1. Excel polytechnic college
DEPARTMENT OF MECHANICAL
ENGINEERING

2. SEMINAR
THERMAL & AUTOMOBILE

3. Title : VALVE MECHANISM
Subject : THERMAL & AUTOMOBILE
Section : C
Department: Mechanical
Submitted by
KEERTHIVASAN

4. CONTENTS
• INTRODUCTON
• OPERATION
• TYPES
• VALVE MECHANISM IN CONVENTIONAL TYPE
• SOLIENOID OPERATED VALVES
• ADVANTAGES
• DISADVANTAGES

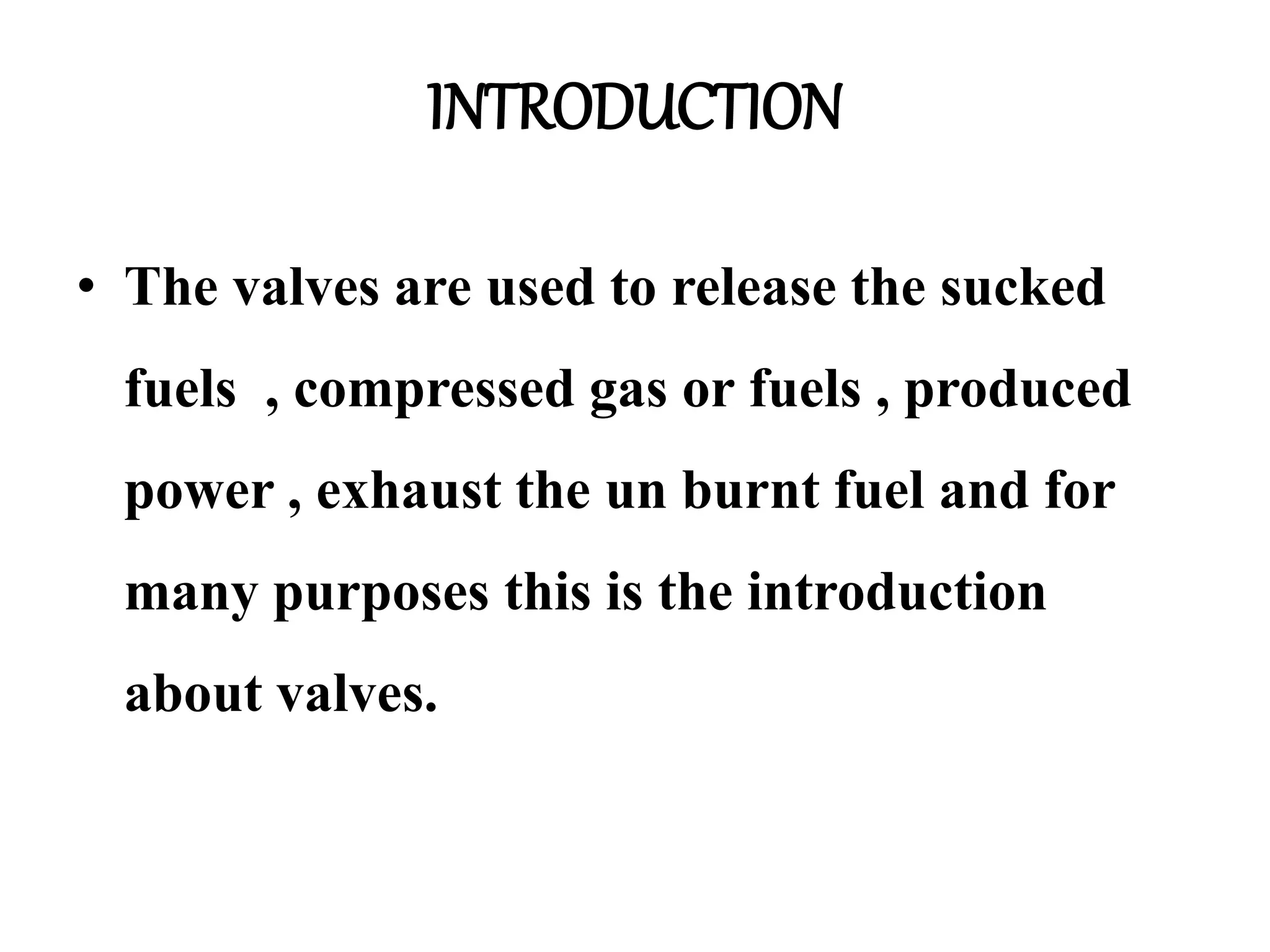

5. INTRODUCTION
• The valves are used to release the sucked
fuels , compressed gas or fuels , produced
power , exhaust the un burnt fuel and for
many purposes this is the introduction
about valves.

6. OPERATION
• Consists of a central cam shaft
• When cam shaft rotates the lobes push
against the valves to open them
• The cam is driven by taking input from
the crank shaft.
• A single cam shaft can be used to open
both the (i.e. intake and exhaust ) valves
(SOHC) or two cams can be used one for
intake and one for exhaust (DOHC).
 How the valves are opened and closed?

7. OPERATION
• Depending on RPM and engine load the
ECM would directly control all valve
timings.
• There will be no cam ( Camless Valves)
• Valve timing would be infinitely
controllable
• Valve timing will be controlled electrically
by Electronic Control Module (ECM)
• It is a future technology and currently not
in production.
Solenoid Operated Valves

8. TYPES OF VALVES
• COMPRESSION VALVE
• POWER VALVE
• SUCTION VALVE
• EXHAUST VALVE
FOR 2 STROKE ENGINES
FOR 4 STROKE ENGINES

9. • CAM SHAFT
• CAM FOLLOWER
• PUSH ROD
• ROCKER ARM
• VALVE SPRING
• VALVE GUIDE
• VALVE STEM
VALVE MECHANISM IN CONVENTIONAL
ENGINE

10. Advantages
• Better fuel efficiency
• High initial torque
• Lover emission
• Better performance

11. Disadvantages
• Higher cost of engine
• More complex mechanisms
• Lower overall engine life because of
increased wear.

12. CONCLUSION
• Even though some disadvantages
are present, we can expect electro-
hydraulic & electromechanical
valves to replace the conventional
camshaft technology.
