Vaccum Circuit Breaker

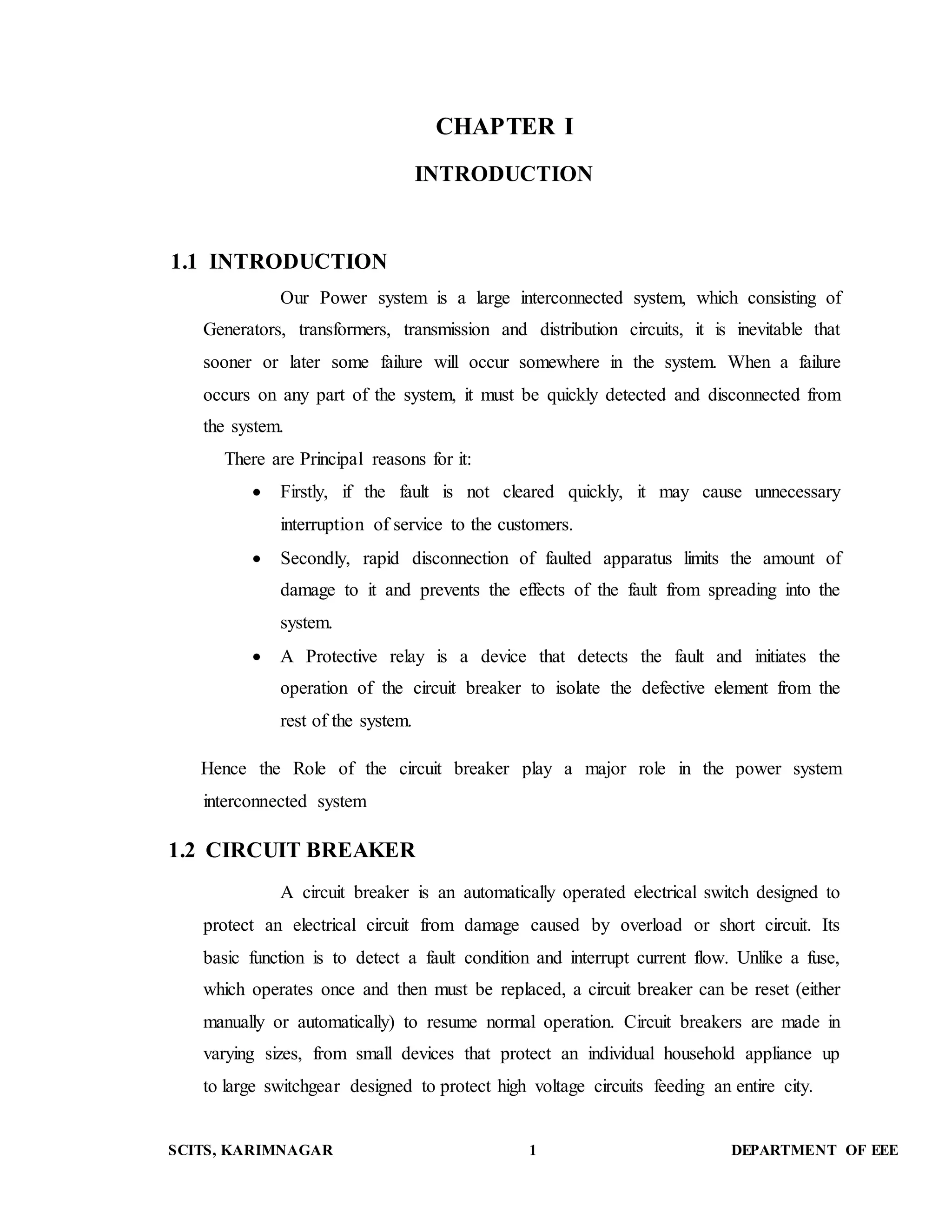

1. CHAPTER I
INTRODUCTION
1.1 INTRODUCTION
Our Power system is a large interconnected system, which consisting of
Generators, transformers, transmission and distribution circuits, it is inevitable that
sooner or later some failure will occur somewhere in the system. When a failure
occurs on any part of the system, it must be quickly detected and disconnected from
the system.
There are Principal reasons for it:
Firstly, if the fault is not cleared quickly, it may cause unnecessary
interruption of service to the customers.
Secondly, rapid disconnection of faulted apparatus limits the amount of
damage to it and prevents the effects of the fault from spreading into the
system.
A Protective relay is a device that detects the fault and initiates the
operation of the circuit breaker to isolate the defective element from the
rest of the system.
Hence the Role of the circuit breaker play a major role in the power system
interconnected system
1.2 CIRCUIT BREAKER
A circuit breaker is an automatically operated electrical switch designed to
protect an electrical circuit from damage caused by overload or short circuit. Its
basic function is to detect a fault condition and interrupt current flow. Unlike a fuse,
which operates once and then must be replaced, a circuit breaker can be reset (either
manually or automatically) to resume normal operation. Circuit breakers are made in
varying sizes, from small devices that protect an individual household appliance up
to large switchgear designed to protect high voltage circuits feeding an entire city.
SCITS, KARIMNAGAR 1 DEPARTMENT OF EEE
2. The modern power system deals with huge power network and huge
numbers of associated electrical equipment. During short circuit fault or any other
types of electrical fault these equipment as well as the power network suffer a high
stress of fault current in then which may damage the equipment and networks
permanently. For saving these equipment and the power networks the fault current
should be cleared from the system as quickly as possible. Again after the fault is
cleared, the system must come to its normal working condition as soon as possible
for supplying reliable quality of power to receiving ends. In addition to that for
proper controlling of power system, different switching operations are required to be
performed. So for timely disconnecting and reconnecting different parts of power
system network for protection and control, there must be some special type of
switching devices which can be operated safely under huge current carrying
condition, During interruption of huge current, there would be large arcing in
between switching contacts, so care should be taken to quench these arcs in circuit
breaker in safe manner .The circuit breaker is the special device which does all the
required switching operations during current carrying condition. This was the basic
Introduction to Circuit Breaker.
Circuit breakers are a piece of electrical device that
1. Make or break a circuit either manually or by remote control under
normal conditions.
2. Break a circuit automatically under fault conditions.
3. Make a circuit either manually or by remote control under fault
conditions.
SCITS, KARIMNAGAR 2 DEPARTMENT OF EEE
3. CHAPTER II
CIRCUIT BREAKERS
2.1 INTRODUCTION
Circuit Breaker is a critical component of an electrical system they are
used to connect and disconnect transmission lines under normal operating conditions.
They are also used to a clear section of transmission grid should a short circuit occur
in the system, isolating the fault. The technology of circuit breaker evolved based on
primarily on the media in which the circuit breaker contacts are located. Every circuit
breaker used a dielectric media. When system voltages and current levels increased
oil circuit breakers are introduced later compressed air circuit breakers are developed
followed by SF6 and working breakers which is preferred technology for high voltage
circuit breaker.
The main purpose of a circuit breaker is to:
Switch load currents
Make on to a fault
Break normal and fault currents
Carry fault currents without blowing itself open.
The important characteristics from a protection point of view are:
The speed with which the main current is opened after a tripping impulse is
received.
The capacity of the circuit that the main contacts are capable of interrupting
(rupturing capacity).
The first characteristics are referred to as the ‘tripping time’ and are expressed
in cycles.
Modern high speed circuit breakers having tripping times between 3 to 8
cycles.
SCITS, KARIMNAGAR 3 DEPARTMENT OF EEE

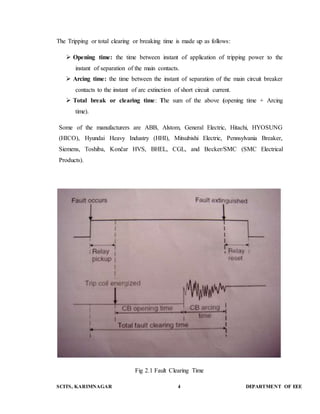

4. The Tripping or total clearing or breaking time is made up as follows:
Opening time: the time between instant of application of tripping power to the
instant of separation of the main contacts.
Arcing time: the time between the instant of separation of the main circuit breaker
contacts to the instant of arc extinction of short circuit current.
Total break or clearing time: The sum of the above (opening time + Arcing
time).
Some of the manufacturers are ABB, Alstom, General Electric, Hitachi, HYOSUNG
(HICO), Hyundai Heavy Industry (HHI), Mitsubishi Electric, Pennsylvania Breaker,
Siemens, Toshiba, Končar HVS, BHEL, CGL, and Becker/SMC (SMC Electrical
Products).
Fig 2.1 Fault Clearing Time
SCITS, KARIMNAGAR 4 DEPARTMENT OF EEE

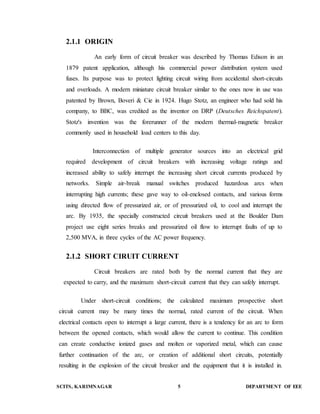

5. 2.1.1 ORIGIN
An early form of circuit breaker was described by Thomas Edison in an
1879 patent application, although his commercial power distribution system used
fuses. Its purpose was to protect lighting circuit wiring from accidental short-circuits
and overloads. A modern miniature circuit breaker similar to the ones now in use was
patented by Brown, Boveri & Cie in 1924. Hugo Stotz, an engineer who had sold his
company, to BBC, was credited as the inventor on DRP (Deutsches Reichspatent).
Stotz's invention was the forerunner of the modern thermal-magnetic breaker
commonly used in household load centers to this day.
Interconnection of multiple generator sources into an electrical grid
required development of circuit breakers with increasing voltage ratings and
increased ability to safely interrupt the increasing short circuit currents produced by
networks. Simple air-break manual switches produced hazardous arcs when
interrupting high currents; these gave way to oil-enclosed contacts, and various forms
using directed flow of pressurized air, or of pressurized oil, to cool and interrupt the
arc. By 1935, the specially constructed circuit breakers used at the Boulder Dam
project use eight series breaks and pressurized oil flow to interrupt faults of up to
2,500 MVA, in three cycles of the AC power frequency.
2.1.2 SHORT CIRUIT CURRENT
Circuit breakers are rated both by the normal current that they are
expected to carry, and the maximum short-circuit current that they can safely interrupt.
Under short-circuit conditions; the calculated maximum prospective short
circuit current may be many times the normal, rated current of the circuit. When
electrical contacts open to interrupt a large current, there is a tendency for an arc to form
between the opened contacts, which would allow the current to continue. This condition
can create conductive ionized gases and molten or vaporized metal, which can cause
further continuation of the arc, or creation of additional short circuits, potentially
resulting in the explosion of the circuit breaker and the equipment that it is installed in.
SCITS, KARIMNAGAR 5 DEPARTMENT OF EEE

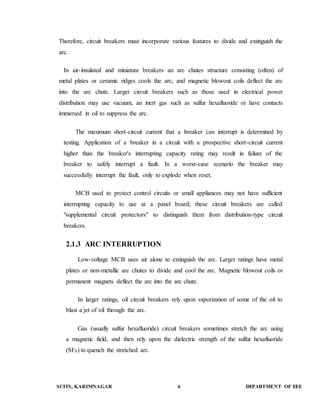

6. Therefore, circuit breakers must incorporate various features to divide and extinguish the
arc.
In air-insulated and miniature breakers an arc chutes structure consisting (often) of
metal plates or ceramic ridges cools the arc, and magnetic blowout coils deflect the arc
into the arc chute. Larger circuit breakers such as those used in electrical power
distribution may use vacuum, an inert gas such as sulfur hexafluoride or have contacts
immersed in oil to suppress the arc.
The maximum short-circuit current that a breaker can interrupt is determined by
testing. Application of a breaker in a circuit with a prospective short-circuit current
higher than the breaker's interrupting capacity rating may result in failure of the
breaker to safely interrupt a fault. In a worst-case scenario the breaker may
successfully interrupt the fault, only to explode when reset.
MCB used to protect control circuits or small appliances may not have sufficient
interrupting capacity to use at a panel board; these circuit breakers are called
"supplemental circuit protectors" to distinguish them from distribution-type circuit
breakers.
2.1.3 ARC INTERRUPTION
Low-voltage MCB uses air alone to extinguish the arc. Larger ratings have metal
plates or non-metallic arc chutes to divide and cool the arc. Magnetic blowout coils or
permanent magnets deflect the arc into the arc chute.
In larger ratings, oil circuit breakers rely upon vaporization of some of the oil to
blast a jet of oil through the arc.
Gas (usually sulfur hexafluoride) circuit breakers sometimes stretch the arc using
a magnetic field, and then rely upon the dielectric strength of the sulfur hexafluoride
(SF6) to quench the stretched arc.
SCITS, KARIMNAGAR 6 DEPARTMENT OF EEE

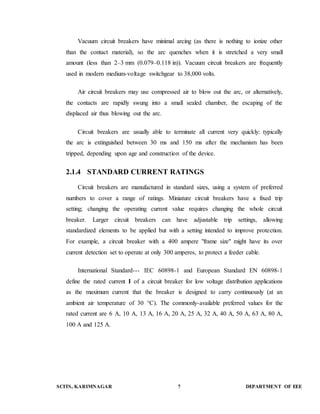

7. Vacuum circuit breakers have minimal arcing (as there is nothing to ionize other
than the contact material), so the arc quenches when it is stretched a very small
amount (less than 2–3 mm (0.079–0.118 in)). Vacuum circuit breakers are frequently
used in modern medium-voltage switchgear to 38,000 volts.
Air circuit breakers may use compressed air to blow out the arc, or alternatively,
the contacts are rapidly swung into a small sealed chamber, the escaping of the
displaced air thus blowing out the arc.
Circuit breakers are usually able to terminate all current very quickly: typically
the arc is extinguished between 30 ms and 150 ms after the mechanism has been
tripped, depending upon age and construction of the device.
2.1.4 STANDARD CURRENT RATINGS
Circuit breakers are manufactured in standard sizes, using a system of preferred
numbers to cover a range of ratings. Miniature circuit breakers have a fixed trip
setting; changing the operating current value requires changing the whole circuit
breaker. Larger circuit breakers can have adjustable trip settings, allowing
standardized elements to be applied but with a setting intended to improve protection.
For example, a circuit breaker with a 400 ampere "frame size" might have its over
current detection set to operate at only 300 amperes, to protect a feeder cable.
International Standard--- IEC 60898-1 and European Standard EN 60898-1
define the rated current I of a circuit breaker for low voltage distribution applications
as the maximum current that the breaker is designed to carry continuously (at an
ambient air temperature of 30 °C). The commonly-available preferred values for the
rated current are 6 A, 10 A, 13 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A, 63 A, 80 A,
100 A and 125 A.
SCITS, KARIMNAGAR 7 DEPARTMENT OF EEE
8. 2.2 TYPES OF CIRCUIT BREAKERS
Many different classifications of circuit breakers can be made, based on
their features such as voltage class, construction type, interrupting type, and structural
features, the types of breakers basically refer to the medium in which the breaker
opens and closes. The medium could be
OIL
AIR BLAST
SF6
VACUUM
Fig 2.2 Types of circuit Brekers
SCITS, KARIMNAGAR 8 DEPARTMENT OF EEE
9. 1. Arc control Device
Fig 2.2.1 Arc chamber
A breaker consists of moving and fixed contact, and during the breaker
operation, the contacts are broken and the arc created during such separation needs to
be controlled. The arc control devices, otherwise known as turbulator or explosion
plot achieves this:
1. Turbulence caused by Arc bubble.
2. Magnetic forces tend to force main contacts a art and movements causes
oil to be sucked in through ports and squirted past gap.
3. When arc extinguished (at current zero), ionized gases get swept away and
prevents re-striking of the arc.
2.2.1 OIL CIRCUIT BREAKERS
Oil Circuit breakers are high voltage circuit breakers that are
usually operated mechanically, using a powerful spring press but use oil to insulate
and therefore, minimize the foot print occupied by circuit breaker. As the medium for
extinguish dark created when the circuit breaker trips under fault condition.
Oil Circuit breakers are used in voltage range in between 11Kv to 132Kv.
SCITS, KARIMNAGAR 9 DEPARTMENT OF EEE

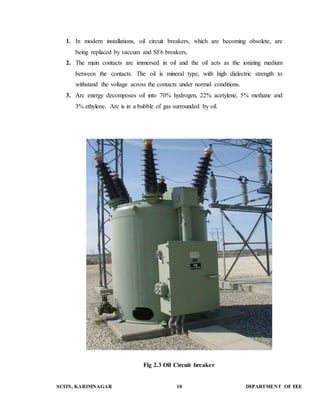

10. 1. In modern installations, oil circuit breakers, which are becoming obsolete, are
being replaced by vaccum and SF6 breakers.
2. The main contacts are immersed in oil and the oil acts as the ionizing medium
between the contacts. The oil is mineral type, with high dielectric strength to
withstand the voltage across the contacts under normal conditions.
3. Arc energy decomposes oil into 70% hydrogen, 22% acetylene, 5% methane and
3% ethylene. Arc is in a bubble of gas surrounded by oil.
Fig 2.3 Oil Circuit breaker
SCITS, KARIMNAGAR 10 DEPARTMENT OF EEE
11. ADVANTAGES:
1. Ability of cool oil to flow into the space after current zero and arc goes out
2. Cooling surface presented by oil
3. Absorption of energy by decomposition of oil.
4. Action of oil as an insulator lending to more compact design of switchgear.
DISADVANTAGES:
1. Inflammability (Especially if there is any air near hydrogen)
2. Maintenance (changing and purifying).
3. Not suitable for high current interruption at low voltages due to carbonization of
oil.
4. The whole breaker unit is immersed in the oil.
2.2.2 TYPES OF OIL CIRCUIT BREAKERS
1) Bulk oil circuit breakers
a) Plain break oil circuit breaker
b) Arc control oil circuit breakers
i) Self-blast oil circuit breaker
(1) Plain explosion pot.
(2) Cross jet explosion pot
(3) Self-compensated explosion pot
ii) Forced-blast oil circuit breaker
2) Low oil circuit breakers
SCITS, KARIMNAGAR 11 DEPARTMENT OF EEE
12. 2.2.3 PLAIN BREAK OIL CIRCUIT BREAKER
The plain-break oil circuit breaker is the earliest type from which all other circuit
breakers have developed. It has a very simple construction. It consist of fixed and
moving contacts enclosed in a strong weather tight earthed tank containing oil up to
certain level and air cushion above the oil level . The air cushion provides sufficient
room to allow for the circuit breaker.
WORKING PRINCIPLE
1. The hydrogen gas bubble generated around the arc cools the arc column and aids
the deionization of the medium between the contacts.
2. The gas sets up turbulence in the coil and helps in eliminating the arcing products
from the arc path.
3. As the arc lengthens due to the separating contacts, the dielectric strength of the
medium is increased.
Fig 2.4 Plain Oil C.B
ADVANTAGES
1. For successful interruption long arc length is necessary and it is formed here.
SCITS, KARIMNAGAR 12 DEPARTMENT OF EEE
13. DISADVANTAGES
1. There is no special control over the arc other than the increase in length by
separating the moving contacts.
2. These breakers do not permit high speed interruption.
2.2.4 SELF-BLAST OIL CIRCUIT BREAKER
In this type of circuit breaker, the gases produced during arcing are confined to a
small volume by the use of an insulating rigid pressure chamber or pot surrounding the
contacts.
a) Plain explosion pot:
It is a rigid cylinder of insulating material and encloses the fixed and moving
contacts. The moving contact is a cylindrical rod passing through a restricted opening (Called
throat) at the bottom. When a fault occurs, the contacts get separated and an arc is struck
between them. The principal limitation of this type of pot is that it cannot be used for very lower
for very high fault currents.
b) Cross jet explosion pot:
This type of pot is just a modification of plain explosion pot. It is made of
insulating material and has channels on one side which act as arc splitters. The arc
splitters help in increasing the arc length, thus facilitating are extinction.
When a fault occurs, the moving contact of the circuit breaker begins to
separate .as the moving contact is withdrawn, the arc is initially struck h in the stop of
the pot. The gas generated by the arc exerts pressure on the oil in the back passage.
When the moving contact uncovers the arc splitter ducts, fresh oil so forced across the
arc path. The arc is therefore driven sideways into the arc splitters which increase the
arc length, causing arc extinction. The cross jet explosion pot is quite efficient for
interrupting heavy fault currents. However, for low fault currents, the gas pressure is
small and consequently the pot does not give a satisfactory operation.
SCITS, KARIMNAGAR 13 DEPARTMENT OF EEE
14. c) Self-compensated explosion pot:
This type of pot is essentially a combination of plain explosion pot and
cross jet explosion pot.therefore; it can interrupt low as well as heavy short circuit
currents with reasonable accuracy.
Fig 2.5 Self compensated
2.2.5 FORCED –BLAST OIL CIRCUIT BREAKER
In a forced –blast oil circuit breaker, oil pressure is created by the piston-cylinder
arrangement. The movement of the piston is mechanically coupled to the
moving contact .when a fault occurs, the contacts get separated by the protective
system and an arc is struck between the contacts .the piston forces a jet of oil towards
the contact gap to extinguish the arc. It may be noted that necessary oil pressure
produced does not in any way depend upon the fault current to be broken.
SCITS, KARIMNAGAR 14 DEPARTMENT OF EEE

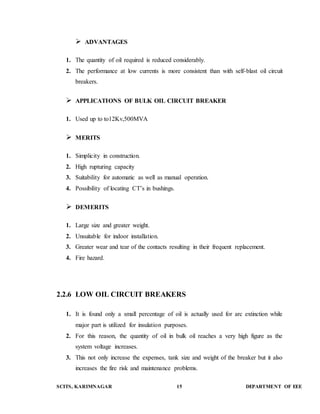

15. ADVANTAGES
1. The quantity of oil required is reduced considerably.
2. The performance at low currents is more consistent than with self-blast oil circuit
breakers.
APPLICATIONS OF BULK OIL CIRCUIT BREAKER
1. Used up to to12Kv,500MVA
MERITS
1. Simplicity in construction.
2. High rupturing capacity
3. Suitability for automatic as well as manual operation.
4. Possibility of locating CT’s in bushings.
DEMERITS
1. Large size and greater weight.
2. Unsuitable for indoor installation.
3. Greater wear and tear of the contacts resulting in their frequent replacement.
4. Fire hazard.
2.2.6 LOW OIL CIRCUIT BREAKERS
1. It is found only a small percentage of oil is actually used for arc extinction while
major part is utilized for insulation purposes.
2. For this reason, the quantity of oil in bulk oil reaches a very high figure as the
system voltage increases.
3. This not only increase the expenses, tank size and weight of the breaker but it also
increases the fire risk and maintenance problems.
SCITS, KARIMNAGAR 15 DEPARTMENT OF EEE

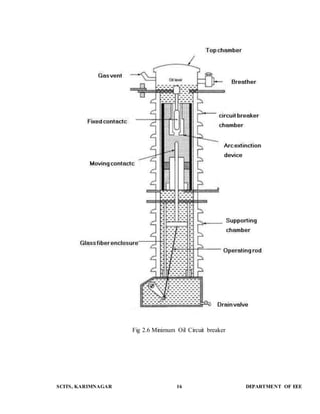

16. Fig 2.6 Minimum Oil Circuit breaker
SCITS, KARIMNAGAR 16 DEPARTMENT OF EEE

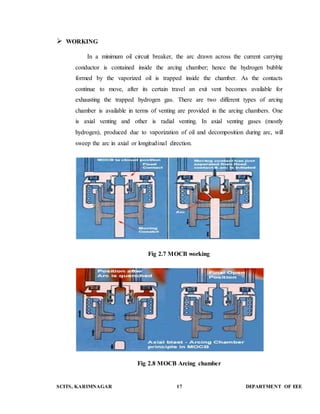

17. WORKING
In a minimum oil circuit breaker, the arc drawn across the current carrying
conductor is contained inside the arcing chamber; hence the hydrogen bubble
formed by the vaporized oil is trapped inside the chamber. As the contacts
continue to move, after its certain travel an exit vent becomes available for
exhausting the trapped hydrogen gas. There are two different types of arcing
chamber is available in terms of venting are provided in the arcing chambers. One
is axial venting and other is radial venting. In axial venting gases (mostly
hydrogen), produced due to vaporization of oil and decomposition during arc, will
sweep the arc in axial or longitudinal direction.
Fig 2.7 MOCB working
Fig 2.8 MOCB Arcing chamber
SCITS, KARIMNAGAR 17 DEPARTMENT OF EEE

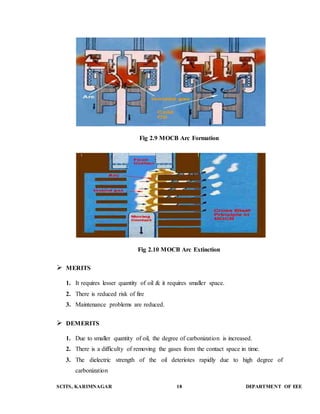

18. Fig 2.9 MOCB Arc Formation
Fig 2.10 MOCB Arc Extinction
MERITS
1. It requires lesser quantity of oil & it requires smaller space.
2. There is reduced risk of fire
3. Maintenance problems are reduced.
DEMERITS
1. Due to smaller quantity of oil, the degree of carbonization is increased.
2. There is a difficulty of removing the gases from the contact space in time.
3. The dielectric strength of the oil deteriotes rapidly due to high degree of
carbonization
SCITS, KARIMNAGAR 18 DEPARTMENT OF EEE
19. 2.3 AIR BLAST CIRCUIT BREAKER
These breakers employ a high pressure air blast as an arc quenching medium
Arc is chopped into a number of small arcs by the Arc-Shute as it rises due to heat
and magnetic forces.
The contacts are opened in a flow of air blast
The air circuit breakers are normally employed for 380-480V distribution.
Suitable for high current interruption at low voltages.
2.3.1 PRINCIPAL OF OPERATION

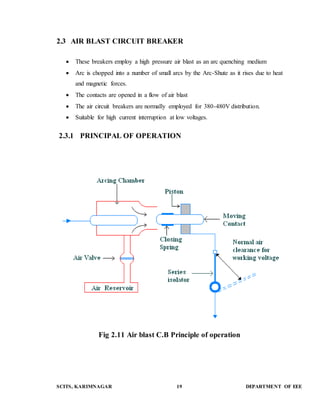

Fig 2.11 Air blast C.B Principle of operation
SCITS, KARIMNAGAR 19 DEPARTMENT OF EEE

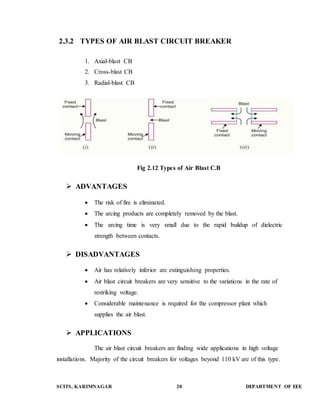

20. 2.3.2 TYPES OF AIR BLAST CIRCUIT BREAKER
1. Axial-blast CB
2. Cross-blast CB
3. Radial-blast CB
Fig 2.12 Types of Air Blast C.B
ADVANTAGES
The risk of fire is eliminated.
The arcing products are completely removed by the blast.
The arcing time is very small due to the rapid buildup of dielectric
strength between contacts.
DISADVANTAGES
Air has relatively inferior arc extinguishing properties.
Air blast circuit breakers are very sensitive to the variations in the rate of
restriking voltage.
Considerable maintenance is required for the compressor plant which
supplies the air blast.
APPLICATIONS
The air blast circuit breakers are finding wide applications in high voltage
installations. Majority of the circuit breakers for voltages beyond 110 kV are of this type.
SCITS, KARIMNAGAR 20 DEPARTMENT OF EEE
21. 2.4 SULPHUR HEXAFLOURIDE GAS (SF6)
A circuit breaker in which the current carrying contacts operate in sulphur
hexafluoride or SF6 gas is known as an SF6 circuit breaker.
SF6 has excellent insulating property. SF6 has high electro-negativity. That means
it has high affinity of absorbing free electron. Whenever a free electron collides with
the SF6 gas molecule, it is absorbed by that gas molecule and forms a negative ion.
The attachment of electron with SF6 gas molecules may occur in two different
ways,
These negative ions obviously much heavier than a free electron and therefore
over all mobility of the charged particle in the SF6 gas is much less as compared other
common gases. We know that mobility of charged particle is majorly responsible for
conducting current through a gas.
Fig 2.13 SF6 C.B
SCITS, KARIMNAGAR 21 DEPARTMENT OF EEE
22. 2.4.1 WORKING OF SF6
The working of SF6 CB of first generation was quite simple it is some extent
similar to air blast circuit breaker. Here SF6 gas was compressed and stored in a high
pressure reservoir. During operation of SF6 circuit breaker this highly compressed
gas is released through the arc in breaker and collected to relatively low pressure
reservoir and then it pumped back to the high pressure reservoir for re utilize.
The working of SF6 circuit breaker is little bit different in modern time.
Innovation of puffer type design makes operation of SF6 CB much easier. In buffer
type design, the arc energy is utilized to develop pressure in the arcing chamber for
arc quenching.
Fig 2.14 SF6 CB Working
SCITS, KARIMNAGAR 22 DEPARTMENT OF EEE

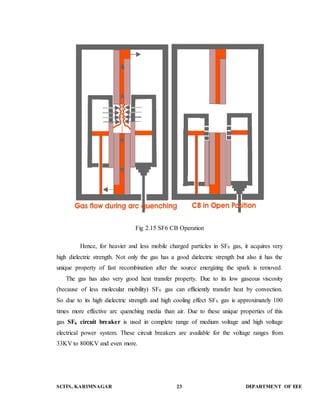

23. Fig 2.15 SF6 CB Operation
Hence, for heavier and less mobile charged particles in SF6 gas, it acquires very
high dielectric strength. Not only the gas has a good dielectric strength but also it has the
unique property of fast recombination after the source energizing the spark is removed.
The gas has also very good heat transfer property. Due to its low gaseous viscosity
(because of less molecular mobility) SF6 gas can efficiently transfer heat by convection.
So due to its high dielectric strength and high cooling effect SF6 gas is approximately 100
times more effective arc quenching media than air. Due to these unique properties of this
gas SF6 circuit breaker is used in complete range of medium voltage and high voltage
electrical power system. These circuit breakers are available for the voltage ranges from
33KV to 800KV and even more.
SCITS, KARIMNAGAR 23 DEPARTMENT OF EEE

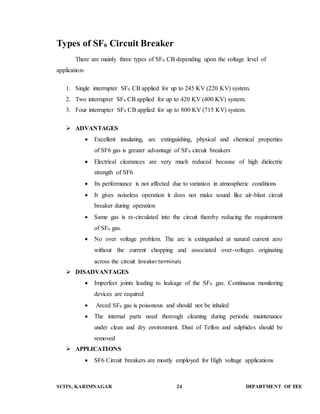

24. Types of SF6 Circuit Breaker
There are mainly three types of SF6 CB depending upon the voltage level of
application-
1. Single interrupter SF6 CB applied for up to 245 KV (220 KV) system.
2. Two interrupter SF6 CB applied for up to 420 KV (400 KV) system.
3. Four interrupter SF6 CB applied for up to 800 KV (715 KV) system.
ADVANTAGES
Excellent insulating, arc extinguishing, physical and chemical properties
of SF6 gas is greater advantage of SF6 circuit breakers
Electrical clearances are very much reduced because of high dielectric
strength of SF6
Its performance is not affected due to variation in atmospheric conditions
It gives noiseless operation it does not make sound like air-blast circuit
breaker during operation
Same gas is re-circulated into the circuit thereby reducing the requirement
of SF6 gas.
No over voltage problem. The arc is extinguished at natural current zero
without the current chopping and associated over-voltages originating
across the circuit breaker terminals
DISADVANTAGES
Imperfect joints leading to leakage of the SF6 gas. Continuous monitoring
devices are required
Arced SF6 gas is poisonous and should not be inhaled
The internal parts need thorough cleaning during periodic maintenance
under clean and dry environment. Dust of Teflon and sulphides should be
removed
APPLICATIONS
SF6 Circuit breakers are mostly employed for High voltage applications
SCITS, KARIMNAGAR 24 DEPARTMENT OF EEE
25. 2.5 TESTING OF CIRCUIT BREAKERS
Why test circuit breakers?
Some of the most important of the many reasons for testing circuit breakers
are to ensure they are:
1. Provide protection for expensive equipment.
2. Prevent outages that lead to loss of income.
3. Ensure reliability of the electricity supply.
4. Prevent downtime and darkness.
5. Verify breaker performance.
Substation breaker testing is an important task for any power utility .The
breakers are there to facilitate the flow of current during normal operation and to
interrupt current flow in the event of a fault.however,all electricity operated
devices are, sooner or later, likely to experience some kind of failure. That failure
can be caused by many facors, including ageing and external faults. The power
utility operator has to be prepared and have a plan in place to handle every
situation.
Testing of circuit breakers is more difficult than other electrical equipment
like transformer or machine because the short circuit current are very large .Also
there is no satisfactory method of testing circuit breaker at reduced power.
The testing plan of circuit breaker consists of essentially of a specially
designed alternator capable of giving about 2000MVA under short circuit
condition the prime mover of the alternator is 750KV motor end is disconnected
just before the short circuiting is done. The kinetic energy of rotor is sufficient to
give the desired energy for testing purpose.
Testing of circuit breaker can be classified in to two main groups
SCITS, KARIMNAGAR 25 DEPARTMENT OF EEE

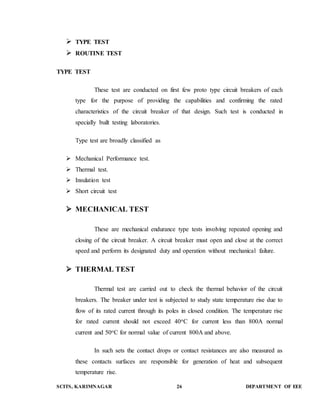

26. TYPE TEST
ROUTINE TEST
TYPE TEST
These test are conducted on first few proto type circuit breakers of each
type for the purpose of providing the capabilities and confirming the rated
characteristics of the circuit breaker of that design. Such test is conducted in
specially built testing laboratories.
Type test are broadly classified as
Mechanical Performance test.
Thermal test.
Insulation test
Short circuit test
MECHANICAL TEST
These are mechanical endurance type tests involving repeated opening and
closing of the circuit breaker. A circuit breaker must open and close at the correct
speed and perform its designated duty and operation without mechanical failure.
THERMAL TEST
Thermal test are carried out to check the thermal behavior of the circuit
breakers. The breaker under test is subjected to study state temperature rise due to
flow of its rated current through its poles in closed condition. The temperature rise
for rated current should not exceed 40oC for current less than 800A normal
current and 50oC for normal value of current 800A and above.
In such sets the contact drops or contact resistances are also measured as
these contacts surfaces are responsible for generation of heat and subsequent
temperature rise.
SCITS, KARIMNAGAR 26 DEPARTMENT OF EEE

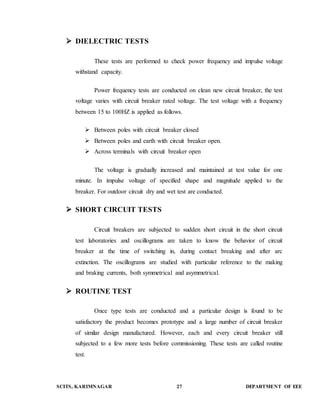

27. DIELECTRIC TESTS
These tests are performed to check power frequency and impulse voltage
withstand capacity.
Power frequency tests are conducted on clean new circuit breaker, the test
voltage varies with circuit breaker rated voltage. The test voltage with a frequency
between 15 to 100HZ is applied as follows.
Between poles with circuit breaker closed
Between poles and earth with circuit breaker open.
Across terminals with circuit breaker open
The voltage is gradually increased and maintained at test value for one
minute. In impulse voltage of specified shape and magnitude applied to the
breaker. For outdoor circuit dry and wet test are conducted.
SHORT CIRCUIT TESTS
Circuit breakers are subjected to sudden short circuit in the short circuit
test laboratories and oscillograms are taken to know the behavior of circuit
breaker at the time of switching in, during contact breaking and after arc
extinction. The oscillograms are studied with particular reference to the making
and braking currents, both symmetrical and asymmetrical.
ROUTINE TEST
Once type tests are conducted and a particular design is found to be
satisfactory the product becomes prototype and a large number of circuit breaker
of similar design manufactured. However, each and every circuit breaker still
subjected to a few more tests before commissioning. These tests are called routine
test.
SCITS, KARIMNAGAR 27 DEPARTMENT OF EEE

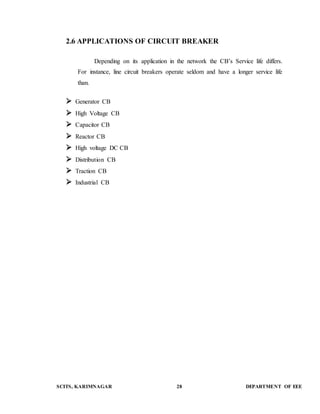

28. 2.6 APPLICATIONS OF CIRCUIT BREAKER
Depending on its application in the network the CB’s Service life differs.
For instance, line circuit breakers operate seldom and have a longer service life
than.
Generator CB
High Voltage CB
Capacitor CB
Reactor CB
High voltage DC CB
Distribution CB
Traction CB
Industrial CB
SCITS, KARIMNAGAR 28 DEPARTMENT OF EEE
29. CHAPTER III
VACCUM CCIRCUIT BREAKER
3.1 INTRODUCTION
A vacuum circuit breaker is such kind of circuit breaker where the arc
quenching takes place in vacuum. The technology is suitable for mainly medium
voltage application. For higher voltage vacuum technology has been developed
but not commercially viable. The operation of opening and closing of current
carrying contacts and associated arc interruption take place in a vacuum chamber
in the breaker which is called vacuum interrupter. The vacuum interrupter consists
of a steel arc chamber in the centre symmetrically arranged ceramic insulators.
The material used for current carrying contacts plays an important role in
the performance of the vacuum circuit breaker. CuCr is the most ideal material to
make VCB contacts. Vacuum interrupter technology was first introduced in the
year of 1960. But still it is a developing technology. As time goes on, the size of
the vacuum interrupter is being reducing from its early 1960’s size due to
different technical developments in this field of engineering. The contact
geometry is also improving with time, from butt contact of early days it gradually
changes to spiral shape, cup shape and axial magnetic field contact. The vacuum
circuit breaker is today recognized as most reliable current interruption
technology for medium voltage switchgear. It requires minimum maintenance
compared to other circuit breaker technologies
3.2 PRINCIPLE
Two contacts called electrode remains closed under normal operating
conditions. When fault occurs on any part of the system, the trip coil of the
Vaccum circuit breaker gets energized and contacts are separated by the vaccum
pressure which is having around (10-7 to 10-5 torr). The arc is quickly
SCITS, KARIMNAGAR 29 DEPARTMENT OF EEE

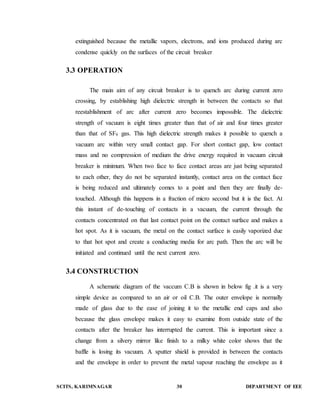

30. extinguished because the metallic vapors, electrons, and ions produced during arc
condense quickly on the surfaces of the circuit breaker
3.3 OPERATION
The main aim of any circuit breaker is to quench arc during current zero
crossing, by establishing high dielectric strength in between the contacts so that
reestablishment of arc after current zero becomes impossible. The dielectric
strength of vacuum is eight times greater than that of air and four times greater
than that of SF6 gas. This high dielectric strength makes it possible to quench a
vacuum arc within very small contact gap. For short contact gap, low contact
mass and no compression of medium the drive energy required in vacuum circuit
breaker is minimum. When two face to face contact areas are just being separated
to each other, they do not be separated instantly, contact area on the contact face
is being reduced and ultimately comes to a point and then they are finally de-touched.
Although this happens in a fraction of micro second but it is the fact. At
this instant of de-touching of contacts in a vacuum, the current through the
contacts concentrated on that last contact point on the contact surface and makes a
hot spot. As it is vacuum, the metal on the contact surface is easily vaporized due
to that hot spot and create a conducting media for arc path. Then the arc will be
initiated and continued until the next current zero.
3.4 CONSTRUCTION
A schematic diagram of the vaccum C.B is shown in below fig .it is a very
simple device as compared to an air or oil C.B. The outer envelope is normally
made of glass due to the ease of joining it to the metallic end caps and also
because the glass envelope makes it easy to examine from outside state of the
contacts after the breaker has interrupted the current. This is important since a
change from a silvery mirror like finish to a milky white color shows that the
baffle is losing its vacuum. A sputter shield is provided in between the contacts
and the envelope in order to prevent the metal vapour reaching the envelope as it
SCITS, KARIMNAGAR 30 DEPARTMENT OF EEE
31. reduces the breakdown strength between the contacts. This is generally made of
stainless steel. Inside the sputter shield the breaker has two contacts, one fixed
and the other moving contact which moves through a short distance of 5 to 10 mm
depending upon the operating voltage. The metallic bellows made of stainless
steel is used to move the lower contact. The design of the bellows is very
important as the life of vacuum breaker depends upon the ability of this part to
perform repeated operations satisfactorily.

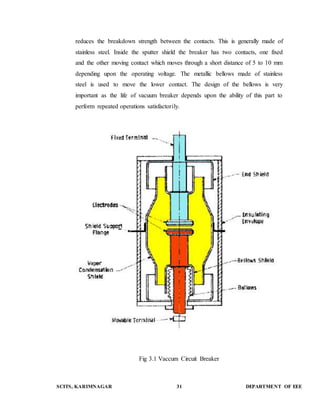

Fig 3.1 Vaccum Circuit Breaker
SCITS, KARIMNAGAR 31 DEPARTMENT OF EEE
32. The periphery of the end cap is sealed to the envelope and the fixed contact
stem is an integral part of one end cap .one end of the fixed as well as moving
contact is brought out of the chamber for external connections. The lower end of
the circuit breaker is fixed to a spring operated or solenoid operated mechanism
so that the metallic bellows inside the chamber are moved downward and upward
during opening and closing operation respectively. It is to be noted that the
operating mechanism should provide sufficient pressure for a good concentration
between the contacts and should avoid any bouncing action

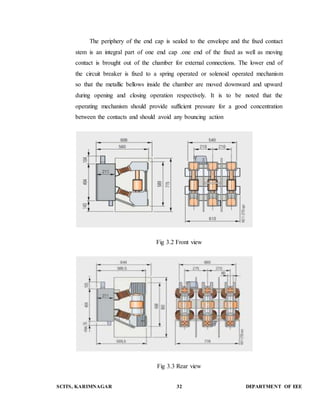

Fig 3.2 Front view
Fig 3.3 Rear view
SCITS, KARIMNAGAR 32 DEPARTMENT OF EEE

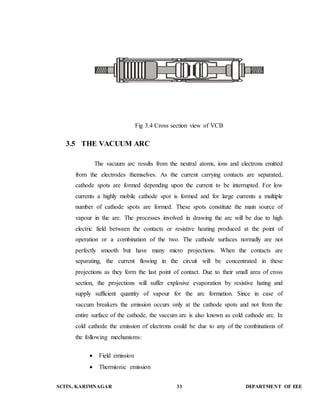

33. Fig 3.4 Cross section view of VCB
3.5 THE VACUUM ARC
The vacuum arc results from the neutral atoms, ions and electrons emitted
from the electrodes themselves. As the current carrying contacts are separated,
cathode spots are formed depending upon the current to be interrupted. For low
currents a highly mobile cathode spot is formed and for large currents a multiple
number of cathode spots are formed. These spots constitute the main source of
vapour in the arc. The processes involved in drawing the arc will be due to high
electric field between the contacts or resistive heating produced at the point of
operation or a combination of the two. The cathode surfaces normally are not
perfectly smooth but have many micro projections. When the contacts are
separating, the current flowing in the circuit will be concentrated in these
projections as they form the last point of contact. Due to their small area of cross
section, the projections will suffer explosive evaporation by resistive hating and
supply sufficient quantity of vapour for the arc formation. Since in case of
vaccum breakers the emission occurs only at the cathode spots and not from the
entire surface of the cathode, the vaccum arc is also known as cold cathode arc. In
cold cathode the emission of electrons could be due to any of the combinations of
the following mechanisms:
Field emission
Thermionic emission
SCITS, KARIMNAGAR 33 DEPARTMENT OF EEE
34. Field and thermionic emission
Secondary emission by positive ion bombardment
Secondary emission by photons
Pinch effect.

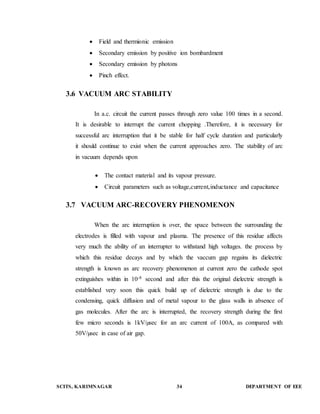

3.6 VACUUM ARC STABILITY
In a.c. circuit the current passes through zero value 100 times in a second.
It is desirable to interrupt the current chopping .Therefore, it is necessary for
successful arc interruption that it be stable for half cycle duration and particularly
it should continue to exist when the current approaches zero. The stability of arc
in vacuum depends upon
The contact material and its vapour pressure.
Circuit parameters such as voltage,current,inductance and capacitance
3.7 VACUUM ARC-RECOVERY PHENOMENON
When the arc interruption is over, the space between the surrounding the
electrodes is filled with vapour and plasma. The presence of this residue affects
very much the ability of an interrupter to withstand high voltages. the process by
which this residue decays and by which the vaccum gap regains its dielectric
strength is known as arc recovery phenomenon at current zero the cathode spot
extinguishes within in 10-8 second and after this the original dielectric strength is
established very soon this quick build up of dielectric strength is due to the
condensing, quick diffusion and of metal vapour to the glass walls in absence of
gas molecules. After the arc is interrupted, the recovery strength during the first
few micro seconds is 1kV/μsec for an arc current of 100A, as compared with
50V/μsec in case of air gap.
SCITS, KARIMNAGAR 34 DEPARTMENT OF EEE
35. 3.8 CURRENT CHOPPING PHENOMENON
Post-arc current phenomena that occur when interrupting high currents
with vacuum circuit breakers have been investigated. High resolution measuring
equipment has been used to measure both the post-arc current and the arc voltage
in the current-zero regions. Three examples of frequently observed phenomena
are described. The first describes the phenomenon that in the event of a current-chopping,
the current is zero for a short period of time just before the natural
alternating current zero, but continues to flow afterwards, in the form of a post-arc
current. The second and third example deal with the post-arc phenomena after
currents those are much higher than the test breakers rated short-circuit current.
These examples show a low-voltage period after current-zero. Apparently, during
this post-arc period, the residual plasma between the breaker's contacts conduct
well. In addition to the voltage-zero periods, the voltage trace in the third example
also shows evidence of current-chopping. This means that the plasma conducts
poorly just before current-zero, but conducts well immediately afterwards.

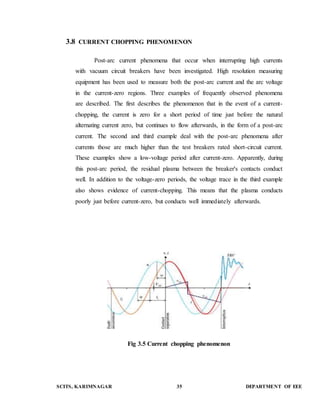

Fig 3.5 Current chopping phenomenon
SCITS, KARIMNAGAR 35 DEPARTMENT OF EEE

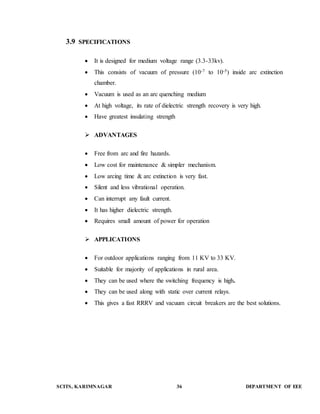

36. 3.9 SPECIFICATIONS
It is designed for medium voltage range (3.3-33kv).
This consists of vacuum of pressure (10-7 to 10-5) inside arc extinction
chamber.
Vacuum is used as an arc quenching medium
At high voltage, its rate of dielectric strength recovery is very high.
Have greatest insulating strength
ADVANTAGES
Free from arc and fire hazards.
Low cost for maintenance & simpler mechanism.
Low arcing time & arc extinction is very fast.
Silent and less vibrational operation.
Can interrupt any fault current.
It has higher dielectric strength.
Requires small amount of power for operation
APPLICATIONS
For outdoor applications ranging from 11 KV to 33 KV.
Suitable for majority of applications in rural area.
They can be used where the switching frequency is high.
They can be used along with static over current relays.
This gives a fast RRRV and vacuum circuit breakers are the best solutions.
SCITS, KARIMNAGAR 36 DEPARTMENT OF EEE

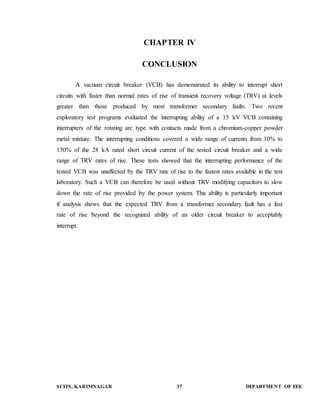

37. CHAPTER IV
CONCLUSION
A vacuum circuit breaker (VCB) has demonstrated its ability to interrupt short
circuits with faster than normal rates of rise of transient recovery voltage (TRV) at levels
greater than those produced by most transformer secondary faults. Two recent
exploratory test programs evaluated the interrupting ability of a 15 kV VCB containing
interrupters of the rotating arc type with contacts made from a chromium-copper powder
metal mixture. The interrupting conditions covered a wide range of currents from 10% to
130% of the 28 kA rated short circuit current of the tested circuit breaker and a wide
range of TRV rates of rise. These tests showed that the interrupting performance of the
tested VCB was unaffected by the TRV rate of rise to the fastest rates available in the test
laboratory. Such a VCB can therefore be used without TRV modifying capacitors to slow
down the rate of rise provided by the power system. This ability is particularly important
if analysis shows that the expected TRV from a transformer secondary fault has a fast
rate of rise beyond the recognized ability of an older circuit breaker to acceptably
interrupt.
SCITS, KARIMNAGAR 37 DEPARTMENT OF EEE
38. REFERENCES
1.Electrical power systems by C.L.Wadhwa, New Age international Publishers.
2.Switch Gear Protection and Power Systems by Sunil S.Rao, Khanna Publishers.
3.Modern Power System Analysis by D. P Kothari & I.J Nagrath. Eastern
Economy Edition.
4.Power Systems by J.B GUPTA, Katson Books.
5.Power system Protection and Switchgear, by B.Ravindranath and Michener,
Wiley Eastern
SCITS, KARIMNAGAR 38 DEPARTMENT OF EEE
