1. Sketching UI Workshop • 2020 • @katerutter
Sketching UI
Workshop
A tasty menu of basic concepts in interaction design & UX
2020 @katerutter
Concept Cafe

2. Sketching UI Workshop • 2020 • @katerutter

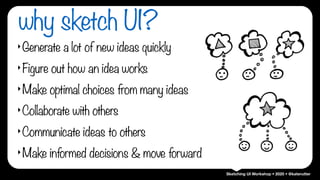

why sketch UI?
‣Generate a lot of new ideas quickly
‣Figure out how an idea works
‣Make optimal choices from many ideas
‣Collaborate with others
‣Communicate ideas to others
‣Make informed decisions & move forward

3. Sketching UI Workshop • 2020 • @katerutter

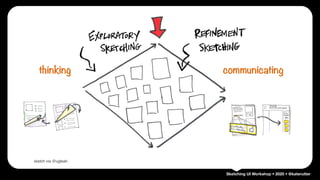

thinking communicating
sketch via @ugleah

4. Sketching UI Workshop • 2020 • @katerutter

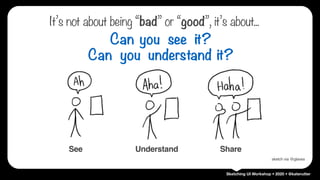

See Understand Share
Can you see it?
Can you understand it?
sketch via @glaves
It’s not about being “bad” or “good”, it’s about...

5. Sketching UI Workshop • 2020 • @katerutter

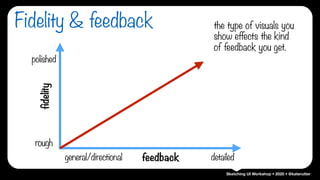

Fidelity & feedback
rough
polished
general/directional detailed
fidelity
feedback
the type of visuals you
show effects the kind
of feedback you get.

6. Sketching UI Workshop • 2020 • @katerutter
“ The more human the
picture, the more human
the response.
~ Dan Roam

7. Sketching UI Workshop • 2020 • @katerutter
WARM-UPS

8. Sketching UI Workshop • 2020 • @katerutter

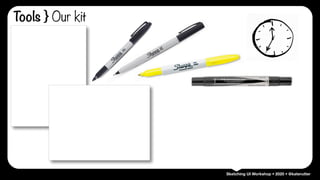

Tools } Our kit

9. Sketching UI Workshop • 2020 • @katerutter

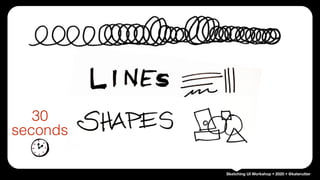

30
seconds

10. Sketching UI Workshop • 2020 • @katerutter
Rapid practice
Creating focus
Key screen
Wire flows

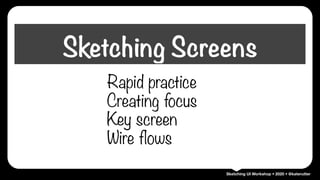

Sketching Screens

11. Sketching UI Workshop • 2020 • @katerutter
Screens} Rapid practice

12. Sketching UI Workshop • 2020 • @katerutter

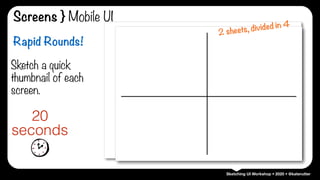

Sketch a quick
thumbnail of each
screen.
20
seconds
Rapid Rounds!
2 sheets, divided in 4
Screens } Mobile UI

13. Sketching UI Workshop • 2020 • @katerutter
screenshot via Workshop Cafe

14. Sketching UI Workshop • 2020 • @katerutter

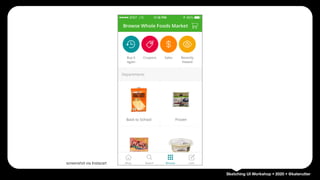

screenshot via Instacart

15. Sketching UI Workshop • 2020 • @katerutter

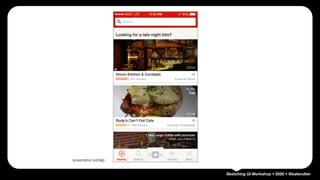

screenshot viaYelp

16. Sketching UI Workshop • 2020 • @katerutter

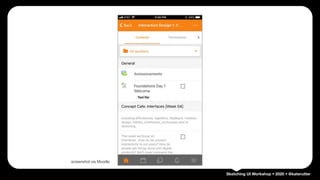

screenshot via Moodle

17. Sketching UI Workshop • 2020 • @katerutter

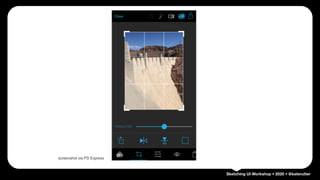

screenshot via PS Express

18. Sketching UI Workshop • 2020 • @katerutter

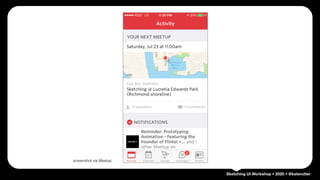

screenshot via Meetup

19. Sketching UI Workshop • 2020 • @katerutter

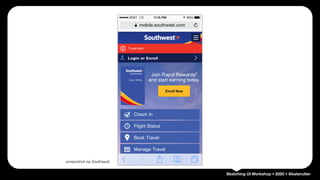

screenshot via Southwest

20. Sketching UI Workshop • 2020 • @katerutter

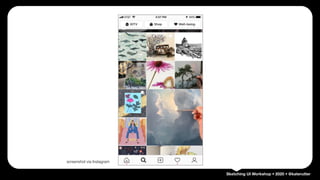

screenshot via Instagram

21. Sketching UI Workshop • 2020 • @katerutter
BREATHE….

22. Sketching UI Workshop • 2020 • @katerutter
Screens } Web UI

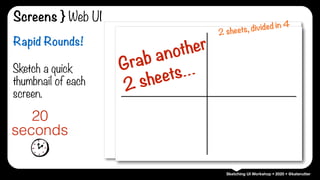

Sketch a quick
thumbnail of each
screen.
20
seconds
Rapid Rounds!
2 sheets, divided in 4
Grab another
2 sheets…

23. Sketching UI Workshop • 2020 • @katerutter

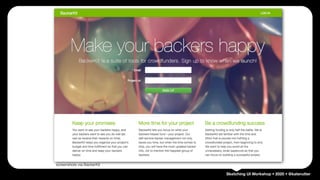

screenshots via BackerKit

24. Sketching UI Workshop • 2020 • @katerutter

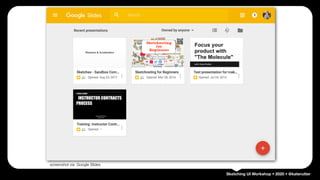

screenshot via Google Slides

25. Sketching UI Workshop • 2020 • @katerutter

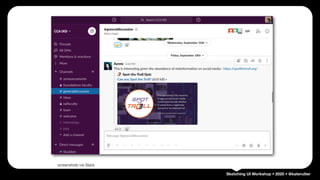

screenshots via Slack

26. Sketching UI Workshop • 2020 • @katerutter

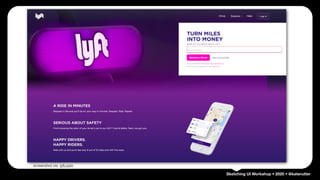

screenshot via lyft.com

27. Sketching UI Workshop • 2020 • @katerutter

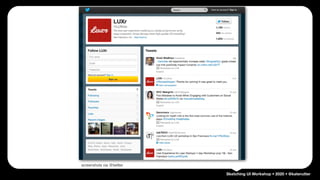

screenshots via @twitter

28. Sketching UI Workshop • 2020 • @katerutter

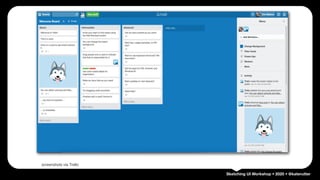

screenshots via Trello

29. Sketching UI Workshop • 2020 • @katerutter
screenshot via alibaba.com

30. Sketching UI Workshop • 2020 • @katerutter
screenshots via @cars.com

31. Sketching UI Workshop • 2020 • @katerutter
WHEW!
Shake it out…

32. Sketching UI Workshop • 2020 • @katerutter
Screens} Creating focus

33. Sketching UI Workshop • 2020 • @katerutter
Yellow marker or pencil
Fat
Regular
Small
Gray marker or pencil
Sharpie markers
Start here
More attention
Depth:
Push back
Look at me! highlighter or
yellow pencil
shading lines or
grey pencil
Screens } Creating focus

34. Sketching UI Workshop • 2020 • @katerutter
DEMO

35. Sketching UI Workshop • 2020 • @katerutter

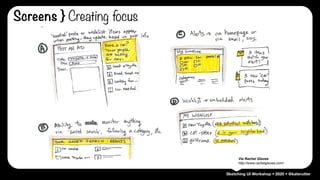

ACTIVITY ONE:
Via Rachel Glaves
http://www.rachelglaves.com/
Screens } Creating focus

36. Sketching UI Workshop • 2020 • @katerutter

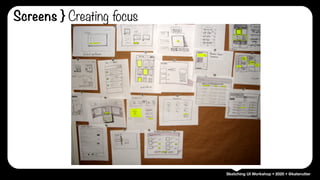

Screens } Creating focus

37. Sketching UI Workshop • 2020 • @katerutter

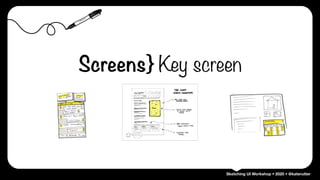

Screens} Key screen

38. Sketching UI Workshop • 2020 • @katerutter
Activity:
1. Basic idea
2. Line weight
3. Shading
4. Highlighting
5. Labels
6. Person
sketch via @adaptivepath
Screens } Key screen

39. Sketching UI Workshop • 2020 • @katerutter
sketch via @adaptivepath

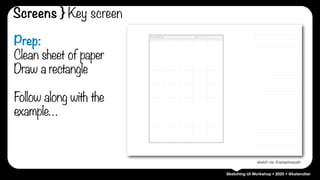

Prep:
Clean sheet of paper
Draw a rectangle
Follow along with the
example…
Screens } Key screen

40. Sketching UI Workshop • 2020 • @katerutter
sketch via @adaptivepath

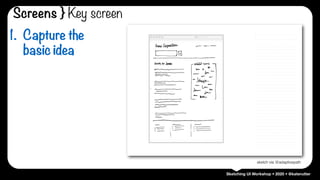

1. Capture the
basic idea
Screens } Key screen

41. Sketching UI Workshop • 2020 • @katerutter
sketch via @adaptivepath

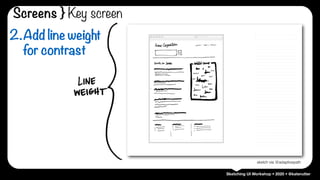

2.Add line weight
for contrast
Screens } Key screen

42. Sketching UI Workshop • 2020 • @katerutter
sketch via @adaptivepath

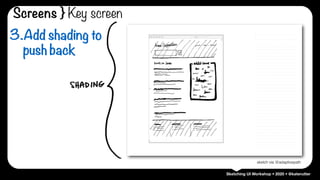

3.Add shading to
push back
Screens } Key screen

43. Sketching UI Workshop • 2020 • @katerutter
highlights
sketch via @adaptivepath

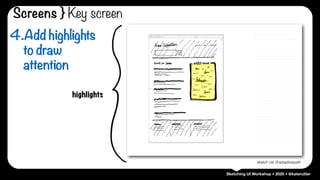

4.Add highlights
to draw
attention
Screens } Key screen

44. Sketching UI Workshop • 2020 • @katerutter
sketch via @adaptivepath

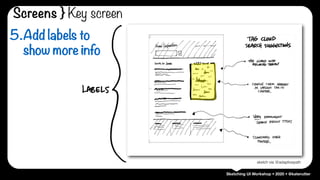

5.Add labels to
show more info
Screens } Key screen

45. Sketching UI Workshop • 2020 • @katerutter
sketch via @adaptivepath
6.Keep the person
in the picture
Add your customer in
the sketch:
What are they feeling?
What are they doing?
Where are they?
Looks like
Jordan fits
my criteria…
I’ll email him
Screens } Key screen

46. Sketching UI Workshop • 2020 • @katerutter

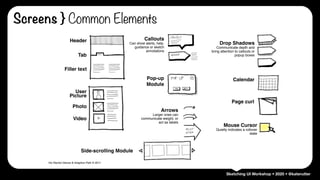

Screens } Common Elements
Header
Tab
User
Video
Filler text
Pop-up
Module
Arrows
Larger ones can
communicate weight, or
act as labels
Side-scrolling Module
Drop Shadows
Communicate depth and
bring attention to callouts or
popup boxes
Calendar
Page curl
Mouse Cursor
Quietly indicates a rollover
state
Callouts
Can show alerts, help,
guidance or sketch
annotations
Via Rachel Glaves & Adaptive Path © 2011

47. Sketching UI Workshop • 2020 • @katerutter
Remember this?
Practice sketching
different UI
•elements,
•components
•templates
•pages
Screens } Common Elements

48. Sketching UI Workshop • 2020 • @katerutter
Screens} Wireflows

49. Sketching UI Workshop • 2020 • @katerutter

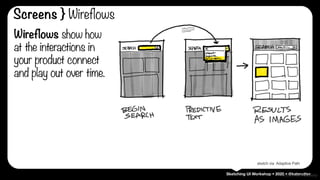

Wireflows show how
at the interactions in
your product connect
and play out over time.
sketch via @ladylexy
sketch via Adaptive Path
Screens } Wireflows

50. Sketching UI Workshop • 2020 • @katerutter

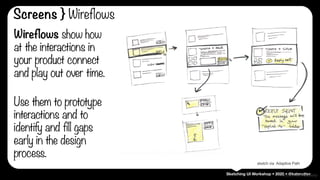

Wireflows show how
at the interactions in
your product connect
and play out over time.
sketch via @ladylexy
sketch via Adaptive Path
Screens } Wireflows
Use them to prototype
interactions and to
identify and fill gaps
early in the design
process.

51. Sketching UI Workshop • 2020 • @katerutter

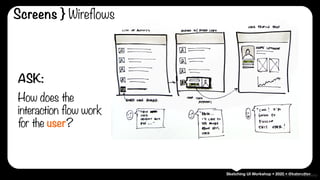

ASK:
How does the
interaction flow work
for the user?
sketch via @ladylexy
Screens } Wireflows

52. Sketching UI Workshop • 2020 • @kateruttersketch via @ladylexy

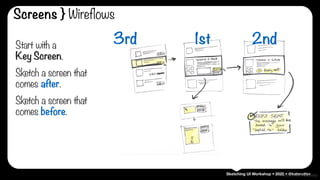

Start with a
Key Screen.
Sketch a screen that
comes after.
Sketch a screen that
comes before.
3rd 2nd1st
Screens } Wireflows

53. Sketching UI Workshop • 2020 • @katerutter
Via Rachel Glaves & Adaptive Path © 2011

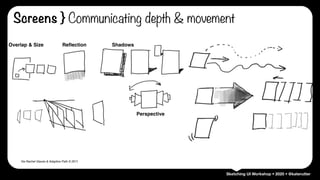

Perspective
Overlap & Size Reflection Shadows
Screens } Communicating depth & movement

54. Sketching UI Workshop • 2020 • @kateruttersketch via @ladylexy
Screens } Wireflows

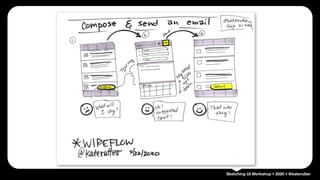

1st
Email
Compose new
email screen
2nd
Email
screen showing
after sent
3rd
Email
screen showing
before compose

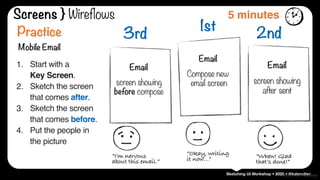

Practice
Mobile Email
1. Start with a
Key Screen.
2. Sketch the screen
that comes after.
3. Sketch the screen
that comes before.
4. Put the people in
the picture
“I’m nervous
about this email.”
5 minutes
“Okay, writing
it now…” “Whew! Glad
that’s done!”

55. Sketching UI Workshop • 2020 • @katerutter
Post your work on the
assignment for
UI Sketching Practice.
(You just did all the work. ;)
Now it’s your turn

56. Sketching UI Workshop • 2020 • @katerutter
Sample Work

57. Sketching UI Workshop • 2020 • @katerutter

58. Sketching UI Workshop • 2020 • @katerutter

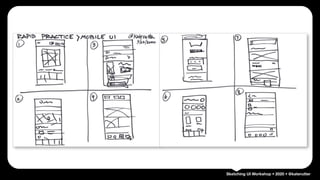

59. Sketching UI Workshop • 2020 • @katerutter

60. Sketching UI Workshop • 2020 • @katerutter

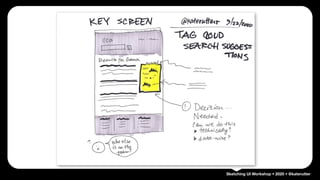

61. Sketching UI Workshop • 2020 • @katerutter

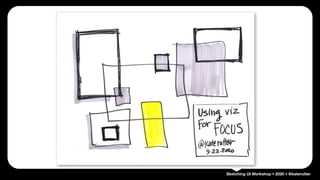

62. Sketching UI Workshop • 2020 • @katerutter

63. Sketching UI Workshop • 2020 • @katerutter
