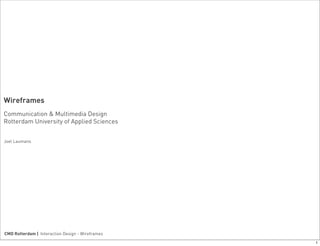

Wireframes
Communication & Multimedia Design
Rotterdam University of Applied Sciences


Joel Laumans




CMD Rotterdam | Interaction Design - Wireframes

                                                  1

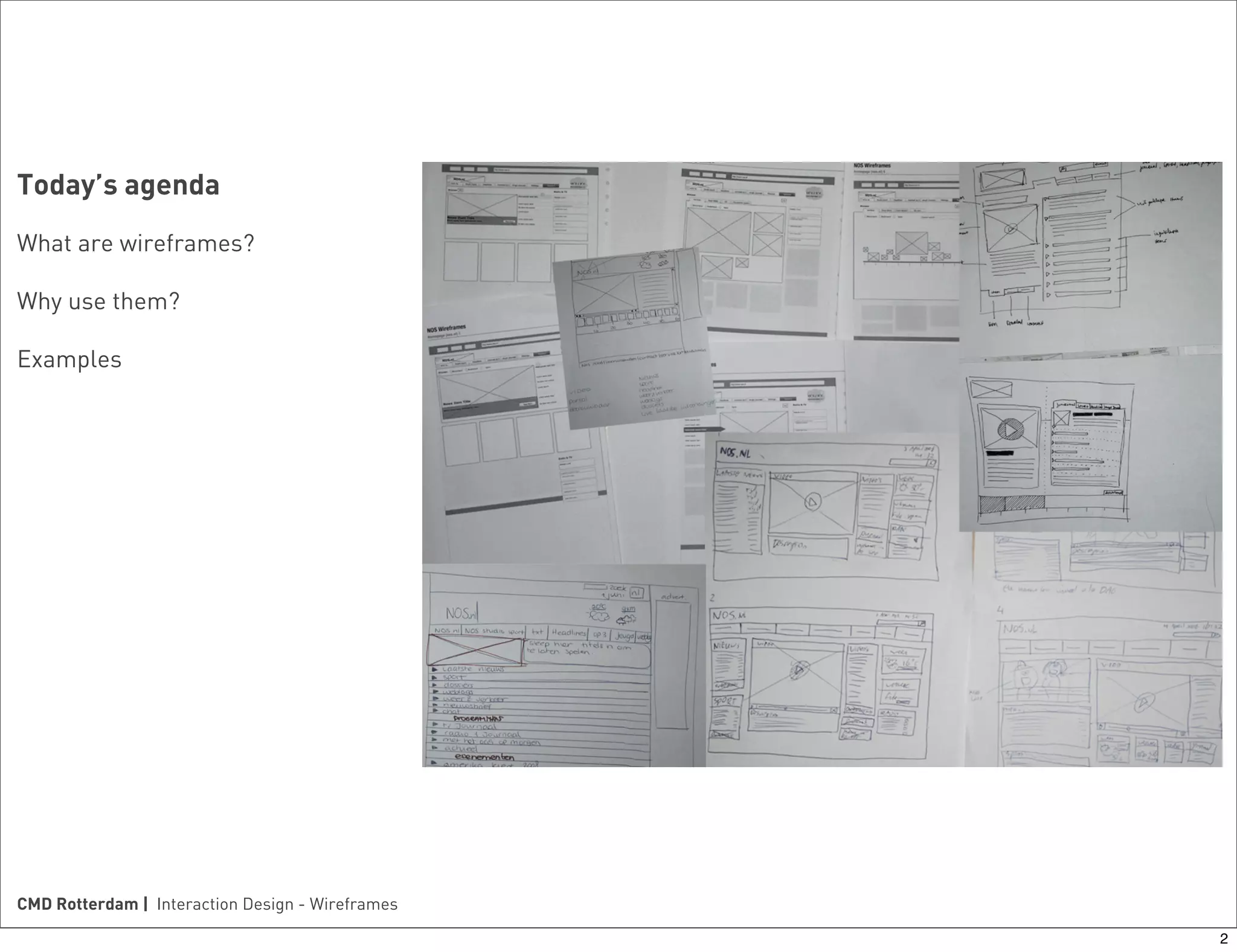

Today’s agenda
What are wireframes?

Why use them?

Examples




CMD Rotterdam | Interaction Design - Wireframes

                                                  2

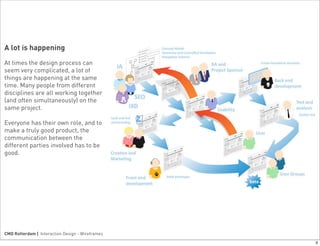

A lot is happening
At times the design process can
seem very complicated, a lot of
things are happening at the same
time. Many people from different
disciplines are all working together
(and often simultaneously) on the
same project.

Everyone has their own role, and to
make a truly good product, the
communication between the
different parties involved has to be
good.




CMD Rotterdam | Interaction Design - Wireframes

                                                  3
CMD Rotterdam | Interaction Design - Wireframes

                                                  4

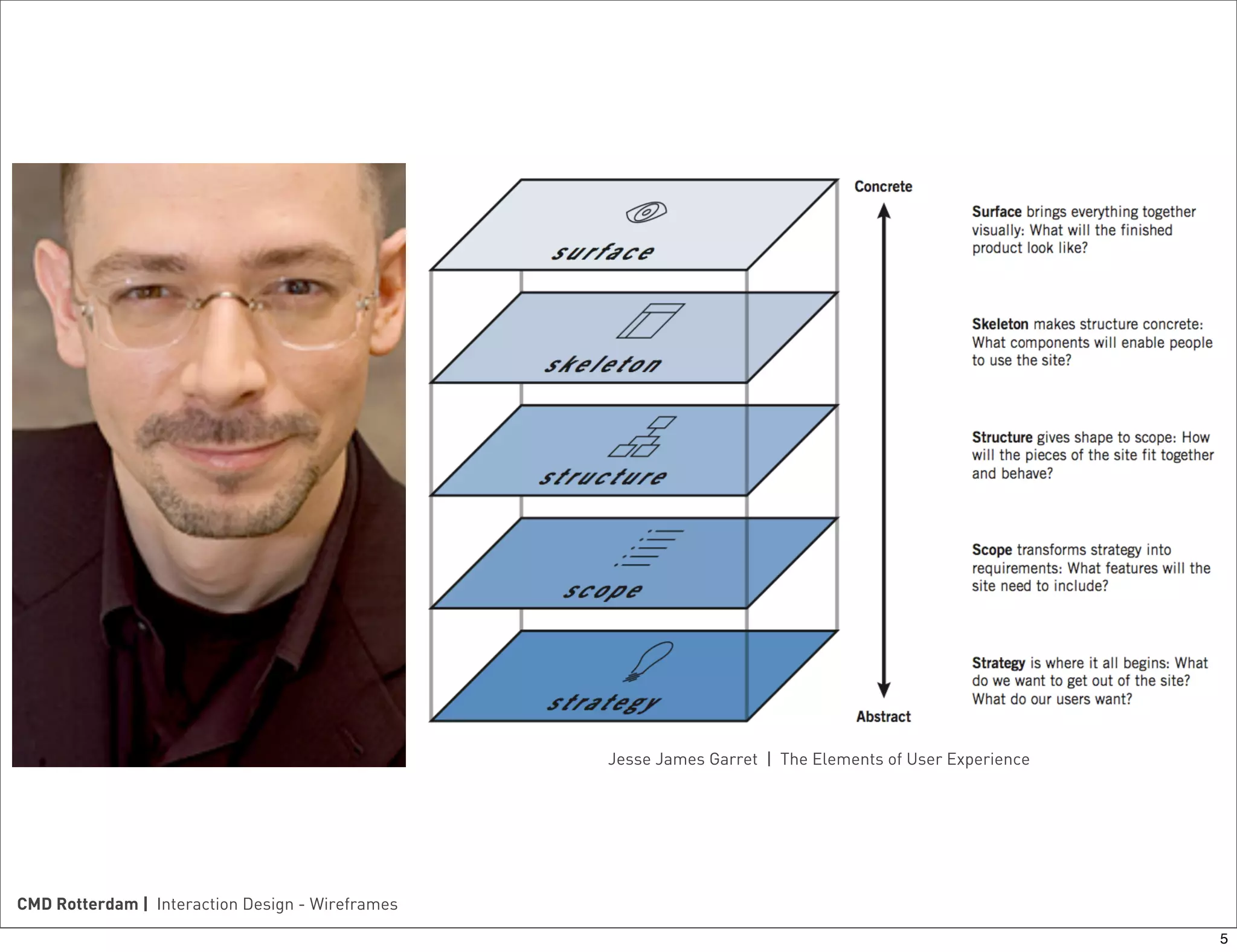

Jesse James Garret | The Elements of User Experience




CMD Rotterdam | Interaction Design - Wireframes

                                                                                                         5

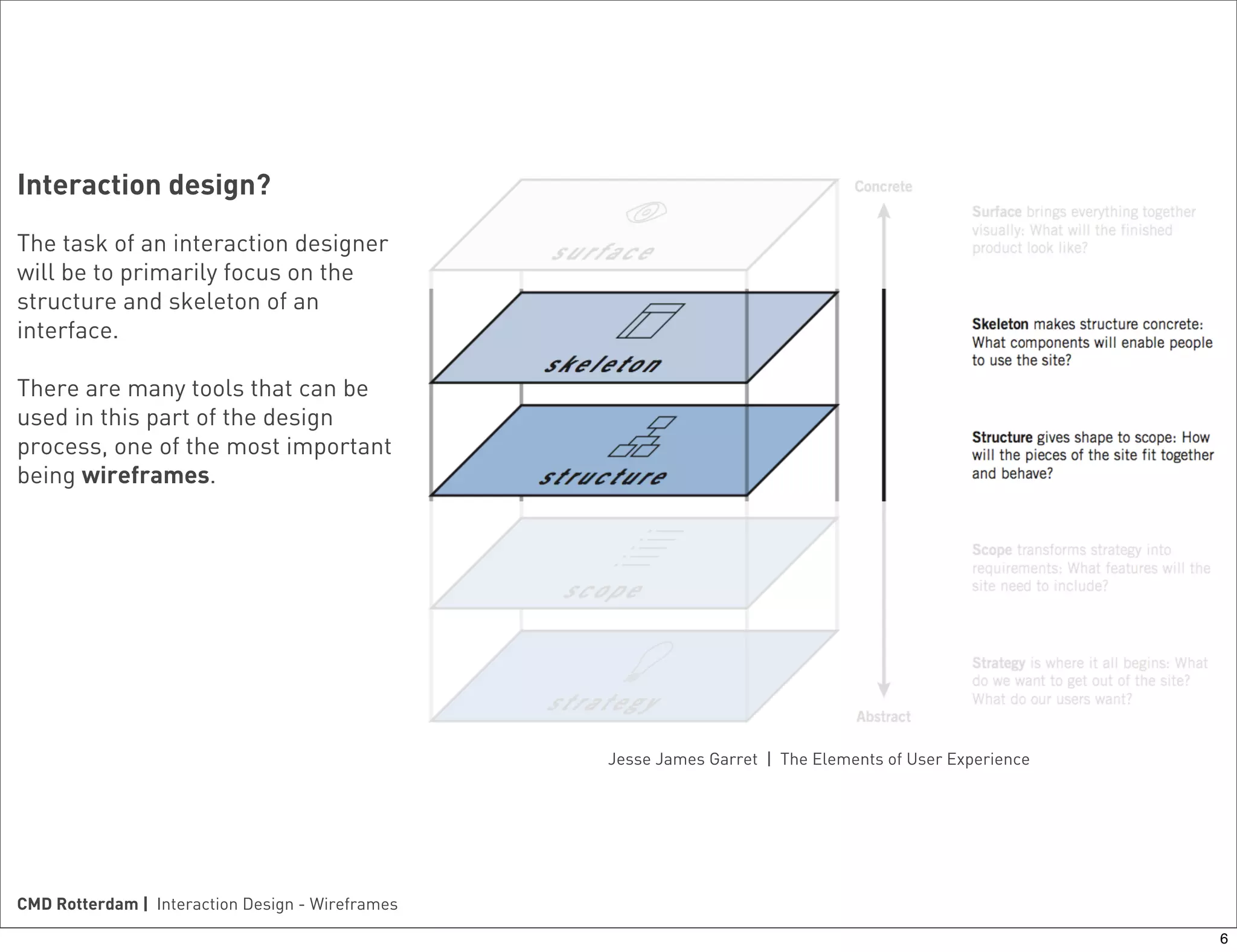

Interaction design?
The task of an interaction designer
will be to primarily focus on the
structure and skeleton of an
interface.

There are many tools that can be
used in this part of the design
process, one of the most important
being wireframes.




                                                  Jesse James Garret | The Elements of User Experience




CMD Rotterdam | Interaction Design - Wireframes

                                                                                                         6

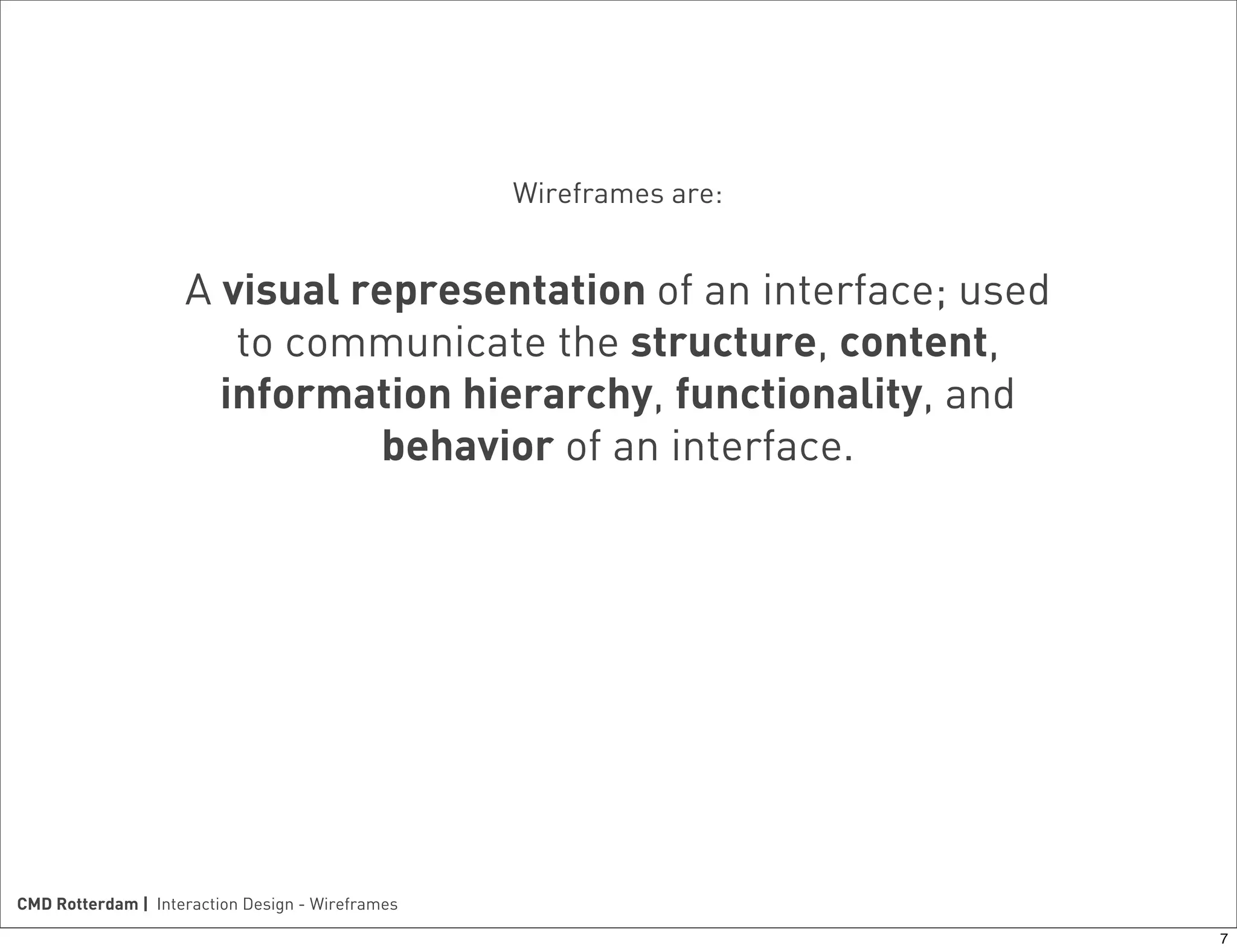

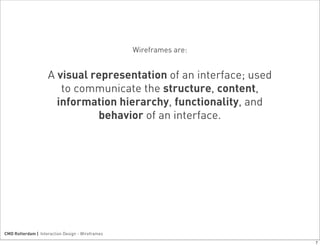

Wireframes are:


                    A visual representation of an interface; used
                       to communicate the structure, content,
                      information hierarchy, functionality, and
                              behavior of an interface.




CMD Rotterdam | Interaction Design - Wireframes

                                                                    7

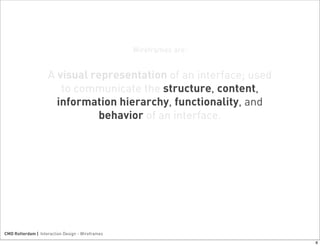

Wireframes are:


                    A visual representation of an interface; used
                       to communicate the structure, content,
                      information hierarchy, functionality, and
                              behavior of an interface.




CMD Rotterdam | Interaction Design - Wireframes

                                                                    8

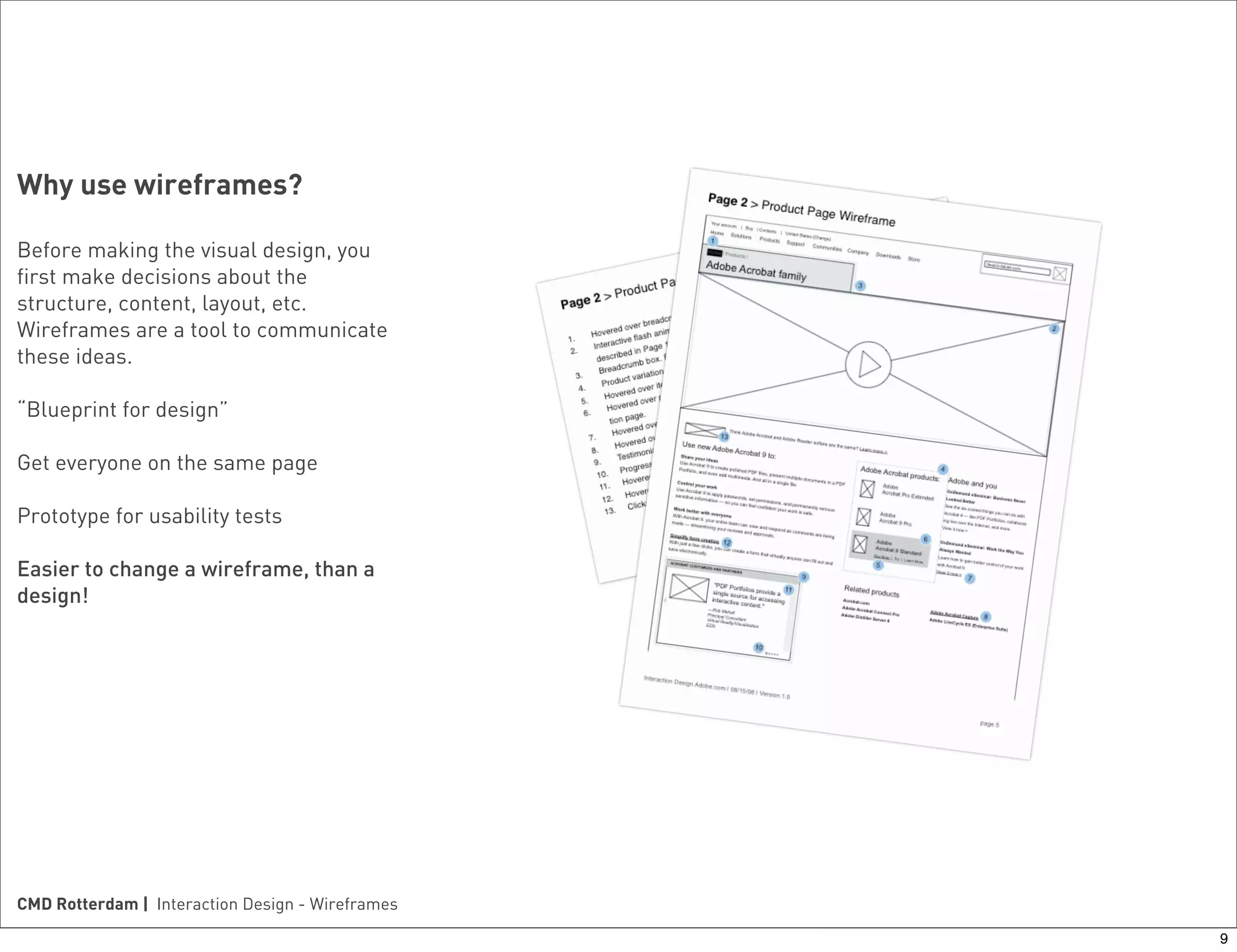

Why use wireframes?

Before making the visual design, you
first make decisions about the
structure, content, layout, etc.
Wireframes are a tool to communicate
these ideas.

“Blueprint for design”

Get everyone on the same page

Prototype for usability tests

Easier to change a wireframe, than a
design!




CMD Rotterdam | Interaction Design - Wireframes

                                                  9

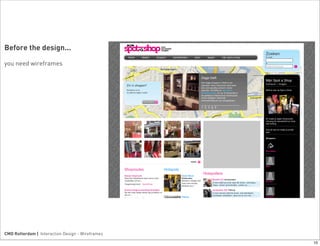

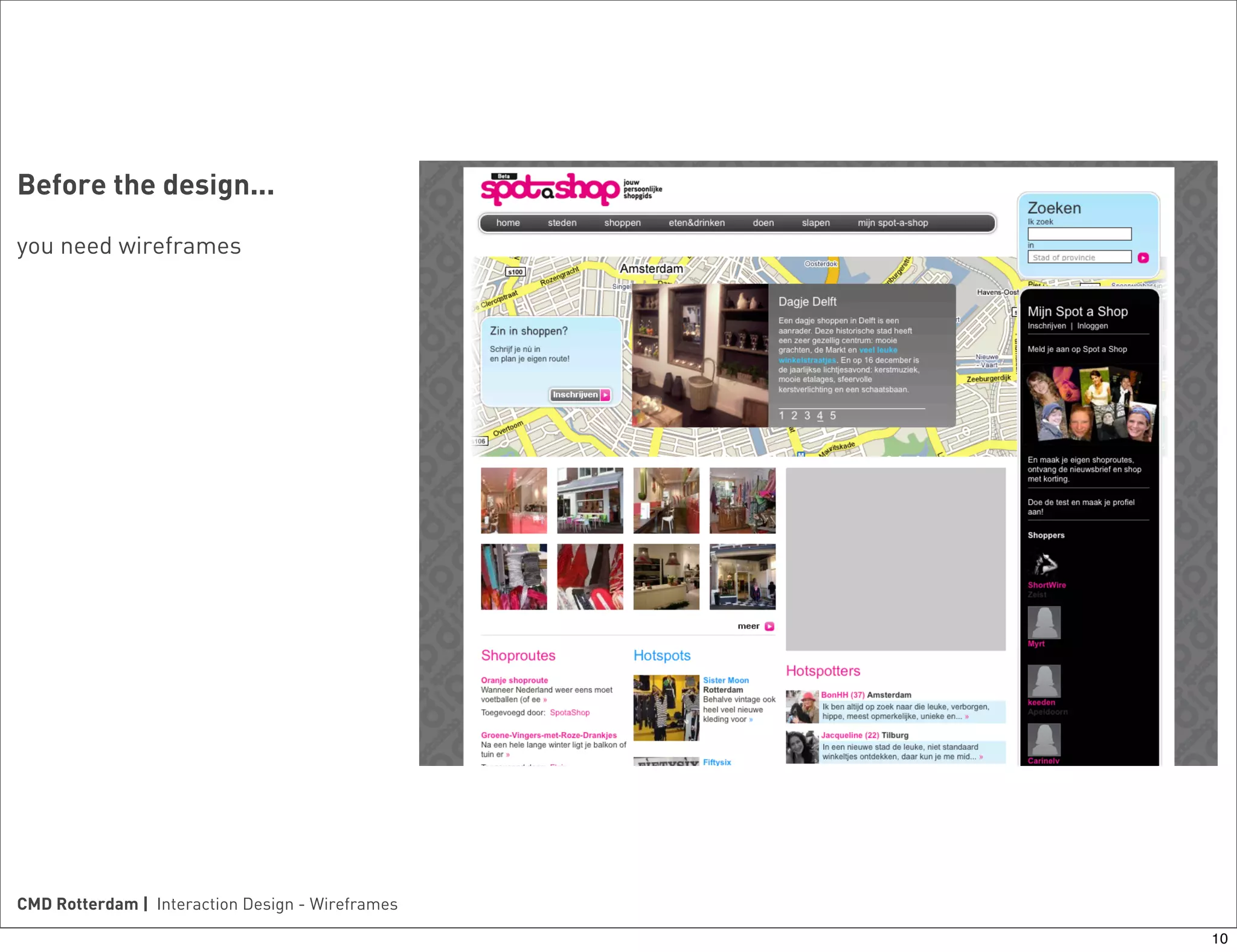

Before the design...

you need wireframes




CMD Rotterdam | Interaction Design - Wireframes

                                                  10

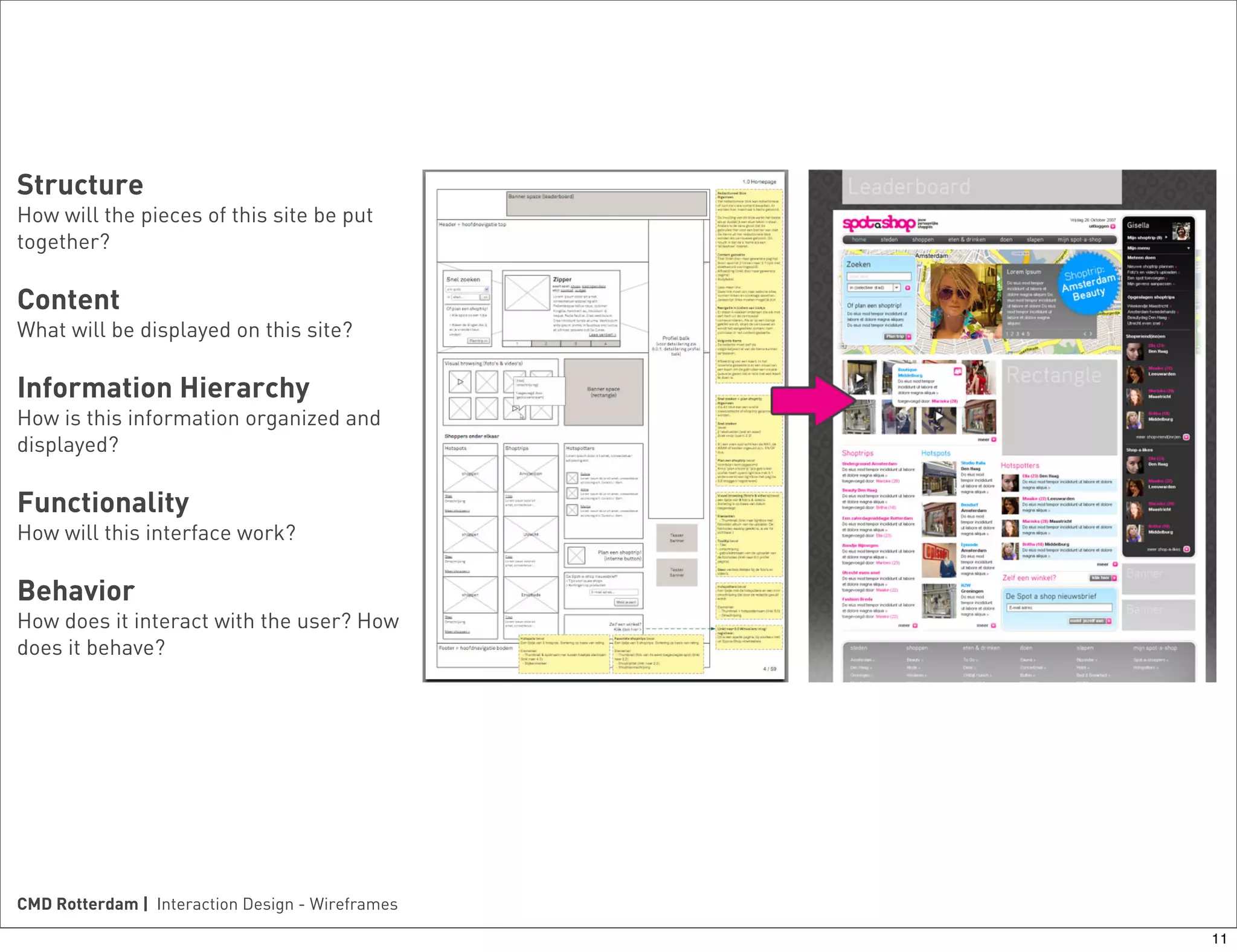

Structure
How will the pieces of this site be put
together?

Content
What will be displayed on this site?

Information Hierarchy
How is this information organized and
displayed?

Functionality
How will this interface work?

Behavior
How does it interact with the user? How
does it behave?




CMD Rotterdam | Interaction Design - Wireframes

                                                  11

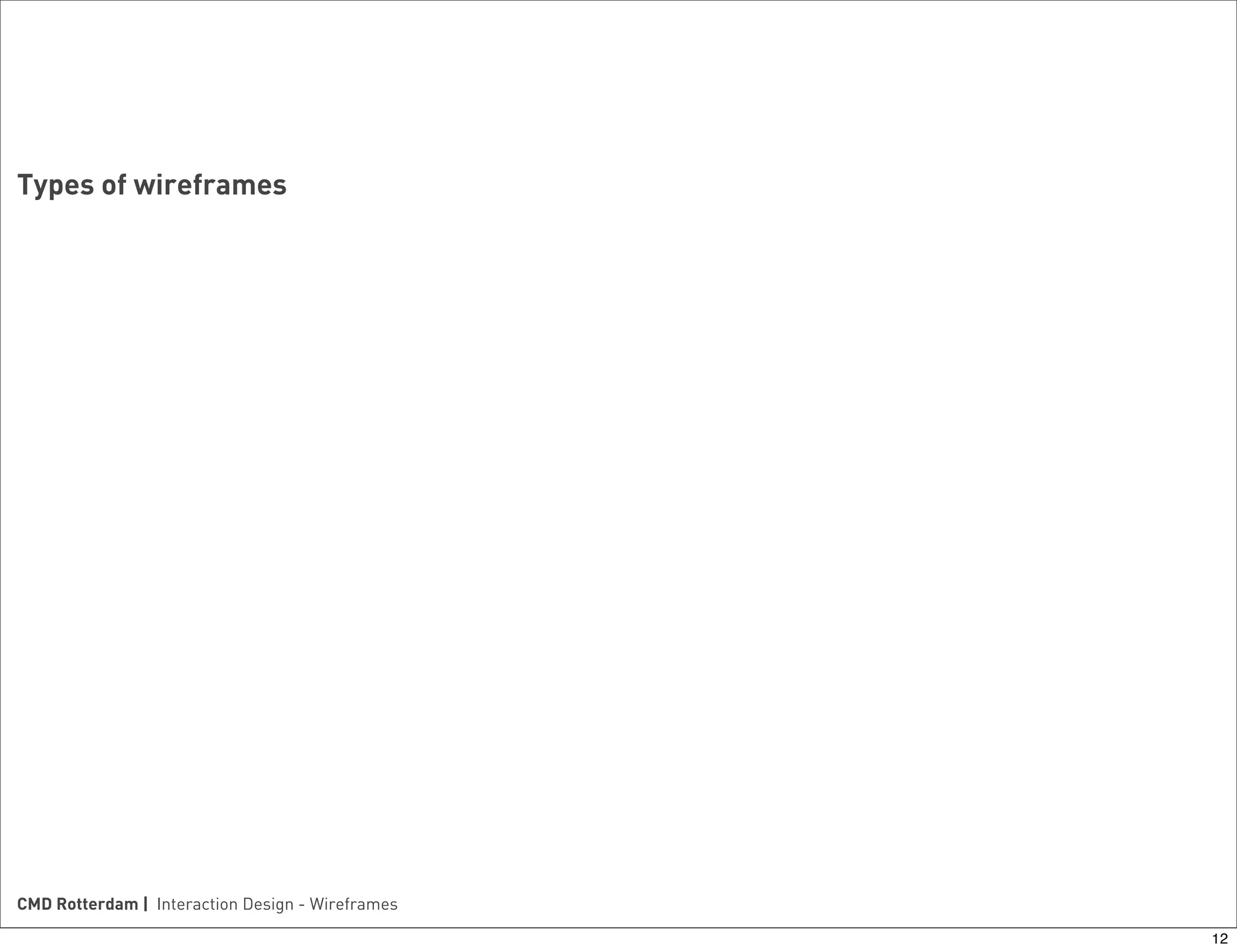

Types of wireframes




CMD Rotterdam | Interaction Design - Wireframes

                                                  12

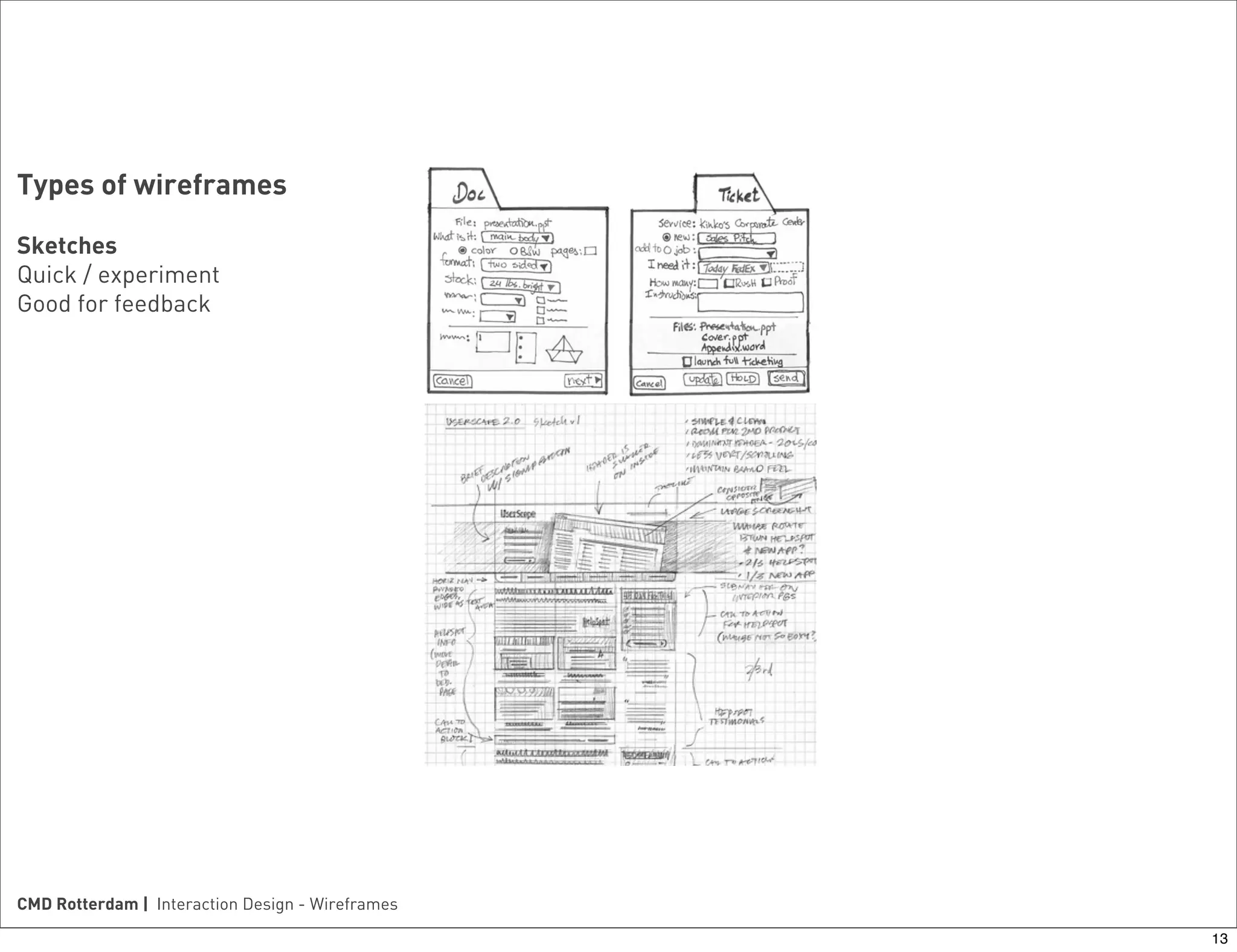

Types of wireframes

Sketches
Quick / experiment
Good for feedback




CMD Rotterdam | Interaction Design - Wireframes

                                                  13

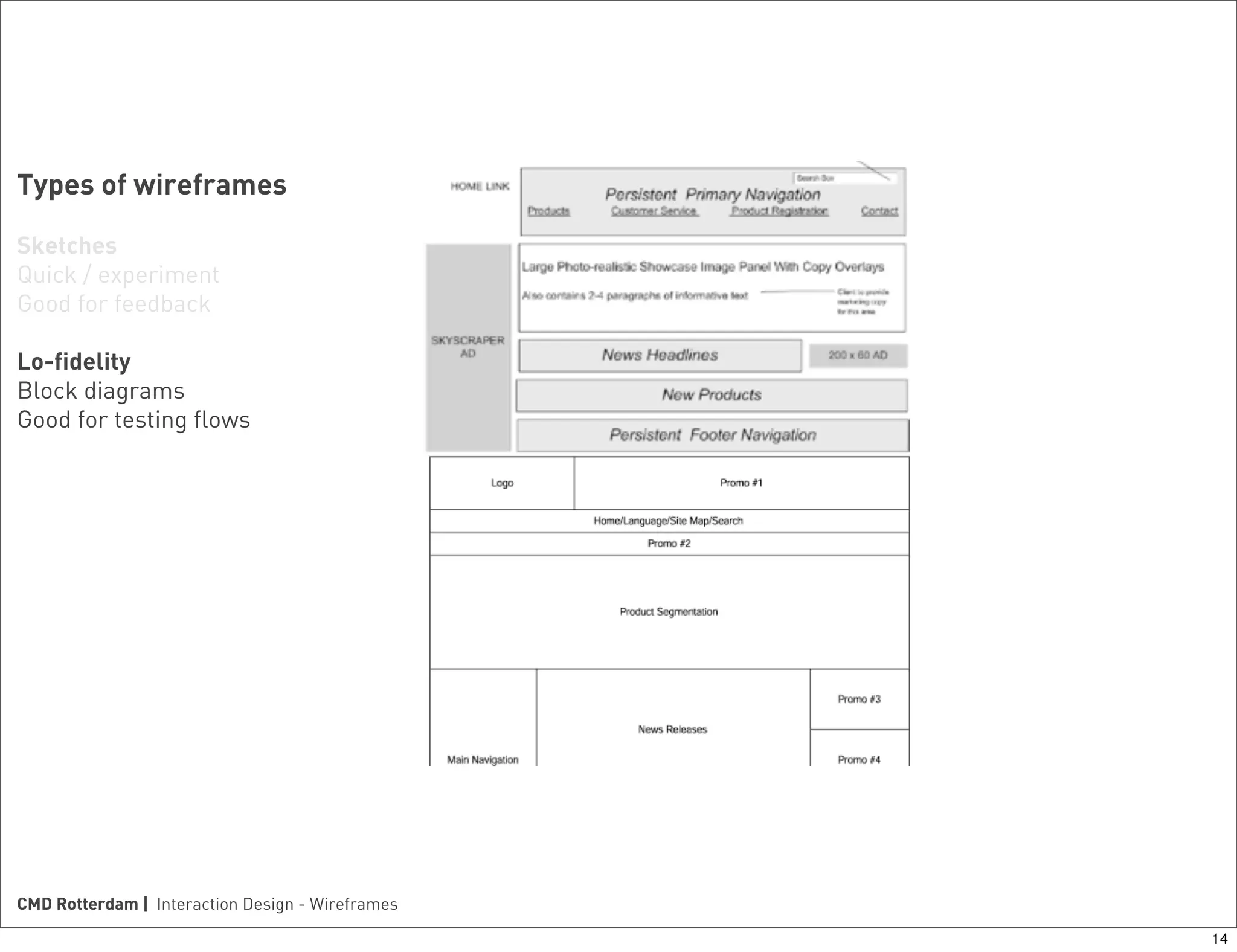

Types of wireframes

Sketches
Quick / experiment
Good for feedback

Lo-fidelity
Block diagrams
Good for testing flows




CMD Rotterdam | Interaction Design - Wireframes

                                                  14
Types of wireframes

Sketches
Quick / experiment
Good for feedback

Lo-fi / Content only
Block diagrams
Good for testing flows

Hi-fidelity
Detailed wireframes
Including comments
Describe content & behavior
“Blueprint for final design”
Should be understood without
explanation




CMD Rotterdam | Interaction Design - Wireframes

                                                  15

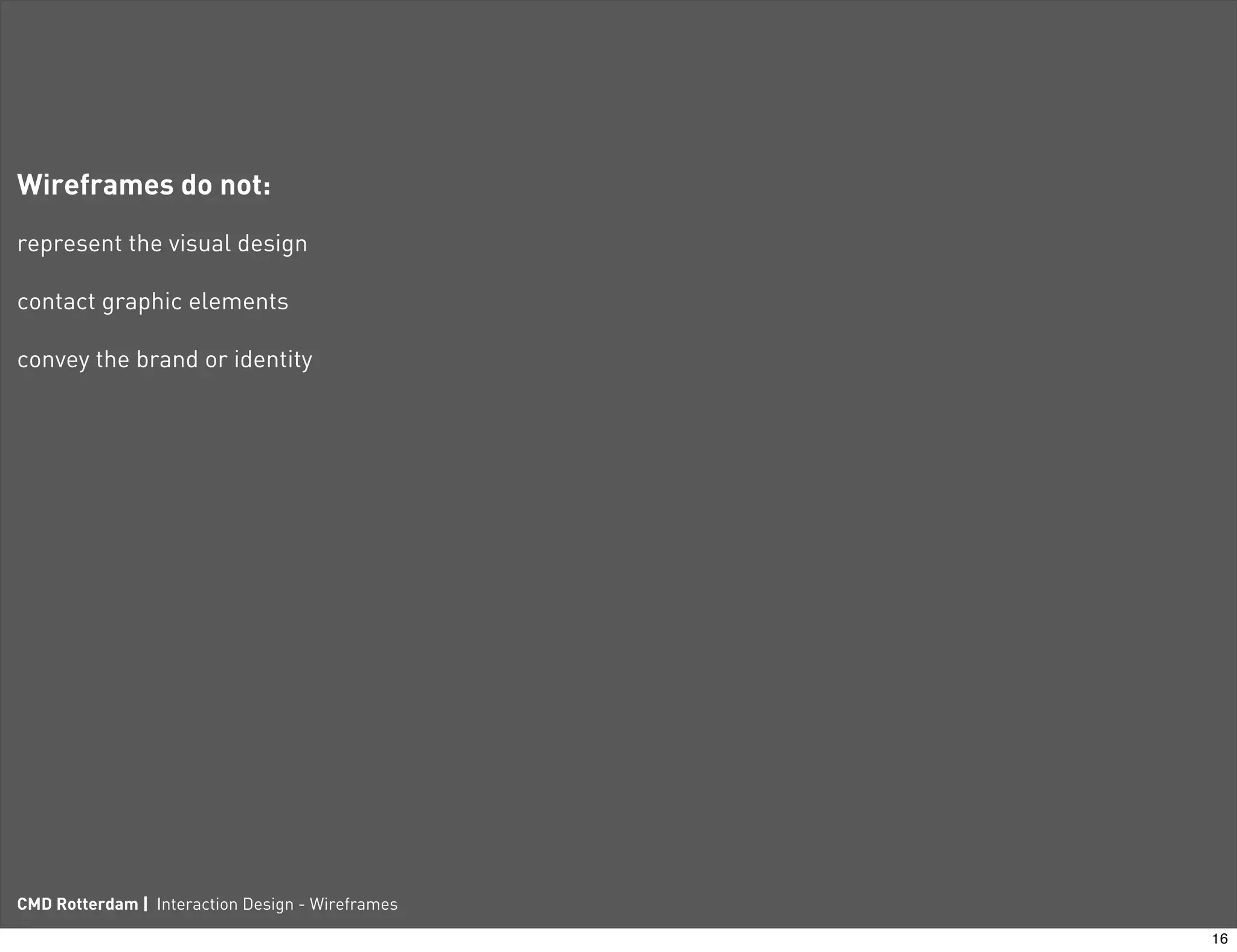

Wireframes do not:
represent the visual design

contact graphic elements

convey the brand or identity




CMD Rotterdam | Interaction Design - Wireframes

                                                  16

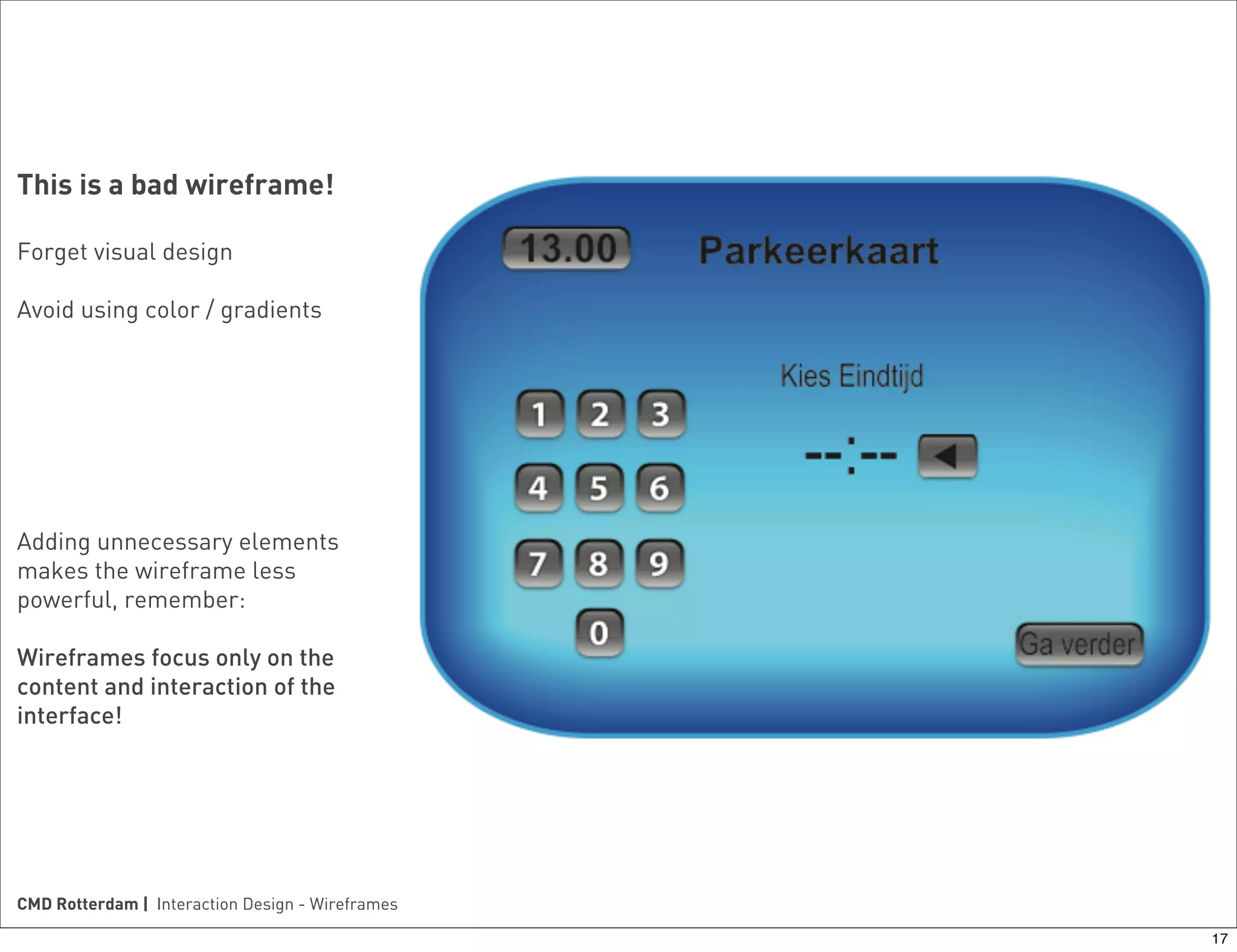

This is a bad wireframe!

Forget visual design

Avoid using color / gradients




Adding unnecessary elements
makes the wireframe less
powerful, remember:

Wireframes focus only on the
content and interaction of the
interface!




CMD Rotterdam | Interaction Design - Wireframes

                                                  17

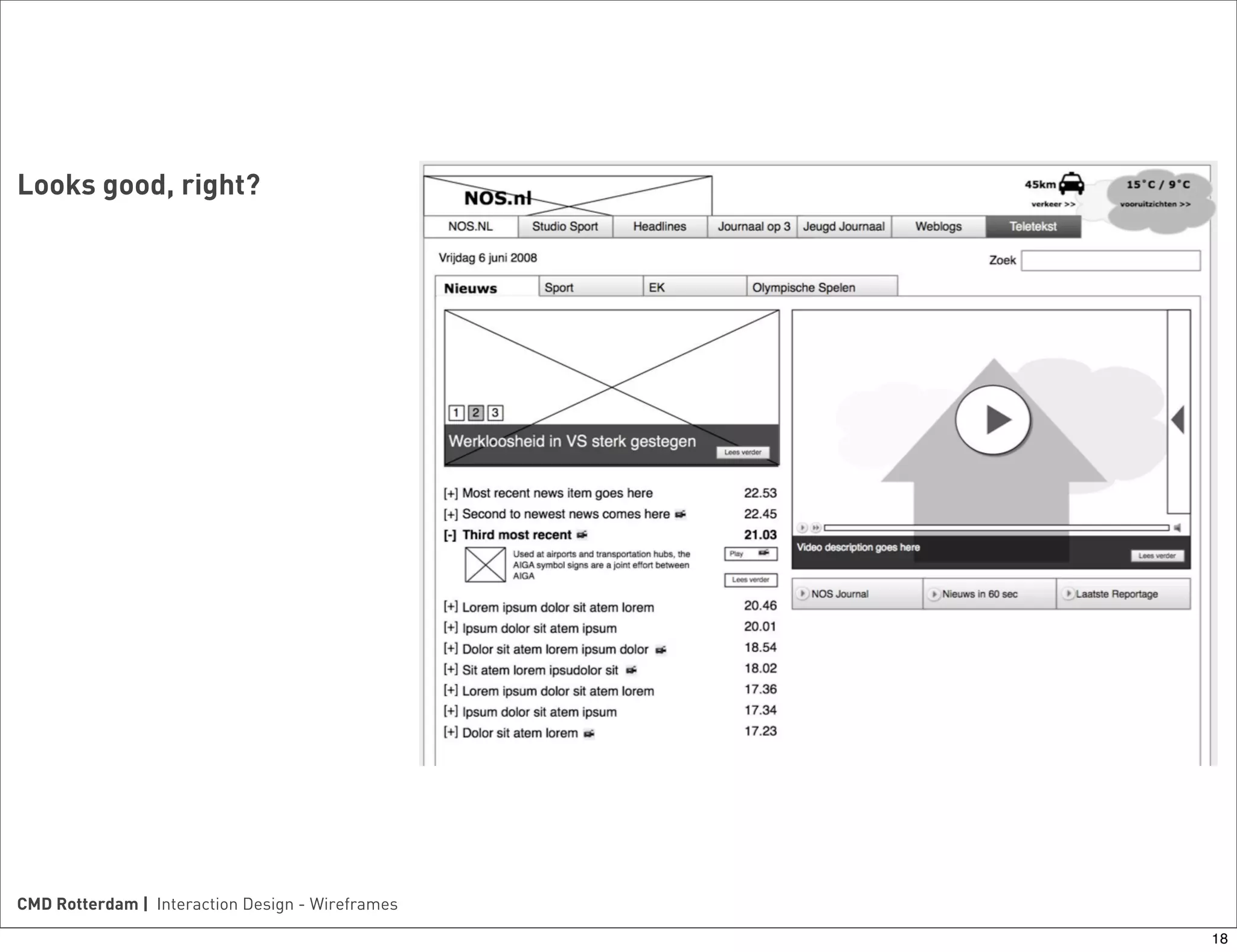

Looks good, right?




CMD Rotterdam | Interaction Design - Wireframes

                                                  18

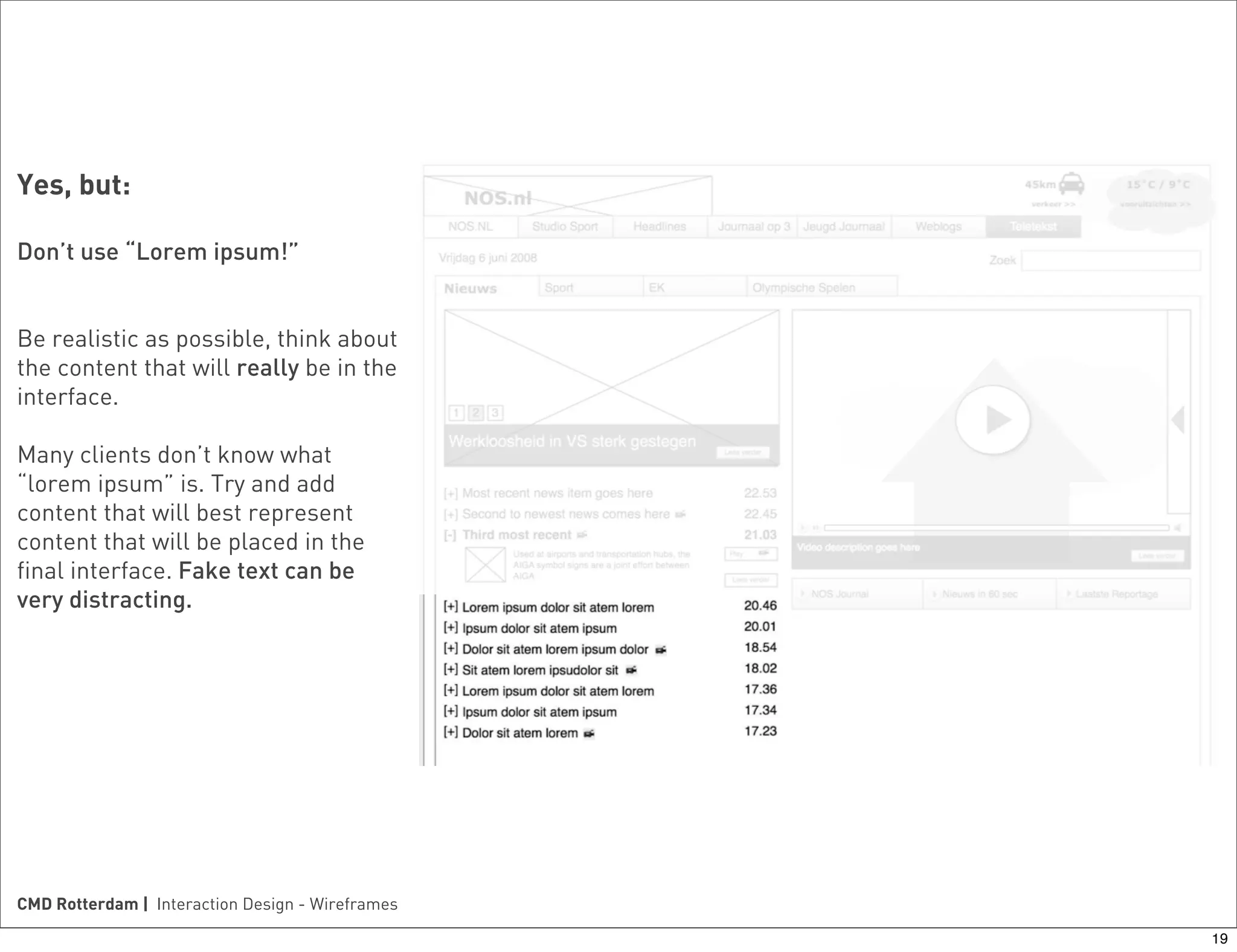

Yes, but:

Don’t use “Lorem ipsum!”


Be realistic as possible, think about
the content that will really be in the
interface.

Many clients don’t know what
“lorem ipsum” is. Try and add
content that will best represent
content that will be placed in the
final interface. Fake text can be
very distracting.




CMD Rotterdam | Interaction Design - Wireframes

                                                  19

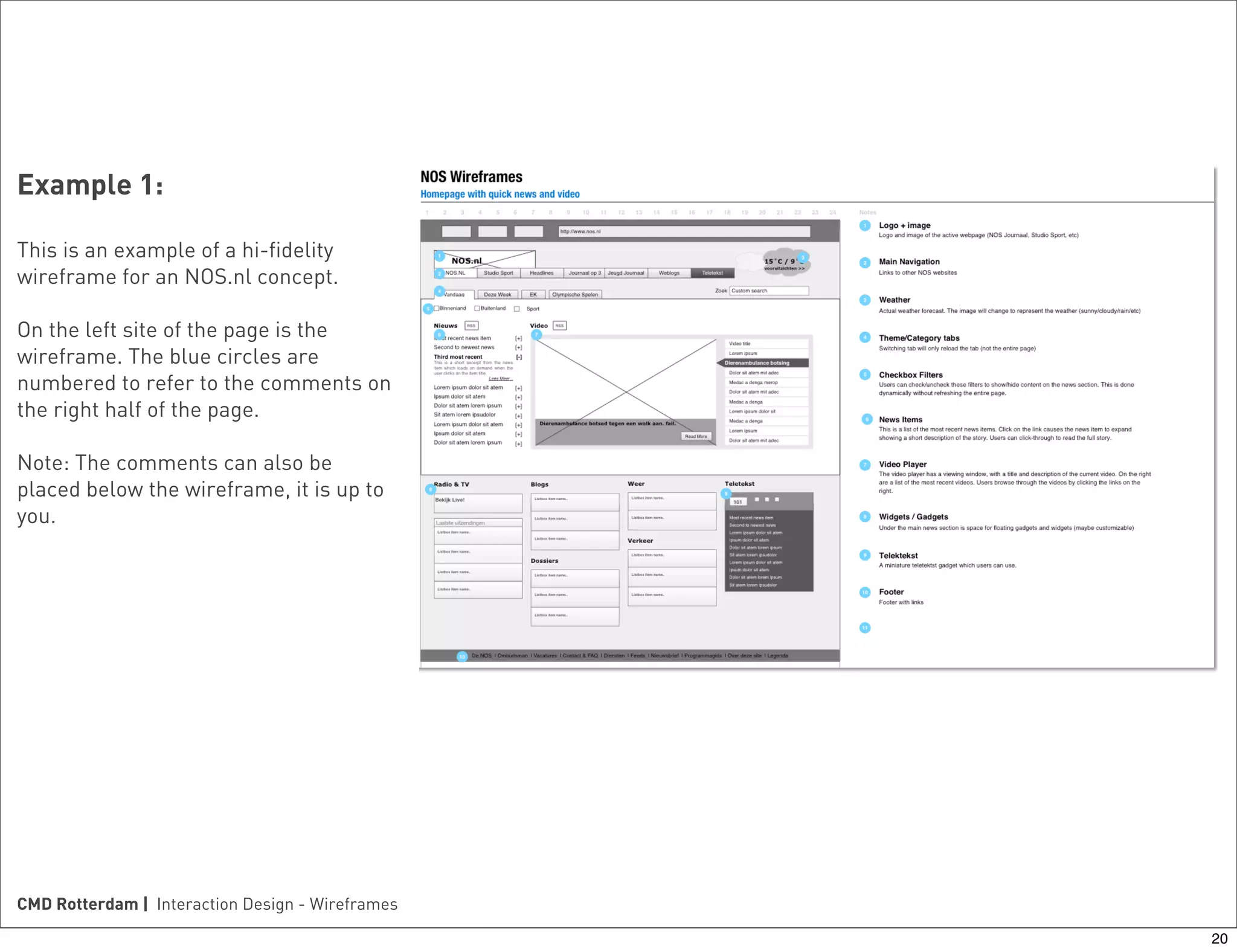

Example 1:

This is an example of a hi-fidelity
wireframe for an NOS.nl concept.

On the left site of the page is the
wireframe. The blue circles are
numbered to refer to the comments on
the right half of the page.

Note: The comments can also be
placed below the wireframe, it is up to
you.




CMD Rotterdam | Interaction Design - Wireframes

                                                  20

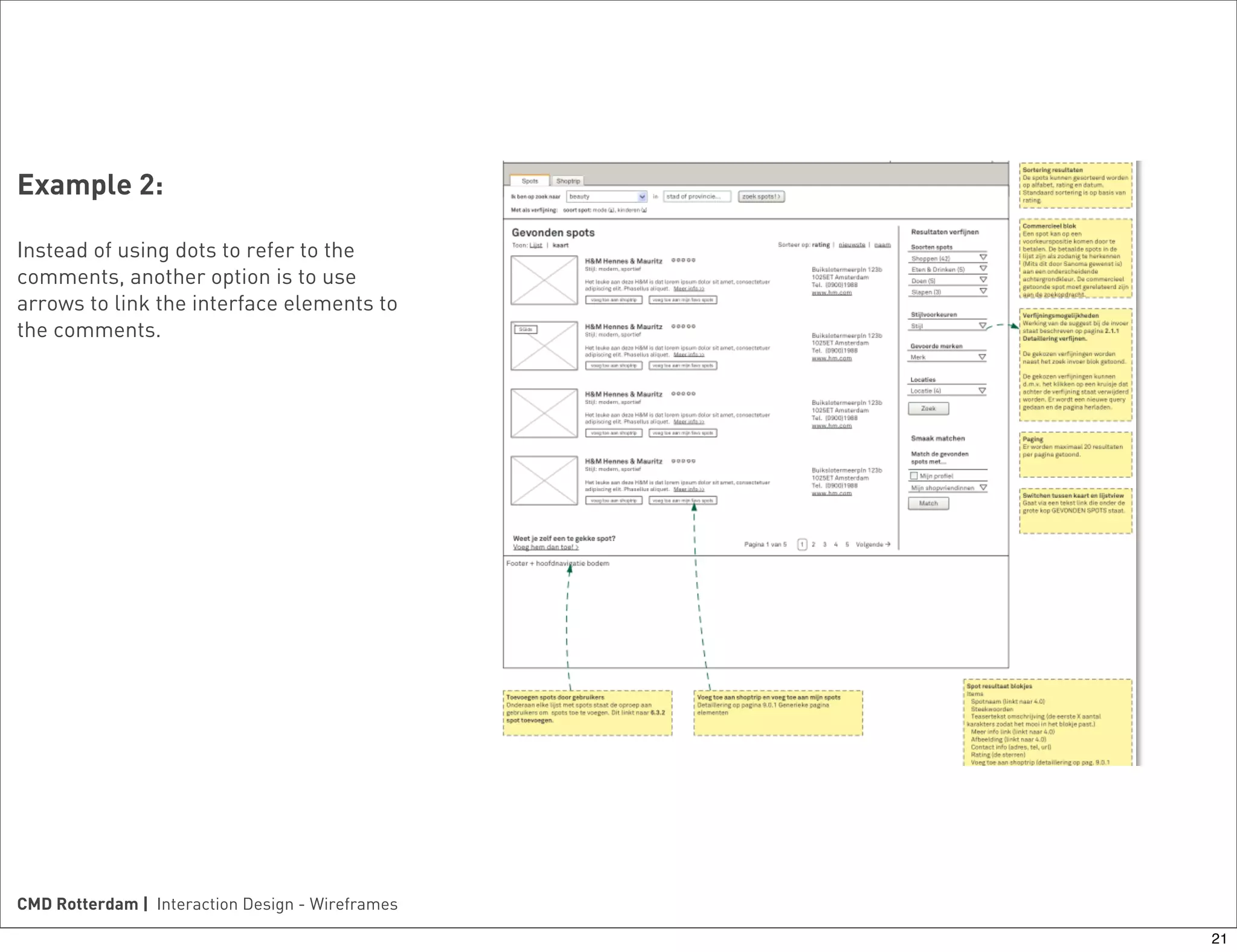

Example 2:

Instead of using dots to refer to the
comments, another option is to use
arrows to link the interface elements to
the comments.




CMD Rotterdam | Interaction Design - Wireframes

                                                  21

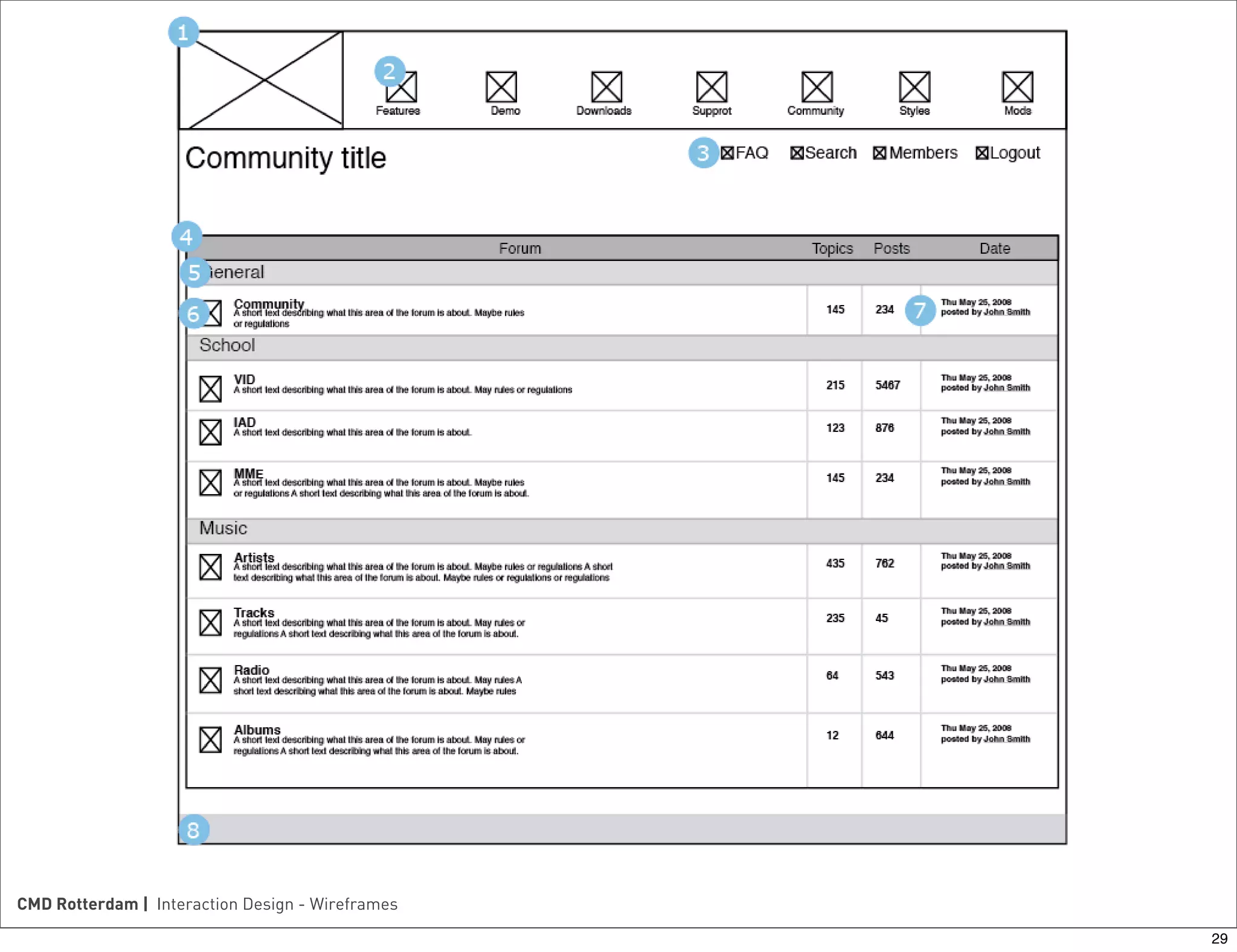

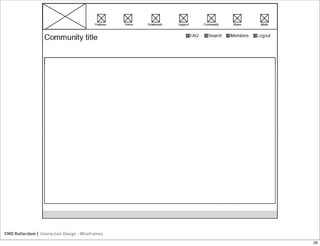

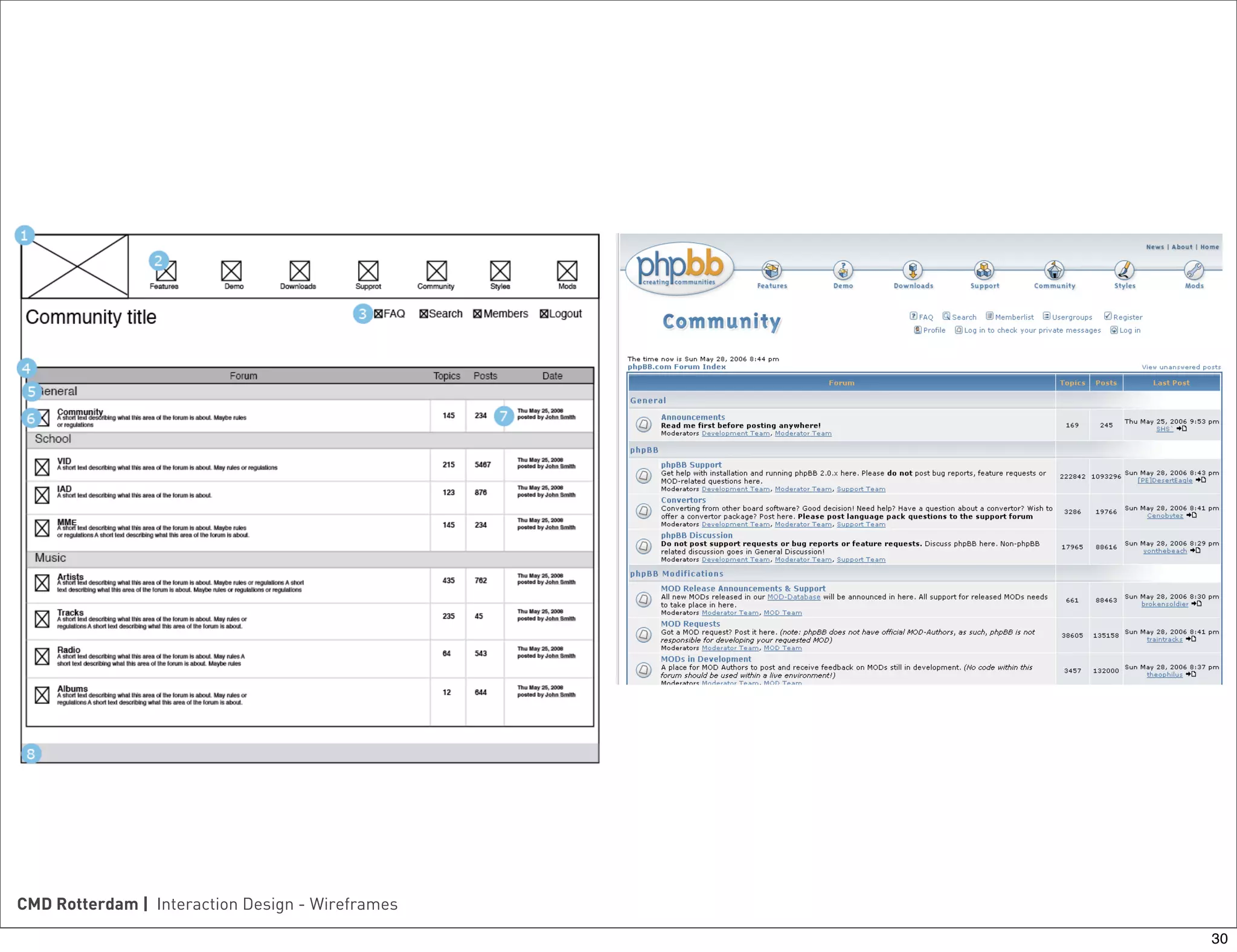

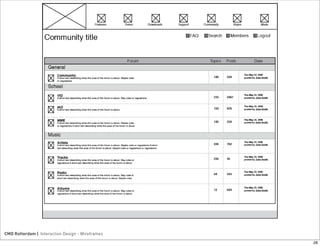

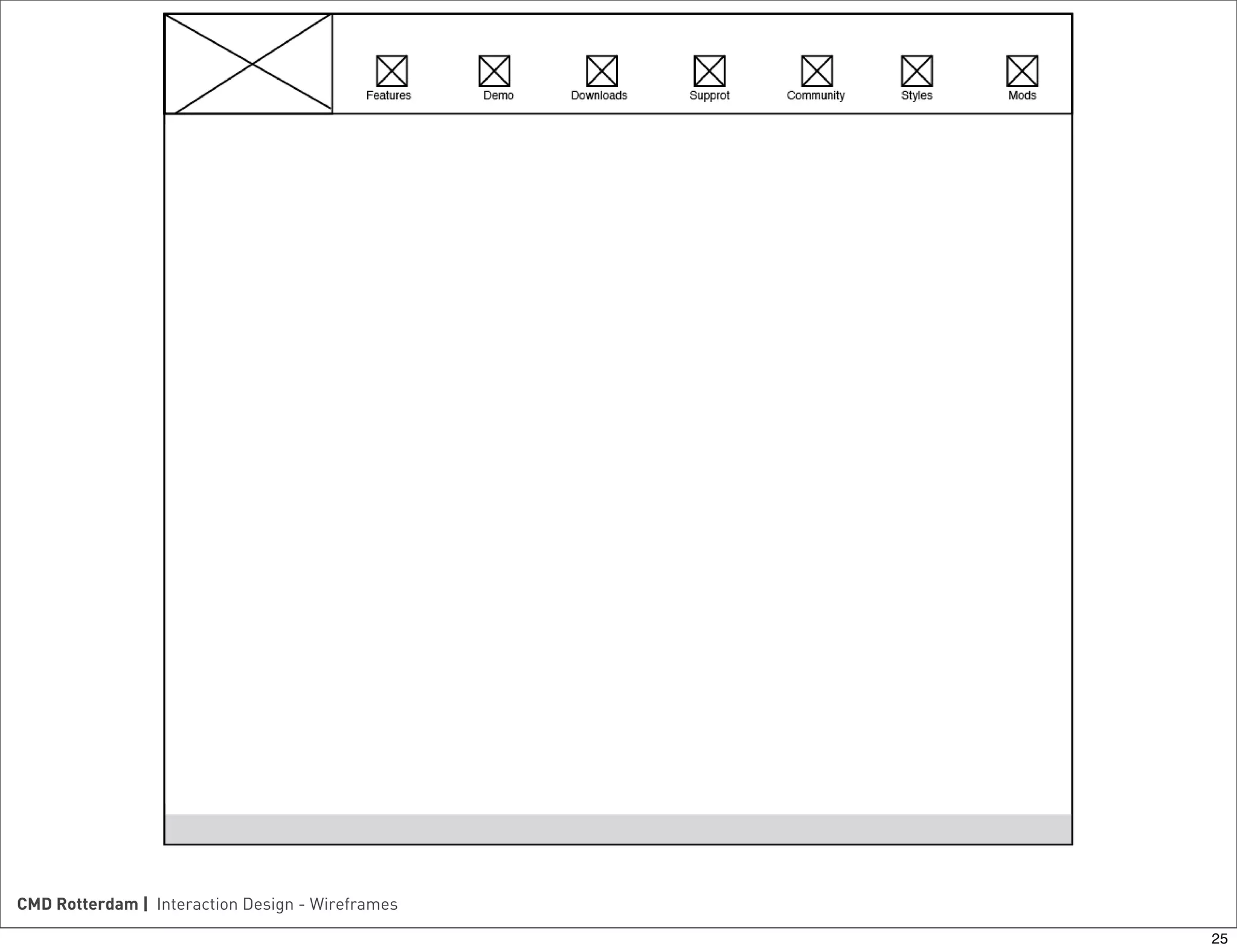

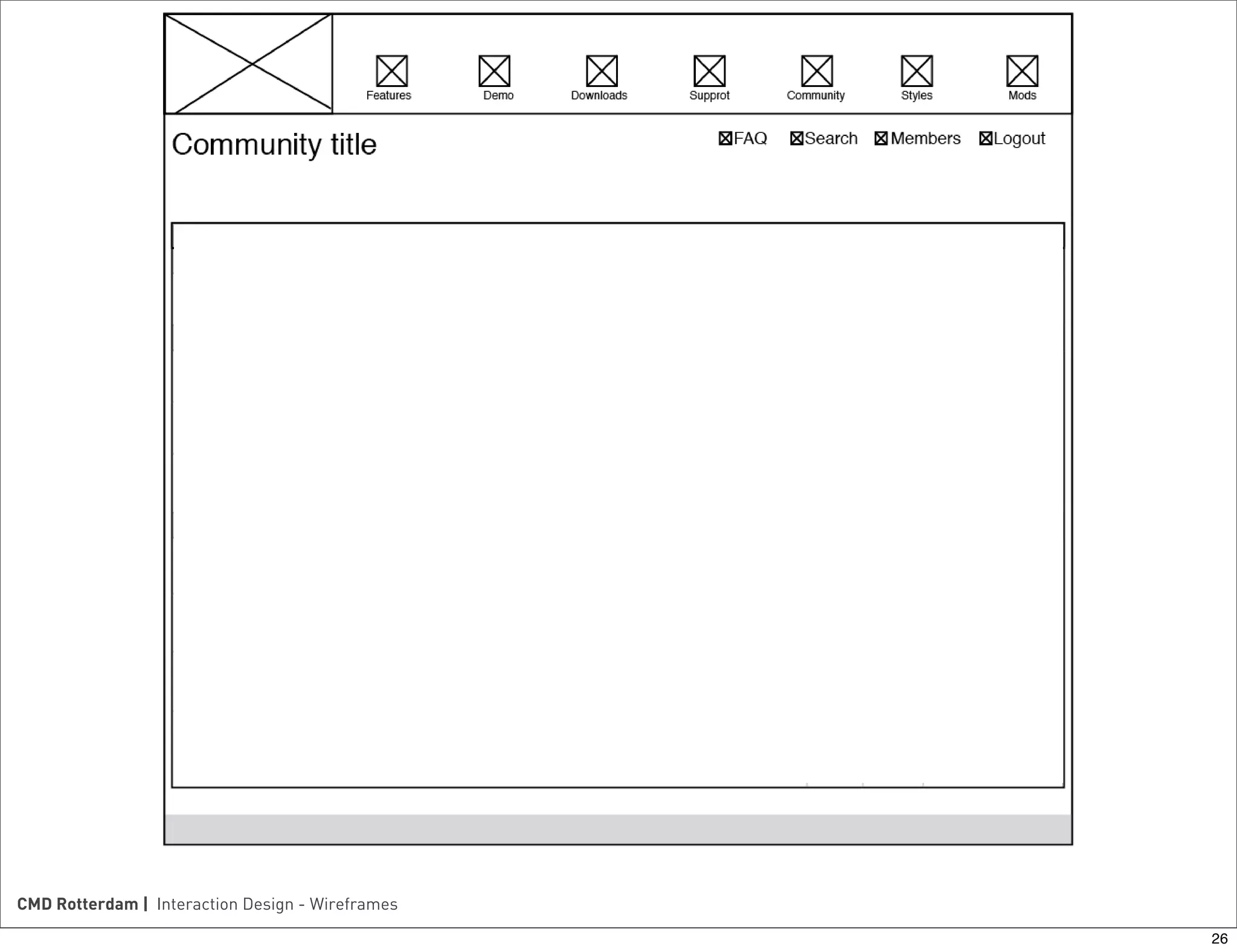

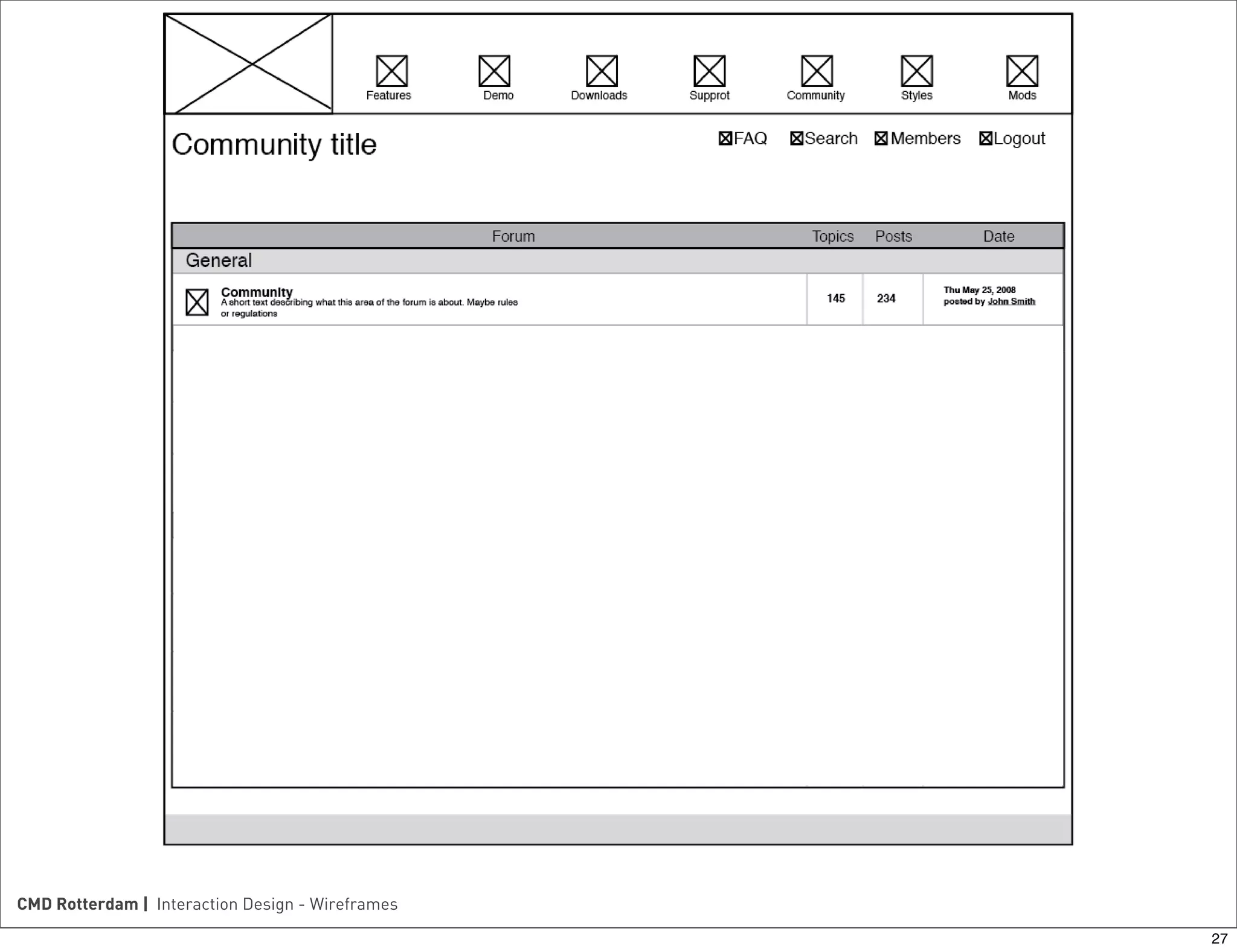

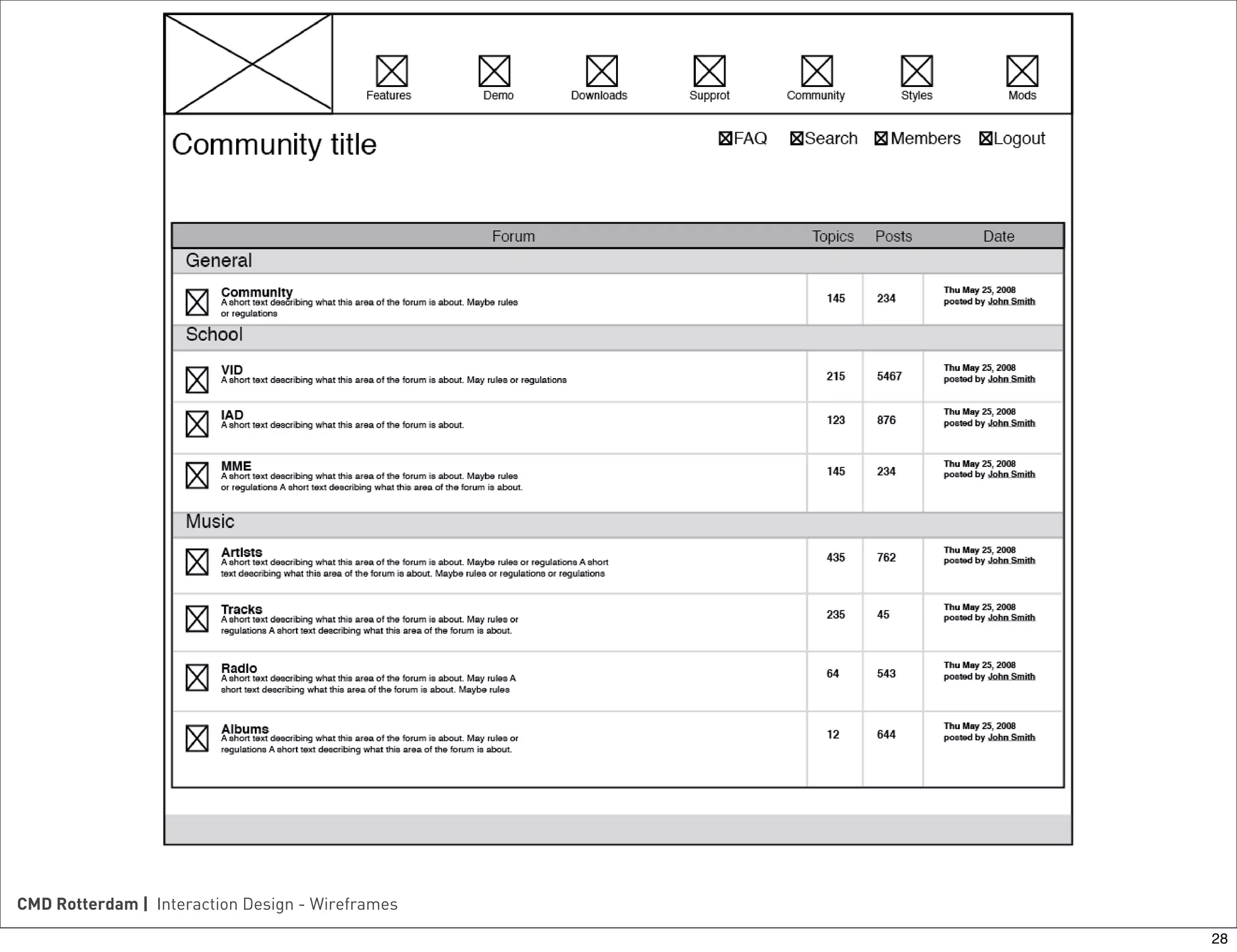

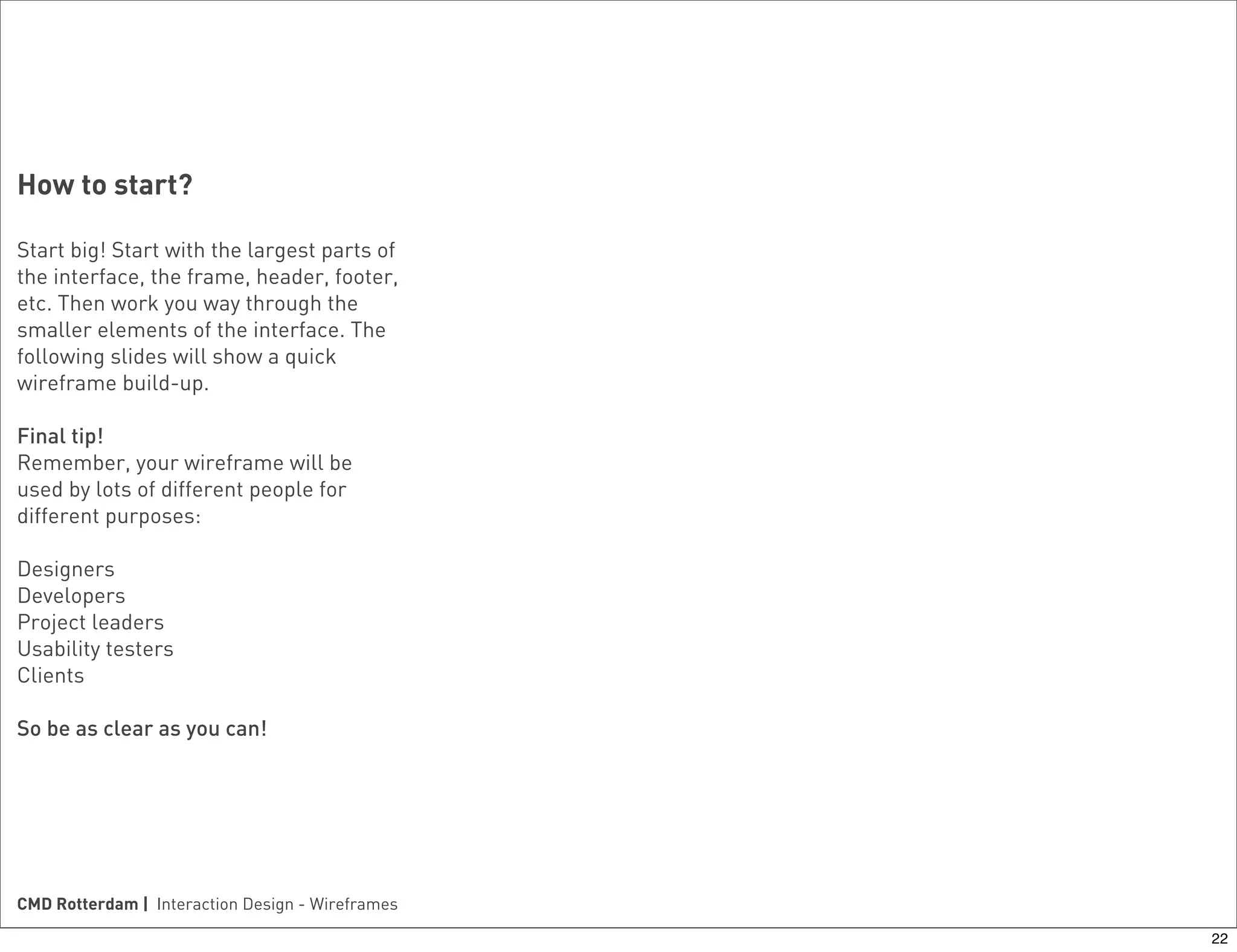

How to start?

Start big! Start with the largest parts of
the interface, the frame, header, footer,
etc. Then work you way through the
smaller elements of the interface. The
following slides will show a quick
wireframe build-up.

Final tip!
Remember, your wireframe will be
used by lots of different people for
different purposes:

Designers
Developers
Project leaders
Usability testers
Clients

So be as clear as you can!




CMD Rotterdam | Interaction Design - Wireframes

                                                  22
CMD Rotterdam | Interaction Design - Wireframes

                                                  23
CMD Rotterdam | Interaction Design - Wireframes

                                                  24
CMD Rotterdam | Interaction Design - Wireframes

                                                  25
CMD Rotterdam | Interaction Design - Wireframes

                                                  26
CMD Rotterdam | Interaction Design - Wireframes

                                                  27
CMD Rotterdam | Interaction Design - Wireframes

                                                  28
CMD Rotterdam | Interaction Design - Wireframes

                                                  29
CMD Rotterdam | Interaction Design - Wireframes

                                                  30

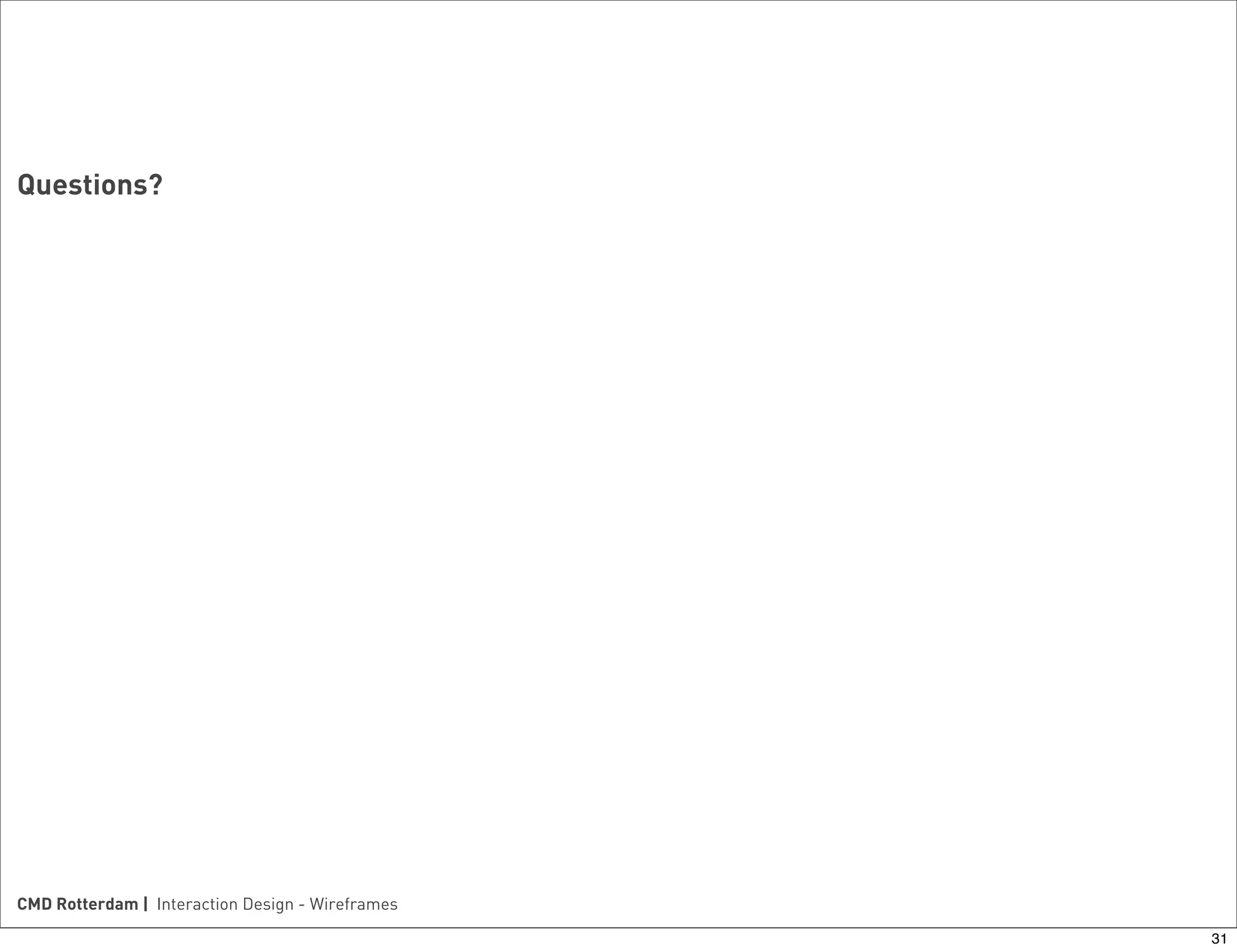

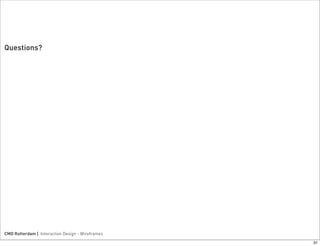

Questions?




CMD Rotterdam | Interaction Design - Wireframes

                                                  31

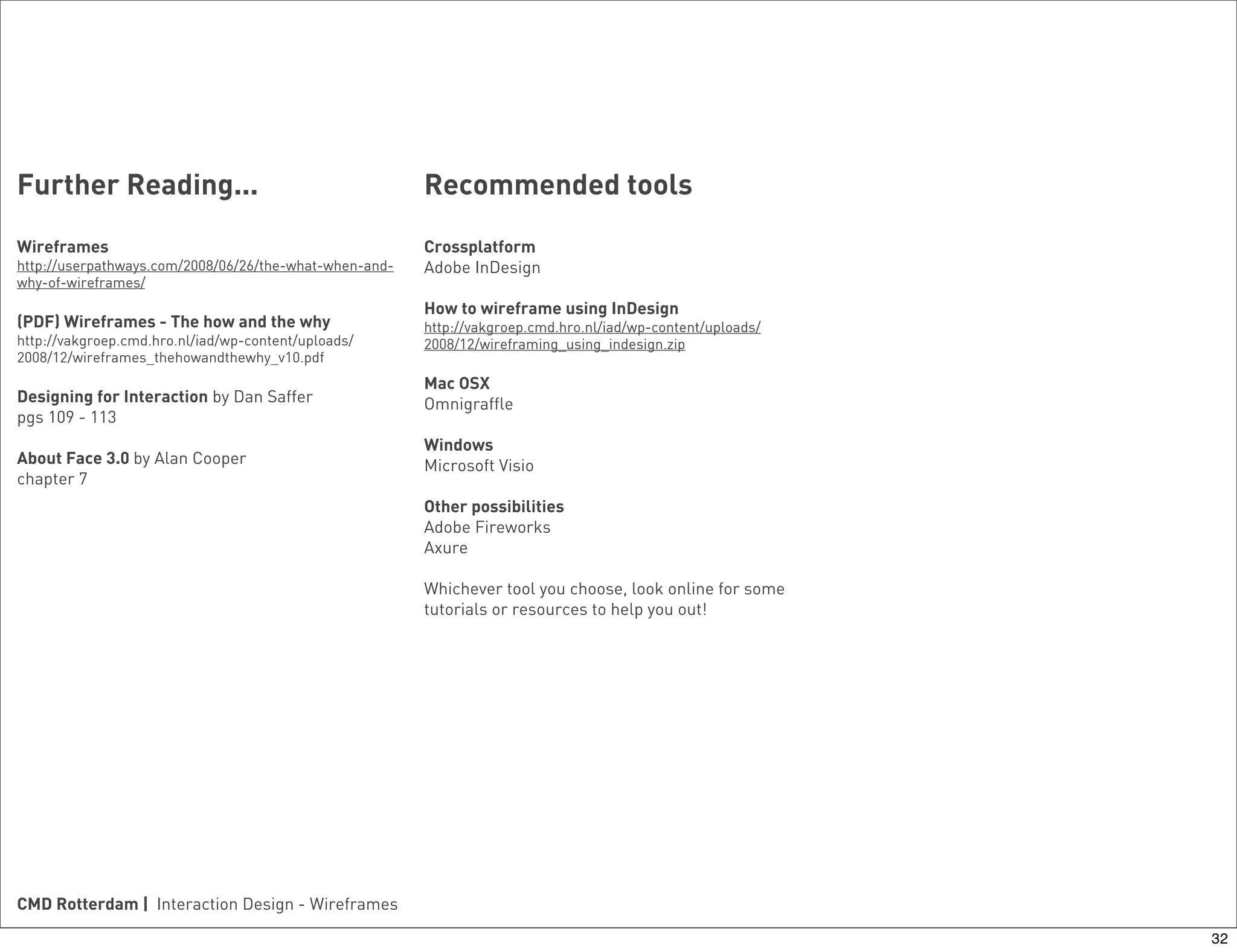

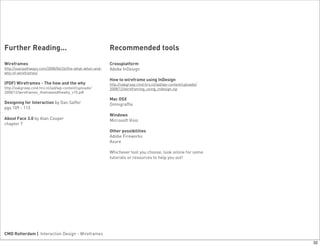

Further Reading...                                      Recommended tools

Wireframes                                              Crossplatform
http://userpathways.com/2008/06/26/the-what-when-and-   Adobe InDesign
why-of-wireframes/
                                                        How to wireframe using InDesign
(PDF) Wireframes - The how and the why                  http://vakgroep.cmd.hro.nl/iad/wp-content/uploads/
http://vakgroep.cmd.hro.nl/iad/wp-content/uploads/      2008/12/wireframing_using_indesign.zip
2008/12/wireframes_thehowandthewhy_v10.pdf
                                                        Mac OSX
Designing for Interaction by Dan Saffer                 Omnigraffle
pgs 109 - 113
                                                        Windows
About Face 3.0 by Alan Cooper                           Microsoft Visio
chapter 7
                                                        Other possibilities
                                                        Adobe Fireworks
                                                        Axure

                                                        Whichever tool you choose, look online for some
                                                        tutorials or resources to help you out!
