1. Modern web
development

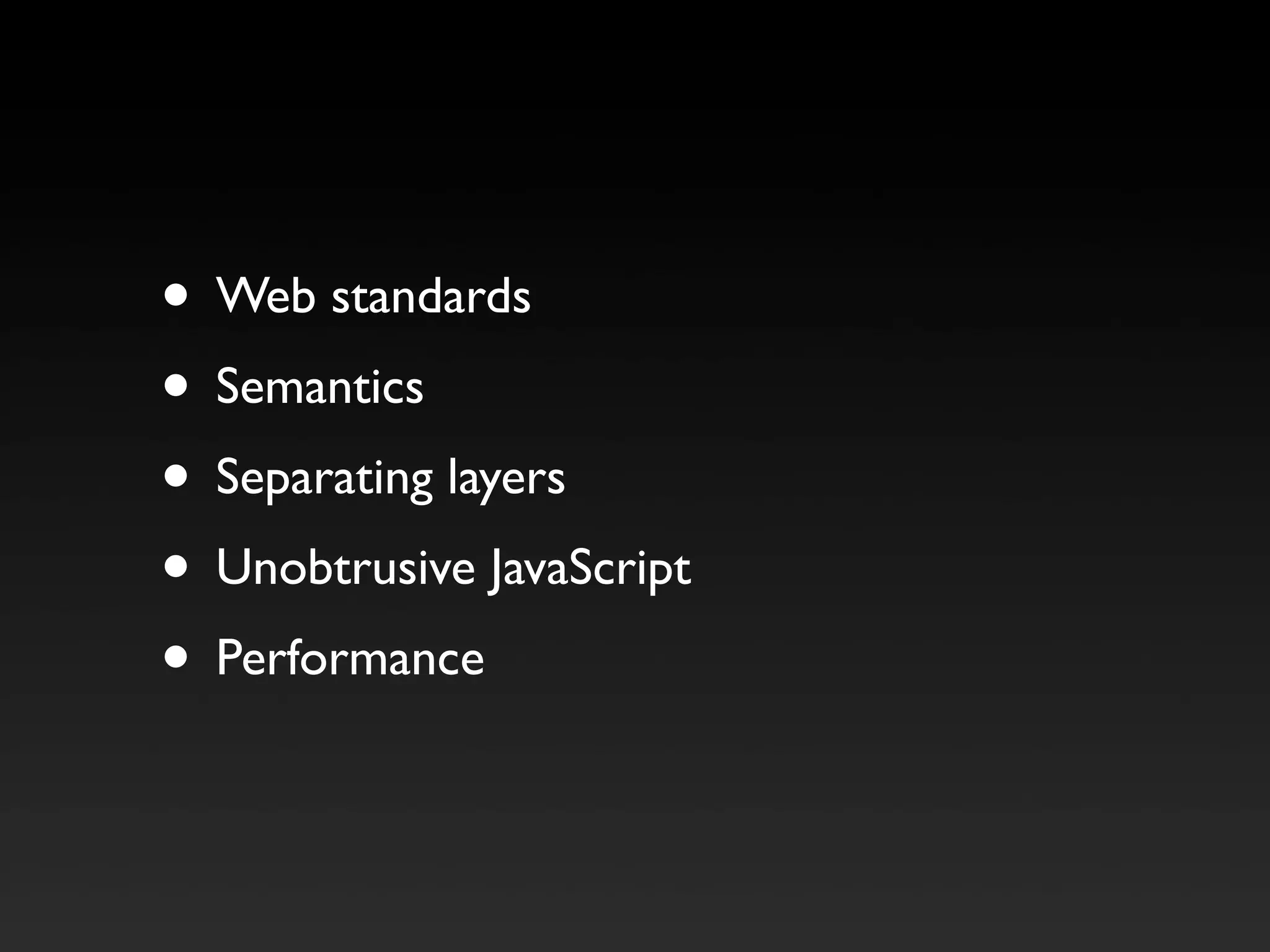

3. • Web standards
• Semantics
• Separating layers
• Unobtrusive JavaScript
• Performance

4. Web standards

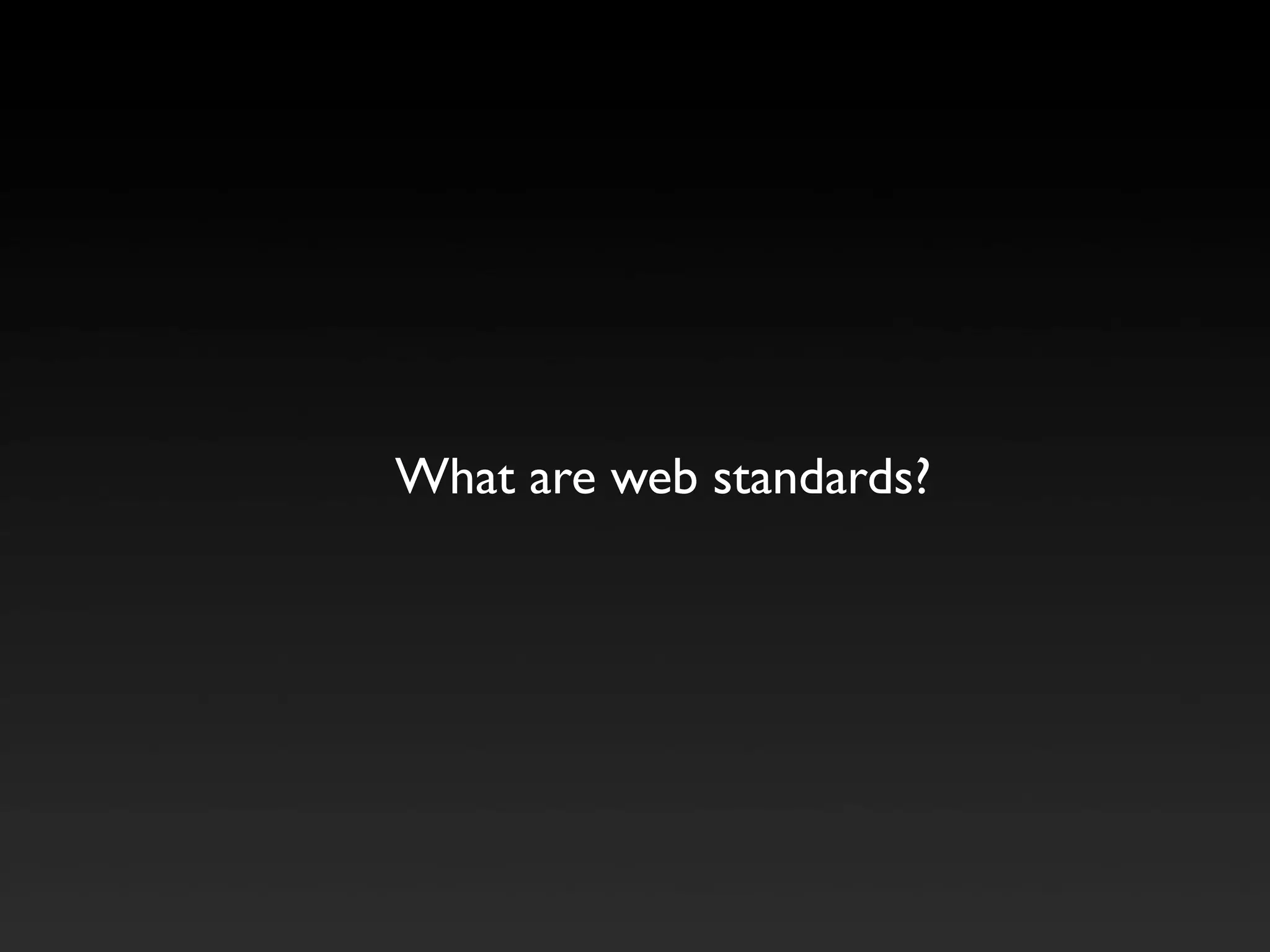

6. What are web standards?

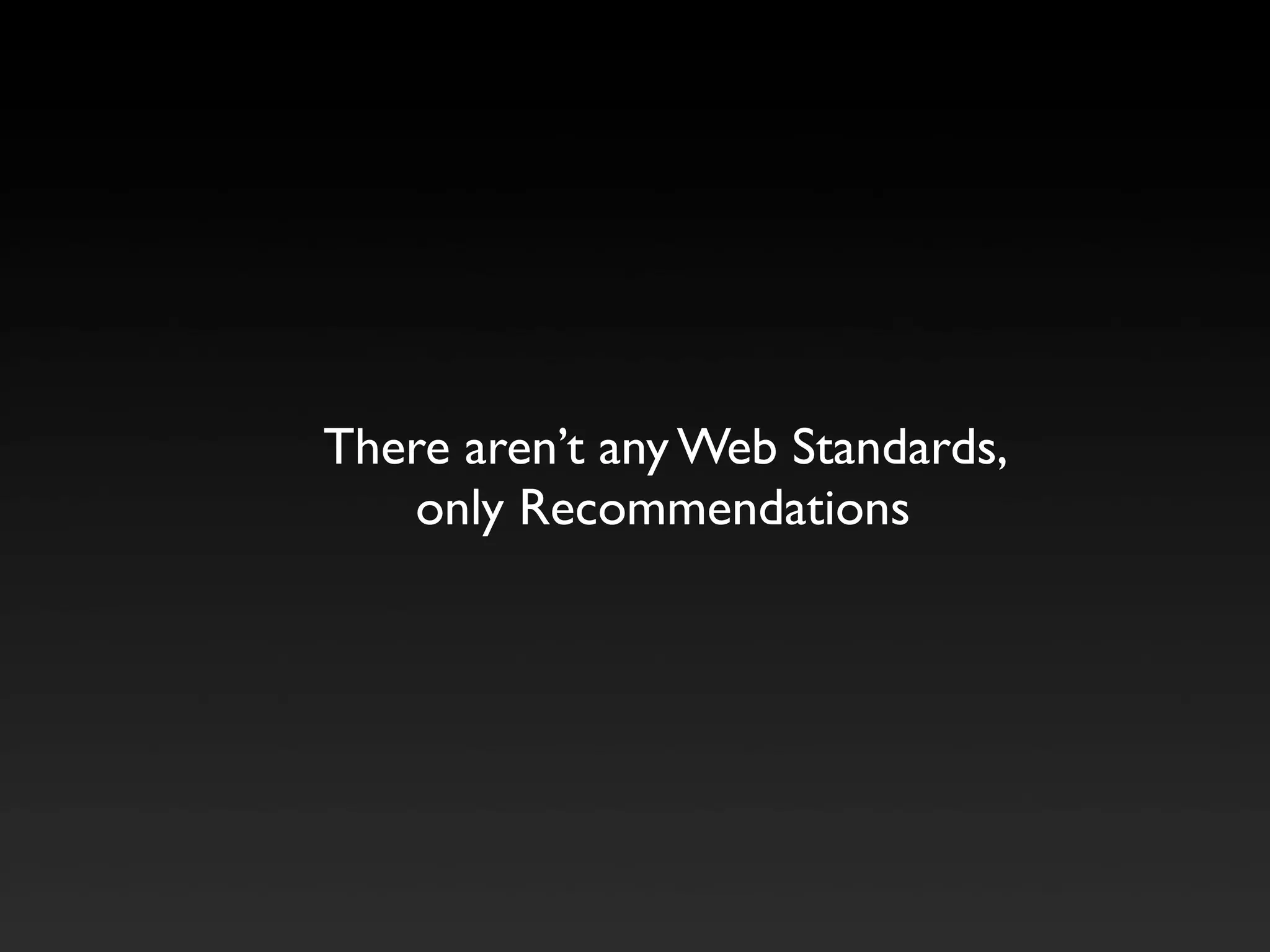

7. There aren’t any Web Standards,
only Recommendations

8. “A W3C Recommendation is a specification
or set of guidelines that, after extensive
consensus-building, has received the
endorsement of W3C Members and the
Director. W3C recommends the wide
deployment of its Recommendations.”
– W3C

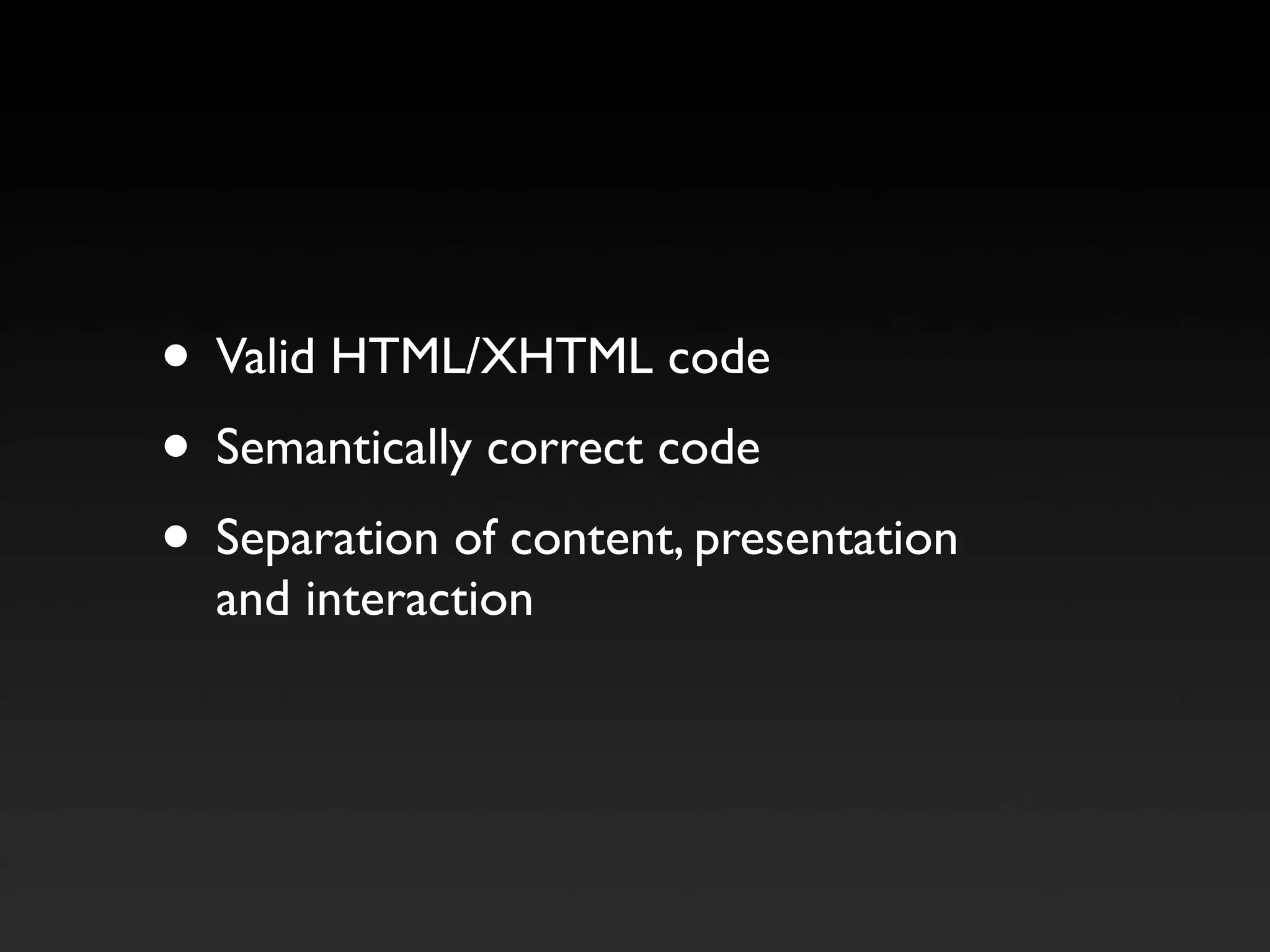

9. • Valid HTML/XHTML code
• Semantically correct code
• Separation of content, presentation
and interaction

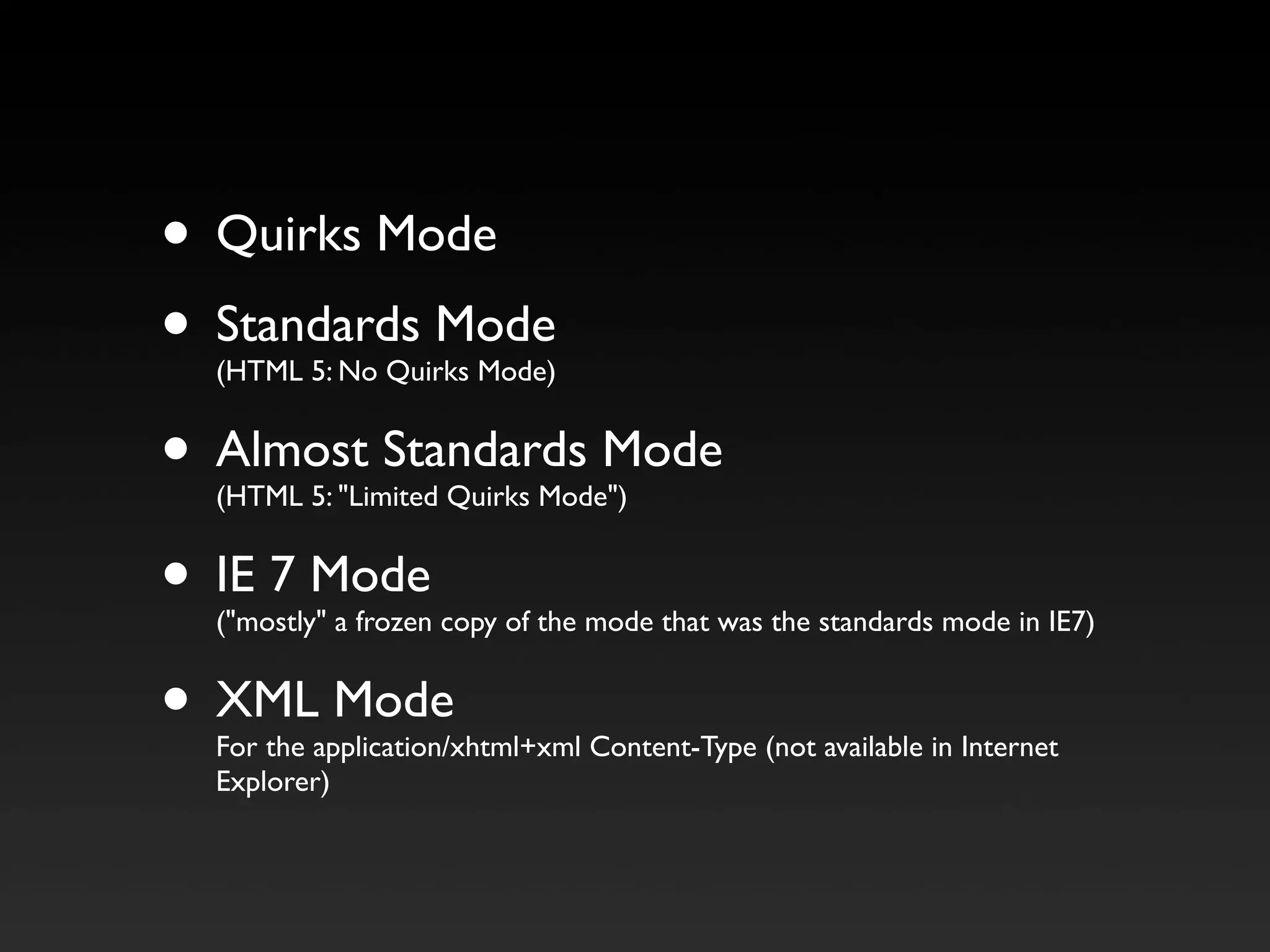

10. DOCTYPEs decide rendering mode

11. • Quirks Mode
• Standards Mode
(HTML 5: No Quirks Mode)
• Almost Standards Mode
(HTML 5: "Limited Quirks Mode")
• IE 7 Mode
("mostly" a frozen copy of the mode that was the standards mode in IE7)
• XML Mode
For the application/xhtml+xml Content-Type (not available in Internet
Explorer)

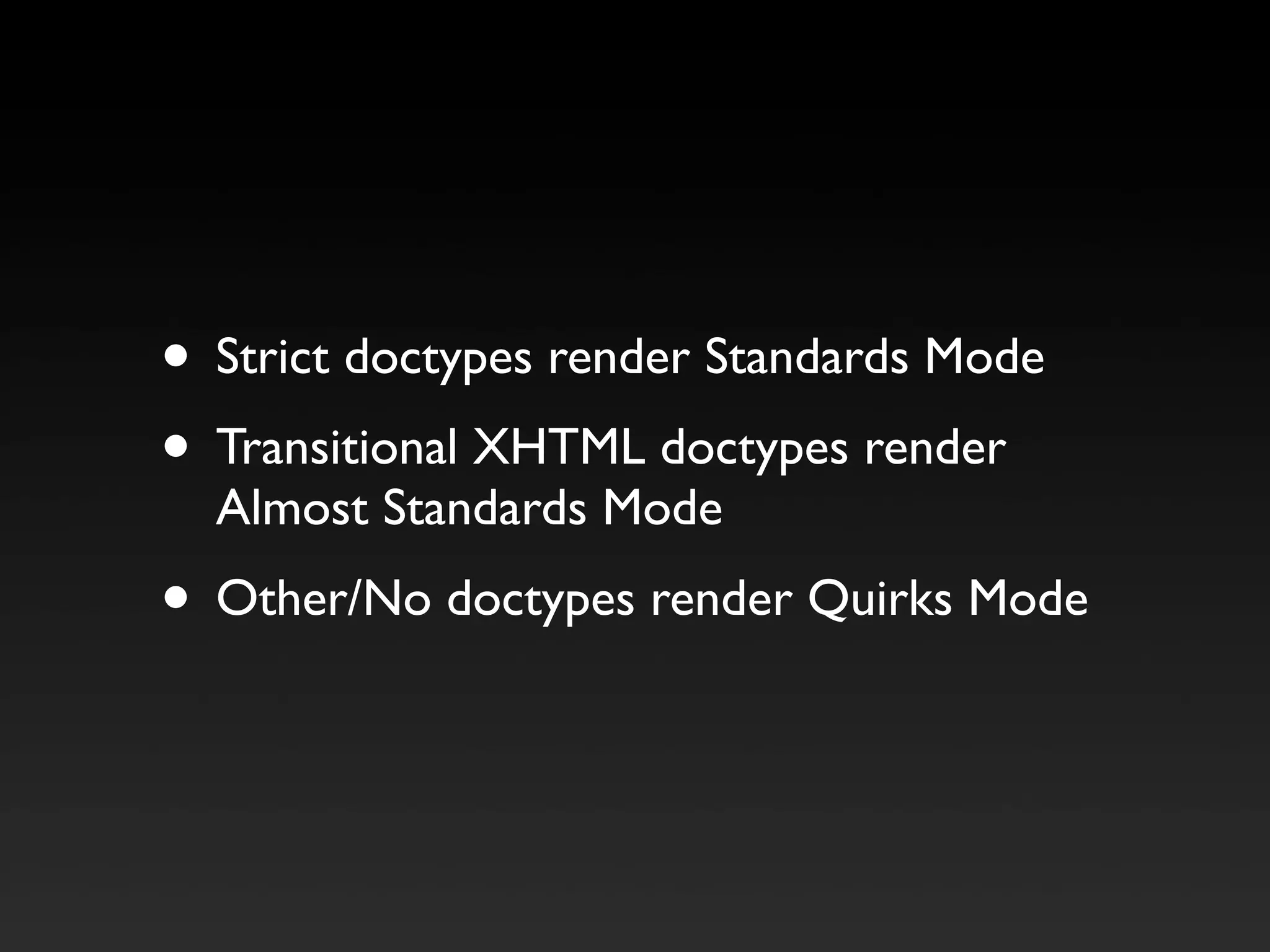

12. • Strict doctypes render Standards Mode
• Transitional XHTML doctypes render
Almost Standards Mode
• Other/No doctypes render Quirks Mode

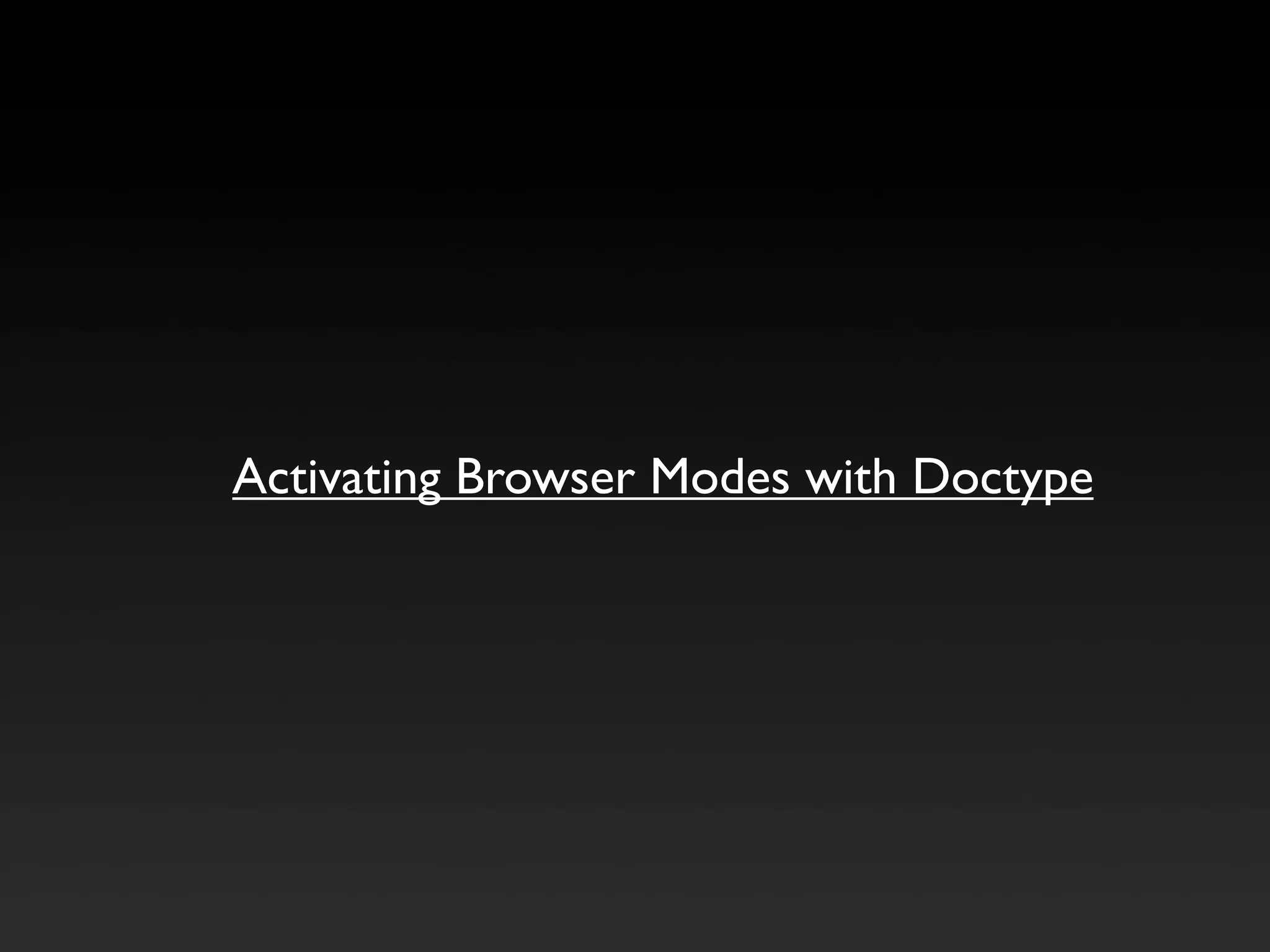

13. Activating Browser Modes with Doctype

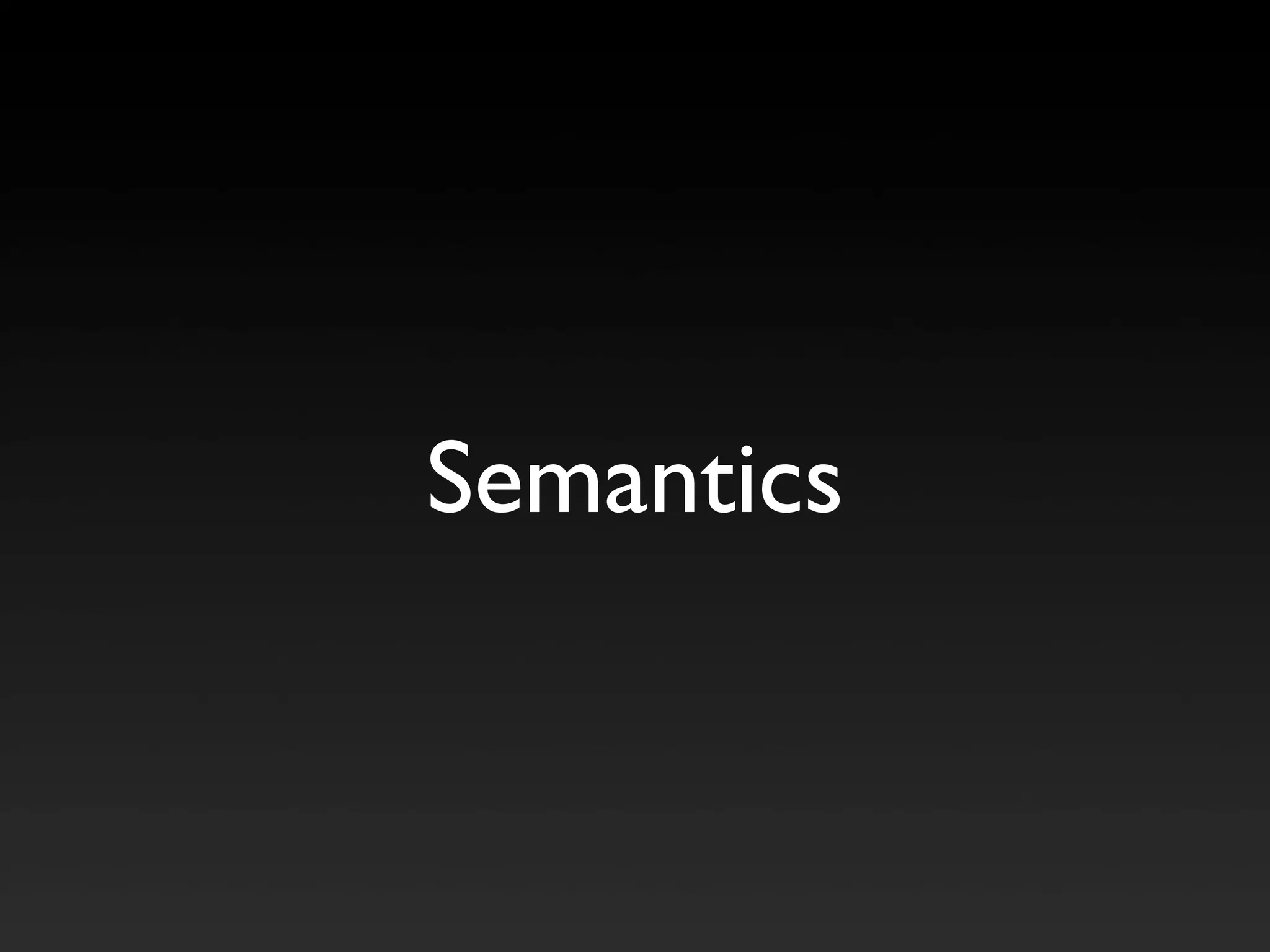

14. Semantics

15. “I have a dream for the Web [in which
computers] become capable of analyzing all
the data on the Web – the content, links, and
transactions between people and
computers.”
– Tim Berners-Lee, 1999

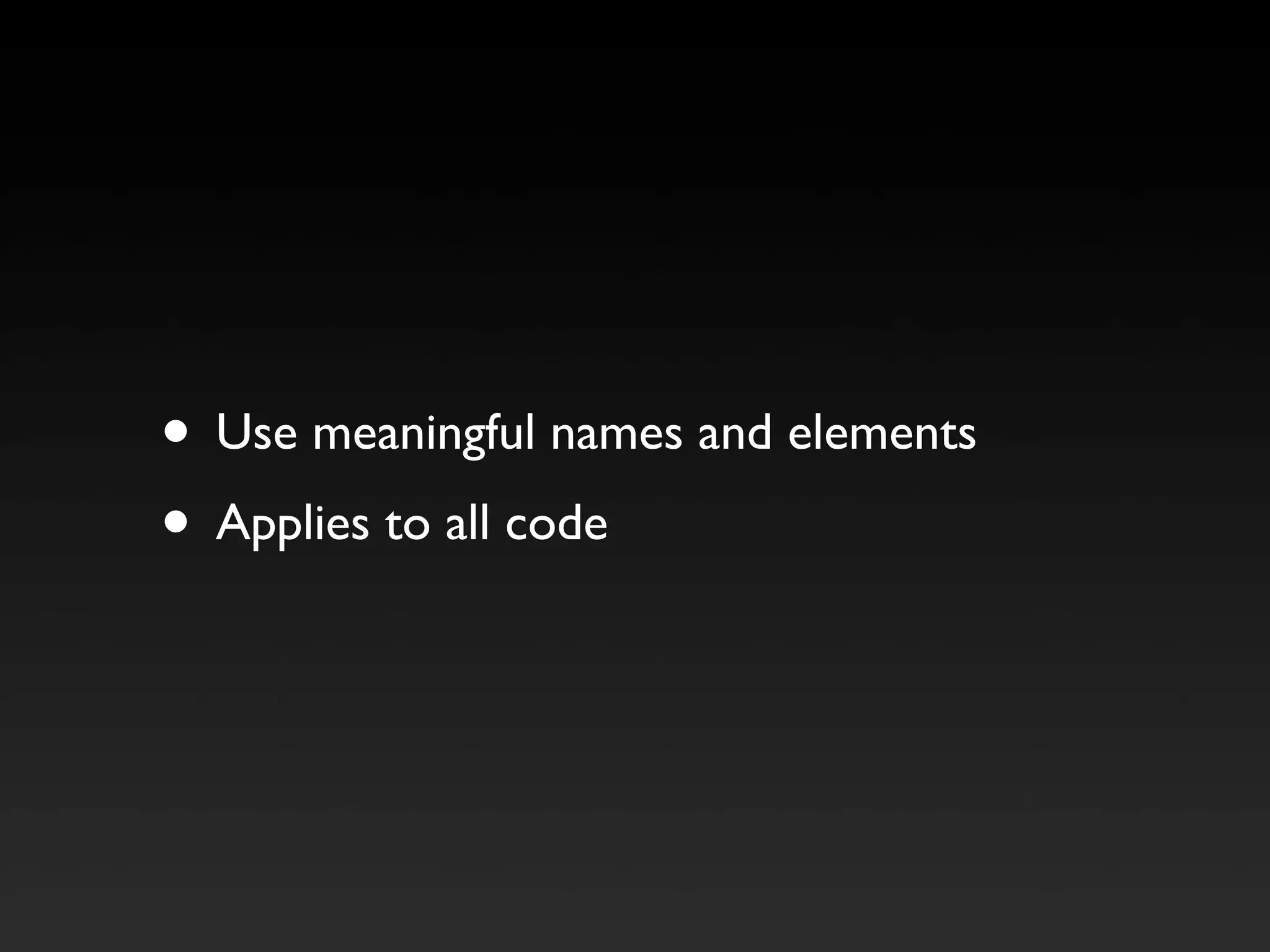

16. • Use meaningful names and elements
• Applies to all code

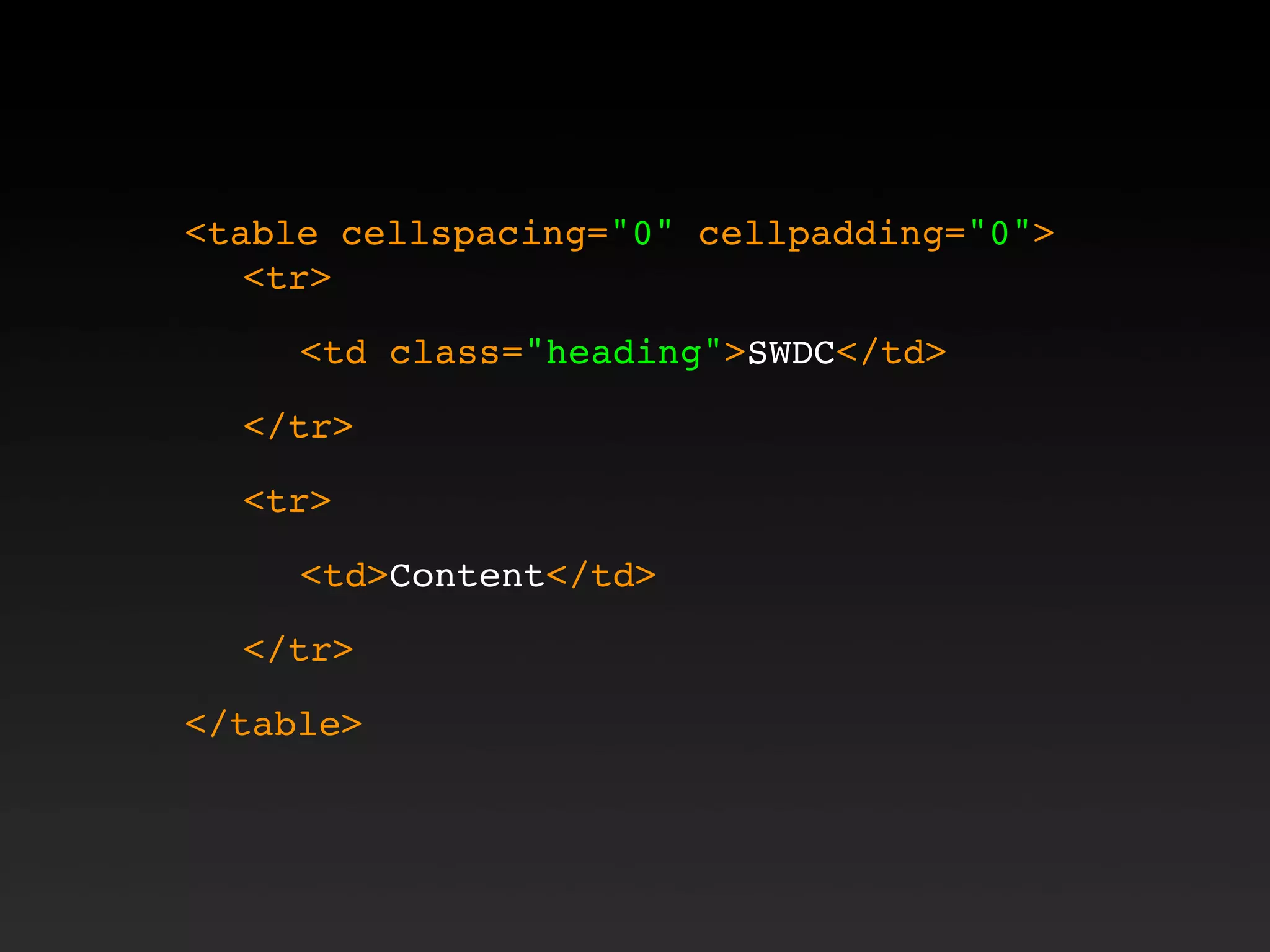

17. <table cellspacing="0" cellpadding="0">
<tr>
<td class="heading">SWDC</td>
</tr>
<tr>
<td>Content</td>
</tr>
</table>

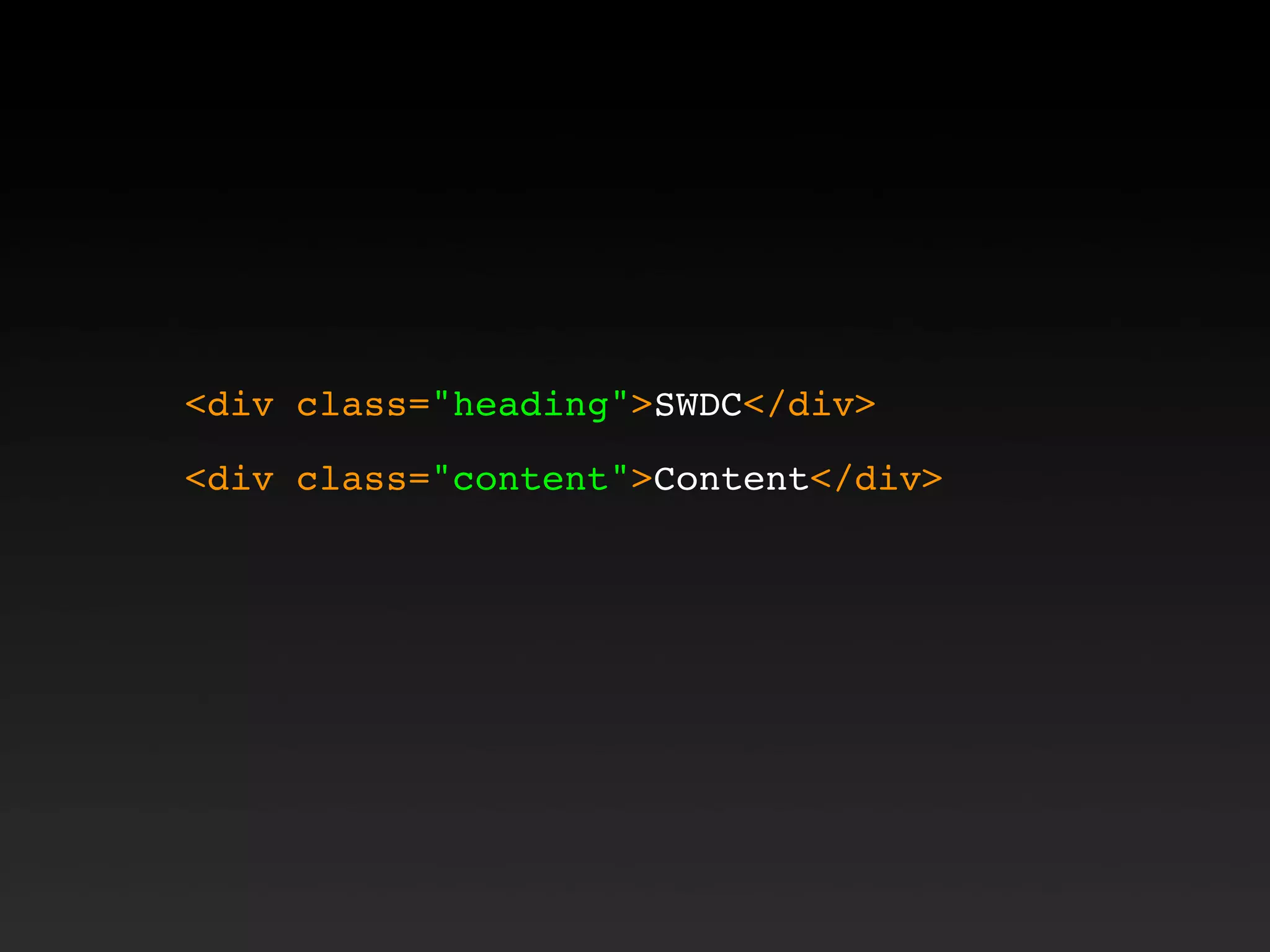

18. <div class="heading">SWDC</div>
<div class="content">Content</div>

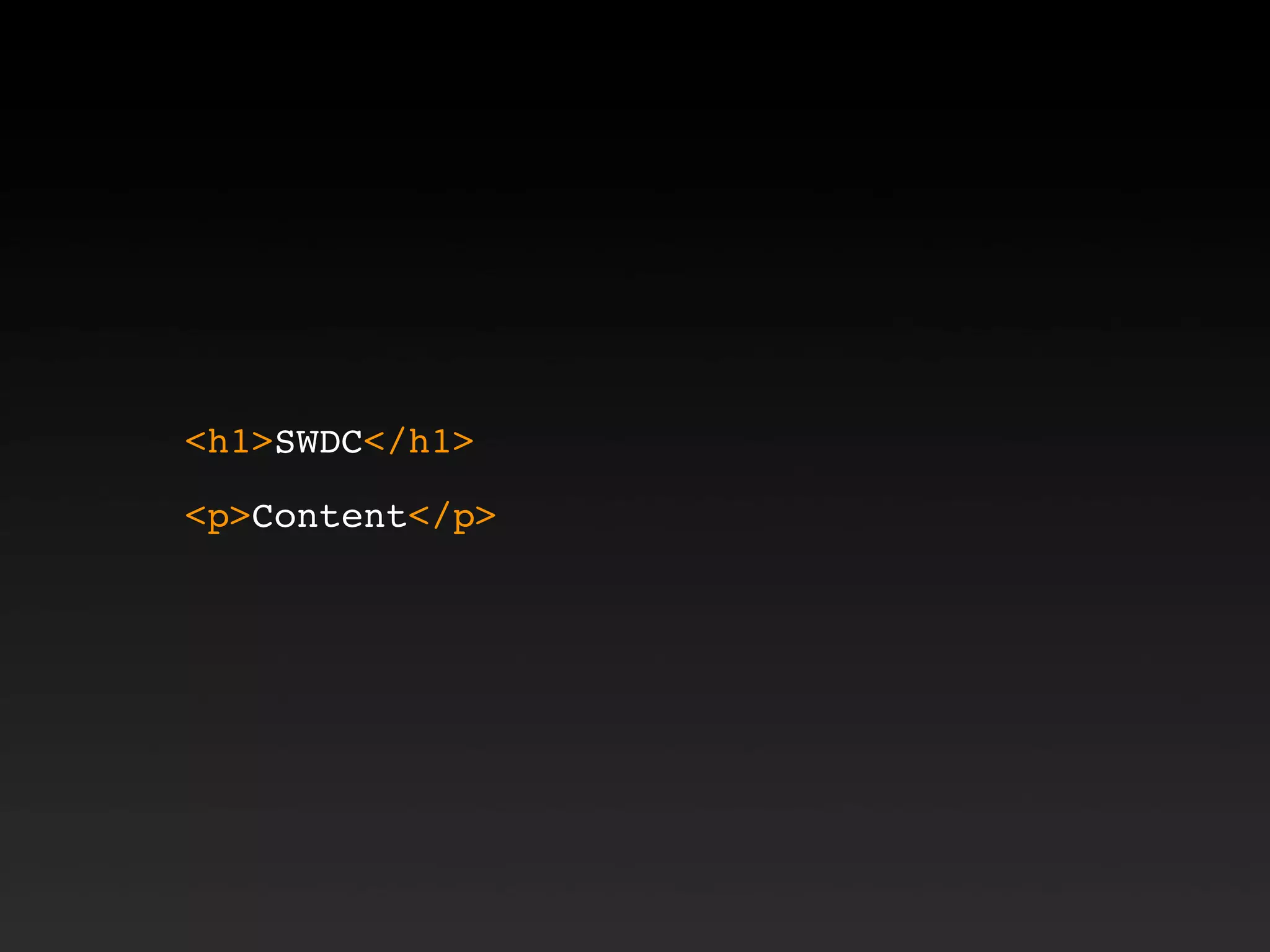

19. <h1>SWDC</h1>
<p>Content</p>

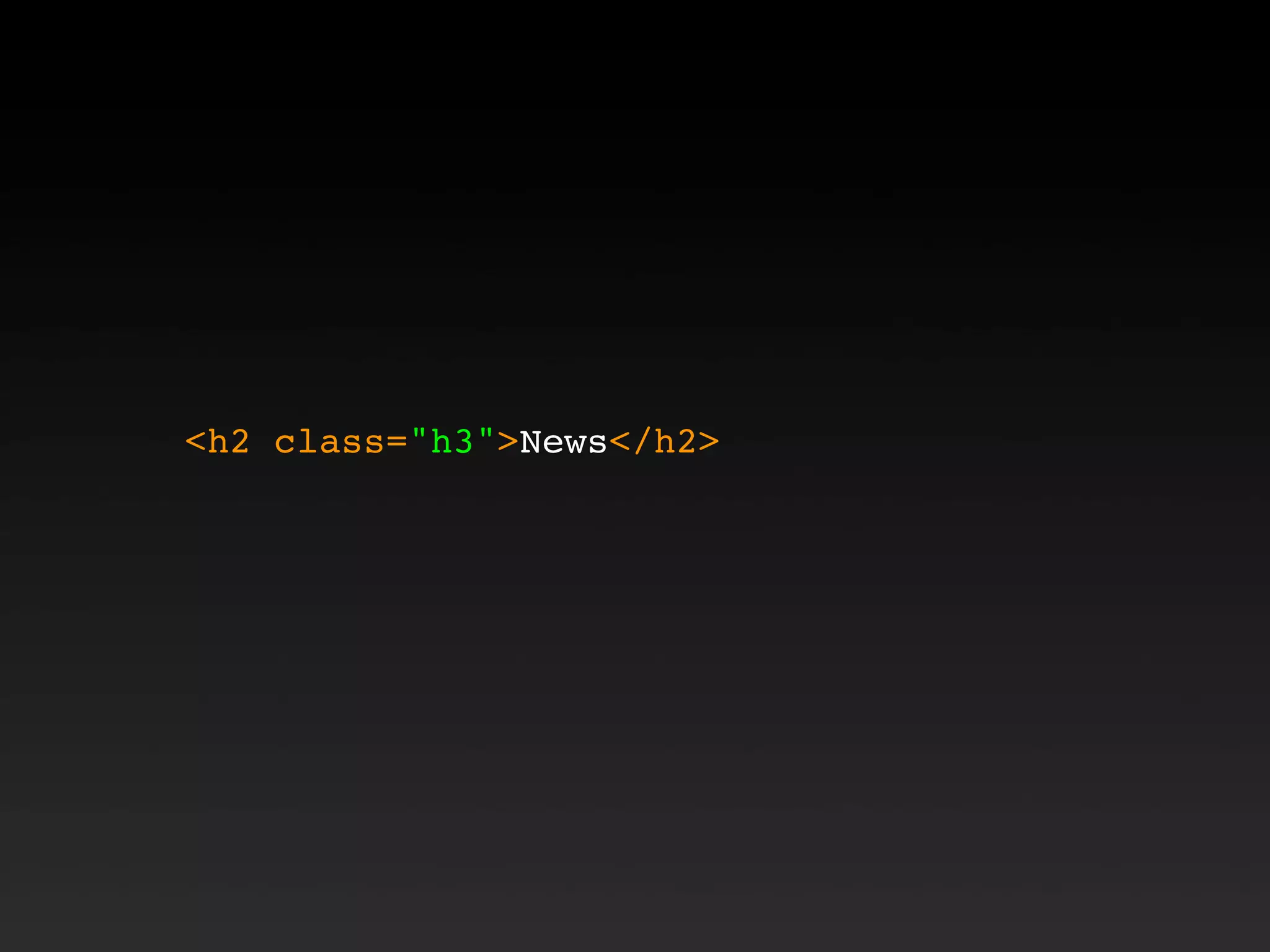

20. <h2 class="h3">News</h2>

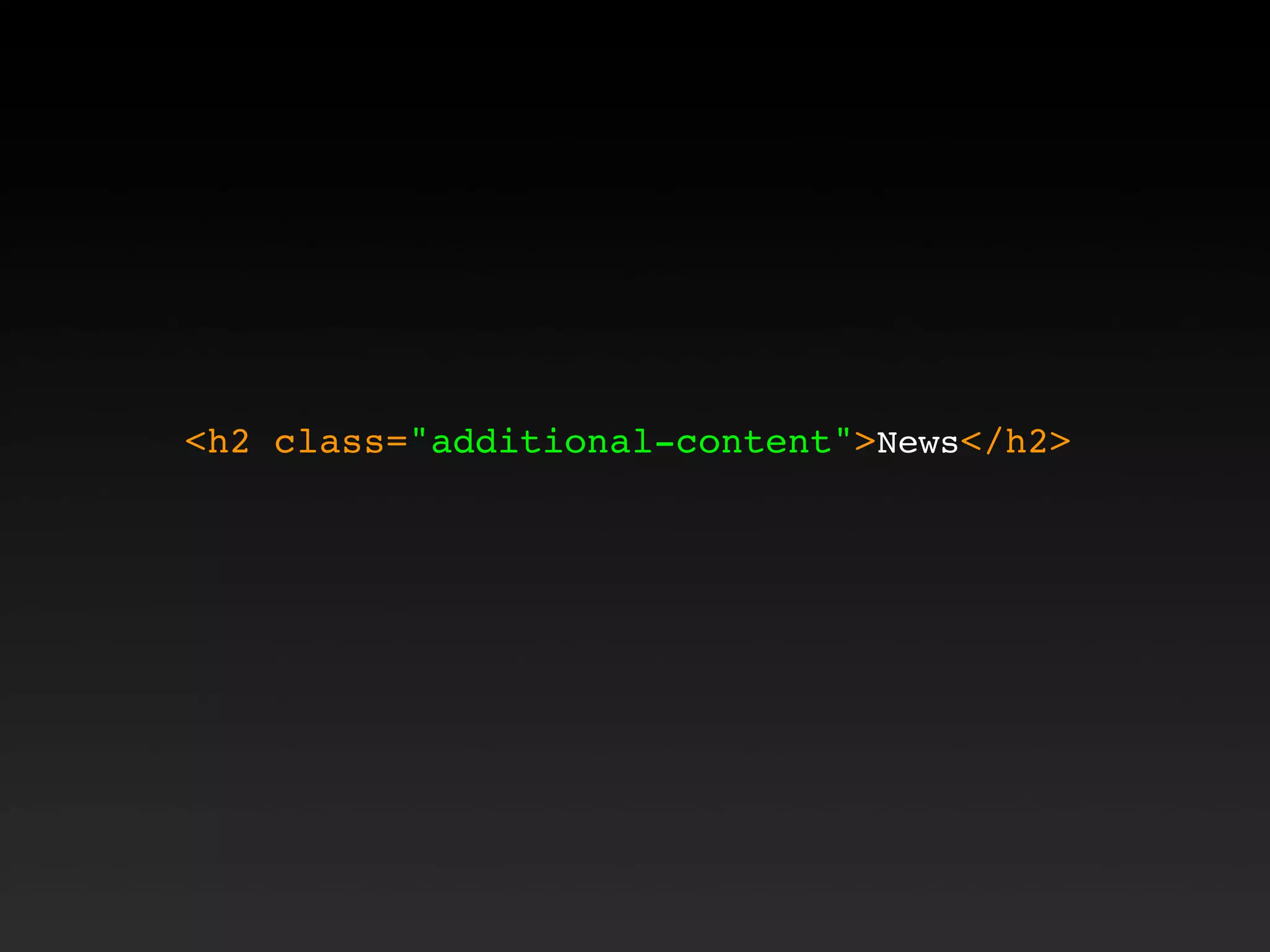

21. <h2 class="additional-content">News</h2>

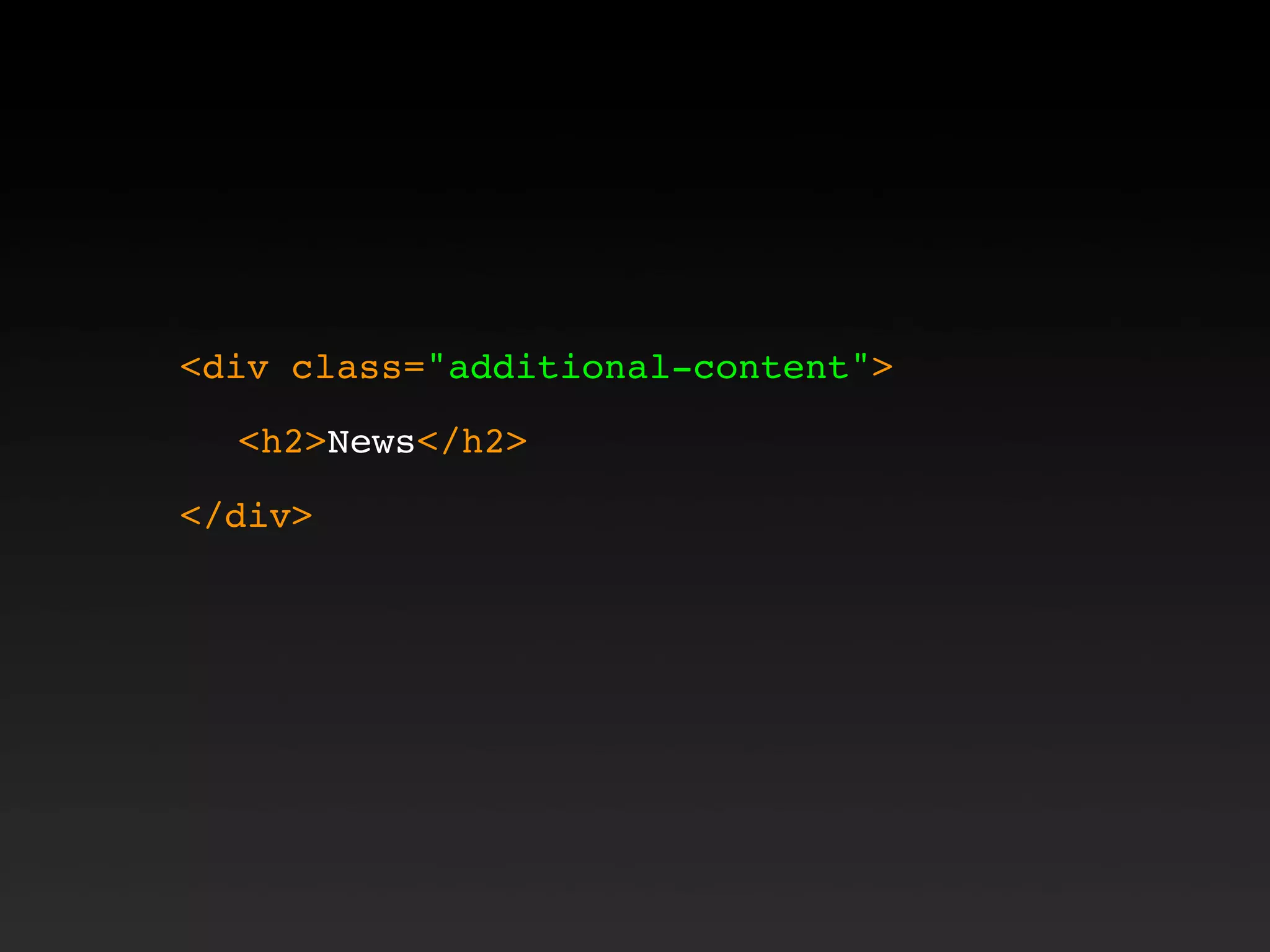

22. <div class="additional-content">
<h2>News</h2>
</div>

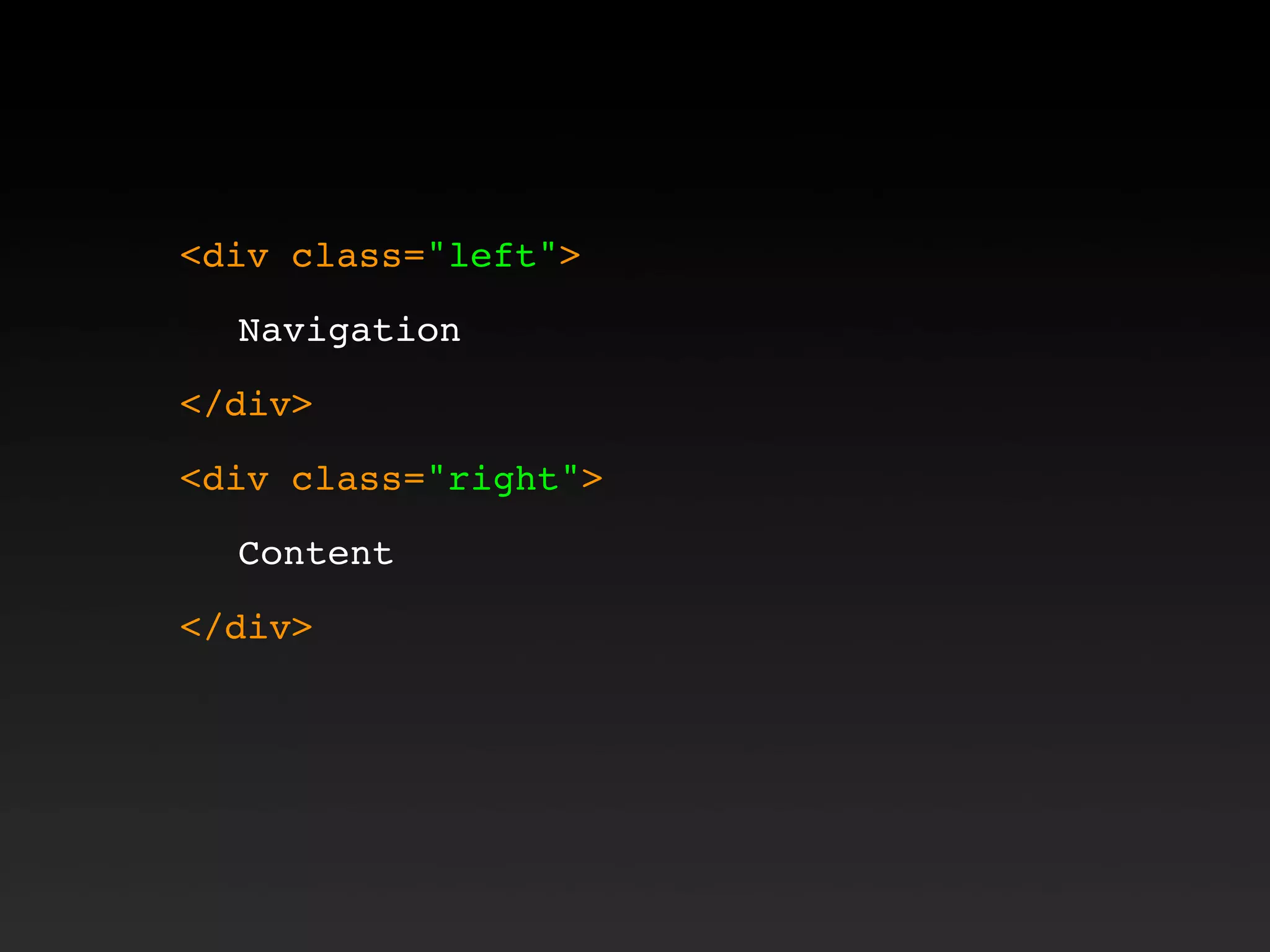

23. <div class="left">
Navigation
</div>
<div class="right">
Content
</div>

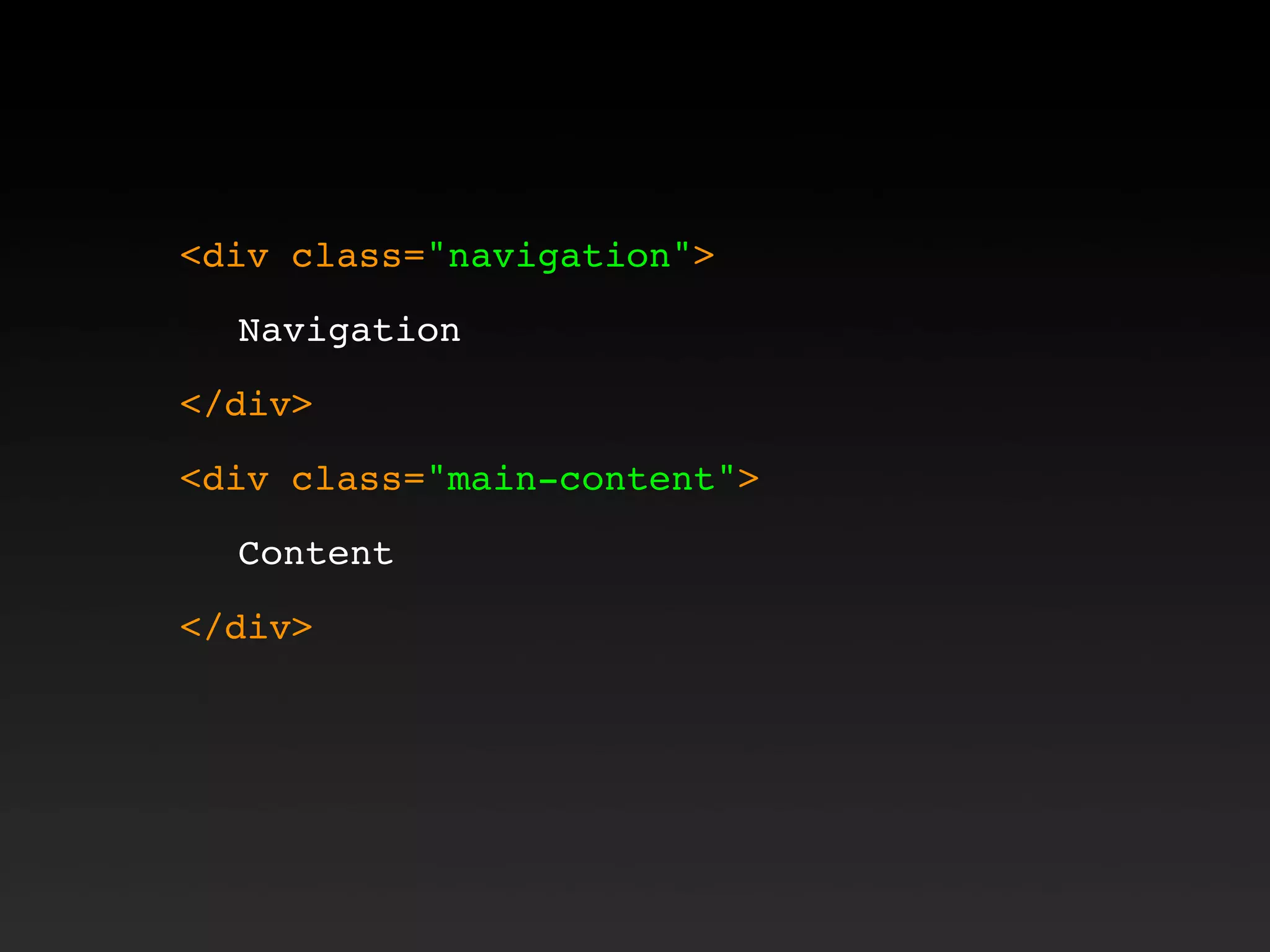

24. <div class="navigation">
Navigation
</div>
<div class="main-content">
Content
</div>

25. Separating layers

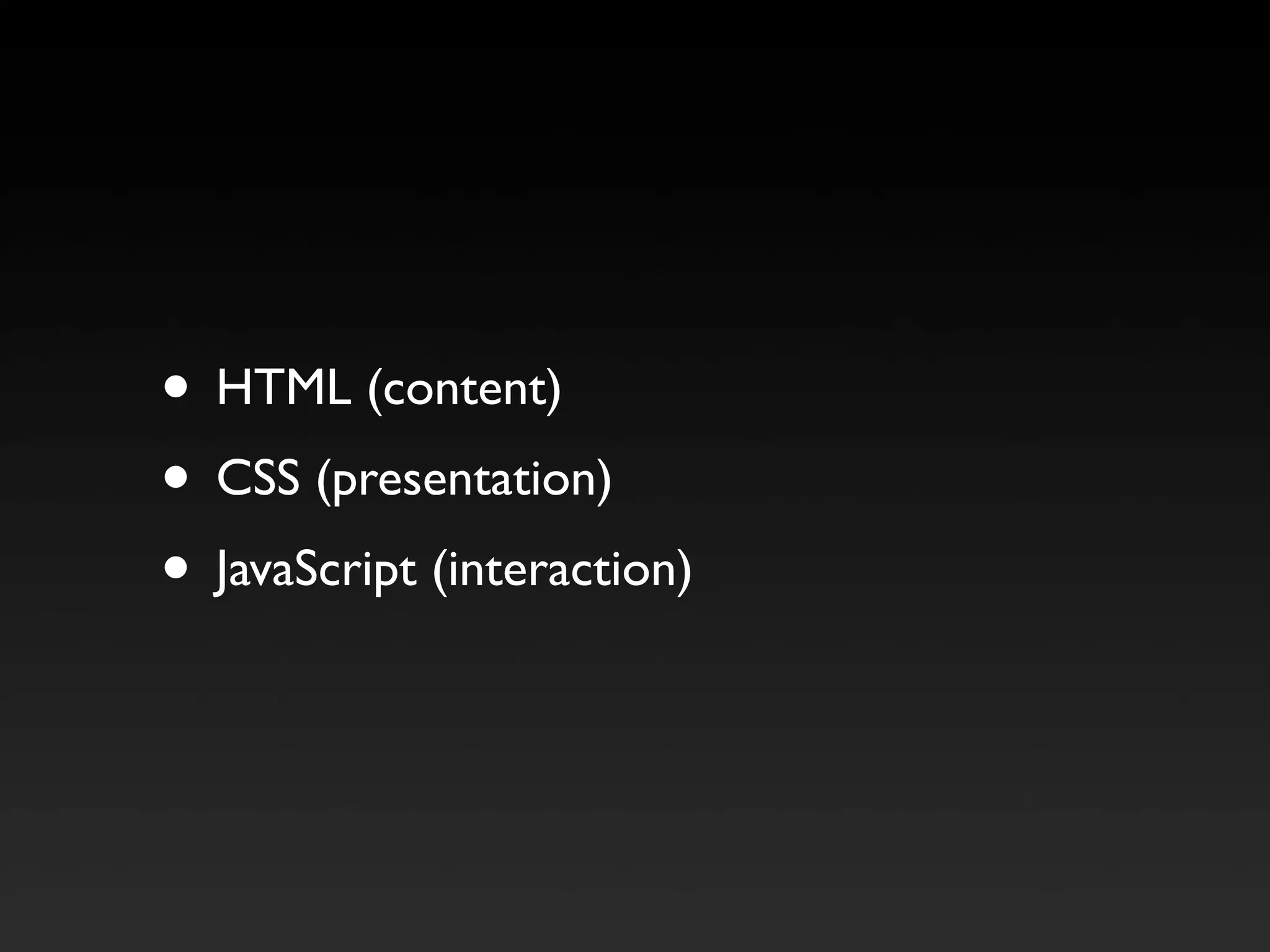

26. • HTML (content)
• CSS (presentation)
• JavaScript (interaction)

27. Why separating layers?

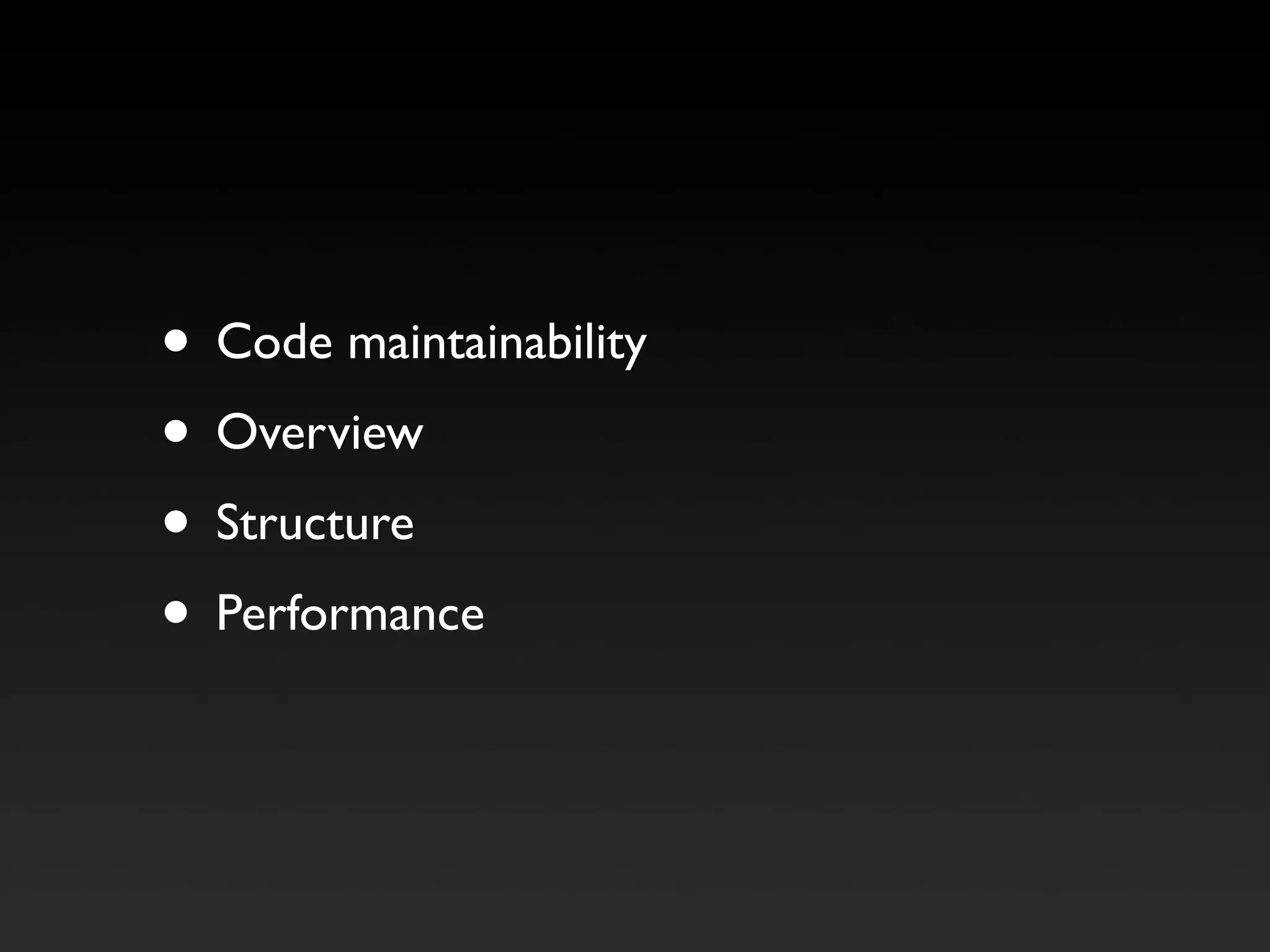

28. • Code maintainability
• Overview
• Structure
• Performance

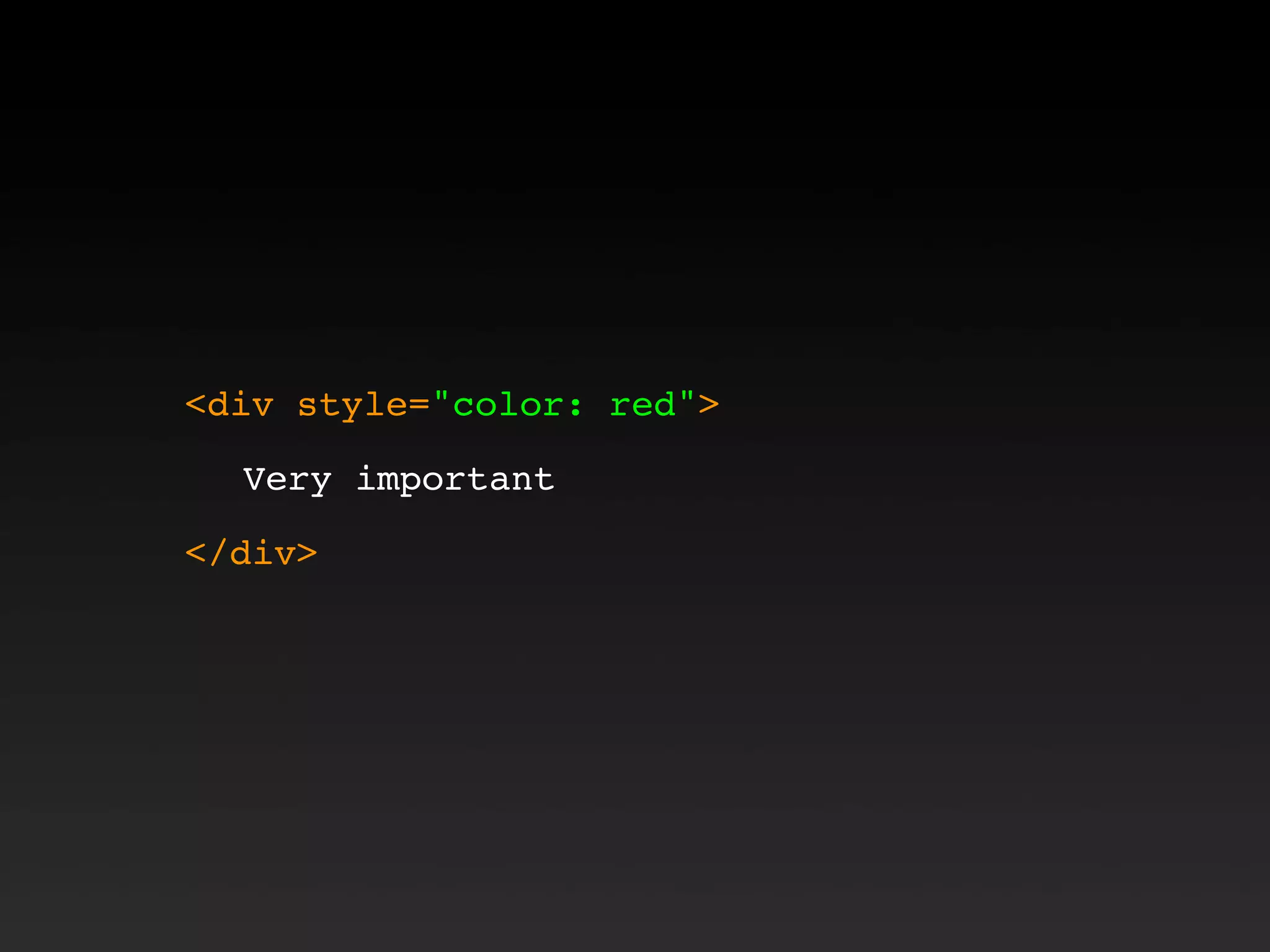

29. <div style="color: red">
Very important
</div>

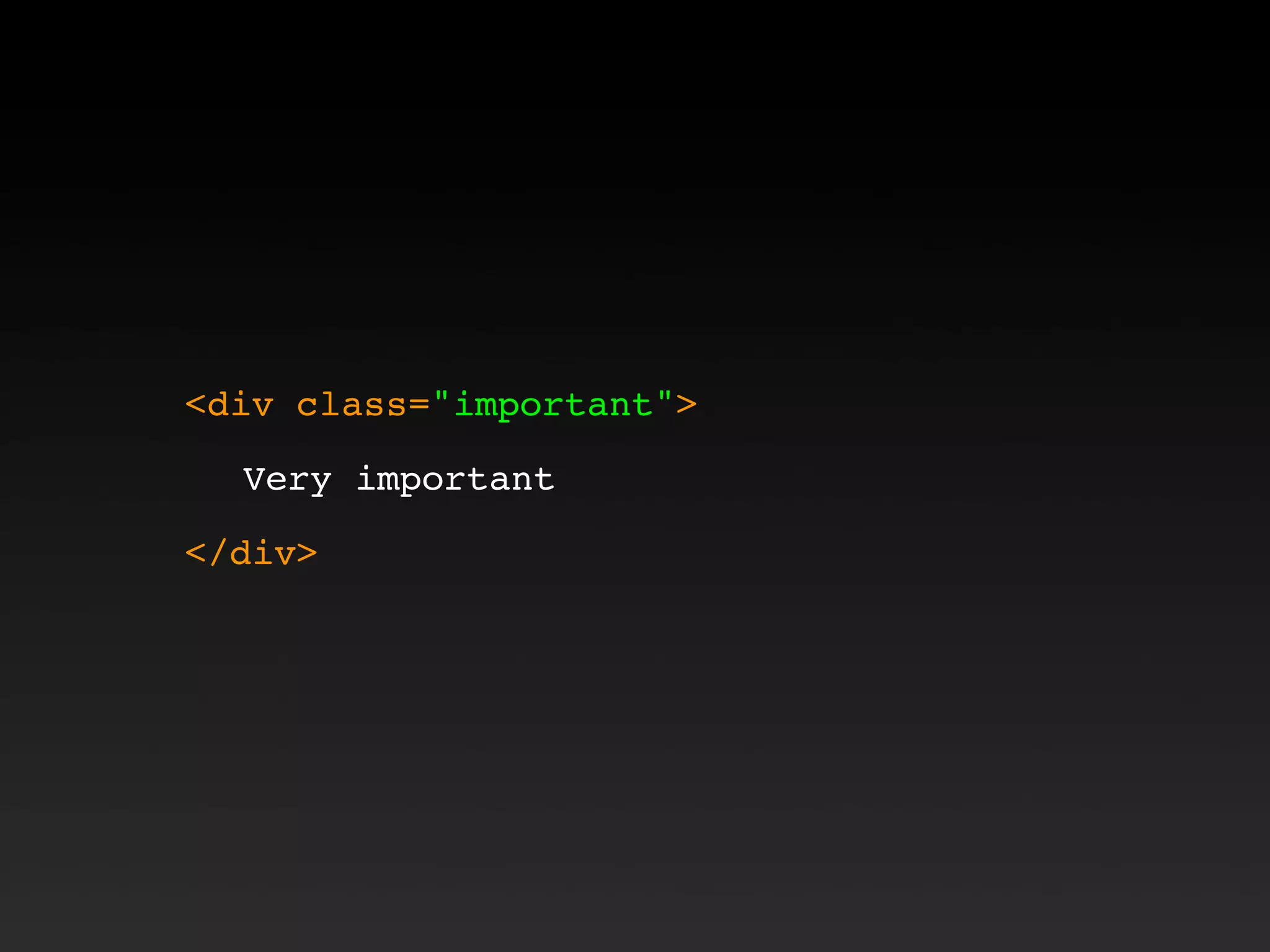

30. <div class="important">
Very important
</div>

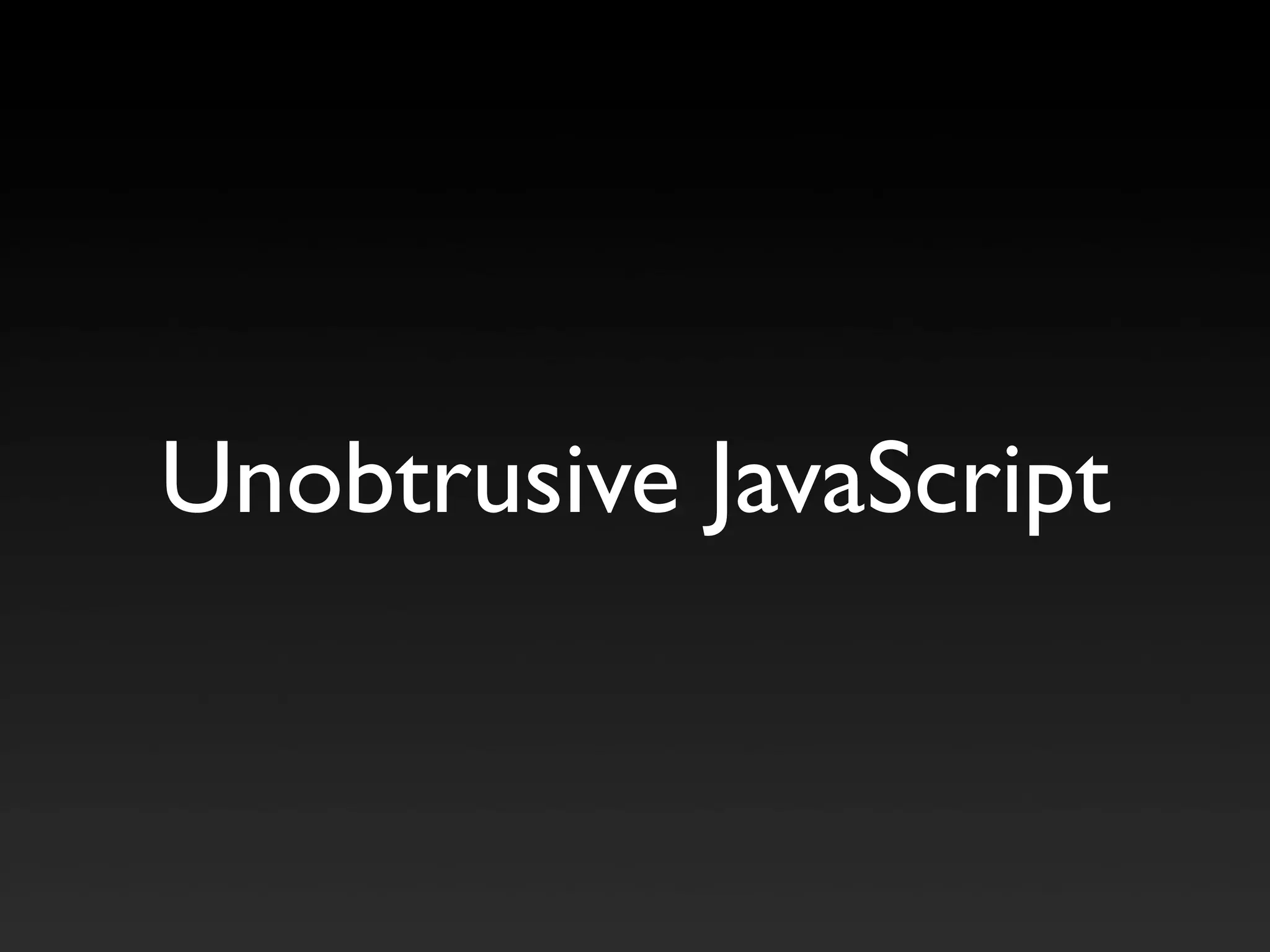

31. Unobtrusive JavaScript

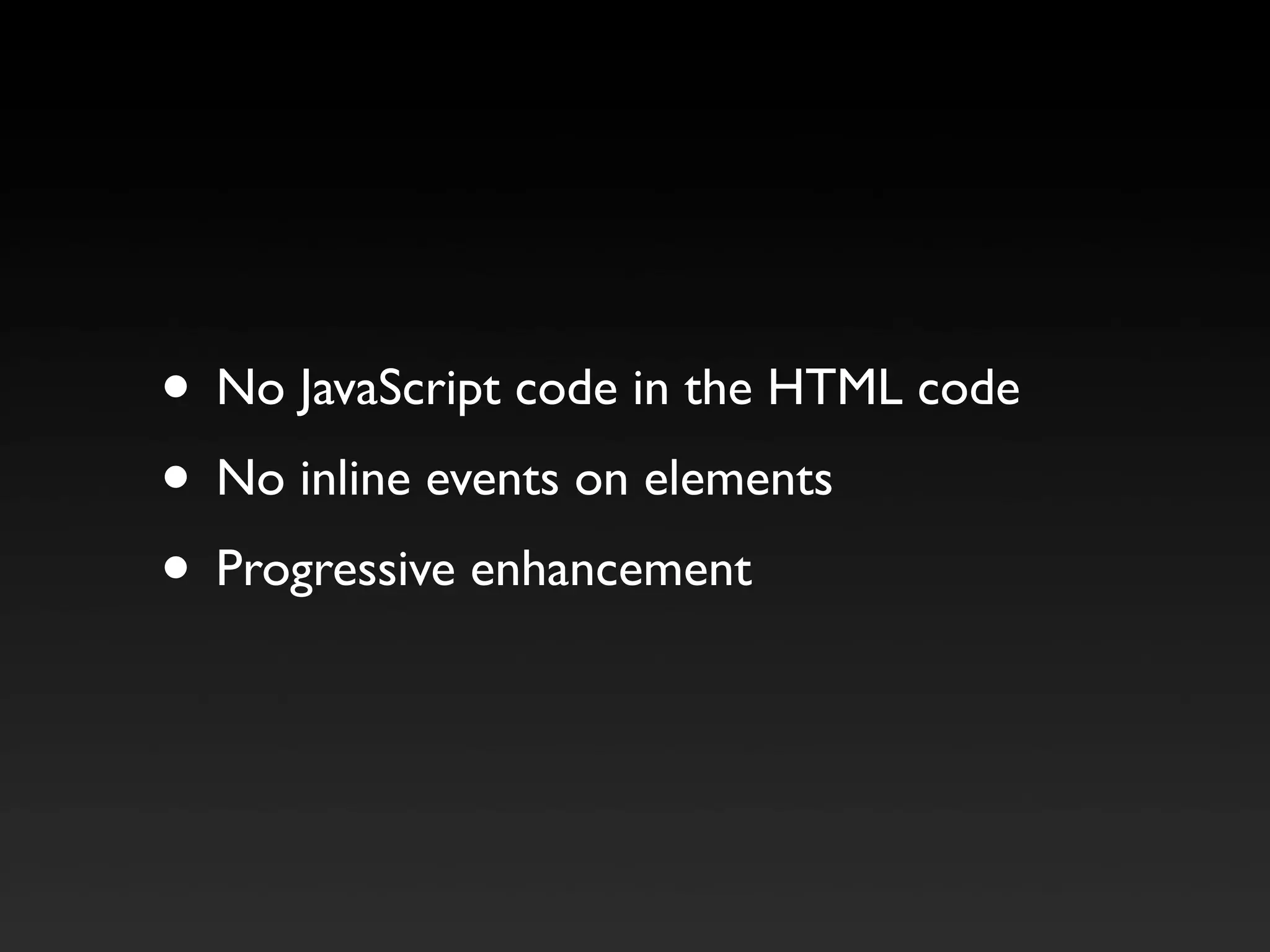

33. • No JavaScript code in the HTML code
• No inline events on elements
• Progressive enhancement

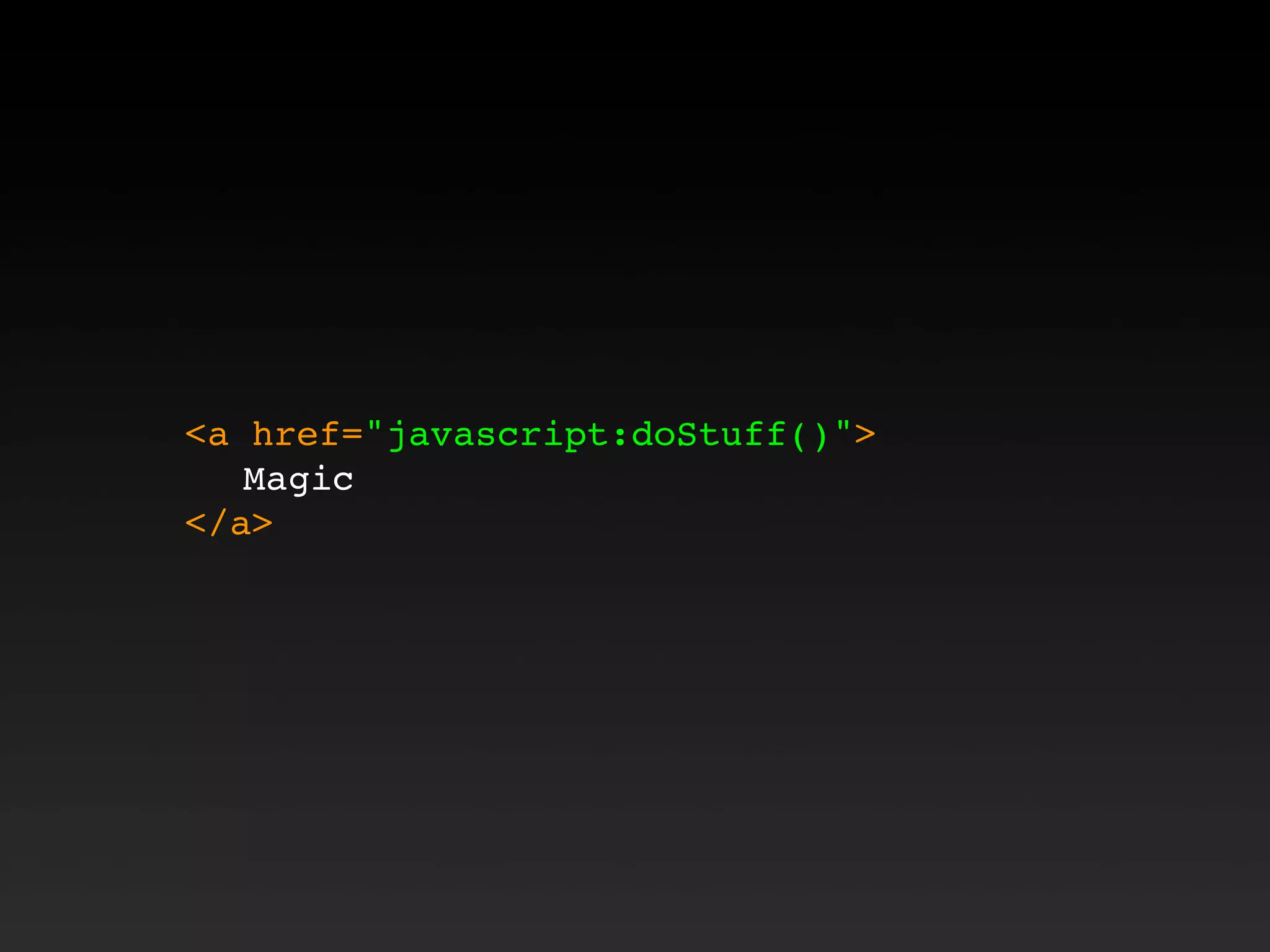

34. <a href="javascript:doStuff()">
Magic
</a>

35. <a href="#" onclick="doStuff(); return
false">
Magic
</a>

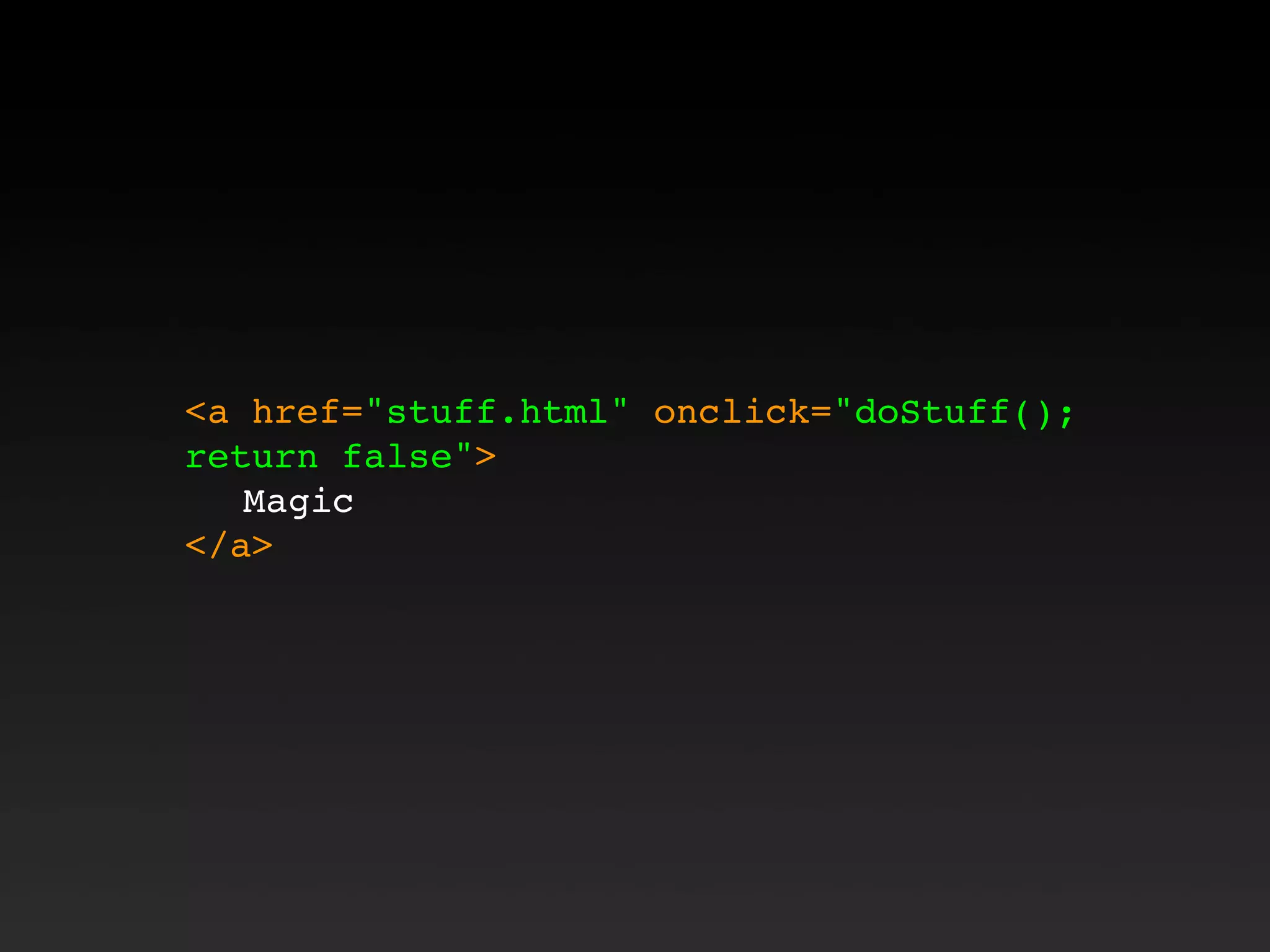

36. <a href="stuff.html" onclick="doStuff();
return false">
Magic
</a>

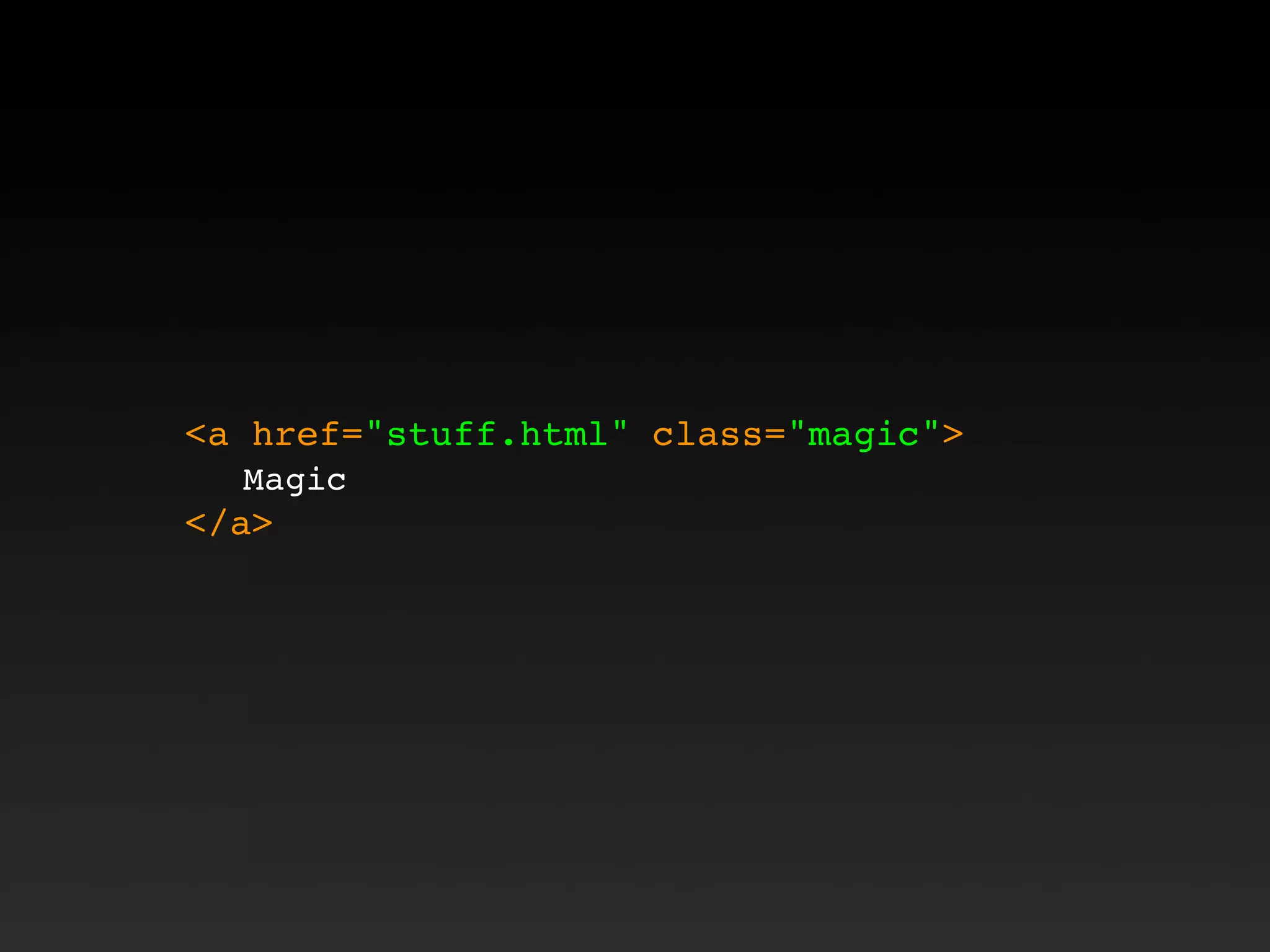

37. <a href="stuff.html" class="magic">
Magic
</a>

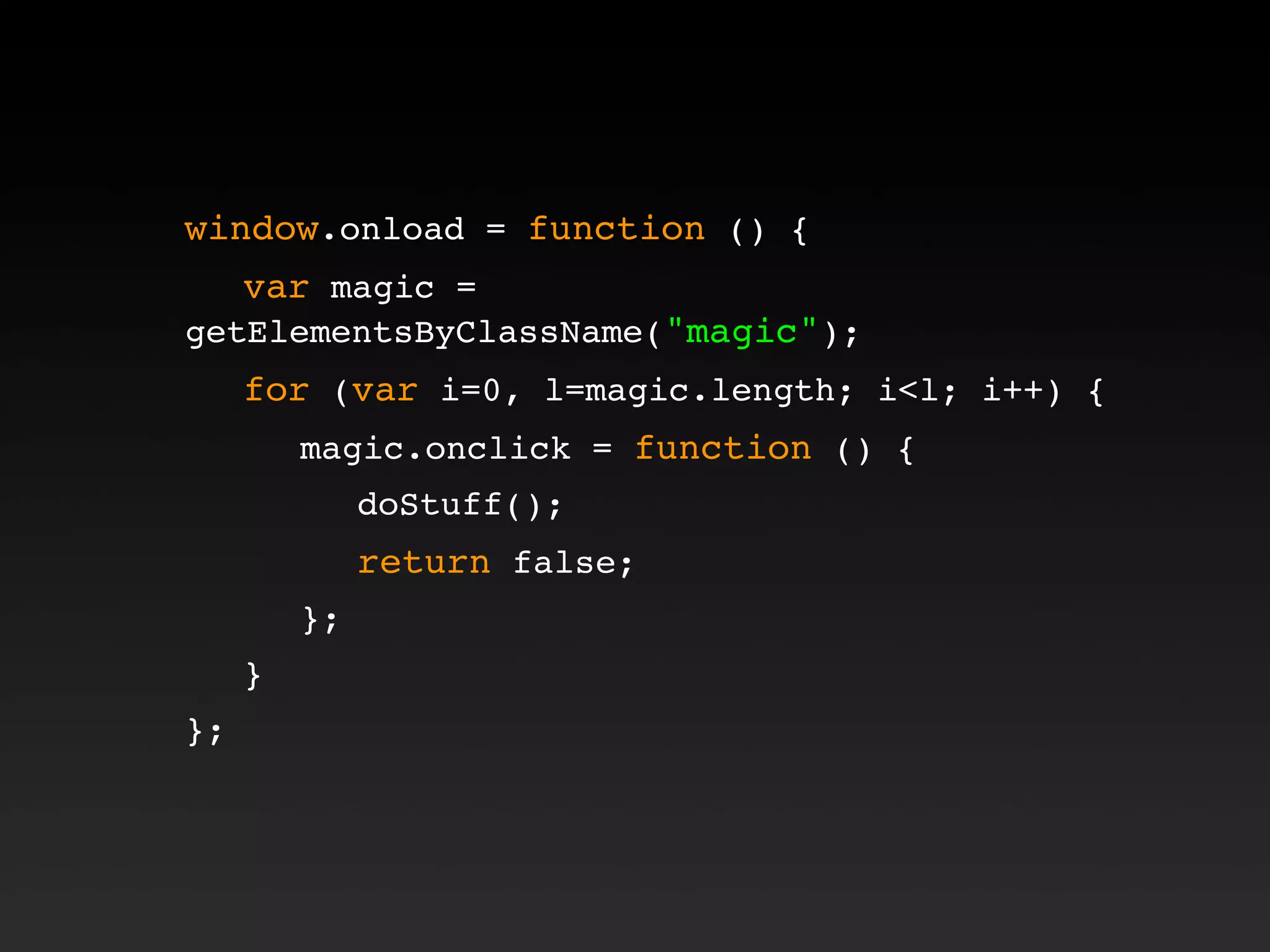

38. window.onload = function () {
var magic =
getElementsByClassName("magic");
for (var i=0, l=magic.length; i<l; i++) {
magic.onclick = function () {
doStuff();
return false;
};
}
};

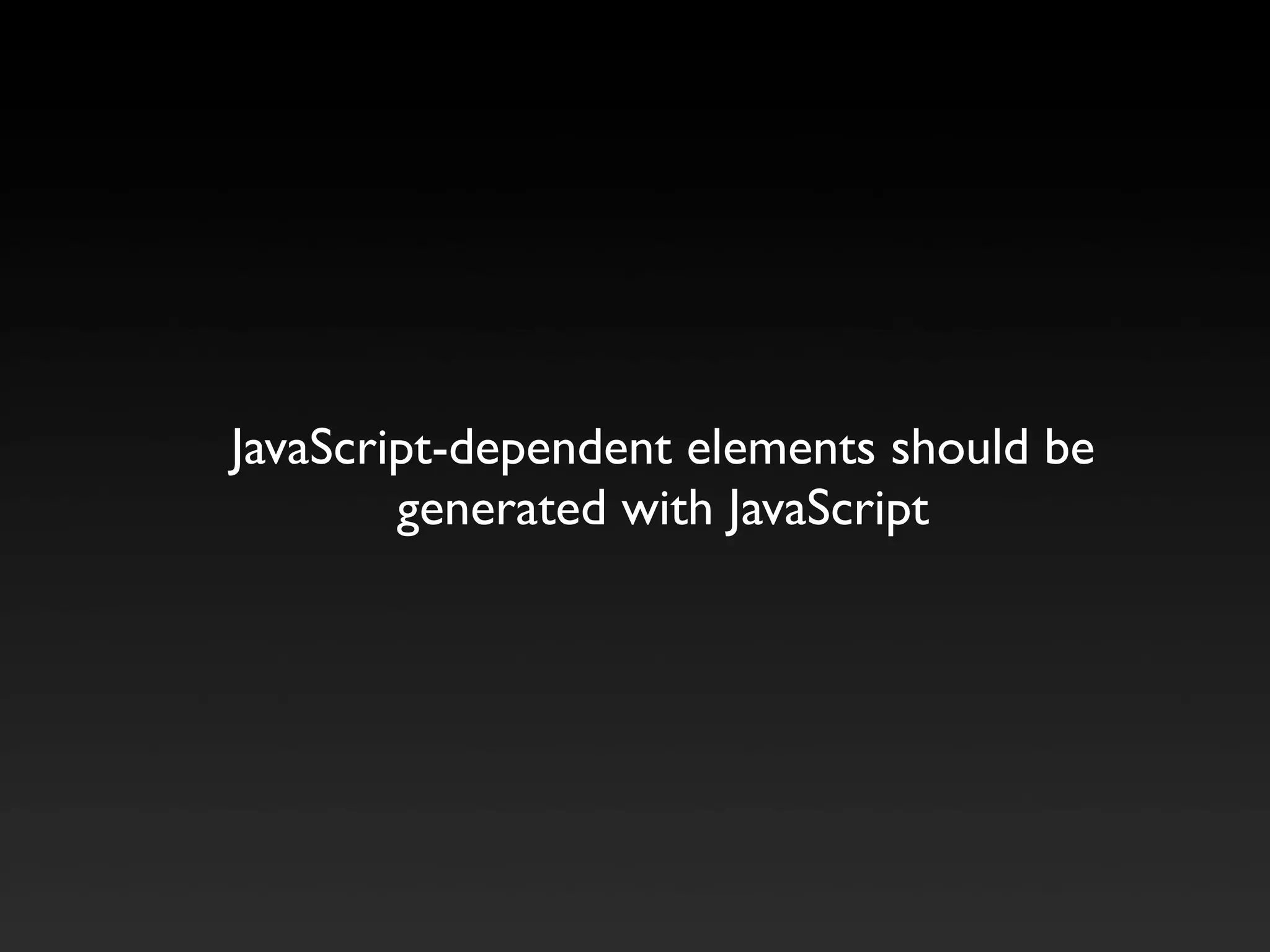

39. JavaScript-dependent elements should be
generated with JavaScript

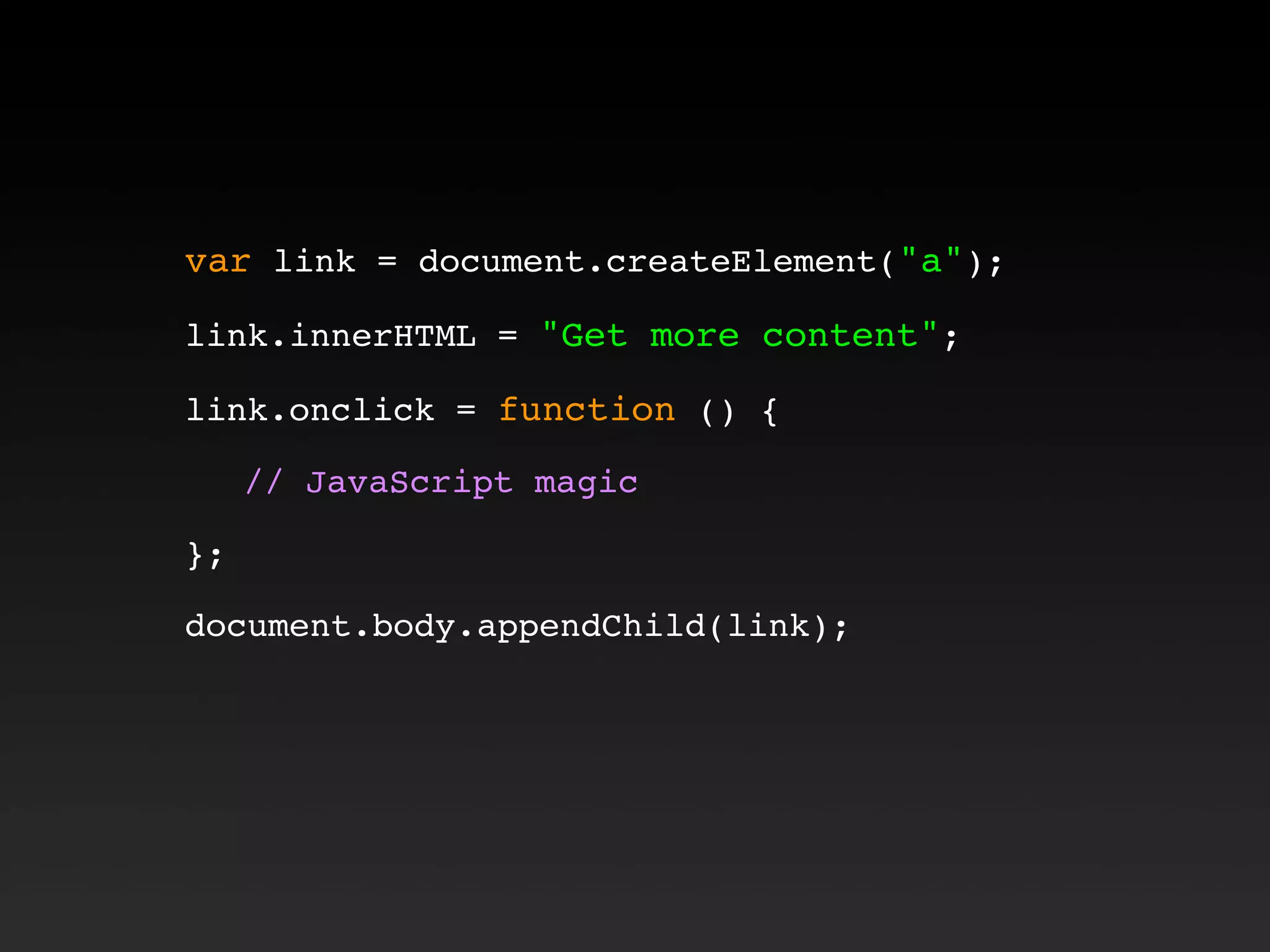

40. var link = document.createElement("a");
link.innerHTML = "Get more content";
link.onclick = function () {
// JavaScript magic
};
document.body.appendChild(link);

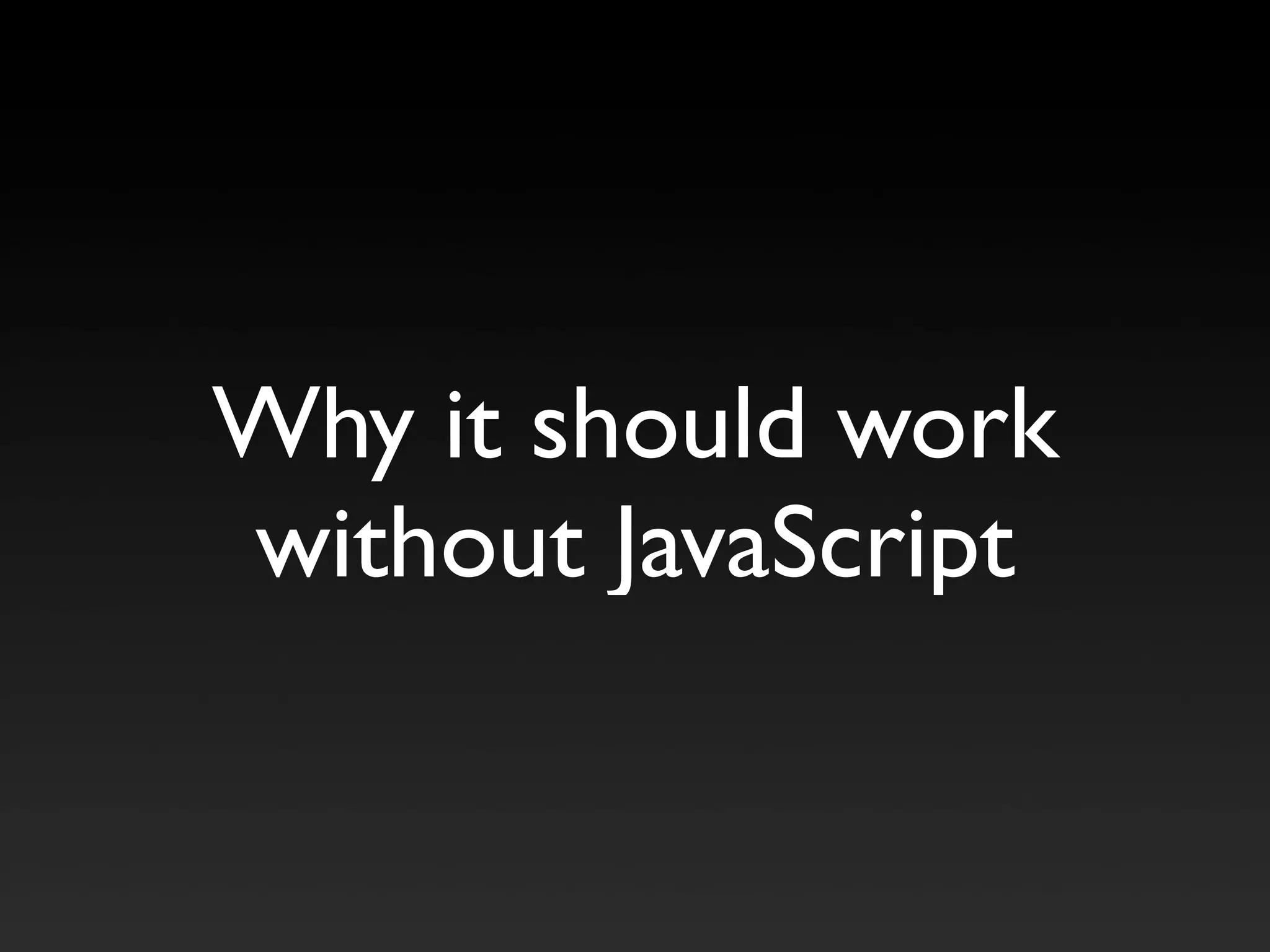

41. Why it should work
without JavaScript

42. A little case study of Sony Ericsson

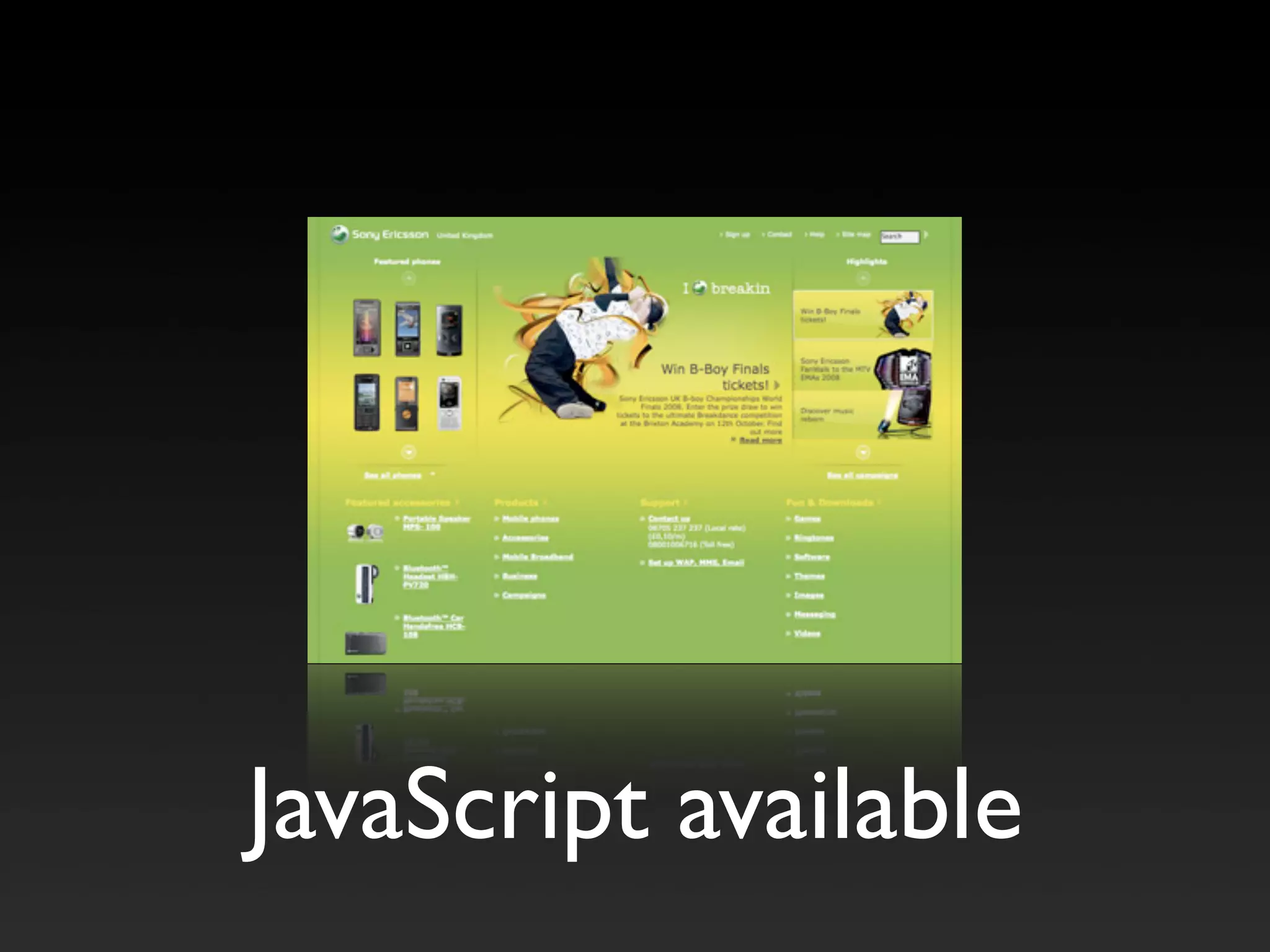

43. JavaScript available

44. No JavaScript

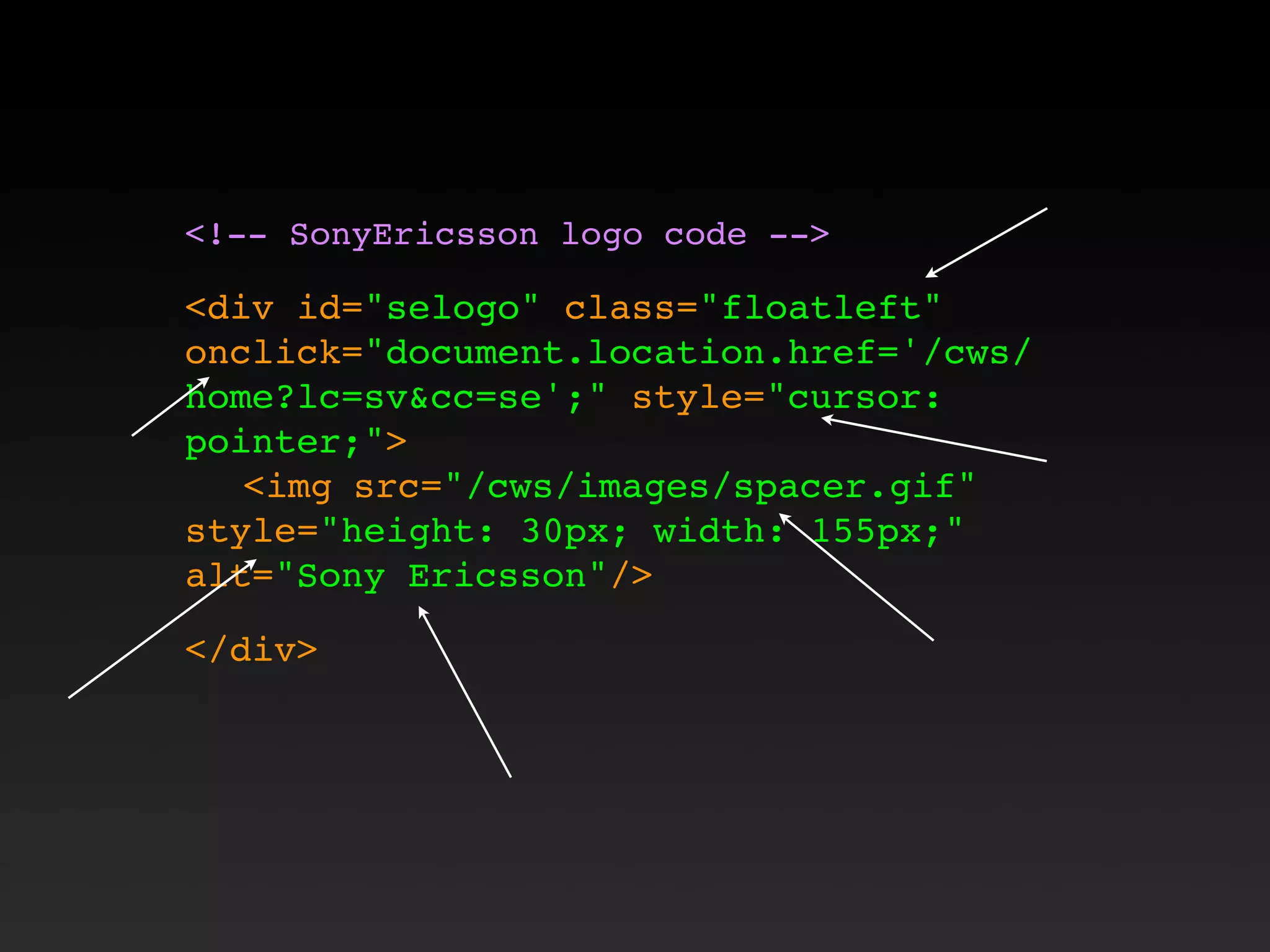

45. <!-- SonyEricsson logo code -->
<div id="selogo" class="floatleft"
onclick="document.location.href='/cws/
home?lc=sv&cc=se';" style="cursor:
pointer;">
<img src="/cws/images/spacer.gif"
style="height: 30px; width: 155px;"
alt="Sony Ericsson"/>
</div>

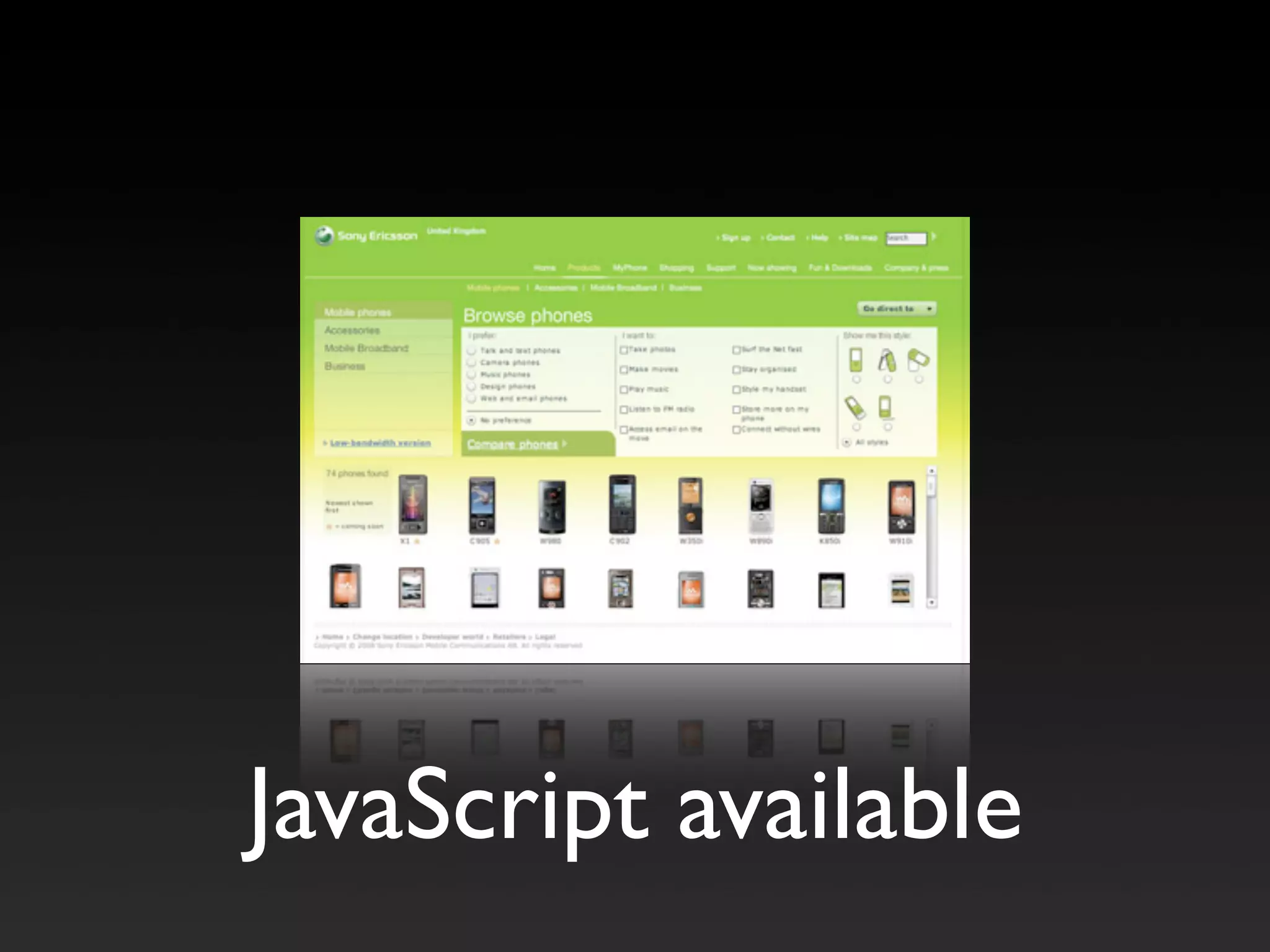

46. JavaScript available

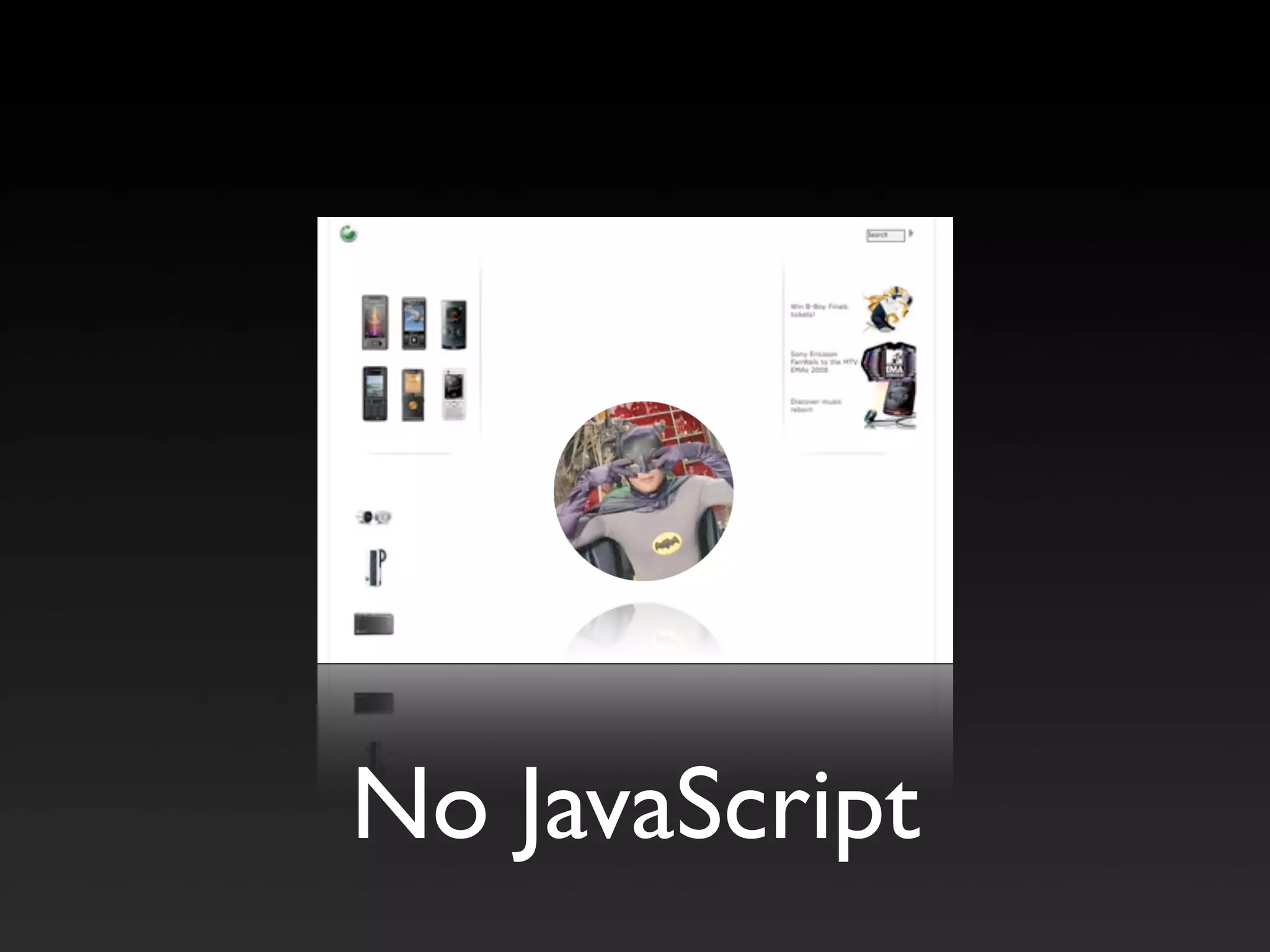

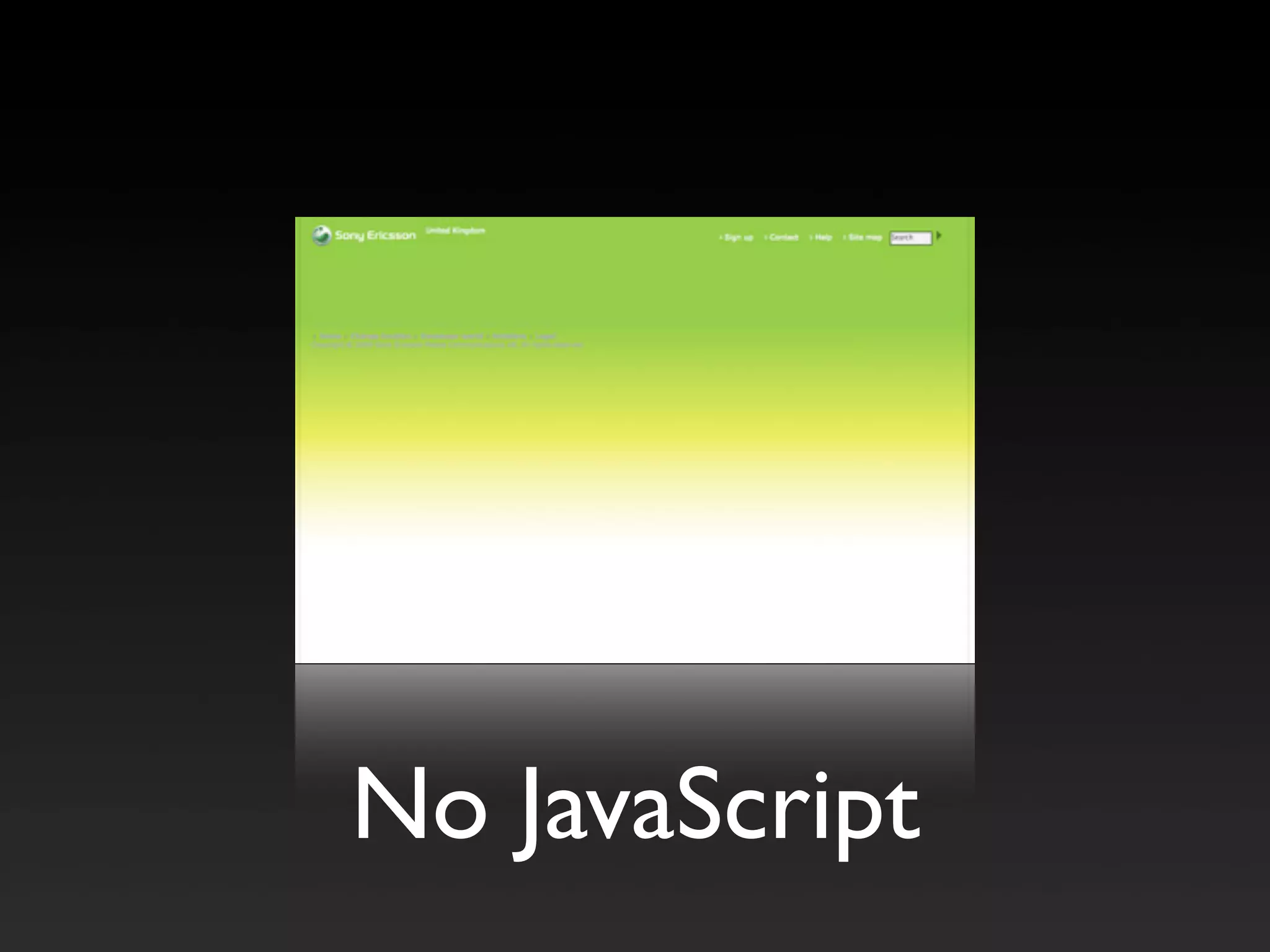

47. No JavaScript

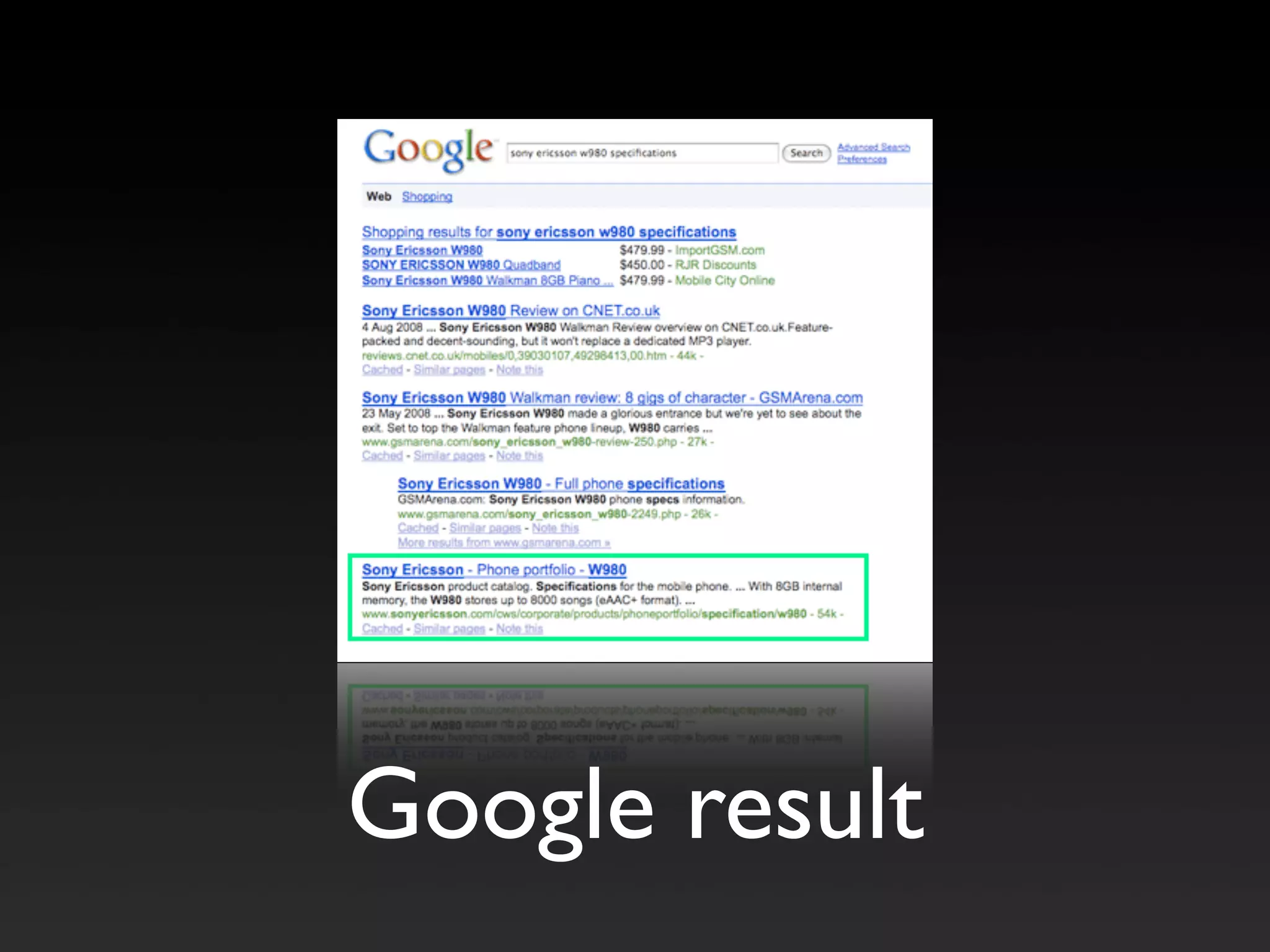

48. Google result

49. Performance

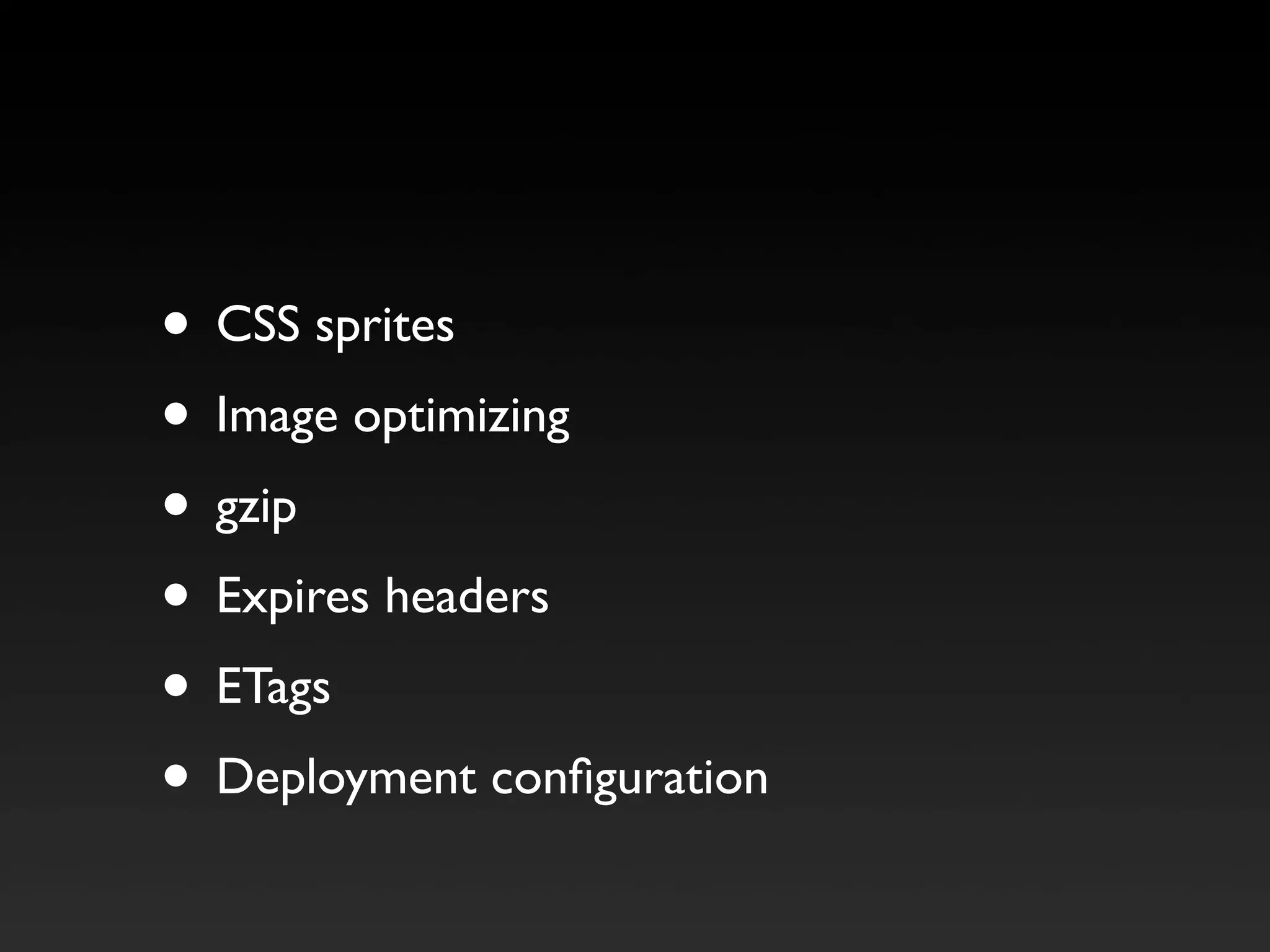

50. • CSS sprites
• Image optimizing
• gzip
• Expires headers
• ETags
• Deployment configuration

51. CSS Sprites

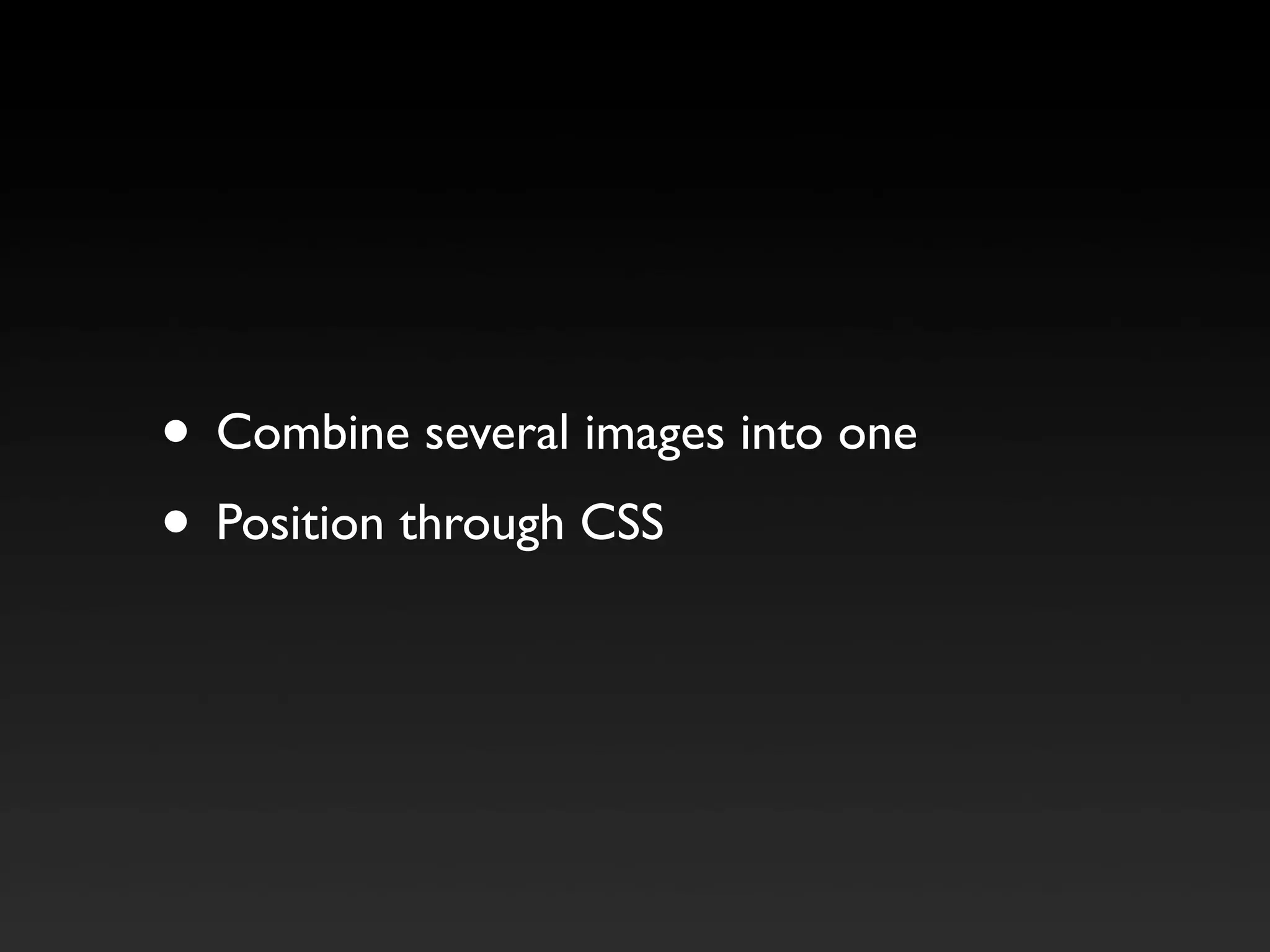

52. • Combine several images into one
• Position through CSS

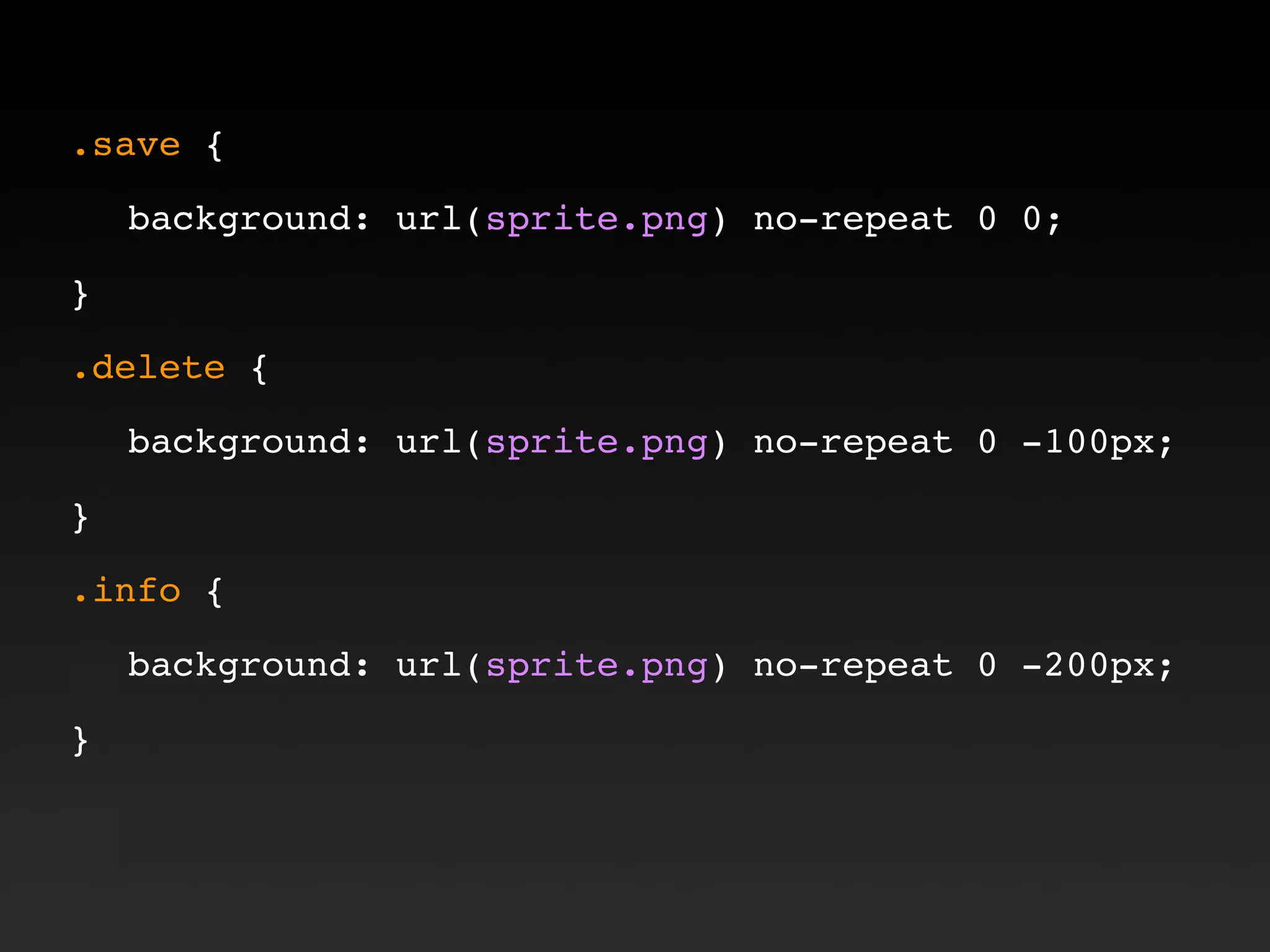

54. .save {
background: url(sprite.png) no-repeat 0 0;
}
.delete {
background: url(sprite.png) no-repeat 0 -100px;
}
.info {
background: url(sprite.png) no-repeat 0 -200px;
}

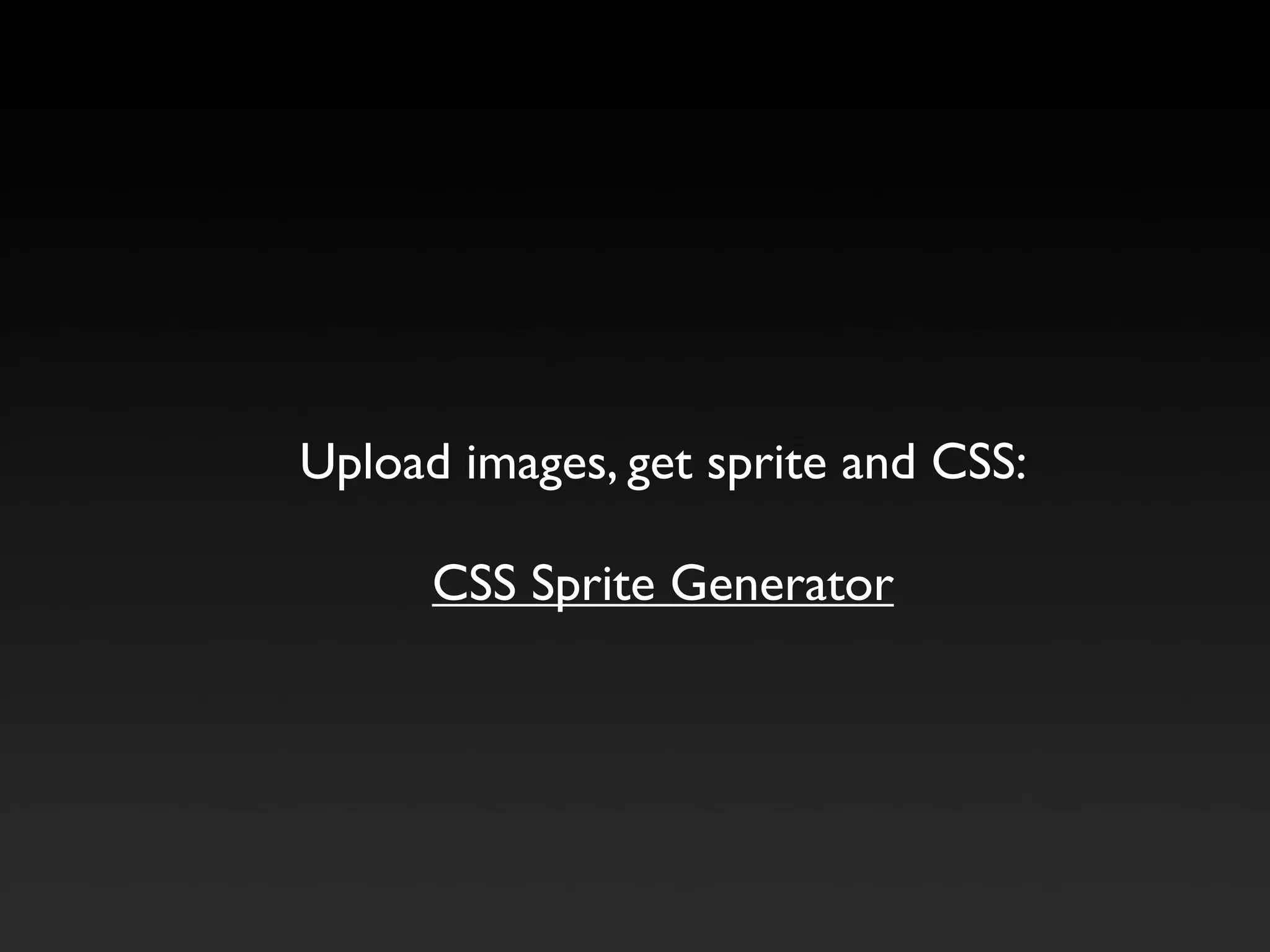

55. Upload images, get sprite and CSS:
CSS Sprite Generator

56. Image optimizing

58. • Combines many open-source optimizers
• Lossless compression
• Removing superfluous metadata

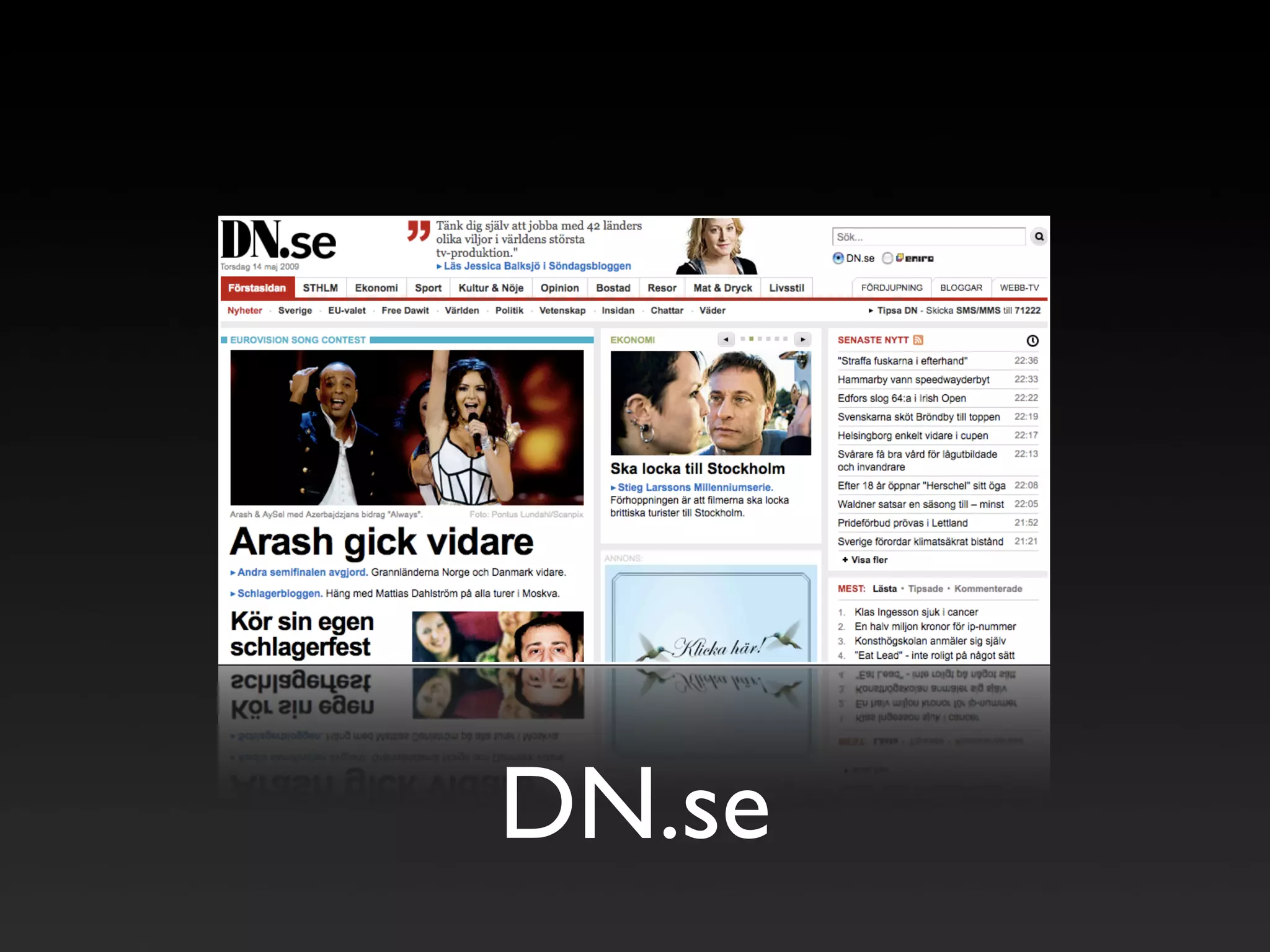

59. DN.se

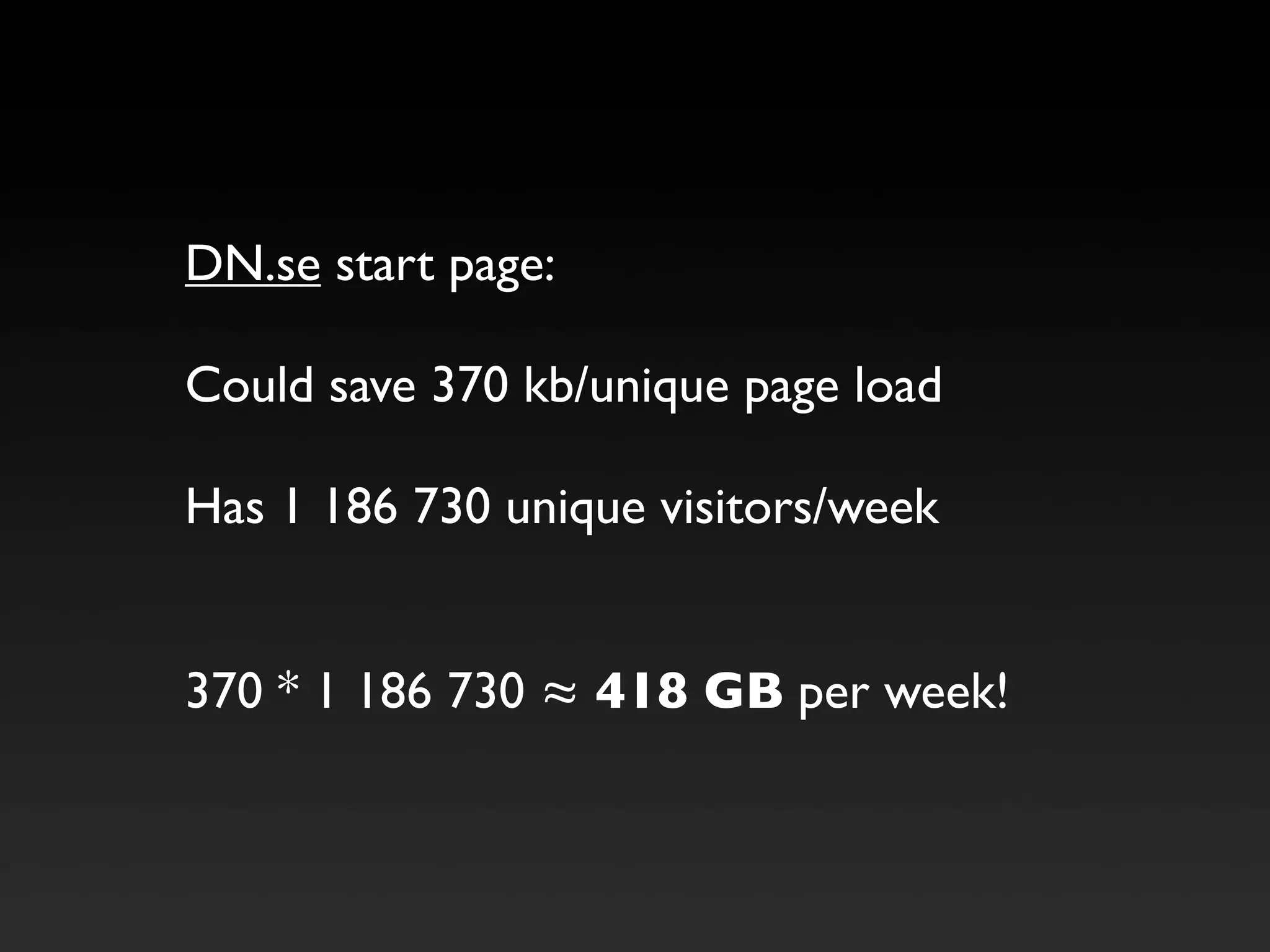

60. DN.se start page:
Could save 370 kb/unique page load
Has 1 186 730 unique visitors/week
370 * 1 186 730 ≈ 418 GB per week!

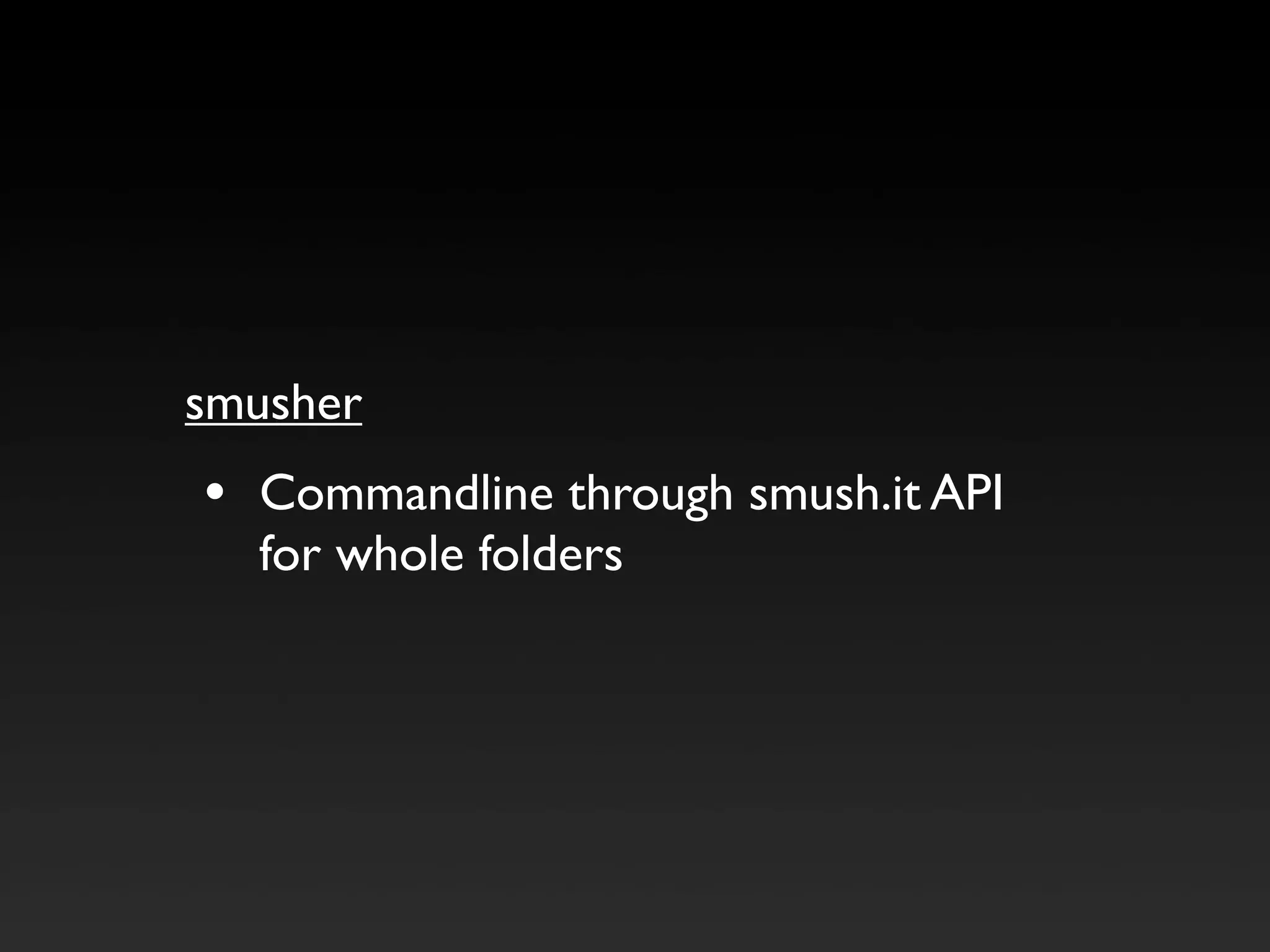

61. smusher
• Commandline through smush.it API
for whole folders

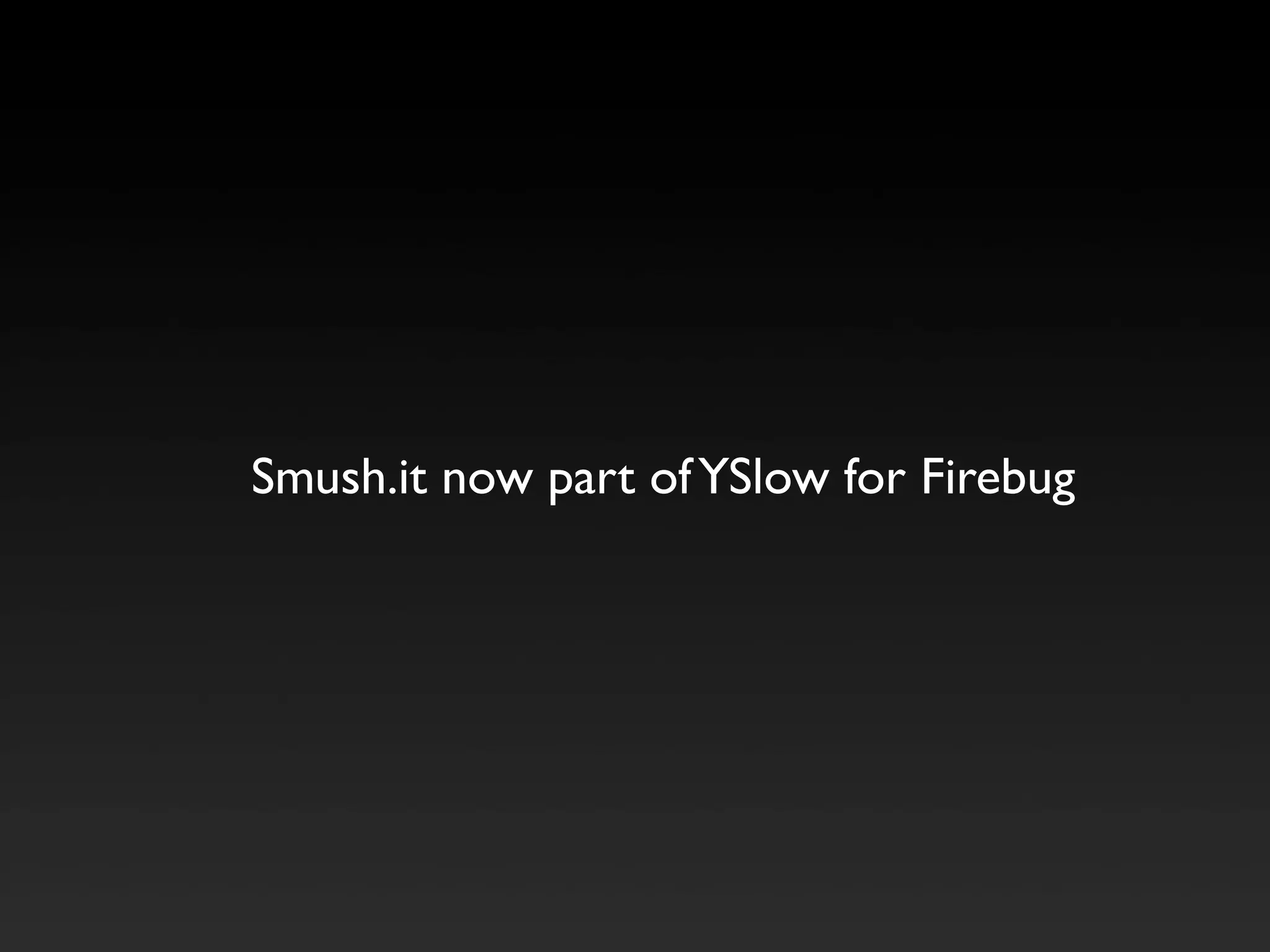

62. Smush.it now part of YSlow for Firebug

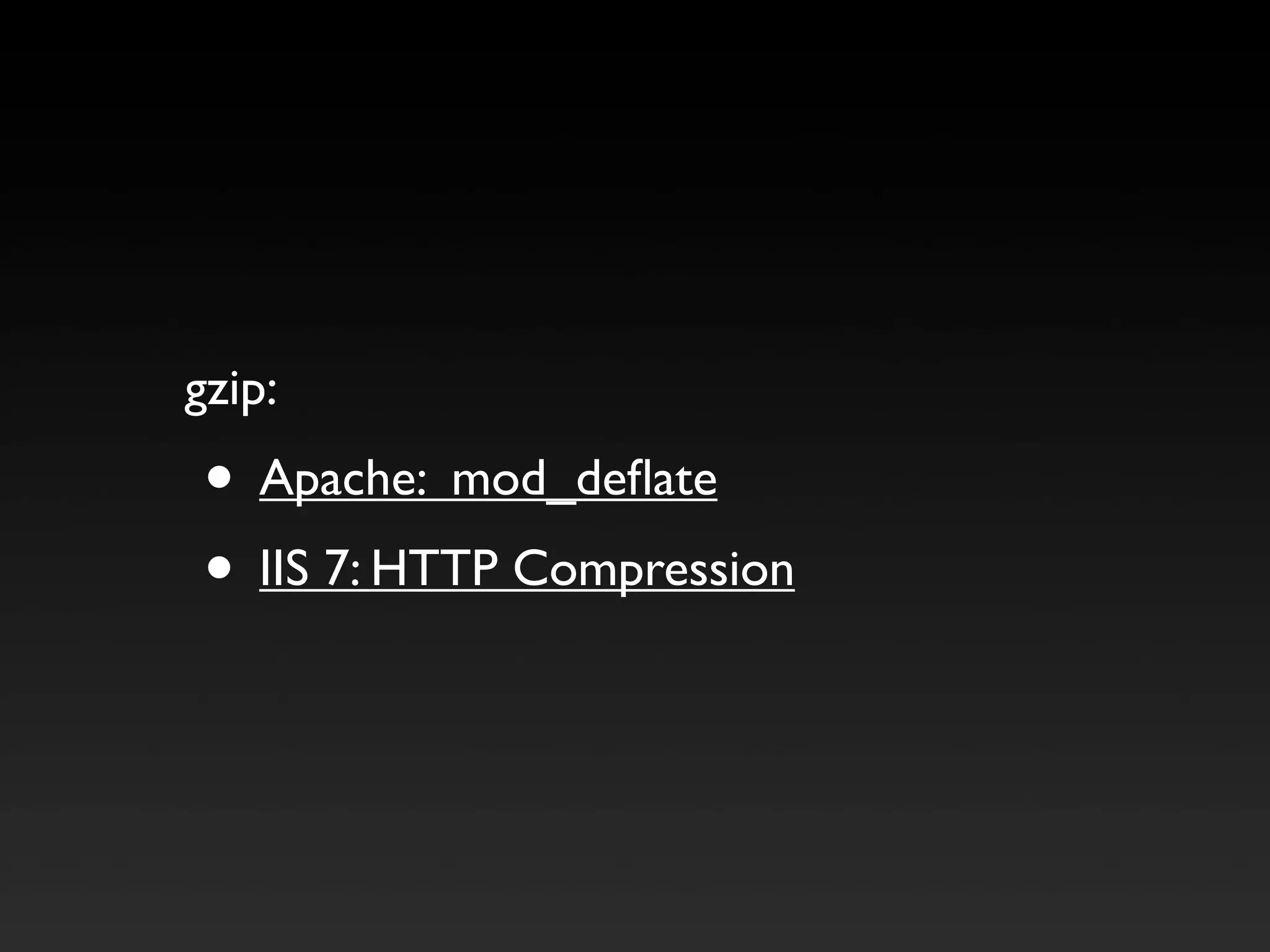

63. gzip:
• Apache: mod_deflate
• IIS 7: HTTP Compression

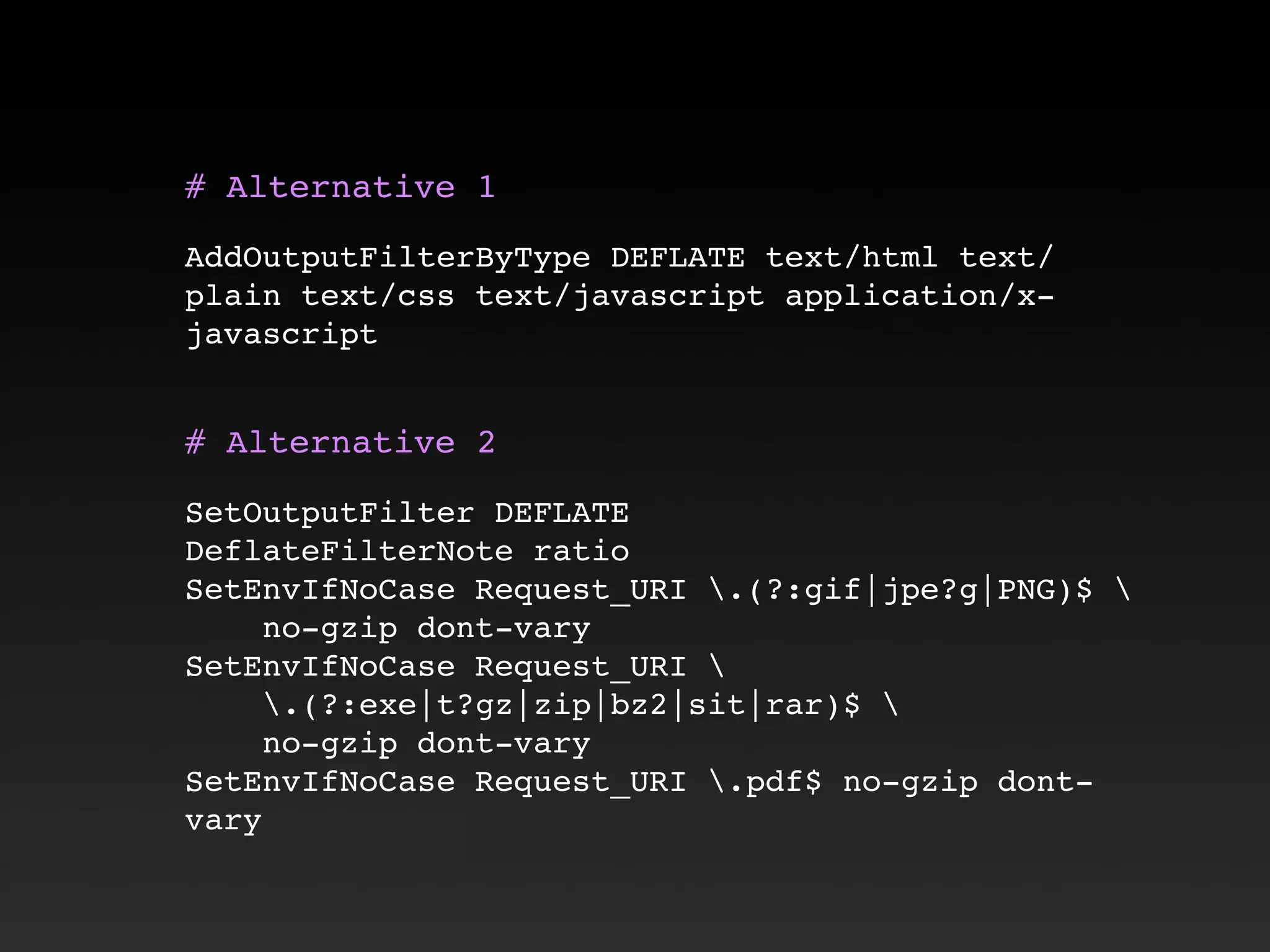

64. # Alternative 1
AddOutputFilterByType DEFLATE text/html text/
plain text/css text/javascript application/x-
javascript
# Alternative 2
SetOutputFilter DEFLATE
DeflateFilterNote ratio
SetEnvIfNoCase Request_URI .(?:gif|jpe?g|PNG)$
no-gzip dont-vary
SetEnvIfNoCase Request_URI
.(?:exe|t?gz|zip|bz2|sit|rar)$
no-gzip dont-vary
SetEnvIfNoCase Request_URI .pdf$ no-gzip dont-
vary

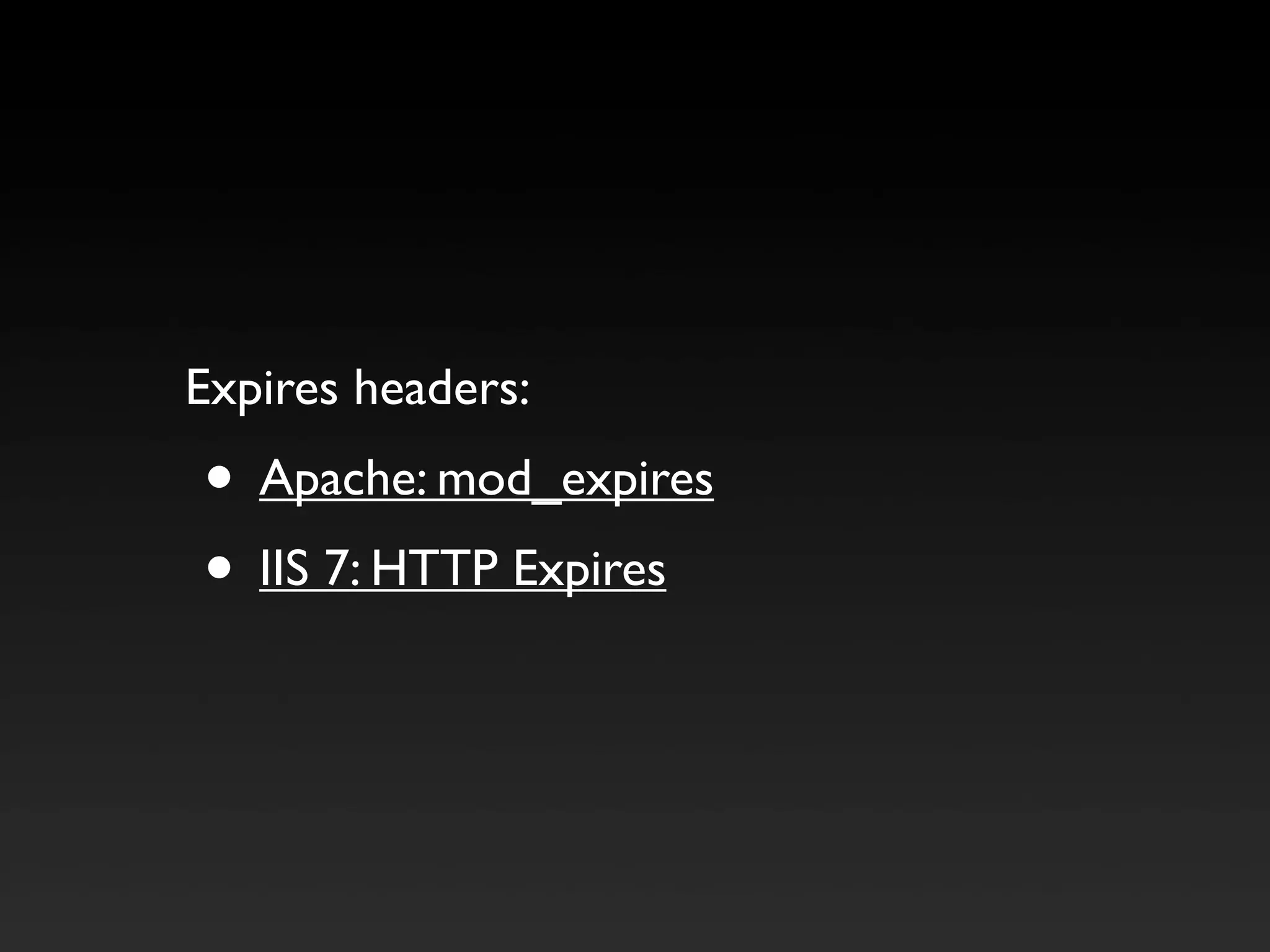

65. Expires headers:
• Apache: mod_expires
• IIS 7: HTTP Expires

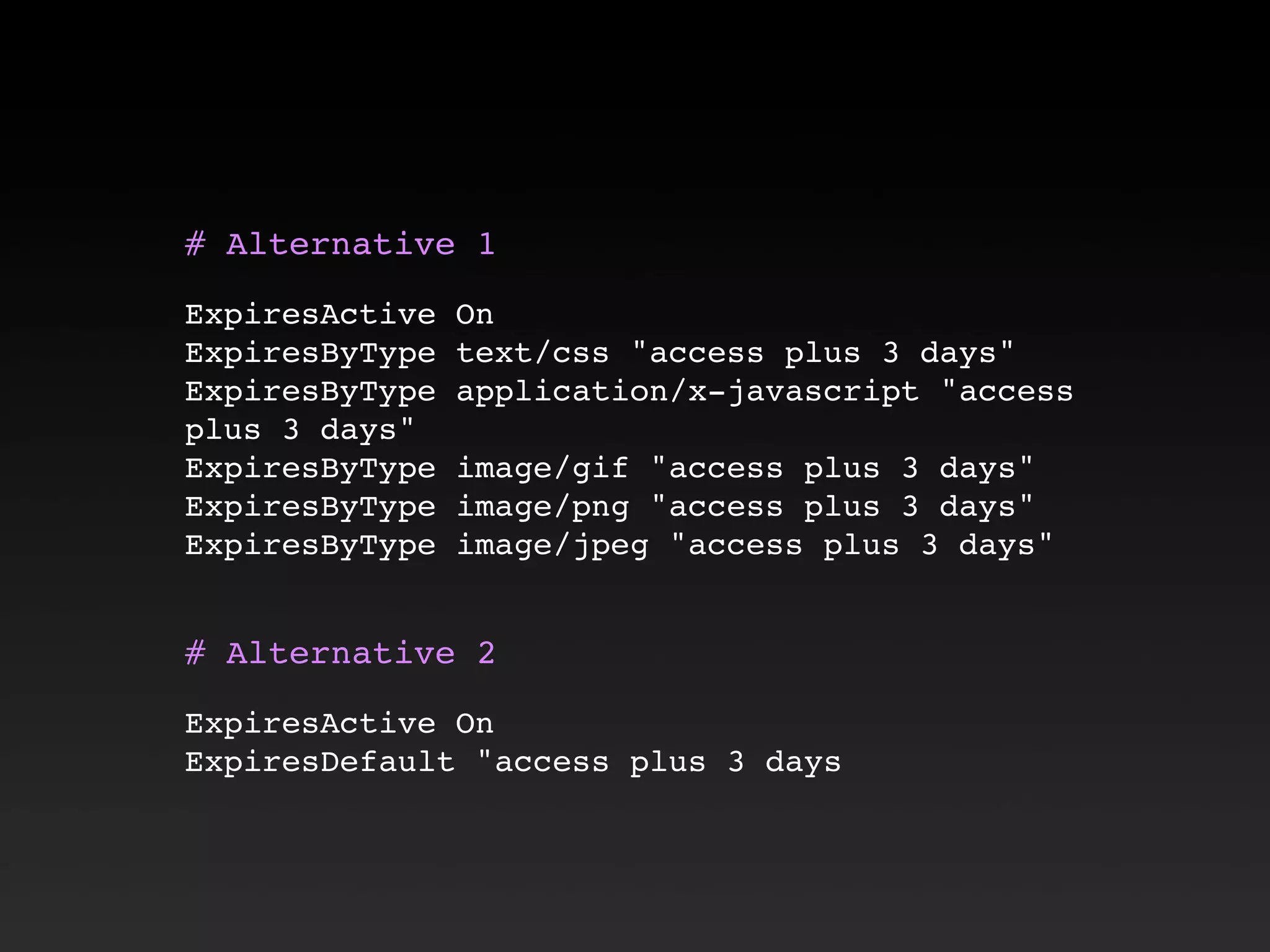

66. # Alternative 1
ExpiresActive On
ExpiresByType text/css "access plus 3 days"
ExpiresByType application/x-javascript "access
plus 3 days"
ExpiresByType image/gif "access plus 3 days"
ExpiresByType image/png "access plus 3 days"
ExpiresByType image/jpeg "access plus 3 days"
# Alternative 2
ExpiresActive On
ExpiresDefault "access plus 3 days

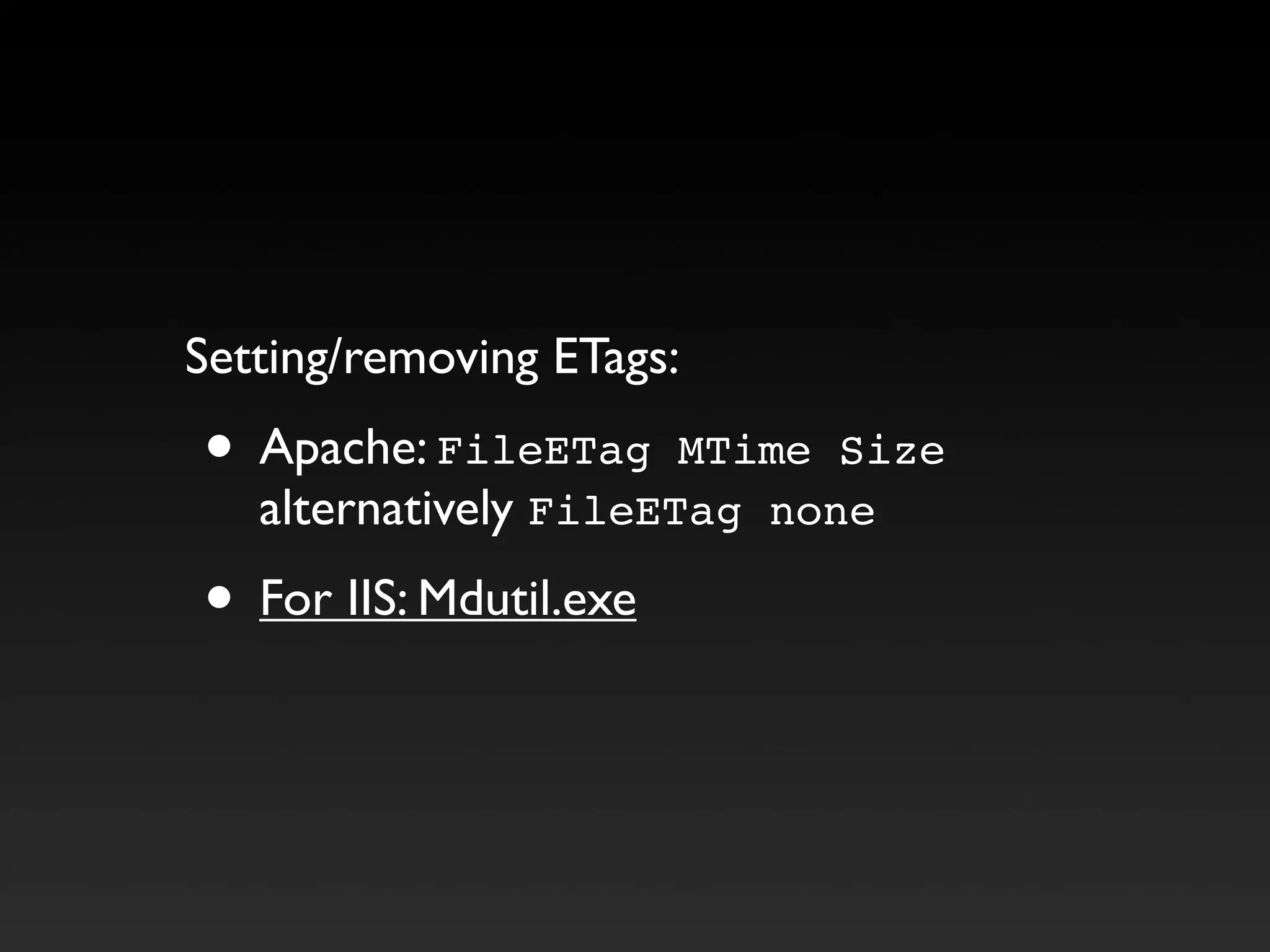

67. Setting/removing ETags:
• Apache: FileETag MTime Size
alternatively FileETag none
• For IIS: Mdutil.exe

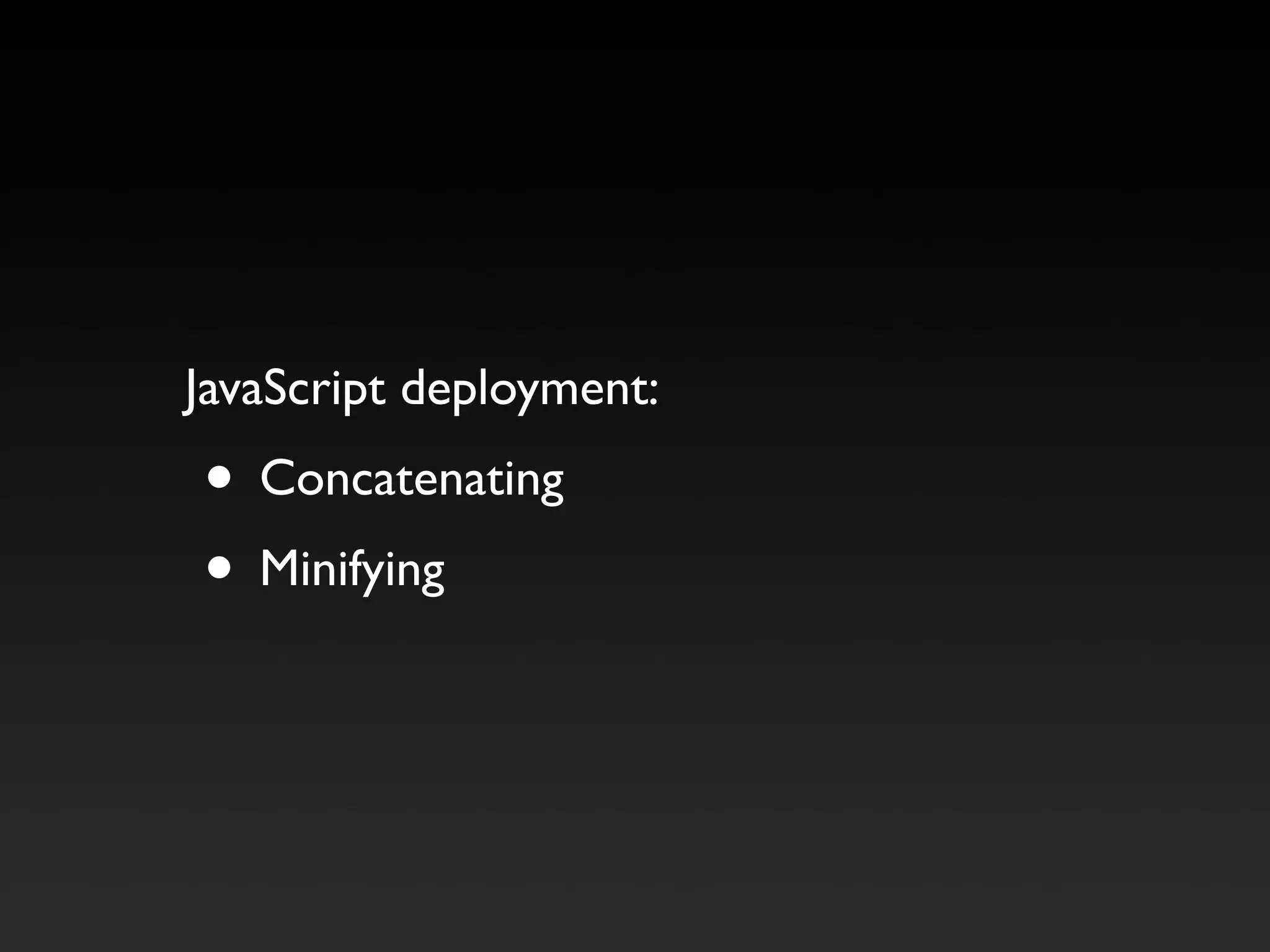

68. JavaScript deployment:
• Concatenating
• Minifying

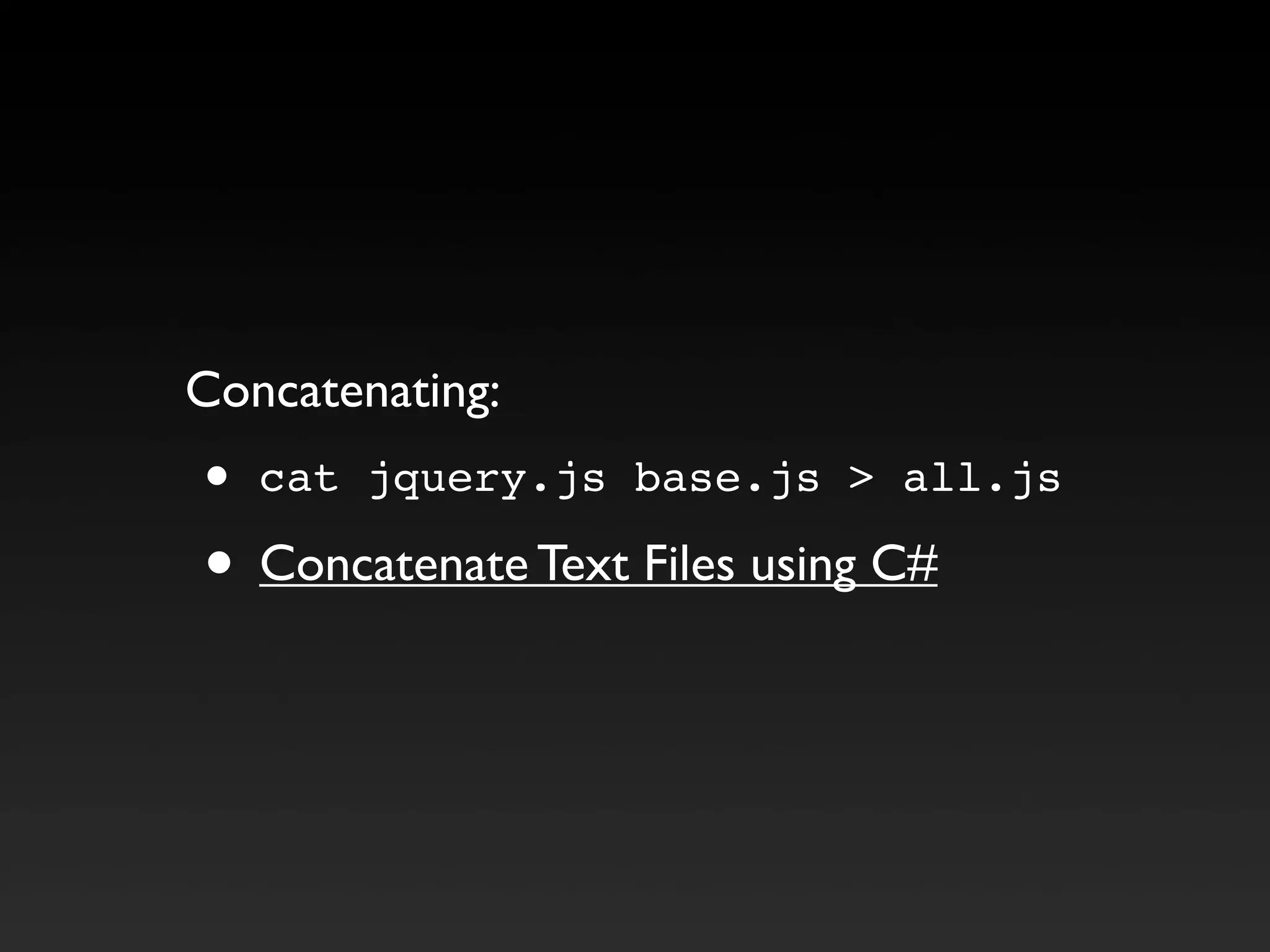

69. Concatenating:
• cat jquery.js base.js > all.js
• Concatenate Text Files using C#

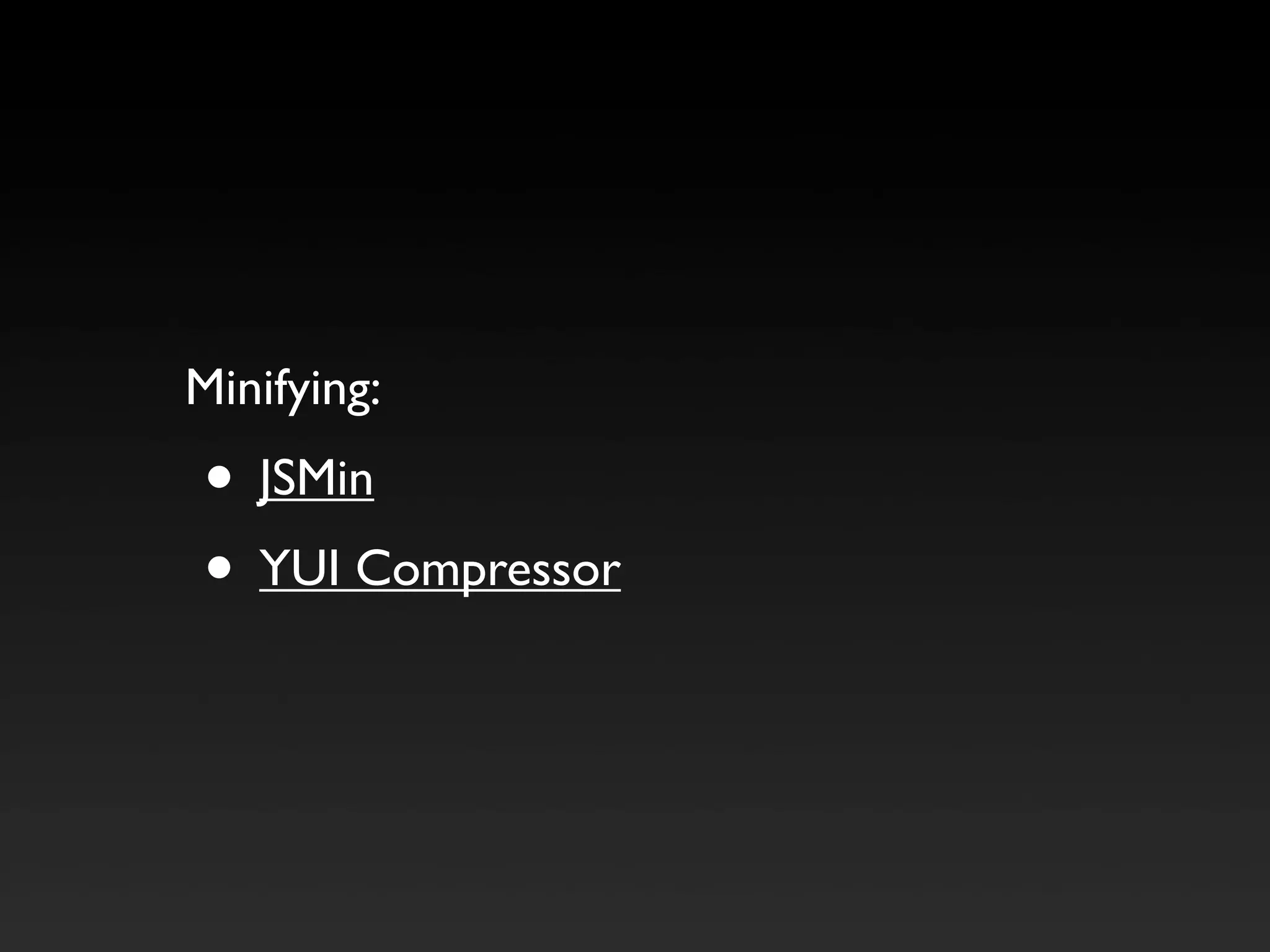

70. Minifying:
• JSMin
• YUI Compressor

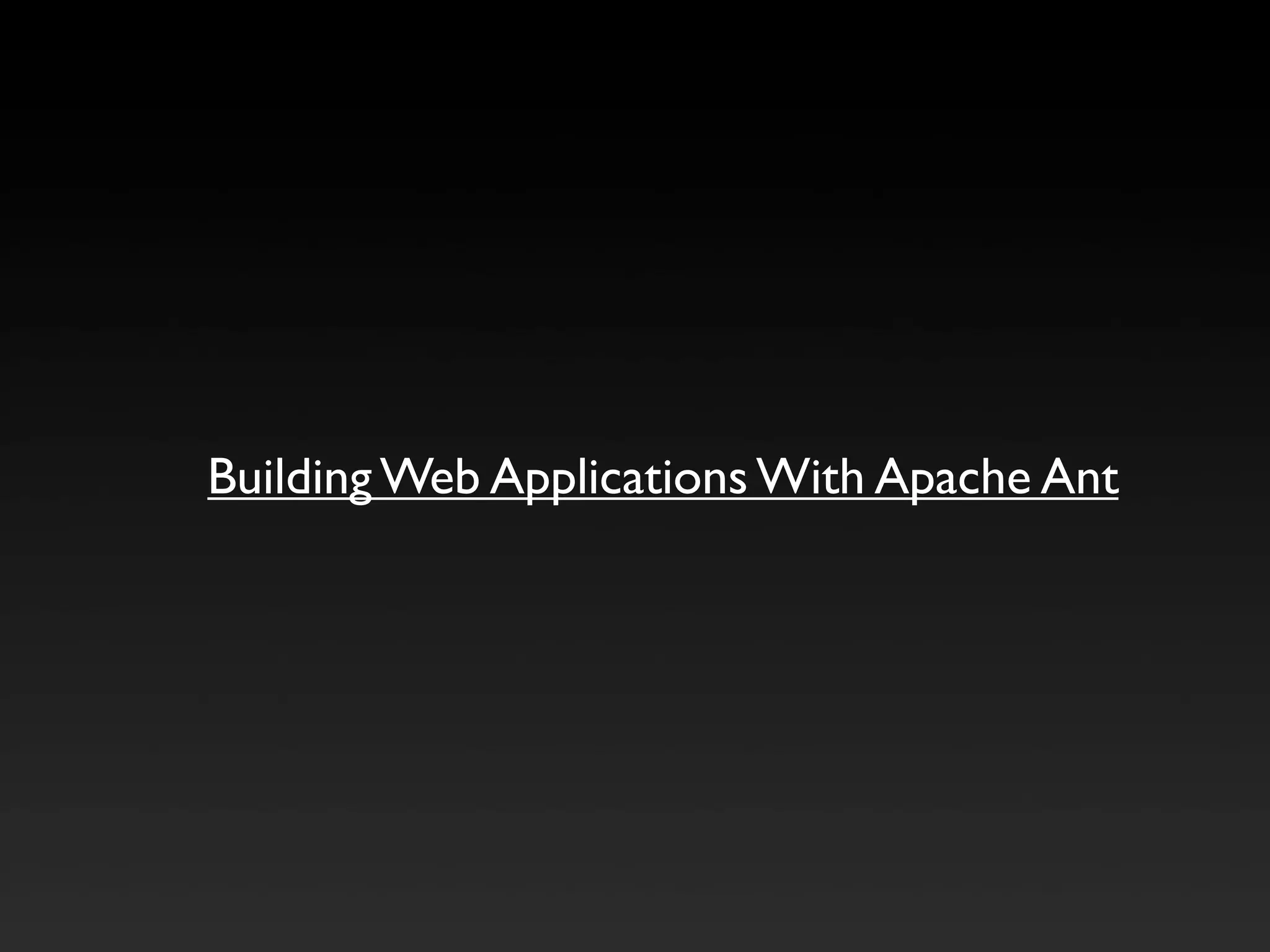

71. Building Web Applications With Apache Ant

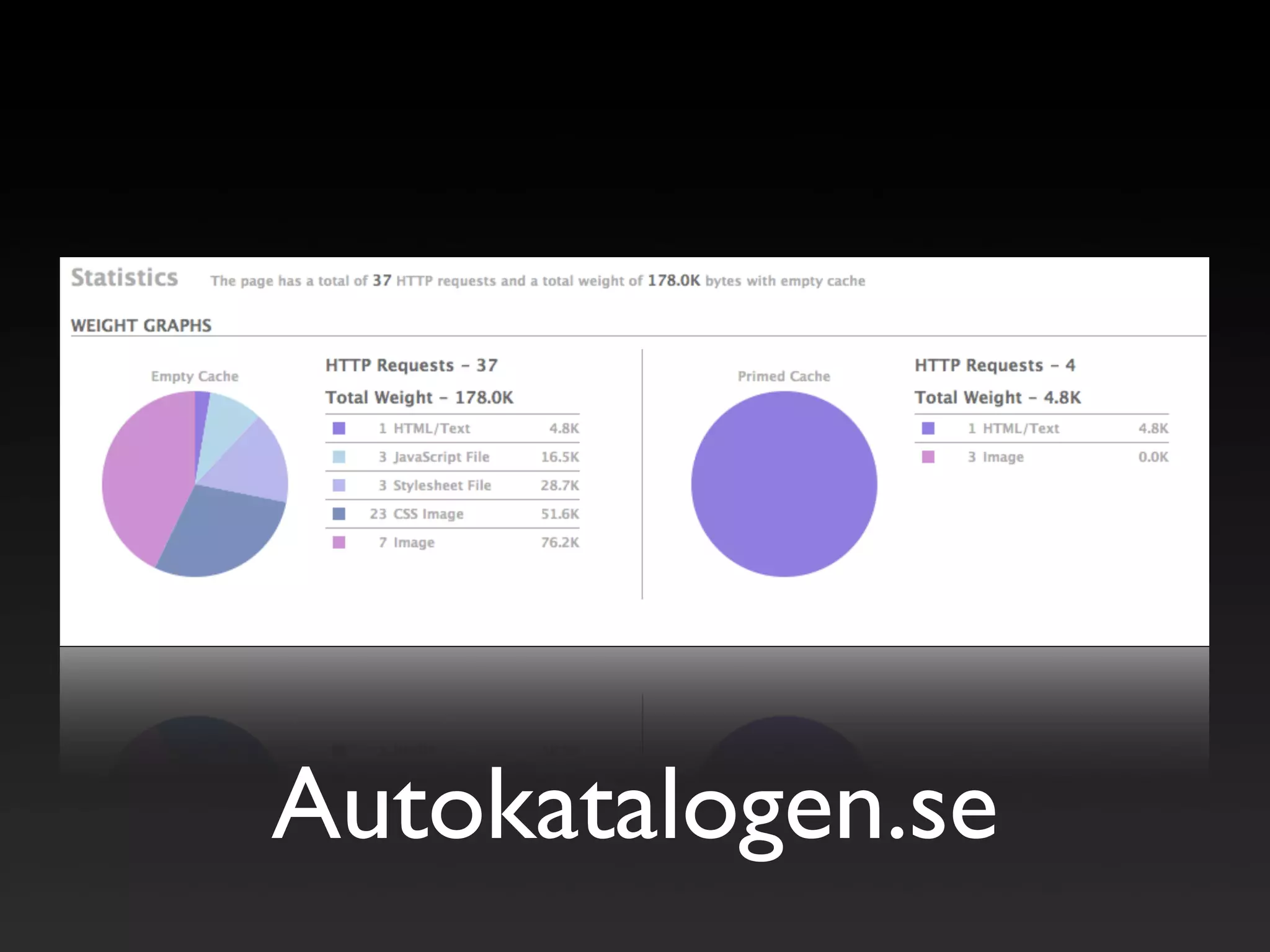

72. Autokatalogen.se

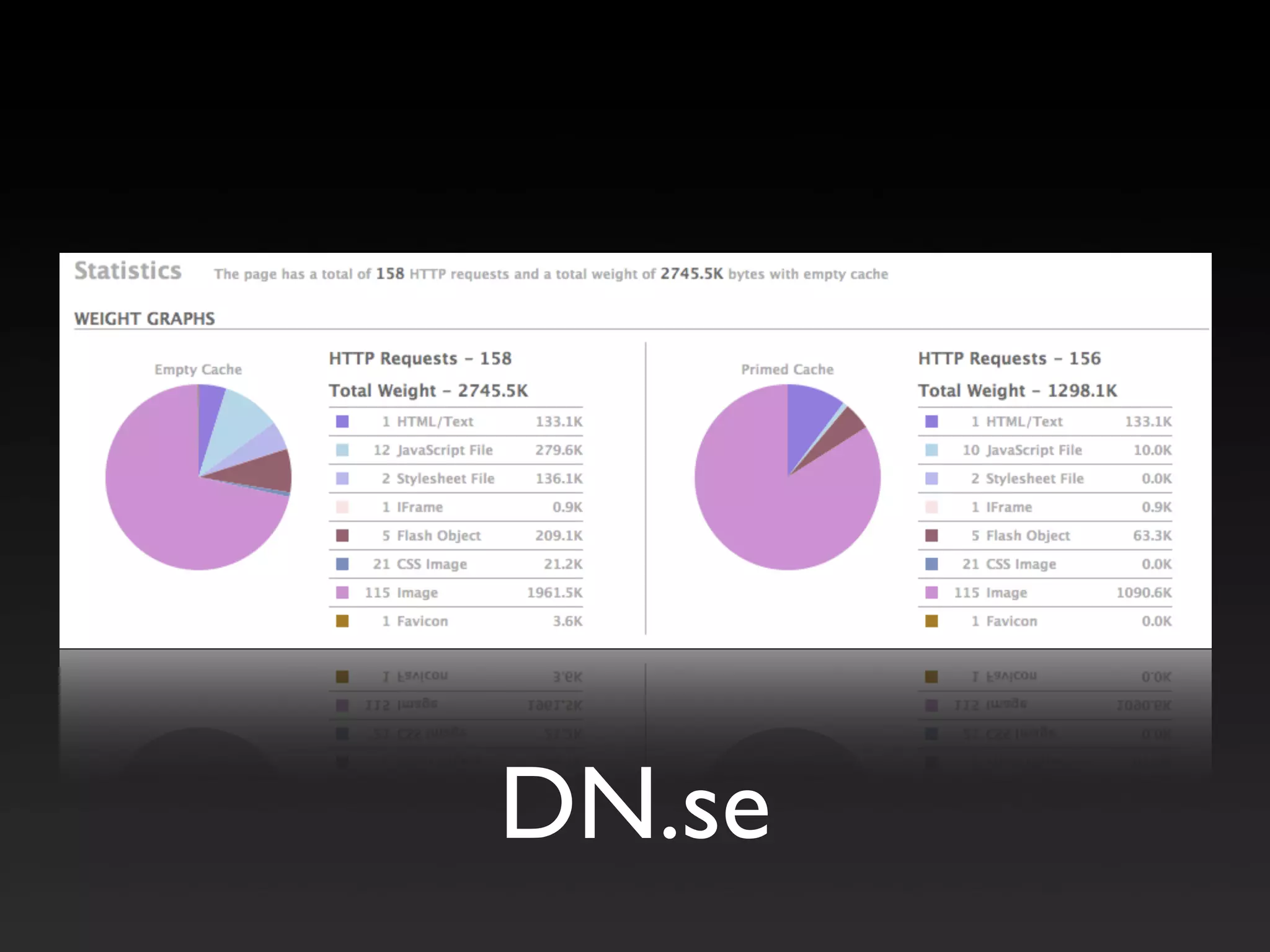

73. DN.se

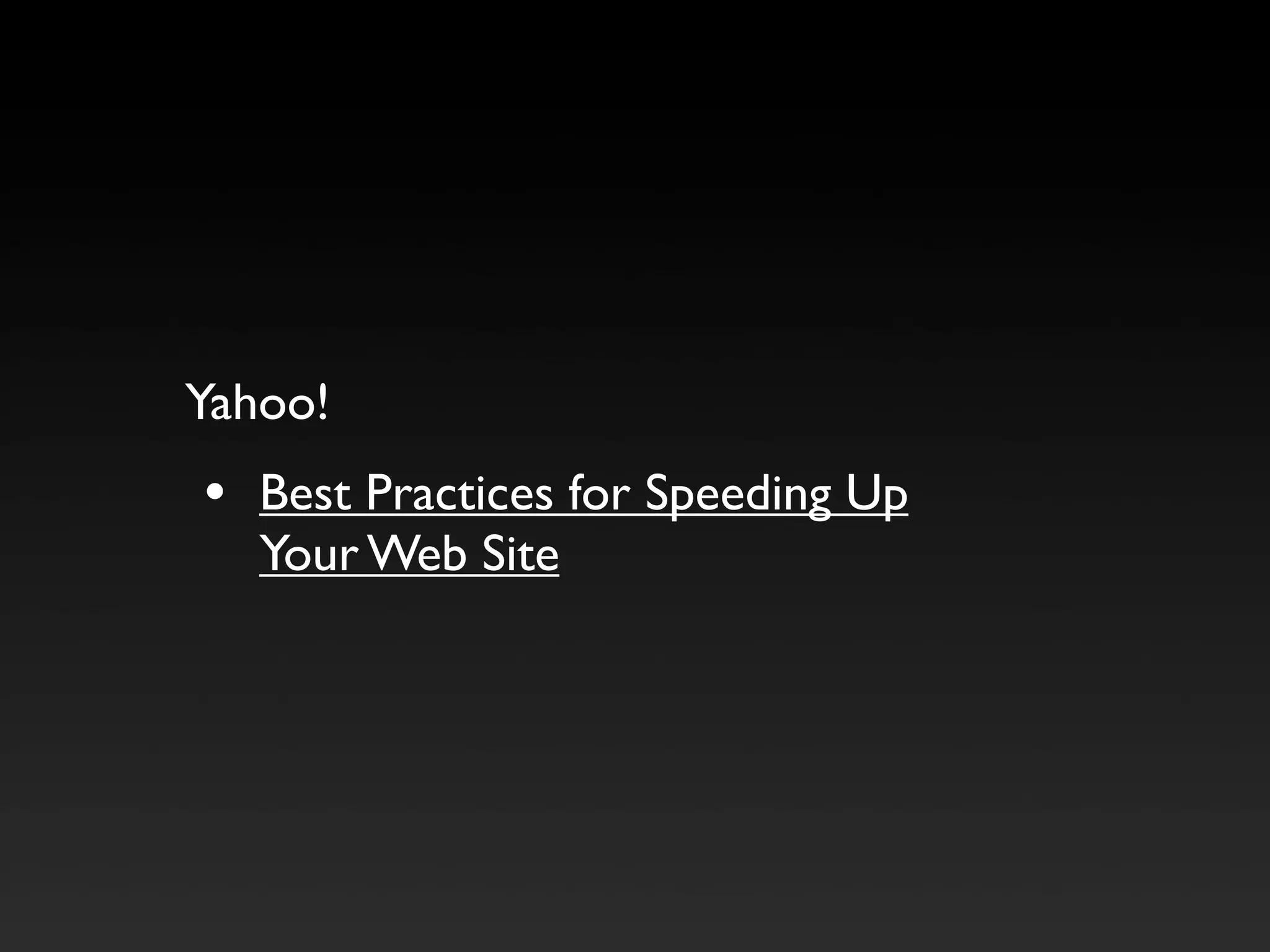

74. Yahoo!
• Best Practices for Speeding Up
Your Web Site

75. Tools

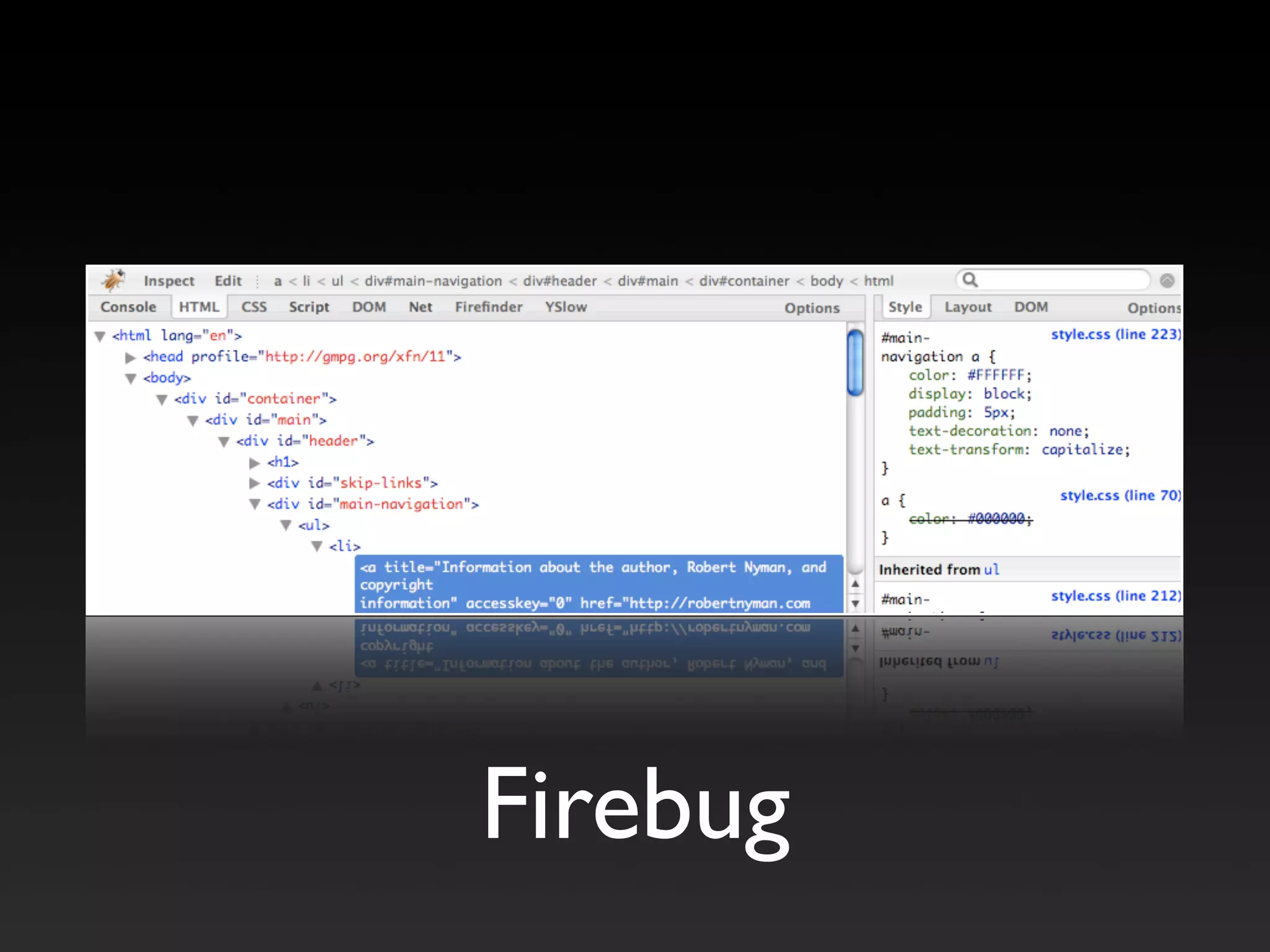

76. Firebug

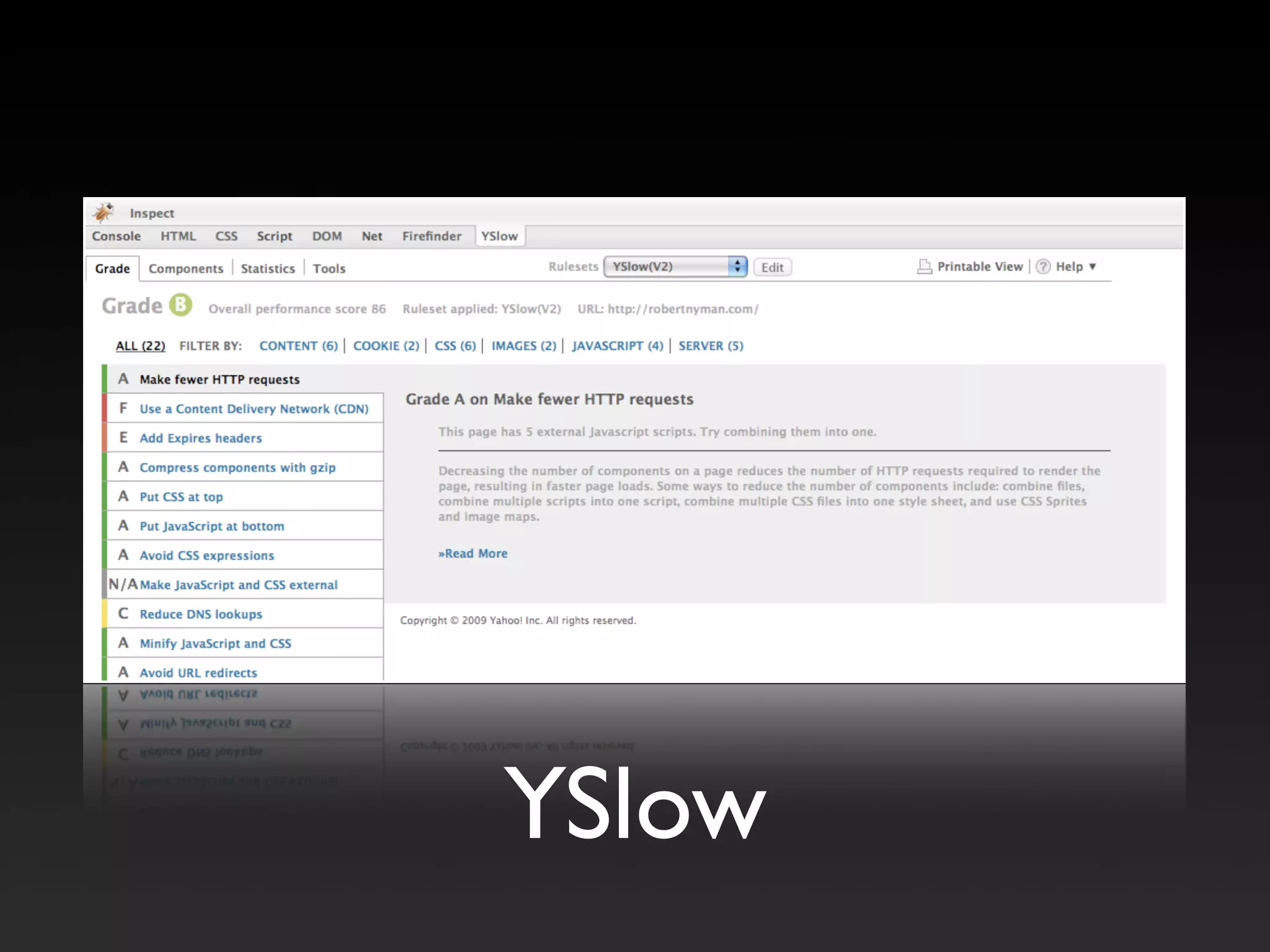

77. YSlow

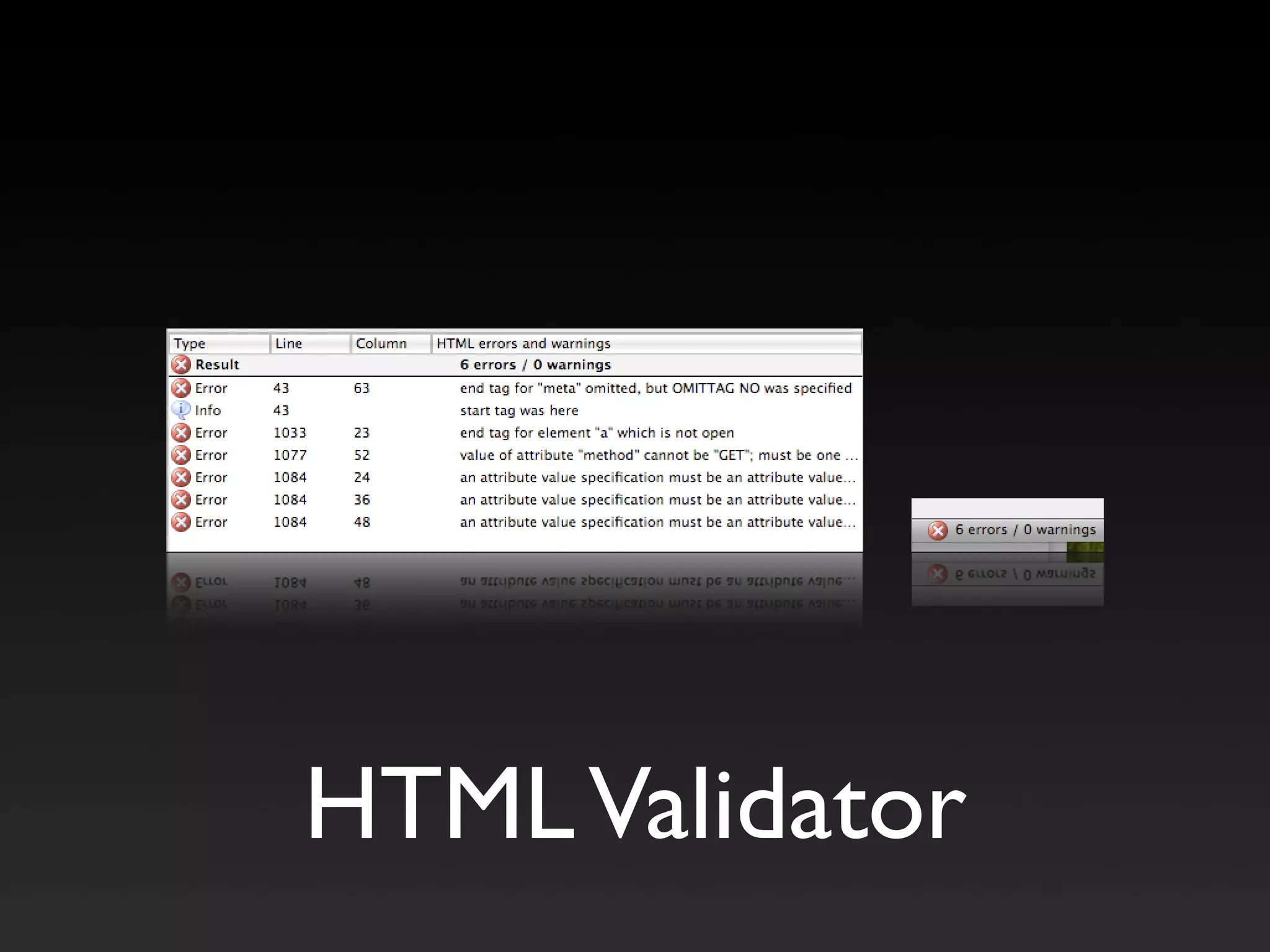

78. HTML Validator

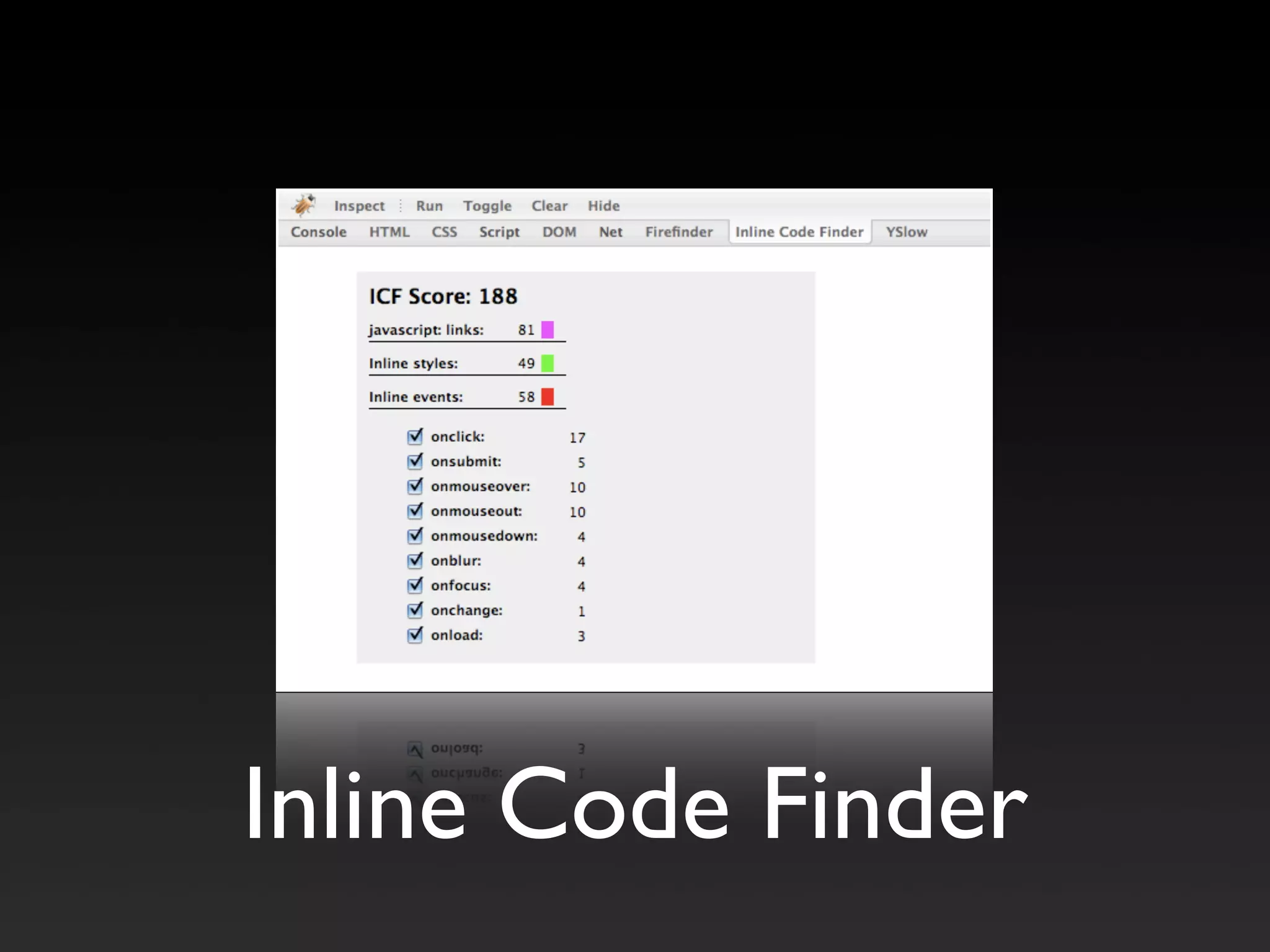

79. Inline Code Finder

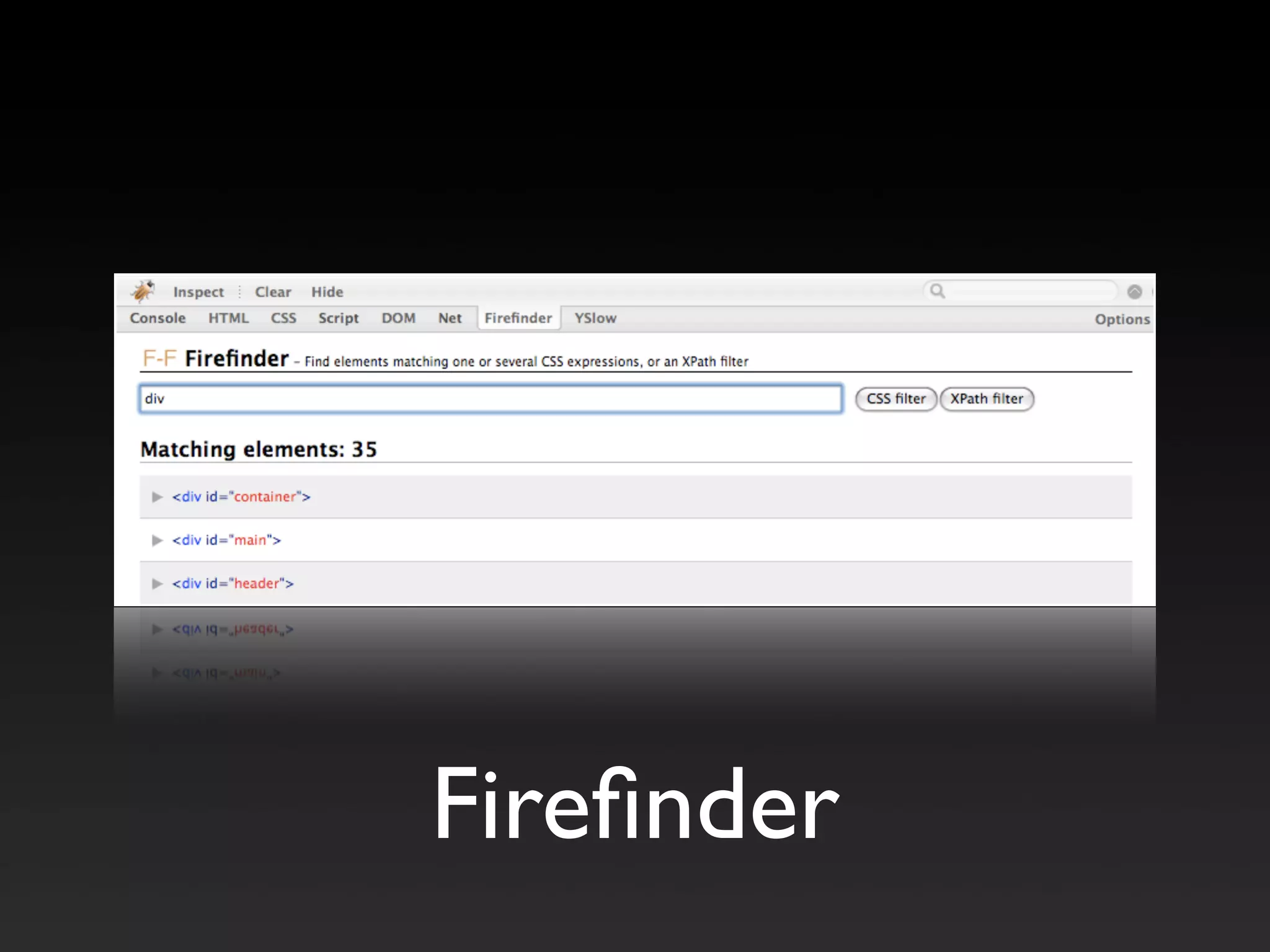

80. Firefinder

81. Obstacles

82. Redmond...

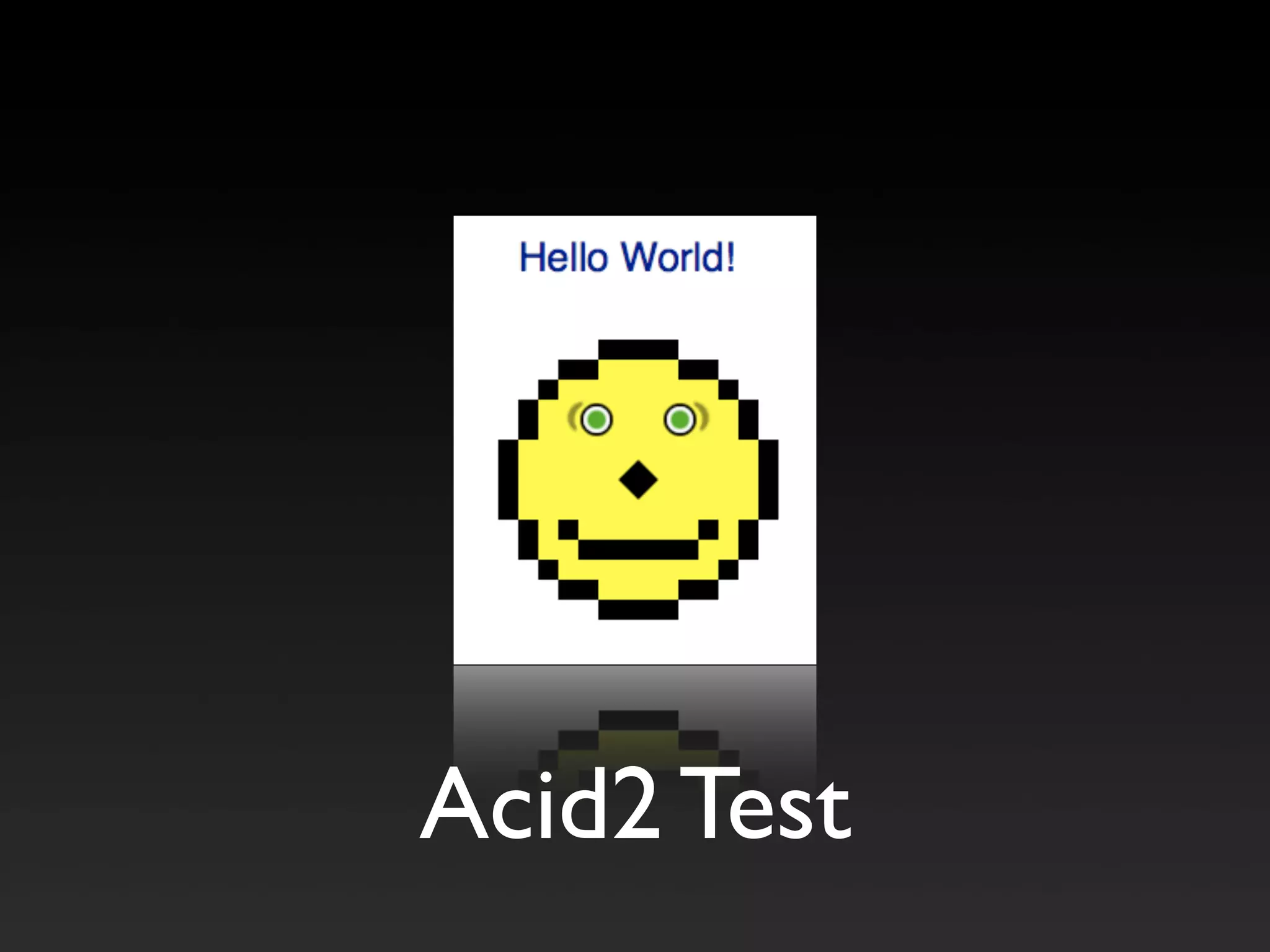

83. Acid2 Test

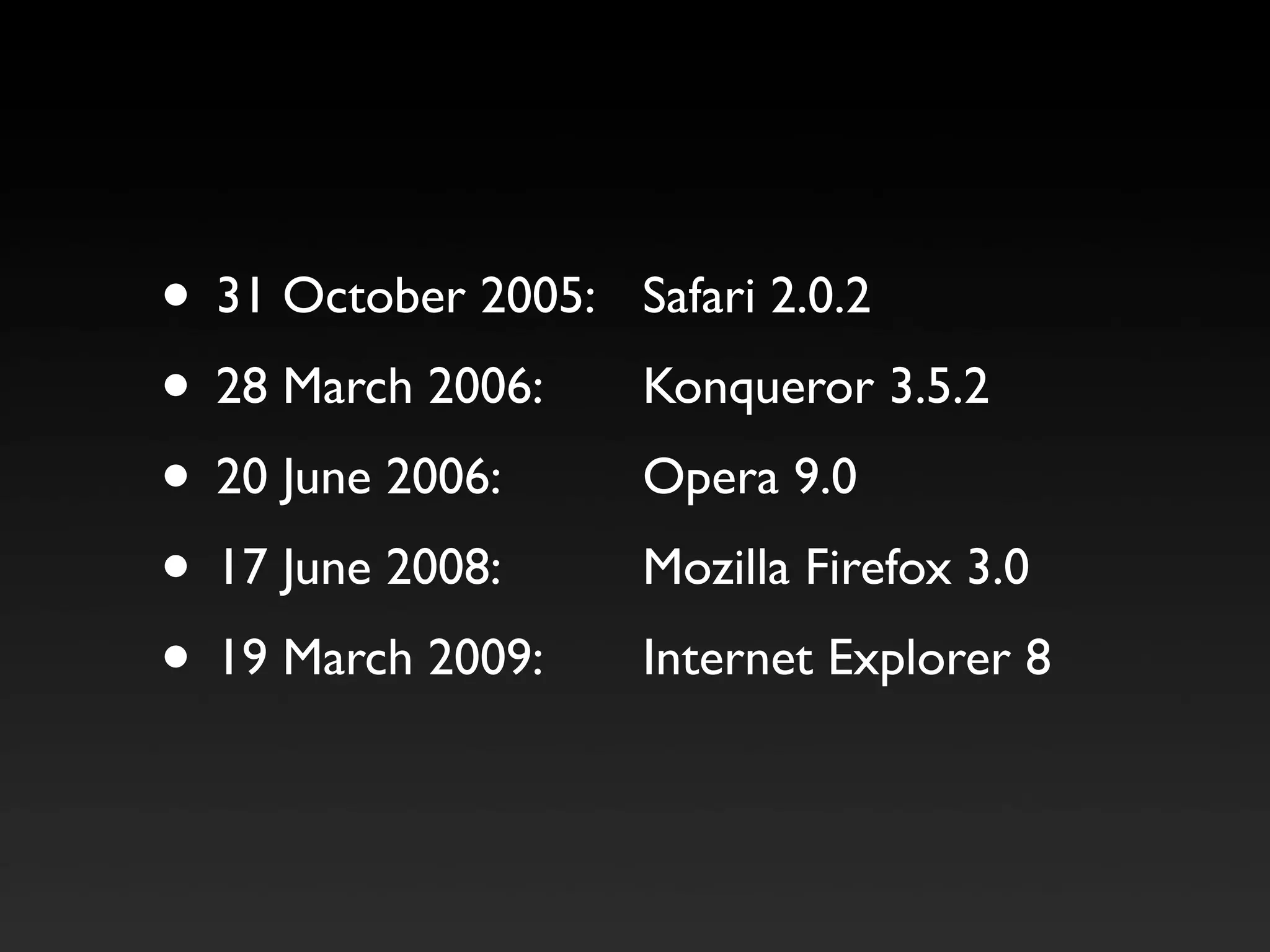

84. • 31 October 2005:
Safari 2.0.2
• 28 March 2006:
Konqueror 3.5.2
• 20 June 2006:
Opera 9.0
• 17 June 2008:
Mozilla Firefox 3.0
• 19 March 2009:
Internet Explorer 8

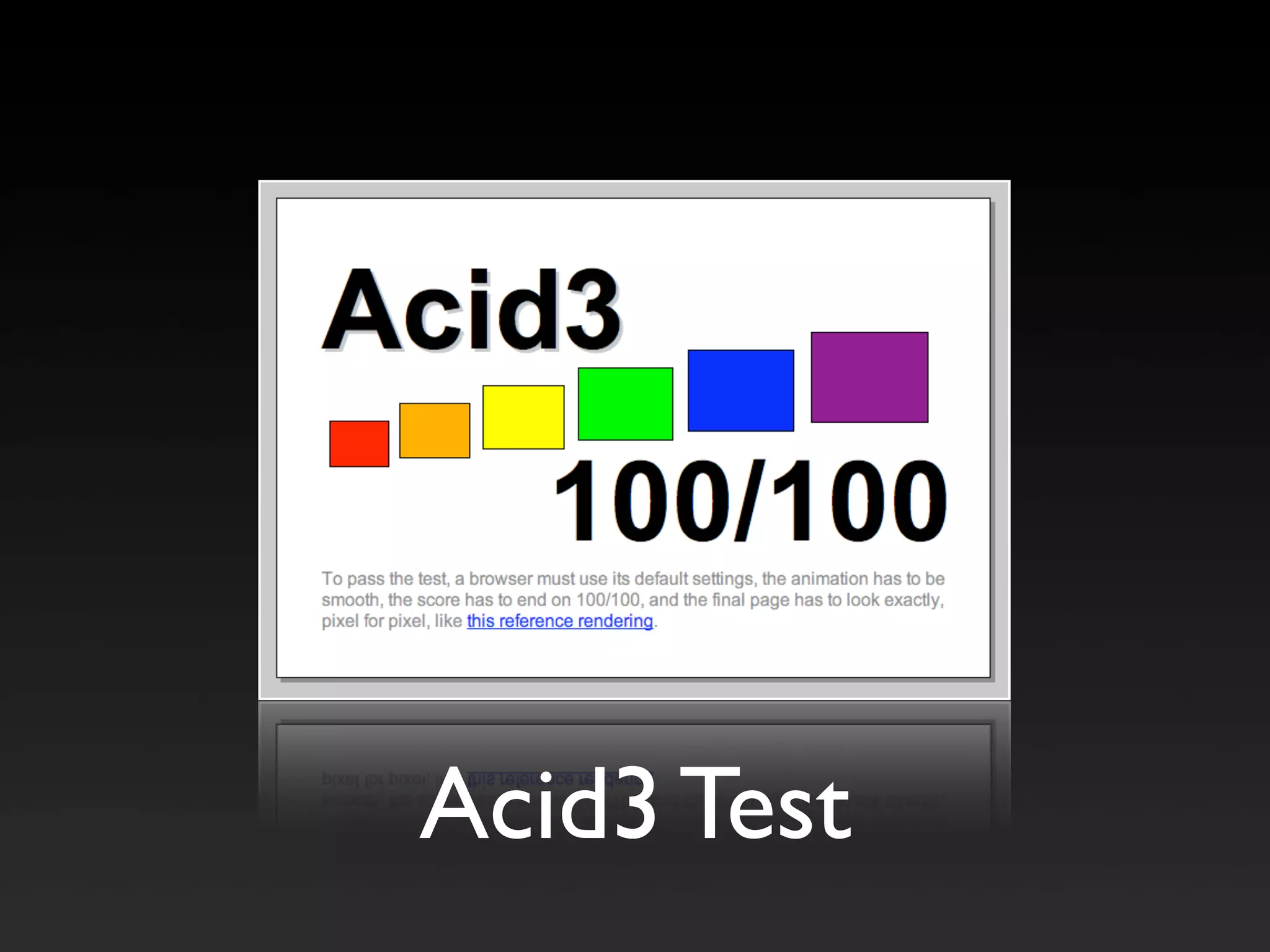

85. Acid3 Test

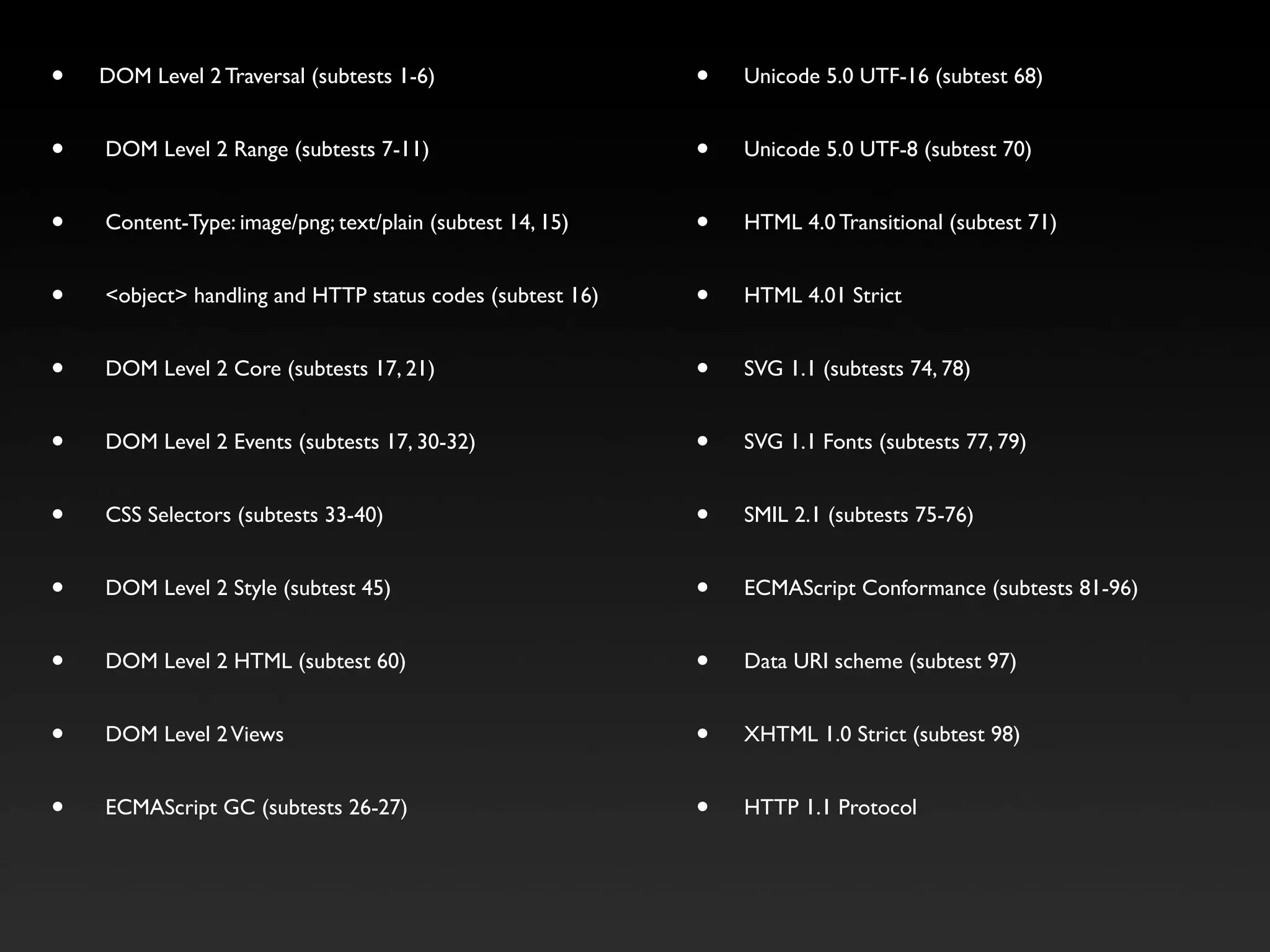

86. • DOM Level 2 Traversal (subtests 1-6) • Unicode 5.0 UTF-16 (subtest 68)
• DOM Level 2 Range (subtests 7-11) • Unicode 5.0 UTF-8 (subtest 70)
• Content-Type: image/png; text/plain (subtest 14, 15) • HTML 4.0 Transitional (subtest 71)
• <object> handling and HTTP status codes (subtest 16) • HTML 4.01 Strict
• DOM Level 2 Core (subtests 17, 21) • SVG 1.1 (subtests 74, 78)
• DOM Level 2 Events (subtests 17, 30-32) • SVG 1.1 Fonts (subtests 77, 79)
• CSS Selectors (subtests 33-40) • SMIL 2.1 (subtests 75-76)
• DOM Level 2 Style (subtest 45) • ECMAScript Conformance (subtests 81-96)
• DOM Level 2 HTML (subtest 60) • Data URI scheme (subtest 97)
• DOM Level 2 Views • XHTML 1.0 Strict (subtest 98)
• ECMAScript GC (subtests 26-27) • HTTP 1.1 Protocol

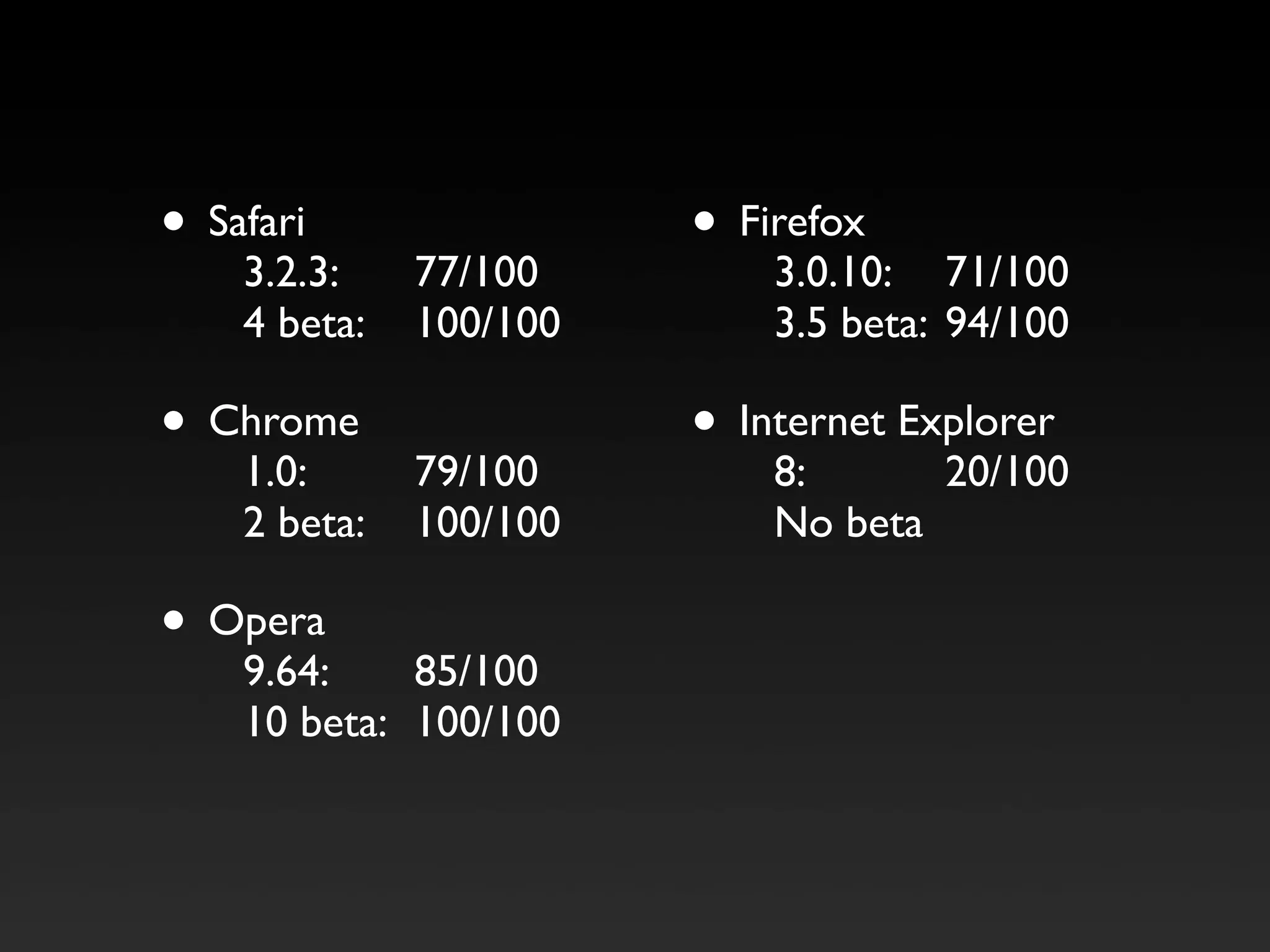

87. • Safari • Firefox
3.2.3:
77/100
3.0.10:
71/100
4 beta:
100/100
3.5 beta:
94/100
• Chrome • Internet Explorer
1.0:
79/100
8:
20/100
2 beta:
100/100
No beta
• Opera
9.64:
85/100
10 beta:
100/100

88. Doctypes & rendering

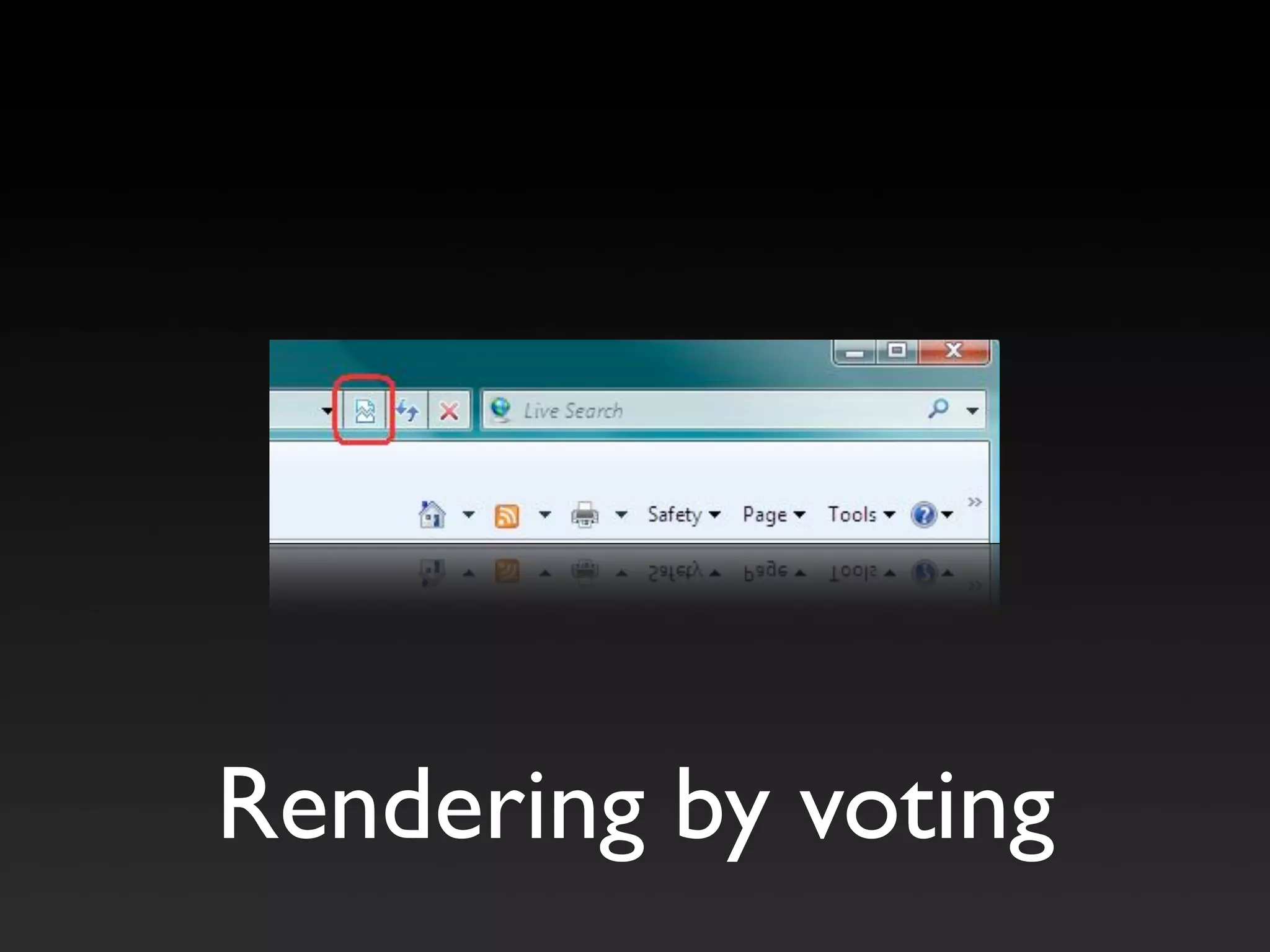

89. Rendering by voting

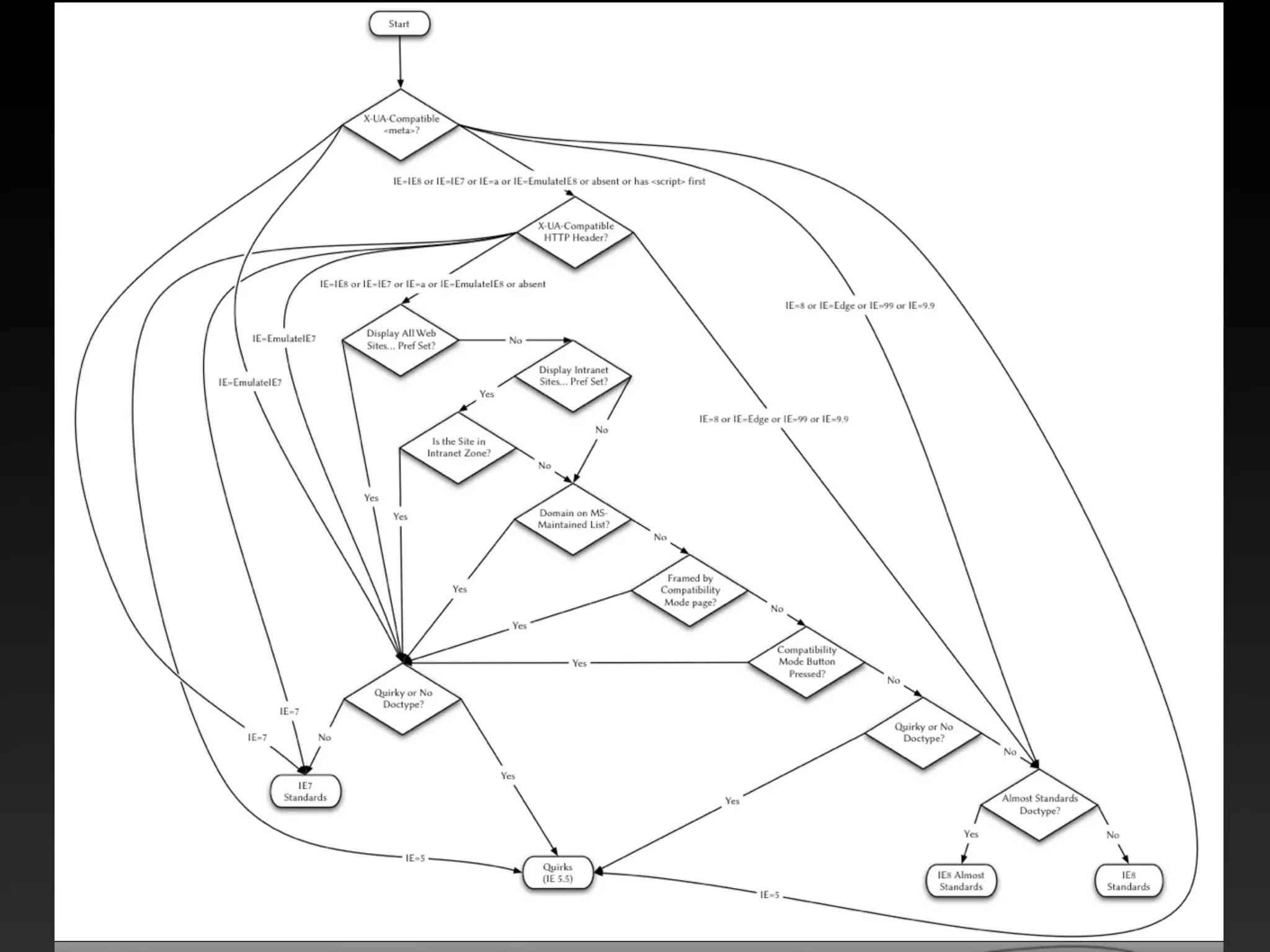

91. IE8 and the X-UA-Compatible situation

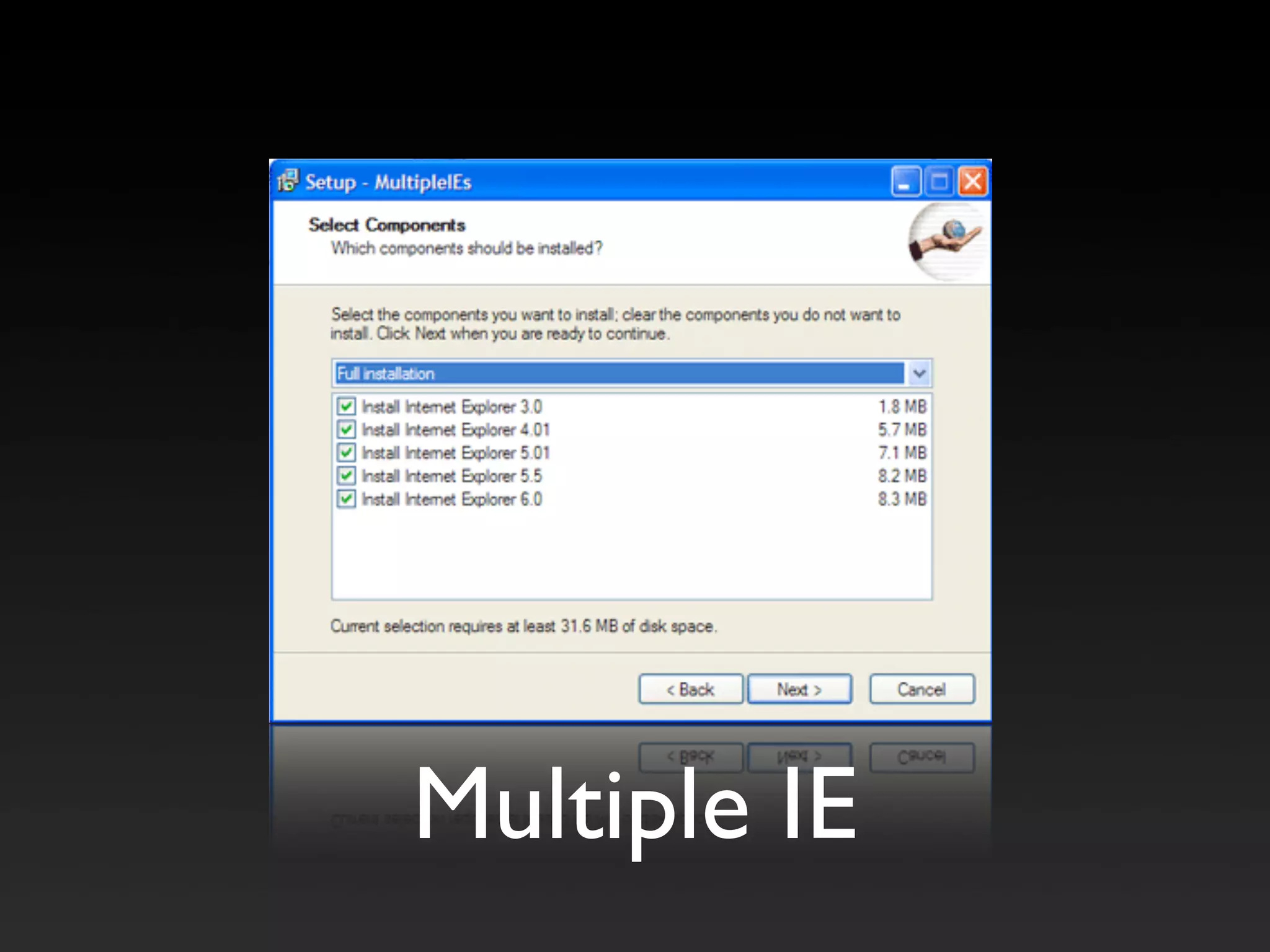

93. Multiple IE

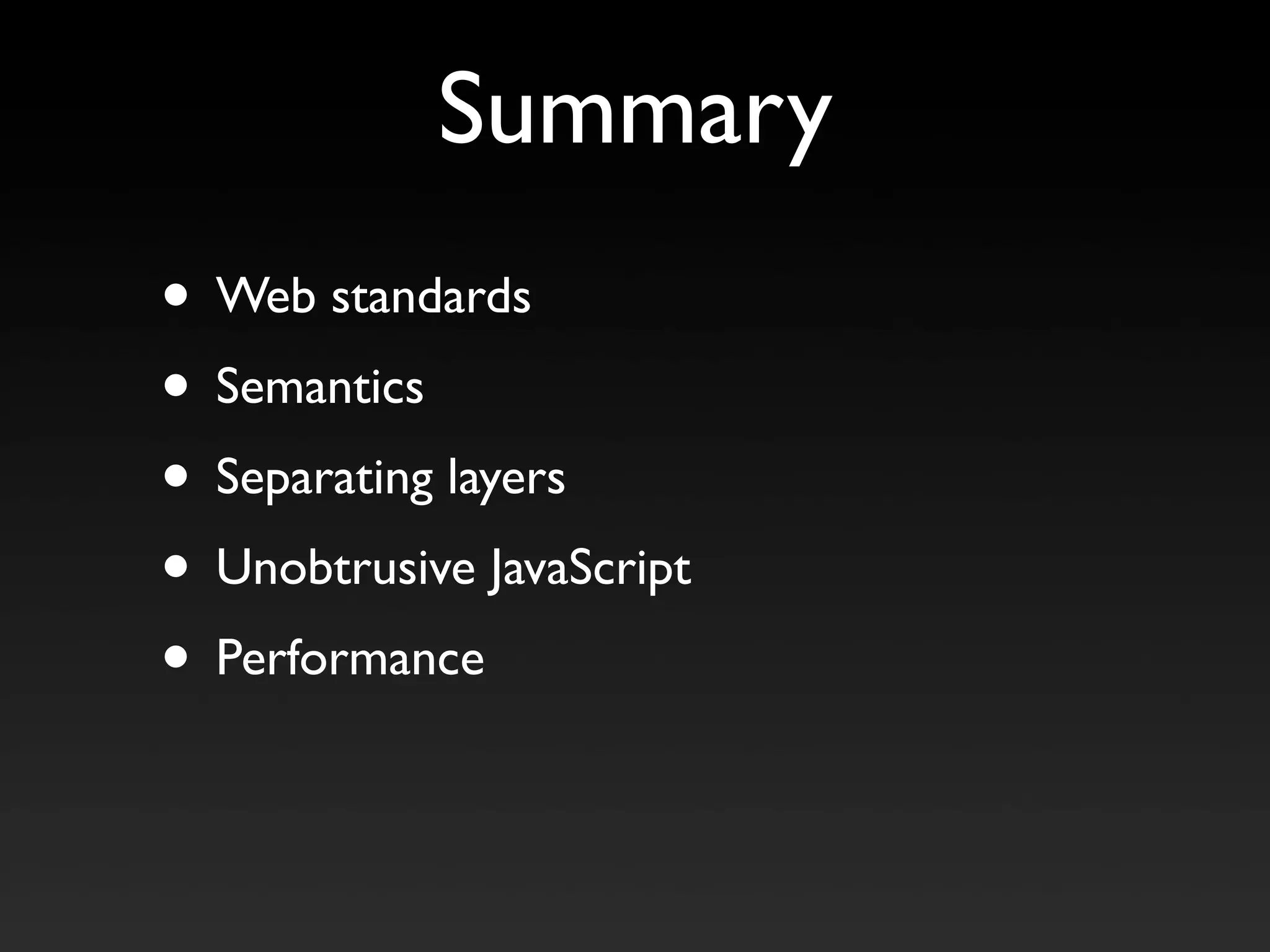

94. Summary
• Web standards
• Semantics
• Separating layers
• Unobtrusive JavaScript
• Performance

95. Robert Nyman
robert@robertnyman.com
robertnyman.com
