mod_ftp is a module for Apache HTTP Server that implements the File Transfer Protocol (FTP) within the Apache architecture. It leverages Apache's flexibility to serve FTP alongside HTTP and HTTPS from the same server instance. mod_ftp supports key FTP features like SSL/TLS encryption, authentication, dynamic content, and logging while integrating with the Apache ecosystem. The document provides an overview of mod_ftp's capabilities and includes a sample configuration.

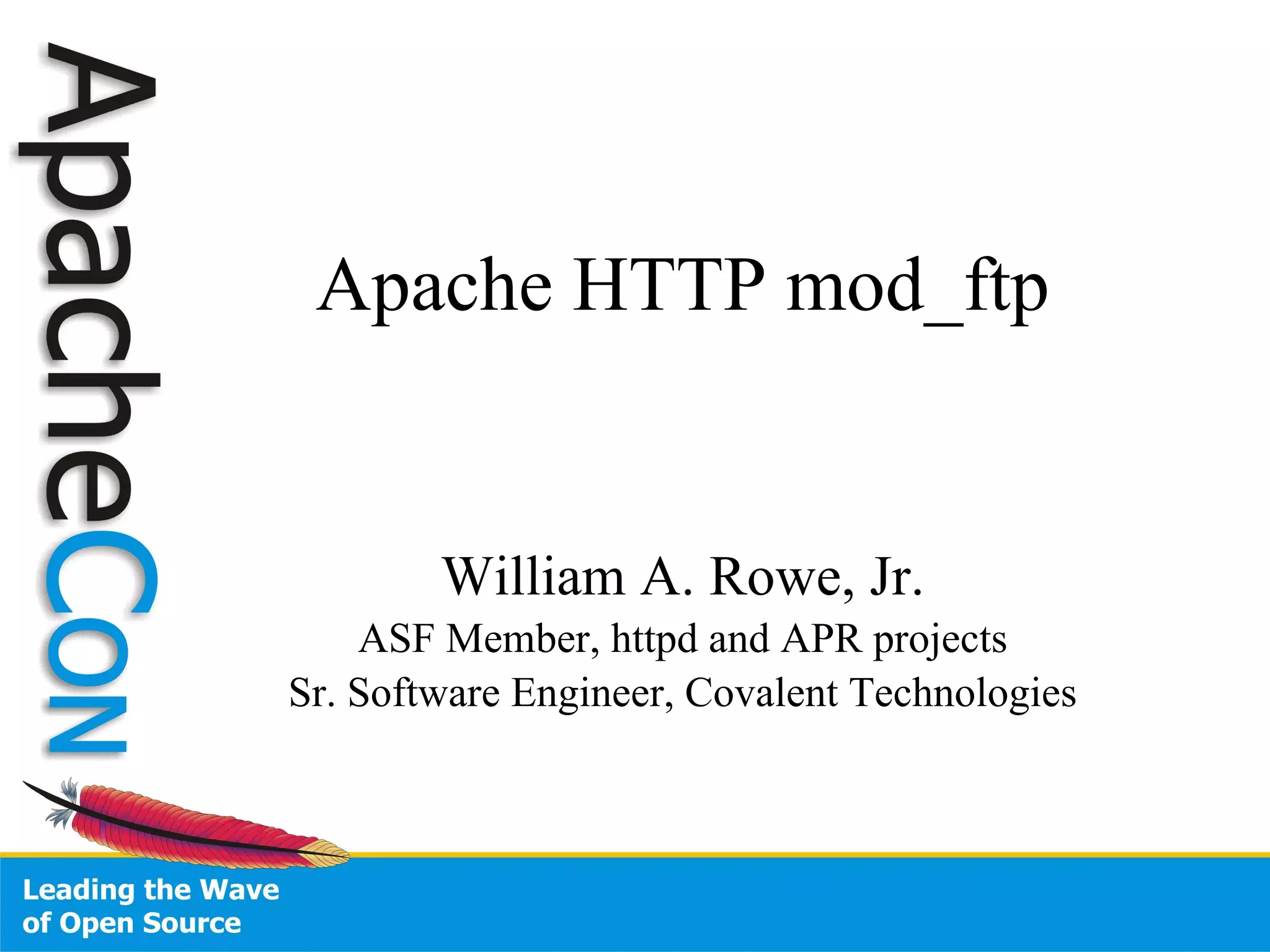

1. Apache HTTP mod_ftp William A. Rowe, Jr. ASF Member, httpd and APR projects Sr. Software Engineer, Covalent Technologies

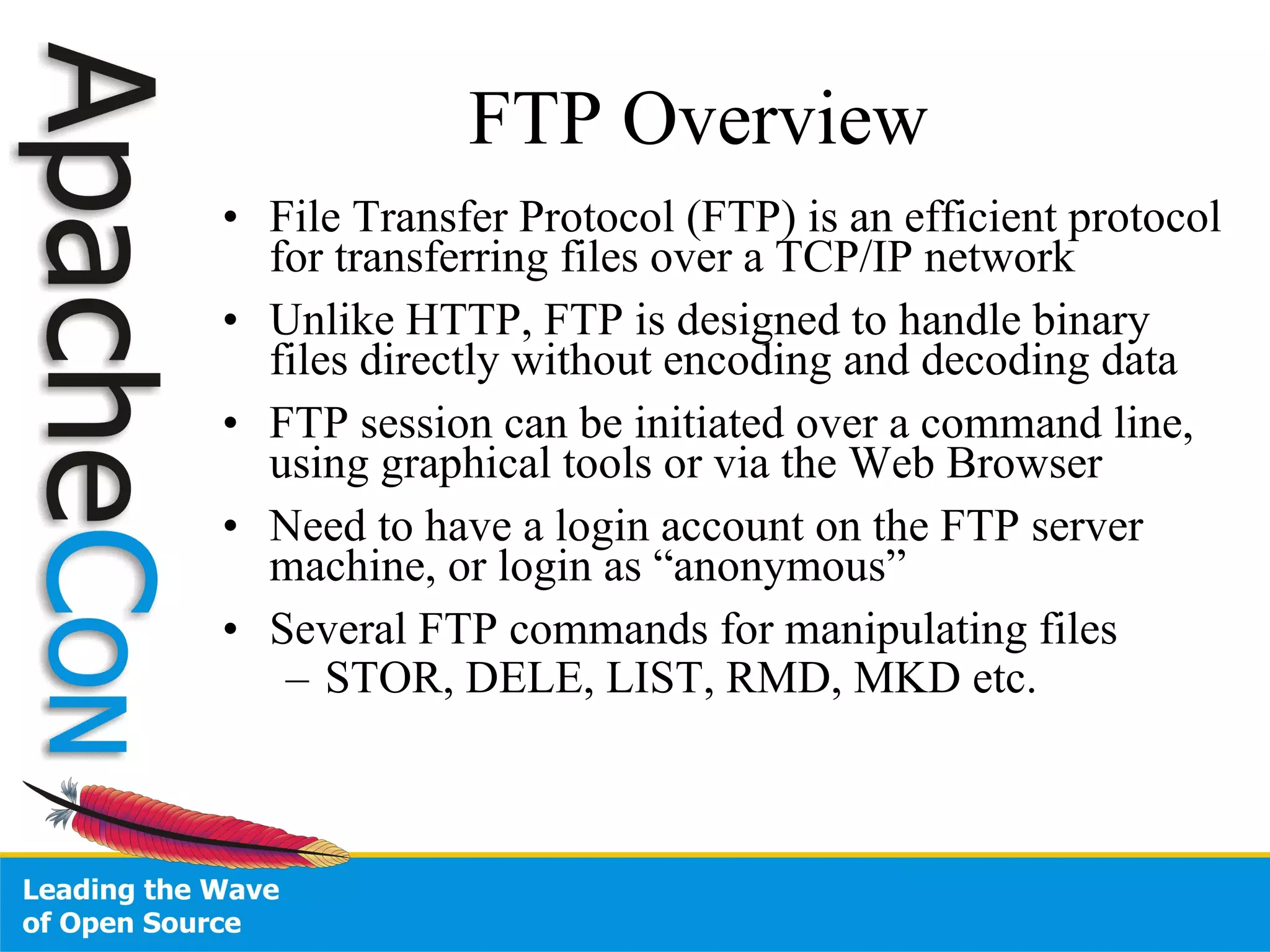

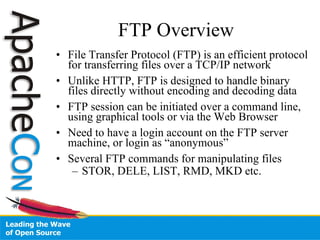

2. FTP Overview File Transfer Protocol (FTP) is an efficient protocol for transferring files over a TCP/IP network Unlike HTTP, FTP is designed to handle binary files directly without encoding and decoding data FTP session can be initiated over a command line, using graphical tools or via the Web Browser Need to have a login account on the FTP server machine, or login as “anonymous” Several FTP commands for manipulating files STOR, DELE, LIST, RMD, MKD etc.

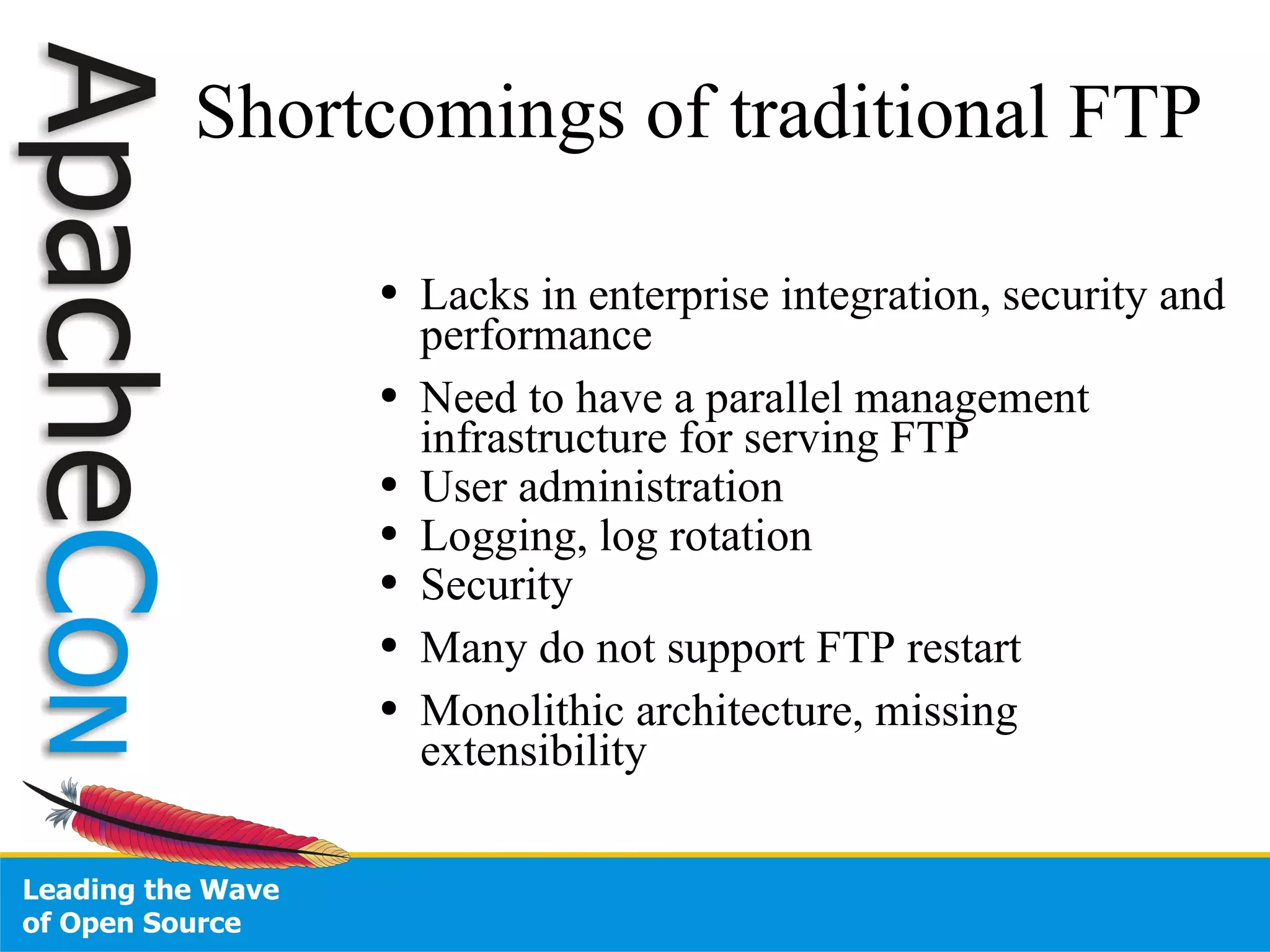

3. Shortcomings of traditional FTP Lacks in enterprise integration, security and performance Need to have a parallel management infrastructure for serving FTP User administration Logging, log rotation Security Many do not support FTP restart Monolithic architecture, missing extensibility

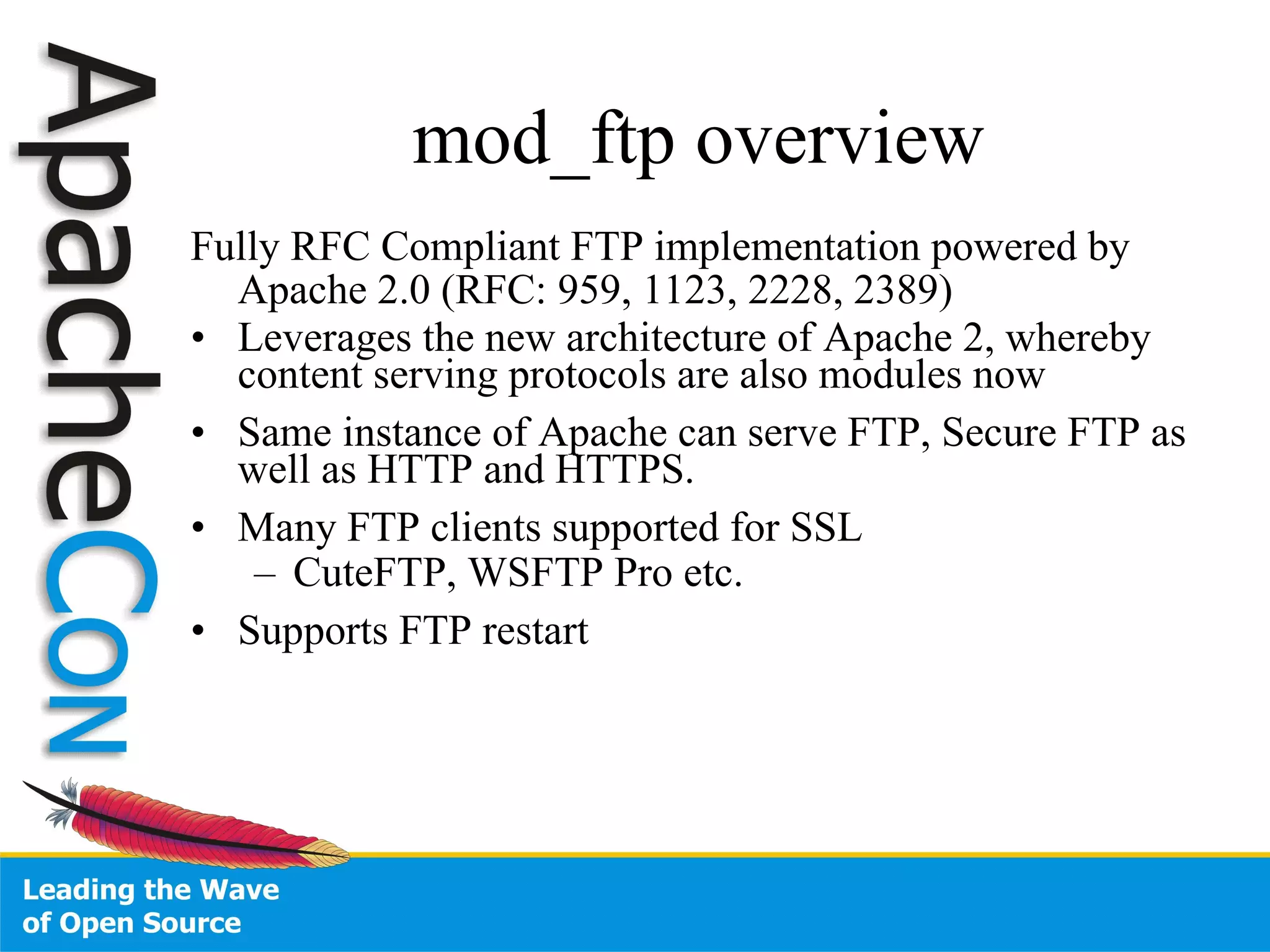

4. mod_ftp overview Fully RFC Compliant FTP implementation powered by Apache 2.0 (RFC: 959, 1123, 2228, 2389)‏ Leverages the new architecture of Apache 2, whereby content serving protocols are also modules now Same instance of Apache can serve FTP, Secure FTP as well as HTTP and HTTPS. Many FTP clients supported for SSL CuteFTP, WSFTP Pro etc. Supports FTP restart

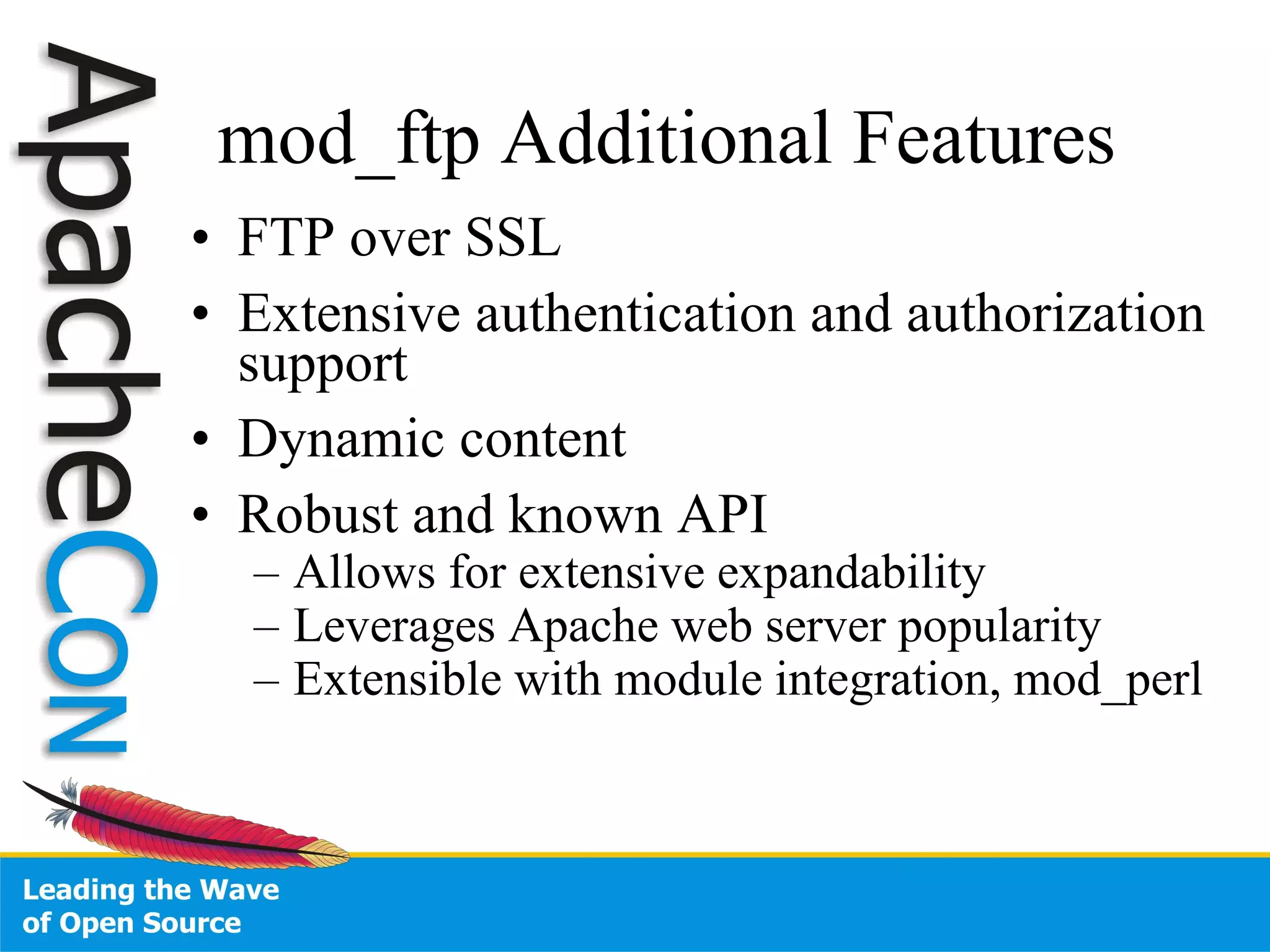

5. mod_ftp Additional Features FTP over SSL Extensive authentication and authorization support Dynamic content Robust and known API Allows for extensive expandability Leverages Apache web server popularity Extensible with module integration, mod_perl

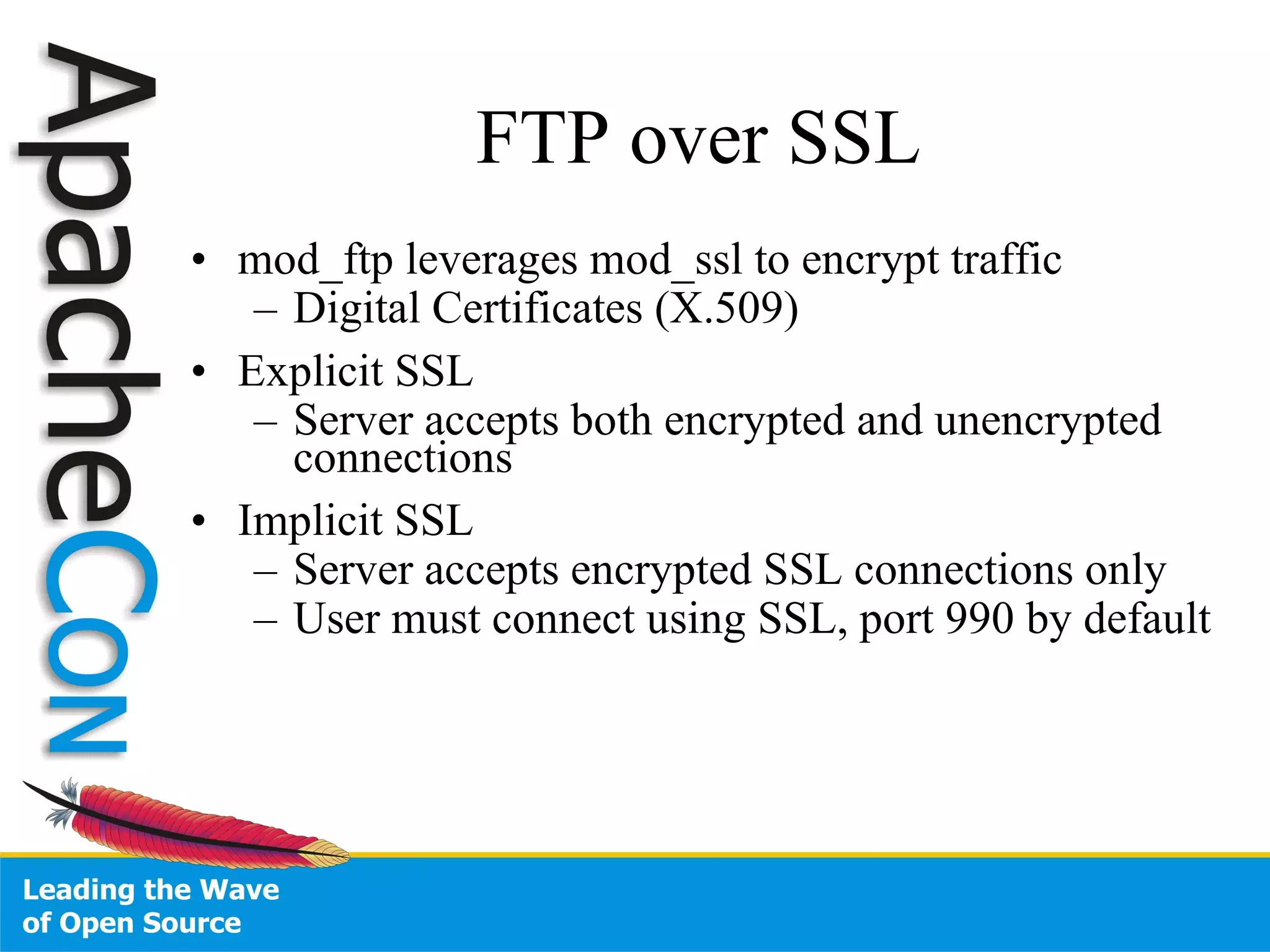

6. FTP over SSL mod_ftp leverages mod_ssl to encrypt traffic Digital Certificates (X.509)‏ Explicit SSL Server accepts both encrypted and unencrypted connections Implicit SSL Server accepts encrypted SSL connections only User must connect using SSL, port 990 by default

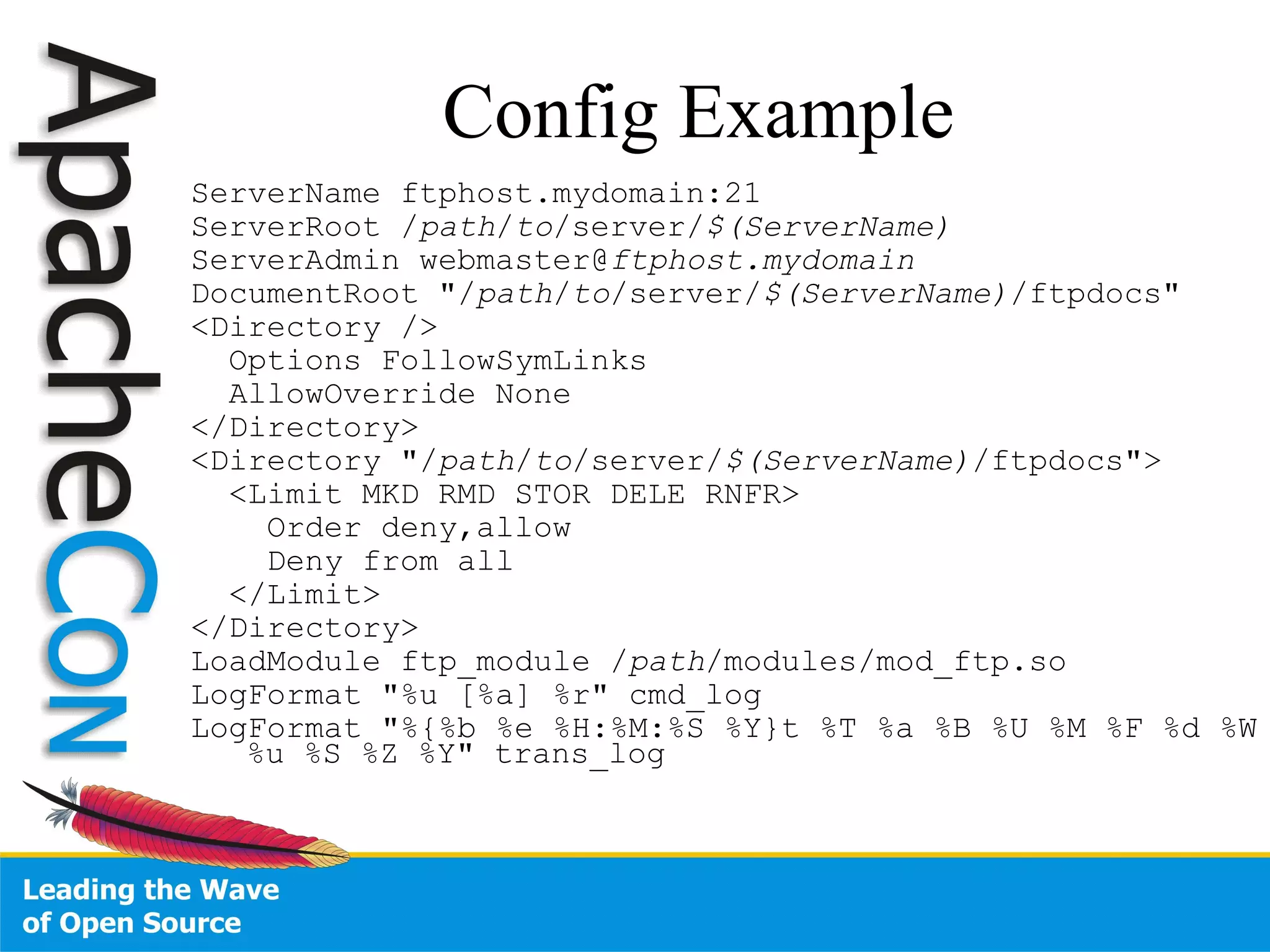

7. ServerName ftphost.mydomain:21 ServerRoot / path / to /server/ $(ServerName) ServerAdmin webmaster@ ftphost.mydomain DocumentRoot &quot;/ path / to /server/ $(ServerName) /ftpdocs&quot; <Directory /> Options FollowSymLinks AllowOverride None </Directory> <Directory &quot;/ path / to /server/ $(ServerName) /ftpdocs&quot;> <Limit MKD RMD STOR DELE RNFR> Order deny,allow Deny from all </Limit> </Directory> LoadModule ftp_module / path /modules/mod_ftp.so LogFormat &quot;%u [%a] %r&quot; cmd_log LogFormat &quot;%{%b %e %H:%M:%S %Y}t %T %a %B %U %M %F %d %W %u %S %Z %Y&quot; trans_log Config Example

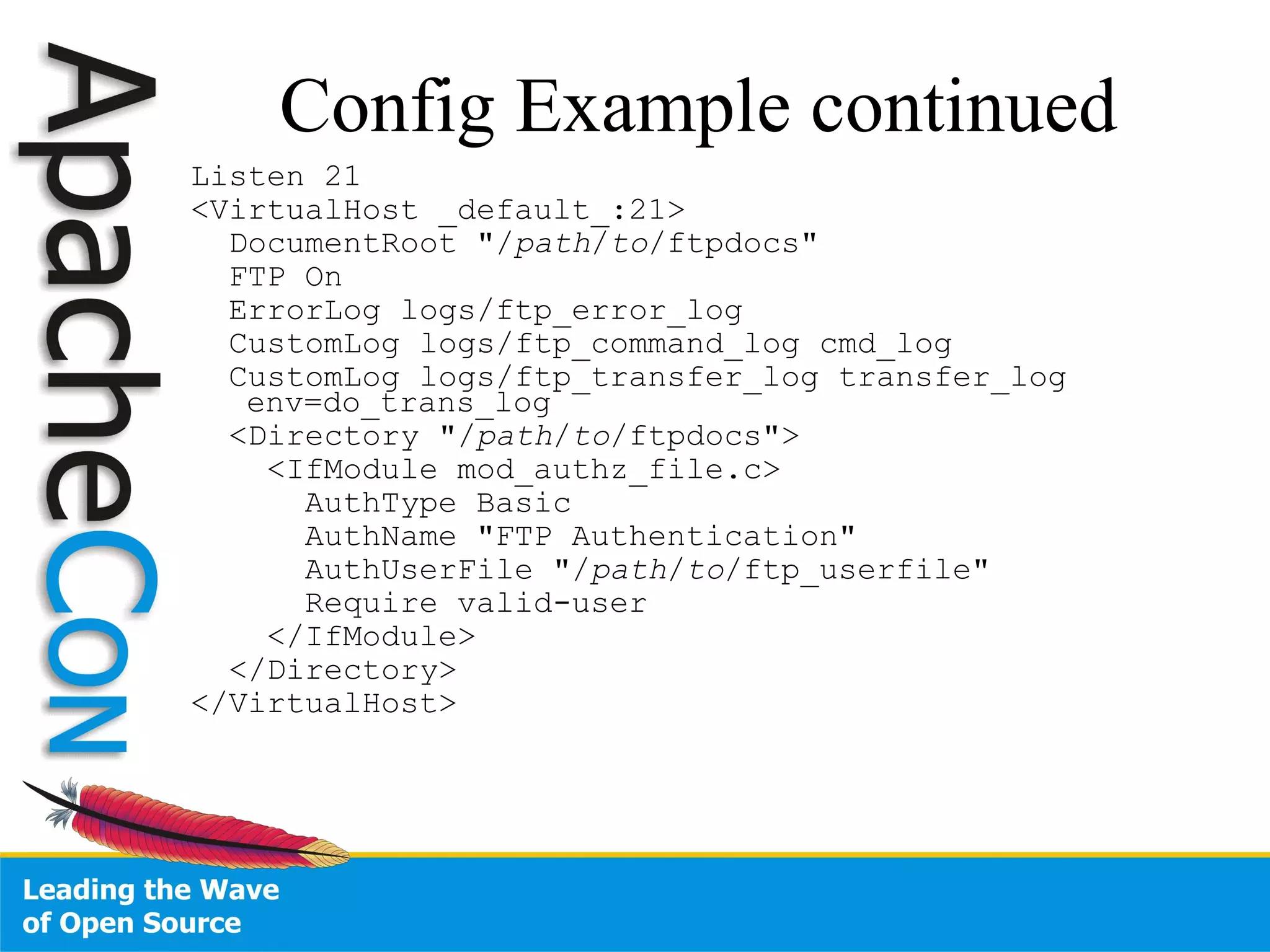

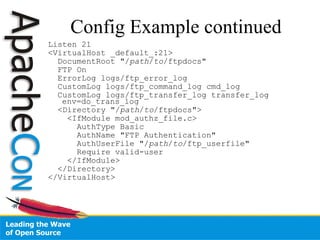

8. Config Example continued Listen 21 <VirtualHost _default_:21> DocumentRoot &quot;/ path / to /ftpdocs&quot; FTP On ErrorLog logs/ftp_error_log CustomLog logs/ftp_command_log cmd_log CustomLog logs/ftp_transfer_log transfer_log env=do_trans_log <Directory &quot;/ path / to /ftpdocs&quot;> <IfModule mod_authz_file.c> AuthType Basic AuthName &quot;FTP Authentication&quot; AuthUserFile &quot;/ path / to /ftp_userfile&quot; Require valid-user </IfModule> </Directory> </VirtualHost>

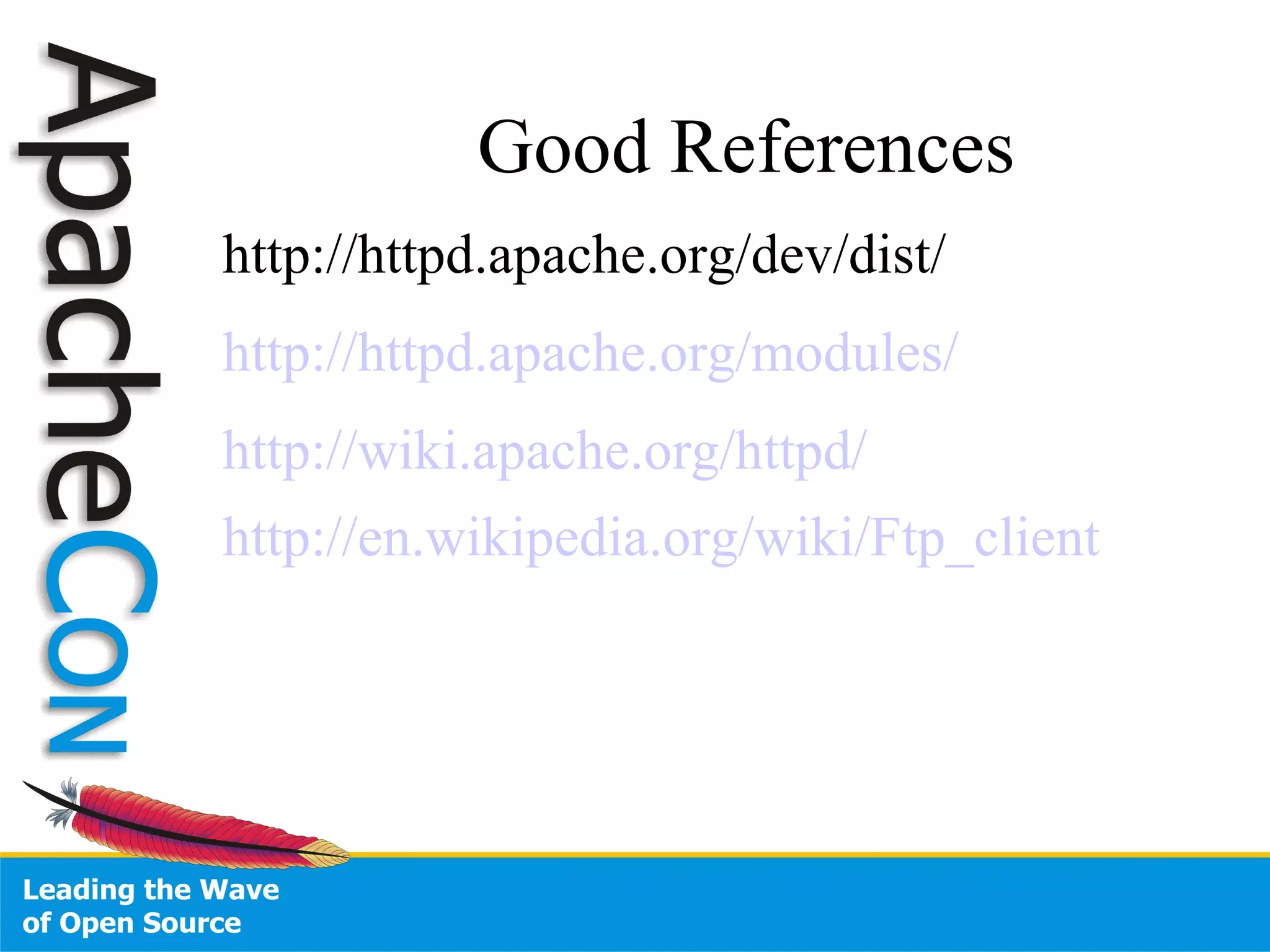

9. Good References http://httpd.apache.org/dev/dist/ http://httpd.apache.org/modules/ http://wiki.apache.org/httpd/ http://en.wikipedia.org/wiki/Ftp_client

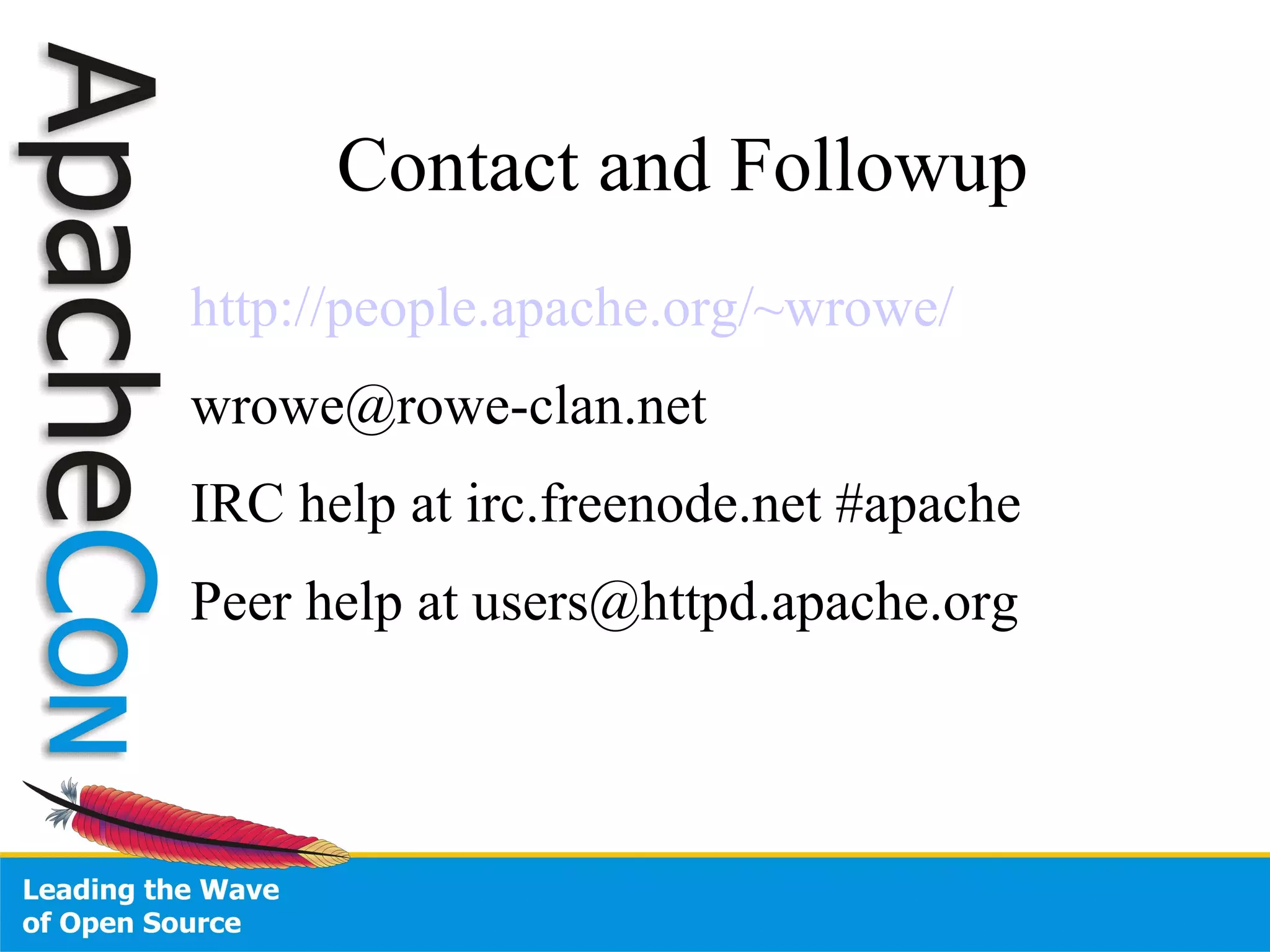

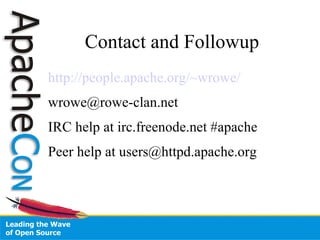

10. Contact and Followup http://people.apache.org/~wrowe/ [email_address] IRC help at irc.freenode.net #apache Peer help at users@httpd.apache.org
