This document describes how to generate runtime animation in Unity by recording and replaying user interactions. It discusses recording transform property values over time, generating AnimationClip assets from the recorded data, and playing back the clips on instantiated prefab duplicates. The key aspects are recording curve keyframes during gameplay and using the Unity animation API to build clips from the curves that can then be applied to objects in the scene for replay. Saving the full recording data is also addressed to allow recreations of the animated scenes from files.

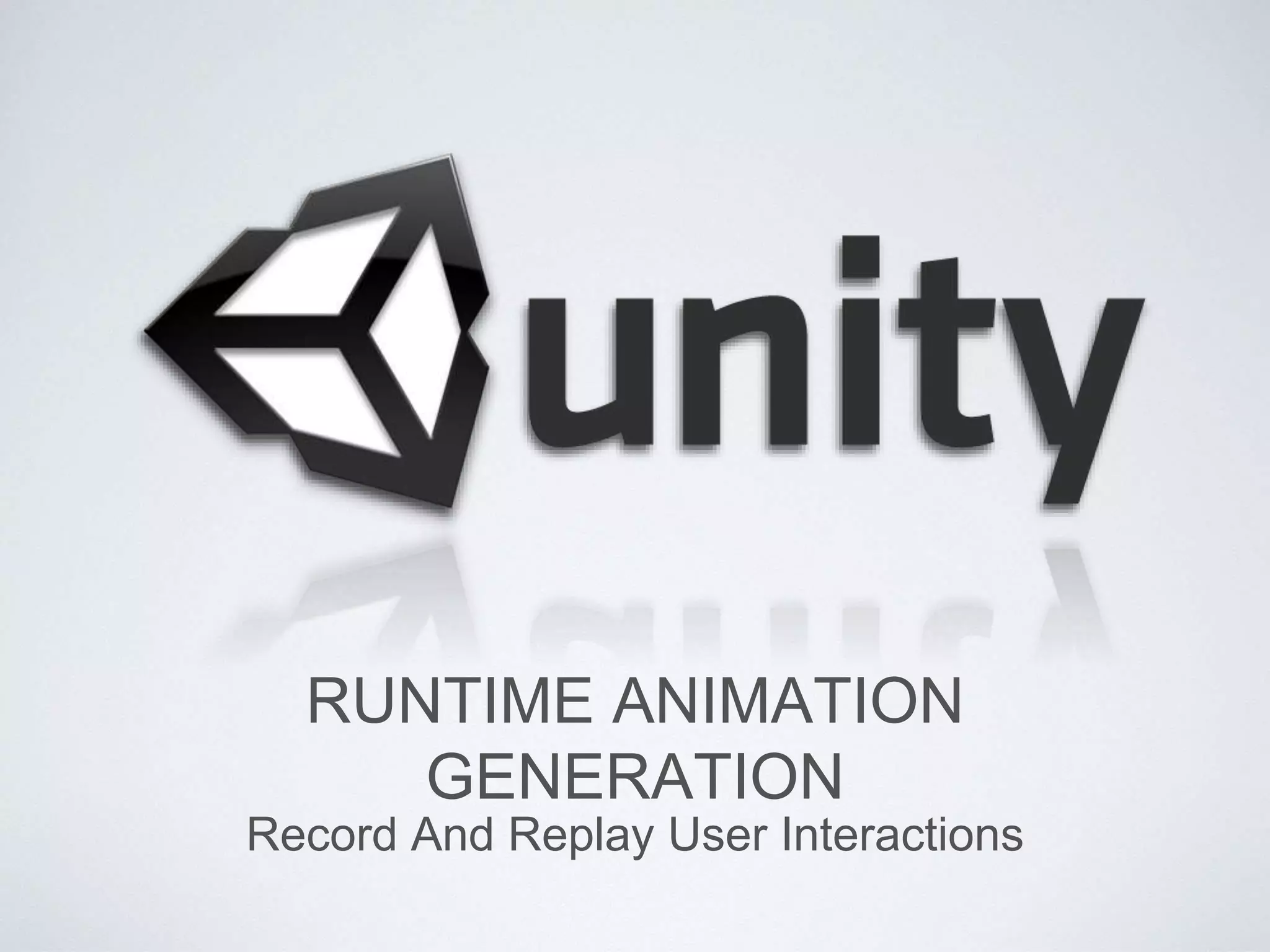

1. RUNTIME ANIMATION
GENERATION
Record And Replay User Interactions

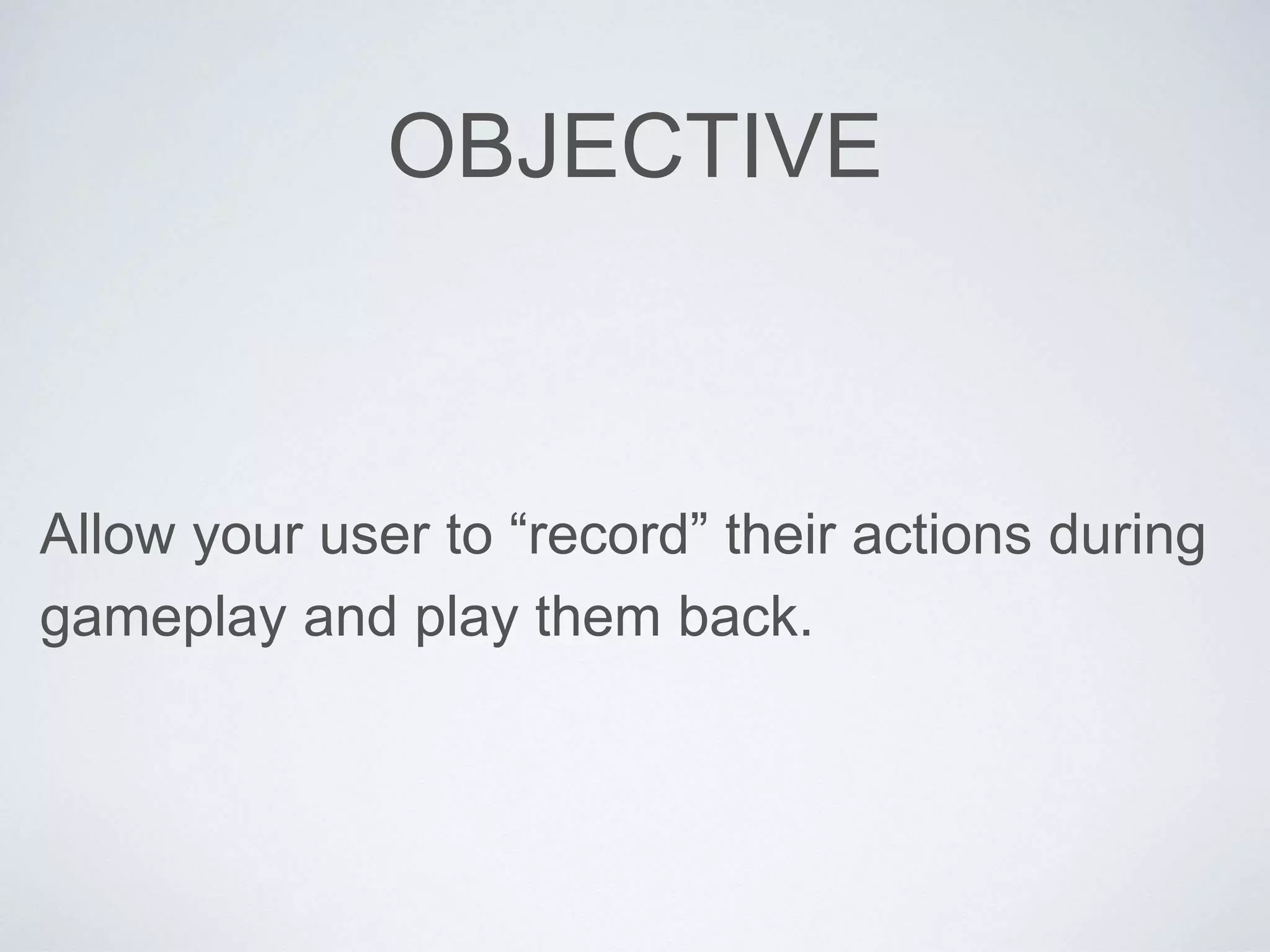

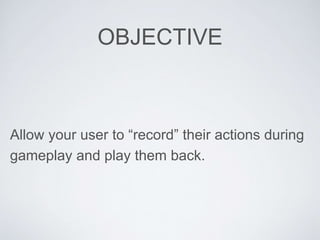

2. OBJECTIVE
Allow your user to “record” their actions during
gameplay and play them back.

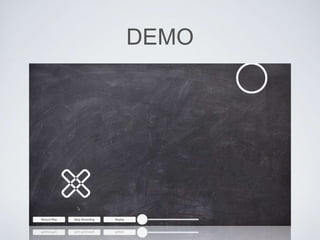

3. DEMO

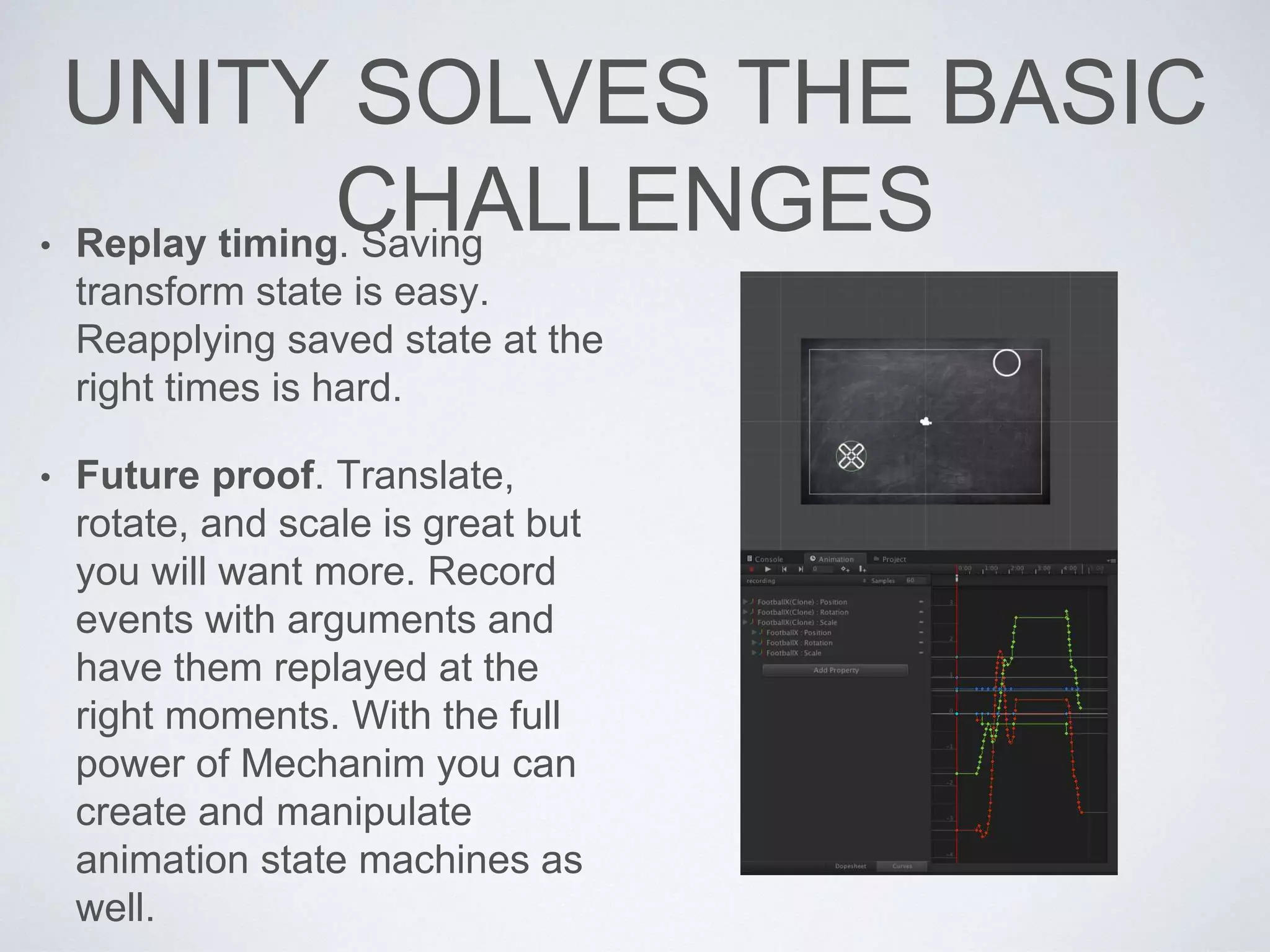

4. UNITY SOLVES THE BASIC
CHALLENGES• Replay timing. Saving
transform state is easy.
Reapplying saved state at the
right times is hard.
• Future proof. Translate,
rotate, and scale is great but
you will want more. Record
events with arguments and
have them replayed at the
right moments. With the full
power of Mechanim you can
create and manipulate
animation state machines as
well.

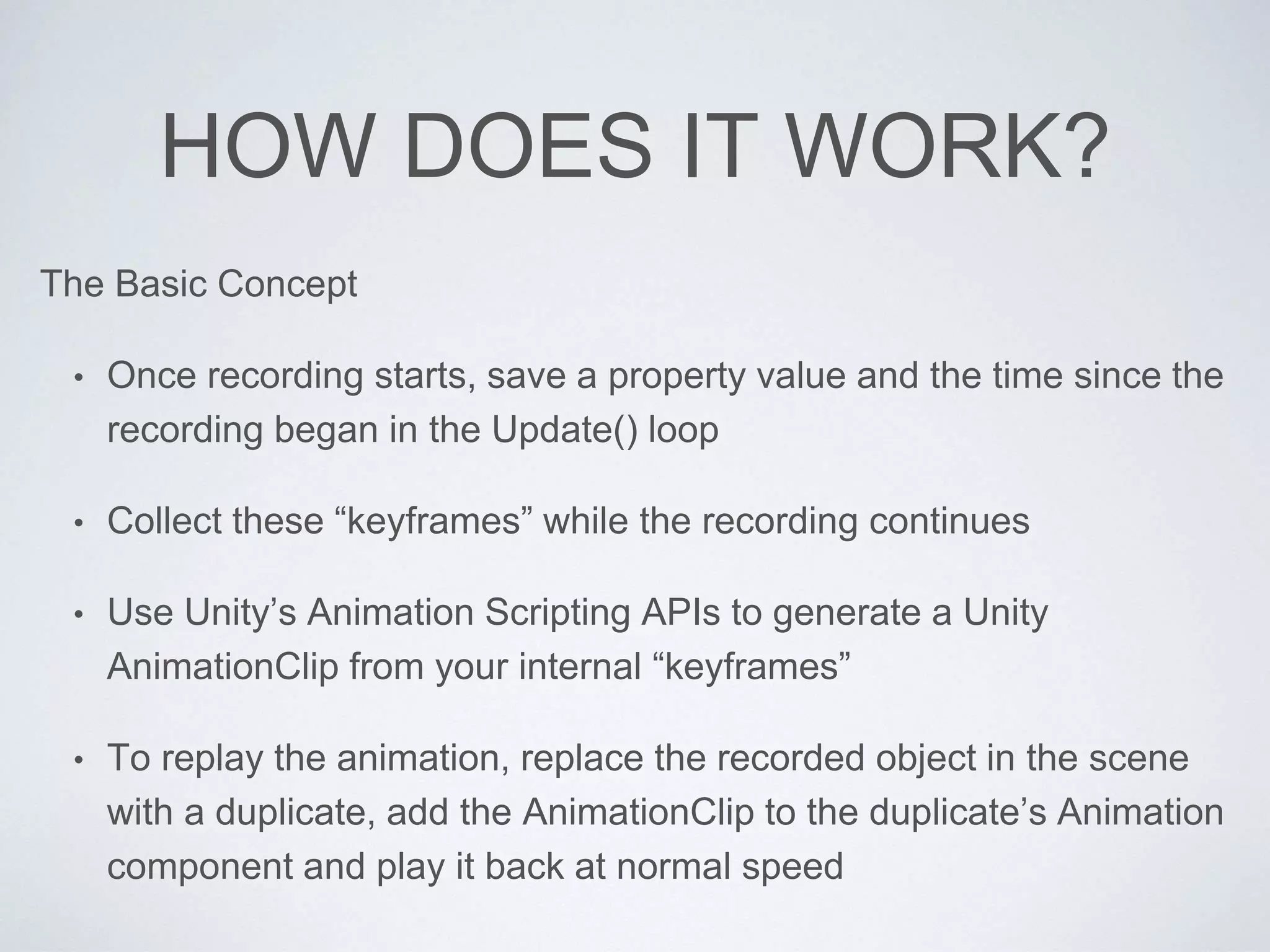

5. HOW DOES IT WORK?
The Basic Concept
• Once recording starts, save a property value and the time since the
recording began in the Update() loop
• Collect these “keyframes” while the recording continues
• Use Unity’s Animation Scripting APIs to generate a Unity
AnimationClip from your internal “keyframes”
• To replay the animation, replace the recorded object in the scene
with a duplicate, add the AnimationClip to the duplicate’s Animation
component and play it back at normal speed

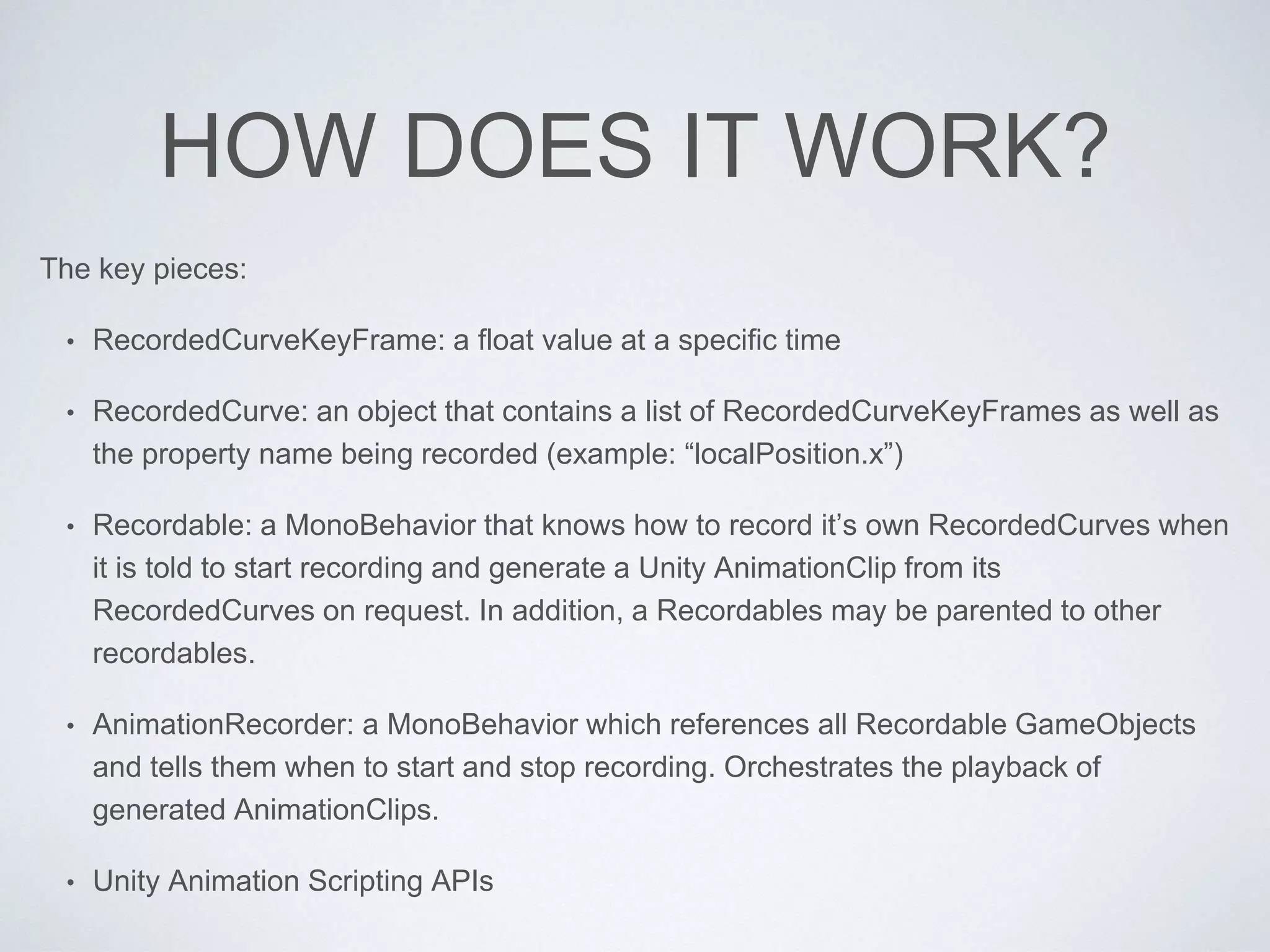

6. HOW DOES IT WORK?
The key pieces:
• RecordedCurveKeyFrame: a float value at a specific time
• RecordedCurve: an object that contains a list of RecordedCurveKeyFrames as well as
the property name being recorded (example: “localPosition.x”)
• Recordable: a MonoBehavior that knows how to record it’s own RecordedCurves when
it is told to start recording and generate a Unity AnimationClip from its
RecordedCurves on request. In addition, a Recordables may be parented to other
recordables.
• AnimationRecorder: a MonoBehavior which references all Recordable GameObjects
and tells them when to start and stop recording. Orchestrates the playback of
generated AnimationClips.
• Unity Animation Scripting APIs

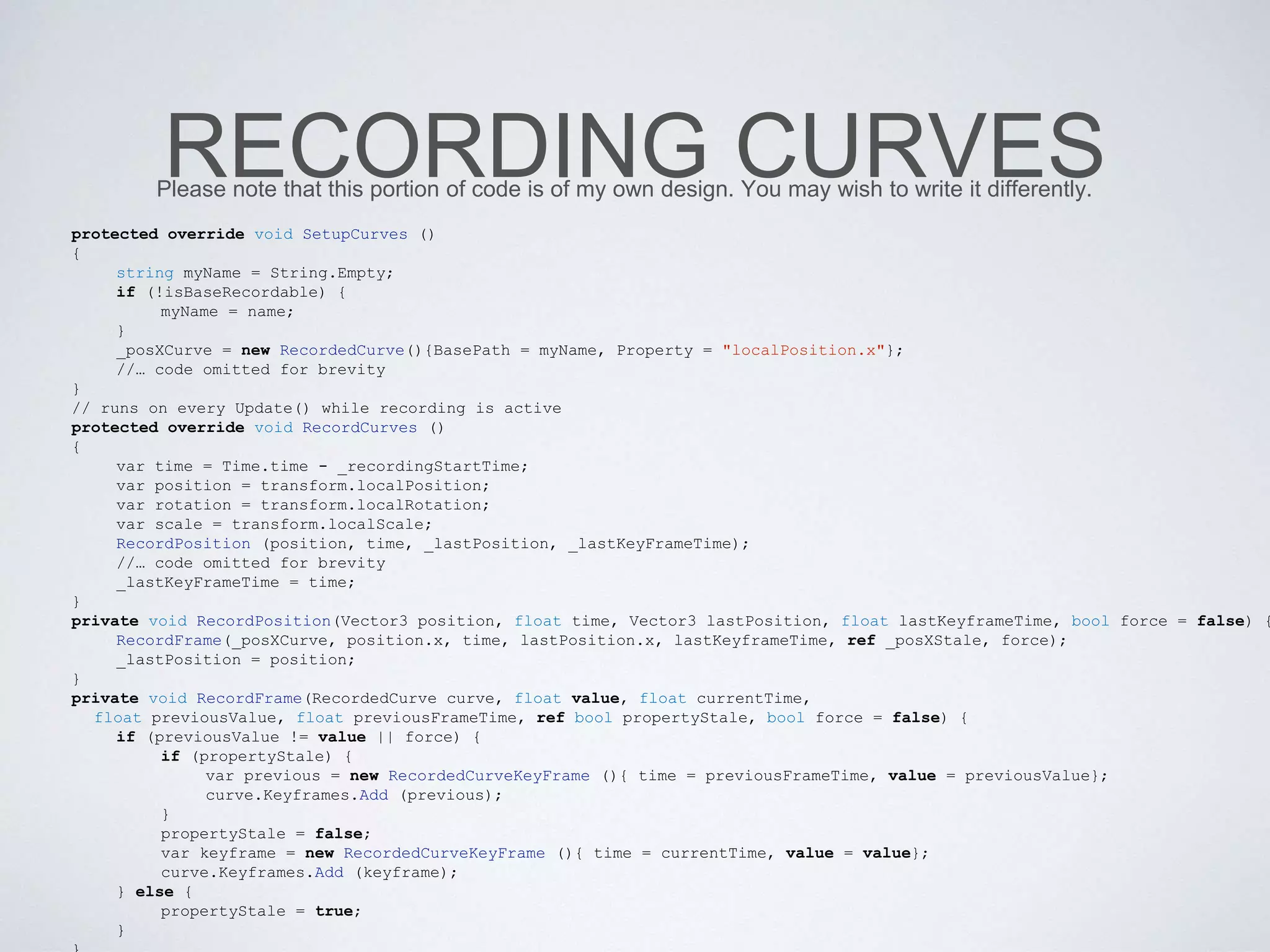

7. RECORDING CURVESPlease note that this portion of code is of my own design. You may wish to write it differently.
protected override void SetupCurves ()
{
string myName = String.Empty;
if (!isBaseRecordable) {
myName = name;
}
_posXCurve = new RecordedCurve(){BasePath = myName, Property = "localPosition.x"};
//… code omitted for brevity
}
// runs on every Update() while recording is active
protected override void RecordCurves ()
{
var time = Time.time - _recordingStartTime;
var position = transform.localPosition;
var rotation = transform.localRotation;
var scale = transform.localScale;
RecordPosition (position, time, _lastPosition, _lastKeyFrameTime);
//… code omitted for brevity
_lastKeyFrameTime = time;
}
private void RecordPosition(Vector3 position, float time, Vector3 lastPosition, float lastKeyframeTime, bool force = false) {
RecordFrame(_posXCurve, position.x, time, lastPosition.x, lastKeyframeTime, ref _posXStale, force);
_lastPosition = position;
}
private void RecordFrame(RecordedCurve curve, float value, float currentTime,
float previousValue, float previousFrameTime, ref bool propertyStale, bool force = false) {
if (previousValue != value || force) {
if (propertyStale) {
var previous = new RecordedCurveKeyFrame (){ time = previousFrameTime, value = previousValue};
curve.Keyframes.Add (previous);
}
propertyStale = false;
var keyframe = new RecordedCurveKeyFrame (){ time = currentTime, value = value};
curve.Keyframes.Add (keyframe);
} else {
propertyStale = true;
}

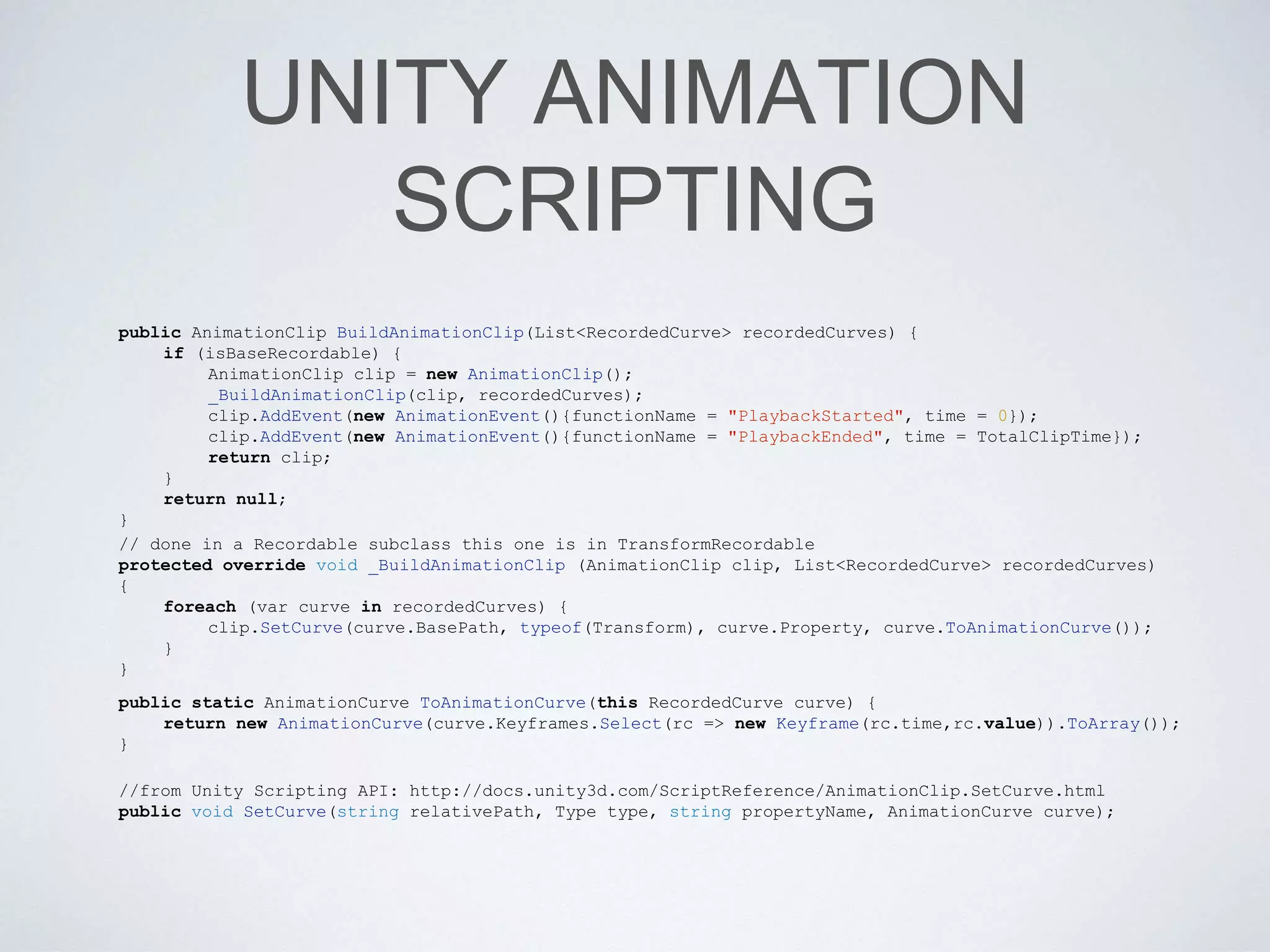

8. UNITY ANIMATION
SCRIPTING
// done in a Recordable subclass this one is in TransformRecordable
protected override void _BuildAnimationClip (AnimationClip clip, List<RecordedCurve> recordedCurves)
{
foreach (var curve in recordedCurves) {
clip.SetCurve(curve.BasePath, typeof(Transform), curve.Property, curve.ToAnimationCurve());
}
}
public static AnimationCurve ToAnimationCurve(this RecordedCurve curve) {
return new AnimationCurve(curve.Keyframes.Select(rc => new Keyframe(rc.time,rc.value)).ToArray());
}
//from Unity Scripting API: http://docs.unity3d.com/ScriptReference/AnimationClip.SetCurve.html
public void SetCurve(string relativePath, Type type, string propertyName, AnimationCurve curve);
public AnimationClip BuildAnimationClip(List<RecordedCurve> recordedCurves) {
if (isBaseRecordable) {
AnimationClip clip = new AnimationClip();
_BuildAnimationClip(clip, recordedCurves);
clip.AddEvent(new AnimationEvent(){functionName = "PlaybackStarted", time = 0});
clip.AddEvent(new AnimationEvent(){functionName = "PlaybackEnded", time = TotalClipTime});
return clip;
}
return null;
}

9. USING GENERATED

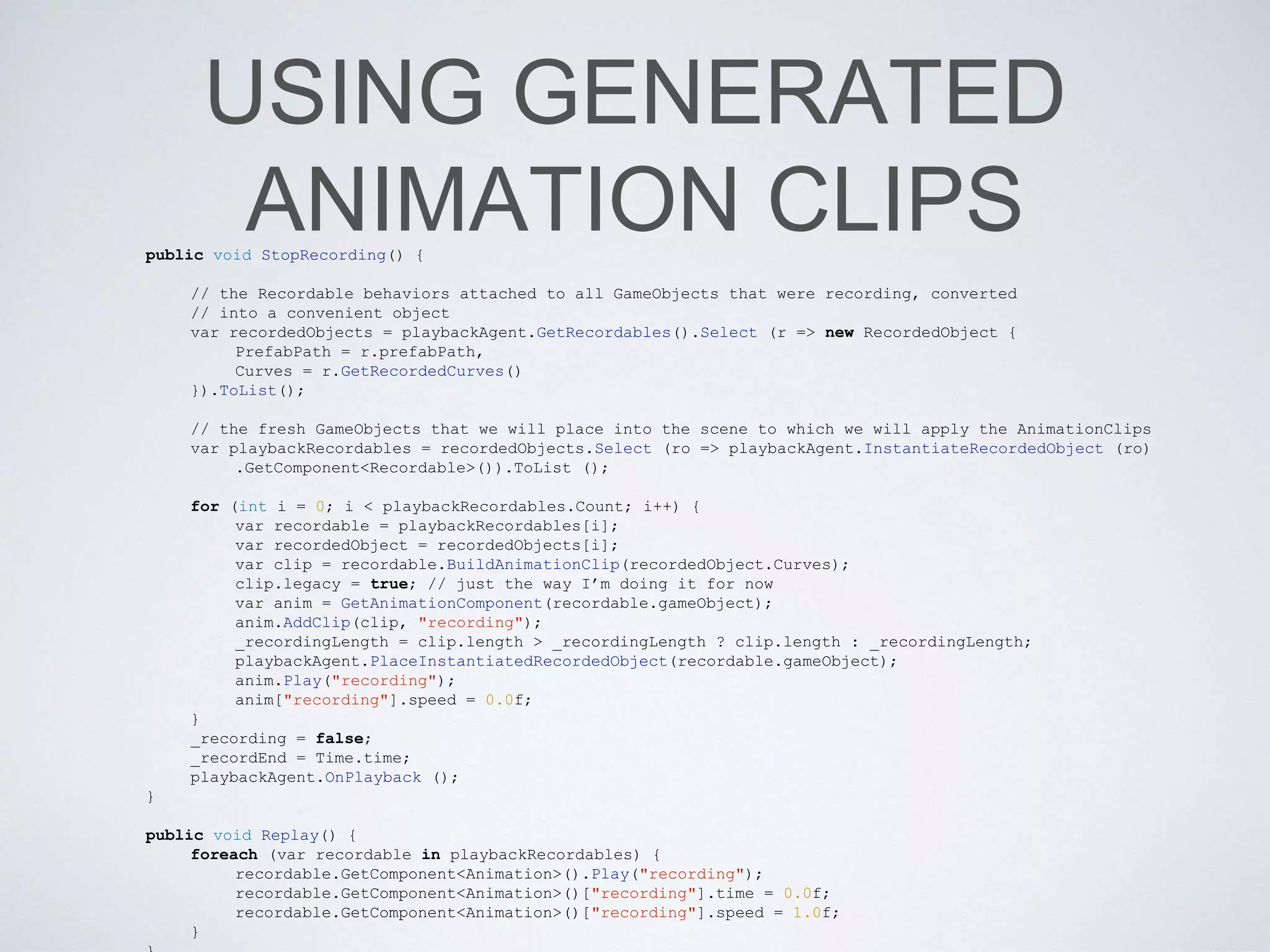

ANIMATION CLIPSpublic void StopRecording() {
// the Recordable behaviors attached to all GameObjects that were recording, converted
// into a convenient object
var recordedObjects = playbackAgent.GetRecordables().Select (r => new RecordedObject {
PrefabPath = r.prefabPath,
Curves = r.GetRecordedCurves()
}).ToList();
// the fresh GameObjects that we will place into the scene to which we will apply the AnimationClips
var playbackRecordables = recordedObjects.Select (ro => playbackAgent.InstantiateRecordedObject (ro)
.GetComponent<Recordable>()).ToList ();
for (int i = 0; i < playbackRecordables.Count; i++) {
var recordable = playbackRecordables[i];
var recordedObject = recordedObjects[i];
var clip = recordable.BuildAnimationClip(recordedObject.Curves);
clip.legacy = true; // just the way I’m doing it for now
var anim = GetAnimationComponent(recordable.gameObject);
anim.AddClip(clip, "recording");
_recordingLength = clip.length > _recordingLength ? clip.length : _recordingLength;
playbackAgent.PlaceInstantiatedRecordedObject(recordable.gameObject);
anim.Play("recording");
anim["recording"].speed = 0.0f;
}
_recording = false;
_recordEnd = Time.time;
playbackAgent.OnPlayback ();
}
public void Replay() {
foreach (var recordable in playbackRecordables) {
recordable.GetComponent<Animation>().Play("recording");
recordable.GetComponent<Animation>()["recording"].time = 0.0f;
recordable.GetComponent<Animation>()["recording"].speed = 1.0f;
}

10. SAVING ANIMATIONS
You may do this step any way you want with some guidelines.
• Serialize your own data model and only work with Unity’s objects only at
runtime.
• Save all the data that you need to fully recreate your recordings. You will
need to be able to instantiate prefabs, generate and apply Animation clips,
play background audio etc. There’s a lot of state info required to recreate
a scene.
• Version your serialized models. You will always have to make a change
and you will need a migration strategy.
• Choose a cross-platform serialization tool. I use Protocol Buffers because
they are cross-platform, fast, and small.

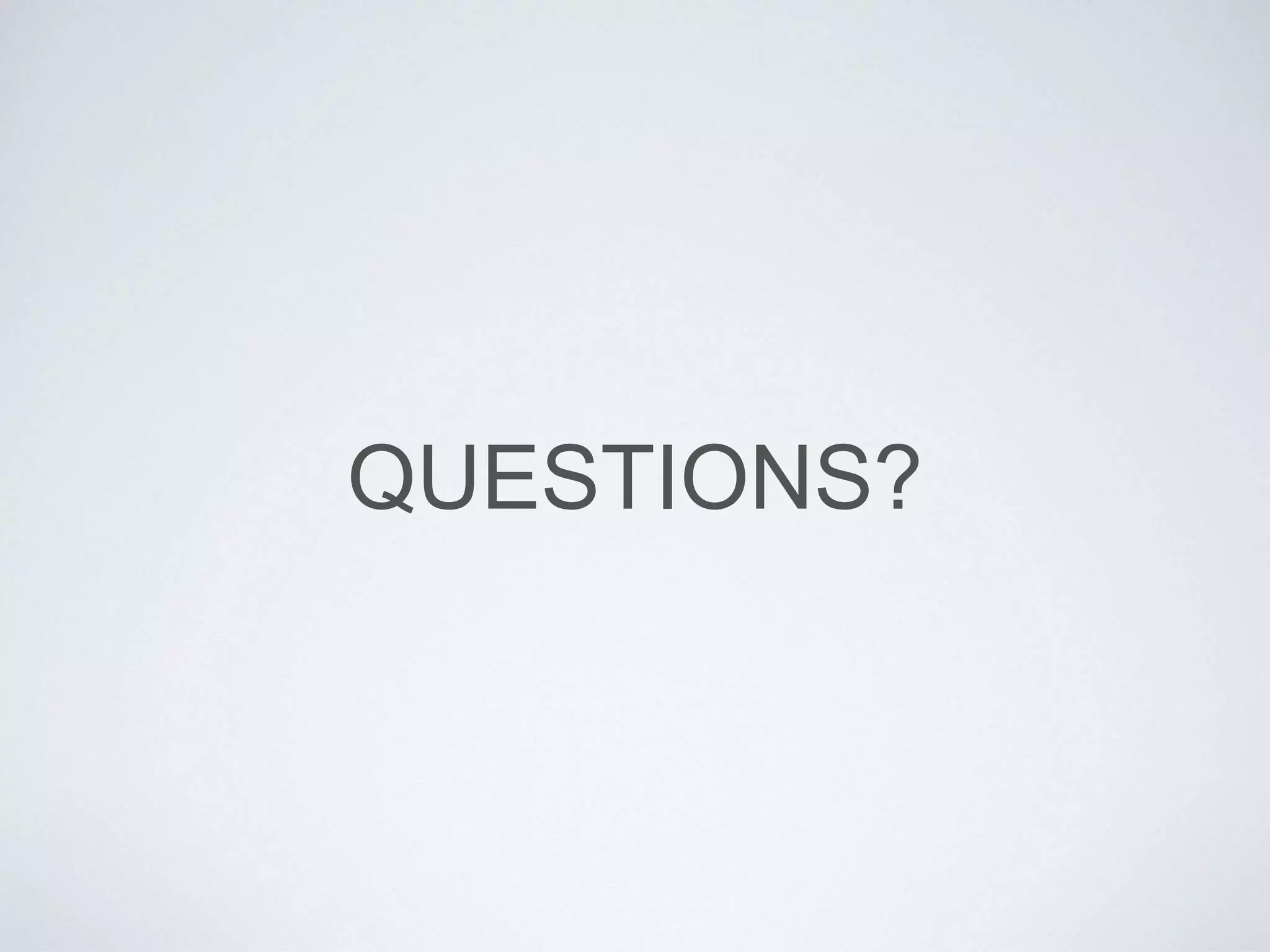

11. QUESTIONS?
