github.com/gianarb/orbiter
Gianluca Arbezzano
@gianarb
Building clouds at InfluxDB (SRE)

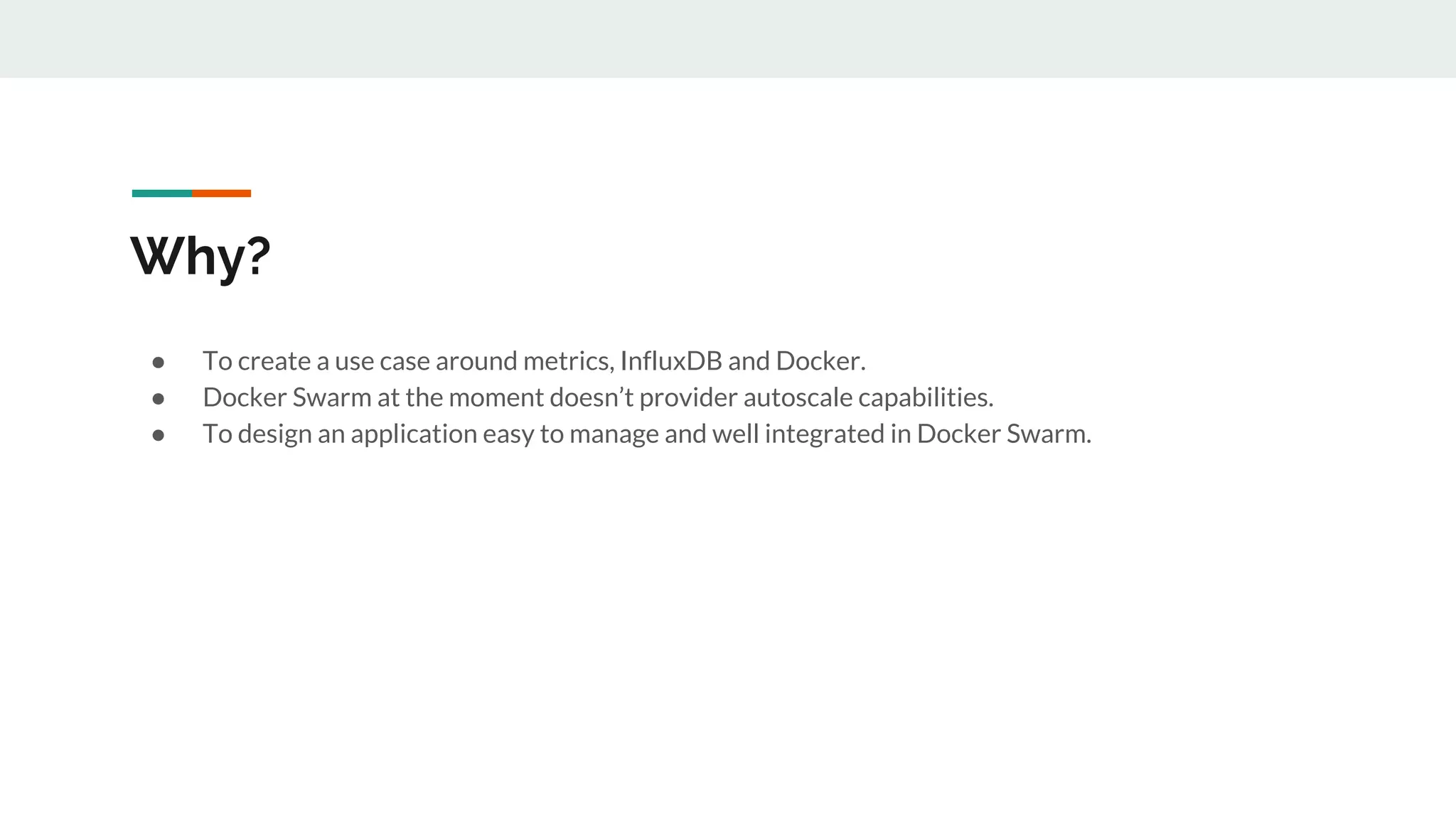

Why?
● To create a use case around metrics, InfluxDB and Docker.
● Docker Swarm at the moment doesn’t provider autoscale capabilities.
● To design an application easy to manage and well integrated in Docker Swarm.

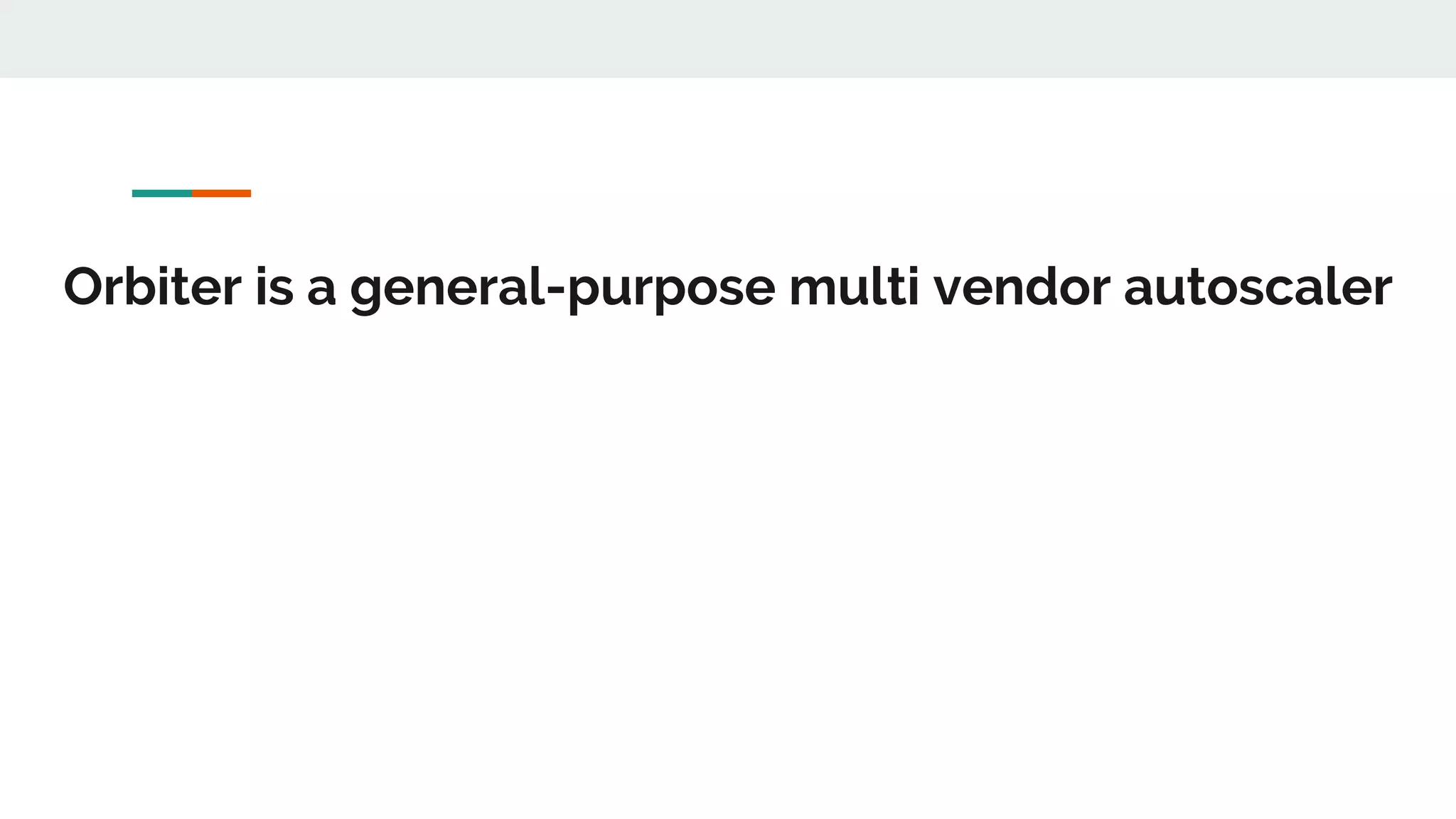

Orbiter is a general-purpose multi vendor autoscaler
Orbiter is a general-purpose multi vendor autoscaler
Orbiter is a Docker Swarm autoscaler

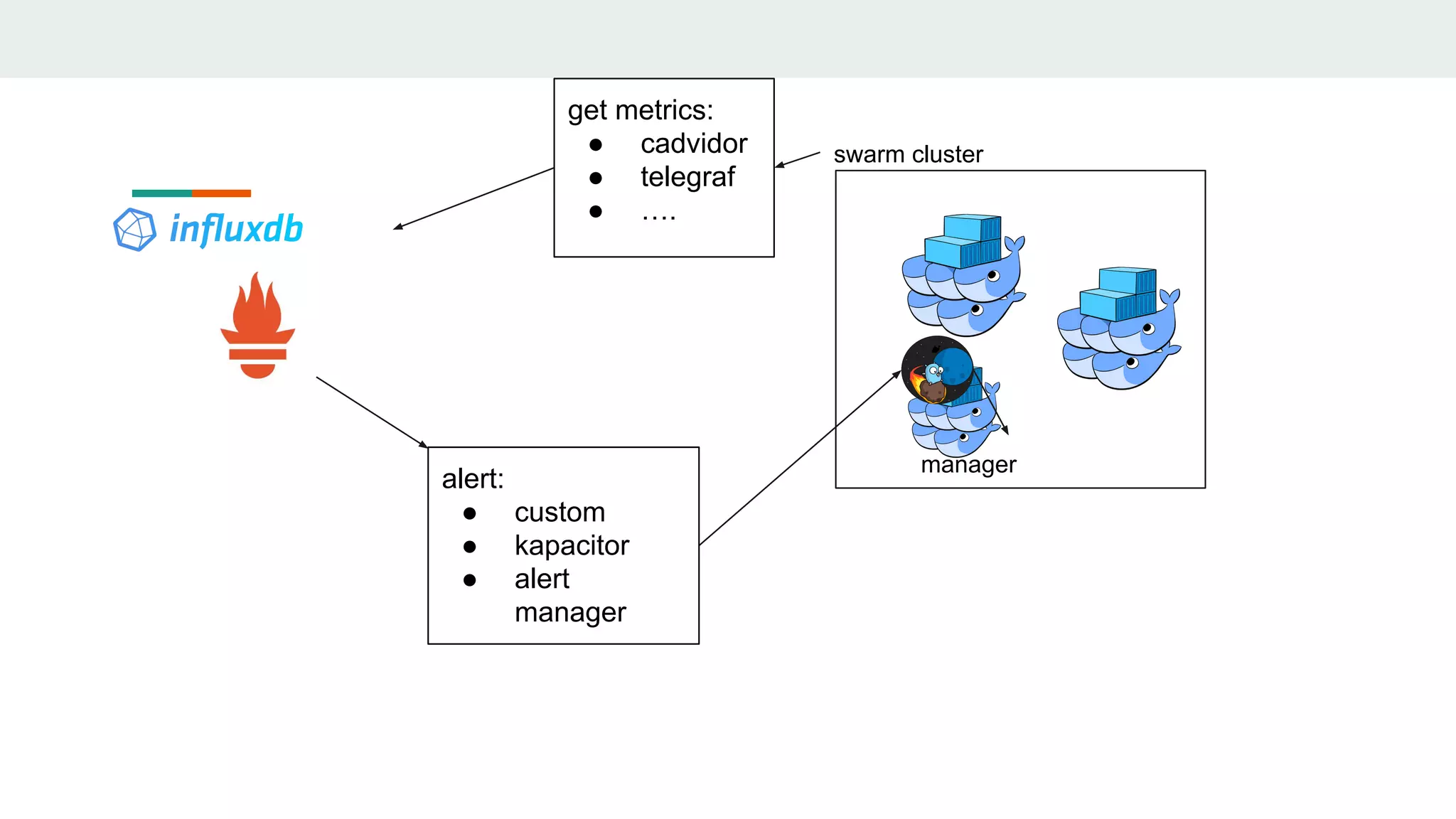

swarm cluster
manager
get metrics:
● cadvidor
● telegraf
● ….
alert:
● custom
● kapacitor
● alert
manager

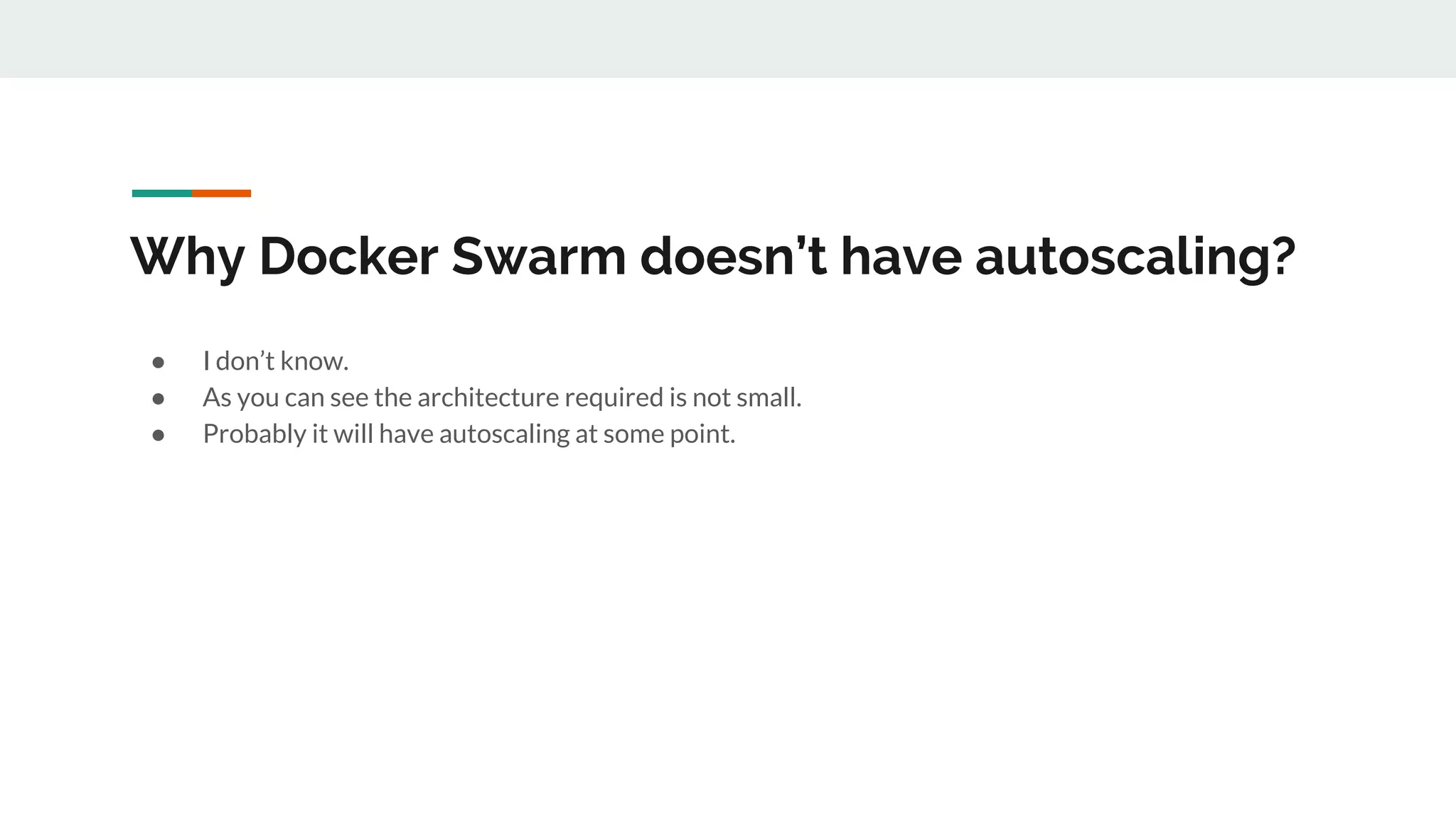

Why Docker Swarm doesn’t have autoscaling?
● I don’t know.
● As you can see the architecture required is not small.
● Probably it will have autoscaling at some point.

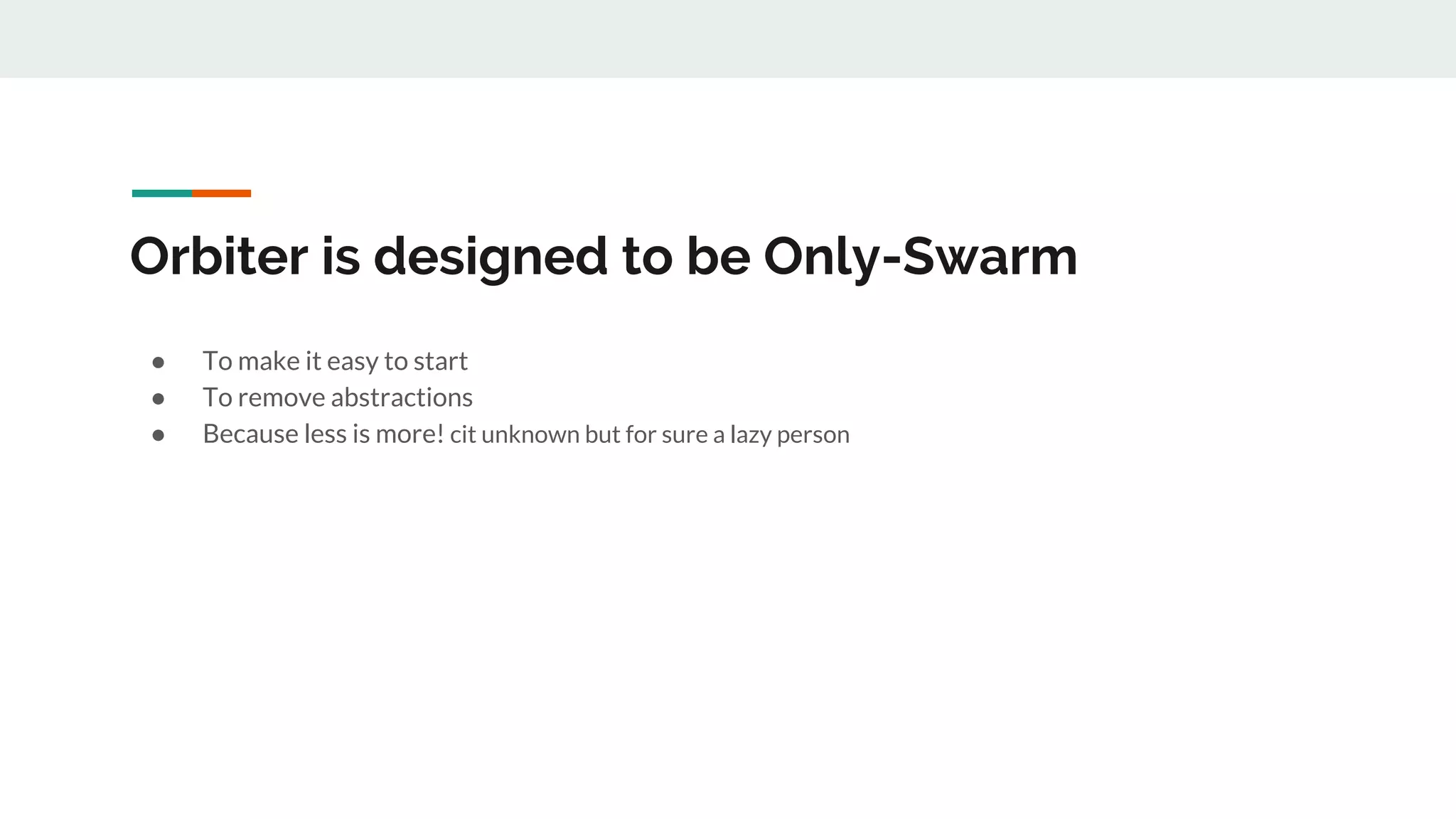

Orbiter is designed to be Only-Swarm
● To make it easy to start
● To remove abstractions
● Because less is more! cit unknown but for sure a lazy person

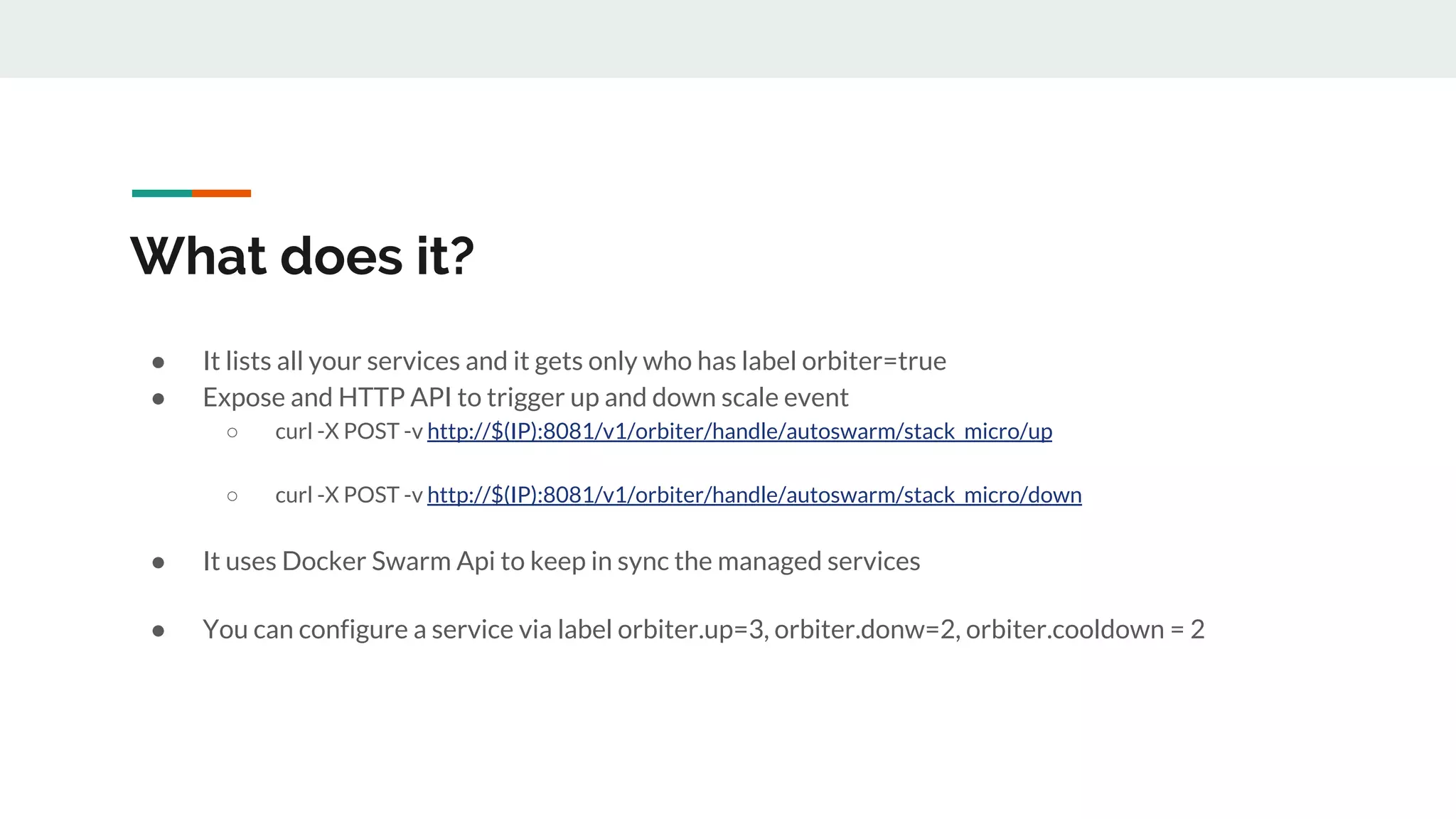

What does it?
● It lists all your services and it gets only who has label orbiter=true
● Expose and HTTP API to trigger up and down scale event
○ curl -X POST -v http://$(IP):8081/v1/orbiter/handle/autoswarm/stack_micro/up
○ curl -X POST -v http://$(IP):8081/v1/orbiter/handle/autoswarm/stack_micro/down
● It uses Docker Swarm Api to keep in sync the managed services
● You can configure a service via label orbiter.up=3, orbiter.donw=2, orbiter.cooldown = 2

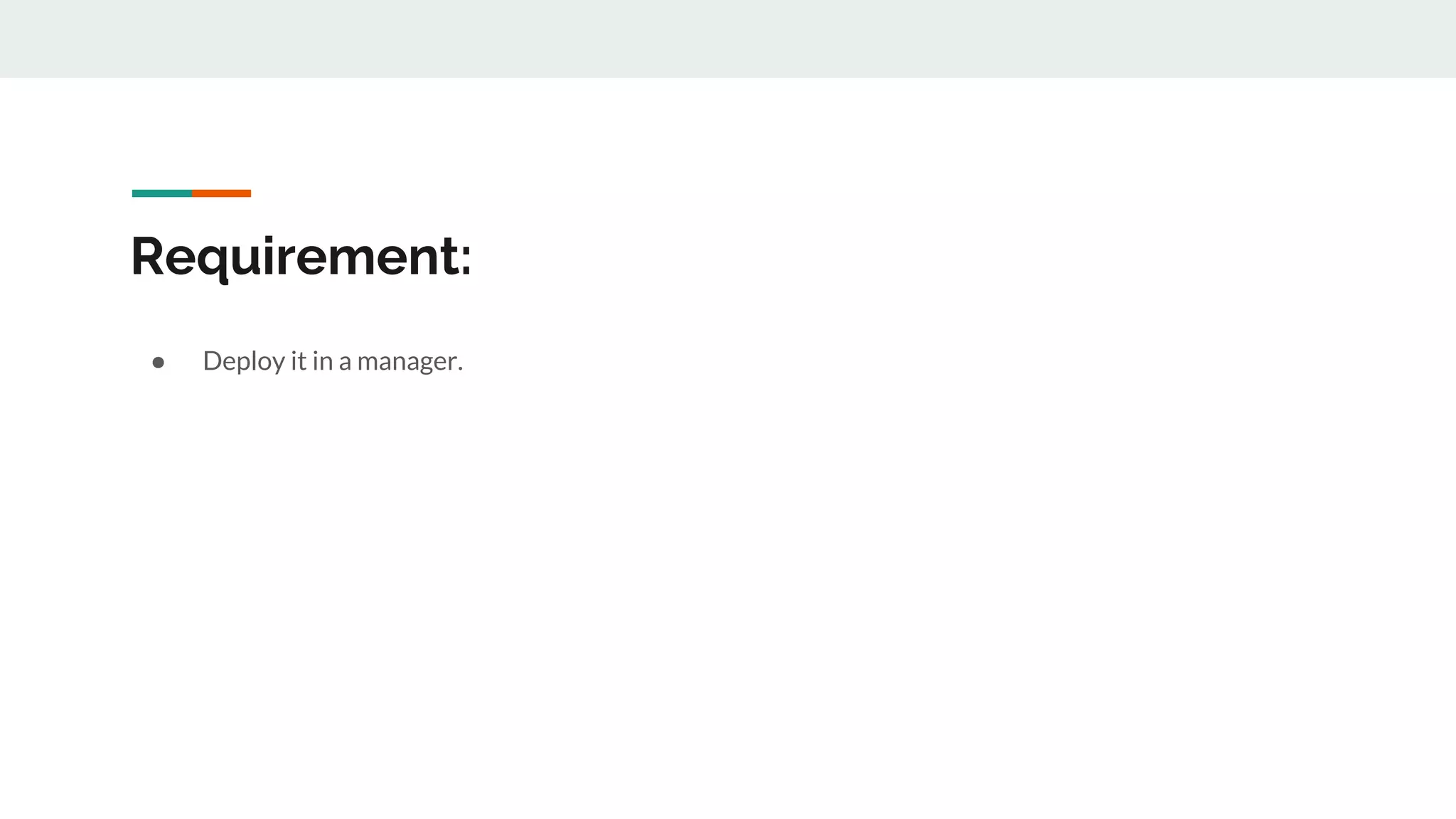

Requirement:
● Deploy it in a manager.

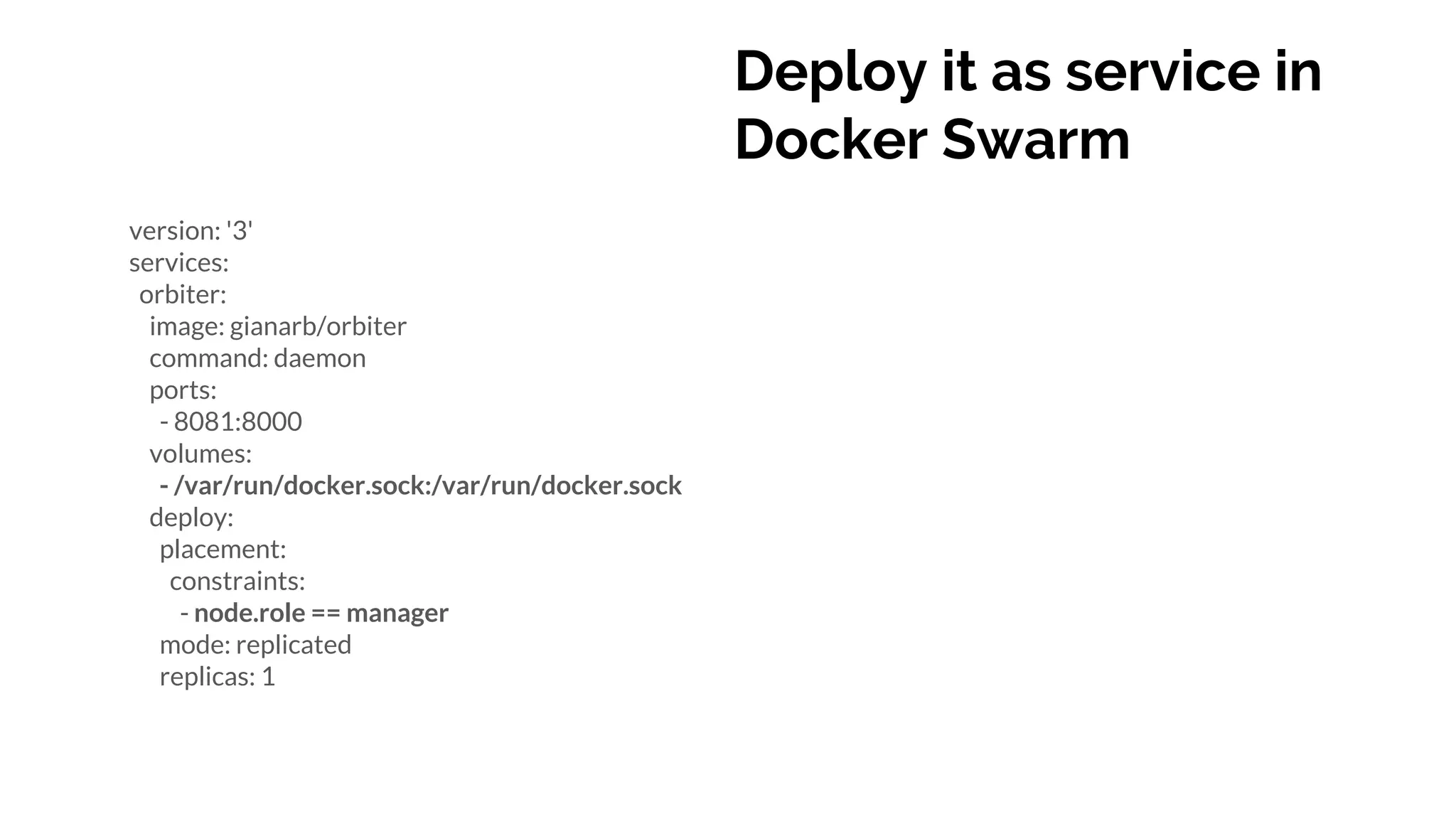

Deploy it as service in
Docker Swarm
version: '3'
services:
orbiter:
image: gianarb/orbiter
command: daemon
ports:
- 8081:8000
volumes:
- /var/run/docker.sock:/var/run/docker.sock
deploy:
placement:
constraints:
- node.role == manager
mode: replicated
replicas: 1

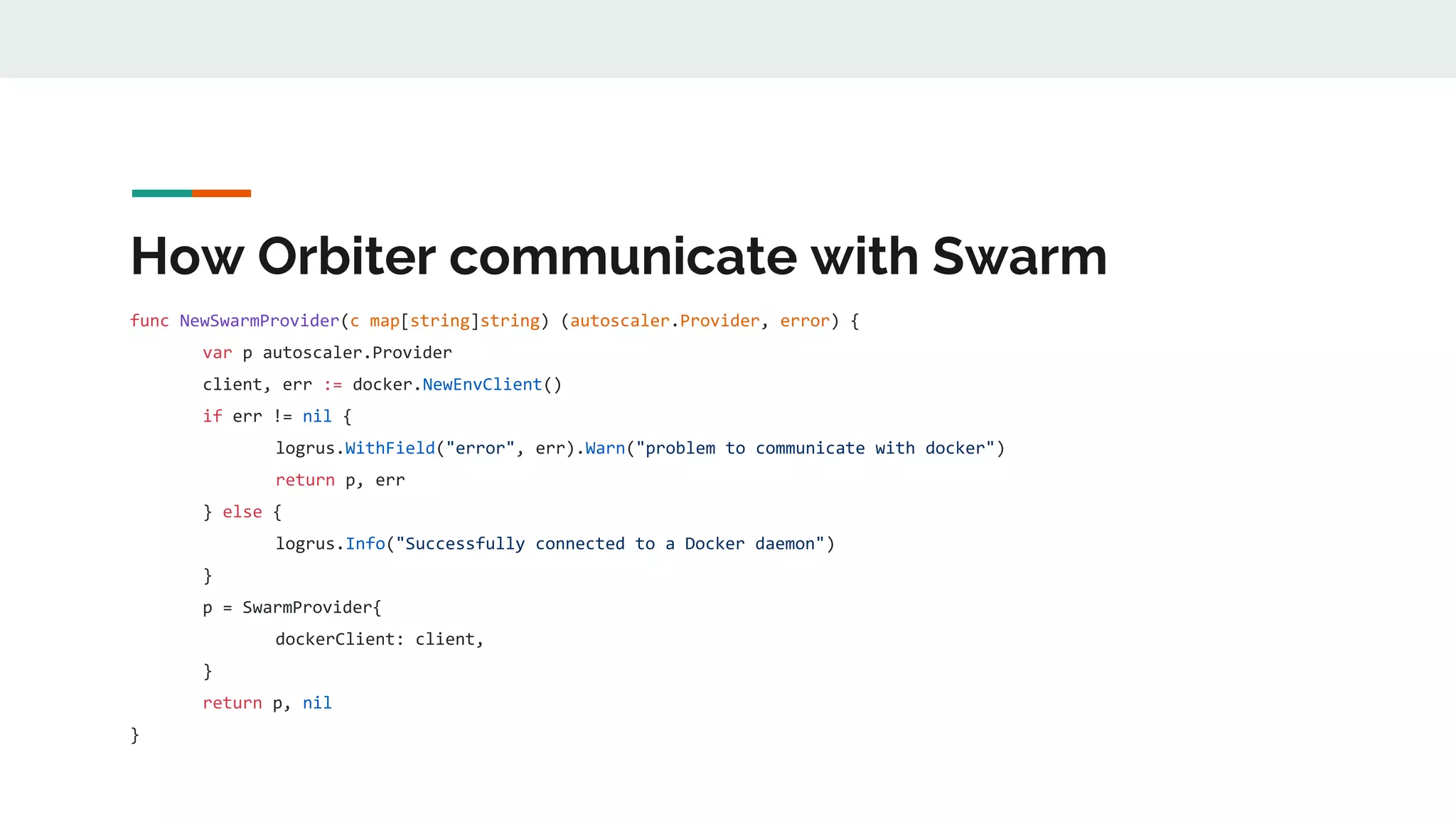

How Orbiter communicate with Swarm
func NewSwarmProvider(c map[string]string) (autoscaler.Provider, error) {
var p autoscaler.Provider
client, err := docker.NewEnvClient()
if err != nil {
logrus.WithField("error", err).Warn("problem to communicate with docker")
return p, err
} else {
logrus.Info("Successfully connected to a Docker daemon")
}
p = SwarmProvider{
dockerClient: client,
}
return p, nil
}
Orbiter and how to extend Docker Swarm

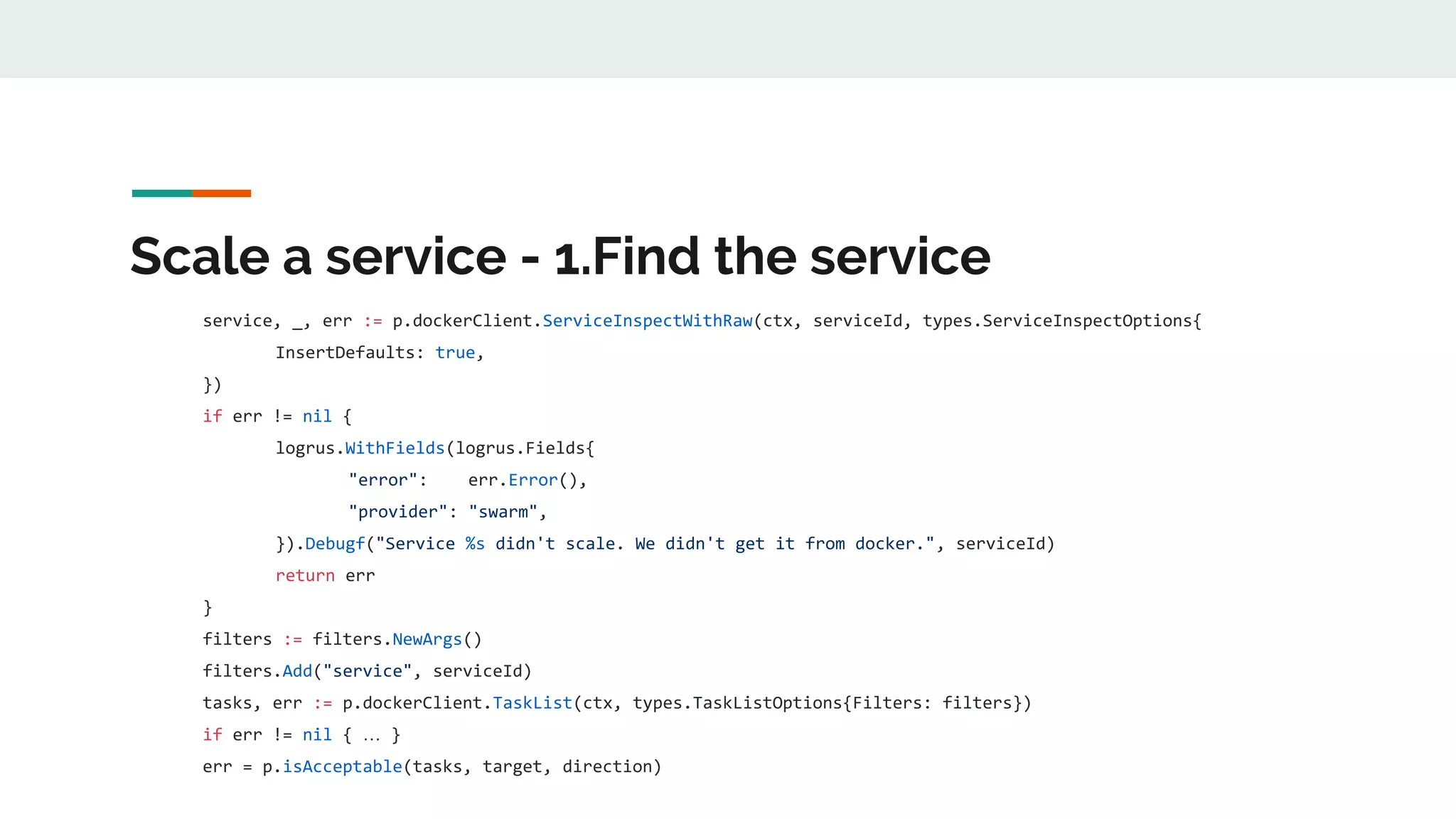

Scale a service - 1.Find the service
service, _, err := p.dockerClient.ServiceInspectWithRaw(ctx, serviceId, types.ServiceInspectOptions{
InsertDefaults: true,
})
if err != nil {
logrus.WithFields(logrus.Fields{
"error": err.Error(),
"provider": "swarm",
}).Debugf("Service %s didn't scale. We didn't get it from docker.", serviceId)
return err
}
filters := filters.NewArgs()
filters.Add("service", serviceId)
tasks, err := p.dockerClient.TaskList(ctx, types.TaskListOptions{Filters: filters})
if err != nil { … }
err = p.isAcceptable(tasks, target, direction)

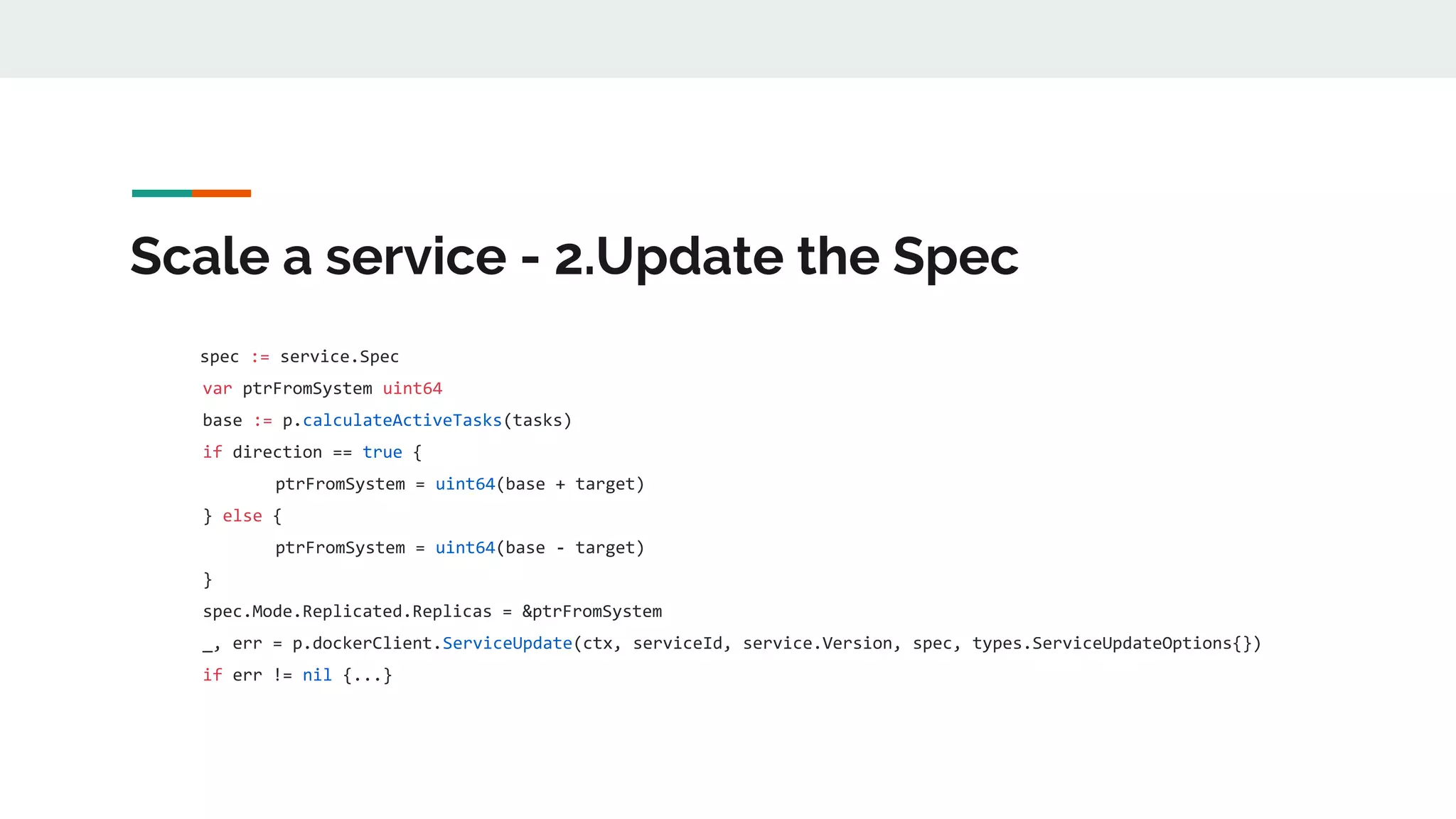

Scale a service - 2.Update the Spec
spec := service.Spec
var ptrFromSystem uint64
base := p.calculateActiveTasks(tasks)
if direction == true {
ptrFromSystem = uint64(base + target)
} else {
ptrFromSystem = uint64(base - target)
}
spec.Mode.Replicated.Replicas = &ptrFromSystem
_, err = p.dockerClient.ServiceUpdate(ctx, serviceId, service.Version, spec, types.ServiceUpdateOptions{})
if err != nil {...}
Background job to sync services with Docker
services, err := dockerClient.ServiceList(ctx, types.ServiceListOptions{})
if err != nil {
logrus.WithField("error", err).Debug("Bad communication with Docker.")
return
}
prov, _ := provider.NewSwarmProvider(map[string]string{})
for _, service := range services {
s, err := getAutoscalerByService(prov, service.Spec.Annotations)
if err != nil {
continue
}
c.Autoscalers[fmt.Sprintf("autoswarm/%s", service.Spec.Annotations.Name)] = s
}

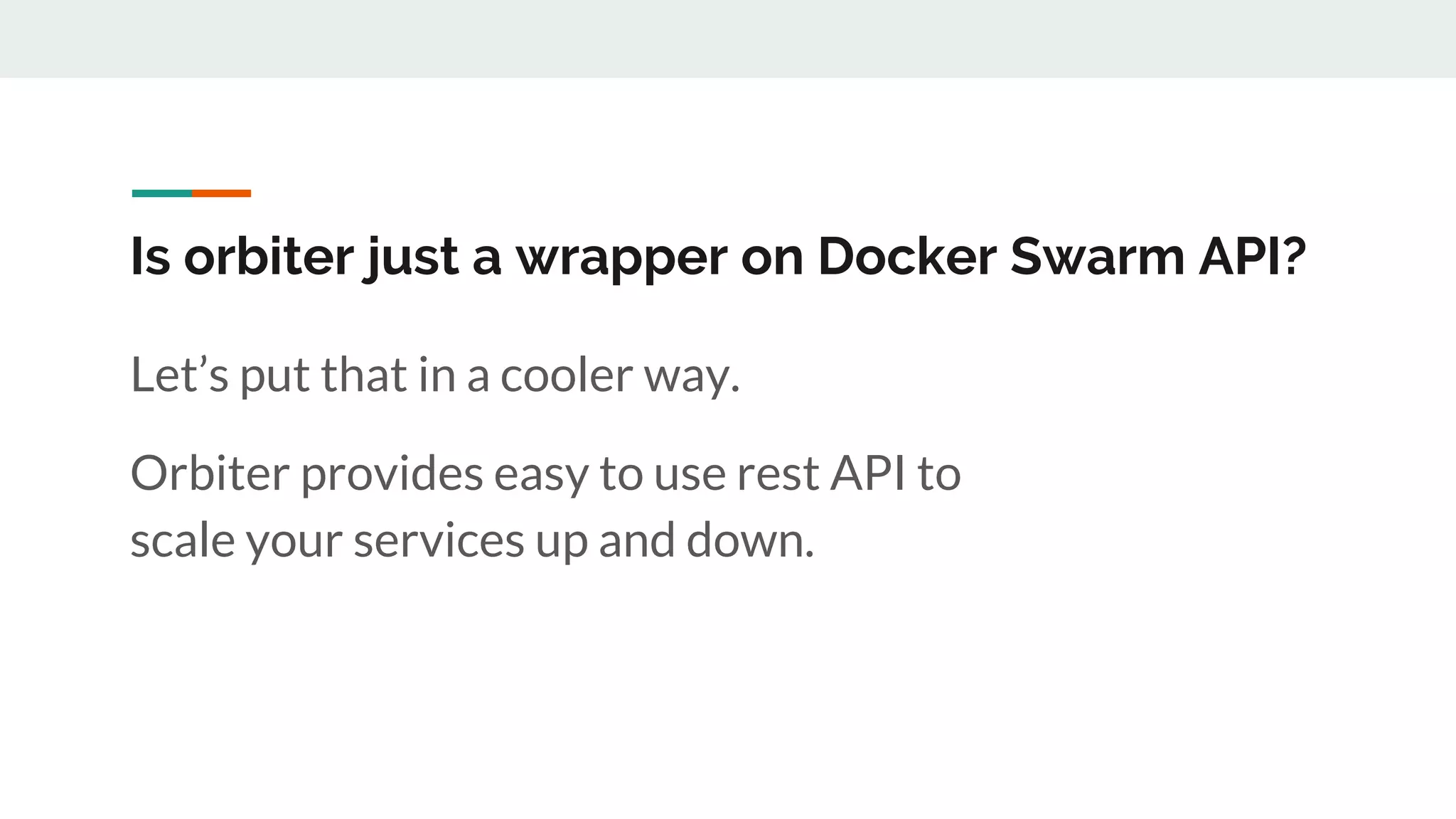

Is orbiter just a wrapper on Docker Swarm API?
Let’s put that in a cooler way.
Orbiter provides easy to use rest API to
scale your services up and down.
T-shirt time
Demo
Orbiter and how to extend Docker Swarm
Thanks a lot
https://twitter.com/gianarb
https://github.com/gianarb
https://gianarb.it

More Related Content

What's hot

A dive into akka streams: from the basics to a real-world scenario
A dive into akka streams: from the basics to a real-world scenarioA dive into akka streams: from the basics to a real-world scenario
A dive into akka streams: from the basics to a real-world scenario
Gioia Ballin

CLS & asyncListener: asynchronous observability for Node.js
CLS & asyncListener: asynchronous observability for Node.jsCLS & asyncListener: asynchronous observability for Node.js
CLS & asyncListener: asynchronous observability for Node.js
Forrest Norvell

Callbacks and control flow in Node js
Callbacks and control flow in Node jsCallbacks and control flow in Node js
Callbacks and control flow in Node js
Thomas Roch

Asynchronous handlers in asp.net
Asynchronous handlers in asp.netAsynchronous handlers in asp.net
Asynchronous handlers in asp.net
Abhishek Sur

Using akka streams to access s3 objects
Using akka streams to access s3 objectsUsing akka streams to access s3 objects
Using akka streams to access s3 objects
Mikhail Girkin

Using SaltStack to orchestrate microservices in application containers at Sal...
Using SaltStack to orchestrate microservices in application containers at Sal...Using SaltStack to orchestrate microservices in application containers at Sal...
Using SaltStack to orchestrate microservices in application containers at Sal...
Love Nyberg

Go With The Flow
Go With The FlowGo With The Flow
Go With The Flow
PhilWinstanley

Elixir at Evercam (By Milos Mosic)
Elixir at Evercam (By Milos Mosic)Elixir at Evercam (By Milos Mosic)
Asynchronní programování
Asynchronní programováníAsynchronní programování
Asynchronní programování
PeckaDesign.cz

Neighborly nagios
Neighborly nagiosNeighborly nagios
Neighborly nagios
David Josephsen

MongoDB World 2016: Implementing Async Networking in MongoDB 3.2
MongoDB World 2016: Implementing Async Networking in MongoDB 3.2MongoDB World 2016: Implementing Async Networking in MongoDB 3.2
MongoDB World 2016: Implementing Async Networking in MongoDB 3.2
MongoDB

Javascript internals
Javascript internalsJavascript internals
Javascript internals
Ayush Sharma

Reactive mistakes - ScalaDays Chicago 2017
Reactive mistakes -  ScalaDays Chicago 2017Reactive mistakes -  ScalaDays Chicago 2017
Reactive mistakes - ScalaDays Chicago 2017
Petr Zapletal

Unity 3D Runtime Animation Generation
Unity 3D Runtime Animation GenerationUnity 3D Runtime Animation Generation
Unity 3D Runtime Animation Generation
Dustin Graham

Converting a naive flow to akka streams
Converting a naive flow to akka streamsConverting a naive flow to akka streams
Converting a naive flow to akka streams
Gal Topper

Async Web QA
Async Web QAAsync Web QA
Async Web QA
Vlad Maniak

Workshop 22: React-Redux Middleware
Workshop 22: React-Redux MiddlewareWorkshop 22: React-Redux Middleware
Workshop 22: React-Redux Middleware
Visual Engineering

Functional Programming with JavaScript
Functional Programming with JavaScriptFunctional Programming with JavaScript
Functional Programming with JavaScript
Mark Shelton

Gearman & PHP
Gearman & PHPGearman & PHP
Gearman & PHP
Nemanja Krivokapic

Hadoop Map Reduce Arch
Hadoop Map Reduce ArchHadoop Map Reduce Arch
Hadoop Map Reduce Arch
Jeff Hammerbacher


What's hot (20)

A dive into akka streams: from the basics to a real-world scenario
A dive into akka streams: from the basics to a real-world scenarioA dive into akka streams: from the basics to a real-world scenario
A dive into akka streams: from the basics to a real-world scenario

CLS & asyncListener: asynchronous observability for Node.js
CLS & asyncListener: asynchronous observability for Node.jsCLS & asyncListener: asynchronous observability for Node.js
CLS & asyncListener: asynchronous observability for Node.js

Callbacks and control flow in Node js
Callbacks and control flow in Node jsCallbacks and control flow in Node js
Callbacks and control flow in Node js

Asynchronous handlers in asp.net
Asynchronous handlers in asp.netAsynchronous handlers in asp.net
Asynchronous handlers in asp.net

Using akka streams to access s3 objects
Using akka streams to access s3 objectsUsing akka streams to access s3 objects
Using akka streams to access s3 objects

Using SaltStack to orchestrate microservices in application containers at Sal...
Using SaltStack to orchestrate microservices in application containers at Sal...Using SaltStack to orchestrate microservices in application containers at Sal...
Using SaltStack to orchestrate microservices in application containers at Sal...

Go With The Flow
Go With The FlowGo With The Flow
Go With The Flow

Elixir at Evercam (By Milos Mosic)
Elixir at Evercam (By Milos Mosic)Elixir at Evercam (By Milos Mosic)
Elixir at Evercam (By Milos Mosic)

Asynchronní programování
Asynchronní programováníAsynchronní programování
Asynchronní programování

Neighborly nagios
Neighborly nagiosNeighborly nagios
Neighborly nagios

MongoDB World 2016: Implementing Async Networking in MongoDB 3.2
MongoDB World 2016: Implementing Async Networking in MongoDB 3.2MongoDB World 2016: Implementing Async Networking in MongoDB 3.2
MongoDB World 2016: Implementing Async Networking in MongoDB 3.2

Javascript internals
Javascript internalsJavascript internals
Javascript internals

Reactive mistakes - ScalaDays Chicago 2017
Reactive mistakes -  ScalaDays Chicago 2017Reactive mistakes -  ScalaDays Chicago 2017
Reactive mistakes - ScalaDays Chicago 2017

Unity 3D Runtime Animation Generation
Unity 3D Runtime Animation GenerationUnity 3D Runtime Animation Generation
Unity 3D Runtime Animation Generation

Converting a naive flow to akka streams
Converting a naive flow to akka streamsConverting a naive flow to akka streams
Converting a naive flow to akka streams

Async Web QA
Async Web QAAsync Web QA
Async Web QA

Workshop 22: React-Redux Middleware
Workshop 22: React-Redux MiddlewareWorkshop 22: React-Redux Middleware
Workshop 22: React-Redux Middleware

Functional Programming with JavaScript
Functional Programming with JavaScriptFunctional Programming with JavaScript
Functional Programming with JavaScript

Gearman & PHP
Gearman & PHPGearman & PHP
Gearman & PHP

Hadoop Map Reduce Arch
Hadoop Map Reduce ArchHadoop Map Reduce Arch
Hadoop Map Reduce Arch


Similar to Orbiter and how to extend Docker Swarm

ILM - Pipeline in the cloud
ILM - Pipeline in the cloudILM - Pipeline in the cloud
ILM - Pipeline in the cloud
Aaron Carey

Easy Cloud Native Transformation using HashiCorp Nomad
Easy Cloud Native Transformation using HashiCorp NomadEasy Cloud Native Transformation using HashiCorp Nomad
Easy Cloud Native Transformation using HashiCorp Nomad
Bram Vogelaar

Docker swarm introduction
Docker swarm introductionDocker swarm introduction
Docker swarm introduction
Evan Lin

Building a serverless company on AWS lambda and Serverless framework
Building a serverless company on AWS lambda and Serverless frameworkBuilding a serverless company on AWS lambda and Serverless framework
Building a serverless company on AWS lambda and Serverless framework
Luciano Mammino

Microservices with docker swarm and consul
Microservices with docker swarm and consulMicroservices with docker swarm and consul
Microservices with docker swarm and consul
Nguyen Sy Thanh Son

DCEU 18: Docker Containers in a Serverless World
DCEU 18: Docker Containers in a Serverless WorldDCEU 18: Docker Containers in a Serverless World
DCEU 18: Docker Containers in a Serverless World
Docker, Inc.

Lightbend Lagom: Microservices Just Right
Lightbend Lagom: Microservices Just RightLightbend Lagom: Microservices Just Right
Lightbend Lagom: Microservices Just Right
mircodotta

Higher order infrastructure: from Docker basics to cluster management - Nicol...
Higher order infrastructure: from Docker basics to cluster management - Nicol...Higher order infrastructure: from Docker basics to cluster management - Nicol...
Higher order infrastructure: from Docker basics to cluster management - Nicol...
Codemotion

ECS19 - Damir Dobric - Designing and Operating modern applications with Micro...
ECS19 - Damir Dobric - Designing and Operating modern applications with Micro...ECS19 - Damir Dobric - Designing and Operating modern applications with Micro...
ECS19 - Damir Dobric - Designing and Operating modern applications with Micro...
European Collaboration Summit

Dockerizing Rails
Dockerizing RailsDockerizing Rails
Dockerizing Rails
iGbanam

Build Your Kubernetes Operator with the Right Tool!
Build Your Kubernetes Operator with the Right Tool!Build Your Kubernetes Operator with the Right Tool!
Build Your Kubernetes Operator with the Right Tool!
Rafał Leszko

Build your operator with the right tool
Build your operator with the right toolBuild your operator with the right tool
Build your operator with the right tool
Rafał Leszko

Docker in production service discovery with consul - road to opscon 2015
Docker in production  service discovery with consul - road to opscon 2015Docker in production  service discovery with consul - road to opscon 2015
Docker in production service discovery with consul - road to opscon 2015
Giovanni Toraldo

Altitude SF 2017: Nomad and next-gen application architectures
Altitude SF 2017: Nomad and next-gen application architecturesAltitude SF 2017: Nomad and next-gen application architectures
Altitude SF 2017: Nomad and next-gen application architectures
Fastly

Serverless APIs with JavaScript - Matt Searle - ChocPanda
Serverless APIs with JavaScript - Matt Searle - ChocPandaServerless APIs with JavaScript - Matt Searle - ChocPanda
Serverless APIs with JavaScript - Matt Searle - ChocPanda
Paul Dykes

Swarm mode
Swarm modeSwarm mode
Swarm mode
Dharmit Shah

Docker 進階實務班
Docker 進階實務班Docker 進階實務班
Docker 進階實務班
Philip Zheng

Why Grails?
Why Grails?Why Grails?
Why Grails?
Yiguang Hu

Why Grails
Why GrailsWhy Grails
Why Grails
Yiguang Hu

Kubernetes #1 intro
Kubernetes #1   introKubernetes #1   intro
Kubernetes #1 intro
Terry Cho


Similar to Orbiter and how to extend Docker Swarm (20)

ILM - Pipeline in the cloud
ILM - Pipeline in the cloudILM - Pipeline in the cloud
ILM - Pipeline in the cloud

Easy Cloud Native Transformation using HashiCorp Nomad
Easy Cloud Native Transformation using HashiCorp NomadEasy Cloud Native Transformation using HashiCorp Nomad
Easy Cloud Native Transformation using HashiCorp Nomad

Docker swarm introduction
Docker swarm introductionDocker swarm introduction
Docker swarm introduction

Building a serverless company on AWS lambda and Serverless framework
Building a serverless company on AWS lambda and Serverless frameworkBuilding a serverless company on AWS lambda and Serverless framework
Building a serverless company on AWS lambda and Serverless framework

Microservices with docker swarm and consul
Microservices with docker swarm and consulMicroservices with docker swarm and consul
Microservices with docker swarm and consul

DCEU 18: Docker Containers in a Serverless World
DCEU 18: Docker Containers in a Serverless WorldDCEU 18: Docker Containers in a Serverless World
DCEU 18: Docker Containers in a Serverless World

Lightbend Lagom: Microservices Just Right
Lightbend Lagom: Microservices Just RightLightbend Lagom: Microservices Just Right
Lightbend Lagom: Microservices Just Right

Higher order infrastructure: from Docker basics to cluster management - Nicol...
Higher order infrastructure: from Docker basics to cluster management - Nicol...Higher order infrastructure: from Docker basics to cluster management - Nicol...
Higher order infrastructure: from Docker basics to cluster management - Nicol...

ECS19 - Damir Dobric - Designing and Operating modern applications with Micro...
ECS19 - Damir Dobric - Designing and Operating modern applications with Micro...ECS19 - Damir Dobric - Designing and Operating modern applications with Micro...
ECS19 - Damir Dobric - Designing and Operating modern applications with Micro...

Dockerizing Rails
Dockerizing RailsDockerizing Rails
Dockerizing Rails

Build Your Kubernetes Operator with the Right Tool!
Build Your Kubernetes Operator with the Right Tool!Build Your Kubernetes Operator with the Right Tool!
Build Your Kubernetes Operator with the Right Tool!

Build your operator with the right tool
Build your operator with the right toolBuild your operator with the right tool
Build your operator with the right tool

Docker in production service discovery with consul - road to opscon 2015
Docker in production  service discovery with consul - road to opscon 2015Docker in production  service discovery with consul - road to opscon 2015
Docker in production service discovery with consul - road to opscon 2015

Altitude SF 2017: Nomad and next-gen application architectures
Altitude SF 2017: Nomad and next-gen application architecturesAltitude SF 2017: Nomad and next-gen application architectures
Altitude SF 2017: Nomad and next-gen application architectures

Serverless APIs with JavaScript - Matt Searle - ChocPanda
Serverless APIs with JavaScript - Matt Searle - ChocPandaServerless APIs with JavaScript - Matt Searle - ChocPanda
Serverless APIs with JavaScript - Matt Searle - ChocPanda

Swarm mode
Swarm modeSwarm mode
Swarm mode

Docker 進階實務班
Docker 進階實務班Docker 進階實務班
Docker 進階實務班

Why Grails?
Why Grails?Why Grails?
Why Grails?

Why Grails
Why GrailsWhy Grails
Why Grails

Kubernetes #1 intro
Kubernetes #1   introKubernetes #1   intro
Kubernetes #1 intro


More from Gianluca Arbezzano

Kubernetes debug like a pro
Kubernetes debug like a proKubernetes debug like a pro
Kubernetes debug like a pro
Gianluca Arbezzano

OSDC 2018 - Distributed monitoring
OSDC 2018 - Distributed monitoringOSDC 2018 - Distributed monitoring
OSDC 2018 - Distributed monitoring
Gianluca Arbezzano

Value of your metrics: goodbye monitoring, welcome observability
Value of your metrics: goodbye monitoring, welcome observabilityValue of your metrics: goodbye monitoring, welcome observability
Value of your metrics: goodbye monitoring, welcome observability
Gianluca Arbezzano

InfluxCloudi craft container orchestrator
InfluxCloudi craft container orchestratorInfluxCloudi craft container orchestrator
InfluxCloudi craft container orchestrator
Gianluca Arbezzano

Overview and Opentracing in theory by Gianluca Arbezzano
Overview and Opentracing in theory by Gianluca ArbezzanoOverview and Opentracing in theory by Gianluca Arbezzano
Overview and Opentracing in theory by Gianluca Arbezzano
Gianluca Arbezzano

Monitoring Pull vs Push, InfluxDB and Prometheus
Monitoring Pull vs Push, InfluxDB and PrometheusMonitoring Pull vs Push, InfluxDB and Prometheus
Monitoring Pull vs Push, InfluxDB and Prometheus
Gianluca Arbezzano

Open Tracing, to order and understand your mess. - ApiConf 2017
Open Tracing, to order and understand your mess. - ApiConf 2017Open Tracing, to order and understand your mess. - ApiConf 2017
Open Tracing, to order and understand your mess. - ApiConf 2017
Gianluca Arbezzano

Security Tips to run Docker in Production
Security Tips to run Docker in ProductionSecurity Tips to run Docker in Production
Security Tips to run Docker in Production
Gianluca Arbezzano

Jenkins in the real world - DevOpsCon 2017
Jenkins in the real world - DevOpsCon 2017Jenkins in the real world - DevOpsCon 2017
Jenkins in the real world - DevOpsCon 2017
Gianluca Arbezzano

Monitor your application and sleep
Monitor your application and sleepMonitor your application and sleep
Monitor your application and sleep
Gianluca Arbezzano

Tick Stack - Listen your infrastructure and please sleep
Tick Stack - Listen your infrastructure and please sleepTick Stack - Listen your infrastructure and please sleep
Tick Stack - Listen your infrastructure and please sleep
Gianluca Arbezzano

Docker Novosibirsk Meetup #3 - Docker in Production
Docker Novosibirsk Meetup #3 - Docker in ProductionDocker Novosibirsk Meetup #3 - Docker in Production
Docker Novosibirsk Meetup #3 - Docker in Production
Gianluca Arbezzano

DockerDublin Meetup - News about Docker 1.13
DockerDublin Meetup -  News about Docker 1.13DockerDublin Meetup -  News about Docker 1.13
DockerDublin Meetup - News about Docker 1.13
Gianluca Arbezzano

Docker 1.12 and SwarmKit
Docker 1.12 and SwarmKitDocker 1.12 and SwarmKit
Docker 1.12 and SwarmKit
Gianluca Arbezzano

Time Series Database and Tick Stack
Time Series Database and Tick StackTime Series Database and Tick Stack
Time Series Database and Tick Stack
Gianluca Arbezzano

Queue System and Zend\Queue implementation
Queue System and Zend\Queue implementationQueue System and Zend\Queue implementation
Queue System and Zend\Queue implementation
Gianluca Arbezzano

ZfDayIt 2014 - There is a module for everything
ZfDayIt 2014 - There is a module for everythingZfDayIt 2014 - There is a module for everything
ZfDayIt 2014 - There is a module for everything
Gianluca Arbezzano

Vagrant - PugMI
Vagrant - PugMIVagrant - PugMI
Vagrant - PugMI
Gianluca Arbezzano

Silex, iniziamo
Silex, iniziamoSilex, iniziamo
Silex, iniziamo
Gianluca Arbezzano


More from Gianluca Arbezzano (19)

Kubernetes debug like a pro
Kubernetes debug like a proKubernetes debug like a pro
Kubernetes debug like a pro

OSDC 2018 - Distributed monitoring
OSDC 2018 - Distributed monitoringOSDC 2018 - Distributed monitoring
OSDC 2018 - Distributed monitoring

Value of your metrics: goodbye monitoring, welcome observability
Value of your metrics: goodbye monitoring, welcome observabilityValue of your metrics: goodbye monitoring, welcome observability
Value of your metrics: goodbye monitoring, welcome observability

InfluxCloudi craft container orchestrator
InfluxCloudi craft container orchestratorInfluxCloudi craft container orchestrator
InfluxCloudi craft container orchestrator

Overview and Opentracing in theory by Gianluca Arbezzano
Overview and Opentracing in theory by Gianluca ArbezzanoOverview and Opentracing in theory by Gianluca Arbezzano
Overview and Opentracing in theory by Gianluca Arbezzano

Monitoring Pull vs Push, InfluxDB and Prometheus
Monitoring Pull vs Push, InfluxDB and PrometheusMonitoring Pull vs Push, InfluxDB and Prometheus
Monitoring Pull vs Push, InfluxDB and Prometheus

Open Tracing, to order and understand your mess. - ApiConf 2017
Open Tracing, to order and understand your mess. - ApiConf 2017Open Tracing, to order and understand your mess. - ApiConf 2017
Open Tracing, to order and understand your mess. - ApiConf 2017

Security Tips to run Docker in Production
Security Tips to run Docker in ProductionSecurity Tips to run Docker in Production
Security Tips to run Docker in Production

Jenkins in the real world - DevOpsCon 2017
Jenkins in the real world - DevOpsCon 2017Jenkins in the real world - DevOpsCon 2017
Jenkins in the real world - DevOpsCon 2017

Monitor your application and sleep
Monitor your application and sleepMonitor your application and sleep
Monitor your application and sleep

Tick Stack - Listen your infrastructure and please sleep
Tick Stack - Listen your infrastructure and please sleepTick Stack - Listen your infrastructure and please sleep
Tick Stack - Listen your infrastructure and please sleep

Docker Novosibirsk Meetup #3 - Docker in Production
Docker Novosibirsk Meetup #3 - Docker in ProductionDocker Novosibirsk Meetup #3 - Docker in Production
Docker Novosibirsk Meetup #3 - Docker in Production

DockerDublin Meetup - News about Docker 1.13
DockerDublin Meetup -  News about Docker 1.13DockerDublin Meetup -  News about Docker 1.13
DockerDublin Meetup - News about Docker 1.13

Docker 1.12 and SwarmKit
Docker 1.12 and SwarmKitDocker 1.12 and SwarmKit
Docker 1.12 and SwarmKit

Time Series Database and Tick Stack
Time Series Database and Tick StackTime Series Database and Tick Stack
Time Series Database and Tick Stack

Queue System and Zend\Queue implementation
Queue System and Zend\Queue implementationQueue System and Zend\Queue implementation
Queue System and Zend\Queue implementation

ZfDayIt 2014 - There is a module for everything
ZfDayIt 2014 - There is a module for everythingZfDayIt 2014 - There is a module for everything
ZfDayIt 2014 - There is a module for everything

Vagrant - PugMI
Vagrant - PugMIVagrant - PugMI
Vagrant - PugMI

Silex, iniziamo
Silex, iniziamoSilex, iniziamo
Silex, iniziamo


Recently uploaded

Feature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptxFeature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptx
ssuser1915fe1

Zaitechno Handheld Raman Spectrometer.pdf
Zaitechno Handheld Raman Spectrometer.pdfZaitechno Handheld Raman Spectrometer.pdf
Zaitechno Handheld Raman Spectrometer.pdf
AmandaCheung15

BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and DisadvantagesBLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
SAI KAILASH R

EuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python CodebaseEuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python Codebase
Jimmy Lai

Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17
Bhajan Mehta

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
Priyanka Aash

Tailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer InsightsTailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer Insights
SynapseIndia

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data
Safe Software

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
bhumivarma35300

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Muhammad Ali

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
313mohammedarshad

(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
Priyanka Aash

(CISOPlatform Summit & SACON 2024) Gen AI & Deepfake In Overall Security.pdf
(CISOPlatform Summit & SACON 2024) Gen AI & Deepfake In Overall Security.pdf(CISOPlatform Summit & SACON 2024) Gen AI & Deepfake In Overall Security.pdf
(CISOPlatform Summit & SACON 2024) Gen AI & Deepfake In Overall Security.pdf
Priyanka Aash

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Torry Harris

Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
maigasapphire

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024
Nicolás Lopéz

Types of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technologyTypes of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technology
ldtexsolbl

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
sunilverma7884

Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdfAcumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
BrainSell Technologies

(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf
(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf
(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf
Priyanka Aash


Recently uploaded (20)

Feature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptxFeature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptx

Zaitechno Handheld Raman Spectrometer.pdf
Zaitechno Handheld Raman Spectrometer.pdfZaitechno Handheld Raman Spectrometer.pdf
Zaitechno Handheld Raman Spectrometer.pdf

BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and DisadvantagesBLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages
BLOCKCHAIN TECHNOLOGY - Advantages and Disadvantages

EuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python CodebaseEuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python Codebase

Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...

Tailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer InsightsTailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer Insights

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx

(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...

(CISOPlatform Summit & SACON 2024) Gen AI & Deepfake In Overall Security.pdf
(CISOPlatform Summit & SACON 2024) Gen AI & Deepfake In Overall Security.pdf(CISOPlatform Summit & SACON 2024) Gen AI & Deepfake In Overall Security.pdf
(CISOPlatform Summit & SACON 2024) Gen AI & Deepfake In Overall Security.pdf

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...

Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024

Types of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technologyTypes of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technology

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery

Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdfAcumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf
Acumatica vs. Sage Intacct vs. NetSuite _ NOW CFO.pdf

(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf
(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf
(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf


Orbiter and how to extend Docker Swarm

  • 3. Why? ● To create a use case around metrics, InfluxDB and Docker. ● Docker Swarm at the moment doesn’t provider autoscale capabilities. ● To design an application easy to manage and well integrated in Docker Swarm.
  • 4. Orbiter is a general-purpose multi vendor autoscaler
  • 5. Orbiter is a general-purpose multi vendor autoscaler Orbiter is a Docker Swarm autoscaler

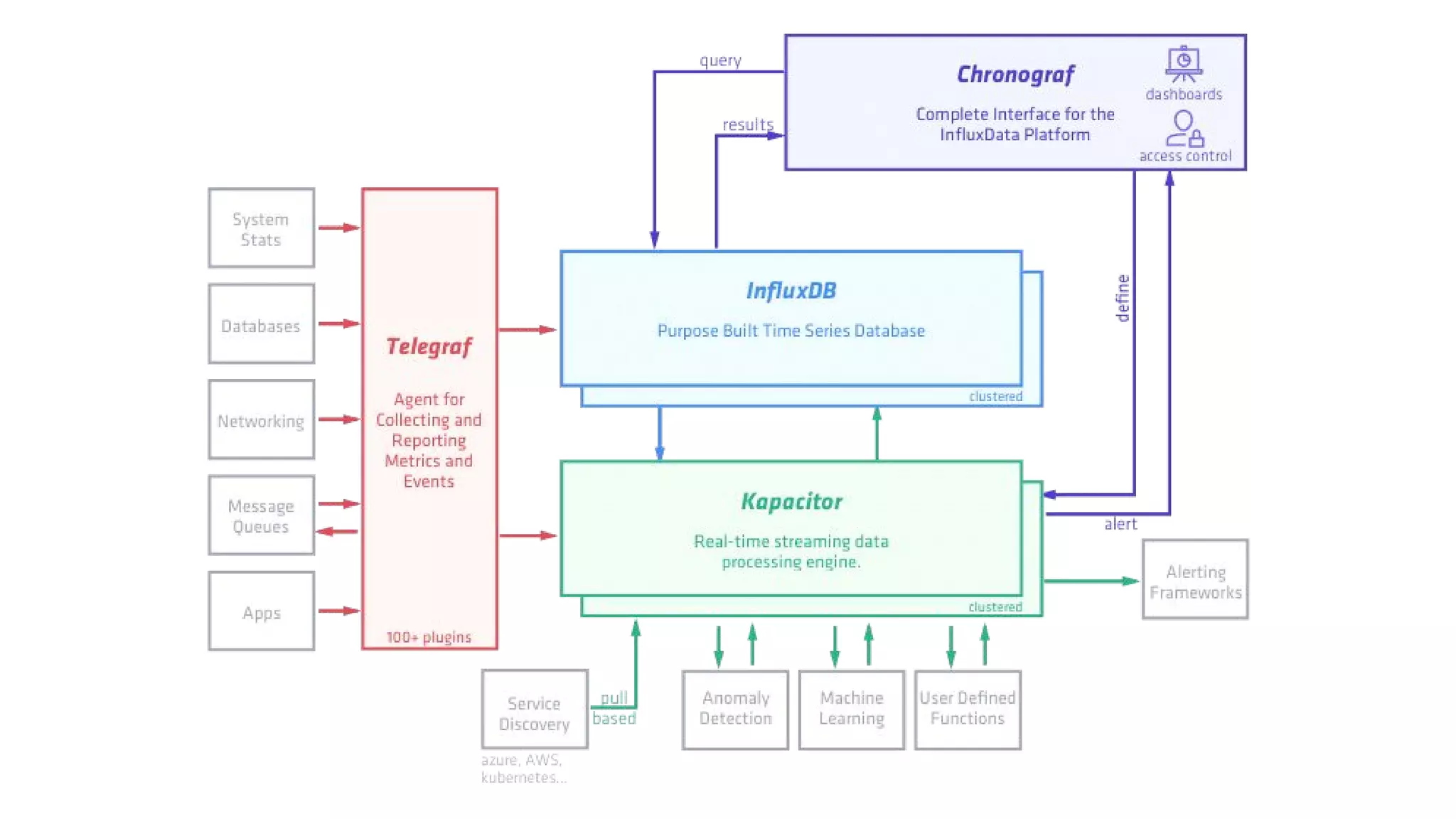

  • 6. swarm cluster manager get metrics: ● cadvidor ● telegraf ● …. alert: ● custom ● kapacitor ● alert manager
  • 7. Why Docker Swarm doesn’t have autoscaling? ● I don’t know. ● As you can see the architecture required is not small. ● Probably it will have autoscaling at some point.
  • 8. Orbiter is designed to be Only-Swarm ● To make it easy to start ● To remove abstractions ● Because less is more! cit unknown but for sure a lazy person
  • 9. What does it? ● It lists all your services and it gets only who has label orbiter=true ● Expose and HTTP API to trigger up and down scale event ○ curl -X POST -v http://$(IP):8081/v1/orbiter/handle/autoswarm/stack_micro/up ○ curl -X POST -v http://$(IP):8081/v1/orbiter/handle/autoswarm/stack_micro/down ● It uses Docker Swarm Api to keep in sync the managed services ● You can configure a service via label orbiter.up=3, orbiter.donw=2, orbiter.cooldown = 2
  • 10. Requirement: ● Deploy it in a manager.
  • 11. Deploy it as service in Docker Swarm version: '3' services: orbiter: image: gianarb/orbiter command: daemon ports: - 8081:8000 volumes: - /var/run/docker.sock:/var/run/docker.sock deploy: placement: constraints: - node.role == manager mode: replicated replicas: 1

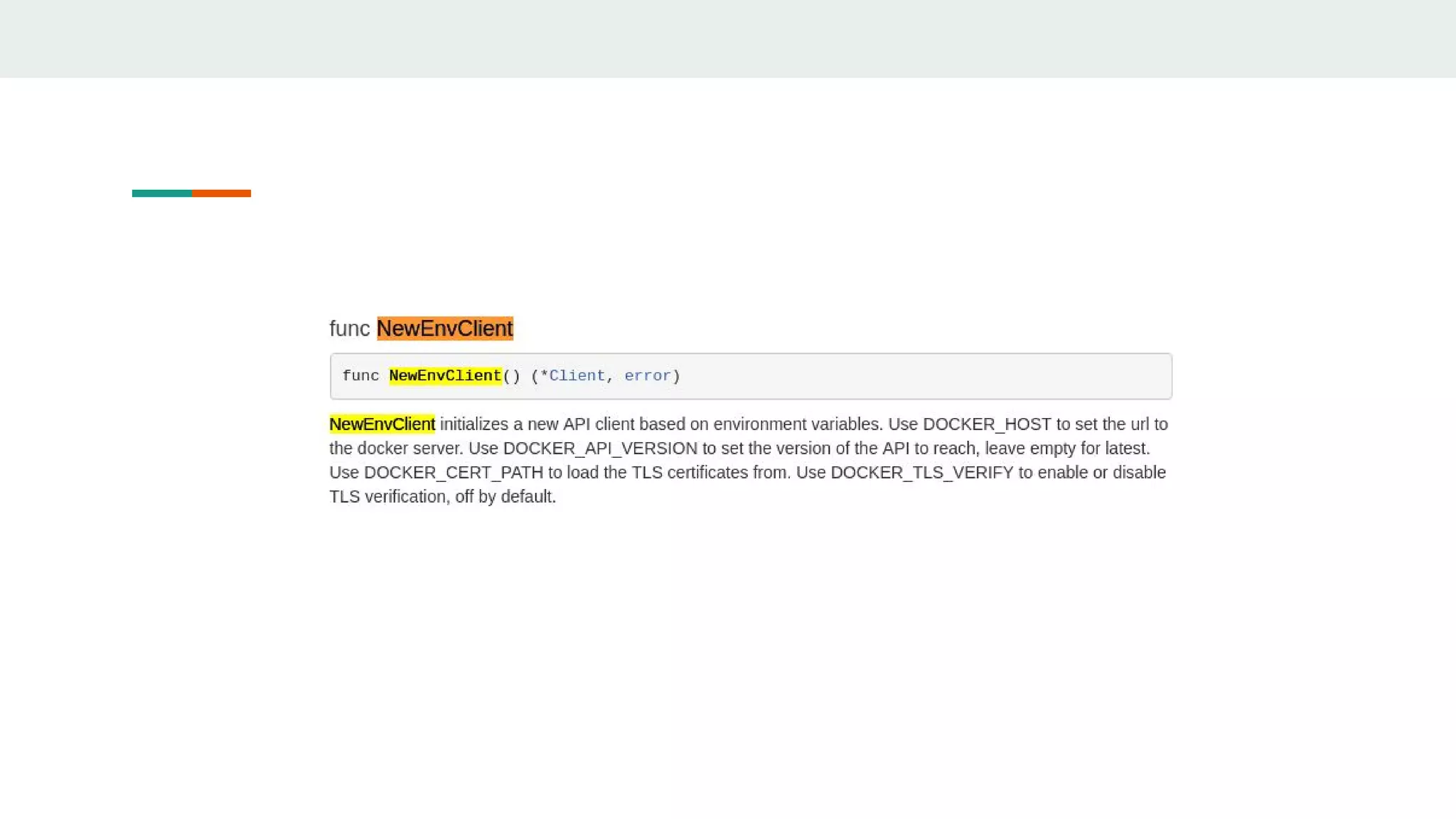

  • 12. How Orbiter communicate with Swarm func NewSwarmProvider(c map[string]string) (autoscaler.Provider, error) { var p autoscaler.Provider client, err := docker.NewEnvClient() if err != nil { logrus.WithField("error", err).Warn("problem to communicate with docker") return p, err } else { logrus.Info("Successfully connected to a Docker daemon") } p = SwarmProvider{ dockerClient: client, } return p, nil }
  • 14. Scale a service - 1.Find the service service, _, err := p.dockerClient.ServiceInspectWithRaw(ctx, serviceId, types.ServiceInspectOptions{ InsertDefaults: true, }) if err != nil { logrus.WithFields(logrus.Fields{ "error": err.Error(), "provider": "swarm", }).Debugf("Service %s didn't scale. We didn't get it from docker.", serviceId) return err } filters := filters.NewArgs() filters.Add("service", serviceId) tasks, err := p.dockerClient.TaskList(ctx, types.TaskListOptions{Filters: filters}) if err != nil { … } err = p.isAcceptable(tasks, target, direction)
  • 15. Scale a service - 2.Update the Spec spec := service.Spec var ptrFromSystem uint64 base := p.calculateActiveTasks(tasks) if direction == true { ptrFromSystem = uint64(base + target) } else { ptrFromSystem = uint64(base - target) } spec.Mode.Replicated.Replicas = &ptrFromSystem _, err = p.dockerClient.ServiceUpdate(ctx, serviceId, service.Version, spec, types.ServiceUpdateOptions{}) if err != nil {...}
  • 16. Background job to sync services with Docker services, err := dockerClient.ServiceList(ctx, types.ServiceListOptions{}) if err != nil { logrus.WithField("error", err).Debug("Bad communication with Docker.") return } prov, _ := provider.NewSwarmProvider(map[string]string{}) for _, service := range services { s, err := getAutoscalerByService(prov, service.Spec.Annotations) if err != nil { continue } c.Autoscalers[fmt.Sprintf("autoswarm/%s", service.Spec.Annotations.Name)] = s }
  • 17. Is orbiter just a wrapper on Docker Swarm API? Let’s put that in a cooler way. Orbiter provides easy to use rest API to scale your services up and down.
  • 19. Demo
