node ffi

1.
node-fﬁ othree jsdc

2.
@othree othree.net MozTW F2E atHTC PhD Candidate

3.
Topics r3 ffi node-ffi node-ffi packages node-r3

4.
r3 https://github.com/c9s/r3

5.
r3 http://c9s.blogspot.tw/2014/05/r3-url-router-library.html

6.
How to Uselibr3

7.
Sample 1/2 n =r3_tree_create(10);! ! int route_data = 3;! ! r3_tree_insert_routel(n, METHOD_GET, "/blog/post", ! sizeof("/blog/post") - 1, &route_data );! ! int err = r3_tree_compile(n, &errstr);

8.
Sample 1/2 n =r3_tree_create(10);! ! int route_data = 3;! ! r3_tree_insert_routel(n, METHOD_GET, "/blog/post", ! sizeof("/blog/post") - 1, &route_data );! ! int err = r3_tree_compile(n, &errstr); Create Tree

9.
Sample 1/2 n =r3_tree_create(10);! ! int route_data = 3;! ! r3_tree_insert_routel(n, METHOD_GET, "/blog/post", ! sizeof("/blog/post") - 1, &route_data );! ! int err = r3_tree_compile(n, &errstr); Insert Route

10.
Sample 1/2 n =r3_tree_create(10);! ! int route_data = 3;! ! r3_tree_insert_routel(n, METHOD_GET, "/blog/post", ! sizeof("/blog/post") - 1, &route_data );! ! int err = r3_tree_compile(n, &errstr); Data

11.
Sample 1/2 n =r3_tree_create(10);! ! int route_data = 3;! ! r3_tree_insert_routel(n, METHOD_GET, "/blog/post", ! sizeof("/blog/post") - 1, &route_data );! ! int err = r3_tree_compile(n, &errstr); Compile

13.
Sample 2/2 match_entry *entry = match_entry_create("/blog/post");! entry->request_method = METHOD_GET;! ! route *matched_route = r3_tree_match_route(n, entry);! matched_route->data; // The Data! ! match_entry_free(entry);! r3_tree_free(n);

14.
Sample 2/2 match_entry *entry = match_entry_create("/blog/post");! entry->request_method = METHOD_GET;! ! route *matched_route = r3_tree_match_route(n, entry);! matched_route->data; // The Data! ! match_entry_free(entry);! r3_tree_free(n); Create Entry

15.
Sample 2/2 match_entry *entry = match_entry_create("/blog/post");! entry->request_method = METHOD_GET;! ! route *matched_route = r3_tree_match_route(n, entry);! matched_route->data; // The Data! ! match_entry_free(entry);! r3_tree_free(n); Match Route

16.
Sample 2/2 match_entry *entry = match_entry_create("/blog/post");! entry->request_method = METHOD_GET;! ! route *matched_route = r3_tree_match_route(n, entry);! matched_route->data; // The Data! ! match_entry_free(entry);! r3_tree_free(n); Route Data

17.
match_entry

18.
Captures {variable_name}!

20.
Sample 2/2 match_entry *entry = match_entry_create(“/blog/post/1/2/3“);! entry->request_method = METHOD_GET; // Method Condition! ! route *matched_route = r3_tree_match_route(n, entry);! ! matched_route->data; // The Data! entry->vars; //Captured Vars, a string array! ! r3_tree_free(n);

21.
May I User3 in node

22.
Yes.

23.
How?

24.
How

25.
Why

26.
Foreign Function Interface

27.
https://en.wikipedia.org/wiki/Foreign_function_interface

29.
__cdecl val = sumExample(2,3) ;// push arguments to the stack, from right to left! push 3 ! push 2 ! ! ; // call the function! call _sumExample ! ! ; // cleanup the stack by adding the size of the arguments to! ; // ESP register! add esp,8 ! ! ; // copy the return value from EAX to a local variable (int c)! mov dword ptr [c],eax

30.
node-fﬁ

31.
https://github.com/node-fﬁ/node-fﬁ

32.
So node-fﬁ Knows

34.
@TooTallNate

35.
fﬁ Packages fﬁ ref ref-structref-array

36.
fﬁ Foreign FunctionCall ref Reference Tools ref-struct Struct Helper ref-array Array Helper

37.
Example var ffi =require('ffi');! ! var libm = ffi.Library('libm', {! 'ceil': [ 'double', [ 'double' ] ]! });! ! libm.ceil(1.5); // 2

38.
Example var ffi =require('ffi');! ! var libm = ffi.Library('libm', {! 'ceil': [ 'double', [ 'double' ] ]! });! ! libm.ceil(1.5); // 2 Library name! Use dlopen

39.
Example var ffi =require('ffi');! ! var libm = ffi.Library('libm', {! 'ceil': [ 'double', [ 'double' ] ]! });! ! libm.ceil(1.5); // 2 A function named ‘ceil’ return double  Take one double parameter

40.
Example var ffi =require('ffi');! ! var libm = ffi.Library('libm', {! 'ceil': [ 'double', [ 'double' ] ]! });! ! libm.ceil(1.5); // 2 return type

41.
Example var ffi =require('ffi');! ! var libm = ffi.Library('libm', {! 'ceil': [ 'double', [ 'double' ] ]! });! ! libm.ceil(1.5); // 2 arguments type

42.
Types void bool bytepointer (u)short (u)int (u)int16 (u)int32 (u)int64 (u)longlong size_t ﬂoat (u)char string object

43.
Example var ffi =require('ffi');! ! var libm = ffi.Library('libm', {! 'ceil': [ 'double', [ 'double' ] ]! });! ! libm.ceil(1.5); // 2 Call ceil

44.
To Use node-fﬁ ffi.Library

45.
math.h http://www.cplusplus.com/reference/cmath/ceil/ double ceil (doublex); var libm = ffi.Library('libm', {! 'ceil': [ 'double', [ 'double' ] ]! });

46.

47.

48.

49.
r3.h

52.
Struct?

53.
Struct

54.
struct _edge {! char* pattern; // 8 bytes! node * child; // 8 bytes! unsigned char pattern_len; // 1 byte! unsigned char opcode:4; // 4 bit! unsigned char has_slug:1; // 1 bit! }; var StructType = require('ref-struct');! ! var edge = StructType({! pattern: "string",! child: "pointer",! pattern_len: "ushort",! opcode: "uchar",! has_slug: "uchar"! });

55.
ref-struct https://en.wikipedia.org/wiki/Application_binary_interface

56.
https://mentorembedded.github.io/cxx-abi/abi.html

57.
https://mentorembedded.github.io/cxx-abi/

58.
Struct in Struct?

59.
typedef struct {! str_array* vars;! const char * path; // current path to dispatch! int path_len; // the length of the current path! int request_method; // current request method! void * data; // route ptr! char * host; // the request host! ! ...

60.
typedef struct {! str_array* vars;! const char * path; // current path to dispatch! int path_len; // the length of the current path! int request_method; // current request method! void * data; // route ptr! char * host; // the request host! ! ... var ref = require('ref');! ! var str_array = StructType({ ... });! ! var match_entry = StructType({! vars: ref.refType(str_array),! path: "string",! path_len: "int",! request_method: "int",! data: "pointer",! host: "pointer",! ...

61.
https://tootallnate.github.io/ref/

63.
ref.refType

64.
https://tootallnate.github.io/ref/

65.
ref.refType indirection *

66.
ref.refType StructType({! var1: str_array,! var2: ref.refType(str_array)! }); str_arrayvar1;! str_array * var2;

67.

68.

69.
ref.refType StructType({! var1: str_array,! var2: ref.refType(str_array),! var3:ref.refType(ref.refType(str_array)),! }); str_array var1;! str_array * var2;! str_array **var3;

70.
Back to r3.h

73.
#deﬁne

74.
#define r3_tree_insert_path(n,p,d) r3_tree_insert_pathl_ex(n,p,s varlibr3 = ffi.Library('libr3', {! "r3_tree_insert_pathl_ex": ["pointer", ["pointer", "string", " });! ! ! var r3_tree_insert_path = function (tree, path, data) {! return libr3.r3_tree_insert_pathl_ex(tree, path, path.length, };

75.
r3.h

76.
r3.h

77.
node-fﬁ-generate https://github.com/tjfontaine/node-fﬁ-generate

78.
node-r3

79.
Now We CanWrite fﬁ.Library Deﬁne for r3

82.
Route Data

83.
route * r3_tree_insert_routel(node*tree, int method,  const char *path, int path_len, void *data);

84.
route * r3_tree_insert_routel(node*tree, int method,  const char *path, int path_len, void *data);

85.
Route Data

86.
Pointer?

87.
Pointer in JS

88.
Buffer

89.
Example 1/2 var tree= libr3.r3_tree_create(10);! ! var data = new Buffer(data_str + 'u0000');! ! r3_tree_insert_route(tree, 'GET','/path', data);

90.
Example 2/2 var node= libr3.r3_tree_match_route(tree, entry);! ! var data = ref.deref(node).data; https://github.com/othree/node-r3/blob/46e29f72bbf68097ed66fd151f9ef42d5a3ede05/node-r3.js

91.
ref.deref  

92.
The Data

93.
BUT

94.
The Problem data data

95.
Solution 1 • buffer.type! •ref.reinterpret

96.
ref.reinterpret

97.
Cons

98.

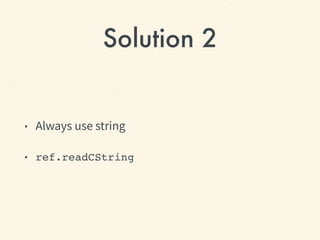

Solution 2 ref.readCString

99.
ref.readCString 00

100.
var data =new Buffer(data_str + 'u0000');

101.
var data =ref.readCString(ref.deref(node).data, 0);

102.
Cons

104.
Performance

105.
Spec https://github.com/c9s/r3/blob/master/tests/bench.c

106.
Route req/s director ~2200 node-r30.0.1 ~1900  

107.
What Takes Time

108.
Transform String

109.
data = newBuffer(data + 'u0000');! r3_tree_insert_path(this.tree, route, data); var node = r3_tree_match(this.tree, path, entry);! ! var data = ref.readCString(node.deref().data, 0);

110.
How to SkipTransform

111.
var i =this.i++;! this.data[i] = data;! ! var iref = ref.alloc('int', i);! ! libr3.r3_tree_insert_route(this.tree, method, route, iref); var node = libr3.r3_tree_match_route(this.tree, entry);! ! var index = node.deref().data.reinterpret(4).readUInt32LE(0);! ! var data = this.data[index];

112.
var i =this.i++;! this.data[i] = data;! ! var iref = ref.alloc('int', i);! ! libr3.r3_tree_insert_route(this.tree, method, route, iref); var node = libr3.r3_tree_match_route(this.tree, entry);! ! var index = node.deref().data.reinterpret(4).readUInt32LE(0);! ! var data = this.data[index]; Store Data

113.
ref.alloc

114.
var i =this.i++;! this.data[i] = data;! ! var iref = ref.alloc('int', i);! ! libr3.r3_tree_insert_route(this.tree, method, route, iref); var node = libr3.r3_tree_match_route(this.tree, entry);! ! var index = node.deref().data.reinterpret(4).readUInt32LE(0);! ! var data = this.data[index]; Data for r3

115.
var i =this.i++;! this.data[i] = data;! ! var iref = ref.alloc('int', i);! ! libr3.r3_tree_insert_route(this.tree, method, route, iref); var node = libr3.r3_tree_match_route(this.tree, entry);! ! var index = node.deref().data.reinterpret(4).readUInt32LE(0);! ! var data = this.data[index]; Resize Buffer

116.
var i =this.i++;! this.data[i] = data;! ! var iref = ref.alloc('int', i);! ! libr3.r3_tree_insert_route(this.tree, method, route, iref); var node = libr3.r3_tree_match_route(this.tree, entry);! ! var index = node.deref().data.reinterpret(4).readUInt32LE(0);! ! var data = this.data[index]; Read Index

117.

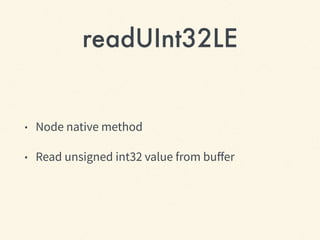

readUInt32LE

118.
Route req/s director ~2200 node-r30.0.1 ~1900 node-r3 0.0.3 ~5000

119.
More Pros

120.

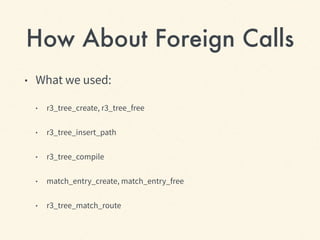

How About ForeignCalls

121.
What is Omissible match_entry_creatematch_entry_free

122.
So

123.
Route req/s director ~2200 node-r30.0.1 ~1900 node-r3 0.0.3 ~5000 node-r3 0.1.0 7800~10600 Not Yet

125.
Crash…

128.
Hard To FindThe Bug

129.
var Router =function (routes) {! var route, data, method, route_frag, i = 0;! this.tree = libr3.r3_tree_create(10);! this.data = [];! for (route in routes) {! this.data[i] = routes[route];! data = ref.alloc('int', i);! route = route.trim();! route_frag = route.split(' ');! if (route_frag.length > 1) {! route = route_frag[1];! method = METHODS[route_frag[0].toUpperCase()];! if (!method) { throw new Error(route_frag[0]); }! r3_tree_insert_route(this.tree, method, route, data);! } else {! r3_tree_insert_route(this.tree, 0, route, data);! }! i++;! }! libr3.r3_tree_compile(this.tree);! return this;! };

130.
var Router =function (routes) {! var route, data, method, route_frag, i = 0;! this.tree = libr3.r3_tree_create(10);! this.data = [];! for (route in routes) {! this.data[i] = routes[route];! data = ref.alloc('int', i);! route = route.trim();! route_frag = route.split(' ');! if (route_frag.length > 1) {! route = route_frag[1];! method = METHODS[route_frag[0].toUpperCa if (!method) { throw new Error(route_fra r3_tree_insert_route(this.tree, method, } else {! r3_tree_insert_route(this.tree, 0, route }! i++;! }! libr3.r3_tree_compile(this.tree);! return this;! };

131.

132.

133.

134.

135.

136.

137.

138.

139.
Any Idea?

140.
var Router =function (routes) {! var route, data, method, route_frag, i = 0;! this.tree = libr3.r3_tree_create(10);! this.data = [];! for (route in routes) {! this.data[i] = routes[route];! data = ref.alloc('int', i);! route = route.trim();! route_frag = route.split(' ');! if (route_frag.length > 1) {! route = route_frag[1];! method = METHODS[route_frag[0].toUpperCase()];! if (!method) { throw new Error(route_frag[0]); }! r3_tree_insert_route(this.tree, method, route, data);! } else {! r3_tree_insert_route(this.tree, 0, route, data);! }! i++;! }! libr3.r3_tree_compile(this.tree);! return this;! };

141.
The Bug data

142.
var Router =function (routes) {! var route, data, method, route_frag, i = 0;! this.tree = libr3.r3_tree_create(10);! this.data = [];! this.index = [];! for (route in routes) {! this.data[i] = routes[route];! data = ref.alloc('int', i);! this.index[i] = data; // prevent GC! route = route.trim();! route_frag = route.split(' ');! if (route_frag.length > 1) {! route = route_frag[1];! method = METHODS[route_frag[0].toUpperCase()];! if (!method) { throw new Error(route_frag[0]); }! r3_tree_insert_route(this.tree, method, route, data);! } else {! r3_tree_insert_route(this.tree, 0, route, data);! }! i++;! }! libr3.r3_tree_compile(this.tree);! return this;! };

145.
node-r3

146.
var Router =require('node-r3').Router;! ! var router = new Router({! "/foo": "data string",! "/foo/bar": function () {},! "/foo/bar/qoo": {obj: 1},! });! ! var dispatched = router.match("/foo");! ! router.free();

147.
var router =new Router({! "/": handler,! "/foo": fooHandler,! "/foo/{id}": fooHandler,! "POST /me": postMeHandler,! "GET /me": getMeHandler,! "POST|GET /post": postHandler,! });! ! var server = http.createServer(! router.httpHandler(notfound)! );

148.
Handler Function function (req,res, captures) array

149.
Error Handler Function function(req, res)

150.
Known Issues

151.
Question?

152.
Thanks For your Attention
