1. Supercharging Reflective Libraries
with InvokeDynamic
Ian Robertson
Myriad Genetics

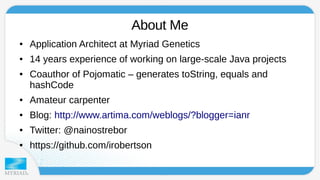

2. About Me
● Application Architect at Myriad Genetics
● 14 years experience of working on large-scale Java projects
● Coauthor of Pojomatic – generates toString, equals and
hashCode
● Amateur carpenter
● Blog: http://www.artima.com/weblogs/?blogger=ianr
● Twitter: @nainostrebor
● https://github.com/irobertson

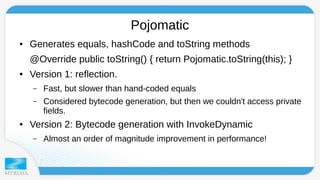

3. Pojomatic
● Generates equals, hashCode and toString methods
@Override public toString() { return Pojomatic.toString(this); }
● Version 1: reflection.
– Fast, but slower than hand-coded equals
– Considered bytecode generation, but then we couldn't access private
fields.
● Version 2: Bytecode generation with InvokeDynamic
– Almost an order of magnitude improvement in performance!

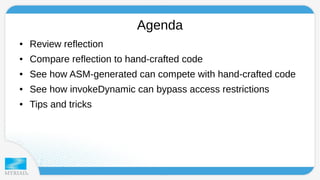

4. Agenda
● Review reflection
● Compare reflection to hand-crafted code
● See how ASM-generated can compete with hand-crafted code
● See how invokeDynamic can bypass access restrictions
● Tips and tricks

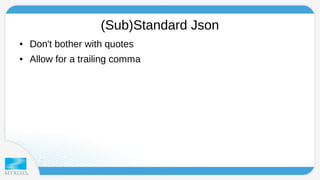

5. (Sub)Standard Json
● Don't bother with quotes
● Allow for a trailing comma

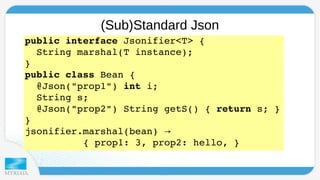

6. (Sub)Standard Json
public interface Jsonifier<T> {
String marshal(T instance);
}
public class Bean {
@Json("prop1") int i;
String s;
@Json("prop2") String getS() { return s; }
}
jsonifier.marshal(bean) →
{ prop1: 3, prop2: hello, }

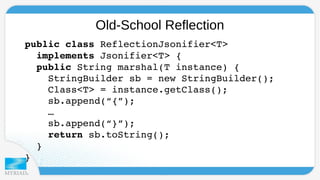

7. Old-School Reflection
p u blic class ReflectionJsonifier<T>
implements Jsonifier<T> {
public String marshal(T instance) {
StringBuilder sb = new StringBuilder();
Class<T> = instance.getClass();
sb.append(“{”);
…
sb.append(“}”);
return sb.toString();
}
}

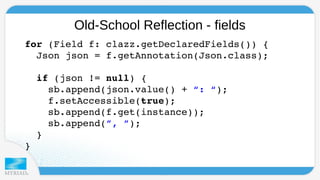

8. Old-School Reflection - fields
f o r (Field f: clazz.getDeclaredFields()) {
Json json = f.getAnnotation(Json.class);
if (json != null) {
sb.append(json.value() + “: “);
f.setAccessible(true);
sb.append(f.get(instance));
sb.append(”, ”);
}
}

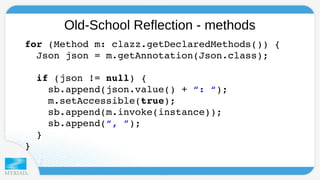

9. Old-School Reflection - methods
f o r (Method m: clazz.getDeclaredMethods()) {
Json json = m.getAnnotation(Json.class);
if (json != null) {
sb.append(json.value() + “: “);
m.setAccessible(true);
sb.append(m.invoke(instance));
sb.append(“, ”);
}
}

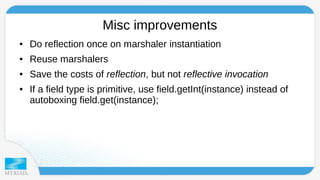

10. Misc improvements
● Do reflection once on marshaler instantiation
● Reuse marshalers
● Save the costs of reflection, but not reflective invocation
● If a field type is primitive, use field.getInt(instance) instead of
autoboxing field.get(instance);

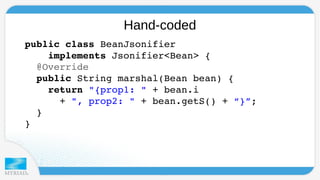

11. Hand-coded
p u blic class BeanJsonifier
implements Jsonifier<Bean> {
@Override
public String marshal(Bean bean) {
return "{prop1: " + bean.i
+ ", prop2: " + bean.getS() + “}”;
}
}

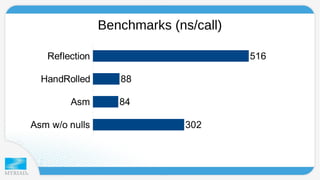

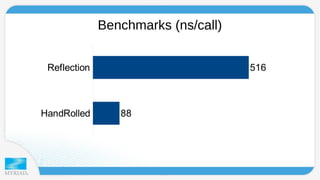

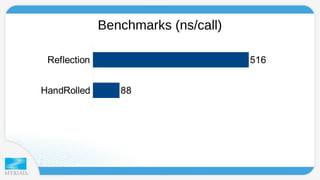

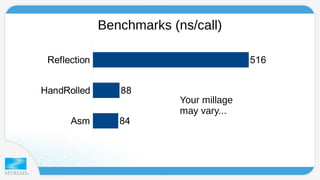

12. Benchmarks (ns/call)
Reflection
HandRolled
88
516

13. REFLECTION
Y U SO SLOW?!

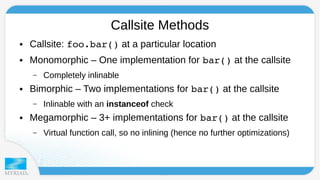

14. Callsite Methods
● Callsite: foo.bar() at a particular location
● Monomorphic – One implementation for bar() at the callsite
– Completely inlinable
● Bimorphic – Two implementations for bar() at the callsite
– Inlinable with an instanceof check
● Megamorphic – 3+ implementations for bar() at the callsite
– Virtual function call, so no inlining (hence no further optimizations)

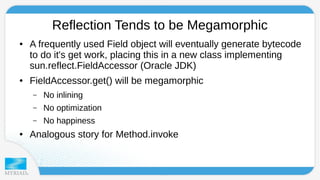

15. Reflection Tends to be Megamorphic
● A frequently used Field object will eventually generate bytecode
to do it's get work, placing this in a new class implementing
sun.reflect.FieldAccessor (Oracle JDK)
● FieldAccessor.get() will be megamorphic
– No inlining
– No optimization
– No happiness
● Analogous story for Method.invoke

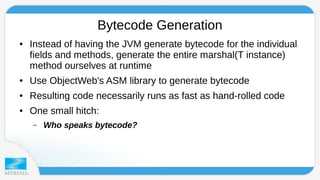

16. Bytecode Generation
● Instead of having the JVM generate bytecode for the individual
fields and methods, generate the entire marshal(T instance)
method ourselves at runtime
● Use ObjectWeb's ASM library to generate bytecode
● Resulting code necessarily runs as fast as hand-rolled code
● One small hitch:
– Who speaks bytecode?

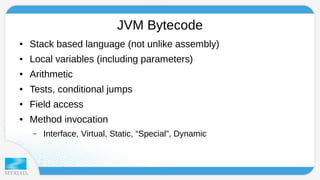

17. JVM Bytecode
● Stack based language (not unlike assembly)
● Local variables (including parameters)
● Arithmetic
● Tests, conditional jumps
● Field access
● Method invocation
– Interface, Virtual, Static, “Special”, Dynamic

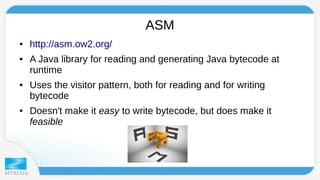

18. ASM
● http://asm.ow2.org/
● A Java library for reading and generating Java bytecode at
runtime
● Uses the visitor pattern, both for reading and for writing
bytecode
● Doesn't make it easy to write bytecode, but does make it
feasible

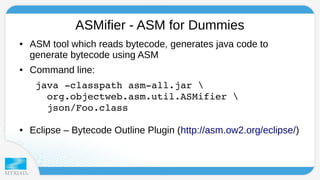

19. ASMifier - ASM for Dummies
● ASM tool which reads bytecode, generates java code to
generate bytecode using ASM
● Command line:
java ­classpath
asm­all.
jar
org.objectweb.asm.util.ASMifier
json/Foo.class
● Eclipse – Bytecode Outline Plugin (http://asm.ow2.org/eclipse/)

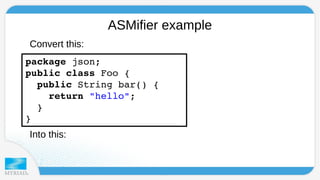

20. ASMifier example
Convert this:
package json;
public class Foo {
public String bar() {
return "hello";
}
}
Into this:

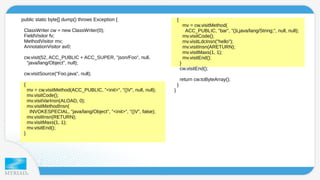

21. public static byte[] dump() throws Exception {
ClassWriter cw = new ClassWriter(0);
FieldVisitor fv;
MethodVisitor mv;
AnnotationVisitor av0;
cw.visit(52, ACC_PUBLIC + ACC_SUPER, "json/Foo", null,
"java/lang/Object", null);
cw.visitSource("Foo.java", null);
{
mv = cw.visitMethod(ACC_PUBLIC, "<init>", "()V", null, null);
mv.visitCode();
mv.visitVarInsn(ALOAD, 0);
mv.visitMethodInsn(
INVOKESPECIAL, "java/lang/Object", "<init>", "()V", false);
mv.visitInsn(RETURN);
mv.visitMaxs(1, 1);
mv.visitEnd();
}
{
mv = cw.visitMethod(
ACC_PUBLIC, "bar", "()Ljava/lang/String;", null, null);
mv.visitCode();
mv.visitLdcInsn("hello");
mv.visitInsn(ARETURN);
mv.visitMaxs(1, 1);
mv.visitEnd();
}
cw.visitEnd();
return cw.toByteArray();
}
}

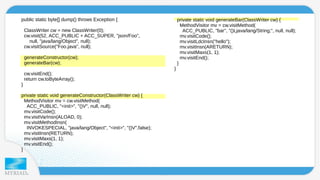

22. public static byte[] dump() throws Exception {
ClassWriter cw = new ClassWriter(0);
cw.visit(52, ACC_PUBLIC + ACC_SUPER, "json/Foo",
null, "java/lang/Object", null);
cw.visitSource("Foo.java", null);
generateConstructor(cw);
generateBar(cw);
cw.visitEnd();
return cw.toByteArray();
}
private static void generateConstructor(ClassWriter cw) {
MethodVisitor mv = cw.visitMethod(
ACC_PUBLIC, "<init>", "()V", null, null);
mv.visitCode();
mv.visitVarInsn(ALOAD, 0);
mv.visitMethodInsn(
INVOKESPECIAL, "java/lang/Object", "<init>", "()V",false);
mv.visitInsn(RETURN);
mv.visitMaxs(1, 1);
mv.visitEnd();
}
private static void generateBar(ClassWriter cw) {
MethodVisitor mv = cw.visitMethod(
ACC_PUBLIC, "bar", "()Ljava/lang/String;", null, null);
mv.visitCode();
mv.visitLdcInsn("hello");
mv.visitInsn(ARETURN);
mv.visitMaxs(1, 1);
mv.visitEnd();
}
}

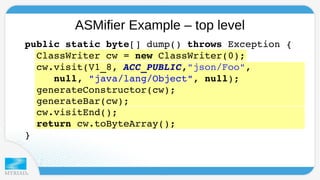

23. ASMifier Example – top level
p u blic static byte[] dump() throws Exception {
ClassWriter cw = new ClassWriter(0);
cw.visit(V1_8, ACC_PUBLIC,"json/Foo",
null, "java/lang/Object", null);
generateConstructor(cw);
generateBar(cw);
cw.visitEnd();
return cw.toByteArray();
}

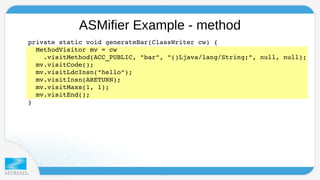

24. ASMifier Example - method
p r ivate static void generateBar(ClassWriter cw) {
MethodVisitor mv = cw
.visitMethod(ACC_PUBLIC, "bar", "()Ljava/lang/String;", null, null);
mv.visitCode();
mv.visitLdcInsn("hello");
mv.visitInsn(ARETURN);
mv.visitMaxs(1, 1);
mv.visitEnd();
}

25. Converting Bytecode Into a Class
● Need a ClassLoader!
public final class ByteClassLoader extends ClassLoader {
public ByteClassLoader(ClassLoader parent) {
super(parent);
}
Class<?> loadClass(String name, byte[] bytes) {
return defineClass(name, bytes, 0, bytes.length);
}
}

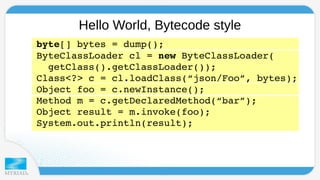

26. Hello World, Bytecode style
byte[] bytes = dump();
ByteClassLoader cl = new ByteClassLoader(
getClass().getClassLoader());
Class<?> c = cl.loadClass(“json/Foo”, bytes);
Object foo = c.newInstance();
Method m = c.getDeclaredMethod(“bar”);
Object result = m.invoke(foo);
System.out.println(result);

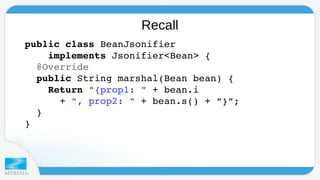

27. Recall
p u blic class BeanJsonifier
implements Jsonifier<Bean> {
@Override
public String marshal(Bean bean) {
Return "{prop1: " + bean.i
+ ", prop2: " + bean.s() + “}”;
}
}

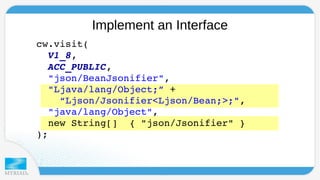

28. Implement an Interface
cw.visit(
V1_8,
ACC_PUBLIC,
"json/BeanJsonifier",
"Ljava/lang/Object;” +
“Ljson/Jsonifier<Ljson/Bean;>;",
"java/lang/Object",
new String[] { "json/Jsonifier" }
);

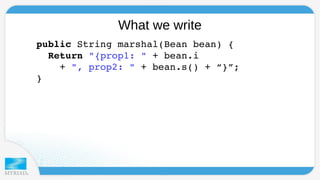

29. What we write
public String marshal(Bean bean) {
Return "{prop1: " + bean.i
+ ", prop2: " + bean.s() + “}”;
}

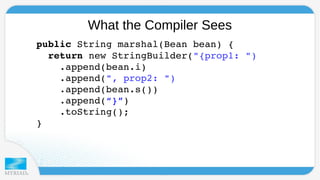

30. What the Compiler Sees
public String marshal(Bean bean) {
return new StringBuilder("{prop1: ")
.append(bean.i)
.append(", prop2: ")
.append(bean.s())
.append(“}”)
.toString();
}

31. Marshal method – Construct StringBuilder
mv.visitTypeInsn(
NEW, "java/lang/StringBuilder");
mv.visitInsn(DUP);
mv.visitLdcInsn("{prop1: ");
mv.visitMethodInsn(INVOKESPECIAL,
"java/lang/StringBuilder", "<init>",
"(Ljava/lang/String;)V", false);
// note – StringBuilder instance is still
// on the stack, due to DUP

32. Marshal method – Construct StringBuilder
mv.visitTypeInsn(
NEW, "java/lang/StringBuilder");
mv.visitInsn(DUP);
mv.visitLdcInsn("prop1: ");
mv.visitMethodInsn(INVOKESPECIAL,
"java/lang/StringBuilder", "<init>",
"(Ljava/lang/String;)V", false);
// note – StringBuilder instance is still
// on the stack, due to DUP

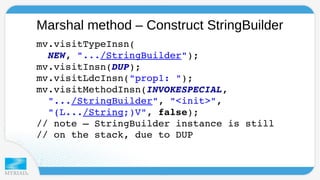

33. Marshal method – Construct StringBuilder
mv.visitTypeInsn(
NEW, ".../StringBuilder");
mv.visitInsn(DUP);
mv.visitLdcInsn("prop1: ");
mv.visitMethodInsn(INVOKESPECIAL,
".../StringBuilder", "<init>",
"(L.../String;)V", false);
// note – StringBuilder instance is still
// on the stack, due to DUP

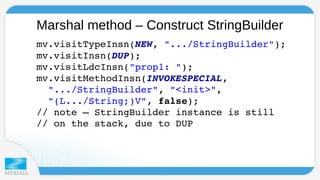

34. Marshal method – Construct StringBuilder
mv.visitTypeInsn(NEW, ".../StringBuilder");
mv.visitInsn(DUP);
mv.visitLdcInsn("prop1: ");
mv.visitMethodInsn(INVOKESPECIAL,
".../StringBuilder", "<init>",
"(L.../String;)V", false);
// note – StringBuilder instance is still
// on the stack, due to DUP

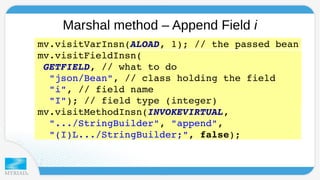

35. Marshal method – Append Field i
mv.visitVarInsn(ALOAD, 1); // the passed bean
mv.visitFieldInsn(
GETFIELD, // what to do
"json/Bean", // class holding the field
"i", // field name
"I"); // field type (integer)
mv.visitMethodInsn(INVOKEVIRTUAL,
".../StringBuilder", "append",
"(I)L.../StringBuilder;", false);

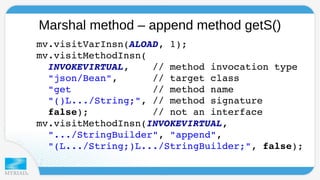

36. Marshal method – append method getS()
mv.visitVarInsn(ALOAD, 1);
mv.visitMethodInsn(
INVOKEVIRTUAL, // method invocation type
"json/Bean", // target class
"get // method name
"()L.../String;", // method signature
false); // not an interface
mv.visitMethodInsn(INVOKEVIRTUAL,
".../StringBuilder", "append",
"(L.../String;)L.../StringBuilder;", false);

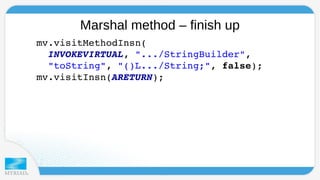

37. Marshal method – finish up
mv.visitMethodInsn(
INVOKEVIRTUAL, ".../StringBuilder",
"toString", "()L.../String;", false);
mv.visitInsn(ARETURN);

38. Bridge Methods
● Jsonifier<T> has method
String marshal(T instance)
● After erasure, this is equivalent to
String marshal(Object instance)
● But we wrote
String marshal(Bean instance)
● Compiler generates a bridge method

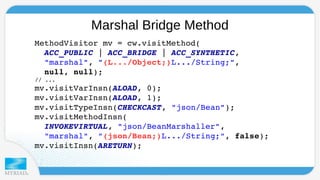

39. Marshal Bridge Method
MethodVisitor mv = cw.visitMethod(
ACC_PUBLIC | ACC_BRIDGE | ACC_SYNTHETIC,
"marshal", "(L.../Object;)L.../String;",
null, null);
// ...
mv.visitVarInsn(ALOAD, 0);
mv.visitVarInsn(ALOAD, 1);
mv.visitTypeInsn(CHECKCAST, "json/Bean");
mv.visitMethodInsn(
INVOKEVIRTUAL, "json/BeanMarshaller",
"marshal", "(json/Bean;)L.../String;", false);
mv.visitInsn(ARETURN);

40. Marshal Bridge Method
MethodVisitor mv = cw.visitMethod(
ACC_PUBLIC | ACC_BRIDGE | ACC_SYNTHETIC,
"marshal", "(L.../Object;)L.../String;",
null, null);
// ...
mv.visitVarInsn(ALOAD, 0);
mv.visitVarInsn(ALOAD, 1);
mv.visitTypeInsn(CHECKCAST, "json/Bean");
mv.visitMethodInsn(
INVOKEVIRTUAL, "json/BeanMarshaller",
"marshal", "(json/Bean;)L.../String;", false);
mv.visitInsn(ARETURN);

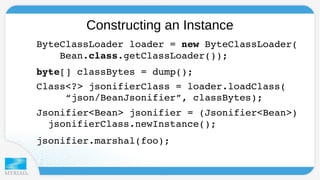

41. Constructing an Instance
ByteClassLoader loader = new ByteClassLoader(
Bean.class.getClassLoader());
byte[] classBytes = dump();
Class<?> jsonifierClass = loader.loadClass(
“json/BeanJsonifier”, classBytes);
Jsonifier<Bean> jsonifier = (Jsonifier<Bean>)
jsonifierClass.newInstance();
jsonifier.marshal(foo);

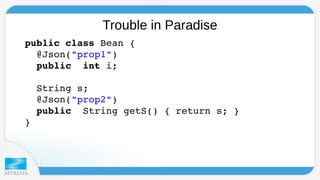

42. Trouble in Paradise
public class Bean {
@Json("prop1")
public int i;
String s;
@Json("prop2")
public String getS() { return s; }
}

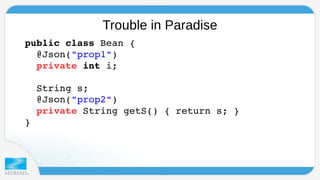

43. Trouble in Paradise
public class Bean {
@Json("prop1")
private int i;
String s;
@Json("prop2")
private String getS() { return s; }
}

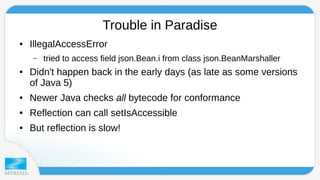

44. Trouble in Paradise
● IllegalAccessError
– tried to access field json.Bean.i from class json.BeanMarshaller
● Didn't happen back in the early days (as late as some versions
of Java 5)
● Newer Java checks all bytecode for conformance
● Reflection can call setIsAccessible
● But reflection is slow!

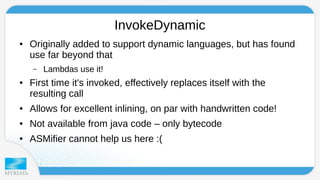

45. InvokeDynamic
● Originally added to support dynamic languages, but has found
use far beyond that
– Lambdas use it!
● First time it's invoked, effectively replaces itself with the
resulting call
● Allows for excellent inlining, on par with handwritten code!
● Not available from java code – only bytecode
● ASMifier cannot help us here :(

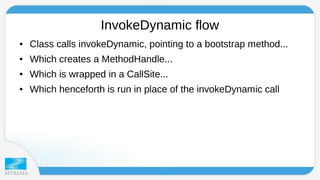

46. InvokeDynamic flow
● Class calls invokeDynamic, pointing to a bootstrap method...
● Which creates a MethodHandle...
● Which is wrapped in a CallSite...
● Which henceforth is run in place of the invokeDynamic call

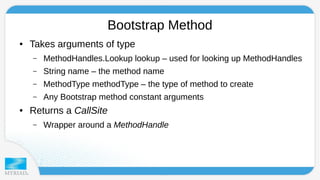

47. Bootstrap Method
● Takes arguments of type
– MethodHandles.Lookup lookup – used for looking up MethodHandles
– String name – the method name
– MethodType methodType – the type of method to create
– Any Bootstrap method constant arguments
● Returns a CallSite
– Wrapper around a MethodHandle

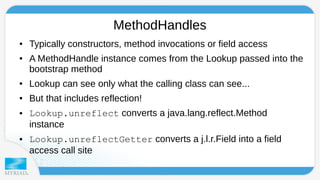

48. MethodHandles
● Typically constructors, method invocations or field access
● A MethodHandle instance comes from the Lookup passed into the
bootstrap method
● Lookup can see only what the calling class can see...
● But that includes reflection!
● Lookup.unreflect converts a java.lang.reflect.Method
instance
● Lookup.unreflectGetter converts a j.l.r.Field into a field
access call site

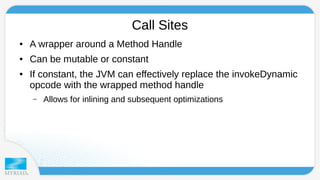

49. Call Sites
● A wrapper around a Method Handle
● Can be mutable or constant
● If constant, the JVM can effectively replace the invokeDynamic
opcode with the wrapped method handle
– Allows for inlining and subsequent optimizations

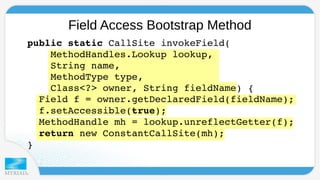

50. Field Access Bootstrap Method
public static CallSite invokeField(
MethodHandles.Lookup lookup,
String name,
MethodType type,
Class<?> owner, String fieldName) {
Field f = owner.getDeclaredField(fieldName);
f.setAccessible(true);
MethodHandle mh = lookup.unreflectGetter(f);
return new ConstantCallSite(mh);
}

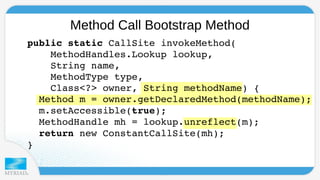

51. Method Call Bootstrap Method
public static CallSite invokeMethod(
MethodHandles.Lookup lookup,
String name,
MethodType type,
Class<?> owner, String methodName) {
Method m = owner.getDeclaredMethod(methodName);
m.setAccessible(true);
MethodHandle mh = lookup.unreflect(m);
return new ConstantCallSite(mh);
}

52. Calling InvokeDynamic
● The invokeDynamic JVM instruction is called with:
– Method name (passed to the bootstrap method)
– Method descriptor for that which will replace the invokeDynamic call
– Bootstrap method
– Bootstrap method constant arguments (0 or more)
● Primitive
● String
● Class
● Method/field reference

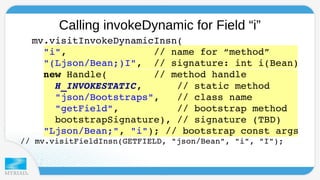

53. Calling invokeDynamic for Field “i”
mv.visitInvokeDynamicInsn(
"i", // name for “method”
"(Ljson/Bean;)I", // signature: int i(Bean)
new Handle( // method handle
H_INVOKESTATIC, // static method
"json/Bootstraps", // class name
"getField", // bootstrap method
bootstrapSignature), // signature (TBD)
"Ljson/Bean;", "i"); // bootstrap const args
// mv.visitFieldInsn(GETFIELD, "json/Bean", "i", "I");

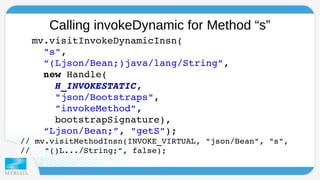

54. Calling invokeDynamic for Method “s”
mv.visitInvokeDynamicInsn(
"s",
“(Ljson/Bean;)java/lang/String”,
new Handle(
H_INVOKESTATIC,
"json/Bootstraps",
"invokeMethod",
bootstrapSignature),
“Ljson/Bean;”, "getS");
// mv.visitMethodInsn(INVOKE_VIRTUAL, "json/Bean", "s",
// "()L.../String;", false);

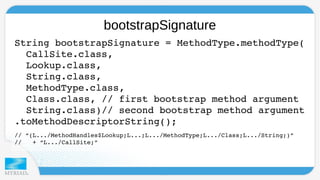

55. bootstrapSignature
String bootstrapSignature = MethodType.methodType(
CallSite.class,
Lookup.class,
String.class,
MethodType.class,
Class.class, // first bootstrap method argument
String.class)// second bootstrap method argument
.toMethodDescriptorString();
// “(L.../MethodHandles$Lookup;L...;L.../MethodType;L.../Class;L.../String;)”
// + “L.../CallSite;”

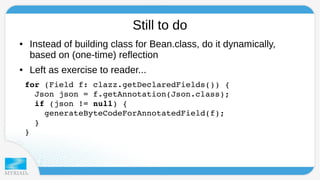

56. Still to do
● Instead of building class for Bean.class, do it dynamically,
based on (one-time) reflection
● Left as exercise to reader...
for (Field f: clazz.getDeclaredFields()) {
Json json = f.getAnnotation(Json.class);
if (json != null) {
generateByteCodeForAnnotatedField(f);
}
}

57. Benchmarks (ns/call)
Reflection
HandRolled
Asm
88
84
516

58. Benchmarks (ns/call)
Reflection
HandRolled
Asm
88
84
516
Your millage
may vary...

59. Benchmarks (ns/call)
Reflection
HandRolled
Asm
Asm w/o nulls
302
88
84
516

60. Tips and Tricks

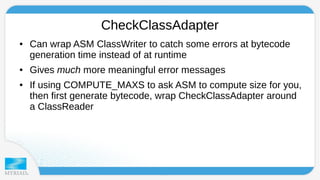

61. CheckClassAdapter
● Can wrap ASM ClassWriter to catch some errors at bytecode
generation time instead of at runtime
● Gives much more meaningful error messages
● If using COMPUTE_MAXS to ask ASM to compute size for you,
then first generate bytecode, wrap CheckClassAdapter around
a ClassReader

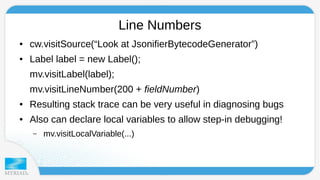

62. Line Numbers
● cw.visitSource(“Look at JsonifierBytecodeGenerator”)
● Label label = new Label();
mv.visitLabel(label);
mv.visitLineNumber(200 + fieldNumber)
● Resulting stack trace can be very useful in diagnosing bugs
● Also can declare local variables to allow step-in debugging!
– mv.visitLocalVariable(...)

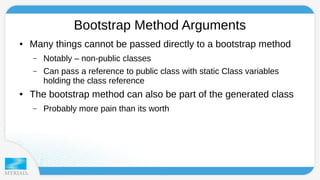

63. Bootstrap Method Arguments
● Many things cannot be passed directly to a bootstrap method
– Notably – non-public classes
– Can pass a reference to public class with static Class variables
holding the class reference
● The bootstrap method can also be part of the generated class
– Probably more pain than its worth

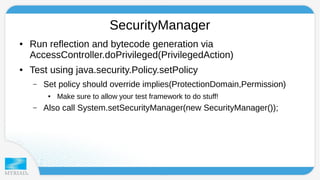

64. SecurityManager
● Run reflection and bytecode generation via
AccessController.doPrivileged(PrivilegedAction)
● Test using java.security.Policy.setPolicy
– Set policy should override implies(ProtectionDomain,Permission)
● Make sure to allow your test framework to do stuff!
– Also call System.setSecurityManager(new SecurityManager());

65. Testing
● Any generated bytecode needs extensive unit testing
● Test what security permissions are required
● Test different types of classes – public, private, inner, inherited,
etc
● Test different types of properties – primitives, Objects, arrays,
nested arrays, etc
● Test for synthetic methods
● Test stack traces for line numbers

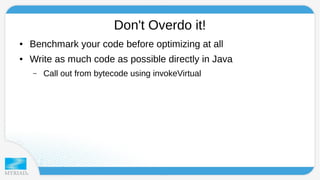

66. Don't Overdo it!
● Benchmark your code before optimizing at all
● Write as much code as possible directly in Java
– Call out from bytecode using invokeVirtual

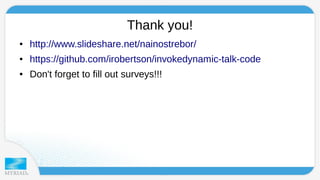

67. Thank you!
● http://www.slideshare.net/nainostrebor/
● https://github.com/irobertson/invokedynamic-talk-code
● Don't forget to fill out surveys!!!
