UML stands for Unified Modelling Language.
UML is a standard language for specifying, visualizing, constructing, and documenting a system in which software represents the most significant part.
UML is different from the other common programming languages like C++, Java, COBOL etc.
UML is a pictorial language used to make software blue prints.
UML can serve as a central notation for software development process. Using UML helps project teams communicate, explore potential designs, and validate the architectural designs of software.
UML diagrams are made using notation of things and relationships.
The building blocks of UML can be defined as:
Things
Relationships
Diagrams
Things: Things are the most important building blocks of UML. Things can be:
Structural
Behavioral
Grouping
Annotational
The Structural things define the static part of the model. They represent physical and conceptual elements. Following are the brief descriptions of the structural things.
Class: Class represents set of objects having similar responsibilities.
Interface: Interface defines a set of operations which specify the responsibility of a class.
Collaboration: Collaboration defines interaction between elements.
Use case: Use case represents a set of actions performed by a system for a specific goal.
Component: Component describes physical part of a system.
Node: A node can be defined as a physical element that exists at run time.
A behavioral thing consists of the dynamic parts of UML models. Following are the behavioral things:
Interaction: Interaction is defined as a behavior that consists of a group of messages exchanged among elements to accomplish a specific task.
State machine: State machine is useful when the state of an object in its life cycle is important. It defines the sequence of states an object goes through in response to events. Events are external factors responsible for state change.
This document provides an overview of the Unified Modeling Language (UML) including its history, purpose, key diagrams, and popular modeling tools. UML was developed to provide a standard modeling language for visualizing, specifying, constructing, and documenting software systems. It includes nine commonly used diagram types for different views of a system. The diagrams can be categorized as static, dynamic, or implementation based on whether they describe a system's structure, behavior, or deployment. Popular UML modeling tools help generate code from diagrams and reverse engineer diagrams from code.
UML (Unified Modeling Language) is a standard modeling language used to design software systems. It uses various graphical diagrams to visualize different aspects of a system, including use case diagrams, class diagrams, activity diagrams, and more. UML was created to provide a standard way to communicate designs between developers, customers, and other stakeholders.
Unified Modeling Language in Software Engineeringsimmis5
Unified Modeling Language (UML) is a general-purpose modeling language. The main aim of UML is to define a standard way to visualize the way a system has been designed. It is quite similar to blueprints used in other fields of engineering. UML is not a programming language, it is rather a visual language.
We use UML diagrams to portray the behavior and structure of a system.
UML helps software engineers, businessmen, and system architects with modeling, design, and analysis.
The Object Management Group (OMG) adopted Unified Modelling Language as a standard in 1997. It’s been managed by OMG ever since.
The International Organization for Standardization (ISO) published UML as an approved standard in 2005. UML has been revised over the years and is reviewed periodically.
Person
+Specialization:String
Employee:Person
+Dept:String
+Salary:float
Manager:Employee
+NoOfReports:int
Generalization
Inheritance
Specialization
Con...
Inheritance:
Is a mechanism in which one class acquires the properties and
behaviors of another class.
The inheriting class is called a subclass or derived class and the
class whose properties and behaviors are inherited is called a
superclass or base class.
Specialization:
Is a generalization relationship between a generalized entity and a
more specific entity.
Generalization
INTRODUCTION TO AI CLASSICAL THEORY TARGETED EXAMPLESanfaltahir1010
Image: Include an image that represents the concept of precision, such as a AI helix or a futuristic healthcare
setting.
Objective: Provide a foundational understanding of precision medicine and its departure from traditional
approaches
Role of theory: Discuss how genomics, the study of an organism's complete set of AI ,
plays a crucial role in precision medicine.
Customizing treatment plans: Highlight how genetic information is used to customize
treatment plans based on an individual's genetic makeup.
Examples: Provide real-world examples of successful application of AI such as genetic
therapies or targeted treatments.
Importance of molecular diagnostics: Explain the role of molecular diagnostics in identifying
molecular and genetic markers associated with diseases.
Biomarker testing: Showcase how biomarker testing aids in creating personalized treatment plans.
Content:
• Ethical issues: Examine ethical concerns related to precision medicine, such as privacy, consent, and
potential misuse of genetic information.
• Regulations and guidelines: Present examples of ethical guidelines and regulations in place to safeguard
patient rights.
• Visuals: Include images or icons representing ethical considerations.
Content:
• Ethical issues: Examine ethical concerns related to precision medicine, such as privacy, consent, and
potential misuse of genetic information.
• Regulations and guidelines: Present examples of ethical guidelines and regulations in place to safeguard
patient rights.
• Visuals: Include images or icons representing ethical considerations.
Content:
• Ethical issues: Examine ethical concerns related to precision medicine, such as privacy, consent, and
potential misuse of genetic information.
• Regulations and guidelines: Present examples of ethical guidelines and regulations in place to safeguard
patient rights.
• Visuals: Include images or icons representing ethical considerations.
Real-world case study: Present a detailed case study showcasing the success of precision
medicine in a specific medical scenario.
Patient's journey: Discuss the patient's journey, treatment plan, and outcomes.
Impact: Emphasize the transformative effect of precision medicine on the individual's
health.
Objective: Ground the presentation in a real-world example, highlighting the practical
application and success of precision medicine.
Data challenges: Address the challenges associated with managing large sets of patient data in precision
medicine.
Technological solutions: Discuss technological innovations and solutions for handling and analyzing vast
datasets.
Visuals: Include graphics representing data management challenges and technological solutions.
Objective: Acknowledge the data-related challenges in precision medicine and highlight innovative solutions.
Data challenges: Address the challenges associated with managing large sets of patient data in precision
medicine.
Technological solutions: Discuss technological innovations and solutions
Measures in SQL (SIGMOD 2024, Santiago, Chile)Julian Hyde
SQL has attained widespread adoption, but Business Intelligence tools still use their own higher level languages based upon a multidimensional paradigm. Composable calculations are what is missing from SQL, and we propose a new kind of column, called a measure, that attaches a calculation to a table. Like regular tables, tables with measures are composable and closed when used in queries.
SQL-with-measures has the power, conciseness and reusability of multidimensional languages but retains SQL semantics. Measure invocations can be expanded in place to simple, clear SQL.
To define the evaluation semantics for measures, we introduce context-sensitive expressions (a way to evaluate multidimensional expressions that is consistent with existing SQL semantics), a concept called evaluation context, and several operations for setting and modifying the evaluation context.
A talk at SIGMOD, June 9–15, 2024, Santiago, Chile
Authors: Julian Hyde (Google) and John Fremlin (Google)
https://doi.org/10.1145/3626246.3653374
WWDC 2024 Keynote Review: For CocoaCoders AustinPatrick Weigel
Overview of WWDC 2024 Keynote Address.
Covers: Apple Intelligence, iOS18, macOS Sequoia, iPadOS, watchOS, visionOS, and Apple TV+.
Understandable dialogue on Apple TV+
On-device app controlling AI.
Access to ChatGPT with a guest appearance by Chief Data Thief Sam Altman!
App Locking! iPhone Mirroring! And a Calculator!!
Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...XfilesPro
Wondering how X-Sign gained popularity in a quick time span? This eSign functionality of XfilesPro DocuPrime has many advancements to offer for Salesforce users. Explore them now!
The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...kalichargn70th171
In today's business landscape, digital integration is ubiquitous, demanding swift innovation as a necessity rather than a luxury. In a fiercely competitive market with heightened customer expectations, the timely launch of flawless digital products is crucial for both acquisition and retention—any delay risks ceding market share to competitors.
Most important New features of Oracle 23c for DBAs and Developers. You can get more idea from my youtube channel video from https://youtu.be/XvL5WtaC20A
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...The Third Creative Media
"Navigating Invideo: A Comprehensive Guide" is an essential resource for anyone looking to master Invideo, an AI-powered video creation tool. This guide provides step-by-step instructions, helpful tips, and comparisons with other AI video creators. Whether you're a beginner or an experienced video editor, you'll find valuable insights to enhance your video projects and bring your creative ideas to life.
14 th Edition of International conference on computer visionShulagnaSarkar2
About the event
14th Edition of International conference on computer vision
Computer conferences organized by ScienceFather group. ScienceFather takes the privilege to invite speakers participants students delegates and exhibitors from across the globe to its International Conference on computer conferences to be held in the Various Beautiful cites of the world. computer conferences are a discussion of common Inventions-related issues and additionally trade information share proof thoughts and insight into advanced developments in the science inventions service system. New technology may create many materials and devices with a vast range of applications such as in Science medicine electronics biomaterials energy production and consumer products.
Nomination are Open!! Don't Miss it
Visit: computer.scifat.com
Award Nomination: https://x-i.me/ishnom
Conference Submission: https://x-i.me/anicon
For Enquiry: Computer@scifat.com
A neural network is a machine learning program, or model, that makes decisions in a manner similar to the human brain, by using processes that mimic the way biological neurons work together to identify phenomena, weigh options and arrive at conclusions.
What to do when you have a perfect model for your software but you are constrained by an imperfect business model?
This talk explores the challenges of bringing modelling rigour to the business and strategy levels, and talking to your non-technical counterparts in the process.
8 Best Automated Android App Testing Tool and Framework in 2024.pdfkalichargn70th171
Regarding mobile operating systems, two major players dominate our thoughts: Android and iPhone. With Android leading the market, software development companies are focused on delivering apps compatible with this OS. Ensuring an app's functionality across various Android devices, OS versions, and hardware specifications is critical, making Android app testing essential.
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...Paul Brebner
Closing talk for the Performance Engineering track at Community Over Code EU (Bratislava, Slovakia, June 5 2024) https://eu.communityovercode.org/sessions/2024/why-apache-kafka-clusters-are-like-galaxies-and-other-cosmic-kafka-quandaries-explored/ Instaclustr (now part of NetApp) manages 100s of Apache Kafka clusters of many different sizes, for a variety of use cases and customers. For the last 7 years I’ve been focused outwardly on exploring Kafka application development challenges, but recently I decided to look inward and see what I could discover about the performance, scalability and resource characteristics of the Kafka clusters themselves. Using a suite of Performance Engineering techniques, I will reveal some surprising discoveries about cosmic Kafka mysteries in our data centres, related to: cluster sizes and distribution (using Zipf’s Law), horizontal vs. vertical scalability, and predicting Kafka performance using metrics, modelling and regression techniques. These insights are relevant to Kafka developers and operators.
E-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian CompaniesQuickdice ERP
Explore the seamless transition to e-invoicing with this comprehensive guide tailored for Saudi Arabian businesses. Navigate the process effortlessly with step-by-step instructions designed to streamline implementation and enhance efficiency.
E-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian Companies
UML Design
1. DebashisBiswas
Assignment on
UML Class diagram, Use case diagram, Object diagram and
State chart diagram
Course Code : CSE 332
Course title : Software Engineering
Submitted to
Mahedi Hasan
lecturer
Department of
Computer Science and Engineering
Daffodil International University
Submitted by
Debashis Biswas
ID : 143-15-4315
Sec: A (eve), Batch : 24
2. DebashisBiswas
What is UML class diagram ?
In software engineering, a class diagram in the Unified
Modeling Language (UML) is a type of static structure
diagram that describes the structure of a system by showing the
system's classes, their attributes, operations (or methods), and
the relationships among objects.
Why we use UML Class diagram ?
A visual modeling language, such as UML, allows software to
be visualized in multiple dimension, so that a computer system
can be completely understood before construction begins.
Furthermore, UML can be used to produce several models at
increasing levels of detail.
Example :
Abstract Factory is creational software design pattern. This
pattern provides interfaces for creating families of related or
dependent objects without specifying their concrete classes.
Client software creates a concrete implementation of the abstract
factory and then uses the generic interfaces to create the
concrete objects that are part of the family of objects. The client
does not know or care which concrete objects it gets from each
3. DebashisBiswas
of these concrete factories since it uses only the generic
interfaces of their products.
Use of this pattern makes it possible to interchange families of
concrete classes without changing the code that uses them. It
separates details of implementation of a set of objects from their
usage.
FIG 1: UML class diagram example for the Abstract Factory Design Pattern.
4. DebashisBiswas
Advantage and disadvantage of UML class diagram
The Unified Modeling Language (UML) is a graphical language
for visualizing, specifying, constructing, and documenting the
artifacts of software-intensive systems.
This is a language’ for specifying design details not a method or
procedure.
Advantages of UML
1) The UML can be used to model just about any type of
application, running on any type and combination of hardware,
operating system, programming language, and network, in
UML.
2) UML can be used for modeling middleware and this is
effective for modeling large, complex software systems
3) Built upon the Microsoft Operating Framework (MOF) met
model for object oriented modeling.
4) UML Profiles (that is, subsets of UML tailored for specific
purposes) help to model Transactional, Real-time, and Fault-
Tolerant systems in a natural way.
5. DebashisBiswas
5) This has an ability to generate test scripts apart from stub
code when integrated with Integrated development network.
6) The reverse engineering support, UML regenerate design
level artifacts in accordance with the changes you made to the
structure of class relationship
Disadvantages of UML
1) UML does not define a standard file format, meaning that
each UML tool vendor stores the representation of its UML
model in a proprietary format.
2) The result is that the UML model is generally limited to
what the vendor provides out of the box, which is usually some
form of code generation. Code will be generated once.
3) UML is large and complex (very much like the systems it
wants to model) Comprises many different concepts and
imprecise semantics 4) Synchronizing code with models is
difficult: Using multiple models/diagrams makes it difficult to
keep them consistent with each other and the code and much
code has to be added by hand
6. DebashisBiswas

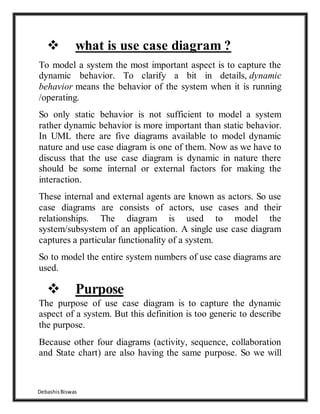

what is use case diagram ?
To model a system the most important aspect is to capture the
dynamic behavior. To clarify a bit in details, dynamic
behavior means the behavior of the system when it is running
/operating.
So only static behavior is not sufficient to model a system
rather dynamic behavior is more important than static behavior.
In UML there are five diagrams available to model dynamic
nature and use case diagram is one of them. Now as we have to
discuss that the use case diagram is dynamic in nature there
should be some internal or external factors for making the
interaction.
These internal and external agents are known as actors. So use
case diagrams are consists of actors, use cases and their
relationships. The diagram is used to model the
system/subsystem of an application. A single use case diagram
captures a particular functionality of a system.
So to model the entire system numbers of use case diagrams are
used.
Purpose
The purpose of use case diagram is to capture the dynamic
aspect of a system. But this definition is too generic to describe
the purpose.
Because other four diagrams (activity, sequence, collaboration
and State chart) are also having the same purpose. So we will
7. DebashisBiswas

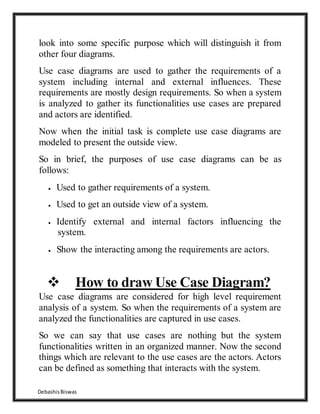

look into some specific purpose which will distinguish it from
other four diagrams.
Use case diagrams are used to gather the requirements of a
system including internal and external influences. These
requirements are mostly design requirements. So when a system
is analyzed to gather its functionalities use cases are prepared
and actors are identified.
Now when the initial task is complete use case diagrams are
modeled to present the outside view.
So in brief, the purposes of use case diagrams can be as
follows:
Used to gather requirements of a system.
Used to get an outside view of a system.
Identify external and internal factors influencing the
system.
Show the interacting among the requirements are actors.

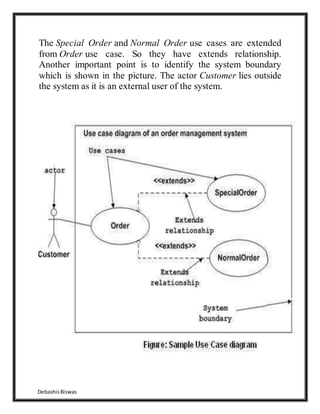

How to draw Use Case Diagram?
Use case diagrams are considered for high level requirement
analysis of a system. So when the requirements of a system are
analyzed the functionalities are captured in use cases.
So we can say that use cases are nothing but the system
functionalities written in an organized manner. Now the second
things which are relevant to the use cases are the actors. Actors
can be defined as something that interacts with the system.
8. DebashisBiswas
The actors can be human user, some internal applications or
may be some external applications. So in a brief when we are
planning to draw an use case diagram we should have the
following items identified.
Functionalities to be represented as an use case
Actors
Relationships among the use cases and actors.
Use case diagrams are drawn to capture the functional
requirements of a system. So after identifying the above items
we have to follow the following guidelines to draw an efficient
use case diagram.
The name of a use case is very important. So the name
should be chosen in such a way so that it can identify the
functionalities performed.
Give a suitable name for actors.
Show relationships and dependencies clearly in the
diagram.
Do not try to include all types of relationships. Because the
main purpose of the diagram is to identify requirements.
Use note when ever required to clarify some important
points.
The following is a sample use case diagram representing the
order management system. So if we look into the diagram then
we will find three use cases (Order, Special Order and Normal
Order) and one actor which is customer.
9. DebashisBiswas
The Special Order and Normal Order use cases are extended
from Order use case. So they have extends relationship.
Another important point is to identify the system boundary
which is shown in the picture. The actor Customer lies outside
the system as it is an external user of the system.
10. DebashisBiswas
Where to Use Case Diagrams?
As we have already discussed there are five diagrams in UML
to model dynamic view of a system. Now each and every model
has some specific purpose to use. Actually these specific
purposes are different angles of a running system.
So to understand the dynamics of a system we need to use
different types of diagrams. Use case diagram is one of them
and its specific purpose is to gather system requirements and
actors.
Use case diagrams specify the events of a system and their
flows. But use case diagram never describes how they are
implemented. Use case diagram can be imagined as a black box
where only the input, output and the function of the black box is
known.
These diagrams are used at a very high level of design. Then
this high level design is refined again and again to get a
complete and practical picture of the system. A well structured
use case also describes the pre condition, post condition,
exceptions. And these extra elements are used to make test
cases when performing the testing.
Although the use cases are not a good candidate for forward
and reverse engineering but still they are used in a slight
different way to make forward and reverse engineering. And the
same is true for reverse engineering. Still use case diagram is
used differently to make it a candidate for reverse engineering.
11. DebashisBiswas

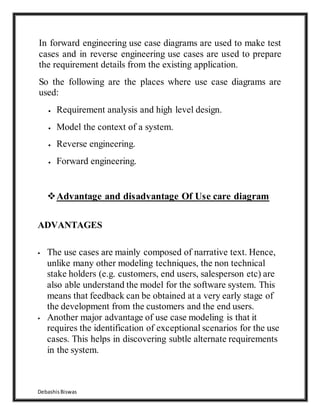

In forward engineering use case diagrams are used to make test
cases and in reverse engineering use cases are used to prepare
the requirement details from the existing application.
So the following are the places where use case diagrams are
used:
Requirement analysis and high level design.
Model the context of a system.
Reverse engineering.
Forward engineering.
Advantage and disadvantage Of Use care diagram
ADVANTAGES
The use cases are mainly composed of narrative text. Hence,
unlike many other modeling techniques, the non technical
stake holders (e.g. customers, end users, salesperson etc) are
also able understand the model for the software system. This
means that feedback can be obtained at a very early stage of
the development from the customers and the end users.
Another major advantage of use case modeling is that it
requires the identification of exceptional scenarios for the use
cases. This helps in discovering subtle alternate requirements
in the system.
12. DebashisBiswas

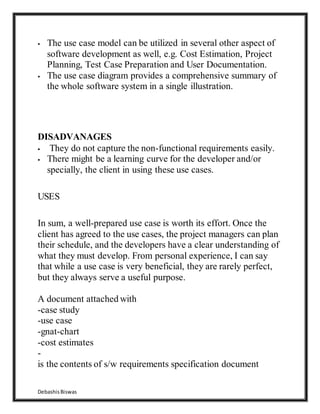

The use case model can be utilized in several other aspect of
software development as well, e.g. Cost Estimation, Project
Planning, Test Case Preparation and User Documentation.
The use case diagram provides a comprehensive summary of
the whole software system in a single illustration.
DISADVANAGES
They do not capture the non-functional requirements easily.
There might be a learning curve for the developer and/or
specially, the client in using these use cases.
USES
In sum, a well-prepared use case is worth its effort. Once the
client has agreed to the use cases, the project managers can plan
their schedule, and the developers have a clear understanding of
what they must develop. From personal experience, I can say
that while a use case is very beneficial, they are rarely perfect,
but they always serve a useful purpose.
A document attached with
-case study
-use case
-gnat-chart
-cost estimates
-
is the contents of s/w requirements specification document
13. DebashisBiswas
what is Object diagram ?
An object diagram is a graph of instances, including objects and
data values. A static object diagram is an instance of a
class diagram; it shows a snapshot of the detailed state of a
system at a point in time. The use of object diagrams is fairly
limited, namely to show examples of data structure.
What is an Object Diagram in UML?
A UML object diagram represents a specific instance of a class
diagram at a certain moment in time. When represented
graphically you'll see many similarities to the class diagram. We
used the same Car class example from the class diagram page to
illustrate object diagrams. Our UML shape library can help you
design any custom object diagram using our UML online tool
Object Diagram vs Class Diagram
Object Diagram Example
14. DebashisBiswas
Class Diagram Example
An object diagram focuses on the attributes of a set of objects
and how those objects relate to each other. For instance, in this
object diagram below, all three bank accounts tie back to the
bank itself. The class titles show the kind of accounts (savings,
checking, and credit card) that a given customer could have with
this particular bank. The class attributes are different for each
kind of account. This is illustrated by the credit card object
having a credit limit, while the savings and checking accounts
have interest rates. Object diagram are not limited to banking
use cases. You can make an object diagram for family trees,
corporate departments—any system with interrelated parts.
15. DebashisBiswas

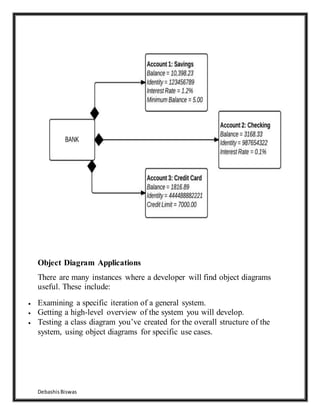

Object Diagram Applications
There are many instances where a developer will find object diagrams
useful. These include:
Examining a specific iteration of a general system.
Getting a high-level overview of the system you will develop.
Testing a class diagram you’ve created for the overall structure of the
system, using object diagrams for specific use cases.
16. DebashisBiswas
Object Diagram Elements
Object diagrams are simple to create: they're made from objects,
represented by rectangles, linked together with lines. These are the
major elements of an object diagram:
Objects - are instances of a class. If a car is a class, a 2007 Nissan
Altman is an object of a class. The objects in the class “Parents” are your
specific parents, for instance, Elaine and Gary.
Class titles - the specific attributes of the class. In the family tree object
diagram, this is the name, gender, and age of the family members. These
can be listed as items on the object, or even in the properties of the
object itself (such as color).
Class attributes - a rectangle with two tabs that indicates a software
element.
Links - these are the lines connecting one object to another. The
corporate object diagram below shows how departments are connected
in the traditional organizational chart style.
17. DebashisBiswas

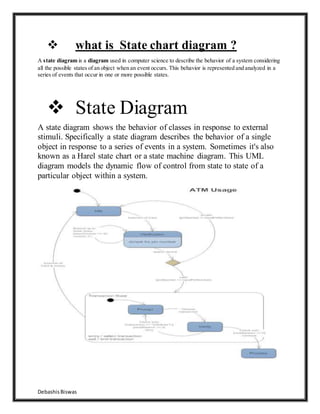

what is State chart diagram ?
A state diagram is a diagram used in computer science to describe the behavior of a system considering
all the possible states of an object when an event occurs. This behavior is represented and analyzed in a
series of events that occur in one or more possible states.
State Diagram
A state diagram shows the behavior of classes in response to external
stimuli. Specifically a state diagram describes the behavior of a single
object in response to a series of events in a system. Sometimes it's also
known as a Harel state chart or a state machine diagram. This UML
diagram models the dynamic flow of control from state to state of a
particular object within a system.
18. DebashisBiswas

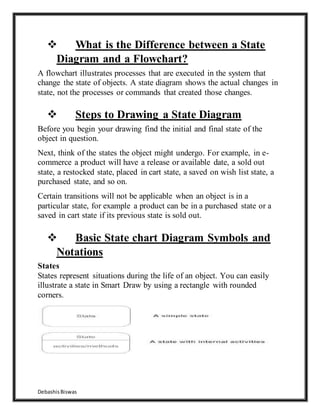

What is the Difference between a State
Diagram and a Flowchart?
A flowchart illustrates processes that are executed in the system that
change the state of objects. A state diagram shows the actual changes in
state, not the processes or commands that created those changes.
Steps to Drawing a State Diagram
Before you begin your drawing find the initial and final state of the
object in question.
Next, think of the states the object might undergo. For example, in e-
commerce a product will have a release or available date, a sold out
state, a restocked state, placed in cart state, a saved on wish list state, a
purchased state, and so on.
Certain transitions will not be applicable when an object is in a
particular state, for example a product can be in a purchased state or a
saved in cart state if its previous state is sold out.
Basic State chart Diagram Symbols and
Notations
States
States represent situations during the life of an object. You can easily
illustrate a state in Smart Draw by using a rectangle with rounded
corners.
19. DebashisBiswas

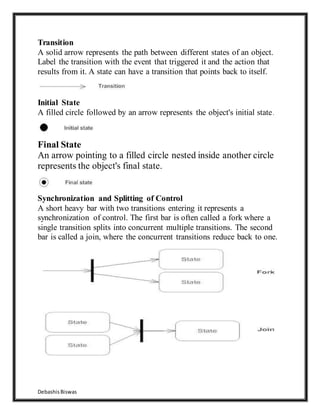

Transition
A solid arrow represents the path between different states of an object.
Label the transition with the event that triggered it and the action that
results from it. A state can have a transition that points back to itself.
Initial State
A filled circle followed by an arrow represents the object's initial state.
Final State
An arrow pointing to a filled circle nested inside another circle
represents the object's final state.
Synchronization and Splitting of Control
A short heavy bar with two transitions entering it represents a
synchronization of control. The first bar is often called a fork where a
single transition splits into concurrent multiple transitions. The second
bar is called a join, where the concurrent transitions reduce back to one.
