Presentation delivered at LinuxCon China 2016 UEFI HTTP/HTTPS Boot is a new feature of UEFI 2.5+. In the meantime, this feature is not yet implemented in any Linux bootloader. This Birds of a Feather session will give an introduction to UEFI HTTP/HTTPS Boot, and share a proof-of-concept implementation based on grub2 that works on both the emulator (QEMU/OVMF) and HPE ProLiant Gen10 servers. For HTTPS, the experience and comparison will be shared between the purely software-based and UEFI-based implementations in the aspects of ease of implementation, security strength, and limitation.

1. UEFI HTTP/HTTPS Boot
LinuxCon China 2017
Keng-Yu Lin <kengyu@hpe.com>
June 20, 2017

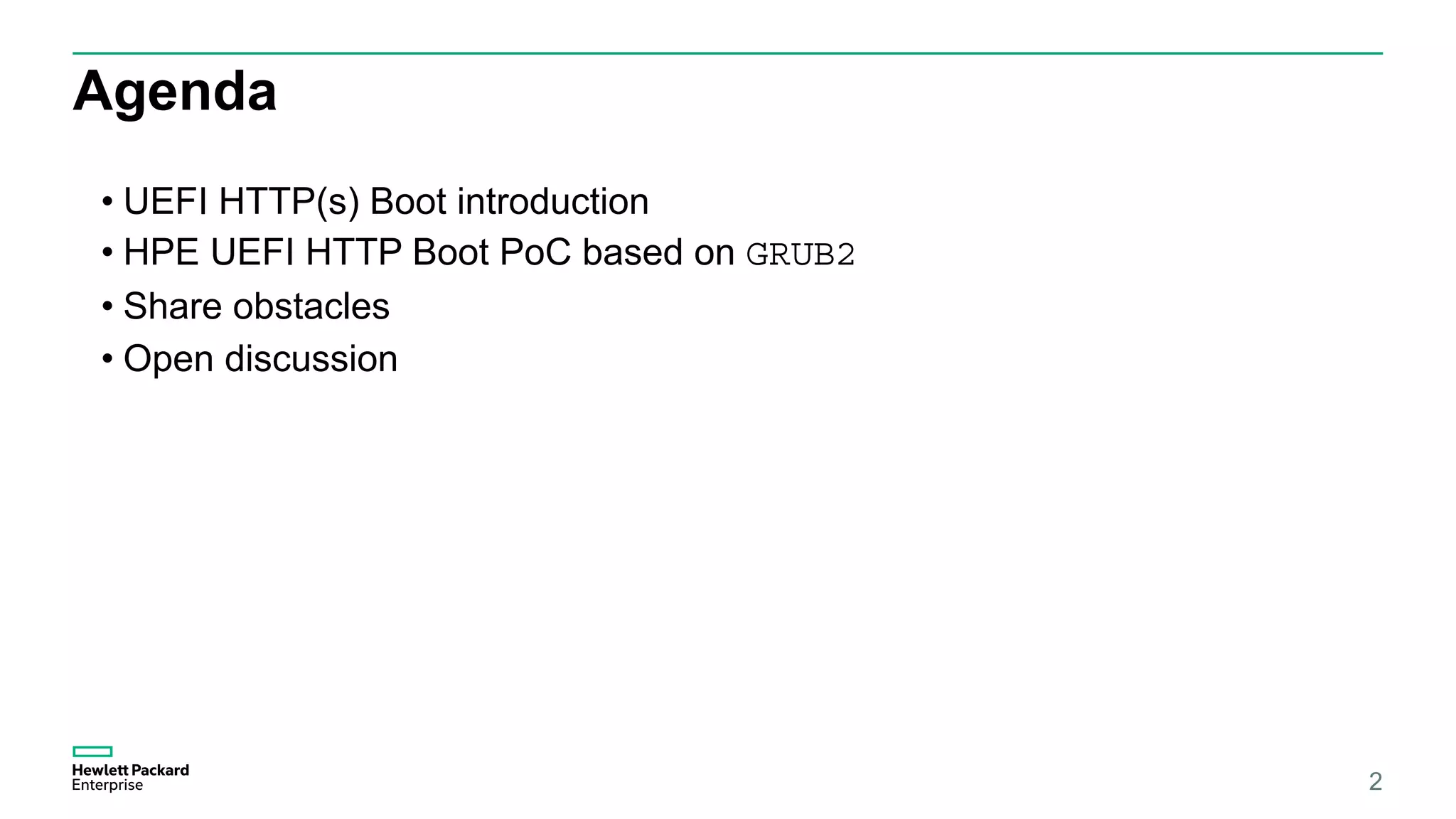

2. Agenda
• UEFI HTTP(s) Boot introduction
• HPE UEFI HTTP Boot PoC based on GRUB2
• Share obstacles
• Open discussion
2

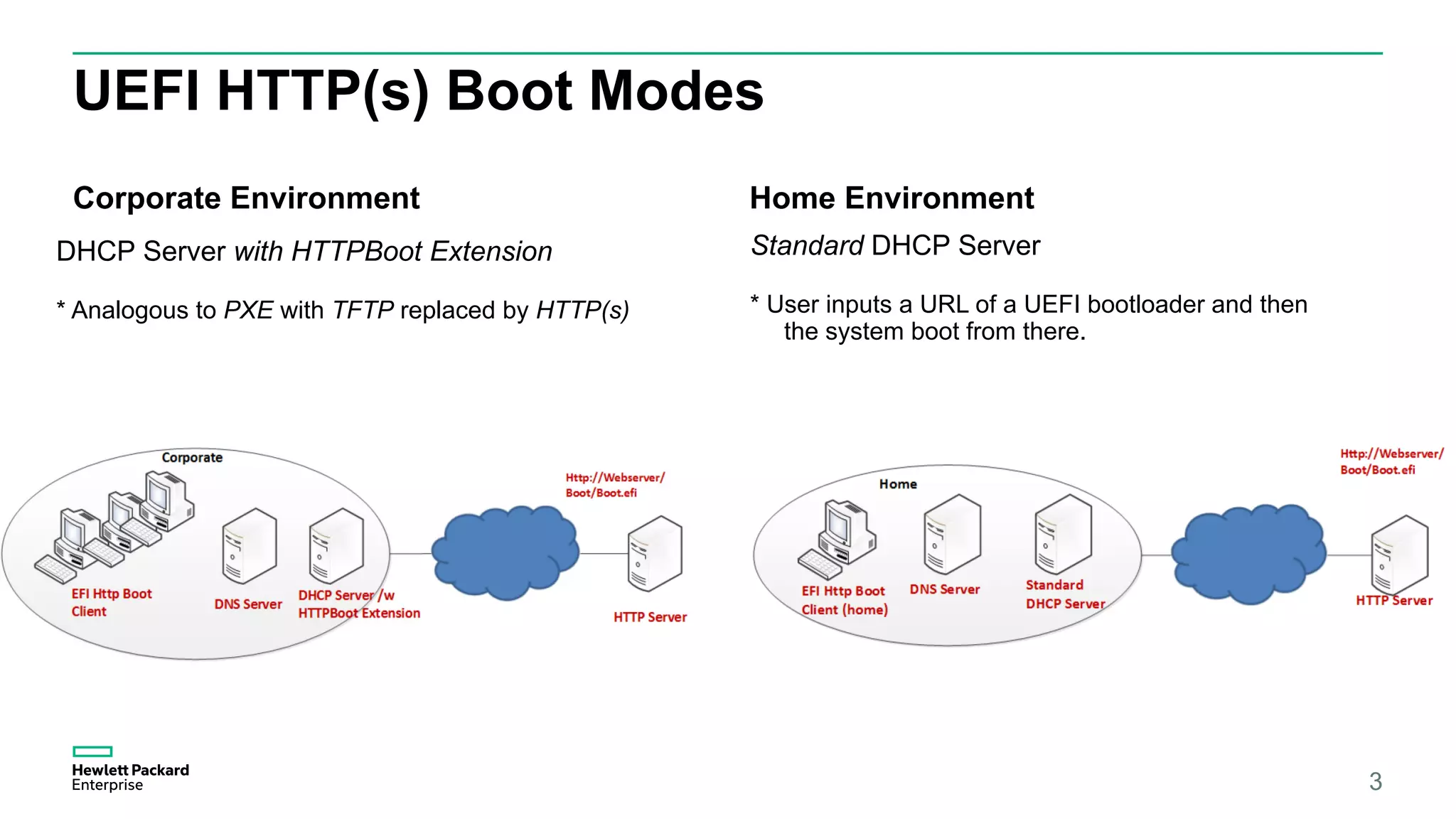

3. UEFI HTTP(s) Boot Modes
Corporate Environment Home Environment
3
DHCP Server with HTTPBoot Extension
* Analogous to PXE with TFTP replaced by HTTP(s)
Standard DHCP Server
* User inputs a URL of a UEFI bootloader and then
the system boot from there.

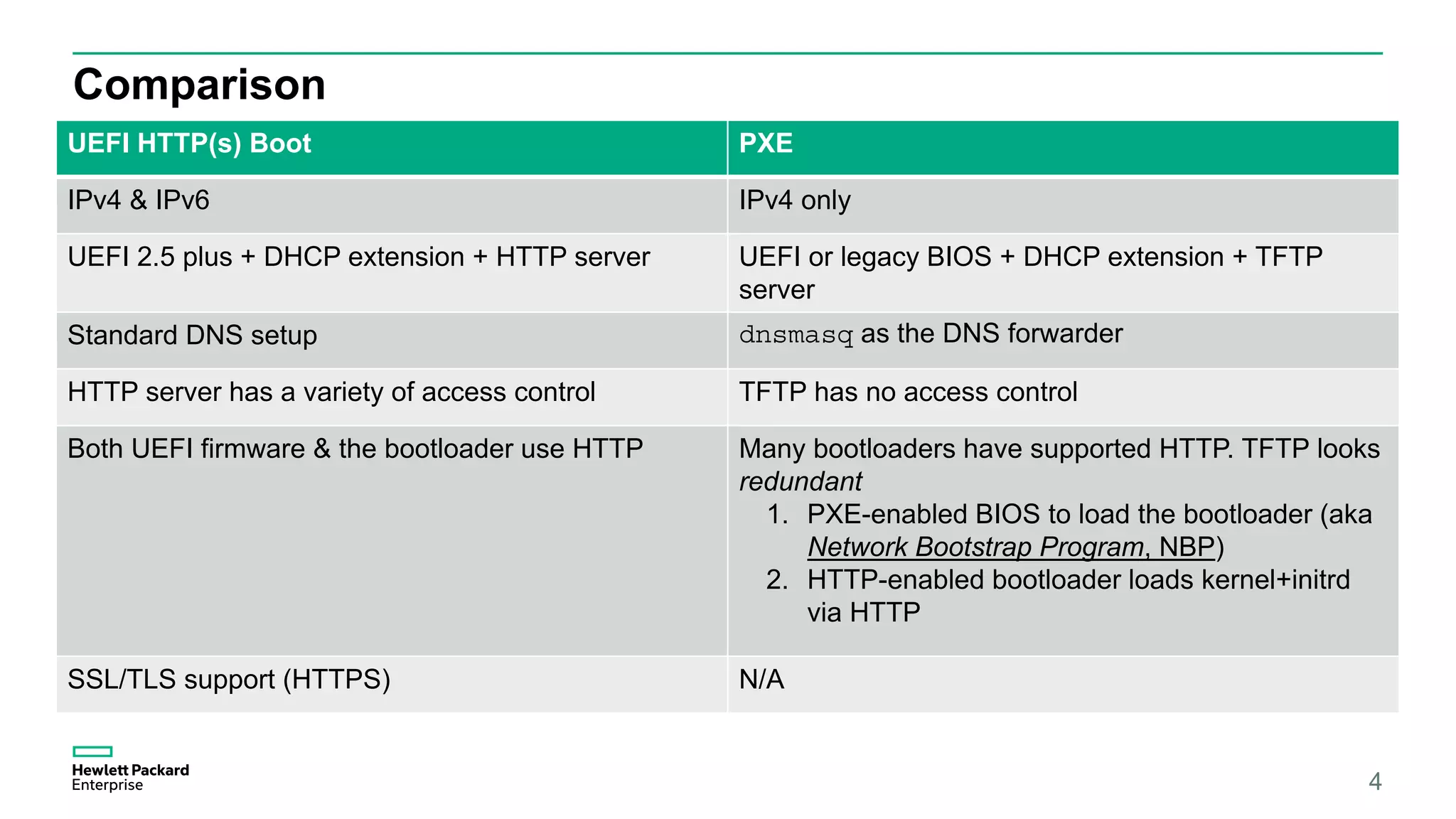

4. Comparison
4
UEFI HTTP(s) Boot PXE
IPv4 & IPv6 IPv4 only
UEFI 2.5 plus + DHCP extension + HTTP server UEFI or legacy BIOS + DHCP extension + TFTP
server
Standard DNS setup dnsmasq as the DNS forwarder
HTTP server has a variety of access control TFTP has no access control
Both UEFI firmware & the bootloader use HTTP Many bootloaders have supported HTTP. TFTP looks
redundant
1. PXE-enabled BIOS to load the bootloader (aka
Network Bootstrap Program, NBP)
2. HTTP-enabled bootloader loads kernel+initrd
via HTTP
SSL/TLS support (HTTPS) N/A

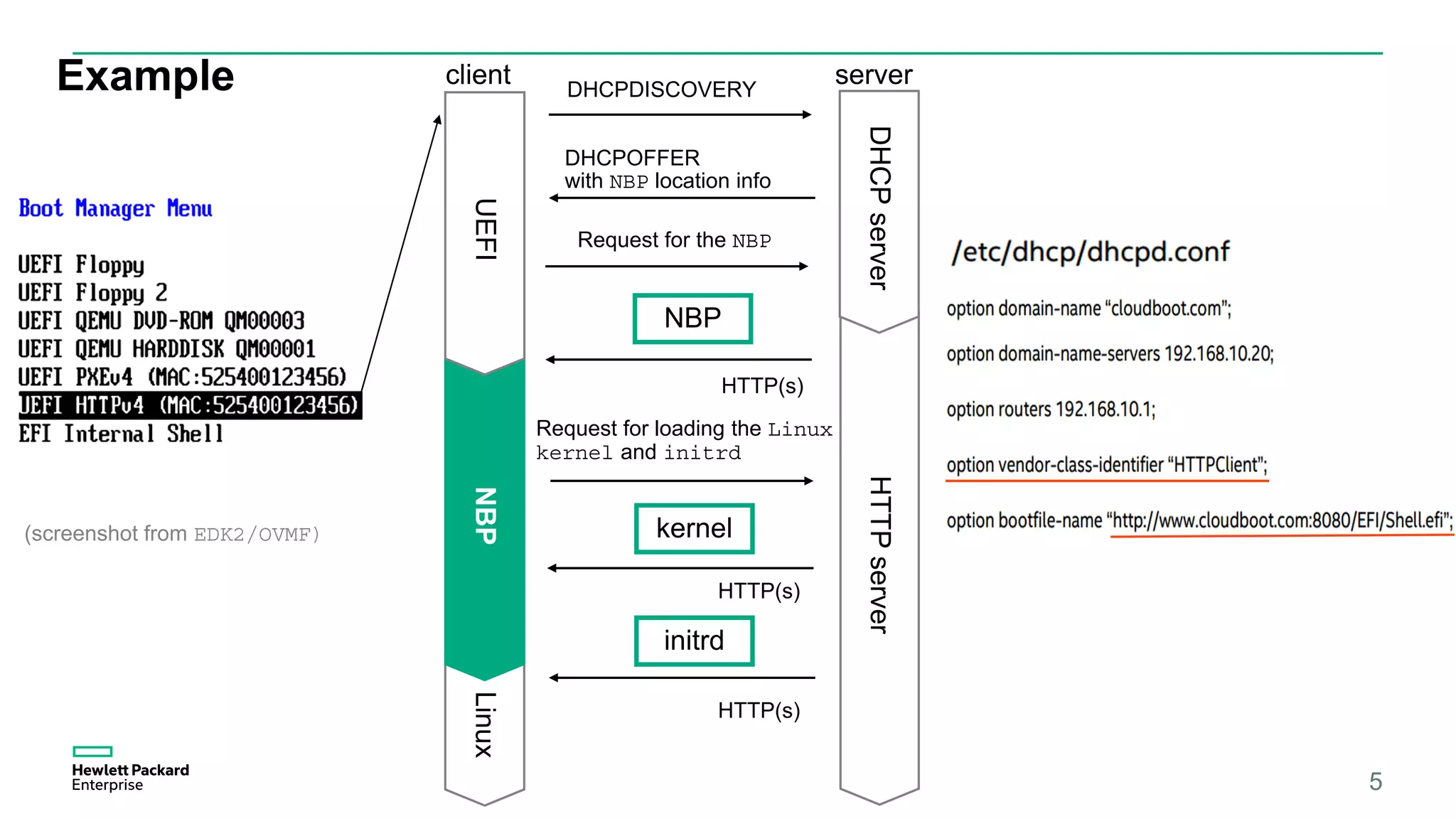

5. Example
5
Linux
HTTP(s)
client server
kernel
NBP
DHCPOFFER
with NBP location info
Request for the NBP
HTTP(s)
NBPUEFI
HTTPserver
Request for loading the Linux
kernel and initrd
initrd
HTTP(s)
DHCPDISCOVERY
DHCPserver
(screenshot from EDK2/OVMF)

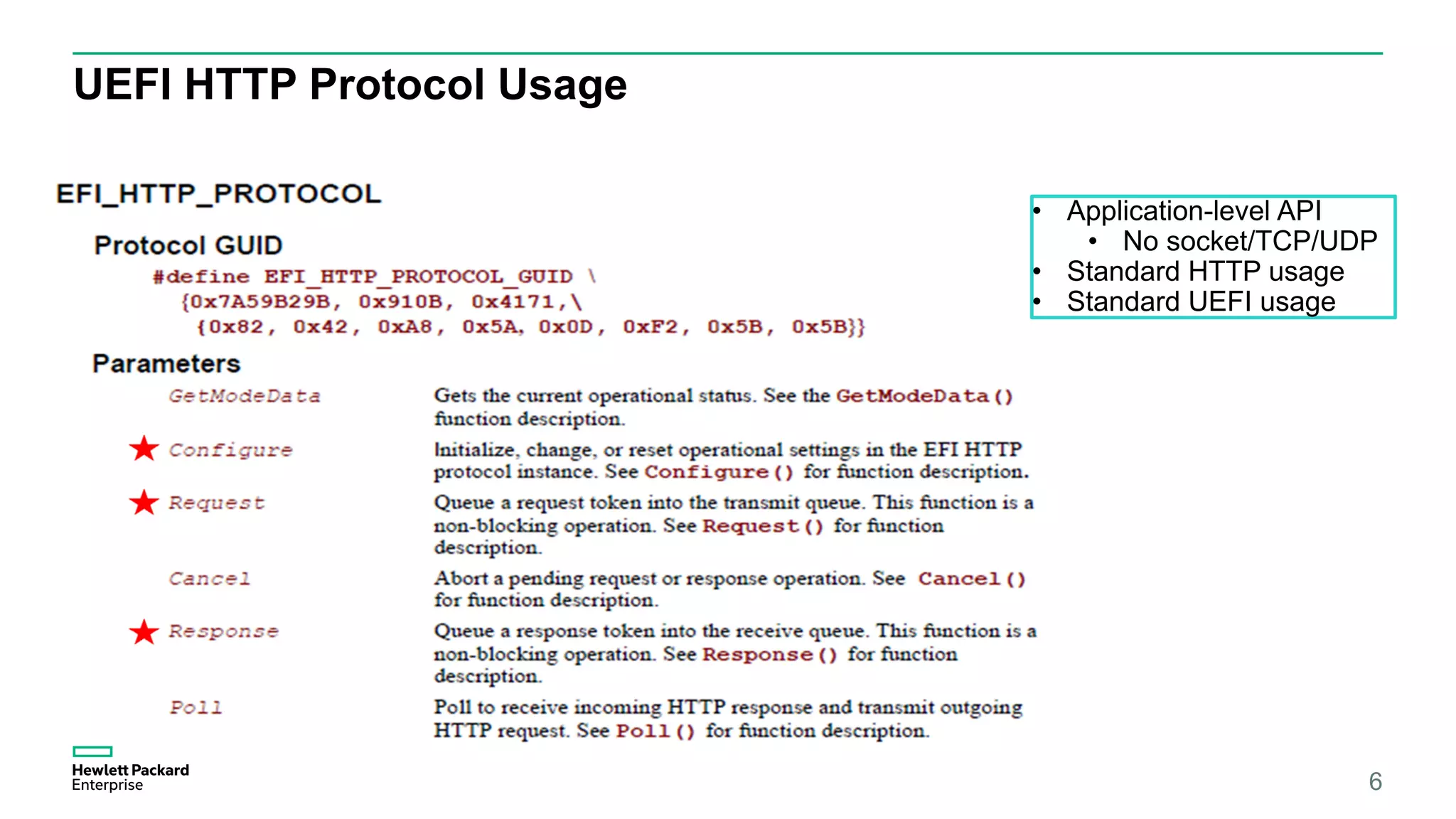

6. UEFI HTTP Protocol Usage
6
• Application-level API
• No socket/TCP/UDP
• Standard HTTP usage
• Standard UEFI usage

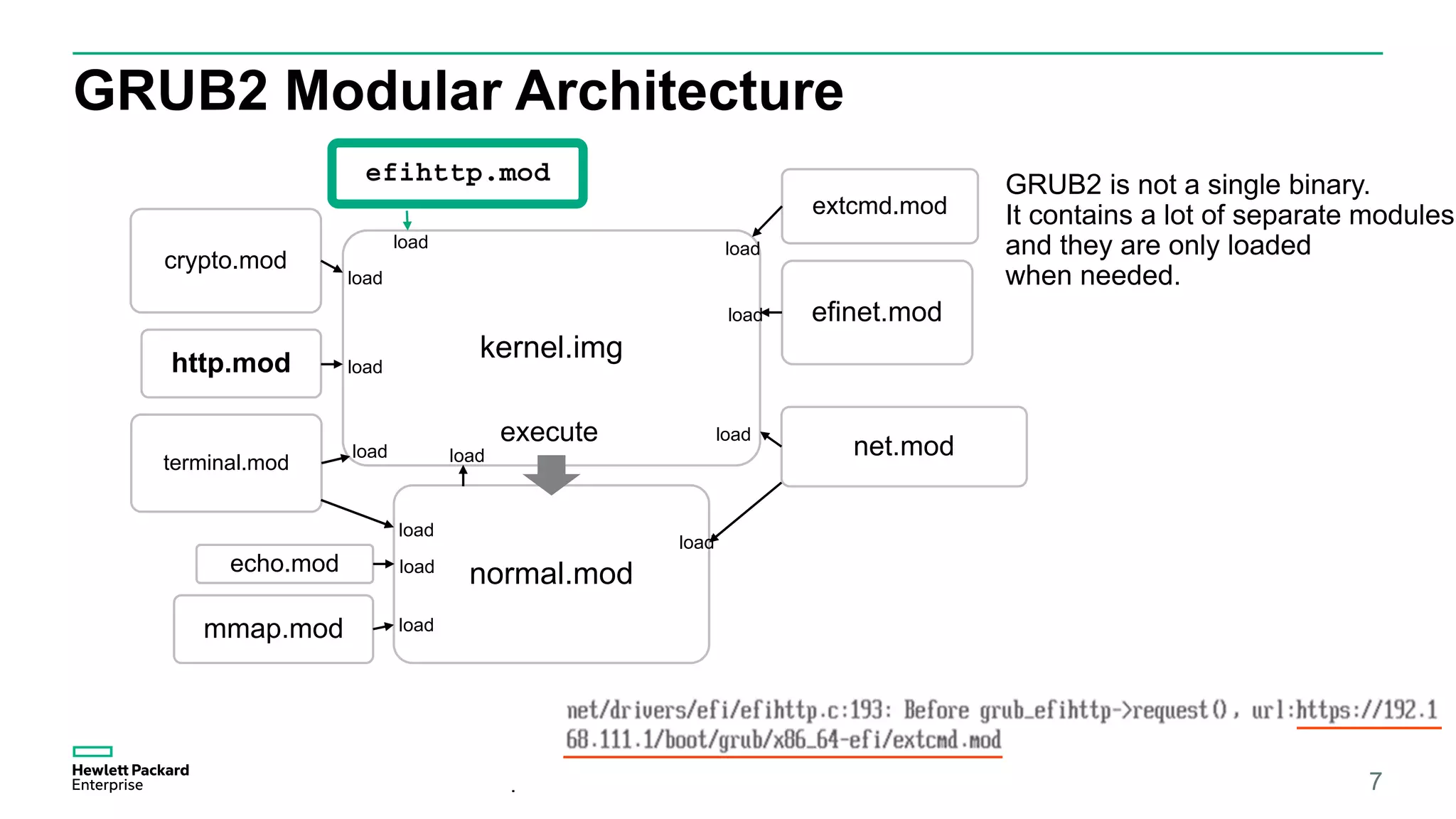

7. GRUB2 Modular Architecture
7
efihttp.mod
kernel.img
net.mod
efinet.mod
crypto.mod
http.mod
normal.mod
terminal.mod
extcmd.mod
execute
load
mmap.mod
echo.mod
load
load load
load
load
load
load
load load
load
load
GRUB2 is not a single binary.
It contains a lot of separate modules
and they are only loaded
when needed.

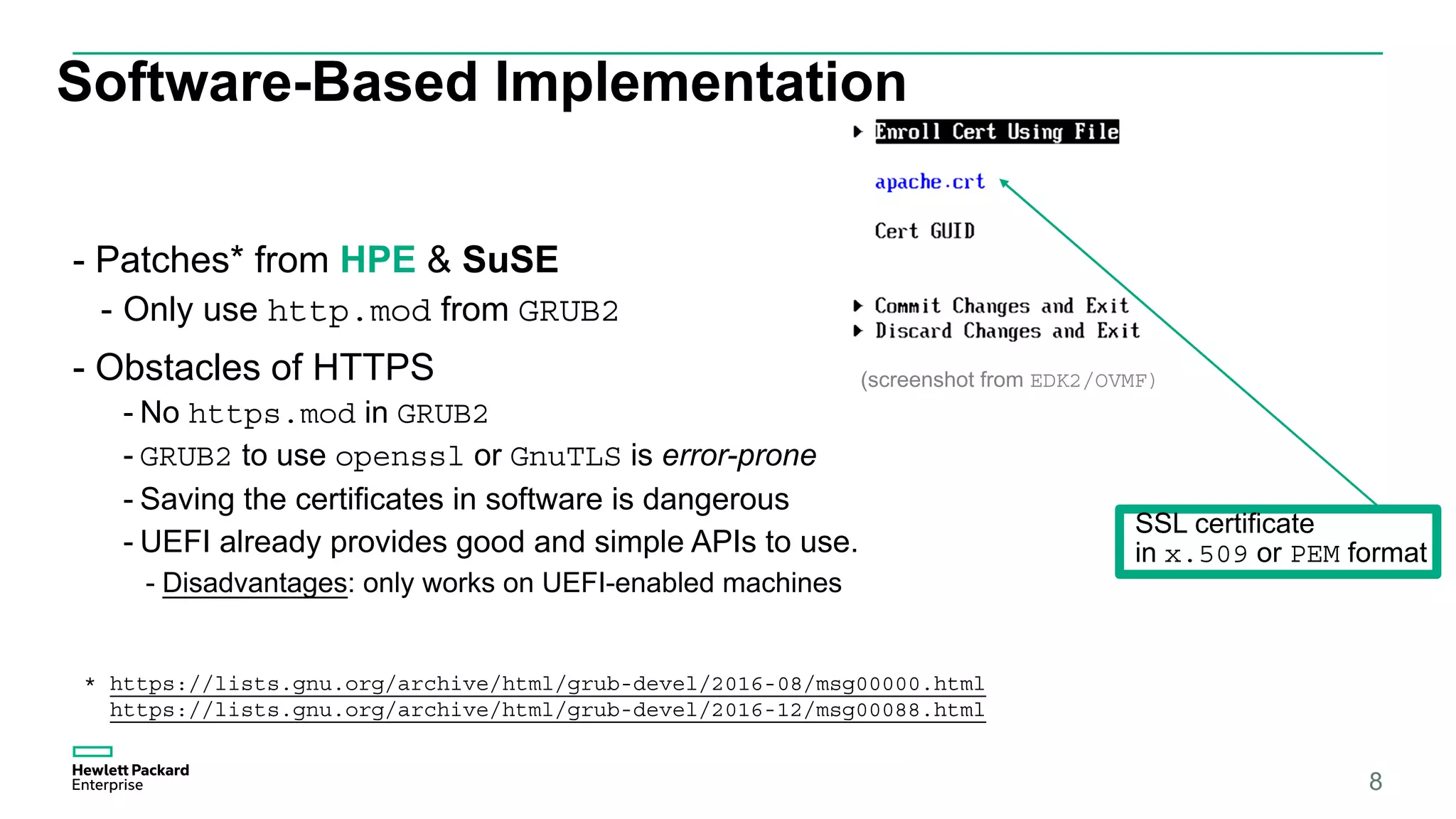

8. Software-Based Implementation
- Patches* from HPE & SuSE
- Only use http.mod from GRUB2
- Obstacles of HTTPS
- No https.mod in GRUB2
- GRUB2 to use openssl or GnuTLS is error-prone
- Saving the certificates in software is dangerous
- UEFI already provides good and simple APIs to use.
- Disadvantages: only works on UEFI-enabled machines
8
* https://lists.gnu.org/archive/html/grub-devel/2016-08/msg00000.html
https://lists.gnu.org/archive/html/grub-devel/2016-12/msg00088.html
(screenshot from EDK2/OVMF)
SSL certificate
in x.509 or PEM format

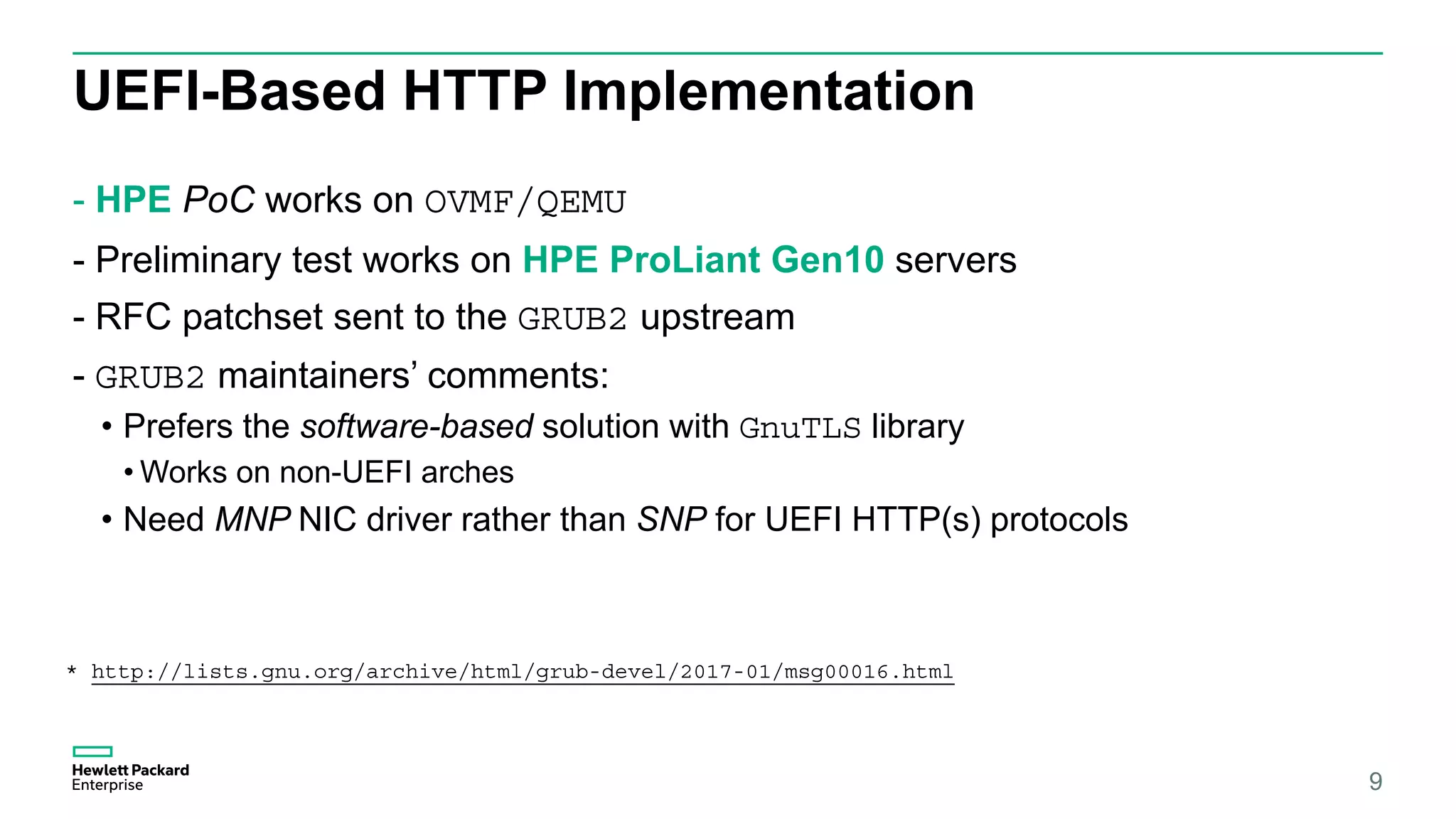

9. UEFI-Based HTTP Implementation
- HPE PoC works on OVMF/QEMU
- Preliminary test works on HPE ProLiant Gen10 servers
- RFC patchset sent to the GRUB2 upstream
- GRUB2 maintainers’ comments:
• Prefers the software-based solution with GnuTLS library
• Works on non-UEFI arches
• Need MNP NIC driver rather than SNP for UEFI HTTP(s) protocols
9
* http://lists.gnu.org/archive/html/grub-devel/2017-01/msg00016.html

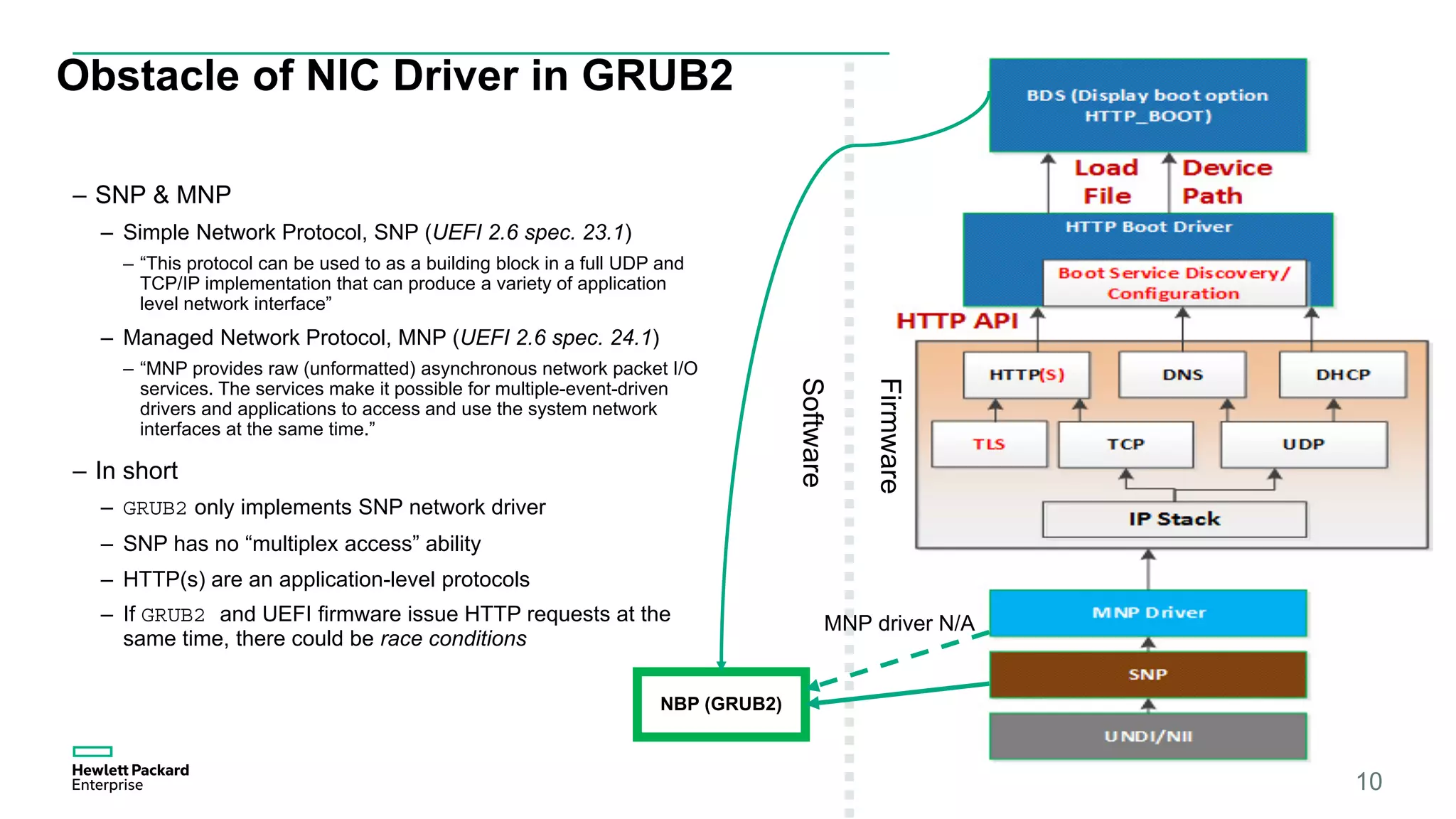

10. Obstacle of NIC Driver in GRUB2
– SNP & MNP
– Simple Network Protocol, SNP (UEFI 2.6 spec. 23.1)
– “This protocol can be used to as a building block in a full UDP and
TCP/IP implementation that can produce a variety of application
level network interface”
– Managed Network Protocol, MNP (UEFI 2.6 spec. 24.1)
– “MNP provides raw (unformatted) asynchronous network packet I/O
services. The services make it possible for multiple-event-driven
drivers and applications to access and use the system network
interfaces at the same time.”
– In short
– GRUB2 only implements SNP network driver
– SNP has no “multiplex access” ability
– HTTP(s) are an application-level protocols
– If GRUB2 and UEFI firmware issue HTTP requests at the
same time, there could be race conditions
10
NBP (GRUB2)
Software
Firmware
MNP driver N/A

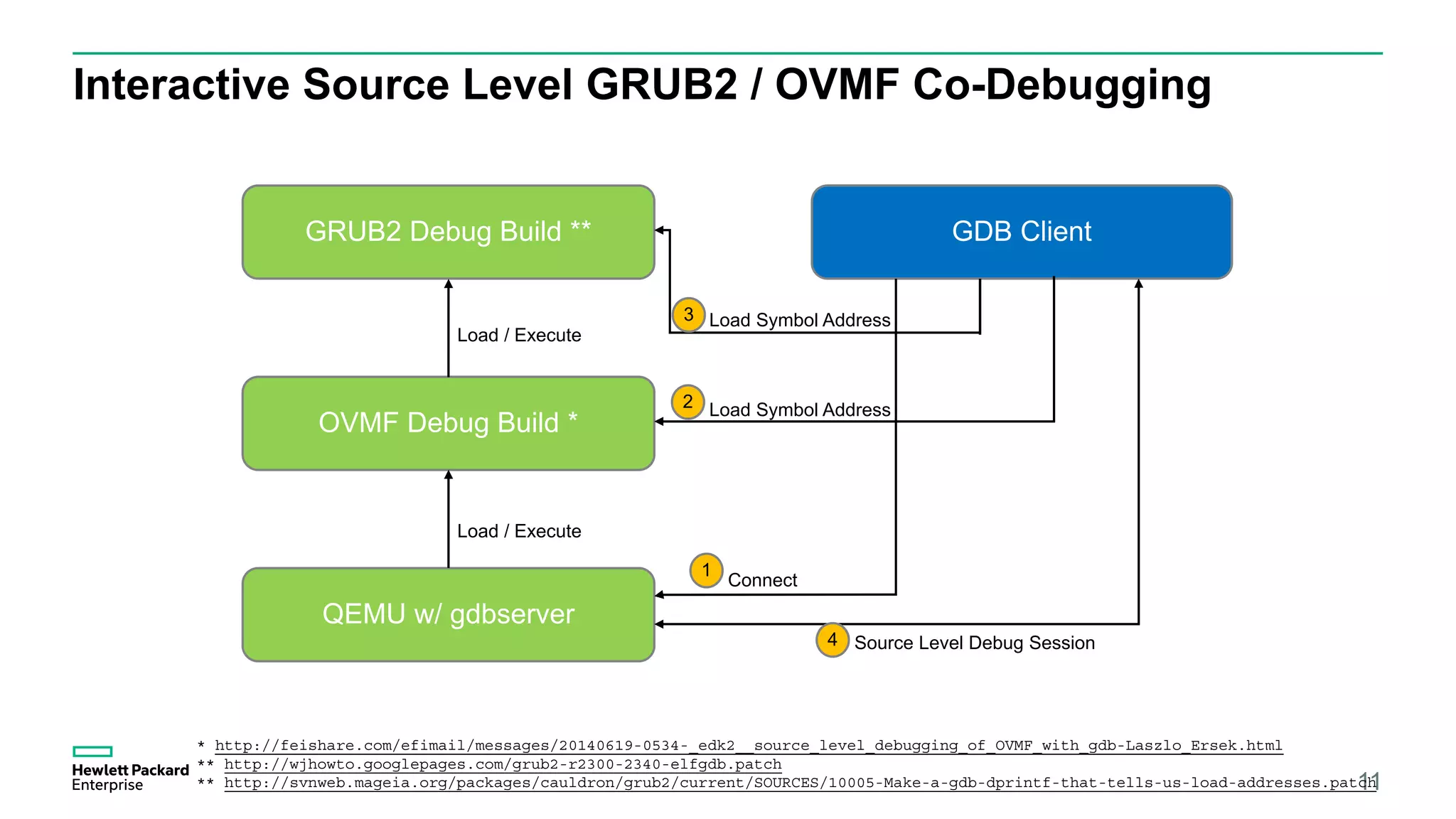

11. Interactive Source Level GRUB2 / OVMF Co-Debugging
11
QEMU w/ gdbserver
OVMF Debug Build *
GRUB2 Debug Build **
Load / Execute
Load / Execute
* http://feishare.com/efimail/messages/20140619-0534-_edk2__source_level_debugging_of_OVMF_with_gdb-Laszlo_Ersek.html
** http://wjhowto.googlepages.com/grub2-r2300-2340-elfgdb.patch
** http://svnweb.mageia.org/packages/cauldron/grub2/current/SOURCES/10005-Make-a-gdb-dprintf-that-tells-us-load-addresses.patch
GDB Client
Connect
1
Load Symbol Address2
Load Symbol Address3
Source Level Debug Session4

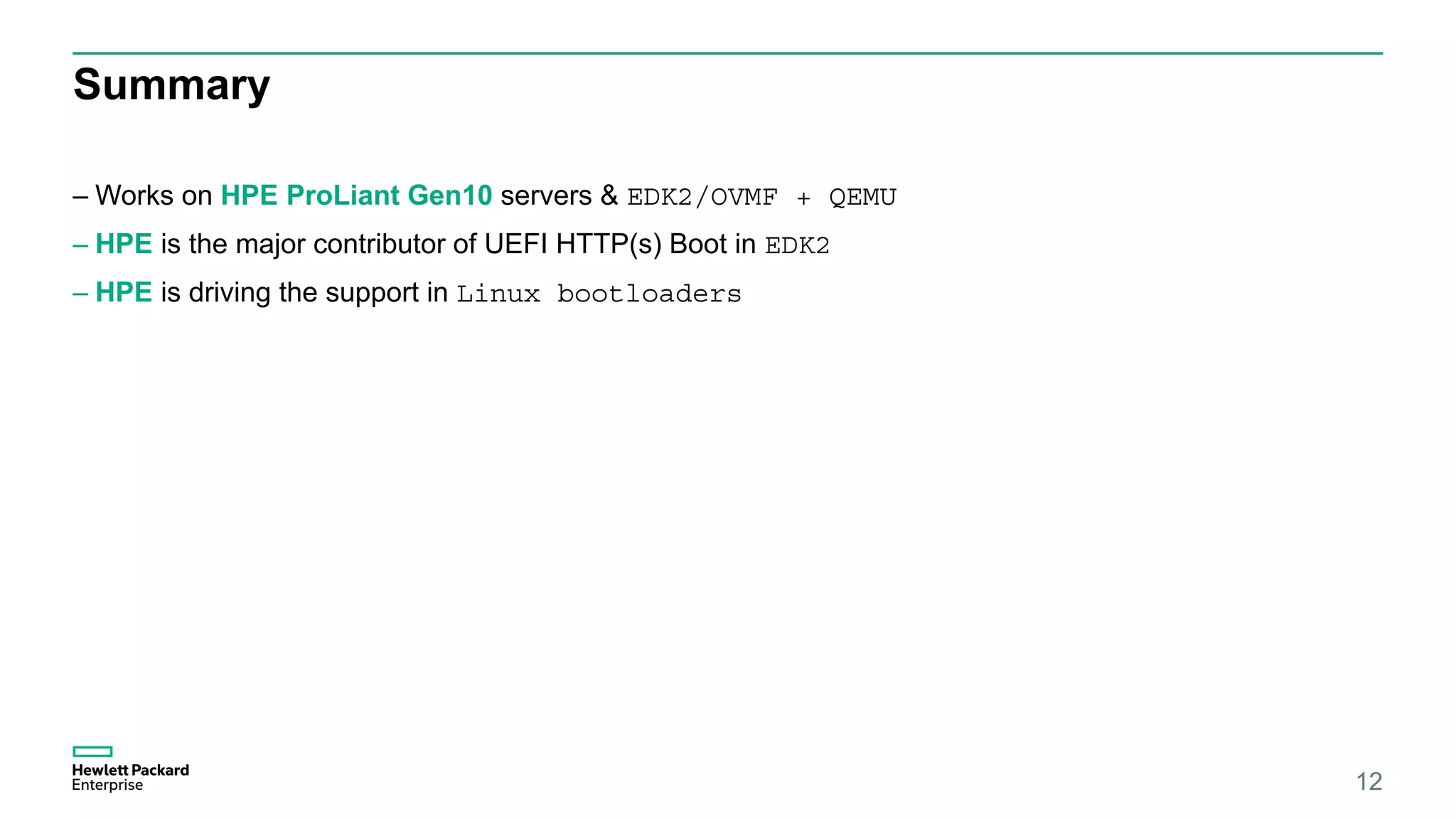

12. Summary
– Works on HPE ProLiant Gen10 servers & EDK2/OVMF + QEMU
– HPE is the major contributor of UEFI HTTP(s) Boot in EDK2
– HPE is driving the support in Linux bootloaders
12

13. Open Discussion
13
