This document summarizes the steps for performing an offshore platform analysis using analysis generator software. It reviews loading and parameters, covers the options available for analysis type, load combination factors, and allowable stresses. The document also highlights important points for configuring the analysis, including specifying the working directory, input and output files, and solution options. Students are then instructed to run an analysis on their model, ensuring the load combination is included, and upload the results to an FTP site using a specified naming convention.

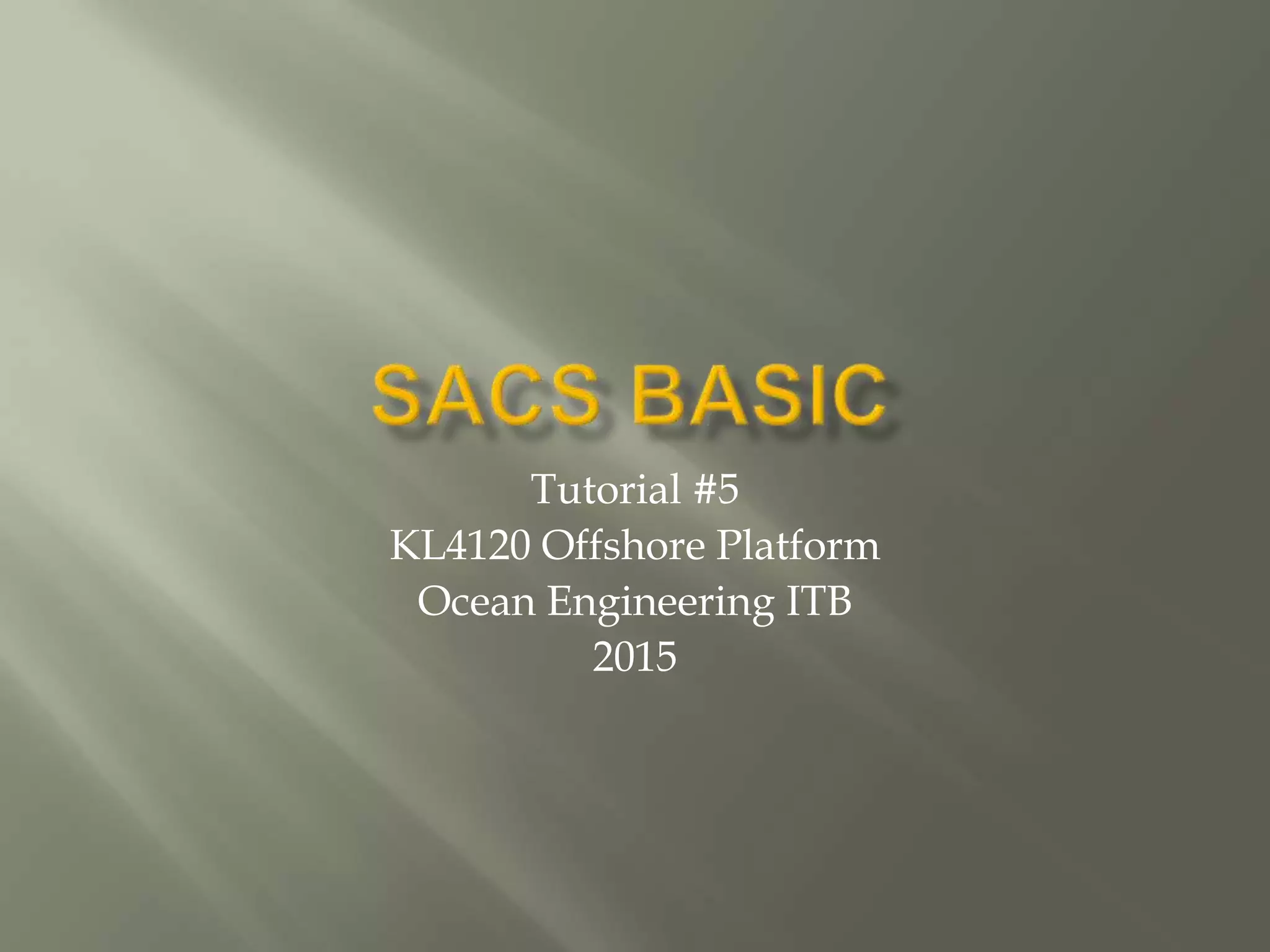

1. Tutorial #5
KL4120 Offshore Platform
Ocean Engineering ITB
2015

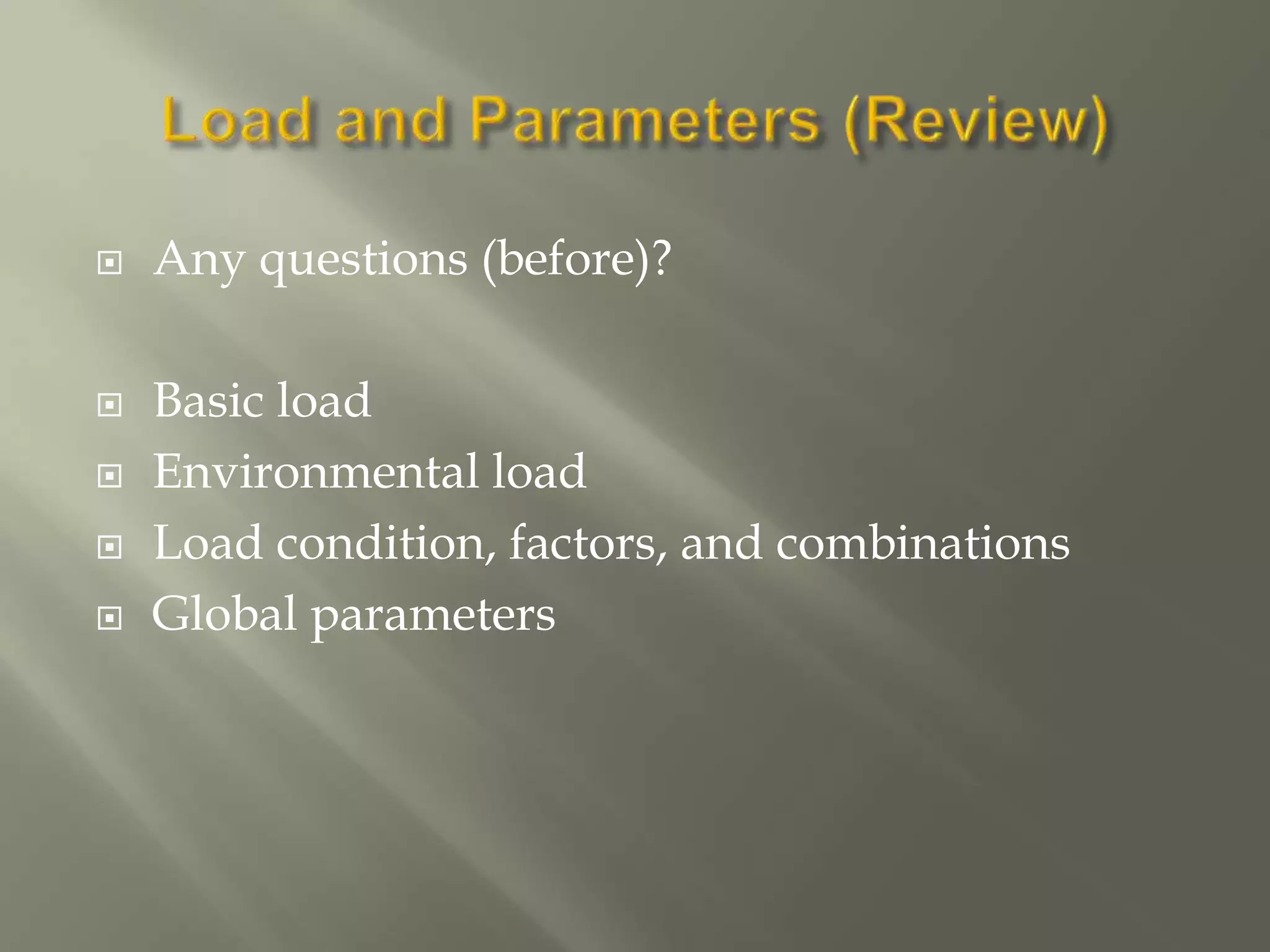

2.  Load and Parameters (Review)

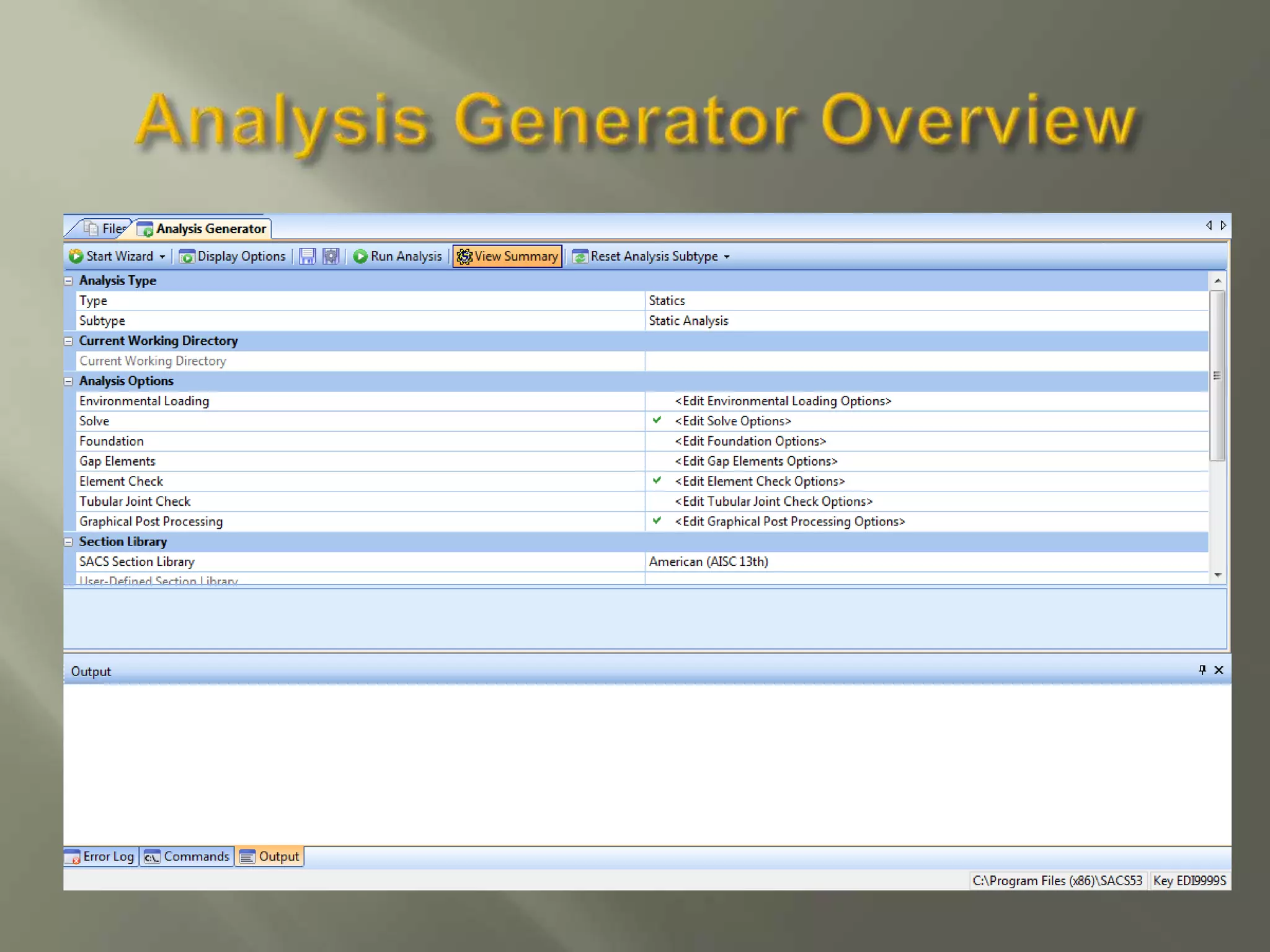

 Precede Analysis Options
 Analysis Generator Overview
 Analysis Generator Options
 Error Checking
 Assignment #3!

3.  Any questions (before)?
 Basic load
 Environmental load
 Load condition, factors, and combinations
 Global parameters

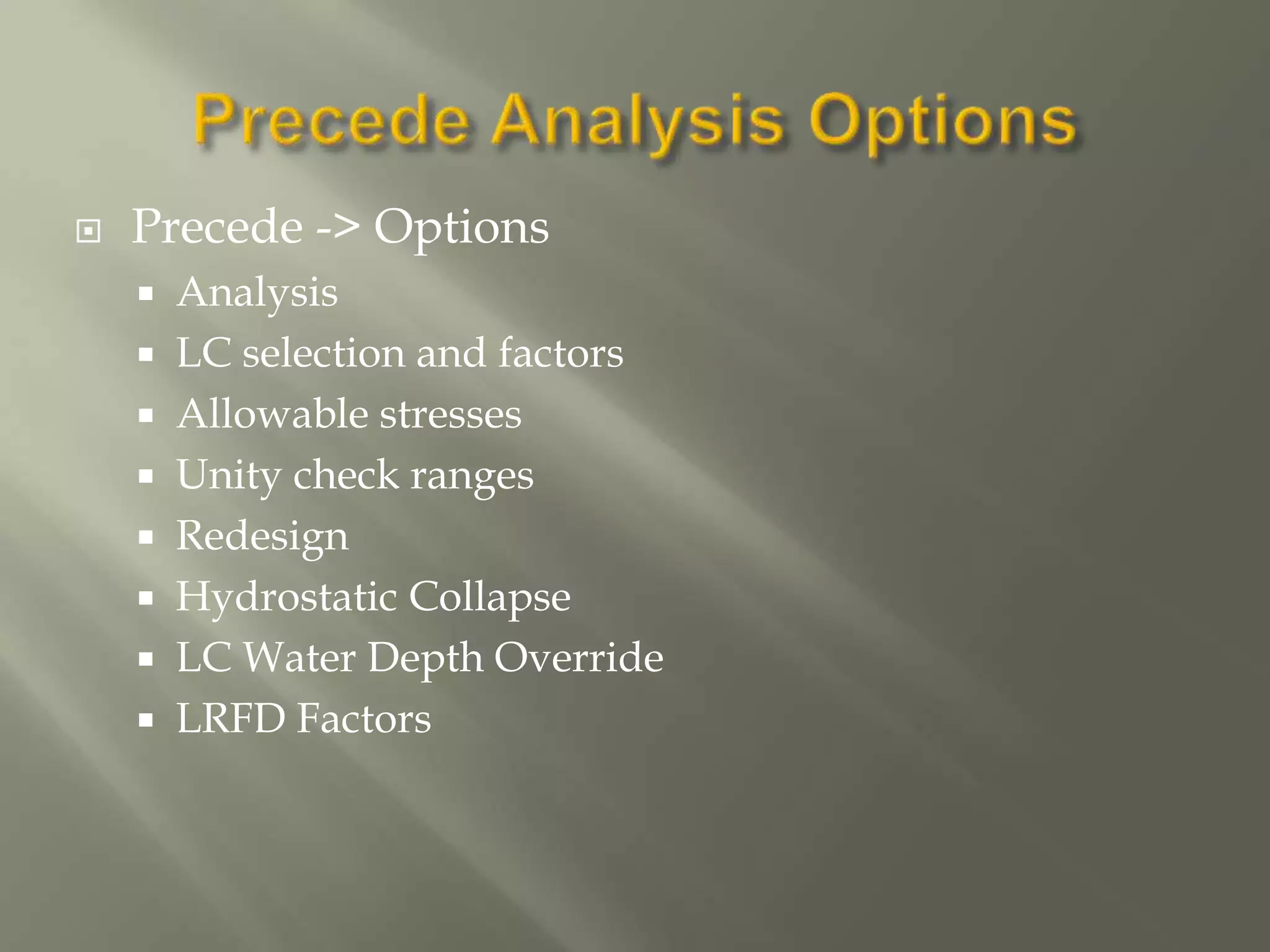

4.  Precede -> Options
 Analysis
 LC selection and factors
 Allowable stresses
 Unity check ranges
 Redesign
 Hydrostatic Collapse
 LC Water Depth Override
 LRFD Factors

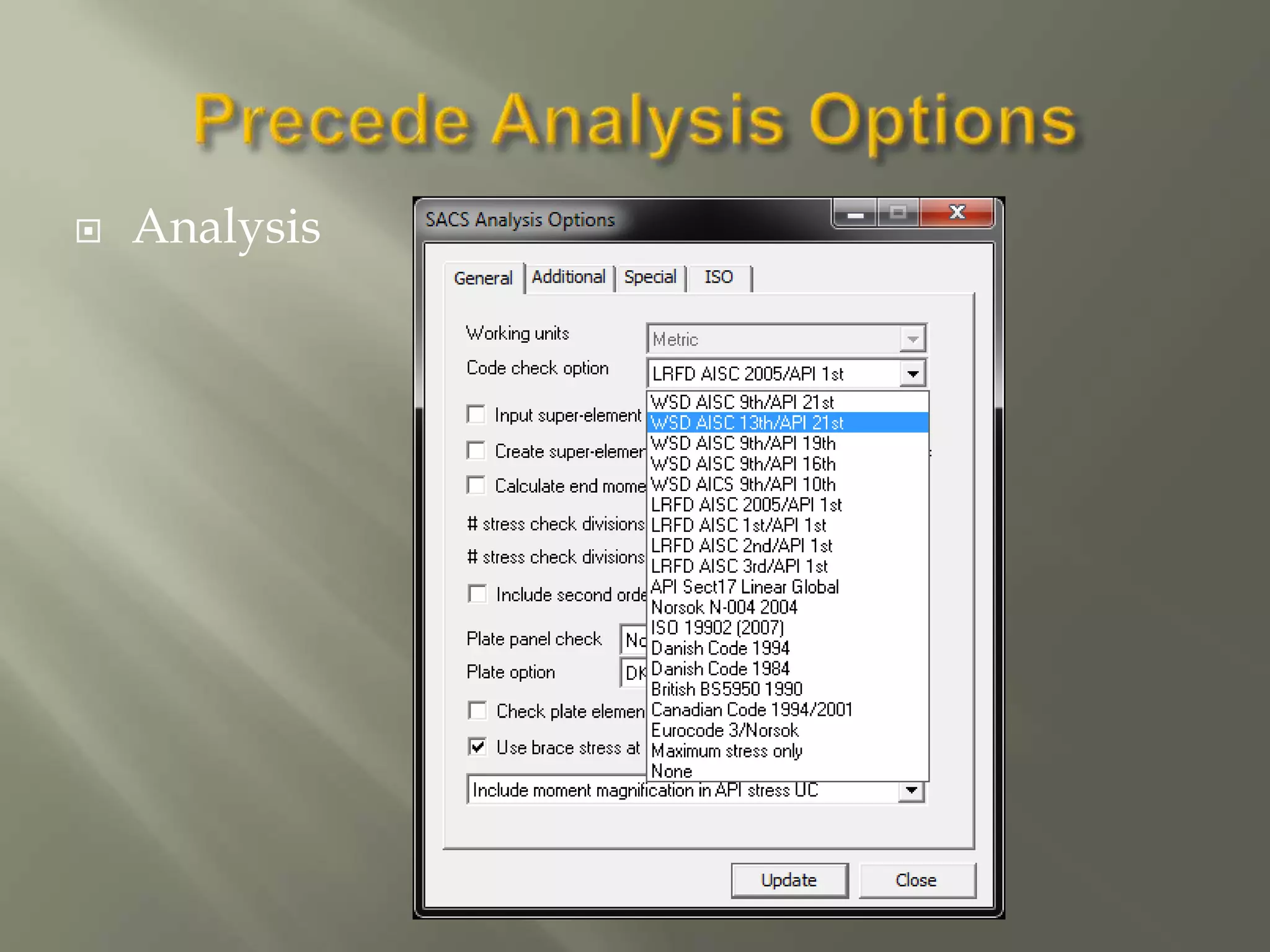

5.  Analysis

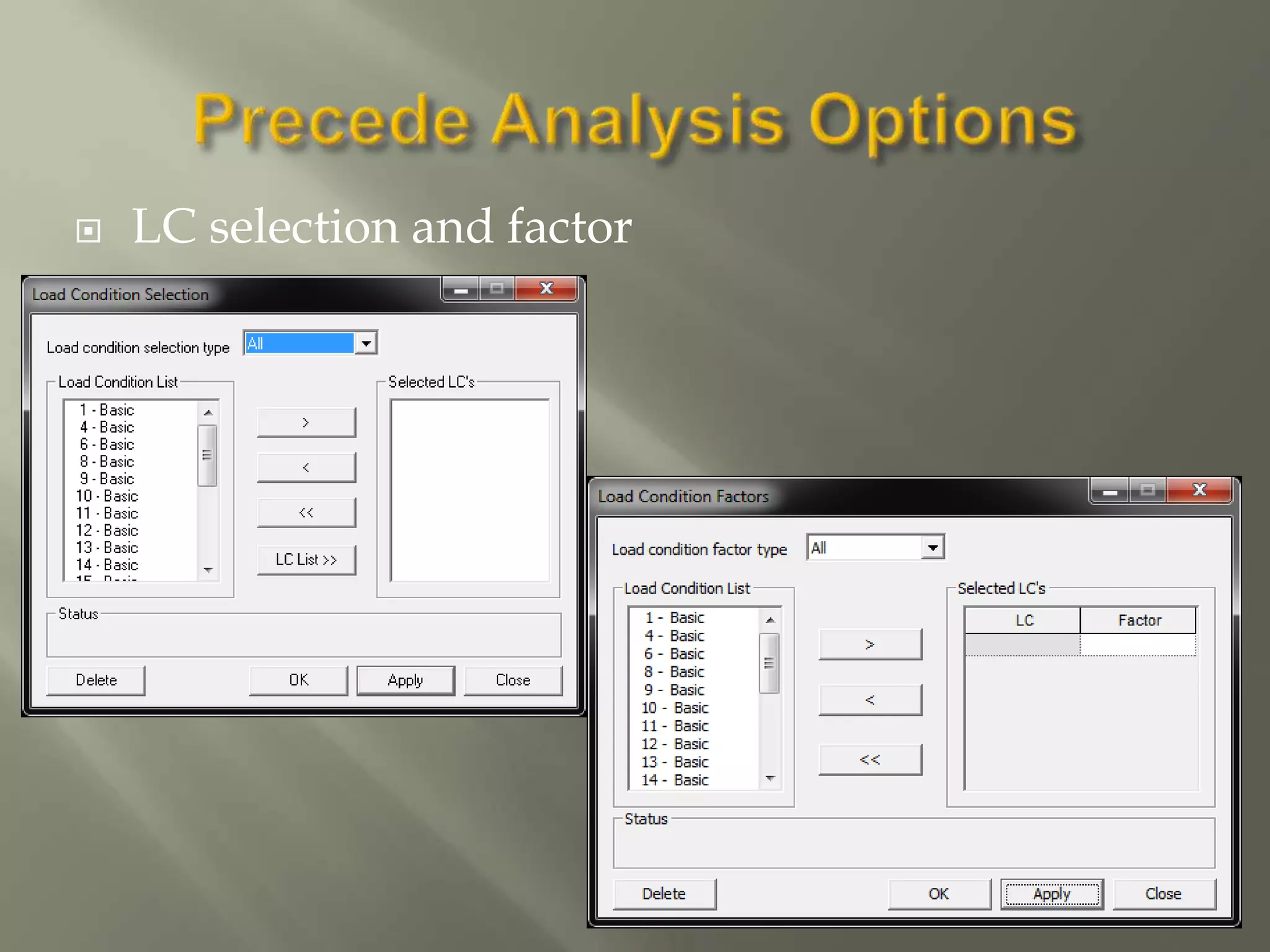

6.  LC selection and factor

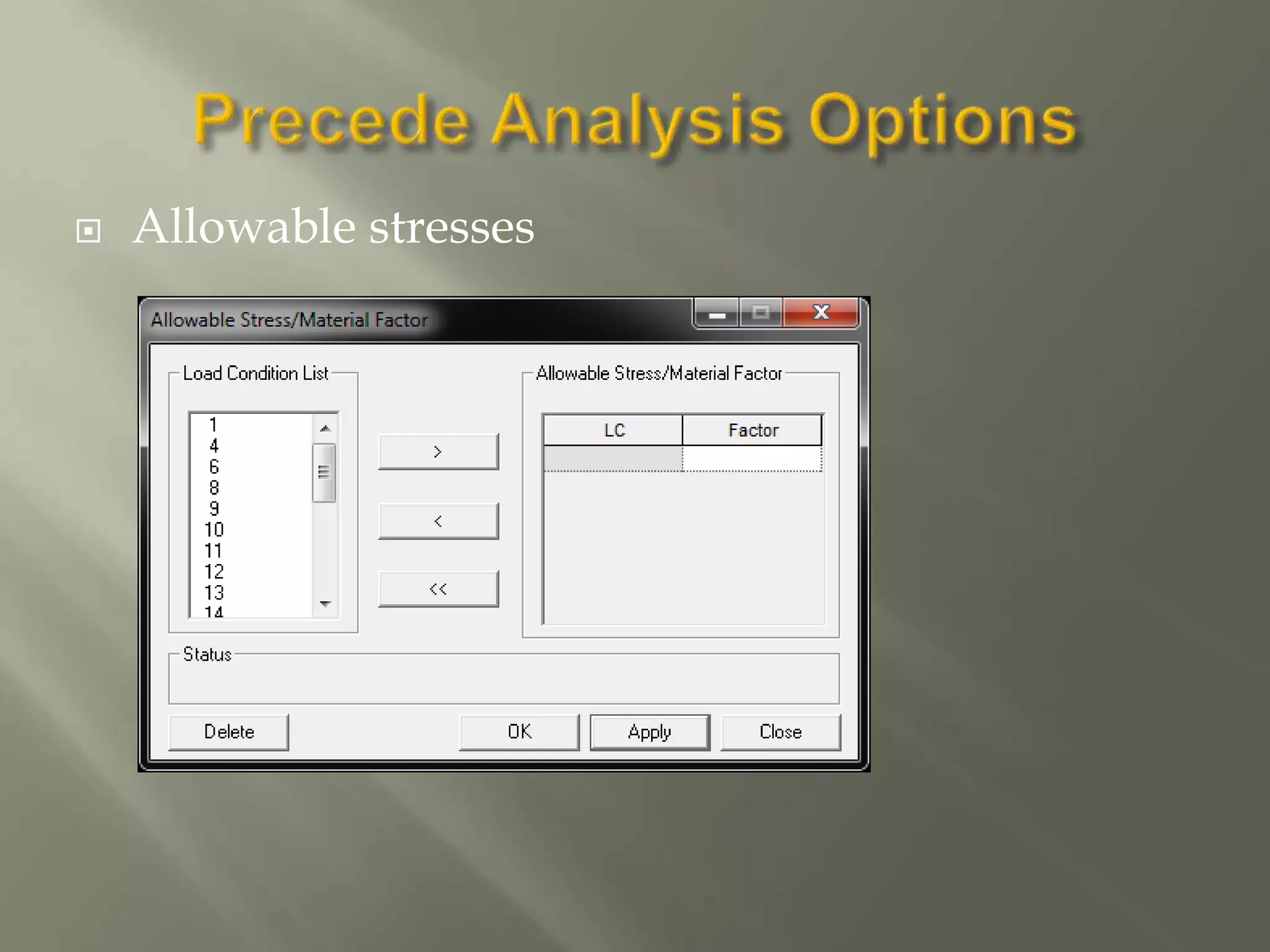

7.  Allowable stresses

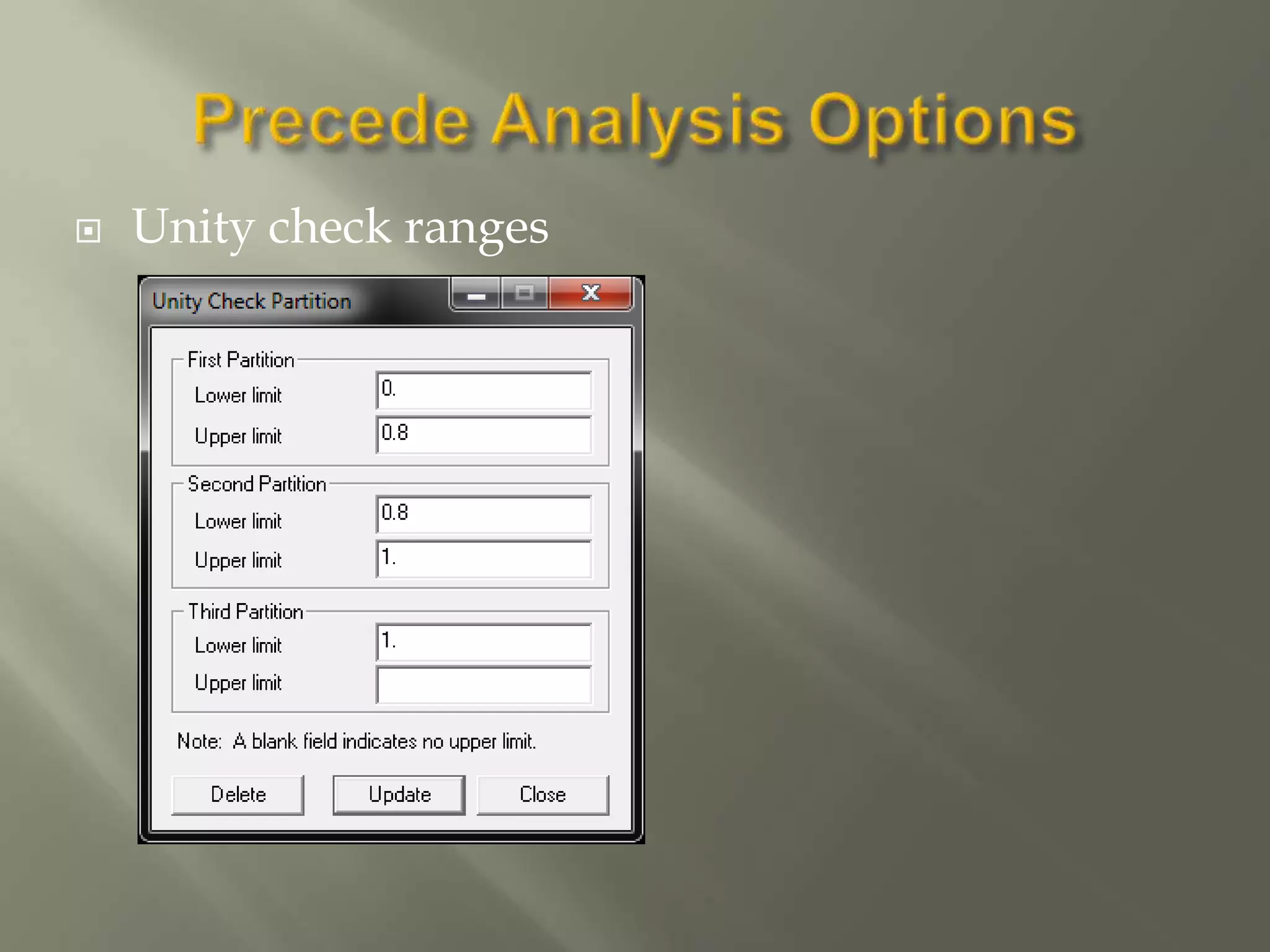

8.  Unity check ranges

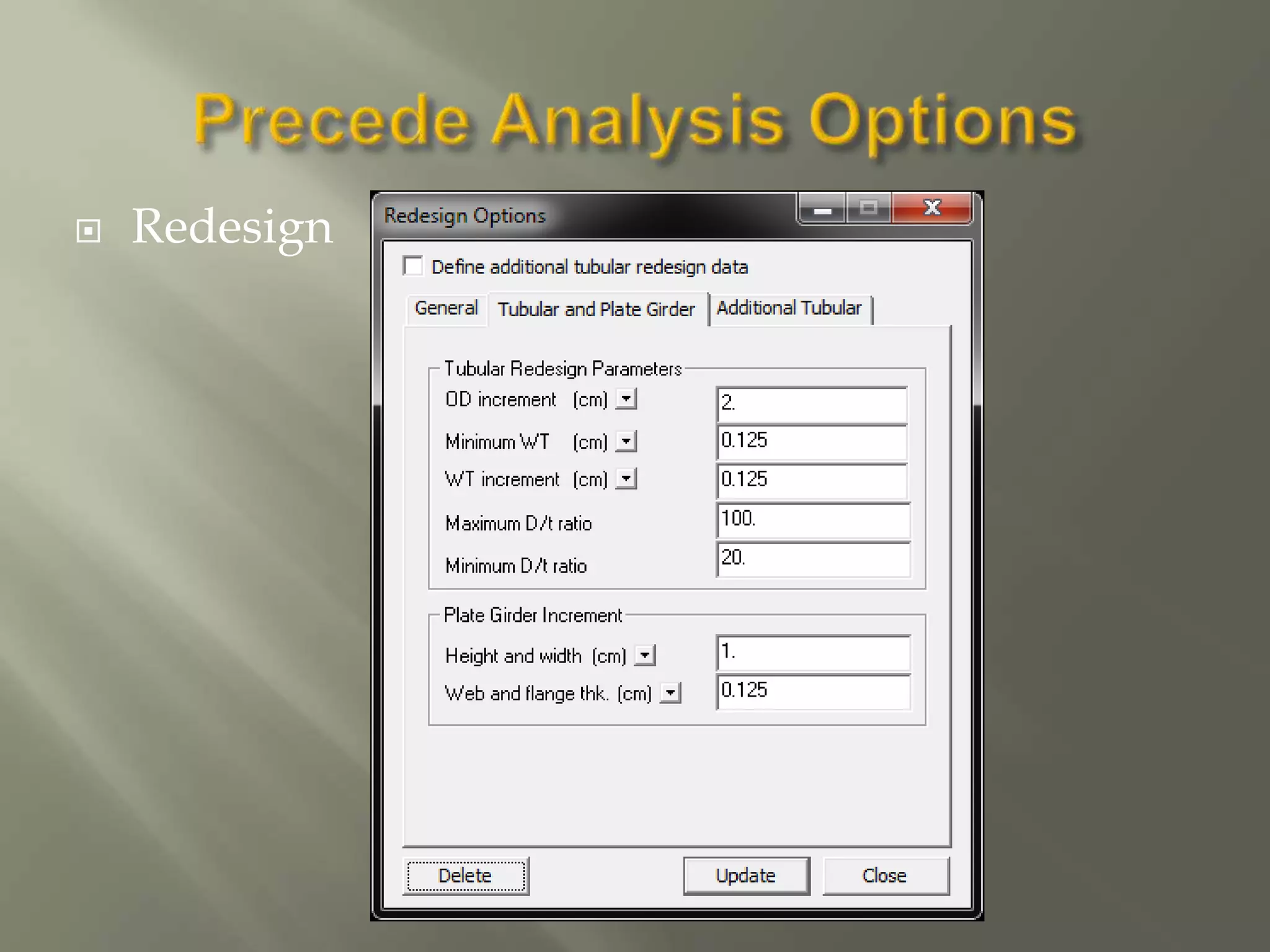

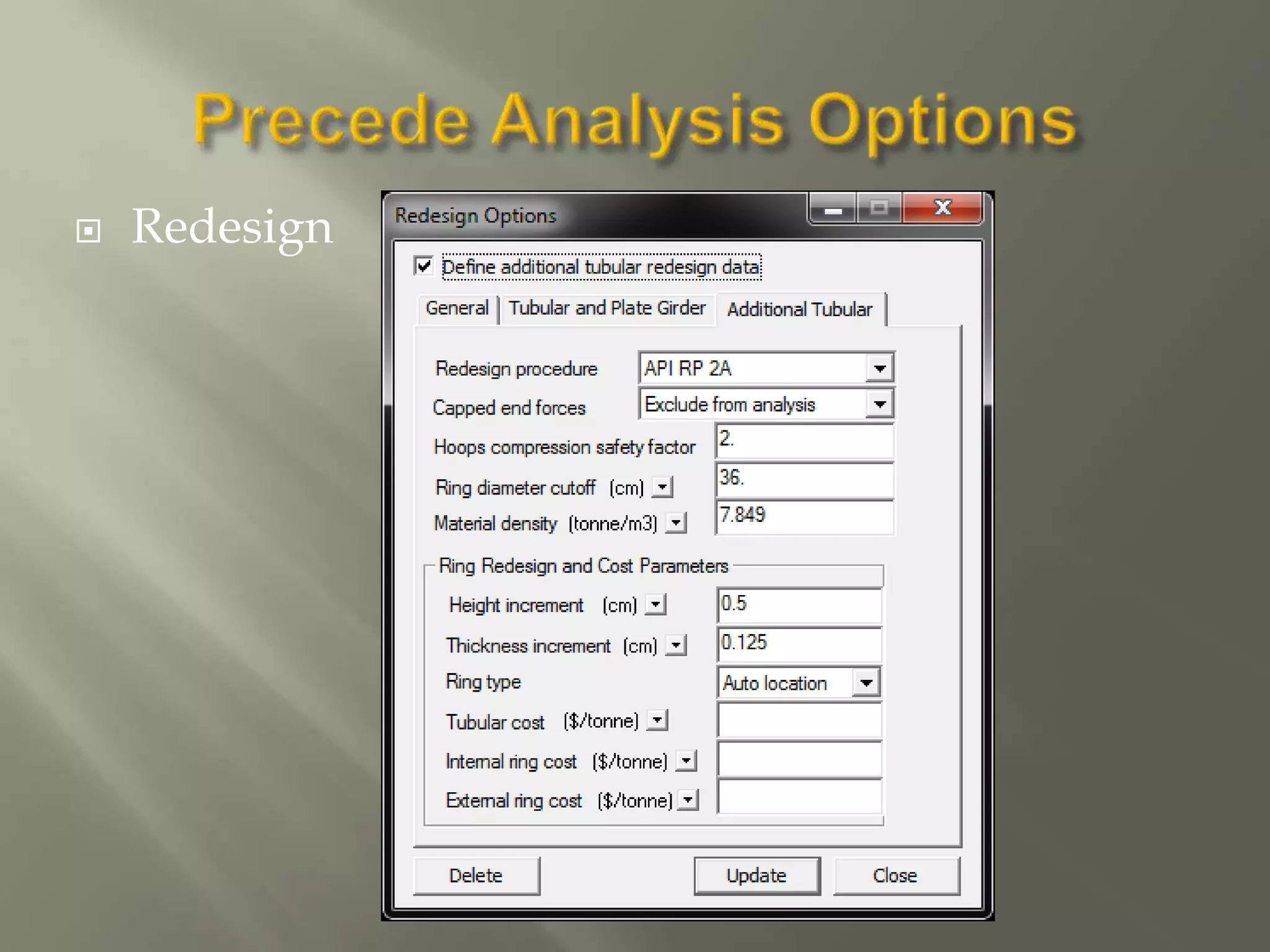

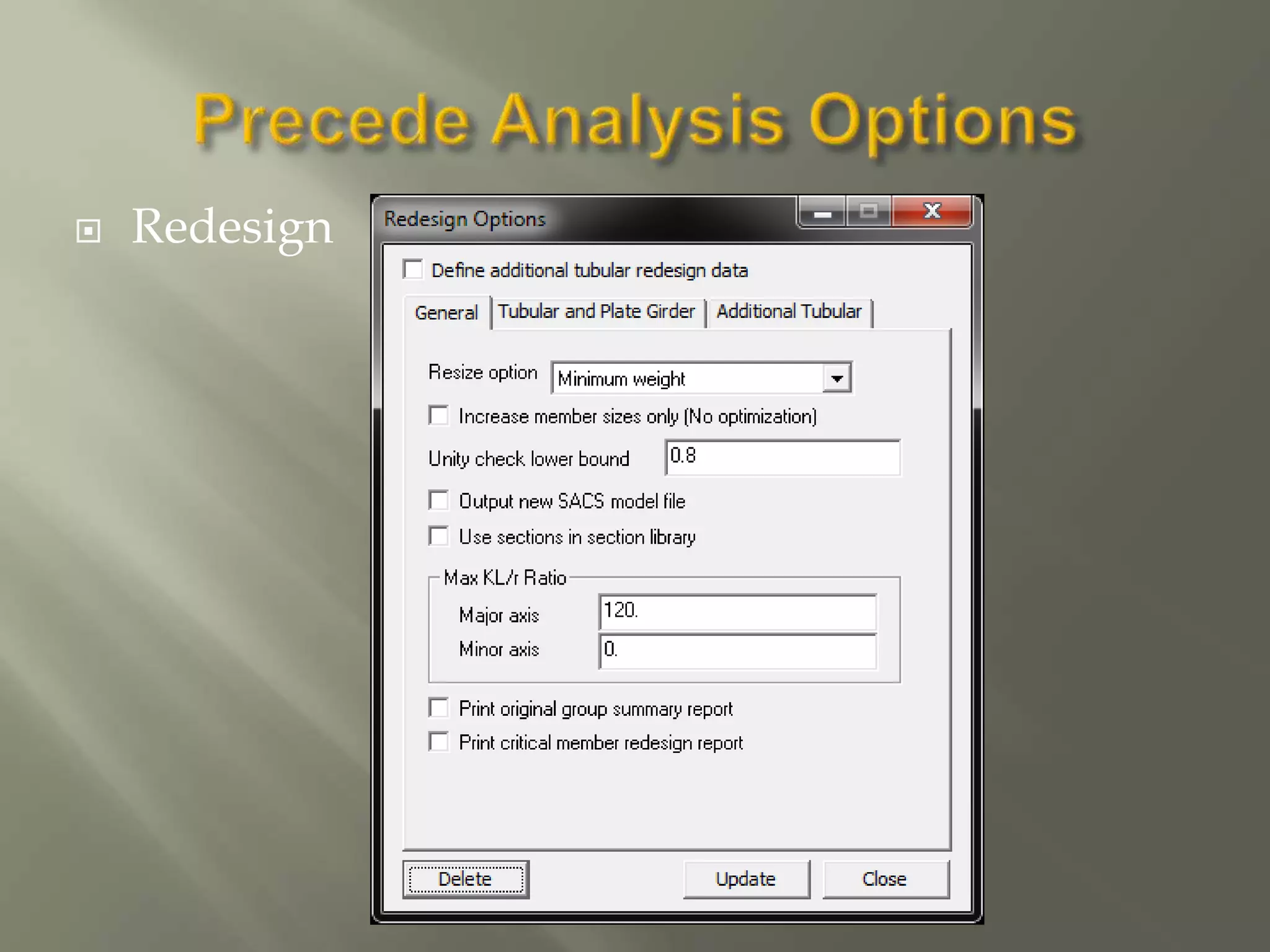

9.  Redesign

10.  Redesign

11.  Redesign

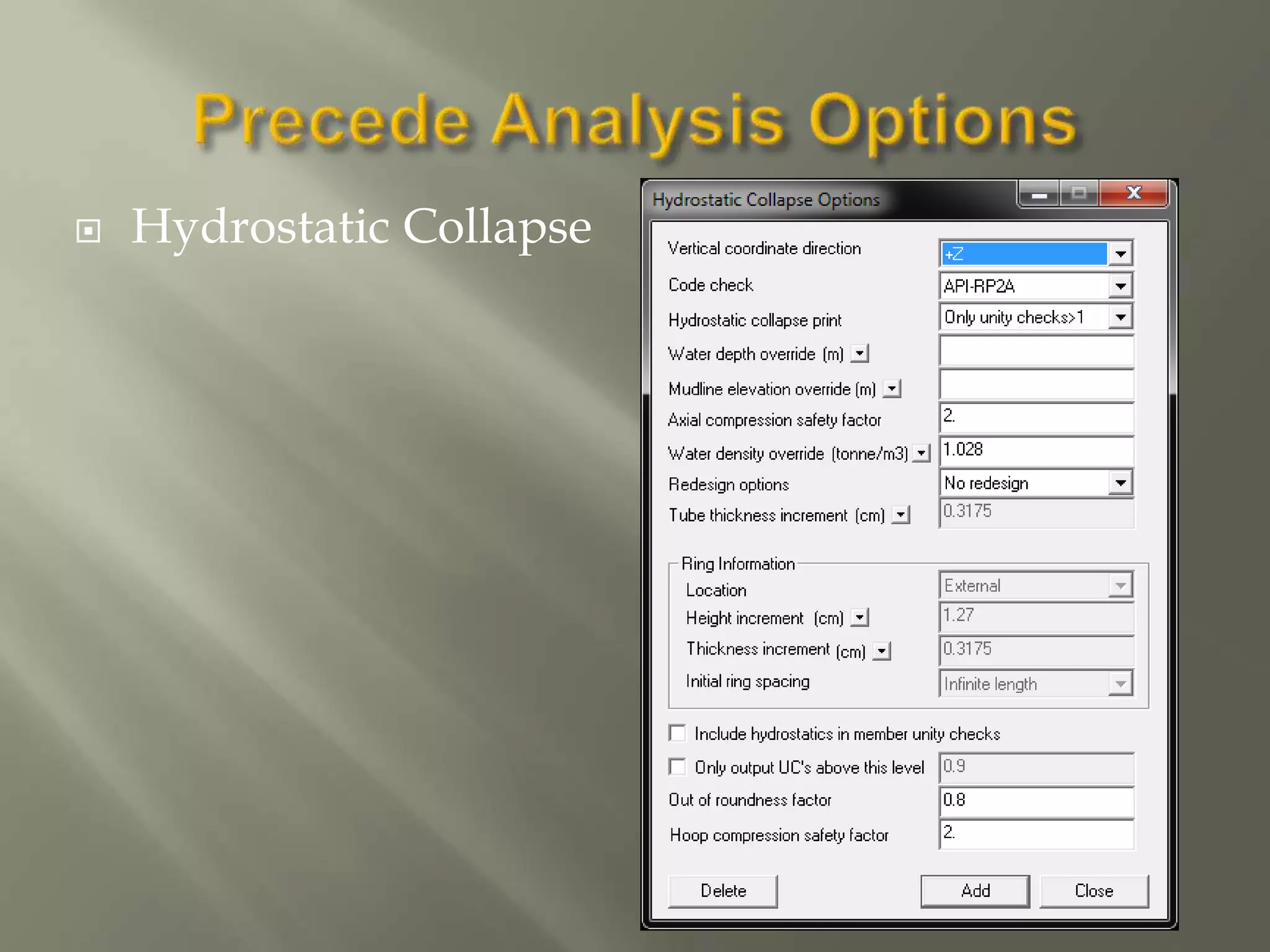

12.  Hydrostatic Collapse

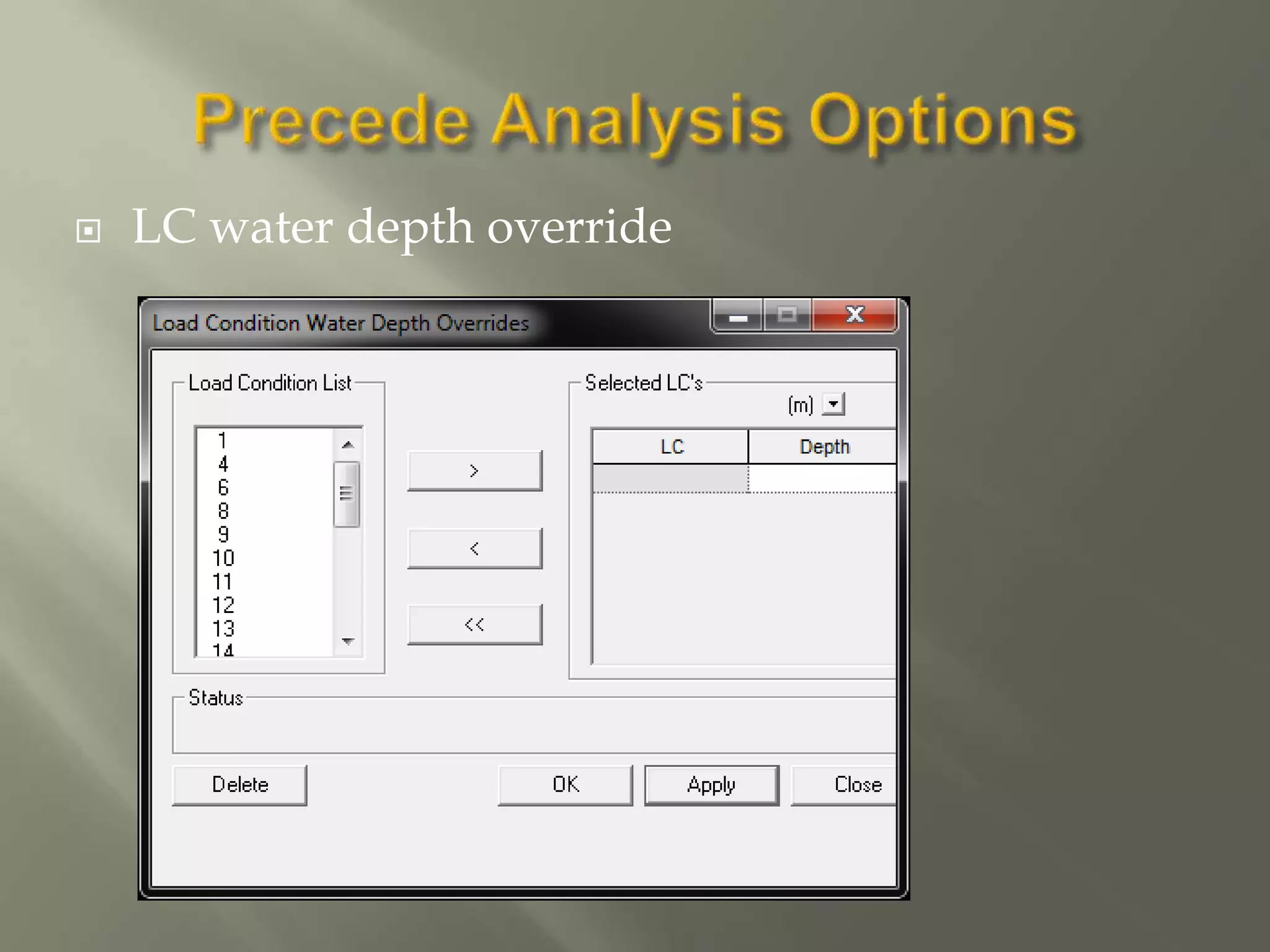

13.  LC water depth override

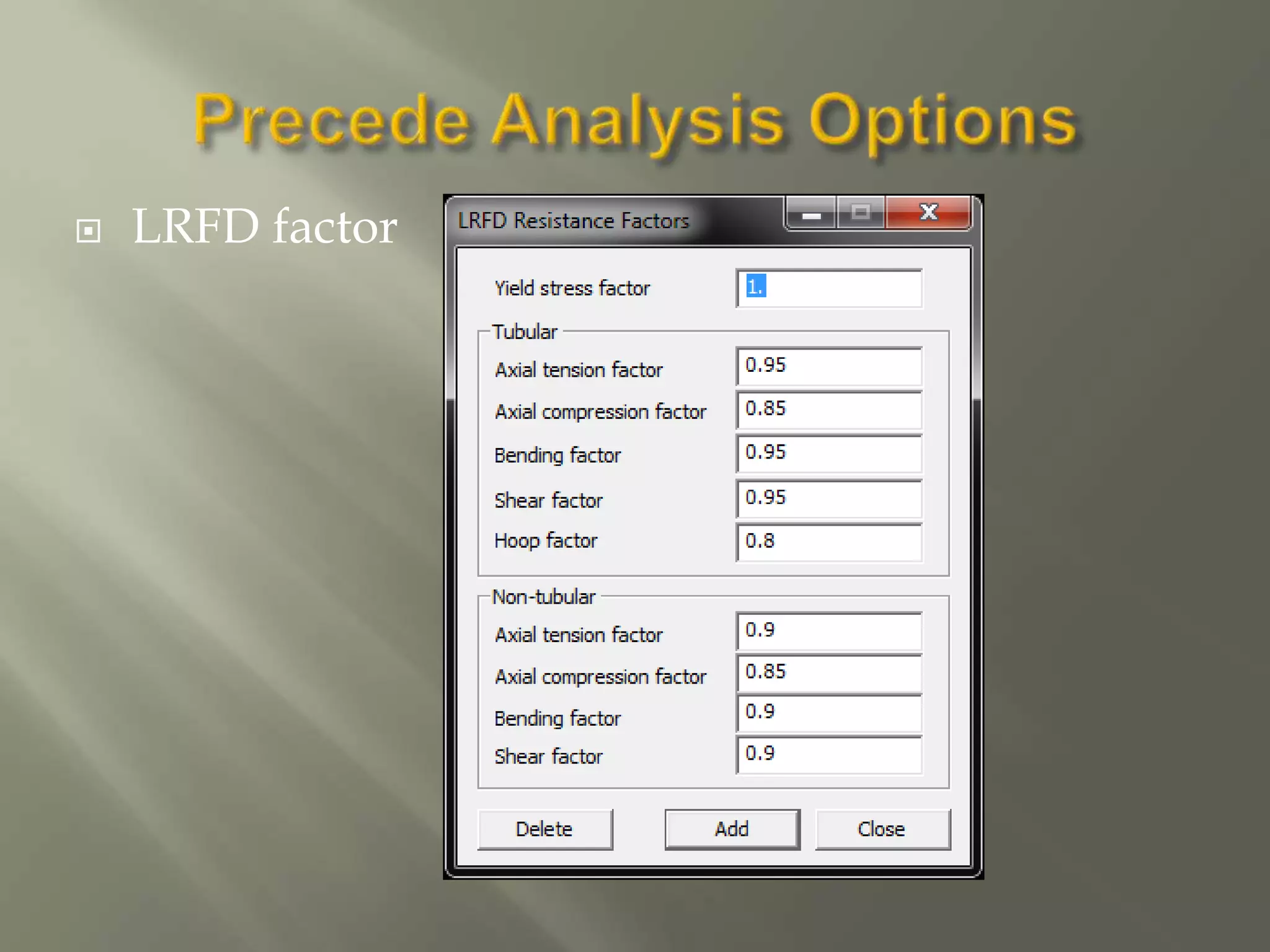

14.  LRFD factor

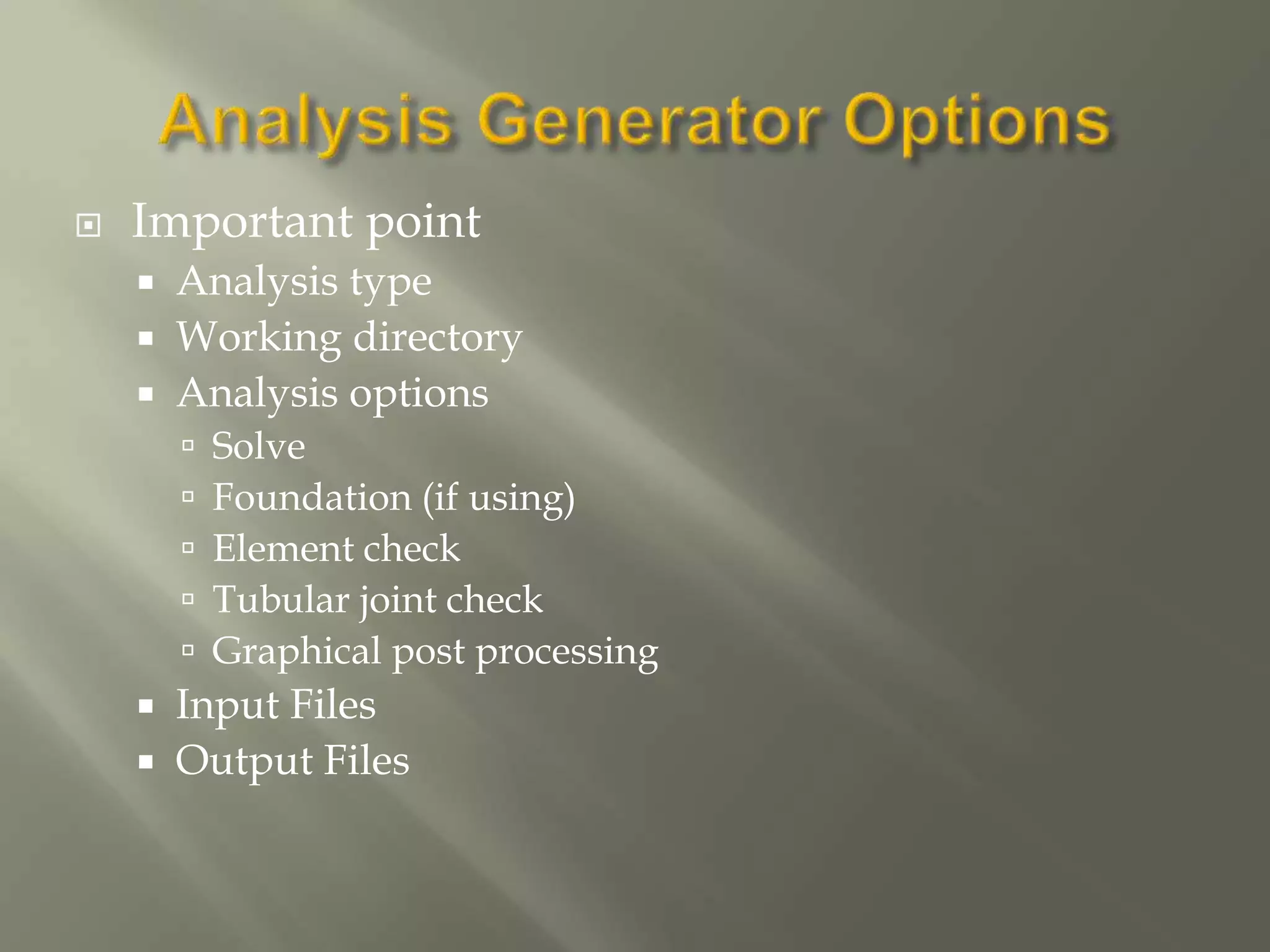

16.  Important point
 Analysis type
 Working directory
 Analysis options
 Solve
 Foundation (if using)
 Element check
 Tubular joint check
 Graphical post processing
 Input Files
 Output Files

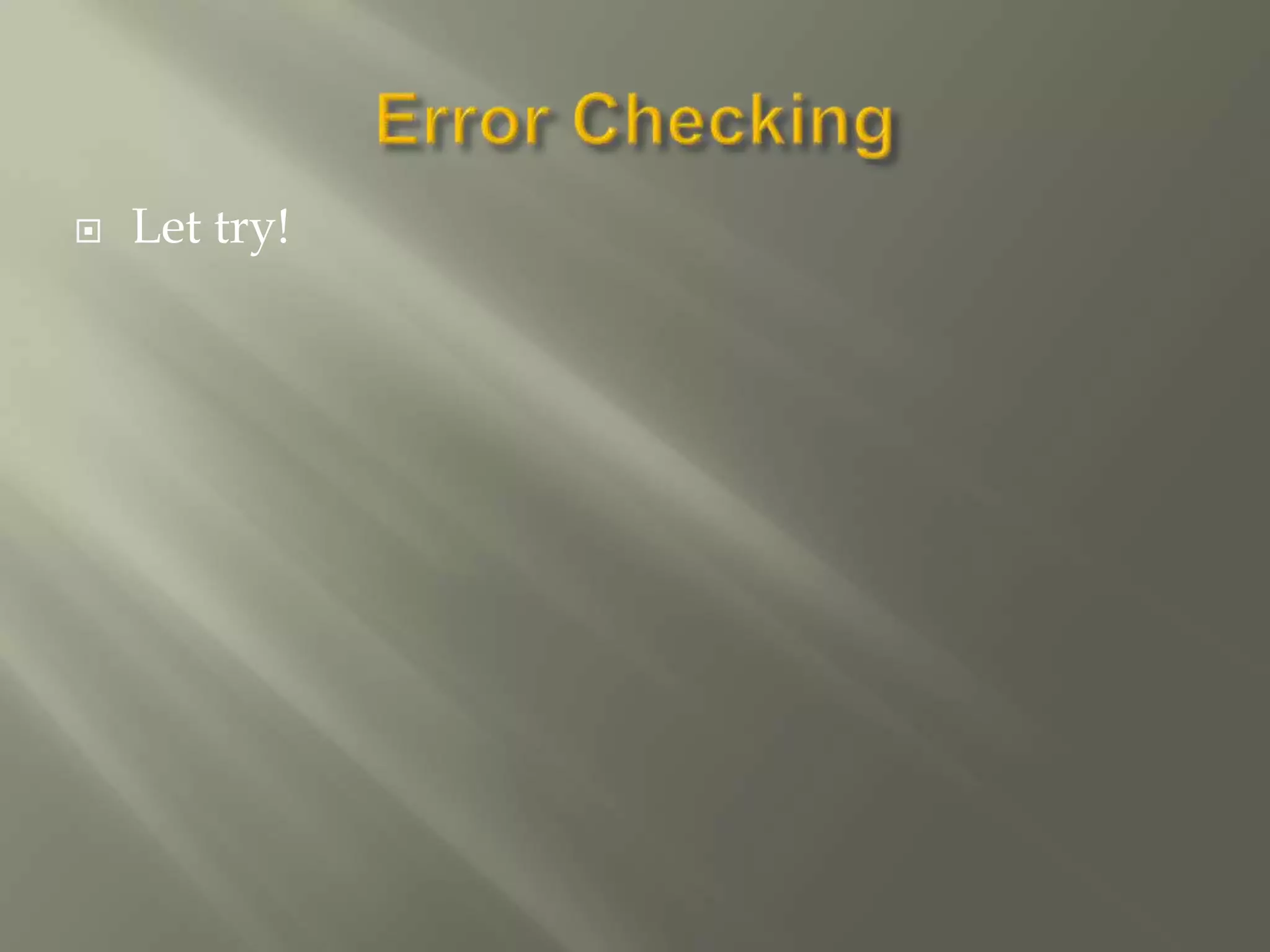

17.  Let try!

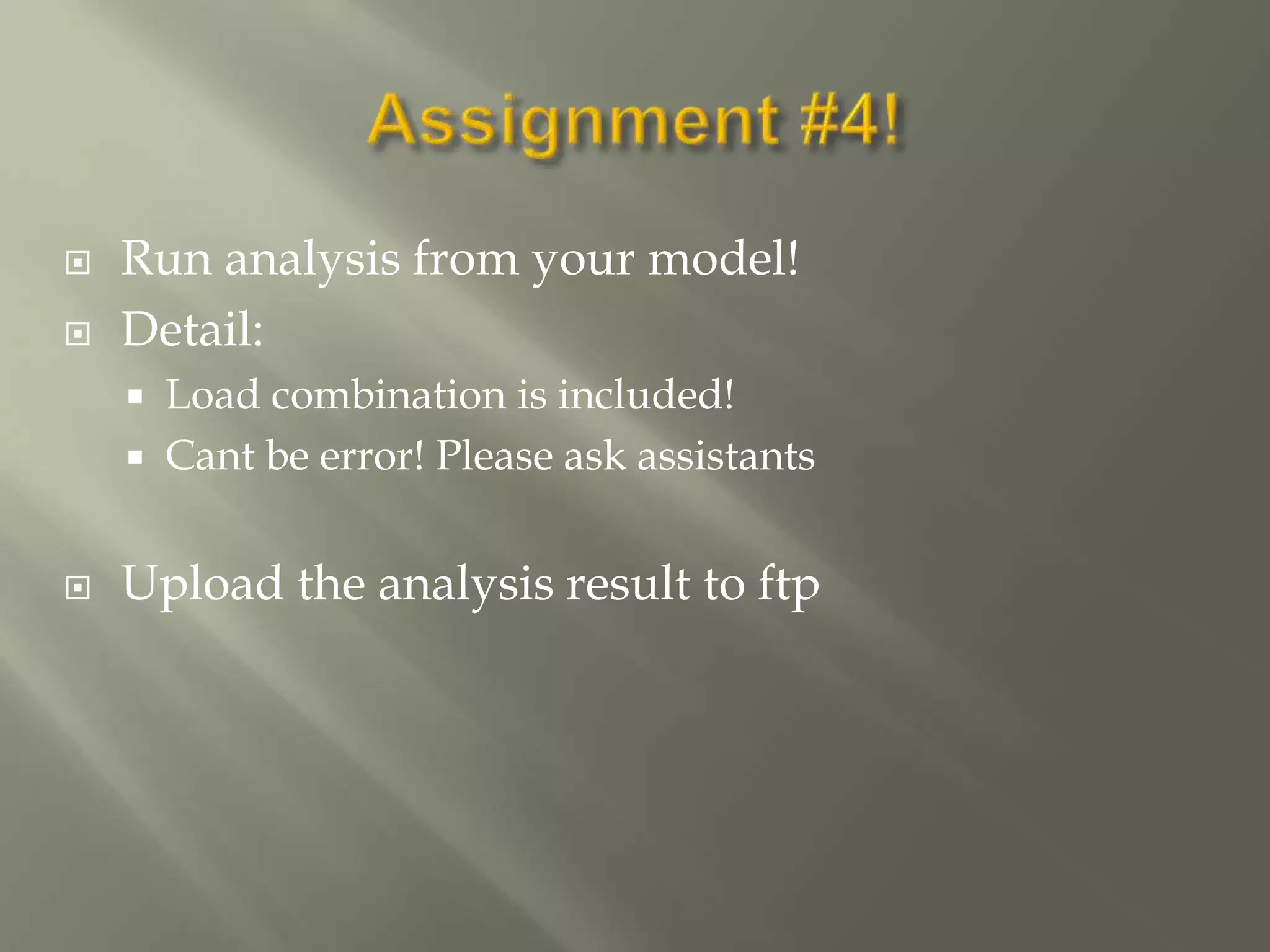

18.  Run analysis from your model!
 Detail:
 Load combination is included!
 Cant be error! Please ask assistants
 Upload the analysis result to ftp

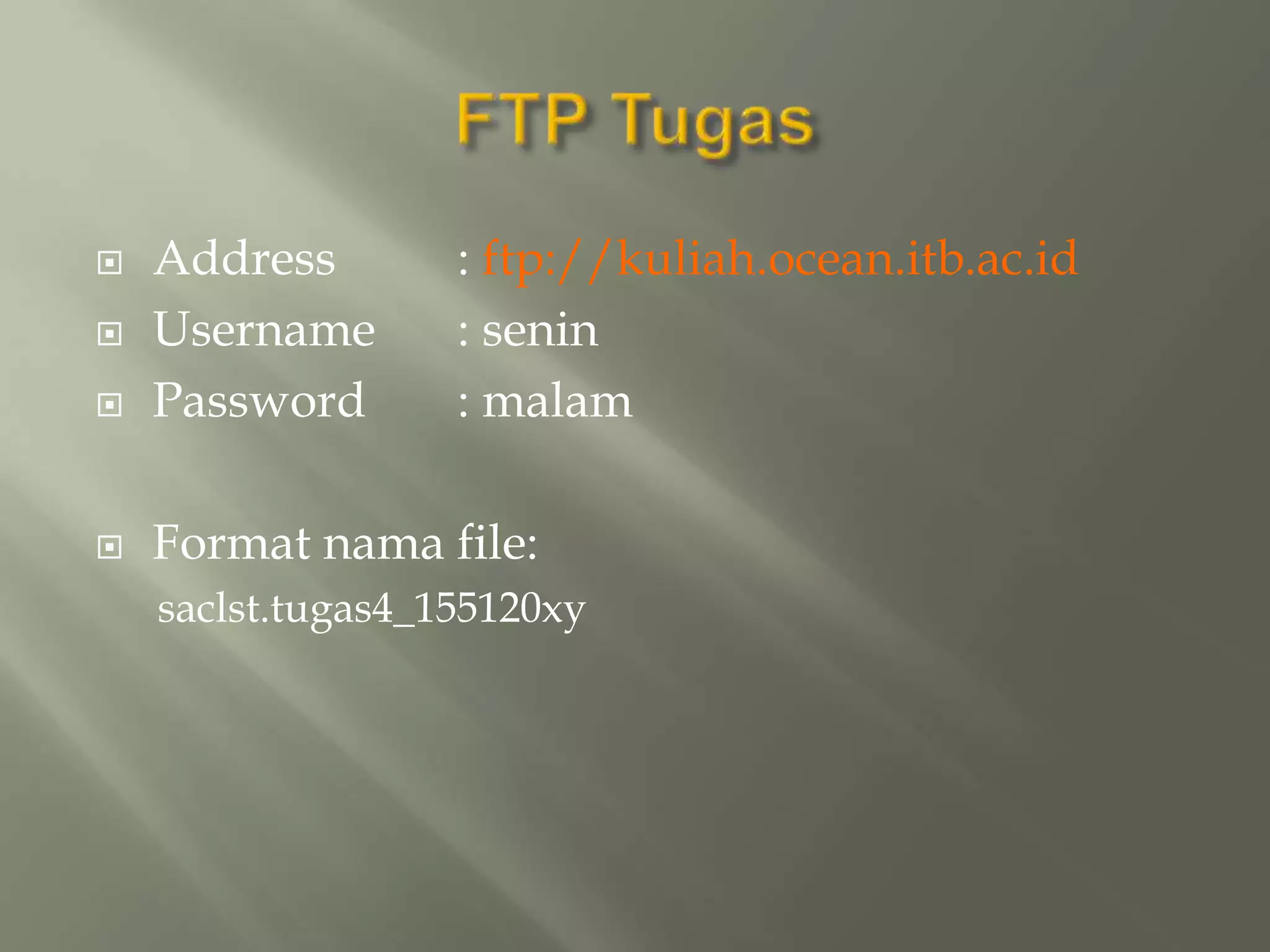

19.  Address : ftp://kuliah.ocean.itb.ac.id
 Username : senin
 Password : malam
 Format nama file:
saclst.tugas4_155120xy
