1. Transistors
&
Opamp
17 March 2024 1

2. Contents
• Transistor (BJT) Structure
• Transistor characteristics and parameters
• DC operating point
• Transistor as an amplifier
• Transistor as a switch
• MOSFET
• Operational Amplifier
17 March 2024 2

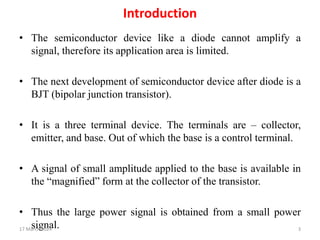

3. Introduction
• The semiconductor device like a diode cannot amplify a
signal, therefore its application area is limited.
• The next development of semiconductor device after diode is a
BJT (bipolar junction transistor).
• It is a three terminal device. The terminals are – collector,
emitter, and base. Out of which the base is a control terminal.
• A signal of small amplitude applied to the base is available in
the “magnified” form at the collector of the transistor.
• Thus the large power signal is obtained from a small power
signal.
17 March 2024 3

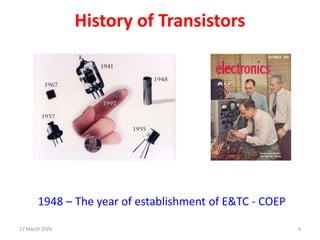

4. http://www.bellsystemmemorial.com/belllabs_transistor.html
History of Transistors
1948 – The year of establishment of E&TC - COEP
17 March 2024 4

5. Why is it called transistor ?
• The term transistor was derived from the words
TRANSFER & RESISTOR.
• Transfers input signal current from a low
resistance path to a high resistance path.
17 March 2024 5

6. Transistor
• This bipolar PNP junction transistor is formed with three layers of
semiconductor material
1. Emitter – emitter supply majority charge carriers. The emitter is always forward
biased with respect to the base. Hence the majority of charge carriers are supplied to
the base. The emitter of a transistor is heavily doped and moderate in size.
2. Collector – the majority of the charge carrier supplied by the emitter is collected
by the collector. The collector-base junction is always reverse biased. The collector
area is moderately doped and has the capacity to collect the charge carrier supplied
by the emitter.
3. Base – The centre section of the transistor is known as the base. The base forms
two circuits, the input circuit with the emitter and the output circuit with the
collector. The emitter-base is forward biased and offers low resistance to the circuit.
The collector-base junction is in reverse bias and offers higher resistance to the
circuit. The base of a transistor is lightly doped and very thin, due to which it offers
the majority charge carrier to the base.
• Depletion region –The depletion regions are formed at the emitter-base junction
and the base-collector junction.
17 March 2024 6

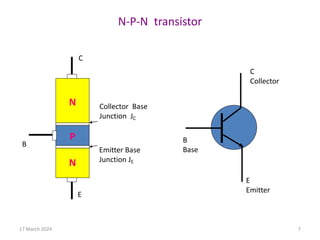

7. N-P-N transistor
N
N
P
C
E
B
Collector Base
Junction JC
Emitter Base
Junction JE
E
Emitter
B
Base
C
Collector
17 March 2024 7

8. An unbiased Transistor – Depletion region
Base
P
Junction
JEB
Emitter collector
N
Junction
JCB
N
Depletion
region
Depletion
region
-
-
-
-
-
+
+
+
+
+
-
-
-
-
-
+
+
+
+
+
-
-
-
-
-
-
-
-
-
-
17 March 2024 8
For an unbiased transistor no external power supplies are connected
As transistor is like two PN junction diodes connected back to back
there are depletion regions at both the junctions, emitter junction and
collector junction.
During diffusion process, depletion region penetrates more deeply
into the lightly doped side in order to include an equal number of impurity
atoms in the each side of the junction.

9. Transistor biasing in the active region
Sr.
No.
Region of
operation
Base emitter
junction
Collector base
junction
application
1 Cutoff region Reverse
biased
Reverse
biased
transistor is OFF
2 Saturation
region
Forward
biased
Forward
biased
transistor is ON
3 Active
region
Forward
biased
Reverse
biased
Amplifier
17 March 2024 9

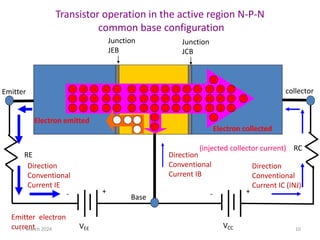

10. Transistor operation in the active region N-P-N
common base configuration
P
Junction
JEB
Emitter collector
N
Base
Junction
JCB
N
VEE
RE
+
-
RC
VCC
+
-
Electron emitted
Electron collected
Emitter electron
current
Direction
Conventional
Current IC (INJ)
Direction
Conventional
Current IB
Direction
Conventional
Current IE
(injected collector current)
17 March 2024 10

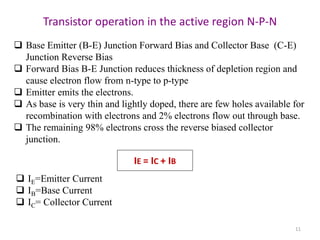

11. Transistor operation in the active region N-P-N
11
 Base Emitter (B-E) Junction Forward Bias and Collector Base (C-E)
Junction Reverse Bias
 Forward Bias B-E Junction reduces thickness of depletion region and
cause electron flow from n-type to p-type
 Emitter emits the electrons.
 As base is very thin and lightly doped, there are few holes available for
recombination with electrons and 2% electrons flow out through base.
 The remaining 98% electrons cross the reverse biased collector
junction.
IE = IC + IB
 IE=Emitter Current
 IB=Base Current
 IC= Collector Current

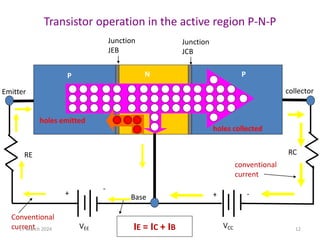

12. Transistor operation in the active region P-N-P
P
Junction
JEB
Emitter collector
N
Base
Junction
JCB
VEE
RE
+
-
RC
VCC
-
holes emitted
holes collected
Conventional
current
conventional
current
+
P P
N
IE = IC + IB
17 March 2024 12

13. Transistor operation in the active region P-N-P
13
 Base Emitter (B-E) Junction Forward Bias and Collector Base (C-E)
Junction Reverse Bias
 Forward Bias B-E Junction reduces thickness of depletion region and
cause electron flow from p-type to n-type
 Emitter emits the holes.
 As base is very thin and lightly doped, there are few electrons available
for recombination with holes and 2% holes flow out through base.
 The remaining 98% holes cross the reverse biased collector junction.
IE = IC + IB
 IE=Emitter Current
 IB=Base Current
 IC= Collector Current

14. Transistor configuration
• Depending on which terminal is made common to input and
output port there are three possible configurations of the
transistor. They are as follows:
• Common base configuration
• Common emitter configuration
• Common collector configuration
17 March 2024 14

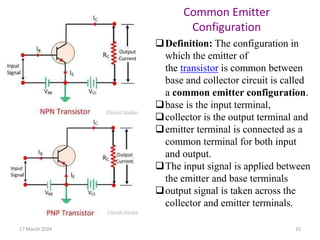

15. 17 March 2024 15
Definition: The configuration in
which the emitter of
the transistor is common between
base and collector circuit is called
a common emitter configuration.
base is the input terminal,
collector is the output terminal and
emitter terminal is connected as a
common terminal for both input
and output.
The input signal is applied between
the emitter and base terminals
output signal is taken across the
collector and emitter terminals.
Common Emitter
Configuration

16. 17 March 2024 16

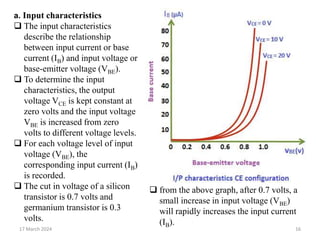

a. Input characteristics
 The input characteristics
describe the relationship
between input current or base
current (IB) and input voltage or
base-emitter voltage (VBE).
 To determine the input
characteristics, the output
voltage VCE is kept constant at
zero volts and the input voltage
VBE is increased from zero
volts to different voltage levels.
 For each voltage level of input
voltage (VBE), the
corresponding input current (IB)
is recorded.
 The cut in voltage of a silicon
transistor is 0.7 volts and
germanium transistor is 0.3
volts.
 from the above graph, after 0.7 volts, a
small increase in input voltage (VBE)
will rapidly increases the input current
(IB).

17. 17 March 2024 17
a. Input characteristics
Dynamic input resistance (ri)
Dynamic input resistance is defined as the ratio of change in input voltage or base
voltage (VBE) to the corresponding change in input current or base current (IB),
with the output voltage or collector voltage (VCE) kept at constant.

18. 17 March 2024 18

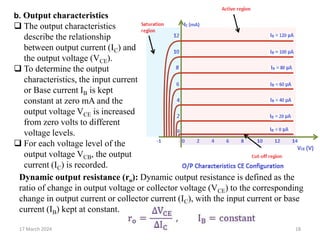

b. Output characteristics
 The output characteristics
describe the relationship
between output current (IC) and
the output voltage (VCE).
 To determine the output
characteristics, the input current
or Base current IB is kept
constant at zero mA and the
output voltage VCE is increased
from zero volts to different
voltage levels.
 For each voltage level of the
output voltage VCB, the output
current (IC) is recorded.
Dynamic output resistance (ro): Dynamic output resistance is defined as the
ratio of change in output voltage or collector voltage (VCE) to the corresponding
change in output current or collector current (IC), with the input current or base
current (IB) kept at constant.

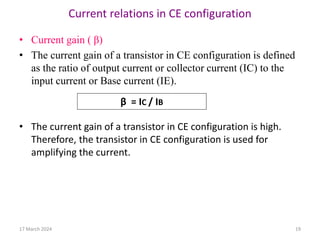

19. Current relations in CE configuration
• Current gain ( β)
• The current gain of a transistor in CE configuration is defined
as the ratio of output current or collector current (IC) to the
input current or Base current (IE).
• The current gain of a transistor in CE configuration is high.
Therefore, the transistor in CE configuration is used for
amplifying the current.
β = IC / IB
17 March 2024 19

20. 17 March 2024 20
 Definition: The configuration in
which the base of the transistor is
common between emitter and
collector circuit is called
a common base configuration.
emitter is the input terminal,
 collector is the output terminal
and
 base terminal is connected as a
common terminal for both input
and output.
 The input signal is applied
between the emitter and base
terminals
 output signal is taken across the
collector and base terminals.
Common Base
Configuration

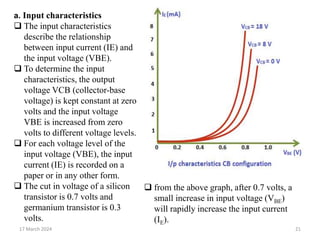

21. 17 March 2024 21
a. Input characteristics
 The input characteristics
describe the relationship
between input current (IE) and
the input voltage (VBE).
 To determine the input
characteristics, the output
voltage VCB (collector-base
voltage) is kept constant at zero
volts and the input voltage
VBE is increased from zero
volts to different voltage levels.
 For each voltage level of the
input voltage (VBE), the input
current (IE) is recorded on a
paper or in any other form.
 The cut in voltage of a silicon
transistor is 0.7 volts and
germanium transistor is 0.3
volts.
 from the above graph, after 0.7 volts, a
small increase in input voltage (VBE)
will rapidly increase the input current
(IE).

22. 17 March 2024 22

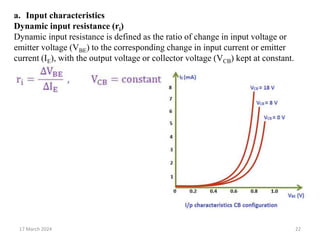

a. Input characteristics
Dynamic input resistance (ri)
Dynamic input resistance is defined as the ratio of change in input voltage or
emitter voltage (VBE) to the corresponding change in input current or emitter
current (IE), with the output voltage or collector voltage (VCB) kept at constant.

23. 17 March 2024 23

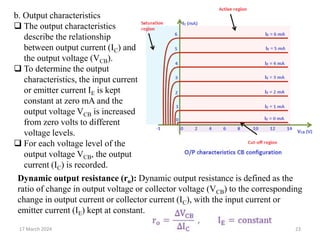

b. Output characteristics
 The output characteristics
describe the relationship
between output current (IC) and
the output voltage (VCB).
 To determine the output
characteristics, the input current
or emitter current IE is kept
constant at zero mA and the
output voltage VCB is increased
from zero volts to different
voltage levels.
 For each voltage level of the
output voltage VCB, the output
current (IC) is recorded.
Dynamic output resistance (ro): Dynamic output resistance is defined as the
ratio of change in output voltage or collector voltage (VCB) to the corresponding
change in output current or collector current (IC), with the input current or
emitter current (IE) kept at constant.

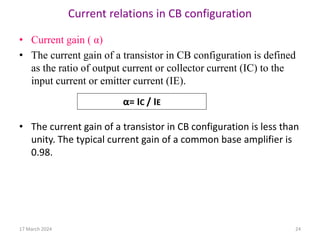

24. Current relations in CB configuration
• Current gain ( α)
• The current gain of a transistor in CB configuration is defined
as the ratio of output current or collector current (IC) to the
input current or emitter current (IE).
• The current gain of a transistor in CB configuration is less than
unity. The typical current gain of a common base amplifier is
0.98.
α= IC / IE
17 March 2024 24

25. 17 March 2024 25
 Definition: The configuration in which
the collector is common between
emitter and base is known as CC
configuration.
 Base is the input terminal,
 Emitter is the output terminal and
 Collector terminal is connected as a
common terminal for both input and
output.
 The input signal is applied between the
Collector and base terminals
 output signal is taken across the
collector and emitter terminals.
Common Collector Configuration

26. 17 March 2024 26
a. Input characteristics
 The input characteristics
describe the relationship
between input current (IB) and
the input voltage (VBC).
 To determine the input
characteristics, the output
voltage VEC (is kept constant
at 3 volts and the input voltage
VBC is increased from zero
volts to different voltage levels.
 For each voltage level of the
input voltage (VBC), the input
current (IB) is recorded on a
paper or in any other form.
Dynamic input resistance (ri)
Dynamic input resistance is defined as the ratio of change in input voltage or emitter
voltage (VBC) to the corresponding change in input current or base current (IB), with
the output voltage (VEC) kept at constant.

27. 17 March 2024 27

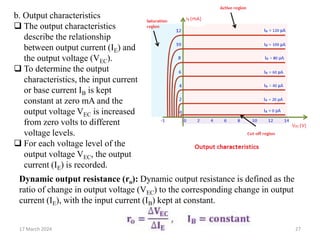

b. Output characteristics
 The output characteristics
describe the relationship
between output current (IE) and
the output voltage (VEC).
 To determine the output
characteristics, the input current
or base current IB is kept
constant at zero mA and the
output voltage VEC is increased
from zero volts to different
voltage levels.
 For each voltage level of the
output voltage VEC, the output
current (IE) is recorded.
Dynamic output resistance (ro): Dynamic output resistance is defined as the
ratio of change in output voltage (VEC) to the corresponding change in output
current (IE), with the input current (IB) kept at constant.

28. 17 March 2024 28

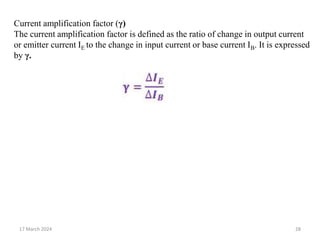

Current amplification factor (γ)
The current amplification factor is defined as the ratio of change in output current
or emitter current IE to the change in input current or base current IB. It is expressed
by γ.

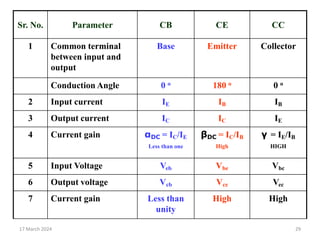

29. Sr. No. Parameter CB CE CC
1 Common terminal
between input and
output
Base Emitter Collector
Conduction Angle 0 o 180 o 0 o
2 Input current IE IB IB
3 Output current IC IC IE
4 Current gain αDC = IC/IE
Less than one
βDC = IC/IB
High
γ = IE/IB
HIGH
5 Input Voltage Veb Vbe Vbc
6 Output voltage Vcb Vce Vec
7 Current gain Less than
unity
High High
17 March 2024 29

30. Sr. No. Parameter CB CE CC
8 Input resistance Very low (20Ω) Low (1KΩ) High(500kΩ)
9 Output resistance Very high (1M) High(40kΩ) Low (50Ω)
10 Application As
preamplifier
Audio
amplifier
Impedance
matching
11. Voltage gain Medium Large Less than 1
17 March 2024 30

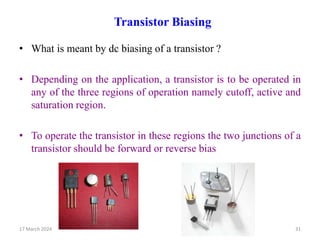

31. Transistor Biasing
• What is meant by dc biasing of a transistor ?
• Depending on the application, a transistor is to be operated in
any of the three regions of operation namely cutoff, active and
saturation region.
• To operate the transistor in these regions the two junctions of a
transistor should be forward or reverse bias
17 March 2024 31

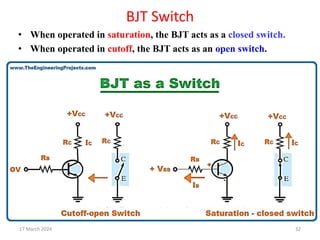

32. BJT Switch
• When operated in saturation, the BJT acts as a closed switch.
• When operated in cutoff, the BJT acts as an open switch.
17 March 2024 32

33. BJT Switch
Cut Off State (Open Switch)
• When transistor operates in the cut off region shows the
following characteristics −
• The input is grounded i.e. at zero potential.
• The VBE is less that cut – in voltage 0.7 V.
• Both emitter – base junction and collector – base junction are
reverse biased.
• The transistor is fully – off acting as open switch.
• The collector current IC = 0 A and output voltage Vout = VCC.
17 March 2024 33

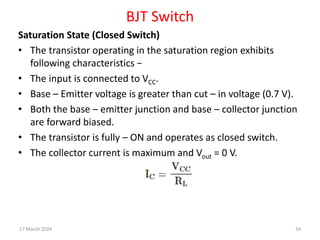

34. BJT Switch
Saturation State (Closed Switch)
• The transistor operating in the saturation region exhibits
following characteristics −
• The input is connected to VCC.
• Base – Emitter voltage is greater than cut – in voltage (0.7 V).
• Both the base – emitter junction and base – collector junction
are forward biased.
• The transistor is fully – ON and operates as closed switch.
• The collector current is maximum and Vout = 0 V.
17 March 2024 34

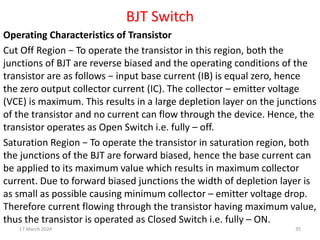

35. BJT Switch
Operating Characteristics of Transistor
Cut Off Region − To operate the transistor in this region, both the
junctions of BJT are reverse biased and the operating conditions of the
transistor are as follows − input base current (IB) is equal zero, hence
the zero output collector current (IC). The collector – emitter voltage
(VCE) is maximum. This results in a large depletion layer on the junctions
of the transistor and no current can flow through the device. Hence, the
transistor operates as Open Switch i.e. fully – off.
Saturation Region − To operate the transistor in saturation region, both
the junctions of the BJT are forward biased, hence the base current can
be applied to its maximum value which results in maximum collector
current. Due to forward biased junctions the width of depletion layer is
as small as possible causing minimum collector – emitter voltage drop.
Therefore current flowing through the transistor having maximum value,
thus the transistor is operated as Closed Switch i.e. fully – ON.
17 March 2024 35

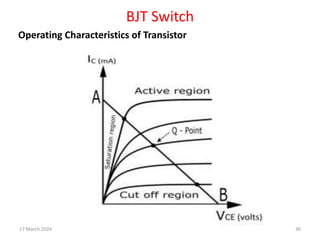

36. BJT Switch
Operating Characteristics of Transistor
17 March 2024 36

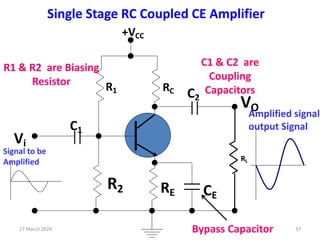

37. RC
RE CE
R2
R1
+VCC
C1
C2
VO
Vi
Signal to be
Amplified RL
Amplified signal
output Signal
R1 & R2 are Biasing
Resistor
C1 & C2 are
Coupling
Capacitors
Bypass Capacitor
Single Stage RC Coupled CE Amplifier
17 March 2024 37

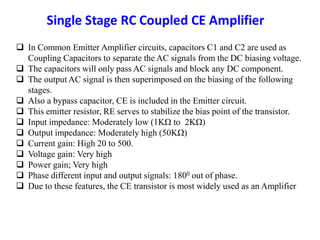

38.  In Common Emitter Amplifier circuits, capacitors C1 and C2 are used as
Coupling Capacitors to separate the AC signals from the DC biasing voltage.
 The capacitors will only pass AC signals and block any DC component.
 The output AC signal is then superimposed on the biasing of the following
stages.
 Also a bypass capacitor, CE is included in the Emitter circuit.
 This emitter resistor, RE serves to stabilize the bias point of the transistor.
 Input impedance: Moderately low (1KΩ to 2KΩ)
 Output impedance: Moderately high (50KΩ)
 Current gain: High 20 to 500.
 Voltage gain: Very high
 Power gain; Very high
 Phase different input and output signals: 1800 out of phase.
 Due to these features, the CE transistor is most widely used as an Amplifier
