2. WELLCOME

3. PRESENTATION BY :
ADNAN ASLAM ADNAN
ROLL NO: 9801
CLASS: T.M.R - B

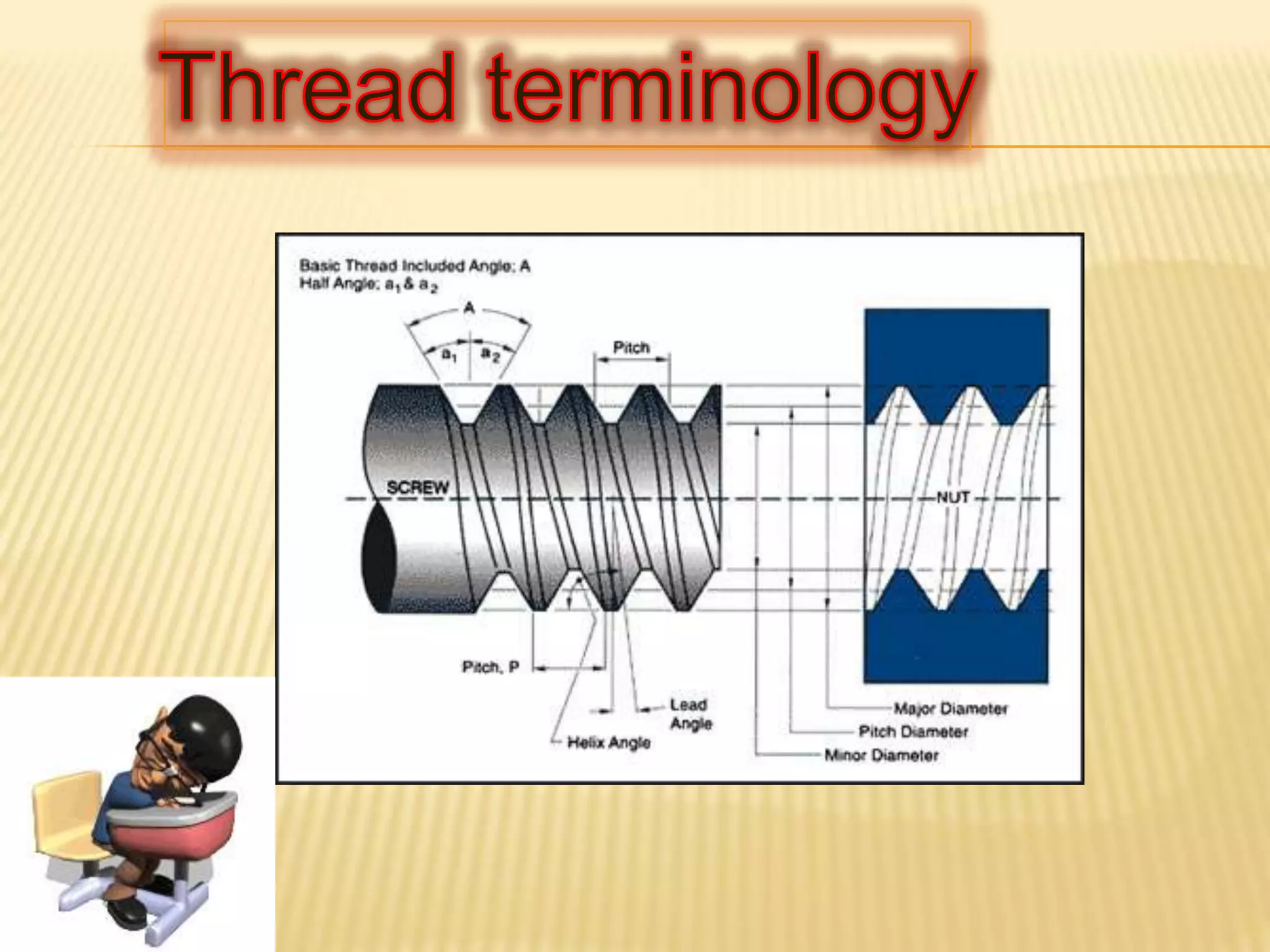

Thread Terminology

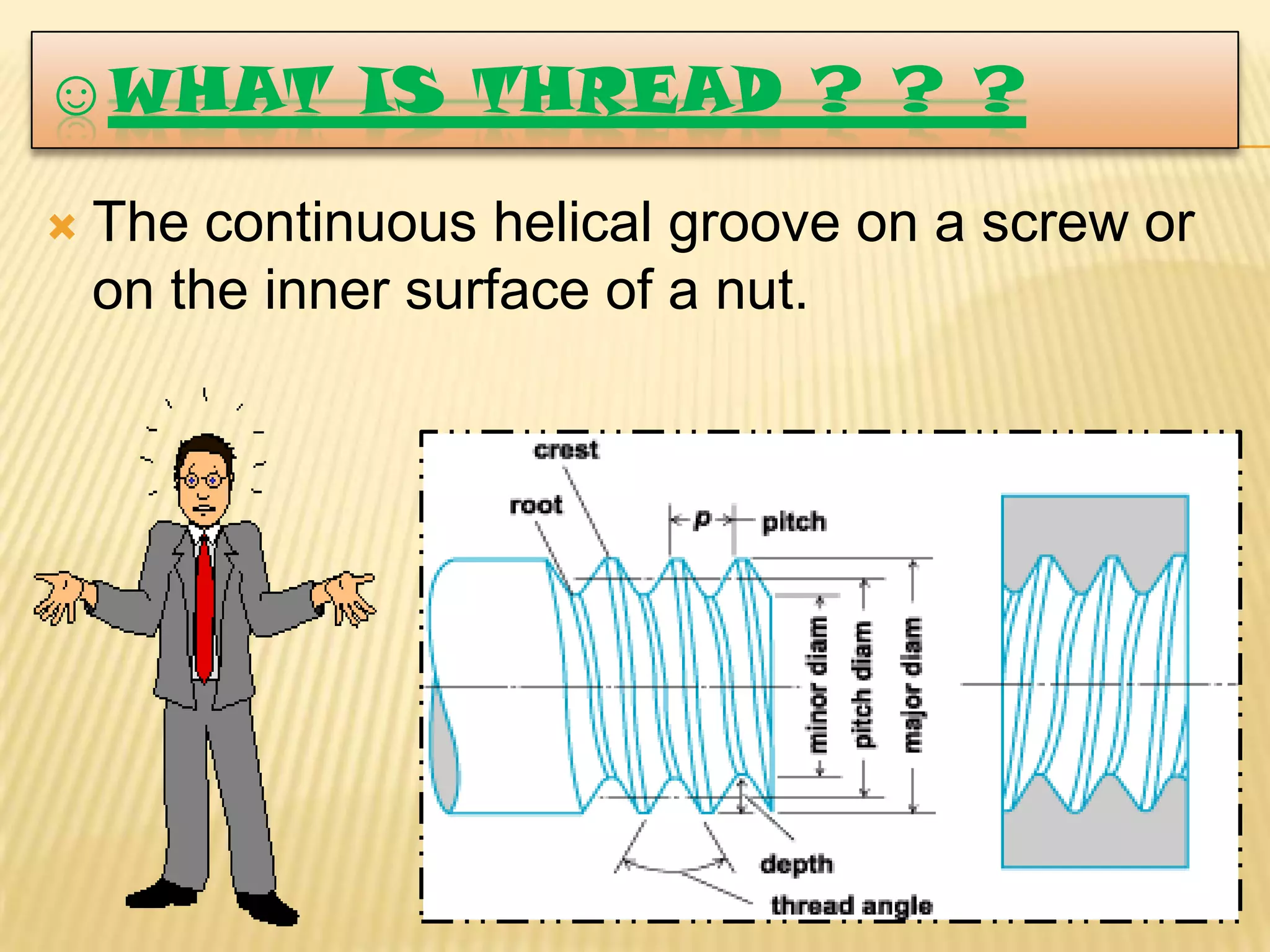

4. ☺WHAT IS THREAD ? ? ?
 The continuous helical groove on a screw or
on the inner surface of a nut.

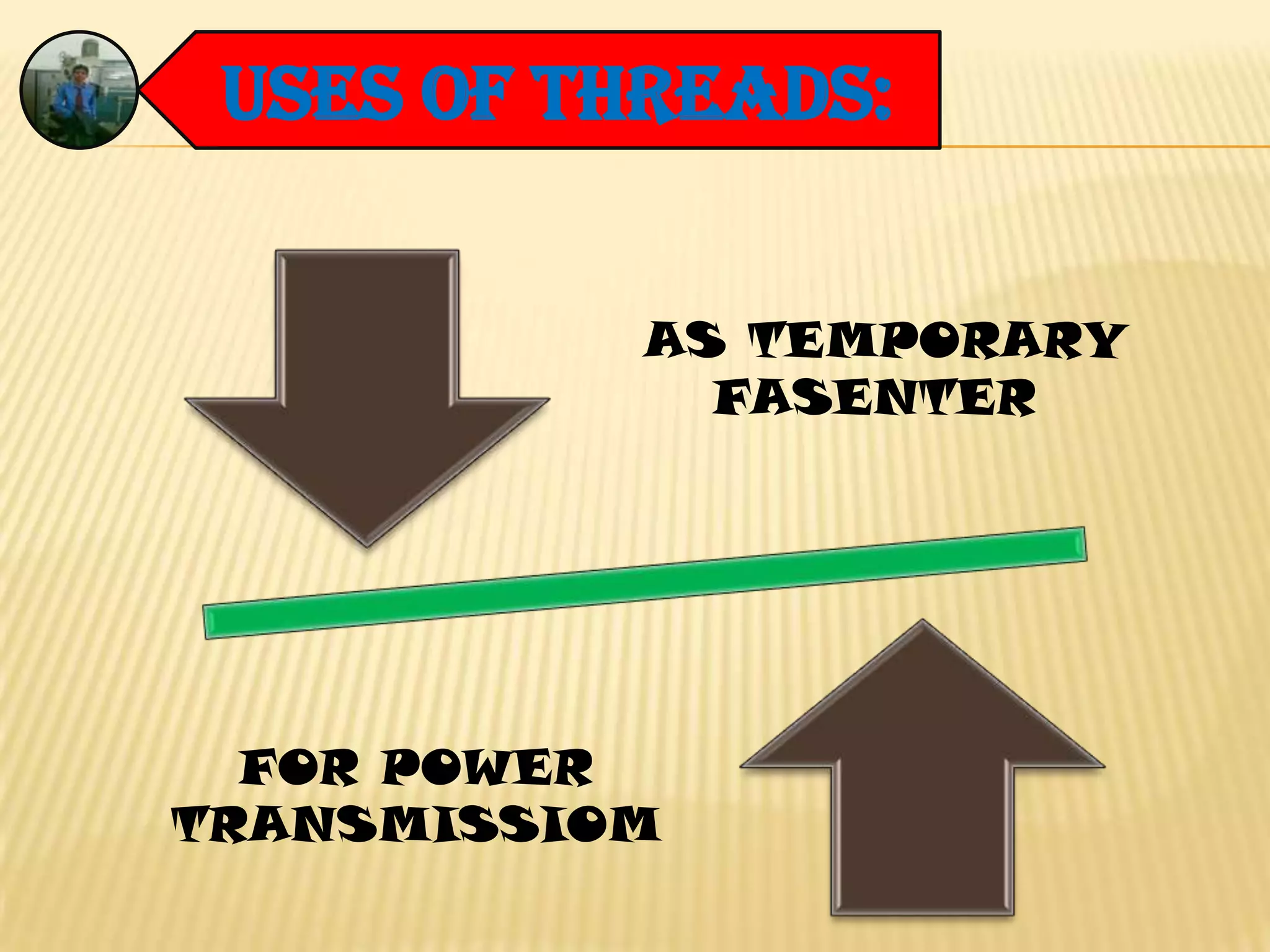

5. Uses of threads:
AS TEMPORARY
FASENTER
FOR POWER
TRANSMISSIOM

6.  THREAD TERMS:
☺MAJOR DIAMETER
☺PITCH DIAMETER
☺MINOR DIAMETER
☺ANGLE OF THREAD
☺DEPTH OF THREAD
☺ROOT ☺ LEAD
☺CREST ☺ FLANK
☺PITCH

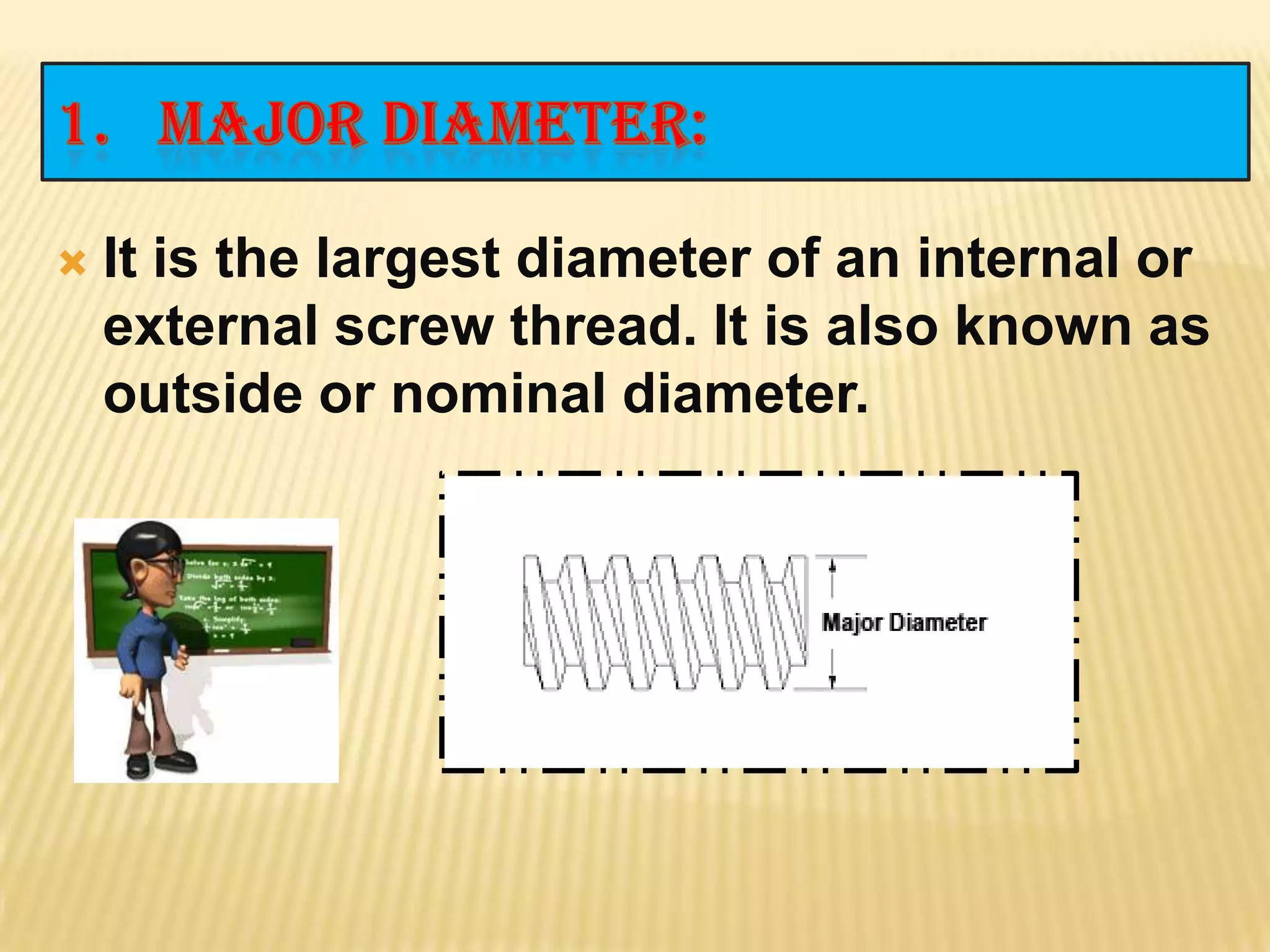

8.  It is the largest diameter of an internal or
external screw thread. It is also known as
outside or nominal diameter.

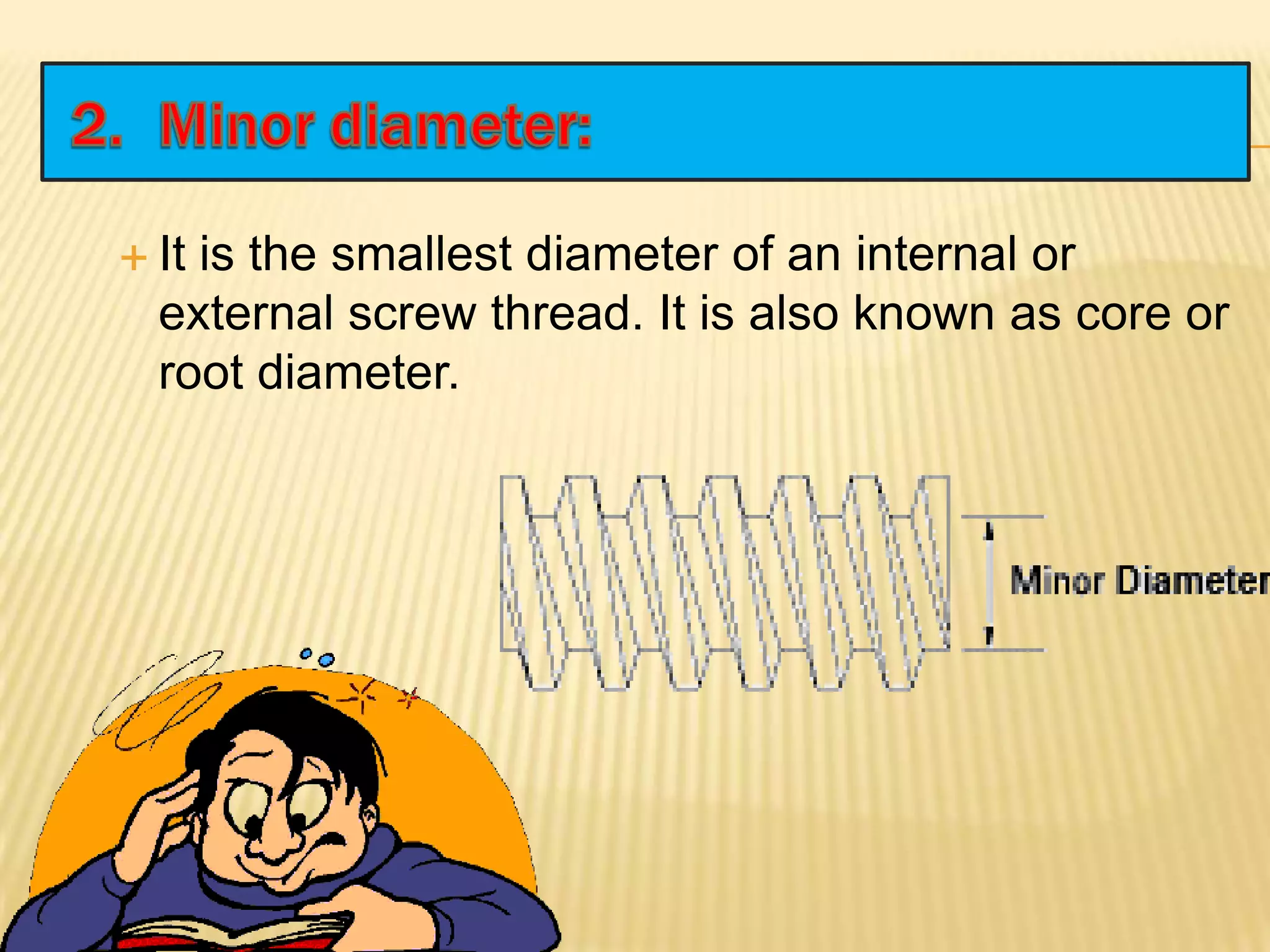

9.  It is the smallest diameter of an internal or
external screw thread. It is also known as core or
root diameter.

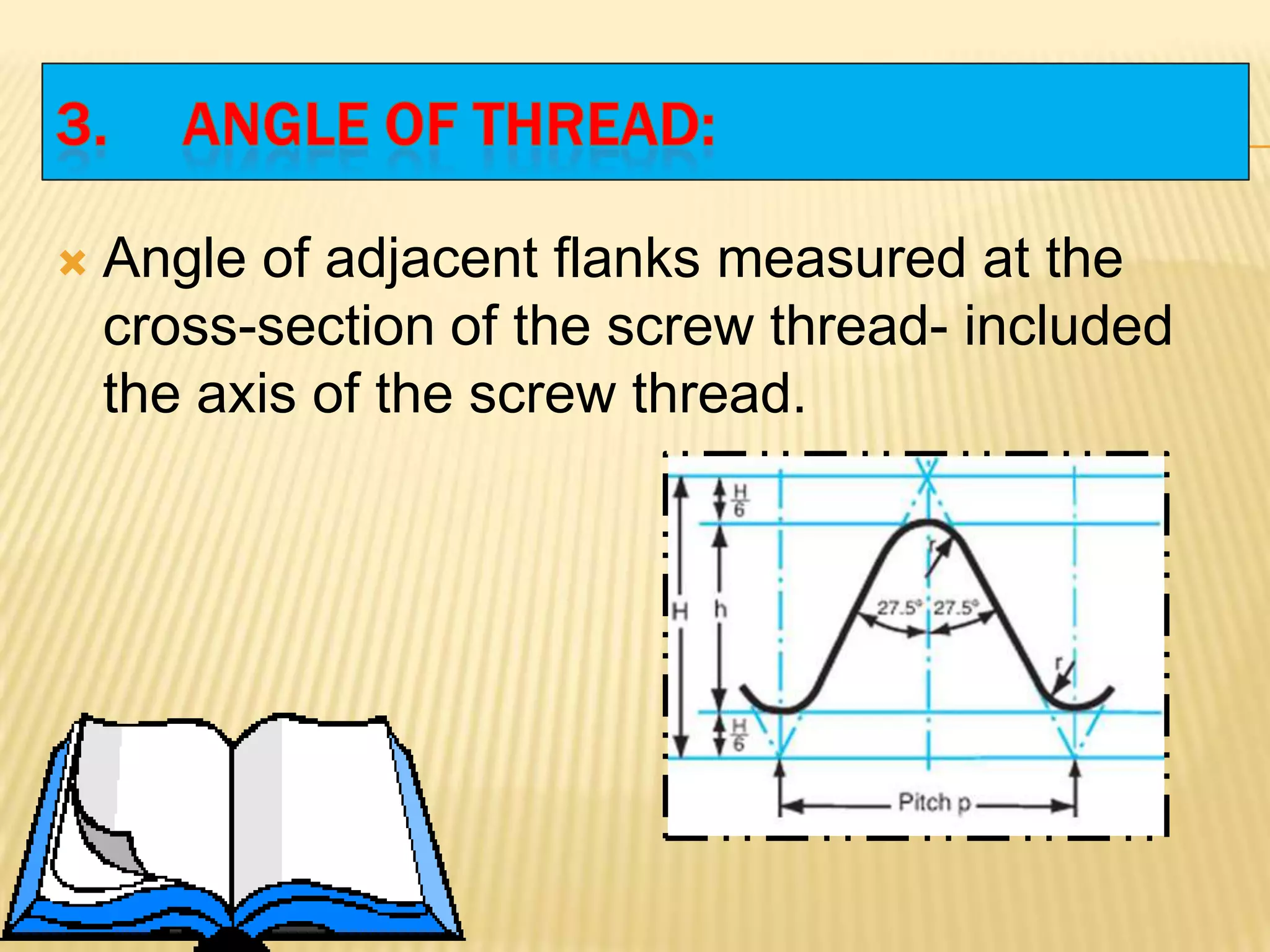

10.  Angle of adjacent flanks measured at the
cross-section of the screw thread- included
the axis of the screw thread.

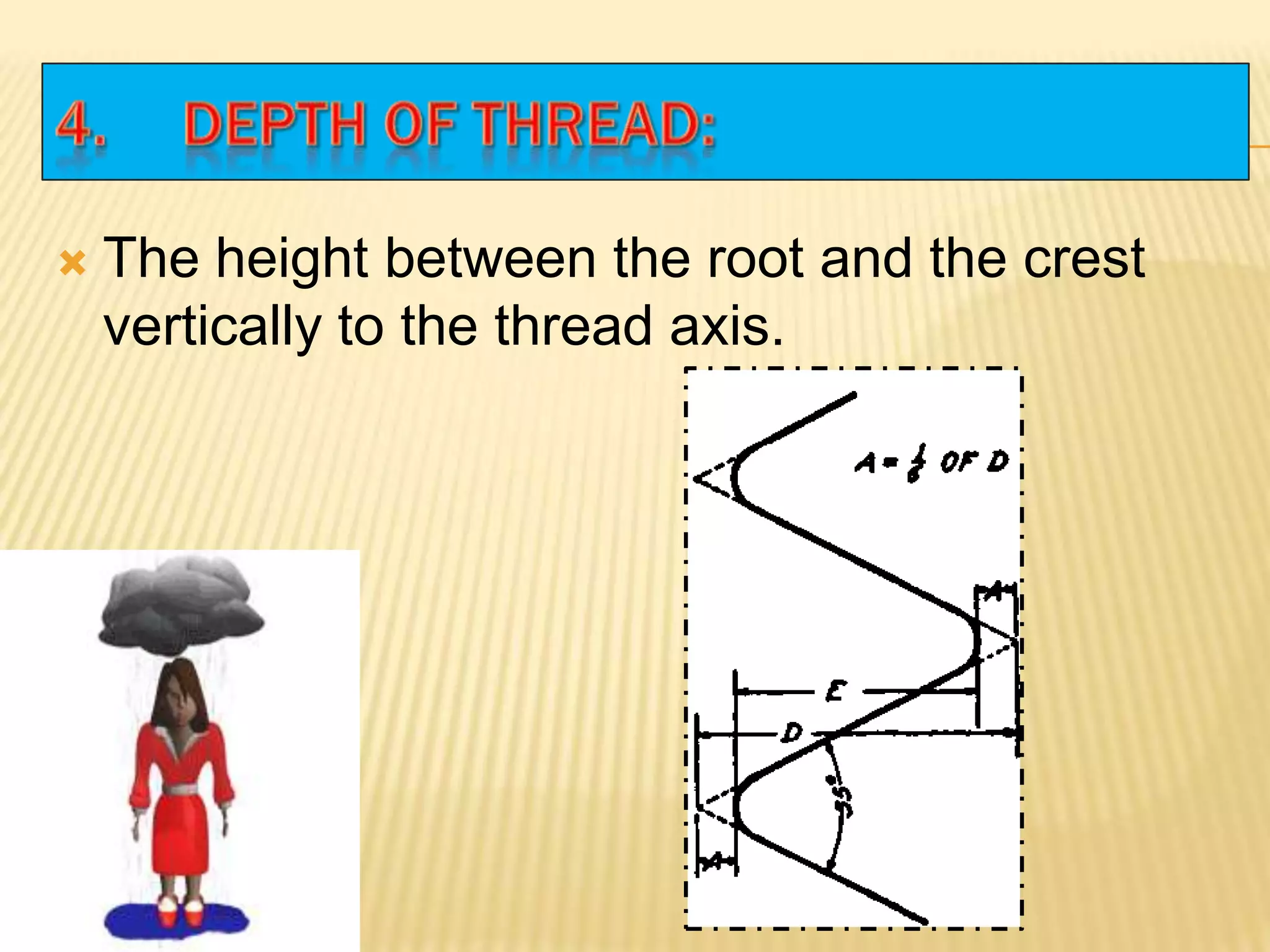

11.  The height between the root and the crest
vertically to the thread axis.

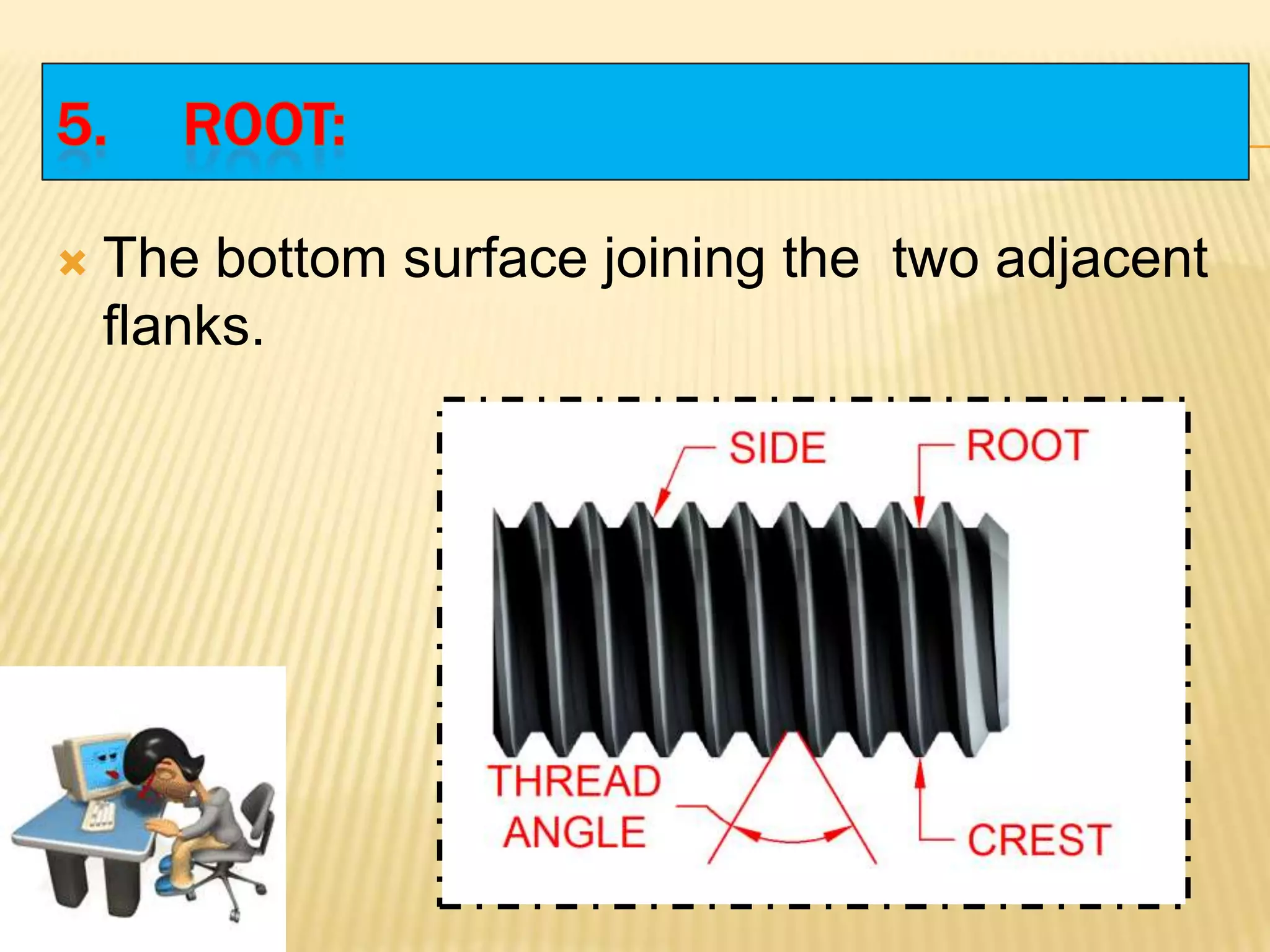

12.  The bottom surface joining the two adjacent
flanks.

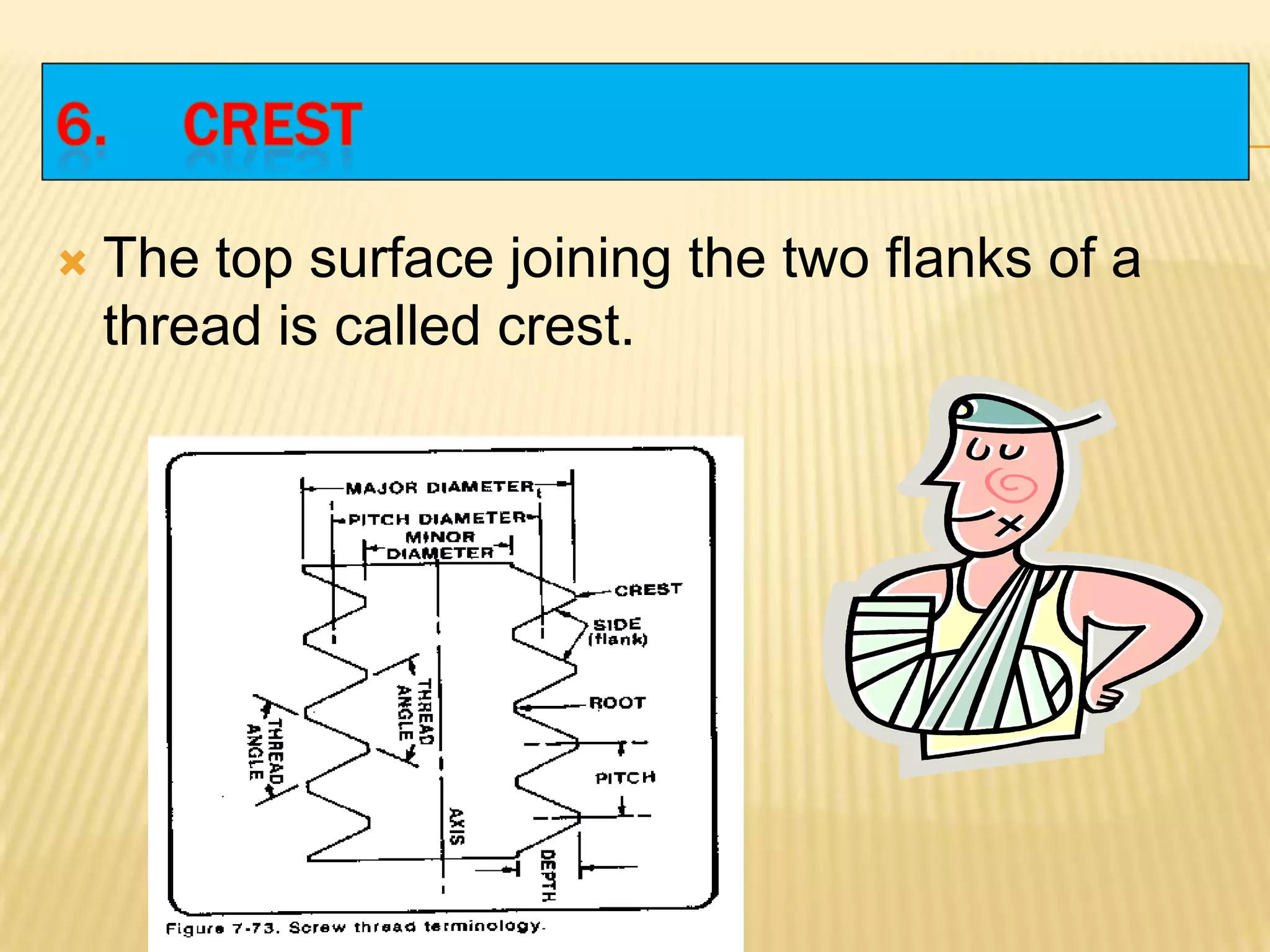

13.  The top surface joining the two flanks of a
thread is called crest.

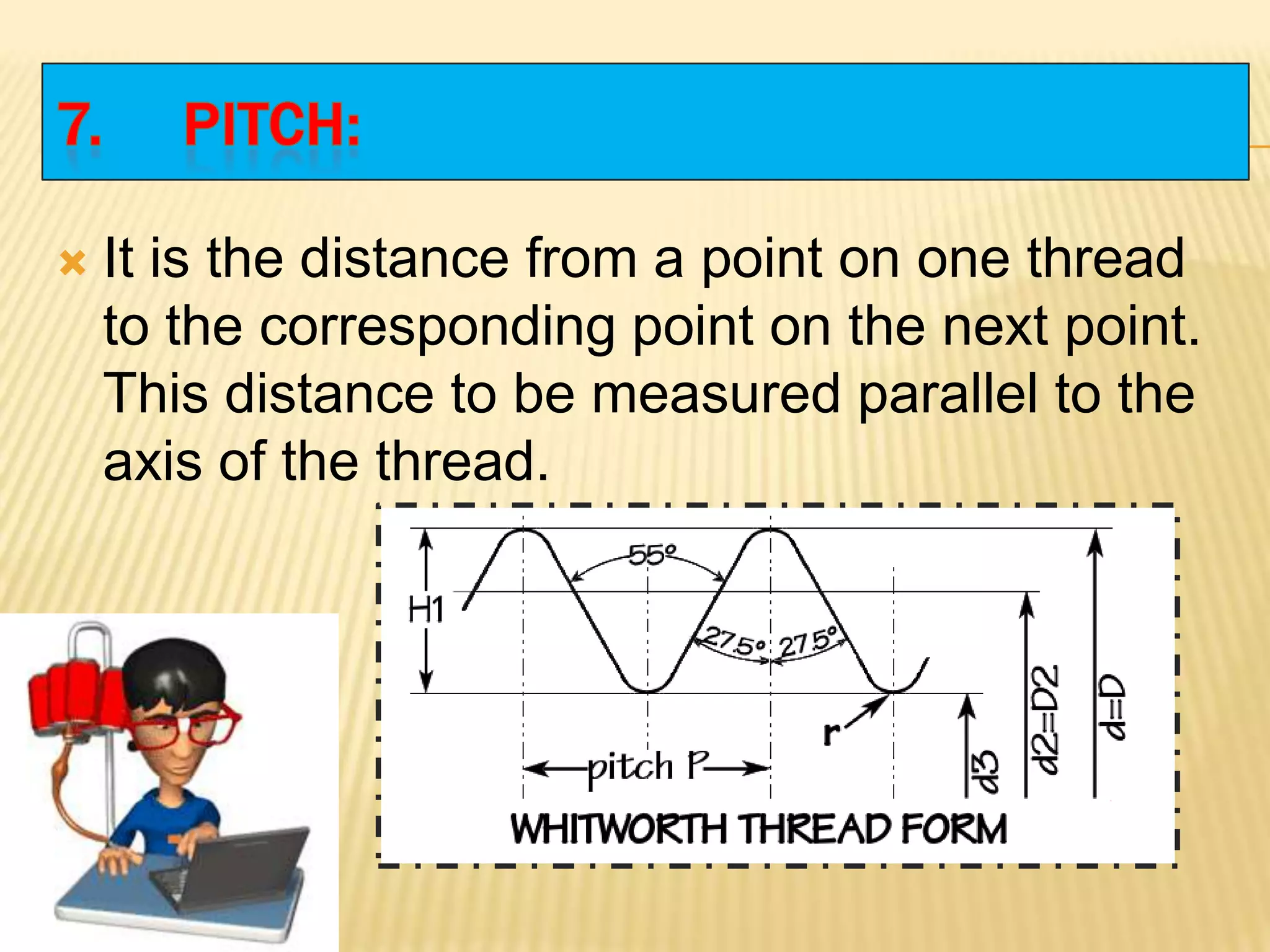

14.  It is the distance from a point on one thread
to the corresponding point on the next point.
This distance to be measured parallel to the
axis of the thread.

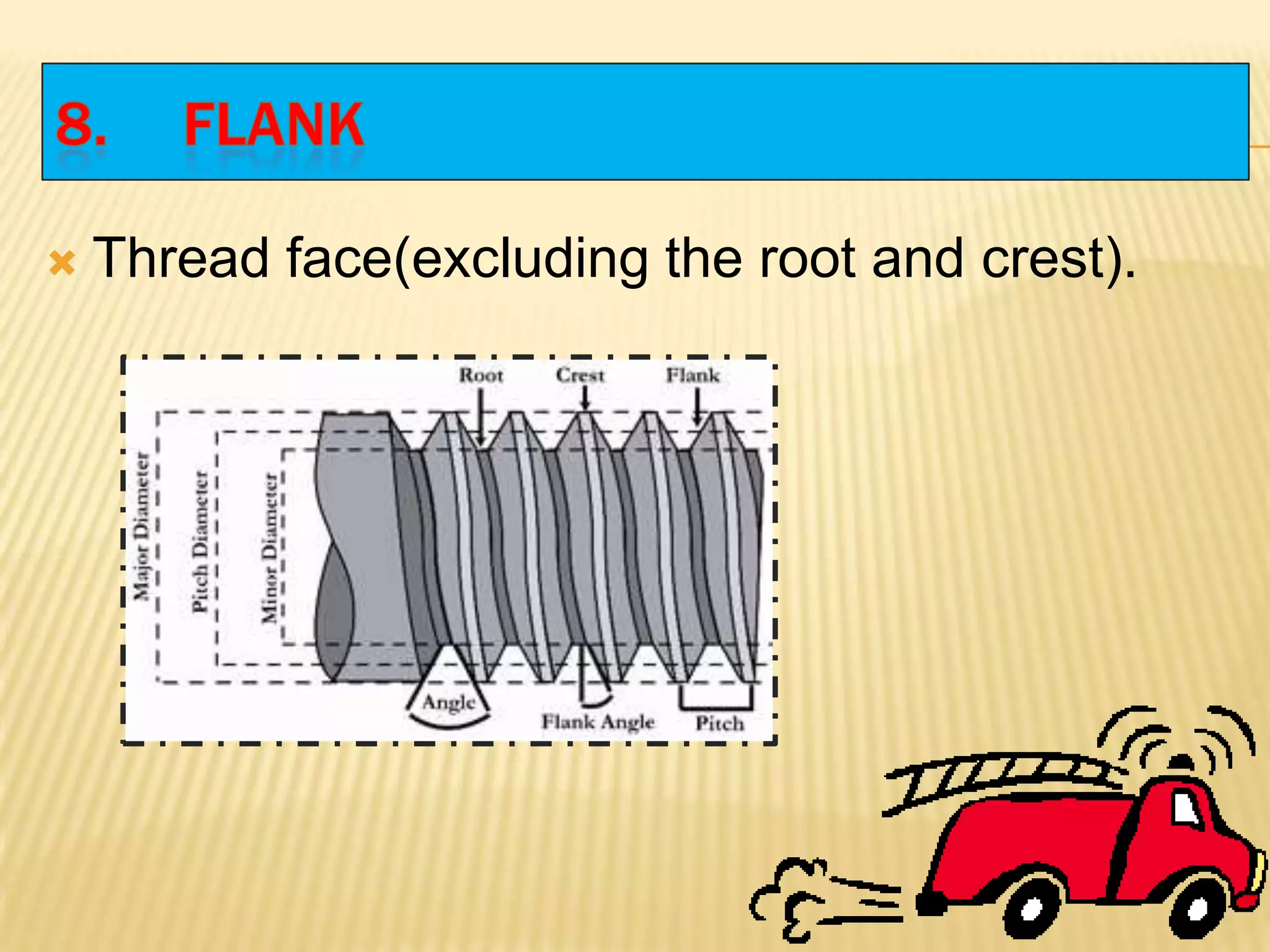

15.  Thread face(excluding the root and crest).

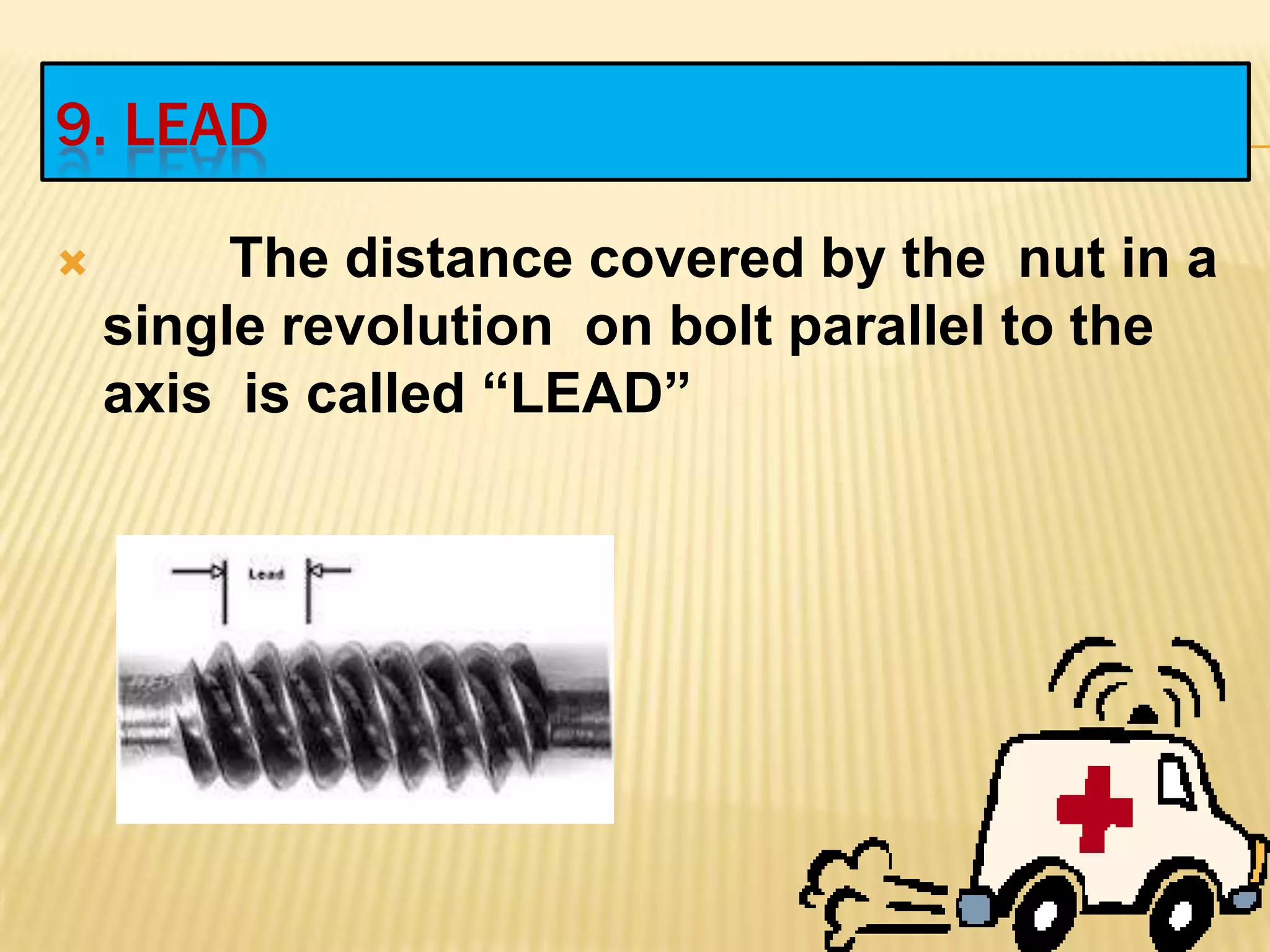

16. 9. LEAD
 The distance covered by the nut in a
single revolution on bolt parallel to the
axis is called “LEAD”

17. COMPOSER:
SUBJECT:
CREDITS:
• ADNAN ASLAM
ROLL NO:(9801)
• MACHINE
DESIGN
• MT - 343
• T.M.R ; B
• SESSION:(2009-
12)

18. LINE FOR SESSIONALS
