A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit.
1. THERMOCOUPLE
∙ Principle of Operation
∙ Materials Used
∙ Advantages
∙ Applications
∙ Comparison with RTD
∙ Limitations
By
AnandBongir
GirjashankarMishra
2. A thermocouple is a junction between two different metals that produces a voltage related to a temperature difference.
3. Principle of Operation
Thermocouples are based on the principle that two wires made of dissimilar materials connected at either end will generate a potential between the two ends that is a function of the materials and temperature difference between the two ends (also called the Seebeck Effect).
4. Seebeck Effect
5.
6. Materials Used
Type K:
Chromel – Alumel
• Range: −200 °C to +1350 °C
• Sensi: 41 µV/°C
Type J:
Iron – Constantan
• −40 to +750 °C
• 55 µV/°C
Type E:
Chromel – Constantan
• 401 to 900° C
• 68 µV/°C
Type N:
Nicrosil – Nisil
• >1200 °C
• 39 µV/°C
7. Advantages
It is rugged in construction
Covers a wide temperature range
Using extension leads and compensating cables, long transmission distances for temperature measurement possible. This is most suitable for temperature measurement of industrial furnaces
Comparatively cheaper in cost
Calibration can be easily checked
Offers good reproducibility
High speed of response
Satisfactory measurement accuracy
8. Limitations
For accurate temperature measurements, cold junction compensation is necessary
The emf induced versus temperature characteristics is somewhat nonlinear
Stray voltage pickup is possible
In many applications, amplification of signal is required
9. Applications
Type B, S, R and K thermocouples are used extensively in the steel and iron industries to monitor temperatures and chemistry throughout the steel making process.
Gas-fed heating appliances such as ovens & water heaters.
In the testing of prototype electrical and mechanical apparatus
heat conduction and its mechanisms ,thermal conductivity,Fourier law,variation of thermal conductivity with temperature in metals and solids,steady and unsteady states,biot and Fourier numbers and their significance, Lumped heat analysis
Heat transfer due to emission of electromagnetic waves is known as thermal radiation. Heat transfer through radiation takes place in form of electromagnetic waves mainly in the infrared region. Radiation emitted by a body is a consequence of thermal agitation of its composing molecules. The underlying mechanisms and the concepts involved are discussed in the ppt
A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit.
1. THERMOCOUPLE
∙ Principle of Operation
∙ Materials Used
∙ Advantages
∙ Applications
∙ Comparison with RTD
∙ Limitations
By
AnandBongir
GirjashankarMishra
2. A thermocouple is a junction between two different metals that produces a voltage related to a temperature difference.
3. Principle of Operation
Thermocouples are based on the principle that two wires made of dissimilar materials connected at either end will generate a potential between the two ends that is a function of the materials and temperature difference between the two ends (also called the Seebeck Effect).
4. Seebeck Effect
5.
6. Materials Used
Type K:
Chromel – Alumel
• Range: −200 °C to +1350 °C
• Sensi: 41 µV/°C
Type J:
Iron – Constantan
• −40 to +750 °C
• 55 µV/°C
Type E:
Chromel – Constantan
• 401 to 900° C
• 68 µV/°C
Type N:
Nicrosil – Nisil
• >1200 °C
• 39 µV/°C
7. Advantages
It is rugged in construction
Covers a wide temperature range
Using extension leads and compensating cables, long transmission distances for temperature measurement possible. This is most suitable for temperature measurement of industrial furnaces
Comparatively cheaper in cost
Calibration can be easily checked
Offers good reproducibility
High speed of response
Satisfactory measurement accuracy
8. Limitations
For accurate temperature measurements, cold junction compensation is necessary
The emf induced versus temperature characteristics is somewhat nonlinear
Stray voltage pickup is possible
In many applications, amplification of signal is required
9. Applications
Type B, S, R and K thermocouples are used extensively in the steel and iron industries to monitor temperatures and chemistry throughout the steel making process.
Gas-fed heating appliances such as ovens & water heaters.
In the testing of prototype electrical and mechanical apparatus
heat conduction and its mechanisms ,thermal conductivity,Fourier law,variation of thermal conductivity with temperature in metals and solids,steady and unsteady states,biot and Fourier numbers and their significance, Lumped heat analysis
Heat transfer due to emission of electromagnetic waves is known as thermal radiation. Heat transfer through radiation takes place in form of electromagnetic waves mainly in the infrared region. Radiation emitted by a body is a consequence of thermal agitation of its composing molecules. The underlying mechanisms and the concepts involved are discussed in the ppt
MICROSCOPIC & MACROSCOPIC POINT OF VIEW , THERMODYNAMIC SYSTEM & CONTROL VO...KRUNAL RAVAL
Thermodynamics is science of energy transfer and its effects on properties.
Main aim is to convert disorganized form of energy into organized form of energy in an efficient manner. Based on the macroscopic approach which does not require knowledge of behavior of individual particles and is called classical thermodynamics.
It is a PowerPoint presentation of Kirchhoff's law of thermal radiation. And it gives a brief idea of Kirchhoff's law, its applications, and examples. Moreover, it explains the terms absorptivity, emissive power, thermal equilibrium, and emissivity.
MICROSCOPIC & MACROSCOPIC POINT OF VIEW , THERMODYNAMIC SYSTEM & CONTROL VO...KRUNAL RAVAL
Thermodynamics is science of energy transfer and its effects on properties.
Main aim is to convert disorganized form of energy into organized form of energy in an efficient manner. Based on the macroscopic approach which does not require knowledge of behavior of individual particles and is called classical thermodynamics.
It is a PowerPoint presentation of Kirchhoff's law of thermal radiation. And it gives a brief idea of Kirchhoff's law, its applications, and examples. Moreover, it explains the terms absorptivity, emissive power, thermal equilibrium, and emissivity.
http://studentlifeatdisk.weebly.com/
http://www.dia.doshisha.ac.jp/disk/
As an MYP interested school we are introducing MYP-style Technology classes. This video was produced to help "flip" our classroom. Students can view this (or the YouTube or Vimeo versions) elsewhere in order to spend more time in class actually creating, collaborating and working in an environment with other learners with access to a knowledgeable"expert".
Lecture 2 Basic Concepts in Machine Learning for Language TechnologyMarina Santini
Definition of Machine Learning
Type of Machine Learning:
Classification
Regression
Supervised Learning
Unsupervised Learning
Reinforcement Learning
Supervised Learning:
Supervised Classification
Training set
Hypothesis class
Empirical error
Margin
Noise
Inductive bias
Generalization
Model assessment
Cross-Validation
Classification in NLP
Types of Classification
We have made an experimental set-up to measure thermal conductivity of oil. Experimental setup is designed in such a way that the accuracy it obtain is kept at the same level, while the cost of the experimentation is reduced to 1/10th of other equivalent model available in market. Modifications done are in positioning of the thermocouple, mass flow rate of the water through the water jacket and its arrangement, the design and placement of heater, the positioning oil pocket for oil, use of less costly and widely available material, etc.
Thermal conductivity can be defined as the rate at which heat is transferred by conduction through a unit cross-section area of a material, when a temperature gradient exits perpendicular to the area.
Development of Thermal Conductivity Measurement Test Rig for Engineering Mate...IOSR Journals
This paper describe the development of a hot rod method by using water as a coolant medium which
measure the heat loss through the rod for the steady state measurement of thermal conductivity of small
samples. The heat flow through the test sample was essentially one dimensional and heat loss through
engineering material is made to use heated guard to block the flow of heat from the hot rod to the
surroundings. Since large correction factors must be applied to account for guard imperfection and not
maintained ideal condition. So that it may be preferable to simply measure and correct for the heat that flows
from the heater disc to directions other than into the sample. Experimental measurements taken in a prototype
apparatus combined with extensive computational modeling of the heat transfer in the apparatus show that
sufficiently accurate measurements can be obtained to allow determination of thermal conductivity of
engineering material. Suggestions are made for further improvements in the method based on results from
regression analysis of the generated data.
Performance Evaluation of Thermoelectric Materials: A Case Study of Orthorhom...inventionjournals
Designers often face the predicament of non-standardized and poor performing materials for thermoelectric module manufacturing. Other than analytical means, the only method to evaluate the performance of thermoelectric materials would be through experimental means. This work studies the experimental approach employed in performance investigation of thermoelectric materials using Orthorhombic SnSe crystals as a case study. The result obtained reveals the high thermoelectric conversion efficiency of orthorhombic crystals, and that they can operate as both low and high temperature thermoelectric material.
Experimentation and analysis of heat transfer through perforated fins of diff...SharathKumar528
Engineering Project by Abhijath HB, Dashartha H S, Akshay Mohanraj and Sharath Kumar M S involving analysis of Fins( Heat exchanging extensions) with various geometrical perforations.
A Strategic Approach: GenAI in EducationPeter Windle
Artificial Intelligence (AI) technologies such as Generative AI, Image Generators and Large Language Models have had a dramatic impact on teaching, learning and assessment over the past 18 months. The most immediate threat AI posed was to Academic Integrity with Higher Education Institutes (HEIs) focusing their efforts on combating the use of GenAI in assessment. Guidelines were developed for staff and students, policies put in place too. Innovative educators have forged paths in the use of Generative AI for teaching, learning and assessments leading to pockets of transformation springing up across HEIs, often with little or no top-down guidance, support or direction.
This Gasta posits a strategic approach to integrating AI into HEIs to prepare staff, students and the curriculum for an evolving world and workplace. We will highlight the advantages of working with these technologies beyond the realm of teaching, learning and assessment by considering prompt engineering skills, industry impact, curriculum changes, and the need for staff upskilling. In contrast, not engaging strategically with Generative AI poses risks, including falling behind peers, missed opportunities and failing to ensure our graduates remain employable. The rapid evolution of AI technologies necessitates a proactive and strategic approach if we are to remain relevant.
Read| The latest issue of The Challenger is here! We are thrilled to announce that our school paper has qualified for the NATIONAL SCHOOLS PRESS CONFERENCE (NSPC) 2024. Thank you for your unwavering support and trust. Dive into the stories that made us stand out!
Honest Reviews of Tim Han LMA Course Program.pptxtimhan337
Personal development courses are widely available today, with each one promising life-changing outcomes. Tim Han’s Life Mastery Achievers (LMA) Course has drawn a lot of interest. In addition to offering my frank assessment of Success Insider’s LMA Course, this piece examines the course’s effects via a variety of Tim Han LMA course reviews and Success Insider comments.
Embracing GenAI - A Strategic ImperativePeter Windle
Artificial Intelligence (AI) technologies such as Generative AI, Image Generators and Large Language Models have had a dramatic impact on teaching, learning and assessment over the past 18 months. The most immediate threat AI posed was to Academic Integrity with Higher Education Institutes (HEIs) focusing their efforts on combating the use of GenAI in assessment. Guidelines were developed for staff and students, policies put in place too. Innovative educators have forged paths in the use of Generative AI for teaching, learning and assessments leading to pockets of transformation springing up across HEIs, often with little or no top-down guidance, support or direction.
This Gasta posits a strategic approach to integrating AI into HEIs to prepare staff, students and the curriculum for an evolving world and workplace. We will highlight the advantages of working with these technologies beyond the realm of teaching, learning and assessment by considering prompt engineering skills, industry impact, curriculum changes, and the need for staff upskilling. In contrast, not engaging strategically with Generative AI poses risks, including falling behind peers, missed opportunities and failing to ensure our graduates remain employable. The rapid evolution of AI technologies necessitates a proactive and strategic approach if we are to remain relevant.
The French Revolution, which began in 1789, was a period of radical social and political upheaval in France. It marked the decline of absolute monarchies, the rise of secular and democratic republics, and the eventual rise of Napoleon Bonaparte. This revolutionary period is crucial in understanding the transition from feudalism to modernity in Europe.
For more information, visit-www.vavaclasses.com
2024.06.01 Introducing a competency framework for languag learning materials ...Sandy Millin
http://sandymillin.wordpress.com/iateflwebinar2024
Published classroom materials form the basis of syllabuses, drive teacher professional development, and have a potentially huge influence on learners, teachers and education systems. All teachers also create their own materials, whether a few sentences on a blackboard, a highly-structured fully-realised online course, or anything in between. Despite this, the knowledge and skills needed to create effective language learning materials are rarely part of teacher training, and are mostly learnt by trial and error.
Knowledge and skills frameworks, generally called competency frameworks, for ELT teachers, trainers and managers have existed for a few years now. However, until I created one for my MA dissertation, there wasn’t one drawing together what we need to know and do to be able to effectively produce language learning materials.
This webinar will introduce you to my framework, highlighting the key competencies I identified from my research. It will also show how anybody involved in language teaching (any language, not just English!), teacher training, managing schools or developing language learning materials can benefit from using the framework.
Synthetic Fiber Construction in lab .pptxPavel ( NSTU)
Synthetic fiber production is a fascinating and complex field that blends chemistry, engineering, and environmental science. By understanding these aspects, students can gain a comprehensive view of synthetic fiber production, its impact on society and the environment, and the potential for future innovations. Synthetic fibers play a crucial role in modern society, impacting various aspects of daily life, industry, and the environment. ynthetic fibers are integral to modern life, offering a range of benefits from cost-effectiveness and versatility to innovative applications and performance characteristics. While they pose environmental challenges, ongoing research and development aim to create more sustainable and eco-friendly alternatives. Understanding the importance of synthetic fibers helps in appreciating their role in the economy, industry, and daily life, while also emphasizing the need for sustainable practices and innovation.
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdfTechSoup
In this webinar you will learn how your organization can access TechSoup's wide variety of product discount and donation programs. From hardware to software, we'll give you a tour of the tools available to help your nonprofit with productivity, collaboration, financial management, donor tracking, security, and more.
Macroeconomics- Movie Location
This will be used as part of your Personal Professional Portfolio once graded.
Objective:
Prepare a presentation or a paper using research, basic comparative analysis, data organization and application of economic information. You will make an informed assessment of an economic climate outside of the United States to accomplish an entertainment industry objective.
3. Contents Definition. Explanation. Methods to measure the thermal conductivity. Experiment. Application (importance). ……Use in industry. ……Use in laboratory. Latest researches in this field.

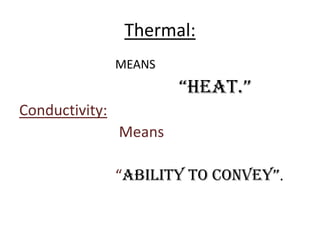

4. Thermal: MEANS “HEAT.” Conductivity: Means “ability to convey”.
5.

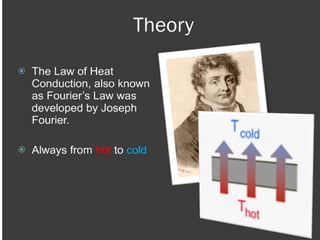

6. It is represented by k and is measured in watts per kelvin per metre (W·K−1·m−1).

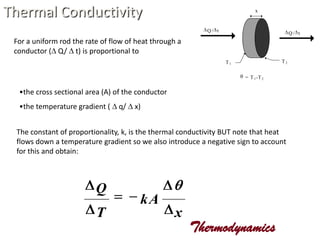

11. the temperature gradient ( q/ x)The constant of proportionality, k, is the thermal conductivity BUT note that heat flows down a temperature gradient so we also introduce a negative sign to account for this and obtain: Thermodynamics
12. Thermal Conductivity k depends on the material and is called the thermal conductivity. Rearranging in terms of k we can evaluate the units of k: So k is defined as the rate of flow of heat through unit area of cross section of 1m of material when the temperature difference between the surfaces is 1K. Thermodynamics

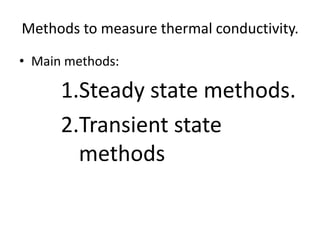

13. Methods to measure thermal conductivity. Main methods: Steady state methods. Transient state methods

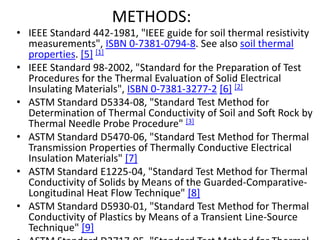

14. Steady state methods. Definition: These methods are used when the materials are in equilibrium state( means when temperature of the materials is constant). Advantage : Accurate readings can be taken. It steady state implies constant signals. Disadvantage: As material take to long time to reach equilibrium state so it is slow method.

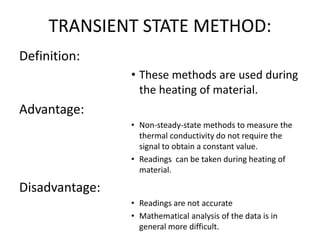

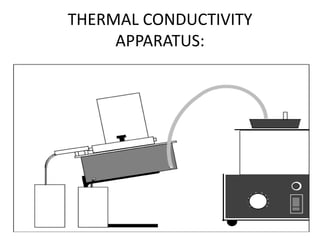

15. TRANSIENT STATE METHOD: Definition: These methods are used during the heating of material. Advantage: Non-steady-state methods to measure the thermal conductivity do not require the signal to obtain a constant value. Readings can be taken during heating of material. Disadvantage: Readings are not accurate Mathematical analysis of the data is in general more difficult.

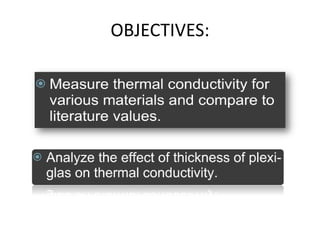

16. METHODS: IEEE Standard 442-1981, "IEEE guide for soil thermal resistivity measurements", ISBN 0-7381-0794-8. See also soil thermal properties. [5][1] IEEE Standard 98-2002, "Standard for the Preparation of Test Procedures for the Thermal Evaluation of Solid Electrical Insulating Materials", ISBN 0-7381-3277-2[6][2] ASTM Standard D5334-08, "Standard Test Method for Determination of Thermal Conductivity of Soil and Soft Rock by Thermal Needle Probe Procedure" [3] ASTM Standard D5470-06, "Standard Test Method for Thermal Transmission Properties of Thermally Conductive Electrical Insulation Materials" [7] ASTM Standard E1225-04, "Standard Test Method for Thermal Conductivity of Solids by Means of the Guarded-Comparative-Longitudinal Heat Flow Technique" [8] ASTM Standard D5930-01, "Standard Test Method for Thermal Conductivity of Plastics by Means of a Transient Line-Source Technique" [9] ASTM Standard D2717-95, "Standard Test Method for Thermal Conductivity of Liquids" [10] ISO 22007-2:2008 "Plastics -- Determination of thermal conductivity and thermal diffusivity -- Part 2: Transient plane heat source (hot disc) method" [11]

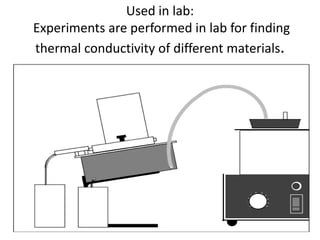

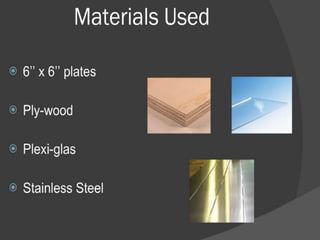

20. PROCEDUER: Take ice block ,find its weight and volume and place it on the material sheet. Then place it on the plate which is under observation Then provide steam for sometime then we the ice converted to water then measure the weight of the water (in beaker). Then place this values in the formula and calculate the conductivity.

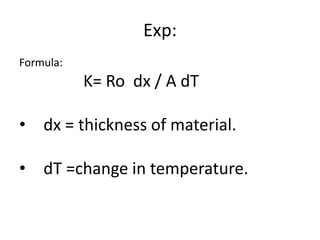

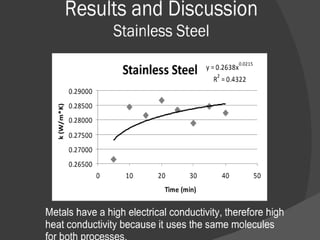

21. Exp: Formula: K= Ro dx / A dT dx = thickness of material. dT =change in temperature.

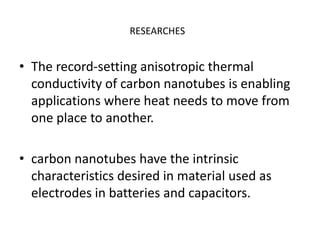

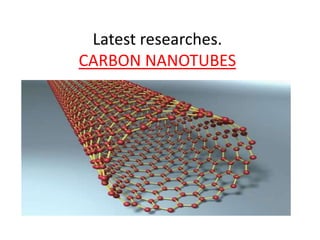

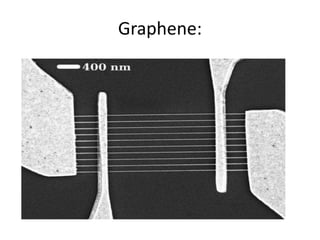

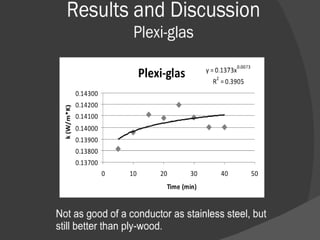

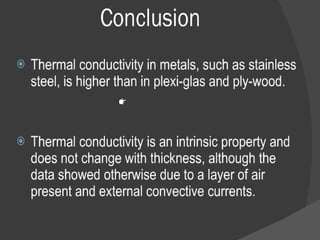

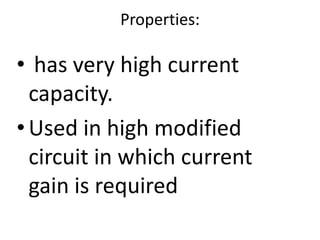

32. RESEARCHES The record-setting anisotropic thermal conductivity of carbon nanotubes is enabling applications where heat needs to move from one place to another. carbon nanotubes have the intrinsic characteristics desired in material used as electrodes in batteries and capacitors.
