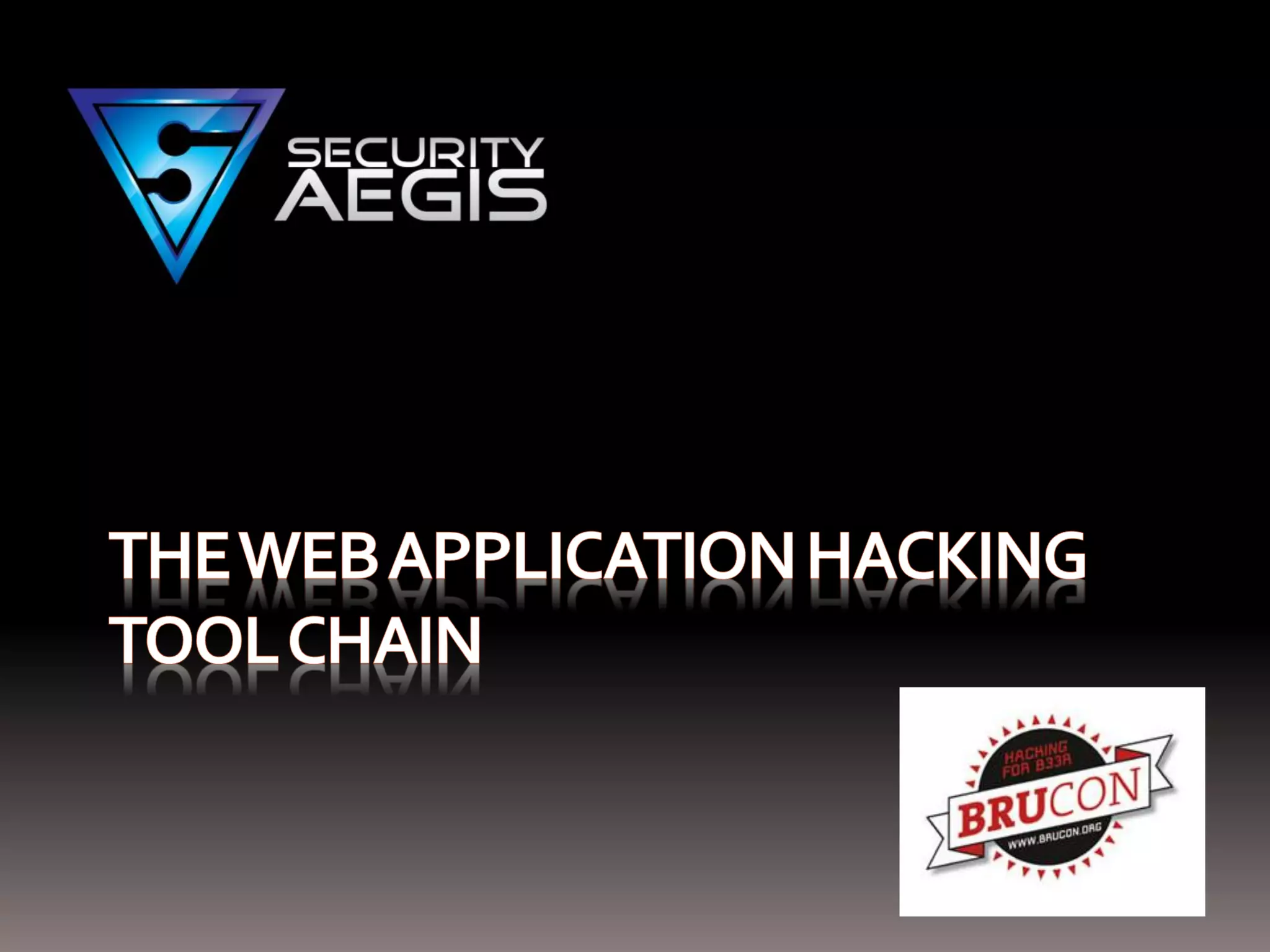

A cursory look at new tools and techniques for 2012

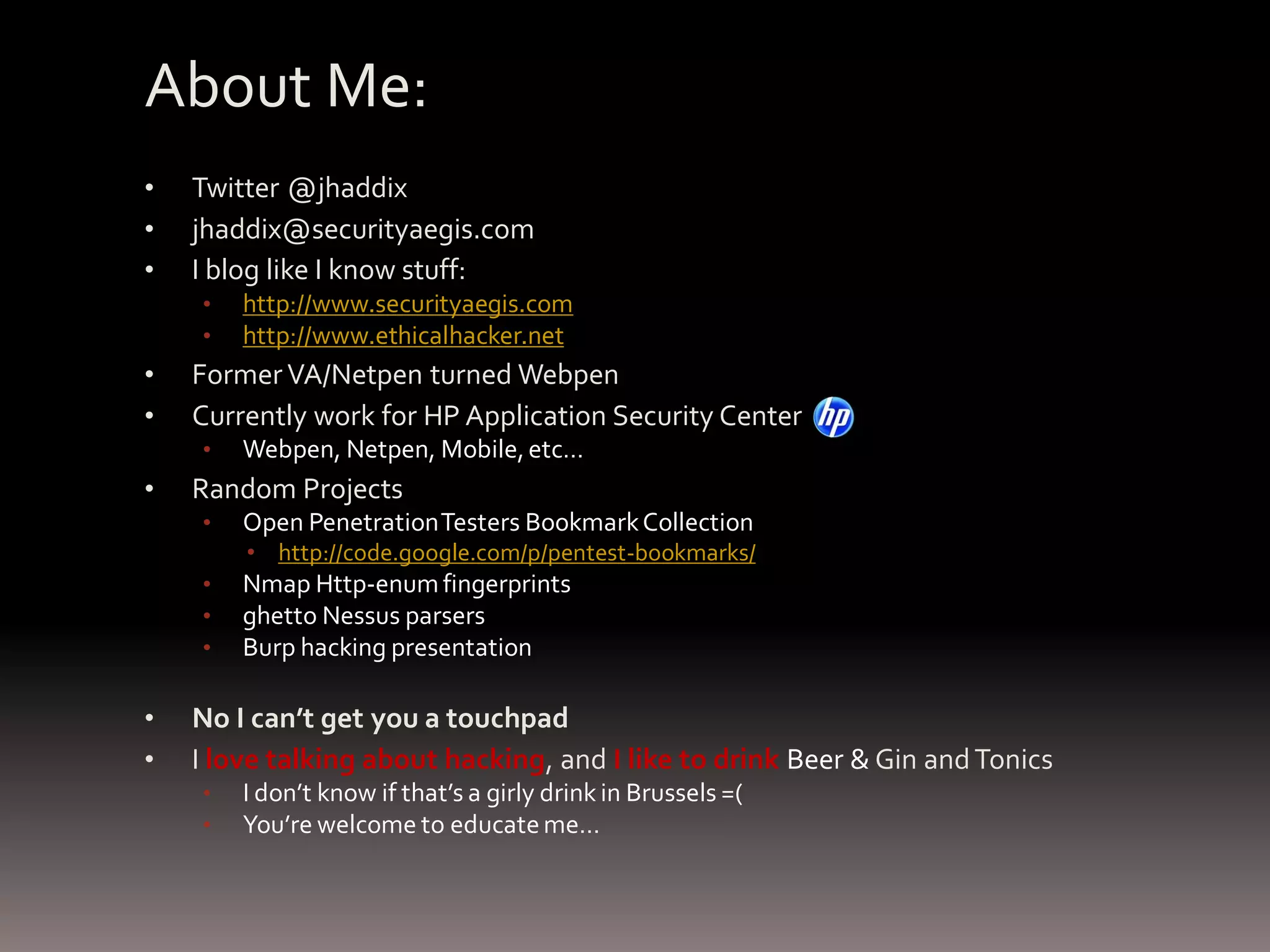

2. About Me:
• Twitter @jhaddix
• jhaddix@securityaegis.com
• I blog like I know stuff:
• http://www.securityaegis.com
• http://www.ethicalhacker.net
• Former VA/Netpen turned Webpen
• Currently work for HP Application Security Center
• Webpen, Netpen, Mobile, etc…
• Random Projects
• Open Penetration Testers Bookmark Collection
• http://code.google.com/p/pentest-bookmarks/
• Nmap Http-enum fingerprints
• ghetto Nessus parsers
• Burp hacking presentation
• No I can’t get you a touchpad
• I love talking about hacking, and I like to drink Beer & Gin and Tonics
• I don’t know if that’s a girly drink in Brussels =(
• You’re welcome to educate me…

3. Words for the Wise:
“Until a man is twenty-five, he still thinks, every so often, that
under the right circumstances he could be the baddest
motherfucker in the world. If (he) moved to a martial-arts
monastery in China and studied real hard for ten years. If (his)
family was wiped out by Colombian drug dealers and (he) swore
(himself) to revenge. If (he) got a fatal disease, had one year to
live, and devoted it to wiping out street crime. If (he) just dropped
out and devoted (his) life to being bad.
Hiro used to feel this way, too, but then he ran into Raven. In a
way, this was liberating. He no longer has to worry about being
the baddest motherfucker in the world. The position is taken.”
― Neal Stephenson, Snow Crash

4. Workshop:
Done a few conference talks, never done a workshop:
• I’m going to move fast, you will get the slides from the con.
• Videos for demos available shortly after the conference
• If there’s something you want to know just pull me aside sometime or
catch me around the con, I’ll do my best to answer all questions.
• You’re pretty much getting a whole class converted to a workshop =).
• Excuses!
• http://code.google.com/p/owaspbwa/
• OK… lets do it.

6. • Web Hacking Tool Classes:
• OSINT (Passive or Semi-Passive)
• Discovery (usually dir brute-forcing or platform
identification)
• Brute Force (password bruting tools)
• Proxies (usually include spider’s)
• Fuzzers/Scanners (error or vuln identification tools)
• Exploitation (vuln exploitation tools)
• Data Aggregation

7. • What am I, a script kiddie?
•Yes and no, you’re a pentester; Which means you have
approximately 40hrs to do what a blackhat has months to
do.
•We need to identify technologies faster, vulns faster, and
speed up the attack process.
•We need to identify the best process and tools to use,
even for our manual web pentesting.

8. GOAL: Gather data to be useful in a web pentest without
(or minimally) interacting with the target.
Google Hacking:
SearchDiggity
Metadata:
FOCA
Email Gathering:
TheHarvester
Metasploit

9. SearchDiggity:
The SearchDiggity tools are basically automation of google/bing hacking
queries. Think of about a thousand vulnerability checks executed against
your target except they are not actually touching your target, only the
search engine cache.

10. GOAL: Free vulnerability
checks aka Google
hacking.
SearchDiggity:
• Requires Ajax Search
Query API key
• 100 queries per day
unless you register a CC
• Buy a pre-paid visa for
$10
• Find vulns fast

11. GOAL: Extract domain usernames, internal pathing, software
versions, etc
FOCA:
FOCA is a windows tool to spider a domain for documents using google/bing/exalead,
download them, and then extract relevant metadata and server information.
• http://www.informatica64.com/DownloadFOCA/
I always go see these guys at DC:
• http://vimeo.com/10602662
• http://vimeo.com/16706893

13. GOAL: Extract domain usernames, internal pathing, etc

14. GOAL: Gather email addresses for forms based logins, etc.
One of the first parts of recon in a pentest is gathering valid login names
and emails. We can use these to profile our target, bruteforce
authentication systems, send client-side attacks (through phishing), look
through social networks for juicy info on platforms and technologies, etc.
Where do we get this info? Well without doing a full-blown Open Source
Recon (OSINT) style assessment, we can use two simple scripts:
• Metasploit's search_email_collector.rb and
• theHarvester

15. Metasploit, under modules/auxiliary/gather, has search_email_collector.rb and
uses search techniques for Google, Bing, and Yahoo.
http://www.metasploit.com/modules/auxiliary/gather/search_email_collector
ruby /framework3/msfcli auxiliary/gather/search_email_collector DOMAIN=your_target_domain OUTFILE=output_file E
Running MSF search_email_collector...
[*] Please wait while we load the module tree...
[*] Harvesting emails .....
[*] Searching Google for email addresses from defcon.com
[*] Extracting emails from Google search results...
[*] Searching Bing email addresses from defcon.com
[*] Extracting emails from Bing search results...
[*] Searching Yahoo for email addresses from defcon.com
[*] Extracting emails from Yahoo search results...
[*] Located 7 email addresses for defcon.com
[*] headsets@defcon.com
[*] info@defcon.com
[*] jobs@defcon.com
[*] nick.s@defcon.com
[*] nick@defcon.com
[*] robert@defcon.com
[*] spr@defcon.com

16. theHarvester (just updated to v2.1) has now fixed some of its previous
bugs. It supports searching Google, Bing, PGP servers, shodan, dns-
bruteforcing, and LinkedIn.
https://code.google.com/p/theharvester/
zombie@haktop:/tools/email/theHarvester# ./theHarvester.py -d
defcon.com -b google -l 500
Accounts found:
===================
quietpro@defcon.com
nick.s@defcon.com
robert@defcon.com
lynne@defcon.com
joe@defcon.com
info@defcon.com
dtangent@defcon.com

17. theHarvester:

18. There’s also a ton of OSINT sites to help identify server information
without ever touching your target yourself:
• Netcraft (Uptime Survey, server info)
• Domain Tools (Whois Lookup and Domain info)
• Centralops.net (traceroute, nslookup, automatic whois lookup, ping, finger)
• Hackerfantastic.com ( GeoIP, whois, host, dig, blacklists, ping, traceroute & nmap)
• whois.webhosting.info (WHOIS and Reverse IP Service/virtual hosting info)
• BING IP Search
• SSL Labs – Projects / Public SSL Server Database – SSL Server Test
• SHODAN – Computer Search Engine (indexed port scans and banner grabs)
• Chris Gates presented on OSINT at Brucon 2009
• http://vimeo.com/6811411
• Other good OSINT resources:
• http://www.slideshare.net/agent0x0/enterprise-open-source-
intelligence-gathering
• http://www.slideshare.net/Laramies/tactical-information-gathering

19. Now we need to map the site. Some issues that we need to
deal with when mapping the site are poor ajax support for
spidering (we go over this later) and finding non-linked
resources. To find non linked resources we bruteforce
common file/path names, framework paths, etc.
Discovery Tools:
• Dirbuster & Wfuzz
• SVNDigger Lists
• FuzzDB and RAFT Lists
• (optionally) Nmap HTTP-Enum & CMS Explorer

20. Dirbuster is a cross
platform directory
bruteforcer written in java
(GUI app).
Tips:
• Disable Recursion and
Redirects for faster
leaner bruting (our
spiders will follow
redirects later)
• We can change
threading on the fly
• Dirbuster’s built-in lists
are from a project that
basically spidered the
whole internet.

21. Wfuzz is a command line equivalent, with a bit more functionality for
general web fuzzing (filter by resp code, wc, charc, etc):
• http://www.edge-security.com/wfuzz.php
Also has some lists!

22. 301’s sometimes redirect to very
interesting subdomains or promo
pages.

23. Alright, so for non linked resources and discovery we can use Dirbuster’s
lists or Wfuzz’s but they are very generic (that’s not necessarily a bad
thing). Like I mentioned before, Dirbuster’s are based off of spidering the
net and aggregating the most common directory data and common
words (partially).
But isn't that finding linked resources? Yes
There are some more options for us as far as lists go:
SVNDigger – a set of directory lists based of pathing of open source
projects on Google Code and SourceForge.
RAFT Lists:
http://code.google.com/p/fuzzdb/
Within the Discovery/PredictableRes path

24. http://www.mavitunasecurity.com/blo
g/svn-digger-better-lists-for-forced-
browsing/
SourceForge and GoogleCode, 400k
words (5000 projects), directories
sorted by project:
• Type
• Extension contained
• Context
• DB Type
Most coverage/success running the
“all” lists, pick as you need.

25. RAFT is a recent proxy project released
at BHUSA 2011, with a set of wordlists
for content discovery based upon
spidering 1.7 million “robots.txt”
disallows and contextual framework
paths. There’s some overlap with
SVNDigger. The lists themselves are
downloadable from the RAFT site but
they are also contained in the FuzzDB
Discovery/PredictableRes directory
which we’ll be seeing in the tactical
fuzzing section later.
Broken down into directories, words, and files
which takes us to smarter recursive content
discovery…

26. 1. Use raft-large-directories
in Dirbuster or Burp
2. Take the successful
output and add it to a
Burp Intruder setup
(clusterbomb) as payload
set 1
3. Add raft-large-files.txt as
2nd payload set

28. Storytime

29. Hopefully at this point we have some logins or emails to try and bruteforce
authentication from the OSINT section. I prefer Burp Suite’s Intruder Module for
bruteforcing authentication.
1. Attempt Login
2. Go to Proxy History Tab
3. Find the POST request
4. Send to Intruder
5. Use Cluster Bomb payload
6. Clear all payload positions
7. Mark username and password fields as
payload positions
8. Goto “payloads” tab
9. Set “payload set” 1 to your username list
10. Set “payload set” 2 to your password list
11. Click on the intruder Menu
12. Start Attack
13. Look for different lengths or grep possible
successful auth messages under options

30. With some valid usernames we want to up our chances of bruting a valid
password. Ron Bowes (@iagox86) has some fantastic password research and has
archived many of the lists that have been leaked on the web.
http://www.skullsecurity.org/blog/2010/the-ultimate-faceoff-between-
password-lists
Huge password repository. Actual user data from hacked sites:
• RockYou (Rockyou 75 is a winner)
• Phpbb
• Myspace
• Hotmail
• Hak5
• Facebook
• More…

31. Just a few…

32. GOAL: Spider the site, identify fuzz points, chain and feed scanner.
For proxies and spidering I use Burp Suite. There exists some good Paros forks (ZAP)
but Burp, even the free version, has much more power and extensibility.

33. Fiddler is a unique and
powerful option as well due to
some great plugins such as
Watcher (for passively
identifying user controllable
)and x5s (for identifying
possible xss insertion points).
These can help us later when
we want to start tacitly
fuzzing.

35. Proxies sit between you and the browser but they can also enhance your testing by
chaining them with your other tools. This is great if your scanner has a proxy mode, this
way we get walk through the functionality of the site and hit it with two different spider
engines and finally attack it with our scanner. Additionally, chaining proxies and scanners
can help us deal with auth/session issues in hard to scan environments (NTLM/Kerberos). If
you’re sticking with open source tools or non-proxy mode scanners you can export your
spider results as links and import them into you scanner.
Browser -> Burp -> Scanner (in proxy mode) -> Site
1. Walk app, executing all Ajax and rich functionality (snaplinks is handy)
2. Browse to anything from the discovery stage to populate proxy and scanner
3. Spider with Proxy of choice
4. (optional, this might pollute your site tree) Fuzz with fuzzer/proxy of choice
5. Run Scan
This all gets fed to the scanner sitemap/tree. Now the scanner has the best chance of
finding all fuzz points and vulns.

36. You said scanners! Which ones?!
Shay Chen has some excellent
research on the accuracy of open
source and commercial scanners.
 Only covers XSS and SQLi atm

37. Now that you have the blanket stuff out of the way, its time to interpret the proxy and
scanner data for tactical fuzzing points.
 Does this functionality display something back to the user?
 Fuzz for XSS
 Does it interact with a database?
 Fuzz for SQLi or other injections
 Does it call on the server file system?
 Fuzz for LFI/PT
 Does it call on a URL or external/internal site/domain?
 Fuzz for RFI
Tactical Fuzzing? Wtf?

38. Now we can fully utilize the project we mentioned a few times earlier, the Fuzz
Database:
“ The fuzzdb aggregates known attack patterns, predictable resource names,
server response messages, and other resources like web shells into the most
comprehensive Open Source database of malicious and malformed input test
cases.”

39. 1. Use Fuzzdb strings on all the afore mentioned forms and parameters
2. Re-fuzz all parameters that gave errors on the spidering/scanning results.
3. After concretely identifying the platform, re-fuzz/content discover with that
platforms specific lists.

40. The fuzzdb also has an excellent error /vuln grep file for import into Burp:

41. When it comes to exploitation tools mostly we need some
automagic tools to exploit different forms of SQL injection or file
include vulnerabilities. For manual testing we also need a set of
web shells.
Our standards are SQLmap, Havij, SQLninja for sql injection
fimap and metasploit for file include vulnerabilities.
and a common set of web shells from the fuzzdb .

42. SQLmap is a comprehensive SQL injection tool with the ability to do many forms of
injection.
SQLmap Tips:
 -l can import Burp logs to test your hosts (when saving in Burp use only your targets in
scope) ./sqlmap -l /root/sqli.txt
 Often we want to force POST parameters ,setting –data will force POST: --
data=userid=test&pass=test
 We can specify parameters with -p : ./sqlmap –u TARGET-p userid,pass
 --level=LEVEL Level of tests to perform (1-5, default 1) has to do with insertion points.
 --risk=RISK Risk of tests to perform (0-3, default 1) has to do with test cases.
 ./sqlmap -l /root/sqli.txt --level=5 --risk=3
 You can max out speed at threads=10
 --forms will parse and test all forms on target
 --os-pwn for possible meterpreter shell

43. Other tools mentioned help us in edge cases:
 Havij for very up to date WAF evasion (modsec) Use at your
own risk.
 http://itsecteam.com/en/projects/project1.htm
 SQLNinja when SQLmap will not exploit
 http://sqlninja.sourceforge.net/
 Fimap for file include exploitation
http://code.google.com/p/fimap/
 Metasploit for remote file includes
 exploit/unix/webapp/php_include

45. We also need some stand
alone shells in several
different languages for
upload vulns. Luckily the
FuzzDB has these as well.

46. What about taking XSS beyond alert(‘xss’)?
BeEF is the best tool for javascript attacks. It’s more extensible now that it
integrates with metasploit. We now can:
 Hook the browser with invisible iframes
 Inject/change content on the fly
 Footprint the internal network
 Sniff keystrokes
 Deliver browser based exploits or metasploit meterpreter java payloads for
full control of the target

47. Video

48. What about web
services, SOAP,
XML?
With a wsdl and
SOAPui proxied
through Burp
and tactically
fuzzing with the
Fuzzdb test
cases we can do
more than any
script or tool I’ve
seen released.

49. I don’t have a fancy portal to put my data =(
The Dradis framework has been revamped to accept a ton for tool outputs allowing us to
import data and keep working faster.
Imports:
 Nmap
 Burp
 Nessus
 Metasploit
 Netsparker
 Openvas
 w3af
Mindmapping software works well too.

51. With all this out of the way semi-quickly we can now take more
time to tactically fuzz and test for logic and more obscure
manual checks!

52. Special thanks go out to:
 Andre Gironda
 Chris Gates, Armando Romeo, Joe McCray, James Fitts,
Bernardo Damele, Daniel Miessler, Ferruh Mavituna, Shay
Chen, Ron Bowes, Adam Muntner, and all tool authors.
