The VoiceMOS Challenge 2022
Wen-Chin Huang¹, Erica Cooper², Yu Tsao³, Hsin-Min Wang³, Tomoki Toda¹, Junichi Yamagishi²
¹Nagoya University, Japan
²National Institute of Informatics, Japan
³Academia Sinica, Taiwan
第141回音声言語情報処理
研究発表会 招待講演

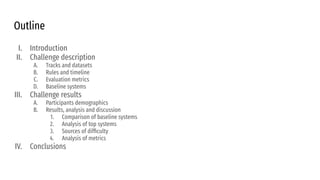

Outline
I. Introduction
II. Challenge description
A. Tracks and datasets
B. Rules and timeline
C. Evaluation metrics
D. Baseline systems
III. Challenge results
A. Participants demographics
B. Results, analysis and discussion
1. Comparison of baseline systems
2. Analysis of top systems
3. Sources of difficulty
4. Analysis of metrics
IV. Conclusions

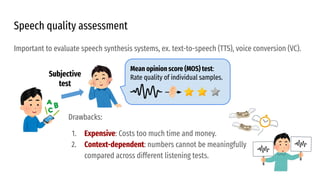

Introduction
Important to evaluate speech synthesis systems, ex. text-to-speech (TTS), voice conversion (VC).
Mean opinion score (MOS) test:
Rate quality of individual samples.
Speech quality assessment
Subjective
test
Drawbacks:
1. Expensive: Costs too much time and money.
2. Context-dependent: numbers cannot be meaningfully
compared across different listening tests.
Important to evaluate speech synthesis systems, ex. text-to-speech (TTS), voice conversion (VC).
Mean opinion score (MOS) test:
Rate quality of individual samples.
Speech quality assessment
Subjective
test
Objective
assessment
Data-driven MOS prediction
(mostly based on deep learning)
Drawback: bad
generalization ability
due to limited training
data.
Goals of the VoiceMOS challenge
*Accepted as an Interspeech 2022 special session!
Encourage research in
automatic data-driven
MOS prediction
Compare different
approaches using
shared datasets and
evaluation
Focus on the
challenging case of
generalizing to a
separate listening test
Promote discussion
about the future of
this research field
Challenge
description
I. Tracks and datasets
II. Rules and timeline
III. Evaluation metrics
IV. Baseline systems

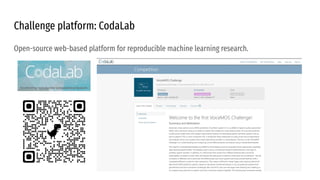

Challenge platform: CodaLab
Open-source web-based platform for reproducible machine learning research.

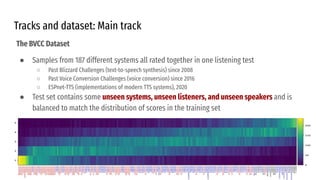

Tracks and dataset: Main track
The BVCC Dataset
● Samples from 187 different systems all rated together in one listening test
○ Past Blizzard Challenges (text-to-speech synthesis) since 2008
○ Past Voice Conversion Challenges (voice conversion) since 2016
○ ESPnet-TTS (implementations of modern TTS systems), 2020
● Test set contains some unseen systems, unseen listeners, and unseen speakers and is
balanced to match the distribution of scores in the training set

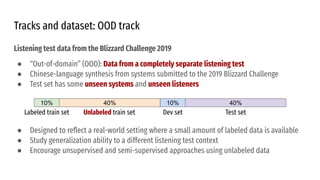

Listening test data from the Blizzard Challenge 2019
● “Out-of-domain” (OOD): Data from a completely separate listening test
● Chinese-language synthesis from systems submitted to the 2019 Blizzard Challenge
● Test set has some unseen systems and unseen listeners
● Designed to reflect a real-world setting where a small amount of labeled data is available
● Study generalization ability to a different listening test context
● Encourage unsupervised and semi-supervised approaches using unlabeled data
Tracks and dataset: OOD track
10% 40% 10% 40%
Labeled train set Unlabeled train set Dev set Test set
Dataset summary

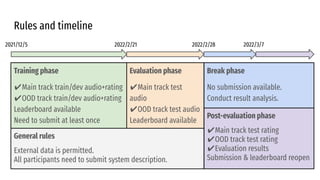

Rules and timeline
Training phase
✔Main track train/dev audio+rating
✔OOD track train/dev audio+rating
Leaderboard available
Need to submit at least once
2021/12/5 2022/2/21 2022/2/28 2022/3/7
Break phase
No submission available.
Conduct result analysis.
Evaluation phase
✔Main track test
audio
✔OOD track test audio
Leaderboard available
Max 3 submissions
Post-evaluation phase
✔Main track test rating
✔OOD track test rating
✔Evaluation results
Submission & leaderboard reopen
General rules
External data is permitted.
All participants need to submit system description.
Evaluation metrics
System-level and Utterance-level
● Mean Squared Error (MSE): difference between predicted and actual MOS
● Linear Correlation Coefficient (LCC): a basic correlation measure
● Spearman Rank Correlation Coefficient (SRCC): non-parametric; measures ranking order
● Kendall Tau Rank Correlation (KTAU): more robust to errors
import numpy as np
import scipy.stats
# `true_mean_scores` and `predict_mean_scores` are both 1-d numpy arrays.
MSE = np.mean((true_mean_scores - predict_mean_scores)**2)
LCC = np.corrcoef(true_mean_scores, predict_mean_scores)[0][1]
SRCC = scipy.stats.spearmanr(true_mean_scores, predict_mean_scores)[0]
KTAU = scipy.stats.kendalltau(true_mean_scores, predict_mean_scores)[0]
Following prior work, we
picked system-level SRCC as
the main evaluation metric.

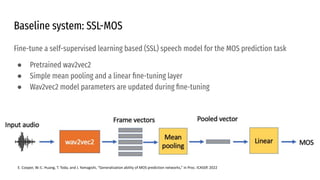

Baseline system: SSL-MOS
Fine-tune a self-supervised learning based (SSL) speech model for the MOS prediction task
● Pretrained wav2vec2
● Simple mean pooling and a linear fine-tuning layer
● Wav2vec2 model parameters are updated during fine-tuning
E. Cooper, W.-C. Huang, T. Toda, and J. Yamagishi, “Generalization ability of MOS prediction networks,” in Proc. ICASSP, 2022
Baseline system: MOSANet
● Originally developed for noisy speech
assessment
● Cross-domain input features:
○ Spectral information
○ Complex features
○ Raw waveform
○ Features extracted from SSL models
R. E. Zezario, S.-W. Fu, F. Chen, C.-S. Fuh, H.-M. Wang, and Y. Tsao, “Deep Learning-based Non-Intrusive
Multi-Objective Speech Assessment Model with Cross-Domain Features,” arXiv preprint
arXiv:2111.02363, 2021.

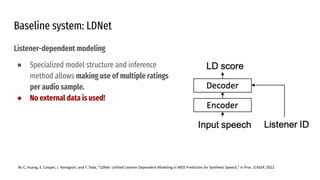

Baseline system: LDNet
Listener-dependent modeling
● Specialized model structure and inference
method allows making use of multiple ratings
per audio sample.
● No external data is used!
W.-C. Huang, E. Cooper, J. Yamagishi, and T. Toda, “LDNet: Unified Listener Dependent Modeling in MOS Prediction for Synthetic Speech,” in Proc. ICASSP, 2022

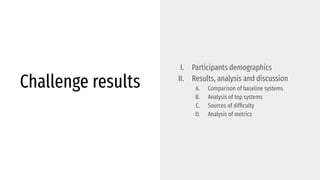

Challenge results
I. Participants demographics
II. Results, analysis and discussion
A. Comparison of baseline systems
B. Analysis of top systems
C. Sources of difficulty
D. Analysis of metrics

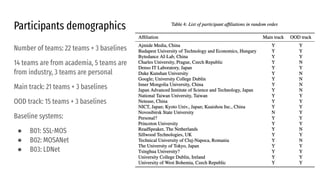

Participants demographics
Number of teams: 22 teams + 3 baselines
14 teams are from academia, 5 teams are
from industry, 3 teams are personal
Main track: 21 teams + 3 baselines
OOD track: 15 teams + 3 baselines
Baseline systems:
● B01: SSL-MOS
● B02: MOSANet
● B03: LDNet

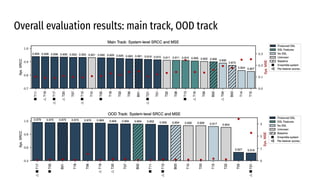

Overall evaluation results: main track, OOD track

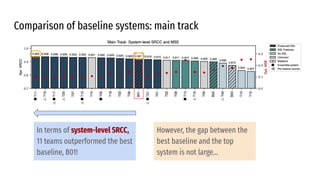

Comparison of baseline systems: main track
In terms of system-level SRCC,
11 teams outperformed the best
baseline, B01!
However, the gap between the
best baseline and the top
system is not large…

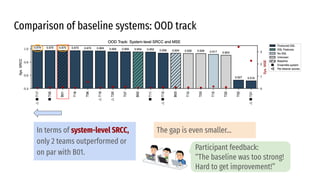

Comparison of baseline systems: OOD track
In terms of system-level SRCC,
only 2 teams outperformed or
on par with B01.
The gap is even smaller…
Participant feedback:
“The baseline was too strong!
Hard to get improvement!”

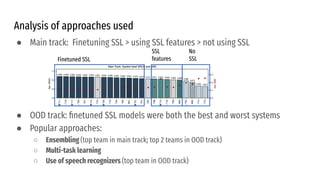

Analysis of approaches used
● Main track: Finetuning SSL > using SSL features > not using SSL
● OOD track: finetuned SSL models were both the best and worst systems
● Popular approaches:
○ Ensembling (top team in main track; top 2 teams in OOD track)
○ Multi-task learning
○ Use of speech recognizers (top team in OOD track)
Finetuned SSL
SSL
features
No
SSL
Analysis of approaches used
● 7 teams used per-listener ratings
● No teams used listener demographics
○ One team used “listener group”
● OOD track: only 3 teams used the unlabeled data:
Conducted their
own listening test
(top team)
Task-adaptive
pretraining
“Pseudo-label” the
unlabeled data using
trained model
Sources of difficulty
Are unseen categories more difficult?
Unseen systems
Unseen speakers
Unseen listeners
Main track OOD track
no
yes (7 teams)
Category
yes (17 teams)
yes (6 teams)
N/A
no

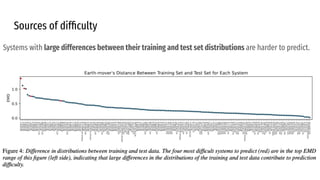

Sources of difficulty
Systems with large differences between their training and test set distributions are harder to predict.

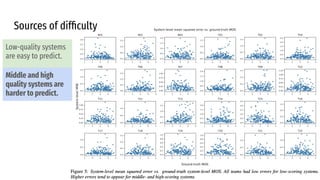

Sources of difficulty
Low-quality systems
are easy to predict.
Middle and high
quality systems are
harder to predict.

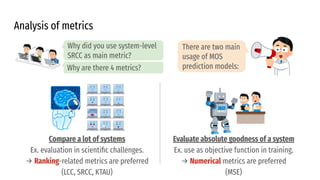

Analysis of metrics
Why did you use system-level
SRCC as main metric?
Why are there 4 metrics?
There are two main
usage of MOS
prediction models:
Compare a lot of systems
Ex. evaluation in scientific challenges.
→ Ranking-related metrics are preferred
(LCC, SRCC, KTAU)
Evaluate absolute goodness of a system
Ex. use as objective function in training.
→ Numerical metrics are preferred
(MSE)

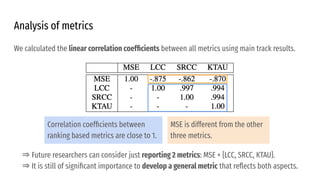

Analysis of metrics
We calculated the linear correlation coefficients between all metrics using main track results.
Correlation coefficients between
ranking based metrics are close to 1.
MSE is different from the other
three metrics.
⇒ Future researchers can consider just reporting 2 metrics: MSE + {LCC, SRCC, KTAU}.
⇒ It is still of significant importance to develop a general metric that reflects both aspects.
Conclusions
Conclusions
⇒ Attracted more than
20 participant teams.
⇒ SSL is very
powerful in this task.
⇒ Generalizing to a
different listening test
is still very hard.
⇒ There will be a 2nd,
3rd, 4th,... version!!
The goals of the VoiceMOS challenge:

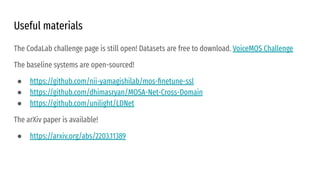

Useful materials
The CodaLab challenge page is still open! Datasets are free to download. VoiceMOS Challenge
The baseline systems are open-sourced!
● https://github.com/nii-yamagishilab/mos-finetune-ssl
● https://github.com/dhimasryan/MOSA-Net-Cross-Domain
● https://github.com/unilight/LDNet
The arXiv paper is available!
● https://arxiv.org/abs/2203.11389

More Related Content

What's hot

What's hot (20)

リアルタイムDNN音声変換フィードバックによるキャラクタ性の獲得手法
リアルタイムDNN音声変換フィードバックによるキャラクタ性の獲得手法リアルタイムDNN音声変換フィードバックによるキャラクタ性の獲得手法
リアルタイムDNN音声変換フィードバックによるキャラクタ性の獲得手法

深層学習を利用した音声強調
深層学習を利用した音声強調深層学習を利用した音声強調
深層学習を利用した音声強調

独立低ランク行列分析に基づくブラインド音源分離(Blind source separation based on independent low-rank...
独立低ランク行列分析に基づくブラインド音源分離(Blind source separation based on independent low-rank...独立低ランク行列分析に基づくブラインド音源分離(Blind source separation based on independent low-rank...
独立低ランク行列分析に基づくブラインド音源分離(Blind source separation based on independent low-rank...

Investigation of Text-to-Speech based Synthetic Parallel Data for Sequence-to...
Investigation of Text-to-Speech based Synthetic Parallel Data for Sequence-to...Investigation of Text-to-Speech based Synthetic Parallel Data for Sequence-to...
Investigation of Text-to-Speech based Synthetic Parallel Data for Sequence-to...

Recent progress on voice conversion: What is next?
Recent progress on voice conversion: What is next?Recent progress on voice conversion: What is next?
Recent progress on voice conversion: What is next?

JVS:フリーの日本語多数話者音声コーパス
JVS:フリーの日本語多数話者音声コーパス JVS:フリーの日本語多数話者音声コーパス
JVS:フリーの日本語多数話者音声コーパス

音声合成のコーパスをつくろう
音声合成のコーパスをつくろう音声合成のコーパスをつくろう
音声合成のコーパスをつくろう

Kameoka2017 ieice03
Kameoka2017 ieice03Kameoka2017 ieice03
Kameoka2017 ieice03

Hands on Voice Conversion
Hands on Voice ConversionHands on Voice Conversion
Hands on Voice Conversion

短時間発話を用いた話者照合のための音声加工の効果に関する検討
短時間発話を用いた話者照合のための音声加工の効果に関する検討短時間発話を用いた話者照合のための音声加工の効果に関する検討
短時間発話を用いた話者照合のための音声加工の効果に関する検討

CTCに基づく音響イベントからの擬音語表現への変換
CTCに基づく音響イベントからの擬音語表現への変換CTCに基づく音響イベントからの擬音語表現への変換
CTCに基づく音響イベントからの擬音語表現への変換

敵対的学習による統合型ソースフィルタネットワーク
敵対的学習による統合型ソースフィルタネットワーク敵対的学習による統合型ソースフィルタネットワーク
敵対的学習による統合型ソースフィルタネットワーク

独立性に基づくブラインド音源分離の発展と独立低ランク行列分析 History of independence-based blind source sep...
独立性に基づくブラインド音源分離の発展と独立低ランク行列分析 History of independence-based blind source sep...独立性に基づくブラインド音源分離の発展と独立低ランク行列分析 History of independence-based blind source sep...
独立性に基づくブラインド音源分離の発展と独立低ランク行列分析 History of independence-based blind source sep...

End-to-End音声認識ためのMulti-Head Decoderネットワーク
End-to-End音声認識ためのMulti-Head DecoderネットワークEnd-to-End音声認識ためのMulti-Head Decoderネットワーク
End-to-End音声認識ためのMulti-Head Decoderネットワーク

実環境音響信号処理における収音技術
実環境音響信号処理における収音技術実環境音響信号処理における収音技術
実環境音響信号処理における収音技術

音情報処理における特徴表現
音情報処理における特徴表現音情報処理における特徴表現
音情報処理における特徴表現

[DL輪読会]Diffusion-based Voice Conversion with Fast Maximum Likelihood Samplin...
[DL輪読会]Diffusion-based Voice Conversion with Fast  Maximum Likelihood Samplin...[DL輪読会]Diffusion-based Voice Conversion with Fast  Maximum Likelihood Samplin...
[DL輪読会]Diffusion-based Voice Conversion with Fast Maximum Likelihood Samplin...

異常音検知に対する深層学習適用事例
異常音検知に対する深層学習適用事例異常音検知に対する深層学習適用事例
異常音検知に対する深層学習適用事例

マルチモーダル深層学習の研究動向
マルチモーダル深層学習の研究動向マルチモーダル深層学習の研究動向
マルチモーダル深層学習の研究動向

信号の独立性に基づく多チャンネル音源分離
信号の独立性に基づく多チャンネル音源分離信号の独立性に基づく多チャンネル音源分離
信号の独立性に基づく多チャンネル音源分離


Similar to The VoiceMOS Challenge 2022

Improving evaluations and utilization with statistical edge nested data desi...
Improving evaluations and utilization with statistical edge  nested data desi...Improving evaluations and utilization with statistical edge  nested data desi...
Improving evaluations and utilization with statistical edge nested data desi...
CesToronto

G2.suntasig.guallichico.maicol.alexander.english.project.design.docx
G2.suntasig.guallichico.maicol.alexander.english.project.design.docxG2.suntasig.guallichico.maicol.alexander.english.project.design.docx
G2.suntasig.guallichico.maicol.alexander.english.project.design.docx
Maicol Suntasig


Similar to The VoiceMOS Challenge 2022 (20)

The VoiceMOS Challenge 2022
The VoiceMOS Challenge 2022The VoiceMOS Challenge 2022
The VoiceMOS Challenge 2022

Human-centered AI: how can we support lay users to understand AI?
Human-centered AI: how can we support lay users to understand AI?Human-centered AI: how can we support lay users to understand AI?
Human-centered AI: how can we support lay users to understand AI?

Natural Language Processing: From Human-Robot Interaction to Alzheimer’s Dete...
Natural Language Processing: From Human-Robot Interaction to Alzheimer’s Dete...Natural Language Processing: From Human-Robot Interaction to Alzheimer’s Dete...
Natural Language Processing: From Human-Robot Interaction to Alzheimer’s Dete...

Wearable Computing - Part IV: Ensemble classifiers & Insight into ongoing res...
Wearable Computing - Part IV: Ensemble classifiers & Insight into ongoing res...Wearable Computing - Part IV: Ensemble classifiers & Insight into ongoing res...
Wearable Computing - Part IV: Ensemble classifiers & Insight into ongoing res...

Explainable AI for non-expert users
Explainable AI for non-expert usersExplainable AI for non-expert users
Explainable AI for non-expert users

Improving evaluations and utilization with statistical edge nested data desi...
Improving evaluations and utilization with statistical edge  nested data desi...Improving evaluations and utilization with statistical edge  nested data desi...
Improving evaluations and utilization with statistical edge nested data desi...

HCI 3e - Ch 9: Evaluation techniques
HCI 3e - Ch 9:  Evaluation techniquesHCI 3e - Ch 9:  Evaluation techniques
HCI 3e - Ch 9: Evaluation techniques

SLR.pdf
SLR.pdfSLR.pdf
SLR.pdf

SLR.pdf
SLR.pdfSLR.pdf
SLR.pdf

Mixed-initiative recommender systems: towards a next generation of recommende...
Mixed-initiative recommender systems: towards a next generation of recommende...Mixed-initiative recommender systems: towards a next generation of recommende...
Mixed-initiative recommender systems: towards a next generation of recommende...

Triantafyllia Voulibasi
Triantafyllia VoulibasiTriantafyllia Voulibasi
Triantafyllia Voulibasi

My experiment
My experimentMy experiment
My experiment

Leveraging Technology in a Music Classroom
Leveraging Technology in a Music ClassroomLeveraging Technology in a Music Classroom
Leveraging Technology in a Music Classroom

Dissertation defense slides on "Semantic Analysis for Improved Multi-document...
Dissertation defense slides on "Semantic Analysis for Improved Multi-document...Dissertation defense slides on "Semantic Analysis for Improved Multi-document...
Dissertation defense slides on "Semantic Analysis for Improved Multi-document...

MediaEval 2016 - UNIFESP Predicting Media Interestingness Task
MediaEval 2016 - UNIFESP Predicting Media Interestingness TaskMediaEval 2016 - UNIFESP Predicting Media Interestingness Task
MediaEval 2016 - UNIFESP Predicting Media Interestingness Task

G2.suntasig.guallichico.maicol.alexander.english.project.design.docx
G2.suntasig.guallichico.maicol.alexander.english.project.design.docxG2.suntasig.guallichico.maicol.alexander.english.project.design.docx
G2.suntasig.guallichico.maicol.alexander.english.project.design.docx

Dstc6 an introduction
Dstc6 an introductionDstc6 an introduction
Dstc6 an introduction

Explaining recommendations: design implications and lessons learned
Explaining recommendations: design implications and lessons learnedExplaining recommendations: design implications and lessons learned
Explaining recommendations: design implications and lessons learned

A Large-Scale Study of the Impact of Feature Selection Techniques on Defect C...
A Large-Scale Study of the Impact of Feature Selection Techniques on Defect C...A Large-Scale Study of the Impact of Feature Selection Techniques on Defect C...
A Large-Scale Study of the Impact of Feature Selection Techniques on Defect C...

Best Practices in Recommender System Challenges
Best Practices in Recommender System ChallengesBest Practices in Recommender System Challenges
Best Practices in Recommender System Challenges


More from NU_I_TODALAB

More from NU_I_TODALAB (15)

距離学習を導入した二値分類モデルによる異常音検知
距離学習を導入した二値分類モデルによる異常音検知距離学習を導入した二値分類モデルによる異常音検知
距離学習を導入した二値分類モデルによる異常音検知

Interactive voice conversion for augmented speech production
Interactive voice conversion for augmented speech productionInteractive voice conversion for augmented speech production
Interactive voice conversion for augmented speech production

Weakly-Supervised Sound Event Detection with Self-Attention
Weakly-Supervised Sound Event Detection with Self-AttentionWeakly-Supervised Sound Event Detection with Self-Attention
Weakly-Supervised Sound Event Detection with Self-Attention

Statistical voice conversion with direct waveform modeling
Statistical voice conversion with direct waveform modelingStatistical voice conversion with direct waveform modeling
Statistical voice conversion with direct waveform modeling

音素事後確率を利用した表現学習に基づく発話感情認識
音素事後確率を利用した表現学習に基づく発話感情認識音素事後確率を利用した表現学習に基づく発話感情認識
音素事後確率を利用した表現学習に基づく発話感情認識

楽曲中歌声加工における声質変換精度向上のための歌声・伴奏分離法
楽曲中歌声加工における声質変換精度向上のための歌声・伴奏分離法楽曲中歌声加工における声質変換精度向上のための歌声・伴奏分離法
楽曲中歌声加工における声質変換精度向上のための歌声・伴奏分離法

空気/体内伝導マイクロフォンを用いた雑音環境下における自己発声音強調/抑圧法
空気/体内伝導マイクロフォンを用いた雑音環境下における自己発声音強調/抑圧法空気/体内伝導マイクロフォンを用いた雑音環境下における自己発声音強調/抑圧法
空気/体内伝導マイクロフォンを用いた雑音環境下における自己発声音強調/抑圧法

時間領域低ランクスペクトログラム近似法に基づくマスキング音声の欠損成分復元
時間領域低ランクスペクトログラム近似法に基づくマスキング音声の欠損成分復元時間領域低ランクスペクトログラム近似法に基づくマスキング音声の欠損成分復元
時間領域低ランクスペクトログラム近似法に基づくマスキング音声の欠損成分復元

Advanced Voice Conversion
Advanced Voice ConversionAdvanced Voice Conversion
Advanced Voice Conversion

Deep Neural Networkに基づく日常生活行動認識における適応手法
Deep Neural Networkに基づく日常生活行動認識における適応手法Deep Neural Networkに基づく日常生活行動認識における適応手法
Deep Neural Networkに基づく日常生活行動認識における適応手法

Missing Component Restoration for Masked Speech Signals based on Time-Domain ...
Missing Component Restoration for Masked Speech Signals based on Time-Domain ...Missing Component Restoration for Masked Speech Signals based on Time-Domain ...
Missing Component Restoration for Masked Speech Signals based on Time-Domain ...

喉頭摘出者のための歌唱支援を目指した電気音声変換法
喉頭摘出者のための歌唱支援を目指した電気音声変換法喉頭摘出者のための歌唱支援を目指した電気音声変換法
喉頭摘出者のための歌唱支援を目指した電気音声変換法

実環境下におけるサイレント音声通話の実現に向けた雑音環境変動に頑健な非可聴つぶやき強調
実環境下におけるサイレント音声通話の実現に向けた雑音環境変動に頑健な非可聴つぶやき強調実環境下におけるサイレント音声通話の実現に向けた雑音環境変動に頑健な非可聴つぶやき強調
実環境下におけるサイレント音声通話の実現に向けた雑音環境変動に頑健な非可聴つぶやき強調

ケプストラム正則化NTFによるステレオチャネル楽曲音源分離
ケプストラム正則化NTFによるステレオチャネル楽曲音源分離ケプストラム正則化NTFによるステレオチャネル楽曲音源分離
ケプストラム正則化NTFによるステレオチャネル楽曲音源分離

音声信号の分析と加工 - 音声を自在に変換するには?
音声信号の分析と加工 - 音声を自在に変換するには?音声信号の分析と加工 - 音声を自在に変換するには?
音声信号の分析と加工 - 音声を自在に変換するには?


Recently uploaded

1893-part-1-2016 for Earthquake load design
1893-part-1-2016 for Earthquake load design1893-part-1-2016 for Earthquake load design
1893-part-1-2016 for Earthquake load design
AshishSingh1301

Seizure stage detection of epileptic seizure using convolutional neural networks
Seizure stage detection of epileptic seizure using convolutional neural networksSeizure stage detection of epileptic seizure using convolutional neural networks
Seizure stage detection of epileptic seizure using convolutional neural networks
IJECEIAES


Recently uploaded (20)

Geometric constructions Engineering Drawing.pdf
Geometric constructions Engineering Drawing.pdfGeometric constructions Engineering Drawing.pdf
Geometric constructions Engineering Drawing.pdf

Fuzzy logic method-based stress detector with blood pressure and body tempera...
Fuzzy logic method-based stress detector with blood pressure and body tempera...Fuzzy logic method-based stress detector with blood pressure and body tempera...
Fuzzy logic method-based stress detector with blood pressure and body tempera...

NEWLETTER FRANCE HELICES/ SDS SURFACE DRIVES - MAY 2024
NEWLETTER FRANCE HELICES/ SDS SURFACE DRIVES - MAY 2024NEWLETTER FRANCE HELICES/ SDS SURFACE DRIVES - MAY 2024
NEWLETTER FRANCE HELICES/ SDS SURFACE DRIVES - MAY 2024

analog-vs-digital-communication (concept of analog and digital).pptx
analog-vs-digital-communication (concept of analog and digital).pptxanalog-vs-digital-communication (concept of analog and digital).pptx
analog-vs-digital-communication (concept of analog and digital).pptx

1893-part-1-2016 for Earthquake load design
1893-part-1-2016 for Earthquake load design1893-part-1-2016 for Earthquake load design
1893-part-1-2016 for Earthquake load design

Piping and instrumentation diagram p.pdf
Piping and instrumentation diagram p.pdfPiping and instrumentation diagram p.pdf
Piping and instrumentation diagram p.pdf

Involute of a circle,Square, pentagon,HexagonInvolute_Engineering Drawing.pdf
Involute of a circle,Square, pentagon,HexagonInvolute_Engineering Drawing.pdfInvolute of a circle,Square, pentagon,HexagonInvolute_Engineering Drawing.pdf
Involute of a circle,Square, pentagon,HexagonInvolute_Engineering Drawing.pdf

Introduction to Arduino Programming: Features of Arduino
Introduction to Arduino Programming: Features of ArduinoIntroduction to Arduino Programming: Features of Arduino
Introduction to Arduino Programming: Features of Arduino

Augmented Reality (AR) with Augin Software.pptx
Augmented Reality (AR) with Augin Software.pptxAugmented Reality (AR) with Augin Software.pptx
Augmented Reality (AR) with Augin Software.pptx

Instruct Nirmaana 24-Smart and Lean Construction Through Technology.pdf
Instruct Nirmaana 24-Smart and Lean Construction Through Technology.pdfInstruct Nirmaana 24-Smart and Lean Construction Through Technology.pdf
Instruct Nirmaana 24-Smart and Lean Construction Through Technology.pdf

Lab Manual Arduino UNO Microcontrollar.docx
Lab Manual Arduino UNO Microcontrollar.docxLab Manual Arduino UNO Microcontrollar.docx
Lab Manual Arduino UNO Microcontrollar.docx

Passive Air Cooling System and Solar Water Heater.ppt
Passive Air Cooling System and Solar Water Heater.pptPassive Air Cooling System and Solar Water Heater.ppt
Passive Air Cooling System and Solar Water Heater.ppt

Electrical shop management system project report.pdf
Electrical shop management system project report.pdfElectrical shop management system project report.pdf
Electrical shop management system project report.pdf

Autodesk Construction Cloud (Autodesk Build).pptx
Autodesk Construction Cloud (Autodesk Build).pptxAutodesk Construction Cloud (Autodesk Build).pptx
Autodesk Construction Cloud (Autodesk Build).pptx

Research Methodolgy & Intellectual Property Rights Series 2
Research Methodolgy & Intellectual Property Rights Series 2Research Methodolgy & Intellectual Property Rights Series 2
Research Methodolgy & Intellectual Property Rights Series 2

Module-III Varried Flow.pptx GVF Definition, Water Surface Profile Dynamic Eq...
Module-III Varried Flow.pptx GVF Definition, Water Surface Profile Dynamic Eq...Module-III Varried Flow.pptx GVF Definition, Water Surface Profile Dynamic Eq...
Module-III Varried Flow.pptx GVF Definition, Water Surface Profile Dynamic Eq...

Multivibrator and its types defination and usges.pptx
Multivibrator and its types defination and usges.pptxMultivibrator and its types defination and usges.pptx
Multivibrator and its types defination and usges.pptx

Raashid final report on Embedded Systems
Raashid final report on Embedded SystemsRaashid final report on Embedded Systems
Raashid final report on Embedded Systems

Seismic Hazard Assessment Software in Python by Prof. Dr. Costas Sachpazis
Seismic Hazard Assessment Software in Python by Prof. Dr. Costas SachpazisSeismic Hazard Assessment Software in Python by Prof. Dr. Costas Sachpazis
Seismic Hazard Assessment Software in Python by Prof. Dr. Costas Sachpazis

Seizure stage detection of epileptic seizure using convolutional neural networks
Seizure stage detection of epileptic seizure using convolutional neural networksSeizure stage detection of epileptic seizure using convolutional neural networks
Seizure stage detection of epileptic seizure using convolutional neural networks


The VoiceMOS Challenge 2022

  • 1. The VoiceMOS Challenge 2022 Wen-Chin Huang¹, Erica Cooper², Yu Tsao³, Hsin-Min Wang³, Tomoki Toda¹, Junichi Yamagishi² ¹Nagoya University, Japan ²National Institute of Informatics, Japan ³Academia Sinica, Taiwan 第141回音声言語情報処理 研究発表会 招待講演
  • 2. Outline I. Introduction II. Challenge description A. Tracks and datasets B. Rules and timeline C. Evaluation metrics D. Baseline systems III. Challenge results A. Participants demographics B. Results, analysis and discussion 1. Comparison of baseline systems 2. Analysis of top systems 3. Sources of difficulty 4. Analysis of metrics IV. Conclusions
  • 4. Important to evaluate speech synthesis systems, ex. text-to-speech (TTS), voice conversion (VC). Mean opinion score (MOS) test: Rate quality of individual samples. Speech quality assessment Subjective test Drawbacks: 1. Expensive: Costs too much time and money. 2. Context-dependent: numbers cannot be meaningfully compared across different listening tests.
  • 5. Important to evaluate speech synthesis systems, ex. text-to-speech (TTS), voice conversion (VC). Mean opinion score (MOS) test: Rate quality of individual samples. Speech quality assessment Subjective test Objective assessment Data-driven MOS prediction (mostly based on deep learning) Drawback: bad generalization ability due to limited training data.
  • 6. Goals of the VoiceMOS challenge *Accepted as an Interspeech 2022 special session! Encourage research in automatic data-driven MOS prediction Compare different approaches using shared datasets and evaluation Focus on the challenging case of generalizing to a separate listening test Promote discussion about the future of this research field
  • 7. Challenge description I. Tracks and datasets II. Rules and timeline III. Evaluation metrics IV. Baseline systems
  • 8. Challenge platform: CodaLab Open-source web-based platform for reproducible machine learning research.
  • 9. Tracks and dataset: Main track The BVCC Dataset ● Samples from 187 different systems all rated together in one listening test ○ Past Blizzard Challenges (text-to-speech synthesis) since 2008 ○ Past Voice Conversion Challenges (voice conversion) since 2016 ○ ESPnet-TTS (implementations of modern TTS systems), 2020 ● Test set contains some unseen systems, unseen listeners, and unseen speakers and is balanced to match the distribution of scores in the training set
  • 10. Listening test data from the Blizzard Challenge 2019 ● “Out-of-domain” (OOD): Data from a completely separate listening test ● Chinese-language synthesis from systems submitted to the 2019 Blizzard Challenge ● Test set has some unseen systems and unseen listeners ● Designed to reflect a real-world setting where a small amount of labeled data is available ● Study generalization ability to a different listening test context ● Encourage unsupervised and semi-supervised approaches using unlabeled data Tracks and dataset: OOD track 10% 40% 10% 40% Labeled train set Unlabeled train set Dev set Test set
  • 12. Rules and timeline Training phase ✔Main track train/dev audio+rating ✔OOD track train/dev audio+rating Leaderboard available Need to submit at least once 2021/12/5 2022/2/21 2022/2/28 2022/3/7 Break phase No submission available. Conduct result analysis. Evaluation phase ✔Main track test audio ✔OOD track test audio Leaderboard available Max 3 submissions Post-evaluation phase ✔Main track test rating ✔OOD track test rating ✔Evaluation results Submission & leaderboard reopen General rules External data is permitted. All participants need to submit system description.
  • 13. Evaluation metrics System-level and Utterance-level ● Mean Squared Error (MSE): difference between predicted and actual MOS ● Linear Correlation Coefficient (LCC): a basic correlation measure ● Spearman Rank Correlation Coefficient (SRCC): non-parametric; measures ranking order ● Kendall Tau Rank Correlation (KTAU): more robust to errors import numpy as np import scipy.stats # `true_mean_scores` and `predict_mean_scores` are both 1-d numpy arrays. MSE = np.mean((true_mean_scores - predict_mean_scores)**2) LCC = np.corrcoef(true_mean_scores, predict_mean_scores)[0][1] SRCC = scipy.stats.spearmanr(true_mean_scores, predict_mean_scores)[0] KTAU = scipy.stats.kendalltau(true_mean_scores, predict_mean_scores)[0] Following prior work, we picked system-level SRCC as the main evaluation metric.
  • 14. Baseline system: SSL-MOS Fine-tune a self-supervised learning based (SSL) speech model for the MOS prediction task ● Pretrained wav2vec2 ● Simple mean pooling and a linear fine-tuning layer ● Wav2vec2 model parameters are updated during fine-tuning E. Cooper, W.-C. Huang, T. Toda, and J. Yamagishi, “Generalization ability of MOS prediction networks,” in Proc. ICASSP, 2022
  • 15. Baseline system: MOSANet ● Originally developed for noisy speech assessment ● Cross-domain input features: ○ Spectral information ○ Complex features ○ Raw waveform ○ Features extracted from SSL models R. E. Zezario, S.-W. Fu, F. Chen, C.-S. Fuh, H.-M. Wang, and Y. Tsao, “Deep Learning-based Non-Intrusive Multi-Objective Speech Assessment Model with Cross-Domain Features,” arXiv preprint arXiv:2111.02363, 2021.
  • 16. Baseline system: LDNet Listener-dependent modeling ● Specialized model structure and inference method allows making use of multiple ratings per audio sample. ● No external data is used! W.-C. Huang, E. Cooper, J. Yamagishi, and T. Toda, “LDNet: Unified Listener Dependent Modeling in MOS Prediction for Synthetic Speech,” in Proc. ICASSP, 2022
  • 17. Challenge results I. Participants demographics II. Results, analysis and discussion A. Comparison of baseline systems B. Analysis of top systems C. Sources of difficulty D. Analysis of metrics
  • 18. Participants demographics Number of teams: 22 teams + 3 baselines 14 teams are from academia, 5 teams are from industry, 3 teams are personal Main track: 21 teams + 3 baselines OOD track: 15 teams + 3 baselines Baseline systems: ● B01: SSL-MOS ● B02: MOSANet ● B03: LDNet
  • 19. Overall evaluation results: main track, OOD track
  • 20. Comparison of baseline systems: main track In terms of system-level SRCC, 11 teams outperformed the best baseline, B01! However, the gap between the best baseline and the top system is not large…
  • 21. Comparison of baseline systems: OOD track In terms of system-level SRCC, only 2 teams outperformed or on par with B01. The gap is even smaller… Participant feedback: “The baseline was too strong! Hard to get improvement!”
  • 22. Analysis of approaches used ● Main track: Finetuning SSL > using SSL features > not using SSL ● OOD track: finetuned SSL models were both the best and worst systems ● Popular approaches: ○ Ensembling (top team in main track; top 2 teams in OOD track) ○ Multi-task learning ○ Use of speech recognizers (top team in OOD track) Finetuned SSL SSL features No SSL
  • 23. Analysis of approaches used ● 7 teams used per-listener ratings ● No teams used listener demographics ○ One team used “listener group” ● OOD track: only 3 teams used the unlabeled data: Conducted their own listening test (top team) Task-adaptive pretraining “Pseudo-label” the unlabeled data using trained model
  • 24. Sources of difficulty Are unseen categories more difficult? Unseen systems Unseen speakers Unseen listeners Main track OOD track no yes (7 teams) Category yes (17 teams) yes (6 teams) N/A no
  • 25. Sources of difficulty Systems with large differences between their training and test set distributions are harder to predict.
  • 26. Sources of difficulty Low-quality systems are easy to predict. Middle and high quality systems are harder to predict.
  • 27. Analysis of metrics Why did you use system-level SRCC as main metric? Why are there 4 metrics? There are two main usage of MOS prediction models: Compare a lot of systems Ex. evaluation in scientific challenges. → Ranking-related metrics are preferred (LCC, SRCC, KTAU) Evaluate absolute goodness of a system Ex. use as objective function in training. → Numerical metrics are preferred (MSE)
  • 28. Analysis of metrics We calculated the linear correlation coefficients between all metrics using main track results. Correlation coefficients between ranking based metrics are close to 1. MSE is different from the other three metrics. ⇒ Future researchers can consider just reporting 2 metrics: MSE + {LCC, SRCC, KTAU}. ⇒ It is still of significant importance to develop a general metric that reflects both aspects.
  • 30. Conclusions ⇒ Attracted more than 20 participant teams. ⇒ SSL is very powerful in this task. ⇒ Generalizing to a different listening test is still very hard. ⇒ There will be a 2nd, 3rd, 4th,... version!! The goals of the VoiceMOS challenge:
  • 31. Useful materials The CodaLab challenge page is still open! Datasets are free to download. VoiceMOS Challenge The baseline systems are open-sourced! ● https://github.com/nii-yamagishilab/mos-finetune-ssl ● https://github.com/dhimasryan/MOSA-Net-Cross-Domain ● https://github.com/unilight/LDNet The arXiv paper is available! ● https://arxiv.org/abs/2203.11389
