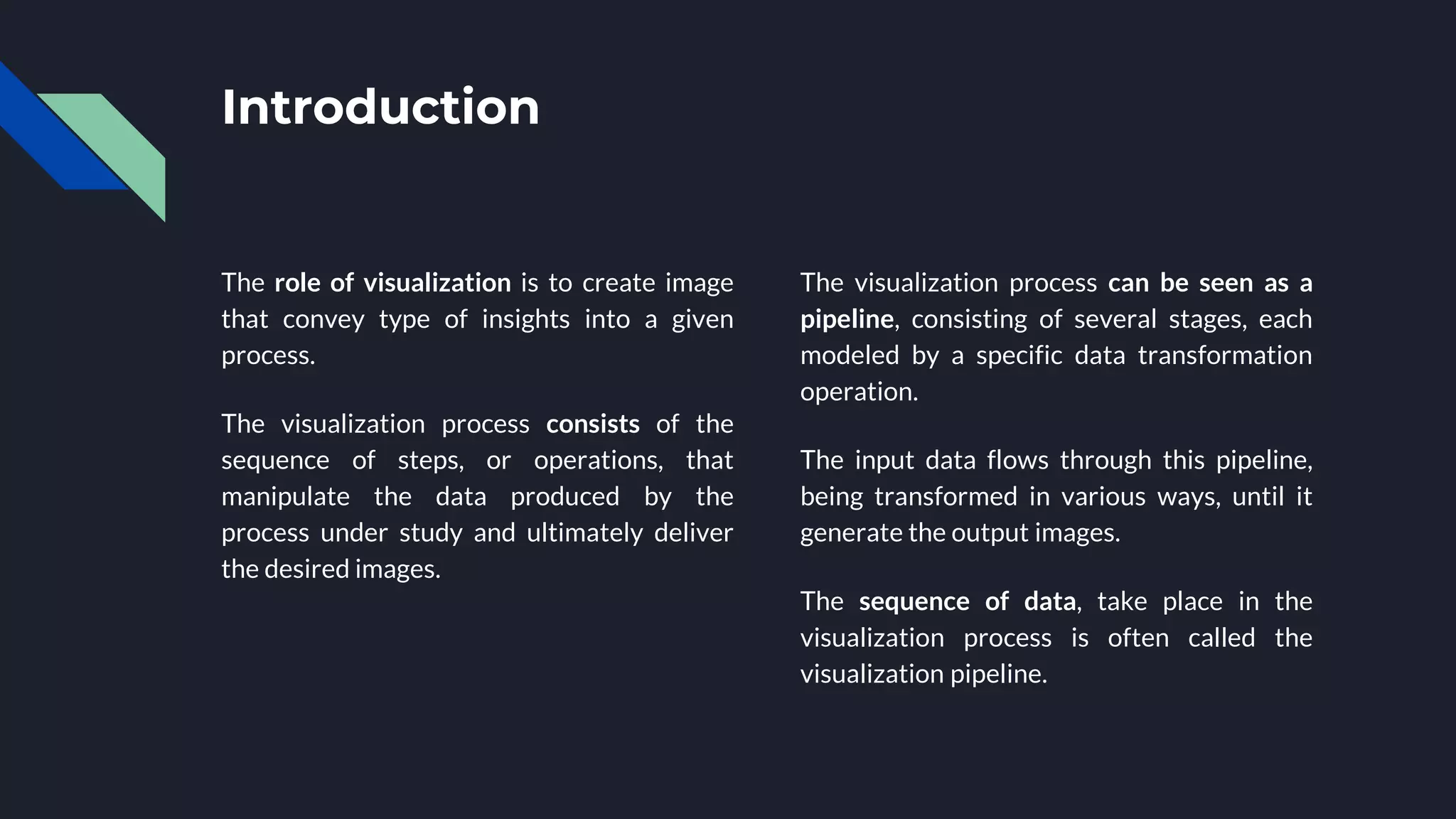

2. Introduction
The role of visualization is to create image
that convey type of insights into a given
process.
The visualization process consists of the
sequence of steps, or operations, that
manipulate the data produced by the
process under study and ultimately deliver
the desired images.
The visualization process can be seen as a
pipeline, consisting of several stages, each
modeled by a specific data transformation
operation.
The input data flows through this pipeline,
being transformed in various ways, until it
generate the output images.
The sequence of data, take place in the
visualization process is often called the
visualization pipeline.
3. Visualization Pipeline Overview
Data is transformed into images
Rendering (3D or
2D)
Data is mapped to geometric primitives
Visualization
Mapping
Data is prepared or preprocessed
Data is produced or acquired
Data Acquisition
Data Enhancement
4. 1. Data Acquisition
(Data is produced or acquired)
Data are prepared for visualization (e.g., by
applying a smoothing filter, interpolating
missing values, or correcting erroneous
measurements) usually computer-centered,
little or no user interaction.
Data acquisition is the process of sampling
signals that measure real world physical
conditions and converting the resulting
samples into digital numeric values that can
be manipulated by a computer.
● Measurement, e.g., CT, MRI
● Written down, scanned in as text
● User input, into databases or
spreadsheets
● Simulation, eg., Computational fluid
dynamics simulation (CFD)
● Modeling, e.g, Computer Aided Design
(CAD), dynamical system
● Videos or Images are recorded
5. 2. Data Enhancement
(Data is prepared or preprocessed )
Datas are enhanced and prepared, selection
of data portions to be visualized -- usually
user-centered.
Data enhancement is all about making sure
any data that is coming into the business is
being looked at with a critical eye and is
being filtered down to maximize its value.
● Filtering, e.g. smoothing (noise
filtering)
● Errors are discovered and corrected
● Missing values may be handled
● Resampling or modify grid
representation
● Derive new data, eg., gradients
● Data interpolation
6. 3. Visualization Mapping
(Data is mapped to geometric primitives)
Focus data are mapped to geometric
primitives (e.g., points, lines) and their
attributes (e.g., color, position, size); most
critical step for achieving Expressiveness
and Effectiveness.
Data is represented by geometric primitives:
points, lines, triangles, polygons, cubes,
shape, color, transparency.
● Compute isosurface
● Compute glyphs or icos
● Compute graph layout
● Compute voxel attributes: colors,
transparency...
7. 4. Rendering (3D or 2D)
(Data is transformed into images)
Geometric data are transformed to image
data.
Rendering or image synthesis is the
automatic process of generating a
photorealistic or non-photorealistic image
from a 2D or 3D model by means of
computer programs
● Projection (3D > 2D)
● Visibility Calculation
● Shading
● Compositing (Accumulate
Transparency and colors values)
● Animation
8. Dataflow Programming with VTK
VTK (Visualization Toolkit) its current status
as a one of the most popular visualization
packages for researchers.
The Visualization Toolkit (VTK) is an open-
source, freely available software system for
3D computer graphics, image processing and
visualization. VTK consists of a C++ class
library and several interpreted interface
layers including Tcl/Tk, Java, and Python.
9. Dataflow Programming with VisTrails
VisTrails is another software for
visualization packages for researchers.
VisTrails is a scientific workflow
management system developed at the
Scientific Computing and Imaging Institute
at the University of Utah that provides
support for data exploration and
visualization. It is written in Python and
employs Qt via PyQt bindings.
10. CONCLUSION
Application can separate and structures the
pipeline in different ways, depending on the
design and implementation consideration
that go beyond. In this presentation I
showed the 4 main ingredients, so
visualization pipeline is described from both
conceptual and implementation of view.
There is no clear cut separation of the
visualization stage.
1. Data Acquisition or Importing
2. Data Enhancement and Filtering
3. Mapping
4. Rendering
11. Reference and Further Reading
Interactive Data Visualization: Foundations, Techniques and
Applications, Second Edition by Matthew O. Ward, Georges
Grinstein, Daniel Kleim, AK Peters/CRC Press, 2015
Data Visualization Principles and Practice, Second Edition by
Alexandru Telea, AK Peters/CRC Press, 2015
Information Visualization: Perception for Design, Third
Edition by Colin Ware, Morgan Kaufmann Publishers, 2013
12. THANKS
Theo Paul Santana / 张飞
Mobile: +86 13611996578
E-Mail: theops2@gmail.com
Internet: http://www.theosantana.com
Editor's Notes
Data Acquisition: Datas people producing data
Data Enhancement: Modification of the data for the next stage of the pipeline, removes values or add new values
Visualization mapping: When the datas are mapped to shapes,
Rendering: Computer graphics, you guys should be expert on it, since a lot of students has design background.
Importing Data First, we have to import the data. This implies finding a representation of the original information we want to investigate in terms of a data set, be it continuous or discrete. Practically, importing data means choosing a specific dataset implementation and converting the original information to the representation implied by the chosen dataset. Ideally, this is a one-to-one mapping or data copying. It is important to realize that the choices made during data importing determine the quality of the resulting images, and thus the effectiveness of the visualization. For example, changing the underlying grid structure from quads to triangles changes the interpolation method which for some visualization algorithm changes the resulting image. For this reason, the data importing step should try to preserve as much of the available input information as possible, and make as few assumptions as possible about what is important and what is not.
Imagine getting a set of numbers tossed at you without a clue as to what they mean and what they are going to do for you. Pre processing, change or modify in some way to prepare for visualization, noise is elimte from data, sometimes they can find error e discovery and eliminate it, missing values, you need to decide the missing values, you need to modify the data representation, you need to drive new data, min and max statistics, data interpolation add values between other values. We have to decide which are the data’s important aspects, or features, we are interested in. In most cases the imported data is not one-to-one with the aspects we want to get insight into. We must distill our raw data sets into more appropriate representations, also called enriched datasets, which encode our features of interest. This process is called data filtering or data enriching. On the one hand, data is filtered to extract relevant information. On the other hand, data is enriched with higher-level information that supports a given task.
After we need the data enhacement we need to transfer the data in shapes and colors, we need use the terminology as geometrics primitives, as points, lines, triangles, polygons we get the raw data and put on shapes. We have some complicate of algorms, they are ways but a bit complicate with the compute. The filtering operation produces an enriched dataset that should directly represent the features of interest for a specific exploration task. Once we have this representation, we must map it to the visual domain. We do this by associating elements of the visual domain with the data elements present in the enriched dataset. This step of the visualization process is called mapping. The visual domain is a multidimensional space whose axes, or dimensions are those elements we perceive as quasiindependent visual attributes, such as shape, position, size, color, texture, illumination, and motion. Typically, a visual feature is a colored, shaded, textured, or animated 2D or 3D shape. Data mapping is probably the operation in the visualization pipeline that is most characteristic for the visualization process as it influences the resulting image more than any other step. There are many different mapping techniques the visualization can be based on, which we will illustrate in the following chapters by introducing various visualization algorithms.
Which ones are visible or which ones are not, shading is a kind of classic computer graphic topic and alot of people do that, compositing is another rend computer technic and animation as well, those are cool on computer graphic topics, if you have chance to take computer graphic class I recommend because is fun. The rendering operation is the final step of the visualization process. Rendering takes the 3D scene created by the mapping operation, together with several user-specified viewing parameters such as the viewpoint and lighting, and renders it to produce the desired images. In typical visualization applications, viewing parameters are considered part of the rendering operation. This allows users to interactively navigate and examine the rendered result of a given visualization. Indeed if the viewpoint changes but the 3D scene produced by the mapping stays the same, all we have to do is render the scene anew with the new viewing parameters, which is a relatively cheap operation.
The visualization pipeline offers an intuitive architectural model to design complex data processing and data visualization application combining lowe level functionalituy so called dataflow graph.
If you want to buy a book I recommend the interactive data visualization in case you want to buy two books you can get those two, probably in the library you can find it, in case not you can get it on taobao or amazon
