1. Text Command in
AutoCAD
Presentation By: Mukesh Gupta
ADMEC Multimedia Institute
C-7/114, 2nd
Floor, Sector-7, Rohini, Delhi:110085
Mob.: +91-8377861642,+91- 9999492155
Email ID: info@admecindia.co.in | website: www.admecindia.co.in
Represented By: ADMEC

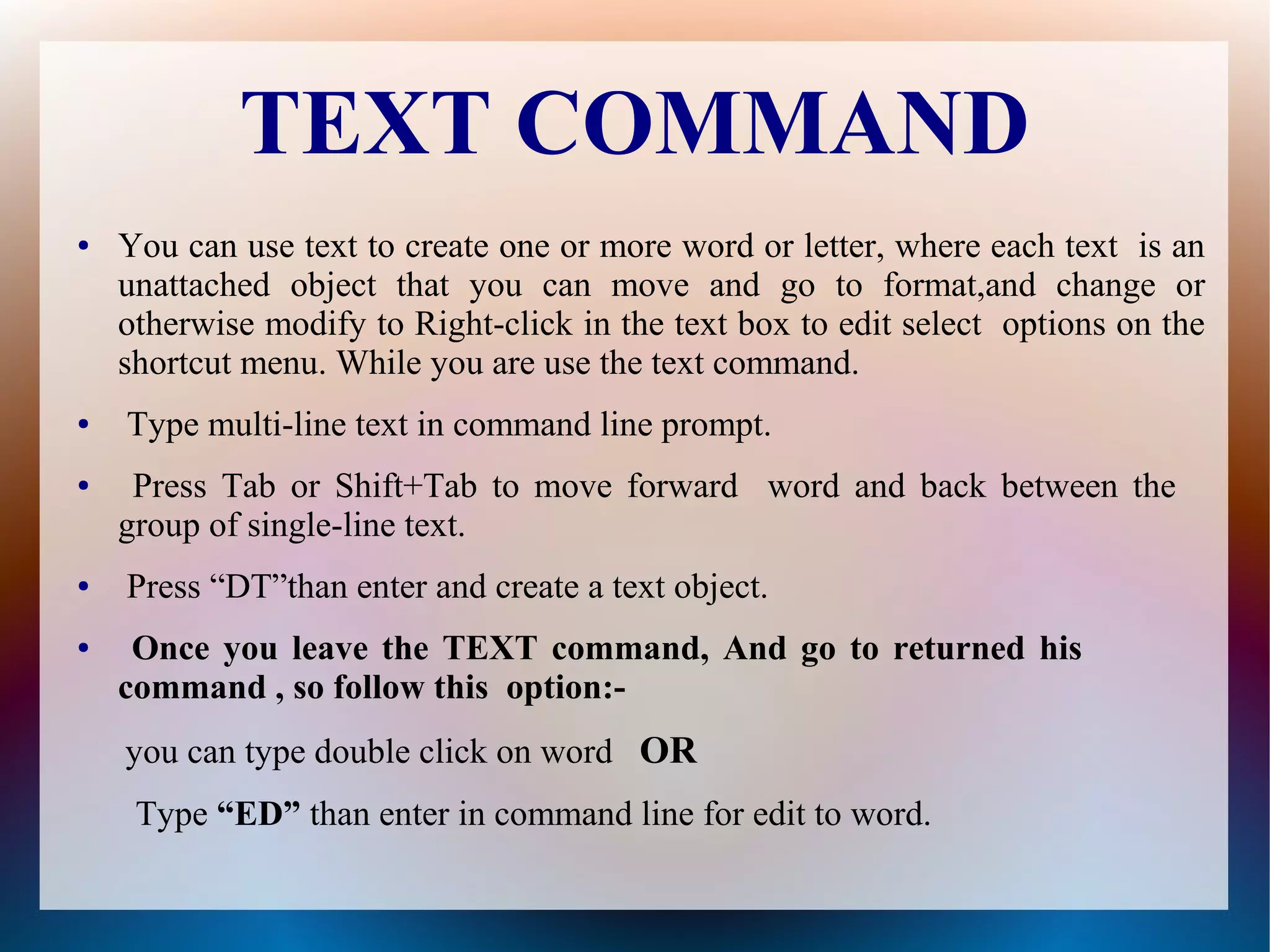

2. TEXT COMMAND
● You can use text to create one or more word or letter, where each text is an
unattached object that you can move and go to format,and change or
otherwise modify to Right-click in the text box to edit select options on the
shortcut menu. While you are use the text command.
● Type multi-line text in command line prompt.
● Press Tab or Shift+Tab to move forward word and back between the
group of single-line text.
● Press “DT”than enter and create a text object.
● Once you leave the TEXT command, And go to returned his
command , so follow this option:-
you can type double click on word OR
Type “ED” than enter in command line for edit to word.

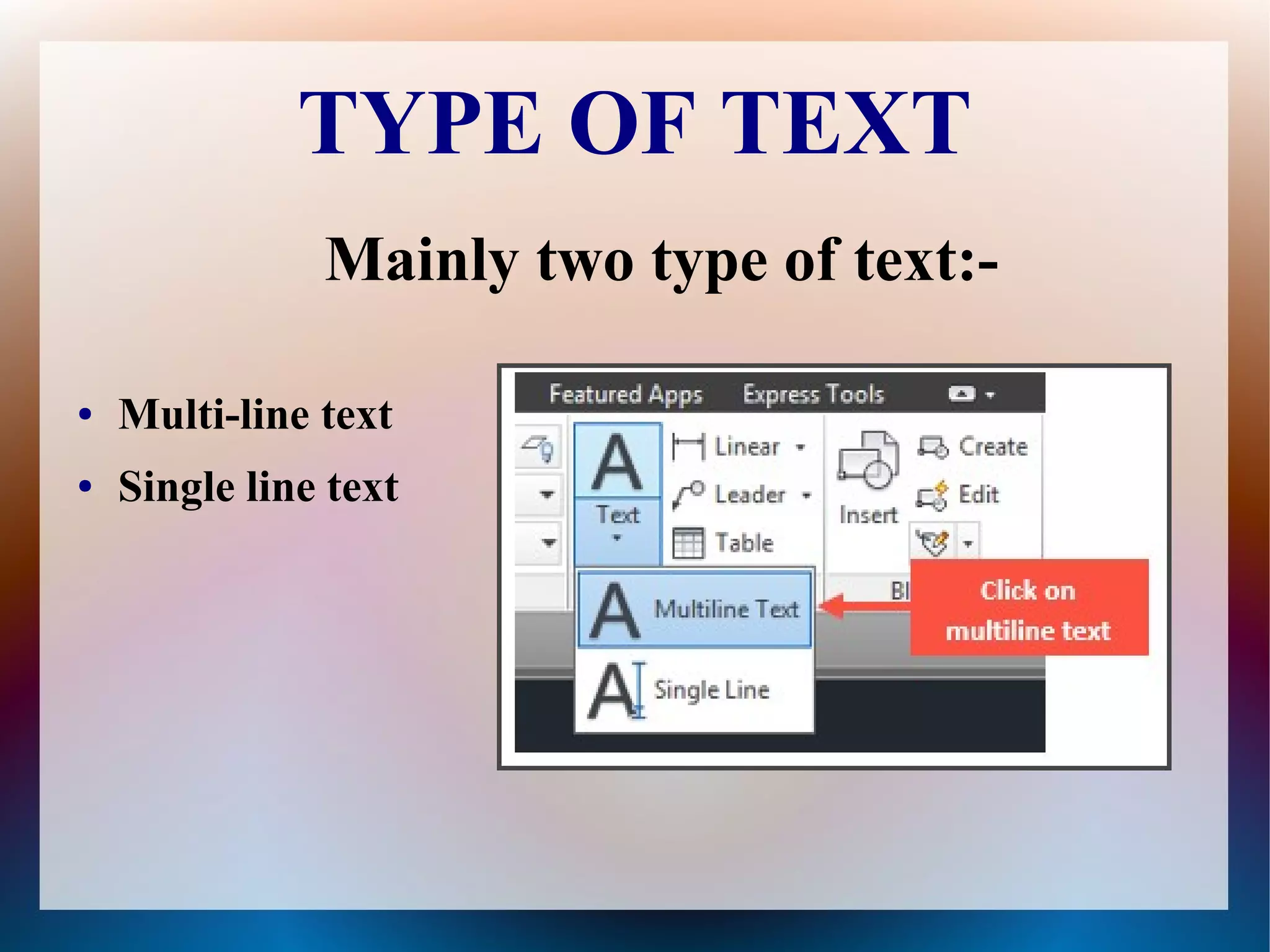

3. TYPE OF TEXT
Mainly two type of text:-
● Multi-line text
● Single line text

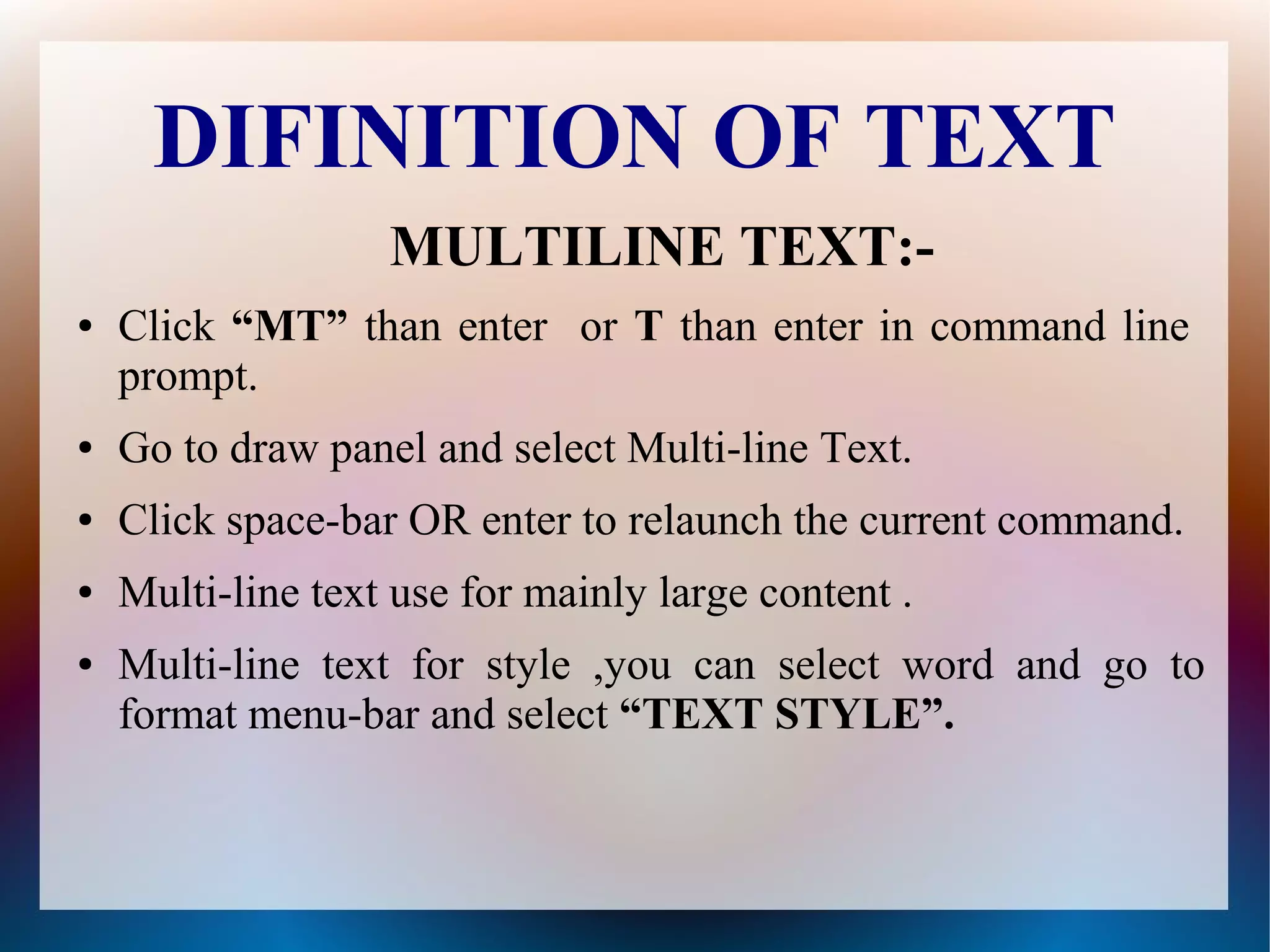

4. DIFINITION OF TEXT
MULTILINE TEXT:-
● Click “MT” than enter or T than enter in command line
prompt.
● Go to draw panel and select Multi-line Text.
● Click space-bar OR enter to relaunch the current command.
● Multi-line text use for mainly large content .
● Multi-line text for style ,you can select word and go to
format menu-bar and select “TEXT STYLE”.

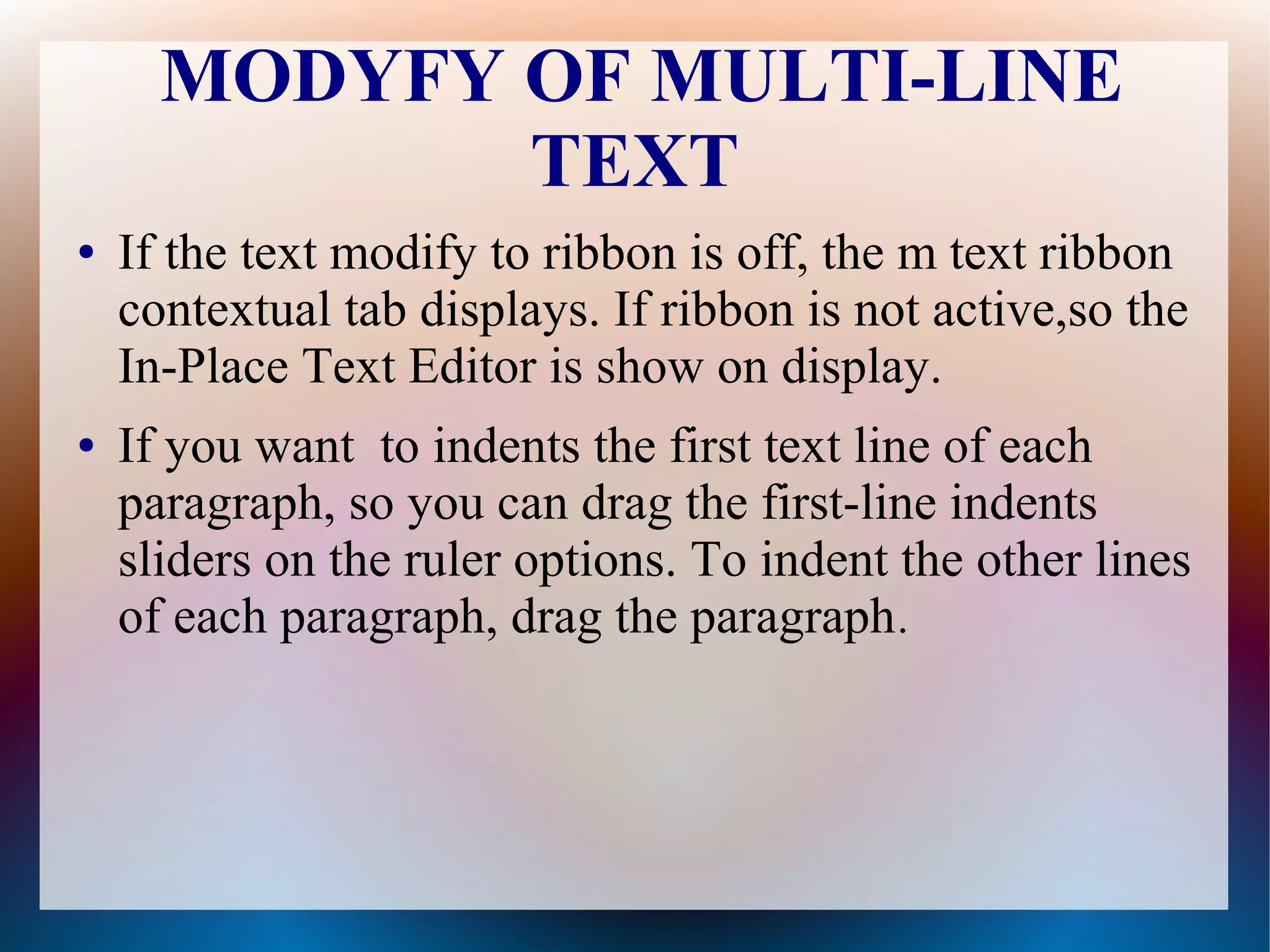

5. MODYFY OF MULTI-LINE
TEXT
● If the text modify to ribbon is off, the m text ribbon
contextual tab displays. If ribbon is not active,so the
In-Place Text Editor is show on display.
● If you want to indents the first text line of each
paragraph, so you can drag the first-line indents
sliders on the ruler options. To indent the other lines
of each paragraph, drag the paragraph.

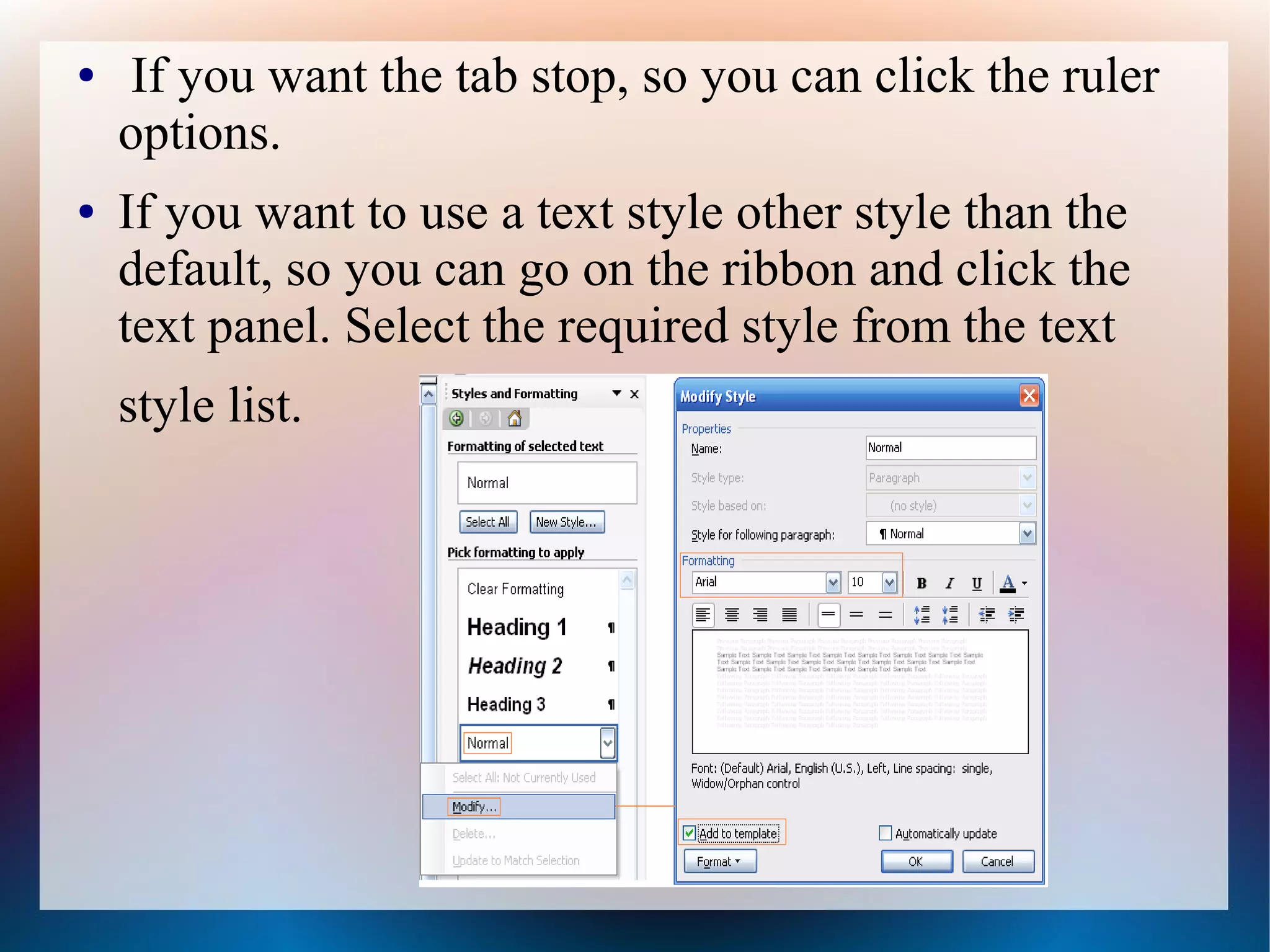

6. ● If you want the tab stop, so you can click the ruler
options.
● If you want to use a text style other style than the
default, so you can go on the ribbon and click the
text panel. Select the required style from the text
style list.

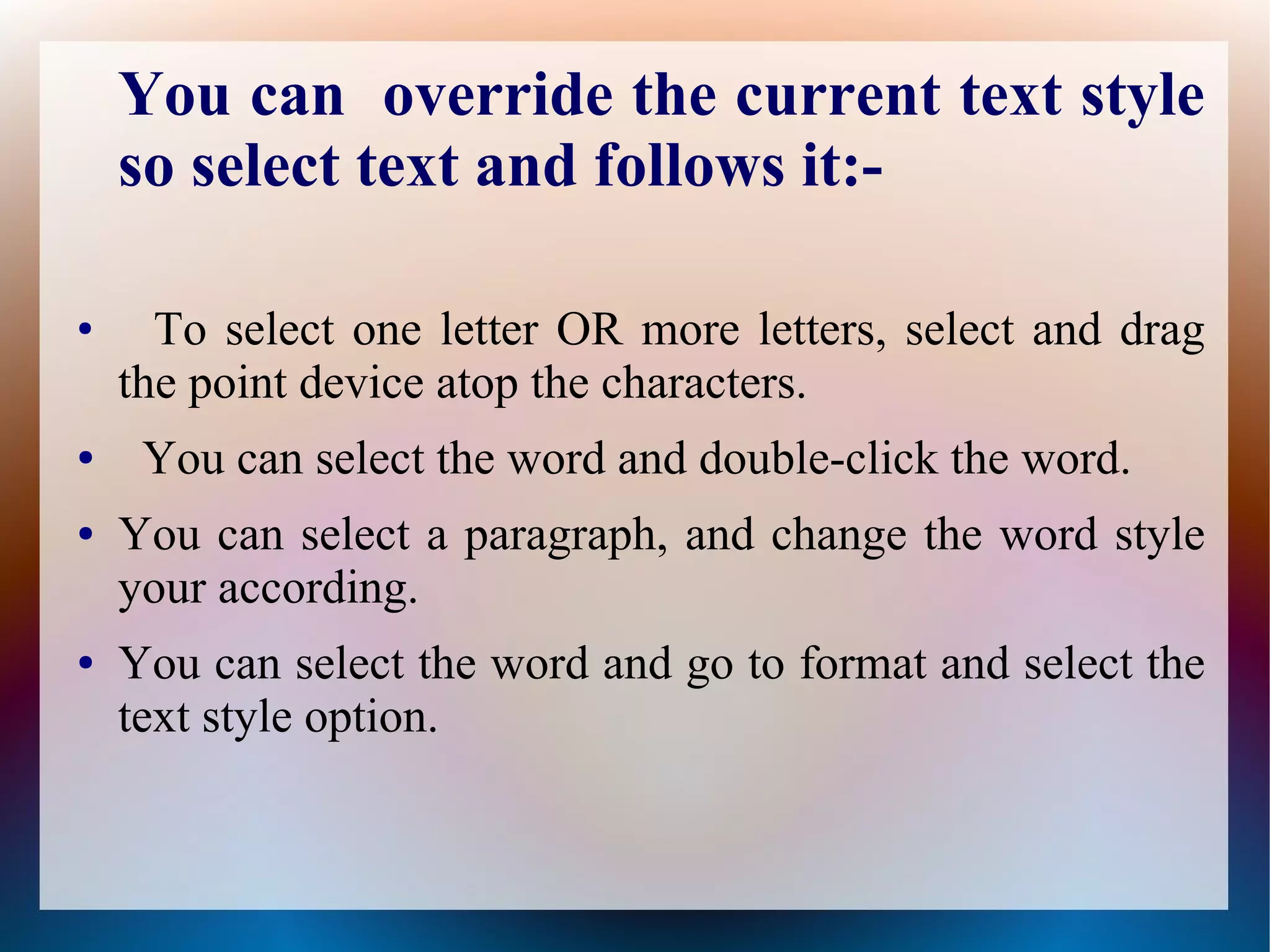

7. You can override the current text style
so select text and follows it:-
●
To select one letter OR more letters, select and drag
the point device atop the characters.
● You can select the word and double-click the word.
● You can select a paragraph, and change the word style
your according.
● You can select the word and go to format and select the
text style option.

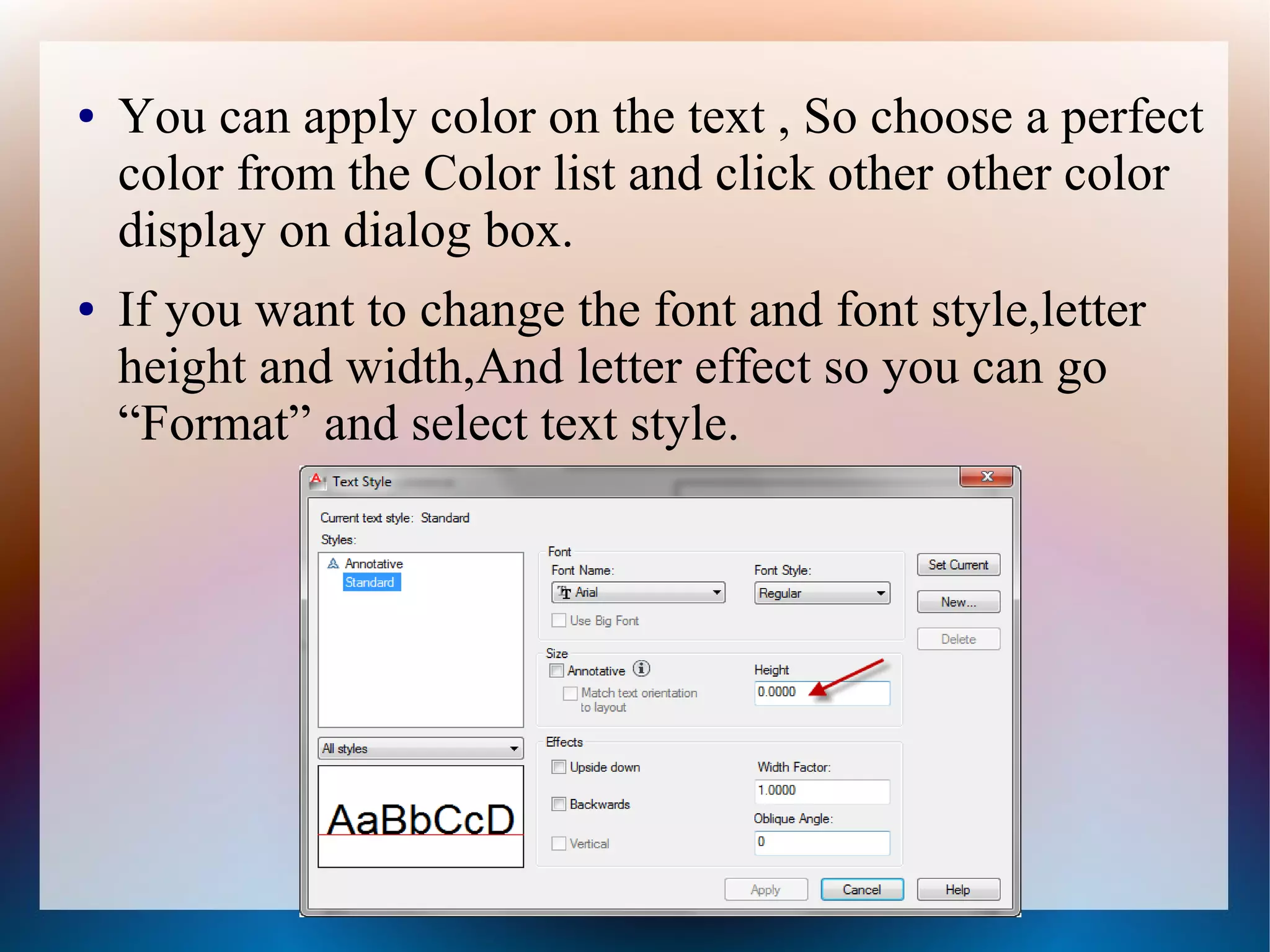

8. ● You can apply color on the text , So choose a perfect
color from the Color list and click other other color
display on dialog box.
● If you want to change the font and font style,letter
height and width,And letter effect so you can go
“Format” and select text style.

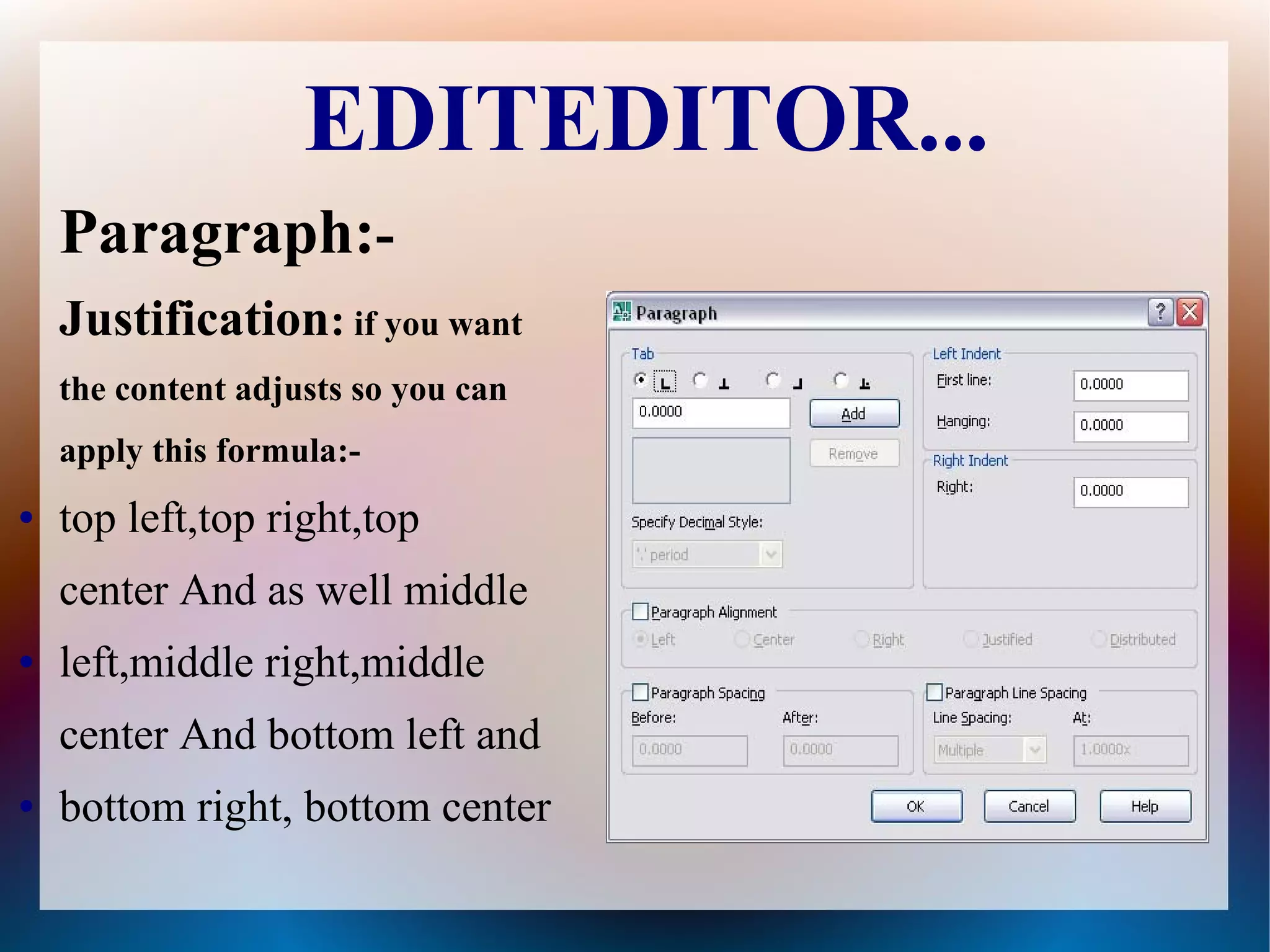

9. EDITEDITOR...
Paragraph:-
Justification: if you want
the content adjusts so you can
apply this formula:-
● top left,top right,top
center And as well middle
● left,middle right,middle
center And bottom left and
● bottom right, bottom center

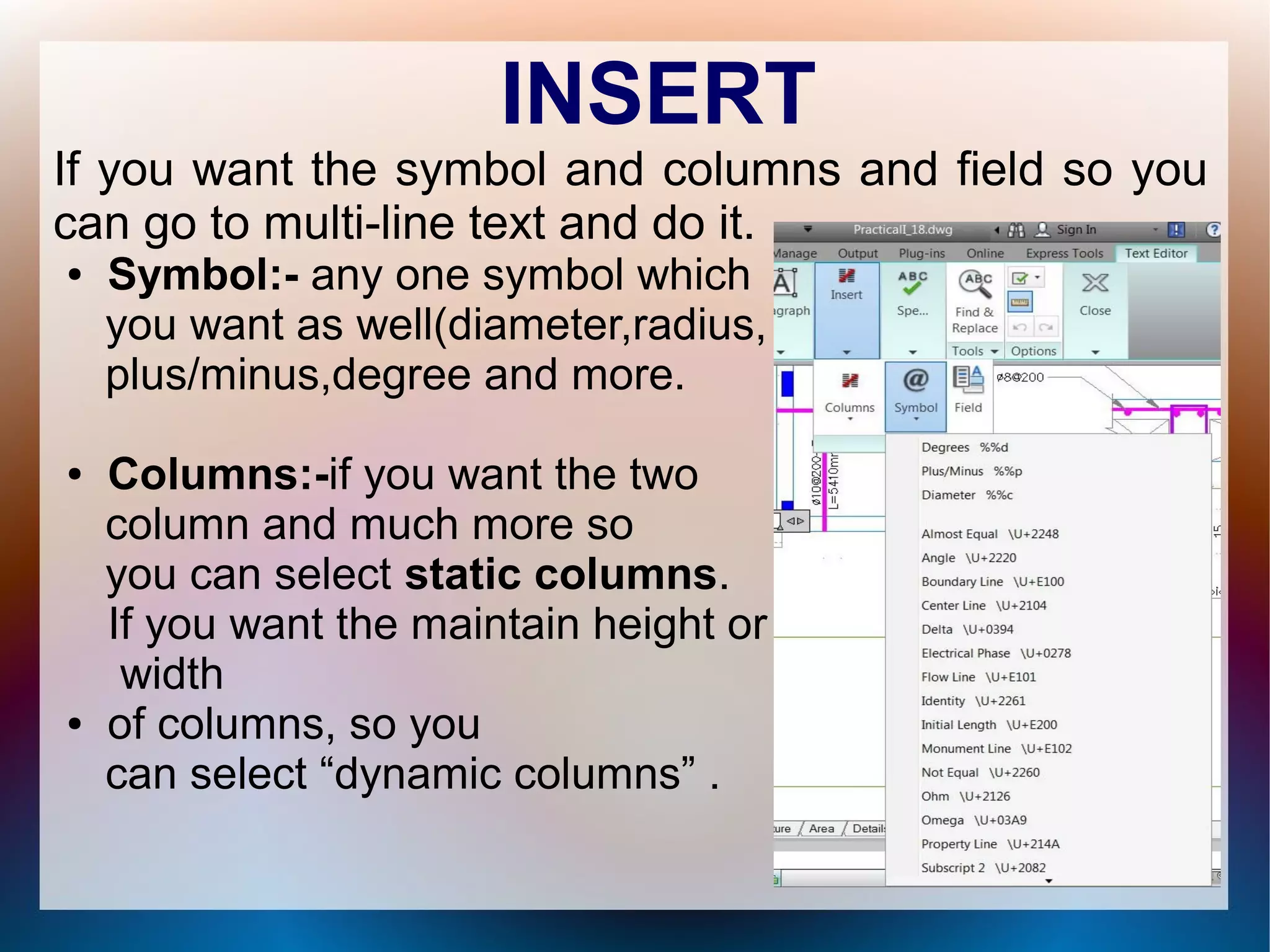

10. INSERT
If you want the symbol and columns and field so you
can go to multi-line text and do it.
● Symbol:- any one symbol which
you want as well(diameter,radius,
plus/minus,degree and more.
● Columns:-if you want the two
column and much more so
you can select static columns.
If you want the maintain height or
width
● of columns, so you
can select “dynamic columns” .

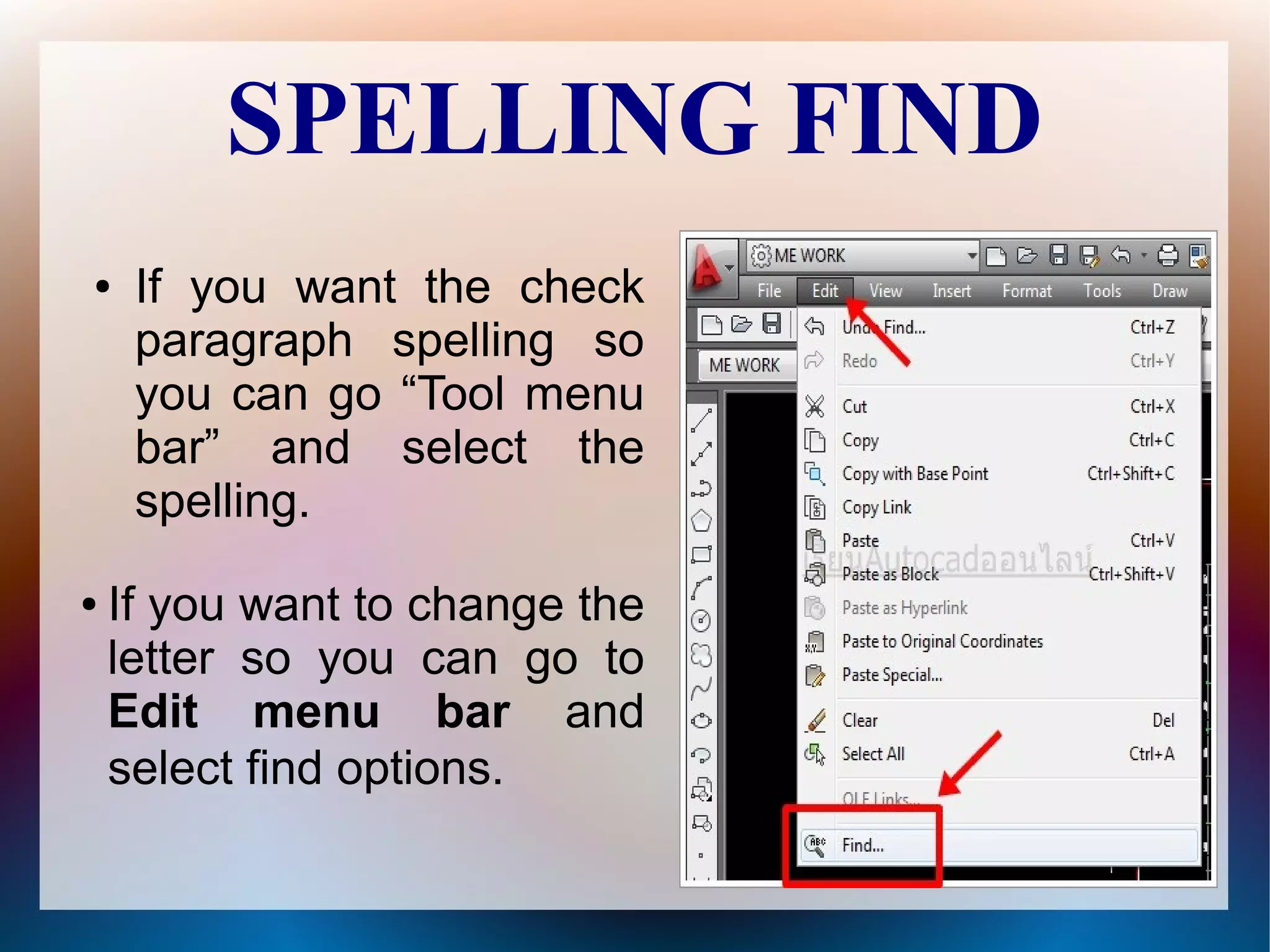

11. SPELLING FIND
● If you want the check
paragraph spelling so
you can go “Tool menu
bar” and select the
spelling.
● If you want to change the
letter so you can go to
Edit menu bar and
select find options.

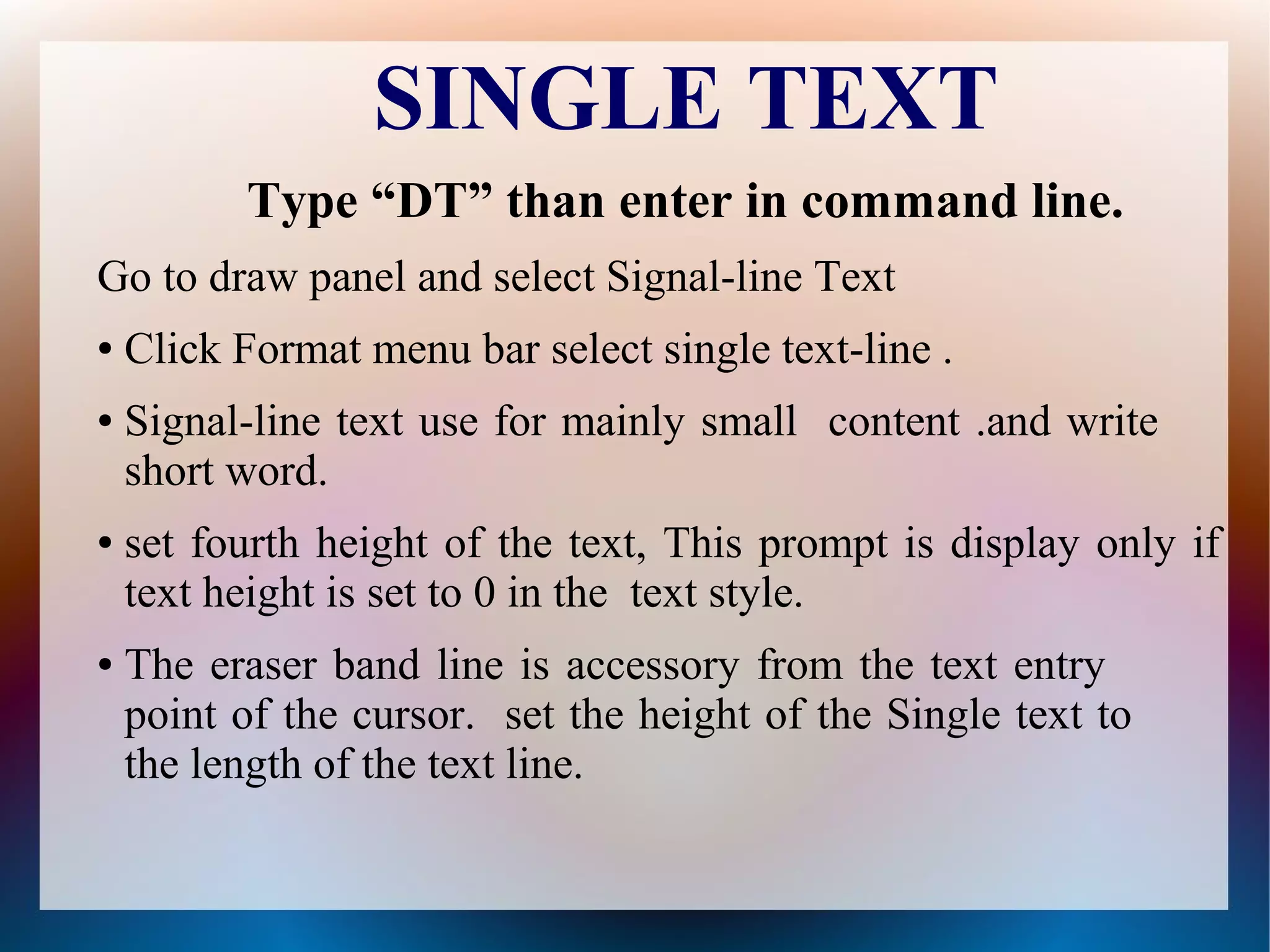

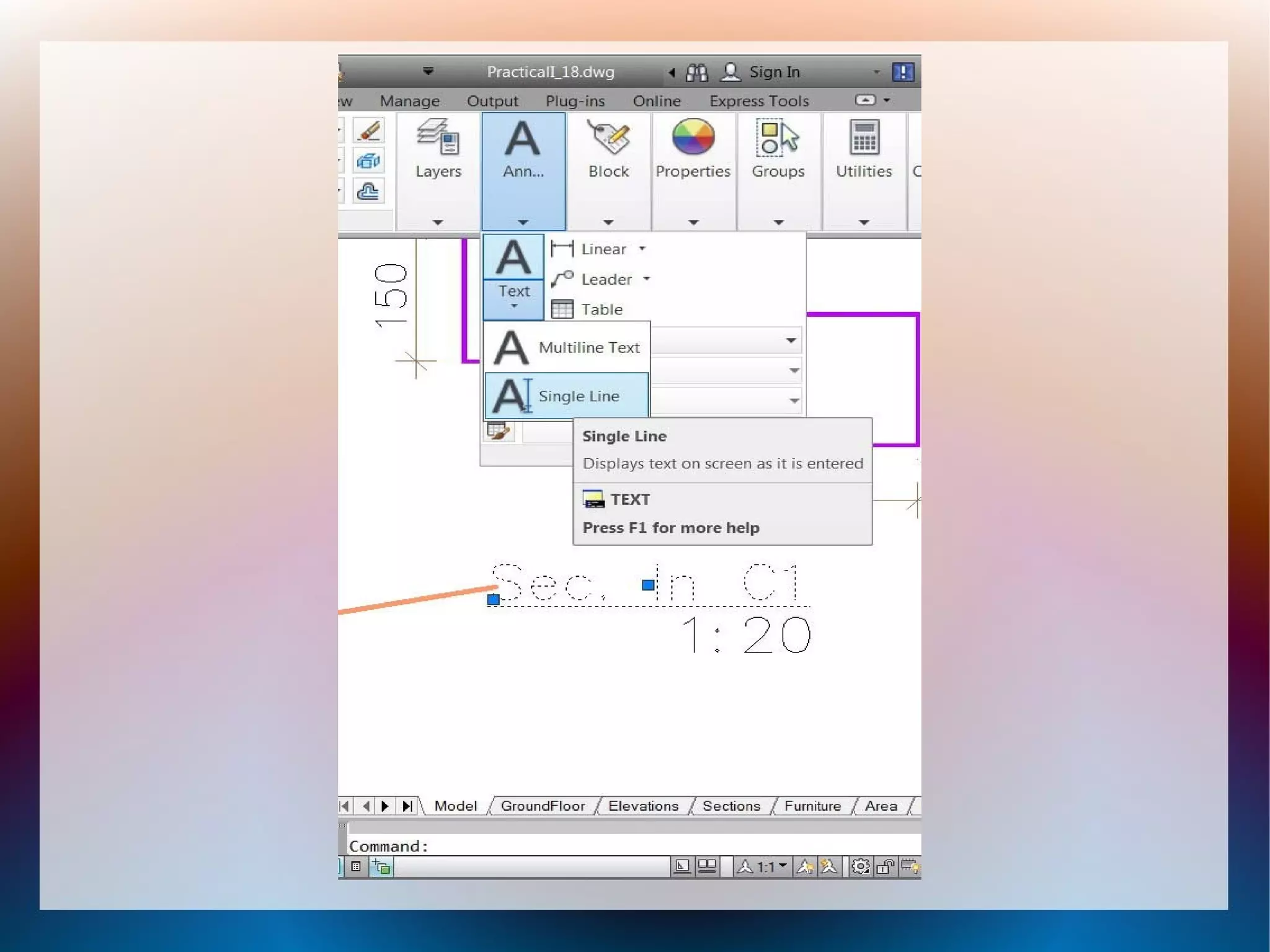

12. SINGLE TEXT
Type “DT” than enter in command line.
Go to draw panel and select Signal-line Text
● Click Format menu bar select single text-line .
● Signal-line text use for mainly small content .and write
short word.
● set fourth height of the text, This prompt is display only if
text height is set to 0 in the text style.
● The eraser band line is accessory from the text entry
point of the cursor. set the height of the Single text to
the length of the text line.

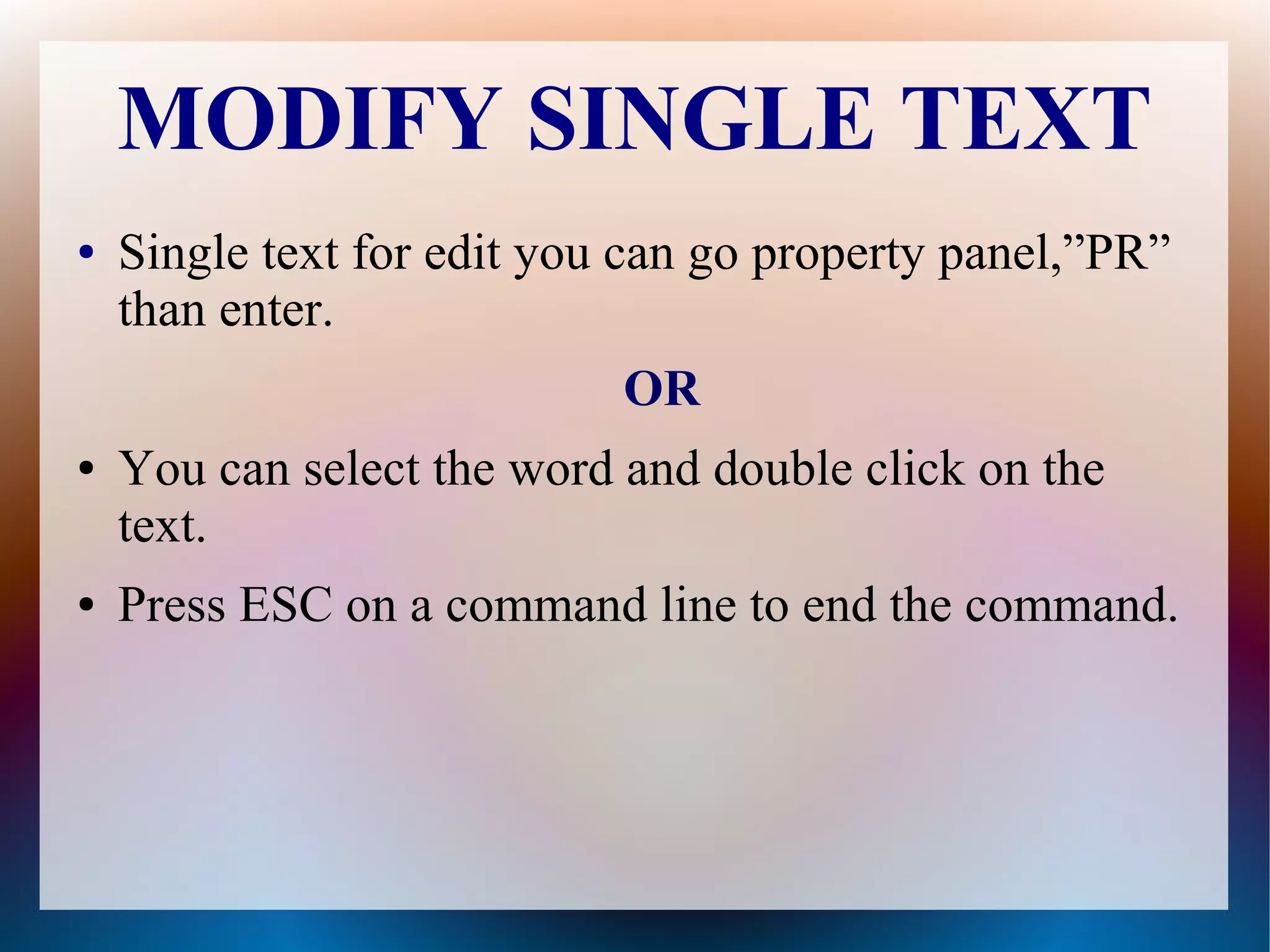

14. MODIFY SINGLE TEXT
● Single text for edit you can go property panel,”PR”
than enter.
OR
● You can select the word and double click on the
text.
● Press ESC on a command line to end the command.

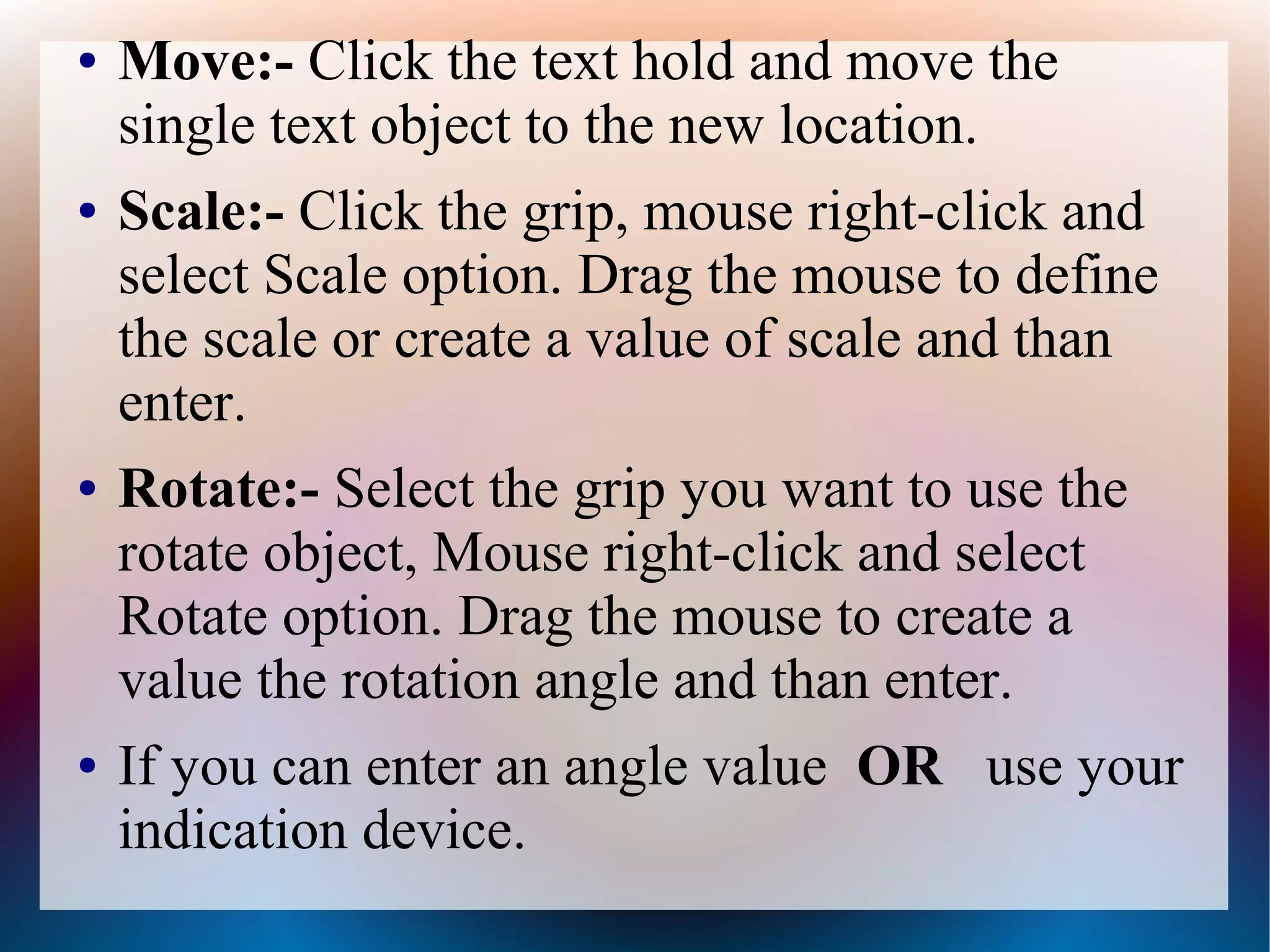

15. ● Move:- Click the text hold and move the
single text object to the new location.
● Scale:- Click the grip, mouse right-click and
select Scale option. Drag the mouse to define
the scale or create a value of scale and than
enter.
● Rotate:- Select the grip you want to use the
rotate object, Mouse right-click and select
Rotate option. Drag the mouse to create a
value the rotation angle and than enter.
● If you can enter an angle value OR use your
indication device.
