In a FAIR world my paper is the supplementary information for my publication
Mark D. Wilkinson CBGP-UPM/INIA, Madrid markw@illuminae.com FAIRness emerges from a novel combination of Web technologies OAI10, Geneva, June 2017 http://tinyurl.com/WilkinsonOAI10
The Problem We surveyed 100 datasets associated with nonmolecular studies ... 64% were archived in a way that partially or entirely prevented reuse. “ ” Dominique G. Roche , Loeske E. B. Kruuk, Robert Lanfear, Sandra A. Binning (2015) http://dx.doi.org/10.1371/journal.pbio.1002295
The Problem Is that data, therefore... Useless?

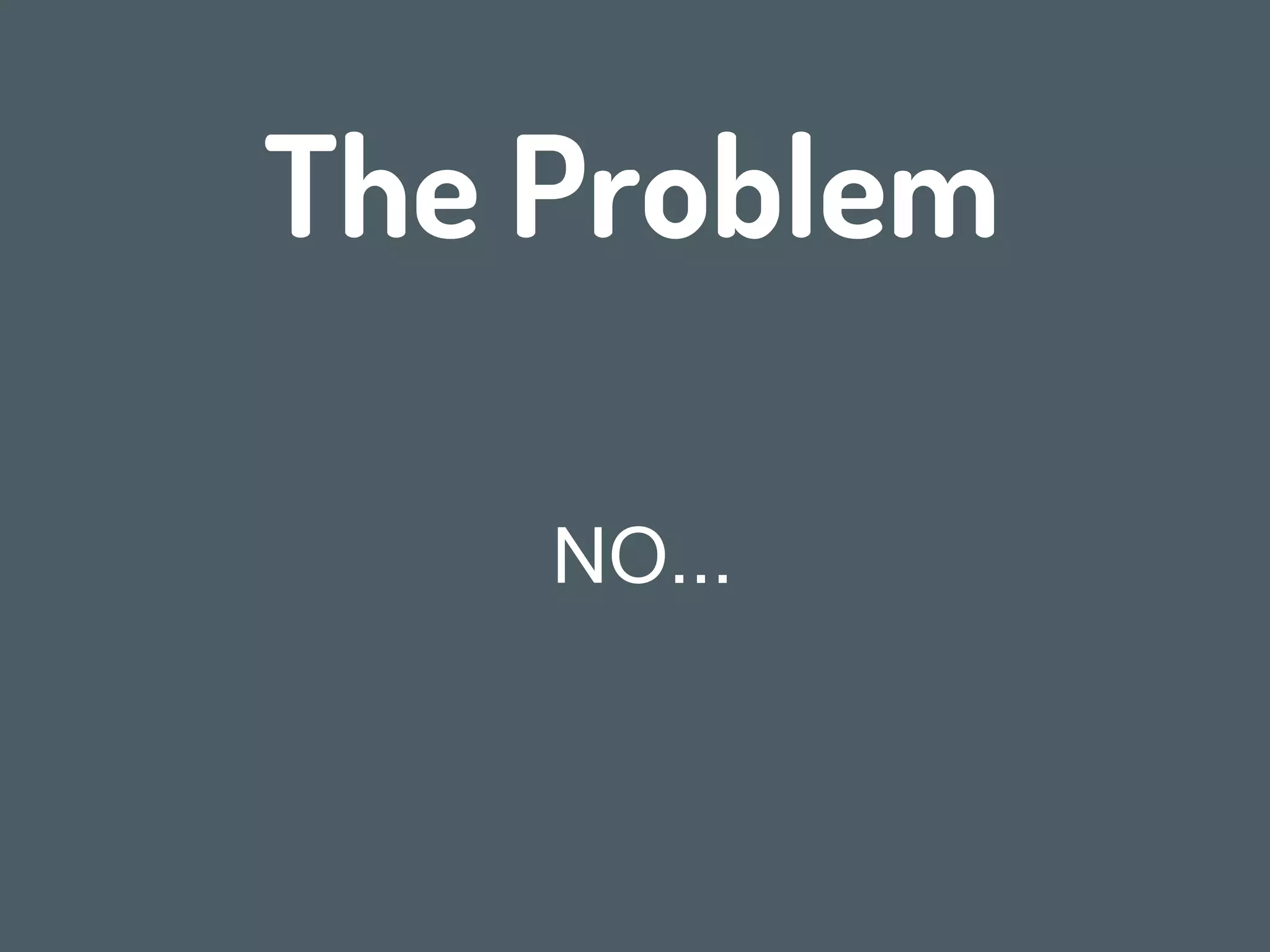

The Problem NO...

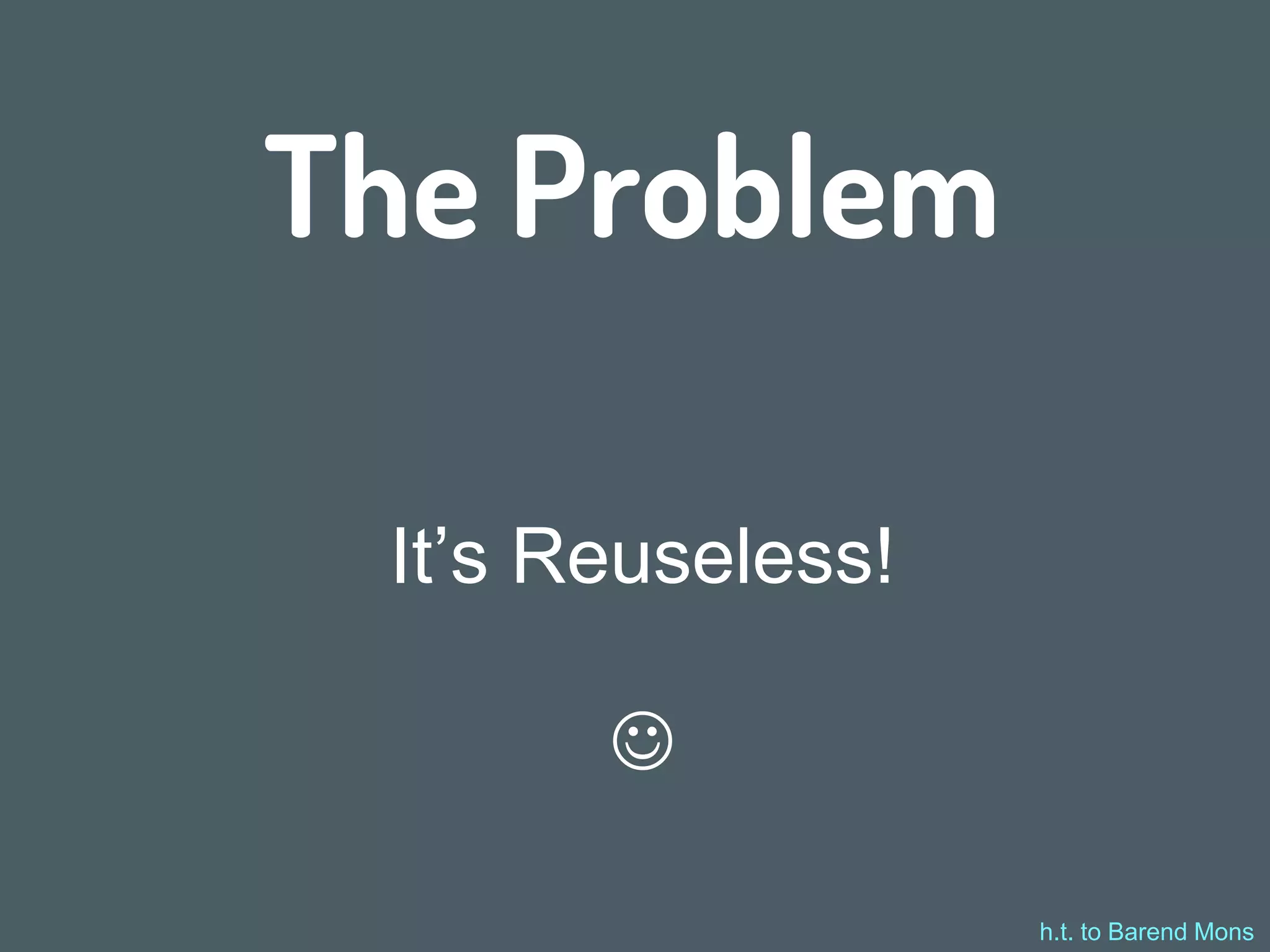

The Problem It’s Reuseless!  h.t. to Barend Mons

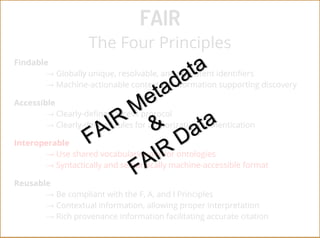

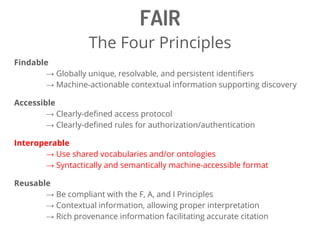

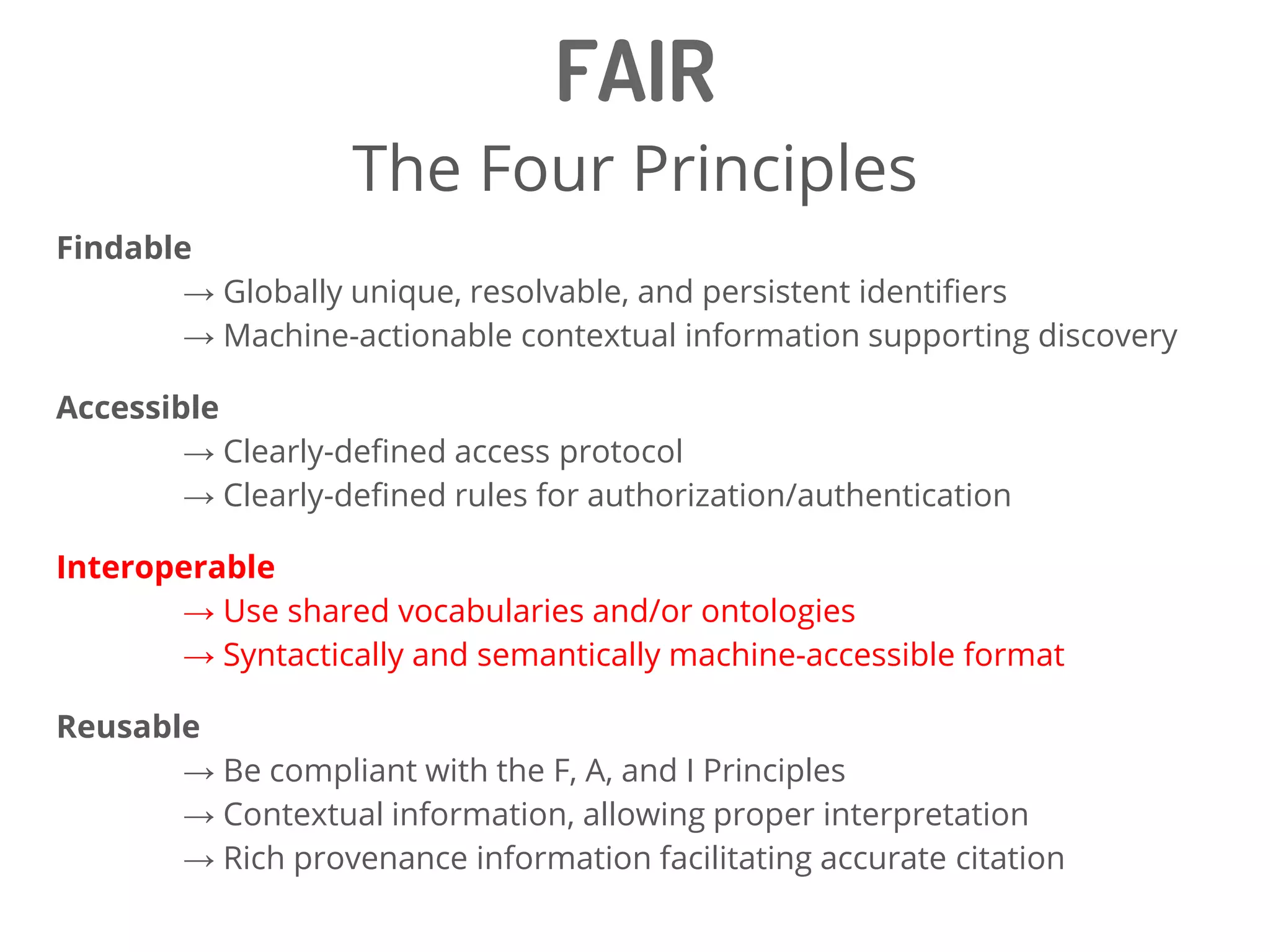

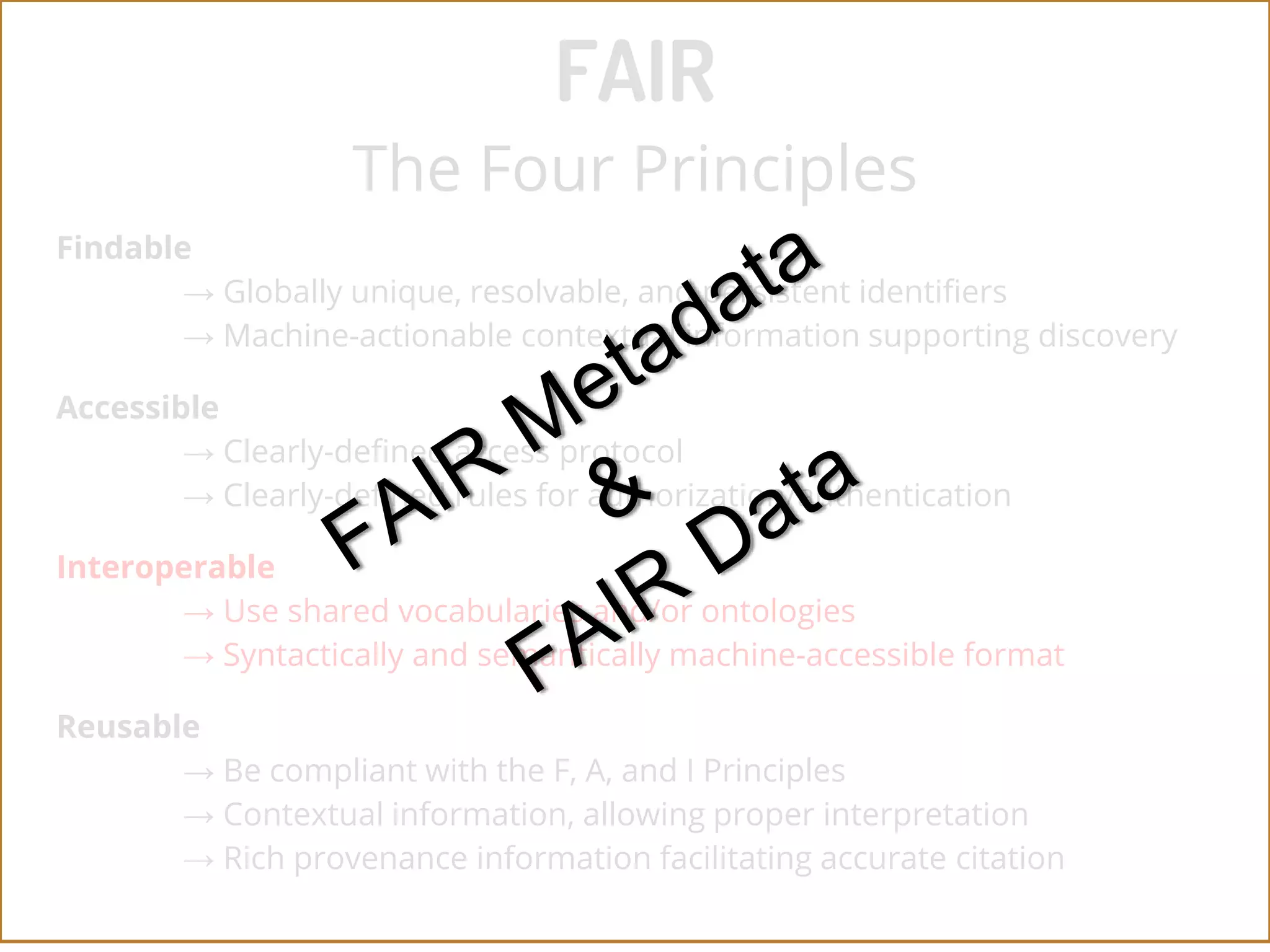

FAIR Findable → Globally unique, resolvable, and persistent identifiers → Machine-actionable contextual information supporting discovery Accessible → Clearly-defined access protocol → Clearly-defined rules for authorization/authentication Interoperable → Use shared vocabularies and/or ontologies → Syntactically and semantically machine-accessible format Reusable → Be compliant with the F, A, and I Principles → Contextual information, allowing proper interpretation → Rich provenance information facilitating accurate citation The Four Principles
FAIR Findable → Globally unique, resolvable, and persistent identifiers → Machine-actionable contextual information supporting discovery Accessible → Clearly-defined access protocol → Clearly-defined rules for authorization/authentication Interoperable → Use shared vocabularies and/or ontologies → Syntactically and semantically machine-accessible format Reusable → Be compliant with the F, A, and I Principles → Contextual information, allowing proper interpretation → Rich provenance information facilitating accurate citation The Four Principles
“Skunkworks” Task: Build a prototype
Skunkworks Participants Mark Wilkinson Michel Dumontier Barend Mons Tim Clark Jun Zhao Paolo Ciccarese Paul Groth Erik van Mulligen Luiz Olavo Bonino da Silva Santos Matthew Gamble Carole Goble Joël Kuiper Morris Swertz Erik Schultes Erik Schultes Mercè Crosas Adrian Garcia Philip Durbin Jeffrey Grethe Katy Wolstencroft Sudeshna Das M. Emily Merrill

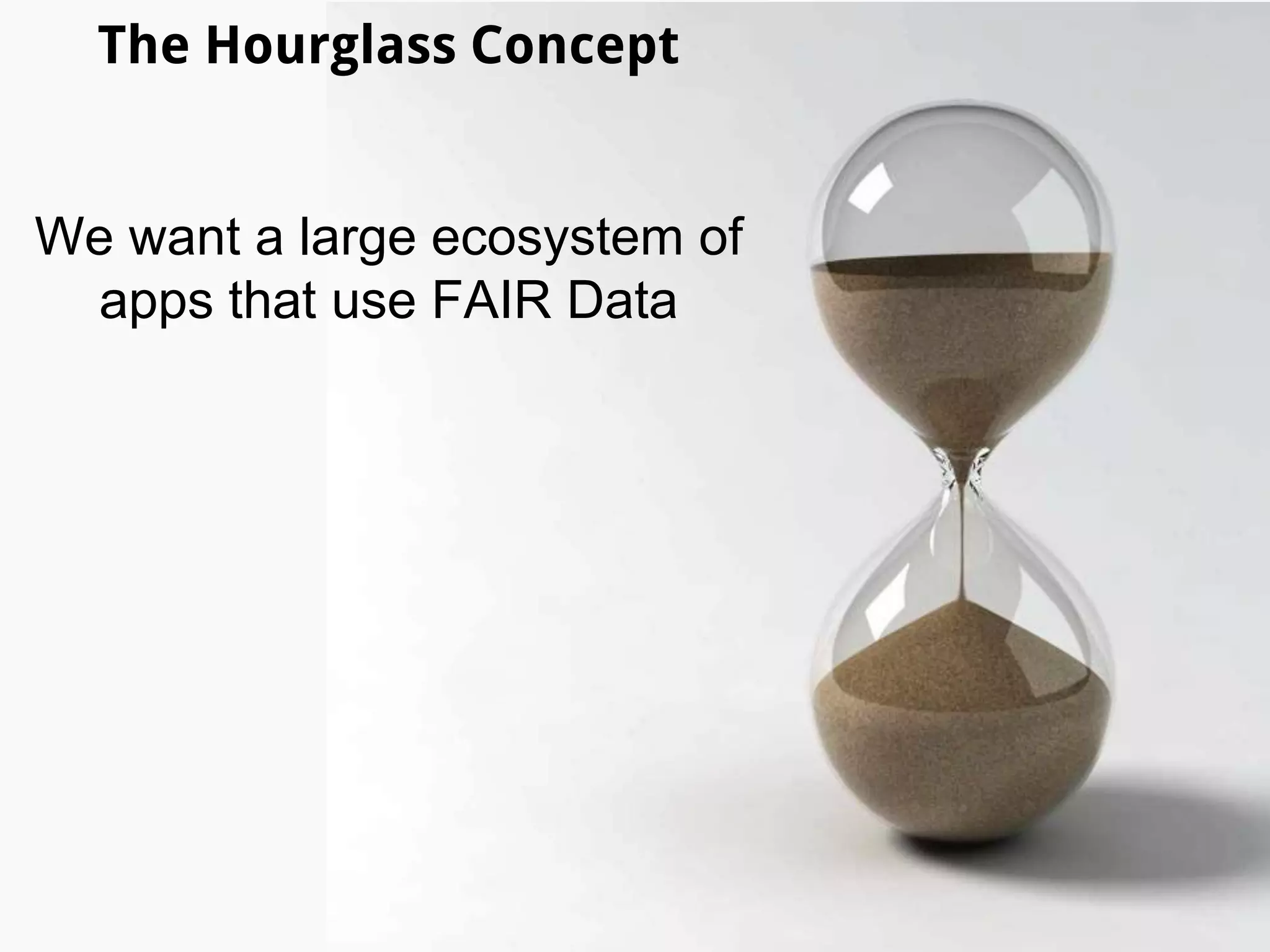

The Hourglass Concept We want a large ecosystem of apps that use FAIR Data
The Hourglass Concept We want to support a wide range of source providers
The Hourglass Concept The FAIR solution between them must be THIN!
Keeping the history brief A series of teleconferences led to the concept of putting metadata into an iterative set of ~identical “containers”

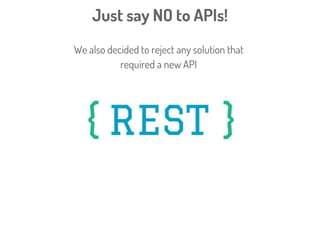

Just say NO to APIs! We also decided to reject any solution that required a new API ProgrammableWeb.com already catalogues >16,000 different Web APIs

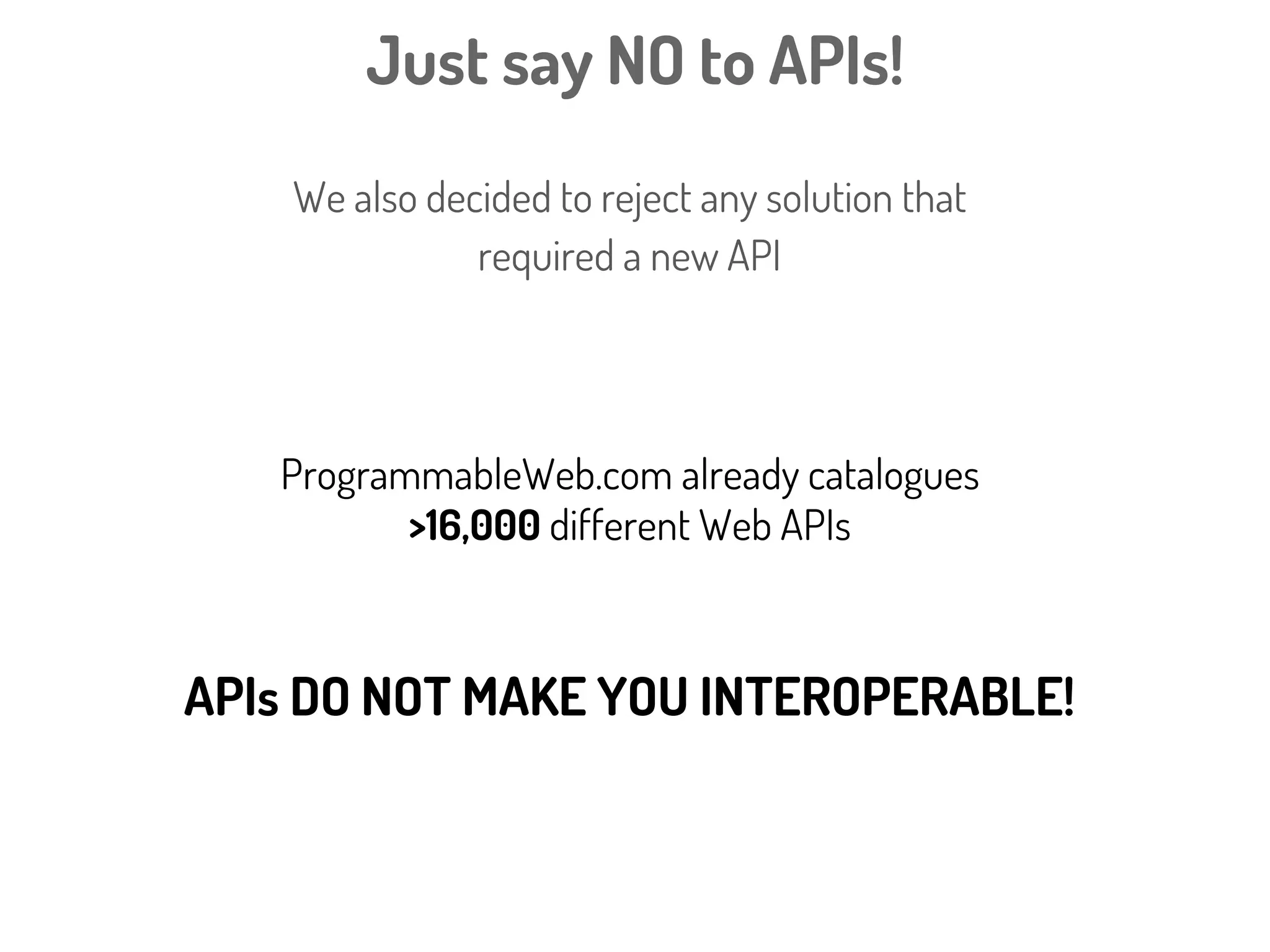

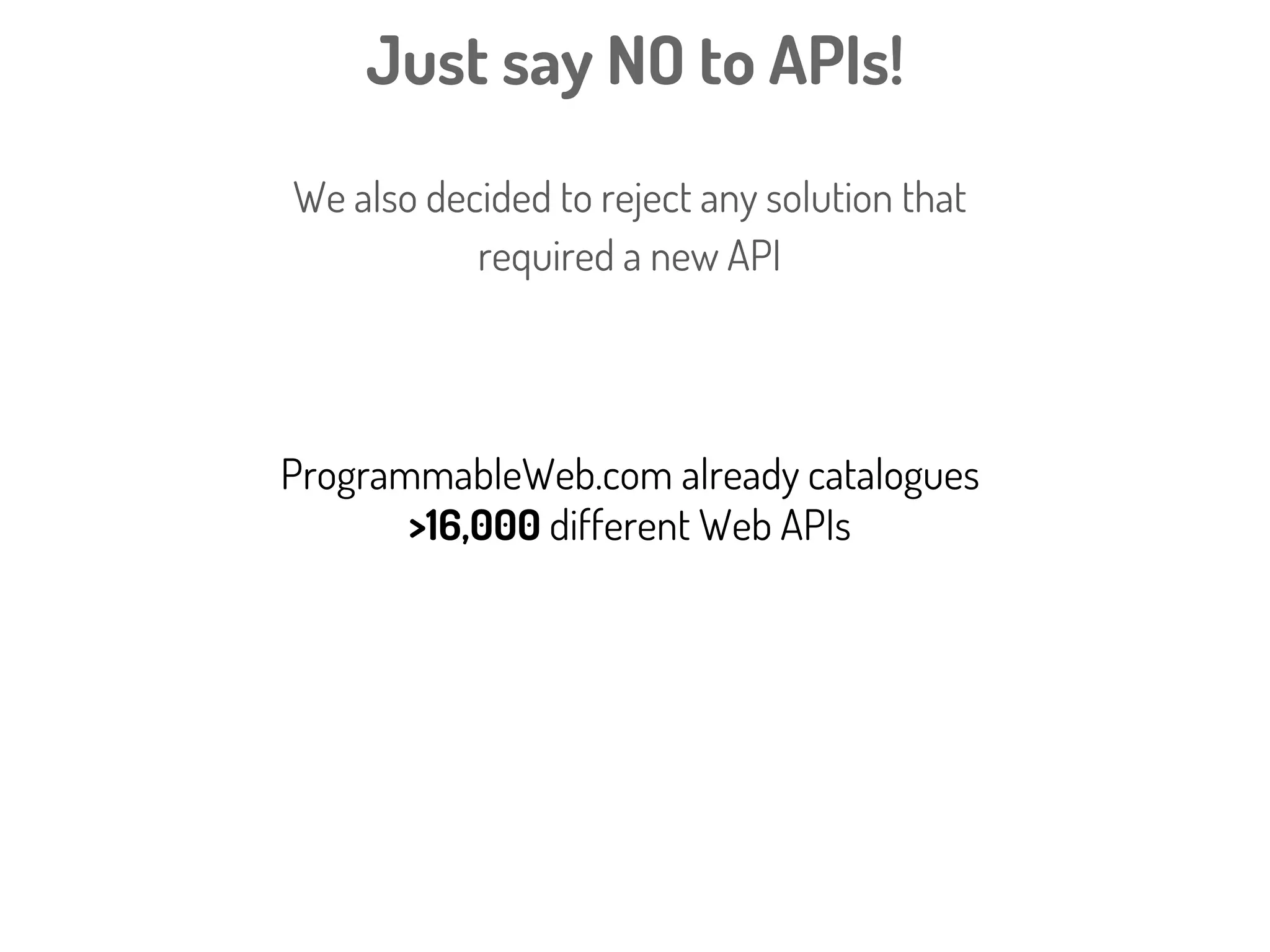

Just say NO to APIs! ProgrammableWeb.com already catalogues >16,000 different Web APIs APIs DO NOT MAKE YOU INTEROPERABLE! We also decided to reject any solution that required a new API
Just say NO to APIs!

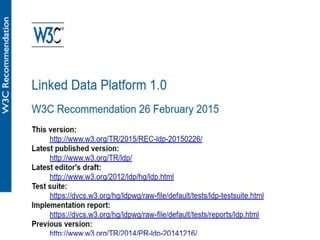

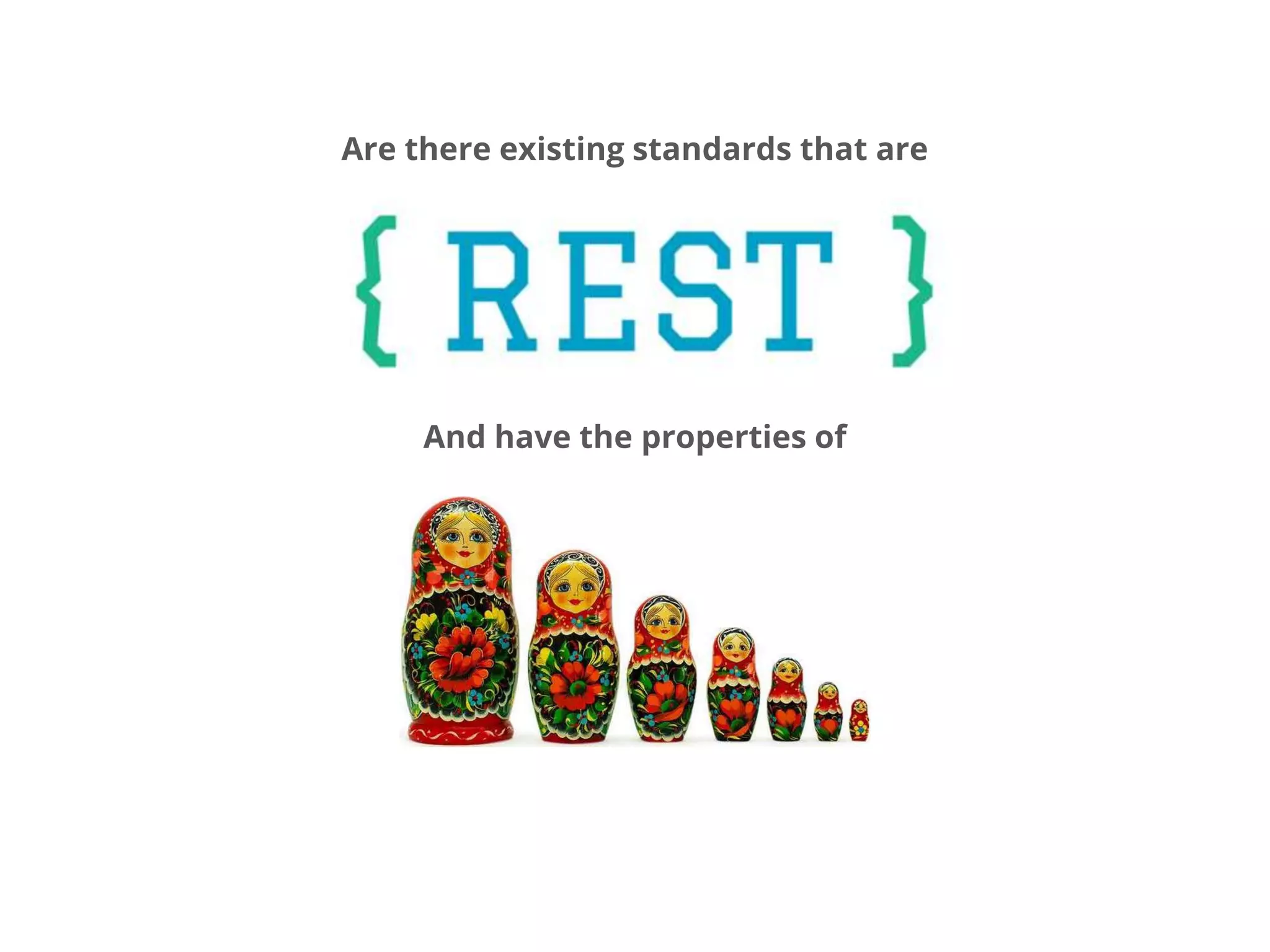

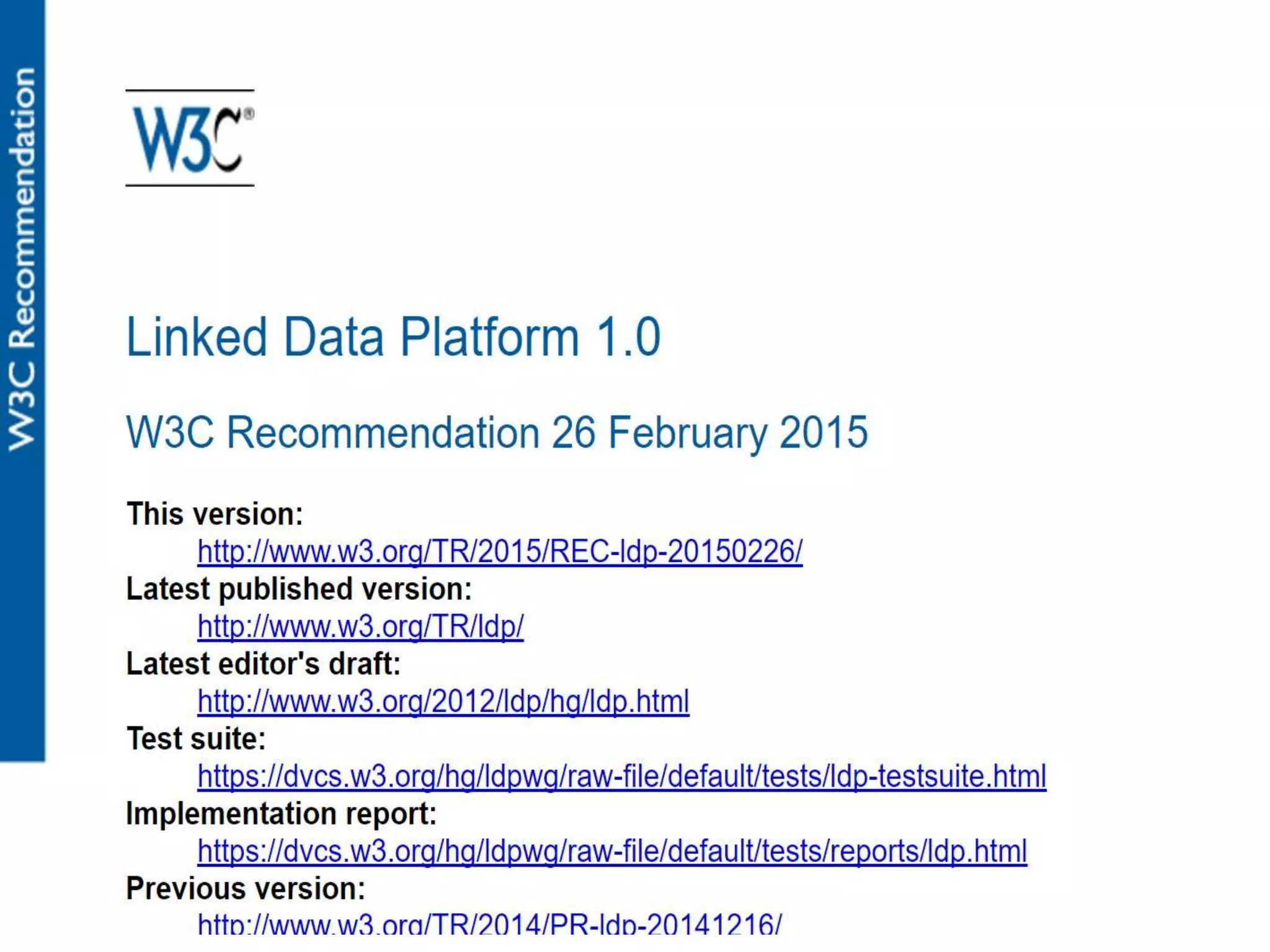

Are there existing standards that are And have the properties of
The FAIR Accessor In incremental detail

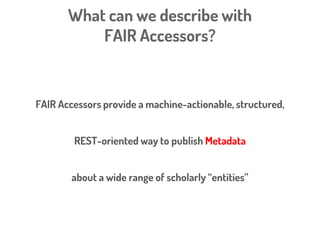

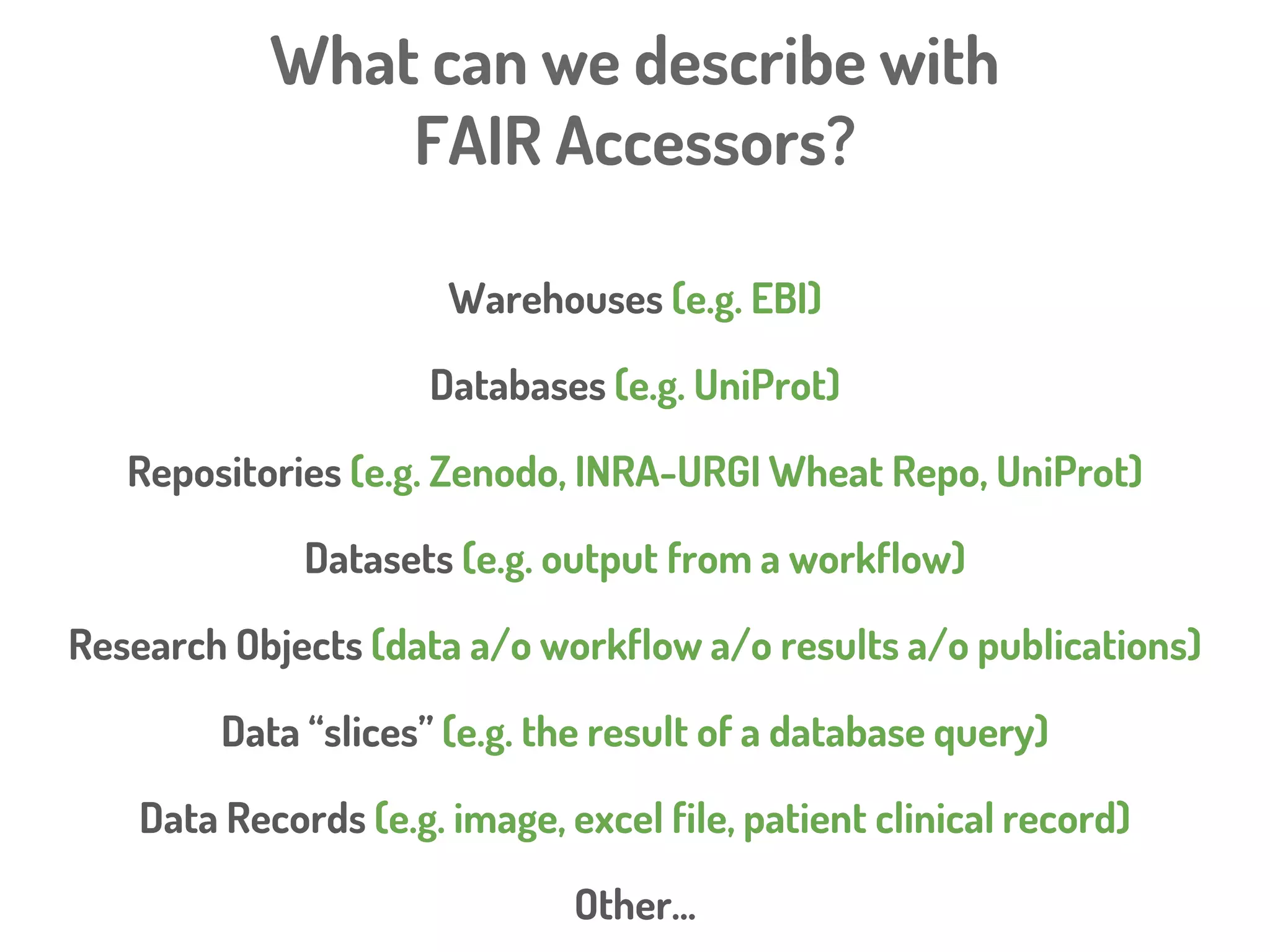

What can we describe with FAIR Accessors? FAIR Accessors provide a machine-actionable, structured, REST-oriented way to publish Metadata about a wide range of scholarly “entities”

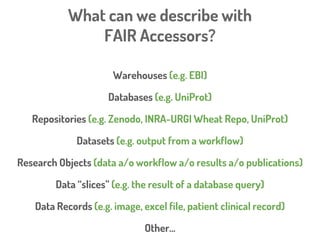

What can we describe with FAIR Accessors? Warehouses (e.g. EBI) Databases (e.g. UniProt) Repositories (e.g. Zenodo, INRA-URGI Wheat Repo, UniProt) Datasets (e.g. output from a workflow) Research Objects (data a/o workflow a/o results a/o publications) Data “slices” (e.g. the result of a database query) Data Records (e.g. image, excel file, patient clinical record) Other…

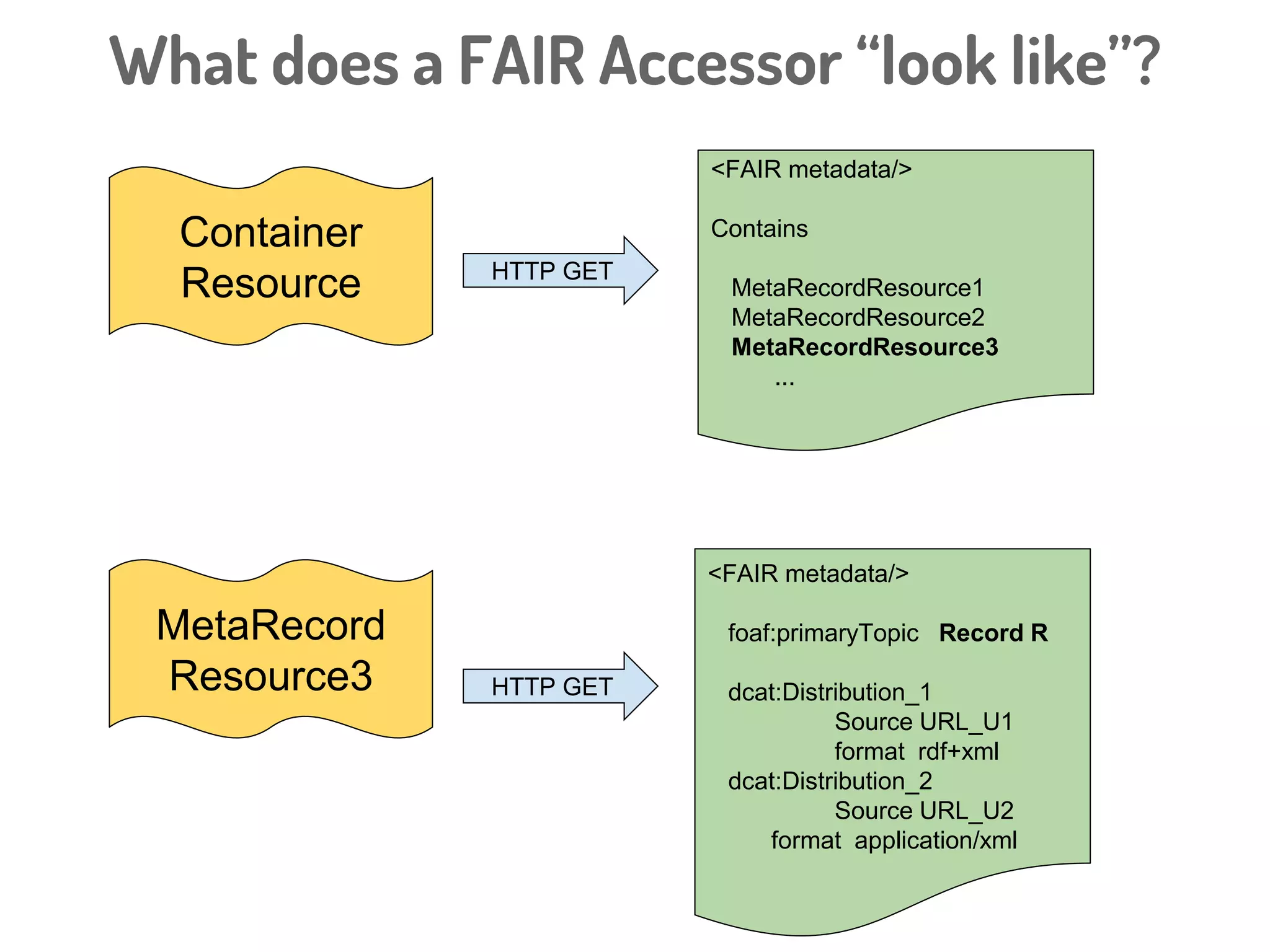

HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? Container Resource

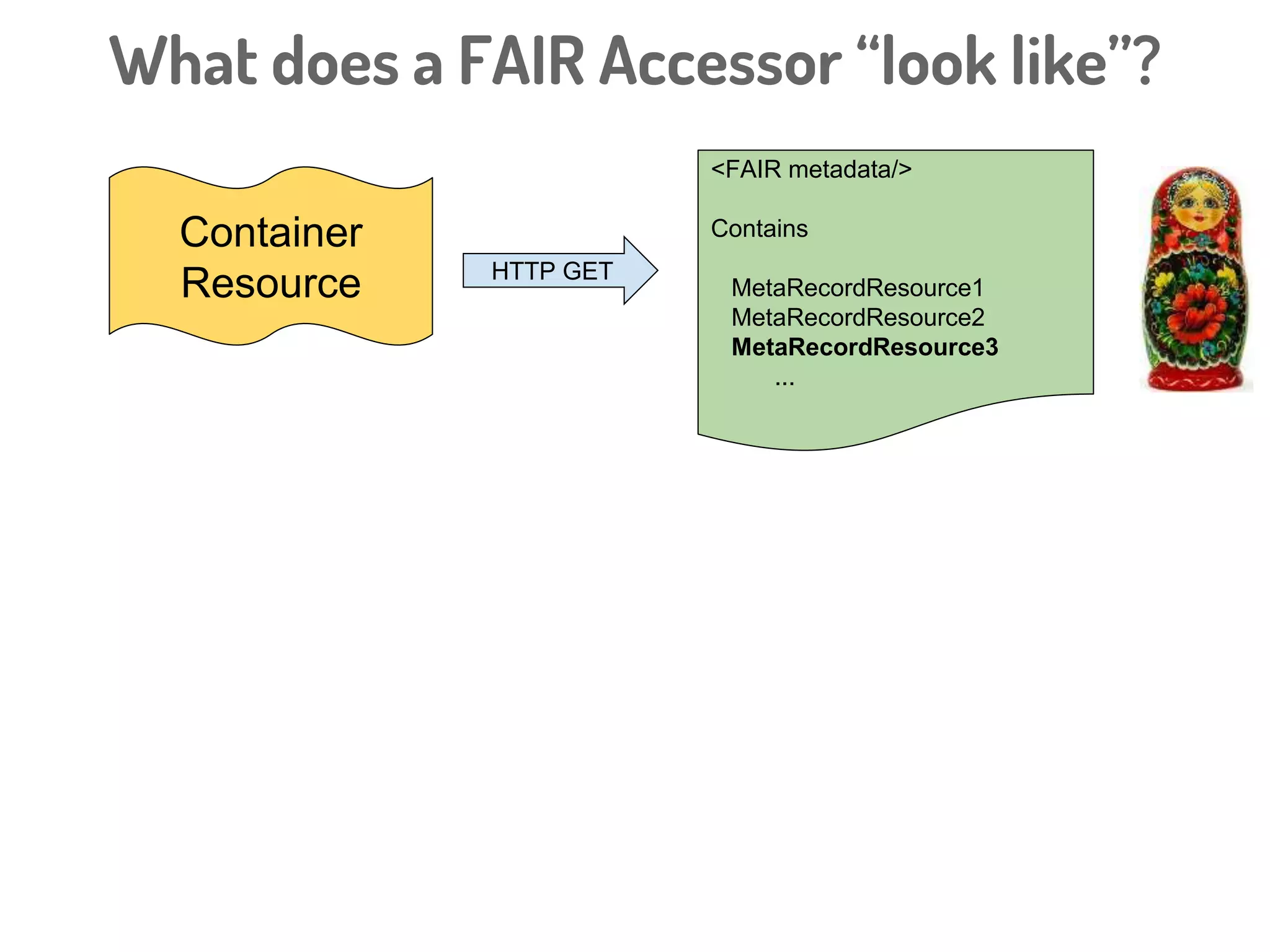

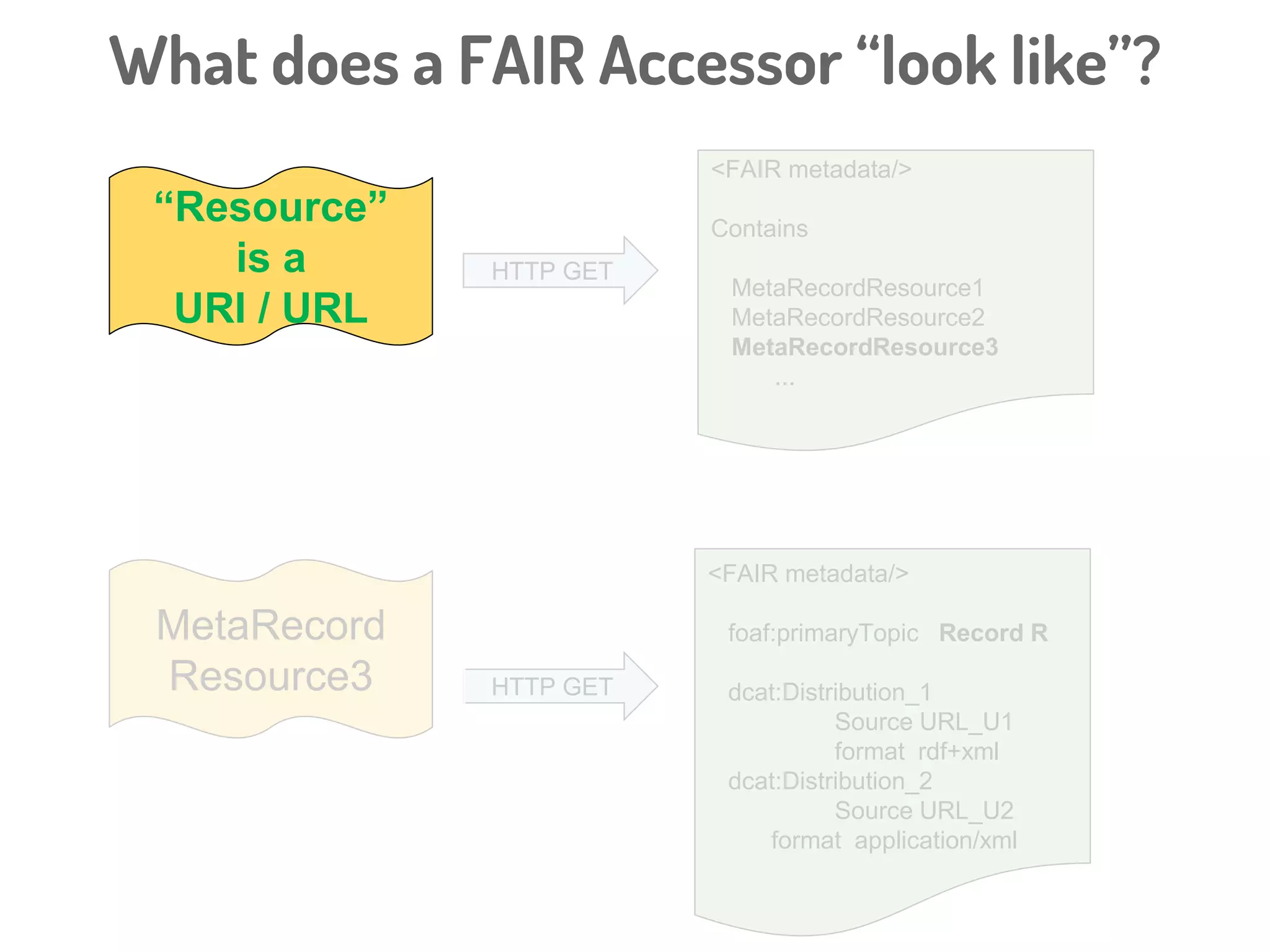

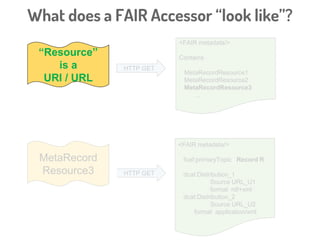

“Resource” is a URI / URL HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”?

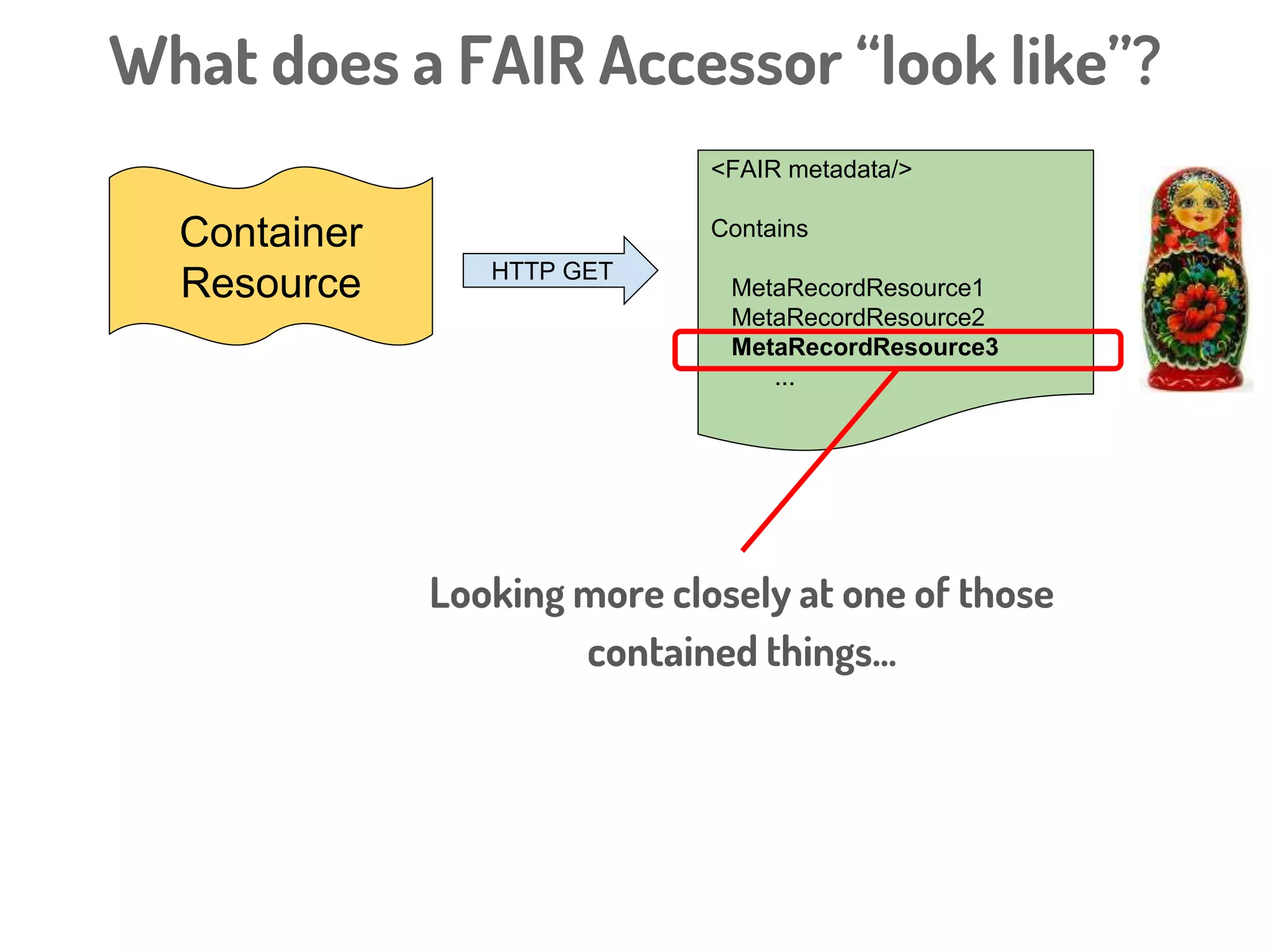

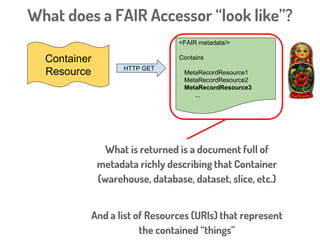

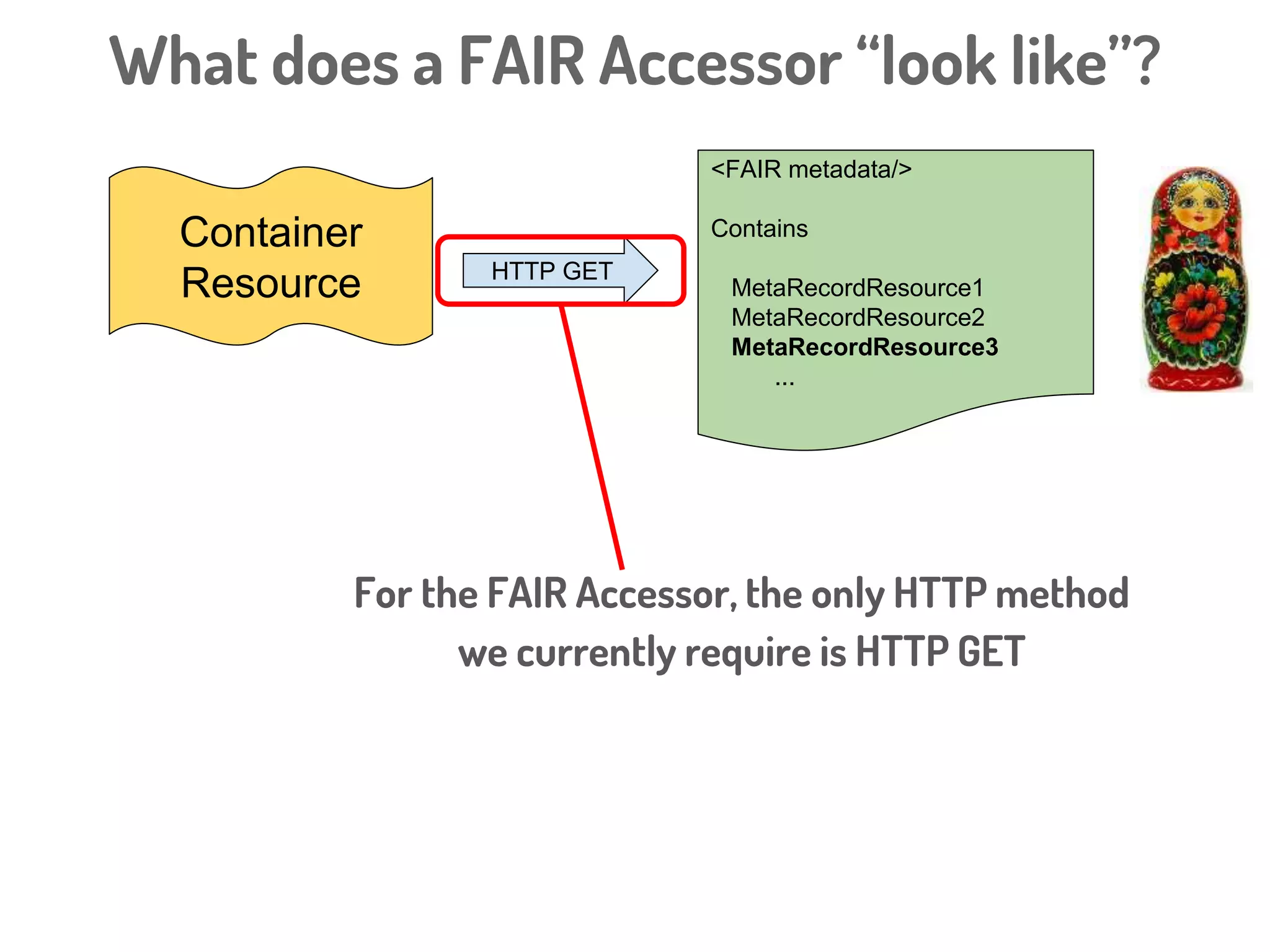

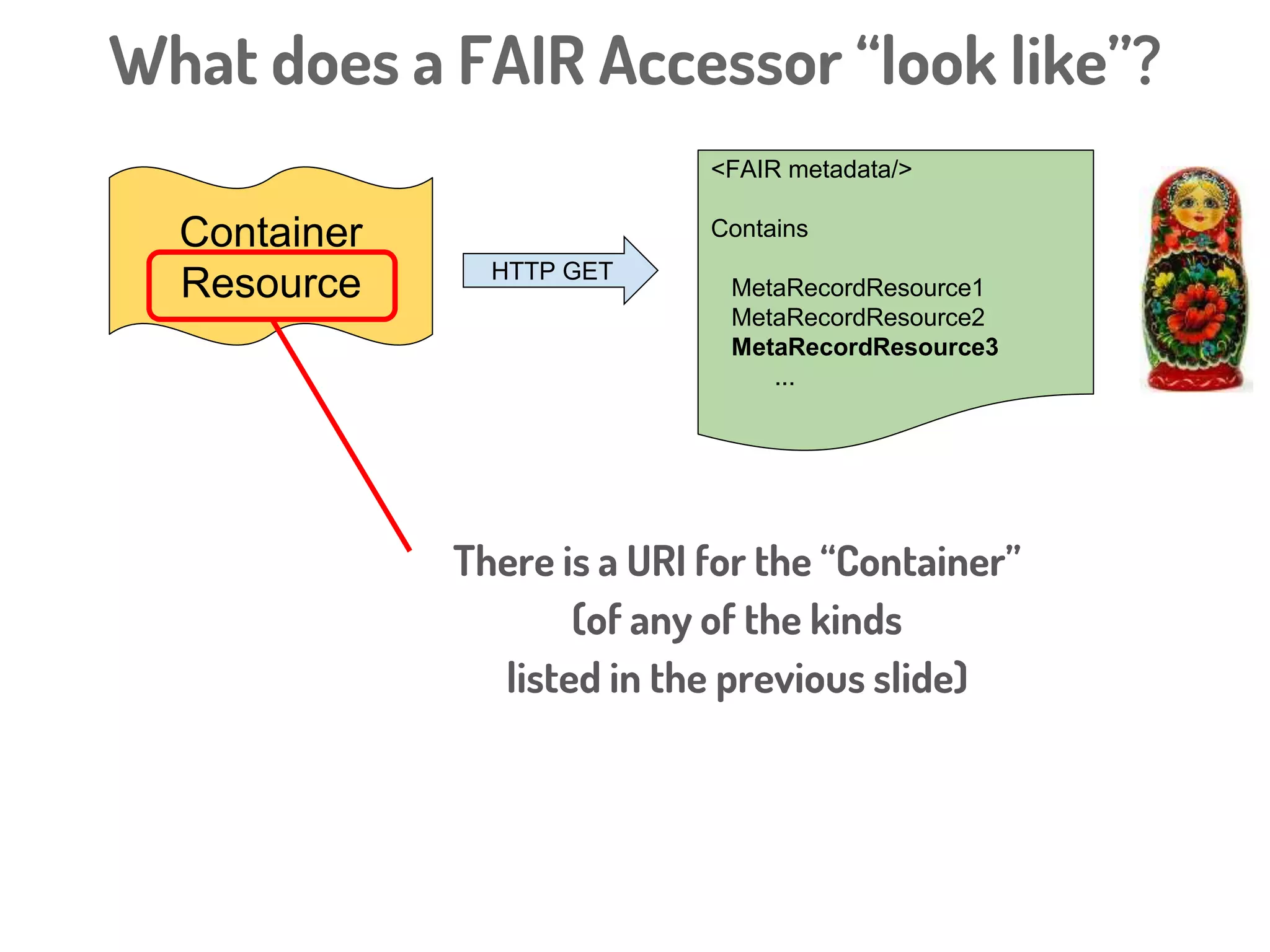

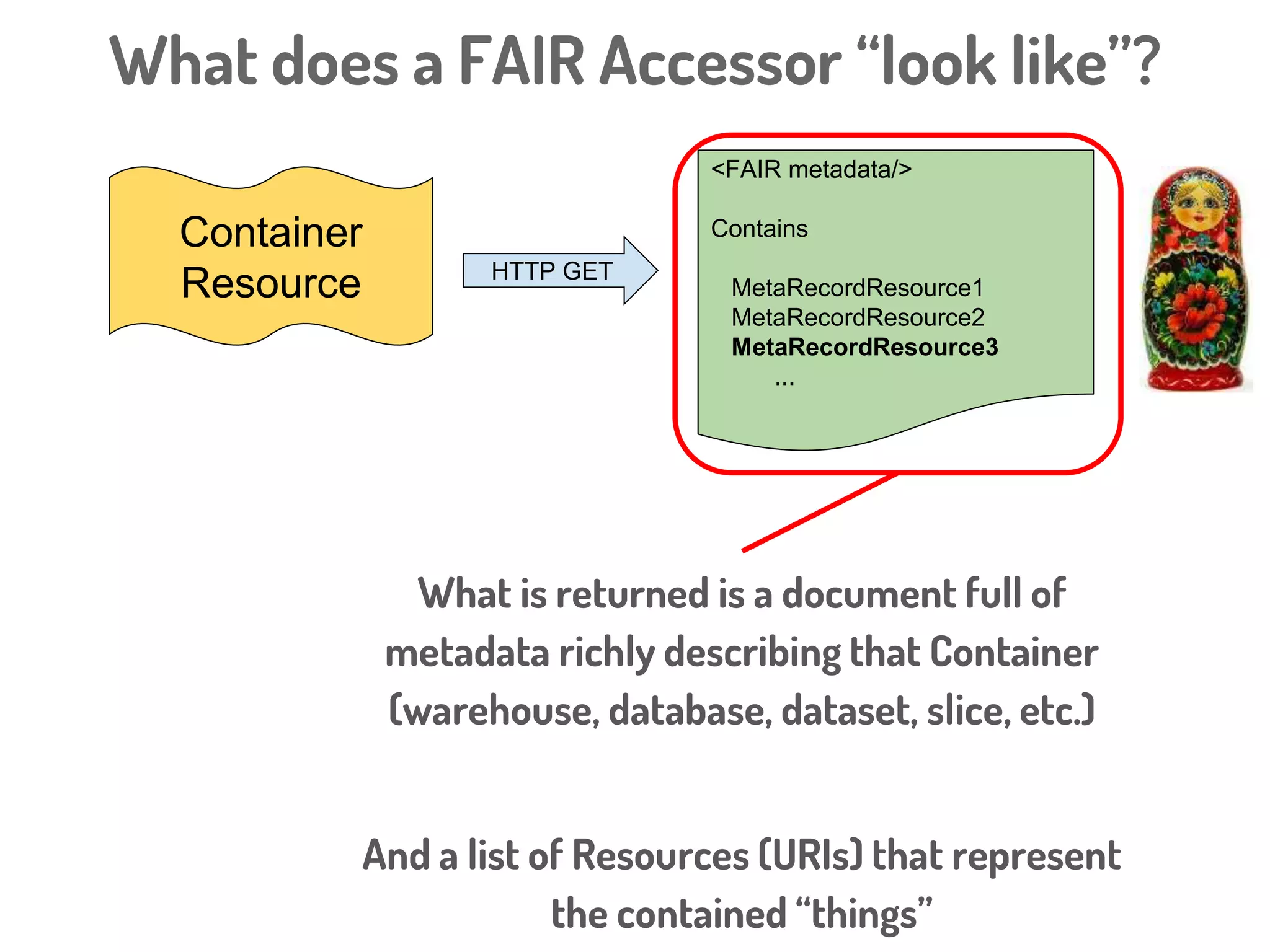

Container Resource HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... What does a FAIR Accessor “look like”?
Container Resource HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... What does a FAIR Accessor “look like”? There is a URI for the “Container” (of any of the kinds listed in the previous slide)
Container Resource HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... What does a FAIR Accessor “look like”? The only HTTP method we currently use is HTTP GET
Container Resource HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... What does a FAIR Accessor “look like”? What is returned is a document full of metadata richly describing that Container (warehouse, database, dataset, slice, etc.) And a list of Resources (URIs) that represent the contained “things”
Container Resource HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... What does a FAIR Accessor “look like”? Looking more closely at one of those contained things...

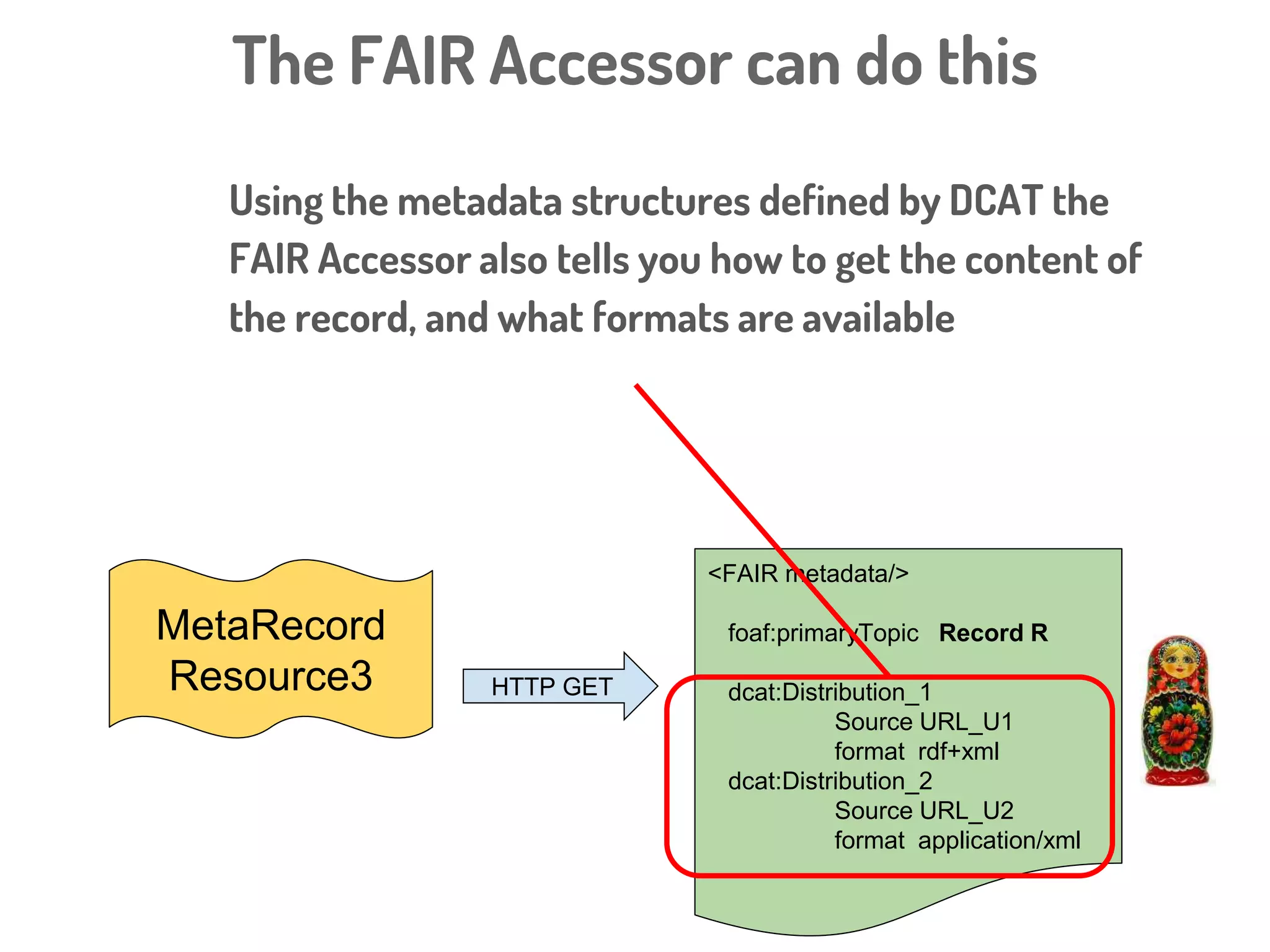

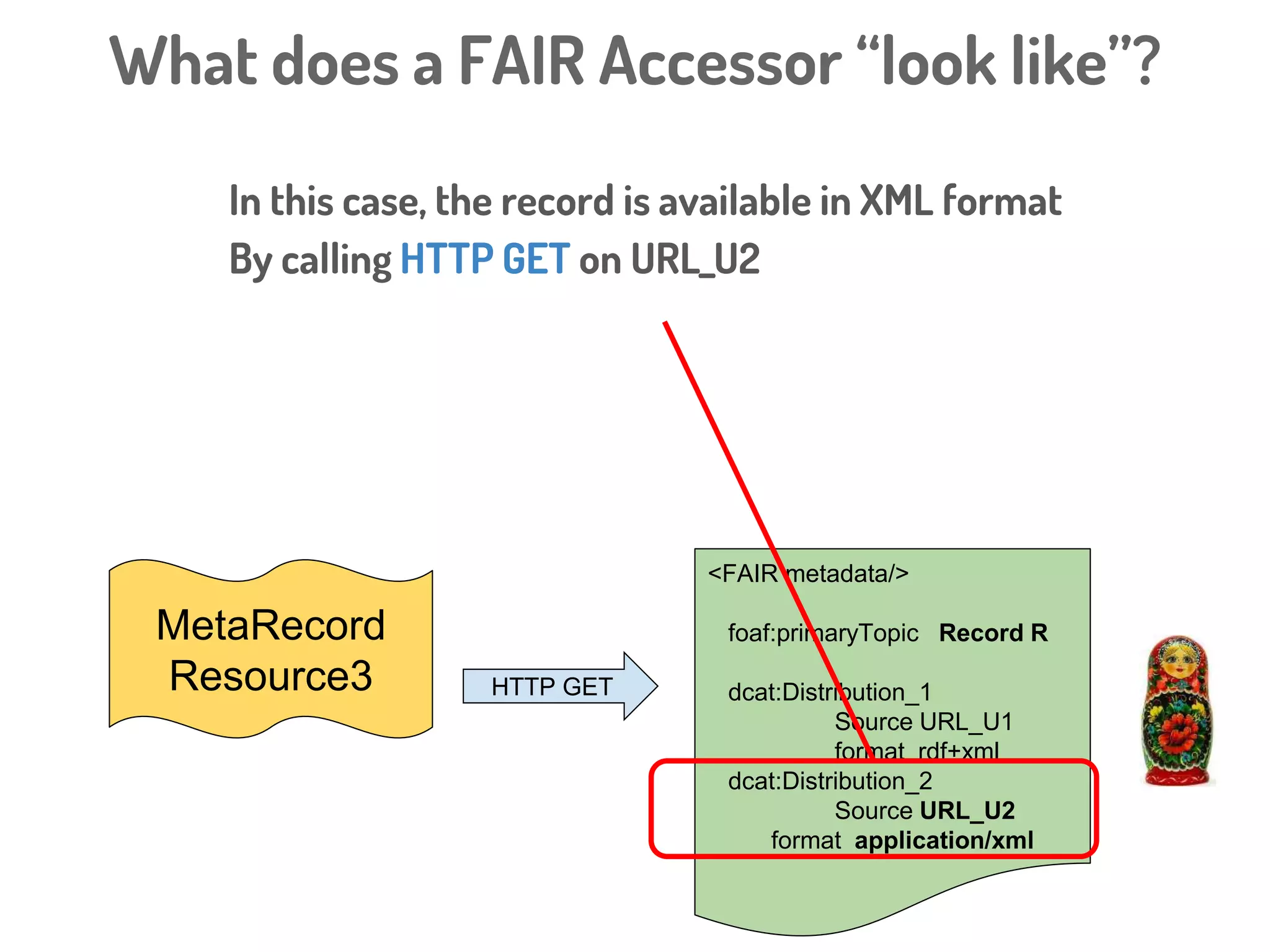

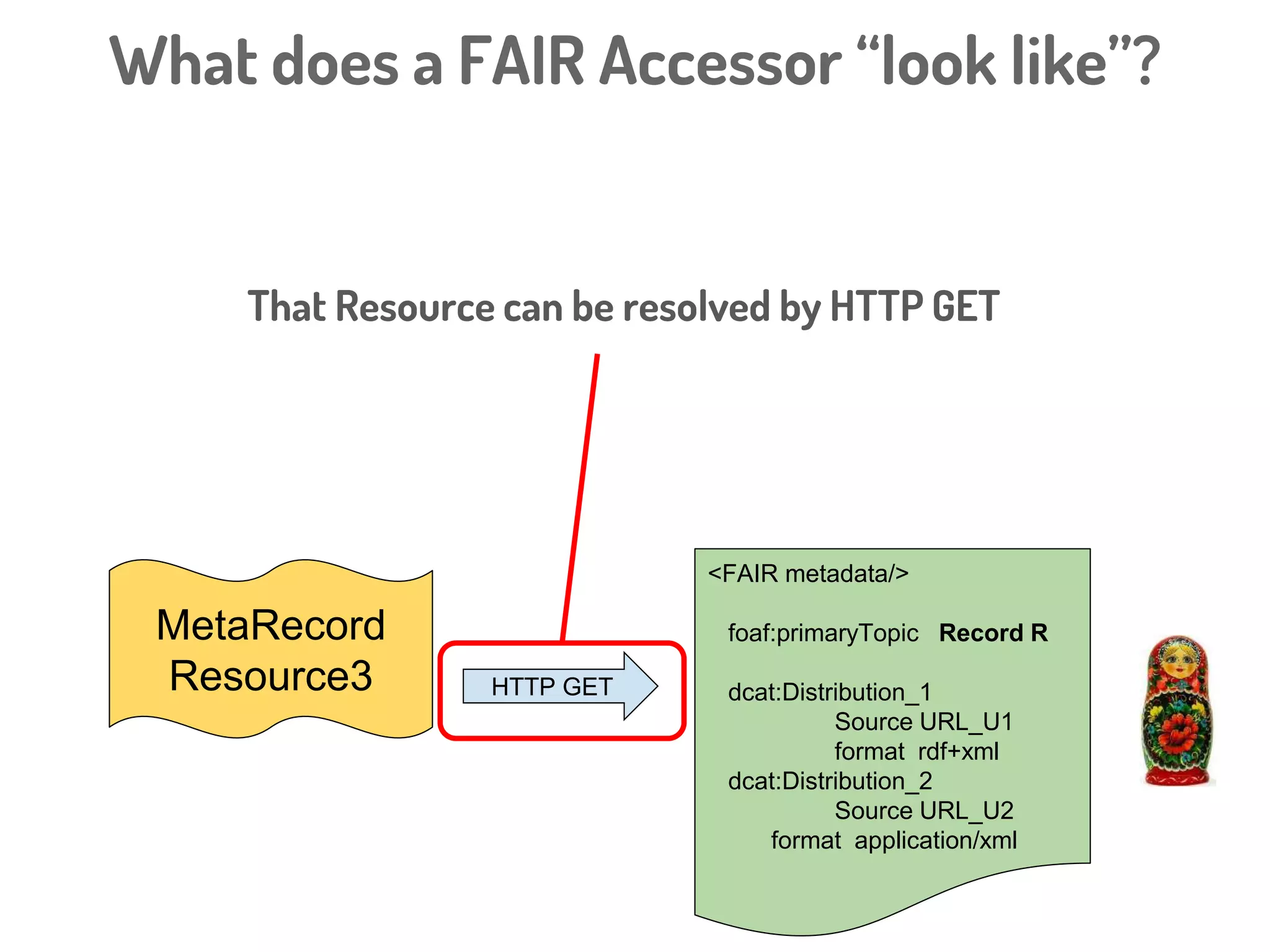

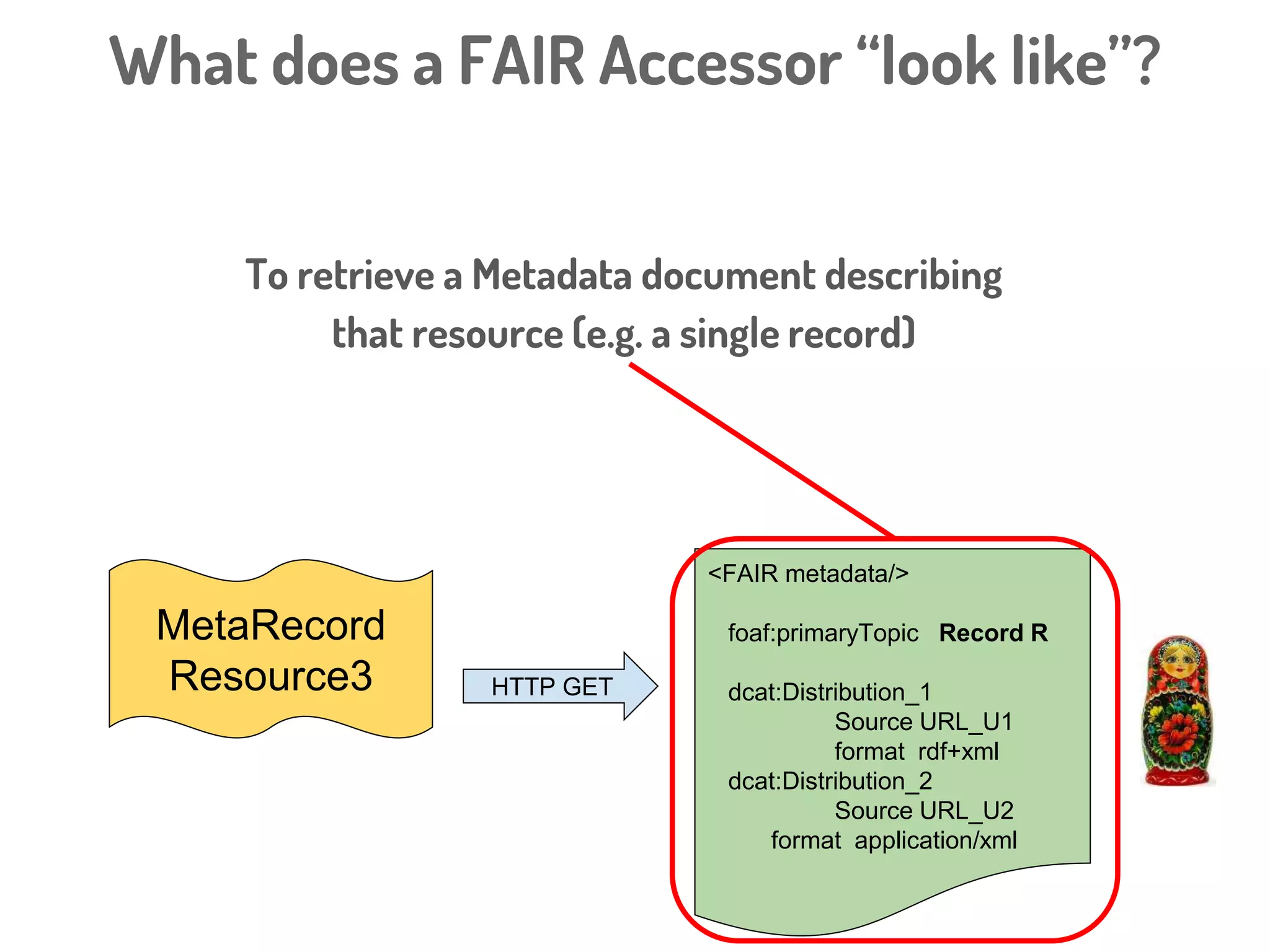

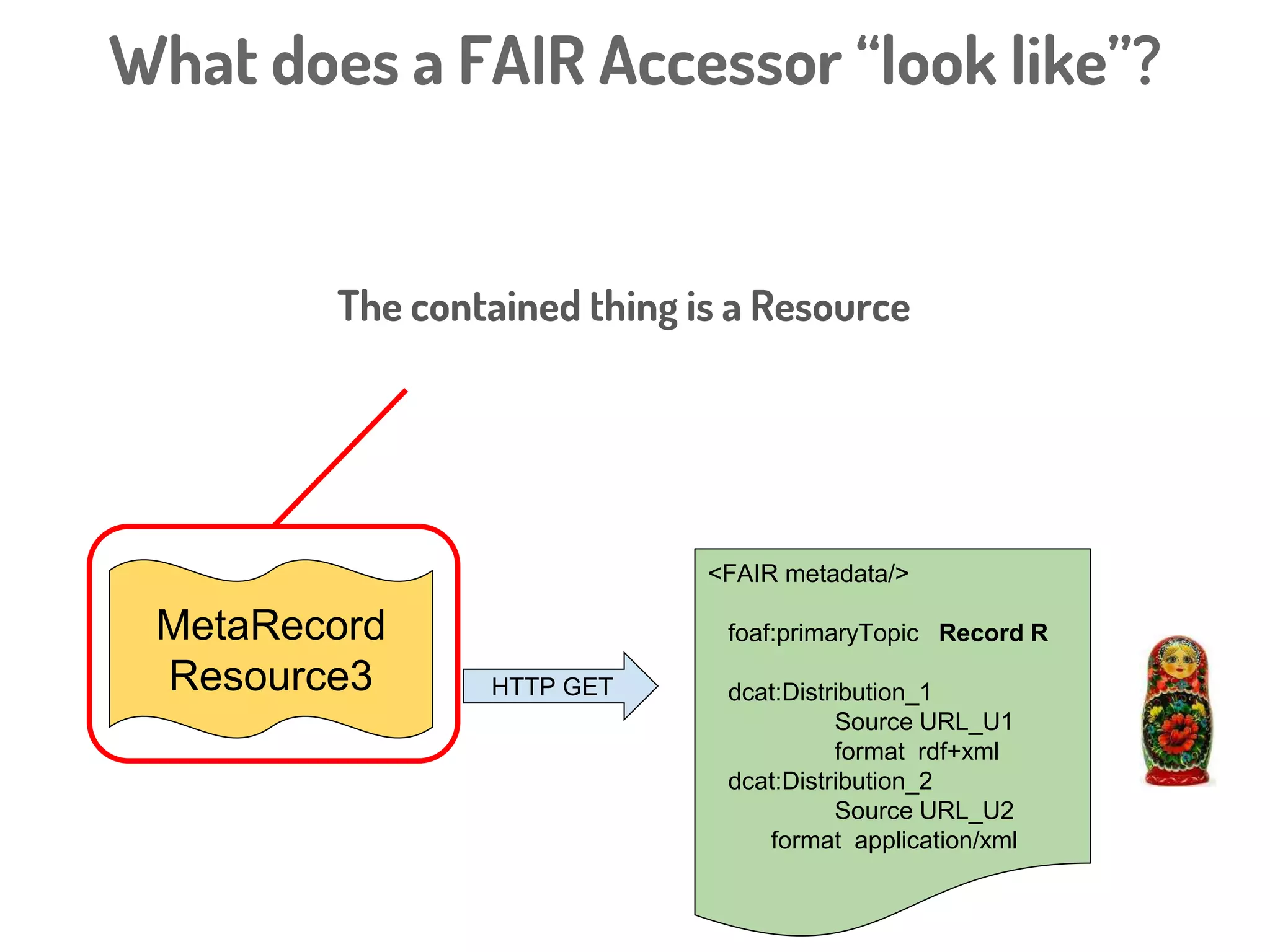

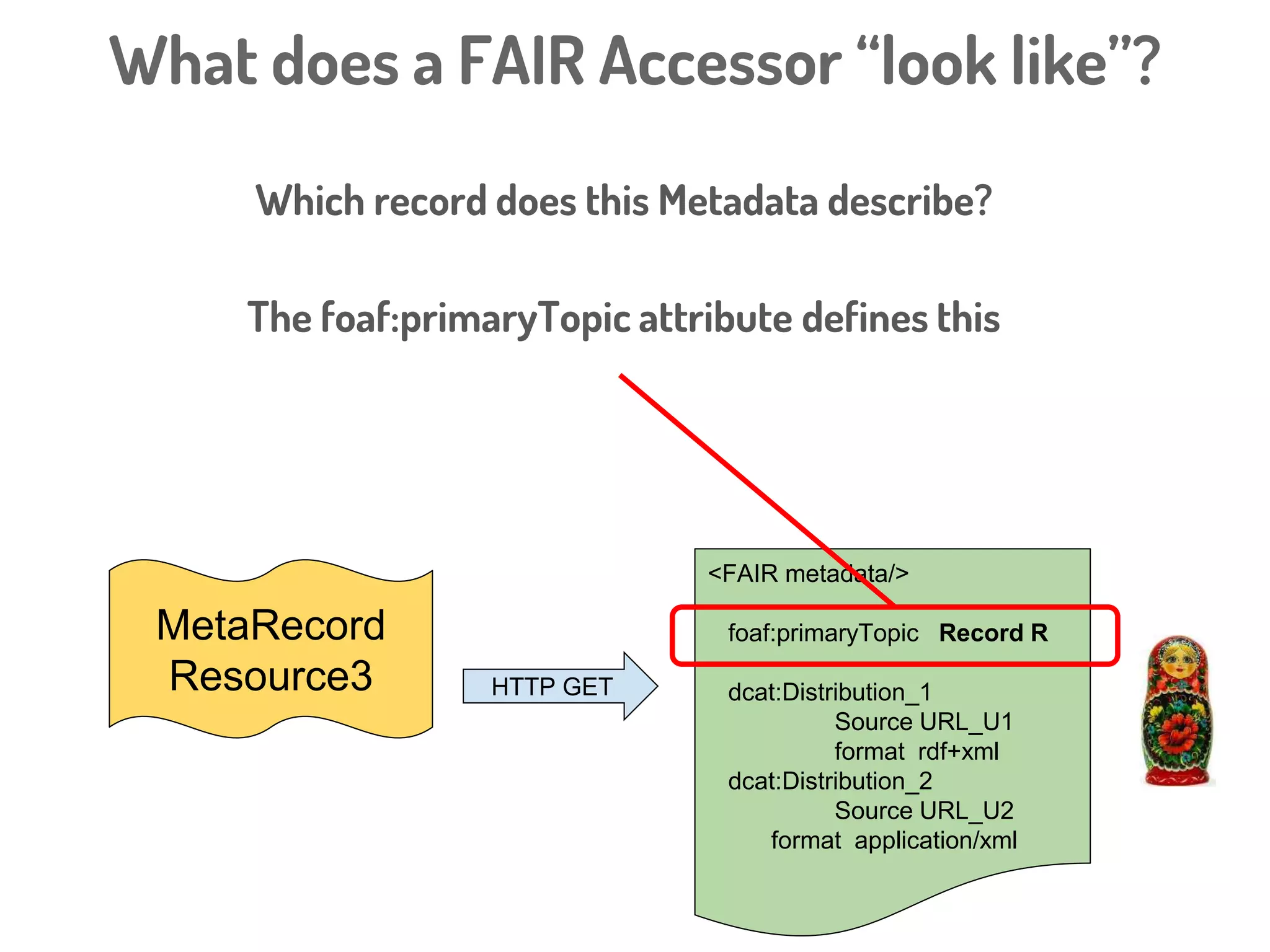

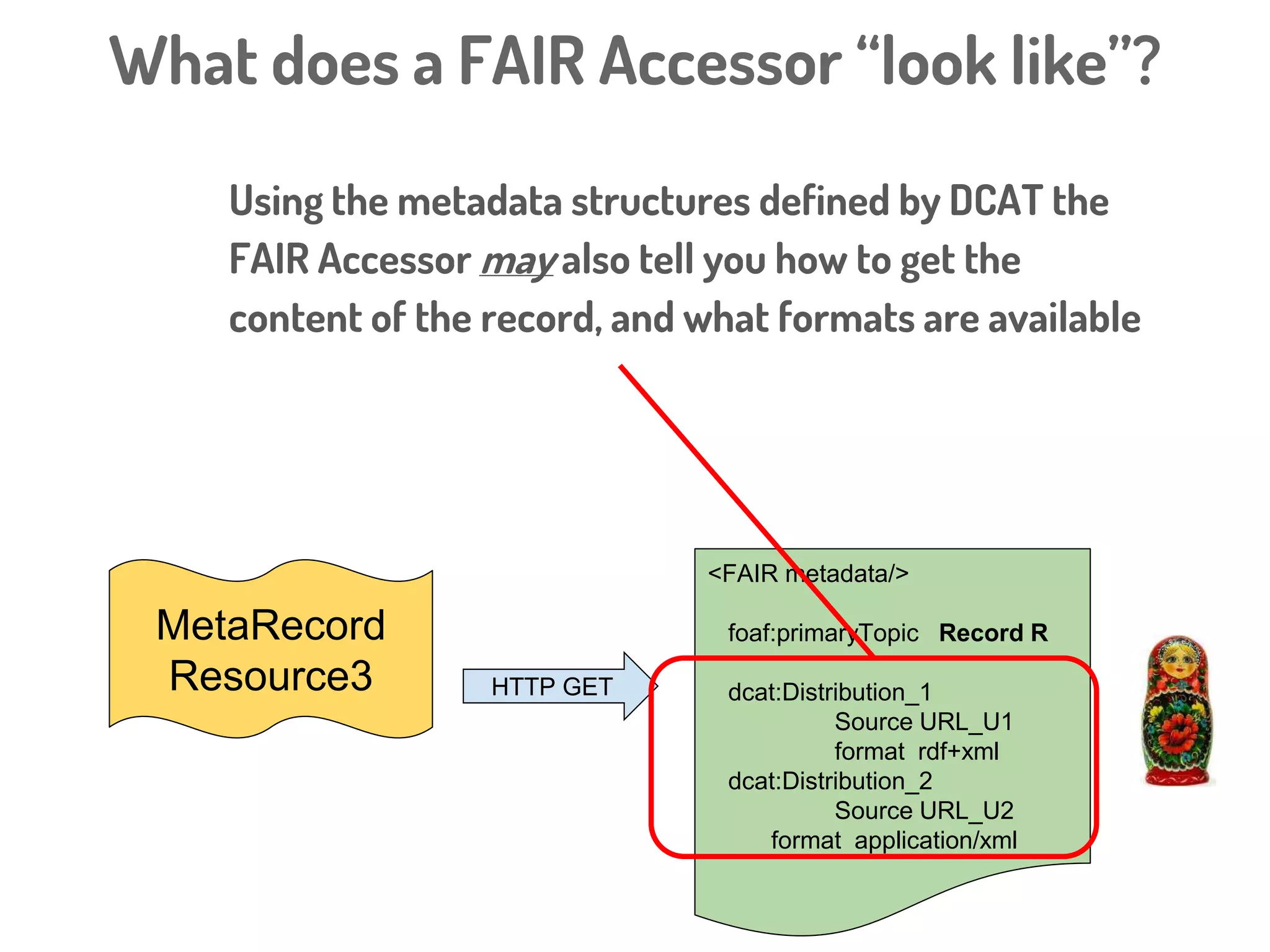

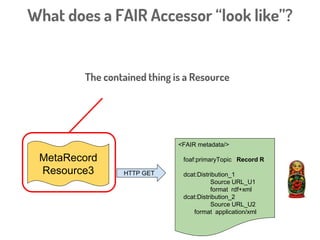

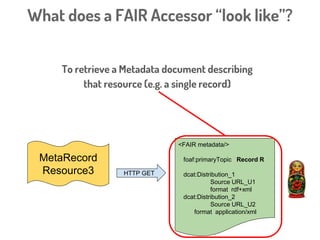

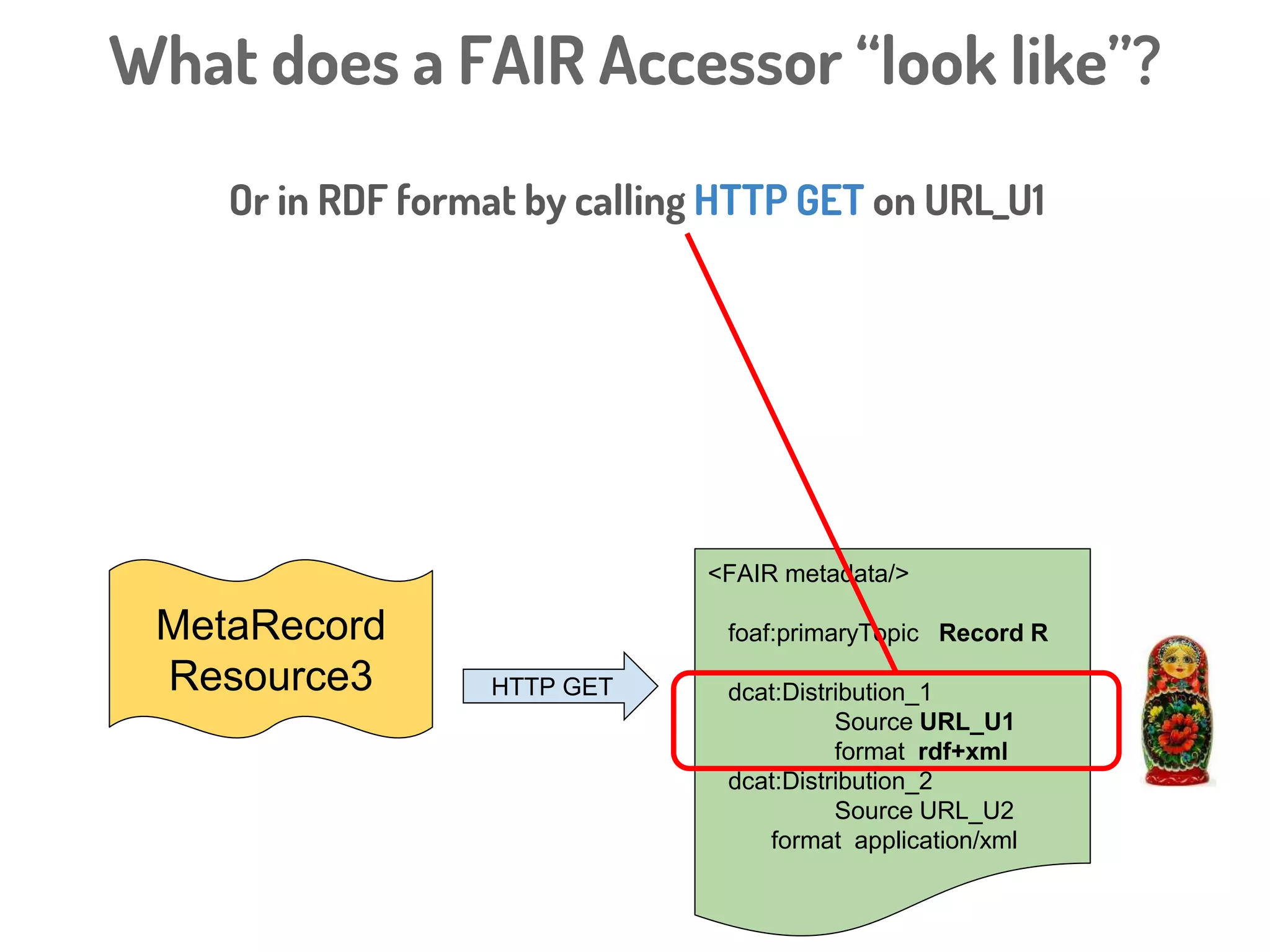

MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? The contained thing is a Resource

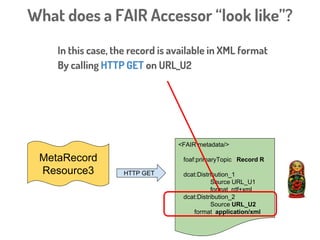

MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? That Resource can be resolved by HTTP GET
MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? To retrieve a Metadata document describing that resource (e.g. a single record)
MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? Which record does this Metadata describe? The foaf:primaryTopic attribute defines this
MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? Using the metadata structures defined by DCAT the FAIR Accessor may also tell you how to get the content of the record, and what formats are available
MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? In this case, the record is available in XML format By calling HTTP GET on URL_U2
MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? Or in RDF format by calling HTTP GET on URL_U1
Container Resource HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”?

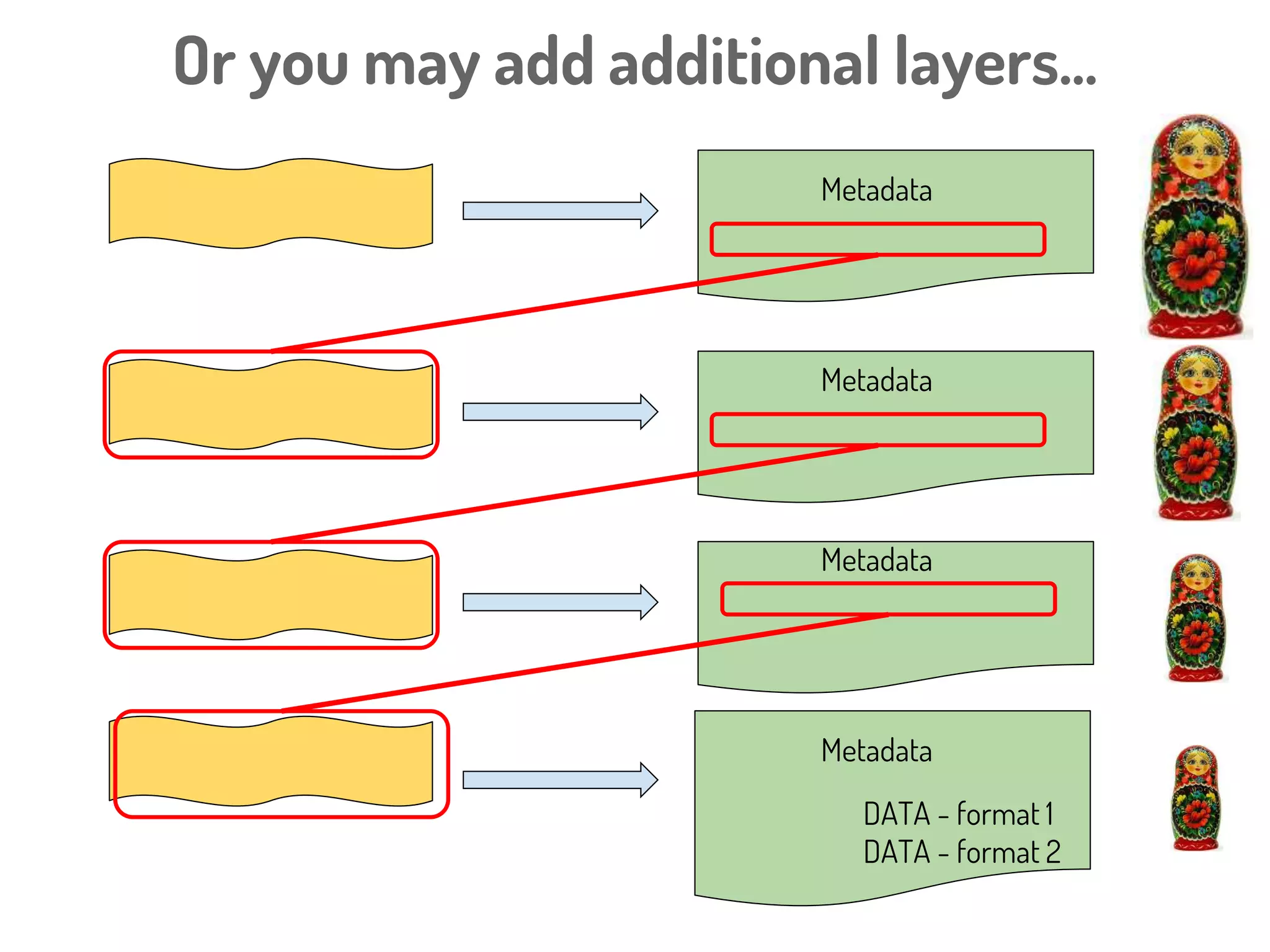

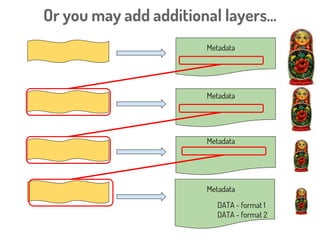

Or you may add additional layers... Metadata Metadata Metadata Metadata DATA - format 1 DATA - format 2

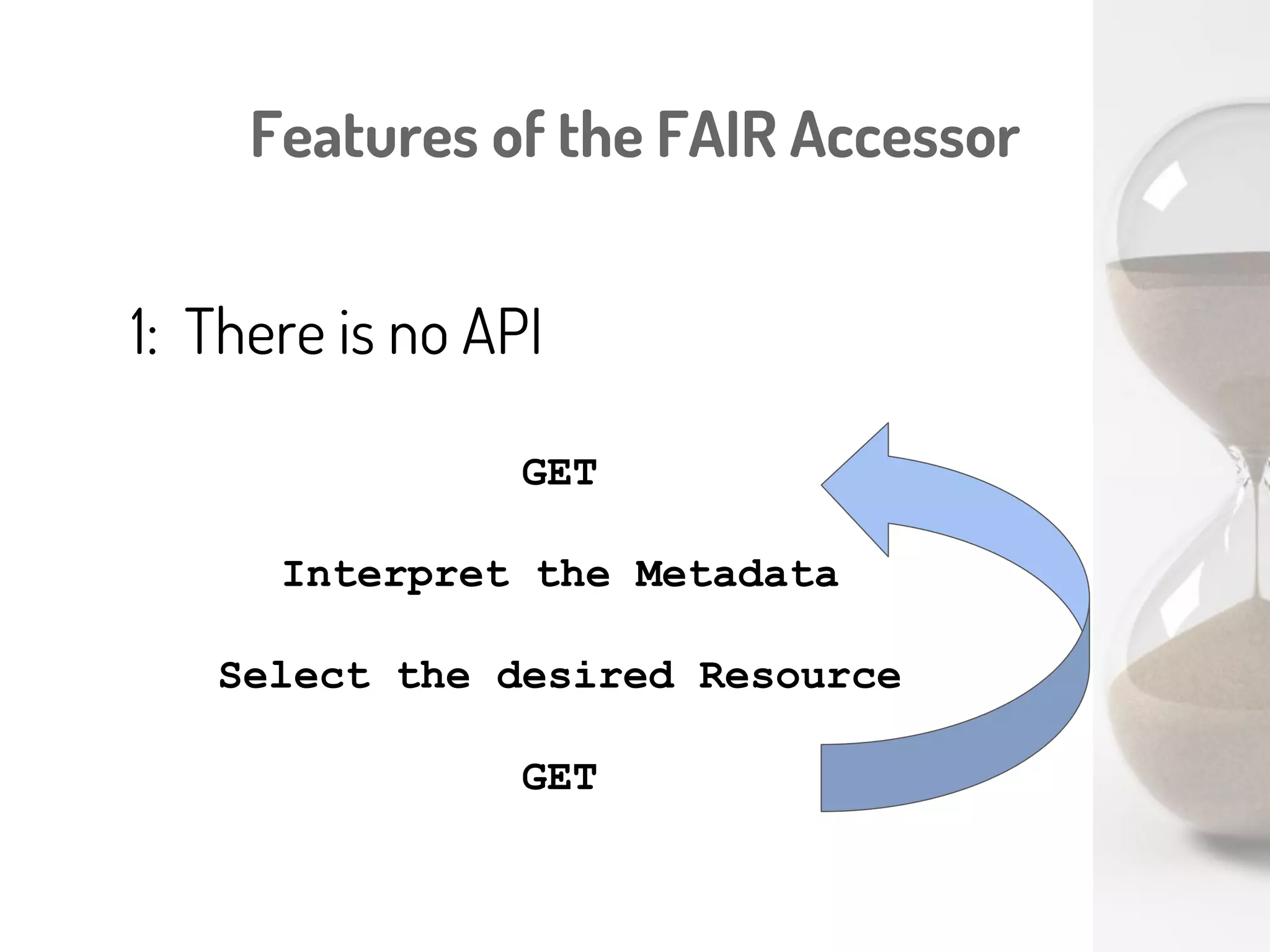

Features of the FAIR Accessor 1: There is no API GET Interpret the Metadata Select the desired Resource GET
Features of the FAIR Accessor 1: There is no API GET Interpret the Metadata Select the desired Resource GET ANY Web agent can explore/index a FAIR Accessor (e.g. Google) An agent that understands globally-accepted vocabularies can explore it “intelligently”

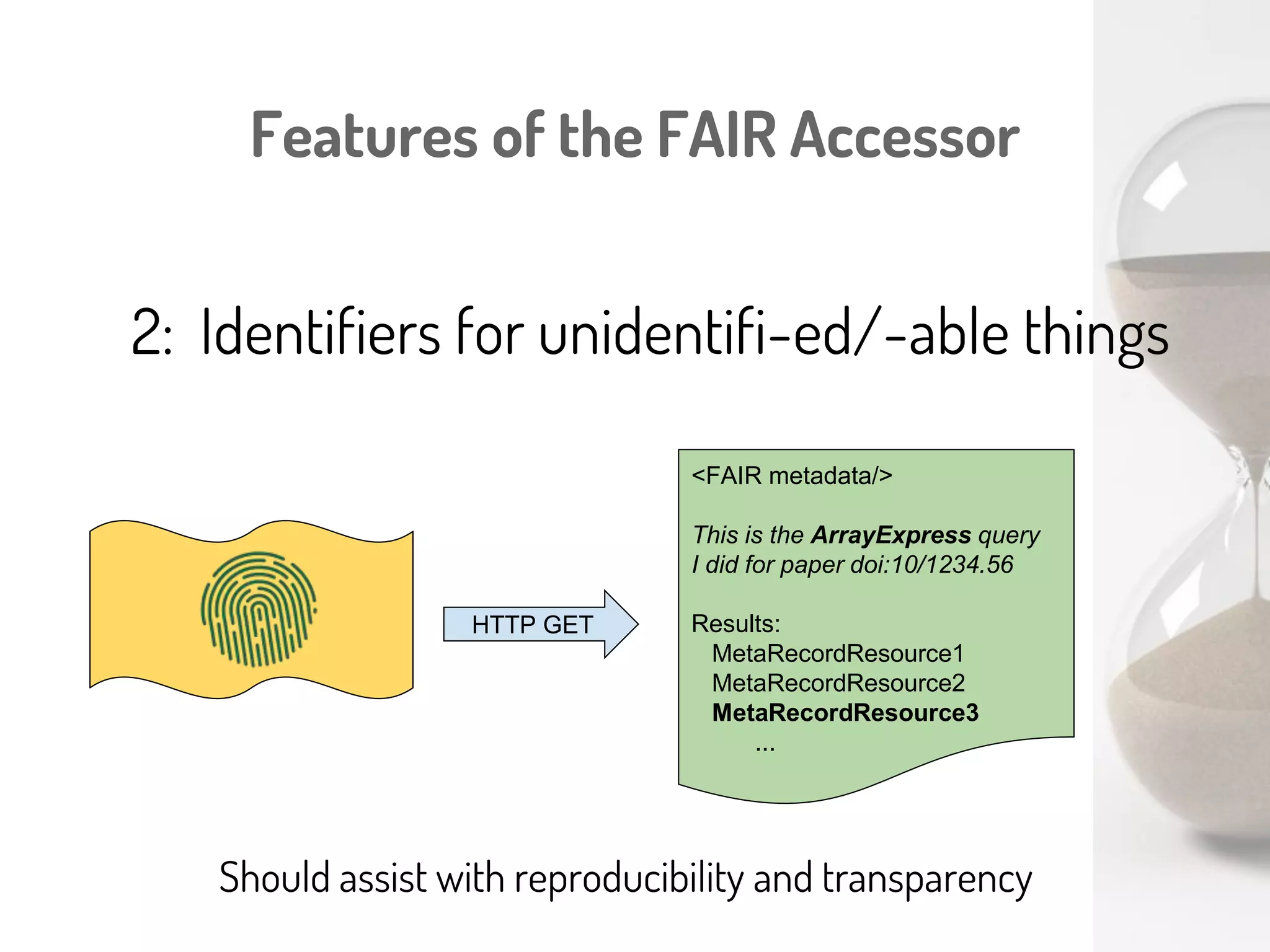

Features of the FAIR Accessor 2: Identifiers for unidentifi-ed/-able things HTTP GET <FAIR metadata/> This is the ArrayExpress query I did for paper doi:10/1234.56 Results: MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... Should assist with reproducibility and transparency

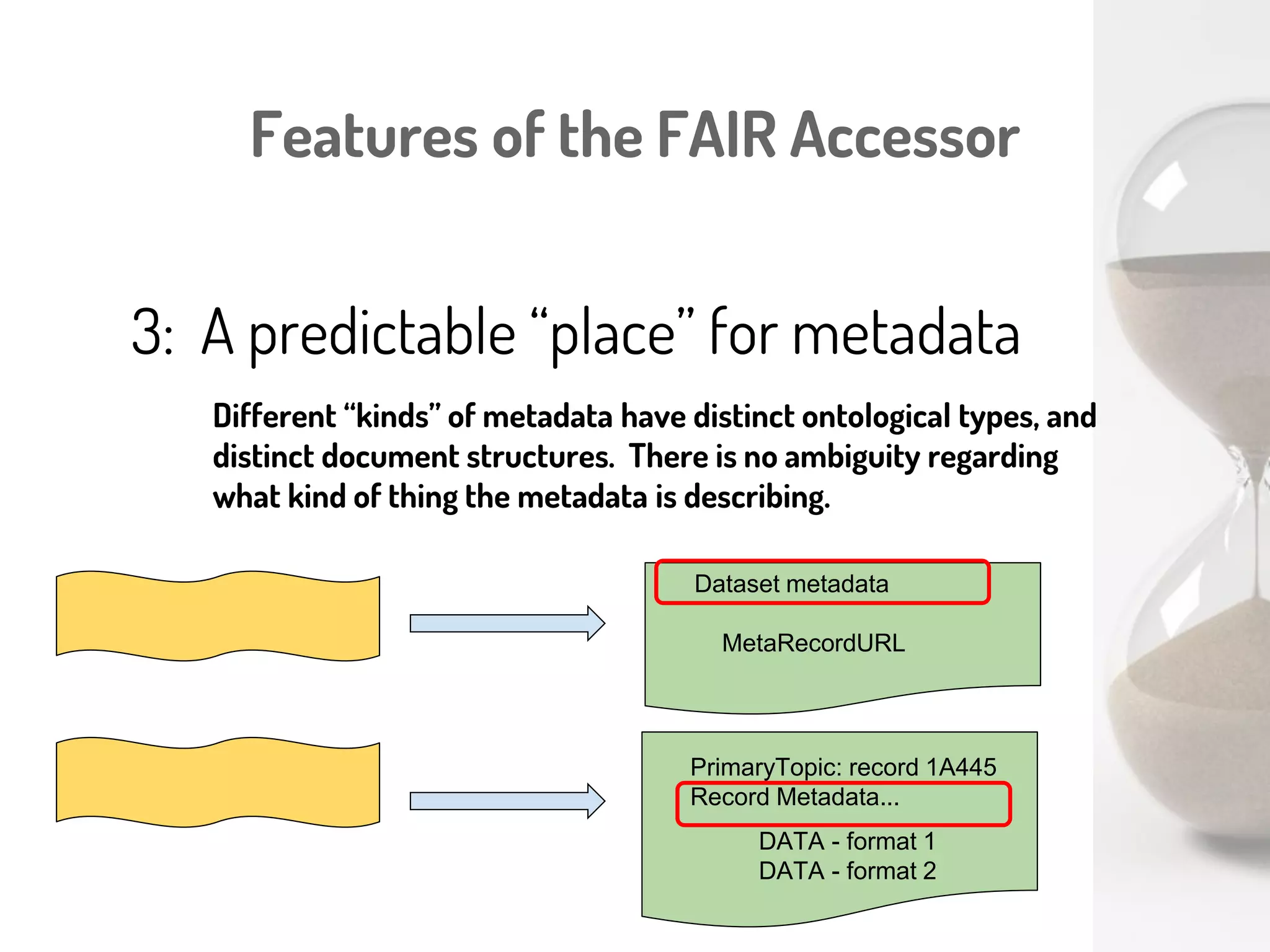

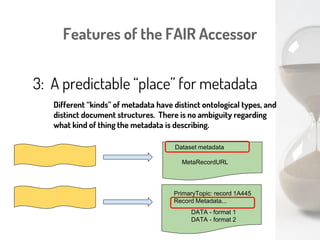

Features of the FAIR Accessor 3: A predictable “place” for metadata PrimaryTopic: record 1A445 Record Metadata... DATA - format 1 DATA - format 2 Different “kinds” of metadata have distinct ontological types, and distinct document structures. There is no ambiguity regarding what kind of thing the metadata is describing. Dataset metadata MetaRecordURL

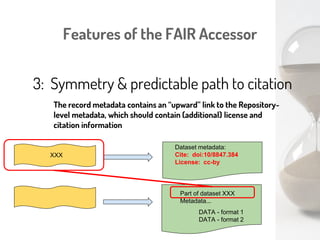

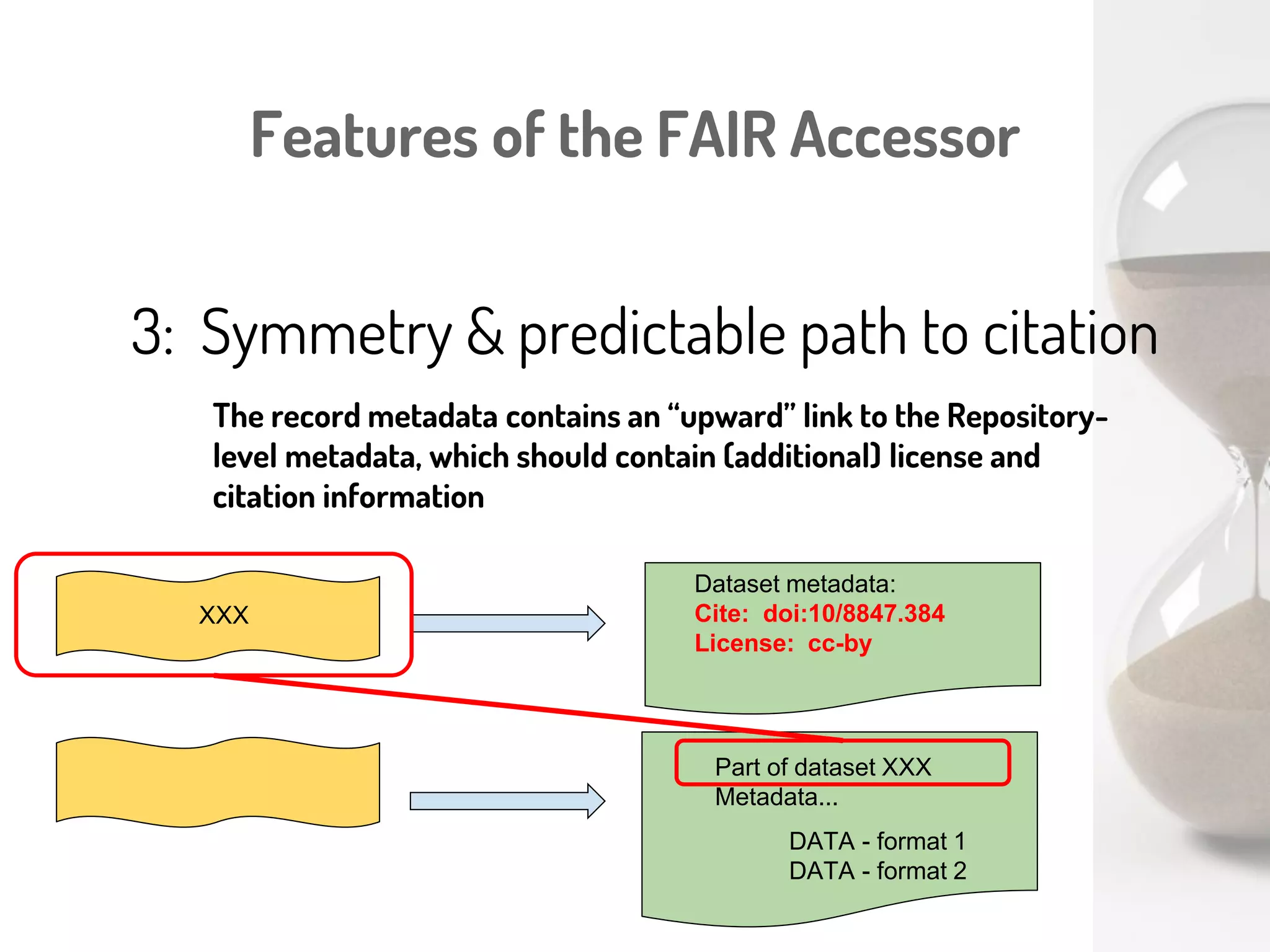

Features of the FAIR Accessor 3: Symmetry & predictable path to citation XXX Part of dataset XXX Metadata... DATA - format 1 DATA - format 2 The record metadata contains an “upward” link to the Repository- level metadata, which should contain (additional) license and citation information Dataset metadata: Cite: doi:10/8847.384 License: cc-by

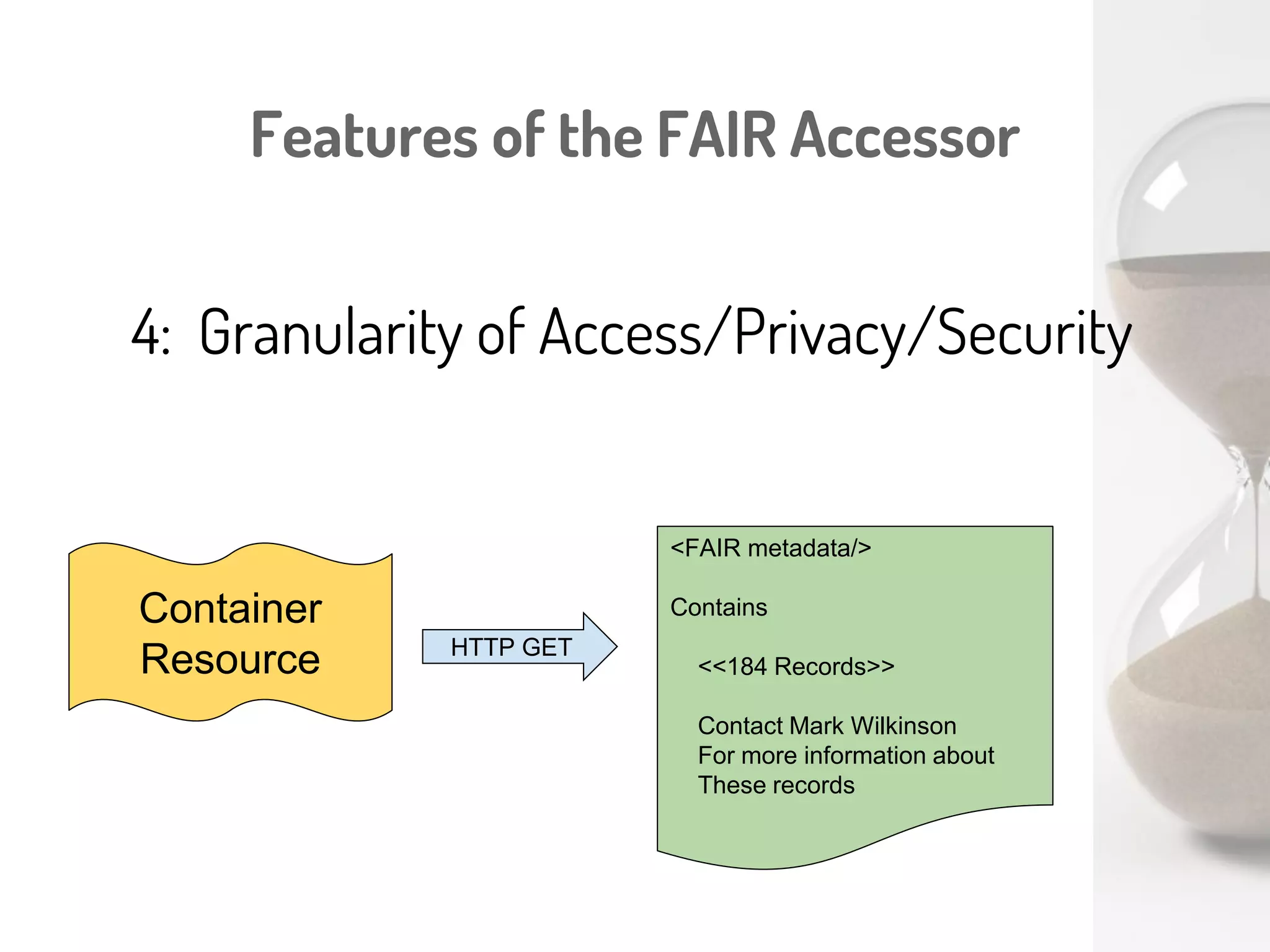

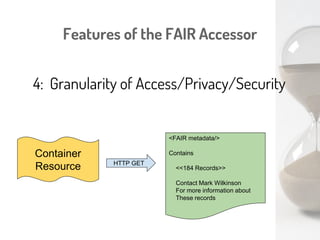

Features of the FAIR Accessor 4: Granularity of Access/Privacy/Security Container Resource HTTP GET <FAIR metadata/> Contains <<184 Records>> Contact Mark Wilkinson For more information about These records

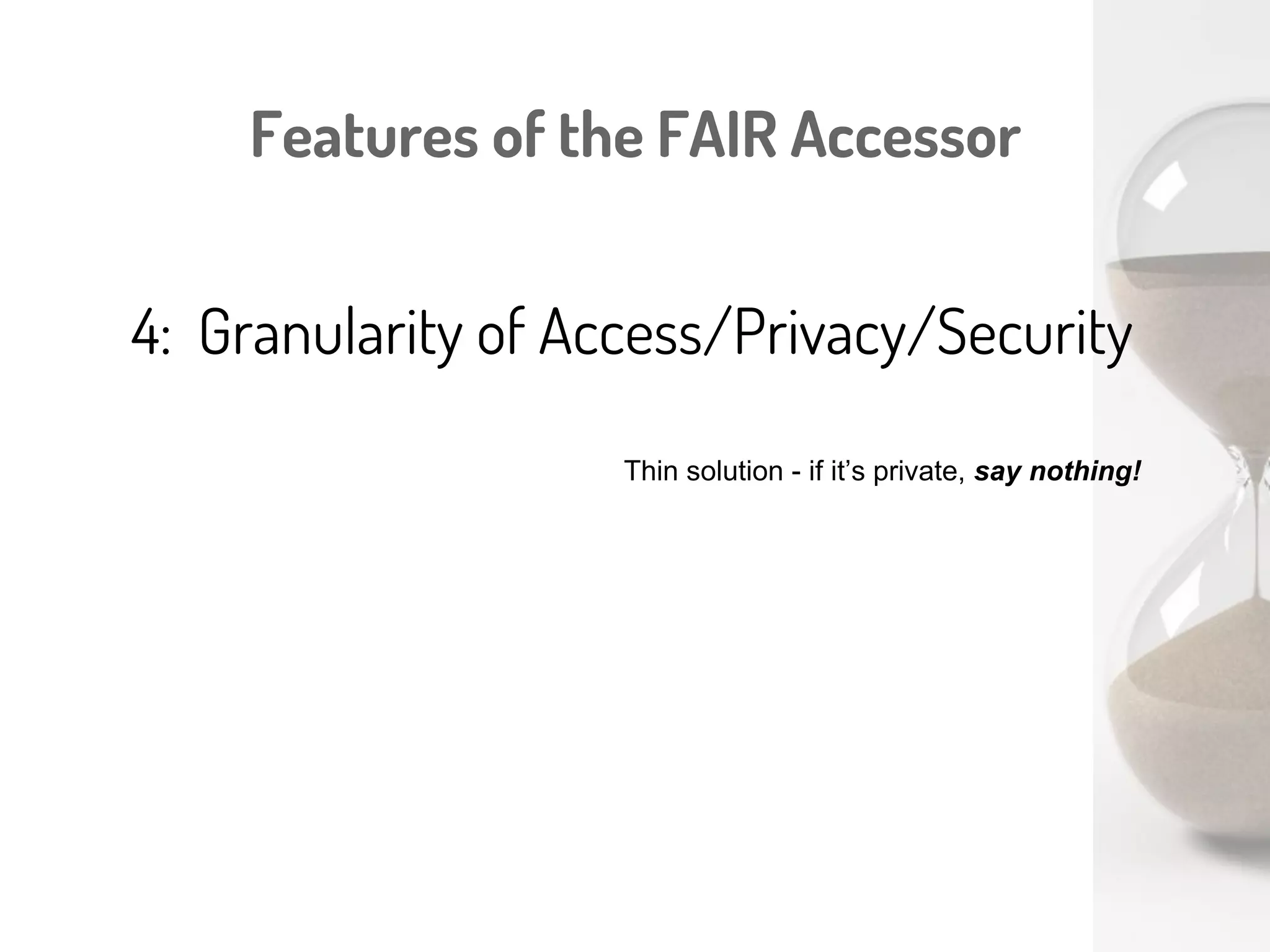

Features of the FAIR Accessor 4: Granularity of Access/Privacy/Security Thin solution - if it’s private, say nothing!
The Real Thing A working FAIR Accessor Serving a “Slice” of UniProt

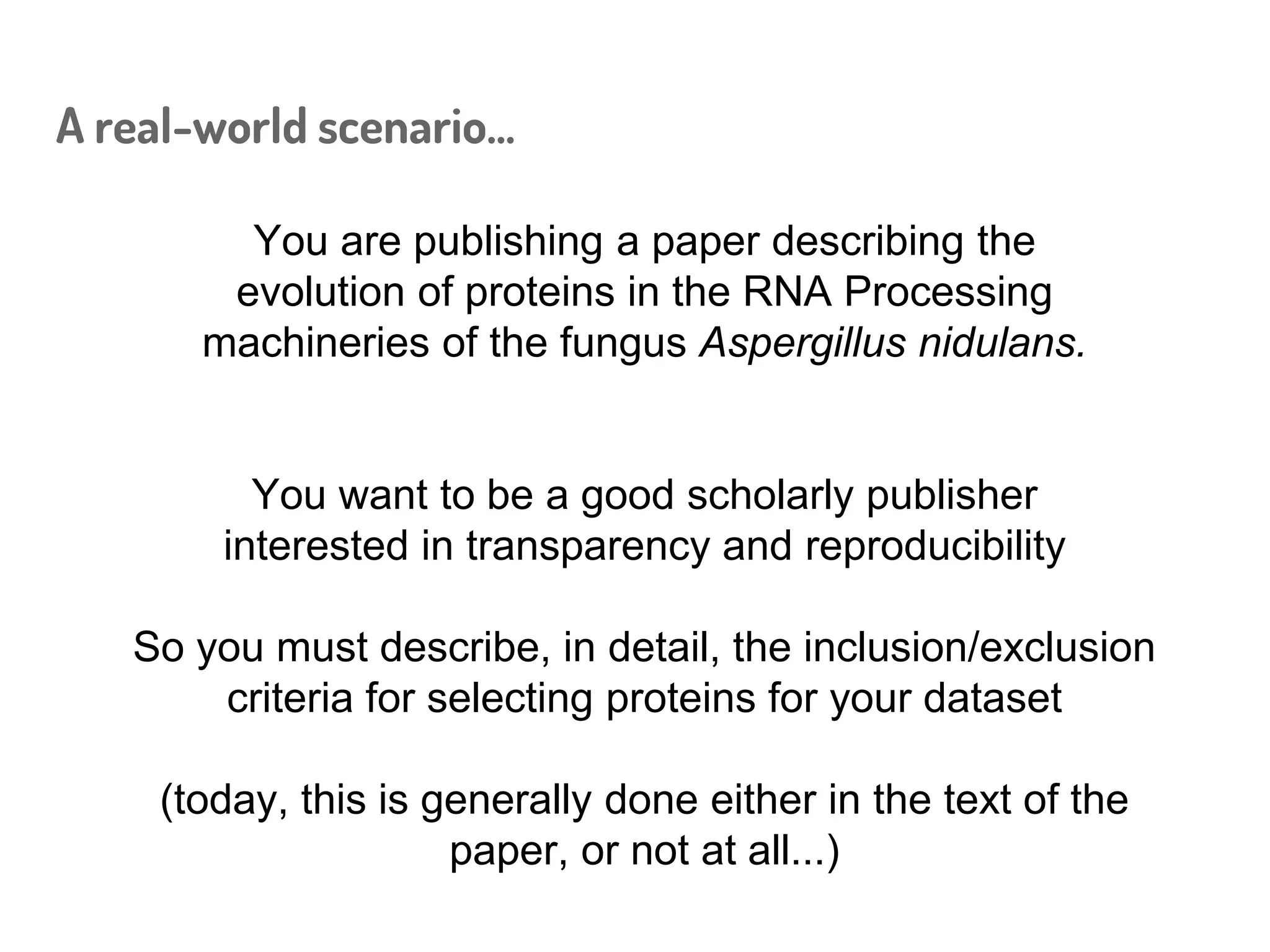

A real-world scenario... You are publishing a paper describing the evolution of proteins in the RNA Processing machineries of the fungus Aspergillus nidulans. You want to be a good scholarly publisher interested in transparency and reproducibility So you must describe, in detail, the inclusion/exclusion criteria for selecting proteins for your dataset (today, this is generally done either in the text of the paper, or not at all...)

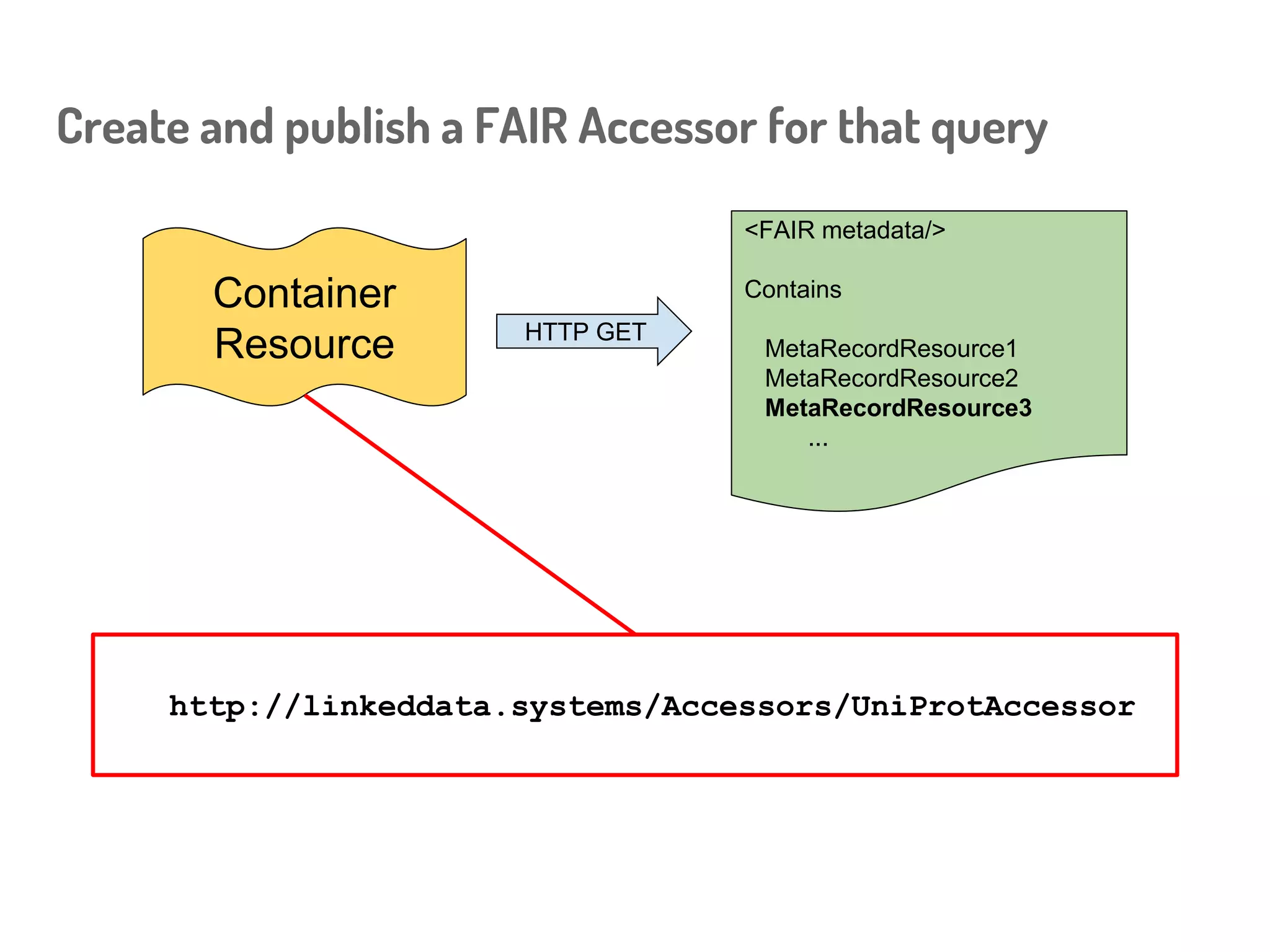

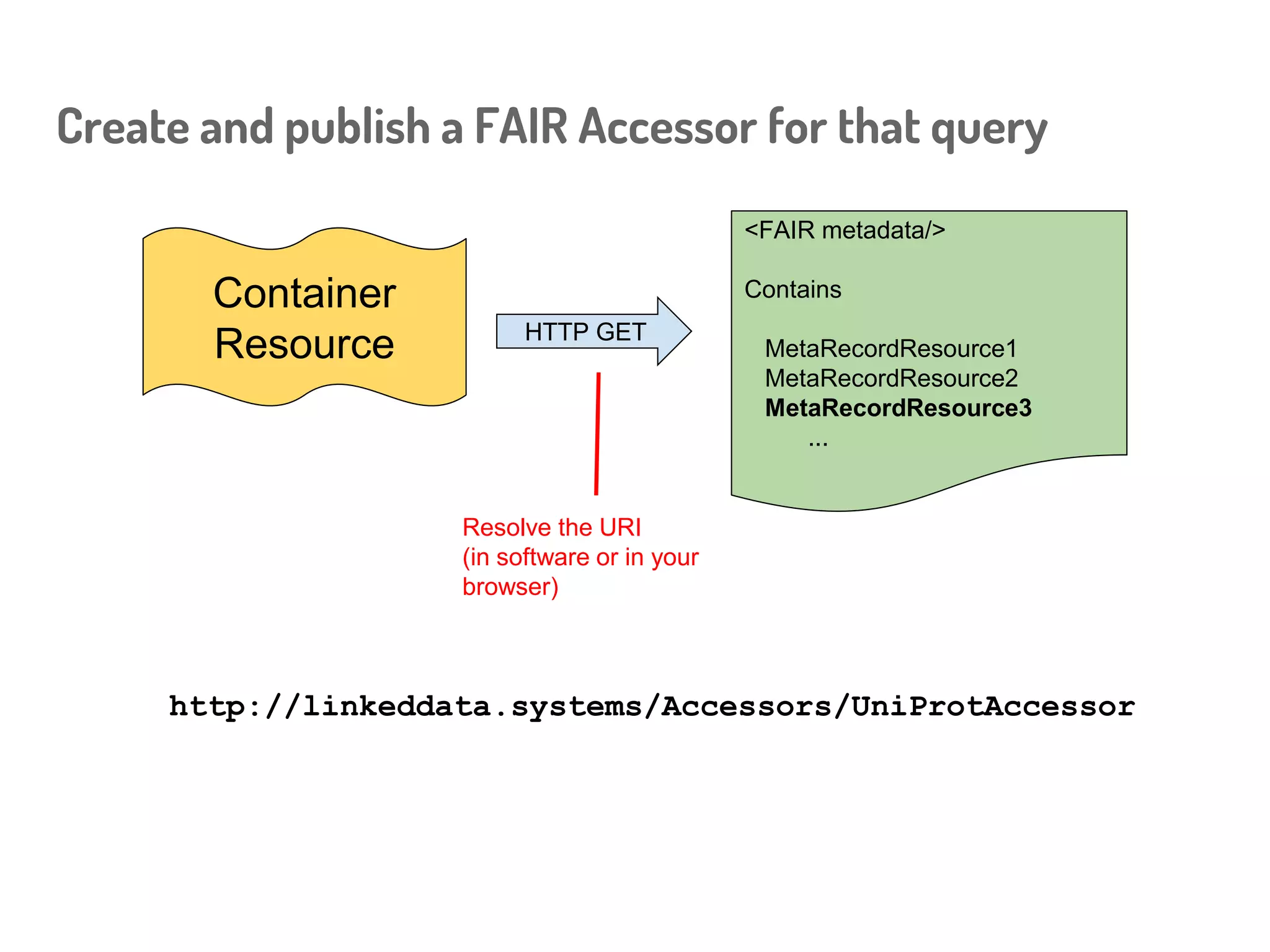

Create and publish a FAIR Accessor for that query http://linkeddata.systems/Accessors/UniProtAccessor Container Resource HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ...
Create and publish a FAIR Accessor for that query http://linkeddata.systems/Accessors/UniProtAccessor Container Resource HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... Resolve the URI (in software or in your browser)

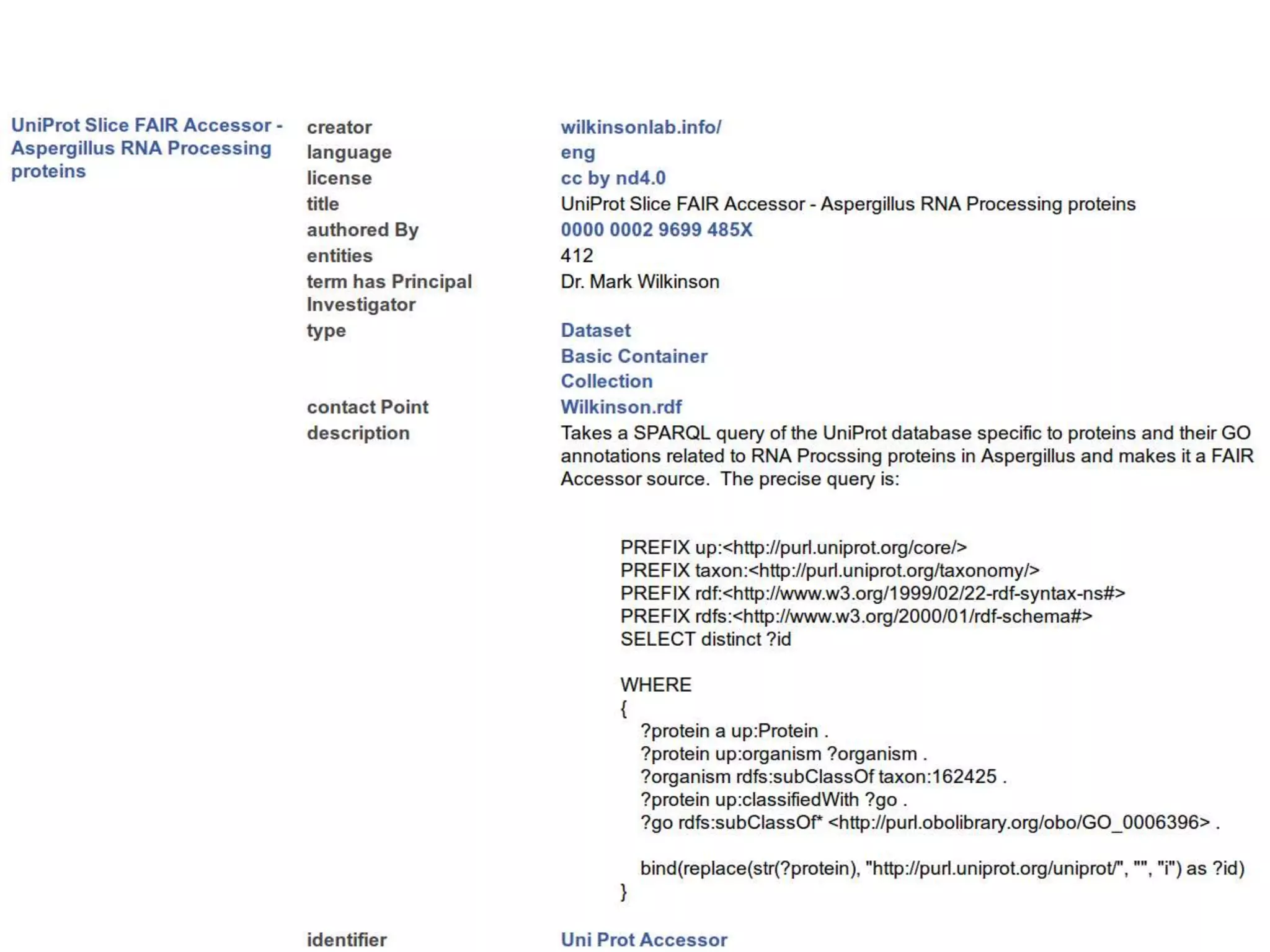

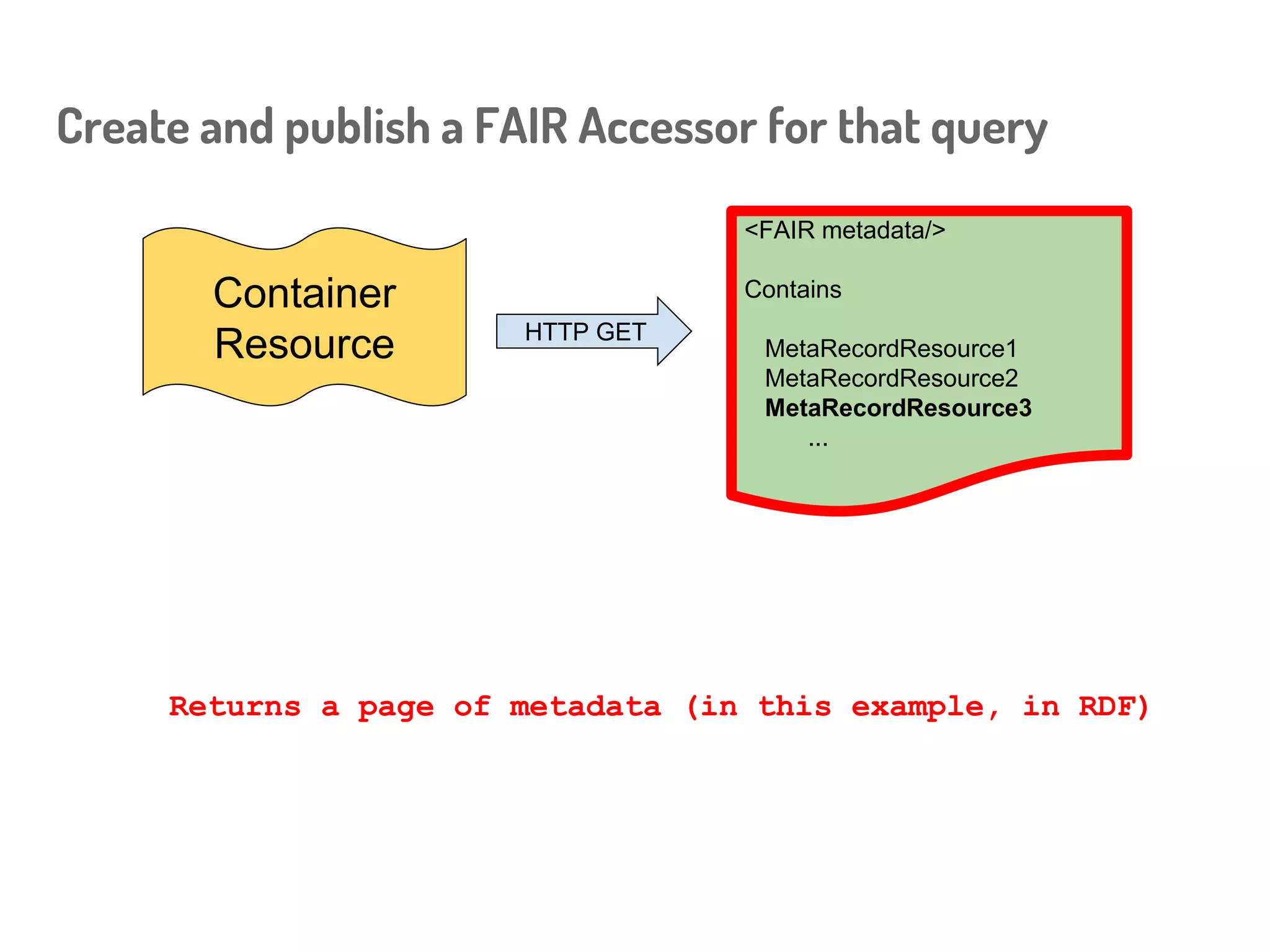

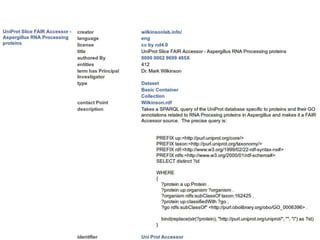

Create and publish a FAIR Accessor for that query Returns a page of metadata (in this example, in RDF) Container Resource HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ...
52

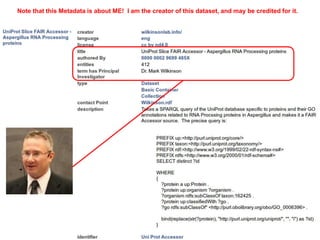

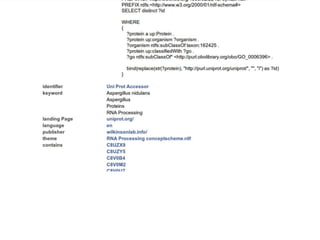

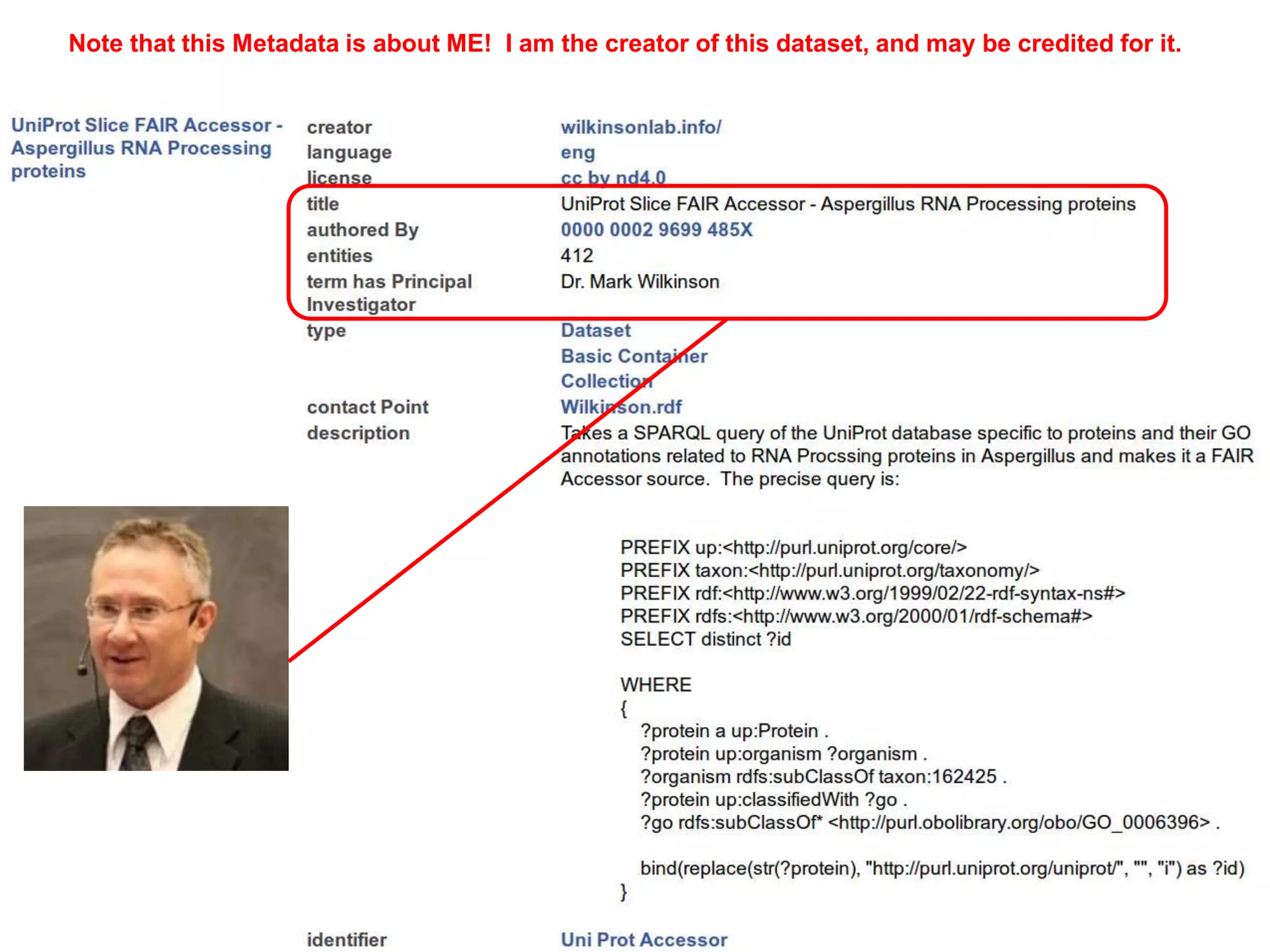

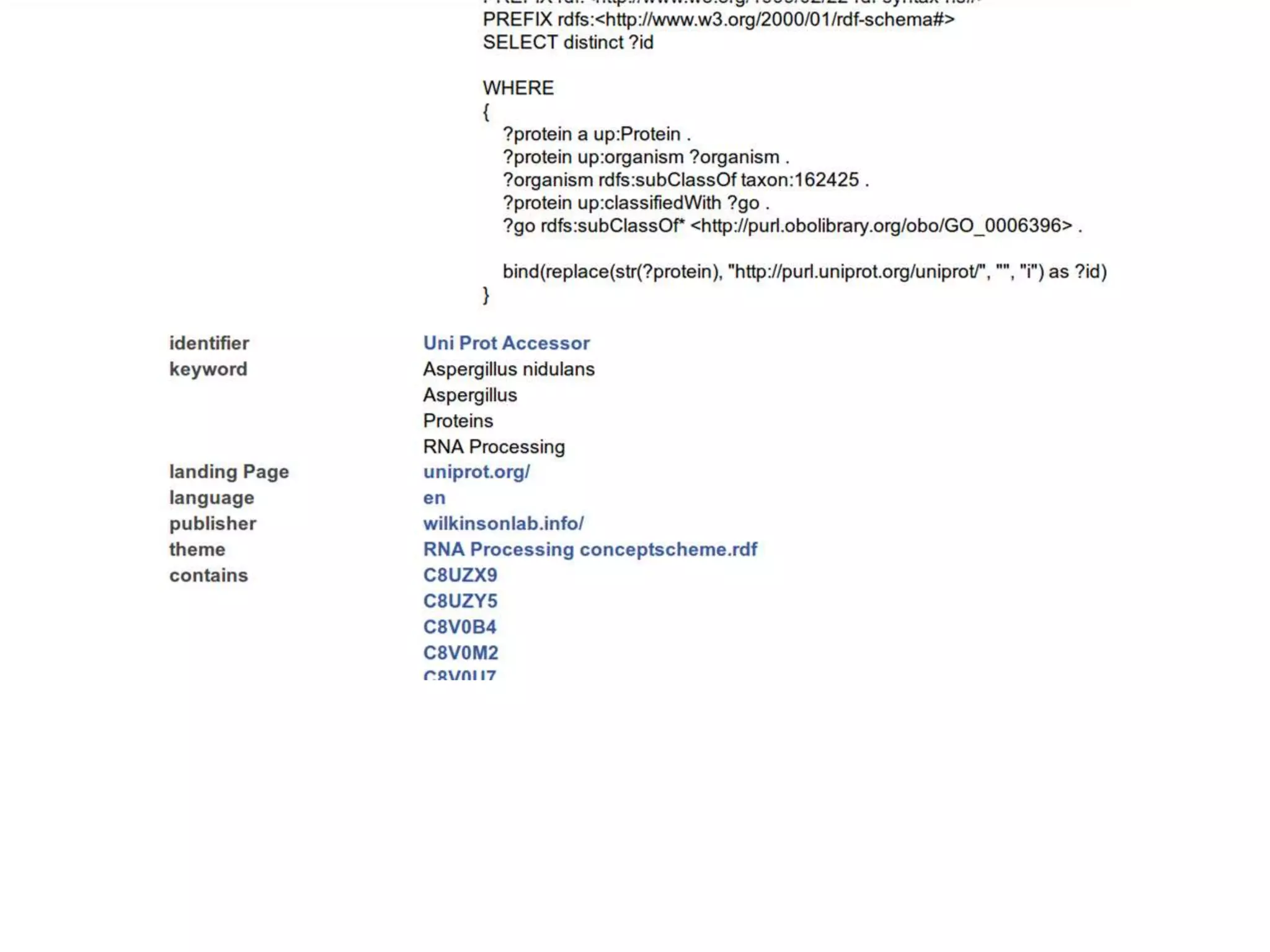

53 Note that this Metadata is about ME! I am the creator of this dataset, and may be credited for it.

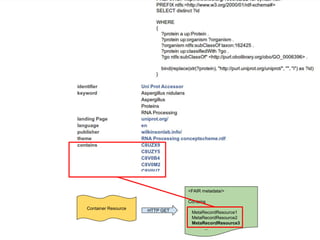

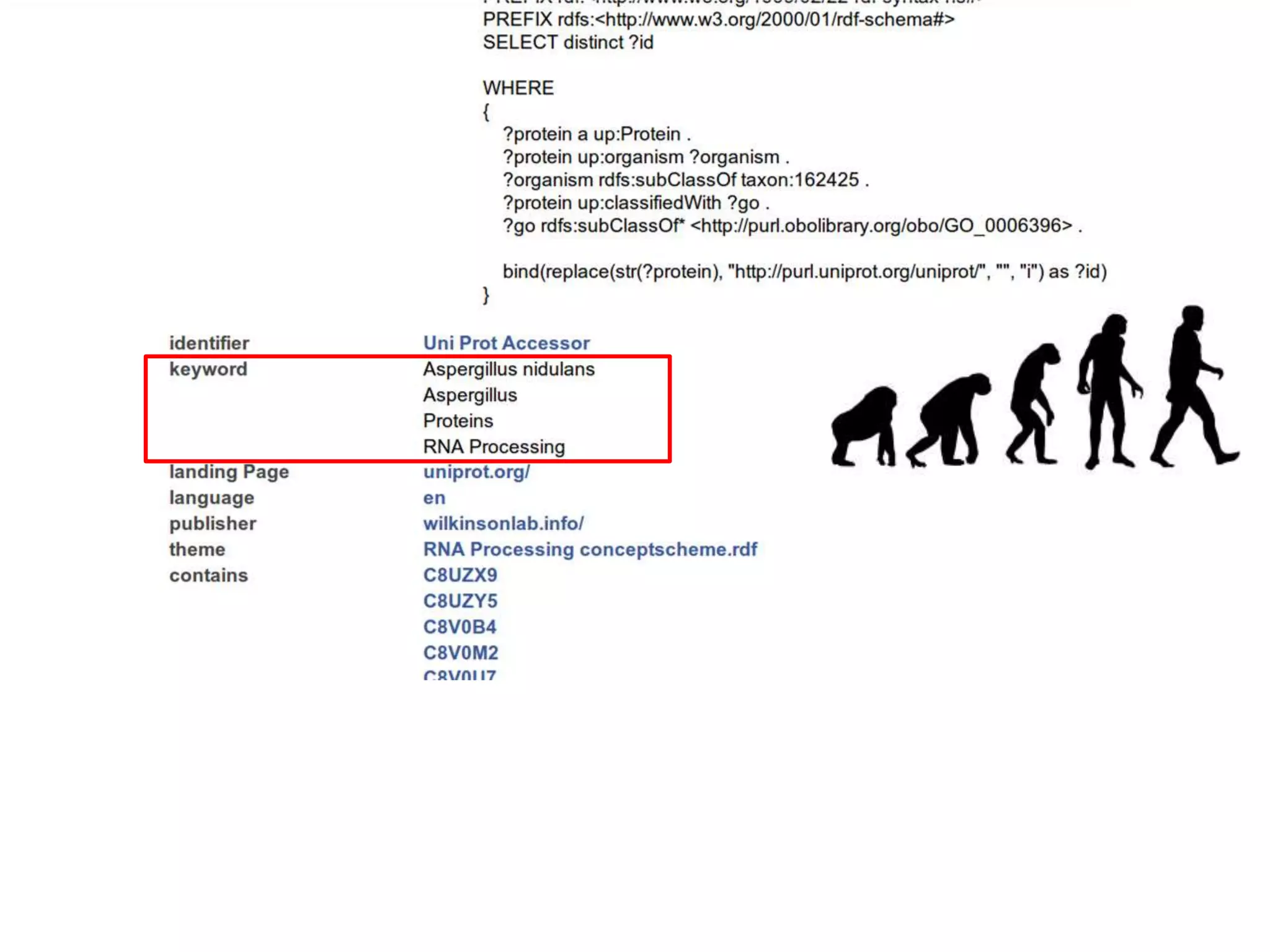

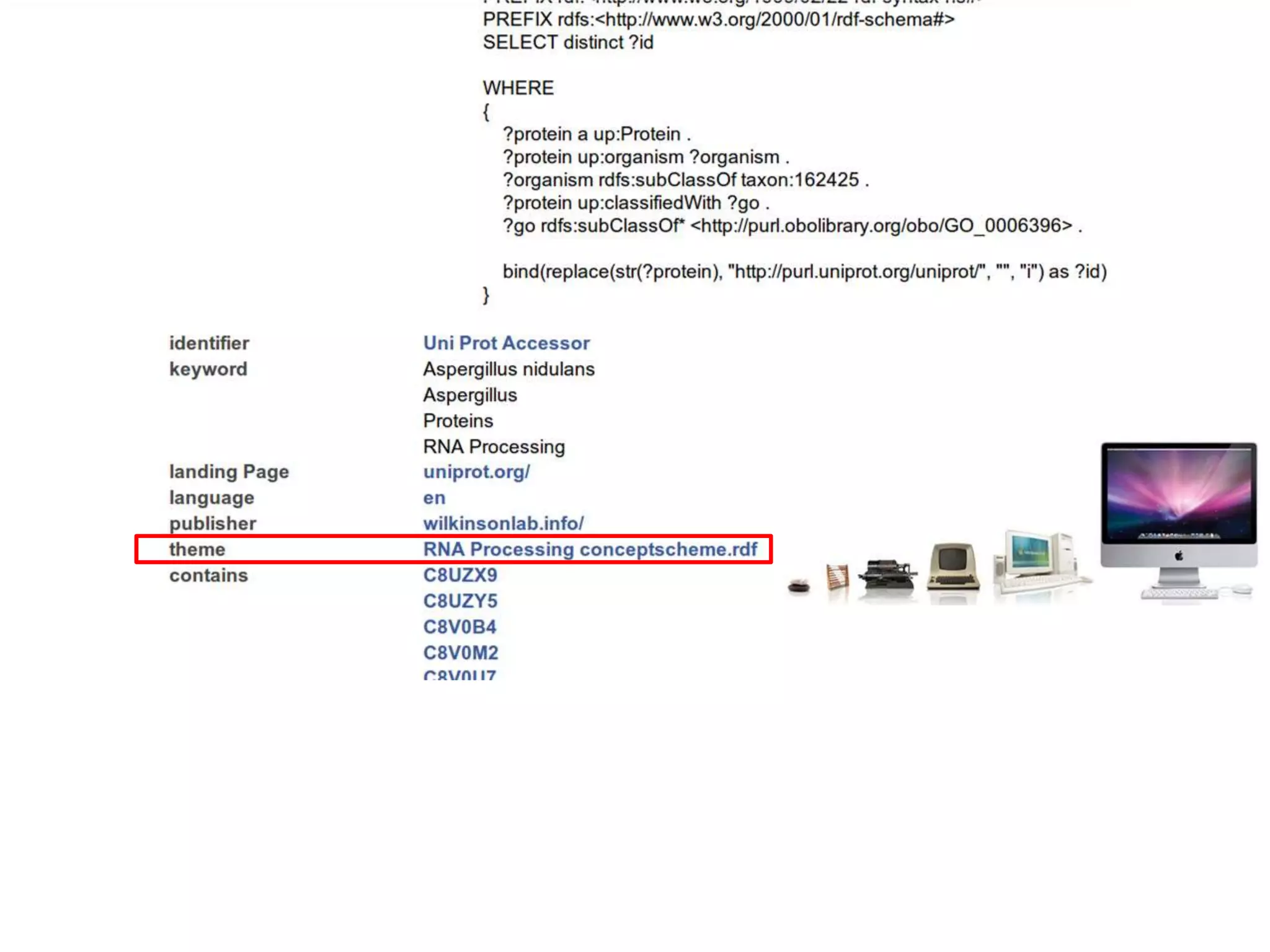

54 The query (i.e. inclusion criteria)

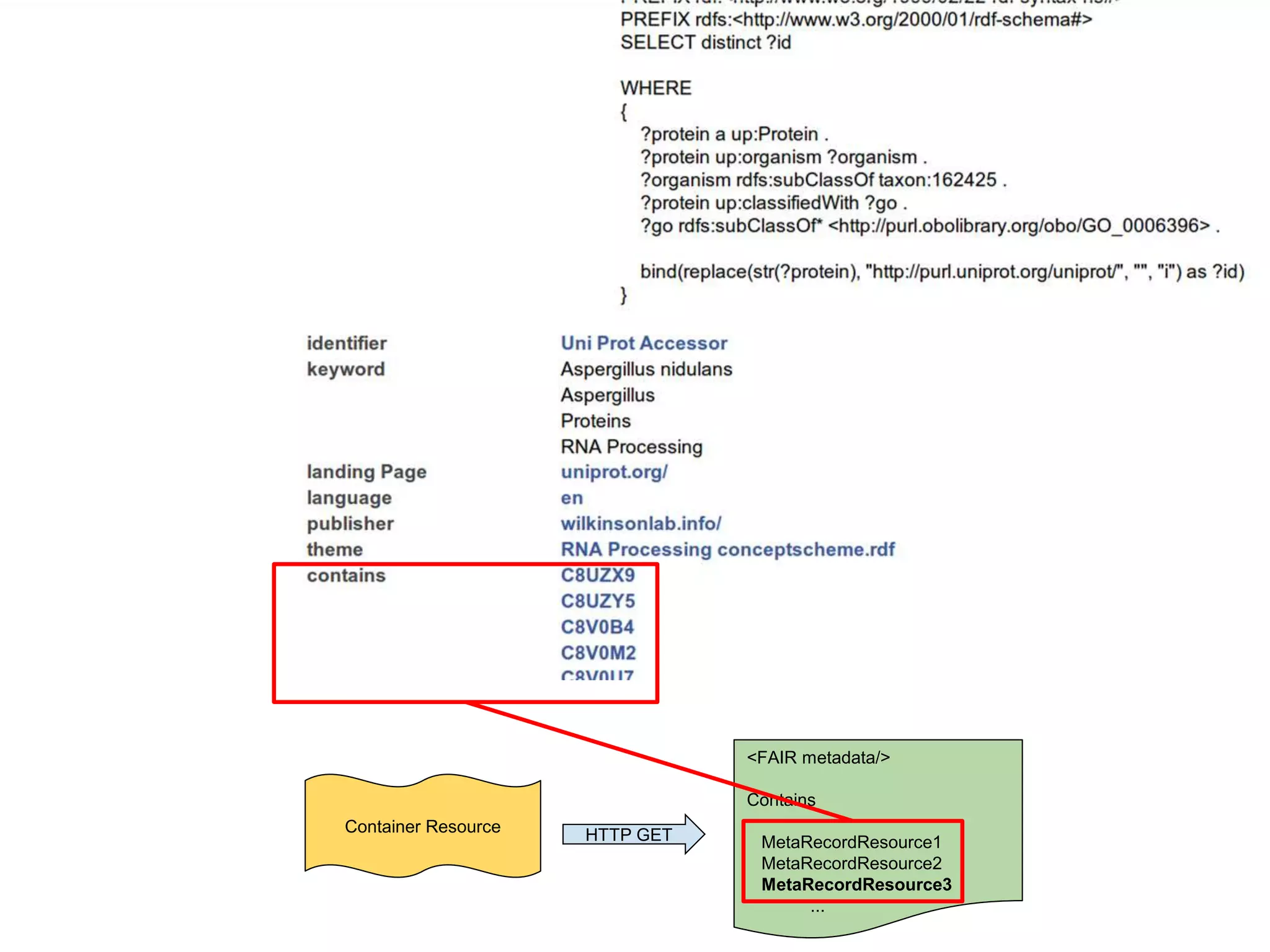

Container Resource HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ...
Container Resource HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET Step down to individual Record metadata

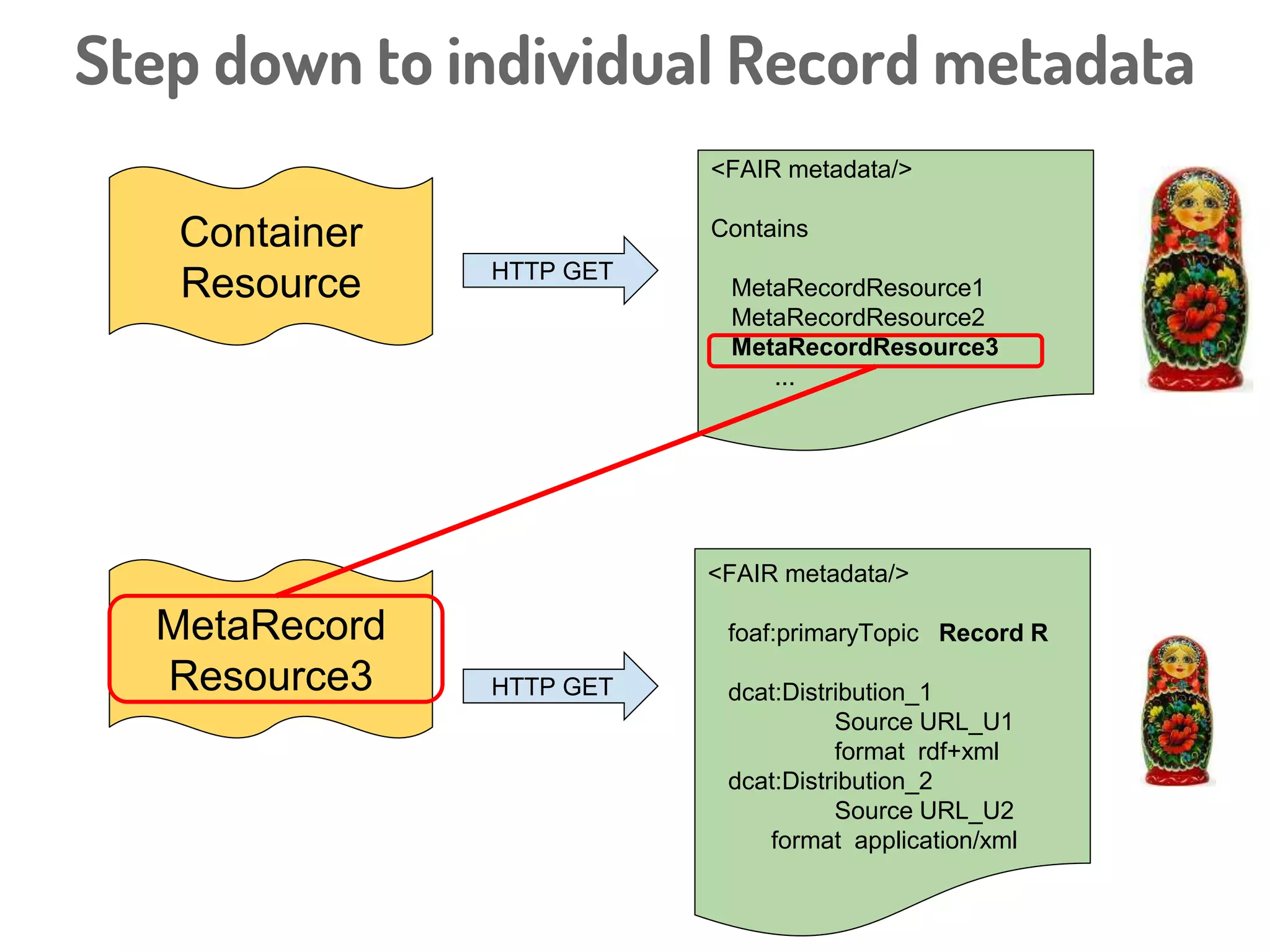

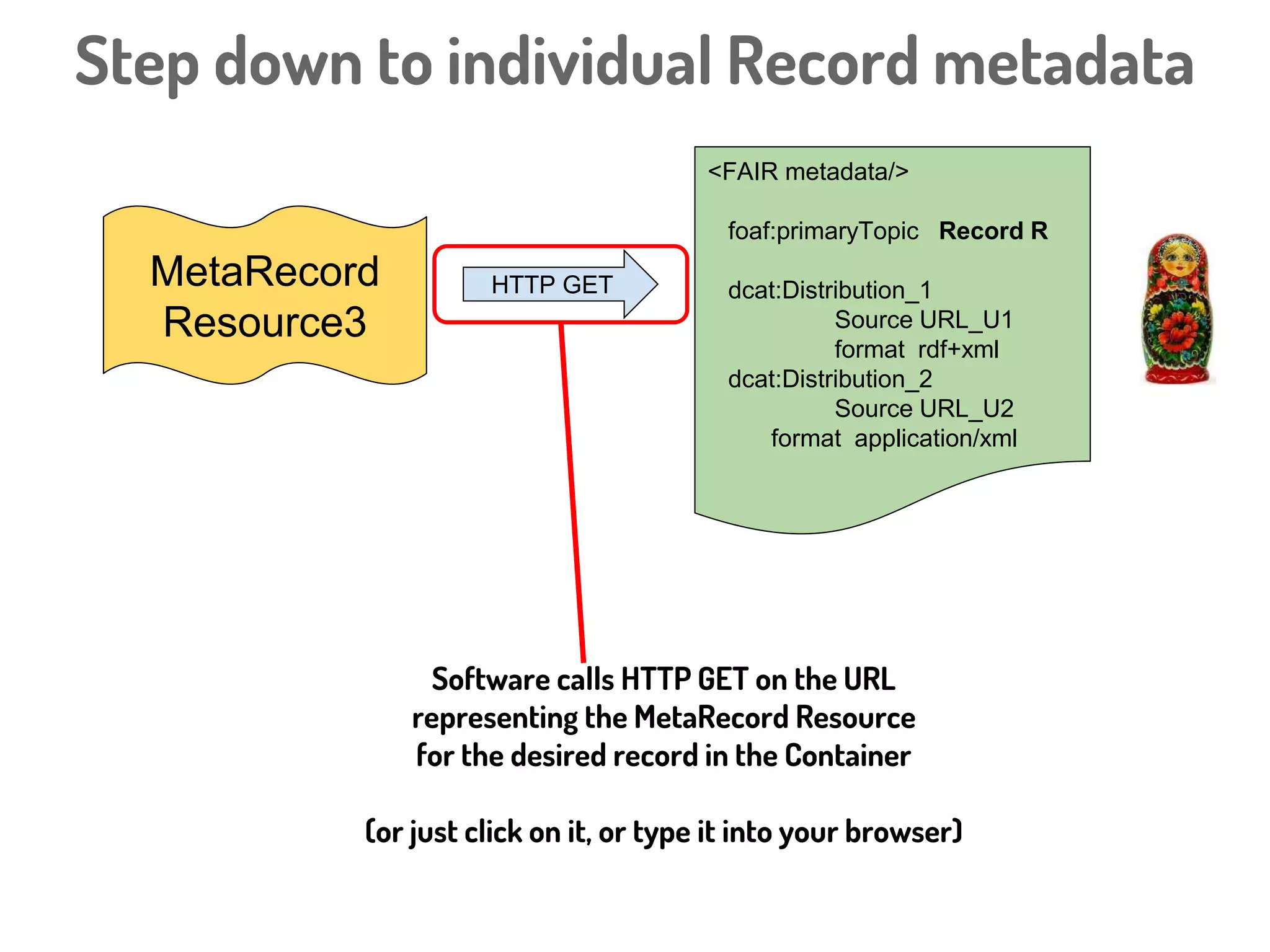

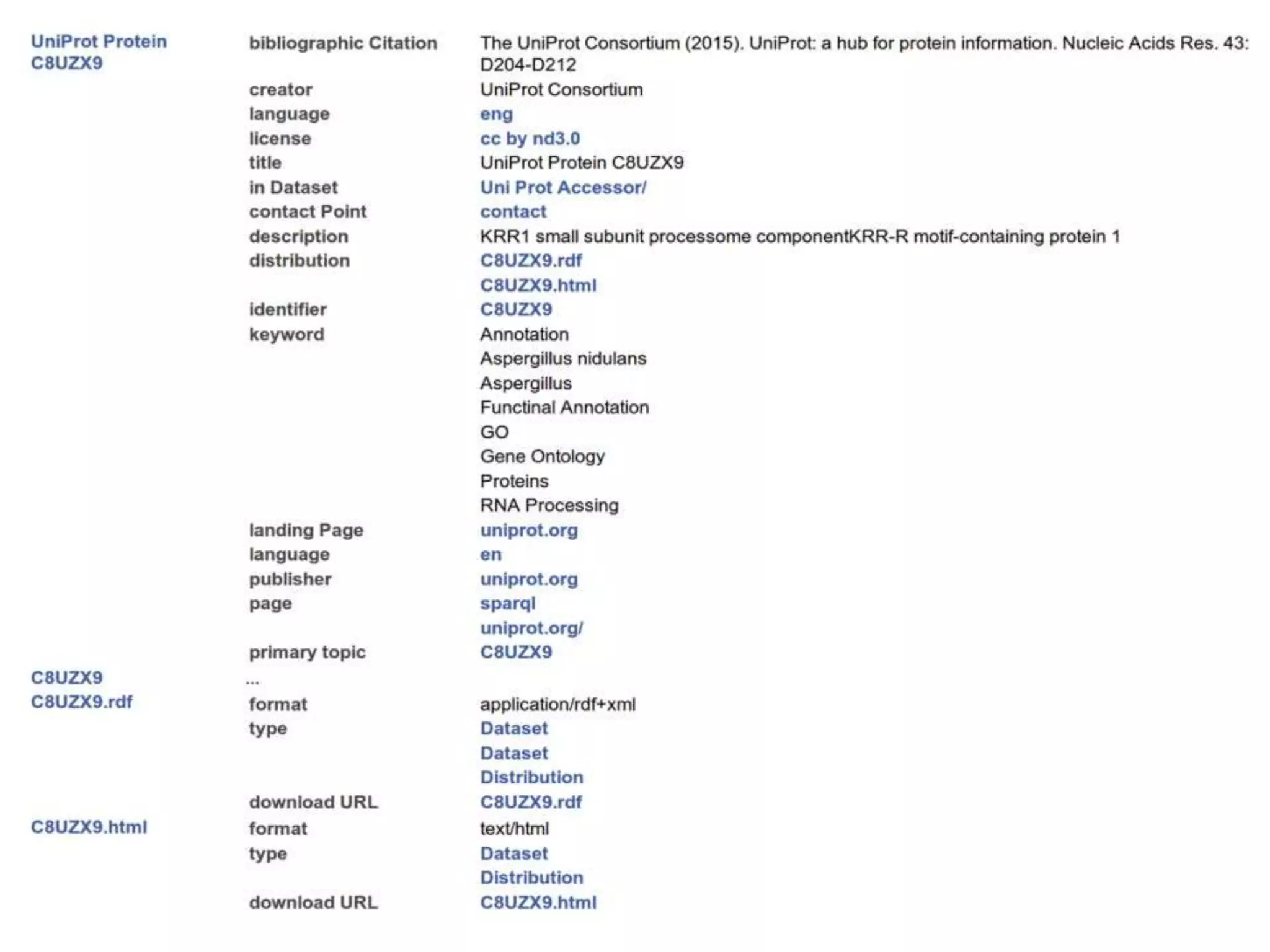

Step down to individual Record metadata MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET Software calls HTTP GET on the URL representing the MetaRecord Resource for the desired record in the Container (or just click on it, or type it into your browser)
<FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml The document that is returned

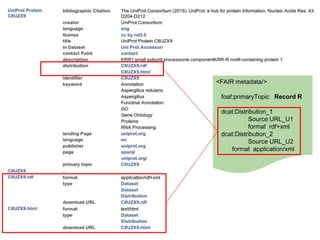

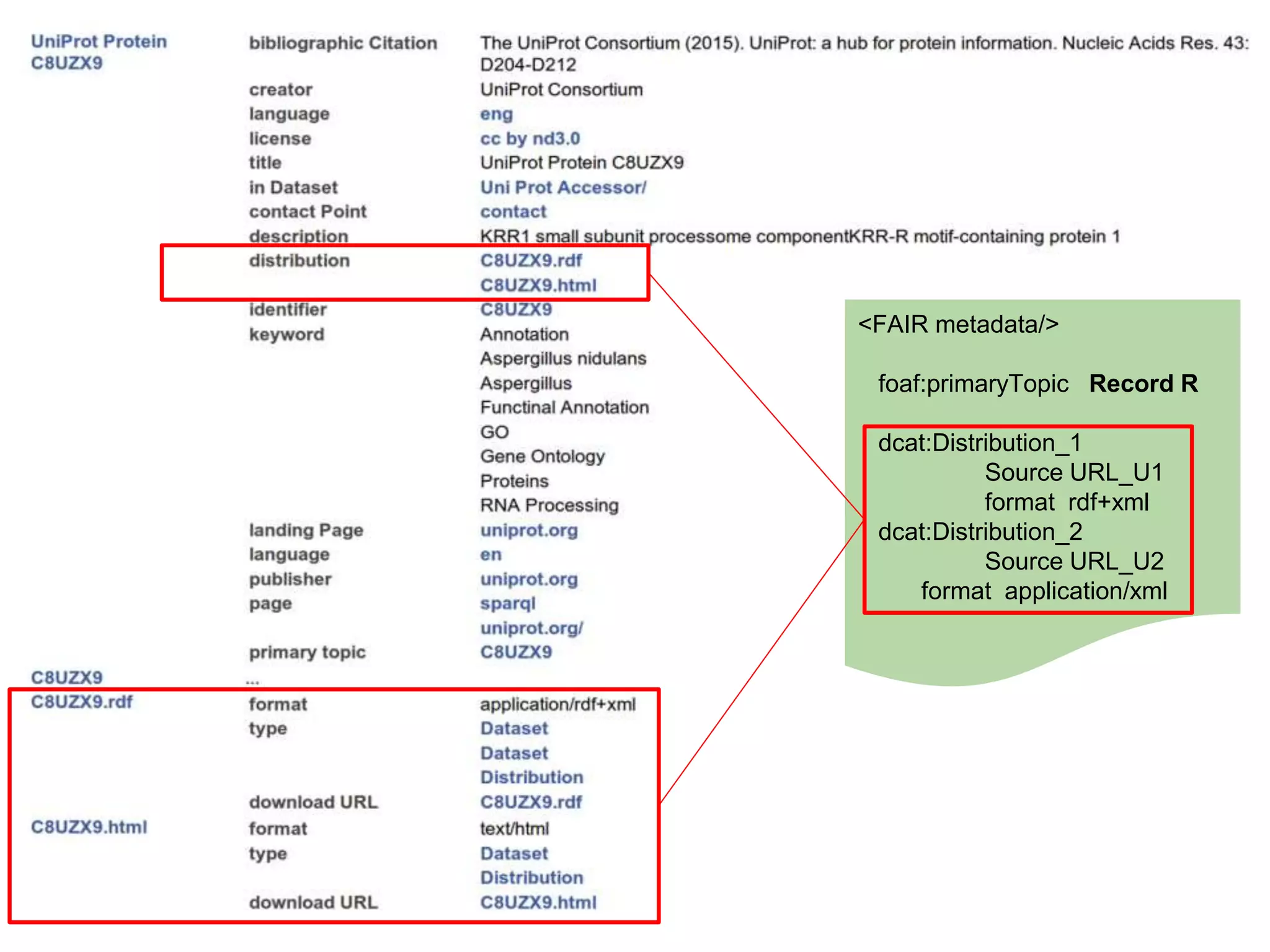

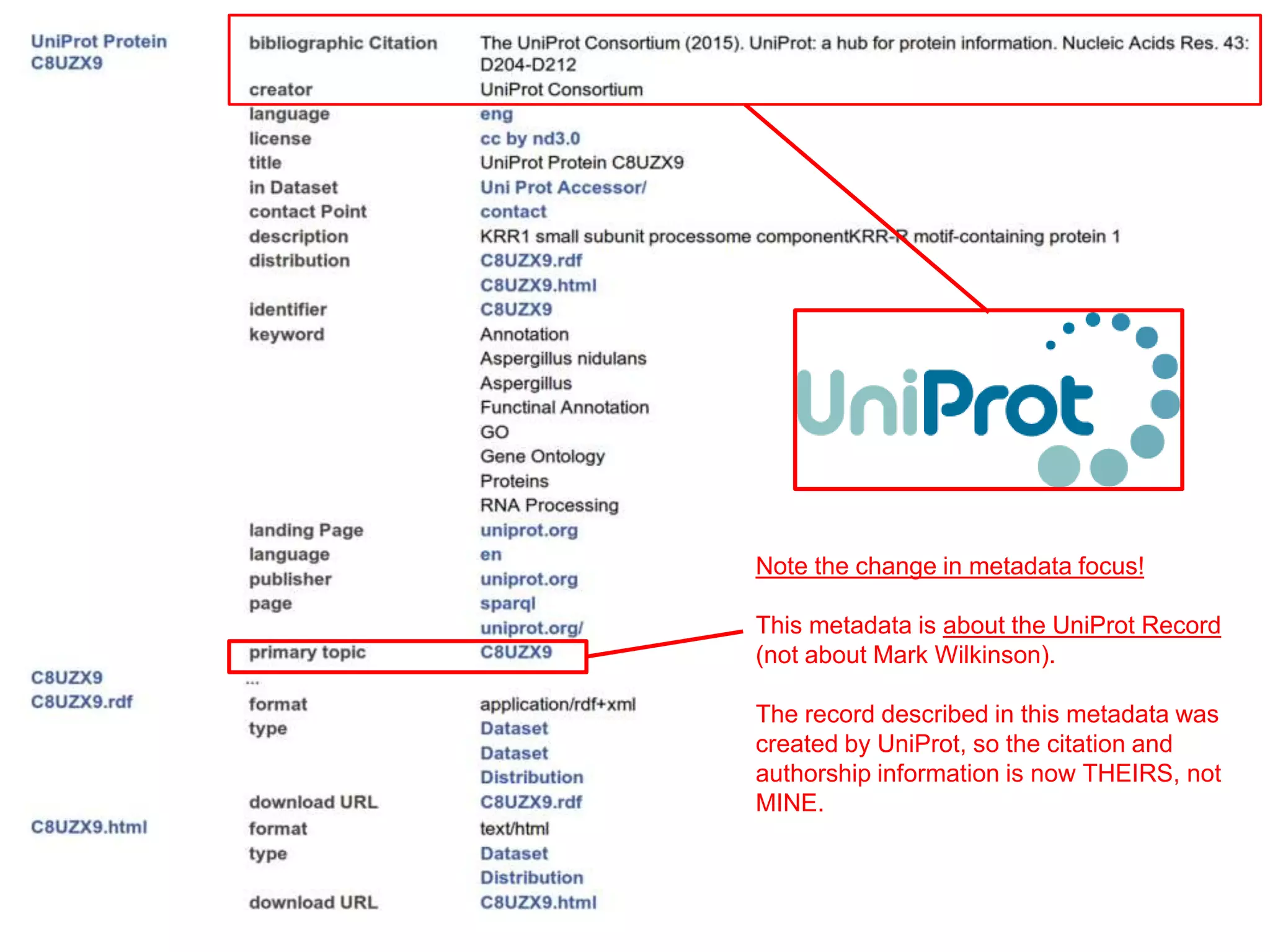

Note the change in metadata focus! This metadata is about the UniProt Record (not about Mark Wilkinson). The record described in this metadata was created by UniProt, so the citation and authorship information is now THEIRS, not MINE.

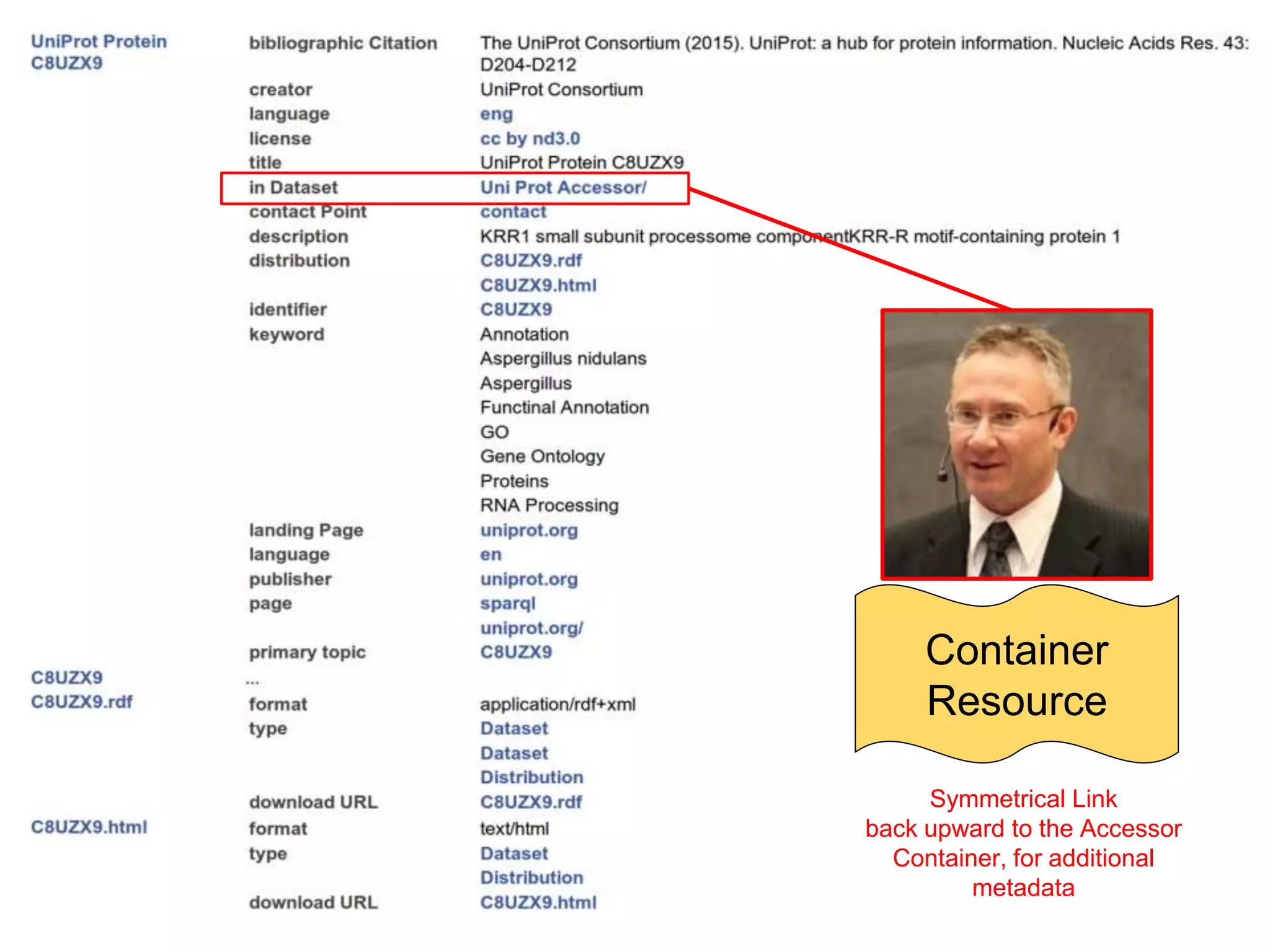

Container Resource Symmetrical Link back upward to the Accessor Container, for additional metadata

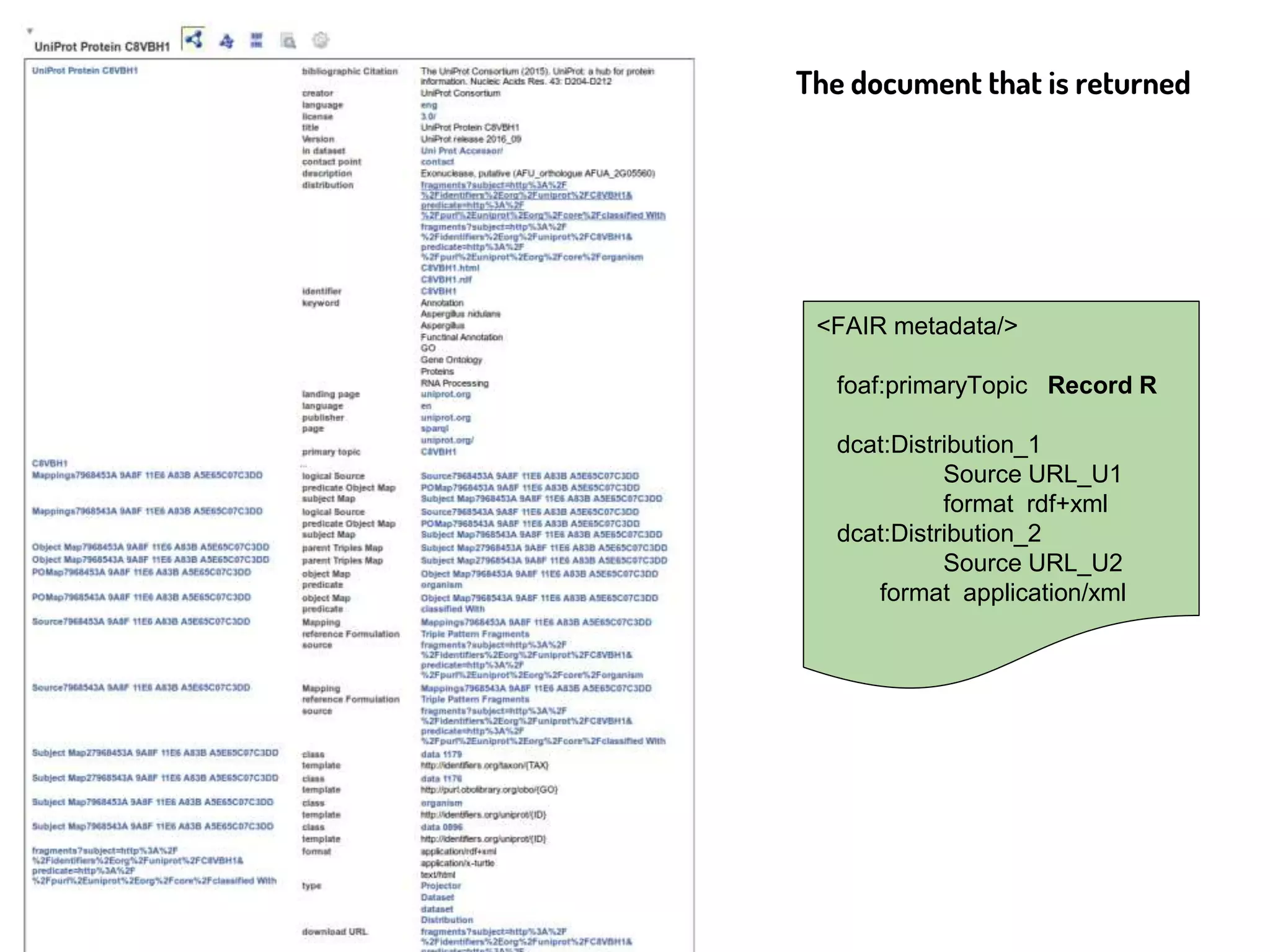

<FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml

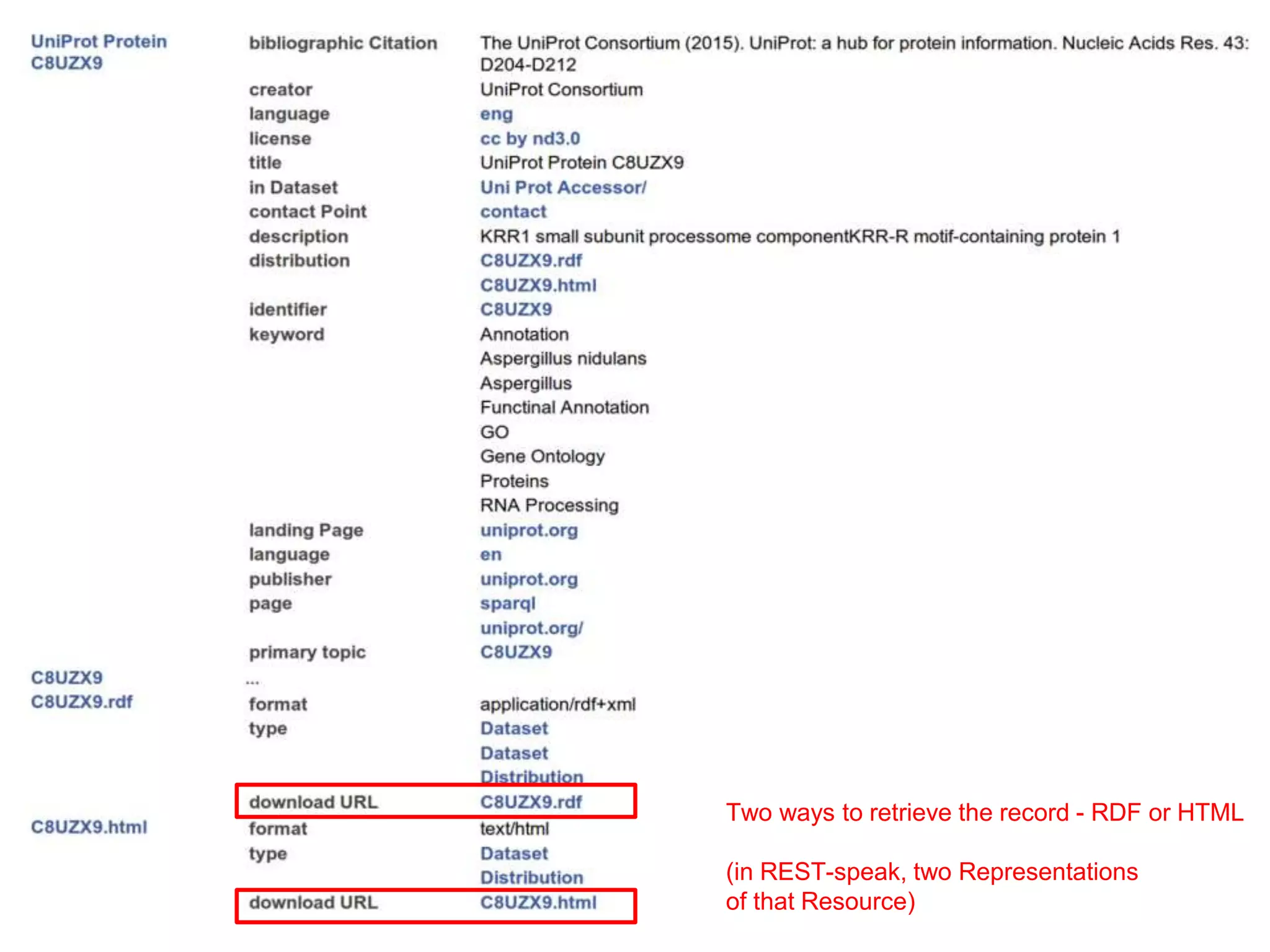

Two ways to retrieve the record - RDF or HTML (in REST-speak, two Representations of that Resource)

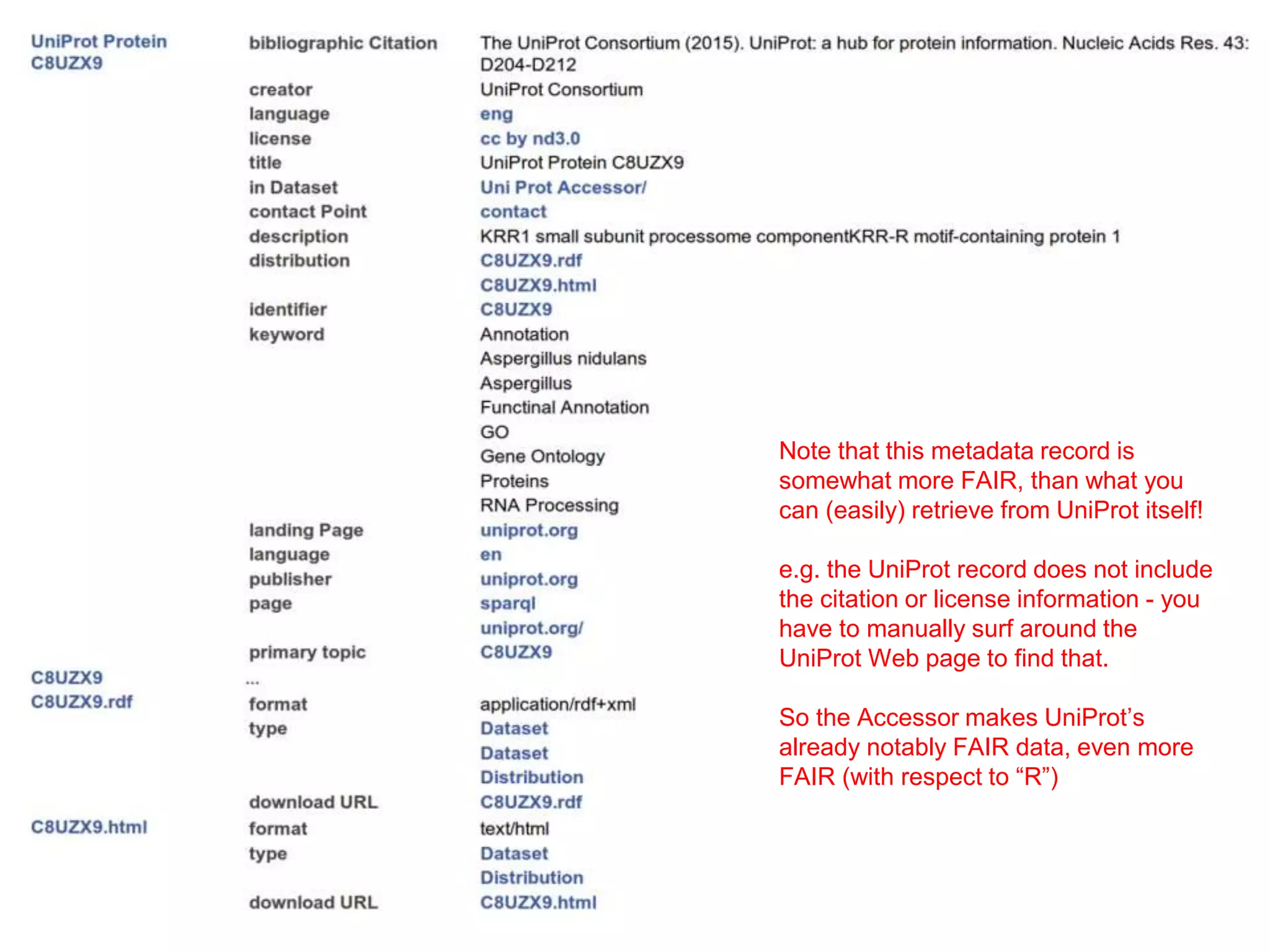

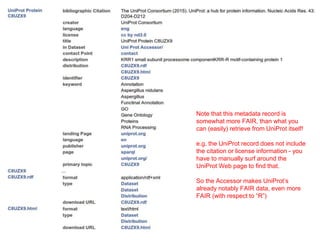

Note that this metadata record is somewhat more FAIR, than what you can (easily) retrieve from UniProt itself! e.g. the UniProt record does not include the citation or license information - you have to manually surf around the UniProt Web page to find that. So the Accessor makes UniProt’s already notably FAIR data, even more FAIR (with respect to “R”)
So far, we have focused on FAIR Metadata

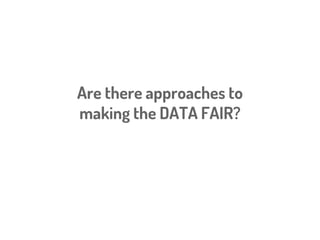

Are there approaches to making the DATA FAIR?
FAIR Projection: Providing FAIR Data from non-FAIR Data Dynamically
Imagine the data we need to integrate is in a CSV file in FigShare or Zenodo How do we discover and integrate that data?
Triple Pattern Fragments + RDF Mapping Language Ruben Verborgh Ghent University Anastasia Dimou Ghent University
Triple Pattern Fragments (TPF) A REST approach to requesting/retrieving RDF Triples from any source Ruben Verborgh “Slices” of data, from any source, are considered Resources and are therefore represented by a distinct URL: http://some.database.org/dataset?s=___;p=___;o=___ Calling HTTP GET on a TPF URL returns the set of Triples matching {?s, ?p, ?o} PLUS hypermedia instructions and Resource URLs for other relevant slices.

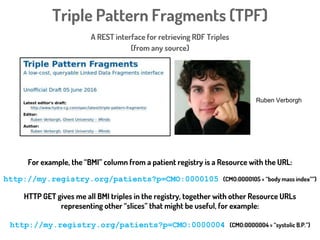

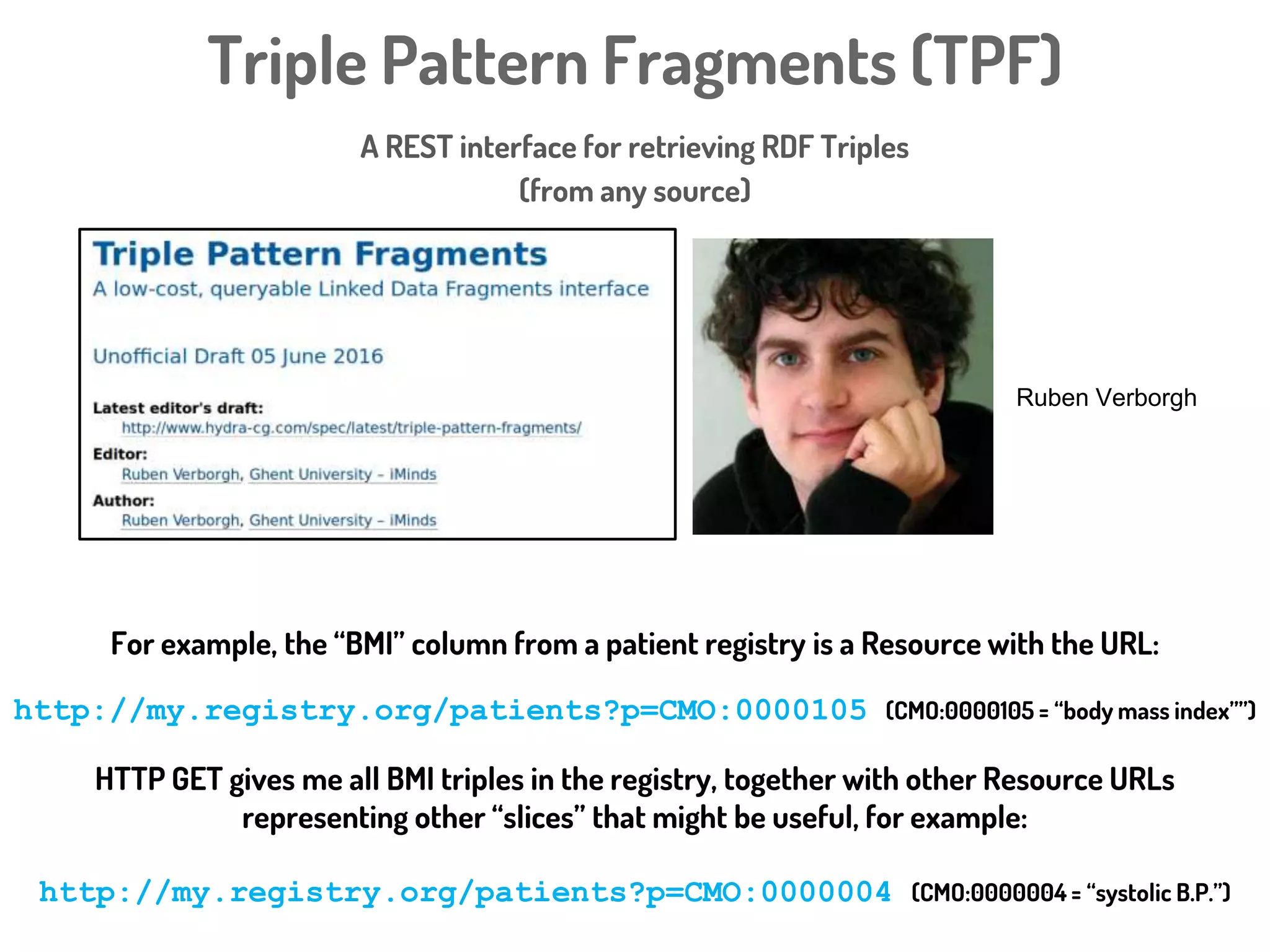

Triple Pattern Fragments (TPF) A REST interface for retrieving RDF Triples (from any source) Ruben Verborgh For example, the “BMI” column from a patient registry is a Resource with the URL: http://my.registry.org/patients?p=CMO:0000105 (CMO:0000105 = “body mass index””) HTTP GET gives me all BMI triples in the registry, together with other Resource URLs representing other “slices” that might be useful, for example: http://my.registry.org/patients?p=CMO:0000004 (CMO:0000004 = “systolic B.P.”)

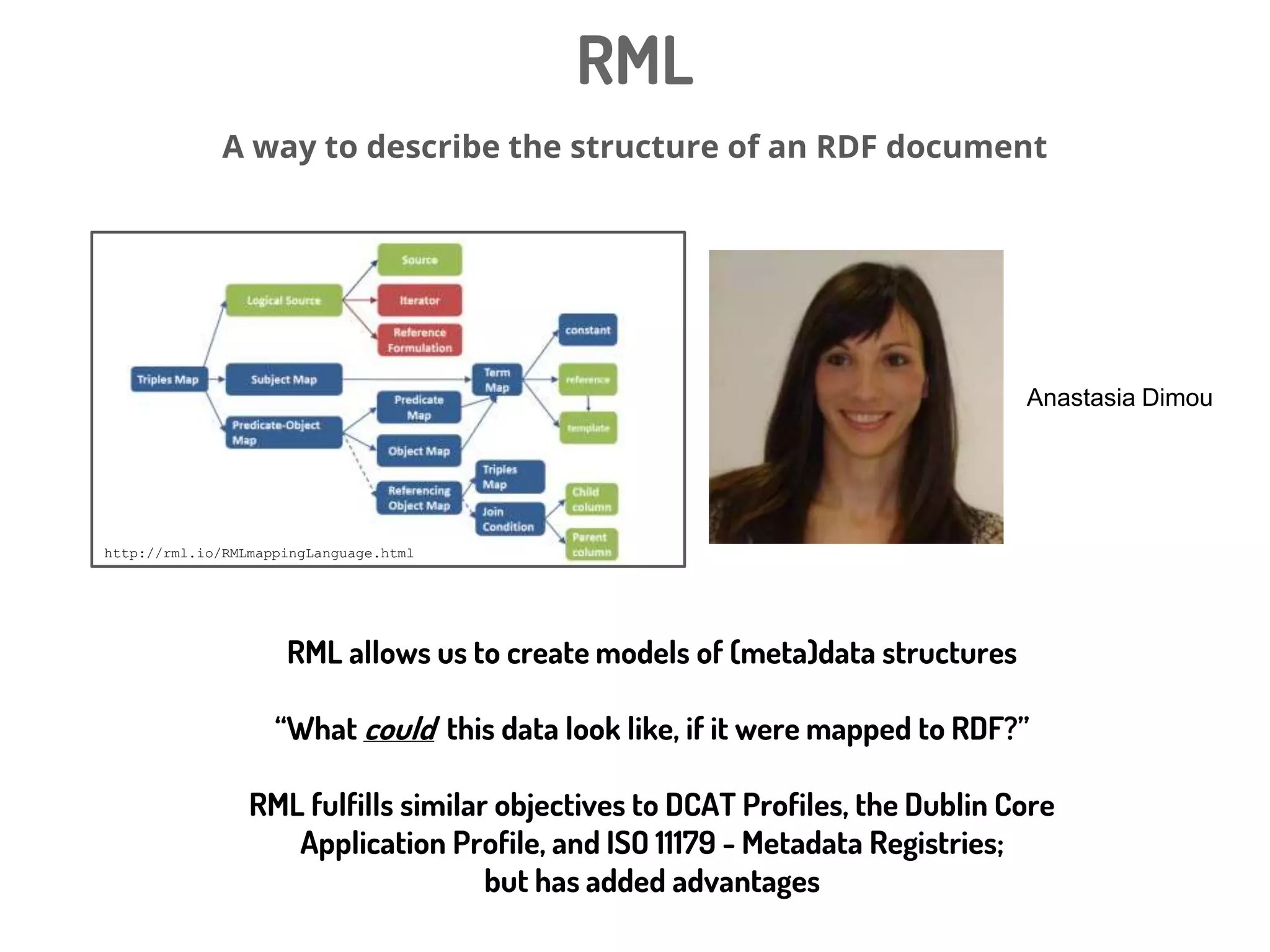

RML A way to describe the structure of an RDF document Anastasia Dimou RML allows us to create models of (meta)data structures “What could this data look like, if it were mapped to RDF?” RML fulfills similar objectives to DCAT Profiles, the Dublin Core Application Profile, and ISO 11179 - Metadata Registries; but has added advantages http://rml.io/RMLmappingLanguage.html
Using RML to describe the structure and semantics of one “kind of” Triple Map1 Predicate Object Map Subject Map Object Map ex:Patient Record subjectMap template “http://example.org/patient/{id}” predicate ex:has Variant Map2 Subject Map2 SO:0000694 (“SNP”) template “http://identifiers.org/dbsnp/{snp}” T H E M O D E L
Using RML to describe the structure and semantics of one “kind of” Triple Map1 Predicate Object Map Subject Map Object Map ex:Patient Record subjectMap template “http://example.org/patient/{id}” predicate ex:has Variant Map2 Subject Map2 SO:0000694 (“SNP”) template “http://identifiers.org/dbsnp/{snp}” T H E M O D E L We call this a Triple Descriptor These are used to describe the structure/semantics of data slices consisting of a set of “alike” triples

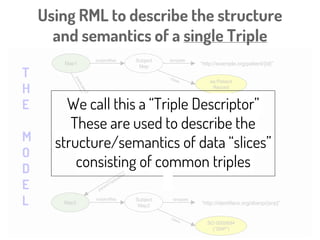

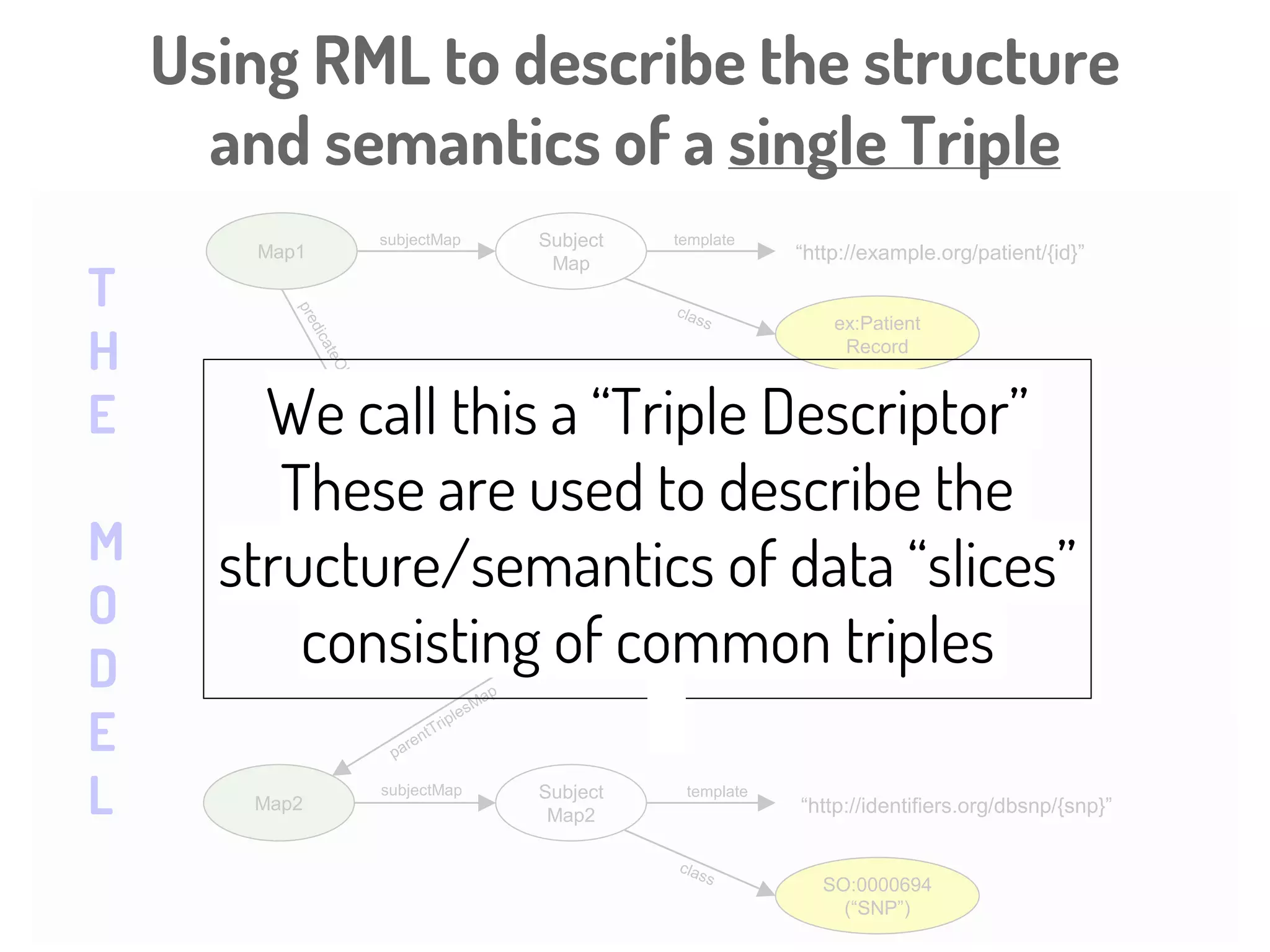

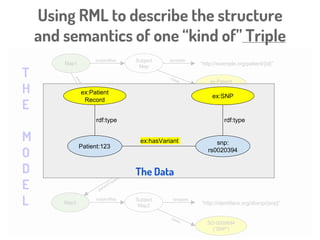

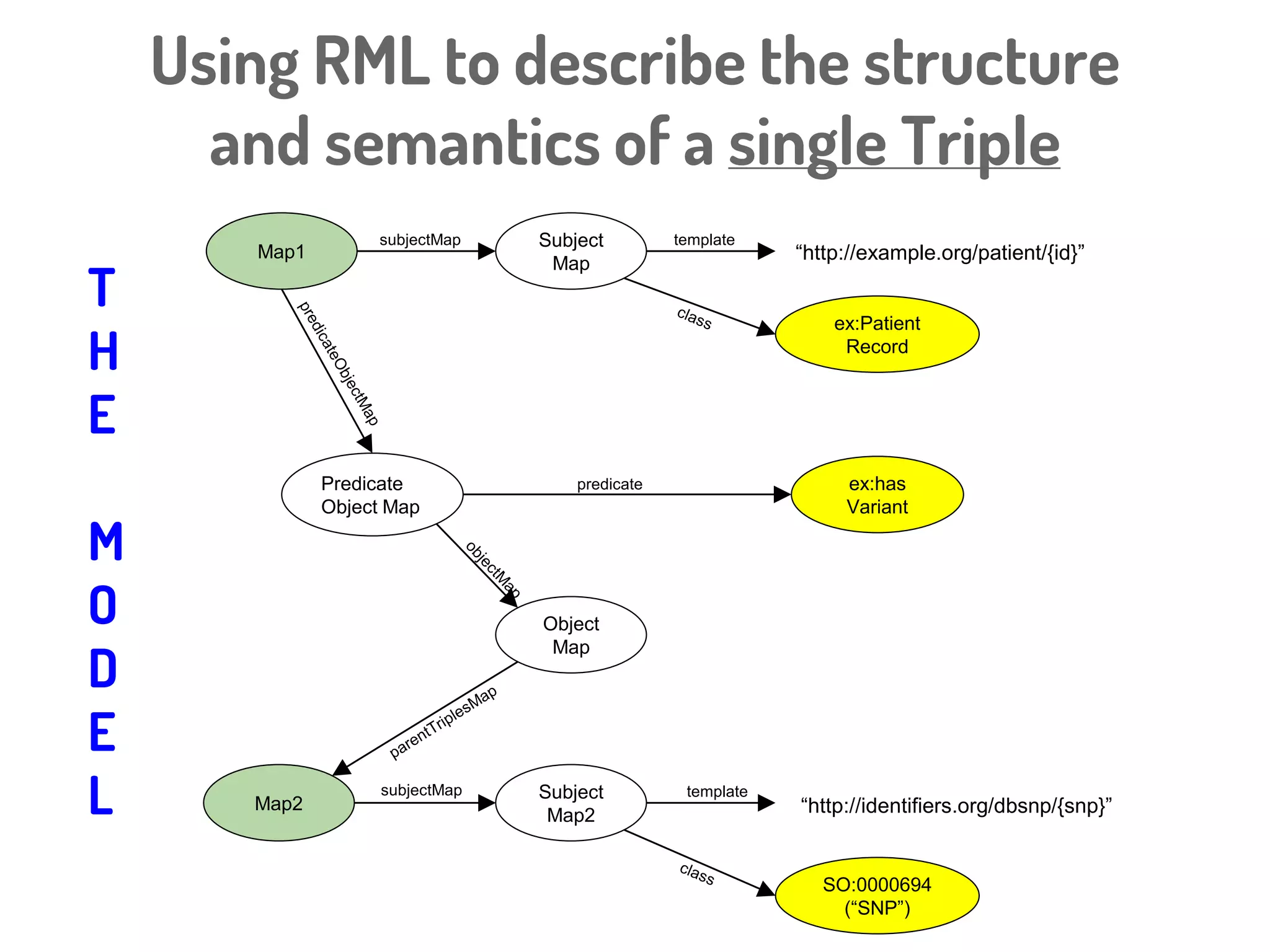

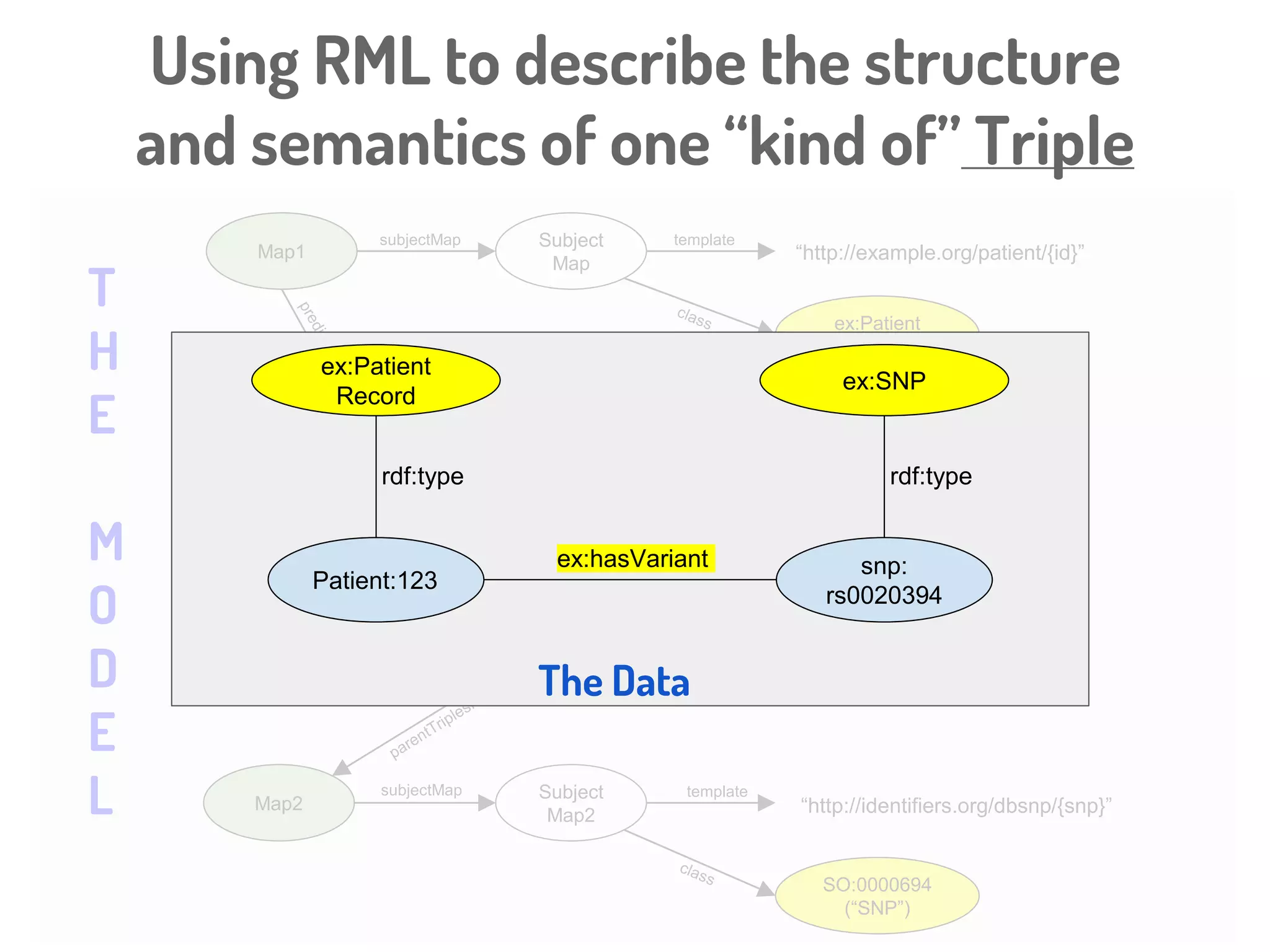

T H E M O D E L Using RML to describe the structure and semantics of one “kind of” Triple Map1 Predicate Object Map Subject Map Object Map ex:Patient Record subjectMap template “http://example.org/patient/{id}” predicate ex:has Variant Map2 Subject Map2 SO:0000694 (“SNP”) template “http://identifiers.org/dbsnp/{snp}” Patient:123 rdf:type ex:Patient Record snp: rs0020394 ex:hasVariant rdf:type ex:SNP Example of Data

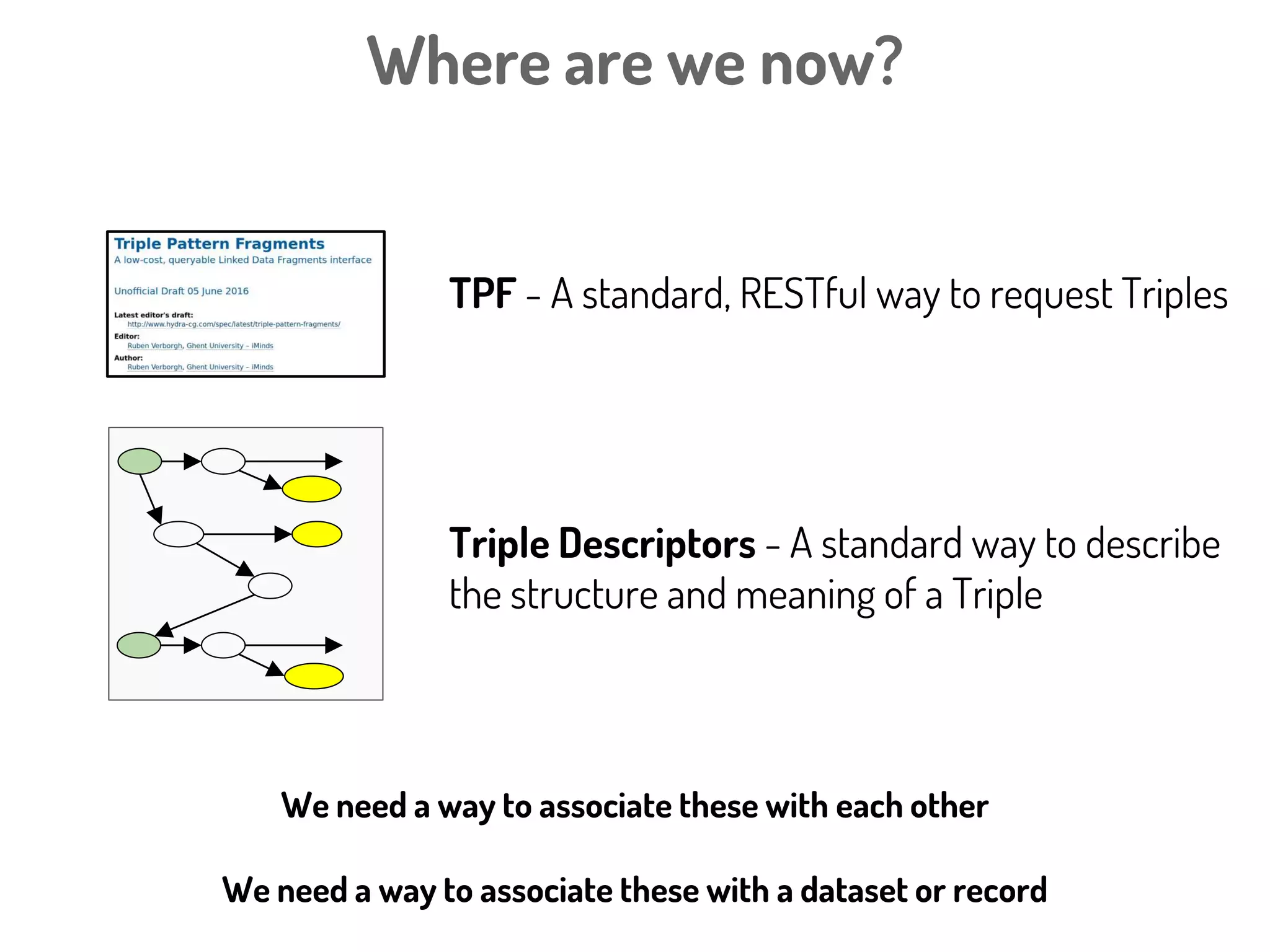

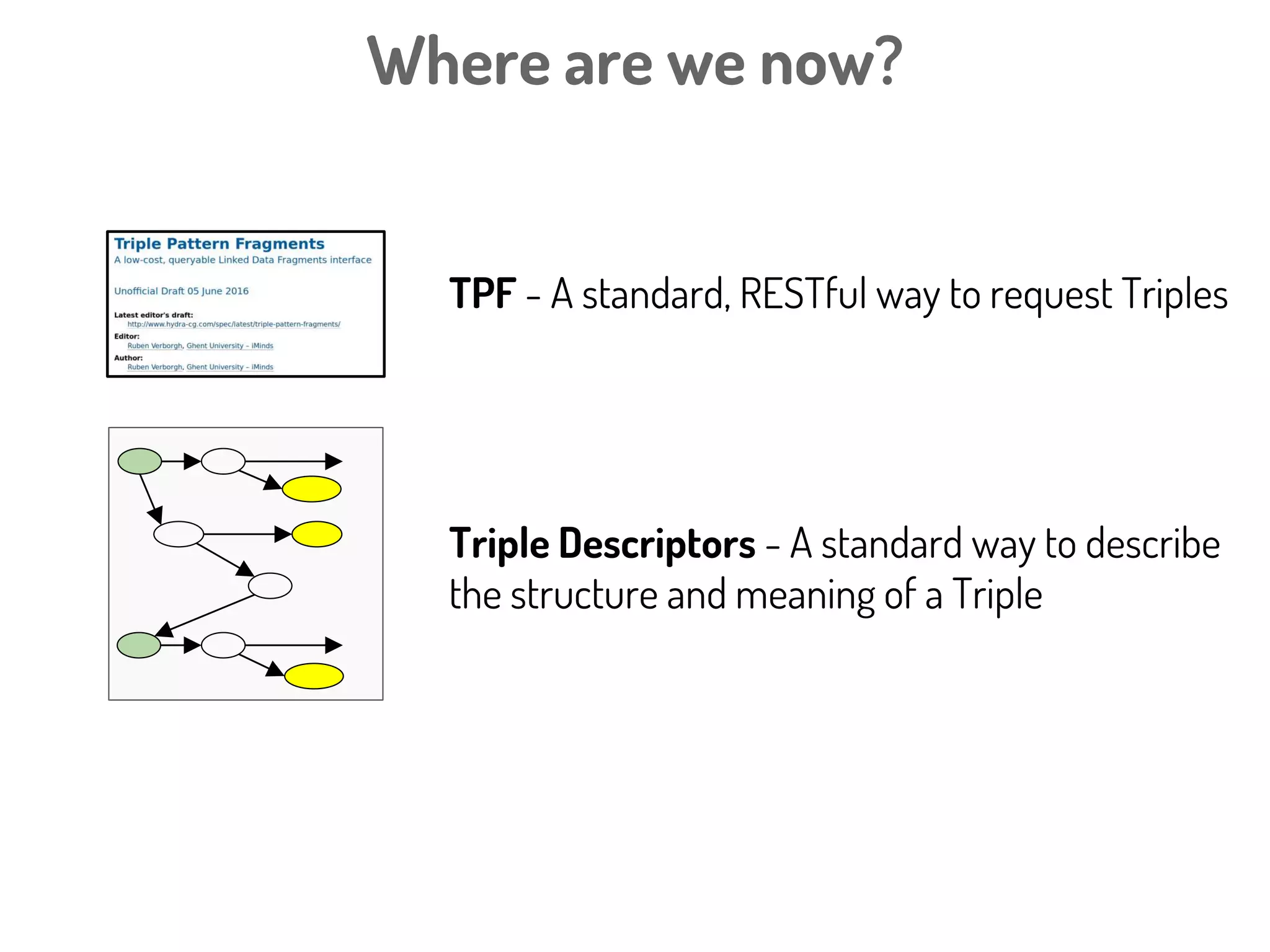

Where are we now? TPF - A standard, RESTful way to request Triples Triple Descriptors - A standard way to describe the structure and meaning of a Triple
Where are we now? TPF - A standard, RESTful way to request Triples Triple Descriptors - A standard way to describe the structure and meaning of a Triple We need a way to associate these with each other We need a way to associate these with a dataset or record
We already have that...

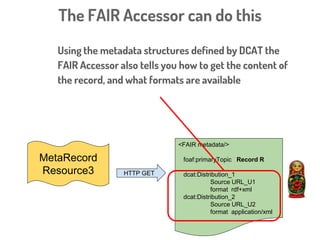

MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET The FAIR Accessor can do this Using the metadata structures defined by DCAT the FAIR Accessor also tells you how to get the content of the record, and what formats are available
If we consider the TPF URL to be just another DCAT Distribution, we get... <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL Format rdf+xml
<FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL Format rdf+xml If we consider the TPF URL to be just another DCAT Distribution, we get... URL representing the Triple Pattern Fragment Resource

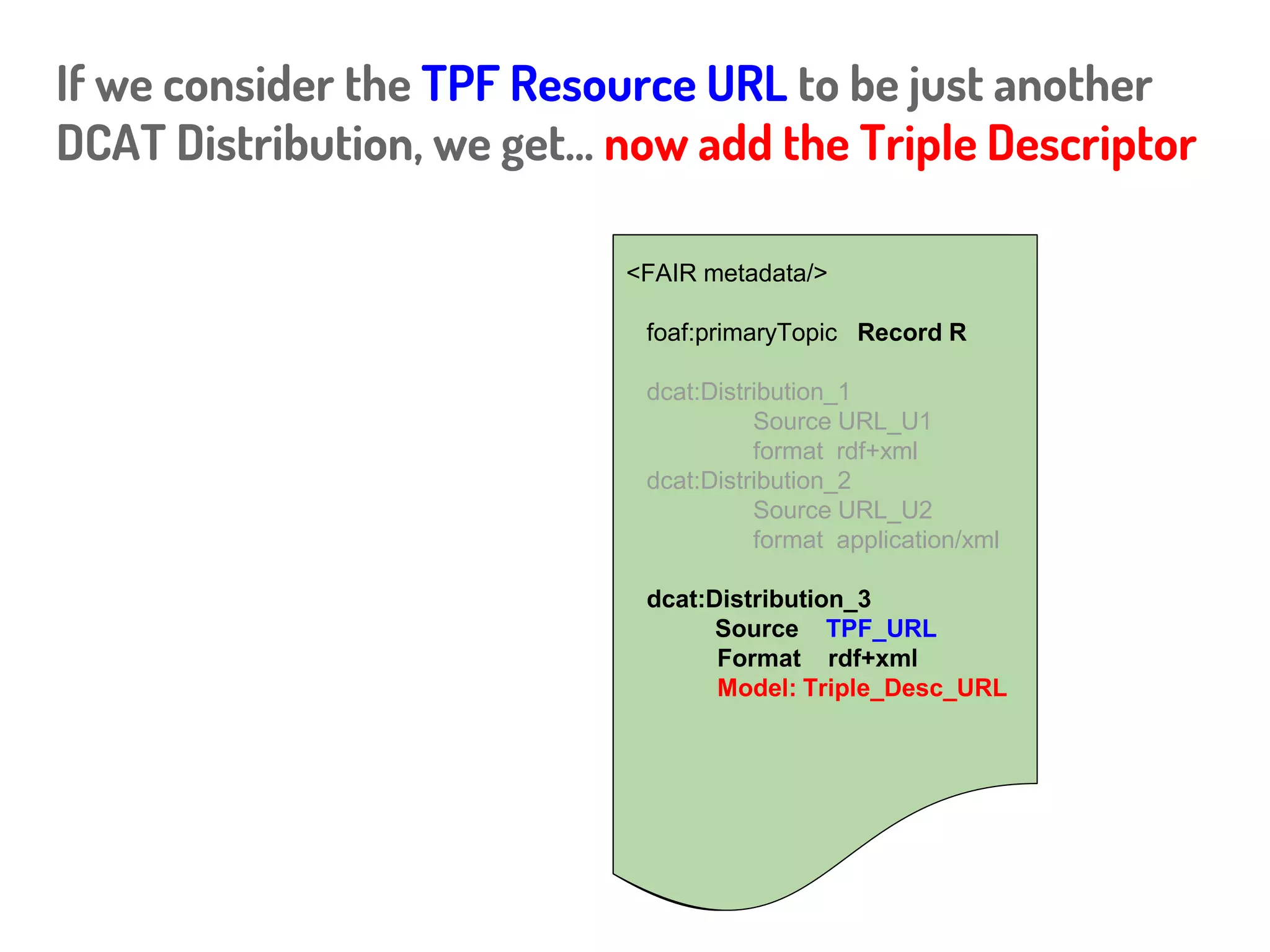

If we consider the TPF URL to be just another DCAT Distribution, we get… now add the Triple Descriptor <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPFrag_URL_1 format rdf+xml Model: Triple_Desc_URL <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL Format rdf+xml Model: Triple_Desc_URL
<FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL_1 Format rdf+xml Model: Triple_Desc_URL If we consider the TPF URL to be just another DCAT Distribution, we get… now add the Triple Descriptor HTTP GET on that URL returns:
<FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL Format rdf+xml Model: Triple_Desc_URL If we consider the TPF URL to be just another DCAT Distribution, we get… now add the Triple Descriptor Record + TPF Server + RML Model
<FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL Format rdf+xml Model: Triple_Desc_URL If we consider the TPF URL to be just another DCAT Distribution, we get… now add the Triple Descriptor FAIR Projector

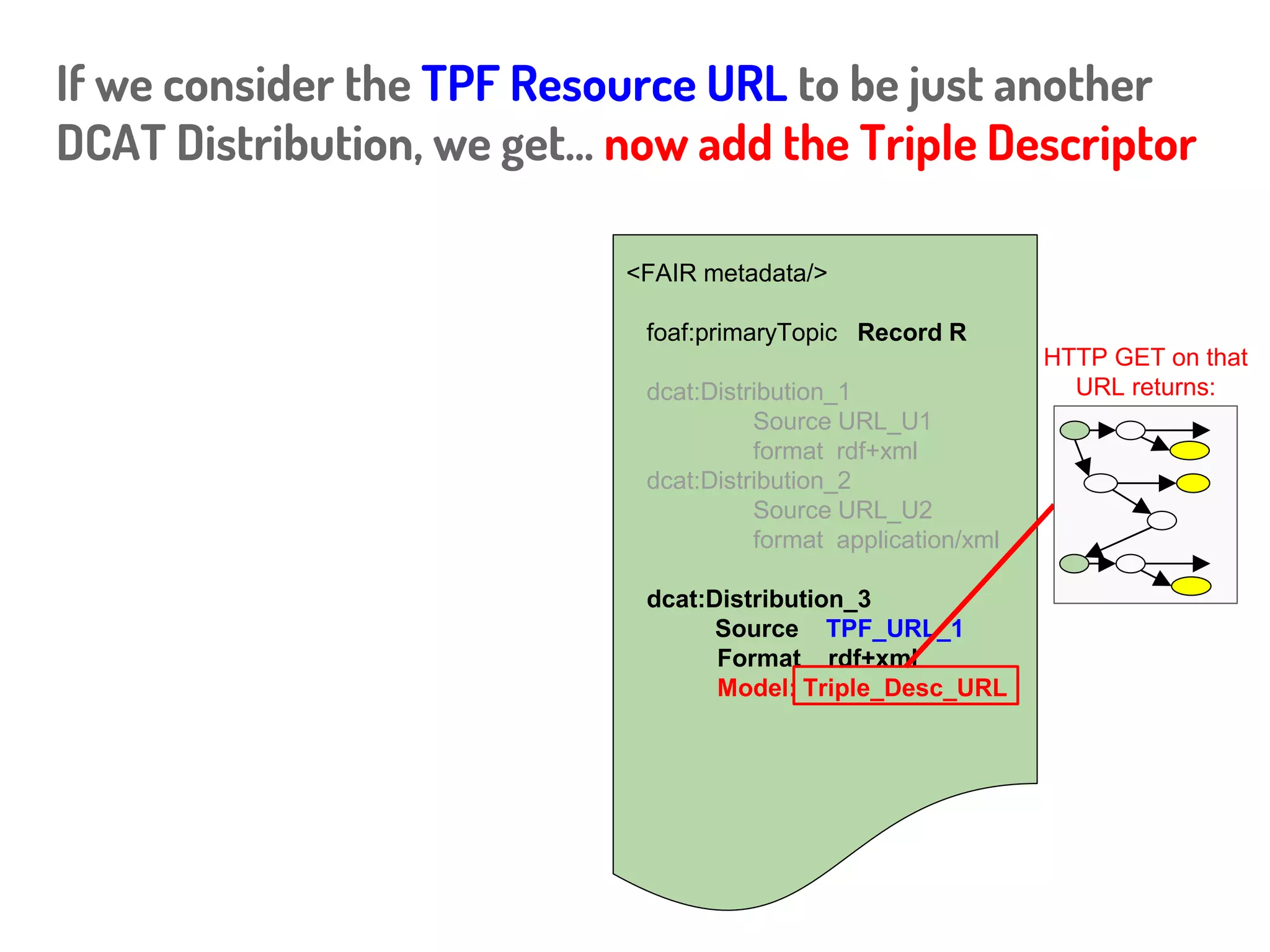

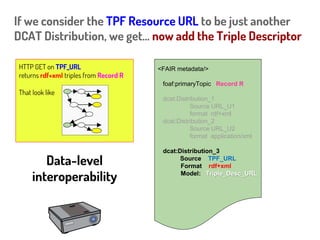

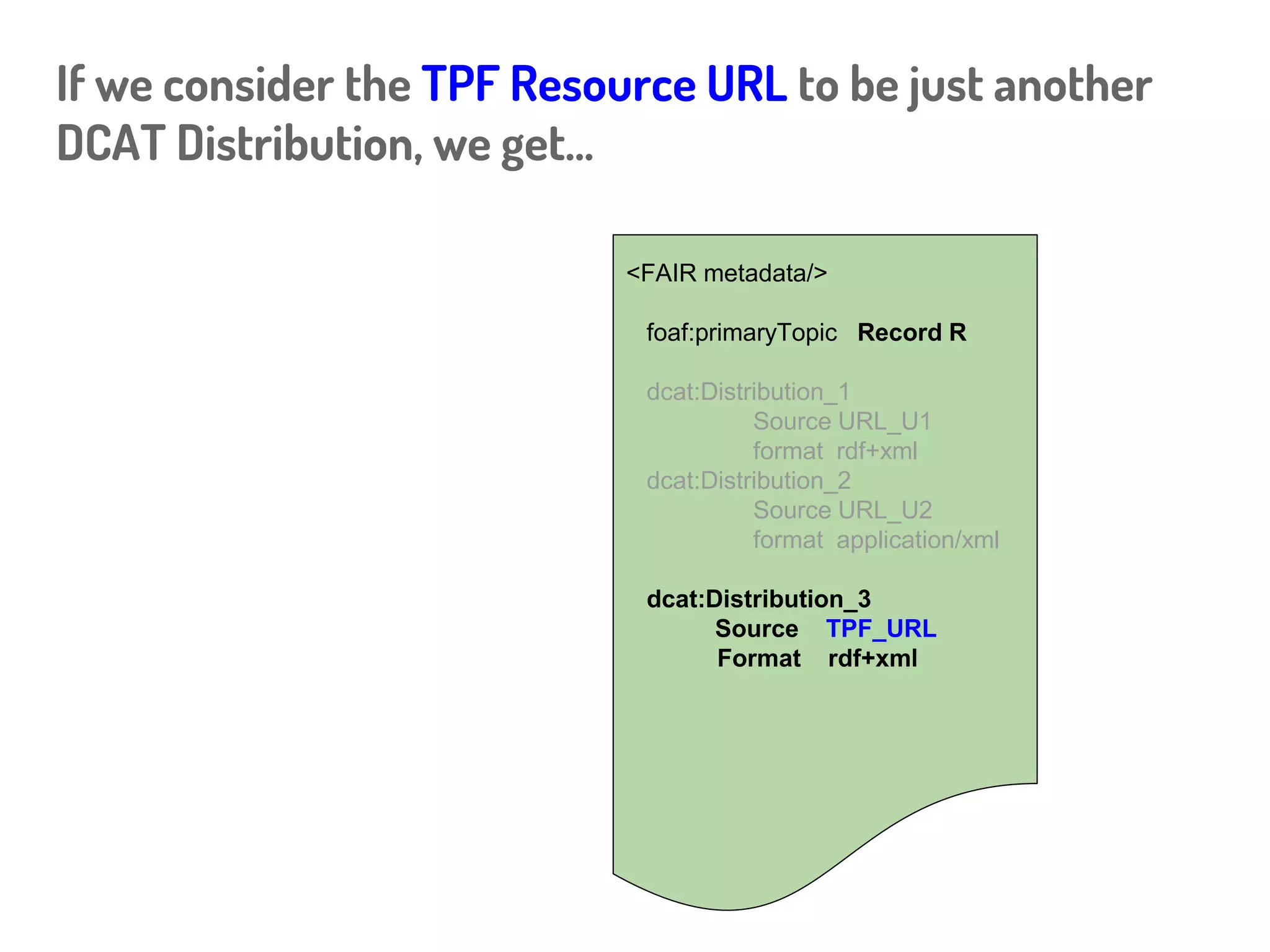

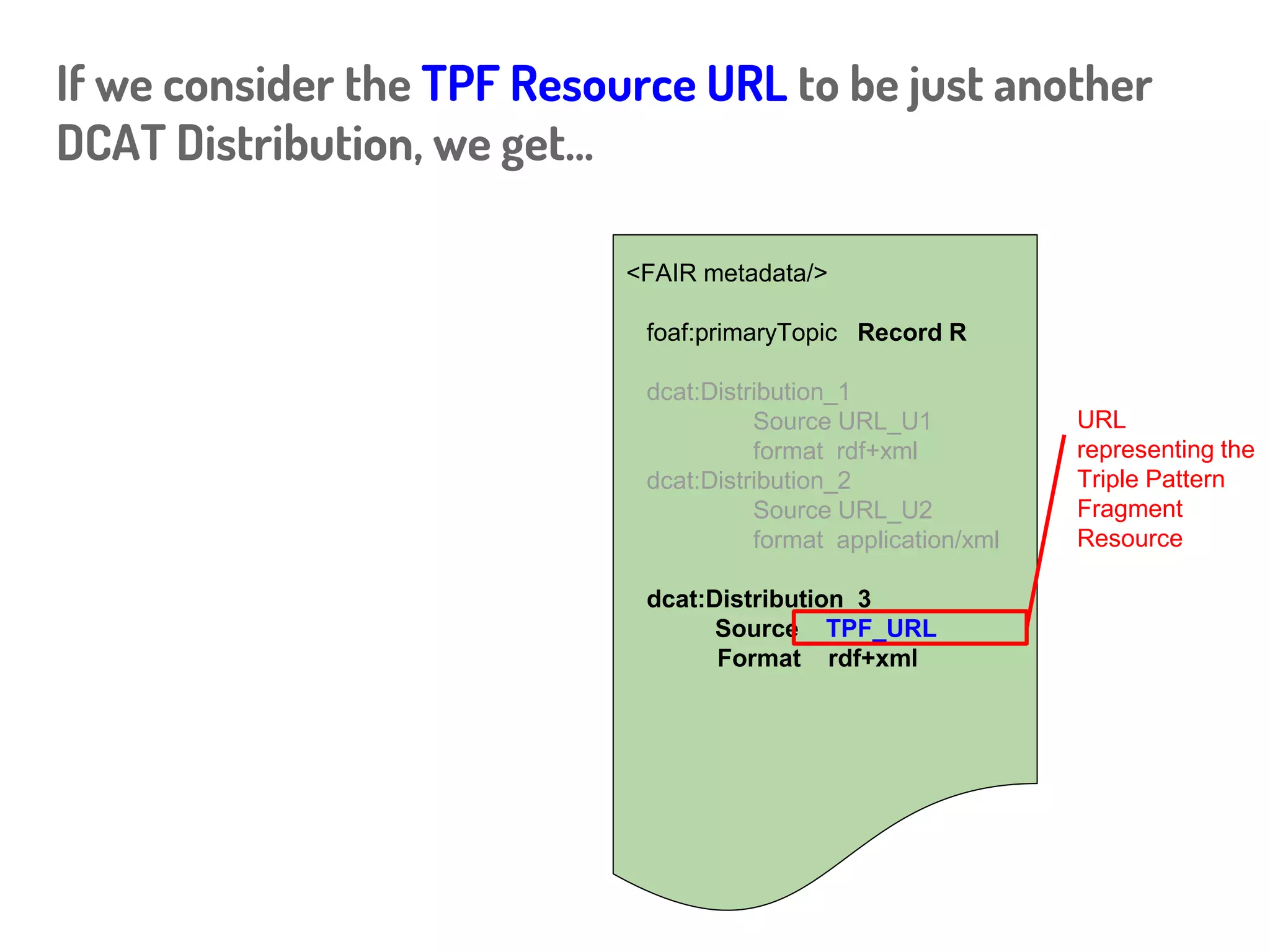

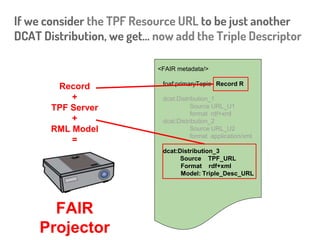

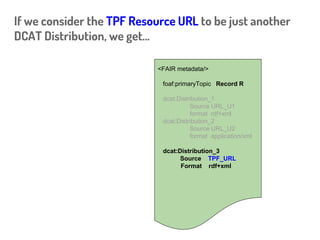

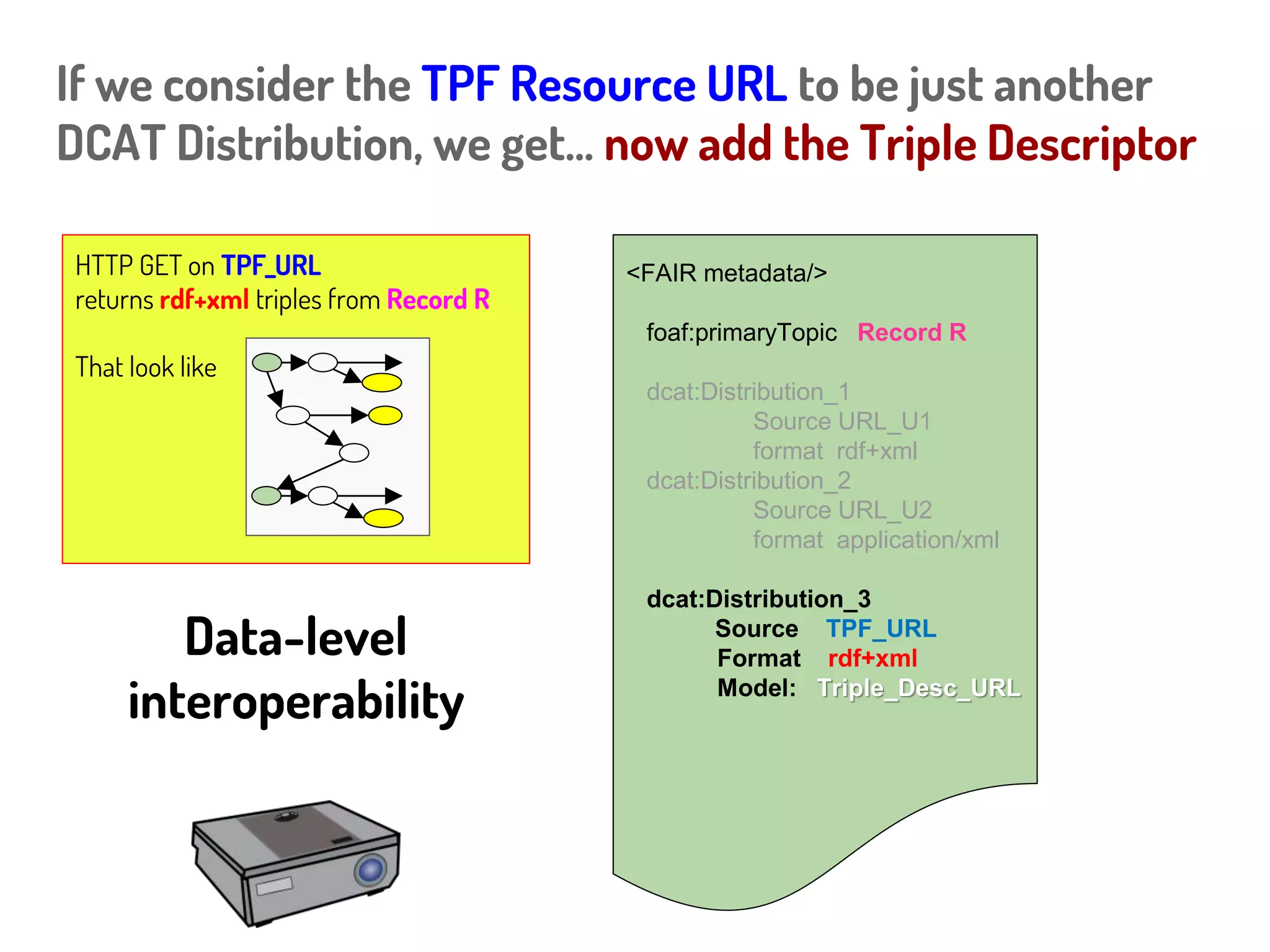

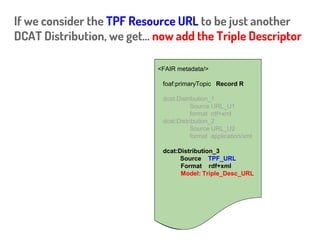

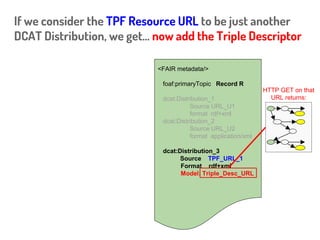

If we consider the TPF Resource URL to be just another DCAT Distribution, we get… now add the Triple Descriptor HTTP GET on TPF_URL returns rdf+xml triples from Record R That look like Data interoperability <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL Format rdf+xml Model: Triple_Desc_URL

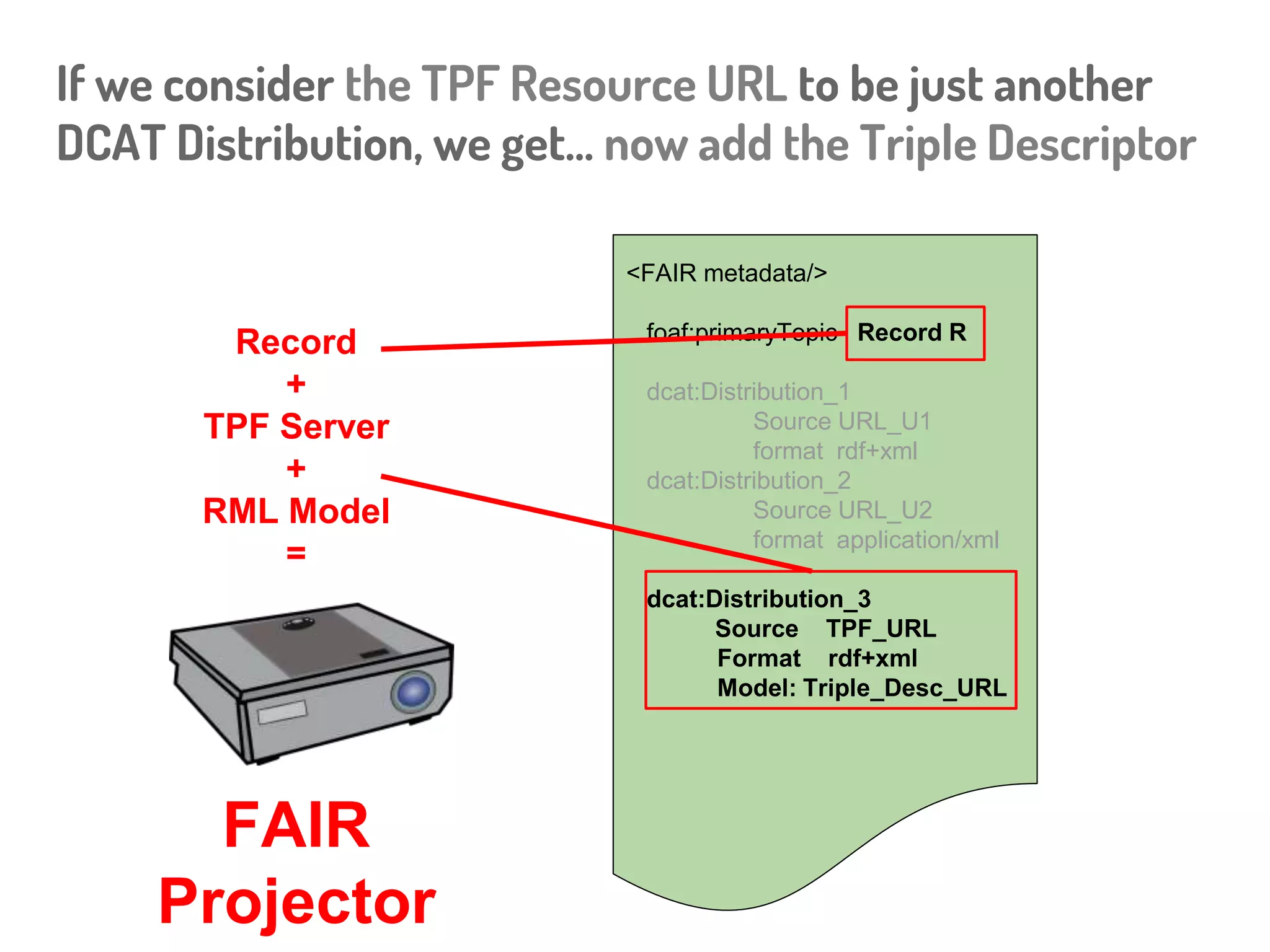

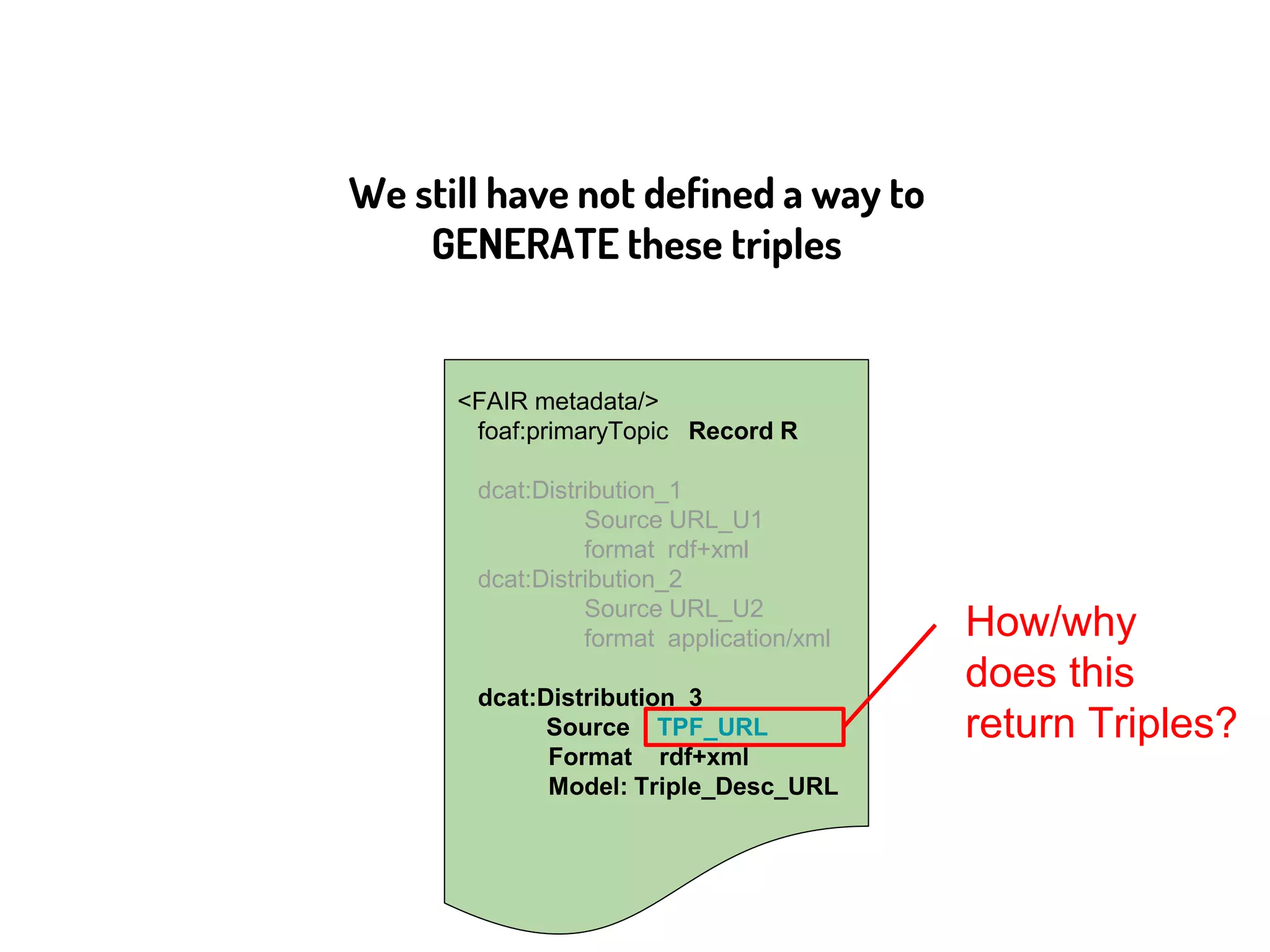

<FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL Format rdf+xml Model: Triple_Desc_URL How/why does this return Triples? We still have not defined a way to GENERATE these triples
Sadly, there is no magic wand to create interoperability
Sadly, there is no magic wand to create interoperability Someone has to write the TPF server that converts the data Interoperability will never come “for free” (because semantics will never come “for free”)

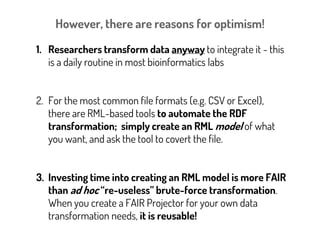

However, there are reasons for optimism! 1. Researchers transform data anyway to integrate 2. For the most common file formats (e.g. CSV or Excel), there are RML-based tools to automate the RDF transformation; simply create an RML model of what you want, and ask the tool to covert the file. 3. Investing time into creating an RML model is more FAIR than ad hoc “re-useless” brute-force transformation. When you create a FAIR Projector for your own data transformation needs, the model is reusable!

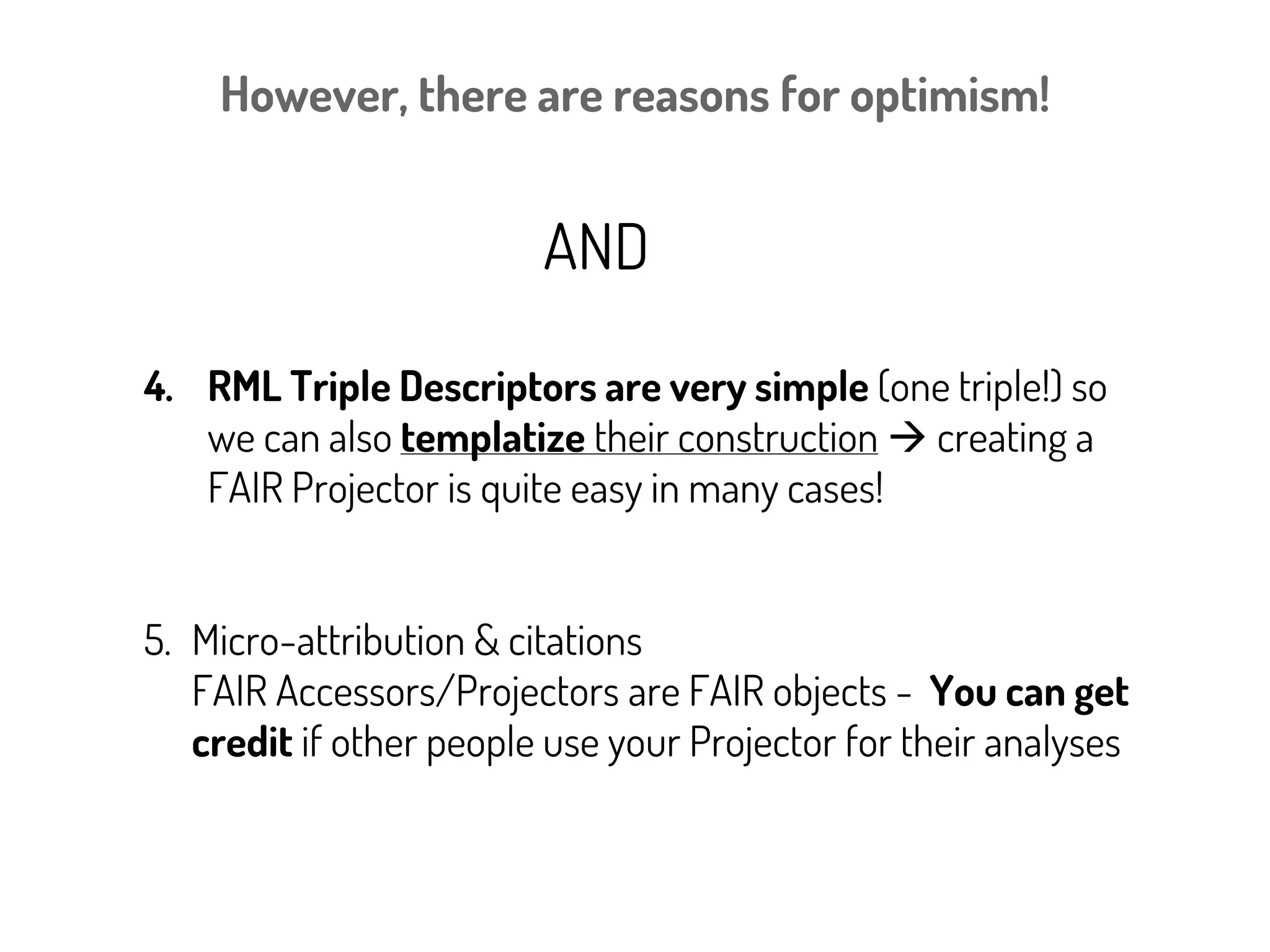

However, there are reasons for optimism! AND 4. RML Triple Descriptors are very simple (one triple!) so we can also templatize their construction  creating a FAIR Projector is quite easy in many cases! 5. Micro-attribution & citations FAIR Accessors/Projectors are FAIR objects - You can get credit if other people use your Projector for their analyses

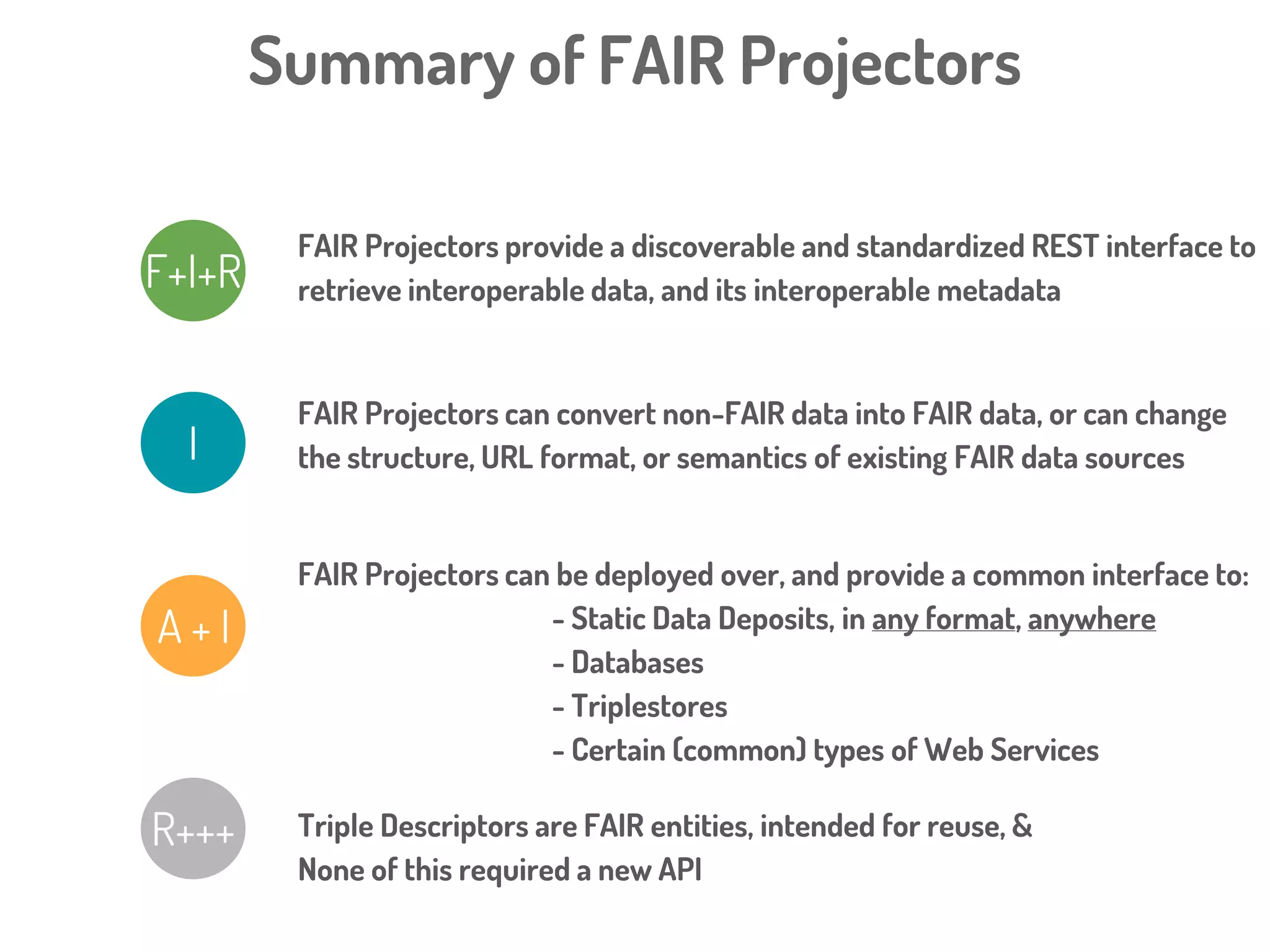

Summary of FAIR Projectors FAIR Projectors provide a discoverable and standardized REST interface to retrieve interoperable data, and its interoperable metadataF+I+R A + I I FAIR Projectors convert non-FAIR data into FAIR data, or can change the structure, URL format, or semantics of existing FAIR data sources FAIR Projectors can be deployed over, and provide a common interface to: - Static Data Deposits, in any format, anywhere - Databases - Triplestores - Certain (common) types of Web Services R+++ Triple Descriptors are FAIR entities, intended for reuse, & None of this required a new API
Thanks to: Michel Dumontier - Stanford Center for Biomedical Informatics Research, Stanford, California. Ruben Verborgh – Ghent University – imec, Ghent, Belgium Luiz Olavo Bonino da Silva Santos - Dutch Techcentre for Life Sciences, Utrecht, The Netherlands - Vrije Universiteit Amsterdam, Amsterdam, The Netherlands. Tim Clark - Department of Neurology, Massachusetts General Hospital Boston MA and Harvard Medical School, Boston, MA, USA Morris A. Swertz - Genomics Coordination Center and Department of Genetics, University Medical Center Groningen, Groningen, The Netherlands Fleur D.L. Kelpin - Genomics Coordination Center and Department of Genetics, University Medical Center Groningen, Groningen, The Netherlands Alasdair J. G. Gray - Department of Computer Science, School of Mathematical and Computer Sciences, Heriot-Watt University, Edinburgh, UK Erik A. Schultes - Department of Human Genetics, Leiden University Medical Center, The Netherlands Erik M. van Mulligen - Department of Medical Informatics, Erasmus University Medical Center Rotterdam, The Netherlands Paolo Ciccarese - Perkin Elmer Innovation Lab, Cambridge MA and Harvard Medical School, Boston MA, USA Mark Thompson - Leiden University Medical Center, Leiden, The Netherlands Jerven T. Bolleman - Swiss-Prot group, SIB Swiss Institute of Bioinformatics, Centre Medical Universitaire, Geneva, Switzerland
In a FAIR world my paper is the supplementary information for my publication
Funding for Mark Wilkinson from: Fundacion BBVA and the UPM Isaac Peral programme, and the Spanish Ministerio de Economía y Competitividad grant number TIN2014-55993-R. Additional support for FAIR Skunkworks members comes from: European Union funded projects ELIXIR-EXCELERATE (H2020 no. 676559), ADOPT BBMRI-ERIC (H2020 no. 676550) CORBEL (H2020 no. 654248) Netherlands Organisation for Scientific Research (Odex4all project) Stichting Topconsortium voor Kennis en Innovatie High Tech Systemen en Materialen (FAIRdICT project) BBMRI-NL RD-Connect and ELIXIR (Rare disease implementation study FP7 no. 305444).
You are not only welcome to share and reuse this presentation... ...You are encouraged to! http://tinyurl.com/WilkinsonOAI10
Important: All our templates are free to use under Creative Commons Attribution License. If you use the graphic assets (photos, icons and typographies) included in this Google Slides Templates you must keep the Credits slide or add all attributions in the last slide notes. FGST Free GoogleSlides Templates Some graphical elements were taken from slide templates provided by:

More Related Content

ODP
Bio2RDF@BH2010
byFrançois Belleau

PDF
Tutorial for Circular and Rectangular Manhattan plots
byAvjinder (Avi) Kaler

PPTX
SWT Lab 3
byMariano Rodriguez-Muro

PDF
A Comparison Between Python APIs For RDF Processing
bylucianb

PPT
Aidan's PhD Viva
byAidan Hogan

PPTX
FAIR Projector Builder
byMark Wilkinson

PDF
Sparql semantic information retrieval by
byIJNSA Journal

PPTX
SWT Lecture Session 8 - Inference in jena
byMariano Rodriguez-Muro

Bio2RDF@BH2010
byFrançois Belleau

Tutorial for Circular and Rectangular Manhattan plots
byAvjinder (Avi) Kaler

SWT Lab 3
byMariano Rodriguez-Muro

A Comparison Between Python APIs For RDF Processing
bylucianb

Aidan's PhD Viva
byAidan Hogan

FAIR Projector Builder
byMark Wilkinson

Sparql semantic information retrieval by
byIJNSA Journal

SWT Lecture Session 8 - Inference in jena
byMariano Rodriguez-Muro


What's hot

PPTX
Make your data great again - Ver 2
byDaniel JACOB

ODP
The OpenOffice.org ODF Toolkit Project
byAlexandro Colorado

PPTX
5 rdfs
byMariano Rodriguez-Muro

PPTX
SWT Lecture Session 6 - RDFS semantics, inference techniques, sesame rdfs
byMariano Rodriguez-Muro

PDF
RDF APIs for .NET Framework
byAdriana Ivanciu

PPTX
Semantic web meetup – sparql tutorial
byAdonisDamian

PDF
Basic Tutorial of Association Mapping by Avjinder Kaler
byAvjinder (Avi) Kaler

PDF
Genomic Selection with Bayesian Generalized Linear Regression model using R
byAvjinder (Avi) Kaler

PDF
Tutorial for Estimating Broad and Narrow Sense Heritability using R
byAvjinder (Avi) Kaler

PPTX
Search Me: Using Lucene.Net
bygramana

PPTX
Democratizing Big Semantic Data management
byWU (Vienna University of Economics and Business)

PPT
2010 03 Lodoxf Openflydata
byJun Zhao

PPT
A hint of_mint
byPeter Sefton

PPTX
Toward Semantic Representation of Science in Electronic Laboratory Notebooks ...
byStuart Chalk

PDF
FAIRness through a novel combination of Web technologies
byResearch Data Alliance

PDF
LPR - Week 1
byFaridRomadhana

PDF
Querying Linked Data with SPARQL
byOlaf Hartig

PPT
Web search engine
byshowhow916

PPTX
linkedARC.net - Addressing the standards question in Archaeological Digital D...
byFrank Lynam

PDF
useR! 2012 Talk
byrtelmore

Make your data great again - Ver 2
byDaniel JACOB

The OpenOffice.org ODF Toolkit Project
byAlexandro Colorado

5 rdfs
byMariano Rodriguez-Muro

SWT Lecture Session 6 - RDFS semantics, inference techniques, sesame rdfs
byMariano Rodriguez-Muro

RDF APIs for .NET Framework
byAdriana Ivanciu

Semantic web meetup – sparql tutorial
byAdonisDamian

Basic Tutorial of Association Mapping by Avjinder Kaler
byAvjinder (Avi) Kaler

Genomic Selection with Bayesian Generalized Linear Regression model using R
byAvjinder (Avi) Kaler

Tutorial for Estimating Broad and Narrow Sense Heritability using R
byAvjinder (Avi) Kaler

Search Me: Using Lucene.Net
bygramana

Democratizing Big Semantic Data management
byWU (Vienna University of Economics and Business)

2010 03 Lodoxf Openflydata
byJun Zhao

A hint of_mint
byPeter Sefton

Toward Semantic Representation of Science in Electronic Laboratory Notebooks ...
byStuart Chalk

FAIRness through a novel combination of Web technologies
byResearch Data Alliance

LPR - Week 1
byFaridRomadhana

Querying Linked Data with SPARQL
byOlaf Hartig

Web search engine
byshowhow916

linkedARC.net - Addressing the standards question in Archaeological Digital D...
byFrank Lynam

useR! 2012 Talk
byrtelmore


Similar to Tech. session : Interoperability and Data FAIRness emerges from a novel combination of Web technologies

PDF
FAIR Data Prototype - Interoperability and FAIRness through a novel combinati...
byMark Wilkinson

PPTX
Metadata modeling principles for life.pptx
byparultewatia1

PPTX
Data FAIRport Prototype & Demo - Presentation to Elsevier, Jul 10, 2015
byMark Wilkinson

PPTX
FAIRy stories: the FAIR Data principles in theory and in practice
byCarole Goble

PPTX
FAIR data overview
byLuiz Olavo Bonino da Silva Santos

PDF
Dataverse as a FAIR Data Repository (Mercè Crosas)
byCSUC - Consorci de Serveis Universitaris de Catalunya

PPTX
FAIR data
bySarah Jones

PPTX
FAIR Data ecosystem
byLuiz Olavo Bonino da Silva Santos

PPTX
dkNET Webinar: FAIR Data & Software in the Research Life Cycle 01/22/2021
bydkNET

PPTX
FAIR play?
bySarah Jones

PPTX
The future of FAIR
bySarah Jones

PPTX
FAIR data and data management
byHugo Besemer

PPTX
IBC FAIR Data Prototype Implementation slideshow
byMark Wilkinson

PPTX
My repository is FAIR!!! What does it mean?
byLuiz Olavo Bonino da Silva Santos

PPTX
What it means to be FAIR
bySarah Jones

PPTX
Why institutions need to raise their capabilities to support FAIR
bySarah Jones

PPT
Webinar@AIMS_FAIR Principles and Data Management Planning
byAIMS (Agricultural Information Management Standards)

PDF
An ecosystem to support FAIR data
byBlue BRIDGE

PPTX
Achieving FAIR from a repository perspective
byLuiz Olavo Bonino da Silva Santos

PPTX
FAIRsharing - Mapping the Landscape of Databases, Repositories, Standards and...
byPeter McQuilton

FAIR Data Prototype - Interoperability and FAIRness through a novel combinati...
byMark Wilkinson

Metadata modeling principles for life.pptx
byparultewatia1

Data FAIRport Prototype & Demo - Presentation to Elsevier, Jul 10, 2015
byMark Wilkinson

FAIRy stories: the FAIR Data principles in theory and in practice
byCarole Goble

FAIR data overview
byLuiz Olavo Bonino da Silva Santos

Dataverse as a FAIR Data Repository (Mercè Crosas)
byCSUC - Consorci de Serveis Universitaris de Catalunya

FAIR data
bySarah Jones

FAIR Data ecosystem
byLuiz Olavo Bonino da Silva Santos

dkNET Webinar: FAIR Data & Software in the Research Life Cycle 01/22/2021
bydkNET

FAIR play?
bySarah Jones

The future of FAIR
bySarah Jones

FAIR data and data management
byHugo Besemer

IBC FAIR Data Prototype Implementation slideshow
byMark Wilkinson

My repository is FAIR!!! What does it mean?
byLuiz Olavo Bonino da Silva Santos

What it means to be FAIR
bySarah Jones

Why institutions need to raise their capabilities to support FAIR
bySarah Jones

Webinar@AIMS_FAIR Principles and Data Management Planning
byAIMS (Agricultural Information Management Standards)

An ecosystem to support FAIR data
byBlue BRIDGE

Achieving FAIR from a repository perspective
byLuiz Olavo Bonino da Silva Santos

FAIRsharing - Mapping the Landscape of Databases, Repositories, Standards and...
byPeter McQuilton


More from Mark Wilkinson

PPTX
ISoLA 2010: SADI Taverna plug-in
byMark Wilkinson

PPTX
Presentation to the J. Craig Venter Institute, Dec. 2014
byMark Wilkinson

PPTX
Tutorial - Creating SADI semantic-web-services
byMark Wilkinson

PPTX
Force11 JDDCP workshop presentation, @ Force2015, Oxford
byMark Wilkinson

PDF
Building SADI Services Tutorial - SIB Workshop, Geneva, December 2015
byMark Wilkinson

PPTX
FAIR Metrics - Presentation to NIH KC1
byMark Wilkinson

PPTX
SADI CSHALS 2013
byMark Wilkinson

PPTX
smartAPIs: EUDAT Semantic Working Group Presentation @ RDA 9th Plenary
byMark Wilkinson

PPTX
Evaluating Hypotheses using SPARQL-DL as an abstract workflow language to cho...
byMark Wilkinson

PPTX
SADI in Perl - Protege Plugin Tutorial (fixed Aug 24, 2011)
byMark Wilkinson

DOCX
Sadi service
byMark Wilkinson

PPTX
Web Science - ISoLA 2012
byMark Wilkinson

PPTX
SWAT4LS 2011: SADI Knowledge Explorer Plug-in
byMark Wilkinson

PPTX
Web Science, SADI, and the Singularity
byMark Wilkinson

PPTX
Technologies, methods and challenges to data sharing and aggrigation
byMark Wilkinson

PDF
Introducing the fair evaluator
byMark Wilkinson

PPTX
Enhancing Reproducibility and Transparency in Clinical Research through Seman...
byMark Wilkinson

DOCX
Sample data and other ur ls
byMark Wilkinson

DOCX
Example code for the SADI BMI Calculator Web Service
byMark Wilkinson

PPTX
Web Science 2.0 - in silico science
byMark Wilkinson

ISoLA 2010: SADI Taverna plug-in
byMark Wilkinson

Presentation to the J. Craig Venter Institute, Dec. 2014
byMark Wilkinson

Tutorial - Creating SADI semantic-web-services
byMark Wilkinson

Force11 JDDCP workshop presentation, @ Force2015, Oxford
byMark Wilkinson

Building SADI Services Tutorial - SIB Workshop, Geneva, December 2015
byMark Wilkinson

FAIR Metrics - Presentation to NIH KC1
byMark Wilkinson

SADI CSHALS 2013
byMark Wilkinson

smartAPIs: EUDAT Semantic Working Group Presentation @ RDA 9th Plenary
byMark Wilkinson

Evaluating Hypotheses using SPARQL-DL as an abstract workflow language to cho...
byMark Wilkinson

SADI in Perl - Protege Plugin Tutorial (fixed Aug 24, 2011)
byMark Wilkinson

Sadi service
byMark Wilkinson

Web Science - ISoLA 2012
byMark Wilkinson

SWAT4LS 2011: SADI Knowledge Explorer Plug-in
byMark Wilkinson

Web Science, SADI, and the Singularity
byMark Wilkinson

Technologies, methods and challenges to data sharing and aggrigation
byMark Wilkinson

Introducing the fair evaluator
byMark Wilkinson

Enhancing Reproducibility and Transparency in Clinical Research through Seman...
byMark Wilkinson

Sample data and other ur ls
byMark Wilkinson

Example code for the SADI BMI Calculator Web Service
byMark Wilkinson

Web Science 2.0 - in silico science
byMark Wilkinson


Recently uploaded

PPTX
Mastering C++ Pointers and Structures Basics to Advanced Concepts.pptx
bycscprabh

PDF
TSC Knowledge Hub for the UN CBD - Target 11
bypensoftservices

PDF
Updates on the Operationalization of the Technical and Scientific Cooperation...
bypensoftservices

PDF
European Subregional Technical Scientific Cooperation Support Centre
bypensoftservices

PDF
Genetics & Plant Breeding Question Paper (PYQ + MCQ) for Competitive Plant Sc...
bySatyam Sharma

PDF
Technical and Scientifical Cooperation and the CHM. History, CBD Decisions, t...
bypensoftservices

PDF
Sujay Rao Mandavilli Knowledge production lifecycle FINAL FINAL FINAL FINAL F...
bySujay Rao Mandavilli

PDF
Reminder of the Context and UN CBD Decisions on TSCCs
bypensoftservices

PDF
North Macedonia’s Process towards the 7th National Report
bypensoftservices

PDF
Extreme properties of a compact and massive accreting black hole host in the ...
bySérgio Sacani

PDF
LE - CHATELIER'S PRINCIPLE WITH PROBLEMS
byvadavengadame

PDF
ICAR SRF, ASRB NET / SMS & STO Exam – Entomology Syllabus | Complete Unit-Wis...
bySatyam Sharma

PPTX
APG systems of Plant Classification (I, II, III, IV- The modern plant classif...
byRashmiMG2

PDF
The Moon-forming impactor Theia originated from the inner Solar System
bySérgio Sacani

PPTX
Physical Science SHS 2.3 Bohr Model of the Atom.pptx
byJessonSuaga1

PPTX
Multimodal AI for Disinformation Detection: from Deep Learning to Foundationa...
byYiannis Kompatsiaris

PPTX
50 quiz bee questions in science for senior high school
byjdelyri

PPTX
Uses of Metal in drugs:unique properties
byaditiraghav25

PPTX
Non-clinical Drug Development.pptx for Pharmaceutics
byrajprasadsatapathy92

PPTX
Correlation and regression analysis.pptx
byDr Showkat Ahmad Wani

Mastering C++ Pointers and Structures Basics to Advanced Concepts.pptx
bycscprabh

TSC Knowledge Hub for the UN CBD - Target 11
bypensoftservices

Updates on the Operationalization of the Technical and Scientific Cooperation...
bypensoftservices

European Subregional Technical Scientific Cooperation Support Centre
bypensoftservices

Genetics & Plant Breeding Question Paper (PYQ + MCQ) for Competitive Plant Sc...
bySatyam Sharma

Technical and Scientifical Cooperation and the CHM. History, CBD Decisions, t...
bypensoftservices

Sujay Rao Mandavilli Knowledge production lifecycle FINAL FINAL FINAL FINAL F...
bySujay Rao Mandavilli

Reminder of the Context and UN CBD Decisions on TSCCs
bypensoftservices

North Macedonia’s Process towards the 7th National Report
bypensoftservices

Extreme properties of a compact and massive accreting black hole host in the ...
bySérgio Sacani

LE - CHATELIER'S PRINCIPLE WITH PROBLEMS
byvadavengadame

ICAR SRF, ASRB NET / SMS & STO Exam – Entomology Syllabus | Complete Unit-Wis...
bySatyam Sharma

APG systems of Plant Classification (I, II, III, IV- The modern plant classif...
byRashmiMG2

The Moon-forming impactor Theia originated from the inner Solar System
bySérgio Sacani

Physical Science SHS 2.3 Bohr Model of the Atom.pptx
byJessonSuaga1

Multimodal AI for Disinformation Detection: from Deep Learning to Foundationa...
byYiannis Kompatsiaris

50 quiz bee questions in science for senior high school
byjdelyri

Uses of Metal in drugs:unique properties
byaditiraghav25

Non-clinical Drug Development.pptx for Pharmaceutics
byrajprasadsatapathy92

Correlation and regression analysis.pptx
byDr Showkat Ahmad Wani


Tech. session : Interoperability and Data FAIRness emerges from a novel combination of Web technologies

  • 1.
    In a FAIRworld my paper is the supplementary information for my publication
  • 2.
    Mark D. Wilkinson CBGP-UPM/INIA,Madrid markw@illuminae.com FAIRness emerges from a novel combination of Web technologies OAI10, Geneva, June 2017 http://tinyurl.com/WilkinsonOAI10
  • 3.
    The Problem We surveyed100 datasets associated with nonmolecular studies ... 64% were archived in a way that partially or entirely prevented reuse. “ ” Dominique G. Roche , Loeske E. B. Kruuk, Robert Lanfear, Sandra A. Binning (2015) http://dx.doi.org/10.1371/journal.pbio.1002295
  • 4.
    The Problem Is thatdata, therefore... Useless?
  • 5.
  • 6.
  • 7.
    FAIR Findable → Globally unique,resolvable, and persistent identifiers → Machine-actionable contextual information supporting discovery Accessible → Clearly-defined access protocol → Clearly-defined rules for authorization/authentication Interoperable → Use shared vocabularies and/or ontologies → Syntactically and semantically machine-accessible format Reusable → Be compliant with the F, A, and I Principles → Contextual information, allowing proper interpretation → Rich provenance information facilitating accurate citation The Four Principles
  • 8.
    FAIR Findable → Globally unique,resolvable, and persistent identifiers → Machine-actionable contextual information supporting discovery Accessible → Clearly-defined access protocol → Clearly-defined rules for authorization/authentication Interoperable → Use shared vocabularies and/or ontologies → Syntactically and semantically machine-accessible format Reusable → Be compliant with the F, A, and I Principles → Contextual information, allowing proper interpretation → Rich provenance information facilitating accurate citation The Four Principles
  • 9.
  • 10.
    Skunkworks Participants Mark Wilkinson MichelDumontier Barend Mons Tim Clark Jun Zhao Paolo Ciccarese Paul Groth Erik van Mulligen Luiz Olavo Bonino da Silva Santos Matthew Gamble Carole Goble Joël Kuiper Morris Swertz Erik Schultes Erik Schultes Mercè Crosas Adrian Garcia Philip Durbin Jeffrey Grethe Katy Wolstencroft Sudeshna Das M. Emily Merrill
  • 11.
    The Hourglass Concept Wewant a large ecosystem of apps that use FAIR Data
  • 12.
    The Hourglass Concept Wewant to support a wide range of source providers
  • 13.
    The Hourglass Concept TheFAIR solution between them must be THIN!
  • 14.
    Keeping the historybrief A series of teleconferences led to the concept of putting metadata into an iterative set of ~identical “containers”
  • 15.
    Just say NOto APIs! We also decided to reject any solution that required a new API ProgrammableWeb.com already catalogues >16,000 different Web APIs
  • 16.
    Just say NOto APIs! ProgrammableWeb.com already catalogues >16,000 different Web APIs APIs DO NOT MAKE YOU INTEROPERABLE! We also decided to reject any solution that required a new API
  • 17.
    Just say NOto APIs!
  • 18.
    Are there existingstandards that are And have the properties of
  • 21.
    The FAIR Accessor Inincremental detail
  • 22.
    What can wedescribe with FAIR Accessors? FAIR Accessors provide a machine-actionable, structured, REST-oriented way to publish Metadata about a wide range of scholarly “entities”
  • 23.
    What can wedescribe with FAIR Accessors? Warehouses (e.g. EBI) Databases (e.g. UniProt) Repositories (e.g. Zenodo, INRA-URGI Wheat Repo, UniProt) Datasets (e.g. output from a workflow) Research Objects (data a/o workflow a/o results a/o publications) Data “slices” (e.g. the result of a database query) Data Records (e.g. image, excel file, patient clinical record) Other…
  • 24.
    HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... MetaRecord Resource3 <FAIRmetadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? Container Resource
  • 25.
    “Resource” is a URI /URL HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”?
  • 26.
    Container Resource HTTP GET <FAIRmetadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... What does a FAIR Accessor “look like”?
  • 27.
    Container Resource HTTP GET <FAIRmetadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... What does a FAIR Accessor “look like”? There is a URI for the “Container” (of any of the kinds listed in the previous slide)
  • 28.
    Container Resource HTTP GET <FAIRmetadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... What does a FAIR Accessor “look like”? The only HTTP method we currently use is HTTP GET
  • 29.
    Container Resource HTTP GET <FAIRmetadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... What does a FAIR Accessor “look like”? What is returned is a document full of metadata richly describing that Container (warehouse, database, dataset, slice, etc.) And a list of Resources (URIs) that represent the contained “things”
  • 30.
    Container Resource HTTP GET <FAIRmetadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... What does a FAIR Accessor “look like”? Looking more closely at one of those contained things...
  • 31.
    MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? The contained thing is a Resource
  • 32.
    MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? That Resource can be resolved by HTTP GET
  • 33.
    MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? To retrieve a Metadata document describing that resource (e.g. a single record)
  • 34.
    MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? Which record does this Metadata describe? The foaf:primaryTopic attribute defines this
  • 35.
    MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? Using the metadata structures defined by DCAT the FAIR Accessor may also tell you how to get the content of the record, and what formats are available
  • 36.
    MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? In this case, the record is available in XML format By calling HTTP GET on URL_U2
  • 37.
    MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”? Or in RDF format by calling HTTP GET on URL_U1
  • 38.
    Container Resource HTTP GET <FAIRmetadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET What does a FAIR Accessor “look like”?
  • 39.
    Or you mayadd additional layers... Metadata Metadata Metadata Metadata DATA - format 1 DATA - format 2
  • 40.
    Features of theFAIR Accessor 1: There is no API GET Interpret the Metadata Select the desired Resource GET
  • 41.
    Features of theFAIR Accessor 1: There is no API GET Interpret the Metadata Select the desired Resource GET ANY Web agent can explore/index a FAIR Accessor (e.g. Google) An agent that understands globally-accepted vocabularies can explore it “intelligently”
  • 42.
    Features of theFAIR Accessor 2: Identifiers for unidentifi-ed/-able things HTTP GET <FAIR metadata/> This is the ArrayExpress query I did for paper doi:10/1234.56 Results: MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... Should assist with reproducibility and transparency
  • 43.
    Features of theFAIR Accessor 3: A predictable “place” for metadata PrimaryTopic: record 1A445 Record Metadata... DATA - format 1 DATA - format 2 Different “kinds” of metadata have distinct ontological types, and distinct document structures. There is no ambiguity regarding what kind of thing the metadata is describing. Dataset metadata MetaRecordURL
  • 44.
    Features of theFAIR Accessor 3: Symmetry & predictable path to citation XXX Part of dataset XXX Metadata... DATA - format 1 DATA - format 2 The record metadata contains an “upward” link to the Repository- level metadata, which should contain (additional) license and citation information Dataset metadata: Cite: doi:10/8847.384 License: cc-by
  • 45.
    Features of theFAIR Accessor 4: Granularity of Access/Privacy/Security Container Resource HTTP GET <FAIR metadata/> Contains <<184 Records>> Contact Mark Wilkinson For more information about These records
  • 46.
    Features of theFAIR Accessor 4: Granularity of Access/Privacy/Security Thin solution - if it’s private, say nothing!
  • 47.
    The Real Thing Aworking FAIR Accessor Serving a “Slice” of UniProt
  • 48.

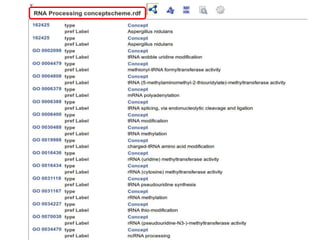

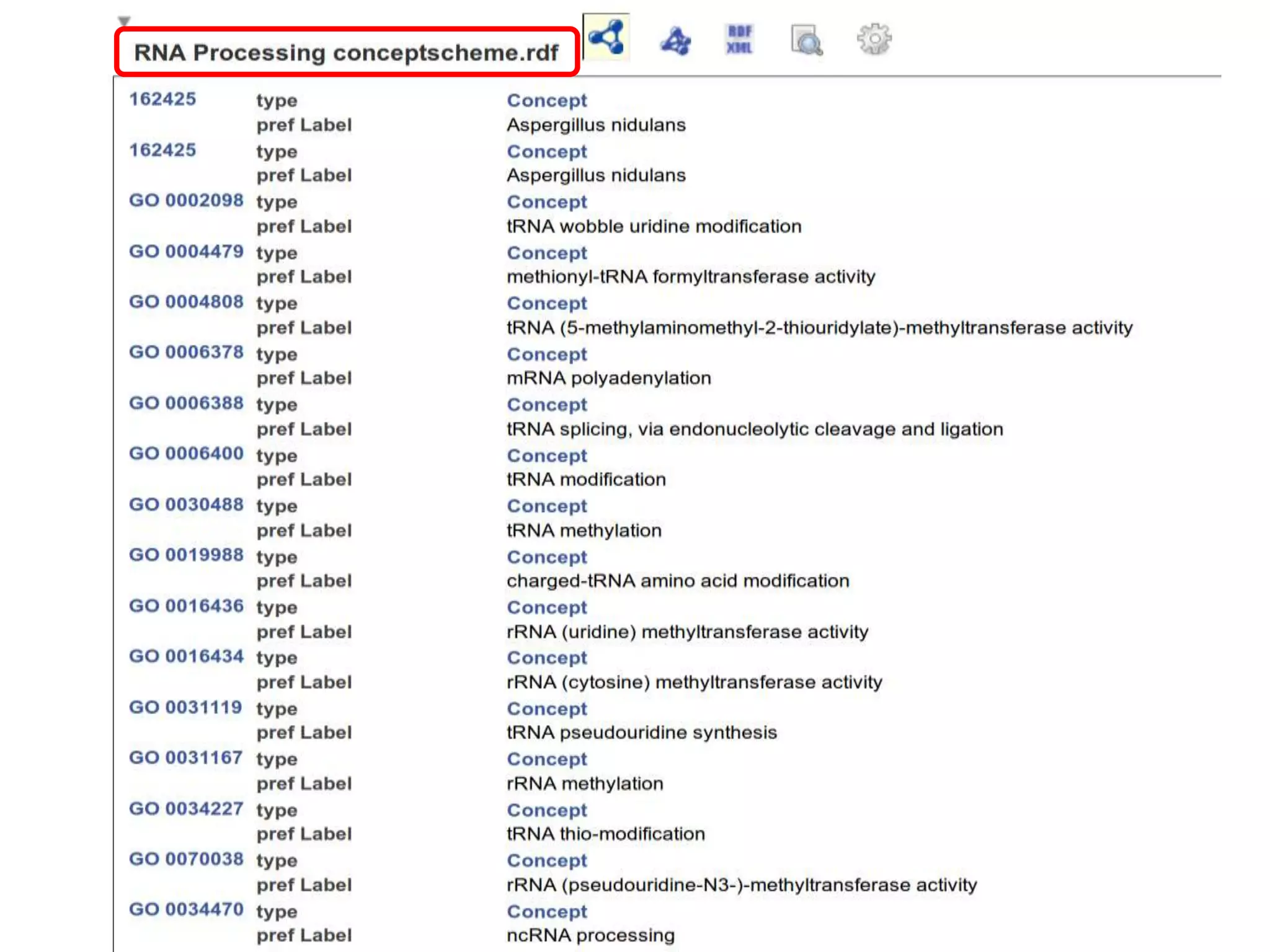

    A real-world scenario... Youare publishing a paper describing the evolution of proteins in the RNA Processing machineries of the fungus Aspergillus nidulans. You want to be a good scholarly publisher interested in transparency and reproducibility So you must describe, in detail, the inclusion/exclusion criteria for selecting proteins for your dataset (today, this is generally done either in the text of the paper, or not at all...)
  • 49.
    Create and publisha FAIR Accessor for that query http://linkeddata.systems/Accessors/UniProtAccessor Container Resource HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ...
  • 50.
    Create and publisha FAIR Accessor for that query http://linkeddata.systems/Accessors/UniProtAccessor Container Resource HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... Resolve the URI (in software or in your browser)
  • 51.
    Create and publisha FAIR Accessor for that query Returns a page of metadata (in this example, in RDF) Container Resource HTTP GET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ...
  • 52.
  • 53.
    53 Note that thisMetadata is about ME! I am the creator of this dataset, and may be credited for it.
  • 54.
  • 59.
    Container Resource HTTPGET <FAIR metadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ...
  • 60.
    Container Resource HTTP GET <FAIRmetadata/> Contains MetaRecordResource1 MetaRecordResource2 MetaRecordResource3 ... MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET Step down to individual Record metadata
  • 61.
    Step down toindividual Record metadata MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET Software calls HTTP GET on the URL representing the MetaRecord Resource for the desired record in the Container (or just click on it, or type it into your browser)
  • 62.
    <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml The document that is returned
  • 64.
    Note the changein metadata focus! This metadata is about the UniProt Record (not about Mark Wilkinson). The record described in this metadata was created by UniProt, so the citation and authorship information is now THEIRS, not MINE.
  • 65.
    Container Resource Symmetrical Link back upwardto the Accessor Container, for additional metadata
  • 66.
    <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml
  • 67.
    Two ways toretrieve the record - RDF or HTML (in REST-speak, two Representations of that Resource)
  • 68.
    Note that thismetadata record is somewhat more FAIR, than what you can (easily) retrieve from UniProt itself! e.g. the UniProt record does not include the citation or license information - you have to manually surf around the UniProt Web page to find that. So the Accessor makes UniProt’s already notably FAIR data, even more FAIR (with respect to “R”)
  • 69.
    So far, wehave focused on FAIR Metadata
  • 70.
    Are there approachesto making the DATA FAIR?
  • 71.
    FAIR Projection: Providing FAIRData from non-FAIR Data Dynamically
  • 72.
    Imagine the data weneed to integrate is in a CSV file in FigShare or Zenodo How do we discover and integrate that data?
  • 73.
    Triple Pattern Fragments + RDFMapping Language Ruben Verborgh Ghent University Anastasia Dimou Ghent University
  • 74.
    Triple Pattern Fragments(TPF) A REST approach to requesting/retrieving RDF Triples from any source Ruben Verborgh “Slices” of data, from any source, are considered Resources and are therefore represented by a distinct URL: http://some.database.org/dataset?s=___;p=___;o=___ Calling HTTP GET on a TPF URL returns the set of Triples matching {?s, ?p, ?o} PLUS hypermedia instructions and Resource URLs for other relevant slices.
  • 75.
    Triple Pattern Fragments(TPF) A REST interface for retrieving RDF Triples (from any source) Ruben Verborgh For example, the “BMI” column from a patient registry is a Resource with the URL: http://my.registry.org/patients?p=CMO:0000105 (CMO:0000105 = “body mass index””) HTTP GET gives me all BMI triples in the registry, together with other Resource URLs representing other “slices” that might be useful, for example: http://my.registry.org/patients?p=CMO:0000004 (CMO:0000004 = “systolic B.P.”)
  • 76.
    RML A way todescribe the structure of an RDF document Anastasia Dimou RML allows us to create models of (meta)data structures “What could this data look like, if it were mapped to RDF?” RML fulfills similar objectives to DCAT Profiles, the Dublin Core Application Profile, and ISO 11179 - Metadata Registries; but has added advantages http://rml.io/RMLmappingLanguage.html
  • 77.
    Using RML todescribe the structure and semantics of one “kind of” Triple Map1 Predicate Object Map Subject Map Object Map ex:Patient Record subjectMap template “http://example.org/patient/{id}” predicate ex:has Variant Map2 Subject Map2 SO:0000694 (“SNP”) template “http://identifiers.org/dbsnp/{snp}” T H E M O D E L
  • 78.
    Using RML todescribe the structure and semantics of one “kind of” Triple Map1 Predicate Object Map Subject Map Object Map ex:Patient Record subjectMap template “http://example.org/patient/{id}” predicate ex:has Variant Map2 Subject Map2 SO:0000694 (“SNP”) template “http://identifiers.org/dbsnp/{snp}” T H E M O D E L We call this a Triple Descriptor These are used to describe the structure/semantics of data slices consisting of a set of “alike” triples
  • 79.
    T H E M O D E L Using RML todescribe the structure and semantics of one “kind of” Triple Map1 Predicate Object Map Subject Map Object Map ex:Patient Record subjectMap template “http://example.org/patient/{id}” predicate ex:has Variant Map2 Subject Map2 SO:0000694 (“SNP”) template “http://identifiers.org/dbsnp/{snp}” Patient:123 rdf:type ex:Patient Record snp: rs0020394 ex:hasVariant rdf:type ex:SNP Example of Data
  • 80.
    Where are wenow? TPF - A standard, RESTful way to request Triples Triple Descriptors - A standard way to describe the structure and meaning of a Triple
  • 81.
    Where are wenow? TPF - A standard, RESTful way to request Triples Triple Descriptors - A standard way to describe the structure and meaning of a Triple We need a way to associate these with each other We need a way to associate these with a dataset or record
  • 82.
  • 83.
    MetaRecord Resource3 <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml HTTP GET The FAIR Accessor can do this Using the metadata structures defined by DCAT the FAIR Accessor also tells you how to get the content of the record, and what formats are available
  • 84.
    If we considerthe TPF URL to be just another DCAT Distribution, we get... <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL Format rdf+xml
  • 85.
    <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL Format rdf+xml If we consider the TPF URL to be just another DCAT Distribution, we get... URL representing the Triple Pattern Fragment Resource
  • 86.
    If we considerthe TPF URL to be just another DCAT Distribution, we get… now add the Triple Descriptor <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPFrag_URL_1 format rdf+xml Model: Triple_Desc_URL <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL Format rdf+xml Model: Triple_Desc_URL
  • 87.
    <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL_1 Format rdf+xml Model: Triple_Desc_URL If we consider the TPF URL to be just another DCAT Distribution, we get… now add the Triple Descriptor HTTP GET on that URL returns:
  • 88.
    <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL Format rdf+xml Model: Triple_Desc_URL If we consider the TPF URL to be just another DCAT Distribution, we get… now add the Triple Descriptor Record + TPF Server + RML Model
  • 89.
    <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL Format rdf+xml Model: Triple_Desc_URL If we consider the TPF URL to be just another DCAT Distribution, we get… now add the Triple Descriptor FAIR Projector
  • 90.
    If we considerthe TPF Resource URL to be just another DCAT Distribution, we get… now add the Triple Descriptor HTTP GET on TPF_URL returns rdf+xml triples from Record R That look like Data interoperability <FAIR metadata/> foaf:primaryTopic Record R dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL Format rdf+xml Model: Triple_Desc_URL
  • 91.
    <FAIR metadata/> foaf:primaryTopic RecordR dcat:Distribution_1 Source URL_U1 format rdf+xml dcat:Distribution_2 Source URL_U2 format application/xml dcat:Distribution_3 Source TPF_URL Format rdf+xml Model: Triple_Desc_URL How/why does this return Triples? We still have not defined a way to GENERATE these triples
  • 92.
    Sadly, there isno magic wand to create interoperability
  • 93.
    Sadly, there isno magic wand to create interoperability Someone has to write the TPF server that converts the data Interoperability will never come “for free” (because semantics will never come “for free”)
  • 94.
    However, there arereasons for optimism! 1. Researchers transform data anyway to integrate 2. For the most common file formats (e.g. CSV or Excel), there are RML-based tools to automate the RDF transformation; simply create an RML model of what you want, and ask the tool to covert the file. 3. Investing time into creating an RML model is more FAIR than ad hoc “re-useless” brute-force transformation. When you create a FAIR Projector for your own data transformation needs, the model is reusable!
  • 95.
    However, there arereasons for optimism! AND 4. RML Triple Descriptors are very simple (one triple!) so we can also templatize their construction  creating a FAIR Projector is quite easy in many cases! 5. Micro-attribution & citations FAIR Accessors/Projectors are FAIR objects - You can get credit if other people use your Projector for their analyses
  • 96.
    Summary of FAIRProjectors FAIR Projectors provide a discoverable and standardized REST interface to retrieve interoperable data, and its interoperable metadataF+I+R A + I I FAIR Projectors convert non-FAIR data into FAIR data, or can change the structure, URL format, or semantics of existing FAIR data sources FAIR Projectors can be deployed over, and provide a common interface to: - Static Data Deposits, in any format, anywhere - Databases - Triplestores - Certain (common) types of Web Services R+++ Triple Descriptors are FAIR entities, intended for reuse, & None of this required a new API
  • 97.
    Thanks to: Michel Dumontier- Stanford Center for Biomedical Informatics Research, Stanford, California. Ruben Verborgh – Ghent University – imec, Ghent, Belgium Luiz Olavo Bonino da Silva Santos - Dutch Techcentre for Life Sciences, Utrecht, The Netherlands - Vrije Universiteit Amsterdam, Amsterdam, The Netherlands. Tim Clark - Department of Neurology, Massachusetts General Hospital Boston MA and Harvard Medical School, Boston, MA, USA Morris A. Swertz - Genomics Coordination Center and Department of Genetics, University Medical Center Groningen, Groningen, The Netherlands Fleur D.L. Kelpin - Genomics Coordination Center and Department of Genetics, University Medical Center Groningen, Groningen, The Netherlands Alasdair J. G. Gray - Department of Computer Science, School of Mathematical and Computer Sciences, Heriot-Watt University, Edinburgh, UK Erik A. Schultes - Department of Human Genetics, Leiden University Medical Center, The Netherlands Erik M. van Mulligen - Department of Medical Informatics, Erasmus University Medical Center Rotterdam, The Netherlands Paolo Ciccarese - Perkin Elmer Innovation Lab, Cambridge MA and Harvard Medical School, Boston MA, USA Mark Thompson - Leiden University Medical Center, Leiden, The Netherlands Jerven T. Bolleman - Swiss-Prot group, SIB Swiss Institute of Bioinformatics, Centre Medical Universitaire, Geneva, Switzerland
  • 98.
    In a FAIRworld my paper is the supplementary information for my publication
  • 99.
    Funding for MarkWilkinson from: Fundacion BBVA and the UPM Isaac Peral programme, and the Spanish Ministerio de Economía y Competitividad grant number TIN2014-55993-R. Additional support for FAIR Skunkworks members comes from: European Union funded projects ELIXIR-EXCELERATE (H2020 no. 676559), ADOPT BBMRI-ERIC (H2020 no. 676550) CORBEL (H2020 no. 654248) Netherlands Organisation for Scientific Research (Odex4all project) Stichting Topconsortium voor Kennis en Innovatie High Tech Systemen en Materialen (FAIRdICT project) BBMRI-NL RD-Connect and ELIXIR (Rare disease implementation study FP7 no. 305444).
  • 100.
    You are notonly welcome to share and reuse this presentation... ...You are encouraged to! http://tinyurl.com/WilkinsonOAI10
  • 101.
    Important: All ourtemplates are free to use under Creative Commons Attribution License. If you use the graphic assets (photos, icons and typographies) included in this Google Slides Templates you must keep the Credits slide or add all attributions in the last slide notes. FGST Free GoogleSlides Templates Some graphical elements were taken from slide templates provided by:
