DataStax TechDay - Munich 2014

DataStax TechDay - Munich
Christian Johannsen, Solutions Engineer
1

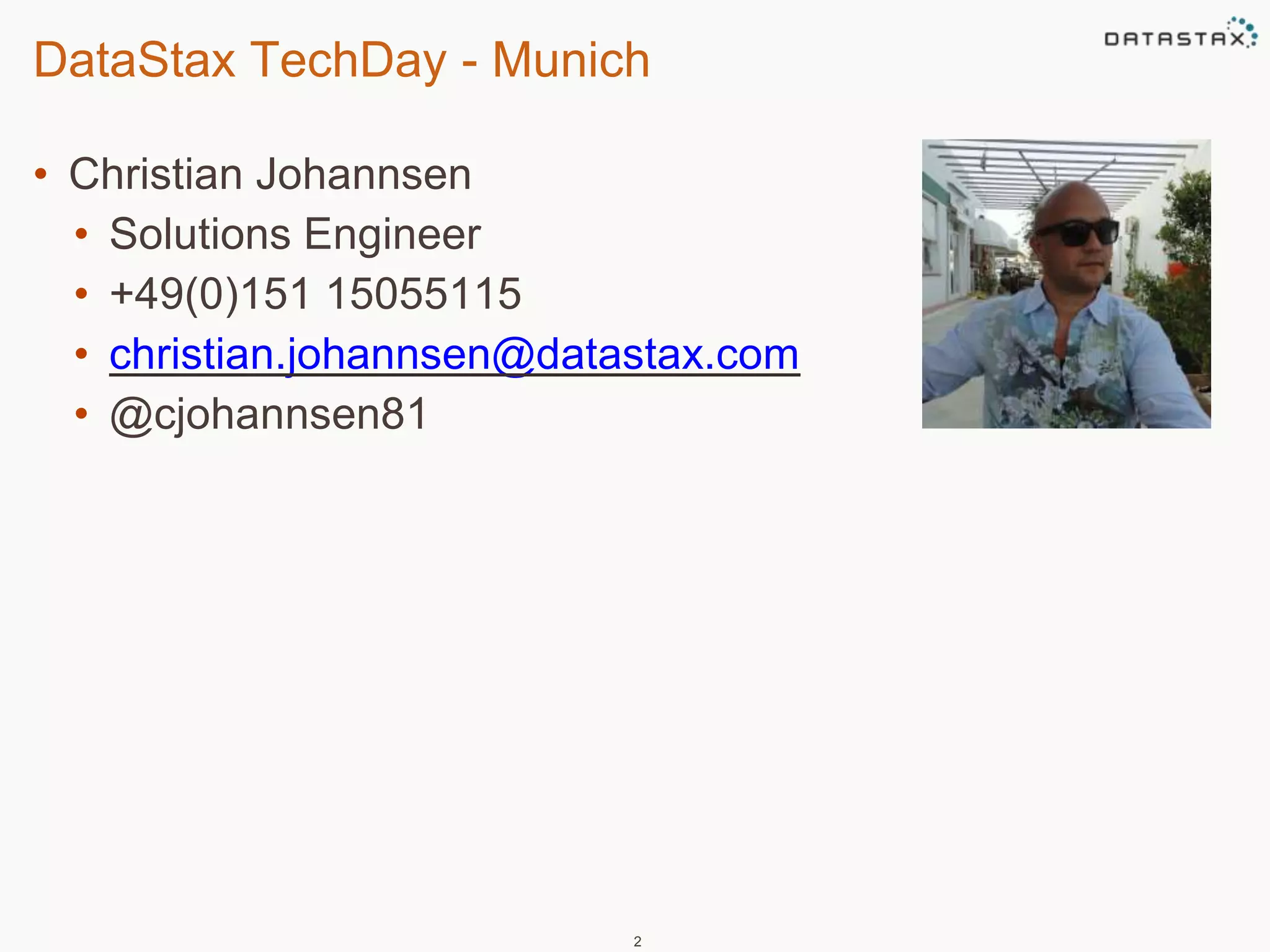

• Christian Johannsen
• Solutions Engineer
• +49(0)151 15055115
• christian.johannsen@datastax.com
• @cjohannsen81
2

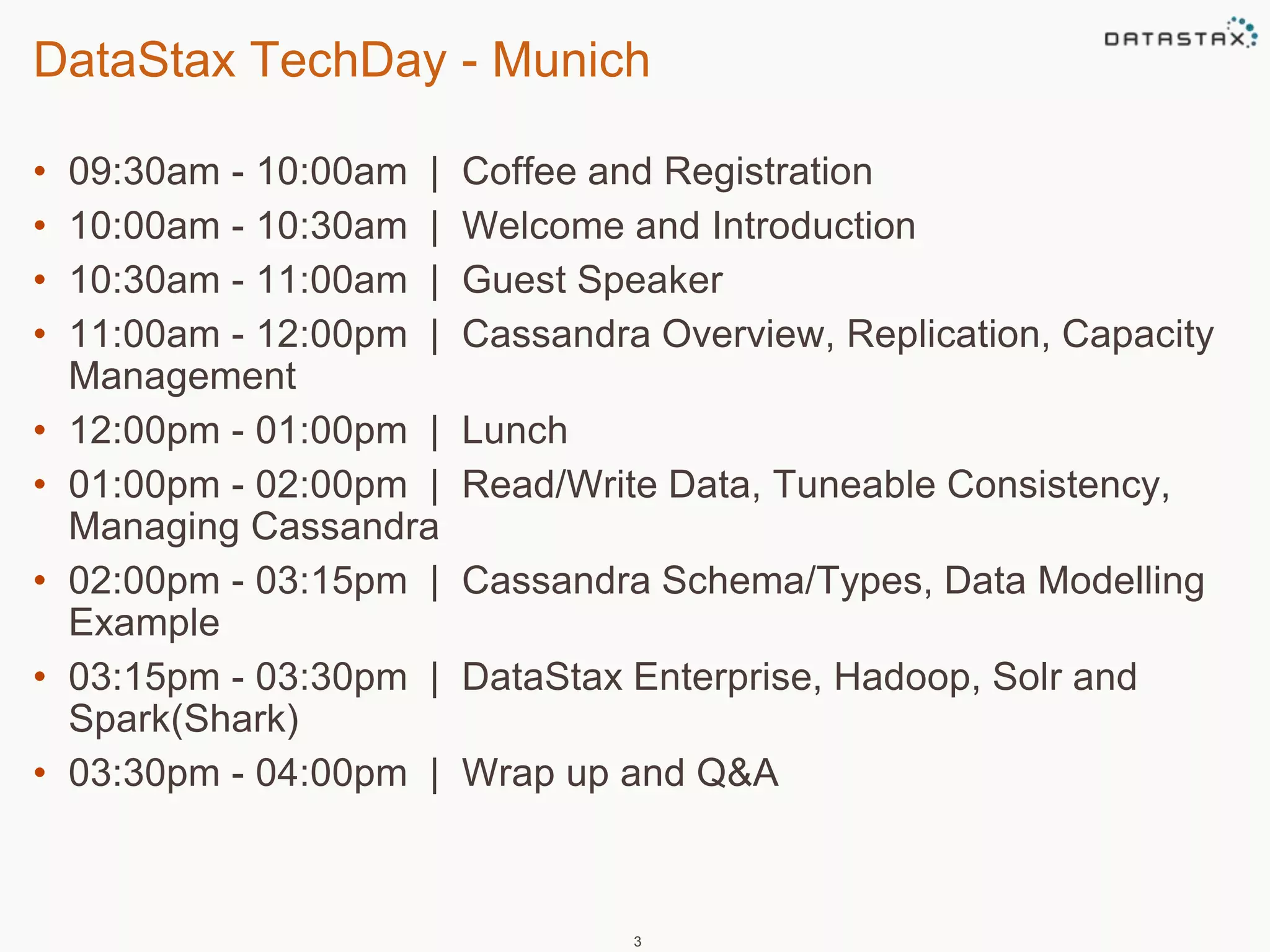

• 09:30am - 10:00am | Coffee and Registration
• 10:00am - 10:30am | Welcome and Introduction
• 10:30am - 11:00am | Guest Speaker
• 11:00am - 12:00pm | Cassandra Overview, Replication, Capacity
Management
• 12:00pm - 01:00pm | Lunch
• 01:00pm - 02:00pm | Read/Write Data, Tuneable Consistency,
Managing Cassandra
• 02:00pm - 03:15pm | Cassandra Schema/Types, Data Modelling
Example
• 03:15pm - 03:30pm | DataStax Enterprise, Hadoop, Solr and
Spark(Shark)
• 03:30pm - 04:00pm | Wrap up and Q&A
3

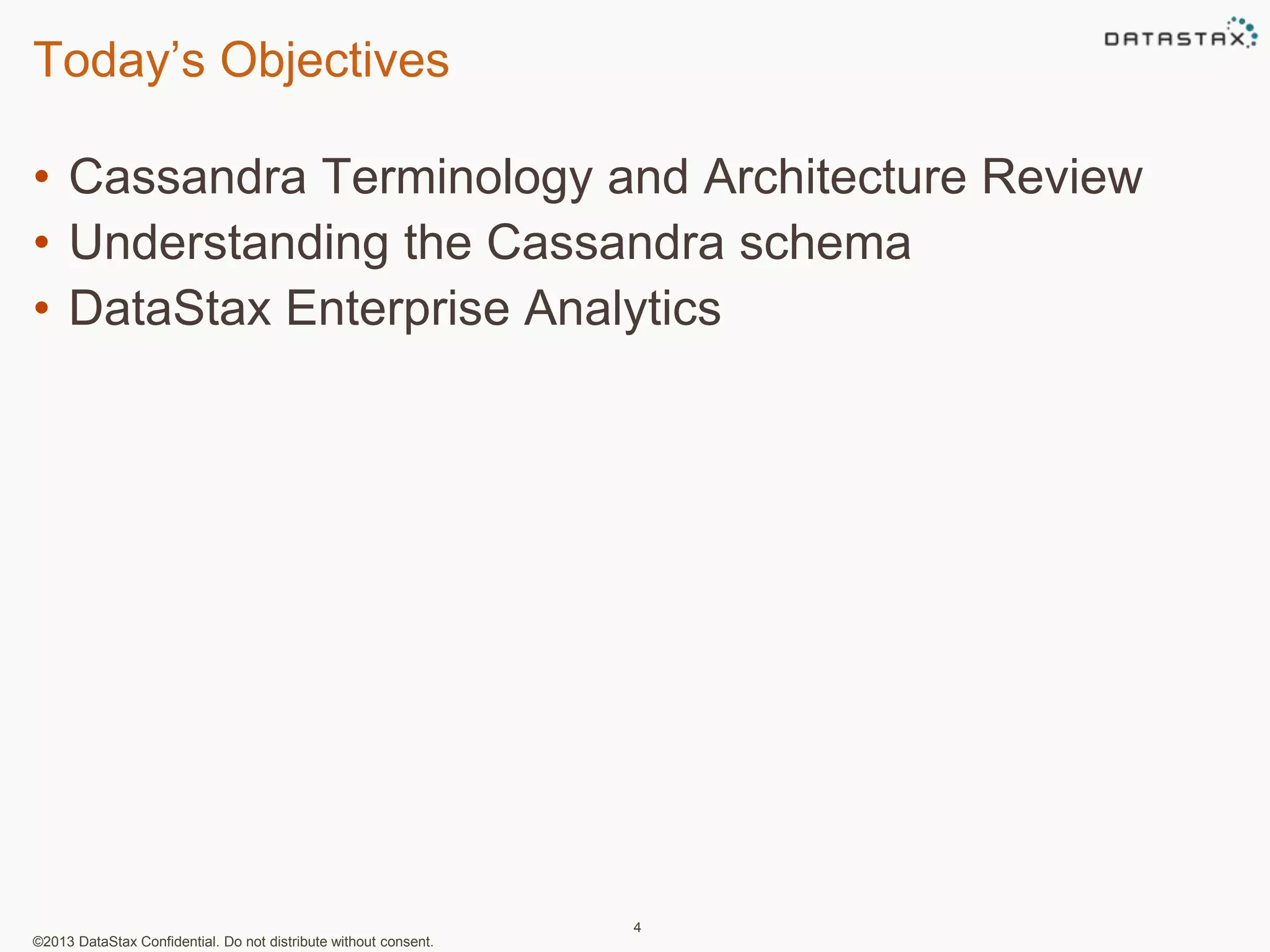

Today’s Objectives
• Cassandra Terminology and Architecture Review
• Understanding the Cassandra schema
• DataStax Enterprise Analytics
©2013 DataStax Confidential. Do not distribute without consent.
4

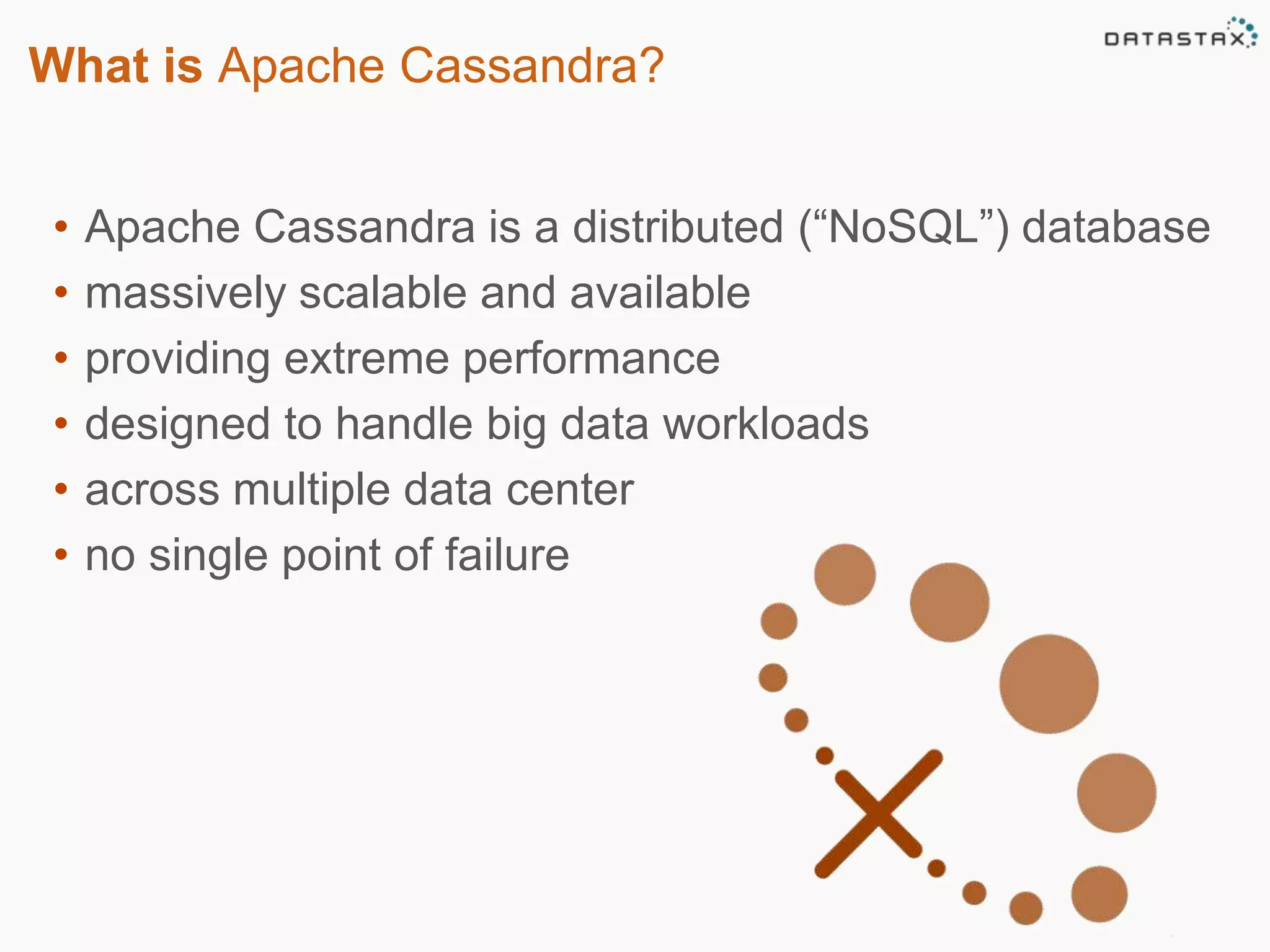

What is Apache Cassandra?
• Apache Cassandra is a distributed (“NoSQL”) database
• massively scalable and available
• providing extreme performance
• designed to handle big data workloads
• across multiple data center
• no single point of failure

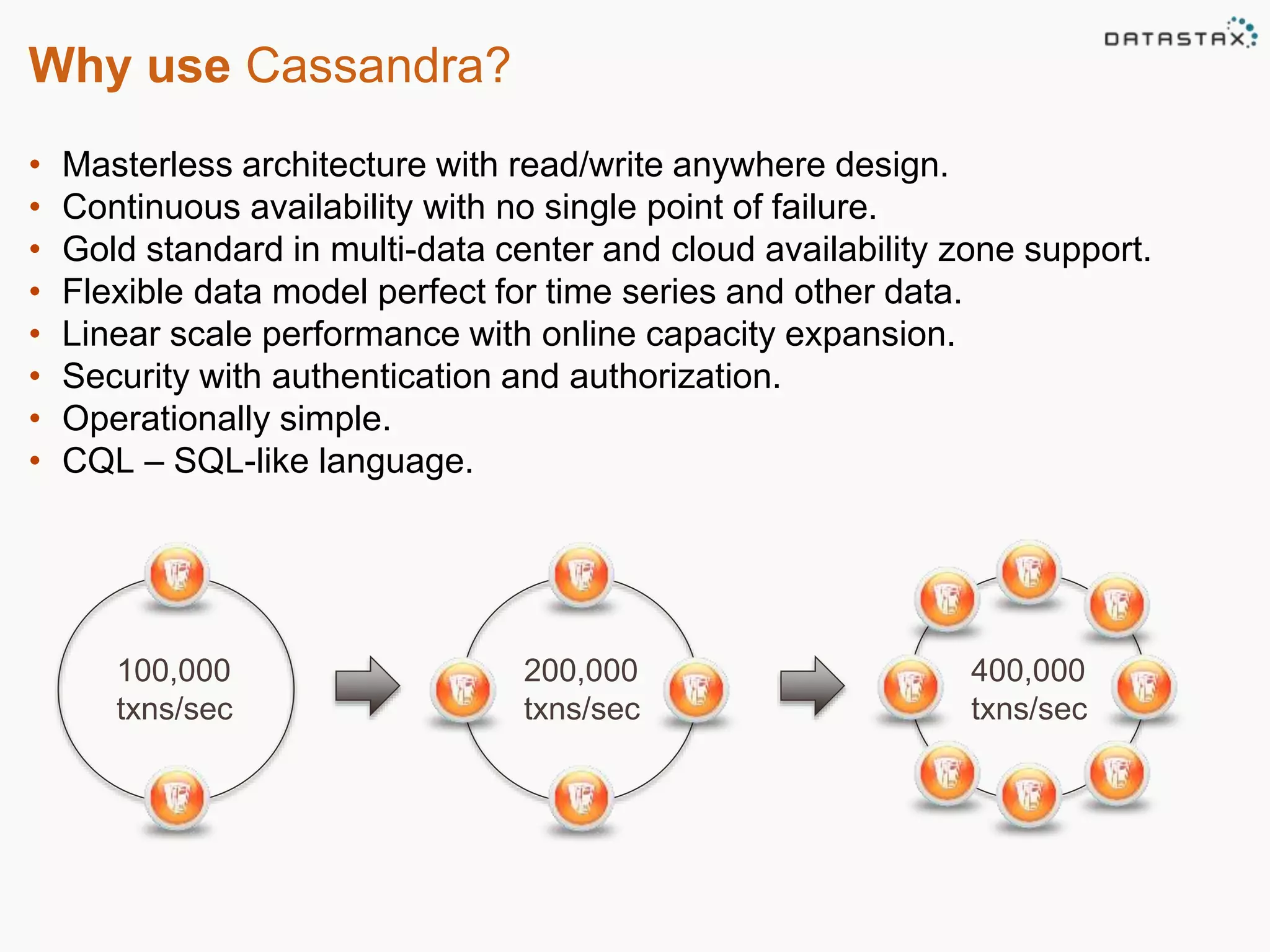

Why use Cassandra?
• Masterless architecture with read/write anywhere design.
• Continuous availability with no single point of failure.
• Gold standard in multi-data center and cloud availability zone support.
• Flexible data model perfect for time series and other data.
• Linear scale performance with online capacity expansion.
• Security with authentication and authorization.
• Operationally simple.
• CQL – SQL-like language.
100,000
txns/sec
200,000
txns/sec
400,000
txns/sec

History of Cassandra
• Amazon Dynamo partitioning and replication
• Log-structured ColumnFamily data model similar to Bigtable's
8

9

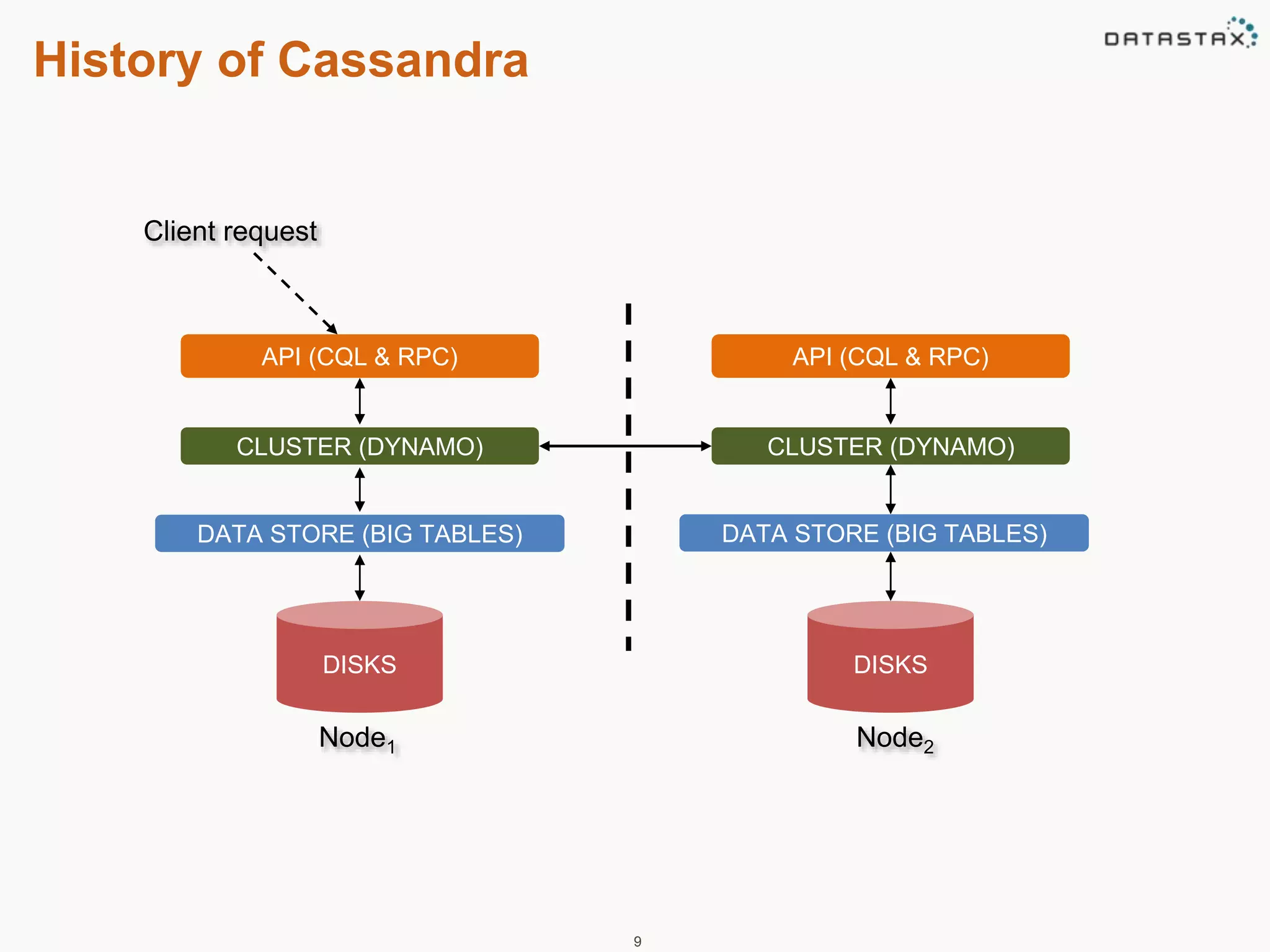

API (CQL & RPC)
CLUSTER (DYNAMO)
DATA STORE (BIG TABLES)
DISKS
Node1
Client request
API (CQL & RPC)
CLUSTER (DYNAMO)
DATA STORE (BIG TABLES)
DISKS
Node2
History of Cassandra

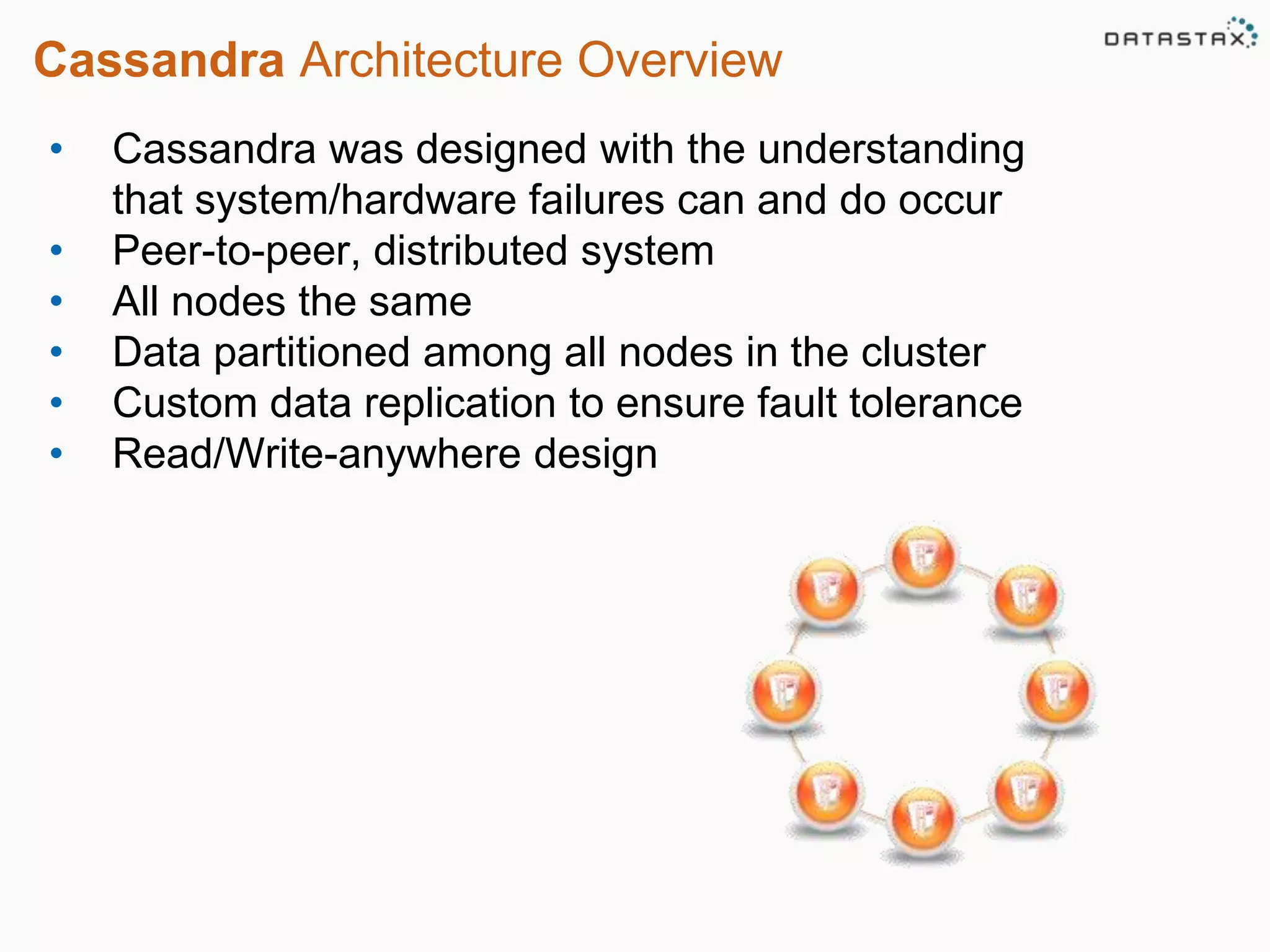

Cassandra Architecture Overview
• Cassandra was designed with the understanding
that system/hardware failures can and do occur
• Peer-to-peer, distributed system
• All nodes the same
• Data partitioned among all nodes in the cluster
• Custom data replication to ensure fault tolerance
• Read/Write-anywhere design

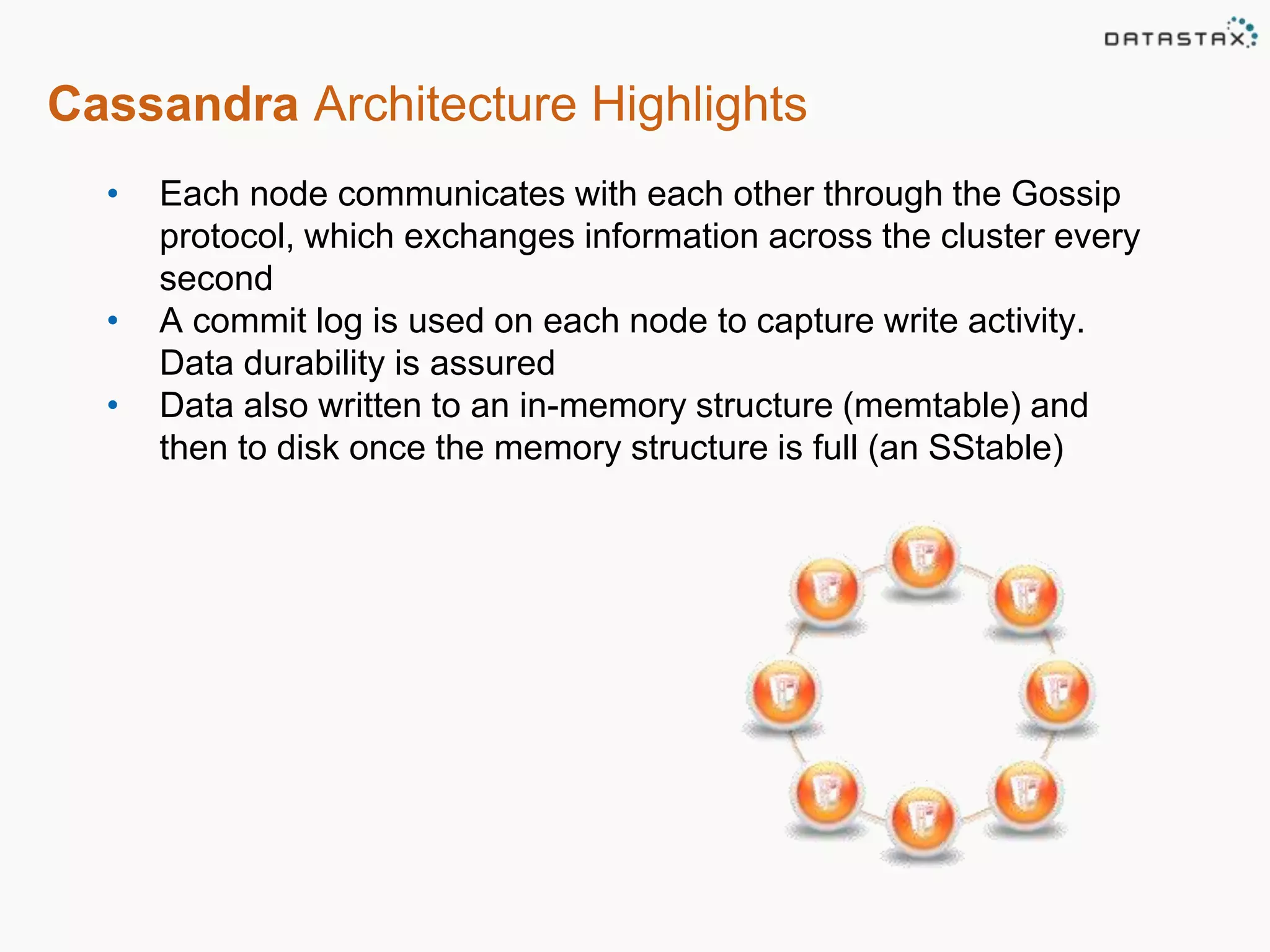

Cassandra Architecture Highlights
• Each node communicates with each other through the Gossip
protocol, which exchanges information across the cluster every
second

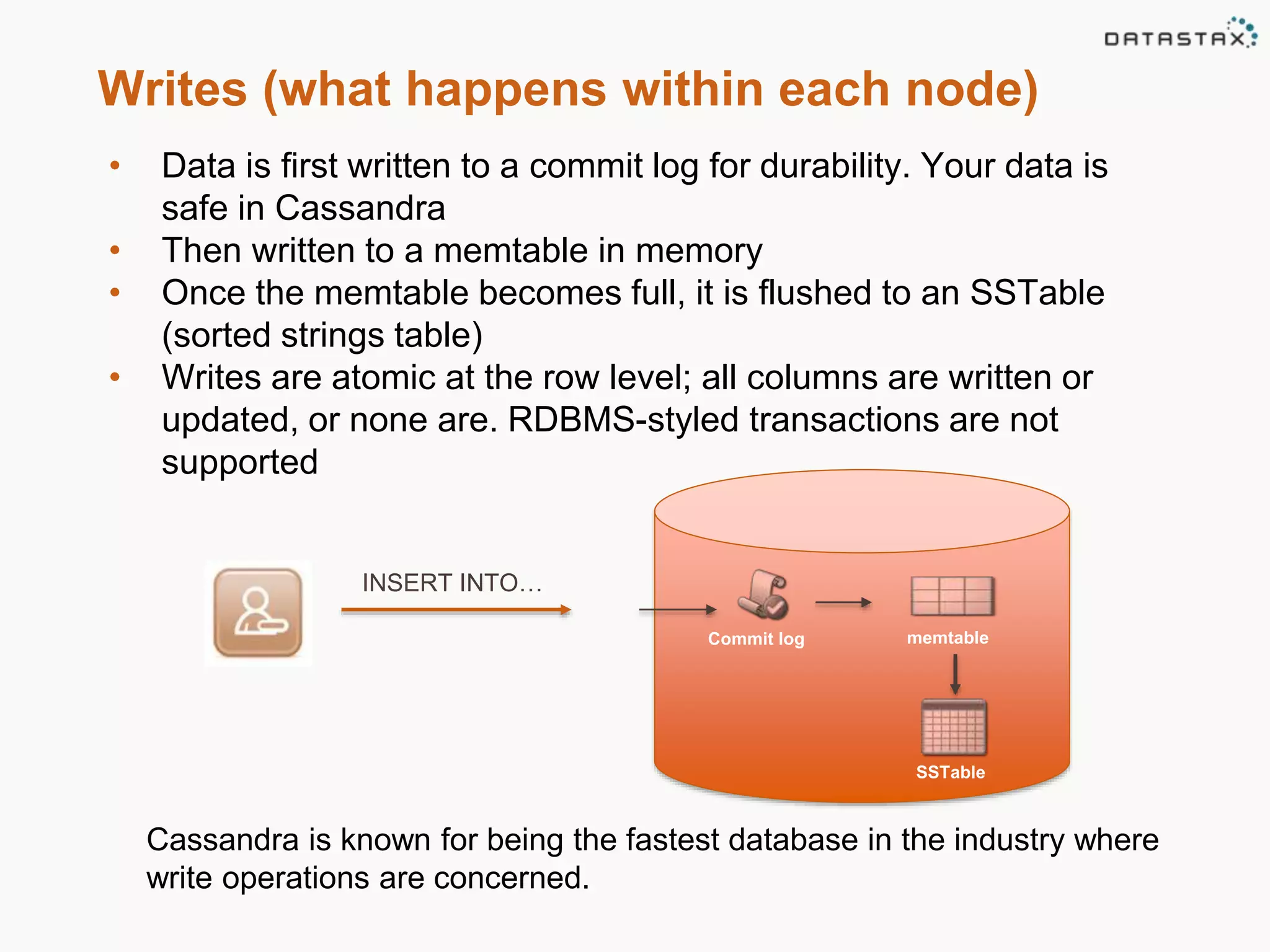

• A commit log is used on each node to capture write activity.
Data durability is assured

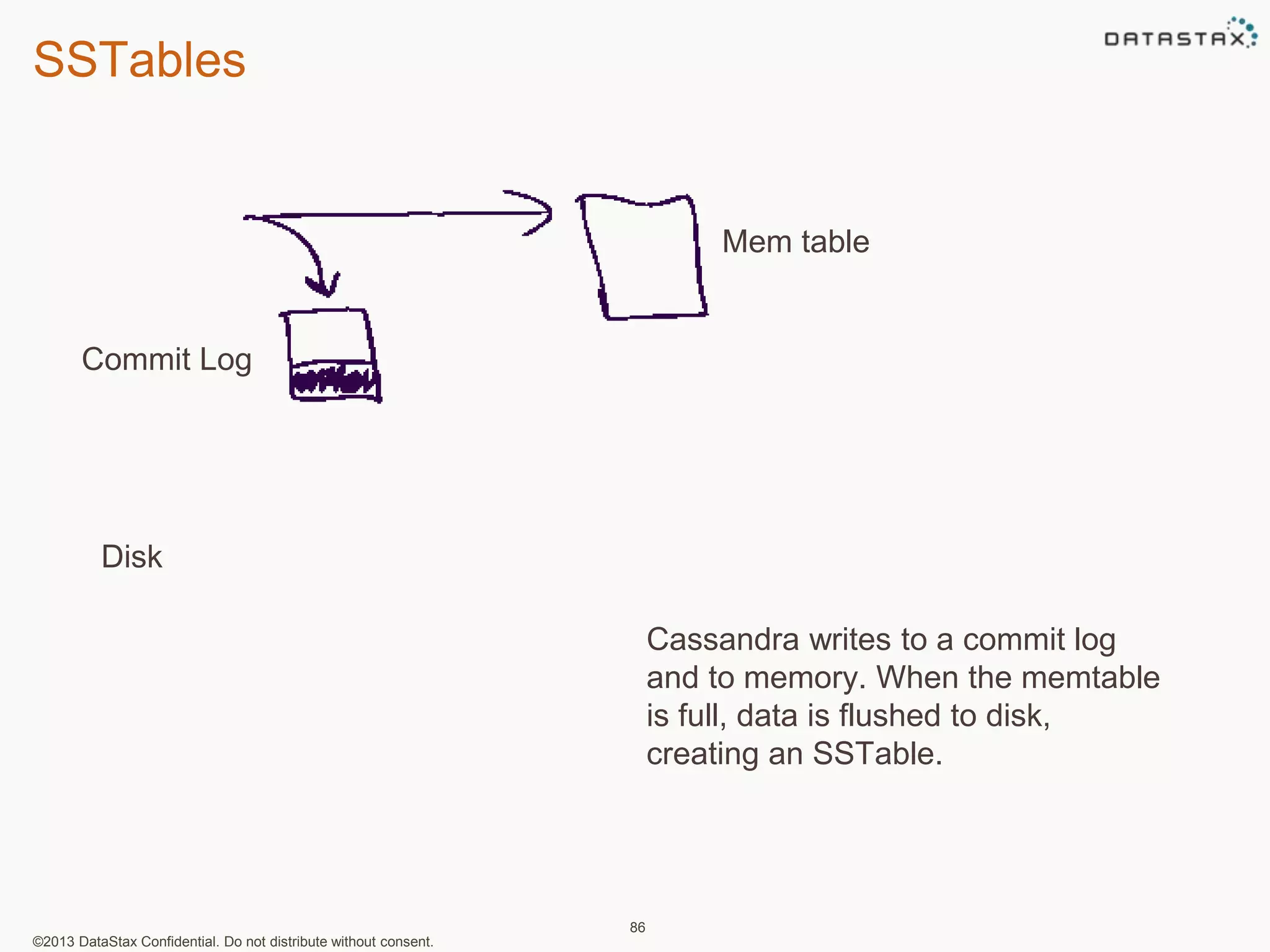

• Data also written to an in-memory structure (memtable) and
then to disk once the memory structure is full (an SStable)

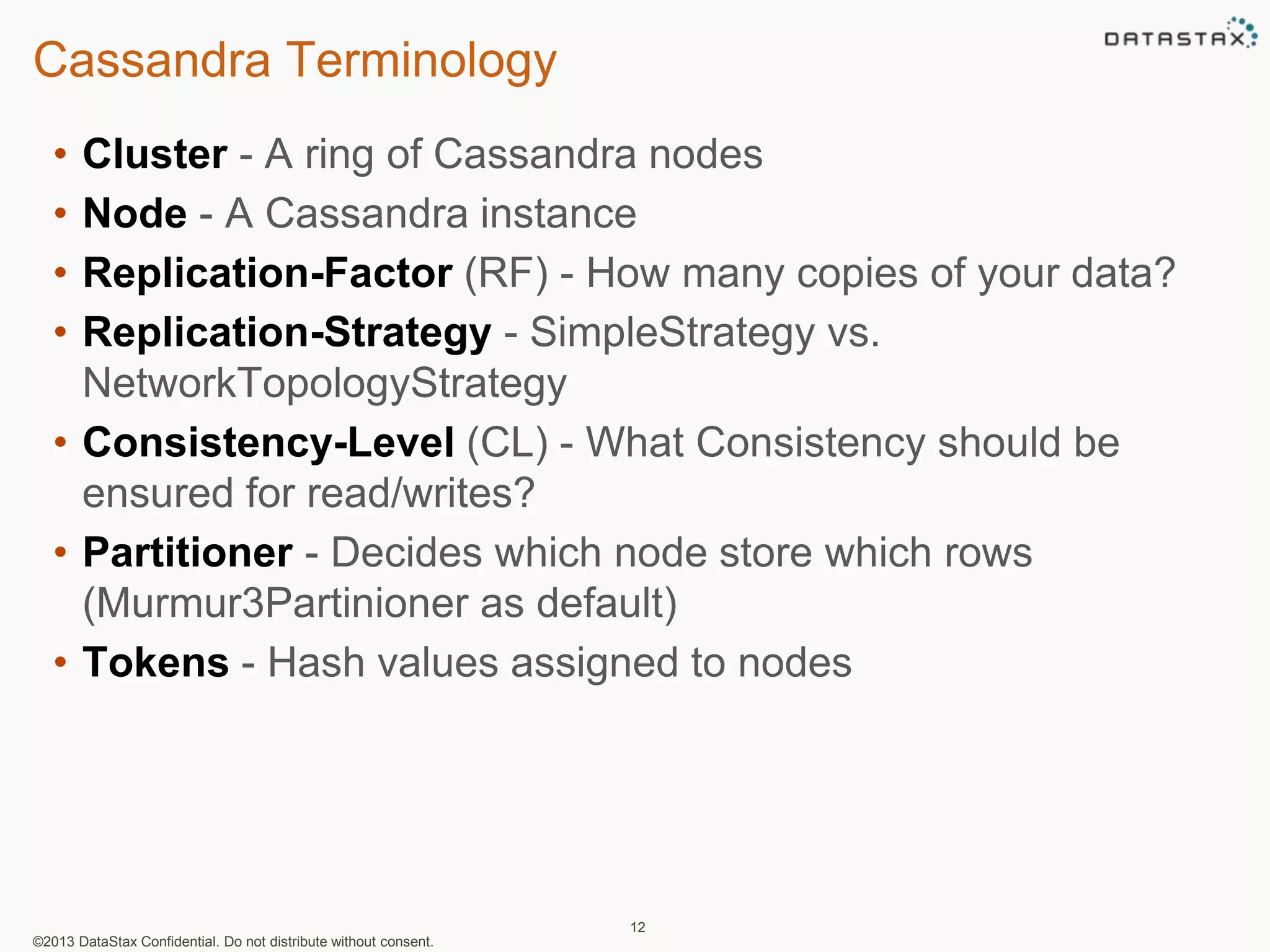

Cassandra Terminology
• Cluster - A ring of Cassandra nodes
• Node - A Cassandra instance
• Replication-Factor (RF) - How many copies of your data?
• Replication-Strategy - SimpleStrategy vs.
NetworkTopologyStrategy
• Consistency-Level (CL) - What Consistency should be
ensured for read/writes?
• Partitioner - Decides which node store which rows
(Murmur3Partinioner as default)
• Tokens - Hash values assigned to nodes
12

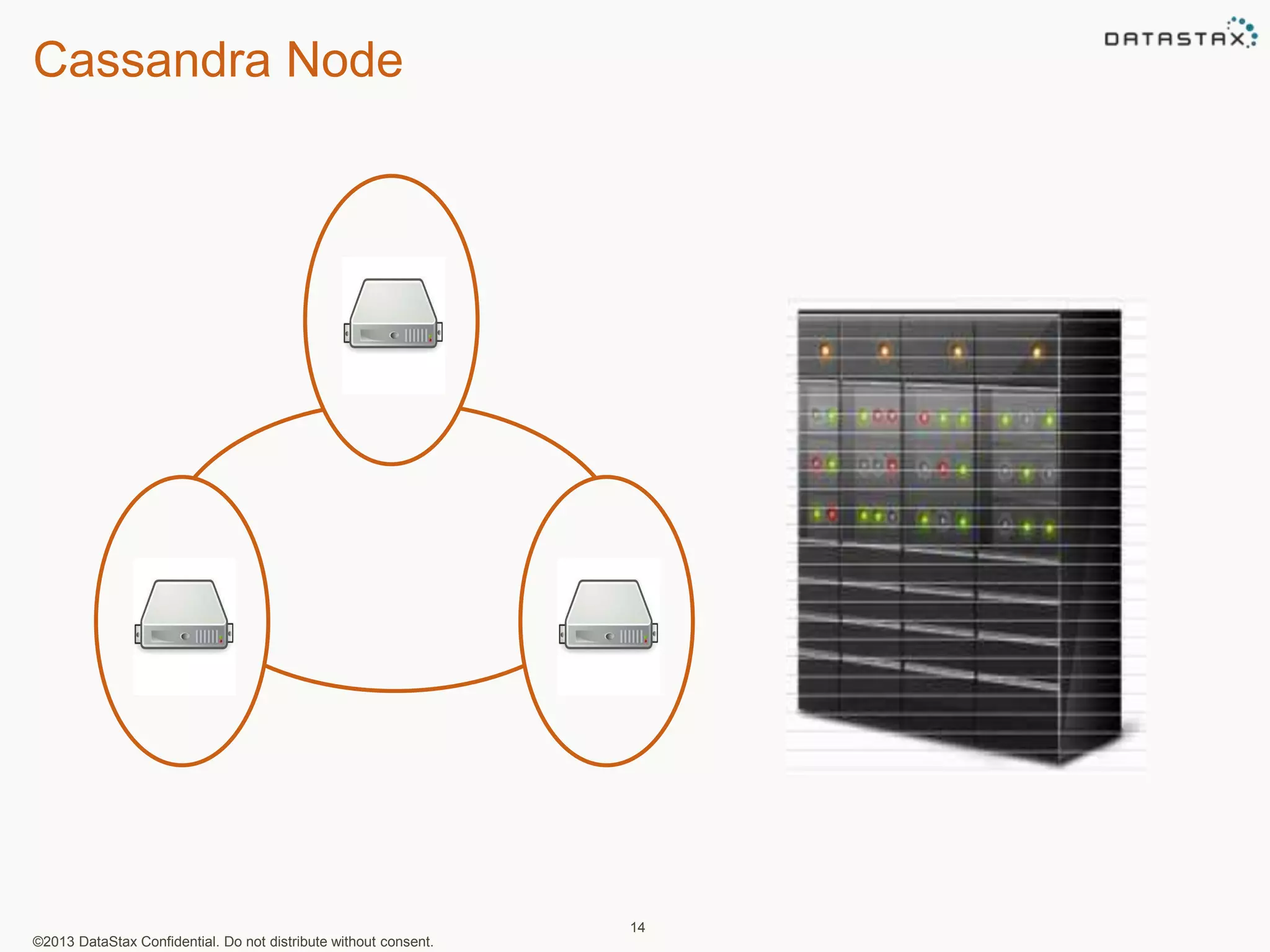

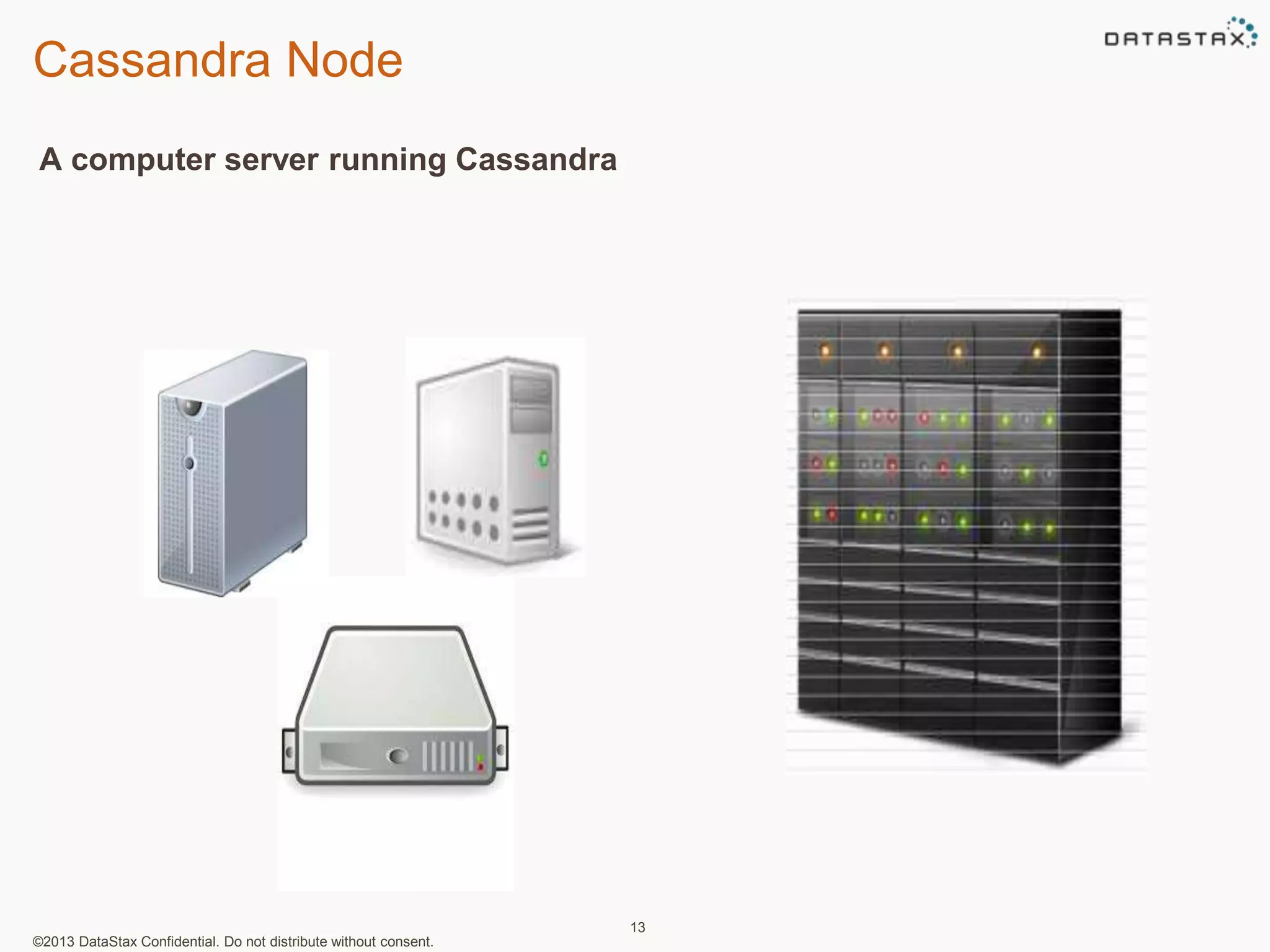

Cassandra Node
13
A computer server running Cassandra

Cassandra Node
14

Cassandra Cluster
A group of Cassandra nodes working together
15

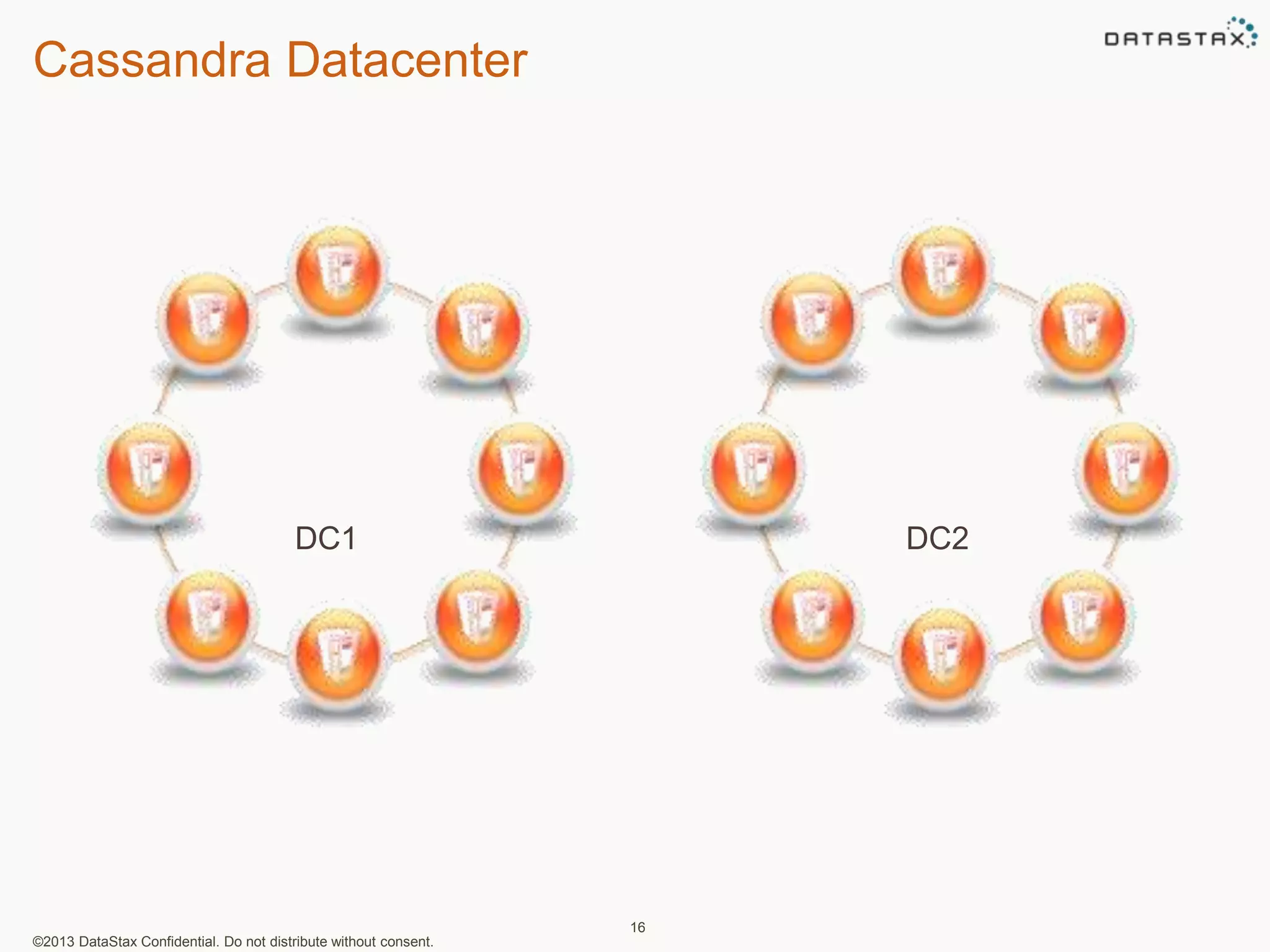

Cassandra Datacenter
DC1 DC2
16

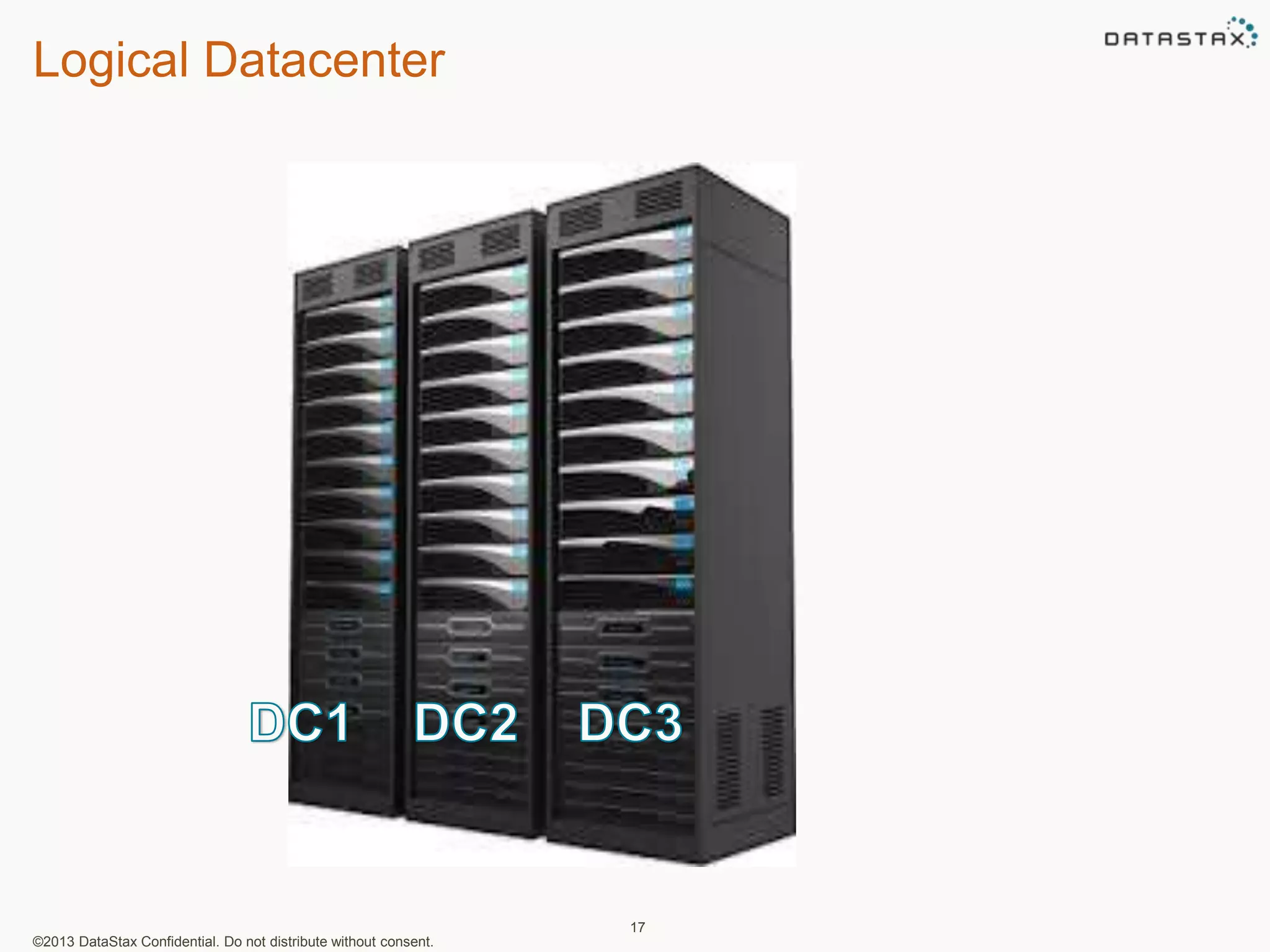

Logical Datacenter

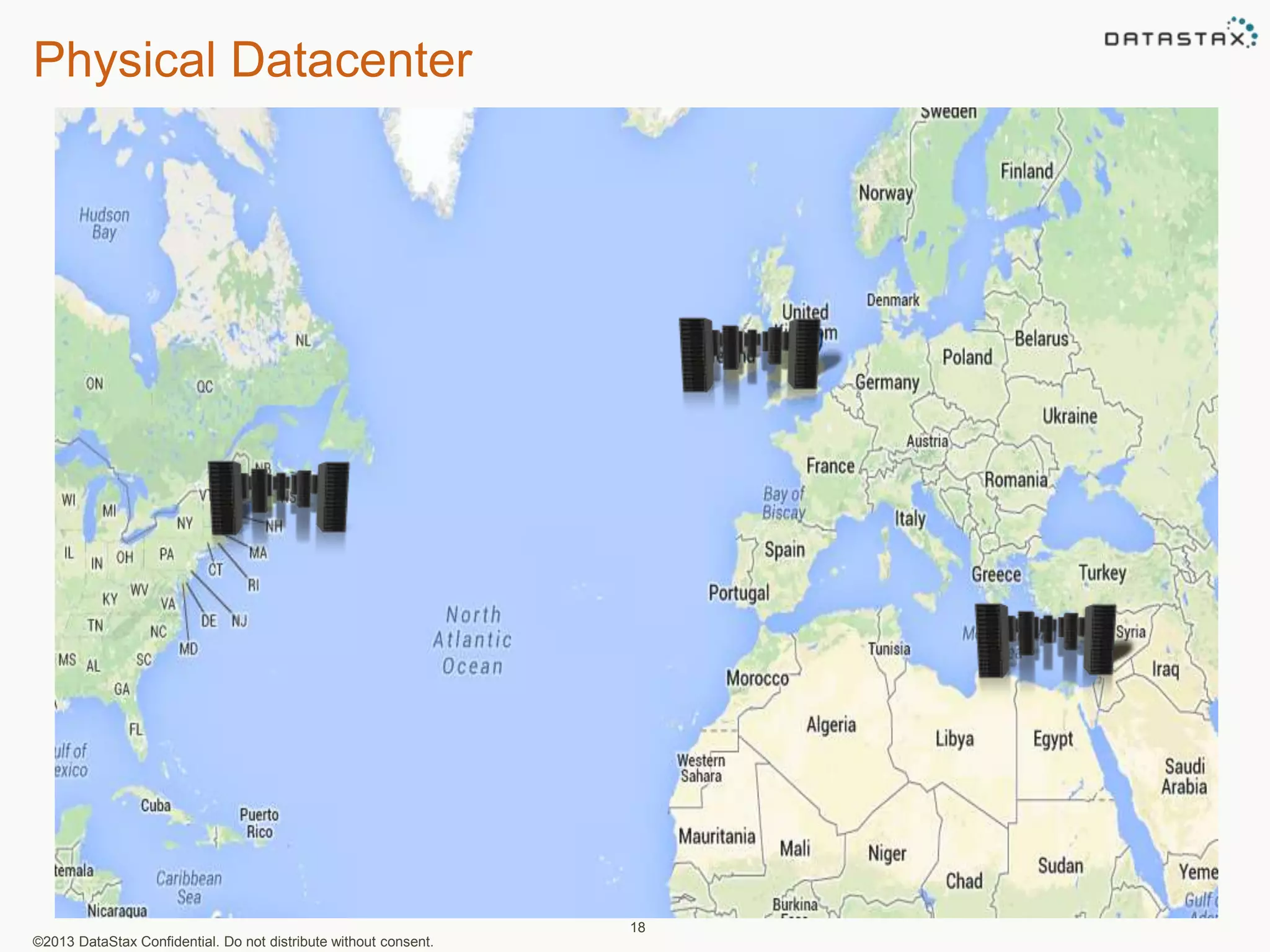

17

Physical Datacenter
18

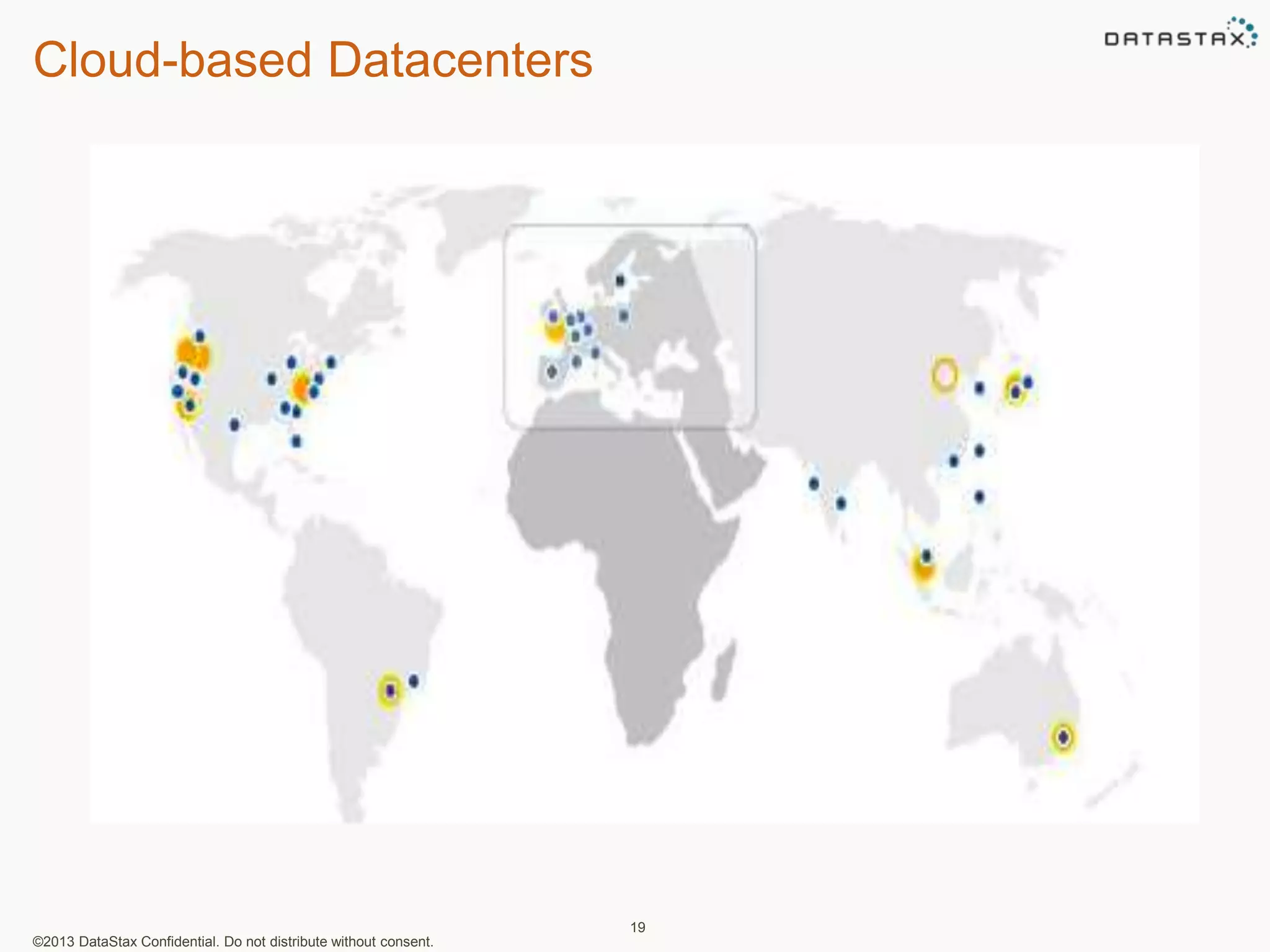

Cloud-based Datacenters
19

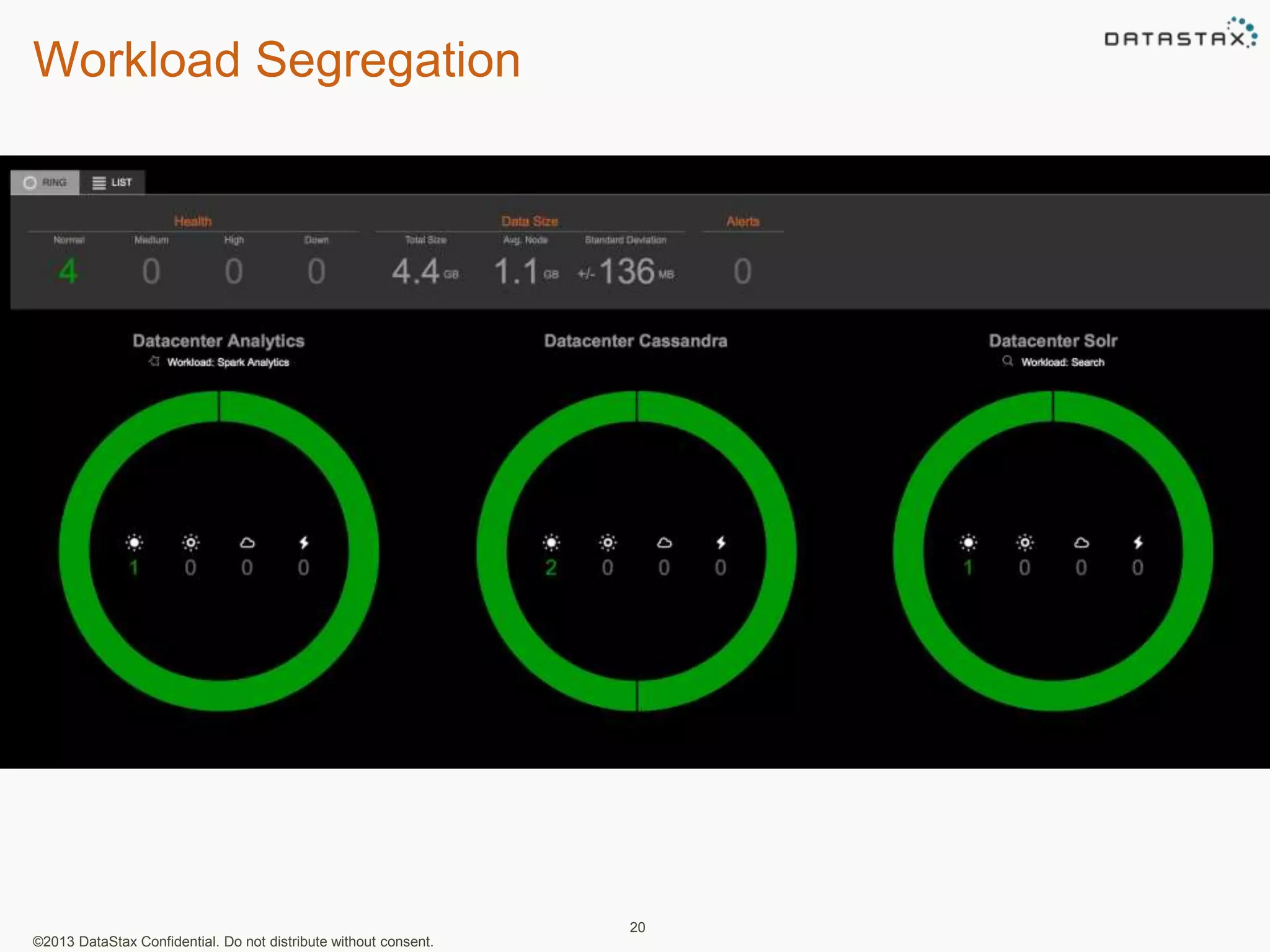

Workload Segregation
20

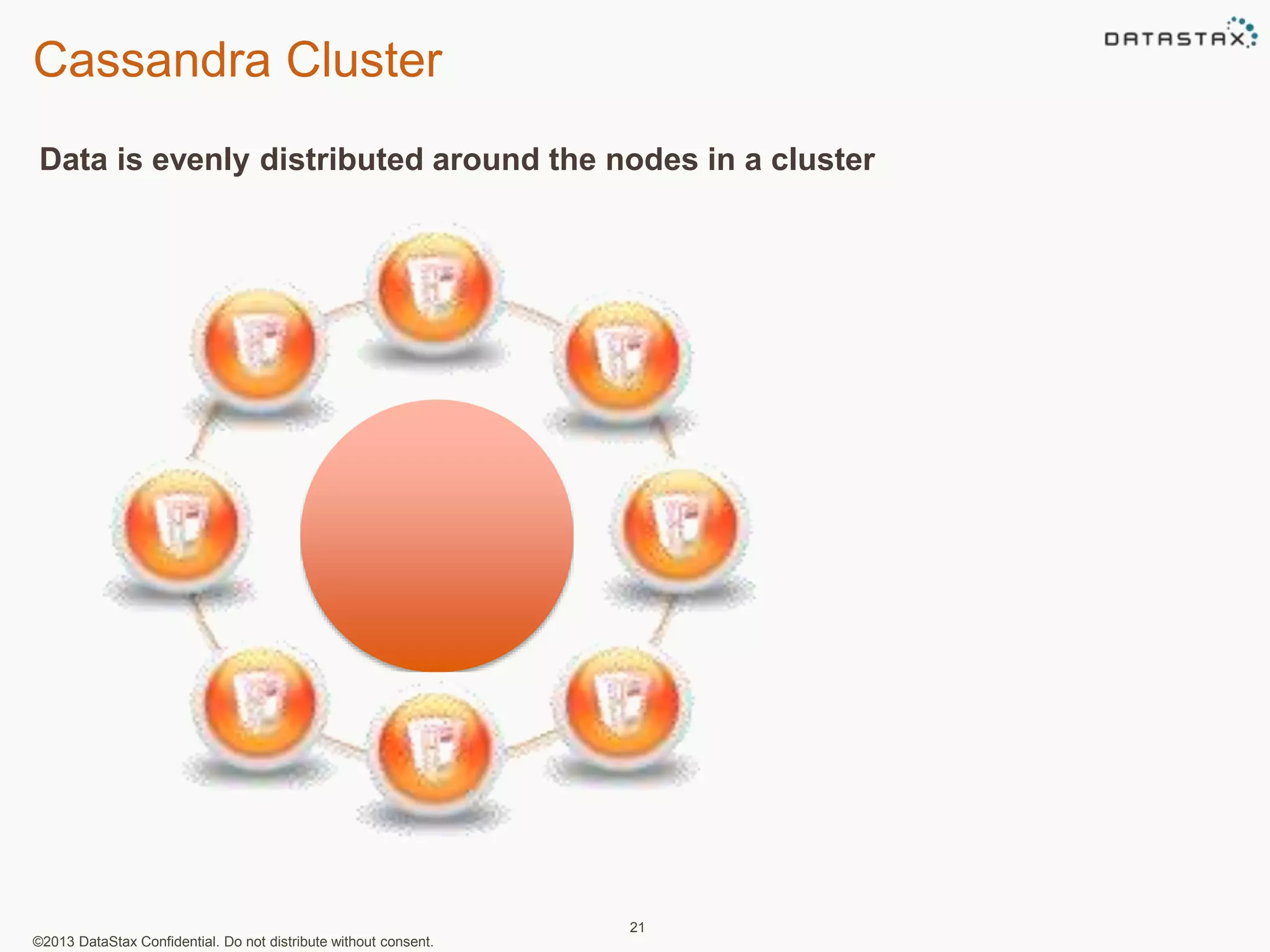

Cassandra Cluster
Data is evenly distributed around the nodes in a cluster
21

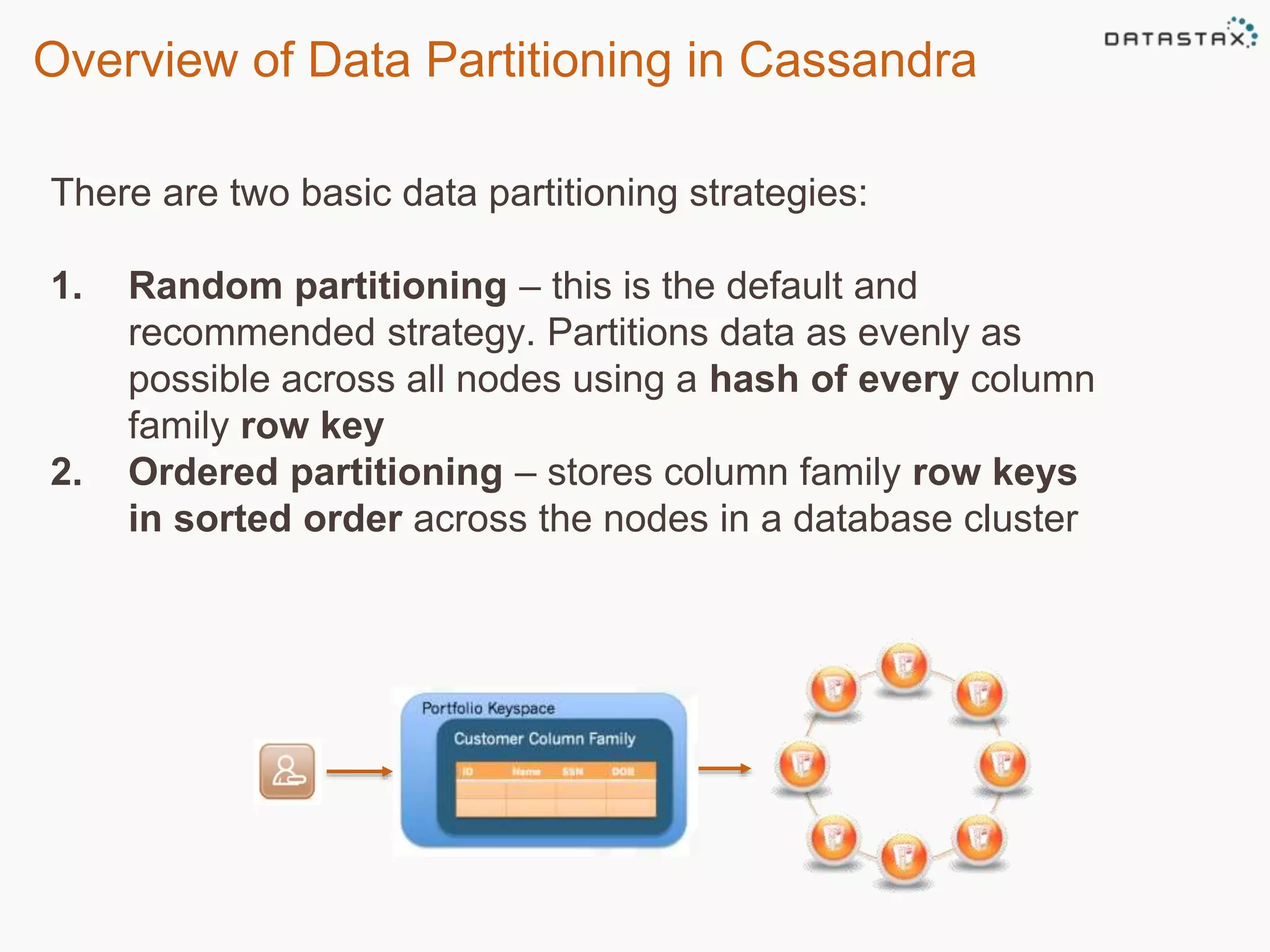

Overview of Data Partitioning in Cassandra
There are two basic data partitioning strategies:
1. Random partitioning – this is the default and
recommended strategy. Partitions data as evenly as
possible across all nodes using a hash of every column
family row key
2. Ordered partitioning – stores column family row keys
in sorted order across the nodes in a database cluster

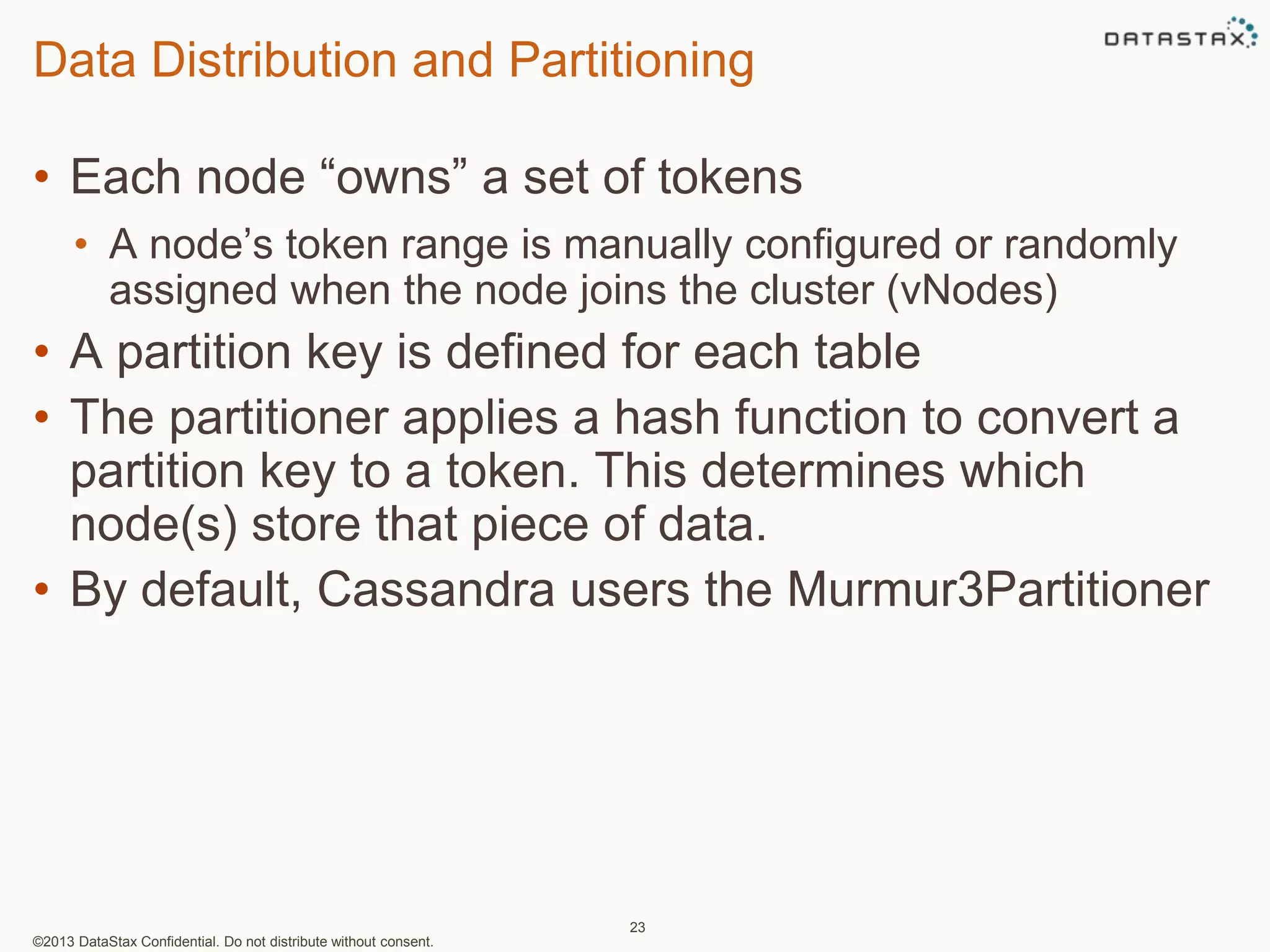

Data Distribution and Partitioning
• Each node “owns” a set of tokens
• A node’s token range is manually configured or randomly
assigned when the node joins the cluster (vNodes)
• A partition key is defined for each table
• The partitioner applies a hash function to convert a
partition key to a token. This determines which
node(s) store that piece of data.
• By default, Cassandra users the Murmur3Partitioner
23

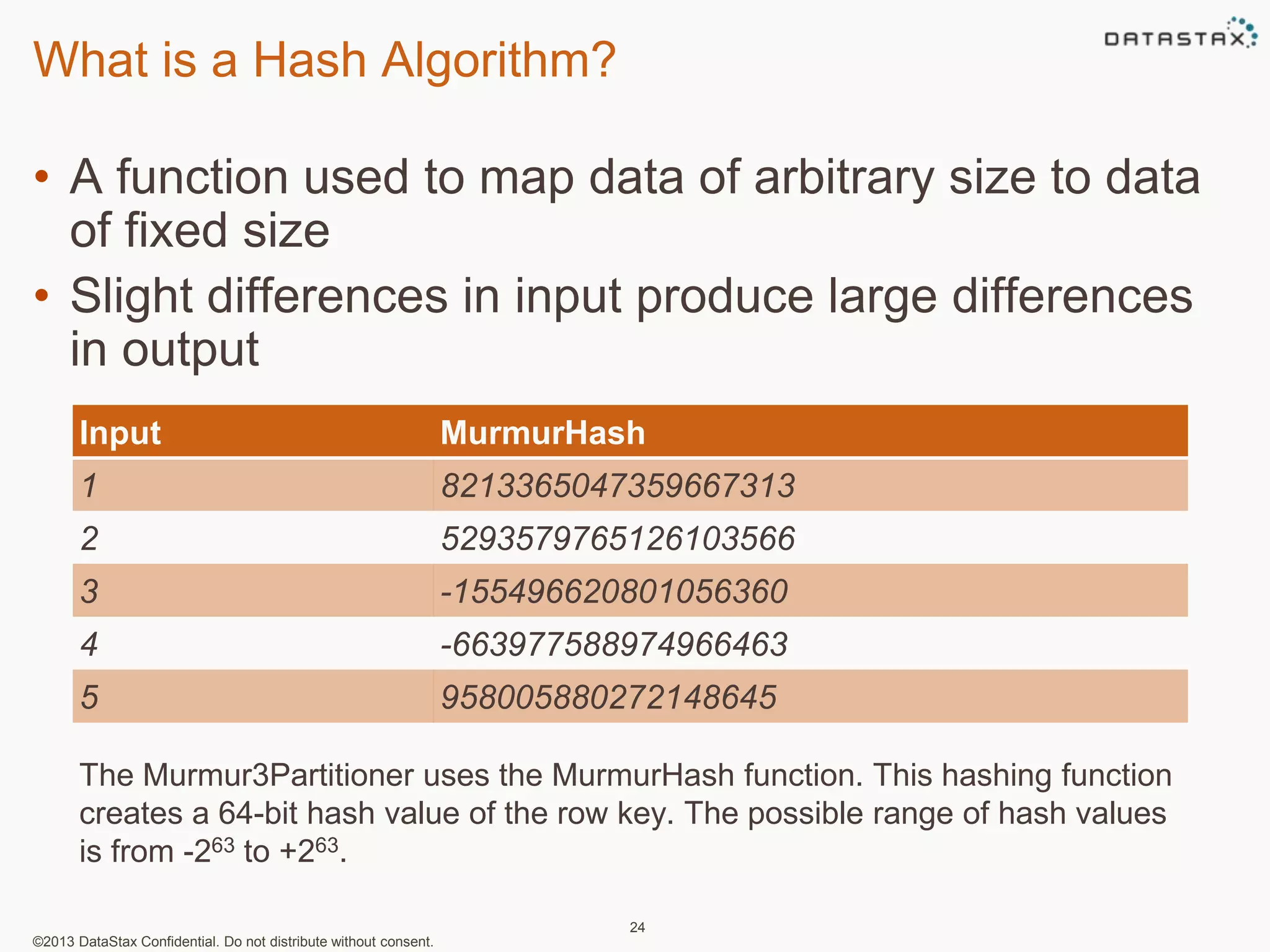

What is a Hash Algorithm?
• A function used to map data of arbitrary size to data
of fixed size
• Slight differences in input produce large differences
in output
Input MurmurHash
1 8213365047359667313
2 5293579765126103566
3 -155496620801056360
4 -663977588974966463
5 958005880272148645
The Murmur3Partitioner uses the MurmurHash function. This hashing function
creates a 64-bit hash value of the row key. The possible range of hash values
is from -263 to +263.
24

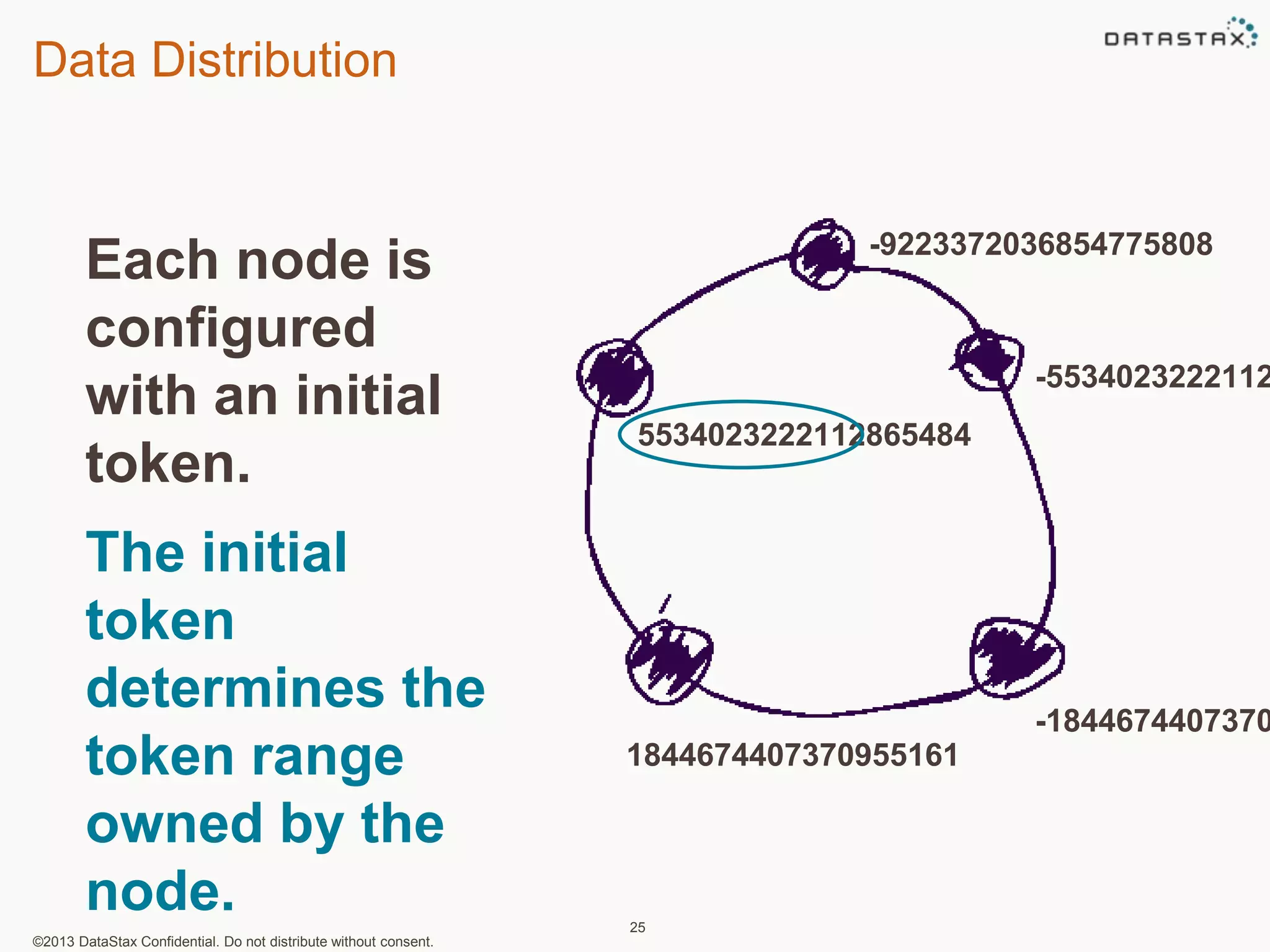

Data Distribution
5534023222112865484
25
-9223372036854775808
-5534023222112865485
-1844674407370955162
1844674407370955161
Each node is
configured
with an initial
token.
The initial
token
determines the
token range
owned by the
node.

5534023222112865484
26
-9223372036854775808
-5534023222112865485
-1844674407370955162
1844674407370955161
Data Distribution
This node owns the token
range:
1844674407370955162
To
5534023222112865484

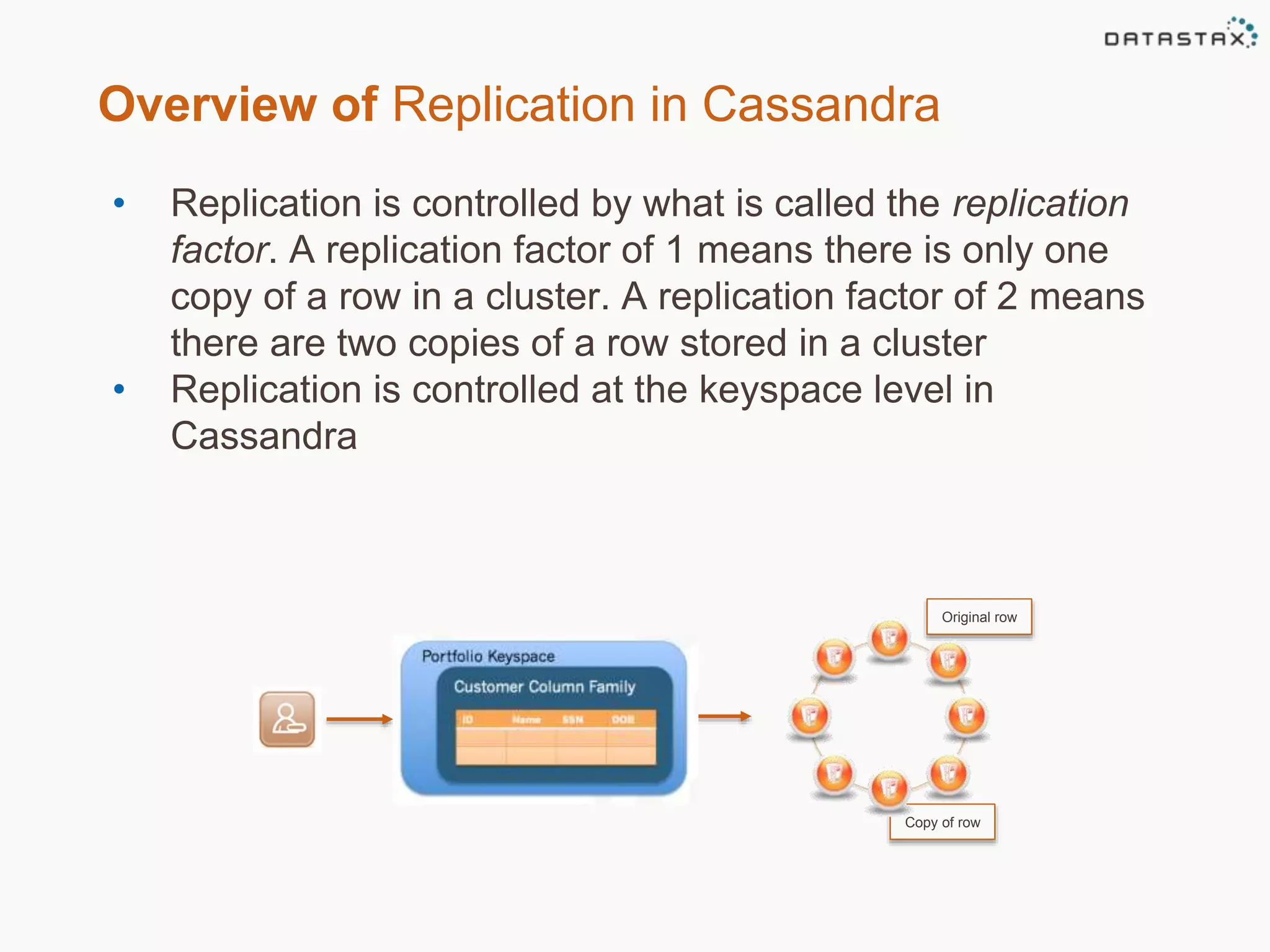

Overview of Replication in Cassandra
• Replication is controlled by what is called the replication
factor. A replication factor of 1 means there is only one
copy of a row in a cluster. A replication factor of 2 means
there are two copies of a row stored in a cluster
• Replication is controlled at the keyspace level in
Cassandra
Original row
Copy of row

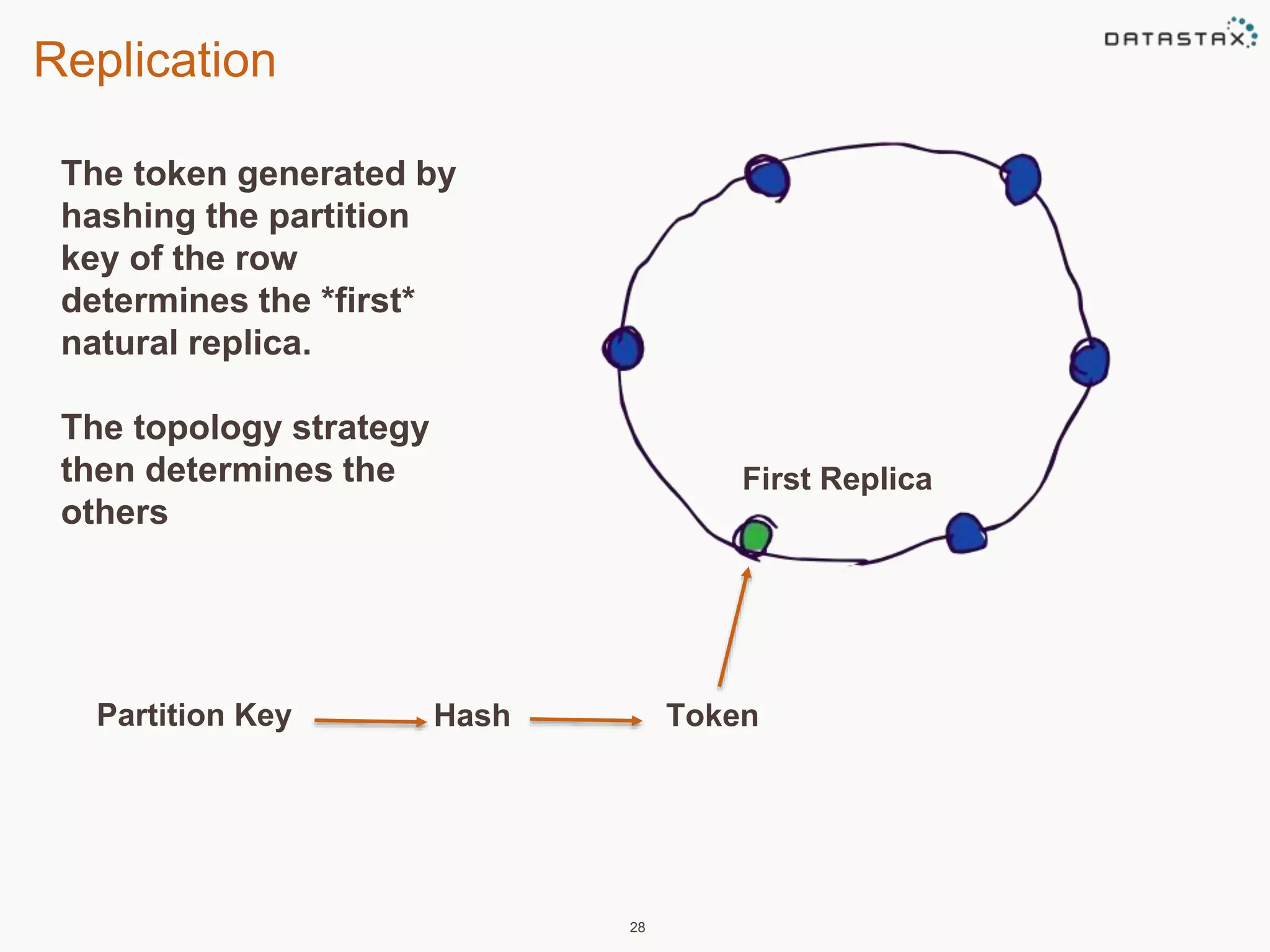

Replication
28
The token generated by
hashing the partition
key of the row
determines the *first*
natural replica.
The topology strategy
then determines the
others
First Replica
Partition Key Hash Token

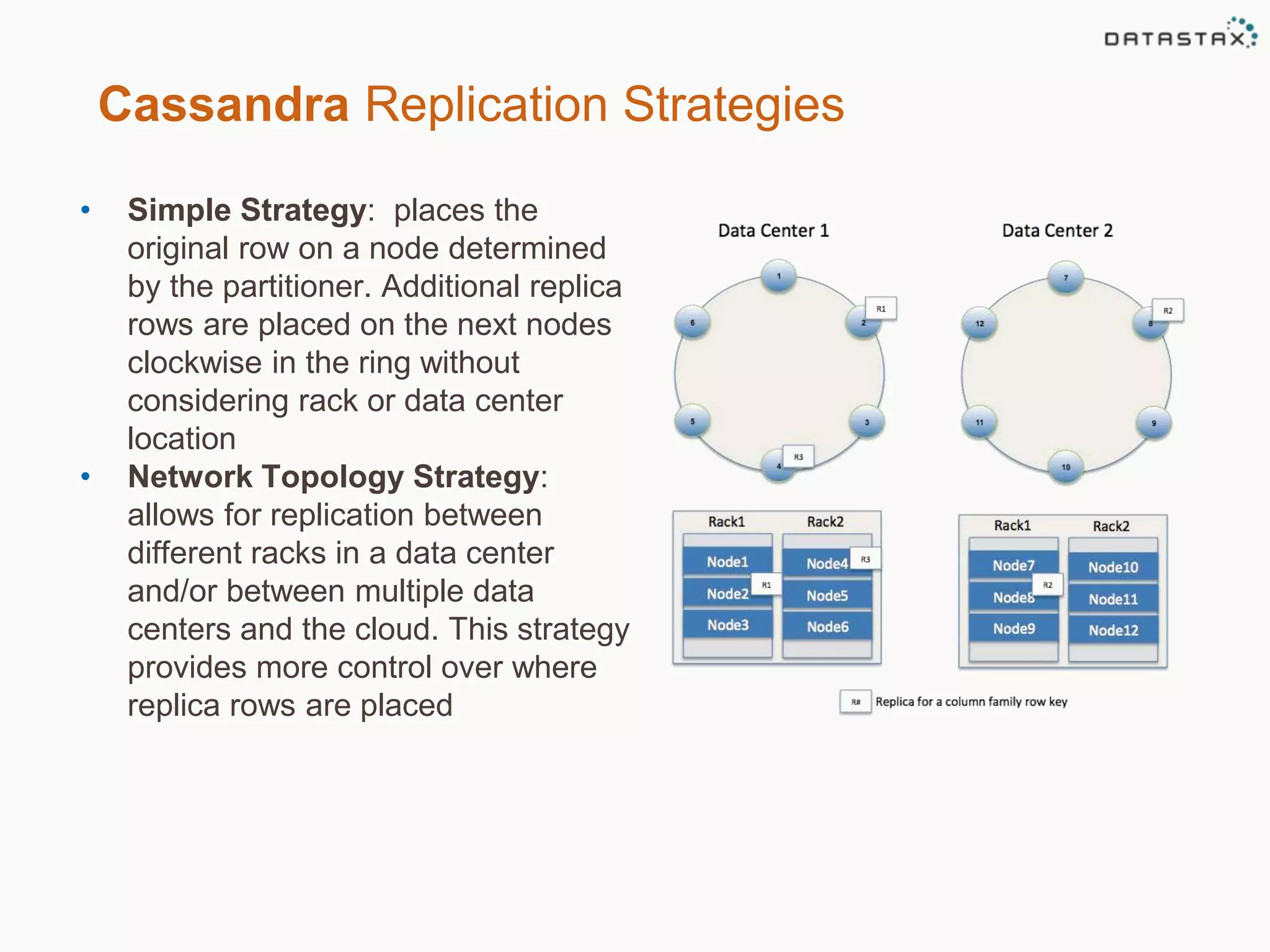

Cassandra Replication Strategies
• Simple Strategy: places the
original row on a node determined
by the partitioner. Additional replica
rows are placed on the next nodes
clockwise in the ring without
considering rack or data center
location
• Network Topology Strategy:
allows for replication between
different racks in a data center
and/or between multiple data
centers and the cloud. This strategy
provides more control over where
replica rows are placed

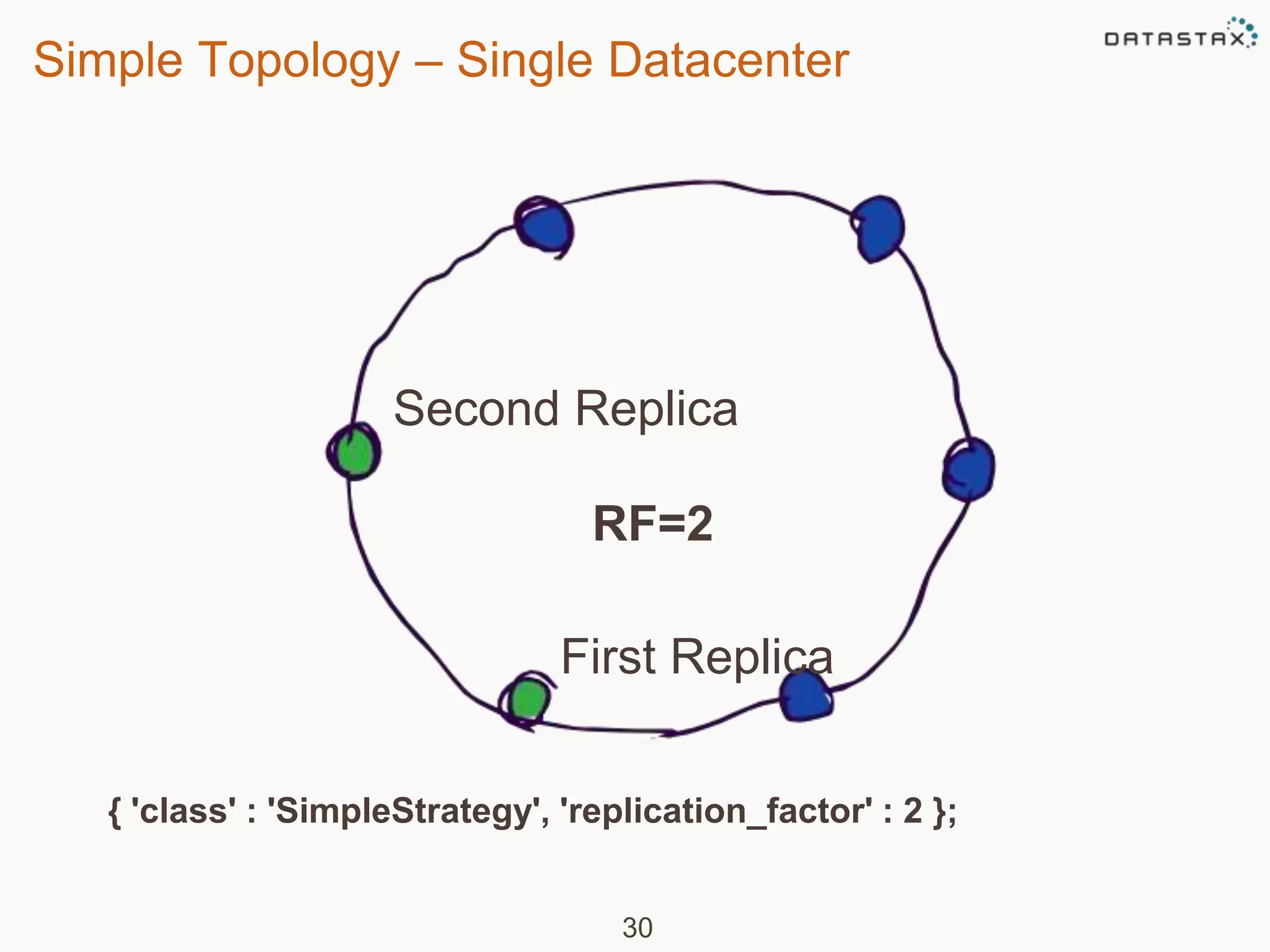

Simple Topology – Single Datacenter
Second Replica
RF=2
First Replica
{ 'class' : 'SimpleStrategy', 'replication_factor' : 2 };
30

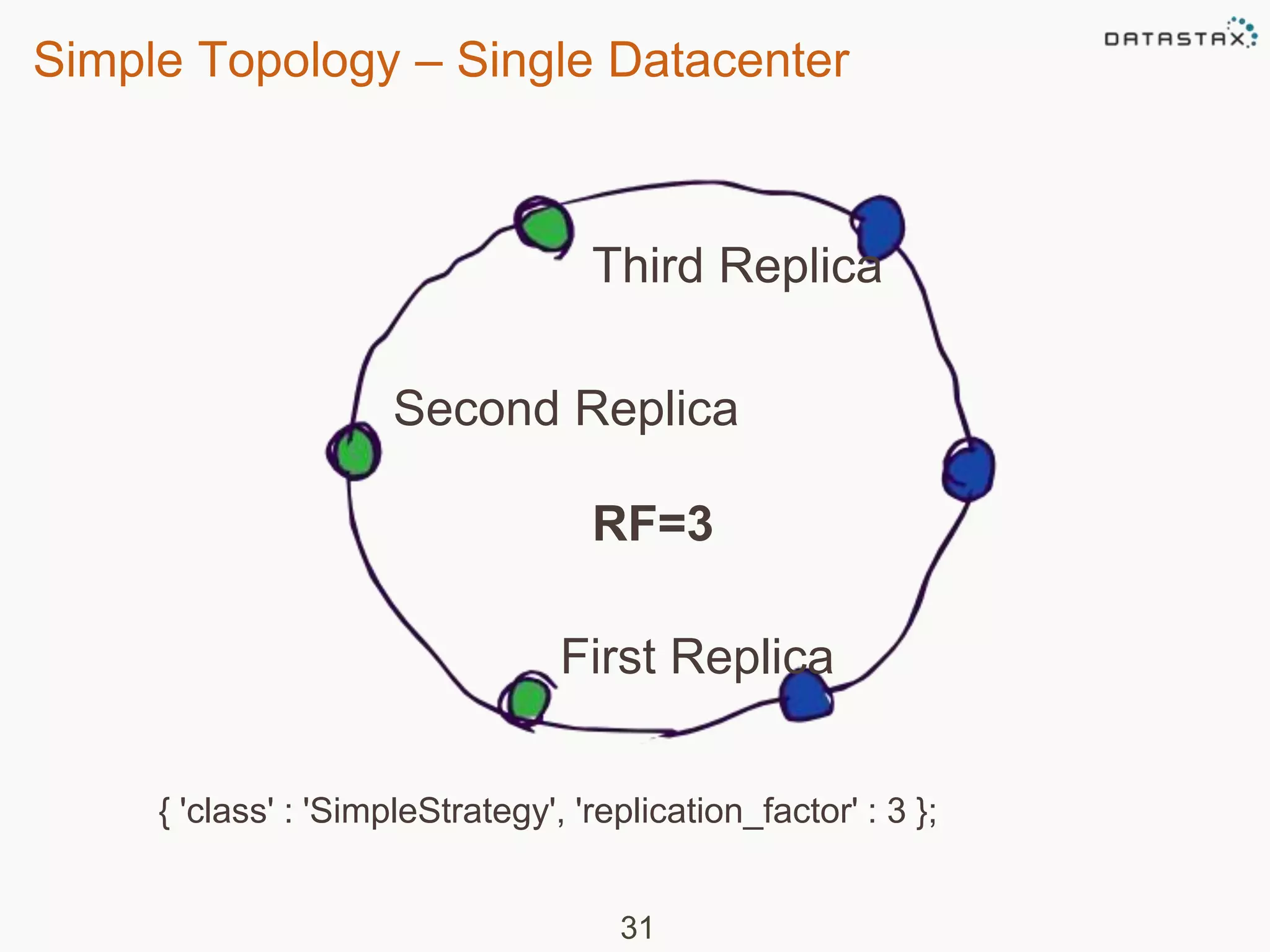

Simple Topology – Single Datacenter
Third Replica
Second Replica
RF=3
First Replica
{ 'class' : 'SimpleStrategy', 'replication_factor' : 3 };
31

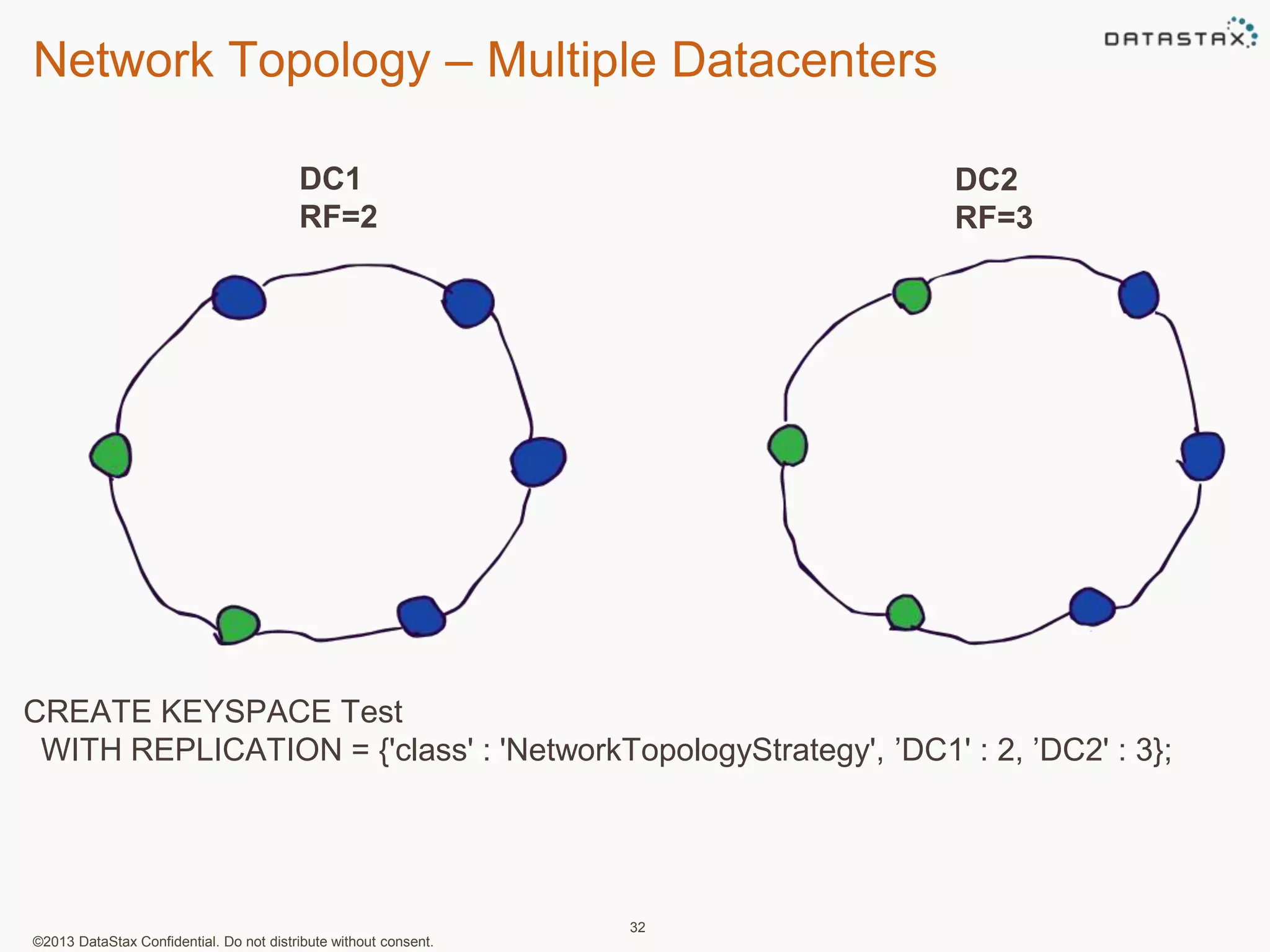

Network Topology – Multiple Datacenters
32
DC1
RF=2
DC2
RF=3
CREATE KEYSPACE Test
WITH REPLICATION = {'class' : 'NetworkTopologyStrategy', ’DC1' : 2, ’DC2' : 3};

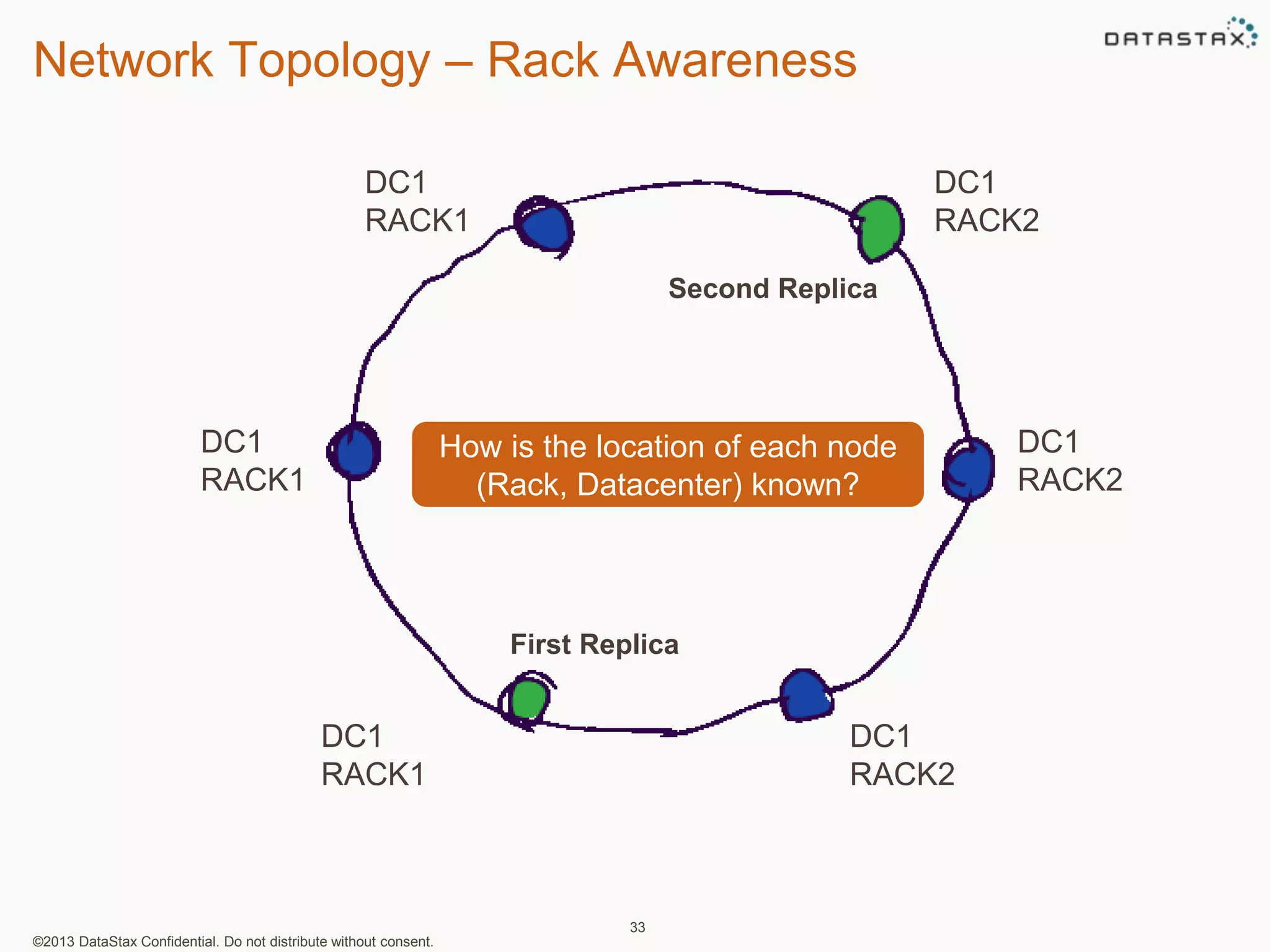

Network Topology – Rack Awareness
How is the location of each node
(Rack, Datacenter) known?
33
DC1
RACK1
DC1
RACK1
DC1
RACK1
DC1
RACK2
DC1
RACK2
Second Replica
DC1
RACK2
RF=2
First Replica

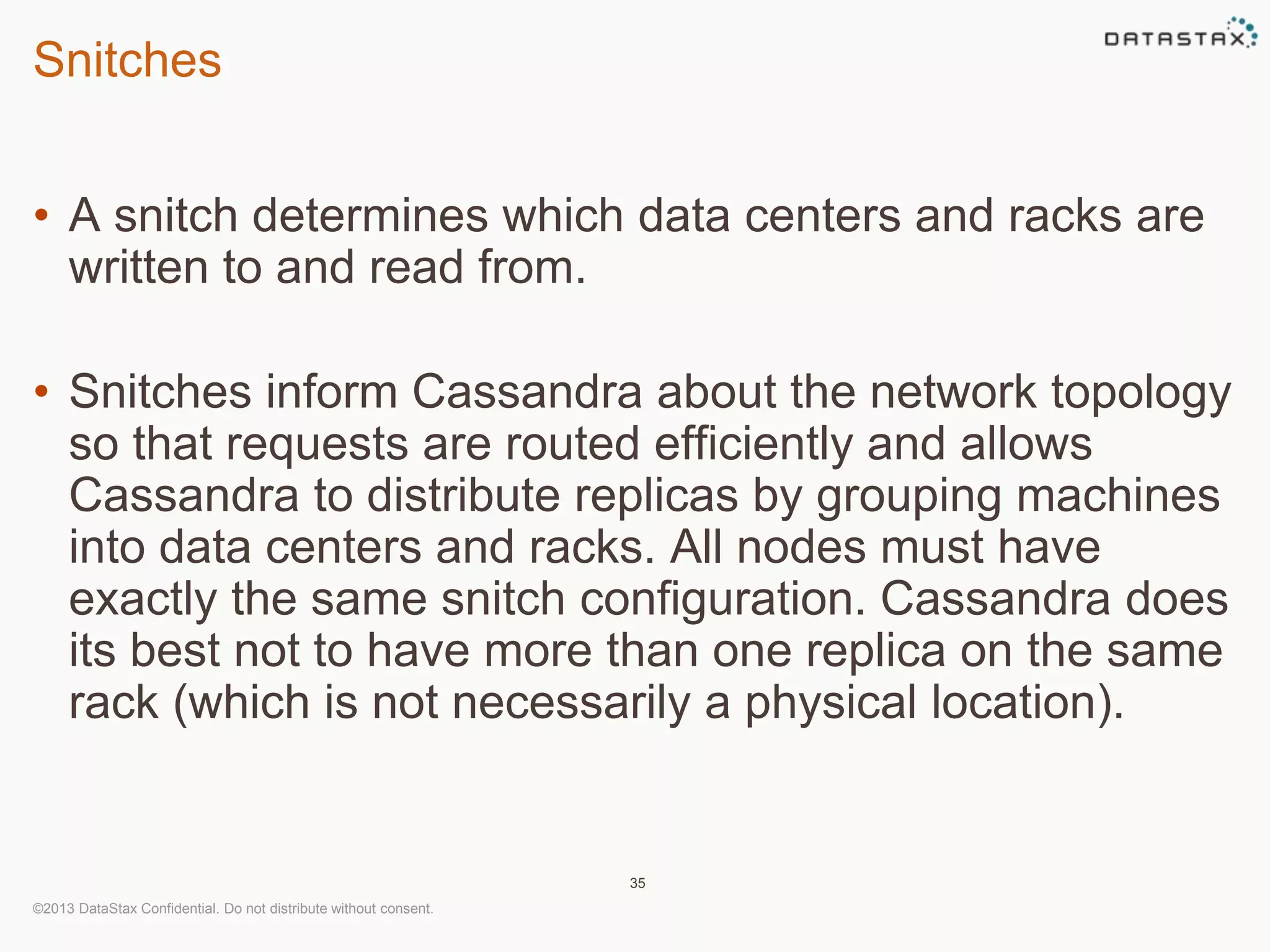

Snitches
• A snitch determines which data centers and racks are
written to and read from.
• Snitches inform Cassandra about the network topology
so that requests are routed efficiently and allows
Cassandra to distribute replicas by grouping machines
into data centers and racks. All nodes must have
exactly the same snitch configuration. Cassandra does
its best not to have more than one replica on the same
rack (which is not necessarily a physical location).
35

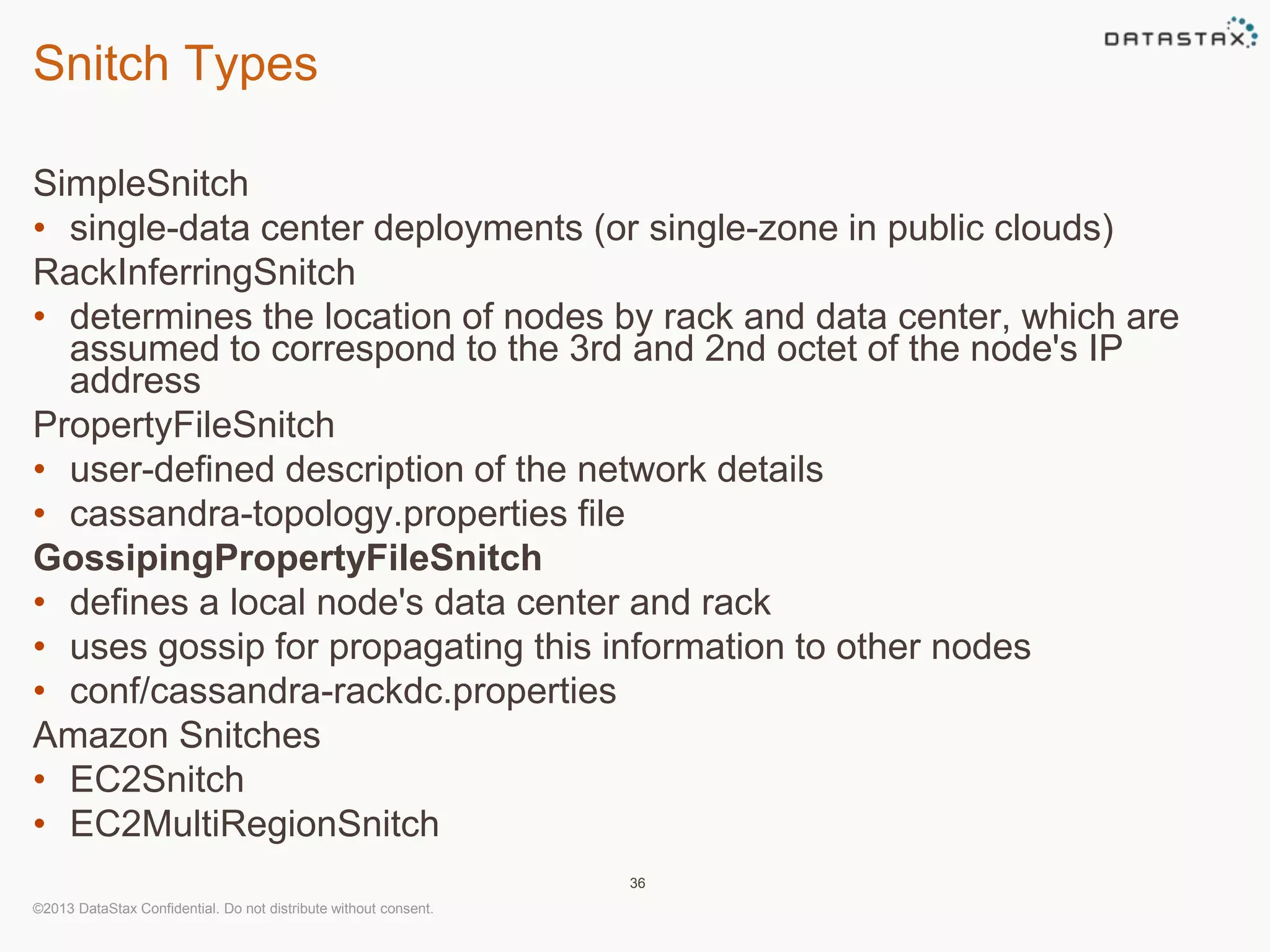

Snitch Types
SimpleSnitch
• single-data center deployments (or single-zone in public clouds)
RackInferringSnitch
• determines the location of nodes by rack and data center, which are
assumed to correspond to the 3rd and 2nd octet of the node's IP
address
PropertyFileSnitch
• user-defined description of the network details
• cassandra-topology.properties file
GossipingPropertyFileSnitch
• defines a local node's data center and rack
• uses gossip for propagating this information to other nodes
• conf/cassandra-rackdc.properties
Amazon Snitches
• EC2Snitch
• EC2MultiRegionSnitch
36

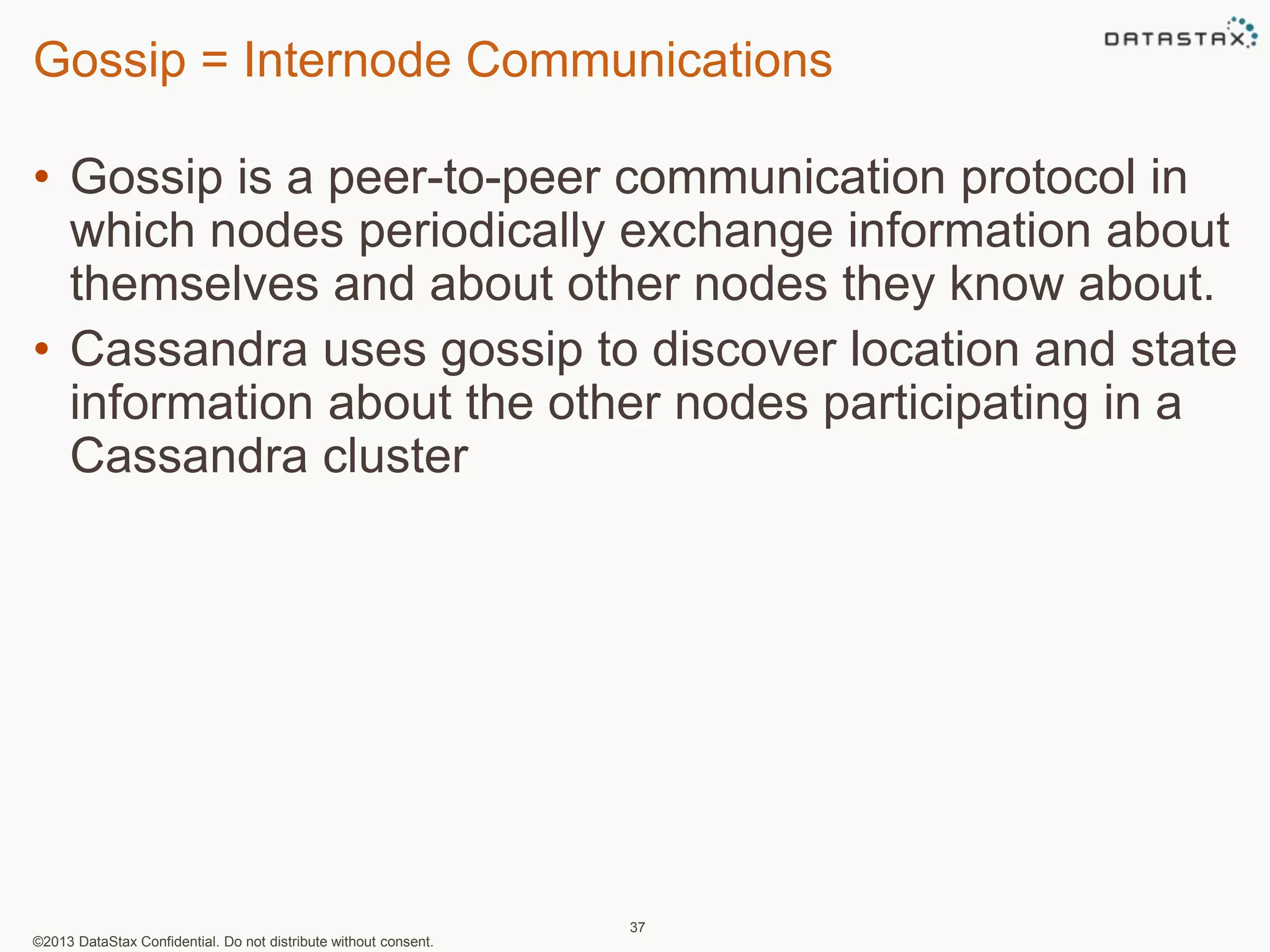

Gossip = Internode Communications
• Gossip is a peer-to-peer communication protocol in
which nodes periodically exchange information about
themselves and about other nodes they know about.
• Cassandra uses gossip to discover location and state
information about the other nodes participating in a
Cassandra cluster
37

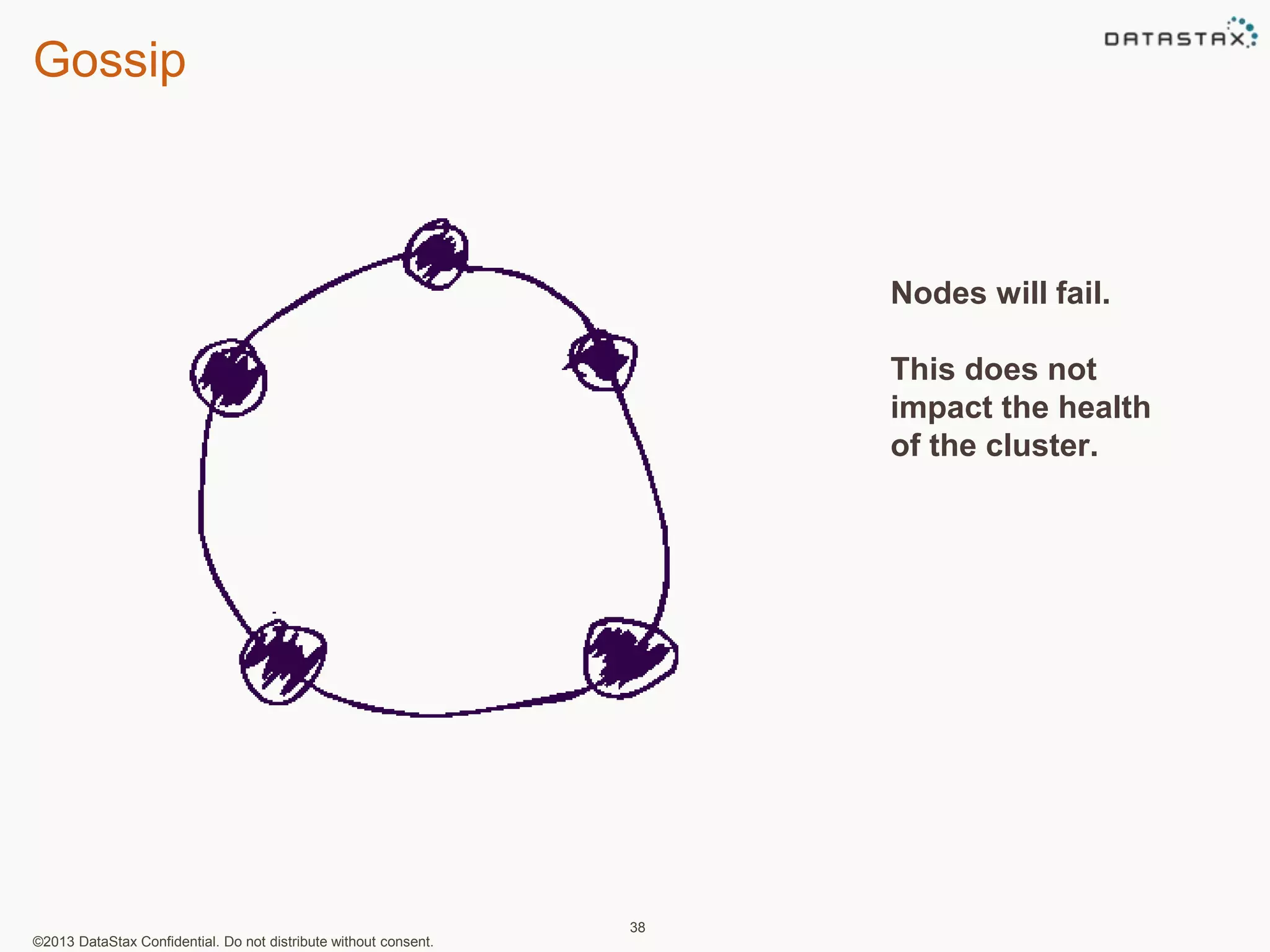

Gossip
38
Nodes will fail.
This does not
impact the health
of the cluster.

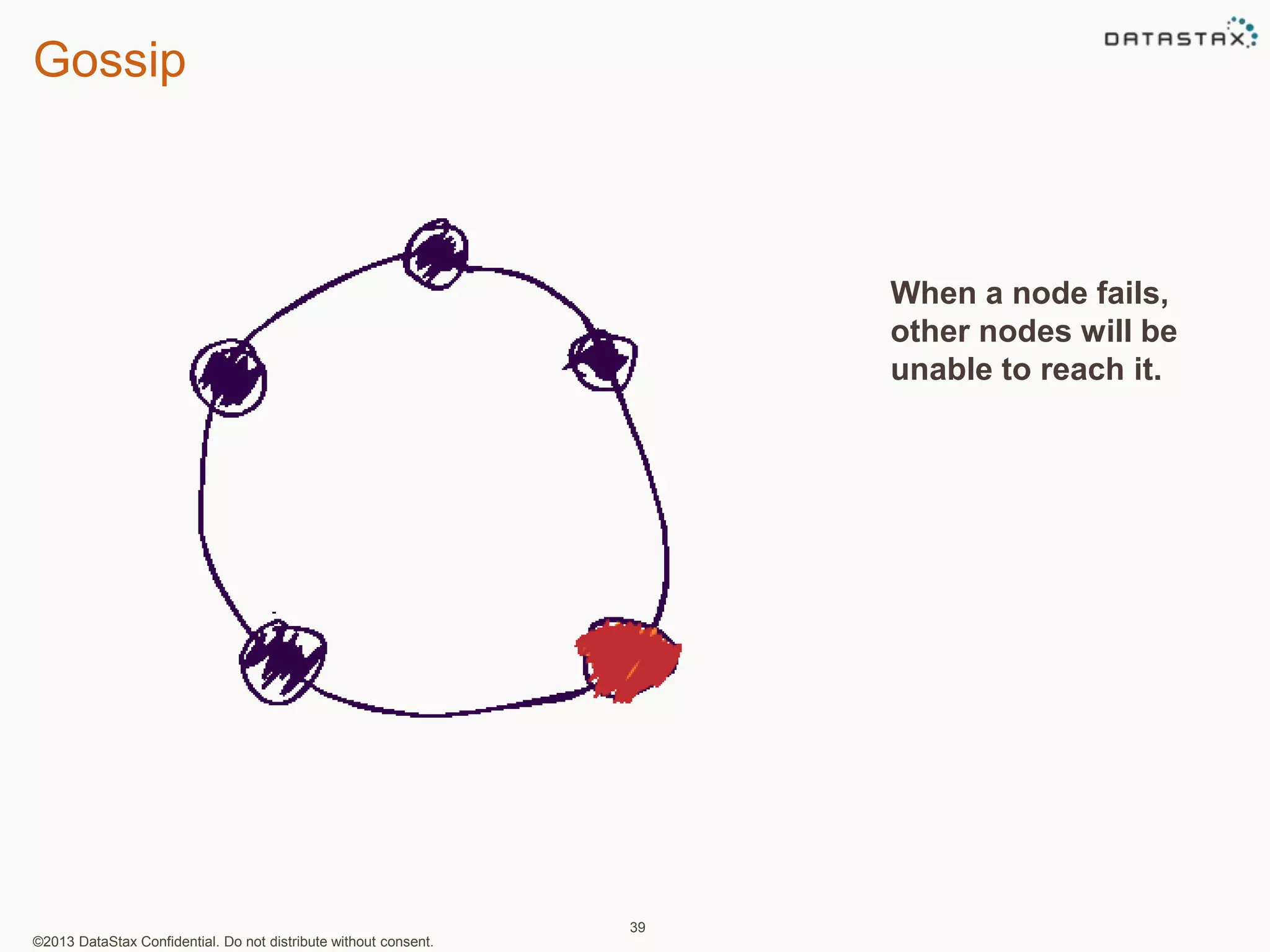

Gossip
39
When a node fails,
other nodes will be
unable to reach it.

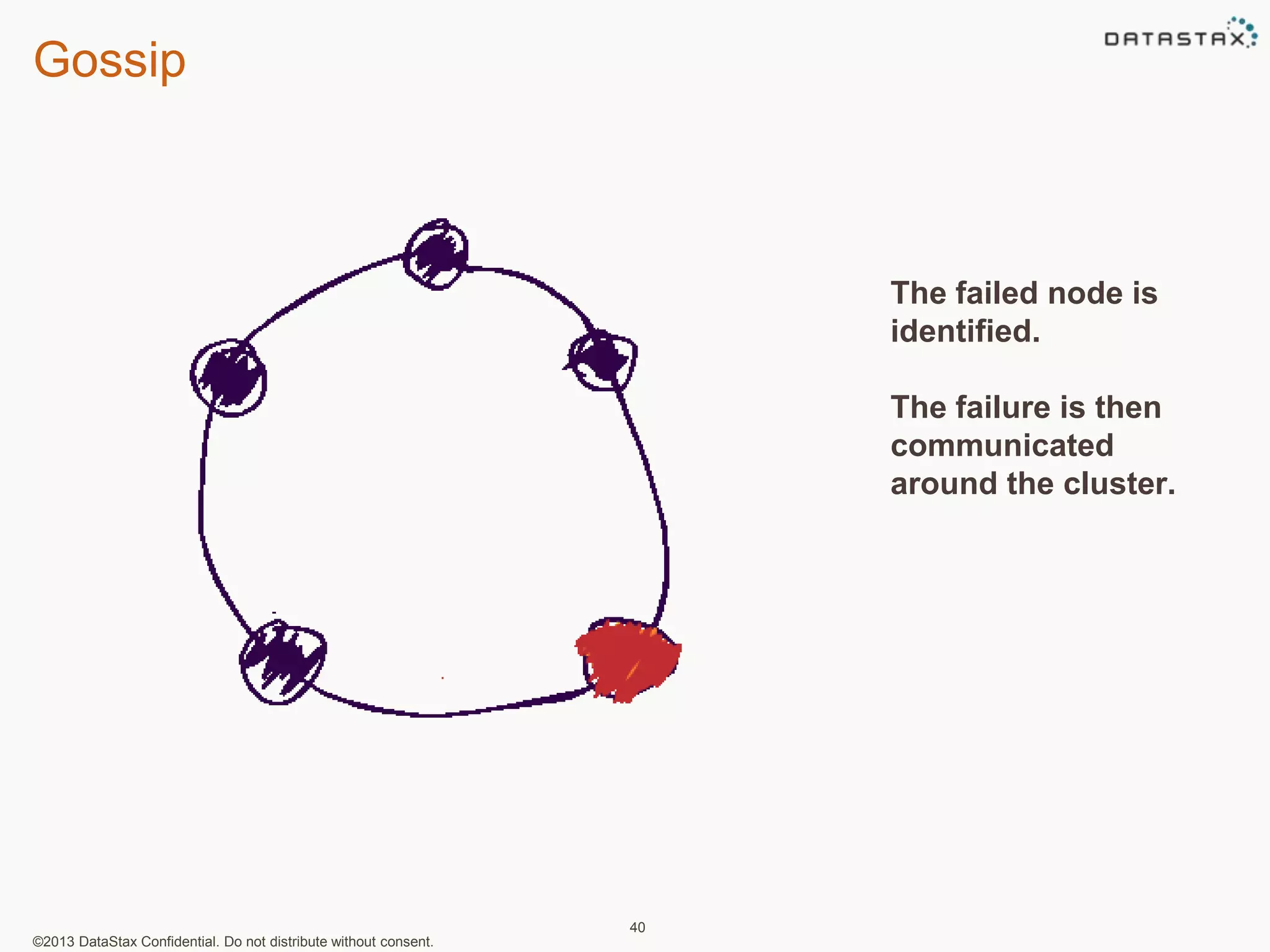

Gossip
40
The failed node is
identified.
The failure is then
communicated
around the cluster.

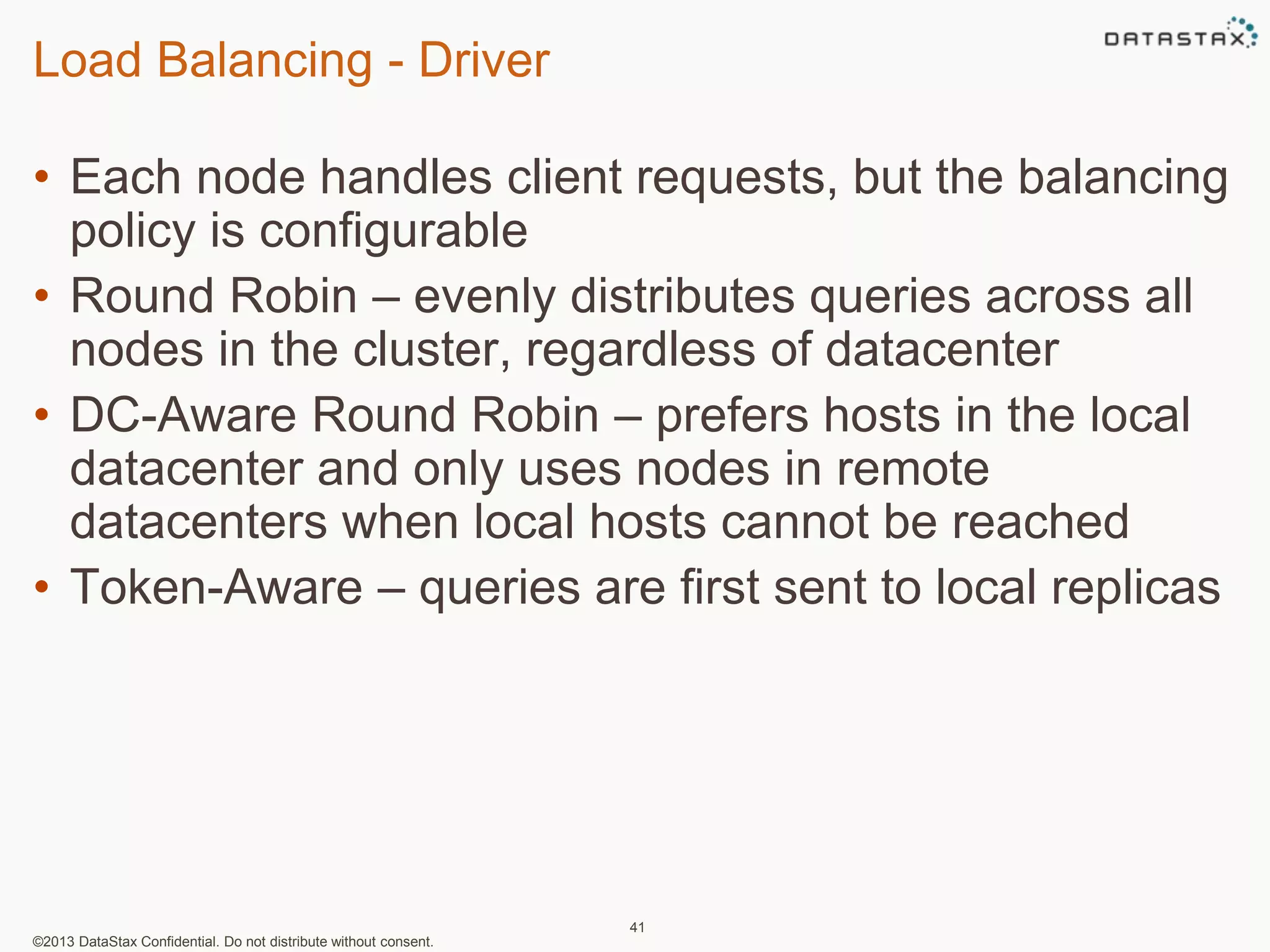

Load Balancing - Driver
• Each node handles client requests, but the balancing
policy is configurable
• Round Robin – evenly distributes queries across all
nodes in the cluster, regardless of datacenter
• DC-Aware Round Robin – prefers hosts in the local
datacenter and only uses nodes in remote
datacenters when local hosts cannot be reached
• Token-Aware – queries are first sent to local replicas
41

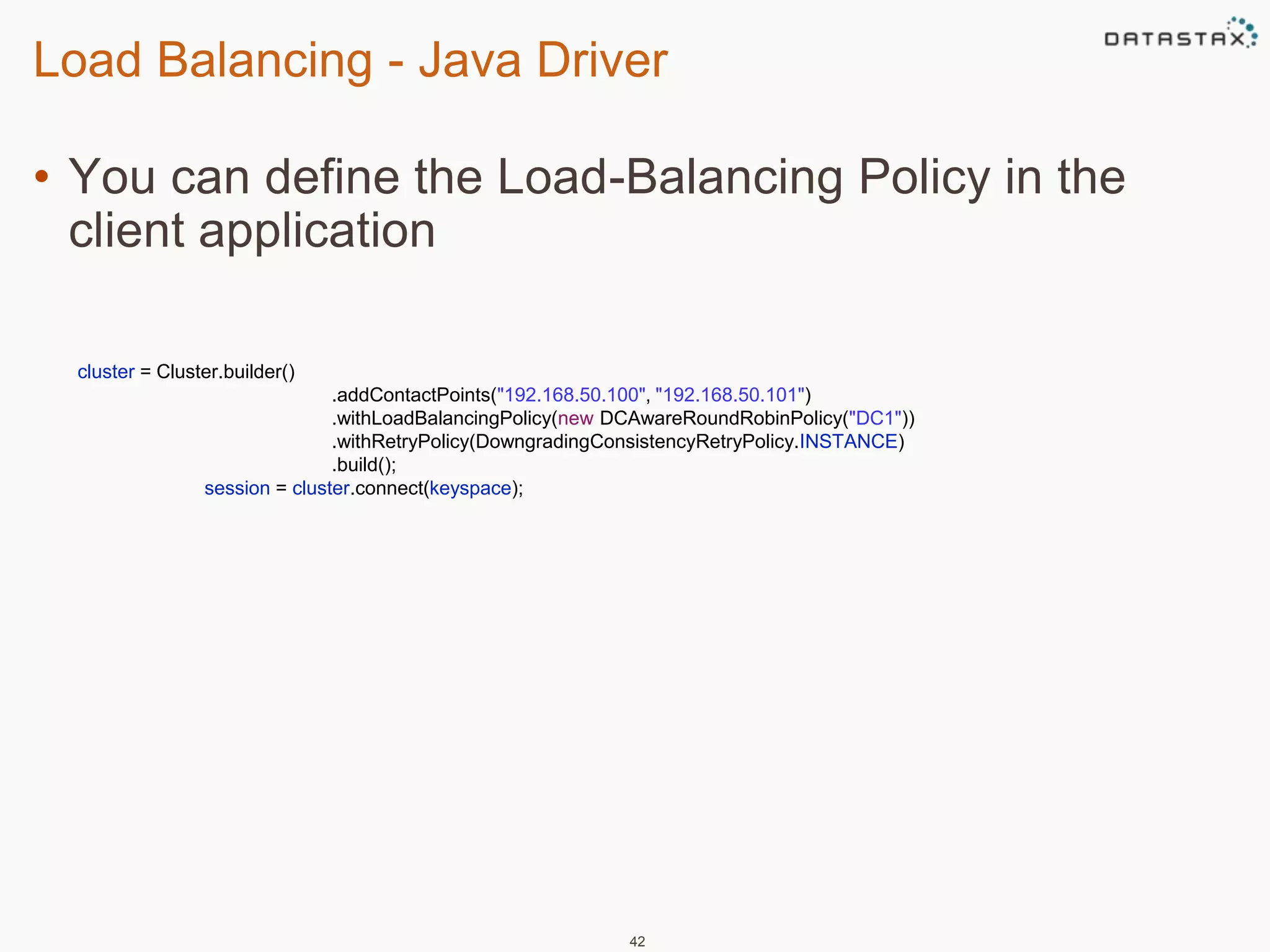

Load Balancing - Java Driver
• You can define the Load-Balancing Policy in the
client application
42
cluster = Cluster.builder()
.addContactPoints("192.168.50.100", "192.168.50.101")
.withLoadBalancingPolicy(new DCAwareRoundRobinPolicy("DC1"))
.withRetryPolicy(DowngradingConsistencyRetryPolicy.INSTANCE)
.build();
session = cluster.connect(keyspace);

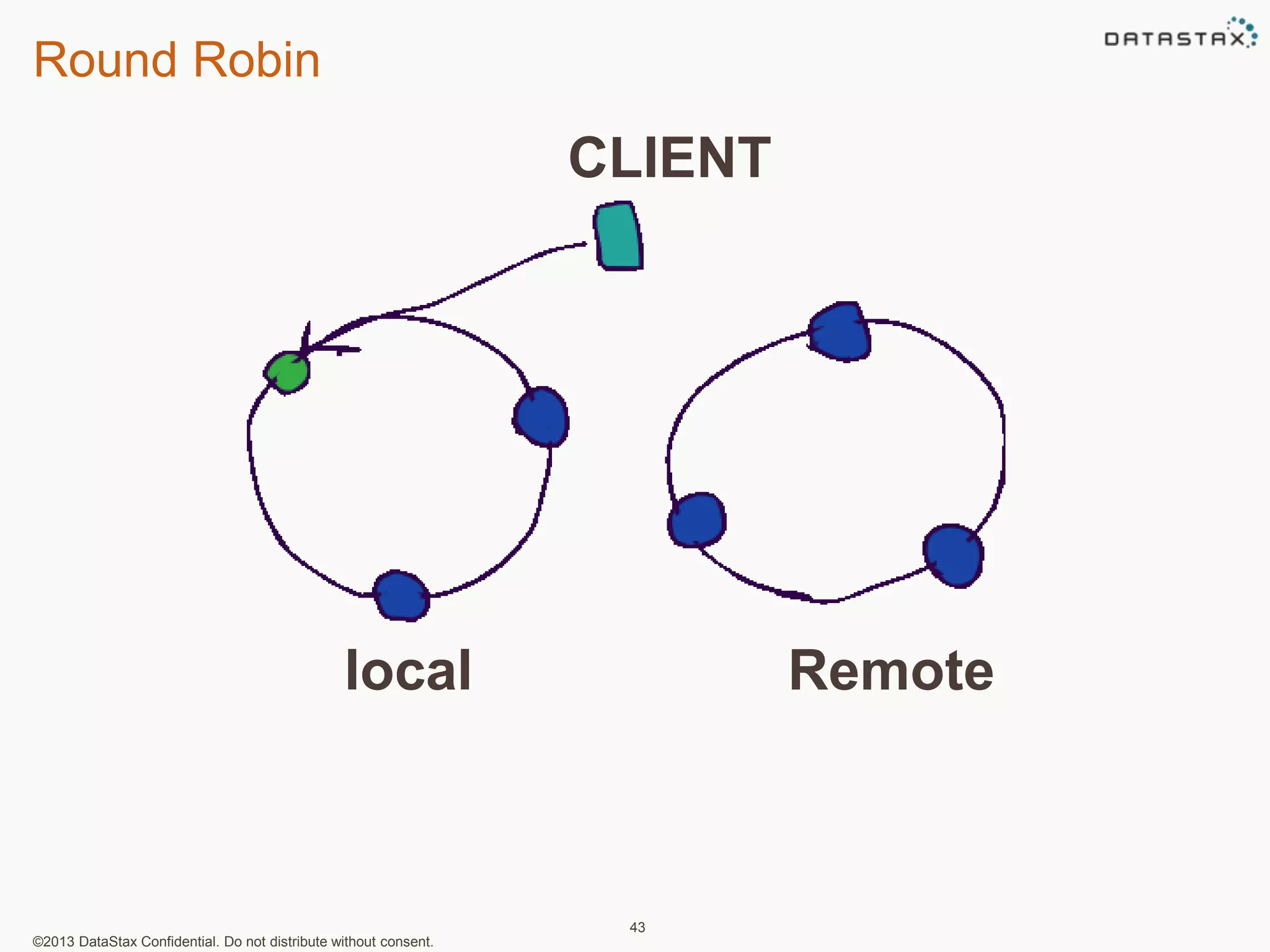

Round Robin
CLIENT
local Remote
43

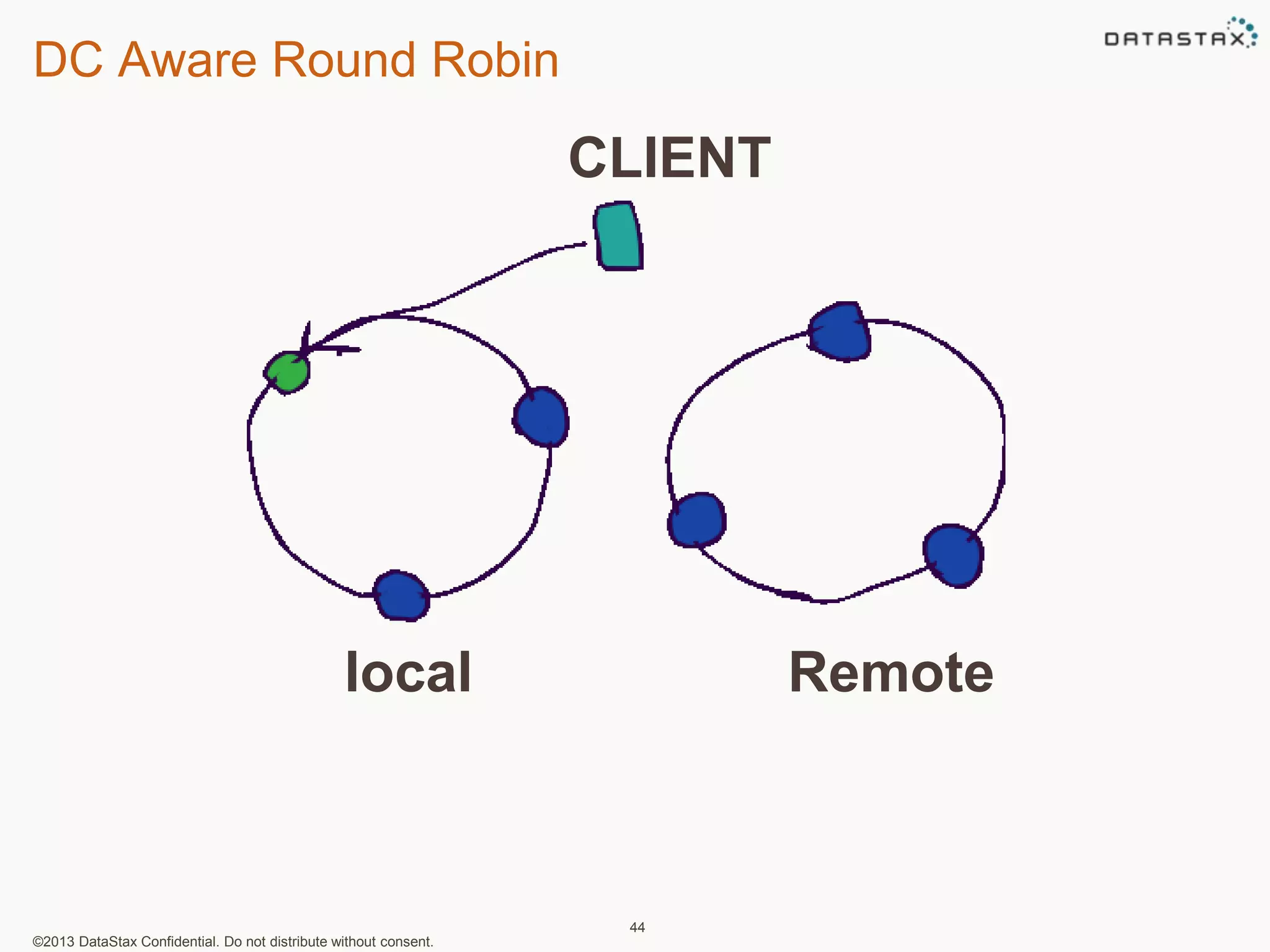

DC Aware Round Robin
CLIENT
local Remote
44

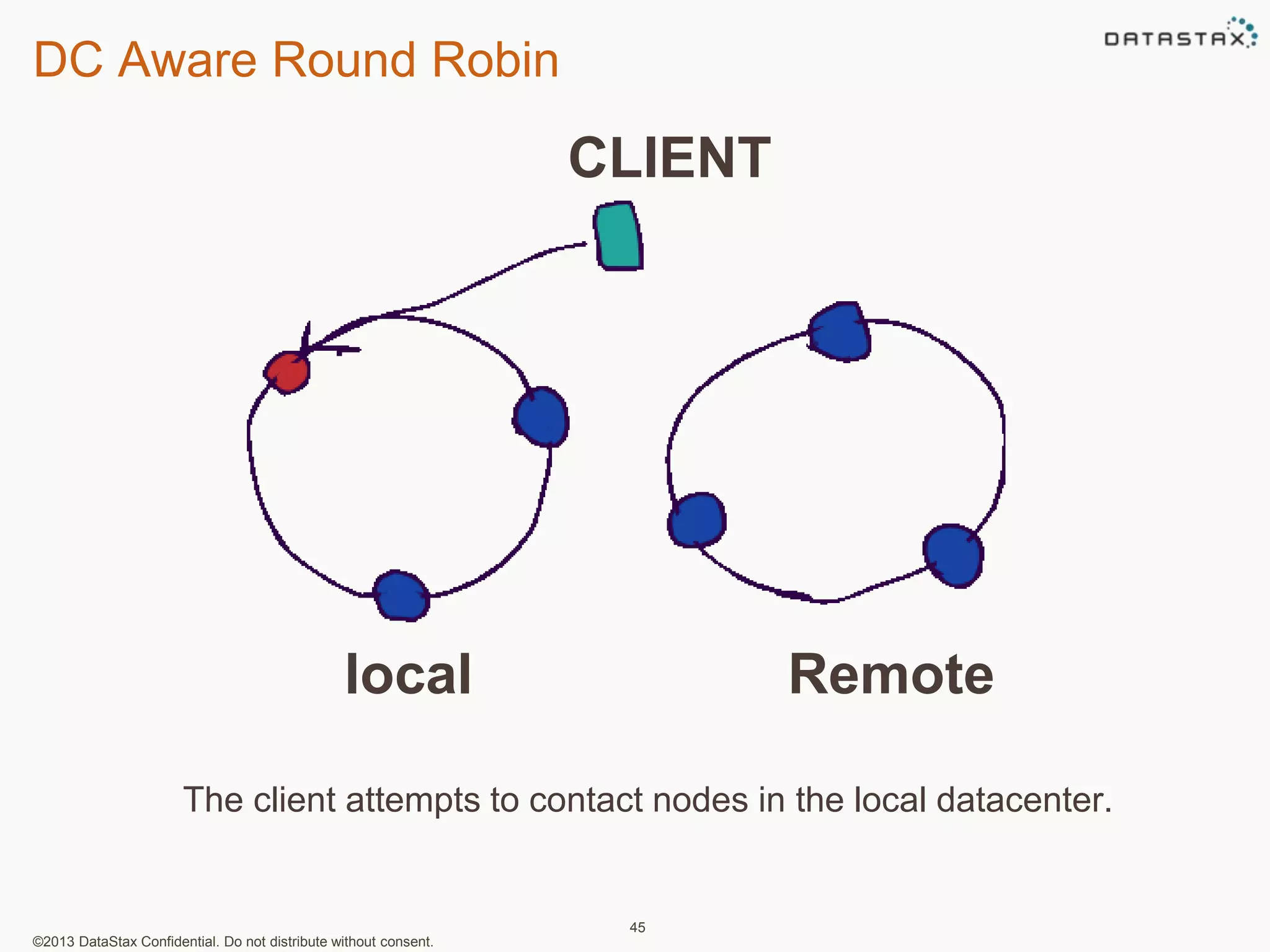

CLIENT
local Remote
The client attempts to contact nodes in the local datacenter.
45

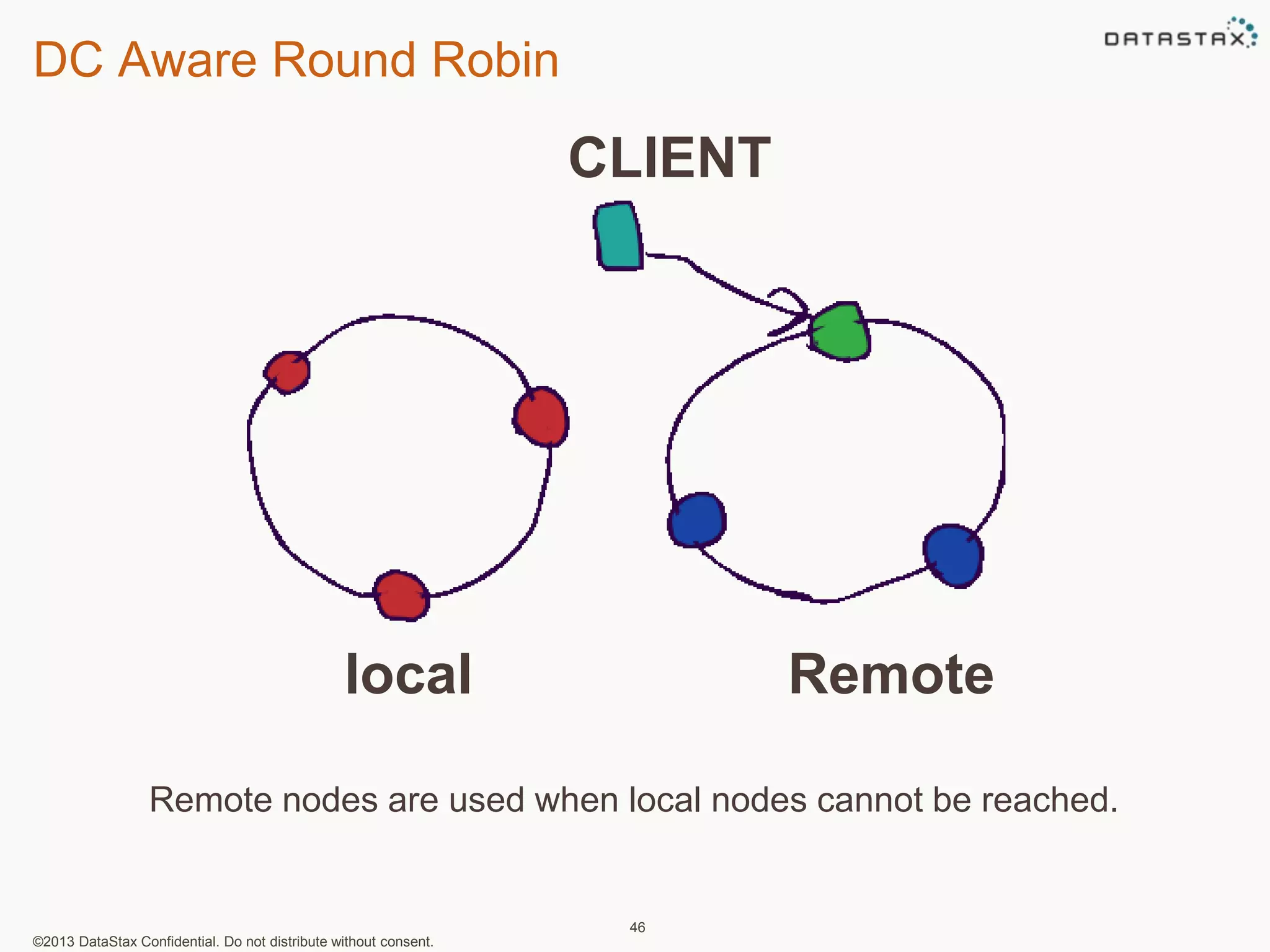

CLIENT
local Remote
Remote nodes are used when local nodes cannot be reached.
46

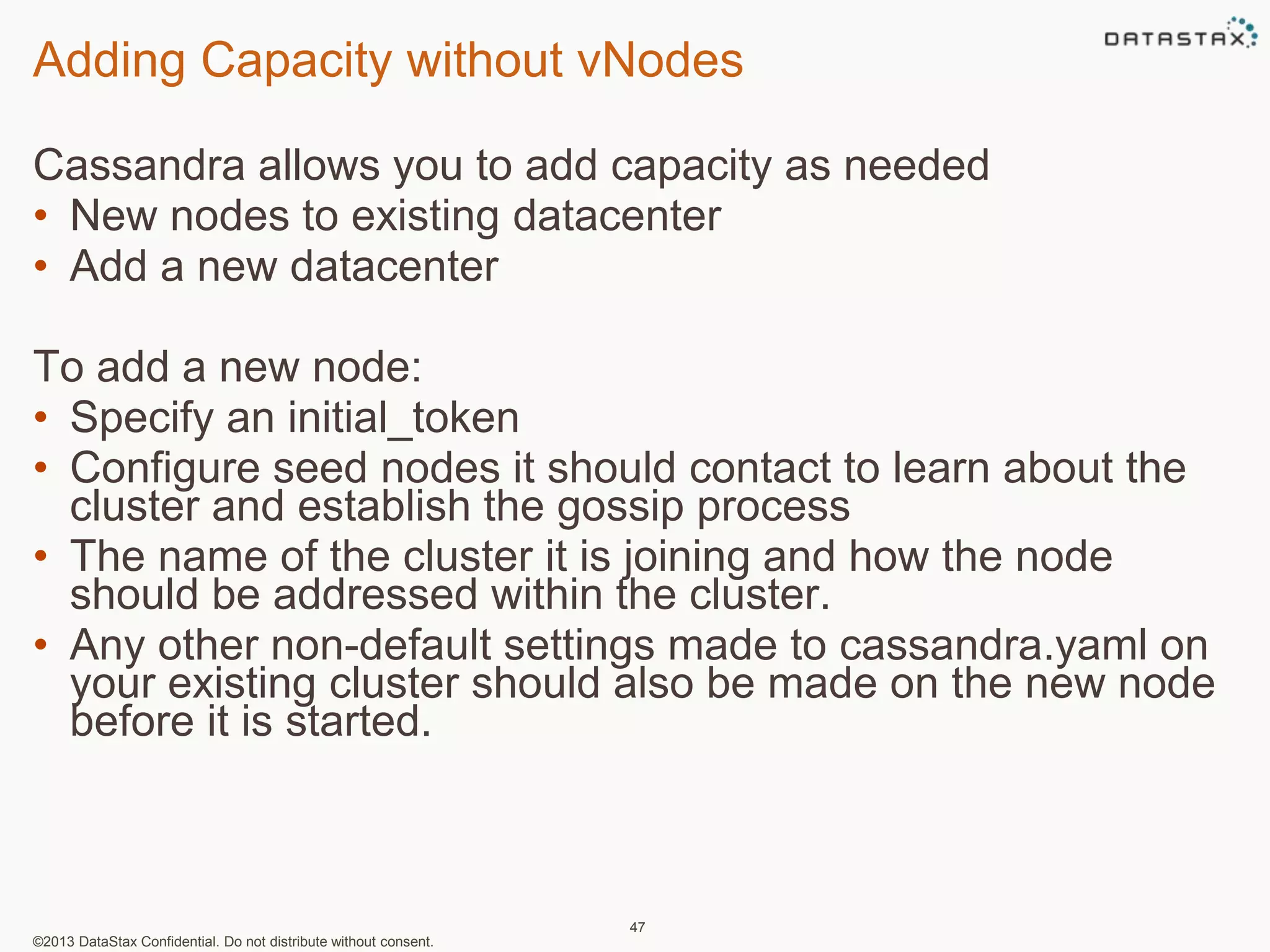

Adding Capacity without vNodes
Cassandra allows you to add capacity as needed
• New nodes to existing datacenter
• Add a new datacenter
To add a new node:
• Specify an initial_token
• Configure seed nodes it should contact to learn about the
cluster and establish the gossip process
• The name of the cluster it is joining and how the node
should be addressed within the cluster.
• Any other non-default settings made to cassandra.yaml on
your existing cluster should also be made on the new node
before it is started.
47

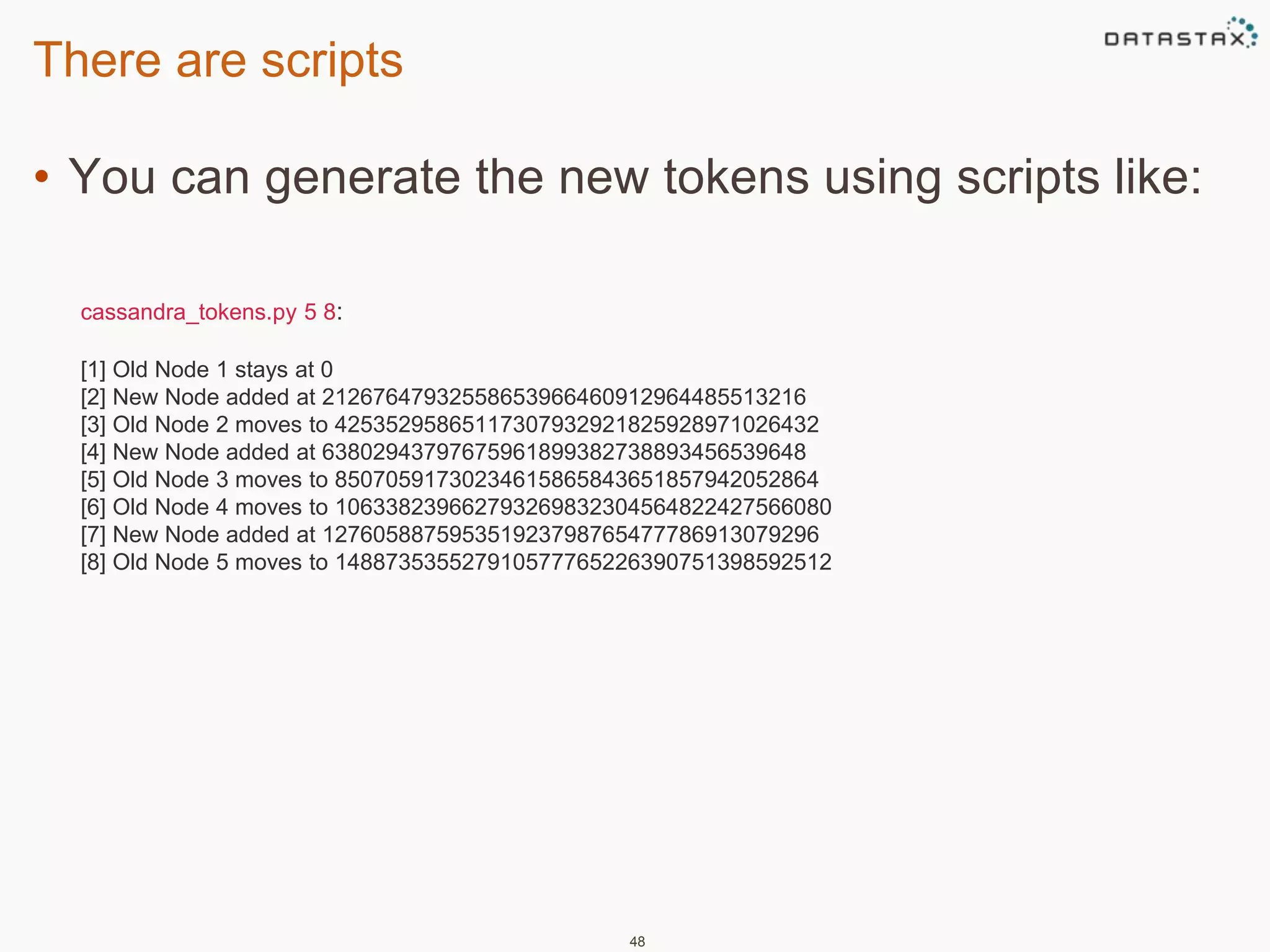

There are scripts
• You can generate the new tokens using scripts like:
48
cassandra_tokens.py 5 8:
[1] Old Node 1 stays at 0
[2] New Node added at 21267647932558653966460912964485513216
[3] Old Node 2 moves to 42535295865117307932921825928971026432
[4] New Node added at 63802943797675961899382738893456539648
[5] Old Node 3 moves to 85070591730234615865843651857942052864
[6] Old Node 4 moves to 106338239662793269832304564822427566080
[7] New Node added at 127605887595351923798765477786913079296
[8] Old Node 5 moves to 148873535527910577765226390751398592512

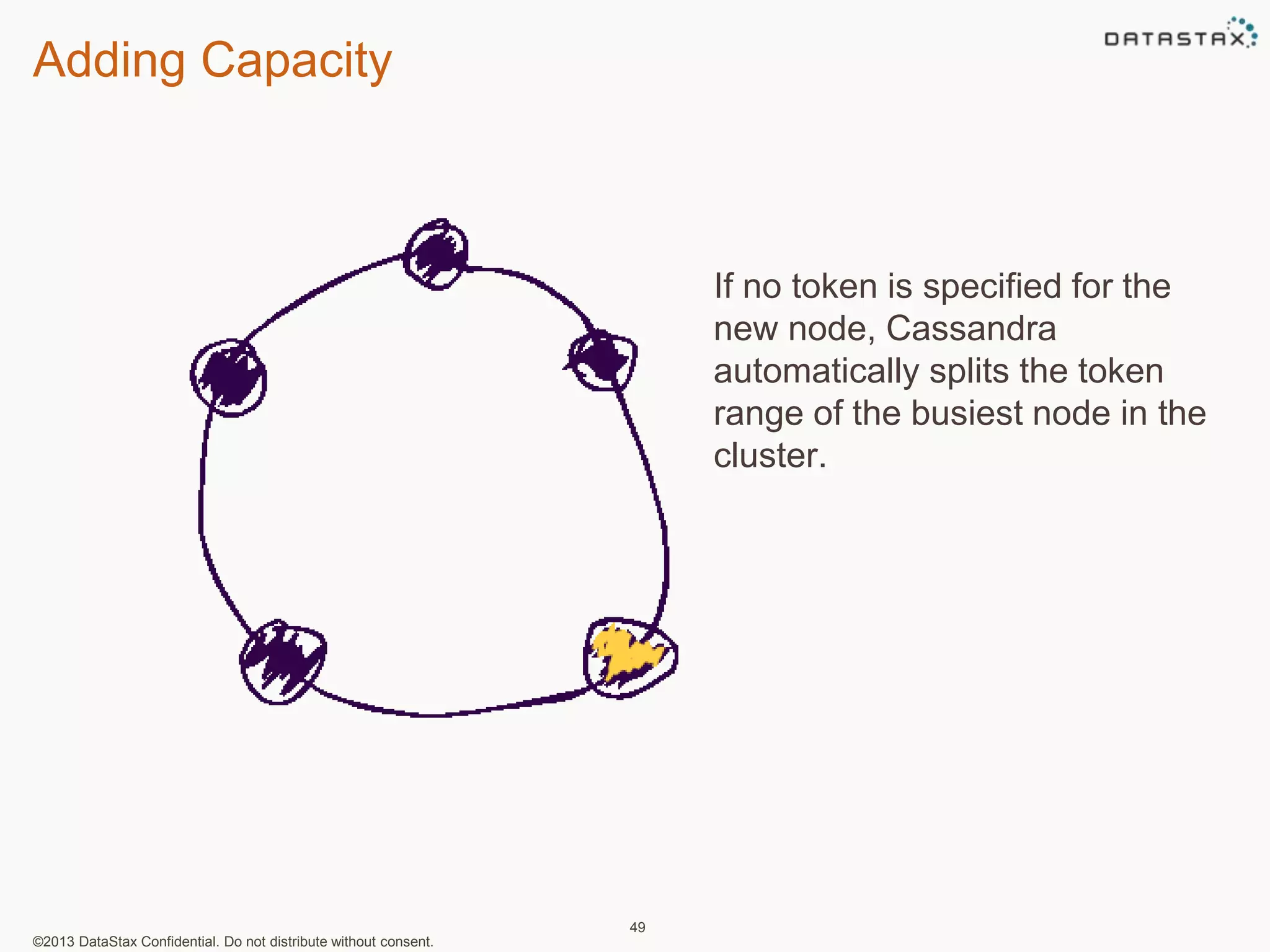

Adding Capacity
49
If no token is specified for the
new node, Cassandra
automatically splits the token
range of the busiest node in the
cluster.

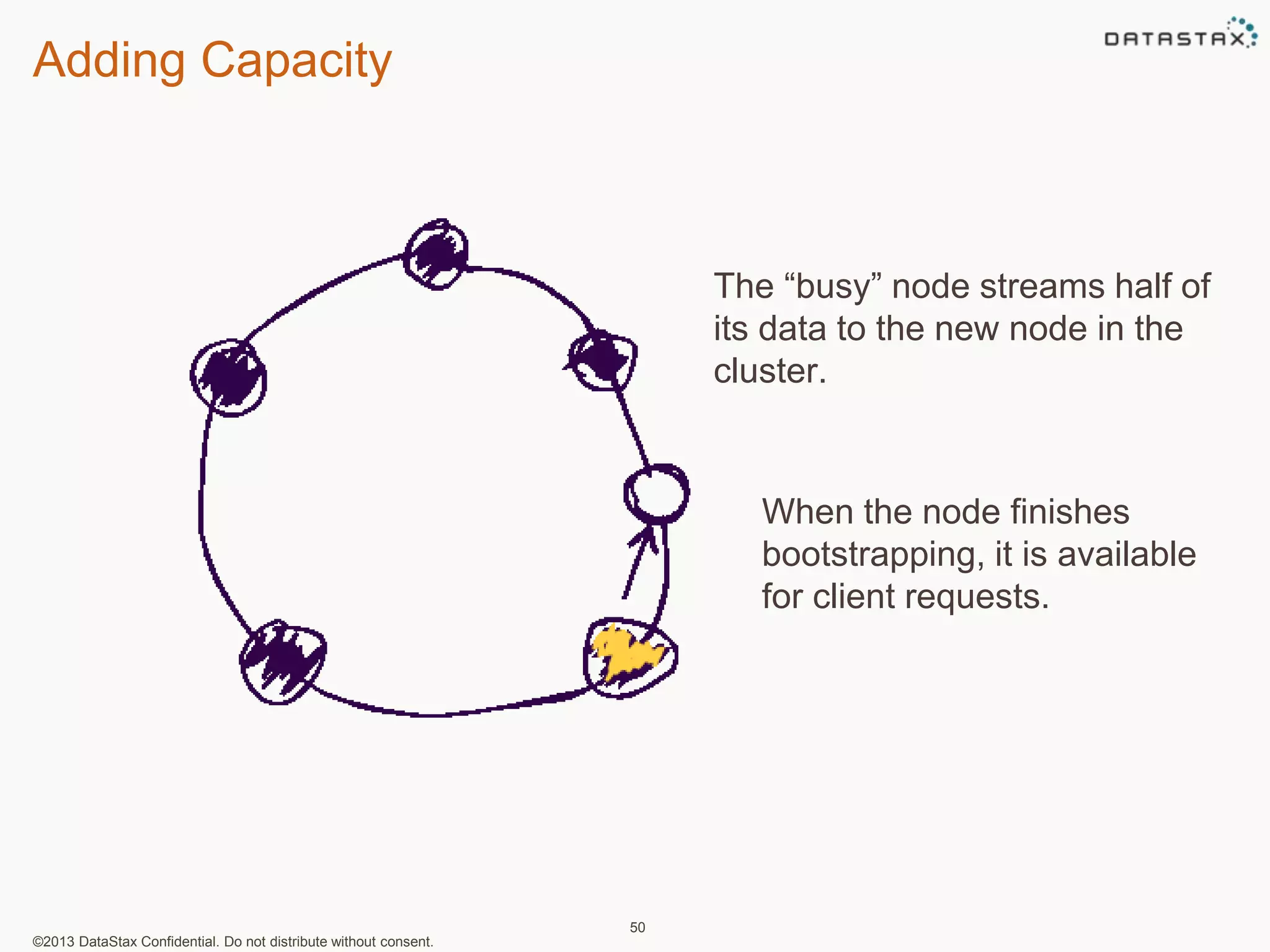

Adding Capacity
50
The “busy” node streams half of
its data to the new node in the
cluster.
When the node finishes
bootstrapping, it is available
for client requests.

Rebalancing a Live Cluster
• Determine new tokens
• Optimize for smallest number of moves
• Optimize for least amount of data transfer
• Move the nodes
For each node that needs to move:
nodetool move new_token
51

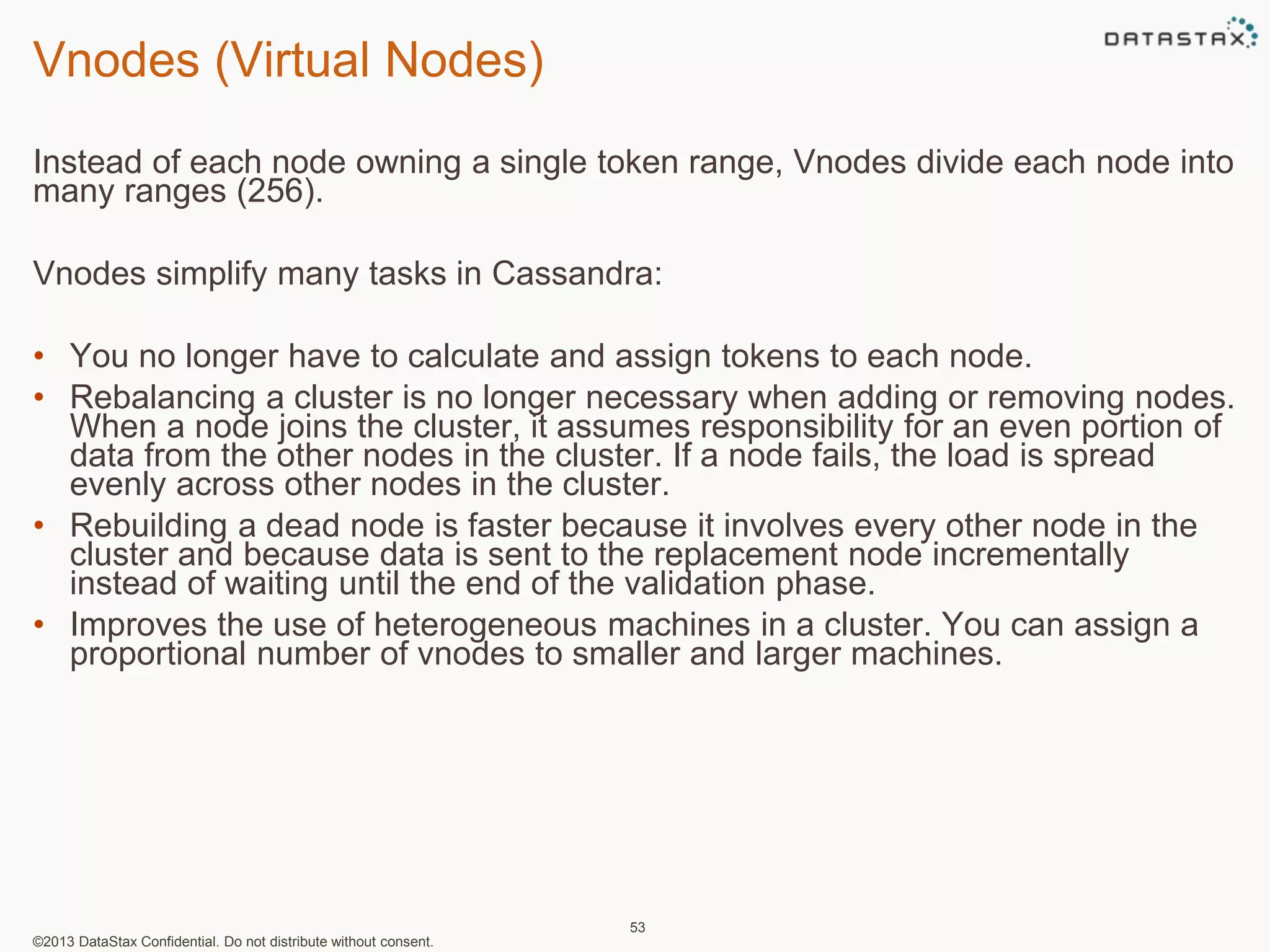

Vnodes (Virtual Nodes)
Instead of each node owning a single token range, Vnodes divide each node into
many ranges (256).
Vnodes simplify many tasks in Cassandra:
• You no longer have to calculate and assign tokens to each node.
• Rebalancing a cluster is no longer necessary when adding or removing nodes.
When a node joins the cluster, it assumes responsibility for an even portion of
data from the other nodes in the cluster. If a node fails, the load is spread
evenly across other nodes in the cluster.
• Rebuilding a dead node is faster because it involves every other node in the
cluster and because data is sent to the replacement node incrementally
instead of waiting until the end of the validation phase.
• Improves the use of heterogeneous machines in a cluster. You can assign a
proportional number of vnodes to smaller and larger machines.
53

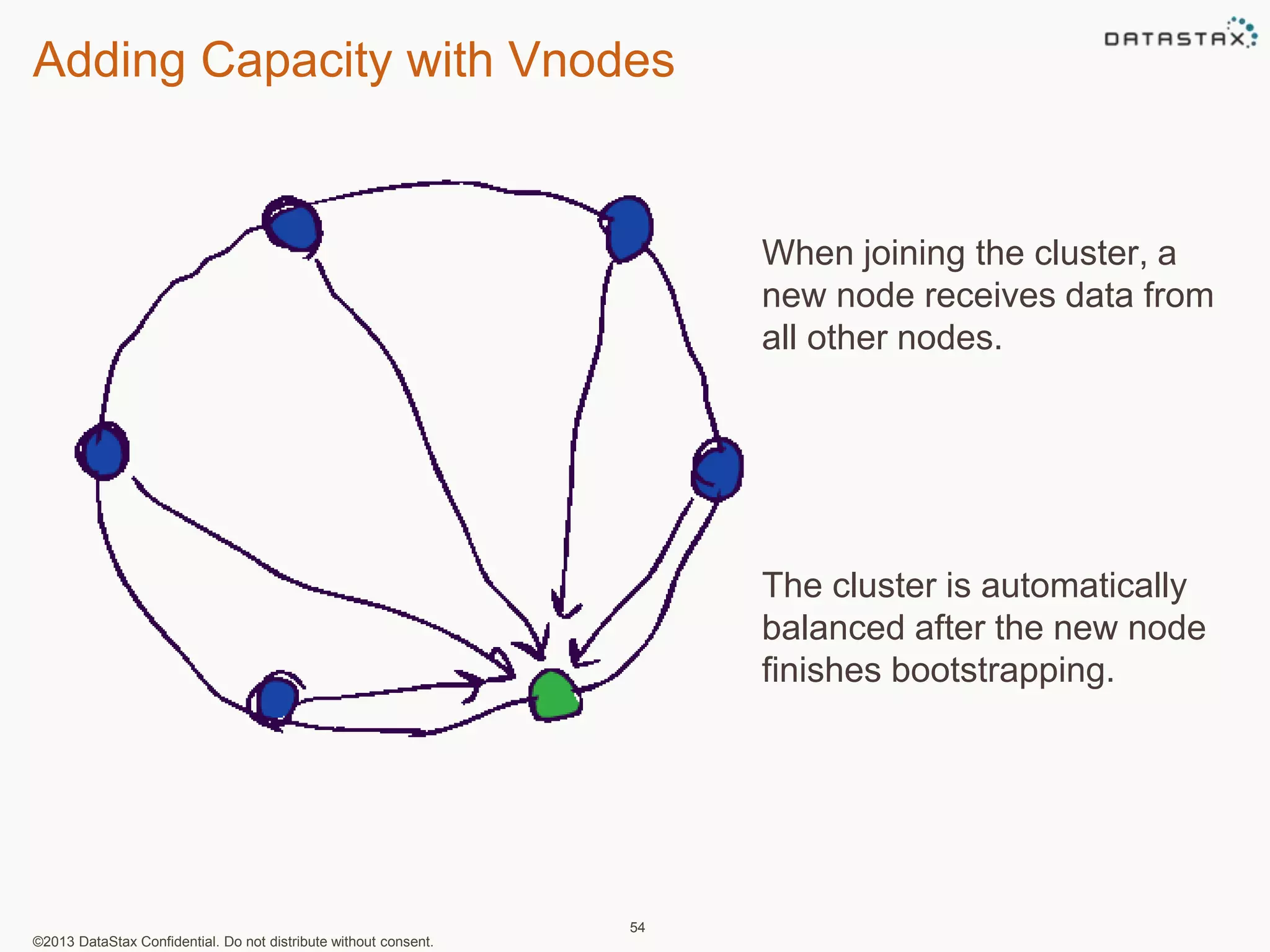

Adding Capacity with Vnodes
54
When joining the cluster, a
new node receives data from
all other nodes.
The cluster is automatically
balanced after the new node
finishes bootstrapping.

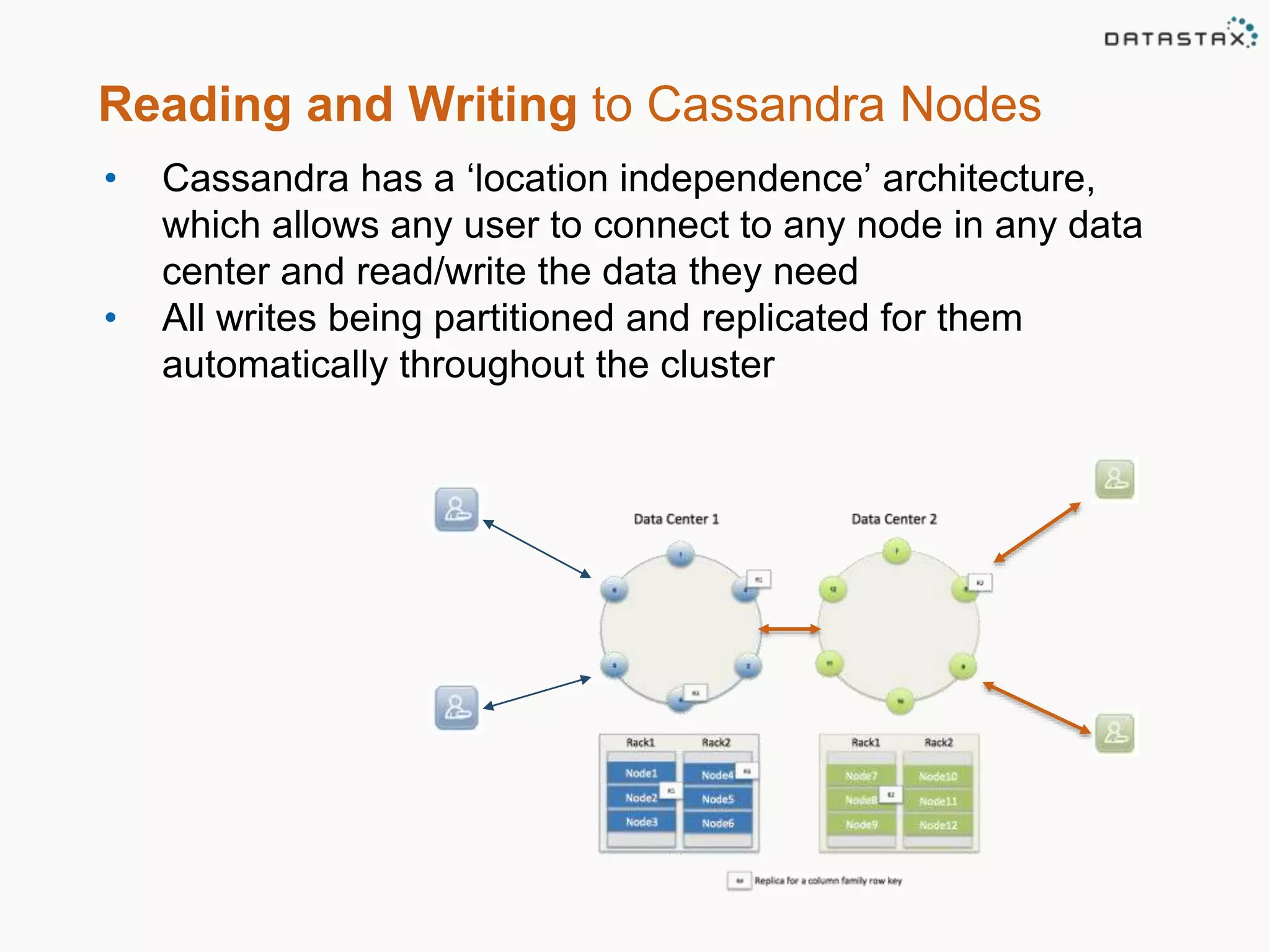

Reading and Writing to Cassandra Nodes
• Cassandra has a ‘location independence’ architecture,
which allows any user to connect to any node in any data
center and read/write the data they need
• All writes being partitioned and replicated for them
automatically throughout the cluster

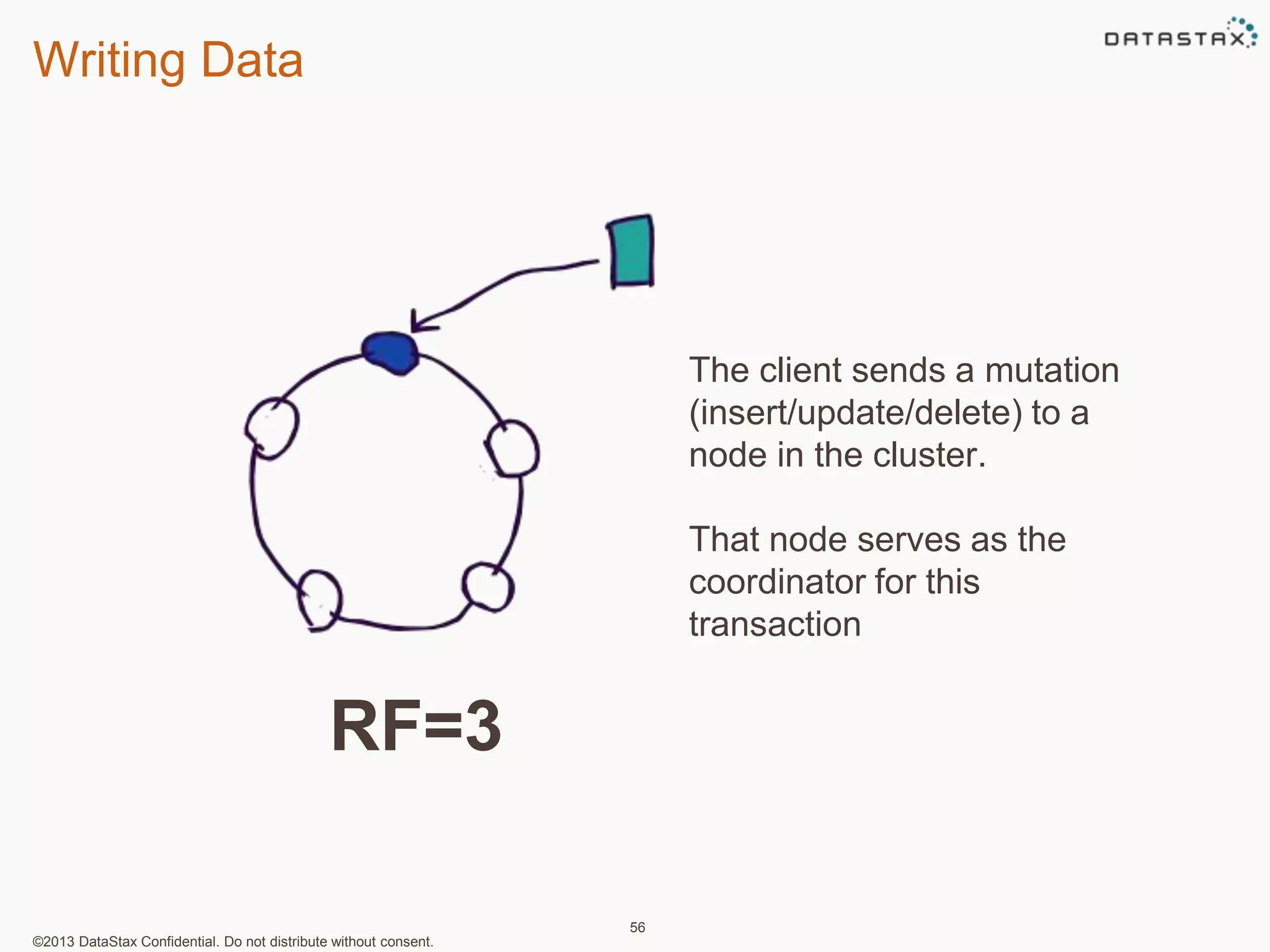

Writing Data
56
The client sends a mutation
(insert/update/delete) to a
node in the cluster.
That node serves as the
coordinator for this
transaction
RF=3

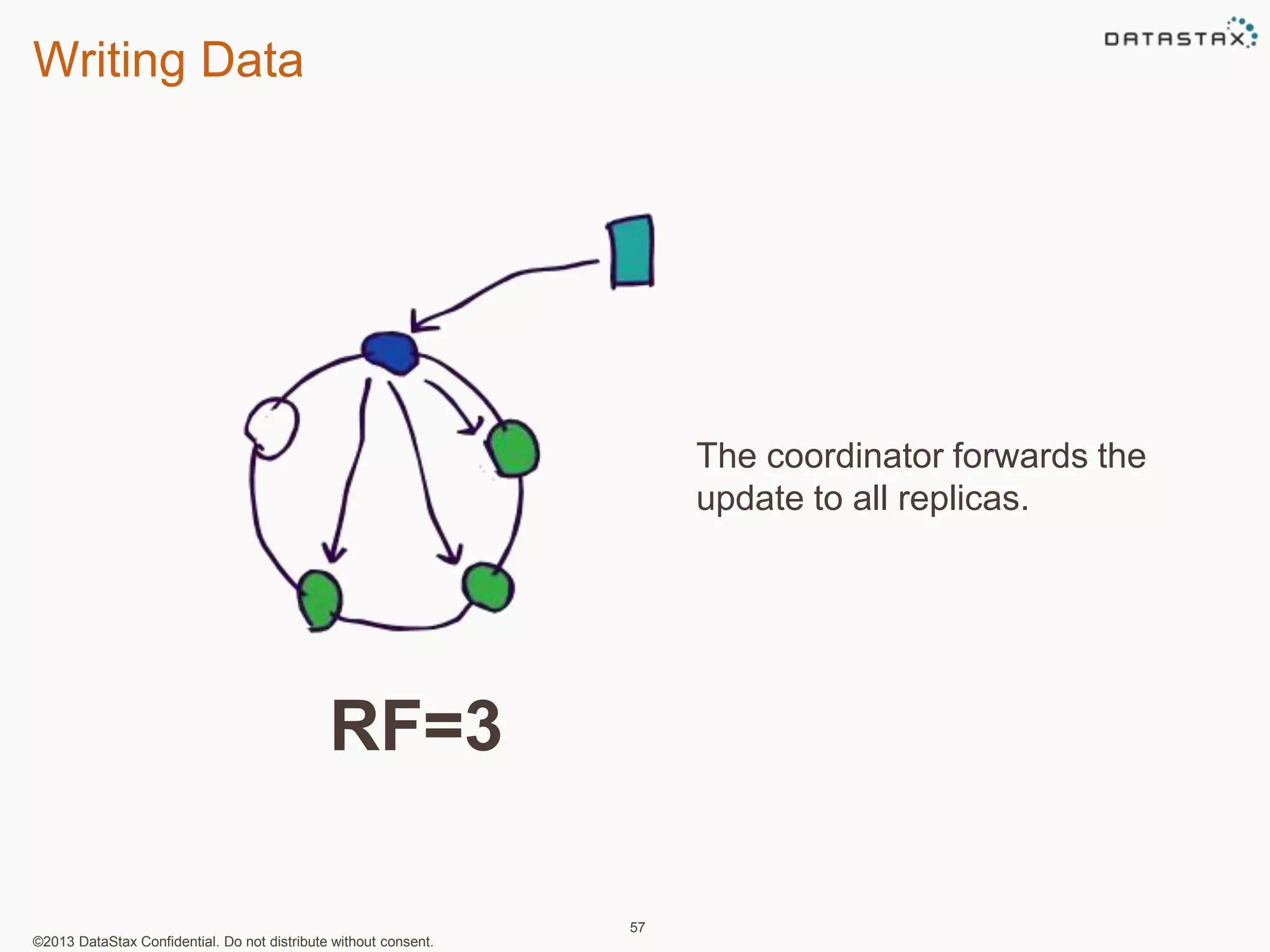

Writing Data
57
The coordinator forwards the
update to all replicas.
RF=3

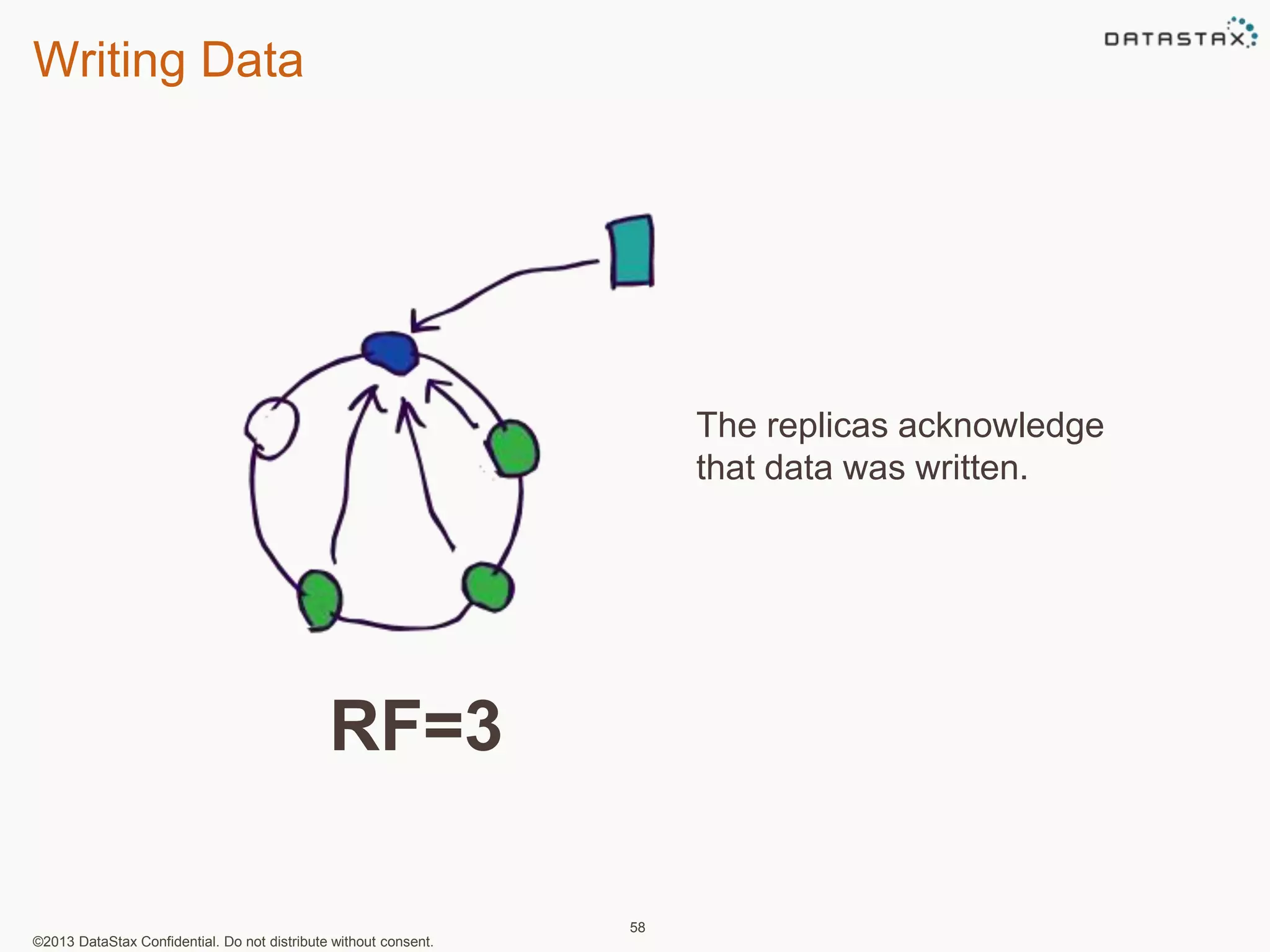

Writing Data
58
The replicas acknowledge
that data was written.
RF=3

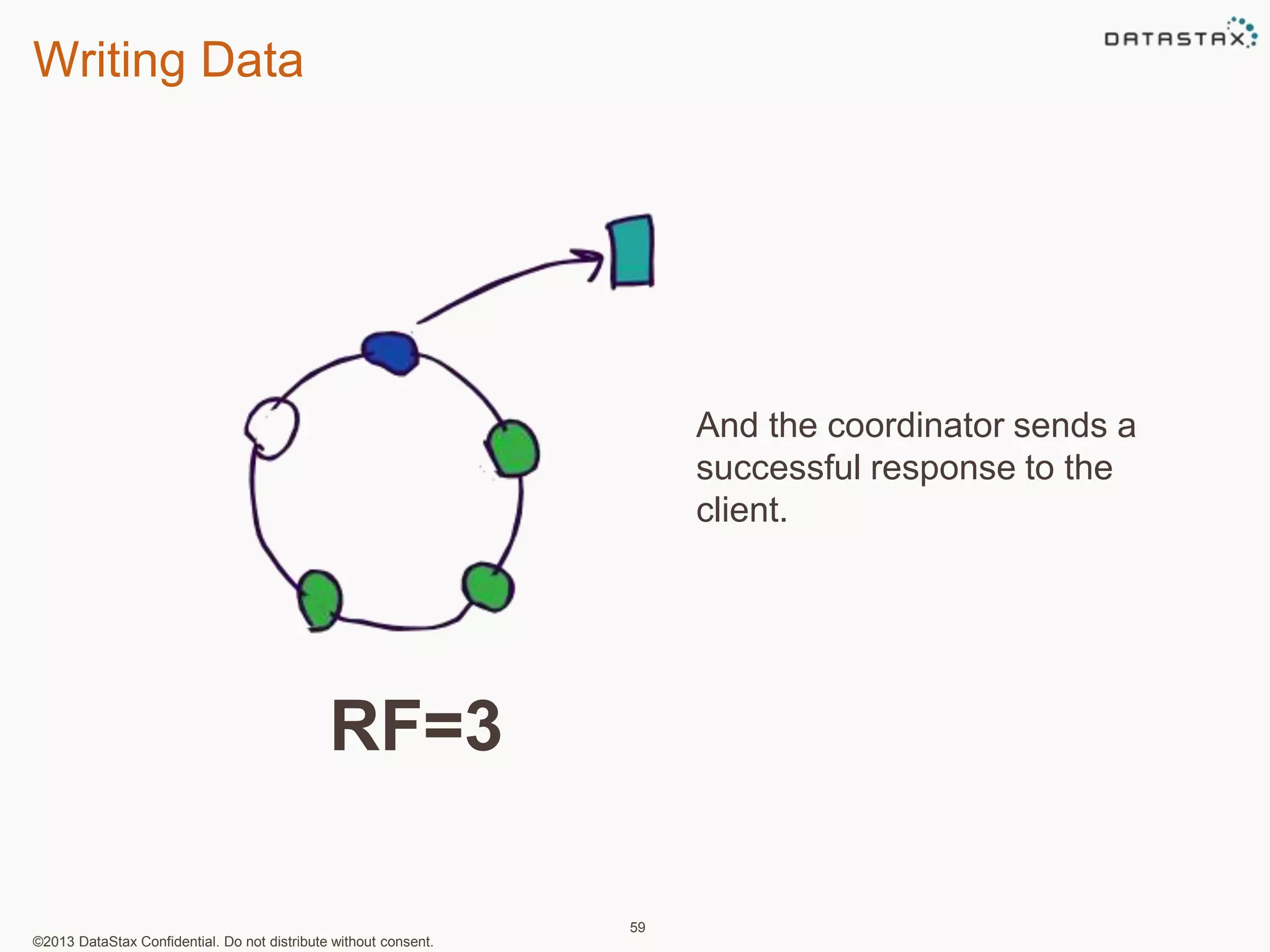

Writing Data
59
And the coordinator sends a
successful response to the
client.
RF=3

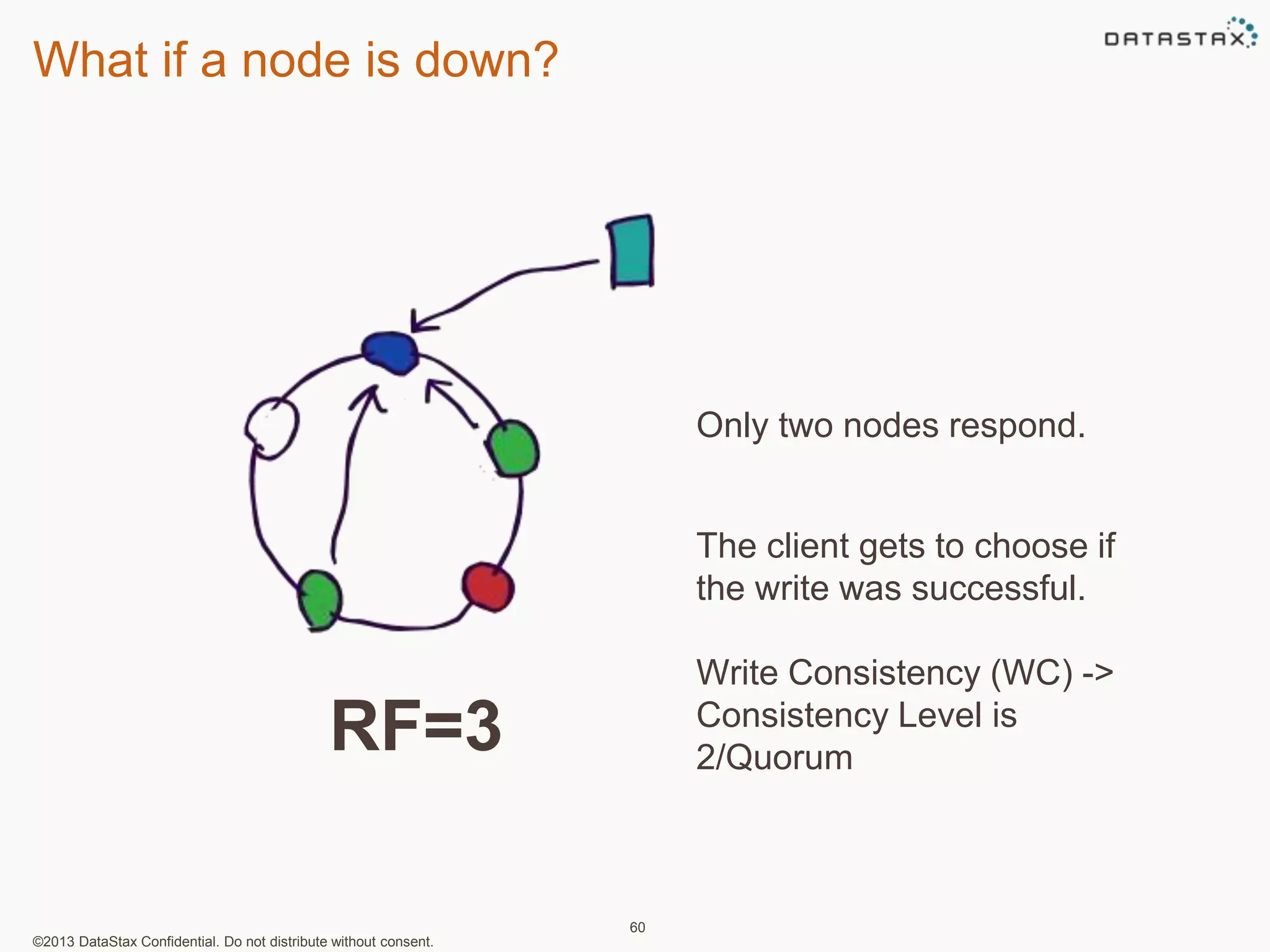

What if a node is down?
60
Only two nodes respond.
The client gets to choose if
the write was successful.
Write Consistency (WC) ->
Consistency Level is
2/Quorum RF=3

Tunable Data Consistency
• Choose between strong and eventual consistency
(one to all responding) depending on the need
• Can be done on a per-operation basis, and for both
reads and writes
• Handles multi-data center operations
Writes
• Any
• One
• Quorum
• Local_Quorum
• Each_Quorum
• All
Reads
• One
• Quorum
• Local_Quorum
• Each_Quorum
• All

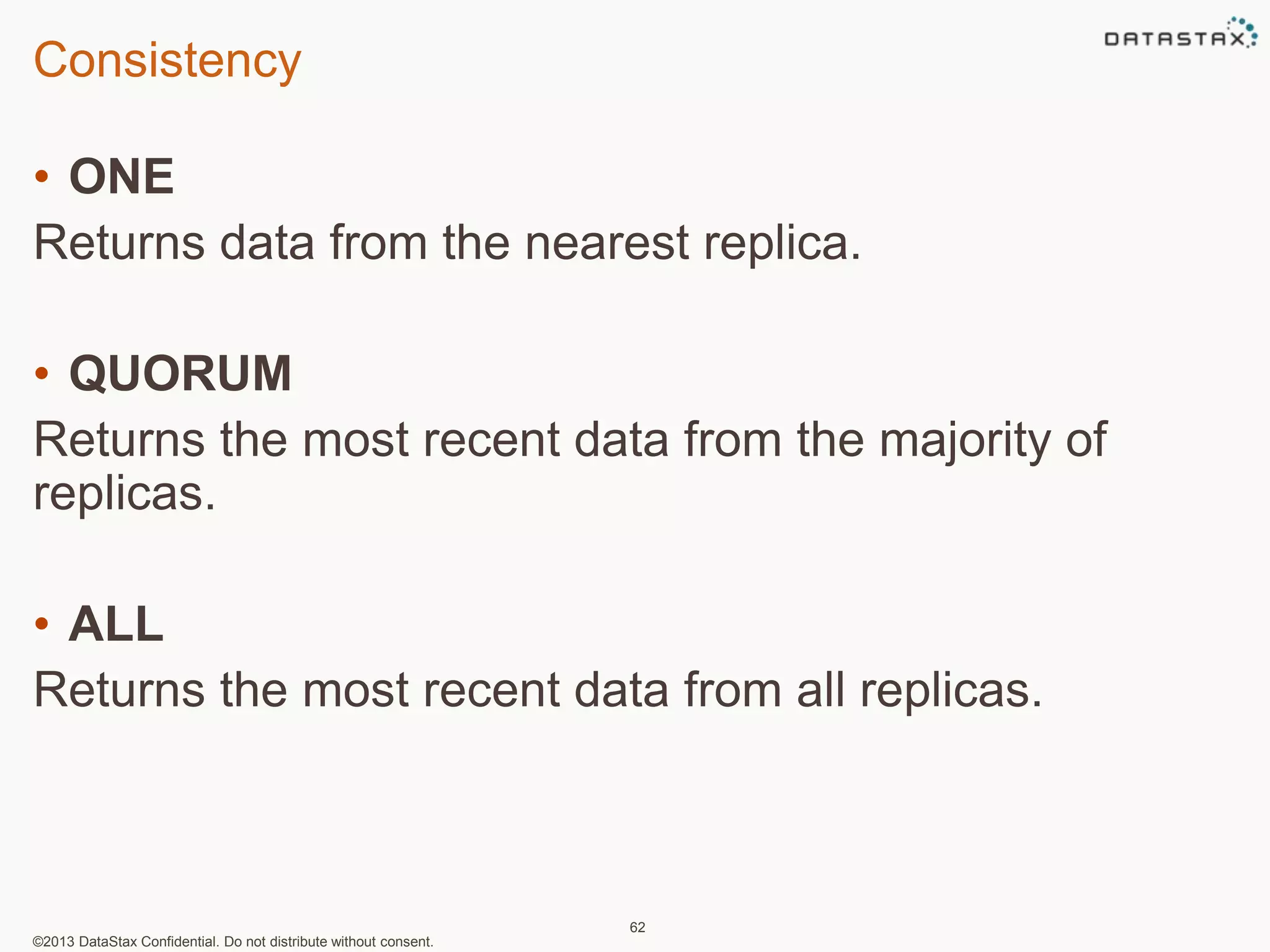

Consistency
• ONE
Returns data from the nearest replica.
• QUORUM
Returns the most recent data from the majority of
replicas.
• ALL
Returns the most recent data from all replicas.
62

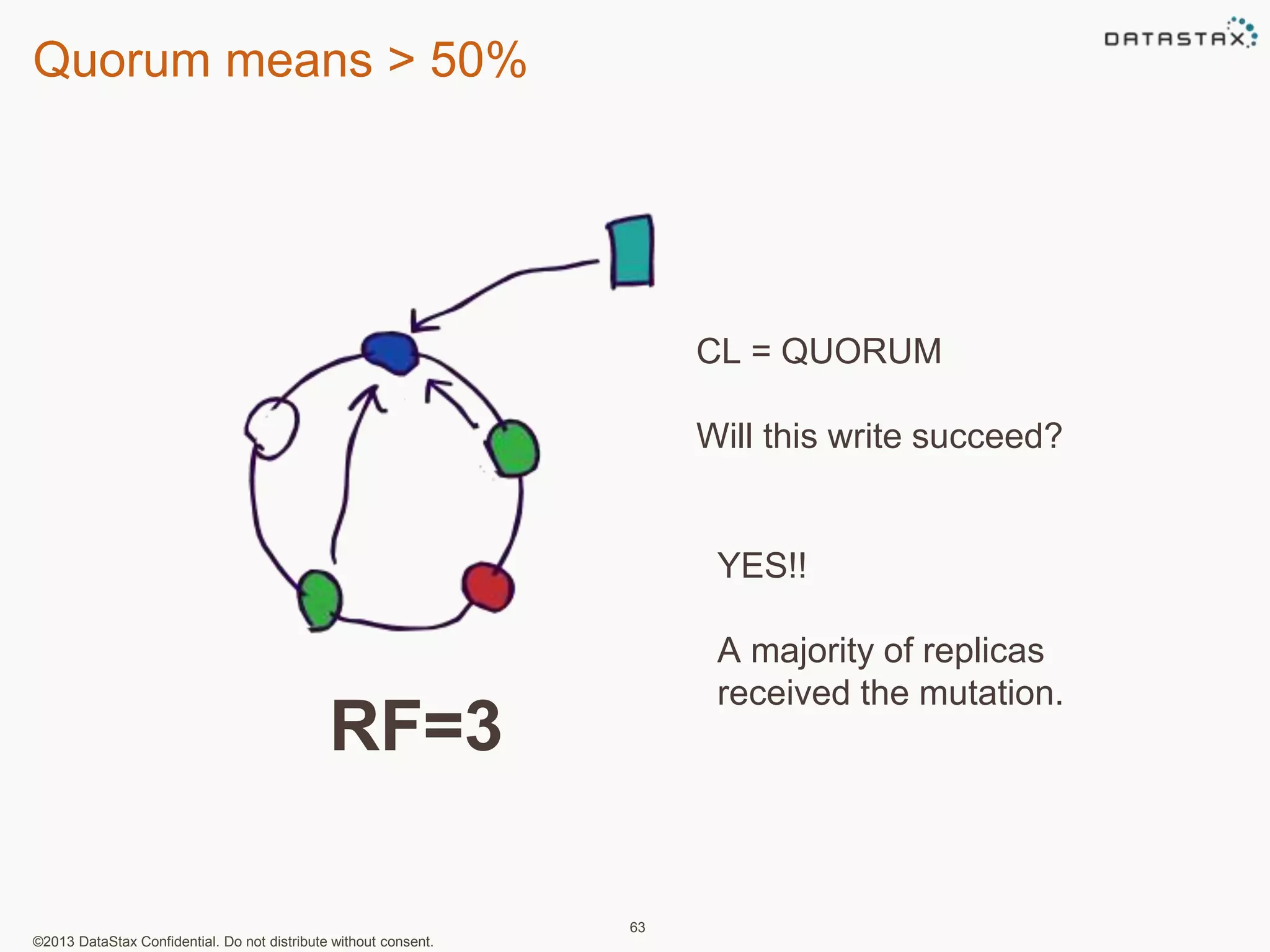

Quorum means > 50%
63
CL = QUORUM
Will this write succeed?
YES!!
A majority of replicas
received the mutation.
RF=3

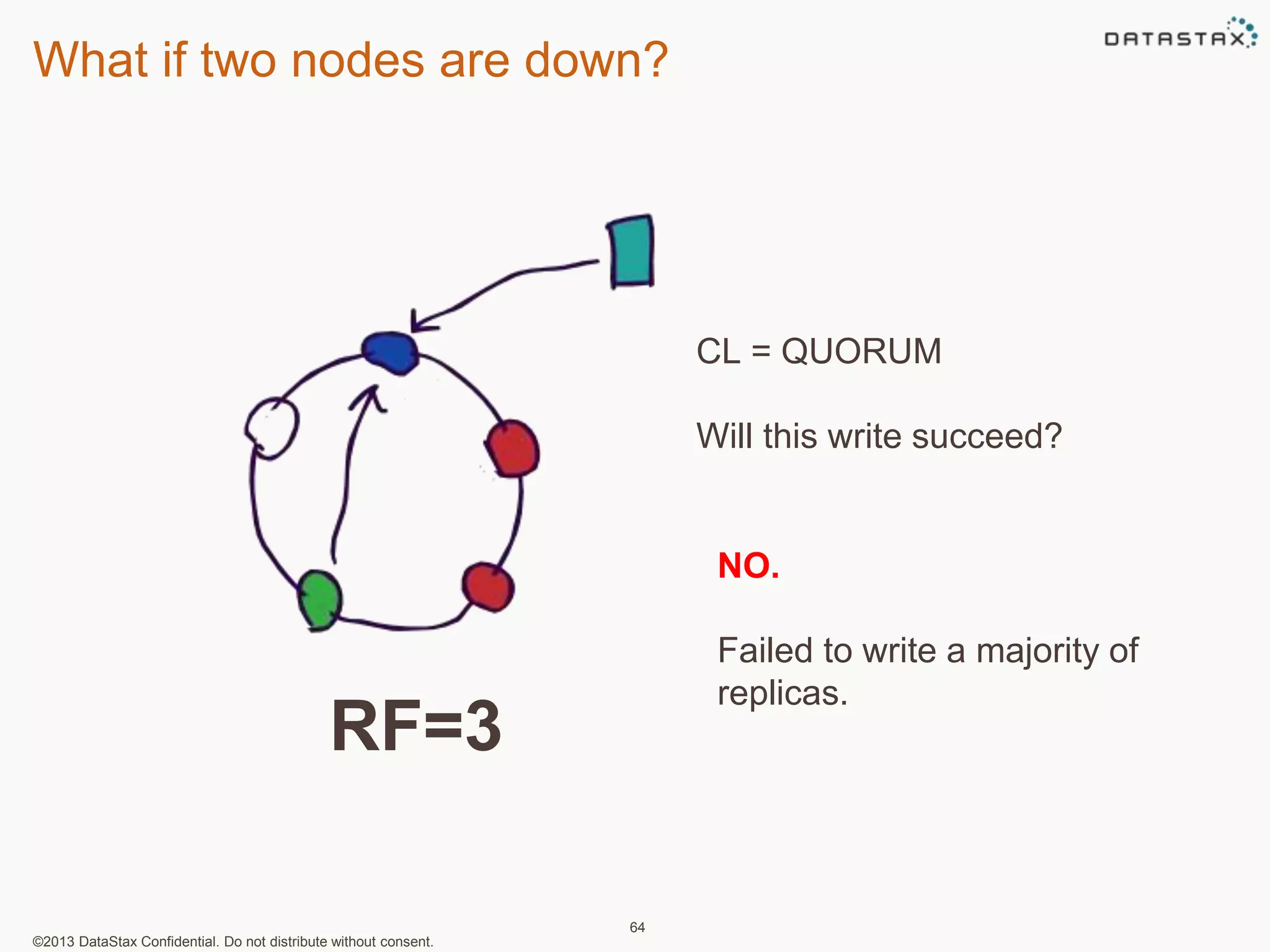

What if two nodes are down?
64
CL = QUORUM
NO.
Failed to write a majority of
replicas.
RF=3

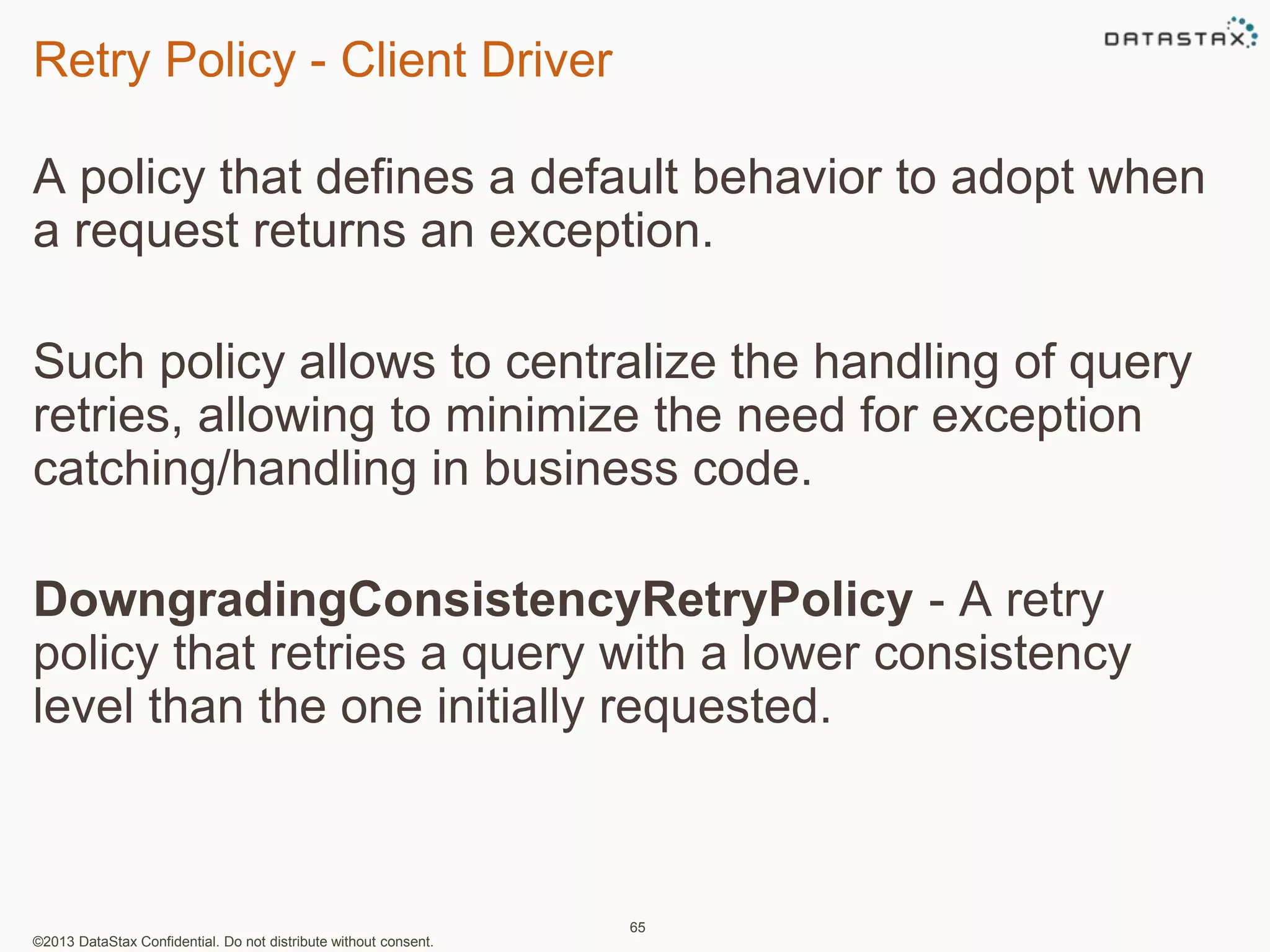

Retry Policy - Client Driver
A policy that defines a default behavior to adopt when
a request returns an exception.
Such policy allows to centralize the handling of query
retries, allowing to minimize the need for exception
catching/handling in business code.
DowngradingConsistencyRetryPolicy - A retry
policy that retries a query with a lower consistency
level than the one initially requested.
65

Load Balancing - Java Driver
• You can define the Load-Balancing Policy in the
client application
66
.addContactPoints("192.168.50.100", "192.168.50.101")
.withLoadBalancingPolicy(new DCAwareRoundRobinPolicy("DC1"))
.withRetryPolicy(DowngradingConsistencyRetryPolicy.INSTANCE)
.build();
session = cluster.connect(keyspace);

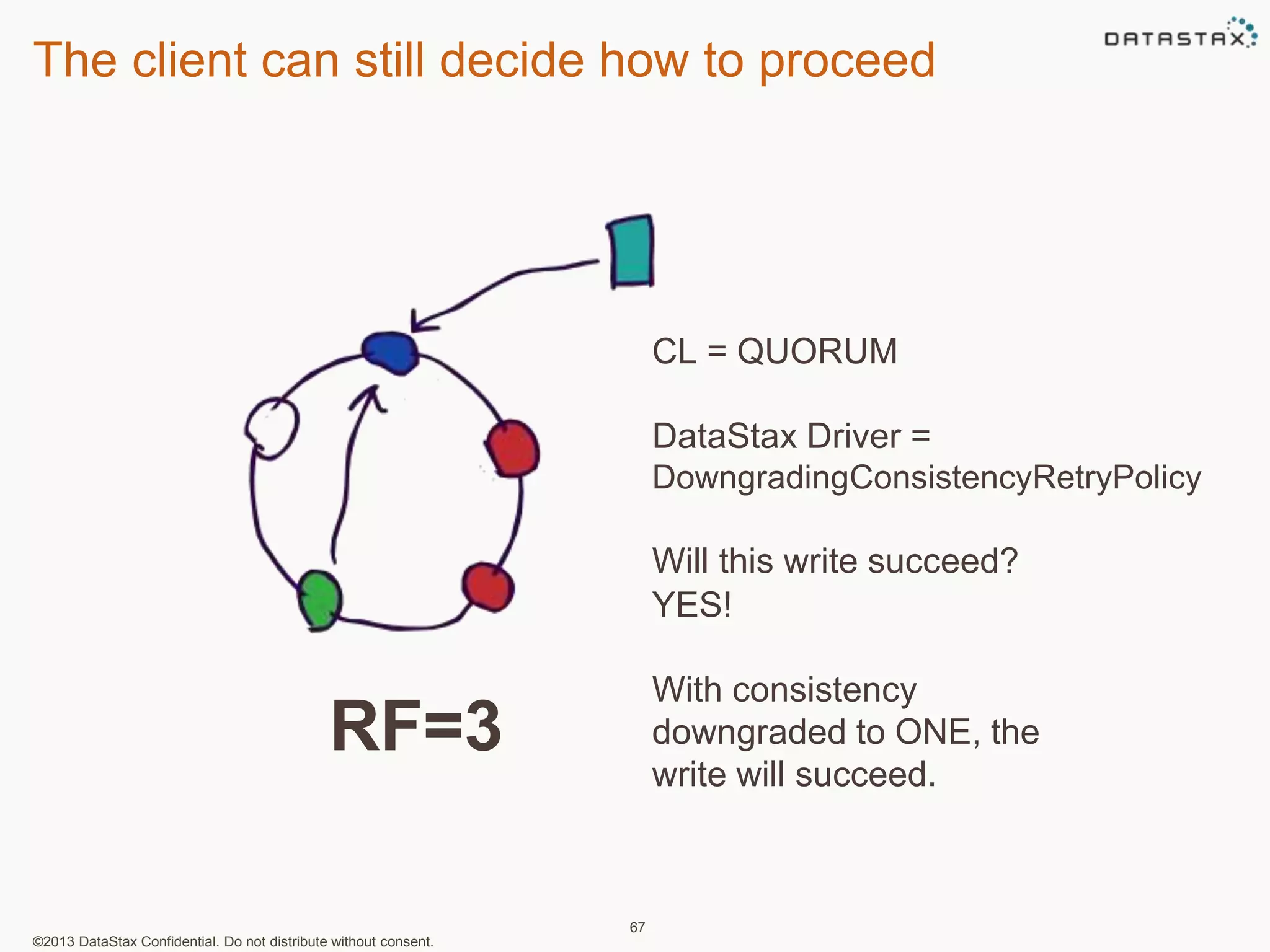

The client can still decide how to proceed
67
CL = QUORUM
DataStax Driver =
DowngradingConsistencyRetryPolicy
YES!
With consistency
downgraded to ONE, the
write will succeed.
RF=3

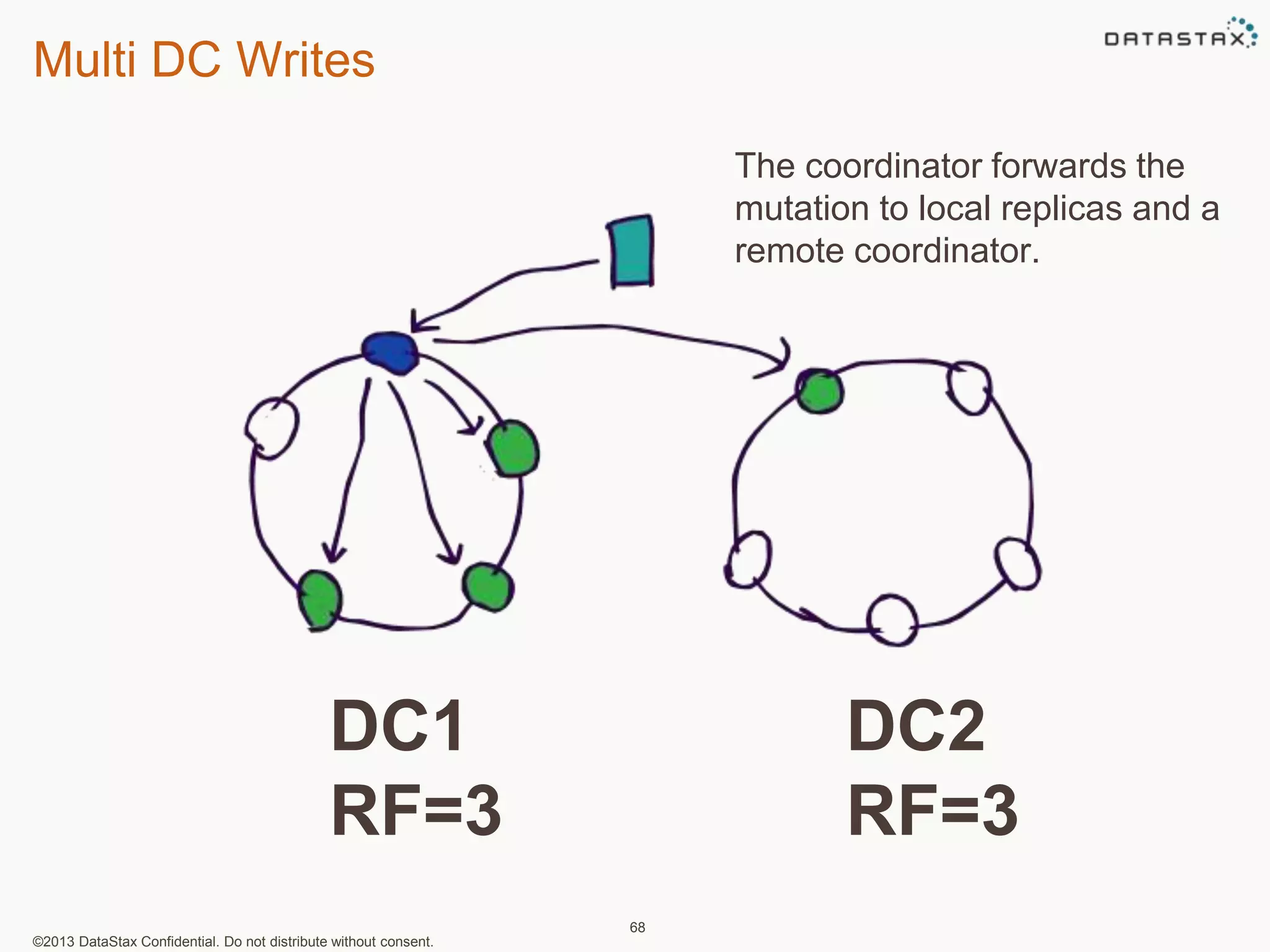

Multi DC Writes
68
DC1
RF=3
mutation to local replicas and a
remote coordinator.
DC2
RF=3

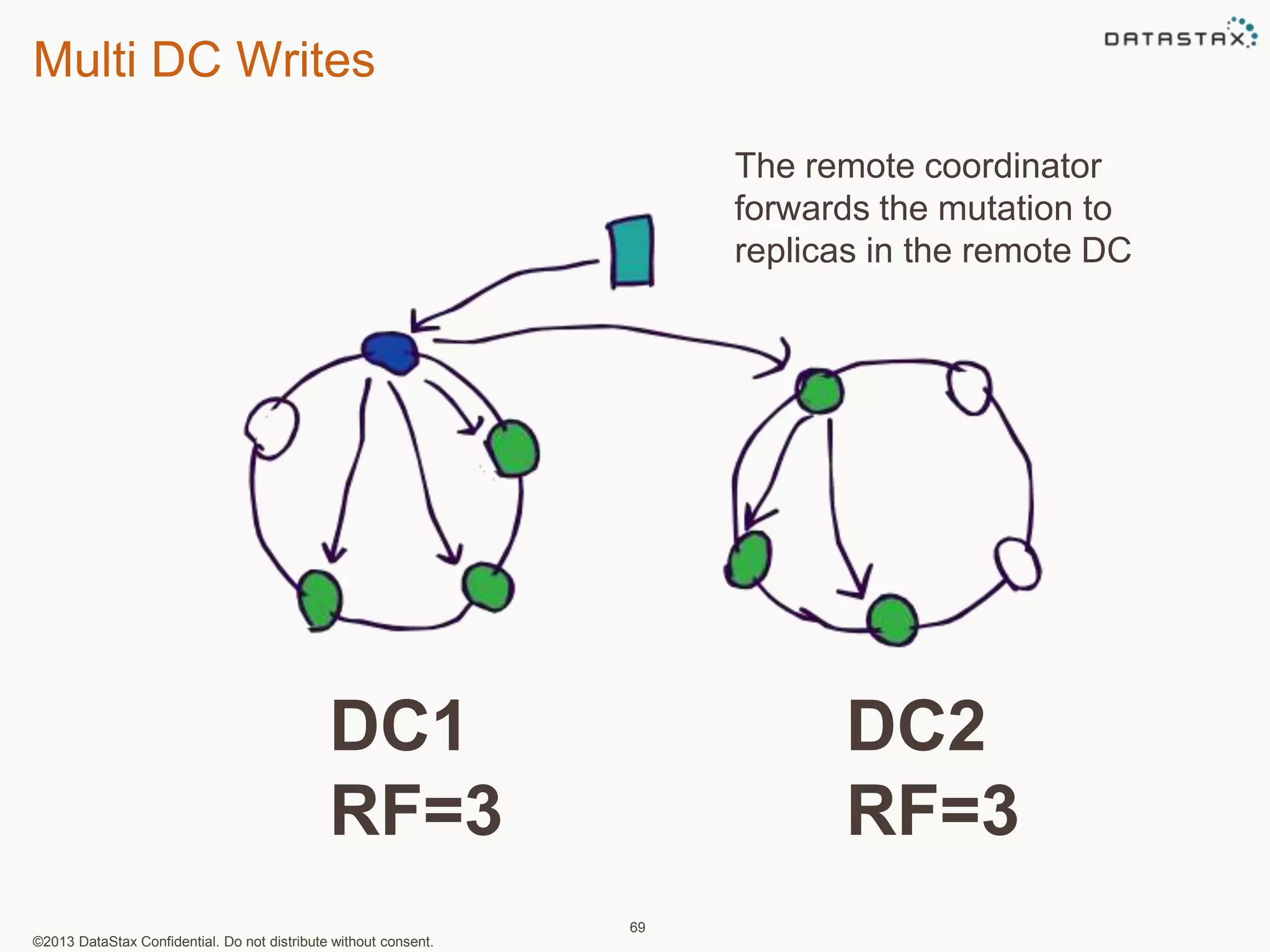

Multi DC Writes
69
DC1
RF=3
The remote coordinator
forwards the mutation to
replicas in the remote DC
DC2
RF=3

Multi DC Writes
70
DC1
RF=3
All replicas acknowledge the
write.
DC2
RF=3

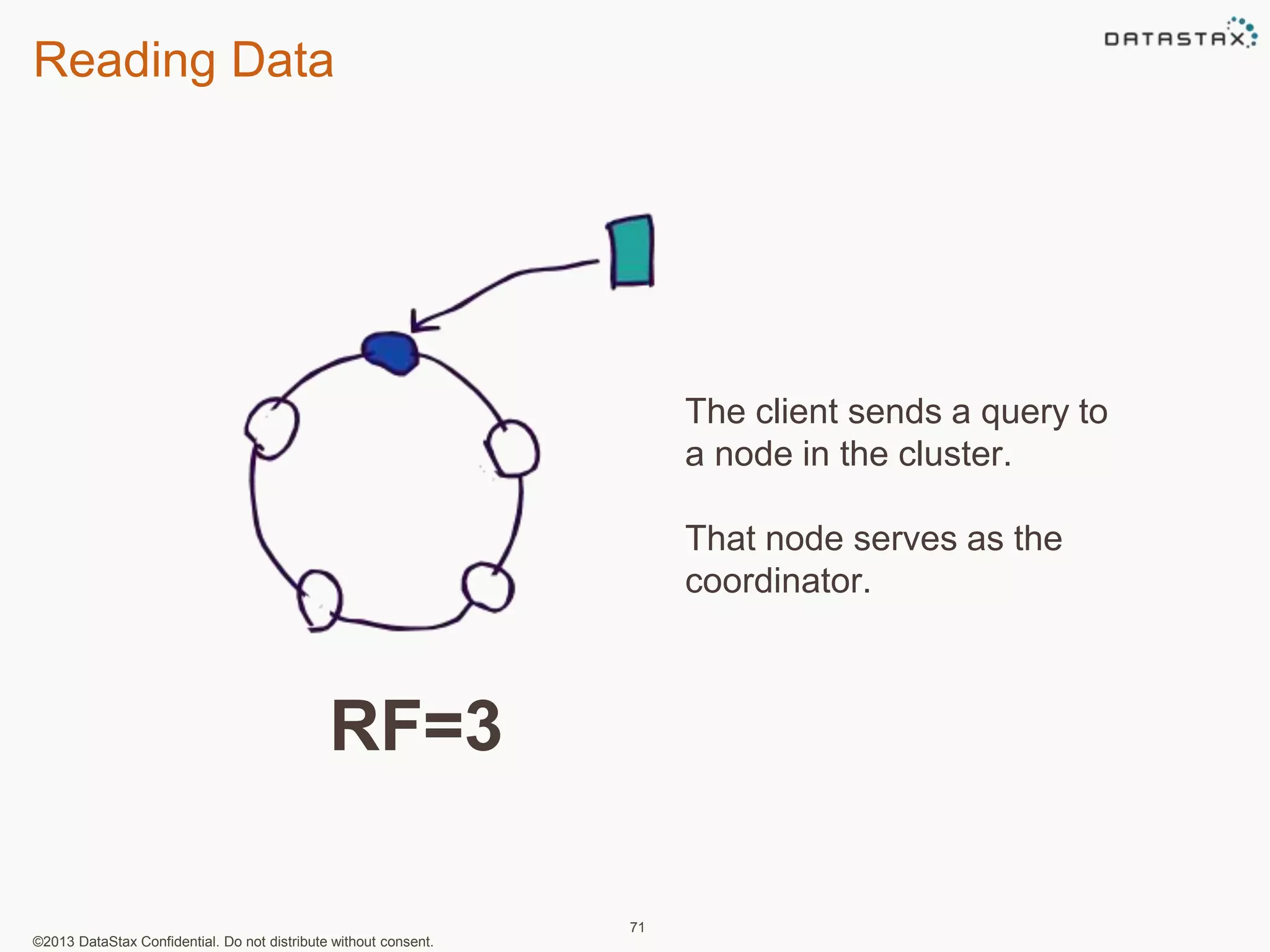

Reading Data
71
The client sends a query to
a node in the cluster.
That node serves as the
coordinator.
RF=3

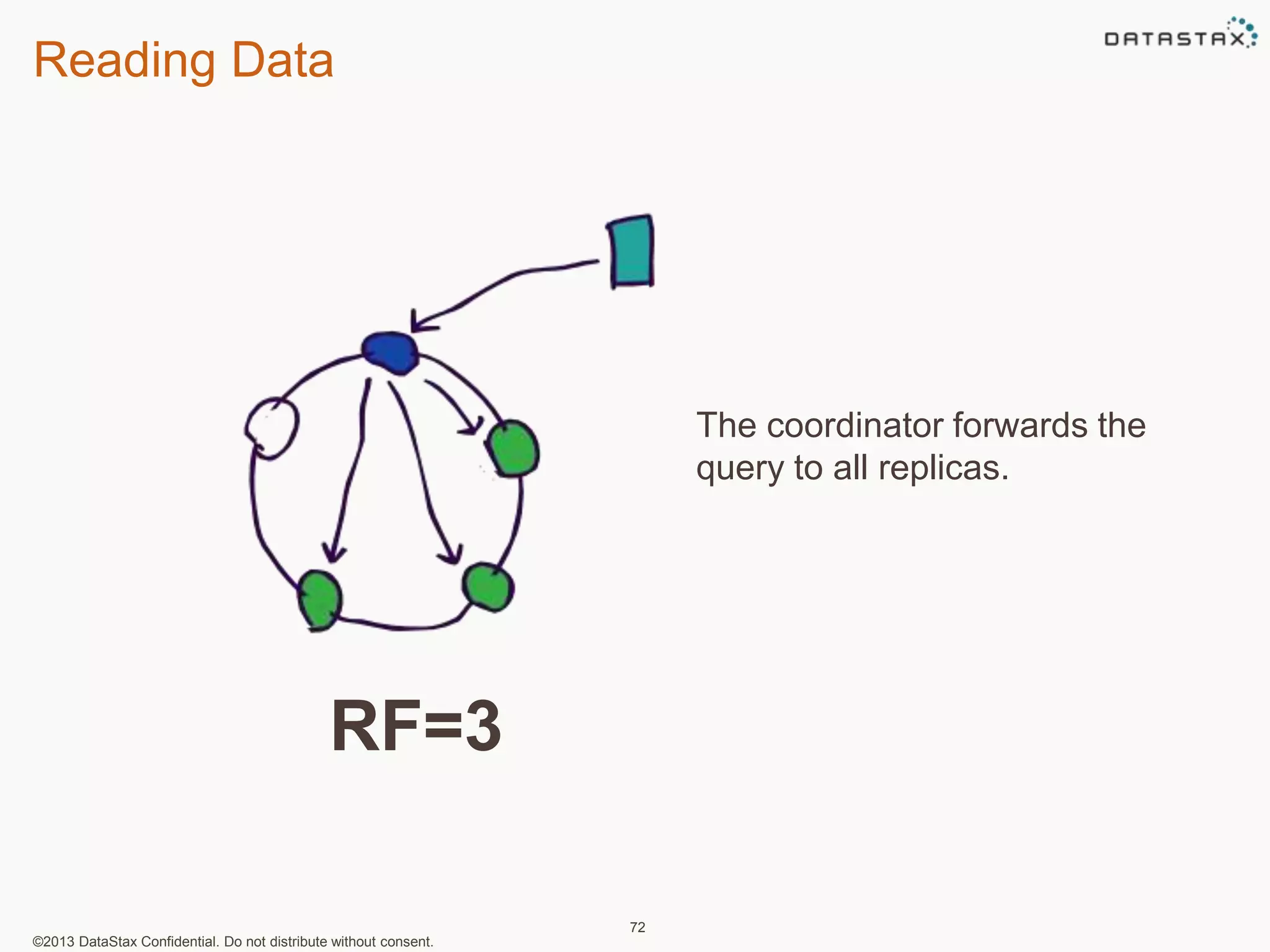

Reading Data
72
query to all replicas.
RF=3

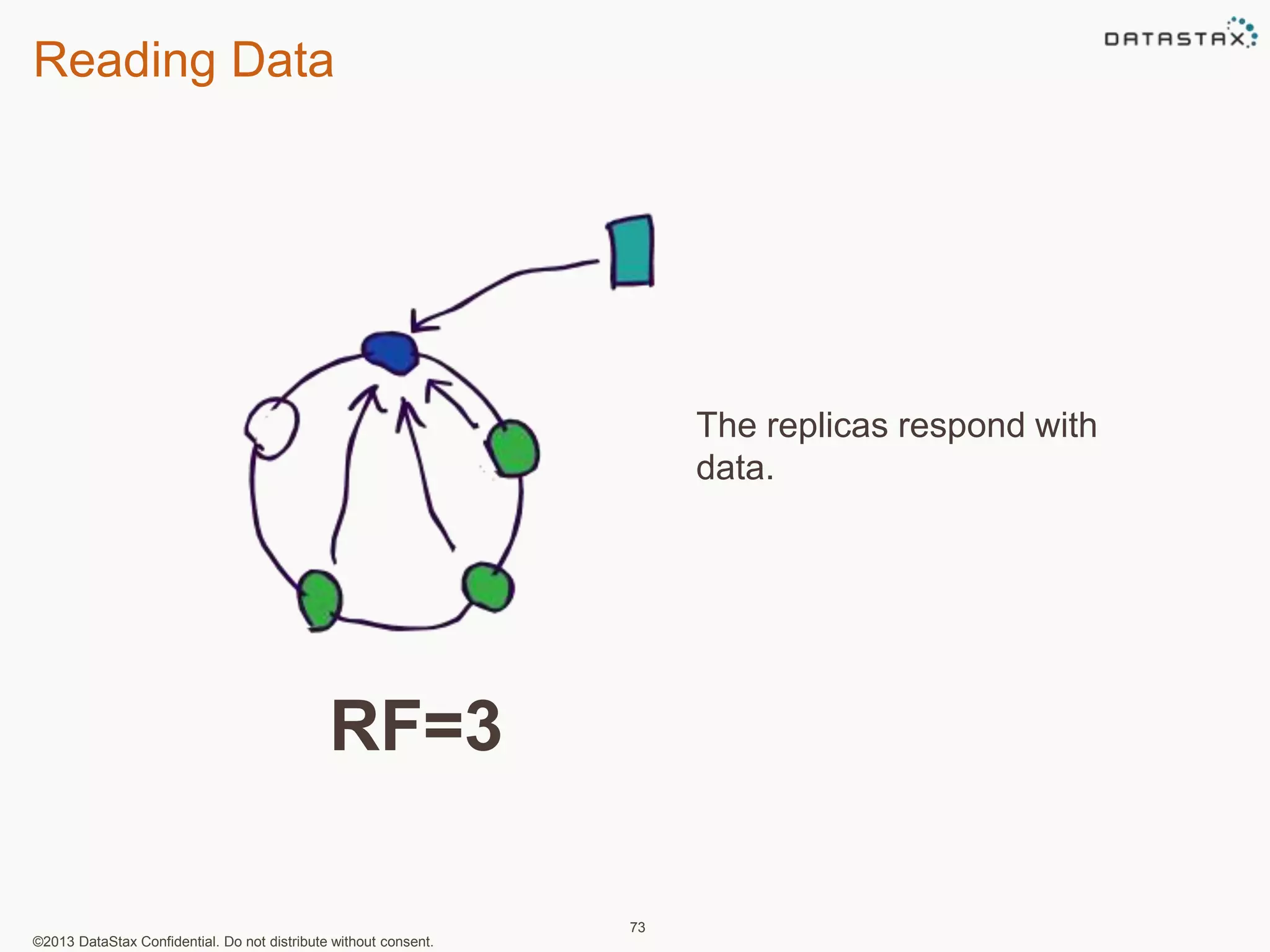

Reading Data
73
The replicas respond with
data.
RF=3

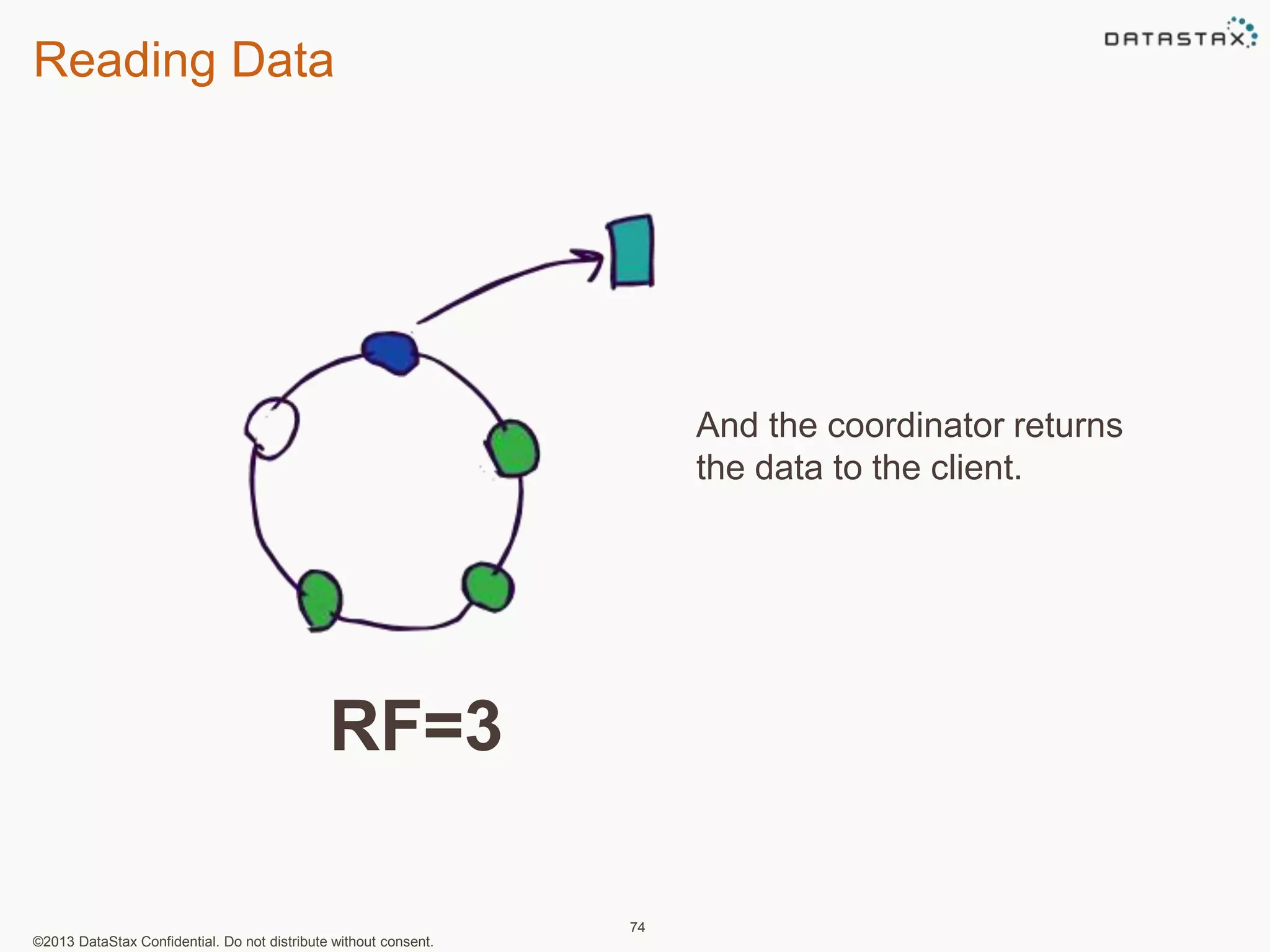

Reading Data
74
And the coordinator returns
the data to the client.
RF=3

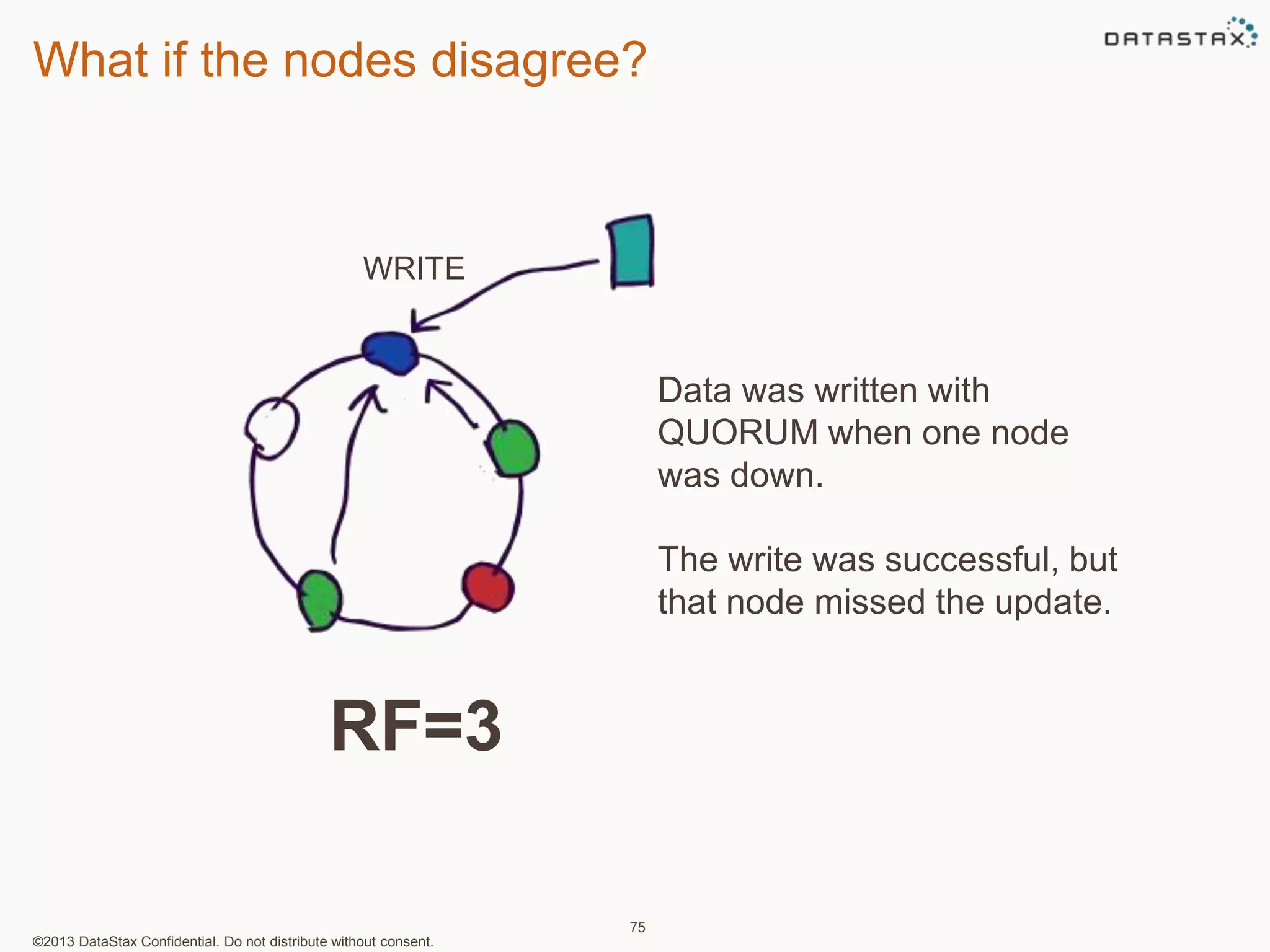

What if the nodes disagree?
WRITE
75
Data was written with
QUORUM when one node
was down.
The write was successful, but
that node missed the update.
RF=3

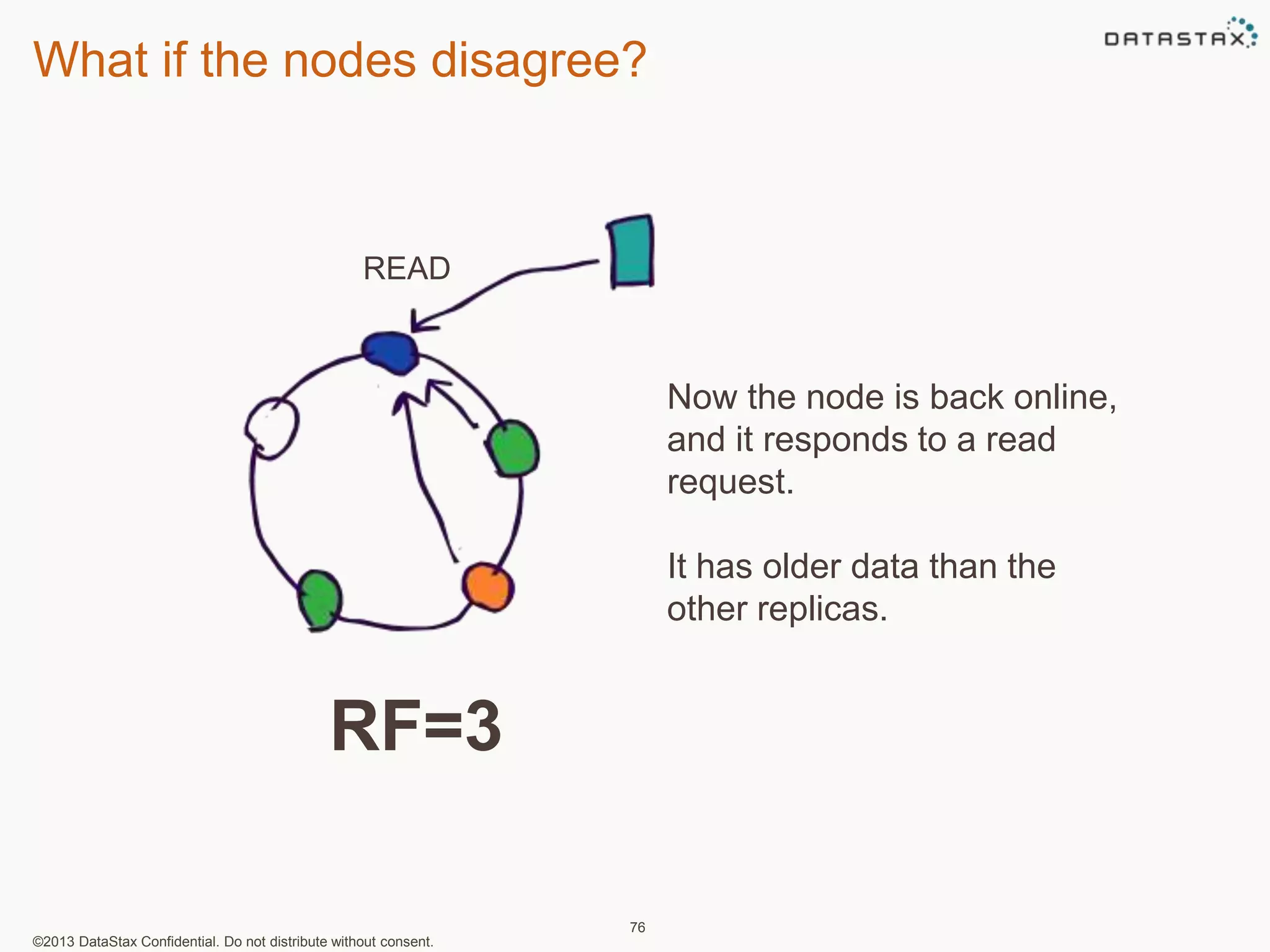

READ
76
Now the node is back online,
and it responds to a read
request.
It has older data than the
other replicas.
RF=3

NEWEST
77
The coordinator resolves the
discrepancy and sends the
newest data to the client.
READ REPAIR
The coordinator also notifies
the “out of date” node that it
has old data.
The “out of date” node
receives updated data from
RF=3 another replica.

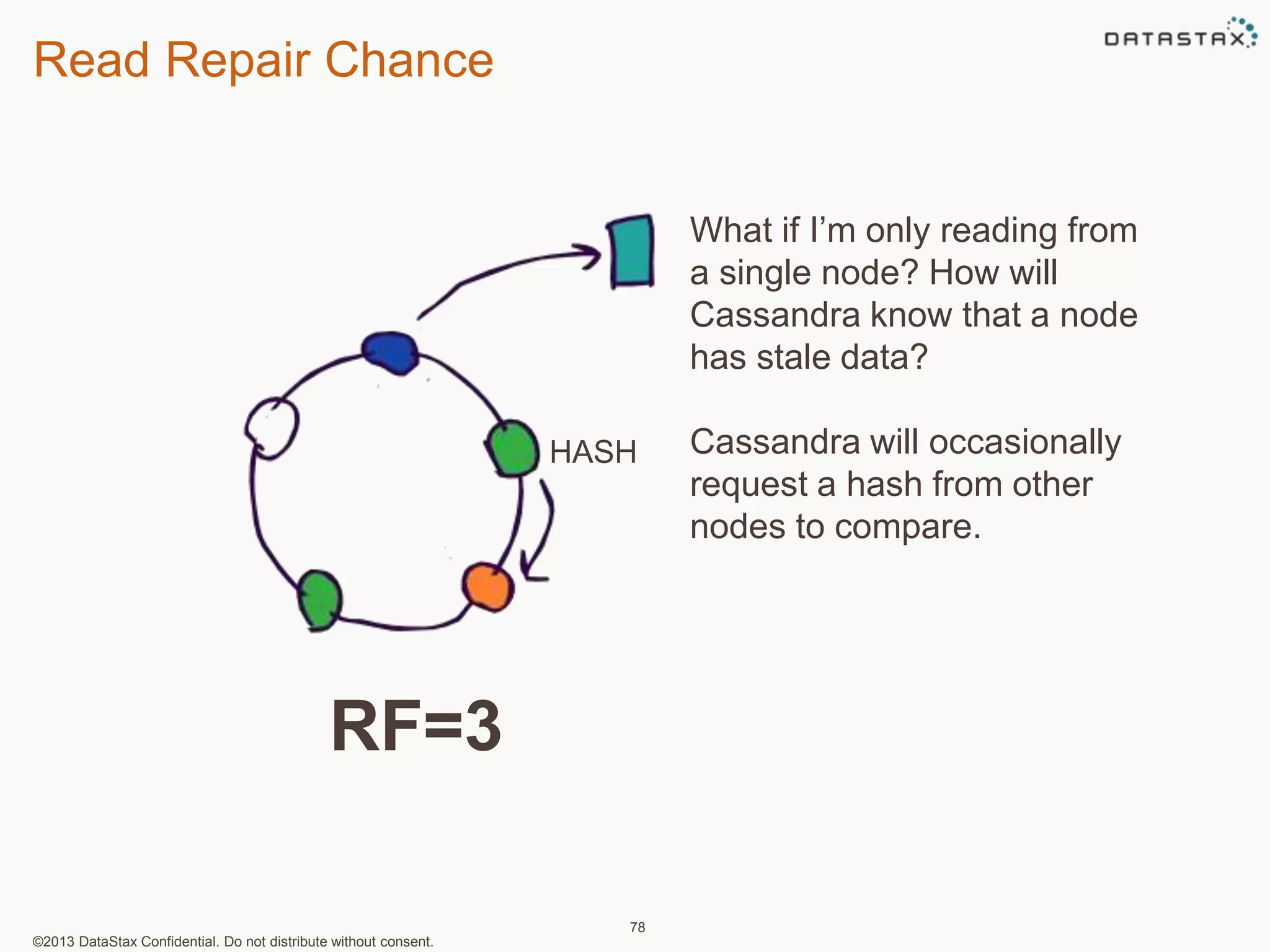

Read Repair Chance
78
What if I’m only reading from
a single node? How will
Cassandra know that a node
has stale data?
Cassandra will occasionally
request a hash from other
nodes to compare.
RF=3
HASH

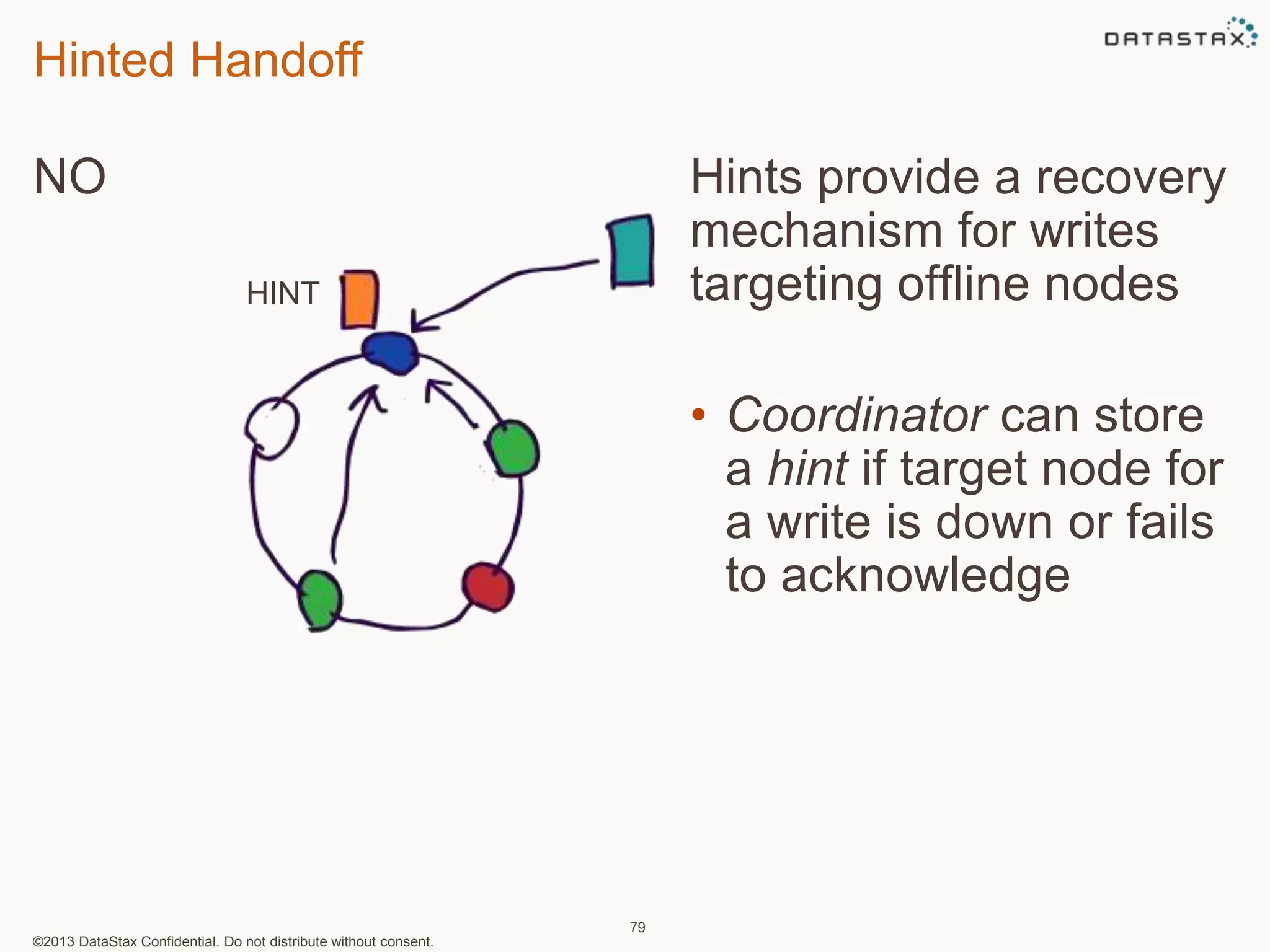

Hinted Handoff
NO
79
HINT
Hints provide a recovery
mechanism for writes
targeting offline nodes
• Coordinator can store
a hint if target node for
a write is down or fails
to acknowledge

Hinted Handoff
80
HINT
The write is replayed
when the target node
comes online

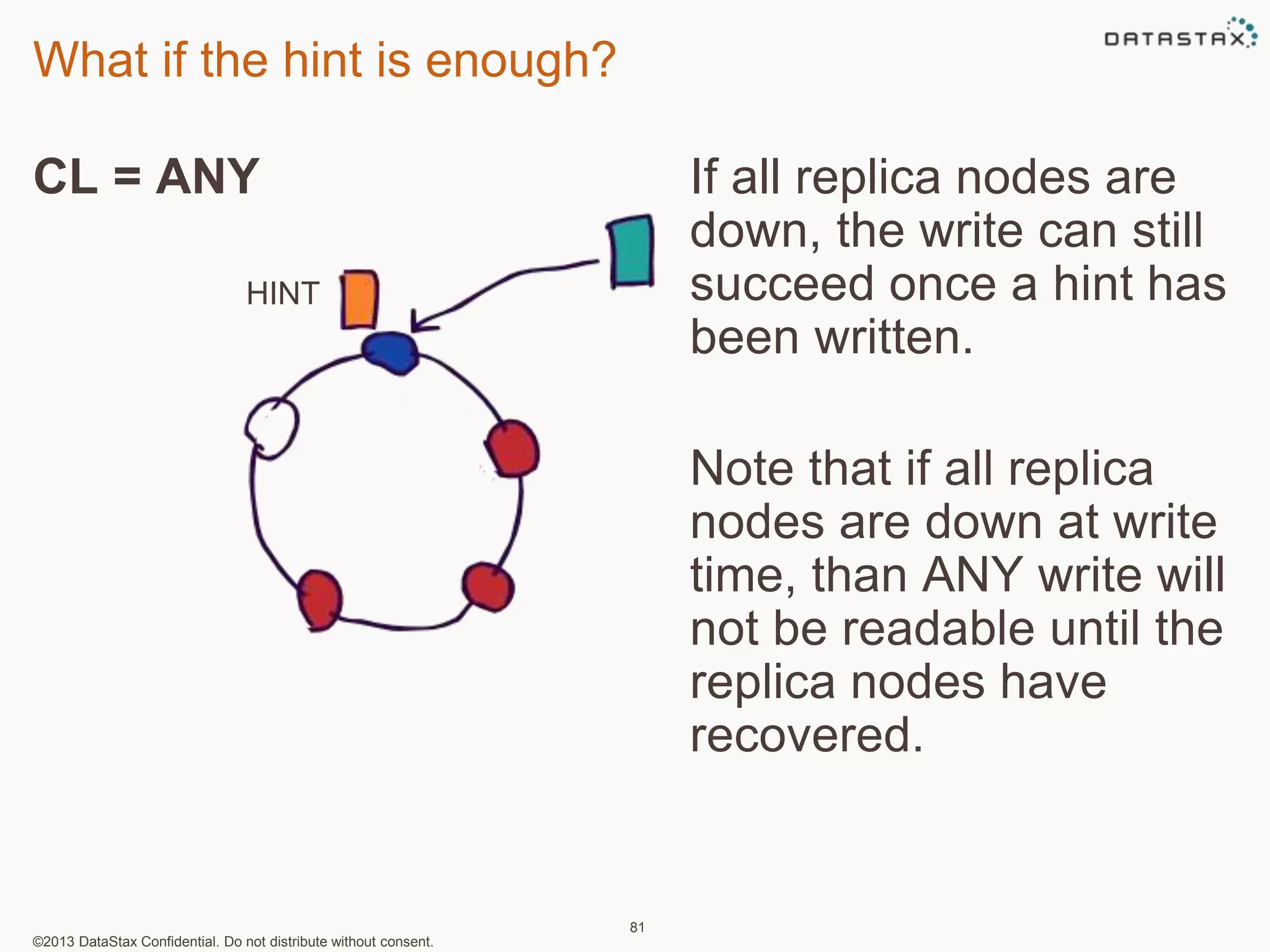

What if the hint is enough?
CL = ANY
81
HINT
If all replica nodes are
down, the write can still
succeed once a hint has
been written.
Note that if all replica
nodes are down at write
time, than ANY write will
not be readable until the
replica nodes have
recovered.

Rapid Read Protection
82
During a read, does the
coordinator really forward
the query to all replicas?
That seems unnecessary!
RF=3

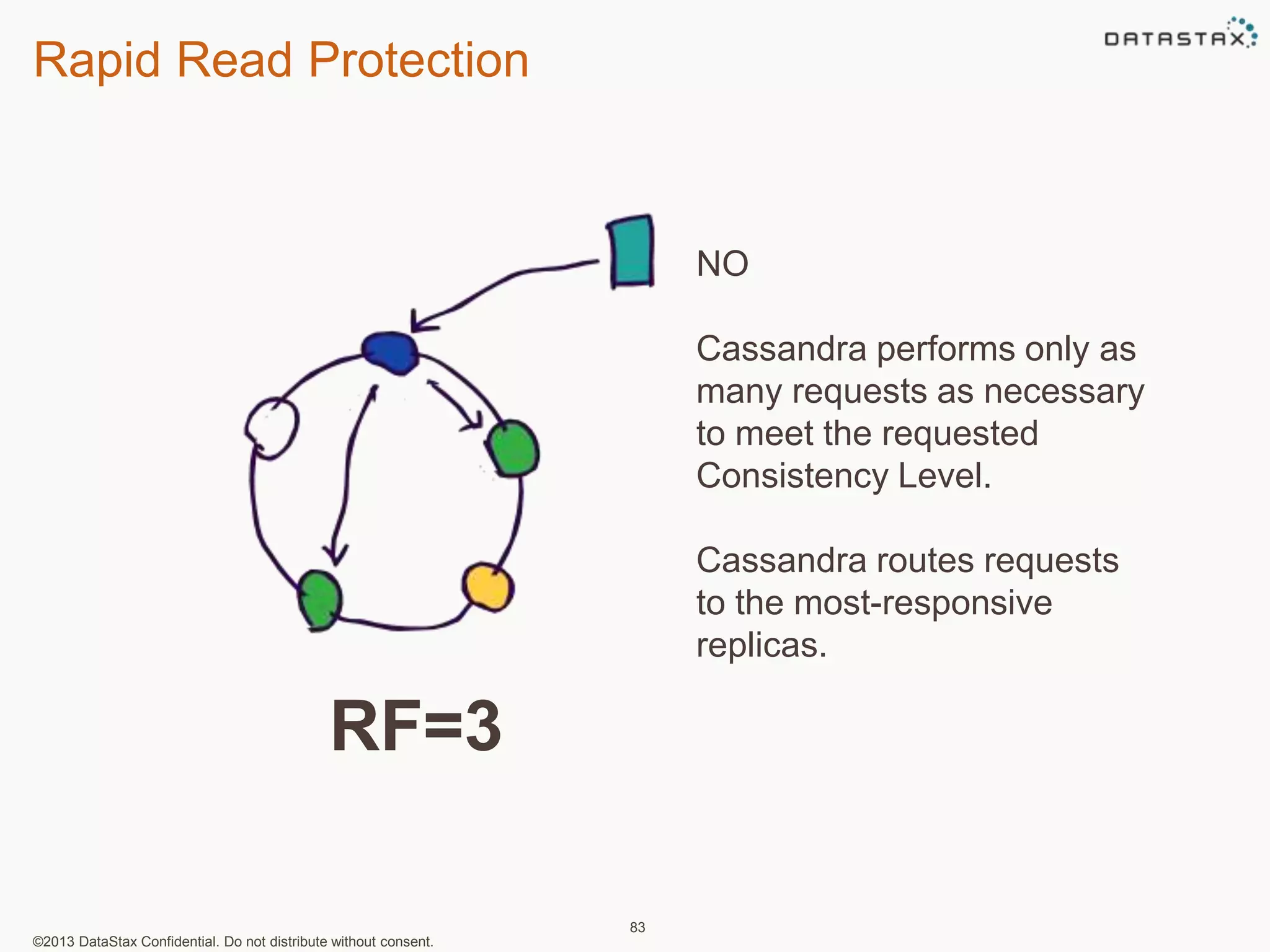

83
NO
Cassandra performs only as
many requests as necessary
to meet the requested
Consistency Level.
Cassandra routes requests
to the most-responsive
replicas.
RF=3

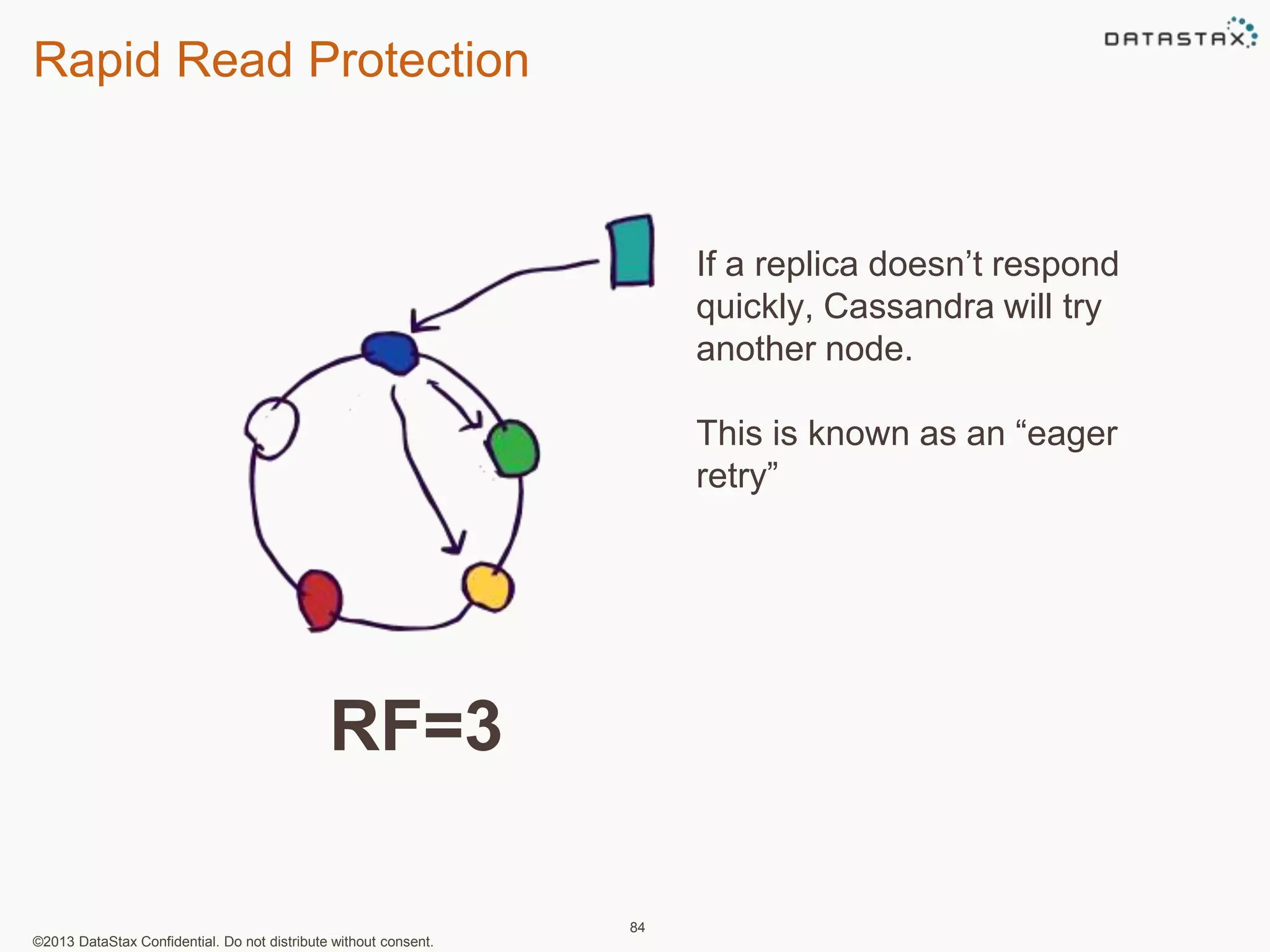

84
If a replica doesn’t respond
quickly, Cassandra will try
another node.
This is known as an “eager
retry”
RF=3

Writes (what happens within each node)
• Data is first written to a commit log for durability. Your data is
safe in Cassandra
• Then written to a memtable in memory
• Once the memtable becomes full, it is flushed to an SSTable
(sorted strings table)
• Writes are atomic at the row level; all columns are written or
updated, or none are. RDBMS-styled transactions are not
supported
INSERT INTO…
Commit log memtable
SSTable
Cassandra is known for being the fastest database in the industry where
write operations are concerned.

SSTables
86
Commit Log
Mem table
Cassandra writes to a commit log
and to memory. When the memtable
is full, data is flushed to disk,
creating an SSTable.
Disk

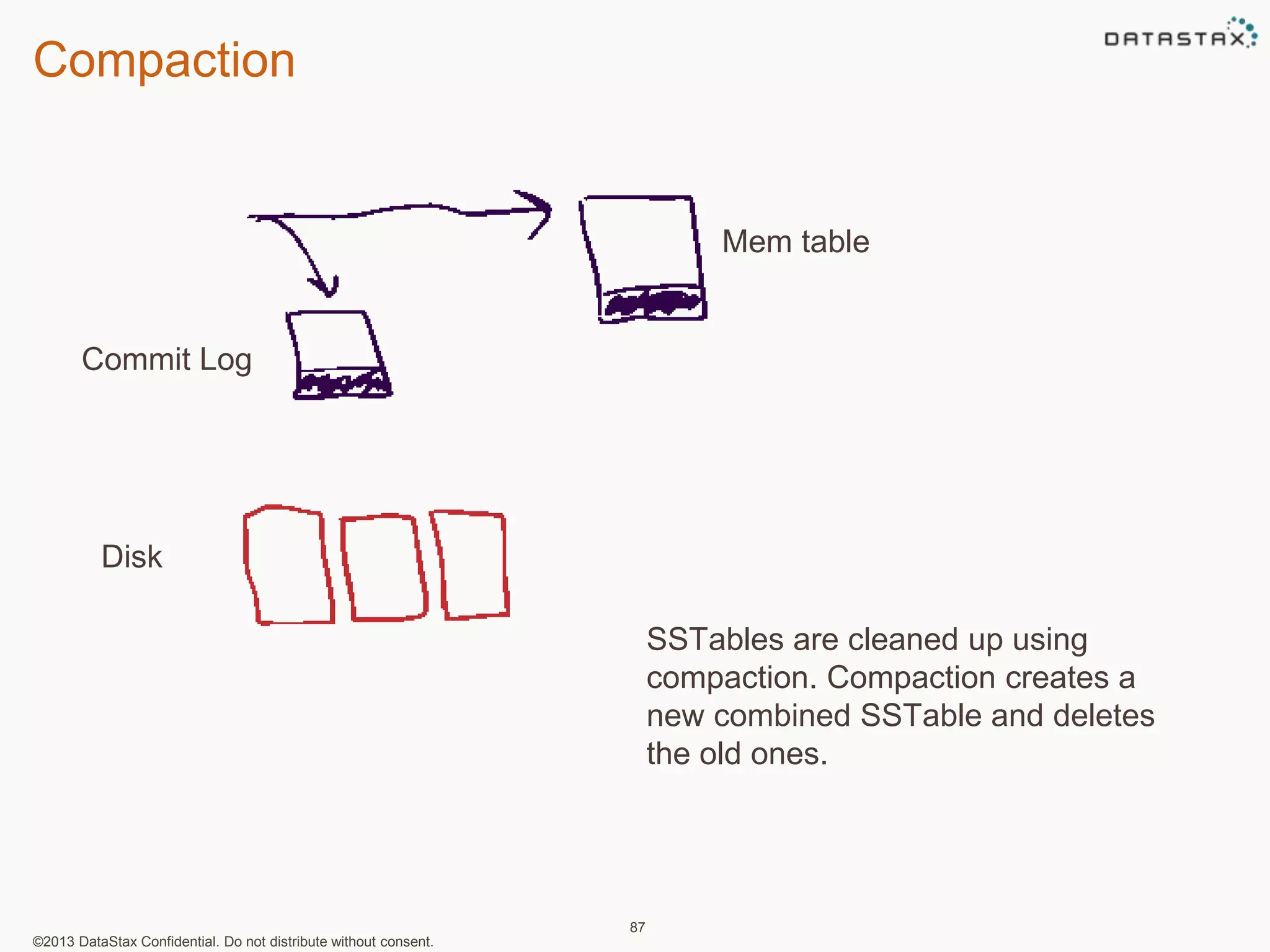

Compaction
87
Commit Log
Mem table
SSTables are cleaned up using
compaction. Compaction creates a
new combined SSTable and deletes
the old ones.
Disk

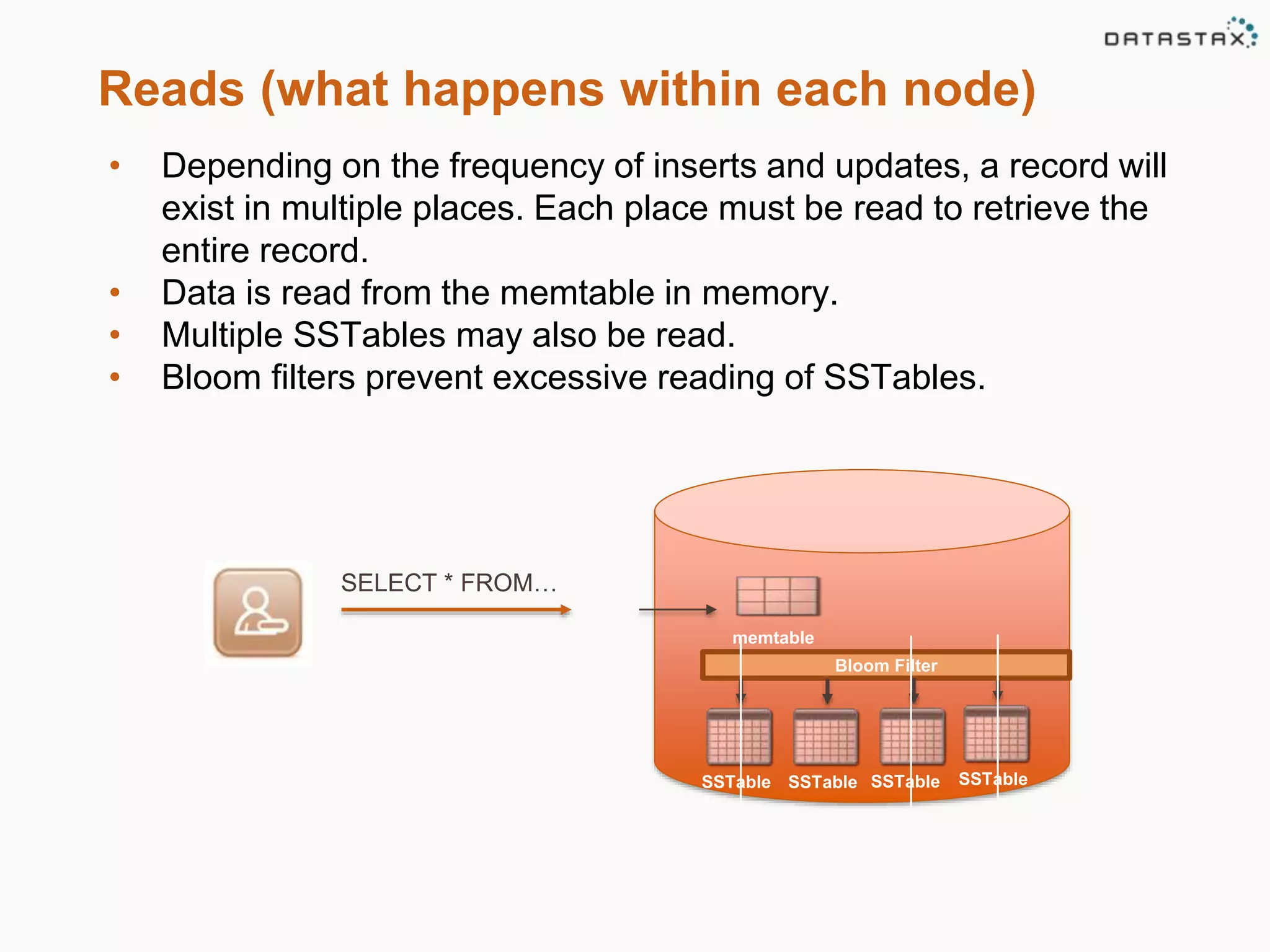

Reads (what happens within each node)
• Depending on the frequency of inserts and updates, a record will
exist in multiple places. Each place must be read to retrieve the
entire record.
• Data is read from the memtable in memory.
• Multiple SSTables may also be read.
• Bloom filters prevent excessive reading of SSTables.
SELECT * FROM…
memtable
SSTable
Bloom Filter
SSTable SSTable SSTable

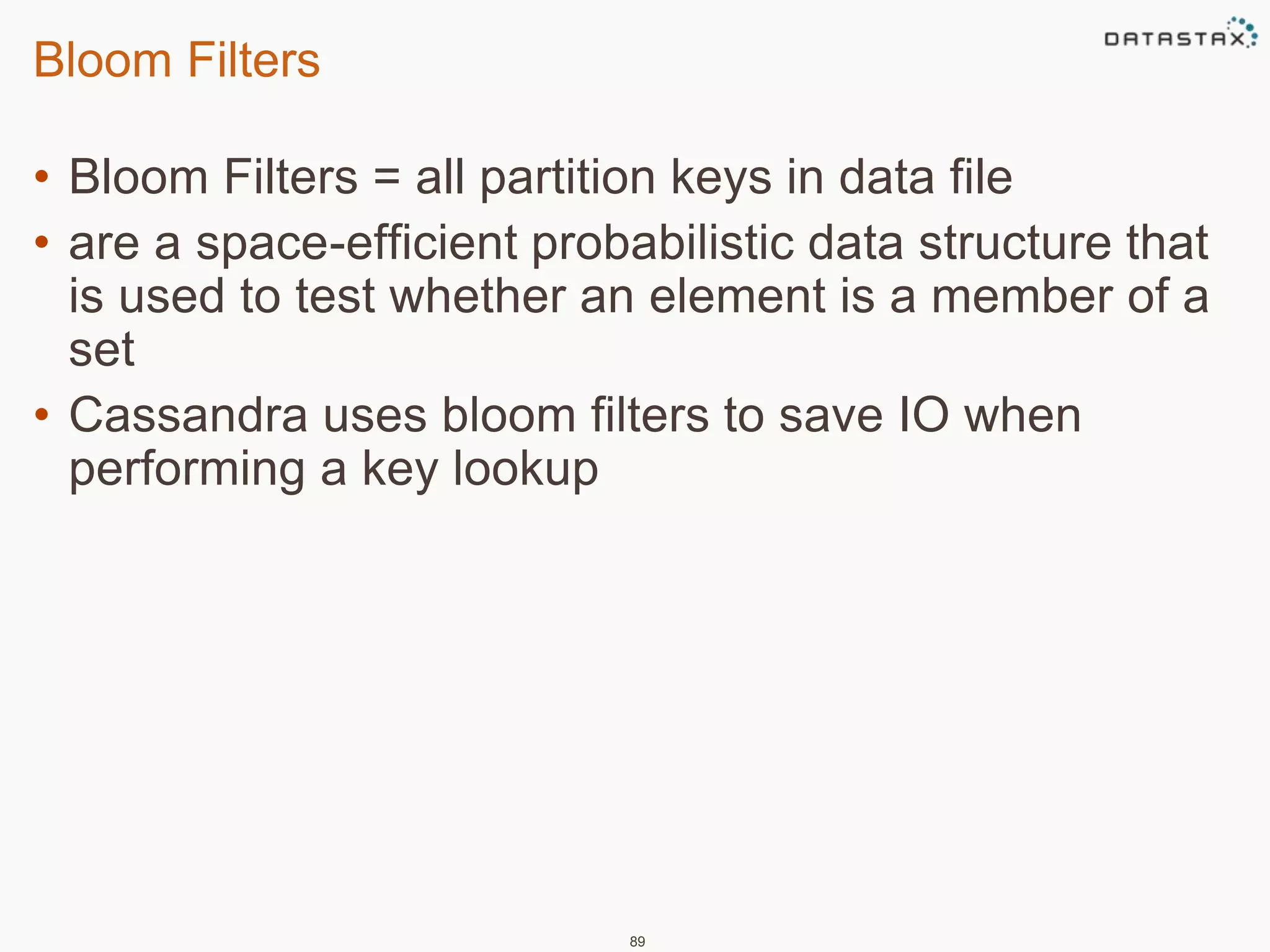

Bloom Filters
• Bloom Filters = all partition keys in data file
• are a space-efficient probabilistic data structure that
is used to test whether an element is a member of a
set
• Cassandra uses bloom filters to save IO when
performing a key lookup
89

Deletes
• Hard to delete things in a distributed systems
• Keep track of Replicas
• SSTables are immutable
• Cassandra does not immediately remove data
marked for deletion from disk.
• Data is marked with tombstones
• The deletion occurs during compaction
• If you use the sized-tiered or date-tiered compaction
strategy, you can drop data immediately using a
manual compaction process

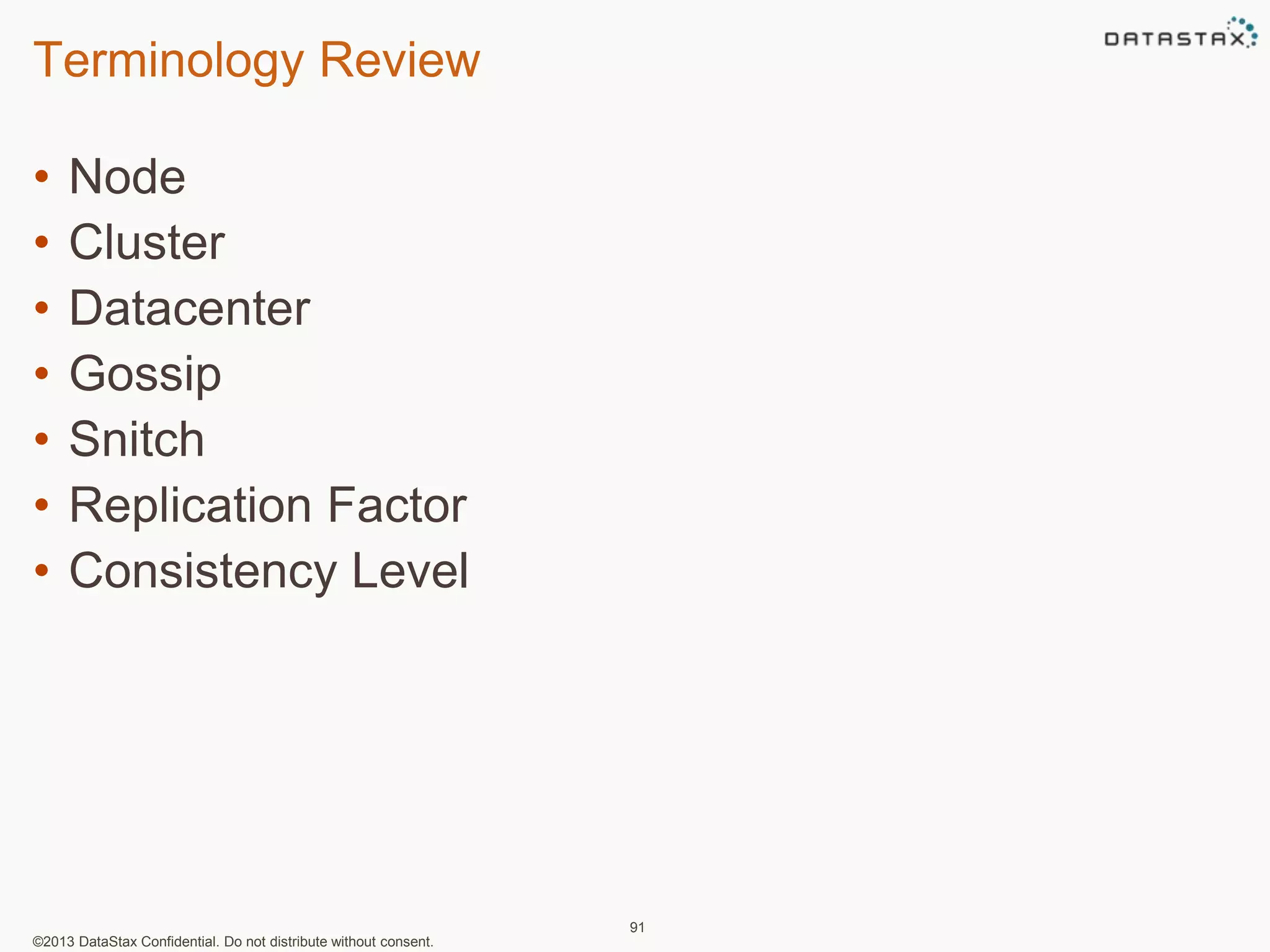

Terminology Review
• Node
• Cluster
• Datacenter
• Gossip
• Snitch
• Replication Factor
• Consistency Level
91

DataStax OpsCenter
• Visual, browser-based user
interface negates need to install
client software
• Administration tasks carried out
in point-and-click fashion
• Allows for visual rebalance of
data across a cluster when new
nodes are added
• Contains proactive alerts that
warn of impending issues.
• Built-in external notification
abilities
• Visually perform and schedule
backup operations

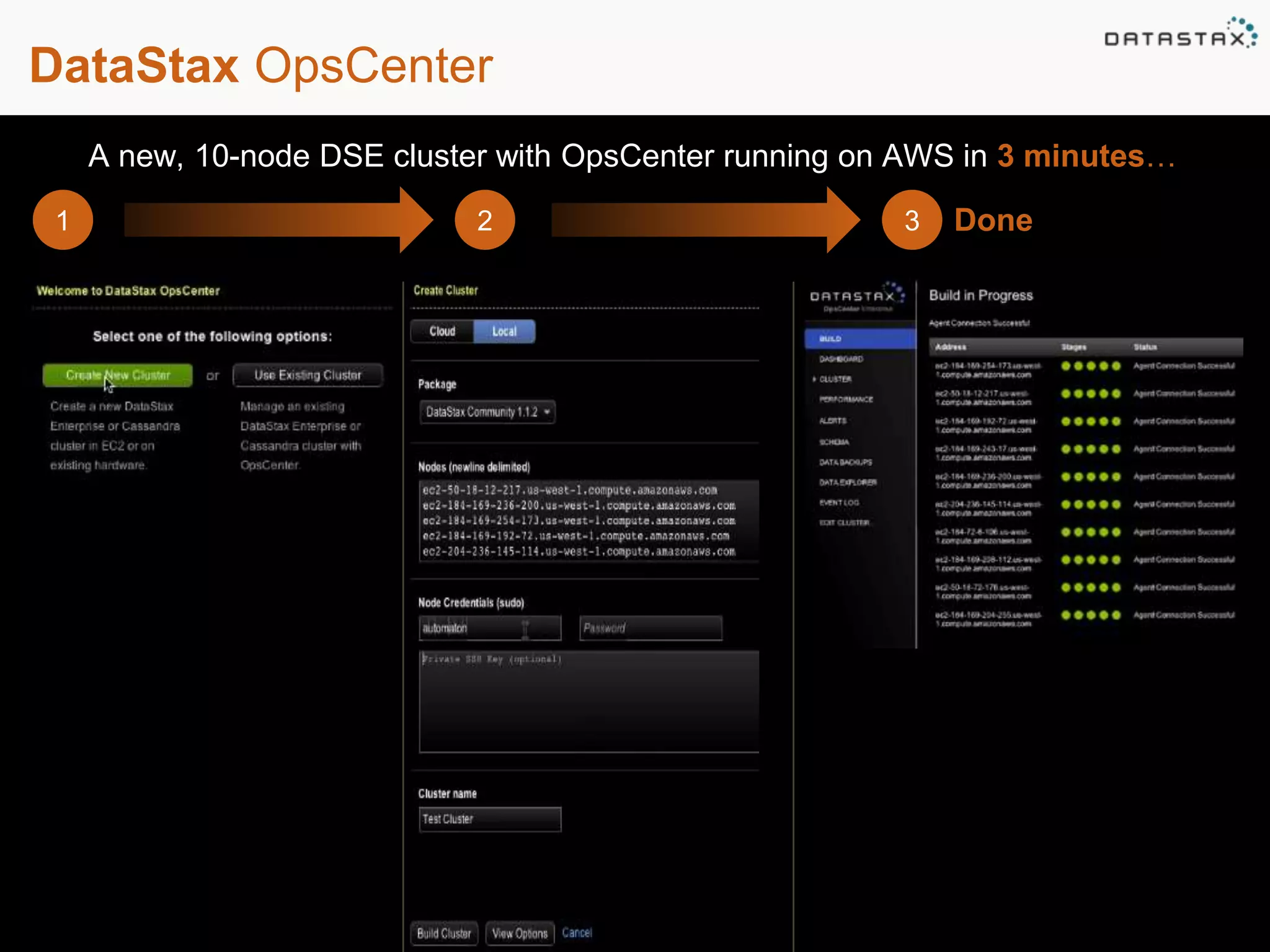

DataStax OpsCenter
A new, 10-node Cassandra (or A new, 10-node DSE cluste Hr awditoho pO) pcsluCsteenr tweirt hr uOnpnsiCnegn otenr AruWnnSin gin i n3 3m mininuutteess……
1 2 3 Done

How Does OpsCenter Work?
• Consists of the OpsCenter Server, Client, and Agents
• Server and Client are written in Python
• Agent is written in Java
• Uses keyspace in monitored Cassandra cluster for storing
historical information
• Client runs in standard Web Browser
• Runs on desktop, laptop, and tablet

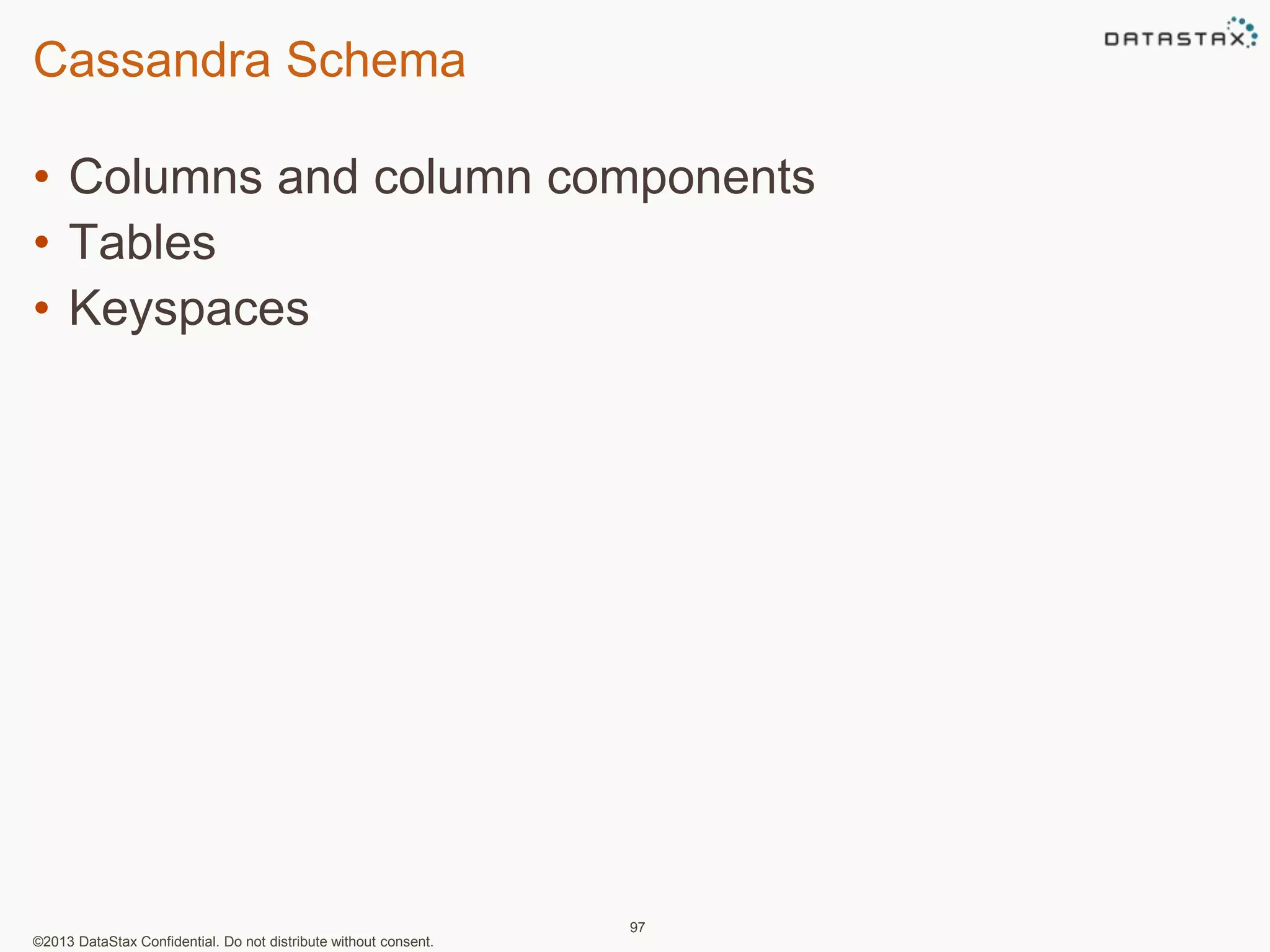

Cassandra Schema
• Columns and column components
• Tables
• Keyspaces
97

High Level Overview
Keyspace
Table
Row
Column

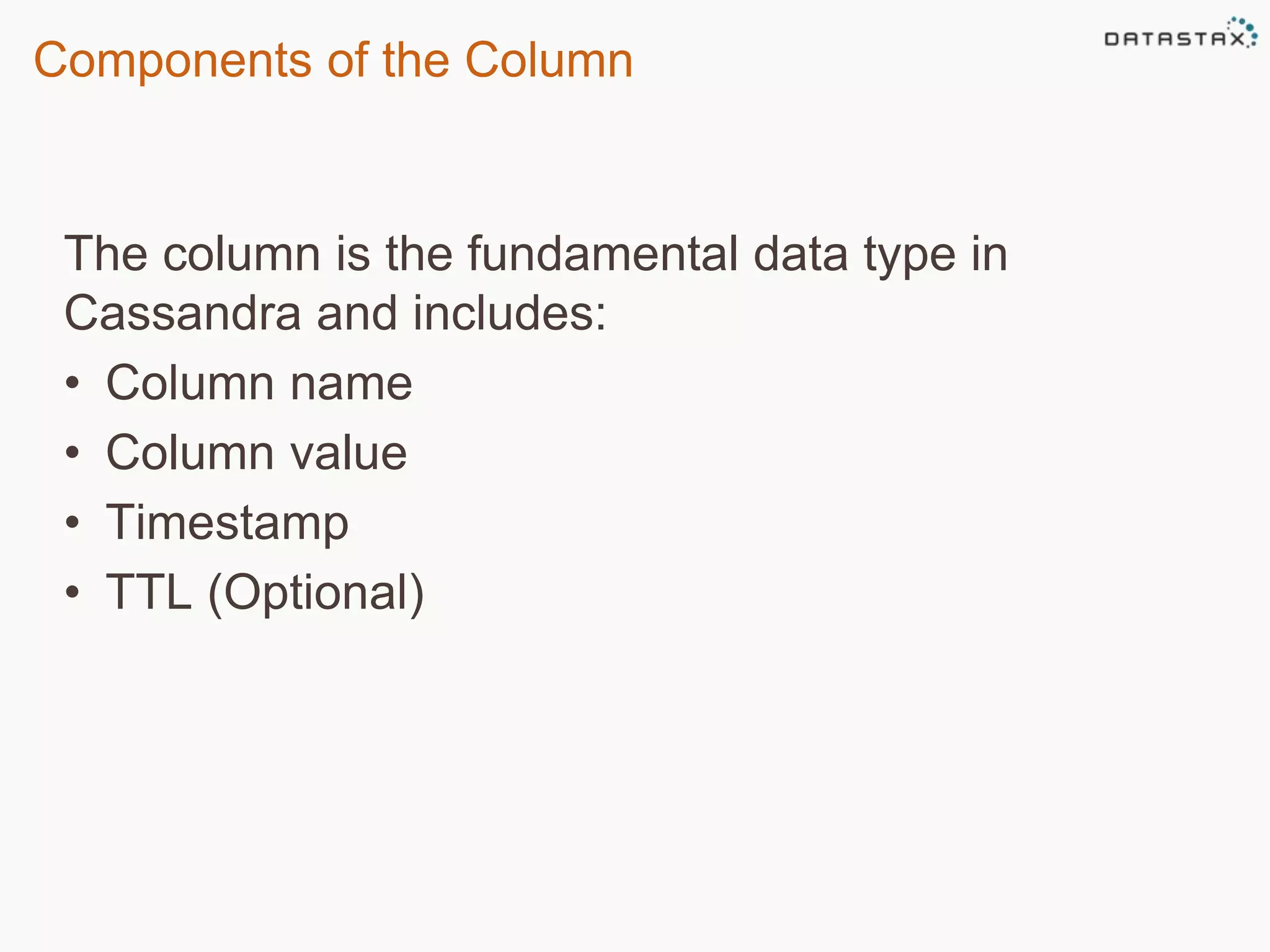

Components of the Column
The column is the fundamental data type in
Cassandra and includes:
• Column name
• Column value
• Timestamp
• TTL (Optional)

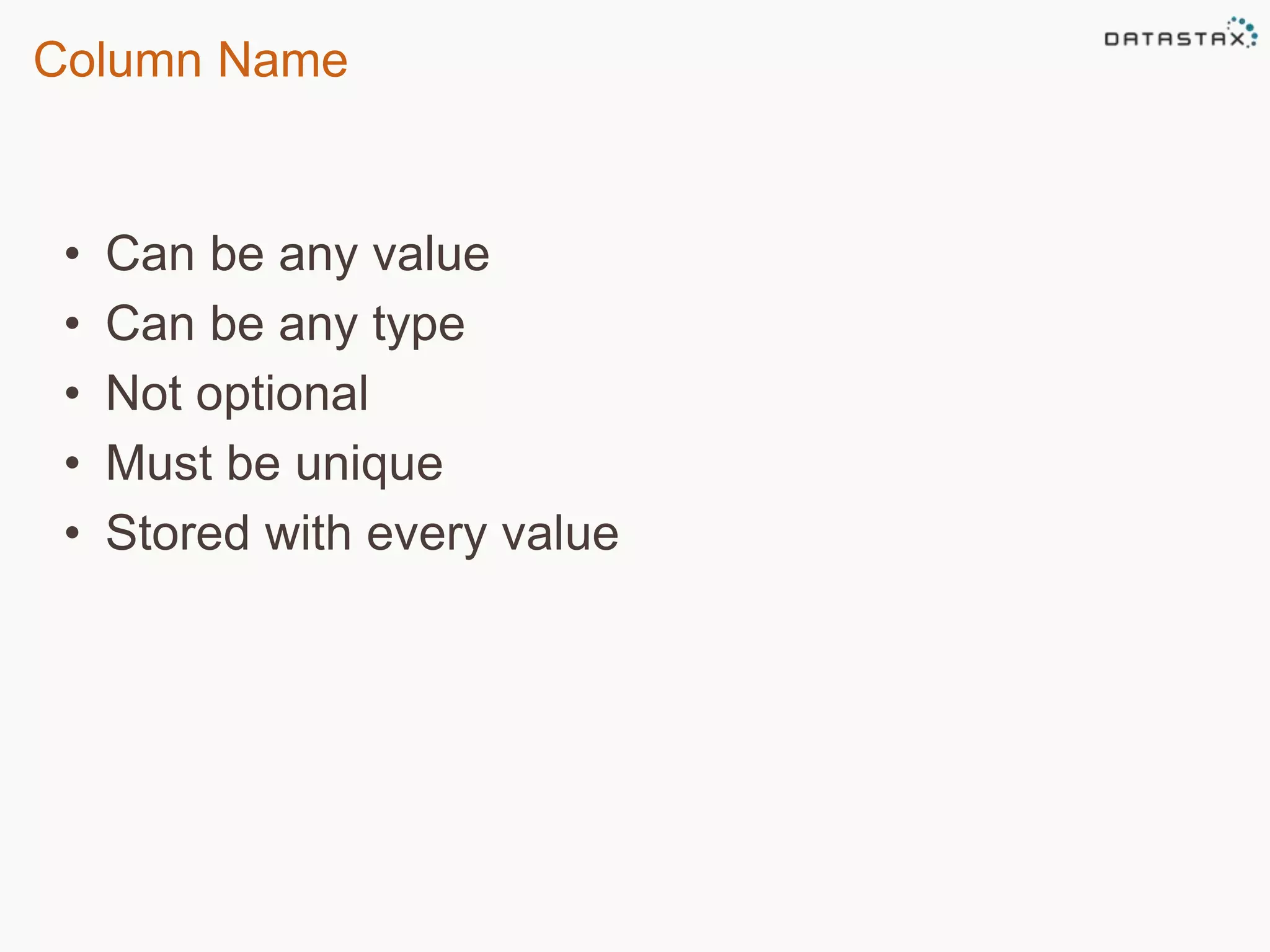

Column Name
• Can be any value
• Can be any type
• Not optional
• Must be unique
• Stored with every value

Column Names can be Timestamps
Symbol 201408280930 201408280931 201408280932
MSFT 44.50 44.60 45.00
AAPL 97.00 100.01 98.57

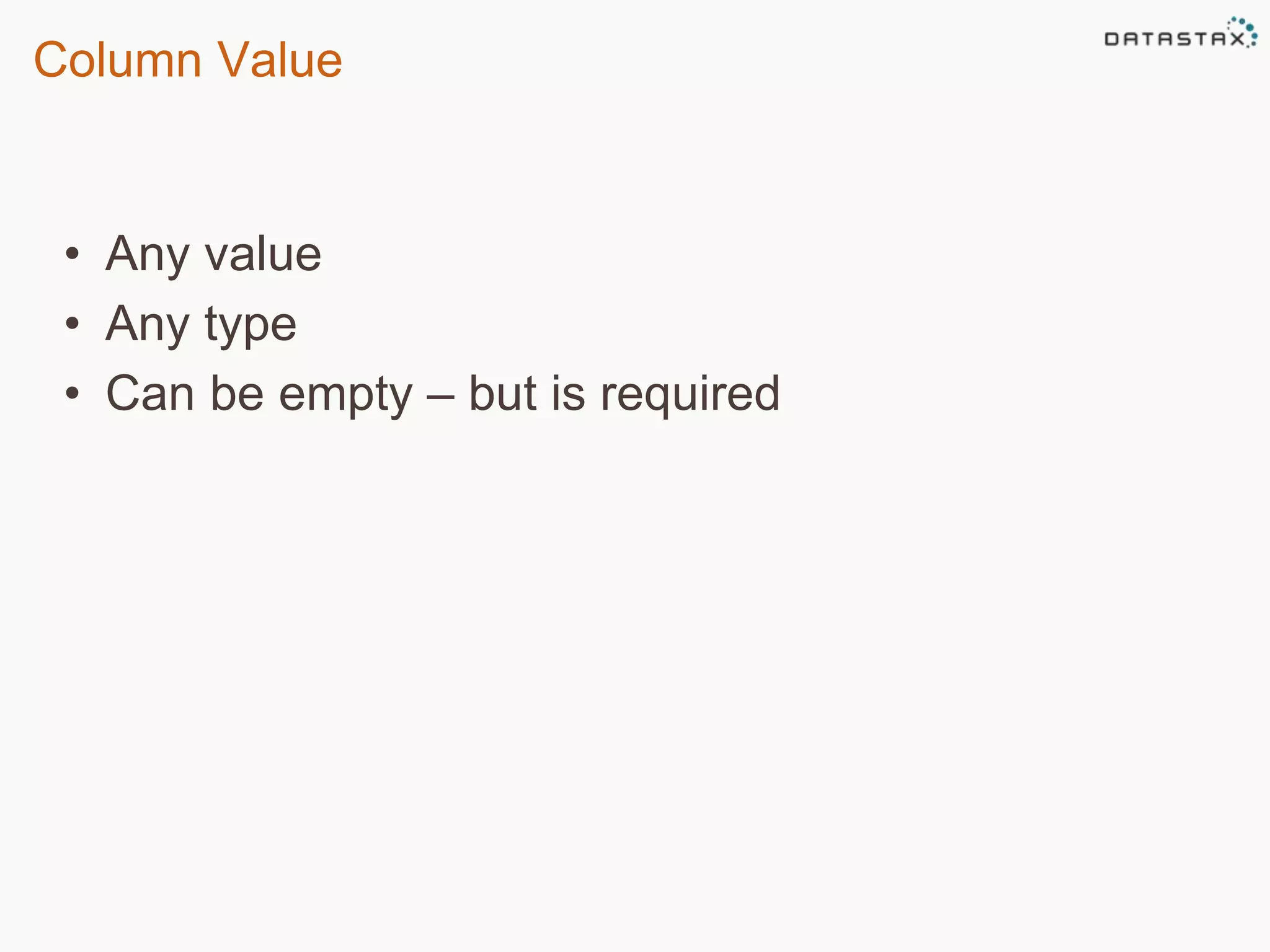

Column Value
• Any value
• Any type
• Can be empty – but is required

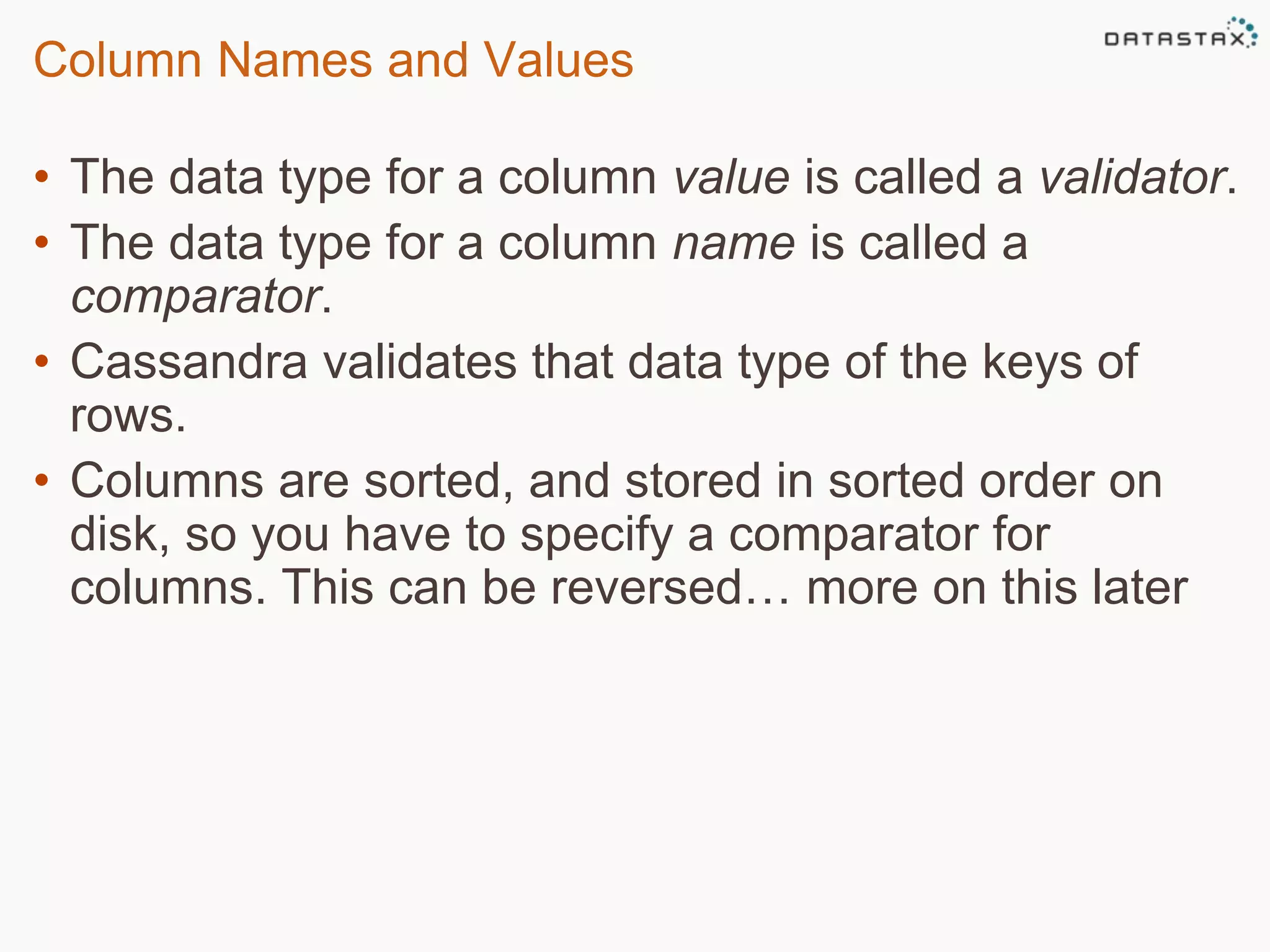

Column Names and Values
• The data type for a column value is called a validator.
• The data type for a column name is called a
comparator.
• Cassandra validates that data type of the keys of
rows.
• Columns are sorted, and stored in sorted order on
disk, so you have to specify a comparator for
columns. This can be reversed… more on this later

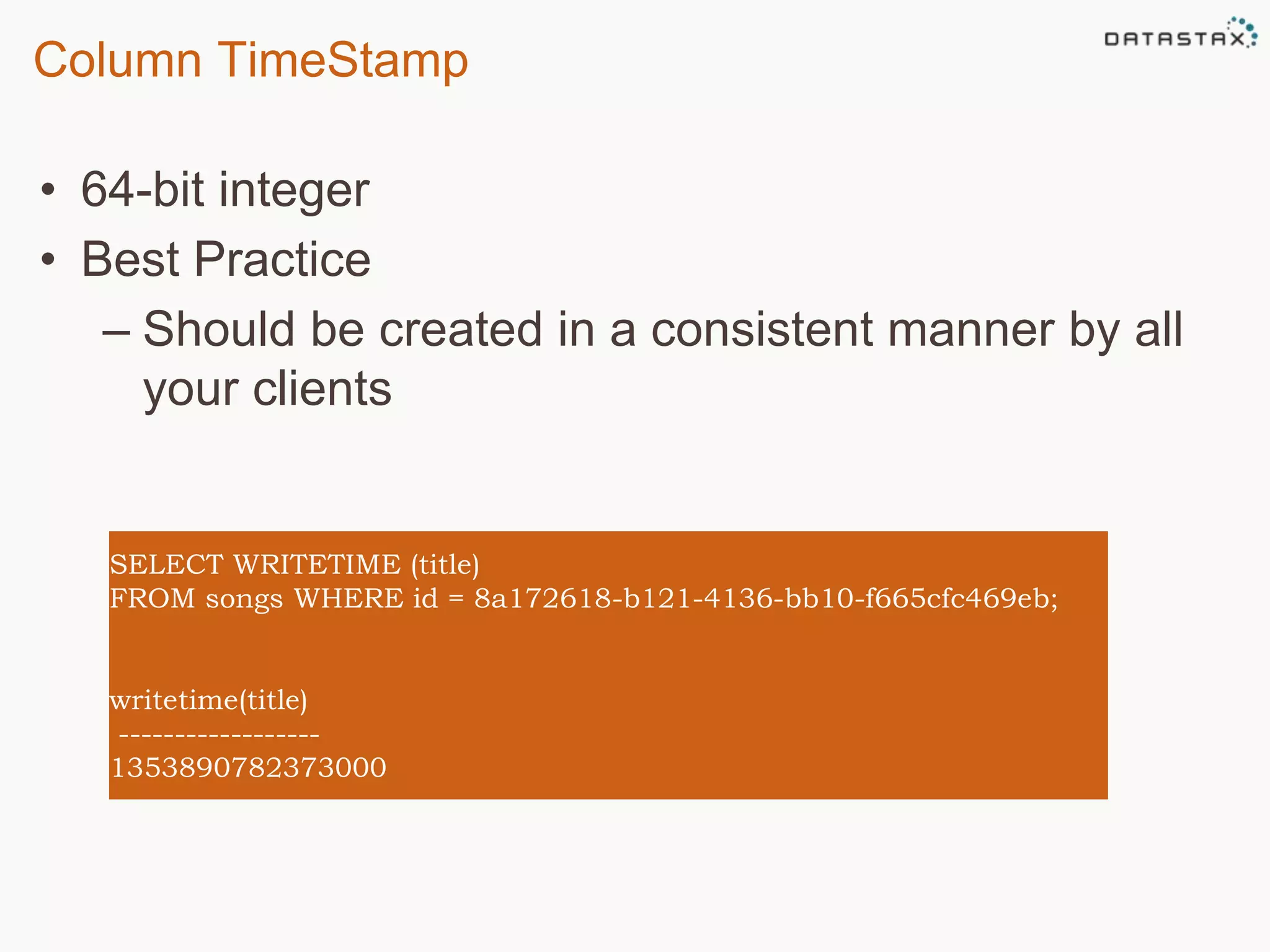

Column TimeStamp
• 64-bit integer
• Best Practice
– Should be created in a consistent manner by all
your clients
SELECT WRITETIME (title)
FROM songs WHERE id = 8a172618-b121-4136-bb10-f665cfc469eb;
writetime(title)
------------------
1353890782373000

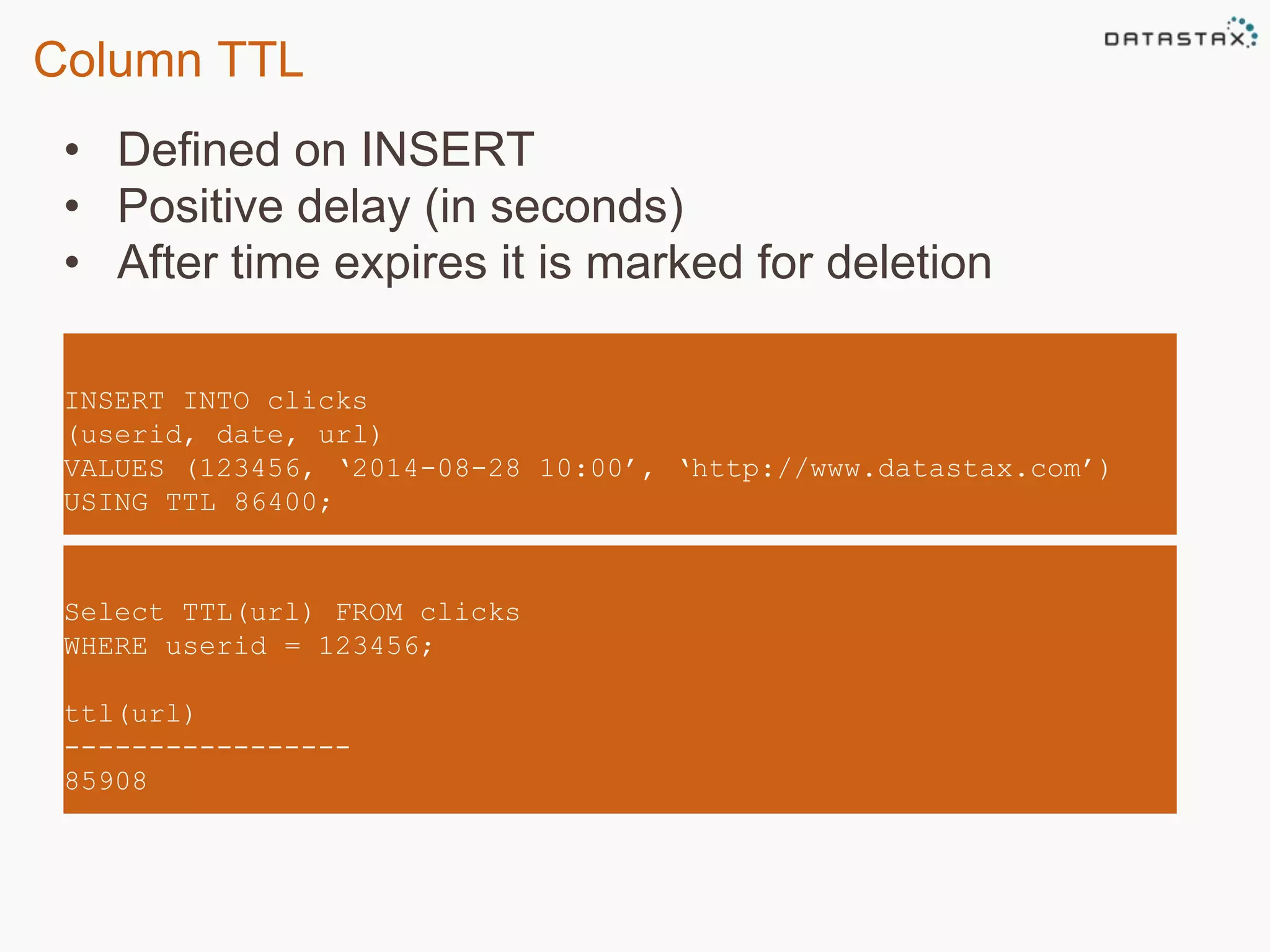

Column TTL
• Defined on INSERT
• Positive delay (in seconds)
• After time expires it is marked for deletion
INSERT INTO clicks
(userid, date, url)
VALUES (123456, ‘2014-08-28 10:00’, ‘http://www.datastax.com’)
USING TTL 86400;
Select TTL(url) FROM clicks
WHERE userid = 123456;
ttl(url)
-----------------
85908

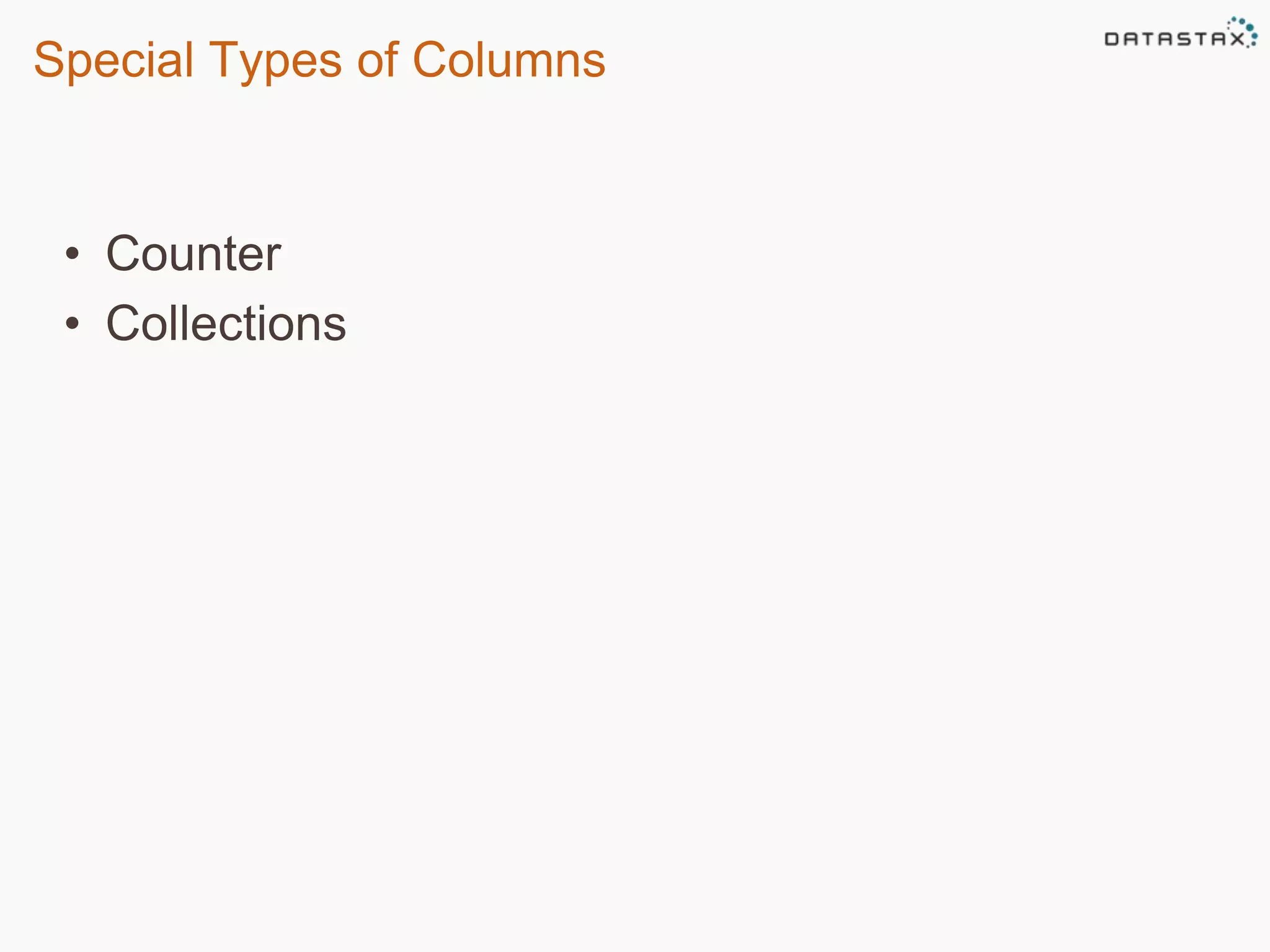

Special Types of Columns
• Counter
• Collections

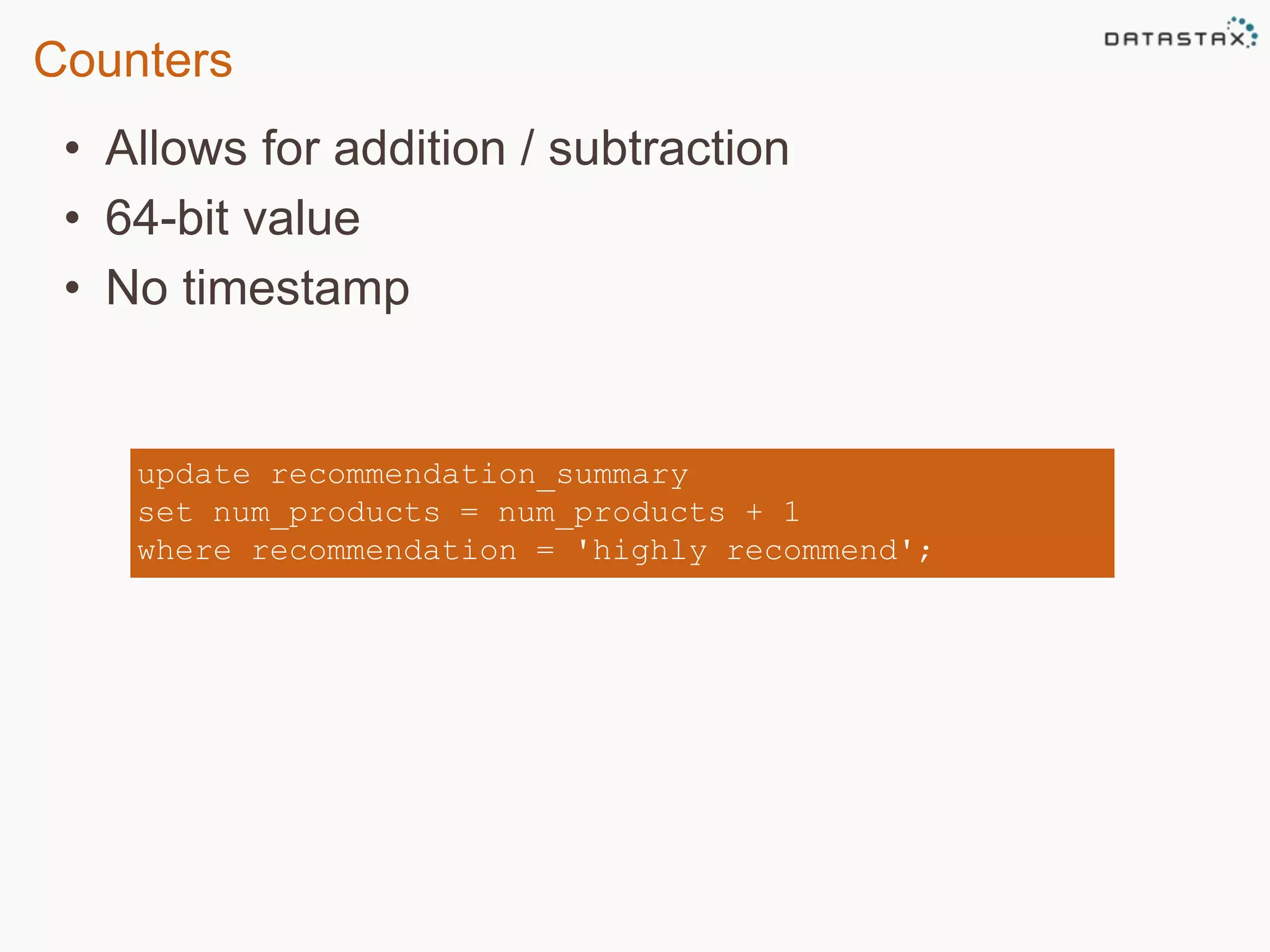

Counters
• Allows for addition / subtraction
• 64-bit value
• No timestamp
update recommendation_summary
set num_products = num_products + 1
where recommendation = 'highly recommend';

Collections
• Collections give you three types:
- Set (A distinct group of unordered elements)
- List (An ordered sequence of elements)
- Map (Composed of a collection of key, value pairs)
• Each allow for dynamic updates
CREATE TABLE collections_example (
id int PRIMARY KEY,
set_example set<text>,
list_example list<text>,
map_example map<int,text>
);

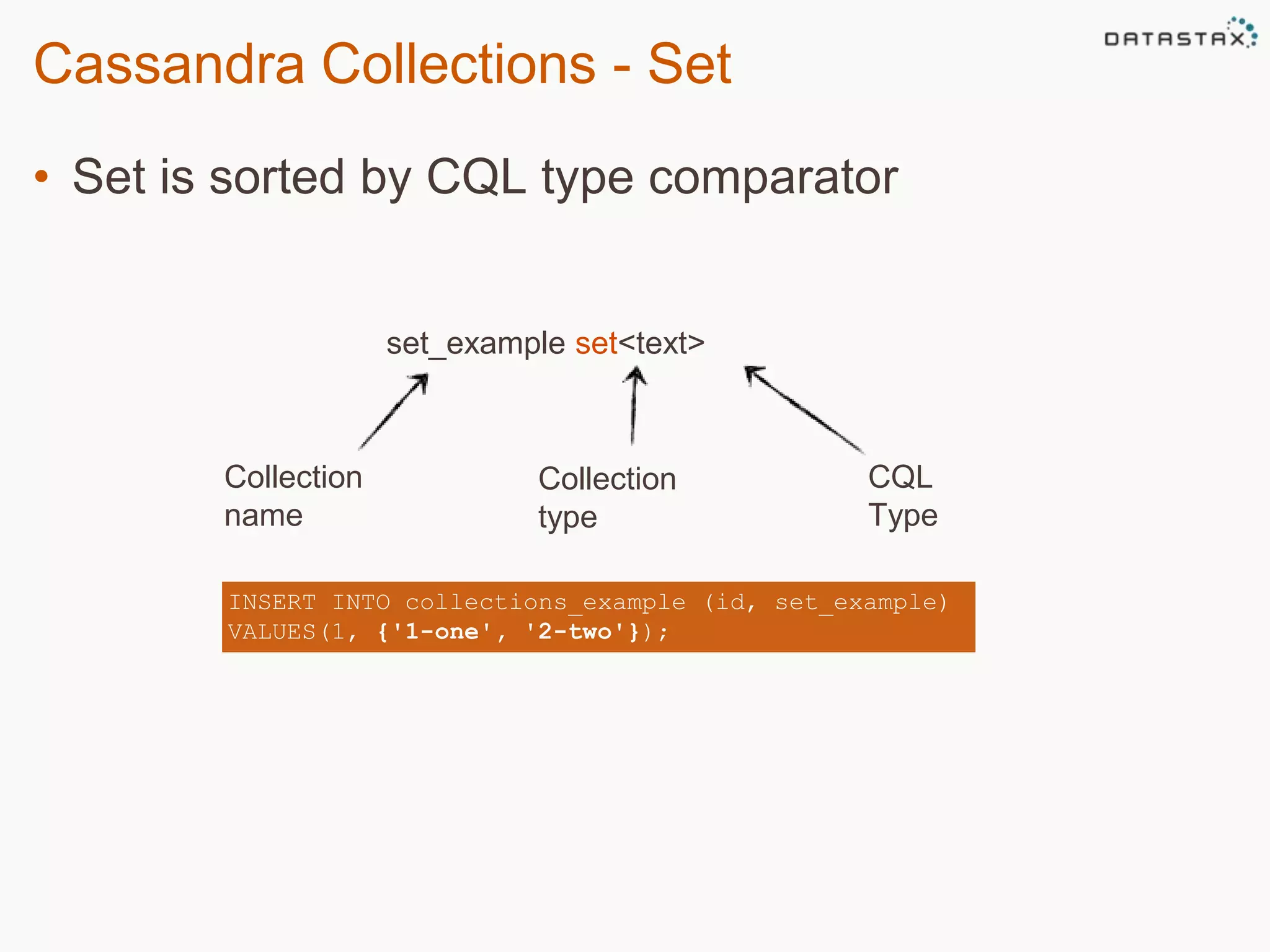

Cassandra Collections - Set
• Set is sorted by CQL type comparator
set_example set<text>
Collection
name
Collection
type
CQL
Type
INSERT INTO collections_example (id, set_example)
VALUES(1, {'1-one', '2-two'});

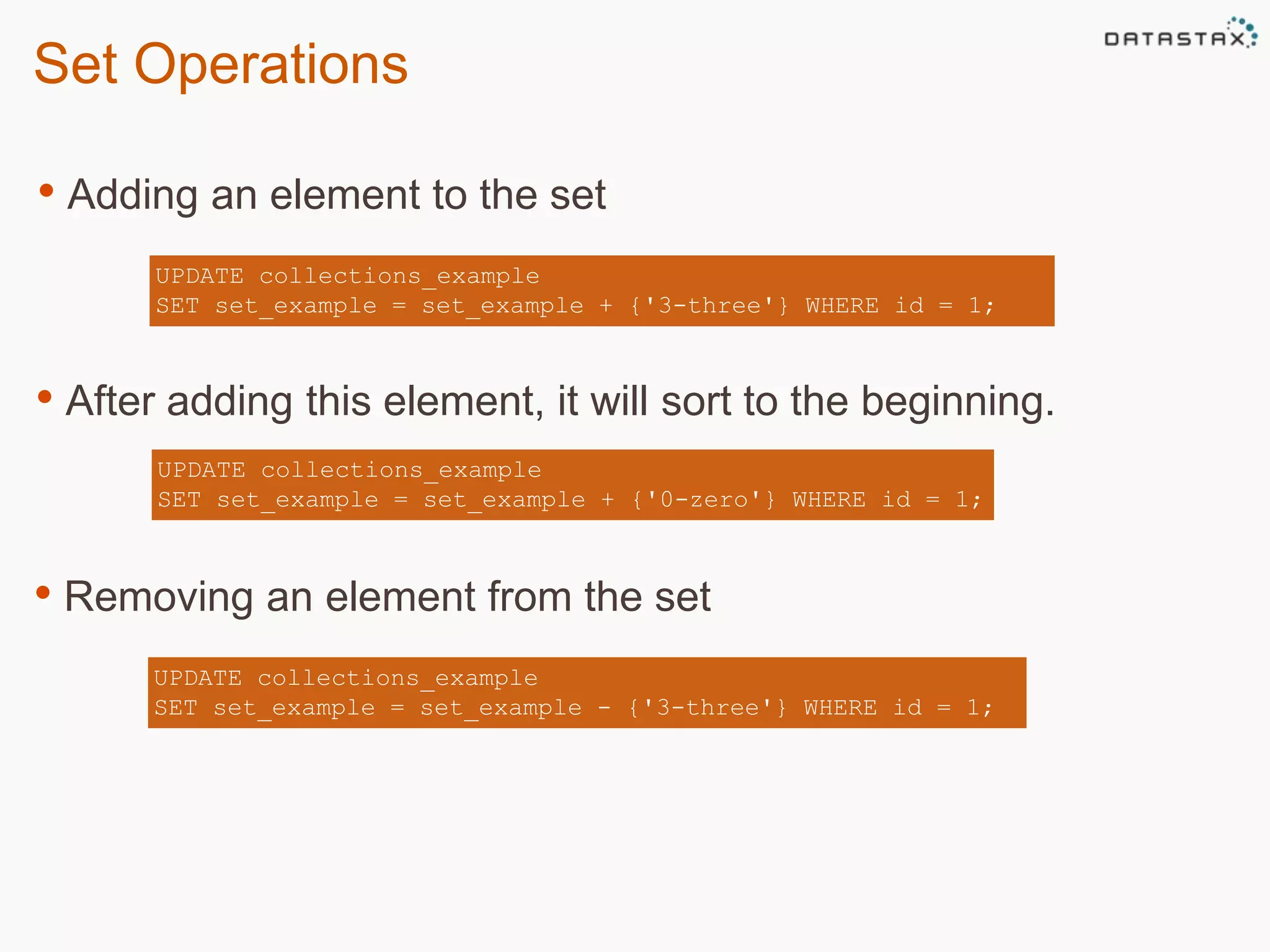

Set Operations
• Adding an element to the set
UPDATE collections_example
SET set_example = set_example + {'3-three'} WHERE id = 1;
• After adding this element, it will sort to the beginning.
SET set_example = set_example + {'0-zero'} WHERE id = 1;
• Removing an element from the set
SET set_example = set_example - {'3-three'} WHERE id = 1;

Cassandra Collections - List
Ordered by insertion
list_example list<text>
Collection
name
Collection
type
CQL
Type
INSERT INTO collections_example (id, list_example)
VALUES(1, ['1-one', '2-two']);

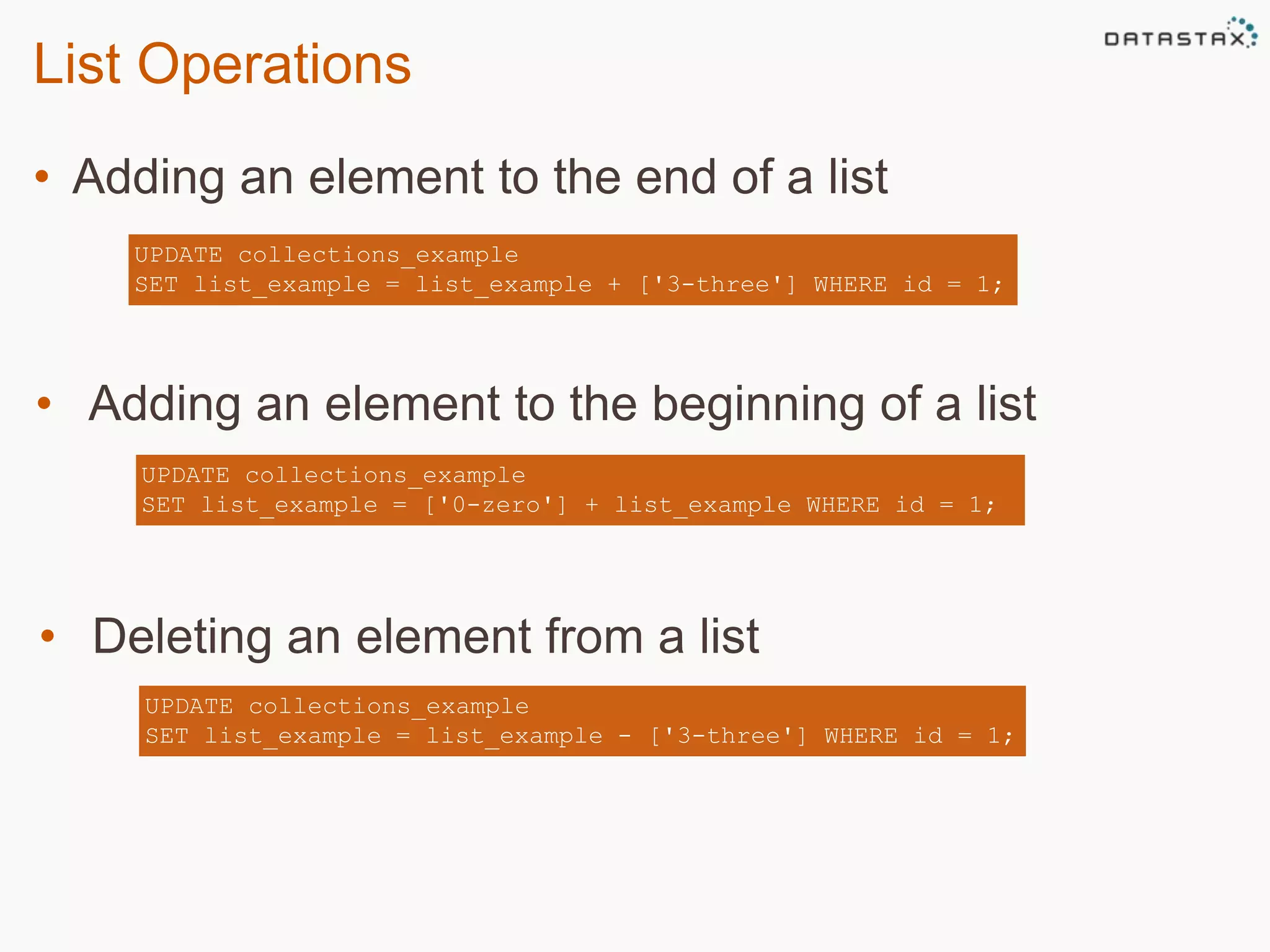

List Operations
• Adding an element to the end of a list
SET list_example = list_example + ['3-three'] WHERE id = 1;
• Adding an element to the beginning of a list
SET list_example = ['0-zero'] + list_example WHERE id = 1;
• Deleting an element from a list
SET list_example = list_example - ['3-three'] WHERE id = 1;

Cassandra Collections - Map
• Key and value
• Key is sorted by CQL type comparator
map_example map<int,text>
Collection
name
Collection
type
Value CQL
Type
Key CQL
Type
INSERT INTO collections_example (id, map_example)
VALUES(1, { 1 : 'one', 2 : 'two' });

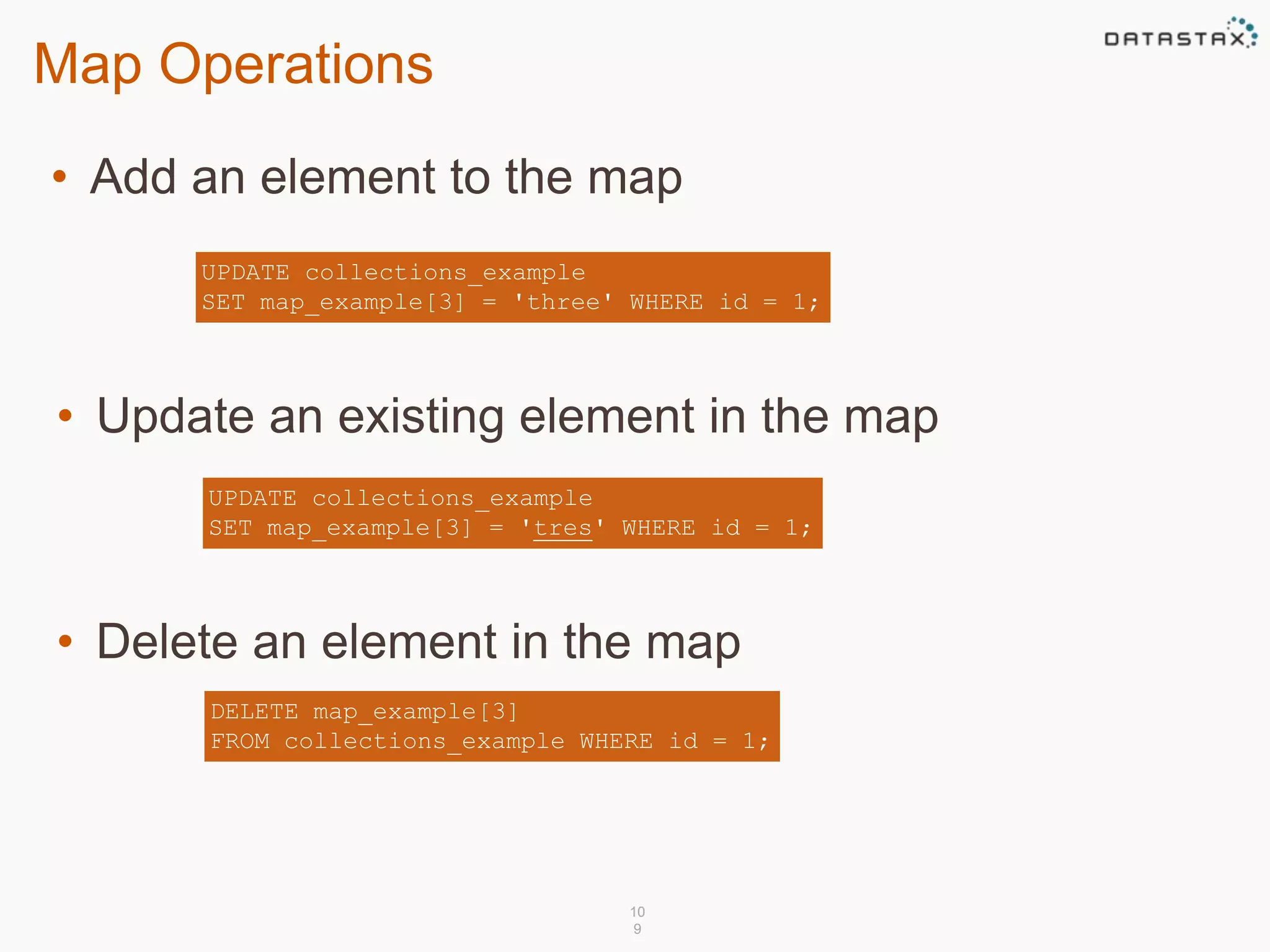

Map Operations
• Add an element to the map
SET map_example[3] = 'three' WHERE id = 1;
• Update an existing element in the map
SET map_example[3] = 'tres' WHERE id = 1;
• Delete an element in the map
DELETE map_example[3]
FROM collections_example WHERE id = 1;
10
9

The Cassandra Schema
Consists of:
• Column
• Cloumn Family / Table
• Keyspace

Tables (Column Families)
• Similar to relational tables
• Groupings of Rows
• Tunable Consistency
• De-Normalization
• To avoid I/O
• Simplify the Read Path
• Static or Dynamic

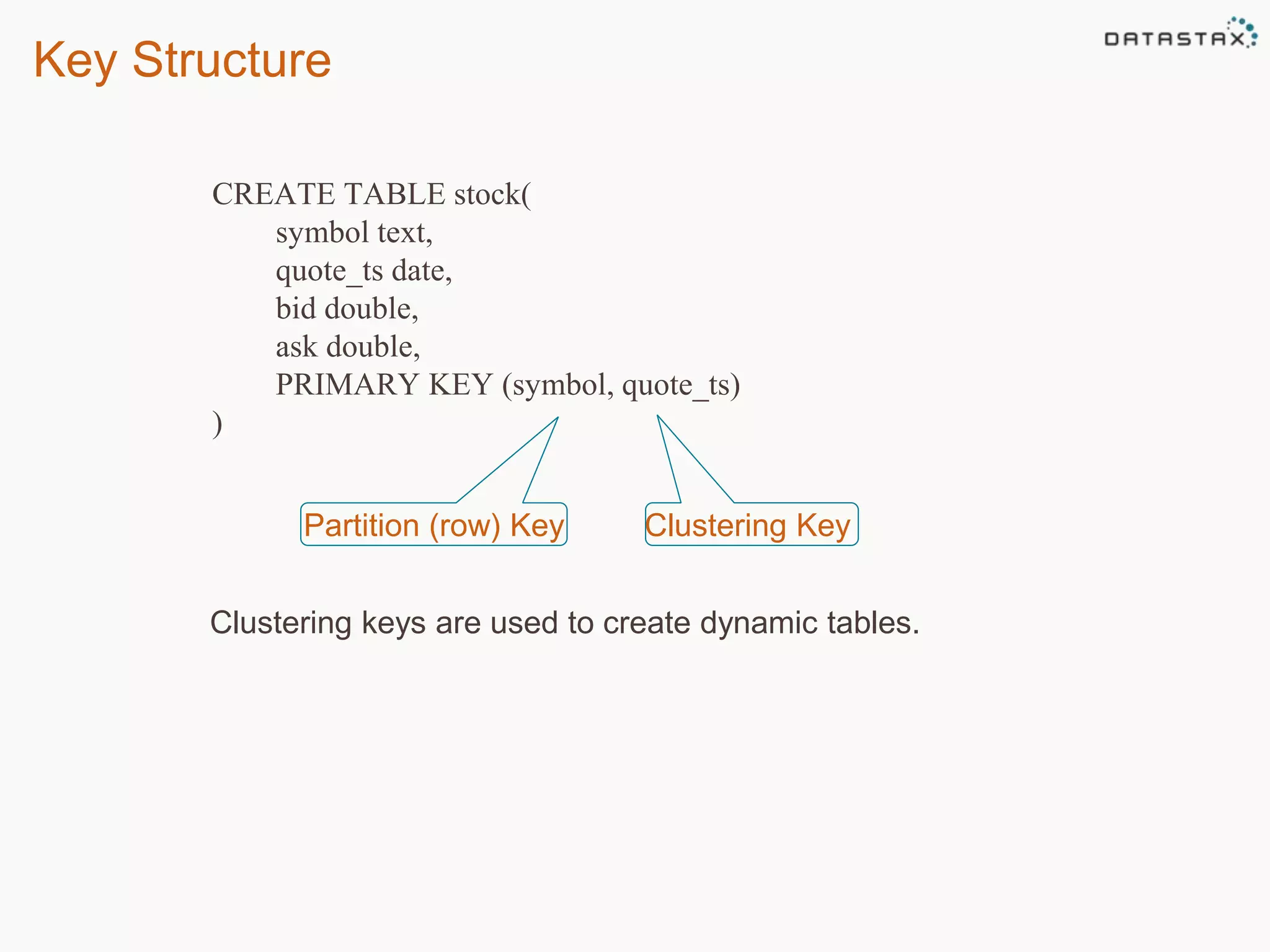

Key Structure
CREATE TABLE stock(
symbol text,
quote_ts date,
bid double,
ask double,
PRIMARY KEY (symbol, quote_ts)
)
Partition (row) Key Clustering Key
Clustering keys are used to create dynamic tables.

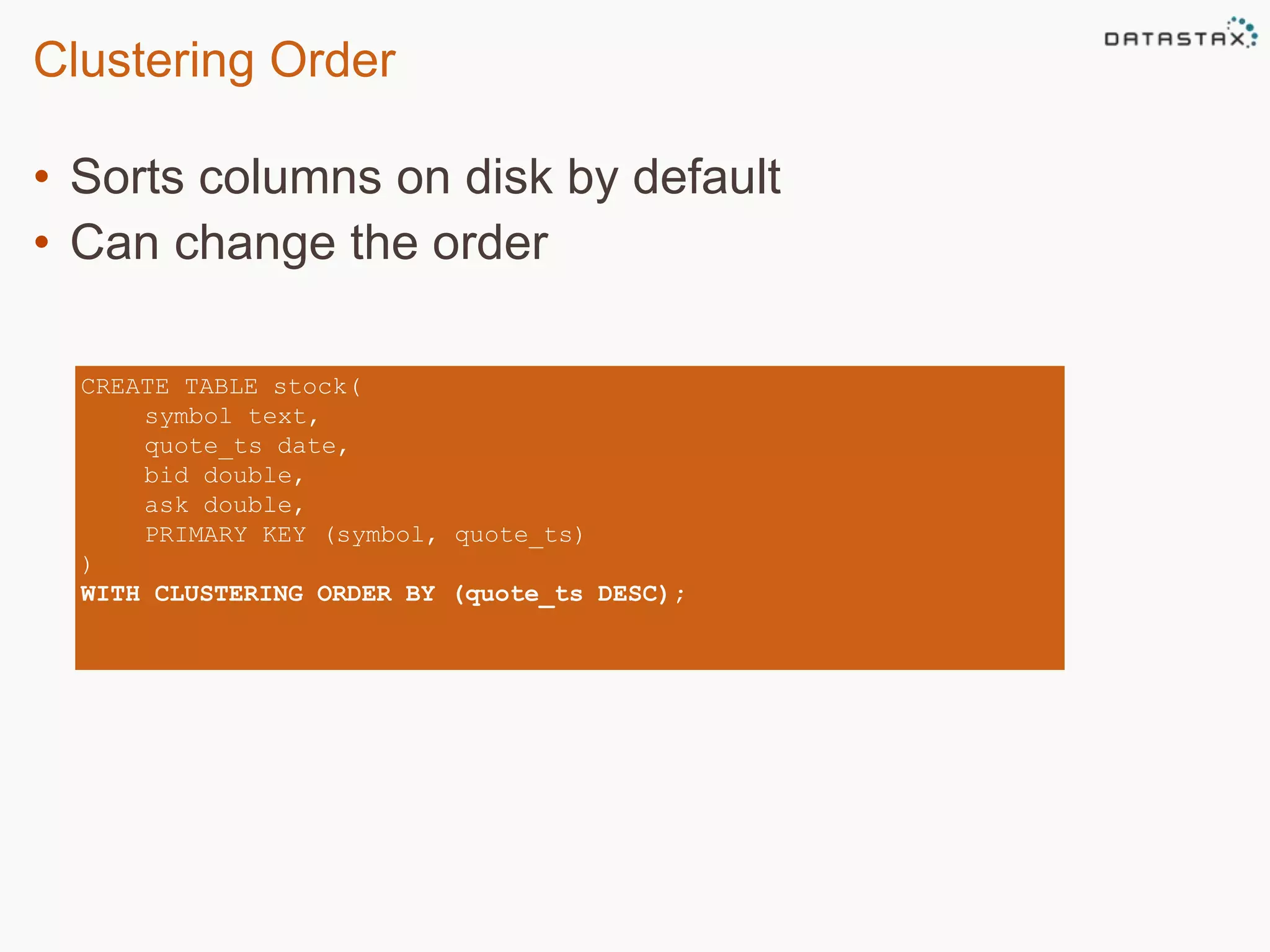

Clustering Order
• Sorts columns on disk by default
• Can change the order
CREATE TABLE stock(
symbol text,
quote_ts date,
bid double,
ask double,
)
WITH CLUSTERING ORDER BY (quote_ts DESC);

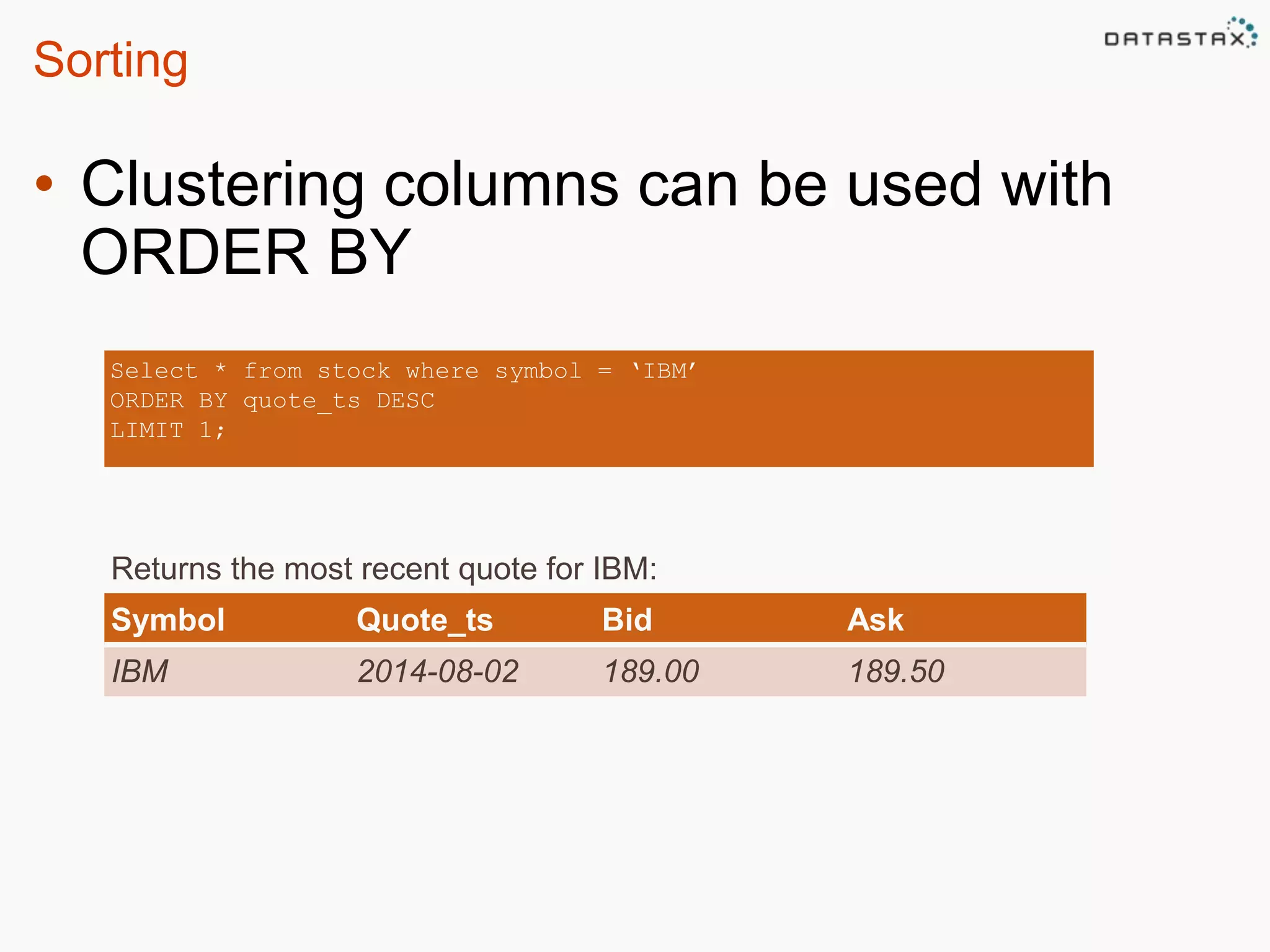

Sorting
• Clustering columns can be used with
ORDER BY
Select * from stock where symbol = ‘IBM’
ORDER BY quote_ts DESC
LIMIT 1;
Returns the most recent quote for IBM:
Symbol Quote_ts Bid Ask
IBM 2014-08-02 189.00 189.50

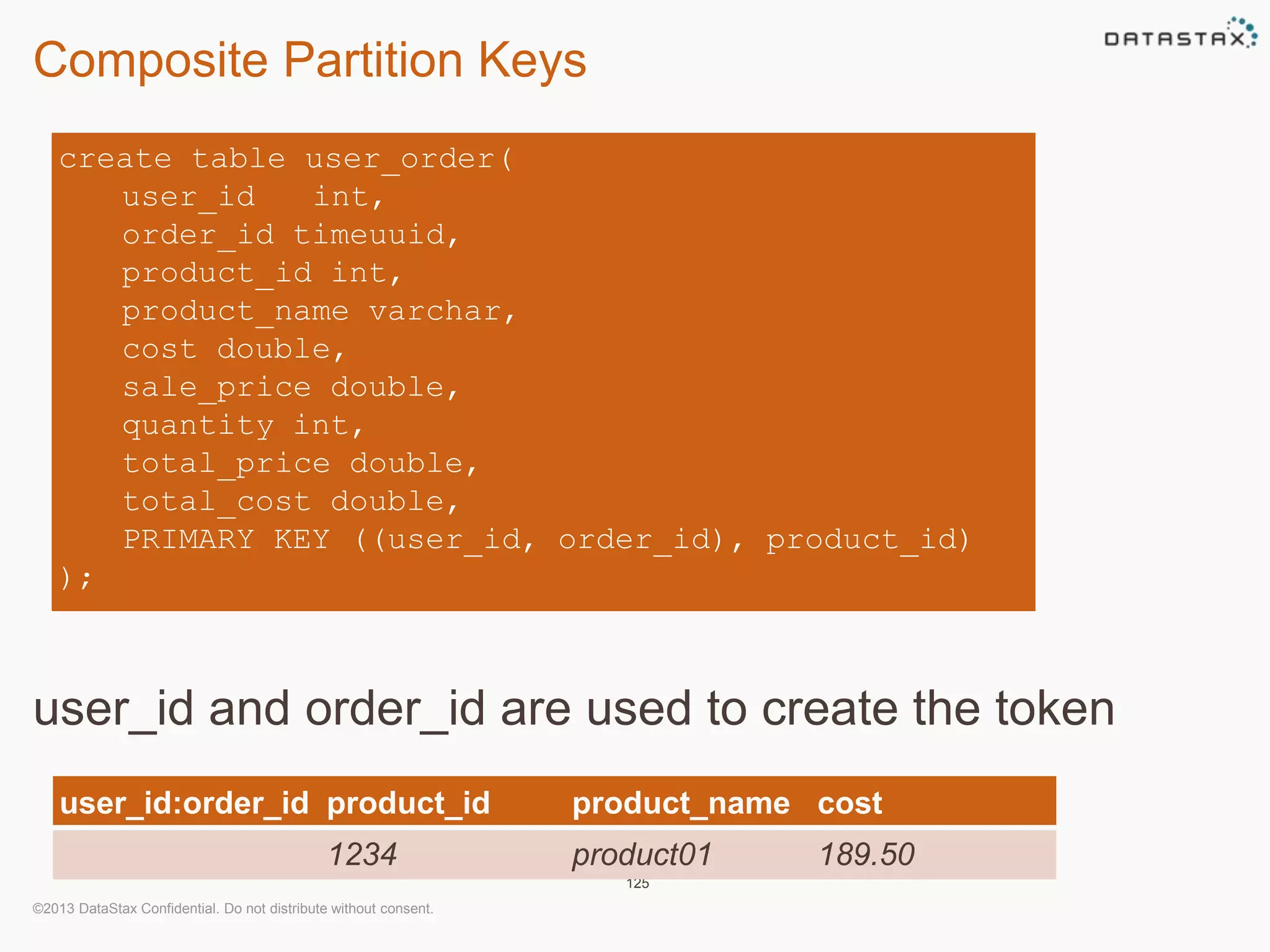

Composite Partition Keys
user_id and order_id are used to create the token
125
create table user_order(
user_id int,
order_id timeuuid,
product_id int,
product_name varchar,
cost double,
sale_price double,
quantity int,
total_price double,
total_cost double,
PRIMARY KEY ((user_id, order_id), product_id)
);
user_id:order_id product_id product_name cost
1234 product01 189.50

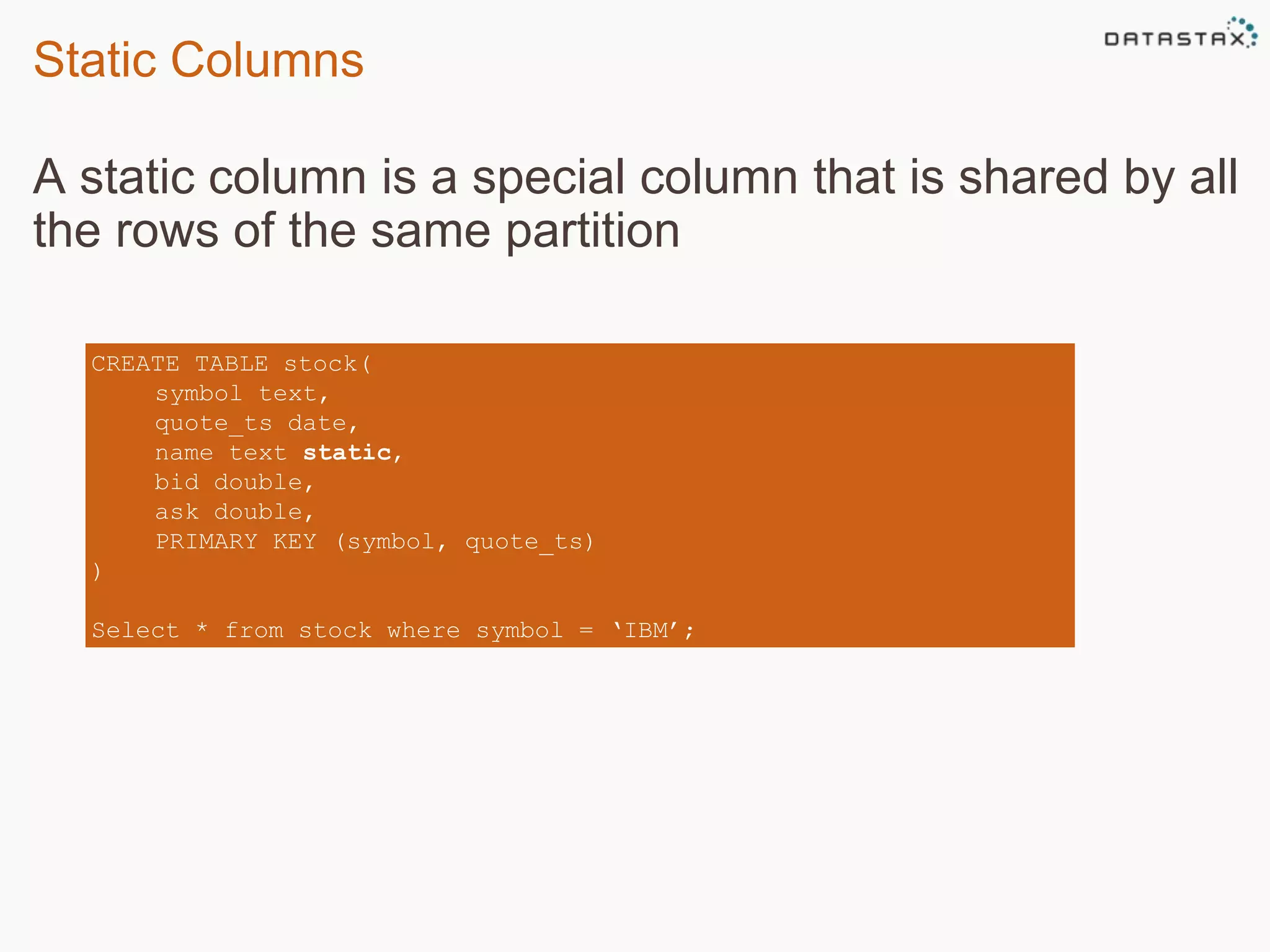

Static Columns
A static column is a special column that is shared by all
the rows of the same partition
CREATE TABLE stock(
symbol text,
quote_ts date,
name text static,
bid double,
ask double,
)
Select * from stock where symbol = ‘IBM’;

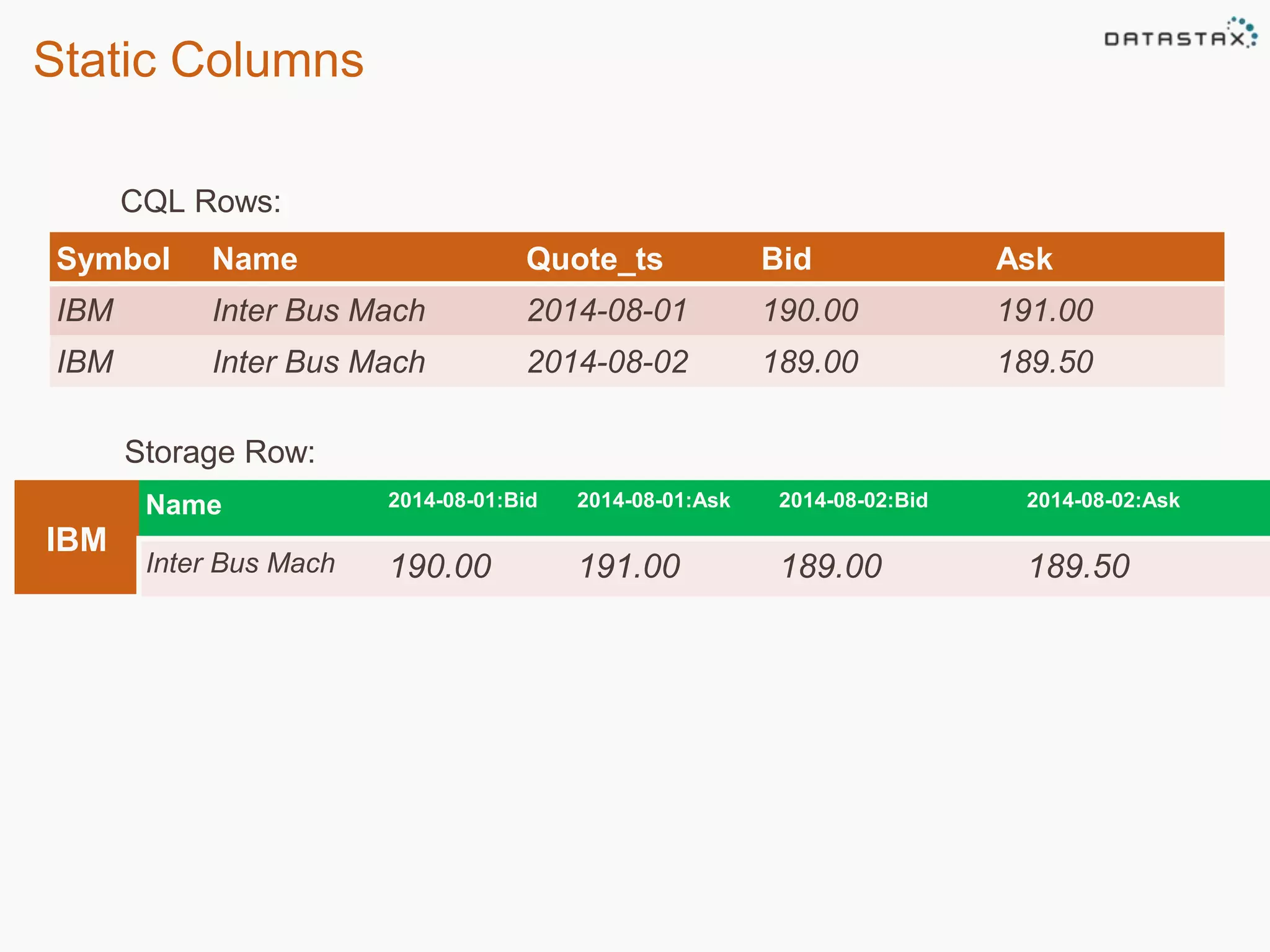

Static Columns
CQL Rows:
Symbol Name Quote_ts Bid Ask
IBM Inter Bus Mach 2014-08-01 190.00 191.00
IBM Inter Bus Mach 2014-08-02 189.00 189.50
IBM
Storage Row:
Name 2014-08-01:Bid 2014-08-01:Ask 2014-08-02:Bid 2014-08-02:Ask
Inter Bus Mach 190.00 191.00 189.00 189.50

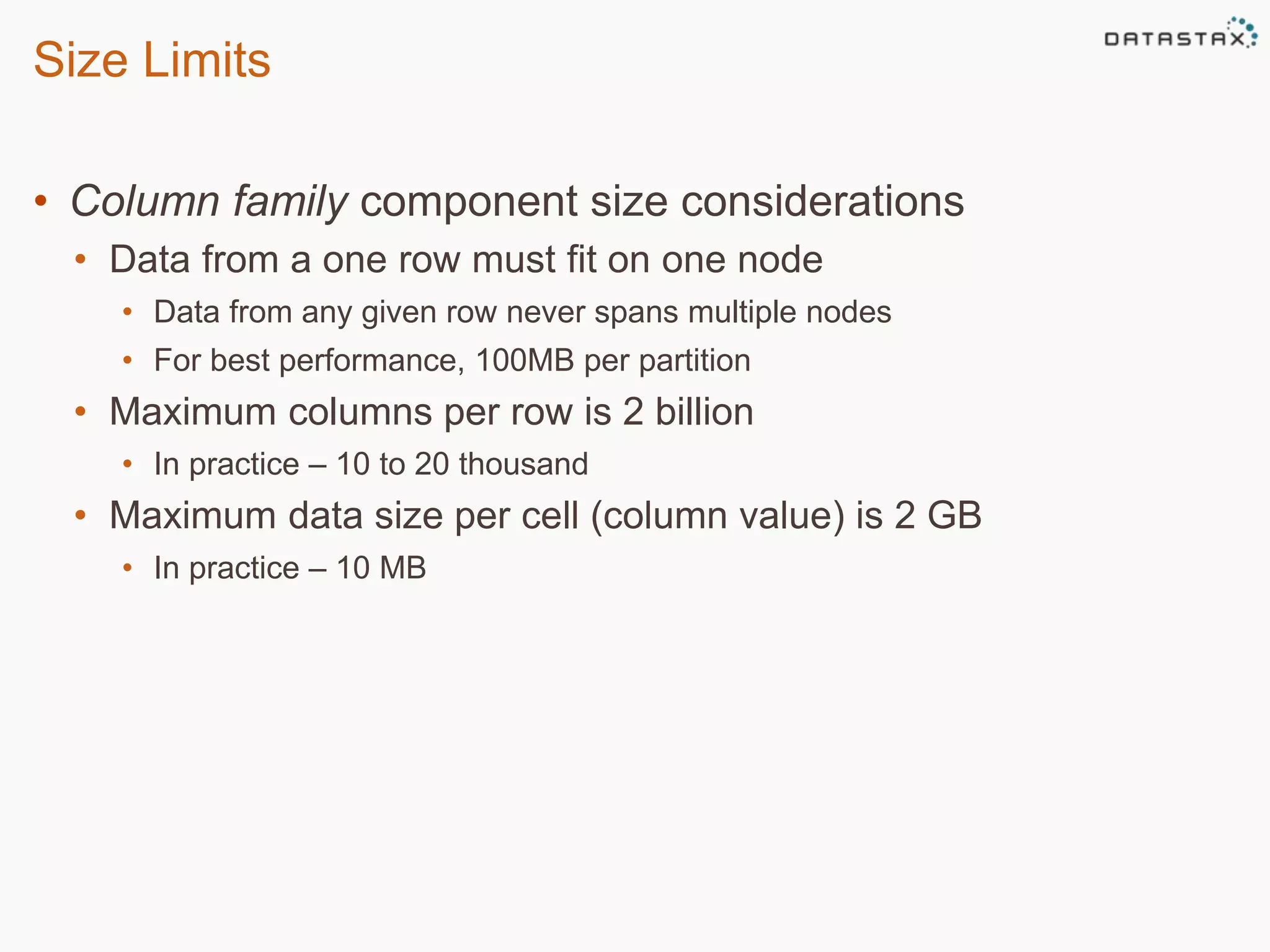

Size Limits
• Column family component size considerations
• Data from a one row must fit on one node
• Data from any given row never spans multiple nodes
• For best performance, 100MB per partition
• Maximum columns per row is 2 billion
• In practice – 10 to 20 thousand
• Maximum data size per cell (column value) is 2 GB
• In practice – 10 MB

The Cassandra Schema
Consists of:
• Column
• Column Family
• Keyspace

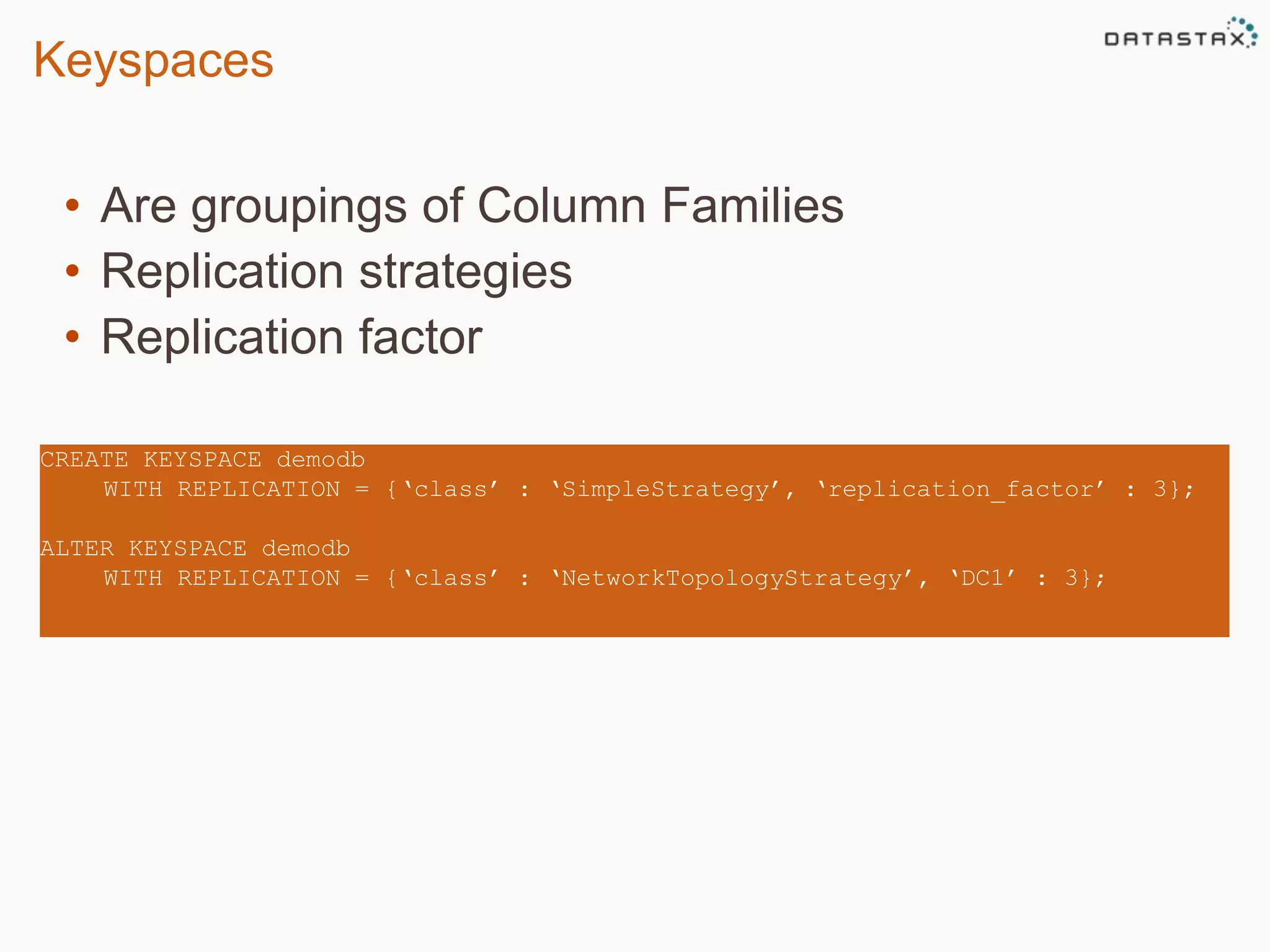

Keyspaces
• Are groupings of Column Families
• Replication strategies
• Replication factor
CREATE KEYSPACE demodb
WITH REPLICATION = {‘class’ : ‘SimpleStrategy’, ‘replication_factor’ : 3};
ALTER KEYSPACE demodb
WITH REPLICATION = {‘class’ : ‘NetworkTopologyStrategy’, ‘DC1’ : 3};

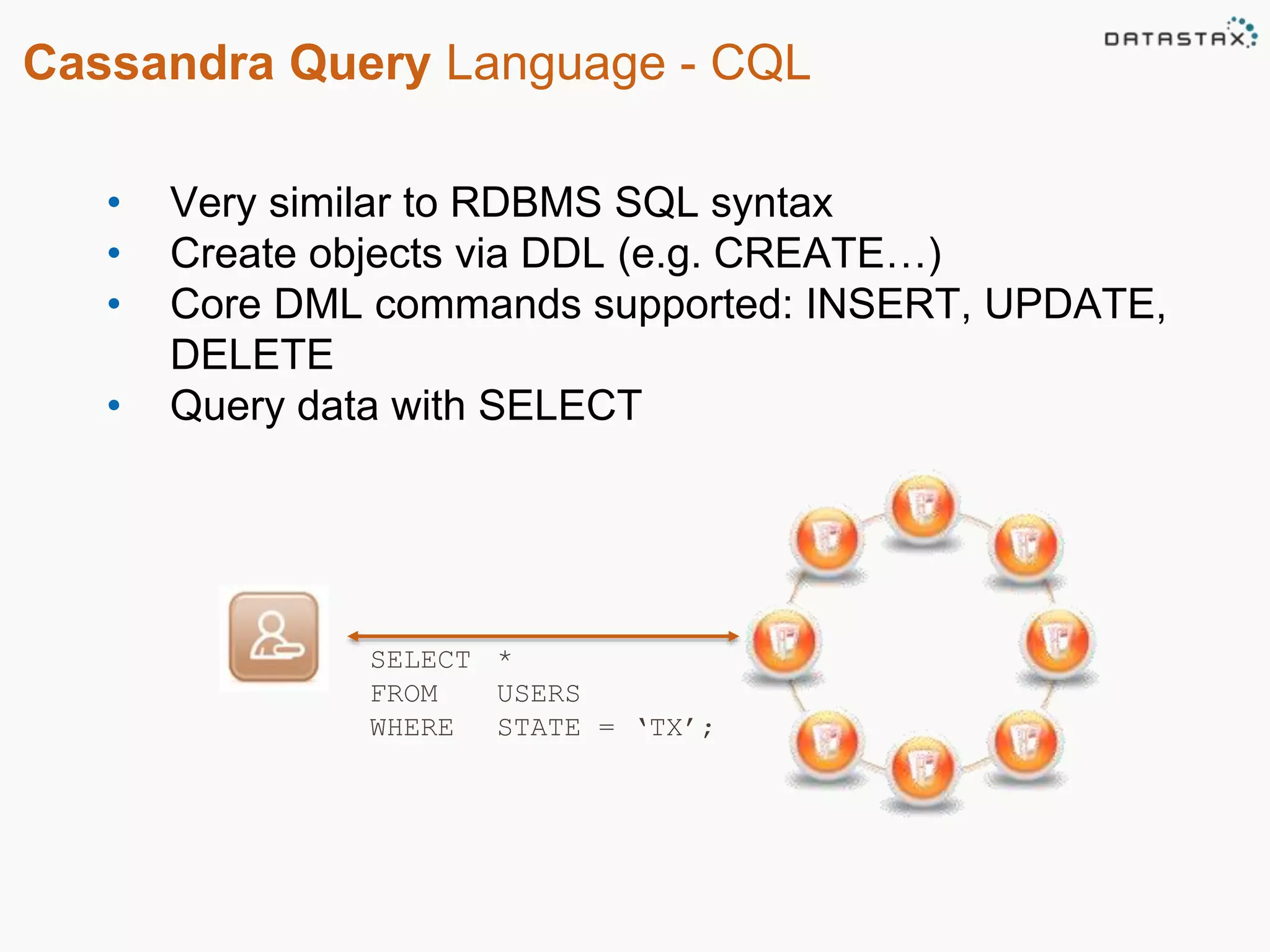

Cassandra Query Language - CQL
• Very similar to RDBMS SQL syntax
• Create objects via DDL (e.g. CREATE…)
• Core DML commands supported: INSERT, UPDATE,
DELETE
• Query data with SELECT
SELECT *
FROM USERS
WHERE STATE = ‘TX’;

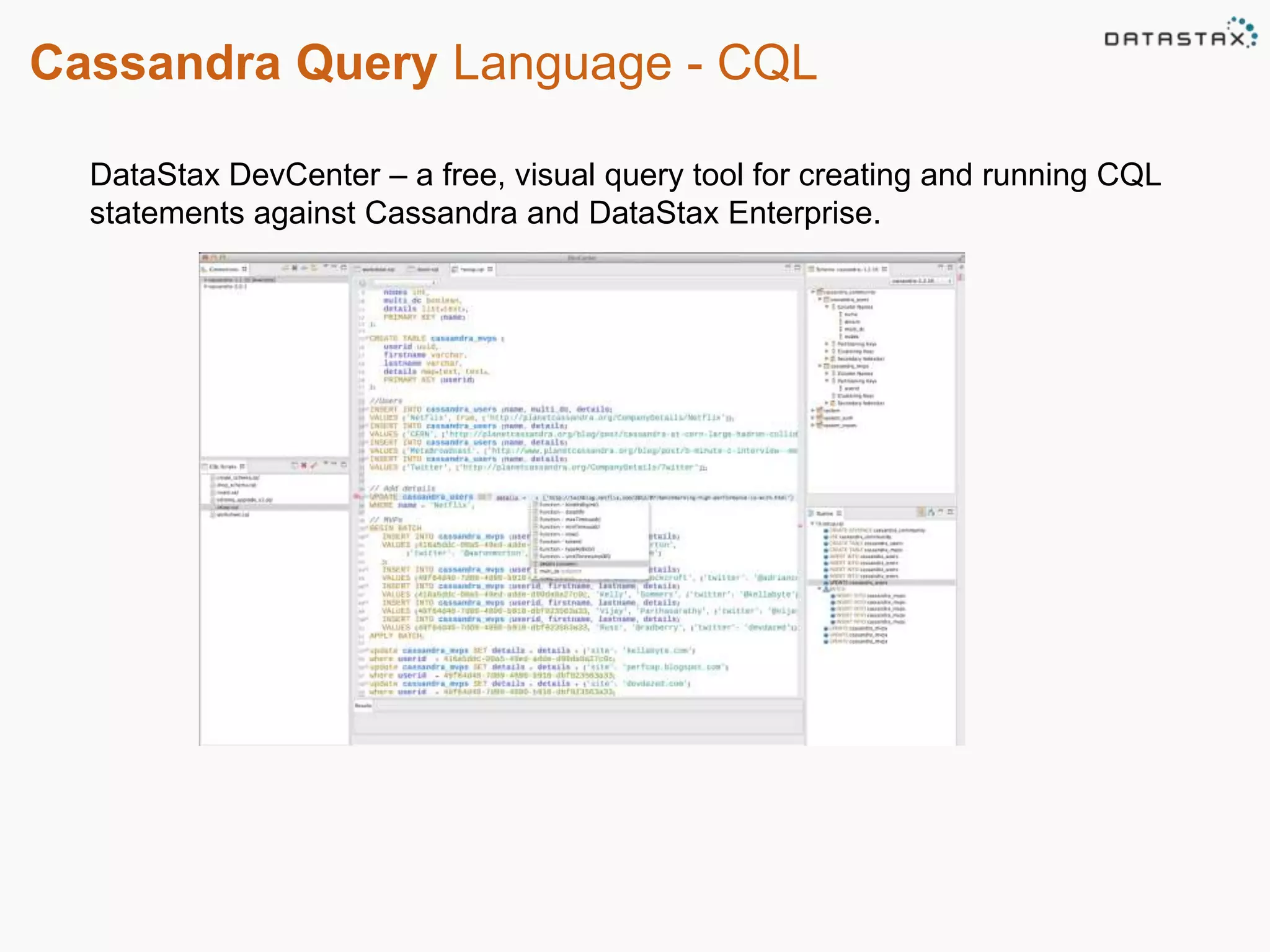

Cassandra Query Language - CQL
DataStax DevCenter – a free, visual query tool for creating and running CQL
statements against Cassandra and DataStax Enterprise.

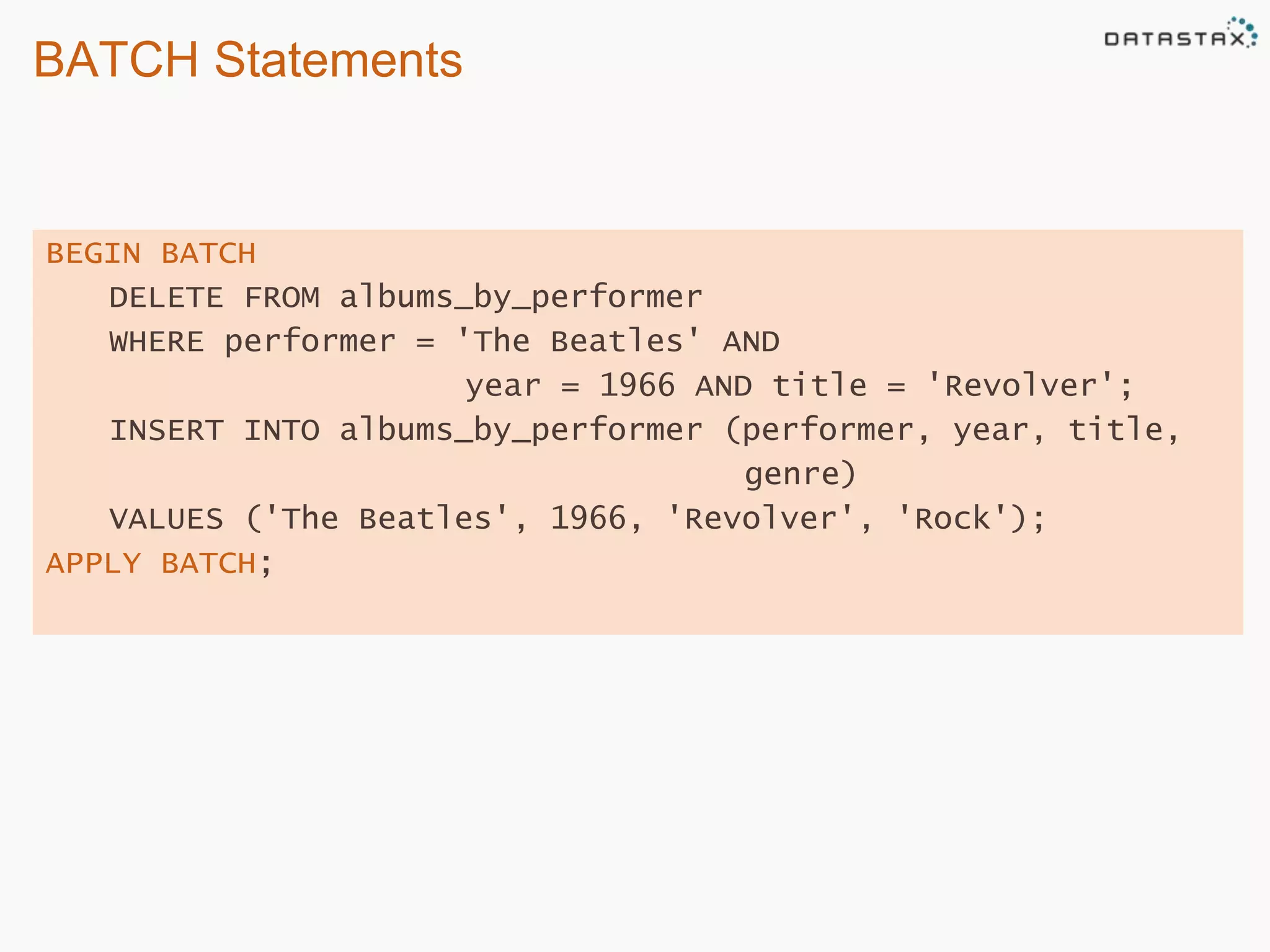

BATCH Statements
BEGIN BATCH
DELETE FROM albums_by_performer
WHERE performer = 'The Beatles' AND
year = 1966 AND title = 'Revolver';
INSERT INTO albums_by_performer (performer, year, title,
genre)
VALUES ('The Beatles', 1966, 'Revolver', 'Rock');
APPLY BATCH;

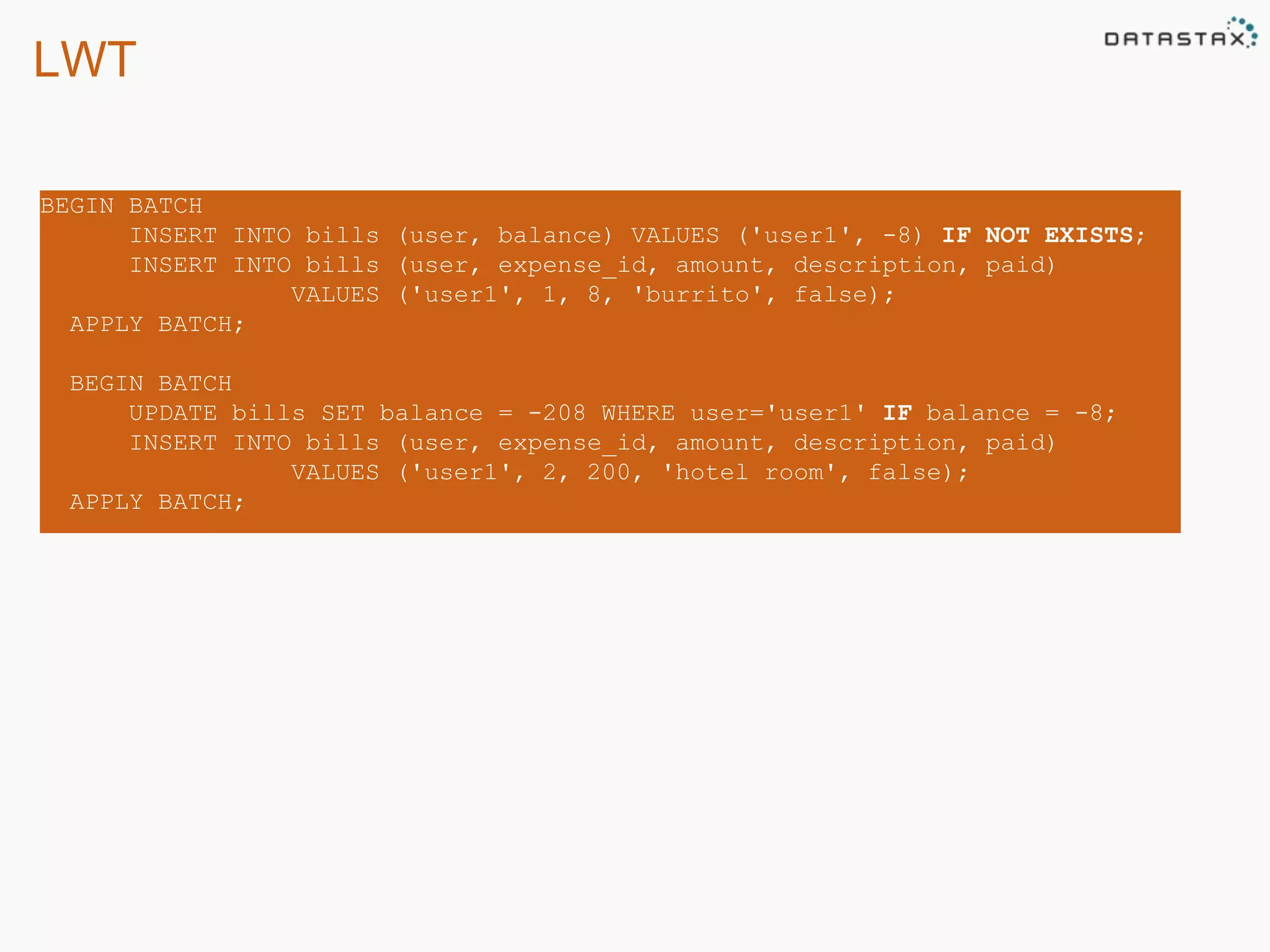

LWT
BEGIN BATCH
INSERT INTO bills (user, balance) VALUES ('user1', -8) IF NOT EXISTS;
INSERT INTO bills (user, expense_id, amount, description, paid)
VALUES ('user1', 1, 8, 'burrito', false);
APPLY BATCH;
BEGIN BATCH
UPDATE bills SET balance = -208 WHERE user='user1' IF balance = -8;
INSERT INTO bills (user, expense_id, amount, description, paid)
VALUES ('user1', 2, 200, 'hotel room', false);
APPLY BATCH;

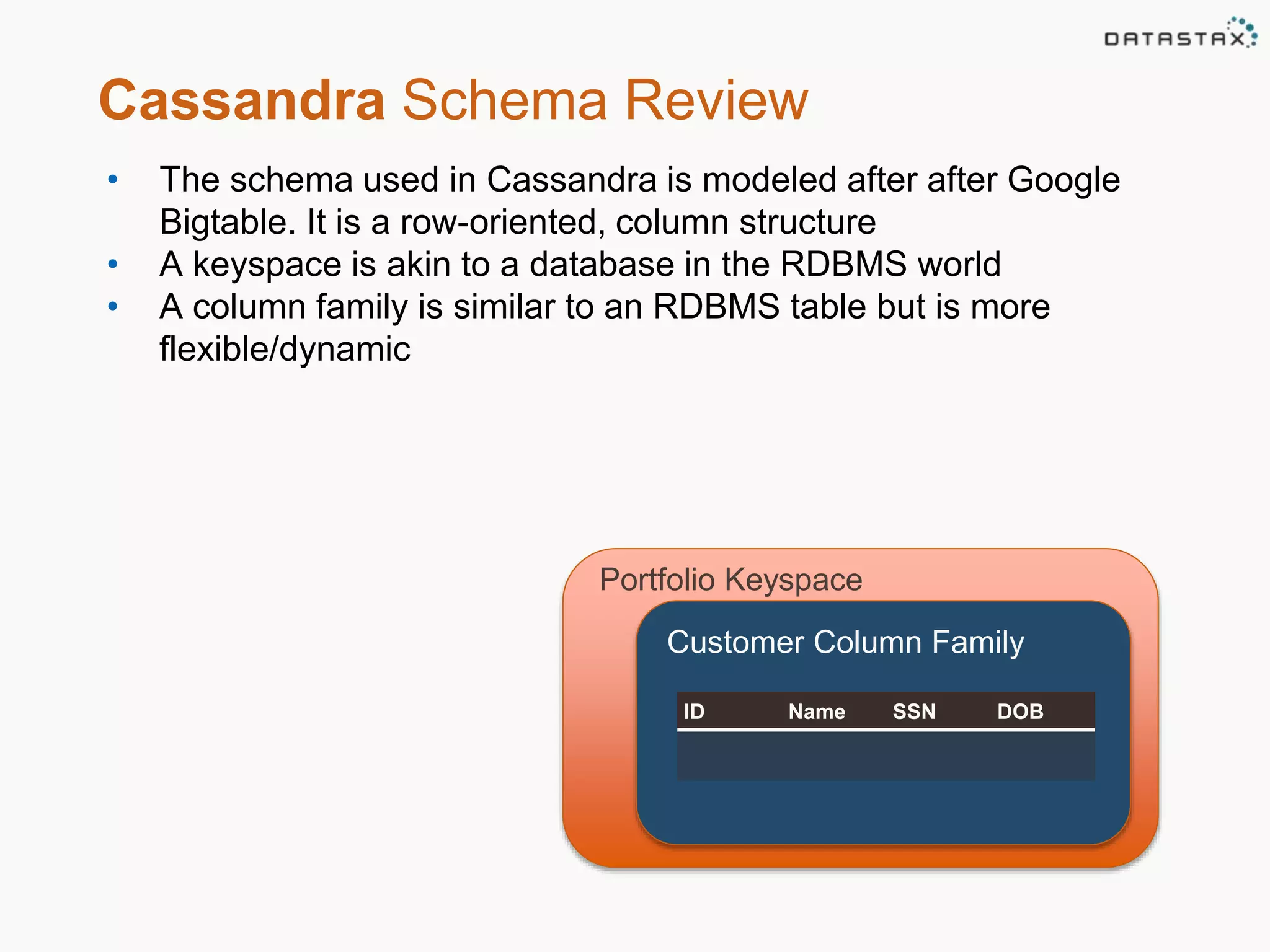

Cassandra Schema Review
• The schema used in Cassandra is modeled after after Google
Bigtable. It is a row-oriented, column structure
• A keyspace is akin to a database in the RDBMS world
• A column family is similar to an RDBMS table but is more
flexible/dynamic
Portfolio Keyspace
Customer Column Family
ID Name SSN DOB

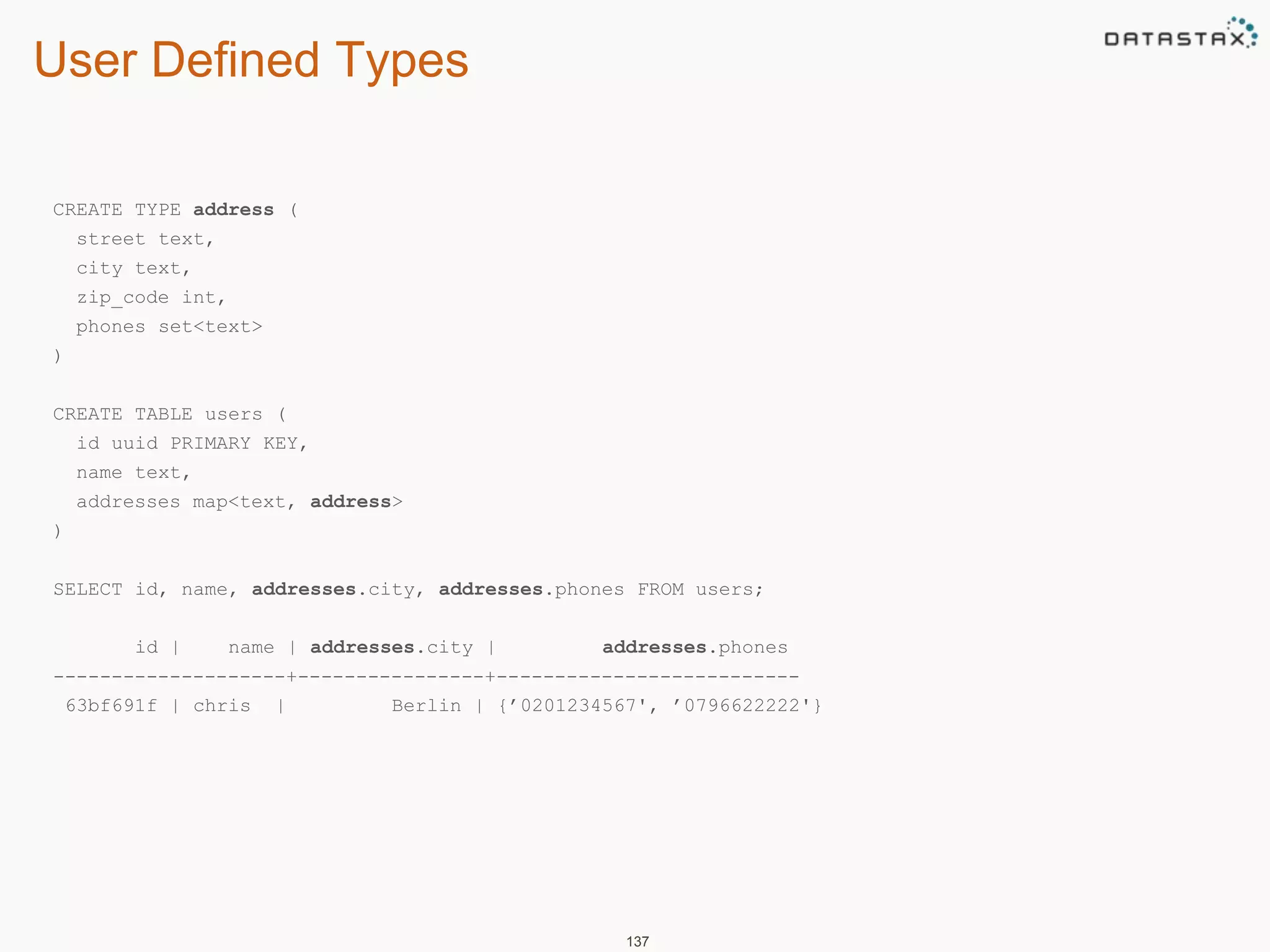

User Defined Types
137
CREATE TYPE address (
street text,
city text,
zip_code int,
phones set<text>
)
CREATE TABLE users (
id uuid PRIMARY KEY,
name text,
addresses map<text, address>
)
SELECT id, name, addresses.city, addresses.phones FROM users;
id | name | addresses.city | addresses.phones
--------------------+----------------+--------------------------
63bf691f | chris | Berlin | {’0201234567', ’0796622222'}

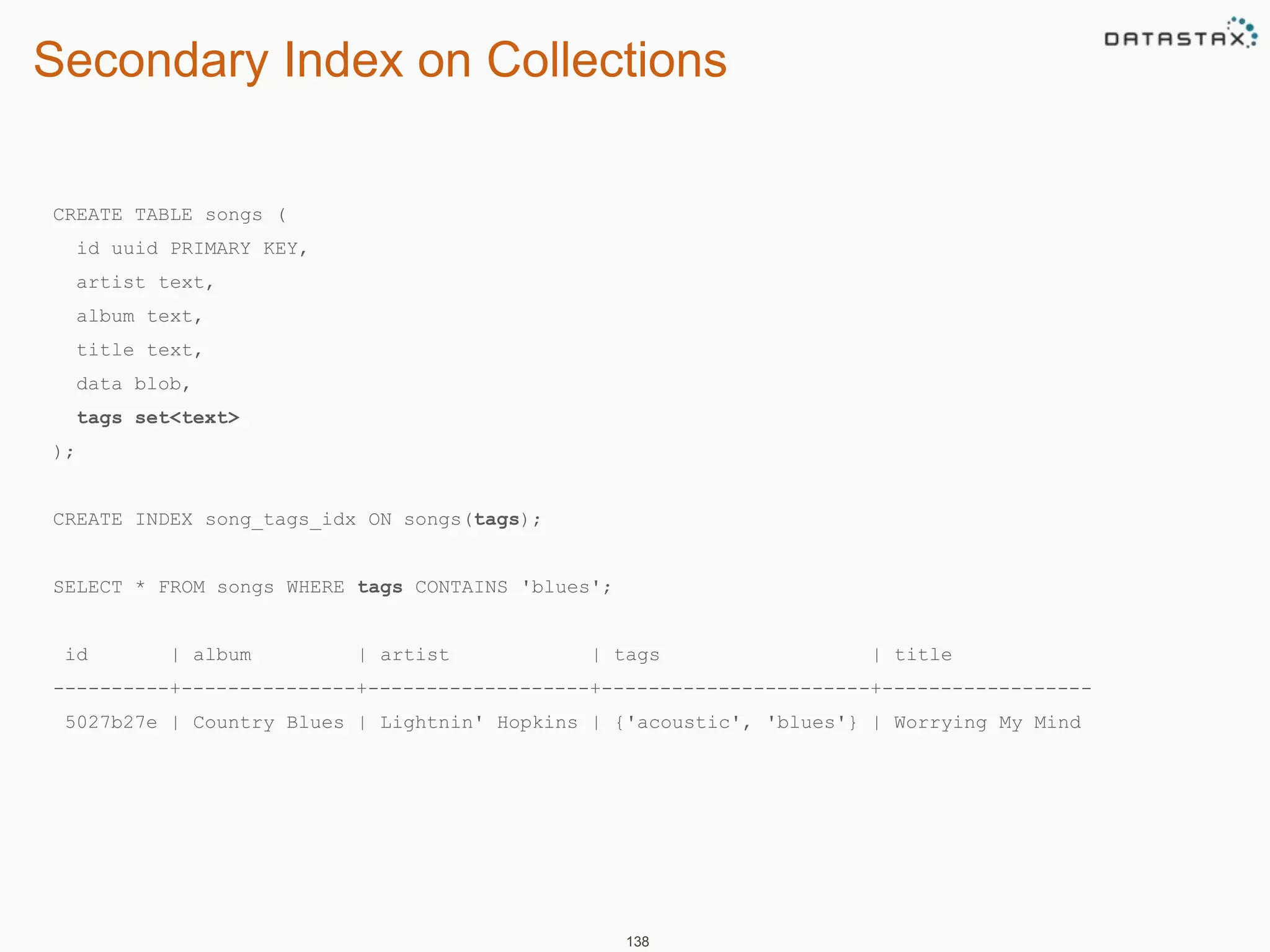

Secondary Index on Collections
138
CREATE TABLE songs (
id uuid PRIMARY KEY,
artist text,
album text,
title text,
data blob,
tags set<text>
);
CREATE INDEX song_tags_idx ON songs(tags);
SELECT * FROM songs WHERE tags CONTAINS 'blues';
id | album | artist | tags | title
----------+---------------+-------------------+-----------------------+------------------
5027b27e | Country Blues | Lightnin' Hopkins | {'acoustic', 'blues'} | Worrying My Mind

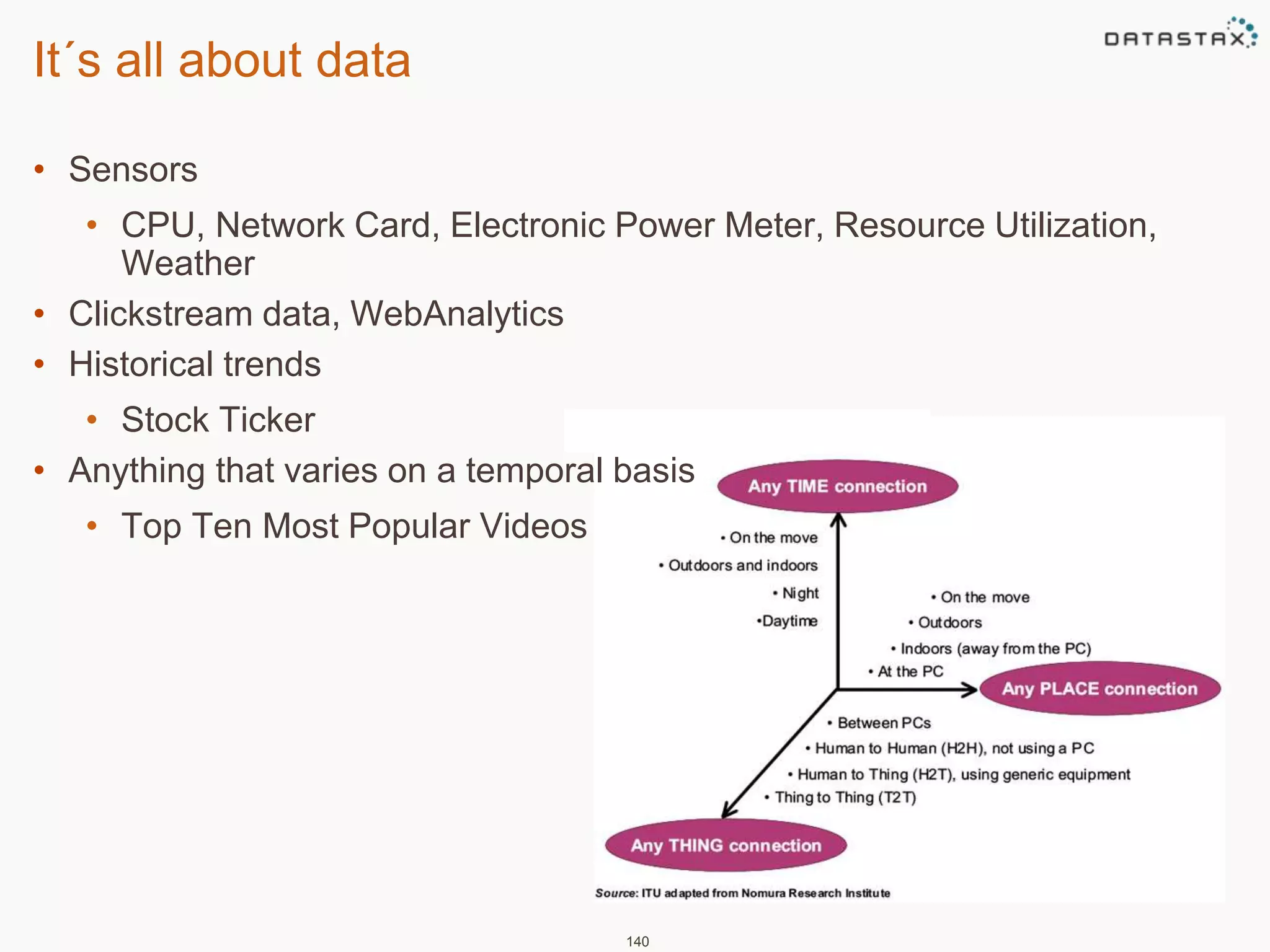

It´s all about data
• Sensors
• CPU, Network Card, Electronic Power Meter, Resource Utilization,
Weather
• Clickstream data, WebAnalytics
• Historical trends
• Stock Ticker
• Anything that varies on a temporal basis
• Top Ten Most Popular Videos
140

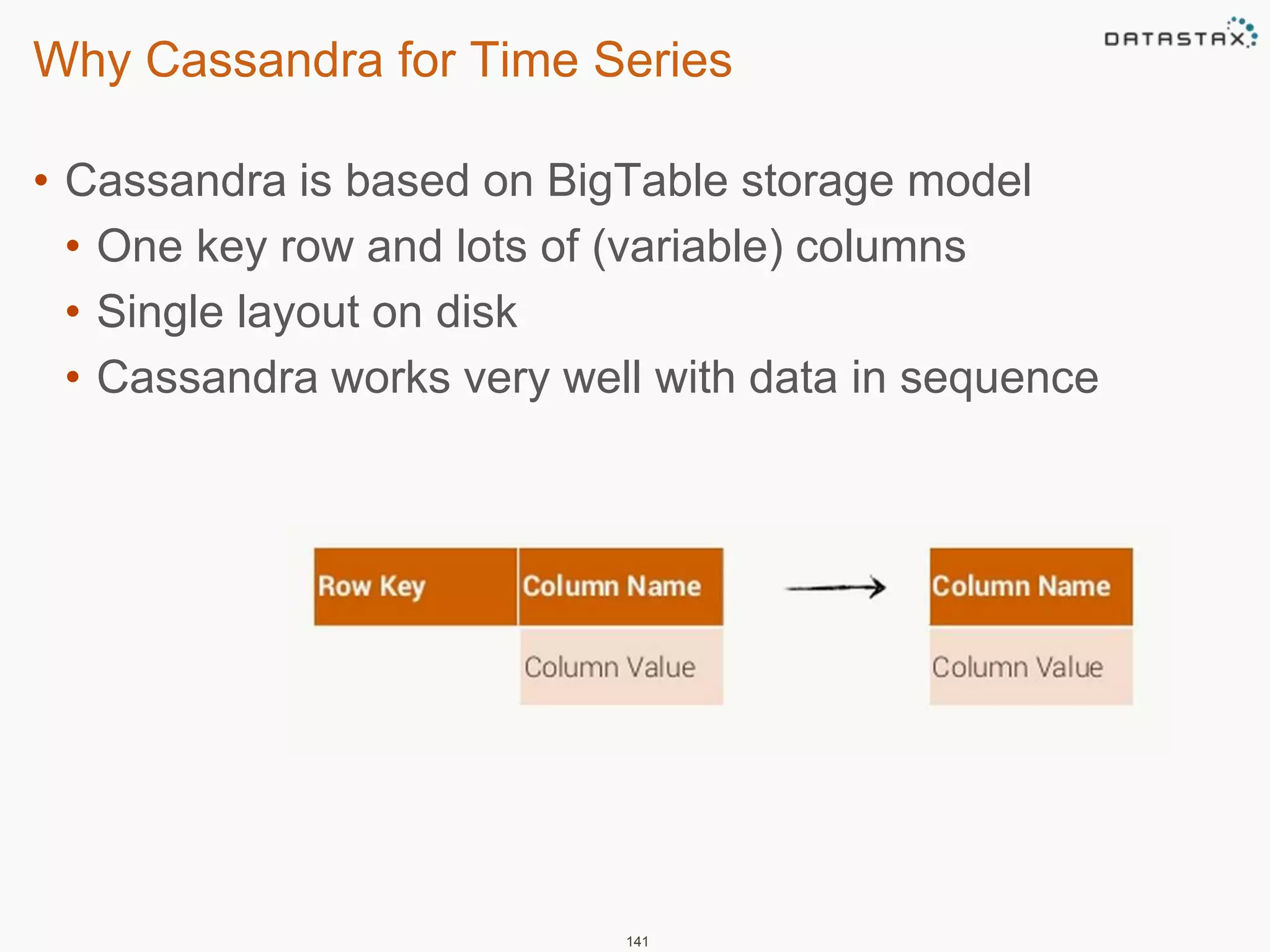

Why Cassandra for Time Series
• Cassandra is based on BigTable storage model
• One key row and lots of (variable) columns
• Single layout on disk
• Cassandra works very well with data in sequence
141

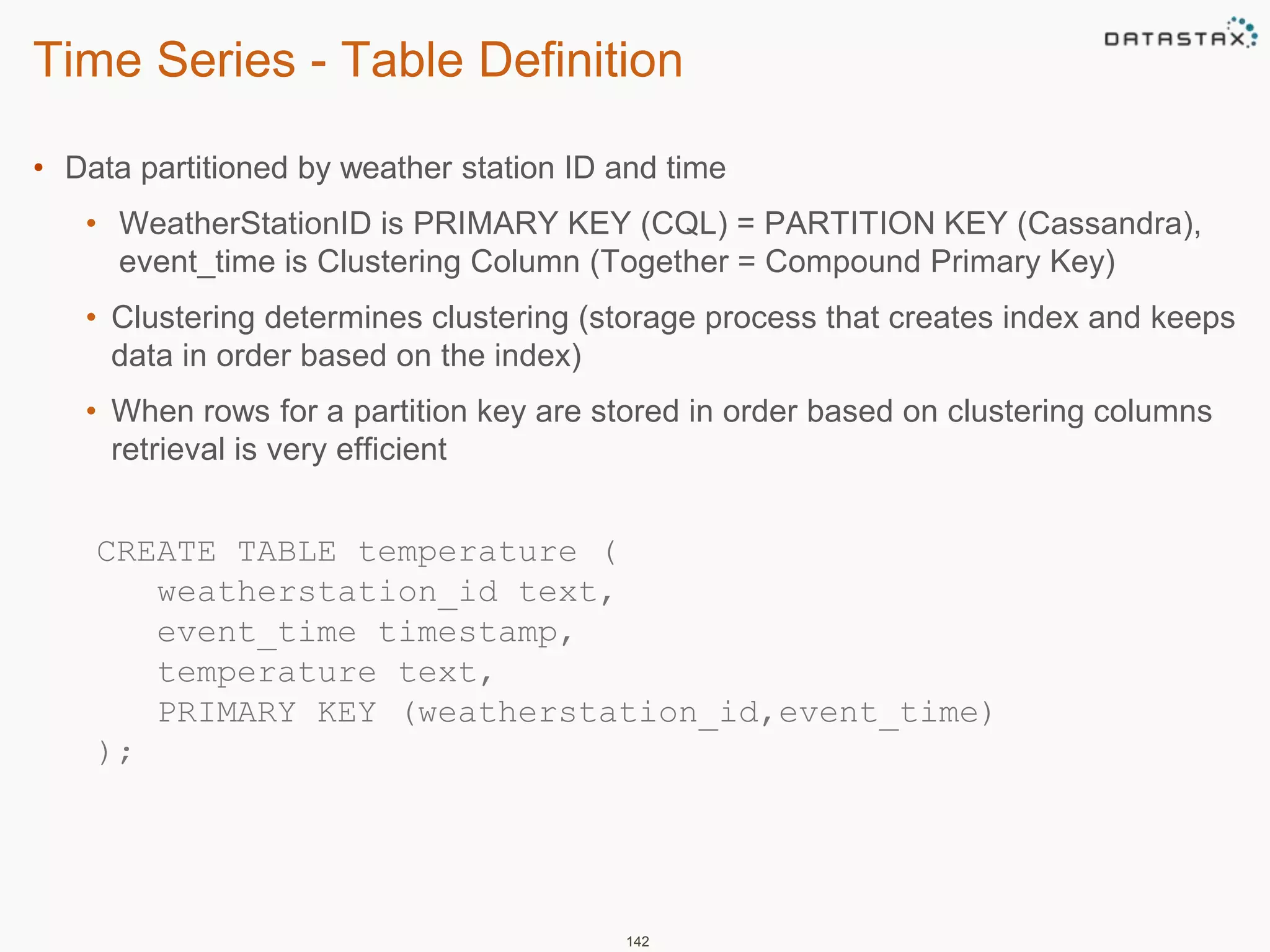

Time Series - Table Definition
• Data partitioned by weather station ID and time
• WeatherStationID is PRIMARY KEY (CQL) = PARTITION KEY (Cassandra),
event_time is Clustering Column (Together = Compound Primary Key)
• Clustering determines clustering (storage process that creates index and keeps
data in order based on the index)
• When rows for a partition key are stored in order based on clustering columns
retrieval is very efficient
CREATE TABLE temperature (
weatherstation_id text,
event_time timestamp,
temperature text,
PRIMARY KEY (weatherstation_id,event_time)
);
142

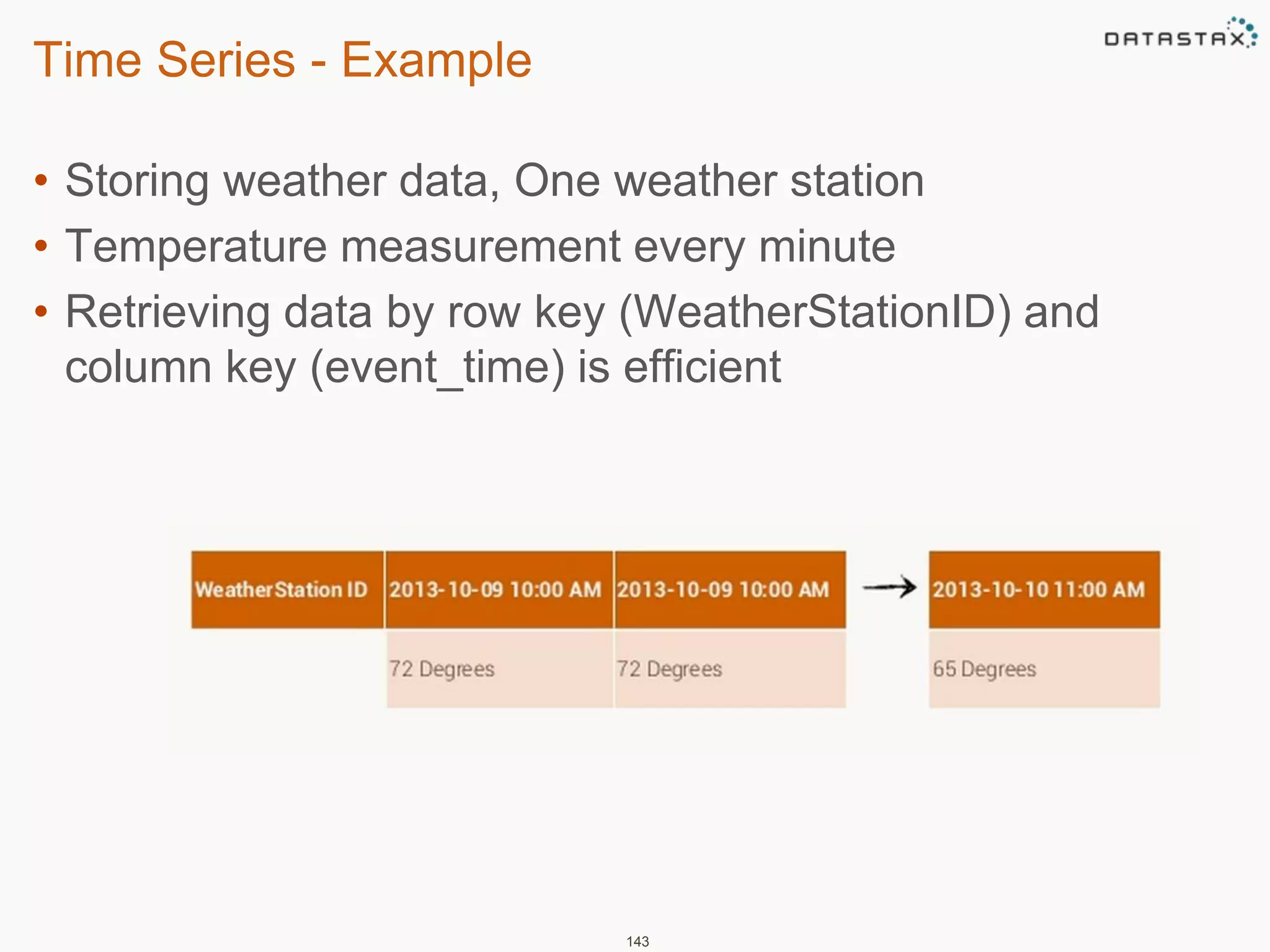

Time Series - Example
• Storing weather data, One weather station
• Temperature measurement every minute
• Retrieving data by row key (WeatherStationID) and
column key (event_time) is efficient
143

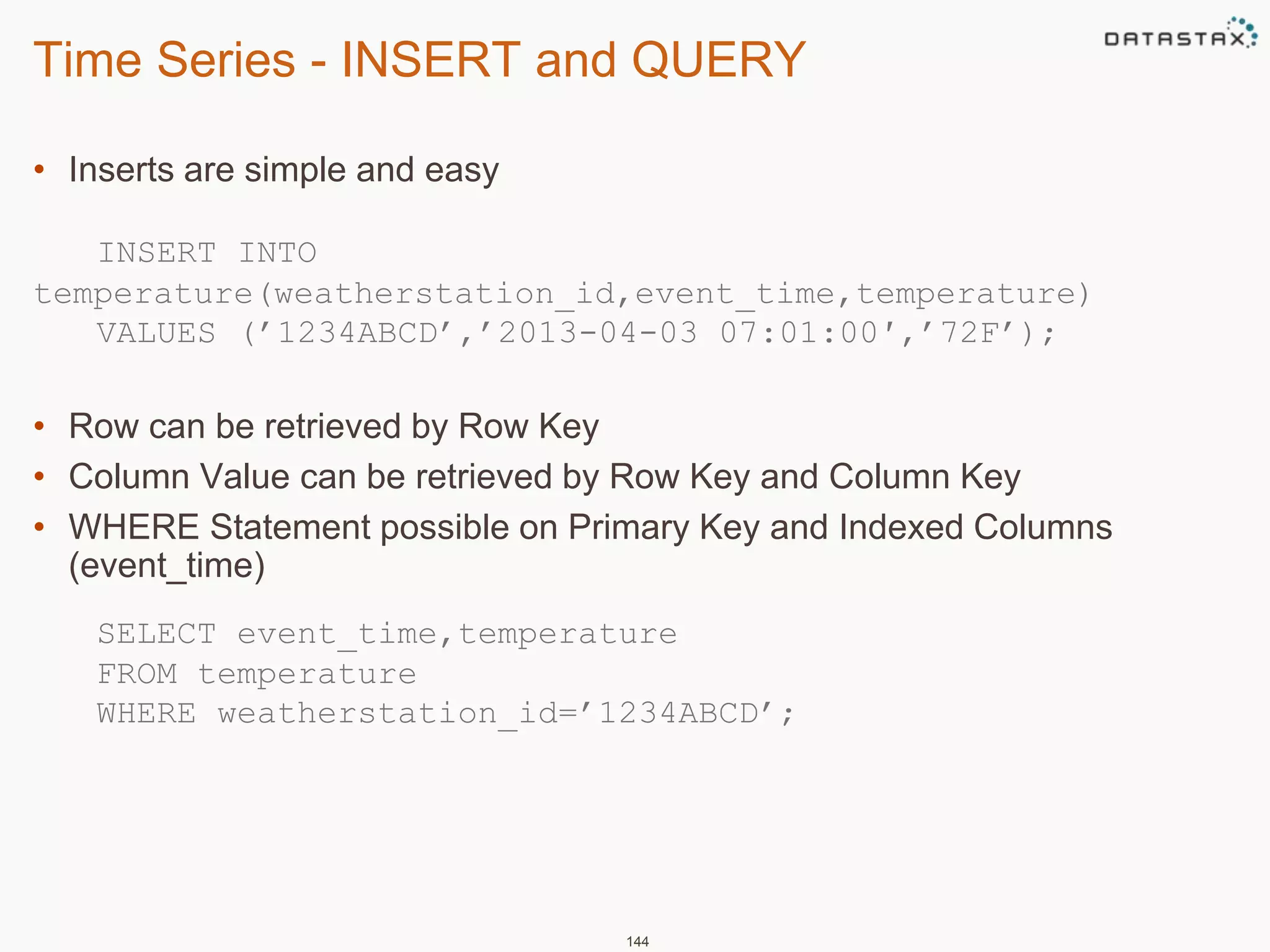

Time Series - INSERT and QUERY
• Inserts are simple and easy
INSERT INTO
temperature(weatherstation_id,event_time,temperature)
VALUES (’1234ABCD’,’2013-04-03 07:01:00′,’72F’);
• Row can be retrieved by Row Key
• Column Value can be retrieved by Row Key and Column Key
• WHERE Statement possible on Primary Key and Indexed Columns
(event_time)
SELECT event_time,temperature
FROM temperature
WHERE weatherstation_id=’1234ABCD’;
144

Time Series - Queries
• Queries based on Date and Date ranges are easy
145

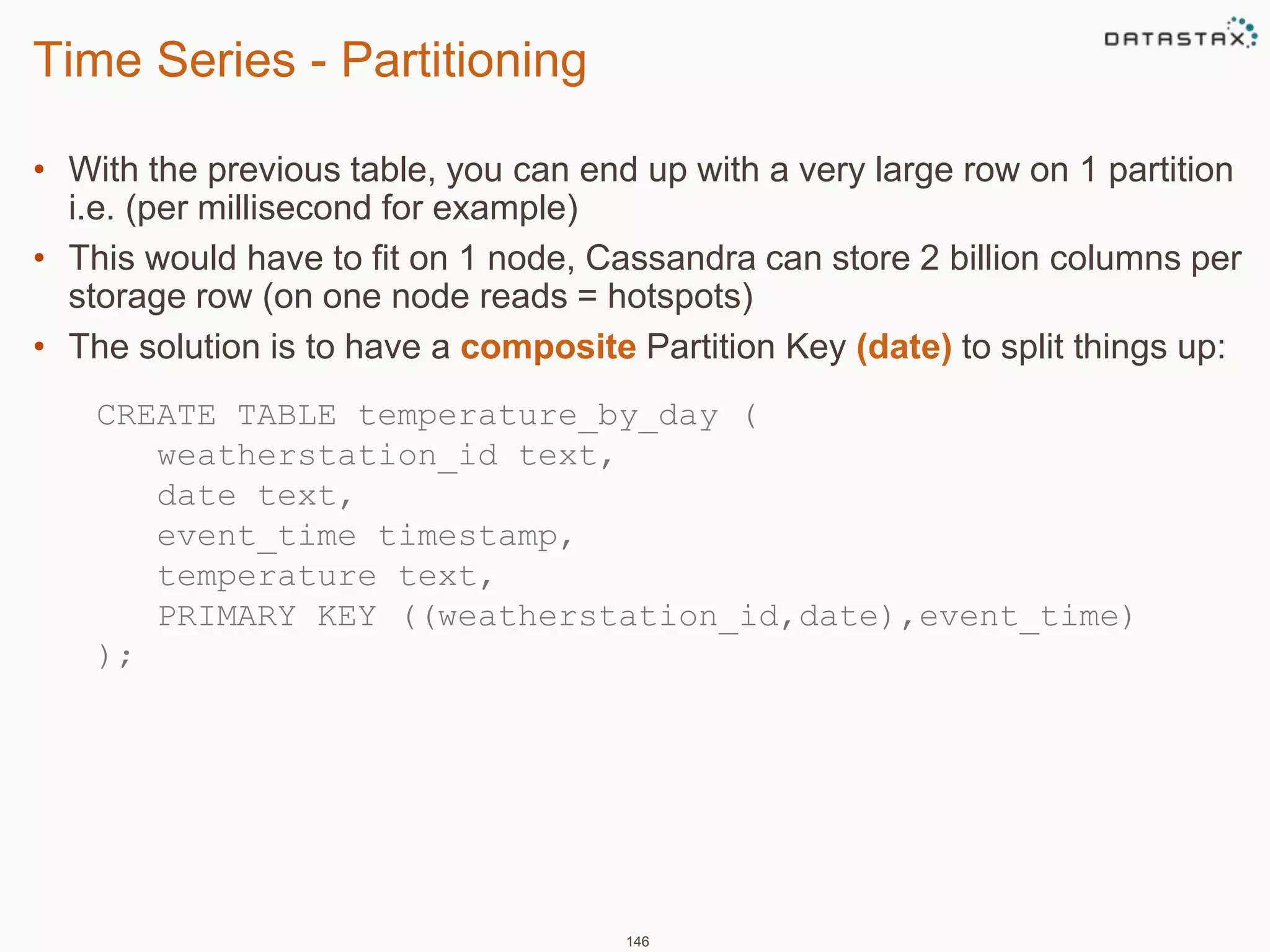

Time Series - Partitioning
• With the previous table, you can end up with a very large row on 1 partition
i.e. (per millisecond for example)
• This would have to fit on 1 node, Cassandra can store 2 billion columns per
storage row (on one node reads = hotspots)
• The solution is to have a composite Partition Key (date) to split things up:
CREATE TABLE temperature_by_day (
weatherstation_id text,
date text,
event_time timestamp,
temperature text,
PRIMARY KEY ((weatherstation_id,date),event_time)
);
146

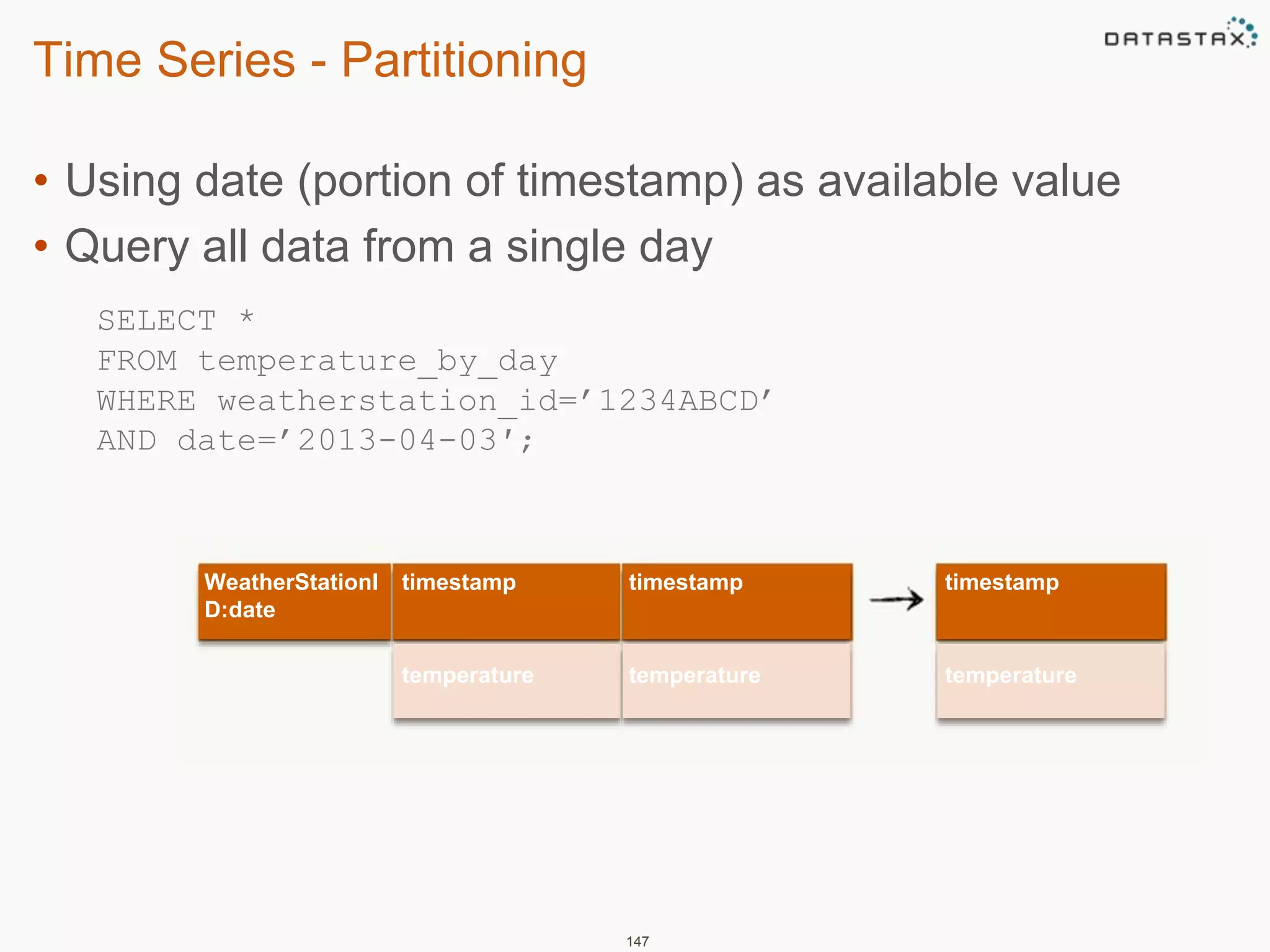

Time Series - Partitioning
• Using date (portion of timestamp) as available value
• Query all data from a single day
SELECT *
FROM temperature_by_day
WHERE weatherstation_id=’1234ABCD’
AND date=’2013-04-03′;
147
WeatherStationI
D:date
timestamp timestamp timestamp
temperature temperature temperature

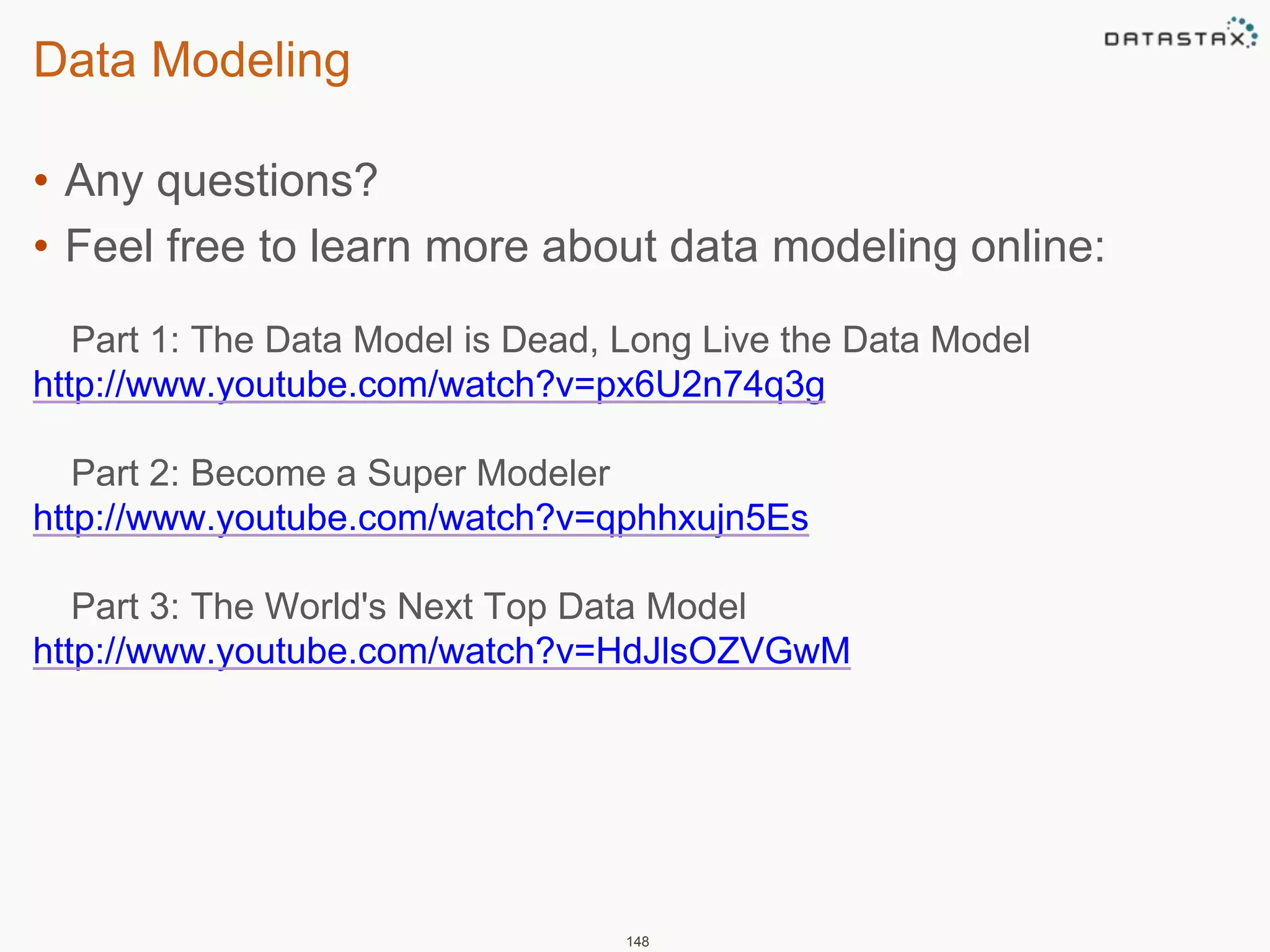

Data Modeling
• Any questions?
• Feel free to learn more about data modeling online:
Part 1: The Data Model is Dead, Long Live the Data Model
http://www.youtube.com/watch?v=px6U2n74q3g
Part 2: Become a Super Modeler
http://www.youtube.com/watch?v=qphhxujn5Es
Part 3: The World's Next Top Data Model
http://www.youtube.com/watch?v=HdJlsOZVGwM
148

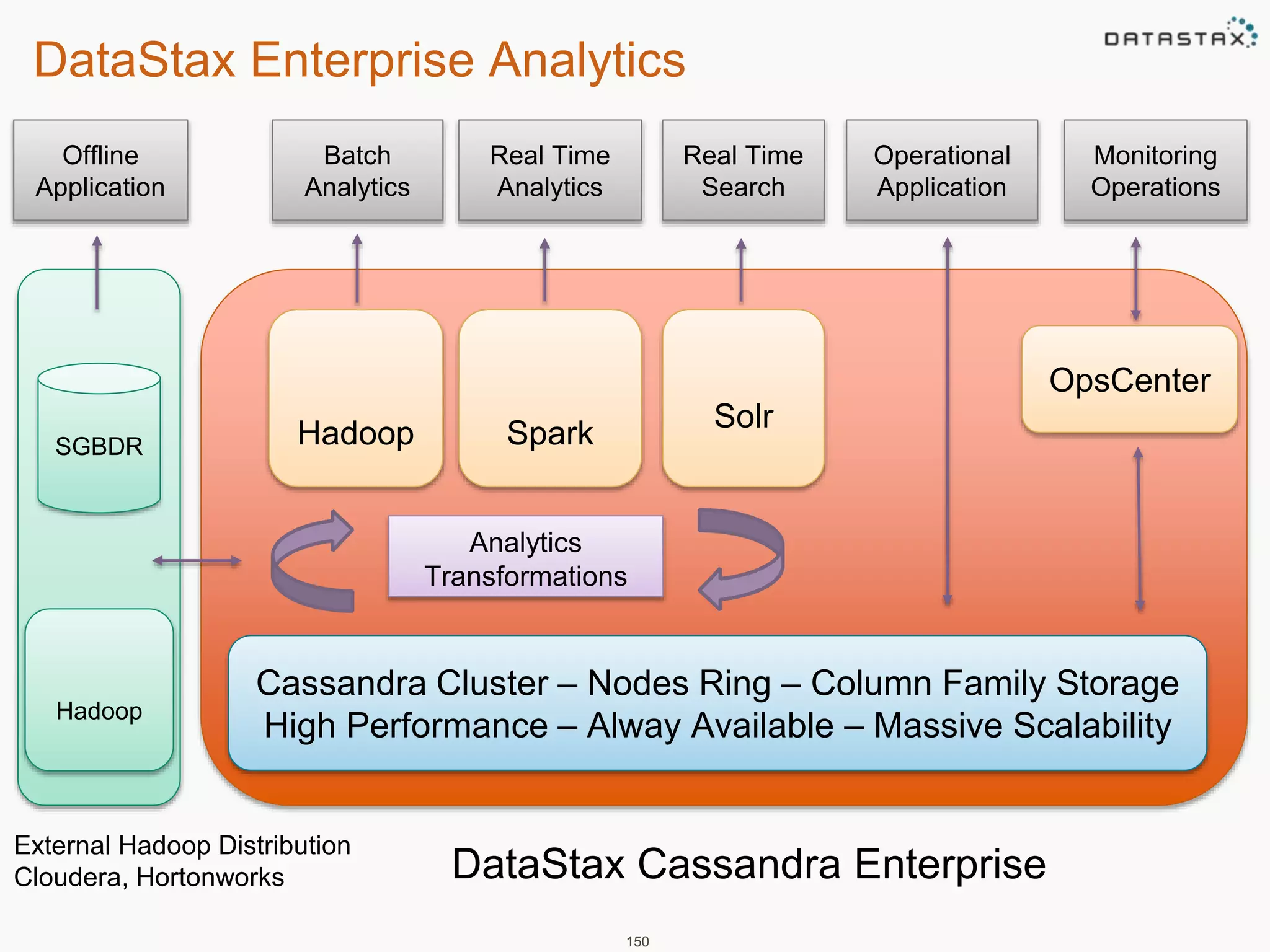

DataStax Enterprise Analytics
Cassandra Cluster – Nodes Ring – Column Family Storage
High Performance – Alway Available – Massive Scalability
150
Hadoop
Offline
Application
DataStax Cassandra Enterprise
External Hadoop Distribution
Cloudera, Hortonworks
Spark
Solr
OpsCenter
Hadoop
Monitoring
Operations
Operational
Application
Real Time
Search
Real Time
Analytics
Batch
Analytics
SGBDR
Analytics
Transformations

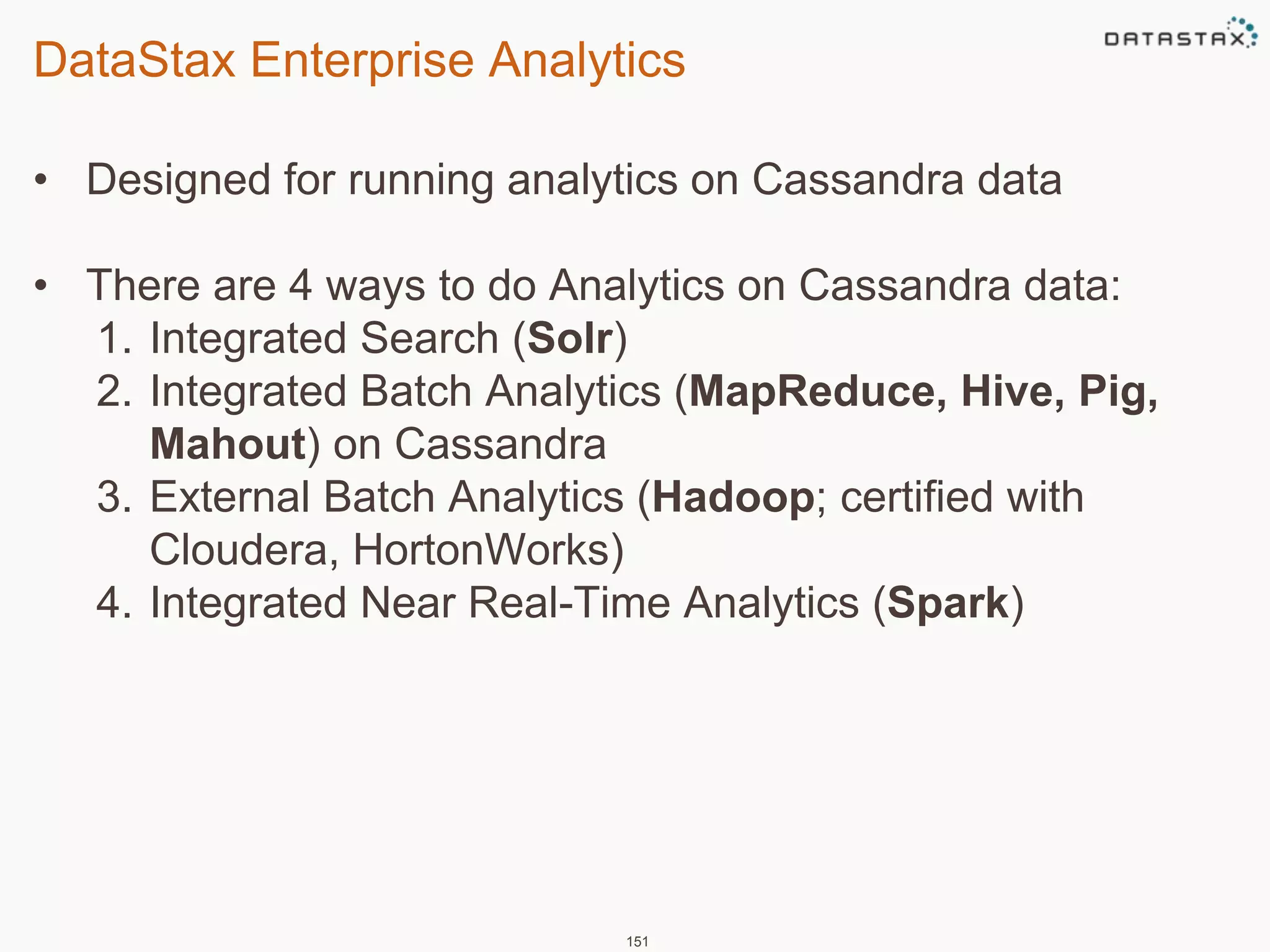

DataStax Enterprise Analytics
• Designed for running analytics on Cassandra data
• There are 4 ways to do Analytics on Cassandra data:
1. Integrated Search (Solr)
2. Integrated Batch Analytics (MapReduce, Hive, Pig,
Mahout) on Cassandra
3. External Batch Analytics (Hadoop; certified with
Cloudera, HortonWorks)
4. Integrated Near Real-Time Analytics (Spark)
151

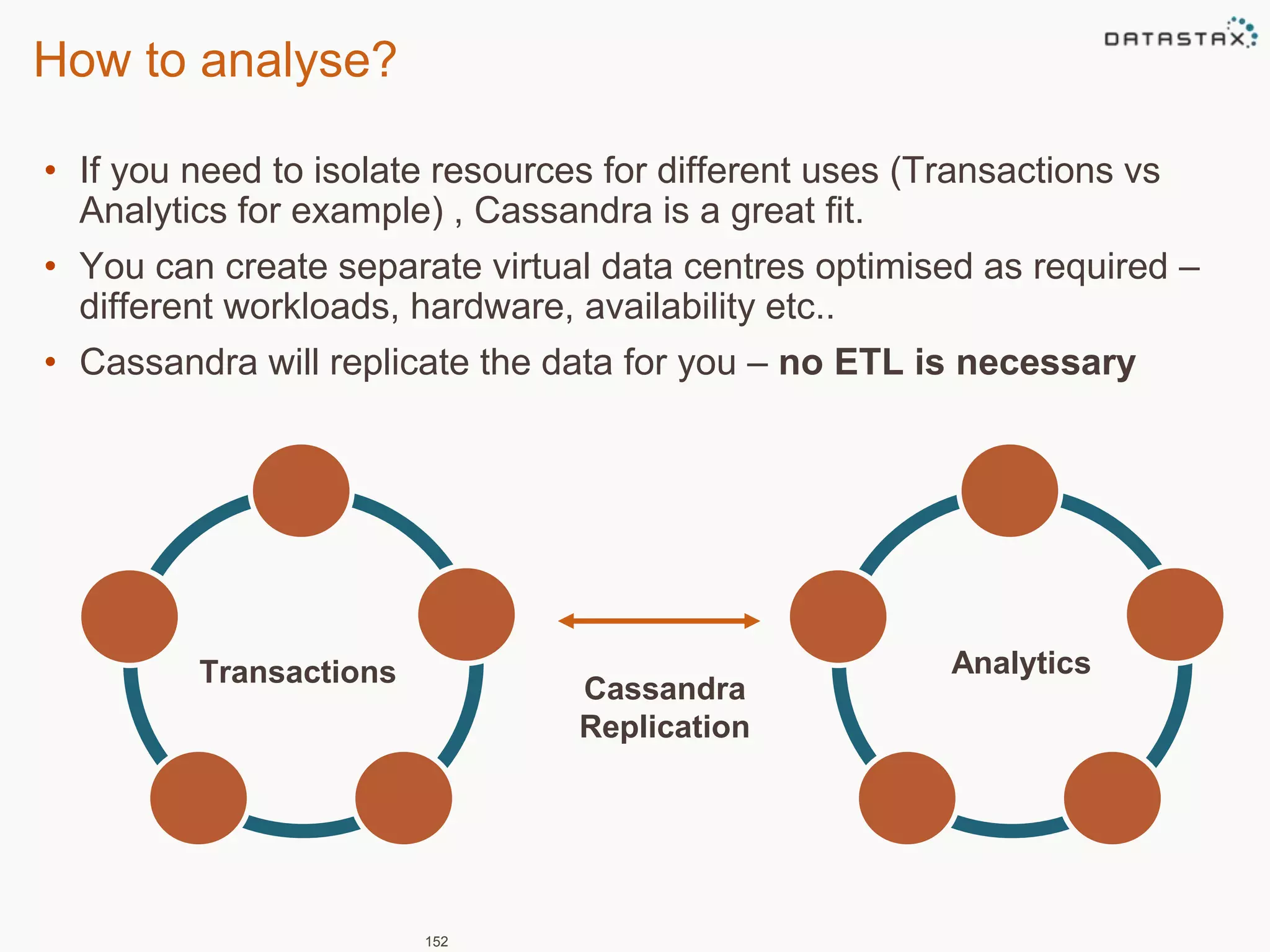

How to analyse?
• If you need to isolate resources for different uses (Transactions vs
Analytics for example) , Cassandra is a great fit.
• You can create separate virtual data centres optimised as required –
different workloads, hardware, availability etc..
• Cassandra will replicate the data for you – no ETL is necessary
Transactions Analytics
152
Cassandra
Replication

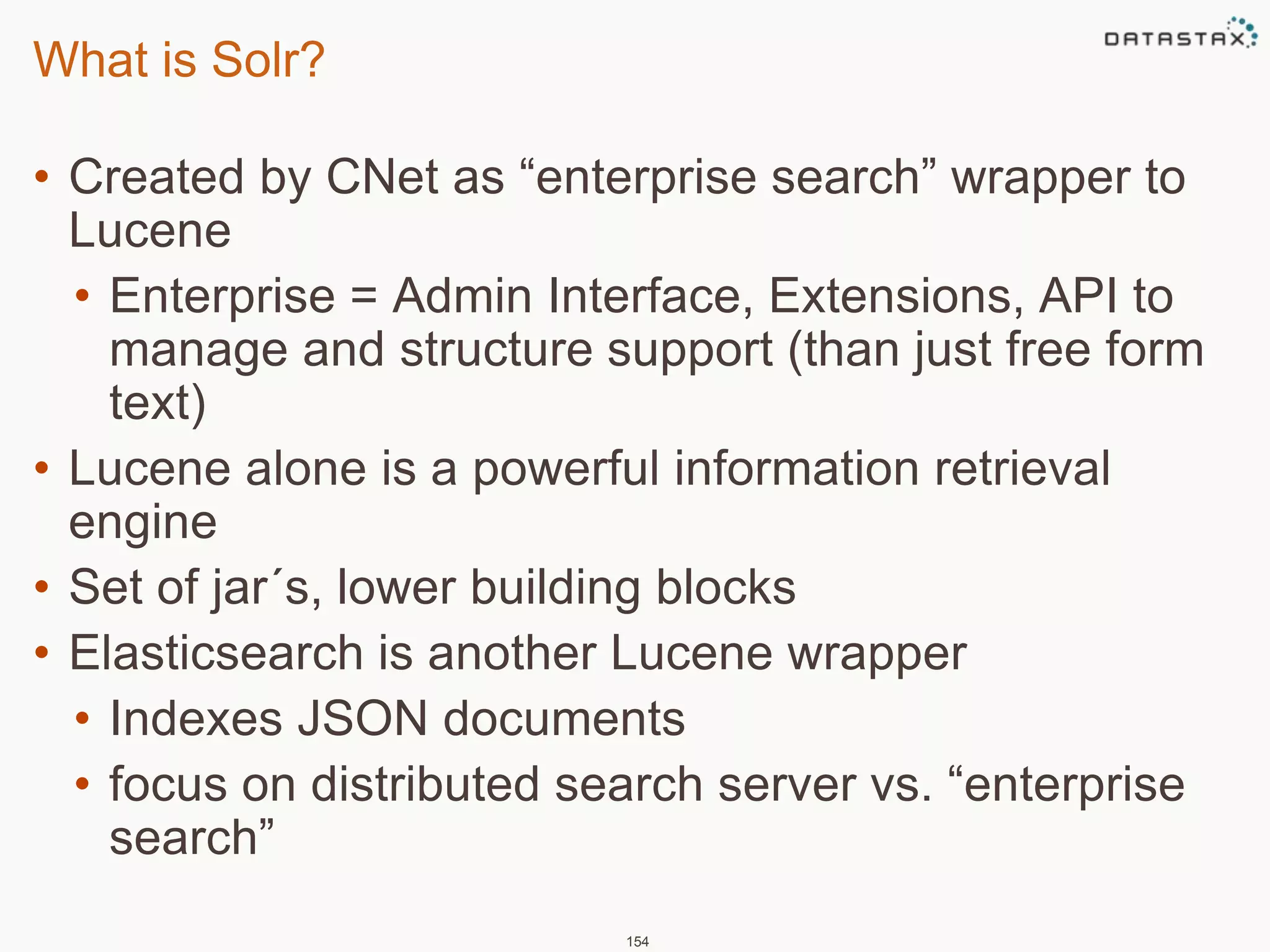

What is Solr?
• Created by CNet as “enterprise search” wrapper to
Lucene
• Enterprise = Admin Interface, Extensions, API to
manage and structure support (than just free form
text)
• Lucene alone is a powerful information retrieval
engine
• Set of jar´s, lower building blocks
• Elasticsearch is another Lucene wrapper
• Indexes JSON documents
• focus on distributed search server vs. “enterprise
search”
154

Solr Search
• Search != Query
• Query: implies an exact set of results
• “give me all cafe visits of this year for user xyz”
• Search: fuzzier, with typical inexact sets of results
• “give me the top web pages containing “apache”
and “cassandra”
155

Solr Integration in DSE Analytics
• 100% Solr/Lucene compatible
• Very fast performance
• Real-time search operations; indexes can be rebuilt on the fly
• Provides data durability (overcomes Solr’s lack of write-ahead
log - if community Solr node goes down, data can be
lost)
• Overcomes Solr write bottleneck – can read/write to any Solr
node
• Automatic sharding via Cassandra replication
• Search indexes can span multiple data centers (regular Solr
cannot)
• Online scalability via adding new nodes
• Built-in failover; continuously available
156

Integrated Hadoop
• Integrated Hadoop 1.0.4
• CFS (Cassandra File System) , no HDFS
• No Single Point of failure
• No Hadoop complexity – every node is built the same
• Hive / Pig / Sqoop / Mahout
Cassandra
Replication
158
Customer
Facing
Hadoop
Nodes

Bring Your Own Hadoop
159
Hive
Request
External Hadoop
Resource
Manager
• Analytics from external Hadoop
distribution
• Hadoop 2.x support
• Certified with Cloudera,
Hortonworks
Cassandra
Nodes

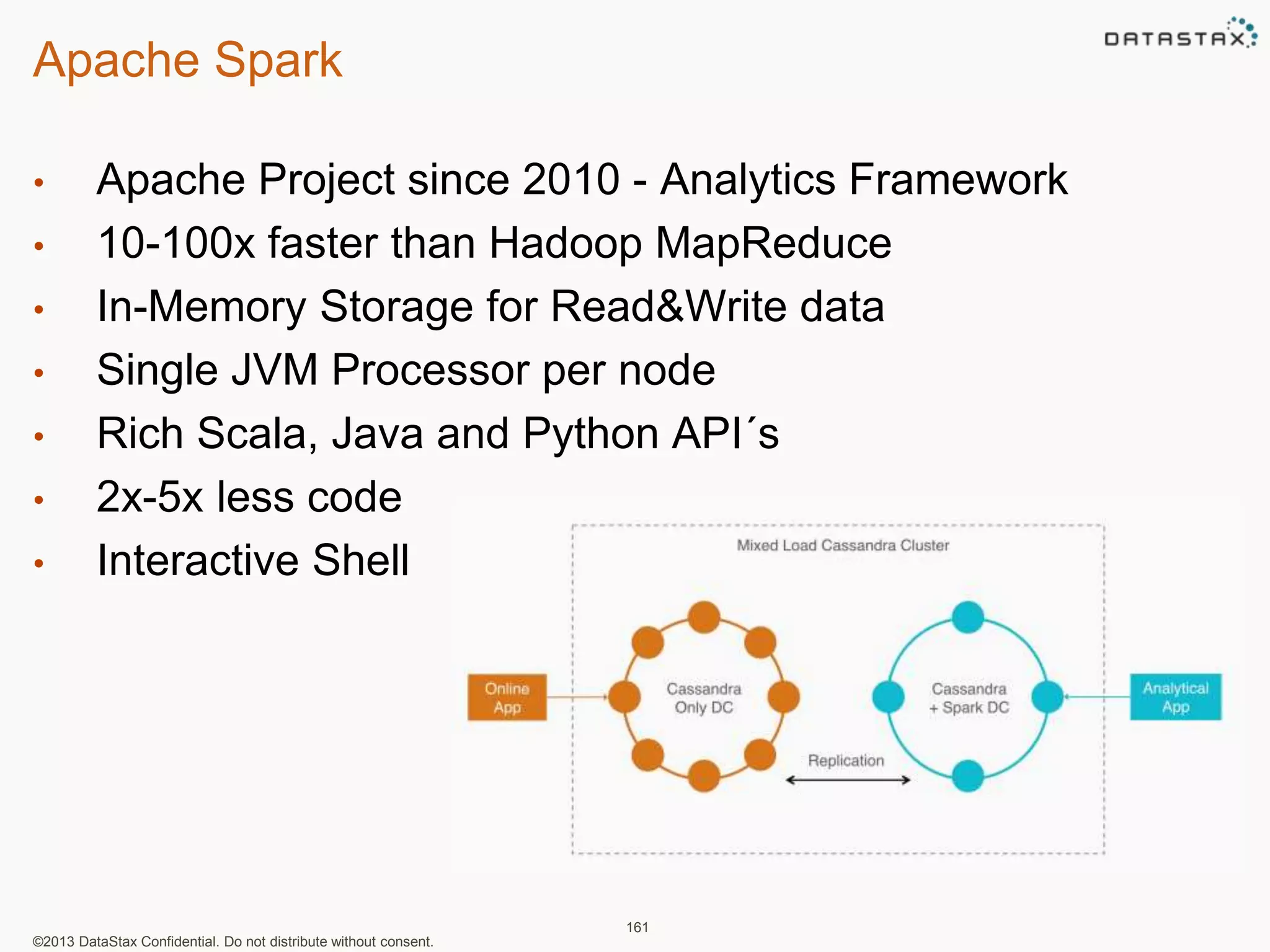

Apache Spark
• Apache Project since 2010 - Analytics Framework
• 10-100x faster than Hadoop MapReduce
• In-Memory Storage for Read&Write data
• Single JVM Processor per node
• Rich Scala, Java and Python API´s
• 2x-5x less code
• Interactive Shell
161

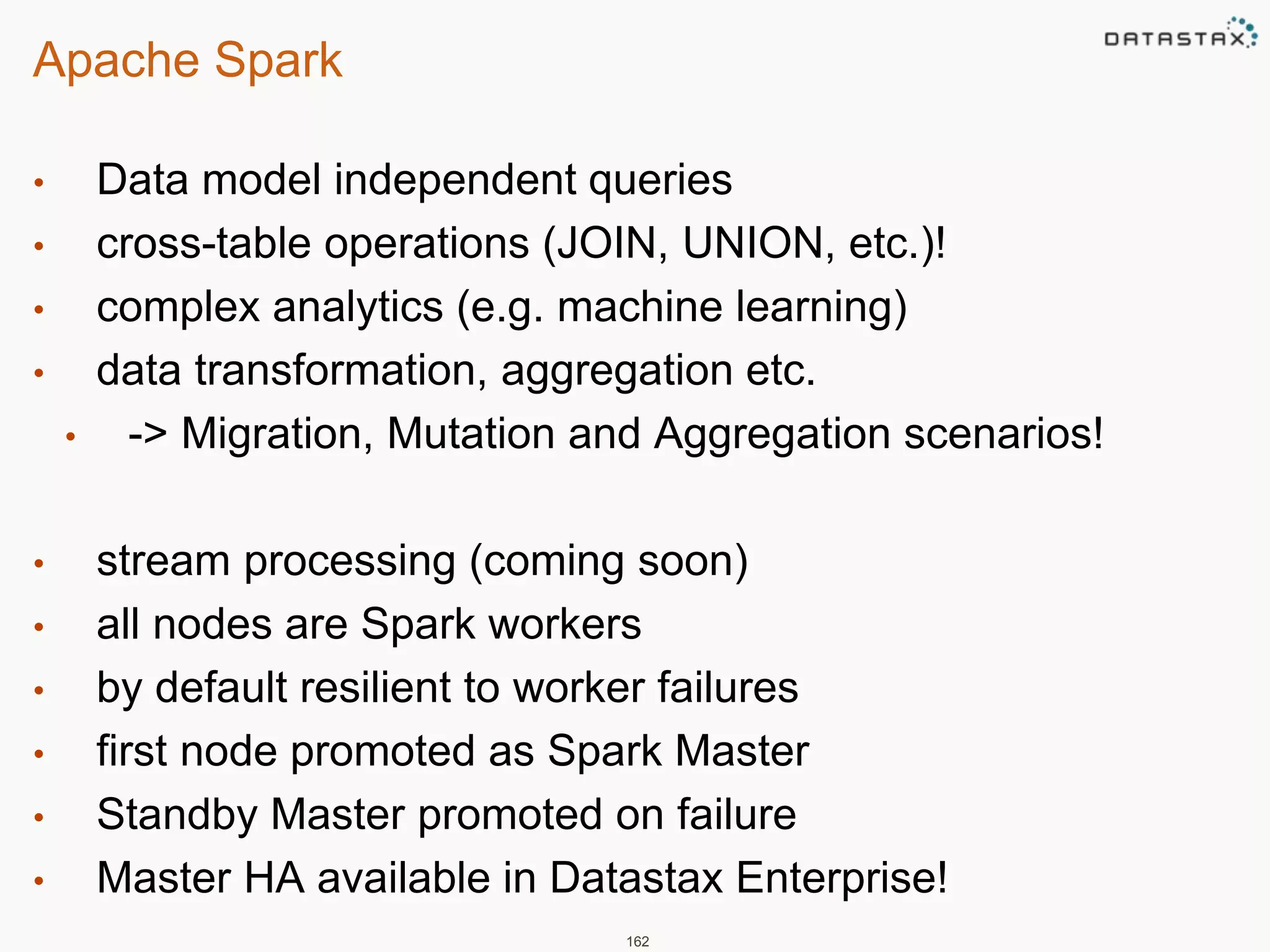

Apache Spark
• Data model independent queries
• cross-table operations (JOIN, UNION, etc.)!
• complex analytics (e.g. machine learning)
• data transformation, aggregation etc.
• -> Migration, Mutation and Aggregation scenarios!
• stream processing (coming soon)
• all nodes are Spark workers
• by default resilient to worker failures
• first node promoted as Spark Master
• Standby Master promoted on failure
• Master HA available in Datastax Enterprise!
162

Apache Spark
• Architecture
163

Howto Spark?
• DataStax Cassandra Spark driver
• OpenSource: https://github.com/datastax/cassandra-driver-
spark
• Compatible with
• Spark 0.9+
• Cassandra 2.0+
• DataStax Enterprise 4.5+
164

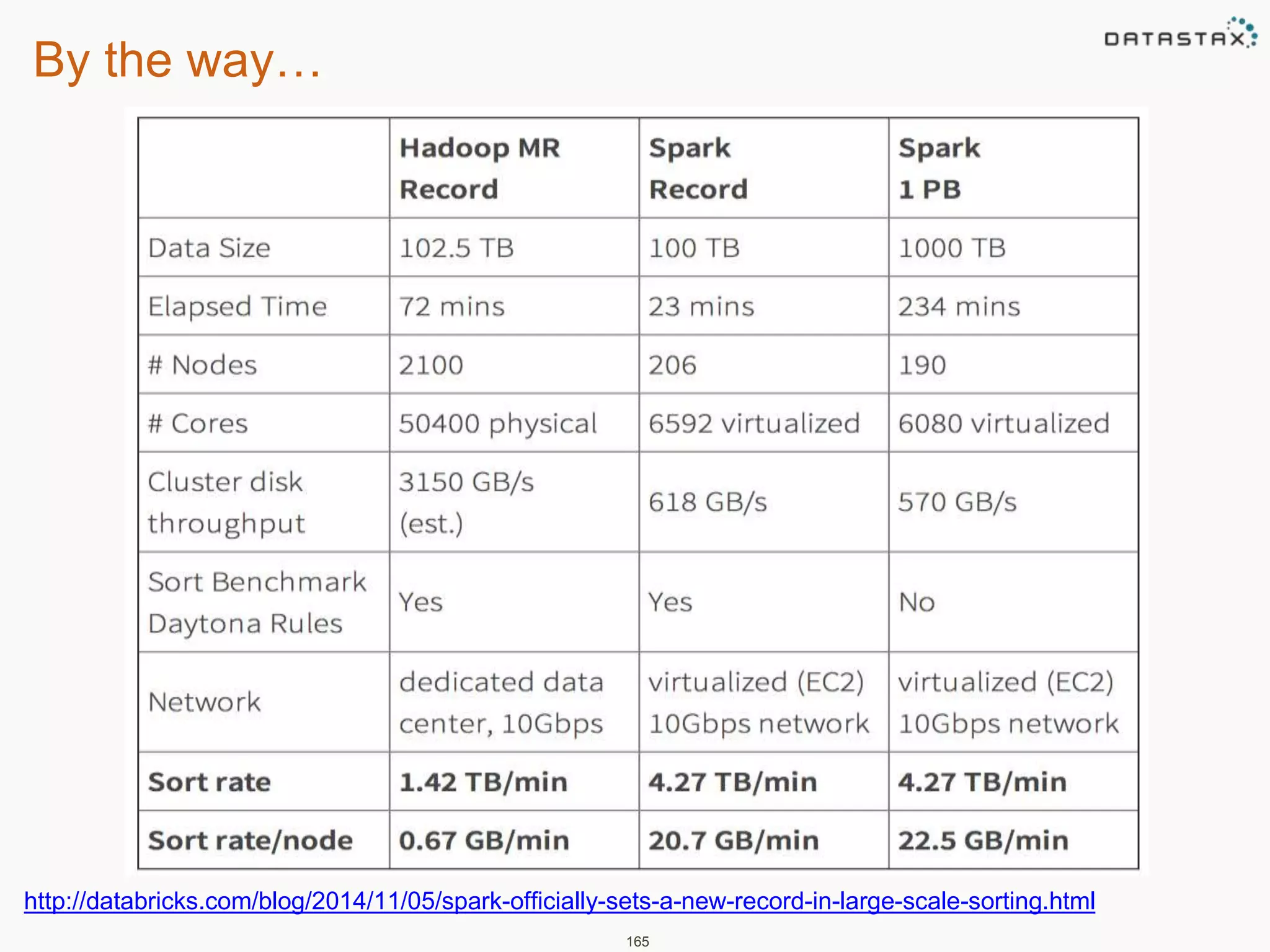

By the way…
http://databricks.com/blog/2014/11/05/spark-officially-sets-a-new-record-in-large-scale-sorting.html
165

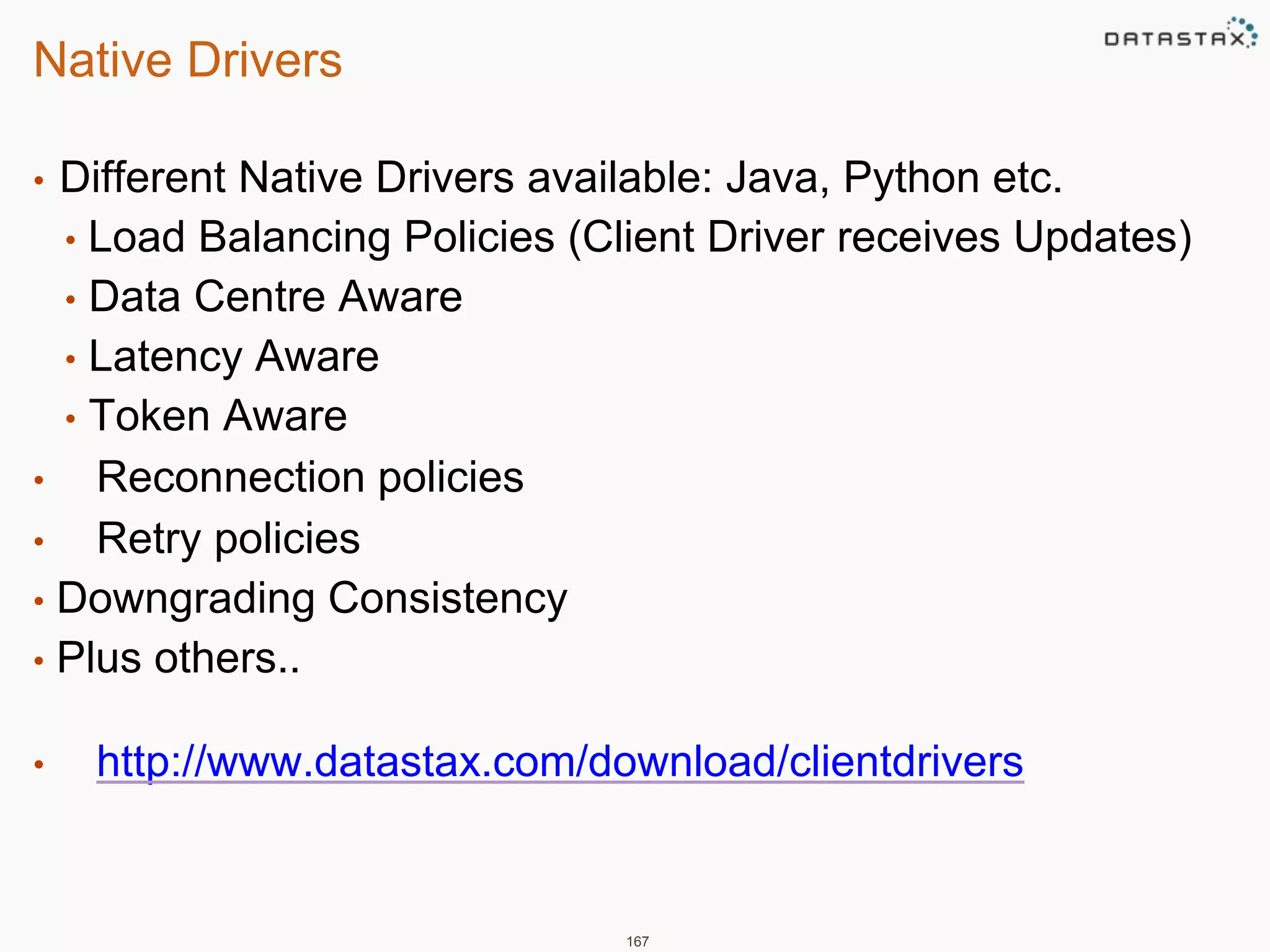

Native Drivers
• Different Native Drivers available: Java, Python etc.
• Load Balancing Policies (Client Driver receives Updates)
• Data Centre Aware
• Latency Aware
• Token Aware
• Reconnection policies
• Retry policies
• Downgrading Consistency
• Plus others..
• http://www.datastax.com/download/clientdrivers
167

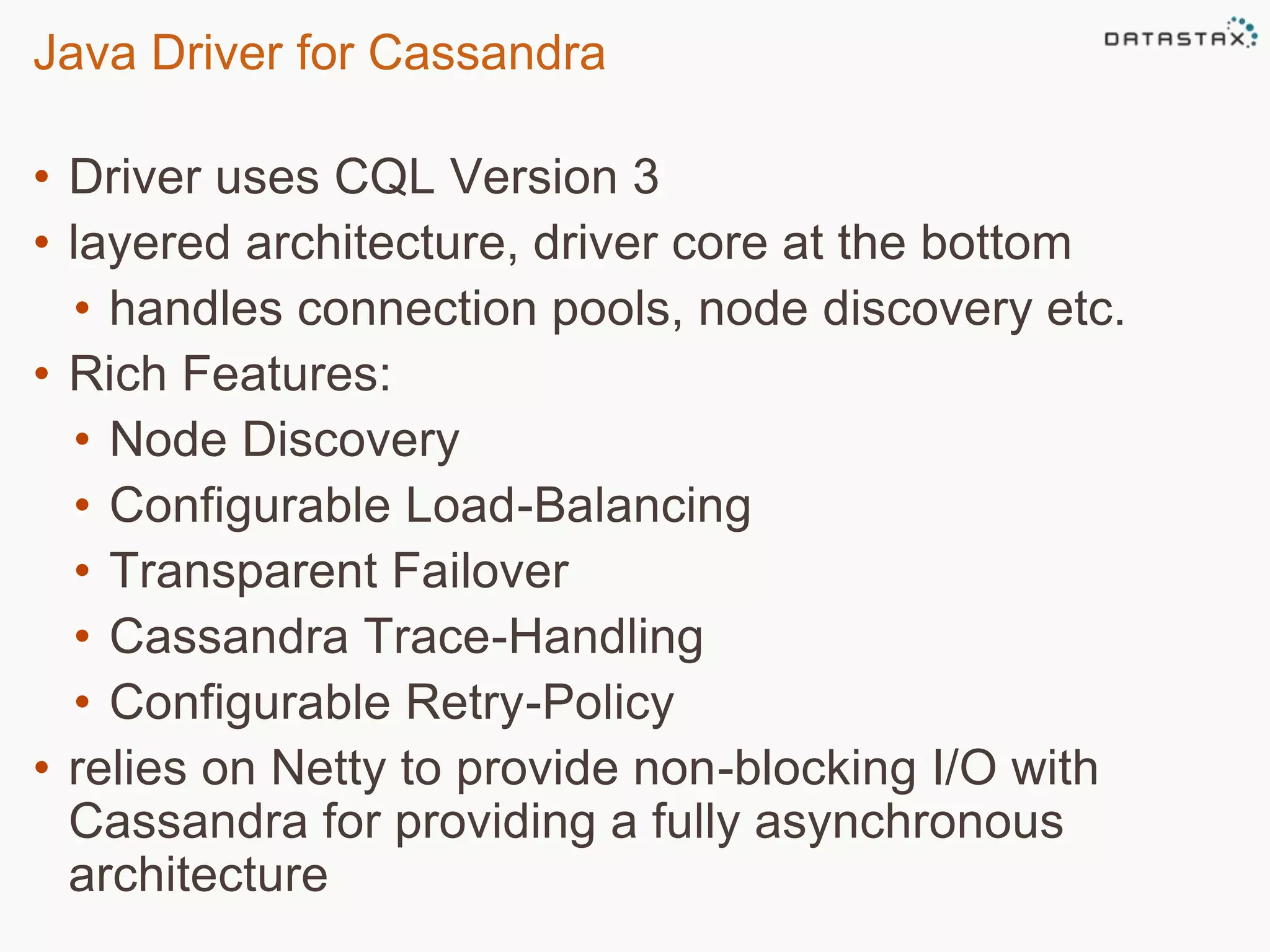

Java Driver for Cassandra
• Driver uses CQL Version 3
• layered architecture, driver core at the bottom
• handles connection pools, node discovery etc.
• Rich Features:
• Node Discovery
• Configurable Load-Balancing
• Transparent Failover
• Cassandra Trace-Handling
• Configurable Retry-Policy
• relies on Netty to provide non-blocking I/O with
Cassandra for providing a fully asynchronous
architecture
Session 7: The Java Driver

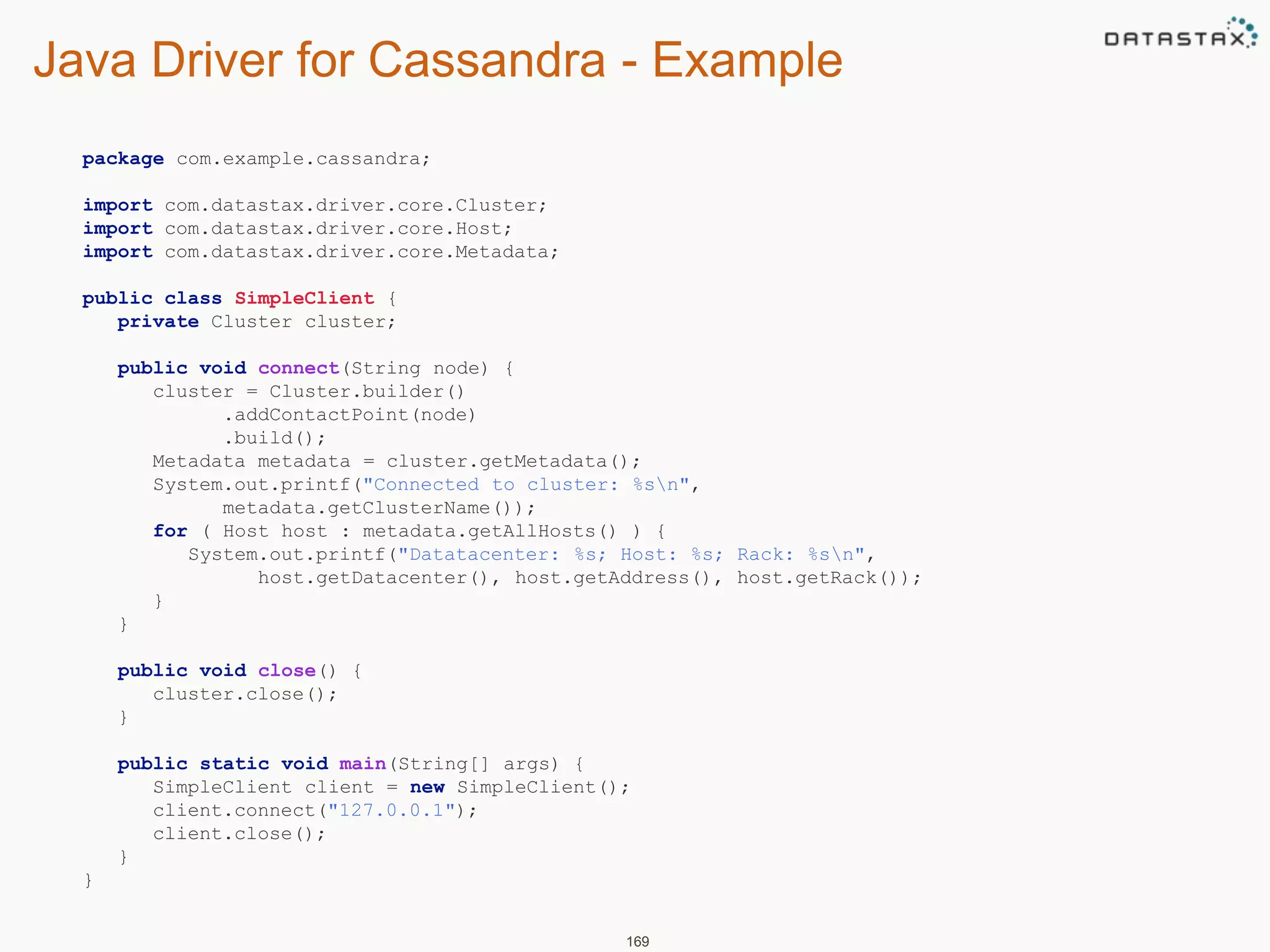

Java Driver for Cassandra - Example
169
package com.example.cassandra;
import com.datastax.driver.core.Cluster;
import com.datastax.driver.core.Host;
import com.datastax.driver.core.Metadata;
public class SimpleClient {
private Cluster cluster;
public void connect(String node) {
.addContactPoint(node)
.build();
Metadata metadata = cluster.getMetadata();
System.out.printf("Connected to cluster: %sn",
metadata.getClusterName());
for ( Host host : metadata.getAllHosts() ) {
System.out.printf("Datatacenter: %s; Host: %s; Rack: %sn",
host.getDatacenter(), host.getAddress(), host.getRack());
}
}
public void close() {
cluster.close();
}
public static void main(String[] args) {
SimpleClient client = new SimpleClient();
client.connect("127.0.0.1");
client.close();
}
}

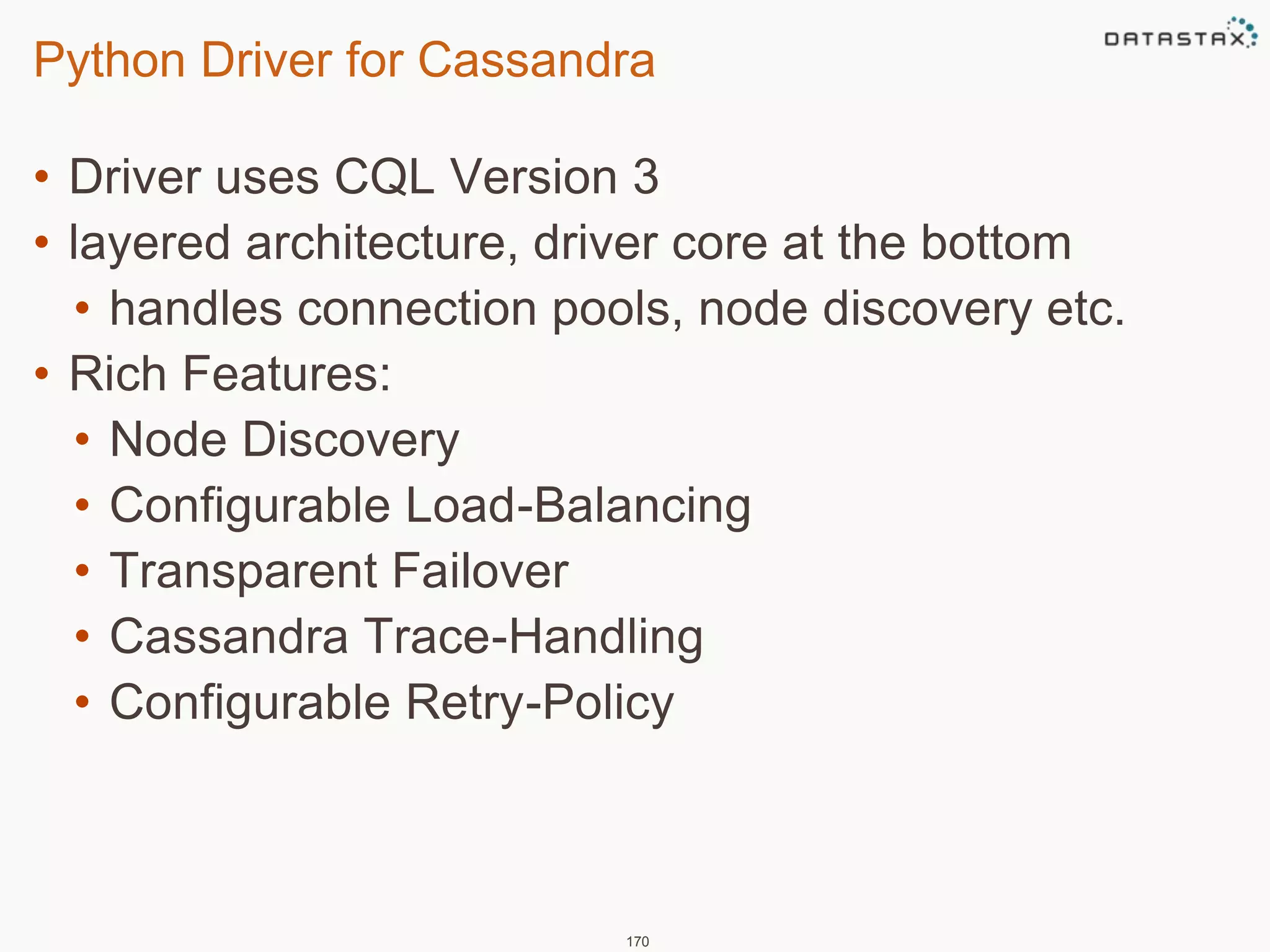

Python Driver for Cassandra
• Driver uses CQL Version 3
• layered architecture, driver core at the bottom
• handles connection pools, node discovery etc.
• Rich Features:
• Node Discovery
• Configurable Load-Balancing
• Transparent Failover
• Cassandra Trace-Handling
• Configurable Retry-Policy
170

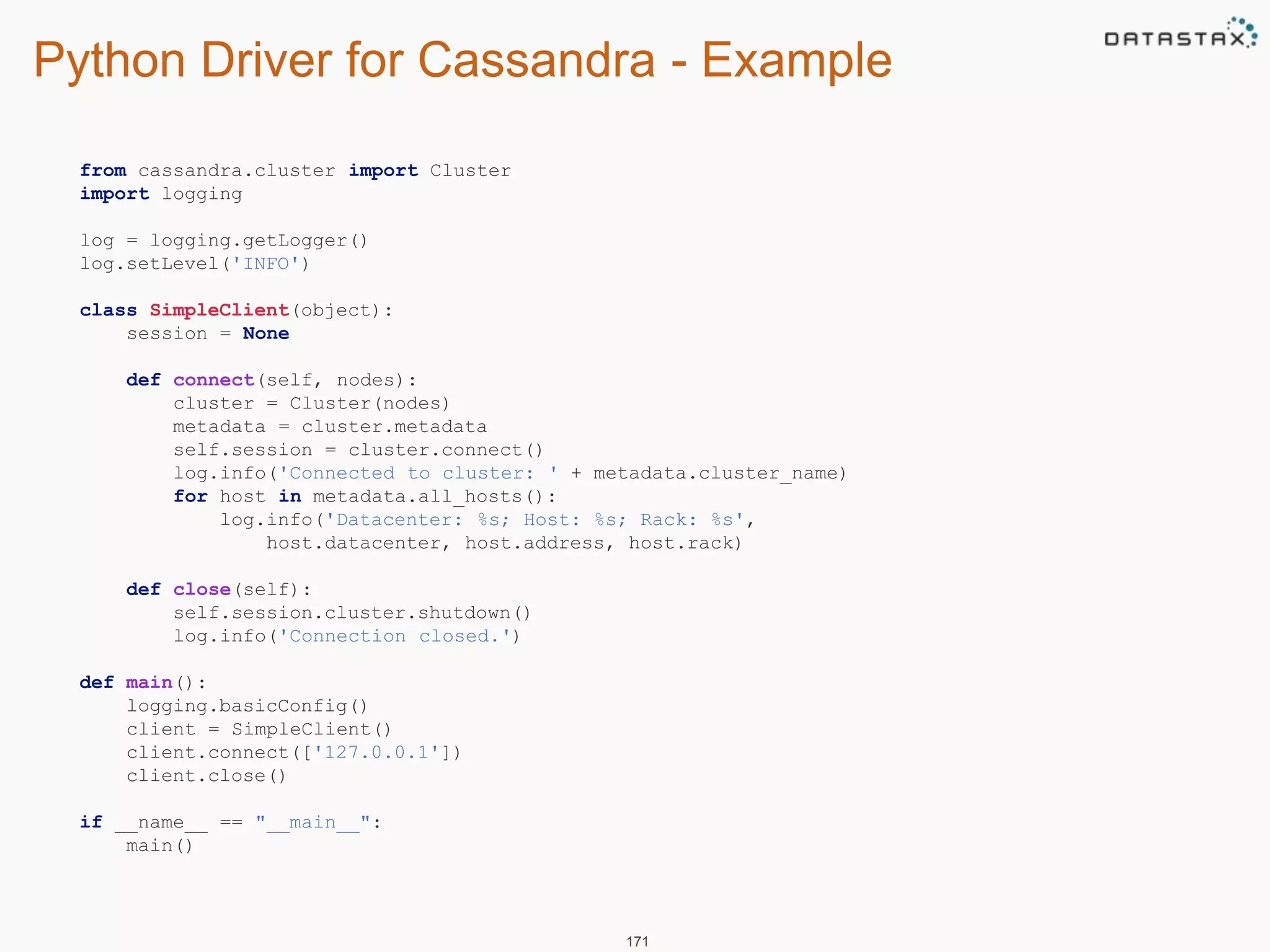

Python Driver for Cassandra - Example
171
from cassandra.cluster import Cluster
import logging
log = logging.getLogger()
log.setLevel('INFO')
class SimpleClient(object):
session = None
def connect(self, nodes):
cluster = Cluster(nodes)
metadata = cluster.metadata
self.session = cluster.connect()
log.info('Connected to cluster: ' + metadata.cluster_name)
for host in metadata.all_hosts():
log.info('Datacenter: %s; Host: %s; Rack: %s',
host.datacenter, host.address, host.rack)
def close(self):
self.session.cluster.shutdown()
log.info('Connection closed.')
def main():
logging.basicConfig()
client = SimpleClient()
client.connect(['127.0.0.1'])
client.close()
if __name__ == "__main__":
main()

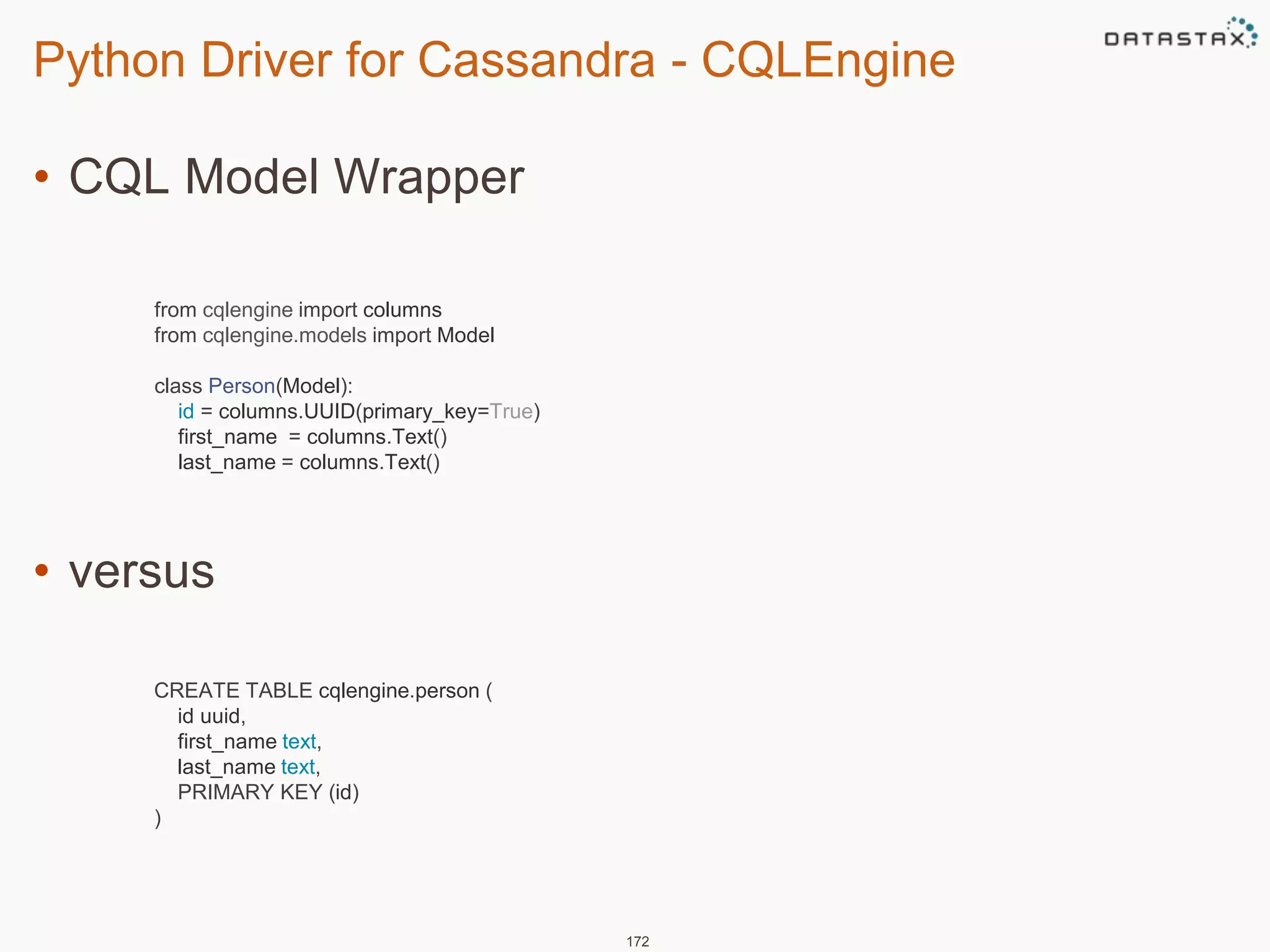

Python Driver for Cassandra - CQLEngine
• CQL Model Wrapper
• versus
172
from cqlengine import columns
from cqlengine.models import Model
class Person(Model):
id = columns.UUID(primary_key=True)
first_name = columns.Text()
last_name = columns.Text()
CREATE TABLE cqlengine.person (
id uuid,
first_name text,
last_name text,
PRIMARY KEY (id)
)

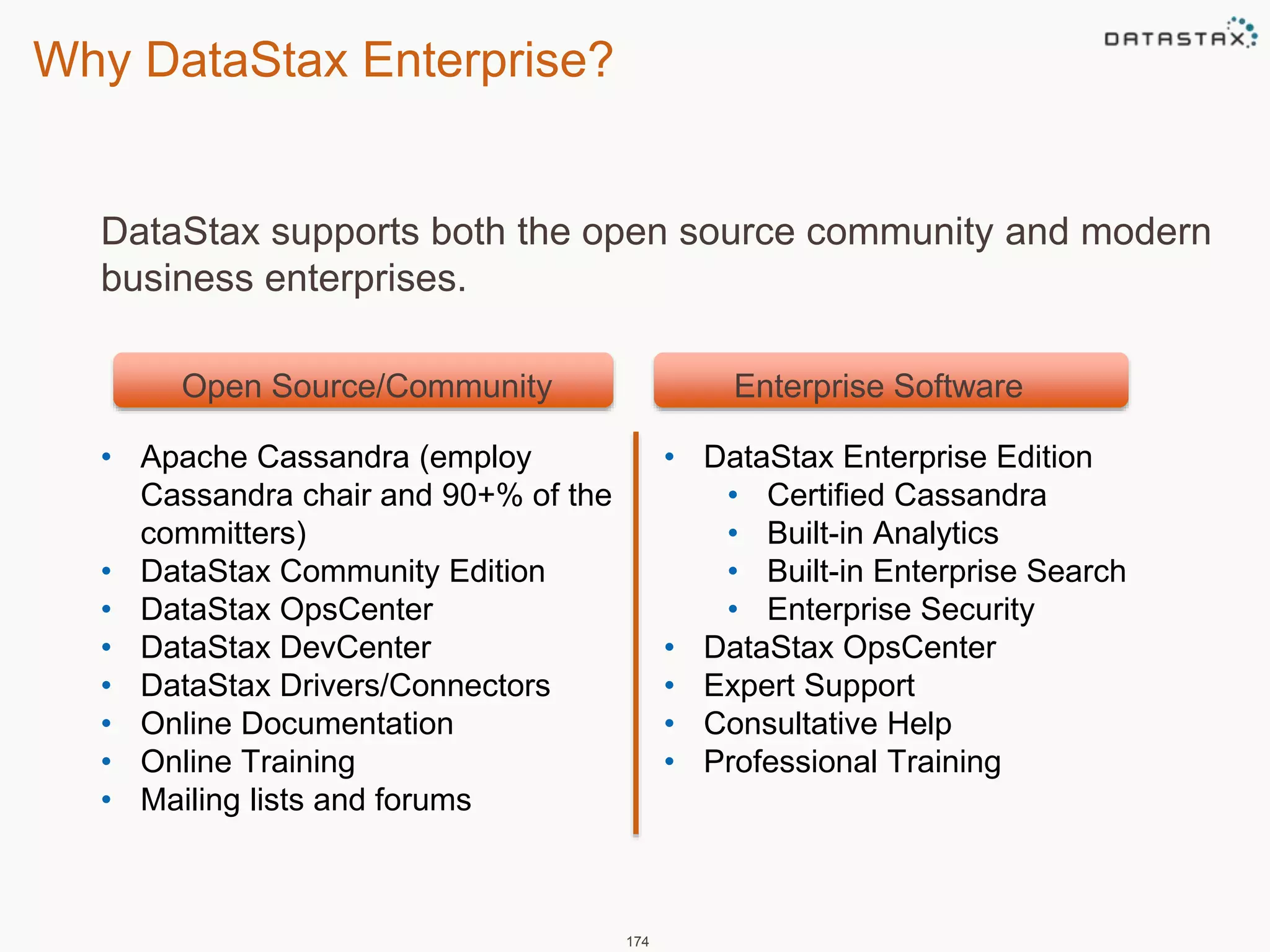

Why DataStax Enterprise?
DataStax supports both the open source community and modern
business enterprises.
Open Source/Community Enterprise Software
174
• Apache Cassandra (employ
Cassandra chair and 90+% of the
committers)
• DataStax Community Edition
• DataStax OpsCenter
• DataStax DevCenter
• DataStax Drivers/Connectors
• Online Documentation
• Online Training
• Mailing lists and forums
• DataStax Enterprise Edition
• Certified Cassandra
• Built-in Analytics
• Built-in Enterprise Search
• Enterprise Security
• DataStax OpsCenter
• Expert Support
• Consultative Help
• Professional Training

DataStax Enterprise vs. Open Source
Feature Open Source Datastax Enterprise
175
Database Software
Data Platform Latest Community Cassandra Production Certified Cassandra
Core security features Yes Yes
Enterprise security features No Yes
Built-in automatic management services No Yes
Integrated analytics No Yes
Integrated enterprise search No Yes
Workload/Workflow Isolation No Yes
Easy migration of RDBMS and log data No Yes
Certified Service Packs No Yes
Certified platform support No Yes
Management Software
OpsCenter Basic functionality Advanced functionality
Services
Community Support Yes Yes
Datastax 24x7x365 Support No Yes
Quarterly Performance Reviews No Yes
Hot Fixes No Yes
Bug Escalation Privilege No Yes
Custom Builds No Option

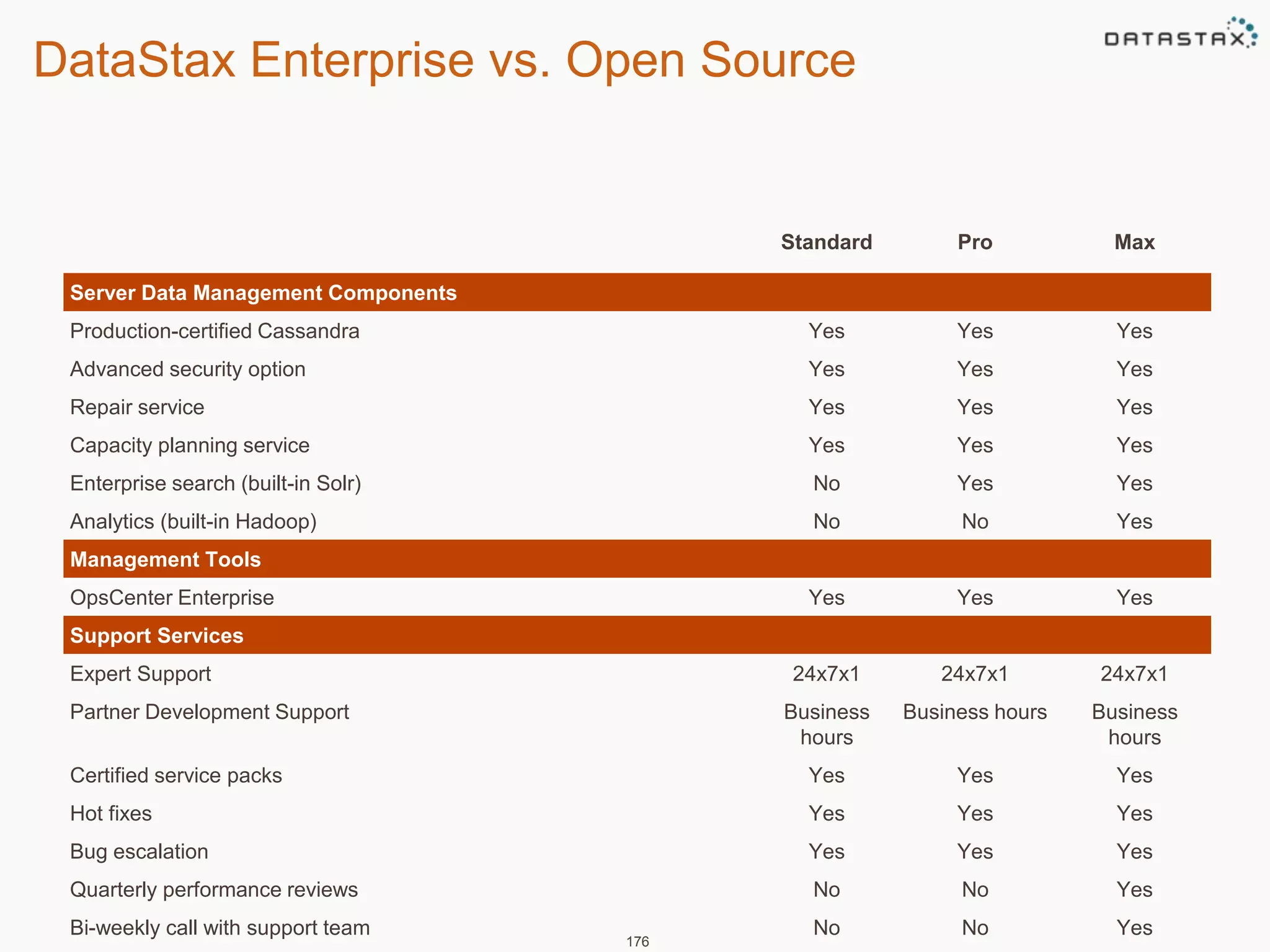

DataStax Enterprise vs. Open Source
176
Standard Pro Max
Server Data Management Components
Production-certified Cassandra Yes Yes Yes
Advanced security option Yes Yes Yes
Repair service Yes Yes Yes
Capacity planning service Yes Yes Yes
Enterprise search (built-in Solr) No Yes Yes
Analytics (built-in Hadoop) No No Yes
Management Tools
OpsCenter Enterprise Yes Yes Yes
Support Services
Expert Support 24x7x1 24x7x1 24x7x1
Partner Development Support Business
hours
Business hours Business
hours
Certified service packs Yes Yes Yes
Hot fixes Yes Yes Yes
Bug escalation Yes Yes Yes
Quarterly performance reviews No No Yes
Bi-weekly call with support team No No Yes

DSE Analytics
DEMO

DataStax TechDay - Munich 2014

More Related Content

What's hot

Viewers also liked

Similar to DataStax TechDay - Munich 2014

DataStax TechDay - Munich 2014

Editor's Notes
