- 1. Apache Cassandra PhilipThompson Software Engineer DataStax ©2014 DataStax. Do not distribute without consent. 1

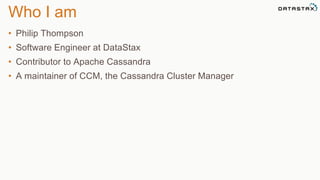

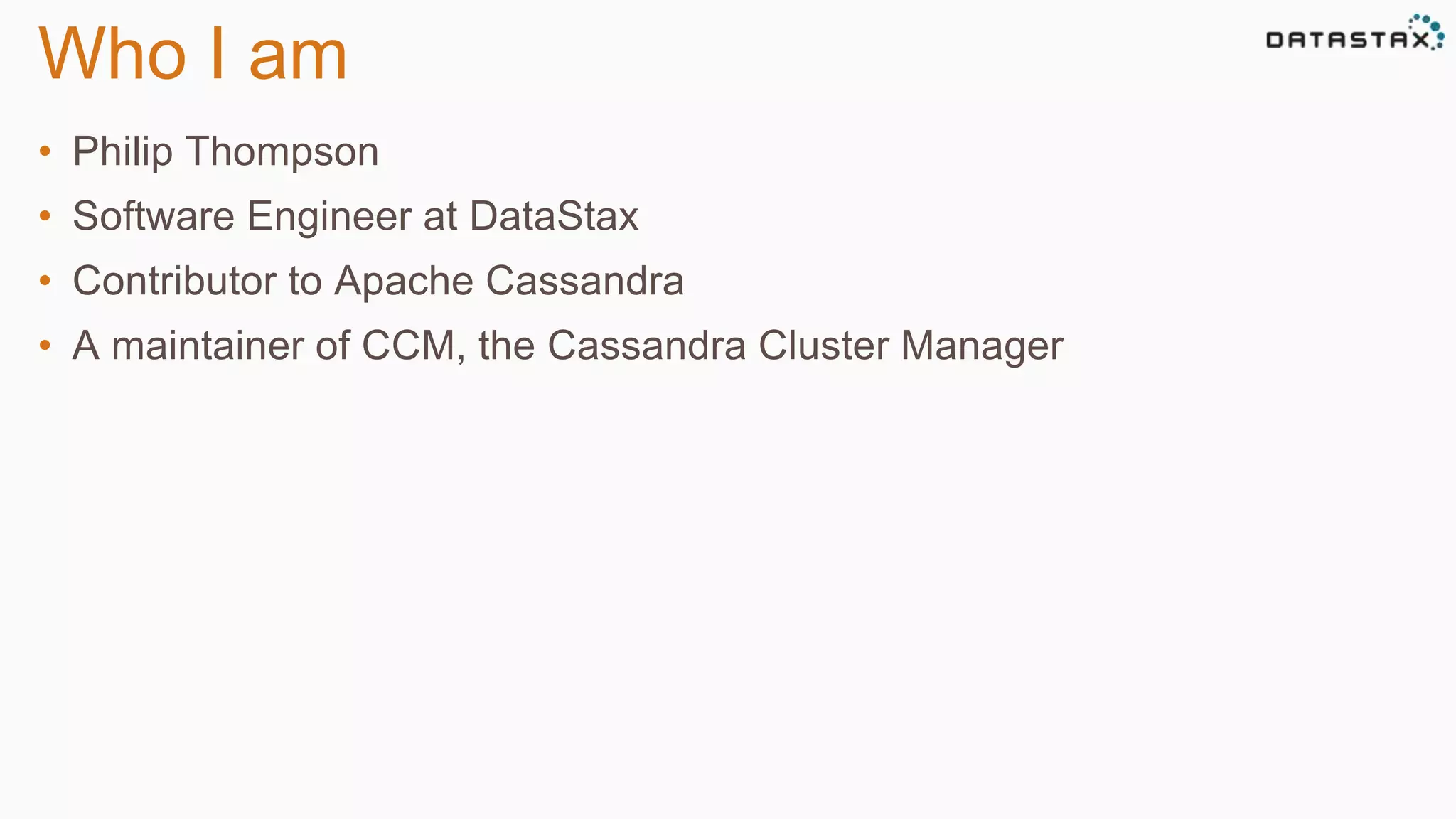

- 2. Who I am • Philip Thompson • Software Engineer at DataStax • Contributor to Apache Cassandra • A maintainer of CCM, the Cassandra Cluster Manager

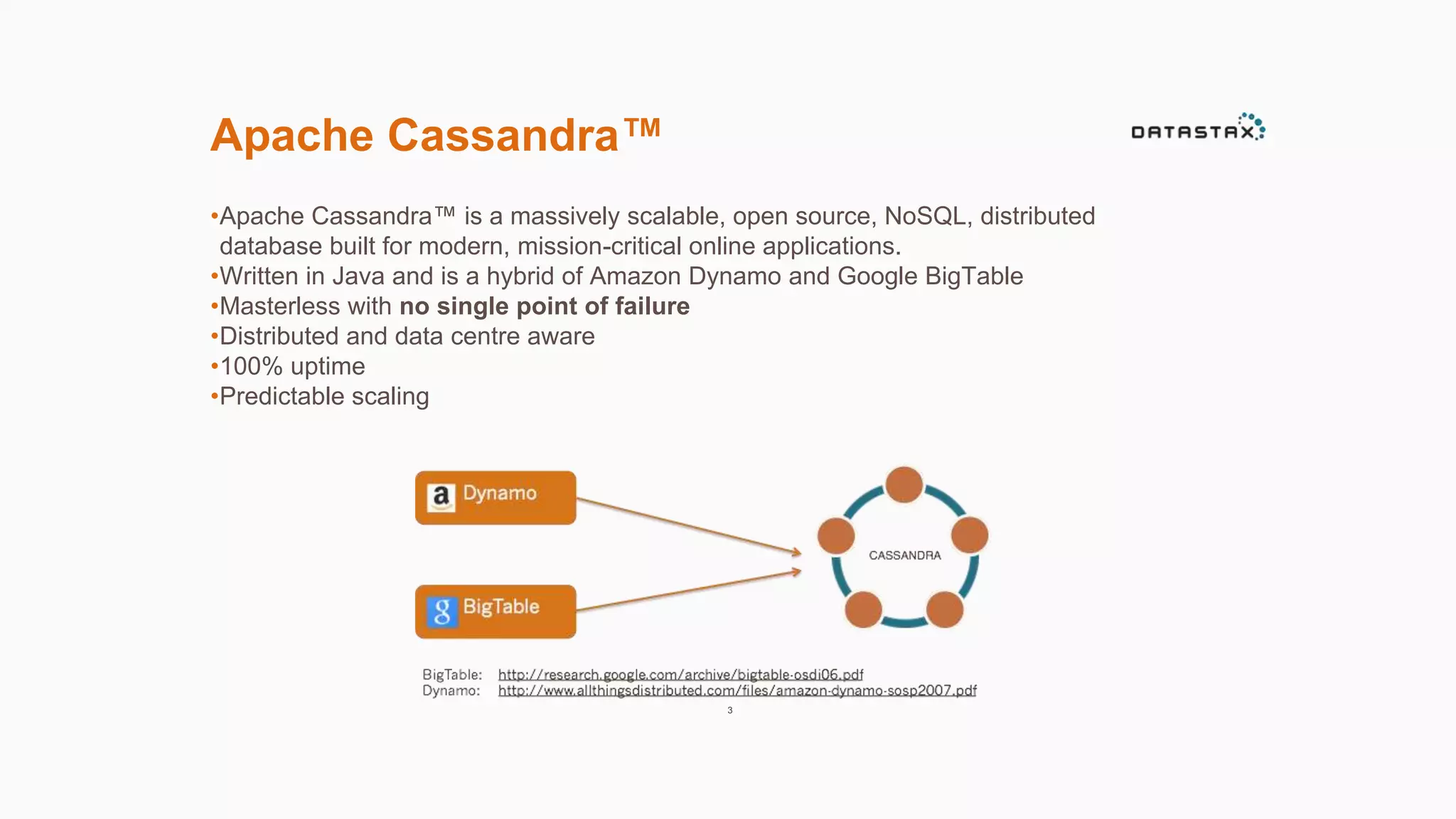

- 3. Apache Cassandra™ •ApacheCassandra™ is a massively scalable, open source, NoSQL, distributed database built for modern, mission-critical online applications. •Written in Java and is a hybrid of Amazon Dynamo and Google BigTable •Masterless with no single point of failure •Distributed and data centre aware •100% uptime •Predictable scaling 3
- 4.

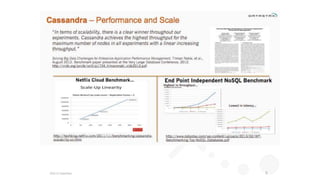

- 5.
- 6.
- 7.

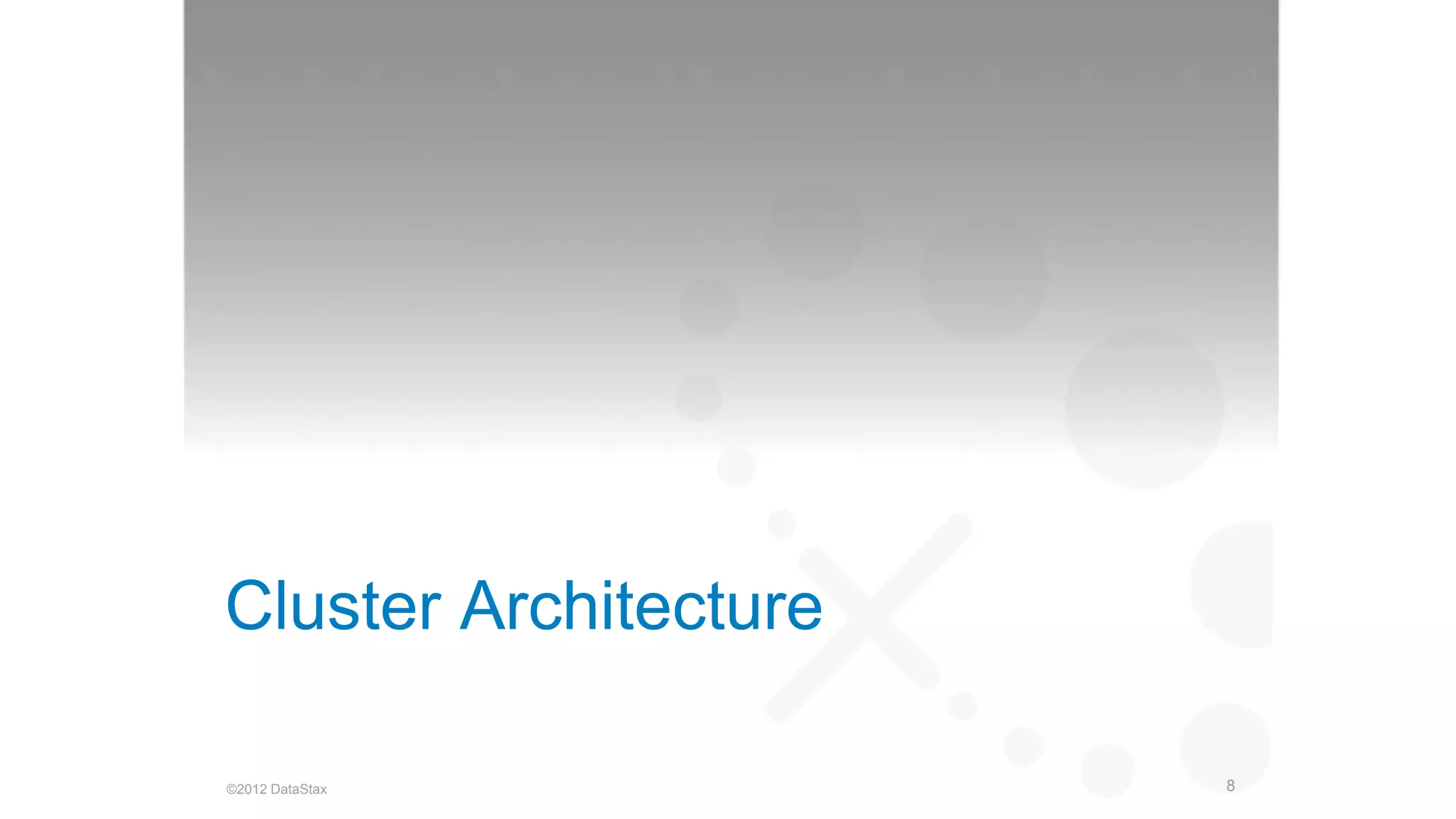

- 8. Cluster Architecture ©2012DataStax 8

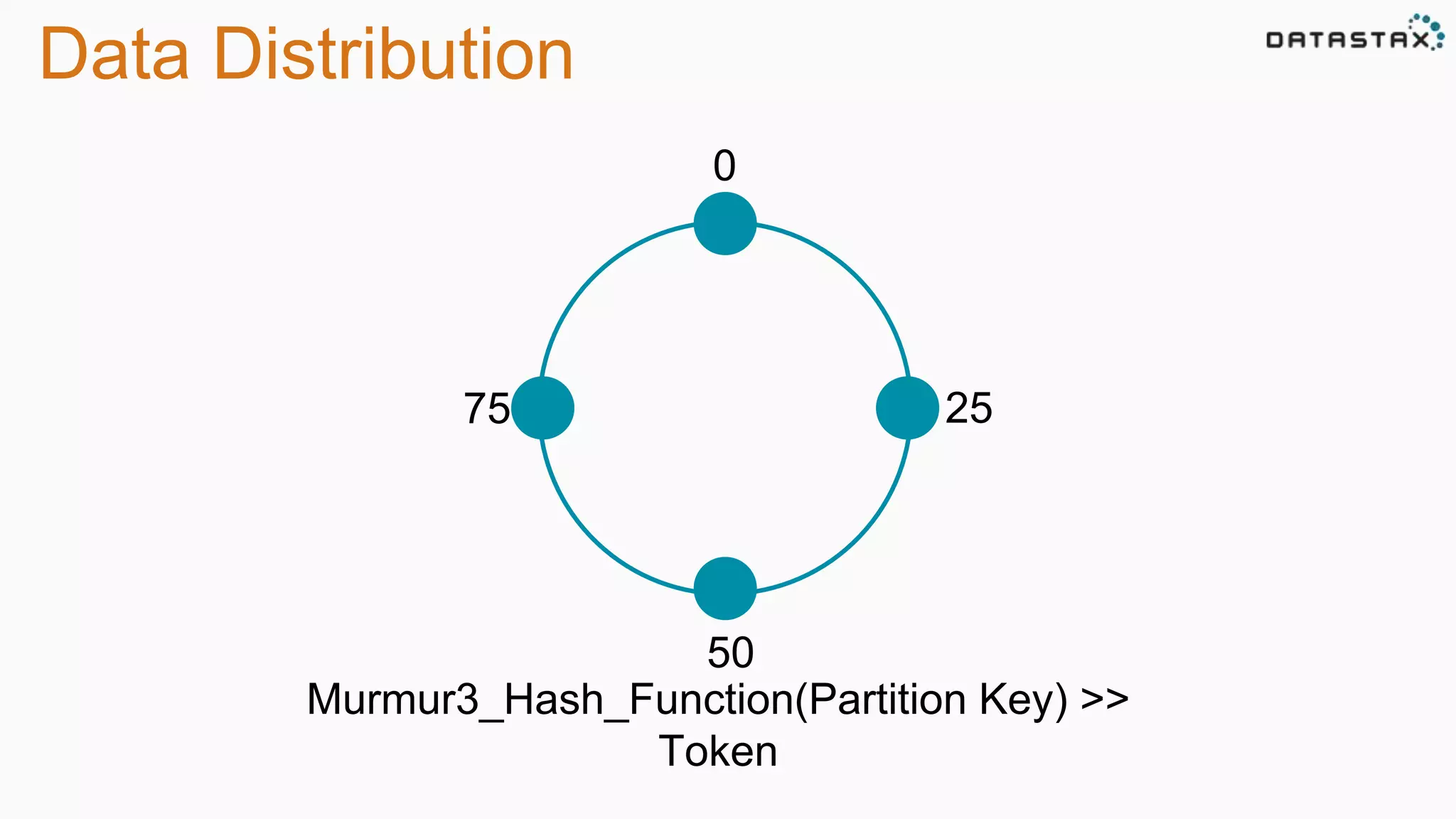

- 9. Data Distribution 75 0 25 50 Murmur3_Hash_Function(Partition Key) >> Token

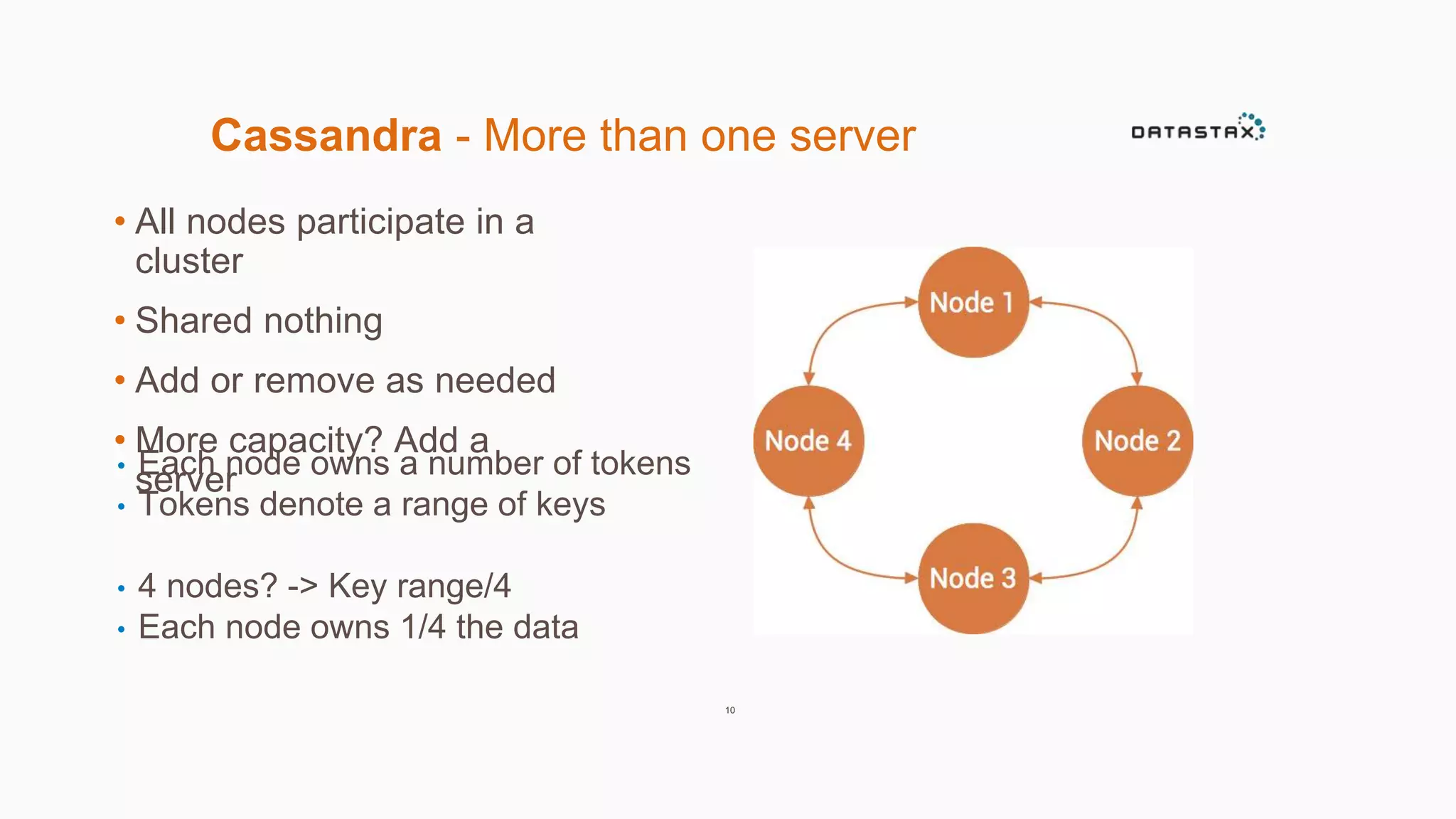

- 10. Cassandra - Morethan one server • All nodes participate in a cluster • Shared nothing • Add or remove as needed • More capacity? Add a server 10 • Each node owns a number of tokens • Tokens denote a range of keys • 4 nodes? -> Key range/4 • Each node owns 1/4 the data

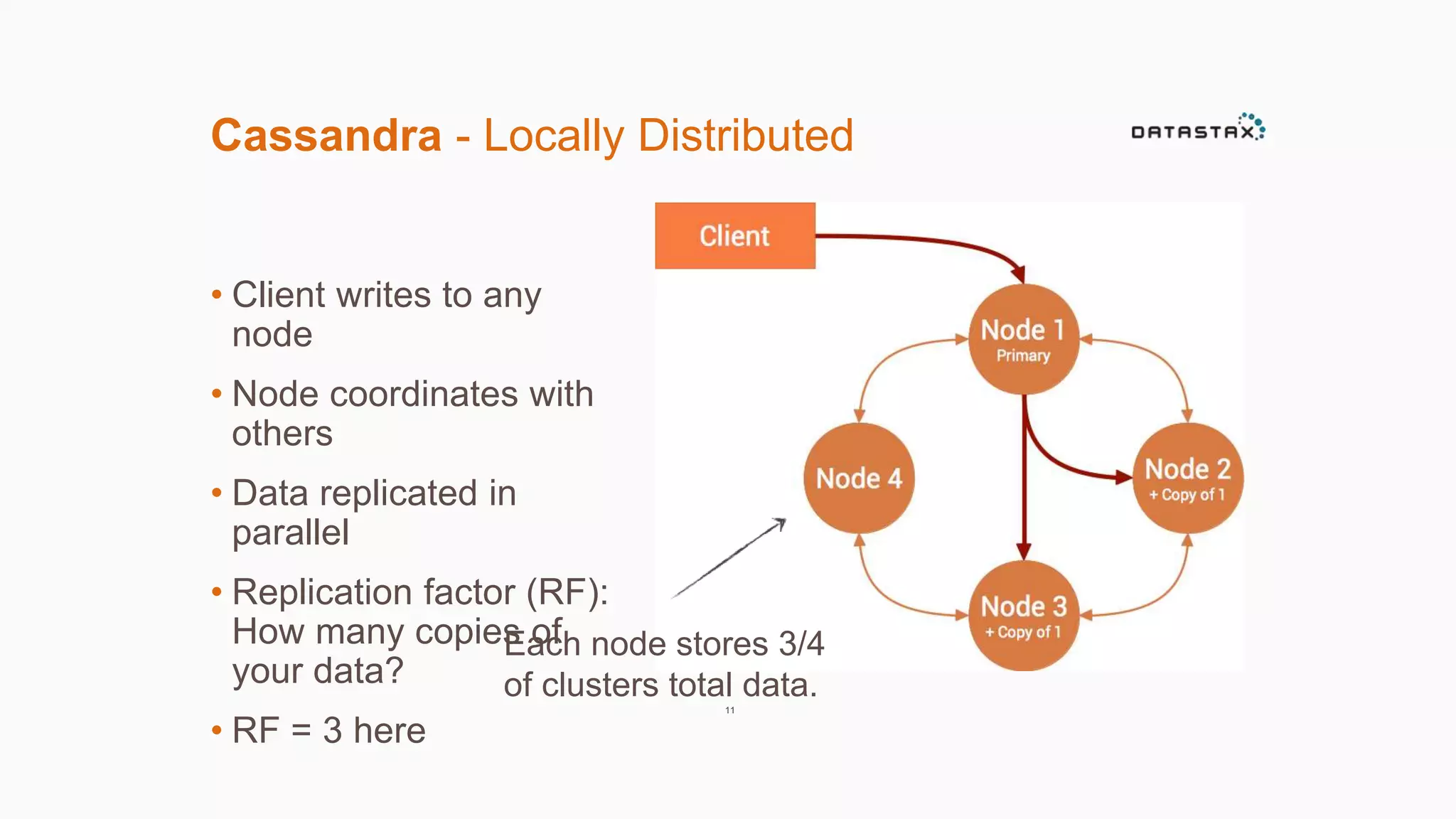

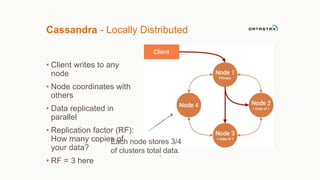

- 11. Cassandra - LocallyDistributed • Client writes to any node • Node coordinates with others • Data replicated in parallel • Replication factor (RF): How many copies of your data? • RF = 3 here Each node stores 3/4 of clusters total data. 11

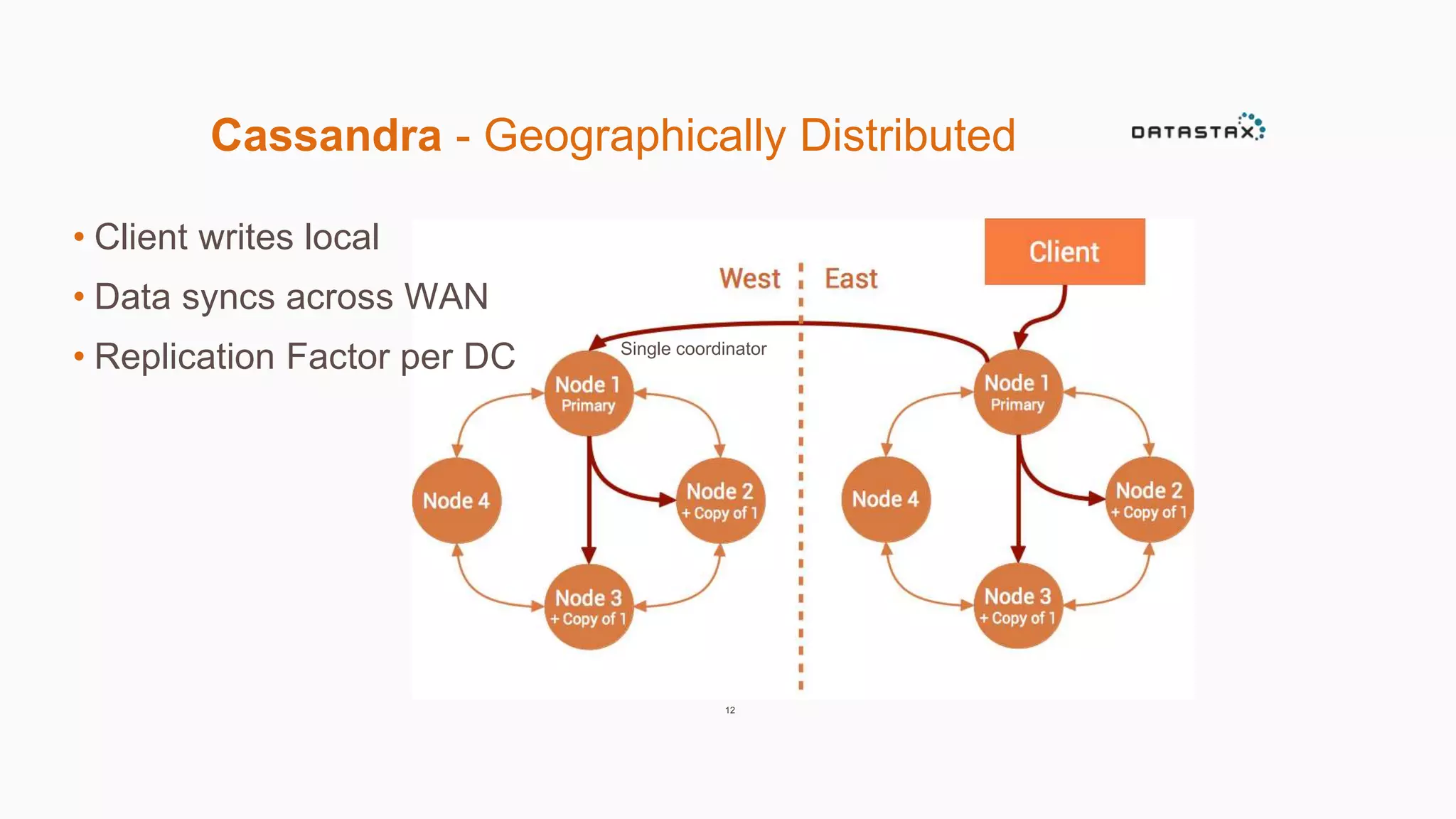

- 12. Cassandra - GeographicallyDistributed • Client writes local • Data syncs across WAN • Replication Factor per DC Single coordinator 12

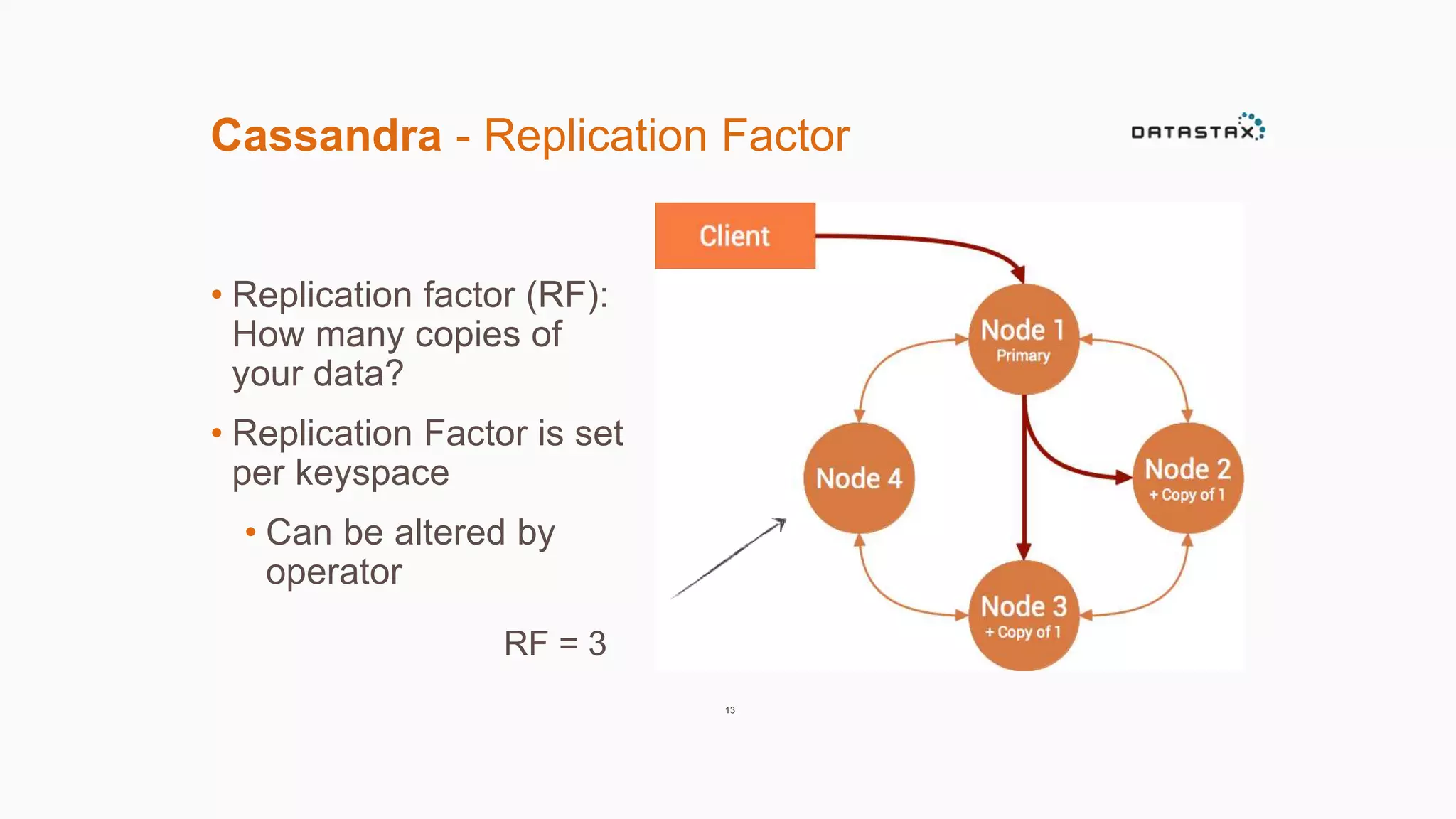

- 13. Cassandra - ReplicationFactor • Replication factor (RF): How many copies of your data? • Replication Factor is set per keyspace • Can be altered by operator 13 RF = 3

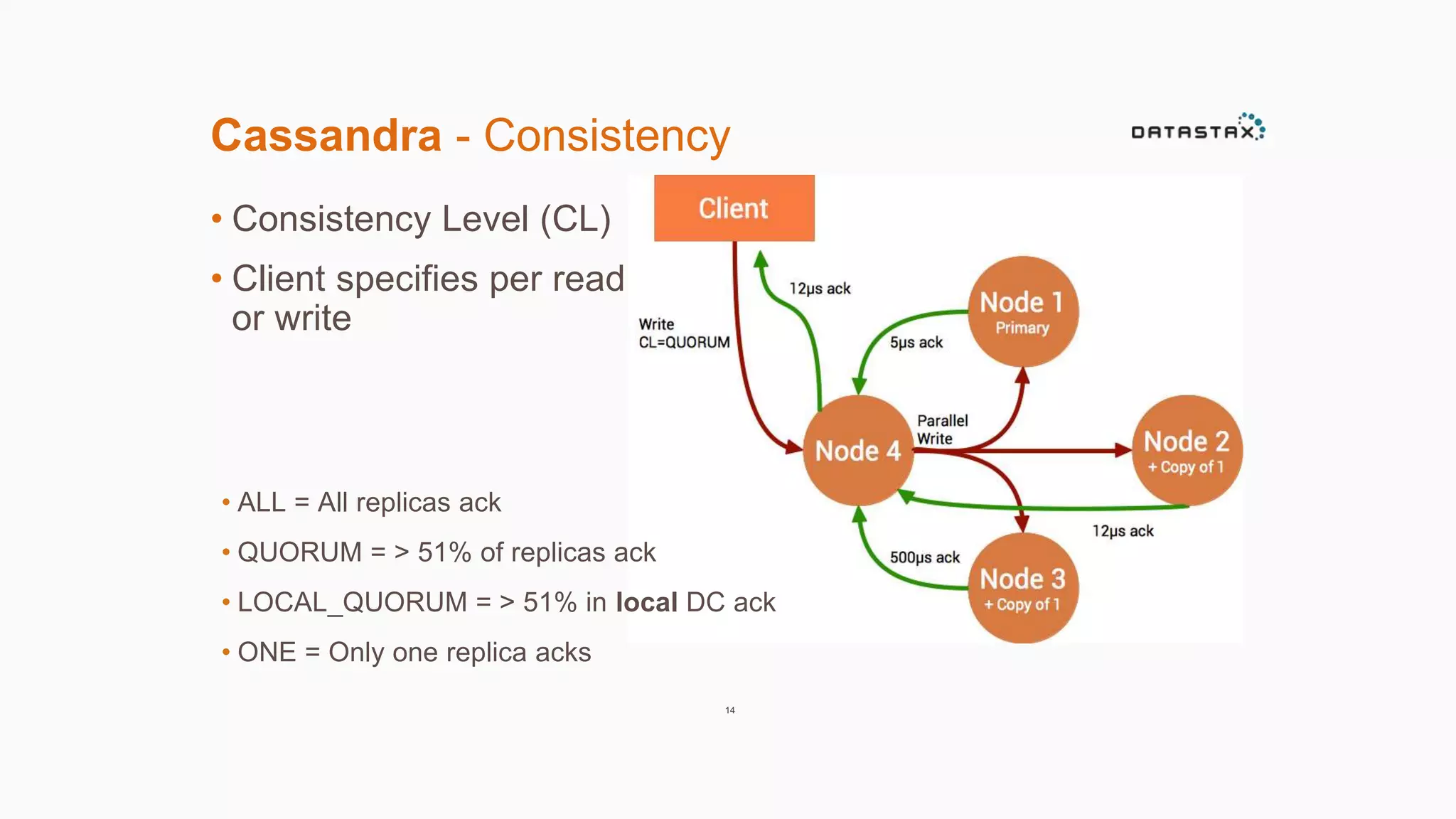

- 14. Cassandra - Consistency • Consistency Level (CL) • Client specifies per read or write • ALL = All replicas ack • QUORUM = > 51% of replicas ack • LOCAL_QUORUM = > 51% in local DC ack • ONE = Only one replica acks 14

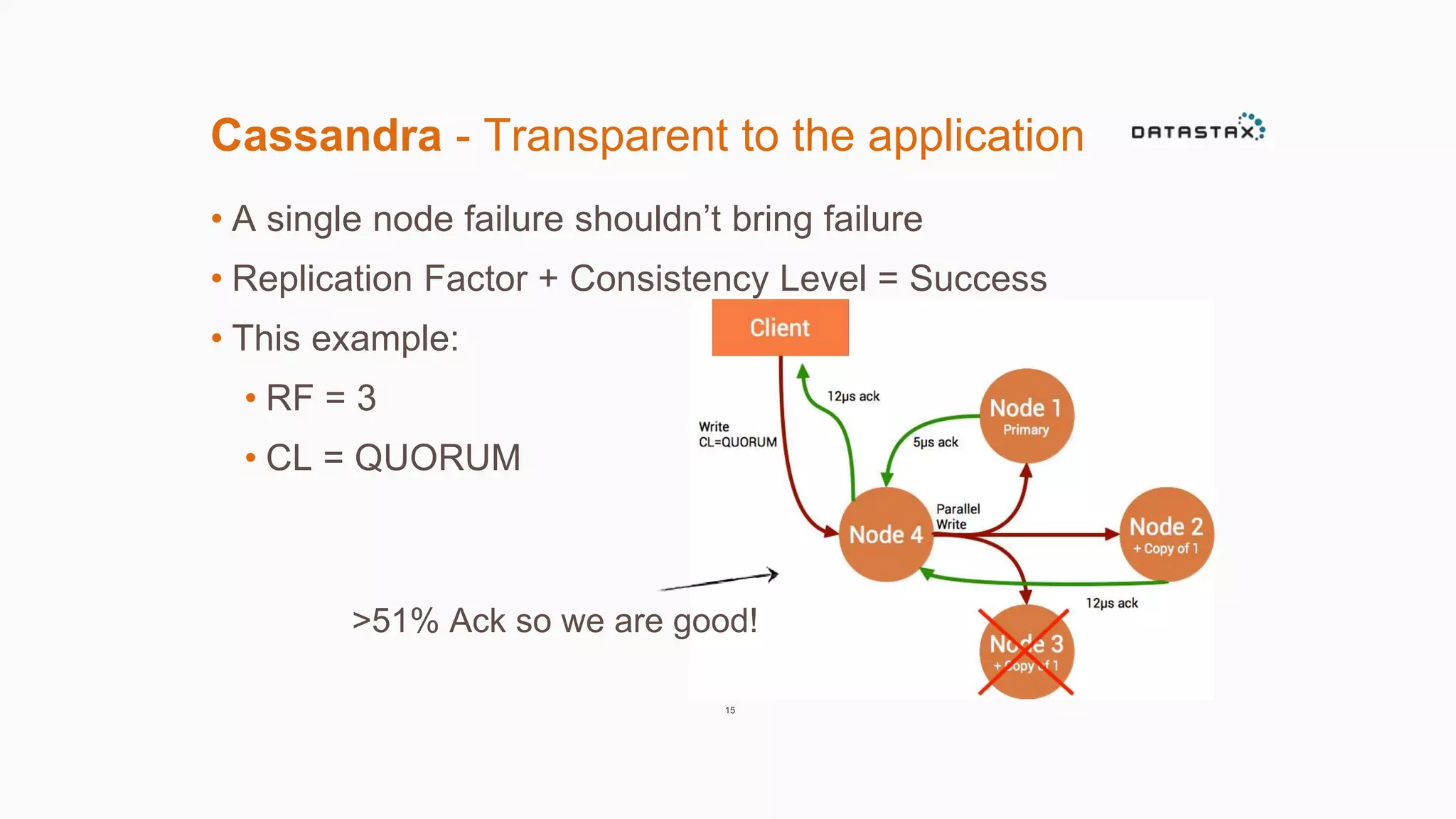

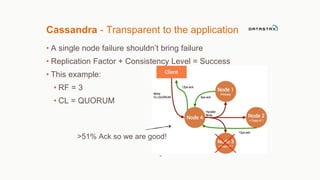

- 15. Cassandra - Transparentto the application • A single node failure shouldn’t bring failure • Replication Factor + Consistency Level = Success • This example: • RF = 3 • CL = QUORUM >51% Ack so we are good! 15

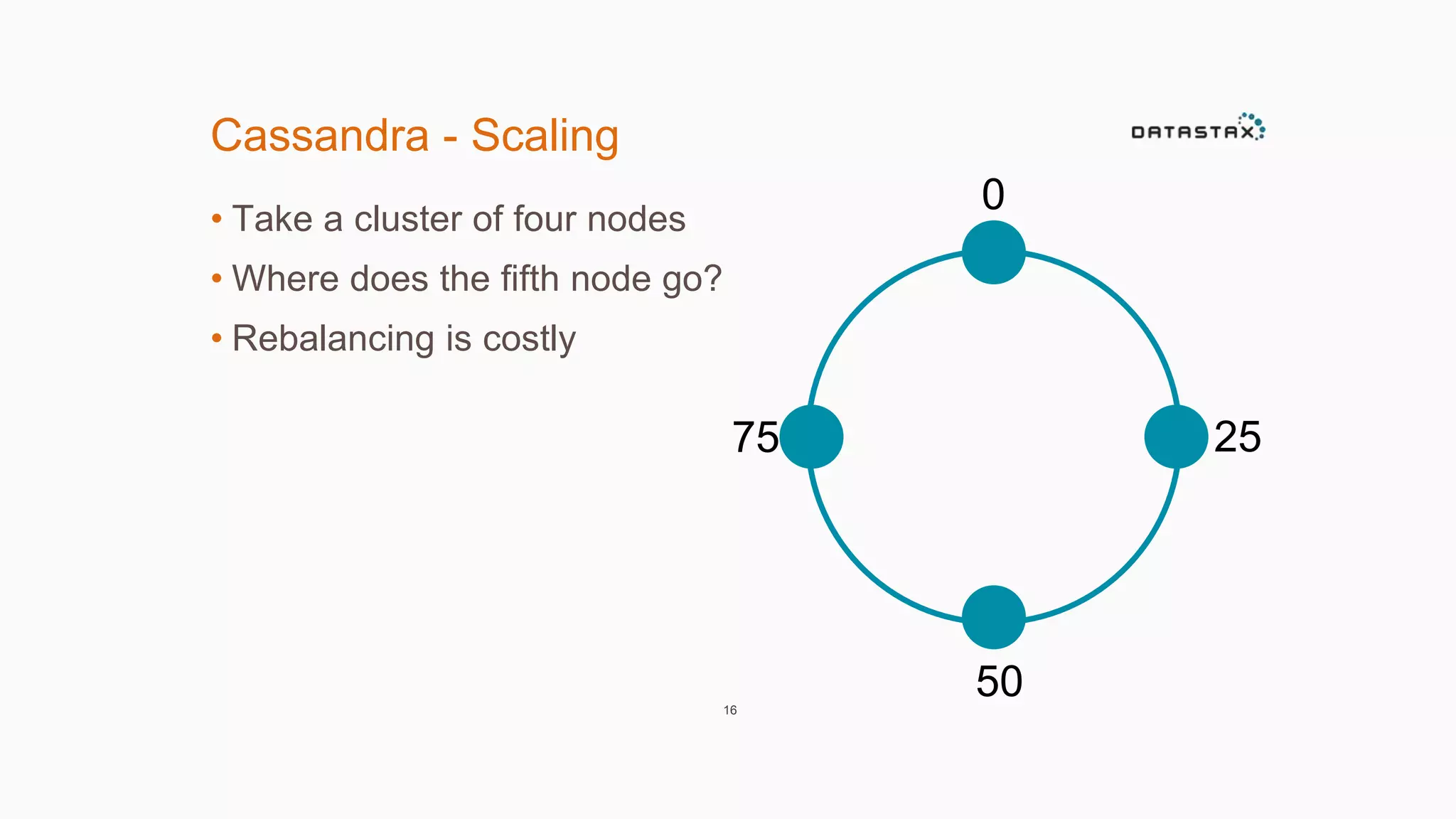

- 16. Cassandra - Scaling • Take a cluster of four nodes • Where does the fifth node go? • Rebalancing is costly 75 16 0 25 50

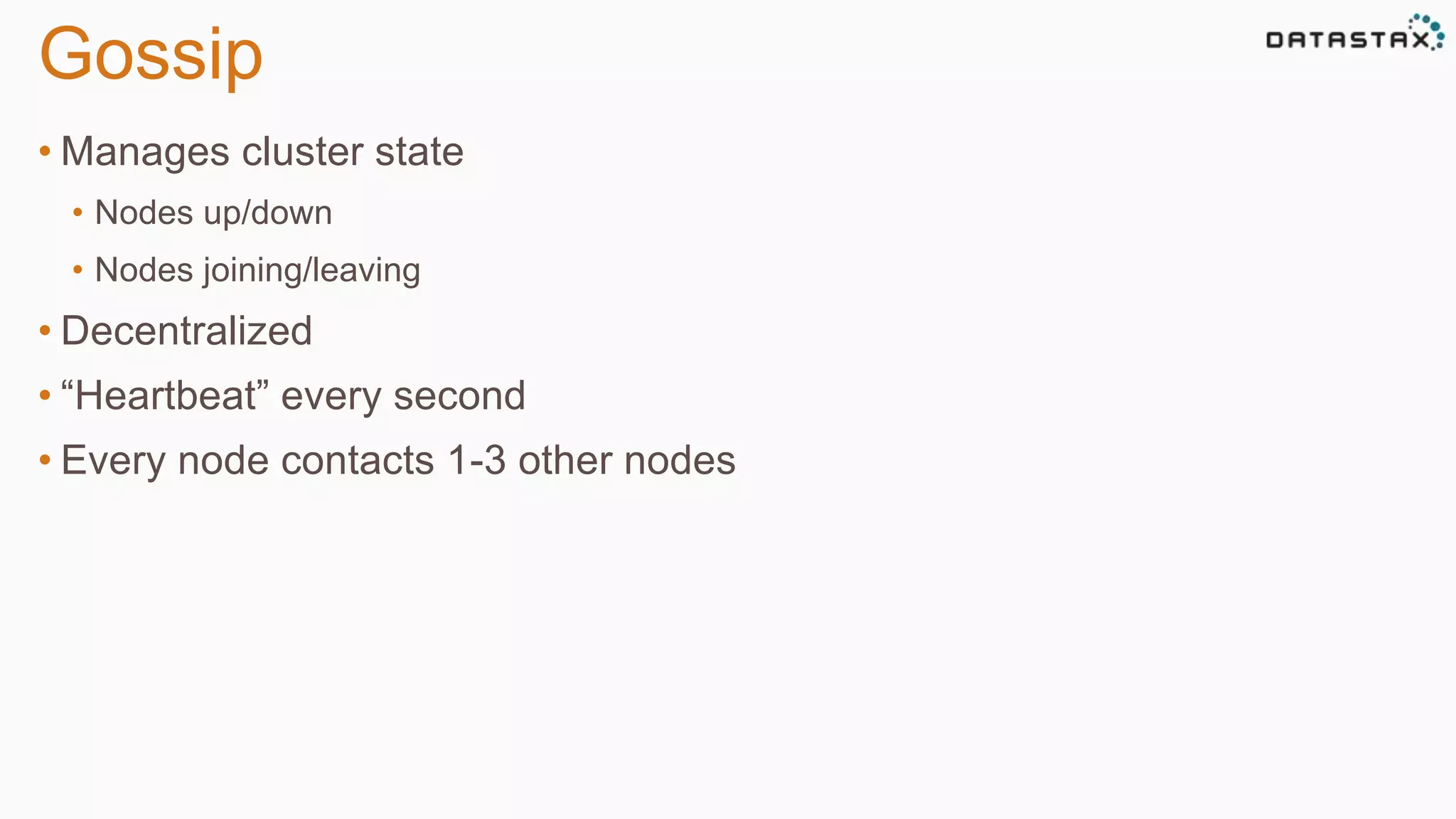

- 19. Gossip • Managescluster state • Nodes up/down • Nodes joining/leaving • Decentralized • “Heartbeat” every second • Every node contacts 1-3 other nodes

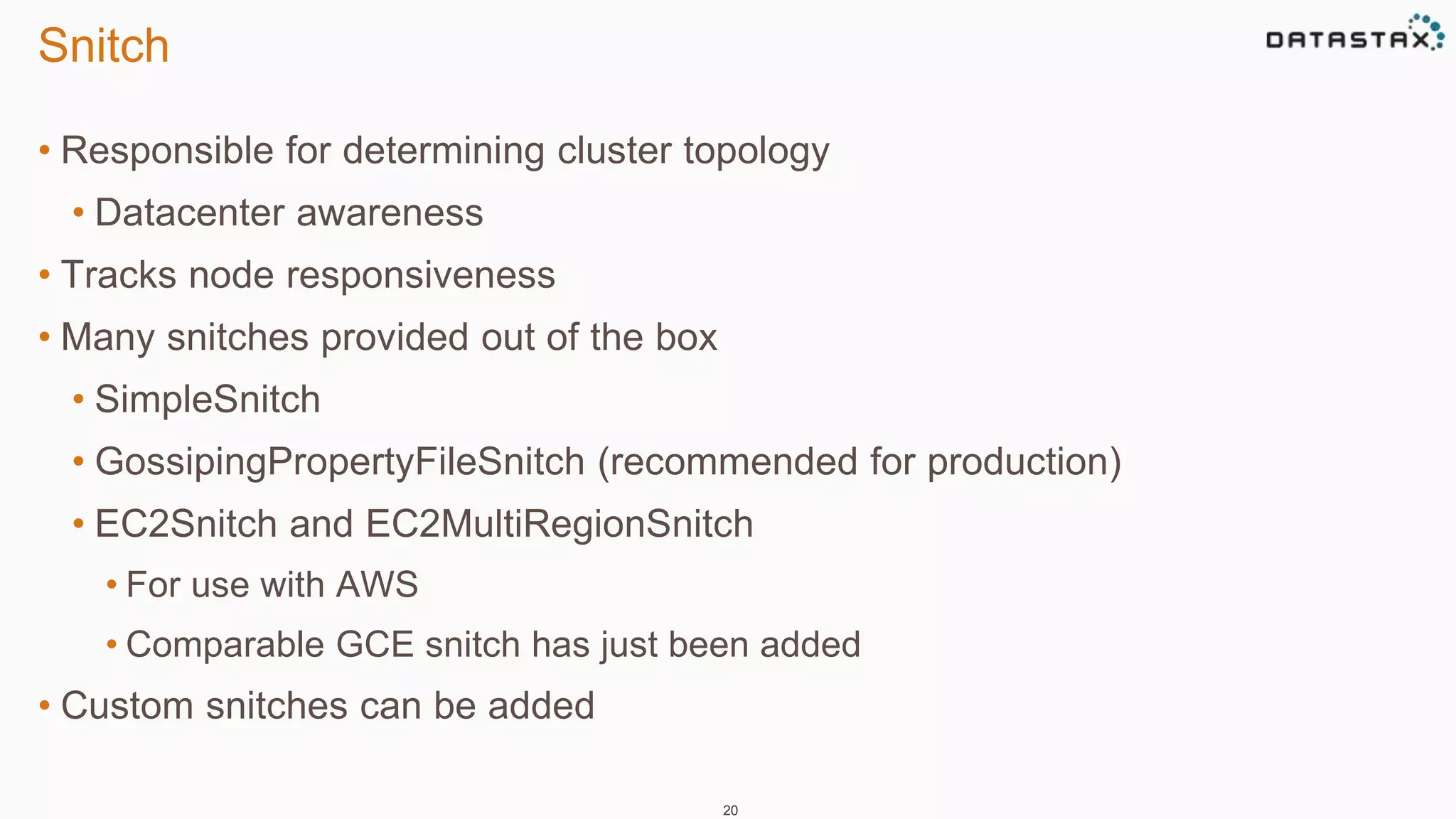

- 20. Snitch • Responsiblefor determining cluster topology • Datacenter awareness • Tracks node responsiveness • Many snitches provided out of the box • SimpleSnitch • GossipingPropertyFileSnitch (recommended for production) • EC2Snitch and EC2MultiRegionSnitch • For use with AWS • Comparable GCE snitch has just been added • Custom snitches can be added 20

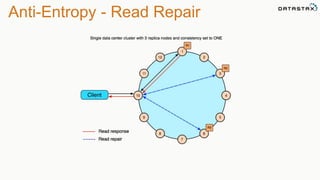

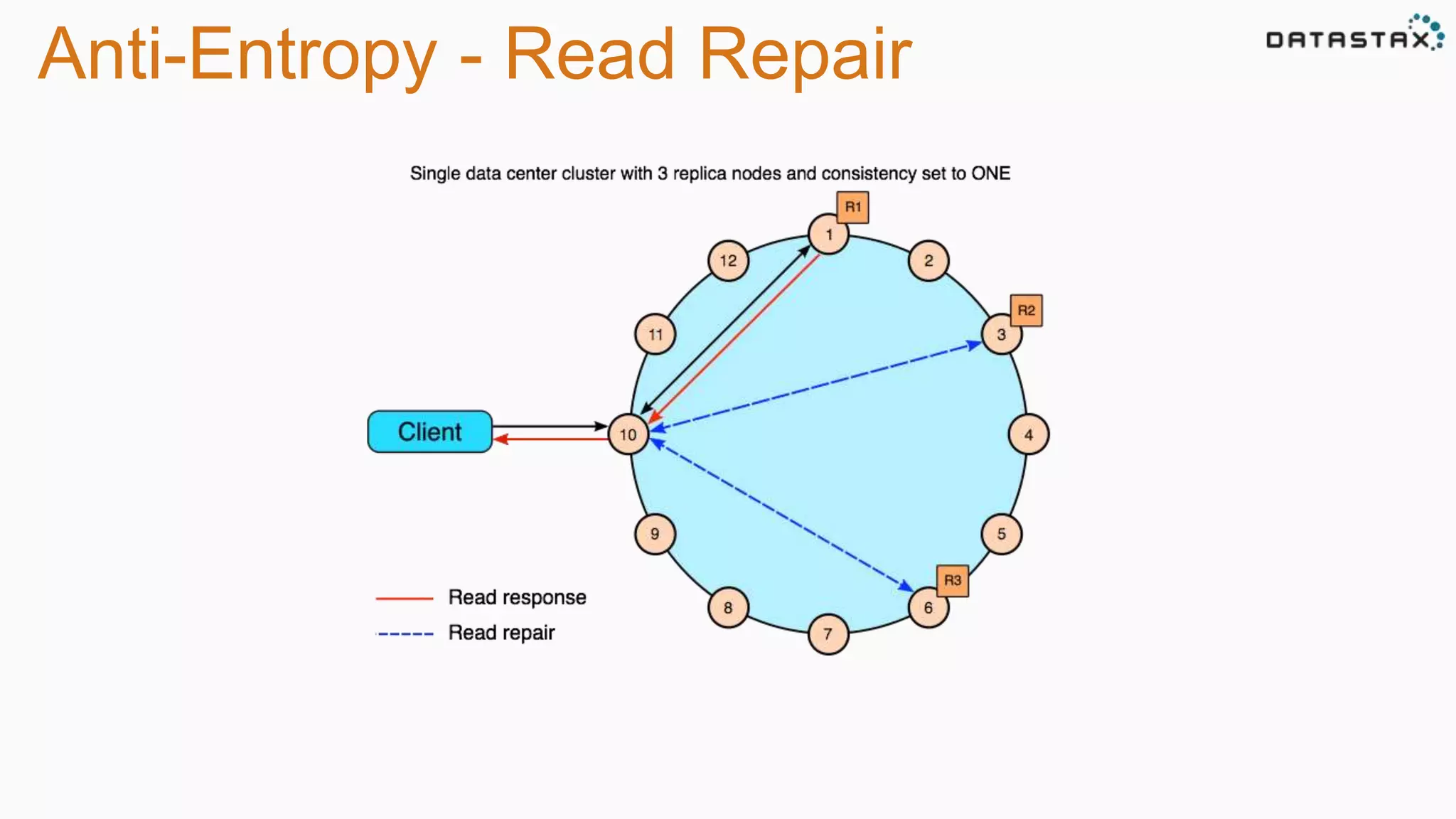

- 21. Anti-Entropy - ReadRepair

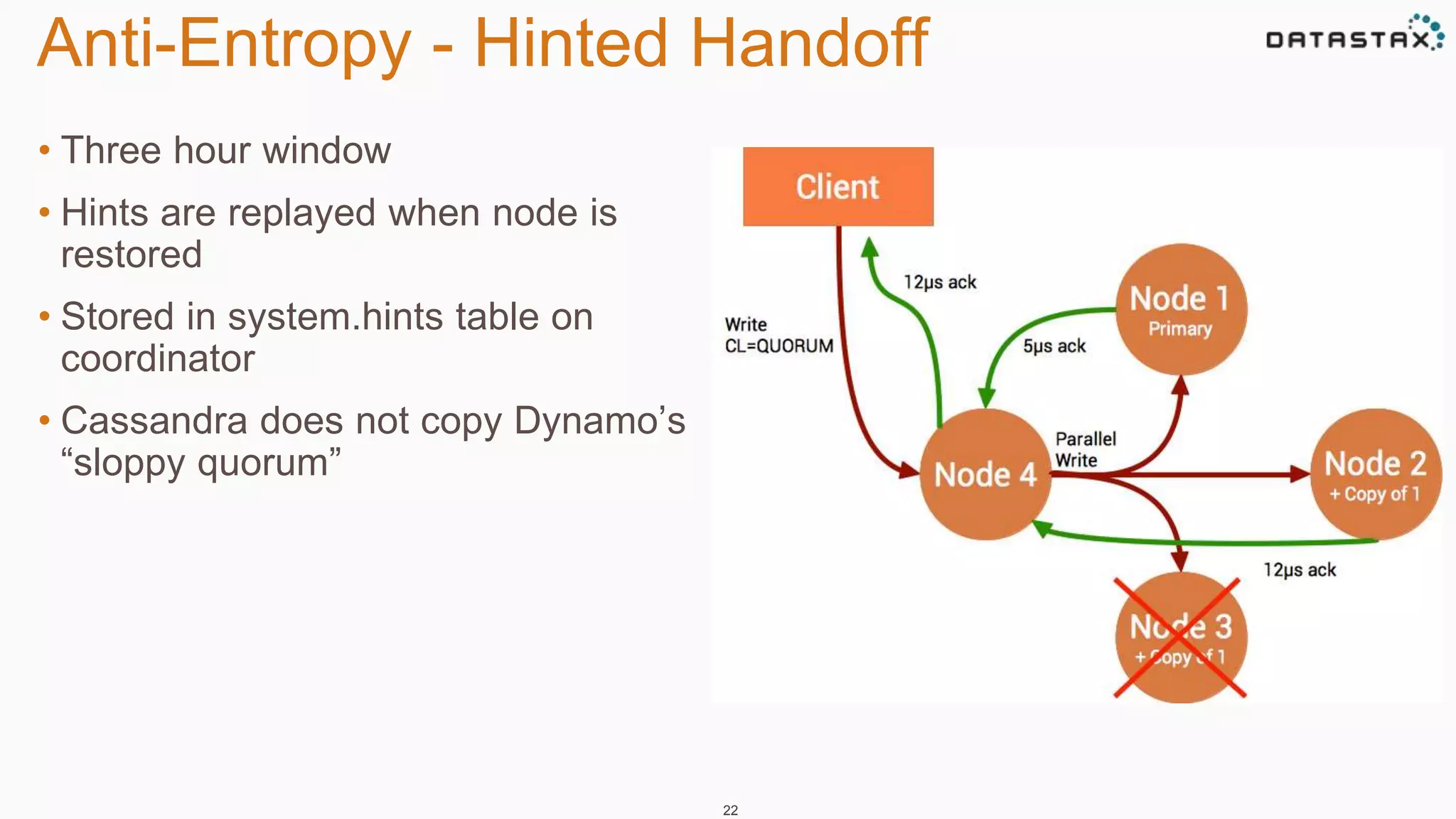

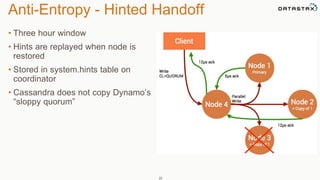

- 22. Anti-Entropy - HintedHandoff • Three hour window • Hints are replayed when node is restored • Stored in system.hints table on coordinator • Cassandra does not copy Dynamo’s “sloppy quorum” 22

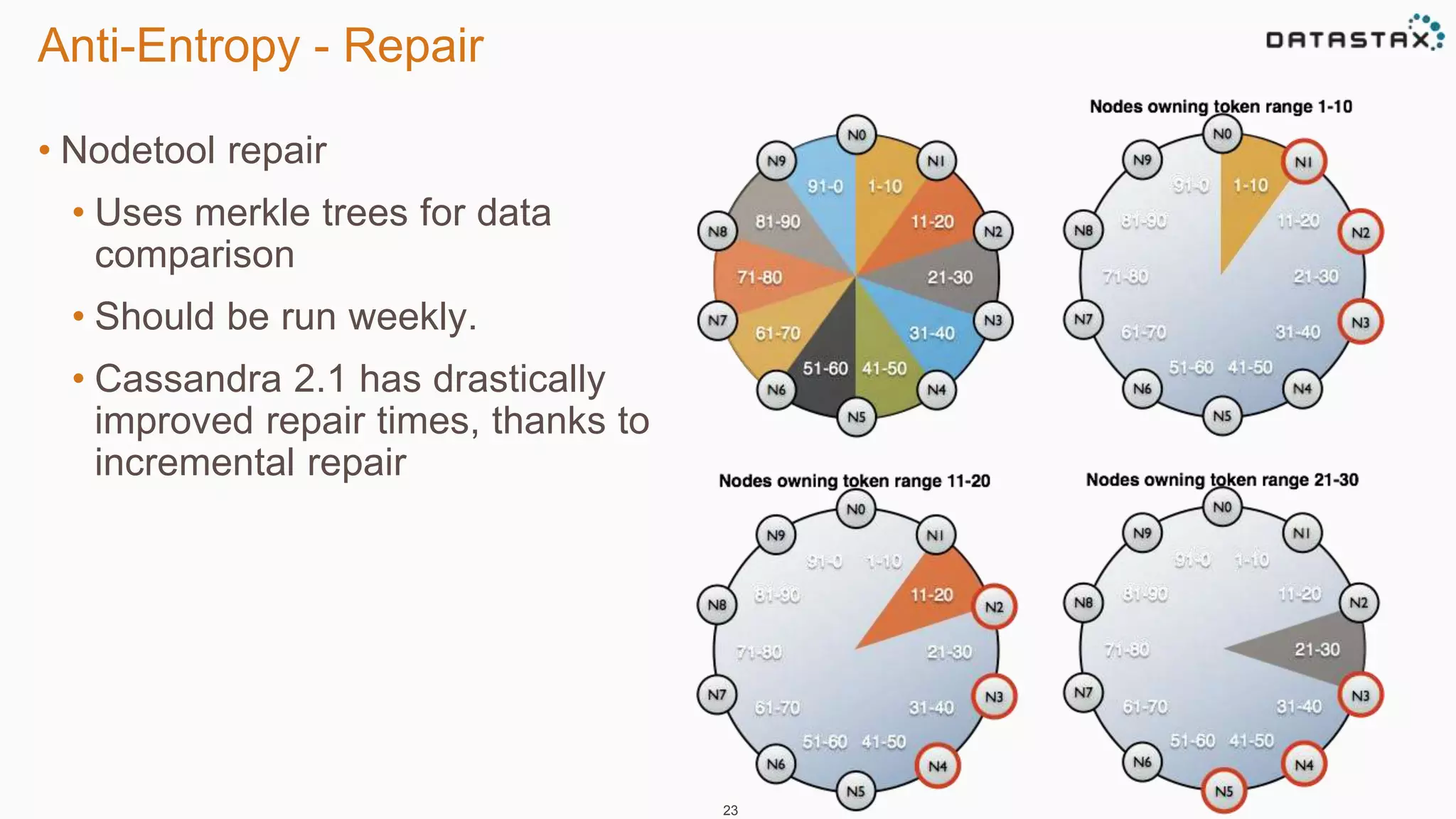

- 23. Anti-Entropy - Repair • Nodetool repair • Uses merkle trees for data comparison • Should be run weekly. • Cassandra 2.1 has drastically improved repair times, thanks to incremental repair 23
- 24. Node Architecture ©2012DataStax 24

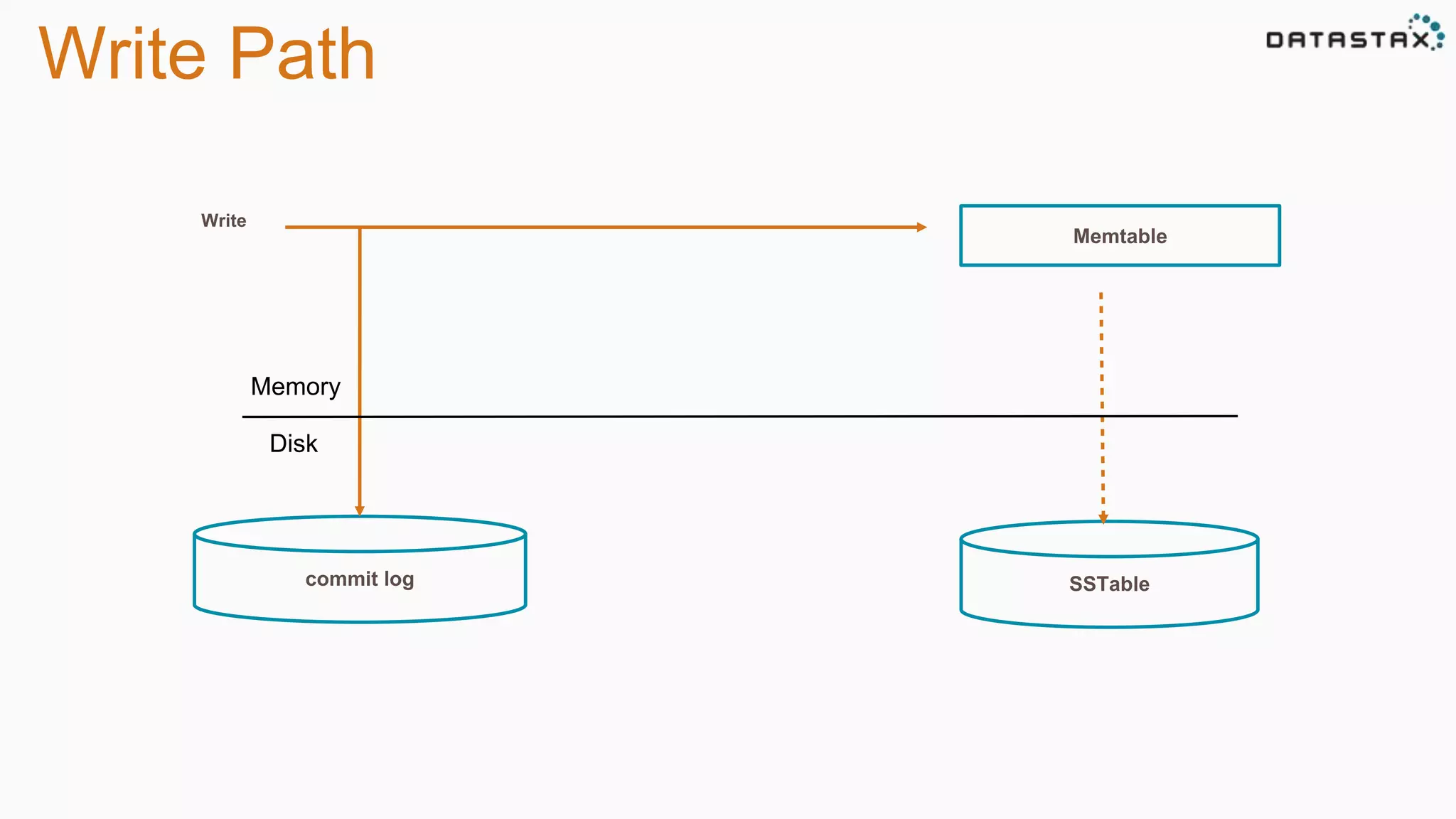

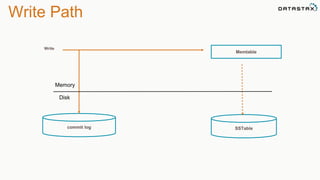

- 25. Write Path commitlog Memtable SSTable Write Memory Disk

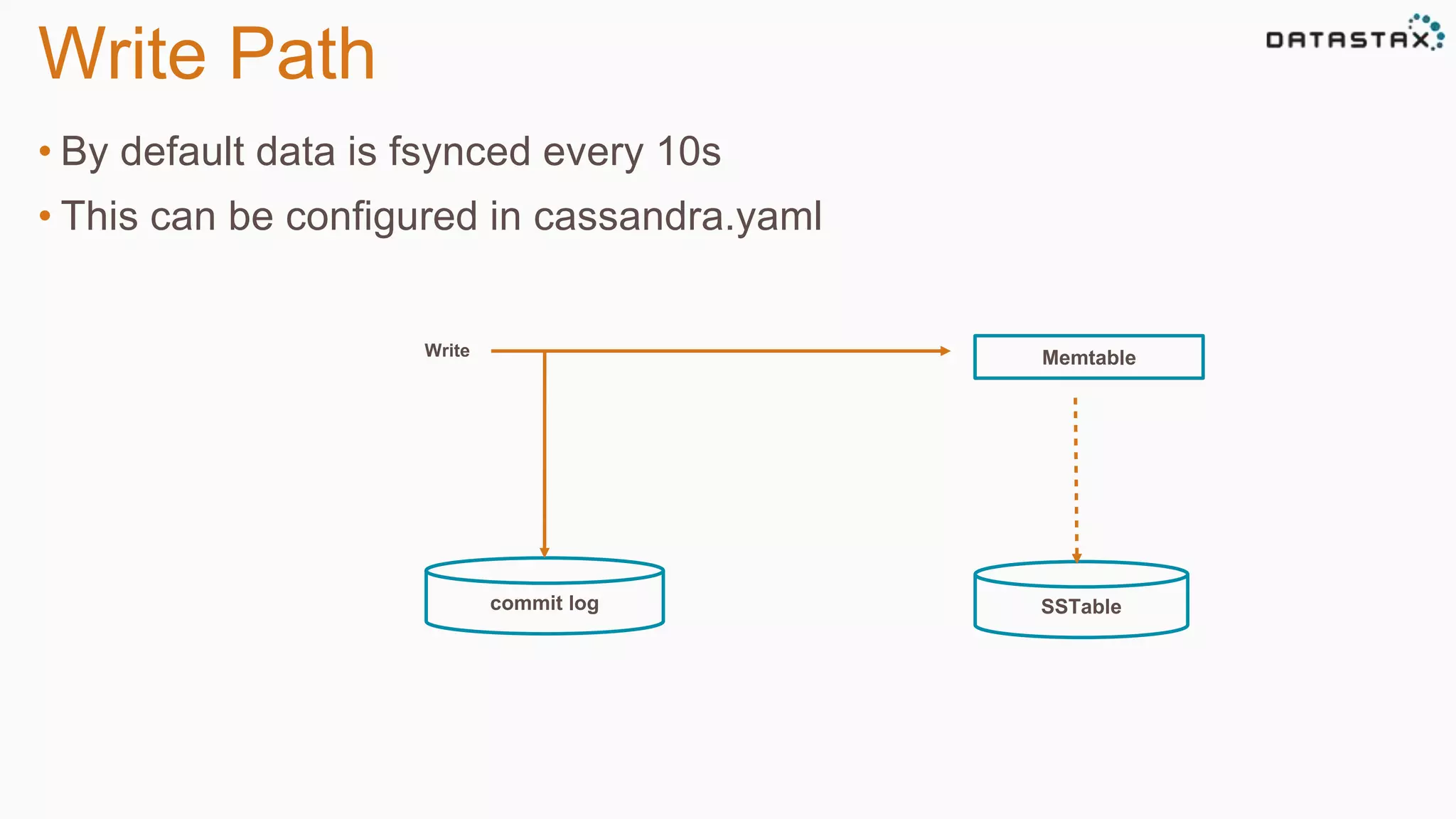

- 26. Write Path •By default data is fsynced every 10s • This can be configured in cassandra.yaml commit log Memtable SSTable Write

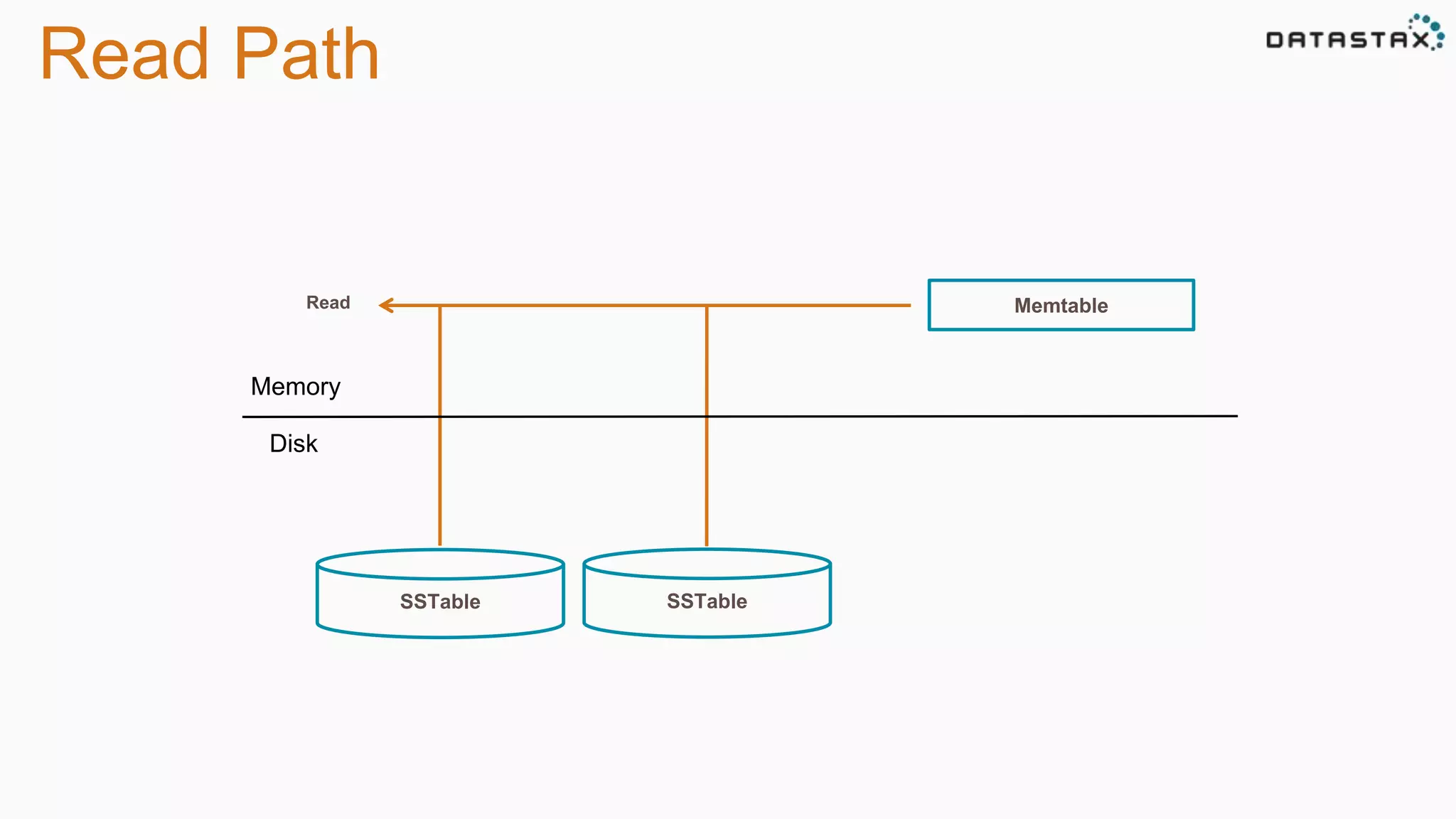

- 27. Read Path Memtable SSTable Read SSTable Memory Disk

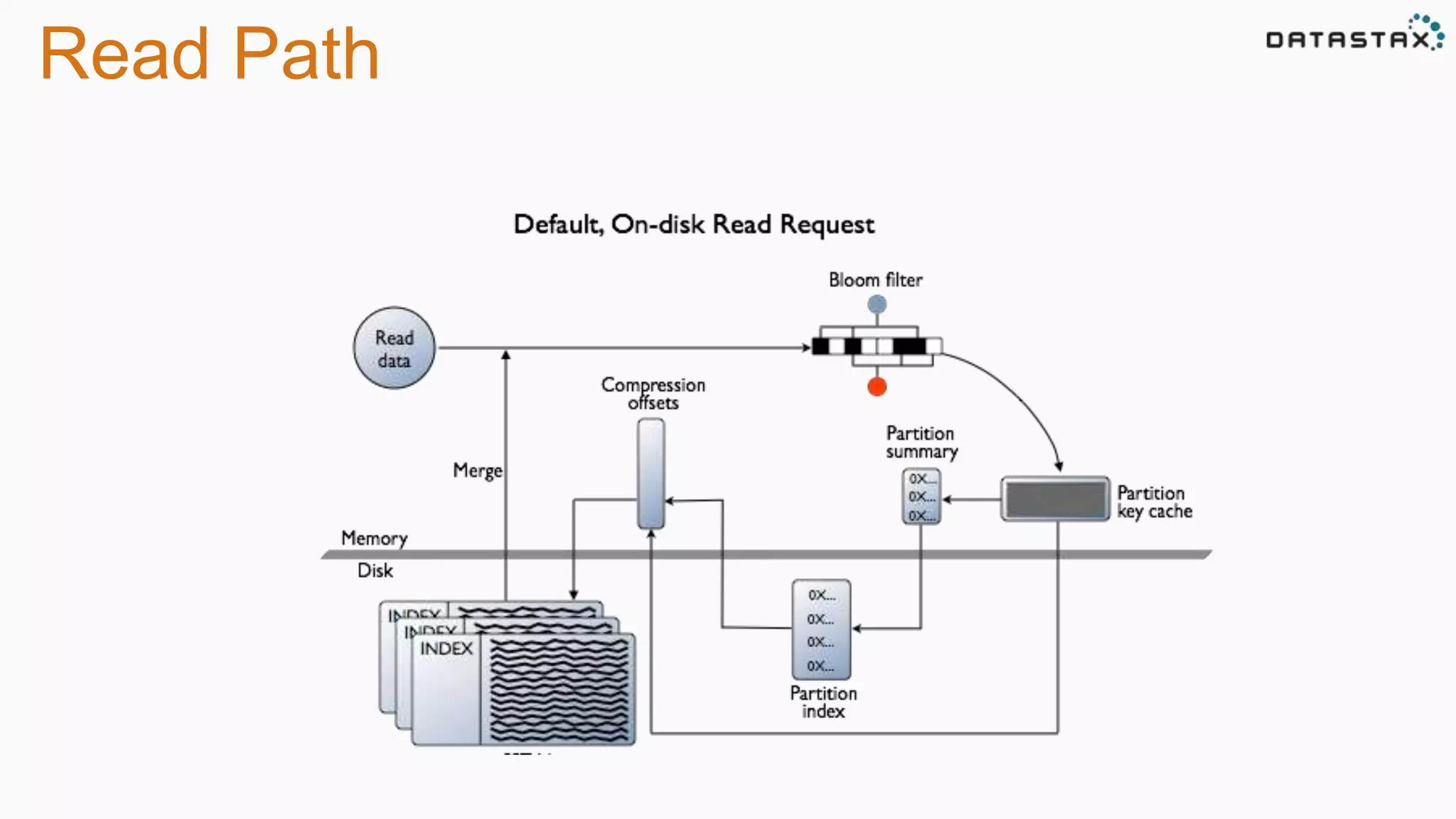

- 28.
- 29.
- 30.

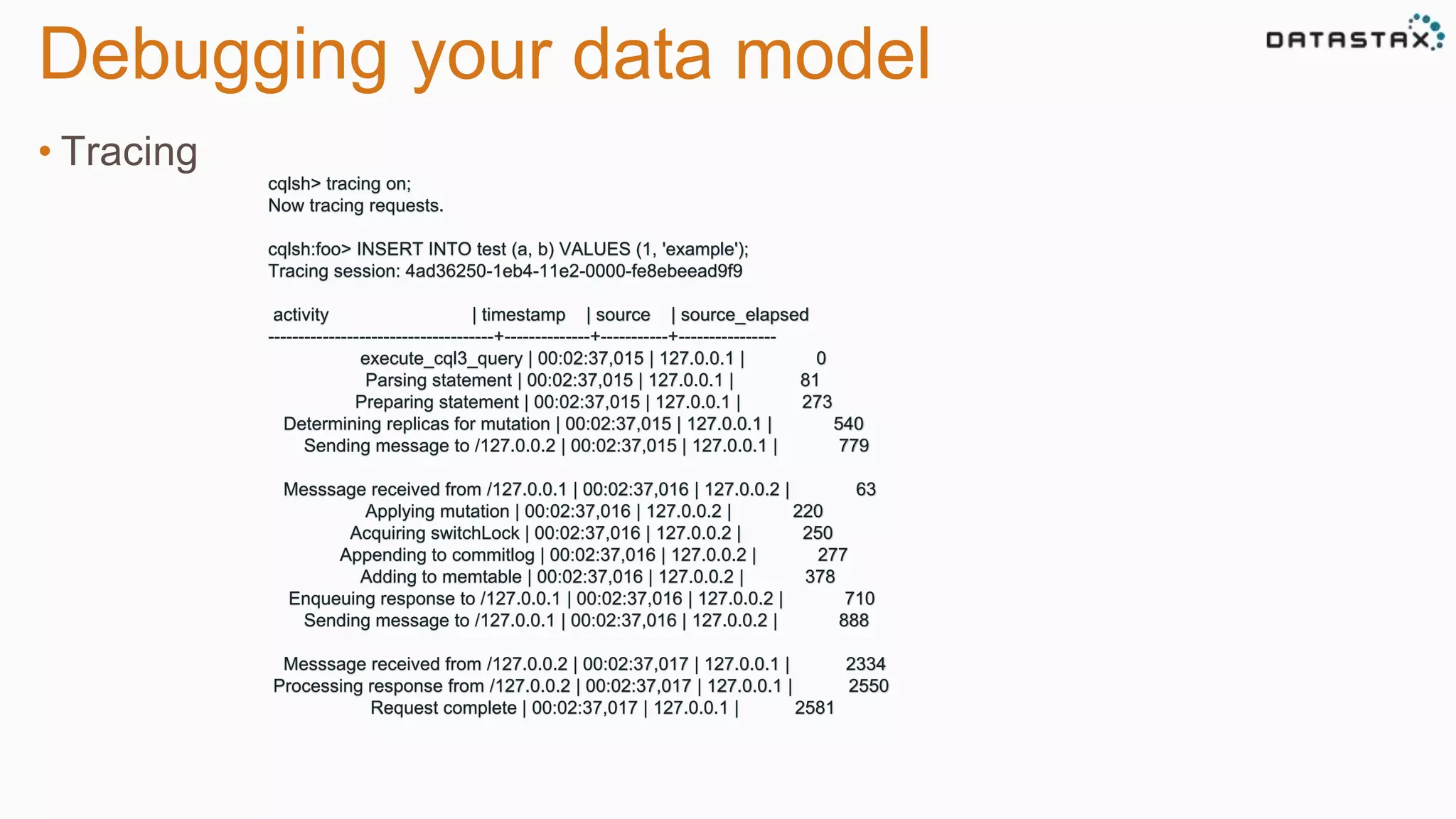

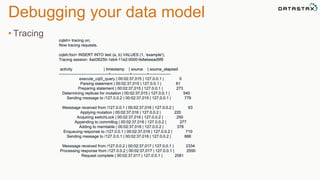

- 31. Debugging your datamodel • Tracing cqlsh> tracing on; Now tracing requests. cqlsh:foo> INSERT INTO test (a, b) VALUES (1, 'example'); Tracing session: 4ad36250-1eb4-11e2-0000-fe8ebeead9f9 activity | timestamp | source | source_elapsed -------------------------------------+--------------+-----------+---------------- execute_cql3_query | 00:02:37,015 | 127.0.0.1 | 0 Parsing statement | 00:02:37,015 | 127.0.0.1 | 81 Preparing statement | 00:02:37,015 | 127.0.0.1 | 273 Determining replicas for mutation | 00:02:37,015 | 127.0.0.1 | 540 Sending message to /127.0.0.2 | 00:02:37,015 | 127.0.0.1 | 779 Messsage received from /127.0.0.1 | 00:02:37,016 | 127.0.0.2 | 63 Applying mutation | 00:02:37,016 | 127.0.0.2 | 220 Acquiring switchLock | 00:02:37,016 | 127.0.0.2 | 250 Appending to commitlog | 00:02:37,016 | 127.0.0.2 | 277 Adding to memtable | 00:02:37,016 | 127.0.0.2 | 378 Enqueuing response to /127.0.0.1 | 00:02:37,016 | 127.0.0.2 | 710 Sending message to /127.0.0.1 | 00:02:37,016 | 127.0.0.2 | 888 Messsage received from /127.0.0.2 | 00:02:37,017 | 127.0.0.1 | 2334 Processing response from /127.0.0.2 | 00:02:37,017 | 127.0.0.1 | 2550 Request complete | 00:02:37,017 | 127.0.0.1 | 2581

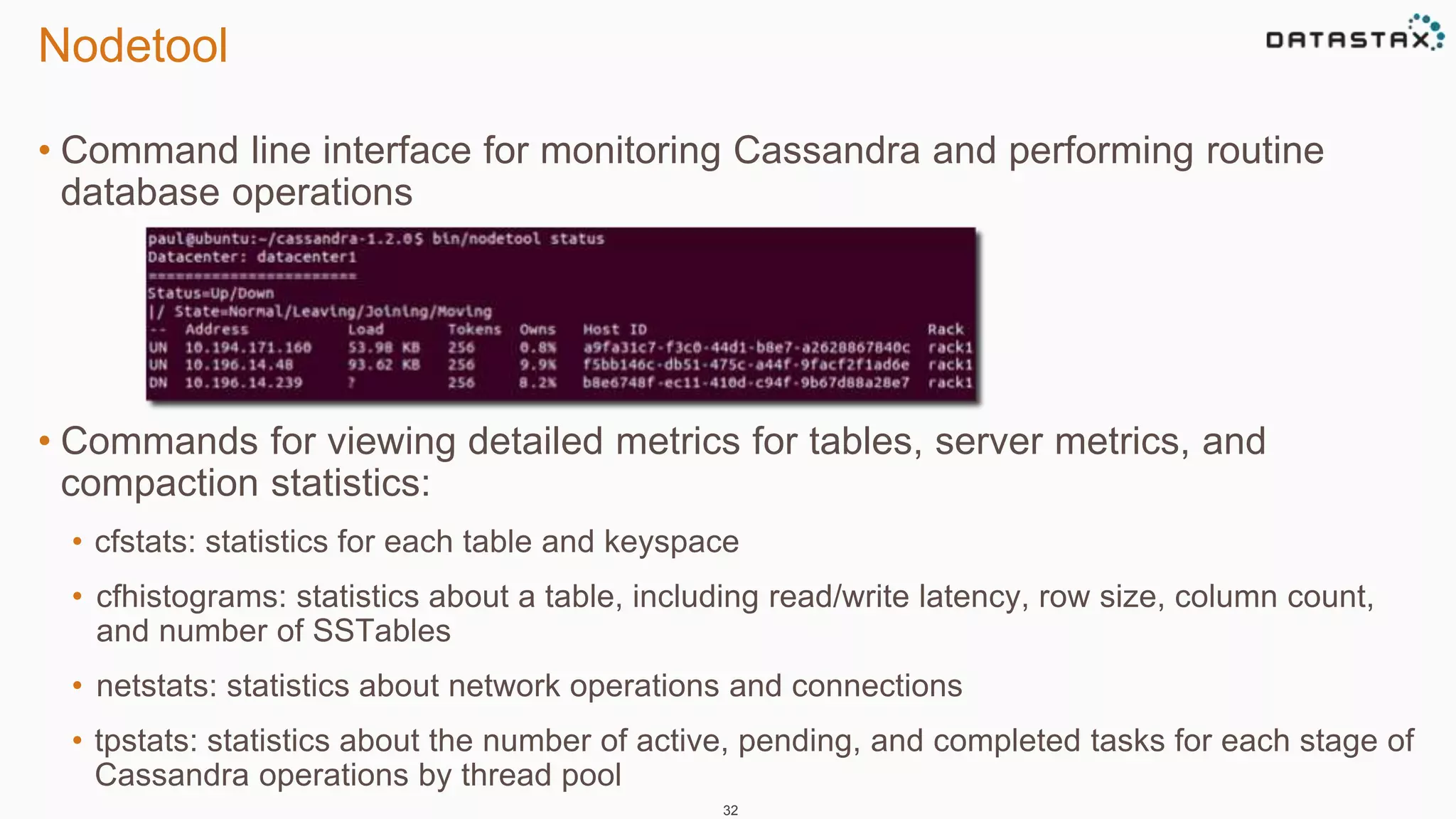

- 32. Nodetool • Commandline interface for monitoring Cassandra and performing routine database operations • Commands for viewing detailed metrics for tables, server metrics, and compaction statistics: • cfstats: statistics for each table and keyspace • cfhistograms: statistics about a table, including read/write latency, row size, column count, and number of SSTables • netstats: statistics about network operations and connections • tpstats: statistics about the number of active, pending, and completed tasks for each stage of Cassandra operations by thread pool 32
- 33. Try it out ©2012 DataStax 33

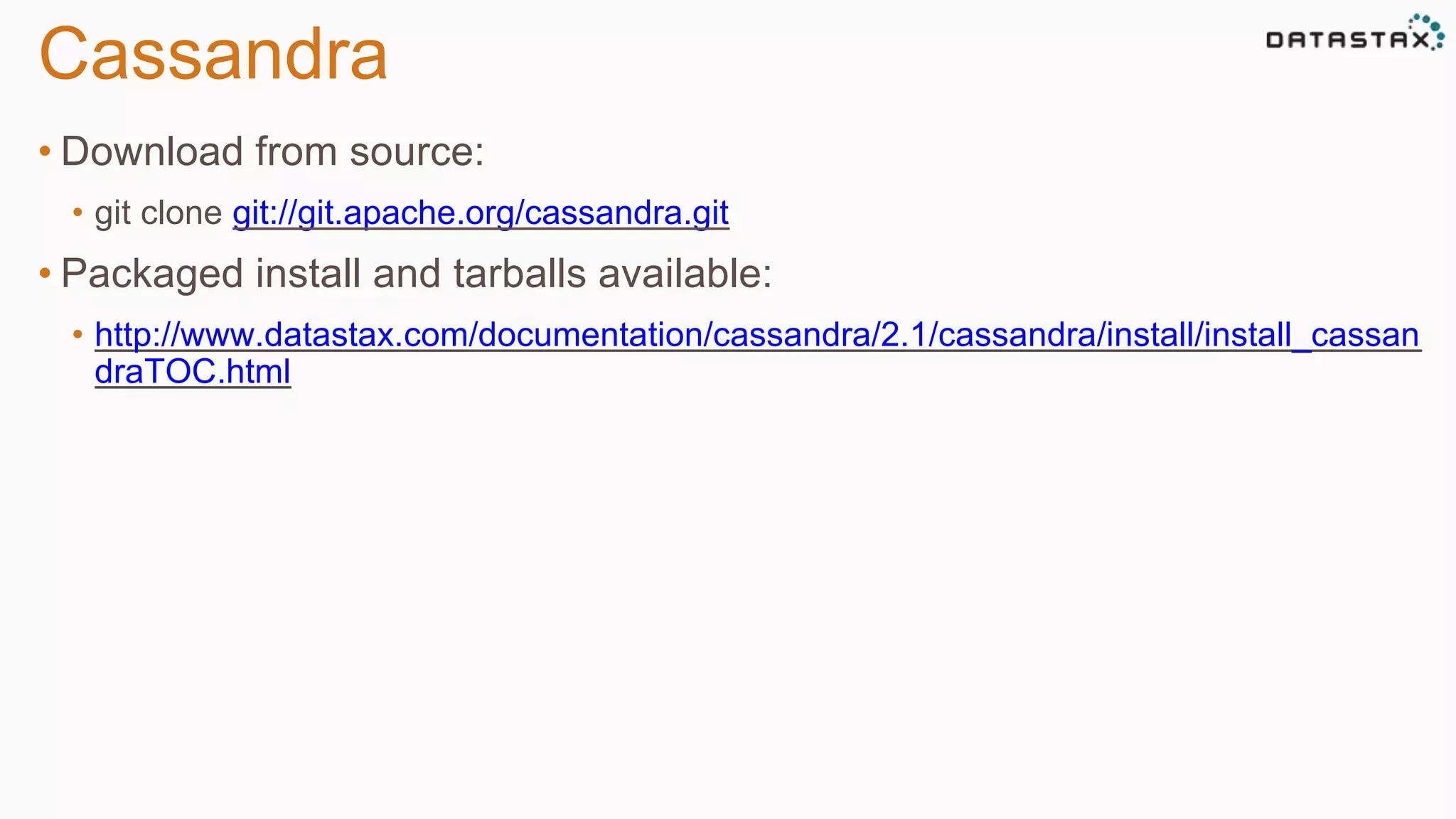

- 34. Cassandra • Downloadfrom source: • git clone git://git.apache.org/cassandra.git • Packaged install and tarballs available: • http://www.datastax.com/documentation/cassandra/2.1/cassandra/install/install_cassan draTOC.html

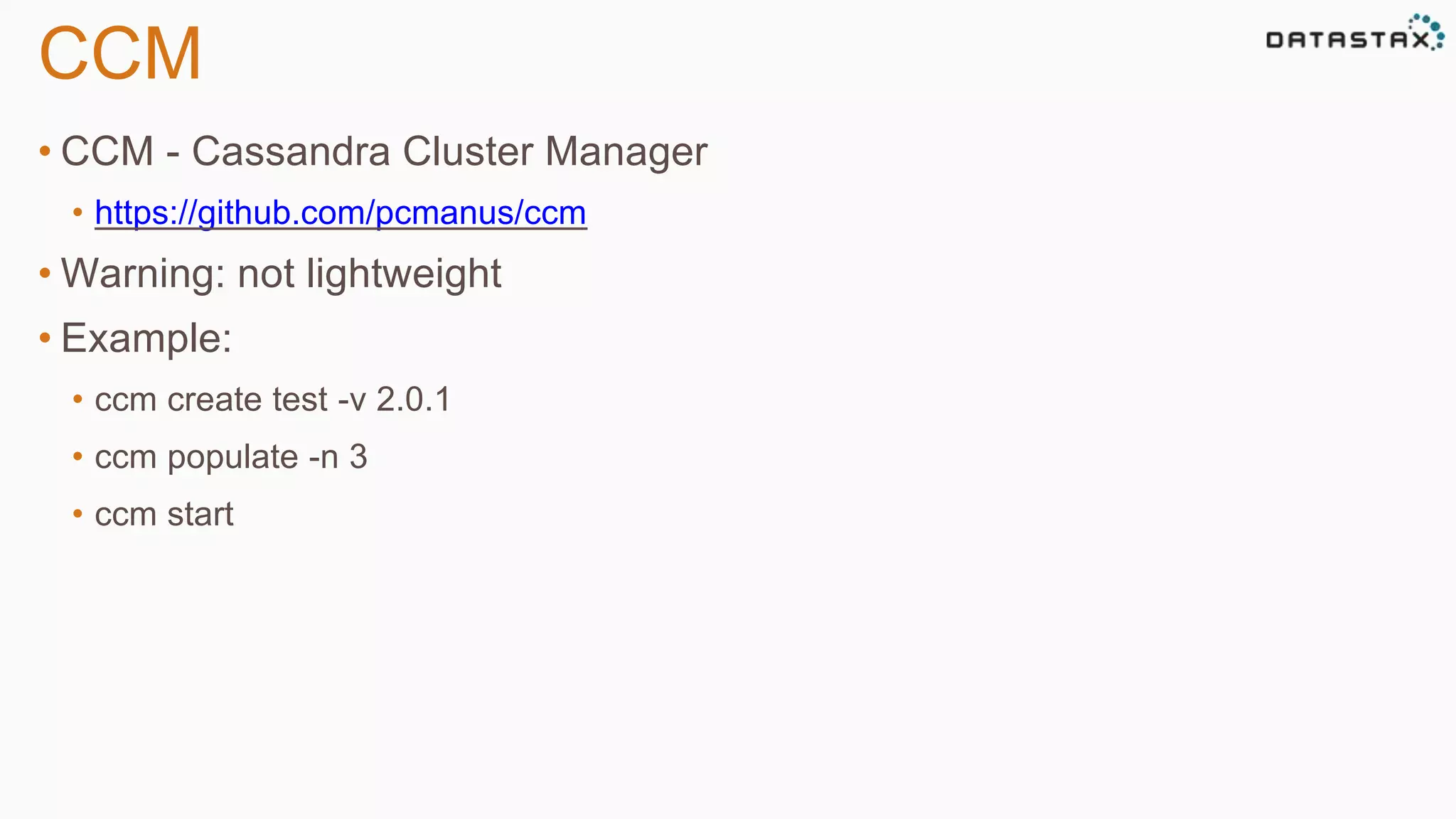

- 35. CCM • CCM- Cassandra Cluster Manager • https://github.com/pcmanus/ccm •Warning: not lightweight • Example: • ccm create test -v 2.0.1 • ccm populate -n 3 • ccm start

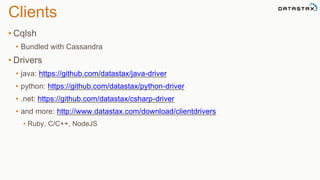

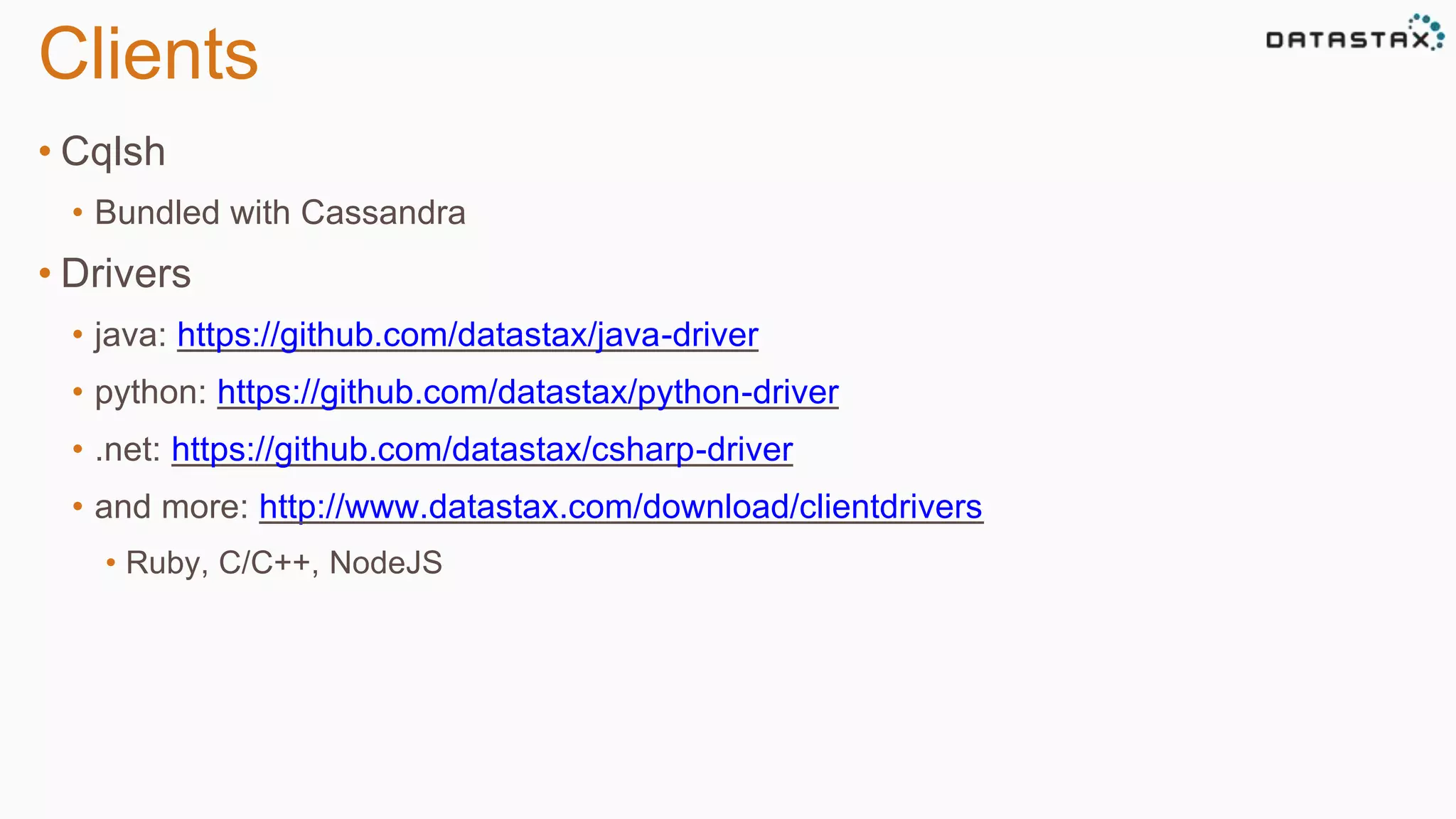

- 36. Clients • Cqlsh • Bundled with Cassandra • Drivers • java: https://github.com/datastax/java-driver • python: https://github.com/datastax/python-driver • .net: https://github.com/datastax/csharp-driver • and more: http://www.datastax.com/download/clientdrivers • Ruby, C/C++, NodeJS

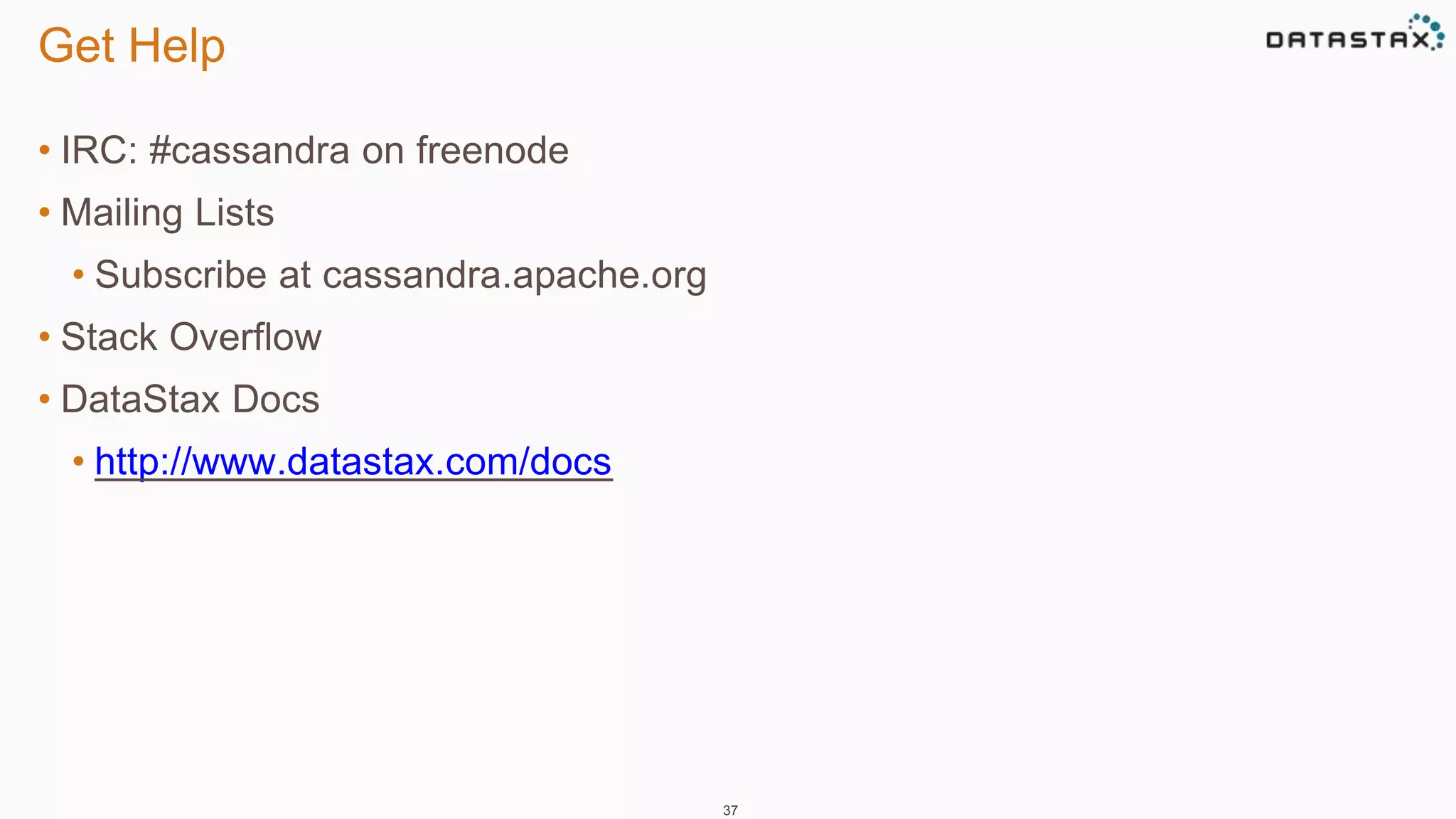

- 37. Get Help •IRC: #cassandra on freenode • Mailing Lists • Subscribe at cassandra.apache.org • Stack Overflow • DataStax Docs • http://www.datastax.com/docs 37
- 38.
- 39. ©2014 DataStax Confidential.Do not distribute without consent. 39
