The presentation discusses the challenges of accurately counting big data and introduces streaming algorithms as a solution to reduce memory usage, latency, and improve accuracy. It highlights Rakuten's internal C library, libsketch, which provides high-speed streaming algorithms like hyperloglog and count-min sketch for data analysis. The presentation emphasizes the practical applications of these algorithms in counting unique users and products sold on the platform.

1. Counting Big Data
by Streaming Algorithms
2013/10/26 @ Rakuten Technology Conference 2013
Rakuten Institute of Technology, Rakuten, Inc.,
Yusaku Kaneta
http://www.rakuten.co.jp/

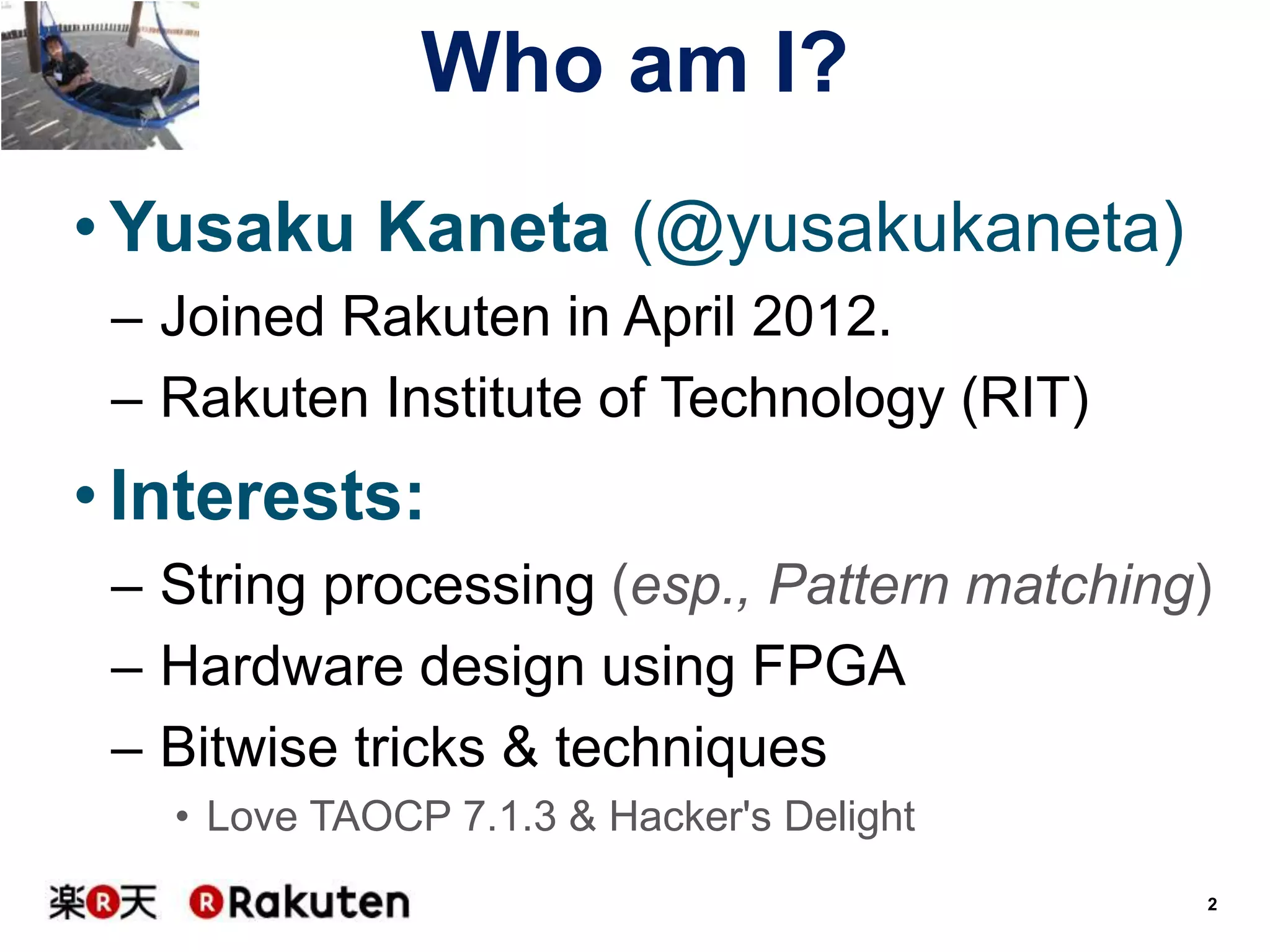

2. Who am I?
• Yusaku Kaneta (@yusakukaneta)
– Joined Rakuten in April 2012.
– Rakuten Institute of Technology (RIT)
• Interests:
– String processing (esp., Pattern matching)
– Hardware design using FPGA
– Bitwise tricks & techniques
• Love TAOCP 7.1.3 & Hacker's Delight
2

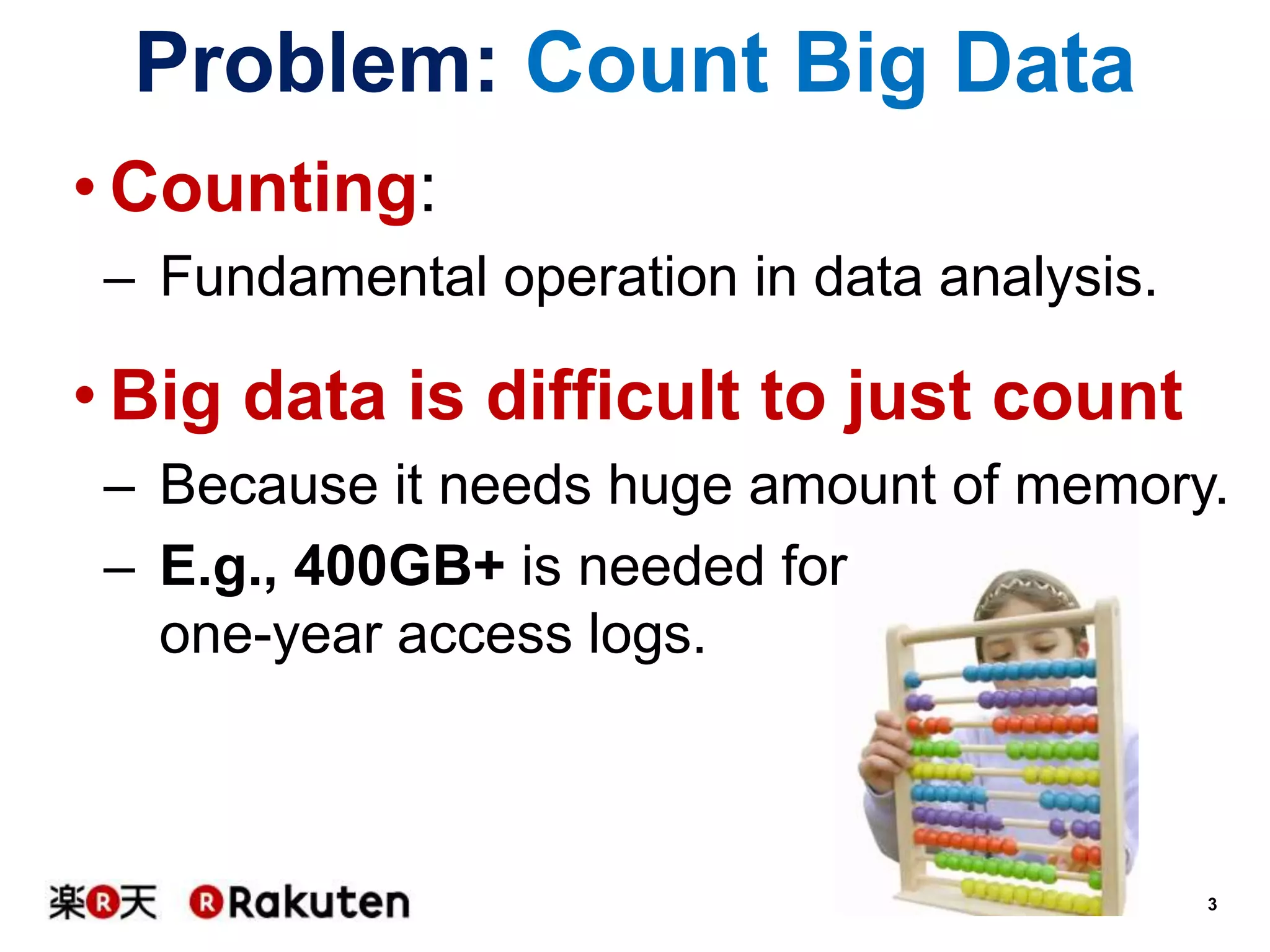

3. Problem: Count Big Data
• Counting:
– Fundamental operation in data analysis.
• Big data is difficult to just count
– Because it needs huge amount of memory.
– E.g., 400GB+ is needed for
one-year access logs.
3

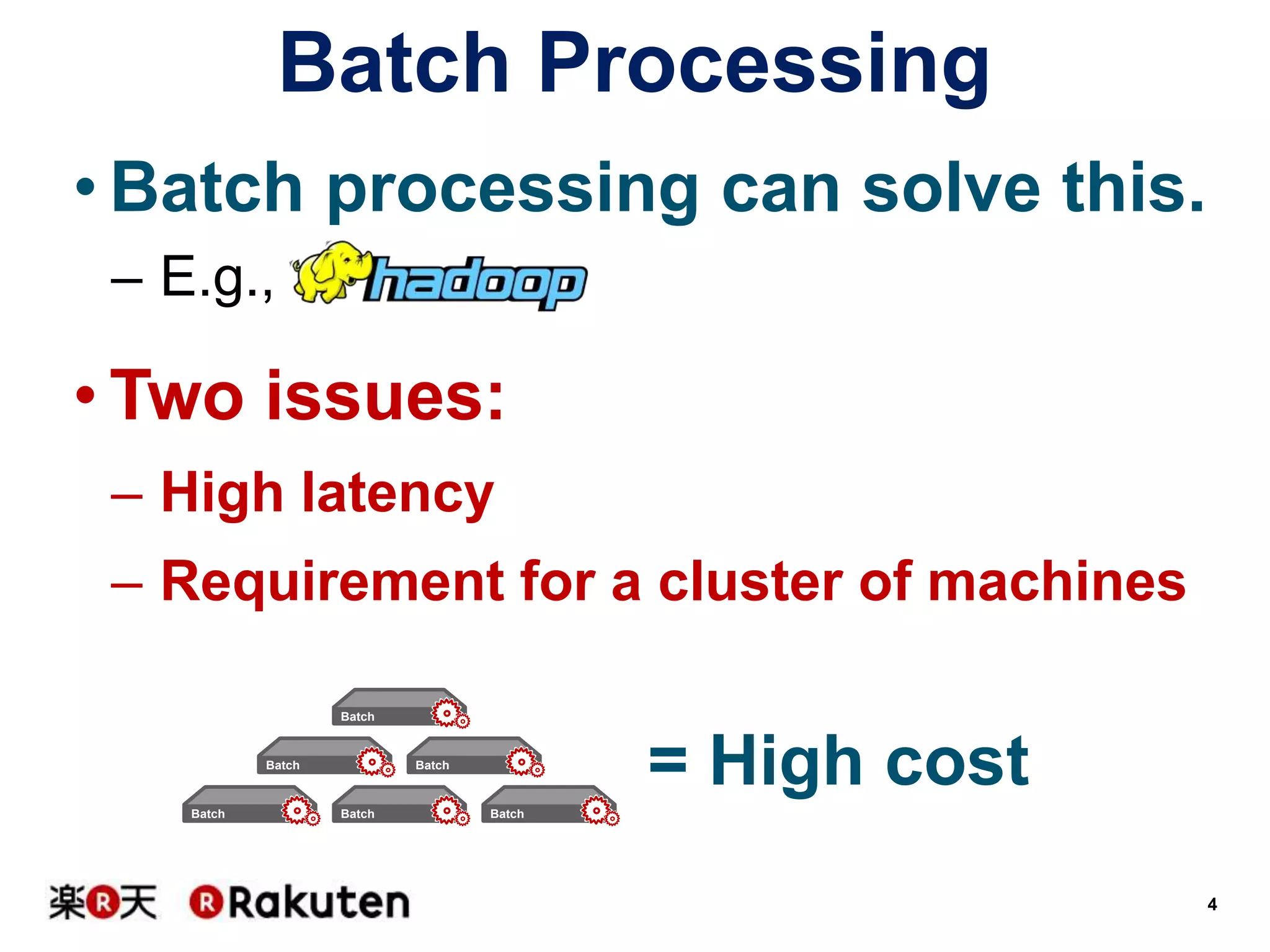

4. Batch Processing
• Batch processing can solve this.
– E.g.,
• Two issues:
– High latency
– Requirement for a cluster of machines
Batch
Batch
Batch
= High cost
Batch
Batch
Batch
4

5. Our Goals
1. Reduce memory
– Cost reduction.
2. Reduce latency
– Quick business decisions.
3. Achieve high-accuracy
– Correct business decisions.
5

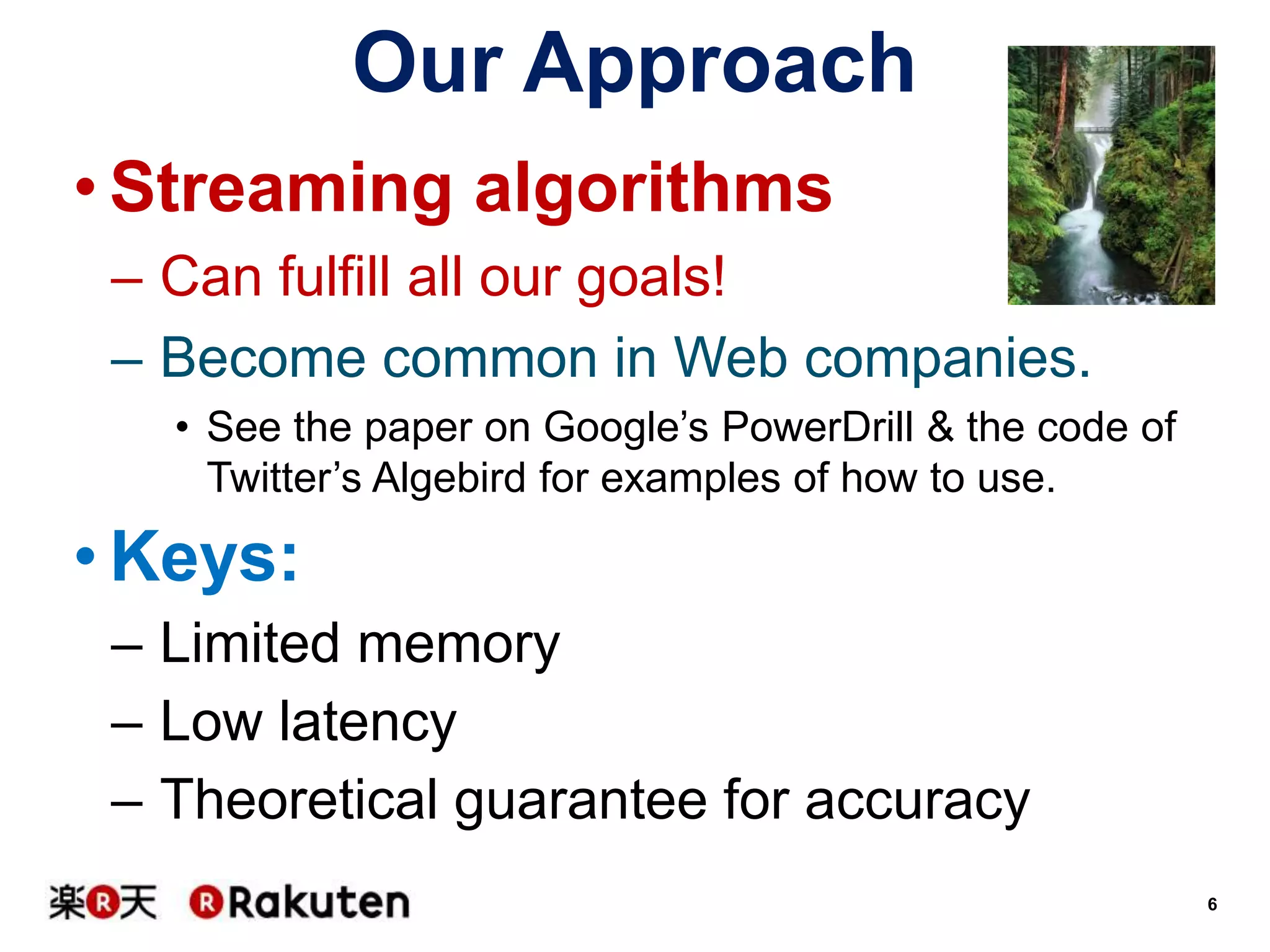

6. Our Approach
• Streaming algorithms
– Can fulfill all our goals!
– Become common in Web companies.
• See the paper on Google’s PowerDrill & the code of
Twitter’s Algebird for examples of how to use.
• Keys:
– Limited memory
– Low latency
– Theoretical guarantee for accuracy
6

7. Streaming Algorithm Library
• RIT internally provides a C library
for streaming algorithms, libsketch.
• Three advantages:
Memory
efficient
• Bindings for
High
speed
High
accuracy
&
7

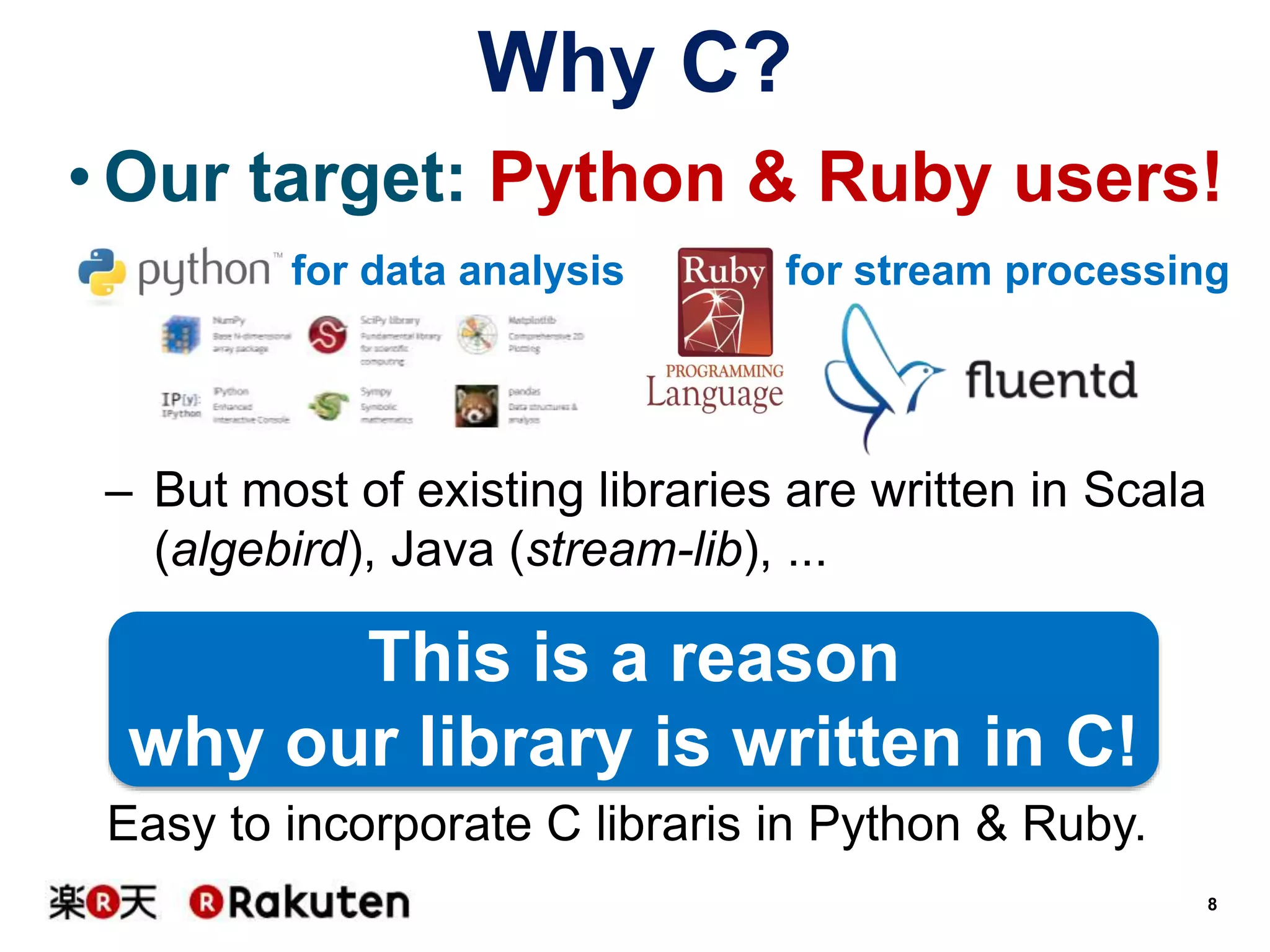

8. Why C?
• Our target: Python & Ruby users!
for data analysis
for stream processing
– But most of existing libraries are written in Scala
(algebird), Java (stream-lib), ...
This is a reason
why our library is written in C!
Easy to incorporate C libraris in Python & Ruby.
8

9. Application

10. Count Query in Rakuten
• Example: We want to know...
1. How many unique users that checked
an item in one day (month, or year)?
2. How many products sold in one day
(month, or year)?
• Streaming algorithms for the queries
1. HyperLogLog algorithm
2. Count-Min Sketch algorithm
10

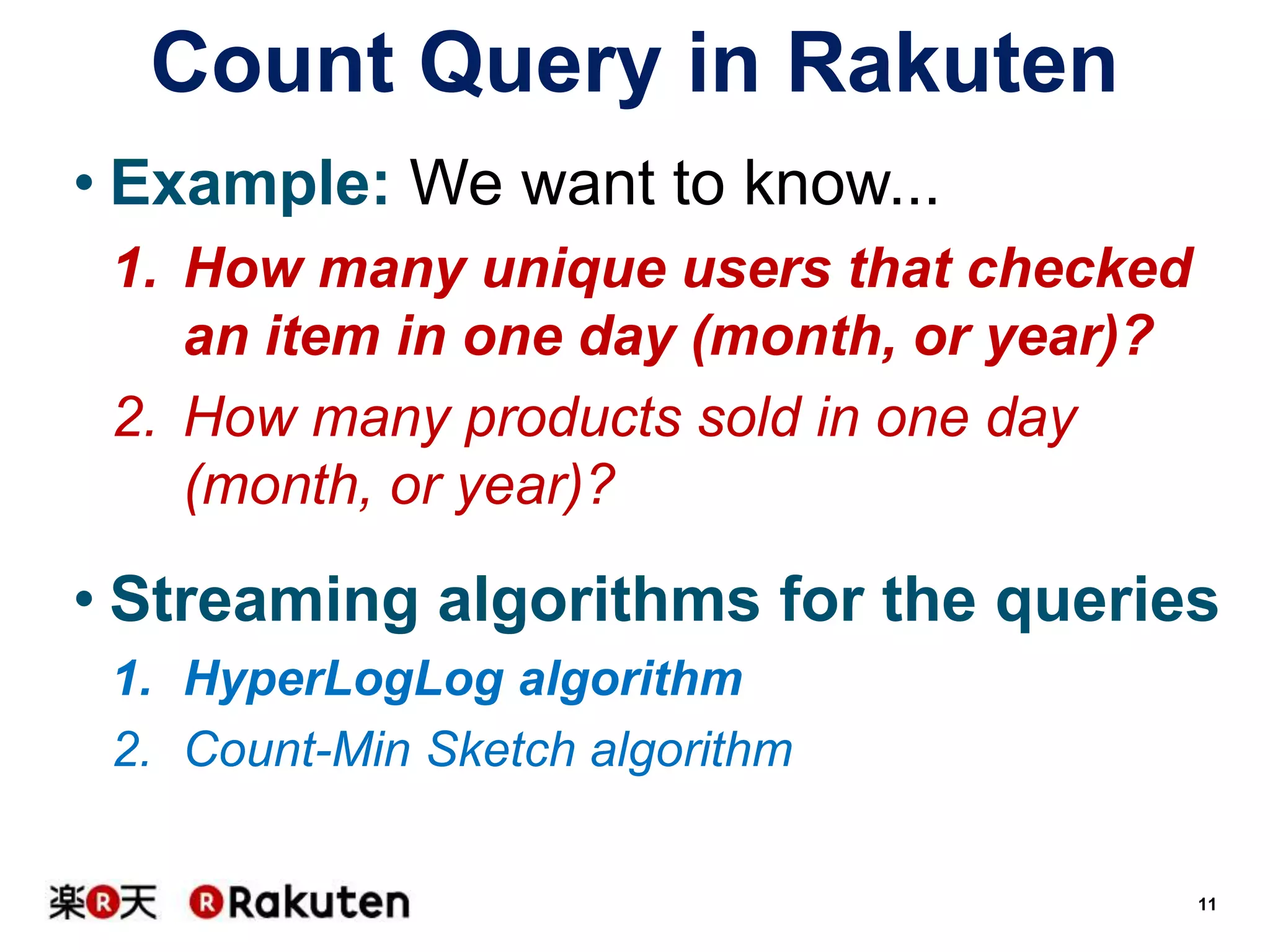

11. Count Query in Rakuten
• Example: We want to know...
1. How many unique users that checked
an item in one day (month, or year)?
2. How many products sold in one day
(month, or year)?
• Streaming algorithms for the queries
1. HyperLogLog algorithm
2. Count-Min Sketch algorithm
11

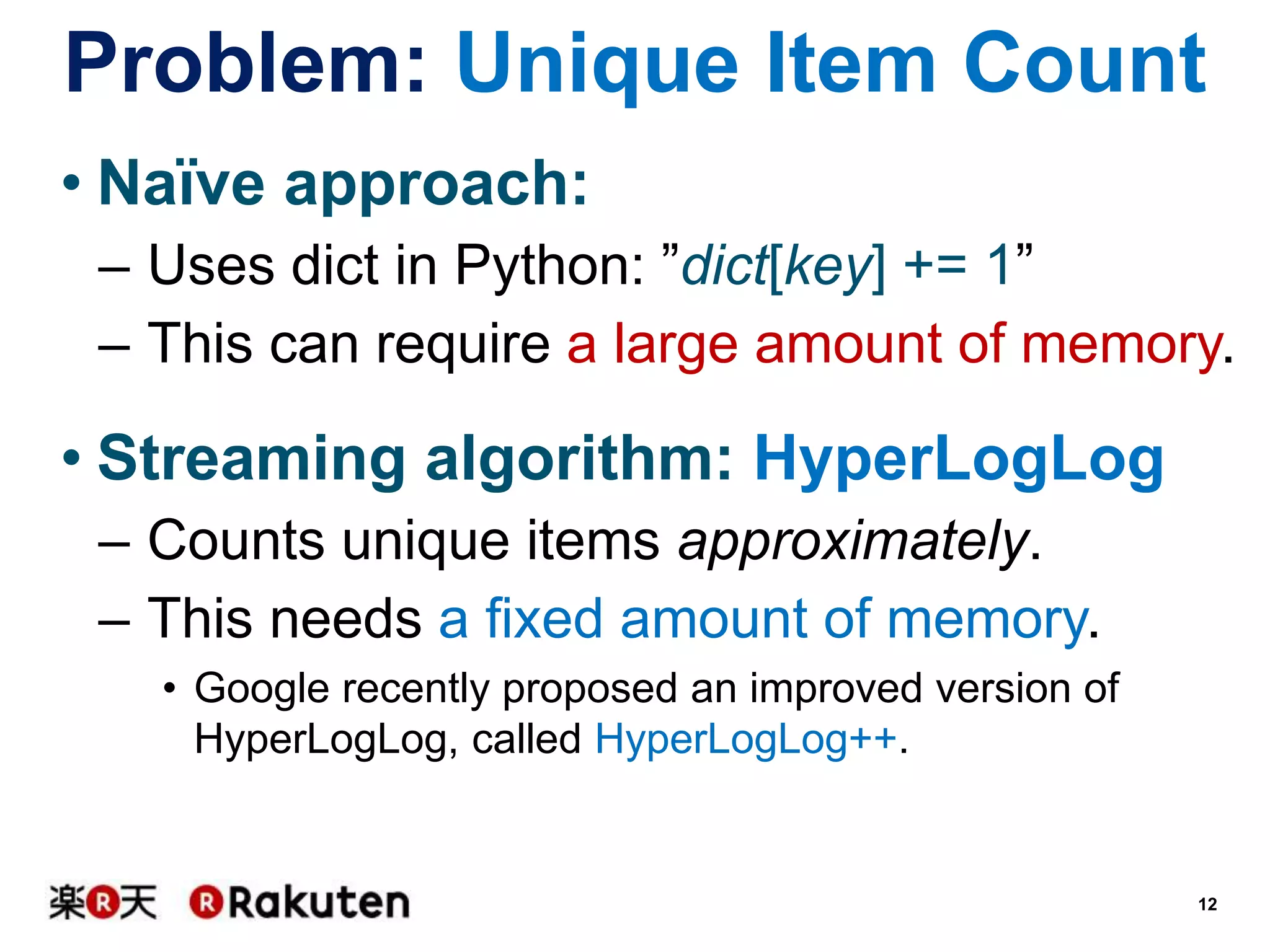

12. Problem: Unique Item Count
• Naïve approach:
– Uses dict in Python: ”dict[key] += 1”
– This can require a large amount of memory.
• Streaming algorithm: HyperLogLog
– Counts unique items approximately.
– This needs a fixed amount of memory.
• Google recently proposed an improved version of
HyperLogLog, called HyperLogLog++.
12

13. HyperLogLog
• Basic ideas:
–Hash function
–Harmonic mean
–Stochastic averaging
13

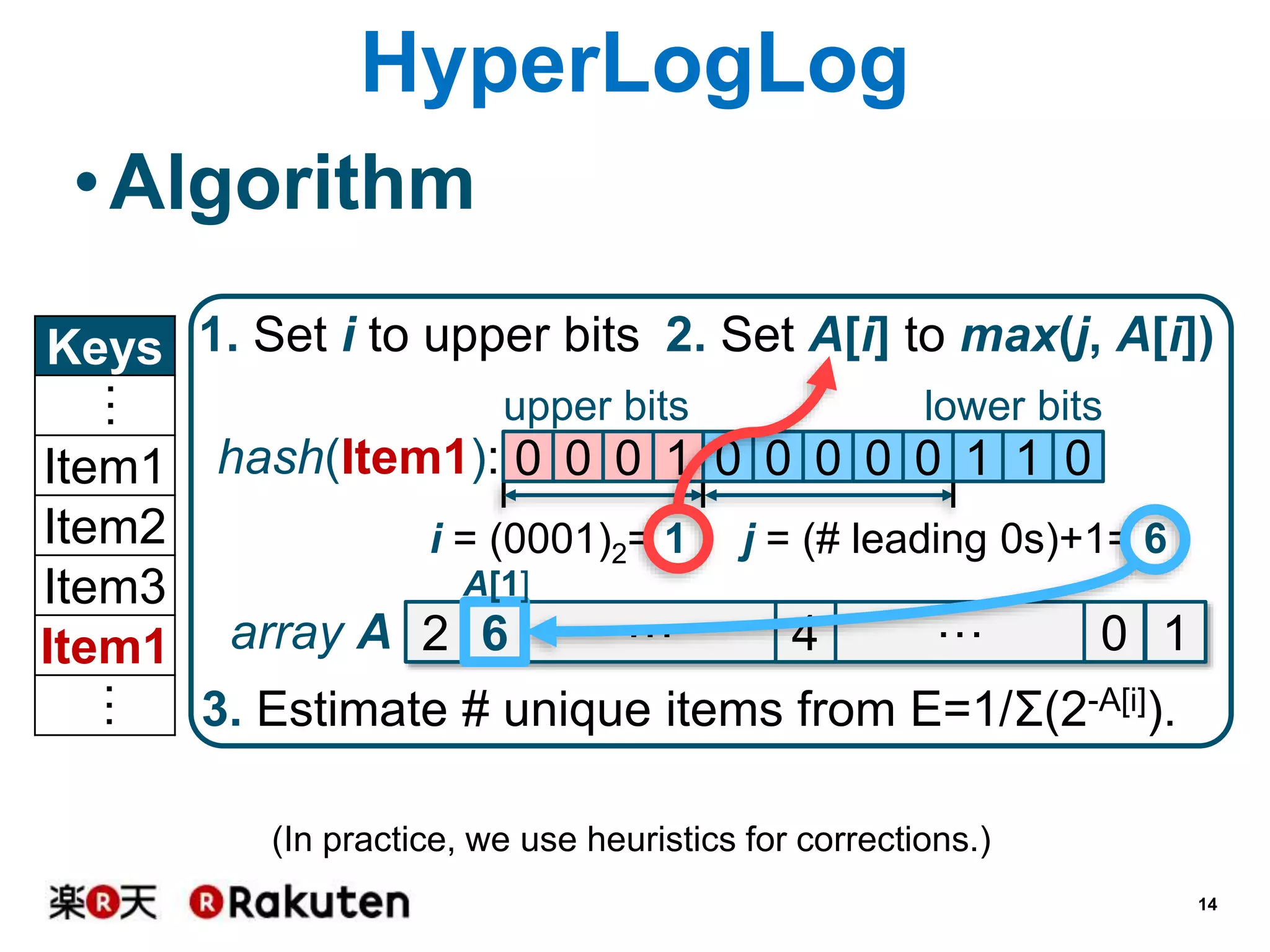

14. HyperLogLog
• Algorithm
Keys 1. Set i to upper bits 2. Set A[i] to max(j, A[i])
…
upper bits
lower bits
…
Item1 hash(Item1): 0 0 0 1 0 0 0 0 0 1 1 0
Item2
i = (0001)2= 1 j = (# leading 0s)+1= 6
A[1]
Item3
4
0 1
···
···
Item1 array A 2 6
3. Estimate # unique items from E=1/Σ(2-A[i]).
(In practice, we use heuristics for corrections.)
14

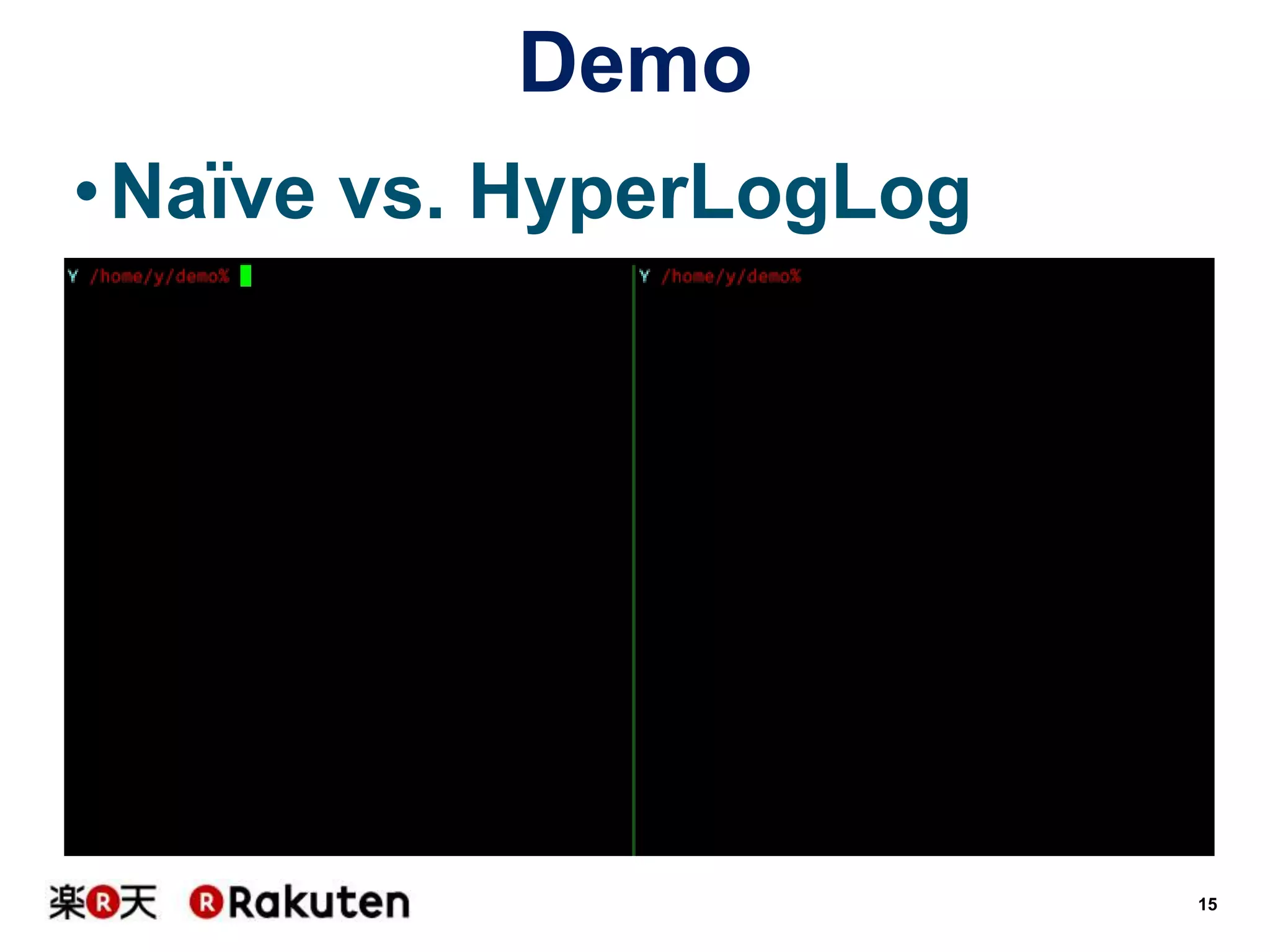

15. Demo
• Naïve vs. HyperLogLog
15

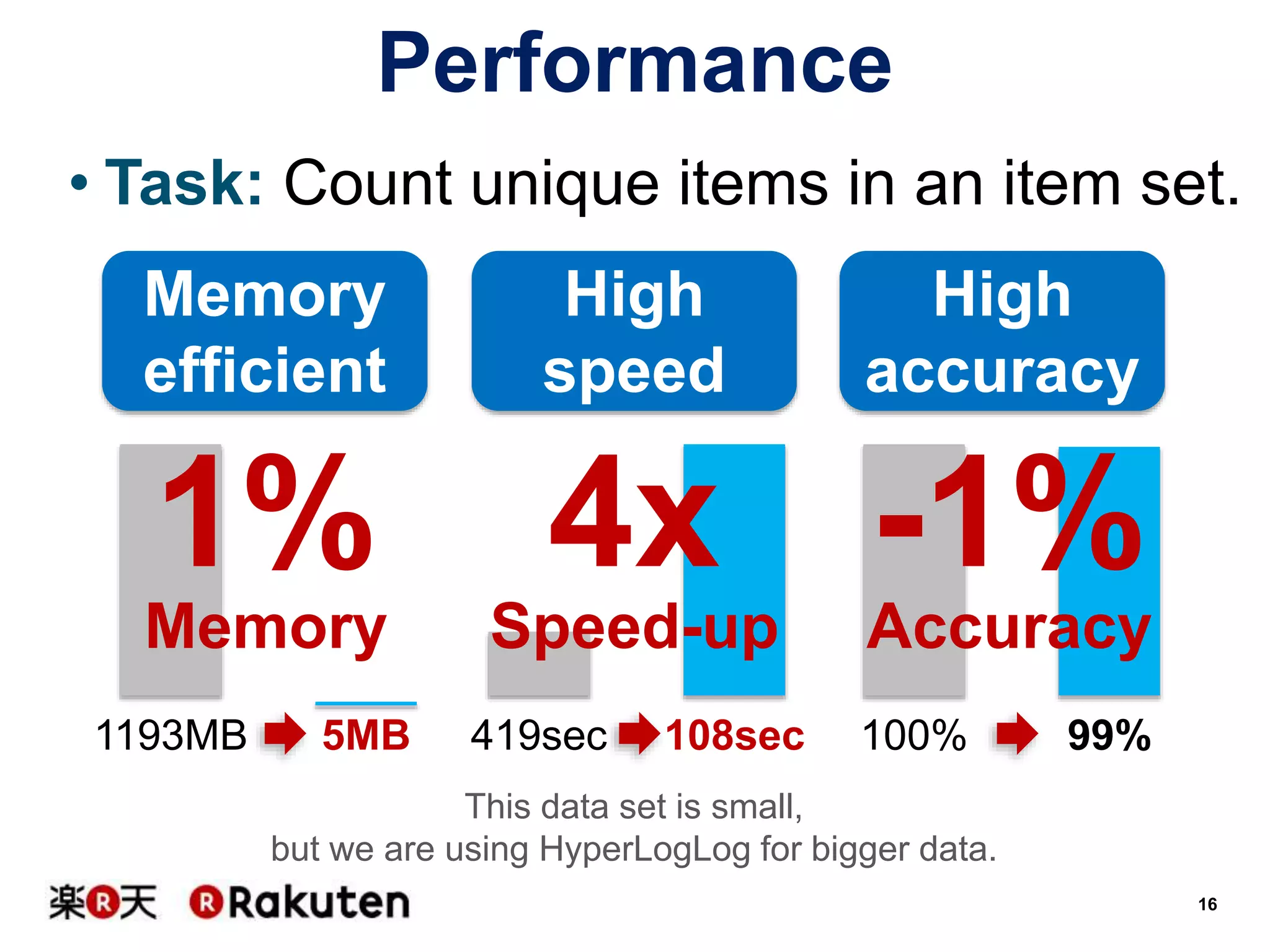

16. Performance
• Task: Count unique items in an item set.
Memory
efficient
High
speed
1%
4x -1%
Memory
1193MB
5MB
Speed-up
419sec
108sec
High
accuracy
Accuracy
100%
99%
This data set is small,
but we are using HyperLogLog for bigger data.
16

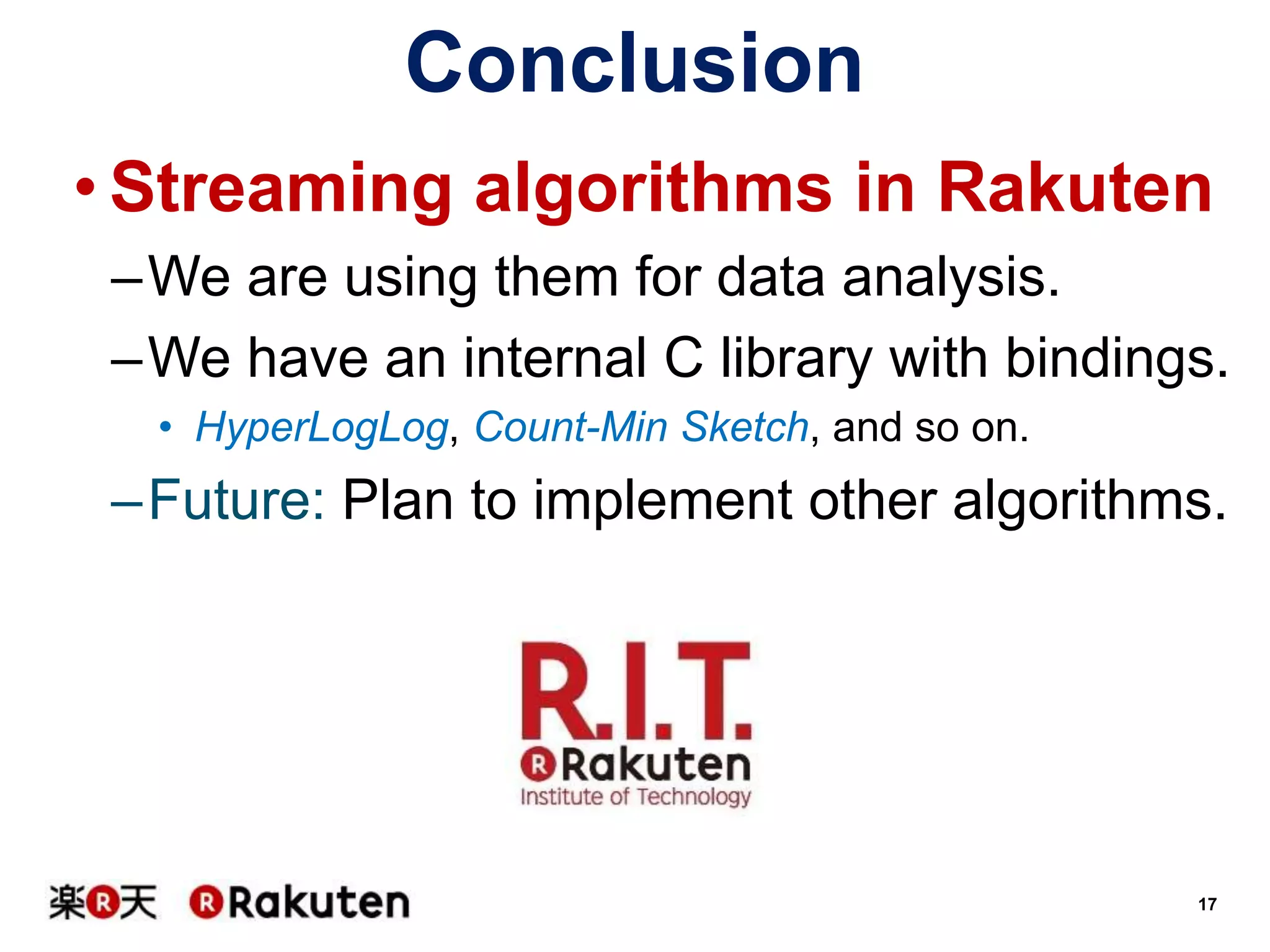

17. Conclusion
• Streaming algorithms in Rakuten
–We are using them for data analysis.
–We have an internal C library with bindings.
• HyperLogLog, Count-Min Sketch, and so on.
–Future: Plan to implement other algorithms.
17

18. Reference
• HyperLogLog & HyperLogLog++
– [Flajolet et al., AOFA 2007], [Heule et al., EDBT 2013]
• Count-Min Sketch
– [Cormode, Muthukrishnan, J. Algorithms, 2005]
• An excellent slide by Alex Smola
– http://alex.smola.org/teaching/berkeley2012/slides/3_Streams.pdf
• AK TECH BLOG by Aggregate Knowledge
– http://blog.aggregateknowledge.com/
• Stream-lib by Clearspring
– https://github.com/clearspring/stream-lib
18
