A presentation from the annual Southern Africa Telecommunication Networks and Applications Conference (SATNAC) 2016 by Joshua Leibstein

1. Broadband Evolution - Unlocking
“The Internet of Things”
TB detection using
modified Local Binary Pattern features
Joshua Leibstein
Andre Nel

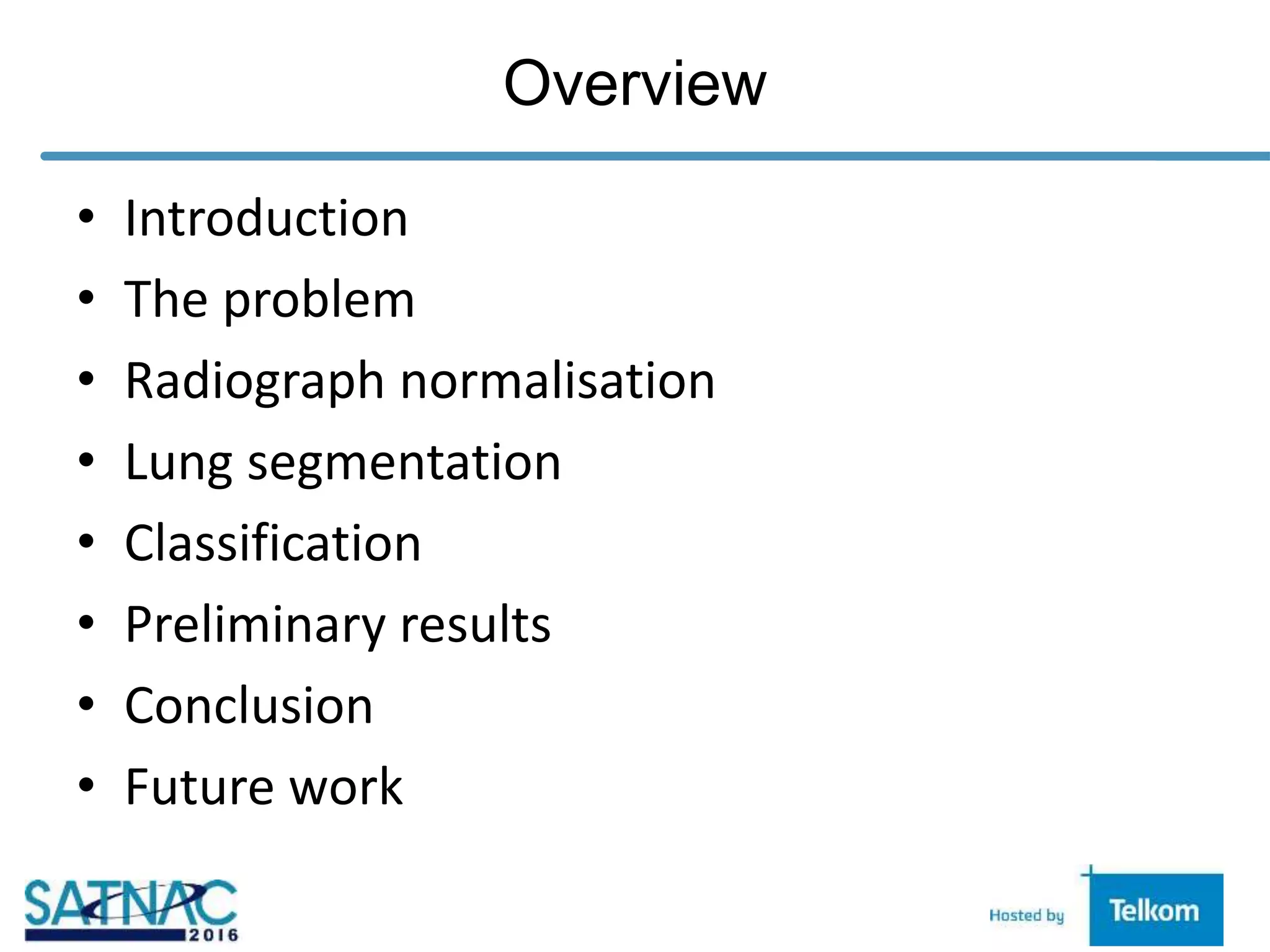

2. Overview
• Introduction
• The problem
• Radiograph normalisation
• Lung segmentation
• Classification
• Preliminary results
• Conclusion
• Future work

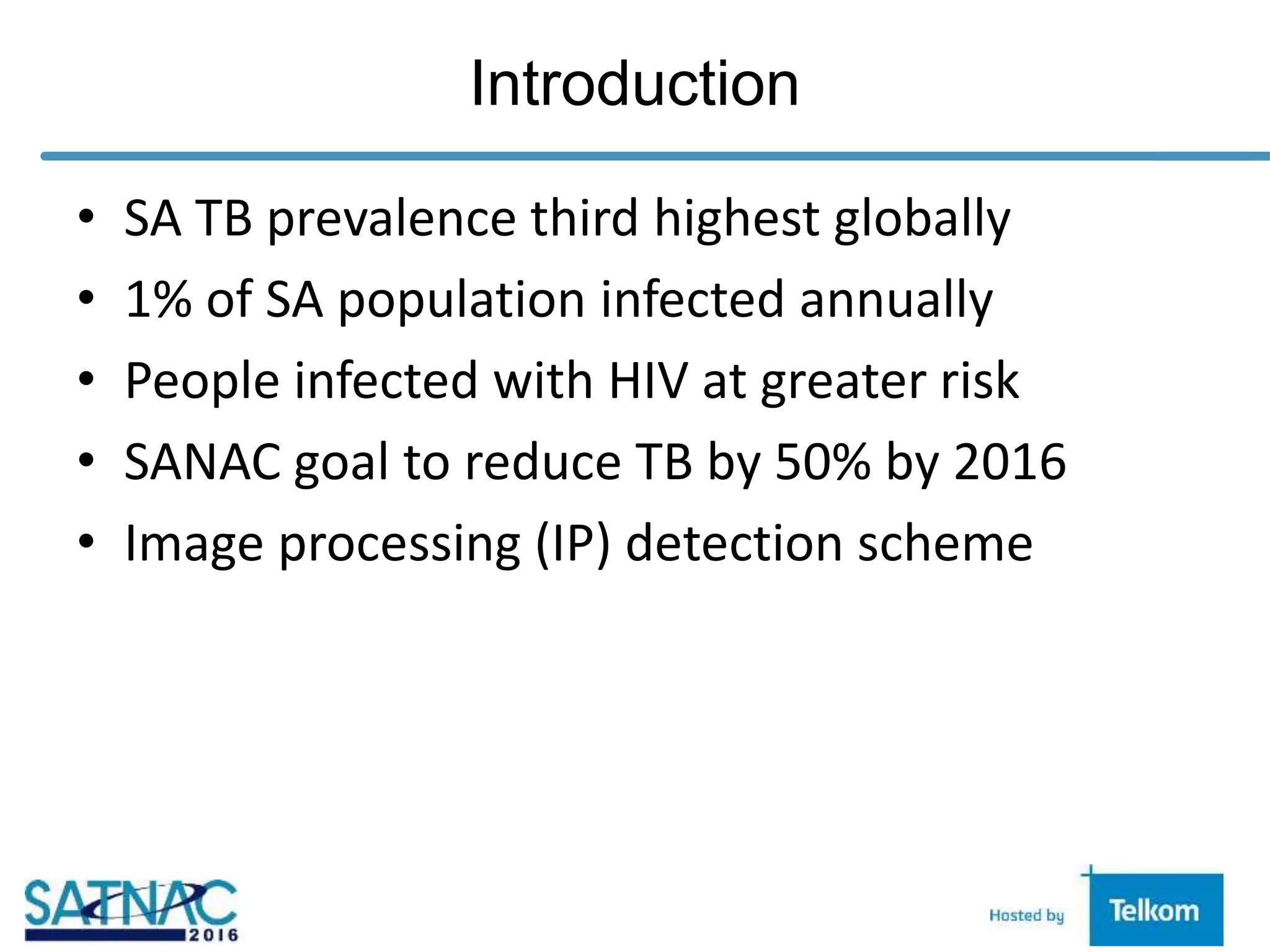

3. Introduction
• SA TB prevalence third highest globally
• 1% of SA population infected annually
• People infected with HIV at greater risk
• SANAC goal to reduce TB by 50% by 2016
• Image processing (IP) detection scheme

4. The Problem

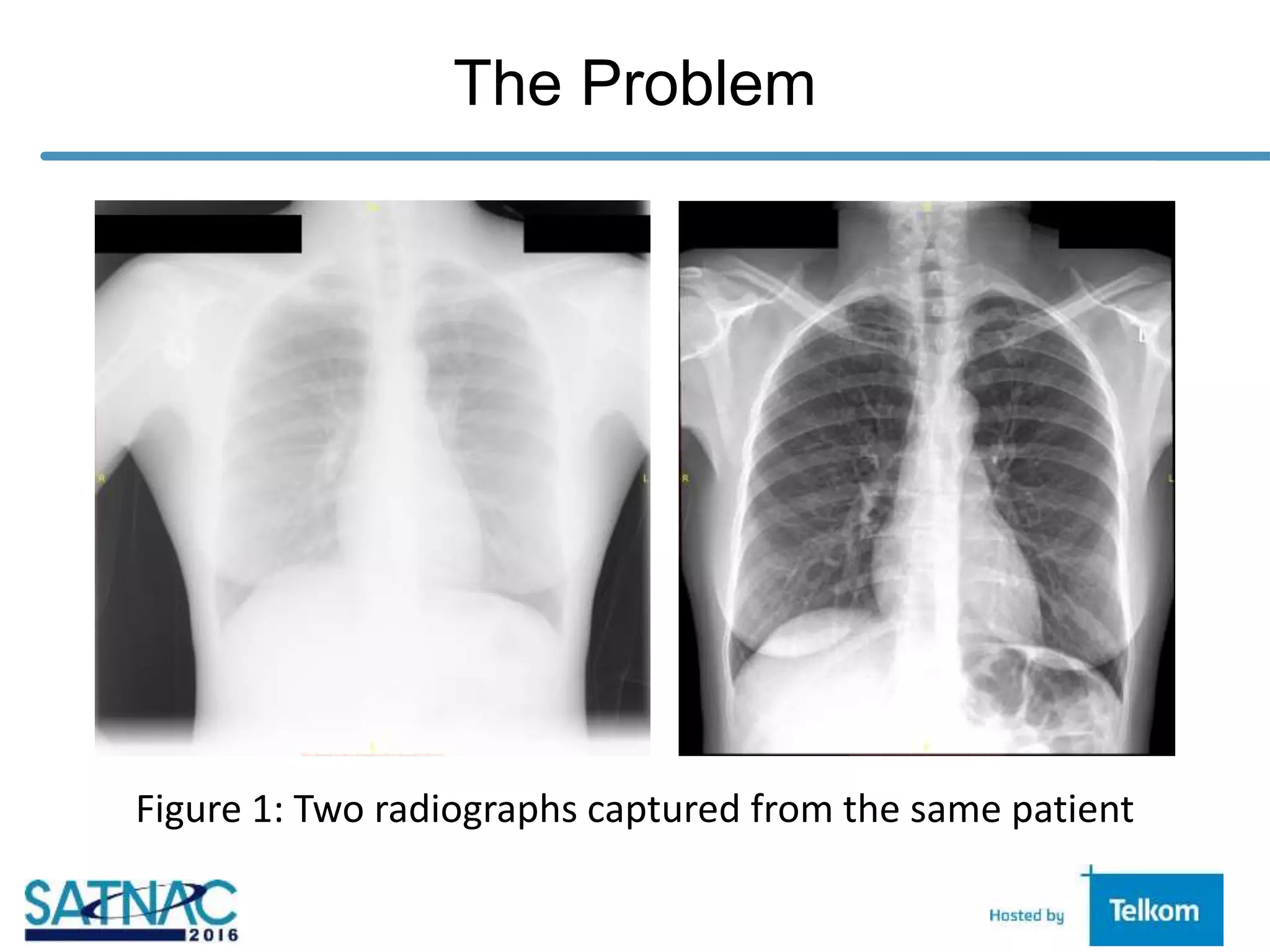

Figure 1: Two radiographs captured from the same patient

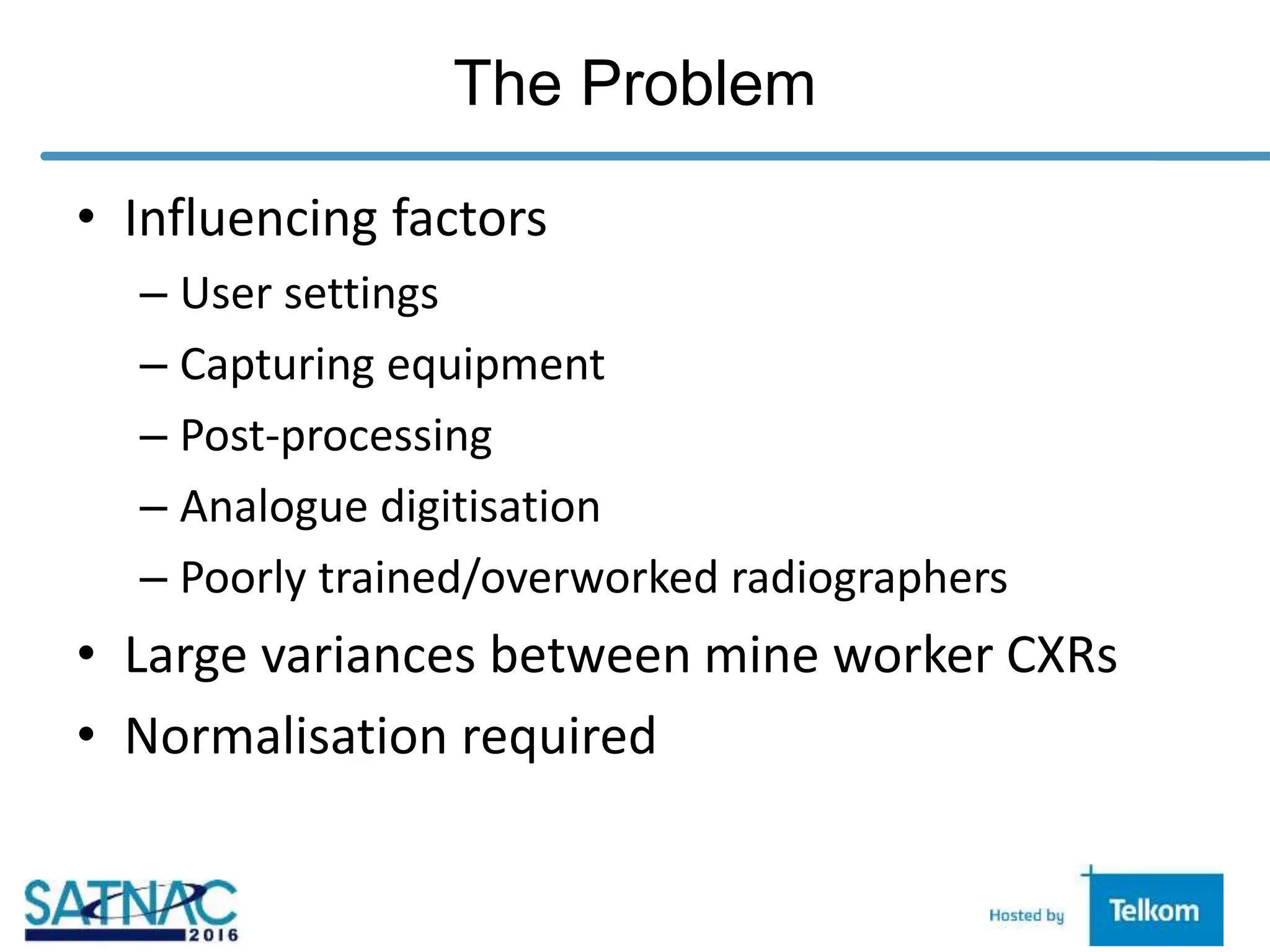

5. • Influencing factors
– User settings
– Capturing equipment
– Post-processing
– Analogue digitisation
– Poorly trained/overworked radiographers
• Large variances between mine worker CXRs
• Normalisation required
The Problem

6. Normalisation
• Difference of Gaussian (DoG) energy
normalisation

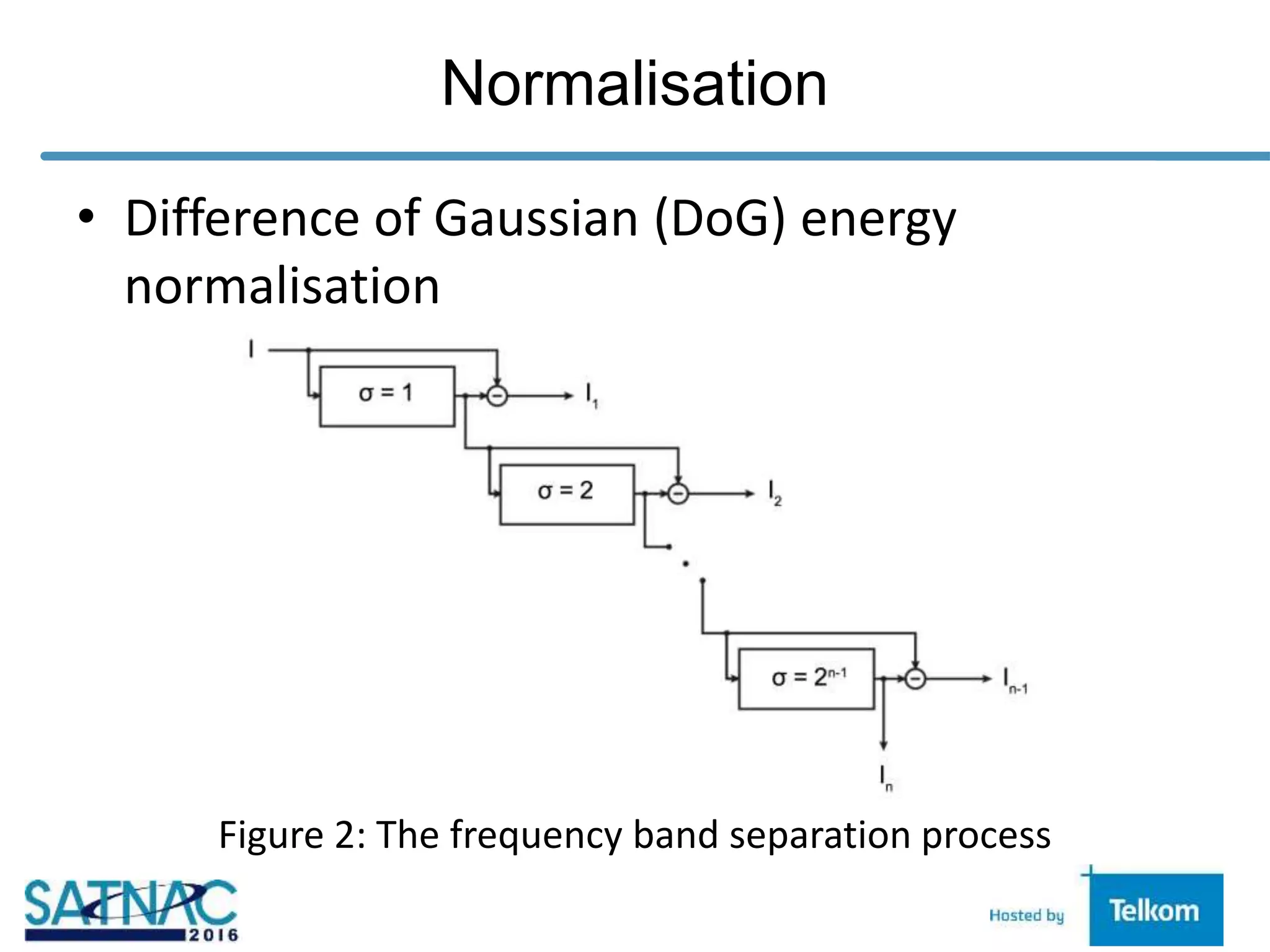

Figure 2: The frequency band separation process

7. Normalisation

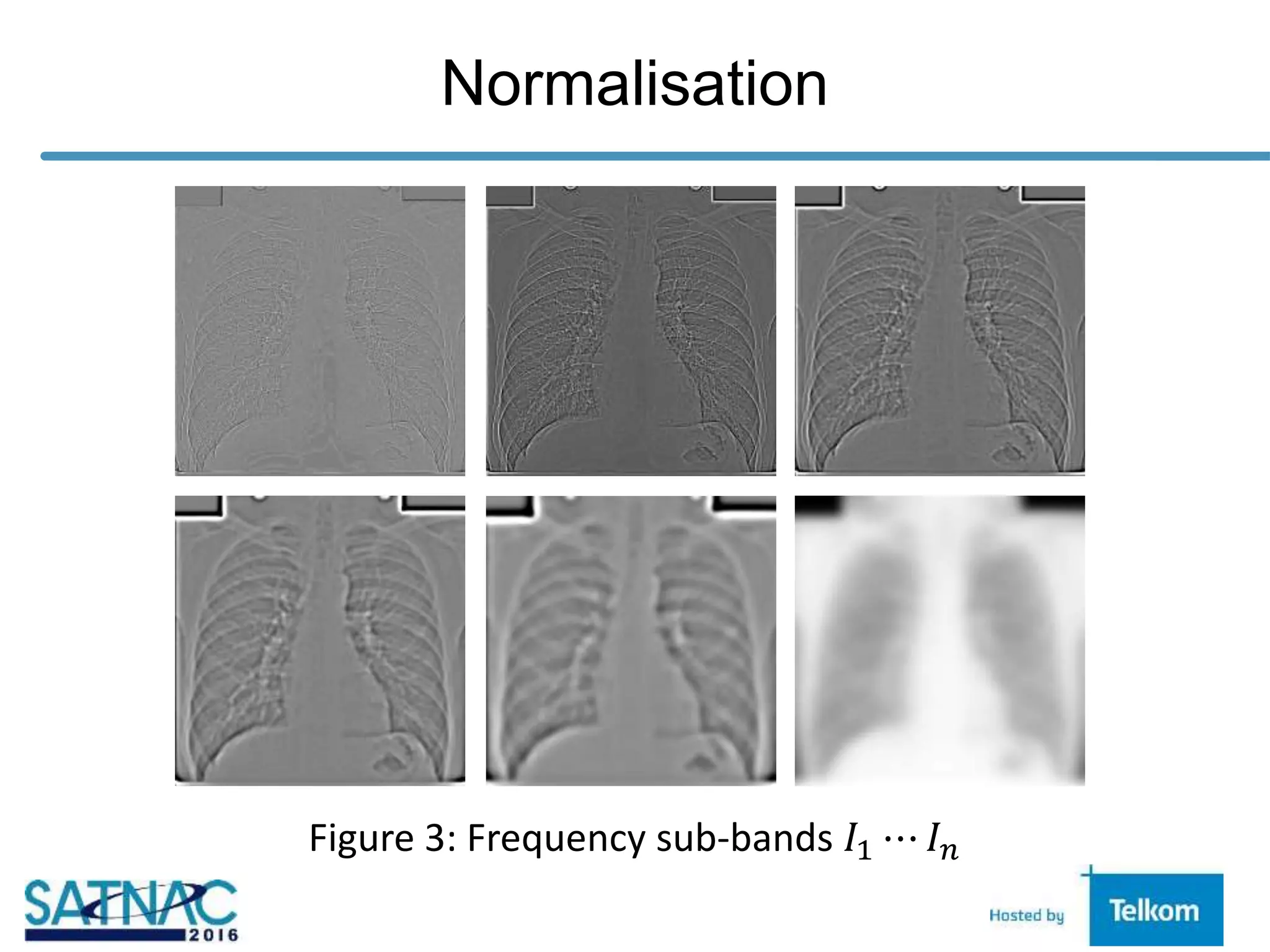

Figure 3: Frequency sub-bands 𝐼1 ⋯ 𝐼 𝑛

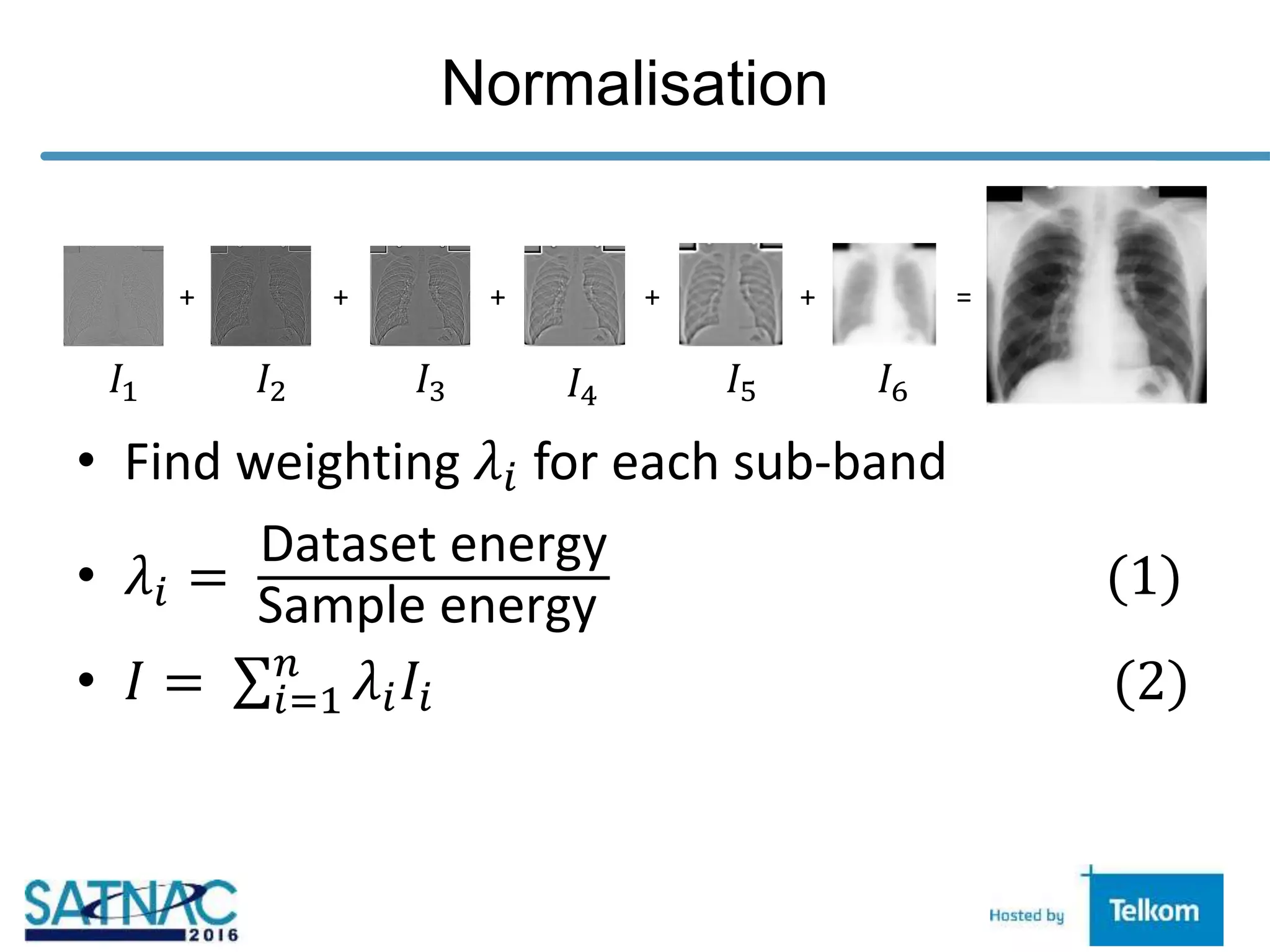

8. • Find weighting 𝜆𝑖 for each sub-band
• 𝜆𝑖 =
Dataset energy
Sample energy
(1)
• 𝐼 = 𝑖=1
𝑛
𝜆𝑖 𝐼𝑖 (2)
Normalisation
+ + + + + =
𝐼1 𝐼2 𝐼3 𝐼4 𝐼5 𝐼6

9. Normalisation

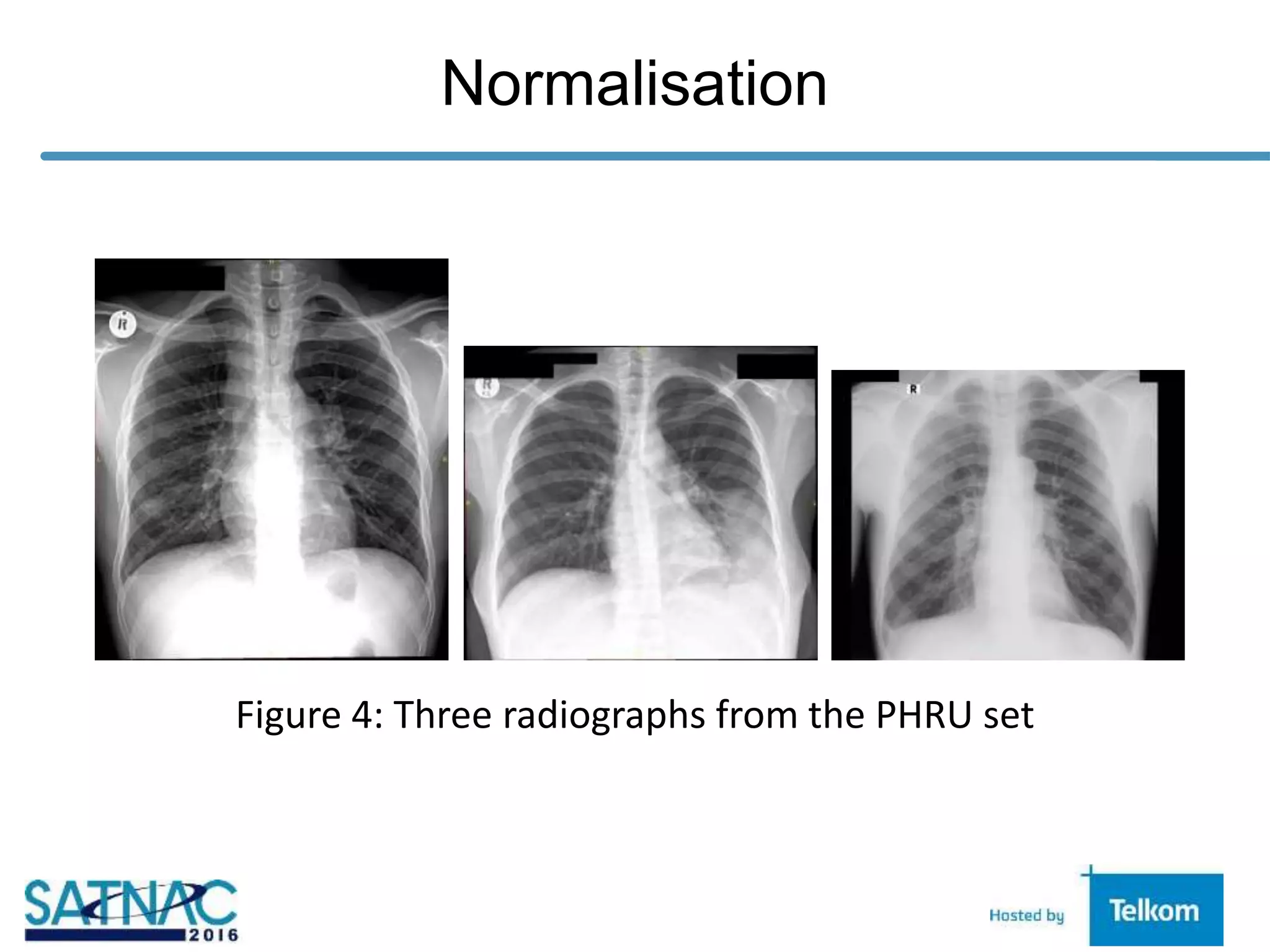

Figure 4: Three radiographs from the PHRU set

10. Normalisation

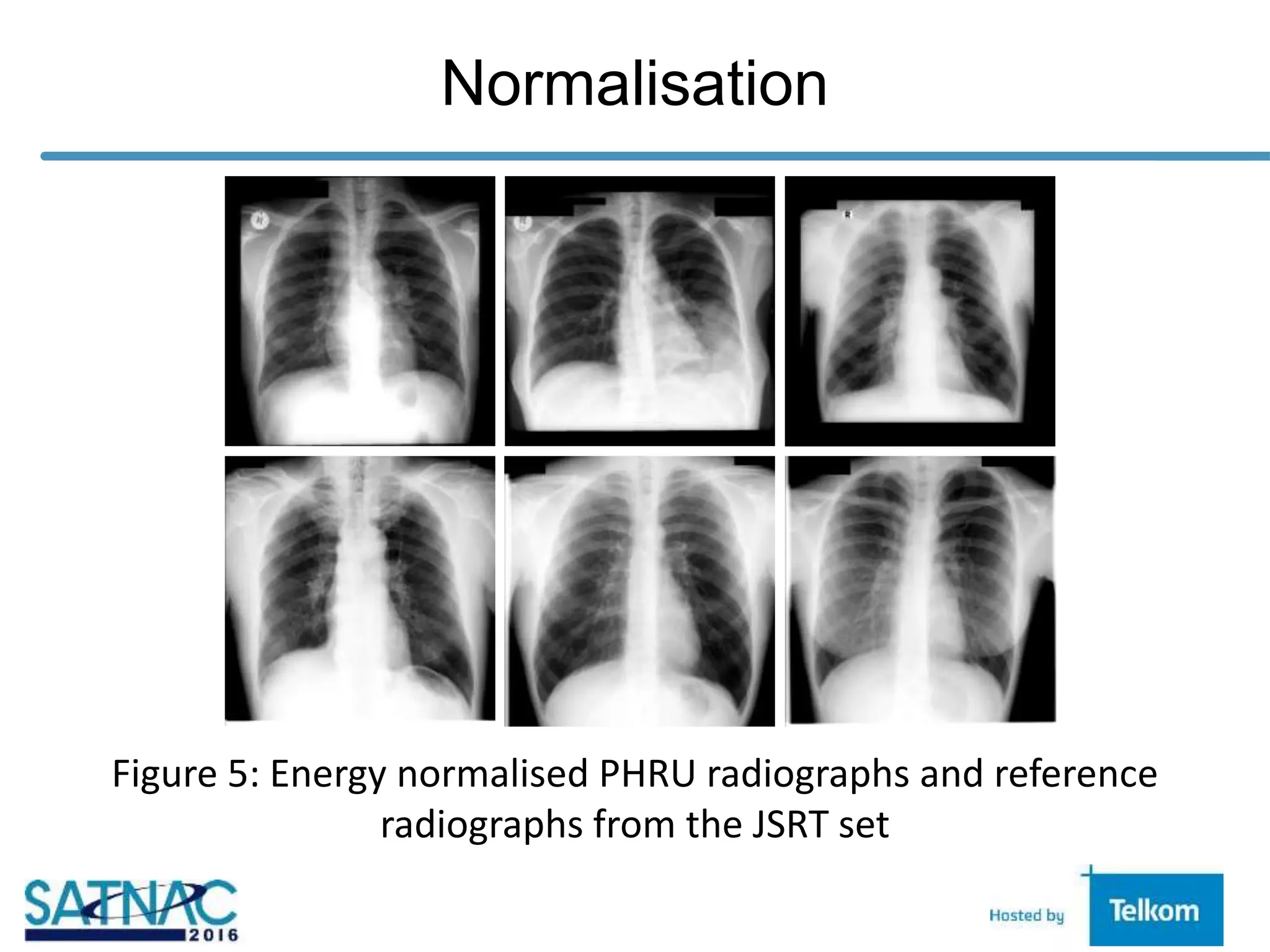

Figure 5: Energy normalised PHRU radiographs and reference
radiographs from the JSRT set

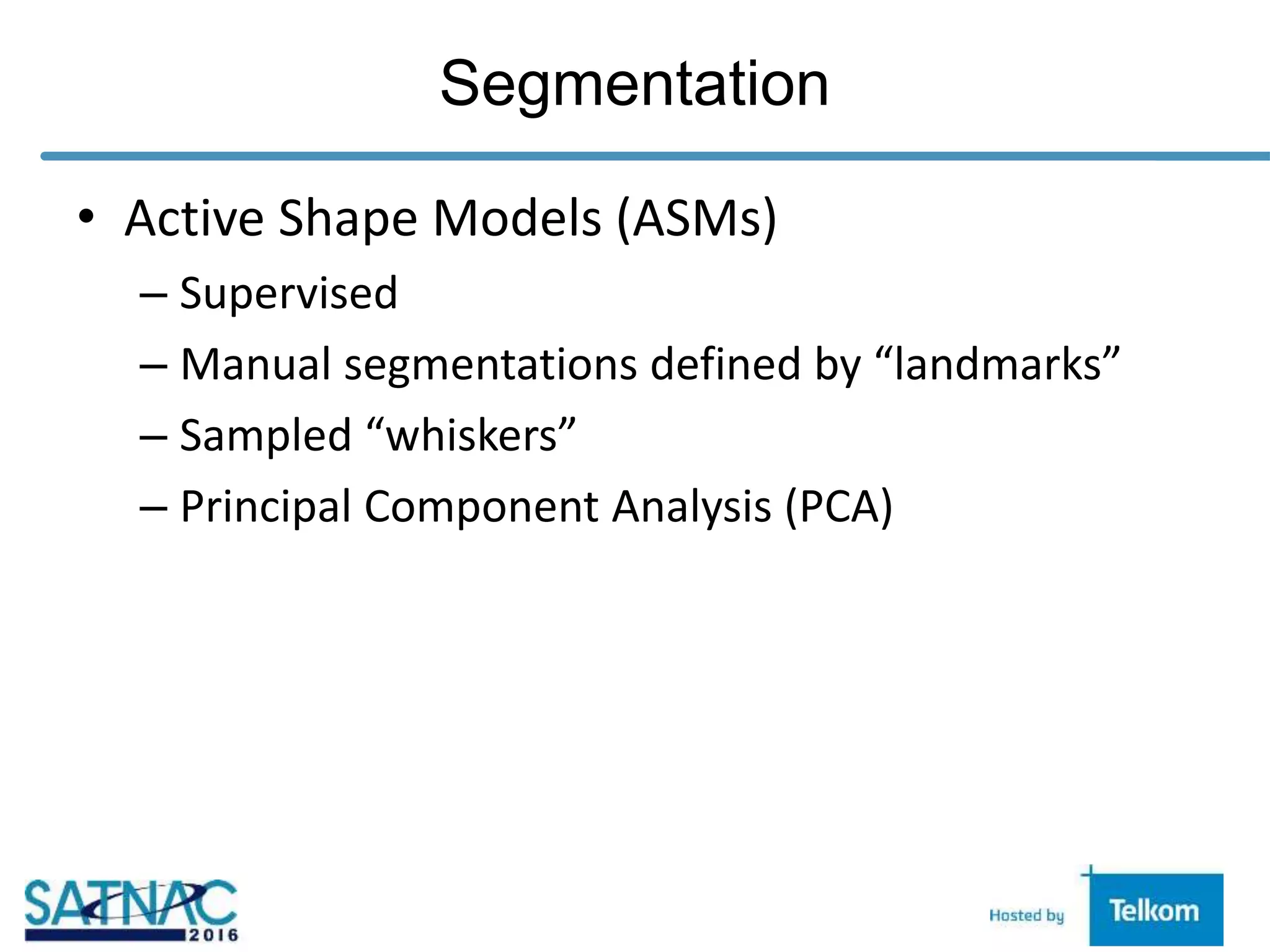

11. Segmentation
• Active Shape Models (ASMs)
– Supervised
– Manual segmentations defined by “landmarks”
– Sampled “whiskers”
– Principal Component Analysis (PCA)

12. Segmentation

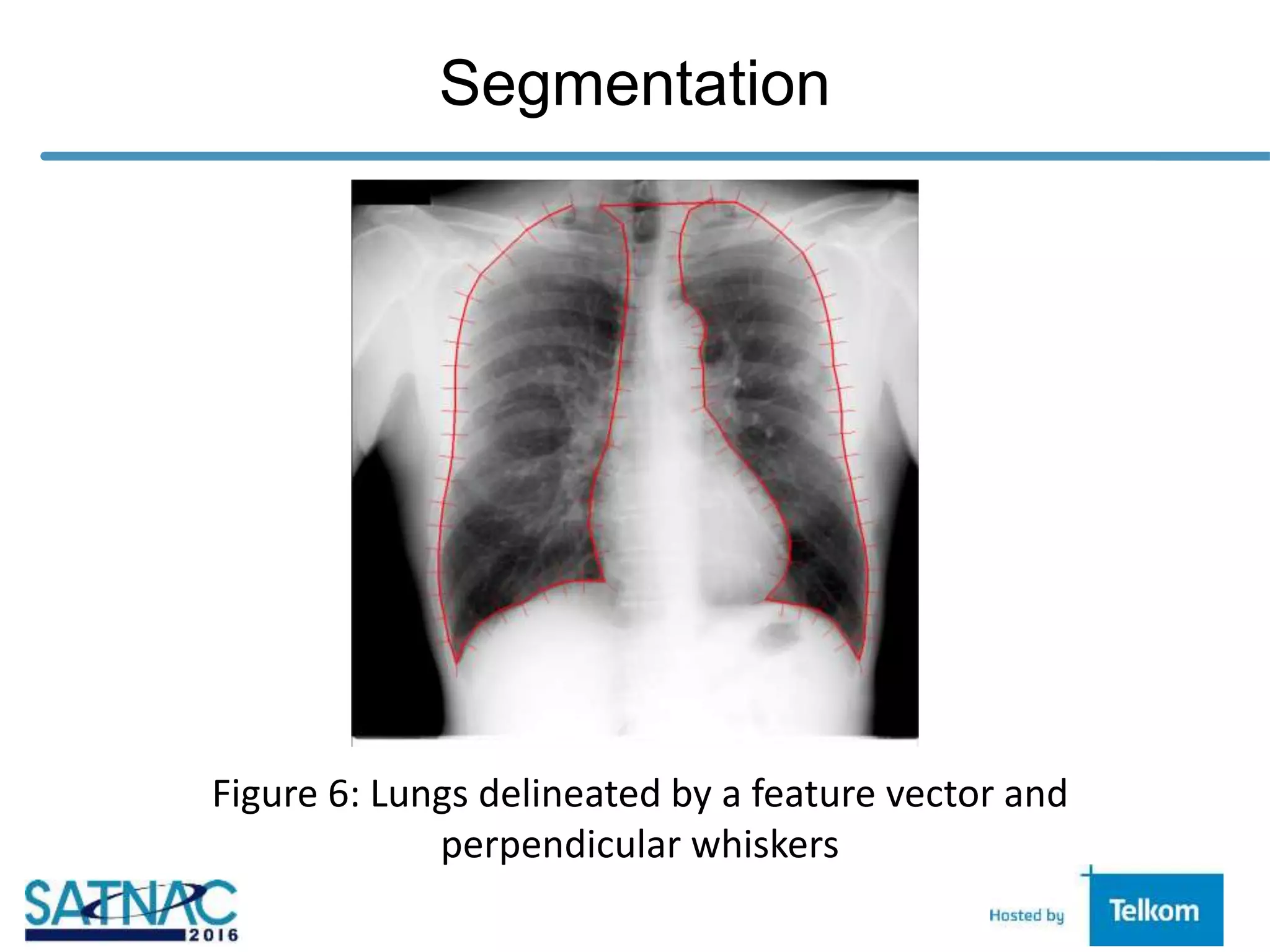

Figure 6: Lungs delineated by a feature vector and
perpendicular whiskers

13. Segmentation

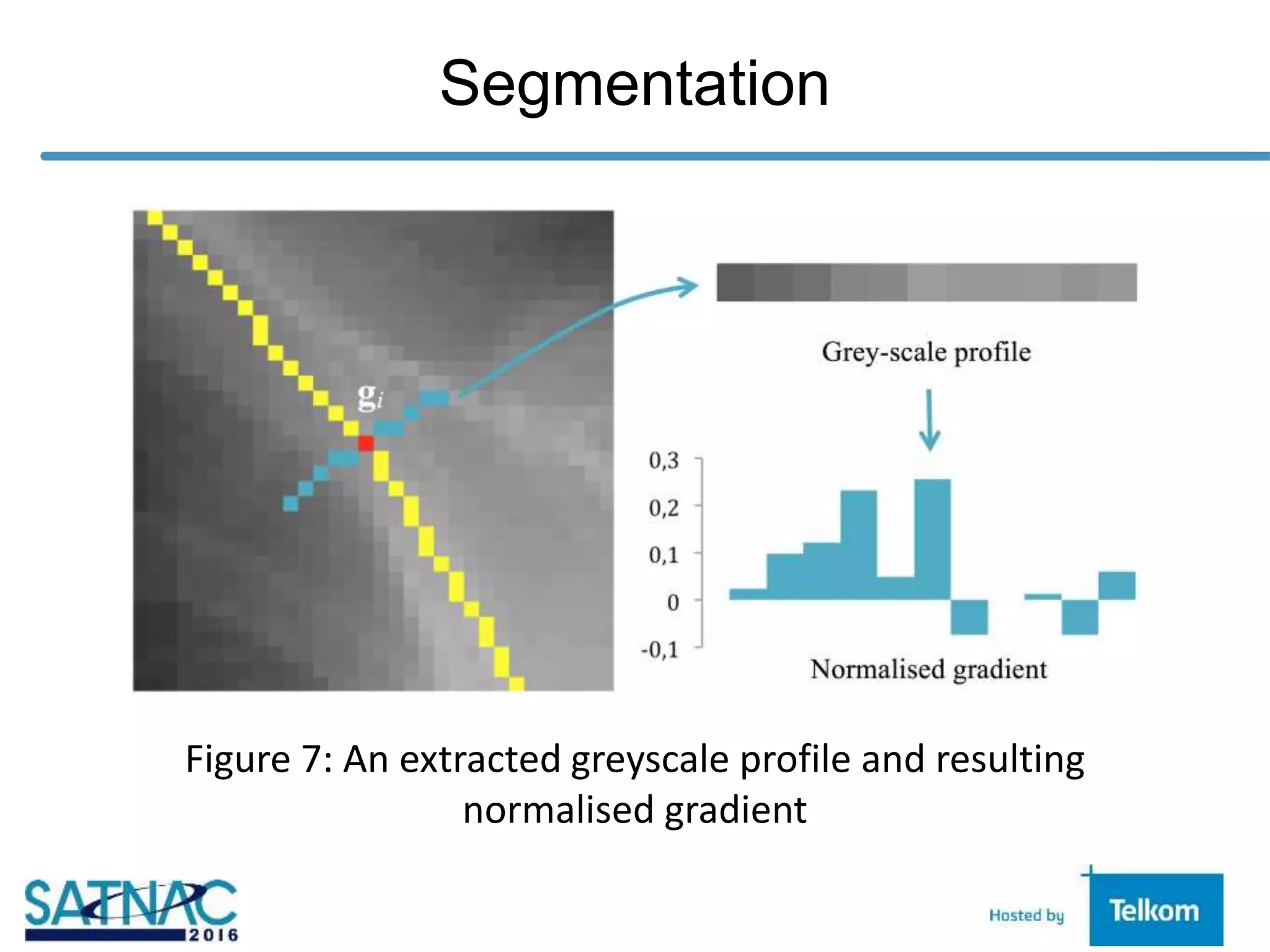

Figure 7: An extracted greyscale profile and resulting
normalised gradient

14. Segmentation

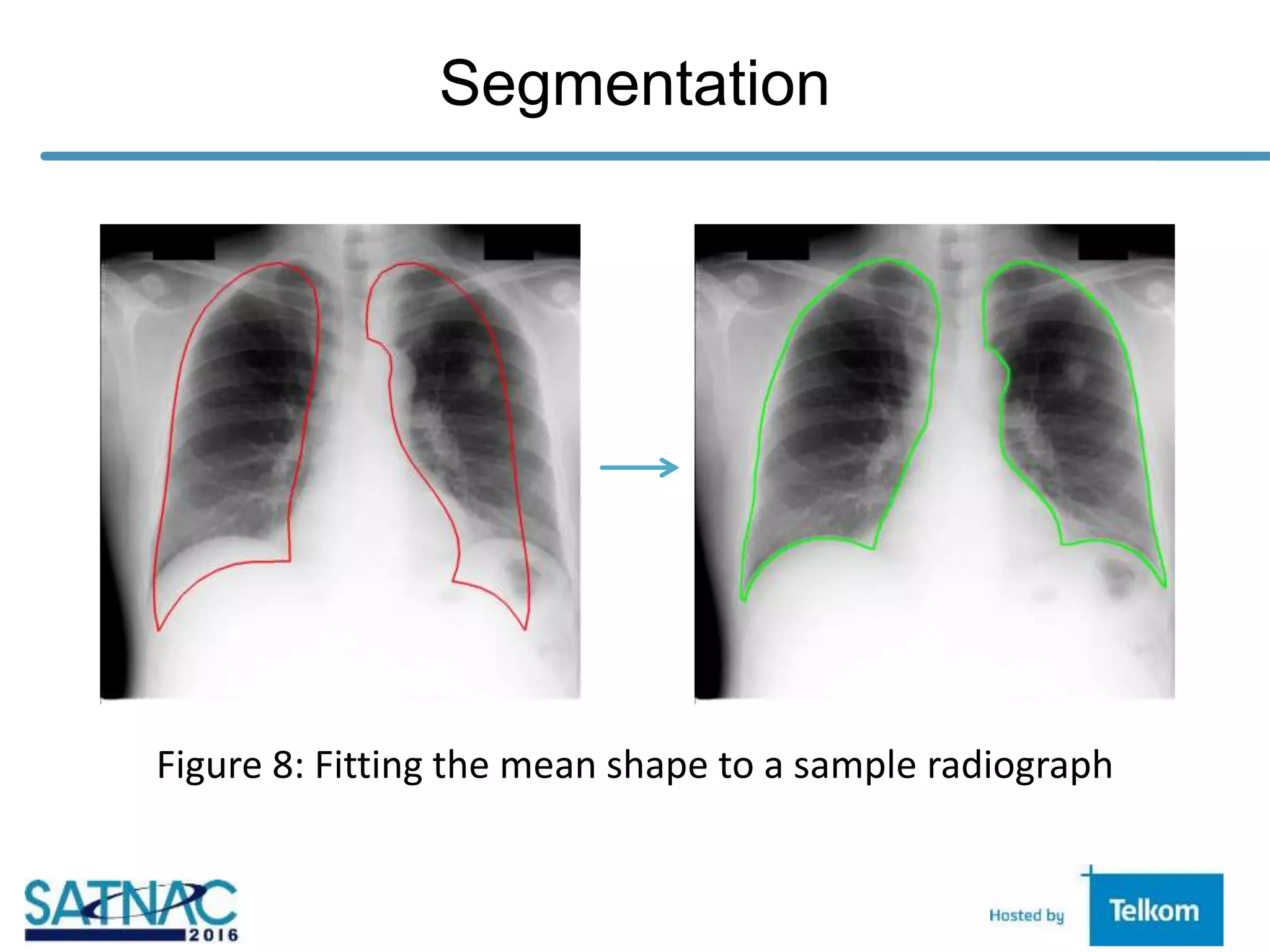

Figure 8: Fitting the mean shape to a sample radiograph

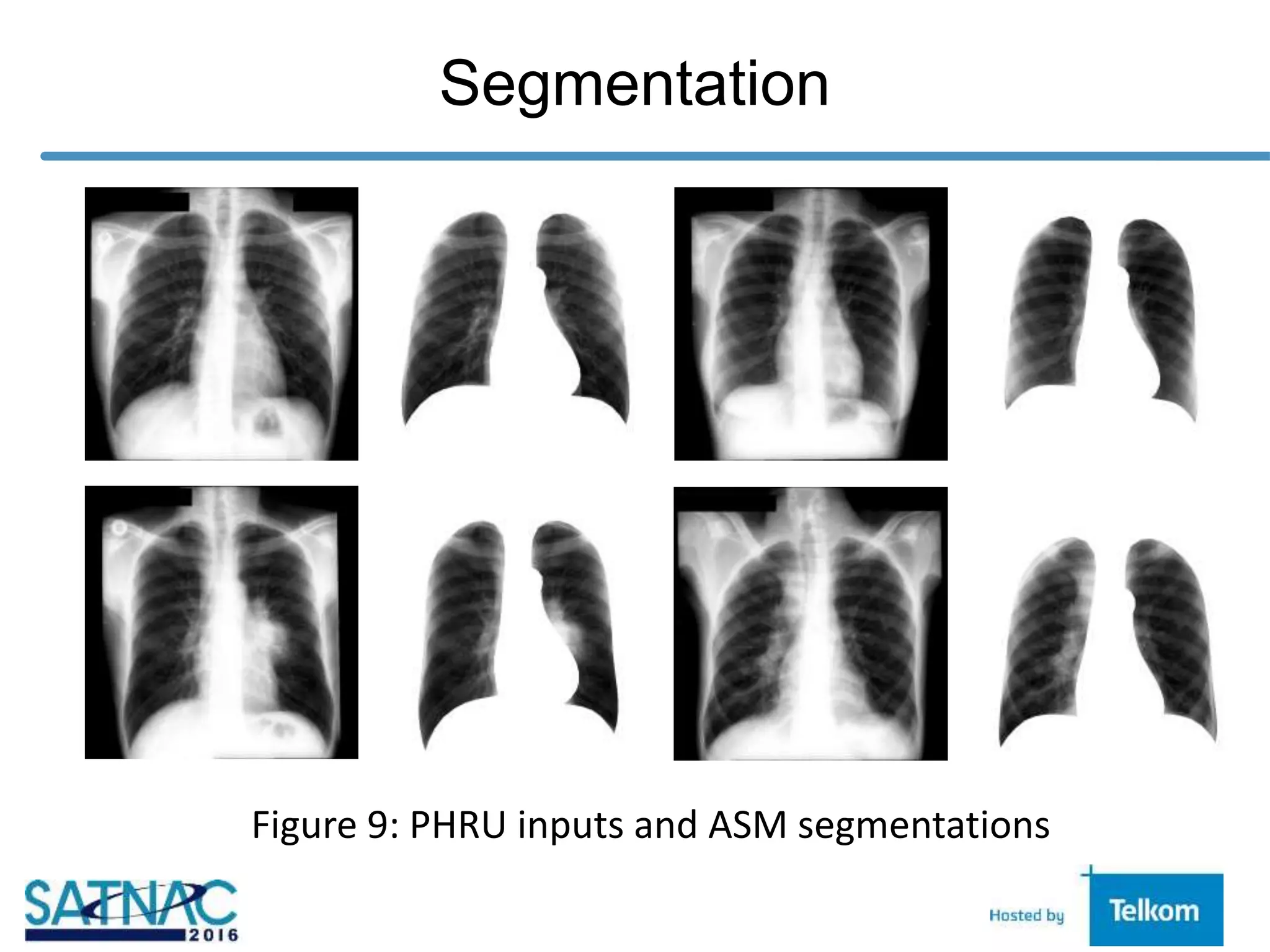

15. Segmentation
Figure 9: PHRU inputs and ASM segmentations

16. Segmentation

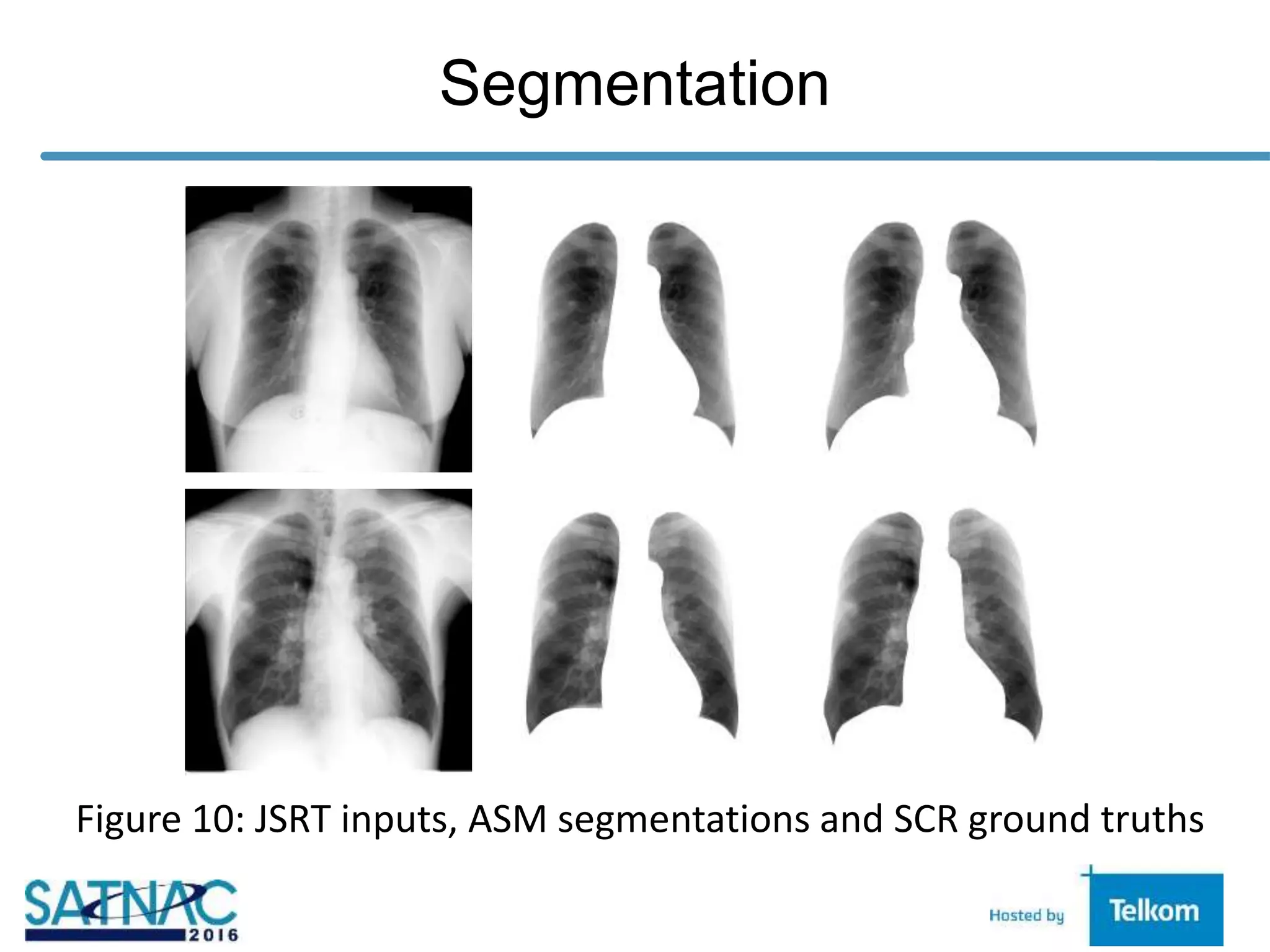

Figure 10: JSRT inputs, ASM segmentations and SCR ground truths

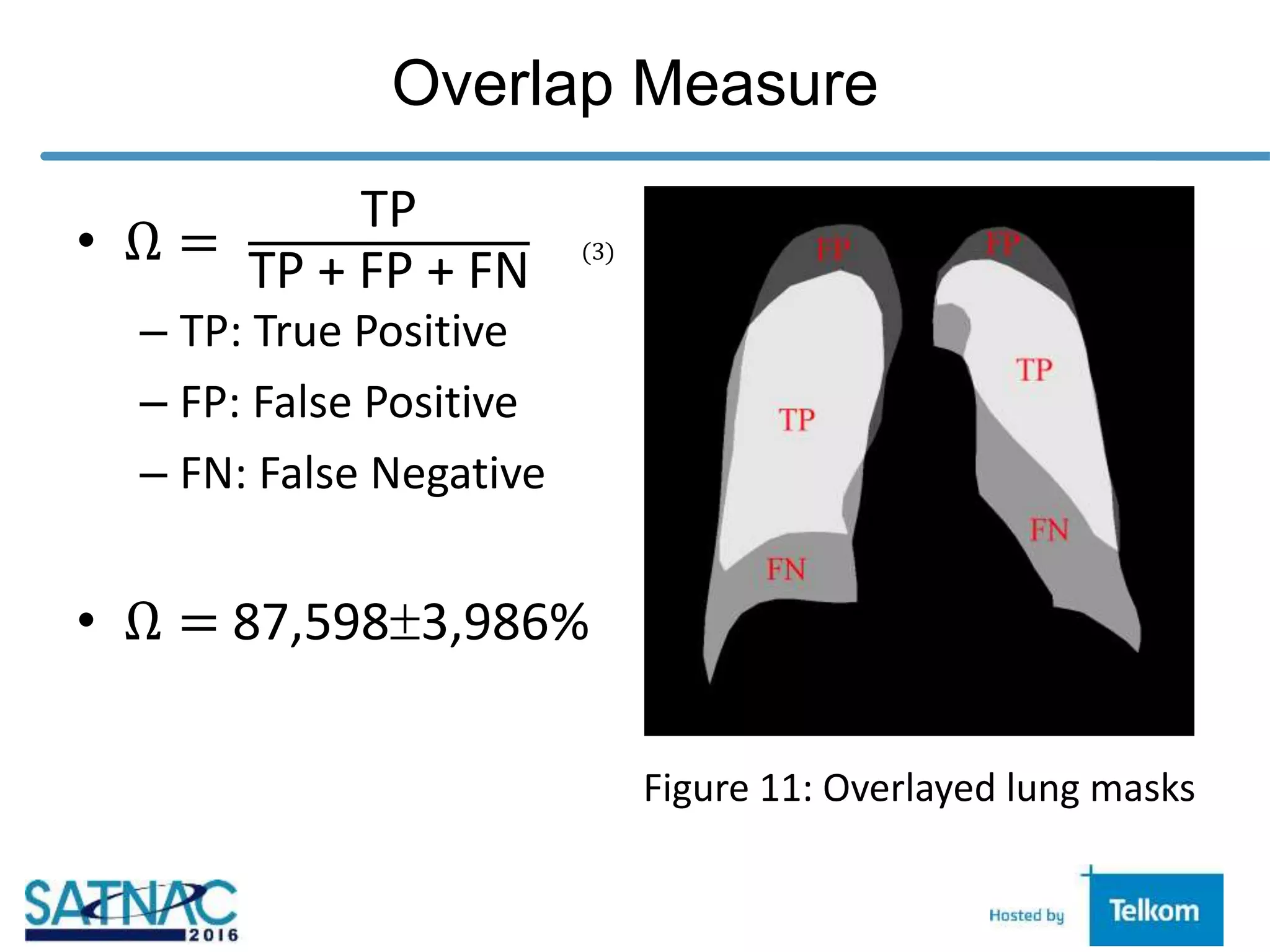

17. Overlap Measure
• Ω =
TP
TP + FP + FN
(3)
– TP: True Positive
– FP: False Positive
– FN: False Negative
• Ω = 87,5983,986%
Figure 11: Overlayed lung masks

18. Subdivision

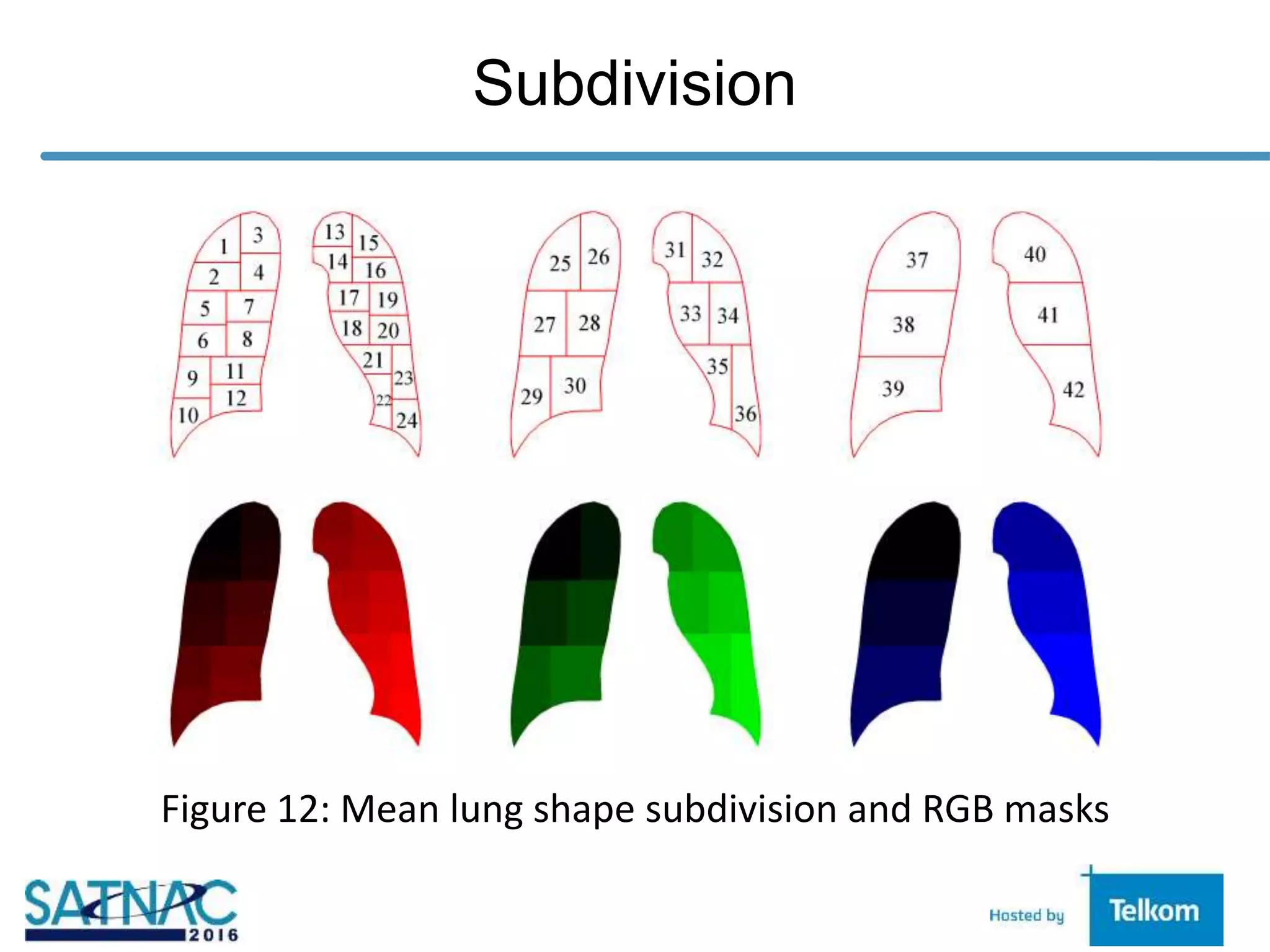

Figure 12: Mean lung shape subdivision and RGB masks

19. RBF Interpolation
• Interpolation of 𝑛-dimensional scattered data
• 𝑠 𝐱 = 𝑖=1
𝑛
𝑤𝑖 𝜙 ∥ 𝐱 − 𝐱 𝑖 ∥ (4)
Figure 13: Interpolation of the mean shape onto a sample lung
segmentation

20. RBF Interpolation

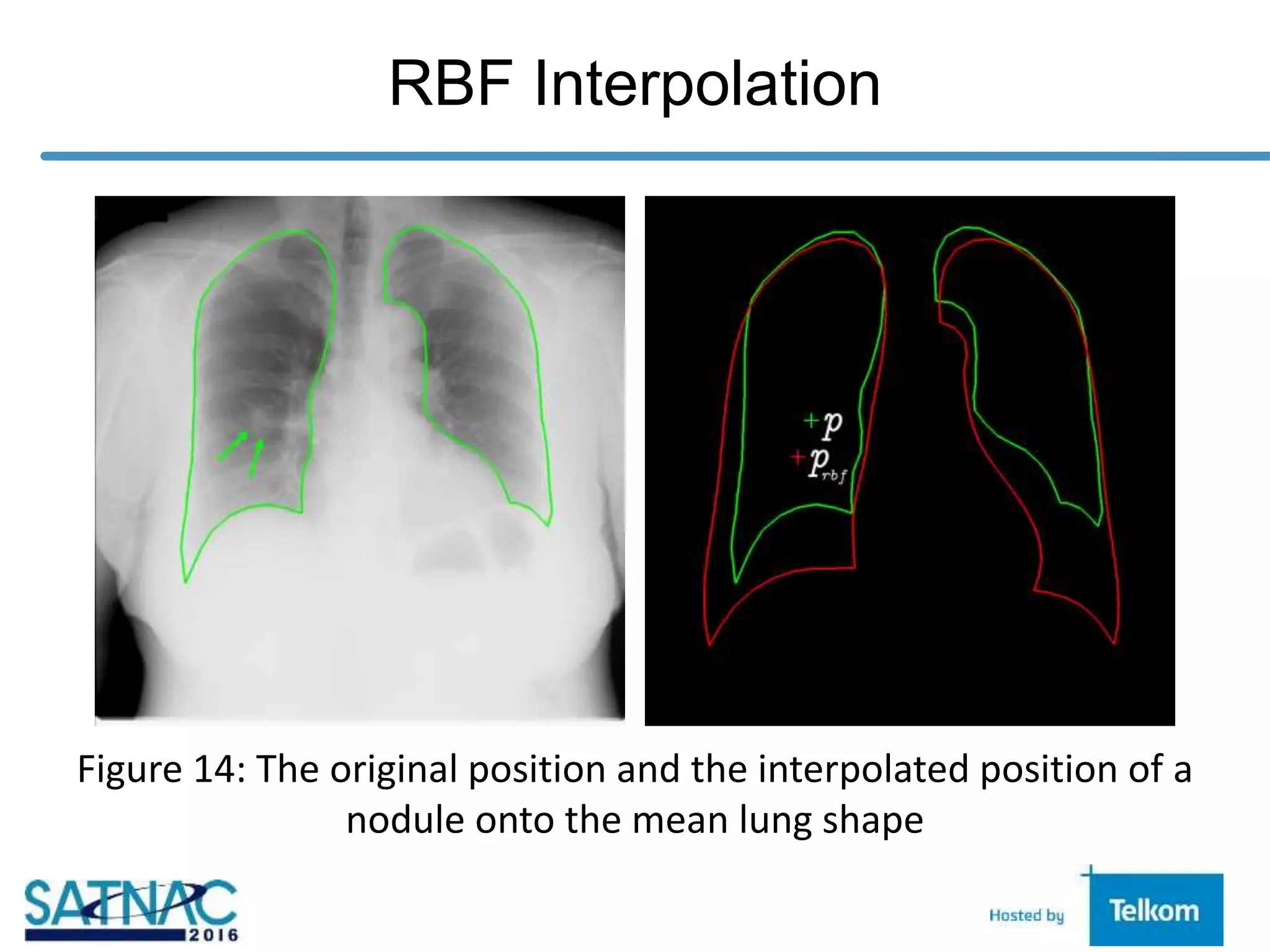

Figure 14: The original position and the interpolated position of a
nodule onto the mean lung shape

21. RBF Interpolation

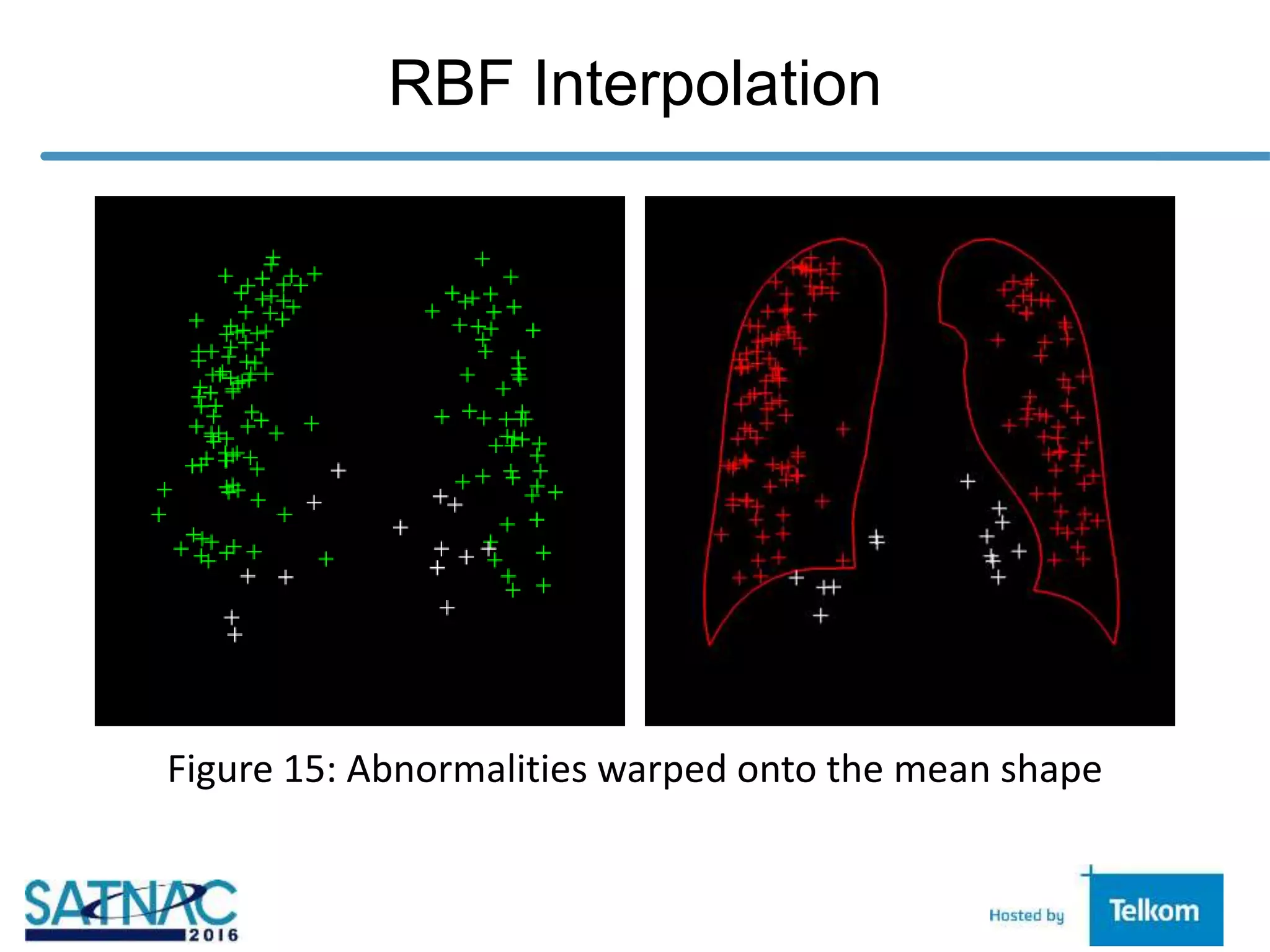

Figure 15: Abnormalities warped onto the mean shape

22. Probability Measure

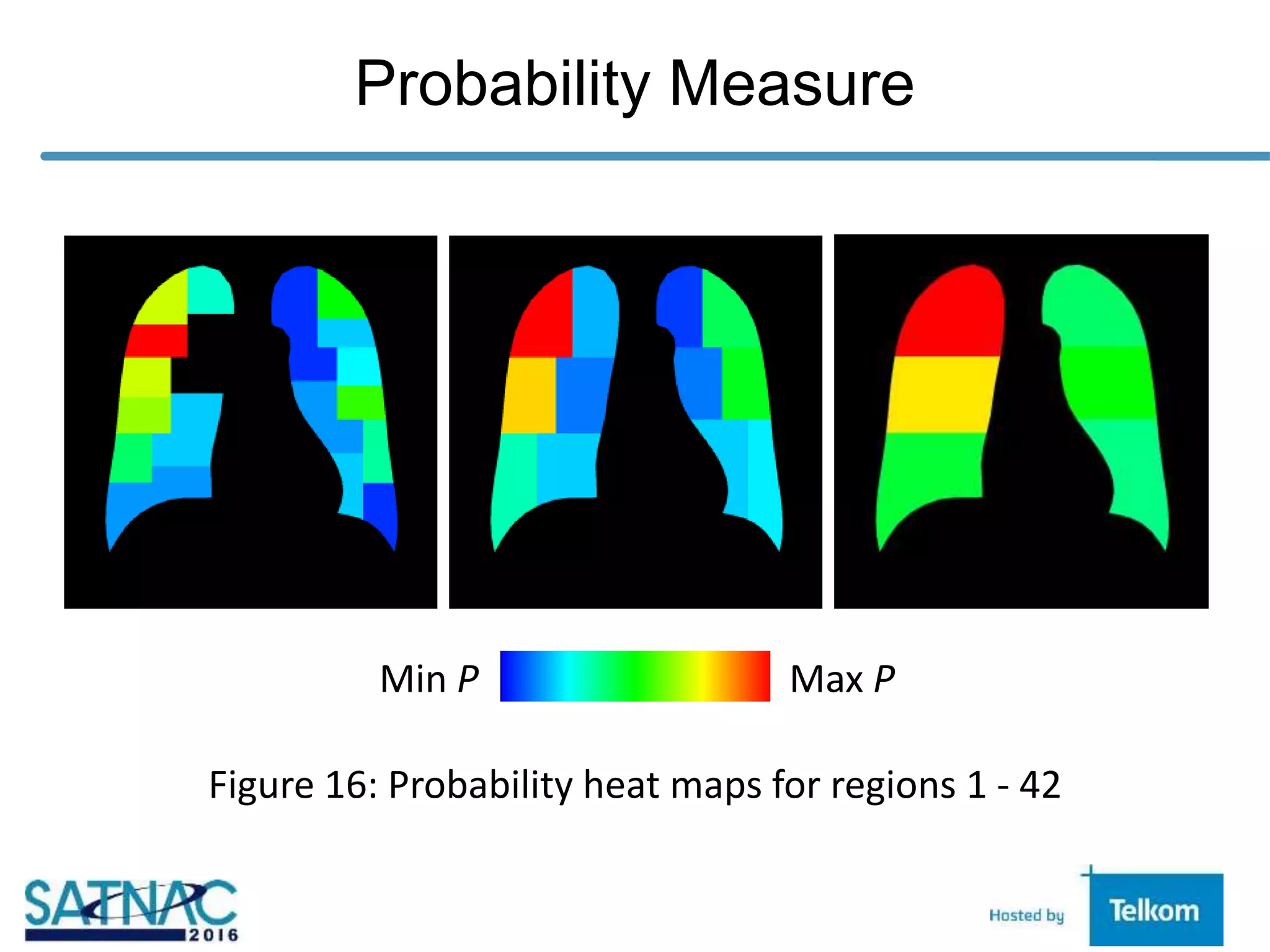

Figure 16: Probability heat maps for regions 1 - 42
Max PMin P

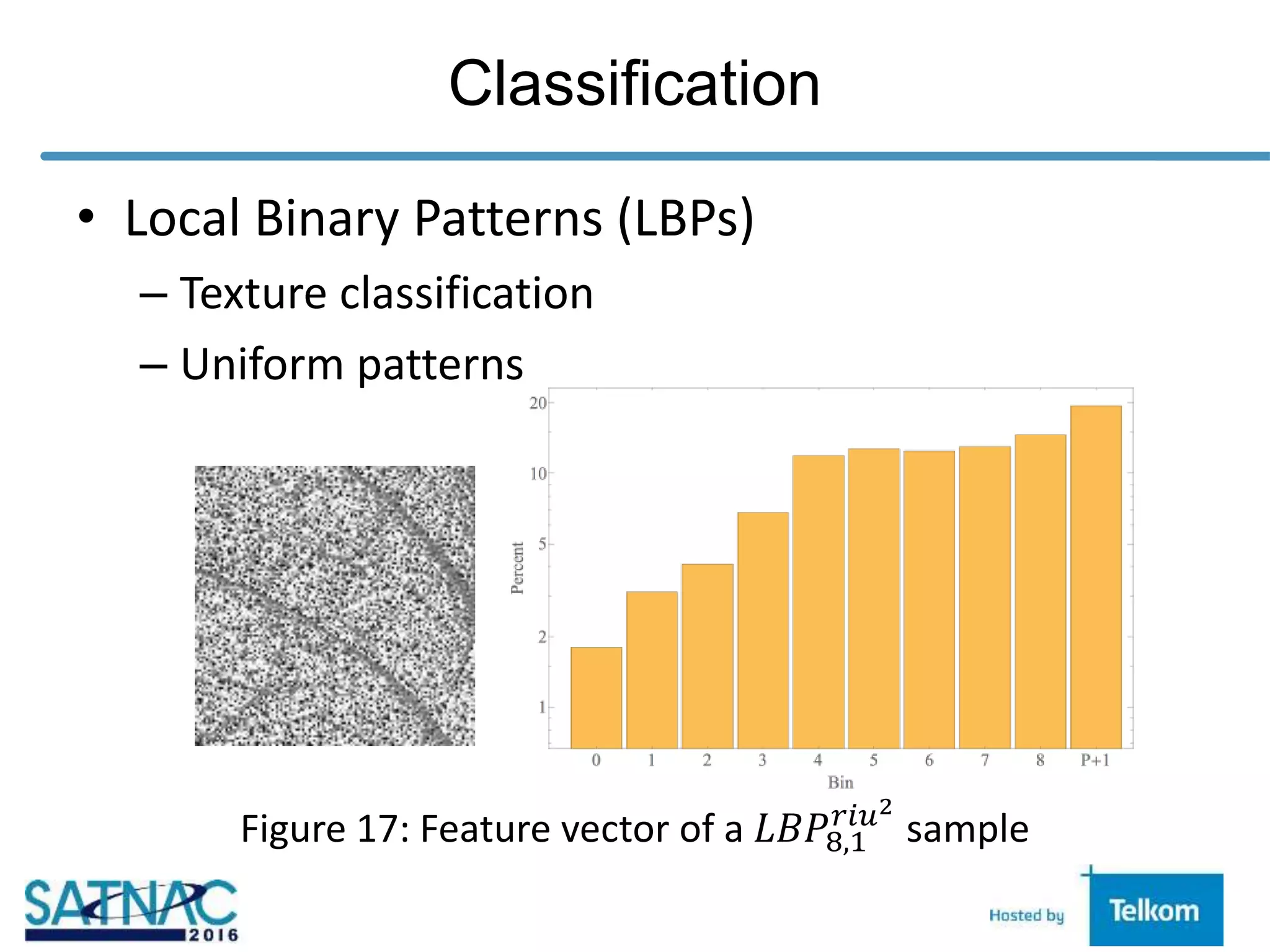

23. Classification
• Local Binary Patterns (LBPs)
– Texture classification
– Uniform patterns
Figure 17: Feature vector of a 𝐿𝐵𝑃8,1
𝑟𝑖𝑢2
sample

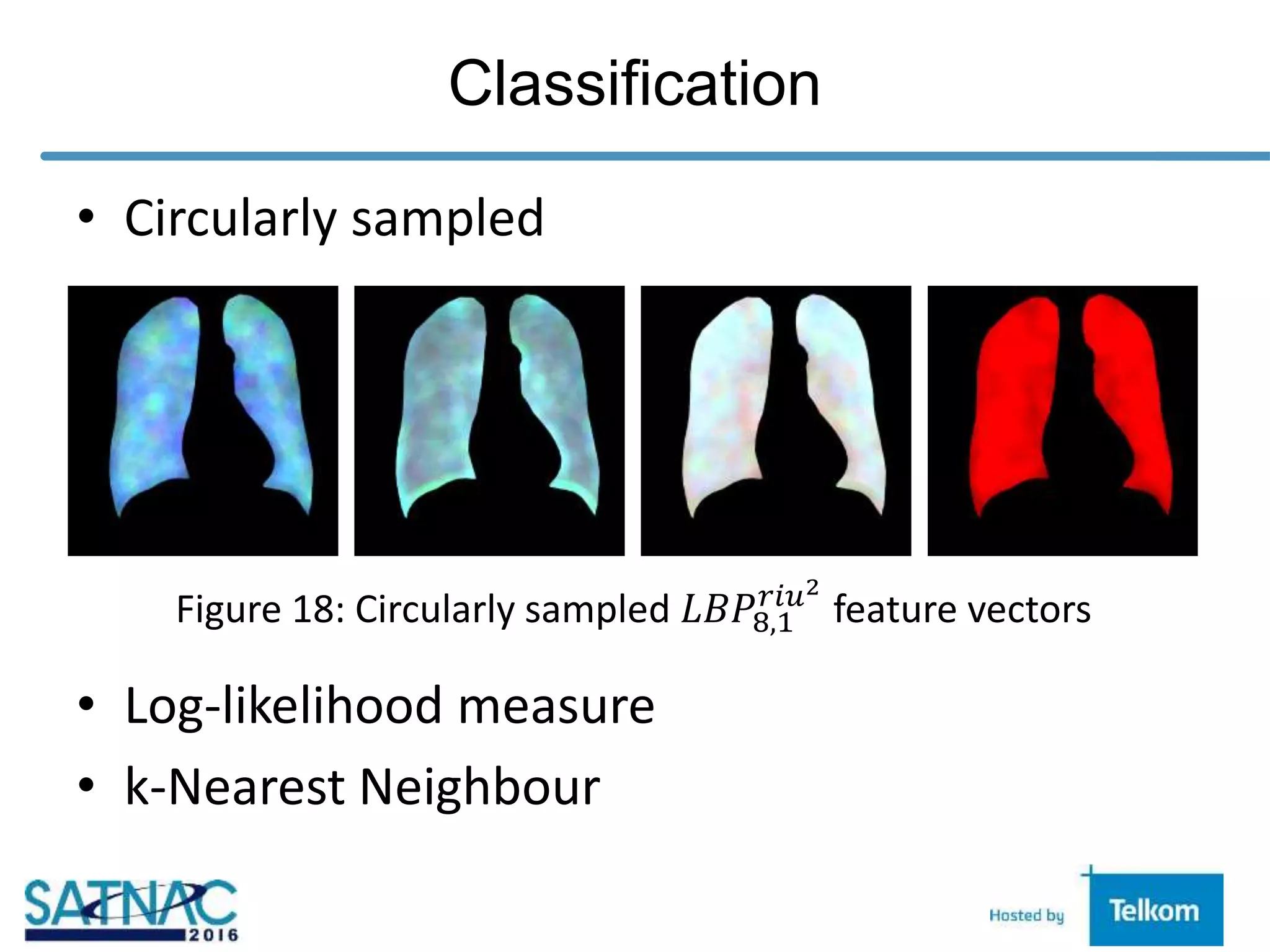

24. Classification
• Circularly sampled
• Log-likelihood measure
• k-Nearest Neighbour
Figure 18: Circularly sampled 𝐿𝐵𝑃8,1
𝑟𝑖𝑢2
feature vectors

25. Results

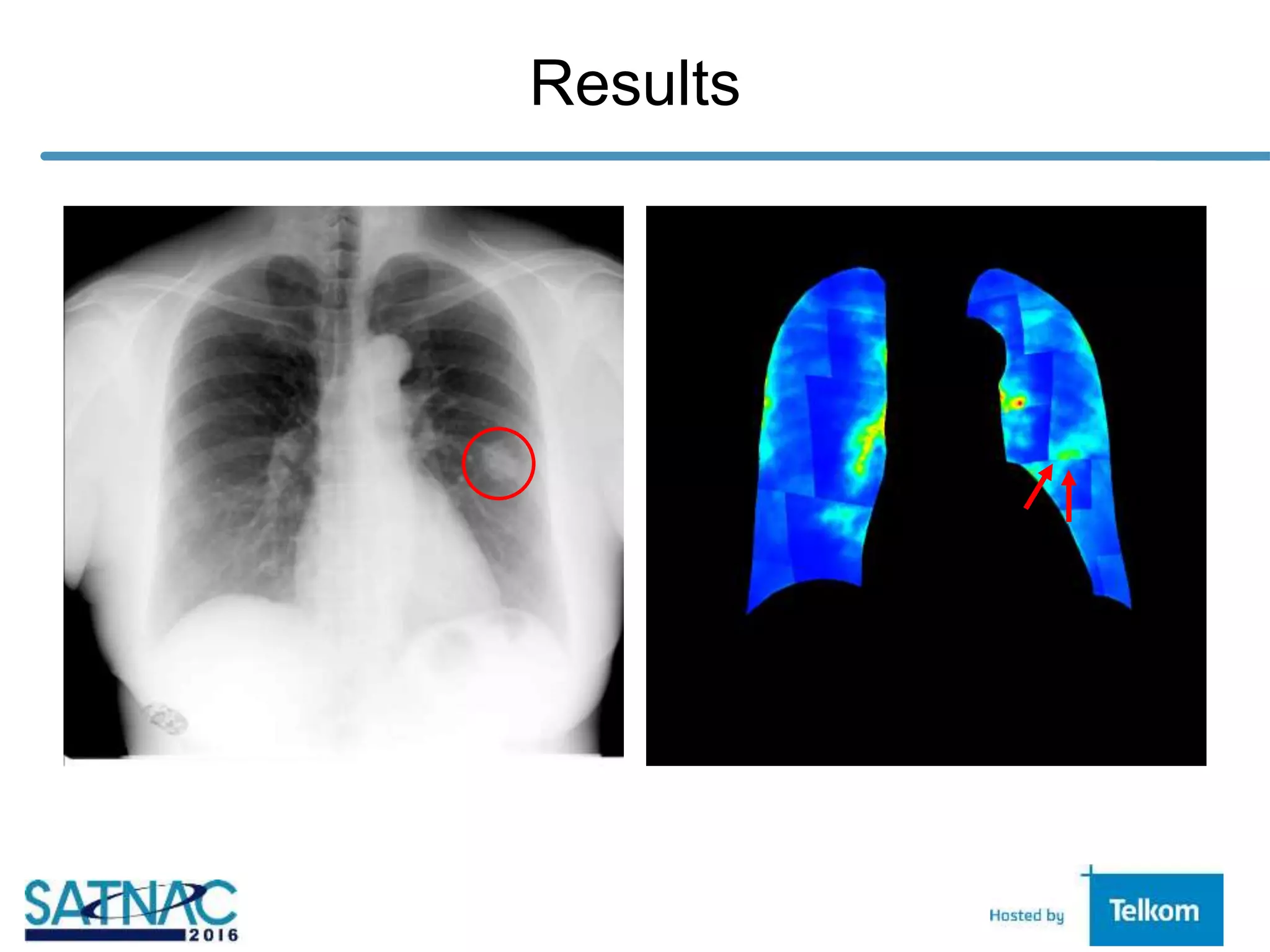

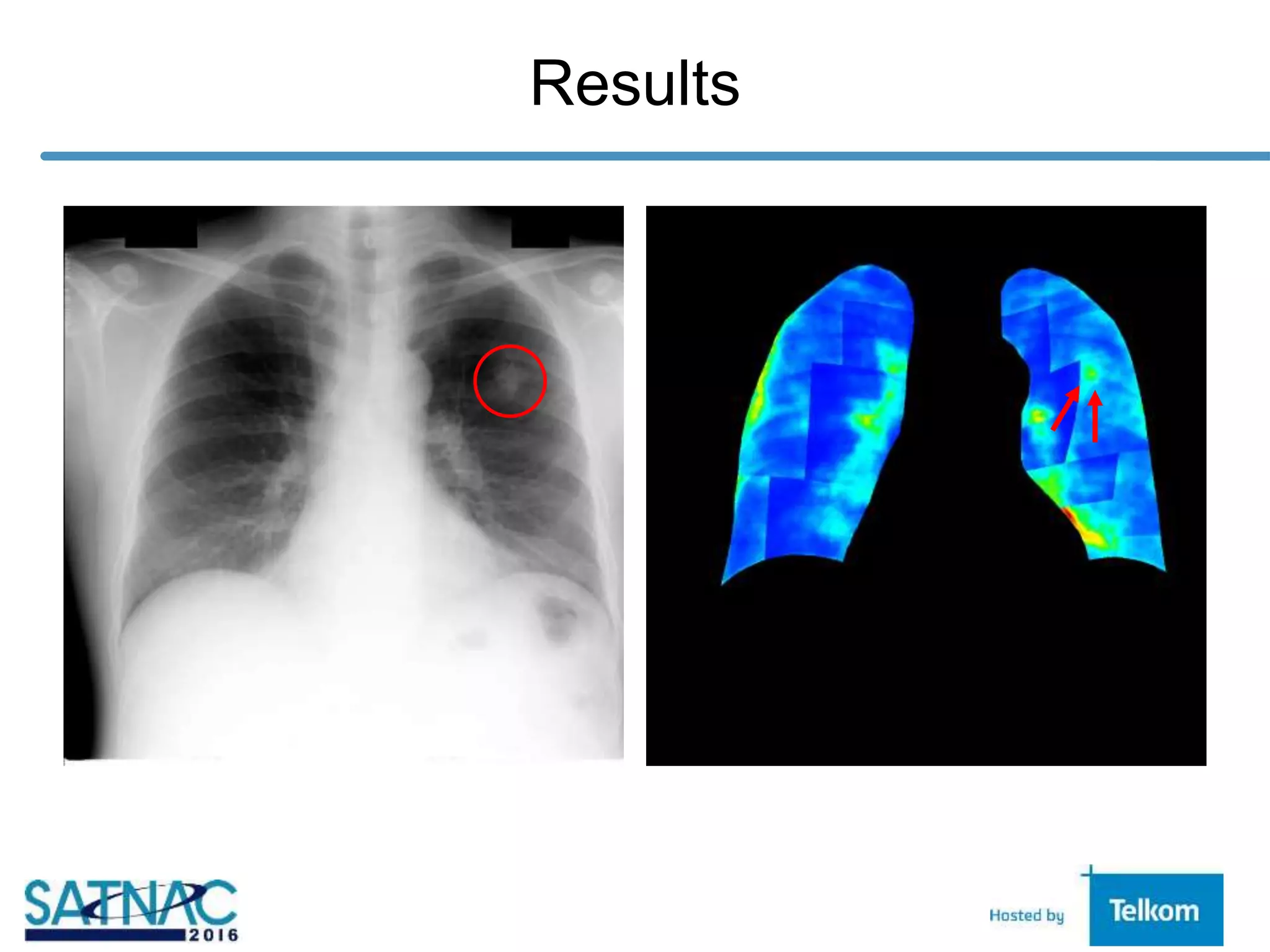

26. Results

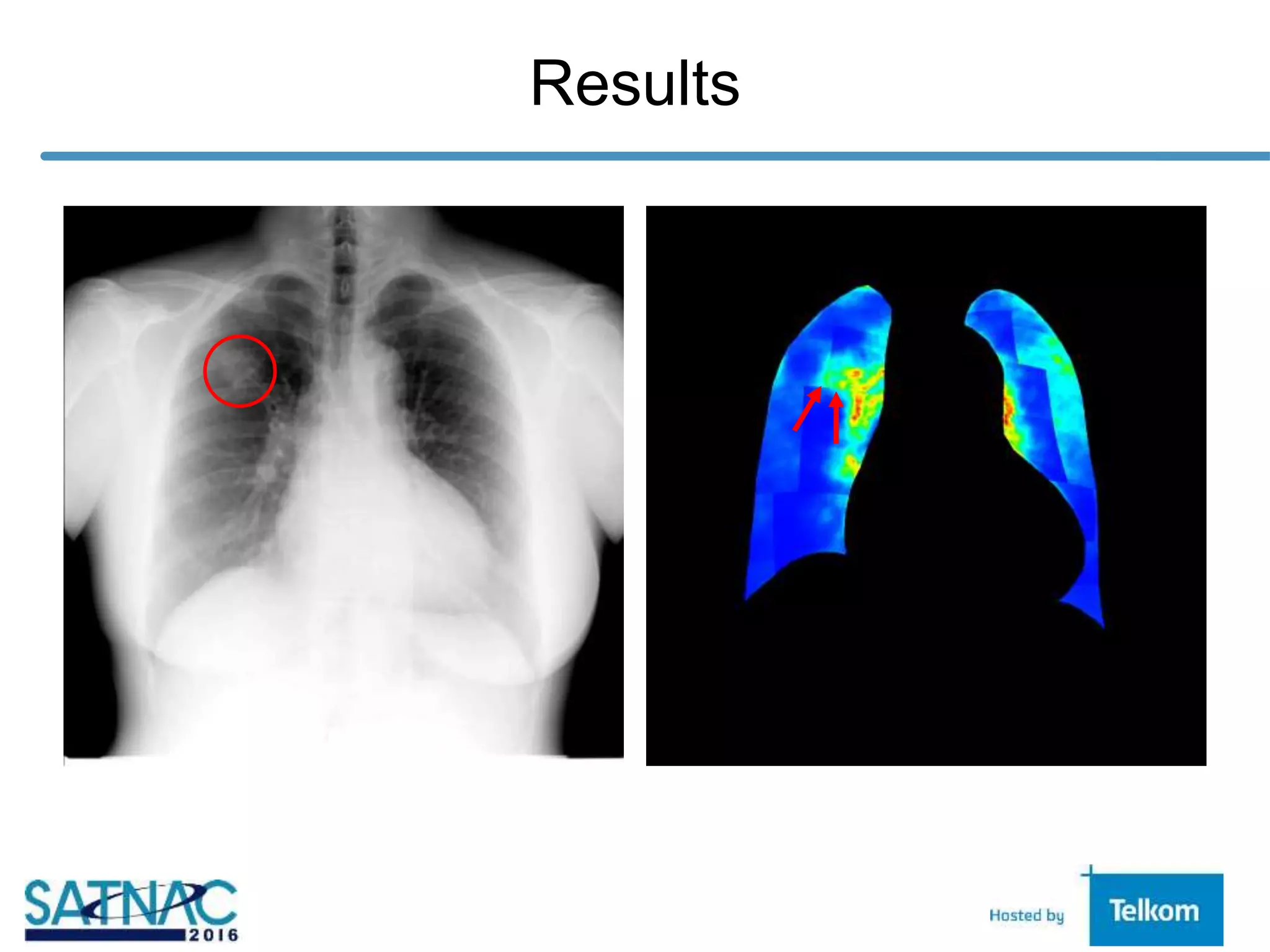

27. Results

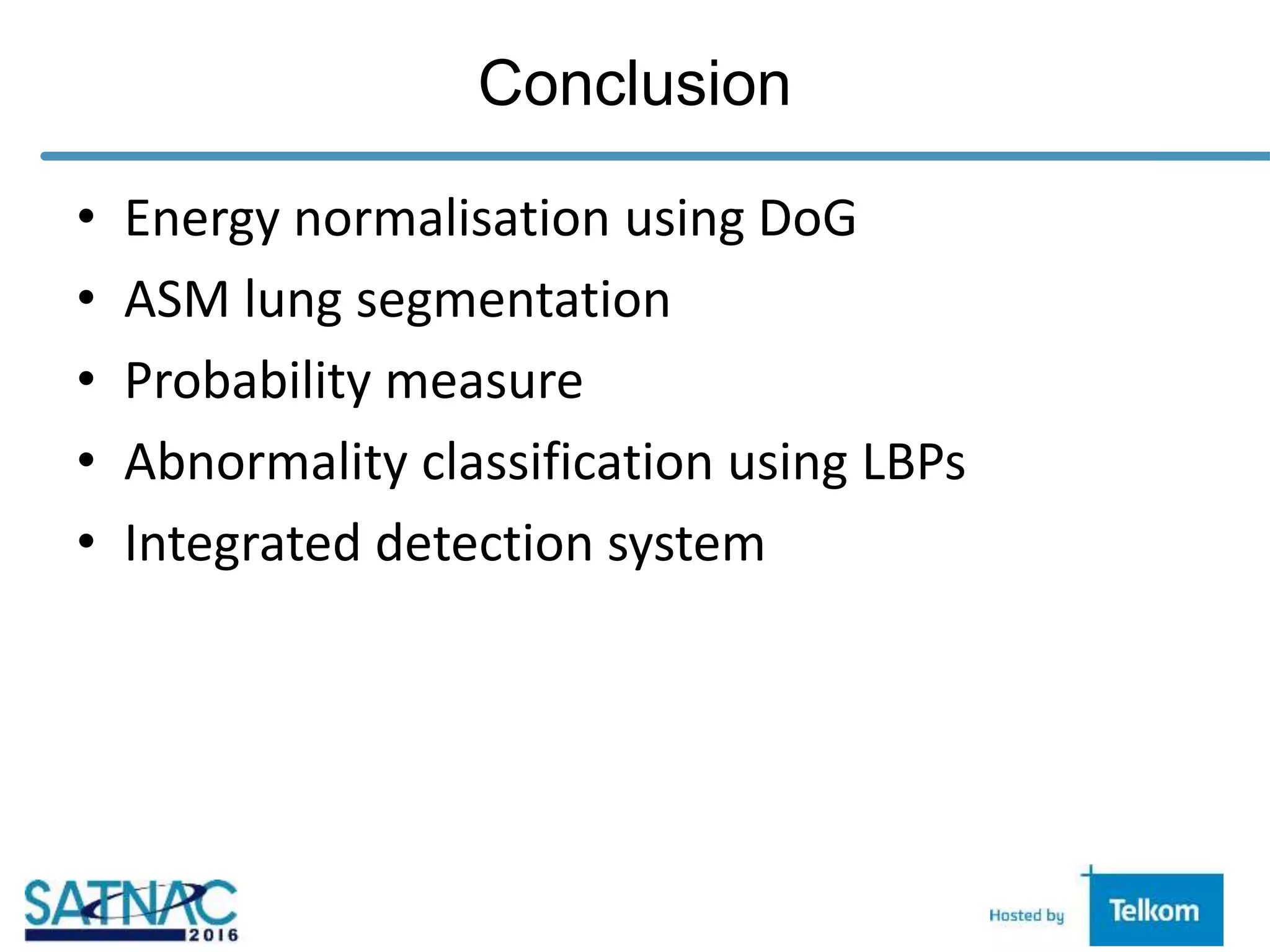

28. Conclusion
• Energy normalisation using DoG
• ASM lung segmentation
• Probability measure
• Abnormality classification using LBPs
• Integrated detection system

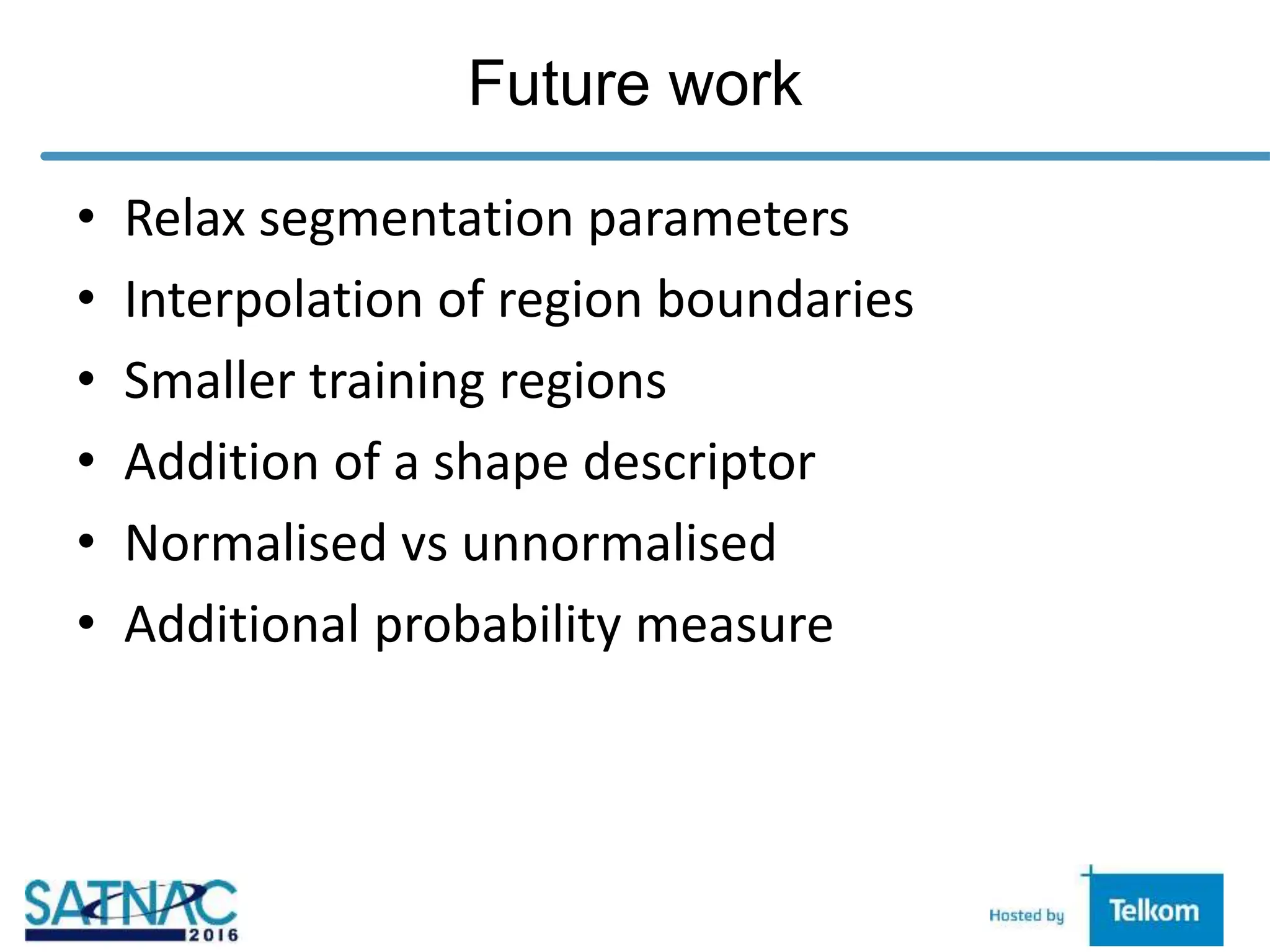

29. Future work
• Relax segmentation parameters
• Interpolation of region boundaries
• Smaller training regions
• Addition of a shape descriptor
• Normalised vs unnormalised
• Additional probability measure

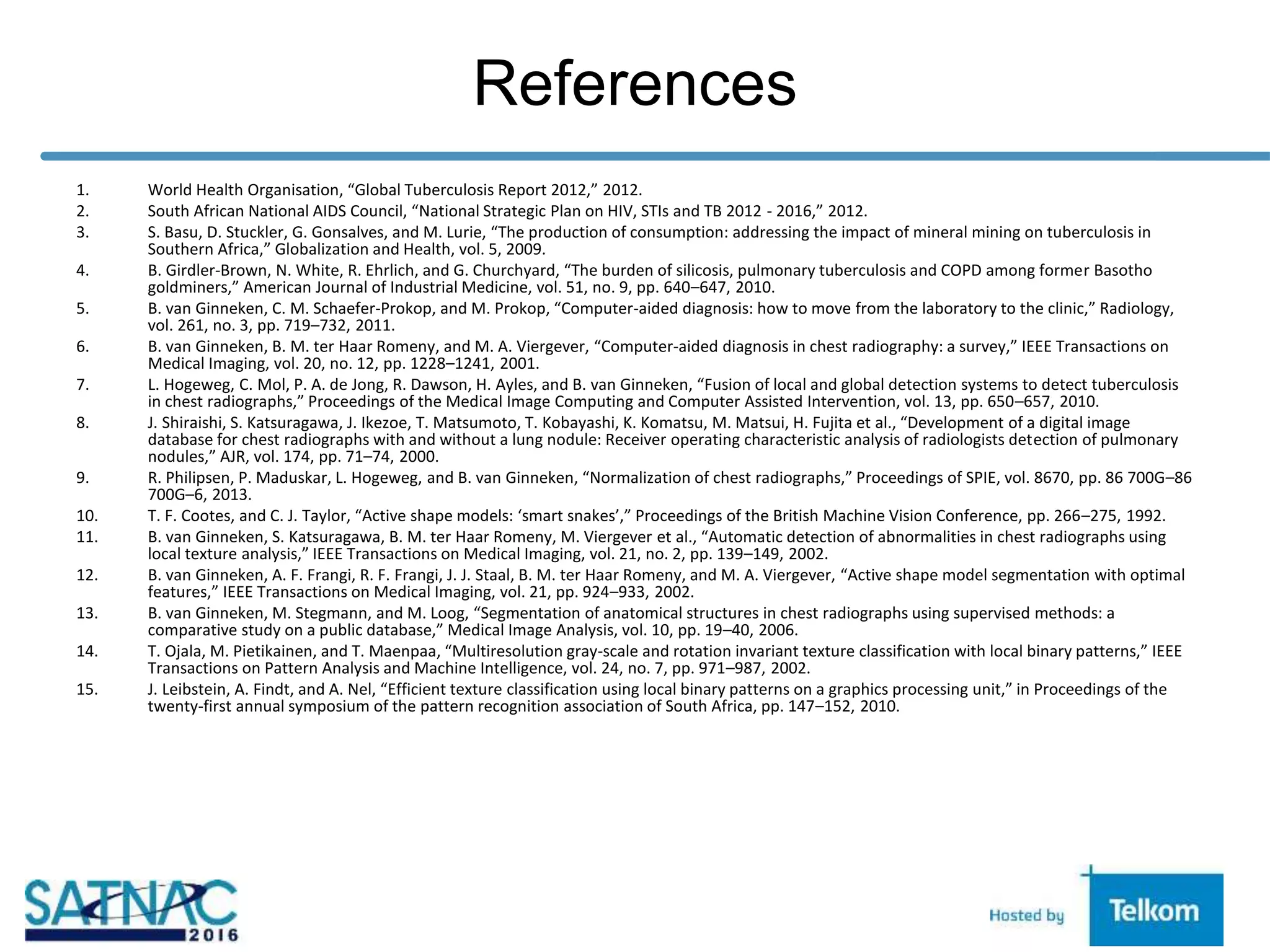

30. References
1. World Health Organisation, “Global Tuberculosis Report 2012,” 2012.
2. South African National AIDS Council, “National Strategic Plan on HIV, STIs and TB 2012 - 2016,” 2012.
3. S. Basu, D. Stuckler, G. Gonsalves, and M. Lurie, “The production of consumption: addressing the impact of mineral mining on tuberculosis in
Southern Africa,” Globalization and Health, vol. 5, 2009.
4. B. Girdler-Brown, N. White, R. Ehrlich, and G. Churchyard, “The burden of silicosis, pulmonary tuberculosis and COPD among former Basotho
goldminers,” American Journal of Industrial Medicine, vol. 51, no. 9, pp. 640–647, 2010.
5. B. van Ginneken, C. M. Schaefer-Prokop, and M. Prokop, “Computer-aided diagnosis: how to move from the laboratory to the clinic,” Radiology,
vol. 261, no. 3, pp. 719–732, 2011.
6. B. van Ginneken, B. M. ter Haar Romeny, and M. A. Viergever, “Computer-aided diagnosis in chest radiography: a survey,” IEEE Transactions on
Medical Imaging, vol. 20, no. 12, pp. 1228–1241, 2001.
7. L. Hogeweg, C. Mol, P. A. de Jong, R. Dawson, H. Ayles, and B. van Ginneken, “Fusion of local and global detection systems to detect tuberculosis
in chest radiographs,” Proceedings of the Medical Image Computing and Computer Assisted Intervention, vol. 13, pp. 650–657, 2010.
8. J. Shiraishi, S. Katsuragawa, J. Ikezoe, T. Matsumoto, T. Kobayashi, K. Komatsu, M. Matsui, H. Fujita et al., “Development of a digital image
database for chest radiographs with and without a lung nodule: Receiver operating characteristic analysis of radiologists detection of pulmonary
nodules,” AJR, vol. 174, pp. 71–74, 2000.
9. R. Philipsen, P. Maduskar, L. Hogeweg, and B. van Ginneken, “Normalization of chest radiographs,” Proceedings of SPIE, vol. 8670, pp. 86 700G–86
700G–6, 2013.
10. T. F. Cootes, and C. J. Taylor, “Active shape models: ‘smart snakes’,” Proceedings of the British Machine Vision Conference, pp. 266–275, 1992.
11. B. van Ginneken, S. Katsuragawa, B. M. ter Haar Romeny, M. Viergever et al., “Automatic detection of abnormalities in chest radiographs using
local texture analysis,” IEEE Transactions on Medical Imaging, vol. 21, no. 2, pp. 139–149, 2002.
12. B. van Ginneken, A. F. Frangi, R. F. Frangi, J. J. Staal, B. M. ter Haar Romeny, and M. A. Viergever, “Active shape model segmentation with optimal
features,” IEEE Transactions on Medical Imaging, vol. 21, pp. 924–933, 2002.
13. B. van Ginneken, M. Stegmann, and M. Loog, “Segmentation of anatomical structures in chest radiographs using supervised methods: a
comparative study on a public database,” Medical Image Analysis, vol. 10, pp. 19–40, 2006.
14. T. Ojala, M. Pietikainen, and T. Maenpaa, “Multiresolution gray-scale and rotation invariant texture classification with local binary patterns,” IEEE
Transactions on Pattern Analysis and Machine Intelligence, vol. 24, no. 7, pp. 971–987, 2002.
15. J. Leibstein, A. Findt, and A. Nel, “Efficient texture classification using local binary patterns on a graphics processing unit,” in Proceedings of the
twenty-first annual symposium of the pattern recognition association of South Africa, pp. 147–152, 2010.
