1. An introduction

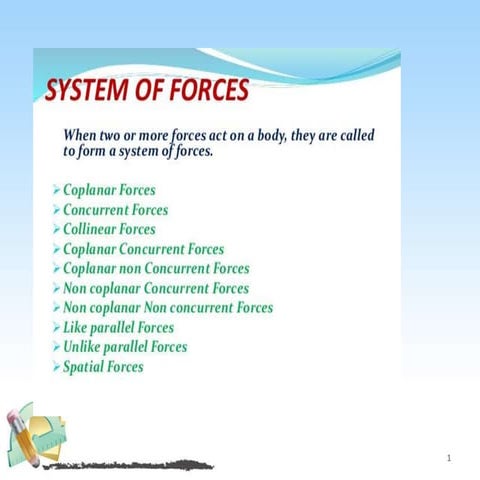

SYSTEM OF FORCES

2. Equilibrium of Forces
What? When?
When the sum of all forces acting on an object is zero.
𝑖=1
𝑛
𝐹𝑖 = 0

3. Force Couple System
What? When? F
F
S
Two forces producing zero resultant but some moment.
𝑖=1
𝑛
𝐹𝑖 = 0
𝑖=1
𝑛
(𝐹𝑖 𝑟𝑖) ≠ 0

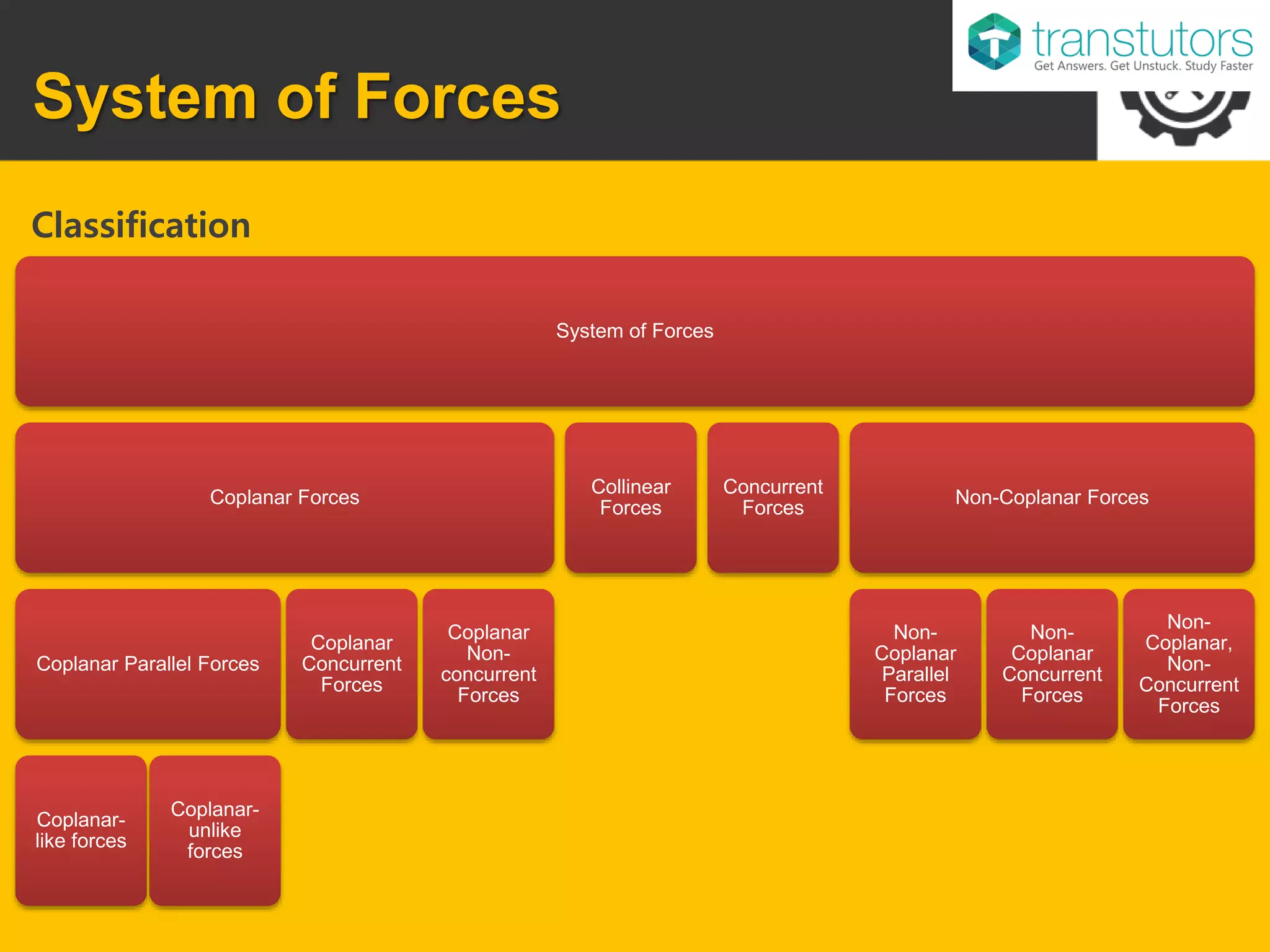

4. System of Forces
Classification
System of Forces
Coplanar Forces
Coplanar Parallel Forces
Coplanar-
like forces
Coplanar-
unlike
forces
Coplanar
Concurrent
Forces
Coplanar
Non-
concurrent
Forces
Collinear
Forces
Concurrent
Forces
Non-Coplanar Forces
Non-
Coplanar
Parallel
Forces
Non-
Coplanar
Concurrent
Forces
Non-
Coplanar,
Non-
Concurrent
Forces

5. Coplanar Forces
Forces lie in the same plane.
Coplanar-Parallel Forces
Coplanar-Concurrent Forces
Coplanar Non-Concurrent Forces

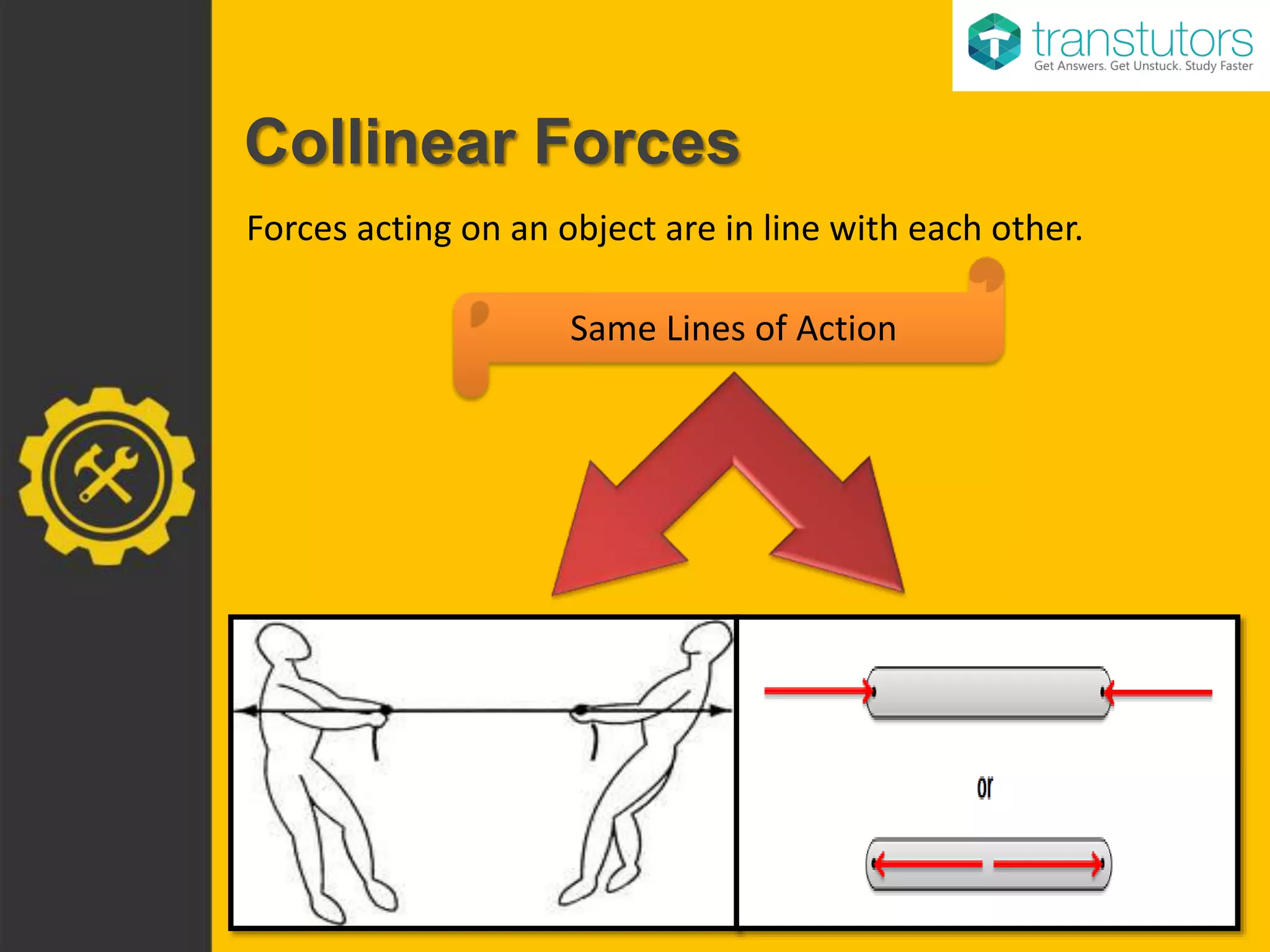

6. Collinear Forces
Forces acting on an object are in line with each other.
Same Lines of Action

7. Concurrent Forces
Forces acting on an object pass through a common point
Intersecting Lines of Action

8. Non-Coplanar Forces
Forces acting on an object are not in the same plane.
Non-Coplanar, Parallel Forces Non-Coplanar, Concurrent Forces
Non-Coplanar, Non-Concurrent Forces
