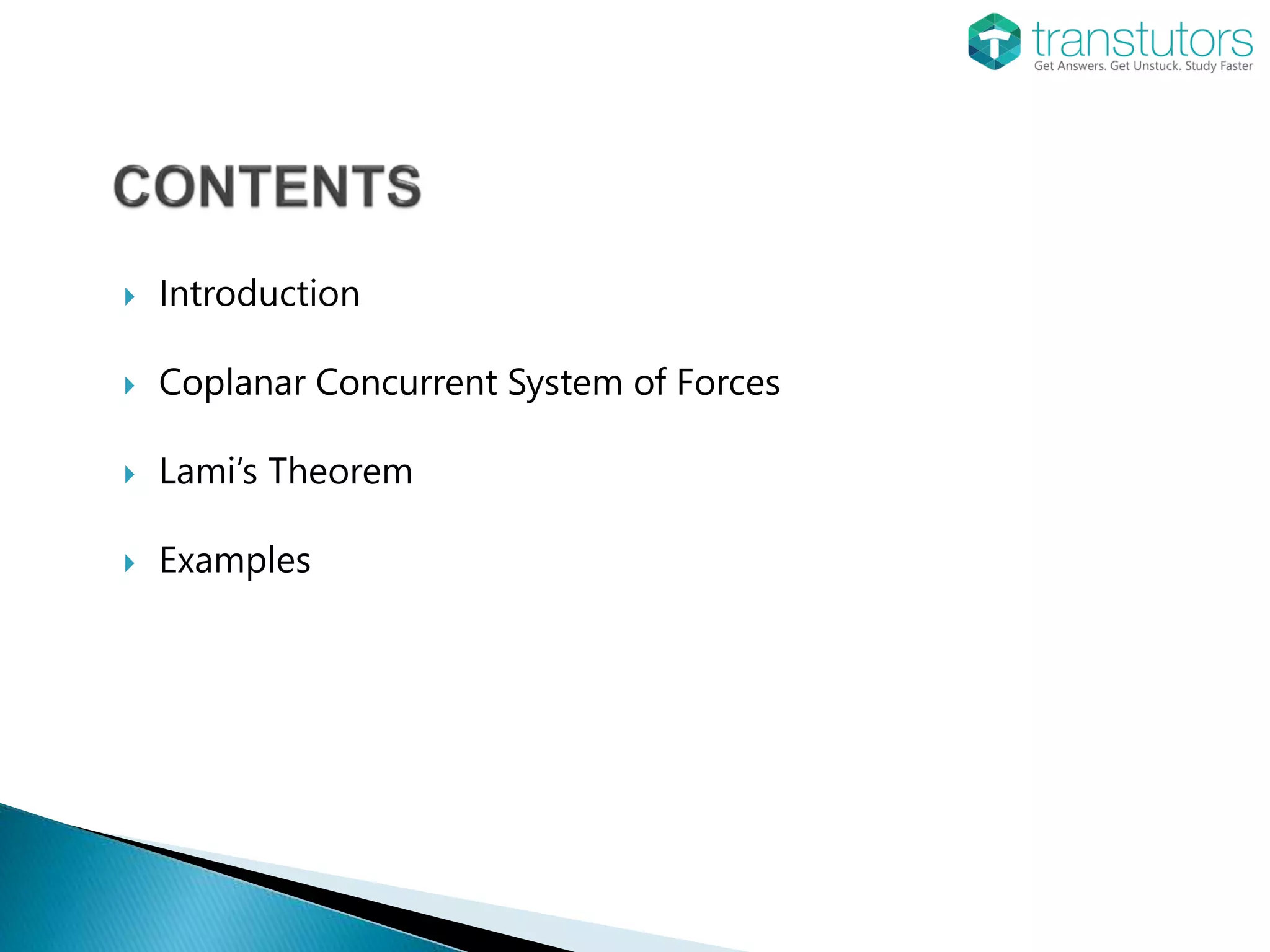

 Introduction
 Coplanar Concurrent System of Forces
 Lami’s Theorem
 Examples

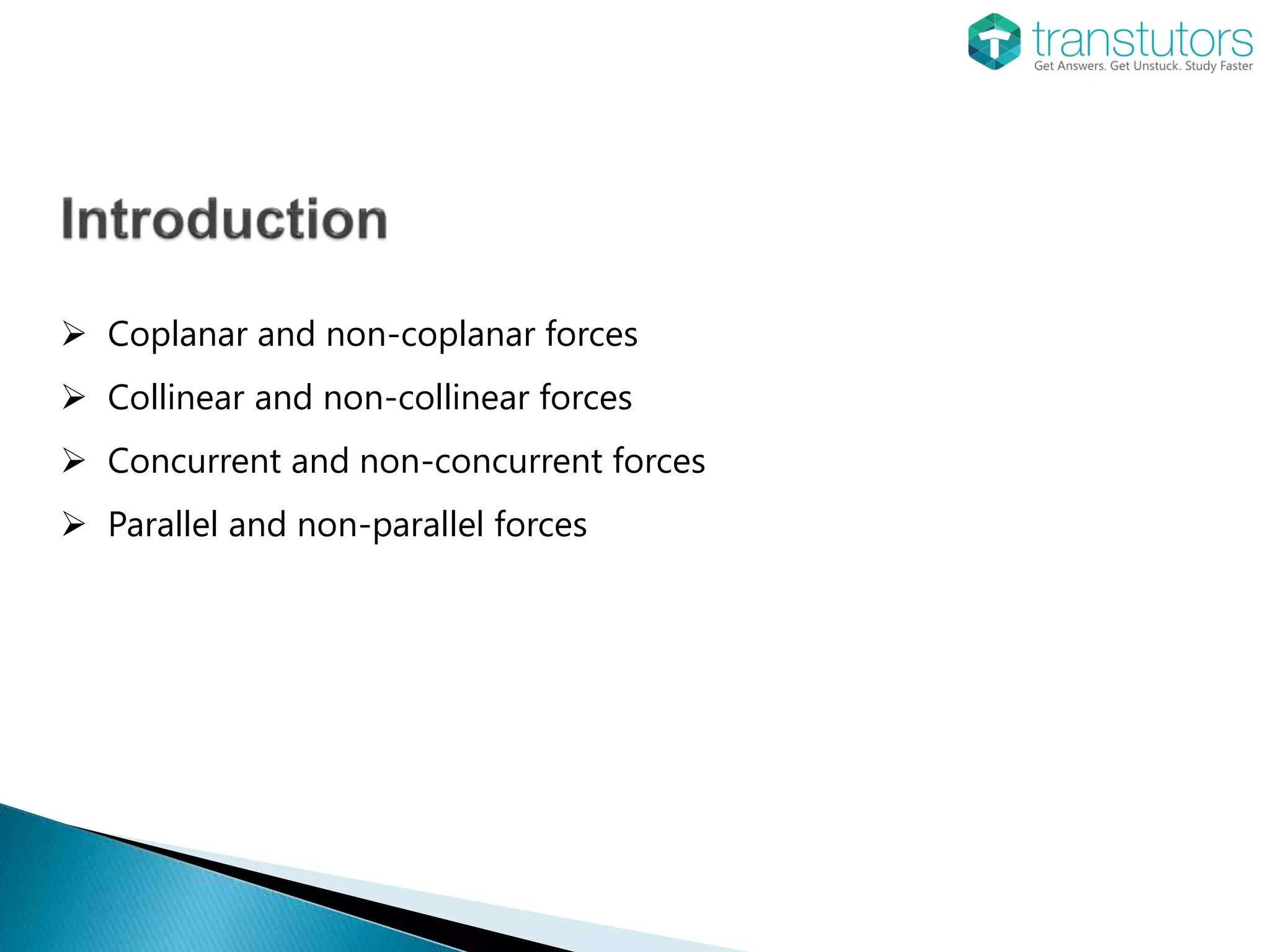

 Coplanar and non-coplanar forces
 Collinear and non-collinear forces
 Concurrent and non-concurrent forces
 Parallel and non-parallel forces

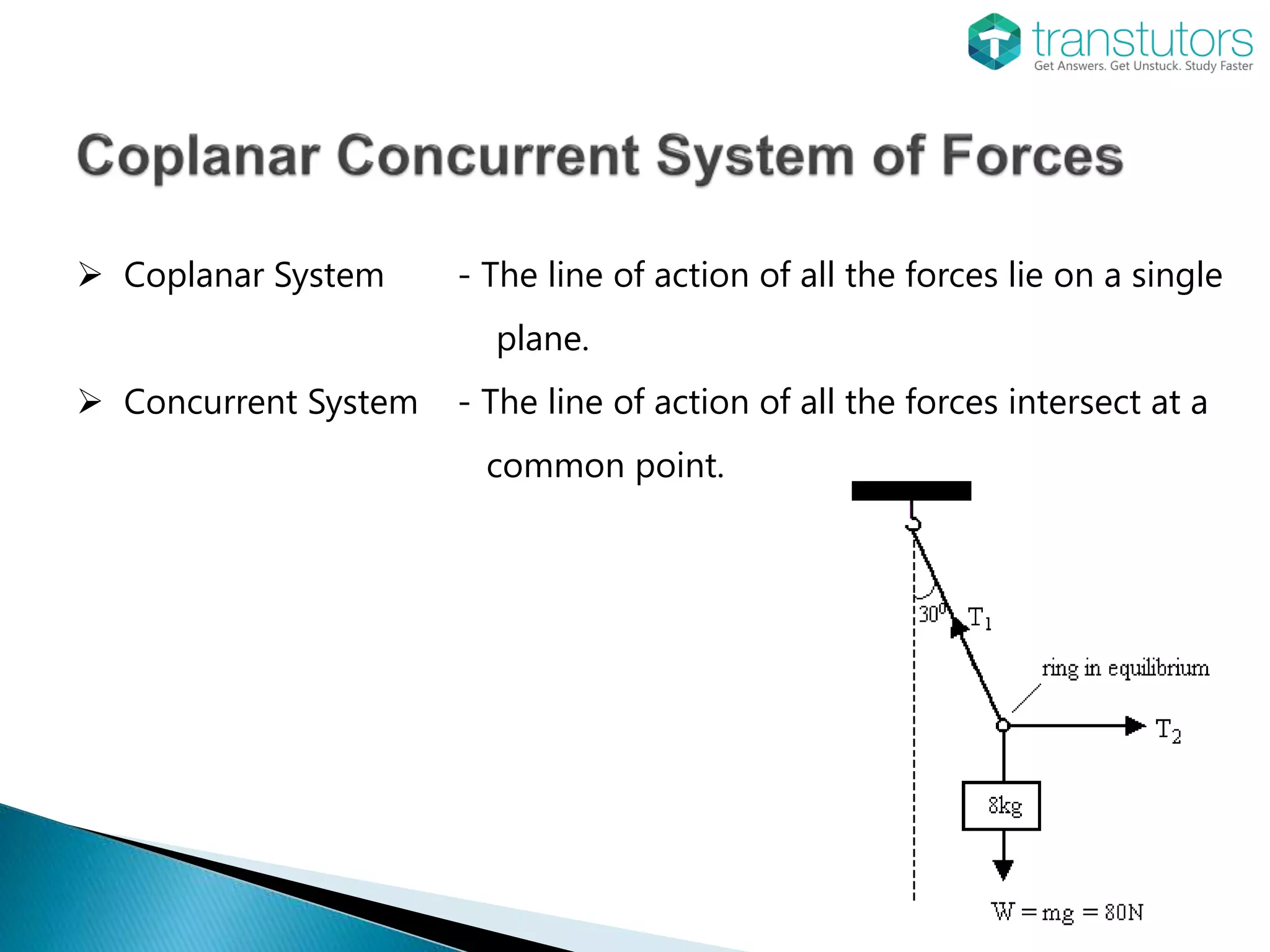

 Coplanar System - The line of action of all the forces lie on a single
plane.
 Concurrent System - The line of action of all the forces intersect at a
common point.

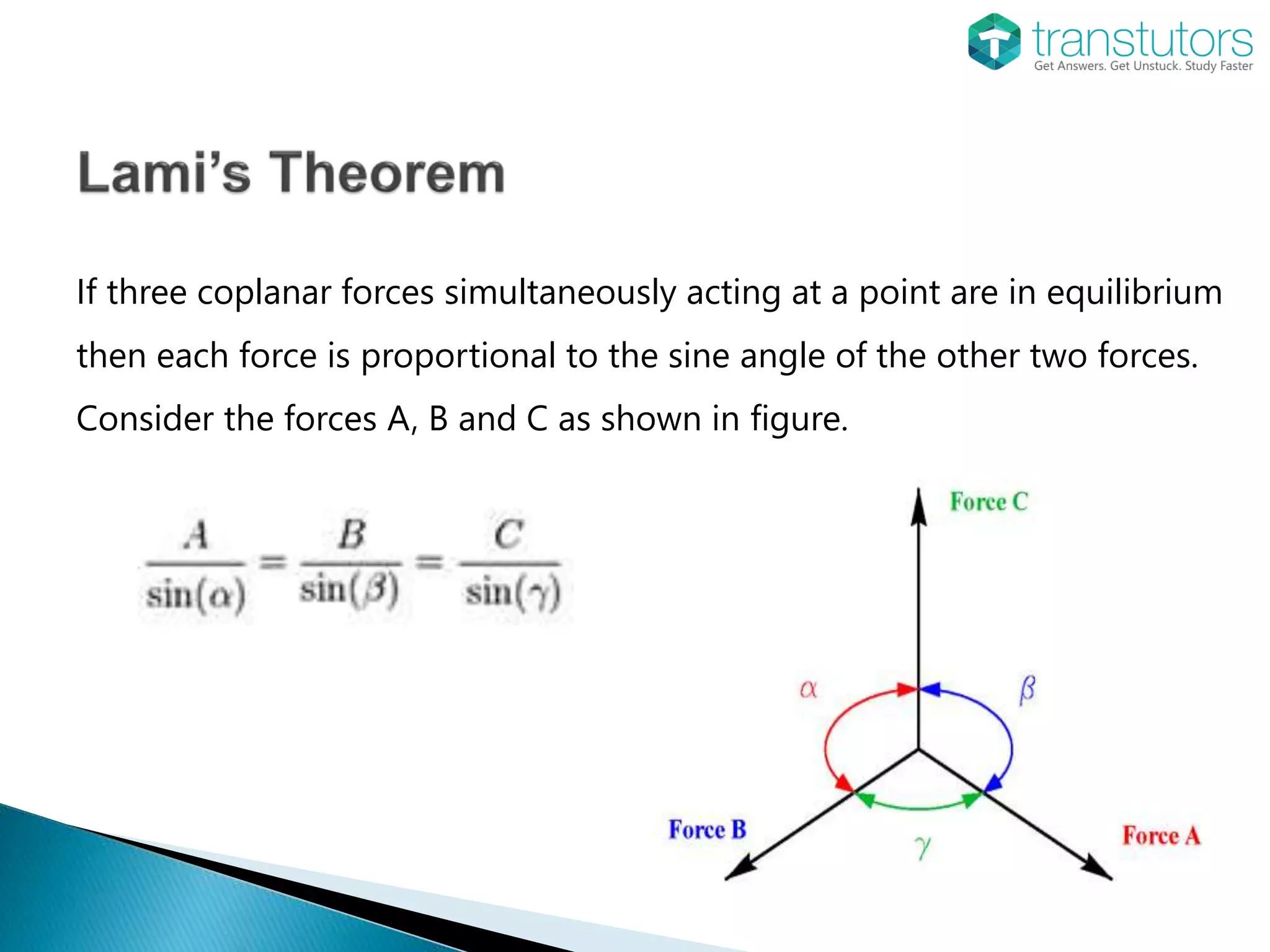

If three coplanar forces simultaneously acting at a point are in equilibrium
then each force is proportional to the sine angle of the other two forces.
Consider the forces A, B and C as shown in figure.
Determine the tension in the strings that support a lamp fixture as shown
in figure.

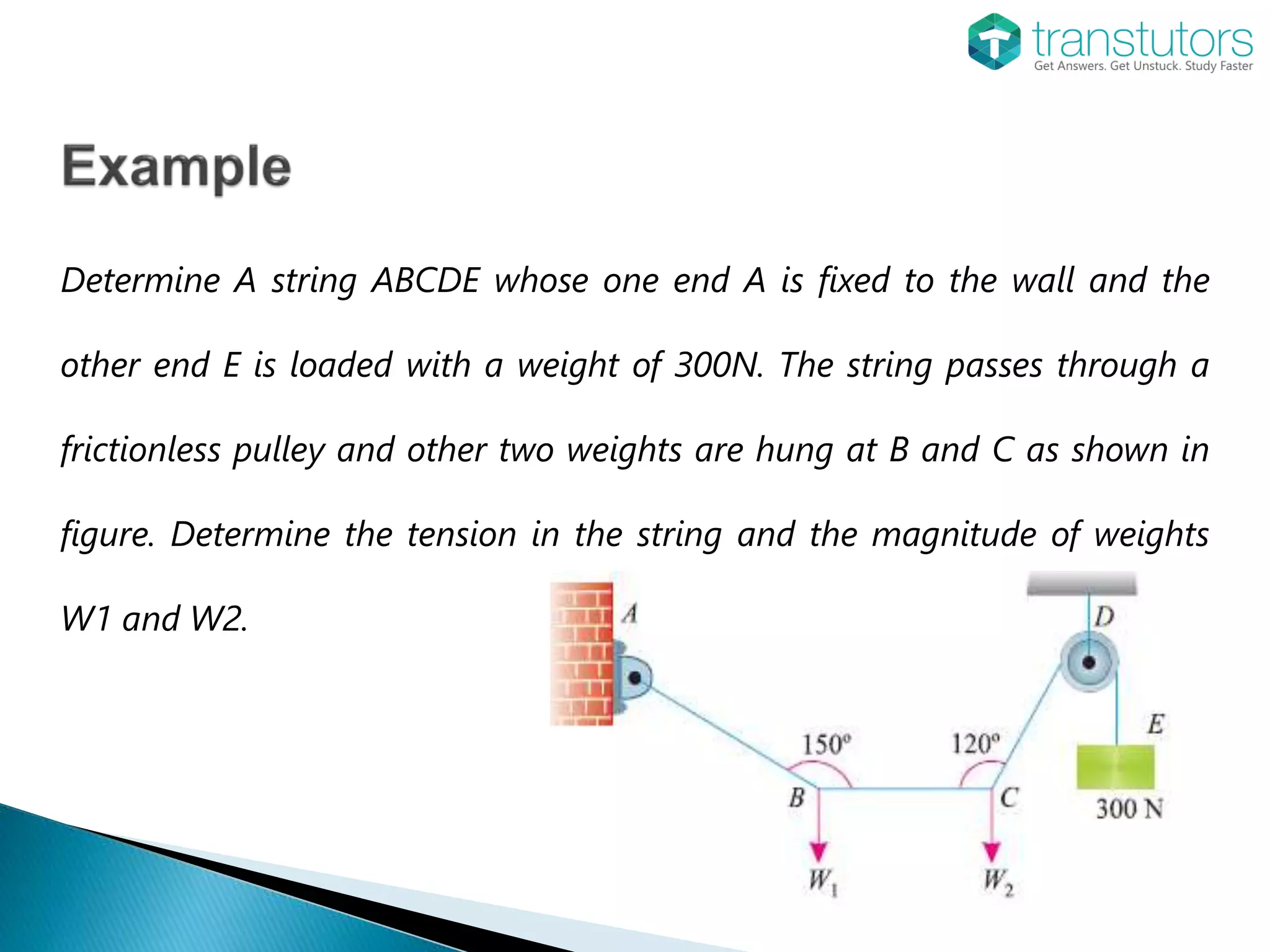

Determine A string ABCDE whose one end A is fixed to the wall and the
other end E is loaded with a weight of 300N. The string passes through a
frictionless pulley and other two weights are hung at B and C as shown in
figure. Determine the tension in the string and the magnitude of weights
W1 and W2.

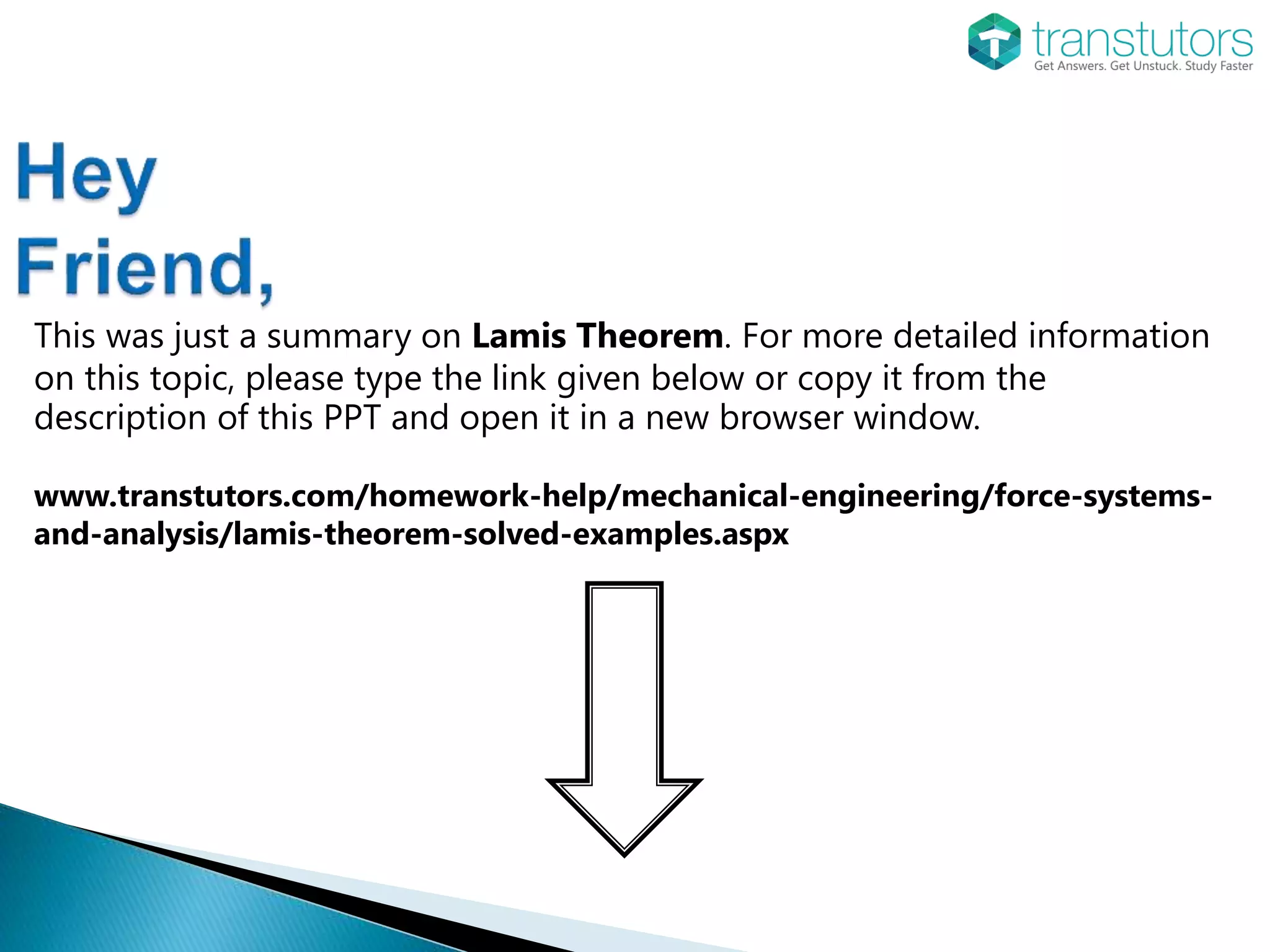

This was just a summary on Lamis Theorem. For more detailed information
on this topic, please type the link given below or copy it from the
description of this PPT and open it in a new browser window.
www.transtutors.com/homework-help/mechanical-engineering/force-systems-
and-analysis/lamis-theorem-solved-examples.aspx

More Related Content

What's hot

Equilibrium and Equation of Equilibrium:2D
Equilibrium and Equation of Equilibrium:2DEquilibrium and Equation of Equilibrium:2D
Equilibrium and Equation of Equilibrium:2D
rasel2211

Equilibrium & equation of equilibrium in 3D
Equilibrium & equation of equilibrium in 3DEquilibrium & equation of equilibrium in 3D
Equilibrium & equation of equilibrium in 3D
imoinul007


What's hot (20)

engineering statics :equilibrium
engineering statics :equilibriumengineering statics :equilibrium
engineering statics :equilibrium

Engineering mechanics by A.Vinoth Jebaraj
Engineering mechanics by A.Vinoth JebarajEngineering mechanics by A.Vinoth Jebaraj
Engineering mechanics by A.Vinoth Jebaraj

TORSION (MECHANICS OF SOLIDS)
TORSION (MECHANICS OF SOLIDS)TORSION (MECHANICS OF SOLIDS)
TORSION (MECHANICS OF SOLIDS)

System of Forces - Engineering Mechanics
System of Forces - Engineering MechanicsSystem of Forces - Engineering Mechanics
System of Forces - Engineering Mechanics

engineering mechanics
engineering mechanicsengineering mechanics
engineering mechanics

Coplanar concurrent forces PPT GTU
Coplanar concurrent forces PPT GTUCoplanar concurrent forces PPT GTU
Coplanar concurrent forces PPT GTU

Introduction of engineering mechanics
Introduction of engineering mechanicsIntroduction of engineering mechanics
Introduction of engineering mechanics

INTRODUCTION TO ENGINEERING MECHANICS - SPP.pptx
INTRODUCTION TO ENGINEERING MECHANICS - SPP.pptxINTRODUCTION TO ENGINEERING MECHANICS - SPP.pptx
INTRODUCTION TO ENGINEERING MECHANICS - SPP.pptx

Equilibrium and Equation of Equilibrium:2D
Equilibrium and Equation of Equilibrium:2DEquilibrium and Equation of Equilibrium:2D
Equilibrium and Equation of Equilibrium:2D

Truss-method of joints
Truss-method of joints Truss-method of joints
Truss-method of joints

Equilibrium of rigid bodies
Equilibrium of rigid bodiesEquilibrium of rigid bodies
Equilibrium of rigid bodies

shear centre
shear centreshear centre
shear centre

Equilibrium & equation of equilibrium in 3D
Equilibrium & equation of equilibrium in 3DEquilibrium & equation of equilibrium in 3D
Equilibrium & equation of equilibrium in 3D

Chapter 3. velocity analysis (IC,GRAPHICAL AND RELATIVE VELOCITY METHOD)
Chapter 3. velocity analysis (IC,GRAPHICAL AND RELATIVE VELOCITY METHOD)Chapter 3. velocity analysis (IC,GRAPHICAL AND RELATIVE VELOCITY METHOD)
Chapter 3. velocity analysis (IC,GRAPHICAL AND RELATIVE VELOCITY METHOD)

Inversion of 4 bar chain mechanism
Inversion of 4 bar chain mechanismInversion of 4 bar chain mechanism
Inversion of 4 bar chain mechanism

Fluid dynamic
Fluid dynamicFluid dynamic
Fluid dynamic

LAWS FOR THE RESULTANT FORCE
LAWS FOR THE RESULTANT FORCELAWS FOR THE RESULTANT FORCE
LAWS FOR THE RESULTANT FORCE

Lecture 2 principal stress and strain
Lecture 2 principal stress and strainLecture 2 principal stress and strain
Lecture 2 principal stress and strain

Unit 5 Friction
Unit 5 FrictionUnit 5 Friction
Unit 5 Friction

Engineering Mechanics Pdf
Engineering Mechanics PdfEngineering Mechanics Pdf
Engineering Mechanics Pdf


Similar to Lami's Theorem | Mechanical Engineering

Concurrent Forces
Concurrent ForcesConcurrent Forces
Concurrent Forces
stooty s

Concurrent Forces
Concurrent ForcesConcurrent Forces
Concurrent Forces
guestb54490

moments couples and force couple systems by ahmad khan
moments couples and force couple systems by ahmad khanmoments couples and force couple systems by ahmad khan
moments couples and force couple systems by ahmad khan
Self-employed


Similar to Lami's Theorem | Mechanical Engineering (20)

Tension for Concurrent and Coplanar Force System | Mechanical Engineering
Tension for Concurrent and Coplanar Force System | Mechanical EngineeringTension for Concurrent and Coplanar Force System | Mechanical Engineering
Tension for Concurrent and Coplanar Force System | Mechanical Engineering

Engineering Mechanics First Year
Engineering Mechanics First YearEngineering Mechanics First Year
Engineering Mechanics First Year

3. coplanar forces equilibrium
3. coplanar forces equilibrium3. coplanar forces equilibrium
3. coplanar forces equilibrium

Forces 7
Forces 7Forces 7
Forces 7

Coplanar forces equilibrium
Coplanar forces equilibriumCoplanar forces equilibrium
Coplanar forces equilibrium

LECTURE NOTES ON STATICS_2024 power point presentation.
LECTURE NOTES ON STATICS_2024 power point presentation.LECTURE NOTES ON STATICS_2024 power point presentation.
LECTURE NOTES ON STATICS_2024 power point presentation.

Concurrent Forces
Concurrent ForcesConcurrent Forces
Concurrent Forces

Concurrent Forces
Concurrent ForcesConcurrent Forces
Concurrent Forces

coplanarforce[1].pptx
coplanarforce[1].pptxcoplanarforce[1].pptx
coplanarforce[1].pptx

Mechanical Technology Grade 10 Chapter 8 forces
Mechanical Technology Grade 10 Chapter 8 forcesMechanical Technology Grade 10 Chapter 8 forces
Mechanical Technology Grade 10 Chapter 8 forces

Momento en estructuras
Momento en estructurasMomento en estructuras
Momento en estructuras

Ctm 154[1]
Ctm 154[1]Ctm 154[1]
Ctm 154[1]

moments couples and force couple systems by ahmad khan
moments couples and force couple systems by ahmad khanmoments couples and force couple systems by ahmad khan
moments couples and force couple systems by ahmad khan

LAMI’S THEOREM.pptx
LAMI’S THEOREM.pptxLAMI’S THEOREM.pptx
LAMI’S THEOREM.pptx

Lecture 4 - Resultant of Forces - Part 1.pptx
Lecture 4 - Resultant of Forces - Part 1.pptxLecture 4 - Resultant of Forces - Part 1.pptx
Lecture 4 - Resultant of Forces - Part 1.pptx

2 coplanar
2 coplanar2 coplanar
2 coplanar

Engineering mechanics
Engineering mechanics Engineering mechanics
Engineering mechanics

Trusses
TrussesTrusses
Trusses

Trusses
TrussesTrusses
Trusses

Trusses
TrussesTrusses
Trusses


More from Transweb Global Inc

More from Transweb Global Inc (20)

Resultant of Coplanar Parallel Forces | Mechanical Engineering
Resultant of Coplanar Parallel Forces | Mechanical EngineeringResultant of Coplanar Parallel Forces | Mechanical Engineering
Resultant of Coplanar Parallel Forces | Mechanical Engineering

The Centroidal Axis | Mechanical Engineering
The Centroidal Axis | Mechanical EngineeringThe Centroidal Axis | Mechanical Engineering
The Centroidal Axis | Mechanical Engineering

System Of Coplanar Forces | Mechanical Engineering
System Of Coplanar Forces | Mechanical EngineeringSystem Of Coplanar Forces | Mechanical Engineering
System Of Coplanar Forces | Mechanical Engineering

Resultant of Two Unlike and Unequal Parallel Forces | Mechanical Engineering
Resultant of Two Unlike and Unequal Parallel Forces | Mechanical EngineeringResultant of Two Unlike and Unequal Parallel Forces | Mechanical Engineering
Resultant of Two Unlike and Unequal Parallel Forces | Mechanical Engineering

SFD Load Diagram Examples | Mechanical Engineering
SFD Load Diagram Examples | Mechanical EngineeringSFD Load Diagram Examples | Mechanical Engineering
SFD Load Diagram Examples | Mechanical Engineering

Principle Of Transmissibility | Mechanical Engineering
Principle Of Transmissibility | Mechanical EngineeringPrinciple Of Transmissibility | Mechanical Engineering
Principle Of Transmissibility | Mechanical Engineering

Similarities between Leadership and Management | Management
Similarities between Leadership and Management | ManagementSimilarities between Leadership and Management | Management
Similarities between Leadership and Management | Management

Ranked Positional Weight Method | Management
Ranked Positional Weight Method | ManagementRanked Positional Weight Method | Management
Ranked Positional Weight Method | Management

Business Intelligence And Business Analytics | Management
Business Intelligence And Business Analytics | ManagementBusiness Intelligence And Business Analytics | Management
Business Intelligence And Business Analytics | Management

ABC Cost Hierarchy | Management
ABC Cost Hierarchy | ManagementABC Cost Hierarchy | Management
ABC Cost Hierarchy | Management

Speed To Market | Management
Speed To Market | ManagementSpeed To Market | Management
Speed To Market | Management

Managerial Hubris | Finance
Managerial Hubris | FinanceManagerial Hubris | Finance
Managerial Hubris | Finance

Conductance | Electrical Engineering
Conductance | Electrical EngineeringConductance | Electrical Engineering
Conductance | Electrical Engineering

Advantages and Disadvantages of Digital Electronics | Electrical Engineering
Advantages and Disadvantages of Digital Electronics | Electrical EngineeringAdvantages and Disadvantages of Digital Electronics | Electrical Engineering
Advantages and Disadvantages of Digital Electronics | Electrical Engineering

Stabilization Of Operating Point | Electrical Engineering
Stabilization Of Operating Point | Electrical EngineeringStabilization Of Operating Point | Electrical Engineering
Stabilization Of Operating Point | Electrical Engineering

Offer Curves | Economics
Offer Curves | EconomicsOffer Curves | Economics
Offer Curves | Economics

Fixed Exchange Rate | Economics
Fixed Exchange Rate | EconomicsFixed Exchange Rate | Economics
Fixed Exchange Rate | Economics

Computer Architecture | Computer Science
Computer Architecture | Computer ScienceComputer Architecture | Computer Science
Computer Architecture | Computer Science

Compilers Computer Program | Computer Science
Compilers Computer Program | Computer ScienceCompilers Computer Program | Computer Science
Compilers Computer Program | Computer Science

Bluemix (Java) | Computer Science
Bluemix (Java) | Computer ScienceBluemix (Java) | Computer Science
Bluemix (Java) | Computer Science


Recently uploaded

The Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdfThe Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdf
kaushalkr1407

Industrial Training Report- AKTU Industrial Training Report
Industrial Training Report- AKTU Industrial Training ReportIndustrial Training Report- AKTU Industrial Training Report
Industrial Training Report- AKTU Industrial Training Report
Avinash Rai


Recently uploaded (20)

GIÁO ÁN DẠY THÊM (KẾ HOẠCH BÀI BUỔI 2) - TIẾNG ANH 8 GLOBAL SUCCESS (2 CỘT) N...
GIÁO ÁN DẠY THÊM (KẾ HOẠCH BÀI BUỔI 2) - TIẾNG ANH 8 GLOBAL SUCCESS (2 CỘT) N...GIÁO ÁN DẠY THÊM (KẾ HOẠCH BÀI BUỔI 2) - TIẾNG ANH 8 GLOBAL SUCCESS (2 CỘT) N...
GIÁO ÁN DẠY THÊM (KẾ HOẠCH BÀI BUỔI 2) - TIẾNG ANH 8 GLOBAL SUCCESS (2 CỘT) N...

Sha'Carri Richardson Presentation 202345
Sha'Carri Richardson Presentation 202345Sha'Carri Richardson Presentation 202345
Sha'Carri Richardson Presentation 202345

Basic Civil Engineering Notes of Chapter-6, Topic- Ecosystem, Biodiversity G...
Basic Civil Engineering Notes of Chapter-6,  Topic- Ecosystem, Biodiversity G...Basic Civil Engineering Notes of Chapter-6,  Topic- Ecosystem, Biodiversity G...
Basic Civil Engineering Notes of Chapter-6, Topic- Ecosystem, Biodiversity G...

The Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdfThe Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdf

Chapter 3 - Islamic Banking Products and Services.pptx
Chapter 3 - Islamic Banking Products and Services.pptxChapter 3 - Islamic Banking Products and Services.pptx
Chapter 3 - Islamic Banking Products and Services.pptx

The approach at University of Liverpool.pptx
The approach at University of Liverpool.pptxThe approach at University of Liverpool.pptx
The approach at University of Liverpool.pptx

Supporting (UKRI) OA monographs at Salford.pptx
Supporting (UKRI) OA monographs at Salford.pptxSupporting (UKRI) OA monographs at Salford.pptx
Supporting (UKRI) OA monographs at Salford.pptx

50 ĐỀ LUYỆN THI IOE LỚP 9 - NĂM HỌC 2022-2023 (CÓ LINK HÌNH, FILE AUDIO VÀ ĐÁ...
50 ĐỀ LUYỆN THI IOE LỚP 9 - NĂM HỌC 2022-2023 (CÓ LINK HÌNH, FILE AUDIO VÀ ĐÁ...50 ĐỀ LUYỆN THI IOE LỚP 9 - NĂM HỌC 2022-2023 (CÓ LINK HÌNH, FILE AUDIO VÀ ĐÁ...
50 ĐỀ LUYỆN THI IOE LỚP 9 - NĂM HỌC 2022-2023 (CÓ LINK HÌNH, FILE AUDIO VÀ ĐÁ...

Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup   New Member Orientation and Q&A (May 2024).pdfWelcome to TechSoup   New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf

UNIT – IV_PCI Complaints: Complaints and evaluation of complaints, Handling o...
UNIT – IV_PCI Complaints: Complaints and evaluation of complaints, Handling o...UNIT – IV_PCI Complaints: Complaints and evaluation of complaints, Handling o...
UNIT – IV_PCI Complaints: Complaints and evaluation of complaints, Handling o...

1.4 modern child centered education - mahatma gandhi-2.pptx
1.4 modern child centered education - mahatma gandhi-2.pptx1.4 modern child centered education - mahatma gandhi-2.pptx
1.4 modern child centered education - mahatma gandhi-2.pptx

Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXXPhrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX

B.ed spl. HI pdusu exam paper-2023-24.pdf
B.ed spl. HI pdusu exam paper-2023-24.pdfB.ed spl. HI pdusu exam paper-2023-24.pdf
B.ed spl. HI pdusu exam paper-2023-24.pdf

Industrial Training Report- AKTU Industrial Training Report
Industrial Training Report- AKTU Industrial Training ReportIndustrial Training Report- AKTU Industrial Training Report
Industrial Training Report- AKTU Industrial Training Report

NCERT Solutions Power Sharing Class 10 Notes pdf
NCERT Solutions Power Sharing Class 10 Notes pdfNCERT Solutions Power Sharing Class 10 Notes pdf
NCERT Solutions Power Sharing Class 10 Notes pdf

Embracing GenAI - A Strategic Imperative
Embracing GenAI - A Strategic ImperativeEmbracing GenAI - A Strategic Imperative
Embracing GenAI - A Strategic Imperative

Benefits and Challenges of Using Open Educational Resources
Benefits and Challenges of Using Open Educational ResourcesBenefits and Challenges of Using Open Educational Resources
Benefits and Challenges of Using Open Educational Resources

Basic_QTL_Marker-assisted_Selection_Sourabh.ppt
Basic_QTL_Marker-assisted_Selection_Sourabh.pptBasic_QTL_Marker-assisted_Selection_Sourabh.ppt
Basic_QTL_Marker-assisted_Selection_Sourabh.ppt

Home assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdfHome assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdf

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

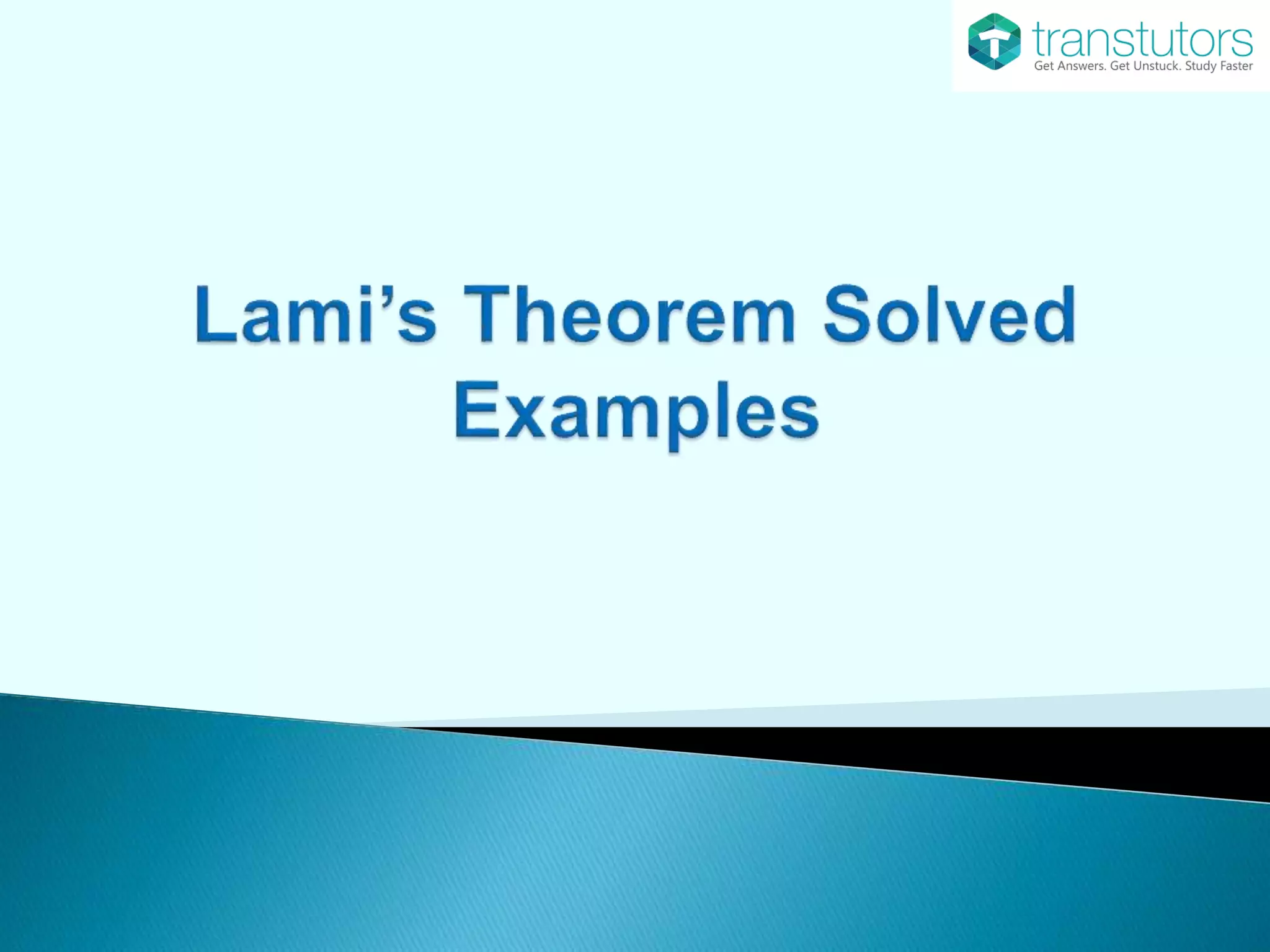

Lami's Theorem | Mechanical Engineering

  • 1.
  • 2.  Introduction  Coplanar Concurrent System of Forces  Lami’s Theorem  Examples
  • 3.  Coplanar and non-coplanar forces  Collinear and non-collinear forces  Concurrent and non-concurrent forces  Parallel and non-parallel forces
  • 4.  Coplanar System - The line of action of all the forces lie on a single plane.  Concurrent System - The line of action of all the forces intersect at a common point.
  • 5. If three coplanar forces simultaneously acting at a point are in equilibrium then each force is proportional to the sine angle of the other two forces. Consider the forces A, B and C as shown in figure.
  • 6. Determine the tension in the strings that support a lamp fixture as shown in figure.
  • 7. Determine A string ABCDE whose one end A is fixed to the wall and the other end E is loaded with a weight of 300N. The string passes through a frictionless pulley and other two weights are hung at B and C as shown in figure. Determine the tension in the string and the magnitude of weights W1 and W2.
  • 8. This was just a summary on Lamis Theorem. For more detailed information on this topic, please type the link given below or copy it from the description of this PPT and open it in a new browser window. www.transtutors.com/homework-help/mechanical-engineering/force-systems- and-analysis/lamis-theorem-solved-examples.aspx
