Synapseindia dot net development web applications with ajax

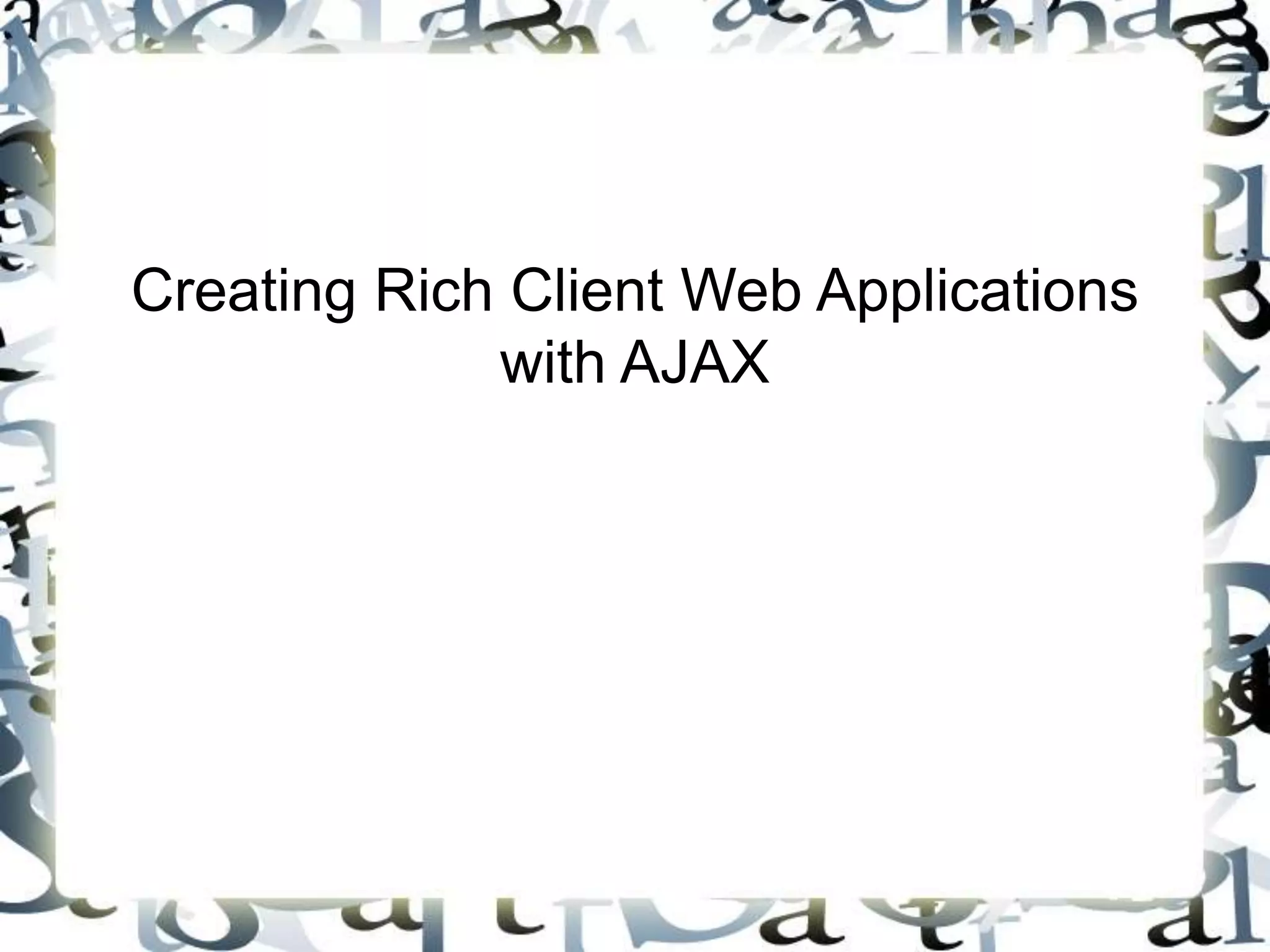

Creating Rich Client Web Applications
with AJAX

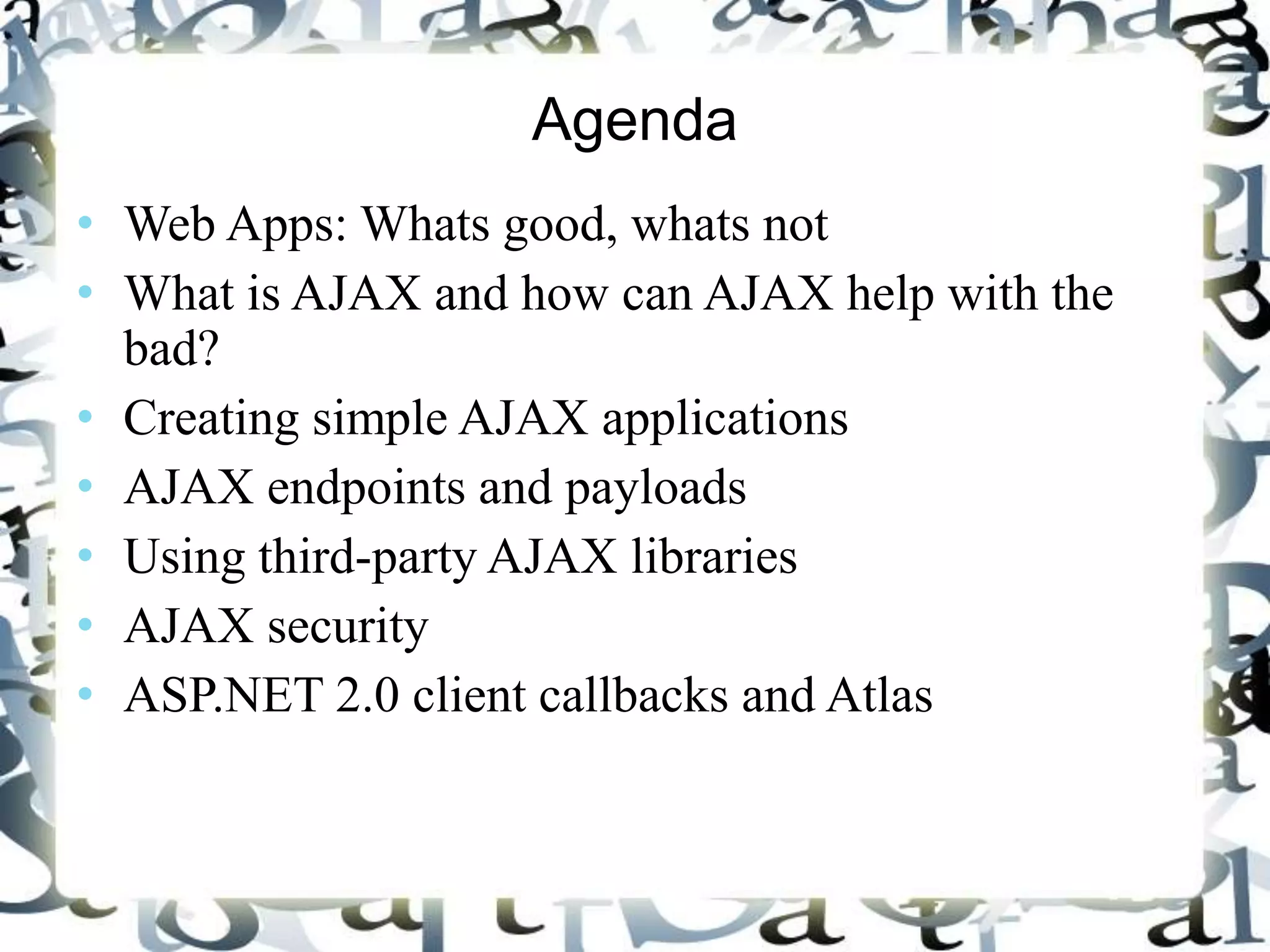

Agenda
• Web Apps: Whats good, whats not
• What is AJAX and how can AJAX help with the
bad?
• Creating simple AJAX applications
• AJAX endpoints and payloads
• Using third-party AJAX libraries
• AJAX security
• ASP.NET 2.0 client callbacks and Atlas

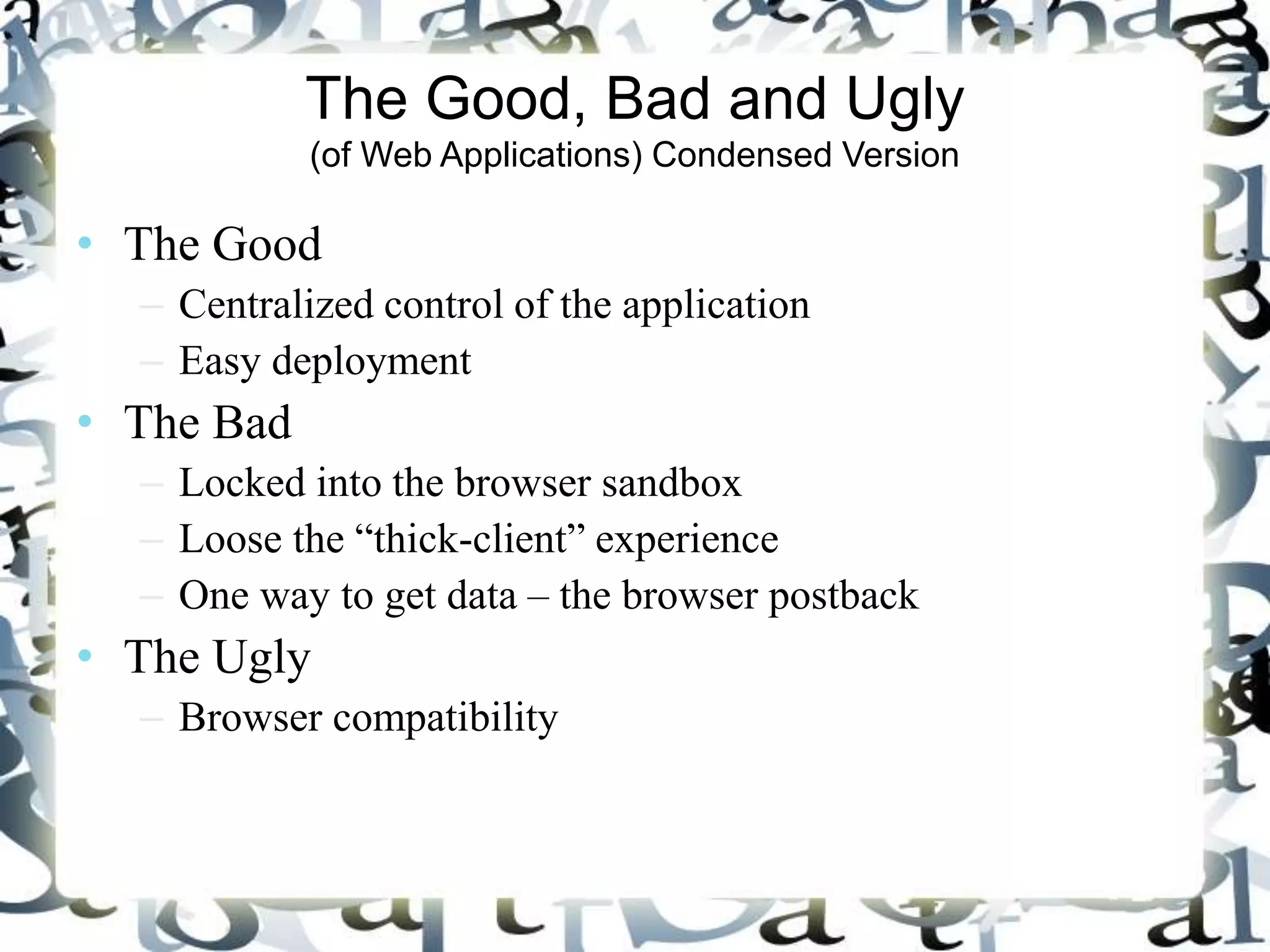

The Good, Bad and Ugly
(of Web Applications) Condensed Version
• The Good
– Centralized control of the application
– Easy deployment
• The Bad
– Locked into the browser sandbox
– Loose the “thick-client” experience
– One way to get data – the browser postback
• The Ugly
– Browser compatibility

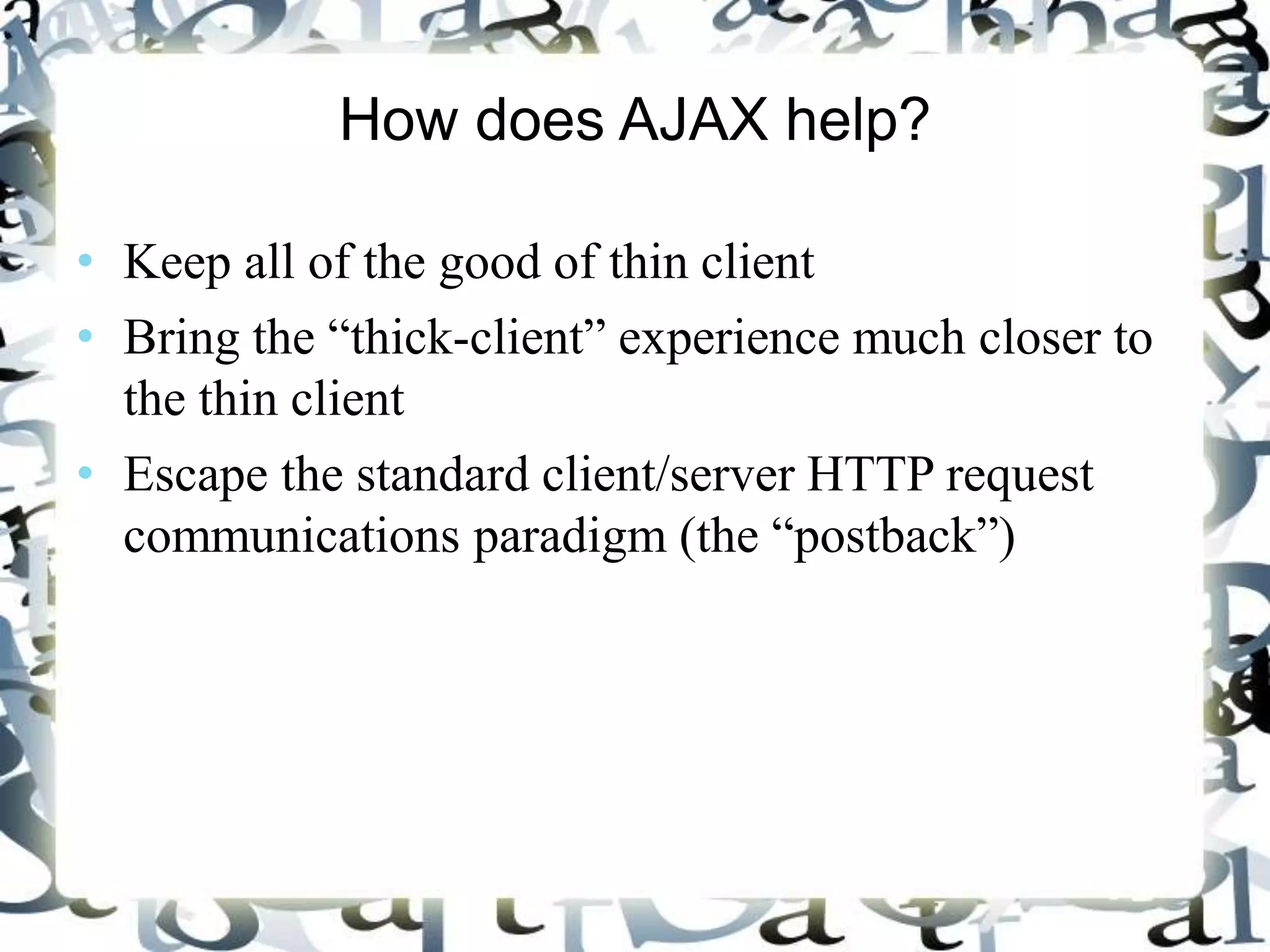

How does AJAX help?
• Keep all of the good of thin client
• Bring the “thick-client” experience much closer to
the thin client
• Escape the standard client/server HTTP request
communications paradigm (the “postback”)

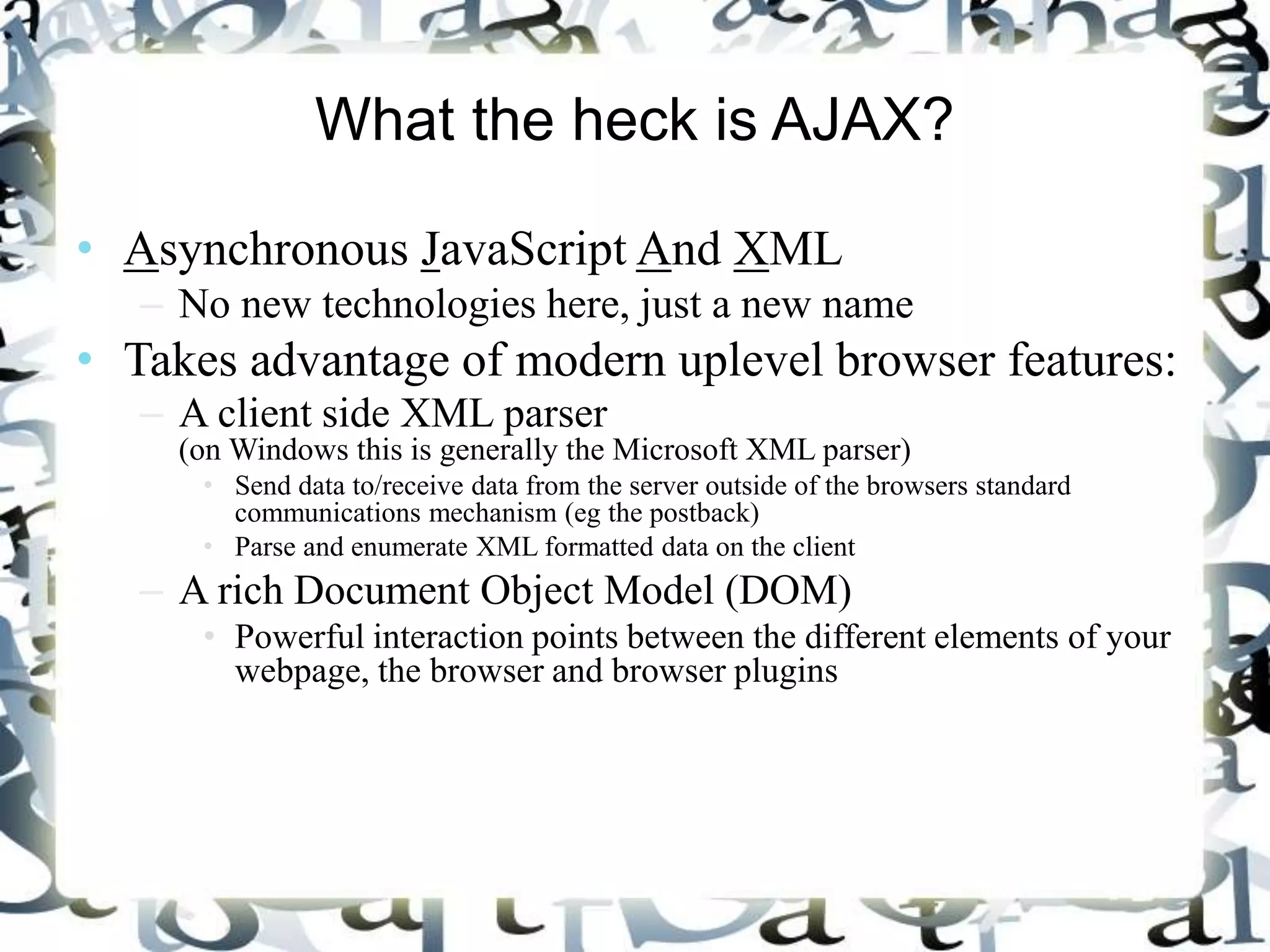

What the heck is AJAX?
• Asynchronous JavaScript And XML
– No new technologies here, just a new name
• Takes advantage of modern uplevel browser features:
– A client side XML parser
(on Windows this is generally the Microsoft XML parser)
• Send data to/receive data from the server outside of the browsers standard
communications mechanism (eg the postback)
• Parse and enumerate XML formatted data on the client
– A rich Document Object Model (DOM)
• Powerful interaction points between the different elements of your
webpage, the browser and browser plugins

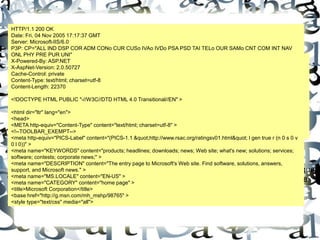

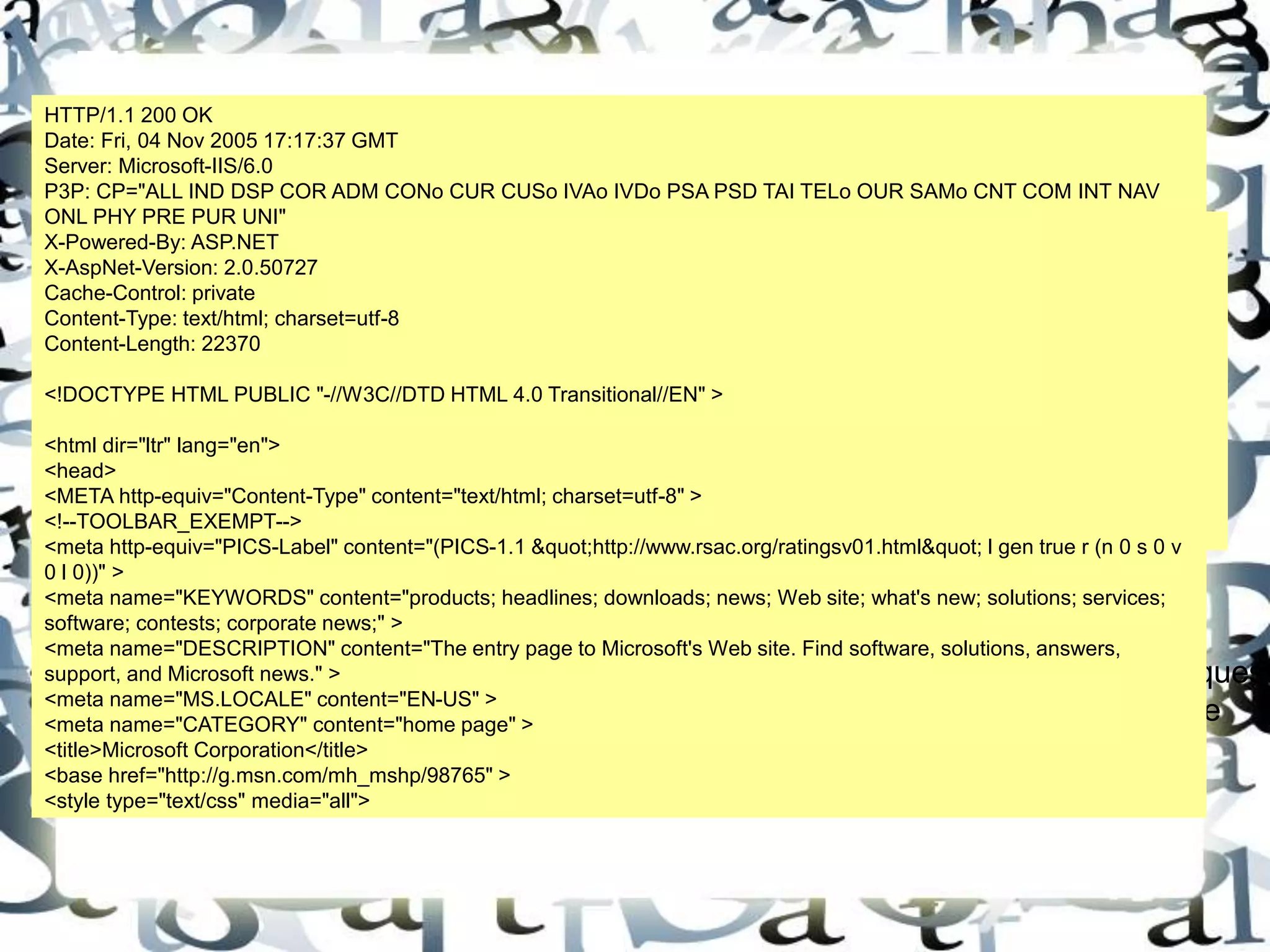

The standard web client/server
request processing model
HTTP/1.1 200 OK
Date: Fri, 04 Nov 2005 17:17:37 GMT
Server: Microsoft-IIS/6.0
P3P: CP="ALL IND DSP COR ADM CONo CUR CUSo IVAo IVDo PSA PSD TAI TELo OUR SAMo CNT COM INT NAV
ONL PHY PRE PUR UNI"
X-Powered-By: ASP.NET
X-AspNet-Version: 2.0.50727
Cache-Control: private
Content-Type: text/html; charset=utf-8
Content-Length: 22370
GET / HTTP/1.1
Accept: image/gif, image/x-xbitmap, image/jpeg, image/pjpeg, application/x-shockwave-flash,
application/vnd.ms-excel, application/vnd.ms-powerpoint, application/msword, */*
Accept-Language: en-us
Accept-Encoding: gzip, deflate
User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1; .NET CLR 1.1.4322; .NET CLR
2.0.50727)
Host: www.microsoft.com
Proxy-Connection: Keep-Alive
Cookie: MC1=GUID=5cd2d5ca1a1cc54183c10f4bacaa45fa&HASH=cad5&LV=20059&V=3;
A=I&I=AxUFAAAAAABuCAAAzJInmvNBZzRHm8aAr99x0A!!; msresearch=1
Browser makes a resource
request to the server
<html dir="ltr" lang="en">
<head>
<META http-equiv="Content-Type" content="text/html; charset=utf-8" >

<meta http-equiv="PICS-Label" content="(PICS-1.1 "http://www.rsac.org/ratingsv01.html" l gen true r (n 0 s 0 v
0 l 0))" >
<meta name="KEYWORDS" content="products; headlines; downloads; news; Web site; what's new; solutions; services;
software; contests; corporate news;" >
<meta name="DESCRIPTION" content="The entry page to Microsoft's Web site. Find software, solutions, answers,
support, and Microsoft news." >
<meta name="MS.LOCALE" content="EN-US" >
<meta name="CATEGORY" content="home page" >
<title>Microsoft Corporation</title>
<base href="http://g.msn.com/mh_mshp/98765" >
<style type="text/css" media="all">
Server processes the request
and returns a result to the
browser
HTTP Request
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN" >
HTTP Response

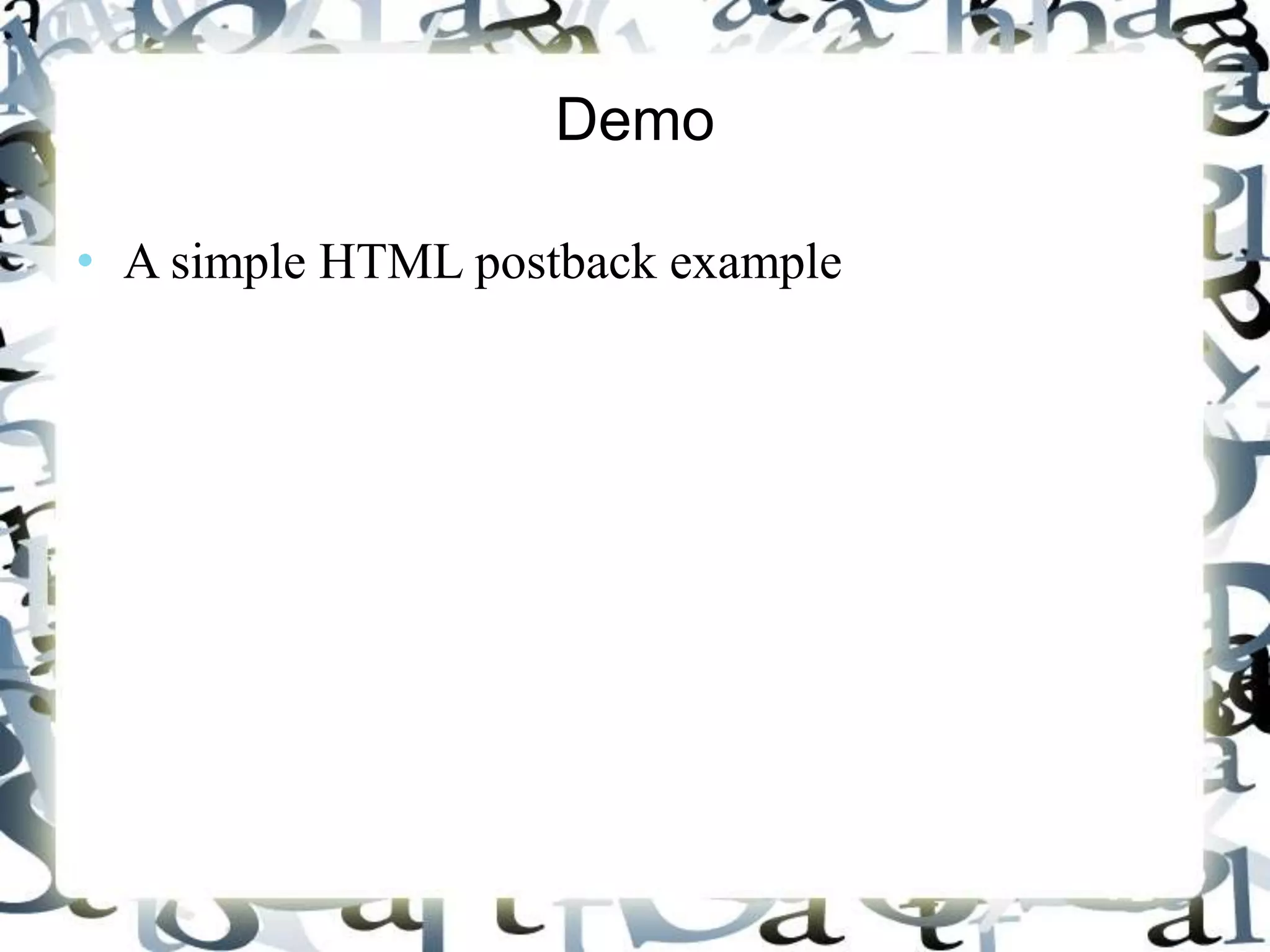

Demo
• A simple HTML postback example

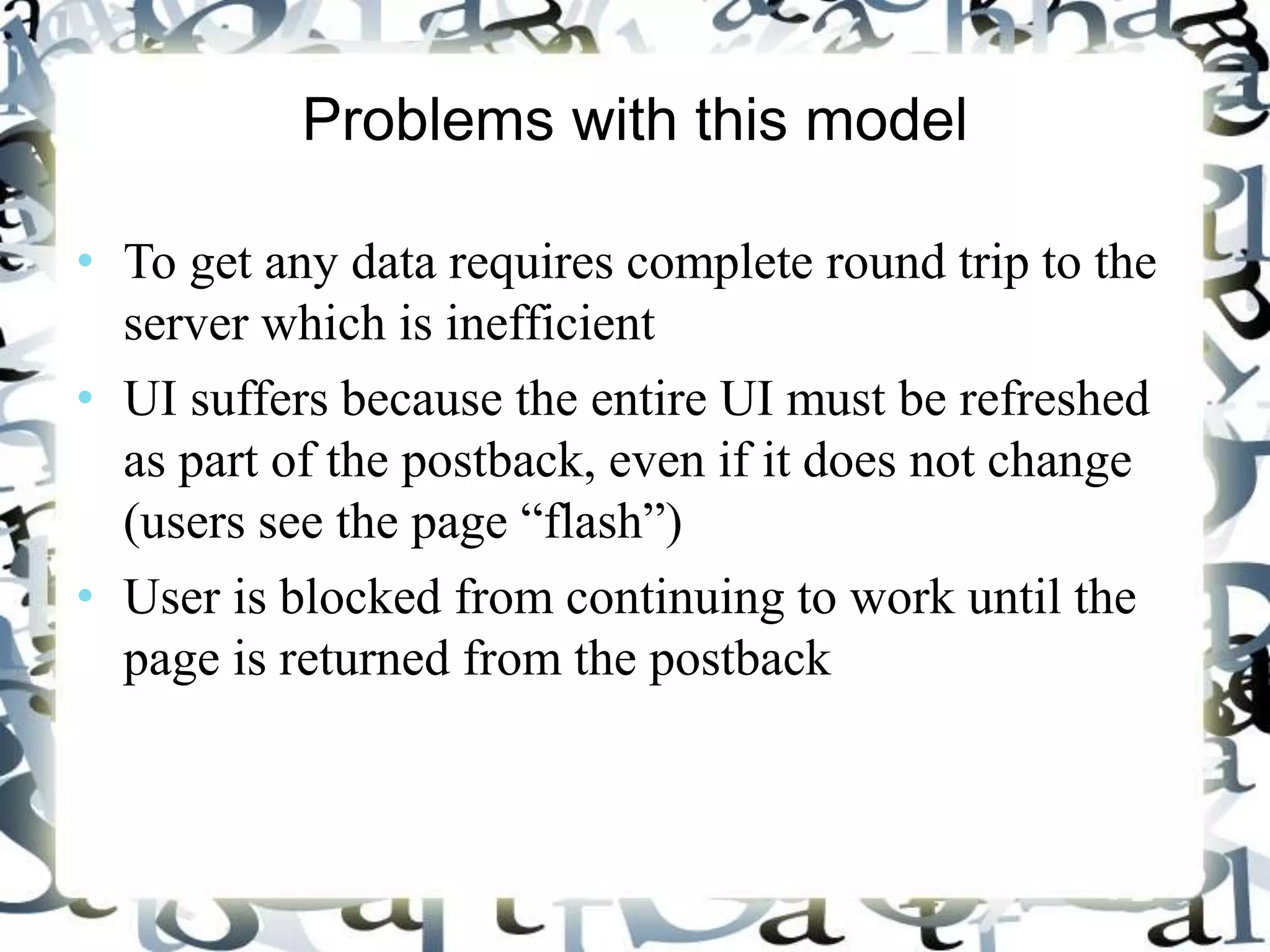

Problems with this model
• To get any data requires complete round trip to the
server which is inefficient
• UI suffers because the entire UI must be refreshed
as part of the postback, even if it does not change
(users see the page “flash”)
• User is blocked from continuing to work until the
page is returned from the postback

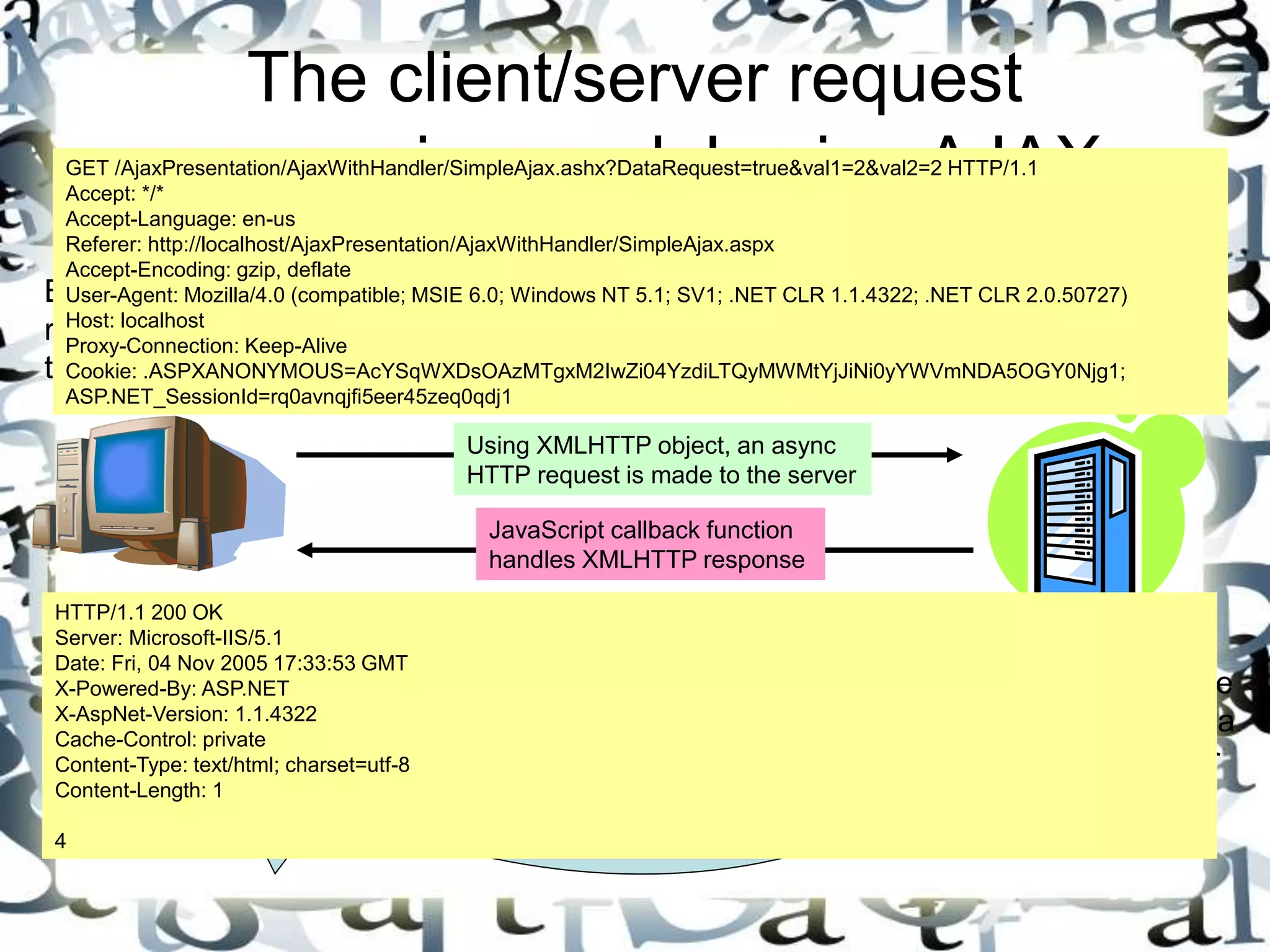

The client/server request
processing model using AJAX
GET /AjaxPresentation/AjaxWithHandler/SimpleAjax.ashx?DataRequest=true&val1=2&val2=2 HTTP/1.1
Accept: */*
Accept-Language: en-us
Referer: http://localhost/AjaxPresentation/AjaxWithHandler/SimpleAjax.aspx
Accept-Encoding: gzip, deflate
User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1; .NET CLR 1.1.4322; .NET CLR 2.0.50727)
Host: localhost
Proxy-Connection: Keep-Alive
Cookie: .ASPXANONYMOUS=AcYSqWXDsOAzMTgxM2IwZi04YzdiLTQyMWMtYjJiNi0yYWVmNDA5OGY0Njg1;
ASP.NET_SessionId=rq0avnqjfi5eer45zeq0qdj1
Server processes the
request and returns a
result to the browser
Browser makes a
resource request to
the server
HTTP Request
Using XMLHTTP object, an async
HTTP request is made to the server
JavaScript callback function
handles XMLHTTP response
HTTP Response
HTTP/1.1 200 OK
Server: Microsoft-IIS/5.1
Date: Fri, 04 Nov 2005 17:33:53 GMT
X-Powered-By: ASP.NET
X-AspNet-Version: 1.1.4322
Cache-Control: private
Content-Type: text/html; charset=utf-8
Content-Length: 1
4

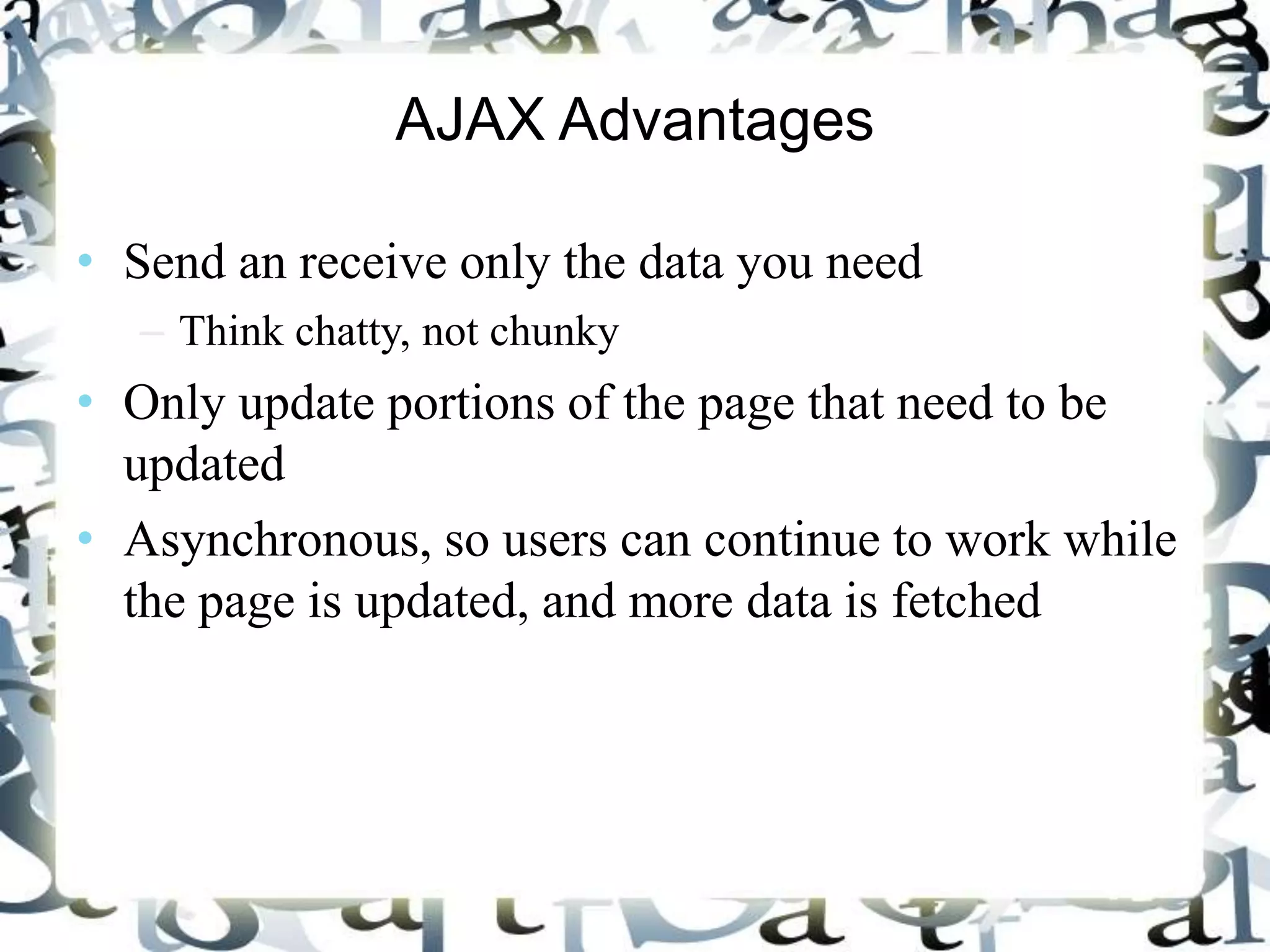

AJAX Advantages
• Send an receive only the data you need
– Think chatty, not chunky
• Only update portions of the page that need to be
updated
• Asynchronous, so users can continue to work while
the page is updated, and more data is fetched

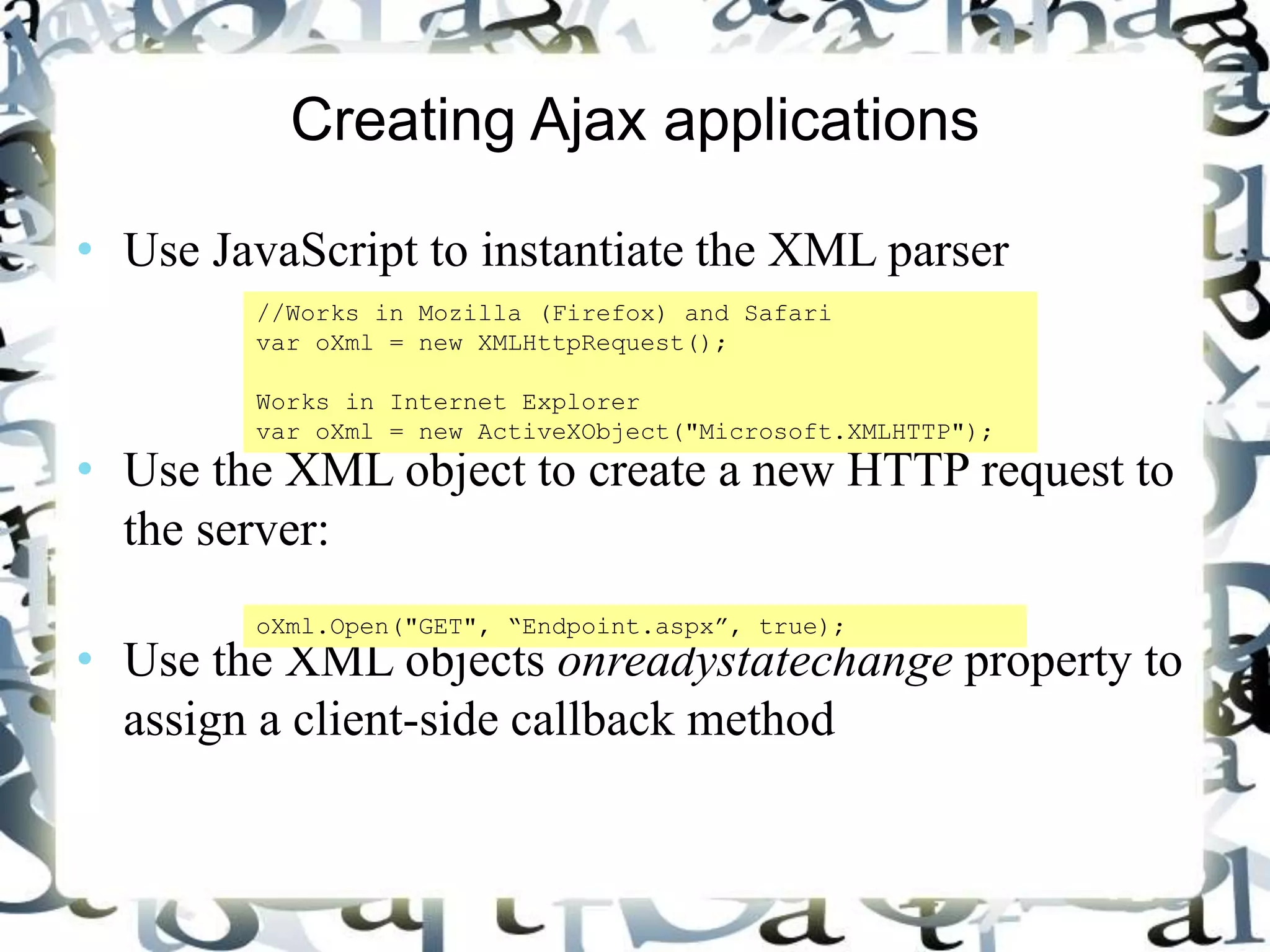

Creating Ajax applications
• Use JavaScript to instantiate the XML parser
//Works in Mozilla (Firefox) and Safari
var oXml = new XMLHttpRequest();
Works in Internet Explorer
var oXml = new ActiveXObject("Microsoft.XMLHTTP");
• Use the XML object to create a new HTTP request to
the server:
oXml.Open("GET", “Endpoint.aspx”, true);
• Use the XML objects onreadystatechange property to
assign a client-side callback method

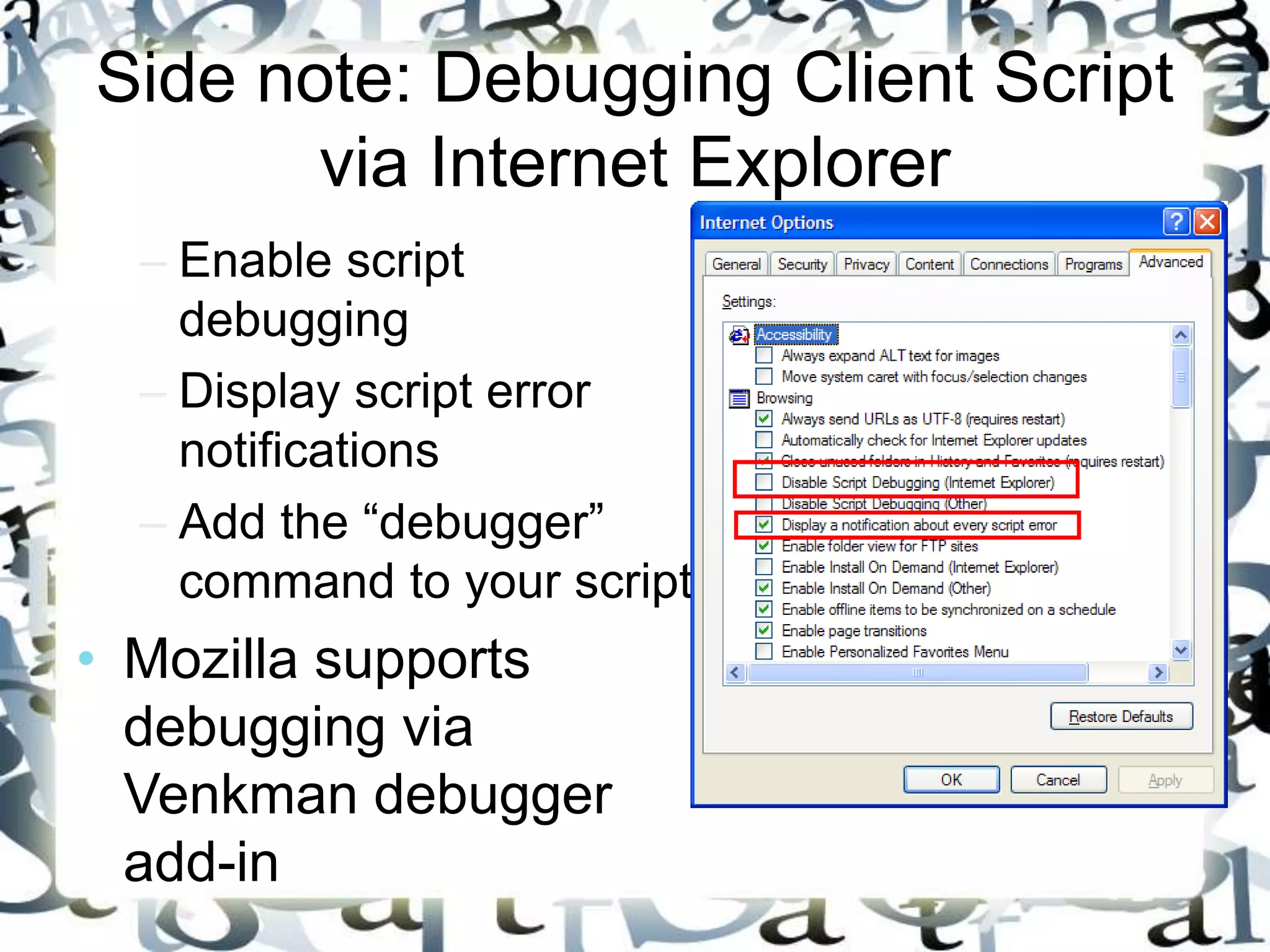

Side note: Debugging Client Script
via Internet Explorer
– Enable script
debugging
– Display script error
notifications
– Add the “debugger”
command to your script
• Mozilla supports
debugging via
Venkman debugger
add-in

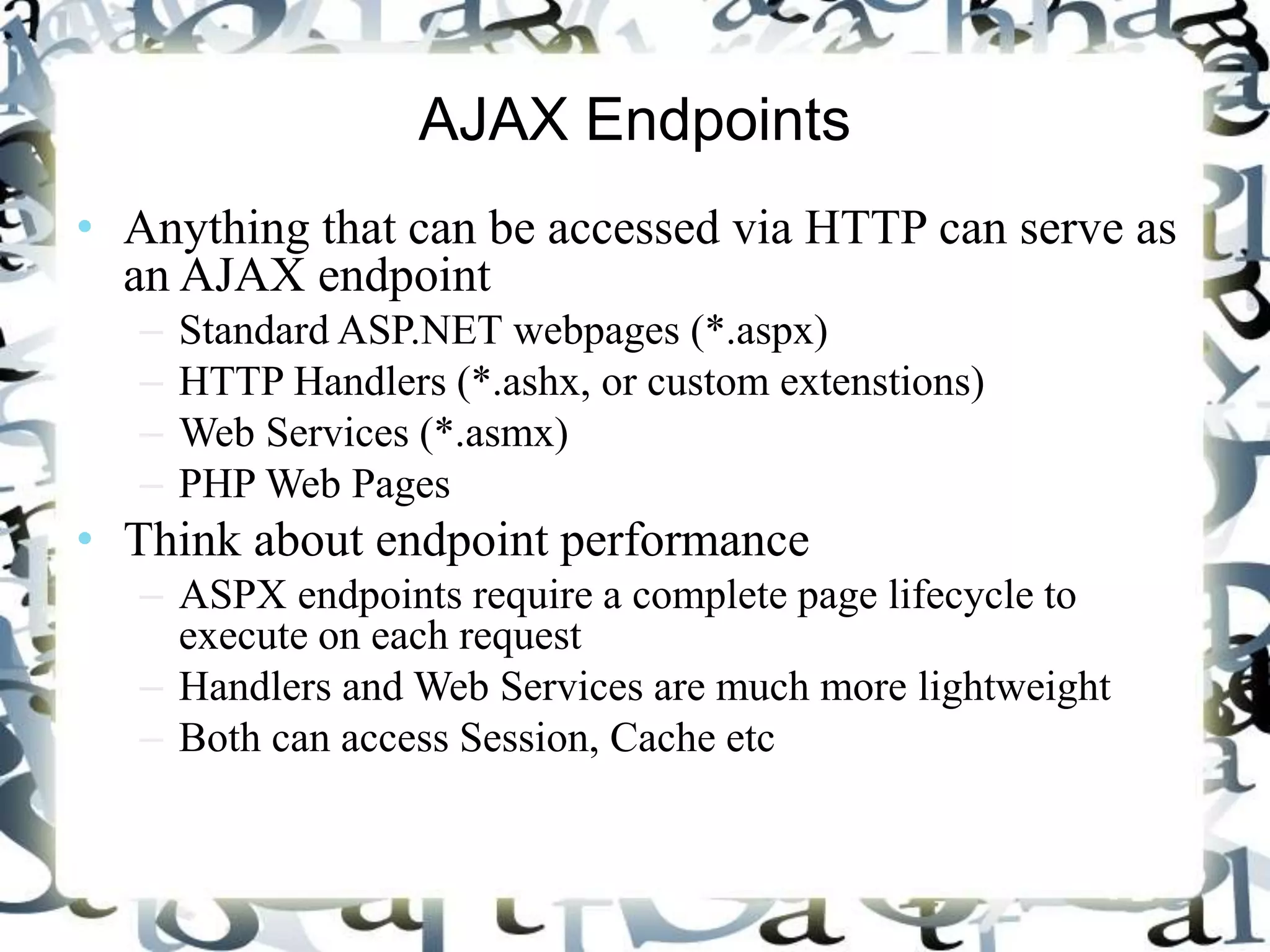

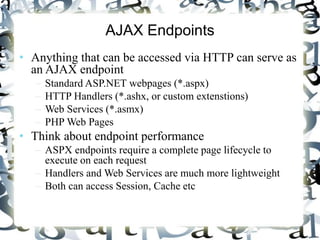

AJAX Endpoints
• Anything that can be accessed via HTTP can serve as
an AJAX endpoint
– Standard ASP.NET webpages (*.aspx)
– HTTP Handlers (*.ashx, or custom extenstions)
– Web Services (*.asmx)
– PHP Web Pages
• Think about endpoint performance
– ASPX endpoints require a complete page lifecycle to
execute on each request
– Handlers and Web Services are much more lightweight
– Both can access Session, Cache etc

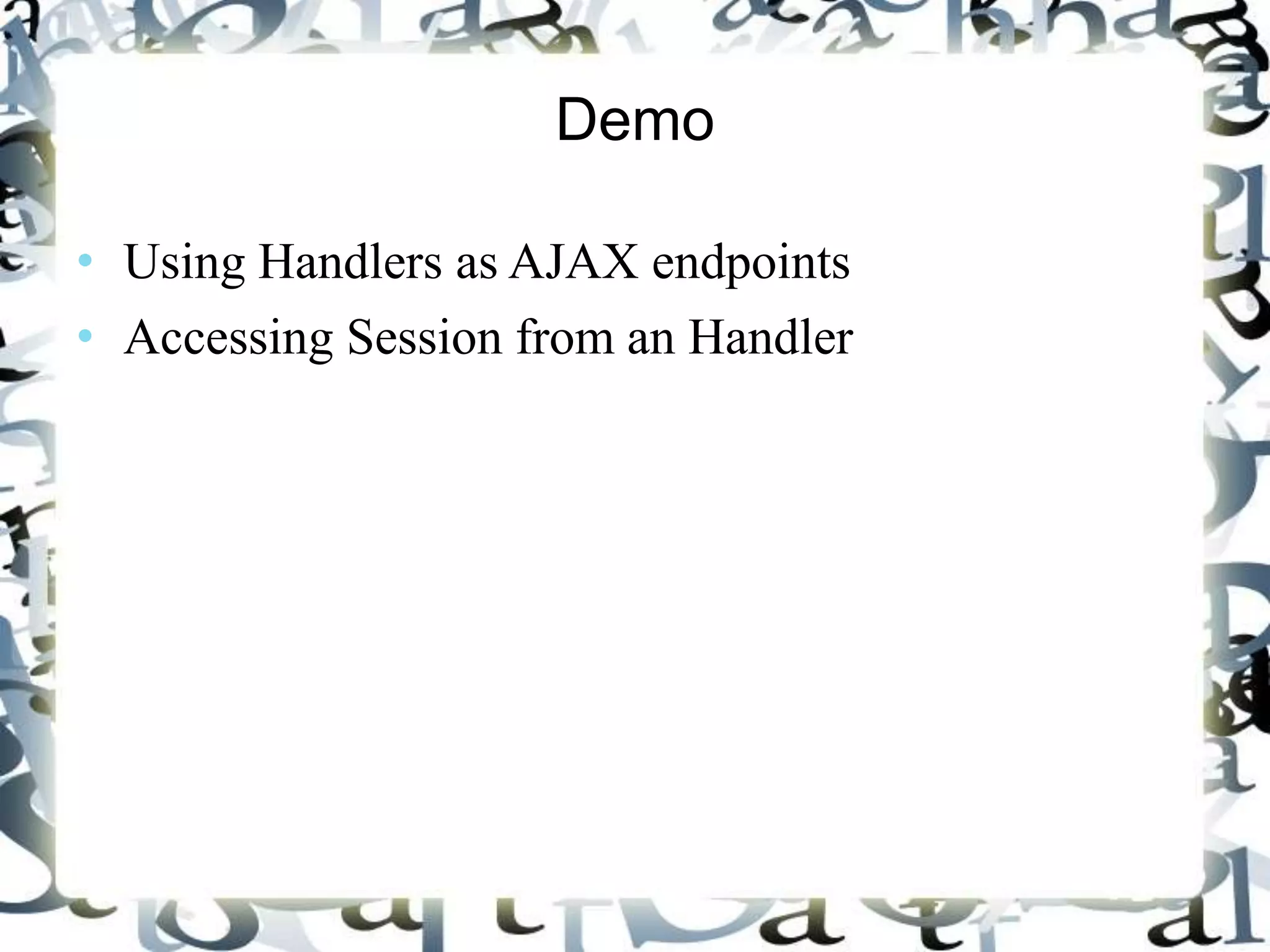

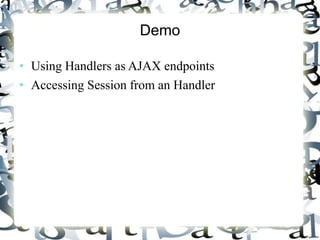

Demo
• Using Handlers as AJAX endpoints
• Accessing Session from an Handler

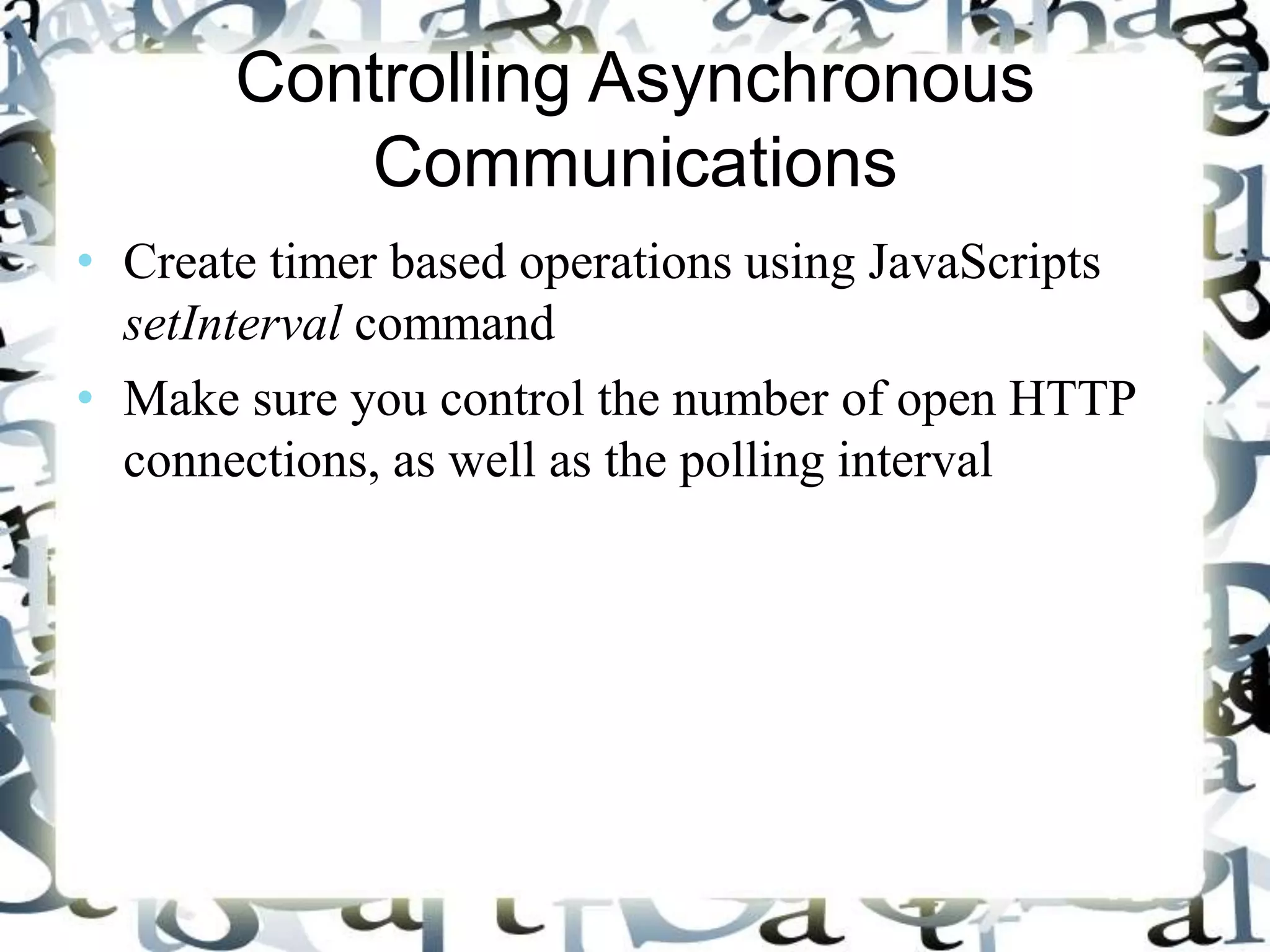

Controlling Asynchronous
Communications
• Create timer based operations using JavaScripts
setInterval command
• Make sure you control the number of open HTTP
connections, as well as the polling interval

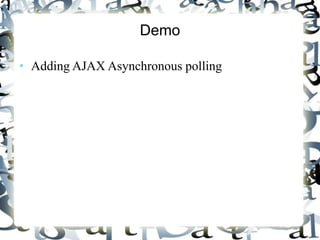

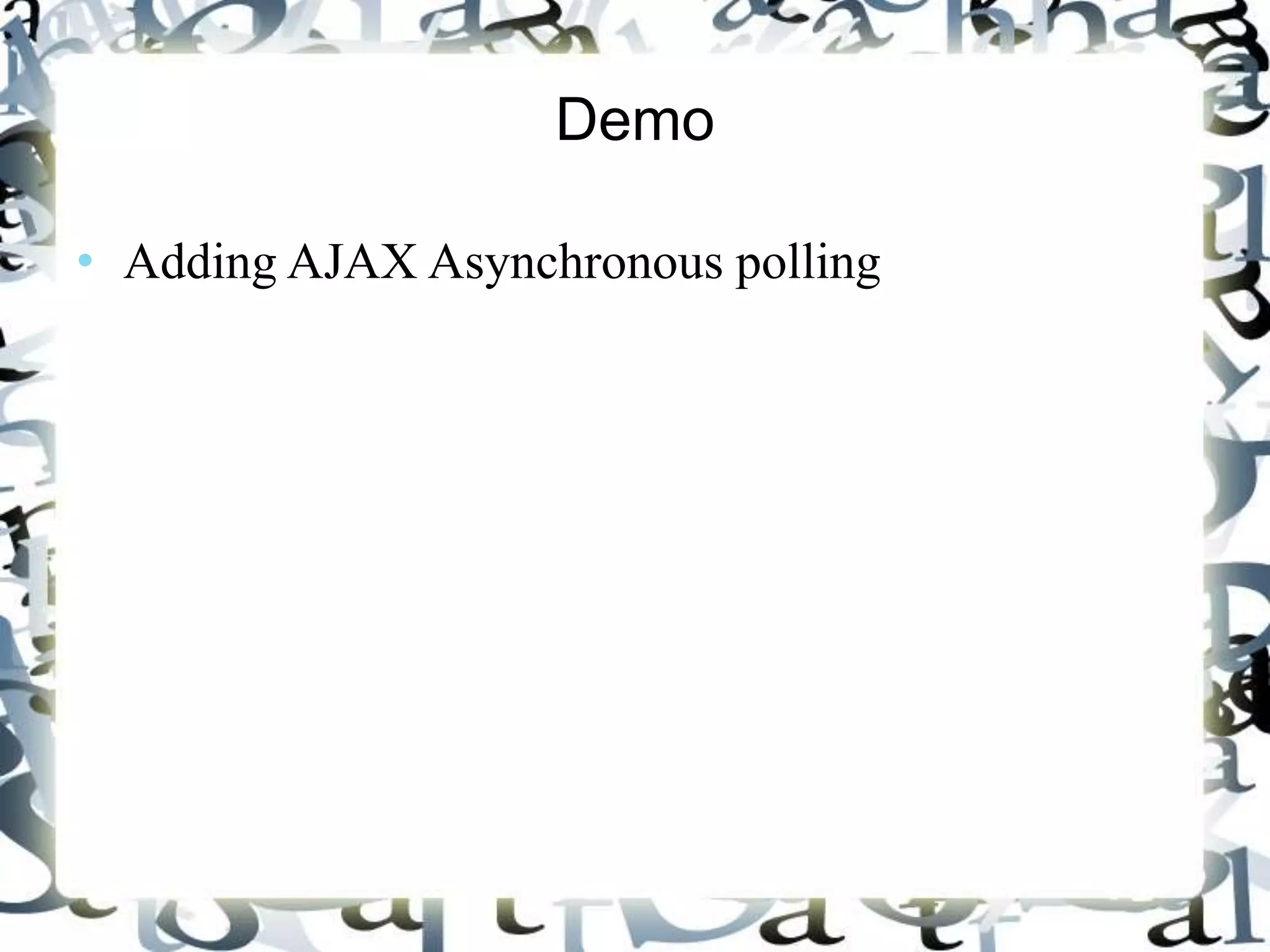

Demo
• Adding AJAX Asynchronous polling

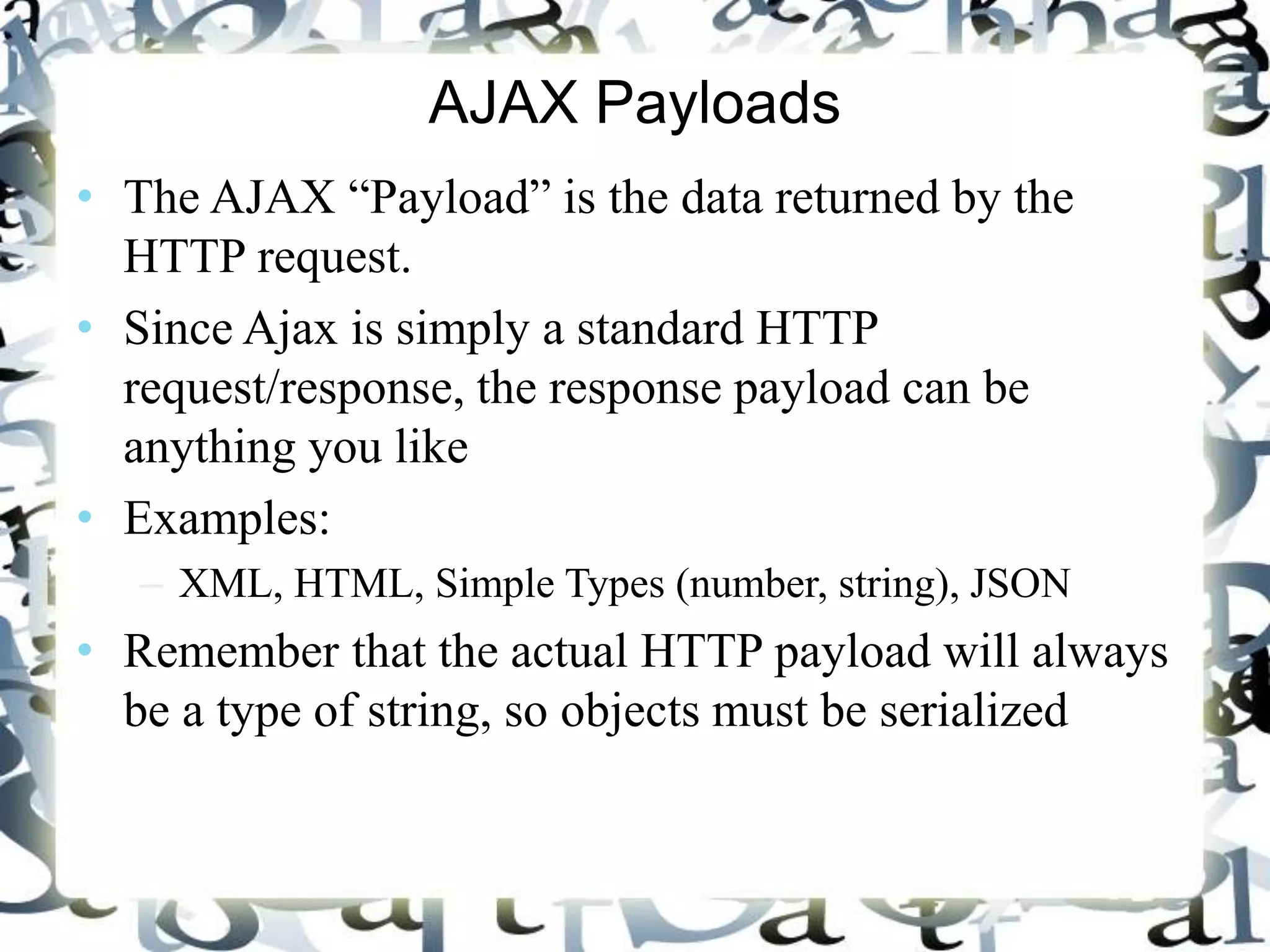

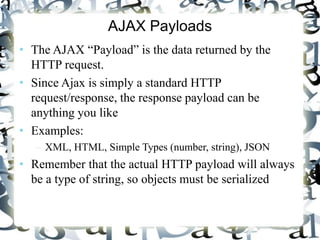

AJAX Payloads
• The AJAX “Payload” is the data returned by the
HTTP request.
• Since Ajax is simply a standard HTTP
request/response, the response payload can be
anything you like
• Examples:
– XML, HTML, Simple Types (number, string), JSON
• Remember that the actual HTTP payload will always
be a type of string, so objects must be serialized

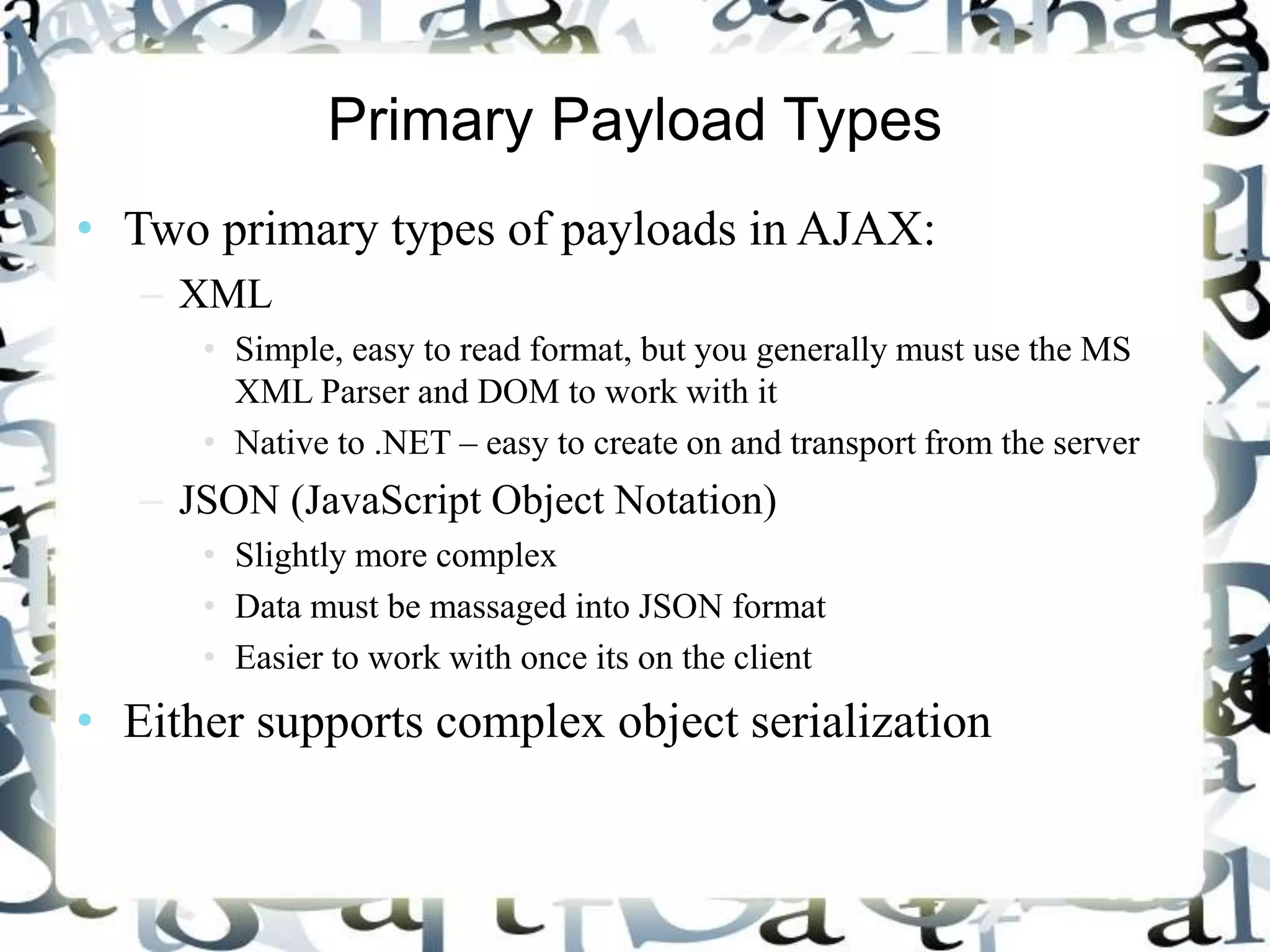

Primary Payload Types
• Two primary types of payloads in AJAX:
– XML
• Simple, easy to read format, but you generally must use the MS
XML Parser and DOM to work with it
• Native to .NET – easy to create on and transport from the server
– JSON (JavaScript Object Notation)
• Slightly more complex
• Data must be massaged into JSON format
• Easier to work with once its on the client
• Either supports complex object serialization

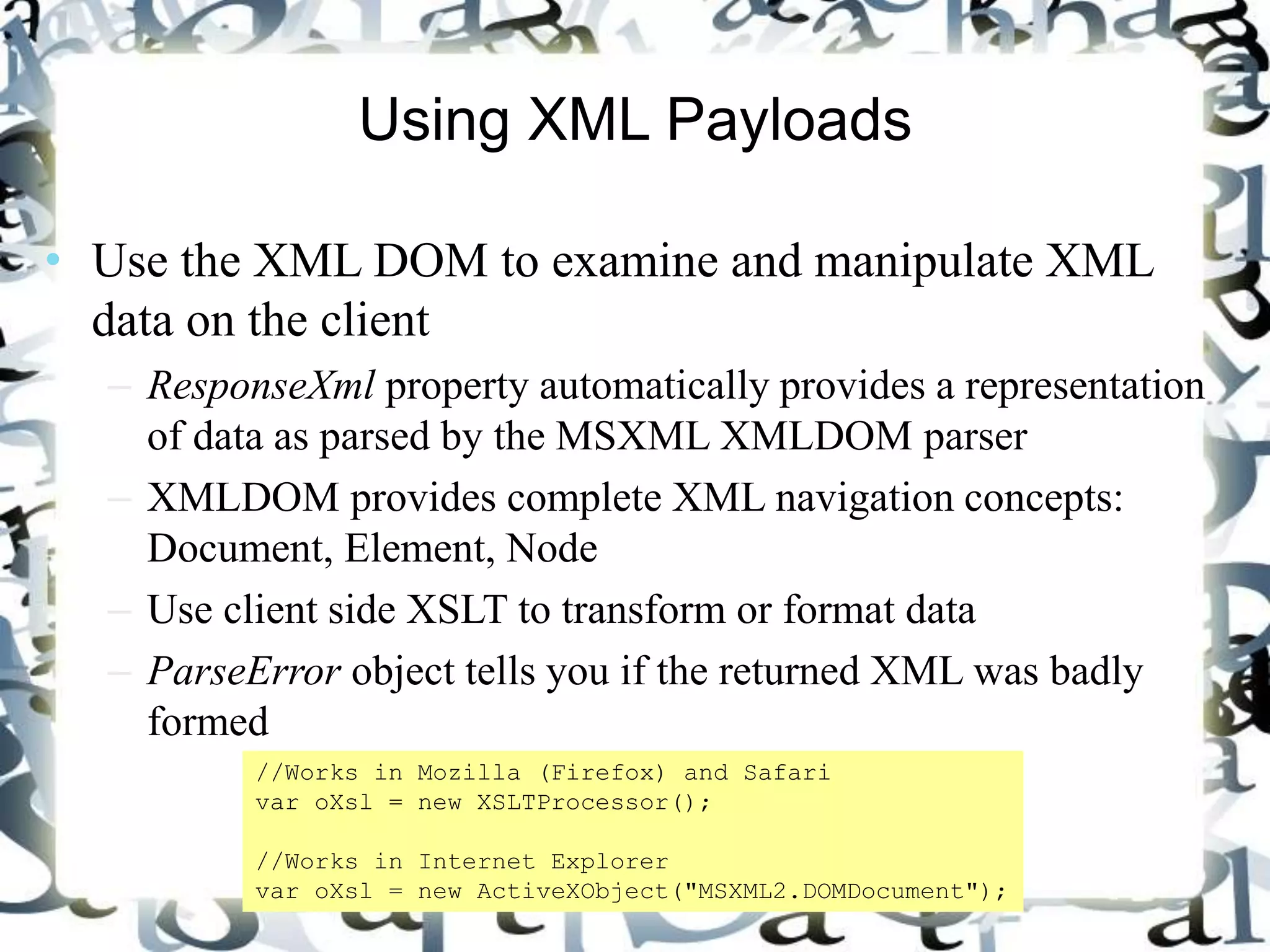

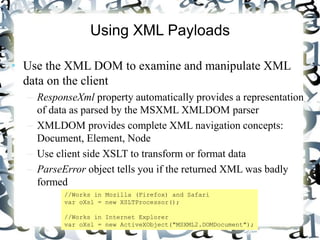

Using XML Payloads
• Use the XML DOM to examine and manipulate XML
data on the client
– ResponseXml property automatically provides a representation
of data as parsed by the MSXML XMLDOM parser
– XMLDOM provides complete XML navigation concepts:
Document, Element, Node
– Use client side XSLT to transform or format data
– ParseError object tells you if the returned XML was badly
formed
//Works in Mozilla (Firefox) and Safari
var oXsl = new XSLTProcessor();
//Works in Internet Explorer
var oXsl = new ActiveXObject("MSXML2.DOMDocument");

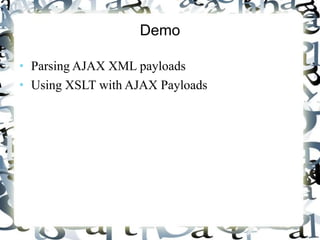

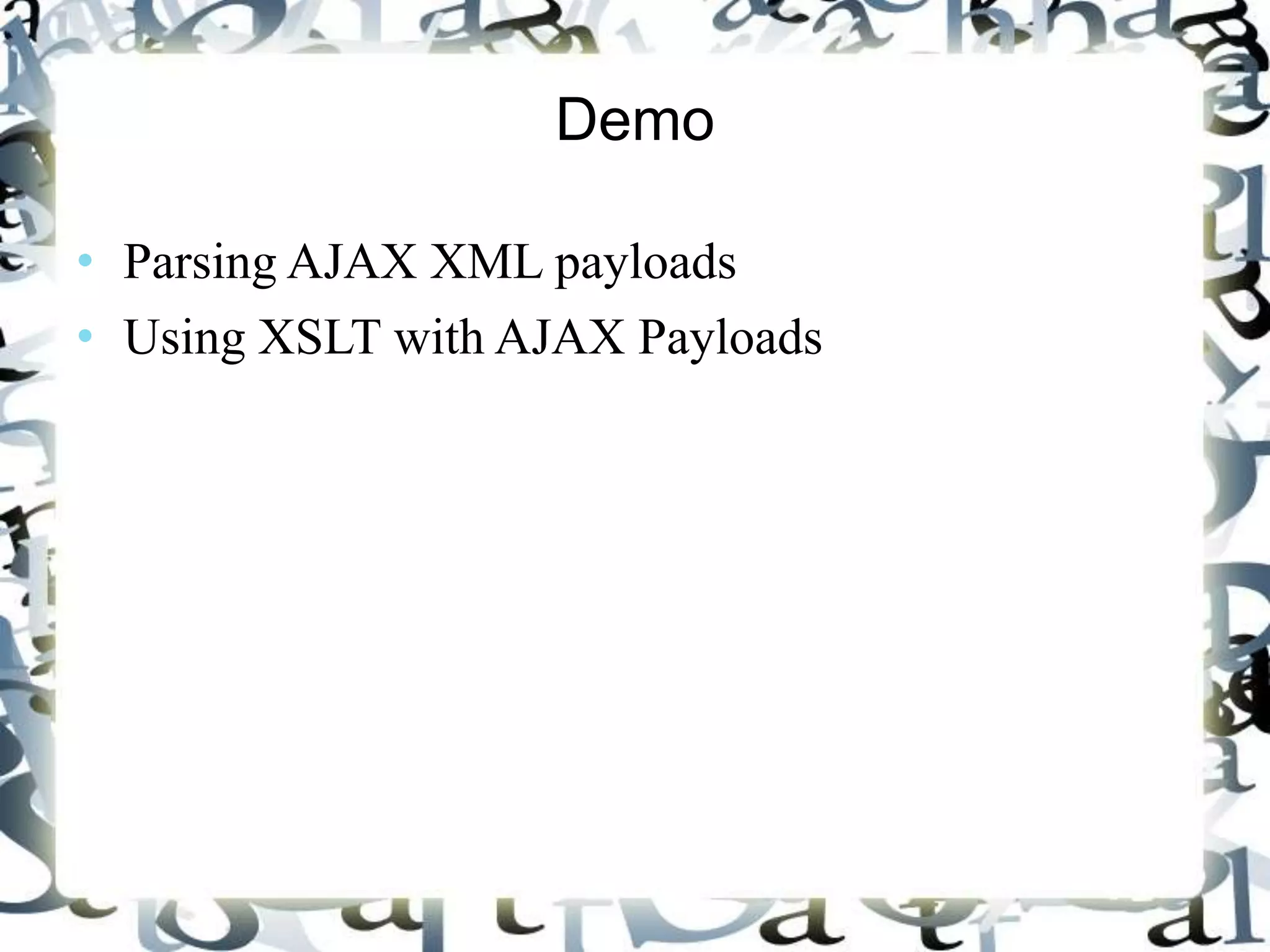

Demo
• Parsing AJAX XML payloads
• Using XSLT with AJAX Payloads

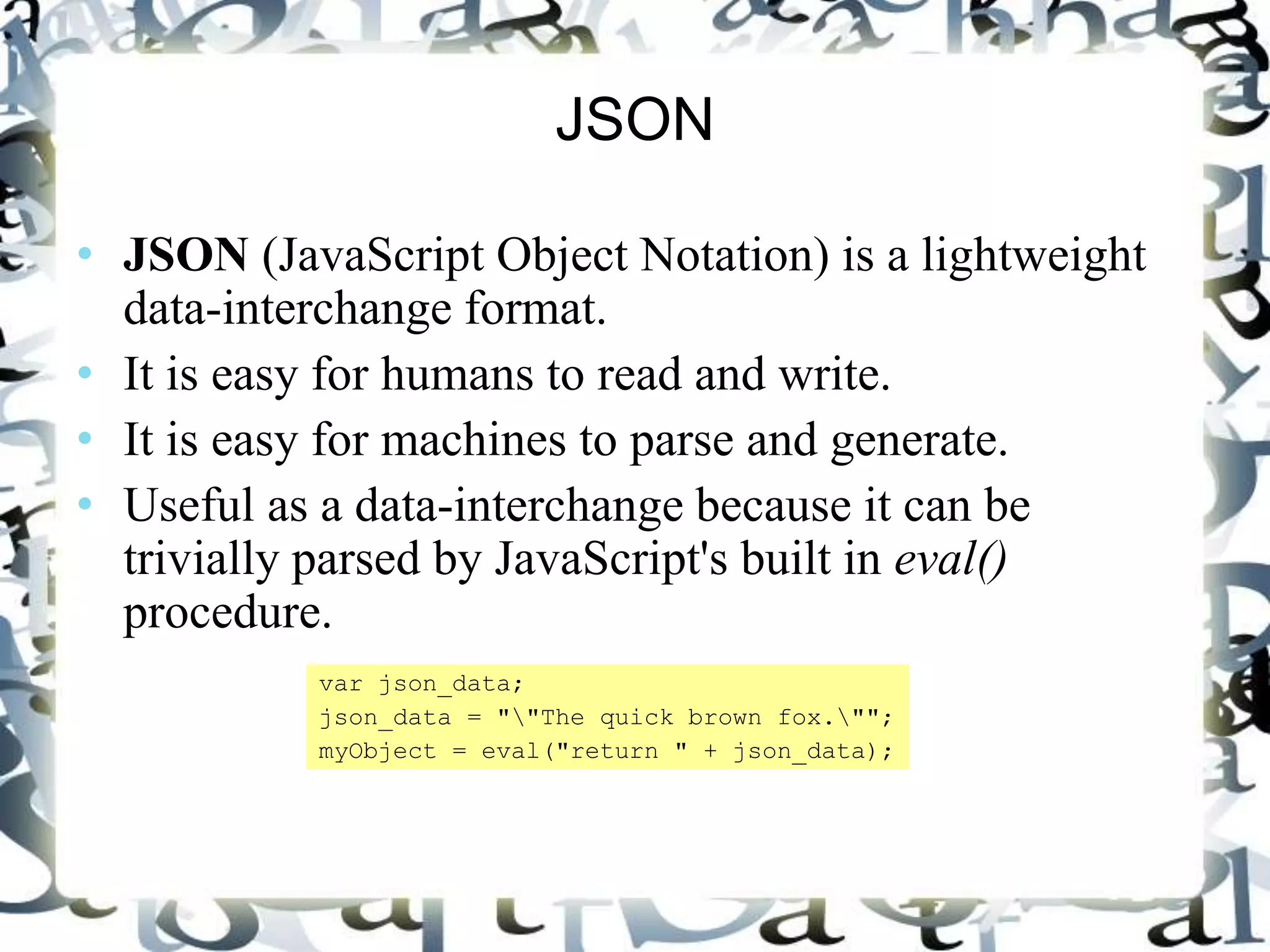

JSON
• JSON (JavaScript Object Notation) is a lightweight
data-interchange format.
• It is easy for humans to read and write.
• It is easy for machines to parse and generate.
• Useful as a data-interchange because it can be
trivially parsed by JavaScript's built in eval()
procedure.
var json_data;
json_data = ""The quick brown fox."";
myObject = eval("return " + json_data);

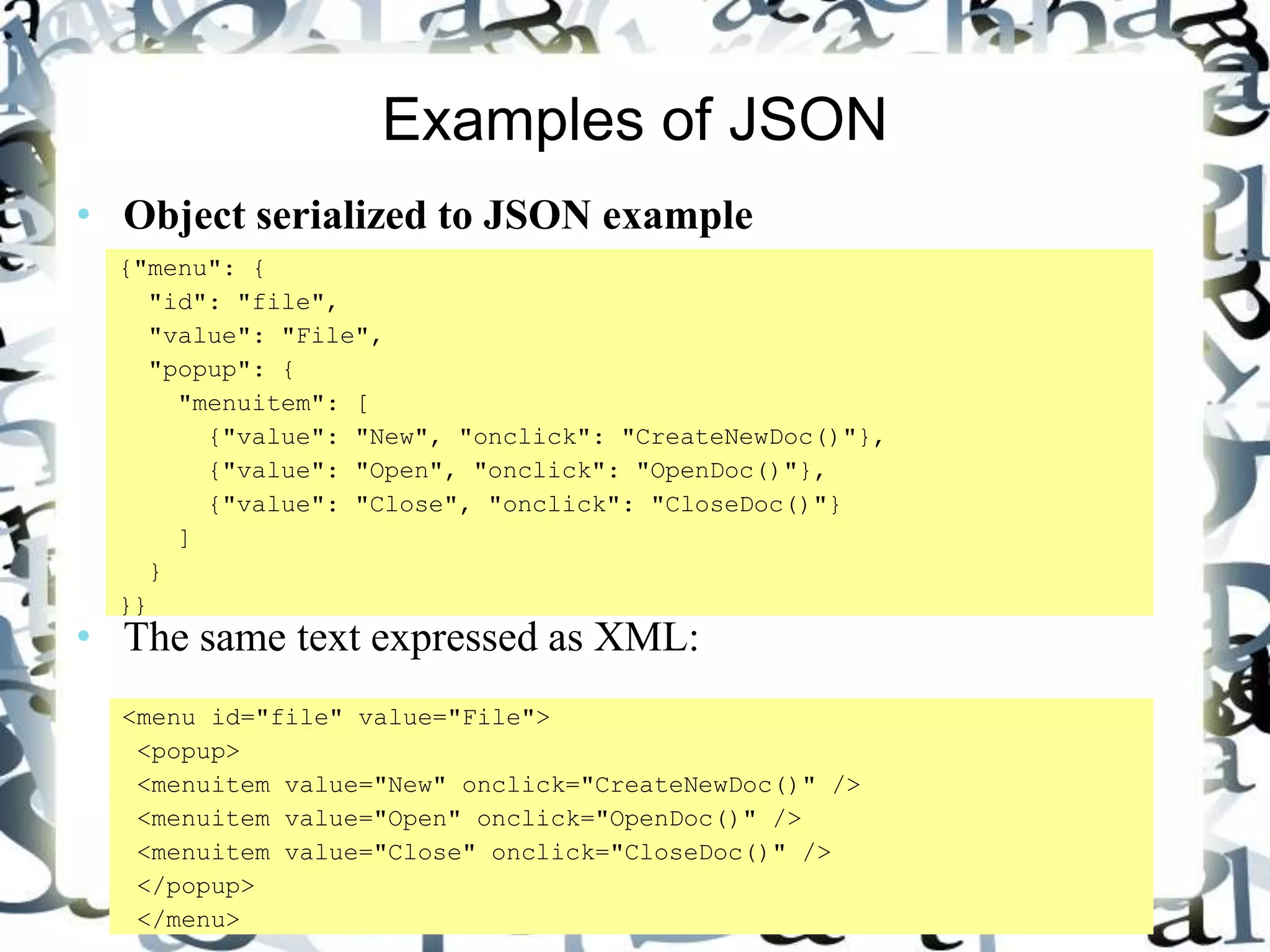

Examples of JSON
• Object serialized to JSON example
{"menu": {
"id": "file",
"value": "File",
"popup": {
"menuitem": [
{"value": "New", "onclick": "CreateNewDoc()"},
{"value": "Open", "onclick": "OpenDoc()"},
{"value": "Close", "onclick": "CloseDoc()"}
]
}
}}
• The same text expressed as XML:
<menu id="file" value="File">
<popup>
<menuitem value="New" onclick="CreateNewDoc()" />
<menuitem value="Open" onclick="OpenDoc()" />
<menuitem value="Close" onclick="CloseDoc()" />
</popup>
</menu>

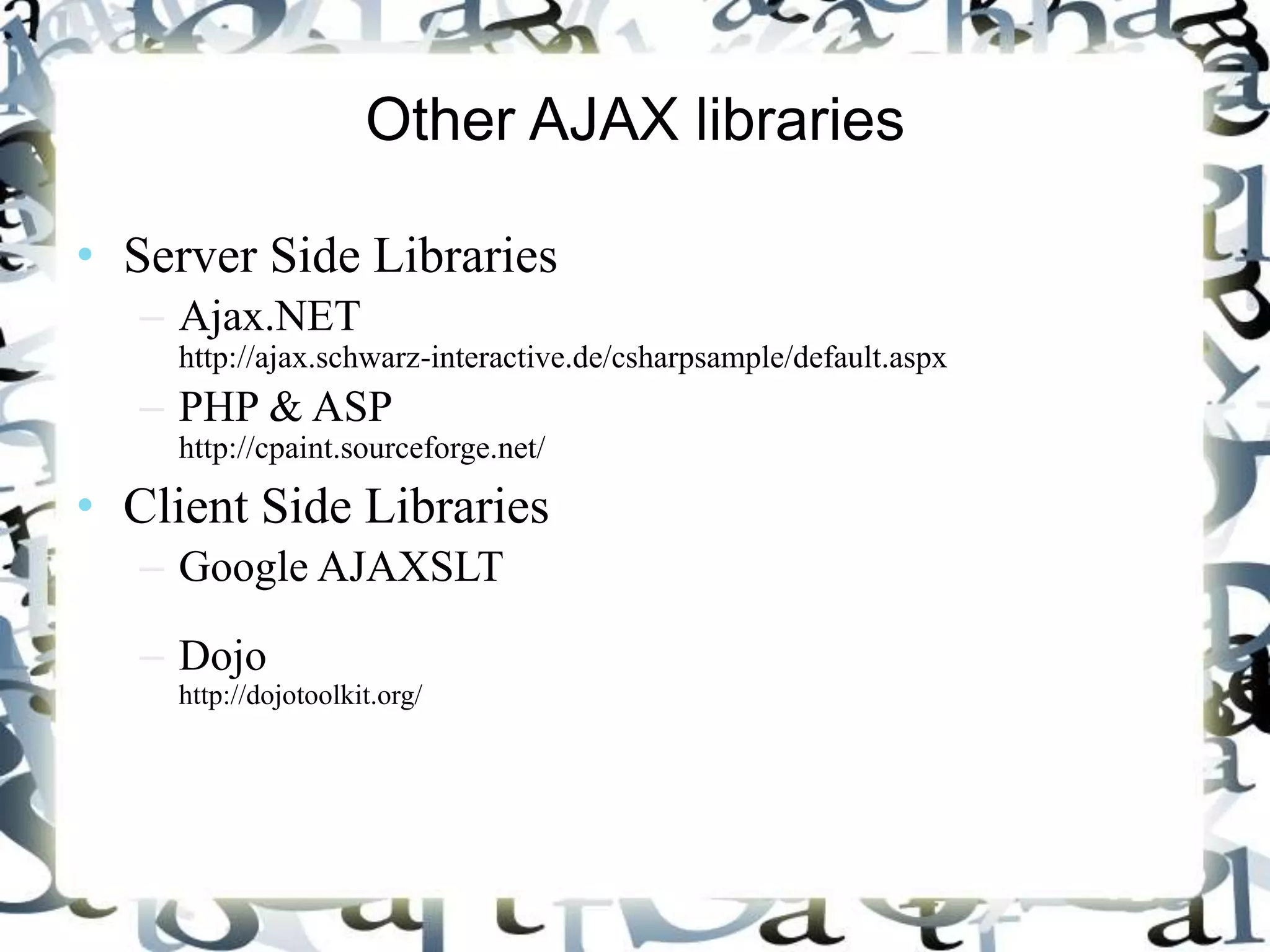

Other AJAX libraries
• Server Side Libraries
– Ajax.NET
http://ajax.schwarz-interactive.de/csharpsample/default.aspx
– PHP & ASP
http://cpaint.sourceforge.net/
• Client Side Libraries
– Google AJAXSLT
http://goog-ajaxslt.sourceforge.net/
– Dojo
http://dojotoolkit.org/

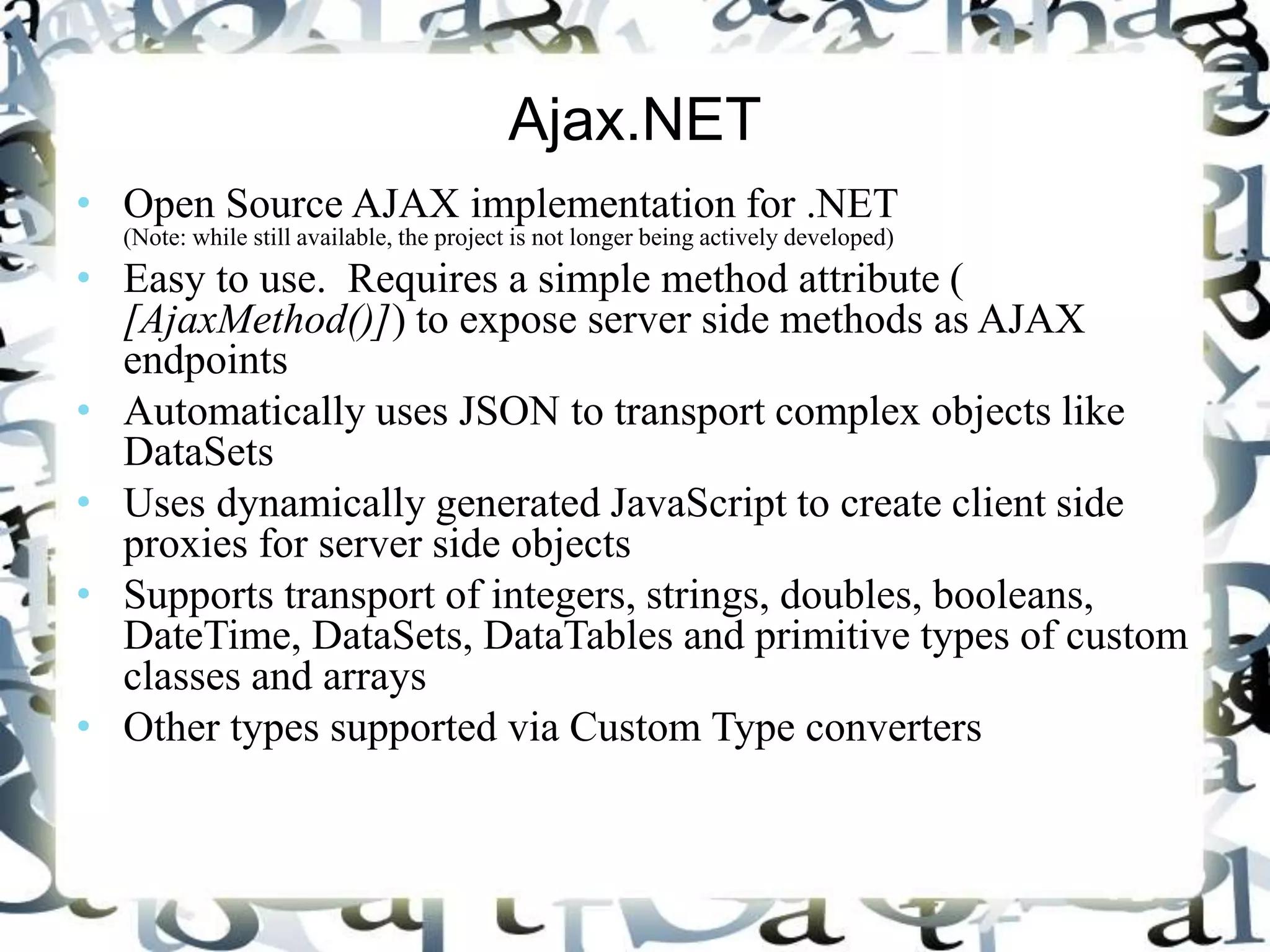

Ajax.NET
• Open Source AJAX implementation for .NET
(Note: while still available, the project is not longer being actively developed)
• Easy to use. Requires a simple method attribute (
[AjaxMethod()]) to expose server side methods as AJAX
endpoints
• Automatically uses JSON to transport complex objects like
DataSets
• Uses dynamically generated JavaScript to create client side
proxies for server side objects
• Supports transport of integers, strings, doubles, booleans,
DateTime, DataSets, DataTables and primitive types of custom
classes and arrays
• Other types supported via Custom Type converters

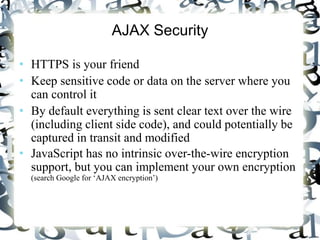

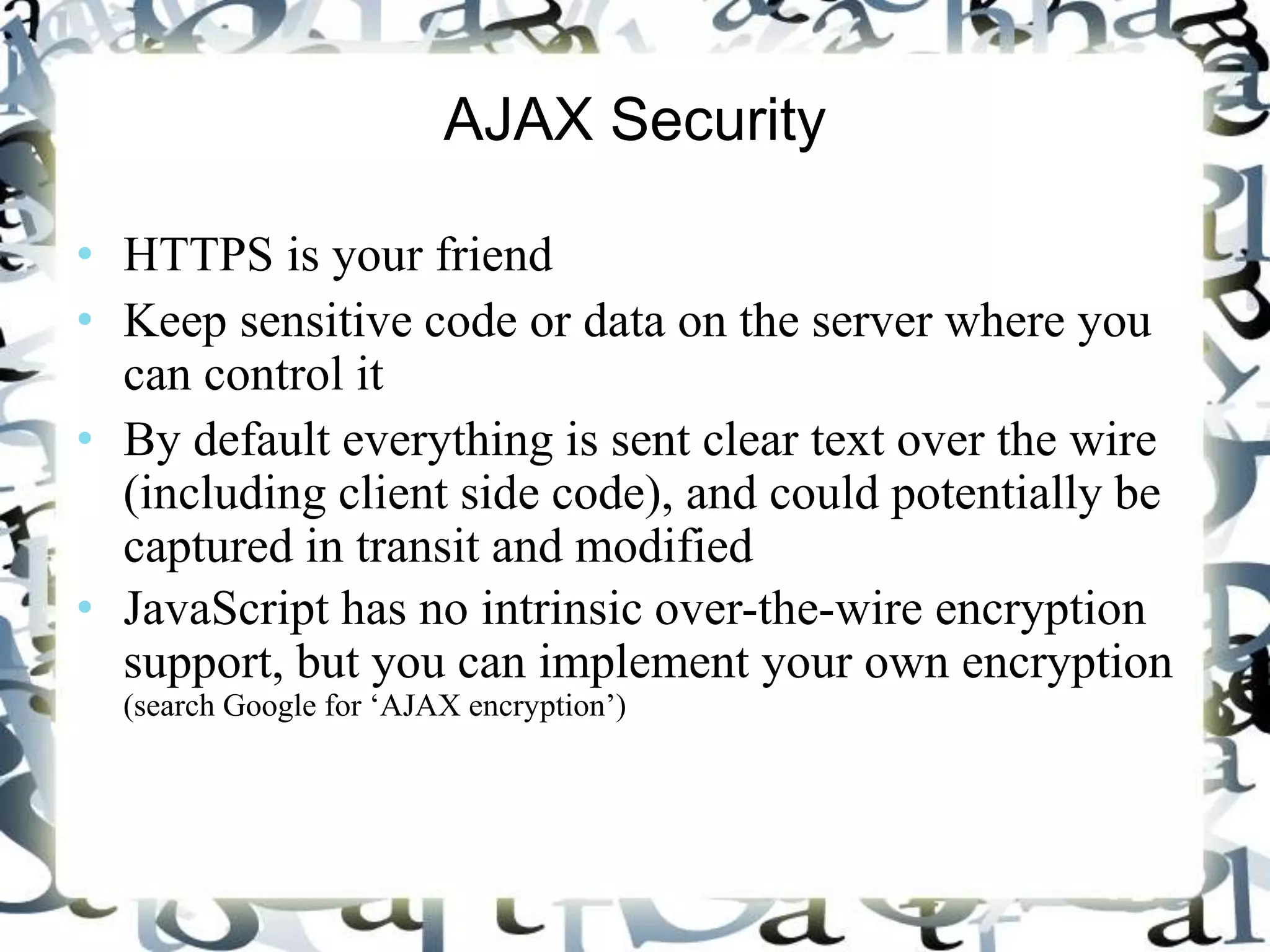

AJAX Security
• HTTPS is your friend
• Keep sensitive code or data on the server where you
can control it
• By default everything is sent clear text over the wire
(including client side code), and could potentially be
captured in transit and modified
• JavaScript has no intrinsic over-the-wire encryption
support, but you can implement your own encryption
(search Google for ‘AJAX encryption’)

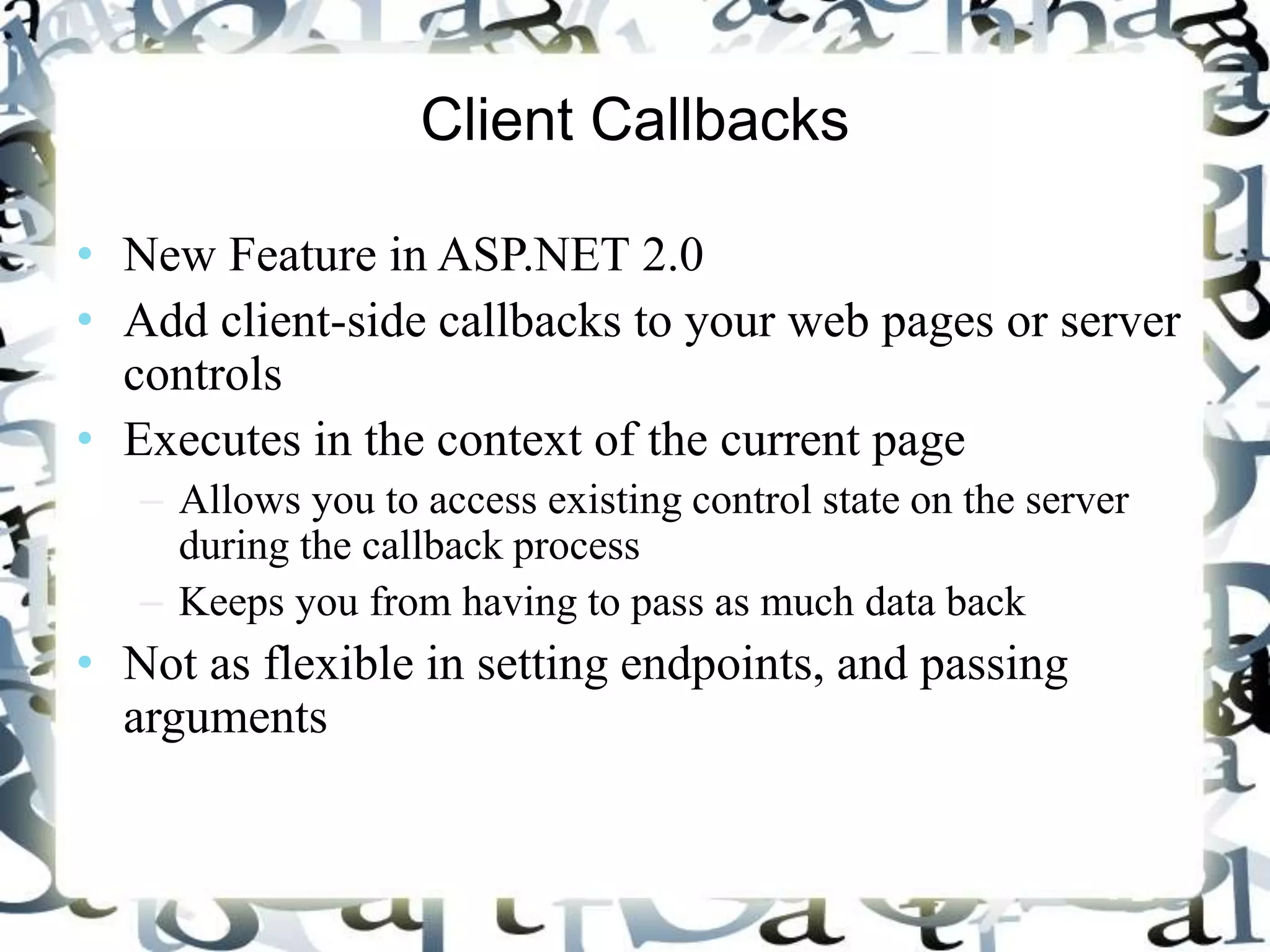

Client Callbacks
• New Feature in ASP.NET 2.0
• Add client-side callbacks to your web pages or server
controls
• Executes in the context of the current page
– Allows you to access existing control state on the server
during the callback process
– Keeps you from having to pass as much data back
• Not as flexible in setting endpoints, and passing
arguments

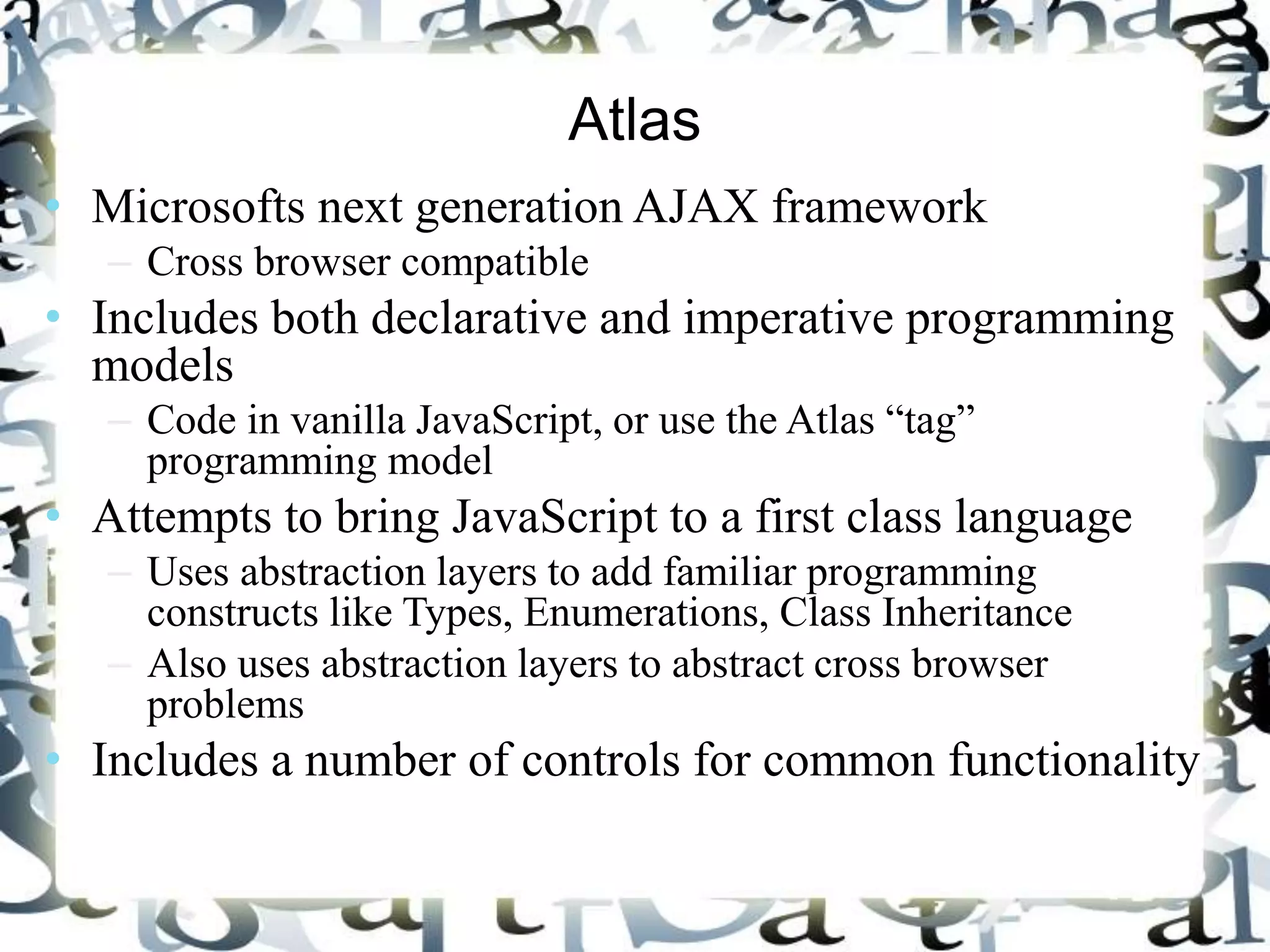

Atlas
• Microsofts next generation AJAX framework
– Cross browser compatible
• Includes both declarative and imperative programming
models
– Code in vanilla JavaScript, or use the Atlas “tag”
programming model
• Attempts to bring JavaScript to a first class language
– Uses abstraction layers to add familiar programming
constructs like Types, Enumerations, Class Inheritance
– Also uses abstraction layers to abstract cross browser
problems
• Includes a number of controls for common functionality

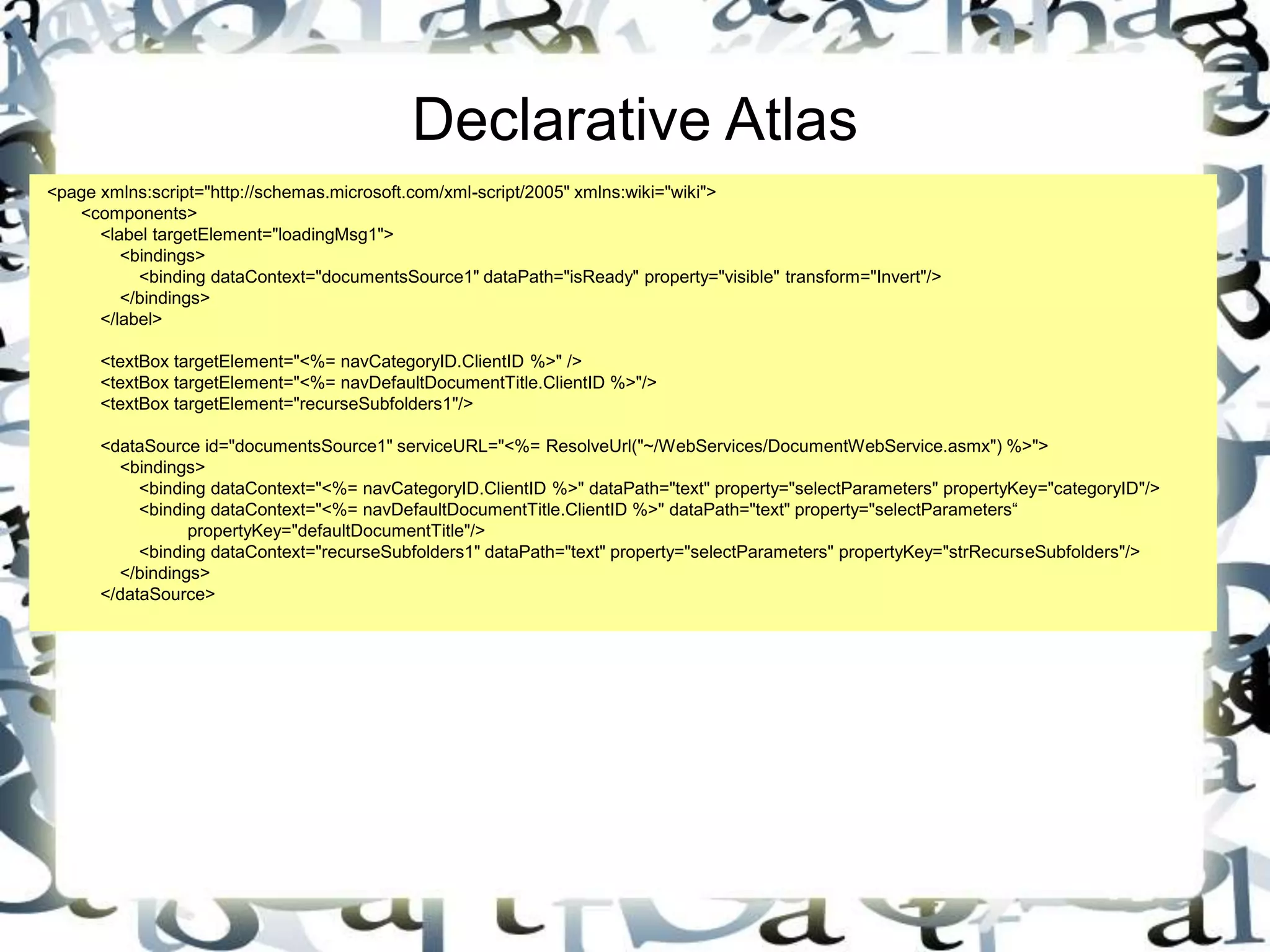

Declarative Atlas
<page xmlns:script="http://schemas.microsoft.com/xml-script/2005" xmlns:wiki="wiki">
<components>
<label targetElement="loadingMsg1">
<bindings>
<binding dataContext="documentsSource1" dataPath="isReady" property="visible" transform="Invert"/>
</bindings>
</label>
<textBox targetElement="<%= navCategoryID.ClientID %>" />
<textBox targetElement="<%= navDefaultDocumentTitle.ClientID %>"/>
<textBox targetElement="recurseSubfolders1"/>
<dataSource id="documentsSource1" serviceURL="<%= ResolveUrl("~/WebServices/DocumentWebService.asmx") %>">
<bindings>
<binding dataContext="<%= navCategoryID.ClientID %>" dataPath="text" property="selectParameters" propertyKey="categoryID"/>
<binding dataContext="<%= navDefaultDocumentTitle.ClientID %>" dataPath="text" property="selectParameters“
propertyKey="defaultDocumentTitle"/>
<binding dataContext="recurseSubfolders1" dataPath="text" property="selectParameters" propertyKey="strRecurseSubfolders"/>
</bindings>
</dataSource>

Synapseindia dot net development web applications with ajax

More Related Content

What's hot

Viewers also liked

Similar to Synapseindia dot net development web applications with ajax

More from Synapseindiappsdevelopment

Recently uploaded

Synapseindia dot net development web applications with ajax
