ASP.NET WEB API Training

ASP.NET WEB API
(ADVANCED COURSE)
Trainer:Chalermpon Areepong
Microsoft MVP : ASP.NET
ASP.NET & MVCTHAI DEVELOPERS GROUP
www.fb.com/groups/mvcthaidev

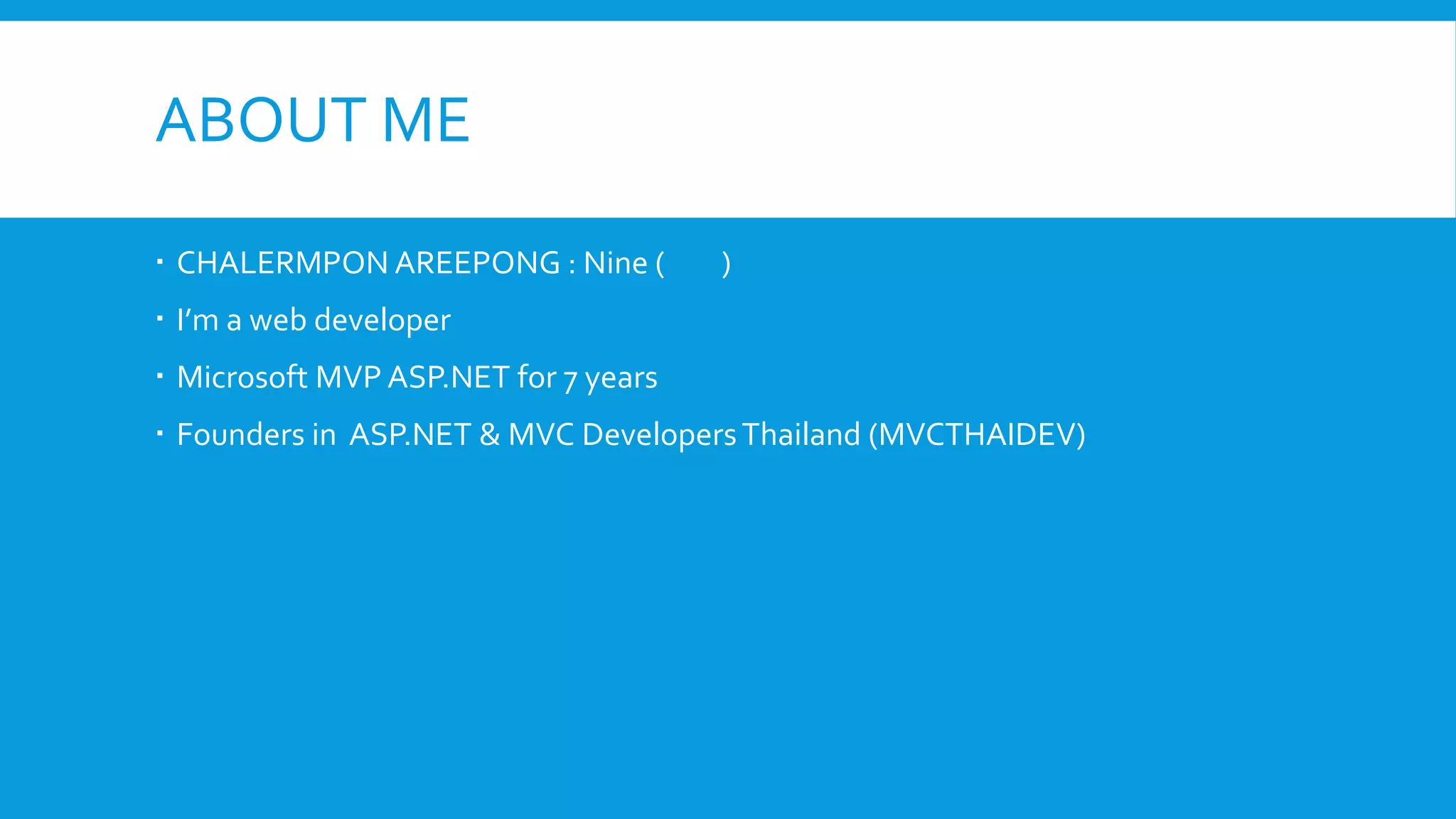

ABOUT ME
 CHALERMPON AREEPONG : Nine ( )
 I’m a web developer
 Microsoft MVP ASP.NET for 7 years
 Founders in ASP.NET & MVC DevelopersThailand (MVCTHAIDEV)

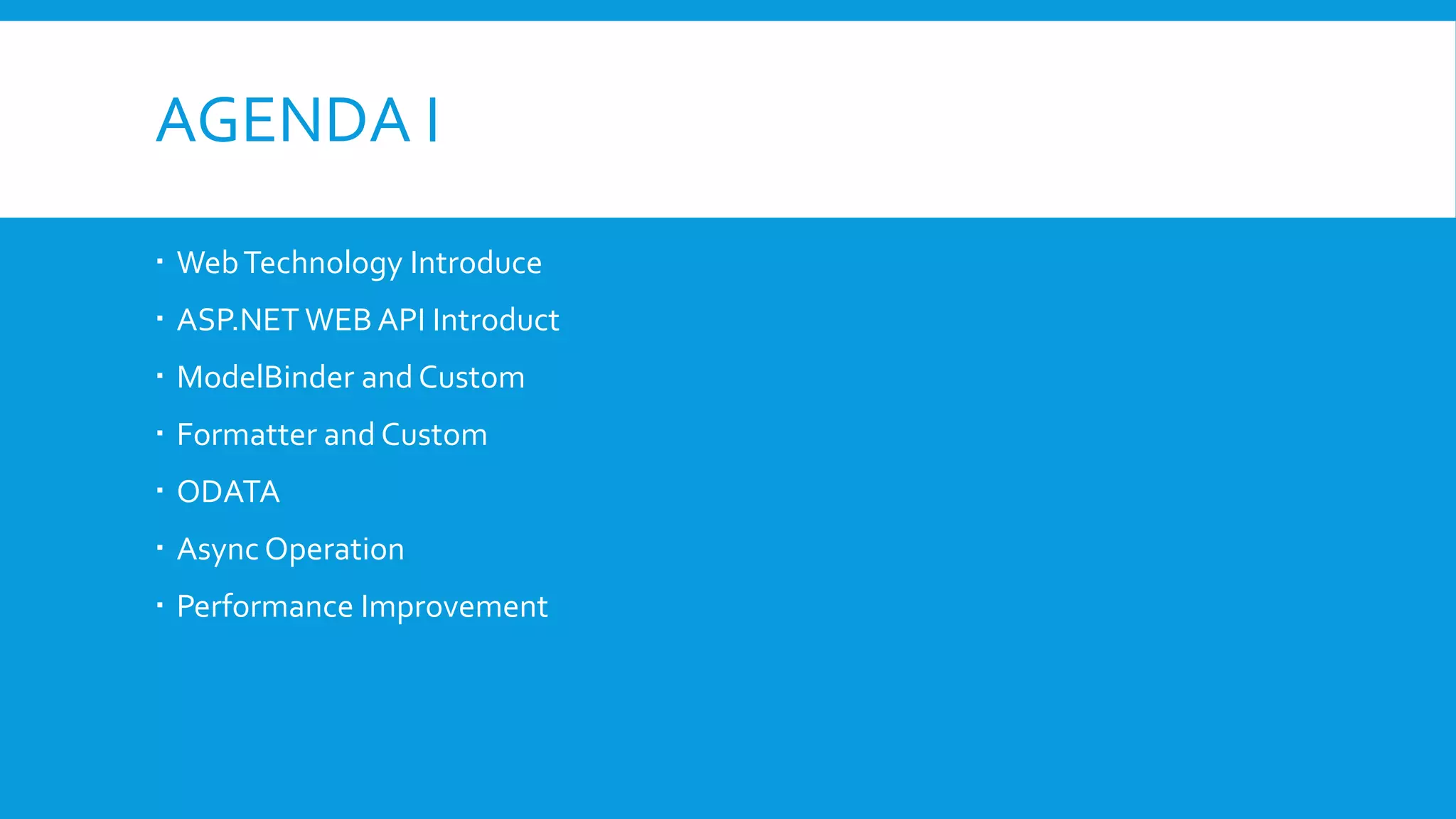

AGENDA I
 WebTechnology Introduce
 ASP.NET WEB API Introduct
 ModelBinder and Custom
 Formatter and Custom
 ODATA
 Async Operation
 Performance Improvement

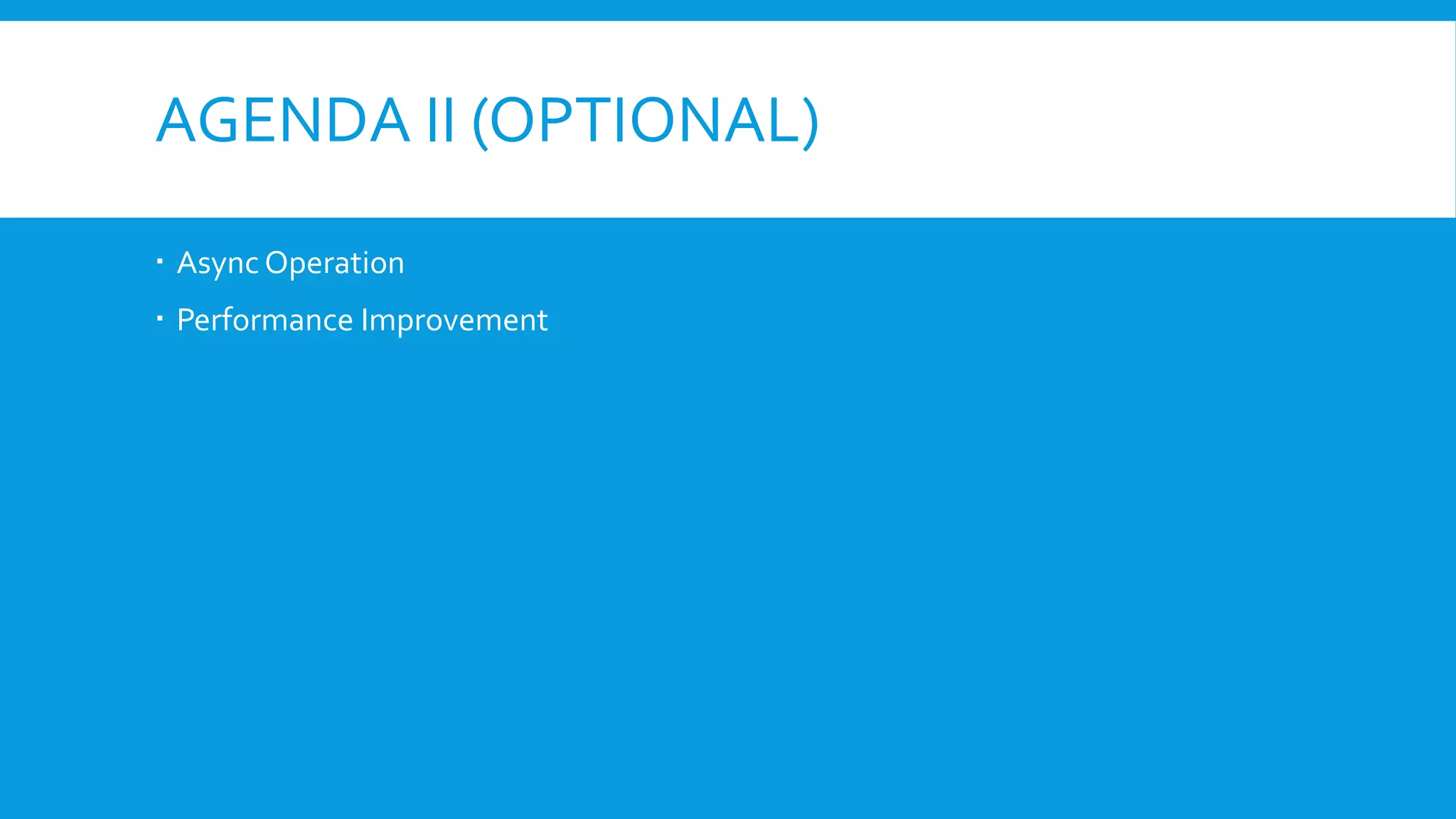

AGENDA II (OPTIONAL)
 Async Operation
 Performance Improvement

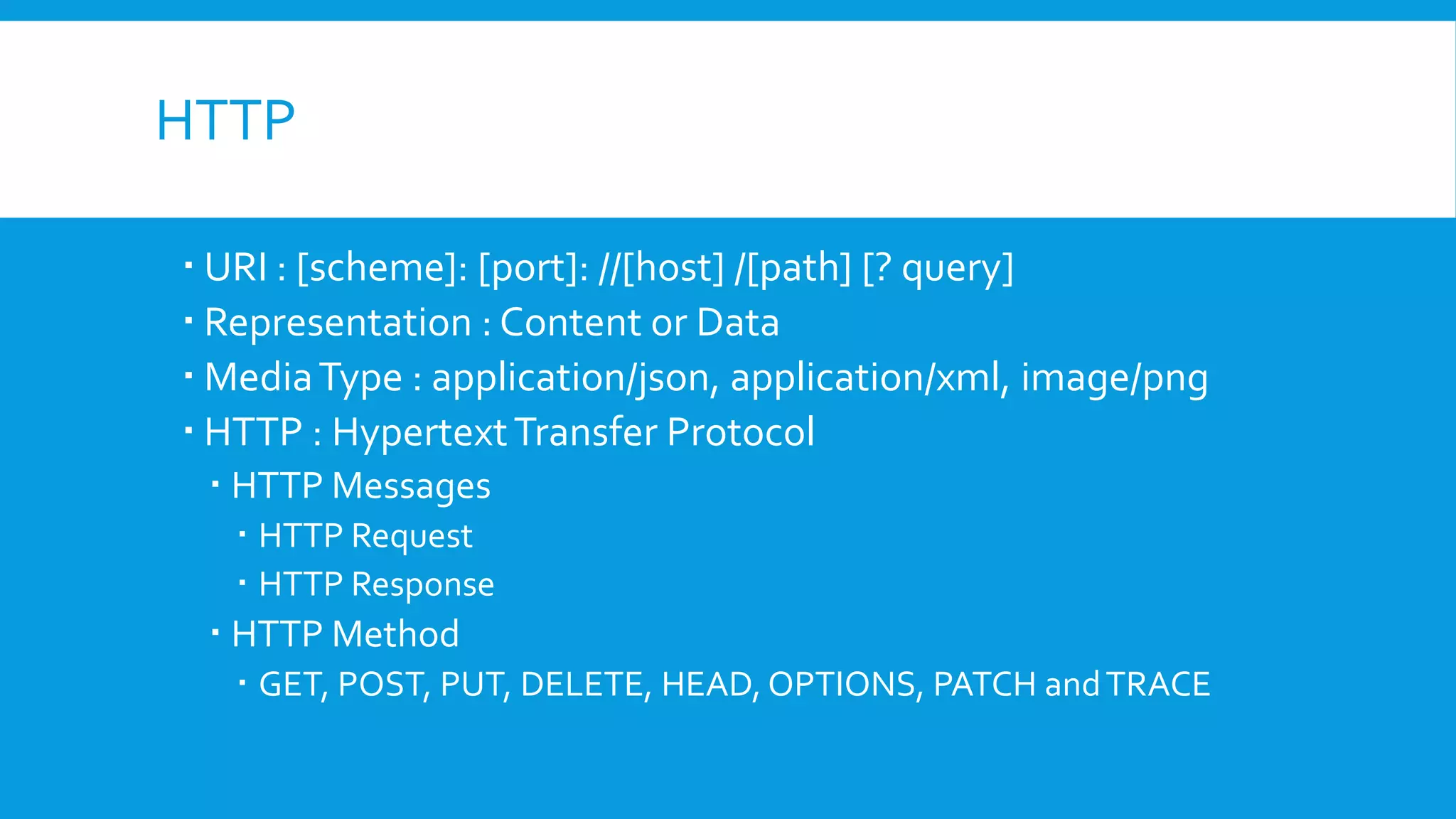

HTTP
 URI : [scheme]: [port]: //[host] /[path] [? query]
 Representation : Content or Data
 MediaType : application/json, application/xml, image/png
 HTTP : HypertextTransfer Protocol
 HTTP Messages
 HTTP Request
 HTTP Response
 HTTP Method
 GET, POST, PUT, DELETE, HEAD, OPTIONS, PATCH andTRACE

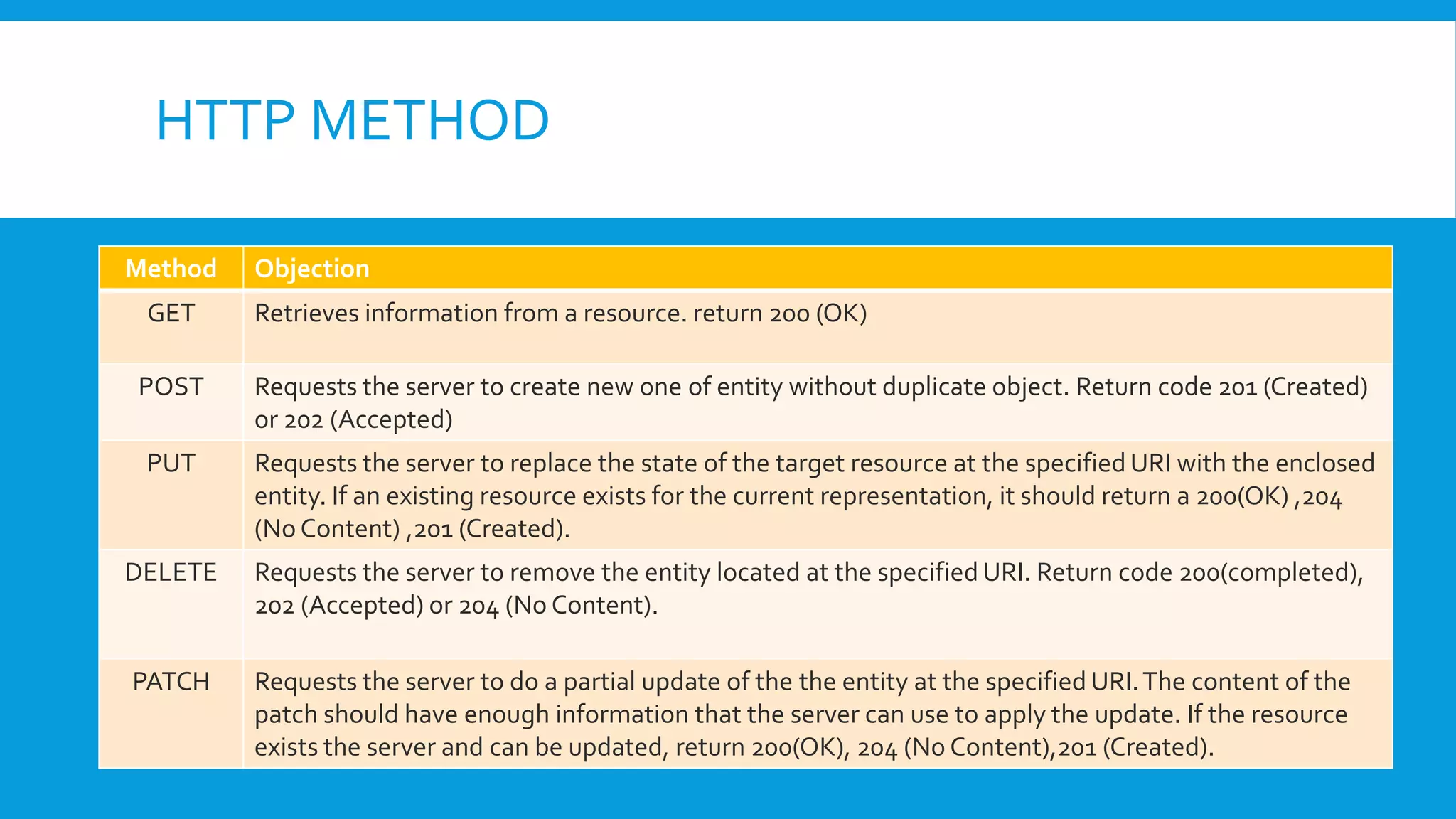

HTTP METHOD
Method Objection
GET Retrieves information from a resource. return 200 (OK)
POST Requests the server to create new one of entity without duplicate object. Return code 201 (Created)
or 202 (Accepted)
PUT Requests the server to replace the state of the target resource at the specifiedURI with the enclosed
entity. If an existing resource exists for the current representation, it should return a 200(OK) ,204
(No Content) ,201 (Created).
DELETE Requests the server to remove the entity located at the specified URI. Return code 200(completed),
202 (Accepted) or 204 (No Content).
PATCH Requests the server to do a partial update of the the entity at the specified URI.The content of the
patch should have enough information that the server can use to apply the update. If the resource
exists the server and can be updated, return 200(OK), 204 (No Content),201 (Created).

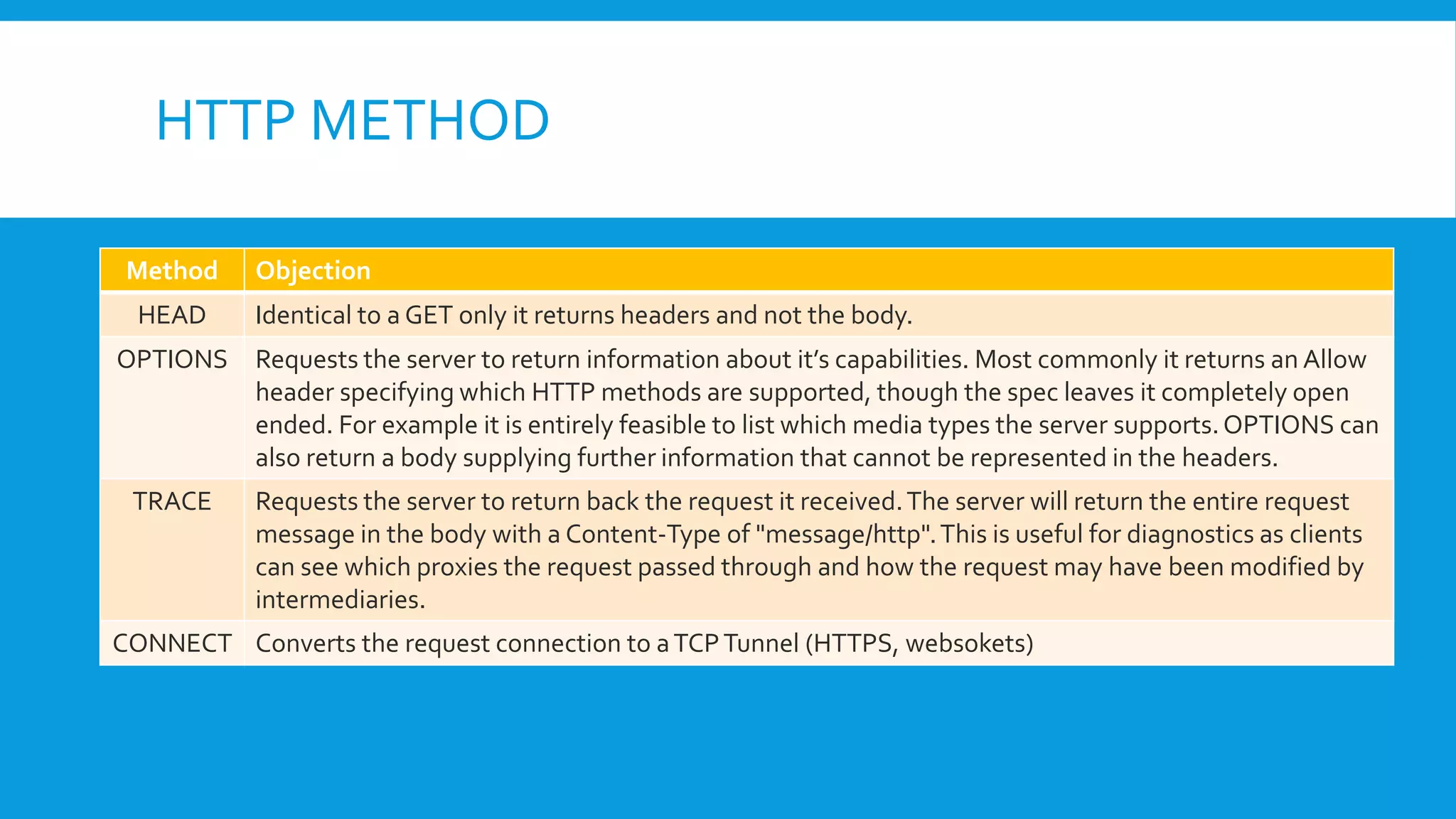

HTTP METHOD
Method Objection
HEAD Identical to a GET only it returns headers and not the body.
OPTIONS Requests the server to return information about it’s capabilities. Most commonly it returns an Allow
header specifying which HTTP methods are supported, though the spec leaves it completely open
ended. For example it is entirely feasible to list which media types the server supports.OPTIONS can
also return a body supplying further information that cannot be represented in the headers.
TRACE Requests the server to return back the request it received.The server will return the entire request
message in the body with a Content-Type of "message/http".This is useful for diagnostics as clients
can see which proxies the request passed through and how the request may have been modified by
intermediaries.
CONNECT Converts the request connection to aTCPTunnel (HTTPS, websokets)

WEB COMMUNICATION
Web Server
GET
Response
GET https://www.facebook.com/groups/mvcthaidev HTTP/1.1
method: GET
accept-encoding: gzip,deflate,sdch
url: /groups/mvcthaidev
host: www.facebook.com
accept-language: en-US,en;q=0.8
user-agent: Mozilla/5.0 (Windows NT 6.1;WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/27.0.1453.94
Safari/537.36
accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
version: HTTP/1.1
scheme: https

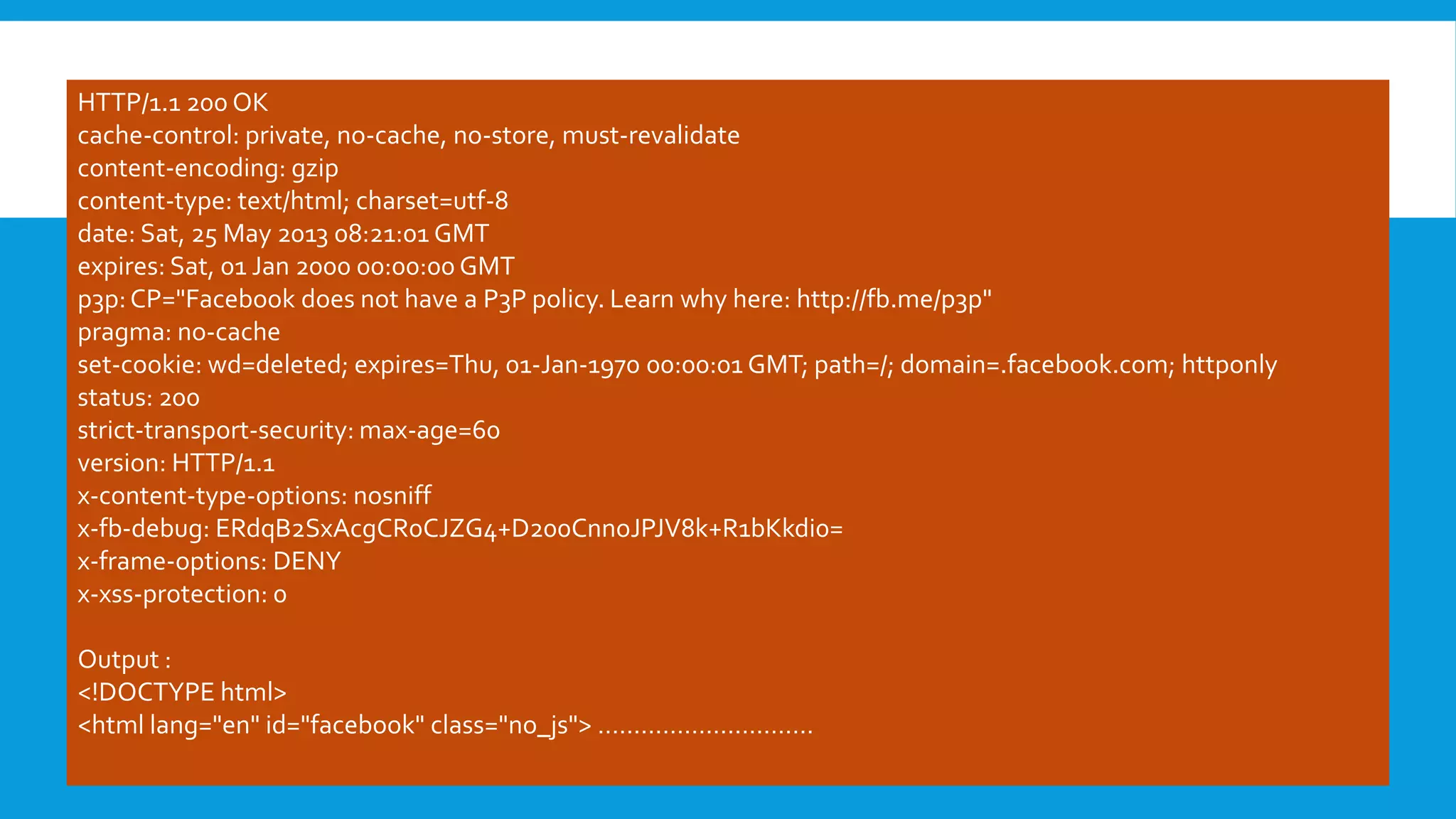

HTTP/1.1 200 OK
cache-control: private, no-cache, no-store, must-revalidate
content-encoding: gzip
content-type: text/html; charset=utf-8
date: Sat, 25 May 2013 08:21:01 GMT
expires: Sat, 01 Jan 2000 00:00:00 GMT
p3p:CP="Facebook does not have a P3P policy. Learn why here: http://fb.me/p3p"
pragma: no-cache
set-cookie: wd=deleted; expires=Thu, 01-Jan-1970 00:00:01 GMT; path=/; domain=.facebook.com; httponly
status: 200
strict-transport-security: max-age=60
version: HTTP/1.1
x-content-type-options: nosniff
x-fb-debug: ERdqB2SxAcgCR0CJZG4+D200CnnoJPJV8k+R1bKkdi0=
x-frame-options: DENY
x-xss-protection: 0
Output :
<!DOCTYPE html>
<html lang="en" id="facebook" class="no_js"> …………………………

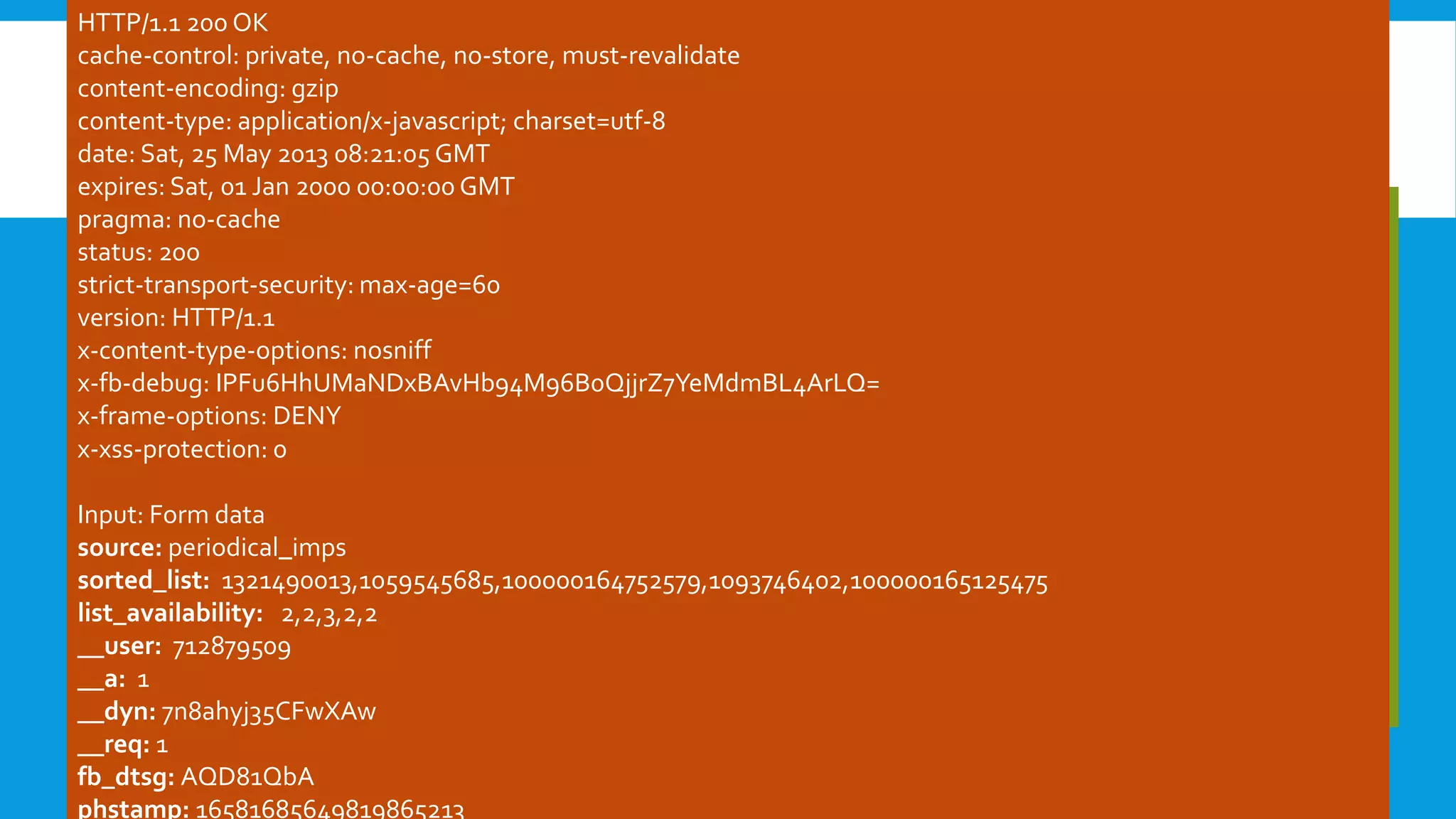

WEB COMMUNICATION
Web Server
POST
Response
POST https://www.facebook.com/ajax/chat/imps_logging.php HTTP/1.1
origin: https://www.facebook.com
method: POST
accept-encoding: gzip,deflate,sdch
url: /ajax/chat/imps_logging.php
host: www.facebook.com
accept-language: en-US,en;q=0.8
user-agent: Mozilla/5.0 (Windows NT 6.1;WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/27.0.1453.94
Safari/537.36
content-type: application/x-www-form-urlencoded
accept: */*
referer: https://www.facebook.com/groups/mvcthaidev
x-svn-rev: 826852
version: HTTP/1.1
content-length: 242
scheme: https
HTTP/1.1 200 OK
cache-control: private, no-cache, no-store, must-revalidate
content-encoding: gzip
content-type: application/x-javascript; charset=utf-8
date: Sat, 25 May 2013 08:21:05 GMT
expires: Sat, 01 Jan 2000 00:00:00 GMT
pragma: no-cache
status: 200
strict-transport-security: max-age=60
version: HTTP/1.1
x-content-type-options: nosniff
x-fb-debug: IPFu6HhUMaNDxBAvHb94M96B0QjjrZ7YeMdmBL4ArLQ=
x-frame-options: DENY
x-xss-protection: 0
Input: Form data
source: periodical_imps
sorted_list: 1321490013,1059545685,100000164752579,1093746402,100000165125475
list_availability: 2,2,3,2,2
__user: 712879509
__a: 1
__dyn: 7n8ahyj35CFwXAw
__req: 1
fb_dtsg: AQD81QbA
phstamp: 16581685649819865213

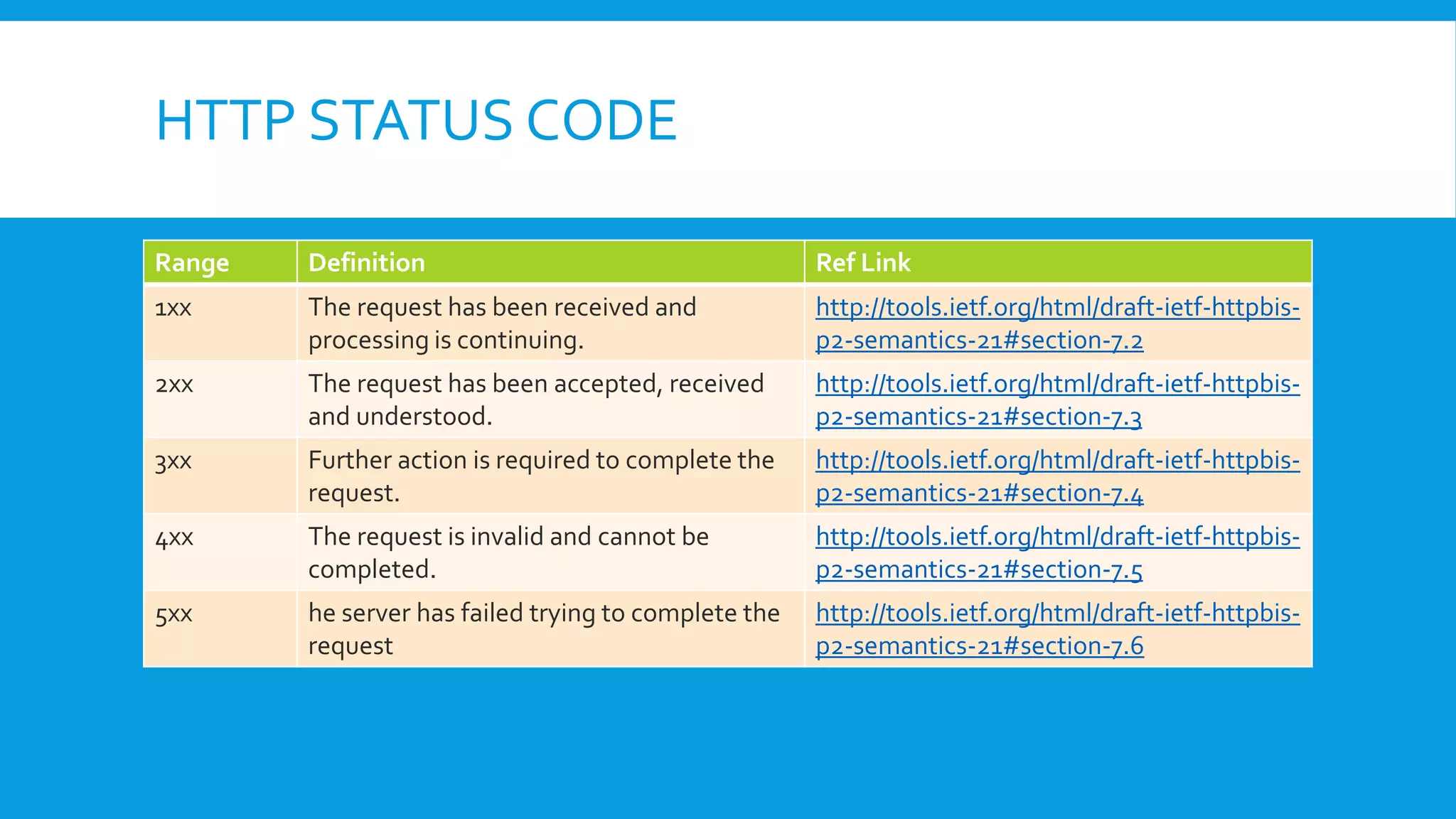

HTTP STATUS CODE
Range Definition Ref Link
1xx The request has been received and
processing is continuing.
http://tools.ietf.org/html/draft-ietf-httpbis-
p2-semantics-21#section-7.2
2xx The request has been accepted, received
and understood.
3xx Further action is required to complete the
request.
4xx The request is invalid and cannot be
completed.
5xx he server has failed trying to complete the
request

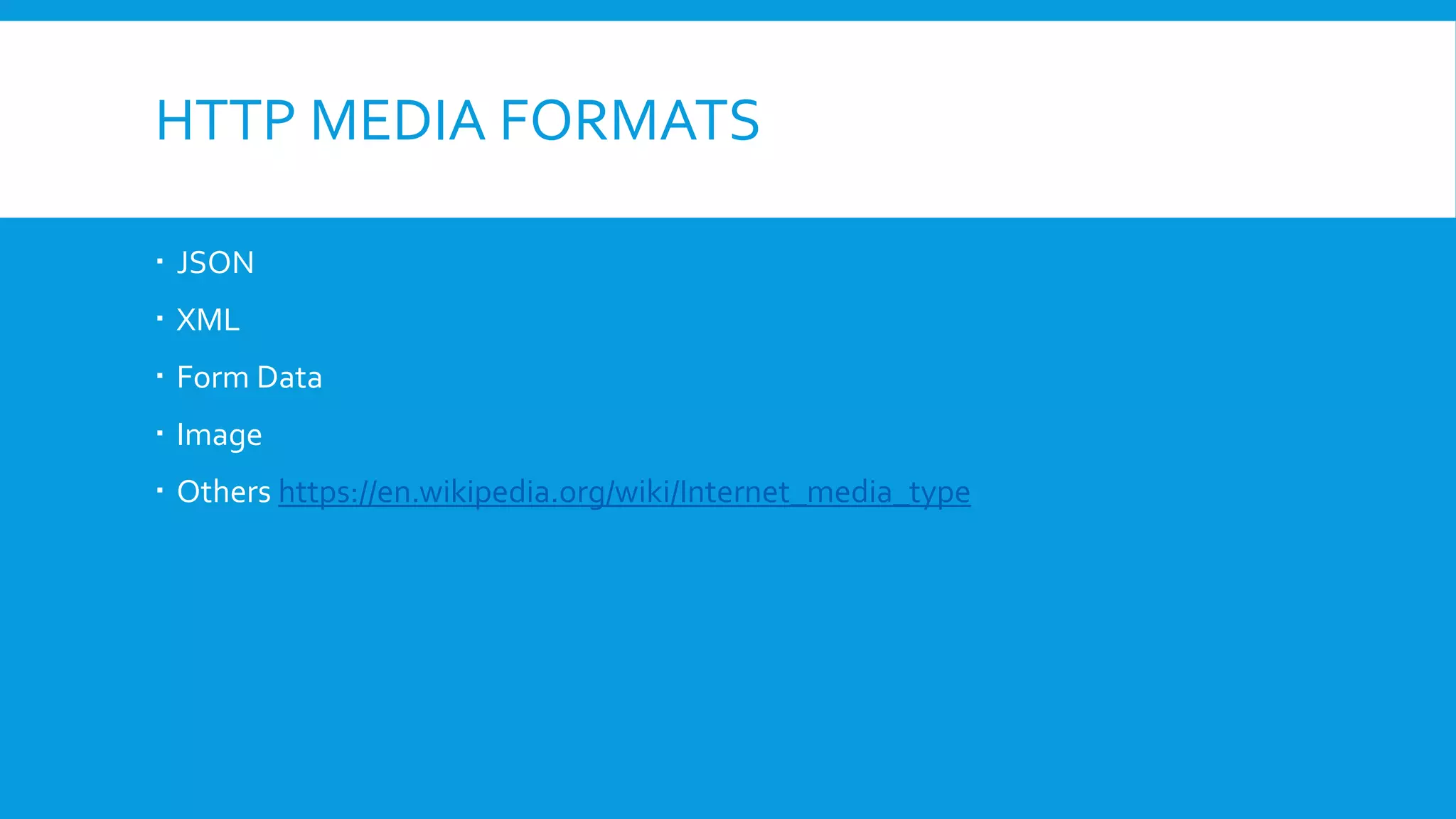

HTTP MEDIA FORMATS
 JSON
 XML
 Form Data
 Image
 Others https://en.wikipedia.org/wiki/Internet_media_type

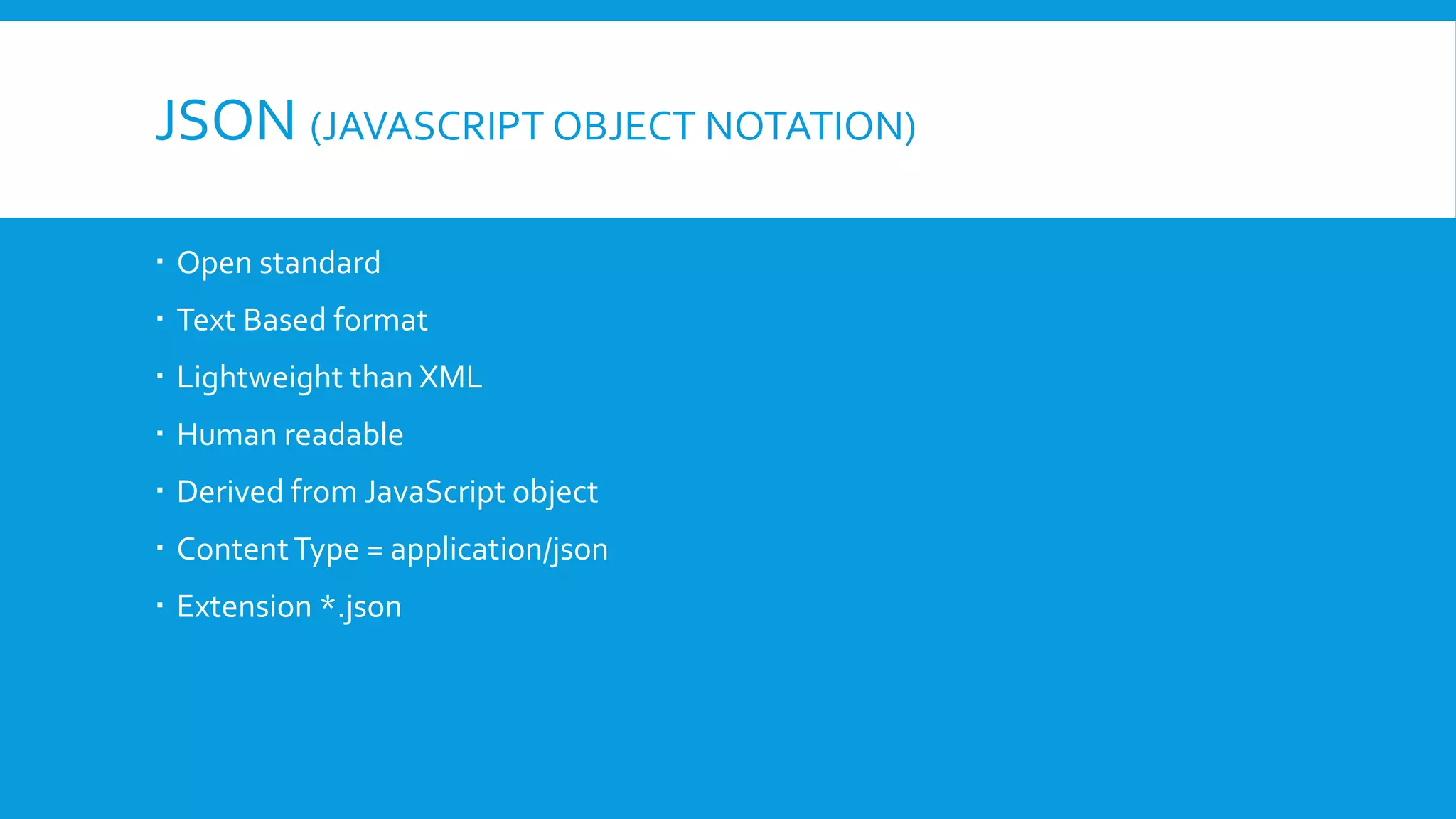

JSON (JAVASCRIPT OBJECT NOTATION)
 Open standard
 Text Based format
 Lightweight than XML
 Human readable
 Derived from JavaScript object
 ContentType = application/json
 Extension *.json

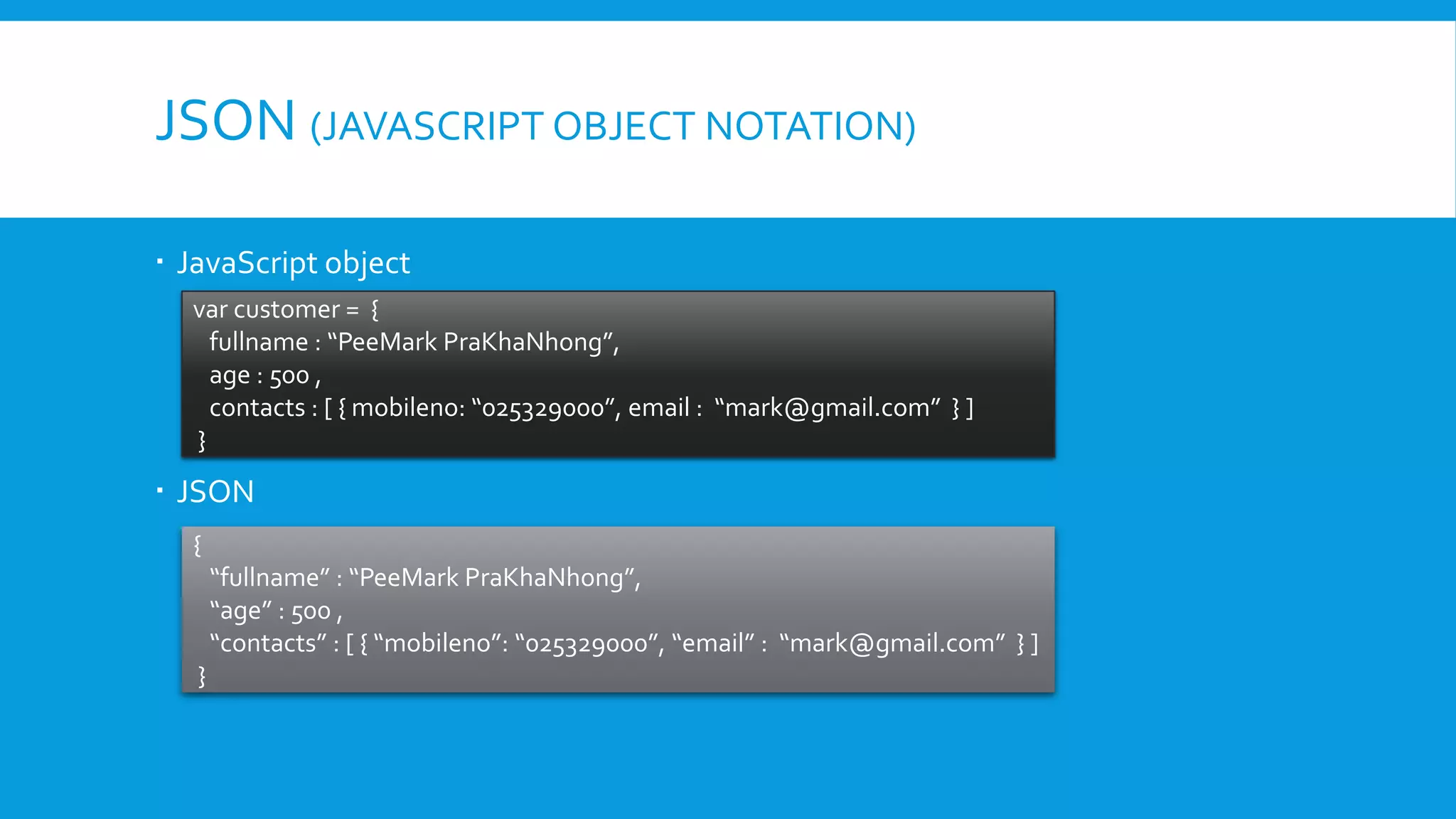

JSON (JAVASCRIPT OBJECT NOTATION)
 JavaScript object
 JSON
var customer = {
fullname : “PeeMark PraKhaNhong”,
age : 500 ,
contacts : [ { mobileno: “025329000”, email : “mark@gmail.com” } ]
}
{
“fullname” : “PeeMark PraKhaNhong”,
“age” : 500 ,
“contacts” : [ { “mobileno”: “025329000”, “email” : “mark@gmail.com” } ]
}

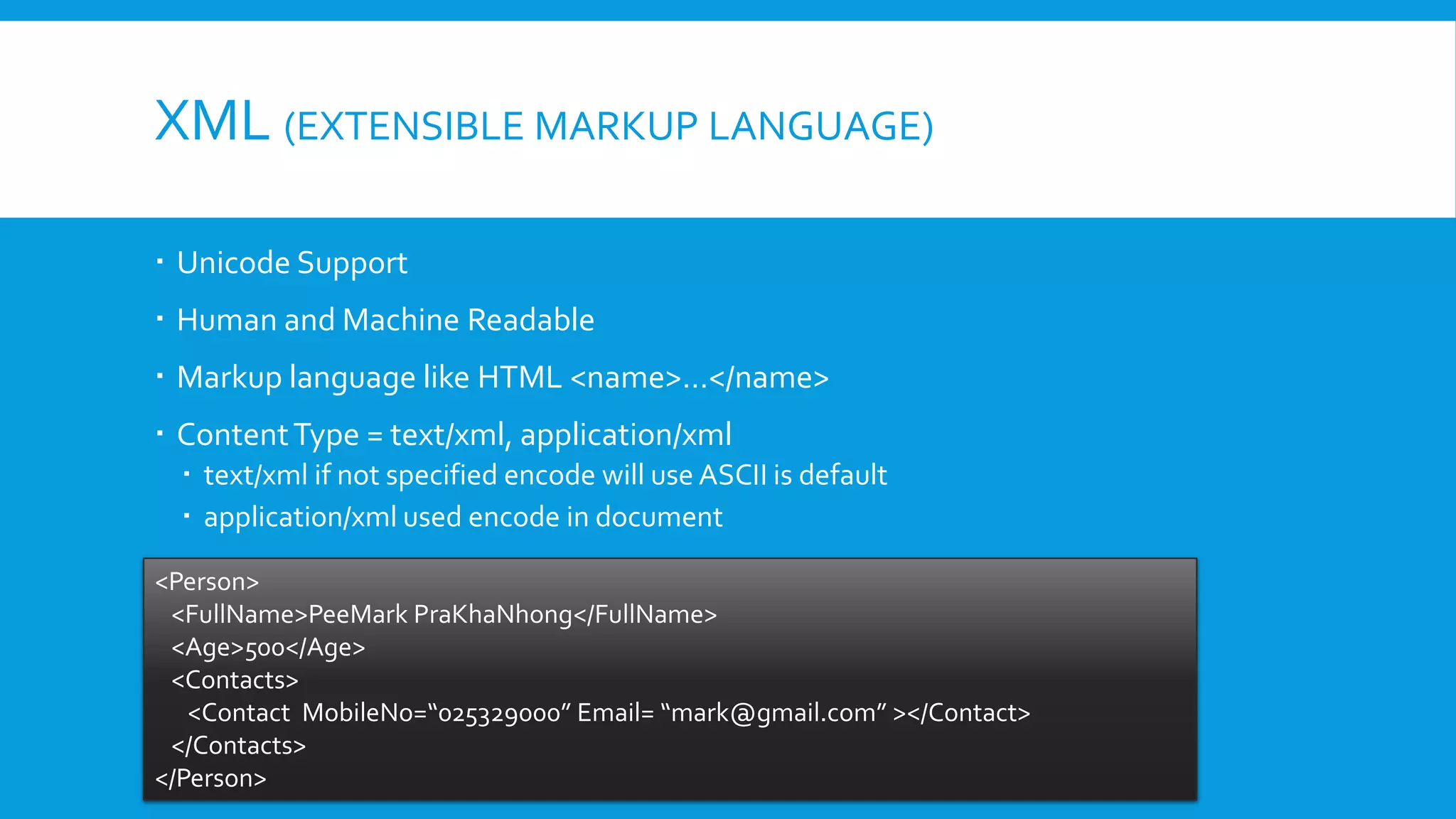

XML (EXTENSIBLE MARKUP LANGUAGE)
 Unicode Support
 Human and Machine Readable
 Markup language like HTML <name>…</name>
 ContentType = text/xml, application/xml
 text/xml if not specified encode will use ASCII is default
 application/xml used encode in document
<Person>
<FullName>PeeMark PraKhaNhong</FullName>
<Age>500</Age>
<Contacts>
<Contact MobileNo=“025329000” Email= “mark@gmail.com” ></Contact>
</Contacts>
</Person>

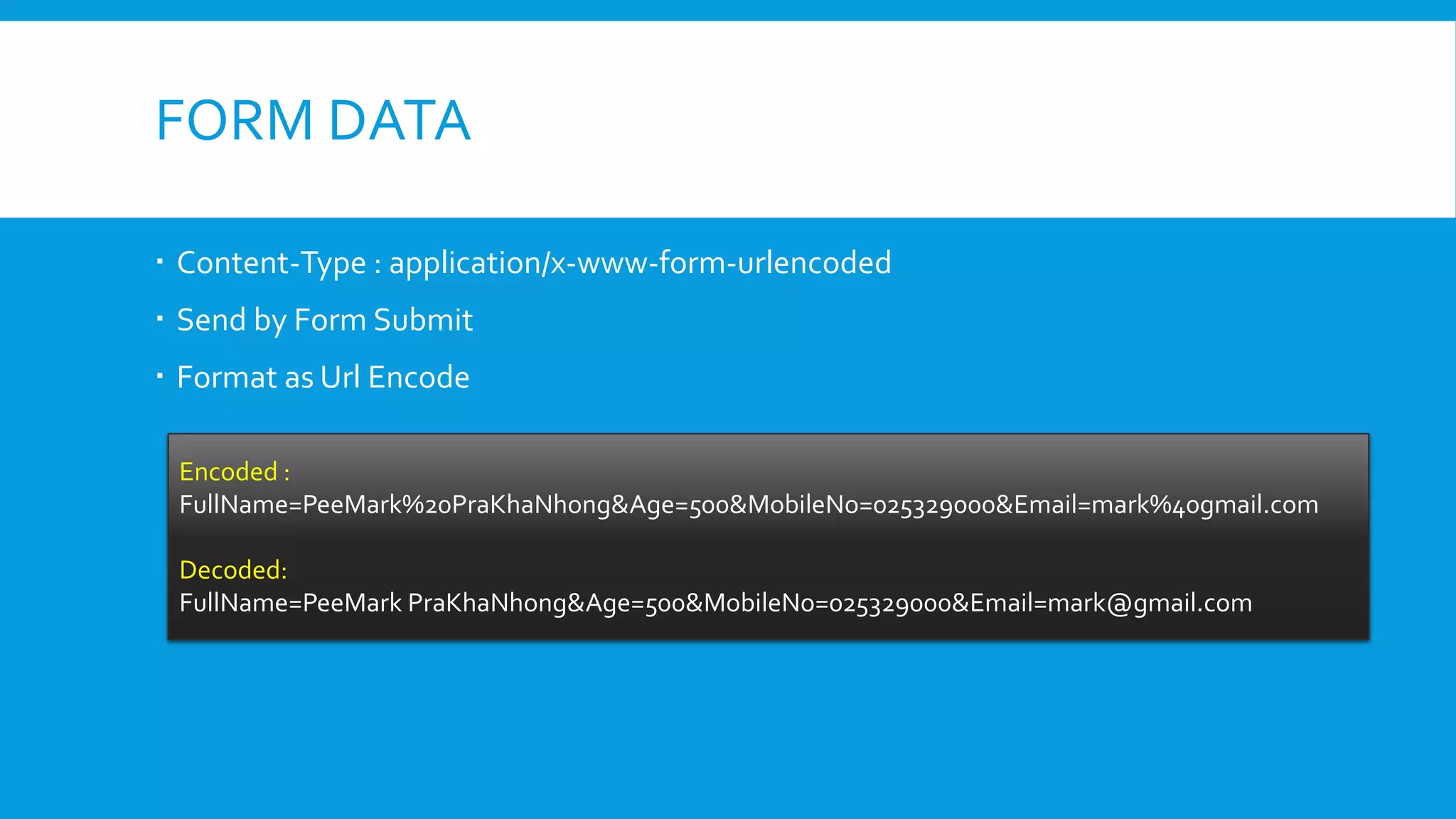

FORM DATA
 Content-Type : application/x-www-form-urlencoded
 Send by Form Submit
 Format as Url Encode
Encoded :
FullName=PeeMark%20PraKhaNhong&Age=500&MobileNo=025329000&Email=mark%40gmail.com
Decoded:
FullName=PeeMark PraKhaNhong&Age=500&MobileNo=025329000&Email=mark@gmail.com

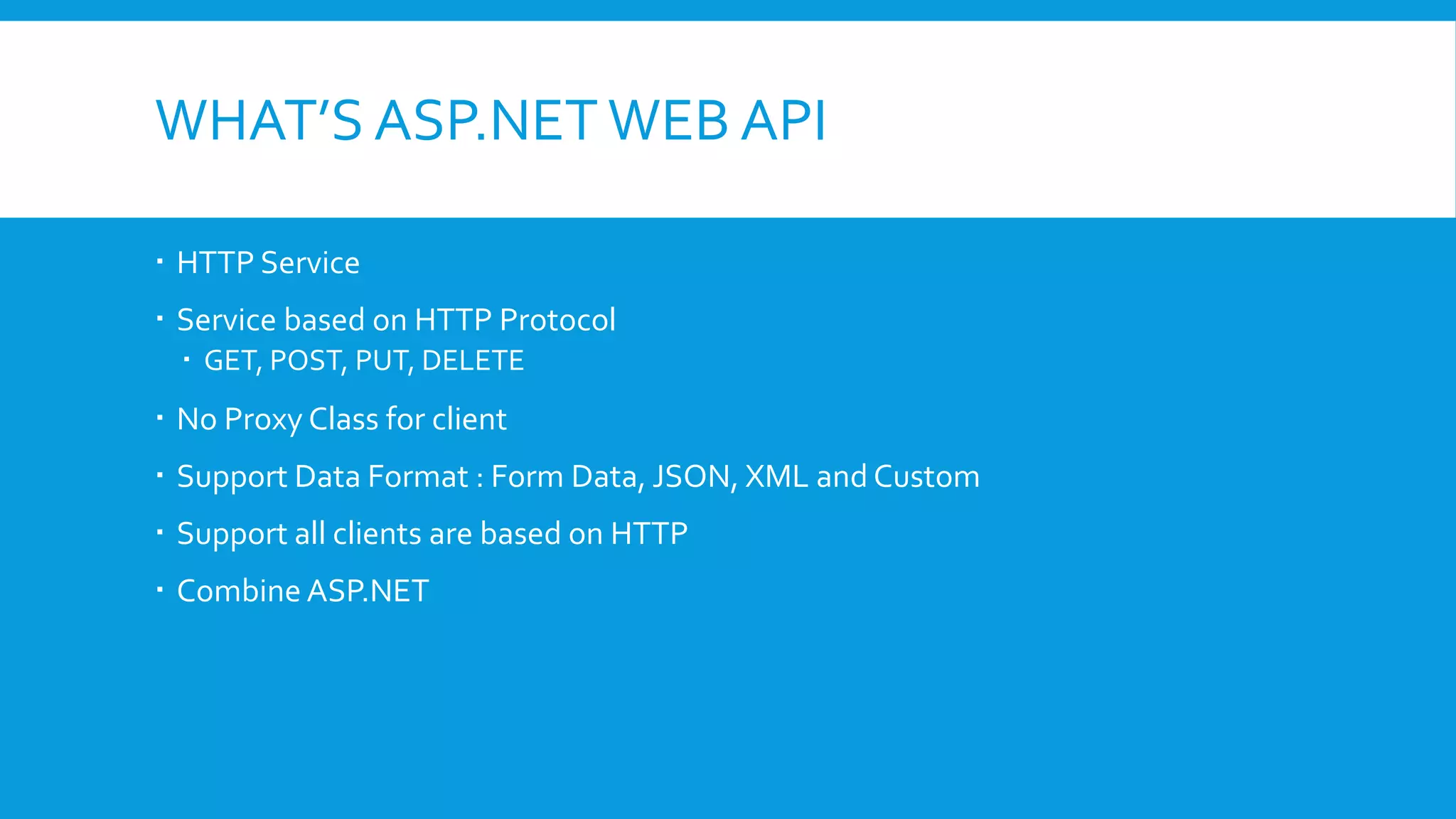

WHAT’S ASP.NET WEB API
 HTTP Service
 Service based on HTTP Protocol
 GET, POST, PUT, DELETE
 No Proxy Class for client
 Support Data Format : Form Data, JSON, XML and Custom
 Support all clients are based on HTTP
 Combine ASP.NET

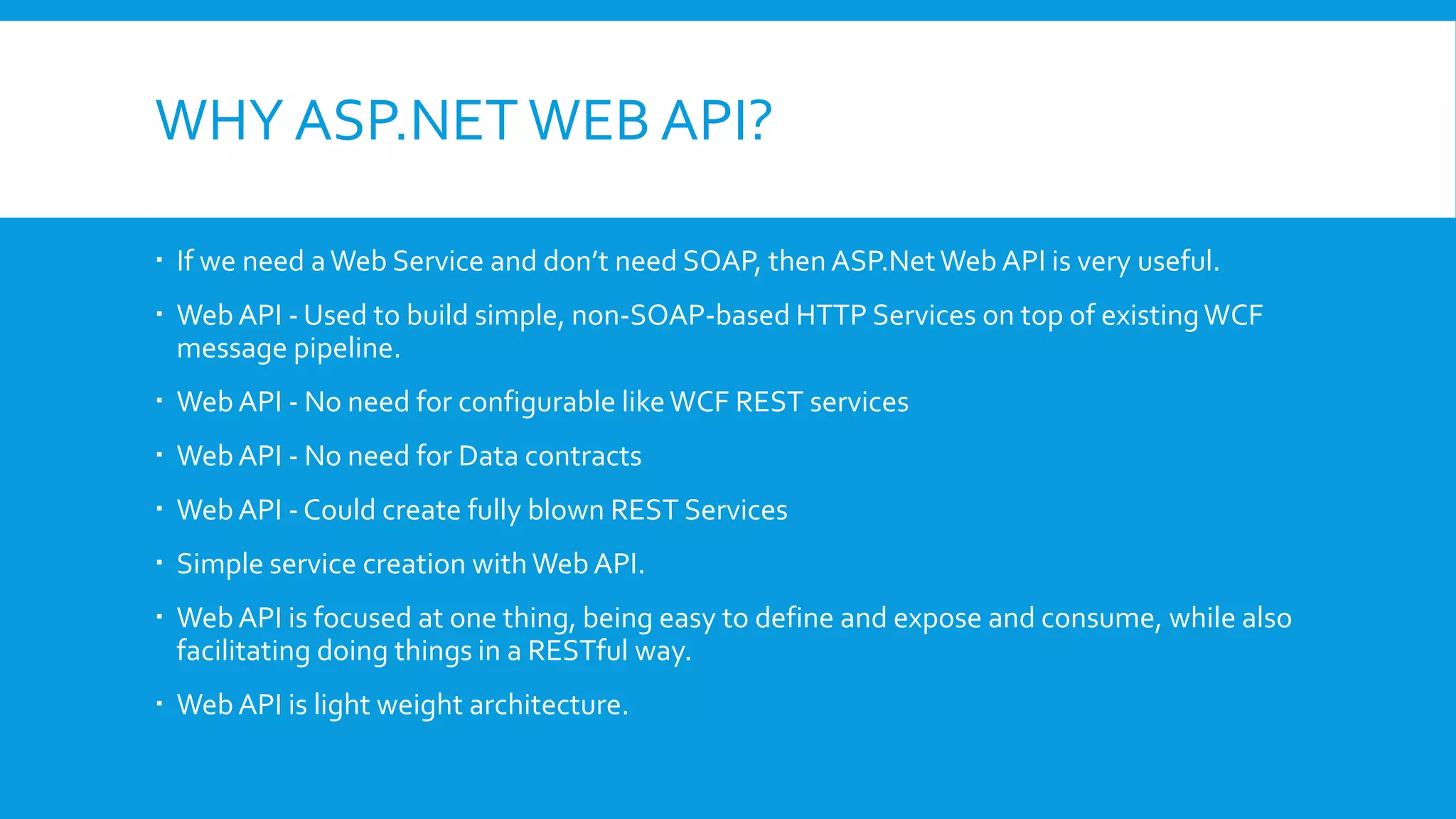

WHY ASP.NET WEB API?
 If we need aWeb Service and don’t need SOAP, then ASP.NetWeb API is very useful.
 Web API - Used to build simple, non-SOAP-based HTTP Services on top of existingWCF
message pipeline.
 Web API - No need for configurable likeWCF REST services
 Web API - No need for Data contracts
 Web API - Could create fully blown REST Services
 Simple service creation withWeb API.
 Web API is focused at one thing, being easy to define and expose and consume, while also
facilitating doing things in a RESTful way.
 Web API is light weight architecture.

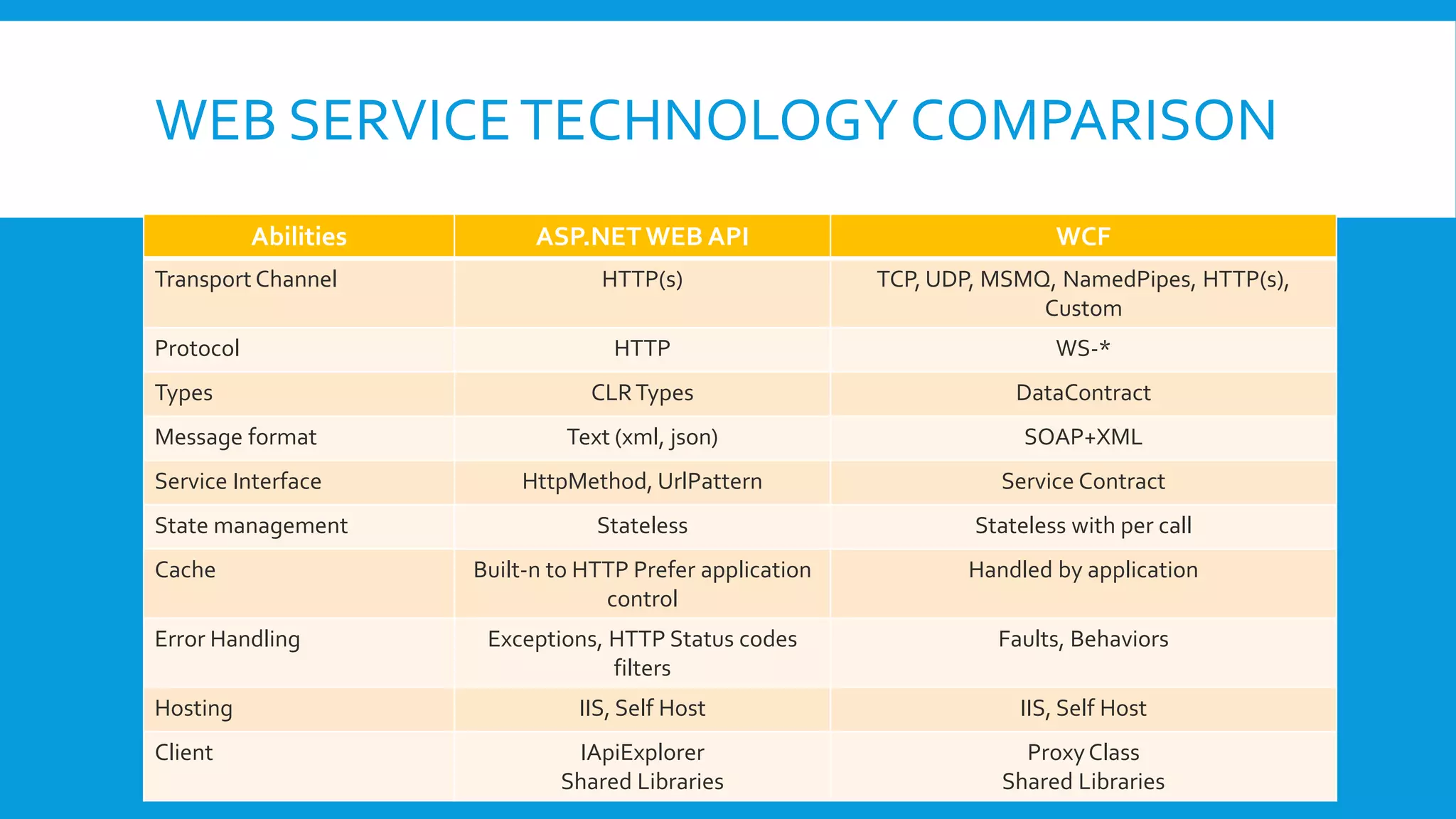

WEB SERVICETECHNOLOGY COMPARISON
Abilities ASP.NETWEB API WCF
Transport Channel HTTP(s) TCP, UDP, MSMQ, NamedPipes, HTTP(s),
Custom
Protocol HTTP WS-*
Types CLRTypes DataContract
Message format Text (xml, json) SOAP+XML
Service Interface HttpMethod, UrlPattern Service Contract
State management Stateless Stateless with per call
Cache Built-n to HTTP Prefer application
control
Handled by application
Error Handling Exceptions, HTTP Status codes
filters
Faults, Behaviors
Hosting IIS, Self Host IIS, Self Host
Client IApiExplorer
Shared Libraries
ProxyClass
Shared Libraries

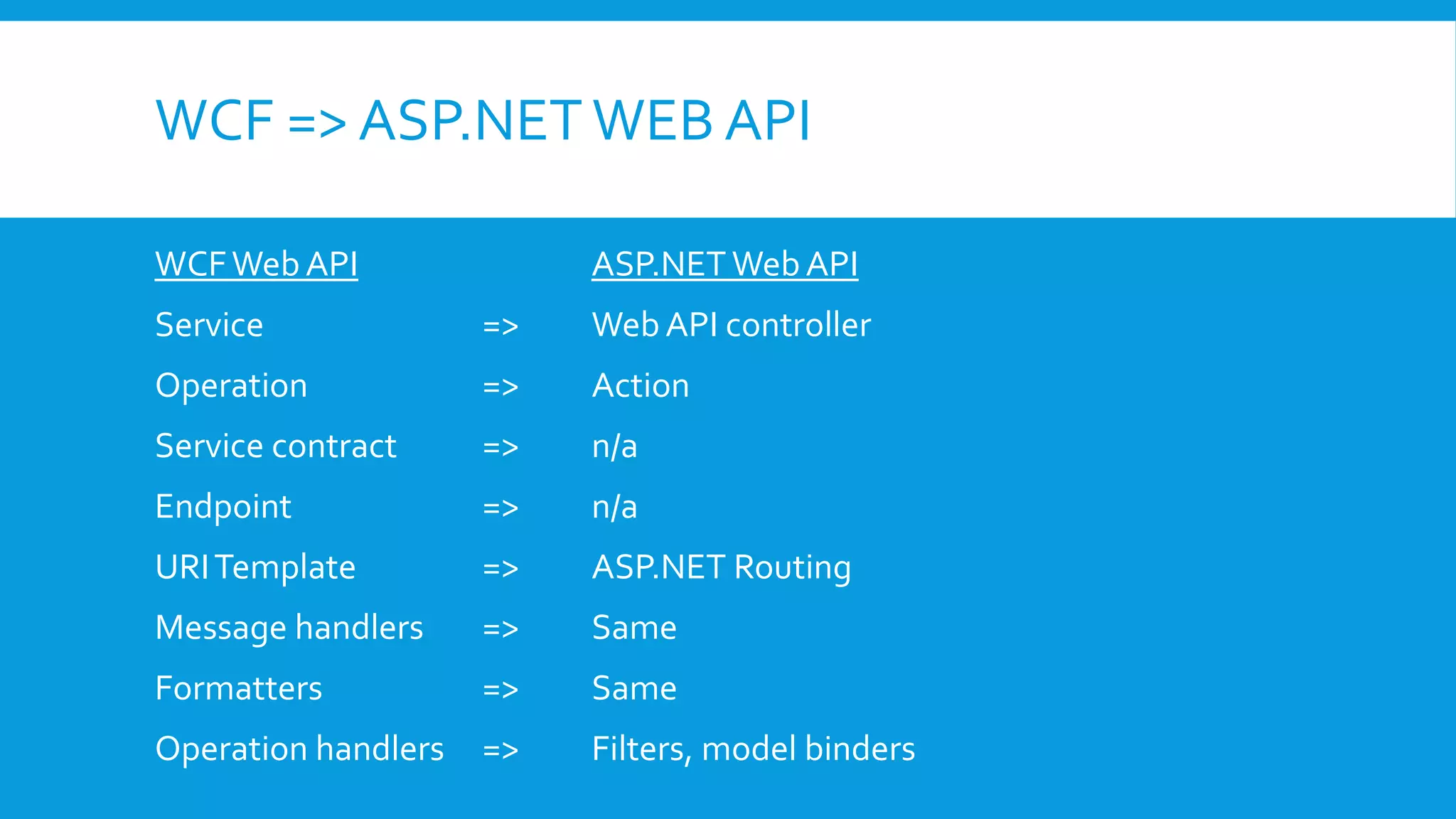

WCF => ASP.NET WEB API
WCFWebAPI ASP.NET WebAPI
Service => Web API controller
Operation => Action
Service contract => n/a
Endpoint => n/a
URITemplate => ASP.NET Routing
Message handlers => Same
Formatters => Same
Operation handlers => Filters, model binders

LAB1
BASIC ASP.NET WEB API
ASP.NETWEBAPI

LAB1
BASICS
HTTP METHOD
HTTP MESSAGE
ROUTE

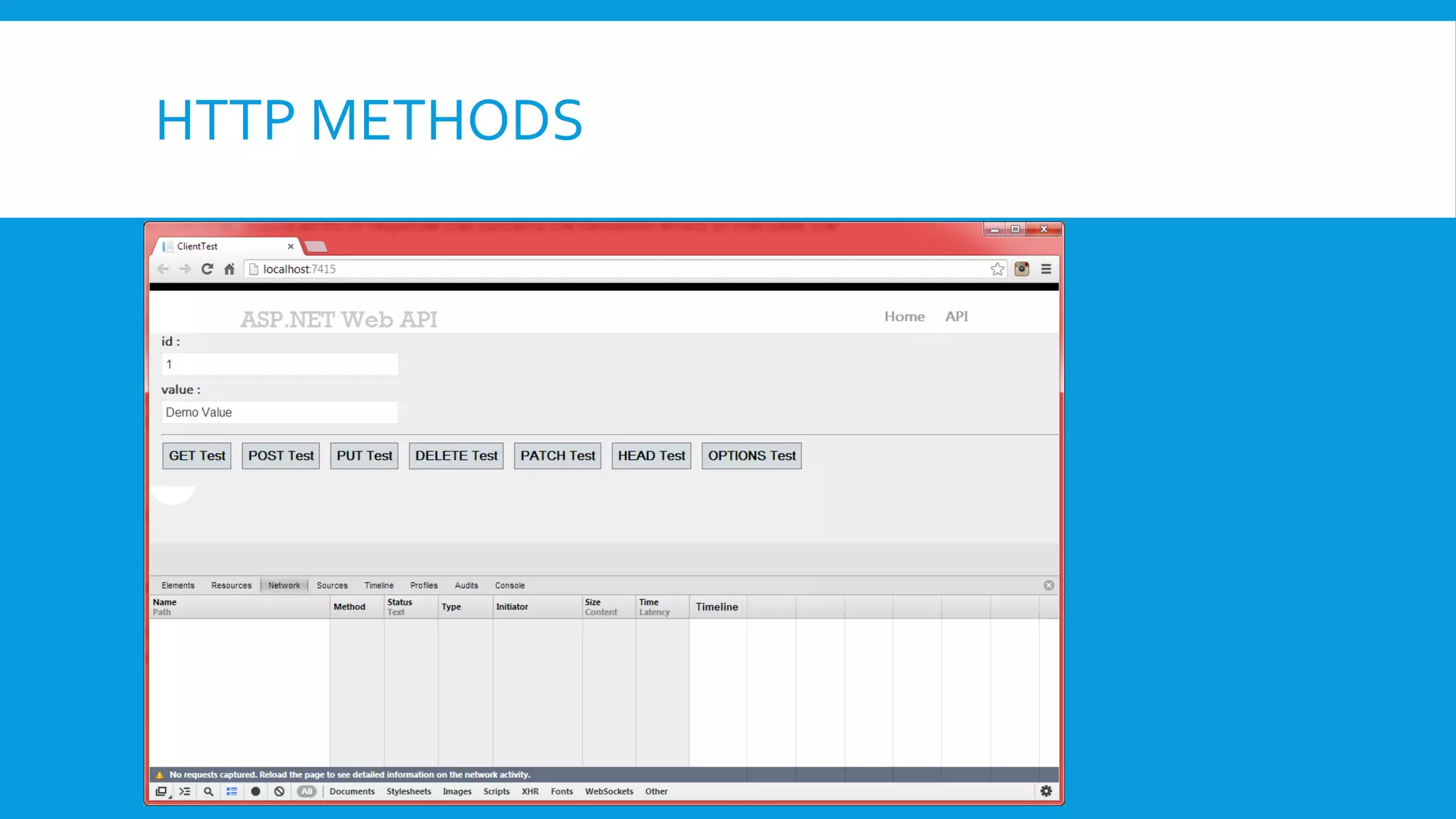

HTTP METHODS
 Test the API from JavaScript client

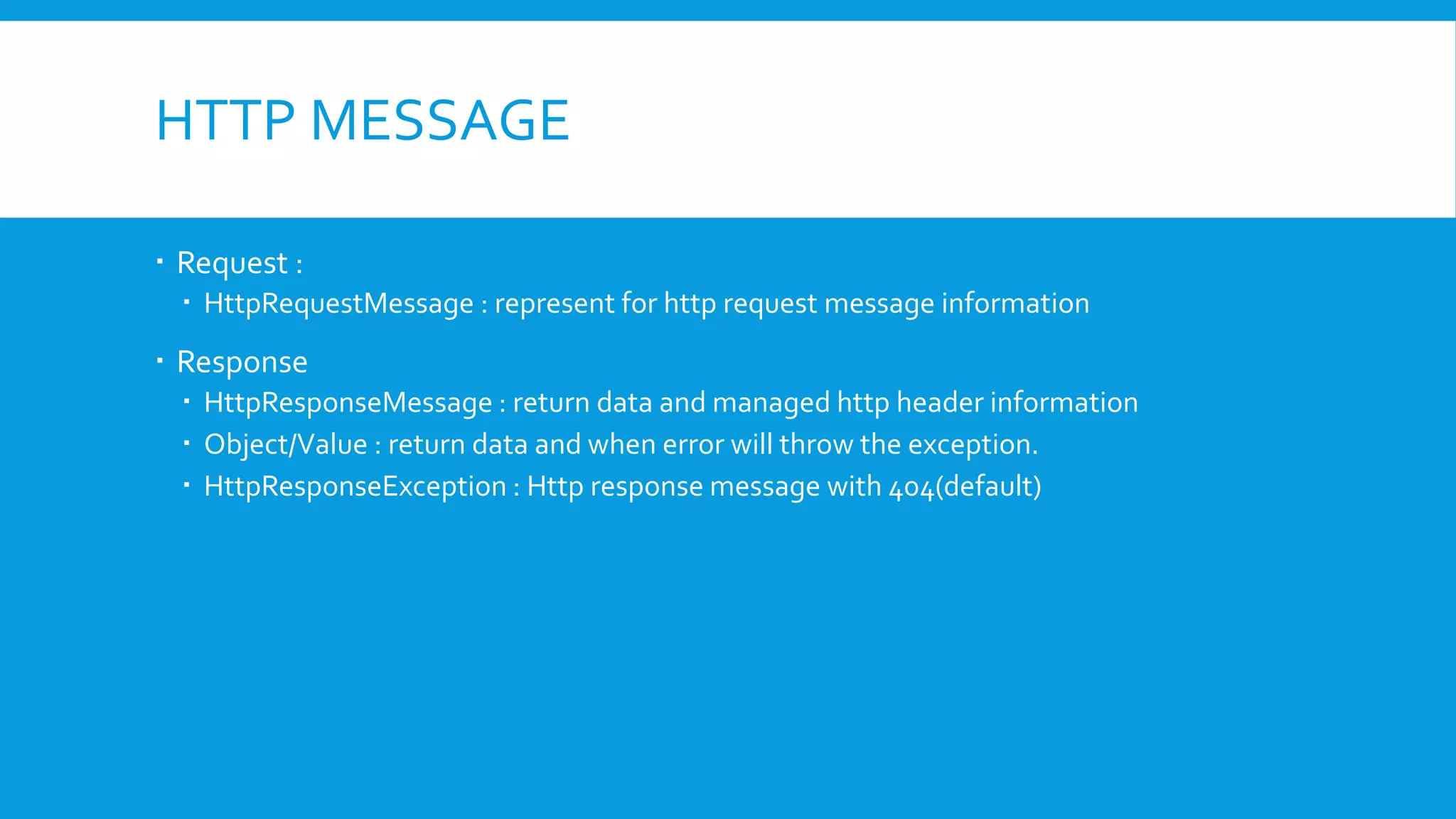

HTTP MESSAGE
 Request :
 HttpRequestMessage : represent for http request message information
 Response
 HttpResponseMessage : return data and managed http header information
 Object/Value : return data and when error will throw the exception.
 HttpResponseException : Http response message with 404(default)

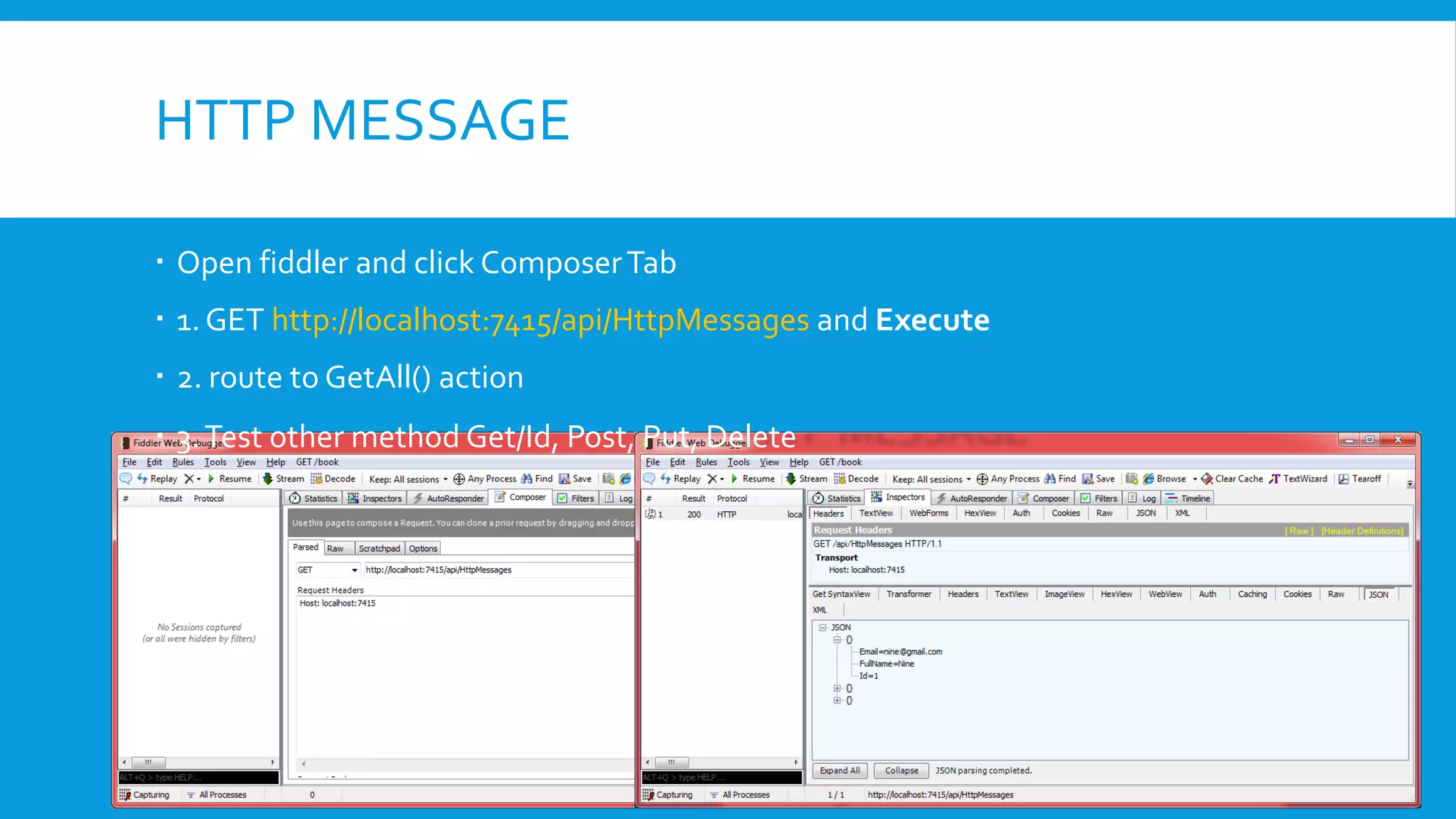

HTTP MESSAGE
 Open fiddler and click ComposerTab
 1. GET http://localhost:7415/api/HttpMessages and Execute
 2. route to GetAll() action
 3.Test other method Get/Id, Post, Put, Delete

ROUTE
 Like MVC App
 Default route is api/{controller}/{id}
 Add action to route like a MVC App api/{controller}/{action}/{id}
 Force Action name with [ActionName(“name”)] to support {action}

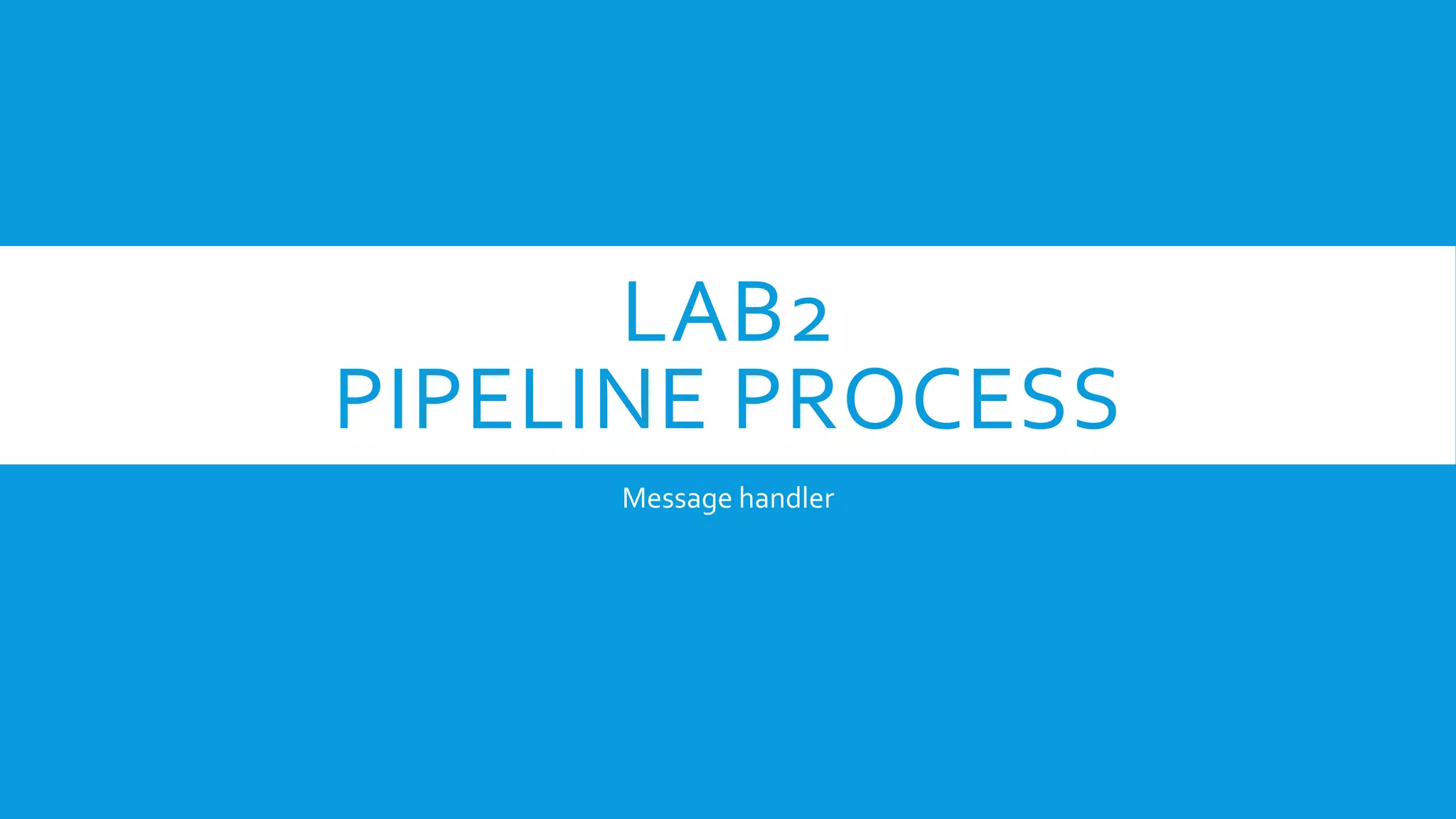

LAB2
PIPELINE PROCESS
Message handler

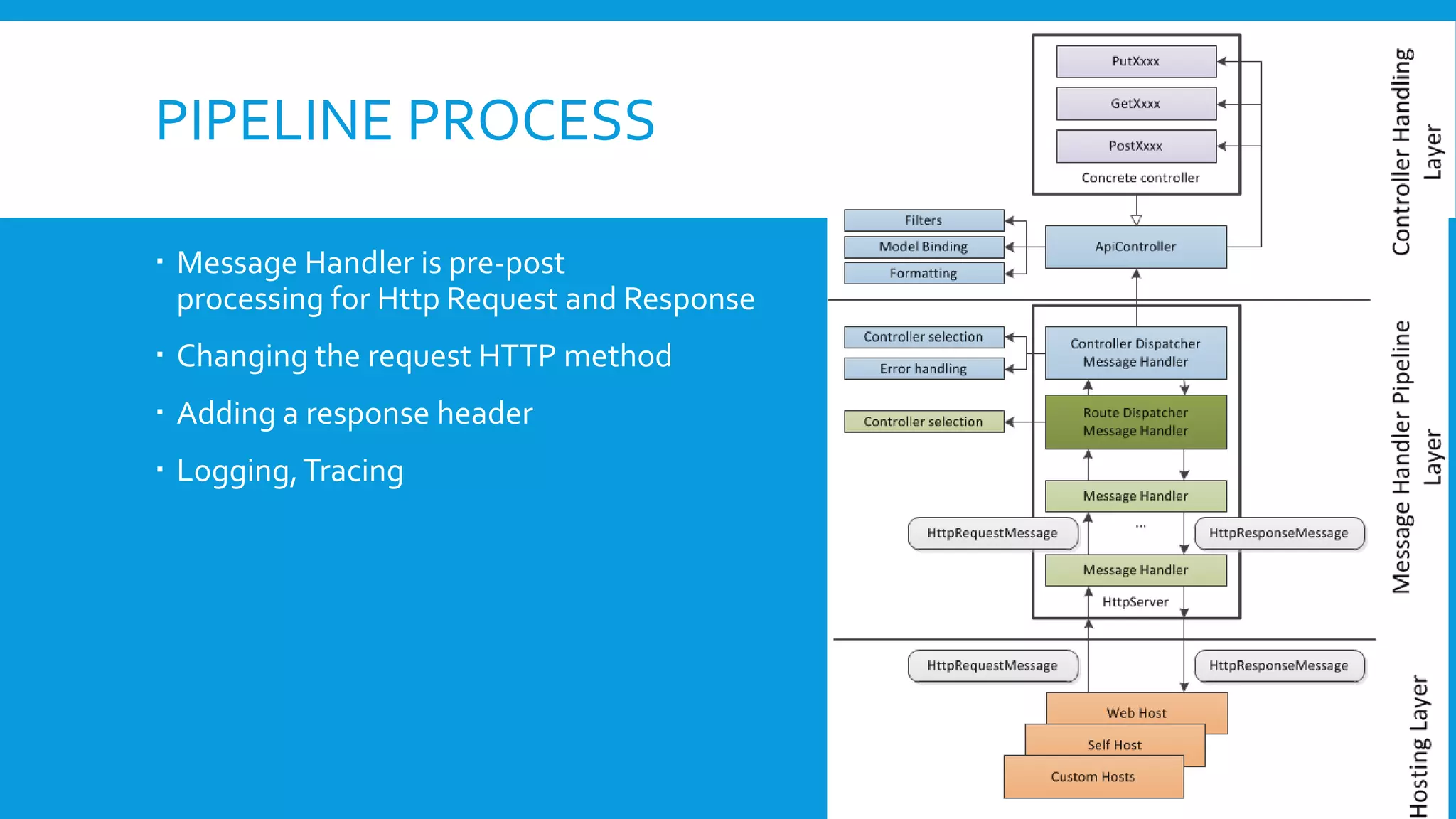

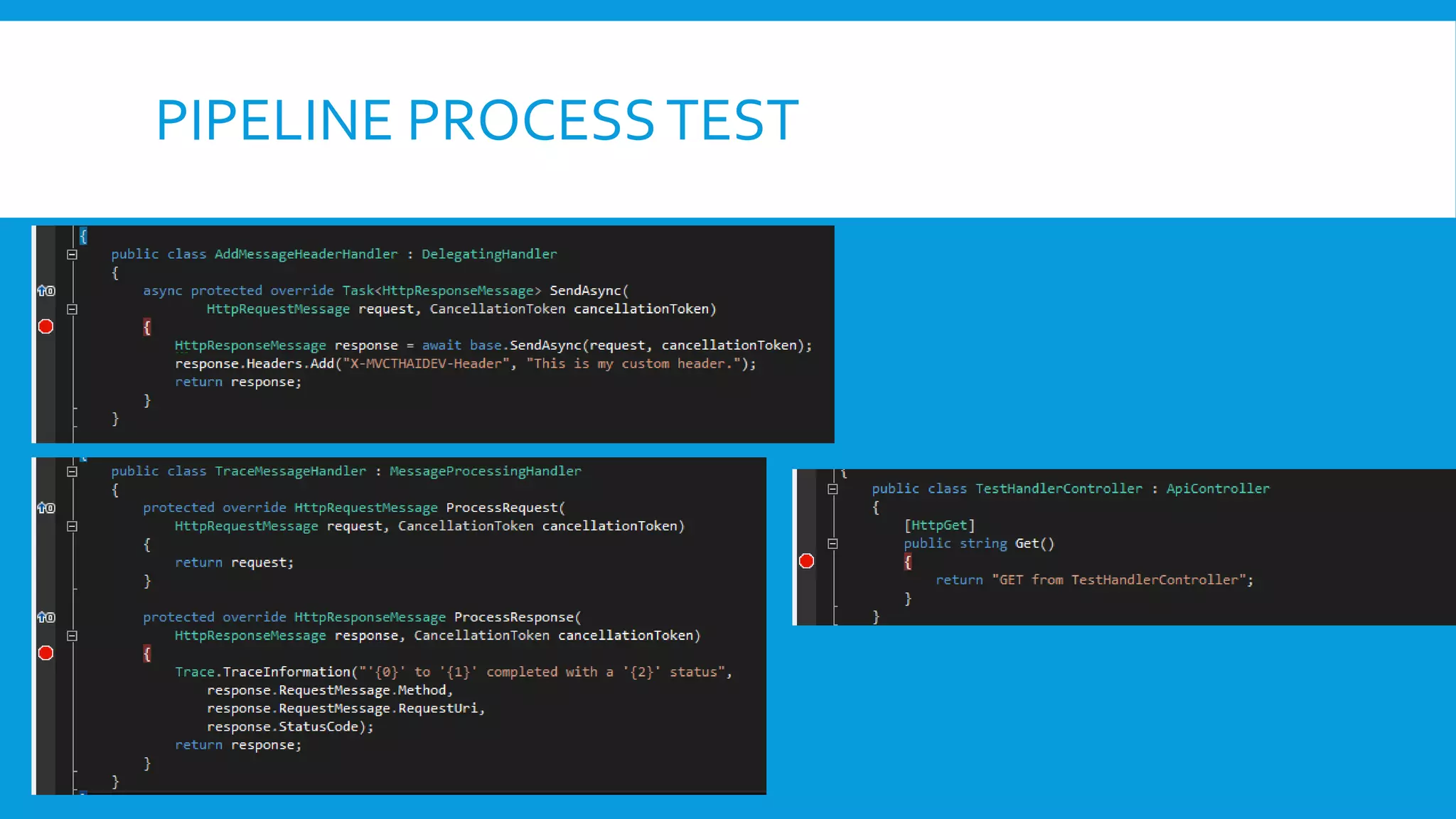

PIPELINE PROCESS
 Message Handler is pre-post
processing for Http Request and Response
 Changing the request HTTP method
 Adding a response header
 Logging,Tracing

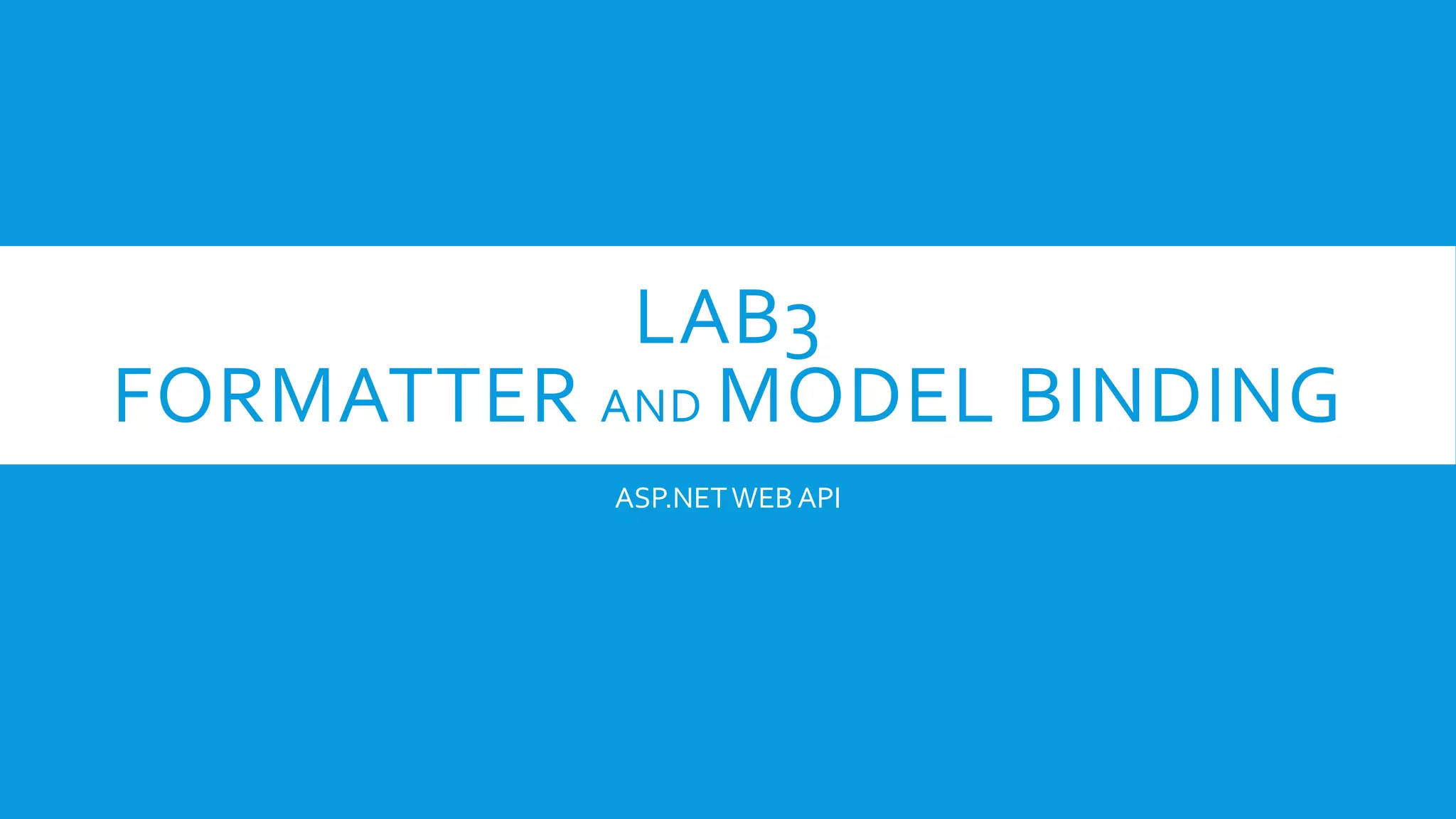

LAB3

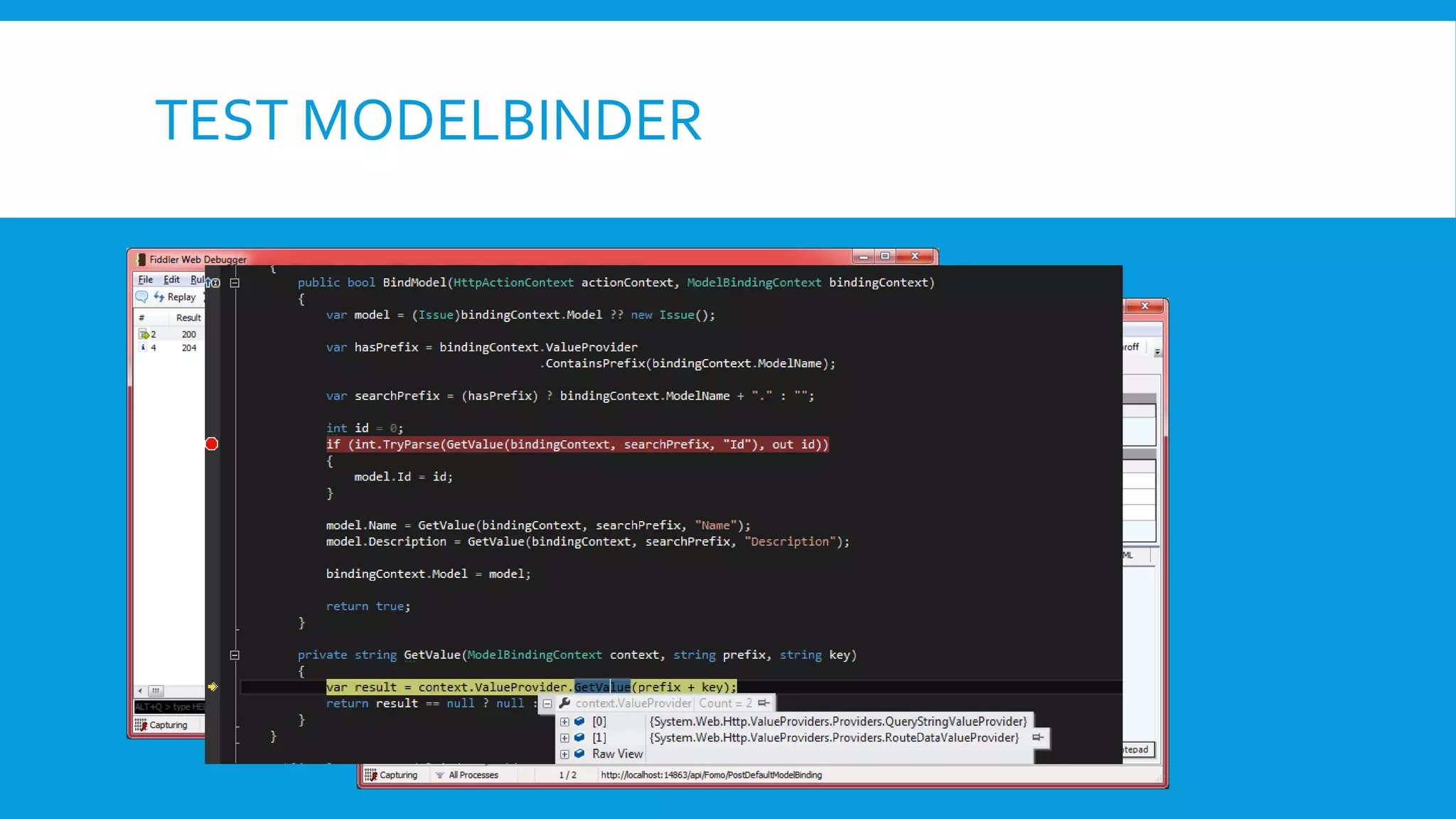

FORMATTER AND MODEL BINDING
ASP.NETWEBAPI

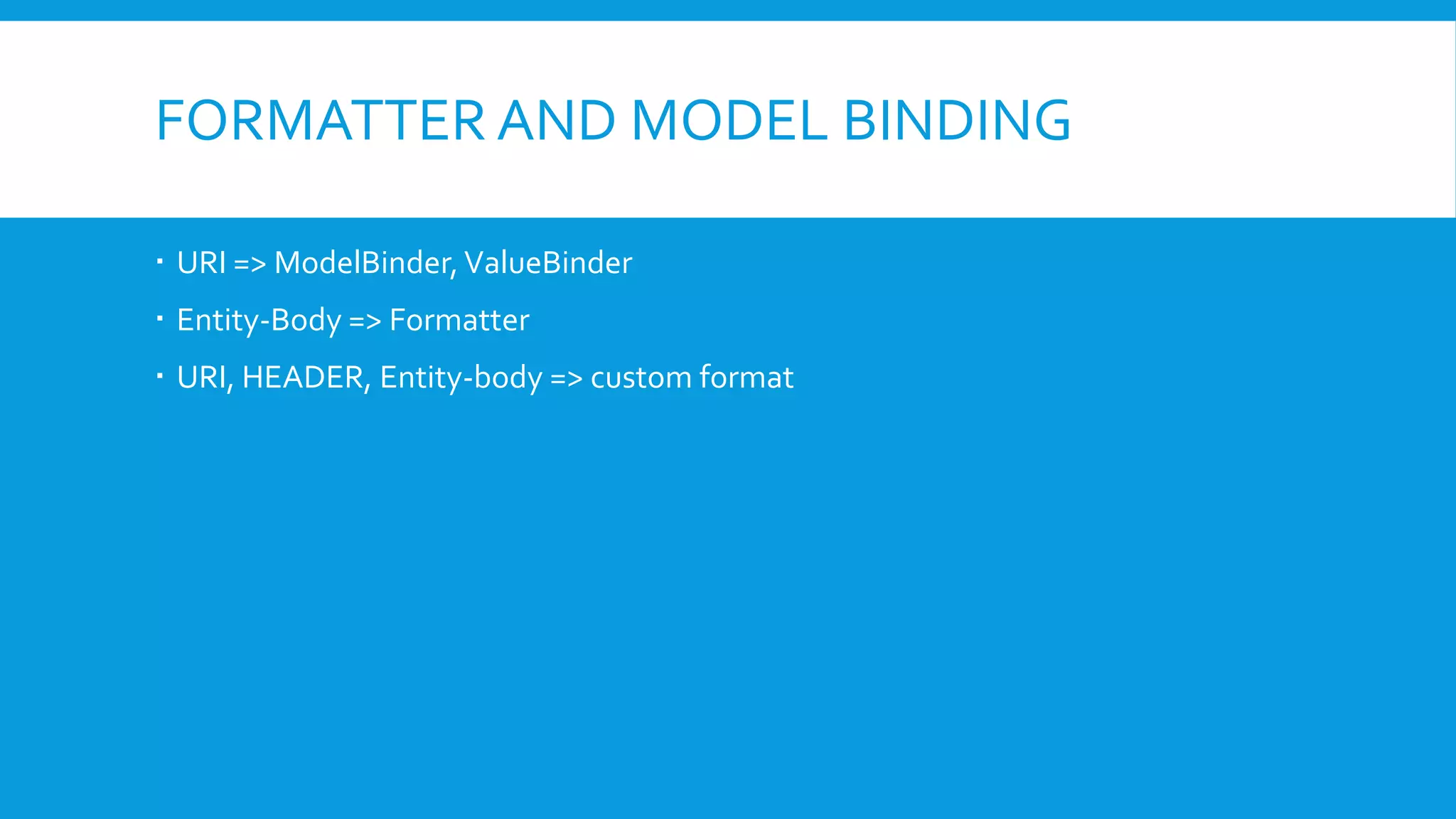

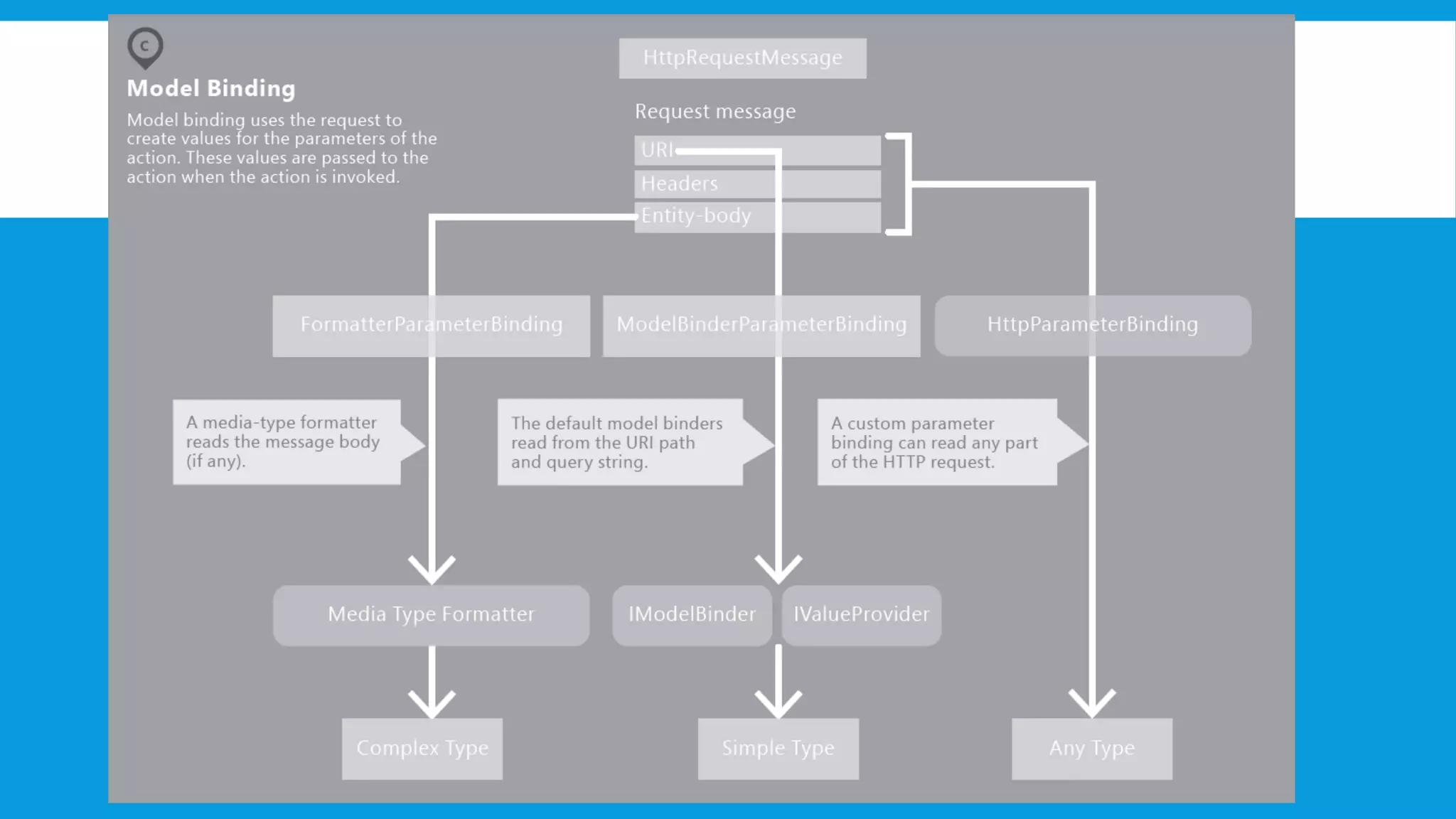

FORMATTER AND MODEL BINDING
 URI => ModelBinder, ValueBinder
 Entity-Body => Formatter
 URI, HEADER, Entity-body => custom format

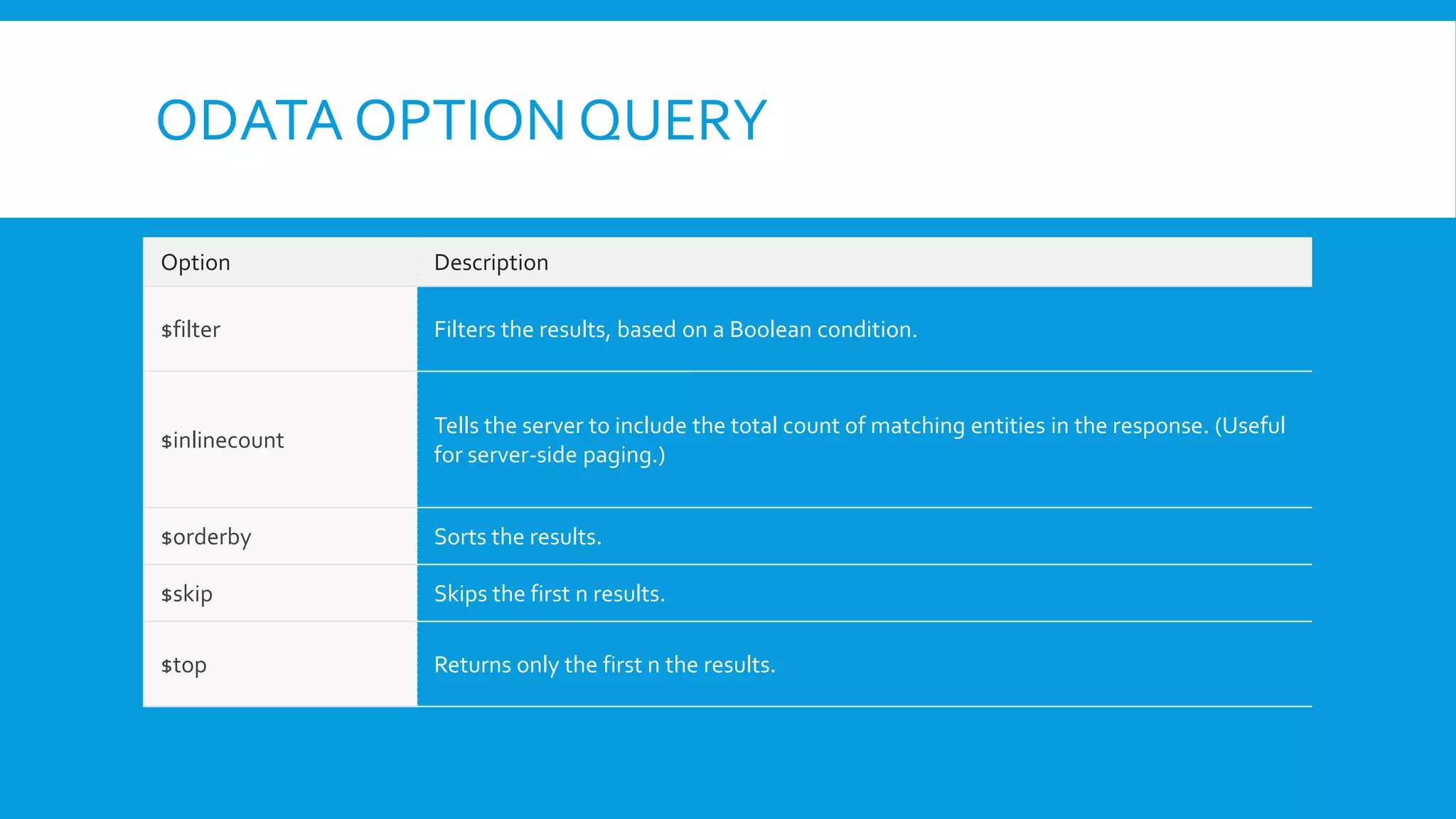

ODATA OPTION QUERY
Option Description
$filter Filters the results, based on a Boolean condition.
$inlinecount
Tells the server to include the total count of matching entities in the response. (Useful
for server-side paging.)
$orderby Sorts the results.
$skip Skips the first n results.
$top Returns only the first n the results.

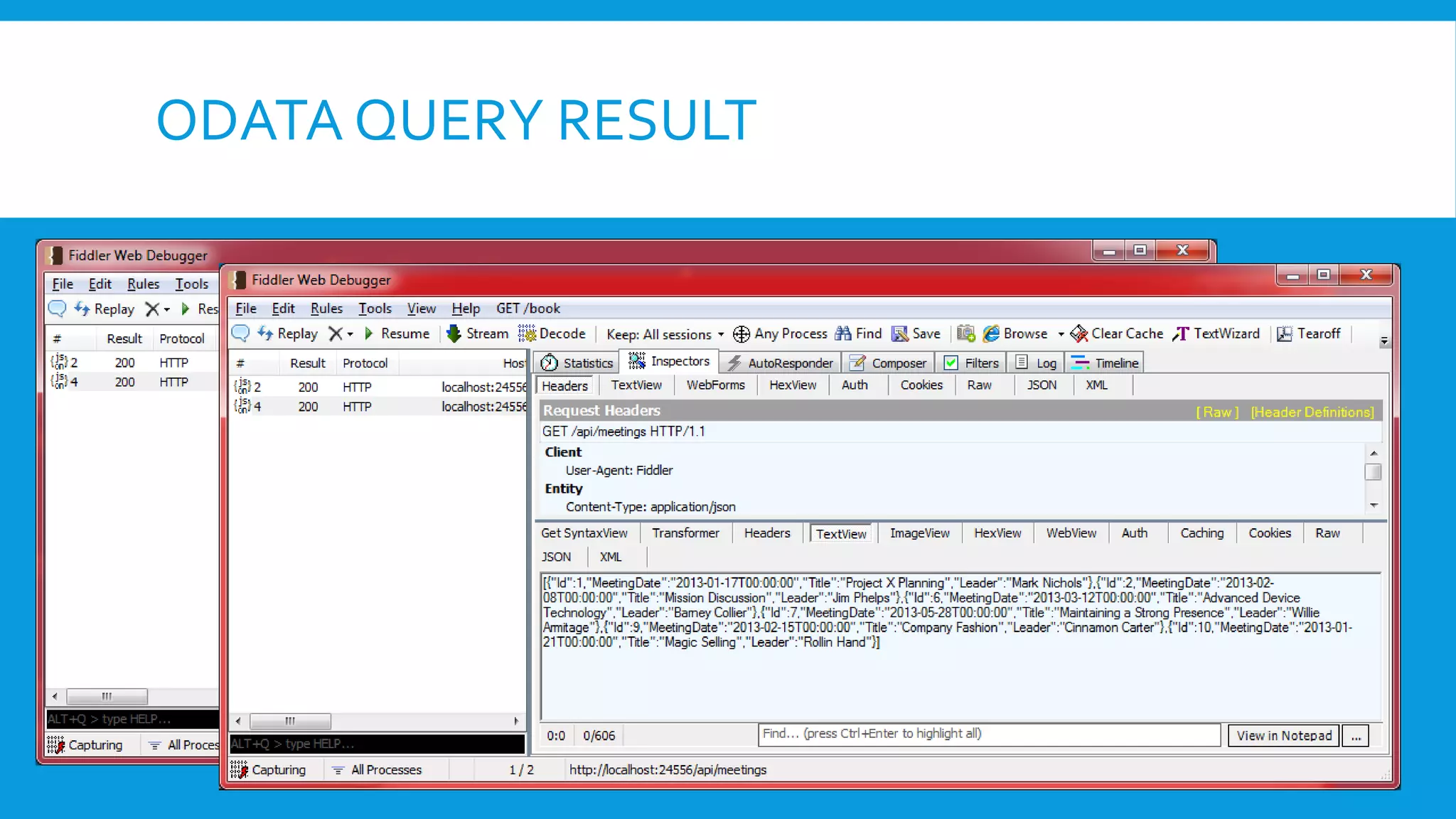

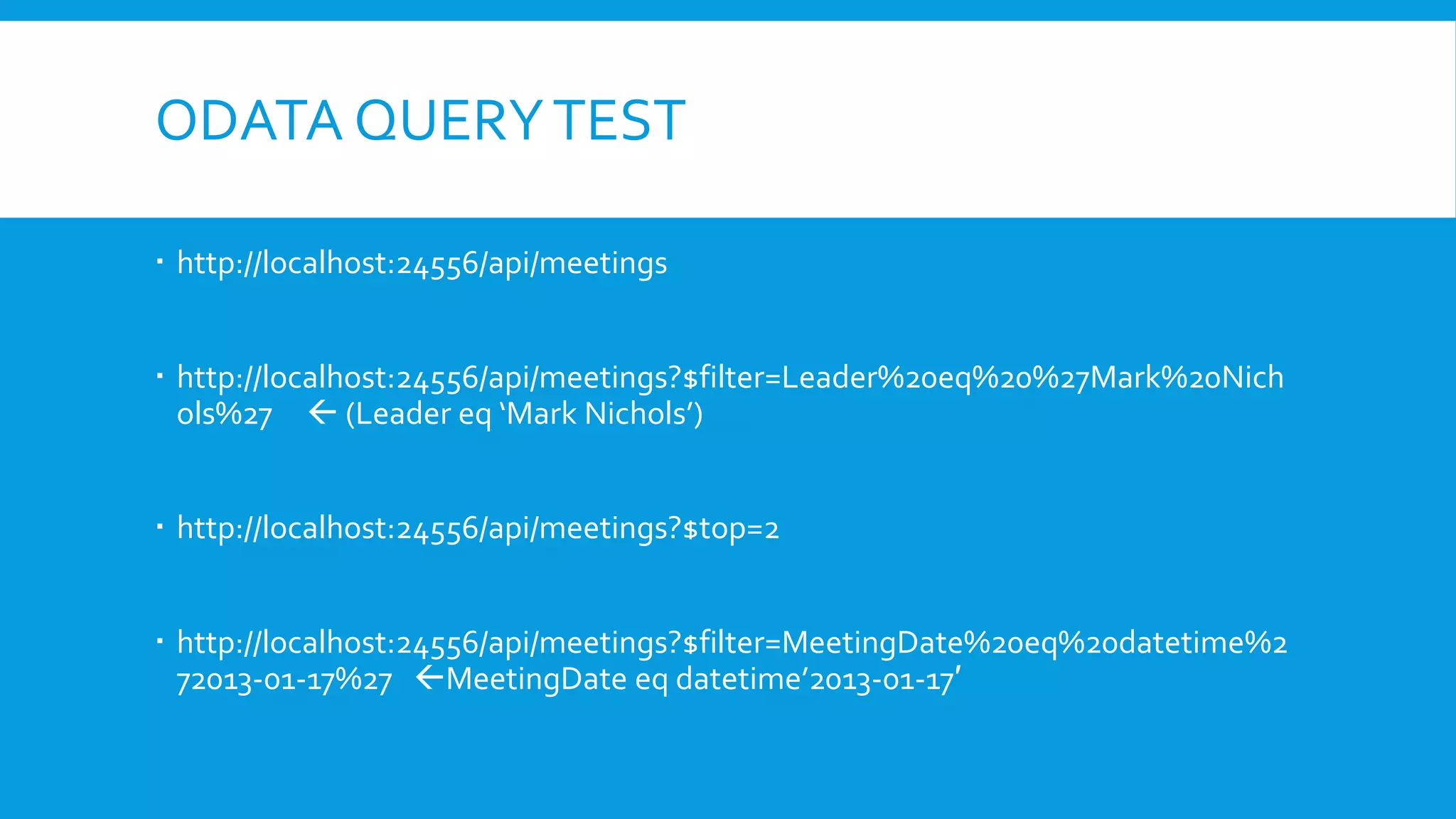

ODATA QUERYTEST
 http://localhost:24556/api/meetings
 http://localhost:24556/api/meetings?$filter=Leader%20eq%20%27Mark%20Nich
ols%27  (Leader eq ‘Mark Nichols’)
 http://localhost:24556/api/meetings?$top=2
 http://localhost:24556/api/meetings?$filter=MeetingDate%20eq%20datetime%2
72013-01-17%27 MeetingDate eq datetime’2013-01-17′

LAB6

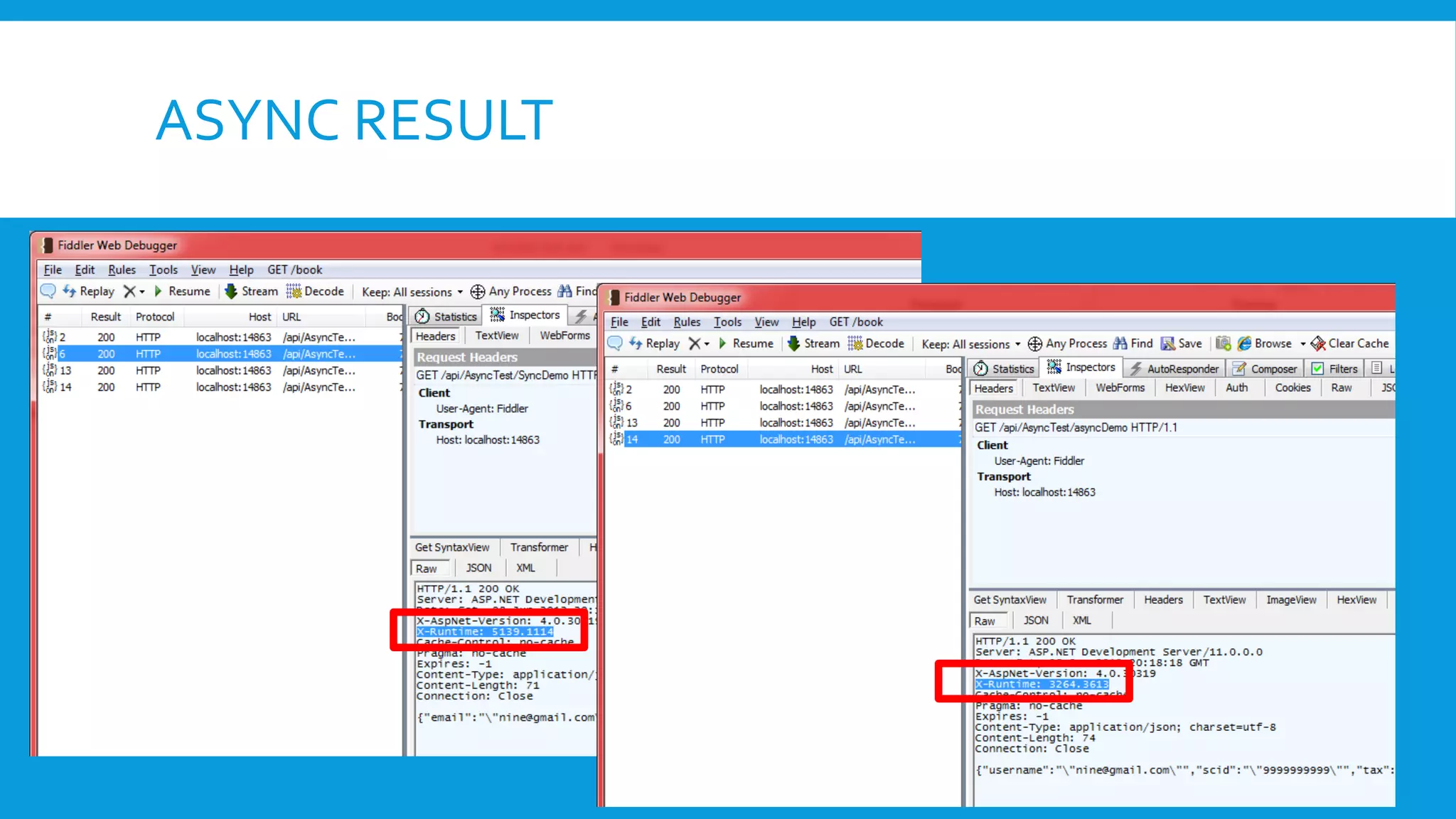

ASYNC OPERATION
ASP.NETWEBAPI

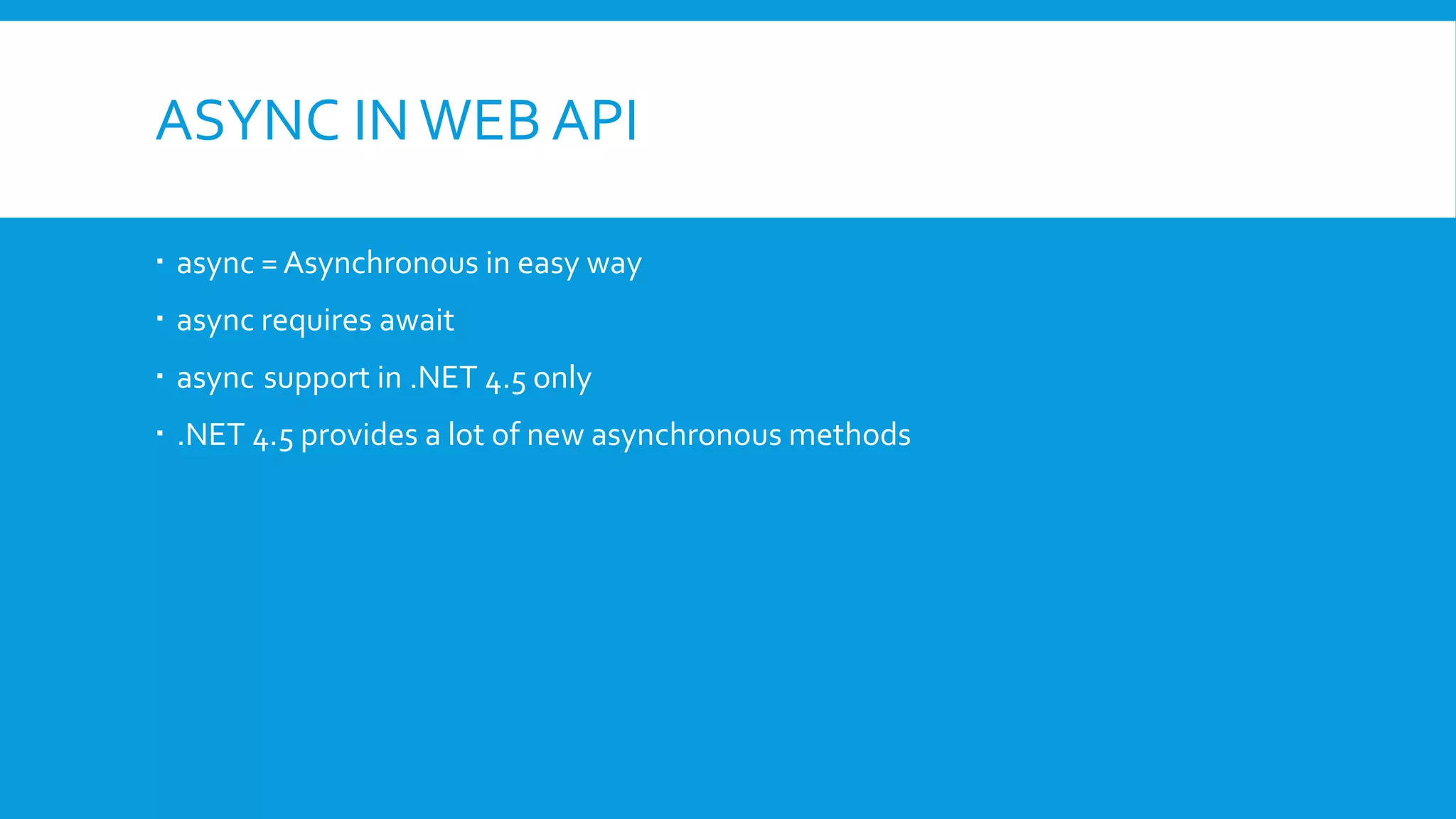

ASYNC INWEB API
 async = Asynchronous in easy way
 async requires await
 async support in .NET 4.5 only
 .NET 4.5 provides a lot of new asynchronous methods

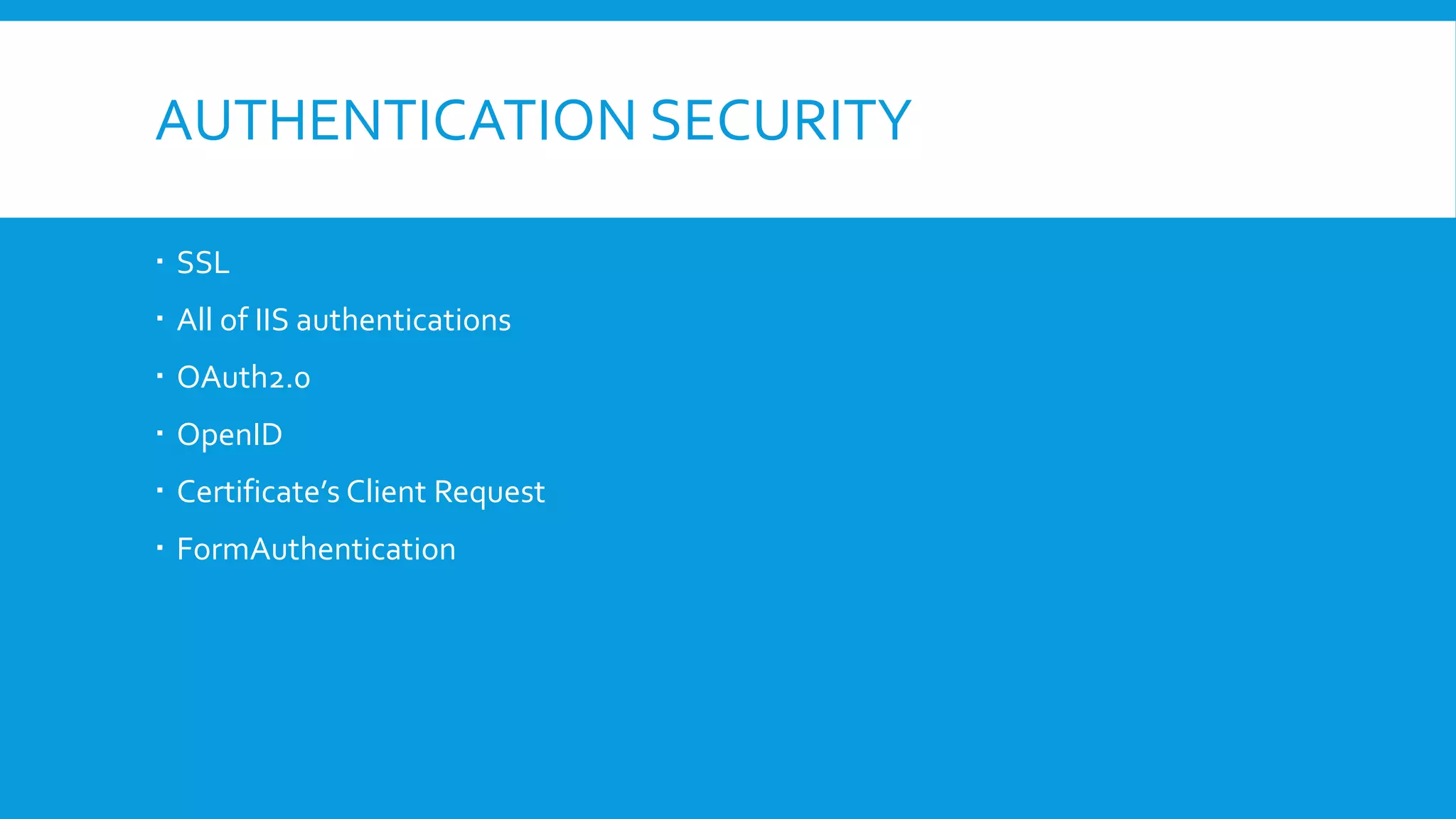

AUTHENTICATION SECURITY
 SSL
 All of IIS authentications
 OAuth2.0
 OpenID
 Certificate’s Client Request
 FormAuthentication

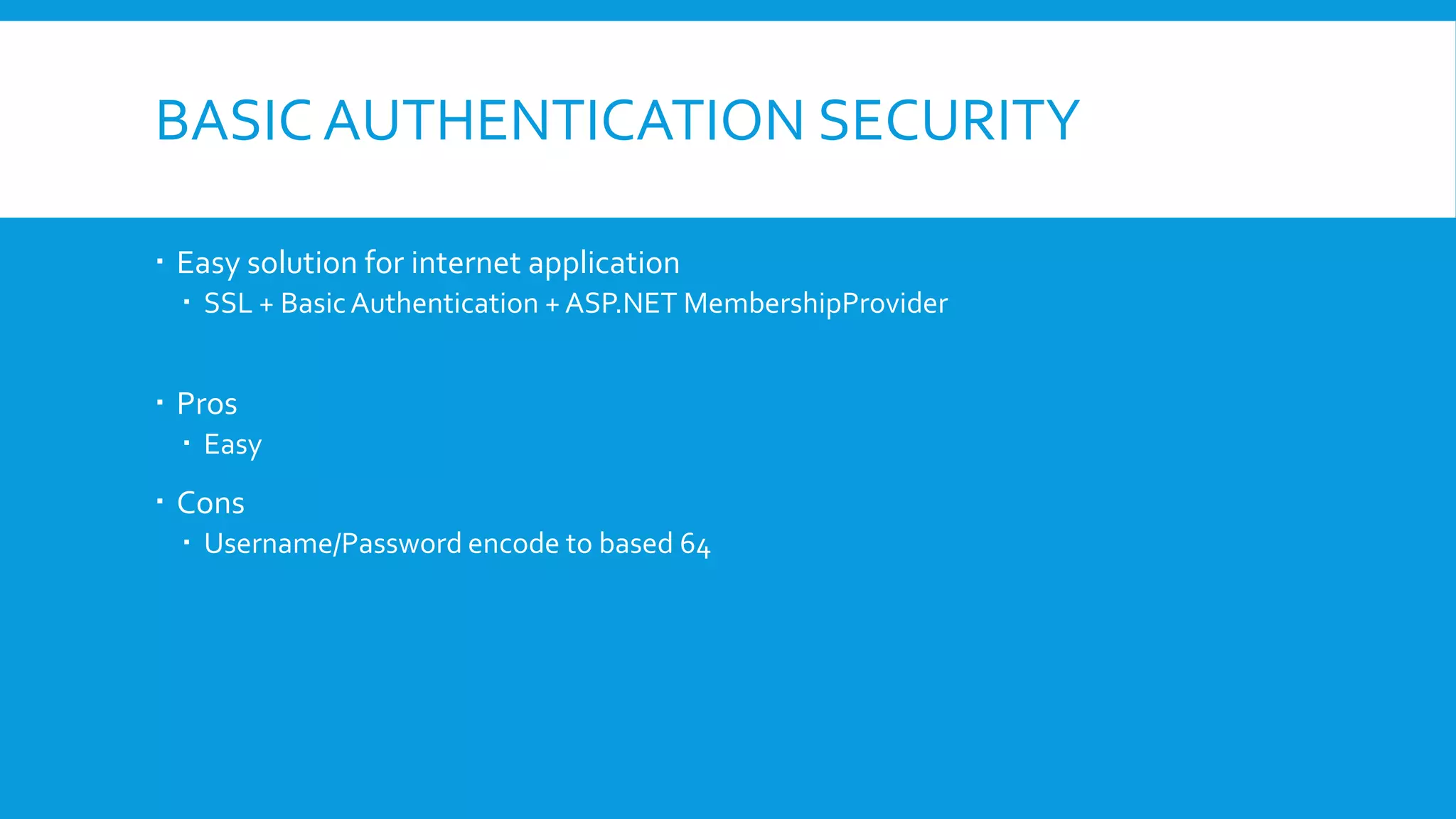

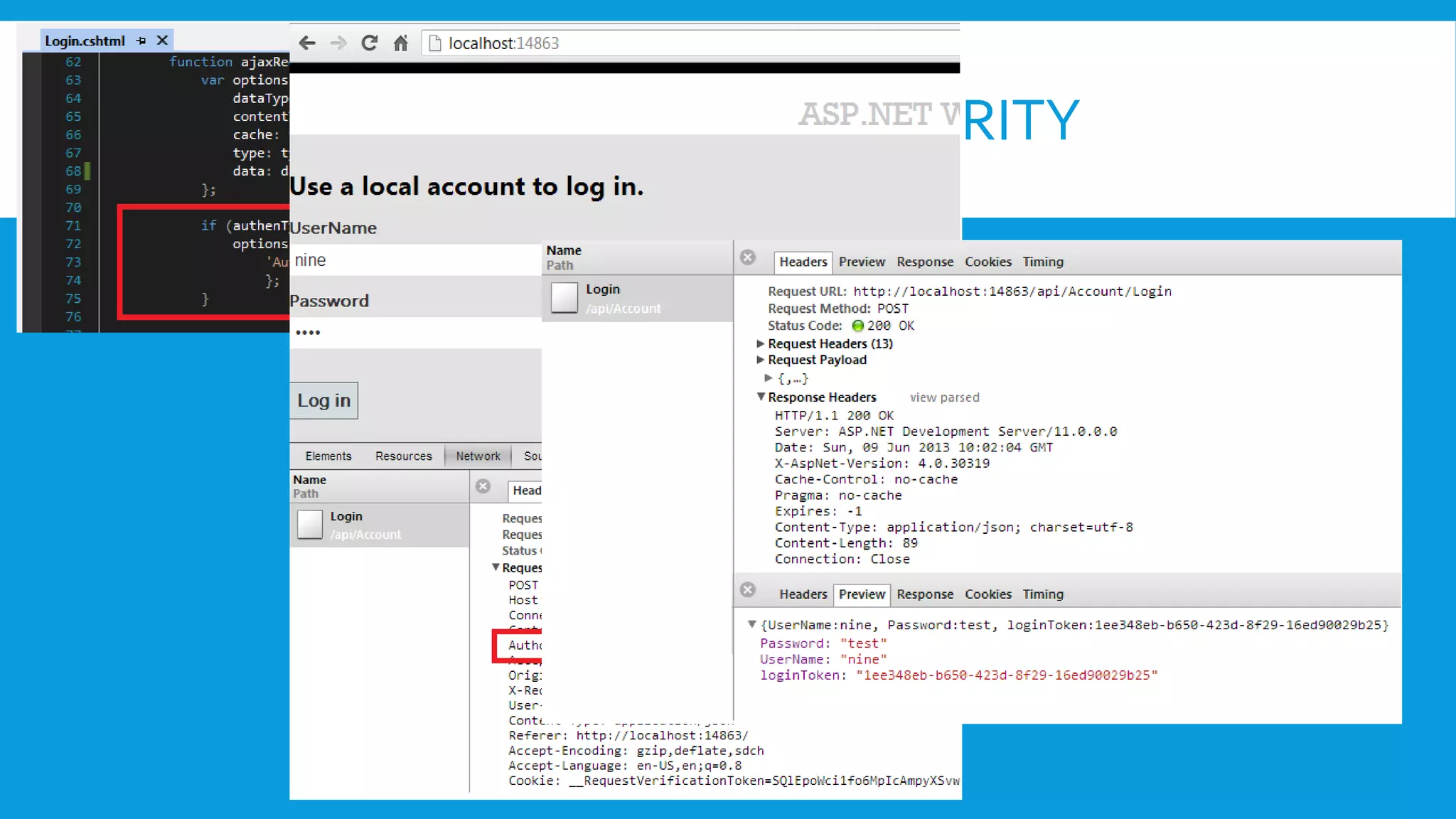

BASIC AUTHENTICATION SECURITY
 Easy solution for internet application
 SSL + BasicAuthentication + ASP.NET MembershipProvider
 Pros
 Easy
 Cons
 Username/Password encode to based 64

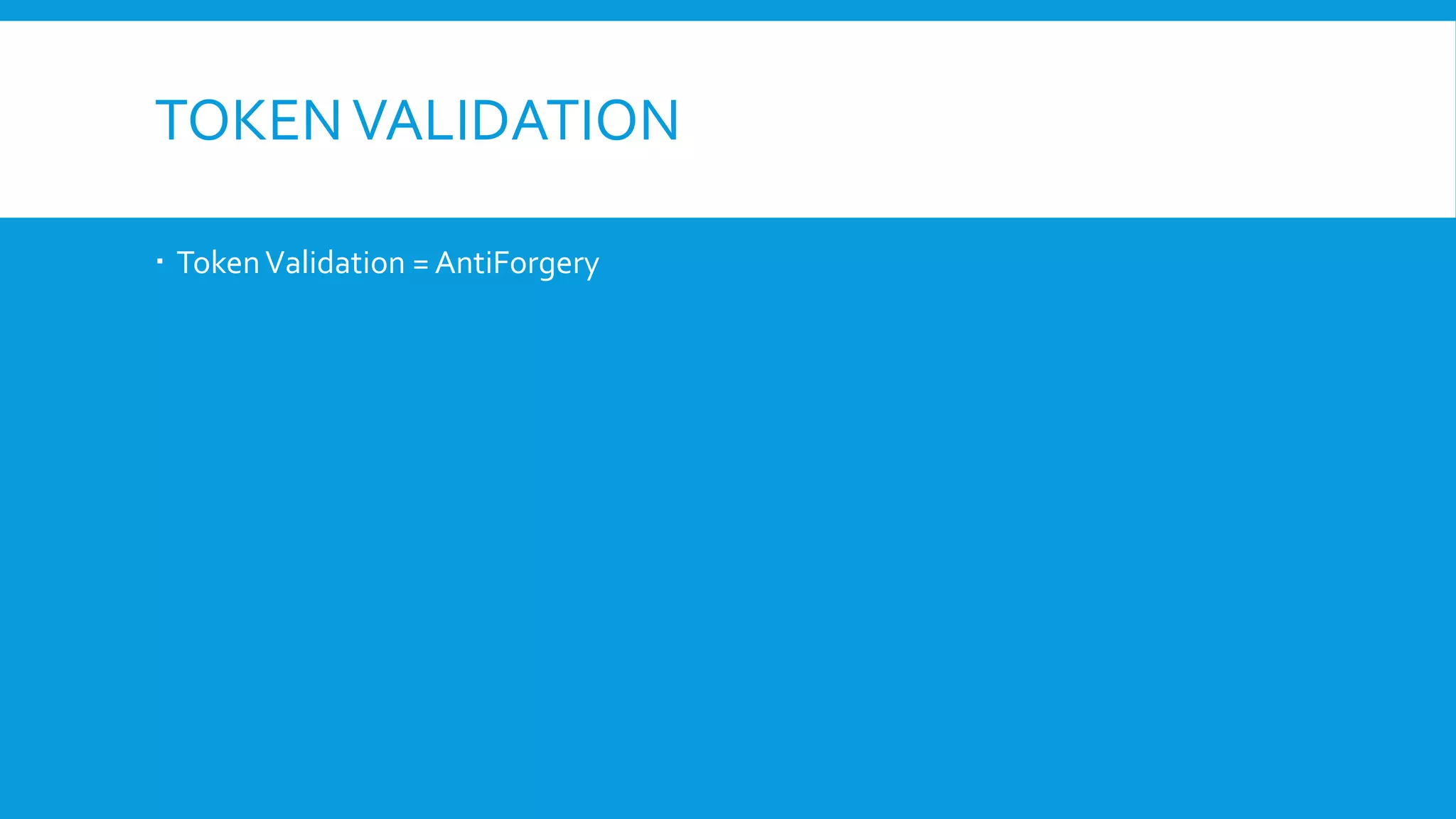

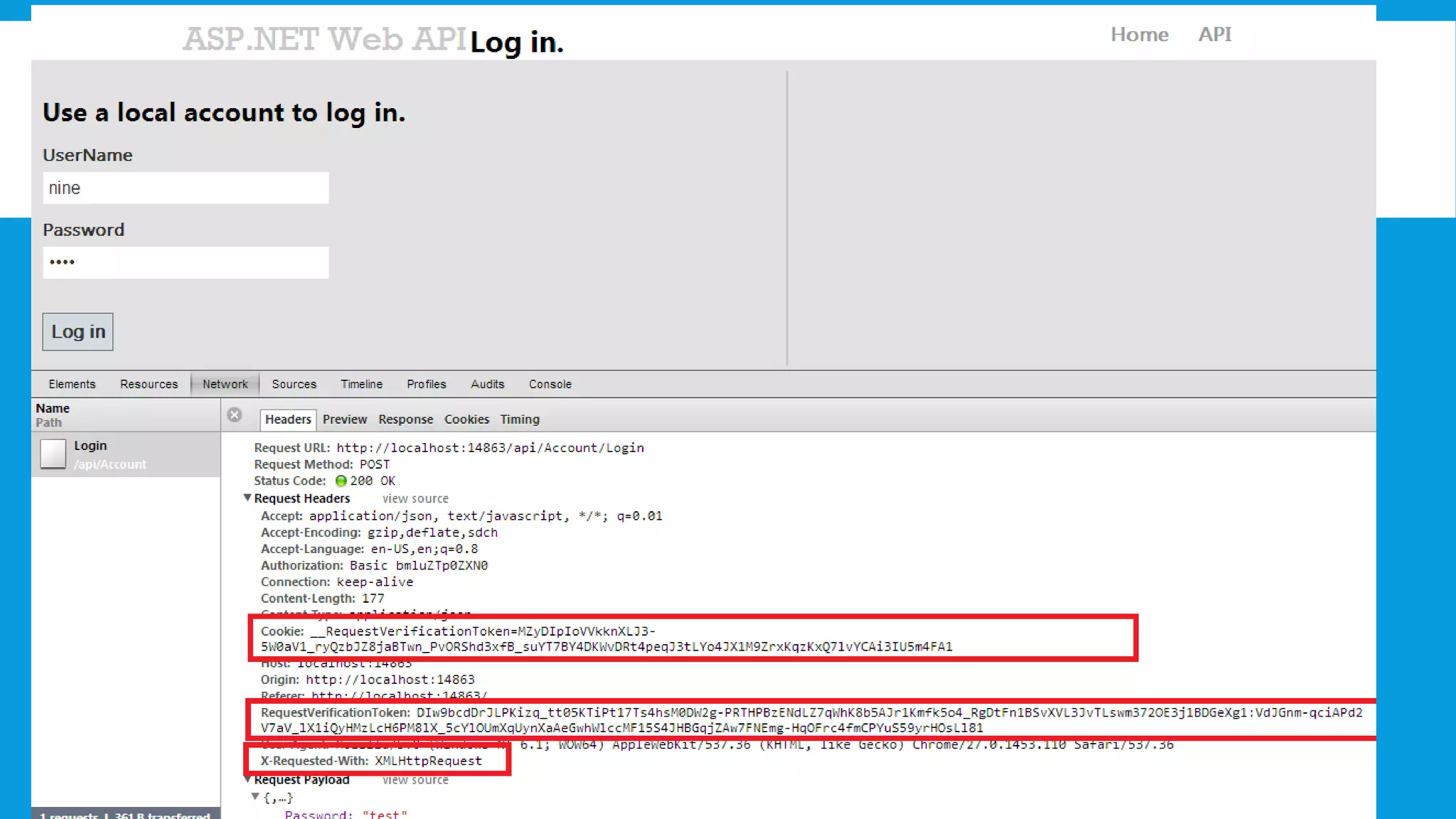

TOKENVALIDATION
 TokenValidation = AntiForgery

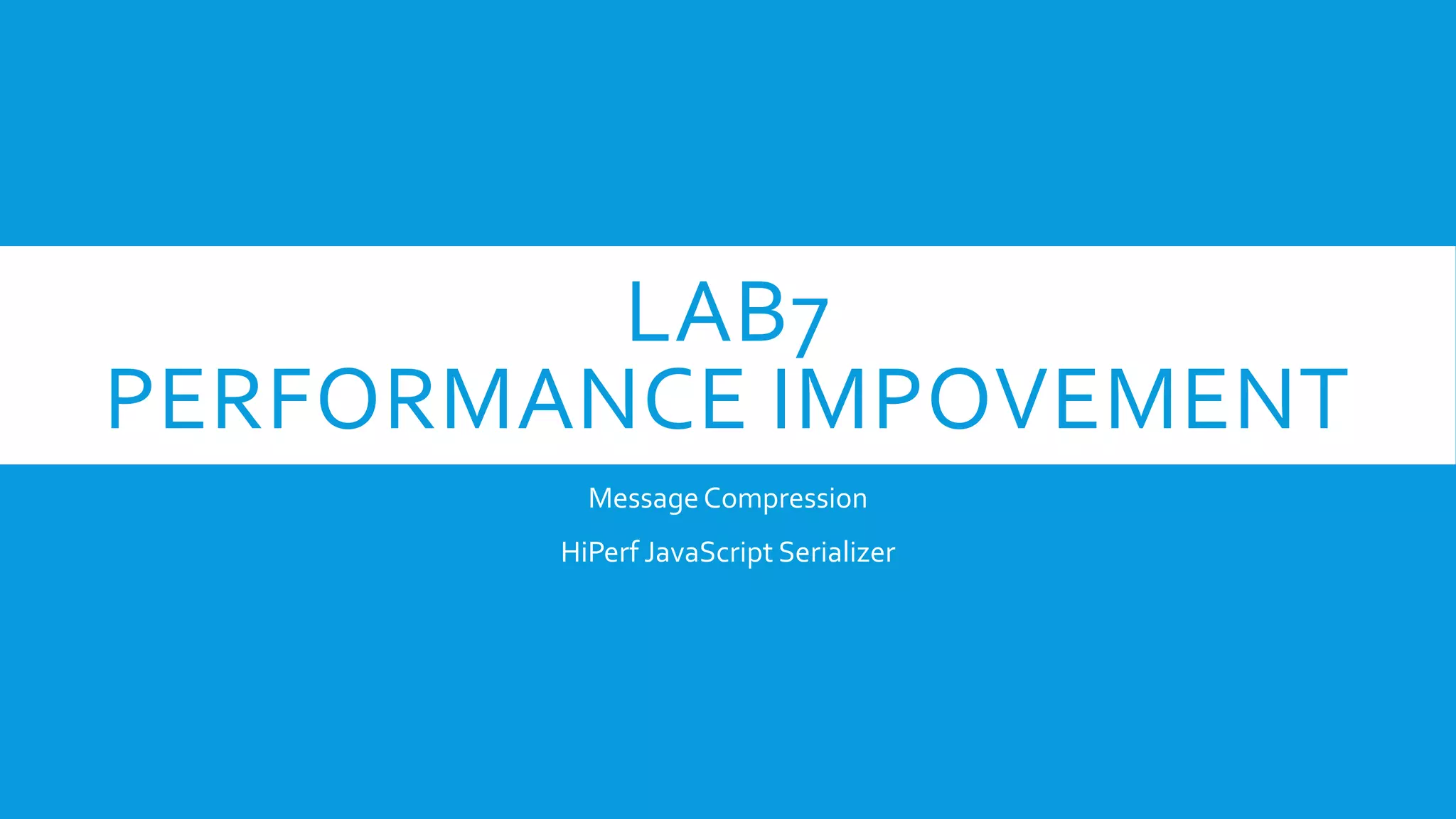

LAB7
PERFORMANCE IMPOVEMENT
MessageCompression
HiPerf JavaScript Serializer

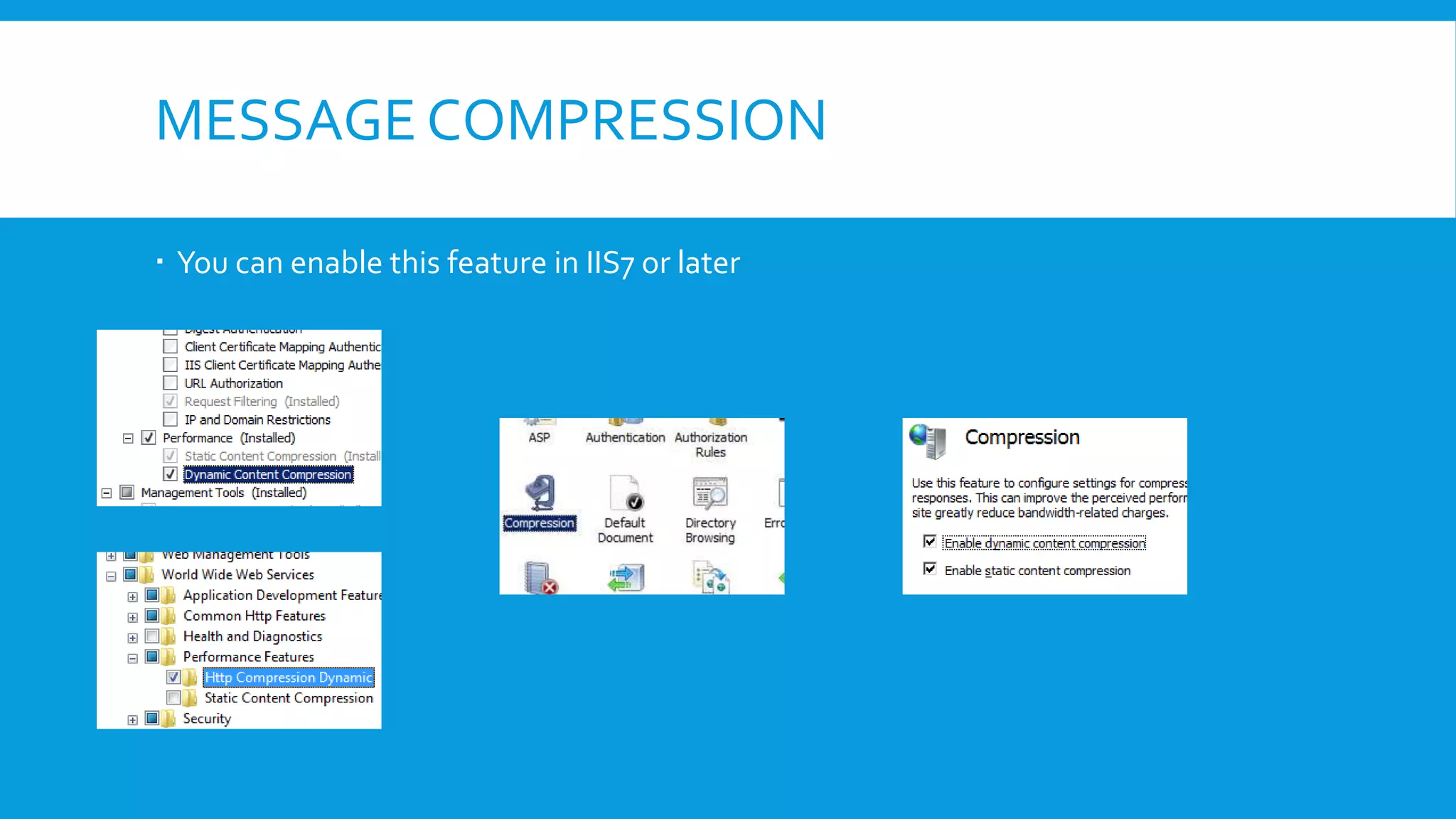

MESSAGE COMPRESSION
 You can enable this feature in IIS7 or later

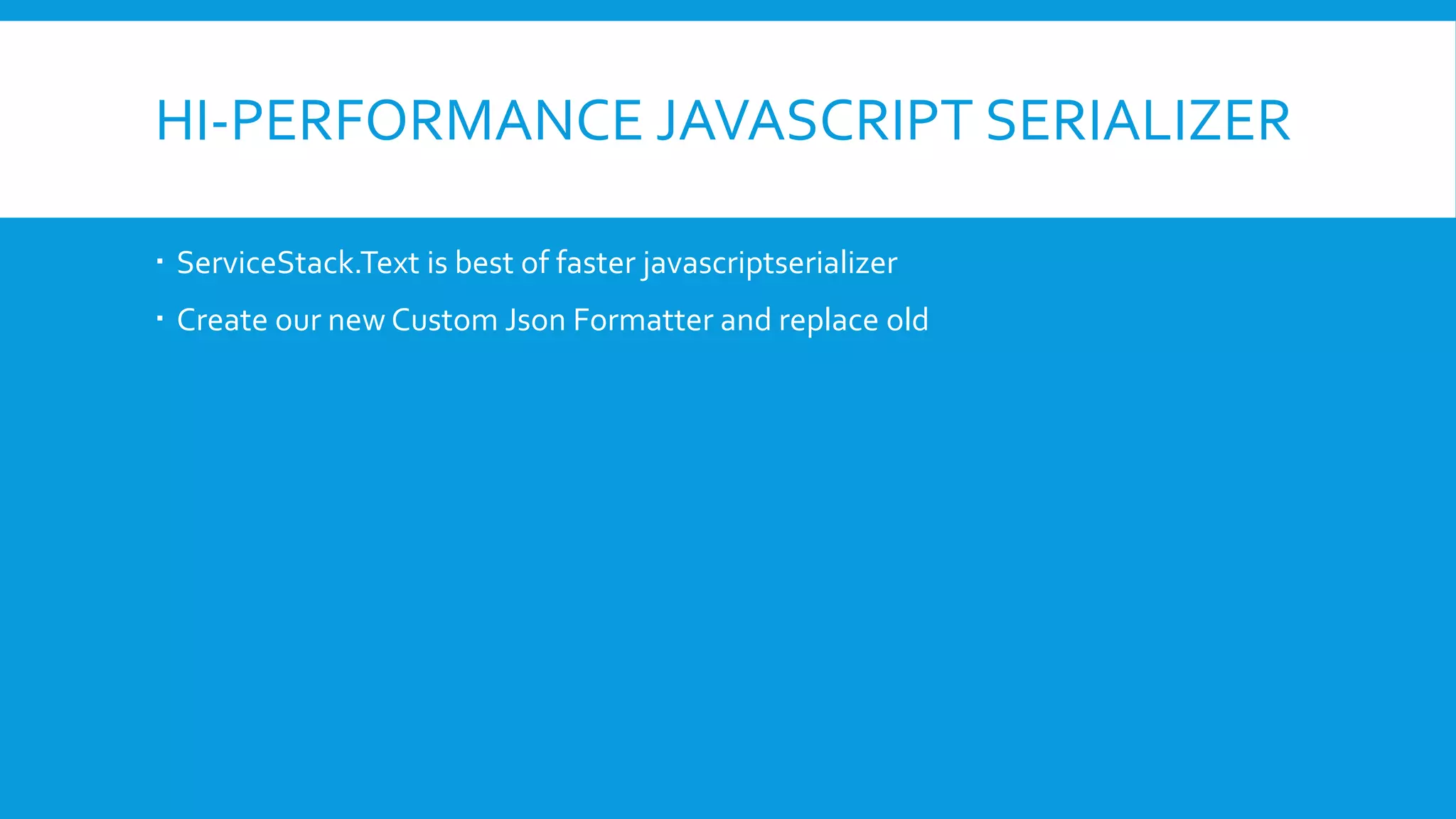

HI-PERFORMANCE JAVASCRIPT SERIALIZER
 ServiceStack.Text is best of faster javascriptserializer
 Create our new Custom Json Formatter and replace old

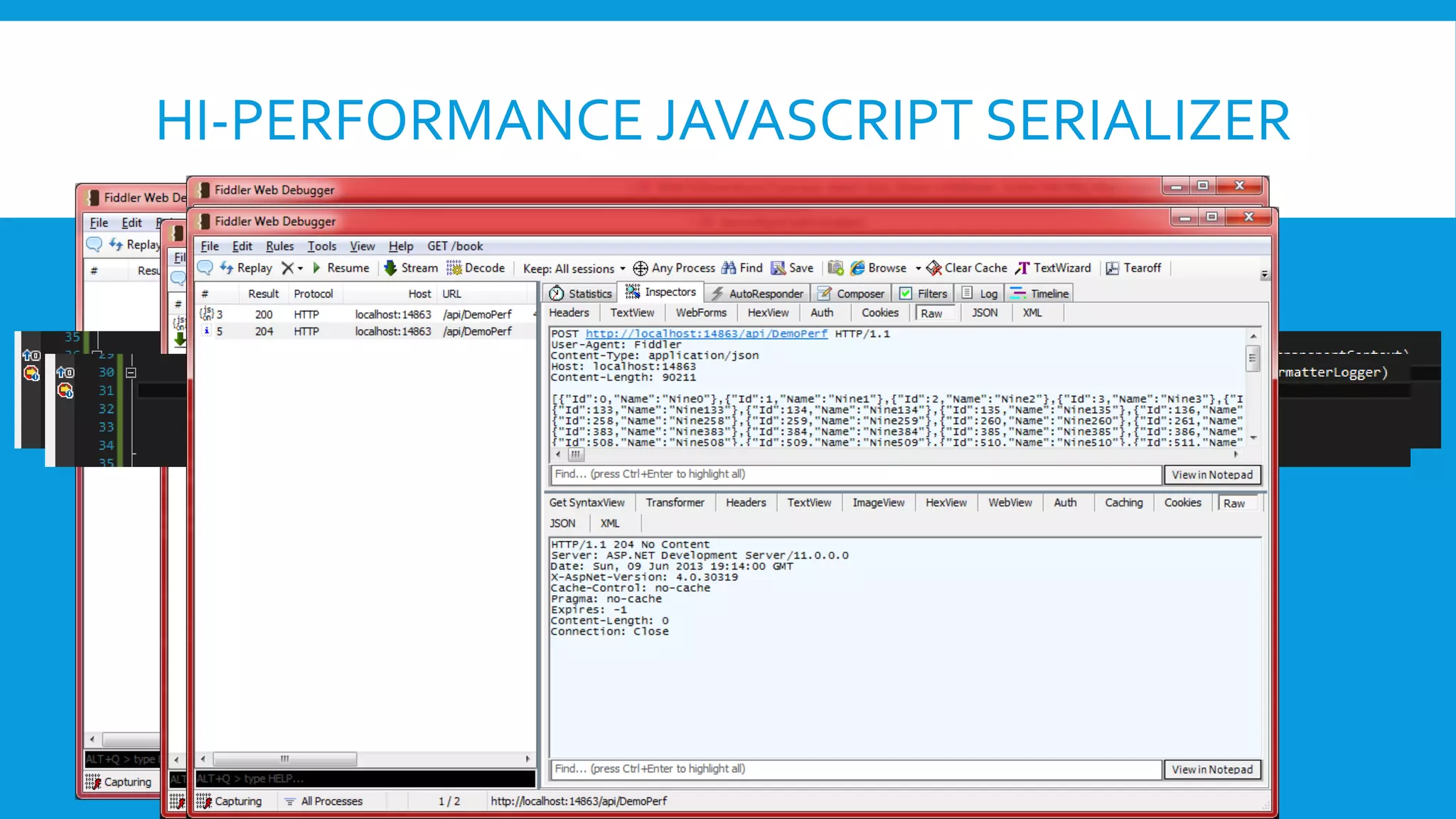

HI-PERFORMANCE JAVASCRIPT SERIALIZER

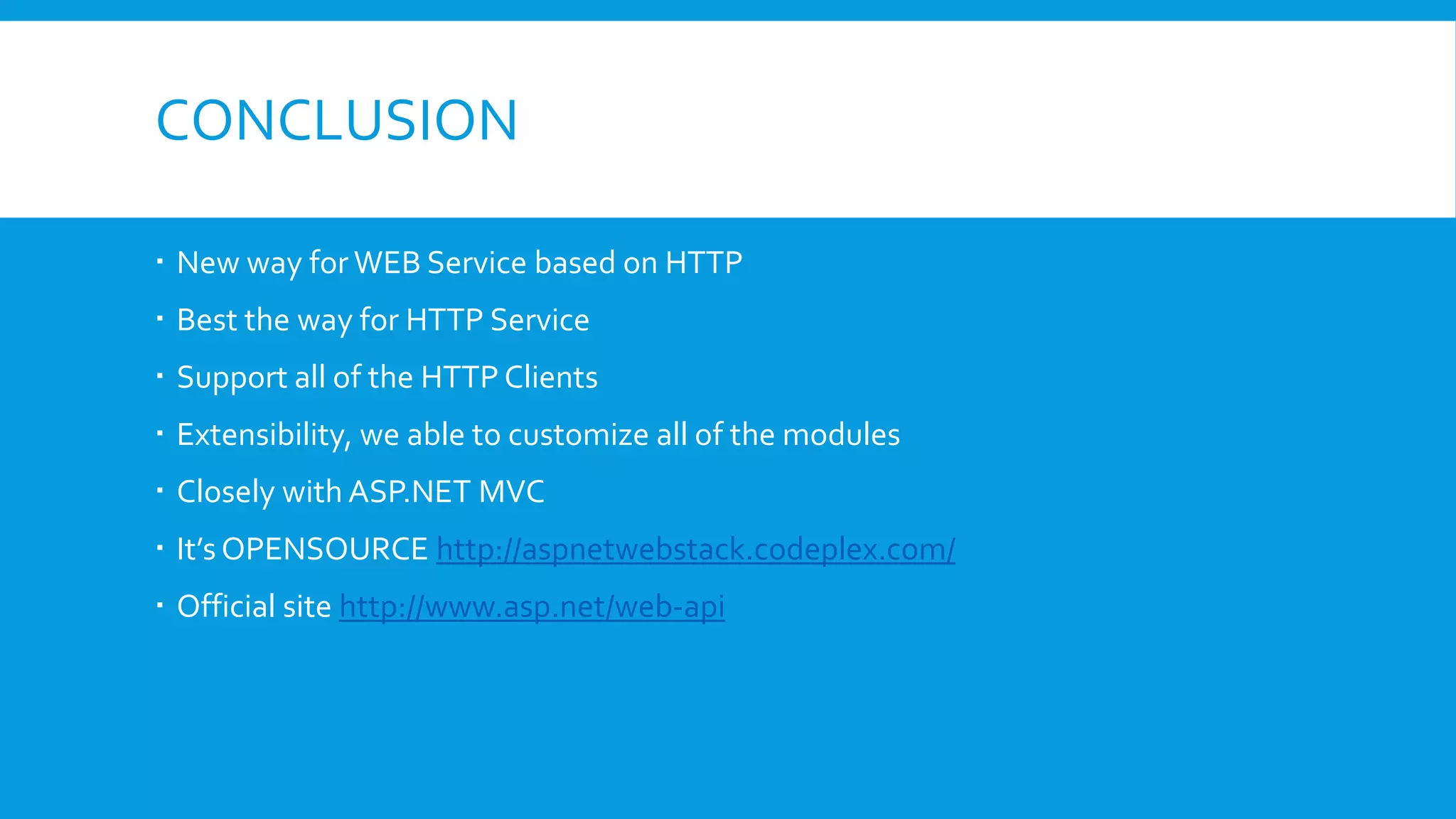

CONCLUSION
 New way for WEB Service based on HTTP
 Best the way for HTTP Service
 Support all of the HTTP Clients
 Extensibility, we able to customize all of the modules
 Closely with ASP.NET MVC
 It’s OPENSOURCE http://aspnetwebstack.codeplex.com/
 Official site http://www.asp.net/web-api

REAL WORLD IMPLEMENTATION
BY
CASE STUDY
ASP.NETWEB API Advanced course II
soon…

ASP.NET WEB API Training

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to ASP.NET WEB API Training

Similar to ASP.NET WEB API Training (20)

More from Chalermpon Areepong

More from Chalermpon Areepong (10)

Recently uploaded

Recently uploaded (20)

ASP.NET WEB API Training
