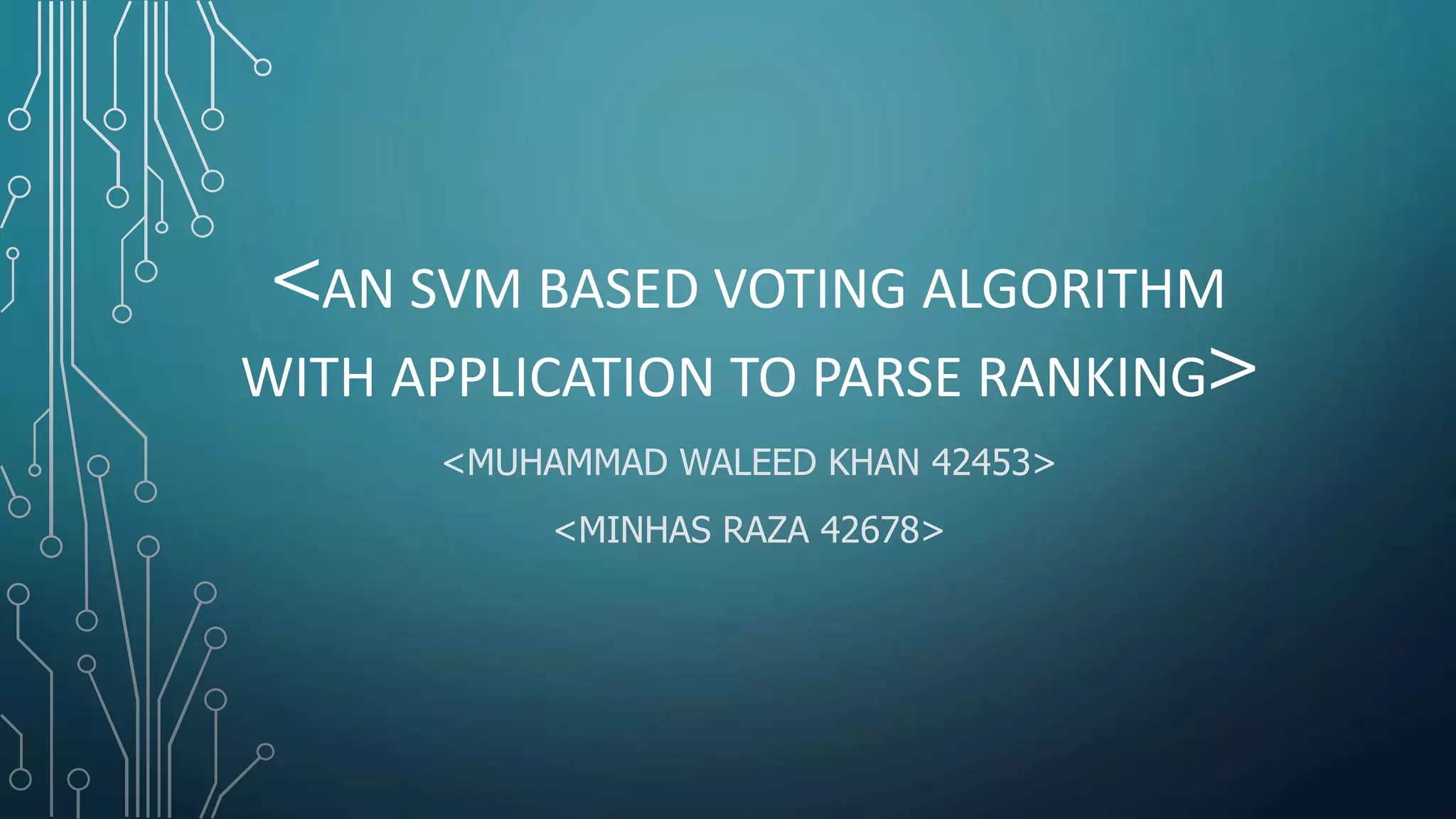

1. <AN SVM BASED VOTING ALGORITHM
WITH APPLICATION TO PARSE RANKING>
<MUHAMMAD WALEED KHAN 42453>
<MINHAS RAZA 42678>

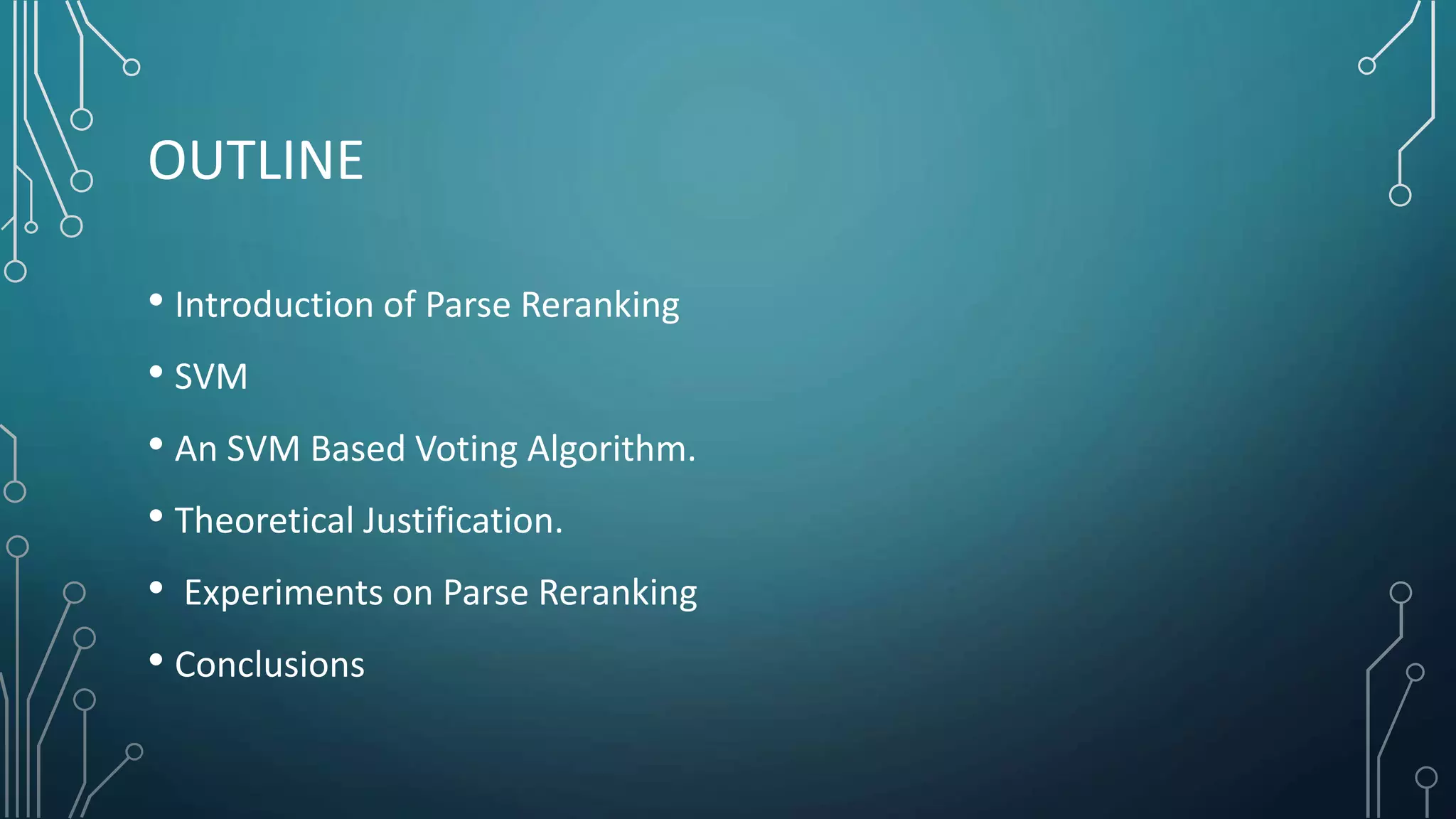

2. OUTLINE
• Introduction of Parse Reranking
• SVM
• An SVM Based Voting Algorithm.
• Theoretical Justification.
• Experiments on Parse Reranking
• Conclusions

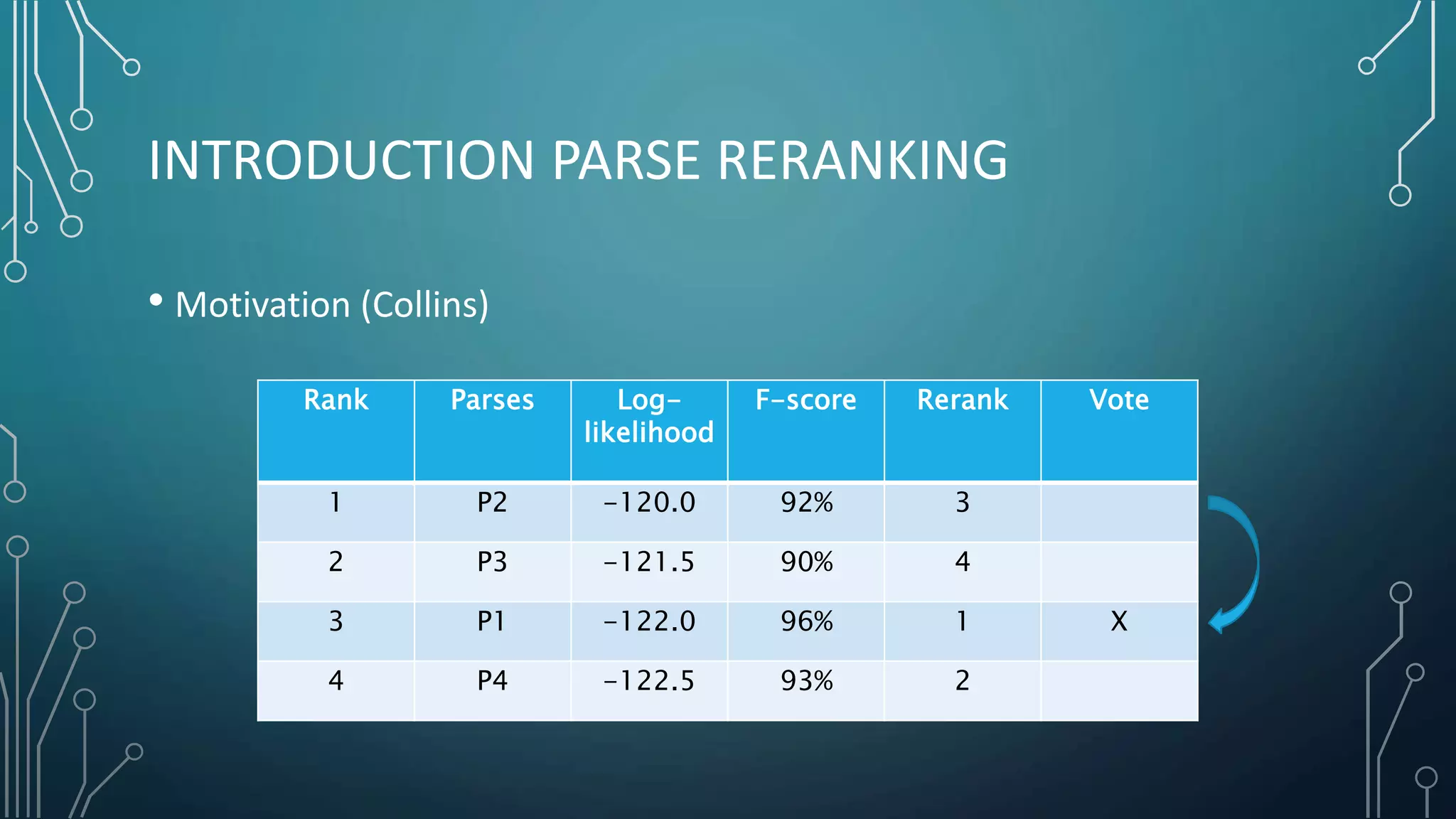

3. INTRODUCTION PARSE RERANKING
• Motivation (Collins)
Rank Parses Log-
likelihood
F-score Rerank Vote
1 P2 -120.0 92% 3
2 P3 -121.5 90% 4
3 P1 -122.0 96% 1 X
4 P4 -122.5 93% 2

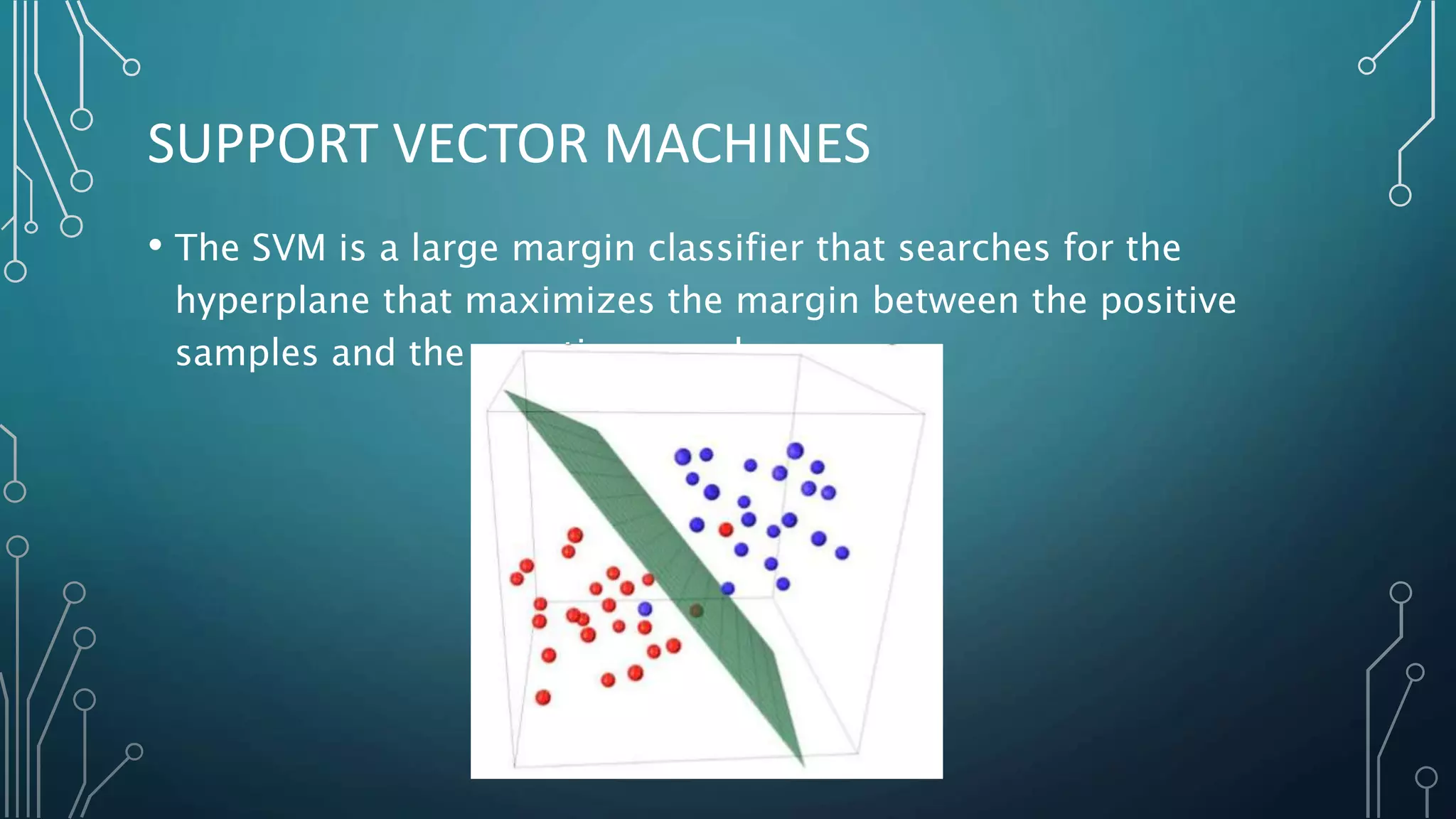

4. SUPPORT VECTOR MACHINES
• The SVM is a large margin classifier that searches for the
hyperplane that maximizes the margin between the positive
samples and the negative samples.

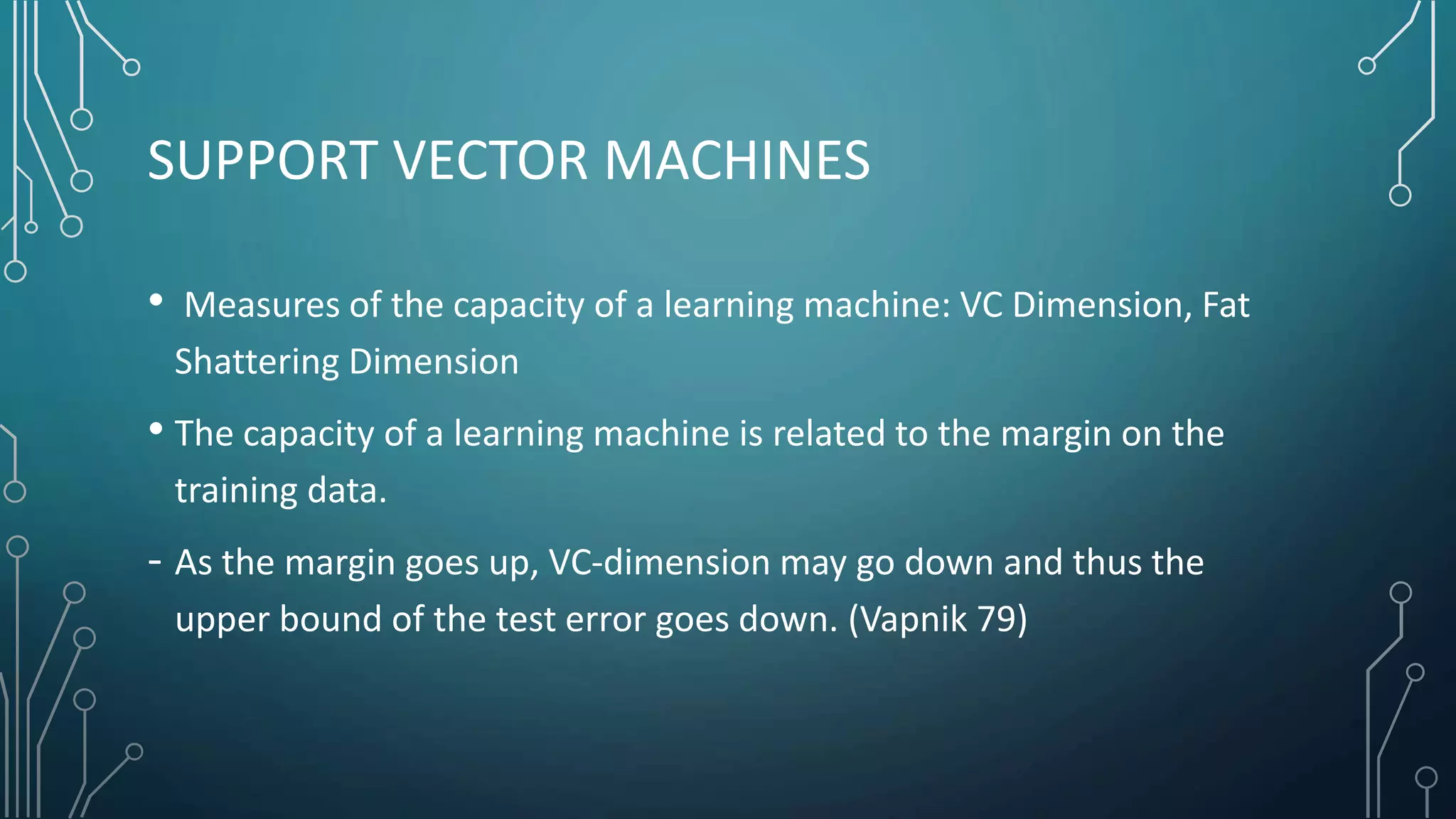

5. SUPPORT VECTOR MACHINES
• Measures of the capacity of a learning machine: VC Dimension, Fat
Shattering Dimension
• The capacity of a learning machine is related to the margin on the
training data.
- As the margin goes up, VC-dimension may go down and thus the
upper bound of the test error goes down. (Vapnik 79)

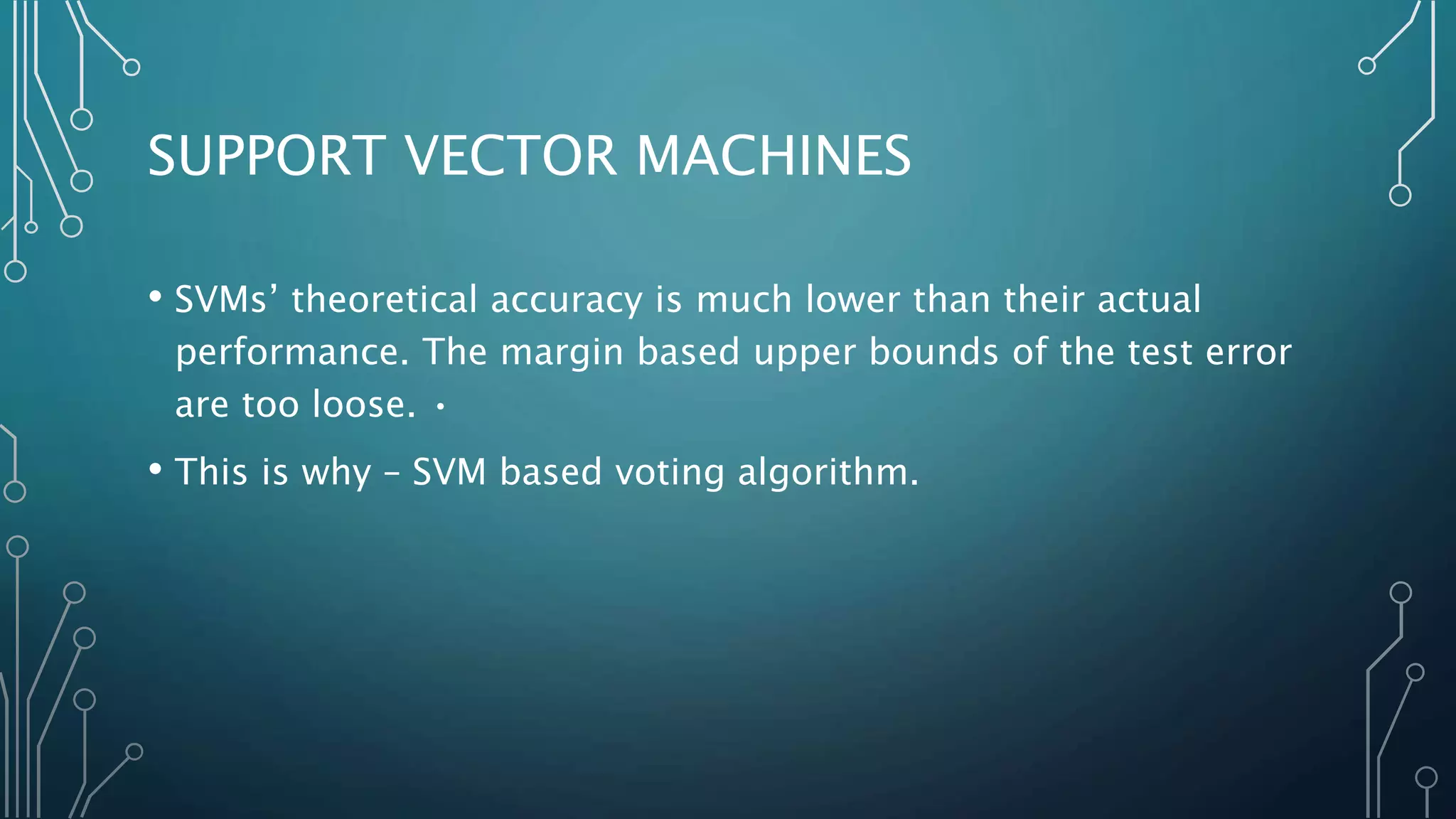

6. SUPPORT VECTOR MACHINES
• SVMs’ theoretical accuracy is much lower than their actual
performance. The margin based upper bounds of the test error
are too loose. •
• This is why – SVM based voting algorithm.

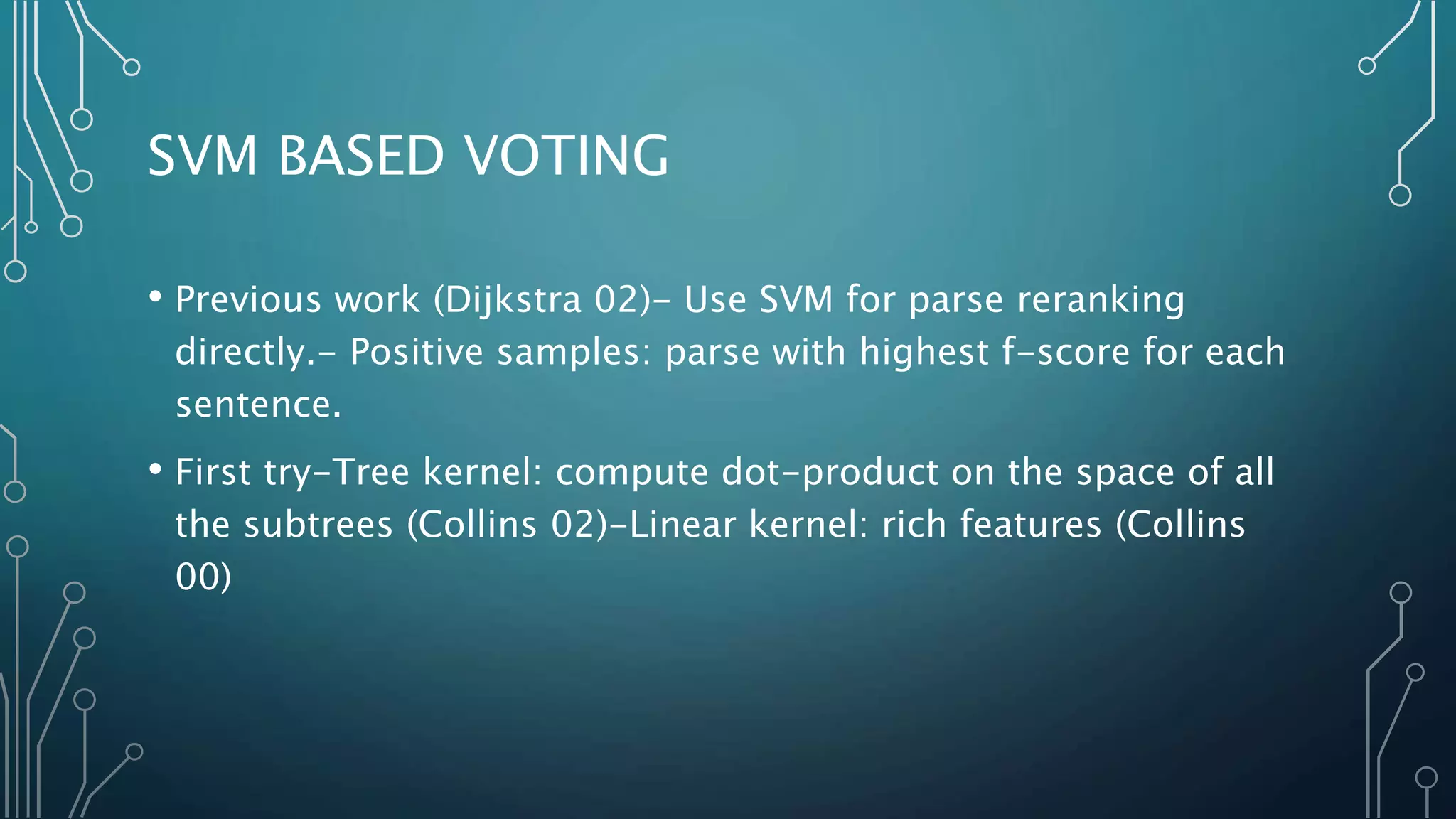

7. SVM BASED VOTING
• Previous work (Dijkstra 02)- Use SVM for parse reranking
directly.- Positive samples: parse with highest f-score for each
sentence.
• First try-Tree kernel: compute dot-product on the space of all
the subtrees (Collins 02)-Linear kernel: rich features (Collins
00)

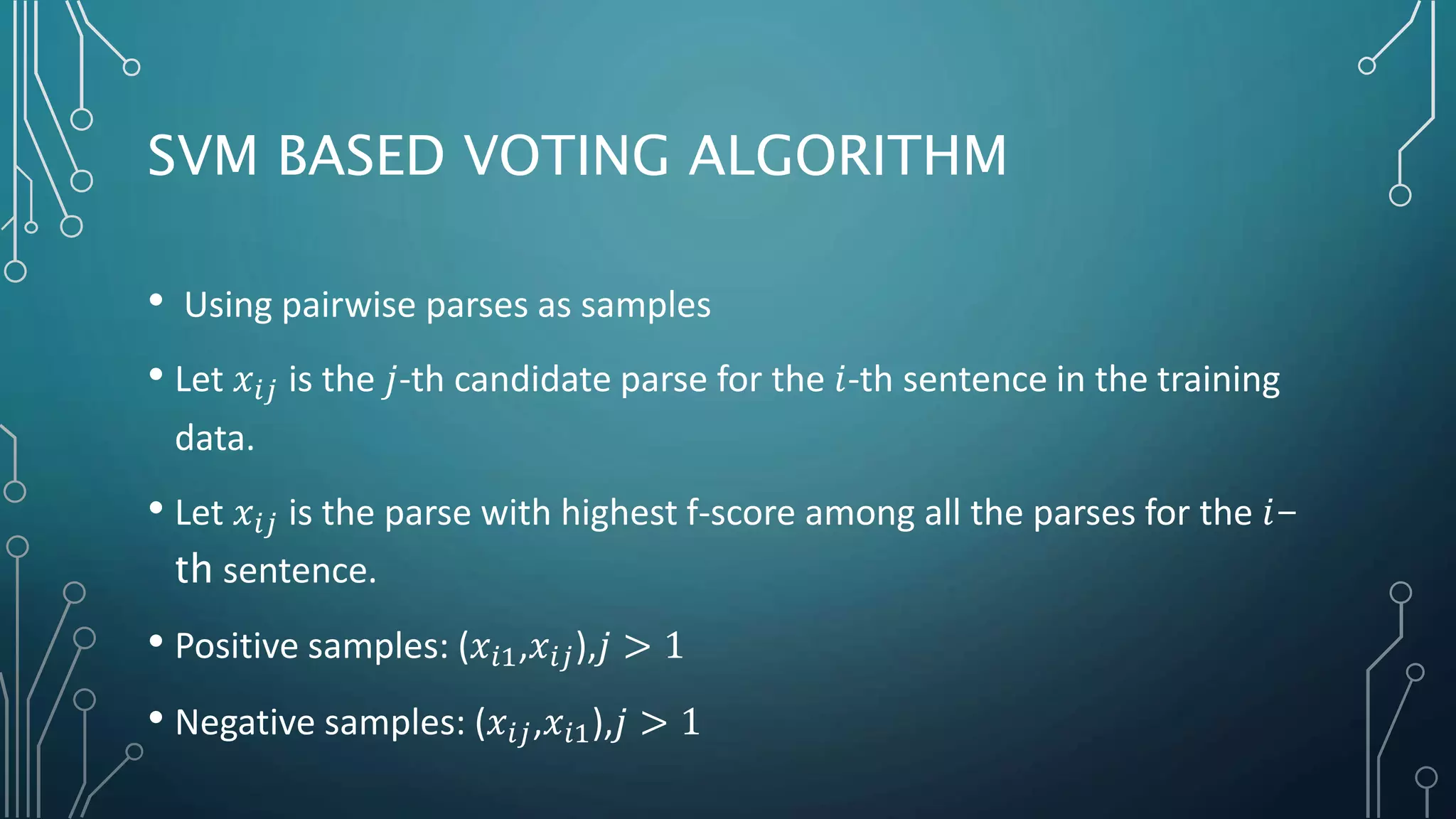

8. SVM BASED VOTING ALGORITHM
• Using pairwise parses as samples
• Let 𝑥𝑖𝑗 is the 𝑗-th candidate parse for the 𝑖-th sentence in the training
data.
• Let 𝑥𝑖𝑗 is the parse with highest f-score among all the parses for the 𝑖-
th sentence.
• Positive samples: (𝑥𝑖1,𝑥𝑖𝑗),𝑗 > 1
• Negative samples: (𝑥𝑖𝑗,𝑥𝑖1),𝑗 > 1

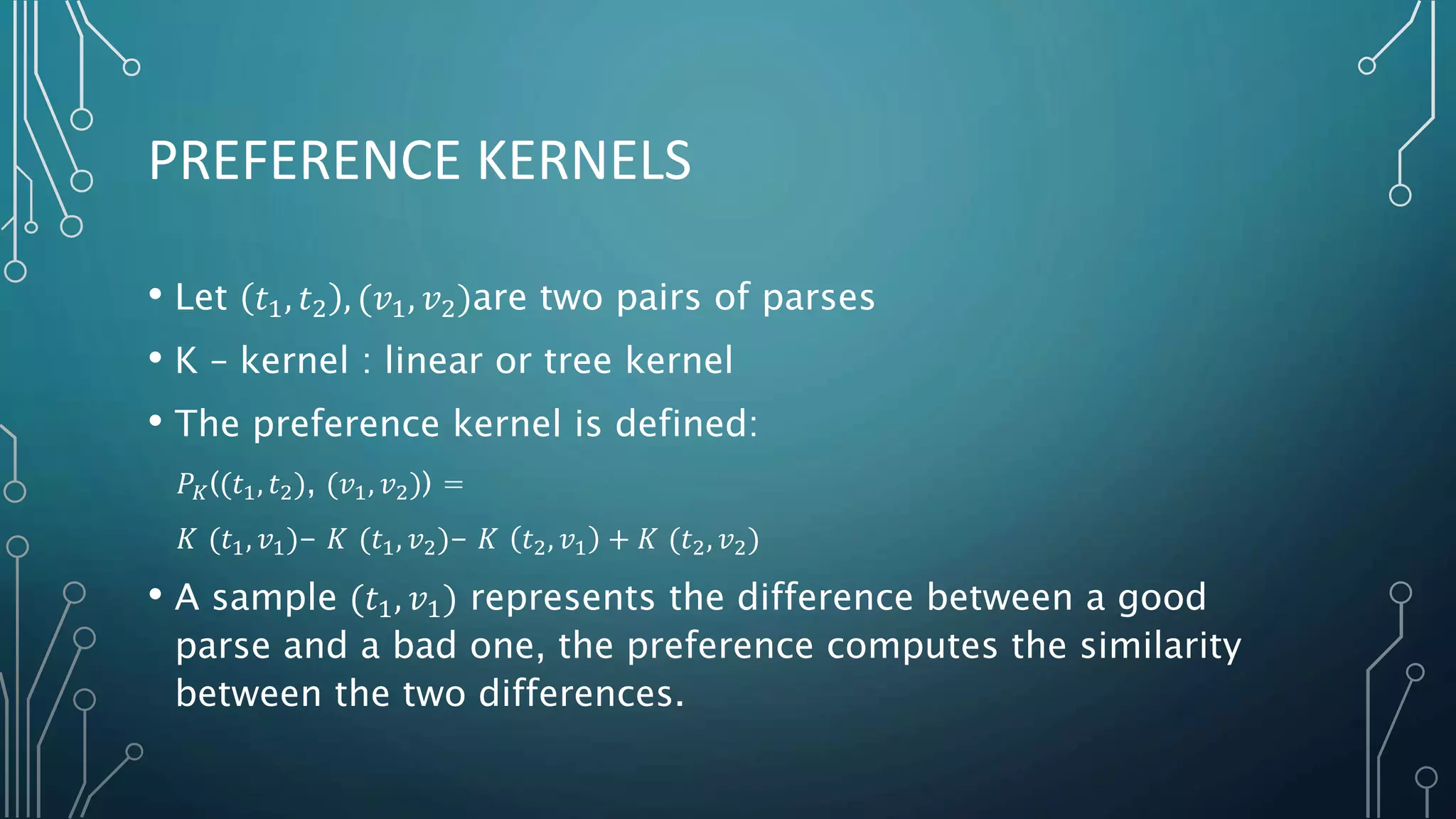

9. PREFERENCE KERNELS
• Let 𝑡1, 𝑡2 , (𝑣1, 𝑣2)are two pairs of parses
• K – kernel : linear or tree kernel
• The preference kernel is defined:
𝑃𝐾((𝑡1, 𝑡2), (𝑣1, 𝑣2)) =
𝐾 (𝑡1, 𝑣1)- 𝐾 (𝑡1, 𝑣2)- 𝐾 𝑡2, 𝑣1 + 𝐾 (𝑡2, 𝑣2)
• A sample (𝑡1, 𝑣1) represents the difference between a good
parse and a bad one, the preference computes the similarity
between the two differences.

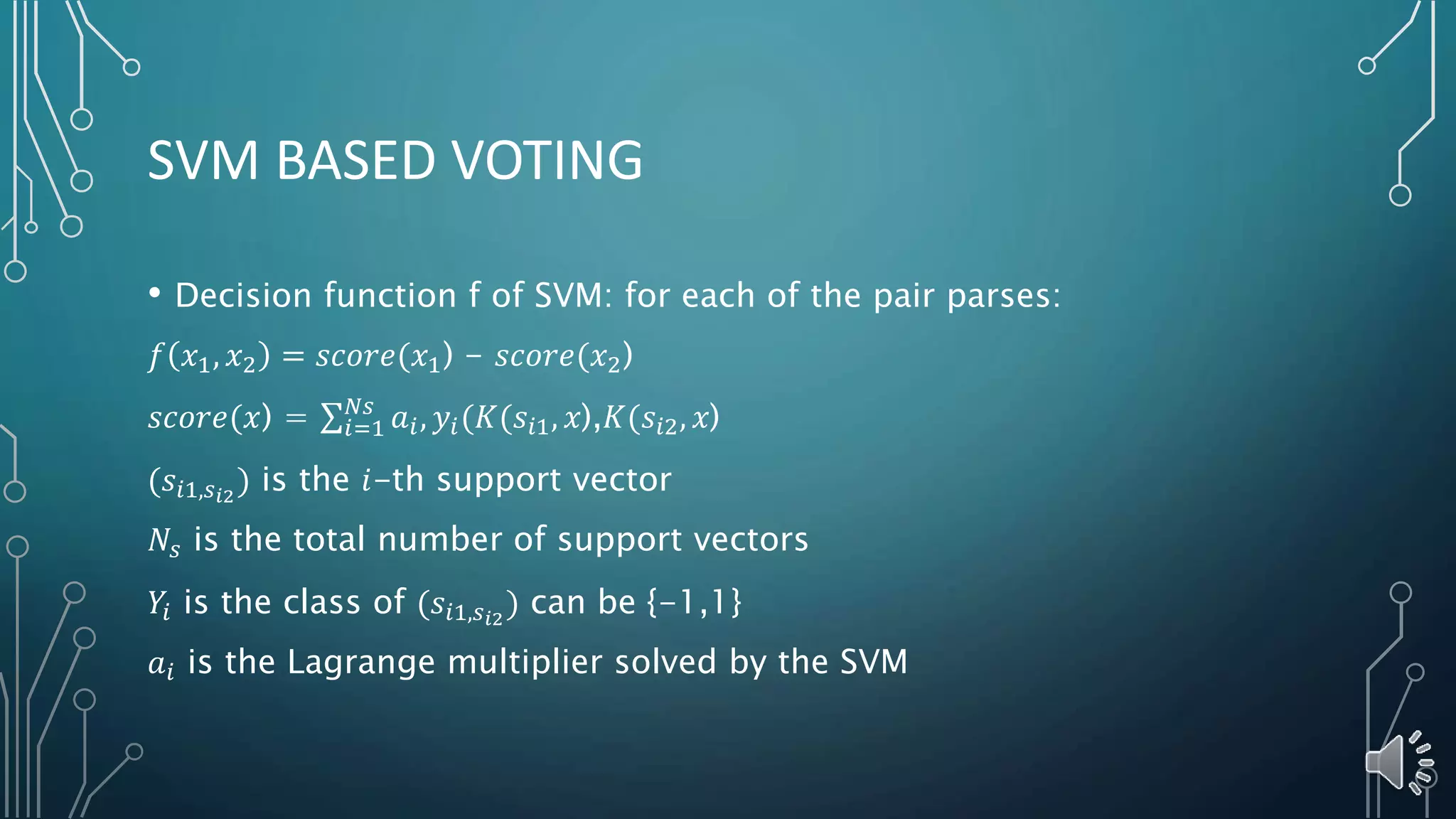

10. SVM BASED VOTING
• Decision function f of SVM: for each of the pair parses:
𝑓 𝑥1, 𝑥2 = 𝑠𝑐𝑜𝑟𝑒(𝑥1) - 𝑠𝑐𝑜𝑟𝑒(𝑥2)
𝑠𝑐𝑜𝑟𝑒(𝑥) = 𝑖=1
𝑁𝑠
𝑎𝑖, 𝑦𝑖(𝐾(𝑠𝑖1, 𝑥),𝐾(𝑠𝑖2, 𝑥)
(𝑠𝑖1,𝑠𝑖2
) is the 𝑖-th support vector
𝑁𝑠 is the total number of support vectors
𝑌𝑖 is the class of (𝑠𝑖1,𝑠𝑖2
) can be {-1,1}
𝑎𝑖 is the Lagrange multiplier solved by the SVM

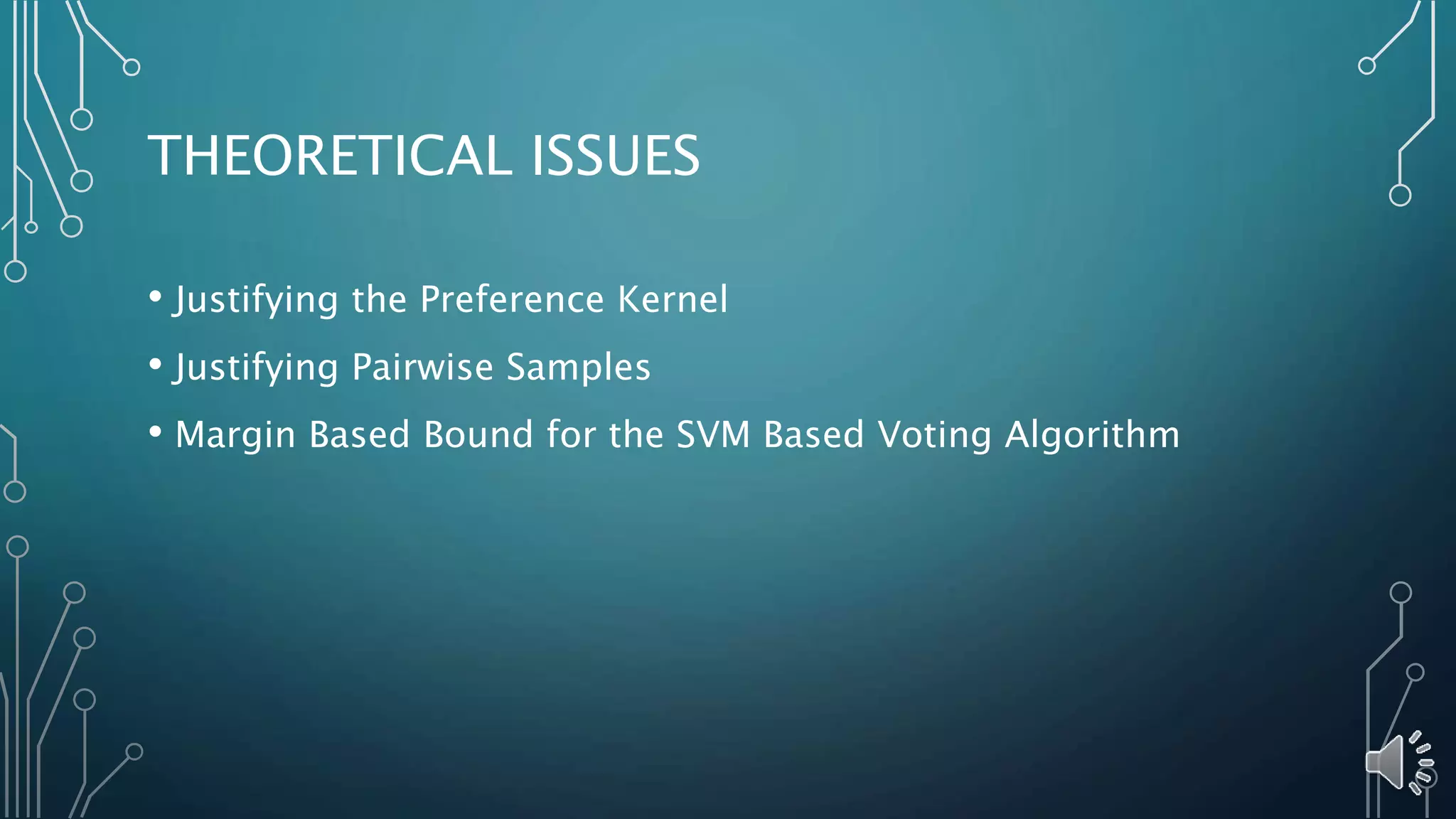

11. THEORETICAL ISSUES
• Justifying the Preference Kernel
• Justifying Pairwise Samples
• Margin Based Bound for the SVM Based Voting Algorithm

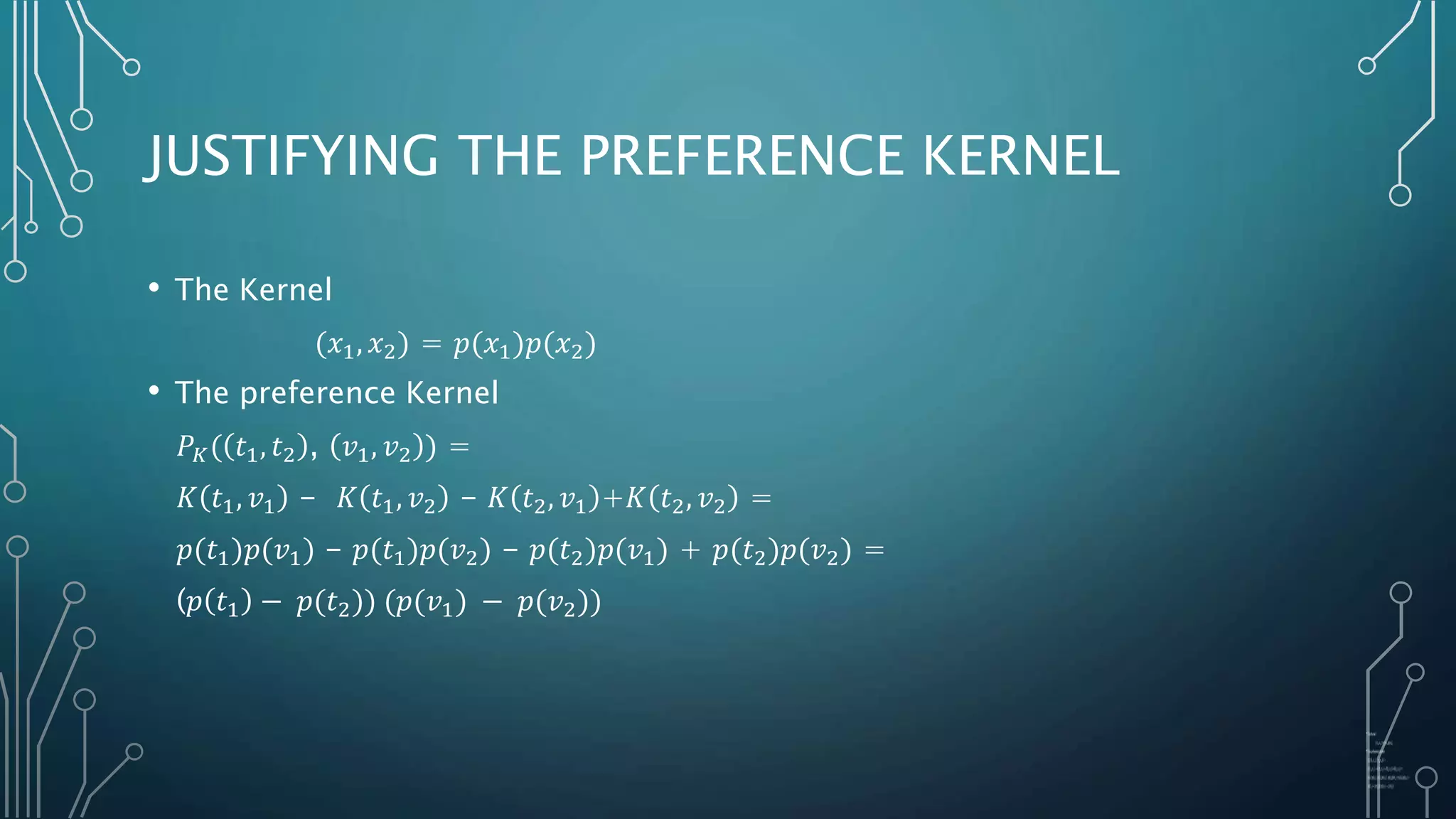

12. JUSTIFYING THE PREFERENCE KERNEL
• The Kernel
(𝑥1, 𝑥2) = 𝑝(𝑥1)𝑝(𝑥2)
• The preference Kernel
𝑃𝐾( 𝑡1, 𝑡2 , 𝑣1, 𝑣2 ) =
𝐾 𝑡1, 𝑣1 - 𝐾 𝑡1, 𝑣2 - 𝐾 𝑡2, 𝑣1 +𝐾 𝑡2, 𝑣2 =
𝑝(𝑡1)𝑝(𝑣1) - 𝑝(𝑡1)𝑝(𝑣2) - 𝑝(𝑡2)𝑝(𝑣1) + 𝑝(𝑡2)𝑝(𝑣2) =
(𝑝 𝑡1 − 𝑝(𝑡2)) (𝑝(𝑣1) − 𝑝(𝑣2))

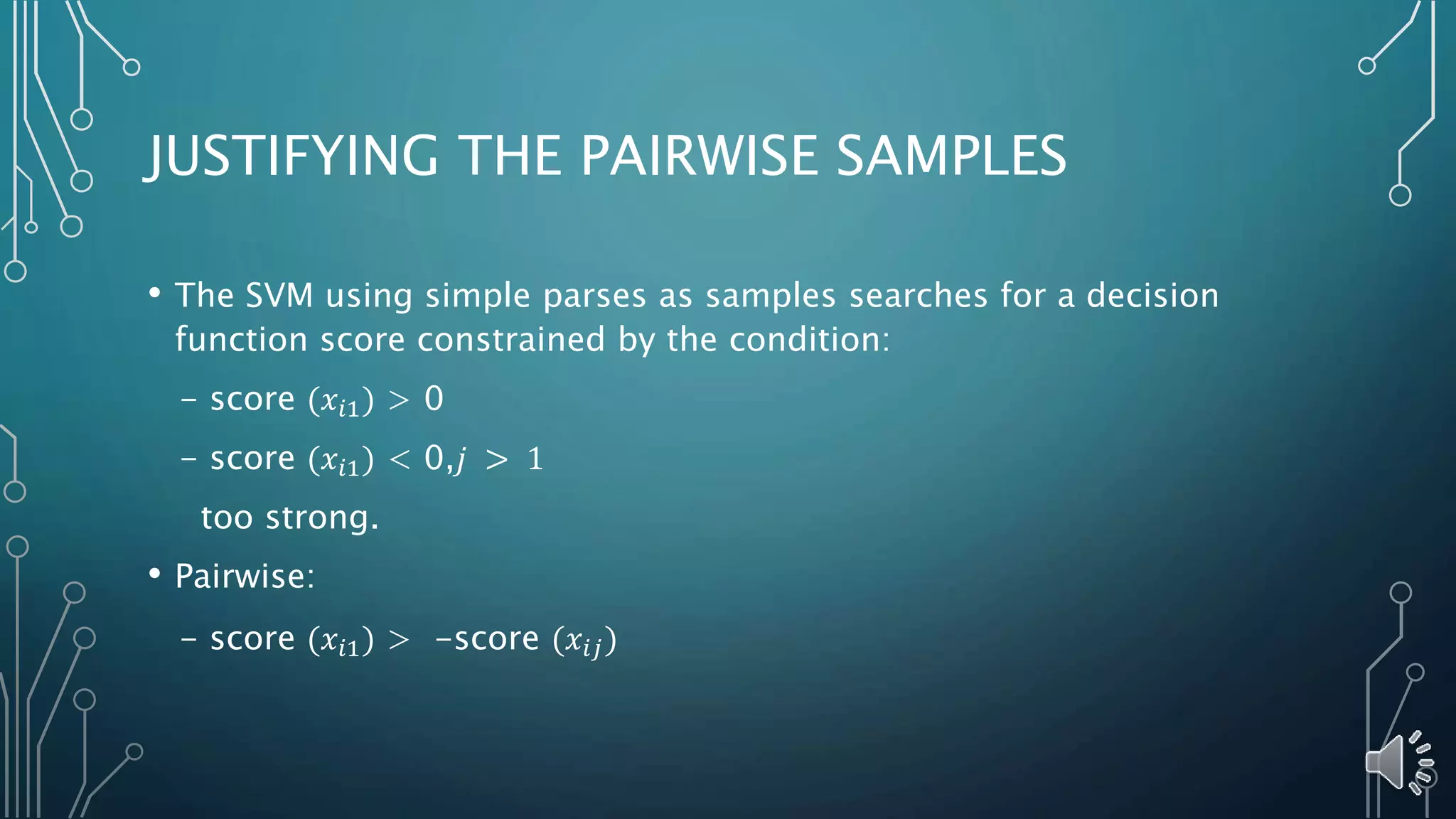

13. JUSTIFYING THE PAIRWISE SAMPLES
• The SVM using simple parses as samples searches for a decision
function score constrained by the condition:
- score (𝑥𝑖1) > 0
- score (𝑥𝑖1) < 0,𝑗 > 1
too strong.
• Pairwise:
- score (𝑥𝑖1) > -score (𝑥𝑖𝑗)

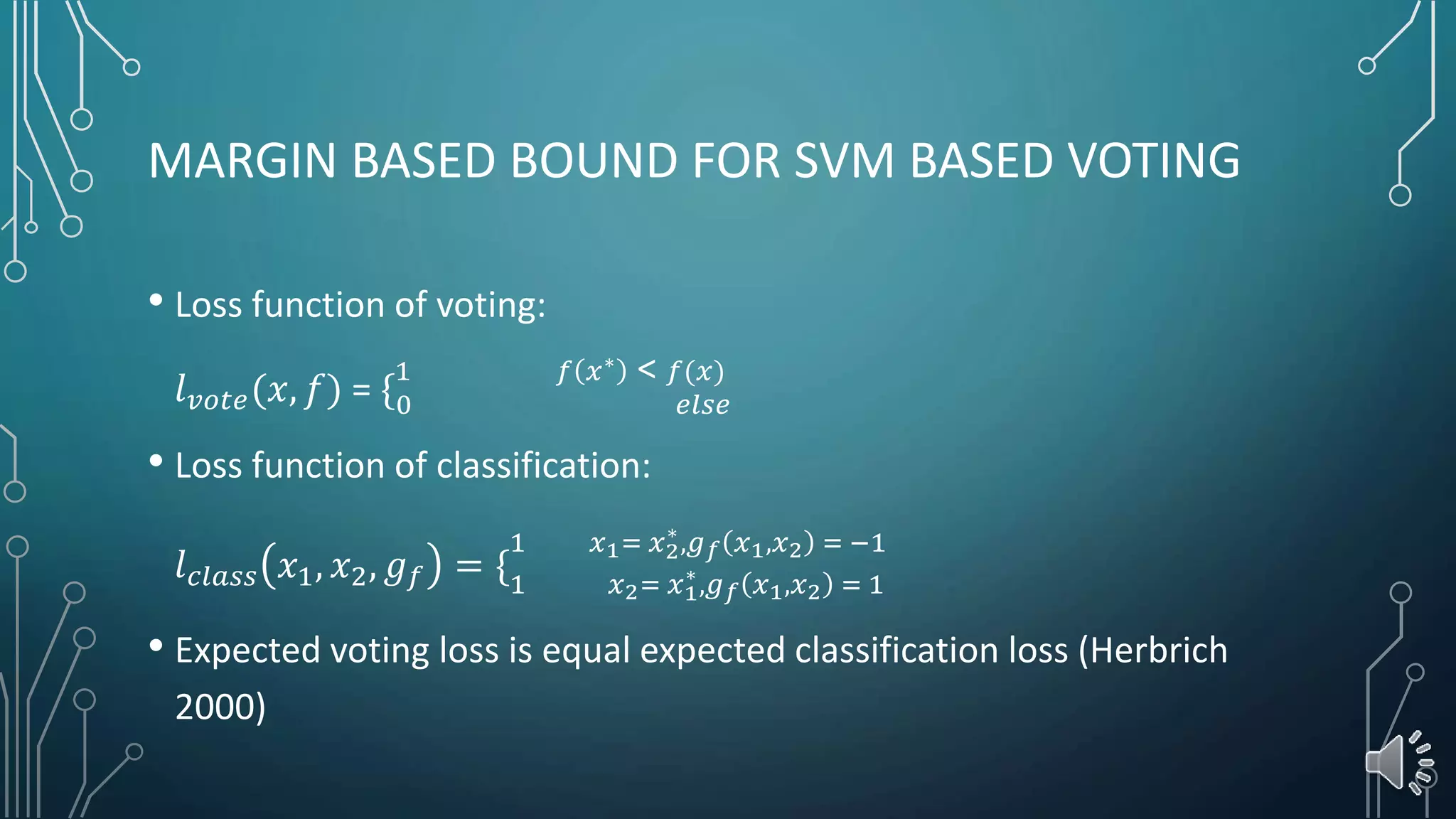

14. MARGIN BASED BOUND FOR SVM BASED VOTING
• Loss function of voting:
𝑙𝑣𝑜𝑡𝑒(𝑥, 𝑓) = {0 𝑒𝑙𝑠𝑒
1 𝑓 𝑥∗ < 𝑓(𝑥)
• Loss function of classification:
𝑙𝑐𝑙𝑎𝑠𝑠 𝑥1, 𝑥2, 𝑔𝑓 = {1 𝑥2= 𝑥1
∗,𝑔𝑓 𝑥1,𝑥2 = 1
1 𝑥1= 𝑥2
∗,𝑔𝑓 𝑥1,𝑥2 = −1
• Expected voting loss is equal expected classification loss (Herbrich
2000)

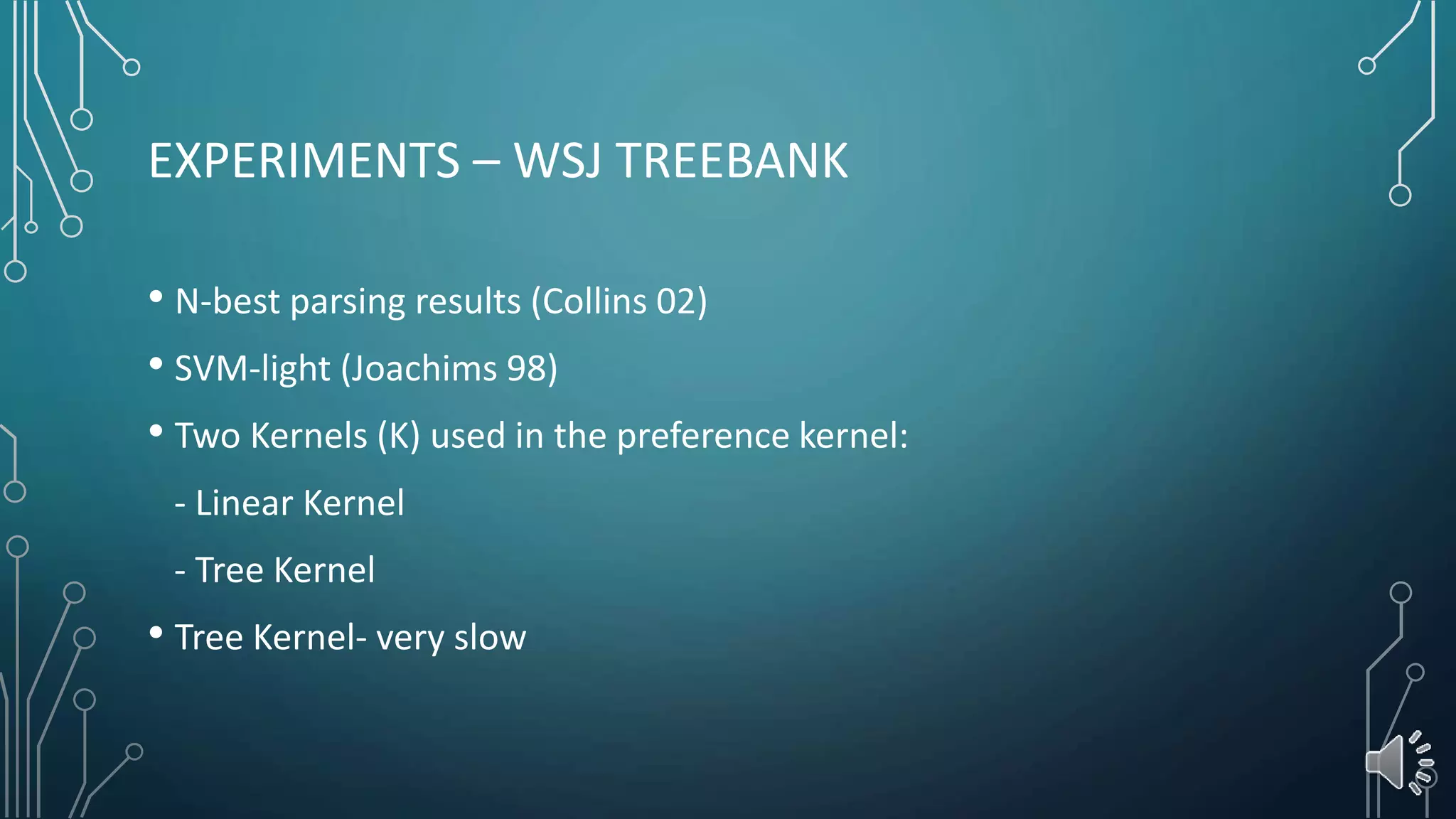

15. EXPERIMENTS – WSJ TREEBANK
• N-best parsing results (Collins 02)
• SVM-light (Joachims 98)
• Two Kernels (K) used in the preference kernel:
- Linear Kernel
- Tree Kernel
• Tree Kernel- very slow

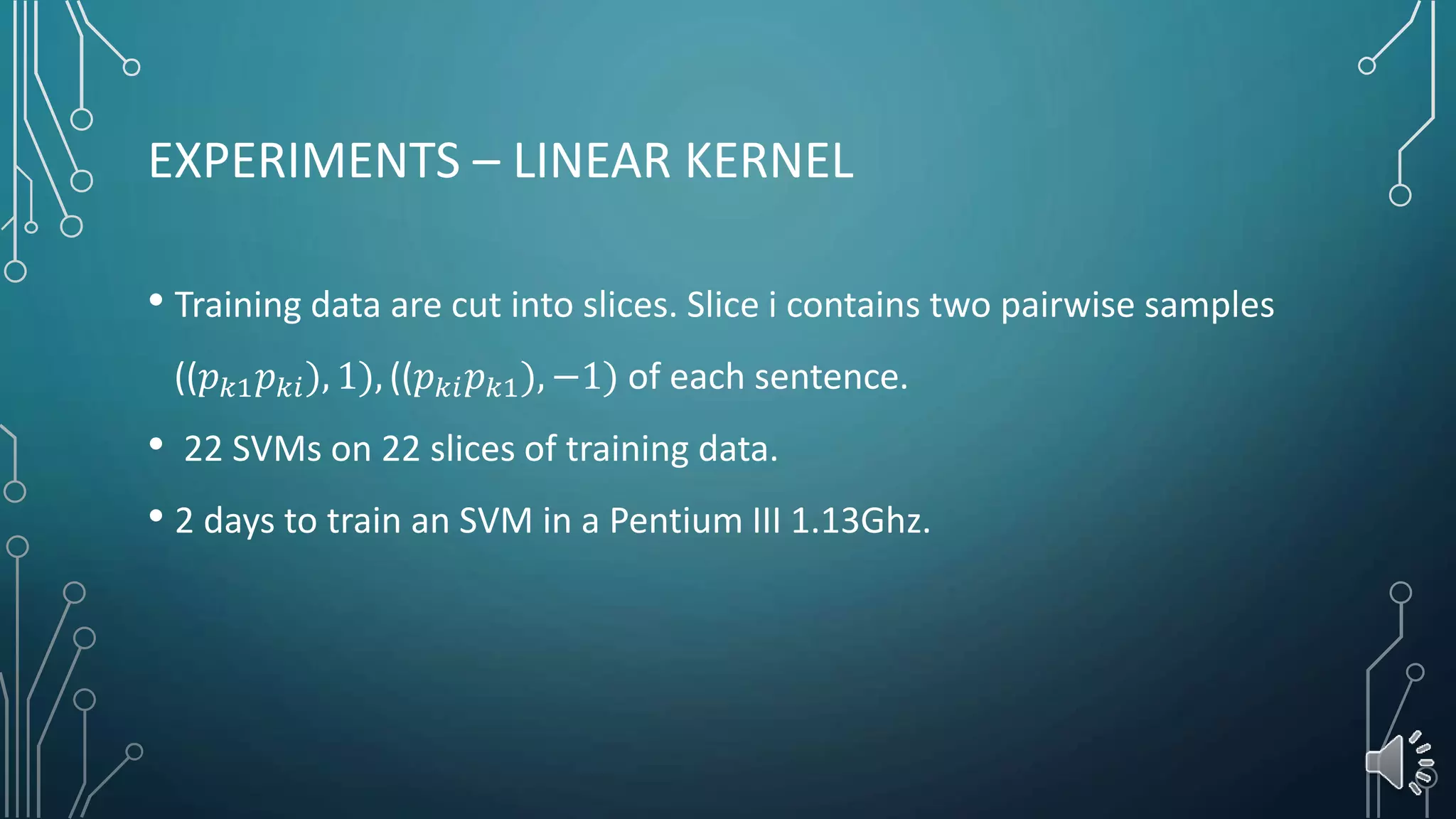

16. EXPERIMENTS – LINEAR KERNEL
• Training data are cut into slices. Slice i contains two pairwise samples
((𝑝𝑘1𝑝𝑘𝑖), 1), ((𝑝𝑘𝑖𝑝𝑘1), −1) of each sentence.
• 22 SVMs on 22 slices of training data.
• 2 days to train an SVM in a Pentium III 1.13Ghz.

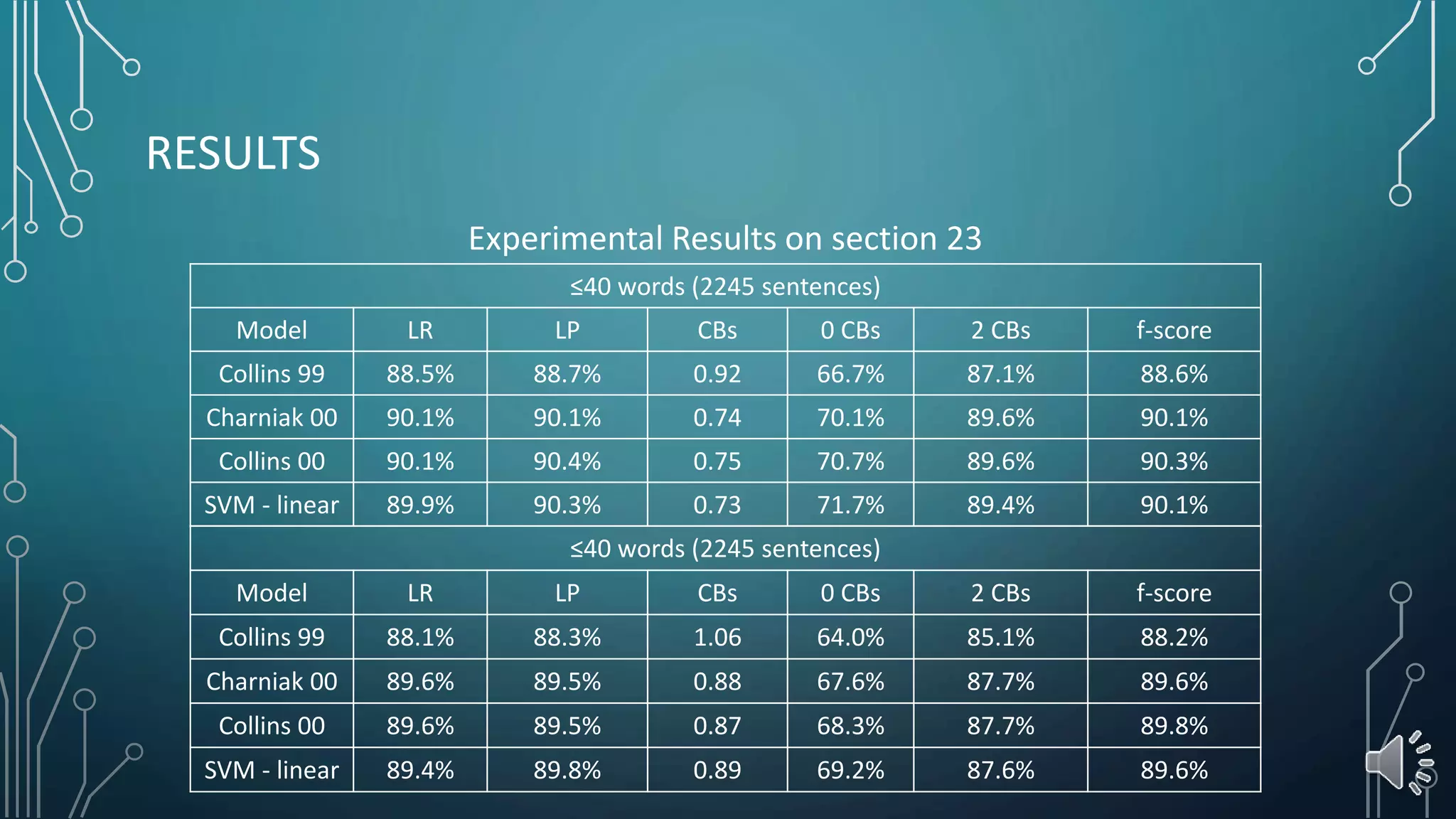

17. RESULTS
Experimental Results on section 23
≤40 words (2245 sentences)
Model LR LP CBs 0 CBs 2 CBs f-score
Collins 99 88.5% 88.7% 0.92 66.7% 87.1% 88.6%
Charniak 00 90.1% 90.1% 0.74 70.1% 89.6% 90.1%
Collins 00 90.1% 90.4% 0.75 70.7% 89.6% 90.3%
SVM - linear 89.9% 90.3% 0.73 71.7% 89.4% 90.1%
≤40 words (2245 sentences)
Model LR LP CBs 0 CBs 2 CBs f-score
Collins 99 88.1% 88.3% 1.06 64.0% 85.1% 88.2%
Charniak 00 89.6% 89.5% 0.88 67.6% 87.7% 89.6%
Collins 00 89.6% 89.5% 0.87 68.3% 87.7% 89.8%
SVM - linear 89.4% 89.8% 0.89 69.2% 87.6% 89.6%

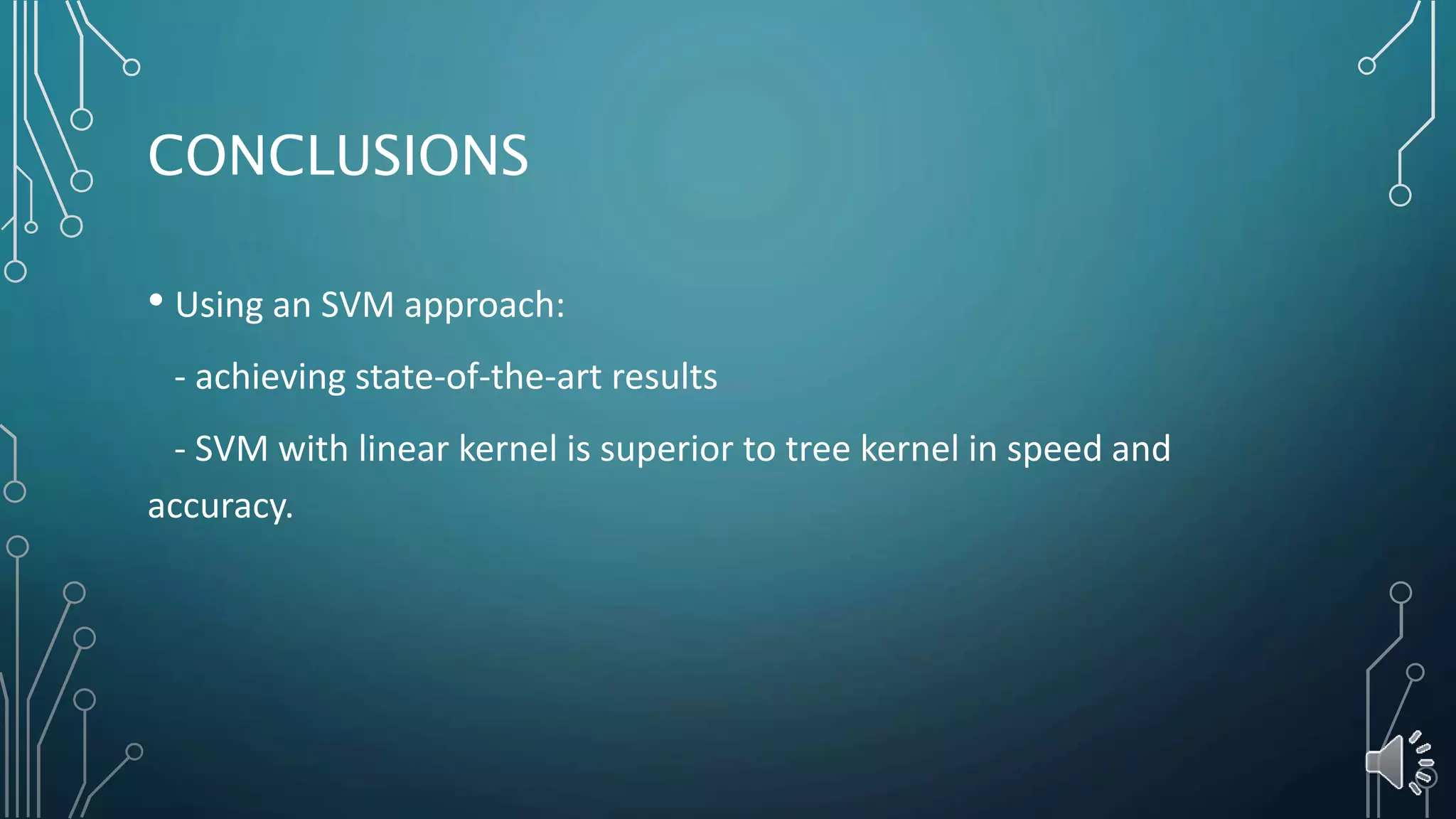

18. CONCLUSIONS
• Using an SVM approach:
- achieving state-of-the-art results
- SVM with linear kernel is superior to tree kernel in speed and
accuracy.
