Viruses have a basic structure consisting of nucleic acid surrounded by a protein coat called a capsid. Some viruses have an additional phospholipid envelope. Viruses come in a few different symmetries for their capsids including icosahedral, helical, binal, and complex. Icosahedral capsids can be enveloped or non-enveloped while helical capsids are long and spiral-shaped. Binal symmetry combines icosahedral and helical features with a head and tail. Complex symmetry refers to asymmetrical virus structures.

1. WHAT IS A VIRUS
1

2. VIRUS
 INTRODUCTION
 BASIC STRUCTURE
 SYMMETRY
• Icosahedral
• Helical
• Binal
• Complex
2

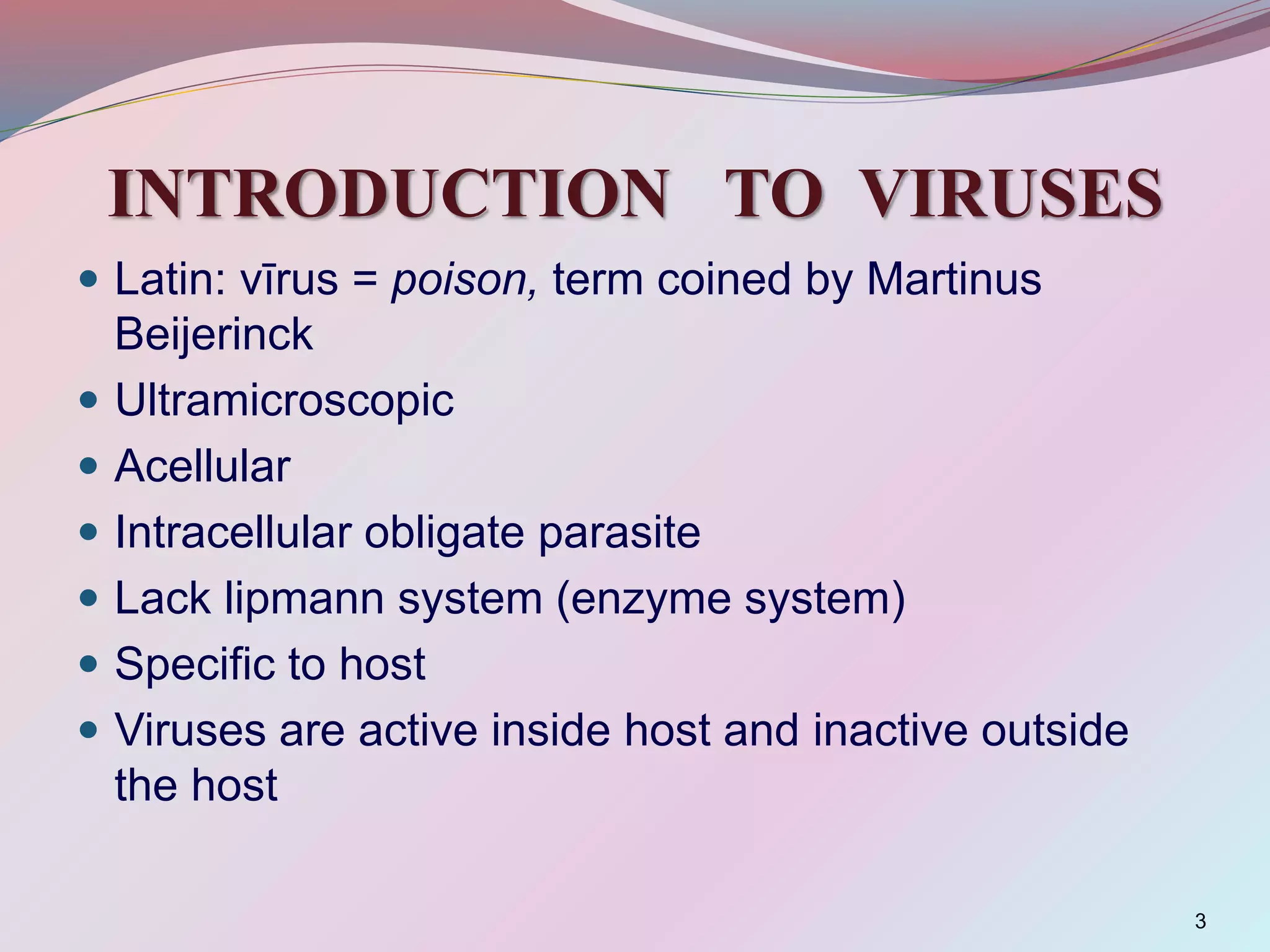

3. INTRODUCTION TO VIRUSES
 Latin: vīrus = poison, term coined by Martinus
Beijerinck
 Ultramicroscopic
 Acellular
 Intracellular obligate parasite
 Lack lipmann system (enzyme system)
 Specific to host
 Viruses are active inside host and inactive outside
the host
3

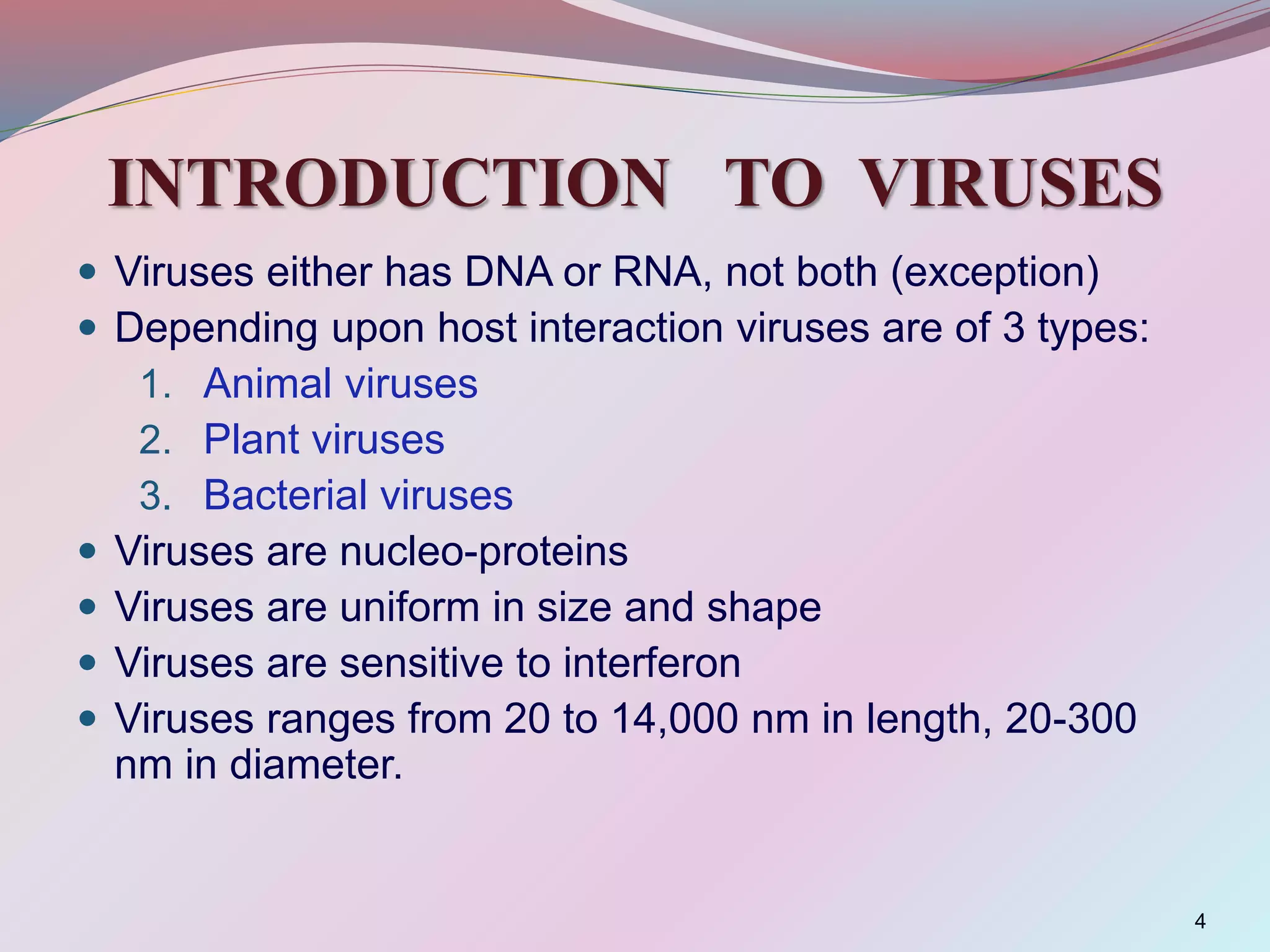

4. INTRODUCTION TO VIRUSES
 Viruses either has DNA or RNA, not both (exception)
 Depending upon host interaction viruses are of 3 types:
1. Animal viruses
2. Plant viruses
3. Bacterial viruses
 Viruses are nucleo-proteins
 Viruses are uniform in size and shape
 Viruses are sensitive to interferon
 Viruses ranges from 20 to 14,000 nm in length, 20-300
nm in diameter.
4

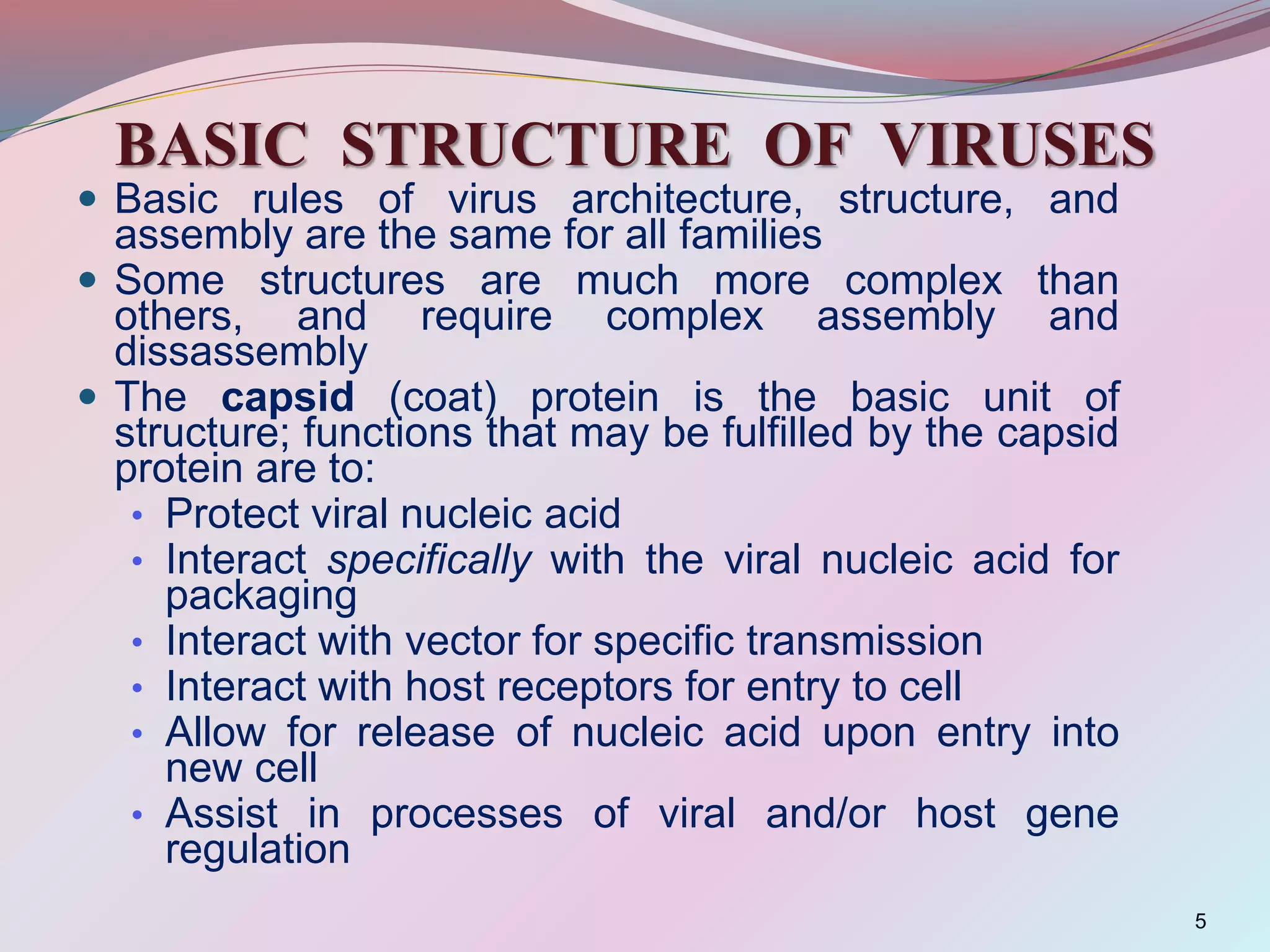

5. BASIC STRUCTURE OF VIRUSES
 Basic rules of virus architecture, structure, and
assembly are the same for all families
 Some structures are much more complex than
others, and require complex assembly and
dissassembly
 The capsid (coat) protein is the basic unit of
structure; functions that may be fulfilled by the capsid
protein are to:
• Protect viral nucleic acid
• Interact specifically with the viral nucleic acid for
packaging
• Interact with vector for specific transmission
• Interact with host receptors for entry to cell
• Allow for release of nucleic acid upon entry into
new cell
• Assist in processes of viral and/or host gene
regulation
5

6. BASIC STRUCTURE OF VIRUSES
 Virions are complete, fully developed viral particles
composed of nucleic acid surrounded by a
protein coat.
 Some viruses have an envelope composed of a
phospholipid bilayer with viral glycoproteins
(spikes).
6

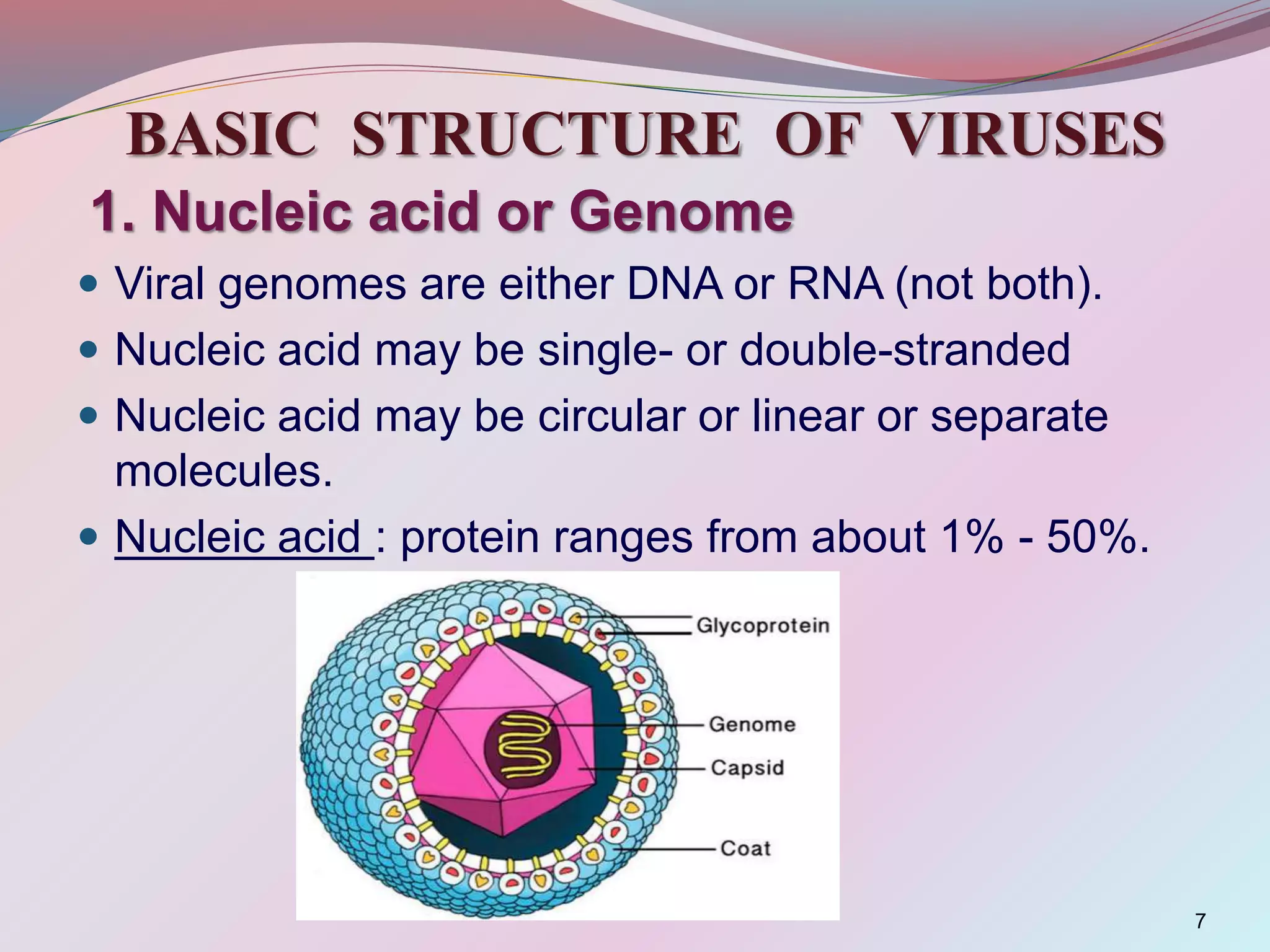

7. BASIC STRUCTURE OF VIRUSES
1. Nucleic acid or Genome
 Viral genomes are either DNA or RNA (not both).
 Nucleic acid may be single- or double-stranded
 Nucleic acid may be circular or linear or separate
molecules.
 Nucleic acid : protein ranges from about 1% - 50%.
7

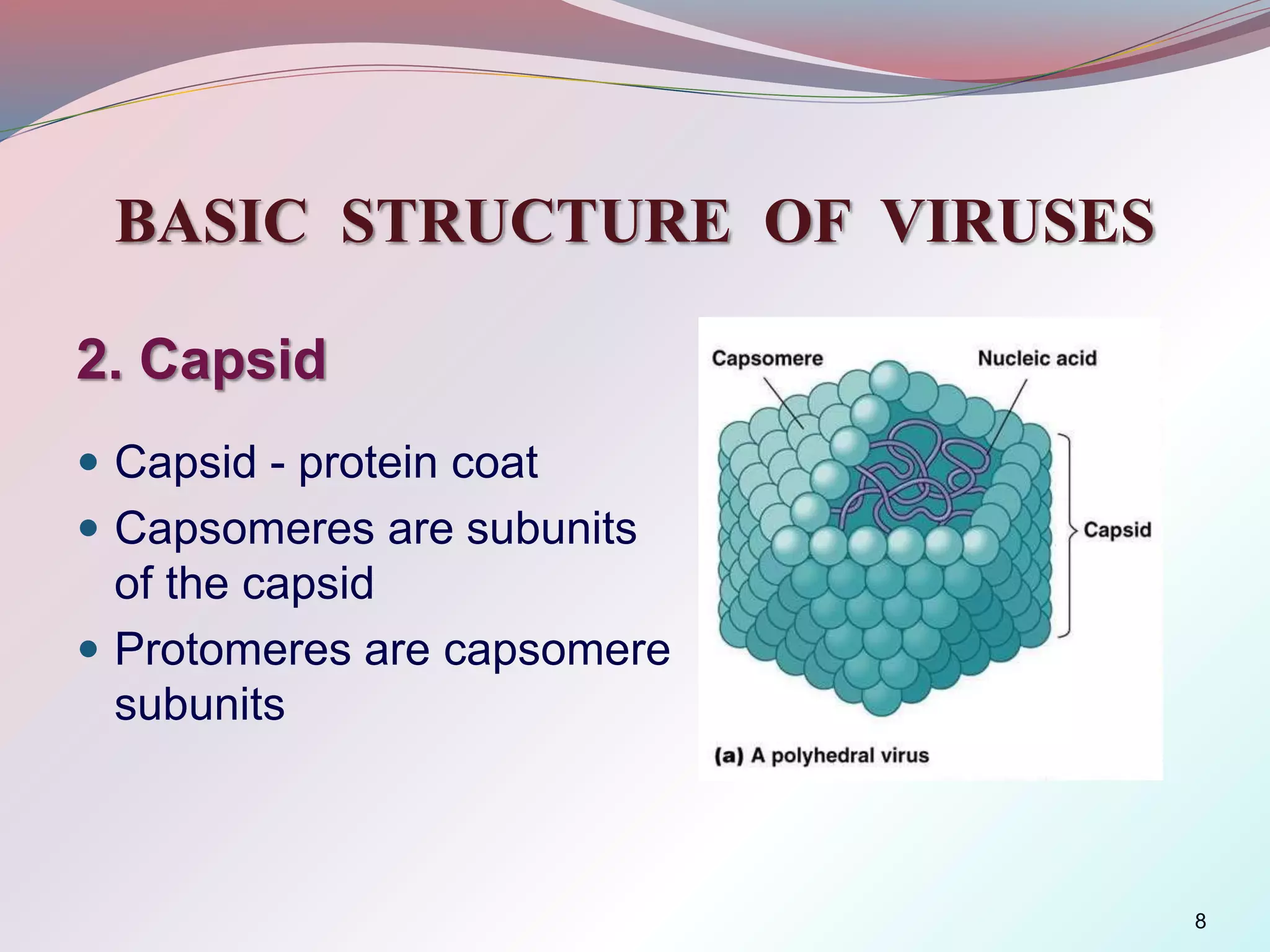

8. BASIC STRUCTURE OF VIRUSES
2. Capsid
 Capsid - protein coat
 Capsomeres are subunits
of the capsid
 Protomeres are capsomere
subunits
8

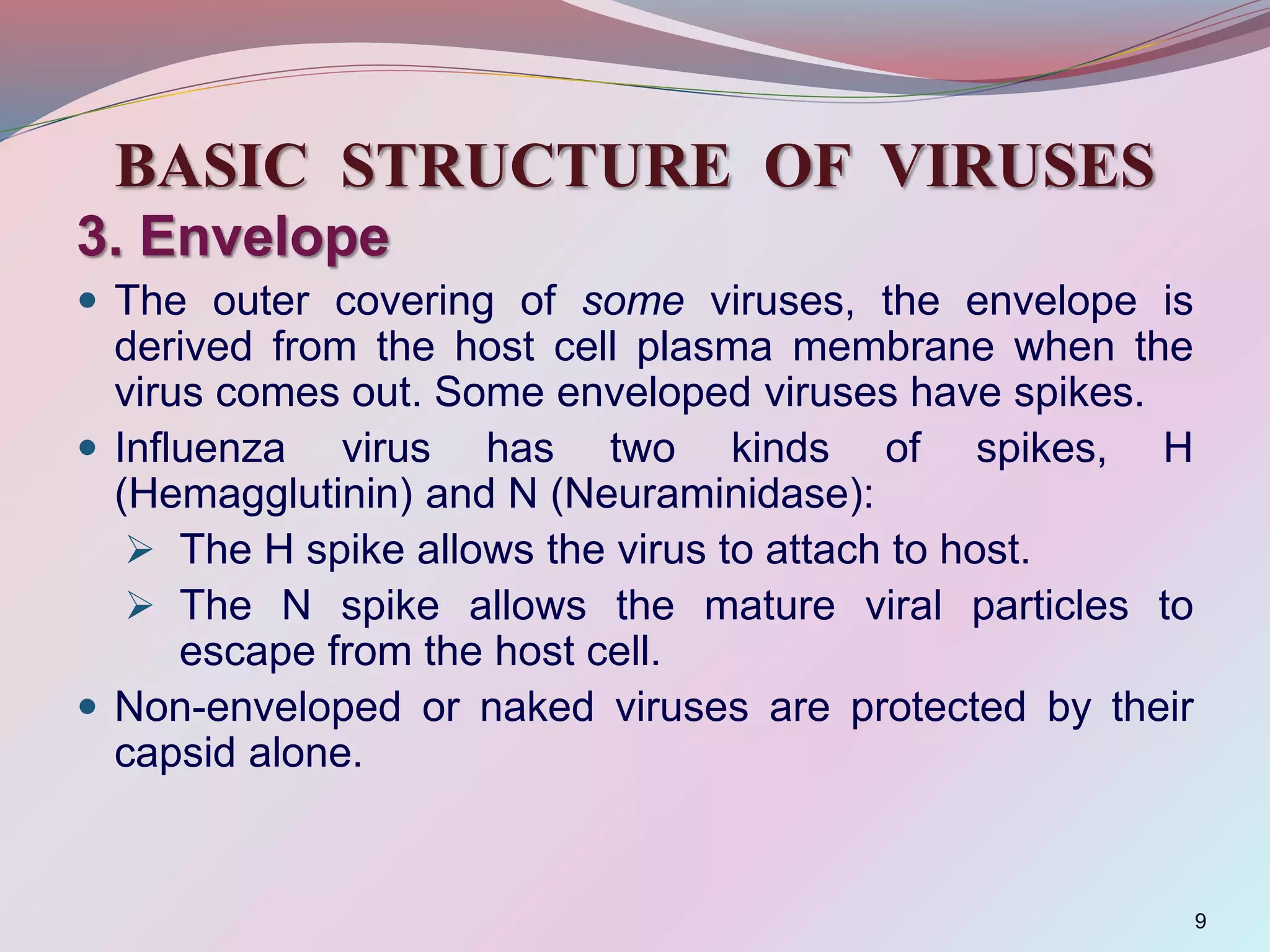

9. BASIC STRUCTURE OF VIRUSES
3. Envelope
 The outer covering of some viruses, the envelope is
derived from the host cell plasma membrane when the
virus comes out. Some enveloped viruses have spikes.
 Influenza virus has two kinds of spikes, H
(Hemagglutinin) and N (Neuraminidase):
 The H spike allows the virus to attach to host.
 The N spike allows the mature viral particles to
escape from the host cell.
 Non-enveloped or naked viruses are protected by their
capsid alone.
9

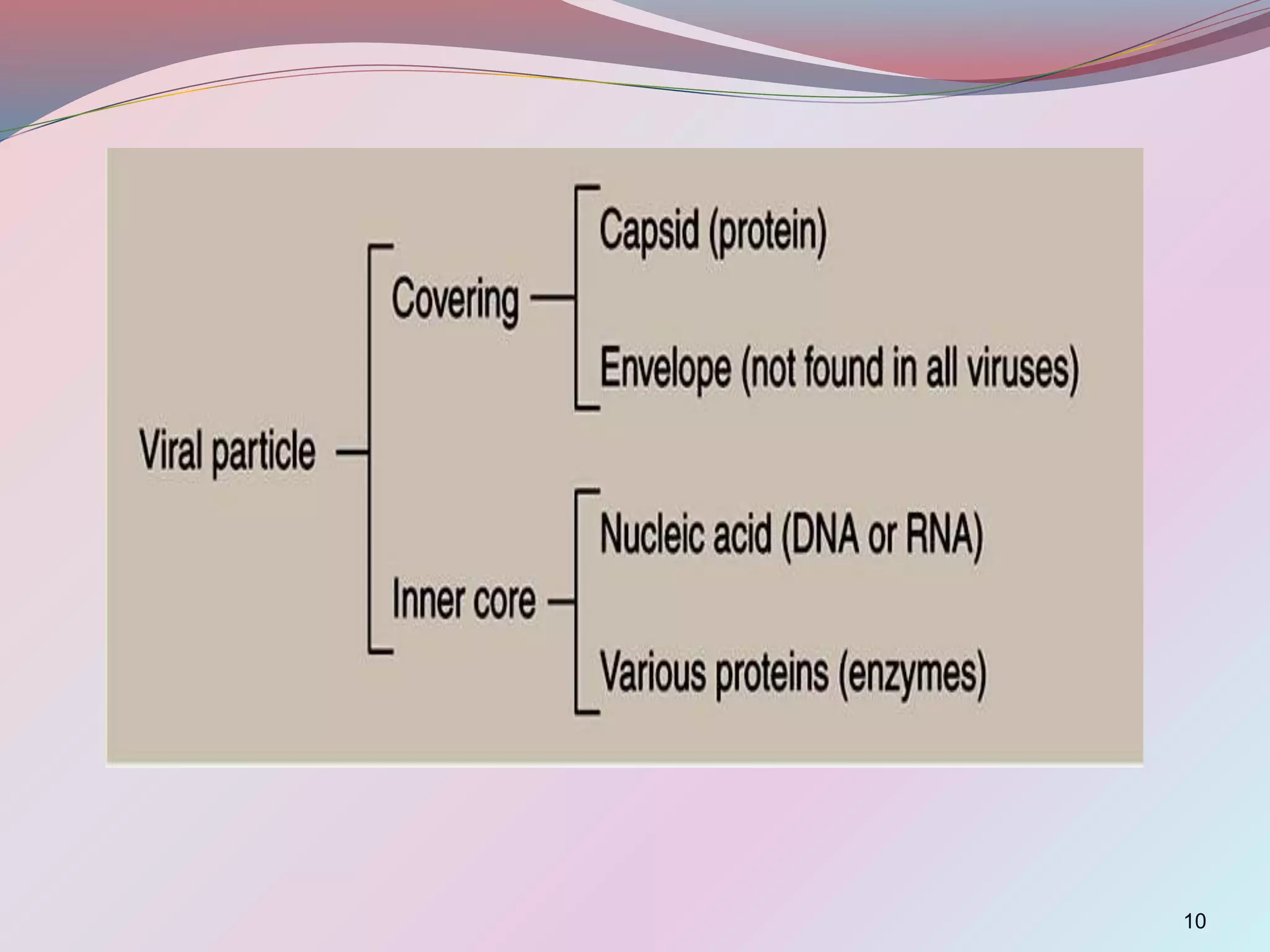

10. 10

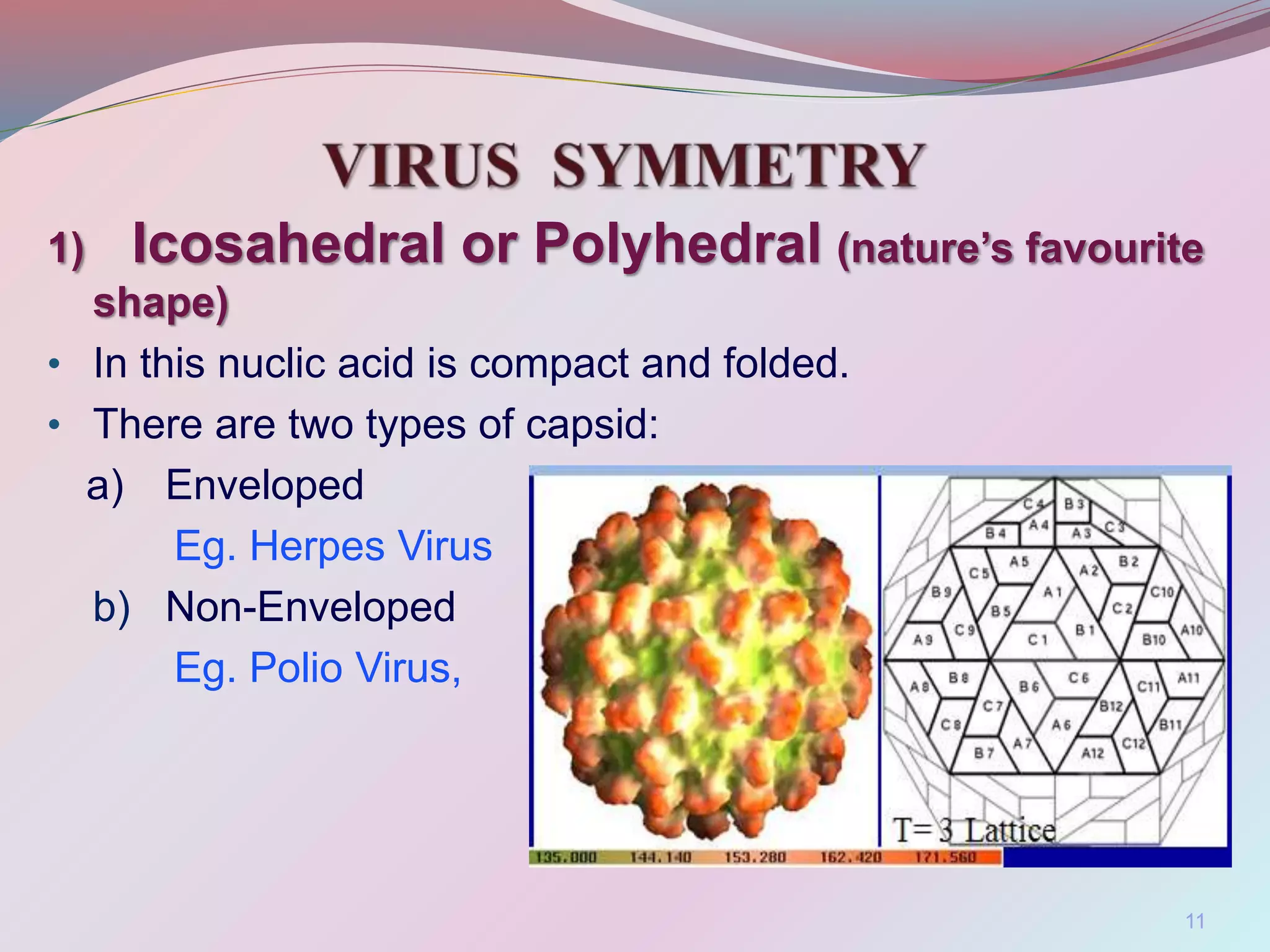

11. 1) Icosahedral or Polyhedral (nature’s favourite
shape)
• In this nuclic acid is compact and folded.
• There are two types of capsid:
a) Enveloped
Eg. Herpes Virus
b) Non-Enveloped
Eg. Polio Virus,
11

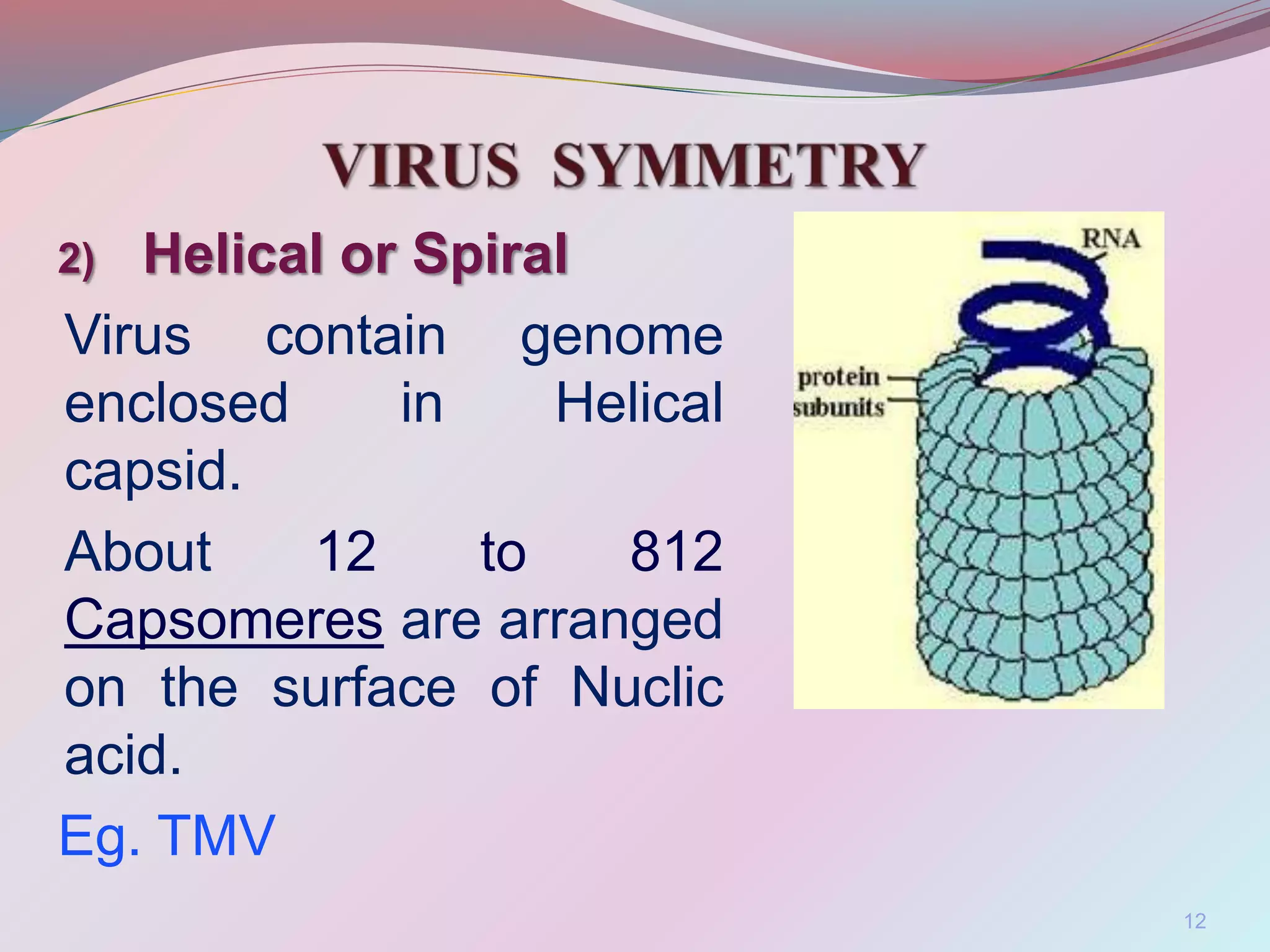

12. 2) Helical or Spiral
Virus contain genome
enclosed in Helical
capsid.
About 12 to 812
Capsomeres are arranged
on the surface of Nuclic
acid.
Eg. TMV
12

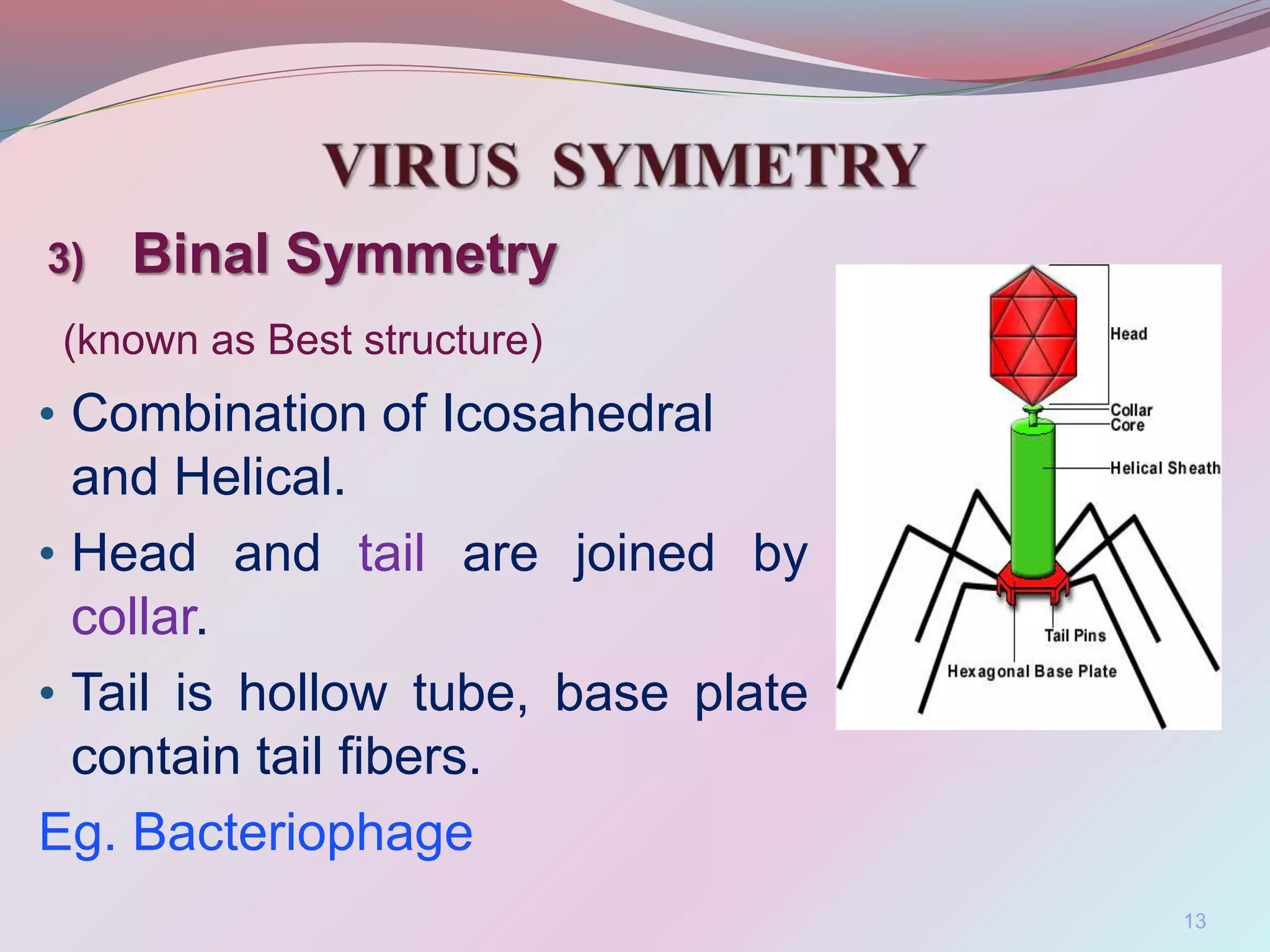

13. 3) Binal Symmetry
(known as Best structure)
• Combination of Icosahedral
and Helical.
• Head and tail are joined by
collar.
• Tail is hollow tube, base plate
contain tail fibers.
Eg. Bacteriophage
13

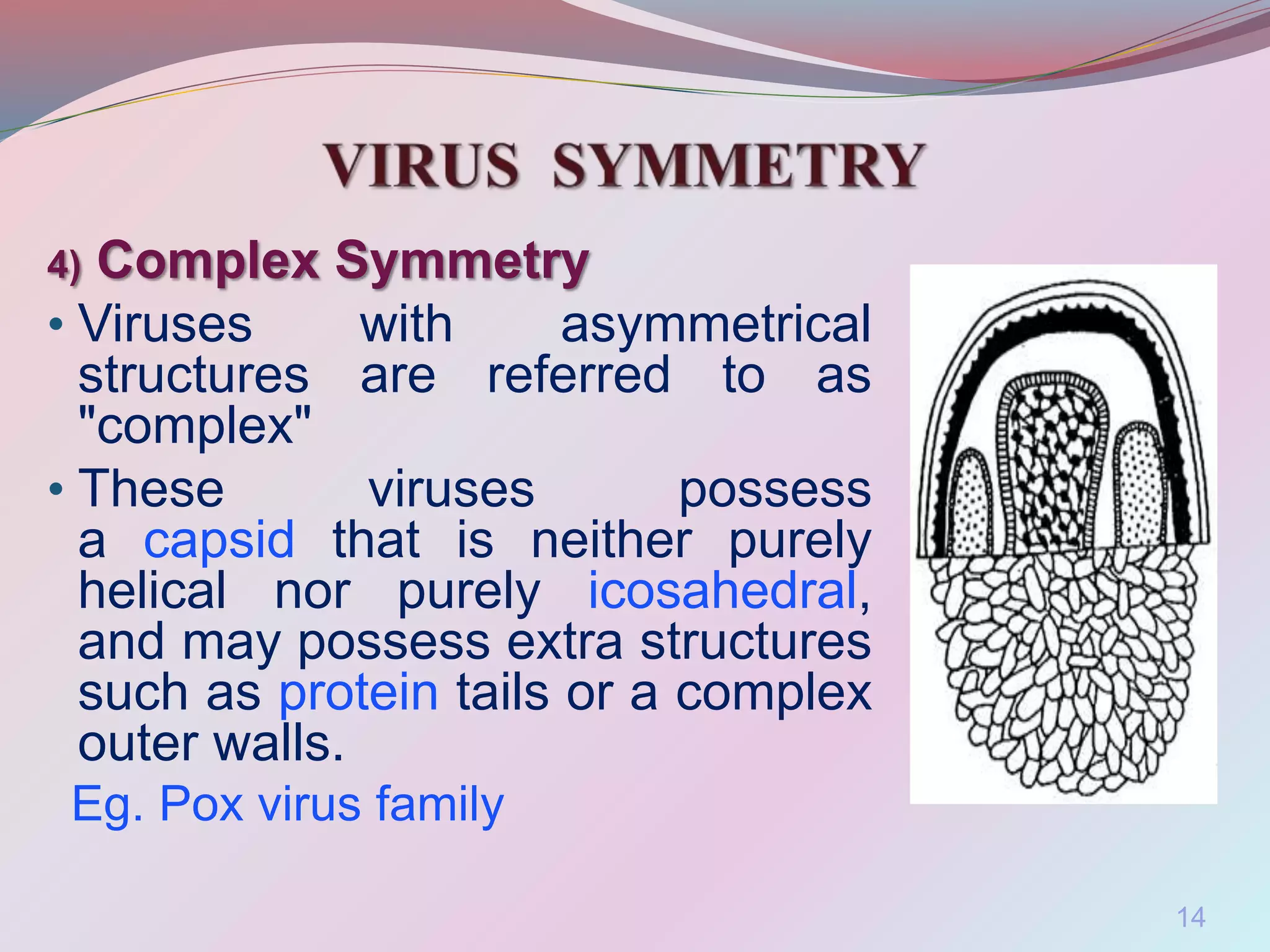

14. 4) Complex Symmetry
• Viruses with asymmetrical
structures are referred to as
"complex"
• These viruses possess
a capsid that is neither purely
helical nor purely icosahedral,
and may possess extra structures
such as protein tails or a complex
outer walls.
Eg. Pox virus family
14

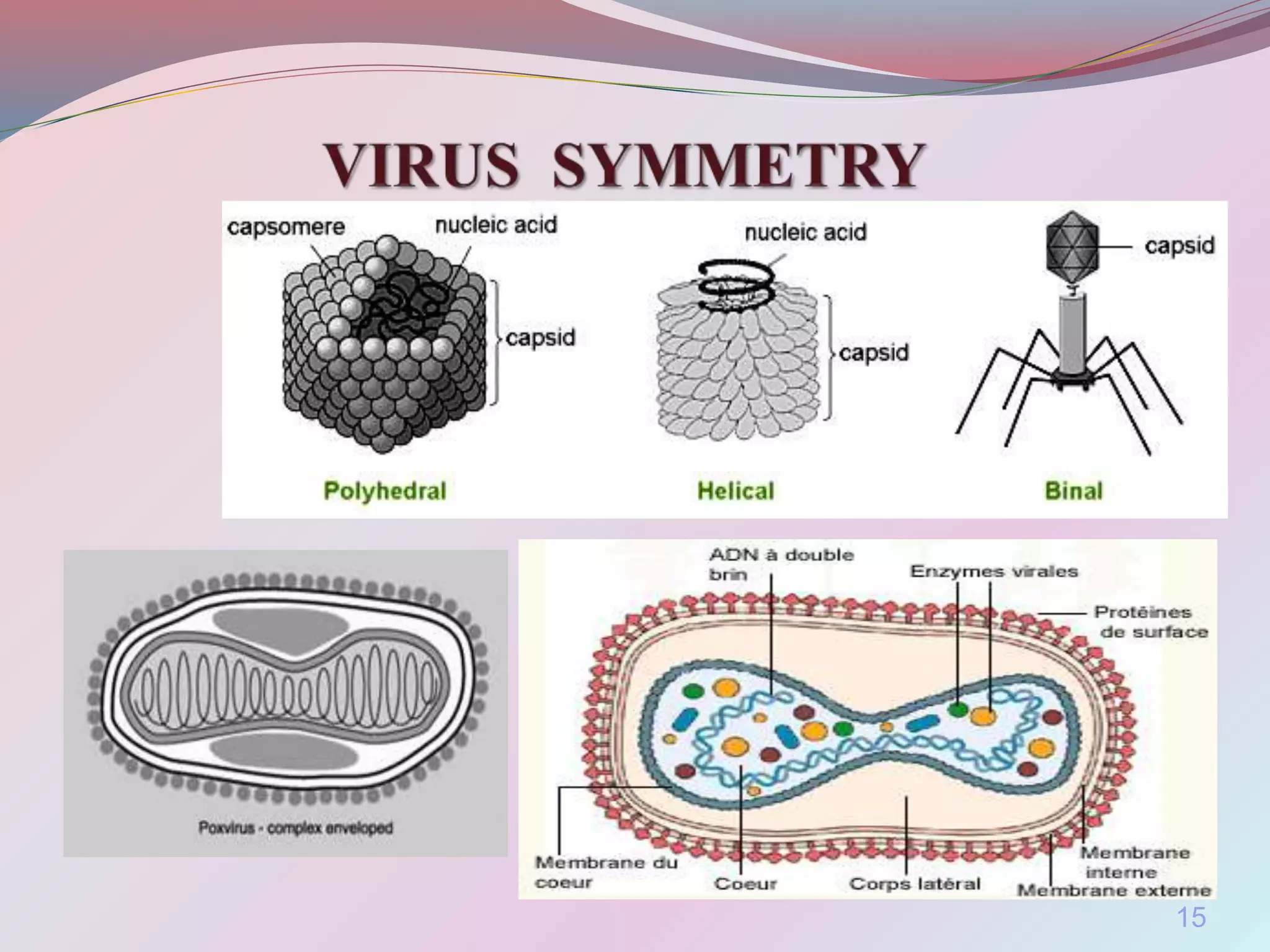

15. 15
