Streaming Visualization
The document discusses stream processing and visualization in the context of big data, outlining the architecture for real-time data integration and analytics. It differentiates between 'data at rest' and 'data in motion', emphasizing the importance of stream analytics and low-latency processing for actionable insights. Various technologies and methods for implementing streaming visualization, such as Apache Kafka, Oracle Stream Analytics, and others, are also presented, highlighting their use cases and benefits.
More Related Content
![谷歌留痕技术教程[ 𝙩𝙤𝙥 𝟮𝟯𝟯. 𝙘 𝙤𝙢 ]](https://cdn.slidesharecdn.com/ss_thumbnails/top233-260130173900-2eb784f9-thumbnail.jpg?width=640&height=640&fit=bounds)
Streaming Visualization
- 1. BASEL BERN BRUGGDÜSSELDORF FRANKFURT A.M. FREIBURG I.BR. GENF HAMBURG KOPENHAGEN LAUSANNE MÜNCHEN STUTTGART WIEN ZÜRICH Streaming Visualization Guido Schmutz DOAG Big Data 2018 – 20.9.2018 @gschmutz guidoschmutz.wordpress.com
- 2. Guido Schmutz Working atTrivadis for more than 21 years Oracle ACE Director for Fusion Middleware and SOA Consultant, Trainer Software Architect for Java, Oracle, SOA and Big Data / Fast Data Head of Trivadis Architecture Board Technology Manager @ Trivadis More than 30 years of software development experience Contact: guido.schmutz@trivadis.com Blog: http://guidoschmutz.wordpress.com Slideshare: http://www.slideshare.net/gschmutz Twitter: gschmutz
- 3. Agenda 1. Visualization inBig Data Reference Architecture 2. How to implement „Data-in-Motion“? 3. Blueprints for Streaming Visualization 4. Blueprints for Stream Visualization – Implementation
- 4. Visualization in BigData Reference Architecture

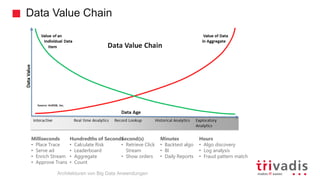

- 5. Data Value Chain Milliseconds •Place Trace • Serve ad • Enrich Stream • Approve Trans Hundredths of Seconds • Calculate Risk • Leaderboard • Aggregate • Count Second(s) • Retrieve Click Stream • Show orders Minutes • Backtest algo • BI • Daily Reports Hours • Algo discovery • Log analysis • Fraud pattern match Architekturen von Big Data Anwendungen

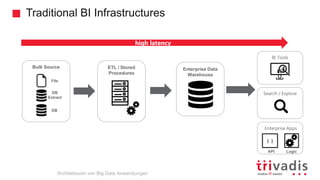

- 6. Traditional BI Infrastructures EnterpriseData Warehouse ETL / Stored Procedures Bulk Source DB Extract File DB Architekturen von Big Data Anwendungen BI Tools Search / Explore Enterprise Apps Logic { } API high latency
- 7. Bulk Source Hadoop Clusterd HadoopCluster Big Data Platform BI Tools Enterprise Data Warehouse SQL Search / Explore Parallel Processing Storage Storage RawRefined Results high latency Enterprise Apps Logic { } API File Import / SQL Import DB Extract File DB Big Data solves Volume and Variety – not Velocity Introduction to Stream Processing
- 8. Bulk Source Hadoop Clusterd HadoopCluster Big Data Platform BI Tools Enterprise Data Warehouse SQL Search / Explore Parallel Processing Storage Storage RawRefined Results high latency Enterprise Apps Logic { } API File Import / SQL Import DB Extract File DB Event Source Location Telemetry IoT Data Mobile Apps Social Big Data solves Volume and Variety – not Velocity Introduction to Stream Processing Event Stream

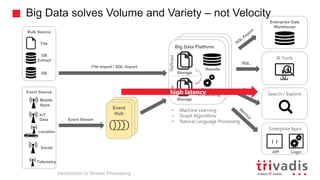

- 9. Bulk Source Hadoop Clusterd HadoopCluster Big Data Platform BI Tools Enterprise Data Warehouse SQL Search / Explore • Machine Learning • Graph Algorithms • Natural Language Processing Parallel Processing Storage Storage RawRefined Results high latency Enterprise Apps Logic { } API File Import / SQL Import DB Extract File DB Event Stream Event Source Location IoT Data Mobile Apps Social Big Data solves Volume and Variety – not Velocity Introduction to Stream Processing Event Hub Event Hub Event Hub Telemetry
- 10. "Data at Rest"vs. "Data in Motion" Data at Rest Data in Motion Store Act Analyze StoreAct Analyze 1110 1010 1010 110 1110 1010 1010 110 Introduction to Stream Processing

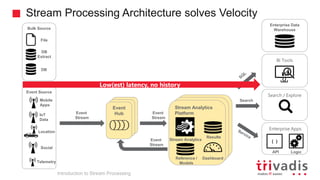

- 11. Event Hub Event Hub Hadoop Clusterd Hadoop Cluster StreamAnalytics Platform Stream Processing Architecture solves Velocity BI Tools Enterprise Data Warehouse Event Hub Search / Explore Enterprise Apps Search Results Stream Analytics Reference / Models Dashboard Logic { } API Event Stream Event Stream Event Stream Bulk Source Event Source Location DB Extract File DB IoT Data Mobile Apps Social Introduction to Stream Processing Low(est) latency, no history Telemetry
- 12. Hadoop Clusterd Hadoop Cluster StreamAnalytics Platform Big Data for all historical data analysis BI Tools Enterprise Data Warehouse Search / Explore Enterprise Apps Search Results Stream Analytics Reference / Models Dashboard Logic { } API Event Stream Event Stream Hadoop Clusterd Hadoop Cluster Big Data Platform Parallel Processing Storage Storage RawRefined Results Data FlowEvent Hub Event Stream Bulk Source Event Source Location DB Extract File DB IoT Data Mobile Apps Social File Import / SQL Import Introduction to Stream Processing Telemetry

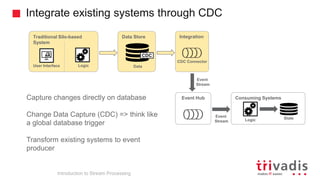

- 13. Data Store Integrate existingsystems through CDC Data Event Hub Integration Consuming Systems StateLogic CDC CDC Connector Traditional Silo-based System LogicUser Interface Capture changes directly on database Change Data Capture (CDC) => think like a global database trigger Transform existing systems to event producer Event Stream Event Stream Introduction to Stream Processing

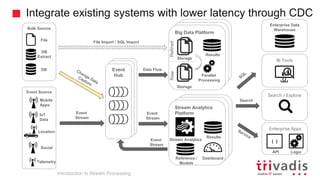

- 14. Hadoop Clusterd Hadoop Cluster StreamAnalytics Platform Integrate existing systems with lower latency through CDC BI Tools Enterprise Data Warehouse Search / Explore Enterprise Apps Search Results Stream Analytics Reference / Models Dashboard Logic { } API Hadoop Clusterd Hadoop Cluster Big Data Platform Parallel Processing Storage Storage RawRefined Results File Import / SQL Import Event Stream Event Stream Data FlowEvent Hub Event Stream Bulk Source Event Source Location DB Extract File DB IoT Data Mobile Apps Social Introduction to Stream Processing Telemetry

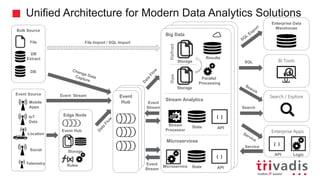

- 15. Hadoop Clusterd Hadoop Cluster BigData Unified Architecture for Modern Data Analytics Solutions SQL Search BI Tools Enterprise Data Warehouse Search / Explore File Import / SQL Import Event Hub Parallel Processing Storage Storage RawRefined Results Microservice State { } API Stream Processor State { } API Event Stream Event Stream Service Stream Analytics Microservices Enterprise Apps Logic { } API Edge Node Rules Event Hub Storage Bulk Source Event Source Location DB Extract File DB IoT Data Mobile Apps Social Event Stream Telemetry

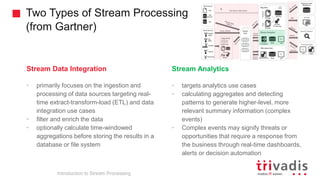

- 16. Two Types ofStream Processing (from Gartner) Introduction to Stream Processing Stream Data Integration • primarily focuses on the ingestion and processing of data sources targeting real- time extract-transform-load (ETL) and data integration use cases • filter and enrich the data • optionally calculate time-windowed aggregations before storing the results in a database or file system Stream Analytics • targets analytics use cases • calculating aggregates and detecting patterns to generate higher-level, more relevant summary information (complex events) • Complex events may signify threats or opportunities that require a response from the business through real-time dashboards, alerts or decision automation
- 17. How to implement„Data-in- Motion“?
- 18. ”Data-in-Motion” Ecosystem Stream Analytics EventHub Open Source Closed Source Stream Data Integration Source: adapted from Tibco Edge Introduction to Stream Processing

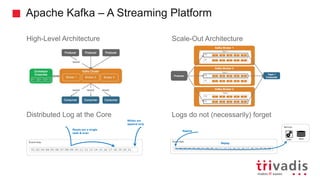

- 19. Apache Kafka –A Streaming Platform High-Level Architecture Distributed Log at the Core Scale-Out Architecture Logs do not (necessarily) forget
- 20. Blueprints for StreamVisualization

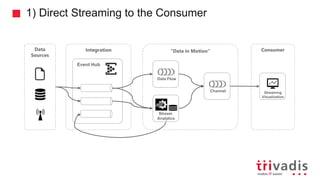

- 21. 1) Direct Streamingto the Consumer ”Data in Motion” Stream Analytics Event Hub Integration Streaming Visualization Channel Consumer Data Flow Data Sources

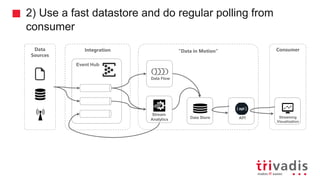

- 22. 2) Use afast datastore and do regular polling from consumer ”Data in Motion” Stream Analytics Event Hub Integration APIData Store Streaming Visualization Data Flow ConsumerData Sources

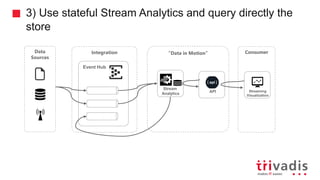

- 23. 3) Use statefulStream Analytics and query directly the store ”Data in Motion” Stream Analytics Event Hub Integration API Streaming Visualization ConsumerData Sources
- 24. Blueprints for StreamVisualization - Impementation
- 25. Visualization: many manyoptions! But do they support Streaming Data?

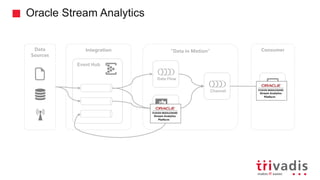

- 26. Oracle Stream Analytics ”Datain Motion” Stream Analytics Event Hub Integration Streaming Visualization Channel Consumer Data Flow Data Sources

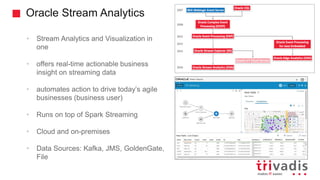

- 27. Oracle Stream Analytics •Stream Analytics and Visualization in one • offers real-time actionable business insight on streaming data • automates action to drive today’s agile businesses (business user) • Runs on top of Spark Streaming • Cloud and on-premises • Data Sources: Kafka, JMS, GoldenGate, File

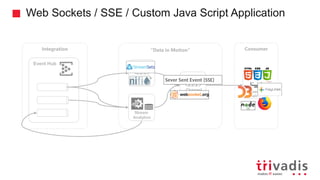

- 28. Web Sockets /SSE / Custom Java Script Application ”Data in Motion” Stream Analytics Event Hub Integration Streaming Visualization Channel Consumer Data Flow Sever Sent Event (SSE)
- 29. Slack / WhatsApp/ Twitter / … ”Data in Motion” Stream Analytics Event Hub Integration Streaming Visualization Channel Consumer Data Flow

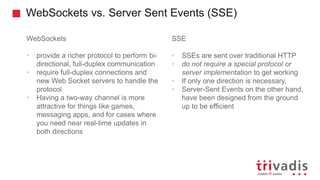

- 30. WebSockets vs. ServerSent Events (SSE) WebSockets • provide a richer protocol to perform bi- directional, full-duplex communication • require full-duplex connections and new Web Socket servers to handle the protocol • Having a two-way channel is more attractive for things like games, messaging apps, and for cases where you need near real-time updates in both directions SSE • SSEs are sent over traditional HTTP • do not require a special protocol or server implementation to get working • If only one direction is necessary, • Server-Sent Events on the other hand, have been designed from the ground up to be efficient

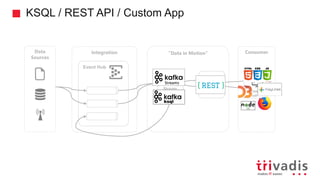

- 31. KSQL / RESTAPI / Custom App ”Data in Motion” Stream Analytics Event Hub Integration API Streaming Visualization ConsumerData Sources
- 32. KSQL & ArcadiaData ”Data in Motion” Stream Analytics Event Hub Integration API Streaming Visualization ConsumerData Sources

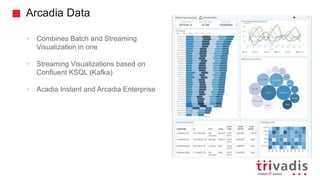

- 33. Arcadia Data • CombinesBatch and Streaming Visualization in one • Streaming Visualizations based on Confluent KSQL (Kafka) • Acadia Instant and Arcadia Enterprise

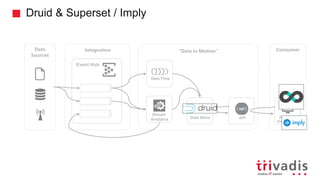

- 34. Druid & Superset/ Imply ”Data in Motion” Stream Analytics Event Hub Integration APIData Store Streaming Visualization Data Flow ConsumerData Sources
- 35. What is Druid? •Open Source Time Series DB by Metamarkets • Apache Incubating • Column-Oriented Storage • Streaming and Batch Ingest • Time optimized partitioning • SQL Support • Deep Storage can be HDFS / S3

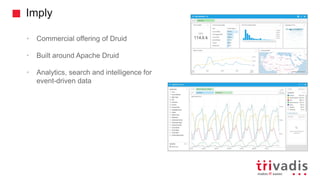

- 36. Imply • Commercial offeringof Druid • Built around Apache Druid • Analytics, search and intelligence for event-driven data

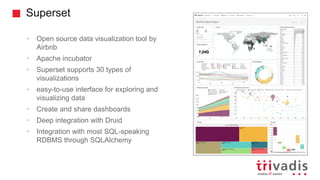

- 37. Superset • Open sourcedata visualization tool by Airbnb • Apache incubator • Superset supports 30 types of visualizations • easy-to-use interface for exploring and visualizing data • Create and share dashboards • Deep integration with Druid • Integration with most SQL-speaking RDBMS through SQLAlchemy

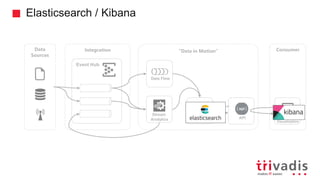

- 38. Elasticsearch / Kibana ”Datain Motion” Stream Analytics Event Hub Integration APIData Store Streaming Visualization Data Flow ConsumerData Sources

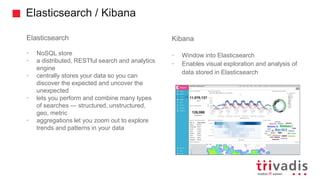

- 39. Elasticsearch / Kibana Elasticsearch •NoSQL store • a distributed, RESTful search and analytics engine • centrally stores your data so you can discover the expected and uncover the unexpected • lets you perform and combine many types of searches — structured, unstructured, geo, metric • aggregations let you zoom out to explore trends and patterns in your data Kibana • Window into Elasticsearch • Enables visual exploration and analysis of data stored in Elasticsearch

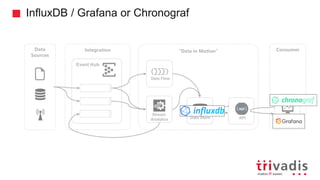

- 40. InfluxDB / Grafanaor Chronograf ”Data in Motion” Stream Analytics Event Hub Integration APIData Store Streaming Visualization Data Flow ConsumerData Sources

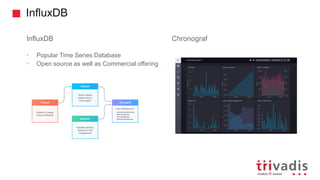

- 41. InfluxDB InfluxDB • Popular TimeSeries Database • Open source as well as Commercial offering Chronograf

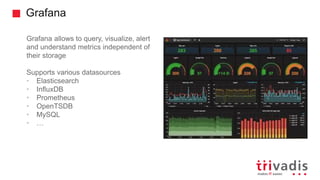

- 42. Grafana Grafana allows toquery, visualize, alert and understand metrics independent of their storage Supports various datasources • Elasticsearch • InfluxDB • Prometheus • OpenTSDB • MySQL • …
- 43. Technology on itsown won't help you. You need to know how to use it properly.
