Introduction to
Stream Processing
Guido Schmutz
DOAG Big Data 2018 – 20.9.2018
@gschmutz guidoschmutz.wordpress.com

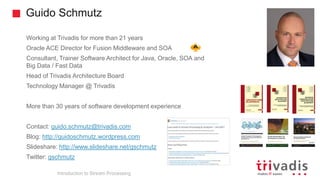

2. Guido Schmutz
Working at Trivadis for more than 21 years
Oracle ACE Director for Fusion Middleware and SOA
Consultant, Trainer Software Architect for Java, Oracle, SOA and
Big Data / Fast Data
Head of Trivadis Architecture Board
Technology Manager @ Trivadis
More than 30 years of software development experience
Contact: guido.schmutz@trivadis.com
Blog: http://guidoschmutz.wordpress.com
Slideshare: http://www.slideshare.net/gschmutz
Twitter: gschmutz
Introduction to Stream Processing

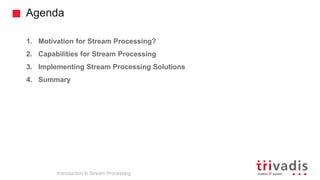

3. Agenda
Introduction to Stream Processing
1. Motivation for Stream Processing?
2. Capabilities for Stream Processing
3. Implementing Stream Processing Solutions
4. Summary

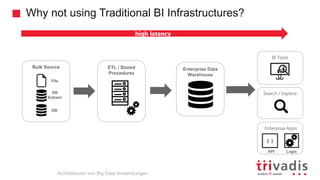

5. Why not using Traditional BI Infrastructures?
Enterprise Data
Warehouse
ETL / Stored
Procedures
Bulk Source
DB
Extract
File
DB
Architekturen von Big Data Anwendungen
BI Tools
Search / Explore
Enterprise Apps
Logic
{ }
API
high latency
6. Bulk Source
Hadoop Clusterd
Hadoop Cluster
Big Data Platform
BI Tools
Enterprise Data
Warehouse
SQL
Search / Explore
Parallel
Processing
Storage
Storage
RawRefined
Results
high latency
Enterprise Apps
Logic
{ }
API
File Import / SQL Import
DB
Extract
File
DB

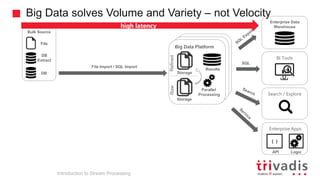

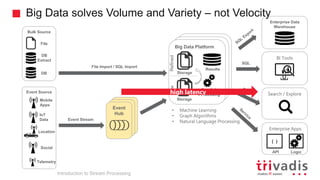

Big Data solves Volume and Variety – not Velocity
Introduction to Stream Processing
7. Bulk Source
Hadoop Clusterd
Hadoop Cluster
Big Data Platform
BI Tools
Enterprise Data
Warehouse
SQL
Search / Explore
Parallel
Processing
Storage
Storage
RawRefined
Results
high latency
Enterprise Apps
Logic
{ }
API
File Import / SQL Import
DB
Extract
File
DB
Event Source
Location
Telemetry
IoT
Data
Mobile
Apps
Social

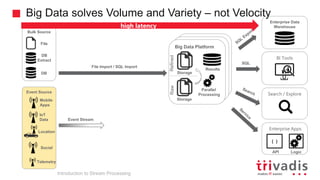

Big Data solves Volume and Variety – not Velocity
Introduction to Stream Processing
Event Stream
8. Bulk Source
Hadoop Clusterd
Hadoop Cluster
Big Data Platform
BI Tools
Enterprise Data
Warehouse
SQL
Search / Explore
• Machine Learning
• Graph Algorithms
• Natural Language Processing
Parallel
Processing
Storage
Storage
RawRefined
Results
high latency
Enterprise Apps
Logic
{ }
API
File Import / SQL Import
DB
Extract
File
DB
Event Stream
Event Source
Location
IoT
Data
Mobile
Apps
Social
Big Data solves Volume and Variety – not Velocity
Introduction to Stream Processing
Event
Hub
Event
Hub
Event
Hub
Telemetry

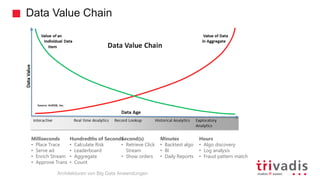

9. Data Value Chain
Milliseconds
• Place Trace
• Serve ad
• Enrich Stream
• Approve Trans
Hundredths of Seconds
• Calculate Risk
• Leaderboard
• Aggregate
• Count
Second(s)
• Retrieve Click
Stream
• Show orders
Minutes
• Backtest algo
• BI
• Daily Reports
Hours
• Algo discovery
• Log analysis
• Fraud pattern match
Architekturen von Big Data Anwendungen
10. "Data at Rest" vs. "Data in Motion"
Data at Rest Data in Motion
Store
Act
Analyze
StoreAct
Analyze
1110
1010
1010
110
1110
1010
1010
110
Introduction to Stream Processing
11. Typical Stream Processing Use Cases
• Notifications and Alerting - a notification or alert should be triggered if
some sort of event or series of events occurs.
• Real-Time Reporting – run real-time dashboards that
employees/customers can look at
• Incremental ETL – still ETL, but not in Batch but in streaming, continuous
mode
• Update data to serve in real-time – compute data that get served
interactively by other applications
• Real-Time decision making – analyzing new inputs and responding to
them automatically using business logic, i.e. Fraud Detection
• Online Machine Learning – train a model on a combination of historical
and streaming data and use it for real-time decision making
Introduction to Stream Processing
12. When to Stream / When not?
Introduction to Stream Processing
Constant low
Milliseconds & under
Low milliseconds to seconds,
delay in case of failures
10s of seconds of more,
Re-run in case of failures
Real-Time Near-Real-Time Batch
Source: adapted from Cloudera

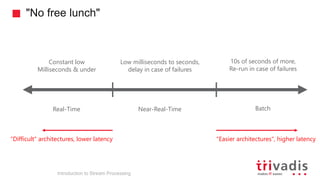

13. "No free lunch"
Introduction to Stream Processing
Constant low
Milliseconds & under
Low milliseconds to seconds,
delay in case of failures
10s of seconds of more,
Re-run in case of failures
Real-Time Near-Real-Time Batch
"Difficult" architectures, lower latency "Easier architectures", higher latency
14. Event
Hub
Event
Hub
Hadoop Clusterd
Hadoop Cluster
Stream Analytics
Platform
Stream Processing Architecture solves Velocity
BI Tools
Enterprise Data
Warehouse
Event
Hub
Search / Explore
Enterprise Apps
Search
Results
Stream Analytics
Reference /
Models
Dashboard
Logic
{ }
API
Event
Stream
Event
Stream
Event
Stream
Bulk Source
Event Source
Location
DB
Extract
File
DB
IoT
Data
Mobile
Apps
Social
Introduction to Stream Processing
Low(est) latency, no history
Telemetry

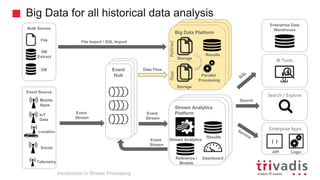

15. Hadoop Clusterd
Hadoop Cluster
Stream Analytics
Platform
Big Data for all historical data analysis
BI Tools
Enterprise Data
Warehouse
Search / Explore
Enterprise Apps
Search
Results
Stream Analytics
Reference /
Models
Dashboard
Logic
{ }
API
Event
Stream
Event
Stream
Hadoop Clusterd
Hadoop Cluster
Big Data Platform
Parallel
Processing
Storage
Storage
RawRefined
Results
Data FlowEvent
Hub
Event
Stream
Bulk Source
Event Source
Location
DB
Extract
File
DB
IoT
Data
Mobile
Apps
Social
File Import / SQL Import
Introduction to Stream Processing
Telemetry

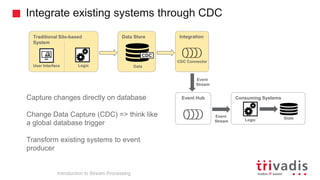

16. Data Store
Integrate existing systems through CDC
Data
Event Hub
Integration
Consuming Systems
StateLogic
CDC
CDC Connector
Traditional Silo-based
System
LogicUser Interface
Capture changes directly on database
Change Data Capture (CDC) => think like
a global database trigger
Transform existing systems to event
producer
Event
Stream
Event
Stream
Introduction to Stream Processing

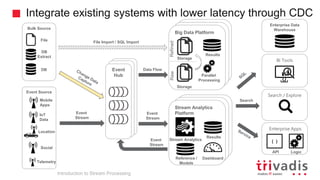

17. Hadoop Clusterd
Hadoop Cluster
Stream Analytics
Platform
Integrate existing systems with lower latency through CDC
BI Tools
Enterprise Data
Warehouse
Search / Explore
Enterprise Apps
Search
Results
Stream Analytics
Reference /
Models
Dashboard
Logic
{ }
API
Hadoop Clusterd
Hadoop Cluster
Big Data Platform
Parallel
Processing
Storage
Storage
RawRefined
Results
File Import / SQL Import
Event
Stream
Event
Stream
Data FlowEvent
Hub
Event
Stream
Bulk Source
Event Source
Location
DB
Extract
File
DB
IoT
Data
Mobile
Apps
Social
Introduction to Stream Processing
Telemetry
18. New systems participate in event-oriented fashion
Hadoop Clusterd
Hadoop Cluster
Big Data Platform
Parallel
Processing
Storage
Storage
RawRefined
Results
Microservice Platform
Microservice State
{ }
API
Stream Analytics Platform
Stream
Processor
State
{ }
API
Event
Stream
SQL
Search
BI Tools
Enterprise Data
Warehouse
Search / Explore
Service
Enterprise Apps
Logic
{ }
API
File Import / SQL Import
Event
Stream
Data FlowEvent
Hub
Event
Stream
Bulk Source
Event Source
Location
DB
Extract
File
DB
IoT
Data
Mobile
Apps
Social
Event
Stream
Event
Stream
Introduction to Stream Processing
Telemetry

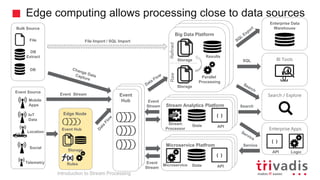

19. Edge computing allows processing close to data sources
Hadoop Clusterd
Hadoop Cluster
Big Data Platform
Parallel
Processing
Storage
Storage
RawRefined
Results
Microservice Platfrom
Microservice State
{ }
API
Stream Analytics Platform
Stream
Processor
State
{ }
API
SQL
Search
BI Tools
Enterprise Data
Warehouse
Search / Explore
Service
Enterprise Apps
Logic
{ }
API
Bulk Source
Event Source
Location
DB
Extract
File
DB
IoT
Data
Mobile
Apps
Social
Edge Node
Rules
Event Hub
Storage
File Import / SQL Import
Event
Hub
Event
Stream
Event
Stream
Event Stream
Introduction to Stream Processing
Telemetry
20. Hadoop Clusterd
Hadoop Cluster
Big Data

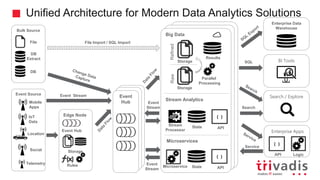

Unified Architecture for Modern Data Analytics Solutions
SQL
Search
BI Tools
Enterprise Data
Warehouse
Search / Explore
File Import / SQL Import
Event
Hub
Parallel
Processing
Storage
Storage
RawRefined
Results
Microservice State
{ }
API
Stream
Processor
State
{ }
API
Event
Stream
Event
Stream
Service
Stream Analytics
Microservices
Enterprise Apps
Logic
{ }
API
Edge Node
Rules
Event Hub
Storage
Bulk Source
Event Source
Location
DB
Extract
File
DB
IoT
Data
Mobile
Apps
Social
Event Stream
Telemetry

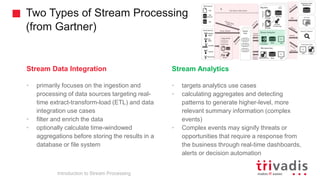

21. Two Types of Stream Processing
(from Gartner)
Introduction to Stream Processing
Stream Data Integration
• primarily focuses on the ingestion and
processing of data sources targeting real-
time extract-transform-load (ETL) and data
integration use cases
• filter and enrich the data
• optionally calculate time-windowed
aggregations before storing the results in a
database or file system
Stream Analytics
• targets analytics use cases
• calculating aggregates and detecting
patterns to generate higher-level, more
relevant summary information (complex
events)
• Complex events may signify threats or
opportunities that require a response from
the business through real-time dashboards,
alerts or decision automation

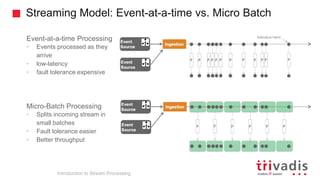

23. Streaming Model: Event-at-a-time vs. Micro Batch
Introduction to Stream Processing
Event-at-a-time Processing
• Events processed as they
arrive
• low-latency
• fault tolerance expensive
Micro-Batch Processing
• Splits incoming stream in
small batches
• Fault tolerance easier
• Better throughput

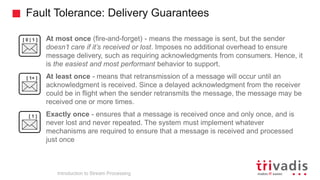

24. Fault Tolerance: Delivery Guarantees
Introduction to Stream Processing
• At most once (fire-and-forget) - means the message is sent, but the sender
doesn’t care if it’s received or lost. Imposes no additional overhead to ensure
message delivery, such as requiring acknowledgments from consumers. Hence, it
is the easiest and most performant behavior to support.
• At least once - means that retransmission of a message will occur until an
acknowledgment is received. Since a delayed acknowledgment from the receiver
could be in flight when the sender retransmits the message, the message may be
received one or more times.
• Exactly once - ensures that a message is received once and only once, and is
never lost and never repeated. The system must implement whatever
mechanisms are required to ensure that a message is received and processed
just once
[ 0 | 1 ]
[ 1+ ]
[ 1 ]
25. API
Introduction to Stream Processing
Compositional / Programmatic
• Highly customizable operator based
on basic building blocks
• Manual topology definition and
optimization
Declarative
• High-Level, fluent API
• Higher order function as operators
(filter, mapWithState …)
• Logical plan optimization
SQL
• Query language allowing to use
stream in FROM clause
• Extensions supporting windowing,
pattern matching, spatial, ….
Operators
• SELECT * FROM <stream> WHERE
f1 = 10

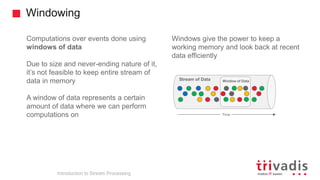

26. Windowing
Introduction to Stream Processing
Computations over events done using
windows of data
Due to size and never-ending nature of it,
it’s not feasible to keep entire stream of
data in memory
A window of data represents a certain
amount of data where we can perform
computations on
Windows give the power to keep a
working memory and look back at recent
data efficiently
Time
Stream of Data Window of Data

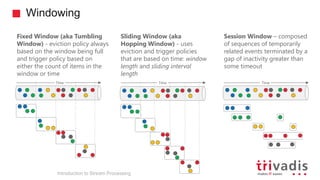

27. Sliding Window (aka
Hopping Window) - uses
eviction and trigger policies
that are based on time: window
length and sliding interval
length
Fixed Window (aka Tumbling
Window) - eviction policy always
based on the window being full
and trigger policy based on
either the count of items in the
window or time
Session Window – composed
of sequences of temporarily
related events terminated by a
gap of inactivity greater than
some timeout
Windowing
Introduction to Stream Processing
Time TimeTime

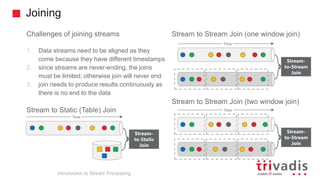

28. Joining
Introduction to Stream Processing
Challenges of joining streams
1. Data streams need to be aligned as they
come because they have different timestamps
2. since streams are never-ending, the joins
must be limited; otherwise join will never end
3. join needs to produce results continuously as
there is no end to the data
Stream to Static (Table) Join
Stream to Stream Join (one window join)
Stream to Stream Join (two window join)
Stream-
to-Static
Join
Stream-
to-Stream
Join
Stream-
to-Stream
Join
Time
Time
Time

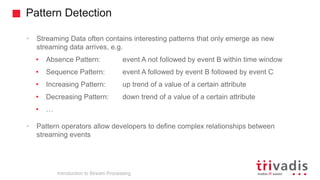

29. Pattern Detection
Introduction to Stream Processing
• Streaming Data often contains interesting patterns that only emerge as new
streaming data arrives, e.g.
• Absence Pattern: event A not followed by event B within time window
• Sequence Pattern: event A followed by event B followed by event C
• Increasing Pattern: up trend of a value of a certain attribute
• Decreasing Pattern: down trend of a value of a certain attribute
• …
• Pattern operators allow developers to define complex relationships between
streaming events

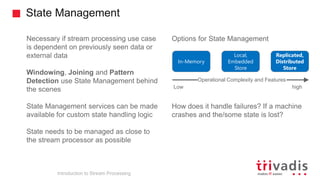

30. State Management
Introduction to Stream Processing
Necessary if stream processing use case
is dependent on previously seen data or
external data
Windowing, Joining and Pattern
Detection use State Management behind
the scenes
State Management services can be made
available for custom state handling logic
State needs to be managed as close to
the stream processor as possible
Options for State Management
How does it handle failures? If a machine
crashes and the/some state is lost?
In-Memory
Replicated,
Distributed
Store
Local,
Embedded
Store
Operational Complexity and Features
Low high

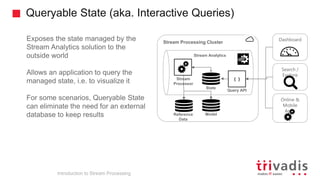

31. Queryable State (aka. Interactive Queries)
Introduction to Stream Processing
Exposes the state managed by the
Stream Analytics solution to the
outside world
Allows an application to query the
managed state, i.e. to visualize it
For some scenarios, Queryable State
can eliminate the need for an external
database to keep results
Stream Processing Cluster
Reference
Data
Stream Analytics
{ }
Query API
State
Stream
Processor
Search /
Explore
Online &
Mobile
Apps
Model
Dashboard

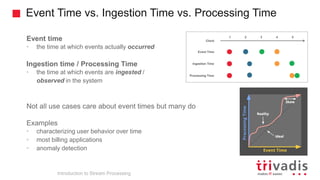

32. Event Time vs. Ingestion Time vs. Processing Time
Introduction to Stream Processing
Event time
• the time at which events actually occurred
Ingestion time / Processing Time
• the time at which events are ingested /
observed in the system
Not all use cases care about event times but many do
Examples
• characterizing user behavior over time
• most billing applications
• anomaly detection

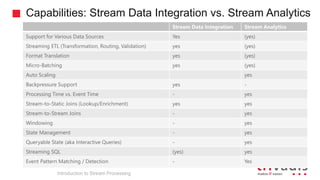

33. Capabilities: Stream Data Integration vs. Stream Analytics
Introduction to Stream Processing
Stream Data Integration Stream Analytics
Support for Various Data Sources Yes (yes)
Streaming ETL (Transformation, Routing, Validation) yes (yes)
Format Translation yes (yes)
Micro-Batching yes (yes)
Auto Scaling yes
Backpressure Support yes -
Processing Time vs. Event Time - yes
Stream-to-Static Joins (Lookup/Enrichment) yes yes
Stream-to-Stream Joins - yes
Windowing - yes
State Management - yes
Queryable State (aka Interactive Queries) - yes
Streaming SQL (yes) yes
Event Pattern Matching / Detection - Yes

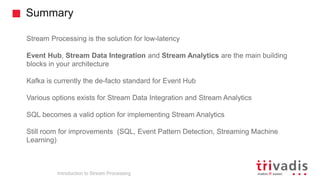

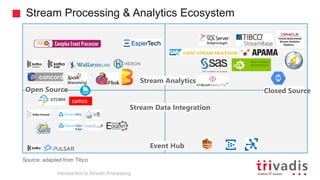

37. Summary
Introduction to Stream Processing
Stream Processing is the solution for low-latency
Event Hub, Stream Data Integration and Stream Analytics are the main building
blocks in your architecture
Kafka is currently the de-facto standard for Event Hub
Various options exists for Stream Data Integration and Stream Analytics
SQL becomes a valid option for implementing Stream Analytics
Still room for improvements (SQL, Event Pattern Detection, Streaming Machine
Learning)
38. Introduction to Stream Processing
Technology on its own won't help you.
You need to know how to use it properly.
