Streaming Visualization
Guido Schmutz
Big Data Technology Summit 2019 – 27.2.19
@gschmutz guidoschmutz.wordpress.com

@gschmutz

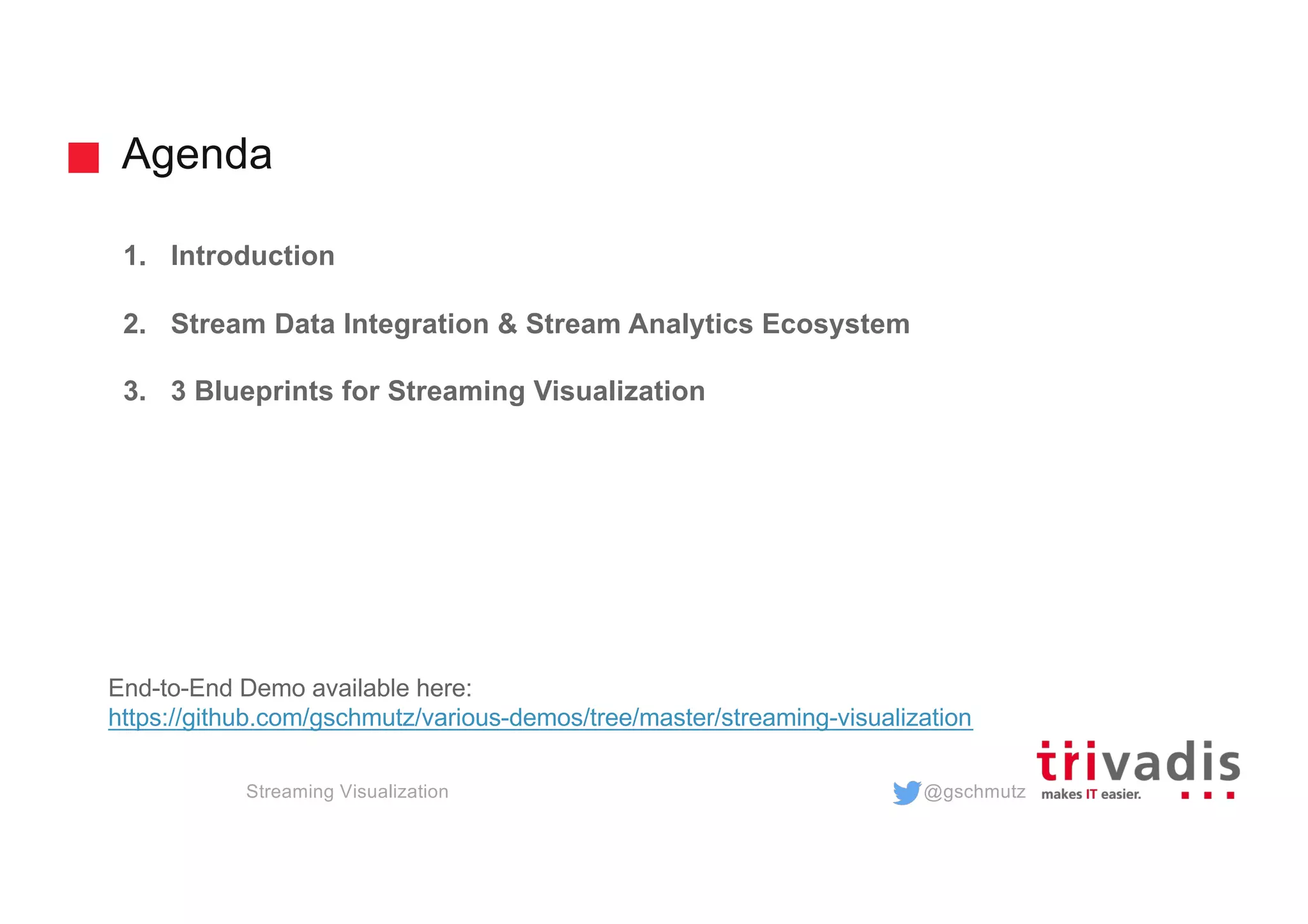

Agenda
1. Introduction
2. Stream Data Integration & Stream Analytics Ecosystem
3. 3 Blueprints for Streaming Visualization
End-to-End Demo available here:
https://github.com/gschmutz/various-demos/tree/master/streaming-visualization

@gschmutz
Guido Schmutz
Working at Trivadis for more than 22 years
Oracle Groundbreaker Ambassador & Oracle ACE Director
Consultant, Trainer Software Architect for Java, Oracle, SOA and
Big Data / Fast Data
Head of Trivadis Architecture Board
Technology Manager @ Trivadis
More than 30 years of software development experience
Contact: guido.schmutz@trivadis.com
Blog: http://guidoschmutz.wordpress.com
Slideshare: http://www.slideshare.net/gschmutz
Twitter: gschmutz
146th edition

@gschmutz
Introduction

@gschmutz

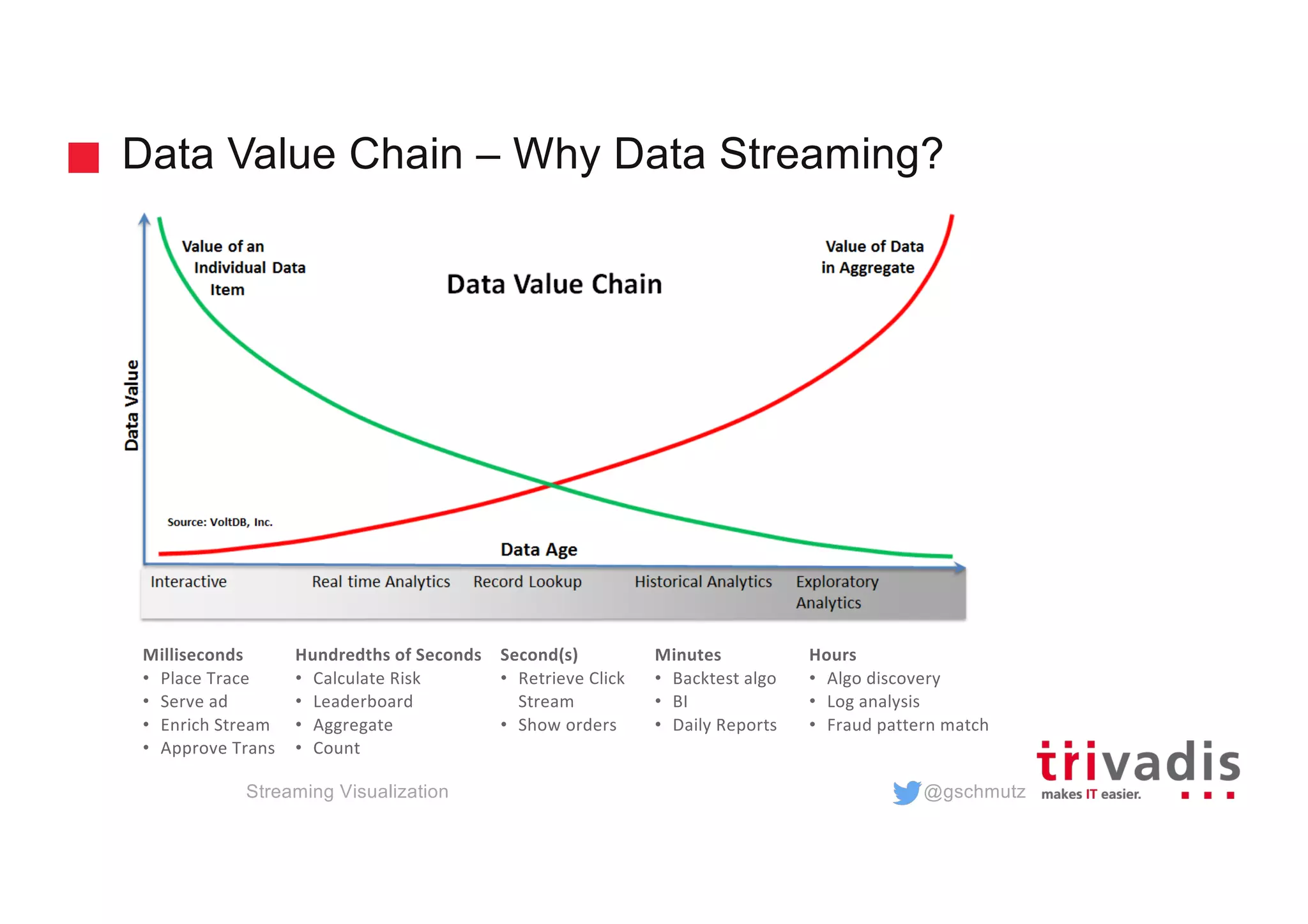

Data Value Chain – Why Data Streaming?
Milliseconds
• Place Trace
• Serve ad
• Enrich Stream
• Approve Trans
Hundredths of Seconds
• Calculate Risk
• Leaderboard
• Aggregate
• Count
Second(s)
• Retrieve Click
Stream
• Show orders
Minutes
• Backtest algo
• BI
• Daily Reports
Hours
• Algo discovery
• Log analysis
• Fraud pattern match

@gschmutz

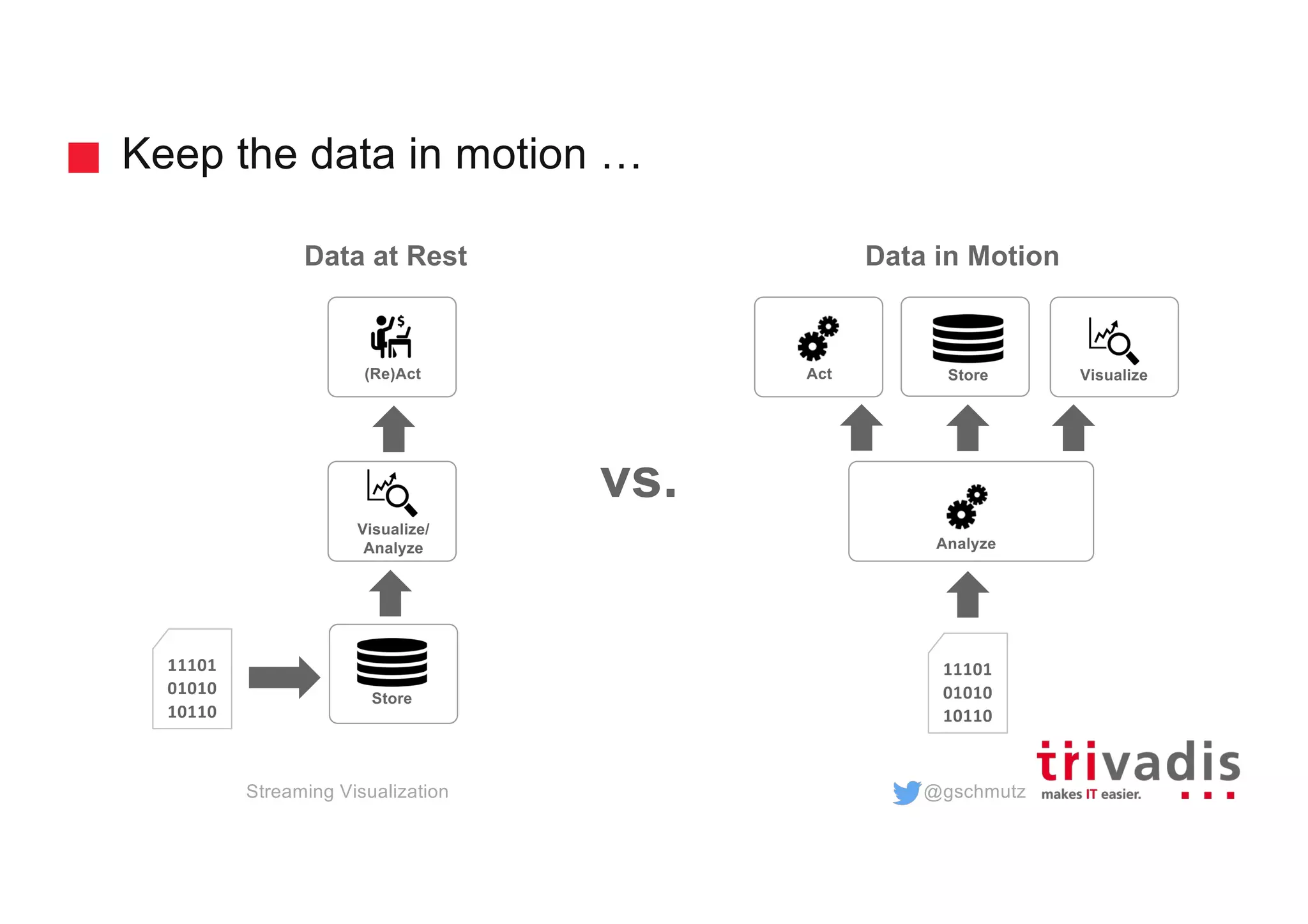

Keep the data in motion …
Data at Rest Data in Motion
Store
(Re)Act
Visualize/
Analyze
StoreAct
Analyze
11101
01010
10110
11101
01010
10110
vs.
Visualize

@gschmutz
Hadoop Clusterd
Hadoop Cluster
Big Data

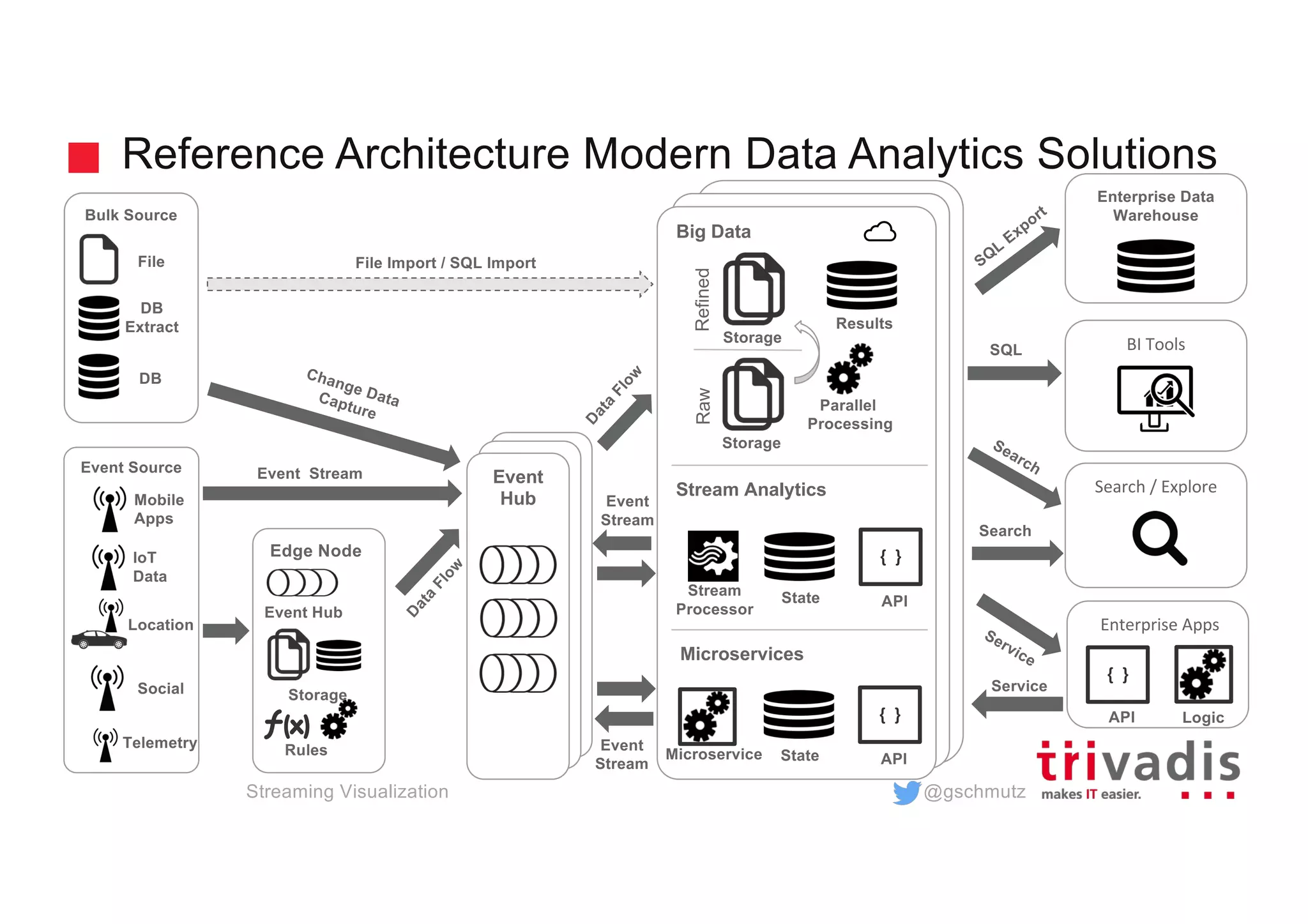

Reference Architecture Modern Data Analytics Solutions
SQL
Search
Service
BI Tools
Enterprise Data
Warehouse
Search / Explore
File Import / SQL Import
Event
Hub
D
ata
Flow
D
ata
Flow
Change DataCapture Parallel
Processing
Storage
Storage
RawRefined
Results
SQL
Export
Microservice State
{ }
API
Stream
Processor
State
{ }
API
Event
Stream
Event
Stream
Search
Service
Stream Analytics
Microservices
Enterprise Apps
Logic
{ }
API
Edge Node
Rules
Event Hub
Storage
Bulk Source
Event Source
Location
DB
Extract
File
DB
IoT
Data
Mobile
Apps
Social
Event Stream
Telemetry

@gschmutz

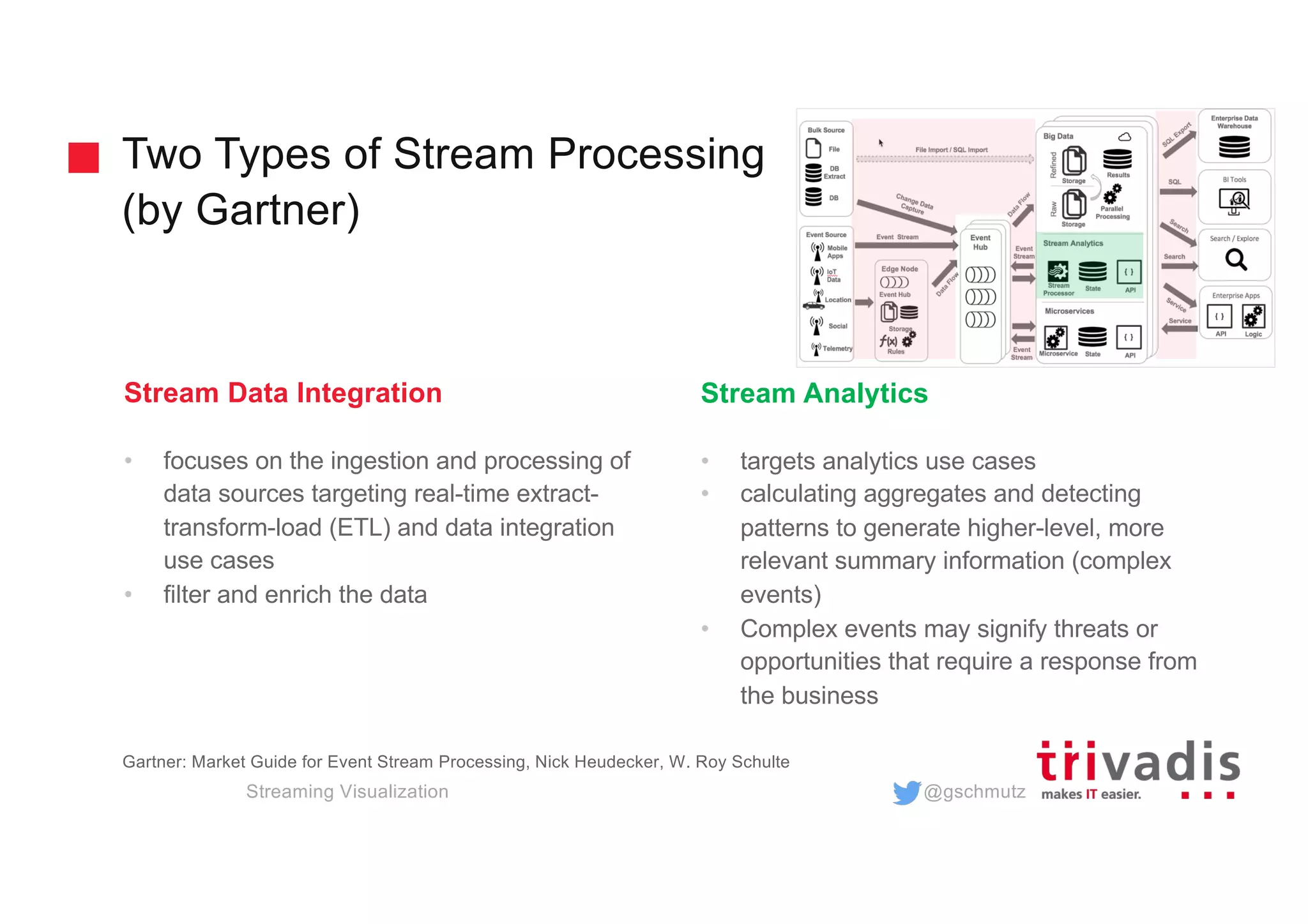

Two Types of Stream Processing
(by Gartner)
Stream Data Integration
• focuses on the ingestion and processing of
data sources targeting real-time extract-
transform-load (ETL) and data integration
use cases
• filter and enrich the data
Stream Analytics
• targets analytics use cases
• calculating aggregates and detecting
patterns to generate higher-level, more
relevant summary information (complex
events)
• Complex events may signify threats or
opportunities that require a response from
the business
Gartner: Market Guide for Event Stream Processing, Nick Heudecker, W. Roy Schulte

@gschmutz
Stream Data Integration & Stream
Analytics Ecosystem

@gschmutz

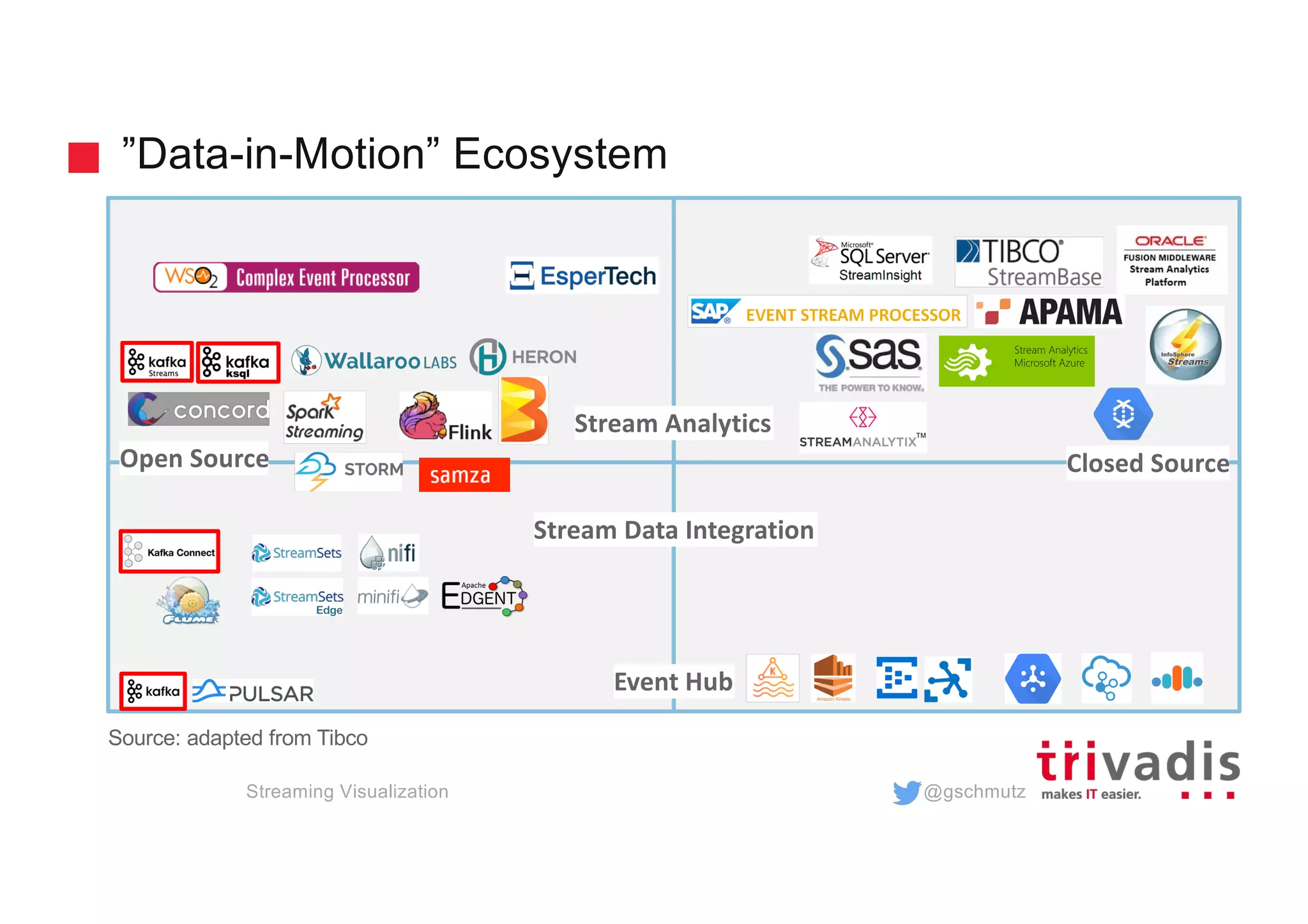

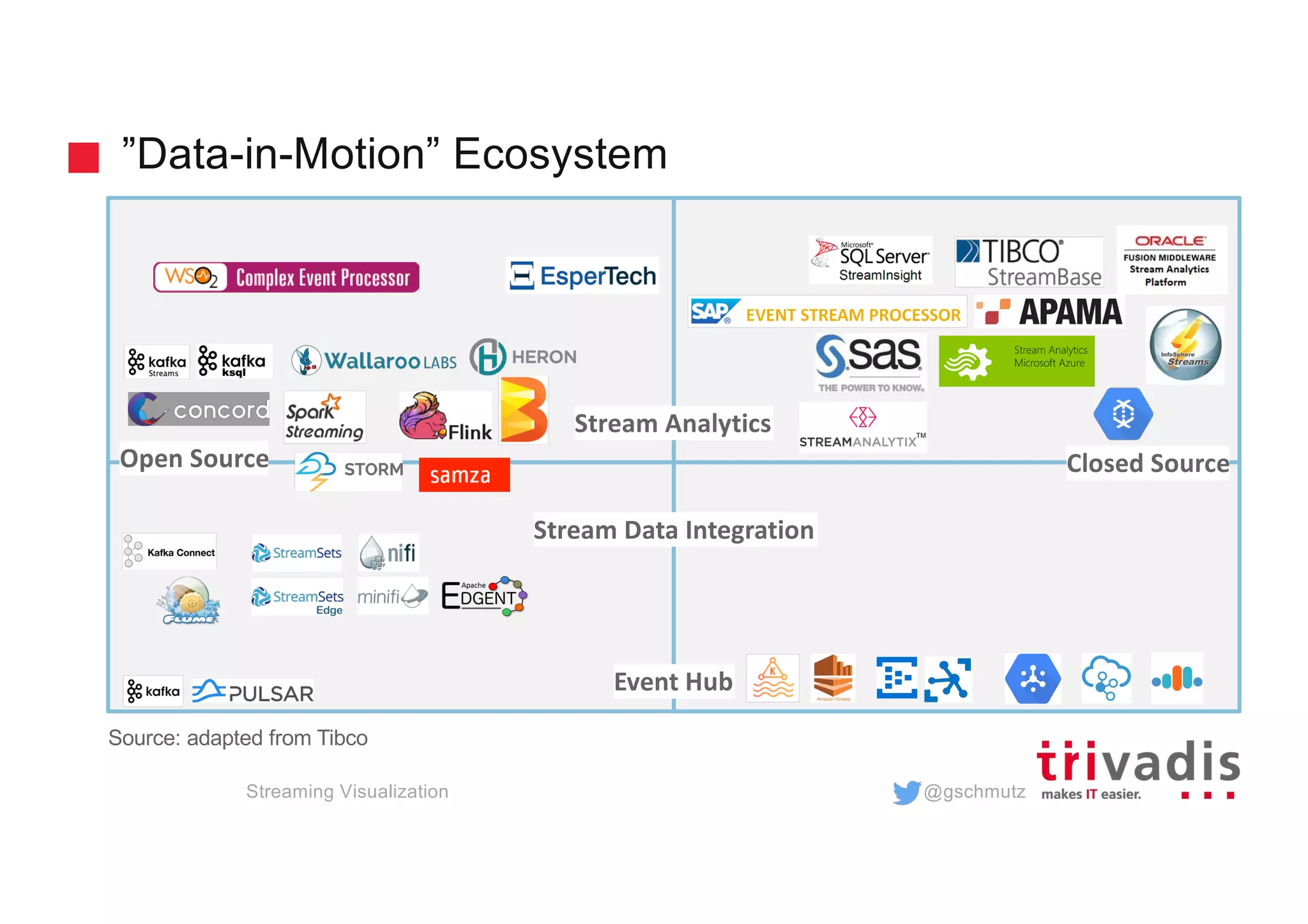

”Data-in-Motion” Ecosystem
Stream Analytics
Event Hub
Open Source Closed Source
Stream Data Integration
Source: adapted from Tibco
Edge

@gschmutz

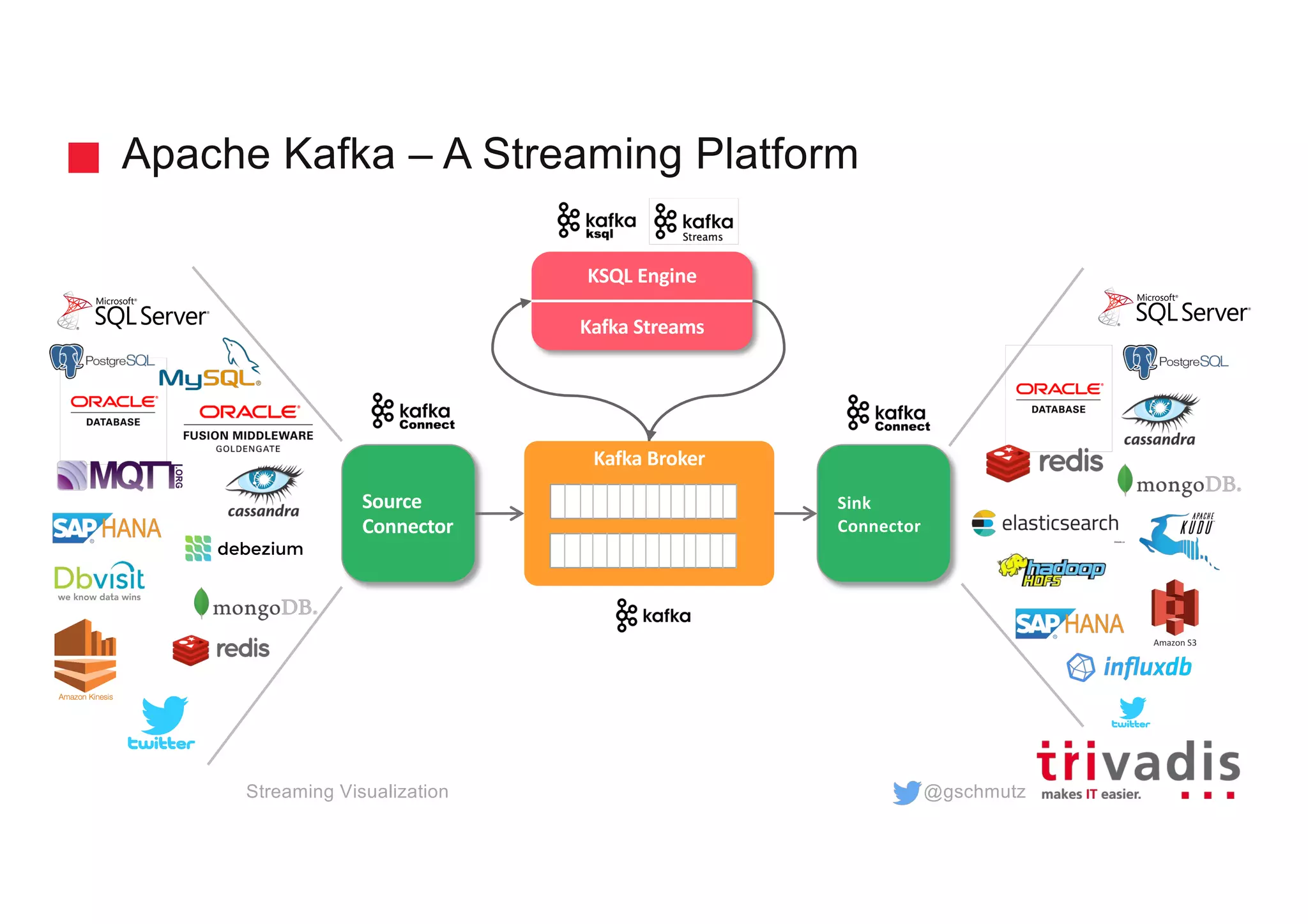

Apache Kafka – A Streaming Platform
Source
Connector
Sink
Connector
trucking_
driver
KSQL Engine
Kafka Streams
Kafka Broker

@gschmutz

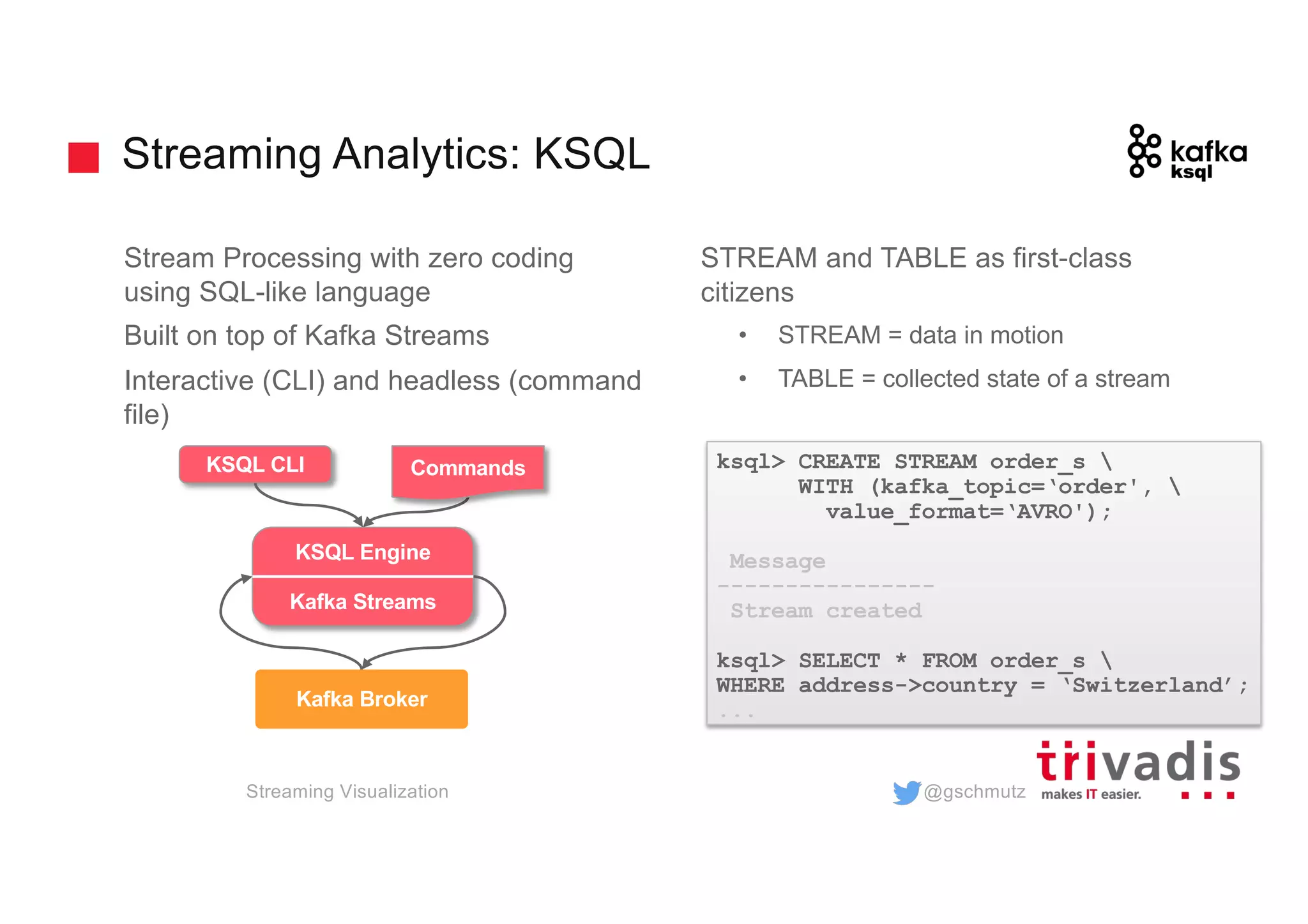

Streaming Analytics: KSQL
STREAM and TABLE as first-class
citizens
• STREAM = data in motion
• TABLE = collected state of a stream
Stream Processing with zero coding
using SQL-like language
Built on top of Kafka Streams
Interactive (CLI) and headless (command
file)
ksql> CREATE STREAM order_s
WITH (kafka_topic=‘order',
value_format=‘AVRO');
Message
----------------
Stream created
ksql> SELECT * FROM order_s
WHERE address->country = ‘Switzerland’;
...
trucking_
driver
Kafka Broker
KSQL Engine
Kafka Streams
KSQL CLI Commands

@gschmutz
3 Blueprints for Streaming
Visualization

@gschmutz
Visualization: many many options! But do they support
Streaming Data?

@gschmutz

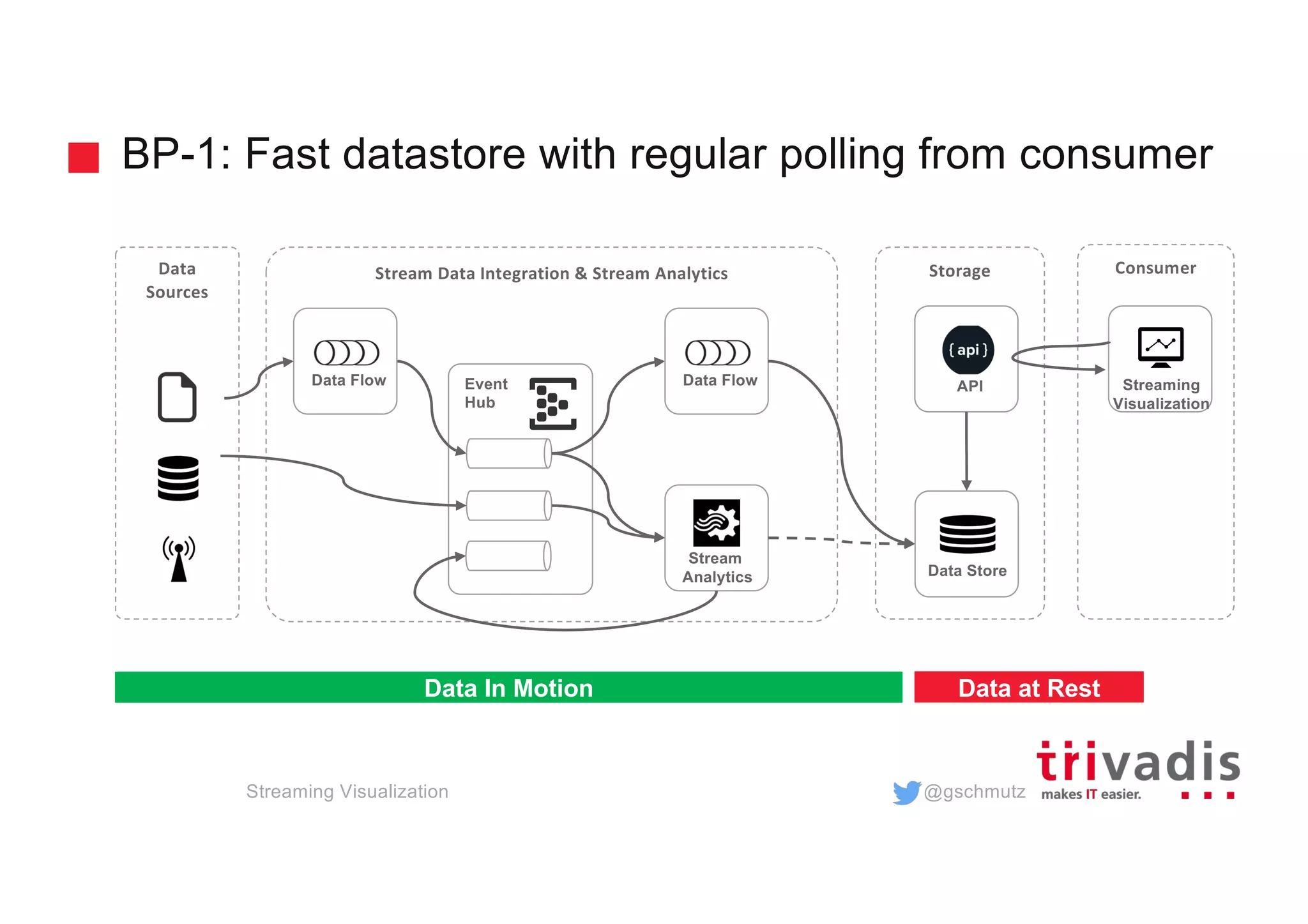

BP-1: Fast datastore with regular polling from consumer
Storage
Stream
Analytics
Event
Hub
Stream Data Integration & Stream Analytics
API
Data Store
Streaming
Visualization
Data Flow
ConsumerData
Sources
Data In Motion Data at Rest
Data Flow

@gschmutz

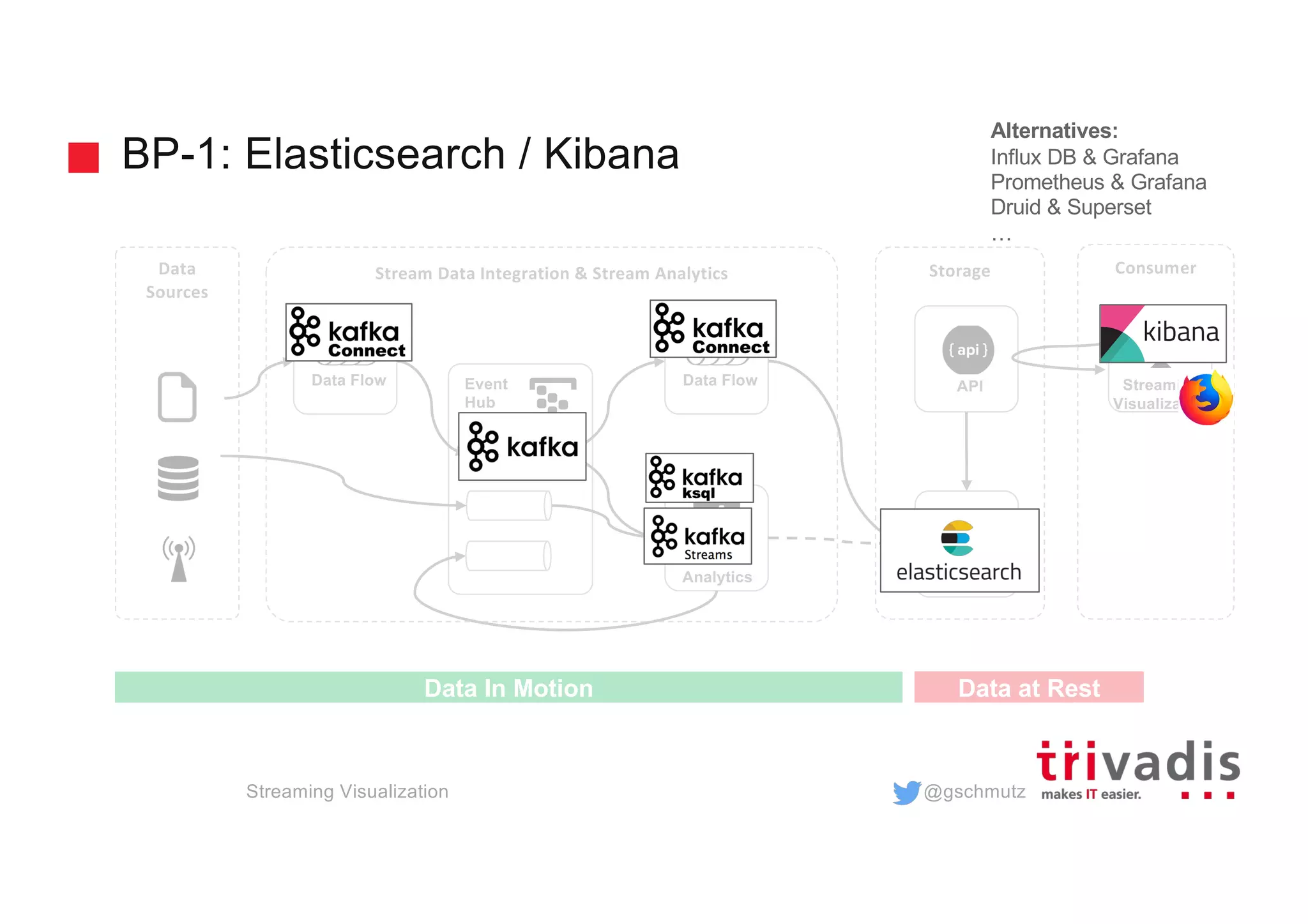

BP-1: Elasticsearch / Kibana
Storage
Stream
Analytics
Event
Hub
API
Data Store
Streaming
Visualization
Data Flow
ConsumerData
Sources
Data Flow
Alternatives:
Influx DB & Grafana
Prometheus & Grafana
Druid & Superset
…

@gschmutz

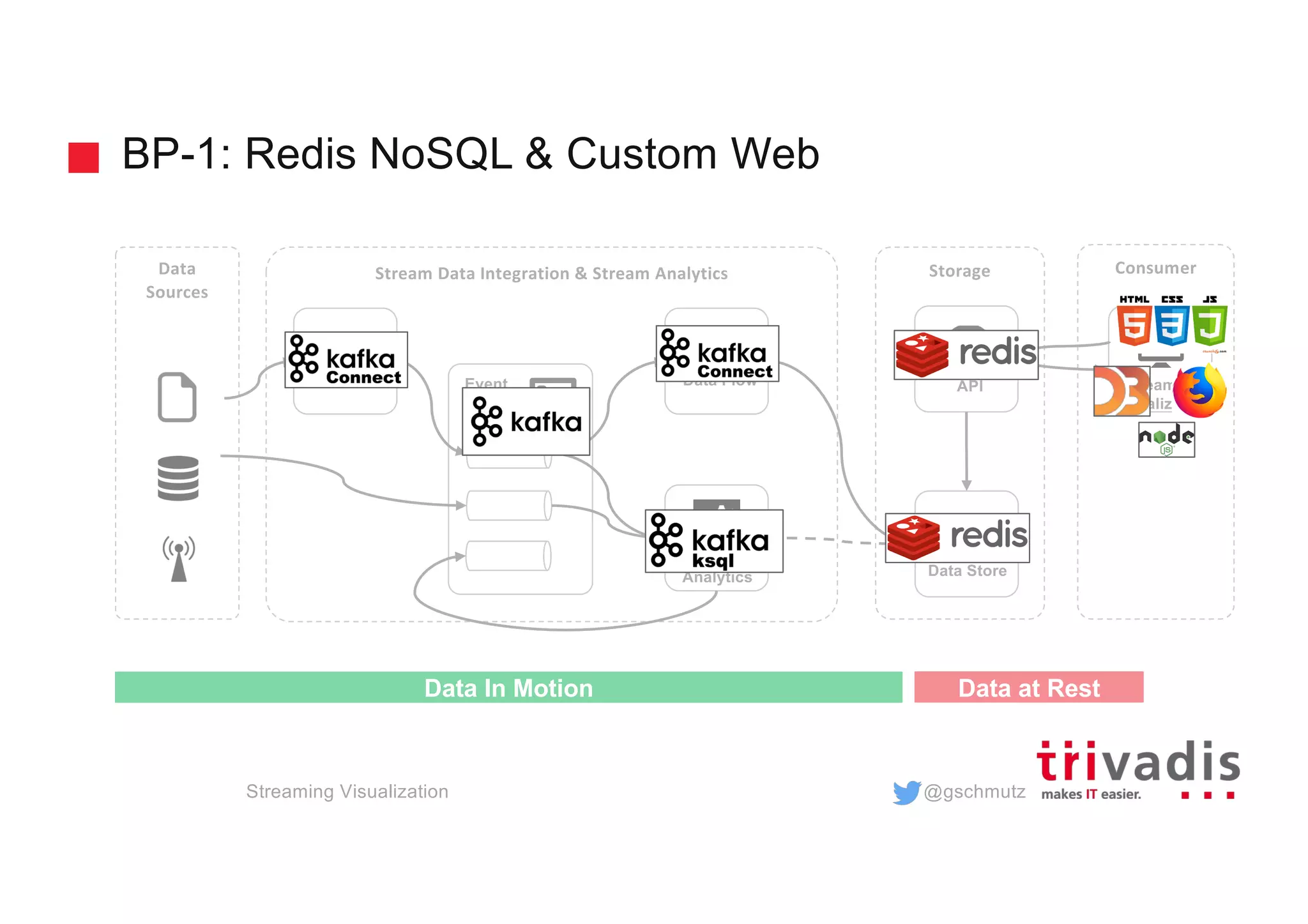

BP-1: Redis NoSQL & Custom Web
Storage
Stream
Analytics
Event
Hub
API
Data Store
Streaming
Visualization
Data Flow
ConsumerData
Sources
Data Flow

@gschmutz

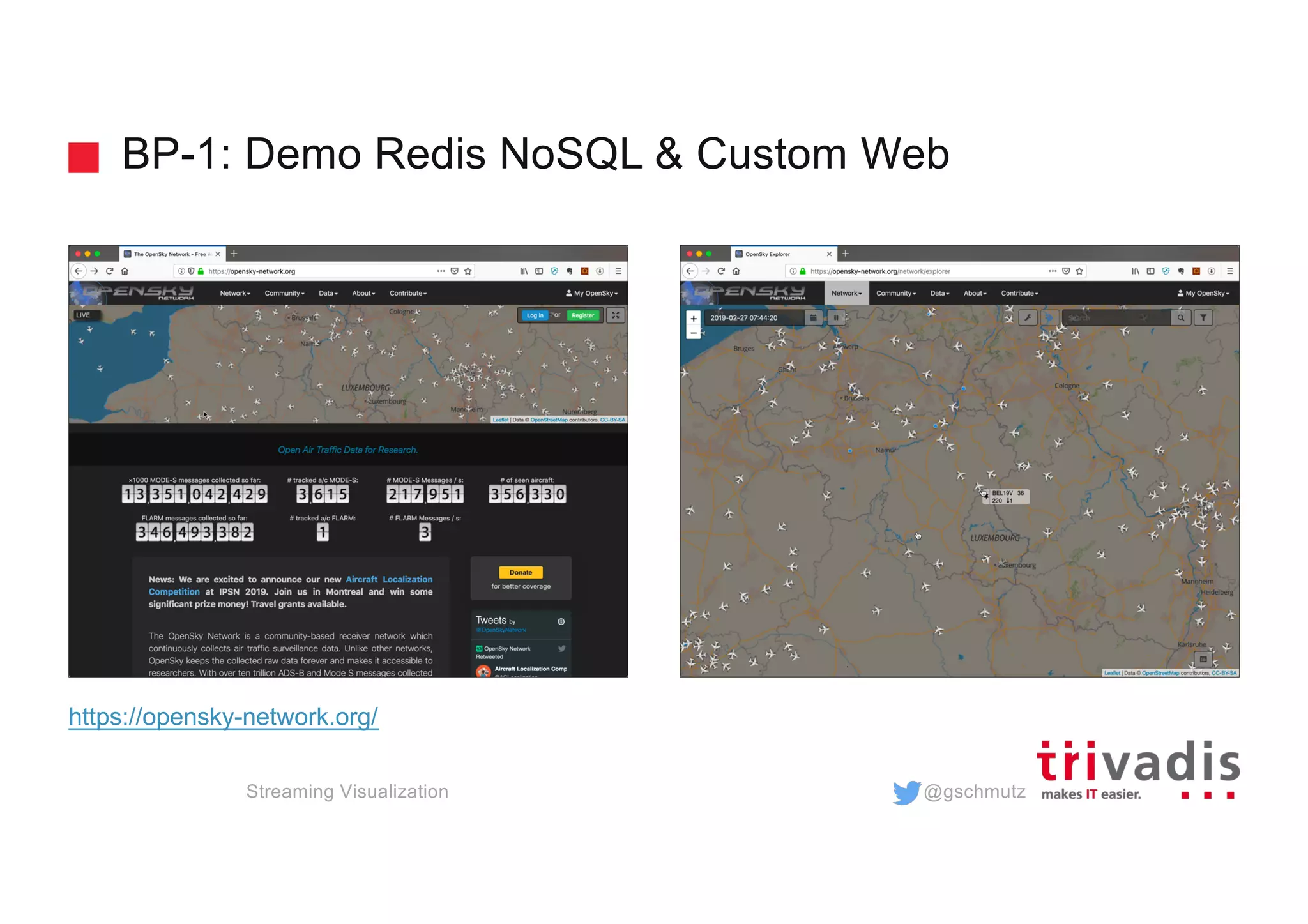

BP-1: Demo Redis NoSQL & Custom Web
https://opensky-network.org/

@gschmutz

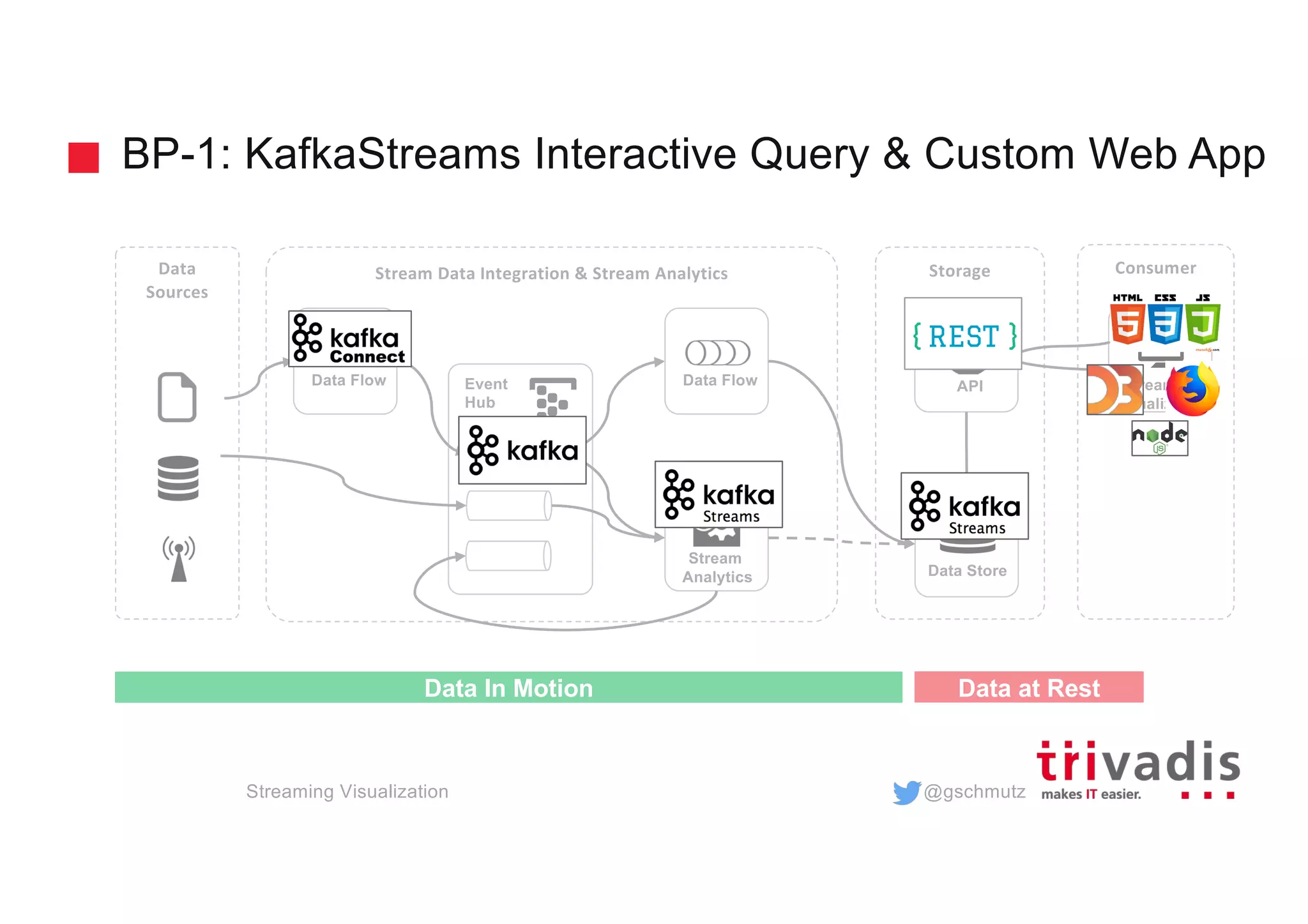

BP-1: KafkaStreams Interactive Query & Custom Web App
Storage
Stream
Analytics
Event
Hub
API
Data Store
Streaming
Visualization
Data Flow
ConsumerData
Sources
Data Flow

@gschmutz

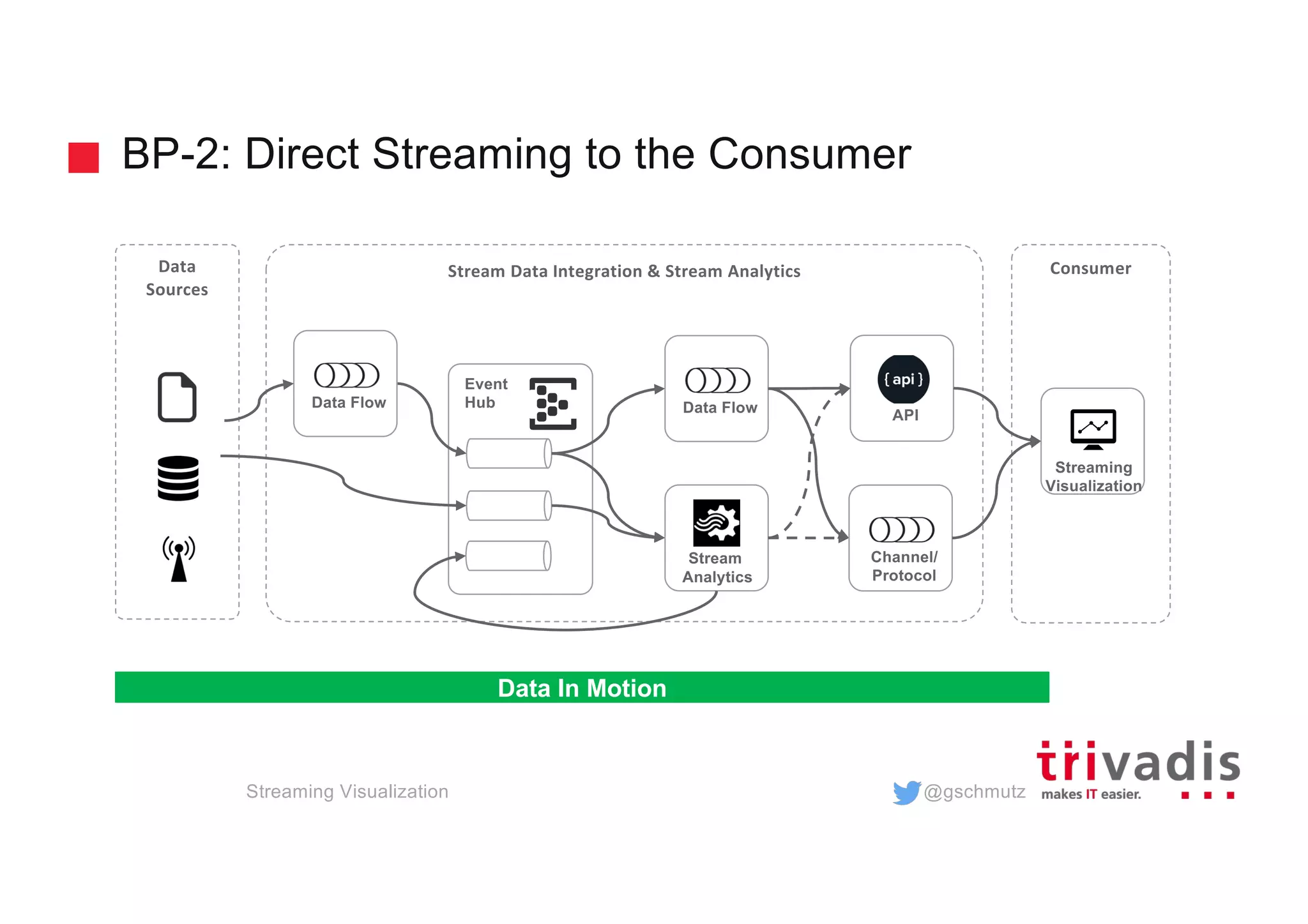

BP-2: Direct Streaming to the Consumer
Stream
Analytics
Event
Hub
Streaming
Visualization
Data Flow
ConsumerData
Sources
Data In Motion
Data Flow
Channel/
Protocol
API

@gschmutz

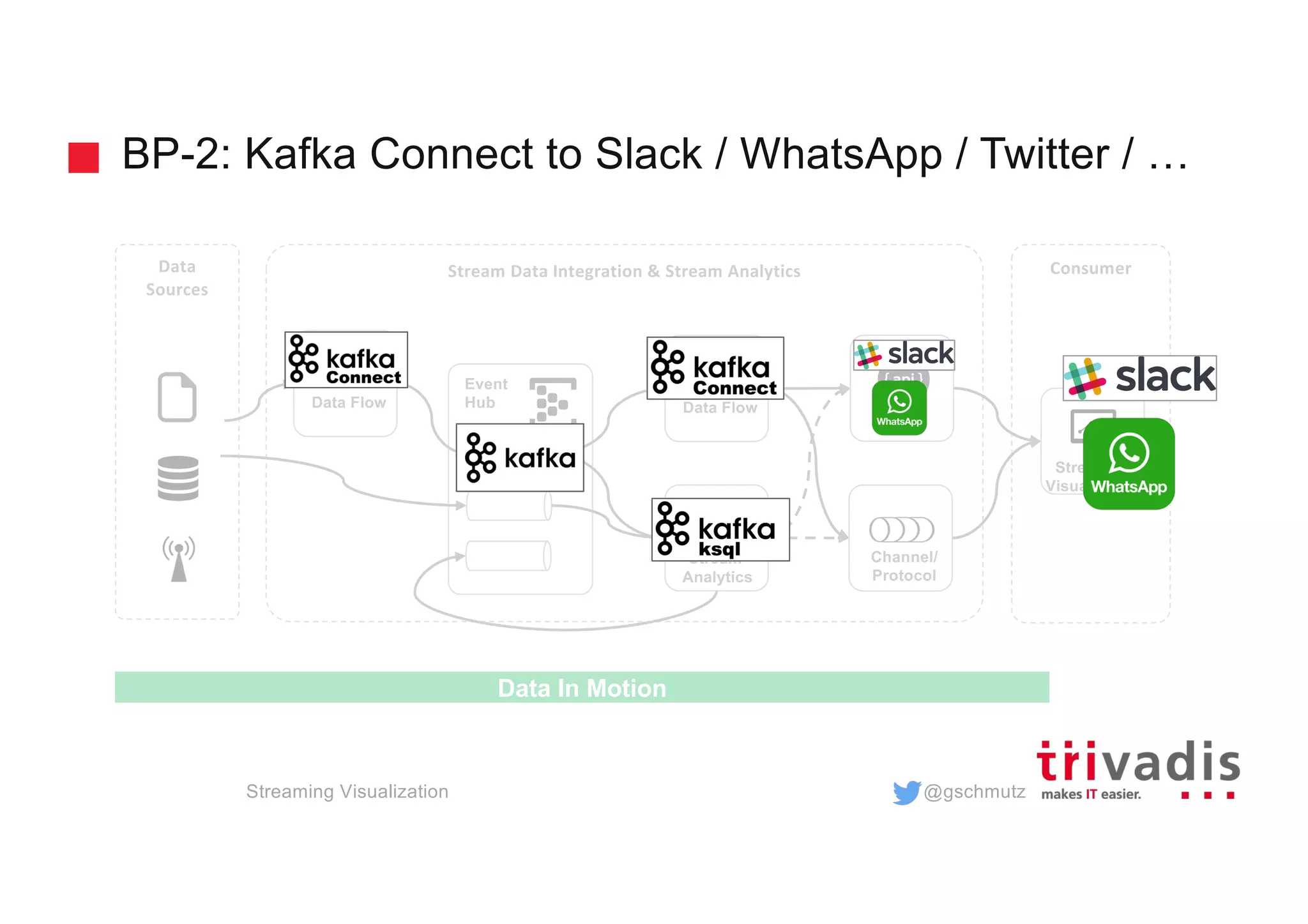

BP-2: Kafka Connect to Slack / WhatsApp / Twitter / …
Stream
Analytics
Event
Hub
Streaming
Visualization
Data Flow
ConsumerData
Sources
Data In Motion
Data Flow
Channel/
Protocol
API

@gschmutz

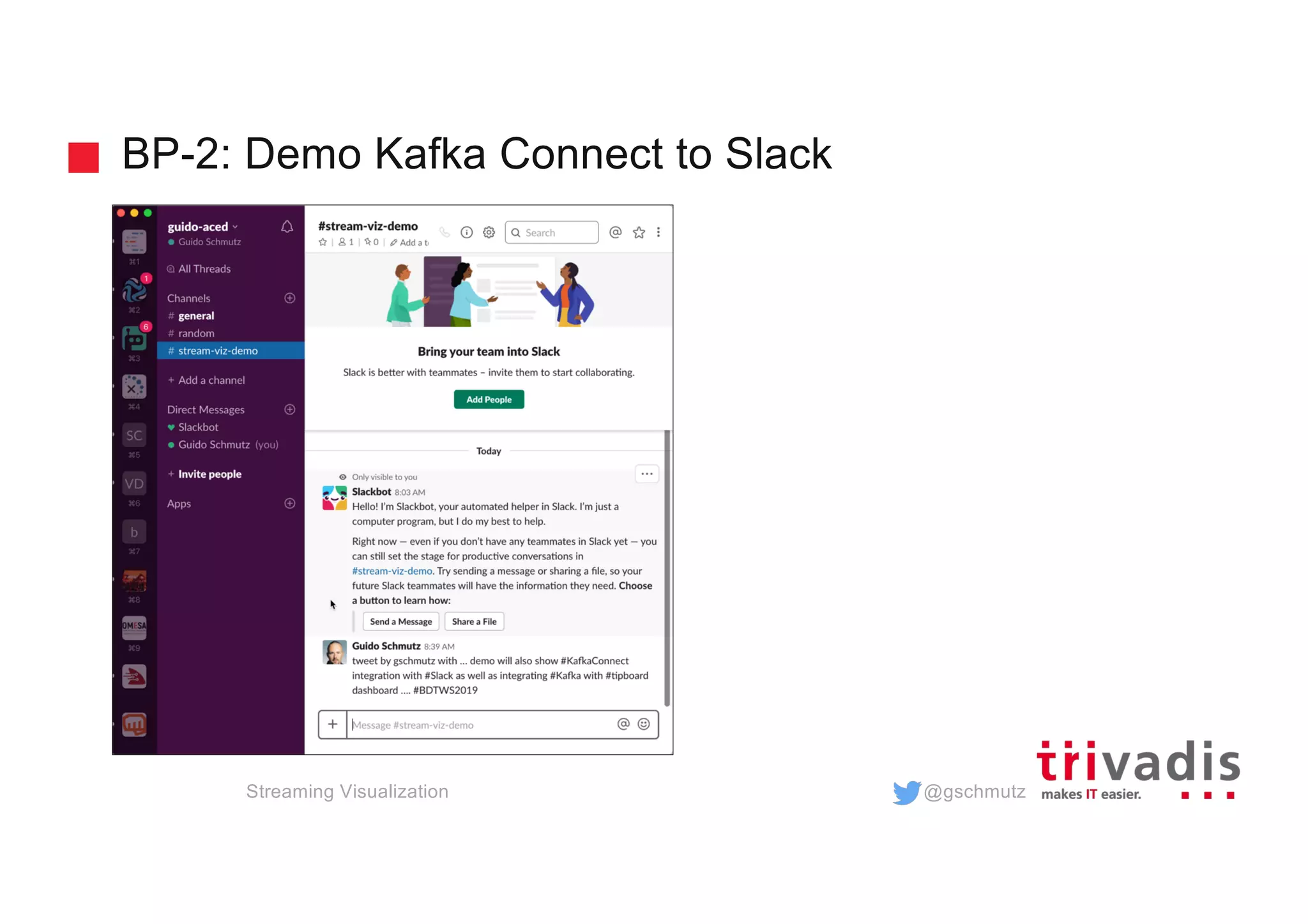

BP-2: Demo Kafka Connect to Slack

@gschmutz

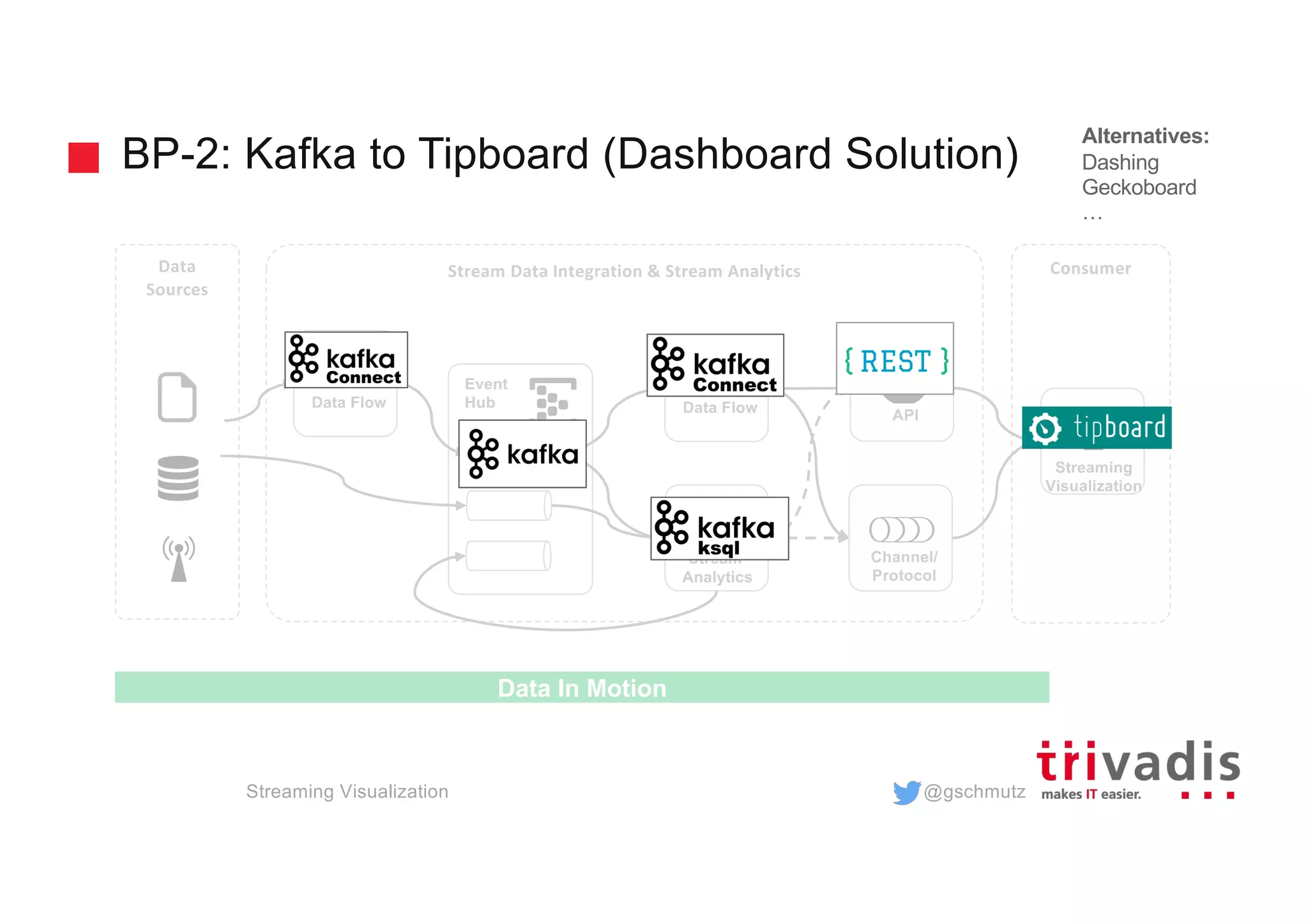

BP-2: Kafka to Tipboard (Dashboard Solution)
Stream
Analytics
Event
Hub
Streaming
Visualization
Data Flow
ConsumerData
Sources
Data In Motion
Data Flow
Channel/
Protocol
API
Alternatives:
Dashing
Geckoboard
…

@gschmutz

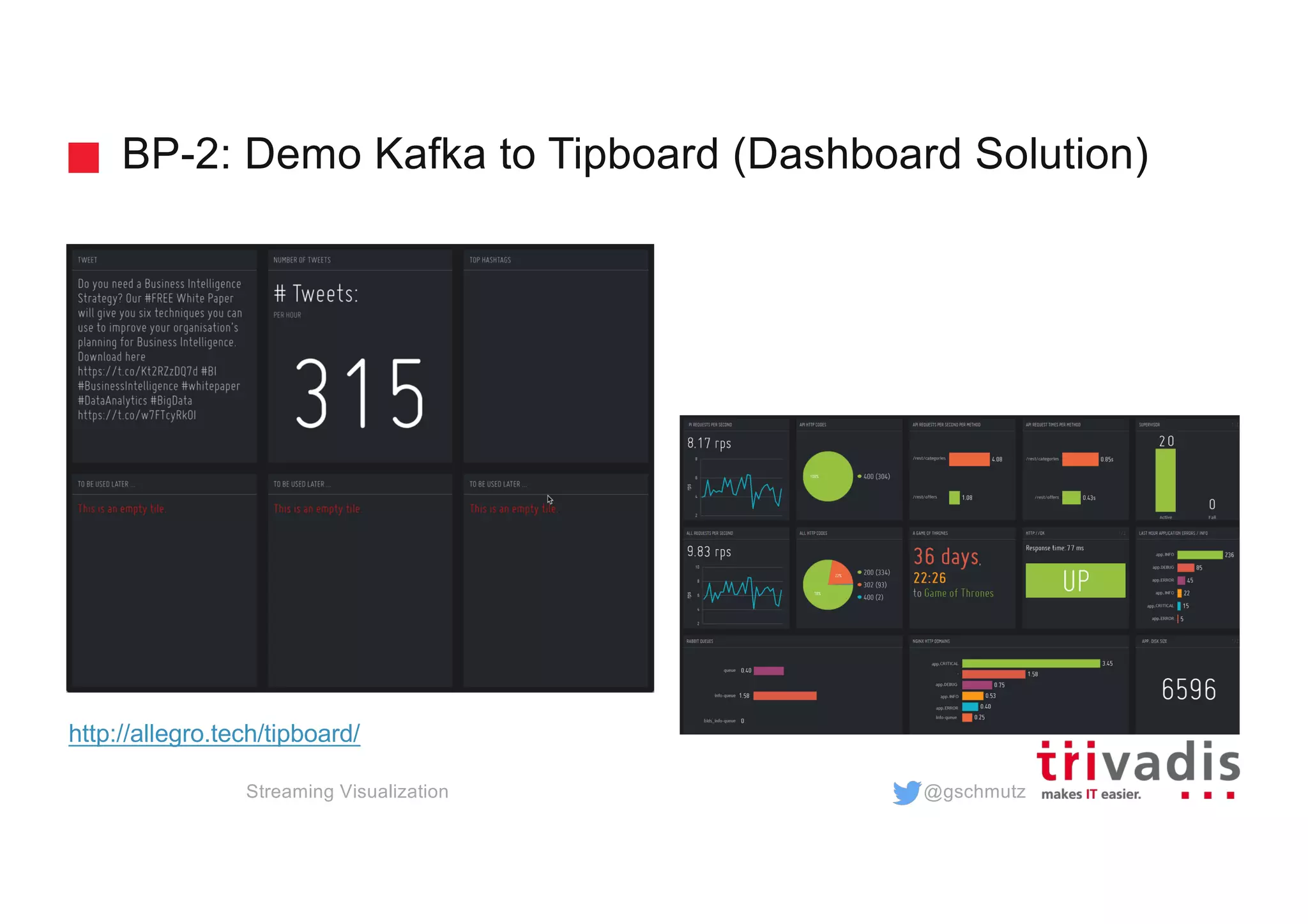

BP-2: Demo Kafka to Tipboard (Dashboard Solution)
http://allegro.tech/tipboard/

@gschmutz

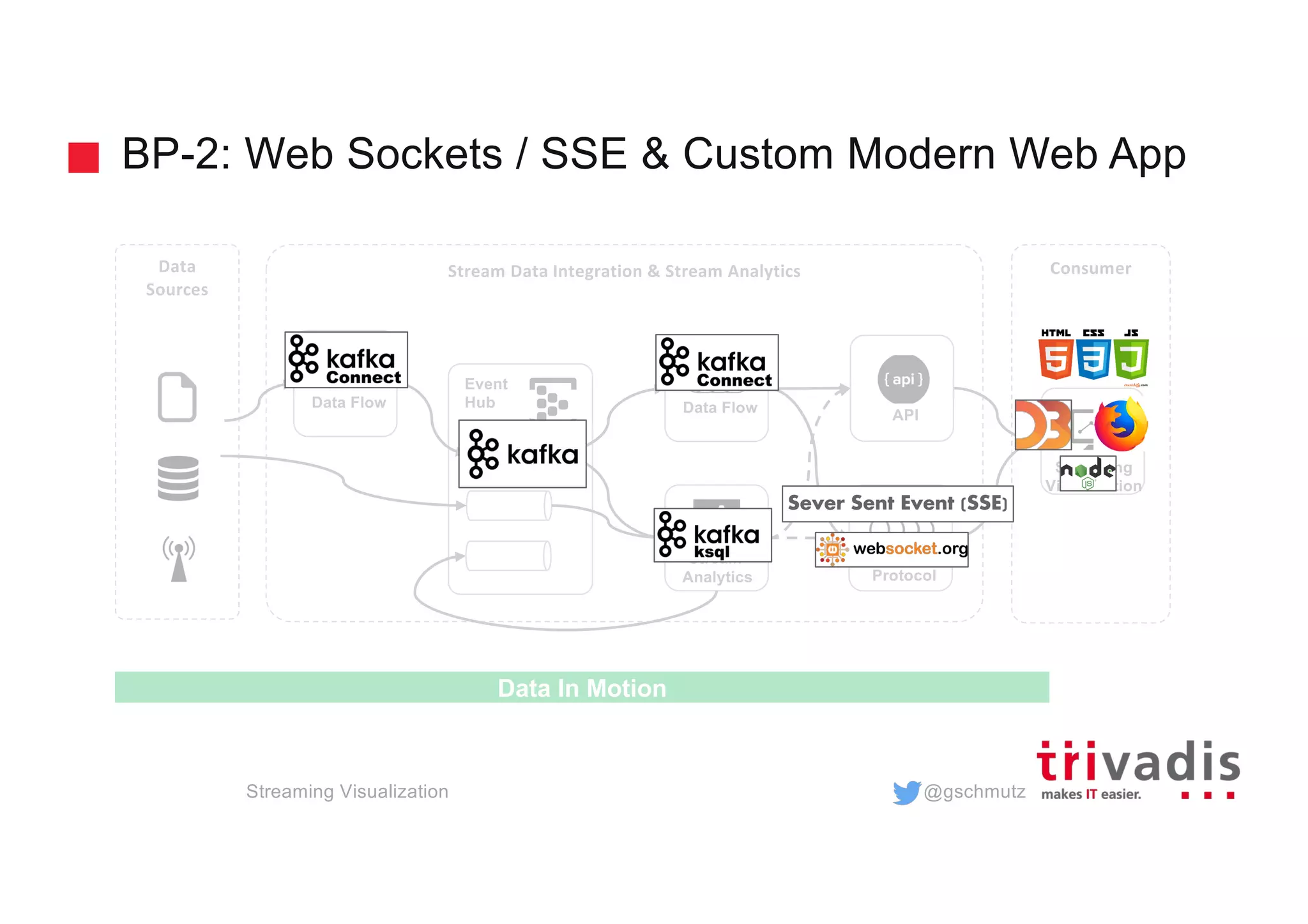

BP-2: Web Sockets / SSE & Custom Modern Web App
Stream
Analytics
Event
Hub
Streaming
Visualization
Data Flow
ConsumerData
Sources
Data In Motion
Data Flow
Channel/
Protocol
API
Sever Sent Event (SSE)

@gschmutz

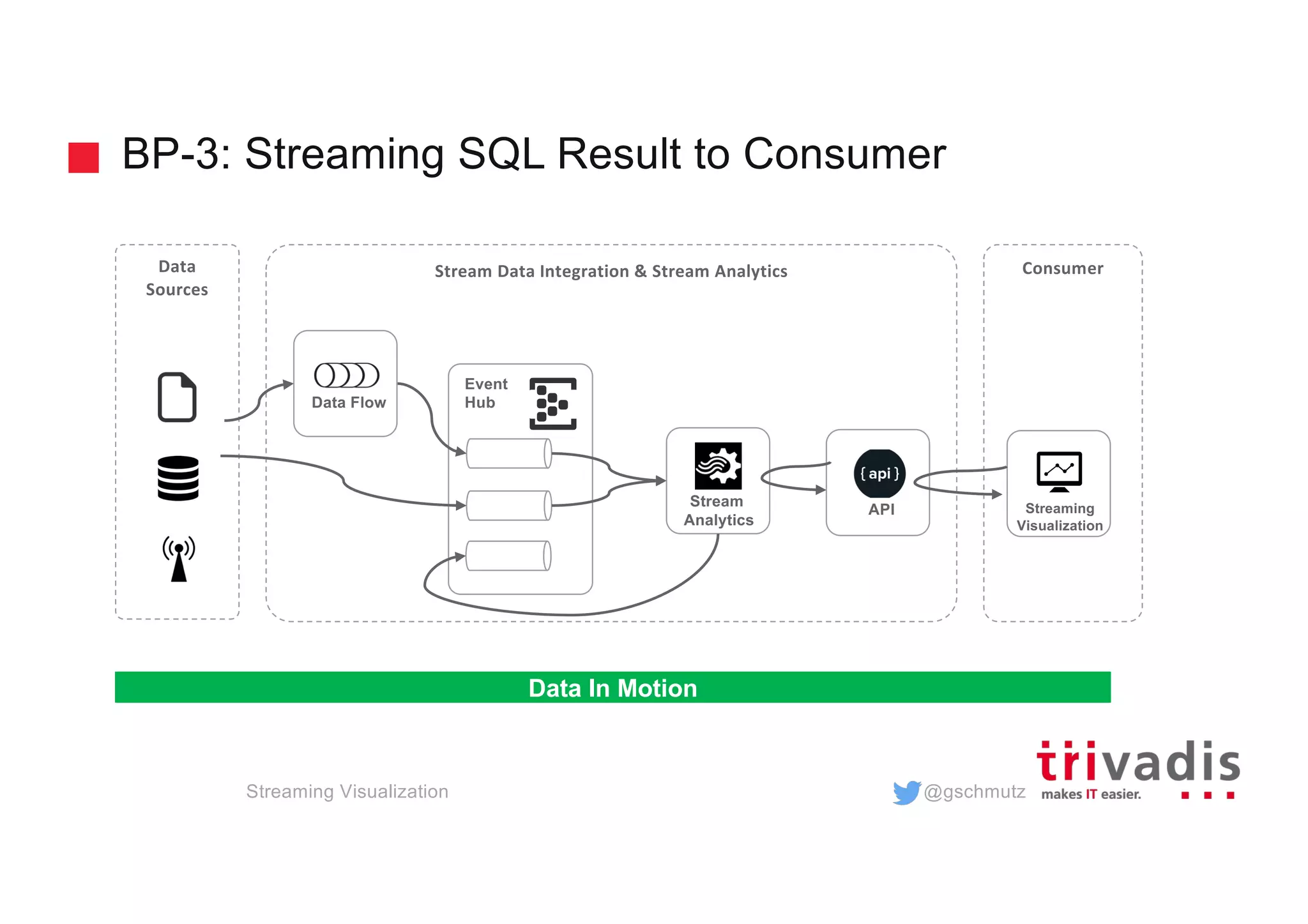

BP-3: Streaming SQL Result to Consumer
Stream
Analytics
Event
Hub
Stream Data Integration & Stream Analytics ConsumerData
Sources
Data In Motion
Data Flow
API Streaming
Visualization

@gschmutz

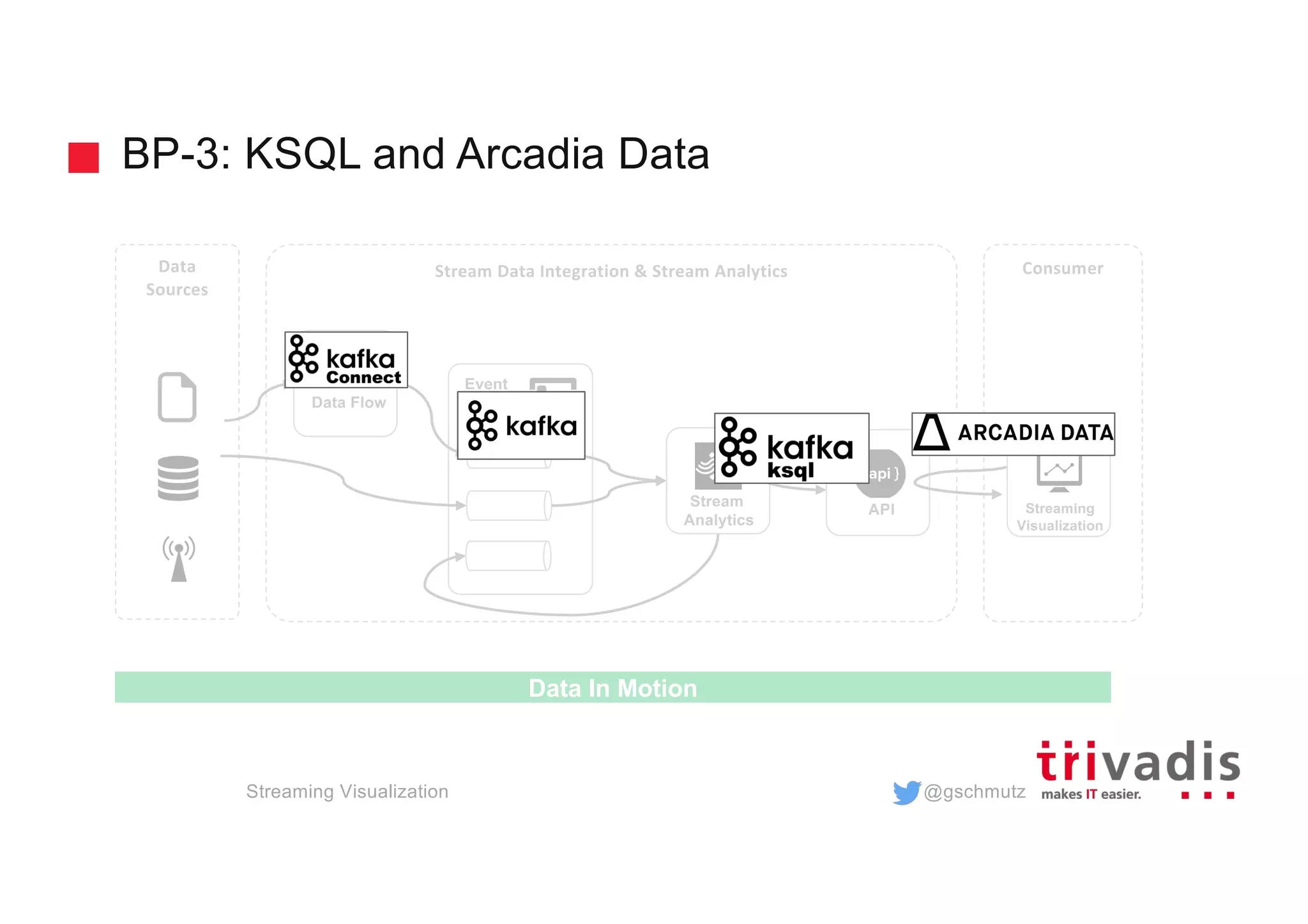

BP-3: KSQL and Arcadia Data
Stream
Analytics
Event
Hub
Sources
Data In Motion
Data Flow
API Streaming
Visualization

@gschmutz

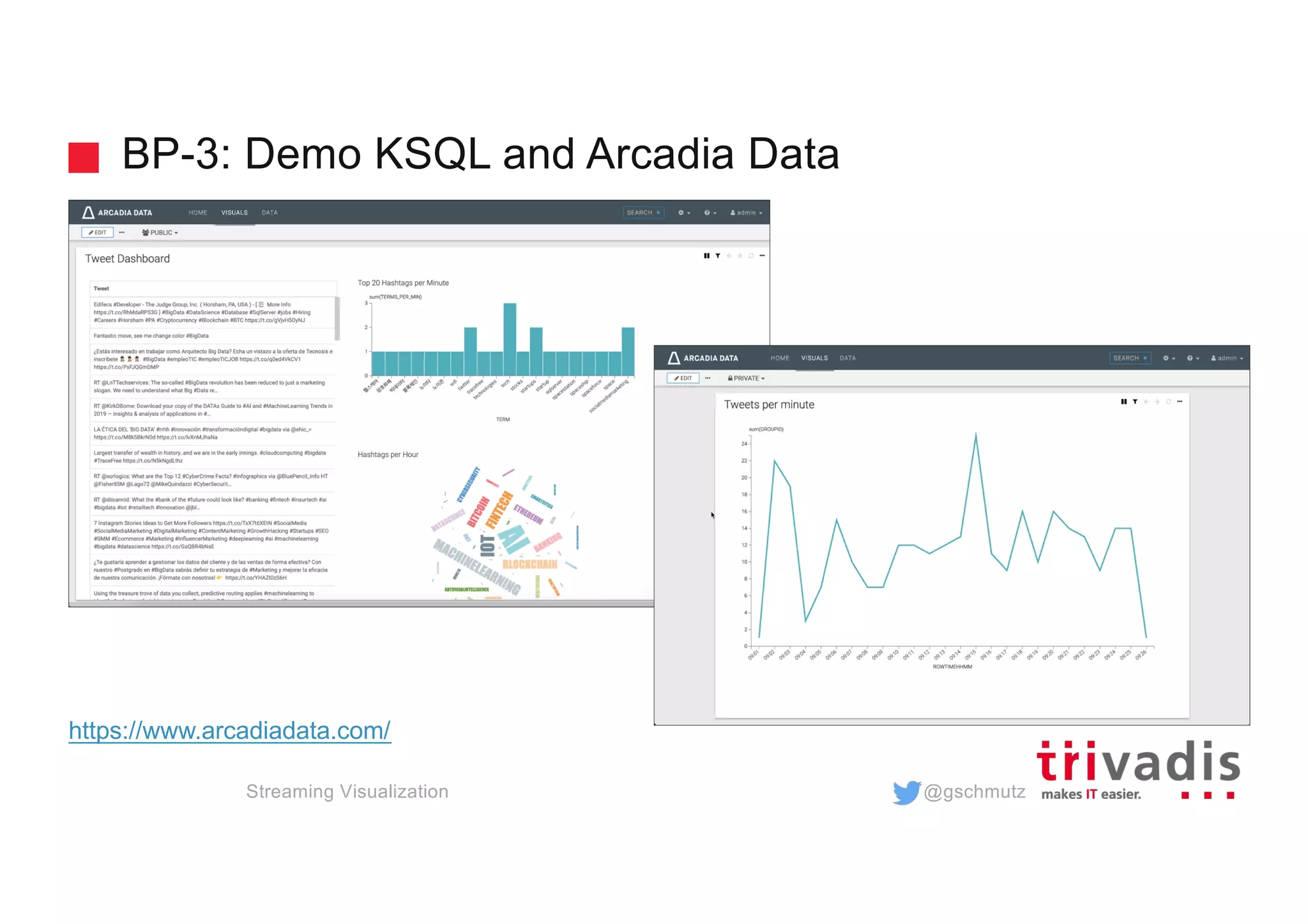

BP-3: Demo KSQL and Arcadia Data
https://www.arcadiadata.com/

@gschmutz

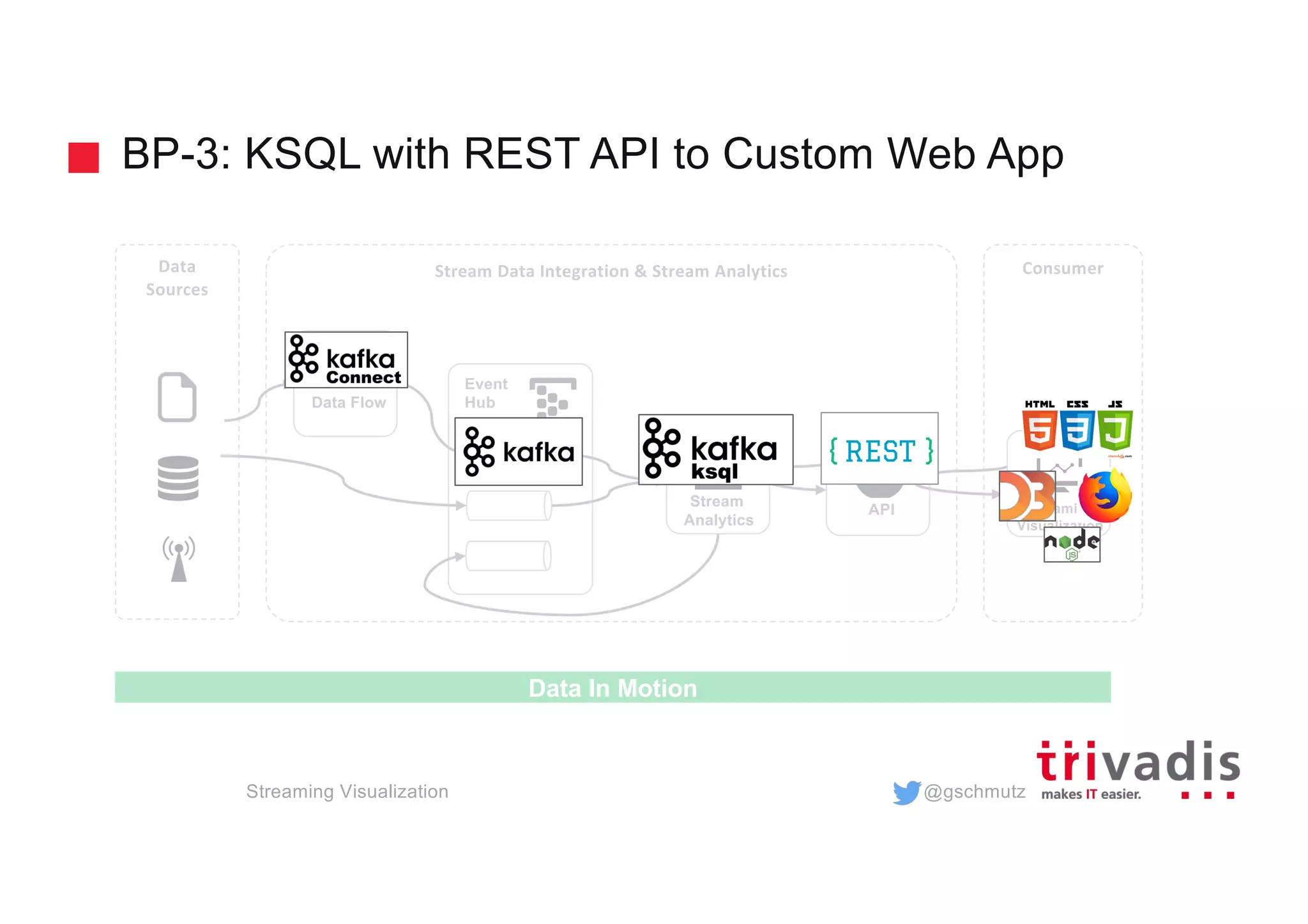

BP-3: KSQL with REST API to Custom Web App
Stream
Analytics
Event
Hub
Sources
Data In Motion
Data Flow
API Streaming
Visualization

@gschmutz

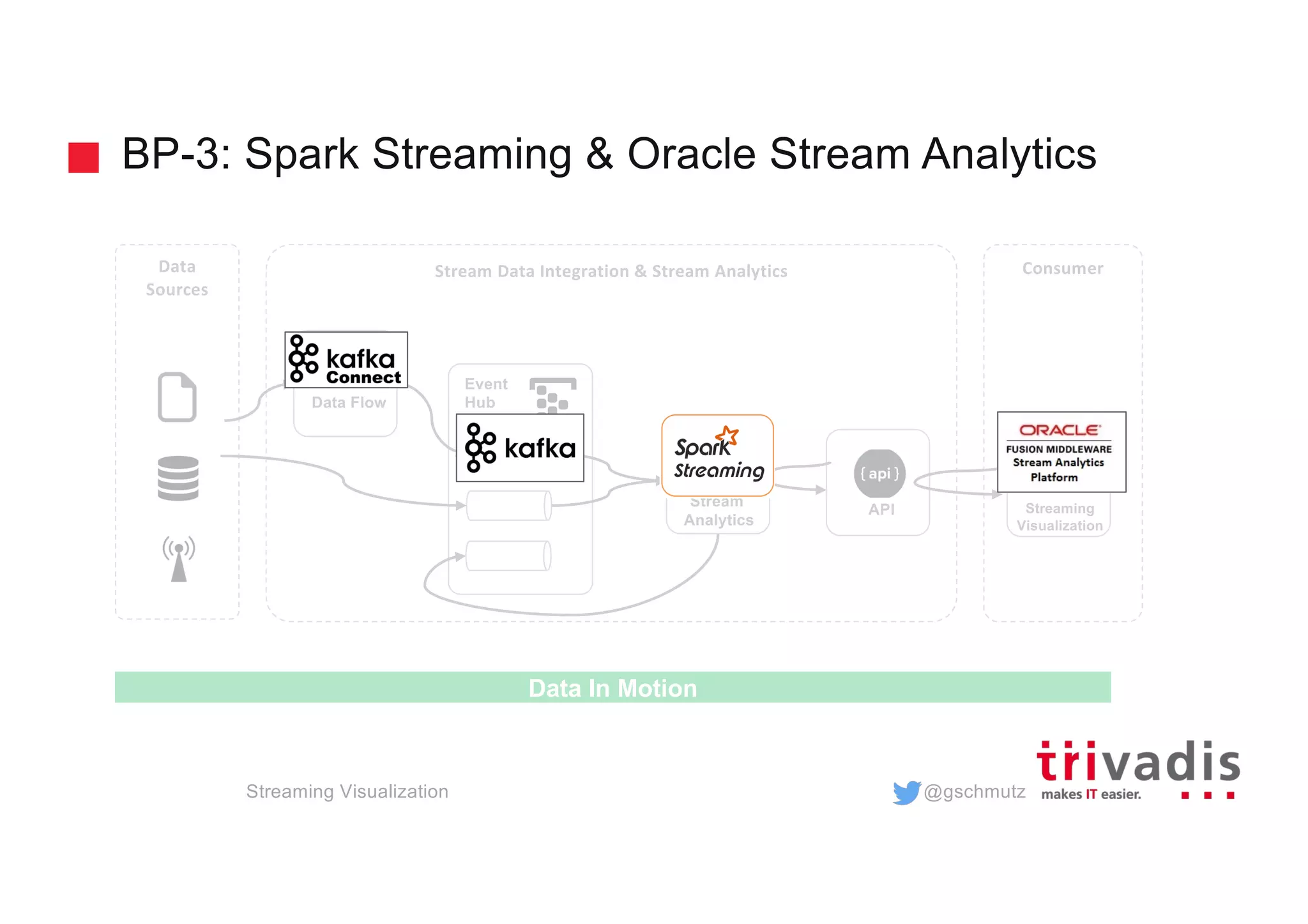

BP-3: Spark Streaming & Oracle Stream Analytics
Stream
Analytics
Event
Hub
Sources
Data In Motion
Data Flow
API Streaming
Visualization

@gschmutz

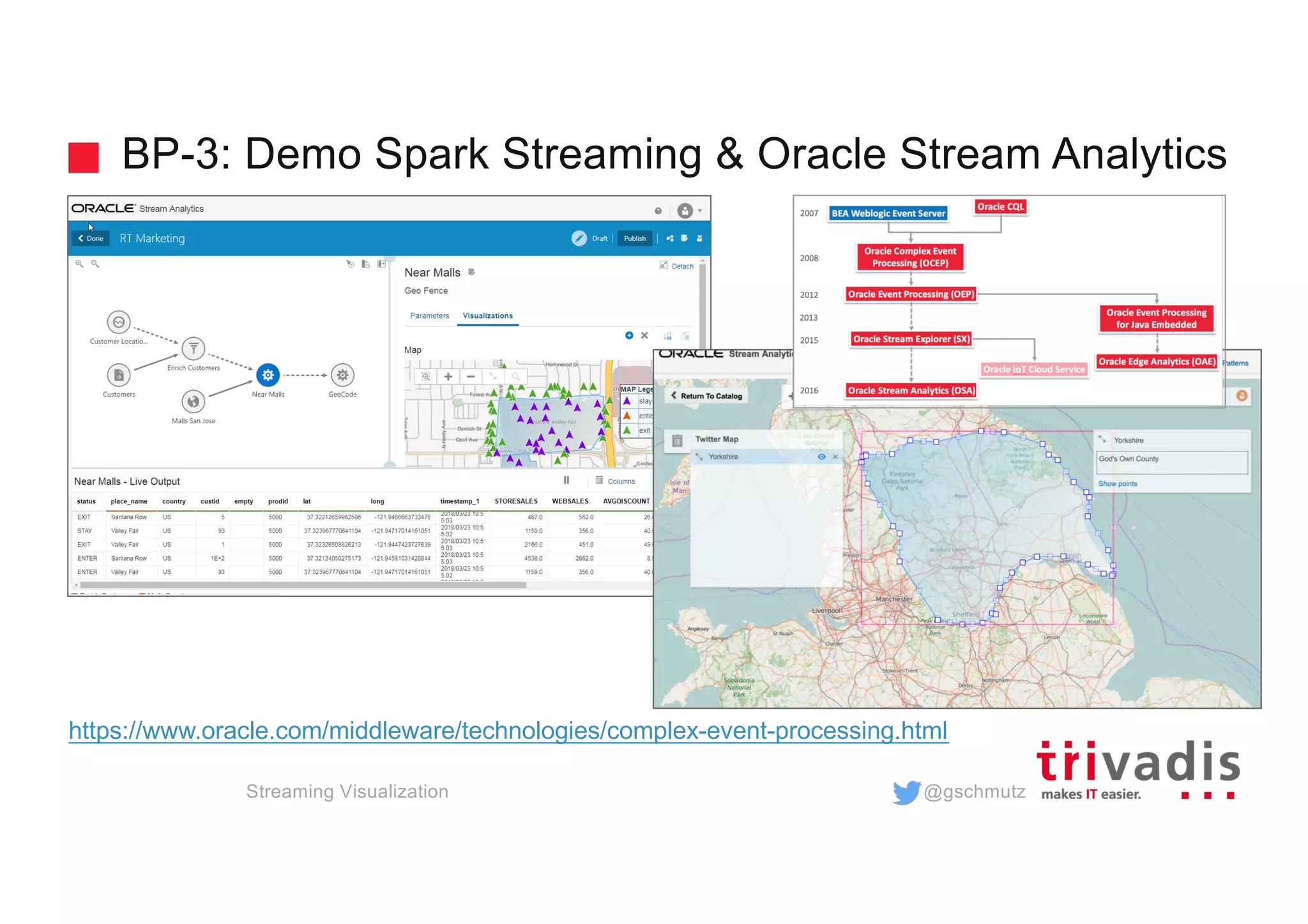

BP-3: Demo Spark Streaming & Oracle Stream Analytics
https://www.oracle.com/middleware/technologies/complex-event-processing.html

@gschmutz

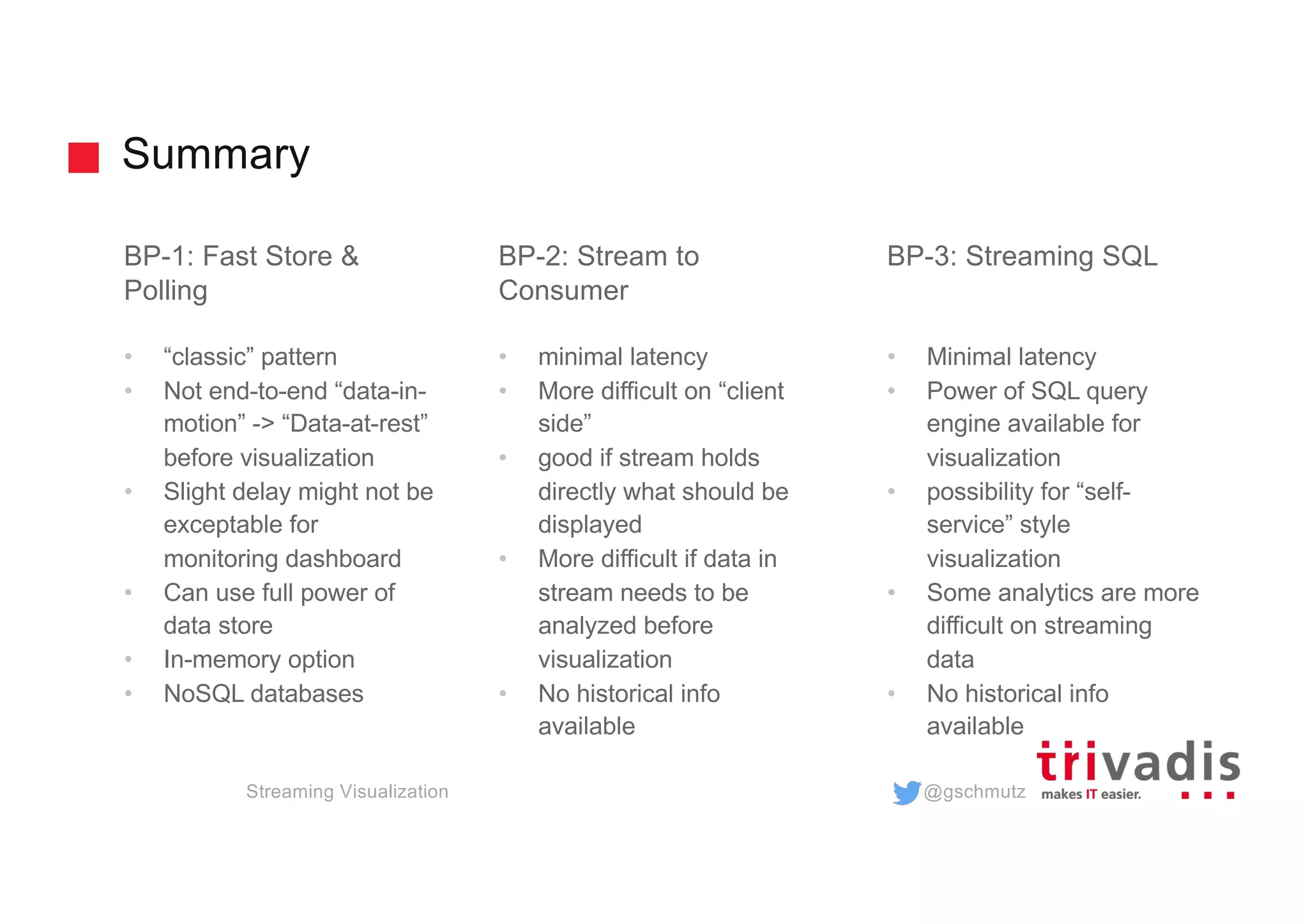

Summary
BP-1: Fast Store &
Polling
• “classic” pattern
• Not end-to-end “data-in-
motion” -> “Data-at-rest”
before visualization
• Slight delay might not be
exceptable for
monitoring dashboard
• Can use full power of
data store
• In-memory option
• NoSQL databases
BP-2: Stream to
Consumer
• minimal latency
• More difficult on “client
side”
• good if stream holds
directly what should be
displayed
• More difficult if data in
stream needs to be
analyzed before
visualization
• No historical info
available
BP-3: Streaming SQL
• Minimal latency
• Power of SQL query
engine available for
visualization
• possibility for “self-
service” style
visualization
• Some analytics are more
difficult on streaming
data
• No historical info
available

@gschmutz
Technology on its own won't help you.
You need to know how to use it properly.
