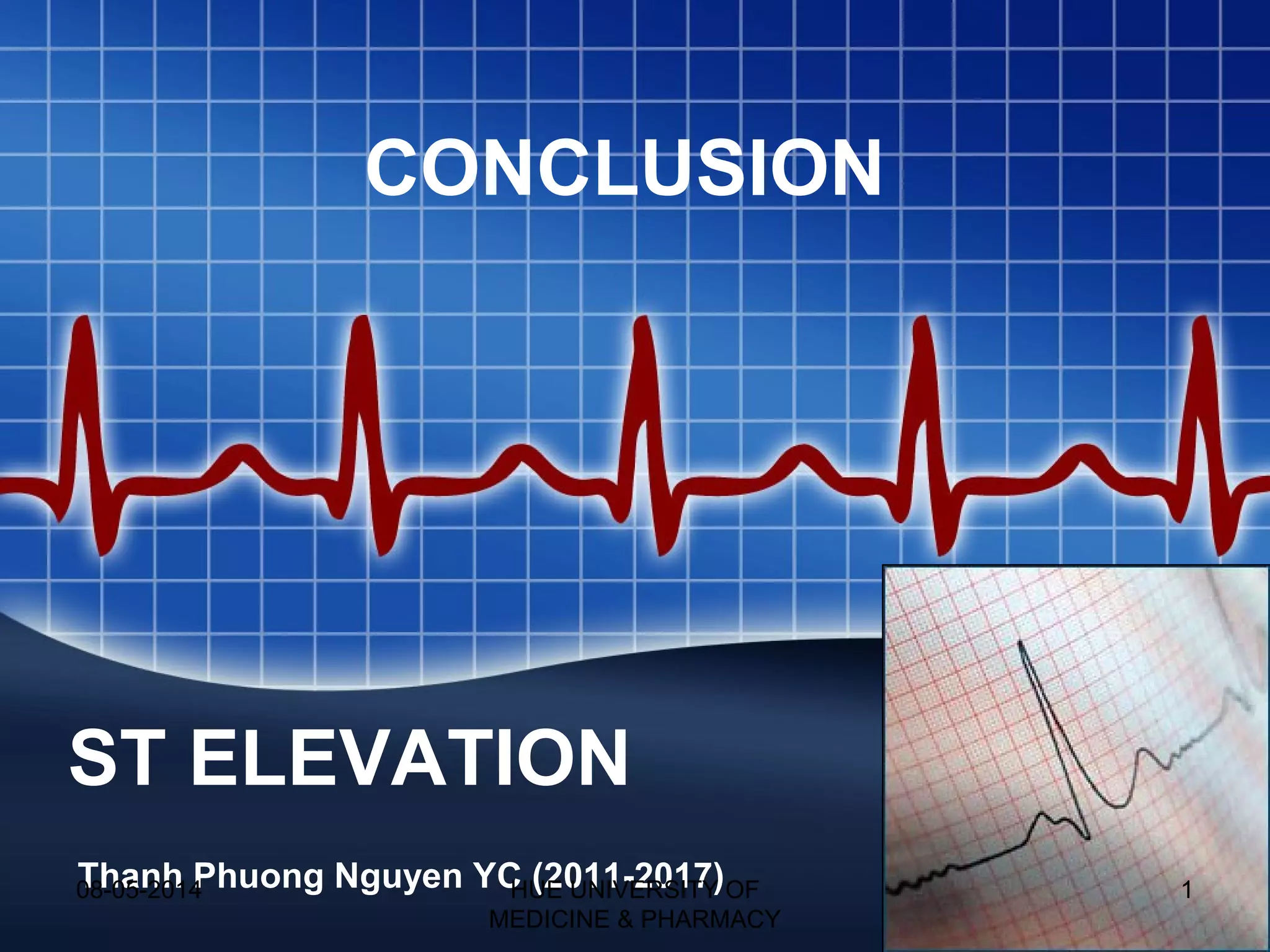

1. ST ELEVATION
Thanh Phuong Nguyen YC (2011-2017)
CONCLUSION
08-05-2014 1HUE UNIVERSITY OF
MEDICINE & PHARMACY

2. INTRO…
08-05-2014 2HUE UNIVERSITY OF
MEDICINE & PHARMACY

3. CAUSE OF ST ELEVATION
• E - Electrolytes
• L – LBBB
• E – Early Repolarization
• V – Ventricular Hypertrophy
• A – Aneurysm
• T – Treatment
• I – Infection/ Injury
• O – Osbourn Waves
• N – Non Occlusive Vasospasm
• B – Brugada Syndrome08-05-2014 3HUE UNIVERSITY OF
MEDICINE & PHARMACY

4. E-HYPERKALEMIA
• Classic ECG changes
Tall “peaked” T waves
Prolongation of PR Intervals
Absent P Waves
Wide QRS
Sinusoidal pattern or V-Tach/V-Fib
08-05-2014 4HUE UNIVERSITY OF
MEDICINE & PHARMACY

5. 08-05-2014 5HUE UNIVERSITY OF
MEDICINE & PHARMACY

6. Symmectrical T waves
08-05-2014 6HUE UNIVERSITY OF
MEDICINE & PHARMACY

7. WHAT TO LOOK FOR
• Peaked T wave in leads with elevation. Ouch!!
• Symmetrical Up and Down strokes
• Often wide >120ms
• ST depression in orther leads
08-05-2014 7HUE UNIVERSITY OF MEDICINE & PHARMACY

8. L-LEFT BUNDLE BRANCH BLOCK
• What is normal for LBBB?
• Wide complex
• ST elevation
• Look for appropriate discordance (<5mm)
** Think Sgarbossa criteria
08-05-2014 8HUE UNIVERSITY OF
MEDICINE & PHARMACY

9. 08-05-2014 9HUE UNIVERSITY OF
MEDICINE & PHARMACY

10. 08-05-2014 10HUE UNIVERSITY OF
MEDICINE & PHARMACY

11. 08-05-2014 11HUE UNIVERSITY OF
MEDICINE & PHARMACY

12. Sgarbossa Criteria
STST ElevationElevation ≥ 1 mm and≥ 1 mm and
concordantconcordant with QRSwith QRS
complexcomplex
Score 5 pointsScore 5 points
Odds Ratio (OR) 25.2Odds Ratio (OR) 25.2
ST DepressionST Depression ≥ 1 mm in≥ 1 mm in
V1, V2, V3V1, V2, V3
Score 3 pointsScore 3 points
OR 6.0OR 6.0
STST ElevationElevation ≥ 5 mm and≥ 5 mm and
discordantdiscordant with QRSwith QRS
complexcomplex
Score 2 pointsScore 2 points
OR 4.3OR 4.3
Odds Ratio: a measure of the degree of association; for example, the odds of exposure among the cases compared
with the odds of exposure among the controls (www.cefpas.it/ebm/tools/glossary.htm)08-05-2014 12HUE UNIVERSITY OF
MEDICINE & PHARMACY

13. STST ElevationElevation ≥ 1 mm and≥ 1 mm and concordantconcordant with QRSwith QRS
complexcomplex
ST DepressionST Depression ≥ 1 mm in V1, V2, V3≥ 1 mm in V1, V2, V3
STST ElevationElevation ≥ 5 mm and≥ 5 mm and discordantdiscordant with QRSwith QRS
complexcomplex
08-05-2014 13HUE UNIVERSITY OF
MEDICINE & PHARMACY

14. • A total score of 3 or more suggests that
the patient is likely experiencing an AMI
based on the ECG crtieria
• With a score less than 3, the ECG
diagnosis is less certain requiring
additional evaluation
• Chan TC, Brady WJ, Harrigan RA et al. ECG in
Emergency Medicine and Acute Care. 1st ed.
Pennsylvania: Elsevier Mosby; 2005.
Sgarbossa Criteria
08-05-2014 14HUE UNIVERSITY OF
MEDICINE & PHARMACY

15. E-EARLY REPOLARIZATION
08-05-2014 15HUE UNIVERSITY OF
MEDICINE & PHARMACY

16. What to look for
• Notched J point in V3
• Concave upward ST segment
• Usually in V2-V5
• PR depression
• Usually less than 2mm elevation
• Not as peaked as hyperkalemic T waves, more rounded
08-05-2014 16HUE UNIVERSITY OF
MEDICINE & PHARMACY

17. 08-05-2014 17HUE UNIVERSITY OF
MEDICINE & PHARMACY

18. Notching or slurring
of J point
Concave
STE
Benign Early Repolarization
Large amplitude
T wave
PR depression
08-05-2014 18HUE UNIVERSITY OF
MEDICINE & PHARMACY

19. • ECG characteristics:
1. STE <2 mm
2. Concavity of initial portion of the ST segment
3. Notching or slurring of the terminal QRS
complex
4. Symmetrical, concordant T wave of large
amplitude
5. Widespread or diffuse distribution of STE
o Does not demonstrate territorial distribution
1. Relative temporal stability
Benign Early Repolarization
08-05-2014 19HUE UNIVERSITY OF
MEDICINE & PHARMACY

20. V-VENTRICULAR HYPERTROPHY
• Many different scoring method
• The most commonly used are S-L criteria
• ST depression & T wave inversion in the
left-side leads: “strain” pattern
08-05-2014 20HUE UNIVERSITY OF
MEDICINE & PHARMACY

21. ECG Diagnostic Criteria for LVH
SensitivitySensitivity SpecificitySpecificity
Sokolow-Lyon IndexSokolow-Lyon Index
SV1 + (RV5 or RV6)>35mmSV1 + (RV5 or RV6)>35mm
2222 100100
Cornell Voltage CriteriaCornell Voltage Criteria
SV3+RaVL>28 mm (men), 20mm(women)SV3+RaVL>28 mm (men), 20mm(women)
4242 9696
R1 + SIII>25 mmR1 + SIII>25 mm 1111 100100
R in aVL> 11mmR in aVL> 11mm 1111 100100
Other Criteria include Romhilt and Estes Point Score
System
Chan TC, Brady WJ, Harrigan RA et al. ECG in EmergencyChan TC, Brady WJ, Harrigan RA et al. ECG in Emergency
Medicine and Acute Care. 1st ed. Pennsylvania: Elsevier Mosby;Medicine and Acute Care. 1st ed. Pennsylvania: Elsevier Mosby;
2005.2005.
08-05-2014 21HUE UNIVERSITY OF
MEDICINE & PHARMACY

22. Left Ventricular Hypertrophy
08-05-2014 22HUE UNIVERSITY OF
MEDICINE & PHARMACY

23. • The initial upsloping of the elevated ST
segment is frequently concave in LVH as
opposed to the more likely flat/convex ST
segment elevation in ACS
• The T wave is usually asymmetrical in
LVHas opposed to the symmetrical T
wave seen in coronary ischemia
ECG Changes of Left Ventricular
Hypertrophy vs AMI
08-05-2014 23HUE UNIVERSITY OF
MEDICINE & PHARMACY

24. A-Aneurysm
• Extremely difficult to pick out!!!!
• Old MI mistake
• Look for RBBB with persistent ST elevation
• Deep Q waves
• Look at T/QRS ratio: Amplitude of T wave/the depth of
the S wave
high -> Acute MI
low -> LVA
*If there is one lead in V1-V4 with a T/QRS ratio>0.36 then
MI likely
08-05-2014 24HUE UNIVERSITY OF
MEDICINE & PHARMACY

25. T-Treatment
• Not much to say here..take a breather..It
only get harder!!!!..
08-05-2014 25HUE UNIVERSITY OF
MEDICINE & PHARMACY

26. INFECTION-INJURY
08-05-2014 26HUE UNIVERSITY OF
MEDICINE & PHARMACY

27. Pericarditis
• ST elevation is present in all leads except
in aVR, DIII, V1
• ST depression in aVR
• PR depression
• No Reciprocal changes
• Have to look at the entire ECG
• Must rely on good patient interview, assessment
& history
08-05-2014 27HUE UNIVERSITY OF
MEDICINE & PHARMACY

28. 08-05-2014 28HUE UNIVERSITY OF
MEDICINE & PHARMACY

29. 08-05-2014 29HUE UNIVERSITY OF
MEDICINE & PHARMACY

30. Acute Pericarditis – Four Classical
Stages
• First described by
Spodick et al
• Stage I
– first few days  2
weeks
– STE, PR depression
• Stage II
– last days  weeks
– Normalization of STE
• Stage III
– after 2-3 weeks, lasts
several weeks
– T wave inversion
• Stage IV
– lasts up to several
months
– gradual resolution of
T wave changes
Chan TC, Brady WJ, Pollack M. Electrocardiographic manifestations: acuteChan TC, Brady WJ, Pollack M. Electrocardiographic manifestations: acute
myopericarditis. J Emerg Med 1999; 17 (5):865-72.myopericarditis. J Emerg Med 1999; 17 (5):865-72.
08-05-2014 30HUE UNIVERSITY OF
MEDICINE & PHARMACY

31. Stage 1 Pericarditis
PR
Depression
08-05-2014 31HUE UNIVERSITY OF
MEDICINE & PHARMACY

32. Stage 2 Pericarditis
08-05-2014 32HUE UNIVERSITY OF
MEDICINE & PHARMACY

33. Stage 3 Pericarditis
08-05-2014 33HUE UNIVERSITY OF
MEDICINE & PHARMACY

34. • PR segment depression is usually
transient but may be the earliest and most
specific sign of acute myopericarditis
• Baljepally R, Spodick DH. PR-segment deviation
as the initial electrocardiographic response in
acute pericarditis. Am J Cardiol 1998; 81
(12):1505-6.
Pericarditis
08-05-2014 34HUE UNIVERSITY OF
MEDICINE & PHARMACY

35. 08-05-2014 35HUE UNIVERSITY OF
MEDICINE & PHARMACY

36. Variable Shapes Of ST Segment
Elevations in AMI
Goldberger AL. Goldberger: Clinical Electrocardiography: A Simplified
Approach. 7th ed: Mosby Elsevier; 2006.
08-05-2014 36HUE UNIVERSITY OF
MEDICINE & PHARMACY

37. MI ST SEGMENTS
• Convex upward ST segments in 2
contigous leads
• Inappropriate concordant ST seg.
• Hyperacute T waves
Symmetrical
Rounded
BIG in relation to R wave
W I D E (# Narrow in hyperkalemia)
* Look for reciprocal changes
08-05-2014 37HUE UNIVERSITY OF
MEDICINE & PHARMACY

38. 08-05-2014 38HUE UNIVERSITY OF
MEDICINE & PHARMACY

39. Sgarbossa … Once again!!!
STST ElevationElevation ≥ 1 mm and≥ 1 mm and concordantconcordant with QRSwith QRS
complexcomplex
ST DepressionST Depression ≥ 1 mm in V1, V2, V3≥ 1 mm in V1, V2, V3
STST ElevationElevation ≥ 5 mm and≥ 5 mm and discordantdiscordant with QRSwith QRS
complexcomplex
08-05-2014 39HUE UNIVERSITY OF
MEDICINE & PHARMACY

40. O-OSBORNE WAVE
08-05-2014 40HUE UNIVERSITY OF
MEDICINE & PHARMACY

41. OSBORNE WAVE
• Are possitive deflections occuring at the
junction between the QRS and the ST
segment
• Typical of severe hypothermia
• Usually has large notch
08-05-2014 41HUE UNIVERSITY OF
MEDICINE & PHARMACY

42. J WAVES
08-05-2014 42HUE UNIVERSITY OF
MEDICINE & PHARMACY

43. N-NON OCCLUSIVE VASOSPASM
• Think Ischemia
• Resembling MI
• Moving on………..->
08-05-2014 43HUE UNIVERSITY OF
MEDICINE & PHARMACY

44. BRUGADA SYNDROME
08-05-2014 44HUE UNIVERSITY OF
MEDICINE & PHARMACY

45. 08-05-2014 45HUE UNIVERSITY OF
MEDICINE & PHARMACY

46. 08-05-2014 46HUE UNIVERSITY OF
MEDICINE & PHARMACY

47. 08-05-2014 47HUE UNIVERSITY OF
MEDICINE & PHARMACY
