This document summarizes SQL statements, functions, and joins. It defines SQL as a programming language for managing relational databases and describes common SQL statements like DDL, DML, and DCL. It also outlines functions like aggregate functions to return single calculated values and scalar functions to modify values. Finally, it explains join operations to combine data from multiple tables based on common fields.

2. NikhilDevS.B
nikhildevsb@gmail.com
www.facebook.com/nikhildevsb
TwitterProfile
www.linkedin.com/nikhildevsb
Typing speed: 24 wpm.

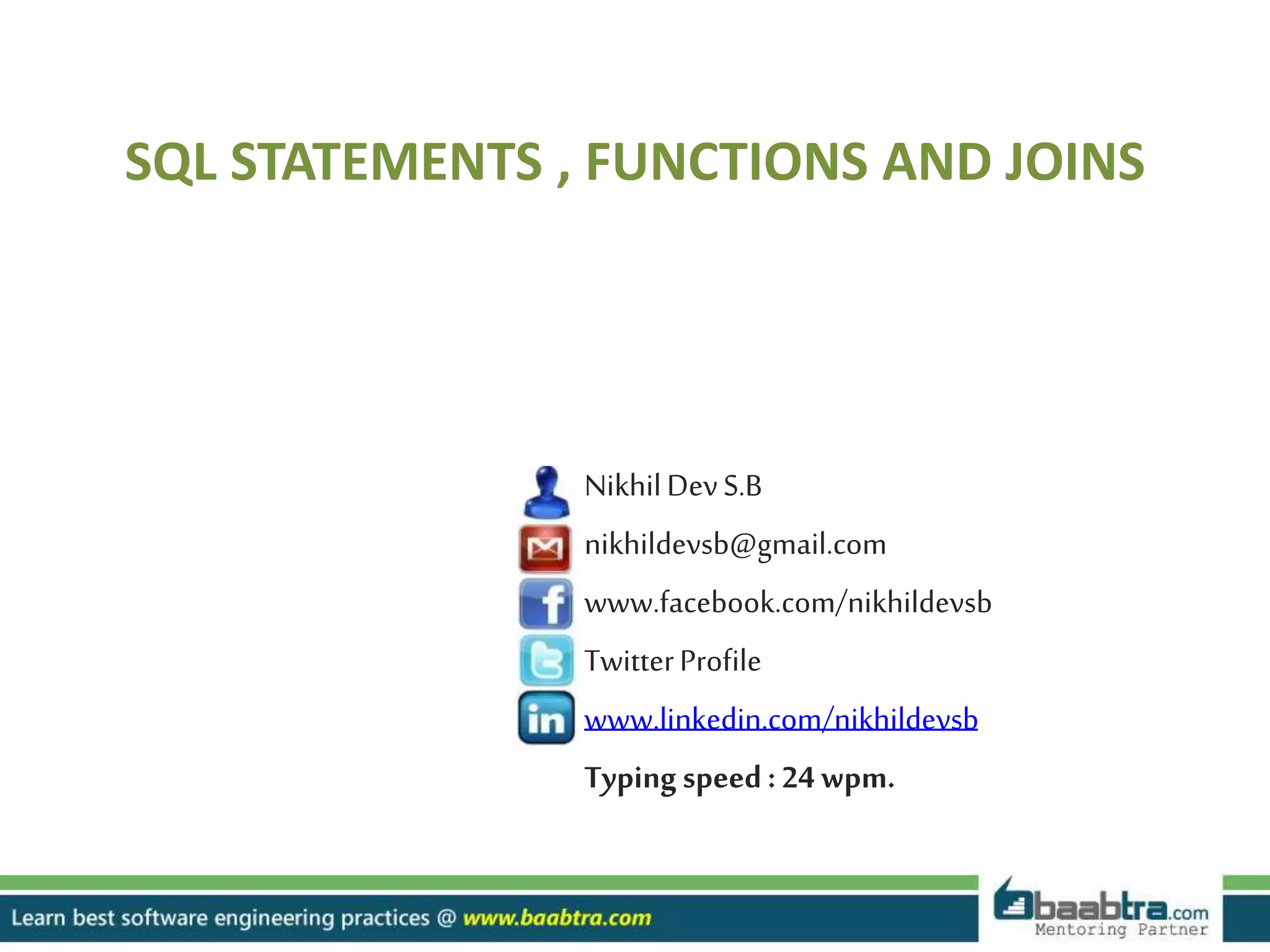

SQL STATEMENTS , FUNCTIONS AND JOINS

3. Disclaimer: This presentation is prepared by trainees of
baabtra.com as a part of mentoring program. This is not
official document of baabtra.com – Mentoring Partner

4. SQL
Structured Query Language
SQL is Special purpose programming language designed
for managing data held in Relational Data Base
Management System(RDBMS)

5. SQL STATEMENTS
• Data Definition Language (DDL)
- Define database structure/schema.
• Data Manipulation Language (DML)
-Manipulation on table data.
Query one or more tables.
• Data Control Language (DCL)
-Set database permissions and privileges.

6. DDL Statements are :
CRAETE
ALTER
DROP
TRUNCATE
DML Statements are :
INSERT
SELECT
UPDATE
DELETE
DCL Statements
GRANT
ROLLBACK
REVOKE

7. Tables in SQL
PName Price Category Manufacturer
Gizmo $19.99 Gadgets GizmoWorks
Powergizmo $29.99 Gadgets GizmoWorks
SingleTouch $149.99 Photography Canon
MultiTouch $203.99 Household Hitachi
Product
Attribute/field/
column
Table name
Tuples or rows

8. DDL Commands
• CREATE - To create objects in data base.
o CREATE DATABASE <database name>;
E.g. CREATE DATABASE db_student;
o CREATE TABLE tablename
(
field1 datatype,
field2 datatype
);
E.g. CREATE TABLE tbl_student(vchr_name varchar(20),int_roll int);
vchr_name int_roll
NULL NULL

9. • ALTER – Alter the structure of database. i.e., to add or drop
columns on existing table.
ALTER TABLE tablename ADD column datatype;//add column
ALTER TABLE tablename DROP column; //delete a column
E.g. ALTER TABLE tbl_student ADD int_mark int; //added new
column mark of
type integer
E.g. ALTER TABLE tbl_student DROP int_mark; //deleted mark
vchr_name int_roll int_mark
NULL NULL NULL

10. • TRUNCATE – To remove all records from table.
TRUNCATE TABLE tablename;
E.g. TRUNCATE TABLE tbl_student;
• RENAME - to rename a table
RENAME TABLE oldname TO newname’;
E.g. RENAME TABLE tbl_student TO tbl_studentrecord;

11. DML Commands
• INSERT – Add data into the table.
insert into table_name values(data1,data2,...);
insert into tbl_student values(‘john’, 11);
tbl_student
vchr_name int_roll
john 11

12. • UPDATE – to update a value in a table.
UPDATE table_name SET column_name=value WHERE condition.
E.g. UPDATE tbl_student set vchr_name=‘james’ where chr_name=‘john’;
vchr_name int_roll
steve 10
james 11
vchr_name int_roll
steve 10
john 11
Before update
After update

13. • DELETE – to delete a row from table.
DELETE FROM tablename ;
DELETE from tbl_student where chr_name=‘james’;
pk_id vchr_name int_roll
1 steve 10
2 james 11
Before deletion
After deletion
pk_id vchr_name int_roll
1 steve 10

14. • SELECT – Retrieve data from database.
SELECT column FROM tablename;
E.g1. SELECT * FROM tbl_student; //gives all columns of table
pk_id vchr_name int_roll
1 steve 10
2 James 11
E.g2. SELECT pk_id,vchr_name FROM tbl_student; //gives
specified columns of table
pk_id vchr_name
1 steve
2 james

15. Functions
1.Aggregate function
2.Scalar functions

16. Aggregate Functions
Function that returns a single value, calculated from values
in column.
• SUM() – returns sum of column.
• COUNT() – returns number of rows.
• AVG() – returns average value of column.
• MIN() – returns smallest value of column.
• MAX() – returns largest value of column.
• LAST() – returns the last value.
• FIRST() – returns the first value.

17. Use of aggregate functions.
SELECT avg(emp_count), sum(emp_count), max(emp_count)
min(emp_count), count(emp_count) from tbl_employee;
brnch_num brnch_name region_num emp_count
108 New york 100 10
110 Boston 100 6
21 Chicago 200 5
404 San Diego 400 6
415 San jose 400 3
avg(emp_count) sum(emp_count) max(emp_count) min(emp_count) count(emp_count)
6 30 10 3 5

18. Scalar Functions
Function that returns a single value, based on input value.
• UCASE() – converts a field to upper case.
• LCASE() - converts a field to lower case.
• LEN() – returns the length of a text filed.
• ROUND() – rounds a numeric field to number of decimal
specified
SELECT UCASE(column_name) FROM table_name;

19. JOIN OPERATION
Combine rows from two or more tables, based on a common
field between them.
• INNER JOIN (SIMPLE JOIN OR JOIN) – Returns rows when there is a
match in both tables
• OUTER JOIN –Returns all the rows of both table whether it has matched
or not
-LEFT OUTER JOIN (LEFT JOIN) – Returns all rows from left
table and matched rows from right table.
- RIGHT OUTER JOIN (RIGHT JOIN)- Returns all rows from
right table and matched rows from left table

20. Pk_emp_id vchr_emp_name vchr_company
1 James Dell
2 John Sony
3 Albert Hp
Pk_desig_id vchr_desig
1 System
engineer
2 Tester
4 Tech support
Tbl_emp Tbl_empdesig
SELECT * FROM tbl_emp JOIN tbl_empdesig on
tbl_emp.pk_emp_id=tbl_empdesig.pk_desig_id
Pk_emp_id vchr_emp_name vchr_company Pk_desig_id vchr_desig
1 James Delll 1 System engineer
2 john Sony 2 Tester
E.g. JOIN
Common value

21. LEFT OUTER JOIN
Pk_emp_id vchr_emp_name Chr_company
1 James Dell
2 John Sony
3 Albert Hp
Pk_desig_id vchr_desig
1 System
engineer
2 Tester
4 Tech support
Tbl_emp Tbl_empdesig
SELECT * FROM tbl_emp LEFT JOIN tbl_empdesig on
tbl_emp.pk_emp_id=tbl_empdesig.pk_desig_id
Pk_emp_id vchr_emp_name vchr_company Pk_desig_id vchr_desig
1 James Delll 1 System engineer
2 john Sony 2 Tester
3 Albert Hp Null null

22. RIGHT OUTER JOIN
Pk_emp_id vchr_emp_name vchr_company
1 James Dell
2 John Sony
3 Albert Hp
Pk_desig_id vchr_desig
1 System
engineer
2 Tester
4 Tech support
Tbl_emp Tbl_empdesig
SELECT * FROM tbl_emp RIGHT JOIN tbl_empdesig on
tbl_emp.pk_emp_id=tbl_empdesig.pk_desig_id
Pk_emp_id vchr_emp_name vchr_company Pk_desig_id vchr_desig
1 James Delll 1 System engineer
2 john Sony 2 Tester
null null null 4 Tech suport

23. Thank you...
