SPU Assisted Rendering

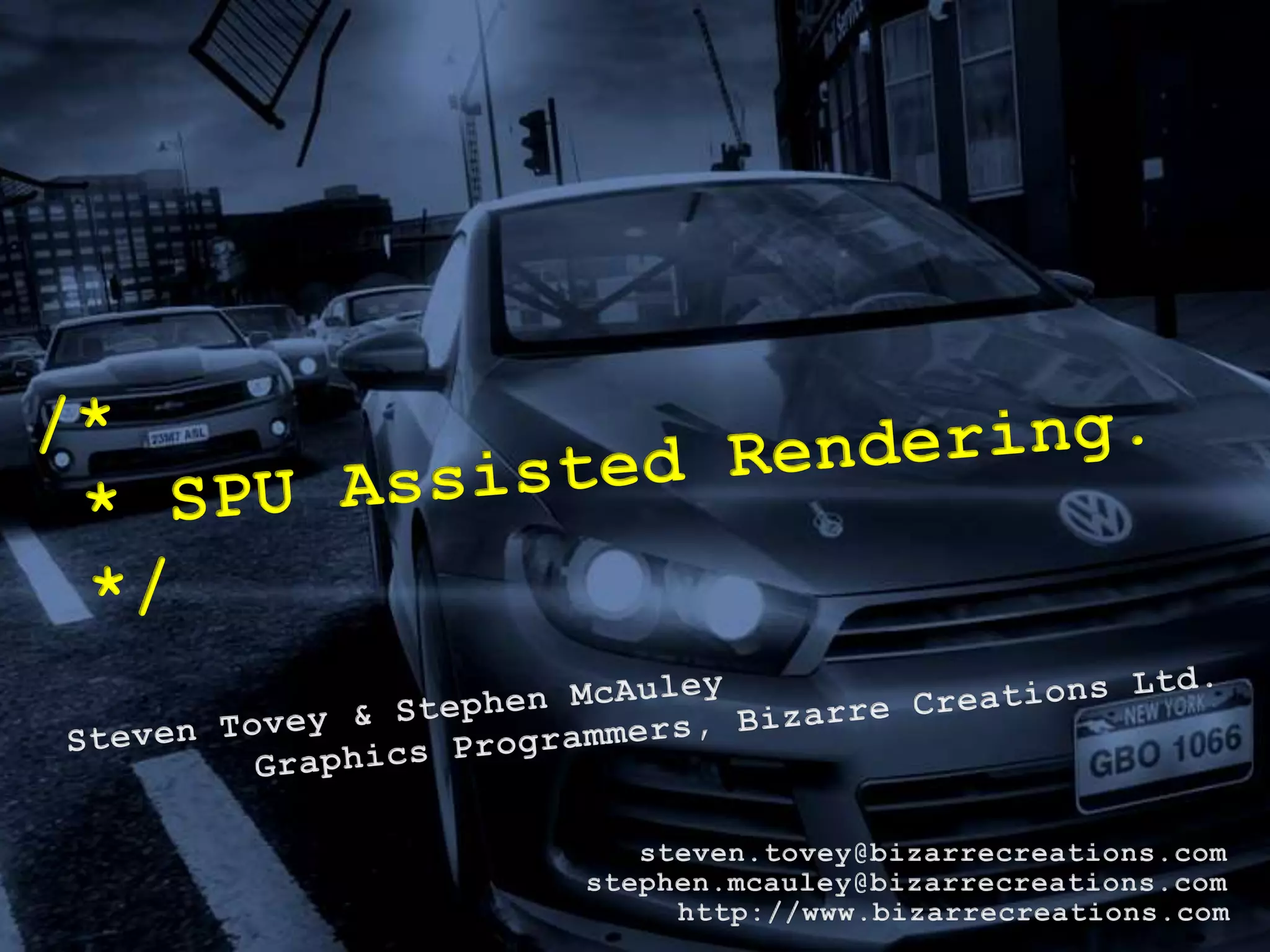

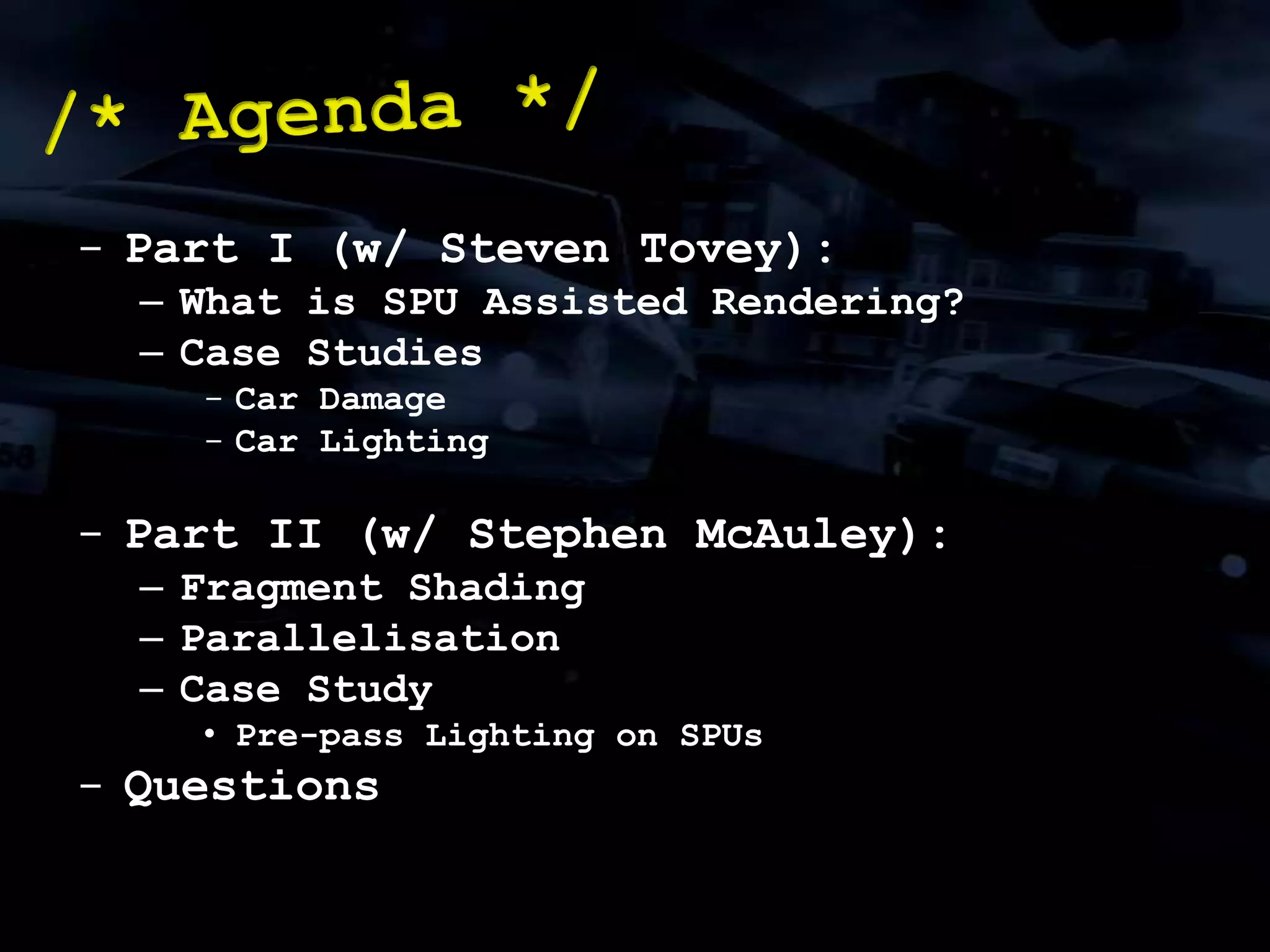

- 1. /* * SPUAssisted Rendering. */Steven Tovey & Stephen McAuleyGraphics Programmers, Bizarre Creations Ltd.steven.tovey@bizarrecreations.comstephen.mcauley@bizarrecreations.comhttp://www.bizarrecreations.com
- 2. /* Welcome! */Wehave some copies of Blur to give away, stick around and fill out your evaluation sheets! Part I (w/ Steven Tovey):What is SPU Assisted Rendering?Case StudiesCar Damage
- 3.
- 4. Part II (w/Stephen McAuley):Fragment ShadingParallelisationCase StudyPre-pass Lighting on SPUsQuestions/* Agenda */
- 5. /* * PartI w/ Steven Tovey */SPU Acceleration of Car Rendering in Blur

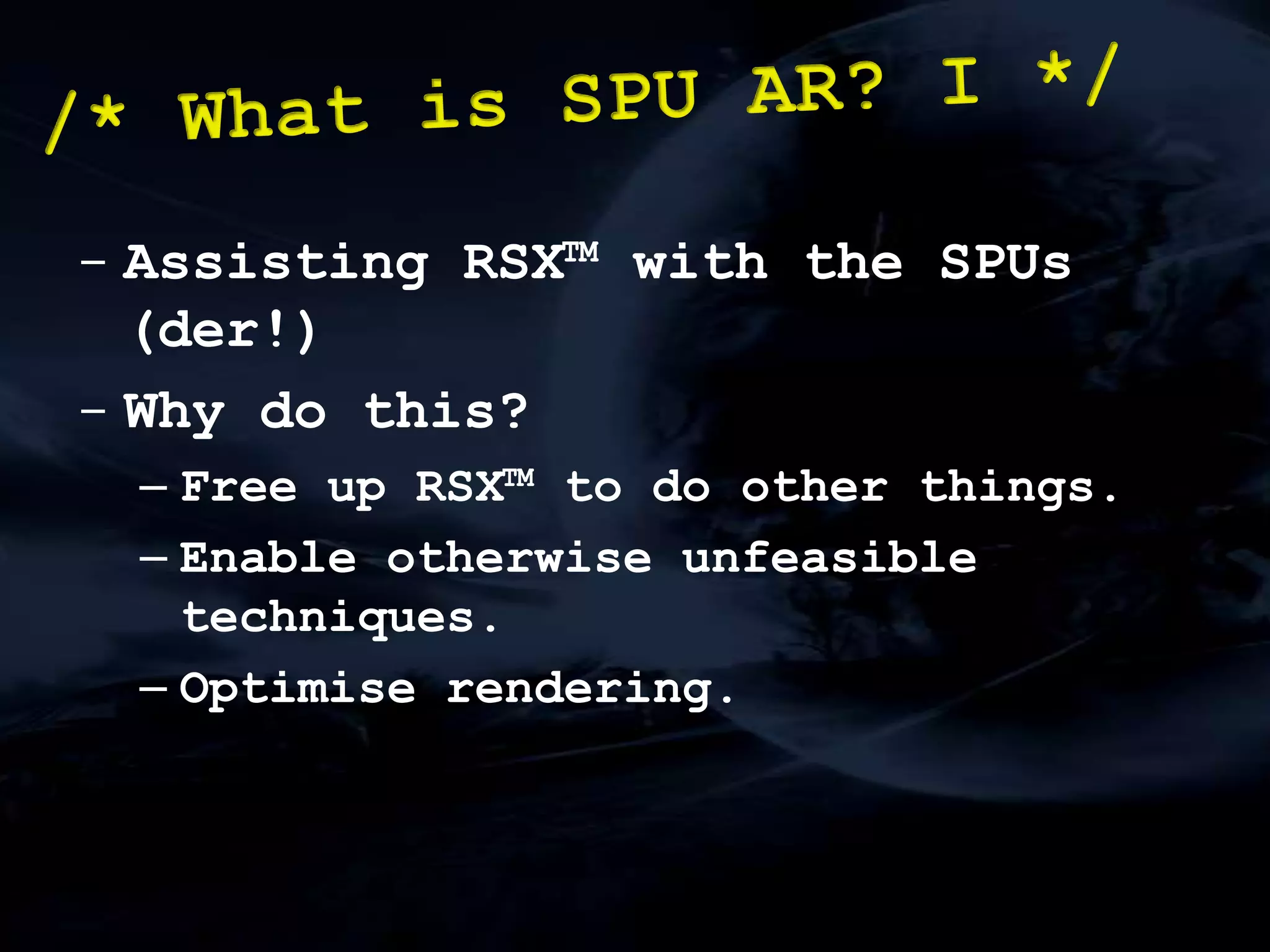

- 6. Assisting RSX™ withthe SPUs (der!)
- 7. Why do this?Freeup RSX™ to do other things.Enable otherwise unfeasible techniques.Optimise rendering./* What is SPU AR? I */
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.
- 14. Etc./* What isSPU AR? II */
- 15.
- 16.

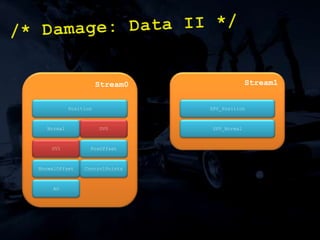

- 17. 2xVTF (volume &2D) for damage.

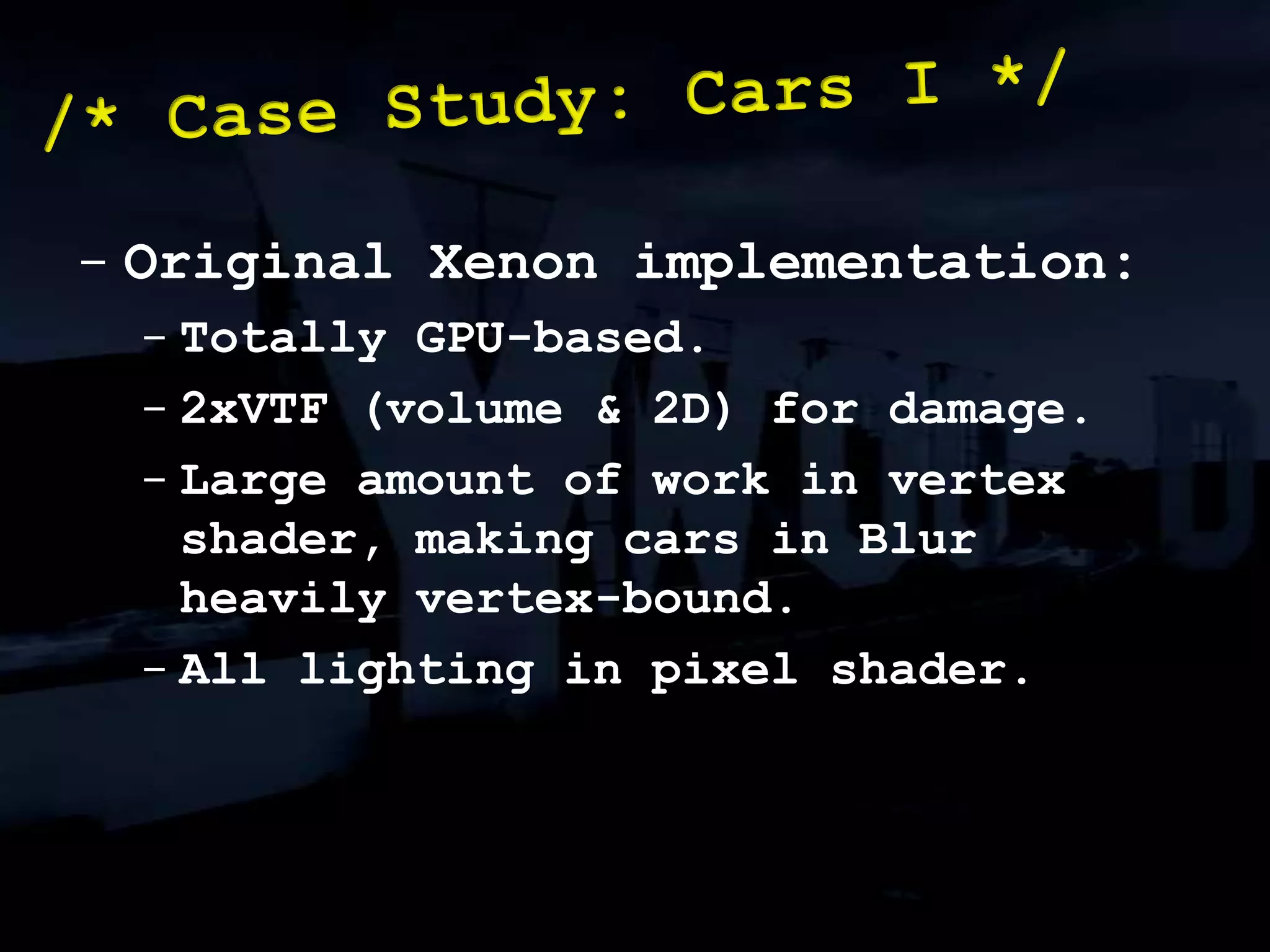

- 18. Large amount ofwork in vertex shader, making cars in Blur heavily vertex-bound.
- 19. All lighting inpixel shader./* Case Study: Cars I */

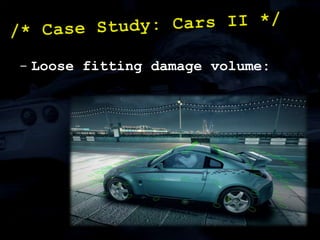

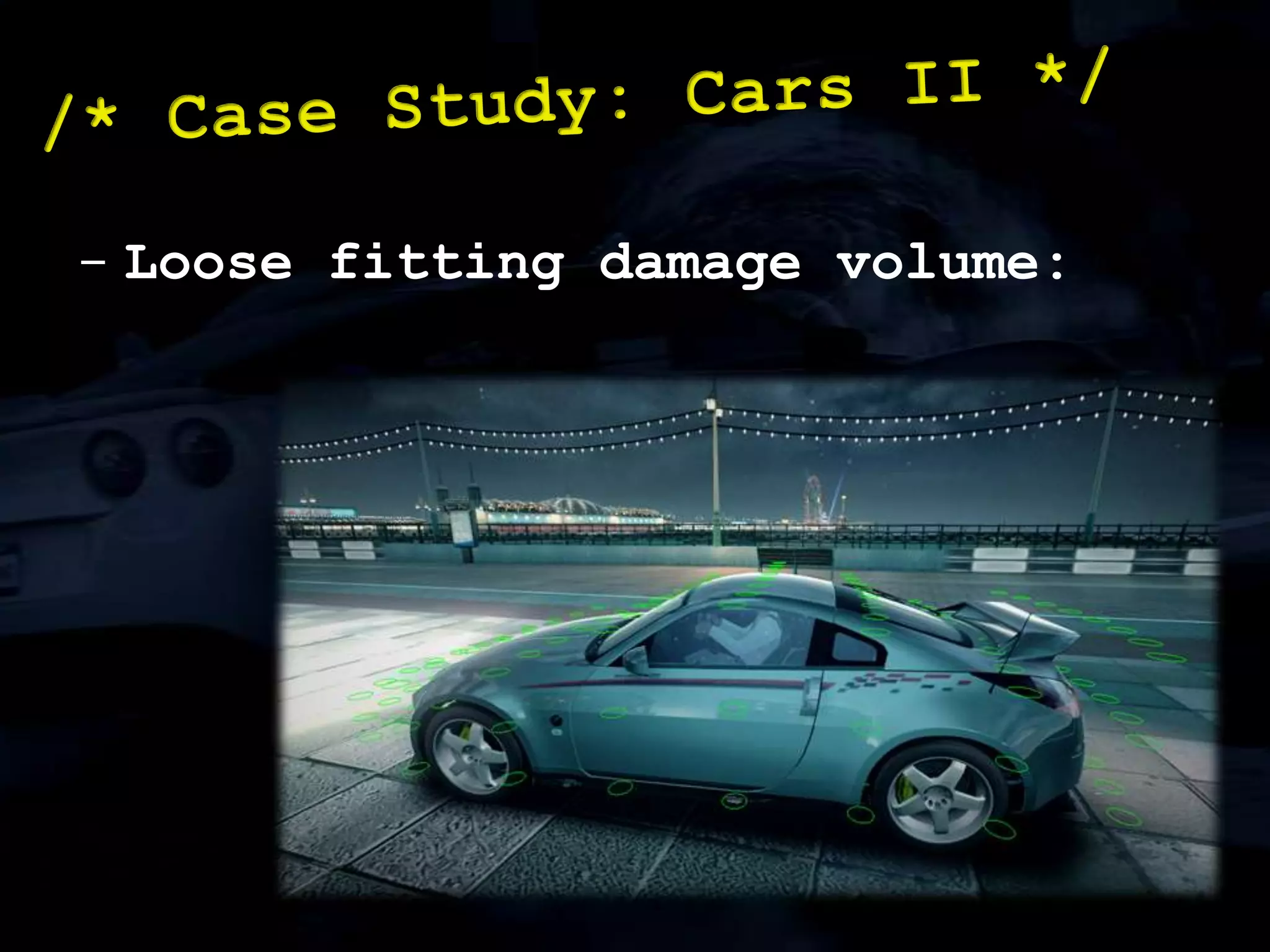

- 20. Loose fitting damagevolume:/* Case Study: Cars II */

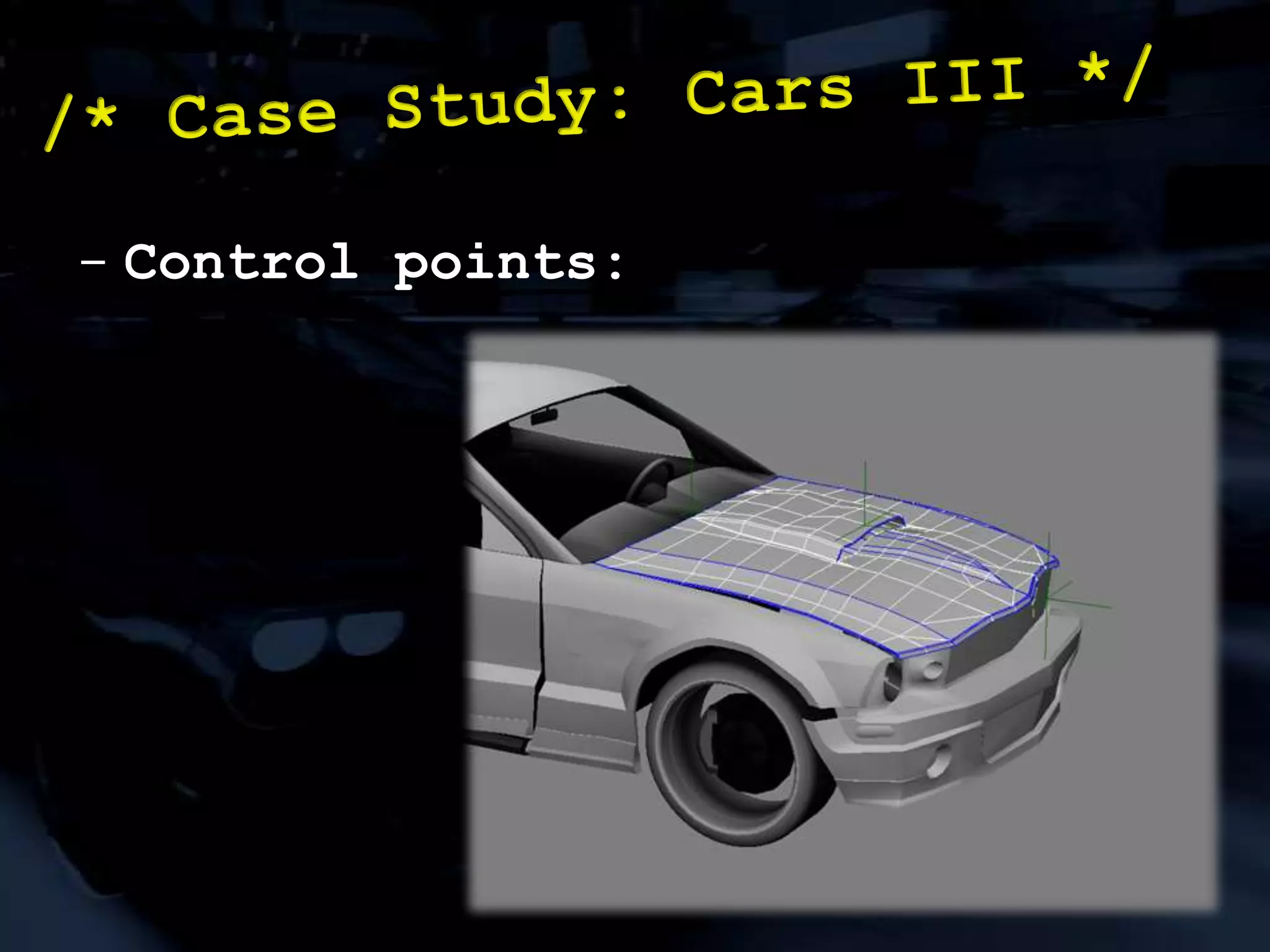

- 21. Control points:/* CaseStudy: Cars III */

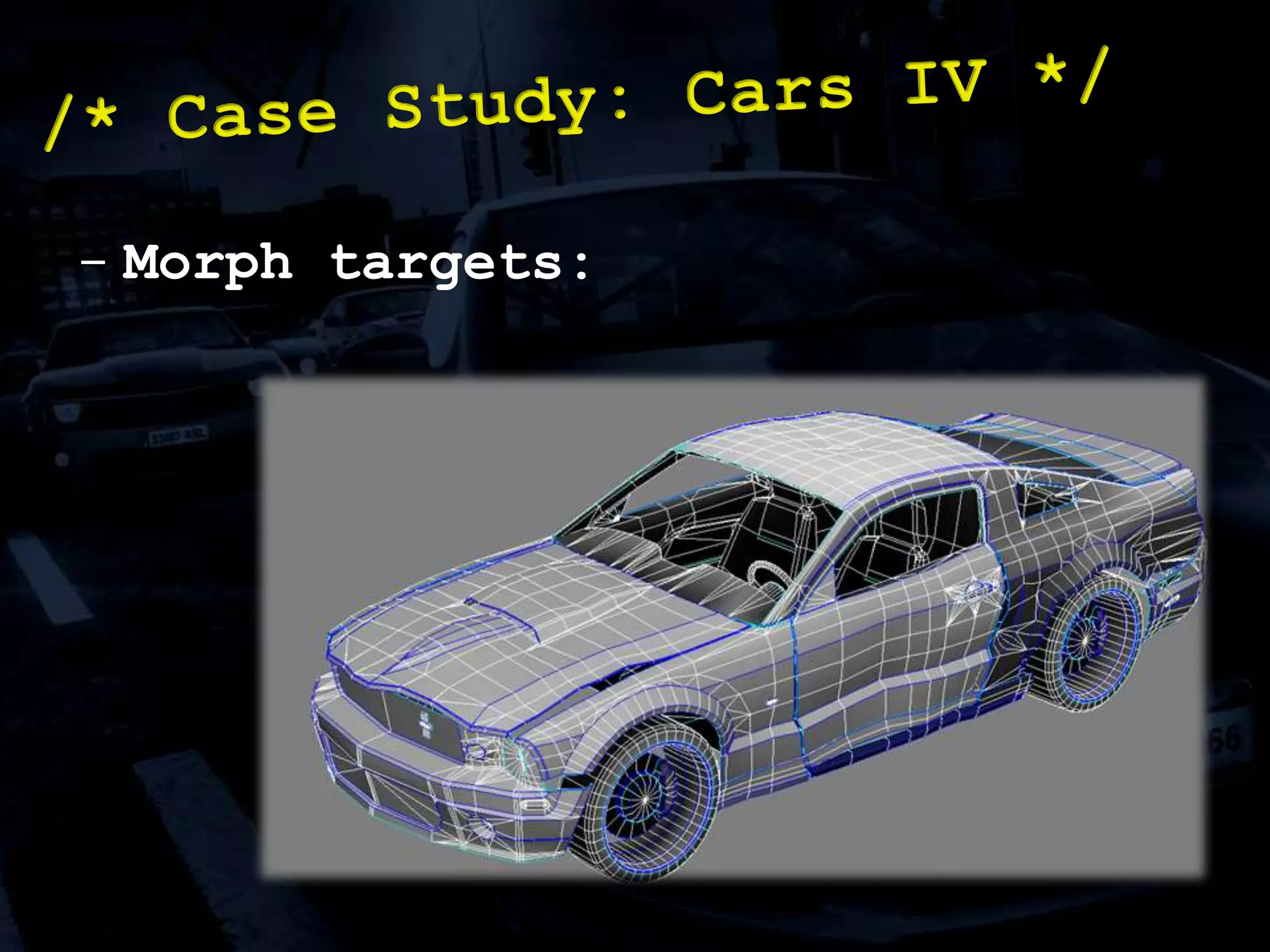

- 22. Morph targets:/* CaseStudy: Cars IV */

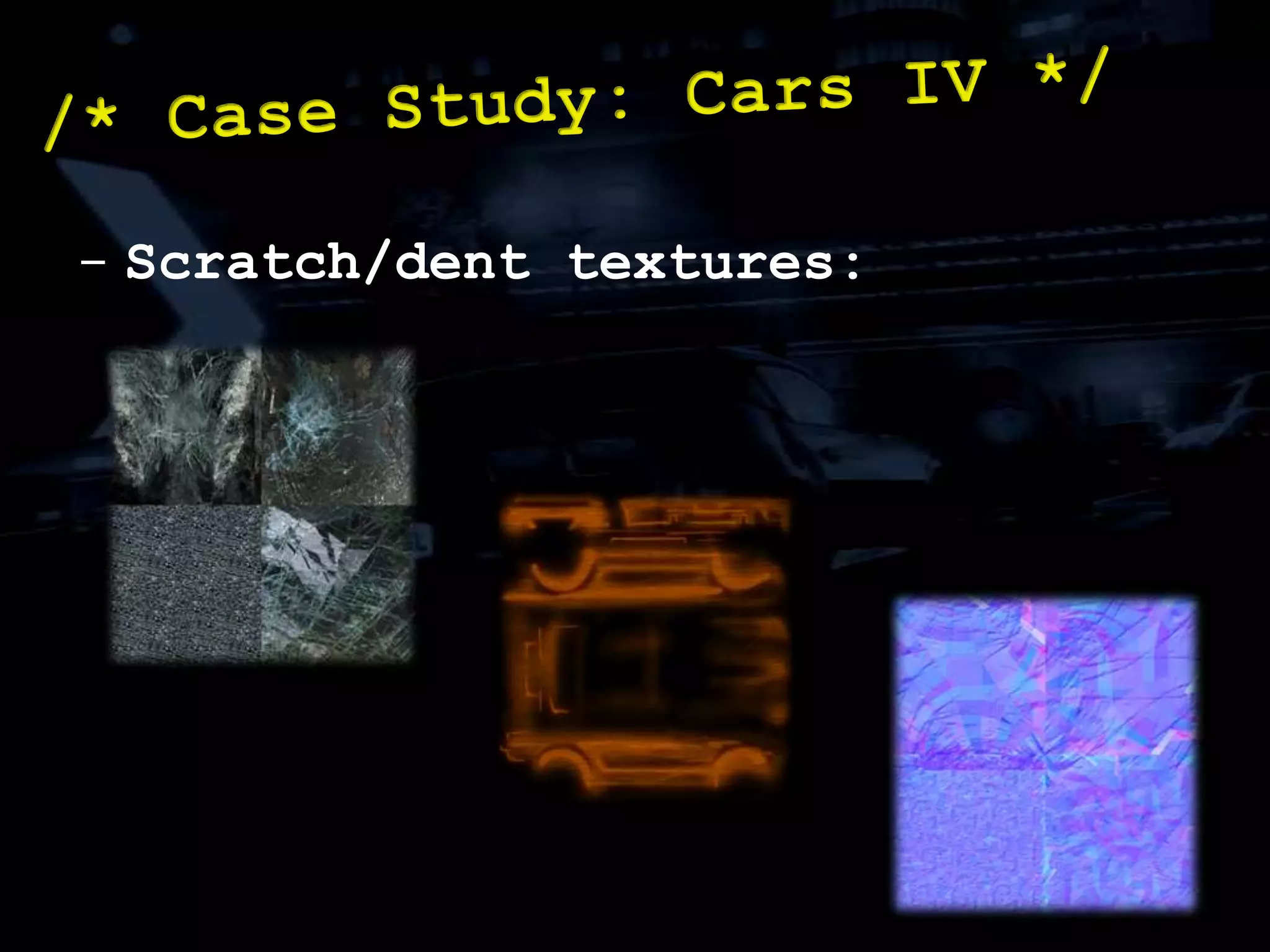

- 23. Scratch/dent textures:/* CaseStudy: Cars IV */
- 24.

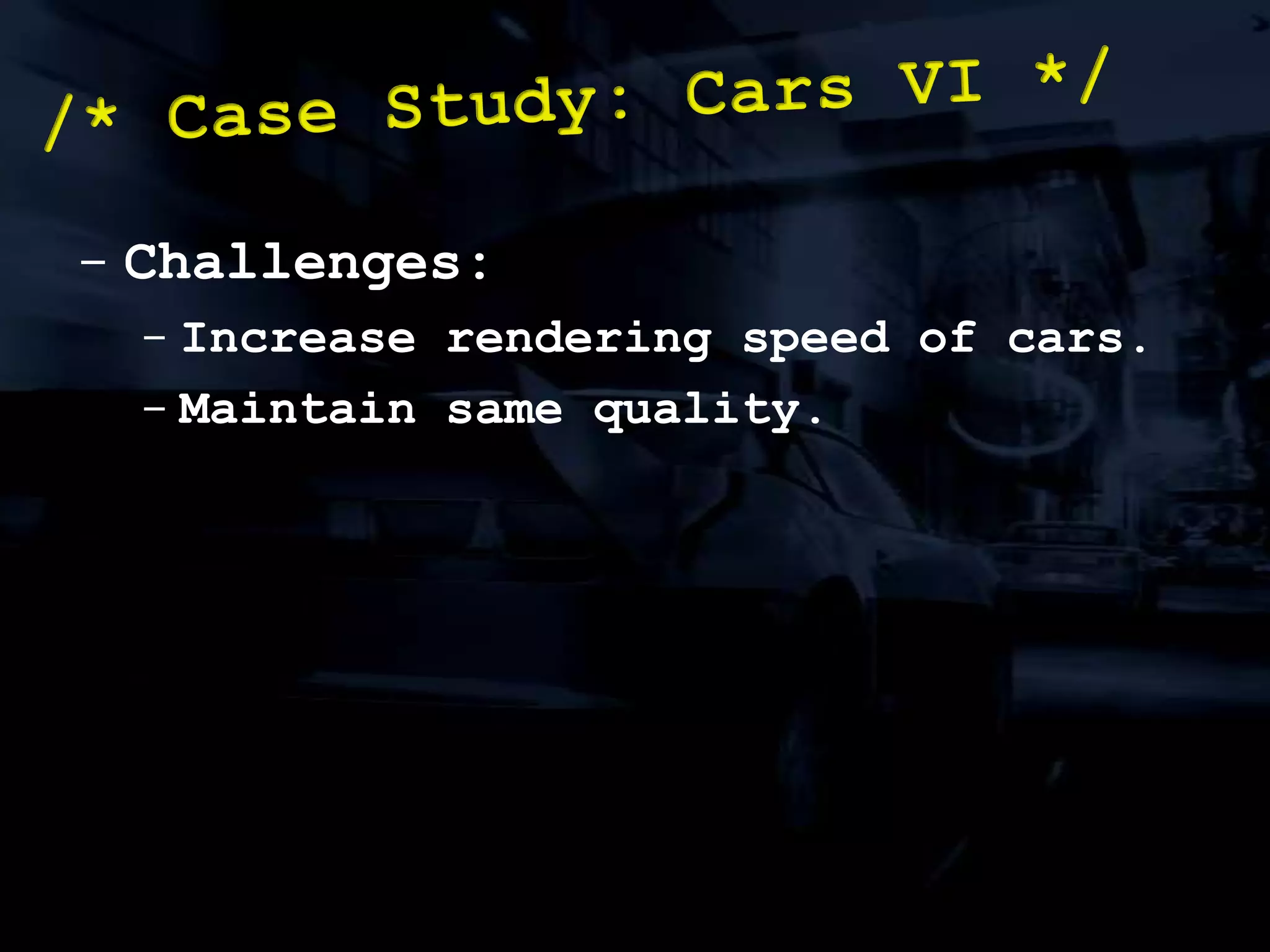

- 25. Increase rendering speedof cars.
- 26. Maintain same quality./*Case Study: Cars VI */
- 27.
- 28. Large parts areSPU based.
- 29.
- 30.
- 31.

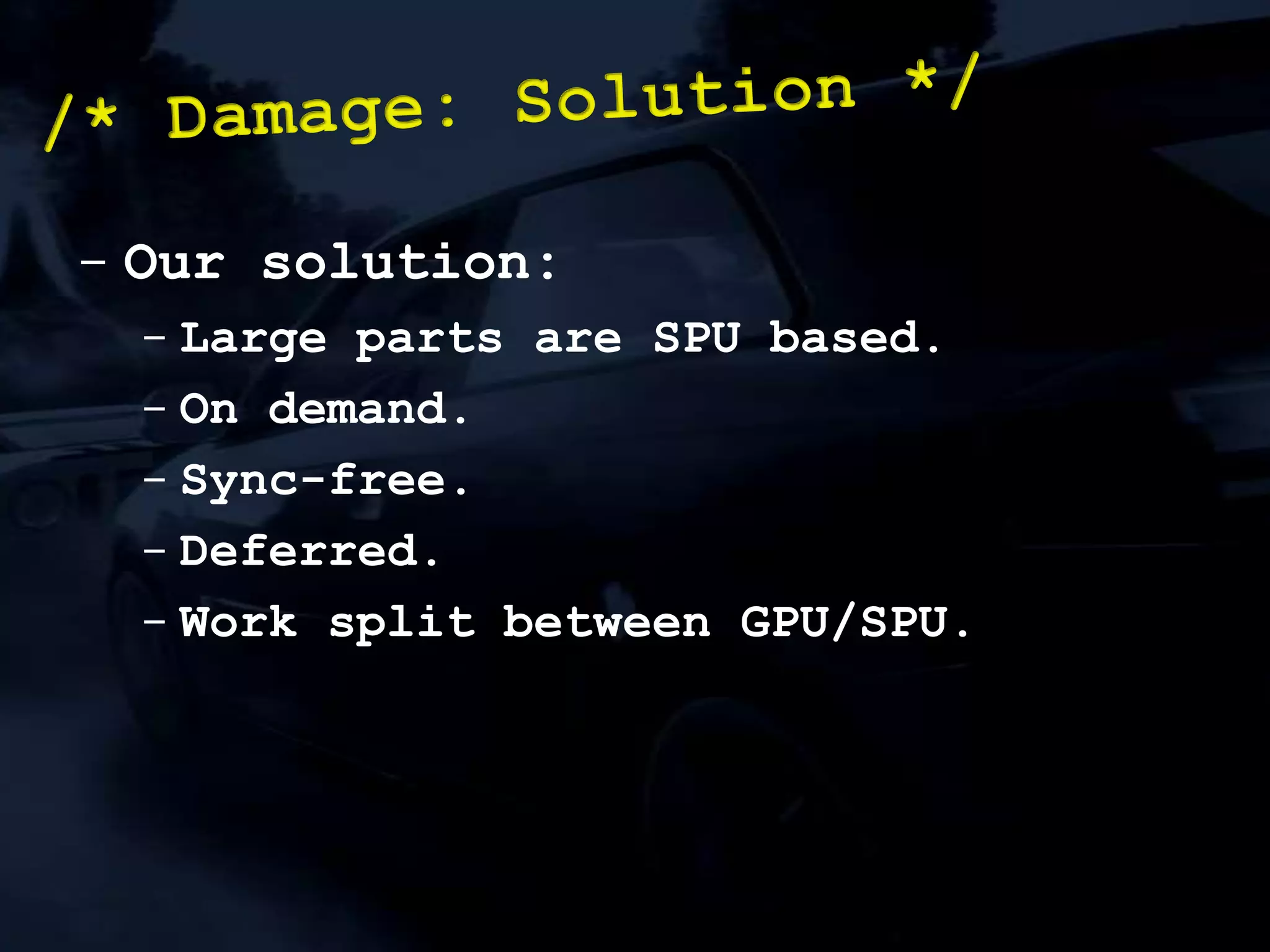

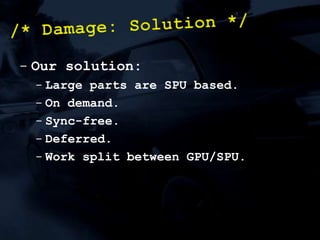

- 32. Work split betweenGPU/SPU./* Damage: Solution */
- 33.
- 34. Read-only car vertexdata.
- 35.
- 36.
- 37.
- 38. One-to-one mapping ofvertices.
- 39.
- 40. Crude approximation ofvolume preservation.

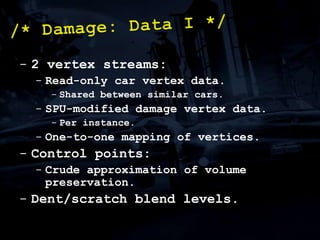

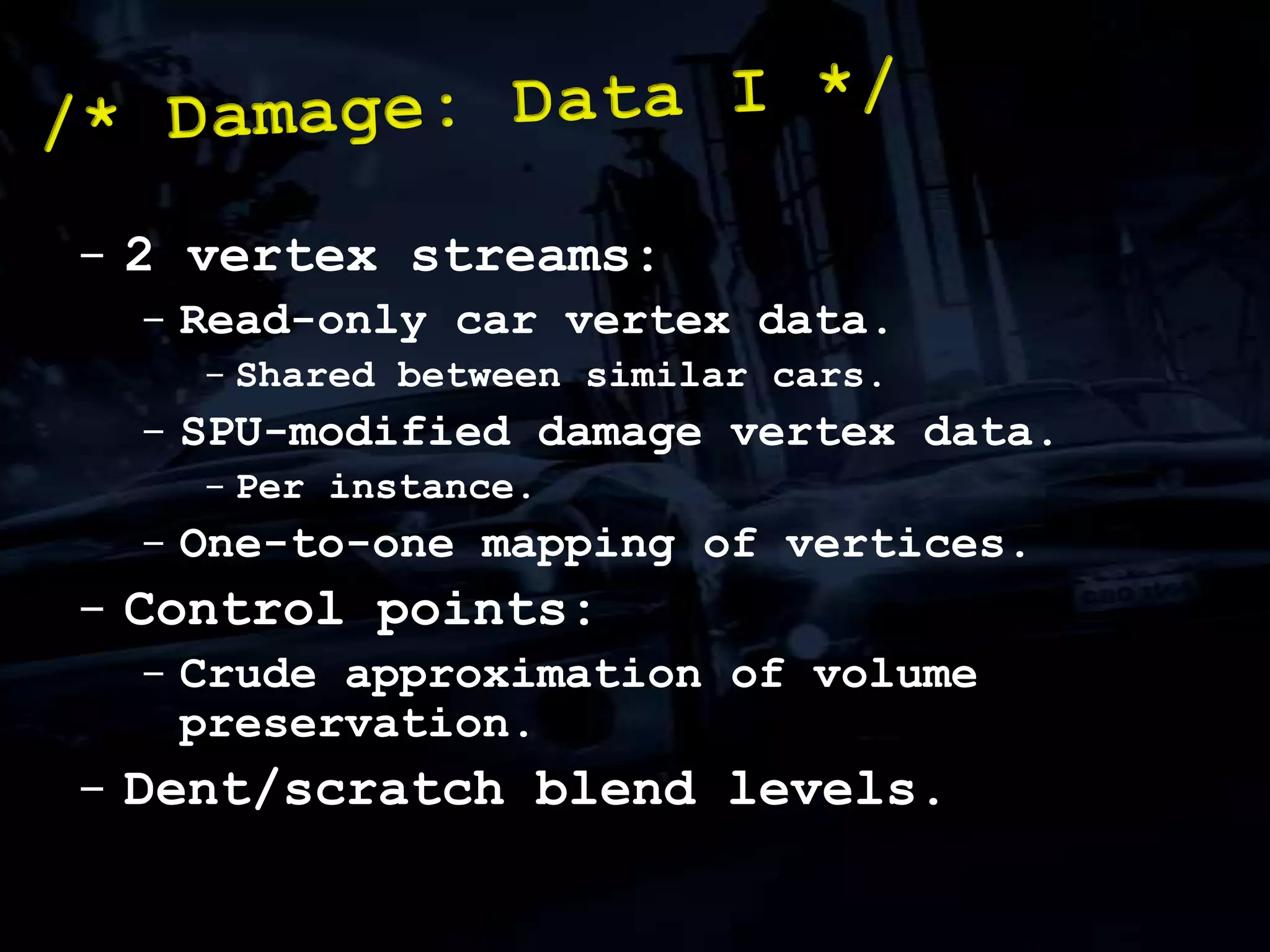

- 41. Dent/scratch blend levels./*Damage: Data I */

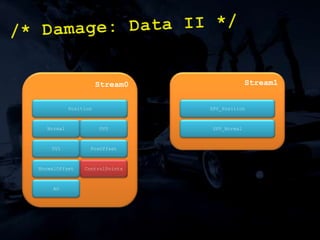

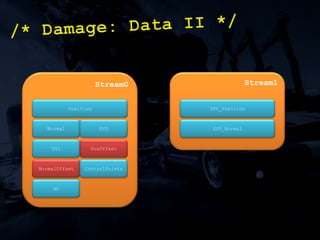

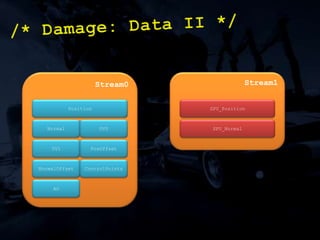

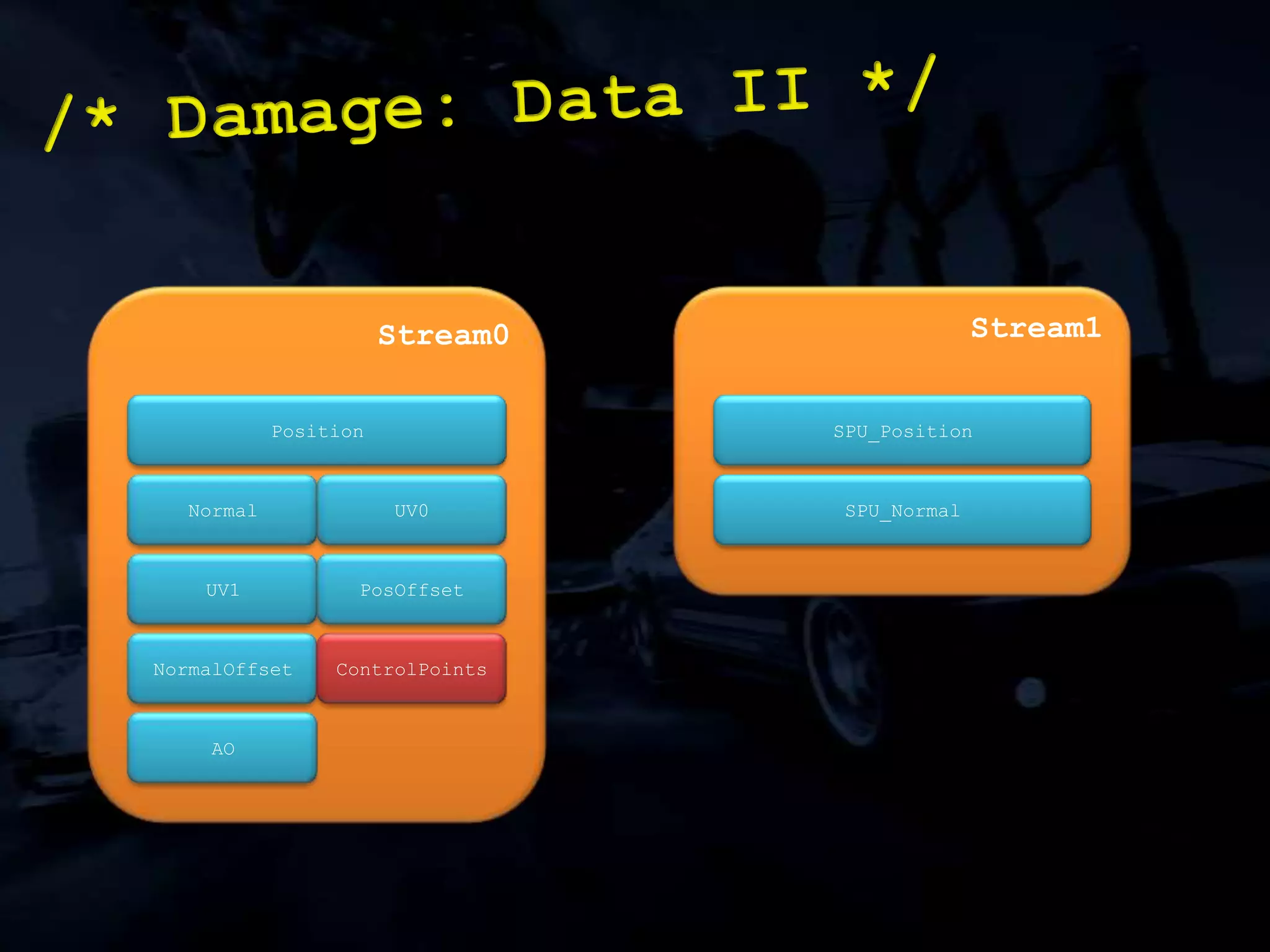

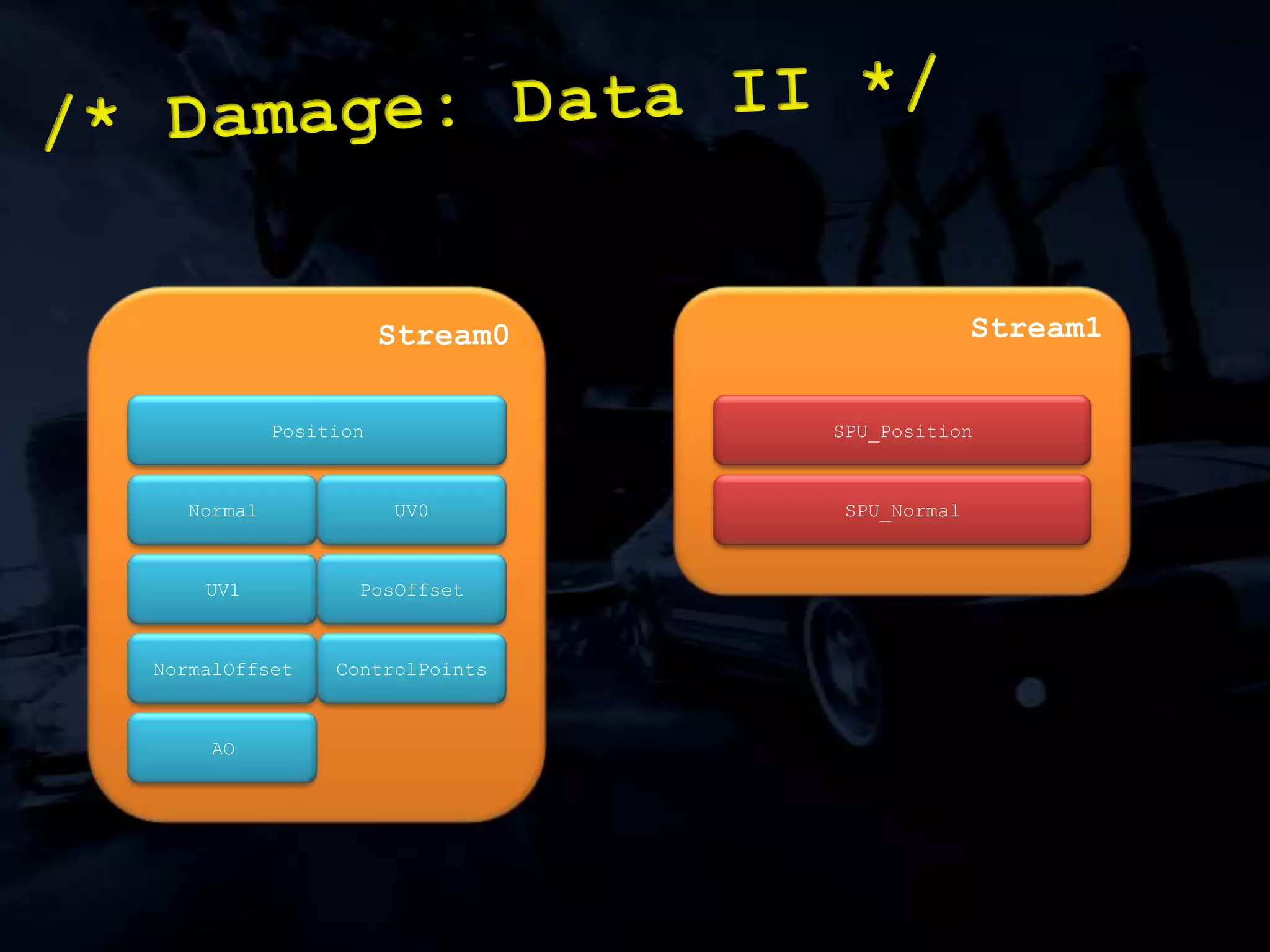

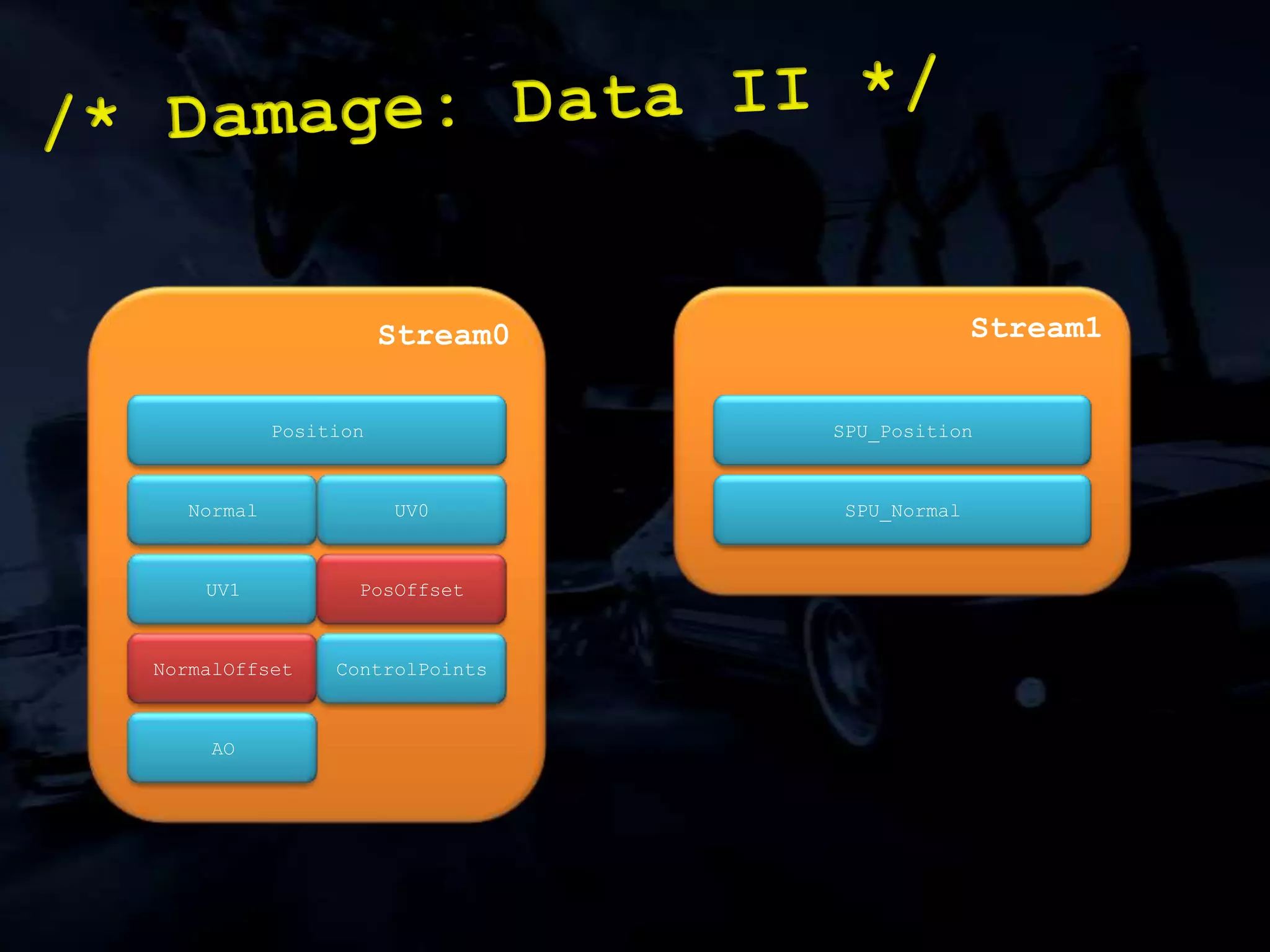

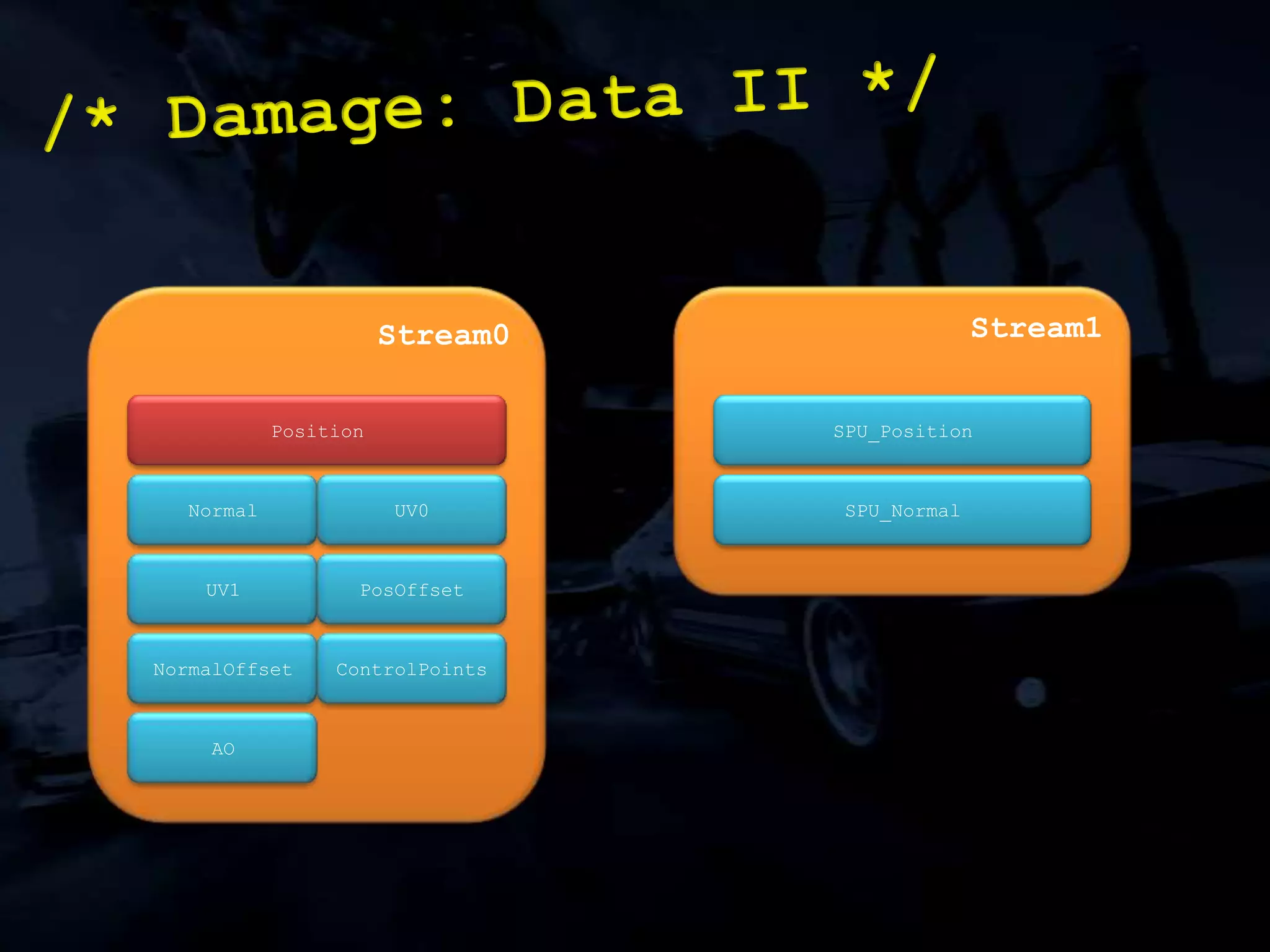

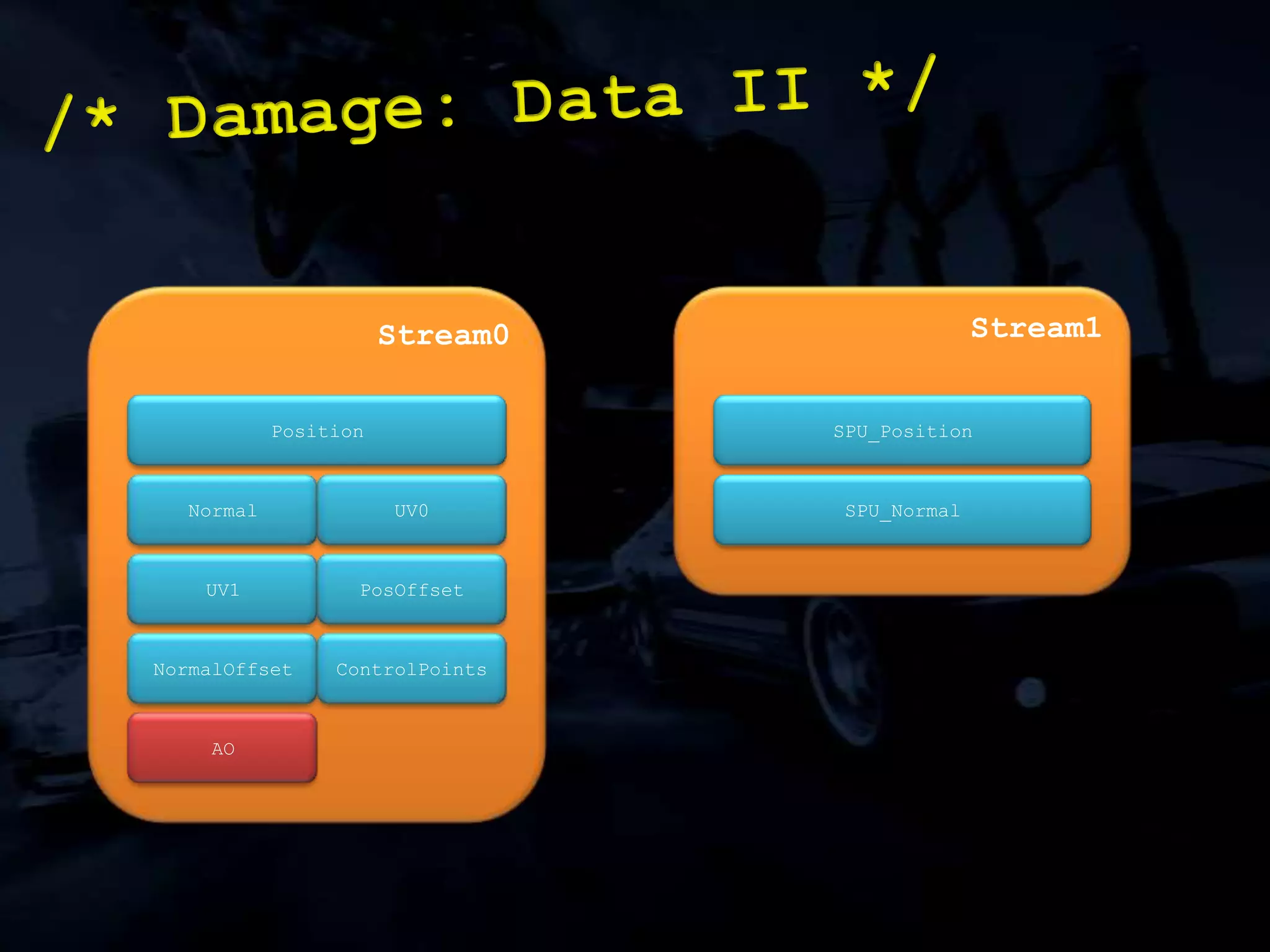

- 42. /* Damage: DataII */Stream0Stream1PositionSPU_PositionNormalUV0SPU_NormalUV1PosOffsetNormalOffsetControlPointsAO

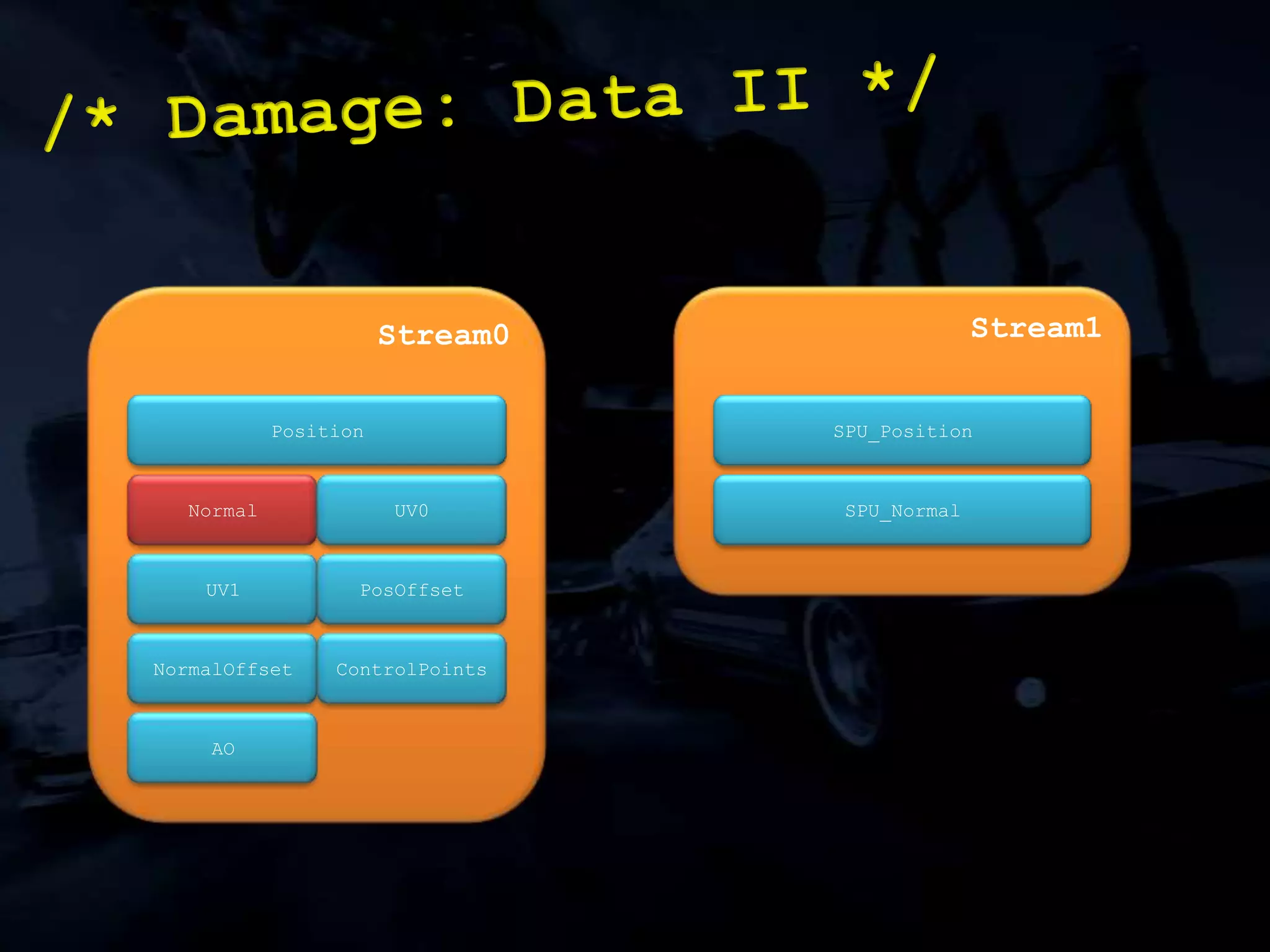

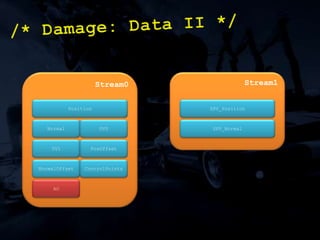

- 43. /* Damage: DataII */Stream0Stream1PositionSPU_PositionNormalUV0SPU_NormalUV1PosOffsetNormalOffsetControlPointsAO
- 44. /* Damage: DataII */Stream0Stream1PositionSPU_PositionNormalUV0SPU_NormalUV1PosOffsetNormalOffsetControlPointsAO
- 45. /* Damage: DataII */Stream0Stream1PositionSPU_PositionNormalUV0SPU_NormalUV1PosOffsetNormalOffsetControlPointsAO
- 46. /* Damage: DataII */Stream0Stream1PositionSPU_PositionNormalUV0SPU_NormalUV1PosOffsetNormalOffsetControlPointsAO
- 47. /* Damage: DataII */Stream0Stream1PositionSPU_PositionNormalUV0SPU_NormalUV1PosOffsetNormalOffsetControlPointsAO
- 48. /* Damage: DataII */Stream0Stream1PositionSPU_PositionNormalUV0SPU_NormalUV1PosOffsetNormalOffsetControlPointsAO

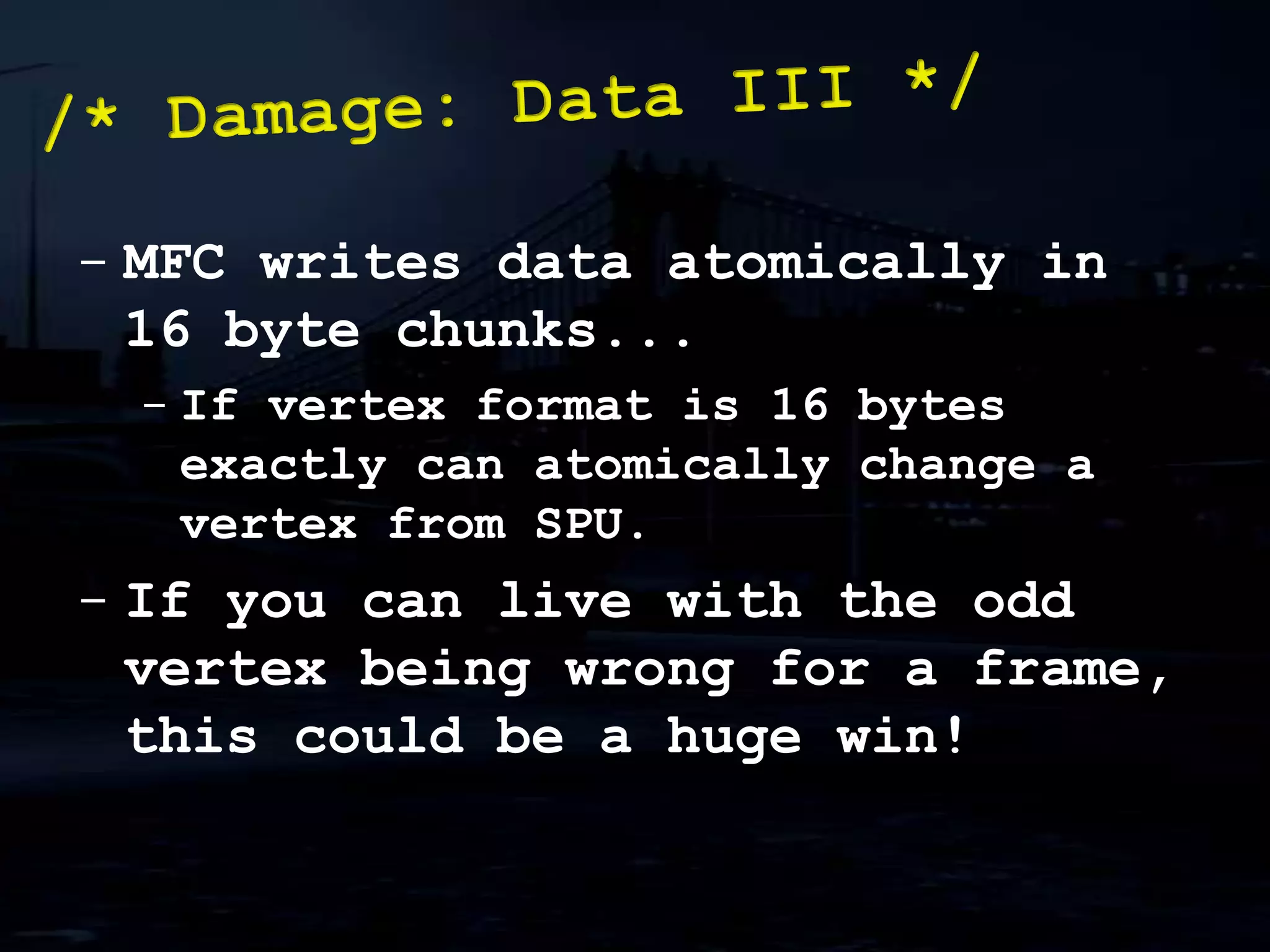

- 49. MFC writes dataatomically in 16 byte chunks...
- 50. If vertex formatis 16 bytes exactly can atomically change a vertex from SPU.
- 51. If you canlive with the odd vertex being wrong for a frame, this could be a huge win!/* Damage: Data III */

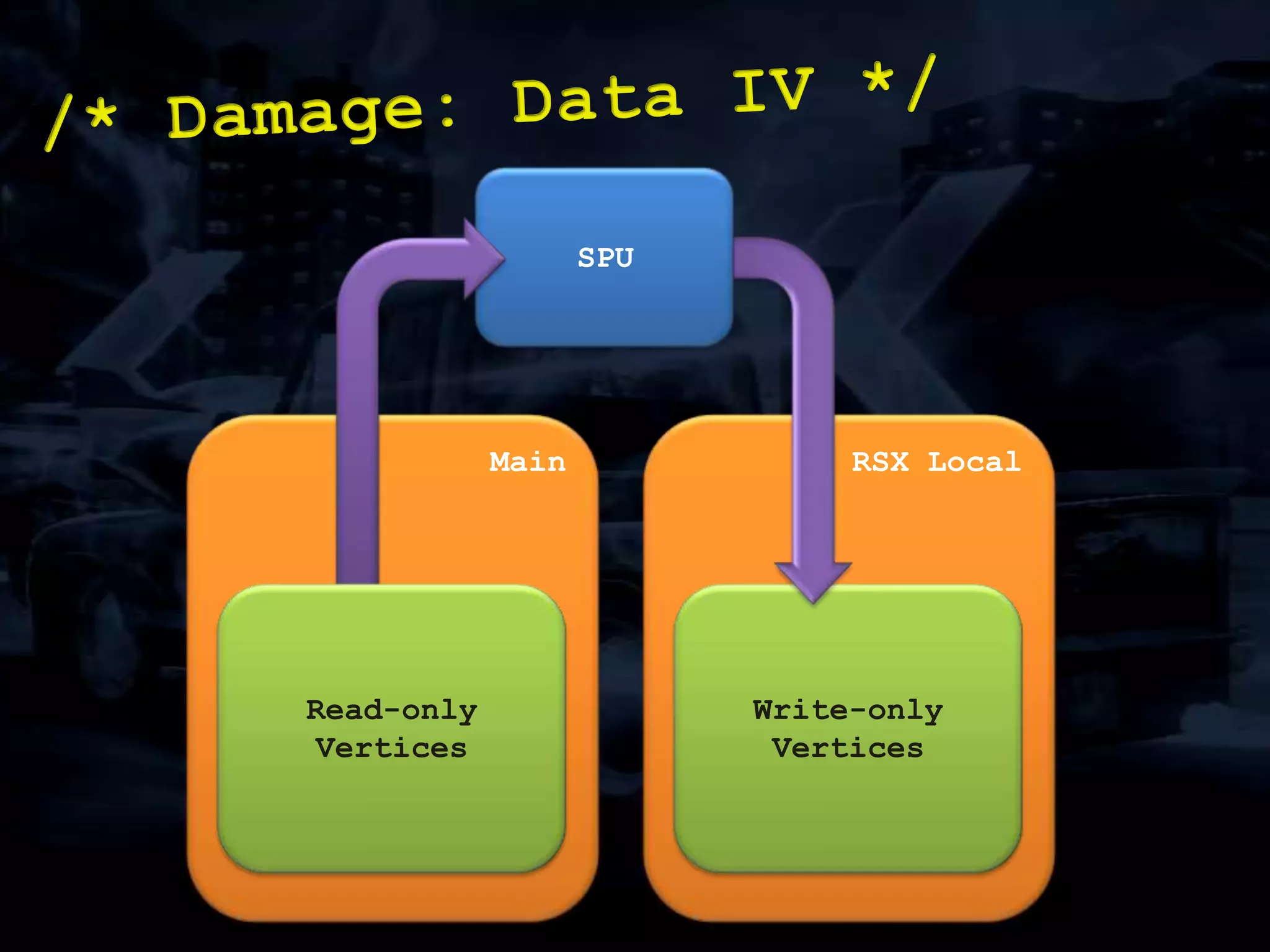

- 52. /* Damage: DataIV */SPURSX LocalMainWrite-only VerticesRead-only Vertices

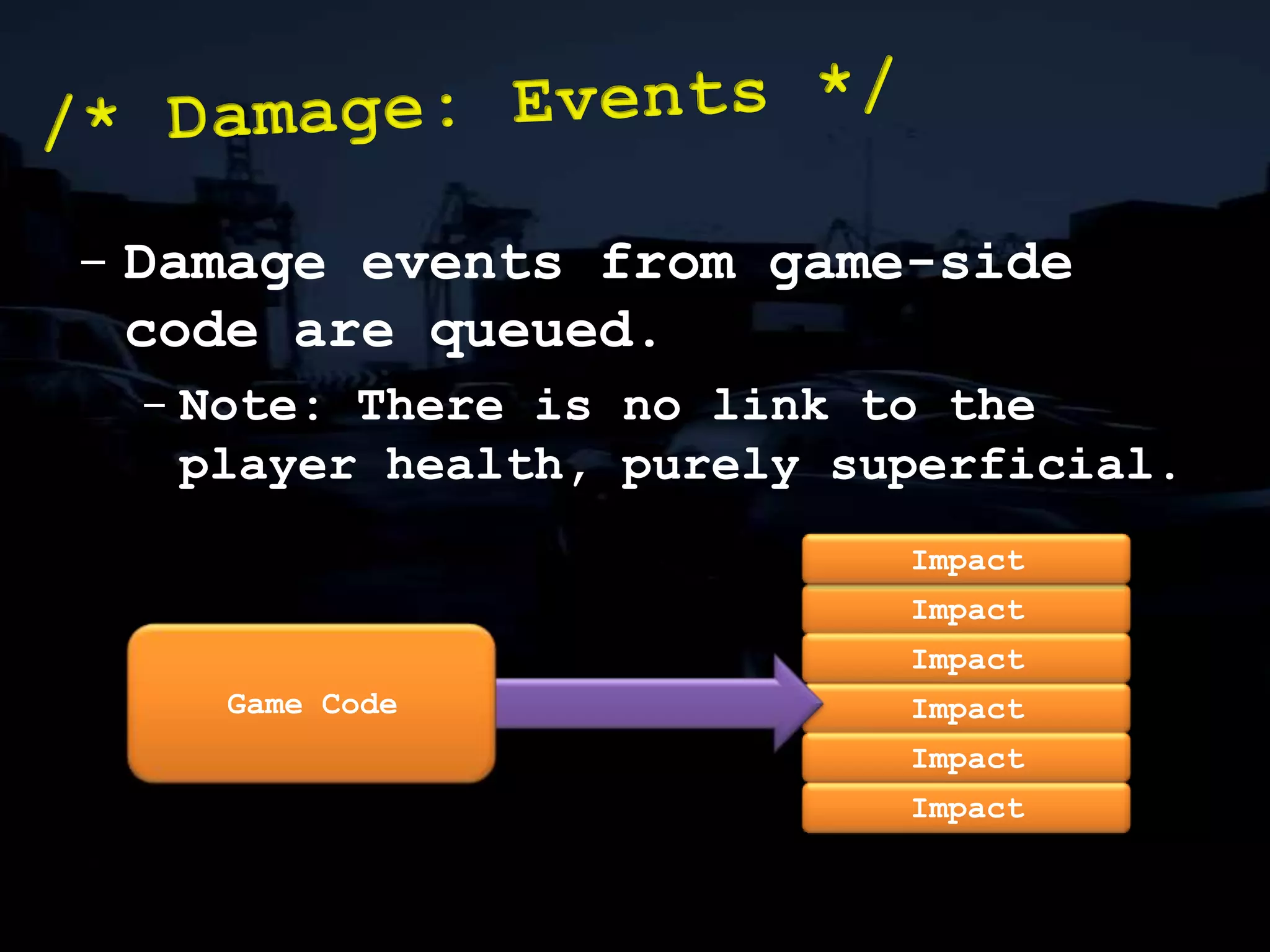

- 53. Damage events fromgame-side code are queued.
- 54. Note: There isno link to the player health, purely superficial./* Damage: Events */ImpactImpactGame CodeImpactImpactImpactImpact

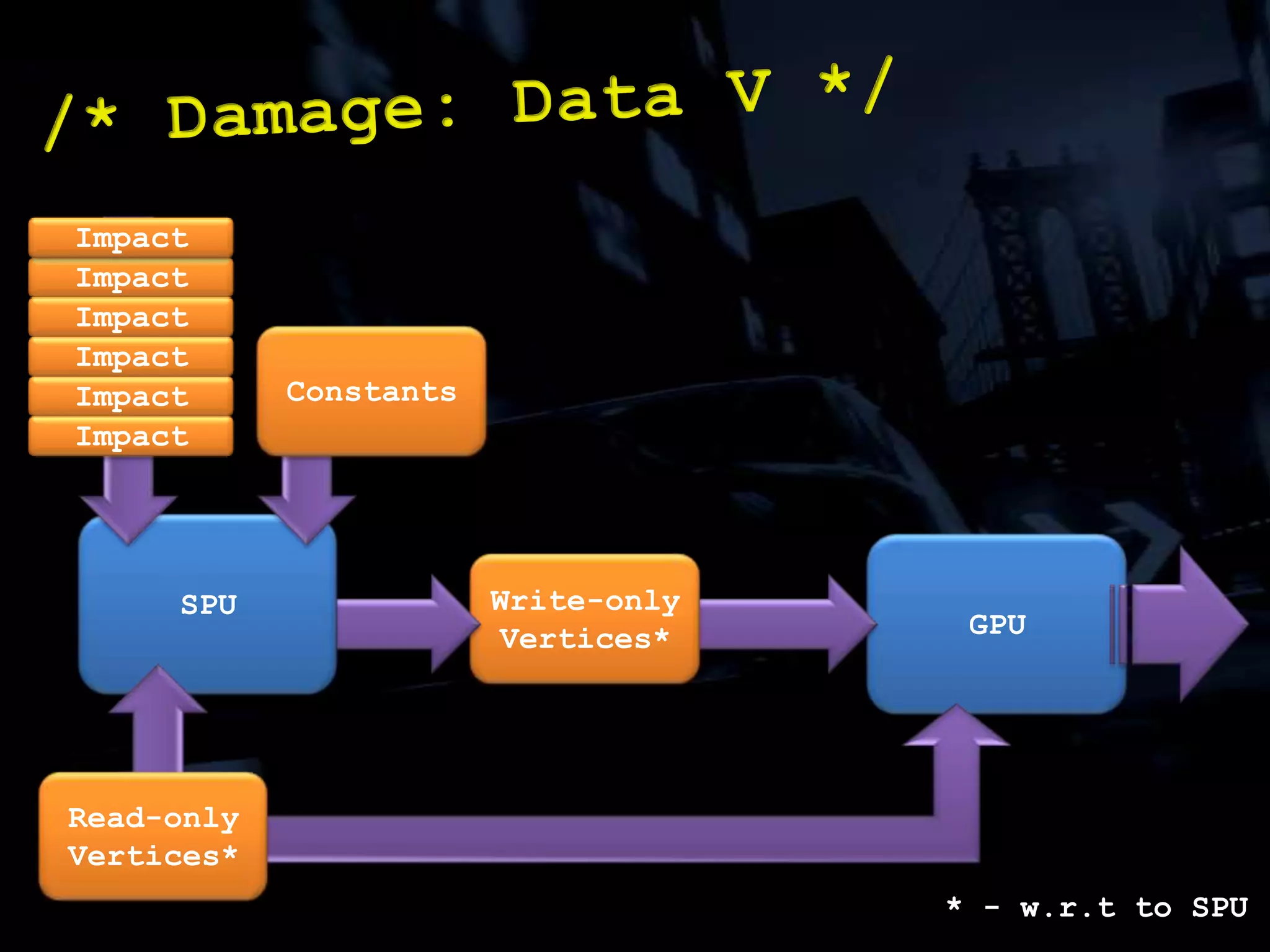

- 55. /* Damage: DataV */ImpactImpactImpactConstantsImpactImpactImpactSPUGPUWrite-only Vertices*Read-only Vertices** - w.r.t to SPU

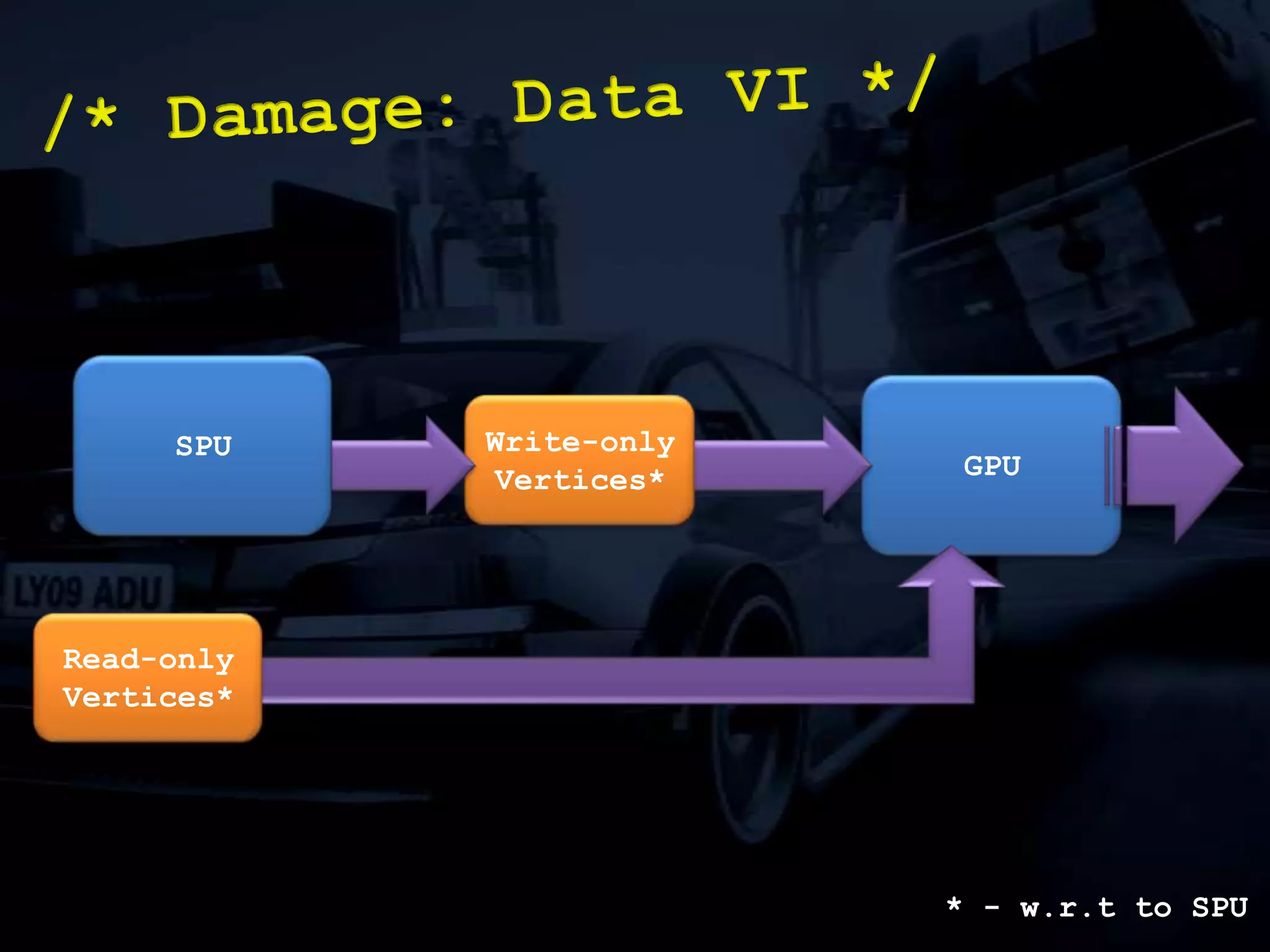

- 56. /* Damage: DataVI */SPUGPUWrite-only Vertices*Read-only Vertices** - w.r.t to SPU

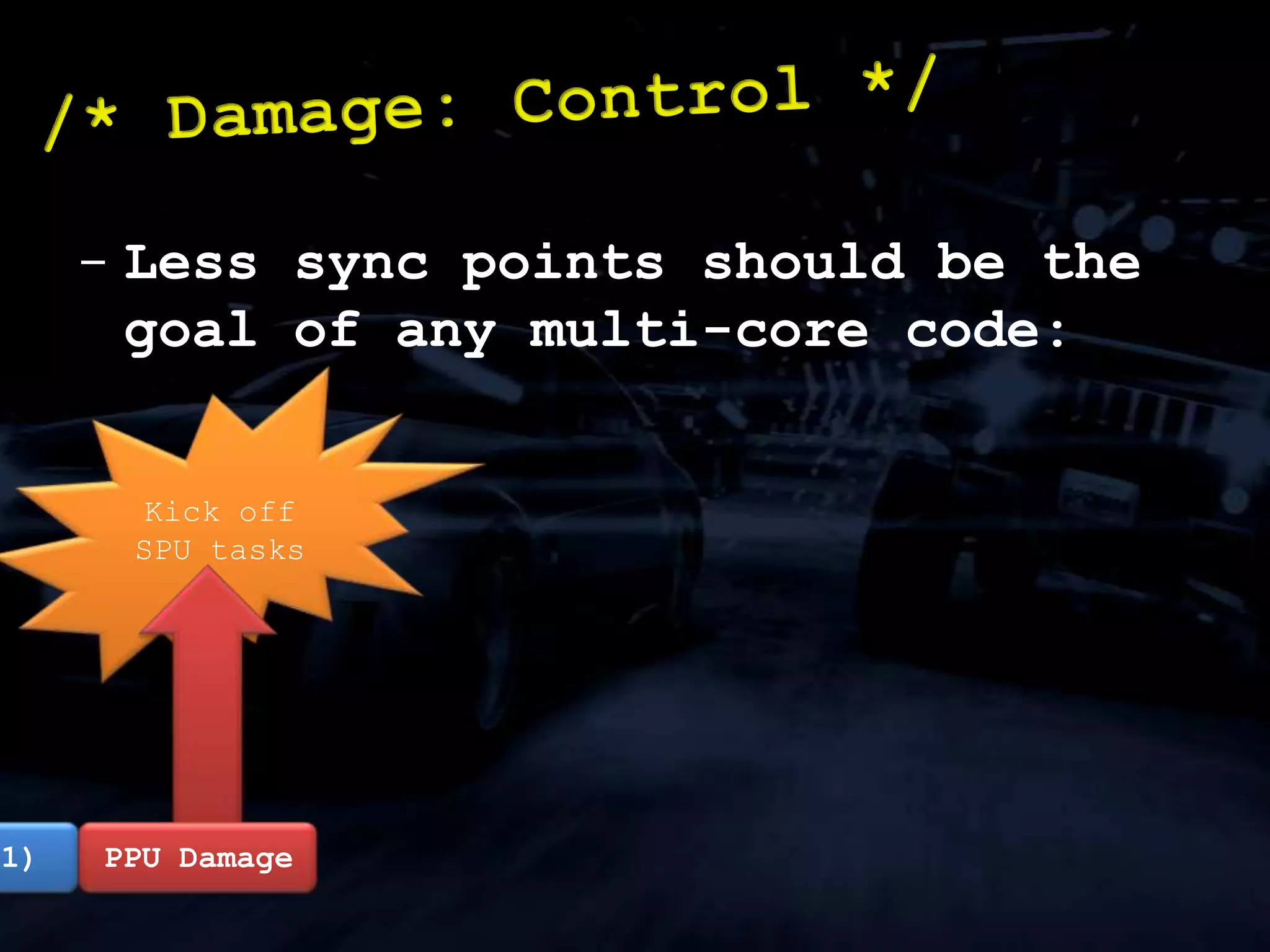

- 57. Kick off SPUtasksLess sync points should be the goal of any multi-core code:/* Damage: Control */Other Work(1)PPU Damage

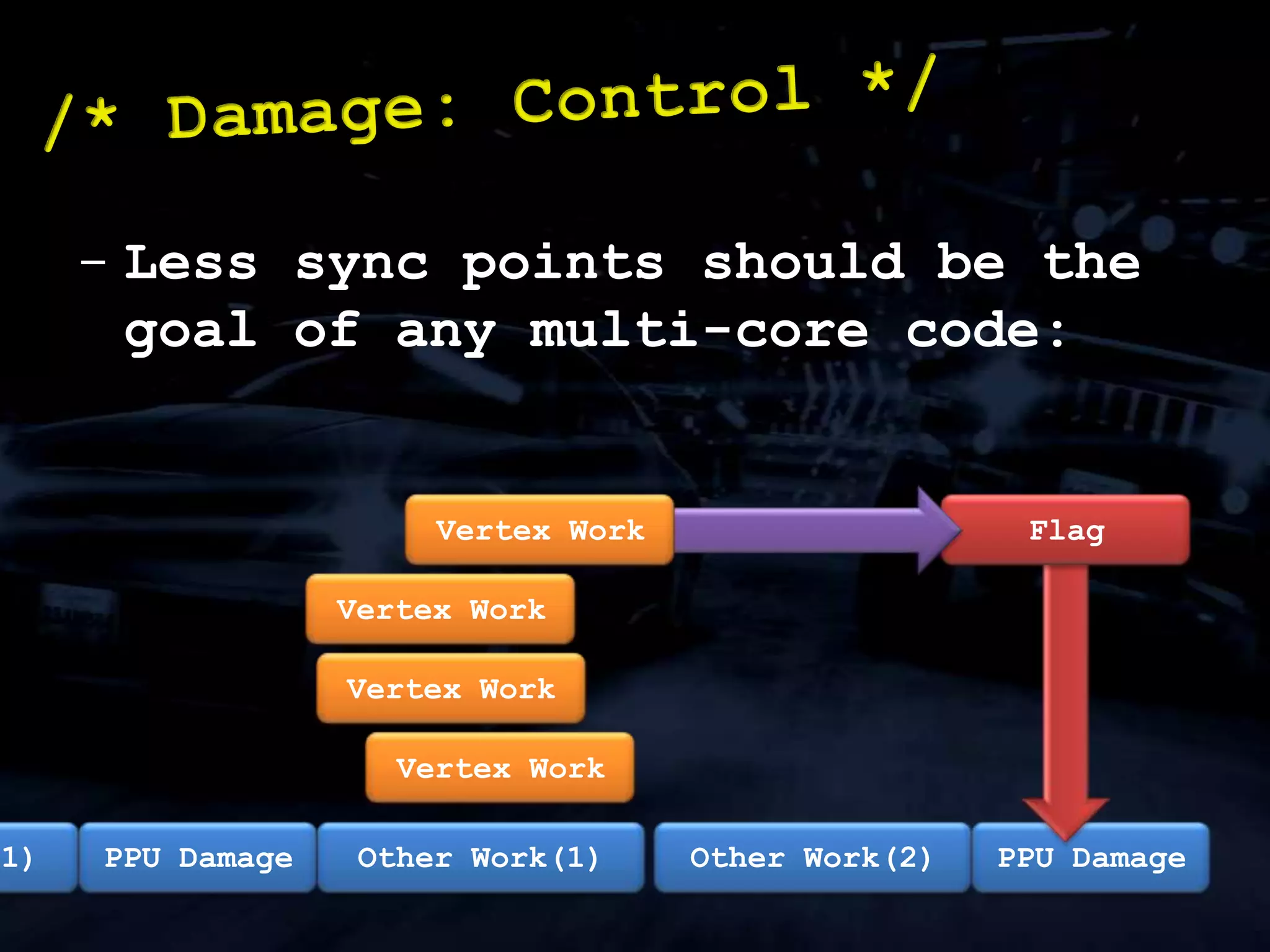

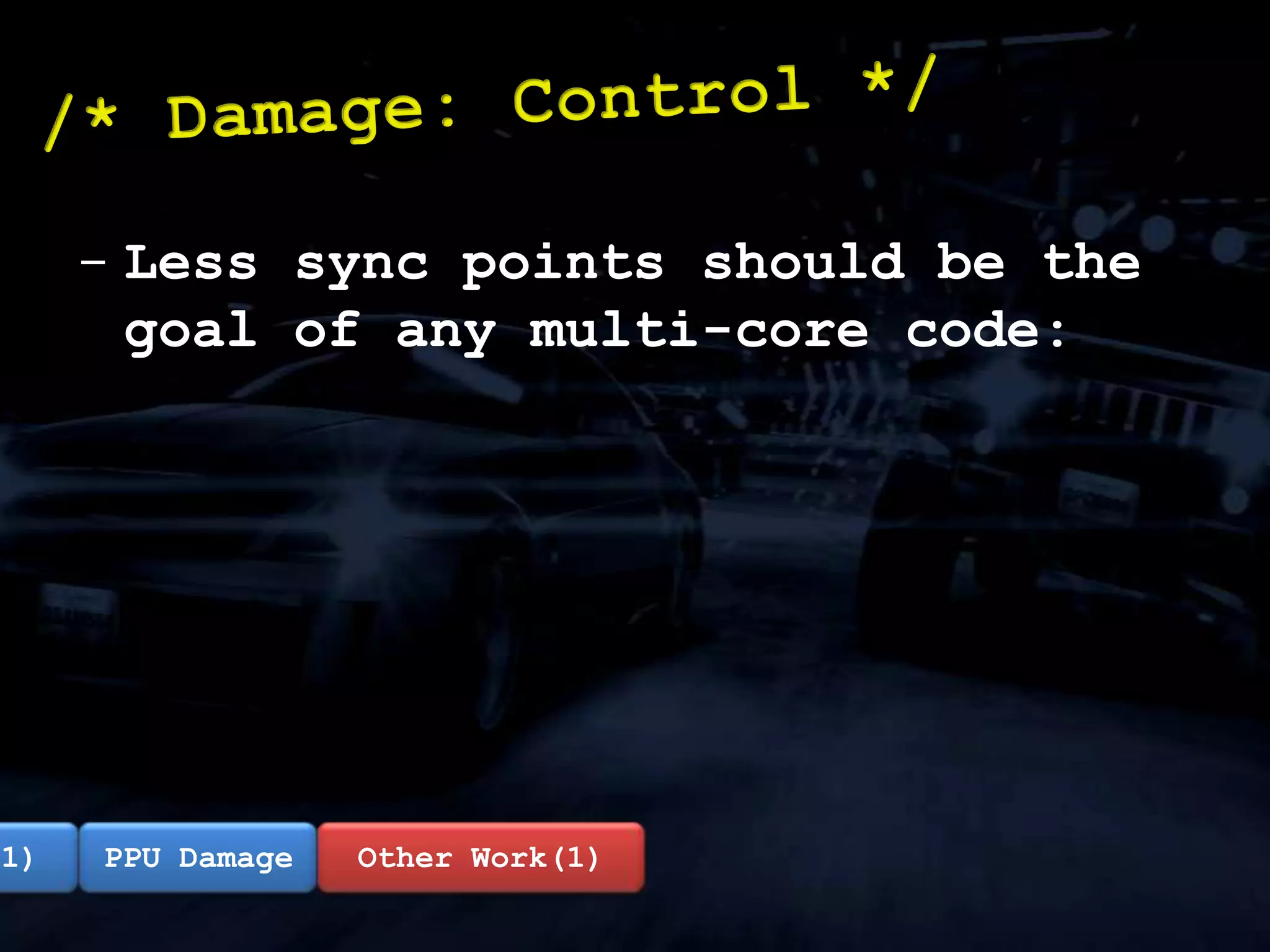

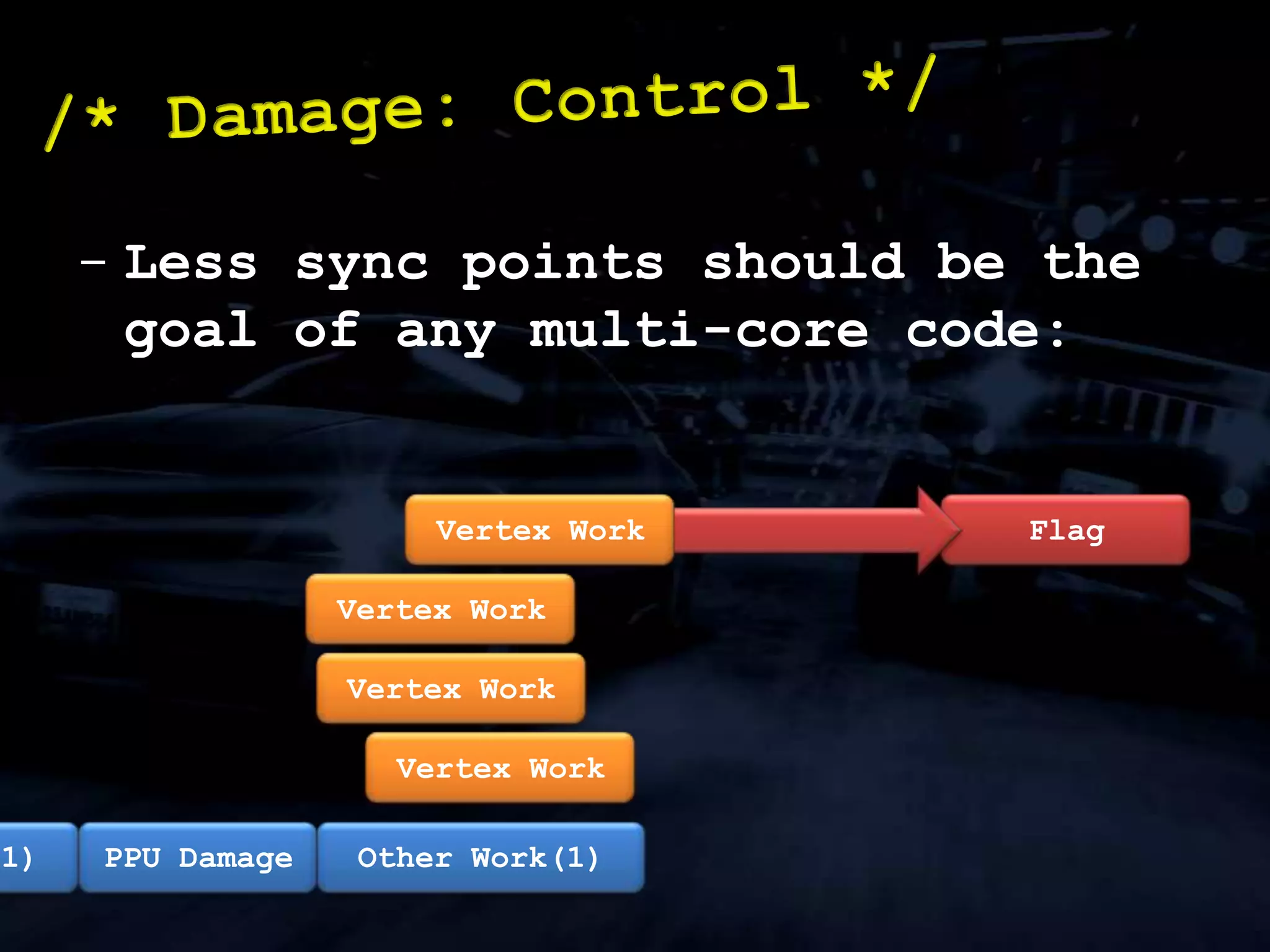

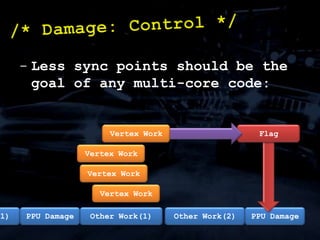

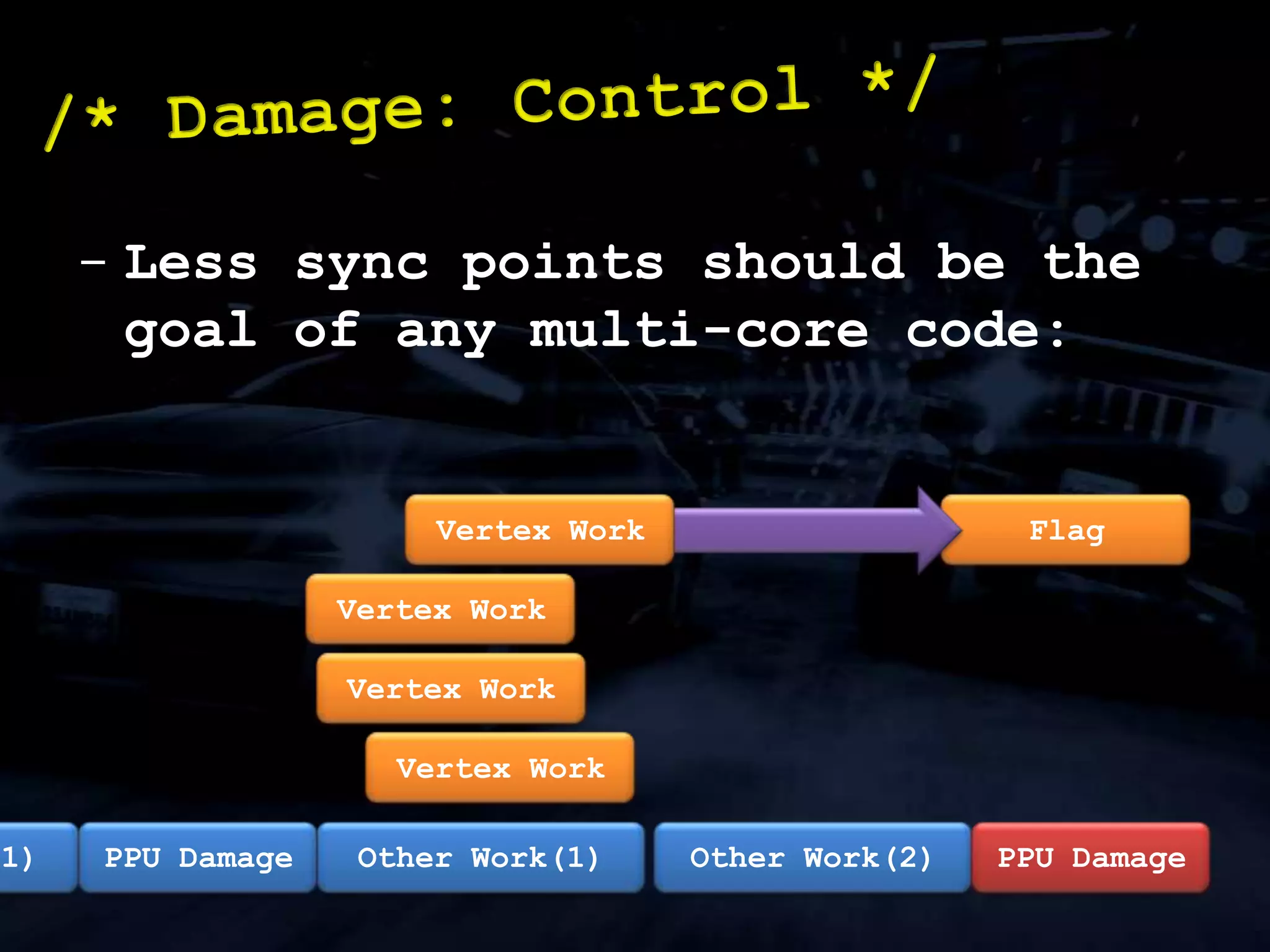

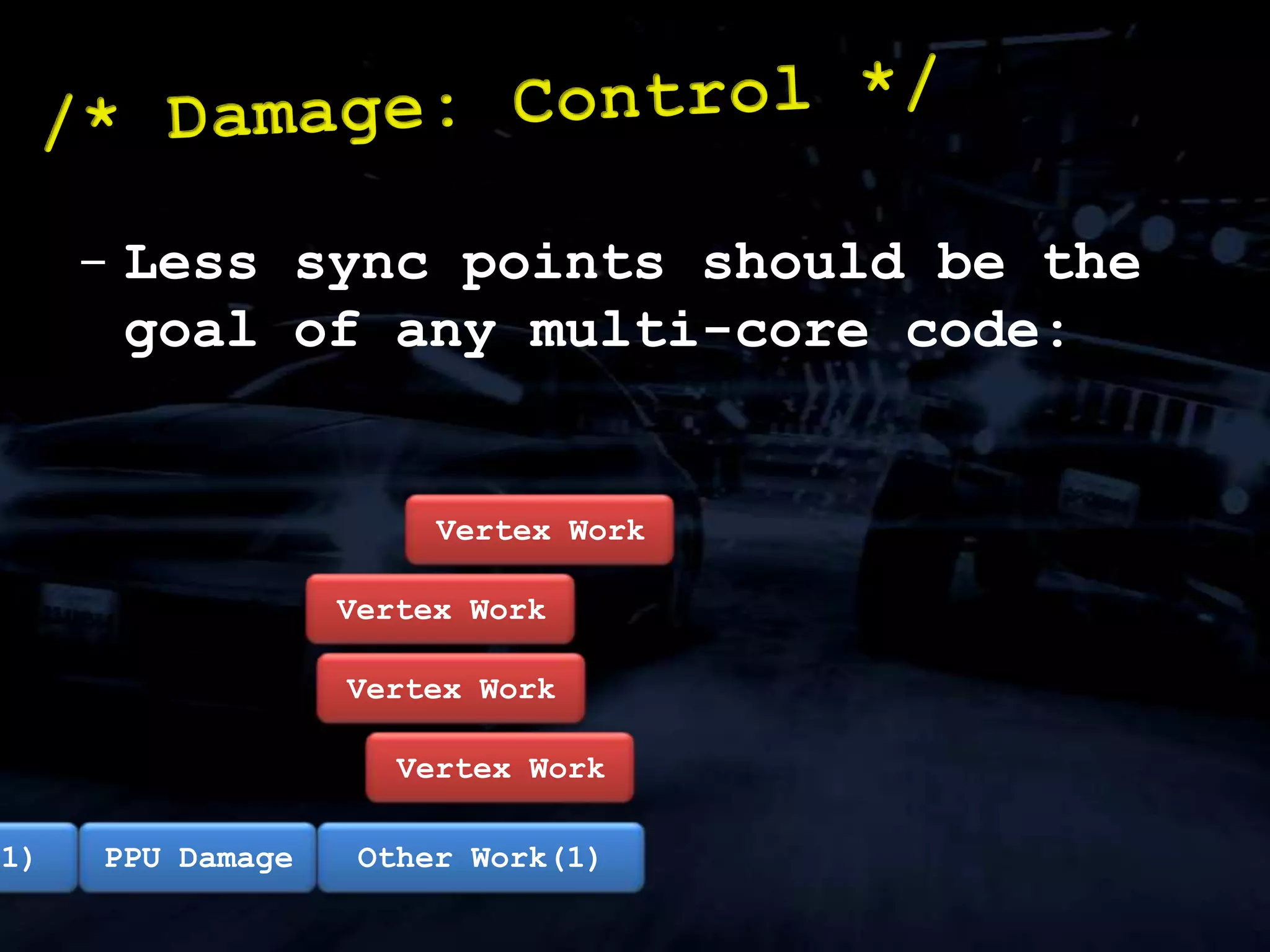

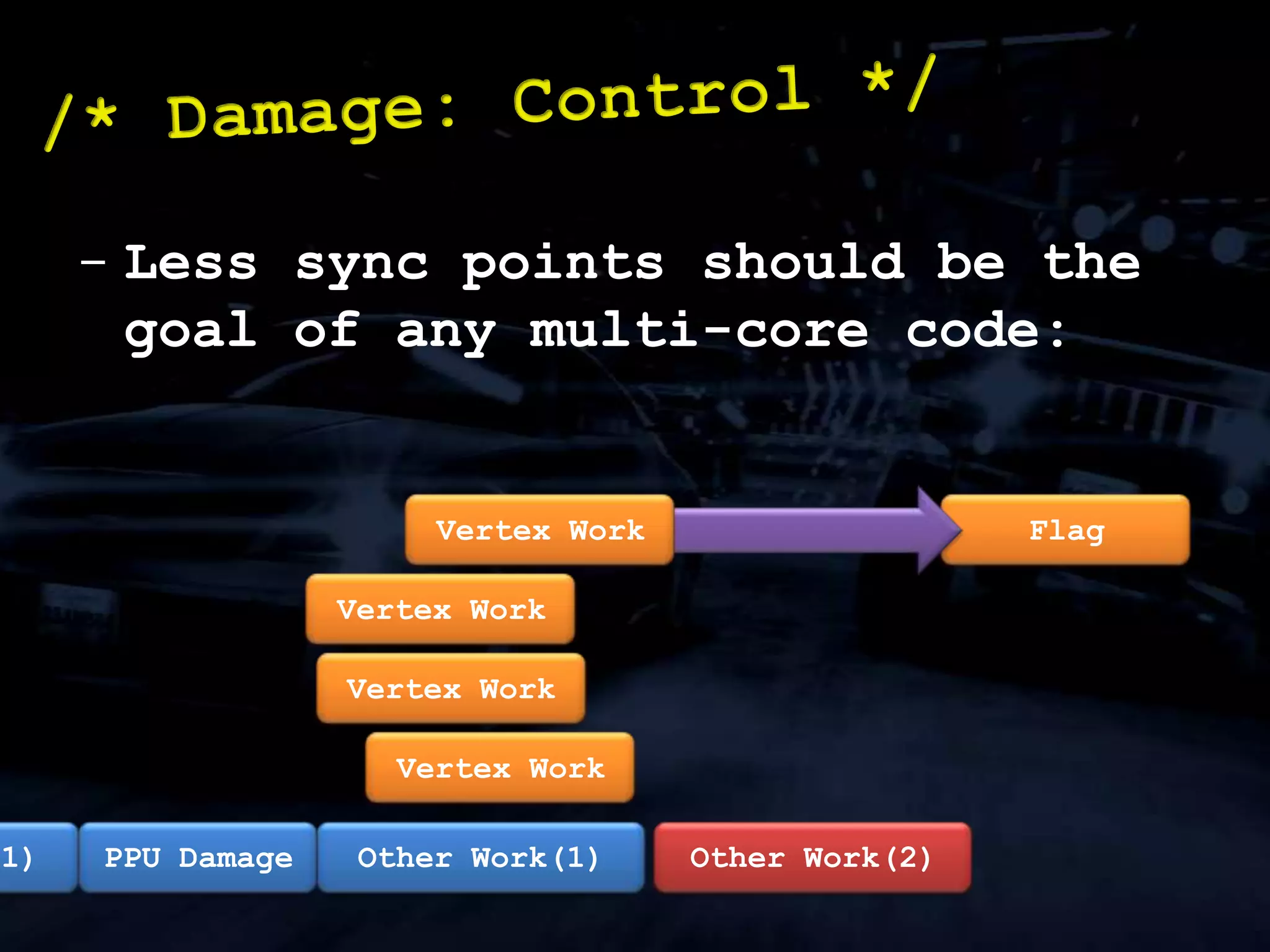

- 58. Less sync pointsshould be the goal of any multi-core code:/* Damage: Control */Other Work(1)Other Work(1)PPU Damage
- 59. Less sync pointsshould be the goal of any multi-core code:/* Damage: Control */Vertex WorkVertex WorkVertex WorkVertex WorkOther Work(1)Other Work(1)PPU Damage
- 60. Less sync pointsshould be the goal of any multi-core code:/* Damage: Control */FlagVertex WorkVertex WorkVertex WorkVertex WorkOther Work(1)Other Work(1)PPU Damage
- 61. Less sync pointsshould be the goal of any multi-core code:/* Damage: Control */FlagVertex WorkVertex WorkVertex WorkVertex WorkOther Work(1)Other Work(2)Other Work(1)PPU Damage
- 62. Less sync pointsshould be the goal of any multi-core code:/* Damage: Control */FlagVertex WorkVertex WorkVertex WorkVertex WorkOther Work(1)Other Work(2)Other Work(1)PPU DamagePPU Damage
- 63. Less sync pointsshould be the goal of any multi-core code:/* Damage: Control */FlagVertex WorkVertex WorkVertex WorkVertex WorkOther Work(1)Other Work(2)Other Work(1)PPU DamagePPU Damage

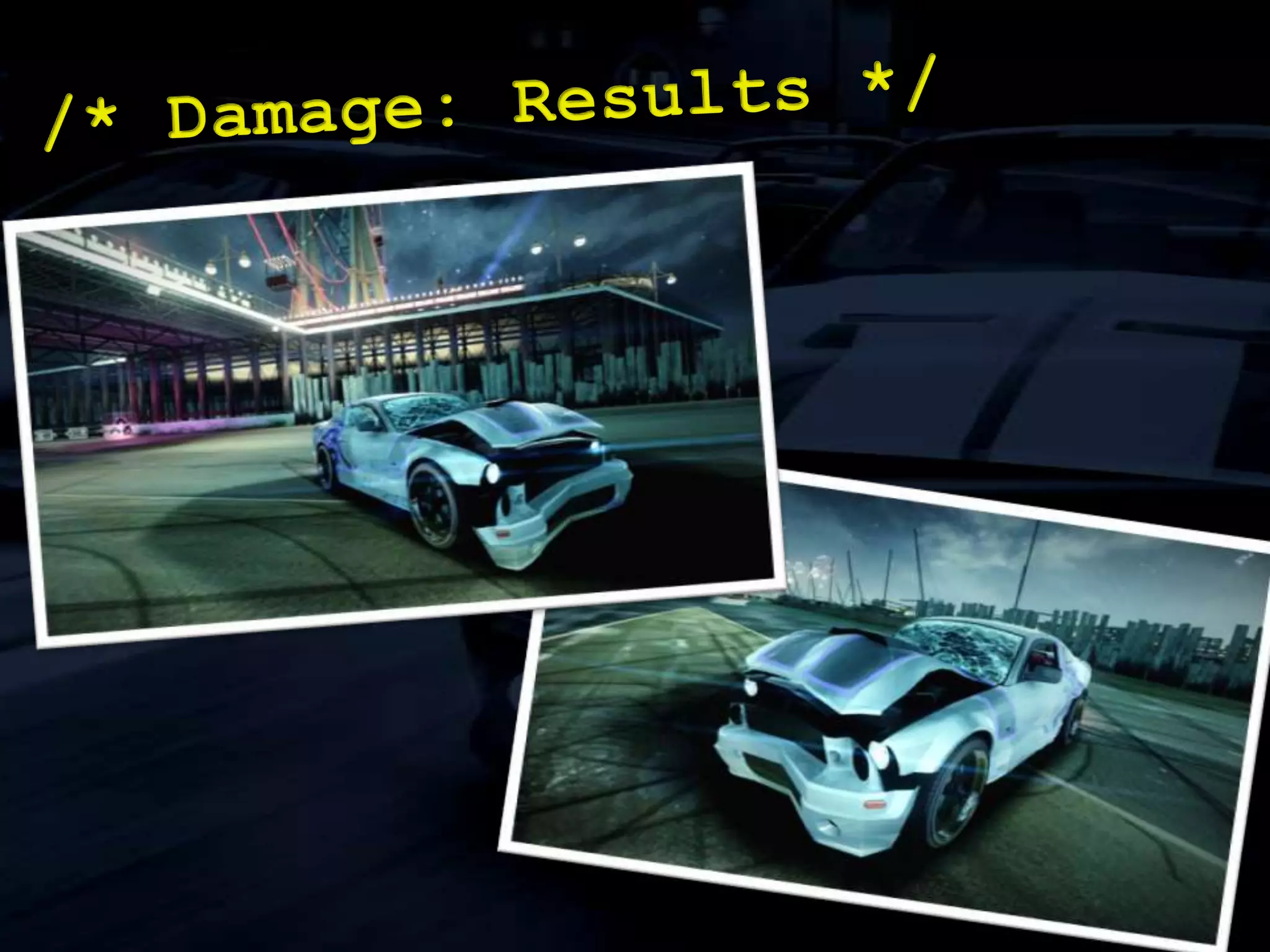

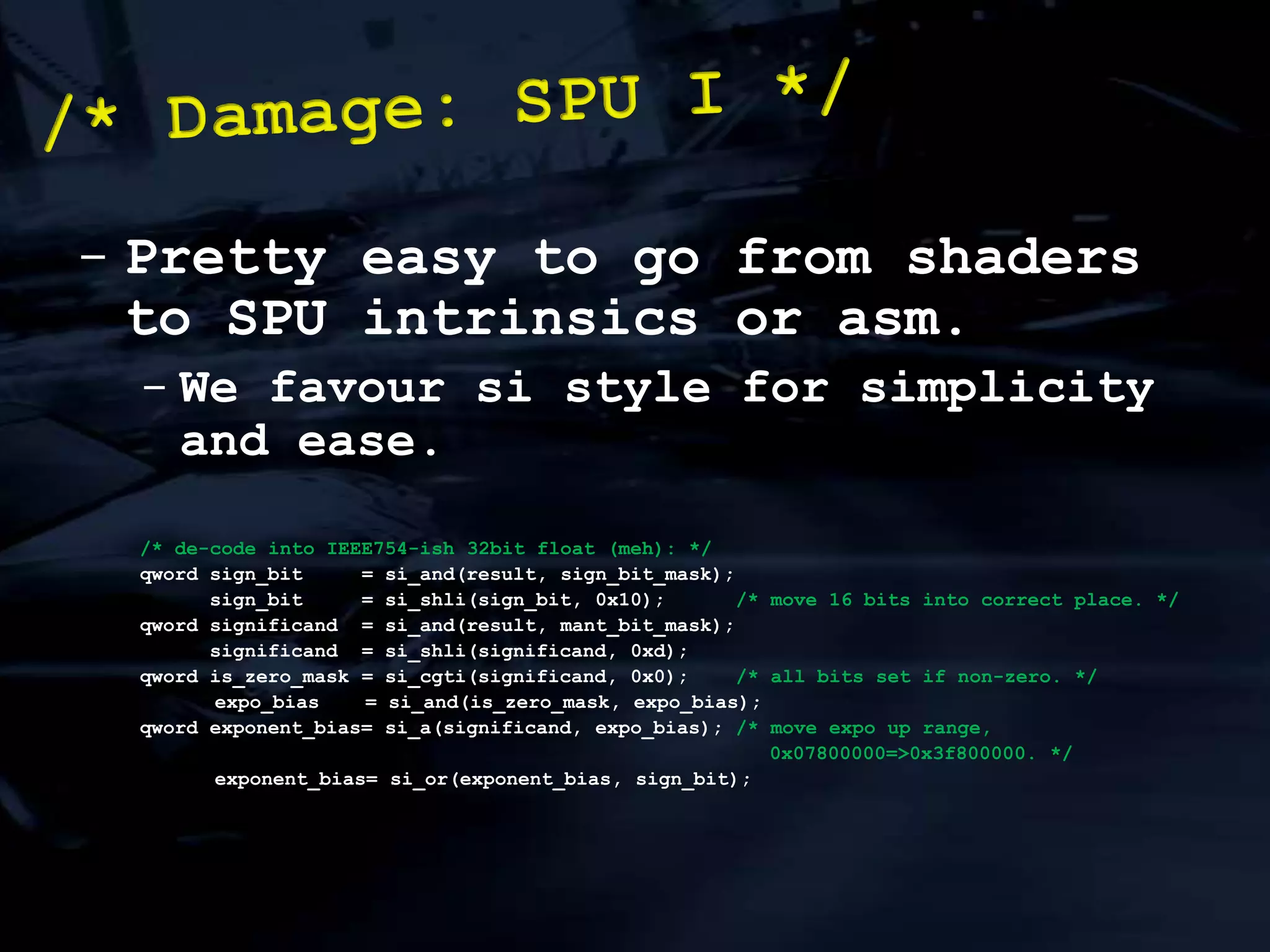

- 64. Pretty easy togo from shaders to SPU intrinsics or asm.
- 65. We favour sistyle for simplicity and ease./* de-code into IEEE754-ish 32bit float (meh): */qword sign_bit = si_and(result, sign_bit_mask);sign_bit = si_shli(sign_bit, 0x10); /* move 16 bits into correct place. */qword significand = si_and(result, mant_bit_mask);significand = si_shli(significand, 0xd);qword is_zero_mask = si_cgti(significand, 0x0); /* all bits set if non-zero. */expo_bias = si_and(is_zero_mask, expo_bias);qword exponent_bias= si_a(significand, expo_bias); /* move expo up range, 0x07800000=>0x3f800000. */exponent_bias= si_or(exponent_bias, sign_bit);/* Damage: SPU I */
- 66.
- 67. GPU version reliedon bilinear filtering of volume texture to smooth damage.

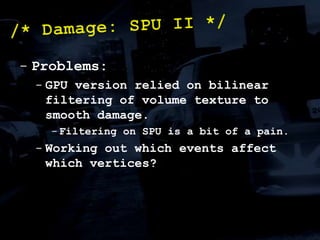

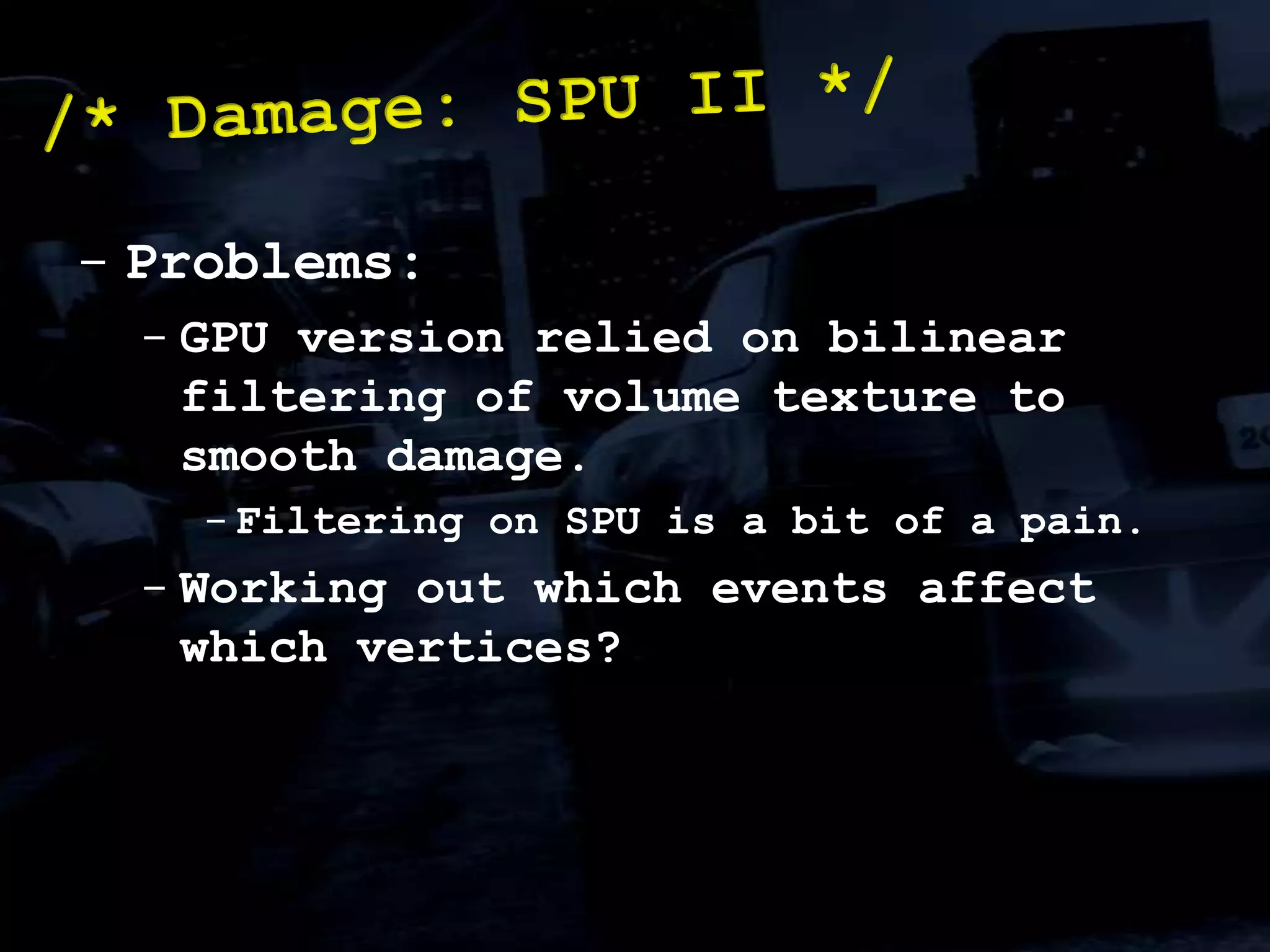

- 68. Filtering on SPUis a bit of a pain.
- 69. Working out whichevents affect which vertices?/* Damage: SPU II */
- 70.
- 71.
- 72. 1. Get datain volume texture-ish format.

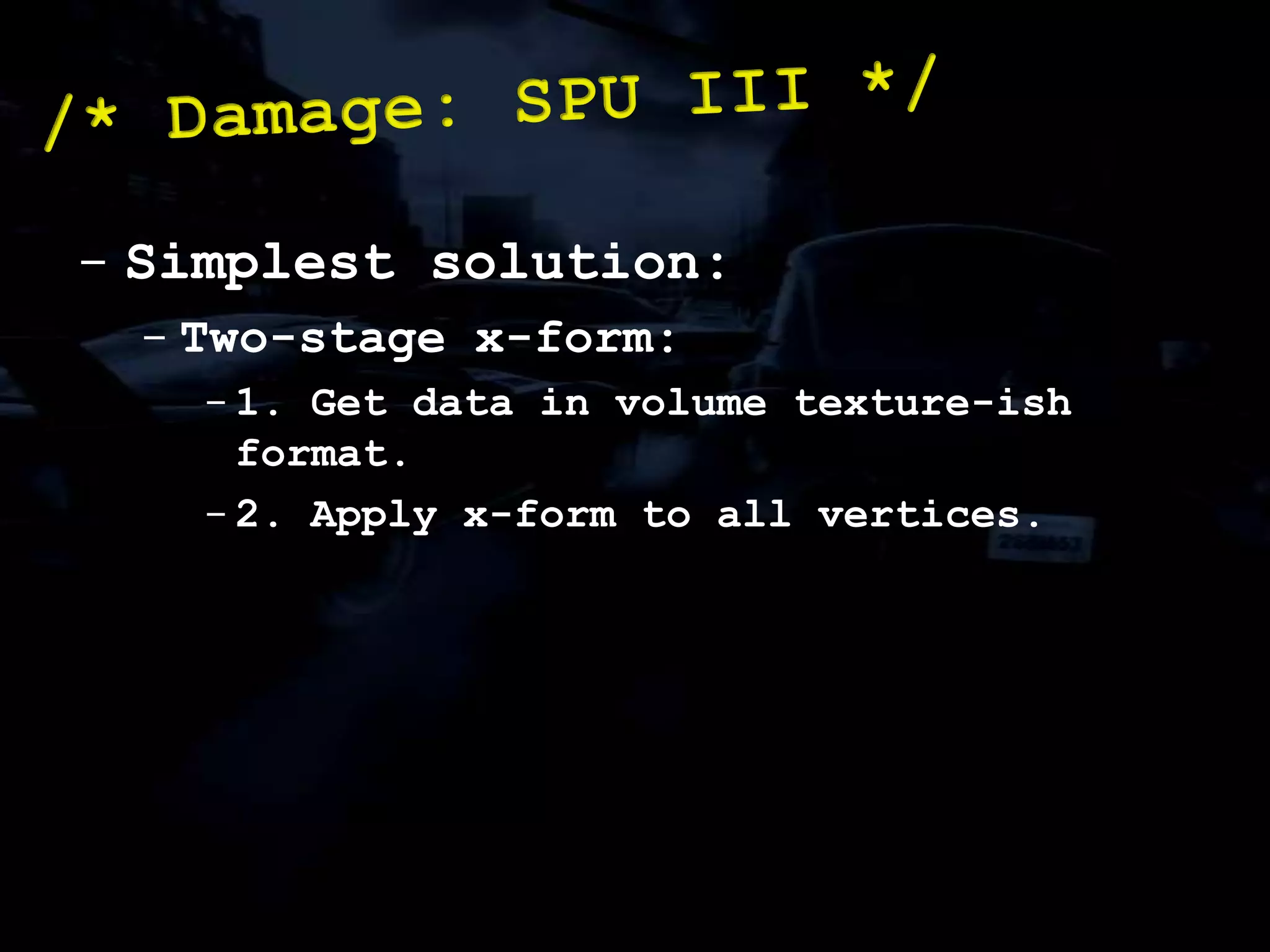

- 73. 2. Apply x-formto all vertices./* Damage: SPU III */
- 74.
- 75.

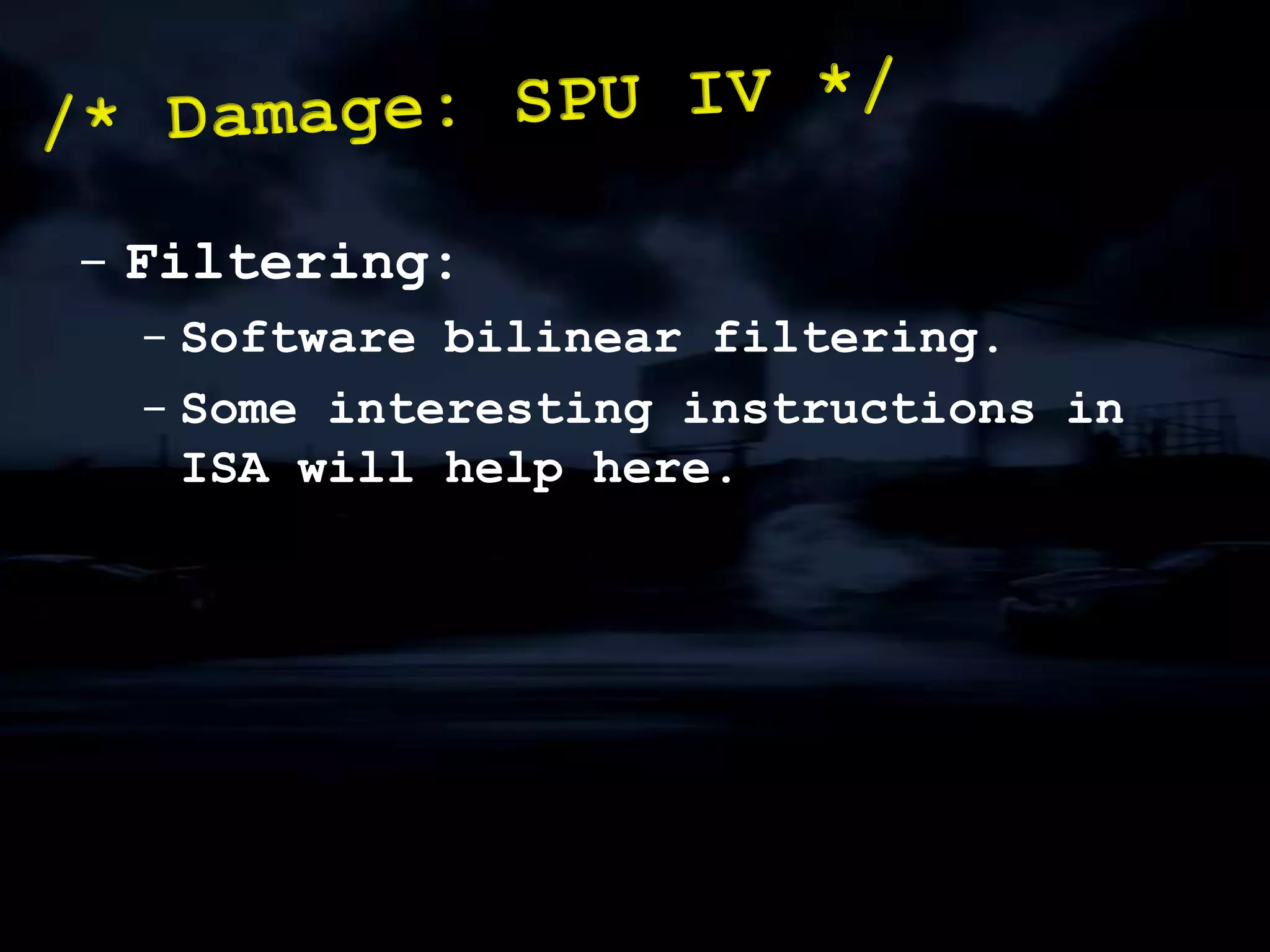

- 76. Some interesting instructionsin ISA will help here./* Damage: SPU IV */
- 77. Data flow throughSPU program is paramount to performance.Process in 16KB chunks.Multi-buffer input and output.If your system isn’t ‘mission critical’, align and lose double buffer./* Damage: Lessons I */

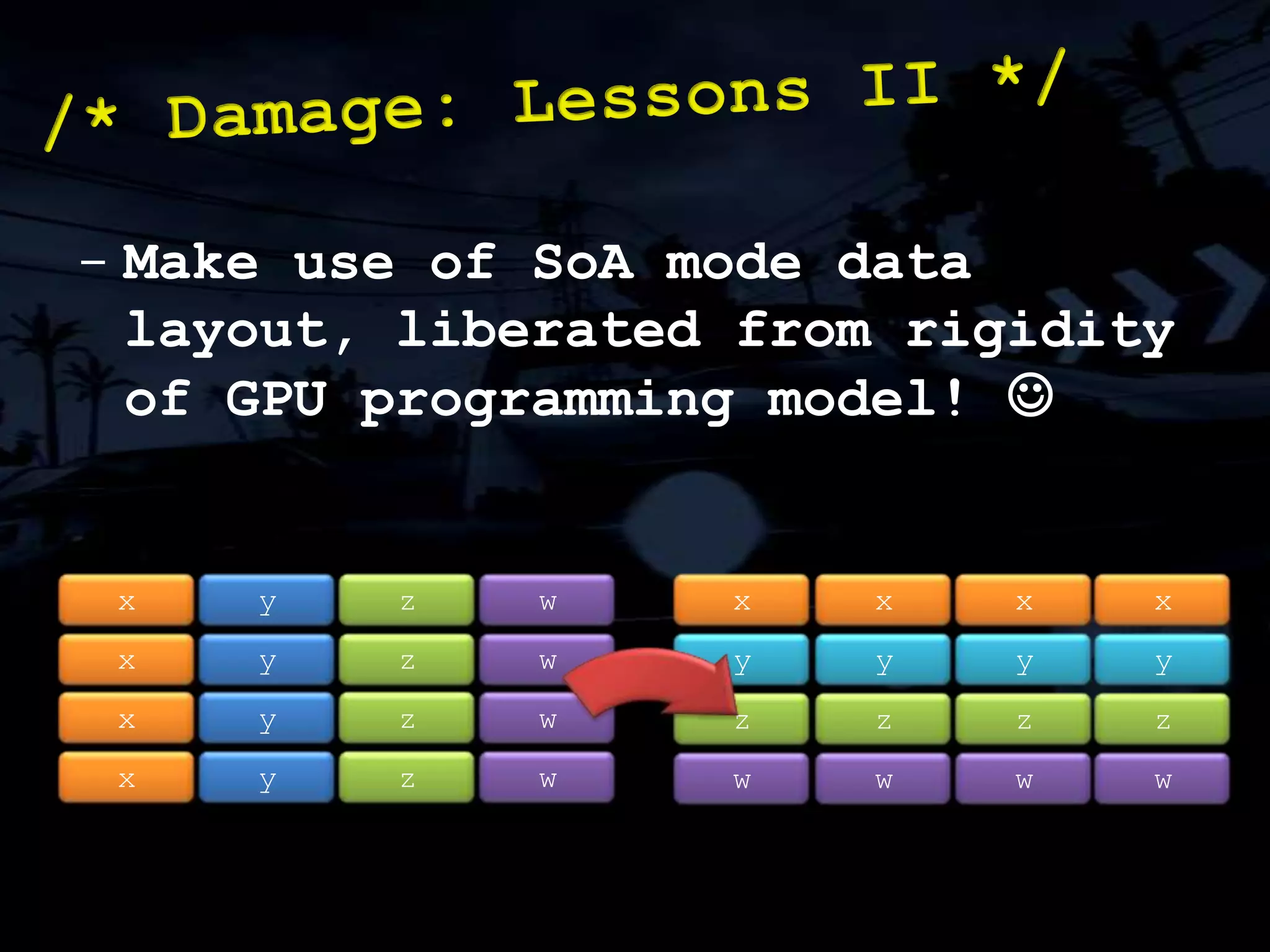

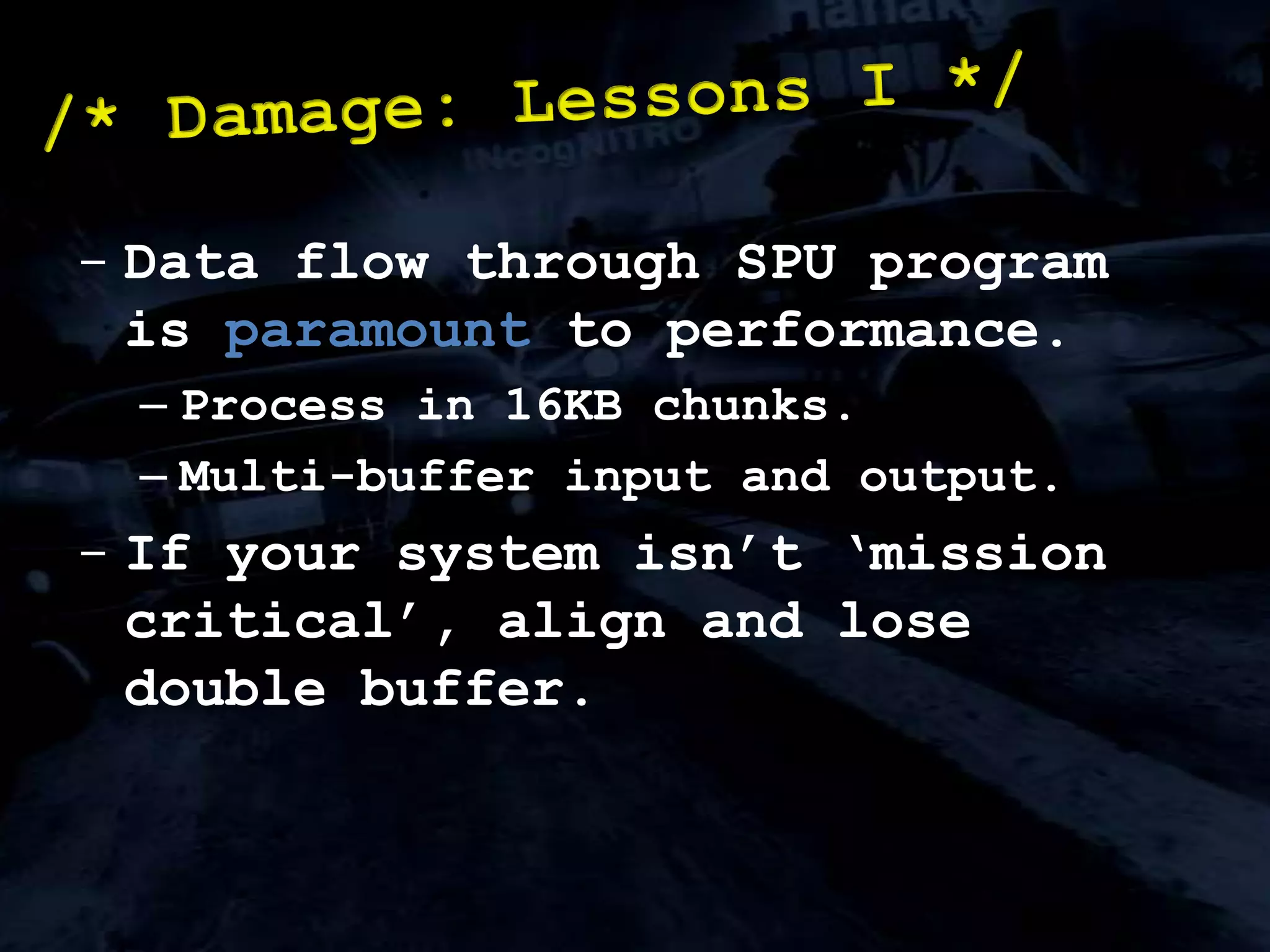

- 78. Make use ofSoA mode data layout, liberated from rigidity of GPU programming model! /* Damage: Lessons II */xyzwxxxxxyzwyyyyxyzwzzzzxyzwwwww
- 79. Add value toyour SPU program for relatively small computational effort:

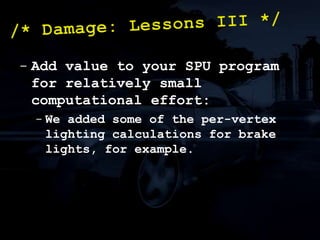

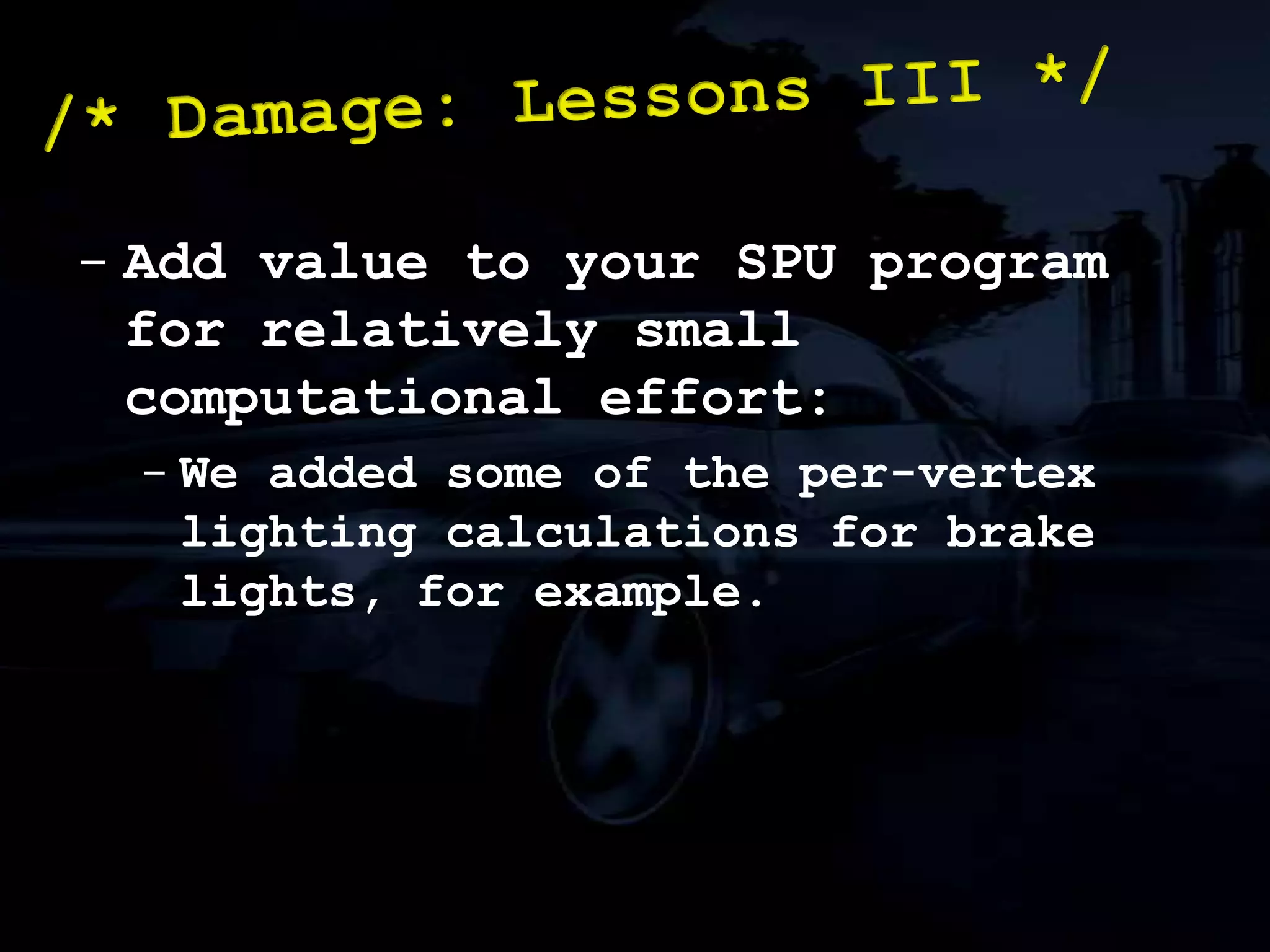

- 80. We added someof the per-vertex lighting calculations for brake lights, for example./* Damage: Lessons III */
- 81.
- 82.
- 83.

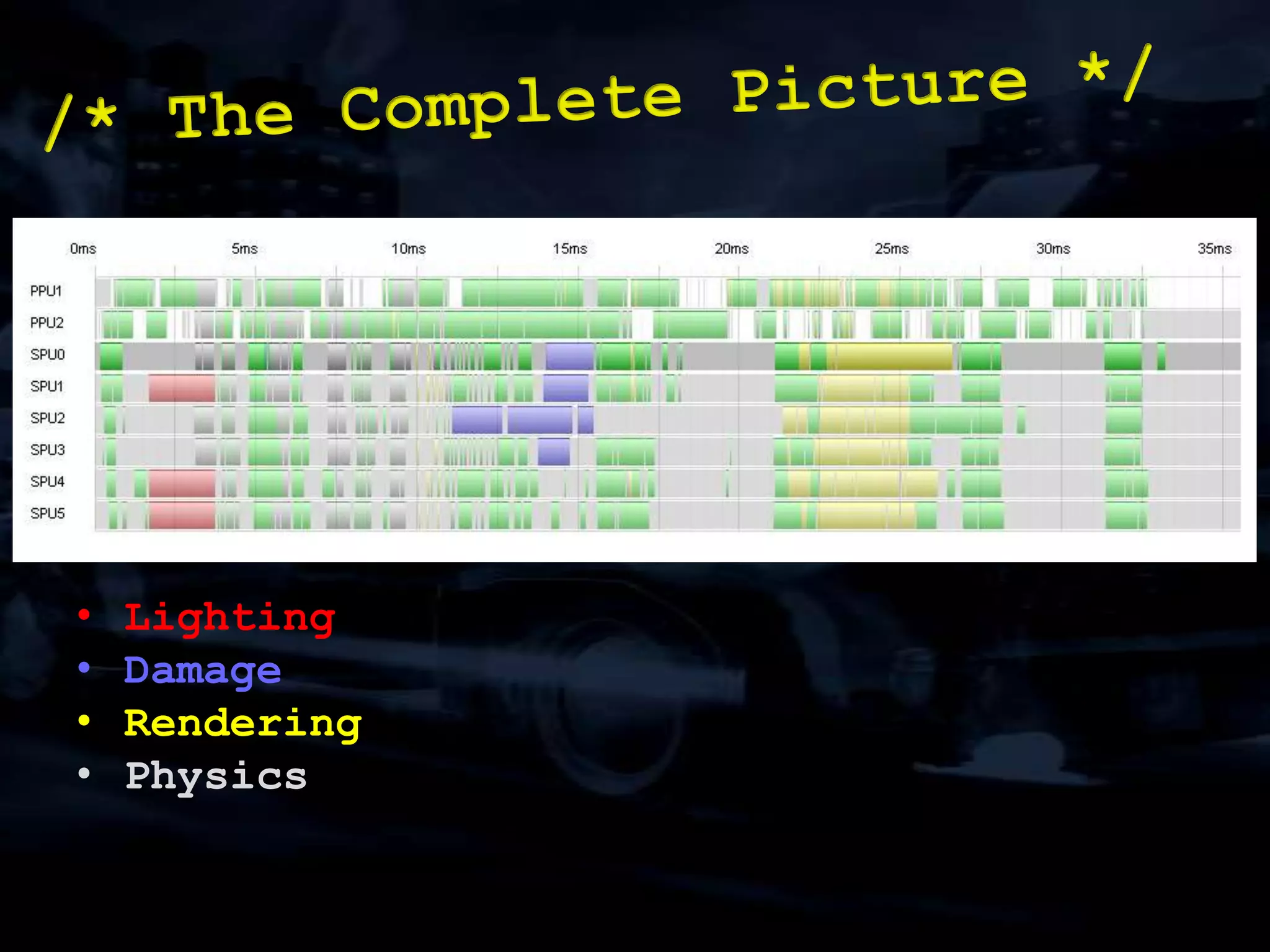

- 84. 40 in total(accounting for double buffer).
- 85.
- 86.
- 87. Work split betweenGPU/SPU.
- 88. Cars are litwith a mixture of things:
- 89. SH (world +dynamic)
- 90.

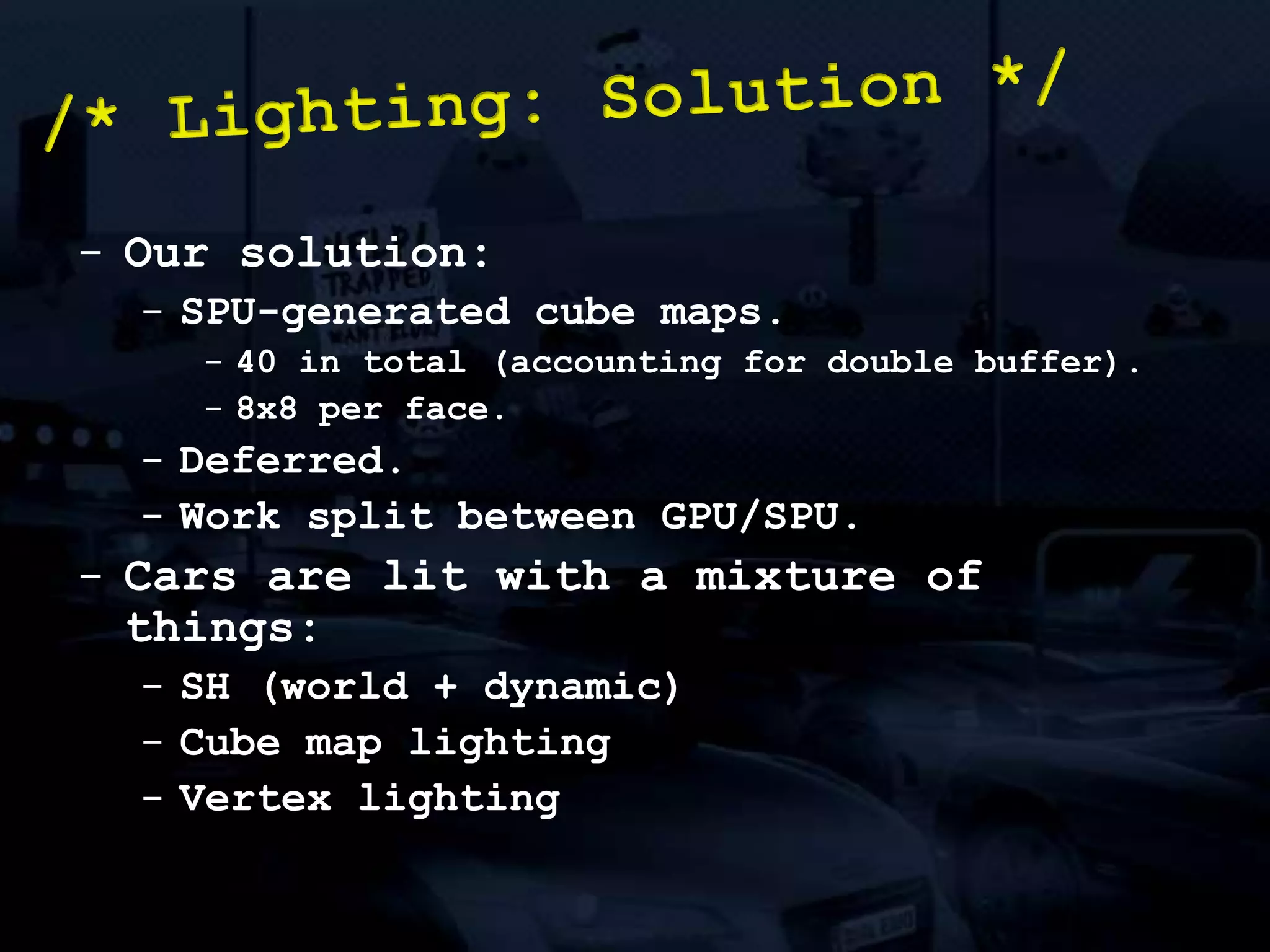

- 91. Vertex lighting/* Lighting:Solution */
- 92.
- 93.
- 94.
- 95.

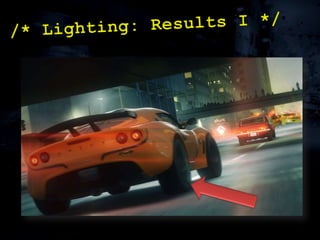

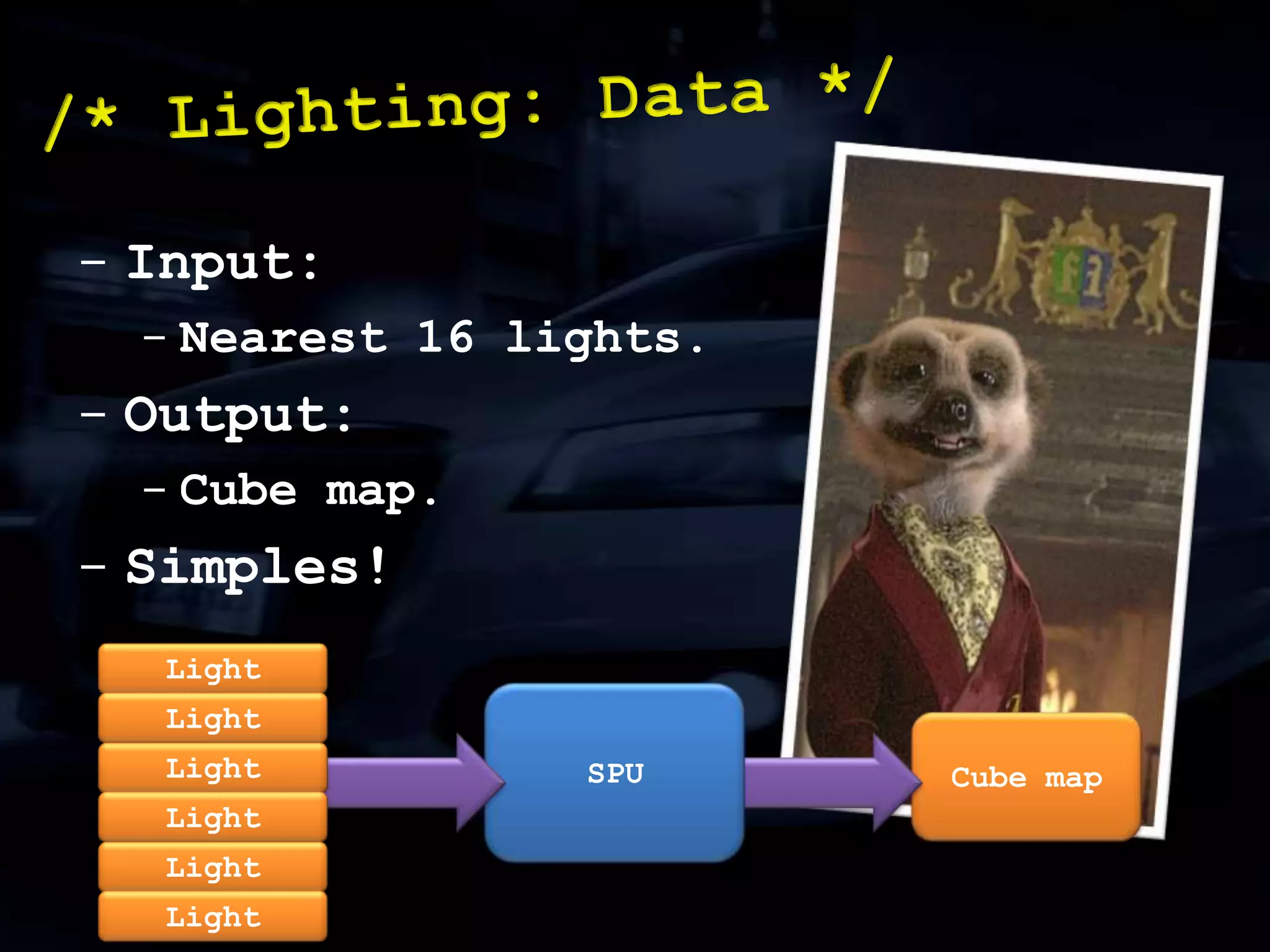

- 96. Simples!/* Lighting: Data*/LightSPULightCube mapLightLightLightLight

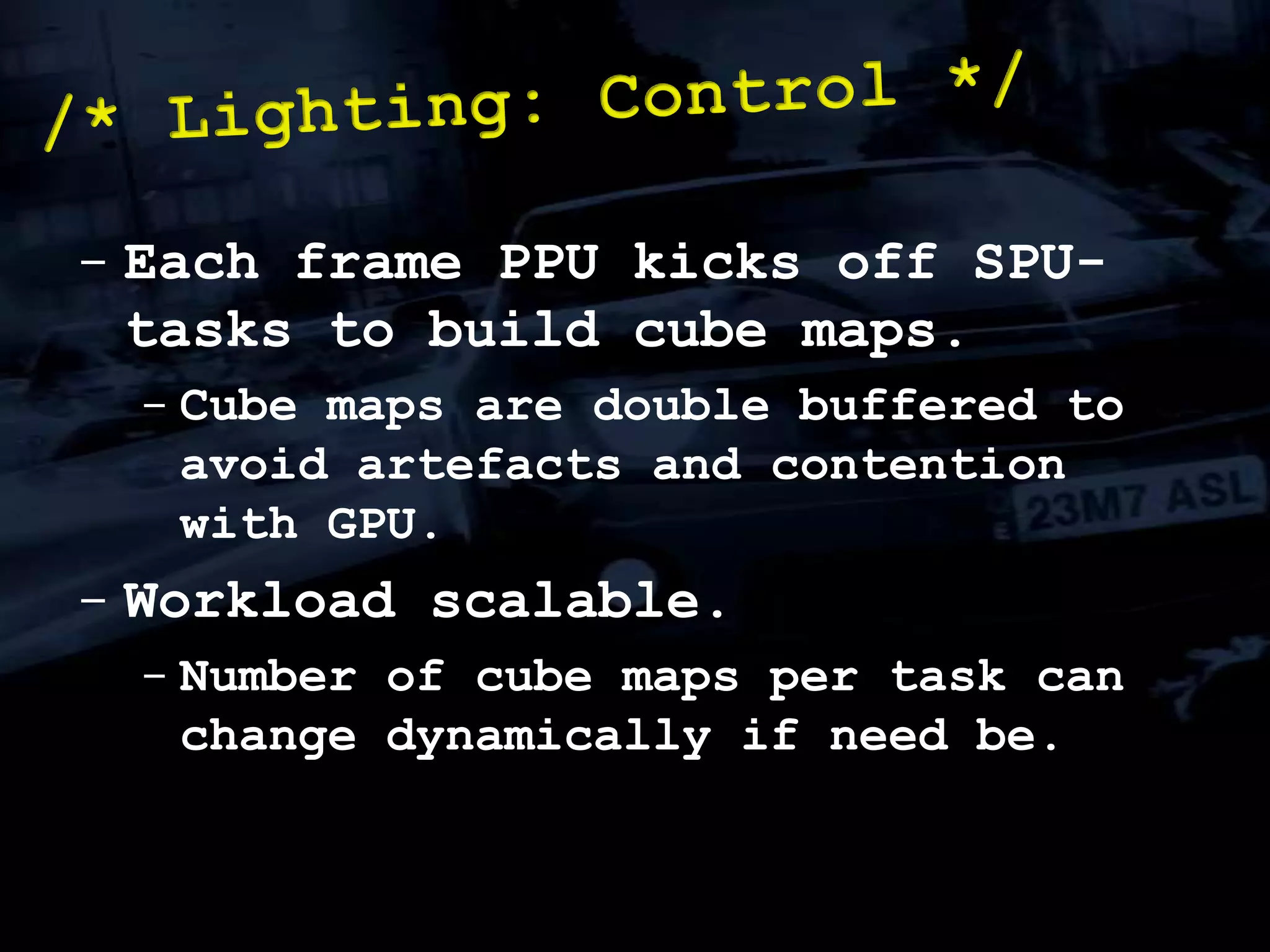

- 97. Each frame PPUkicks off SPU-tasks to build cube maps.
- 98. Cube maps aredouble buffered to avoid artefacts and contention with GPU.
- 99.
- 100. Number of cubemaps per task can change dynamically if need be./* Lighting: Control */

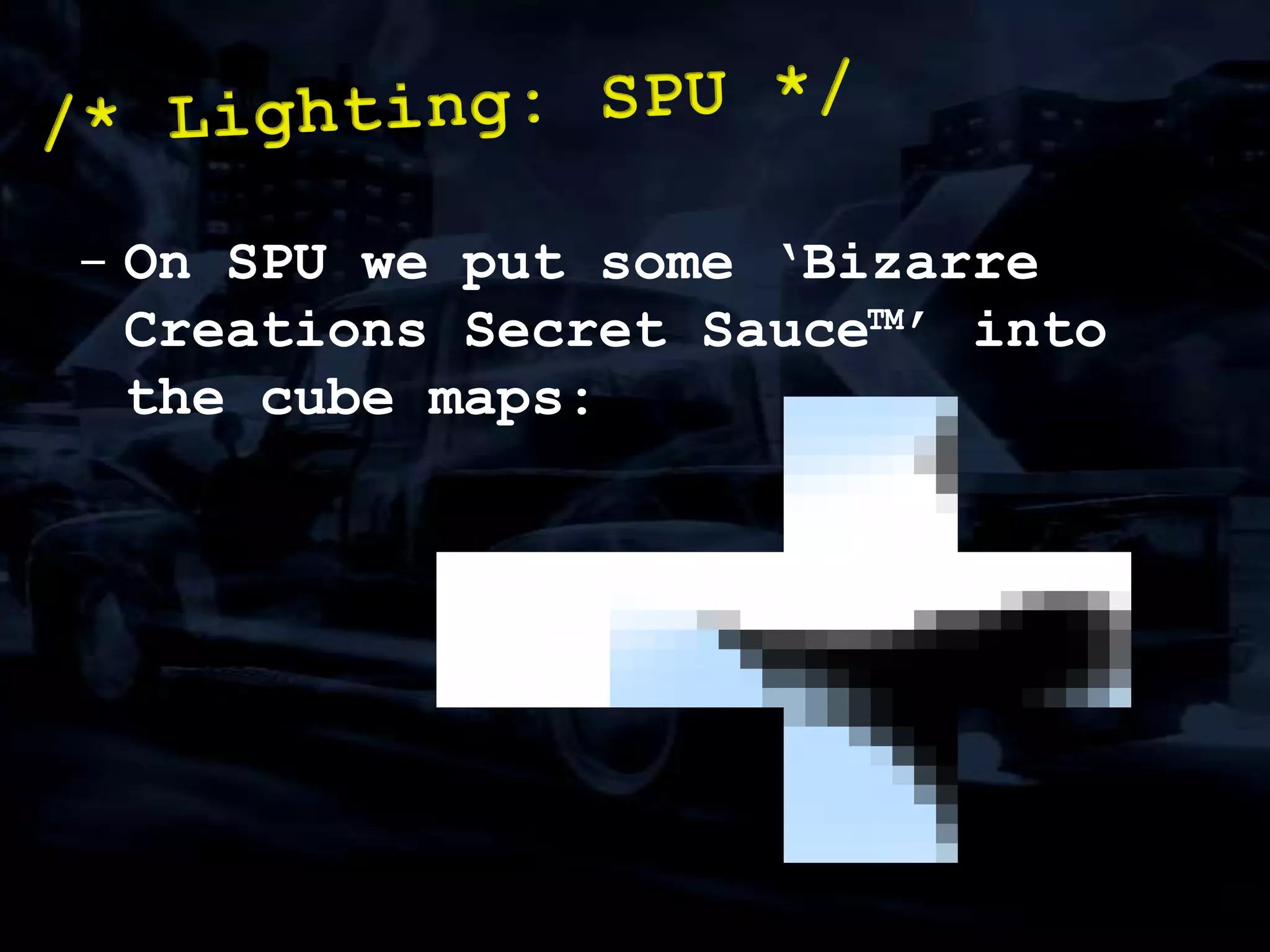

- 101. On SPU weput some ‘Bizarre Creations Secret Sauce™’ into the cube maps:/* Lighting: SPU */

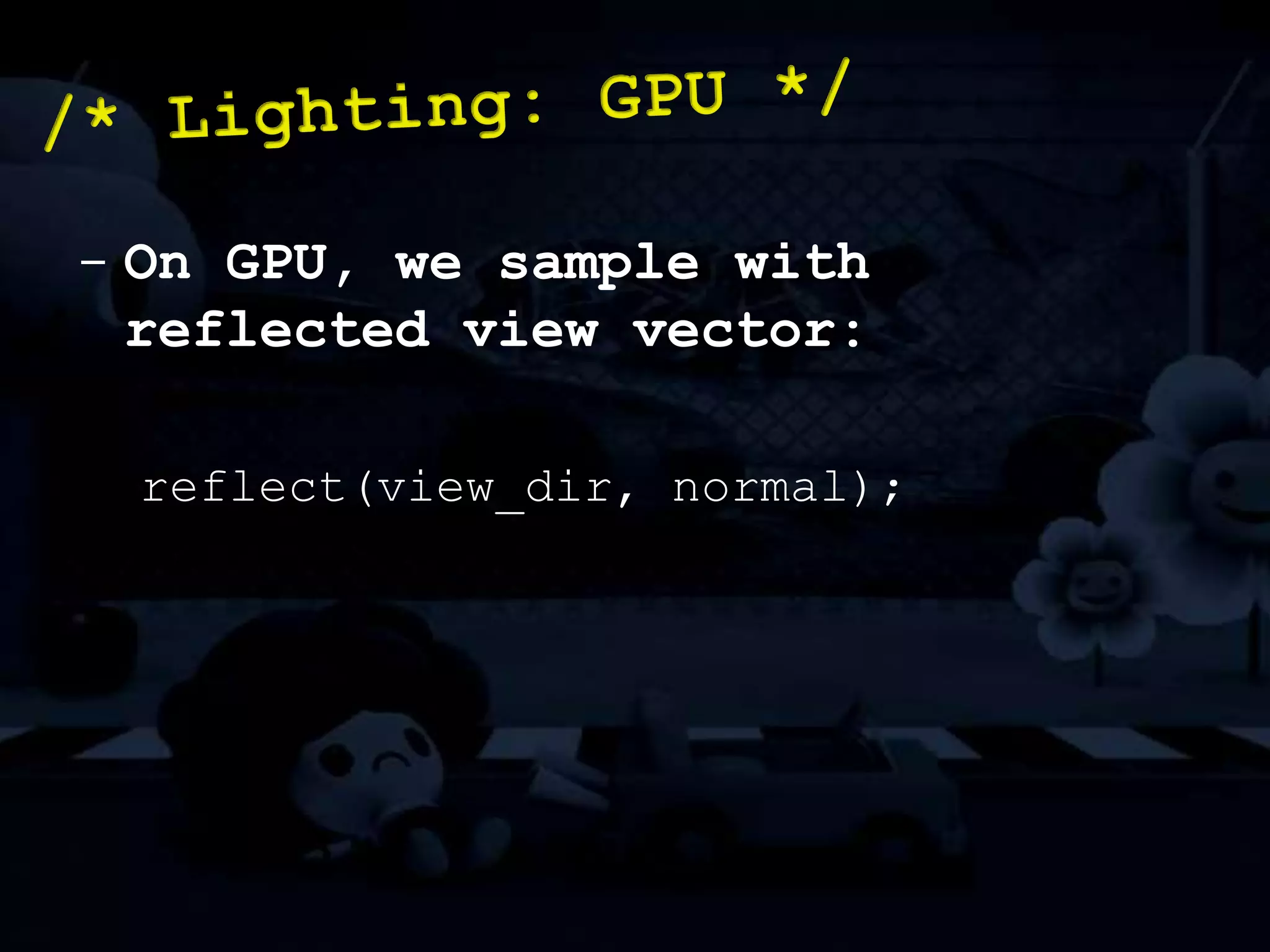

- 102. On GPU, wesample with reflected view vector:reflect(view_dir, normal);/* Lighting: GPU */
- 103.
- 104.

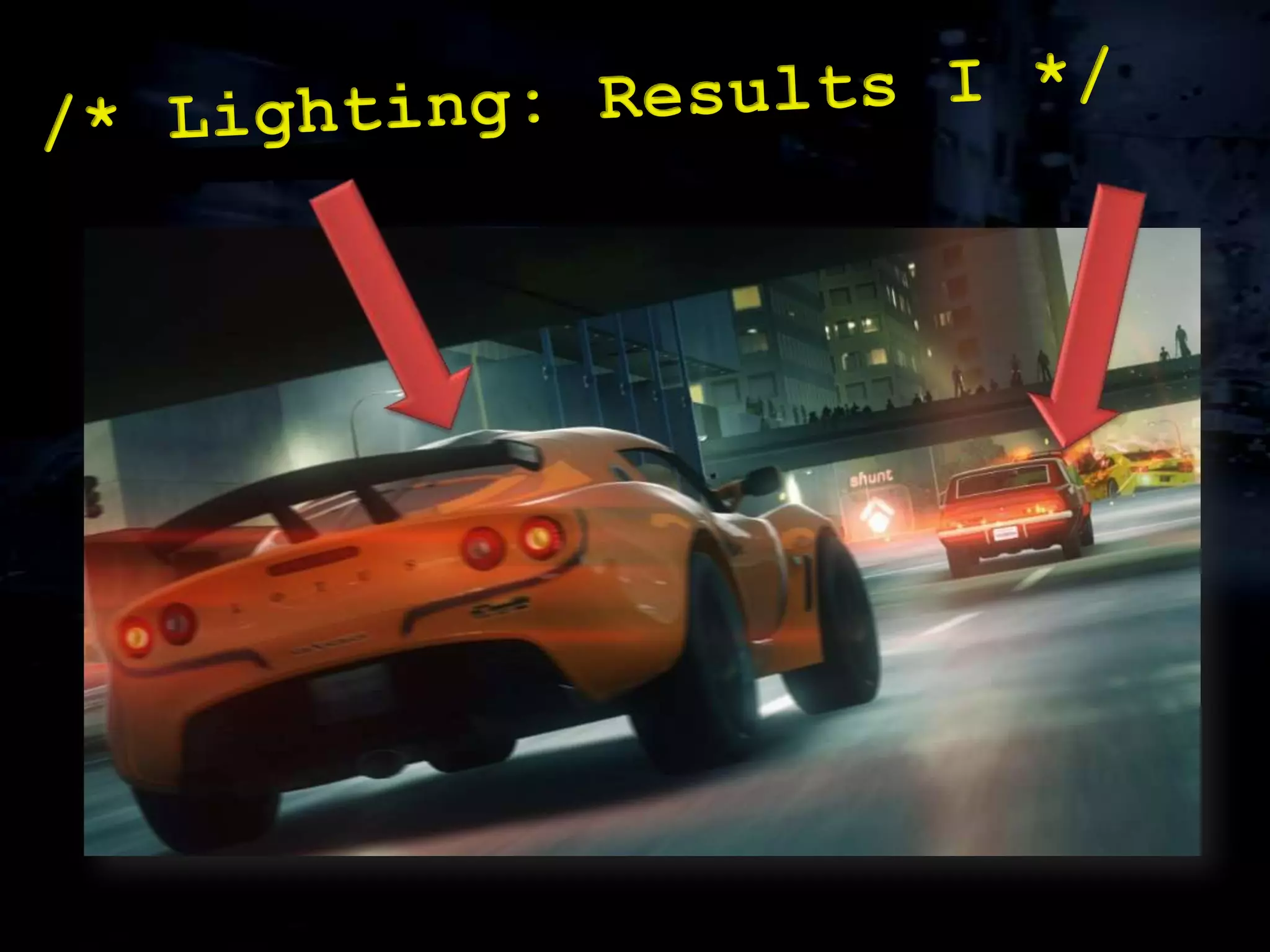

- 105.

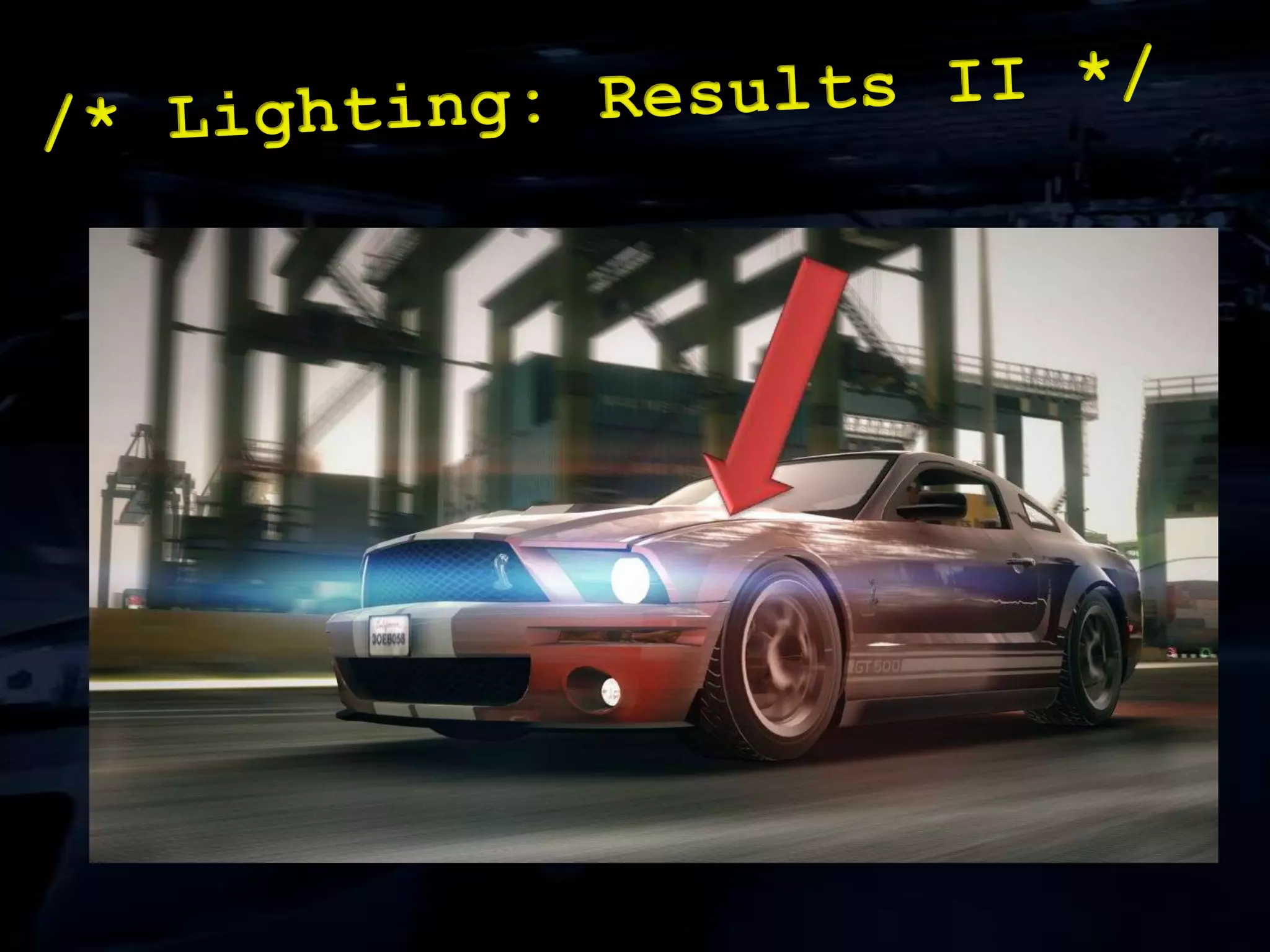

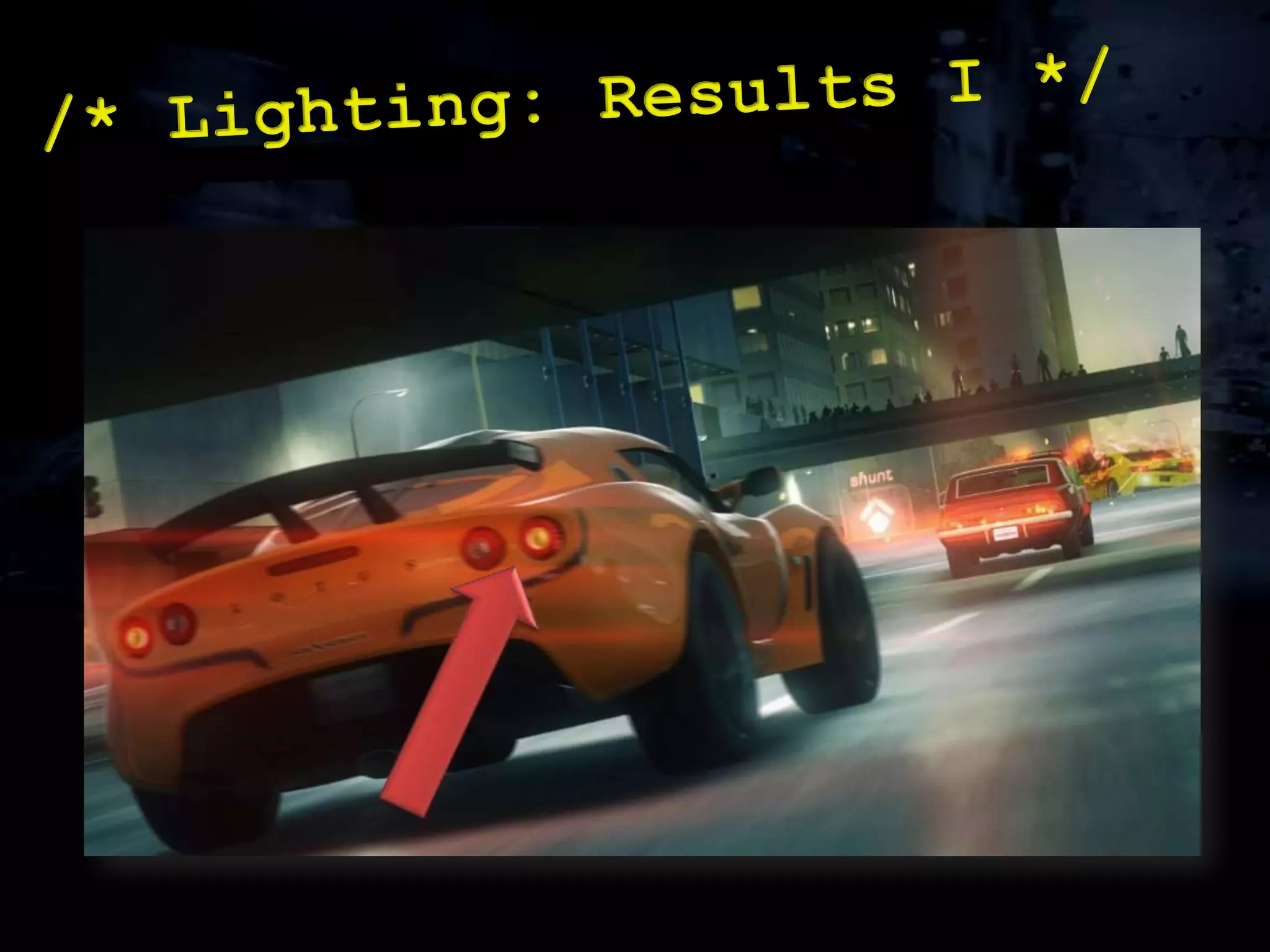

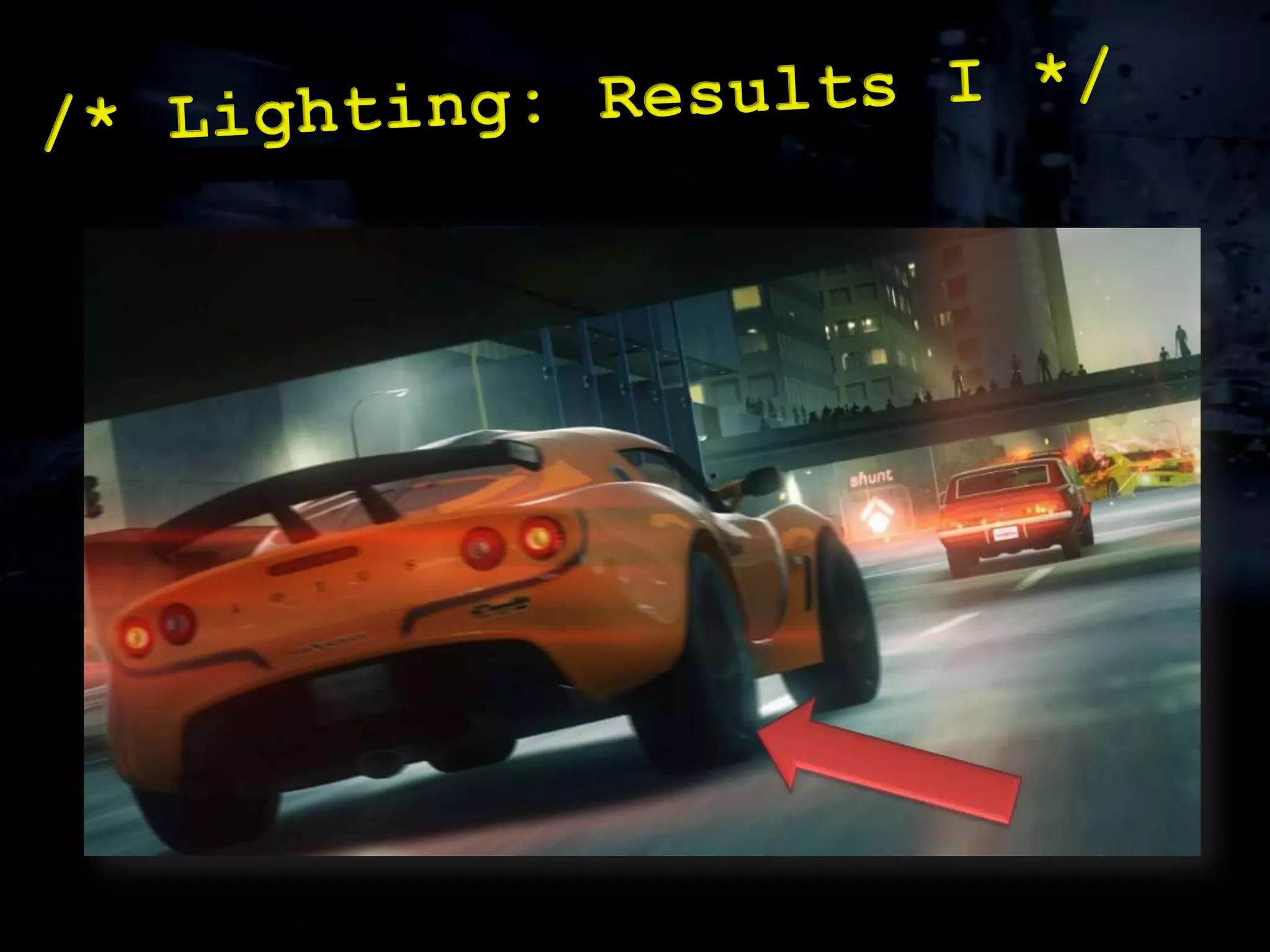

- 106. /* Lighting: ResultsII */

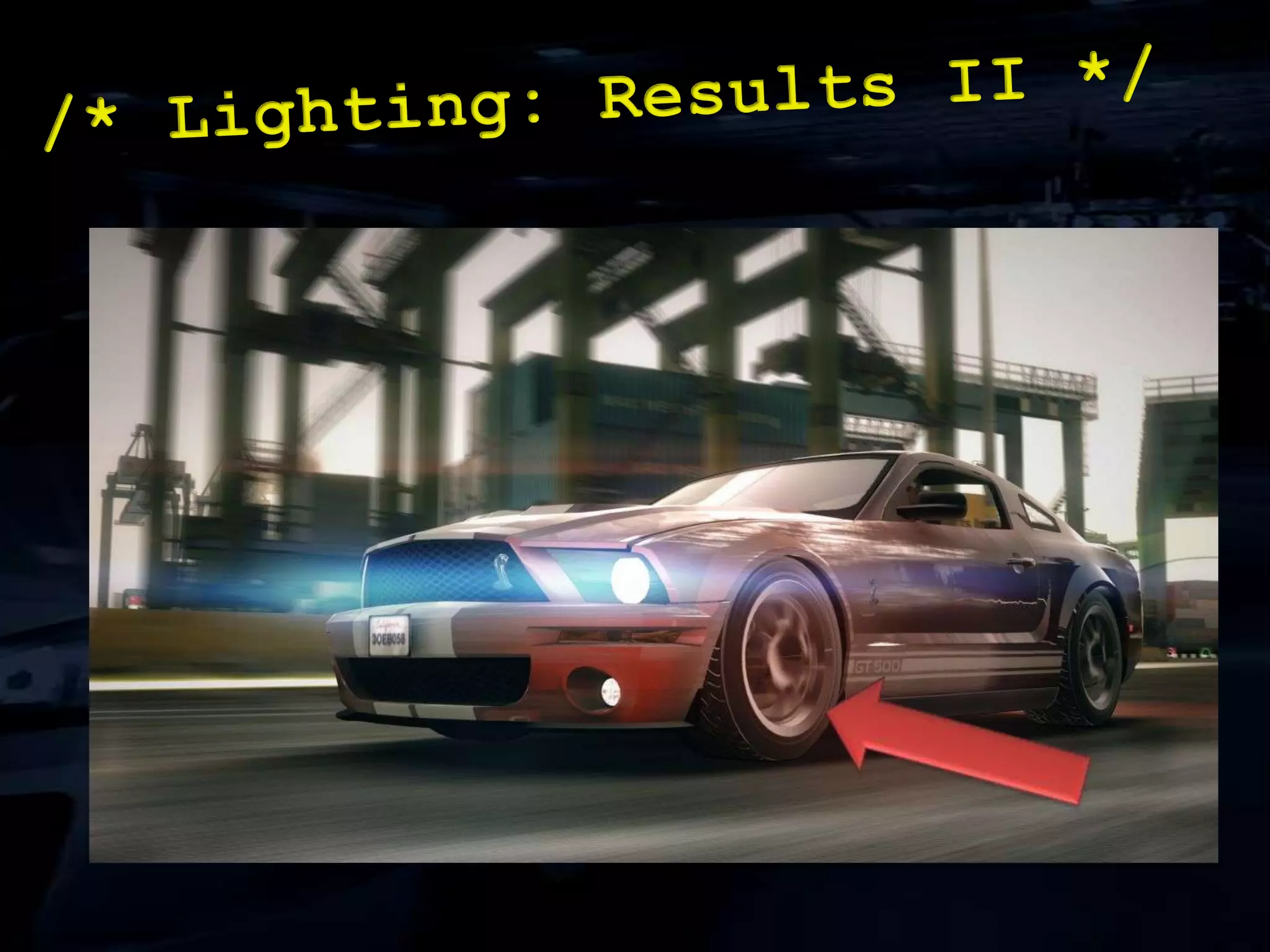

- 107. /* Lighting: ResultsII */
- 108. /* * PartII w/ Steve McAuley */SPU Acceleration of Fragment Shading

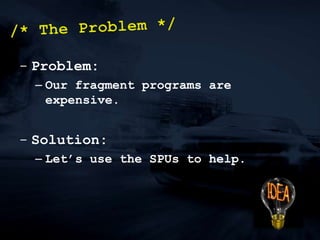

- 109. Problem:Our fragment programsare expensive.Solution:Let’s use the SPUs to help./* The Problem */

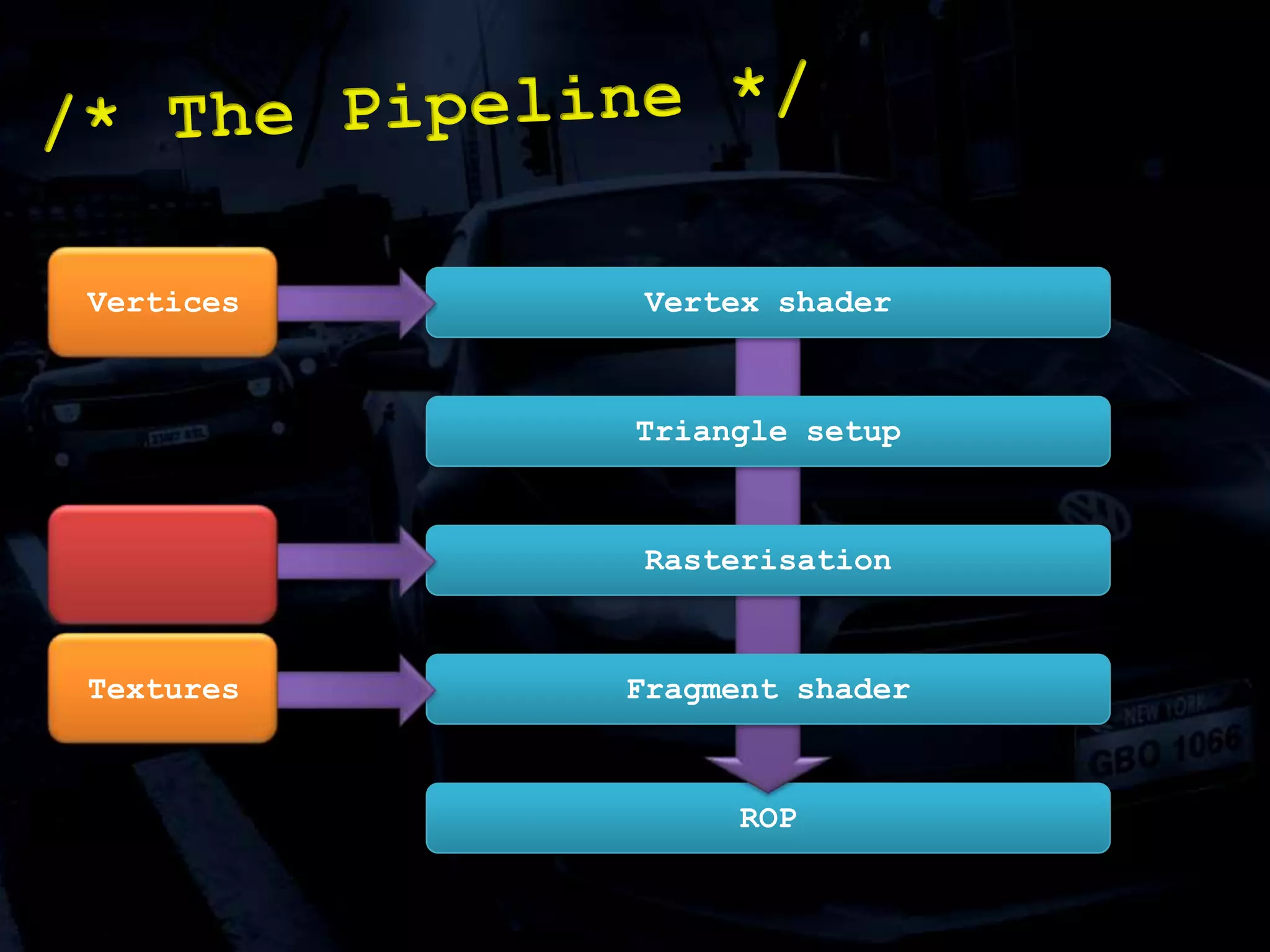

- 110. /* The Pipeline*/VerticesVertex shaderTriangle setupRasterisationTexturesFragment shaderROP

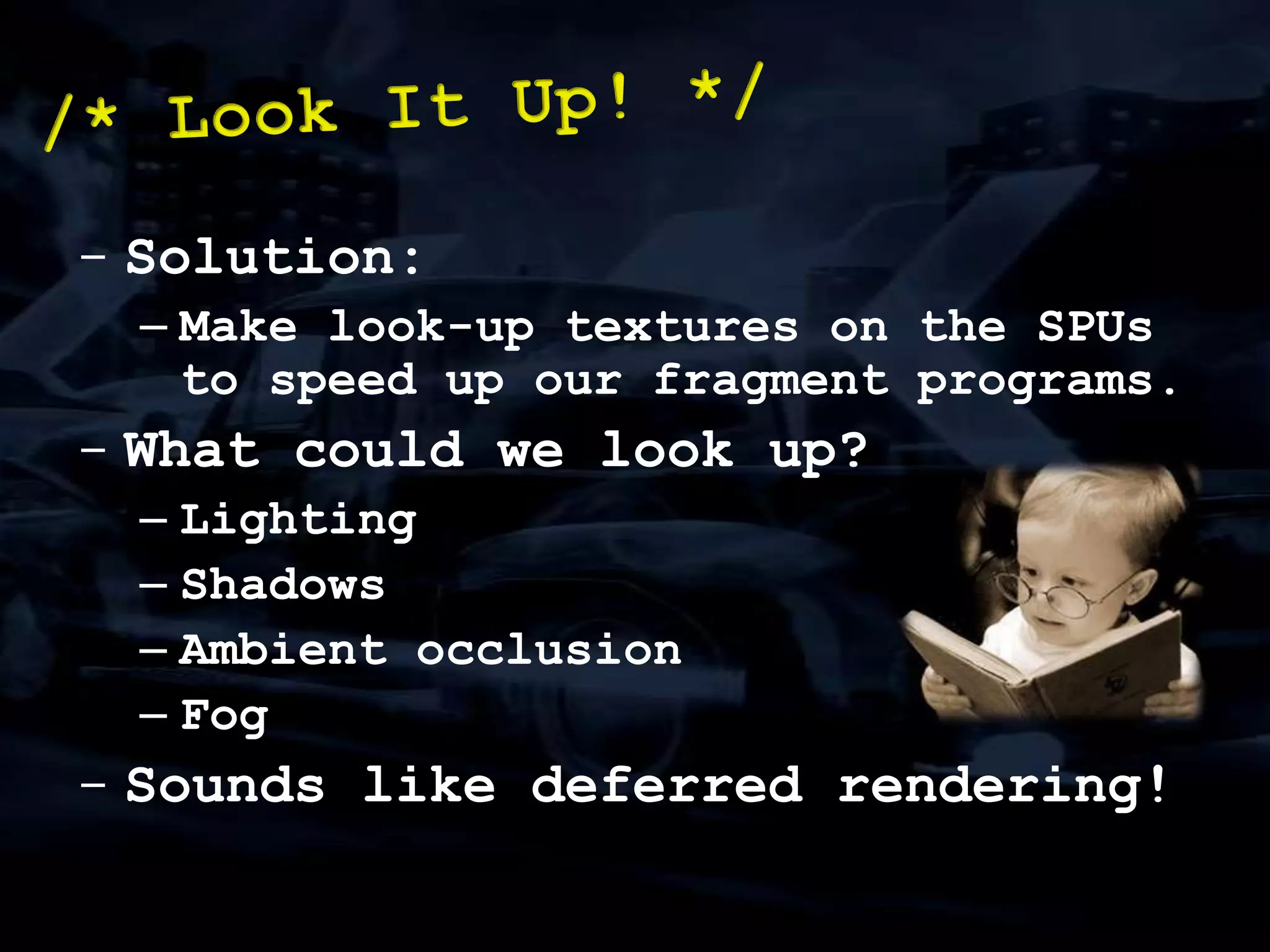

- 111. Solution:Make look-up textureson the SPUs to speed up our fragment programs.What could we look up?LightingShadowsAmbient occlusionFogSounds like deferred rendering!/* Look It Up! */
- 112.

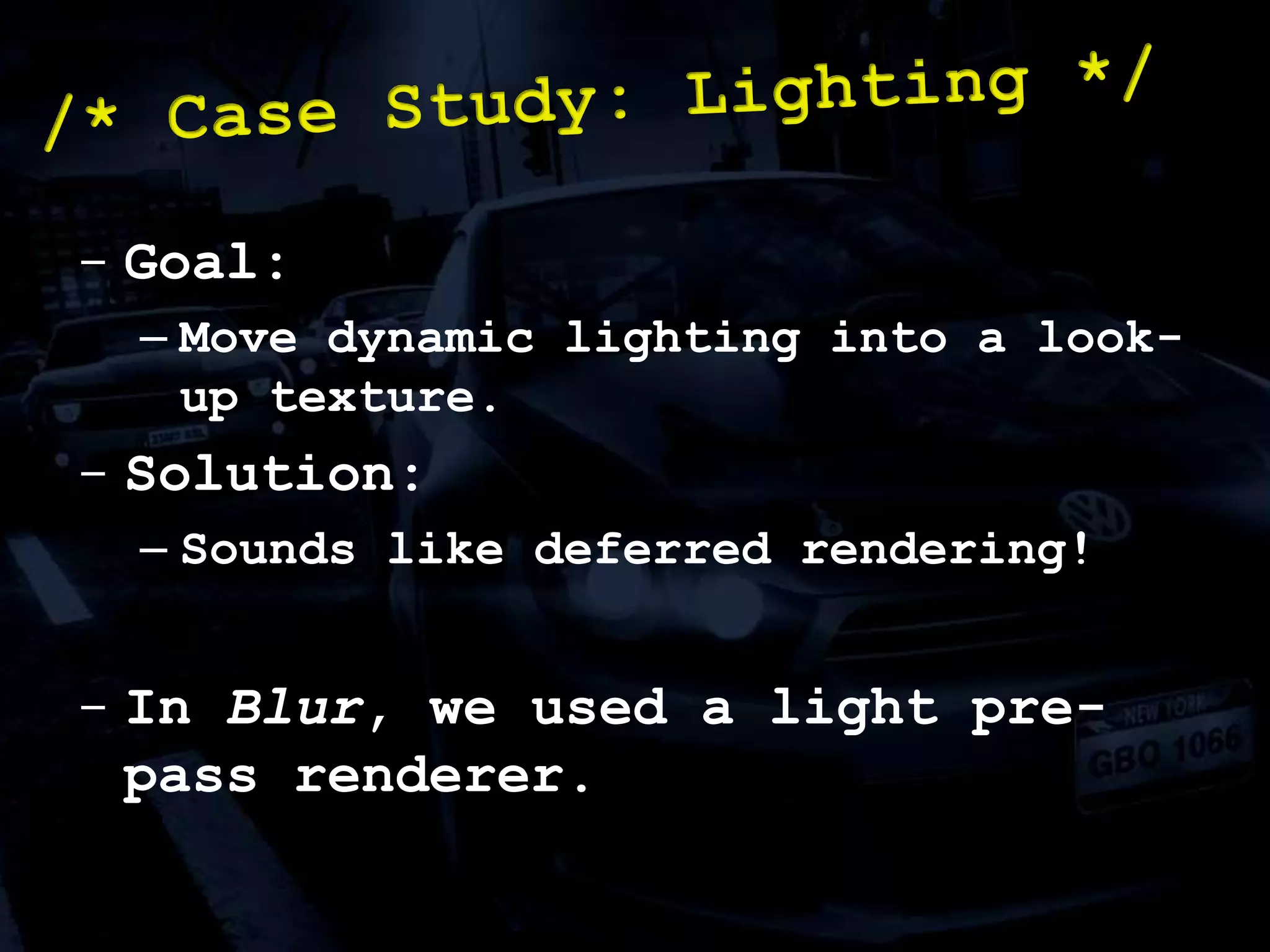

- 113. Goal:Move dynamic lightinginto a look-up texture.Solution:Sounds like deferred rendering!In Blur, we used a light pre-pass renderer./* Case Study: Lighting */

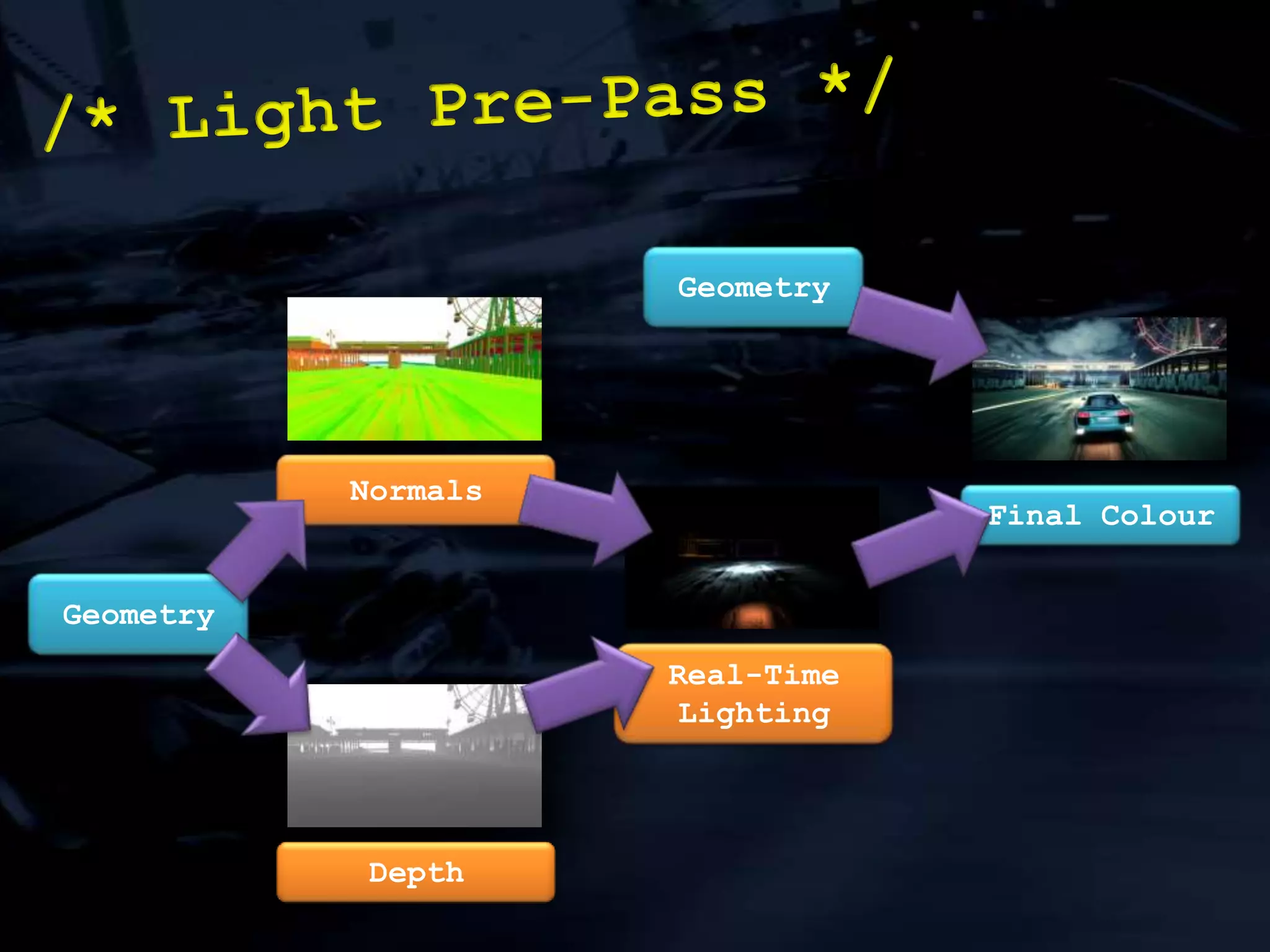

- 114. /* Light Pre-Pass*/GeometryNormalsFinal ColourGeometryReal-Time LightingDepth
- 115. /* A Frameof Blur */Solid AlphaPostPre-PassLightsMirror, Cube Map & ReflectionGPU:

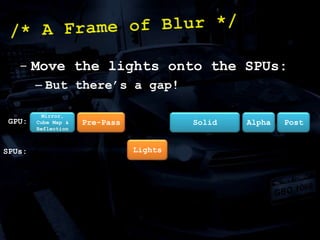

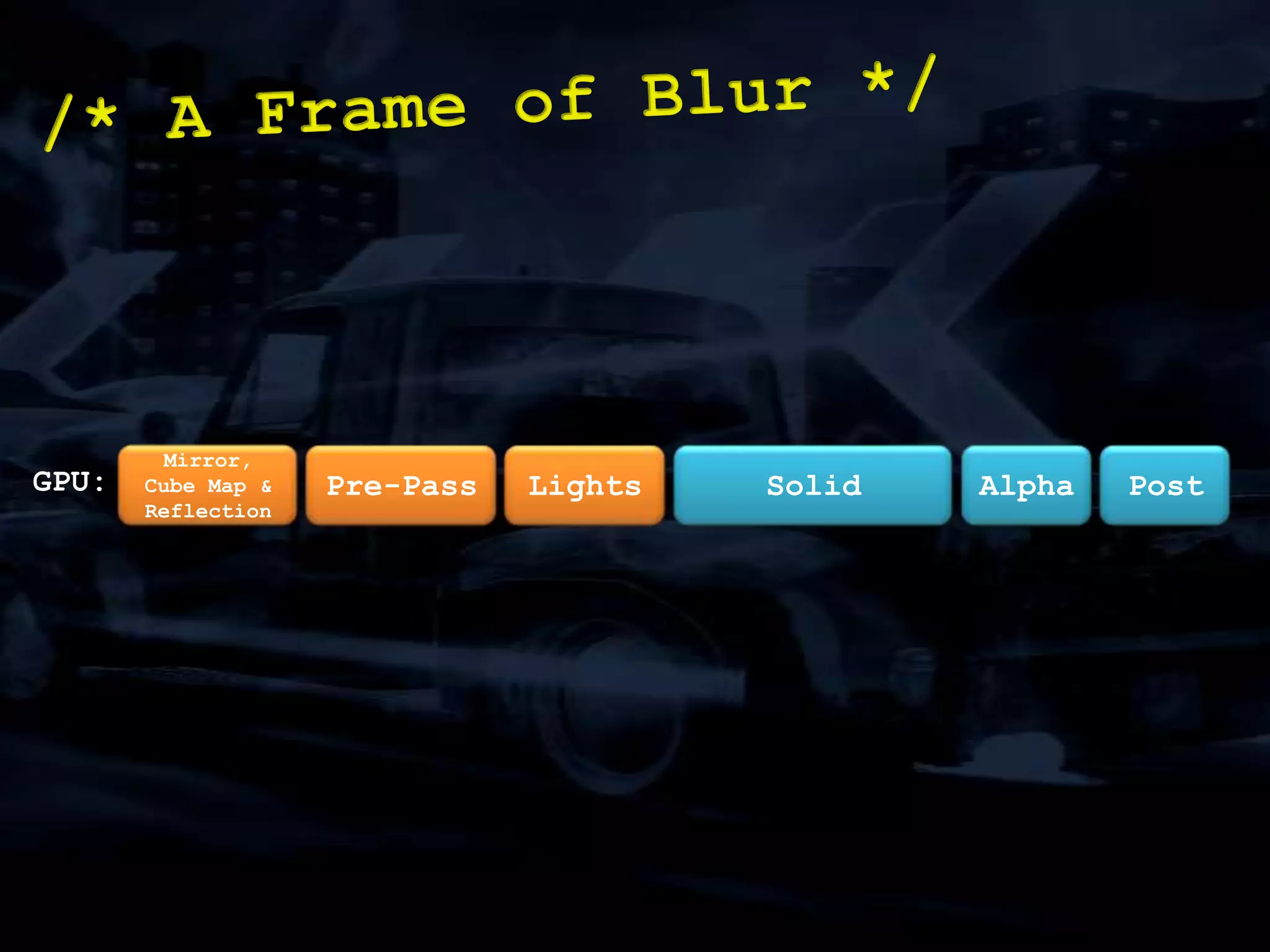

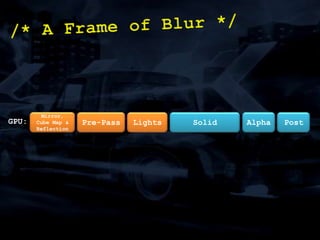

- 116. Move the lightsonto the SPUs:But there’s a gap!/* A Frame of Blur */Solid AlphaPostPre-PassMirror, Cube Map & ReflectionGPU:LightsSPUs:

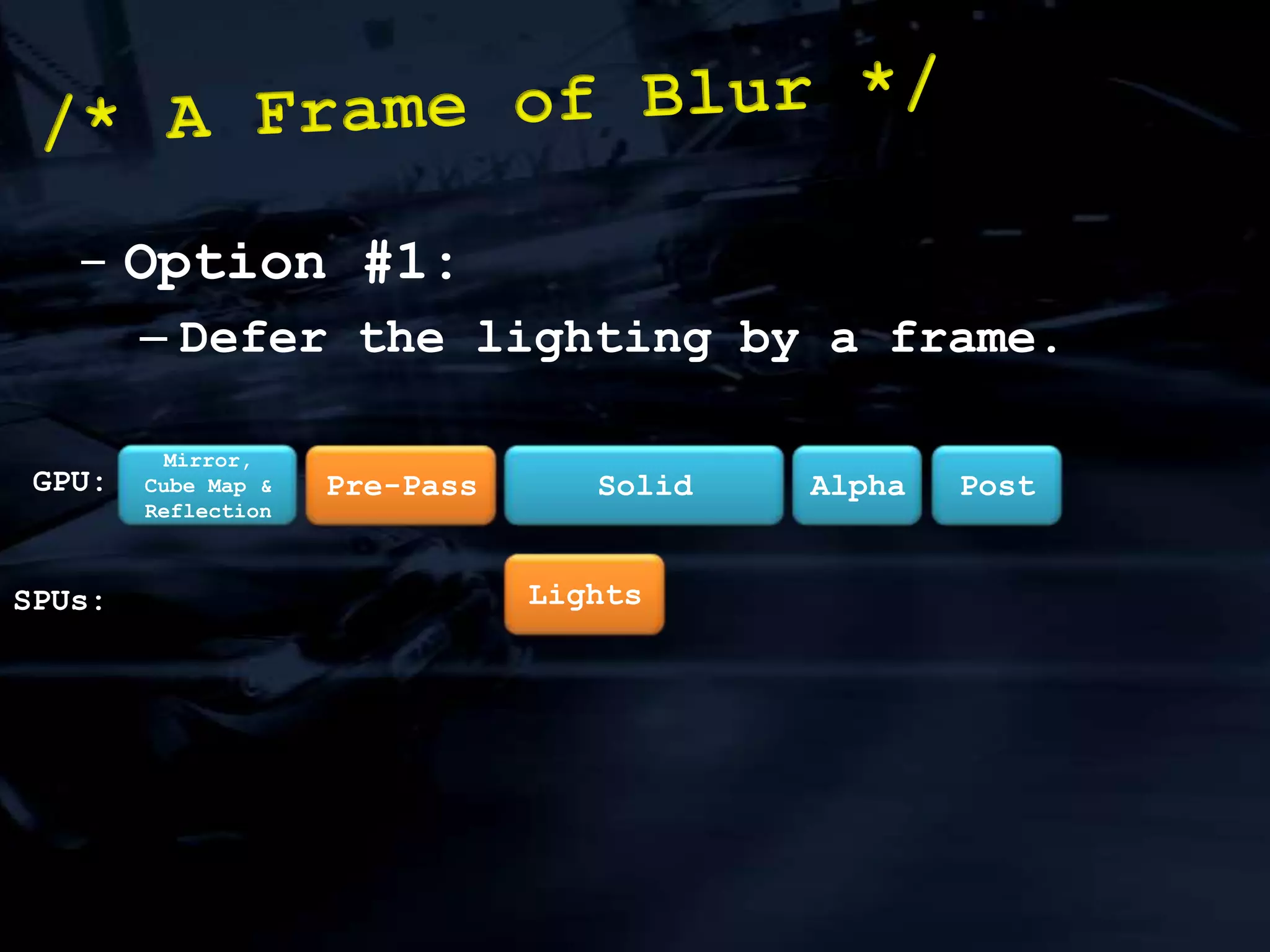

- 117. Option #1:Defer thelighting by a frame./* A Frame of Blur */Solid AlphaPostPre-PassMirror, Cube Map & ReflectionGPU:LightsSPUs:

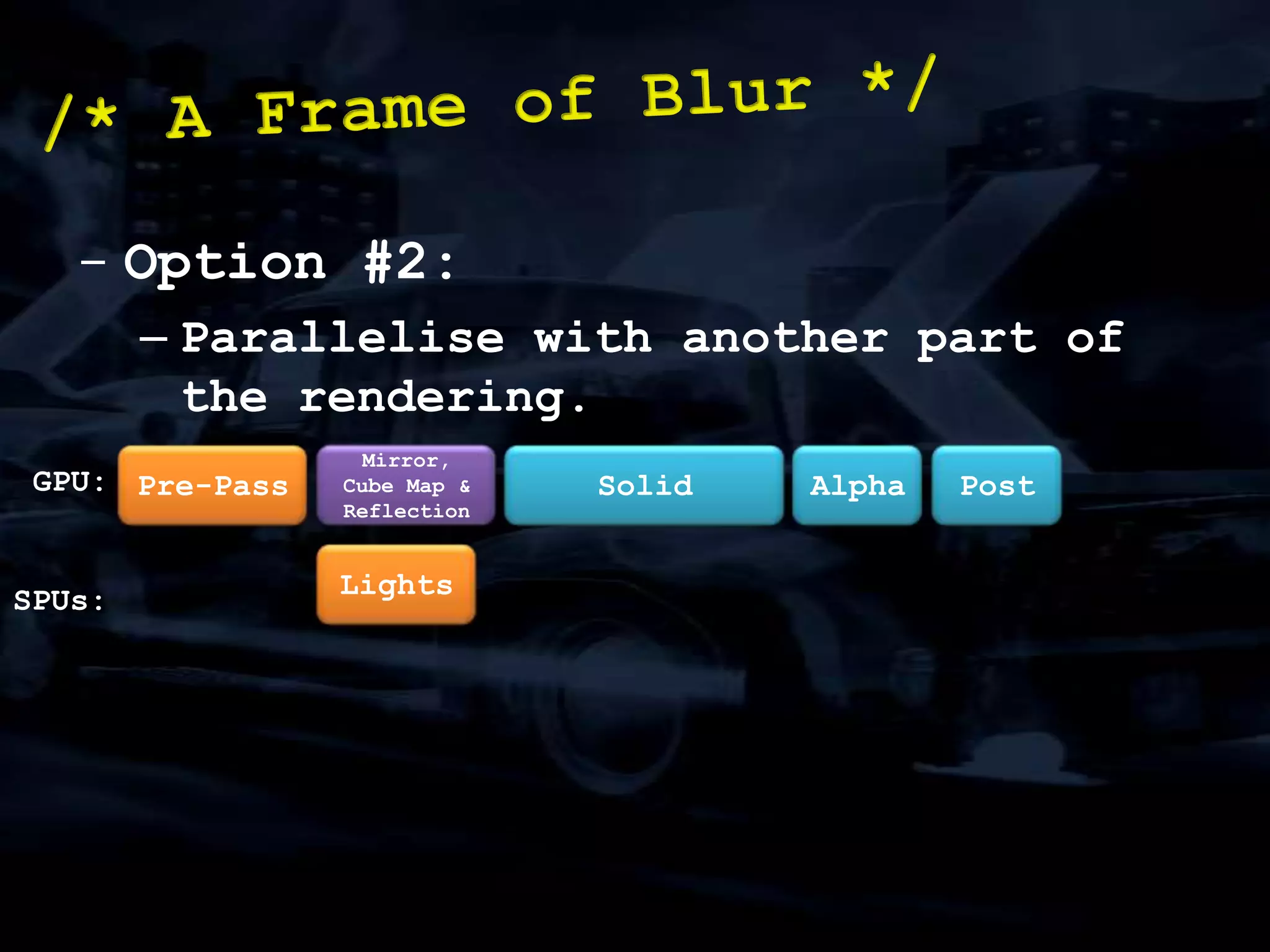

- 118. Option #2:Parallelise withanother part of the rendering./* A Frame of Blur */Solid AlphaPostPre-PassMirror, Cube Map & ReflectionGPU:LightsSPUs:

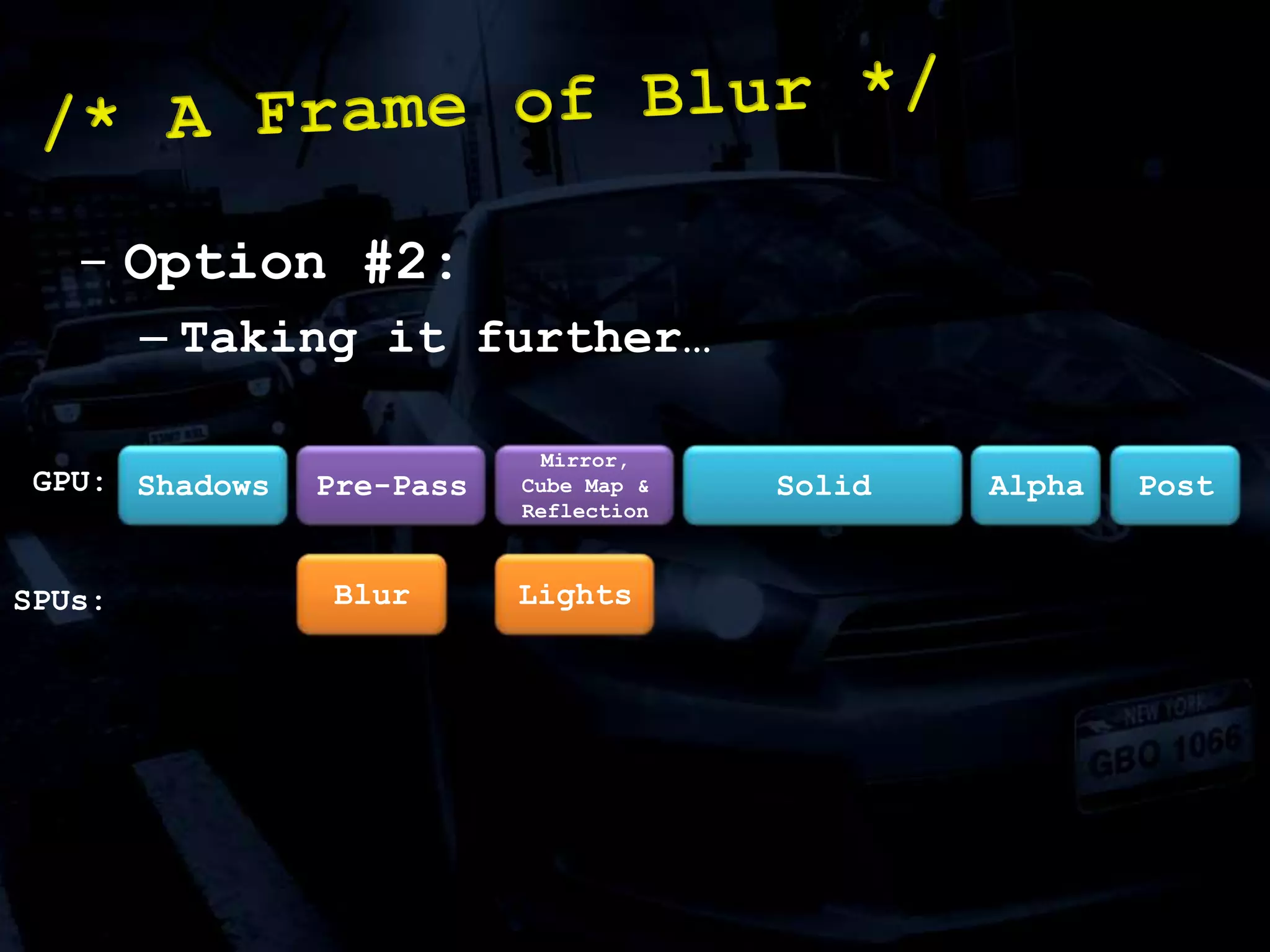

- 119. Option #2:Taking itfurther…/* A Frame of Blur */Solid AlphaPostPre-PassMirror, Cube Map & ReflectionShadowsGPU:LightsBlurSPUs:

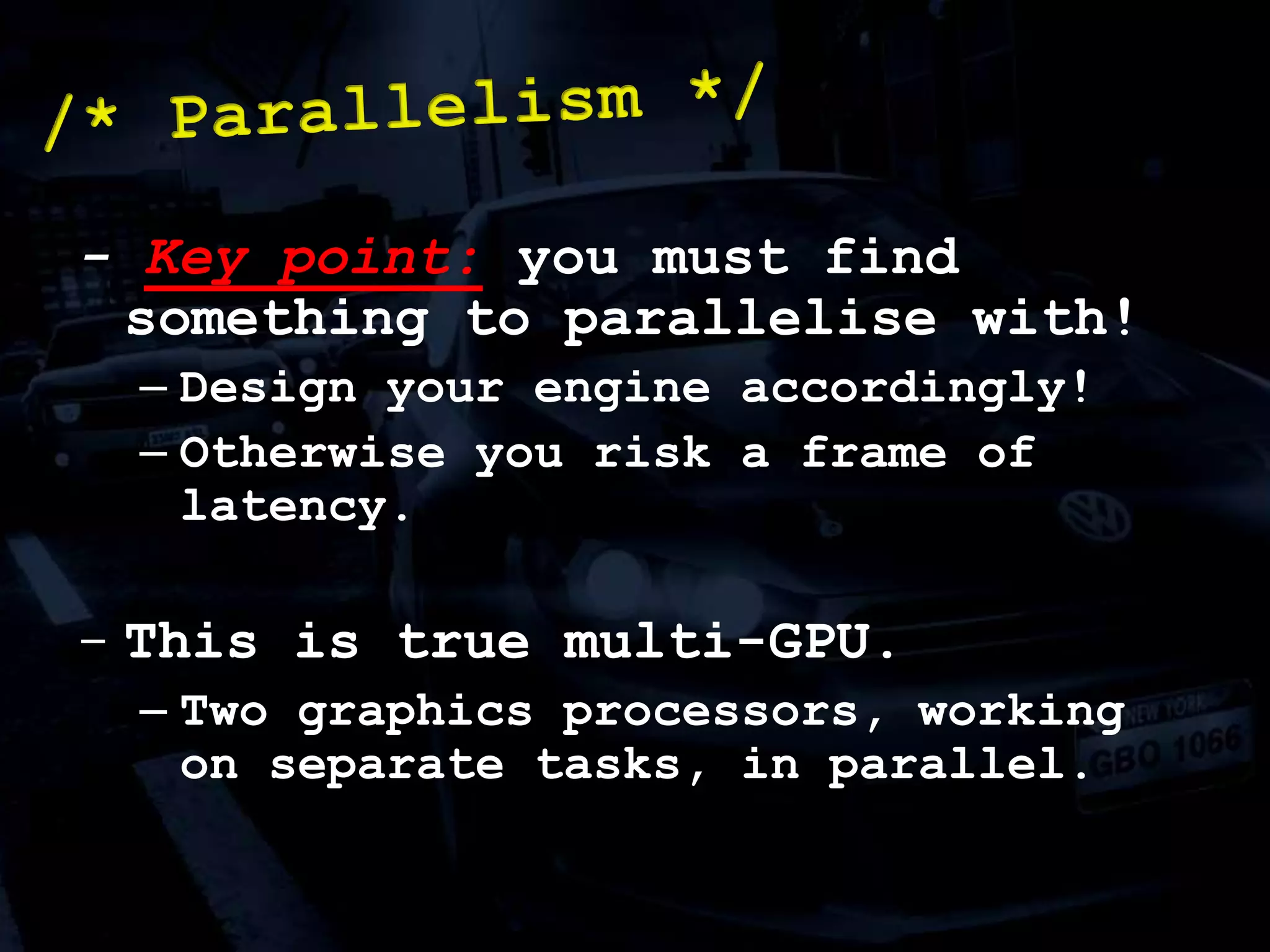

- 120. - Key point:youmust find something to parallelise with!Design your engine accordingly!Otherwise you risk a frame of latency.This is true multi-GPU.Two graphics processors, working on separate tasks, in parallel./* Parallelism */

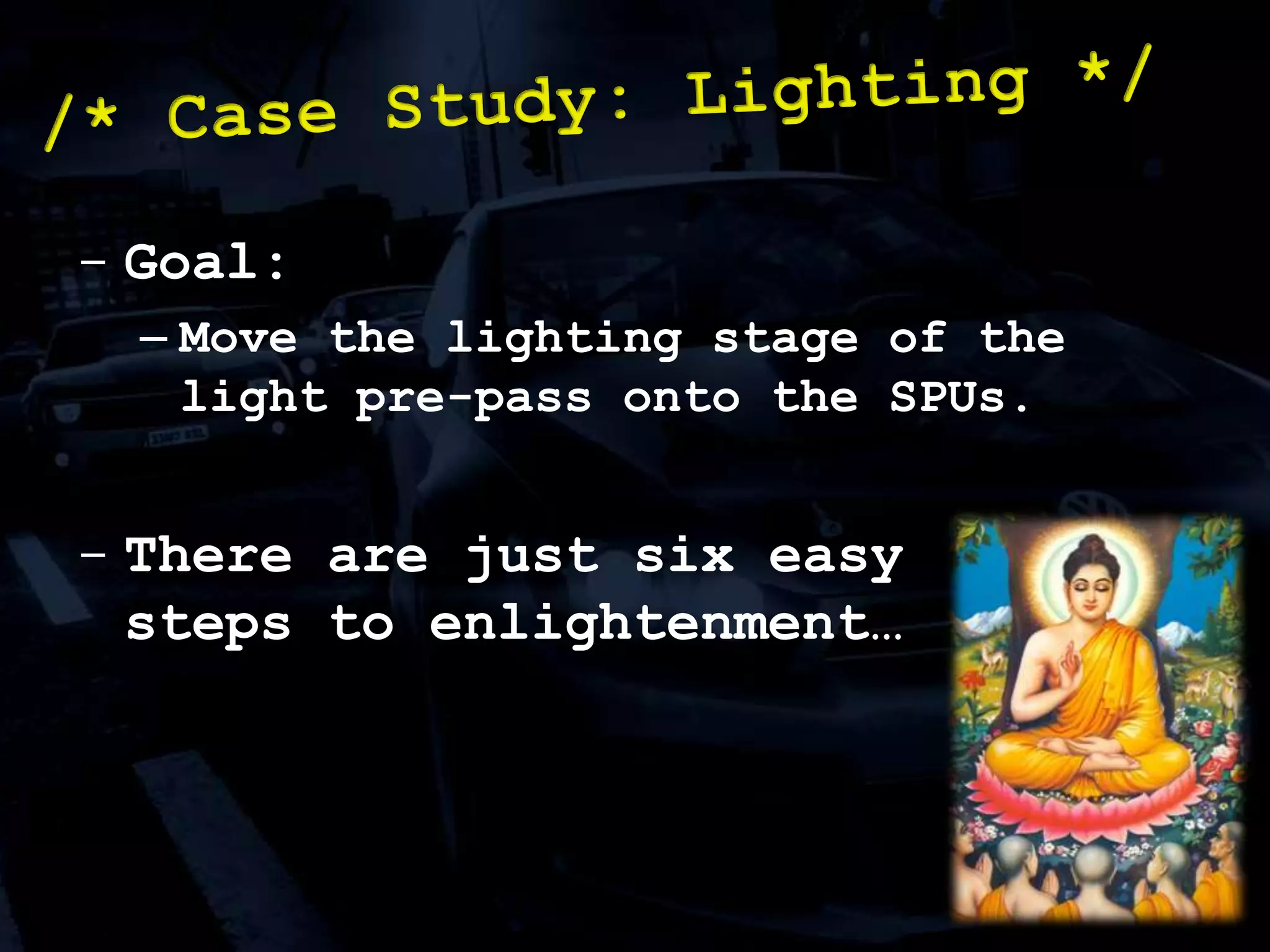

- 121. /* Case Study:Lighting */Goal:Move the lighting stage of the light pre-pass onto the SPUs.There are just six easy steps to enlightenment…/* Step #1: The Data */NormalsTransformDepthLights

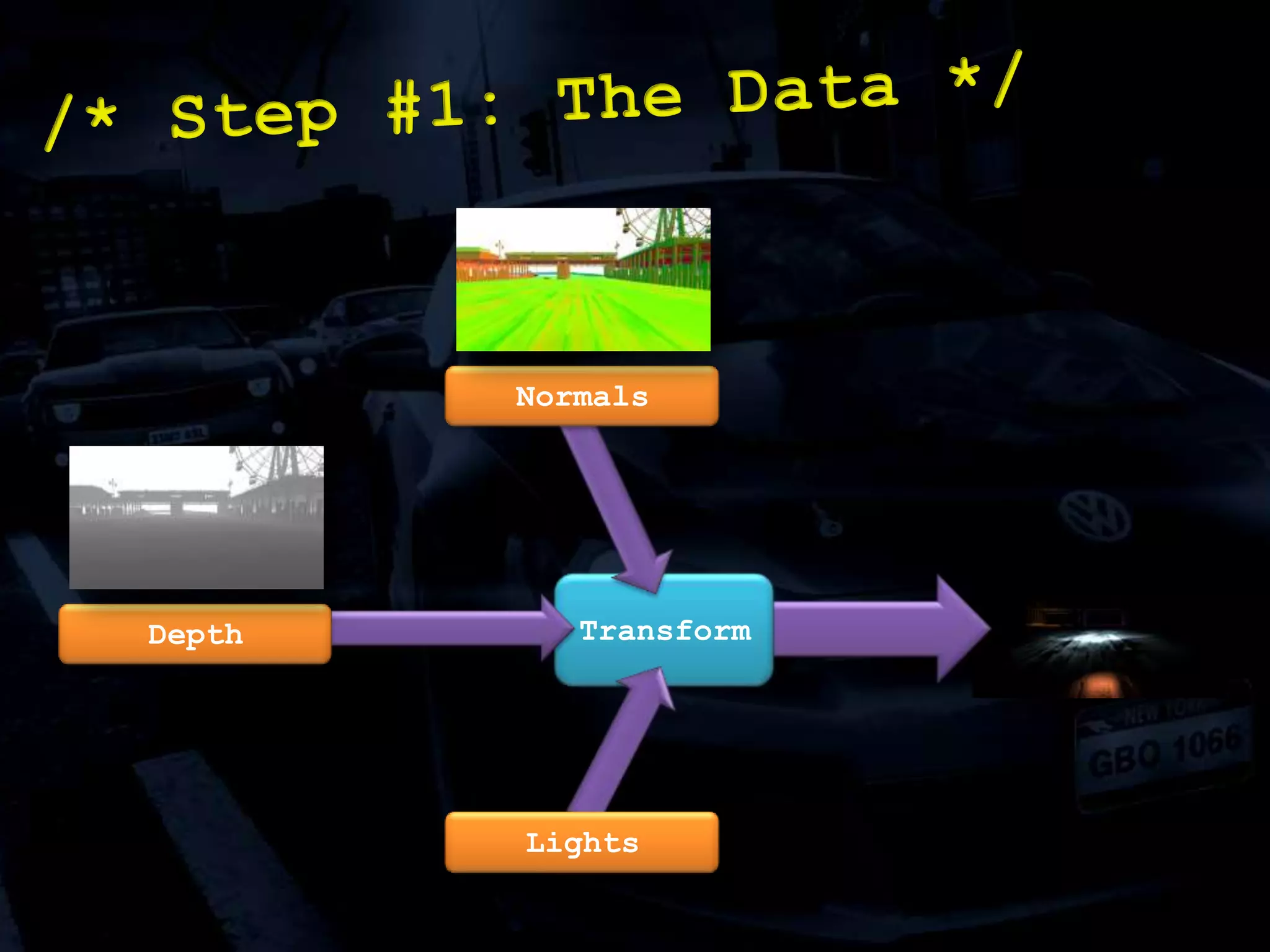

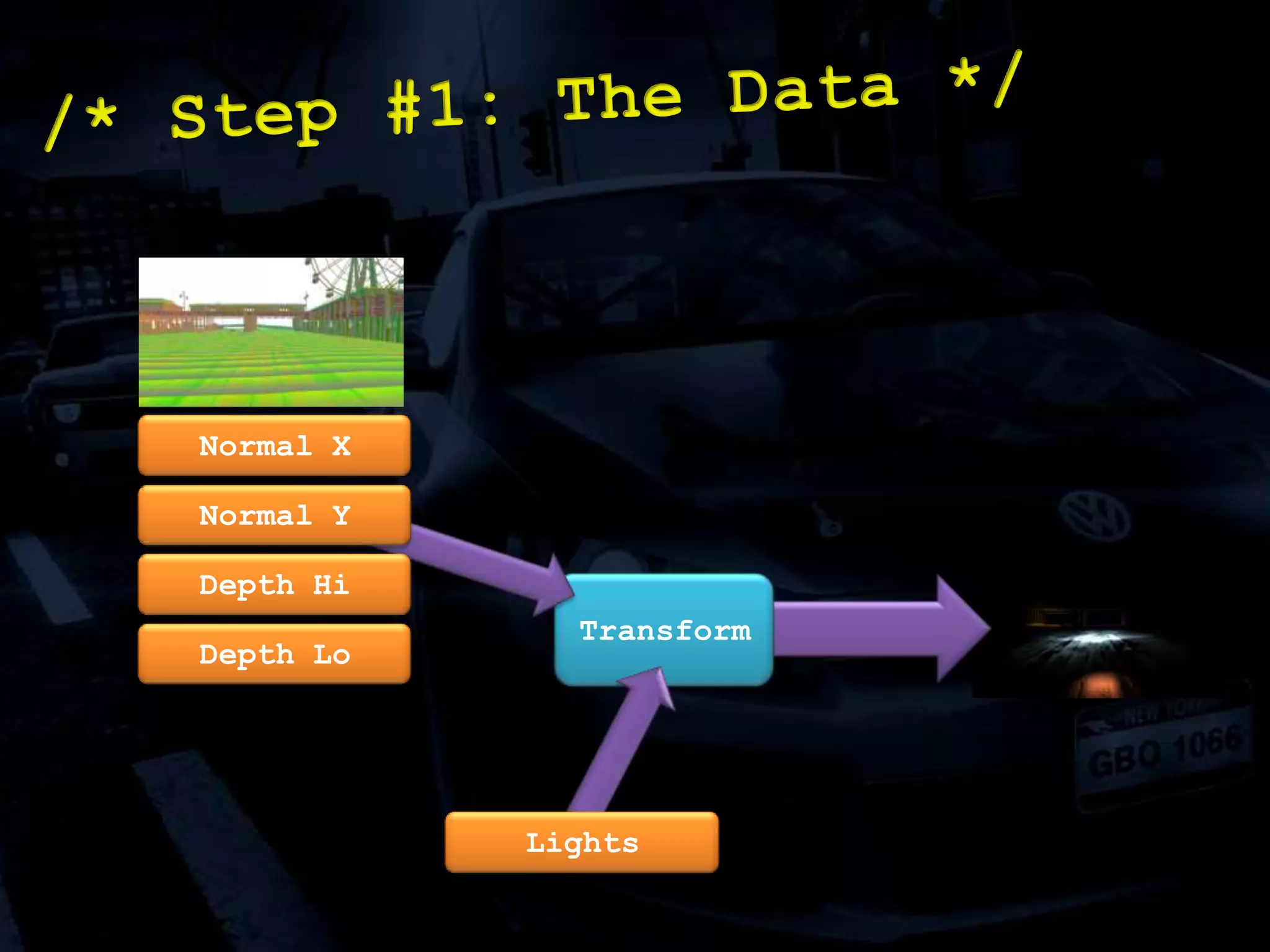

- 122. /* Step #1:The Data */Normal XNormal YDepth HiTransformDepth LoLights

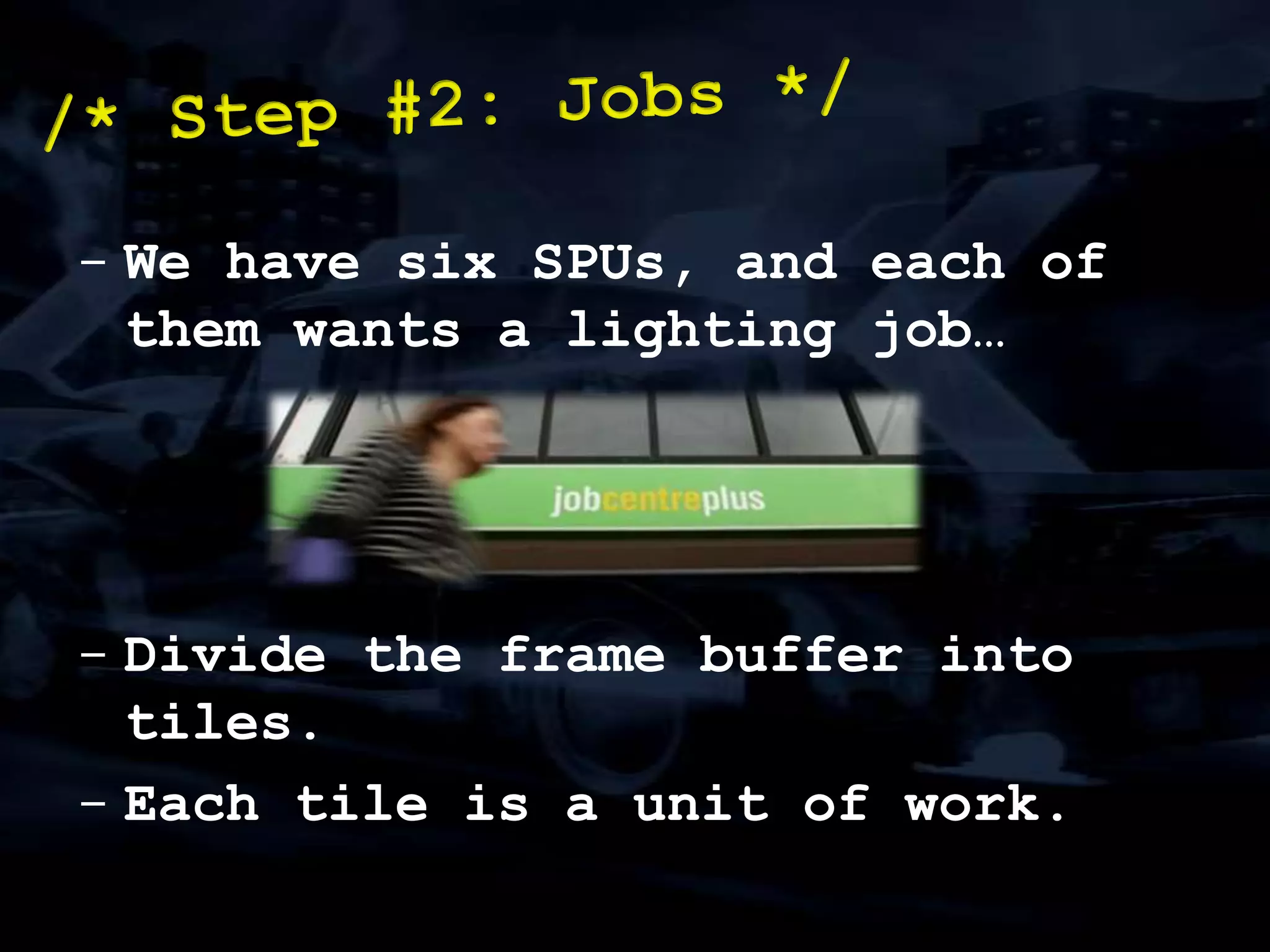

- 123. We have sixSPUs, and each of them wants a lighting job…
- 124. Divide the framebuffer into tiles.

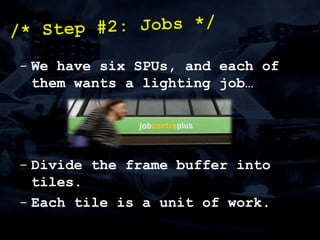

- 125. Each tile isa unit of work./* Step #2: Jobs */

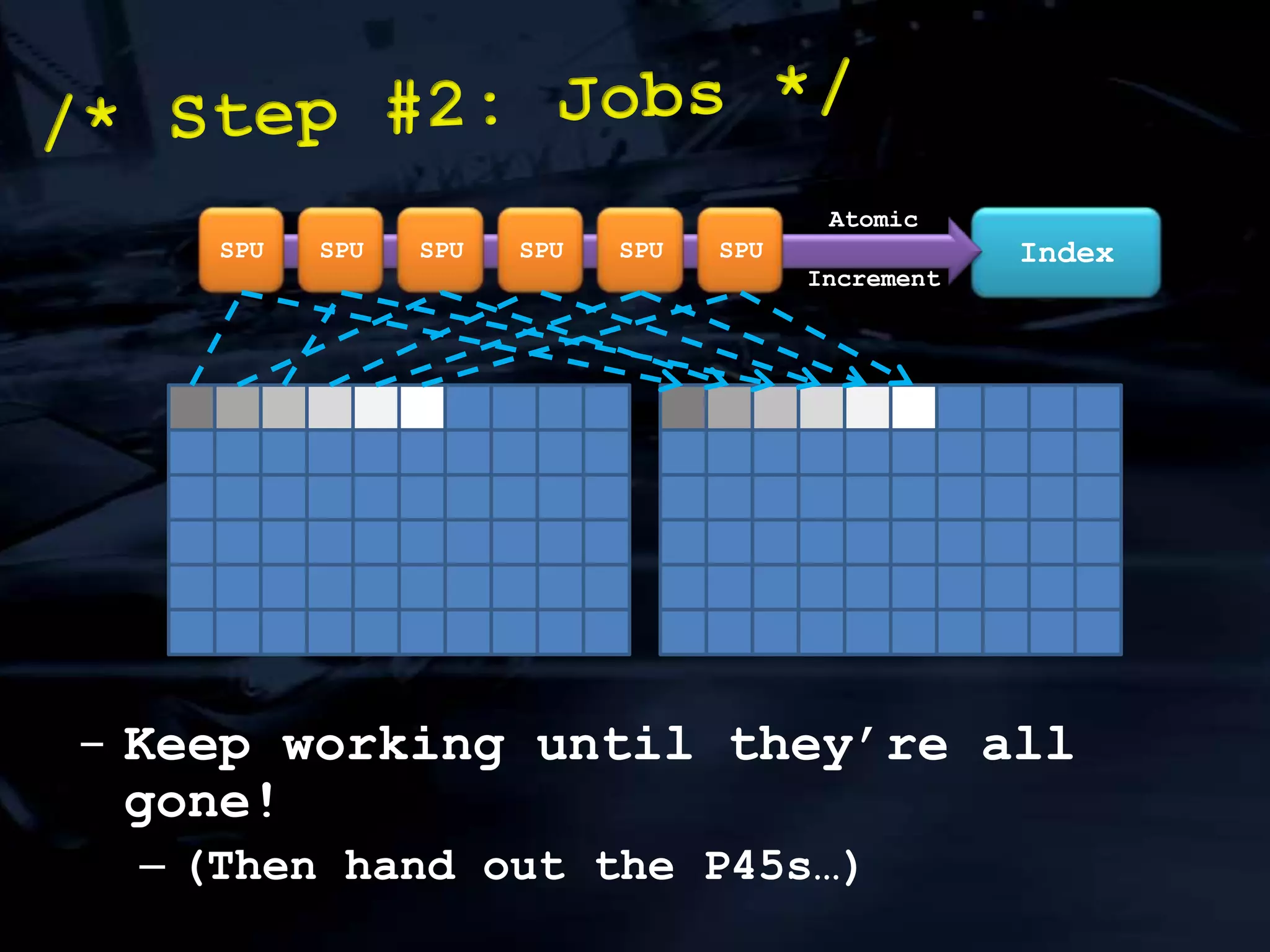

- 126. /* Step #2:Jobs */AtomicIncrementIndexKeep working until they’re all gone!(Then hand out the P45s…)SPUSPUSPUSPUSPUSPU
- 127. Can be atime sink if you’re not careful!Expect to find your worst bugs here.Best to get it right first time!/* Step #3: Sync */

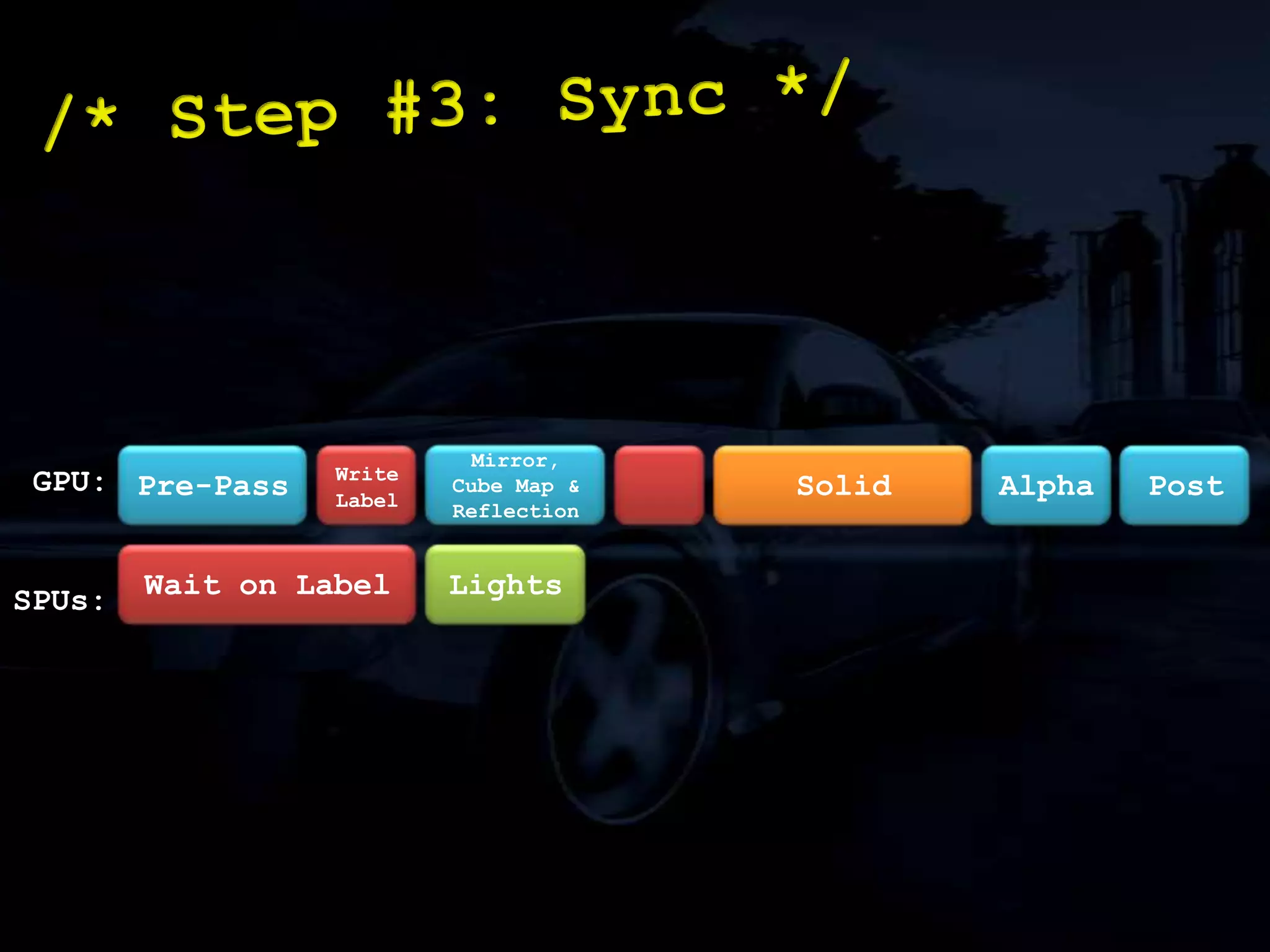

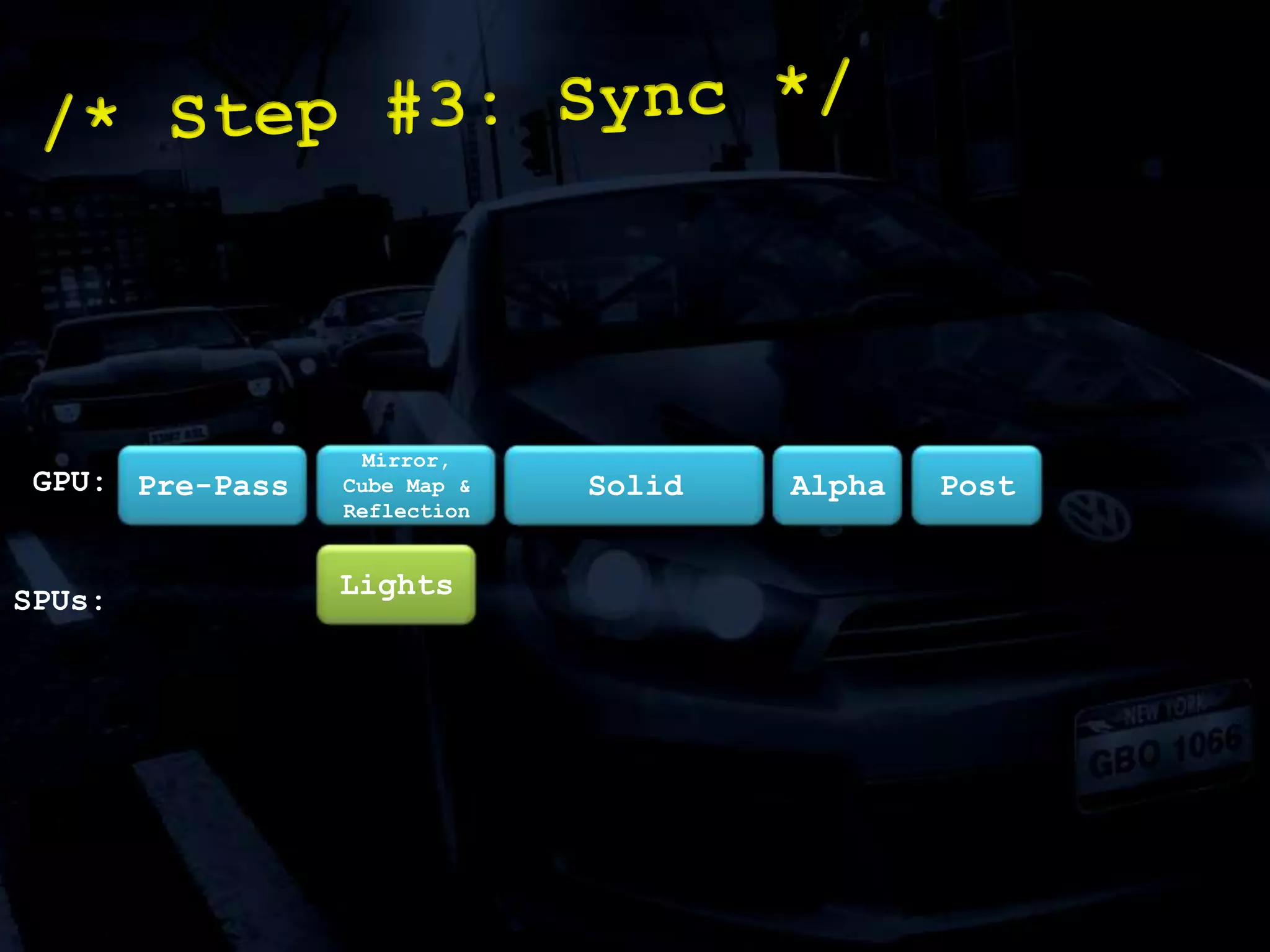

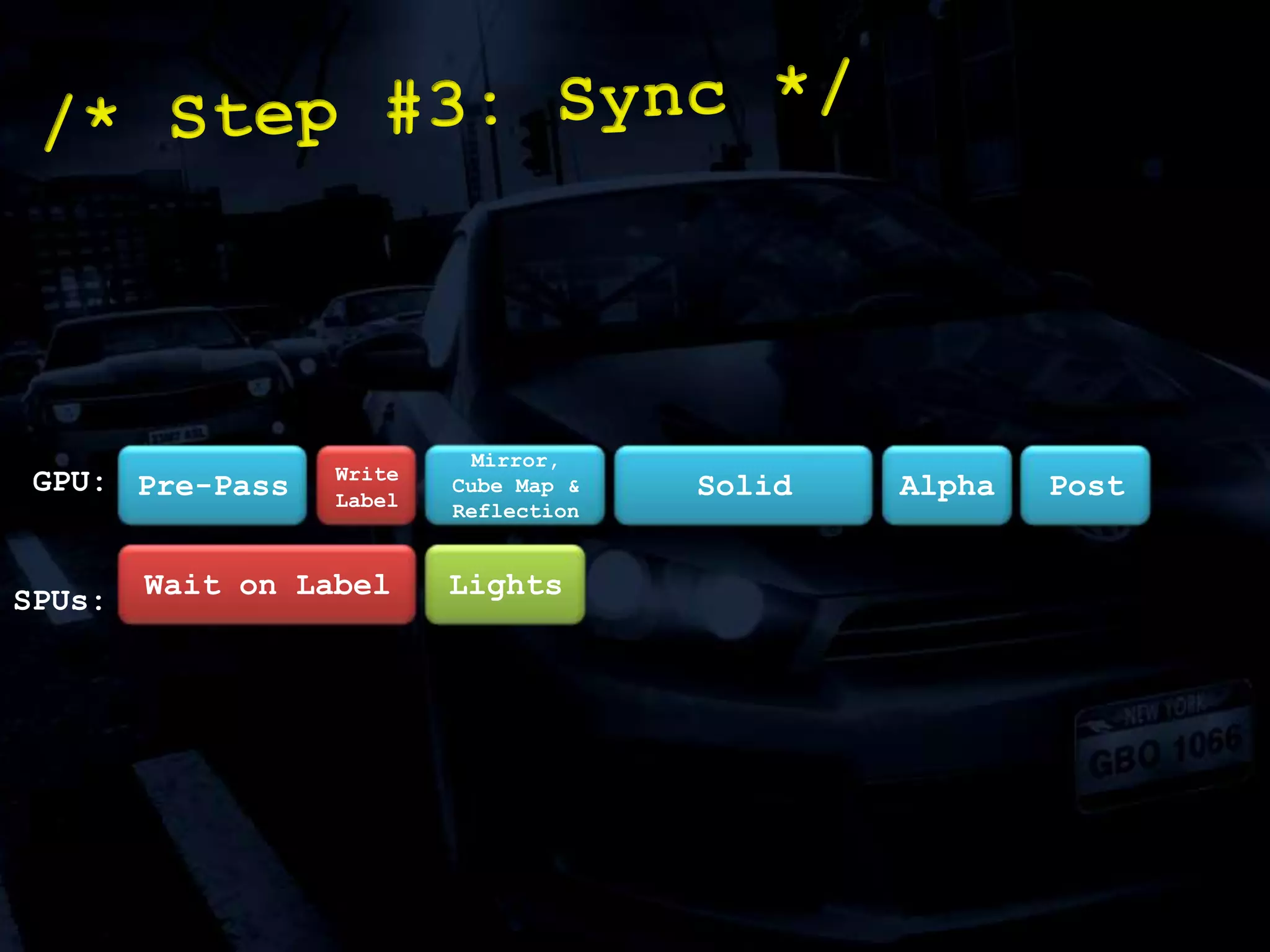

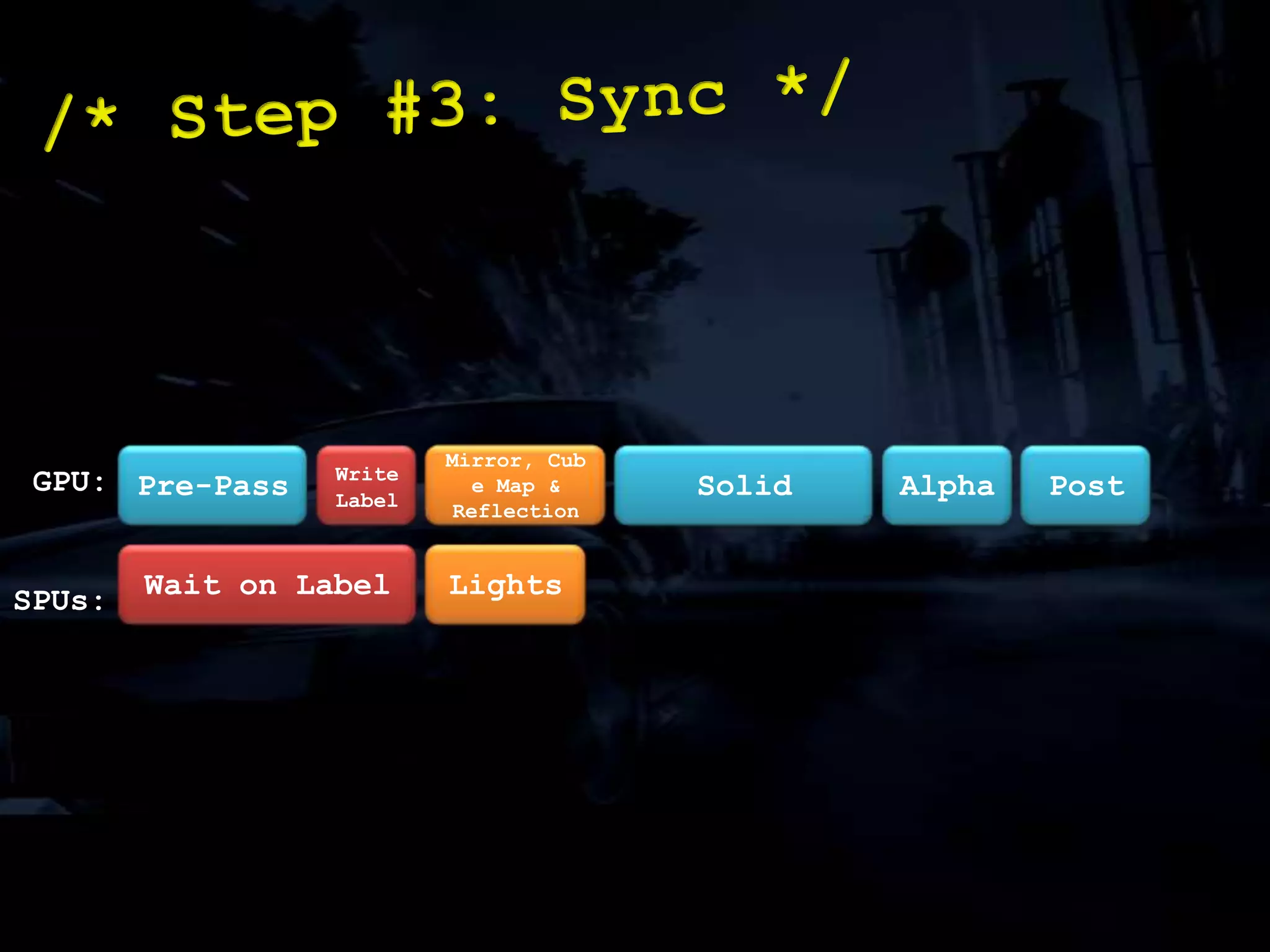

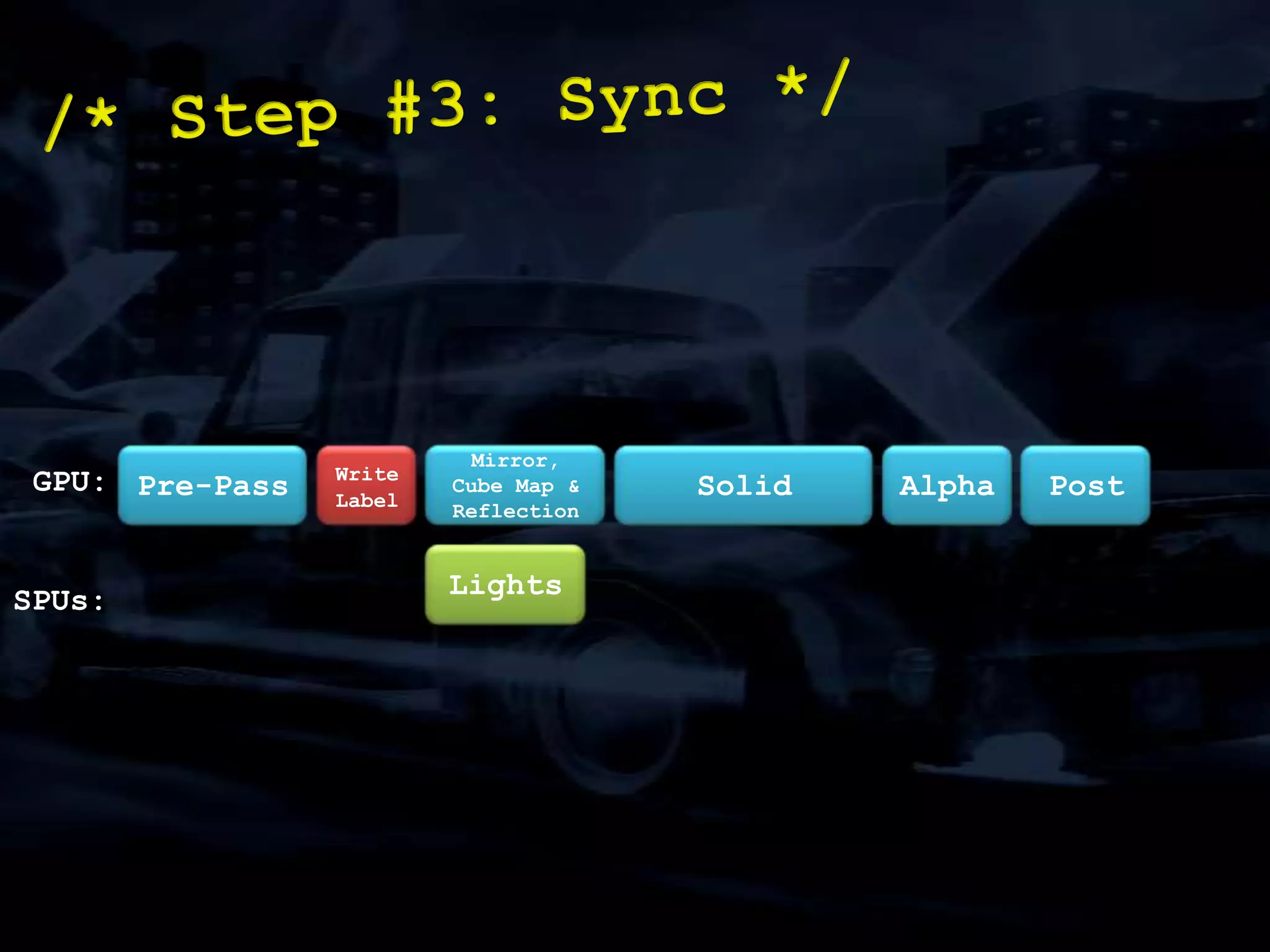

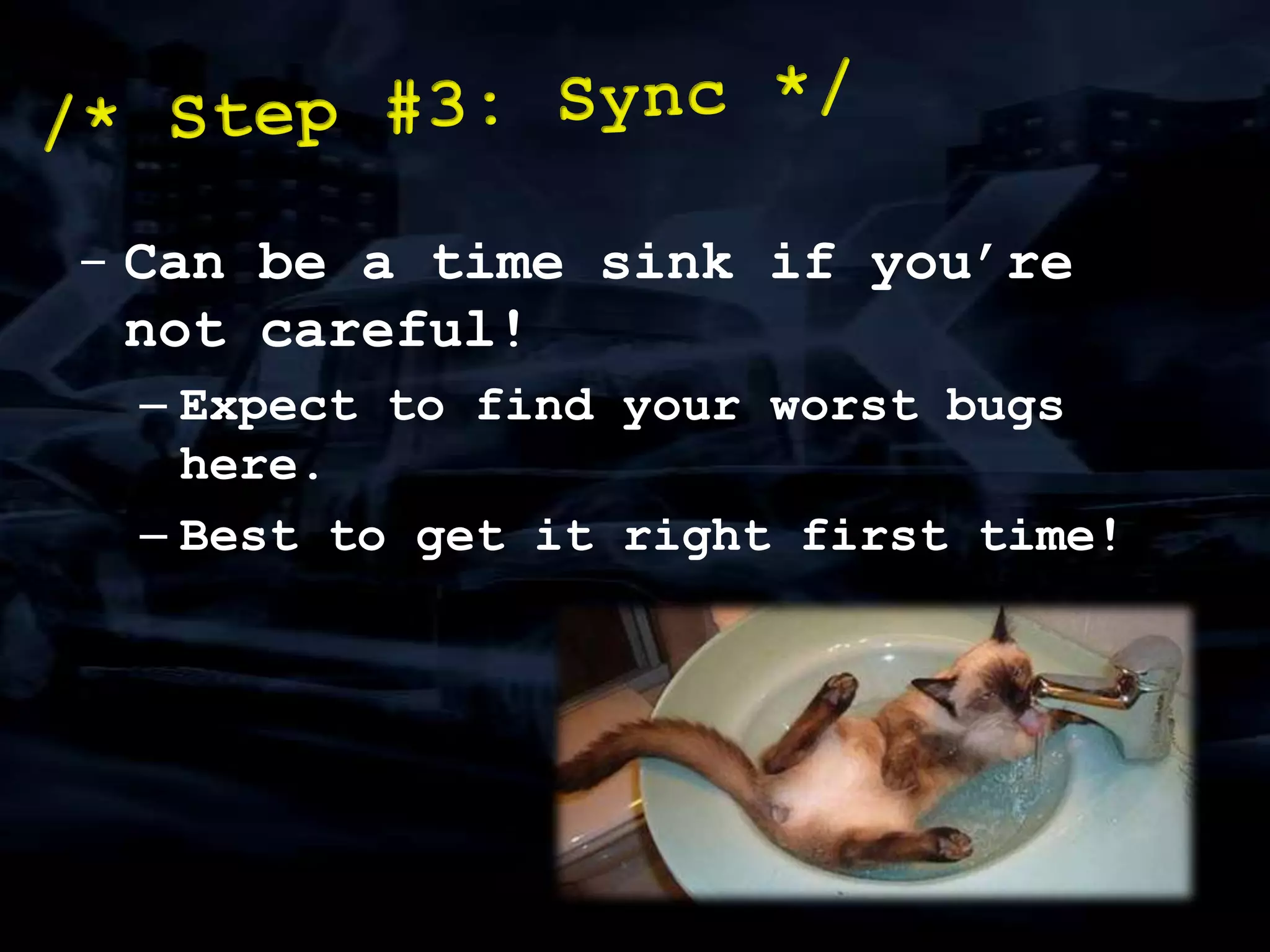

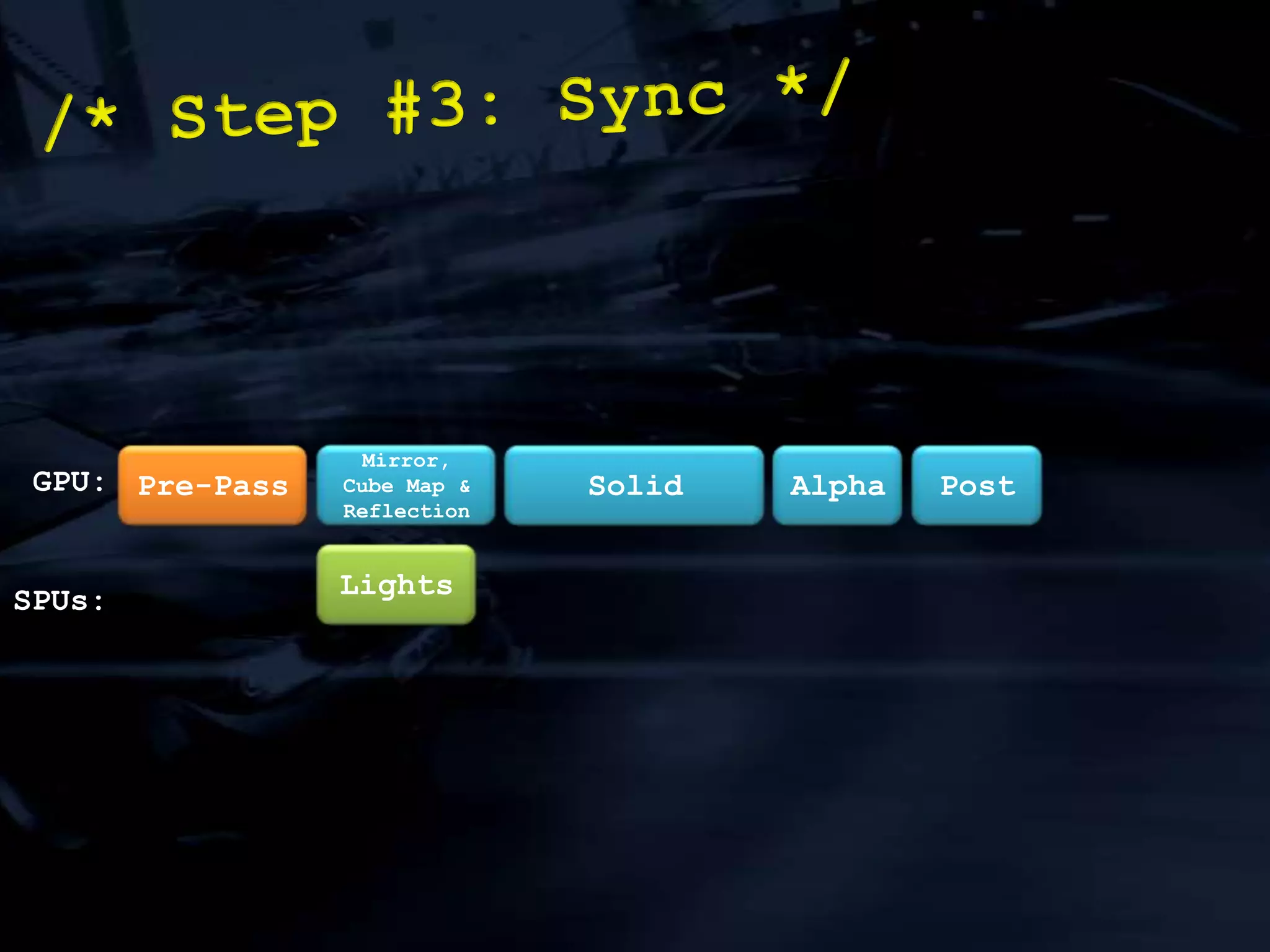

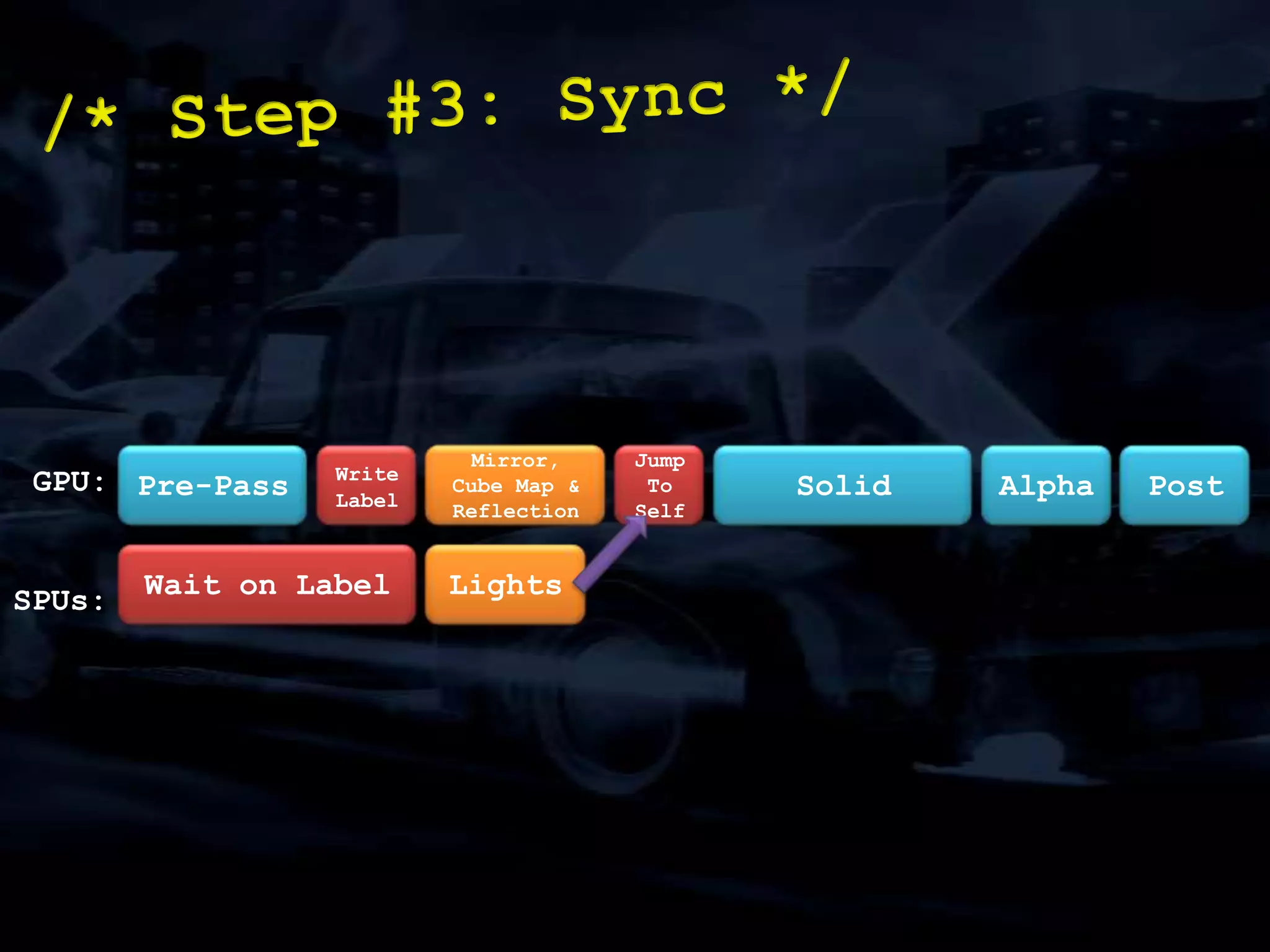

- 128. /* Step #3:Sync */Solid AlphaPostPre-PassMirror, Cube Map & ReflectionGPU:LightsSPUs:
- 129. /* Step #3:Sync */Solid AlphaPostPre-PassMirror, Cube Map & ReflectionGPU:LightsSPUs:
- 130. /* Step #3:Sync */Solid AlphaPostPre-PassMirror, Cube Map & ReflectionWriteLabelGPU:LightsSPUs:
- 131. /* Step #3:Sync */Solid AlphaPostPre-PassMirror, Cube Map & ReflectionWriteLabelGPU:LightsWait on LabelSPUs:
- 132. /* Step #3:Sync */Solid AlphaPostPre-PassMirror, Cube Map & ReflectionWriteLabelGPU:LightsWait on LabelSPUs:
- 133. /* Step #3:Sync */Solid AlphaPostPre-PassMirror, Cube Map & ReflectionWriteLabelJump To SelfGPU:LightsWait on LabelSPUs:
- 134. /* Step #3:Sync */Solid AlphaPostPre-PassMirror, Cube Map & ReflectionWriteLabelGPU:LightsWait on LabelSPUs:

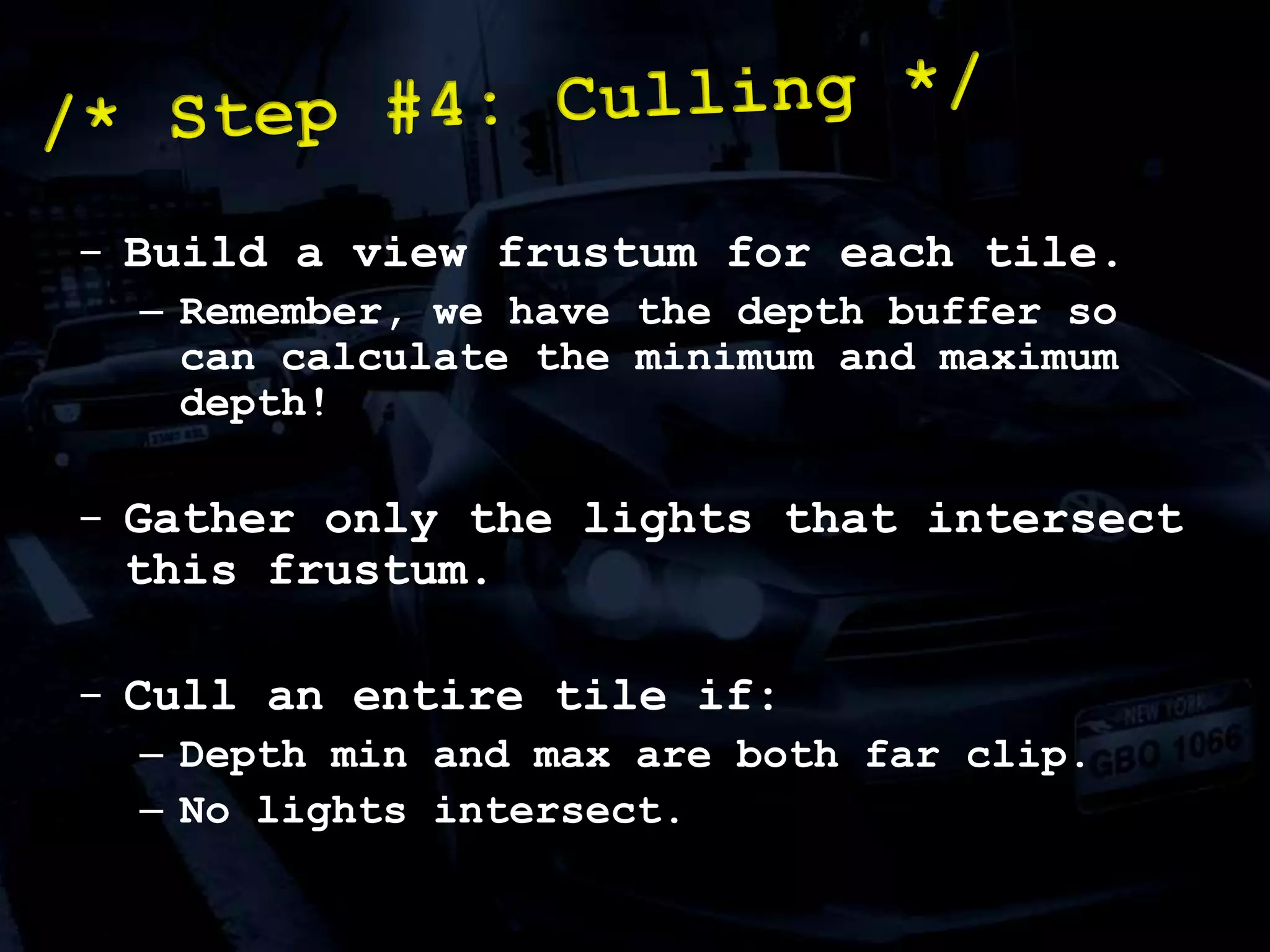

- 135. Build a viewfrustum for each tile.Remember, we have the depth buffer so can calculate the minimum and maximum depth!Gather only the lights that intersect this frustum.
- 136. Cull an entiretile if:Depth min and max are both far clip.No lights intersect./* Step #4: Culling */

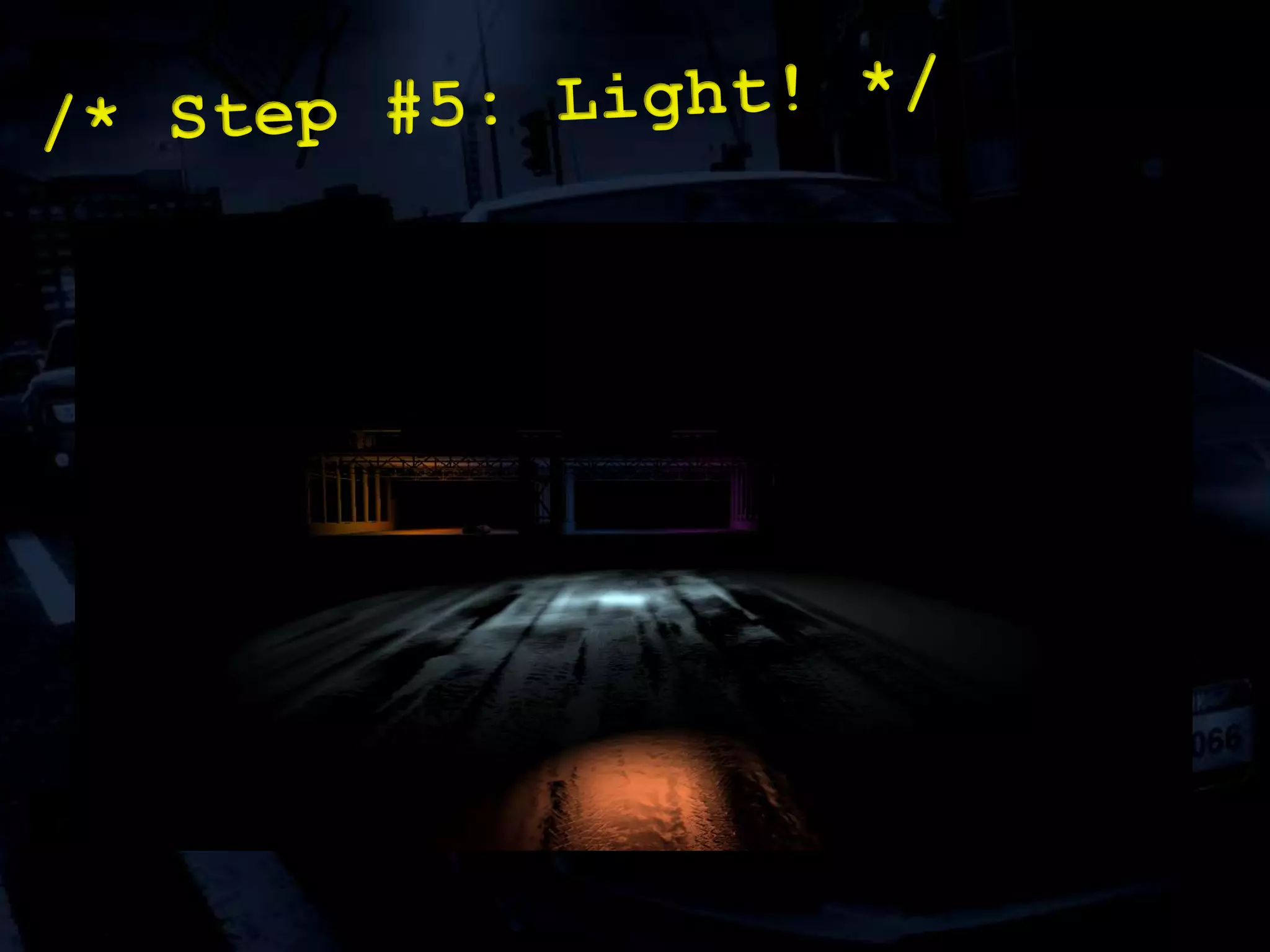

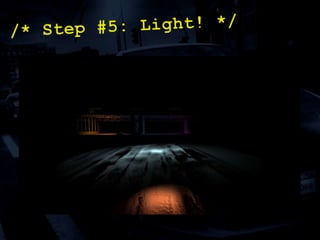

- 137. /* Step #5:Light! */

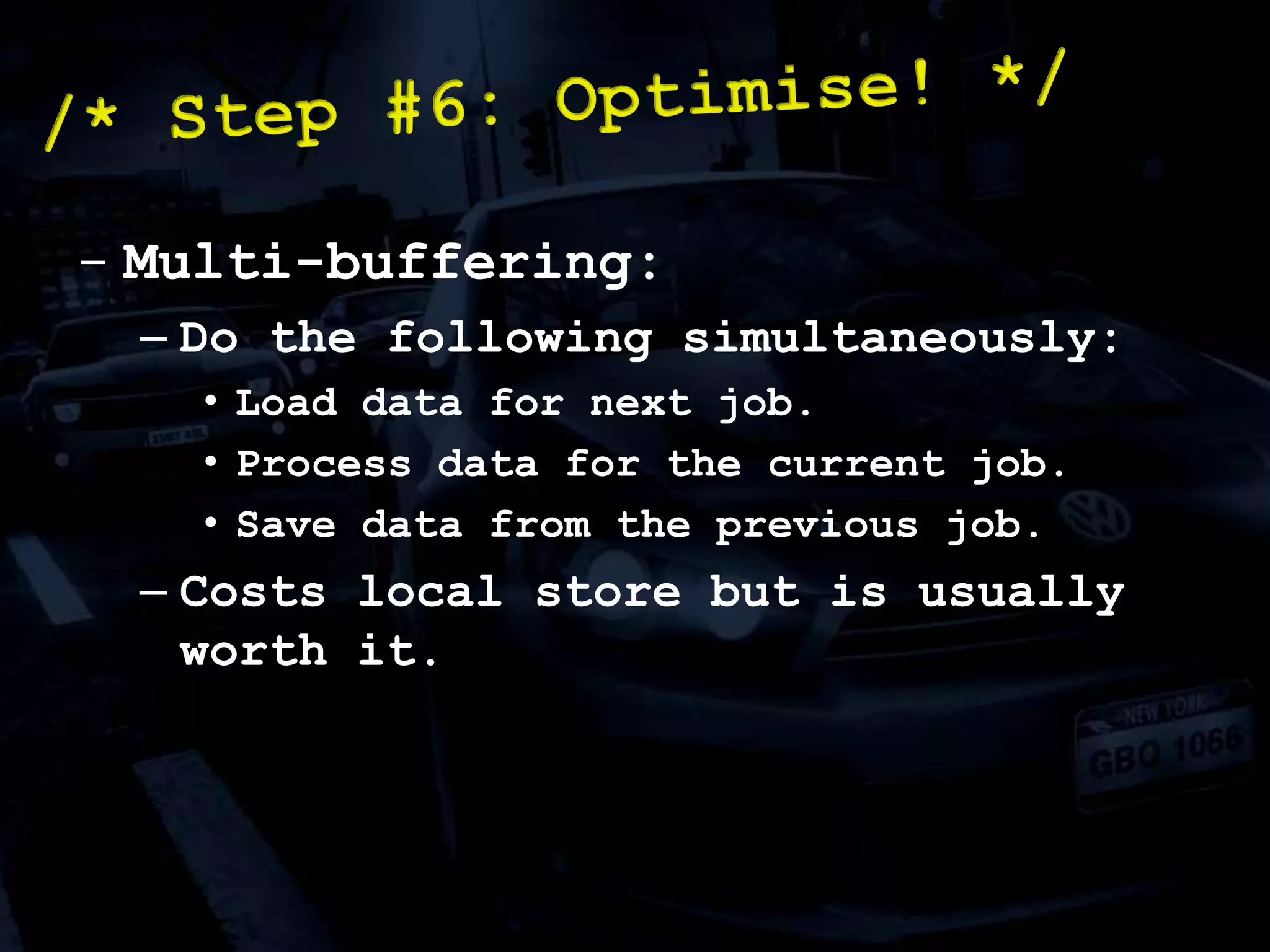

- 138. Multi-buffering:Do the followingsimultaneously:Load data for next job.Process data for the current job.Save data from the previous job.Costs local store but is usually worth it./* Step #6: Optimise! */
- 139. Structure-of-arrays:Transpose your datafor massive damage!e.g./* Step #6: Optimise! */xyzwxxxxxyzwyyyyxyzwzzzzxyzwwwww

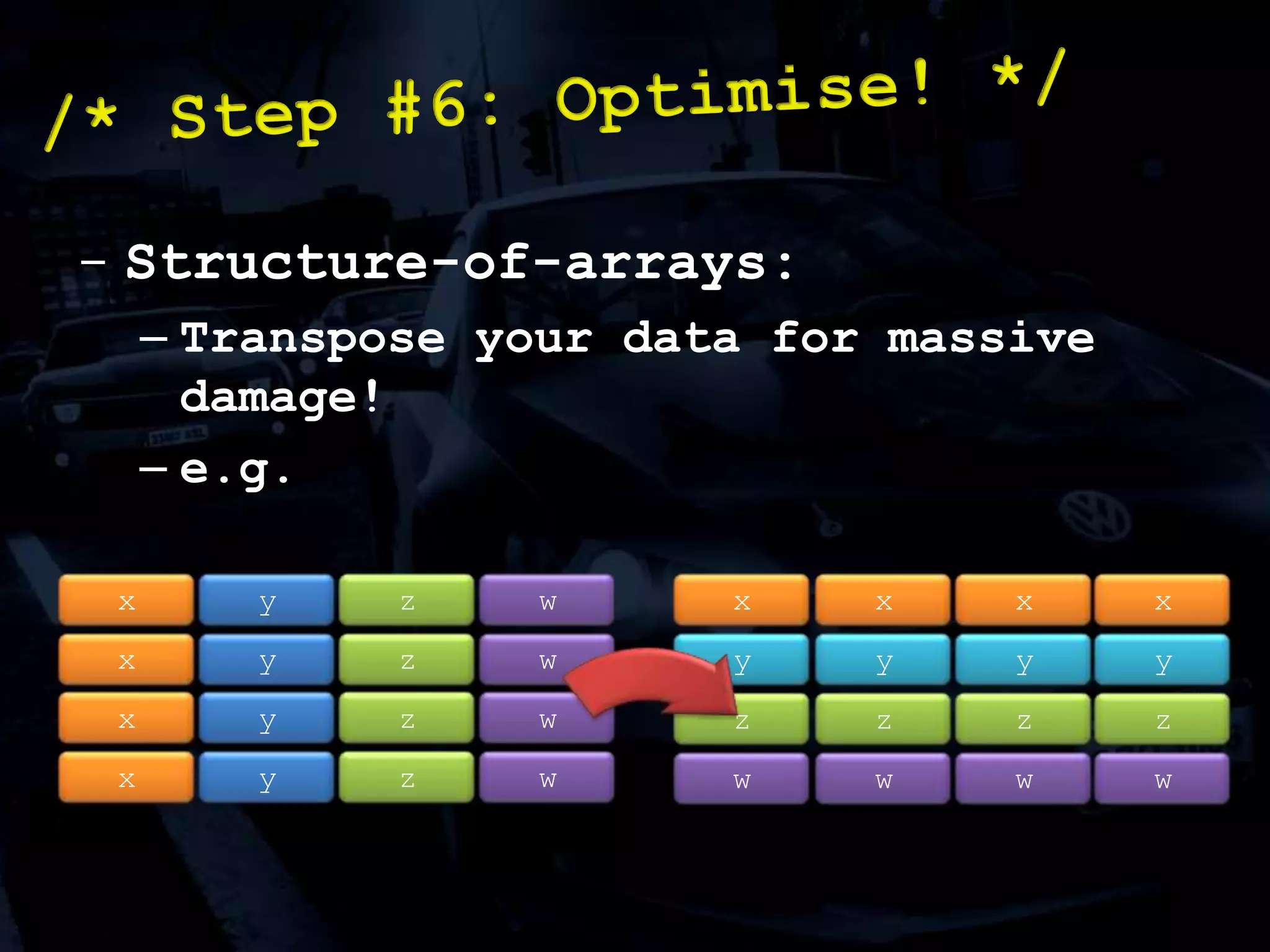

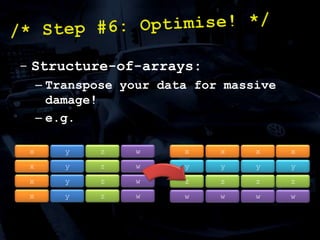

- 140. - Array-of-structures:1 dotproduct, 23 cyclesqword d0 = si_fm(xyz0, abc0);qword d1 = si_rotqbyi(d0, 0x4);qword d2 = si_rotqbyi(d0, 0x8);qword dot = si_fa(d0, d1); dot = si_fa(dot, d2);- Structure-of-arrays:4 dot products, 18 cyclesqword dot0123 = si_fm(x0123, a0123); dot0123 = si_fma(y0123, b0123, dot0123); dot0123 = si_fma(z0123, c0123, dot0123);/* Step #6: Optimise! */

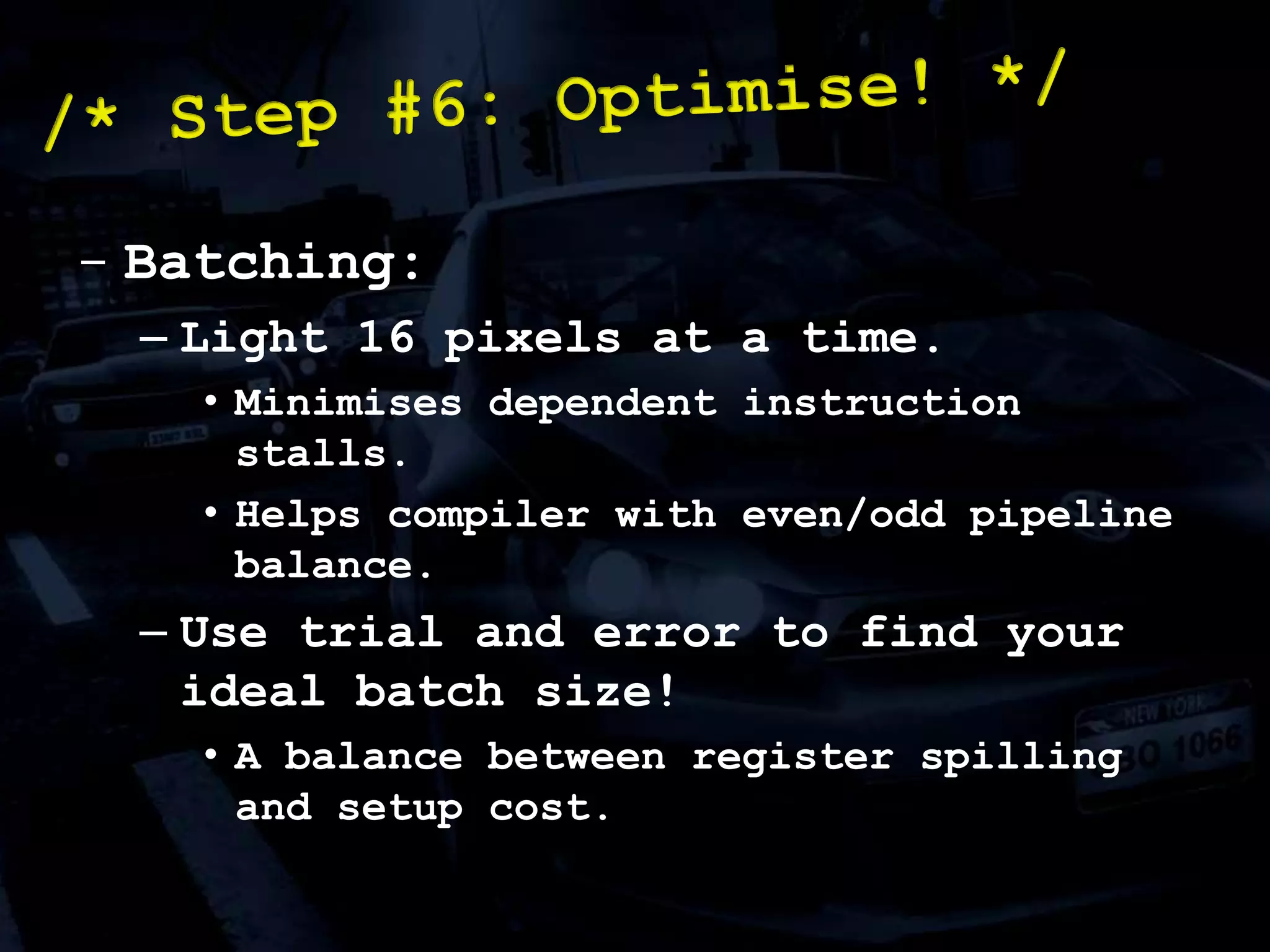

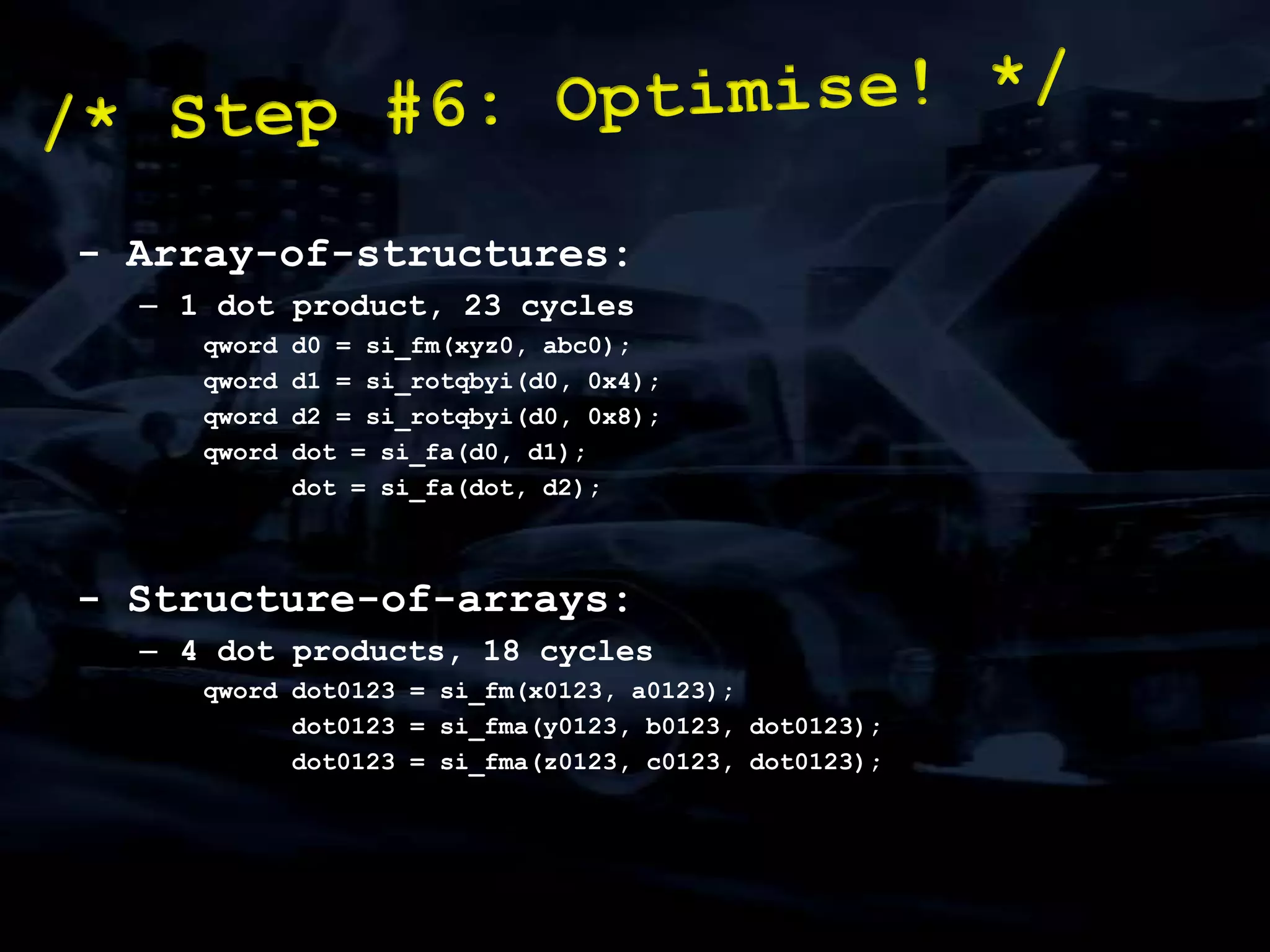

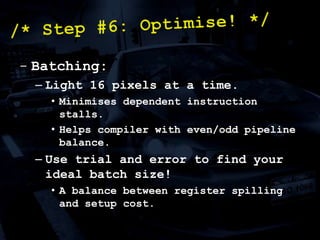

- 141. Batching:Light 16 pixelsat a time.Minimises dependent instruction stalls.Helps compiler with even/odd pipeline balance.Use trial and error to find your ideal batch size!A balance between register spilling and setup cost./* Step #6: Optimise! */

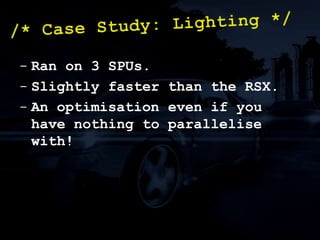

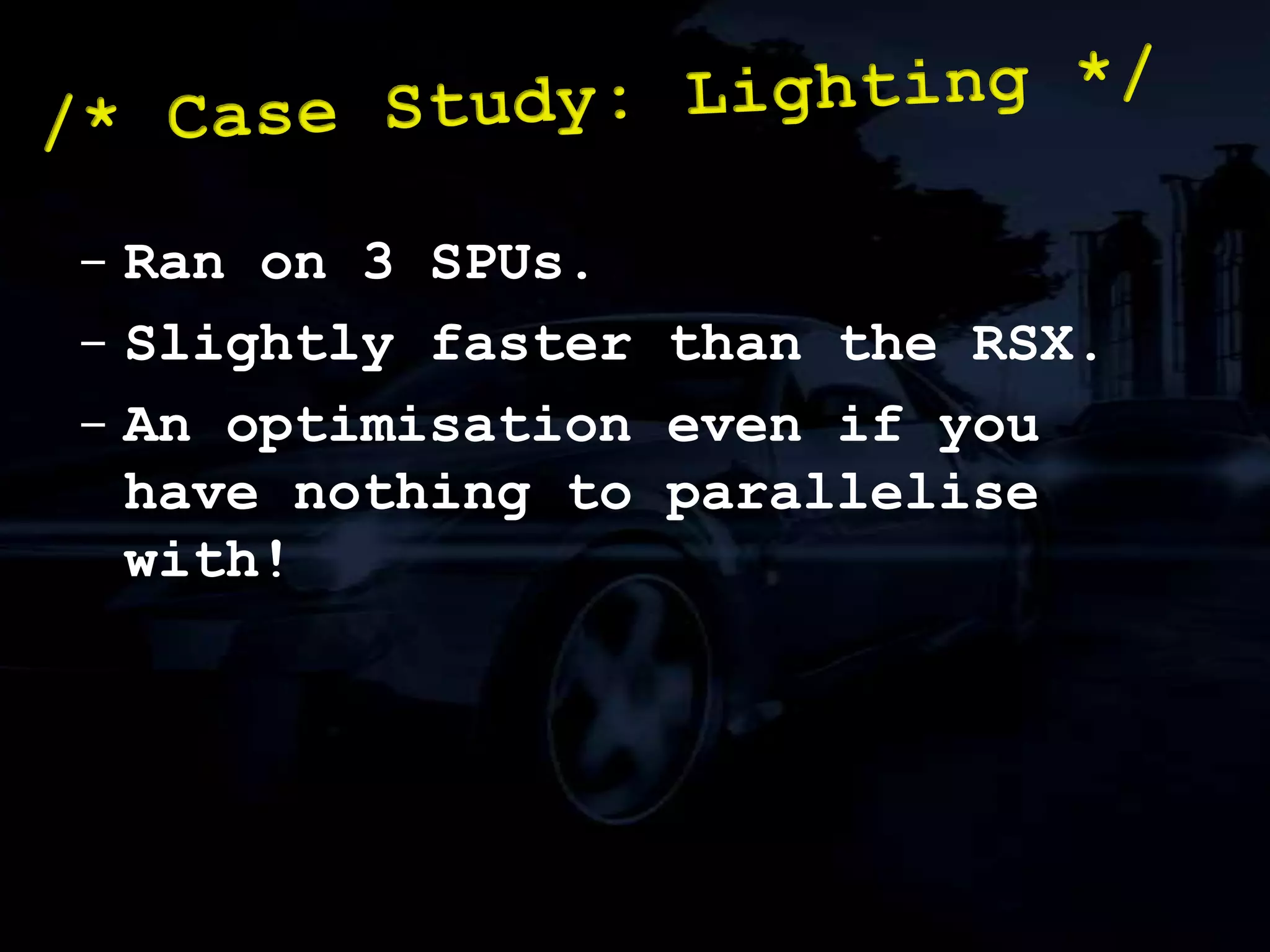

- 142. Ran on 3SPUs.
- 143. Slightly faster thanthe RSX.
- 144. An optimisation evenif you have nothing to parallelise with!/* Case Study: Lighting */
- 145. /* Case Study:Lighting */
- 146.

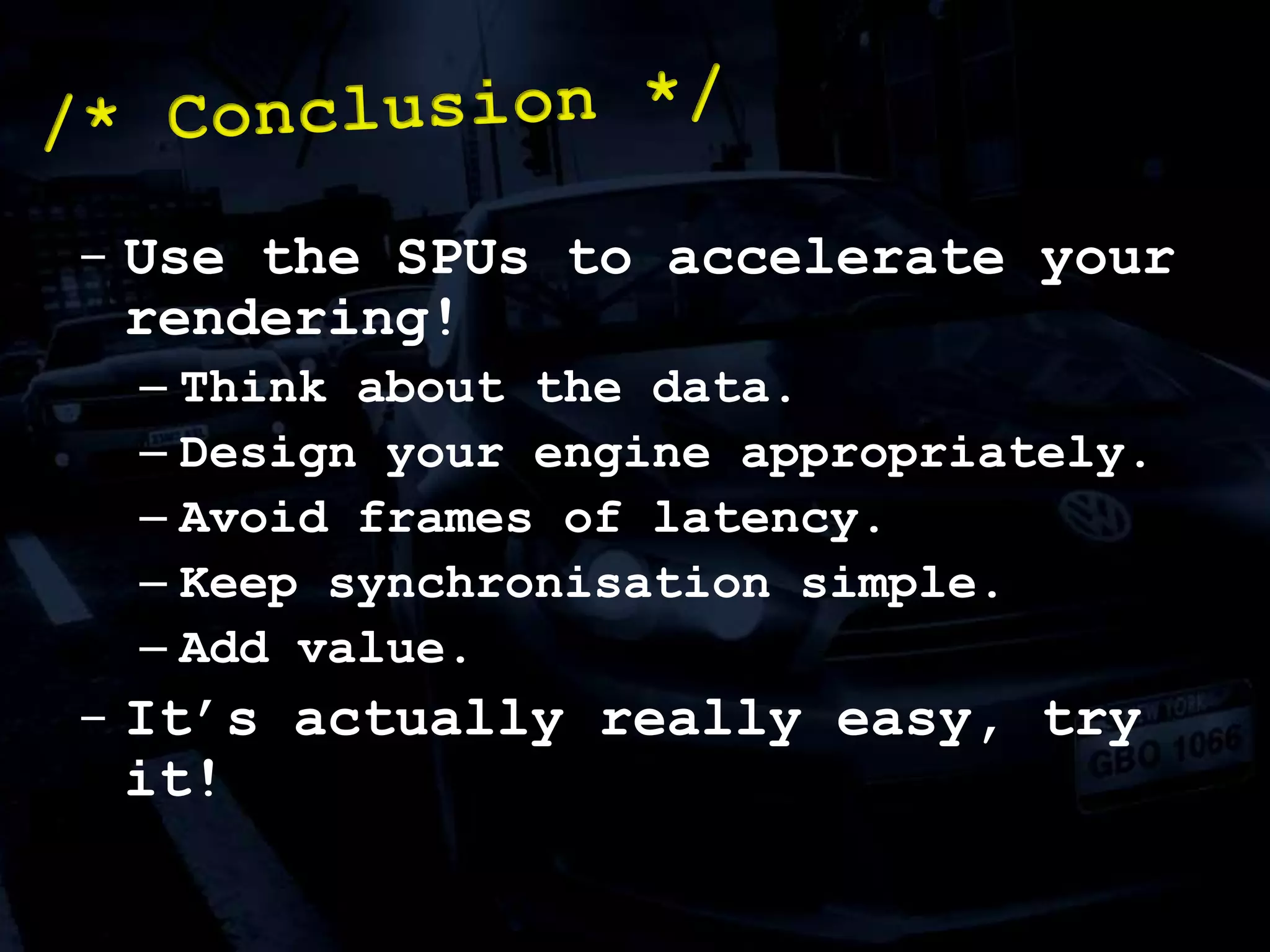

- 147. Use the SPUsto accelerate your rendering!Think about the data.Design your engine appropriately.Avoid frames of latency.Keep synchronisation simple.Add value.It’s actually really easy, try it!/* Conclusion */

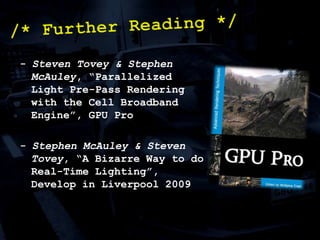

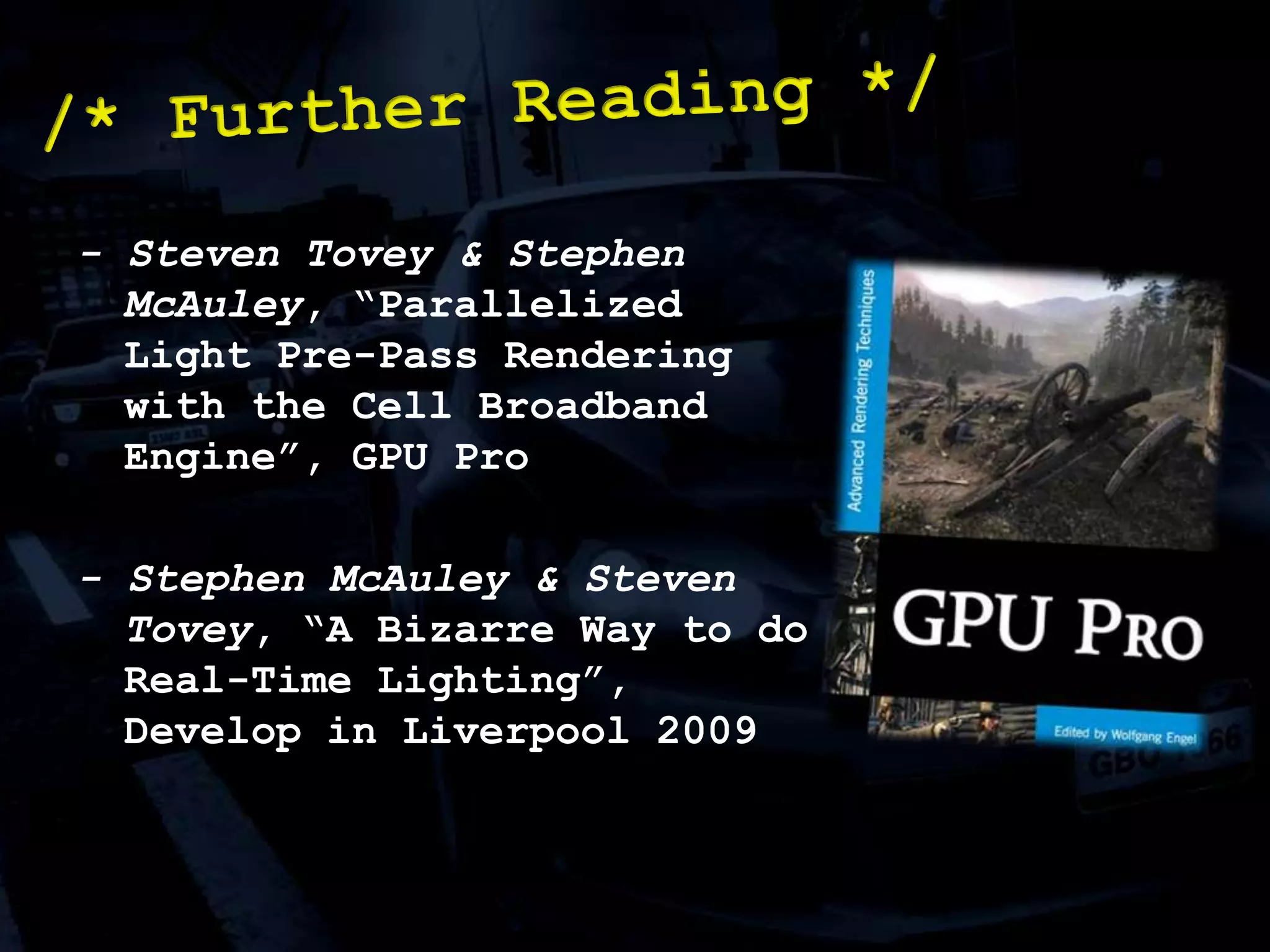

- 148. /* Further Reading*/- Steven Tovey & Stephen McAuley, “Parallelized Light Pre-Pass Rendering with the Cell Broadband Engine”, GPU Pro- Stephen McAuley & Steven Tovey, “A Bizarre Way to do Real-Time Lighting”, Develop in Liverpool 2009
- 149. If you’re talented,then we’re hiring ;)jobs@bizarrecreations.com

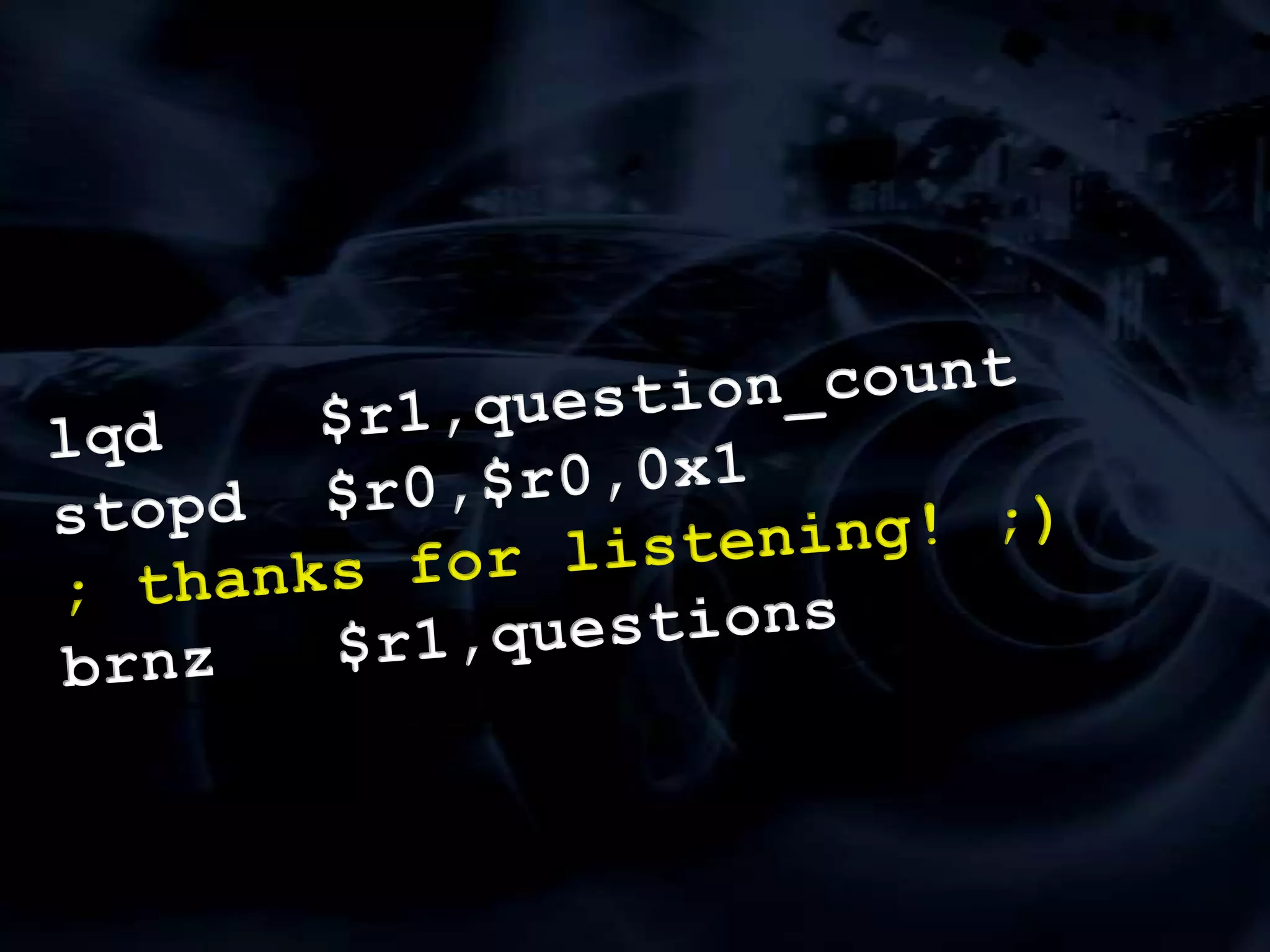

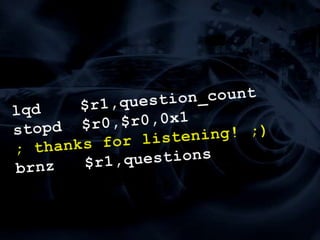

- 150. lqd $r1,question_countstopd $r0,$r0,0x1; thanks for listening! ;)brnz $r1,questions
