Splay Trees and Self Organizing Data Structures

CS 6213 –
Advanced
Data
Structures
SPLAY TREES
SELF ORGANIZING
DATA STRUCTURES

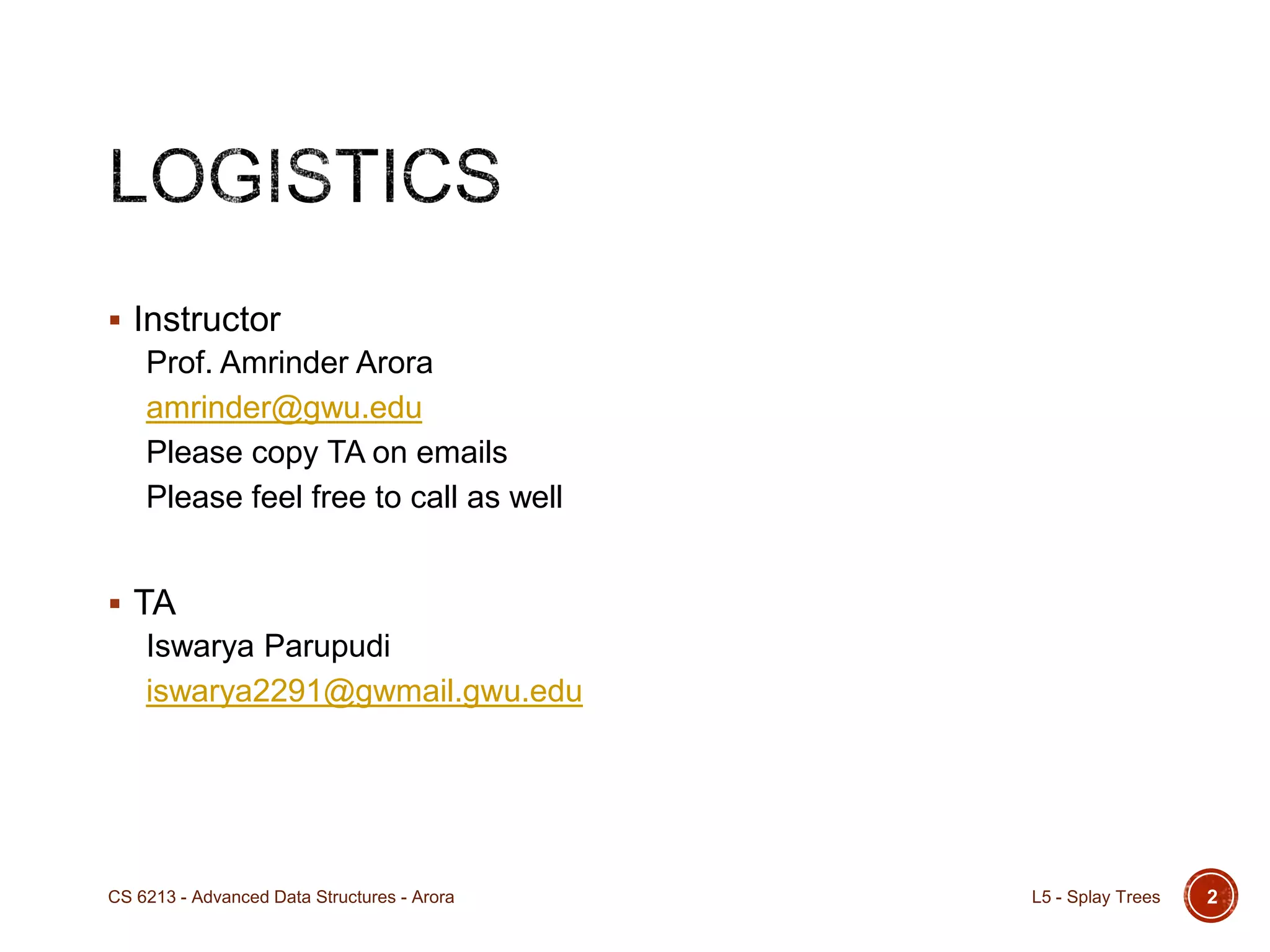

Instructor
Prof. Amrinder Arora
amrinder@gwu.edu
Please copy TA on emails
Please feel free to call as well
TA
Iswarya Parupudi
iswarya2291@gwmail.gwu.edu
L5 - Splay Trees CS 6213 - Advanced Data Structures - Arora 2
LOGISTICS

CS 6213
Basics
Record / Struct
Arrays / Linked
Lists / Stacks
/ Queues
Graphs / Trees
/ BSTs
Advanced
Trie, B-Tree
Splay Trees
R-Trees
Heaps and PQs
Union Find
WHERE WE ARE

David Kaplan @ Washington University
Jay Chen @ NYU Abu Dhabi / NYU Poly
Frank Ruskey @ University of Victoria
CREDITS

Data structure “self organizes” based on the
sequence of operations invoked on it, and based on
some general rules on what to do with the operation.
Different from having rules on what the data
structure should globally look like.
SELF ORGANIZING DATA STRUCTURES

Splay Tree
Is a Binary Search Tree, but is not an AVL or RB Tree
Its height is not guaranteed to be O(log(n)). In fact,
it can even be O(n).
SELF ORGANIZING BINARY SEARCH TREE

splā/ verb
thrust or spread (things, esp. limbs or fingers) out
and apart.
SPLAY

Relax – let the rules break overall
Don’t be so uptight
Focus on amortized time, not just worst case time.
MOTIVATION FOR SPLAY TREES

Problems with AVL Trees
 Extra storage/complexity for height fields
 Ugly delete code
Solution: splay trees
 Blind adjusting version of AVL trees
 Amortized time for all operations is O(log n)
 Worst case time is O(n)
 Insert/find always rotates nodes and makes the new/found
node to be the new root, so its future accesses are faster
MOTIVATION FOR SPLAY TREES (CONT.)

SPLAY TREE IDEA
17
10
92
5
3
Since the tree does not
have a bounded height,
you may be forced to
make a really deep access:
Since you’re down there anyway,
fix up a lot of deep nodes!

Node being accessed (n) is:
 Root
 Child of root
 Has both parent (p) and grandparent (g)
Zig-zig pattern: g  p  n is left-left or right-right
Zig-zag pattern: g  p  n is left-right or right-left
SPLAYING CASES

ACCESS ROOT:
DO NOTHING
X
n
Y
root
X
n
Y
root

ACCESS CHILD OF ROOT:
ZIG (AVL SINGLE ROTATION)
p
X
n
Y
Z
n
Z
p
Y
X
root root

ACCESS (LR, RL) GRANDCHILD:
ZIG-ZAG (AVL DOUBLE ROTATION)
g
X
p
Y
n
Z
W
n
Y
g
W
p
ZX

ACCESS (LL, RR) GRANDCHILD:
ZIG-ZIG
n
Z
Y
p
X
g
W
g
W
X
p
Y
n
Z
Rotate top-down – why?

SPLAYING EXAMPLE:
FIND(6)
2
1
3
4
5
6
Find(6)
2
1
3
6
5
4
zig-zig

… STILL SPLAYING …
zig-zig
2
1
3
6
5
4
1
6
3
2 5
4

… 6 SPLAYED OUT!
zig
1
6
3
2 5
4
6
1
3
2 5
4

ANOTHER EXAMPLE
FIND (4)
Find(4)
zig-zag
6
1
3
2 5
4
6
1
4
3 5
2

… 4 SPLAYED OUT!
zig-zag
6
1
4
3 5
2
61
4
3 5
2

If a node n on the access path is at depth d before
the splay, it’s at about depth d/2 after the splay
 Exceptions are the root, the child of the root, and the node
splayed
Overall, nodes which are below nodes on the access
path tend to move closer to the root
Splaying gets amortized O(log n) performance. (Not
easy to prove)
WHY SPLAYING HELPS

Find the node in normal BST manner
Splay the node to the root
SPLAY OPERATIONS: FIND

Just do BST insert
Then, splay to the root.
SPLAY OPERATIONS: INSERT

SPLIT
split(x)
T L R
splay
OR
L R L R
 x  x> x < x

SPLAY OPERATIONS: DELETE
find(x)
L R
x
L R
> x< x
delete x
Now what?

Join(L, R): Given two trees such that L < R, merge
them
Splay on the maximum element in L, then attach R
JOIN
L R R
splay
L

DELETE COMPLETED
T
find(x)
L R
x
L R
> x< x
delete x
T - x
Join(L,R)

INSERT EXAMPLE
Insert(5)
91
6
4 7
2
split(5)
9
6
7
1
4
2
1
4
2
9
6
7
1
4
2
9
6
7
5

DELETE EXAMPLE
91
6
4 7
2
Delete(4)
find(4)
9
6
7
1
4
2
1
2
9
6
7
Find max
2
1
9
6
7
2
1
9
6
7

Unsorted List
 Access(x) – Costs i, if x is at the i-th location.
 Delete(x) – Costs i, if x is at the i-th location.
 Insert(x) – Costs n+1 if list has n elements
Standard Cost Model
 Cost of operation
 Free inversion – Move the element anywhere to the front
 Paid inversion – Swap any two elements
ANOTHER EXAMPLE OF SELF
ORGANIZING DATA STRUCTURES

Moves the accessed item to the front of the list
 (Other algorithms: Transpose, Frequency Count)
This is the simple idea behind self adjustment.
Similar idea is used in caching algorithms also.
This also introduces us to online algorithms, because
we do not know what the future part of request
sequence will look like.
SELF ADJUSTMENT: “MOVE TO FRONT”
ALGORITHM

 Amortized Cost Analysis: Consider the worst case cost
over multiple operations
 Different from average cost analysis – over “probabilistically
average case” for one operation
 We compare the performance of MTF algorithm to an
Optimal algorithm which knows the full request sequence
in advance and can use that to organize the list.
 Request sequence: s1, s2, … sn
 Frequently used idea in amortized analysis: Potential
function: f(t).
 In context of MTF, we define f(t) to be the number of
“inversions” between the MTF list and the OPT list.
 Key Result: C_MTF(t) + f(t) – f(t – 1) <= 2 C_OPT(t) – 1
 This leads to: C_MTF <= 2 C_OPT overall. (Impressive.)
ANALYSIS OF “MOVE TO FRONT”
ALGORITHM

 Self-tuning data structure
 Operations tune the data structure automatically, based on
some rules
 Final state of the data structure depends upon the sequence of
operations
 Splaying Philosophy
 Keeps most-recently used (MRU) nodes higher up
 Main Results
 Any m consecutive operations starting from an empty tree take
at most O(m log(n)) time, where n is the number of inserts.
 That is, all splay tree operations run in amortized O(log n) time
 O(n) operations can occur, but splaying makes them infrequent
CONCLUSIONS: SPLAY TREE

Splay trees are very effective search trees
Relatively simple: no extra fields required (height
of subtree, color, rank, etc.)
Excellent locality properties:
 Frequently accessed keys are cheap to find (near top of tree)
 Items near an accessed item are also pulled towards the
root.
 Infrequently accessed keys stay out of the way (near bottom
of tree)
CONCLUSIONS: SPLAY TREE (CONT.)
