Solving Heat Management Issues with Thermally Conductive Plastics

SOLVING HEAT MANAGEMENT ISSUES
IN ELECTRONICS APPLICATIONS
USING THERMALLY CONDUCTIVE PLASTICS
06.17.2015Copyright © 2015 Momentive Performance Materials Inc. All rights reserved.
Webinar

PRESENTED BY:
ALLISON HOWARD YESKE DR. CHANDRA RAMAN
GLOBAL MARKETING MANAGER GLOBAL TECHNOLOGY LEADER
Copyright © 2015 Momentive Performance Materials Inc. All rights reserved.

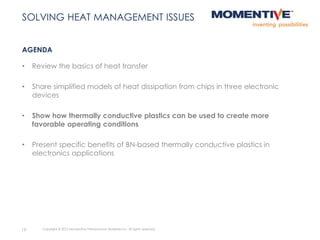

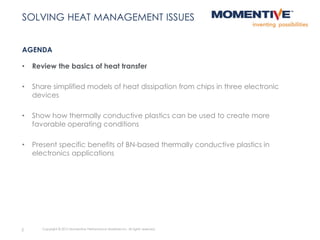

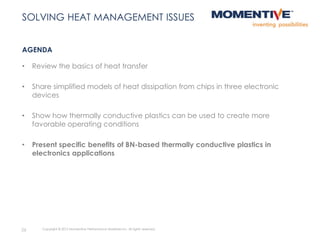

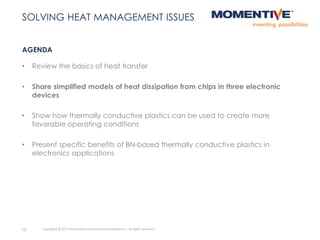

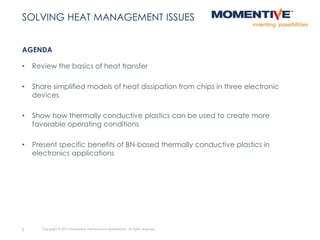

• Review the basics of heat transfer
• Share simplified models of heat dissipation from chips in three electronic
devices
• Show how thermally conductive plastics can be used to create more
favorable operating conditions
• Present specific benefits of BN-based thermally conductive plastics in
electronics applications
AGENDA
3 Copyright © 2015 Momentive Performance Materials Inc. All rights reserved.

Mega-Trends
• Increasing miniaturization with more functionality
• Reducing weight
• Introducing more complex designs with easier assembly
4
Thermally conductive plastics (TCP)
containing boron nitride (BN) can
help solve today’s challenges

devices
AGENDA

Basics of Heat Transfer

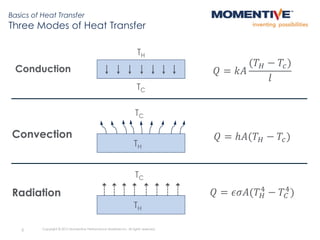

Three Modes of Heat Transfer
6
TH
TC
𝑄 = 𝑘𝐴
(𝑇 𝐻 − 𝑇𝑐)
𝑙
Conduction
𝑄 = 𝑕𝐴(𝑇 𝐻 − 𝑇𝑐)Convection
TH
TC
𝑄 = 𝜖𝜍𝐴(𝑇 𝐻
4
− 𝑇𝐶
4
)Radiation
TH
TC

7

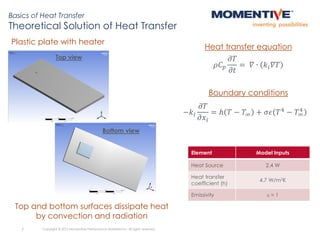

Theoretical Solution of Heat Transfer
Heat transfer equation
Bottom view
Top view
Element Model Inputs
Heat Source 2.4 W
Heat transfer
coefficient (h)
4.7 W/m2K
Emissivity e = 1
Plastic plate with heater
Top and bottom surfaces dissipate heat
by convection and radiation
𝜌𝐶 𝑝
𝜕𝑇
𝜕𝑡
= 𝛻 ∙ 𝑘𝑖 𝛻𝑇
Boundary conditions
−𝑘𝑖
𝜕𝑇
𝜕𝑥𝑖
= 𝑕 𝑇 − 𝑇∞ + 𝜍𝜖 𝑇4
− 𝑇∞
4

8
Temp
(oC)
Predicted Actual
Heater 125 124
Top
surface
119 110

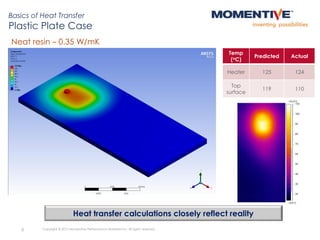

Neat resin – 0.35 W/mK
Plastic Plate Case
Heat transfer calculations closely reflect reality

9
Temp
(oC)
Predicted Actual
Heater 93 96
Top
surface
83 80
Plastic Plate Case
TCP housing: 2 W/mK (X-Z); 0.6 W/mK (Y)
Heat transfer calculations closely reflect reality

devices
AGENDA

Set top box

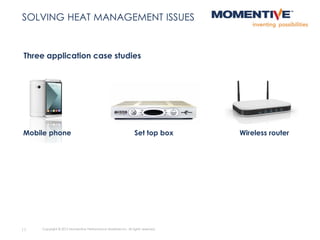

Three application case studies
Mobile phone Wireless router

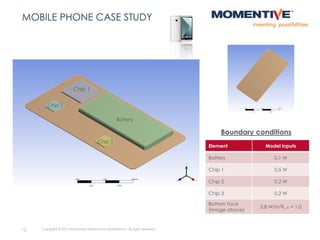

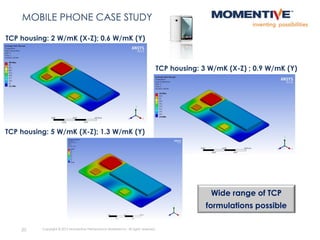

MOBILE PHONE CASE STUDY
Chip 1
Chip 2
Chip 3
Battery
Boundary conditions
Battery 0.1 W
Chip 1 0.5 W
Chip 2 0.2 W
Chip 3 0.2 W
Bottom face
(image above)
3.8 W/m2K, e = 1.0

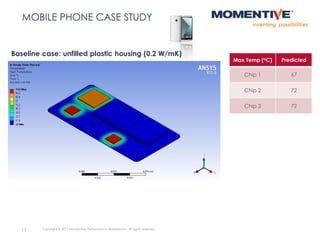

Max Temp (oC) Predicted
Chip 1 67
Chip 2 72
Chip 3 72
Baseline case: unfilled plastic housing (0.2 W/mK)

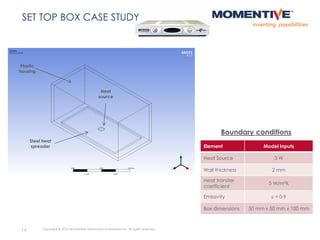

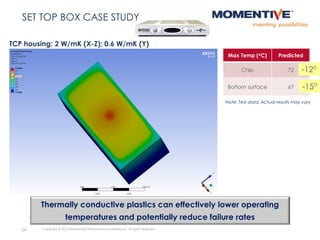

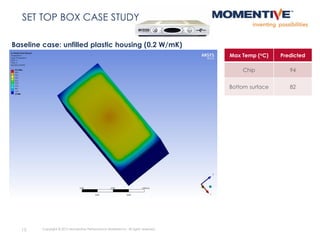

SET TOP BOX CASE STUDY
Boundary conditions
Heat Source 3 W
Wall thickness 2 mm
Heat transfer
coefficient
5 W/m2K
Emissivity e = 0.9
Box dimensions 50 mm x 50 mm x 100 mm
Heat
source
Steel heat
spreader
Plastic
housing

Chip 94
Bottom surface 82
Baseline case: unfilled plastic housing (0.2 W/mK)

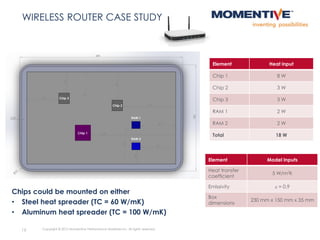

WIRELESS ROUTER CASE STUDY
Element Heat input
Chip 1 8 W
Chip 2 3 W
Chip 3 3 W
RAM 1 2 W
RAM 2 2 W
Total 18 W
Chip 3
Chip 2
Chip 1
RAM 1
RAM 2
Chips could be mounted on either
• Steel heat spreader (TC = 60 W/mK)
• Aluminum heat spreader (TC = 100 W/mK)
Heat transfer
coefficient
5 W/m2K
Emissivity e = 0.9
Box
dimensions
230 mm x 150 mm x 35 mm

Chip 3
Chip 2
Chip 1
RAM 1
RAM 2

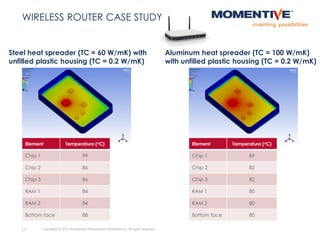

Steel heat spreader (TC = 60 W/mK) with
unfilled plastic housing (TC = 0.2 W/mK)
Aluminum heat spreader (TC = 100 W/mK)
with unfilled plastic housing (TC = 0.2 W/mK)
Element Temperature (oC)
Chip 1 89
Chip 2 82
Chip 3 82
RAM 1 80
RAM 2 80
Bottom face 80
Chip 1 99
Chip 2 86
Chip 3 86
RAM 1 84
RAM 2 84
Bottom face 88

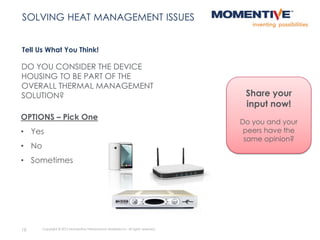

DO YOU CONSIDER THE DEVICE
HOUSING TO BE PART OF THE
OVERALL THERMAL MANAGEMENT
SOLUTION?
Tell Us What You Think!
OPTIONS – Pick One
• Yes
• No
• Sometimes
Share your
input now!
Do you and your
peers have the
same opinion?

devices
AGENDA

TCP housing: 3 W/mK (X-Z) ; 0.9 W/mK (Y)
Wide range of TCP
formulations possible

HOW MUCH OF A TEMPERATURE
CHANGE DO YOU EXPECT TO SEE
MOVING TO A THERMALLY
CONDUCTIVE PLASTIC SOLUTION?
• < 10 oC
• 10 - 20 oC
• > 20 oC
Share your
input now!
Do you and your
peers have the
same opinion?

Max Temp
(oC)
Baseline
Neat Plastic
0.2 W/mK
TCP
2 W/mK
TCP
3 W/mK
TCP
5 W/mK

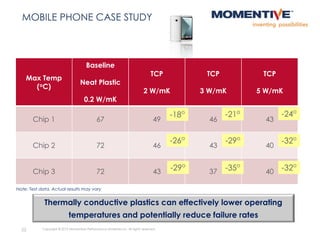

Chip 1 67 49 46 43
Chip 2 72 46 43 40
Chip 3 72 43 37 40
-18o
-26o
-29o
-21o
-29o
-35o
-32o
-32o
-24o
Thermally conductive plastics can effectively lower operating
temperatures and potentially reduce failure rates
Note: Test data. Actual results may vary

Chip 1 42
Chip 2 42
Chip 3 40

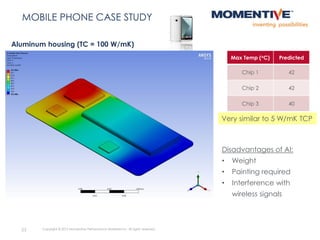

Aluminum housing (TC = 100 W/mK)
Disadvantages of Al:
• Weight
• Painting required
• Interference with
wireless signals
Very similar to 5 W/mK TCP

Chip 72
Bottom surface 67
-12o
-15o
Thermally conductive plastics can effectively lower operating
temperatures and potentially reduce failure rates

Chip 3
Chip 2
Chip 1
RAM 1
RAM 2

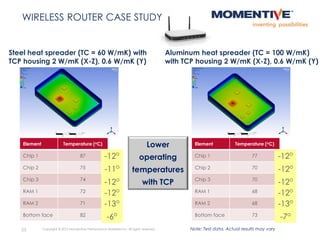

Steel heat spreader (TC = 60 W/mK) with
TCP housing 2 W/mK (X-Z), 0.6 W/mK (Y)
Aluminum heat spreader (TC = 100 W/mK)
with TCP housing 2 W/mK (X-Z), 0.6 W/mK (Y)
Chip 1 77
Chip 2 70
Chip 3 70
RAM 1 68
RAM 2 68
Bottom face 73
Chip 1 87
Chip 2 75
Chip 3 74
RAM 1 72
RAM 2 71
Bottom face 82
-12o
-11o
-12o
-12o
-13o
-6o
-12o
-12o
-12o
-12o
-13o
-7o
Lower
operating
temperatures
with TCP

devices
AGENDA

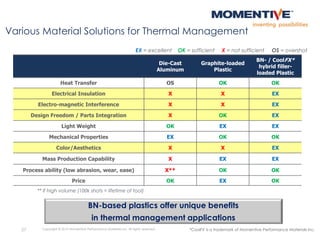

Various Material Solutions for Thermal Management
Die-Cast
Aluminum
Graphite-loaded
Plastic
BN- / CoolFX*
hybrid filler-
loaded Plastic
Heat Transfer OS OK OK
Electrical Insulation X X EX
Electro-magnetic Interference X X EX
Design Freedom / Parts Integration X OK EX
Light Weight OK EX EX
Mechanical Properties EX OK OK
Color/Aesthetics X X EX
Mass Production Capability X EX EX
Process ability (low abrasion, wear, ease) X** OK OK
Price OK EX OK
** If high volume (100k shots = lifetime of tool)
EX = excellent OK = sufficient X = not sufficient OS = overshot
BN-based plastics offer unique benefits
in thermal management applications
*CoolFX is a trademark of Momentive Performance Materials Inc.

IS ELECTRICAL INSULATION
IMPORTANT FOR THE DEVICE
HOUSING?
• Yes
• No
• Sometimes
Share your
input now!
Do you and your
peers have the
same requirements?

With the proliferation of wireless connectivity, more devices are
transmitting and receiving wireless signals (= electromagnetic waves)
Electrically conductive materials interfere with electromagnetic waves

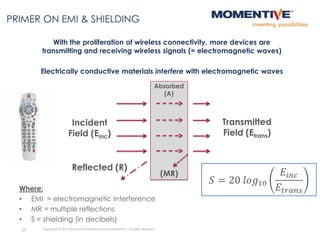

PRIMER ON EMI & SHIELDING
𝑆 = 20 𝑙𝑜𝑔10
𝐸𝑖𝑛𝑐
𝐸𝑡𝑟𝑎𝑛𝑠
Incident
Field (Einc)
Absorbed
(A)
Reflected (R)
Transmitted
Field (Etrans)
(MR)
Where:
• EMI = electromagnetic interference
• MR = multiple reflections
• S = shielding (in decibels)

𝑆 = 20 𝑙𝑜𝑔
𝜂0 + 𝜂 2
4𝜂0 𝜂
+ 20 𝑙𝑜𝑔 1 −
𝜂0 − 𝜂
𝜂0 + 𝜂
2
𝑒
−2𝑡
𝛿 𝑒−𝑗𝛽𝑡
+ 20𝑙𝑜𝑔 𝑒
𝑡
𝛿
𝑆 = 𝑅 + 𝑀𝑅 + 𝐴
𝑅 𝑀𝑅 𝐴
𝜂 =
𝑗𝜔𝜇
𝜎+𝑗𝜔𝜖
𝛿 =
1
𝜋𝑓𝜇𝜍
Where:
• 0 is the impedance of free space (~377 )
•  is the complex impedance of the medium
• d is the skin depth
• b is the phase constant of the shield material
• S is shielding (in decibels)

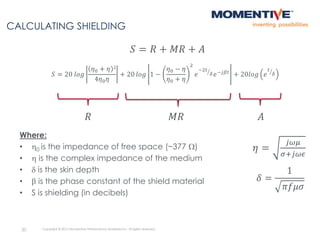

CALCULATING SHIELDING

Electrical (volume) resistivity

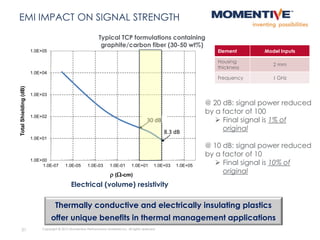

EMI IMPACT ON SIGNAL STRENGTH
1.0E+00
1.0E+01
1.0E+02
1.0E+03
1.0E+04
1.0E+05
1.0E-07 1.0E-05 1.0E-03 1.0E-01 1.0E+01 1.0E+03 1.0E+05
TotalShielding(dB)
r (-cm)
8.3 dB
30 dB
Housing
thickness
2 mm
Frequency 1 GHz
@ 20 dB: signal power reduced
by a factor of 100
 Final signal is 1% of
original
@ 10 dB: signal power reduced
by a factor of 10
 Final signal is 10% of
original
Thermally conductive and electrically insulating plastics
offer unique benefits in thermal management applications
Typical TCP formulations containing
graphite/carbon fiber (30-50 wt%)

WOULD YOU CONSIDER THE
DEVICE HOUSING TO BE PART OF
THE OVERALL THERMAL
MANAGEMENT SOLUTION?
• Yes
• No
• Sometimes
Share your
input now!
Do you and your
peers have the
same opinion?

SUMMARY

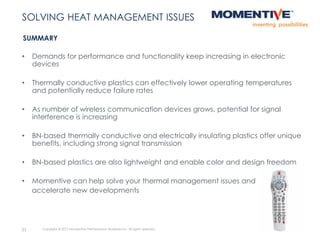

• Demands for performance and functionality keep increasing in electronic
devices
• Thermally conductive plastics can effectively lower operating temperatures
and potentially reduce failure rates
• As number of wireless communication devices grows, potential for signal
interference is increasing
• BN-based thermally conductive and electrically insulating plastics offer unique
benefits, including strong signal transmission
• BN-based plastics are also lightweight and enable color and design freedom
• Momentive can help solve your thermal management issues and
accelerate new developments

34
Coatings

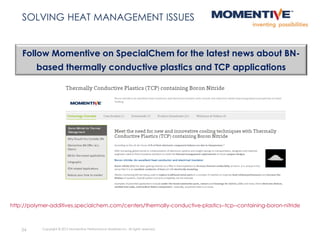

Follow Momentive on SpecialChem for the latest news about BN-
based thermally conductive plastics and TCP applications
