1. Salt Spray Test
IEC60068-2-52 Severity 5
Copyright © 2016 Momentive Performance Materials Inc. All rights reserved.

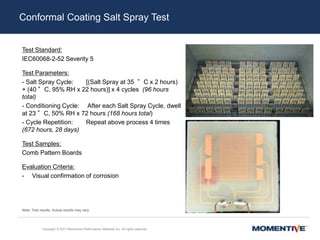

2. Test Standard:
IEC60068-2-52 Severity 5
Test Parameters:
- Salt Spray Cycle: [(Salt Spray at 35 °C x 2 hours)
+ (40 °C, 95% RH x 22 hours)] x 4 cycles (96 hours
total)
- Conditioning Cycle: After each Salt Spray Cycle, dwell
at 23 °C, 50% RH x 72 hours (168 hours total)
- Cycle Repetition: Repeat above process 4 times
(672 hours, 28 days)
Test Samples:
Comb Pattern Boards
Evaluation Criteria:
- Visual confirmation of corrosion
Copyright © 2017 Momentive Performance Materials Inc. All rights reserved.
Conformal Coating Salt Spray Test
Note: Test results. Actual results may vary.

3. Copyright © 2017 Momentive Performance Materials Inc. All rights reserved.
Conformal Coating Salt Spray Test
G Good. No corrosion C Early stages of corrosion F Fail. Excessive corrosion
Note: Test results. Actual results may vary.

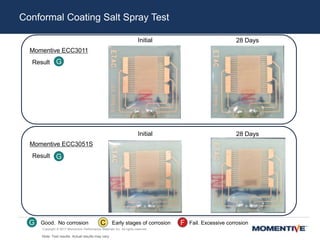

Momentive ECC3011
Initial 28 Days
Result
Momentive ECC3051S
Initial 28 Days
Result G
G

4. Copyright © 2017 Momentive Performance Materials Inc. All rights reserved.
Conformal Coating Salt Spray Test
G Good. No corrosion C Early stages of corrosion F Fail. Excessive corrosion

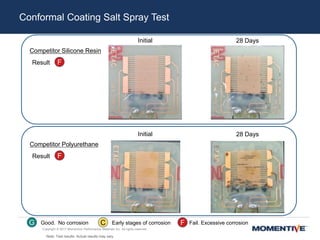

Competitor Silicone Resin
Initial 28 Days
Result F
Competitor Polyurethane
Initial 28 Days
Result F
Note: Test results. Actual results may vary.

5. Copyright © 2017 Momentive Performance Materials Inc. All rights reserved.
Conformal Coating Salt Spray Test
G Good. No corrosion C Early stages of corrosion F Fail. Excessive corrosion
Competitor Polyolefin
Initial 28 Days
Result C
Competitor Acrylic
Initial 28 Days
Result F
Note: Test results. Actual results may vary.

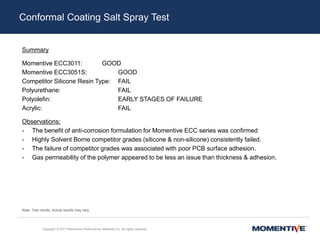

6. Summary
Momentive ECC3011: GOOD
Momentive ECC3051S: GOOD
Competitor Silicone Resin Type: FAIL
Polyurethane: FAIL
Polyolefin: EARLY STAGES OF FAILURE
Acrylic: FAIL
Observations:
- The benefit of anti-corrosion formulation for Momentive ECC series was confirmed
- Highly Solvent Borne competitor grades (silicone & non-silicone) consistently failed.
- The failure of competitor grades was associated with poor PCB surface adhesion.
- Gas permeability of the polymer appeared to be less an issue than thickness & adhesion.
Copyright © 2017 Momentive Performance Materials Inc. All rights reserved.
Conformal Coating Salt Spray Test
Note: Test results. Actual results may vary.

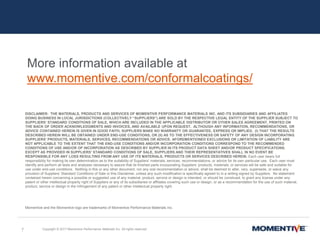

7. DISCLAIMER: THE MATERIALS, PRODUCTS AND SERVICES OF MOMENTIVE PERFORMANCE MATERIALS INC. AND ITS SUBSIDIARIES AND AFFILIATES
