2. Commercial Production of Sodium Hydroxide
By
Mr. Muhammad Ullah Afridi
Institute of Chemical Sciences, University of Peshawar.

3. Sodium Hydroxide (NaOH)
 Sodium hydroxide (NaOH)
also known as lye and caustic
soda
 Is a highly caustic metallic
base which is a white solid
available in:
• pellets
• flakes
• Granules
• 50% saturated solution.
Introduction to Caustic Soda (NaOH)

4. Production Process of CausticSoda (NaOH)andChlorineby EleMrolysis

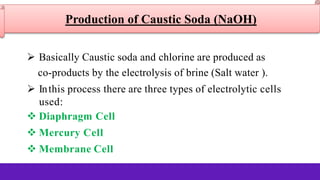

 Basically Caustic soda and chlorine are produced as
co-products by the electrolysis of brine (Salt water ).
 Inthis process there are three types of electrolytic cells
used:
 Diaphragm Cell
 Mercury Cell
 Membrane Cell
Production of Caustic Soda (NaOH)

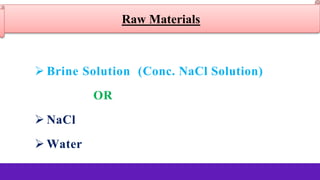

5.  Brine Solution (Conc. NaCl Solution)
OR
 NaCl
 Water
Raw Materials

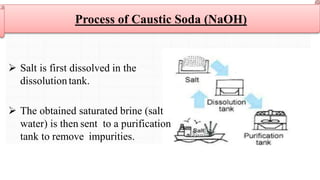

6.  Salt is first dissolved in the
dissolutiontank.
 The obtained saturated brine (salt
water) is then sent to a purification
tank to remove impurities.
Process of Caustic Soda (NaOH)

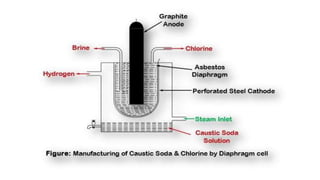

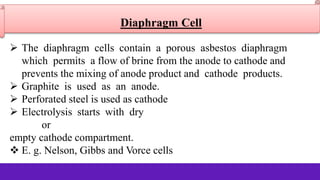

7. Diaphragm Cell
 The diaphragm cells contain a porous asbestos diaphragm
which permits a flow of brine from the anode to cathode and
prevents the mixing of anode product and cathode products.
 Graphite is used as an anode.
 Perforated steel is used as cathode
 Electrolysis starts with dry
or
empty cathode compartment.
 E. g. Nelson, Gibbs and Vorce cells

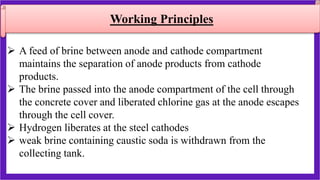

9.  A feed of brine between anode and cathode compartment
maintains the separation of anode products from cathode
products.
 The brine passed into the anode compartment of the cell through
the concrete cover and liberated chlorine gas at the anode escapes
through the cell cover.
 Hydrogen liberates at the steel cathodes
 weak brine containing caustic soda is withdrawn from the
collecting tank.
Working Principles

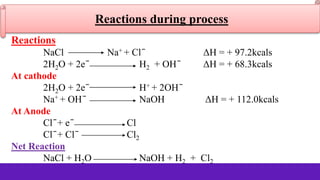

10. Reactions
NaCl Na+ + Cl ̄ ΔH = + 97.2kcals
2H2O + 2e ̄ H2 + OH ̄ ΔH = + 68.3kcals
At cathode
2H2O + 2e ̄ H+ + 2OH ̄
Na+ + OH ̄ NaOH ΔH = + 112.0kcals
At Anode
Cl ̄ + e ̄ Cl
Cl ̄ + Cl ̄ Cl2
Net Reaction
NaCl + H2O NaOH + H2 + Cl2
Reactions during process

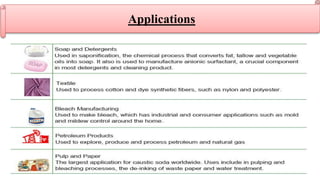

11. Applications
