Dec. 13, 2005 SOCIETY OF MOTION PICTURE AND TELEVISION ENGINEERS
Multi Camera High
Definition TV Studio and
Rogers Communications
Centre Tour
School Of Radio and Television Arts
Ryerson University
LEADERS OF TOMORROWDec. 13, 2005

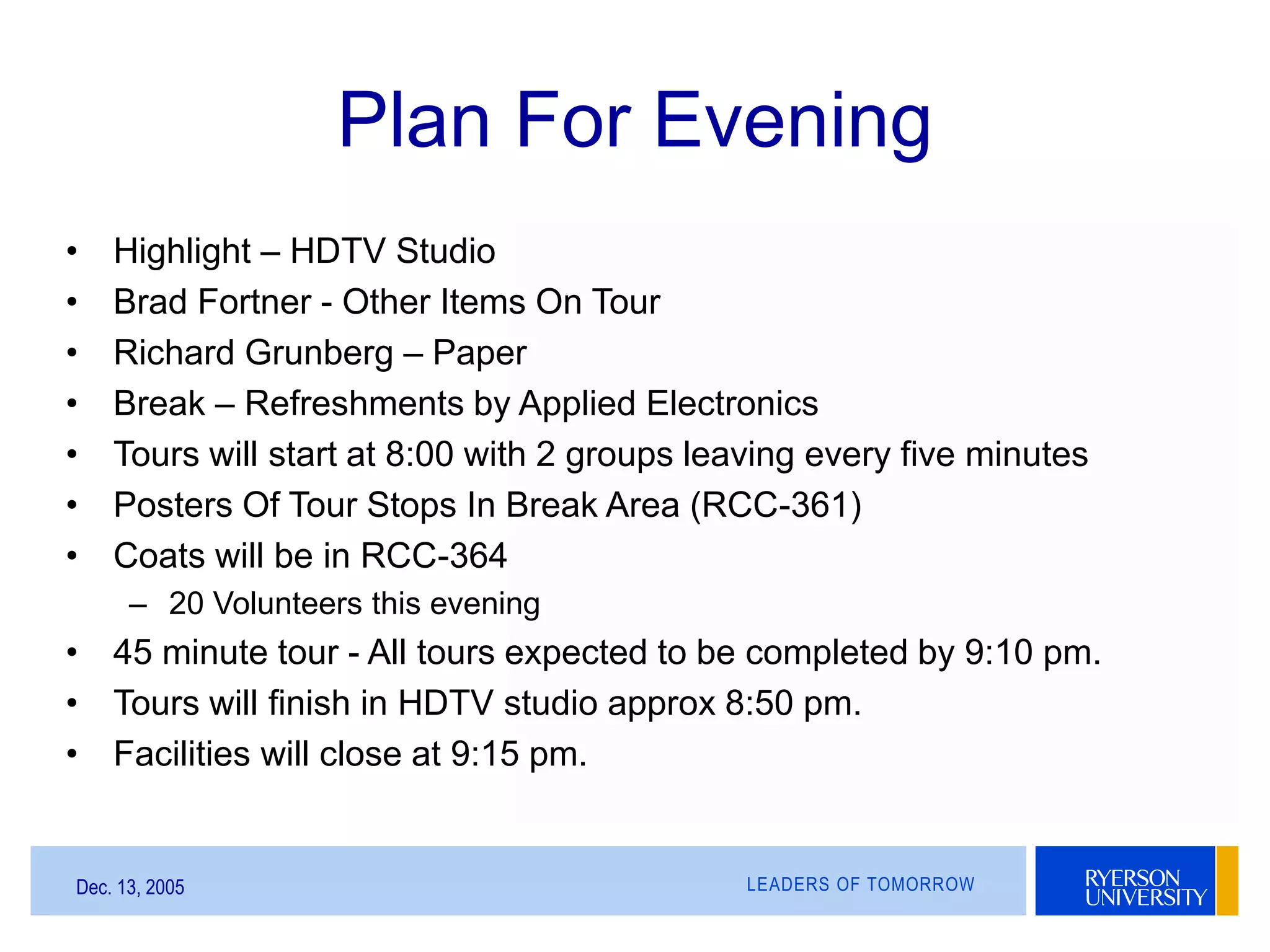

Plan For Evening
• Highlight – HDTV Studio
• Brad Fortner - Other Items On Tour
• Richard Grunberg – Paper
• Break – Refreshments by Applied Electronics
• Tours will start at 8:00 with 2 groups leaving every five minutes
• Posters Of Tour Stops In Break Area (RCC-361)
• Coats will be in RCC-364
– 20 Volunteers this evening
• 45 minute tour - All tours expected to be completed by 9:10 pm.
• Tours will finish in HDTV studio approx 8:50 pm.
• Facilities will close at 9:15 pm.
LEADERS OF TOMORROWDec. 13, 2005

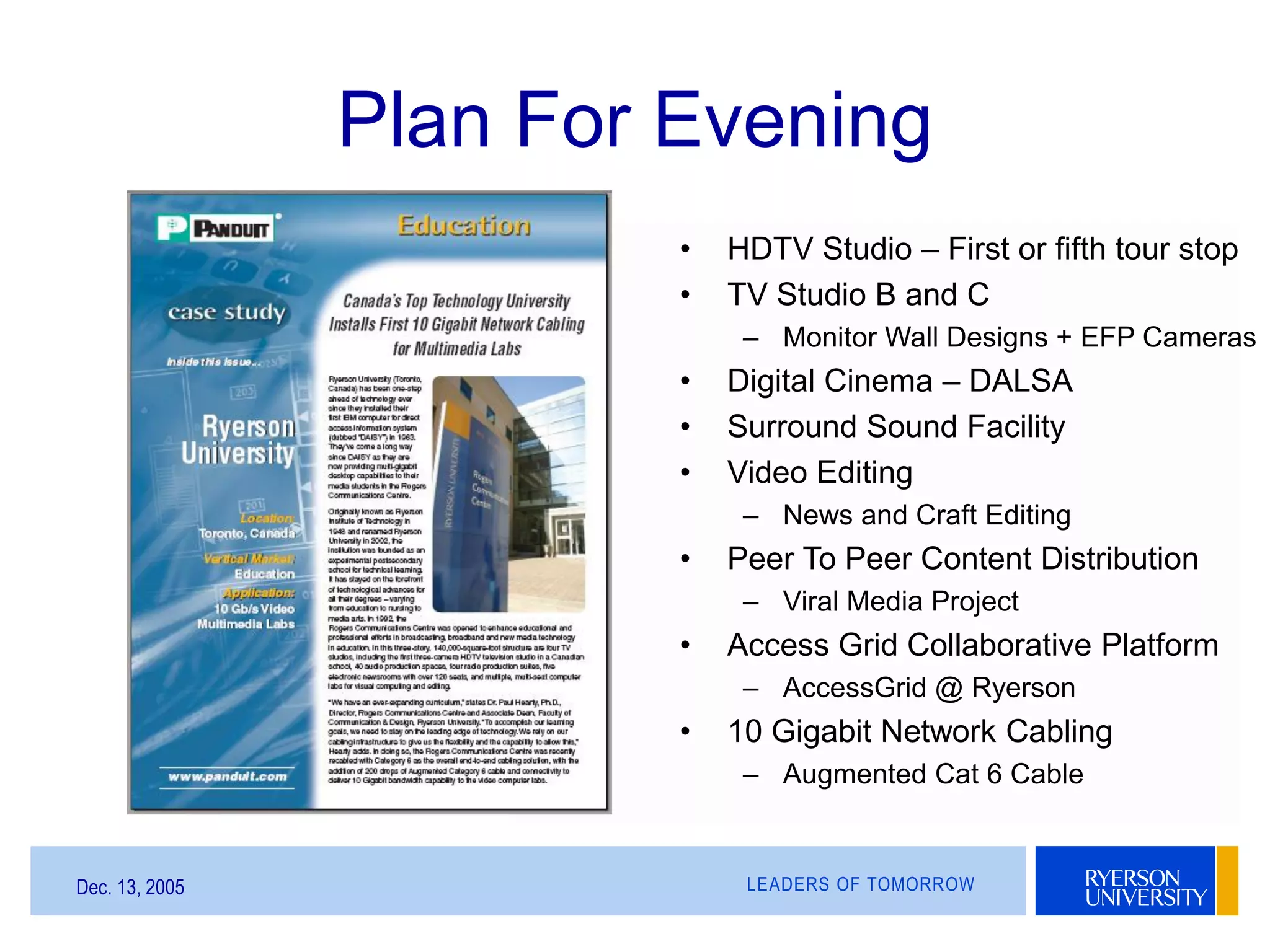

Plan For Evening

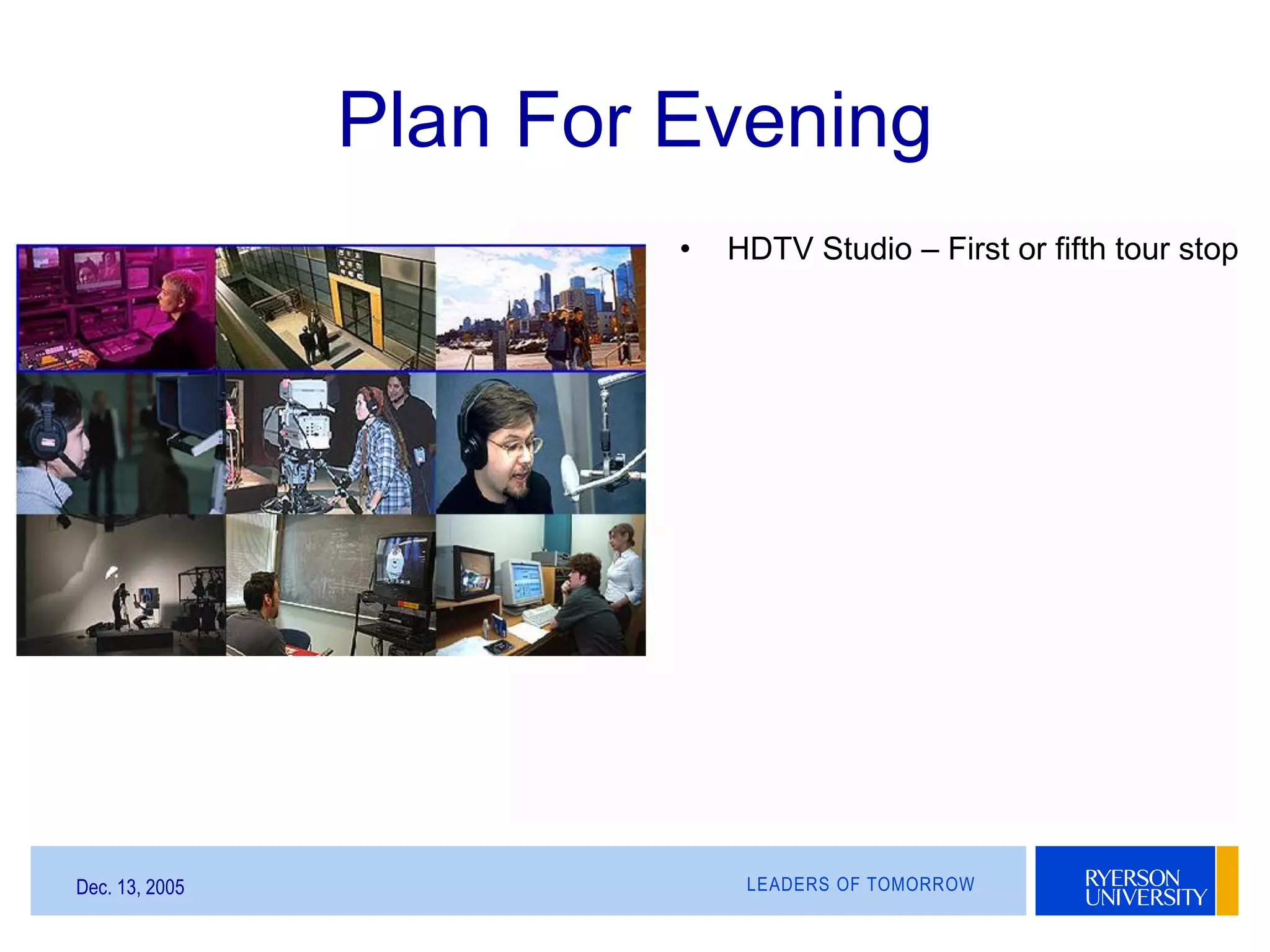

• HDTV Studio – First or fifth tour stop
LEADERS OF TOMORROWDec. 13, 2005

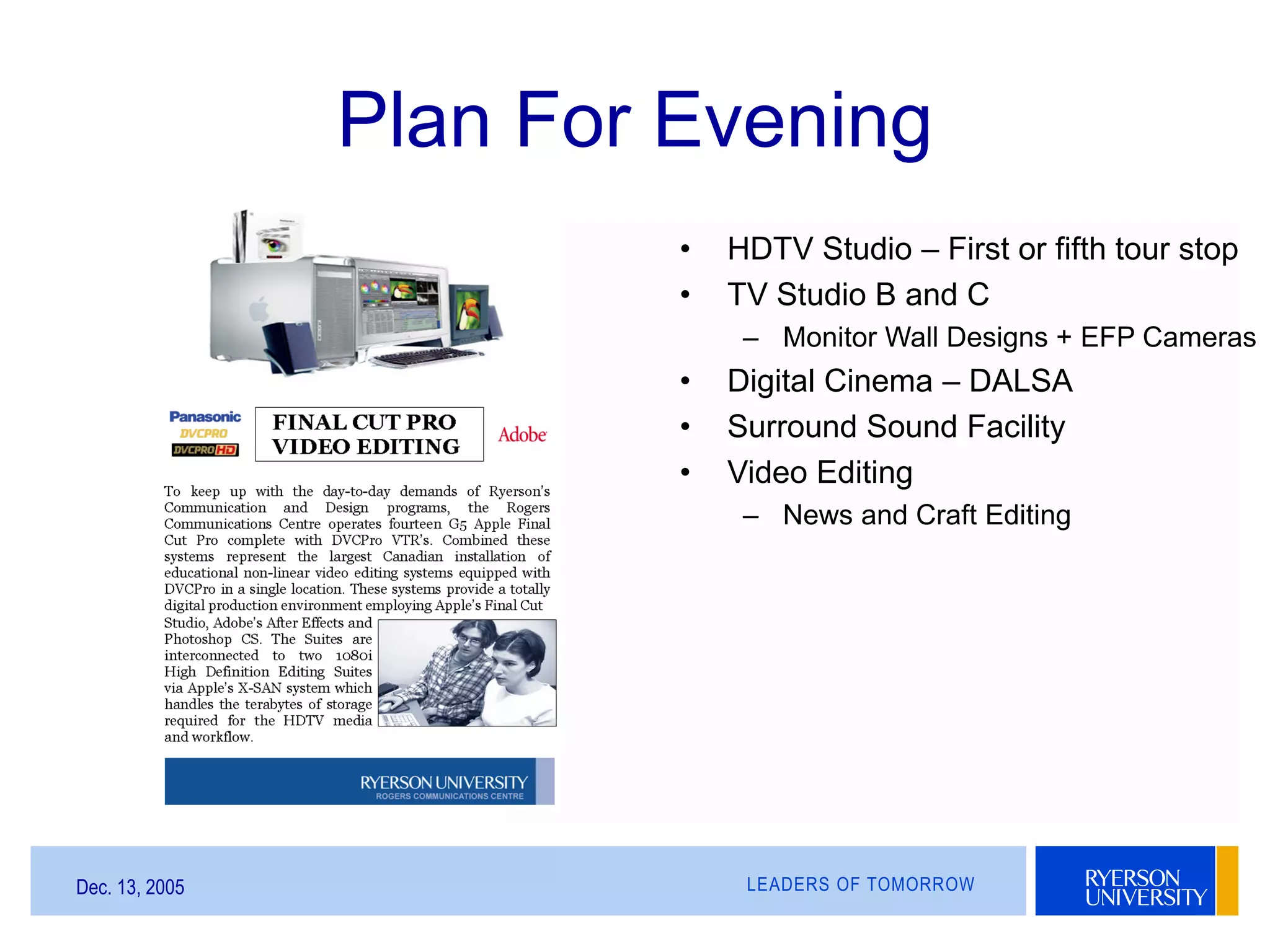

Plan For Evening
• HDTV Studio – First or fifth tour stop
• TV Studio B and C
– Monitor Wall Designs + EFP Cameras
LEADERS OF TOMORROWDec. 13, 2005
Plan For Evening
• HDTV Studio – First or fifth tour stop
• TV Studio B and C
– Monitor Wall Designs + EFP Cameras

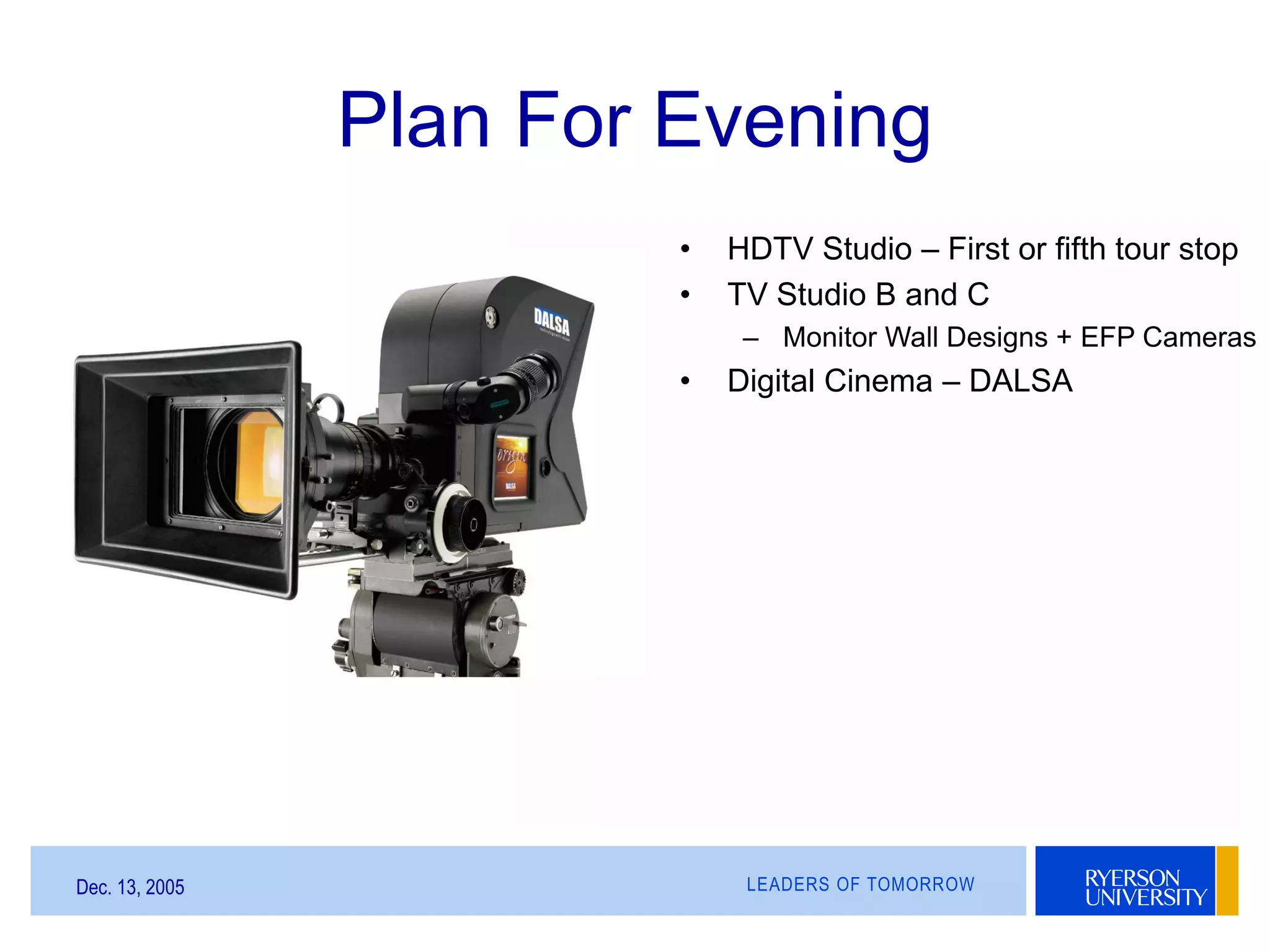

• Digital Cinema – DALSA
LEADERS OF TOMORROWDec. 13, 2005
Plan For Evening
• HDTV Studio – First or fifth tour stop
• TV Studio B and C
– Monitor Wall Designs + EFP Cameras
• Digital Cinema – DALSA
• Surround Sound Facility
LEADERS OF TOMORROWDec. 13, 2005
Plan For Evening
• HDTV Studio – First or fifth tour stop
• TV Studio B and C
– Monitor Wall Designs + EFP Cameras
• Digital Cinema – DALSA
• Surround Sound Facility
• Video Editing
– News and Craft Editing
LEADERS OF TOMORROWDec. 13, 2005
Plan For Evening
• HDTV Studio – First or fifth tour stop
• TV Studio B and C
– Monitor Wall Designs + EFP Cameras
• Digital Cinema – DALSA
• Surround Sound Facility
• Video Editing
– News and Craft Editing
• Peer To Peer Content Distribution
– Viral Media Project
LEADERS OF TOMORROWDec. 13, 2005
Plan For Evening
• HDTV Studio – First or fifth tour stop
• TV Studio B and C
– Monitor Wall Designs + EFP Cameras
• Digital Cinema – DALSA
• Surround Sound Facility
• Video Editing
– News and Craft Editing
• Peer To Peer Content Distribution
– Viral Media Project
• Access Grid Collaborative Platform
– AccessGrid @ Ryerson
LEADERS OF TOMORROWDec. 13, 2005
Plan For Evening
• HDTV Studio – First or fifth tour stop
• TV Studio B and C
– Monitor Wall Designs + EFP Cameras
• Digital Cinema – DALSA
• Surround Sound Facility
• Video Editing
– News and Craft Editing
• Peer To Peer Content Distribution
– Viral Media Project
• Access Grid Collaborative Platform
– AccessGrid @ Ryerson
• 10 Gigabit Network Cabling
– Augmented Cat 6 Cable
LEADERS OF TOMORROWDec. 13, 2005
School Of Photography
School Of Radio
Among Founding Schools At Ryerson

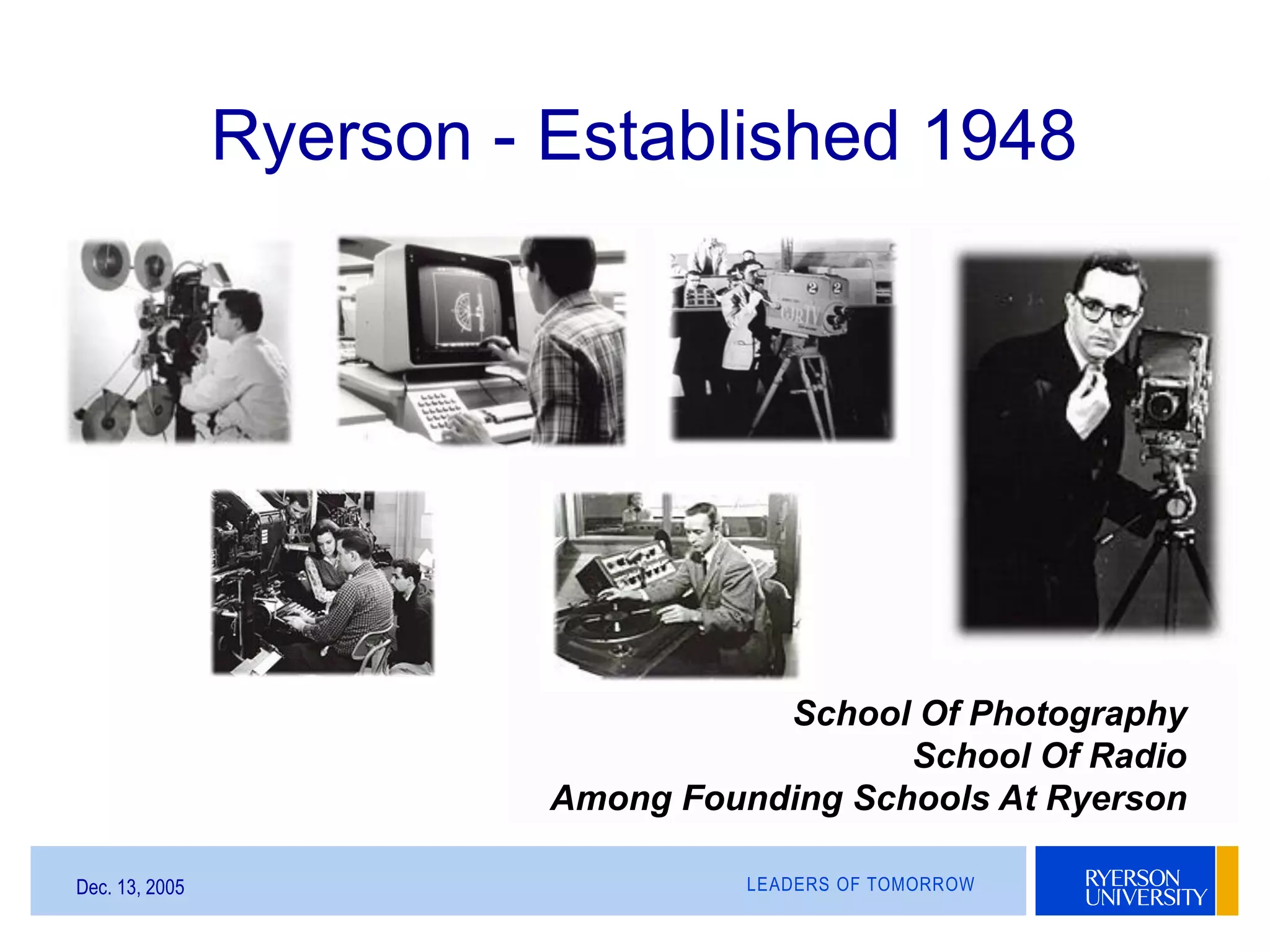

Ryerson - Established 1948
LEADERS OF TOMORROWDec. 13, 2005
Long History With Television Medium

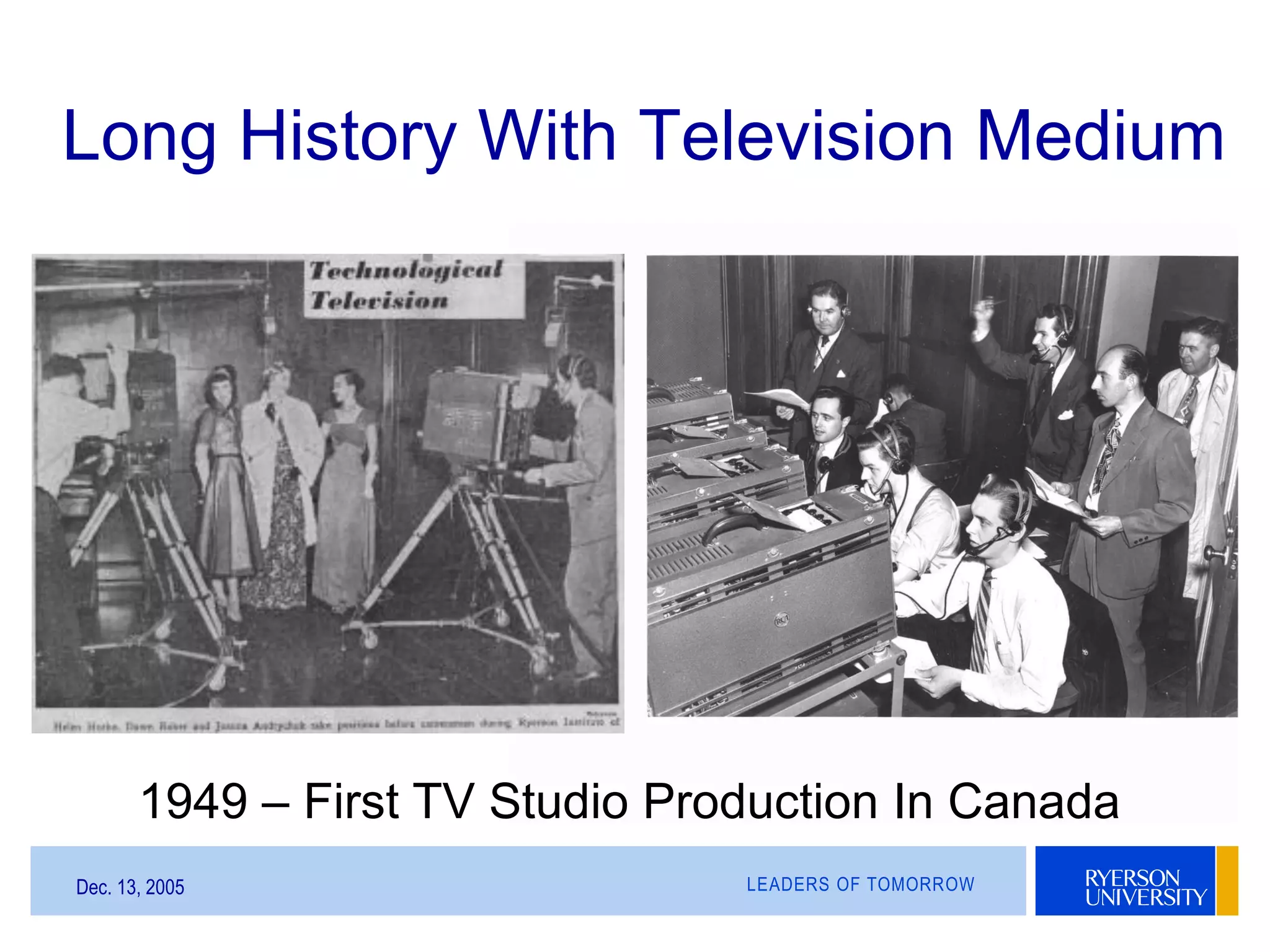

1949 – First TV Studio Production In Canada
LEADERS OF TOMORROWDec. 13, 2005
Long History With Television Medium

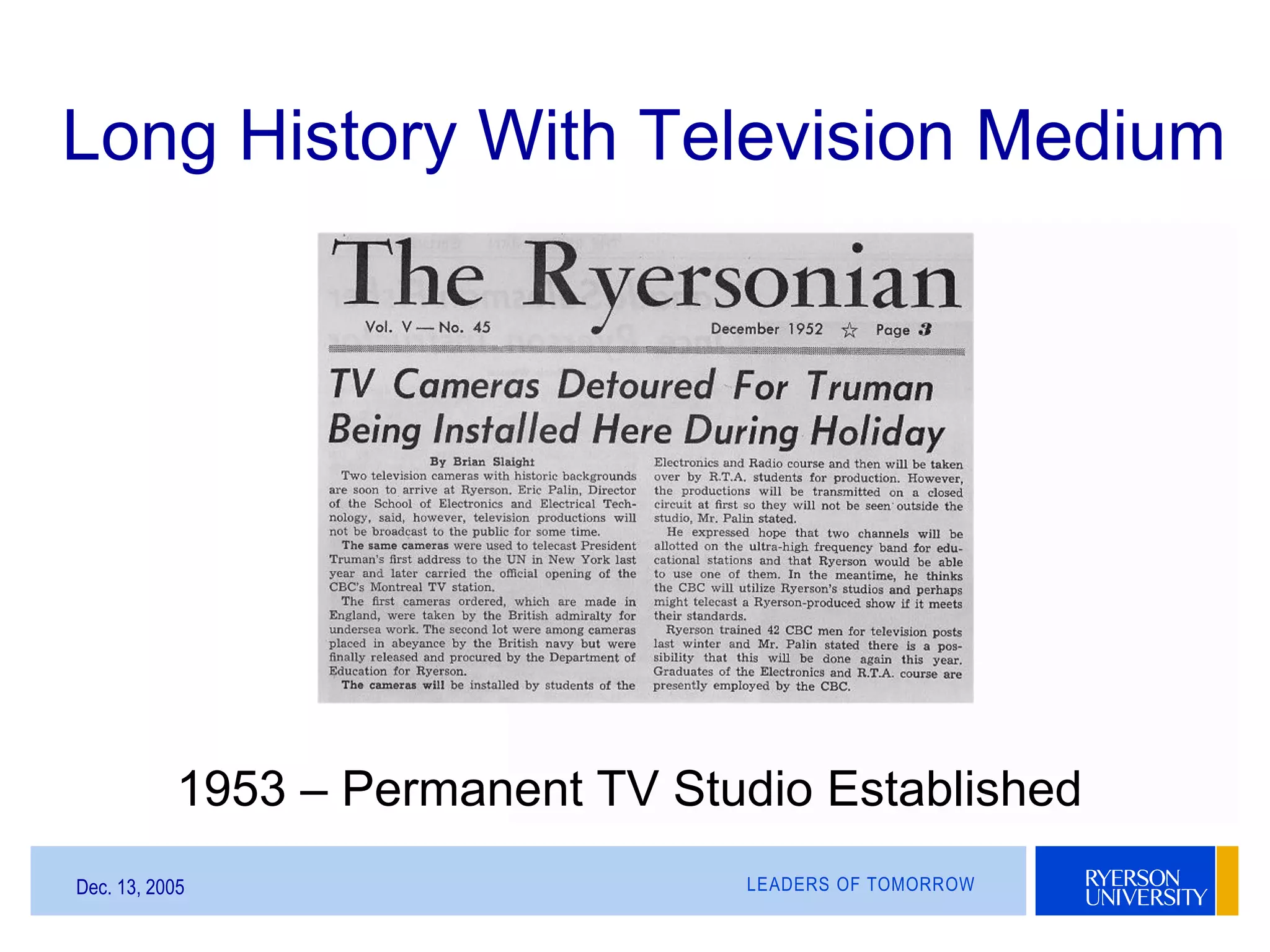

1953 – Permanent TV Studio Established
LEADERS OF TOMORROWDec. 13, 2005
1999/2000 – HDTV Student
Produced Drama In Canada
2001 – First 1080i HDTV end-to-
end broadcast in Canada
Digital Video - HDTV
2002 - 1080i Electronic Field
Production Established
2001 – ATSC Transmitter Test With
CDTV
Dec. 13, 2005 SOCIETY OF MOTION PICTURE AND TELEVISION ENGINEERS
Multi Camera High
Definition TV Studio
School Of Radio and Television Arts
Ryerson University
LEADERS OF TOMORROWDec. 13, 2005
Design Process - Goals
• To upgrade and build a modern
multipurpose television studio
• Provide for modern television
production workflows
• Provide for teaching and
learning activities
• Provide for an “academic
workflow” where teaching and
learning activities would apply to
all four TV studios in the Centre
LEADERS OF TOMORROWDec. 13, 2005

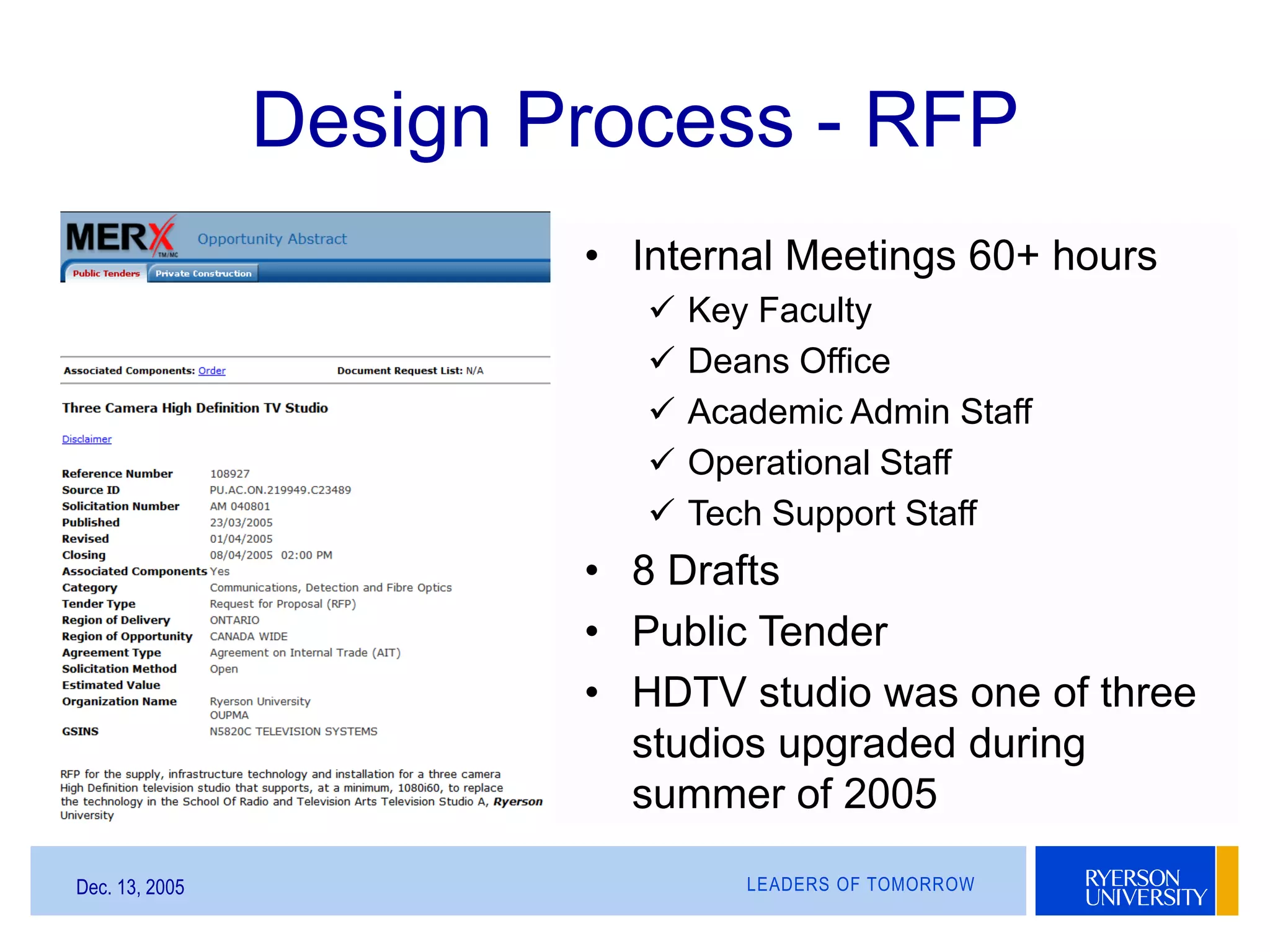

Design Process - RFP
• Internal Meetings 60+ hours
 Key Faculty
 Deans Office
 Academic Admin Staff
 Operational Staff
 Tech Support Staff
• 8 Drafts
• Public Tender
• HDTV studio was one of three
studios upgraded during
summer of 2005
LEADERS OF TOMORROWDec. 13, 2005

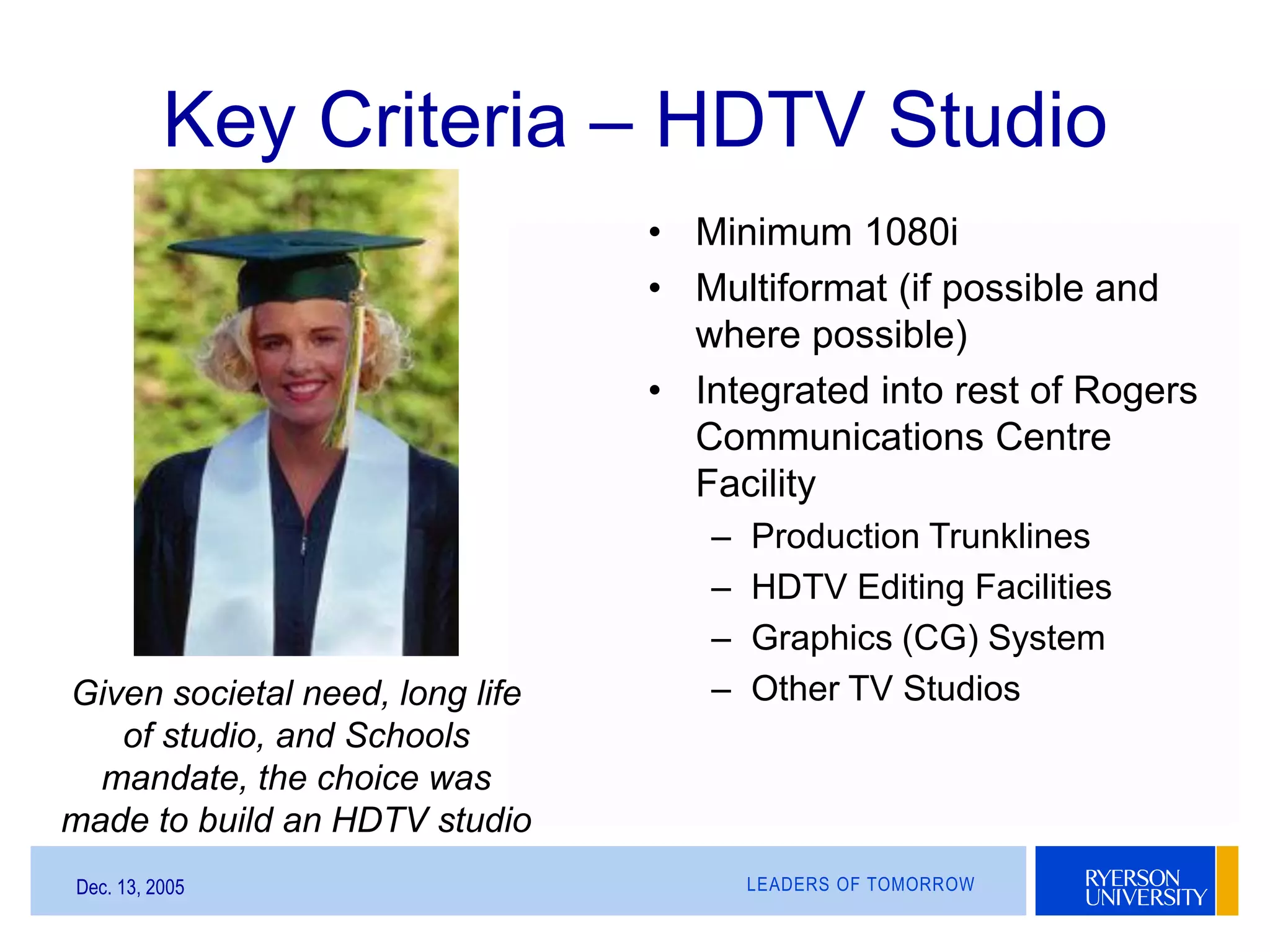

Key Criteria – HDTV Studio
• Minimum 1080i
• Multiformat (if possible and
where possible)
• Integrated into rest of Rogers
Communications Centre
Facility
– Production Trunklines
– HDTV Editing Facilities
– Graphics (CG) System
– Other TV StudiosGiven societal need, long life
of studio, and Schools
mandate, the choice was
made to build an HDTV studio
LEADERS OF TOMORROWDec. 13, 2005
Key Criteria – HDTV Studio
HDTV Switcher
• Modern Functionality
• 2 M/E Operation
• Full Size Control Panel
• Operationally similar to other
TV Studio Switchers
LEADERS OF TOMORROWDec. 13, 2005
Key Criteria – HDTV Studio

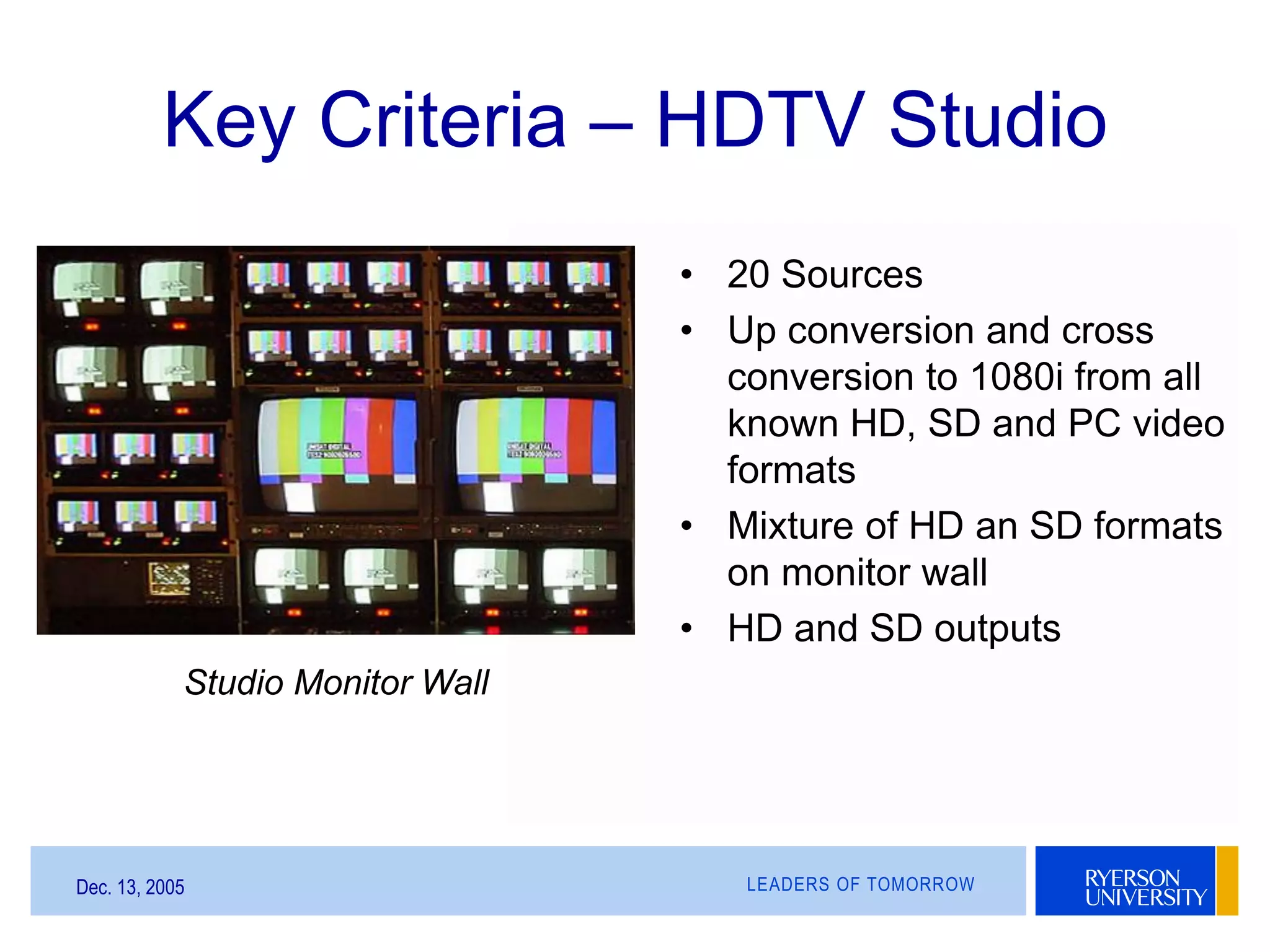

Studio Monitor Wall
• 20 Sources
• Up conversion and cross
conversion to 1080i from all
known HD, SD and PC video
formats
• Mixture of HD an SD formats
on monitor wall
• HD and SD outputs
LEADERS OF TOMORROWDec. 13, 2005
Key Criteria – HDTV Studio
• Quality camera
pedestals suitable for
HDTV Production
• Pedestals that could
be manipulated
easily by student
population

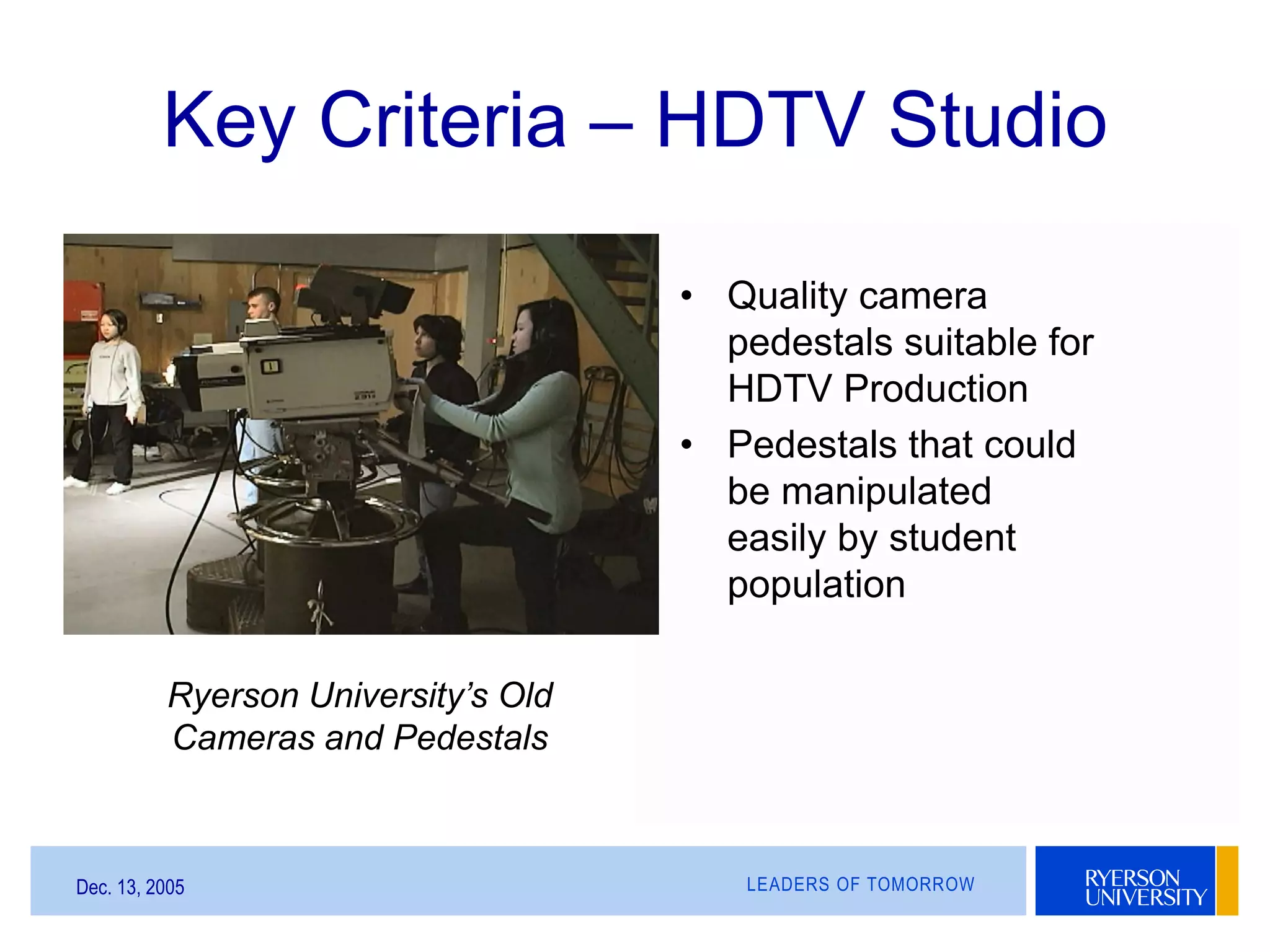

Ryerson University’s Old
Cameras and Pedestals
LEADERS OF TOMORROWDec. 13, 2005
Key Criteria – HDTV Studio

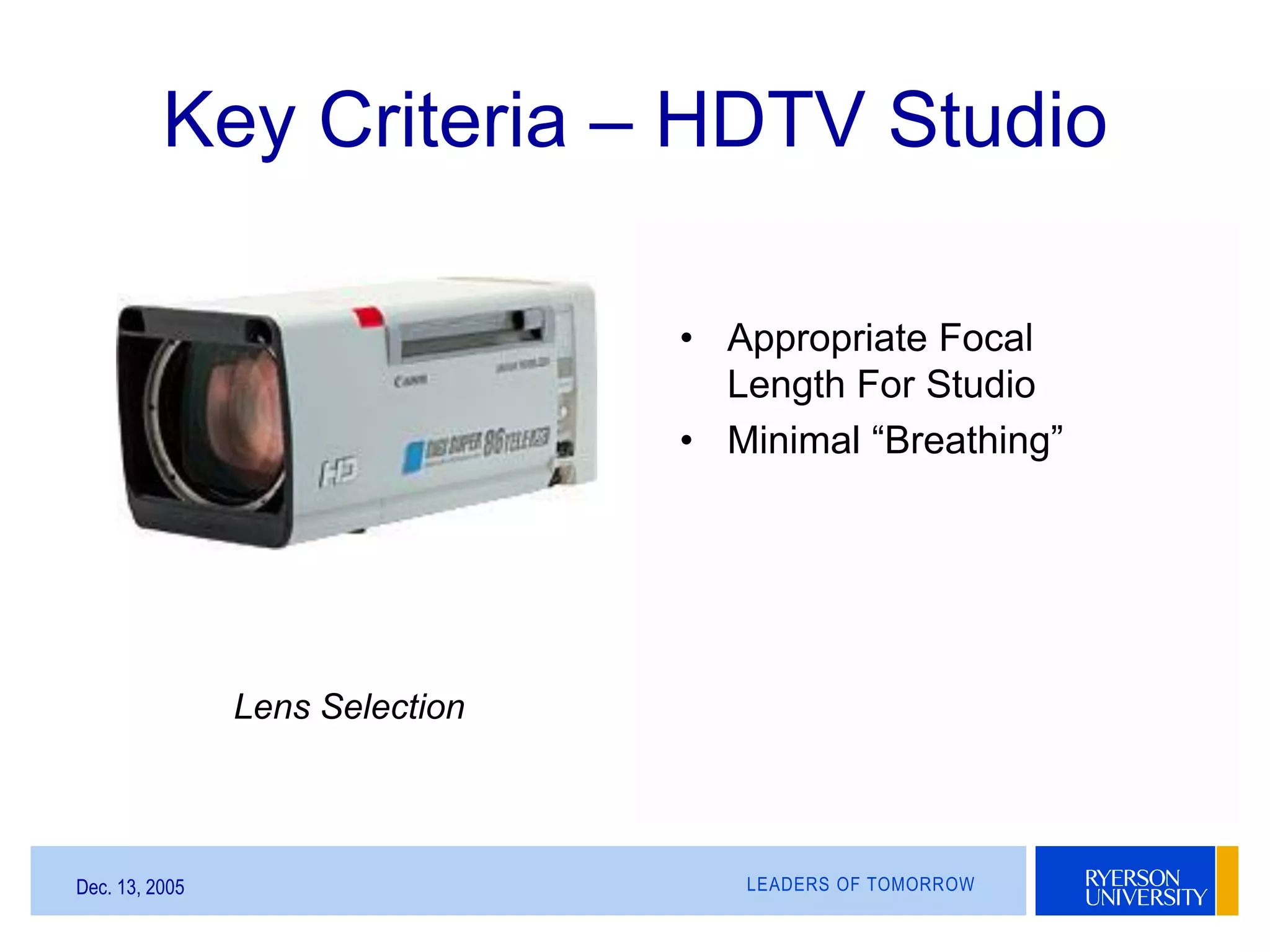

• Appropriate Focal
Length For Studio
• Minimal “Breathing”
Lens Selection
LEADERS OF TOMORROWDec. 13, 2005
Key Criteria – HDTV Studio

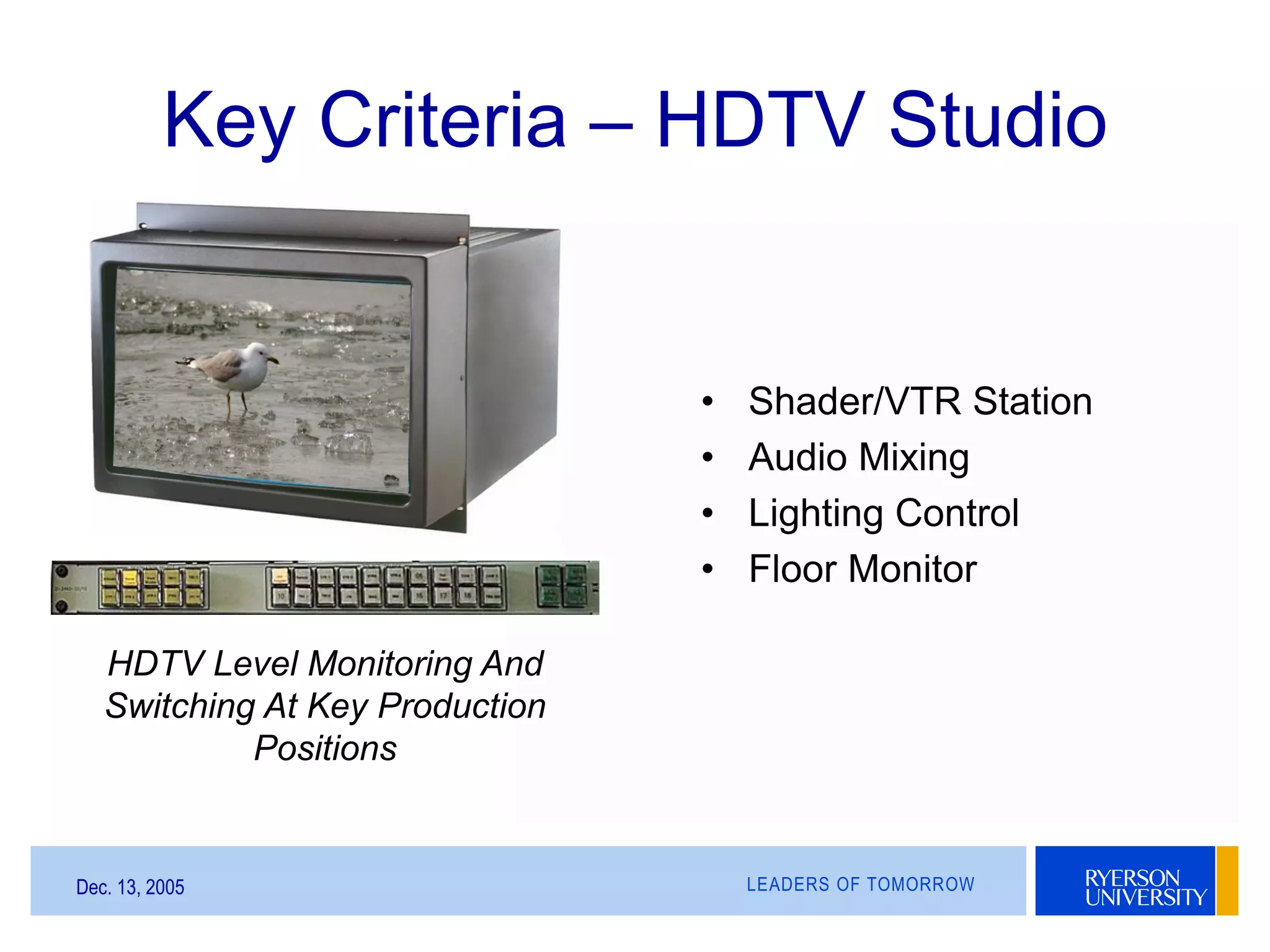

HDTV Level Monitoring And
Switching At Key Production
Positions
• Shader/VTR Station
• Audio Mixing
• Lighting Control
• Floor Monitor
LEADERS OF TOMORROWDec. 13, 2005

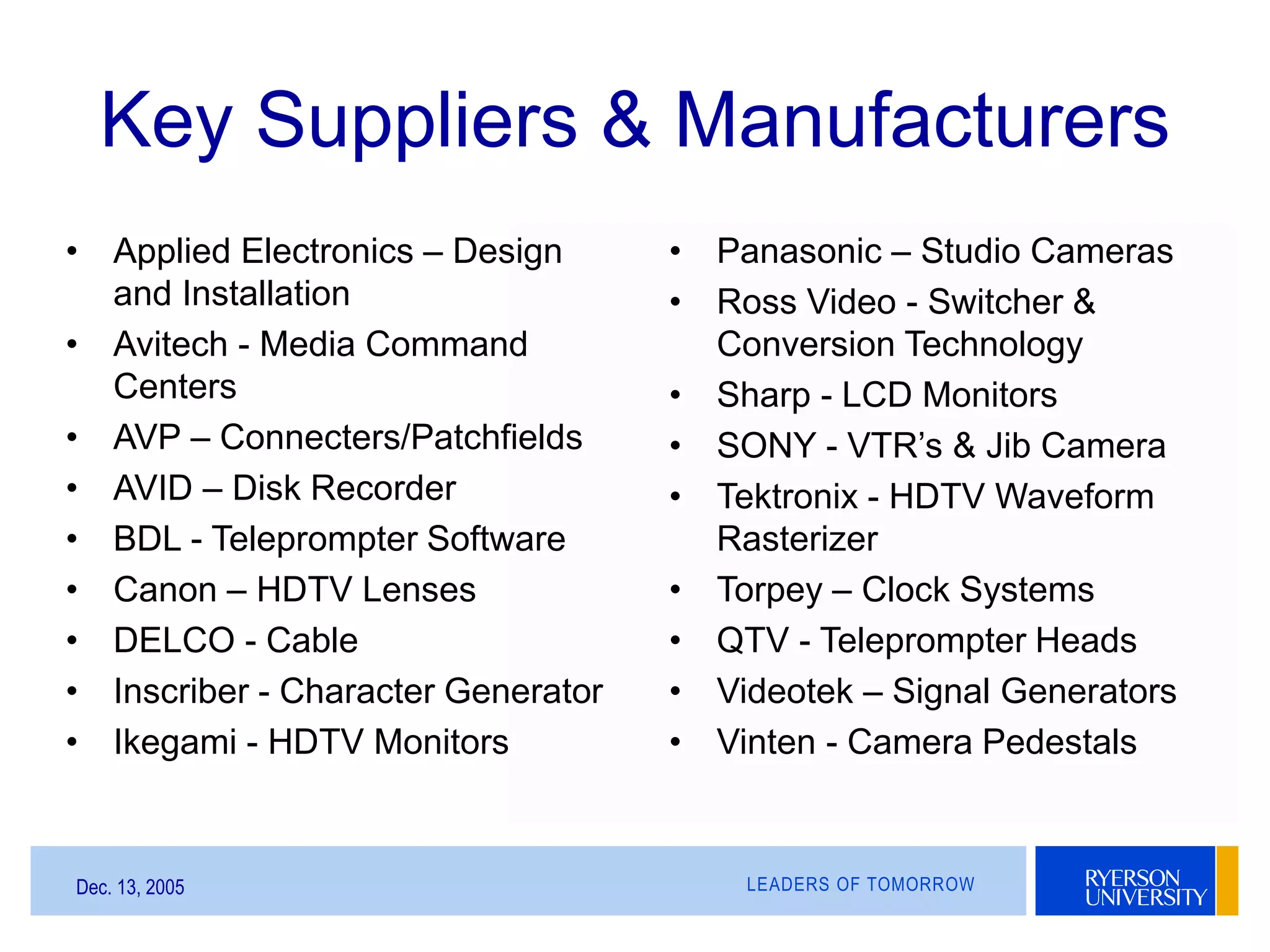

Key Suppliers & Manufacturers
• Applied Electronics – Design
and Installation
• Avitech - Media Command
Centers
• AVP – Connecters/Patchfields
• AVID – Disk Recorder
• BDL - Teleprompter Software
• Canon – HDTV Lenses
• DELCO - Cable
• Inscriber - Character Generator
• Ikegami - HDTV Monitors
• Panasonic – Studio Cameras
• Ross Video - Switcher &
Conversion Technology
• Sharp - LCD Monitors
• SONY - VTR’s & Jib Camera
• Tektronix - HDTV Waveform
Rasterizer
• Torpey – Clock Systems
• QTV - Teleprompter Heads
• Videotek – Signal Generators
• Vinten - Camera Pedestals
LEADERS OF TOMORROWDec. 13, 2005
HDTV Studio Technology
Ross Video Synergy 2
Multi-Definition Switcher
• Fully Featured 2 M/E Switcher
• Provides Modern Functionality
• Full Size Control Panel
• Internal Still Store
LEADERS OF TOMORROWDec. 13, 2005

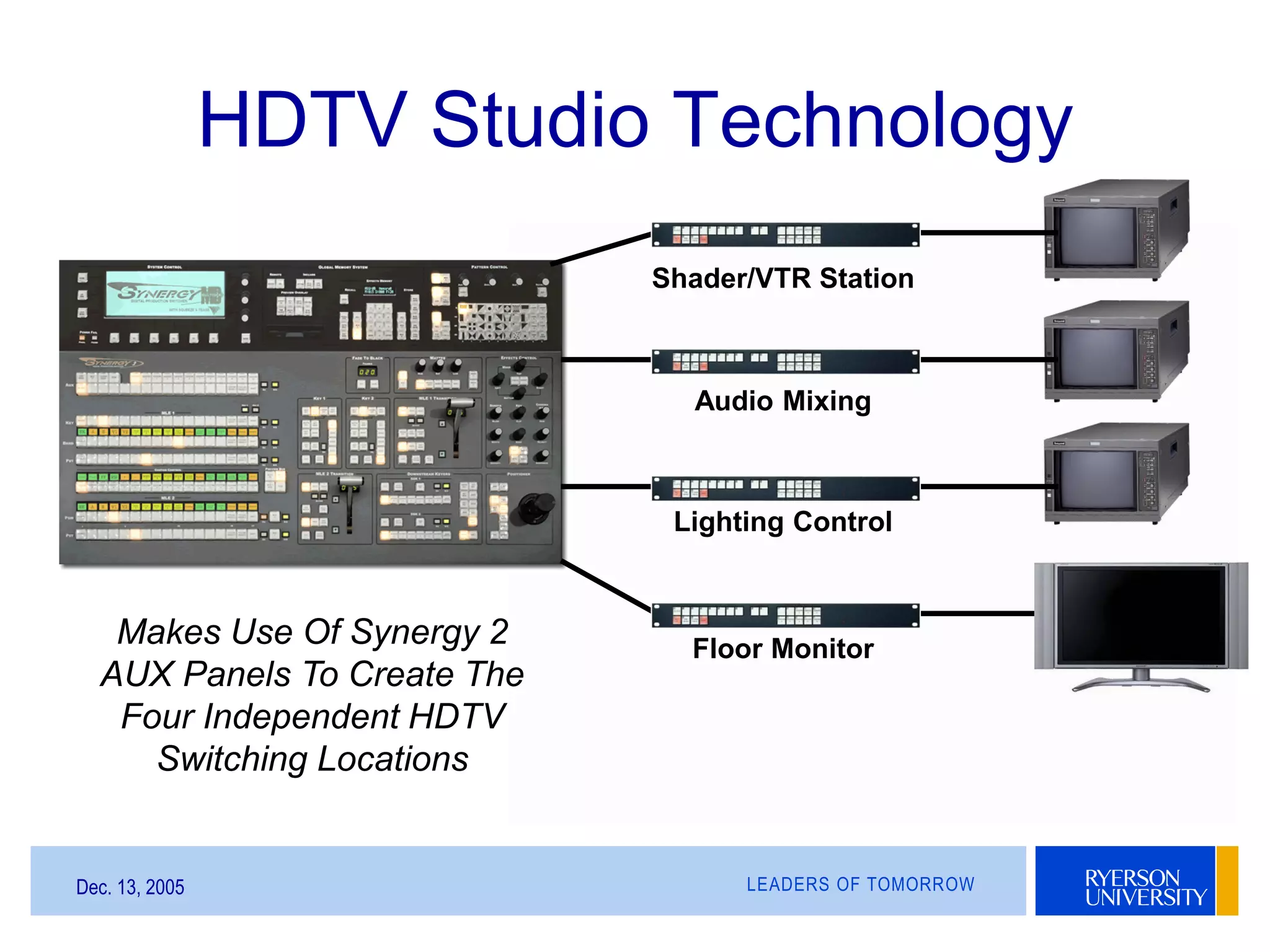

HDTV Studio Technology
Makes Use Of Synergy 2
AUX Panels To Create The
Four Independent HDTV
Switching Locations
Shader/VTR Station
Audio Mixing
Lighting Control
Floor Monitor
LEADERS OF TOMORROWDec. 13, 2005
Conversion Technology
Ross Video ADC-8033
Analog Component to
SDI Converter
Ross Video ADC-8032
Analog Composite to
SDI Converter

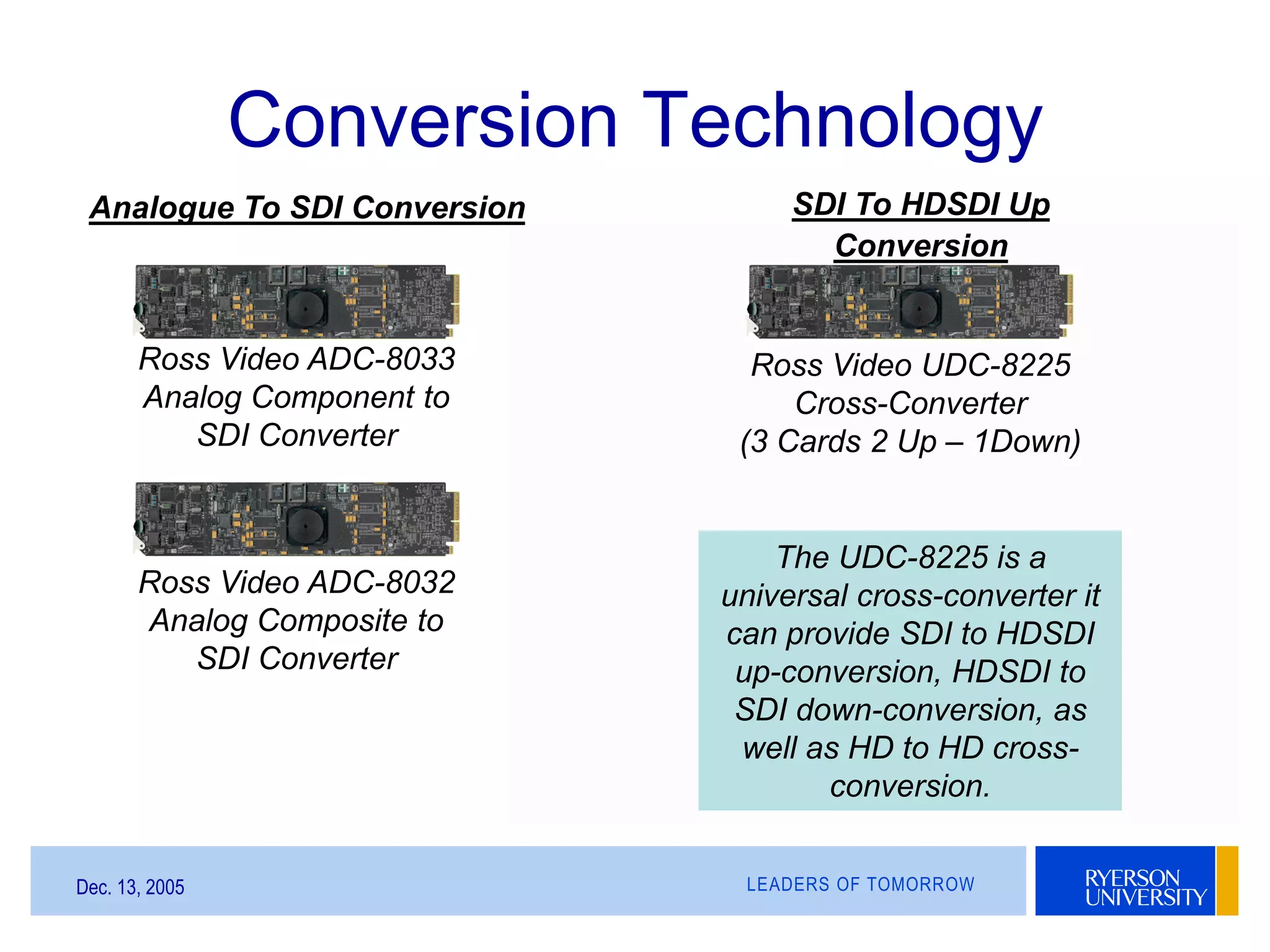

Analogue To SDI Conversion
Ross Video UDC-8225
Cross-Converter
(3 Cards 2 Up – 1Down)
SDI To HDSDI Up
Conversion
The UDC-8225 is a
universal cross-converter it
can provide SDI to HDSDI
up-conversion, HDSDI to
SDI down-conversion, as
well as HD to HD cross-
conversion.
LEADERS OF TOMORROWDec. 13, 2005
Ross Video ADC-8033
Analog Component to
SDI Converter
Ross Video ADC-8032
Analog Composite to
SDI Converter

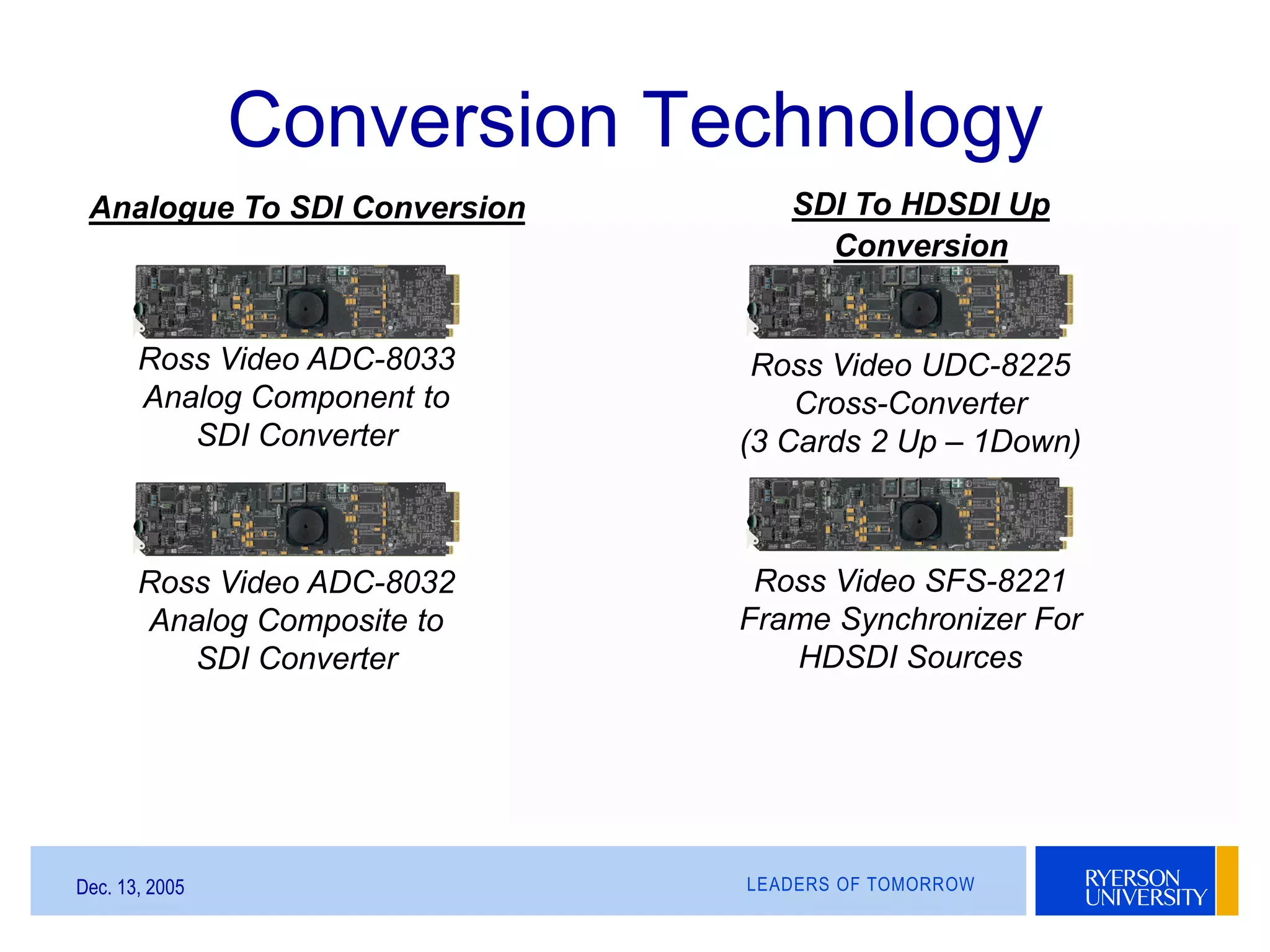

Analogue To SDI Conversion
Ross Video UDC-8225
Cross-Converter
(3 Cards 2 Up – 1Down)
SDI To HDSDI Up
Conversion
Ross Video SFS-8221
Frame Synchronizer For
HDSDI Sources
Conversion Technology
LEADERS OF TOMORROWDec. 13, 2005
Installed Switching “Family”
Synergy 2 Multi-Definition TV
A -HDTV
Synergy 2 SD
TV B-SDI
Synergy 1 SD
TV C-SDI
LEADERS OF TOMORROWDec. 13, 2005
Studio Monitor Wall
Ikegami HTM-2005R
CRT HDTV Monitor
SHARP LC-45GD4U Liquid
Crystal Television
Avitech Media Command
Center
Three Technologies Make Up The Monitor Wall
LEADERS OF TOMORROWDec. 13, 2005
“Dual Personality” Monitor Wall
Ikegami HTM-2005R
CRT HDTV Monitor
• Traditional CRT Based
Program/Preview Monitor
• A SMPTE phosphor CRT
• 4*3 Aspect Ratio Screen
• SD Capable
• Displays HDTV Signals Letterboxed
LEADERS OF TOMORROWDec. 13, 2005
“Dual Personality” Monitor Wall

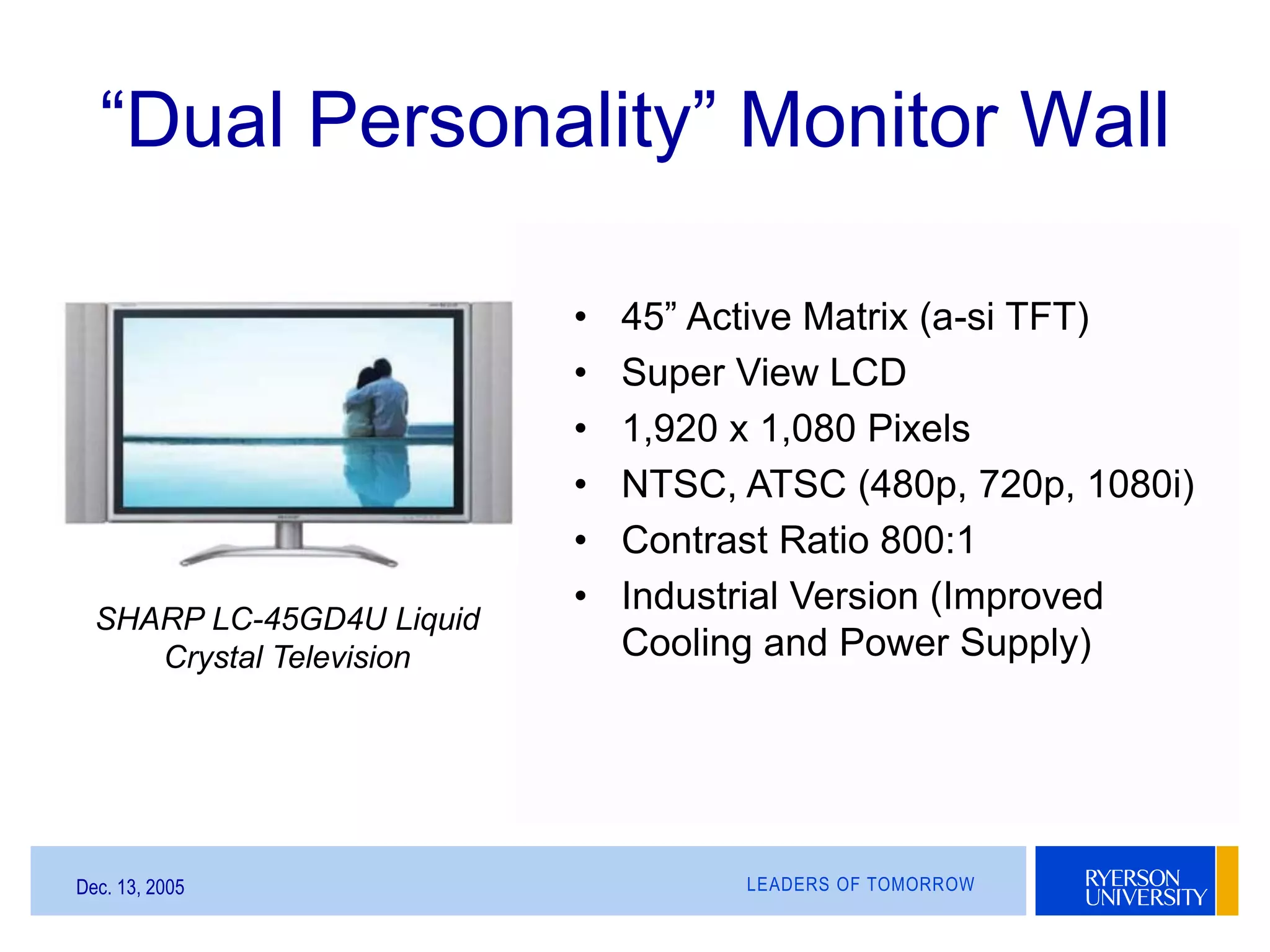

SHARP LC-45GD4U Liquid
Crystal Television
• 45” Active Matrix (a-si TFT)
• Super View LCD
• 1,920 x 1,080 Pixels
• NTSC, ATSC (480p, 720p, 1080i)
• Contrast Ratio 800:1
• Industrial Version (Improved
Cooling and Power Supply)
LEADERS OF TOMORROWDec. 13, 2005
Multi-Input LCD Screen
• Technology Creates Multi-Input
Monitor Wall On LCD Screen
• Provides For Tally & Feed ID
• Allows For Different Monitor Wall
Designs Based On Production Type
• Reduces Monitor Wall Size - Places
Preview Feeds Side By Side (Not
Possible with Letterboxed 9” CRT
Monitors)Avitech Media Command
Center
LEADERS OF TOMORROWDec. 13, 2005
Shader Station Technology
Tektronix
WVR7100
Waveform
Rasterizer
Panasonic AK-HRP931
Operation Panels
Three Components Make Up Shader/VTR Station
Ikegami HTM-
1505RA CRT
HDTV Monitor
with Auto Set-
up Probe
LEADERS OF TOMORROWDec. 13, 2005

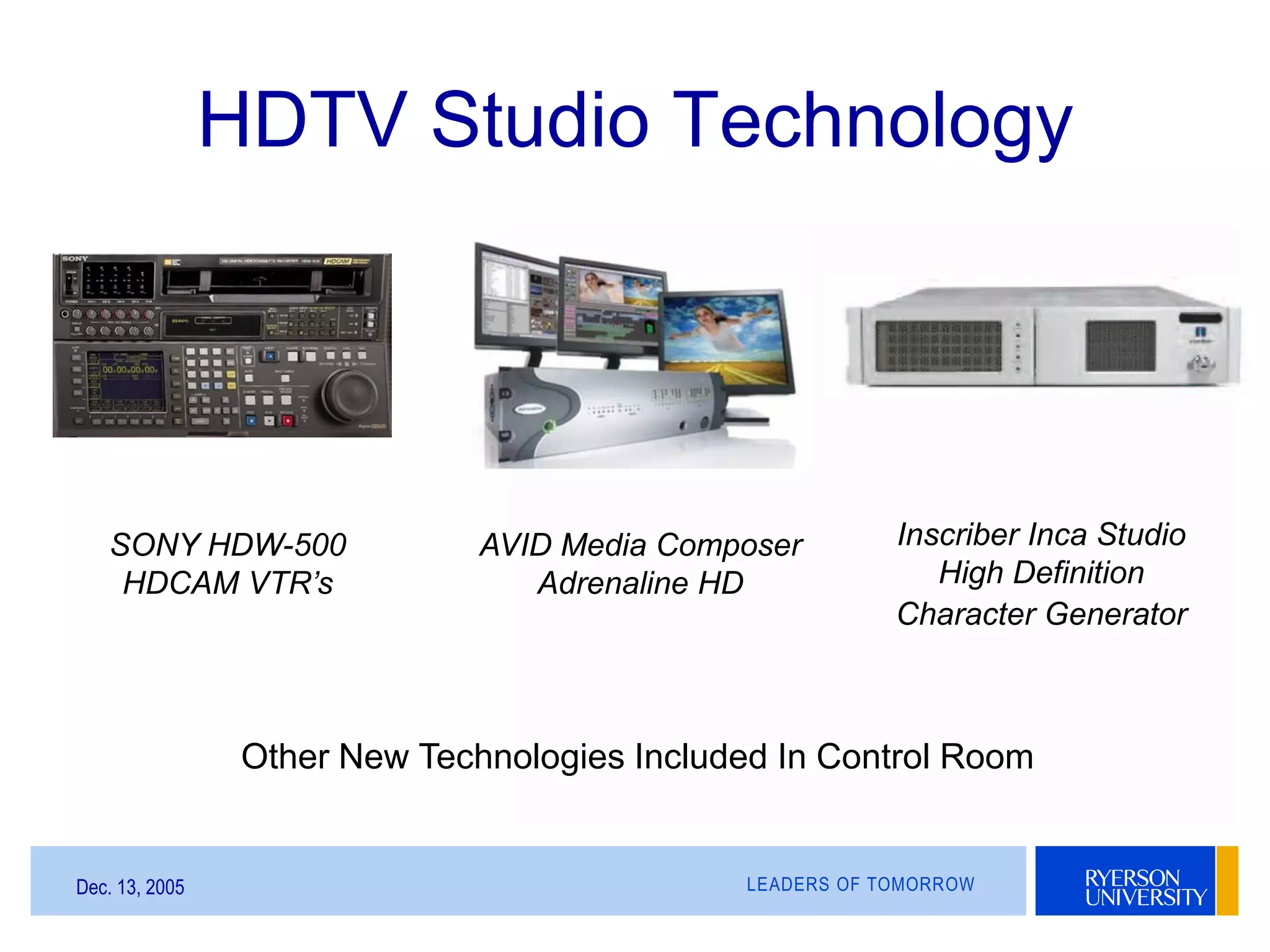

HDTV Studio Technology
AVID Media Composer
Adrenaline HD
SONY HDW-500
HDCAM VTR’s
Inscriber Inca Studio
High Definition
Character Generator
Other New Technologies Included In Control Room
LEADERS OF TOMORROWDec. 13, 2005
HDTV Studio Technology
Torpey Clocks and
Production Timing
System
Dell Dimension PC
StillStore Feeder
BDL Teleprompter
Software
Other New Technologies Included In Control Room
LEADERS OF TOMORROWDec. 13, 2005

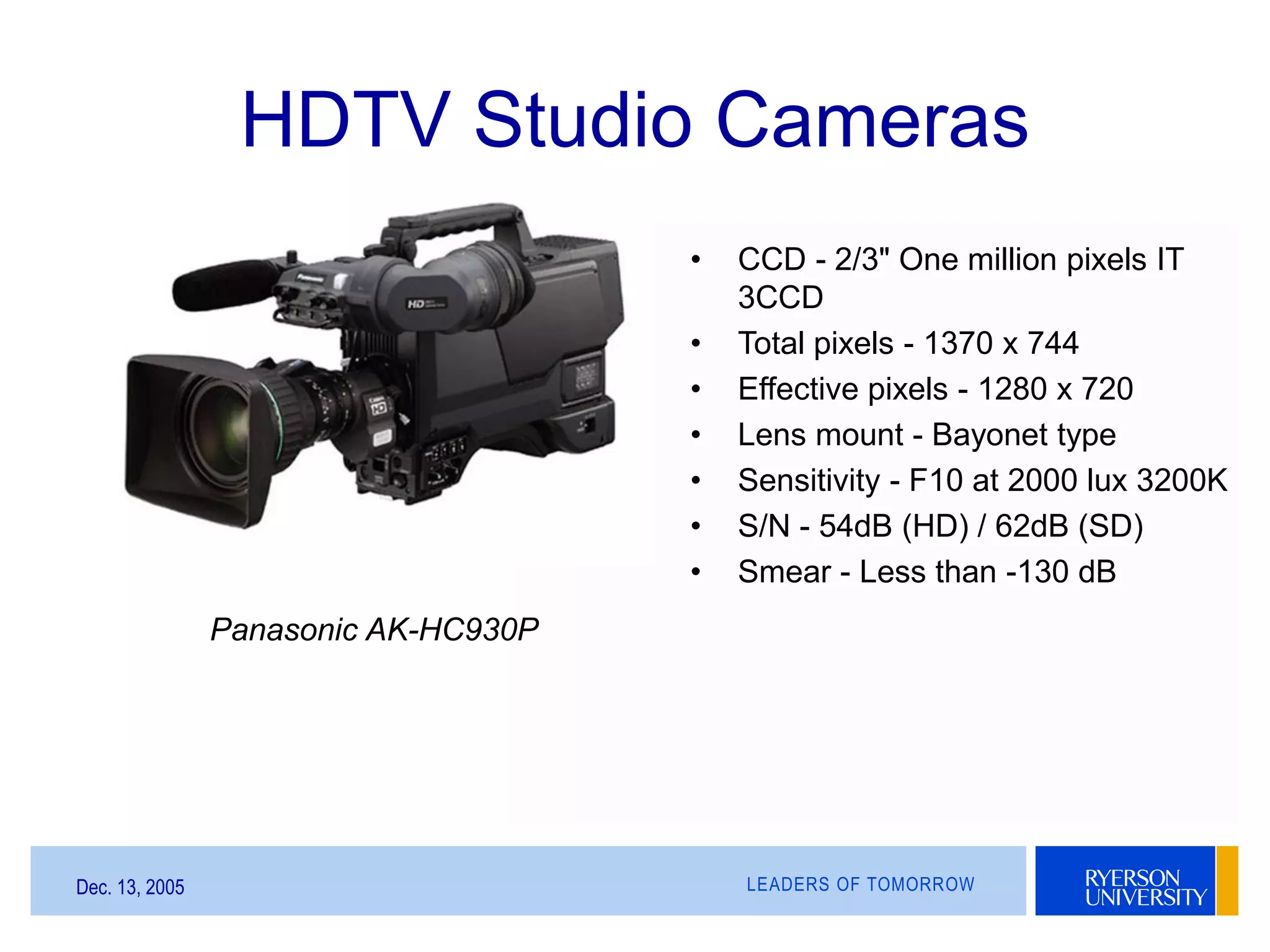

HDTV Studio Cameras
Panasonic AK-HC930P
• CCD - 2/3" One million pixels IT
3CCD
• Total pixels - 1370 x 744
• Effective pixels - 1280 x 720
• Lens mount - Bayonet type
• Sensitivity - F10 at 2000 lux 3200K
• S/N - 54dB (HD) / 62dB (SD)
• Smear - Less than -130 dB
LEADERS OF TOMORROWDec. 13, 2005

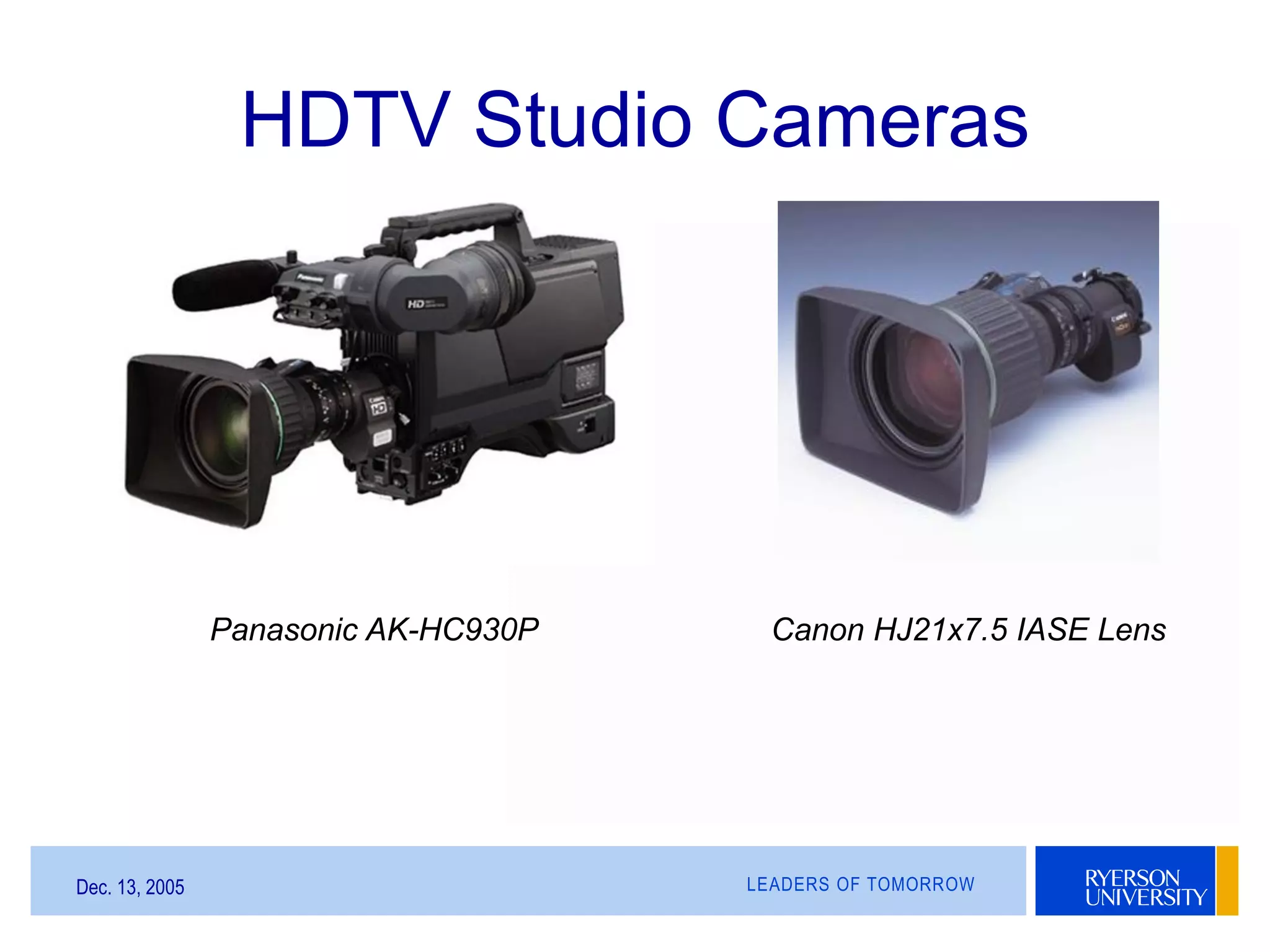

Canon HJ21x7.5 IASE LensPanasonic AK-HC930P
HDTV Studio Cameras
LEADERS OF TOMORROWDec. 13, 2005

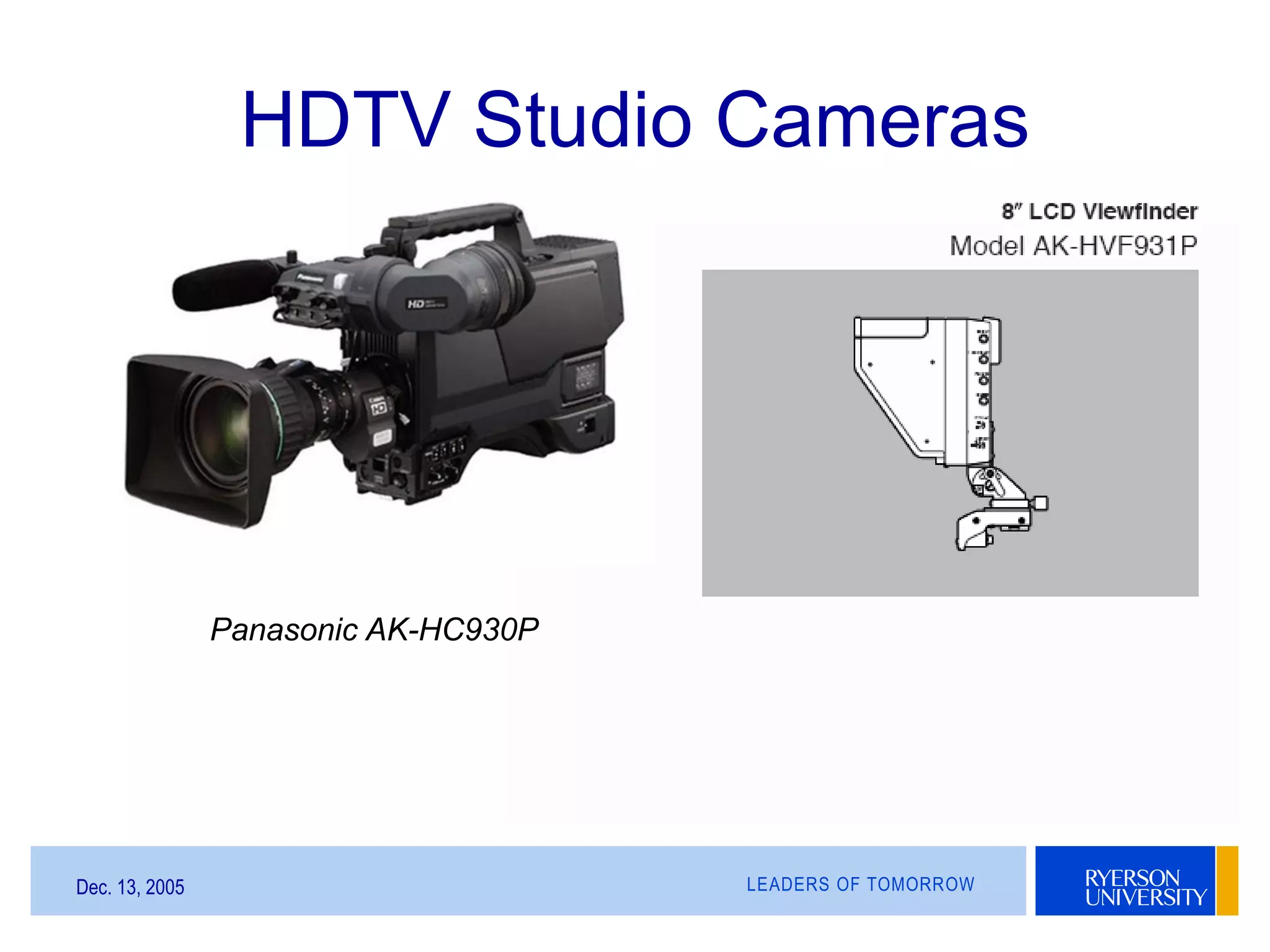

Panasonic AK-HC930P
HDTV Studio Cameras
LEADERS OF TOMORROWDec. 13, 2005
Studio Pedestals
Vinten Osprey Elite
3374-3C (x2)
Vinten Quattro-S
V3850-006
Quattro-S At
Minimum Height
Vinten Vector 60
3806-3
LEADERS OF TOMORROWDec. 13, 2005

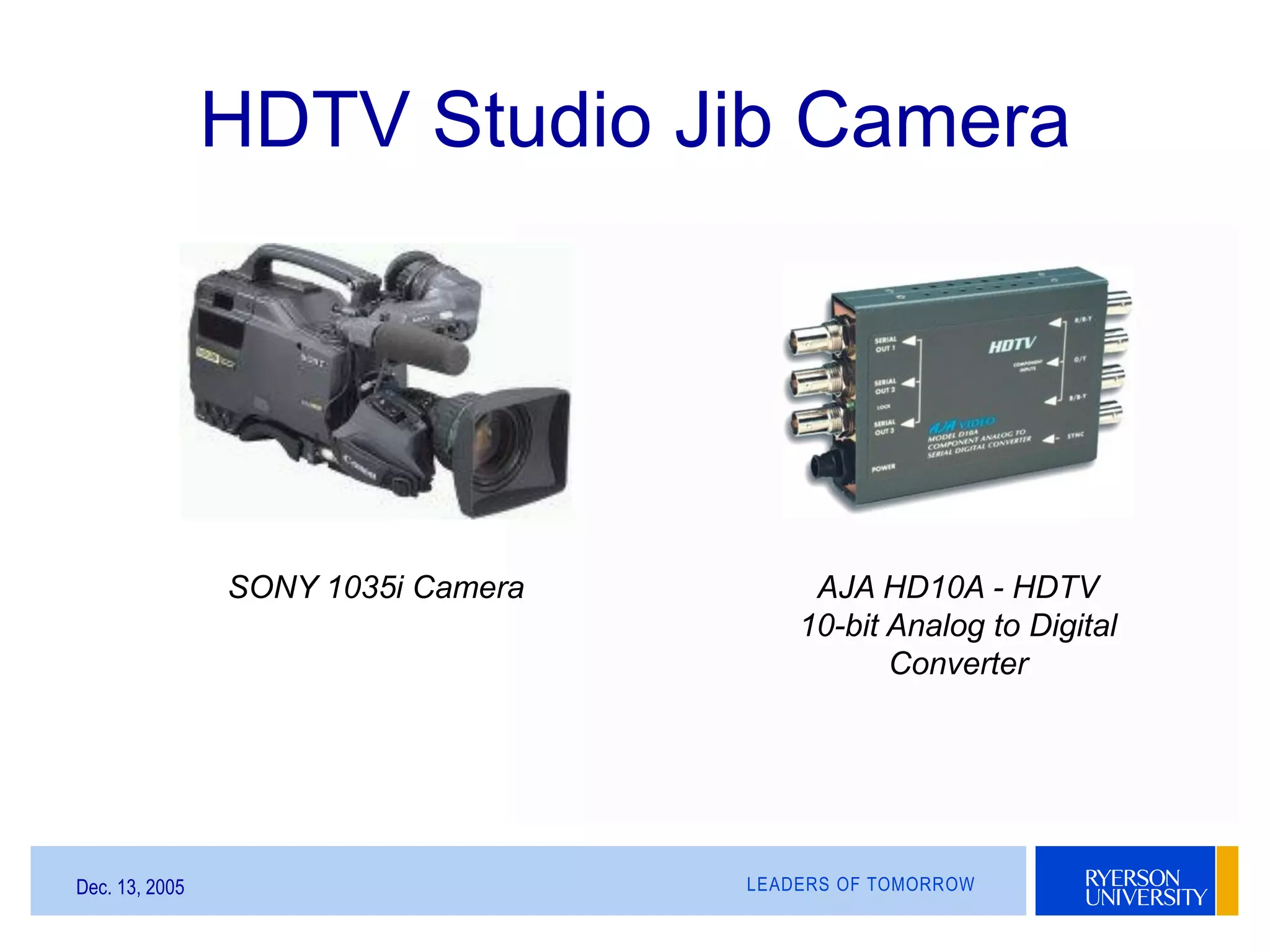

HDTV Studio Jib Camera
SONY 1035i Camera AJA HD10A - HDTV
10-bit Analog to Digital
Converter
LEADERS OF TOMORROWDec. 13, 2005

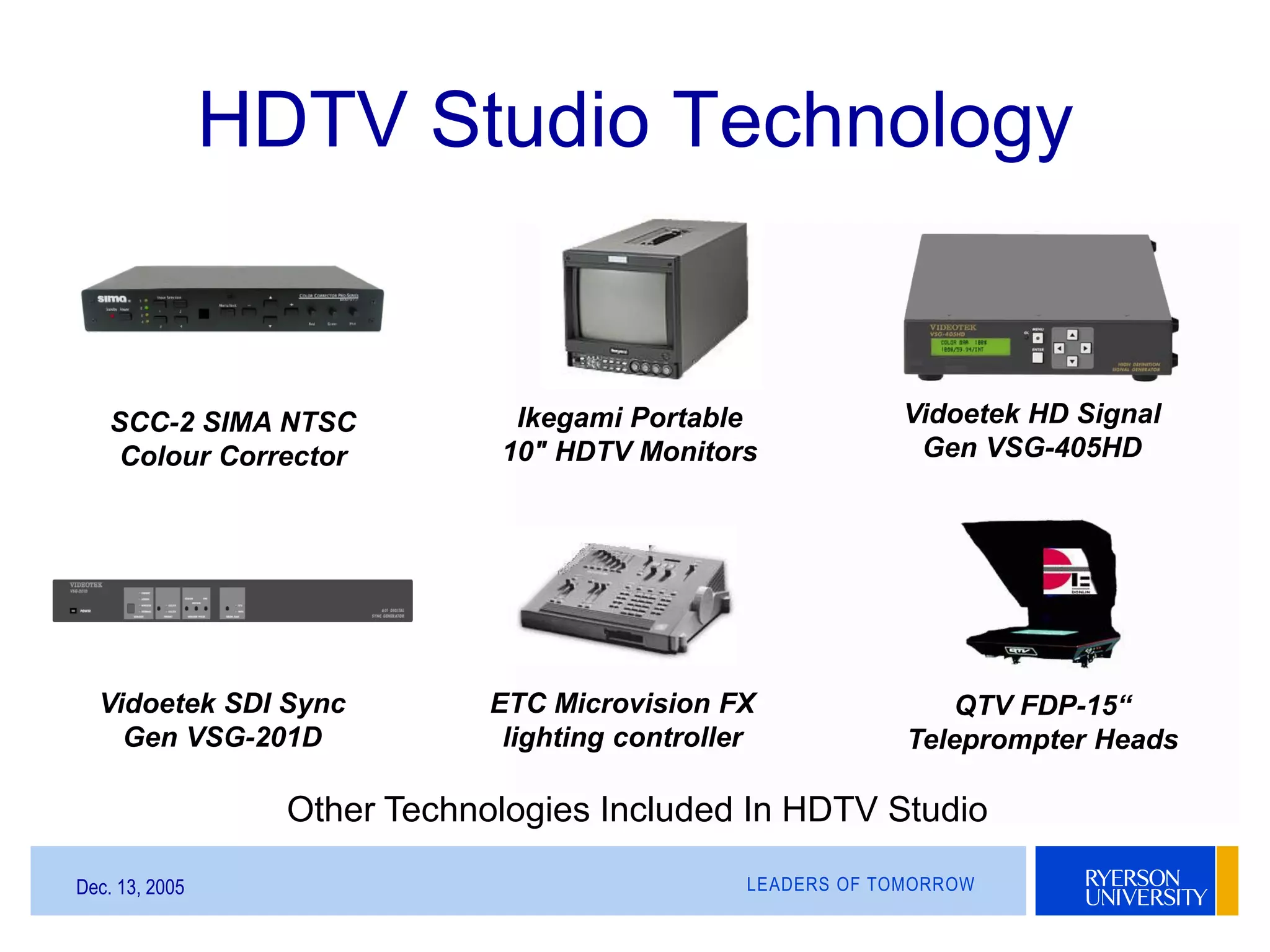

HDTV Studio Technology
SCC-2 SIMA NTSC
Colour Corrector
Ikegami Portable
10" HDTV Monitors
Vidoetek HD Signal
Gen VSG-405HD
Vidoetek SDI Sync
Gen VSG-201D
QTV FDP-15“
Teleprompter Heads
ETC Microvision FX
lighting controller
Other Technologies Included In HDTV Studio
LEADERS OF TOMORROWDec. 13, 2005
Questions

More Related Content

What's hot

Using IT Equipment in Live Broadcast
Using IT Equipment in Live BroadcastUsing IT Equipment in Live Broadcast
Using IT Equipment in Live Broadcast
Kieran Kunhya

Abipbox
AbipboxAbipbox
Abipbox
AbipboxAbipbox
Technoserve
Technoserve Technoserve
Technoserve
TECHNOSERVE W.L.L.

Broadcast day-2007-comtech
Broadcast day-2007-comtechBroadcast day-2007-comtech
Broadcast day-2007-comtech
SSPI Brasil

Abipbox
AbipboxAbipbox
Abipbox
AbipboxAbipbox
Implementing Uncompressed over IP in software and the pitfalls
Implementing Uncompressed over IP in software and the pitfallsImplementing Uncompressed over IP in software and the pitfalls
Implementing Uncompressed over IP in software and the pitfalls
Kieran Kunhya

Review of audio confrencing technology (2)
Review of audio confrencing technology (2)Review of audio confrencing technology (2)
Review of audio confrencing technology (2)
Anoo Al-henai

Abipbox
AbipboxAbipbox
Tv for mobile_platforms
Tv for mobile_platformsTv for mobile_platforms
Tv for mobile_platforms
Tee Lim

Newtec DVB-S2 Calculator: Technical Training
Newtec DVB-S2 Calculator: Technical TrainingNewtec DVB-S2 Calculator: Technical Training
Newtec DVB-S2 Calculator: Technical Training
Newtec

Video standard
Video standardVideo standard
Video standard
Nuttaphon Eiamwongsarn

Abipbox
AbipboxAbipbox
Transport methods in 3DTV--A Survey
Transport methods in 3DTV--A SurveyTransport methods in 3DTV--A Survey
Transport methods in 3DTV--A Survey
Kevin Tong

TV (Television) A Brief Depiction of the internal Mechanism
TV (Television) A Brief Depiction of the internal MechanismTV (Television) A Brief Depiction of the internal Mechanism
TV (Television) A Brief Depiction of the internal Mechanism
Muhammad Safeer Aabbasi

Open VLC Platform
Open VLC PlatformOpen VLC Platform
Open VLC Platform
Vinayagam Mariappan

Loudness 201: Advanced Loudness Webinar
Loudness 201: Advanced Loudness WebinarLoudness 201: Advanced Loudness Webinar
Loudness 201: Advanced Loudness Webinar
Volicon

SVSi_Networked AV
SVSi_Networked AVSVSi_Networked AV
SVSi_Networked AV
Southern Vision Systems, Inc

Synergy brochure english
Synergy brochure englishSynergy brochure english
Synergy brochure english
Manoj Kumar Rai


What's hot (20)

Using IT Equipment in Live Broadcast
Using IT Equipment in Live BroadcastUsing IT Equipment in Live Broadcast
Using IT Equipment in Live Broadcast

Abipbox
AbipboxAbipbox
Abipbox

Abipbox
AbipboxAbipbox
Abipbox

Technoserve
Technoserve Technoserve
Technoserve

Broadcast day-2007-comtech
Broadcast day-2007-comtechBroadcast day-2007-comtech
Broadcast day-2007-comtech

Abipbox
AbipboxAbipbox
Abipbox

Abipbox
AbipboxAbipbox
Abipbox

Implementing Uncompressed over IP in software and the pitfalls
Implementing Uncompressed over IP in software and the pitfallsImplementing Uncompressed over IP in software and the pitfalls
Implementing Uncompressed over IP in software and the pitfalls

Review of audio confrencing technology (2)
Review of audio confrencing technology (2)Review of audio confrencing technology (2)
Review of audio confrencing technology (2)

Abipbox
AbipboxAbipbox
Abipbox

Tv for mobile_platforms
Tv for mobile_platformsTv for mobile_platforms
Tv for mobile_platforms

Newtec DVB-S2 Calculator: Technical Training
Newtec DVB-S2 Calculator: Technical TrainingNewtec DVB-S2 Calculator: Technical Training
Newtec DVB-S2 Calculator: Technical Training

Video standard
Video standardVideo standard
Video standard

Abipbox
AbipboxAbipbox
Abipbox

Transport methods in 3DTV--A Survey
Transport methods in 3DTV--A SurveyTransport methods in 3DTV--A Survey
Transport methods in 3DTV--A Survey

TV (Television) A Brief Depiction of the internal Mechanism
TV (Television) A Brief Depiction of the internal MechanismTV (Television) A Brief Depiction of the internal Mechanism
TV (Television) A Brief Depiction of the internal Mechanism

Open VLC Platform
Open VLC PlatformOpen VLC Platform
Open VLC Platform

Loudness 201: Advanced Loudness Webinar
Loudness 201: Advanced Loudness WebinarLoudness 201: Advanced Loudness Webinar
Loudness 201: Advanced Loudness Webinar

SVSi_Networked AV
SVSi_Networked AVSVSi_Networked AV
SVSi_Networked AV

Synergy brochure english
Synergy brochure englishSynergy brochure english
Synergy brochure english


Viewers also liked

HDTV pro
HDTV proHDTV pro
HDTV pro
guestd78b2b

Time Bandits
Time BanditsTime Bandits
Time Bandits
Marc Hill

CASE STUDY | ABC Cooking Studio
CASE STUDY | ABC Cooking StudioCASE STUDY | ABC Cooking Studio
CASE STUDY | ABC Cooking Studio
Uncle Advertising

Turkish Delight TVC build
Turkish Delight TVC buildTurkish Delight TVC build
Turkish Delight TVC build
Marc Hill

Wisconsin Branding Media Case Study
Wisconsin Branding Media Case StudyWisconsin Branding Media Case Study
Wisconsin Branding Media Case Study
Scott Becher

Elisha Attia Logtel from ANALOG 2 HDTV
Elisha Attia Logtel from ANALOG 2 HDTVElisha Attia Logtel from ANALOG 2 HDTV
Elisha Attia Logtel from ANALOG 2 HDTV
Elysée (Elisha) Attia

HDTV (Case study)
HDTV (Case study)HDTV (Case study)
HDTV (Case study)
Daniel Zhao

Introduction to TV Production
Introduction to TV ProductionIntroduction to TV Production
Introduction to TV Production
ayetullah

hdtv ppt slide
hdtv ppt slidehdtv ppt slide
hdtv ppt slide
cswati

G322 film industry revision
G322 film industry revisionG322 film industry revision
G322 film industry revision
MrSouthworth

Architectural design studio responsibilities and expectations
Architectural design studio   responsibilities and expectationsArchitectural design studio   responsibilities and expectations
Architectural design studio responsibilities and expectations
ctlachu

Horizontal Design Studio versus Vertical Design Studio: A Tale of Two Archit...
Horizontal Design Studio versus Vertical Design Studio:A Tale of Two Archit...Horizontal Design Studio versus Vertical Design Studio:A Tale of Two Archit...
Horizontal Design Studio versus Vertical Design Studio: A Tale of Two Archit...
Khaled Ali

CCTV Building, A Structural Design Overview
CCTV Building, A Structural Design OverviewCCTV Building, A Structural Design Overview
CCTV Building, A Structural Design Overview
Peter Bach


Viewers also liked (13)

HDTV pro
HDTV proHDTV pro
HDTV pro

Time Bandits
Time BanditsTime Bandits
Time Bandits

CASE STUDY | ABC Cooking Studio
CASE STUDY | ABC Cooking StudioCASE STUDY | ABC Cooking Studio
CASE STUDY | ABC Cooking Studio

Turkish Delight TVC build
Turkish Delight TVC buildTurkish Delight TVC build
Turkish Delight TVC build

Wisconsin Branding Media Case Study
Wisconsin Branding Media Case StudyWisconsin Branding Media Case Study
Wisconsin Branding Media Case Study

Elisha Attia Logtel from ANALOG 2 HDTV
Elisha Attia Logtel from ANALOG 2 HDTVElisha Attia Logtel from ANALOG 2 HDTV
Elisha Attia Logtel from ANALOG 2 HDTV

HDTV (Case study)
HDTV (Case study)HDTV (Case study)
HDTV (Case study)

Introduction to TV Production
Introduction to TV ProductionIntroduction to TV Production
Introduction to TV Production

hdtv ppt slide
hdtv ppt slidehdtv ppt slide
hdtv ppt slide

G322 film industry revision
G322 film industry revisionG322 film industry revision
G322 film industry revision

Architectural design studio responsibilities and expectations
Architectural design studio   responsibilities and expectationsArchitectural design studio   responsibilities and expectations
Architectural design studio responsibilities and expectations

Horizontal Design Studio versus Vertical Design Studio: A Tale of Two Archit...
Horizontal Design Studio versus Vertical Design Studio:A Tale of Two Archit...Horizontal Design Studio versus Vertical Design Studio:A Tale of Two Archit...
Horizontal Design Studio versus Vertical Design Studio: A Tale of Two Archit...

CCTV Building, A Structural Design Overview
CCTV Building, A Structural Design OverviewCCTV Building, A Structural Design Overview
CCTV Building, A Structural Design Overview


Similar to SMPTE Toronto Presentation - Multi Camera High Definition TV Studio and Rogers Communications Centre Tour

Remote Production & Streaming Workshop
Remote Production & Streaming WorkshopRemote Production & Streaming Workshop
Remote Production & Streaming Workshop
Richard Harrington

CineGrid @ Holland Festival 2010
CineGrid @ Holland Festival 2010CineGrid @ Holland Festival 2010
CineGrid @ Holland Festival 2010
Frank Kresin

“Comparing ML-Based Audio with ML-Based Vision: An Introduction to ML Audio f...
“Comparing ML-Based Audio with ML-Based Vision: An Introduction to ML Audio f...“Comparing ML-Based Audio with ML-Based Vision: An Introduction to ML Audio f...
“Comparing ML-Based Audio with ML-Based Vision: An Introduction to ML Audio f...
Edge AI and Vision Alliance

Graphic Equalizer Power Point
Graphic Equalizer Power PointGraphic Equalizer Power Point
Graphic Equalizer Power Point
David Hospedales

Robledo Cardoso portfolio V1.2
Robledo Cardoso portfolio V1.2Robledo Cardoso portfolio V1.2
Robledo Cardoso portfolio V1.2
Robledo Cardoso, CTS

NAB 2019: Multi-Camera & Live Streaming Productions (Traditional & VR Cameras...
NAB 2019: Multi-Camera & Live Streaming Productions (Traditional & VR Cameras...NAB 2019: Multi-Camera & Live Streaming Productions (Traditional & VR Cameras...
NAB 2019: Multi-Camera & Live Streaming Productions (Traditional & VR Cameras...
Richard Harrington

Tv studio and editing suite - Broadcast
Tv studio and editing suite - BroadcastTv studio and editing suite - Broadcast
Tv studio and editing suite - Broadcast
Sarah Rizvi

GTG 2015 Presentation V2.0
GTG 2015 Presentation V2.0GTG 2015 Presentation V2.0
GTG 2015 Presentation V2.0
Muthu Babu

Satellite Conferencing: A Mini Course
Satellite Conferencing: A Mini CourseSatellite Conferencing: A Mini Course
Satellite Conferencing: A Mini Course
Dori Schmitz

Experiencing the Live IIoT
Experiencing the Live IIoTExperiencing the Live IIoT
Experiencing the Live IIoT
Real-Time Innovations (RTI)

Deliver and monetize your content with video center operations on aws
Deliver and monetize your content with video center operations on awsDeliver and monetize your content with video center operations on aws
Deliver and monetize your content with video center operations on aws
Amazon Web Services

Projector Training - Solid State Light Source Technology
Projector Training - Solid State Light Source TechnologyProjector Training - Solid State Light Source Technology
Projector Training - Solid State Light Source Technology
rAVe [PUBS]

NEFC fiber use in broadcasting facilities
NEFC fiber use in broadcasting facilitiesNEFC fiber use in broadcasting facilities
NEFC fiber use in broadcasting facilities
Michael Foti

Video distribution over wifi
Video distribution over wifi Video distribution over wifi
Video distribution over wifi
Andrea Di Rocco

Small scale DAB technical event - November 2014
Small scale DAB technical event - November 2014Small scale DAB technical event - November 2014
Small scale DAB technical event - November 2014
CMA_Slides

Robledo cardoso portfolio
Robledo cardoso portfolioRobledo cardoso portfolio
Robledo cardoso portfolio
Robledo Cardoso, CTS

Cvaa webinar 20120612
Cvaa webinar 20120612Cvaa webinar 20120612
Cvaa webinar 20120612
Volicon

Stable Feed and Lower Costs with Use of 5G and Satellite Stable Feed and Lowe...
Stable Feed and Lower Costs with Use of 5G and Satellite Stable Feed and Lowe...Stable Feed and Lower Costs with Use of 5G and Satellite Stable Feed and Lowe...
Stable Feed and Lower Costs with Use of 5G and Satellite Stable Feed and Lowe...
Kieran Kunhya

DOORDARSHAN KENDRA PATNA SUMMER TRAINING
DOORDARSHAN KENDRA PATNA SUMMER TRAININGDOORDARSHAN KENDRA PATNA SUMMER TRAINING
DOORDARSHAN KENDRA PATNA SUMMER TRAINING
Ravi Shankar Kumar

Summer training at Doordarshan presentation
Summer training at Doordarshan presentationSummer training at Doordarshan presentation
Summer training at Doordarshan presentation
Sushil Mishra


Similar to SMPTE Toronto Presentation - Multi Camera High Definition TV Studio and Rogers Communications Centre Tour (20)

Remote Production & Streaming Workshop
Remote Production & Streaming WorkshopRemote Production & Streaming Workshop
Remote Production & Streaming Workshop

CineGrid @ Holland Festival 2010
CineGrid @ Holland Festival 2010CineGrid @ Holland Festival 2010
CineGrid @ Holland Festival 2010

“Comparing ML-Based Audio with ML-Based Vision: An Introduction to ML Audio f...
“Comparing ML-Based Audio with ML-Based Vision: An Introduction to ML Audio f...“Comparing ML-Based Audio with ML-Based Vision: An Introduction to ML Audio f...
“Comparing ML-Based Audio with ML-Based Vision: An Introduction to ML Audio f...

Graphic Equalizer Power Point
Graphic Equalizer Power PointGraphic Equalizer Power Point
Graphic Equalizer Power Point

Robledo Cardoso portfolio V1.2
Robledo Cardoso portfolio V1.2Robledo Cardoso portfolio V1.2
Robledo Cardoso portfolio V1.2

NAB 2019: Multi-Camera & Live Streaming Productions (Traditional & VR Cameras...
NAB 2019: Multi-Camera & Live Streaming Productions (Traditional & VR Cameras...NAB 2019: Multi-Camera & Live Streaming Productions (Traditional & VR Cameras...
NAB 2019: Multi-Camera & Live Streaming Productions (Traditional & VR Cameras...

Tv studio and editing suite - Broadcast
Tv studio and editing suite - BroadcastTv studio and editing suite - Broadcast
Tv studio and editing suite - Broadcast

GTG 2015 Presentation V2.0
GTG 2015 Presentation V2.0GTG 2015 Presentation V2.0
GTG 2015 Presentation V2.0

Satellite Conferencing: A Mini Course
Satellite Conferencing: A Mini CourseSatellite Conferencing: A Mini Course
Satellite Conferencing: A Mini Course

Experiencing the Live IIoT
Experiencing the Live IIoTExperiencing the Live IIoT
Experiencing the Live IIoT

Deliver and monetize your content with video center operations on aws
Deliver and monetize your content with video center operations on awsDeliver and monetize your content with video center operations on aws
Deliver and monetize your content with video center operations on aws

Projector Training - Solid State Light Source Technology
Projector Training - Solid State Light Source TechnologyProjector Training - Solid State Light Source Technology
Projector Training - Solid State Light Source Technology

NEFC fiber use in broadcasting facilities
NEFC fiber use in broadcasting facilitiesNEFC fiber use in broadcasting facilities
NEFC fiber use in broadcasting facilities

Video distribution over wifi
Video distribution over wifi Video distribution over wifi
Video distribution over wifi

Small scale DAB technical event - November 2014
Small scale DAB technical event - November 2014Small scale DAB technical event - November 2014
Small scale DAB technical event - November 2014

Robledo cardoso portfolio
Robledo cardoso portfolioRobledo cardoso portfolio
Robledo cardoso portfolio

Cvaa webinar 20120612
Cvaa webinar 20120612Cvaa webinar 20120612
Cvaa webinar 20120612

Stable Feed and Lower Costs with Use of 5G and Satellite Stable Feed and Lowe...
Stable Feed and Lower Costs with Use of 5G and Satellite Stable Feed and Lowe...Stable Feed and Lower Costs with Use of 5G and Satellite Stable Feed and Lowe...
Stable Feed and Lower Costs with Use of 5G and Satellite Stable Feed and Lowe...

DOORDARSHAN KENDRA PATNA SUMMER TRAINING
DOORDARSHAN KENDRA PATNA SUMMER TRAININGDOORDARSHAN KENDRA PATNA SUMMER TRAINING
DOORDARSHAN KENDRA PATNA SUMMER TRAINING

Summer training at Doordarshan presentation
Summer training at Doordarshan presentationSummer training at Doordarshan presentation
Summer training at Doordarshan presentation


More from Brad Fortner

Pi Is For Python
Pi Is For PythonPi Is For Python
Pi Is For Python
Brad Fortner

Convergence Jukebox Overview Python Toronto Meetup May 2016
Convergence Jukebox Overview Python Toronto Meetup May 2016Convergence Jukebox Overview Python Toronto Meetup May 2016
Convergence Jukebox Overview Python Toronto Meetup May 2016
Brad Fortner

Convergence Jukebox Overview
Convergence Jukebox OverviewConvergence Jukebox Overview
Convergence Jukebox Overview
Brad Fortner

SMPTE Education Update: Education – Key To Member Value
 SMPTE Education Update: Education – Key To Member Value SMPTE Education Update: Education – Key To Member Value
SMPTE Education Update: Education – Key To Member Value
Brad Fortner

SMPTE Toronto Presentation - IPTV and Social Media On The TV Industry
SMPTE Toronto Presentation - IPTV and Social Media On The TV IndustrySMPTE Toronto Presentation - IPTV and Social Media On The TV Industry
SMPTE Toronto Presentation - IPTV and Social Media On The TV Industry
Brad Fortner

Interactive Content Authoring for A153 ATSC Mobile Digital Television Employi...
Interactive Content Authoring for A153 ATSC Mobile Digital Television Employi...Interactive Content Authoring for A153 ATSC Mobile Digital Television Employi...
Interactive Content Authoring for A153 ATSC Mobile Digital Television Employi...
Brad Fortner

SMPTE Toronto Presentation - Open-Source Software In Broadcasting: The Power ...
SMPTE Toronto Presentation - Open-Source Software In Broadcasting: The Power ...SMPTE Toronto Presentation - Open-Source Software In Broadcasting: The Power ...
SMPTE Toronto Presentation - Open-Source Software In Broadcasting: The Power ...
Brad Fortner


More from Brad Fortner (7)

Pi Is For Python
Pi Is For PythonPi Is For Python
Pi Is For Python

Convergence Jukebox Overview Python Toronto Meetup May 2016
Convergence Jukebox Overview Python Toronto Meetup May 2016Convergence Jukebox Overview Python Toronto Meetup May 2016
Convergence Jukebox Overview Python Toronto Meetup May 2016

Convergence Jukebox Overview
Convergence Jukebox OverviewConvergence Jukebox Overview
Convergence Jukebox Overview

SMPTE Education Update: Education – Key To Member Value
 SMPTE Education Update: Education – Key To Member Value SMPTE Education Update: Education – Key To Member Value
SMPTE Education Update: Education – Key To Member Value

SMPTE Toronto Presentation - IPTV and Social Media On The TV Industry
SMPTE Toronto Presentation - IPTV and Social Media On The TV IndustrySMPTE Toronto Presentation - IPTV and Social Media On The TV Industry
SMPTE Toronto Presentation - IPTV and Social Media On The TV Industry

Interactive Content Authoring for A153 ATSC Mobile Digital Television Employi...
Interactive Content Authoring for A153 ATSC Mobile Digital Television Employi...Interactive Content Authoring for A153 ATSC Mobile Digital Television Employi...
Interactive Content Authoring for A153 ATSC Mobile Digital Television Employi...

SMPTE Toronto Presentation - Open-Source Software In Broadcasting: The Power ...
SMPTE Toronto Presentation - Open-Source Software In Broadcasting: The Power ...SMPTE Toronto Presentation - Open-Source Software In Broadcasting: The Power ...
SMPTE Toronto Presentation - Open-Source Software In Broadcasting: The Power ...


Recently uploaded

Call For Paper -3rd International Conference on Artificial Intelligence Advan...
Call For Paper -3rd International Conference on Artificial Intelligence Advan...Call For Paper -3rd International Conference on Artificial Intelligence Advan...
Call For Paper -3rd International Conference on Artificial Intelligence Advan...
ijseajournal

Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...
Prakhyath Rai

DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODELDEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
ijaia

一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
upoux

Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
shadow0702a

Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Sinan KOZAK

Digital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptxDigital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptx
aryanpankaj78

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation
kandramariana6

Supermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdfSupermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdf
Kamal Acharya

Object Oriented Analysis and Design - OOAD
Object Oriented Analysis and Design - OOADObject Oriented Analysis and Design - OOAD
Object Oriented Analysis and Design - OOAD
PreethaV16

Pressure Relief valve used in flow line to release the over pressure at our d...
Pressure Relief valve used in flow line to release the over pressure at our d...Pressure Relief valve used in flow line to release the over pressure at our d...
Pressure Relief valve used in flow line to release the over pressure at our d...
cannyengineerings

ITSM Integration with MuleSoft.pptx
ITSM  Integration with MuleSoft.pptxITSM  Integration with MuleSoft.pptx
ITSM Integration with MuleSoft.pptx
VANDANAMOHANGOUDA

Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...
Prakhyath Rai

TIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptxTIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptx
CVCSOfficial

一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理
uqyfuc

原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
ydzowc

IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student MemberIEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
VICTOR MAESTRE RAMIREZ

smart pill dispenser is designed to improve medication adherence and safety f...
smart pill dispenser is designed to improve medication adherence and safety f...smart pill dispenser is designed to improve medication adherence and safety f...
smart pill dispenser is designed to improve medication adherence and safety f...
um7474492

CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURSCompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
RamonNovais6

NATURAL DEEP EUTECTIC SOLVENTS AS ANTI-FREEZING AGENT
NATURAL DEEP EUTECTIC SOLVENTS AS ANTI-FREEZING AGENTNATURAL DEEP EUTECTIC SOLVENTS AS ANTI-FREEZING AGENT
NATURAL DEEP EUTECTIC SOLVENTS AS ANTI-FREEZING AGENT
Addu25809


Recently uploaded (20)

Call For Paper -3rd International Conference on Artificial Intelligence Advan...
Call For Paper -3rd International Conference on Artificial Intelligence Advan...Call For Paper -3rd International Conference on Artificial Intelligence Advan...
Call For Paper -3rd International Conference on Artificial Intelligence Advan...

Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...

DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODELDEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL

一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理

Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...

Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024

Digital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptxDigital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptx

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation

Supermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdfSupermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdf

Object Oriented Analysis and Design - OOAD
Object Oriented Analysis and Design - OOADObject Oriented Analysis and Design - OOAD
Object Oriented Analysis and Design - OOAD

Pressure Relief valve used in flow line to release the over pressure at our d...
Pressure Relief valve used in flow line to release the over pressure at our d...Pressure Relief valve used in flow line to release the over pressure at our d...
Pressure Relief valve used in flow line to release the over pressure at our d...

ITSM Integration with MuleSoft.pptx
ITSM  Integration with MuleSoft.pptxITSM  Integration with MuleSoft.pptx
ITSM Integration with MuleSoft.pptx

Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...

TIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptxTIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptx

一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理

原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样

IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student MemberIEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member

smart pill dispenser is designed to improve medication adherence and safety f...
smart pill dispenser is designed to improve medication adherence and safety f...smart pill dispenser is designed to improve medication adherence and safety f...
smart pill dispenser is designed to improve medication adherence and safety f...

CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURSCompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS

NATURAL DEEP EUTECTIC SOLVENTS AS ANTI-FREEZING AGENT
NATURAL DEEP EUTECTIC SOLVENTS AS ANTI-FREEZING AGENTNATURAL DEEP EUTECTIC SOLVENTS AS ANTI-FREEZING AGENT
NATURAL DEEP EUTECTIC SOLVENTS AS ANTI-FREEZING AGENT


SMPTE Toronto Presentation - Multi Camera High Definition TV Studio and Rogers Communications Centre Tour

  • 1. Dec. 13, 2005 SOCIETY OF MOTION PICTURE AND TELEVISION ENGINEERS Multi Camera High Definition TV Studio and Rogers Communications Centre Tour School Of Radio and Television Arts Ryerson University
  • 2. LEADERS OF TOMORROWDec. 13, 2005 Plan For Evening • Highlight – HDTV Studio • Brad Fortner - Other Items On Tour • Richard Grunberg – Paper • Break – Refreshments by Applied Electronics • Tours will start at 8:00 with 2 groups leaving every five minutes • Posters Of Tour Stops In Break Area (RCC-361) • Coats will be in RCC-364 – 20 Volunteers this evening • 45 minute tour - All tours expected to be completed by 9:10 pm. • Tours will finish in HDTV studio approx 8:50 pm. • Facilities will close at 9:15 pm.
  • 3. LEADERS OF TOMORROWDec. 13, 2005 Plan For Evening • HDTV Studio – First or fifth tour stop
  • 4. LEADERS OF TOMORROWDec. 13, 2005 Plan For Evening • HDTV Studio – First or fifth tour stop • TV Studio B and C – Monitor Wall Designs + EFP Cameras
  • 5. LEADERS OF TOMORROWDec. 13, 2005 Plan For Evening • HDTV Studio – First or fifth tour stop • TV Studio B and C – Monitor Wall Designs + EFP Cameras • Digital Cinema – DALSA
  • 6. LEADERS OF TOMORROWDec. 13, 2005 Plan For Evening • HDTV Studio – First or fifth tour stop • TV Studio B and C – Monitor Wall Designs + EFP Cameras • Digital Cinema – DALSA • Surround Sound Facility
  • 7. LEADERS OF TOMORROWDec. 13, 2005 Plan For Evening • HDTV Studio – First or fifth tour stop • TV Studio B and C – Monitor Wall Designs + EFP Cameras • Digital Cinema – DALSA • Surround Sound Facility • Video Editing – News and Craft Editing
  • 8. LEADERS OF TOMORROWDec. 13, 2005 Plan For Evening • HDTV Studio – First or fifth tour stop • TV Studio B and C – Monitor Wall Designs + EFP Cameras • Digital Cinema – DALSA • Surround Sound Facility • Video Editing – News and Craft Editing • Peer To Peer Content Distribution – Viral Media Project
  • 9. LEADERS OF TOMORROWDec. 13, 2005 Plan For Evening • HDTV Studio – First or fifth tour stop • TV Studio B and C – Monitor Wall Designs + EFP Cameras • Digital Cinema – DALSA • Surround Sound Facility • Video Editing – News and Craft Editing • Peer To Peer Content Distribution – Viral Media Project • Access Grid Collaborative Platform – AccessGrid @ Ryerson
  • 10. LEADERS OF TOMORROWDec. 13, 2005 Plan For Evening • HDTV Studio – First or fifth tour stop • TV Studio B and C – Monitor Wall Designs + EFP Cameras • Digital Cinema – DALSA • Surround Sound Facility • Video Editing – News and Craft Editing • Peer To Peer Content Distribution – Viral Media Project • Access Grid Collaborative Platform – AccessGrid @ Ryerson • 10 Gigabit Network Cabling – Augmented Cat 6 Cable
  • 11. LEADERS OF TOMORROWDec. 13, 2005 School Of Photography School Of Radio Among Founding Schools At Ryerson Ryerson - Established 1948
  • 12. LEADERS OF TOMORROWDec. 13, 2005 Long History With Television Medium 1949 – First TV Studio Production In Canada
  • 13. LEADERS OF TOMORROWDec. 13, 2005 Long History With Television Medium 1953 – Permanent TV Studio Established
  • 14. LEADERS OF TOMORROWDec. 13, 2005 1999/2000 – HDTV Student Produced Drama In Canada 2001 – First 1080i HDTV end-to- end broadcast in Canada Digital Video - HDTV 2002 - 1080i Electronic Field Production Established 2001 – ATSC Transmitter Test With CDTV
  • 15. Dec. 13, 2005 SOCIETY OF MOTION PICTURE AND TELEVISION ENGINEERS Multi Camera High Definition TV Studio School Of Radio and Television Arts Ryerson University
  • 16. LEADERS OF TOMORROWDec. 13, 2005 Design Process - Goals • To upgrade and build a modern multipurpose television studio • Provide for modern television production workflows • Provide for teaching and learning activities • Provide for an “academic workflow” where teaching and learning activities would apply to all four TV studios in the Centre
  • 17. LEADERS OF TOMORROWDec. 13, 2005 Design Process - RFP • Internal Meetings 60+ hours  Key Faculty  Deans Office  Academic Admin Staff  Operational Staff  Tech Support Staff • 8 Drafts • Public Tender • HDTV studio was one of three studios upgraded during summer of 2005
  • 18. LEADERS OF TOMORROWDec. 13, 2005 Key Criteria – HDTV Studio • Minimum 1080i • Multiformat (if possible and where possible) • Integrated into rest of Rogers Communications Centre Facility – Production Trunklines – HDTV Editing Facilities – Graphics (CG) System – Other TV StudiosGiven societal need, long life of studio, and Schools mandate, the choice was made to build an HDTV studio
  • 19. LEADERS OF TOMORROWDec. 13, 2005 Key Criteria – HDTV Studio HDTV Switcher • Modern Functionality • 2 M/E Operation • Full Size Control Panel • Operationally similar to other TV Studio Switchers
  • 20. LEADERS OF TOMORROWDec. 13, 2005 Key Criteria – HDTV Studio Studio Monitor Wall • 20 Sources • Up conversion and cross conversion to 1080i from all known HD, SD and PC video formats • Mixture of HD an SD formats on monitor wall • HD and SD outputs
  • 21. LEADERS OF TOMORROWDec. 13, 2005 Key Criteria – HDTV Studio • Quality camera pedestals suitable for HDTV Production • Pedestals that could be manipulated easily by student population Ryerson University’s Old Cameras and Pedestals
  • 22. LEADERS OF TOMORROWDec. 13, 2005 Key Criteria – HDTV Studio • Appropriate Focal Length For Studio • Minimal “Breathing” Lens Selection
  • 23. LEADERS OF TOMORROWDec. 13, 2005 Key Criteria – HDTV Studio HDTV Level Monitoring And Switching At Key Production Positions • Shader/VTR Station • Audio Mixing • Lighting Control • Floor Monitor
  • 24. LEADERS OF TOMORROWDec. 13, 2005 Key Suppliers & Manufacturers • Applied Electronics – Design and Installation • Avitech - Media Command Centers • AVP – Connecters/Patchfields • AVID – Disk Recorder • BDL - Teleprompter Software • Canon – HDTV Lenses • DELCO - Cable • Inscriber - Character Generator • Ikegami - HDTV Monitors • Panasonic – Studio Cameras • Ross Video - Switcher & Conversion Technology • Sharp - LCD Monitors • SONY - VTR’s & Jib Camera • Tektronix - HDTV Waveform Rasterizer • Torpey – Clock Systems • QTV - Teleprompter Heads • Videotek – Signal Generators • Vinten - Camera Pedestals
  • 25. LEADERS OF TOMORROWDec. 13, 2005 HDTV Studio Technology Ross Video Synergy 2 Multi-Definition Switcher • Fully Featured 2 M/E Switcher • Provides Modern Functionality • Full Size Control Panel • Internal Still Store
  • 26. LEADERS OF TOMORROWDec. 13, 2005 HDTV Studio Technology Makes Use Of Synergy 2 AUX Panels To Create The Four Independent HDTV Switching Locations Shader/VTR Station Audio Mixing Lighting Control Floor Monitor
  • 27. LEADERS OF TOMORROWDec. 13, 2005 Conversion Technology Ross Video ADC-8033 Analog Component to SDI Converter Ross Video ADC-8032 Analog Composite to SDI Converter Analogue To SDI Conversion Ross Video UDC-8225 Cross-Converter (3 Cards 2 Up – 1Down) SDI To HDSDI Up Conversion The UDC-8225 is a universal cross-converter it can provide SDI to HDSDI up-conversion, HDSDI to SDI down-conversion, as well as HD to HD cross- conversion.
  • 28. LEADERS OF TOMORROWDec. 13, 2005 Ross Video ADC-8033 Analog Component to SDI Converter Ross Video ADC-8032 Analog Composite to SDI Converter Analogue To SDI Conversion Ross Video UDC-8225 Cross-Converter (3 Cards 2 Up – 1Down) SDI To HDSDI Up Conversion Ross Video SFS-8221 Frame Synchronizer For HDSDI Sources Conversion Technology
  • 29. LEADERS OF TOMORROWDec. 13, 2005 Installed Switching “Family” Synergy 2 Multi-Definition TV A -HDTV Synergy 2 SD TV B-SDI Synergy 1 SD TV C-SDI
  • 30. LEADERS OF TOMORROWDec. 13, 2005 Studio Monitor Wall Ikegami HTM-2005R CRT HDTV Monitor SHARP LC-45GD4U Liquid Crystal Television Avitech Media Command Center Three Technologies Make Up The Monitor Wall
  • 31. LEADERS OF TOMORROWDec. 13, 2005 “Dual Personality” Monitor Wall Ikegami HTM-2005R CRT HDTV Monitor • Traditional CRT Based Program/Preview Monitor • A SMPTE phosphor CRT • 4*3 Aspect Ratio Screen • SD Capable • Displays HDTV Signals Letterboxed
  • 32. LEADERS OF TOMORROWDec. 13, 2005 “Dual Personality” Monitor Wall SHARP LC-45GD4U Liquid Crystal Television • 45” Active Matrix (a-si TFT) • Super View LCD • 1,920 x 1,080 Pixels • NTSC, ATSC (480p, 720p, 1080i) • Contrast Ratio 800:1 • Industrial Version (Improved Cooling and Power Supply)
  • 33. LEADERS OF TOMORROWDec. 13, 2005 Multi-Input LCD Screen • Technology Creates Multi-Input Monitor Wall On LCD Screen • Provides For Tally & Feed ID • Allows For Different Monitor Wall Designs Based On Production Type • Reduces Monitor Wall Size - Places Preview Feeds Side By Side (Not Possible with Letterboxed 9” CRT Monitors)Avitech Media Command Center
  • 34. LEADERS OF TOMORROWDec. 13, 2005 Shader Station Technology Tektronix WVR7100 Waveform Rasterizer Panasonic AK-HRP931 Operation Panels Three Components Make Up Shader/VTR Station Ikegami HTM- 1505RA CRT HDTV Monitor with Auto Set- up Probe
  • 35. LEADERS OF TOMORROWDec. 13, 2005 HDTV Studio Technology AVID Media Composer Adrenaline HD SONY HDW-500 HDCAM VTR’s Inscriber Inca Studio High Definition Character Generator Other New Technologies Included In Control Room
  • 36. LEADERS OF TOMORROWDec. 13, 2005 HDTV Studio Technology Torpey Clocks and Production Timing System Dell Dimension PC StillStore Feeder BDL Teleprompter Software Other New Technologies Included In Control Room
  • 37. LEADERS OF TOMORROWDec. 13, 2005 HDTV Studio Cameras Panasonic AK-HC930P • CCD - 2/3" One million pixels IT 3CCD • Total pixels - 1370 x 744 • Effective pixels - 1280 x 720 • Lens mount - Bayonet type • Sensitivity - F10 at 2000 lux 3200K • S/N - 54dB (HD) / 62dB (SD) • Smear - Less than -130 dB
  • 38. LEADERS OF TOMORROWDec. 13, 2005 Canon HJ21x7.5 IASE LensPanasonic AK-HC930P HDTV Studio Cameras
  • 39. LEADERS OF TOMORROWDec. 13, 2005 Panasonic AK-HC930P HDTV Studio Cameras
  • 40. LEADERS OF TOMORROWDec. 13, 2005 Studio Pedestals Vinten Osprey Elite 3374-3C (x2) Vinten Quattro-S V3850-006 Quattro-S At Minimum Height Vinten Vector 60 3806-3
  • 41. LEADERS OF TOMORROWDec. 13, 2005 HDTV Studio Jib Camera SONY 1035i Camera AJA HD10A - HDTV 10-bit Analog to Digital Converter
  • 42. LEADERS OF TOMORROWDec. 13, 2005 HDTV Studio Technology SCC-2 SIMA NTSC Colour Corrector Ikegami Portable 10" HDTV Monitors Vidoetek HD Signal Gen VSG-405HD Vidoetek SDI Sync Gen VSG-201D QTV FDP-15“ Teleprompter Heads ETC Microvision FX lighting controller Other Technologies Included In HDTV Studio
  • 43. LEADERS OF TOMORROWDec. 13, 2005 Questions
