CCTV Building, A Structural Design Overview

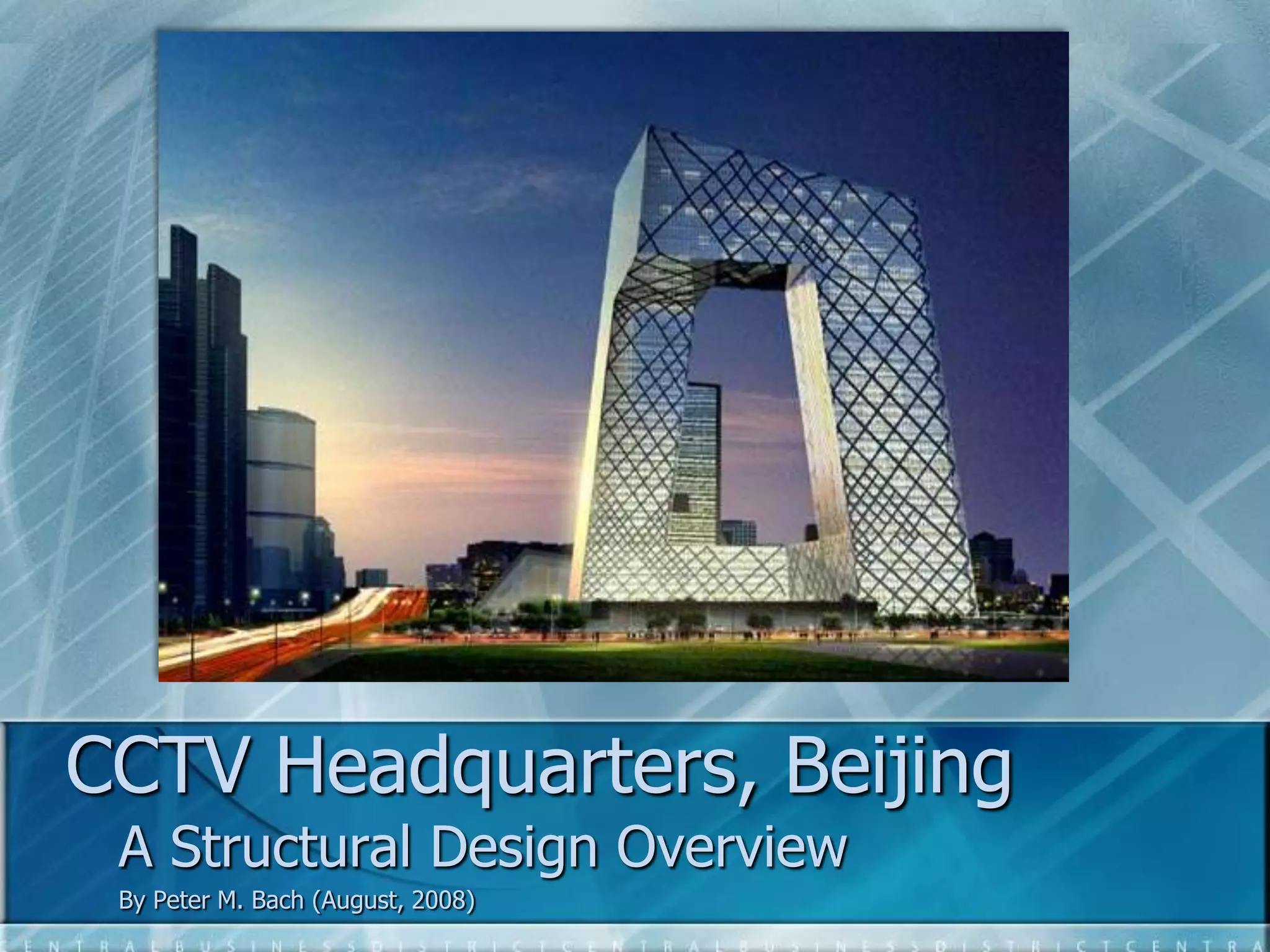

- 1. CCTV Headquarters, Beijing A Structural Design Overview By Peter M. Bach (August, 2008)
- 2. Before we start… Will it stand by itself?
- 3. Before we start… It can! But the question is: How much effort does it take to make it fall?
- 4. Before we start… THIS?!
- 6. Architecture
- 14. Completion in time for Olympics
- 15. Will broadcast the Olympics to the World
- 16. Components:
- 17. CCTV Building (Headquarters & Broadcasting)
- 18. TVCC Wing (Cultural Center, Performing Arts)
- 19. Media Park (Social Gathering Place)
- 22. Partners in Charge: Ole Sheeren & Rem Koolhaas
- 23. Architects: Office for Metropolitan Architecture (OMA)
- 24. Structural Engineers: Ove Arup & Partners
- 25. 10-hectare site
- 26. Two L-Shaped Towers, tallest tower is 230m high
- 27. Total Estimated Construction Cost: €600million
- 30. Cantilever overhang starts after 36 floors and is 13 floors high.
- 31. The towers cantilever 75m outwards
- 32. History
- 33. December 2002 - OMA wins design
- 34. March 2003 – Project Start (after review)
- 35. September 2004 – Groundbreaking
- 36. Mid 2007 – Overhang Construction Underway
- 39. Recreation mainly on bottom
- 40. Elevators in both towers
- 41. Separate Lobby & Elevator for VIPs
- 42. Two Ground Floor Lobbies
- 43. Continuous Loop through Towers
- 45. Architecture
- 46. Architecture What do you think “logic” and “beauty” is defined as?
- 47. Architecture The Skyscraper Concept What do all the above buildings have in common? Height! Human Capabilities
- 49. China willing to try out new ideas
- 50. Everything to do with TV Production is within the CCTV Building (“An inter-connected loop of inter-connected activities”)
- 51. Iconographic Constellation instead of hopeless race for ultimate height
- 52. “…As verticality soars, creativity crashes…”
- 53. “…An Expression of Verticality…”
- 55. Concentrate every program into a single system
- 56. “It is important to encourage different kind of work of engineering as it is with architecture”
- 57. “Experimenting with Engineering liberates imagination and makes other things possible”
- 58. The idea links a bit with communism as is still seen in China
- 59. “There is a natural affinity between the values of architecture and the values of socialism”
- 62. Diagonal Structural Grid System
- 65. Beijing is an Earthquake Prone Area (need seismic stability)
- 66. Every building encounters vertical and lateral loads
- 67. Temperature changes, material deformation
- 69. Shallow foundation not sufficient
- 70. Pore Water present in great amounts
- 72. Vulnerable to Natural or Man-Made Disasters
- 73. How to design & construct?Performance-based Design Approach
- 76. Triangulated structure with diagonal support beams
- 77. Similar to a typical moment frame
- 78. Triangles connected at Nodes and Rings intersect the nodes
- 79. Combines the benefits of a hollow tube with a truss
- 80. Loads follow diagonals, gravity and lateral loads can be transferred by the system to the groundSwiss Re, London
- 83. Timber
- 85. Steel is typical because of high tensile and compressive strengths
- 86. Essentially marrying columns, diagonals and bracings into one system
- 89. Internal Cores will transfer minimal amounts of gravity loads
- 90. Floor Slabs do not have to transfer lateral loads
- 91. Less internal columns required = more space
- 92. Floor plates do not have to be of the same shape on each floor
- 93. Continuous and Uninterrupted Load Transfer
- 95. Less material required (~20% reduction in steel as opposed to typical moment frame method)
- 96. Aesthetically Pleasing – Blends in together with façade
- 97. Floor plan becomes open and free – more internal space
- 98. Most forms can be created with a triangulated form – architectural freedom
- 100. Skyscraper Structural Failure minimized by diagrid construction
- 103. A diagrid structure will definitely show in the aesthetics, very difficult to hide
- 104. Difficult to create a consistent window design
- 105. Heavy-handed if not executed properly
- 108. Must ensure a “strong joint-weak member” system
- 109. Must resist maximum probable load from braces with minimum yielding and stress concentration
- 110. Butterfly plates used to assist smooth load transfer
- 113. Differential Settlement kept to 1:500
- 114. Piles are 1.2m diameter and 35m long
- 115. Piled Raft is 7m thick and has a footprint greater than the towers
- 117. Link up external columns with internal steel core via pin-joints
- 118. Trusses span the bottom two floors of the overhang, loads above are transferred to these trusses, which subsequently transfer loads to the diagrid system
- 121. Cores remain vertical despite Tower Slope (shifted against floor plates)
- 123. Miscellaneous Topics Construction Procedure
- 125. Analysis for different seismic events
- 126. Level 1: Frequent Earthquake No structural damage
- 127. Level 2: Intermediate Earthquake Repairable Structural Damage
- 129. Tests also show that some braces go into plastic buckling during the Earthquake Dissipate seismic energy (GOOD)Maximum downward displacement = 700mm
- 131. Building strength against a 100-year Wind was assessed
- 132. Method: Dynamic Analysis using High-Frequency Pressure Integration Method
- 133. 285 Pressure Taps installed on 1:500 Scale Model
- 134. North and West Winds Critical
- 136. Looped Structure an Advantage
- 137. Reduced Escape Time
- 141. Conclusion
- 143. Architecture looks at iconography rather than the race for height – engineering creativity is better than height
- 144. Many structural challenges to overcome in realizing the project Performance-based design needed
- 145. Diagrid System, Butterfly Plates, Piled Raft Foundations, Load Transfer Trusses all deemed good solutions
- 146. Seismic and Wind Stability ensured through rigorous analysis
- 147. Emergency Escape Routes are effective
- 149. Questions
