1. Dr G.Jayaraman

2. Introduction
 Proper history &
thorough examination,
do not ignore patients
symptoms
 Trauma imaging
constitute major bulk
of the of work
 Diagnosis starts with
plain x ray -most cases
 At least 2views
required

3.  Radiological examination permits assessment of
 Presence of Fracture
 Type & position of fracture
 Simple, comminuted, segmental, etc
 Asso. Joint injury
 Epiphyseal injury
 Asso. Soft tissue involvement
 Age & healing of fracture

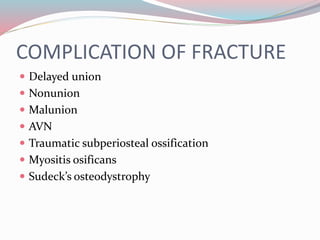

4. COMPLICATION OF FRACTURE
 Delayed union
 Nonunion
 Malunion
 AVN
 Traumatic subperiosteal ossification
 Myositis osificans
 Sudeck’s osteodystrophy

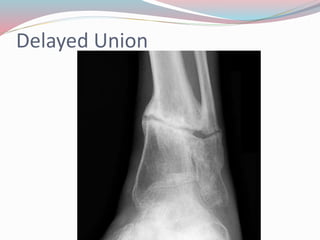

5. Delayed Union

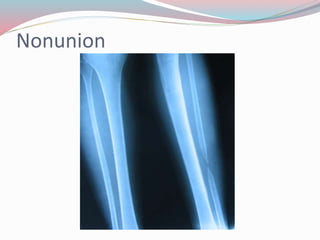

6. Nonunion

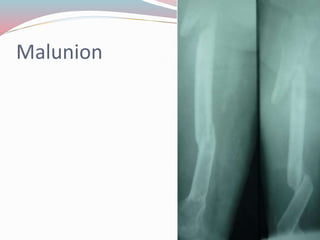

7. Malunion

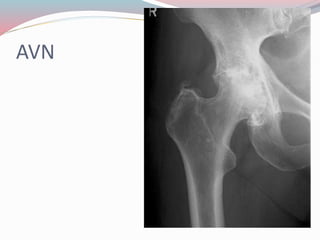

8. AVN

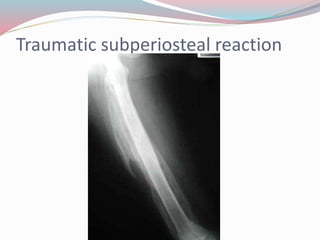

9. Traumatic subperiosteal reaction

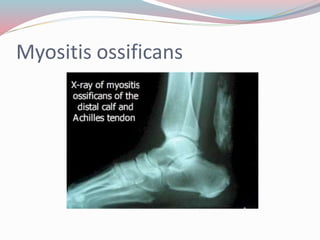

10. Myositis ossificans

11. Sudecks osteodystrophy

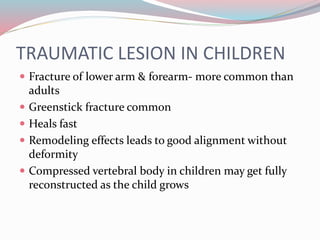

12. TRAUMATIC LESION IN CHILDREN
 Fracture of lower arm & forearm- more common than
adults
 Greenstick fracture common
 Heals fast
 Remodeling effects leads to good alignment without
deformity
 Compressed vertebral body in children may get fully
reconstructed as the child grows

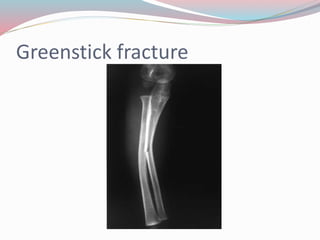

13. Greenstick fracture

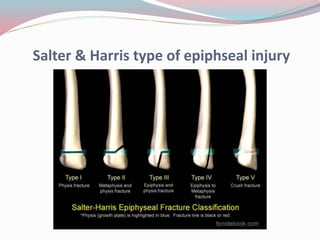

14. Salter & Harris type of epiphseal injury

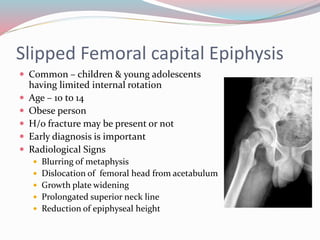

15. Slipped Femoral capital Epiphysis
 Common – children & young adolescents
having limited internal rotation
 Age – 10 to 14
 Obese person
 H/o fracture may be present or not
 Early diagnosis is important
 Radiological Signs
 Blurring of metaphysis
 Dislocation of femoral head from acetabulum
 Growth plate widening
 Prolongated superior neck line
 Reduction of epiphyseal height

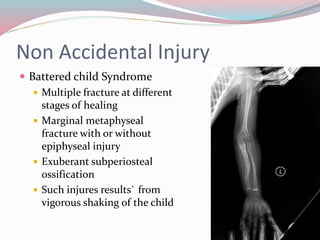

16. Non Accidental Injury
 Battered child Syndrome
 Multiple fracture at different
stages of healing
 Marginal metaphyseal
fracture with or without
epiphyseal injury
 Exuberant subperiosteal
ossification
 Such injures results` from
vigorous shaking of the child

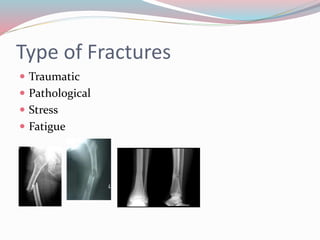

17. Type of Fractures
 Traumatic
 Pathological
 Stress
 Fatigue

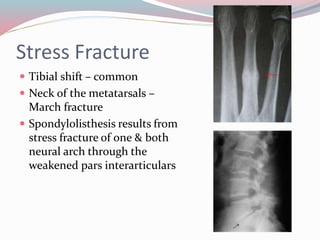

18. Stress Fracture
 Tibial shift – common
 Neck of the metatarsals –
March fracture
 Spondylolisthesis results from
stress fracture of one & both
neural arch through the
weakened pars interarticulars

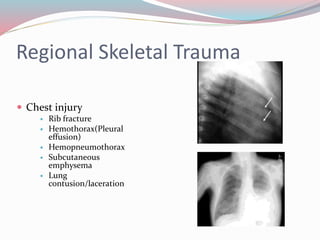

19. Regional Skeletal Trauma
 Chest injury
 Rib fracture
 Hemothorax(Pleural
effusion)
 Hemopneumothorax
 Subcutaneous
emphysema
 Lung
contusion/laceration

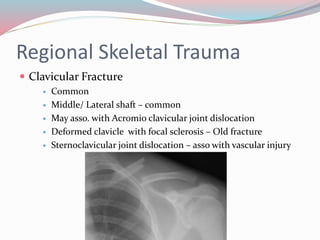

20. Regional Skeletal Trauma
 Clavicular Fracture
 Common
 Middle/ Lateral shaft – common
 May asso. with Acromio clavicular joint dislocation
 Deformed clavicle with focal sclerosis – Old fracture
 Sternoclavicular joint dislocation – asso with vascular injury

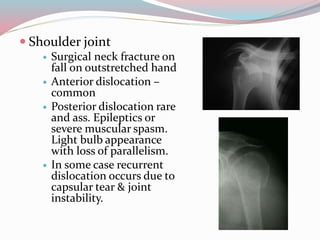

21.  Shoulder joint
 Surgical neck fracture on
fall on outstretched hand
 Anterior dislocation –
common
 Posterior dislocation rare
and ass. Epileptics or
severe muscular spasm.
Light bulb appearance
with loss of parallelism.
 In some case recurrent
dislocation occurs due to
capsular tear & joint
instability.

22.  Hill sach’s defect
 V shaped defect in
posterio lateral aspect
of humeral head.

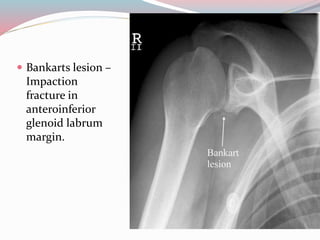

23.  Bankarts lesion –
Impaction
fracture in
anteroinferior
glenoid labrum
margin.

24. Rotator Cuff injury
 Sustained in fractures
and dislocation at the
shoulder joint.

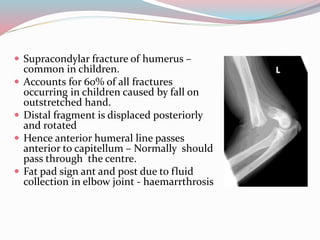

25.  Supracondylar fracture of humerus –
common in children.
 Accounts for 60% of all fractures
occurring in children caused by fall on
outstretched hand.
 Distal fragment is displaced posteriorly
and rotated
 Hence anterior humeral line passes
anterior to capitellum – Normally should
pass through the centre.
 Fat pad sign ant and post due to fluid
collection in elbow joint - haemarrthrosis

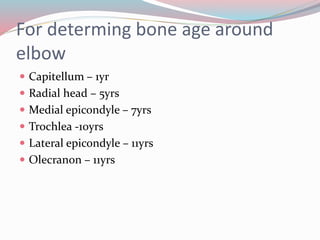

26. For determing bone age around
elbow
 Capitellum – 1yr
 Radial head – 5yrs
 Medial epicondyle – 7yrs
 Trochlea -10yrs
 Lateral epicondyle – 11yrs
 Olecranon – 11yrs

27. Can Radiology make trauma less
obscure
 90% of elbow dislocation are posterior & lateral
displaced
 Myositis ossificans – common

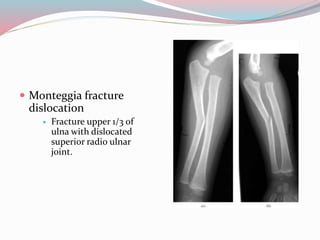

28.  Monteggia fracture
dislocation
 Fracture upper 1/3 of
ulna with dislocated
superior radio ulnar
joint.

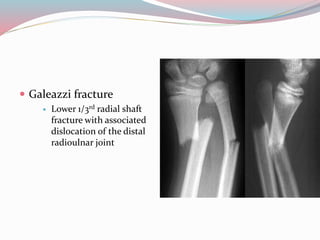

29.  Galeazzi fracture
 Lower 1/3rd radial shaft
fracture with associated
dislocation of the distal
radioulnar joint

30.  Colles fracture
 distal fracture of the radius in the forearm with dorsal
(posterior) displacement of the wrist and hand

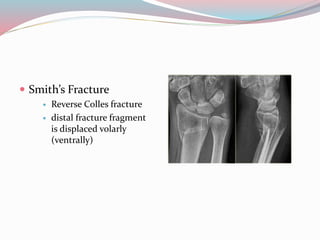

31.  Smith’s Fracture
 Reverse Colles fracture
 distal fracture fragment
is displaced volarly
(ventrally)

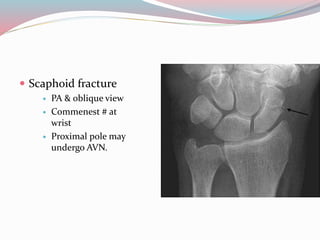

32.  Scaphoid fracture
 PA & oblique view
 Commenest # at
wrist
 Proximal pole may
undergo AVN.

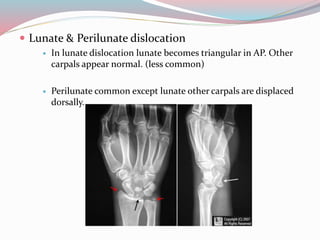

33.  Lunate & Perilunate dislocation
 In lunate dislocation lunate becomes triangular in AP. Other
carpals appear normal. (less common)
 Perilunate common except lunate other carpals are displaced
dorsally.

34. Spine Fracture
 Wedge compression
fracture
 Vertebral end plate
often intact
 Disc spaces maintained
 Height reduced

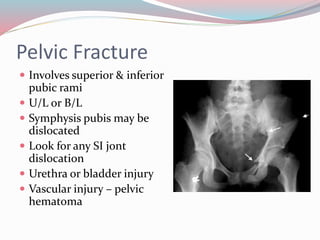

35. Pelvic Fracture
 Involves superior & inferior
pubic rami
 U/L or B/L
 Symphysis pubis may be
dislocated
 Look for any SI jont
dislocation
 Urethra or bladder injury
 Vascular injury – pelvic
hematoma

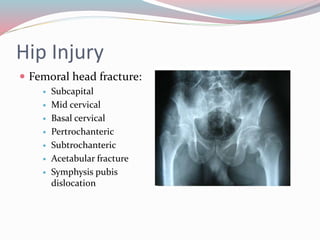

36. Hip Injury
 Femoral head fracture:
 Subcapital
 Mid cervical
 Basal cervical
 Pertrochanteric
 Subtrochanteric
 Acetabular fracture
 Symphysis pubis
dislocation

37.  Hip Dislocation:
 Posterior dislocation
 Anterior dislocation
 Central dislocation

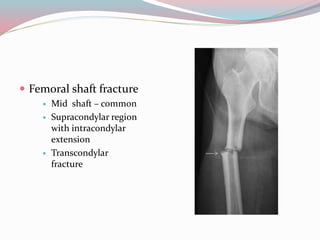

38.  Femoral shaft fracture
 Mid shaft – common
 Supracondylar region
with intracondylar
extension
 Transcondylar
fracture

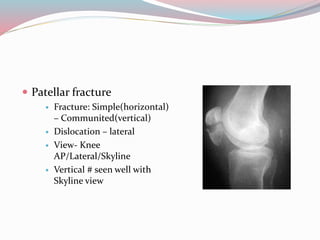

39.  Patellar fracture
 Fracture: Simple(horizontal)
– Communited(vertical)
 Dislocation – lateral
 View- Knee
AP/Lateral/Skyline
 Vertical # seen well with
Skyline view

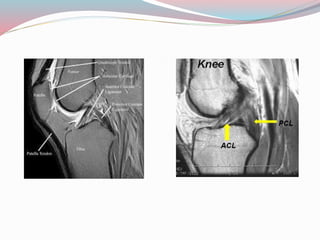

40. Knee injury
 MRI indicated to study the integrity of
cruciate & collateral ligaments, hyaline
cartilage menisci capsule any marrow edema
 Useful when plain x rays are non contributory
but patient has pain during locking and
unlocking movements

42. Ankle injury
 Both malleolar fracture
 Fracture tarsal bones
especially talus and
calcaneum.
 Any H/O fall from a
height look for calcaneal
fracture

43. Head injury
 Clinical examination is important
 Rule out cervical spine injury while turning the pt for
lateral skull
 Views: AP /Lateral Skull
Towns, Basal view now a days not taken due to
availability of CT which gives more information
 For cervical spine injury – AP & Lat view
 Translateral view is taken for cervical spine injury.
 Taken without turning the patient

44. Contd..

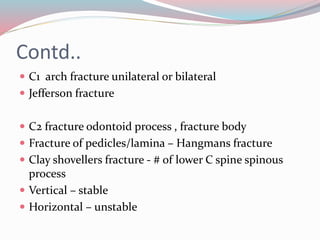

 C1 arch fracture unilateral or bilateral
 Jefferson fracture
 C2 fracture odontoid process , fracture body
 Fracture of pedicles/lamina – Hangmans fracture
 Clay shovellers fracture - # of lower C spine spinous
process
 Vertical – stable
 Horizontal – unstable

45. Contd..

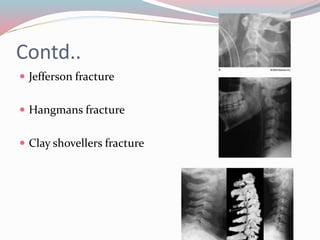

 Jefferson fracture
 Hangmans fracture
 Clay shovellers fracture

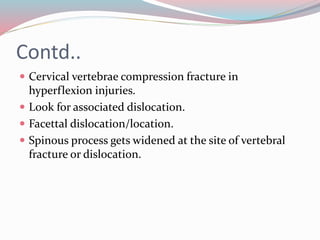

46. Contd..
 Cervical vertebrae compression fracture in
hyperflexion injuries.
 Look for associated dislocation.
 Facettal dislocation/location.
 Spinous process gets widened at the site of vertebral
fracture or dislocation.

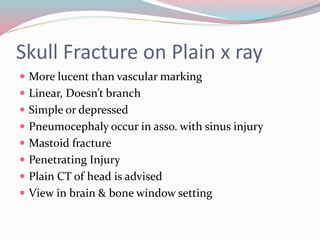

47. Skull Fracture on Plain x ray
 More lucent than vascular marking
 Linear, Doesn’t branch
 Simple or depressed
 Pneumocephaly occur in asso. with sinus injury
 Mastoid fracture
 Penetrating Injury
 Plain CT of head is advised
 View in brain & bone window setting

48. Intracranial bleed

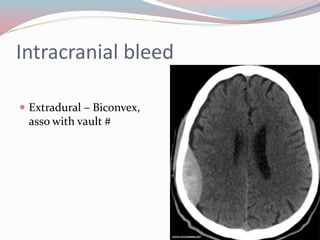

 Extradural – Biconvex,
asso with vault #

49. Intracranial bleed
 Subdural – Semilunar in shape
 Midline shift & mass effect.

50. Intracranial bleed

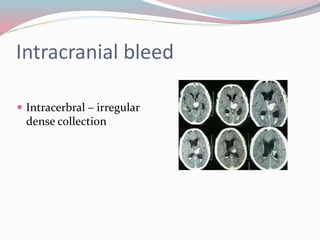

 Intracerbral – irregular
dense collection

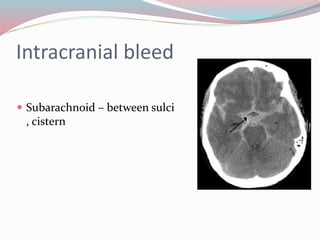

51. Intracranial bleed
 Subarachnoid – between sulci
, cistern

52. Intracranial bleed
Intraventricular bleed

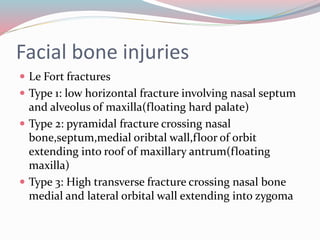

53. Facial bone injuries
 Le Fort fractures
 Type 1: low horizontal fracture involving nasal septum
and alveolus of maxilla(floating hard palate)
 Type 2: pyramidal fracture crossing nasal
bone,septum,medial oribtal wall,floor of orbit
extending into roof of maxillary antrum(floating
maxilla)
 Type 3: High transverse fracture crossing nasal bone
medial and lateral orbital wall extending into zygoma

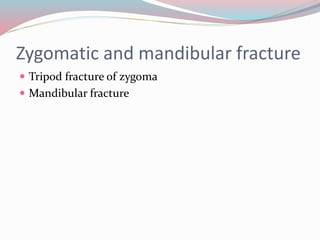

54. Zygomatic and mandibular fracture
 Tripod fracture of zygoma
 Mandibular fracture
