SignalR is an ASP.NET library that allows adding real-time web functionality to applications. It uses HTML5 WebSockets for bidirectional communication between client and server. When WebSockets are not available, it uses other fallback techniques like long polling. On the client, SignalR uses JavaScript to connect to hub methods defined on the server, allowing real-time server calls to client functions. This enables use cases like chat, dashboards, and games by facilitating continuous two-way communication channels.

1. Welcome to the Real-time world of web
Martin Bodocky

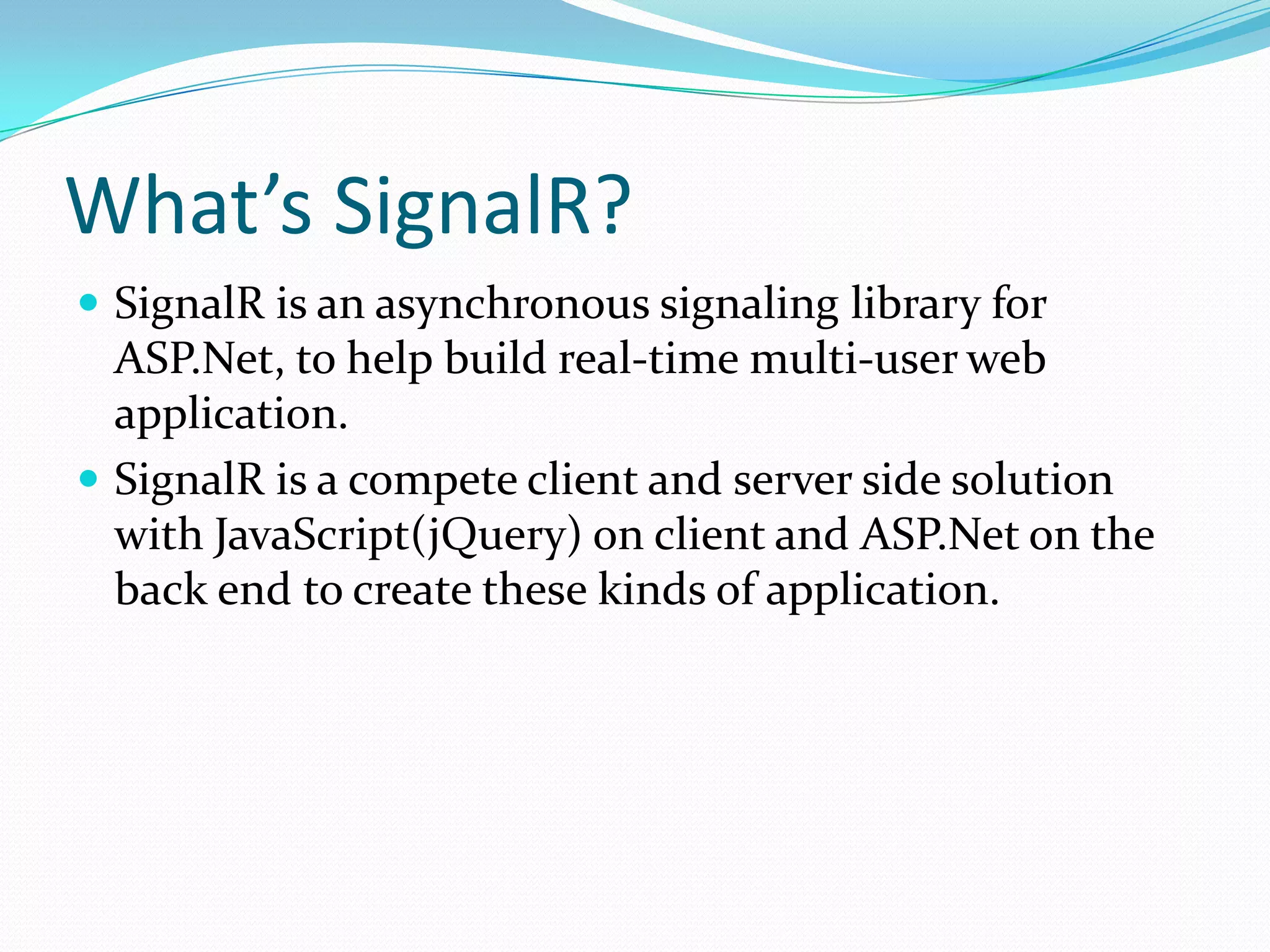

2. What’s SignalR?
 SignalR is an asynchronous signaling library for
ASP.Net, to help build real-time multi-user web
application.
 SignalR is a compete client and server side solution
with JavaScript(jQuery) on client and ASP.Net on the
back end to create these kinds of application.

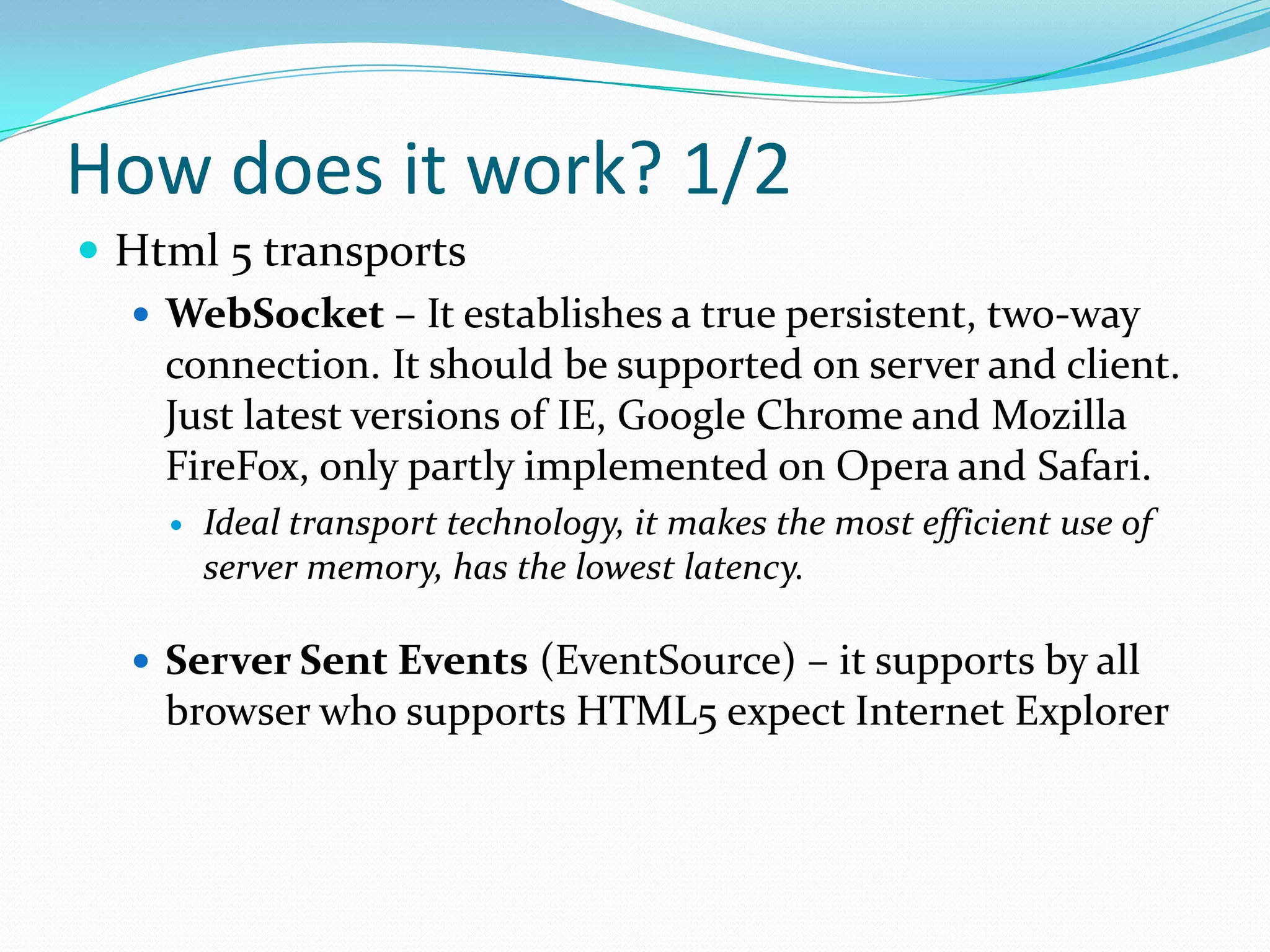

3. How does it work? 1/2
 Html 5 transports
 WebSocket – It establishes a true persistent, two-way
connection. It should be supported on server and client.
Just latest versions of IE, Google Chrome and Mozilla
FireFox, only partly implemented on Opera and Safari.
 Ideal transport technology, it makes the most efficient use of
server memory, has the lowest latency.
 Server Sent Events (EventSource) – it supports by all
browser who supports HTML5 expect Internet Explorer

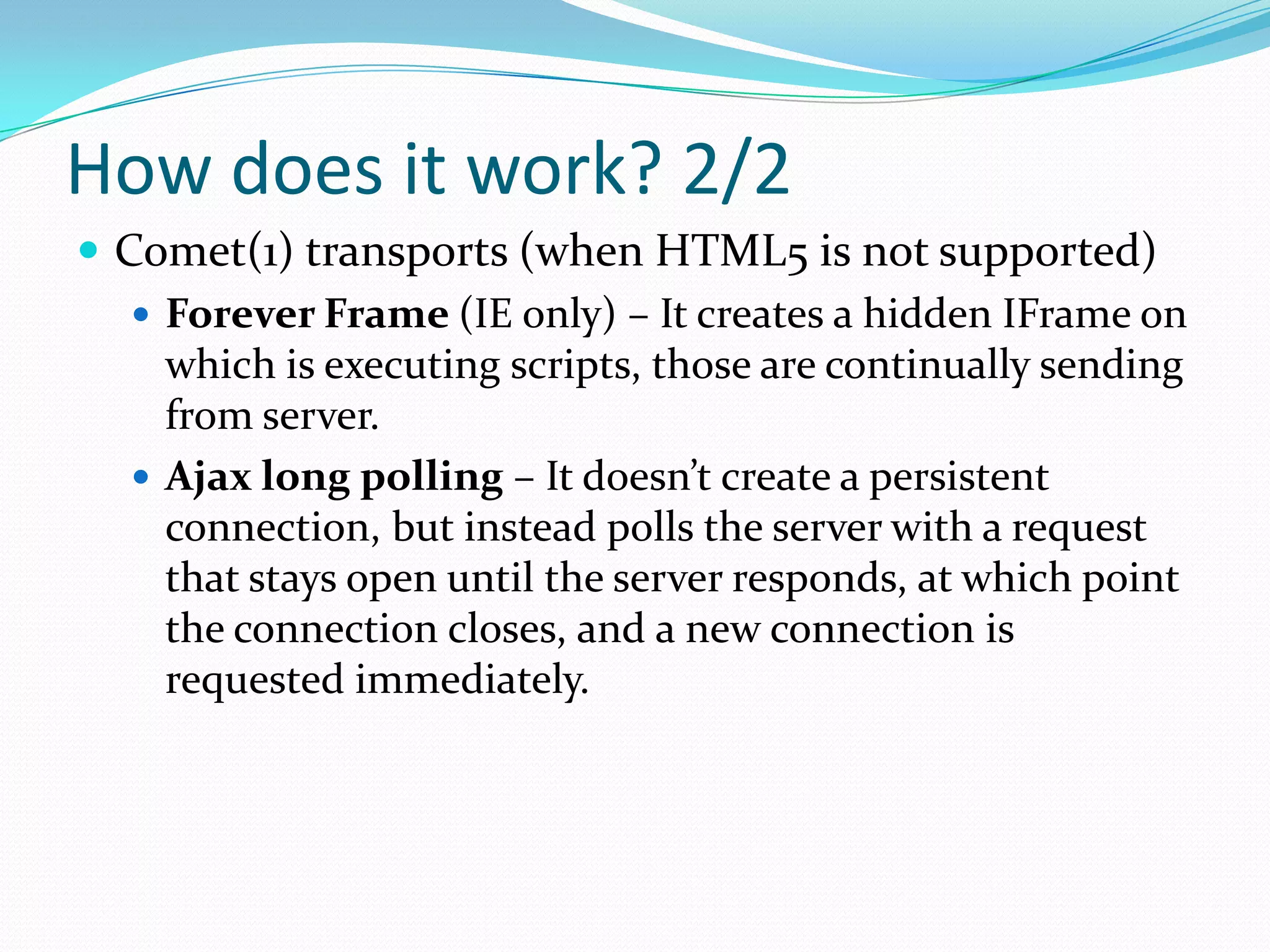

4. How does it work? 2/2
 Comet(1) transports (when HTML5 is not supported)
 Forever Frame (IE only) – It creates a hidden IFrame on
which is executing scripts, those are continually sending
from server.
 Ajax long polling – It doesn’t create a persistent
connection, but instead polls the server with a request
that stays open until the server responds, at which point
the connection closes, and a new connection is
requested immediately.

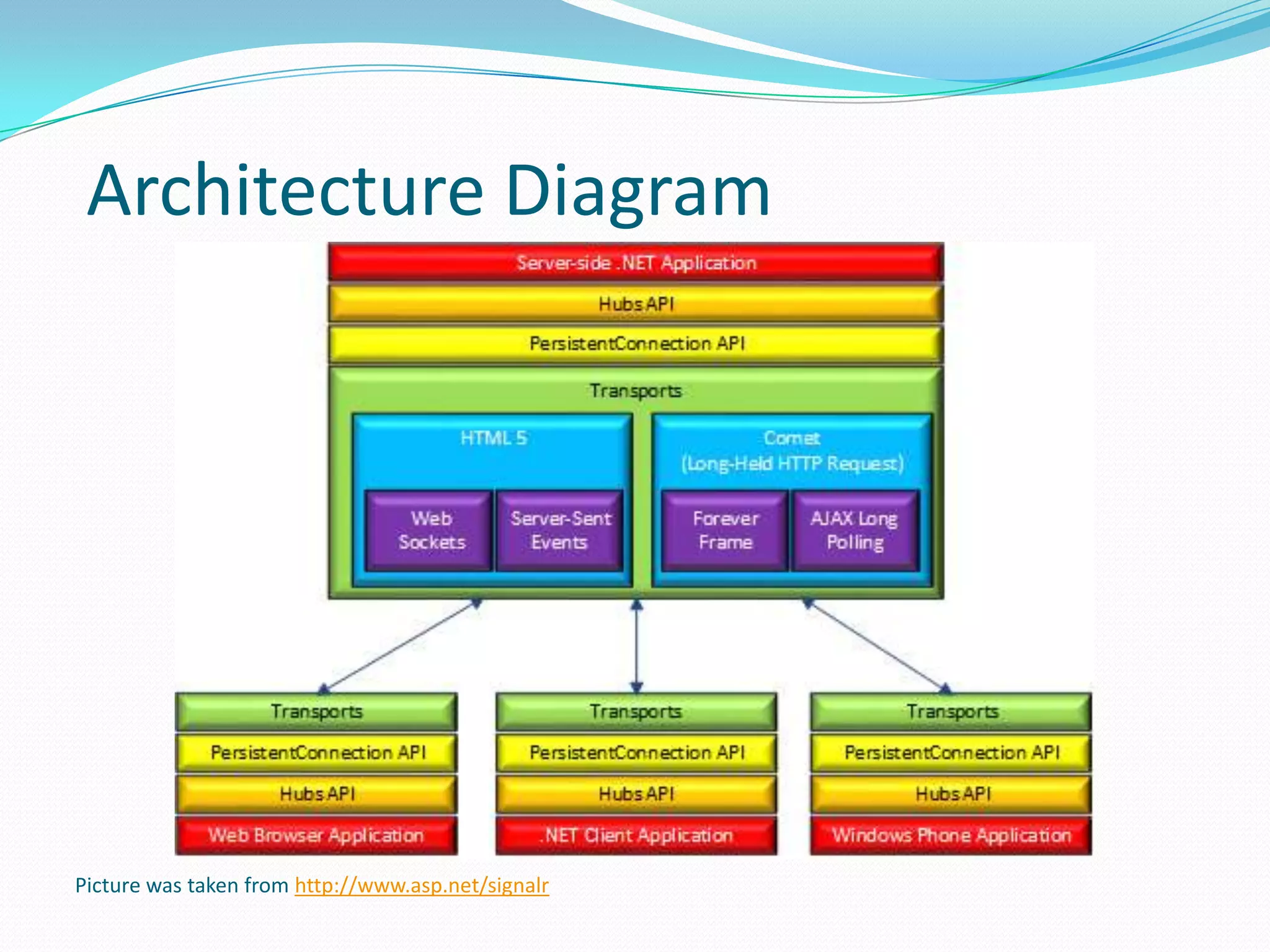

5. Picture was taken from http://www.asp.net/signalr
Architecture Diagram

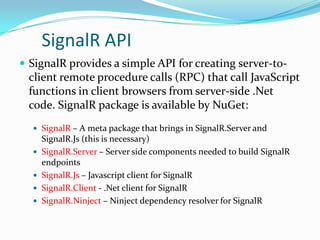

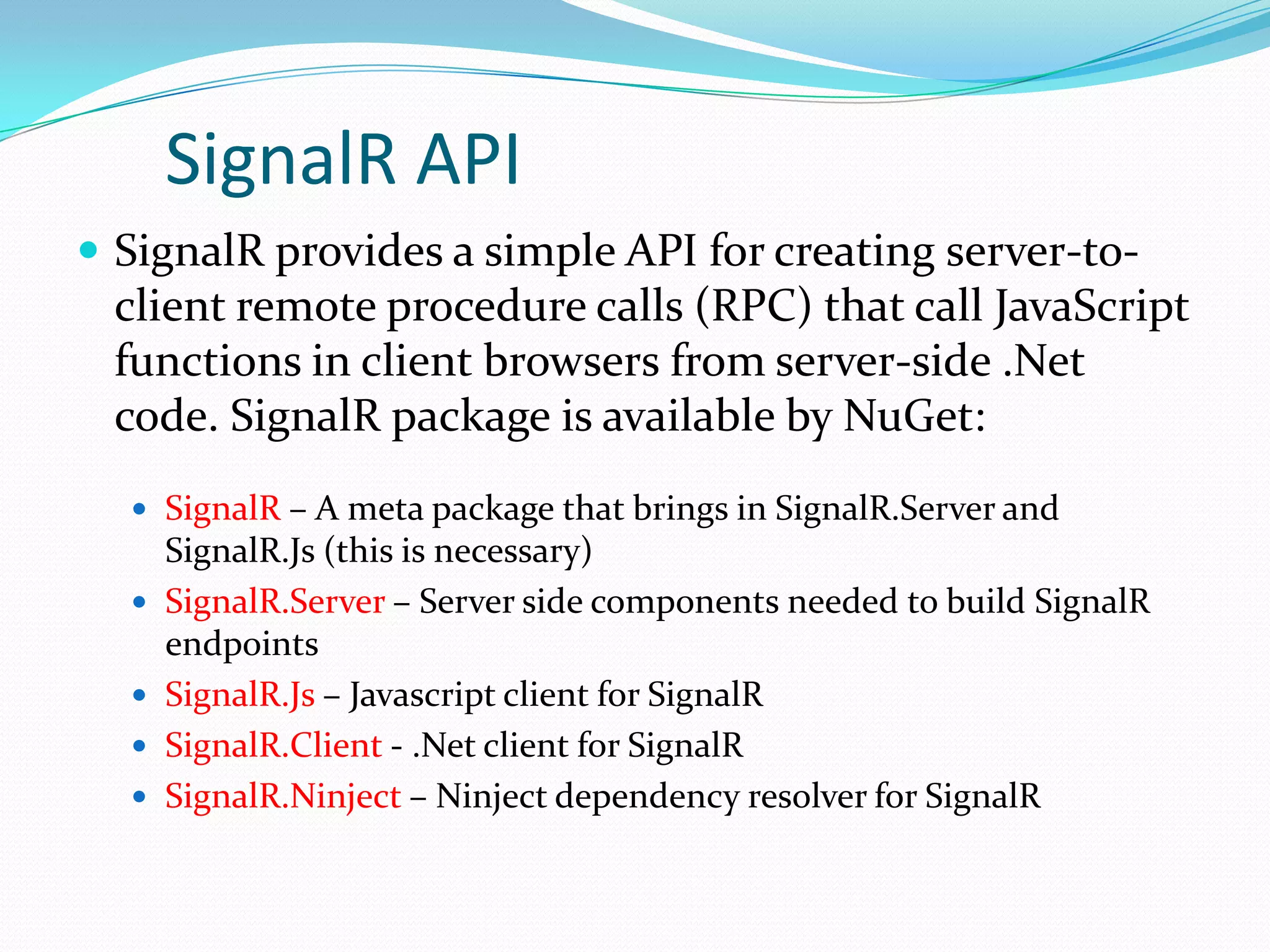

6. SignalR API
 SignalR provides a simple API for creating server-to-
client remote procedure calls (RPC) that call JavaScript
functions in client browsers from server-side .Net
code. SignalR package is available by NuGet:
 SignalR – A meta package that brings in SignalR.Server and
SignalR.Js (this is necessary)
 SignalR.Server – Server side components needed to build SignalR
endpoints
 SignalR.Js – Javascript client for SignalR
 SignalR.Client - .Net client for SignalR
 SignalR.Ninject – Ninject dependency resolver for SignalR

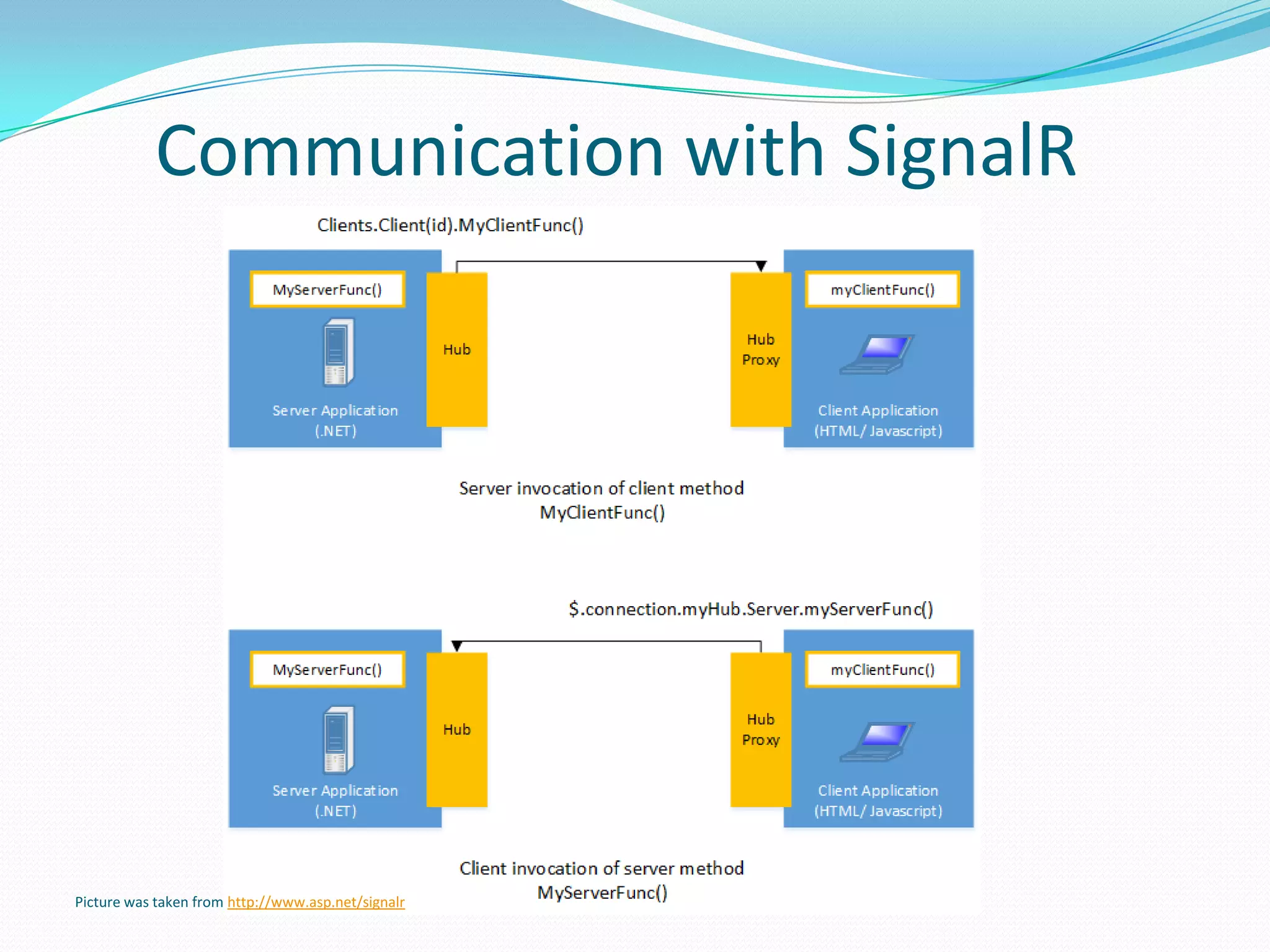

7. Communication with SignalR
Picture was taken from http://www.asp.net/signalr

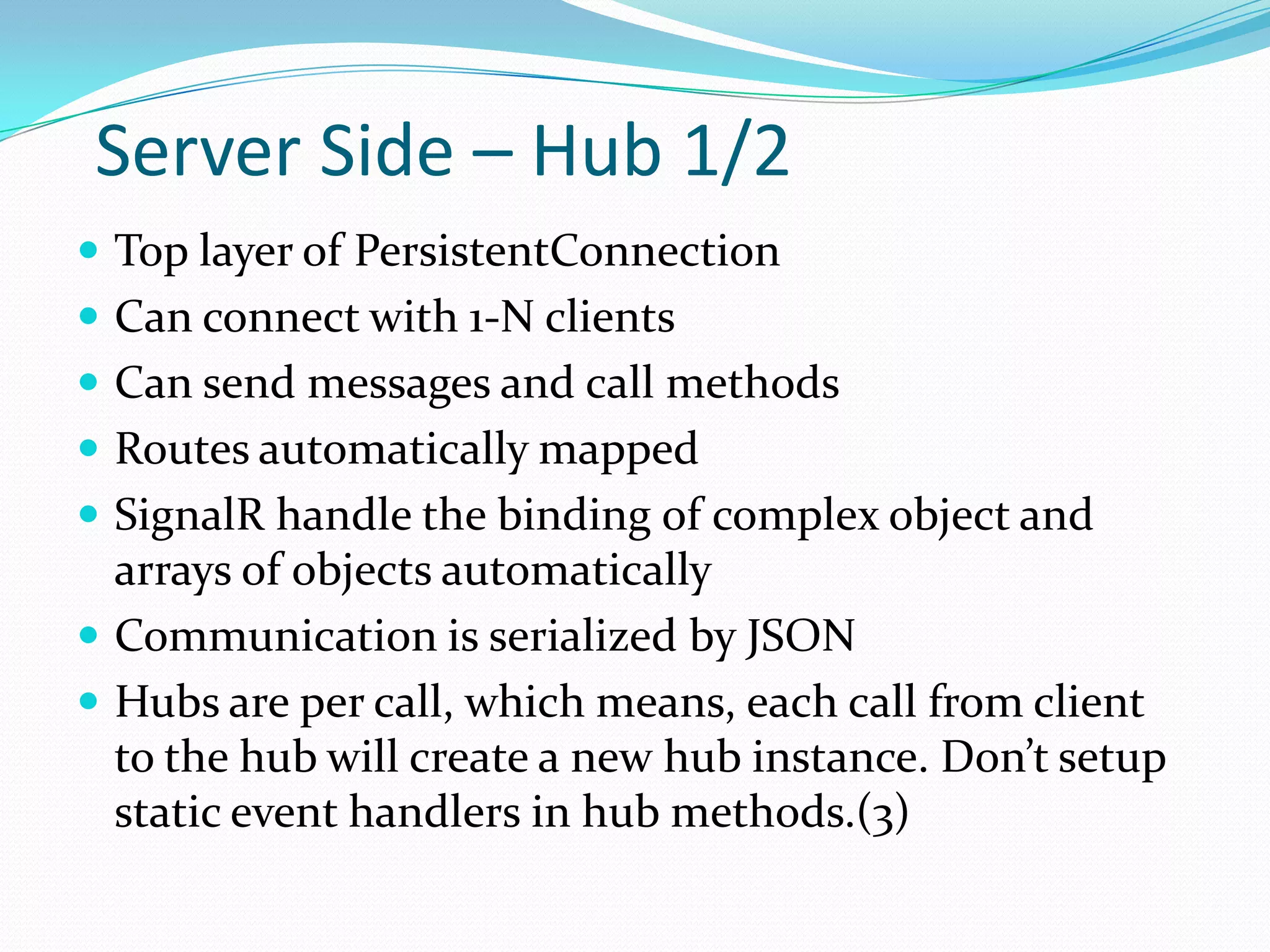

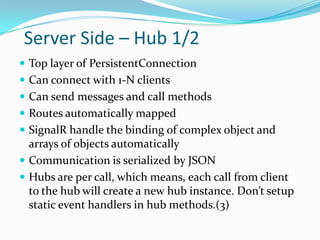

8. Server Side – Hub 1/2
 Top layer of PersistentConnection
 Can connect with 1-N clients
 Can send messages and call methods
 Routes automatically mapped
 SignalR handle the binding of complex object and
arrays of objects automatically
 Communication is serialized by JSON
 Hubs are per call, which means, each call from client
to the hub will create a new hub instance. Don’t setup
static event handlers in hub methods.(3)

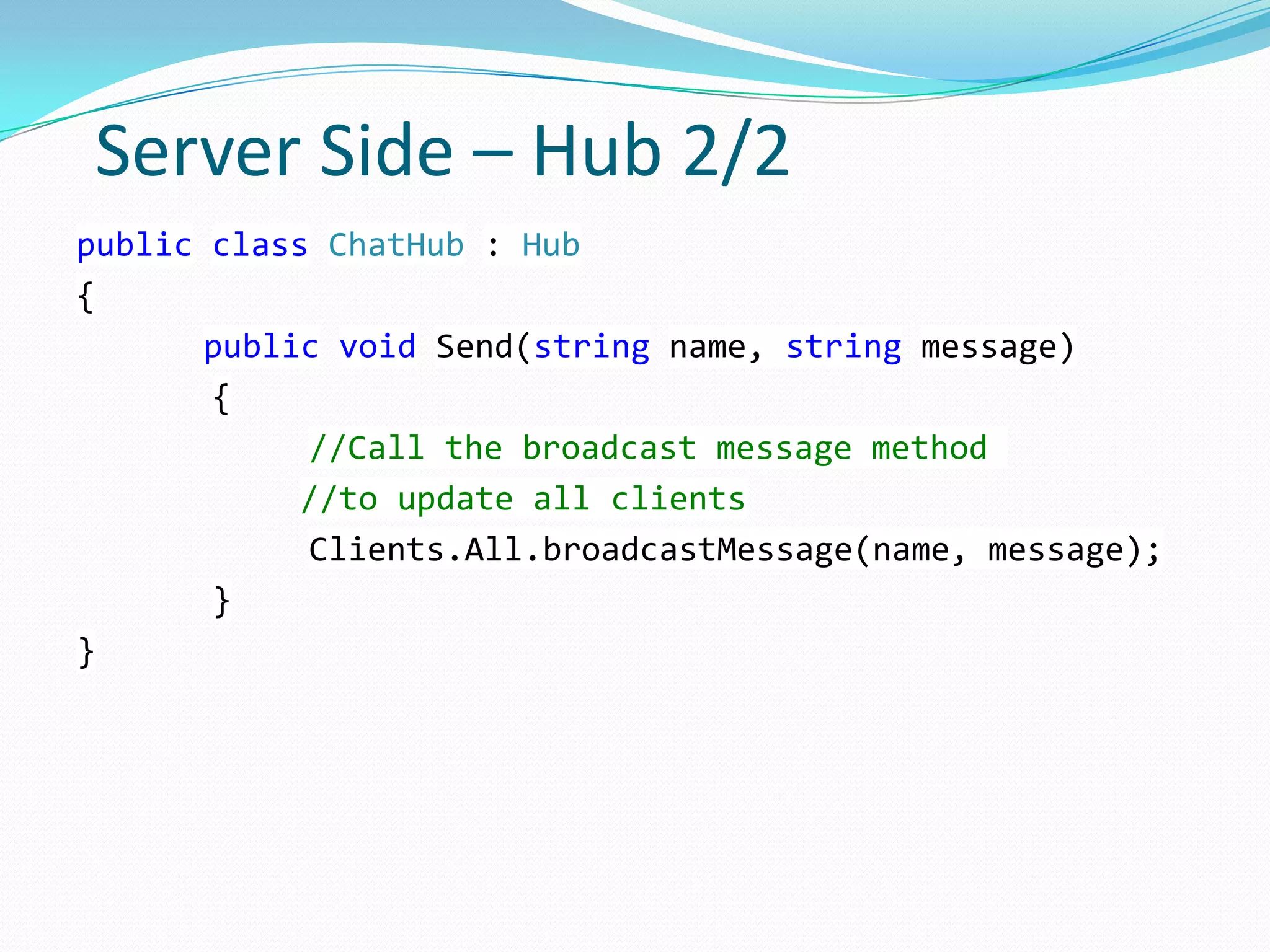

9. Server Side – Hub 2/2
public class ChatHub : Hub
{
public void Send(string name, string message)
{
//Call the broadcast message method
//to update all clients
Clients.All.broadcastMessage(name, message);
}
}

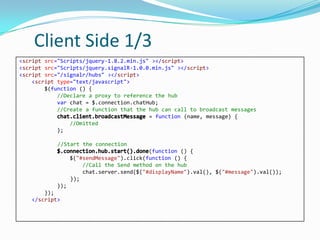

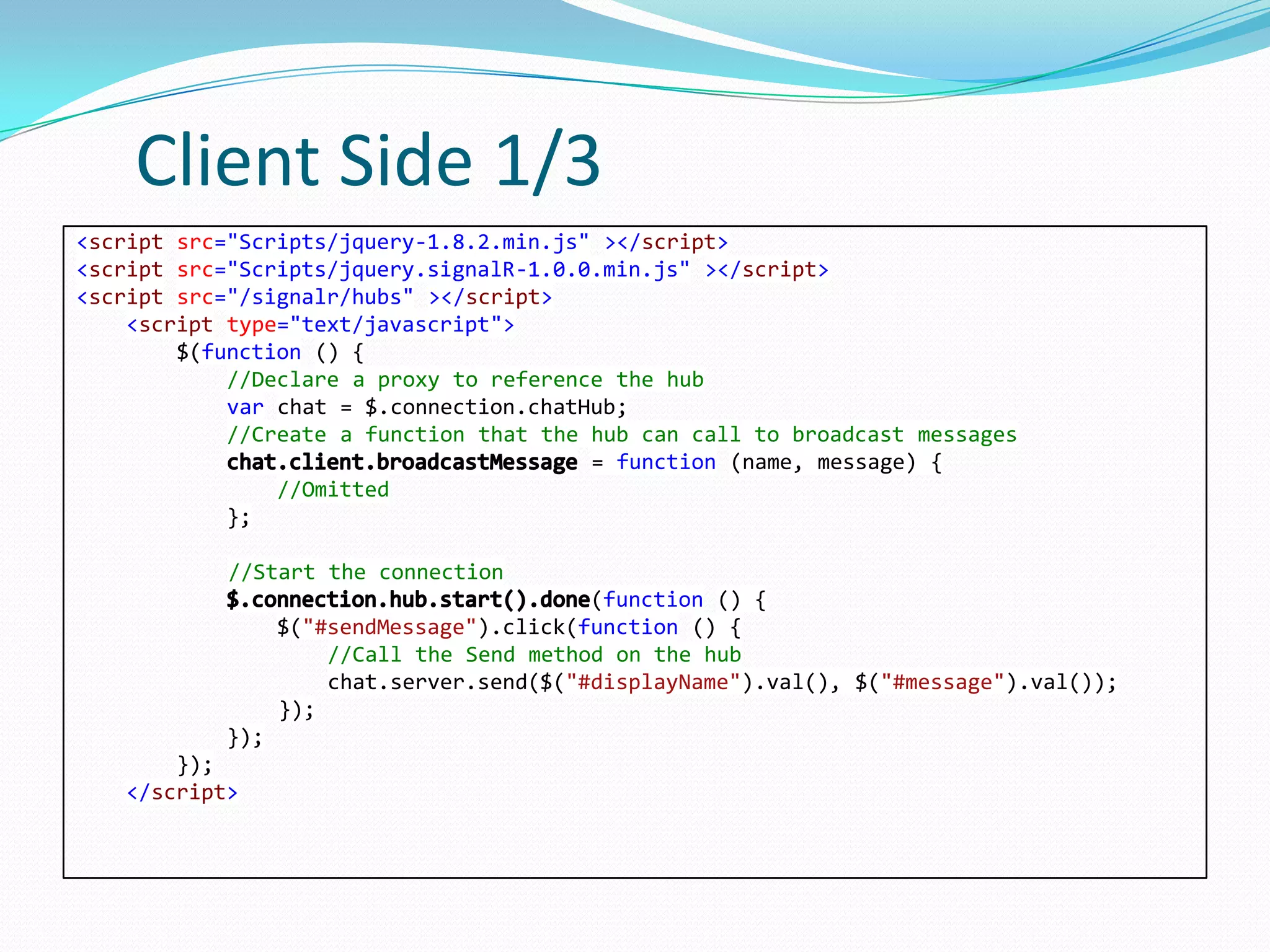

10. Client Side 1/3
<script src="Scripts/jquery-1.8.2.min.js" ></script>
<script src="Scripts/jquery.signalR-1.0.0.min.js" ></script>
<script src="/signalr/hubs" ></script>
<script type="text/javascript">
$(function () {
//Declare a proxy to reference the hub
var chat = $.connection.chatHub;
//Create a function that the hub can call to broadcast messages
= function (name, message) {
//Omitted
};
//Start the connection
(function () {
$("#sendMessage").click(function () {
//Call the Send method on the hub
chat.server.send($("#displayName").val(), $("#message").val());
});
});
});
</script>

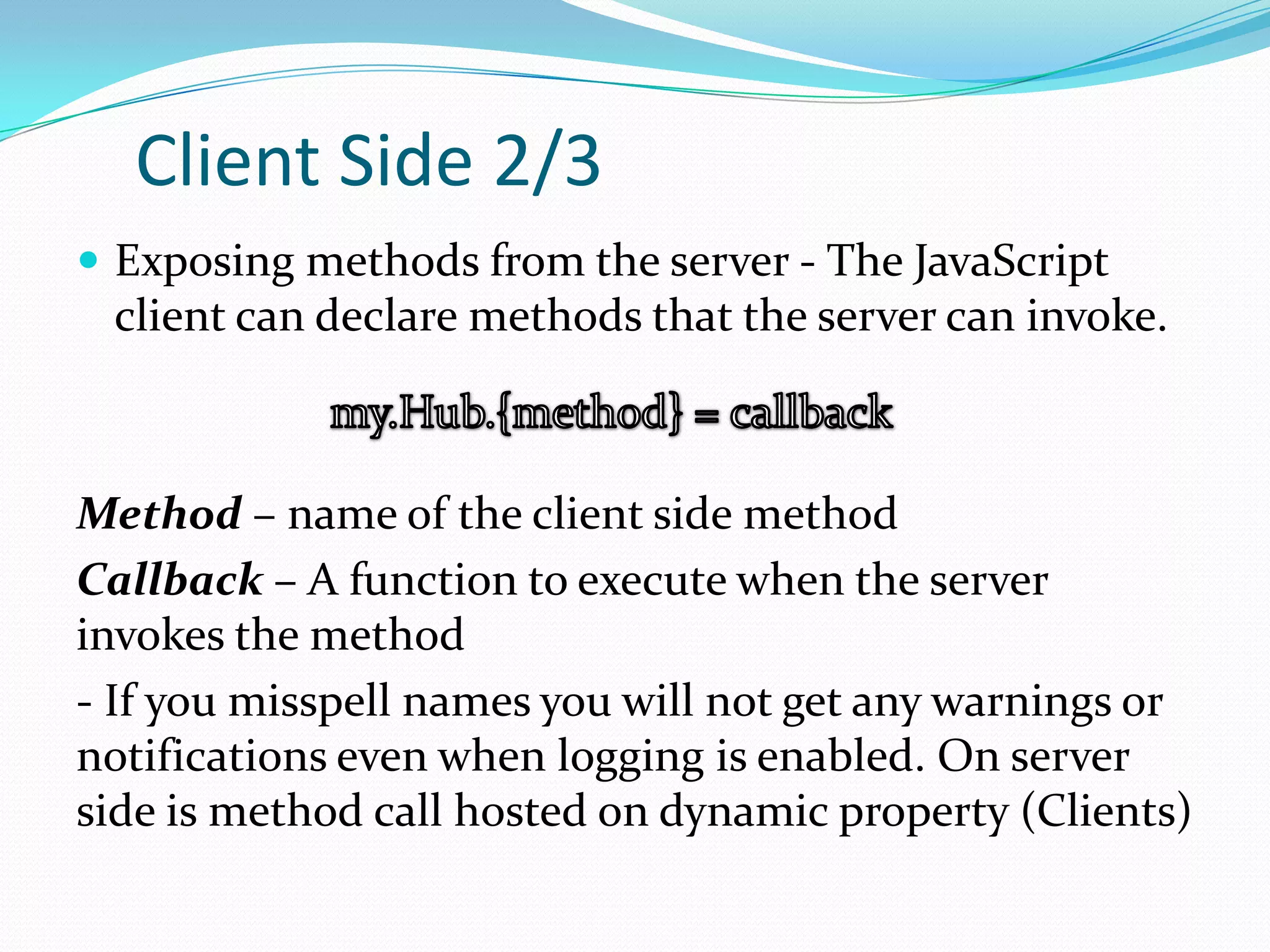

11. Client Side 2/3
 Exposing methods from the server - The JavaScript
client can declare methods that the server can invoke.
Method – name of the client side method
Callback – A function to execute when the server
invokes the method
- If you misspell names you will not get any warnings or
notifications even when logging is enabled. On server
side is method call hosted on dynamic property (Clients)

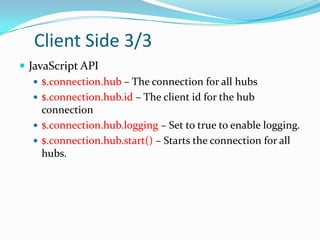

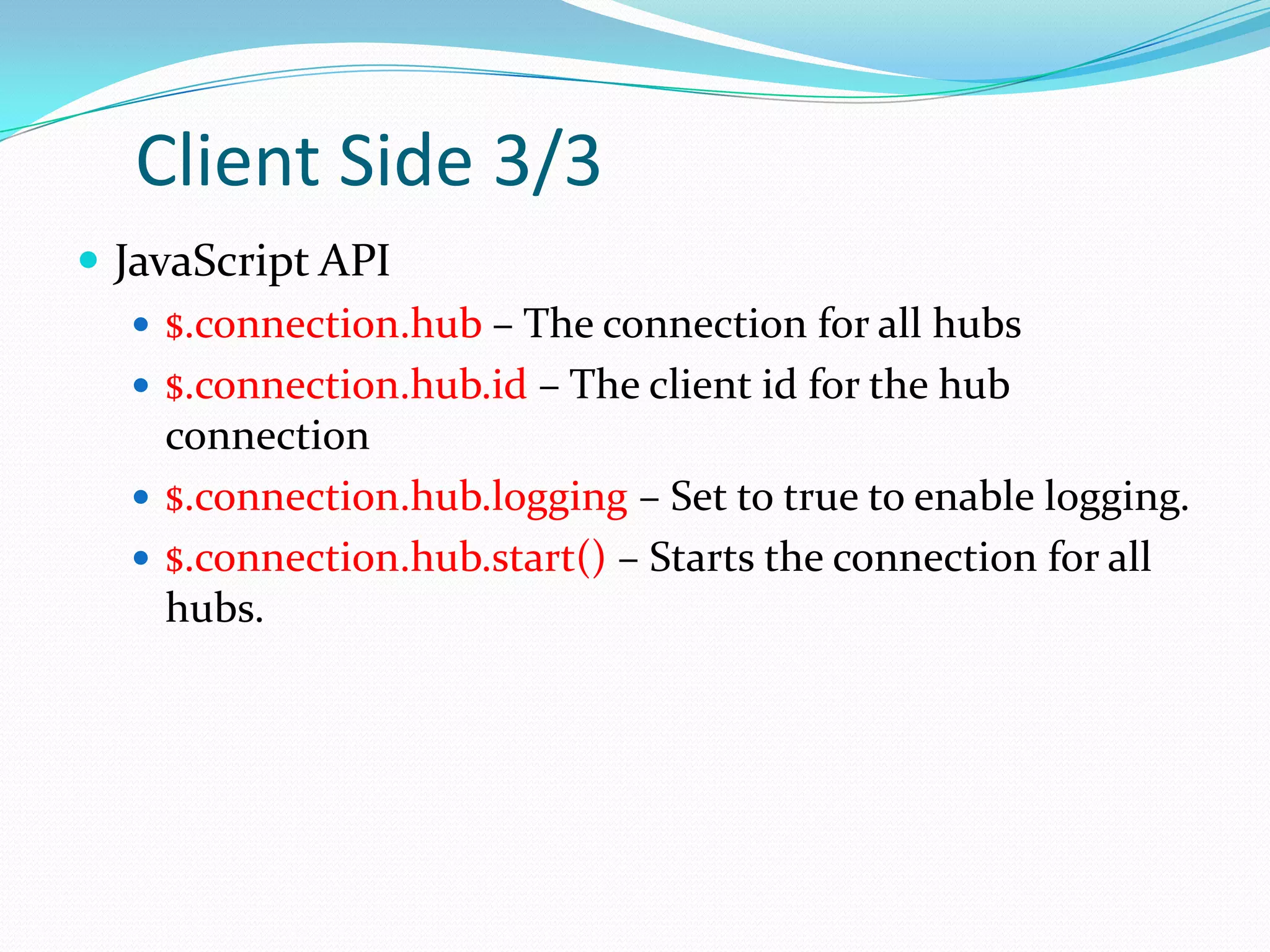

12. Client Side 3/3
 JavaScript API
 $.connection.hub – The connection for all hubs
 $.connection.hub.id – The client id for the hub
connection
 $.connection.hub.logging – Set to true to enable logging.
 $.connection.hub.start() – Starts the connection for all
hubs.

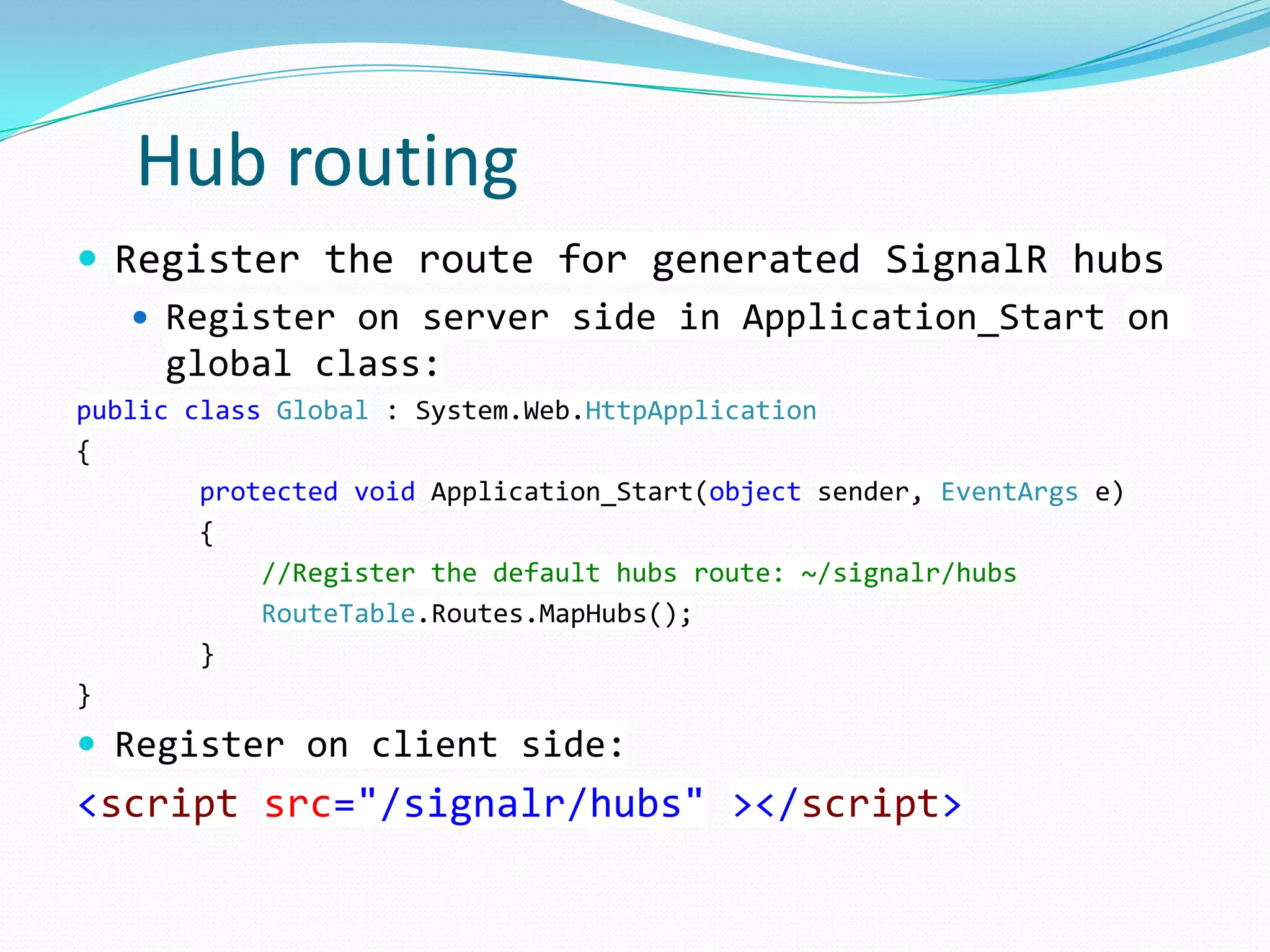

13. Hub routing
 Register the route for generated SignalR hubs
 Register on server side in Application_Start on
global class:
public class Global : System.Web.HttpApplication
{
protected void Application_Start(object sender, EventArgs e)
{
//Register the default hubs route: ~/signalr/hubs
RouteTable.Routes.MapHubs();
}
}
 Register on client side:
<script src="/signalr/hubs" ></script>

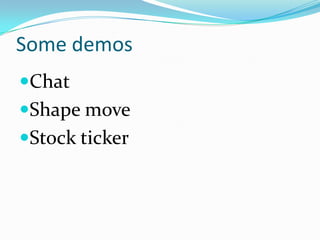

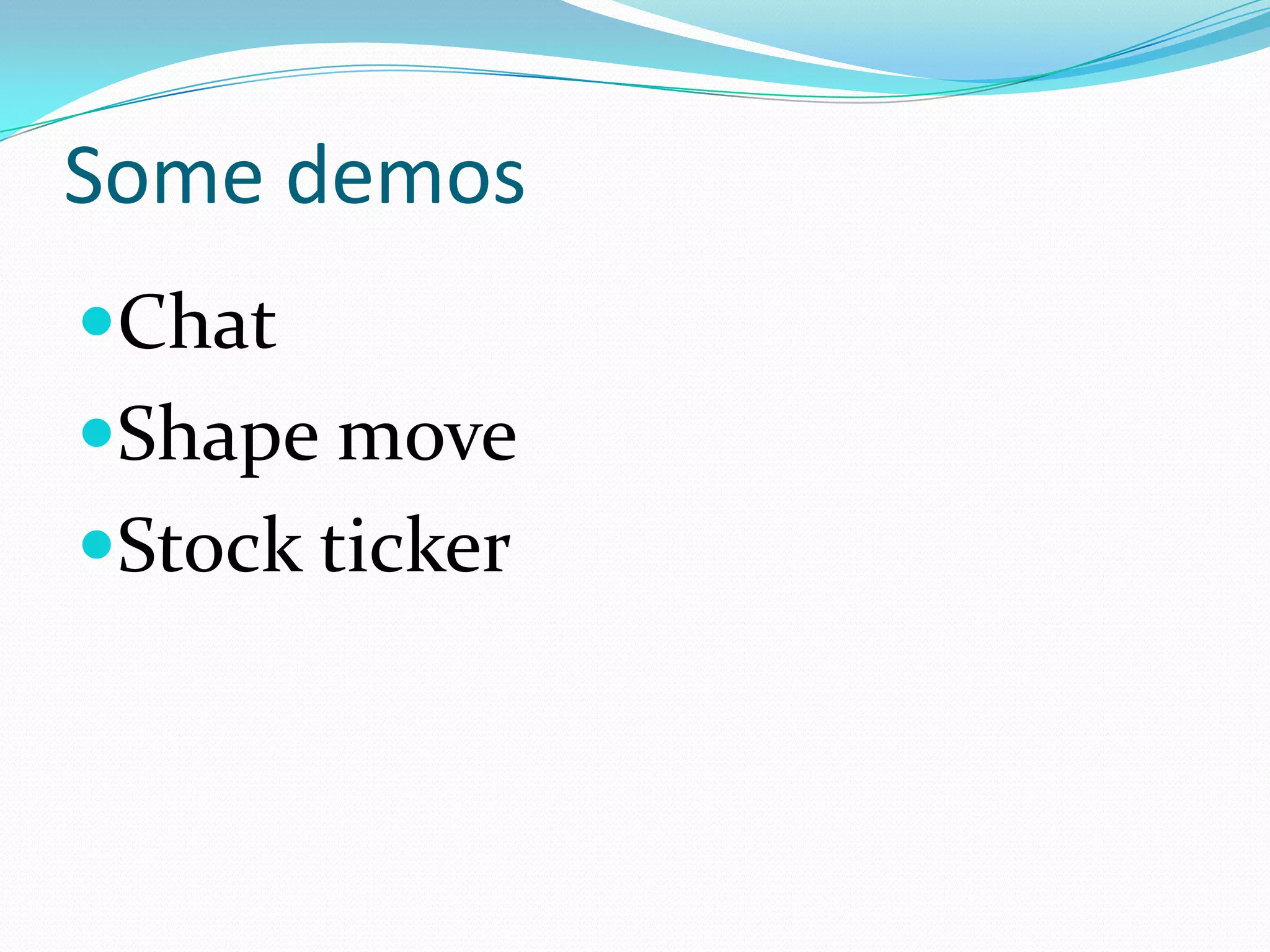

14. Some demos
Chat
Shape move
Stock ticker

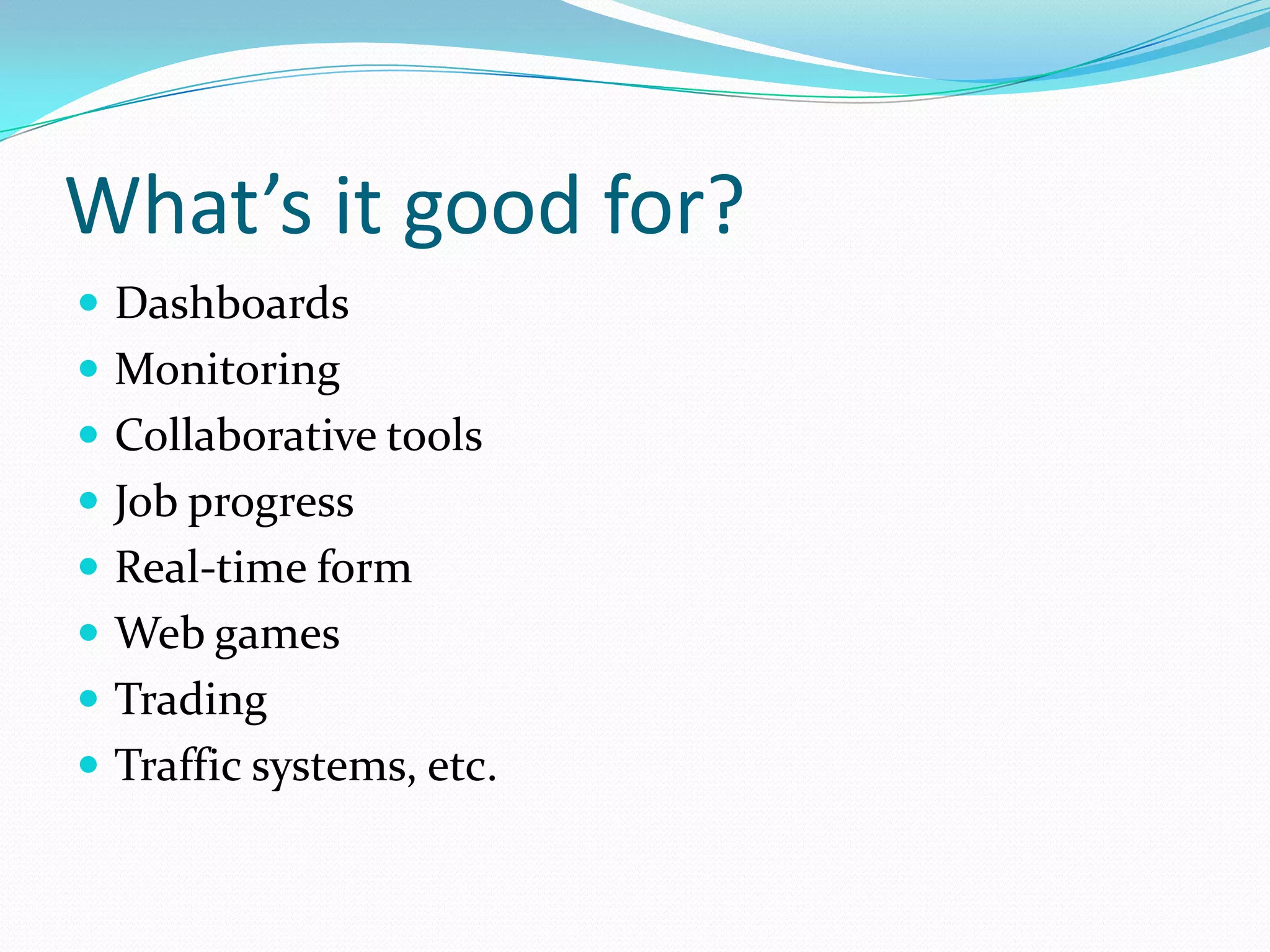

15. What’s it good for?
 Dashboards
 Monitoring
 Collaborative tools
 Job progress
 Real-time form
 Web games
 Trading
 Traffic systems, etc.

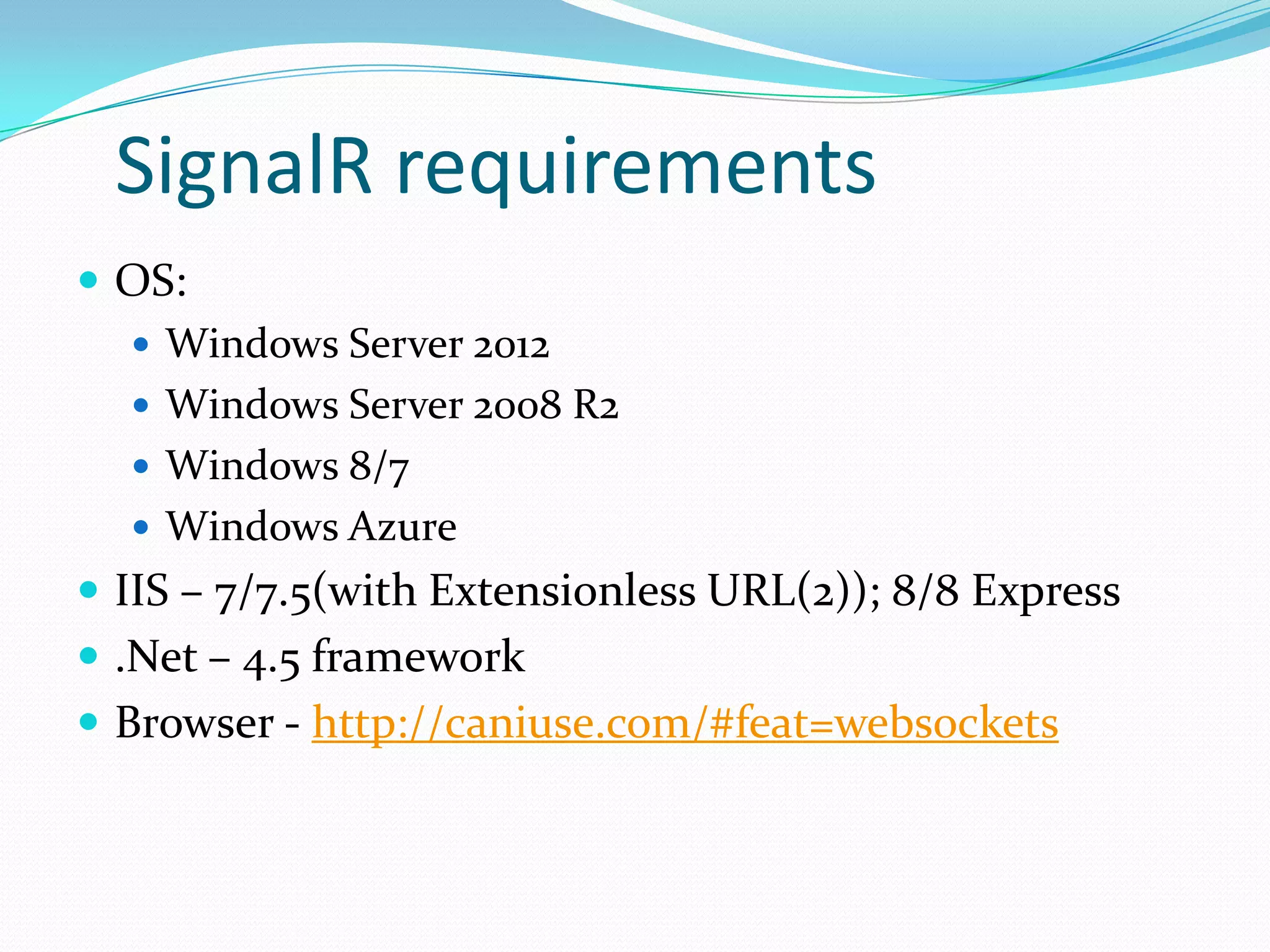

16. SignalR requirements
 OS:
 Windows Server 2012
 Windows Server 2008 R2
 Windows 8/7
 Windows Azure
 IIS – 7/7.5(with Extensionless URL(2)); 8/8 Express
 .Net – 4.5 framework
 Browser - http://caniuse.com/#feat=websockets

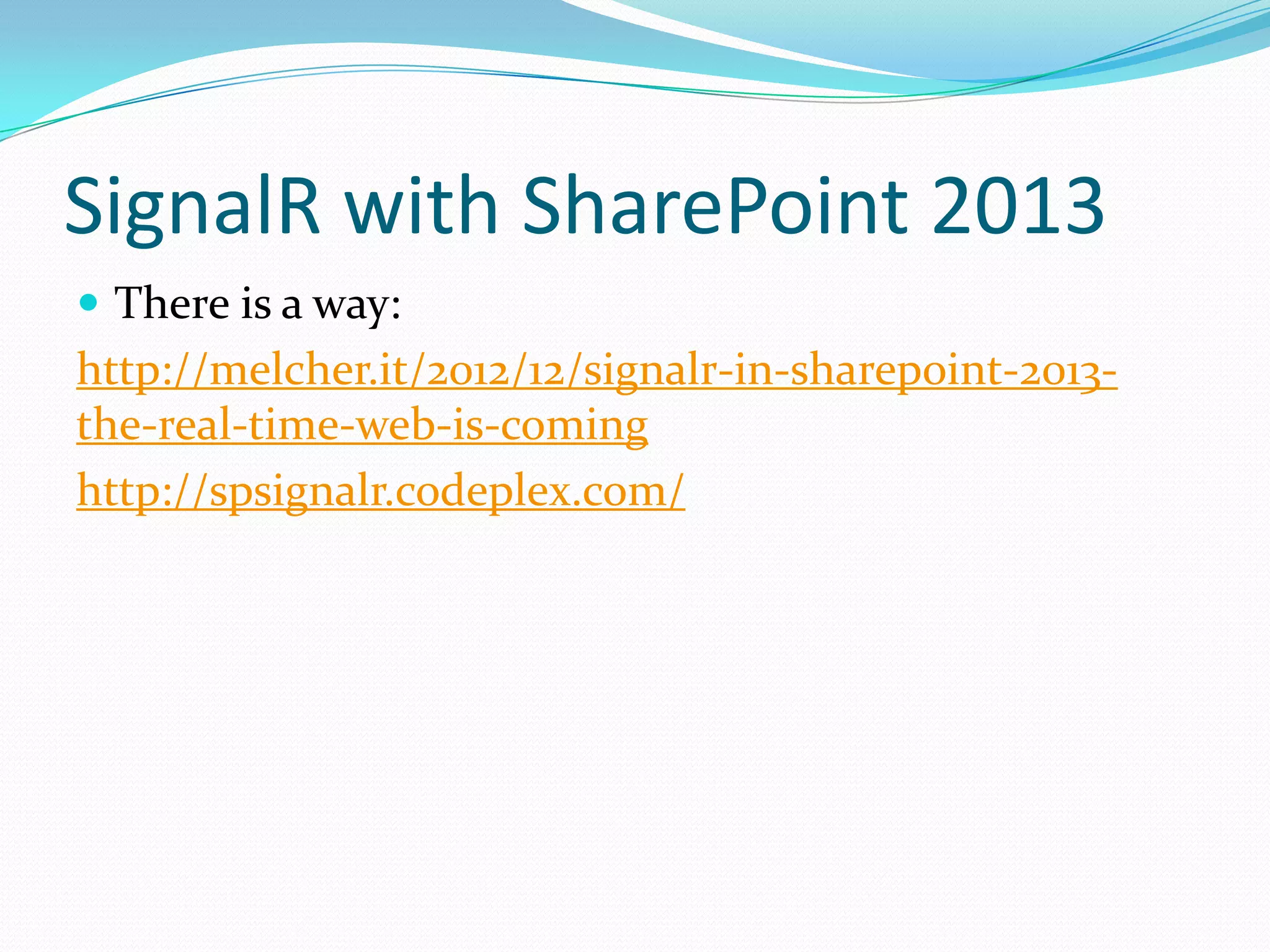

17. SignalR with SharePoint 2013
 There is a way:
http://melcher.it/2012/12/signalr-in-sharepoint-2013-
the-real-time-web-is-coming
http://spsignalr.codeplex.com/

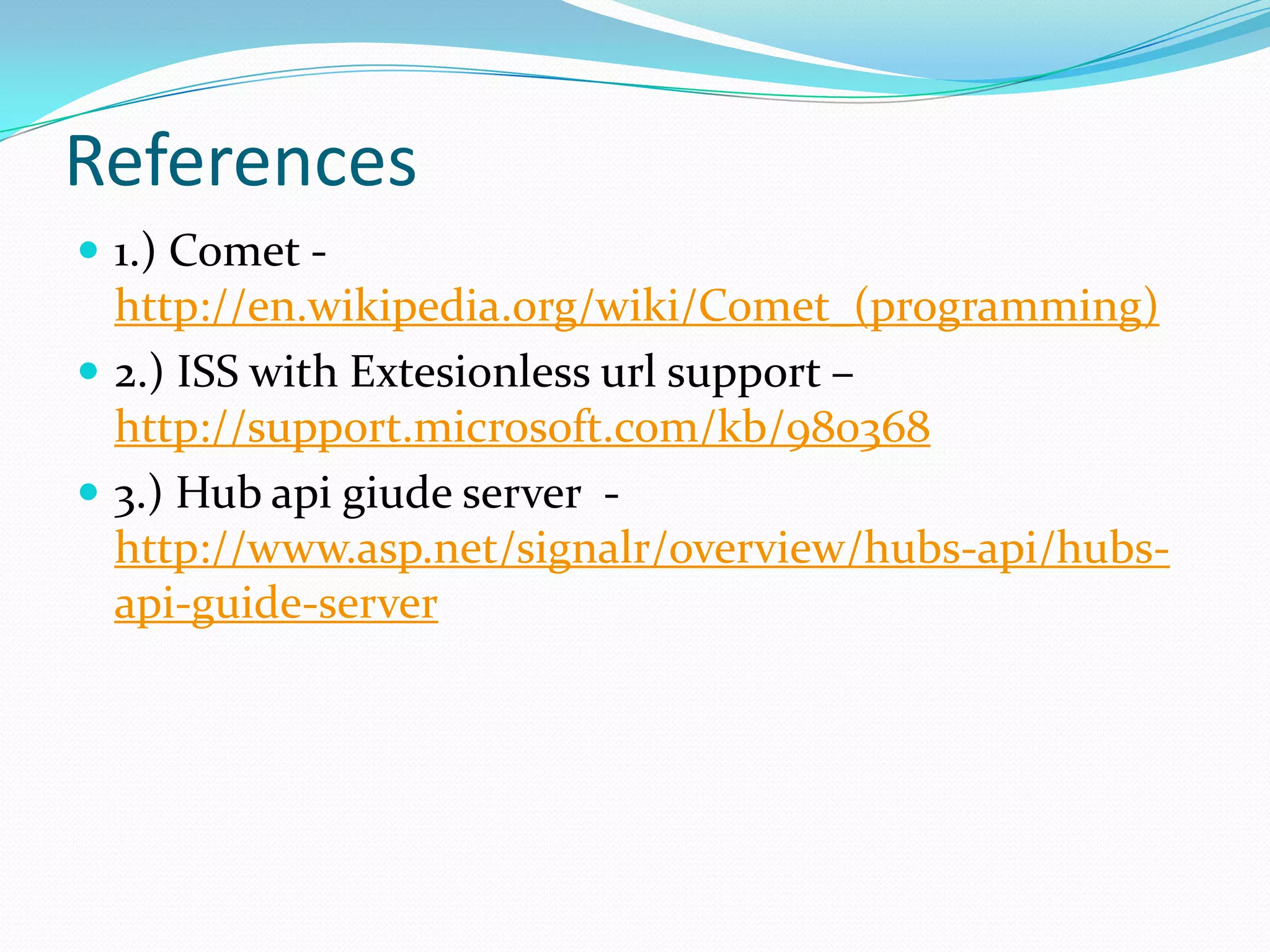

18. References
 1.) Comet -
http://en.wikipedia.org/wiki/Comet_(programming)
 2.) ISS with Extesionless url support –
http://support.microsoft.com/kb/980368
 3.) Hub api giude server -
http://www.asp.net/signalr/overview/hubs-api/hubs-
api-guide-server
