This document summarizes a presentation about ASP.NET SignalR, a framework for adding real-time web functionality to applications. The presentation discusses event-driven architecture and how SignalR supports it. It also covers scaling out SignalR applications across multiple servers and improving performance. The presenter is identified as Alessandro Melchiori, a software architect, and demos of SignalR functionality are included.

1. WEB06
WEB IN REAL TIME CON
ASP.NET SIGNALR
#CDays14 – Milano 25, 26 e 27 Febbraio 2014

2. Grazie a
Sponsor
#CDays14 – Milano 25, 26 e 27 Febbraio 2014

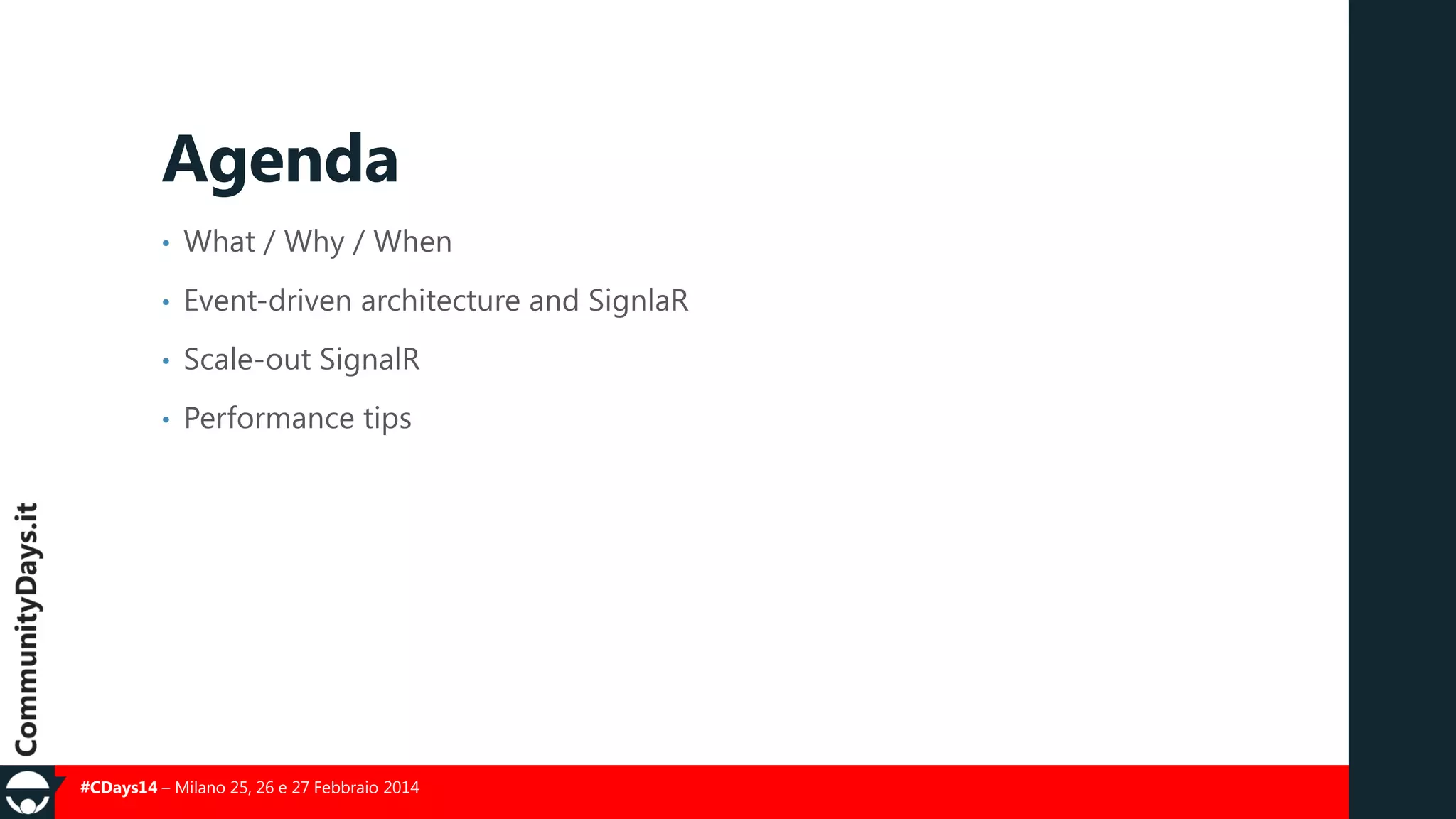

3. Agenda
•
What / Why / When
•
Event-driven architecture and SignlaR
•
Scale-out SignalR
•
Performance tips
#CDays14 – Milano 25, 26 e 27 Febbraio 2014

4. About me
Alessandro Melchiori
Software architect @ codiceplastico
@amelchiori
http://melkio.blog.codiceplastico.com
#CDays14 – Milano 25, 26 e 27 Febbraio 2014

5. demo
SignalR.Intro
#CDays14 – Milano 25, 26 e 27 Febbraio 2014

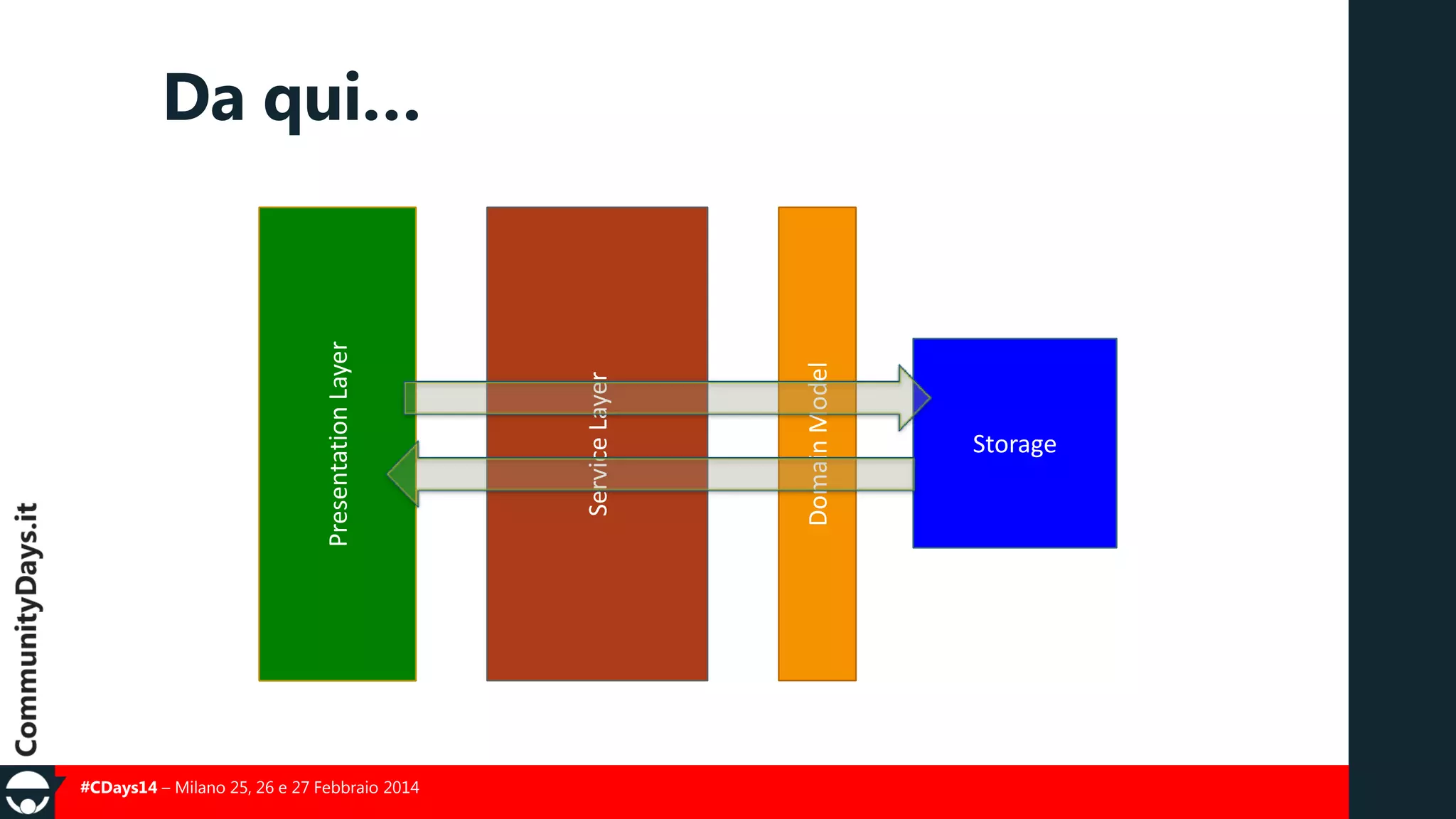

6. #CDays14 – Milano 25, 26 e 27 Febbraio 2014
Domain Model
Service Layer
Presentation Layer
Da qui…
Storage

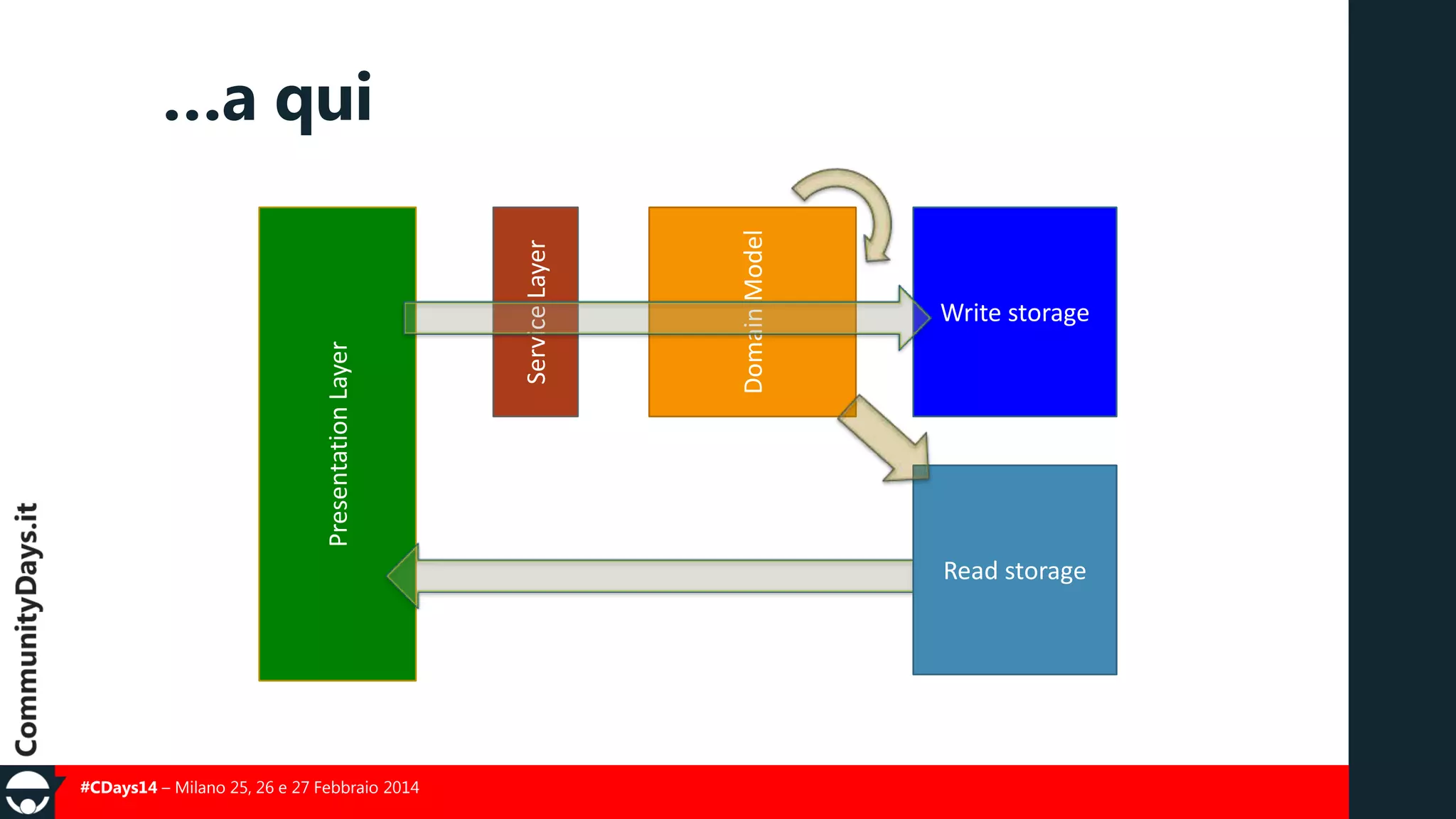

7. Domain Model
Service Layer
Presentation Layer
…a qui
Write storage
Read storage
#CDays14 – Milano 25, 26 e 27 Febbraio 2014

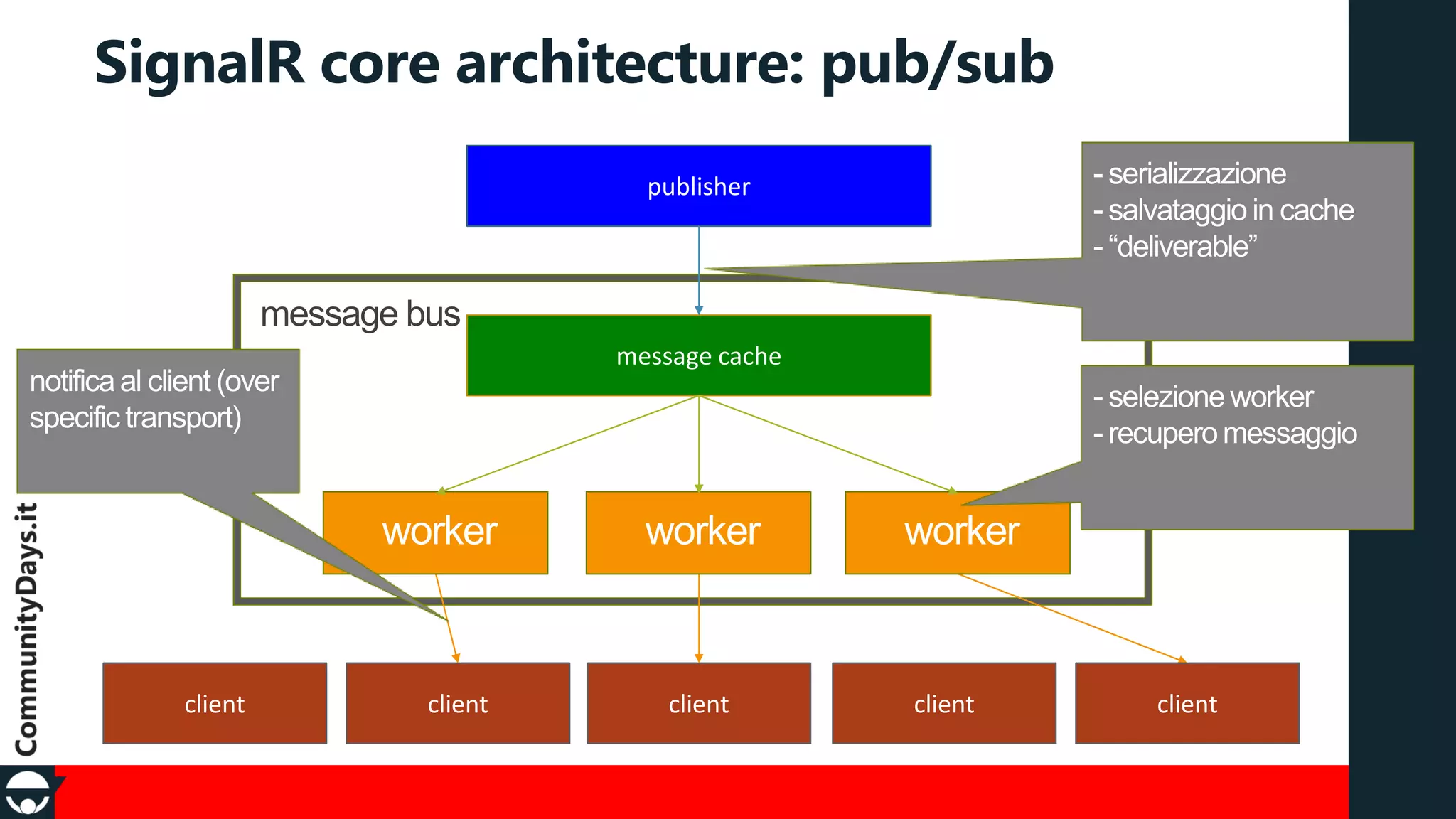

8. SignalR core architecture: pub/sub
publisher
message bus
message cache
client
client
client
client
client

9. Pattern 1. Server broadcast
•
Low rate broadcast of the same payload to all clients
•
One message bus send maps to many users (fan out)
•
More clients don’t increase message bus traffic

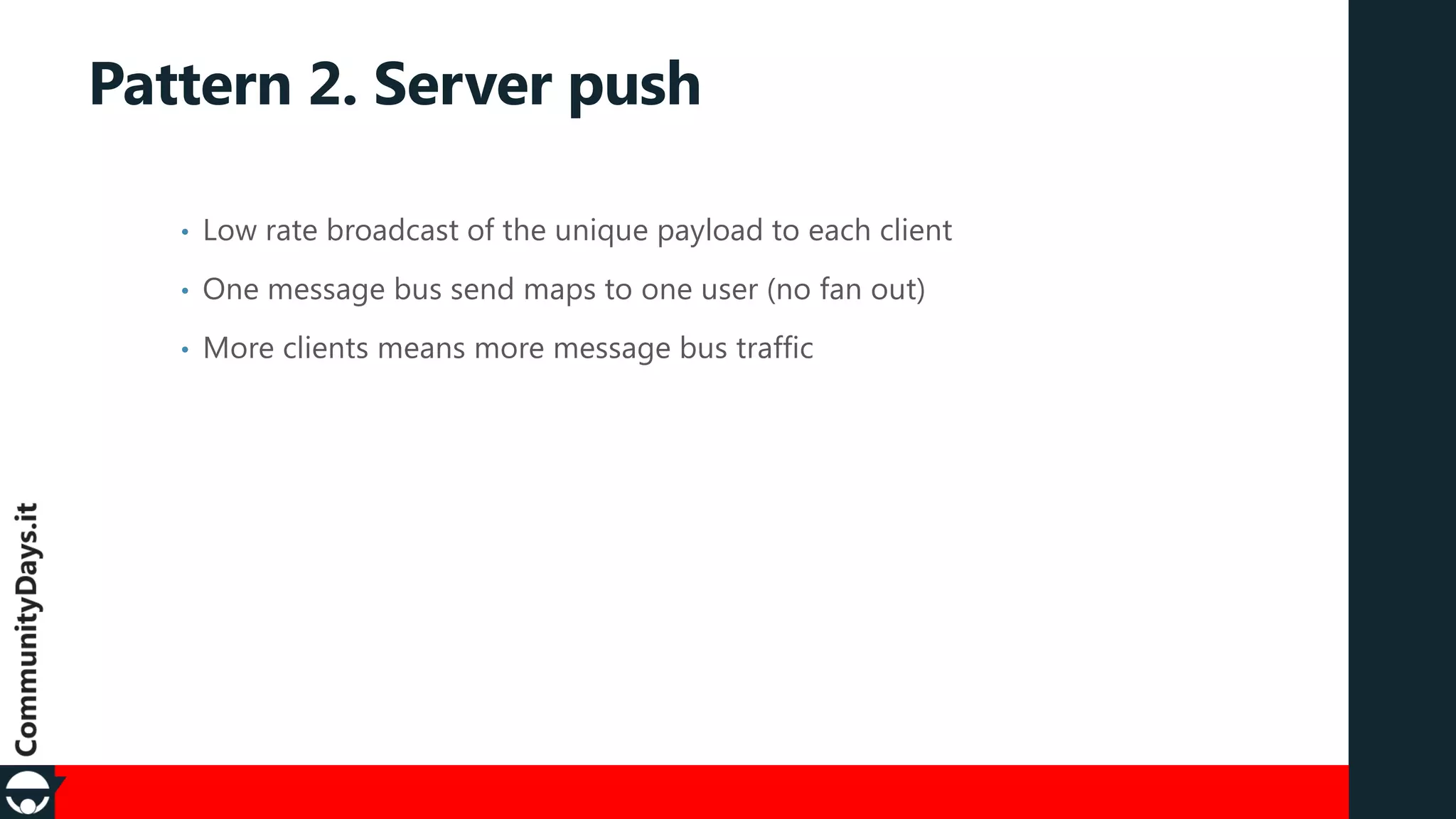

10. Pattern 2. Server push
•
Low rate broadcast of the unique payload to each client
•
One message bus send maps to one user (no fan out)
•
More clients means more message bus traffic

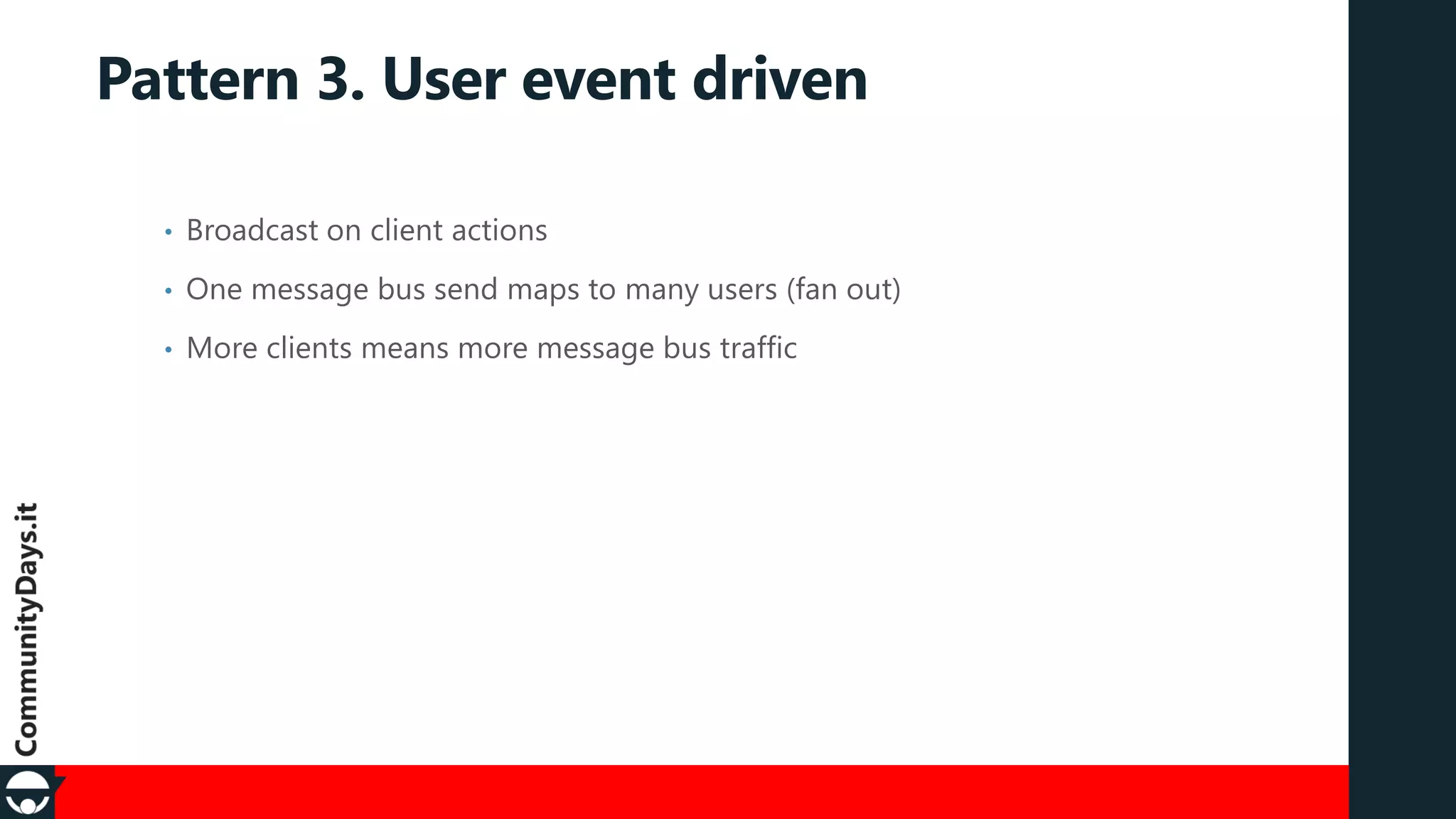

11. Pattern 3. User event driven
•
Broadcast on client actions
•
One message bus send maps to many users (fan out)
•
More clients means more message bus traffic

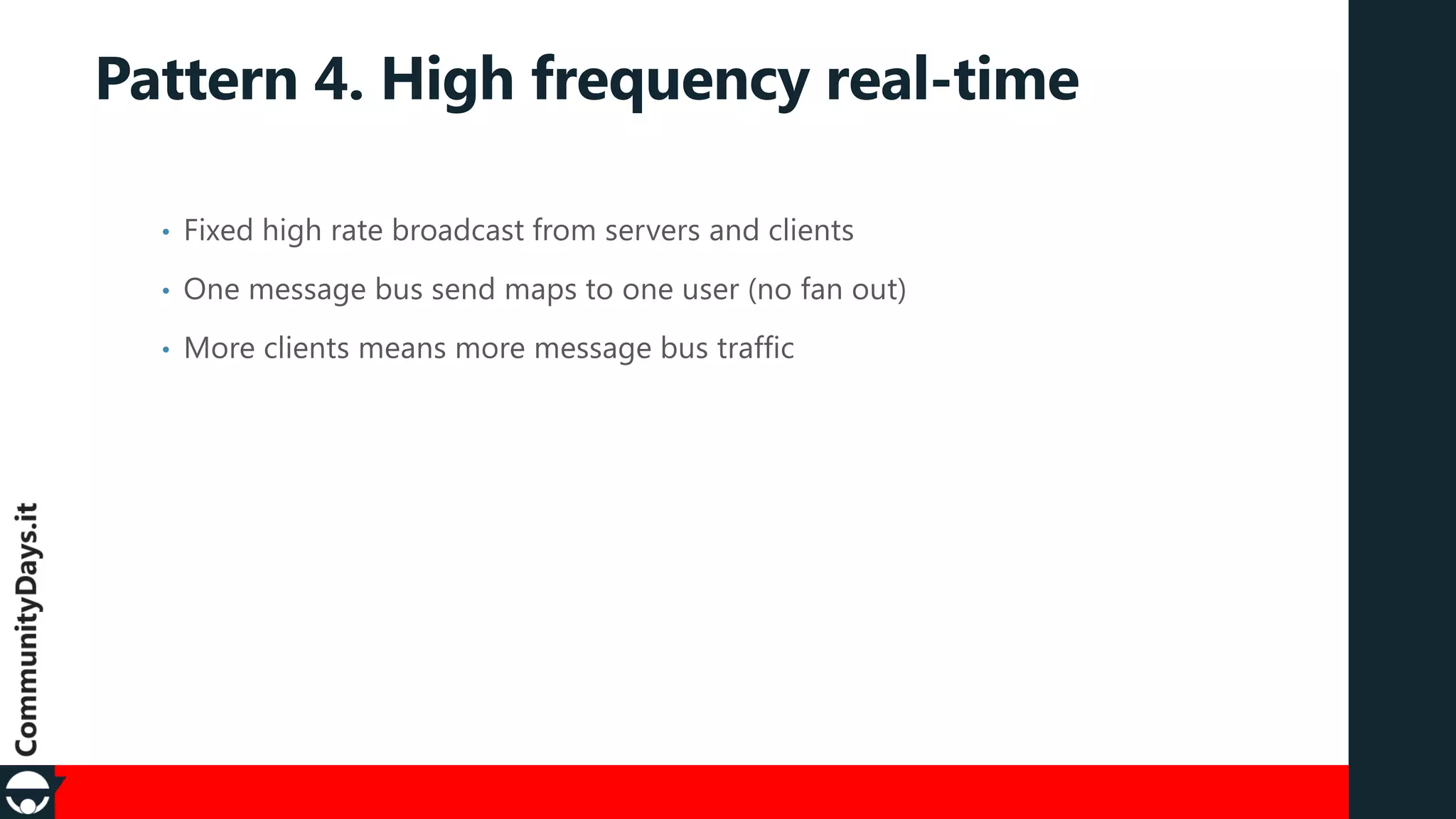

12. Pattern 4. High frequency real-time
•
Fixed high rate broadcast from servers and clients
•
One message bus send maps to one user (no fan out)
•
More clients means more message bus traffic

13. demo
Event-driven architecture & SignalR
#CDays14 – Milano 25, 26 e 27 Febbraio 2014

14. Remember…
Have your app do as little as possible. If
you do nothing, you can scale infinitely.
Scott Hanselman
#CDays14 – Milano 25, 26 e 27 Febbraio 2014

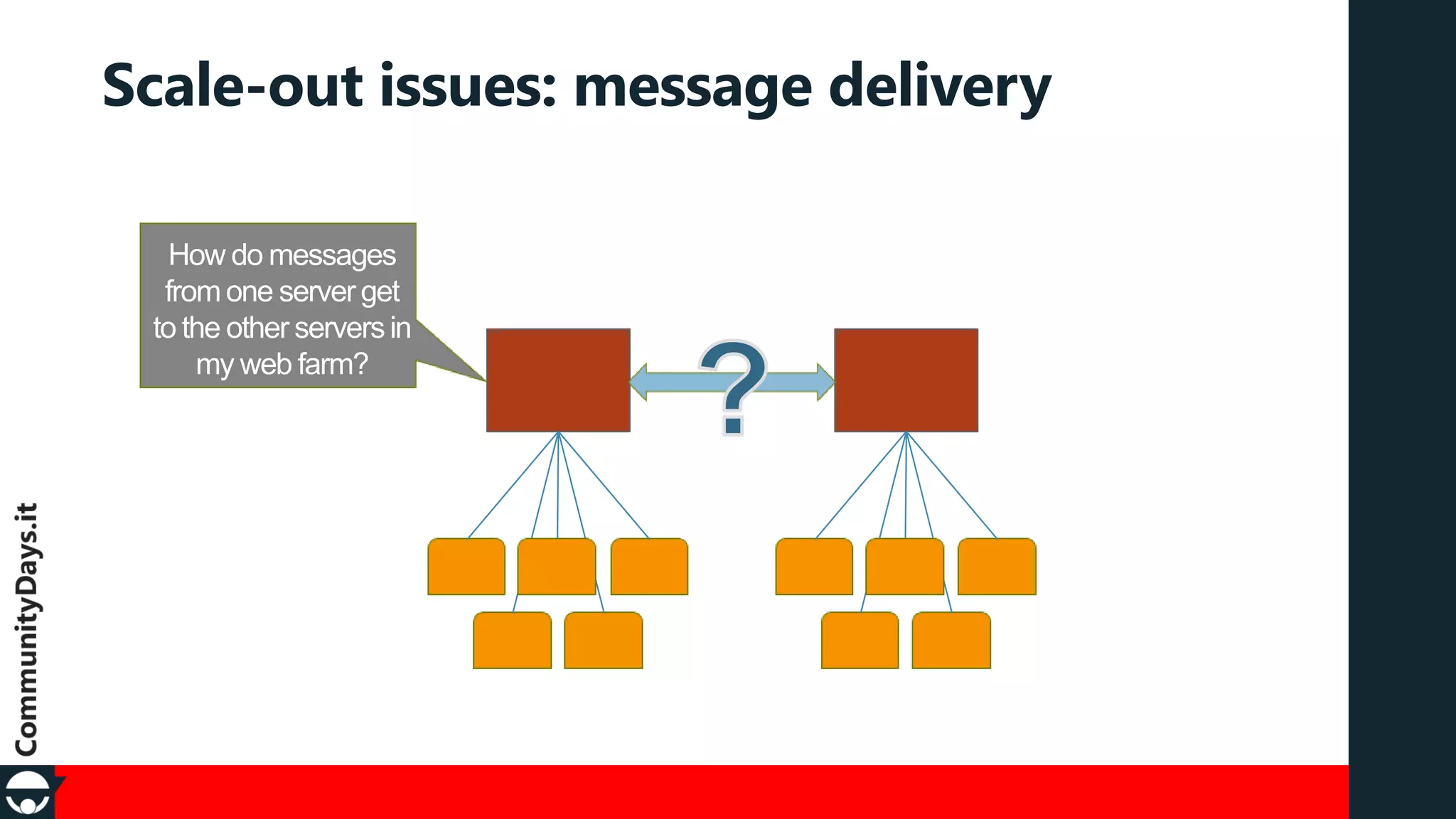

15. Scale-out issues: message delivery

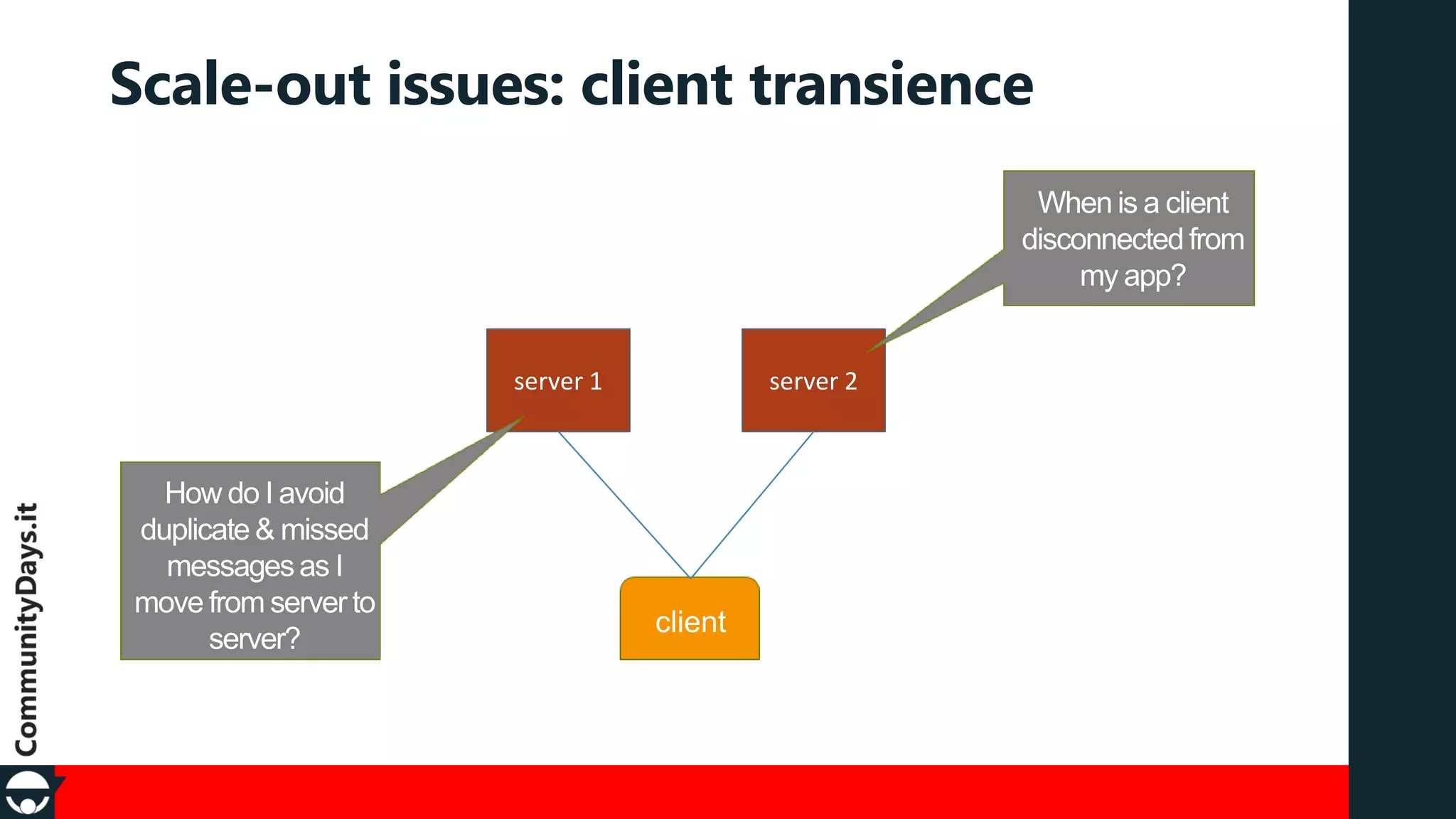

16. Scale-out issues: client transience
server 1
server 2

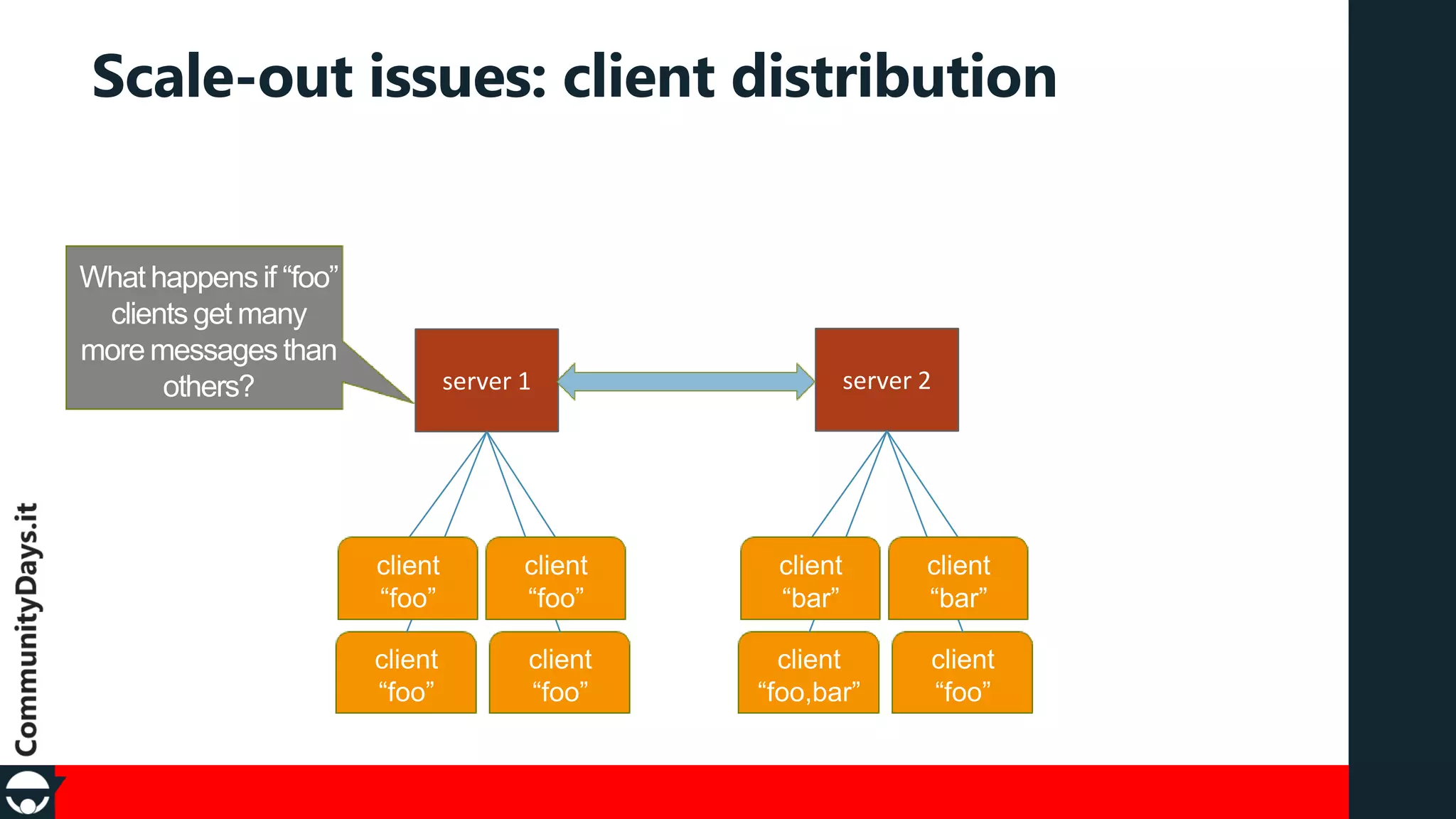

17. Scale-out issues: client distribution
server 1
server 2

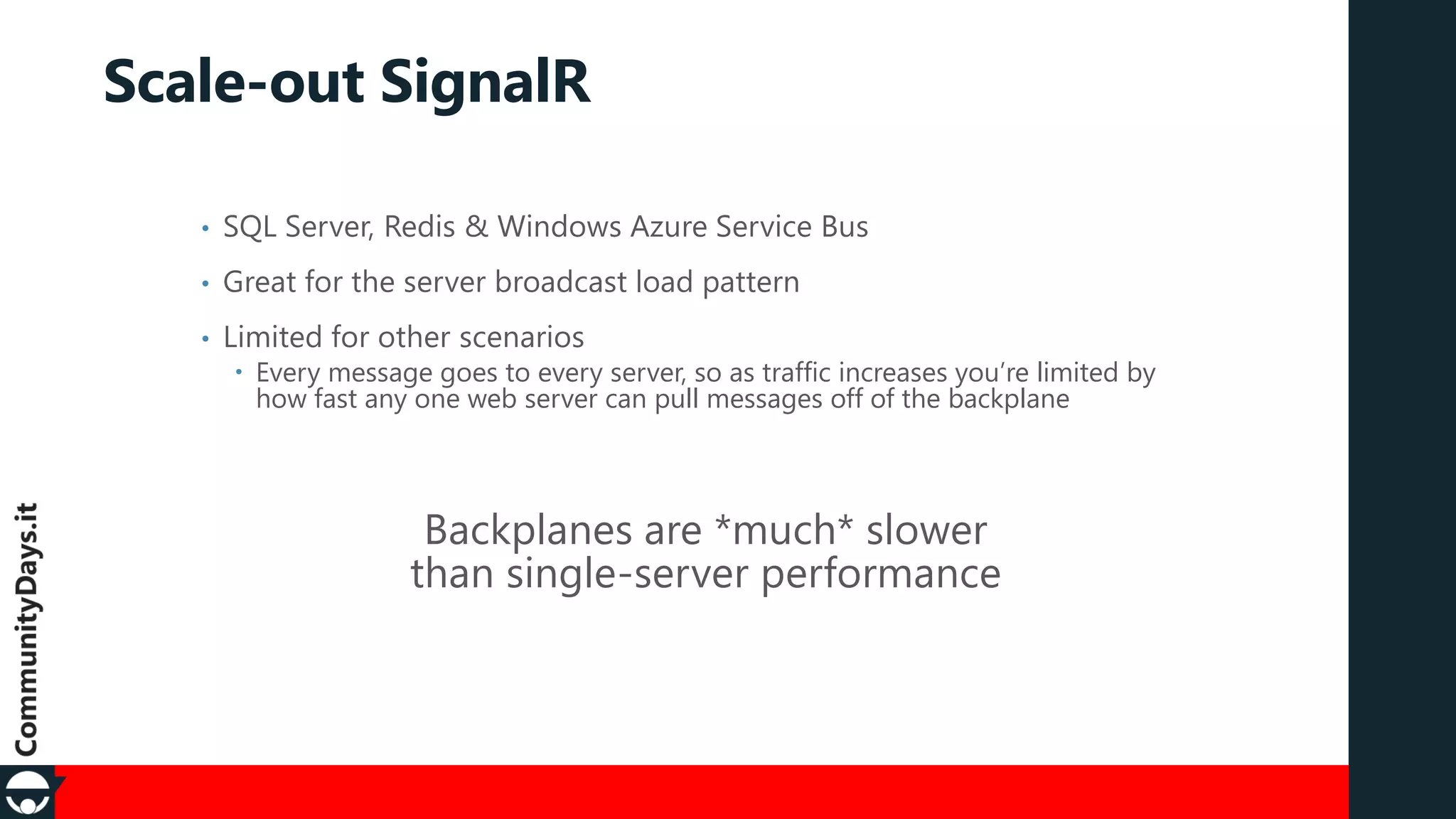

18. Scale-out SignalR
•
SQL Server, Redis & Windows Azure Service Bus
•
Great for the server broadcast load pattern
•
Limited for other scenarios
 Every message goes to every server, so as traffic increases you’re limited by
how fast any one web server can pull messages off of the backplane
Backplanes are *much* slower
than single-server performance

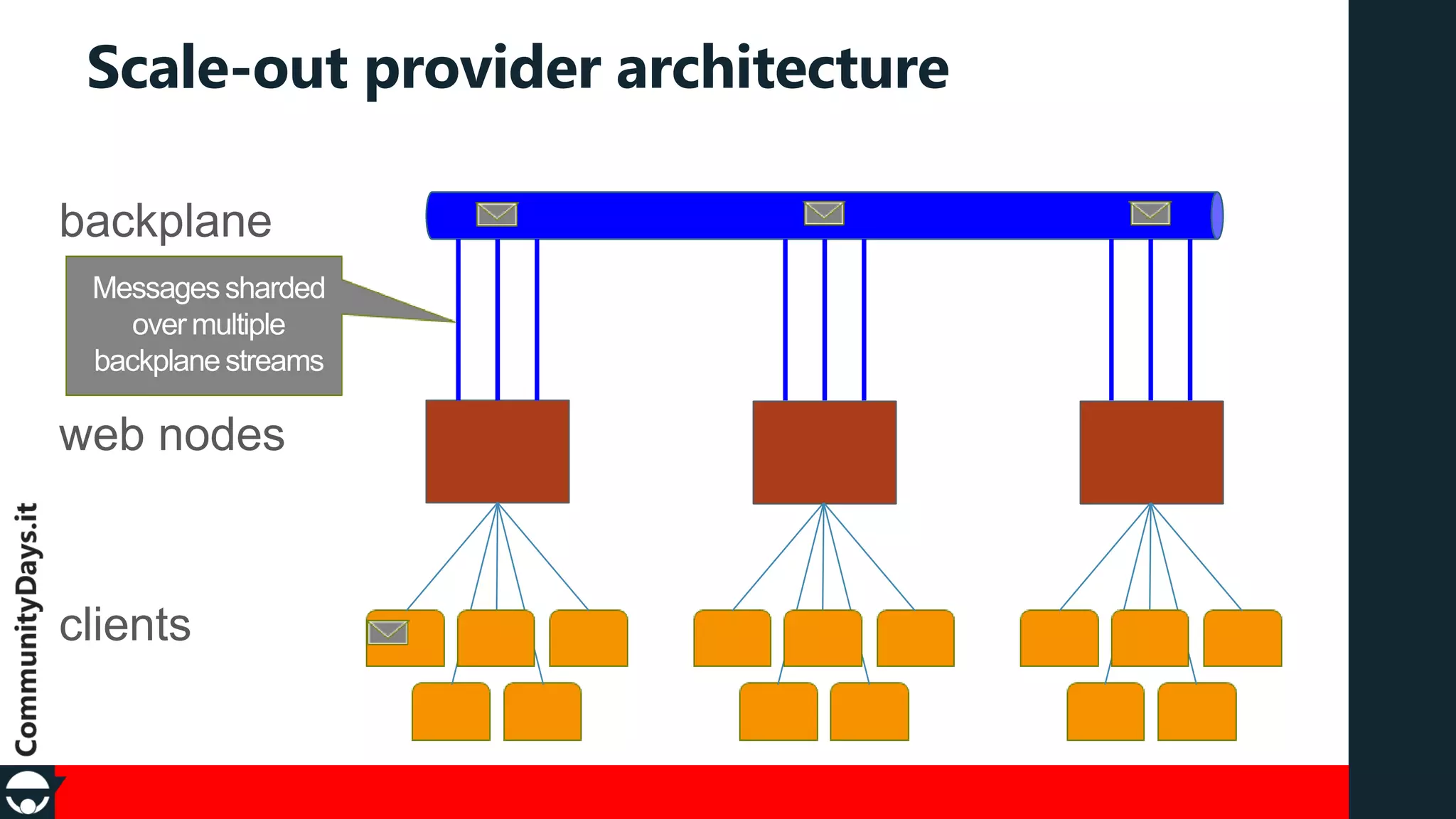

19. Scale-out provider architecture
backplane
web nodes
clients

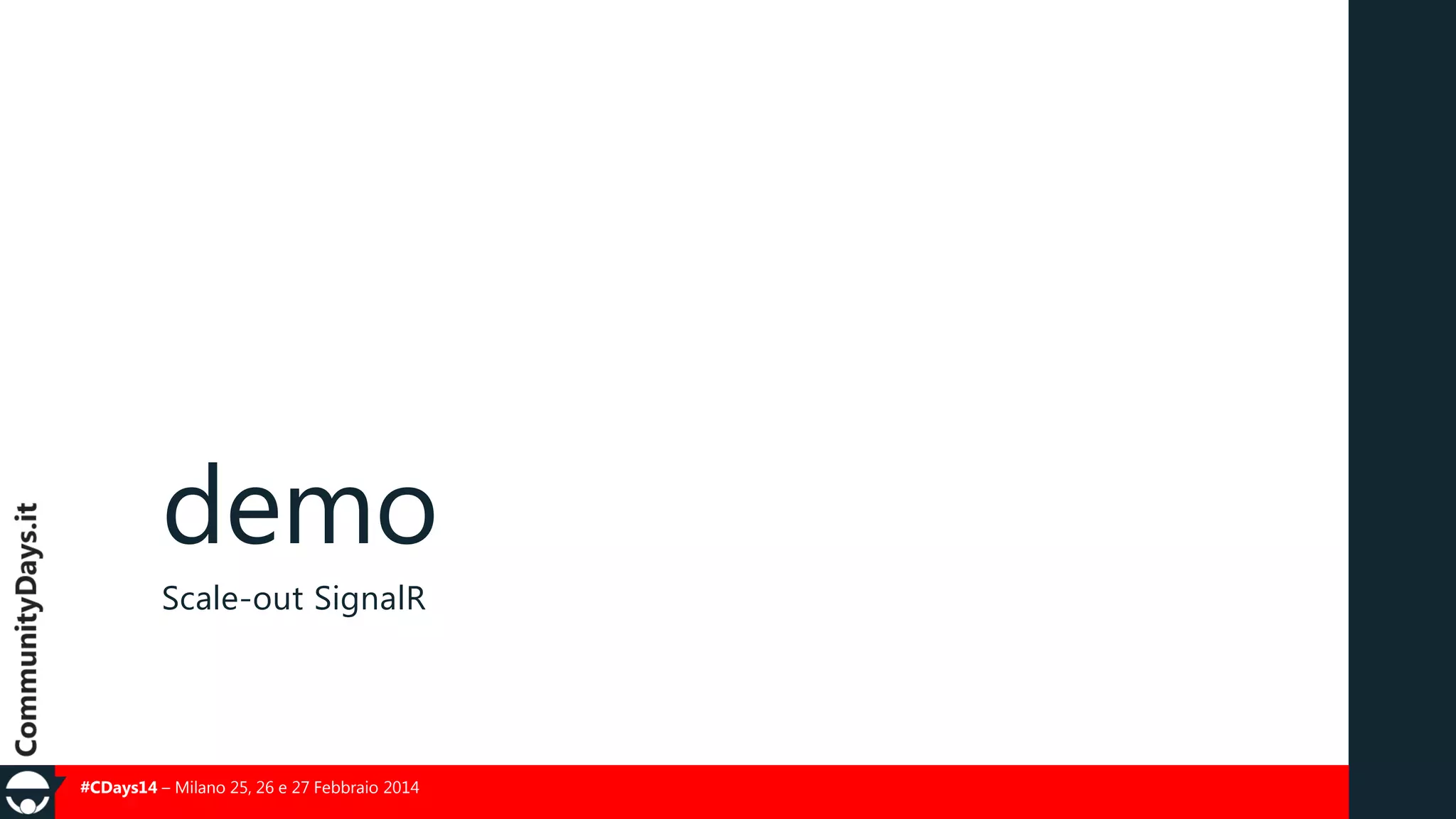

20. demo
Scale-out SignalR
#CDays14 – Milano 25, 26 e 27 Febbraio 2014

21. Q&A
Tutto il materiale di questa sessione su
http://www.communitydays.it/
Lascia il feedback su questa sessione,
potrai essere estratto per i nostri premi!
Seguici su
Twitter @CommunityDaysIT
Facebook http://facebook.com/cdaysit
#CDays14
#CDays14 – Milano 25, 26 e 27 Febbraio 2014
