1. Vert.x for Microservices Architecture
Idan Fridman
Idan.frid@gmail.com
www.idanfridman.com

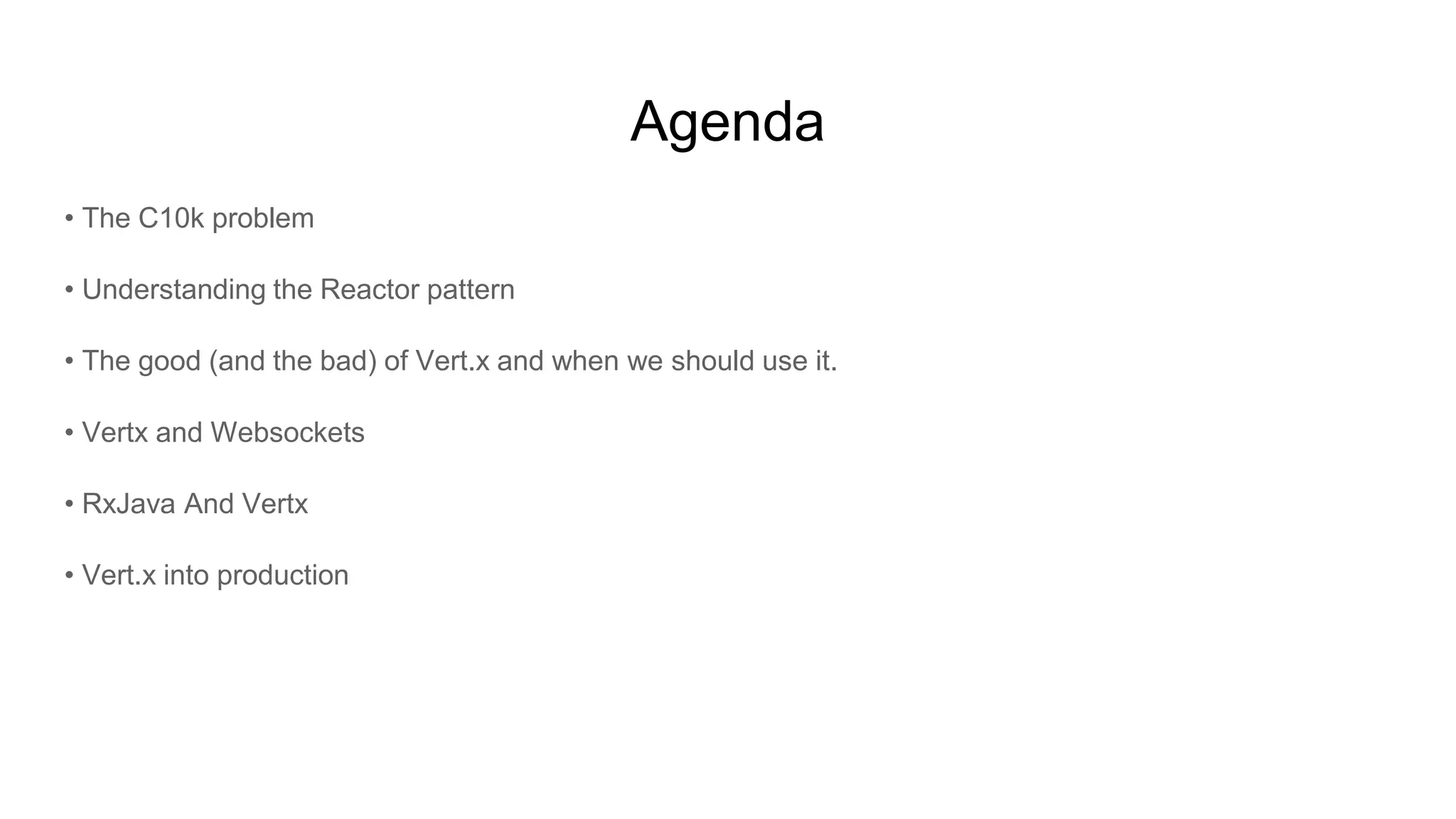

2. Agenda
• The C10k problem
• Understanding the Reactor pattern
• The good (and the bad) of Vert.x and when we should use it.
• Vertx and Websockets
• RxJava And Vertx
• Vert.x into production

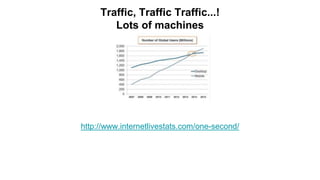

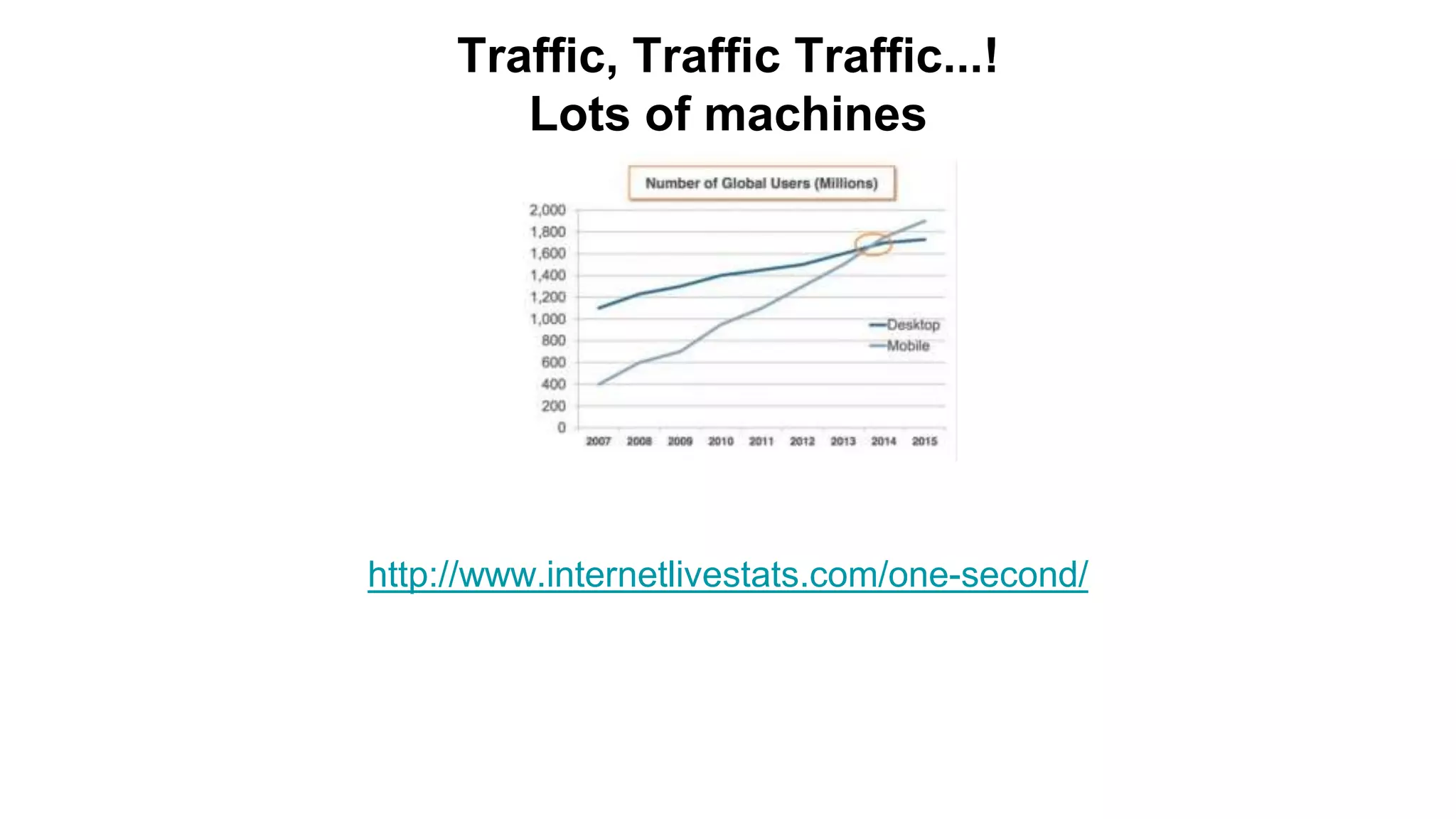

3. Traffic, Traffic Traffic...!
Lots of machines
http://www.internetlivestats.com/one-second/

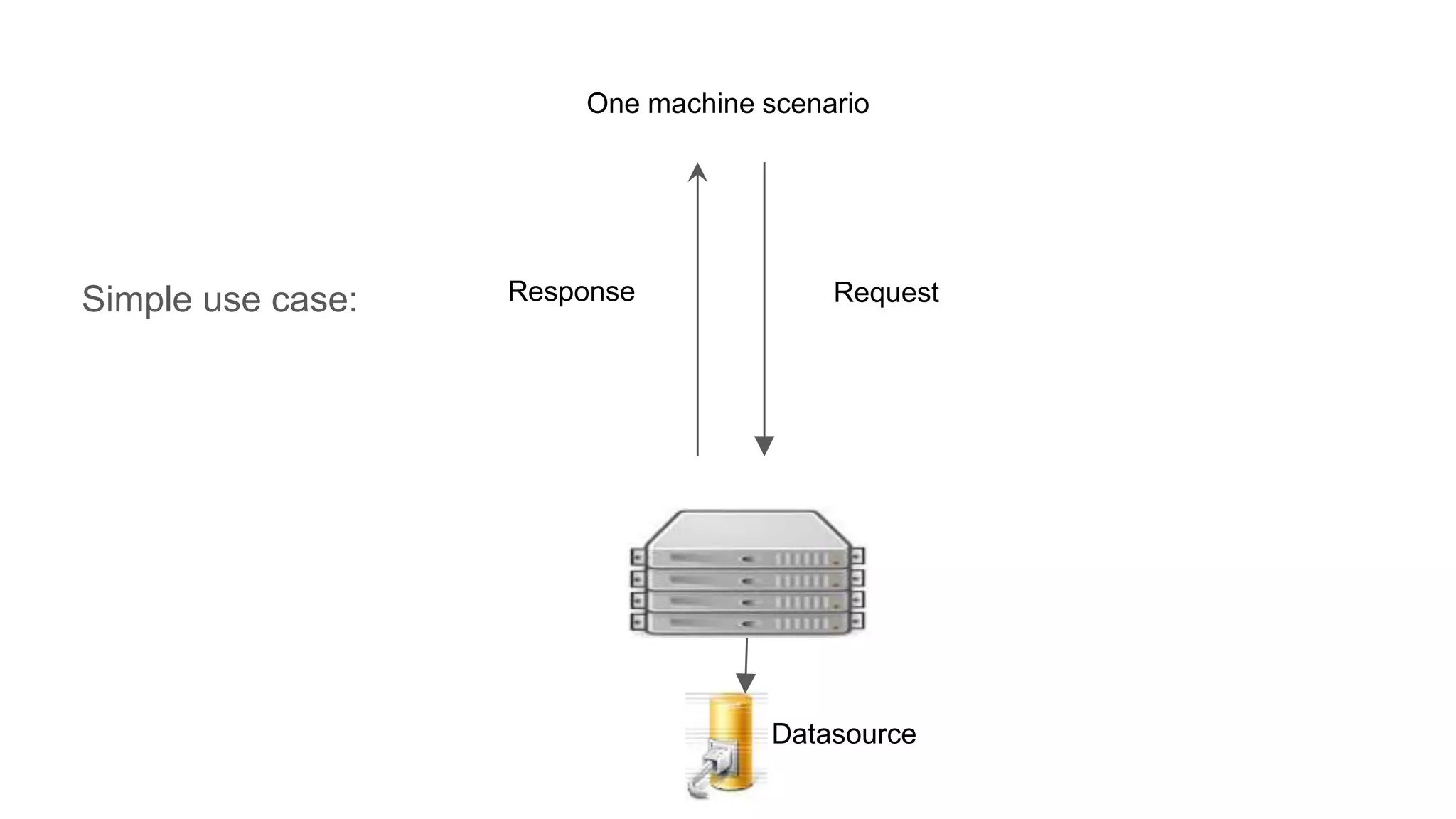

4. One machine scenario
Simple use case: Response Request
Datasource

5. Conventional Technology Stack

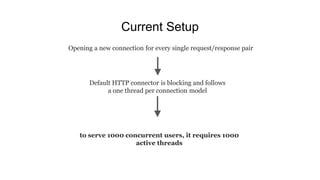

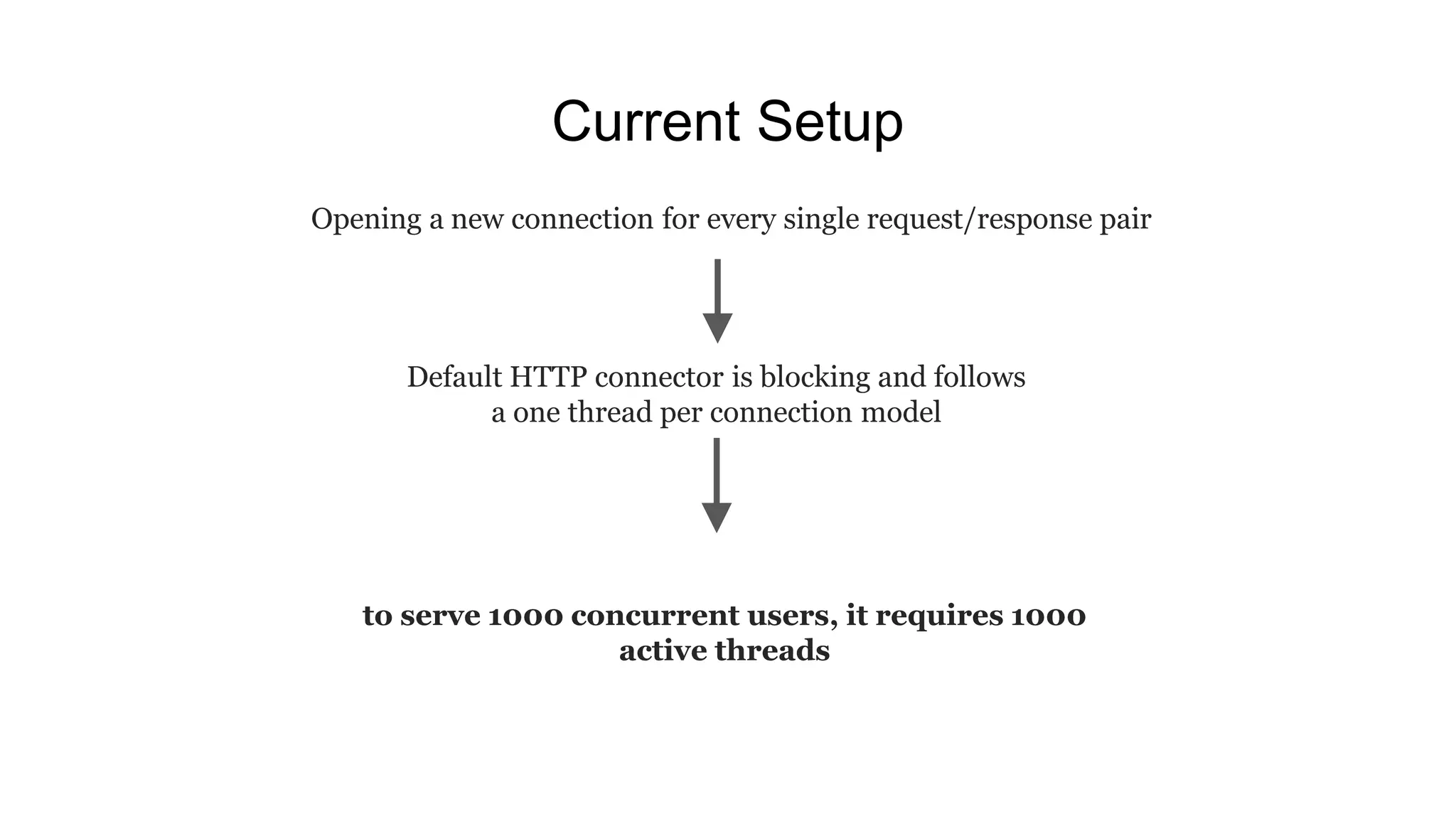

6. Current Setup
Opening a new connection for every single request/response pair
Default HTTP connector is blocking and follows
a one thread per connection model
to serve 1000 concurrent users, it requires 1000
active threads

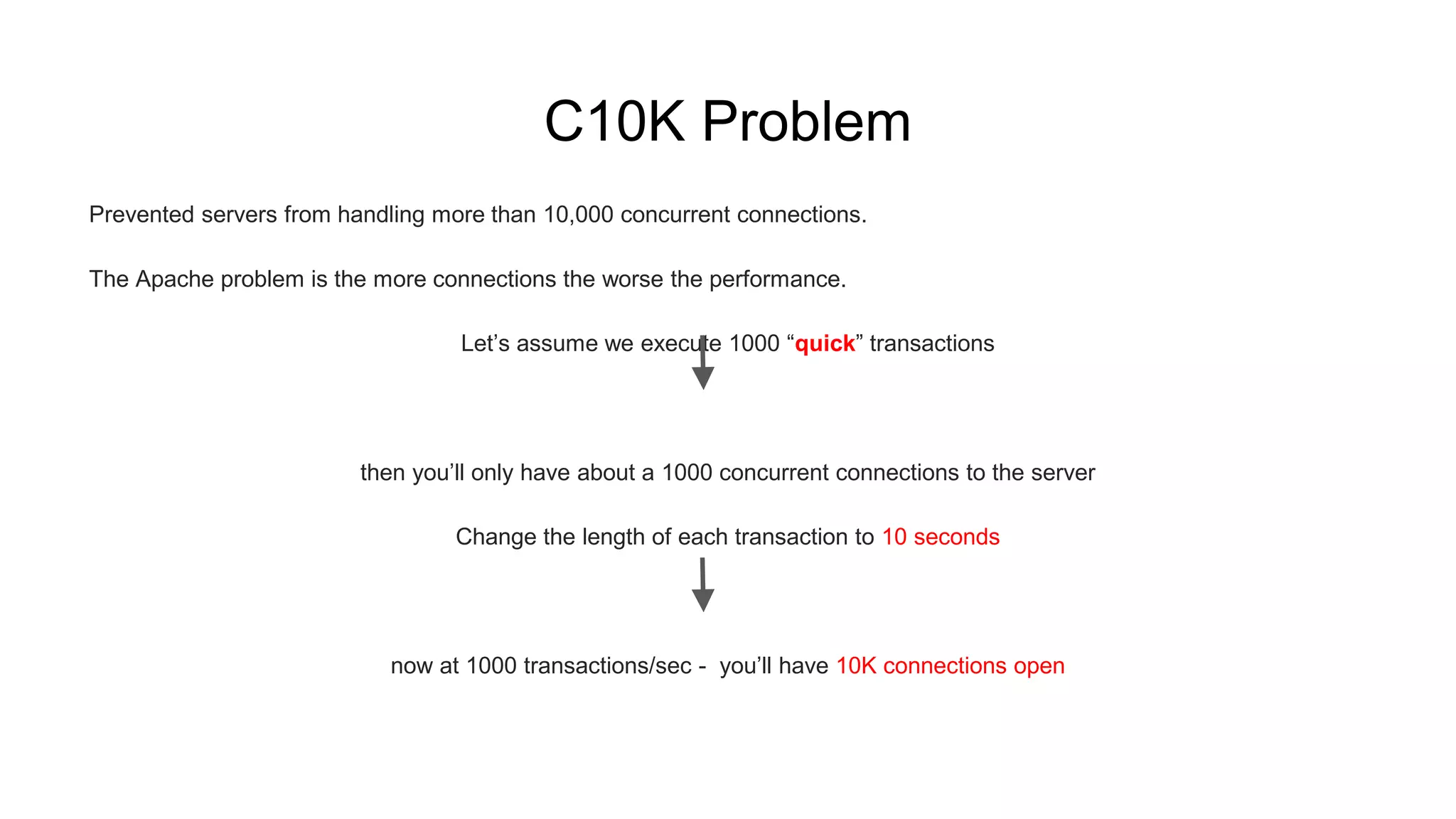

7. C10K Problem
Prevented servers from handling more than 10,000 concurrent connections.
The Apache problem is the more connections the worse the performance.
Let’s assume we execute 1000 “quick” transactions
then you’ll only have about a 1000 concurrent connections to the server
Change the length of each transaction to 10 seconds
now at 1000 transactions/sec - you’ll have 10K connections open

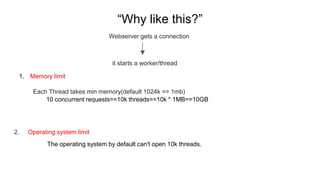

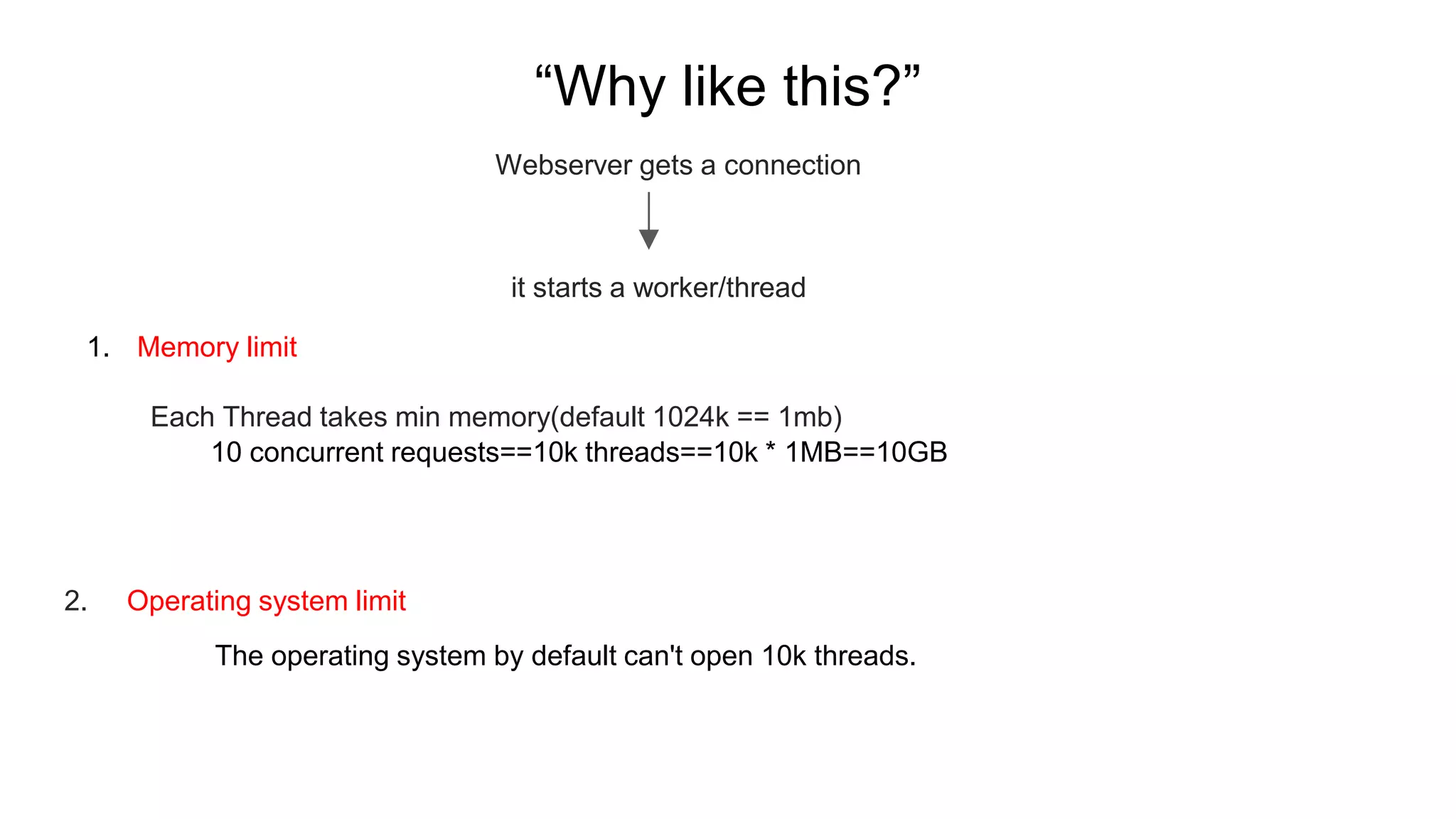

8. “Why like this?”
Webserver gets a connection
it starts a worker/thread
1. Memory limit
Each Thread takes min memory(default 1024k == 1mb)
2. Operating system limit
The operating system by default can't open 10k threads.
10 concurrent requests==10k threads==10k * 1MB==10GB

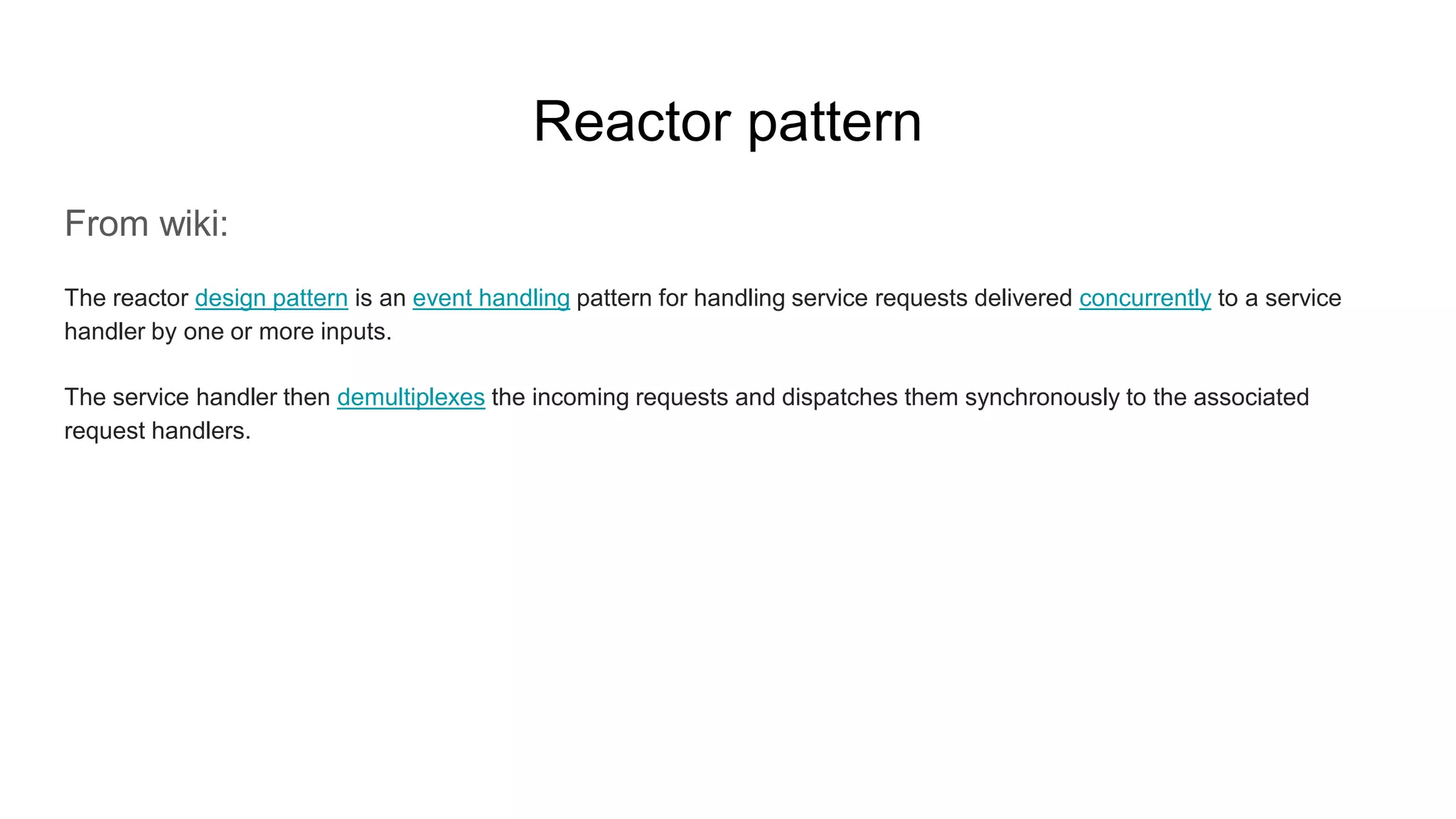

9. Reactor pattern
From wiki:
The reactor design pattern is an event handling pattern for handling service requests delivered concurrently to a service
handler by one or more inputs.
The service handler then demultiplexes the incoming requests and dispatches them synchronously to the associated
request handlers.

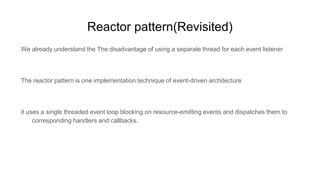

10. Reactor pattern(Revisited)
We already understand the The disadvantage of using a separate thread for each event listener
The reactor pattern is one implementation technique of event-driven architecture
it uses a single threaded event loop blocking on resource-emitting events and dispatches them to
corresponding handlers and callbacks.

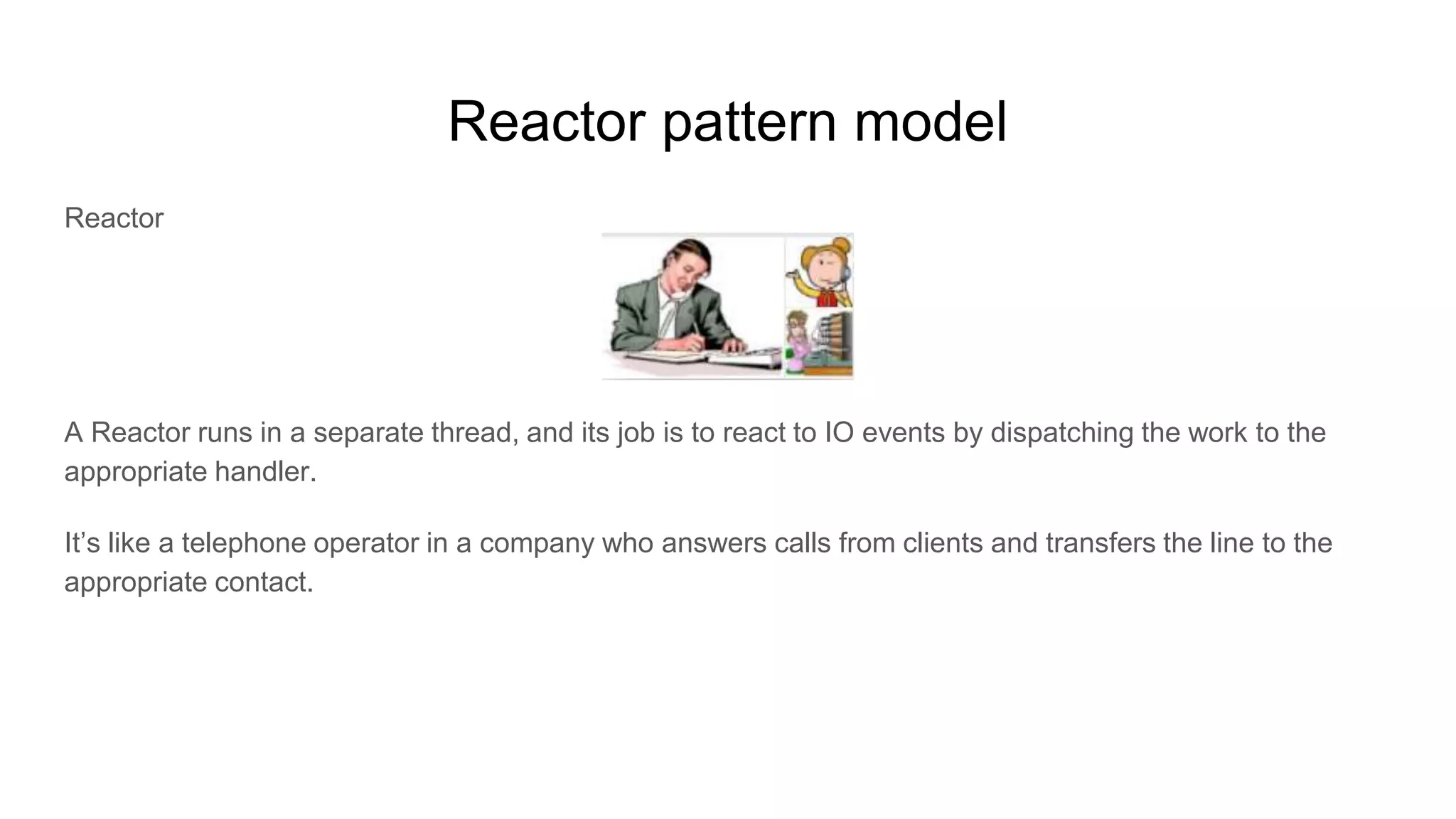

11. Reactor pattern model
Reactor
A Reactor runs in a separate thread, and its job is to react to IO events by dispatching the work to the
appropriate handler.
It’s like a telephone operator in a company who answers calls from clients and transfers the line to the
appropriate contact.

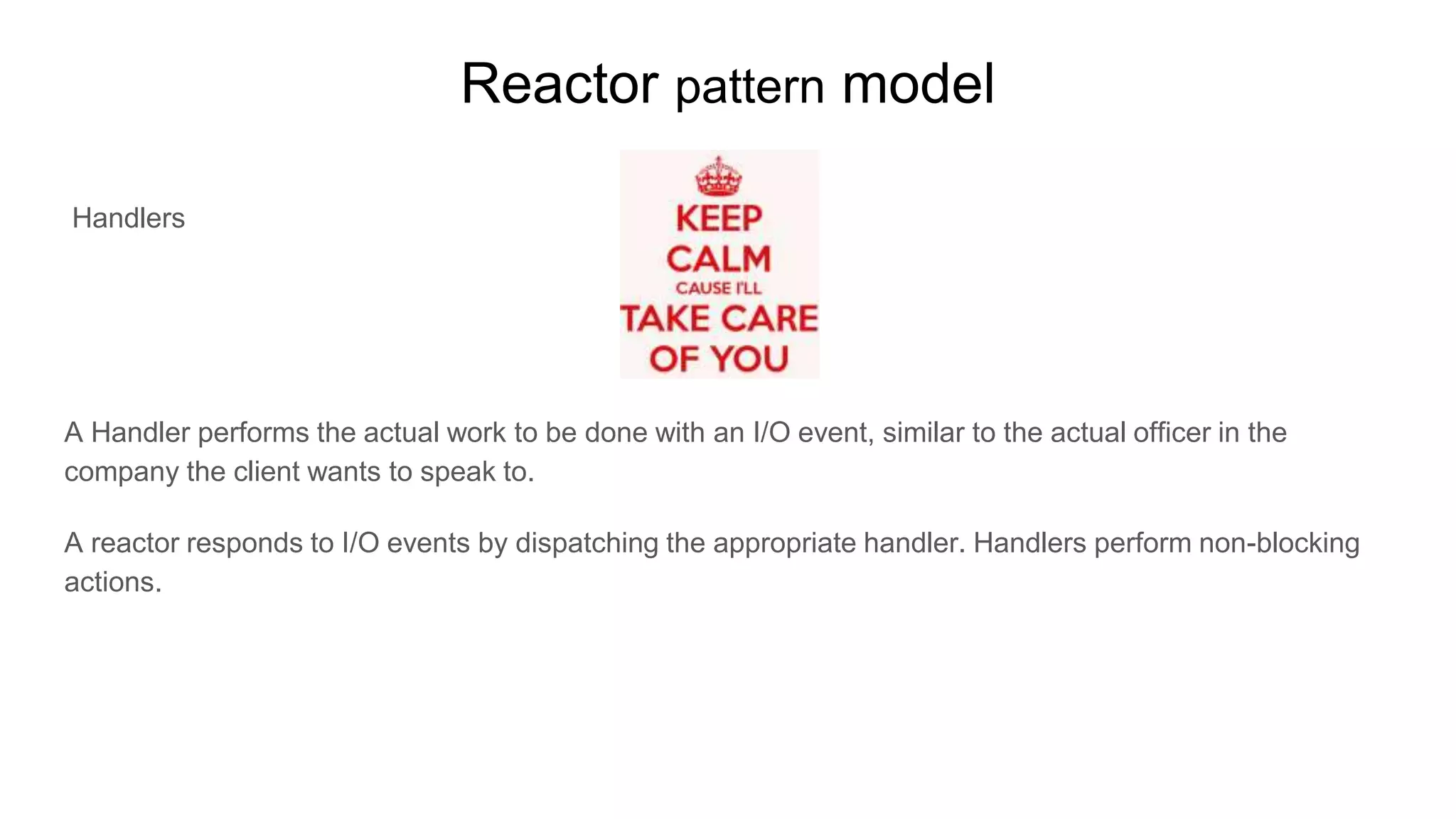

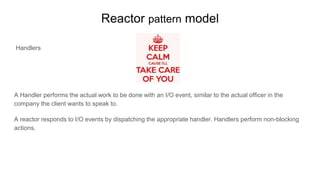

12. Reactor pattern model
Handlers
A Handler performs the actual work to be done with an I/O event, similar to the actual officer in the
company the client wants to speak to.
A reactor responds to I/O events by dispatching the appropriate handler. Handlers perform non-blocking
actions.

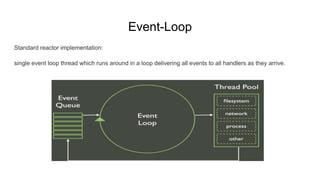

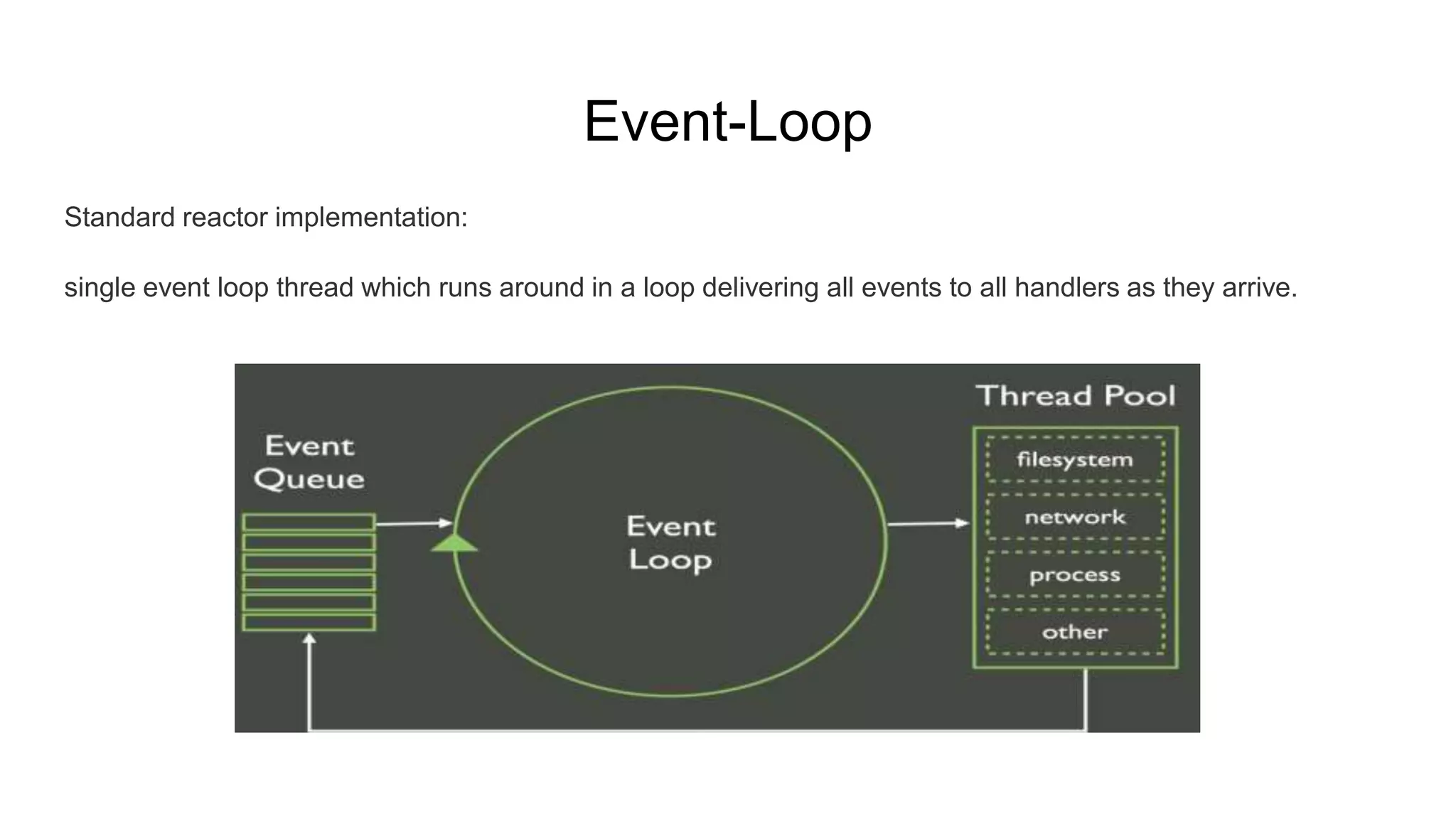

13. Event-Loop
Standard reactor implementation:
single event loop thread which runs around in a loop delivering all events to all handlers as they arrive.

14. Who implementing this?

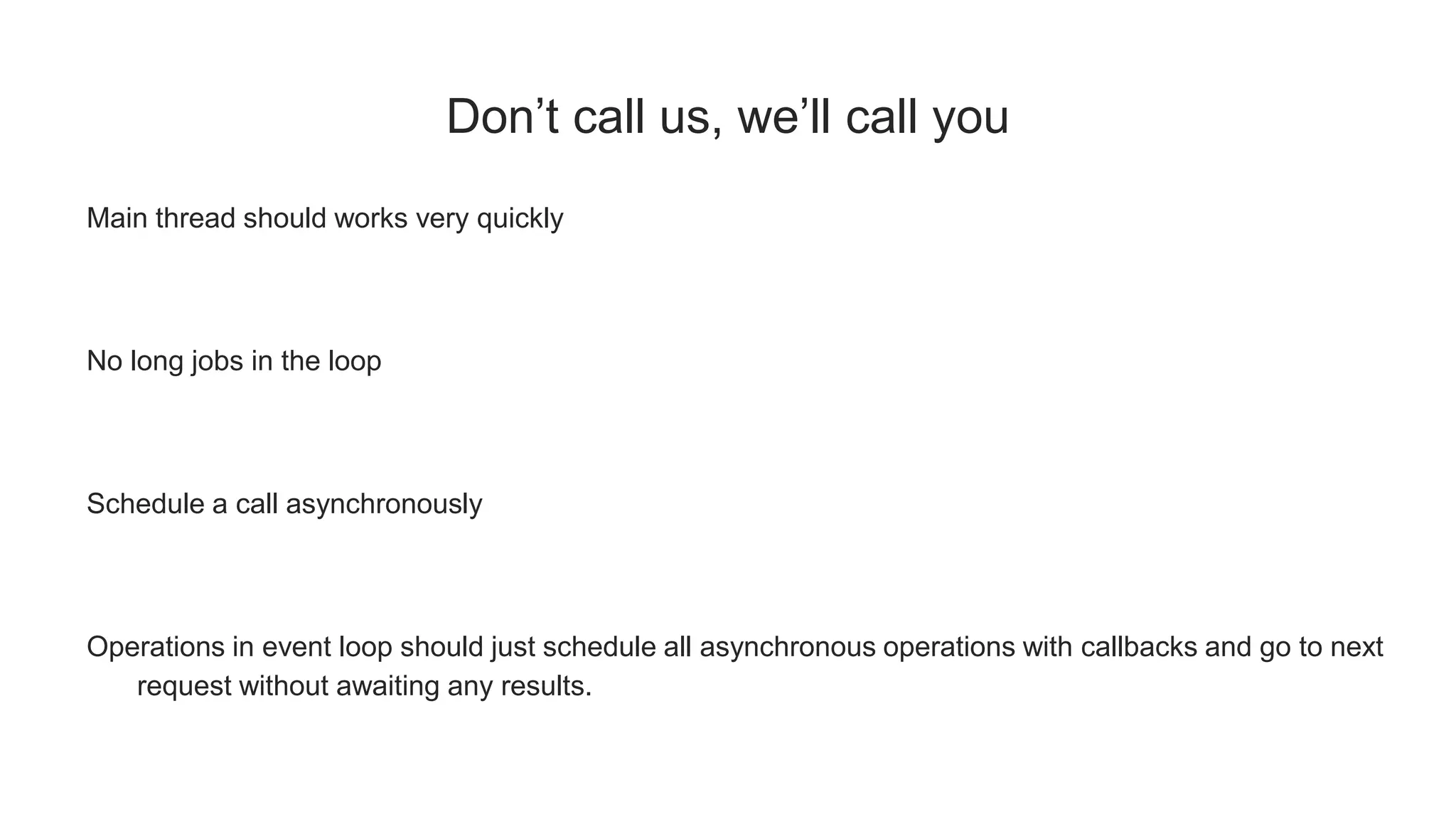

15. Don’t call us, we’ll call you
Main thread should works very quickly
No long jobs in the loop
Schedule a call asynchronously
Operations in event loop should just schedule all asynchronous operations with callbacks and go to next
request without awaiting any results.

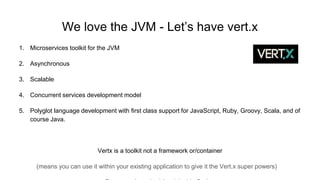

16. We love the JVM - Let’s have vert.x
1. Microservices toolkit for the JVM
2. Asynchronous
3. Scalable
4. Concurrent services development model
5. Polyglot language development with first class support for JavaScript, Ruby, Groovy, Scala, and of
course Java.
Vertx is a toolkit not a framework or/container
(means you can use it within your existing application to give it the Vert.x super powers)

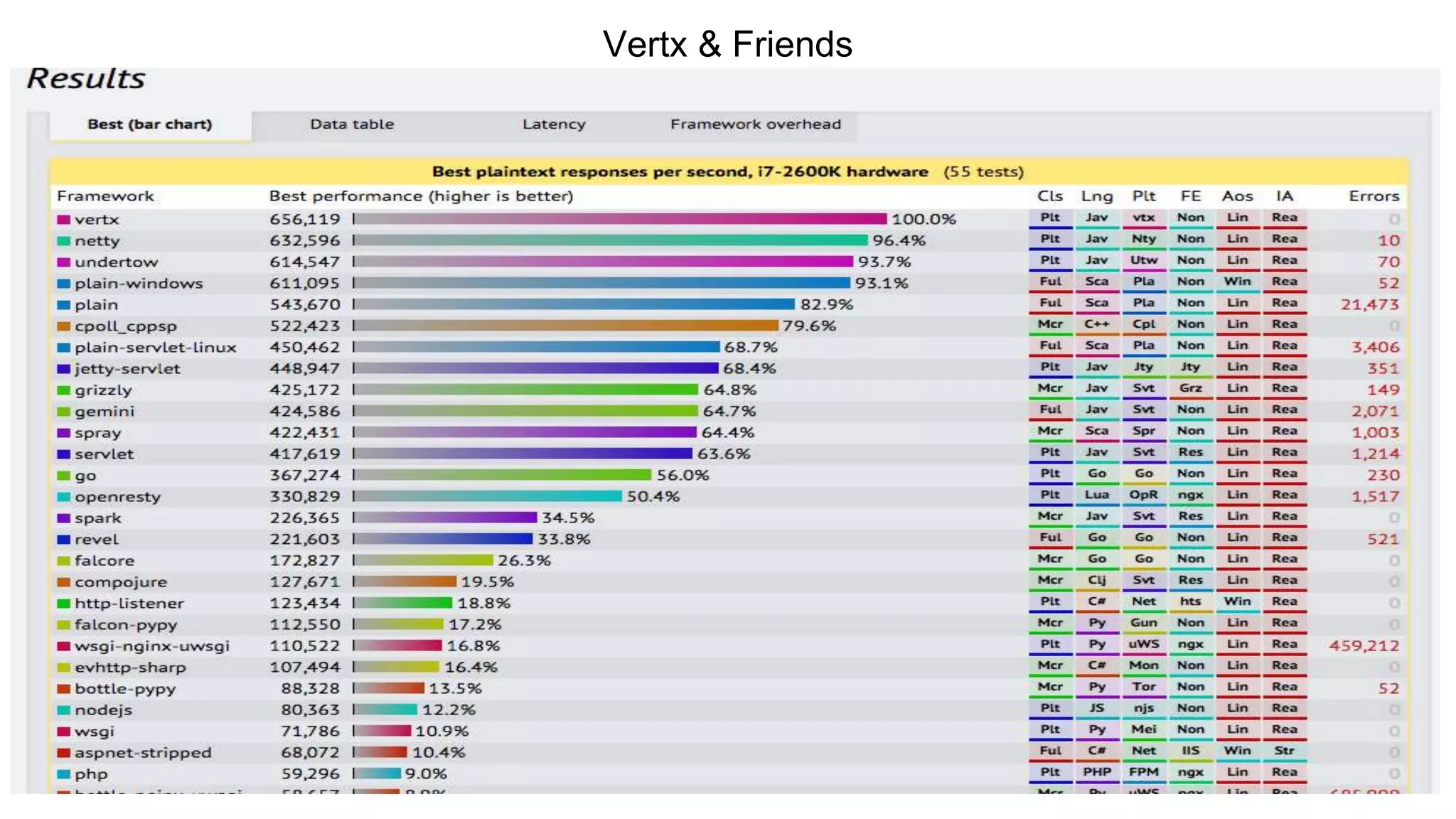

17. Vertx & Friends

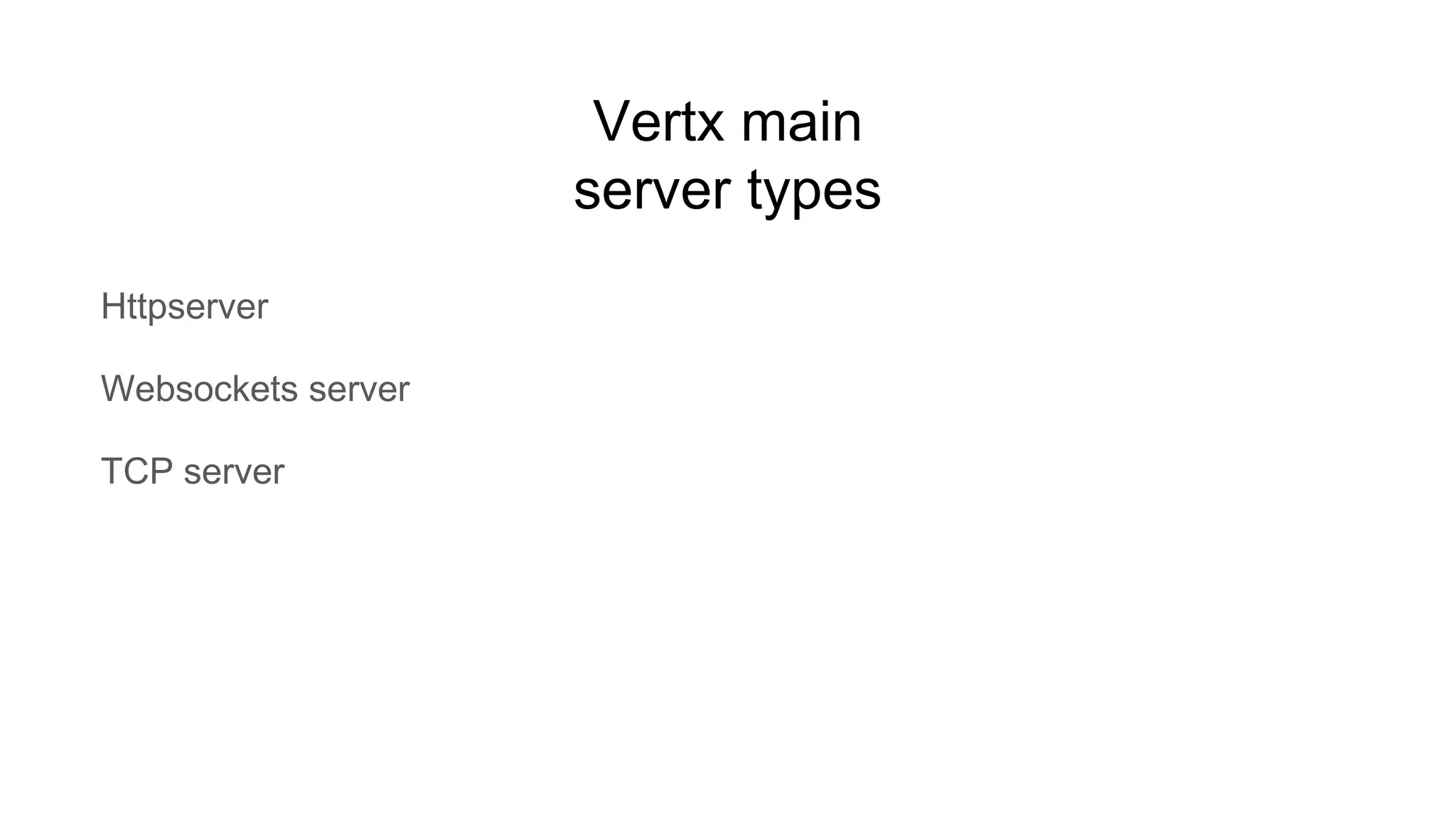

18. Vertx main
server types
Httpserver
Websockets server
TCP server

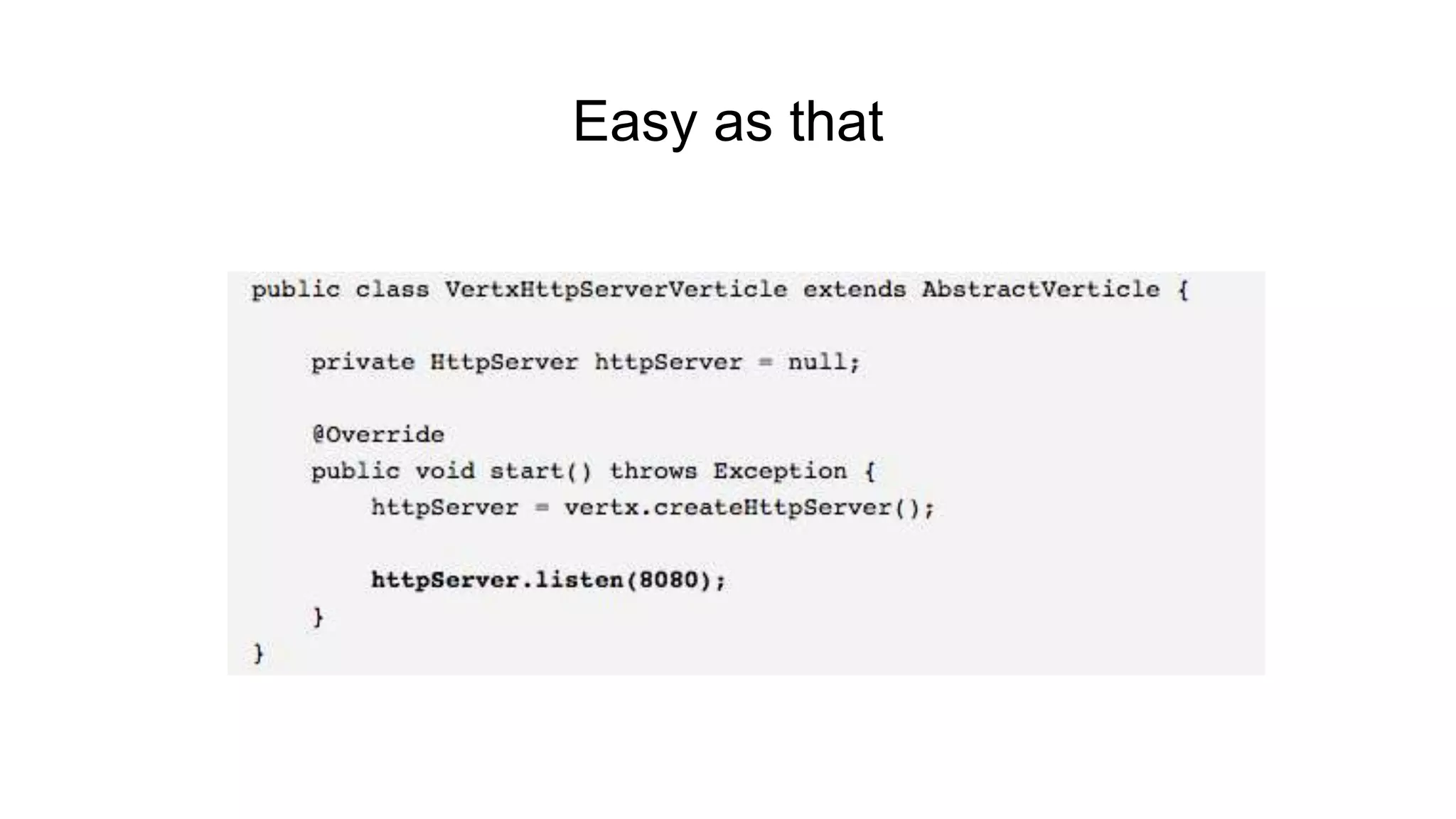

19. Easy as that

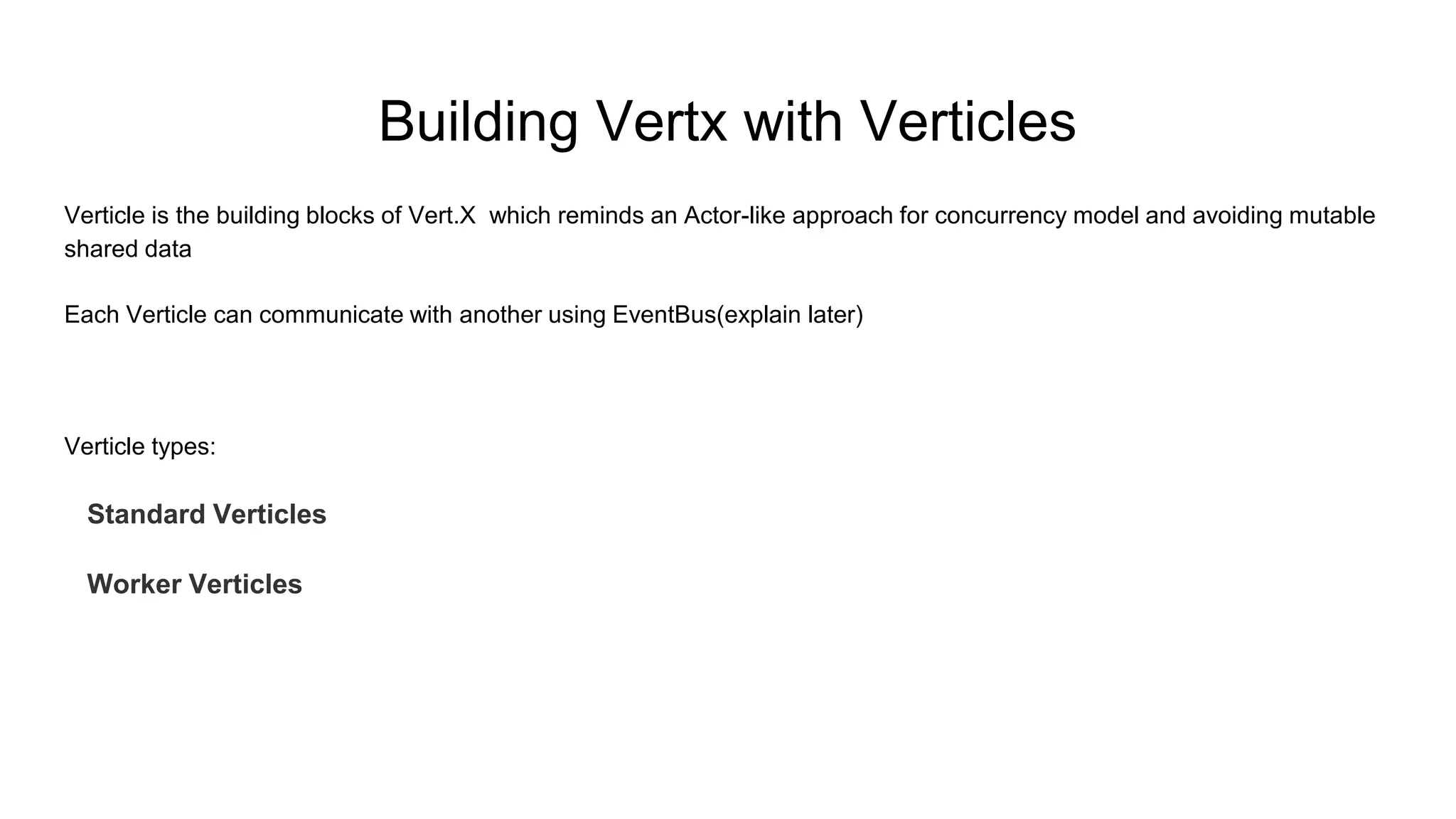

20. Building Vertx with Verticles
Verticle is the building blocks of Vert.X which reminds an Actor-like approach for concurrency model and avoiding mutable
shared data
Each Verticle can communicate with another using EventBus(explain later)
Verticle types:
Standard Verticles
Worker Verticles

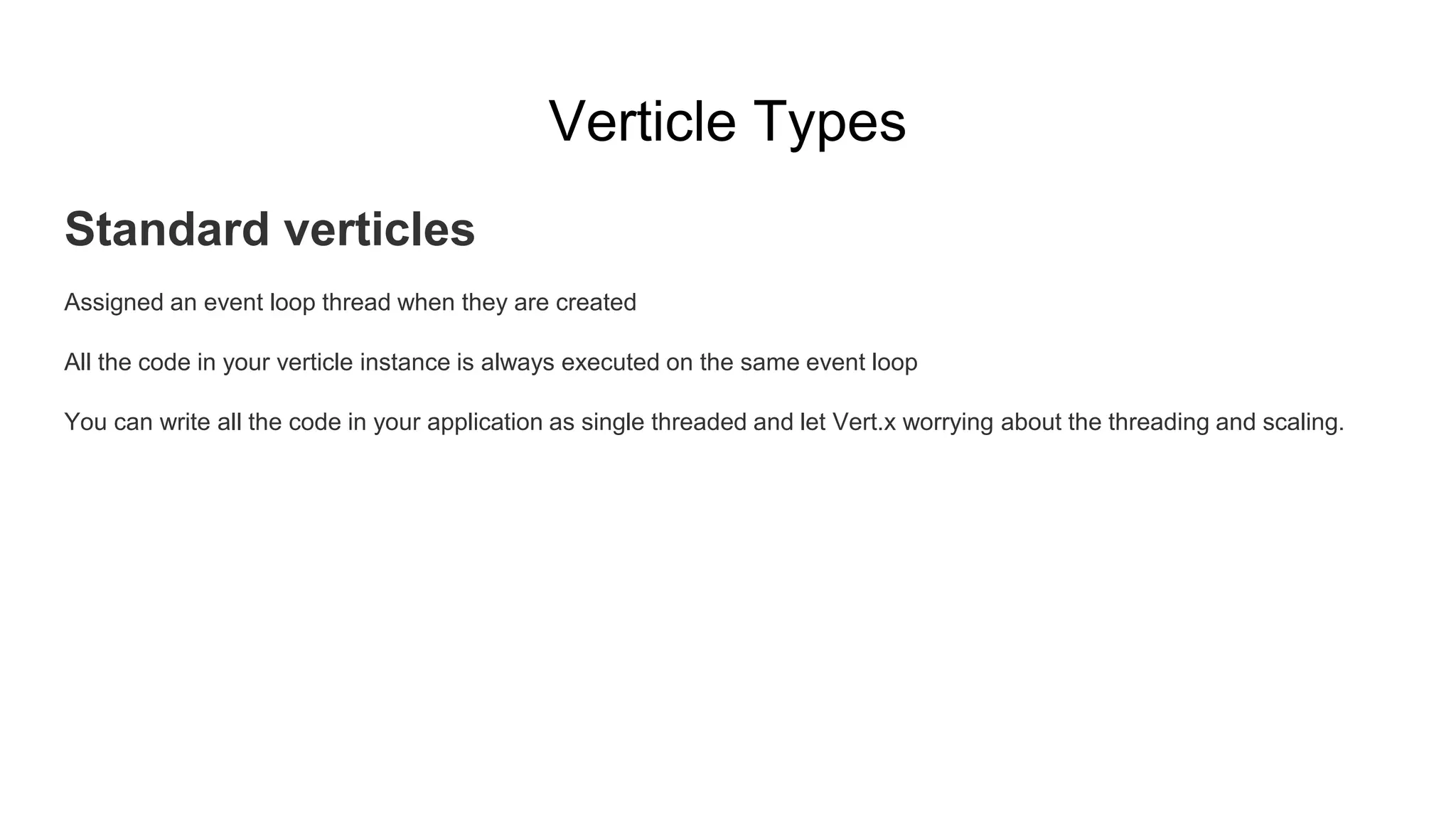

21. Verticle Types
Standard verticles
Assigned an event loop thread when they are created
All the code in your verticle instance is always executed on the same event loop
You can write all the code in your application as single threaded and let Vert.x worrying about the threading and scaling.

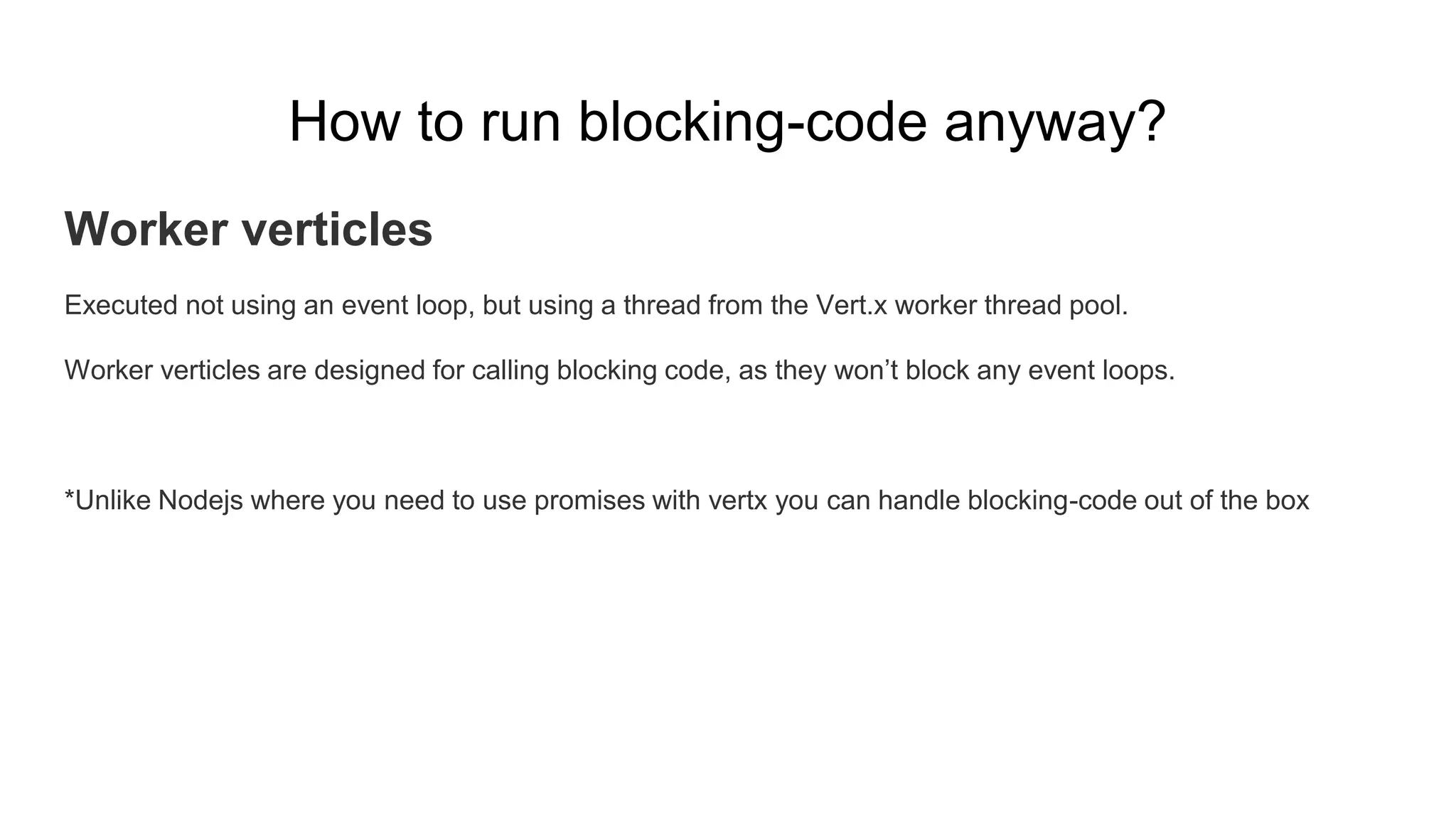

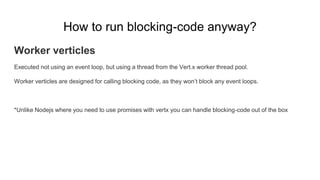

22. How to run blocking-code anyway?
Worker verticles
Executed not using an event loop, but using a thread from the Vert.x worker thread pool.
Worker verticles are designed for calling blocking code, as they won’t block any event loops.
*Unlike Nodejs where you need to use promises with vertx you can handle blocking-code out of the box

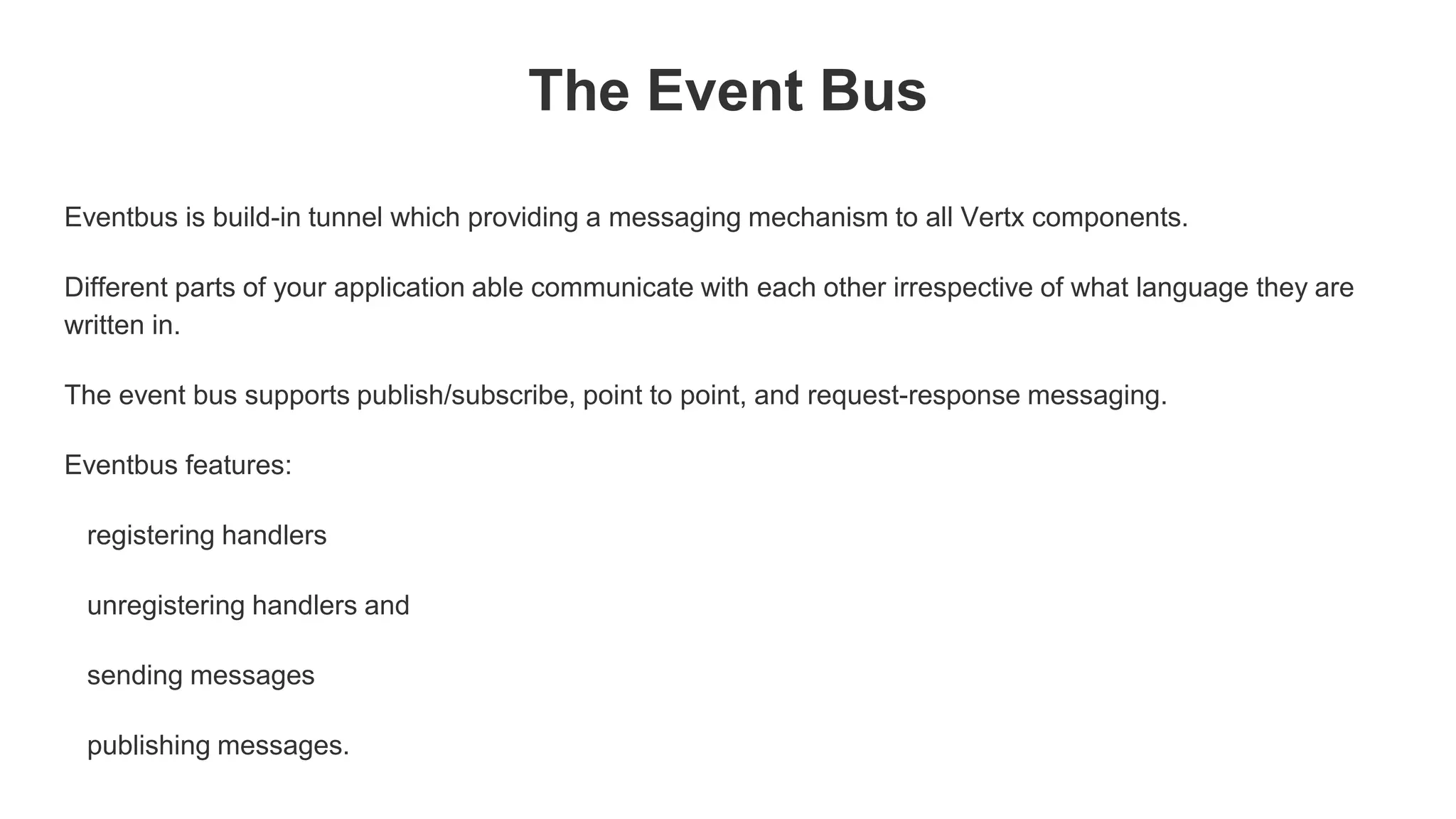

23. The Event Bus
Eventbus is build-in tunnel which providing a messaging mechanism to all Vertx components.
Different parts of your application able communicate with each other irrespective of what language they are
written in.
The event bus supports publish/subscribe, point to point, and request-response messaging.
Eventbus features:
registering handlers
unregistering handlers and
sending messages
publishing messages.

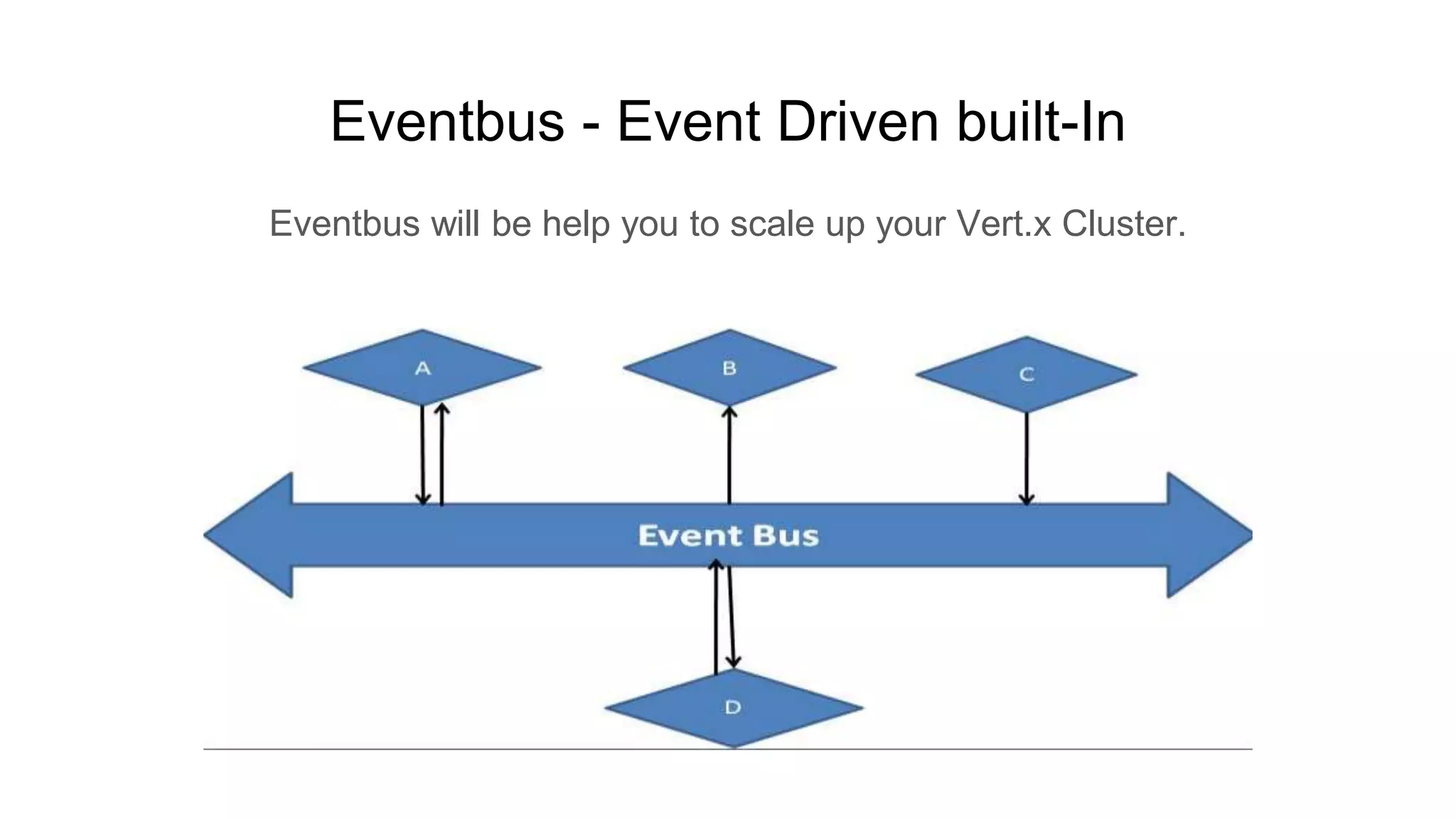

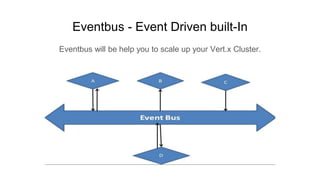

24. Eventbus - Event Driven built-In
Eventbus will be help you to scale up your Vert.x Cluster.

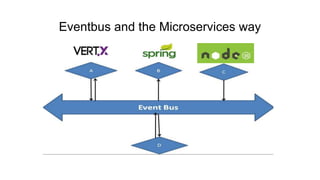

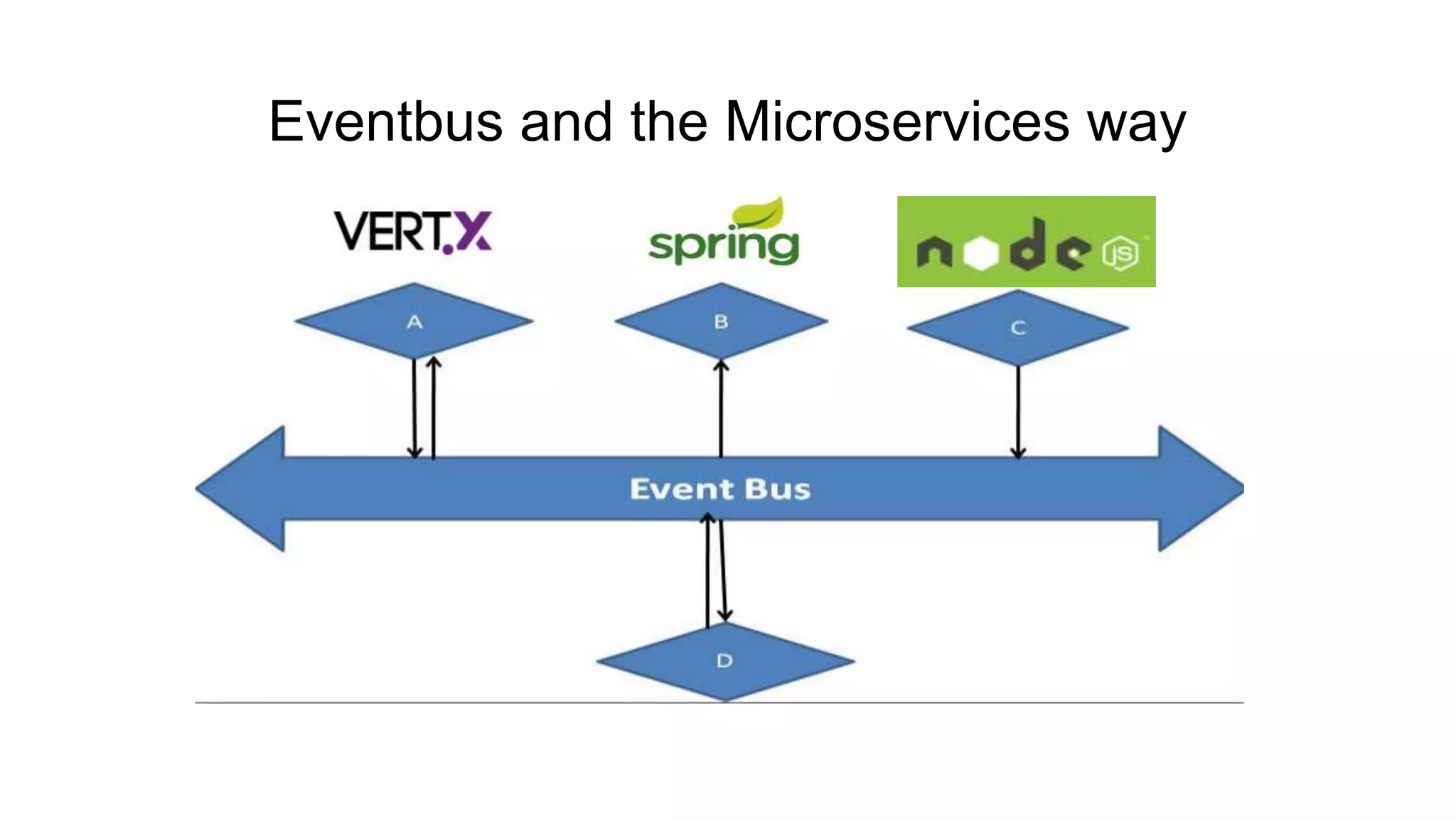

25. Eventbus and the Microservices way

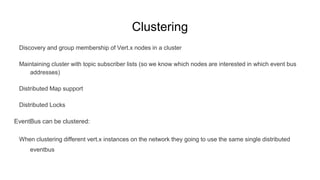

26. Clustering
Discovery and group membership of Vert.x nodes in a cluster
Maintaining cluster with topic subscriber lists (so we know which nodes are interested in which event bus
addresses)
Distributed Map support
Distributed Locks
EventBus can be clustered:
When clustering different vert.x instances on the network they going to use the same single distributed
eventbus

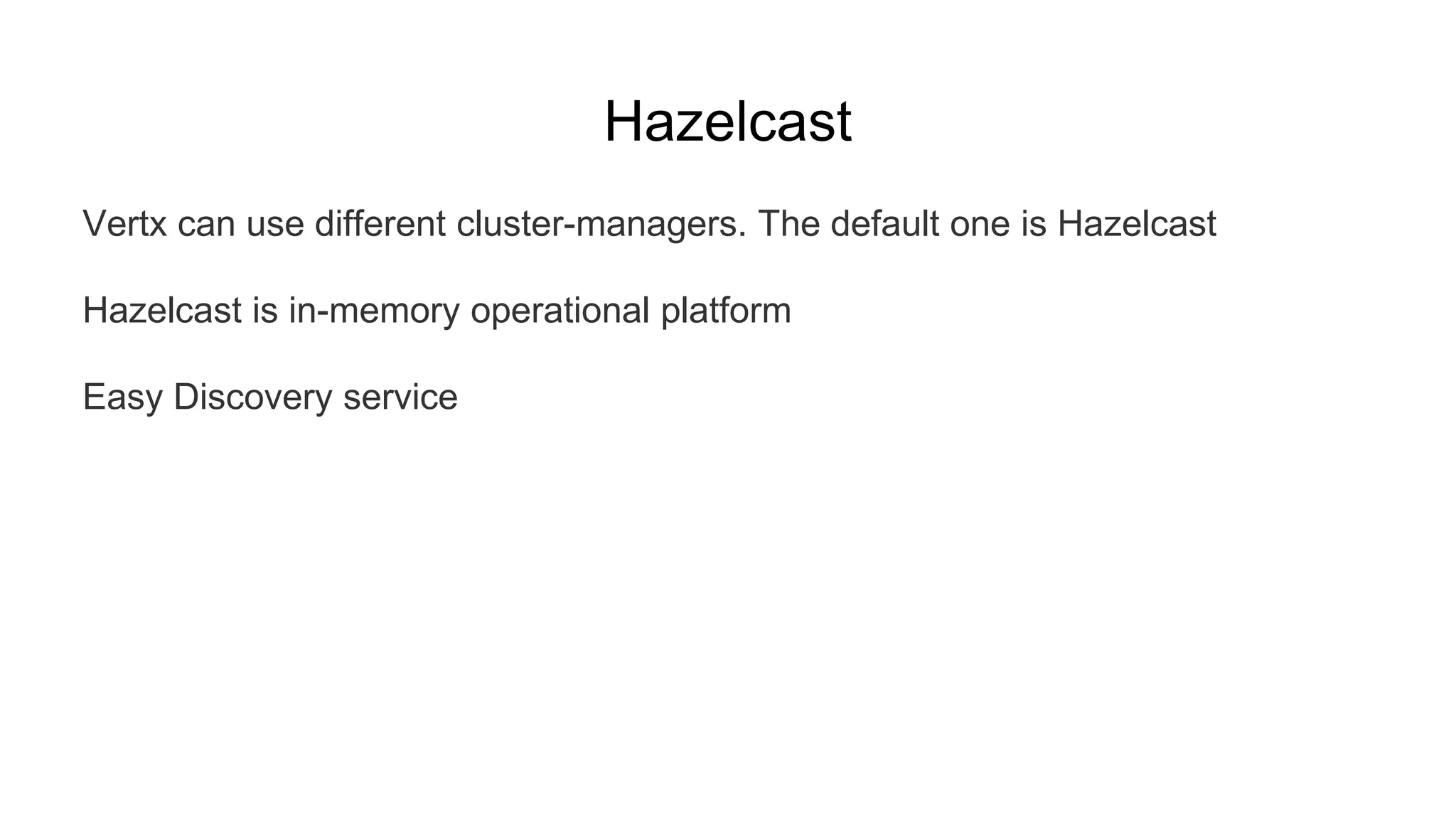

27. Hazelcast
Vertx can use different cluster-managers. The default one is Hazelcast
Hazelcast is in-memory operational platform
Easy Discovery service

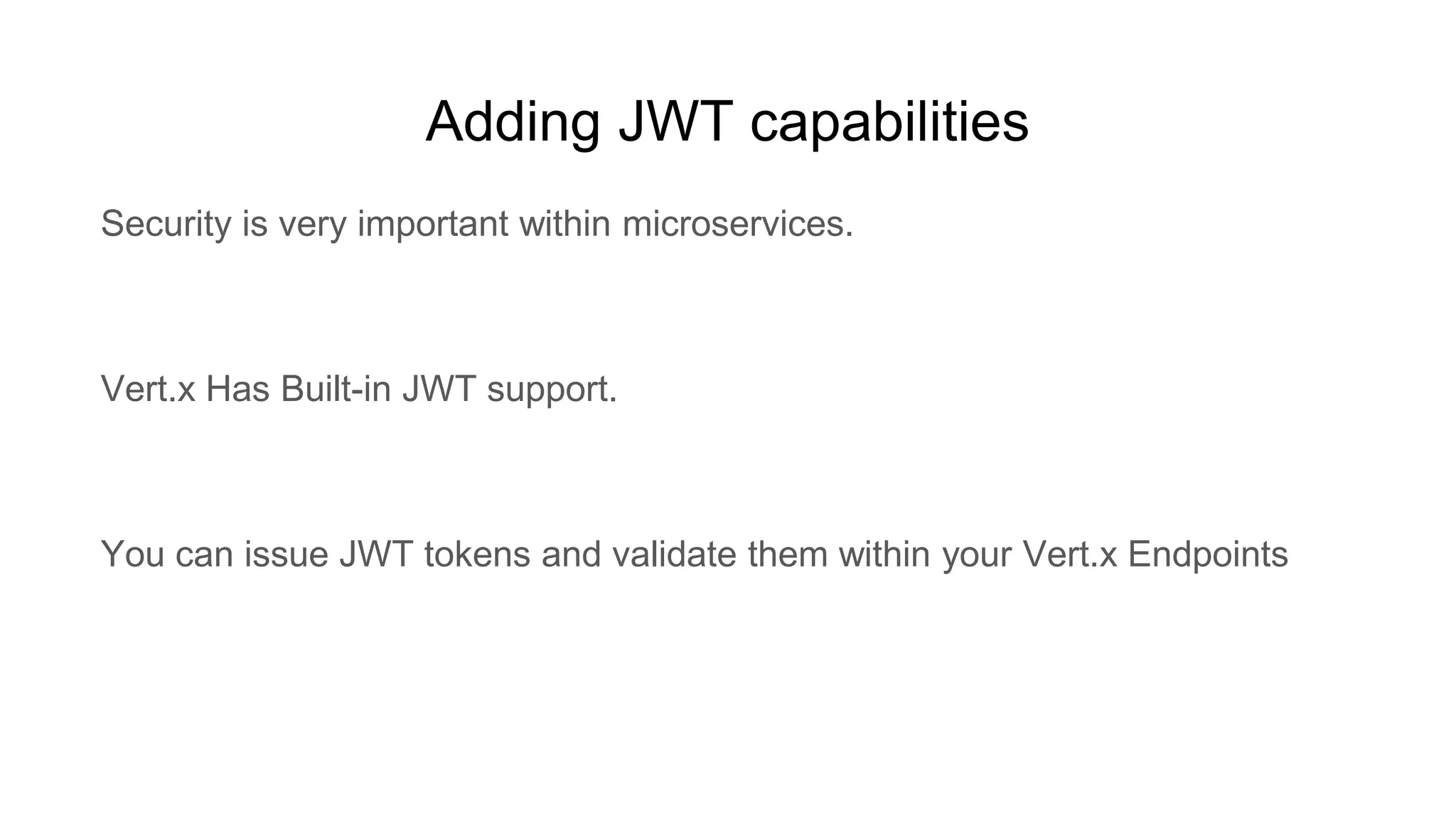

28. Adding JWT capabilities
Security is very important within microservices.
Vert.x Has Built-in JWT support.
You can issue JWT tokens and validate them within your Vert.x Endpoints

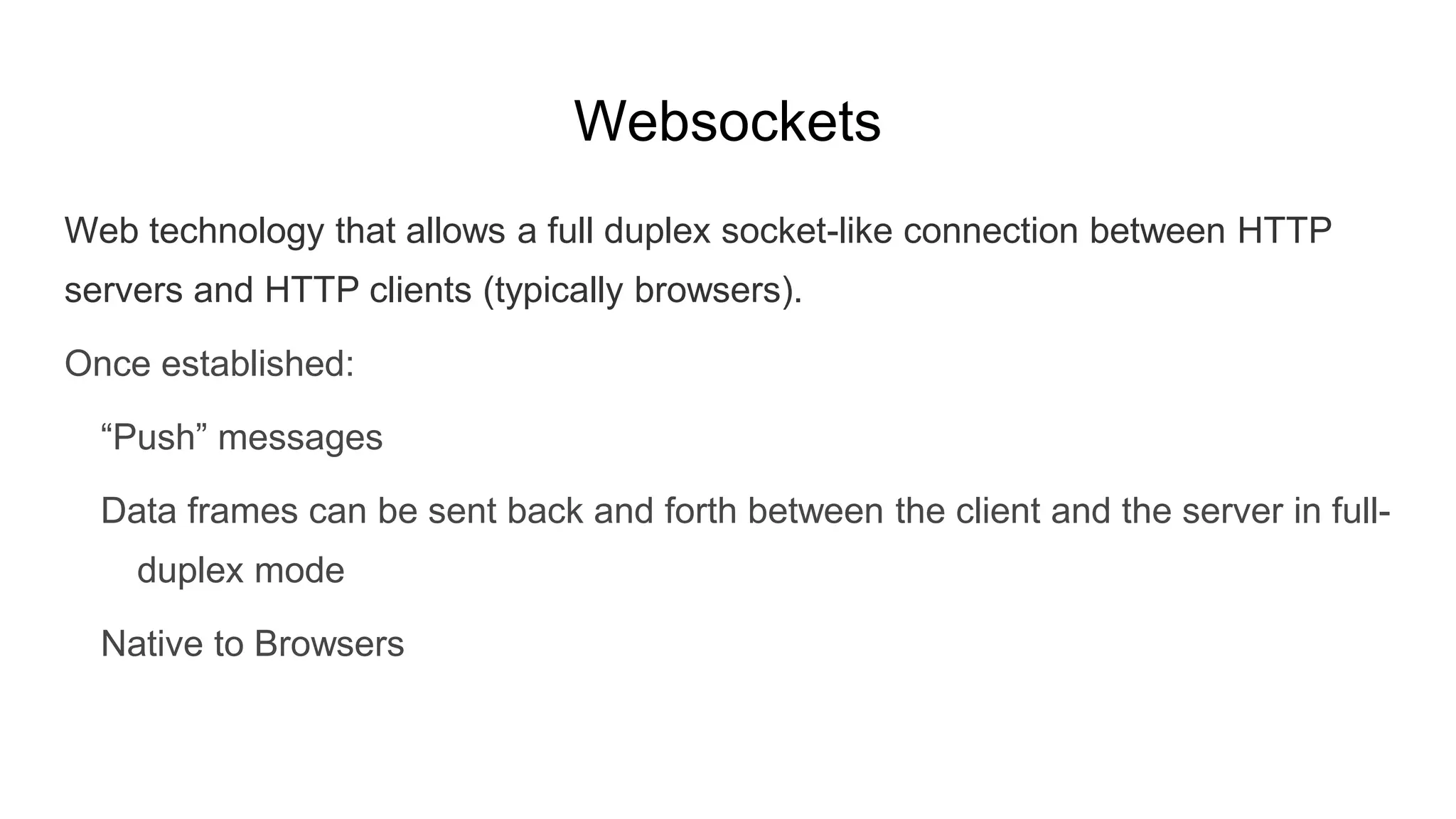

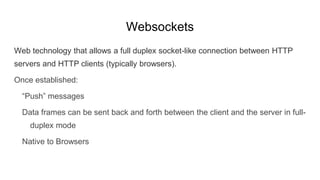

29. Websockets
Web technology that allows a full duplex socket-like connection between HTTP
servers and HTTP clients (typically browsers).
Once established:
“Push” messages
Data frames can be sent back and forth between the client and the server in full-
duplex mode
Native to Browsers

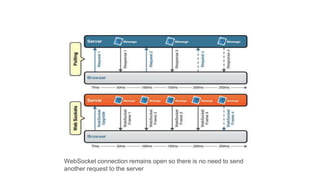

30. WebSocket connection remains open so there is no need to send
another request to the server

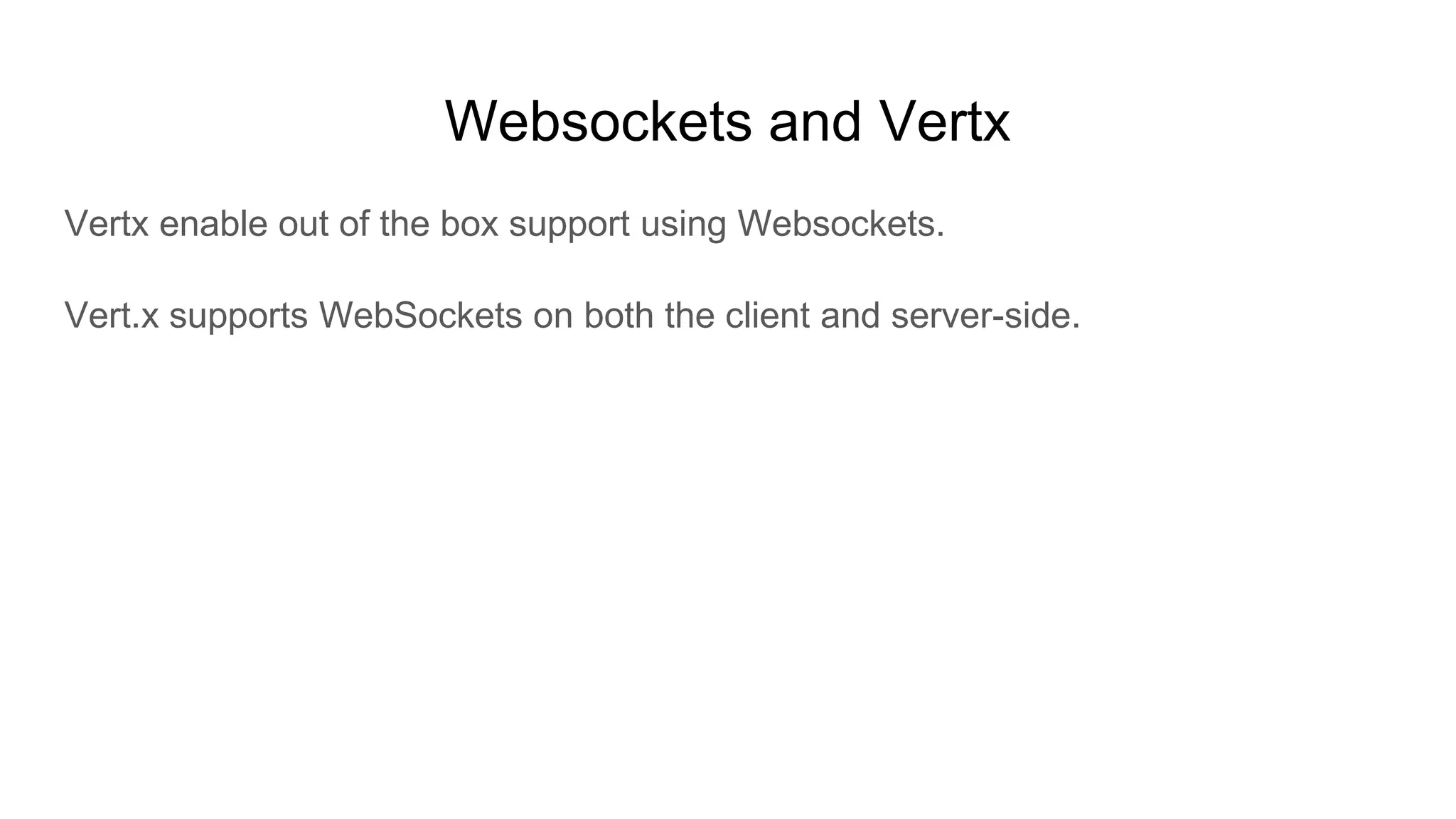

31. Websockets and Vertx
Vertx enable out of the box support using Websockets.
Vert.x supports WebSockets on both the client and server-side.

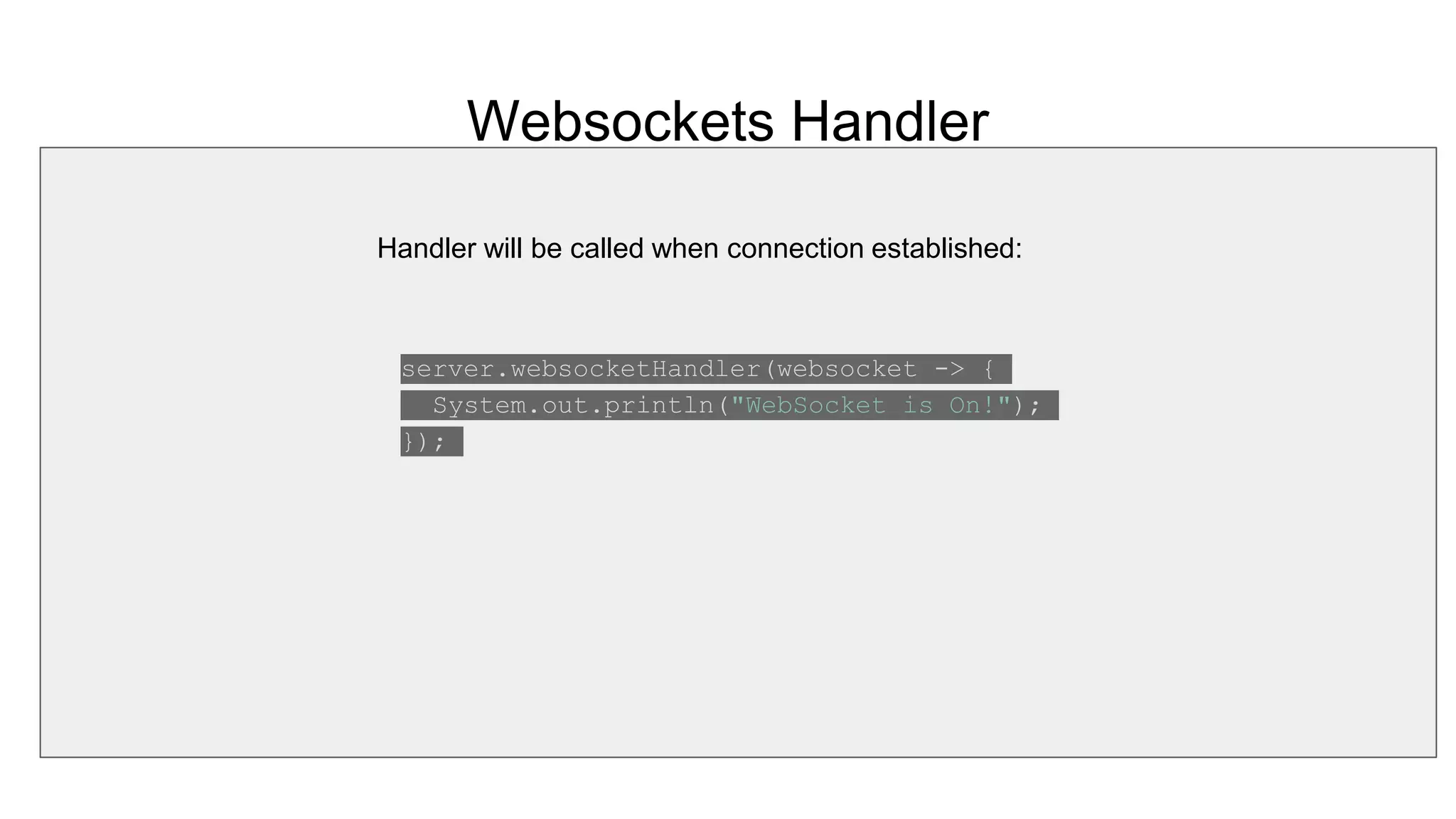

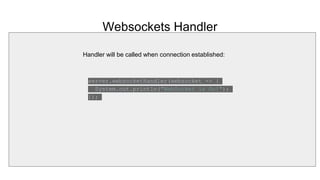

32. Websockets Handler
server.websocketHandler(websocket -> {
System.out.println("WebSocket is On!");
});
Handler will be called when connection established:

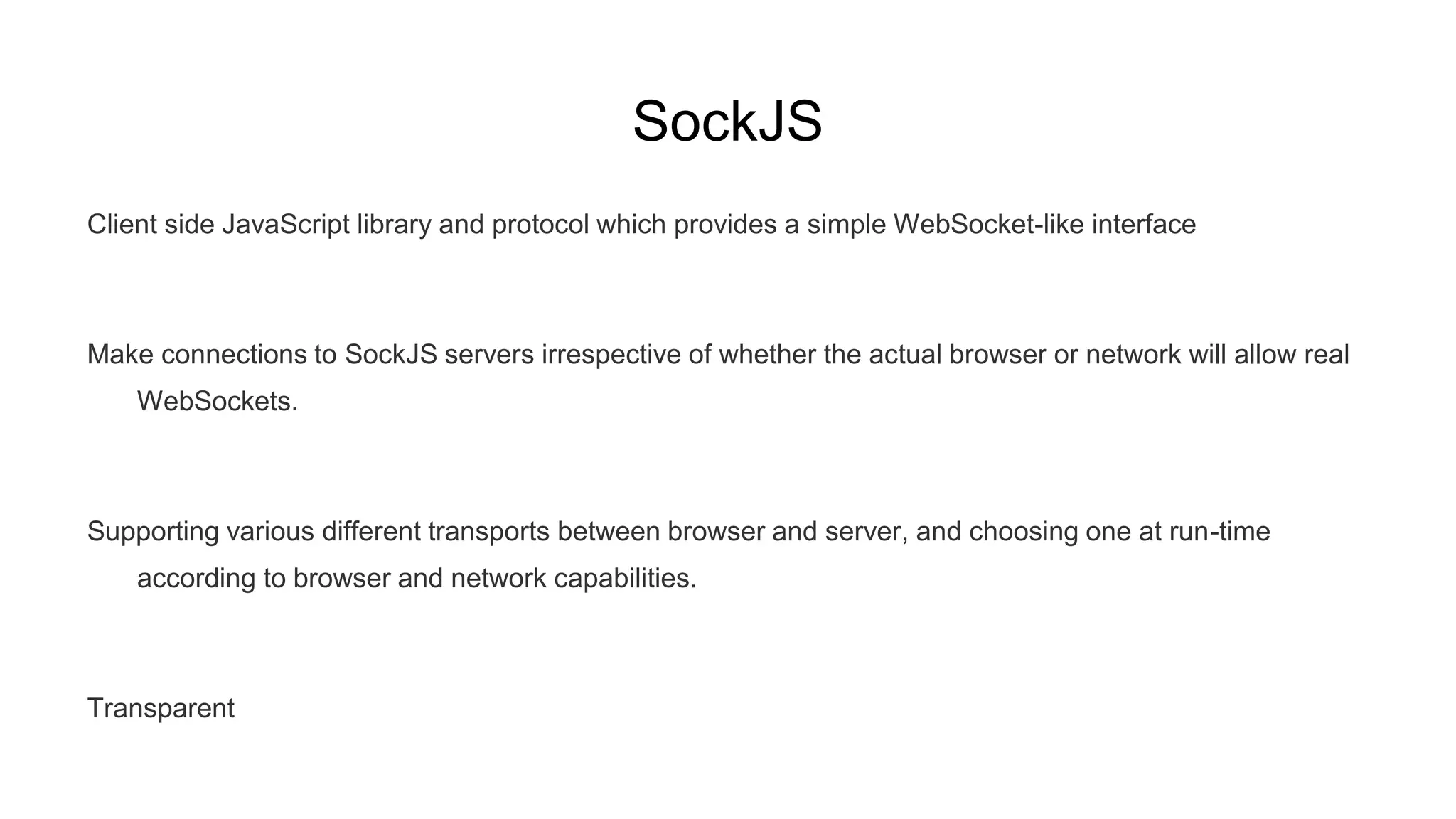

33. SockJS
Client side JavaScript library and protocol which provides a simple WebSocket-like interface
Make connections to SockJS servers irrespective of whether the actual browser or network will allow real
WebSockets.
Supporting various different transports between browser and server, and choosing one at run-time
according to browser and network capabilities.
Transparent

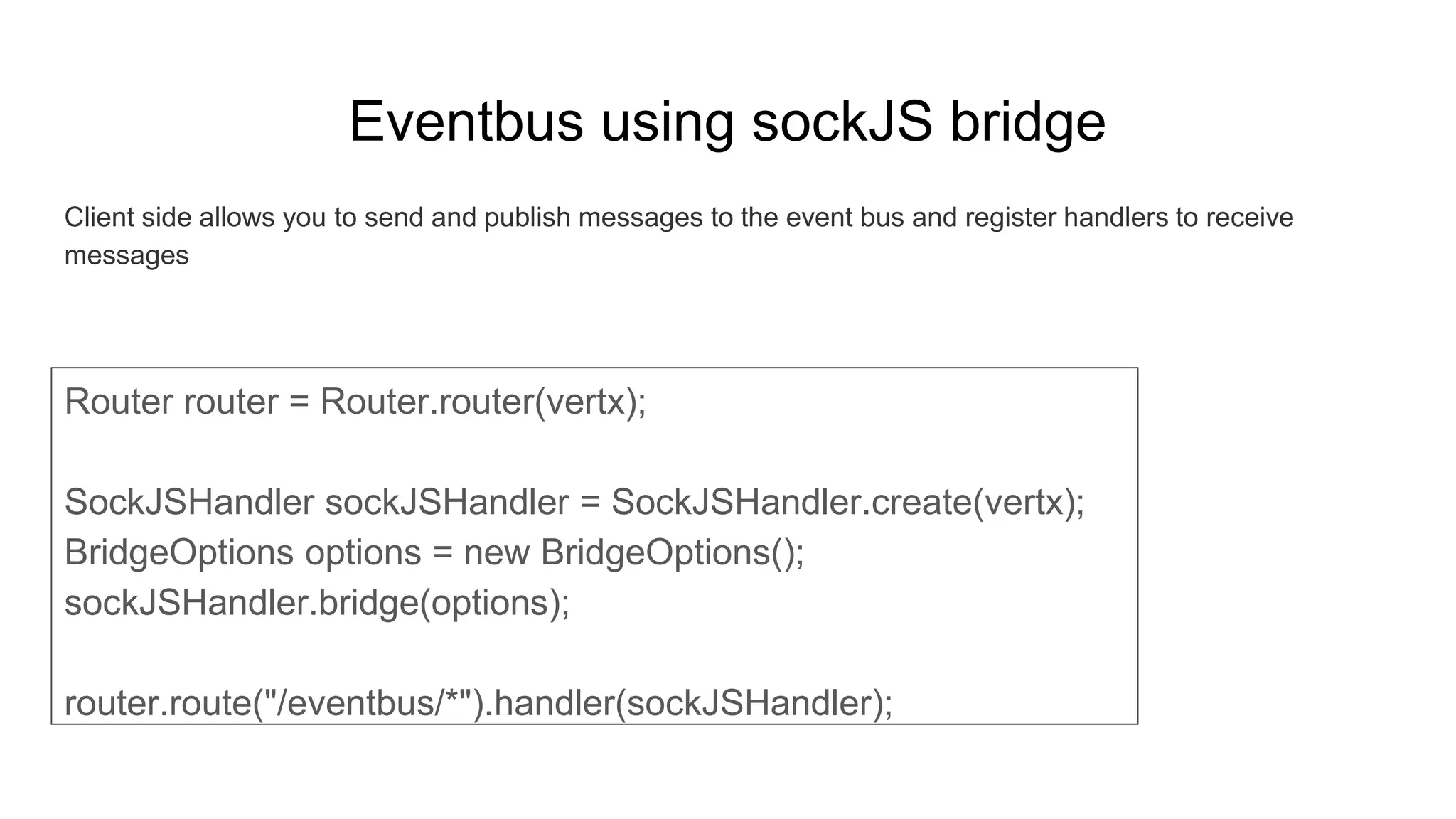

34. Eventbus using sockJS bridge
Client side allows you to send and publish messages to the event bus and register handlers to receive
messages
Router router = Router.router(vertx);
SockJSHandler sockJSHandler = SockJSHandler.create(vertx);
BridgeOptions options = new BridgeOptions();
sockJSHandler.bridge(options);
router.route("/eventbus/*").handler(sockJSHandler);

35. Reactive And Vertx
Natural couple

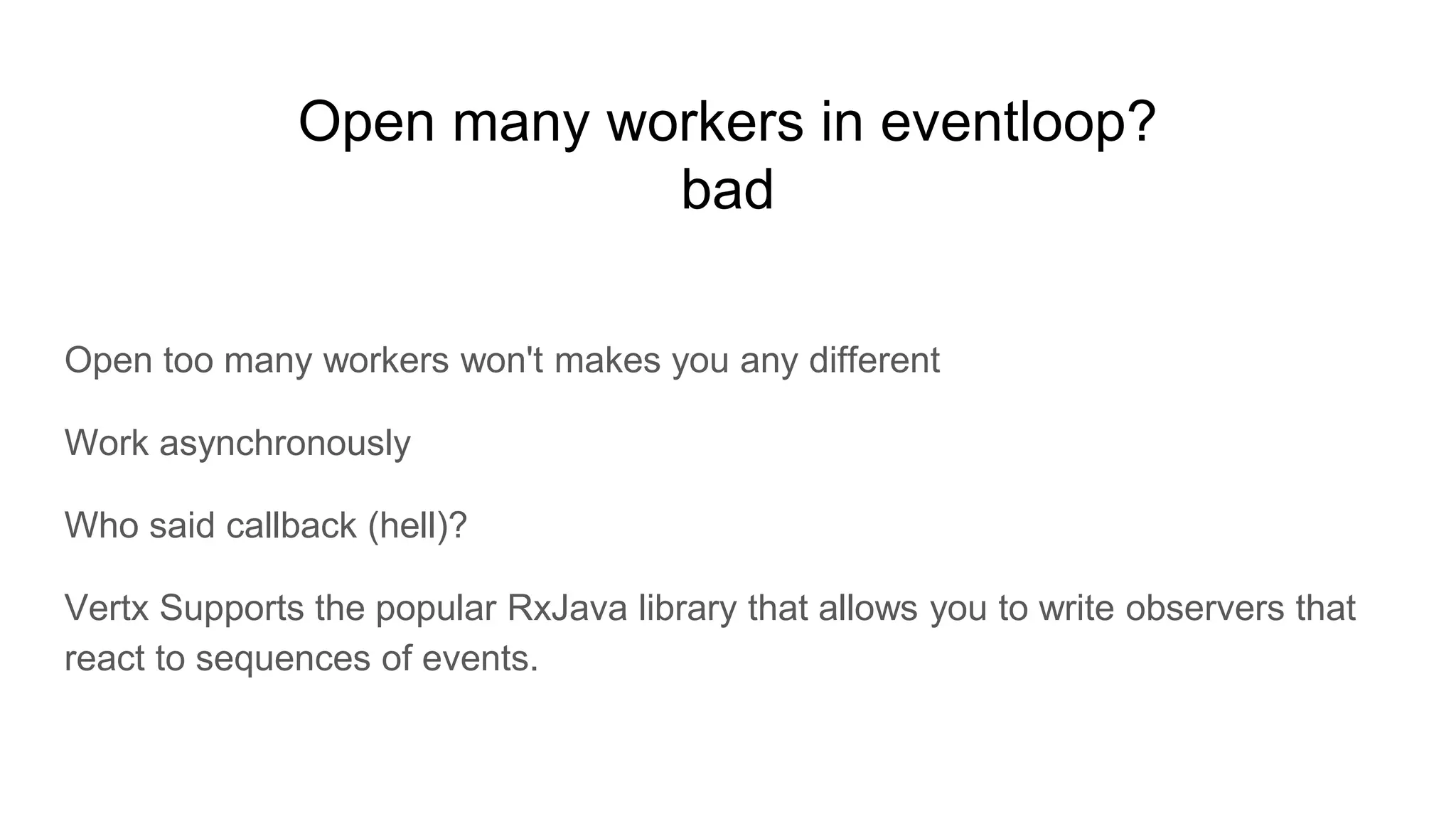

36. Open many workers in eventloop?
bad
Open too many workers won't makes you any different
Work asynchronously
Who said callback (hell)?
Vertx Supports the popular RxJava library that allows you to write observers that
react to sequences of events.

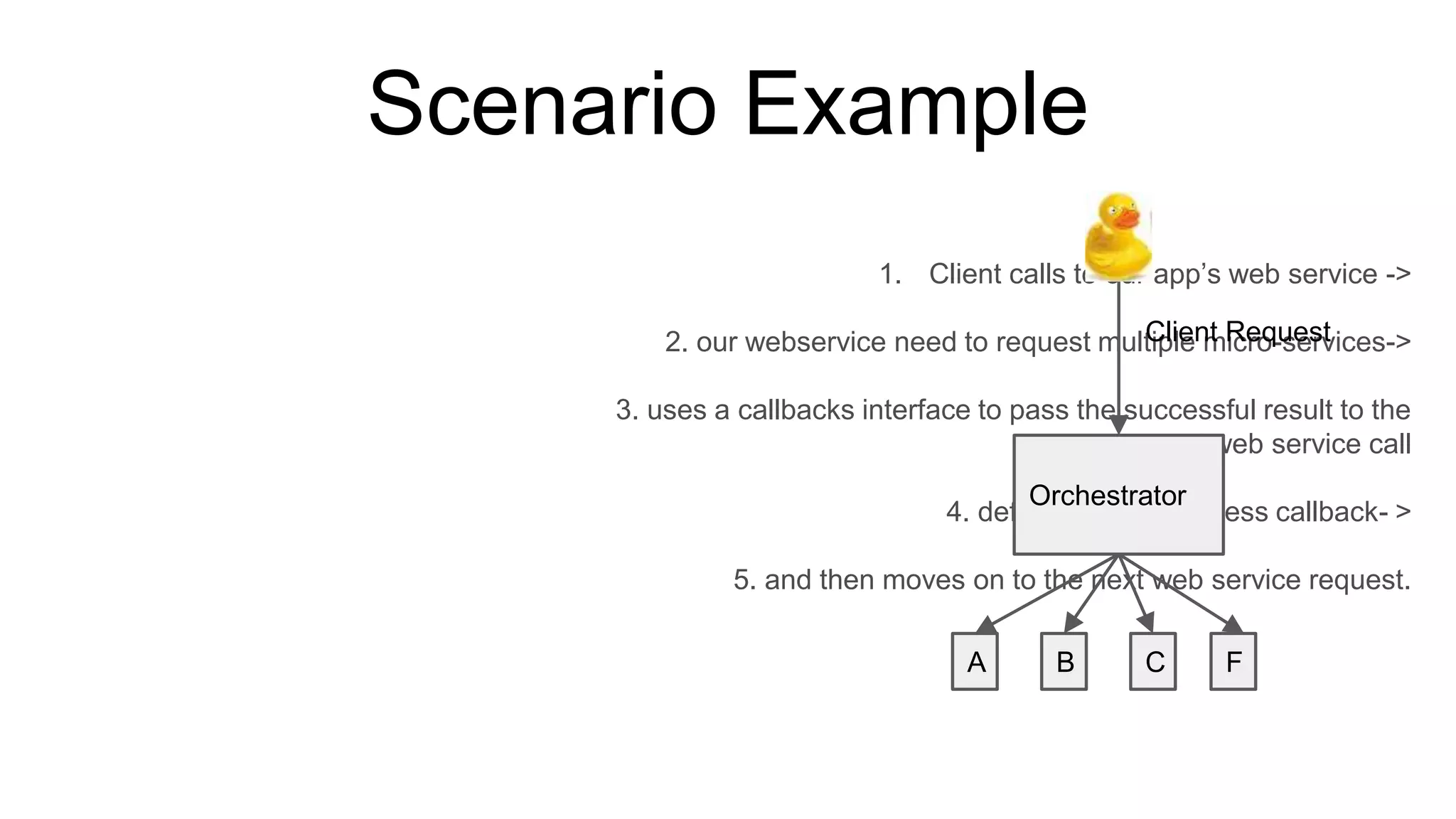

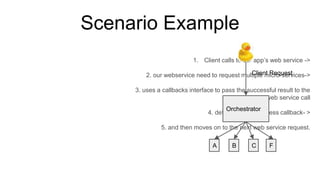

37. Scenario Example
1. Client calls to our app’s web service ->
2. our webservice need to request multiple micro-services->
3. uses a callbacks interface to pass the successful result to the
next web service call
4. define another success callback- >
5. and then moves on to the next web service request.
Orchestrator
A B C F
Client Request

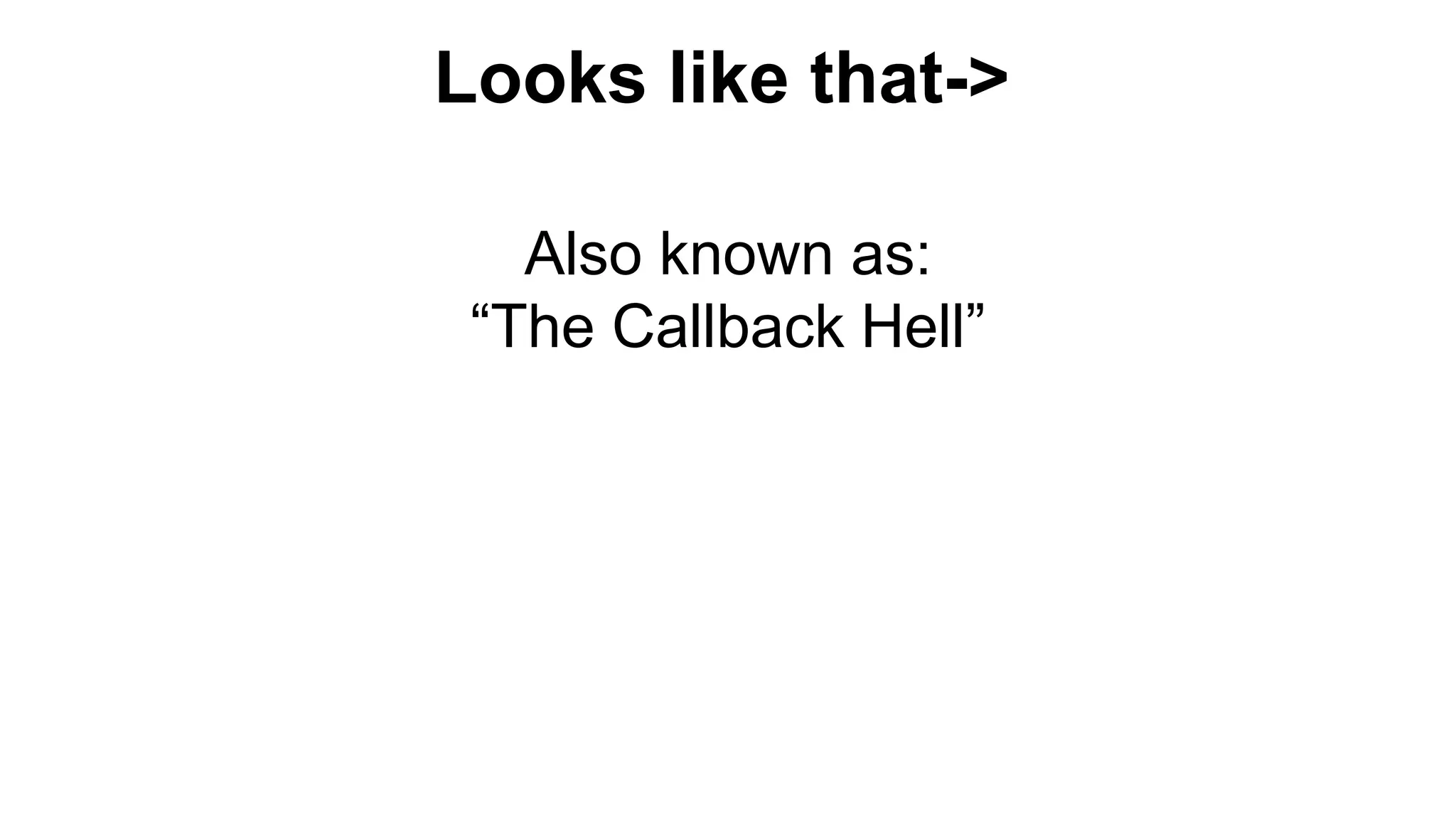

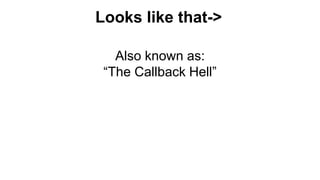

38. Looks like that->
Also known as:
“The Callback Hell”

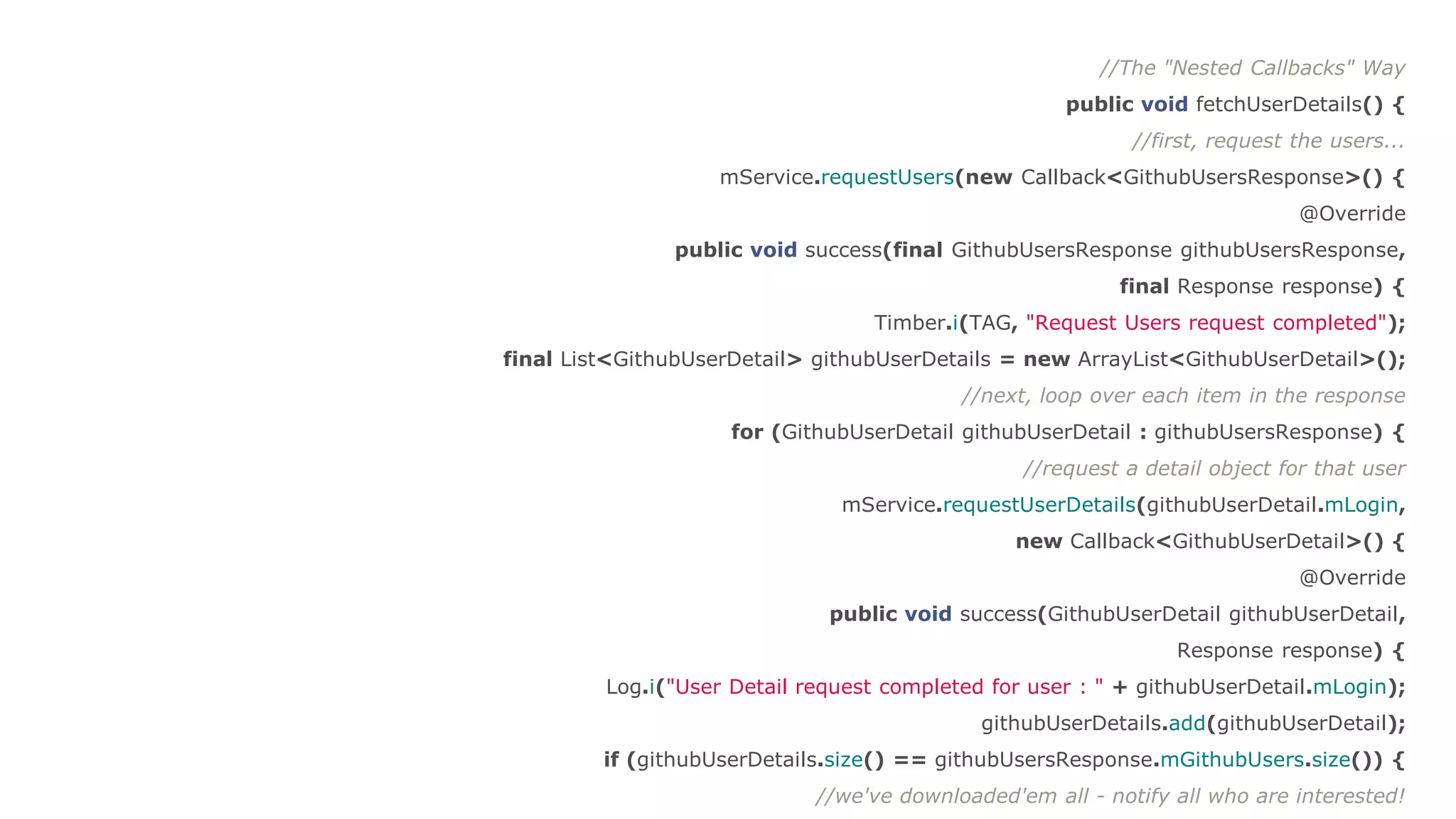

39. //The "Nested Callbacks" Way
public void fetchUserDetails() {
//first, request the users...
mService.requestUsers(new Callback<GithubUsersResponse>() {
@Override
public void success(final GithubUsersResponse githubUsersResponse,
final Response response) {
Timber.i(TAG, "Request Users request completed");
final List<GithubUserDetail> githubUserDetails = new ArrayList<GithubUserDetail>();
//next, loop over each item in the response
for (GithubUserDetail githubUserDetail : githubUsersResponse) {
//request a detail object for that user
mService.requestUserDetails(githubUserDetail.mLogin,
new Callback<GithubUserDetail>() {
@Override
public void success(GithubUserDetail githubUserDetail,
Response response) {
Log.i("User Detail request completed for user : " + githubUserDetail.mLogin);
githubUserDetails.add(githubUserDetail);
if (githubUserDetails.size() == githubUsersResponse.mGithubUsers.size()) {
//we've downloaded'em all - notify all who are interested!

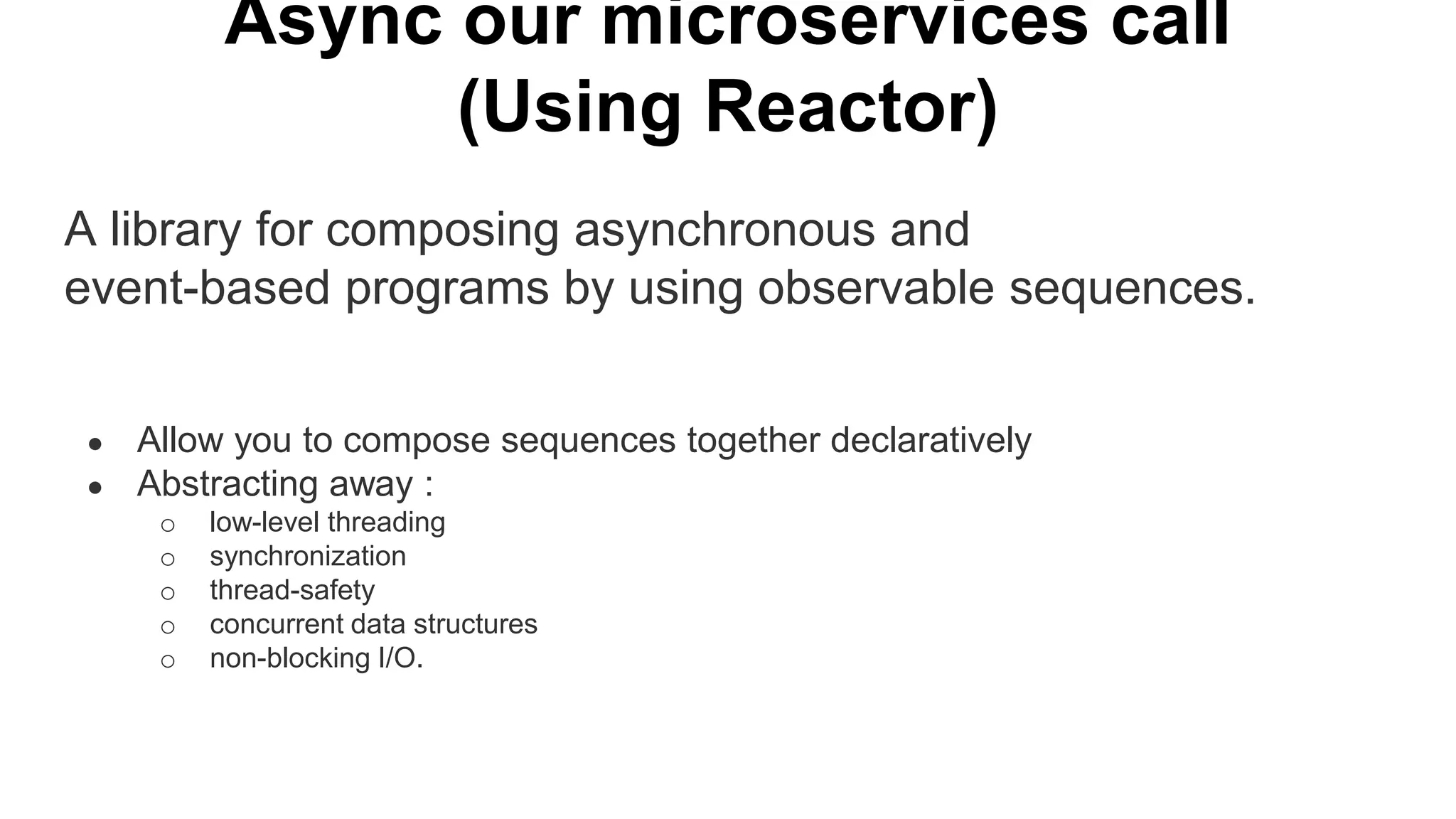

40. Async our microservices call
(Using Reactor)
A library for composing asynchronous and
event-based programs by using observable sequences.
● Allow you to compose sequences together declaratively
● Abstracting away :
o low-level threading
o synchronization
o thread-safety
o concurrent data structures
o non-blocking I/O.

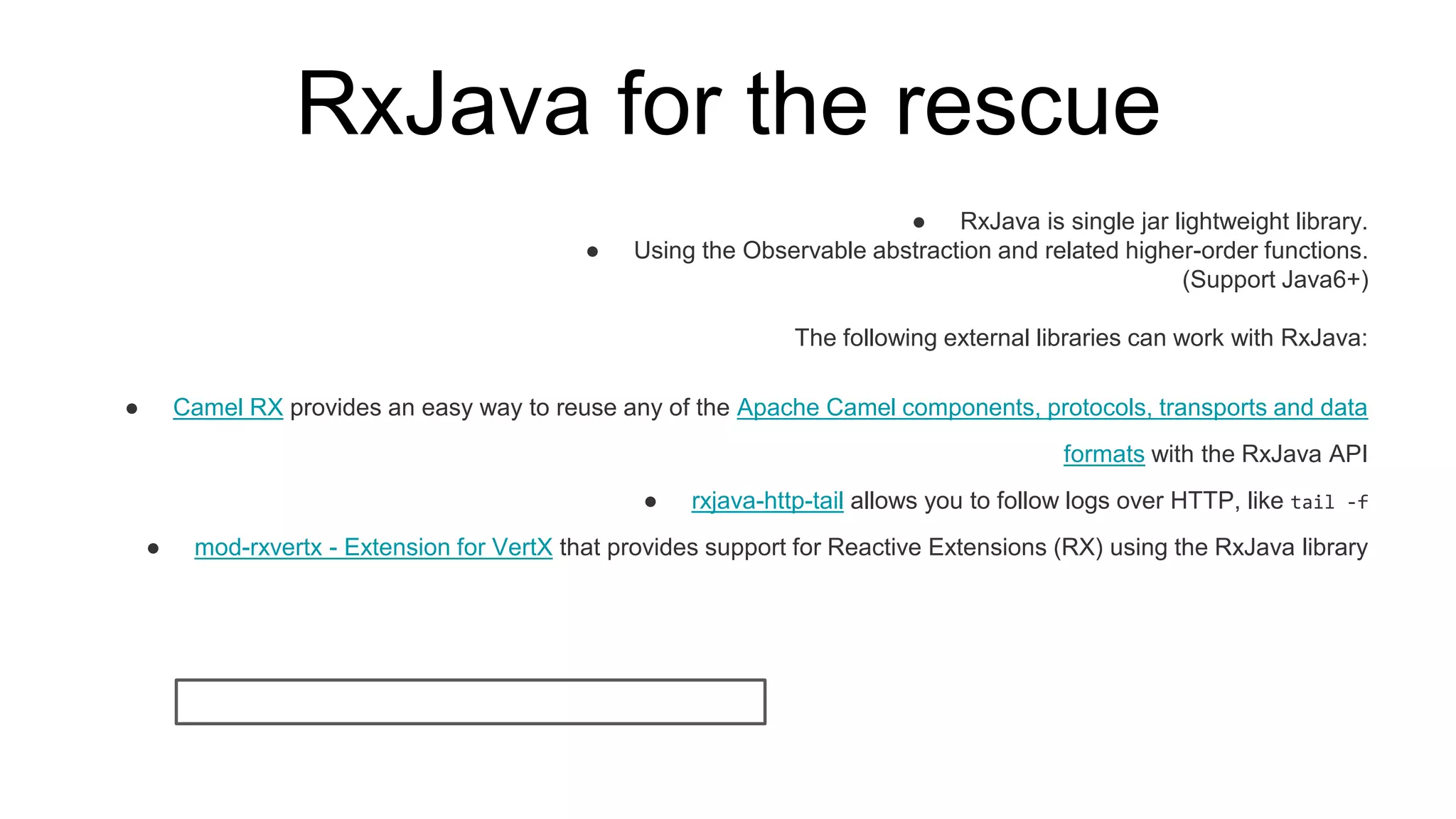

41. RxJava for the rescue
● RxJava is single jar lightweight library.
● Using the Observable abstraction and related higher-order functions.
(Support Java6+)
The following external libraries can work with RxJava:
● Camel RX provides an easy way to reuse any of the Apache Camel components, protocols, transports and data
formats with the RxJava API
● rxjava-http-tail allows you to follow logs over HTTP, like tail -f
● mod-rxvertx - Extension for VertX that provides support for Reactive Extensions (RX) using the RxJava library

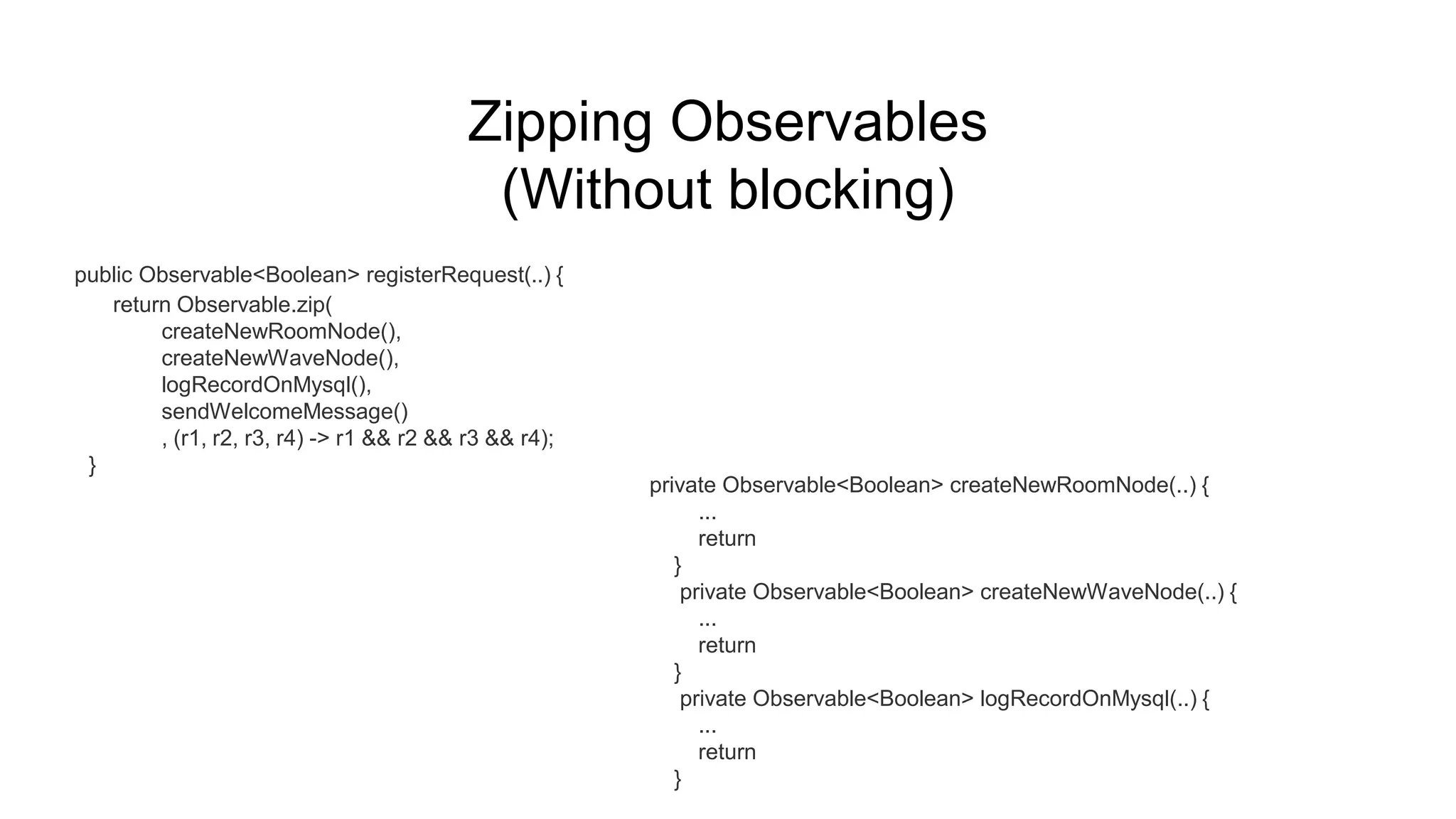

42. Zipping Observables
(Without blocking)
public Observable<Boolean> registerRequest(..) {
return Observable.zip(
createNewRoomNode(),
createNewWaveNode(),
logRecordOnMysql(),
sendWelcomeMessage()
, (r1, r2, r3, r4) -> r1 && r2 && r3 && r4);
}
private Observable<Boolean> createNewRoomNode(..) {
...
return
}
private Observable<Boolean> createNewWaveNode(..) {
...
return
}
private Observable<Boolean> logRecordOnMysql(..) {
...
return
}

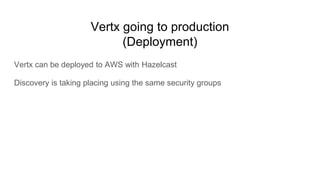

43. Vertx going to production
(Deployment)
Vertx can be deployed to AWS with Hazelcast
Discovery is taking placing using the same security groups

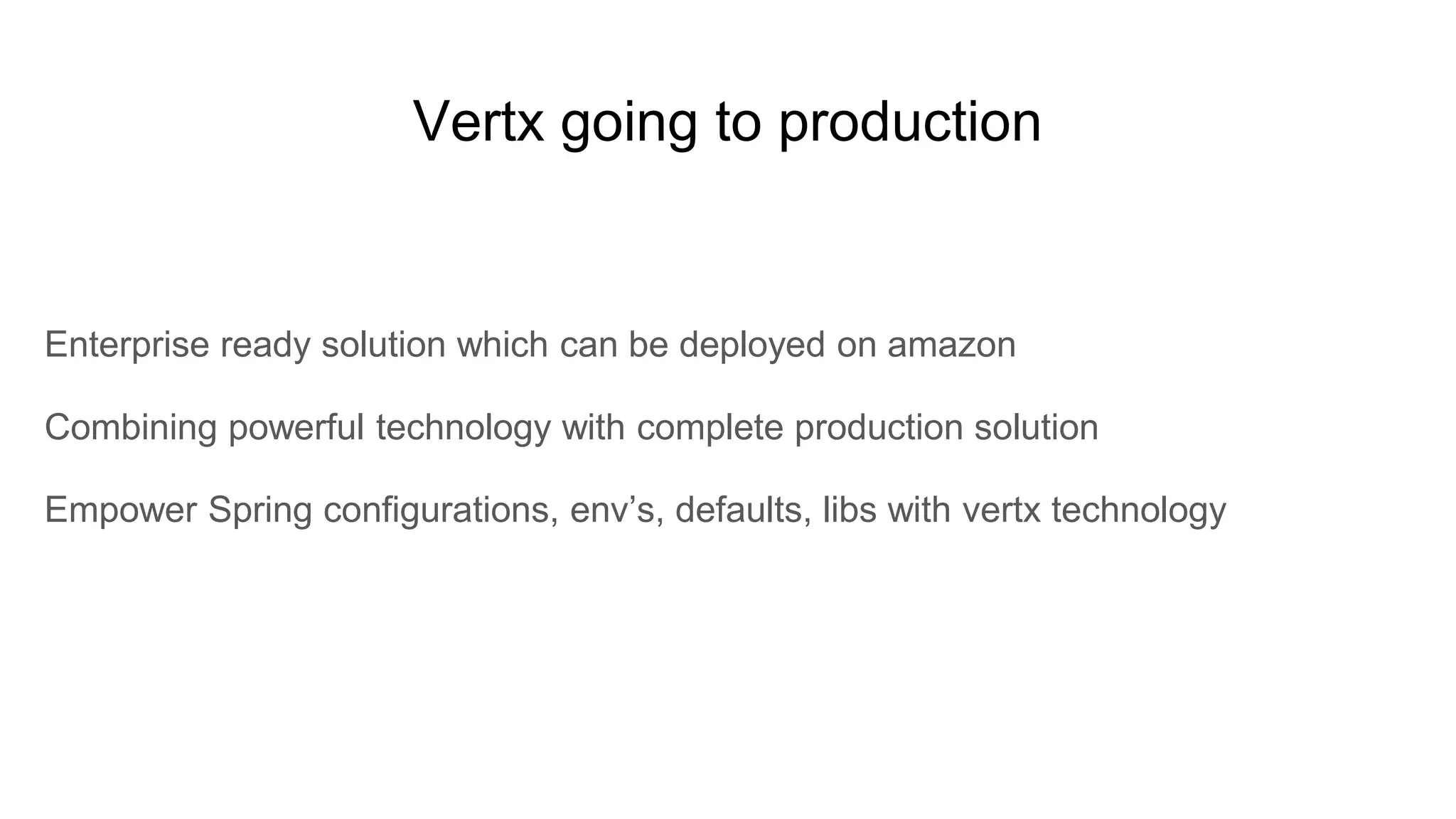

44. Vertx going to production
Enterprise ready solution which can be deployed on amazon
Combining powerful technology with complete production solution
Empower Spring configurations, env’s, defaults, libs with vertx technology

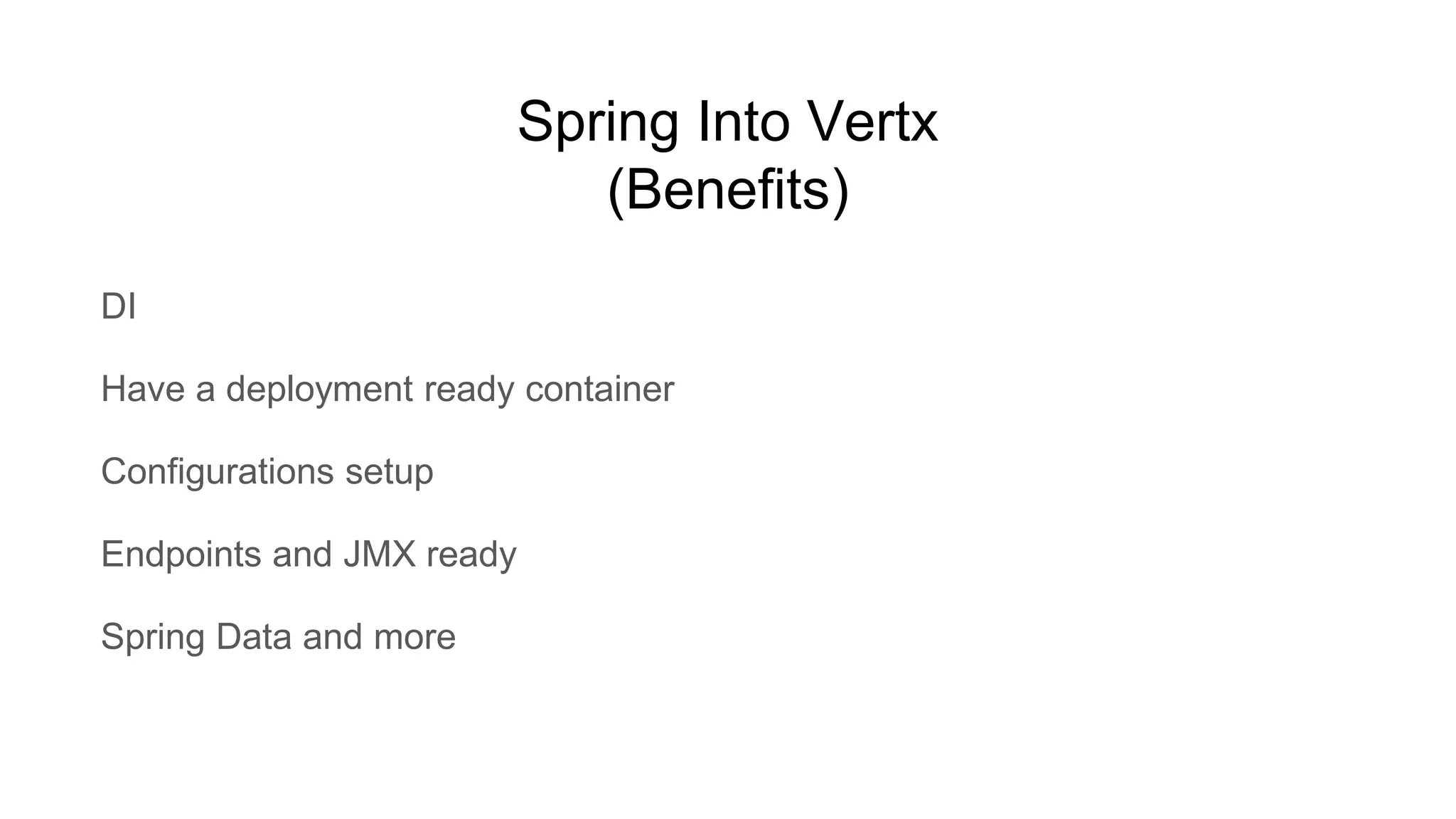

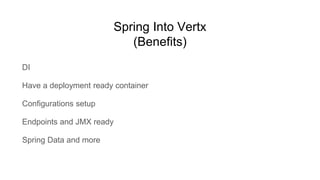

45. Spring Into Vertx
(Benefits)
DI
Have a deployment ready container
Configurations setup
Endpoints and JMX ready
Spring Data and more

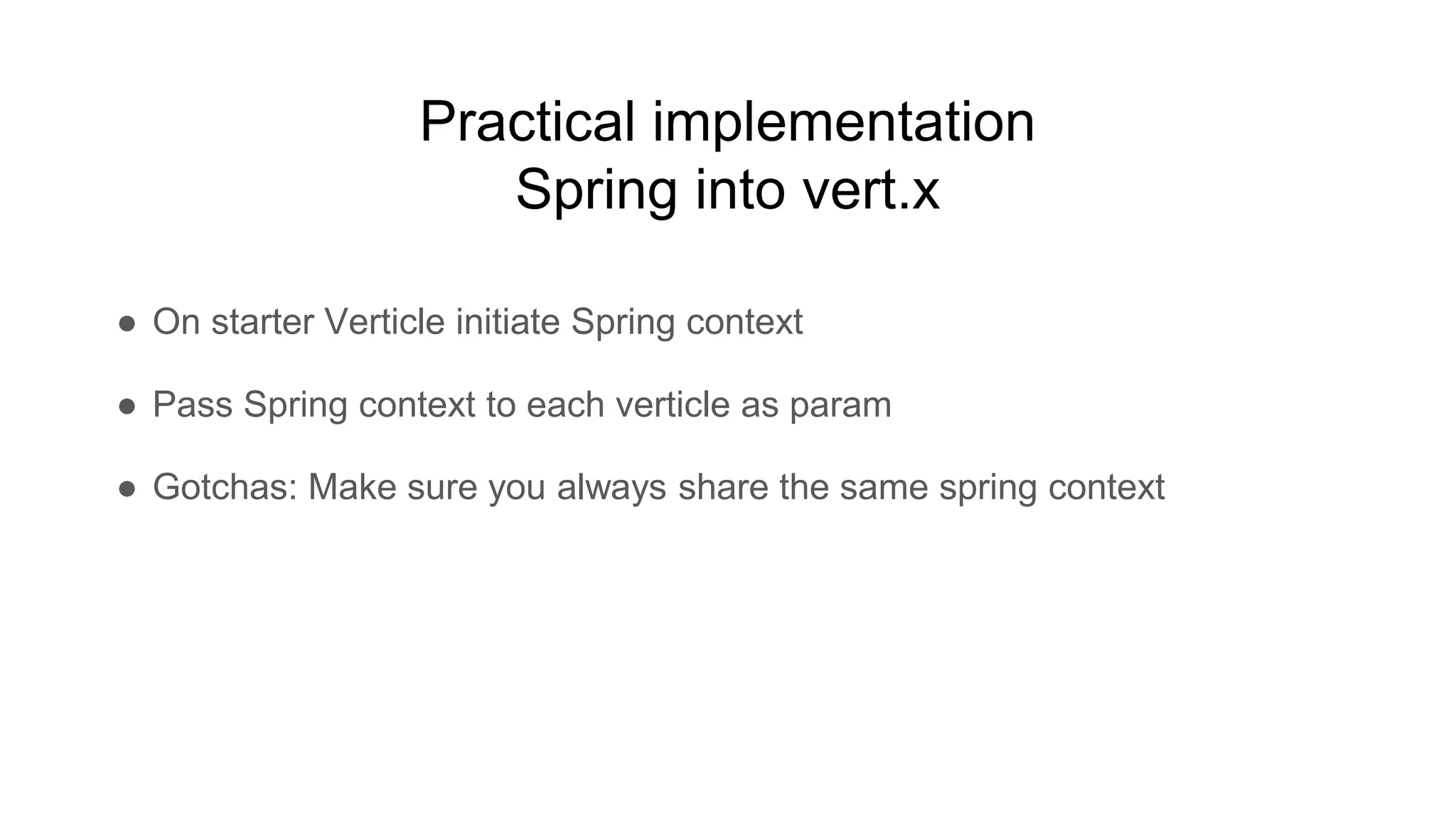

46. Practical implementation
Spring into vert.x
● On starter Verticle initiate Spring context
● Pass Spring context to each verticle as param
● Gotchas: Make sure you always share the same spring context

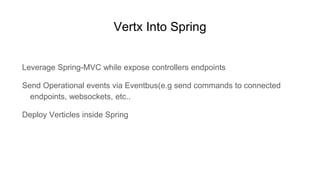

47. Vertx Into Spring
Leverage Spring-MVC while expose controllers endpoints
Send Operational events via Eventbus(e.g send commands to connected
endpoints, websockets, etc..
Deploy Verticles inside Spring

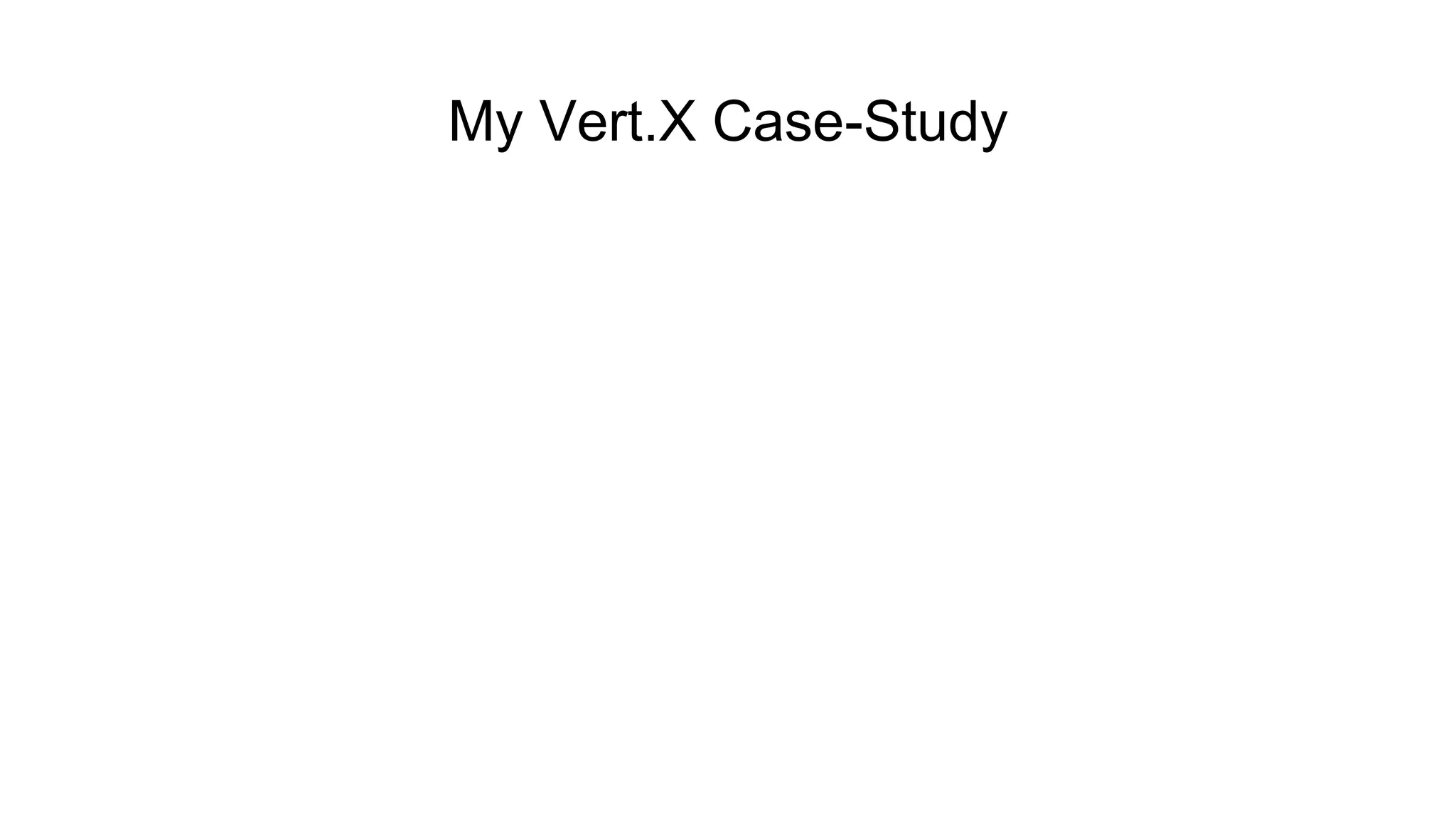

48. My Vert.X Case-Study

49. Thank you:)
Idan Fridman
Idan.frid@gmail.com
www.idanfridman.com
