SignalR

SignalR

Eyal Vardi
CEO E4D Solutions LTD
Microsoft MVP Visual C#
blog: www.eVardi.com

Expert Days 2012


© 2010 E4D LTD. All rights reserved. Tel: 054-5-767-300, Email: Eyal@E4D.co.il

Agenda
 SignalR Server Side API

 SignalR JavaScript API

 SignalR Client .NET API

 SignalR Internals

 SignalR Extensibility

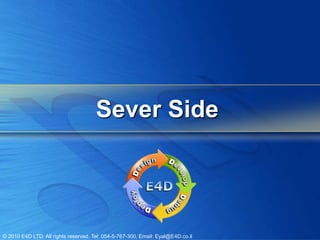

Sever Side


What is SignalR?
 SignalR is an asynchronous signaling library
for ASP.NET, To help build real-time multi-
user web application.
 SignalR is a complete client- and server-side
solution with JS on client and ASP.NET on the
back end to create these kinds of applications.


More Details on SignalR
 SignalR is broken up into a few package on
NuGet:
 SignalR - A meta package that brings in SignalR.Server and
SignalR.Js (you should install this)

 SignalR.Server - Server side components needed to build SignalR
endpoints

 SignalR.Js - Javascript client for SignalR

 SignalR.Client - .NET client for SignalR

 SignalR.Ninject - Ninject dependeny resolver for SignalR

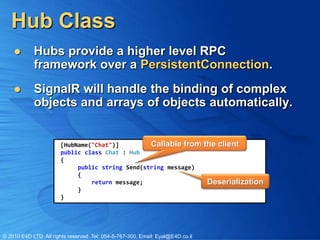

Hub Class
 Hubs provide a higher level RPC
framework over a PersistentConnection.
 SignalR will handle the binding of complex
objects and arrays of objects automatically.

[HubName("Chat")] Callable from the client
public class Chat : Hub
{
public string Send(string message)
{
return message; Deserialization
}
}


Hub API
 Hubs are per call, that is, each call from the
client to the hub will create a new hub
instance. So don't setup static event handlers
in hub methods.

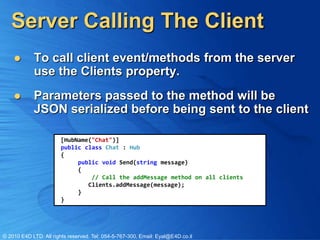

Server Calling The Client
 To call client event/methods from the server
use the Clients property.
 Parameters passed to the method will be
JSON serialized before being sent to the client

[HubName("Chat")]
{
public void Send(string message)
{
// Call the addMessage method on all clients
Clients.addMessage(message);
}
}

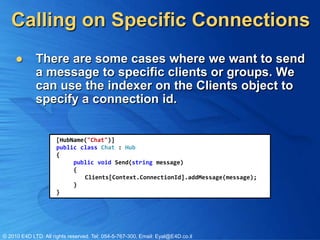

Calling on Specific Connections
 There are some cases where we want to send
a message to specific clients or groups. We
can use the indexer on the Clients object to
specify a connection id.

[HubName("Chat")]
{
{
Clients[Context.ConnectionId].addMessage(message);
}
}


Managing Groups
 You can add connections to groups and send
messages to particular groups.
 You may also return Task/Task<T> from a hub
if you need to do async work.
public class MyHub : Hub, IDisconnect
{
public Task Join() {
return Groups.Add(Context.ConnectionId, "foo");
}

public Task Send(string message) {
return Clients["foo"].addMessage(message);
}

public Task Disconnect() {
return Clients["foo"].leave(Context.ConnectionId);
}
}

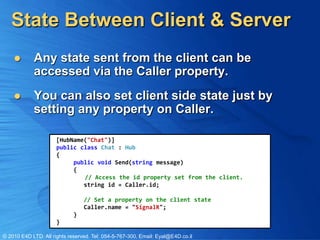

State Between Client & Server
 Any state sent from the client can be
accessed via the Caller property.
 You can also set client side state just by
setting any property on Caller.

[HubName("Chat")]
{
{
// Access the id property set from the client.
string id = Caller.id;

// Set a property on the client state
Caller.name = "SignalR";
}
}


Client Events in Server Side
 To detect disconnects when using hubs,
implement the IDisconnect interface.
 To detect connects and reconnects,
implement Iconnected.

public class Status : Hub, IDisconnect, IConnected
{
public Task Disconnect() {
return Clients.leave(Context.ConnectionId, DateTime.Now.ToString());
}

public Task Connect() {
return Clients.joined(Context.ConnectionId, DateTime.Now.ToString());
}

public Task Reconnect(IEnumerable<string> groups) {
return Clients.rejoined(Context.ConnectionId, DateTime.Now.ToString());
}
}

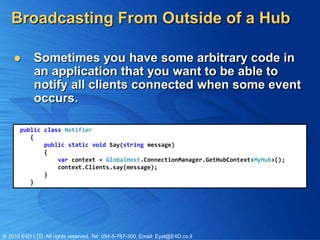

Broadcasting From Outside of a Hub

 Sometimes you have some arbitrary code in
an application that you want to be able to
notify all clients connected when some event
occurs.

public class Notifier
{
public static void Say(string message)
{
var context = GlobalHost.ConnectionManager.GetHubContext<MyHub>();
context.Clients.say(message);
}
}


Hub Routing
 No need to specify a route for the hub as they
are automatically accessible over a special url
(/signalr)

public class MvcApplication : System.Web.HttpApplication
{
protected void Application_Start()
{
RouteTable.Routes.MapHubs("~/signalr2");
}
}


Client Side


JavaScript Client
<script src="Scripts/jquery.signalR-0.5.3.min.js" type="text/javascript"></script>
<script src="/signalr/hubs" type="text/javascript"></script>

<script type="text/javascript">
$(function () {
// Proxy created on the fly
var chat = $.connection.chat;

// Declare a function on the chat hub so the server can invoke it
chat.addMessage = function (message) {
$('#messages').append('<li>' + message + '</li>');
};

$("#broadcast").click(function () {
// Call the chat method on the server
chat.send($('#msg').val());
});

// Start the connection
$.connection.hub.start();
});
</script>

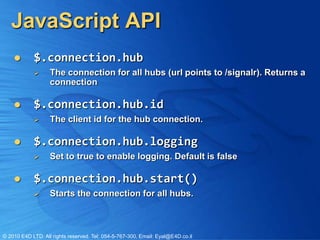

JavaScript API
 $.connection.hub
 The connection for all hubs (url points to /signalr). Returns a
connection

 $.connection.hub.id
 The client id for the hub connection.

 $.connection.hub.logging
 Set to true to enable logging. Default is false

 $.connection.hub.start()
 Starts the connection for all hubs.

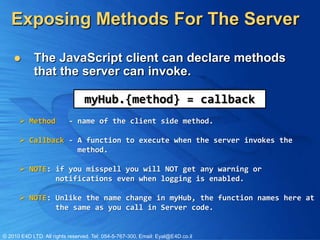

Exposing Methods For The Server

 The JavaScript client can declare methods
that the server can invoke.

myHub.{method} = callback
 Method - name of the client side method.

 Callback - A function to execute when the server invokes the
method.

 NOTE: if you misspell you will NOT get any warning or
notifications even when logging is enabled.

 NOTE: Unlike the name change in myHub, the function names here at
the same as you call in Server code.


Invoking methods on the server
 The proxy will generate methods on each hub
for the associated server methods.
 Returns jQuery deferred.
 NOTE: Method names will be camel cased similarly to hub
names.

myHub.someMethod()
.done(function(result) {})
.fail(function(error) {});

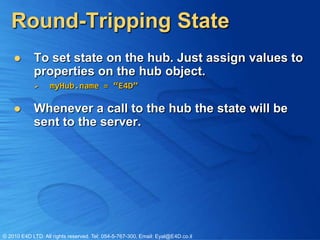

Round-Tripping State
 To set state on the hub. Just assign values to
properties on the hub object.
 myHub.name = “E4D”

 Whenever a call to the hub the state will be
sent to the server.

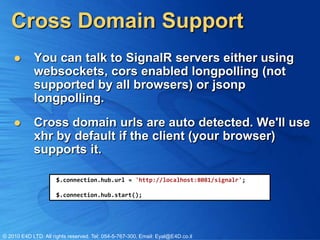

Cross Domain Support
 You can talk to SignalR servers either using
websockets, cors enabled longpolling (not
supported by all browsers) or jsonp
longpolling.
 Cross domain urls are auto detected. We'll use
xhr by default if the client (your browser)
supports it.

$.connection.hub.url = 'http://localhost:8081/signalr';

$.connection.hub.start();

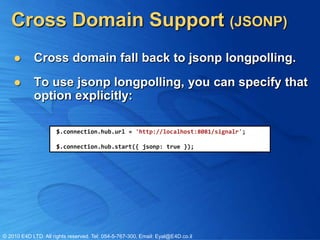

Cross Domain Support (JSONP)
 Cross domain fall back to jsonp longpolling.
 To use jsonp longpolling, you can specify that
option explicitly:

$.connection.hub.url = 'http://localhost:8081/signalr';

$.connection.hub.start({ jsonp: true });

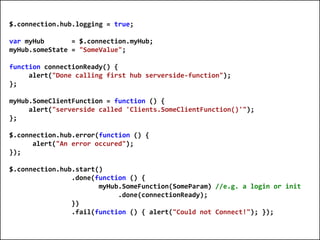

$.connection.hub.logging = true;

var myHub = $.connection.myHub;
myHub.someState = "SomeValue";

function connectionReady() {
alert("Done calling first hub serverside-function");
};

myHub.SomeClientFunction = function () {
alert("serverside called 'Clients.SomeClientFunction()'");
};

$.connection.hub.error(function () {
alert("An error occured");
});

$.connection.hub.start()
.done(function () {
myHub.SomeFunction(SomeParam) //e.g. a login or init
.done(connectionReady);
})
.fail(function () { alert("Could not Connect!"); });

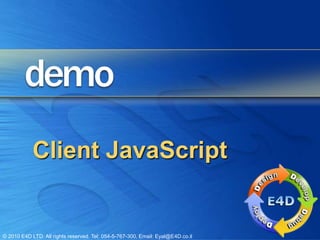

Client JavaScript


.Net Client

// Connect to the service
var hubConnection = new HubConnection("http://localhost/mysite");

// Create a proxy to the chat service
var chat = hubConnection.CreateProxy("chat");

// Print the message when it comes in
chat.On("addMessage", message => Console.WriteLine(message));

// Start the connection
hubConnection.Start().Wait();

string line = null;
while ((line = Console.ReadLine()) != null)
{
// Send a message to the server
chat.Invoke("Send", line).Wait();
}


SignalR Internals


Default Start Point
 The AspNetBootstrapper class initializes the
Asp.Net hosting pipeline with HubDispatcher

[assembly: PreApplicationStartMethod(typeof(AspNetBootstrapper), "Initialize")]

namespace SignalR.Hosting.AspNet
{
public static class AspNetBootstrapper
{
...
// Initializes the ASP.NET host and sets up the default hub route (~/signalr).
public static void Initialize()
{ Add Route
...
RouteTable.Routes.MapHubs();
...
}

private static void OnAppDomainShutdown() { ... }
}
}


MapHubs Extension Methods
 The MapHubs does two things :
 Register the AspNetAssemblyLocator
 Build the route class for SignalR

var locator = new Lazy<IAssemblyLocator>(() => new AspNetAssemblyLocator());
resolver.Register(typeof(IAssemblyLocator), () => locator.Value);

var route = new Route(routeUrl, new HubDispatcherRouteHandler(url, resolver));

routeUrl = "~/signalr /{*operation}"

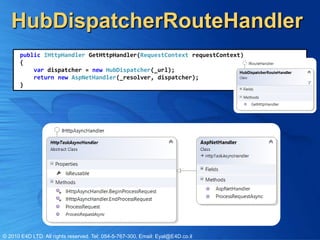

HubDispatcherRouteHandler
public IHttpHandler GetHttpHandler(RequestContext requestContext)
{
var dispatcher = new HubDispatcher(_url);
return new AspNetHandler(_resolver, dispatcher);
}


Persistent Connection


HubDispatcher
public override Task ProcessRequestAsync(HostContext context)
{
// Generate the proxy
if (context.Request.Url.LocalPath.EndsWith("/hubs",StringComparison.OrdinalIgnoreCase))
{
context.Response.ContentType = "application/x-javascript";
return context.Response.EndAsync(_proxyGenerator.GenerateProxy(_url));
}
...
return base.ProcessRequestAsync(context);
}

protected override Task OnReceivedAsync(IRequest req, string connId, string data)
{
...
// 1. Create the hub
...
// 2. Resolve the method
...
// 3. Resolving the state
...
// 4. Invoke the method
...
}

SignalR Extensibility

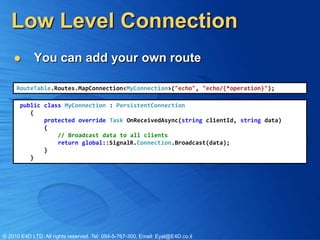

Low Level Connection
 You can add your own route

RouteTable.Routes.MapConnection<MyConnection>("echo", "echo/{*operation}");

public class MyConnection : PersistentConnection
{
protected override Task OnReceivedAsync(string clientId, string data)
{
// Broadcast data to all clients
return global::SignalR.Connection.Broadcast(data);
}
}

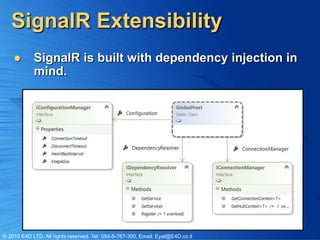

SignalR Extensibility
 SignalR is built with dependency injection in
mind.

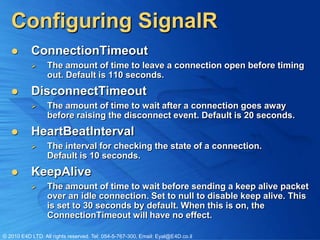

Configuring SignalR
 ConnectionTimeout
 The amount of time to leave a connection open before timing
out. Default is 110 seconds.
 DisconnectTimeout
 The amount of time to wait after a connection goes away
before raising the disconnect event. Default is 20 seconds.
 HeartBeatInterval
 The interval for checking the state of a connection.
Default is 10 seconds.
 KeepAlive
 The amount of time to wait before sending a keep alive packet
over an idle connection. Set to null to disable keep alive. This
is set to 30 seconds by default. When this is on, the
ConnectionTimeout will have no effect.

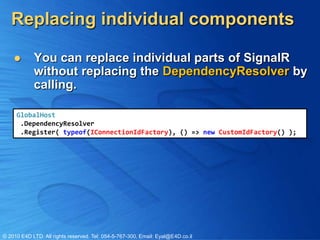

Replacing individual components

 You can replace individual parts of SignalR
without replacing the DependencyResolver by
calling.

GlobalHost
.DependencyResolver
.Register( typeof(IConnectionIdFactory), () => new CustomIdFactory() );

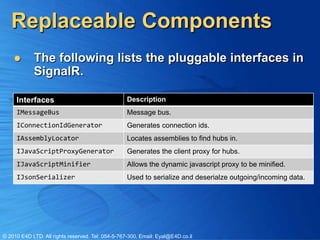

Replaceable Components
 The following lists the pluggable interfaces in
SignalR.

Interfaces Description
IMessageBus Message bus.
IConnectionIdGenerator Generates connection ids.
IAssemblyLocator Locates assemblies to find hubs in.
IJavaScriptProxyGenerator Generates the client proxy for hubs.
IJavaScriptMinifier Allows the dynamic javascript proxy to be minified.
IJsonSerializer Used to serialize and deserialze outgoing/incoming data.


Server Side
