Infrastructure Tracking with Passive Monitoring and Active Probing: ShmooCon 2015 Presentation
The document discusses tracking infrastructure related to malware botnets through passive monitoring and active probing techniques. It provides an overview of tracking systems used to monitor the Gameover Zeus (GOZ) and newGOZ botnets. Specific case studies are described on tracking the fast flux proxy network of the Zbot botnet and predicting and identifying command and control domains generated by the domain generation algorithm (DGA) of the newGOZ botnet.
More Related Content
Similar to Infrastructure Tracking with Passive Monitoring and Active Probing: ShmooCon 2015 Presentation
![Vibe Coding vs. Spec-Driven Development [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/vibecodingvsspecdrivendevelopment-251209105622-43f455e7-thumbnail.jpg?width=640&height=640&fit=bounds)
Infrastructure Tracking with Passive Monitoring and Active Probing: ShmooCon 2015 Presentation
- 1. Infrastructure Tracking with PassiveMonitoring and Active Probing Anthony Kasza Dhia Mahjoub January 18th, 2015

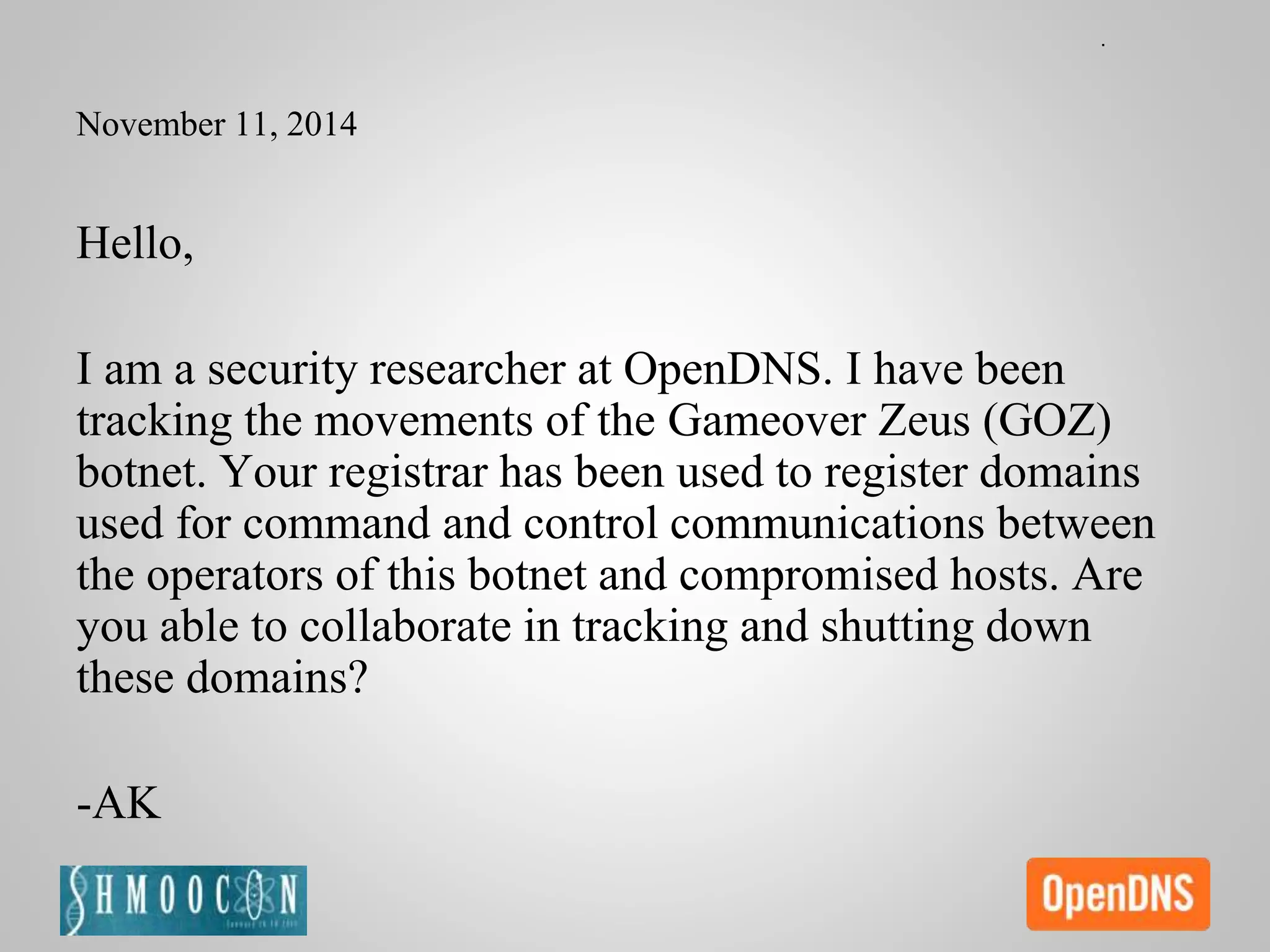

- 2. November 11, 2014 Hello, Iam a security researcher at OpenDNS. I have been tracking the movements of the Gameover Zeus (GOZ) botnet. Your registrar has been used to register domains used for command and control communications between the operators of this botnet and compromised hosts. Are you able to collaborate in tracking and shutting down these domains? -AK

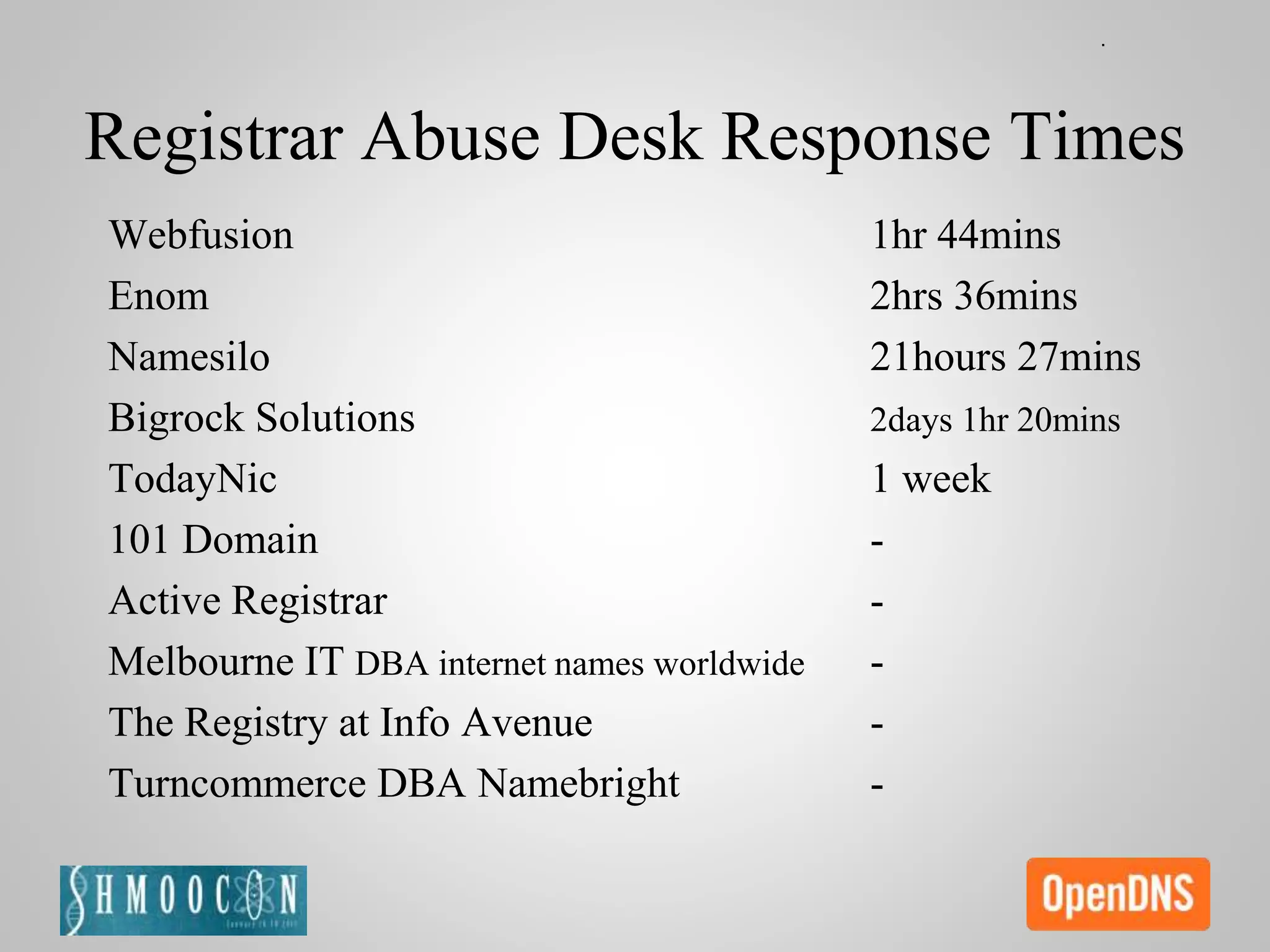

- 3. Registrar Abuse DeskResponse Times Webfusion 1hr 44mins Enom 2hrs 36mins Namesilo 21hours 27mins Bigrock Solutions 2days 1hr 20mins TodayNic 1 week 101 Domain - Active Registrar - Melbourne IT DBA internet names worldwide - The Registry at Info Avenue - Turncommerce DBA Namebright -

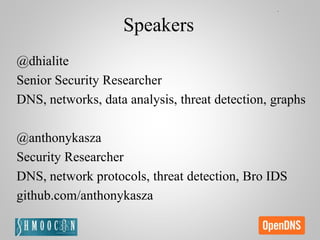

- 4. Speakers @dhialite Senior Security Researcher DNS,networks, data analysis, threat detection, graphs @anthonykasza Security Researcher DNS, network protocols, threat detection, Bro IDS github.com/anthonykasza

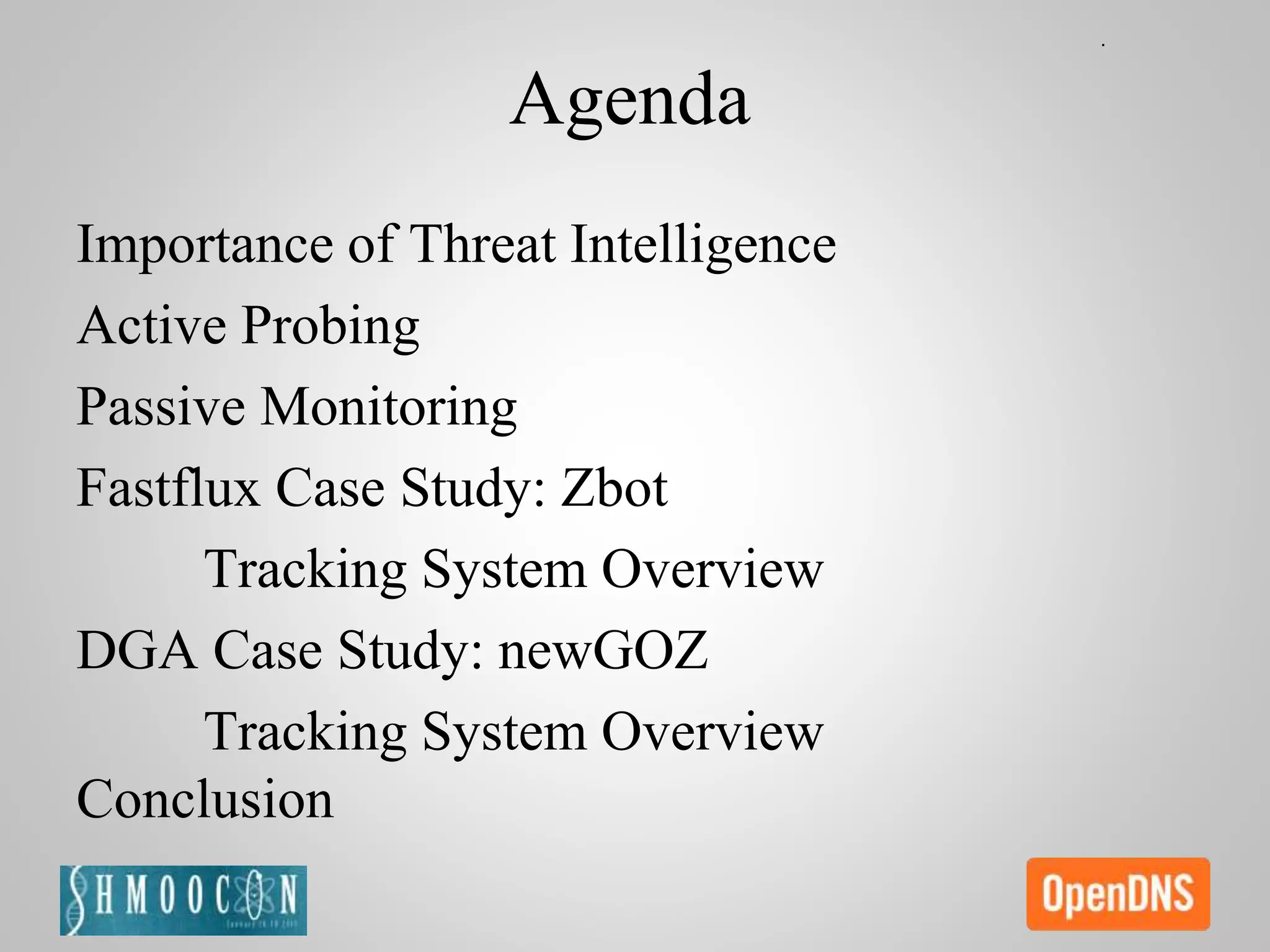

- 5. Agenda Importance of ThreatIntelligence Active Probing Passive Monitoring Fastflux Case Study: Zbot Tracking System Overview DGA Case Study: newGOZ Tracking System Overview Conclusion
- 6.

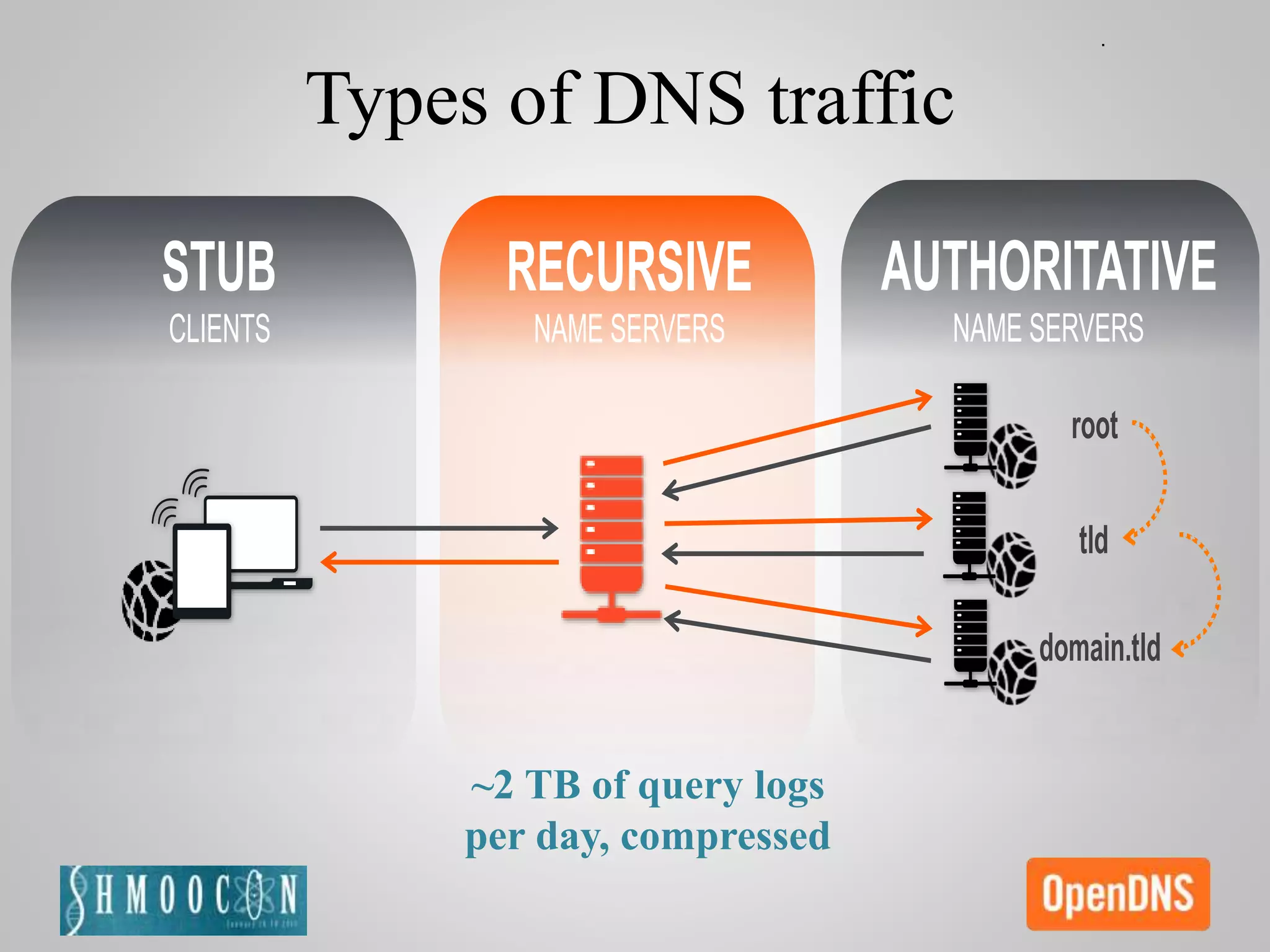

- 7. STUB CLIENTS RECURSIVE NAME SERVERS AUTHORITATIVE NAME SERVERS root tld domain.tld ~2TB of query logs per day, compressed Types of DNS traffic

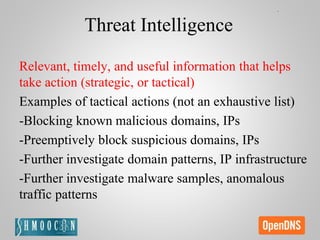

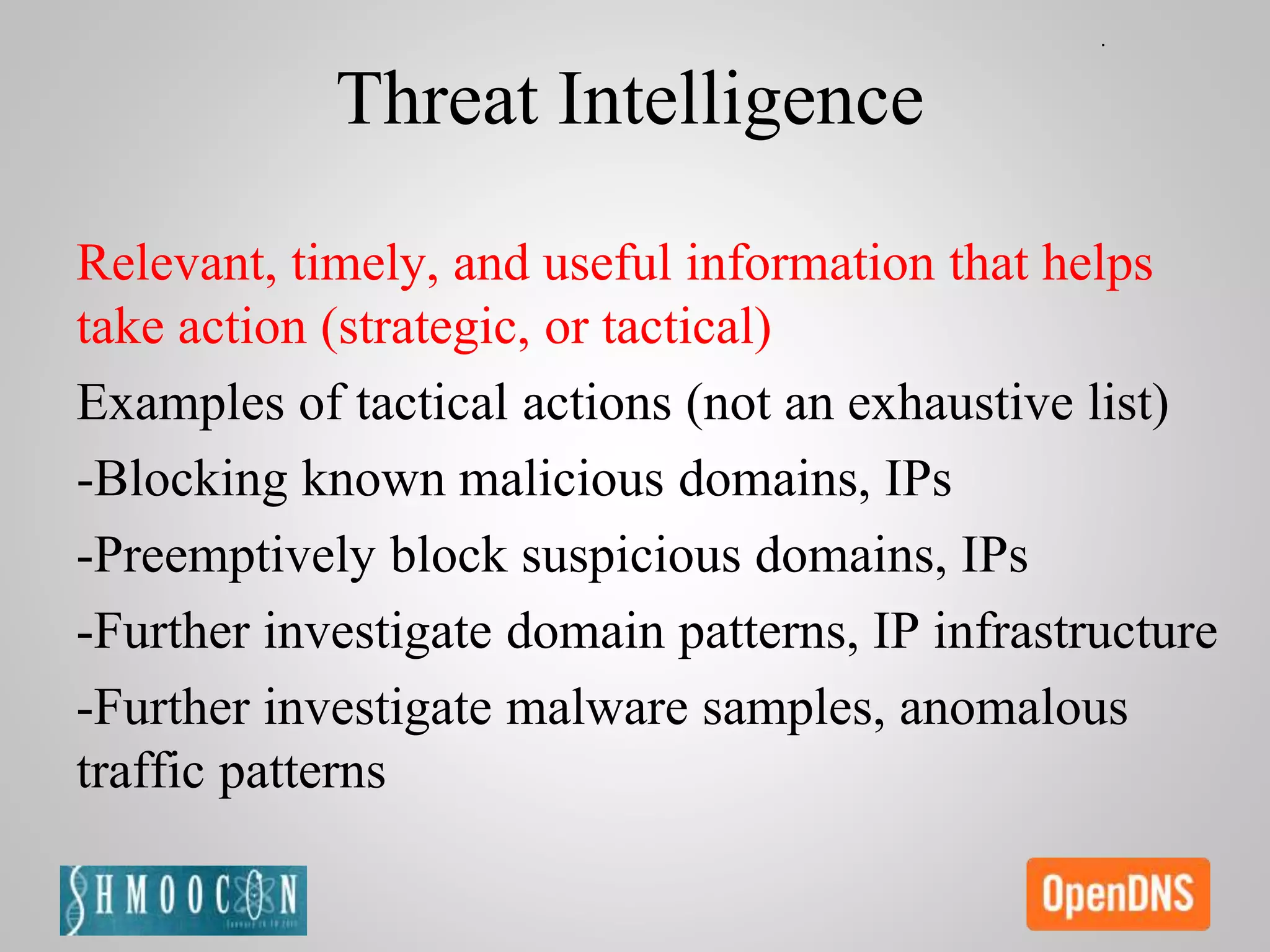

- 8. Threat Intelligence Relevant, timely,and useful information that helps take action (strategic, or tactical) Examples of tactical actions (not an exhaustive list) -Blocking known malicious domains, IPs -Preemptively block suspicious domains, IPs -Further investigate domain patterns, IP infrastructure -Further investigate malware samples, anomalous traffic patterns
- 9.
- 10.

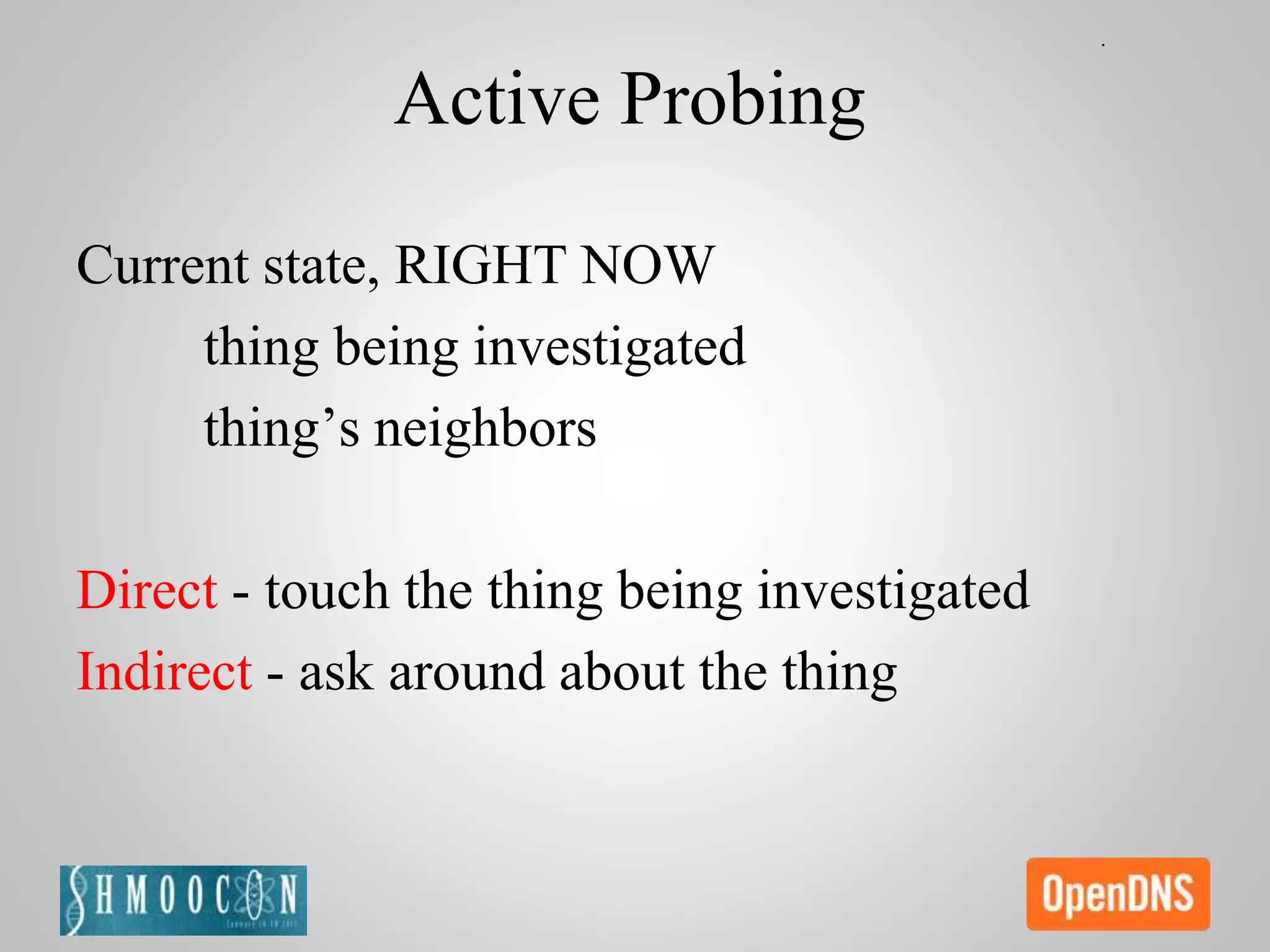

- 11. Active Probing Current state,RIGHT NOW thing being investigated thing’s neighbors Direct - touch the thing being investigated Indirect - ask around about the thing

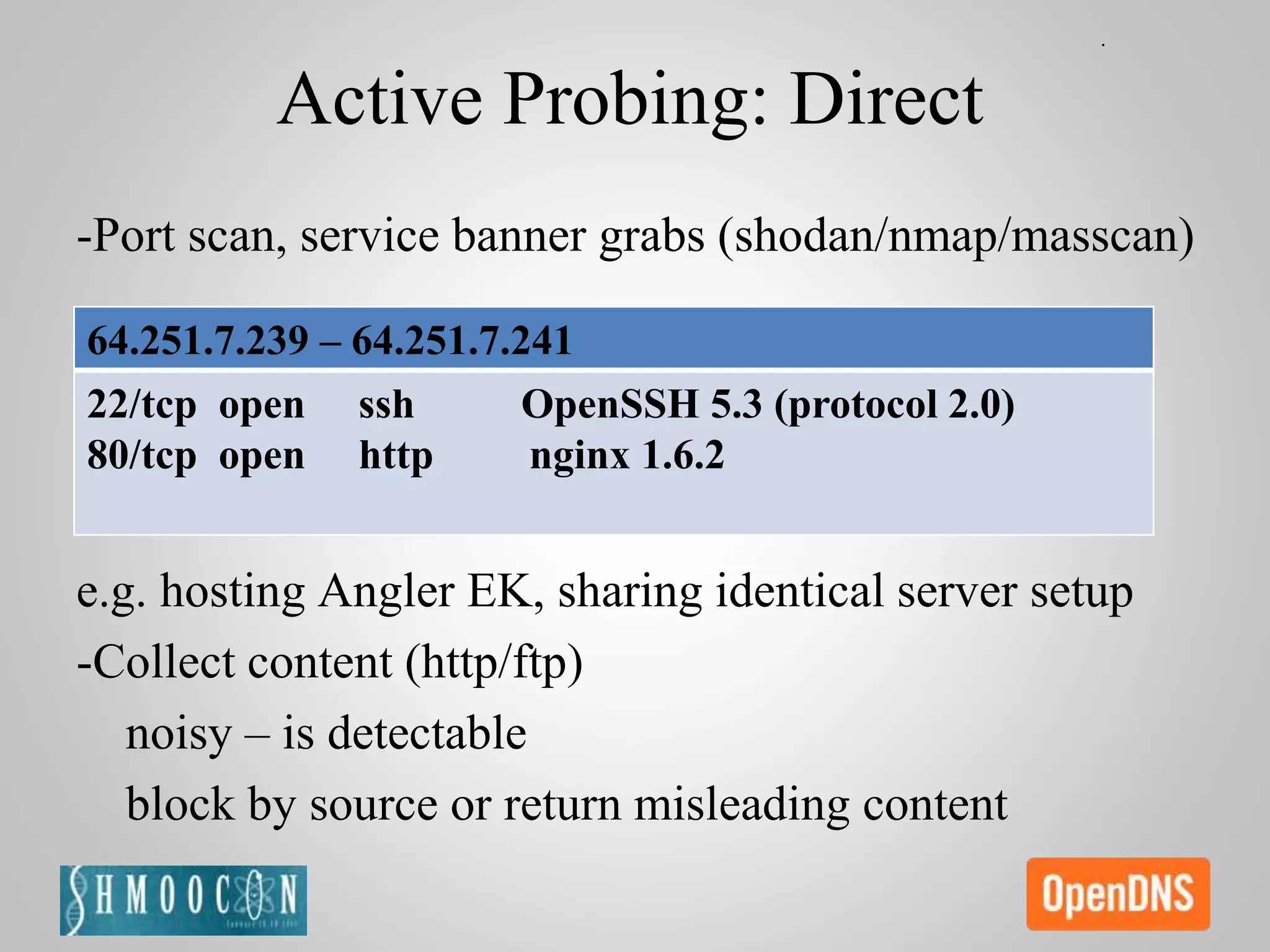

- 12. Active Probing: Direct -Portscan, service banner grabs (shodan/nmap/masscan) e.g. hosting Angler EK, sharing identical server setup -Collect content (http/ftp) noisy – is detectable block by source or return misleading content 64.251.7.239 – 64.251.7.241 22/tcp open ssh OpenSSH 5.3 (protocol 2.0) 80/tcp open http nginx 1.6.2

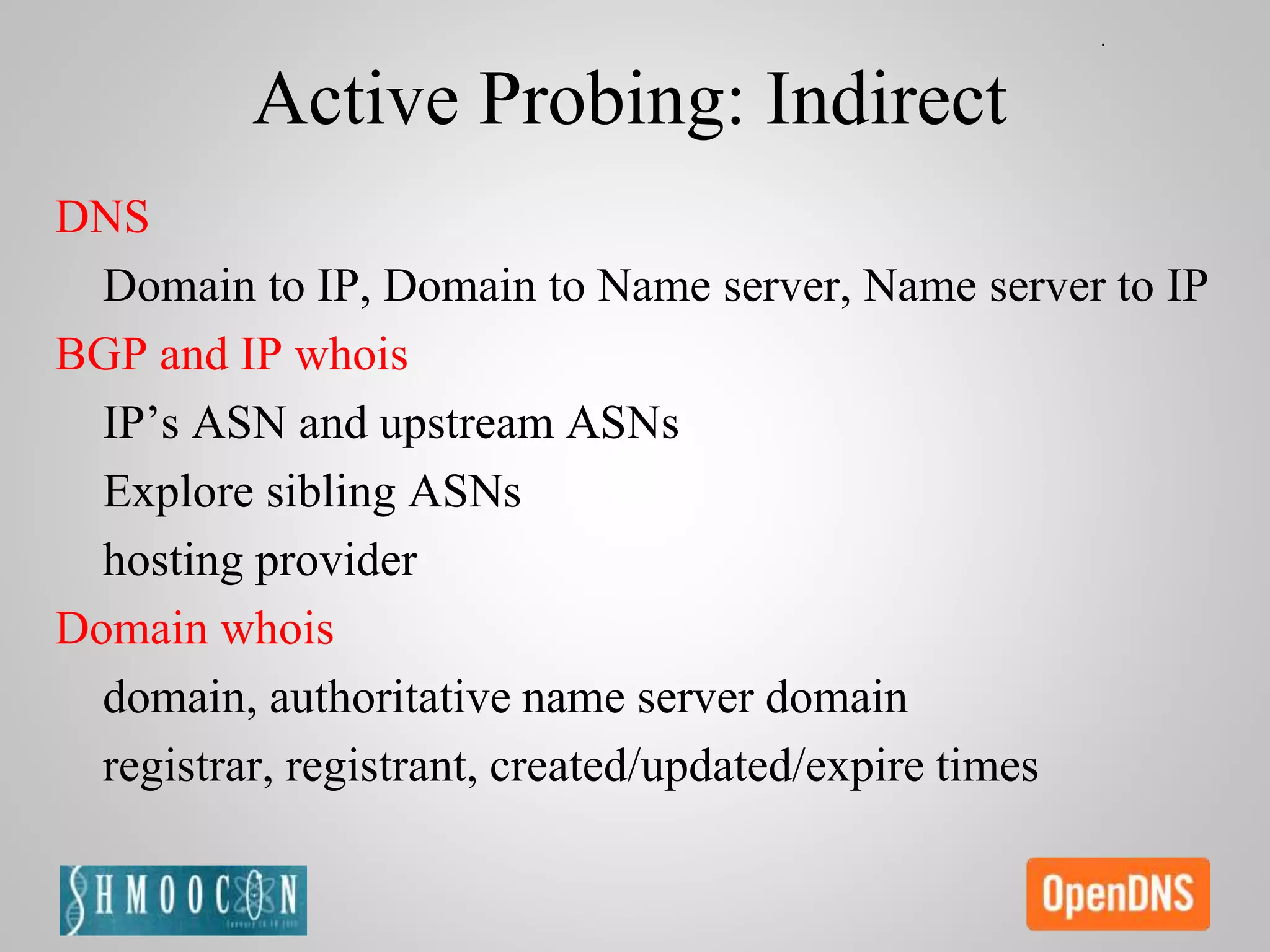

- 13. Active Probing: Indirect DNS Domainto IP, Domain to Name server, Name server to IP BGP and IP whois IP’s ASN and upstream ASNs Explore sibling ASNs hosting provider Domain whois domain, authoritative name server domain registrar, registrant, created/updated/expire times

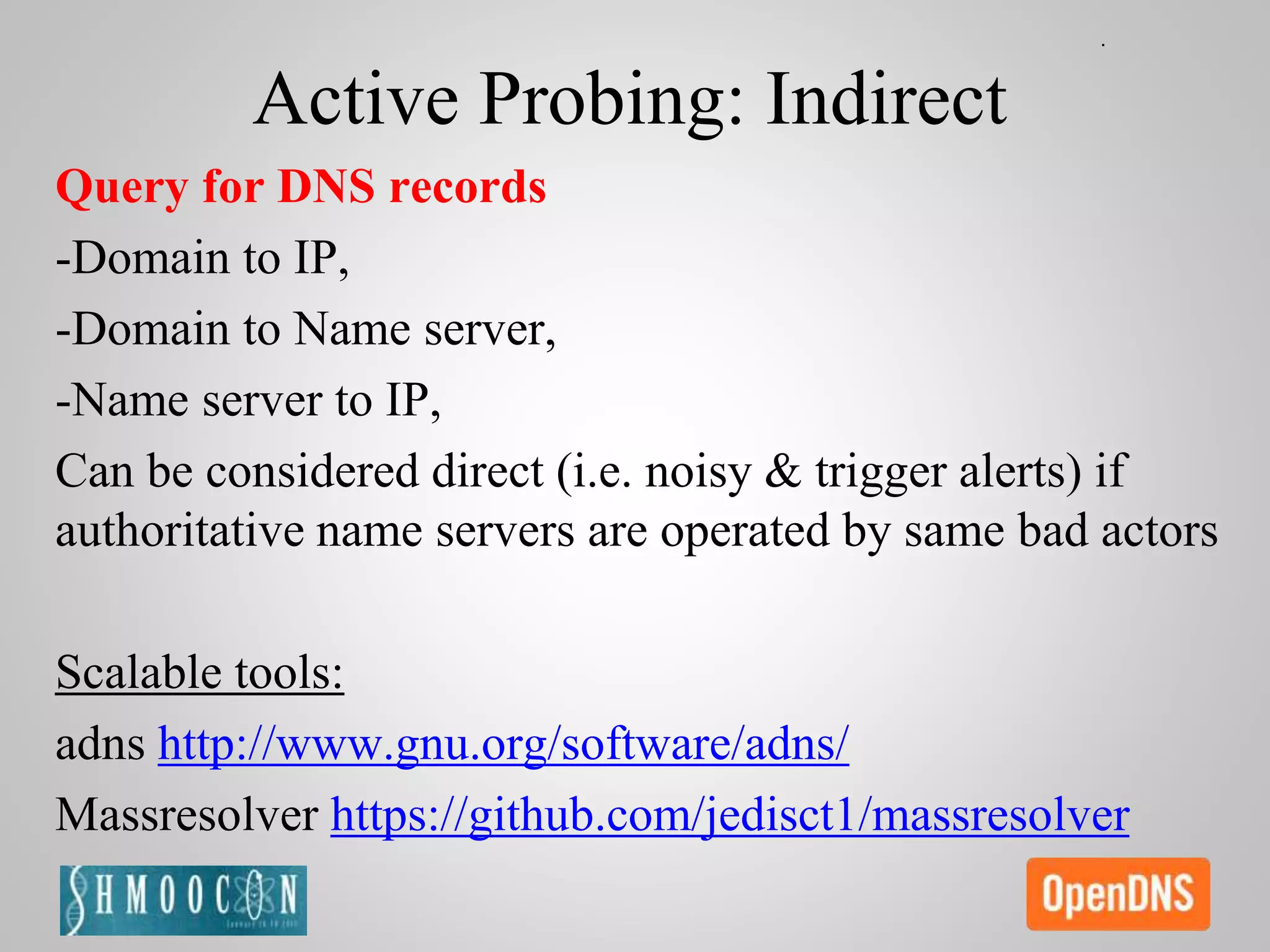

- 14. Active Probing: Indirect Queryfor DNS records -Domain to IP, -Domain to Name server, -Name server to IP, Can be considered direct (i.e. noisy & trigger alerts) if authoritative name servers are operated by same bad actors Scalable tools: adns http://www.gnu.org/software/adns/ Massresolver https://github.com/jedisct1/massresolver

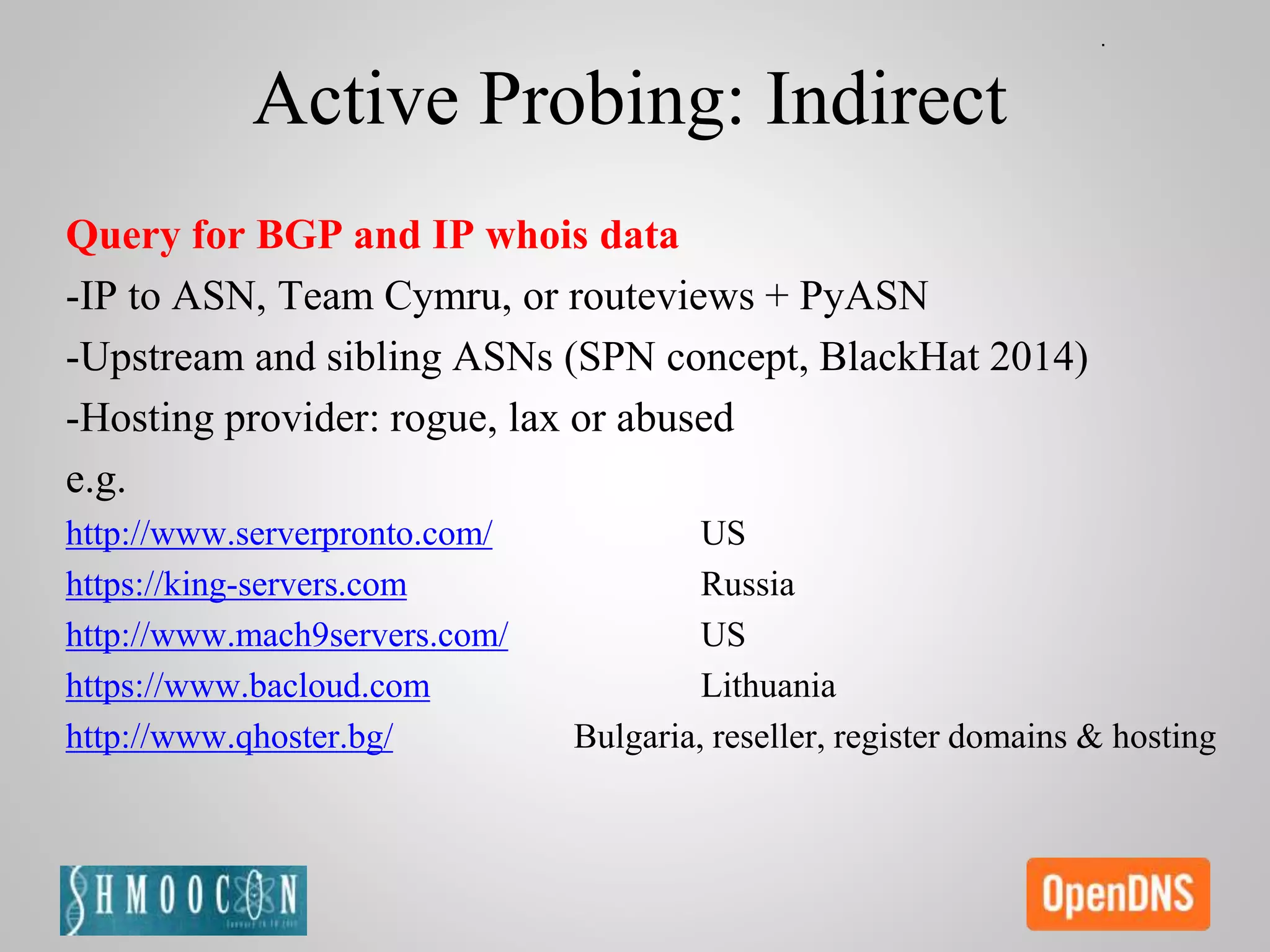

- 15. Active Probing: Indirect Queryfor BGP and IP whois data -IP to ASN, Team Cymru, or routeviews + PyASN -Upstream and sibling ASNs (SPN concept, BlackHat 2014) -Hosting provider: rogue, lax or abused e.g. http://www.serverpronto.com/ US https://king-servers.com Russia http://www.mach9servers.com/ US https://www.bacloud.com Lithuania http://www.qhoster.bg/ Bulgaria, reseller, register domains & hosting

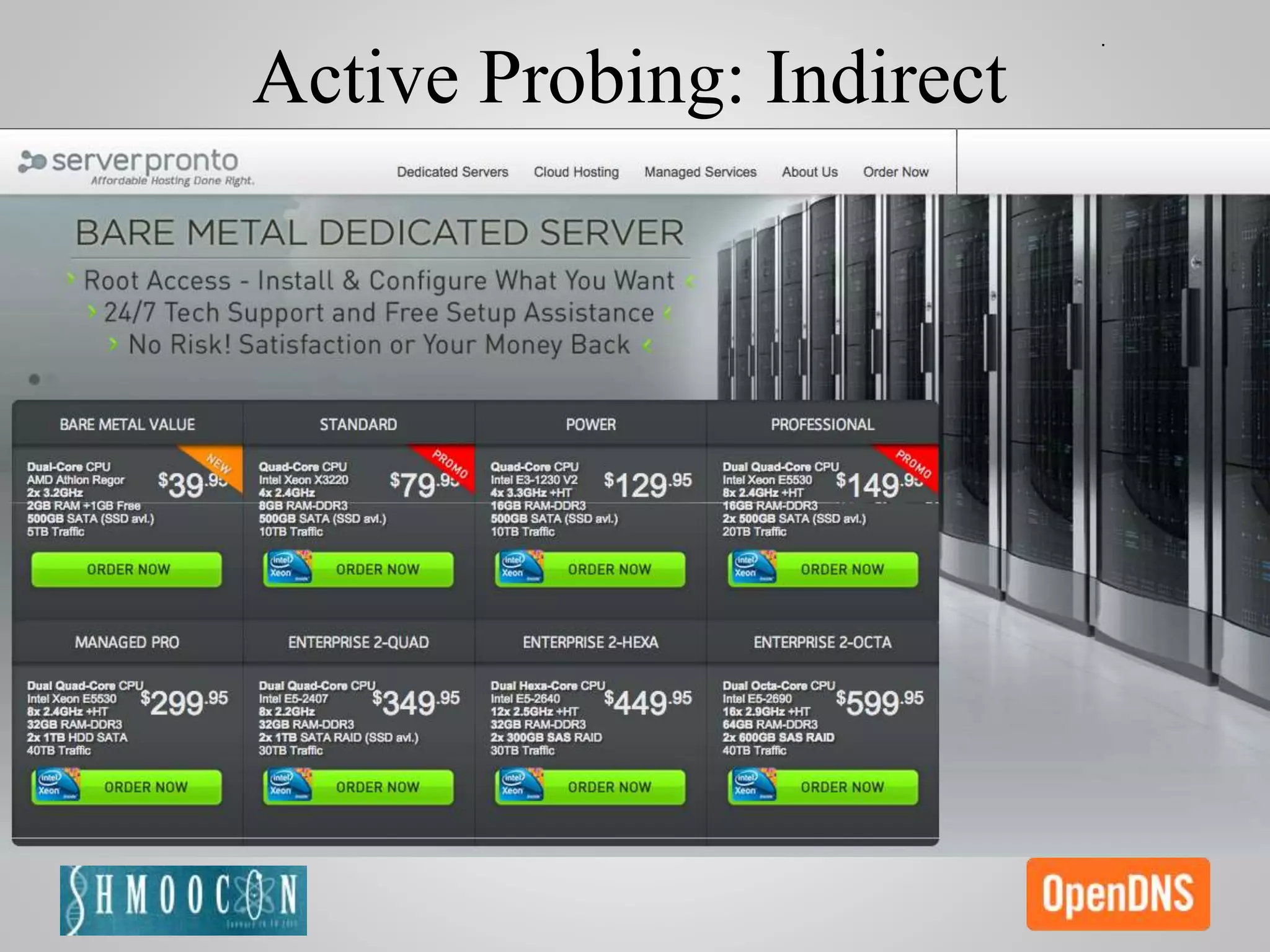

- 16.

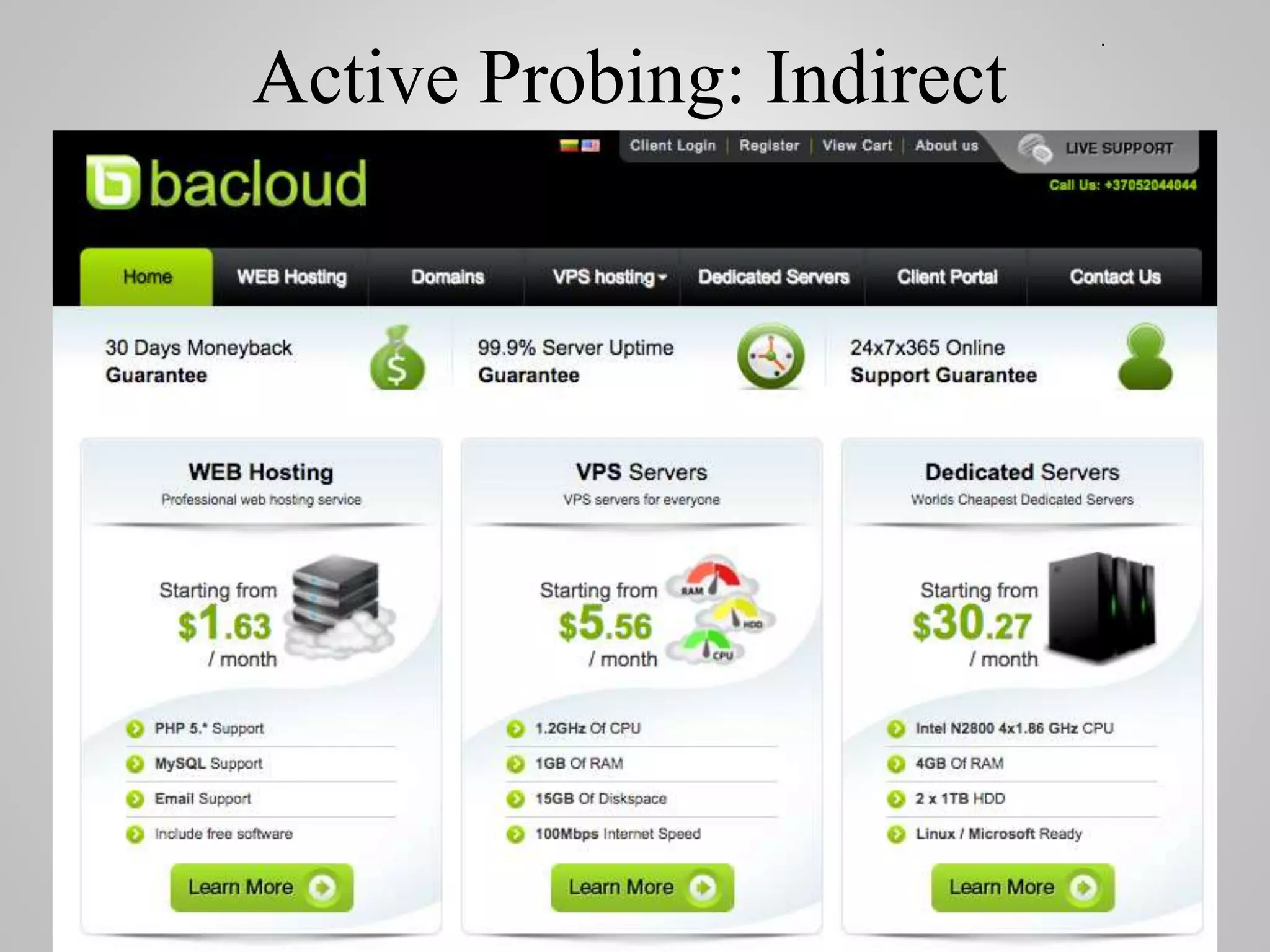

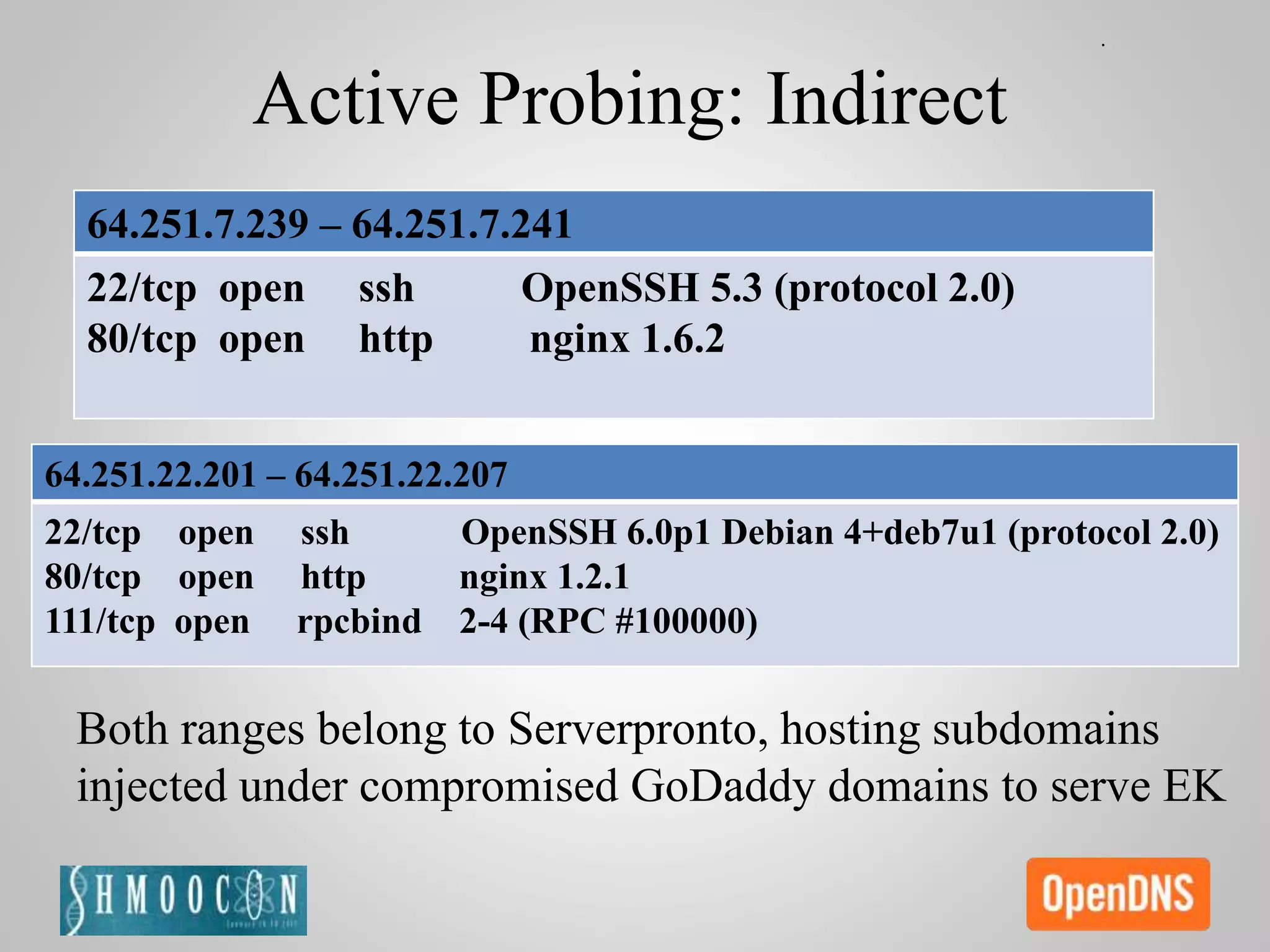

- 17. Active Probing: Indirect Bothranges belong to Serverpronto, hosting subdomains injected under compromised GoDaddy domains to serve EK 64.251.7.239 – 64.251.7.241 22/tcp open ssh OpenSSH 5.3 (protocol 2.0) 80/tcp open http nginx 1.6.2 64.251.22.201 – 64.251.22.207 22/tcp open ssh OpenSSH 6.0p1 Debian 4+deb7u1 (protocol 2.0) 80/tcp open http nginx 1.2.1 111/tcp open rpcbind 2-4 (RPC #100000)

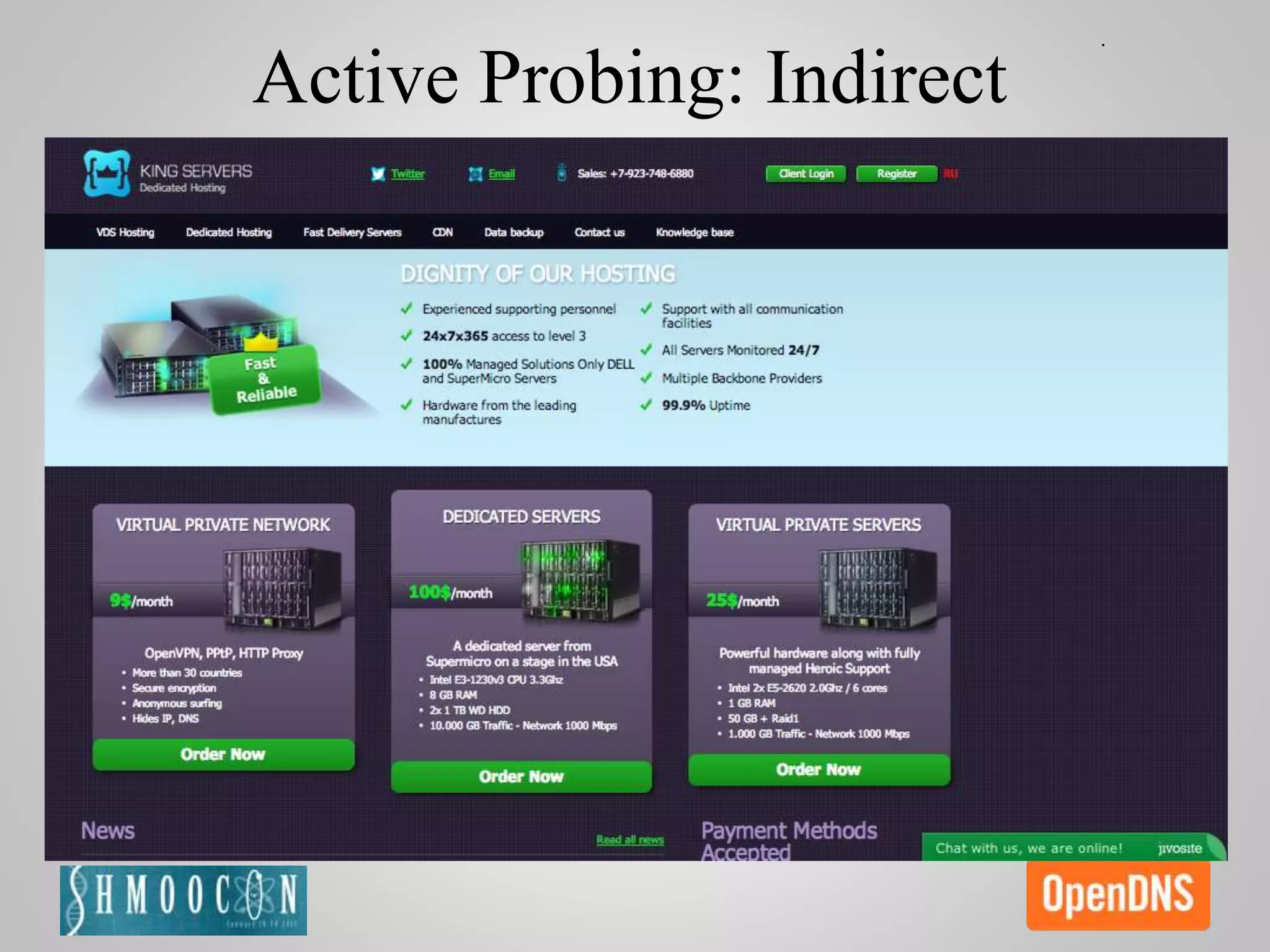

- 18.
- 19.
- 20.

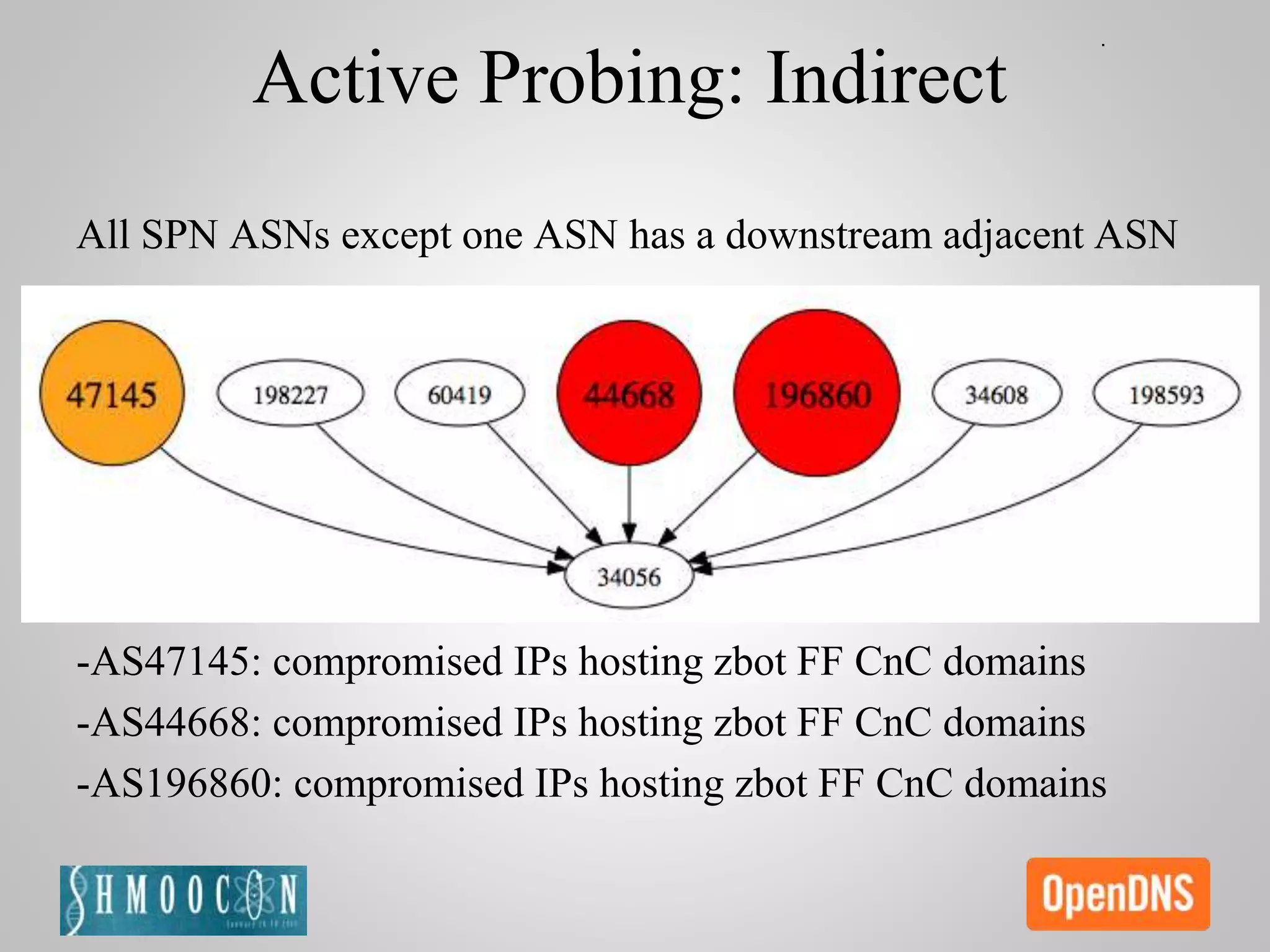

- 21. All SPN ASNsexcept one ASN has a downstream adjacent ASN -AS47145: compromised IPs hosting zbot FF CnC domains -AS44668: compromised IPs hosting zbot FF CnC domains -AS196860: compromised IPs hosting zbot FF CnC domains Active Probing: Indirect

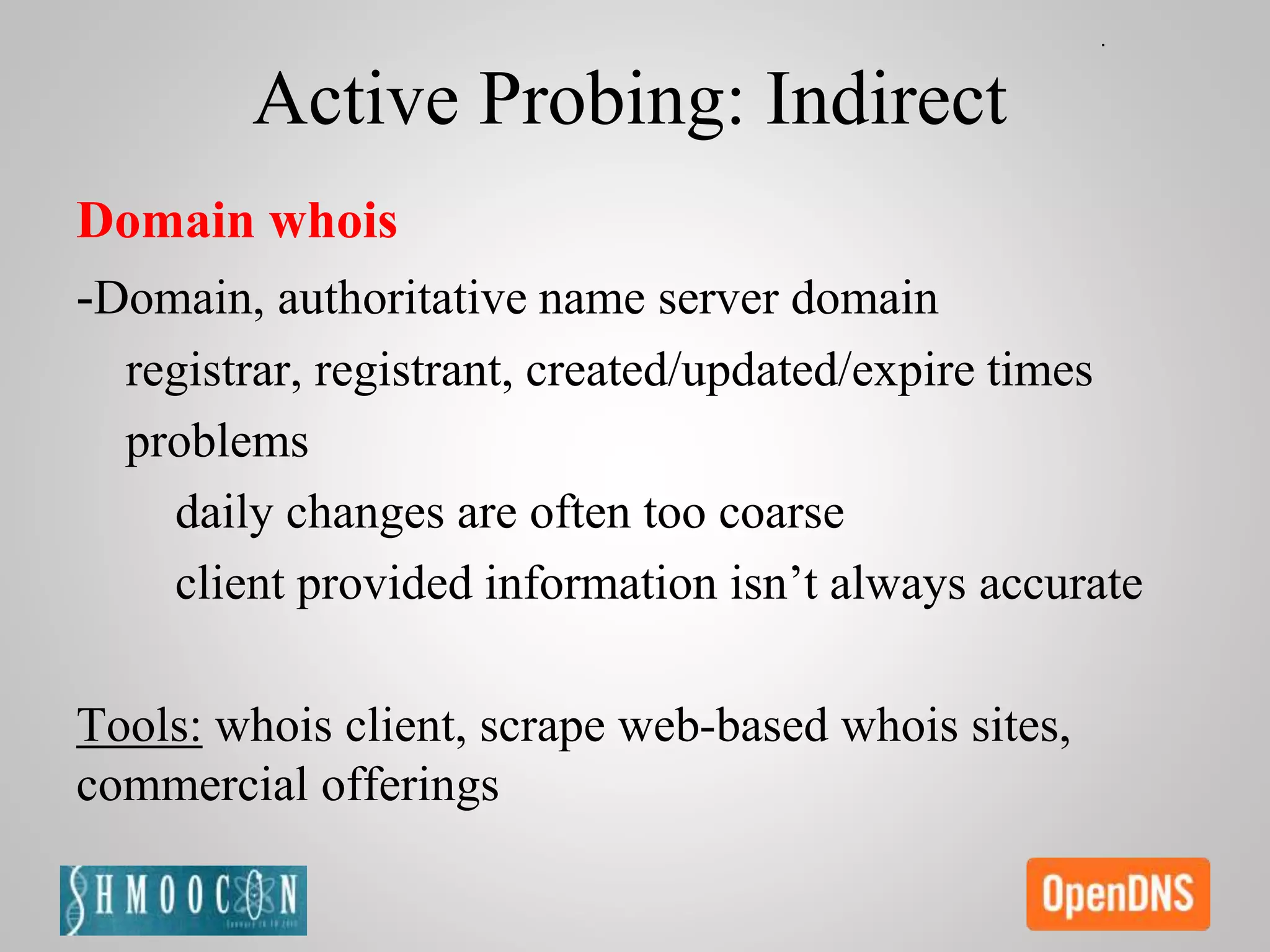

- 22. Active Probing: Indirect Domainwhois -Domain, authoritative name server domain registrar, registrant, created/updated/expire times problems daily changes are often too coarse client provided information isn’t always accurate Tools: whois client, scrape web-based whois sites, commercial offerings

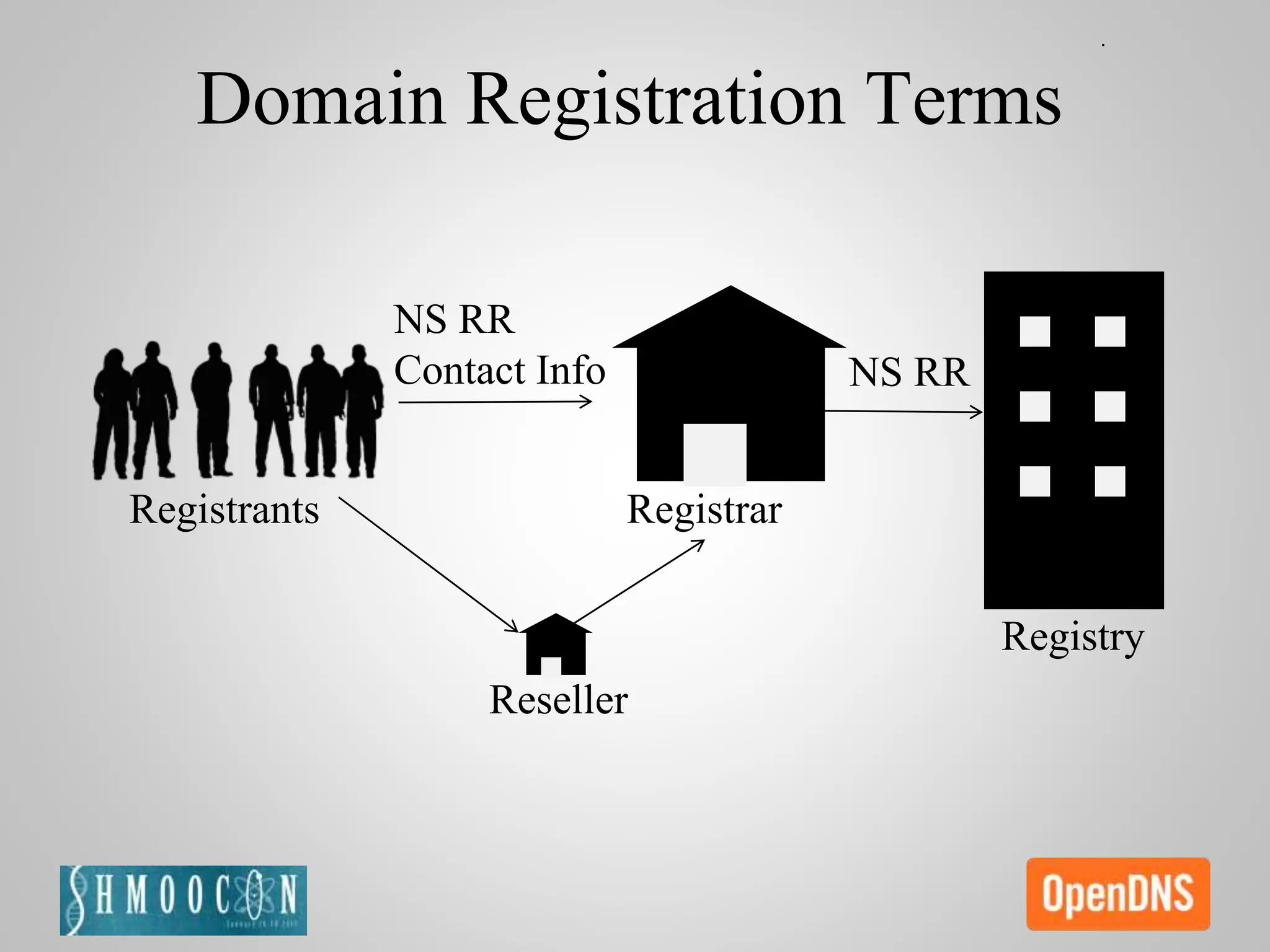

- 23. Domain Registration Terms Registrants Reseller Registrar Registry NSRR NS RR Contact Info
- 24.

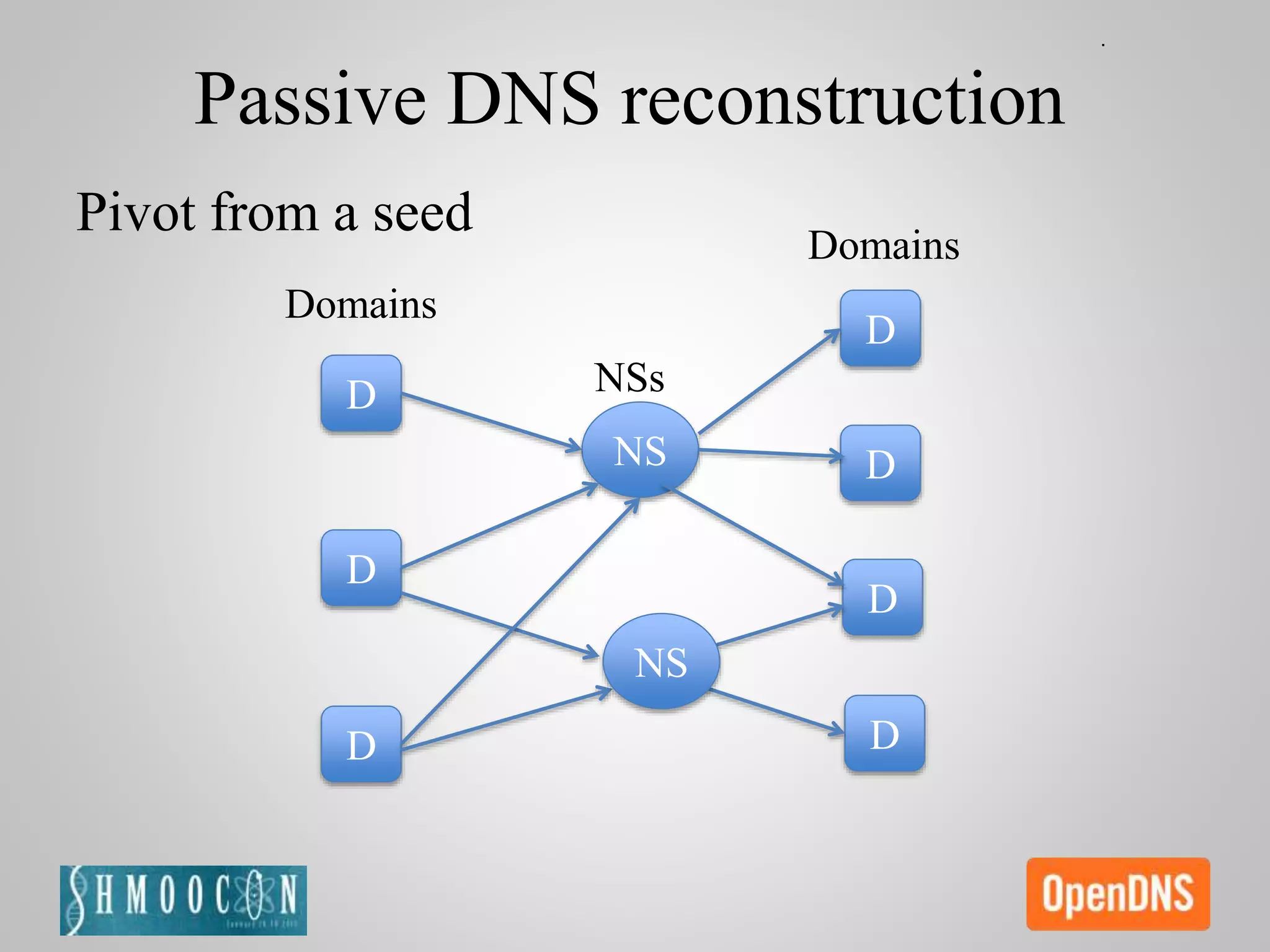

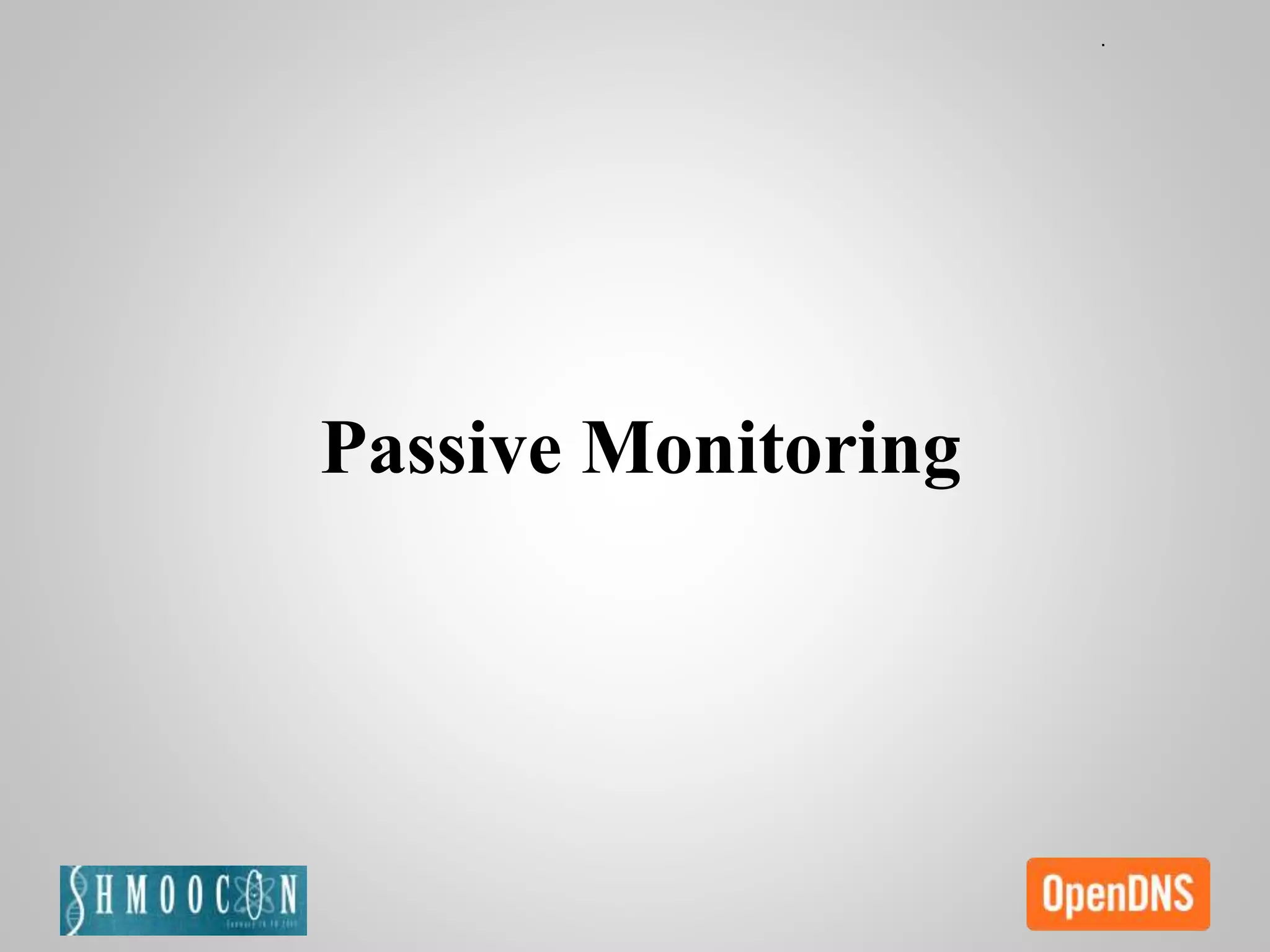

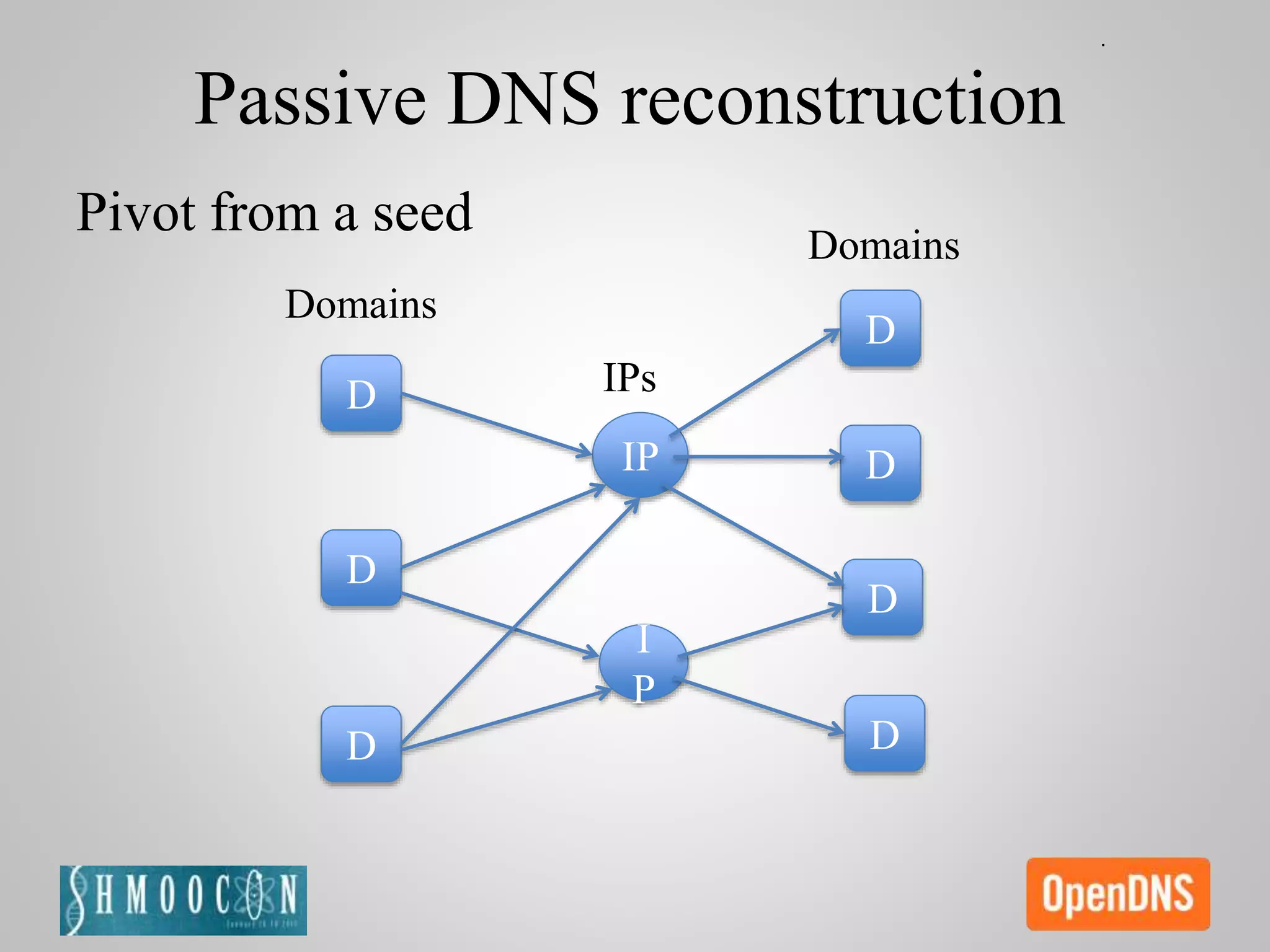

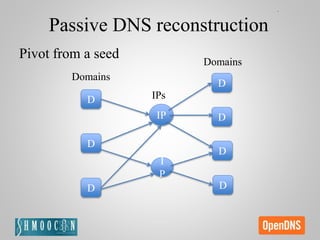

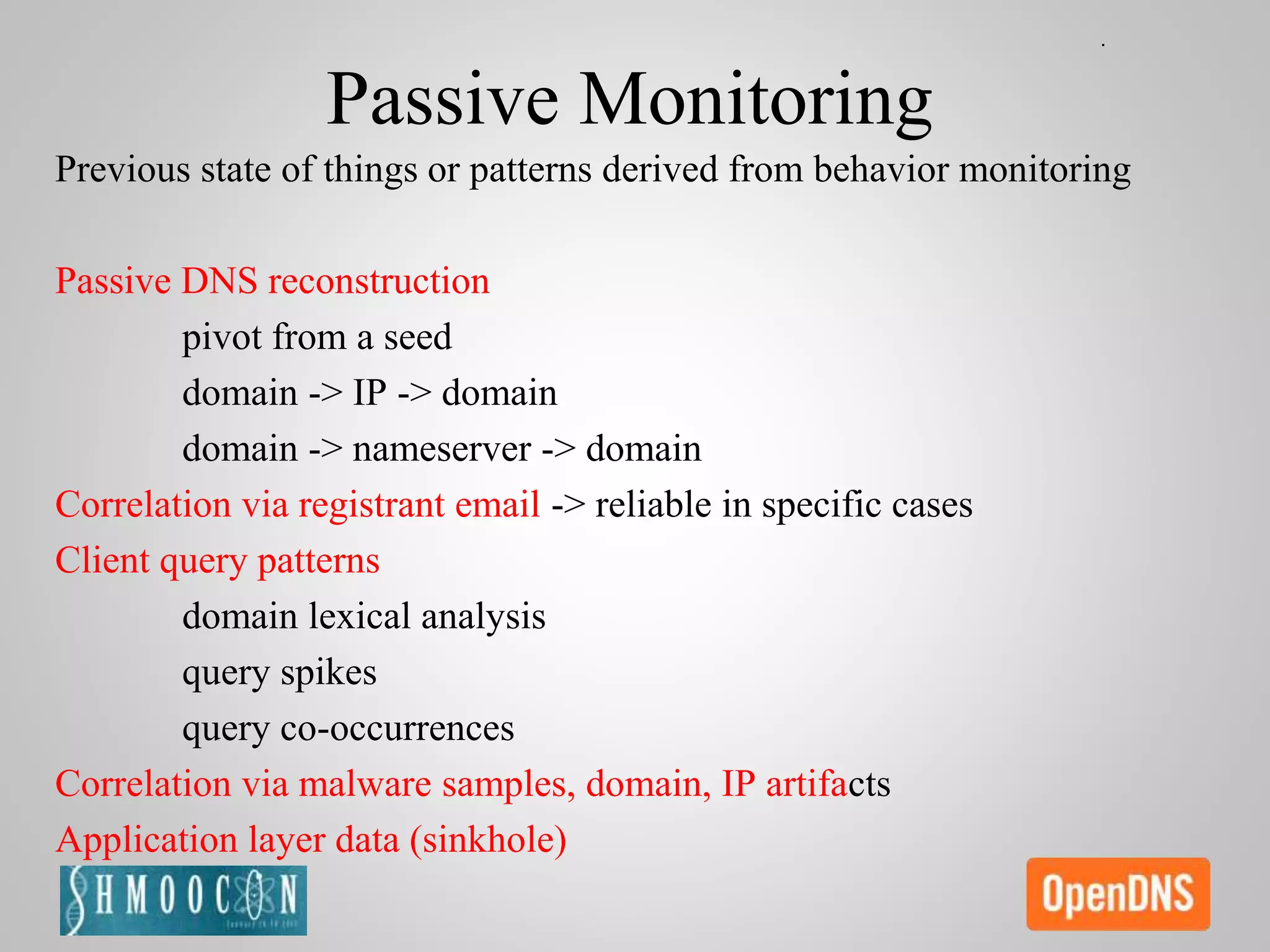

- 25. Passive Monitoring Previous stateof things or patterns derived from behavior monitoring Passive DNS reconstruction pivot from a seed domain -> IP -> domain domain -> nameserver -> domain Correlation via registrant email -> reliable in specific cases Client query patterns domain lexical analysis query spikes query co-occurrences Correlation via malware samples, domain, IP artifacts Application layer data (sinkhole)

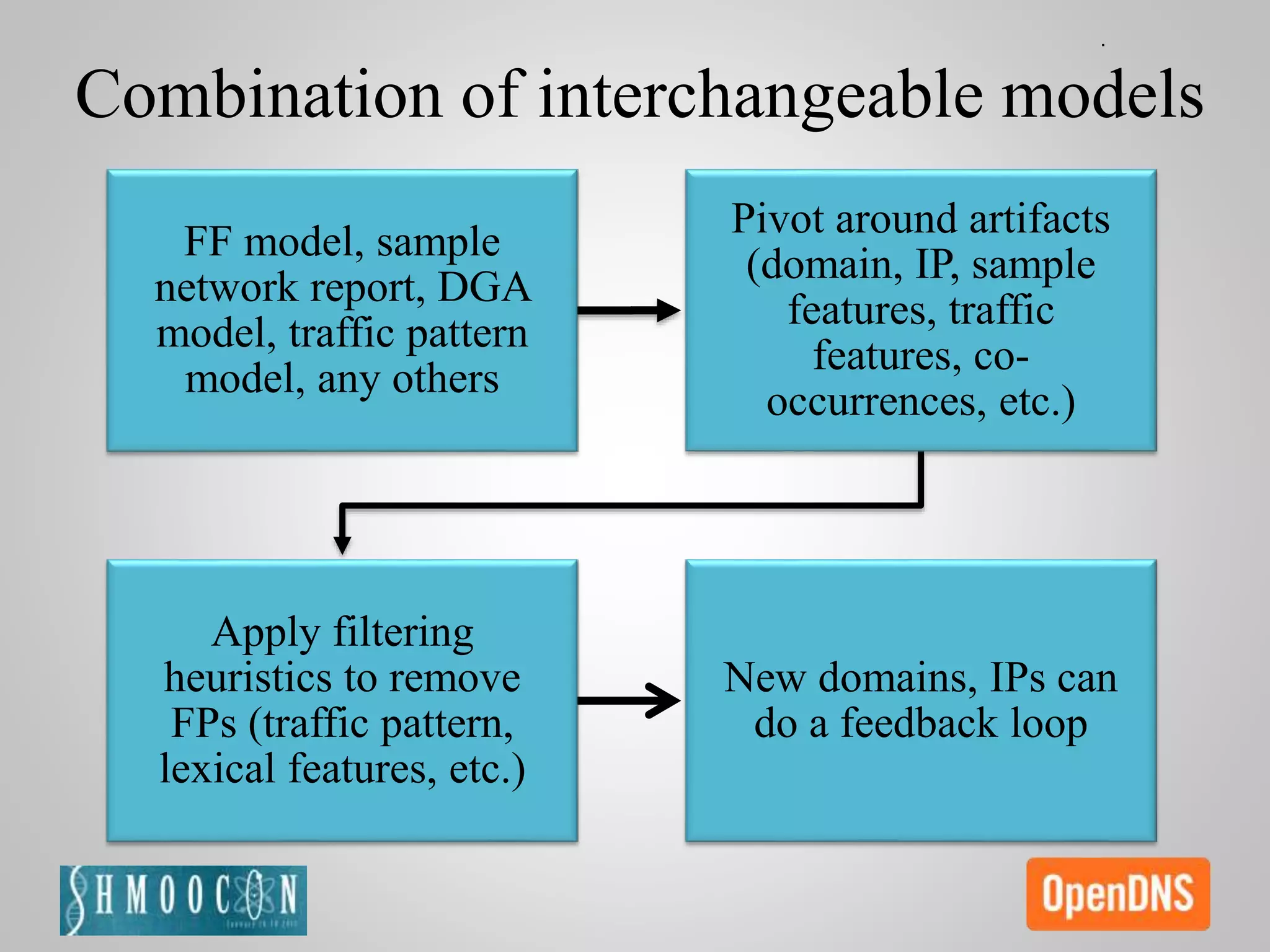

- 26. Combination of interchangeablemodels FF model, sample network report, DGA model, traffic pattern model, any others Pivot around artifacts (domain, IP, sample features, traffic features, co- occurrences, etc.) Apply filtering heuristics to remove FPs (traffic pattern, lexical features, etc.) New domains, IPs can do a feedback loop
- 27.
- 28.

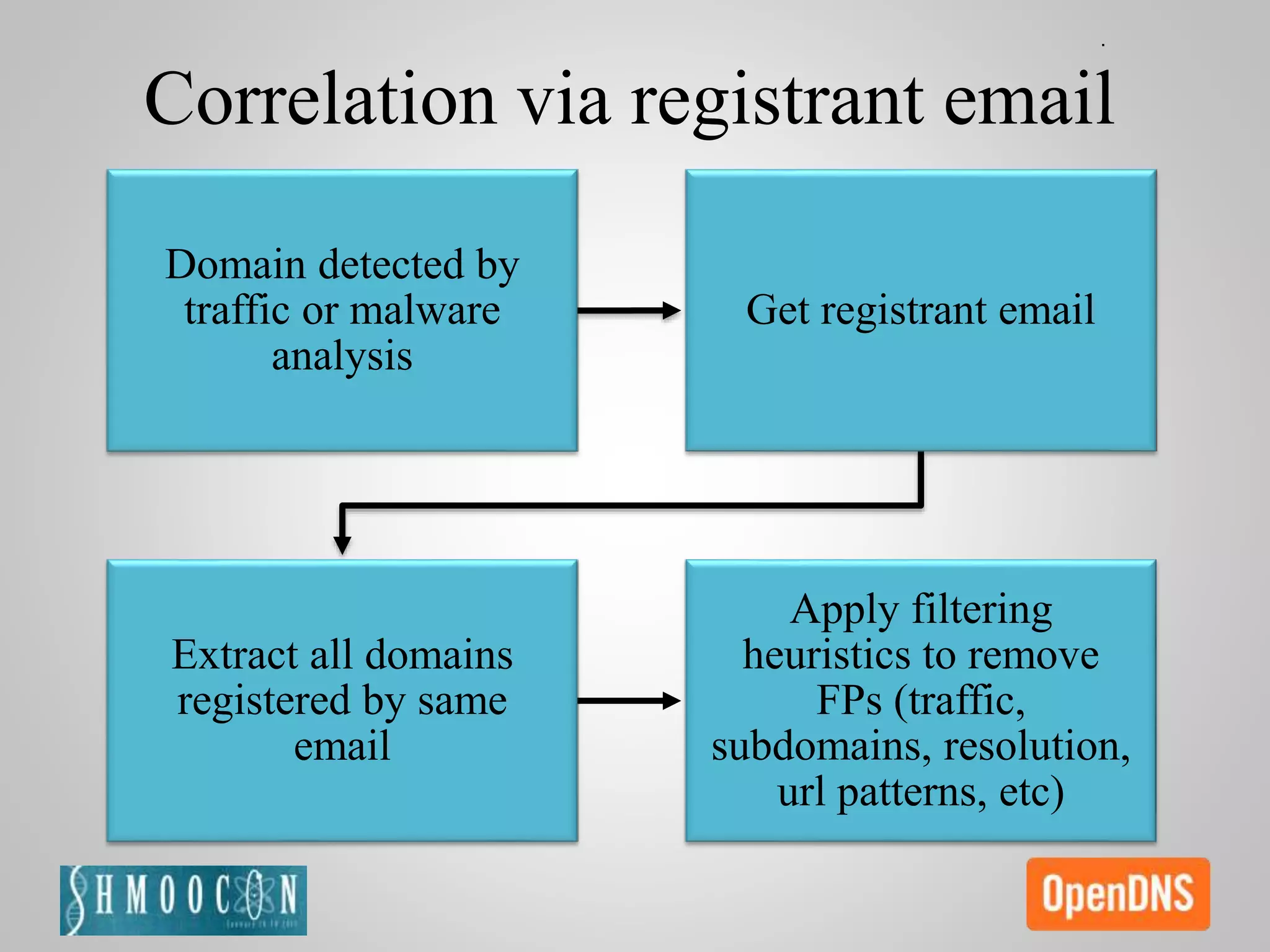

- 29. Domain detected by trafficor malware analysis Get registrant email Extract all domains registered by same email Apply filtering heuristics to remove FPs (traffic, subdomains, resolution, url patterns, etc) Correlation via registrant email

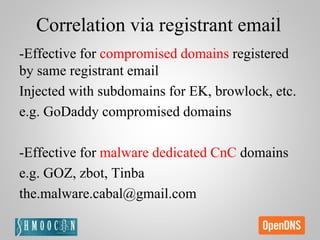

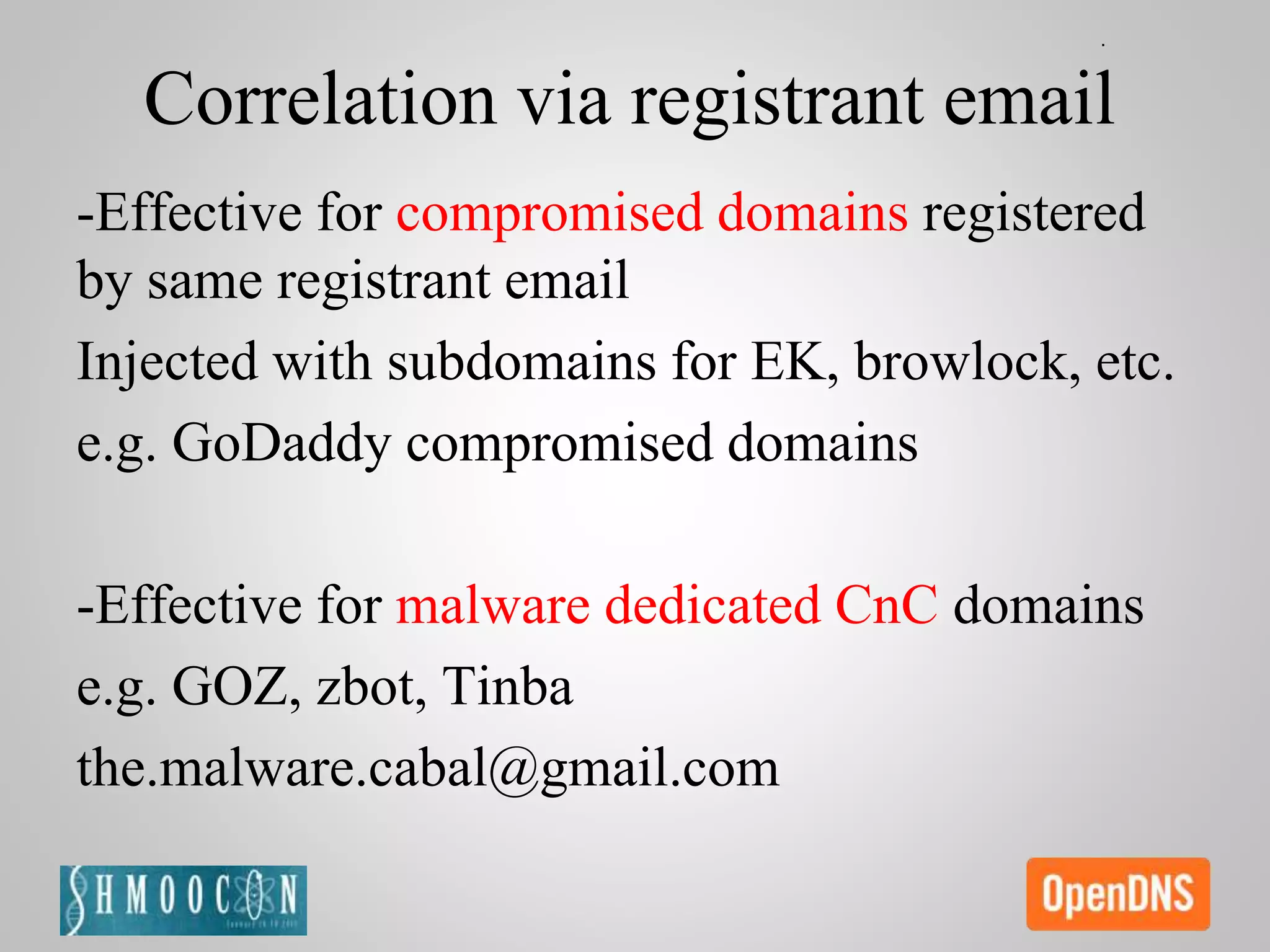

- 30. Correlation via registrantemail -Effective for compromised domains registered by same registrant email Injected with subdomains for EK, browlock, etc. e.g. GoDaddy compromised domains -Effective for malware dedicated CnC domains e.g. GOZ, zbot, Tinba the.malware.cabal@gmail.com

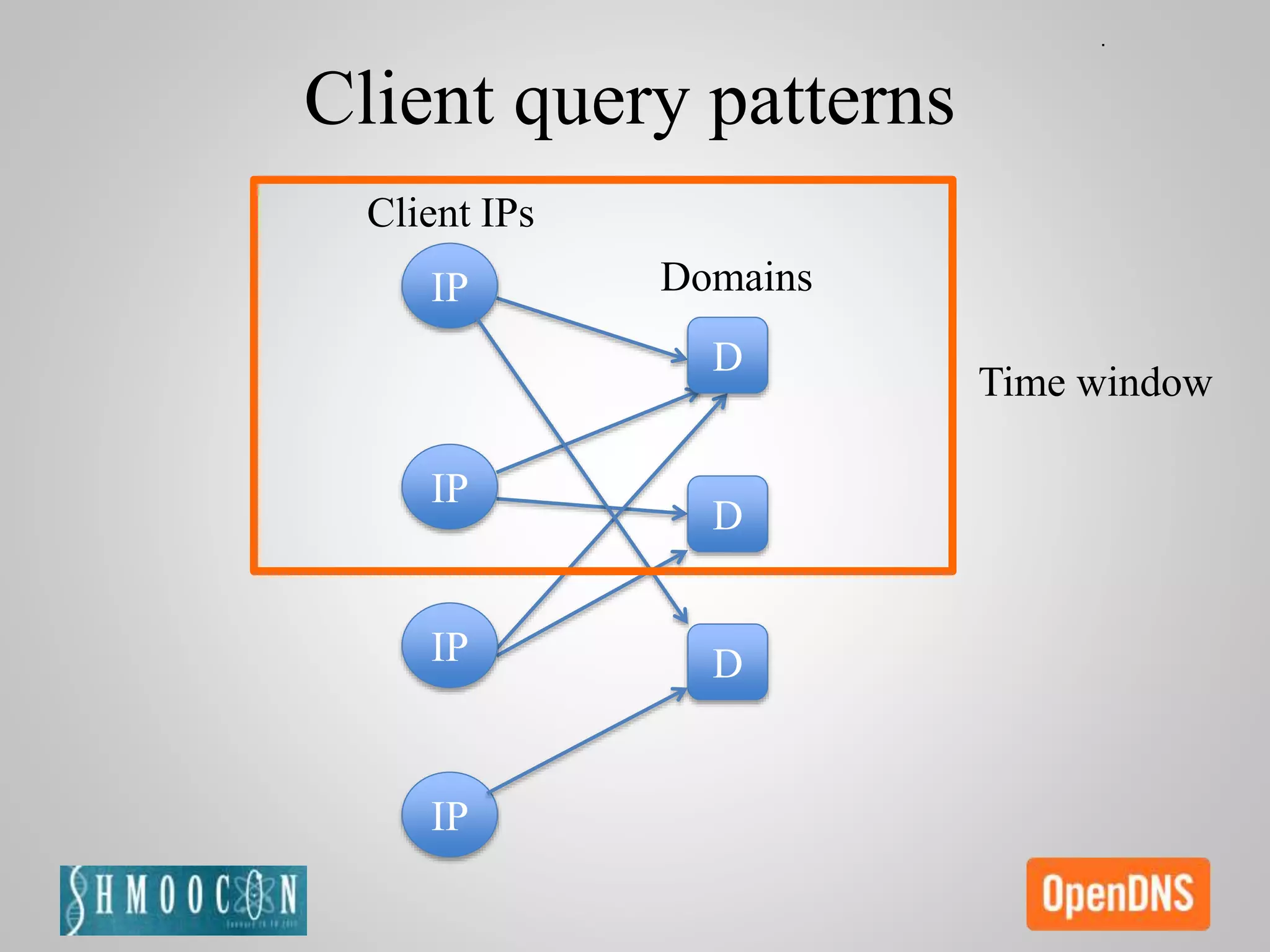

- 31. Client query patterns ClientIPs DomainsIP IP IP D D D IP Time window

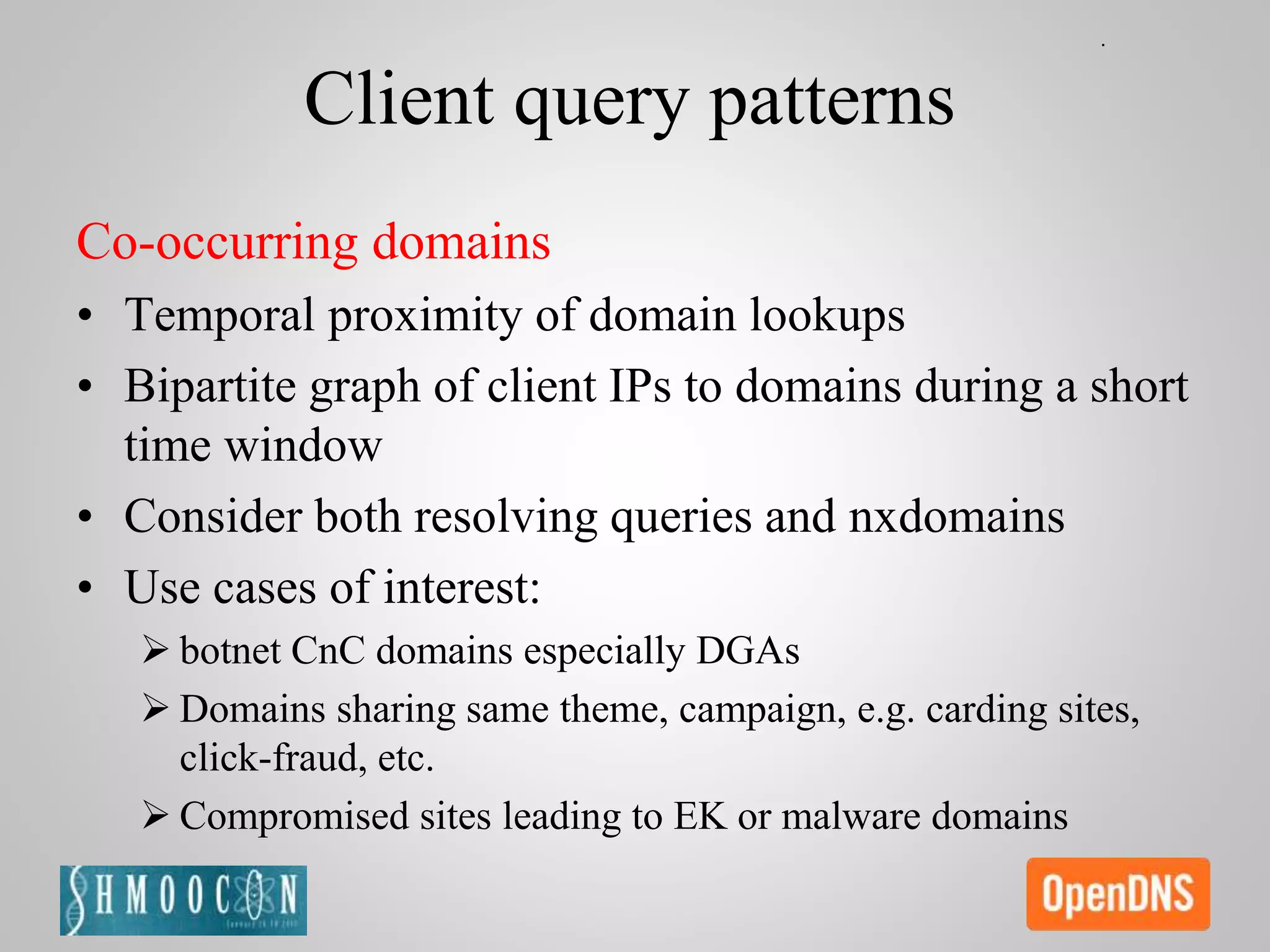

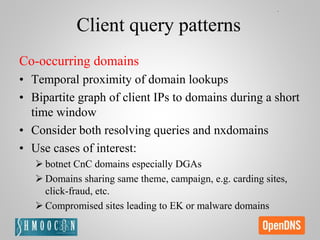

- 32. Client query patterns Co-occurringdomains • Temporal proximity of domain lookups • Bipartite graph of client IPs to domains during a short time window • Consider both resolving queries and nxdomains • Use cases of interest: botnet CnC domains especially DGAs Domains sharing same theme, campaign, e.g. carding sites, click-fraud, etc. Compromised sites leading to EK or malware domains

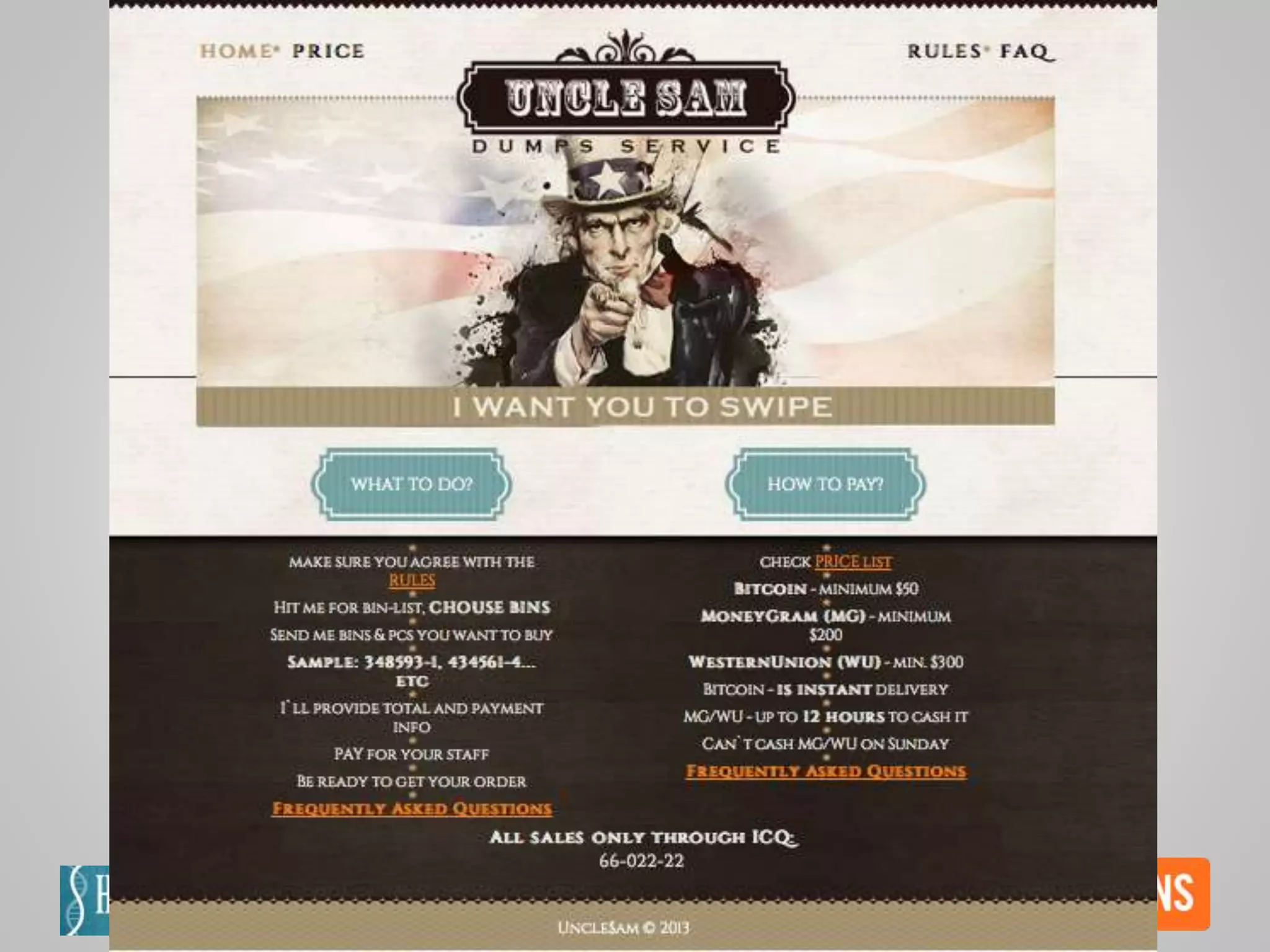

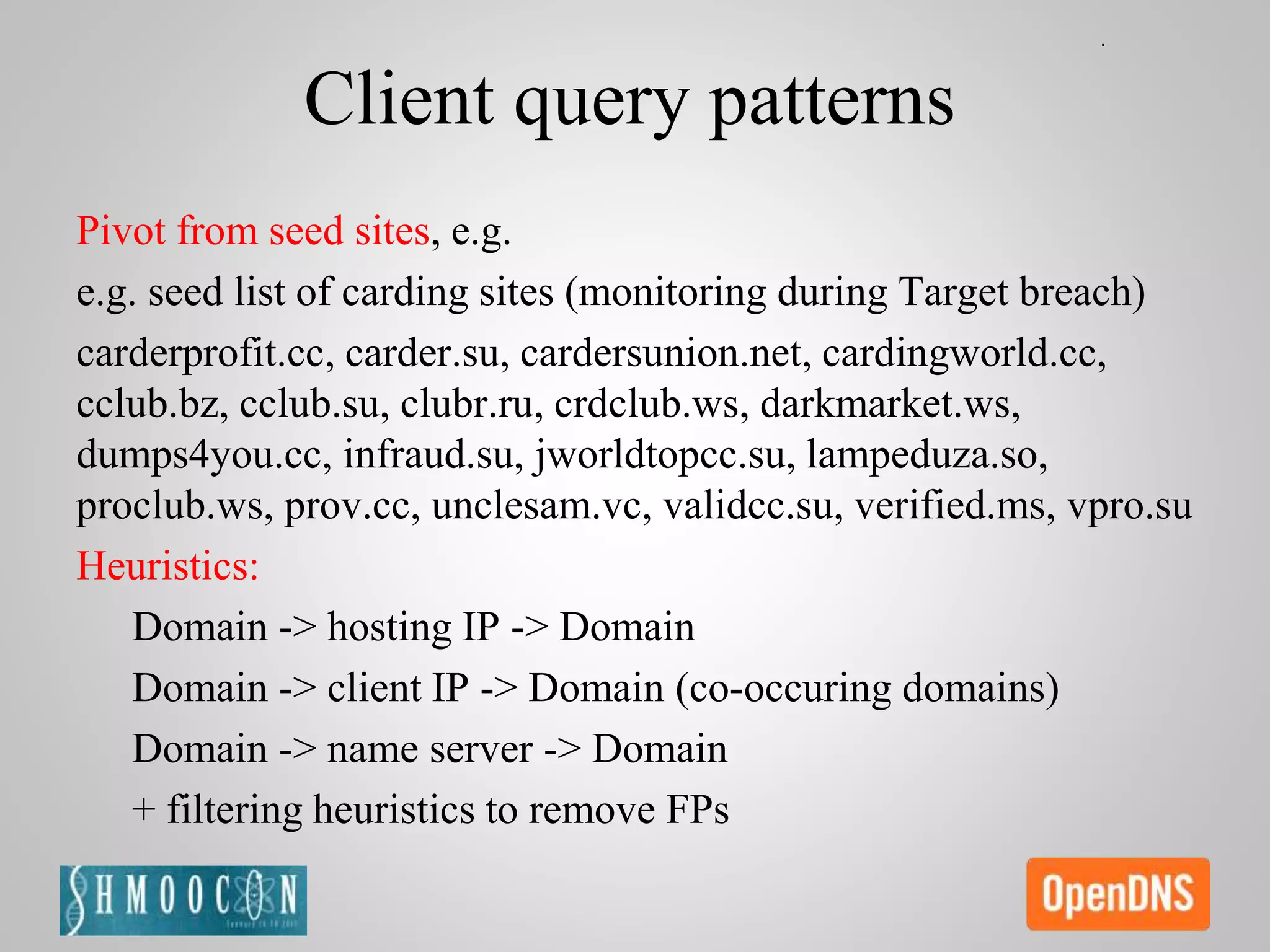

- 33. Client query patterns Pivotfrom seed sites, e.g. e.g. seed list of carding sites (monitoring during Target breach) carderprofit.cc, carder.su, cardersunion.net, cardingworld.cc, cclub.bz, cclub.su, clubr.ru, crdclub.ws, darkmarket.ws, dumps4you.cc, infraud.su, jworldtopcc.su, lampeduza.so, proclub.ws, prov.cc, unclesam.vc, validcc.su, verified.ms, vpro.su Heuristics: Domain -> hosting IP -> Domain Domain -> client IP -> Domain (co-occuring domains) Domain -> name server -> Domain + filtering heuristics to remove FPs

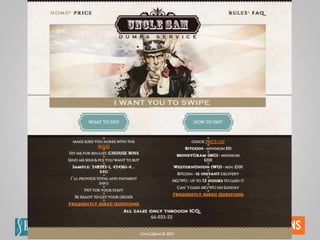

- 34.

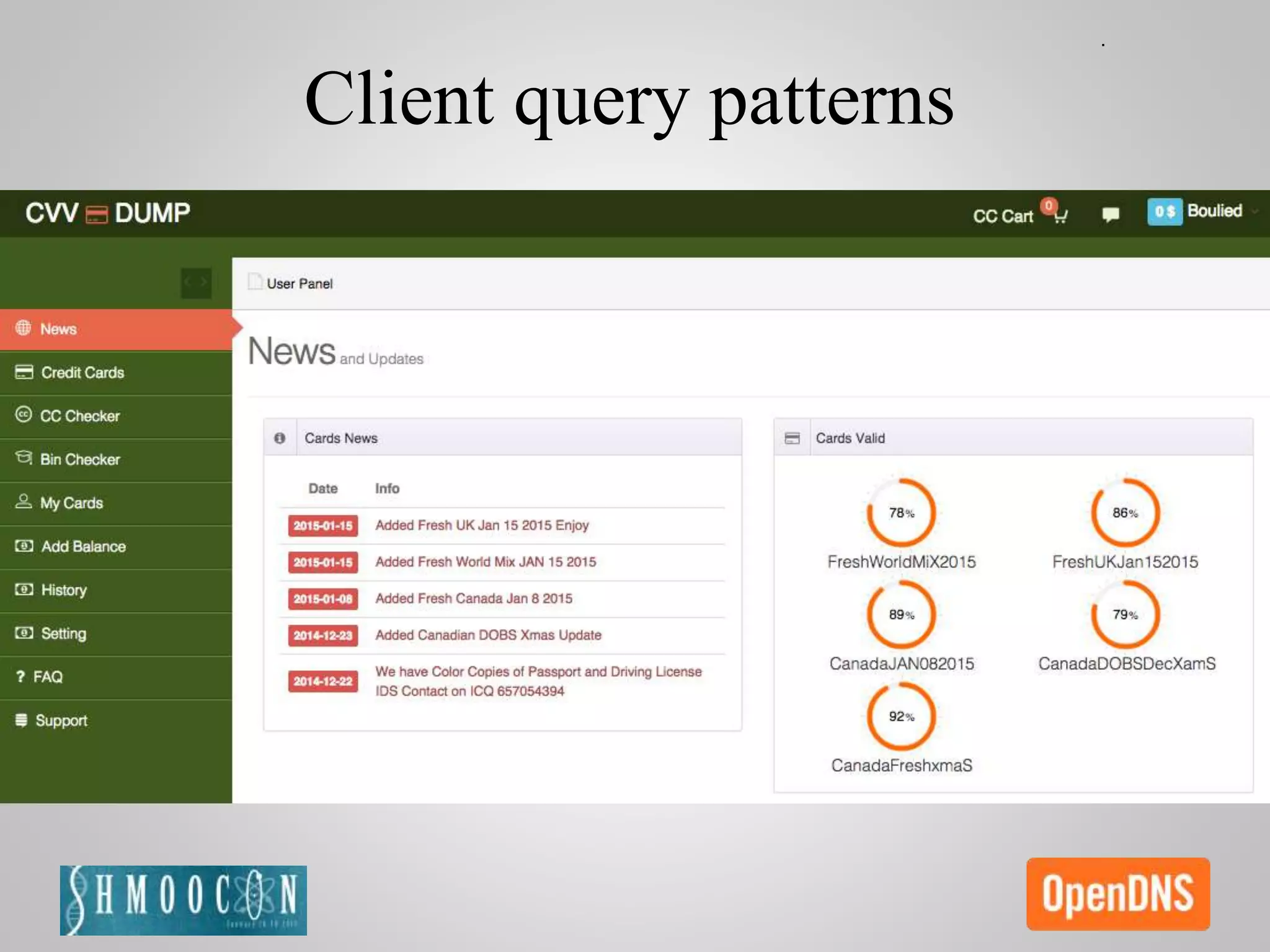

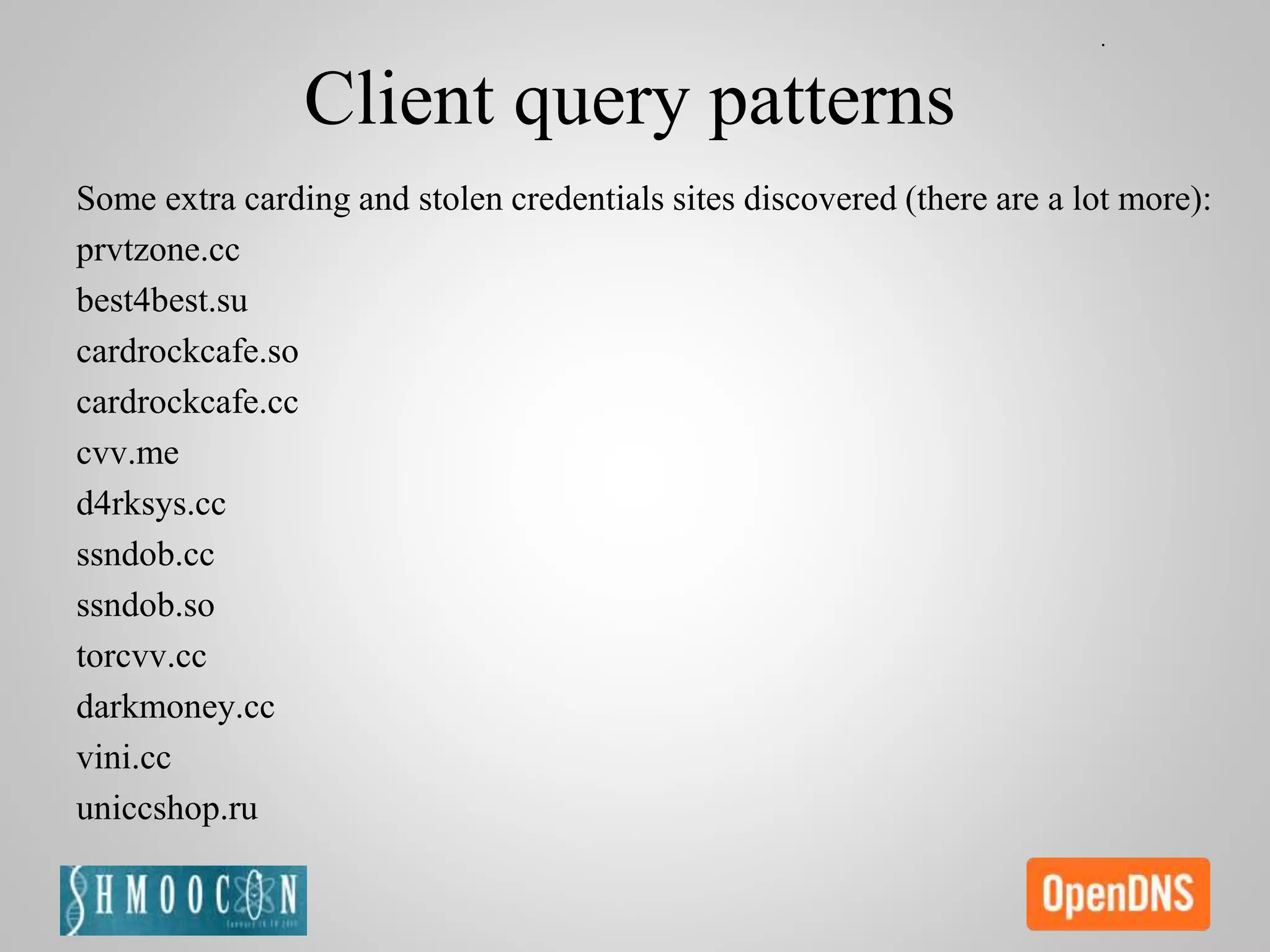

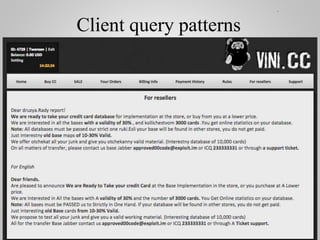

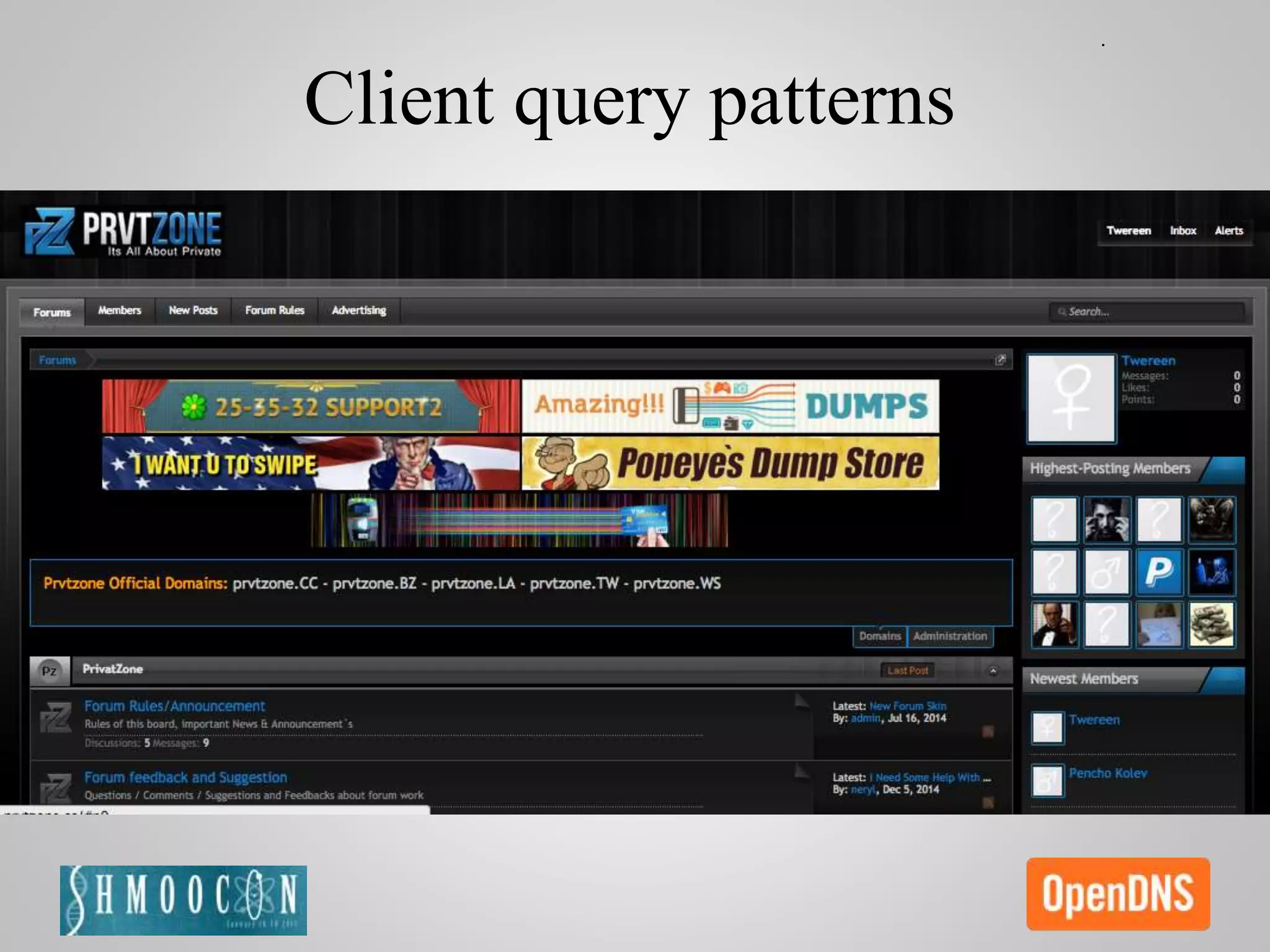

- 35. Client query patterns Someextra carding and stolen credentials sites discovered (there are a lot more): prvtzone.cc best4best.su cardrockcafe.so cardrockcafe.cc cvv.me d4rksys.cc ssndob.cc ssndob.so torcvv.cc darkmoney.cc vini.cc uniccshop.ru
- 36.
- 37.
- 38.

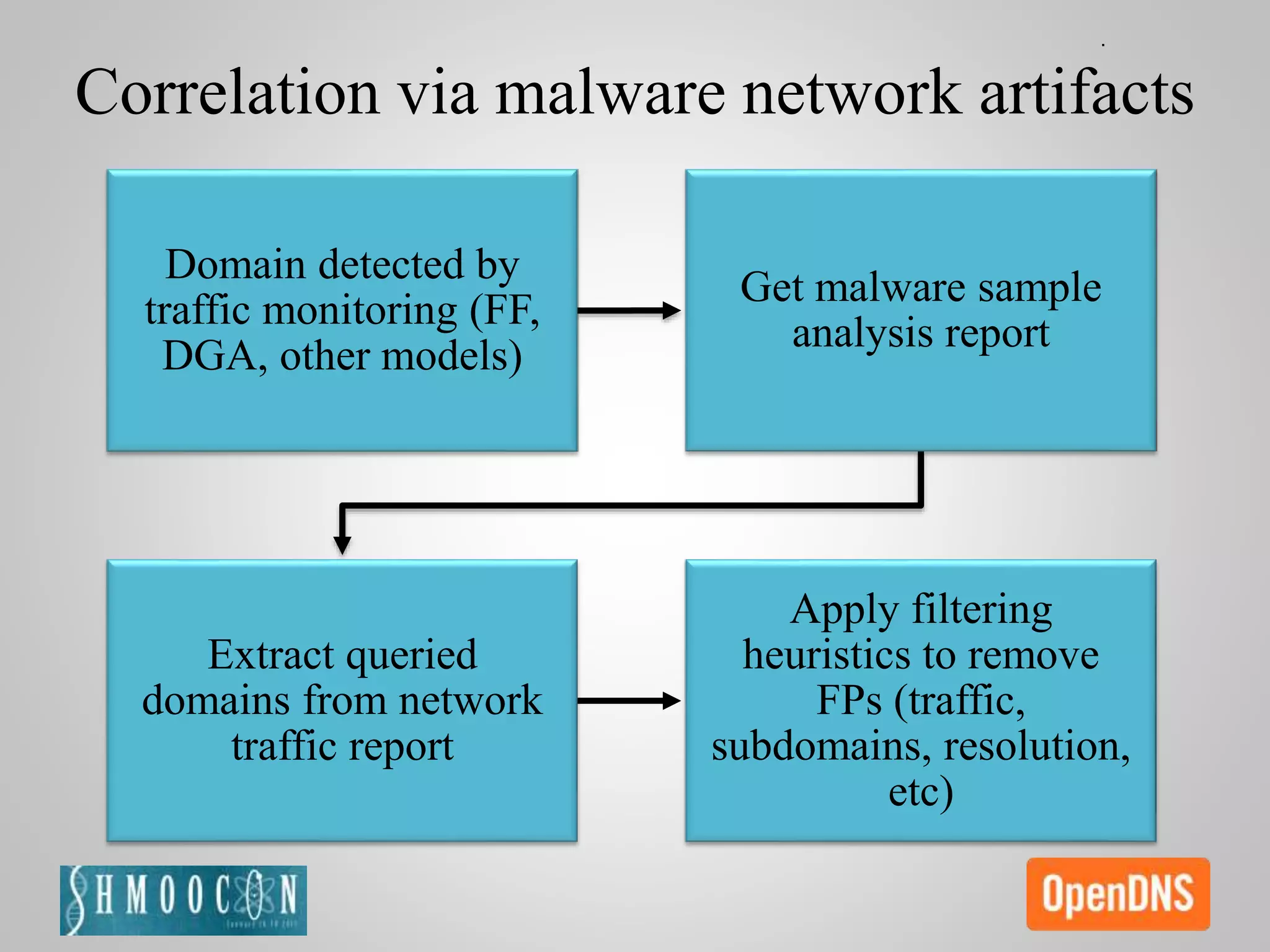

- 39. Domain detected by trafficmonitoring (FF, DGA, other models) Get malware sample analysis report Extract queried domains from network traffic report Apply filtering heuristics to remove FPs (traffic, subdomains, resolution, etc) Correlation via malware network artifacts

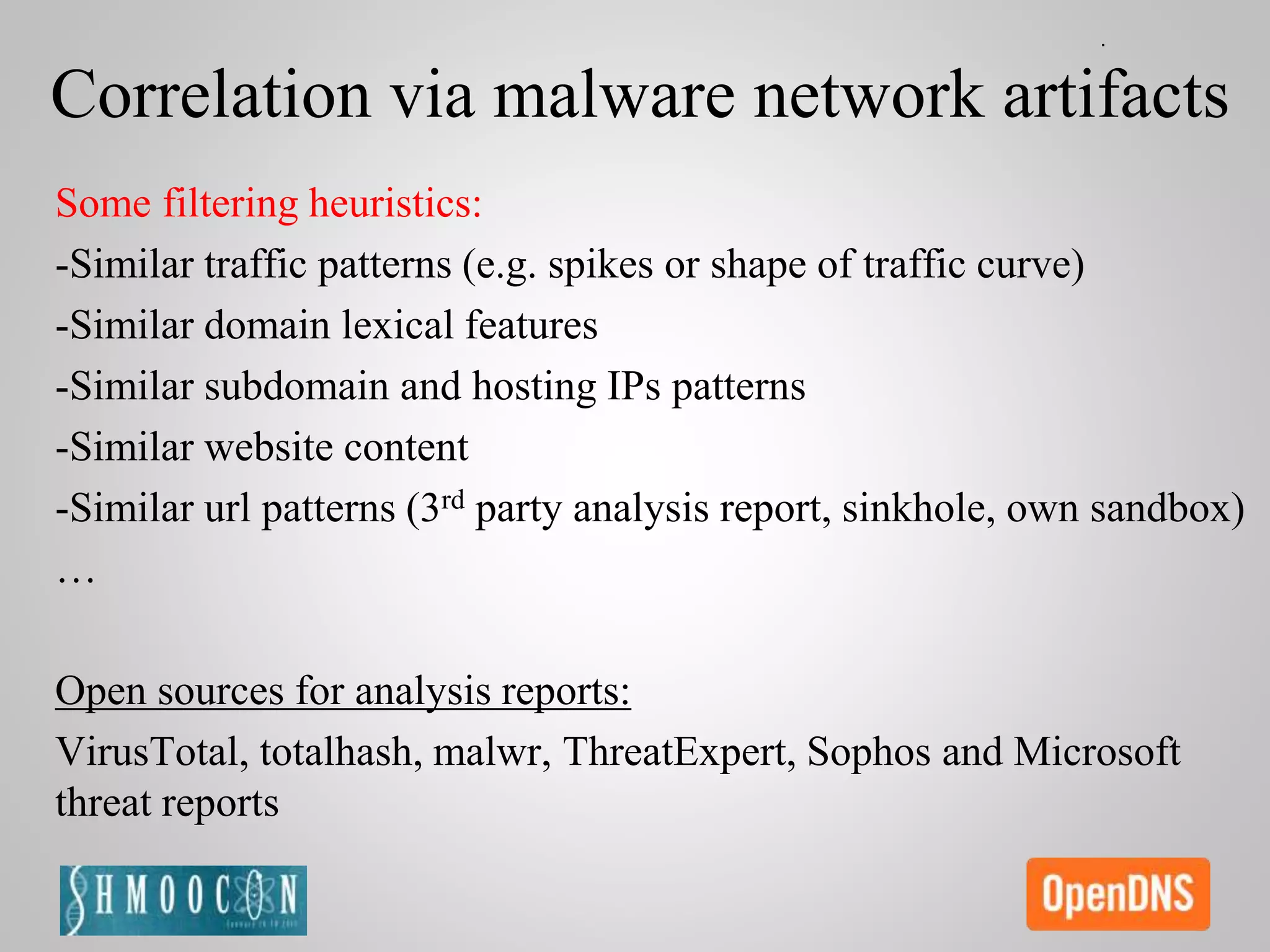

- 40. Correlation via malwarenetwork artifacts Some filtering heuristics: -Similar traffic patterns (e.g. spikes or shape of traffic curve) -Similar domain lexical features -Similar subdomain and hosting IPs patterns -Similar website content -Similar url patterns (3rd party analysis report, sinkhole, own sandbox) … Open sources for analysis reports: VirusTotal, totalhash, malwr, ThreatExpert, Sophos and Microsoft threat reports

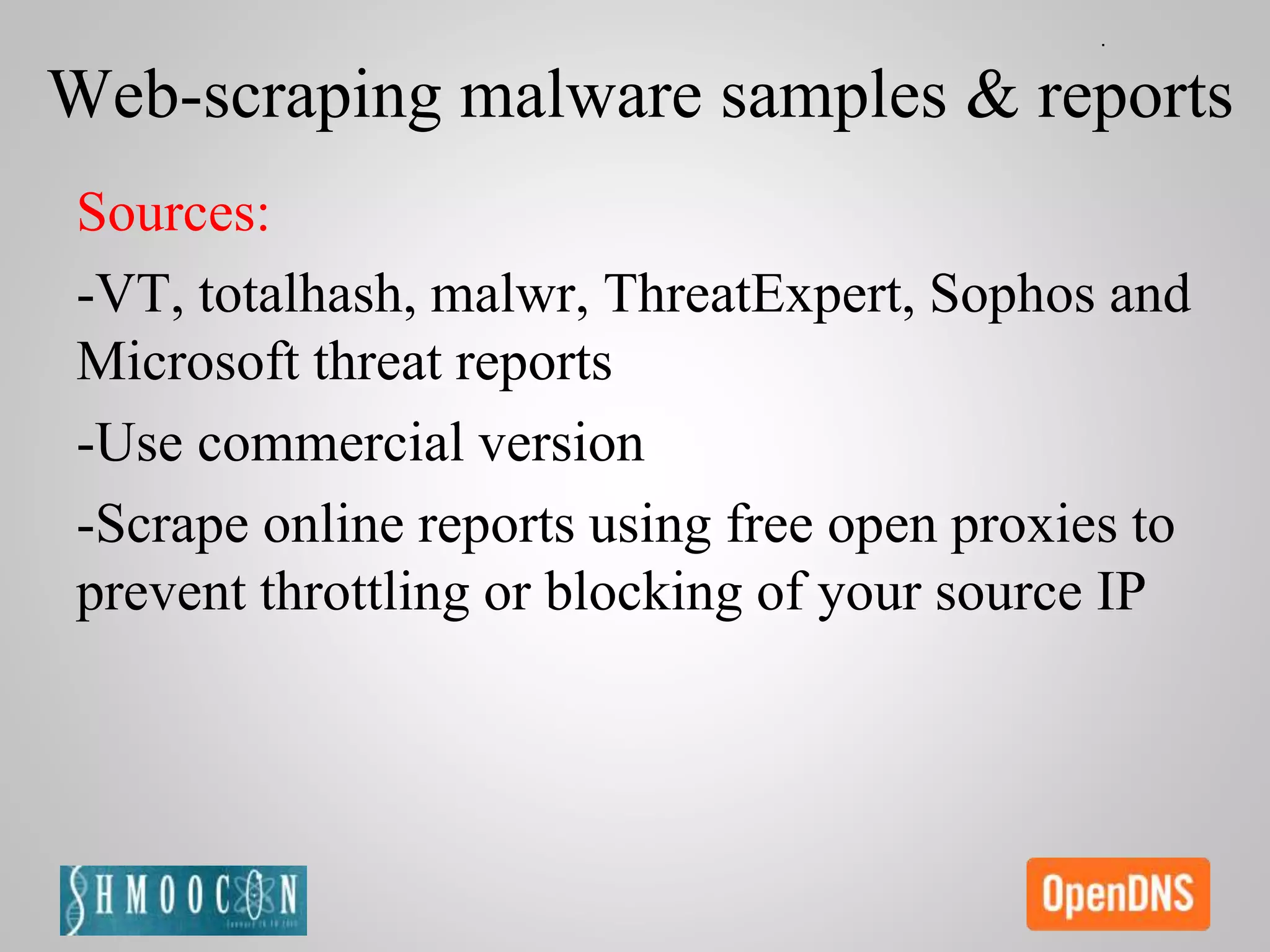

- 41. Web-scraping malware samples& reports Sources: -VT, totalhash, malwr, ThreatExpert, Sophos and Microsoft threat reports -Use commercial version -Scrape online reports using free open proxies to prevent throttling or blocking of your source IP

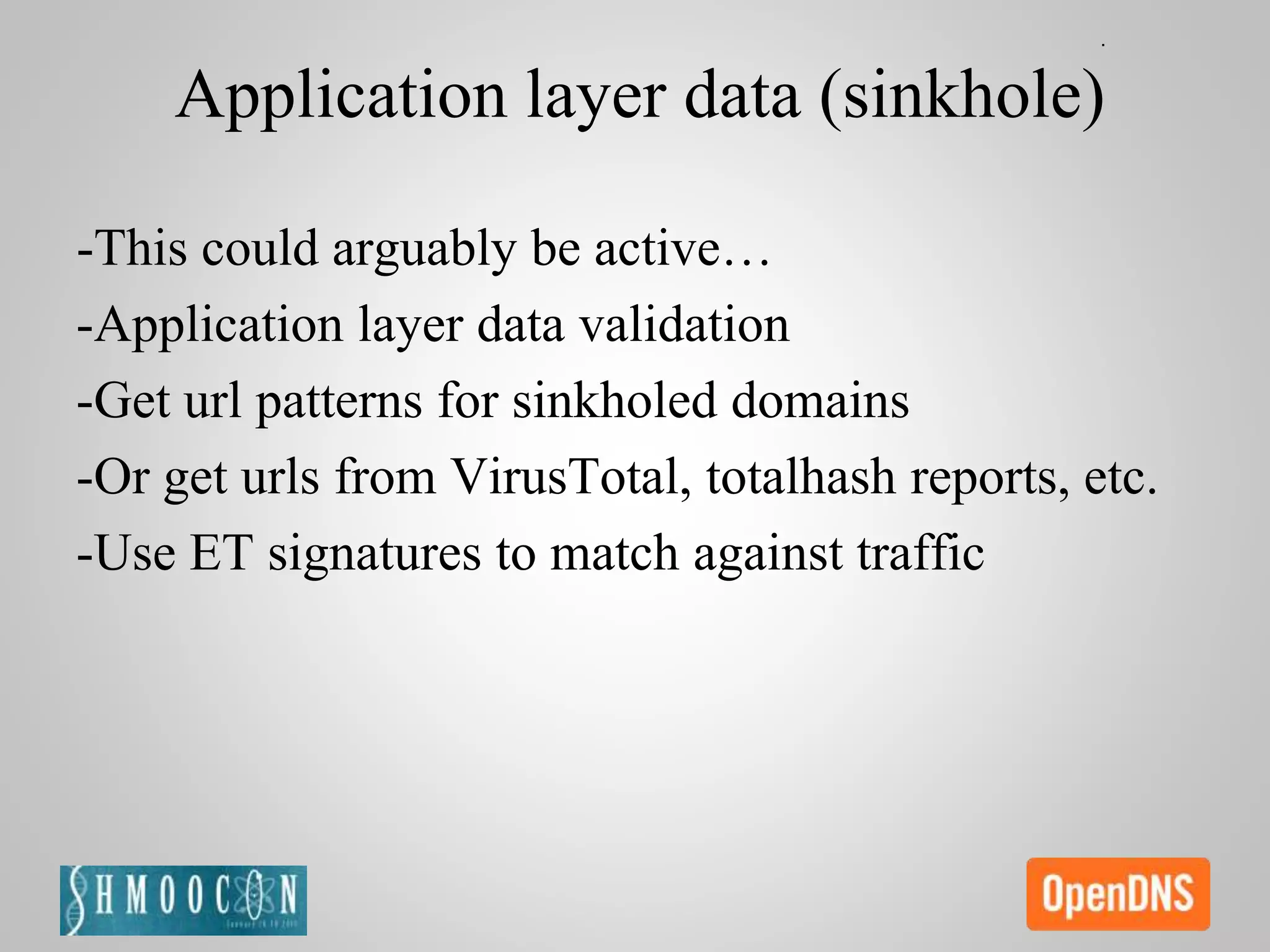

- 42. Application layer data(sinkhole) -This could arguably be active… -Application layer data validation -Get url patterns for sinkholed domains -Or get urls from VirusTotal, totalhash reports, etc. -Use ET signatures to match against traffic

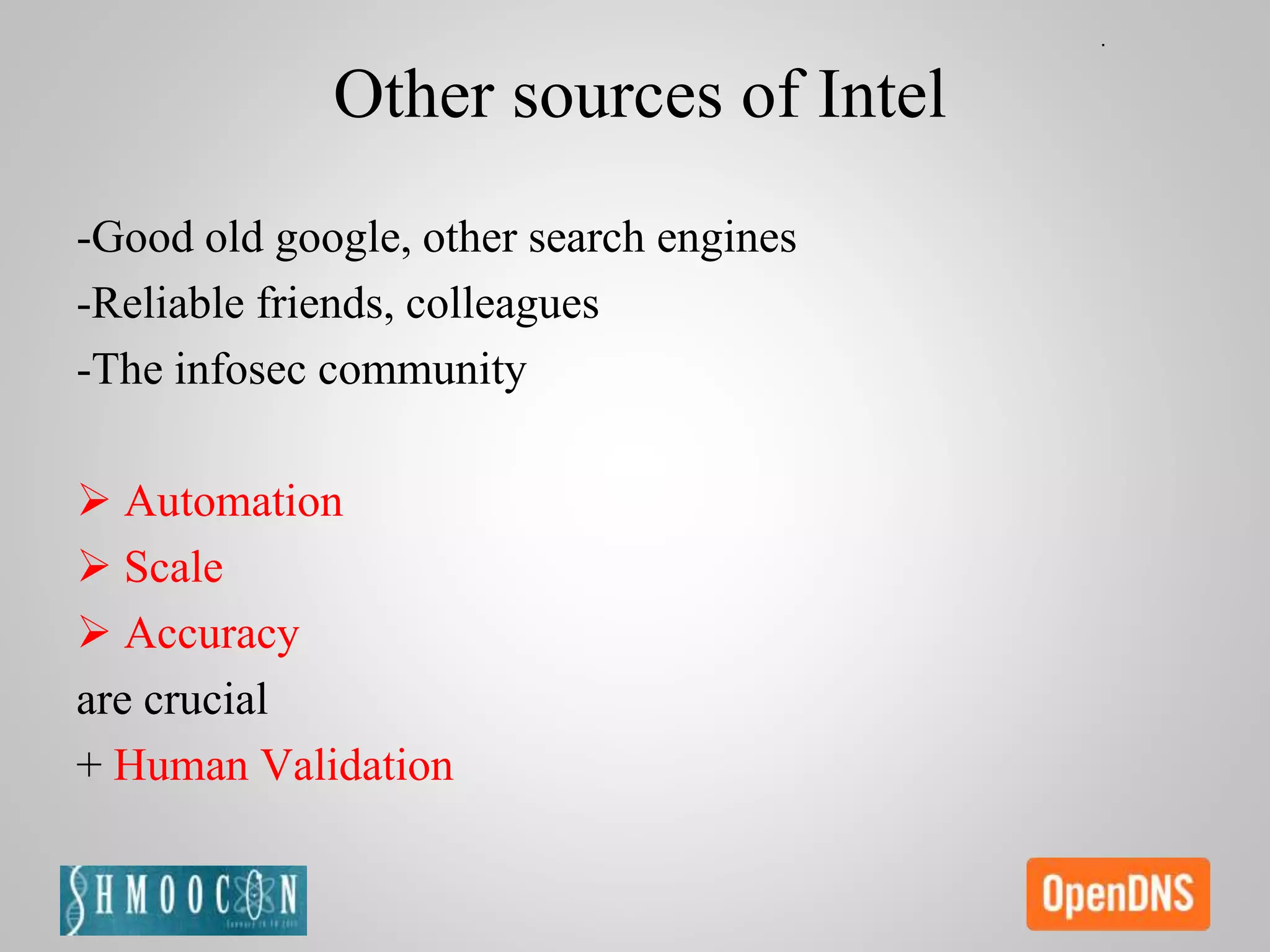

- 43. Other sources ofIntel -Good old google, other search engines -Reliable friends, colleagues -The infosec community Automation Scale Accuracy are crucial + Human Validation
- 44. Fast flux casestudy: Zbot proxy network

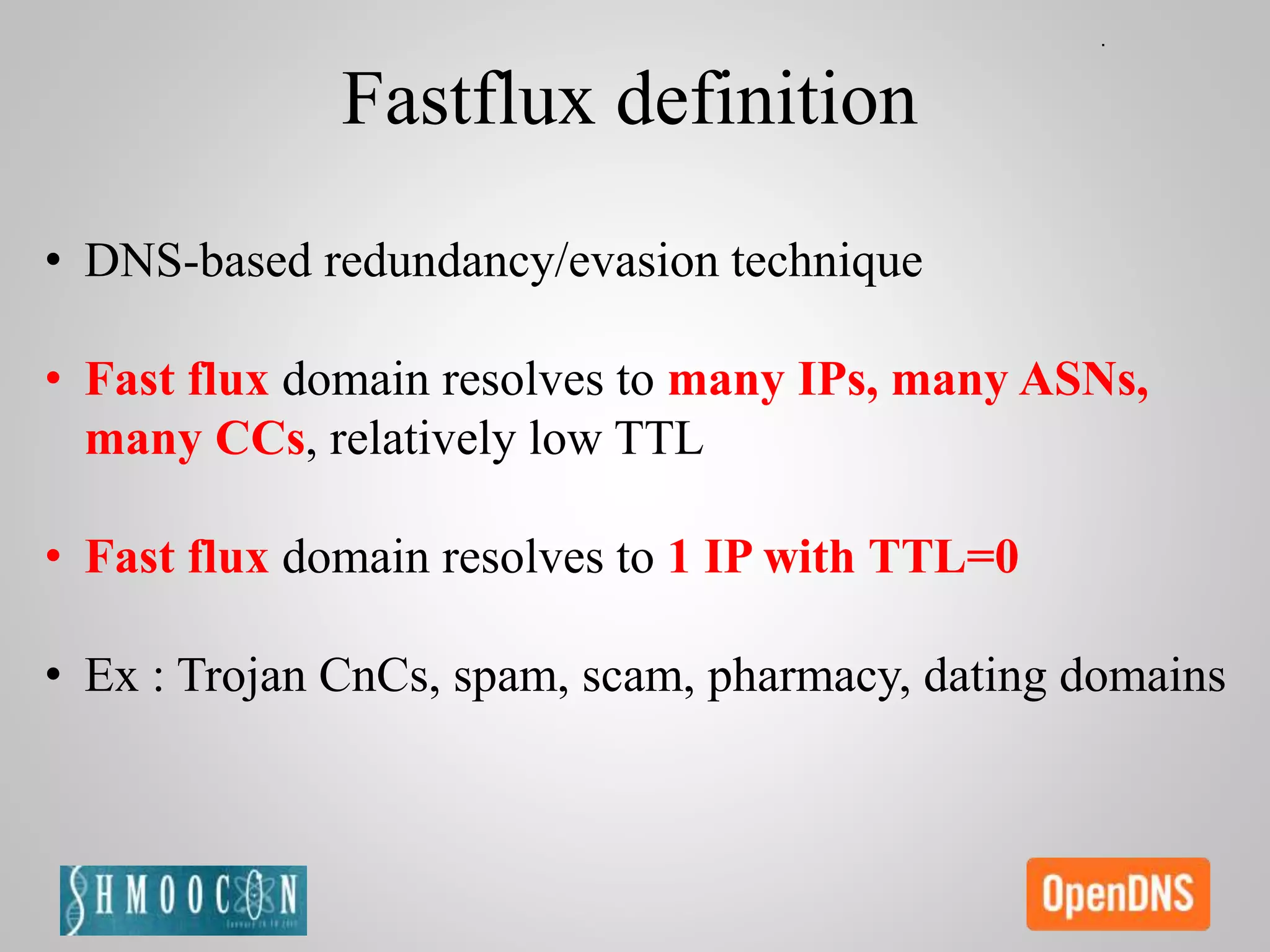

- 45. • DNS-based redundancy/evasiontechnique • Fast flux domain resolves to many IPs, many ASNs, many CCs, relatively low TTL • Fast flux domain resolves to 1 IP with TTL=0 • Ex : Trojan CnCs, spam, scam, pharmacy, dating domains Fastflux definition

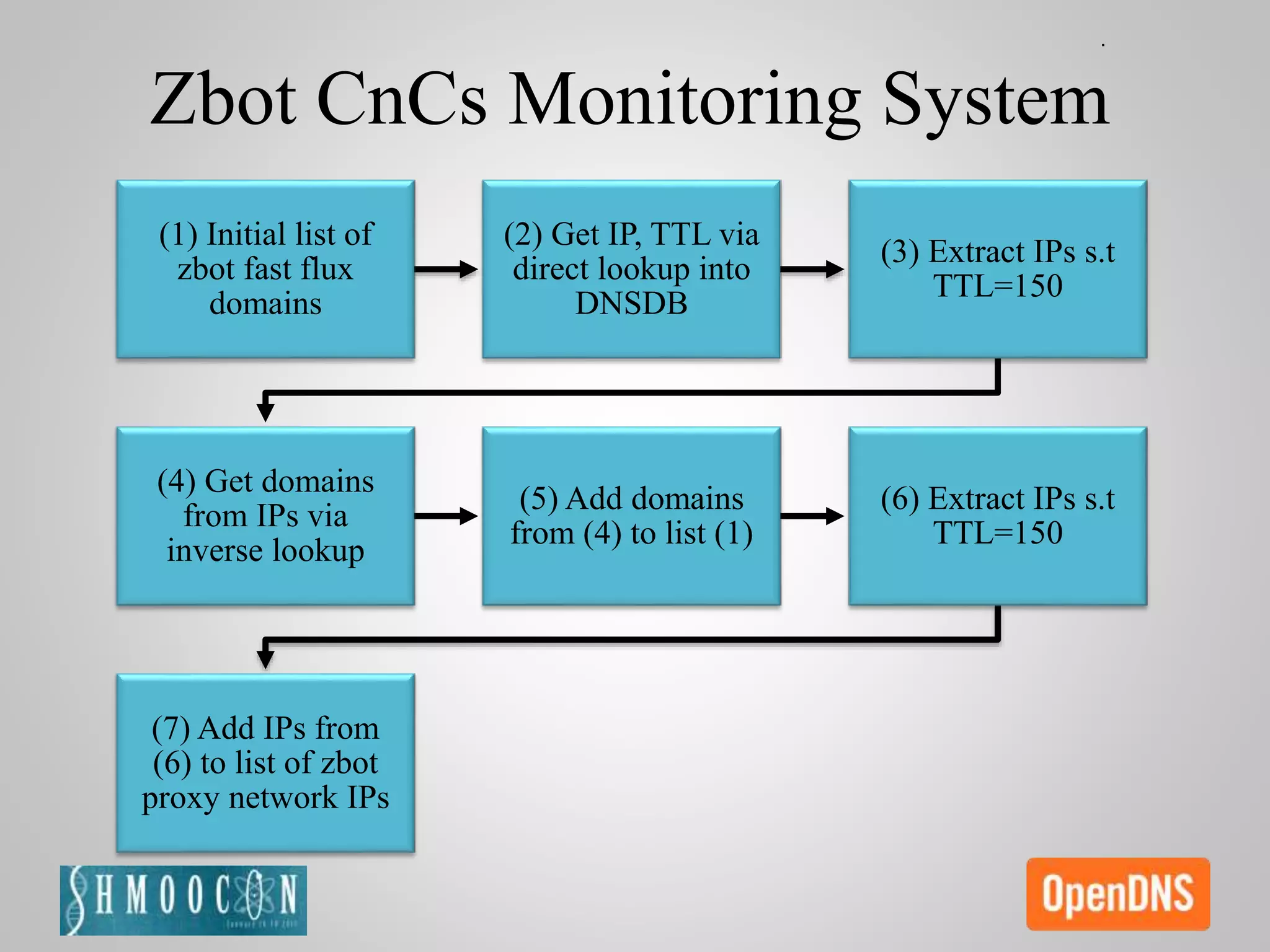

- 46. (1) Initial listof zbot fast flux domains (2) Get IP, TTL via direct lookup into DNSDB (3) Extract IPs s.t TTL=150 (4) Get domains from IPs via inverse lookup (5) Add domains from (4) to list (1) (6) Extract IPs s.t TTL=150 (7) Add IPs from (6) to list of zbot proxy network IPs Zbot CnCs Monitoring System

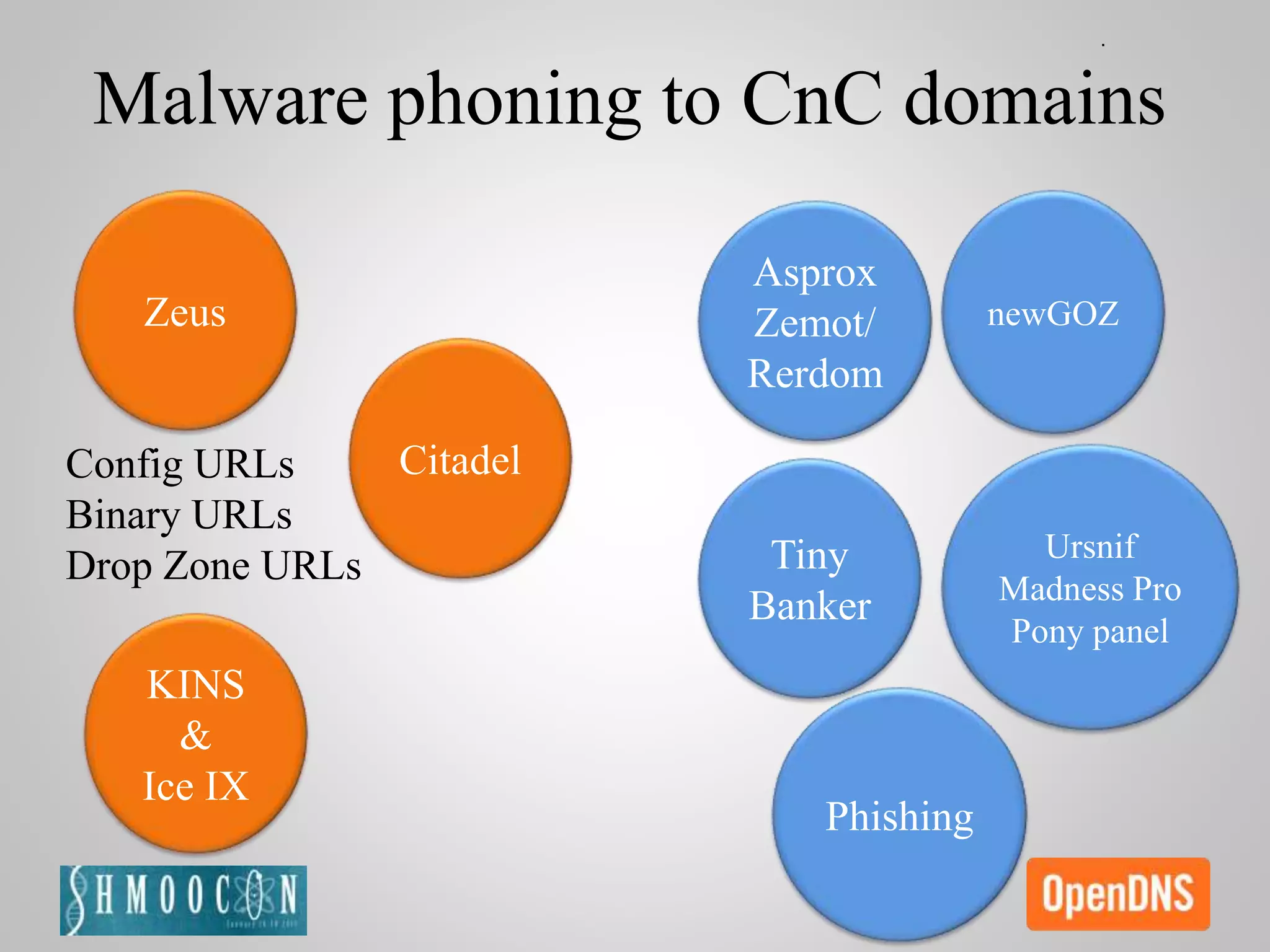

- 47. Zeus Config URLs Binary URLs DropZone URLs Citadel KINS & Ice IX Asprox Zemot/ Rerdom Phishing Ursnif Madness Pro Pony panel newGOZ Tiny Banker Malware phoning to CnC domains

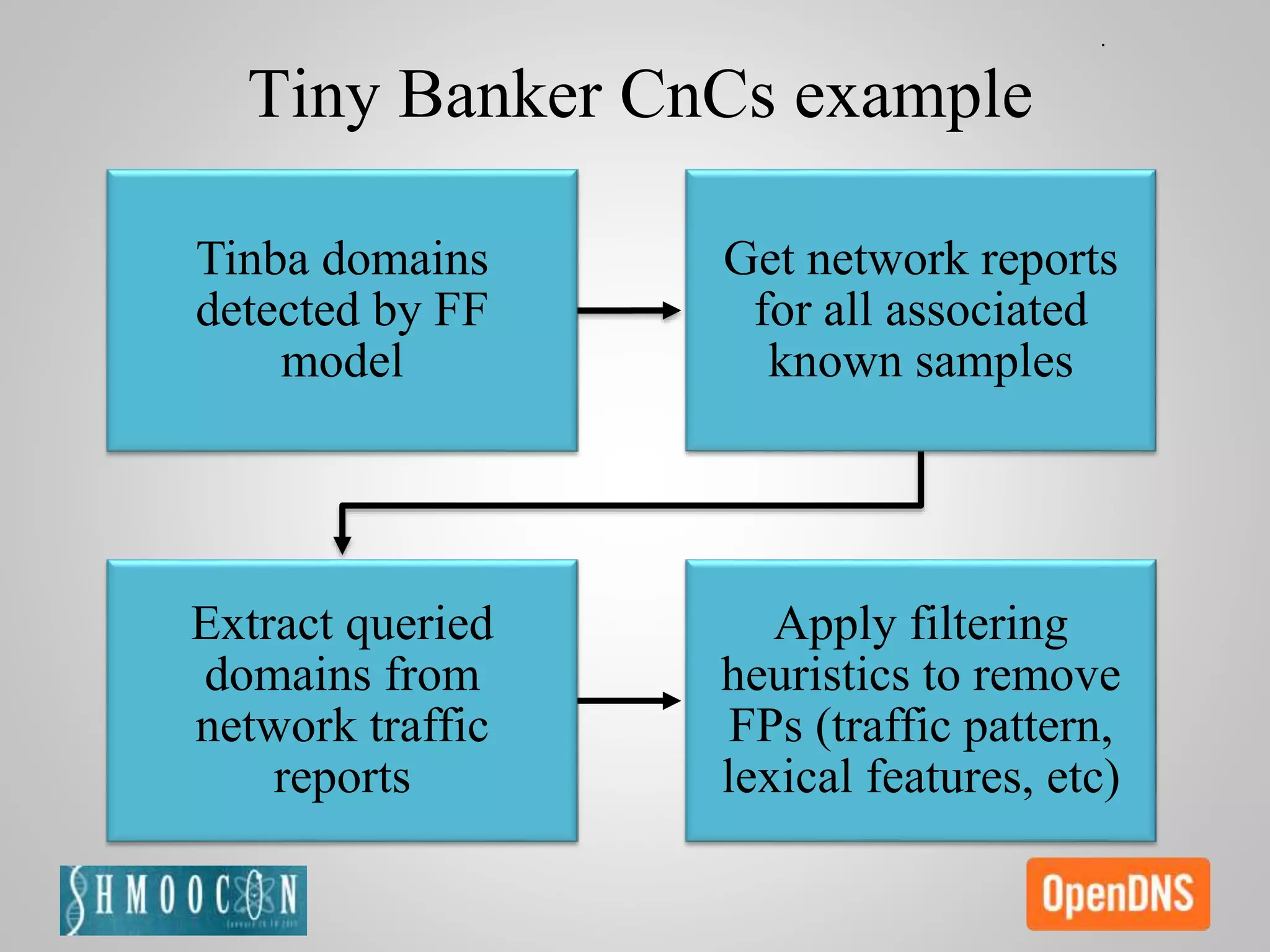

- 48. Tiny Banker CnCsexample Tinba domains detected by FF model Get network reports for all associated known samples Extract queried domains from network traffic reports Apply filtering heuristics to remove FPs (traffic pattern, lexical features, etc)

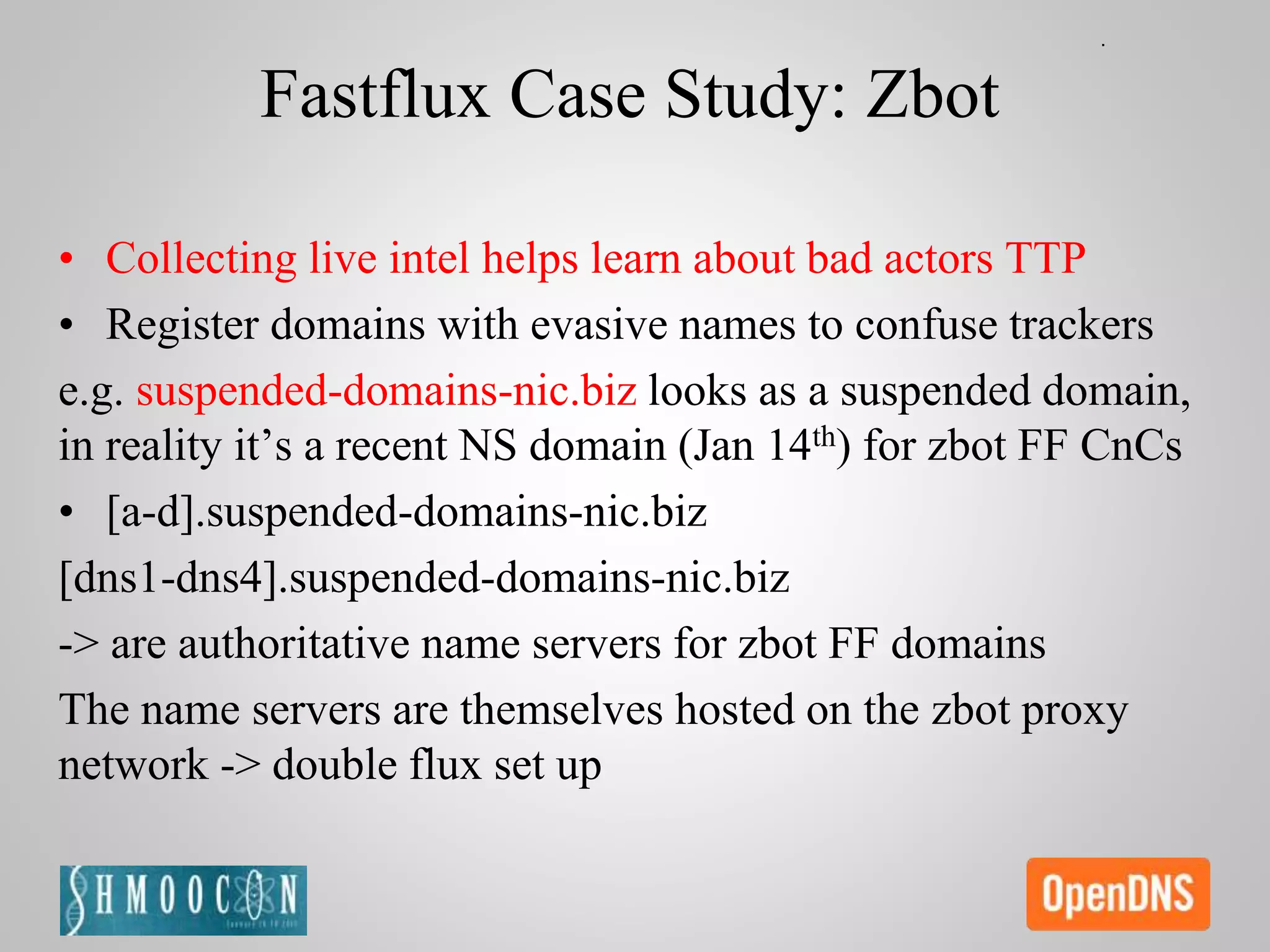

- 49. Fastflux Case Study:Zbot • Collecting live intel helps learn about bad actors TTP • Register domains with evasive names to confuse trackers e.g. suspended-domains-nic.biz looks as a suspended domain, in reality it’s a recent NS domain (Jan 14th) for zbot FF CnCs • [a-d].suspended-domains-nic.biz [dns1-dns4].suspended-domains-nic.biz -> are authoritative name servers for zbot FF domains The name servers are themselves hosted on the zbot proxy network -> double flux set up
- 50.
- 51.

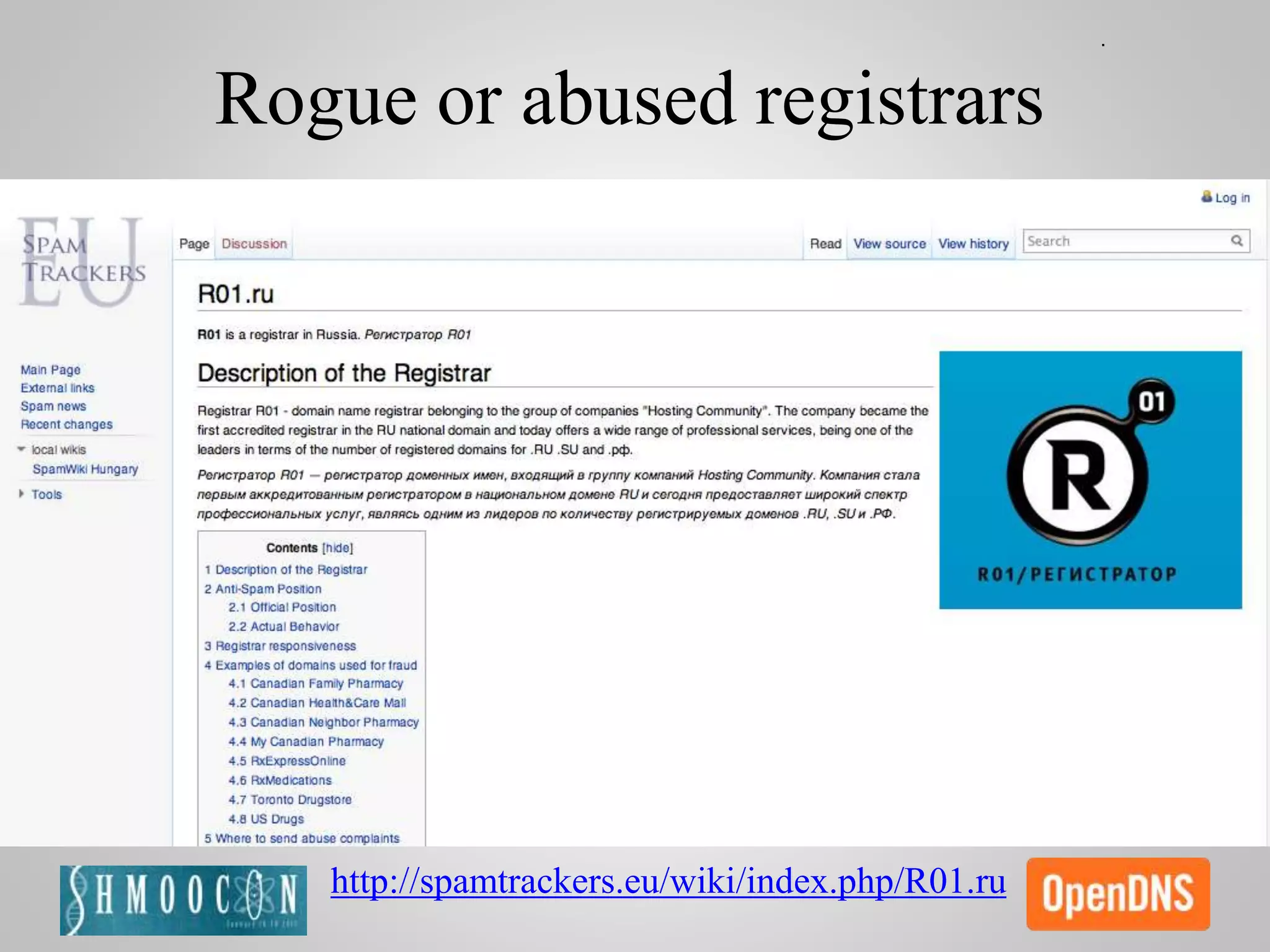

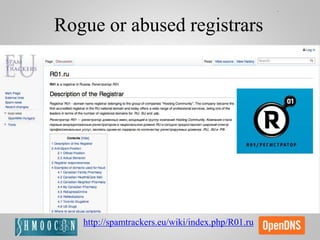

- 52. Rogue or abusedregistrars http://spamtrackers.eu/wiki/index.php/R01.ru
- 53.

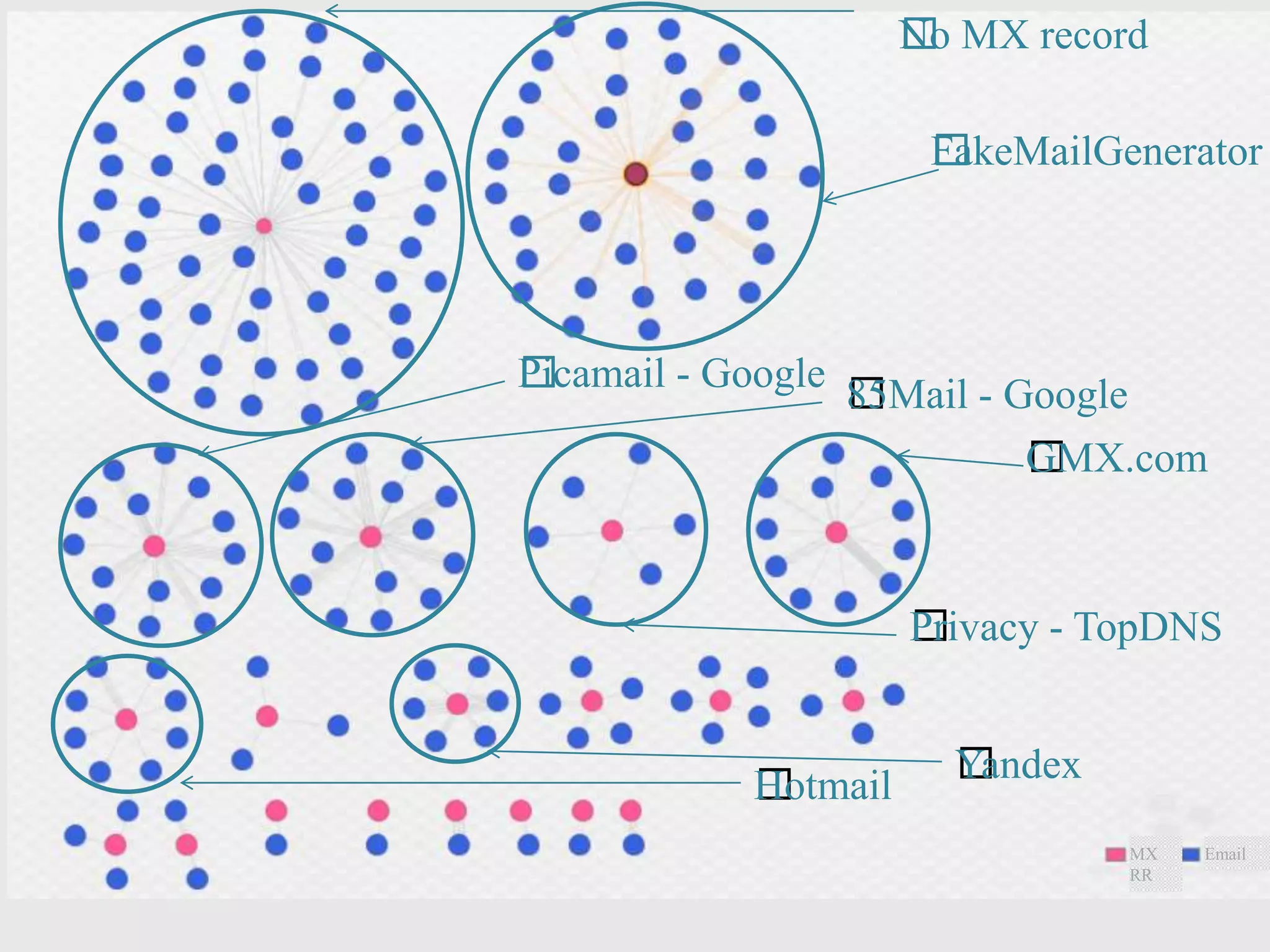

- 54. EmailMX RR No MX record FakeMailGenerator Picamail- Google 85Mail - Google Privacy - TopDNS GMX.com Hotmail Yandex
- 55. DGA case study: newGameOver Zeus (newGOZ)

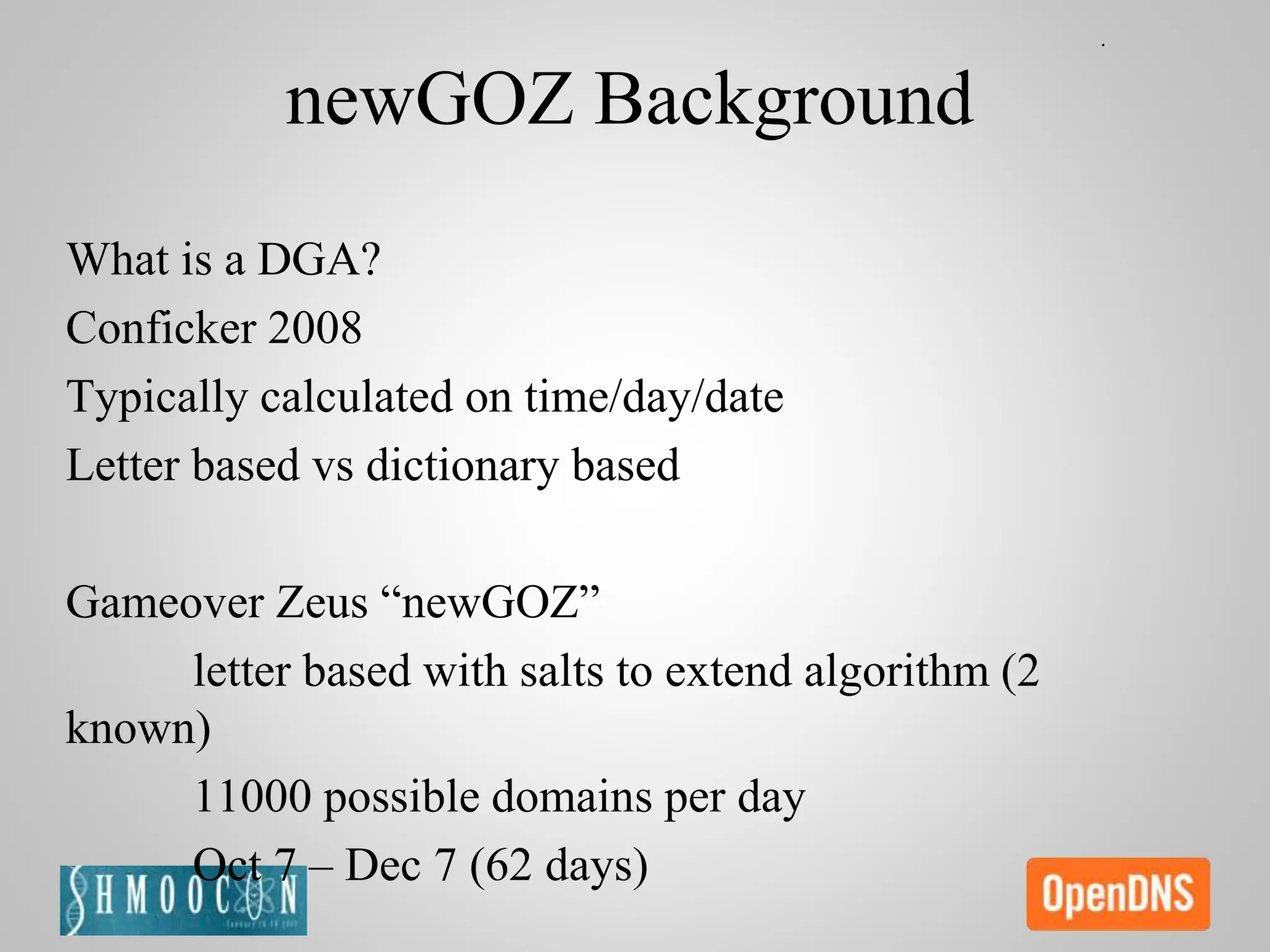

- 56. newGOZ Background What isa DGA? Conficker 2008 Typically calculated on time/day/date Letter based vs dictionary based Gameover Zeus “newGOZ” letter based with salts to extend algorithm (2 known) 11000 possible domains per day Oct 7 – Dec 7 (62 days)

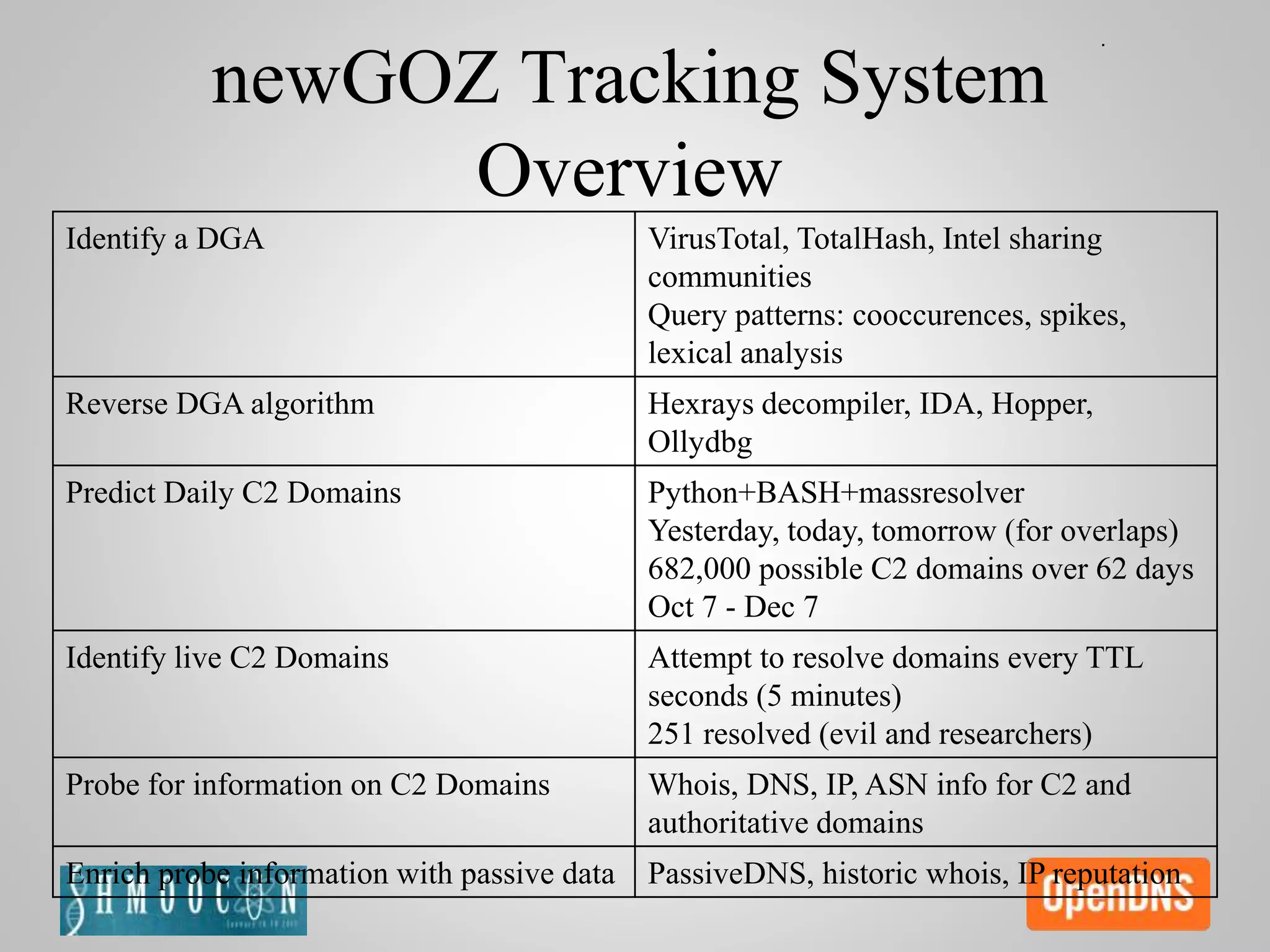

- 57. newGOZ Tracking System Overview Identifya DGA VirusTotal, TotalHash, Intel sharing communities Query patterns: cooccurences, spikes, lexical analysis Reverse DGA algorithm Hexrays decompiler, IDA, Hopper, Ollydbg Predict Daily C2 Domains Python+BASH+massresolver Yesterday, today, tomorrow (for overlaps) 682,000 possible C2 domains over 62 days Oct 7 - Dec 7 Identify live C2 Domains Attempt to resolve domains every TTL seconds (5 minutes) 251 resolved (evil and researchers) Probe for information on C2 Domains Whois, DNS, IP, ASN info for C2 and authoritative domains Enrich probe information with passive data PassiveDNS, historic whois, IP reputation

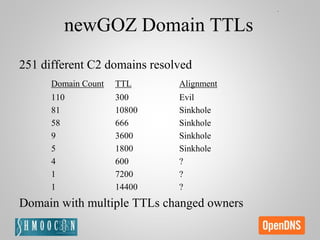

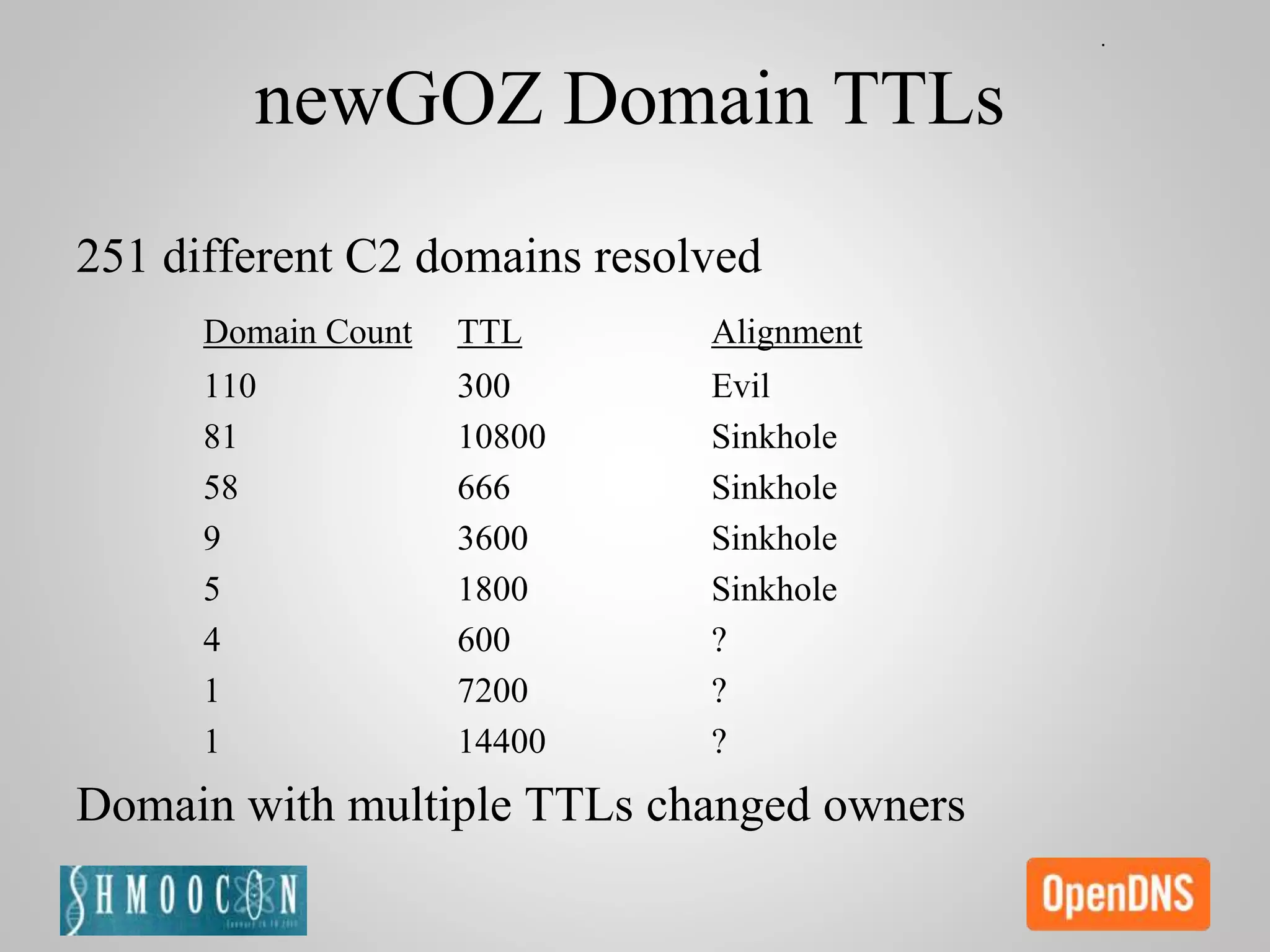

- 58. newGOZ Domain TTLs 251different C2 domains resolved Domain Count TTL Alignment 110 300 Evil 81 10800 Sinkhole 58 666 Sinkhole 9 3600 Sinkhole 5 1800 Sinkhole 4 600 ? 1 7200 ? 1 14400 ? Domain with multiple TTLs changed owners

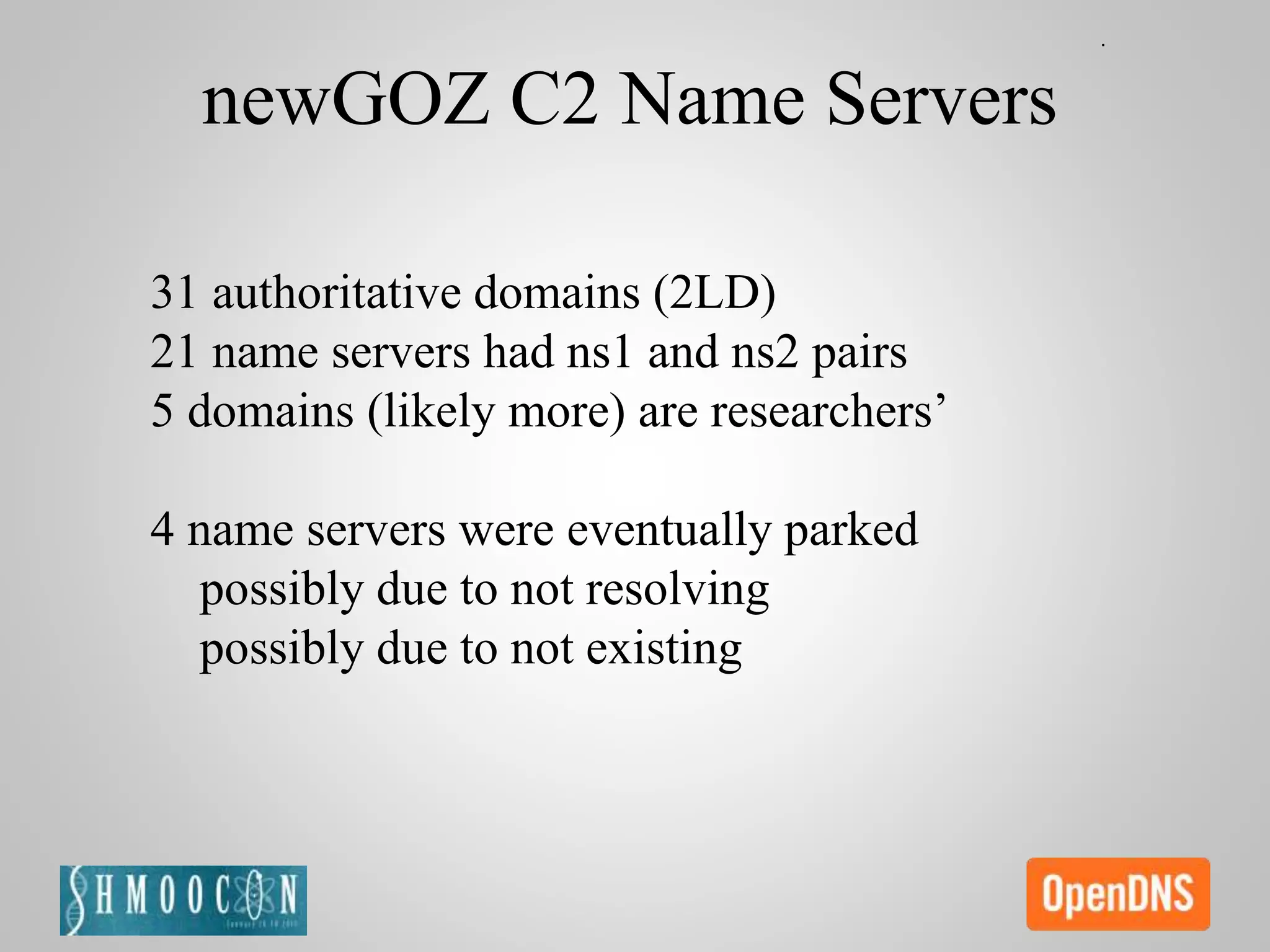

- 59. newGOZ C2 NameServers 31 authoritative domains (2LD) 21 name servers had ns1 and ns2 pairs 5 domains (likely more) are researchers’ 4 name servers were eventually parked possibly due to not resolving possibly due to not existing
- 60. newGOZ C2 NameServers a.dns.gandi.net b.dns.gandi.net c.dns.gandi.net dns1.registrar-servers.com dns2.registrar-servers.com dns3.registrar-servers.com dns4.registrar-servers.com dns5.registrar-servers.com ns.123-reg.co.uk ns2.123-reg.co.uk ns01.domaincontrol.com ns02.domaincontrol.com pdns05.domaincontrol.com pdns06.domaincontrol.com ns1.torpig-sinkhole.org ns2.torpig-sinkhole.org ns1.sinkhole.ch ns2.sinkhole.ch ns1.dynadot.com ns2.dynadot.com ns1.ilcriminallaw.net.lamedelegation.org ns1.acutica.net.rcom-dns.eu ns1.ezracesite.net.rcom-dns.eu ns1.the-jumbotron.net.rcom-dns.eu ns1.acutica.net ns1.autozphibsnz.com ns1.bethanychildcare.net ns1.borrowbynet.net ns1.bossvietguider.com ns1.bundesligagame.net ns1.energiazielona.net ns1.ezracesite.net ns1.hitzandronum.net ns1.hotinspiritrees.net ns1.ilcriminallaw.net ns1.israelandpalestin.com ns1.longhilpartners.com ns1.lovecapo.net ns1.overbytes.net ns1.rannfyaether.net ns1.the-jumbotron.net ns1.themobpokershop.net ns1.thepurringpiano.net ns1.videohomebing.com ns1.visiteitacares.com ns1.whiterelicons.com ns1.zoogmusics.net ns1.zumbbawecker.net - ns2.autozphibsnz.com ns2.bethanychildcare.net ns2.borrowbynet.net ns2.bossvietguider.com - ns2.energiazielona.net - - - - - ns2.longhilpartners.com ns2.lovecapo.net ns2.overbytes.net ns2.rannfyaether.net - ns2.themobpokershop.net ns2.thepurringpiano.net - ns2.visiteitacares.com - ns2.zoogmusics.net -

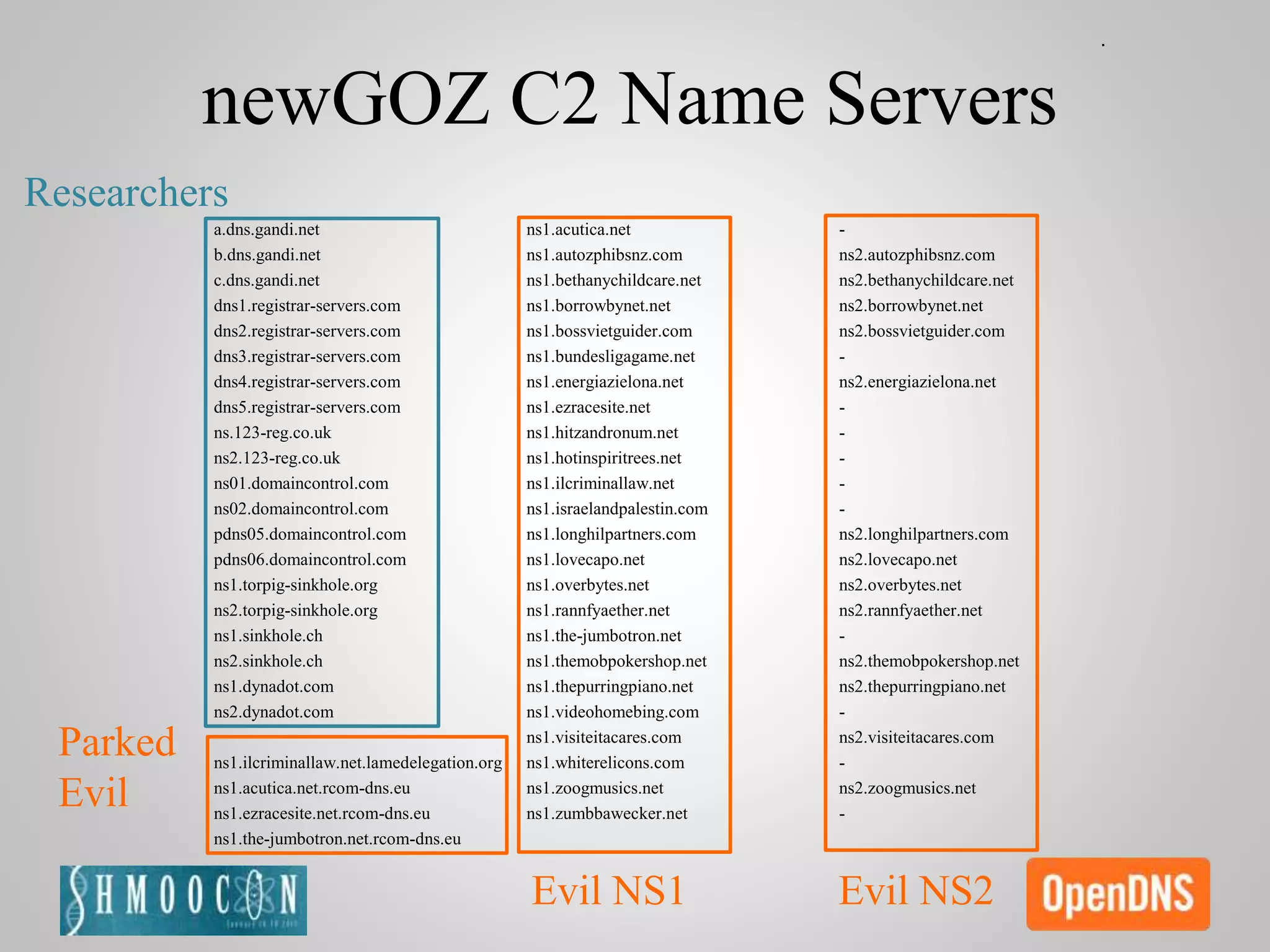

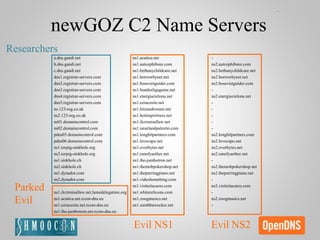

- 61. newGOZ C2 NameServers a.dns.gandi.net b.dns.gandi.net c.dns.gandi.net dns1.registrar-servers.com dns2.registrar-servers.com dns3.registrar-servers.com dns4.registrar-servers.com dns5.registrar-servers.com ns.123-reg.co.uk ns2.123-reg.co.uk ns01.domaincontrol.com ns02.domaincontrol.com pdns05.domaincontrol.com pdns06.domaincontrol.com ns1.torpig-sinkhole.org ns2.torpig-sinkhole.org ns1.sinkhole.ch ns2.sinkhole.ch ns1.dynadot.com ns2.dynadot.com ns1.ilcriminallaw.net.lamedelegation.org ns1.acutica.net.rcom-dns.eu ns1.ezracesite.net.rcom-dns.eu ns1.the-jumbotron.net.rcom-dns.eu ns1.acutica.net ns1.autozphibsnz.com ns1.bethanychildcare.net ns1.borrowbynet.net ns1.bossvietguider.com ns1.bundesligagame.net ns1.energiazielona.net ns1.ezracesite.net ns1.hitzandronum.net ns1.hotinspiritrees.net ns1.ilcriminallaw.net ns1.israelandpalestin.com ns1.longhilpartners.com ns1.lovecapo.net ns1.overbytes.net ns1.rannfyaether.net ns1.the-jumbotron.net ns1.themobpokershop.net ns1.thepurringpiano.net ns1.videohomebing.com ns1.visiteitacares.com ns1.whiterelicons.com ns1.zoogmusics.net ns1.zumbbawecker.net - ns2.autozphibsnz.com ns2.bethanychildcare.net ns2.borrowbynet.net ns2.bossvietguider.com - ns2.energiazielona.net - - - - - ns2.longhilpartners.com ns2.lovecapo.net ns2.overbytes.net ns2.rannfyaether.net - ns2.themobpokershop.net ns2.thepurringpiano.net - ns2.visiteitacares.com - ns2.zoogmusics.net - Researchers Parked Evil Evil NS1 Evil NS2

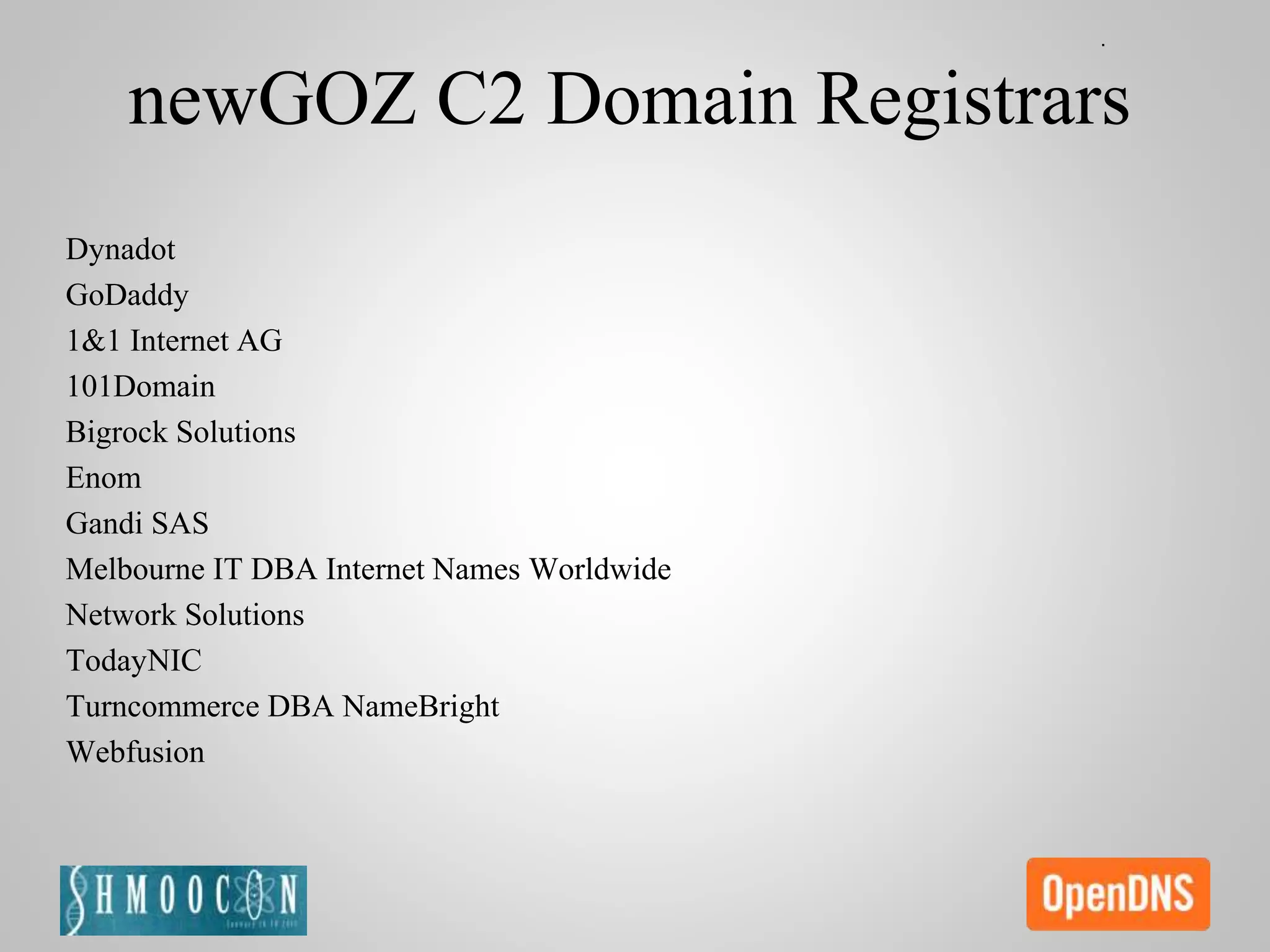

- 62. newGOZ C2 DomainRegistrars Dynadot GoDaddy 1&1 Internet AG 101Domain Bigrock Solutions Enom Gandi SAS Melbourne IT DBA Internet Names Worldwide Network Solutions TodayNIC Turncommerce DBA NameBright Webfusion

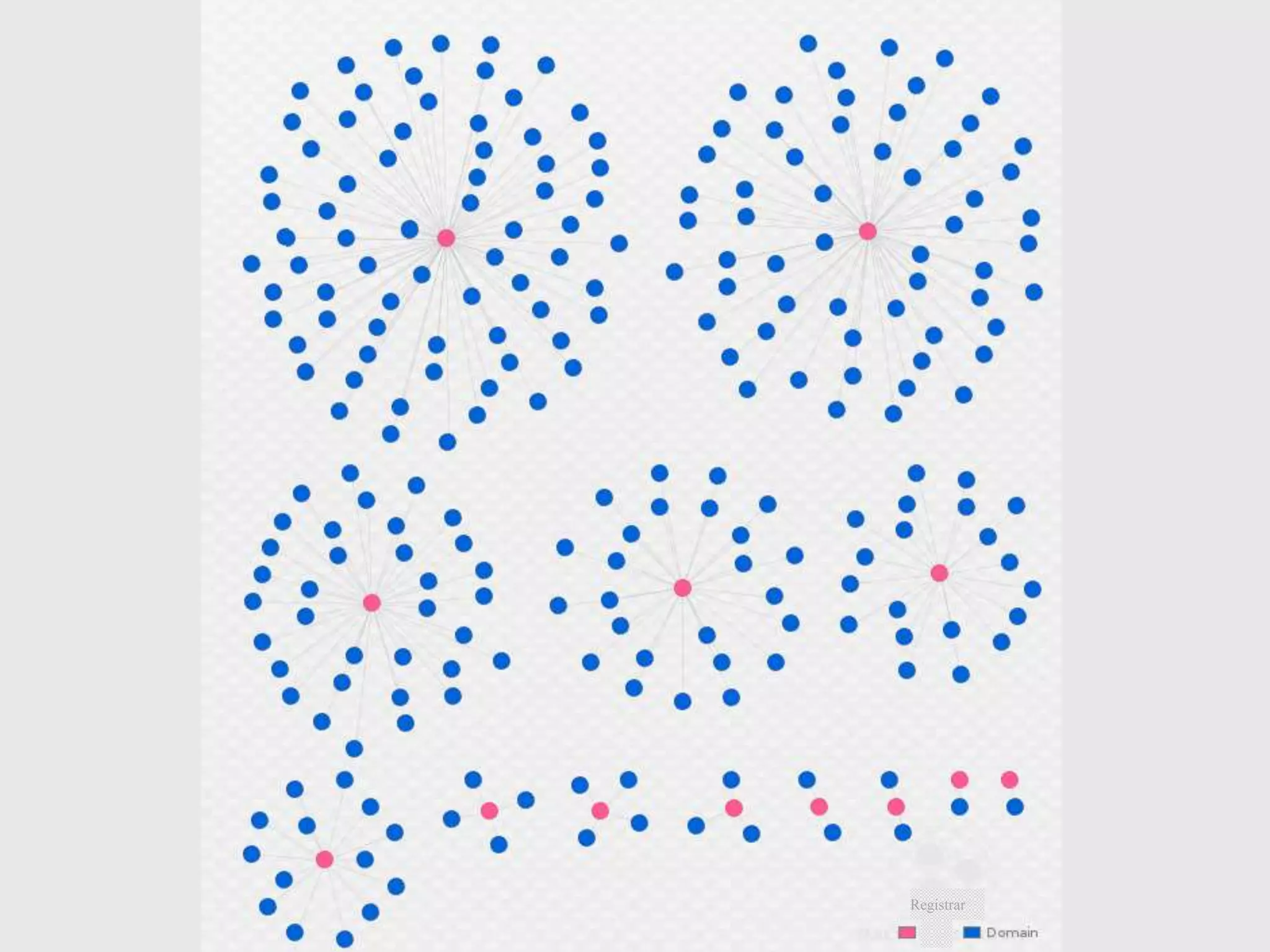

- 63.

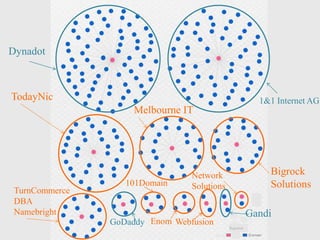

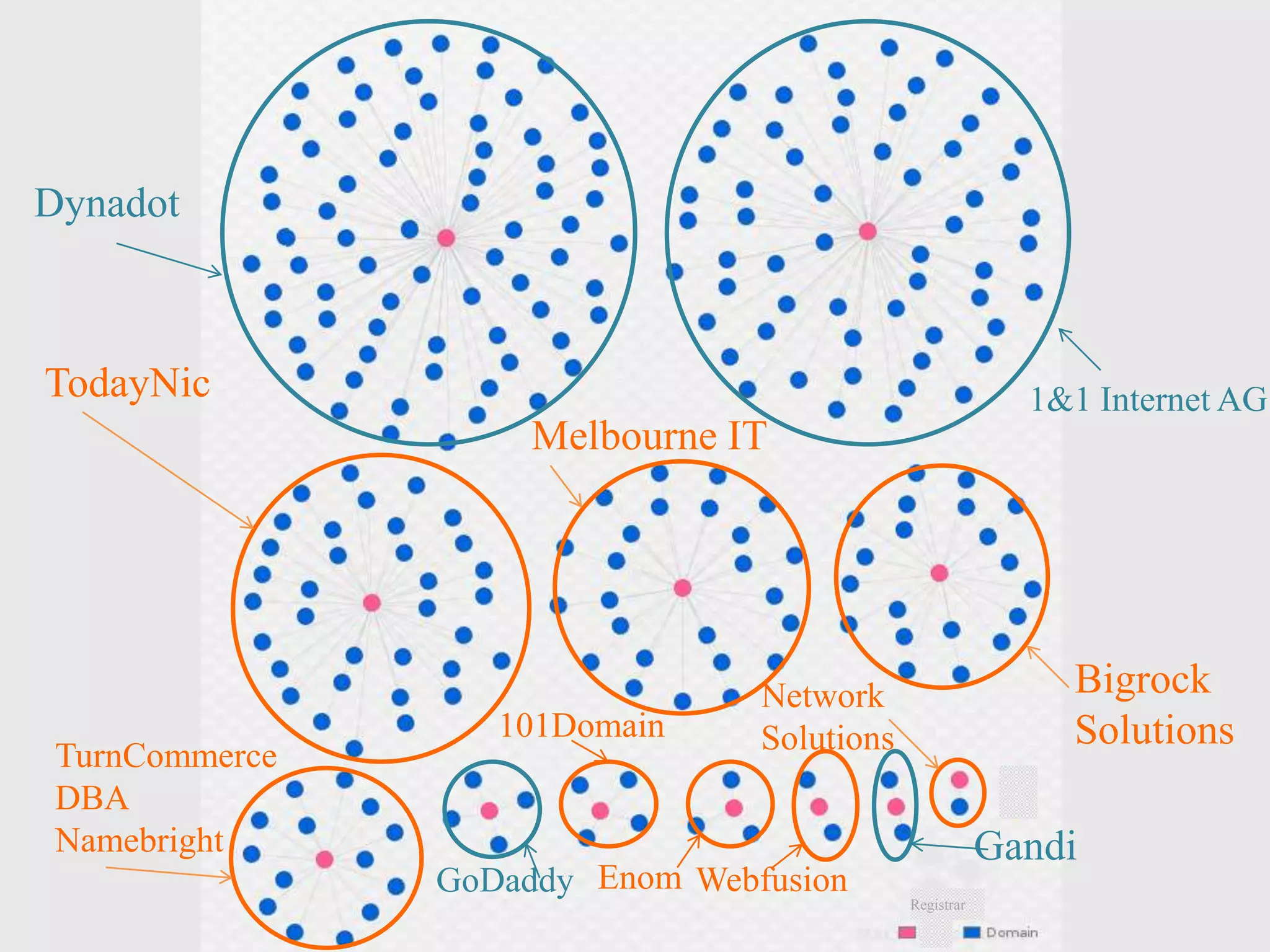

- 64. Registrar 1&1 Internet AG Dynadot Gandi TodayNic MelbourneIT Bigrock Solutions TurnCommerce DBA Namebright GoDaddy 101Domain Enom Webfusion Network Solutions

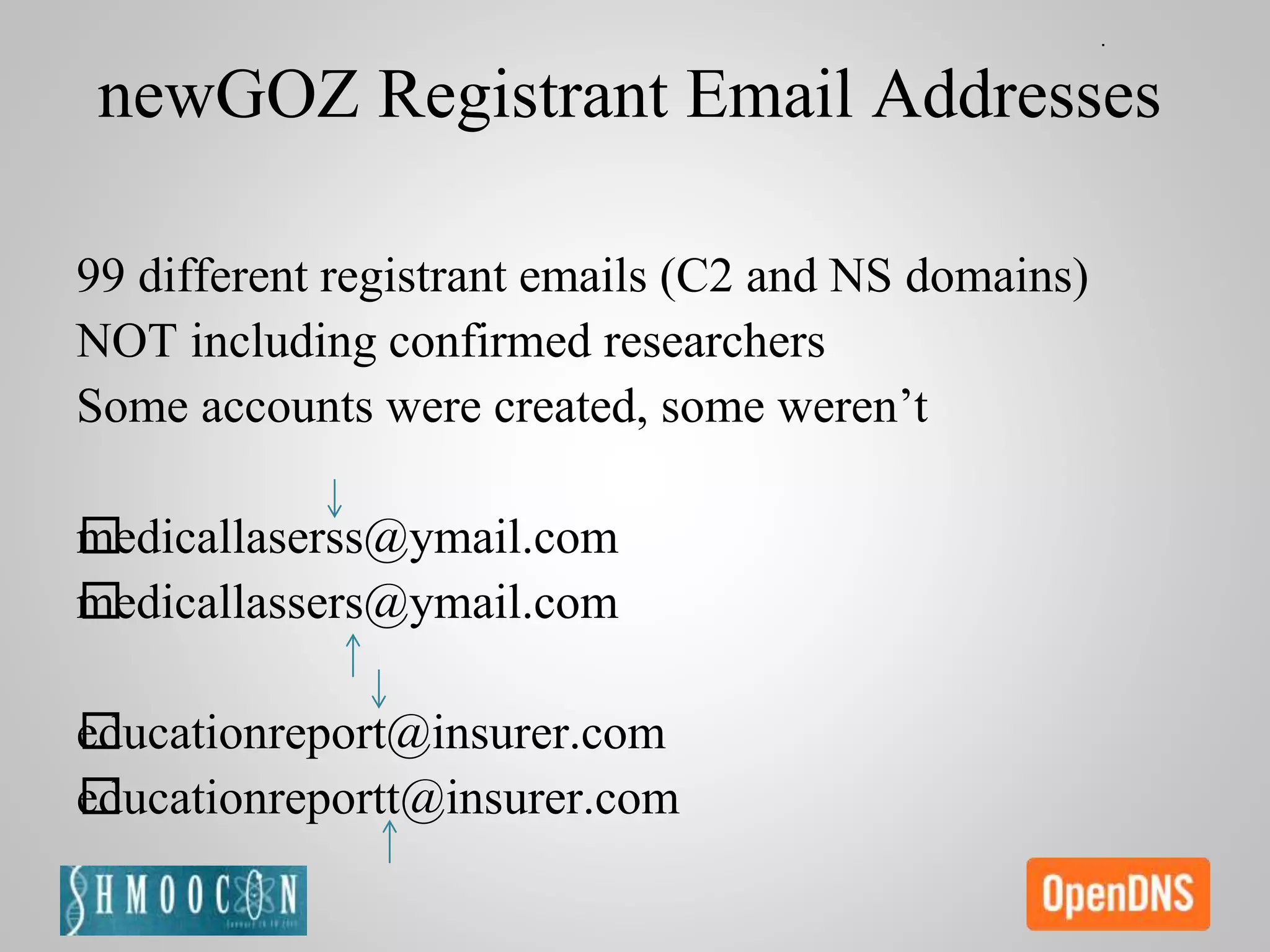

- 65. newGOZ Registrant EmailAddresses 99 different registrant emails (C2 and NS domains) NOT including confirmed researchers Some accounts were created, some weren’t medicallaserss@ymail.com medicallassers@ymail.com educationreport@insurer.com educationreportt@insurer.com

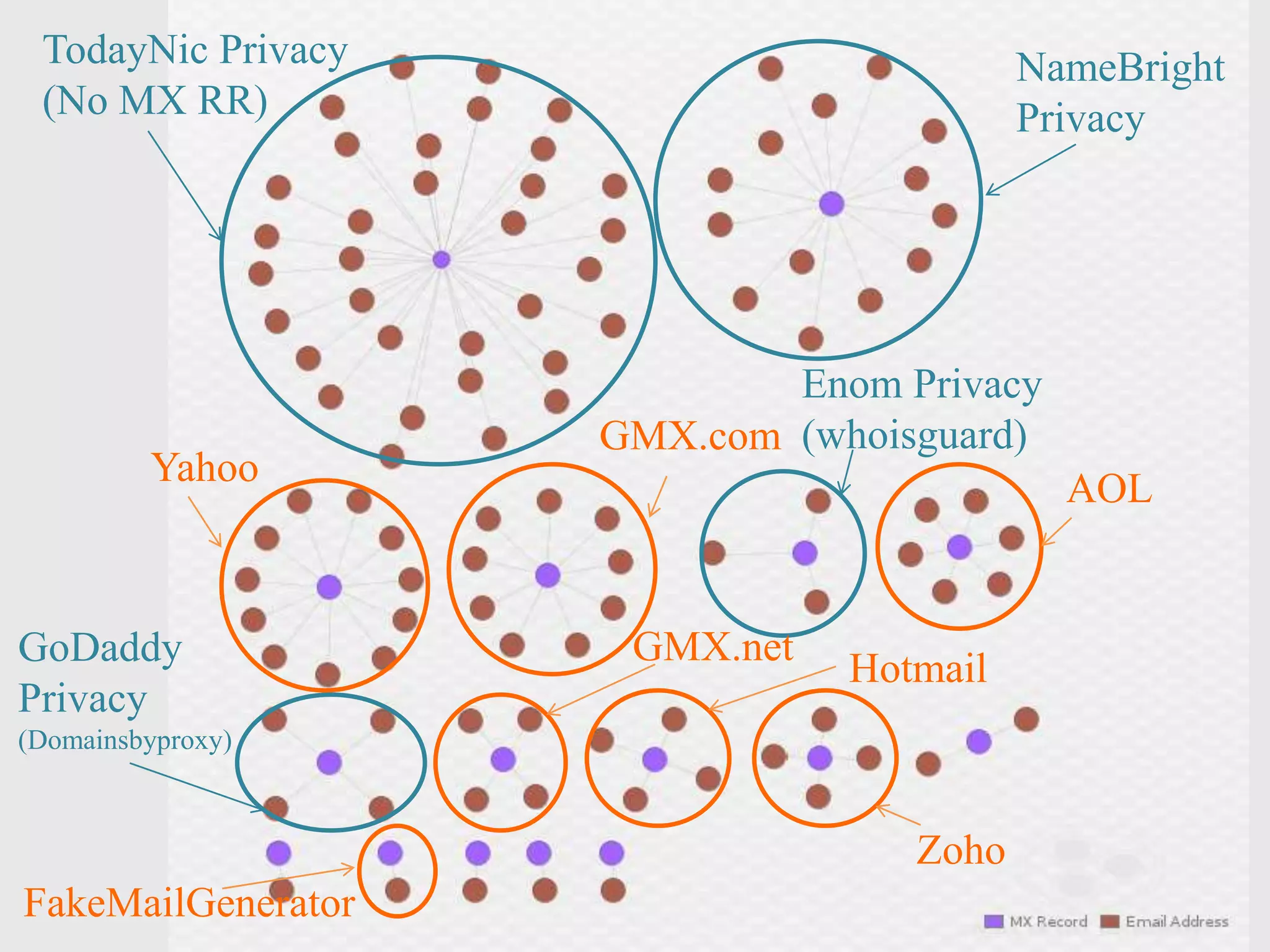

- 67. NameBright Privacy TodayNic Privacy (No MXRR) Yahoo GMX.com AOL Enom Privacy (whoisguard) GoDaddy Privacy (Domainsbyproxy) GMX.net Hotmail Zoho FakeMailGenerator

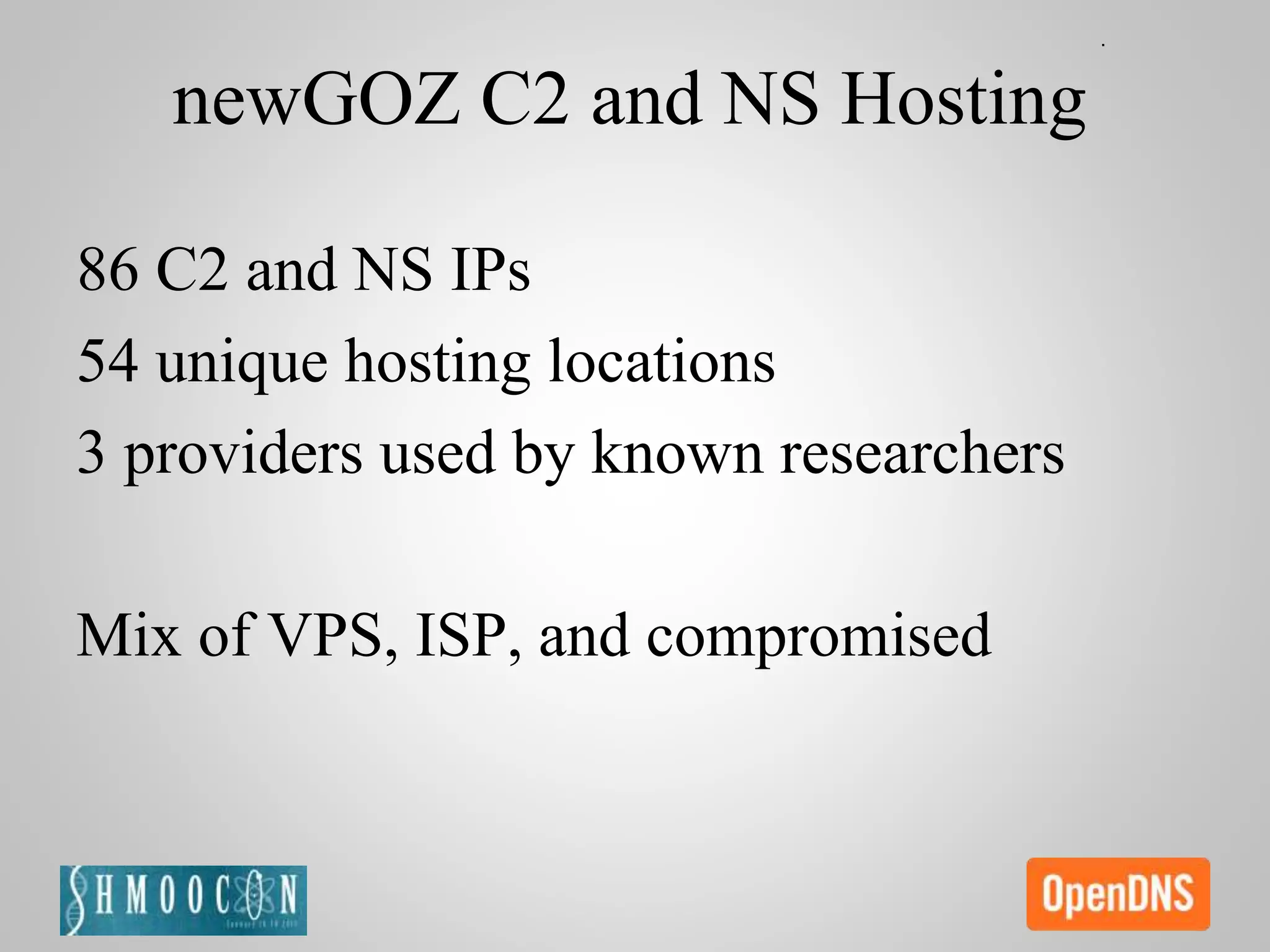

- 68. newGOZ C2 andNS Hosting 86 C2 and NS IPs 54 unique hosting locations 3 providers used by known researchers Mix of VPS, ISP, and compromised

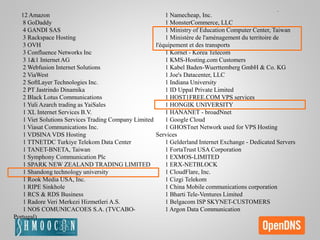

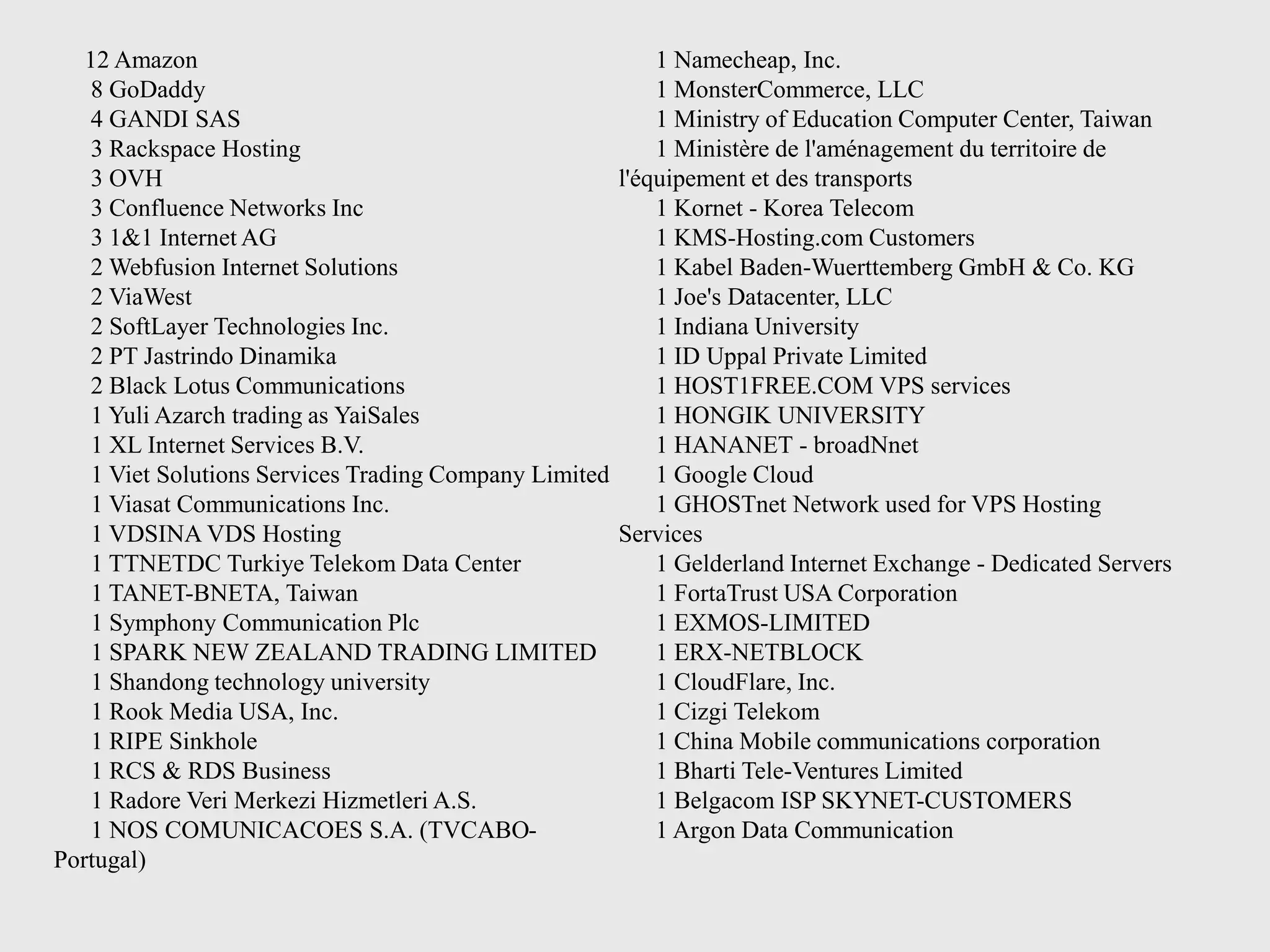

- 69. 12 Amazon 8 GoDaddy 4GANDI SAS 3 Rackspace Hosting 3 OVH 3 Confluence Networks Inc 3 1&1 Internet AG 2 Webfusion Internet Solutions 2 ViaWest 2 SoftLayer Technologies Inc. 2 PT Jastrindo Dinamika 2 Black Lotus Communications 1 Yuli Azarch trading as YaiSales 1 XL Internet Services B.V. 1 Viet Solutions Services Trading Company Limited 1 Viasat Communications Inc. 1 VDSINA VDS Hosting 1 TTNETDC Turkiye Telekom Data Center 1 TANET-BNETA, Taiwan 1 Symphony Communication Plc 1 SPARK NEW ZEALAND TRADING LIMITED 1 Shandong technology university 1 Rook Media USA, Inc. 1 RIPE Sinkhole 1 RCS & RDS Business 1 Radore Veri Merkezi Hizmetleri A.S. 1 NOS COMUNICACOES S.A. (TVCABO- Portugal) 1 Namecheap, Inc. 1 MonsterCommerce, LLC 1 Ministry of Education Computer Center, Taiwan 1 Ministère de l'aménagement du territoire de l'équipement et des transports 1 Kornet - Korea Telecom 1 KMS-Hosting.com Customers 1 Kabel Baden-Wuerttemberg GmbH & Co. KG 1 Joe's Datacenter, LLC 1 Indiana University 1 ID Uppal Private Limited 1 HOST1FREE.COM VPS services 1 HONGIK UNIVERSITY 1 HANANET - broadNnet 1 Google Cloud 1 GHOSTnet Network used for VPS Hosting Services 1 Gelderland Internet Exchange - Dedicated Servers 1 FortaTrust USA Corporation 1 EXMOS-LIMITED 1 ERX-NETBLOCK 1 CloudFlare, Inc. 1 Cizgi Telekom 1 China Mobile communications corporation 1 Bharti Tele-Ventures Limited 1 Belgacom ISP SKYNET-CUSTOMERS 1 Argon Data Communication

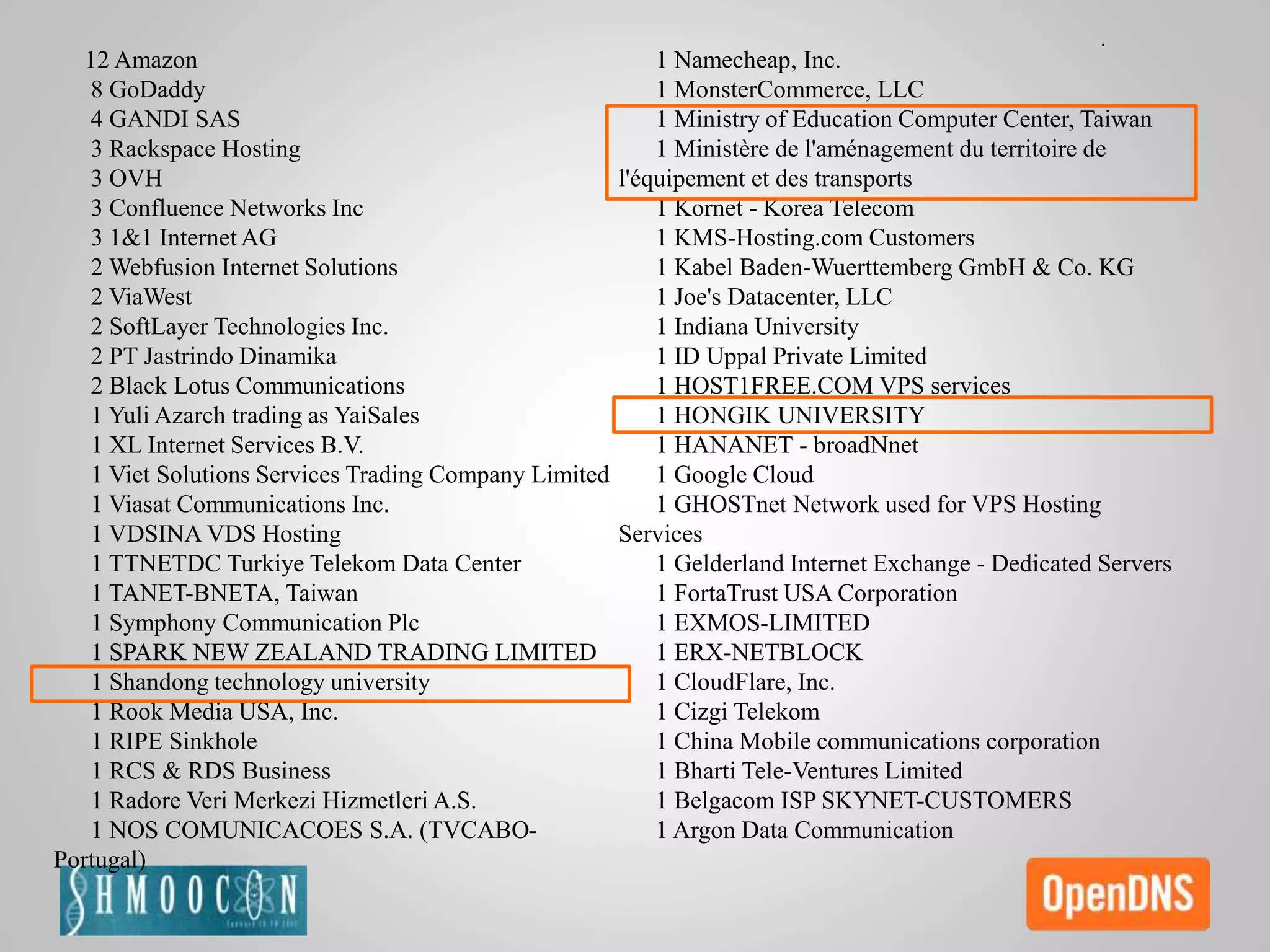

- 70. 12 Amazon 8 GoDaddy 4GANDI SAS 3 Rackspace Hosting 3 OVH 3 Confluence Networks Inc 3 1&1 Internet AG 2 Webfusion Internet Solutions 2 ViaWest 2 SoftLayer Technologies Inc. 2 PT Jastrindo Dinamika 2 Black Lotus Communications 1 Yuli Azarch trading as YaiSales 1 XL Internet Services B.V. 1 Viet Solutions Services Trading Company Limited 1 Viasat Communications Inc. 1 VDSINA VDS Hosting 1 TTNETDC Turkiye Telekom Data Center 1 TANET-BNETA, Taiwan 1 Symphony Communication Plc 1 SPARK NEW ZEALAND TRADING LIMITED 1 Shandong technology university 1 Rook Media USA, Inc. 1 RIPE Sinkhole 1 RCS & RDS Business 1 Radore Veri Merkezi Hizmetleri A.S. 1 NOS COMUNICACOES S.A. (TVCABO- Portugal) 1 Namecheap, Inc. 1 MonsterCommerce, LLC 1 Ministry of Education Computer Center, Taiwan 1 Ministère de l'aménagement du territoire de l'équipement et des transports 1 Kornet - Korea Telecom 1 KMS-Hosting.com Customers 1 Kabel Baden-Wuerttemberg GmbH & Co. KG 1 Joe's Datacenter, LLC 1 Indiana University 1 ID Uppal Private Limited 1 HOST1FREE.COM VPS services 1 HONGIK UNIVERSITY 1 HANANET - broadNnet 1 Google Cloud 1 GHOSTnet Network used for VPS Hosting Services 1 Gelderland Internet Exchange - Dedicated Servers 1 FortaTrust USA Corporation 1 EXMOS-LIMITED 1 ERX-NETBLOCK 1 CloudFlare, Inc. 1 Cizgi Telekom 1 China Mobile communications corporation 1 Bharti Tele-Ventures Limited 1 Belgacom ISP SKYNET-CUSTOMERS 1 Argon Data Communication

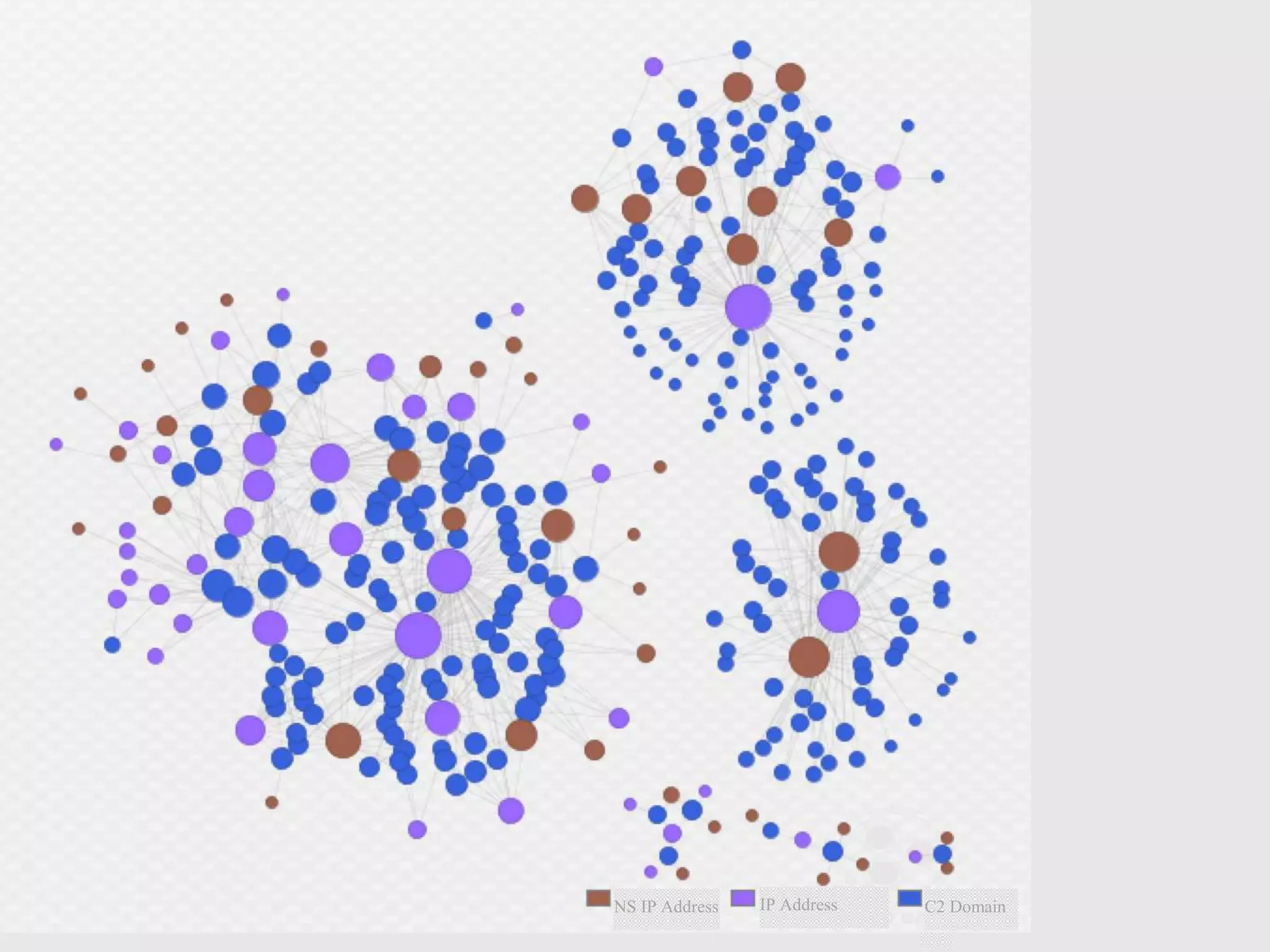

- 71. NS IP AddressC2 DomainIP Address

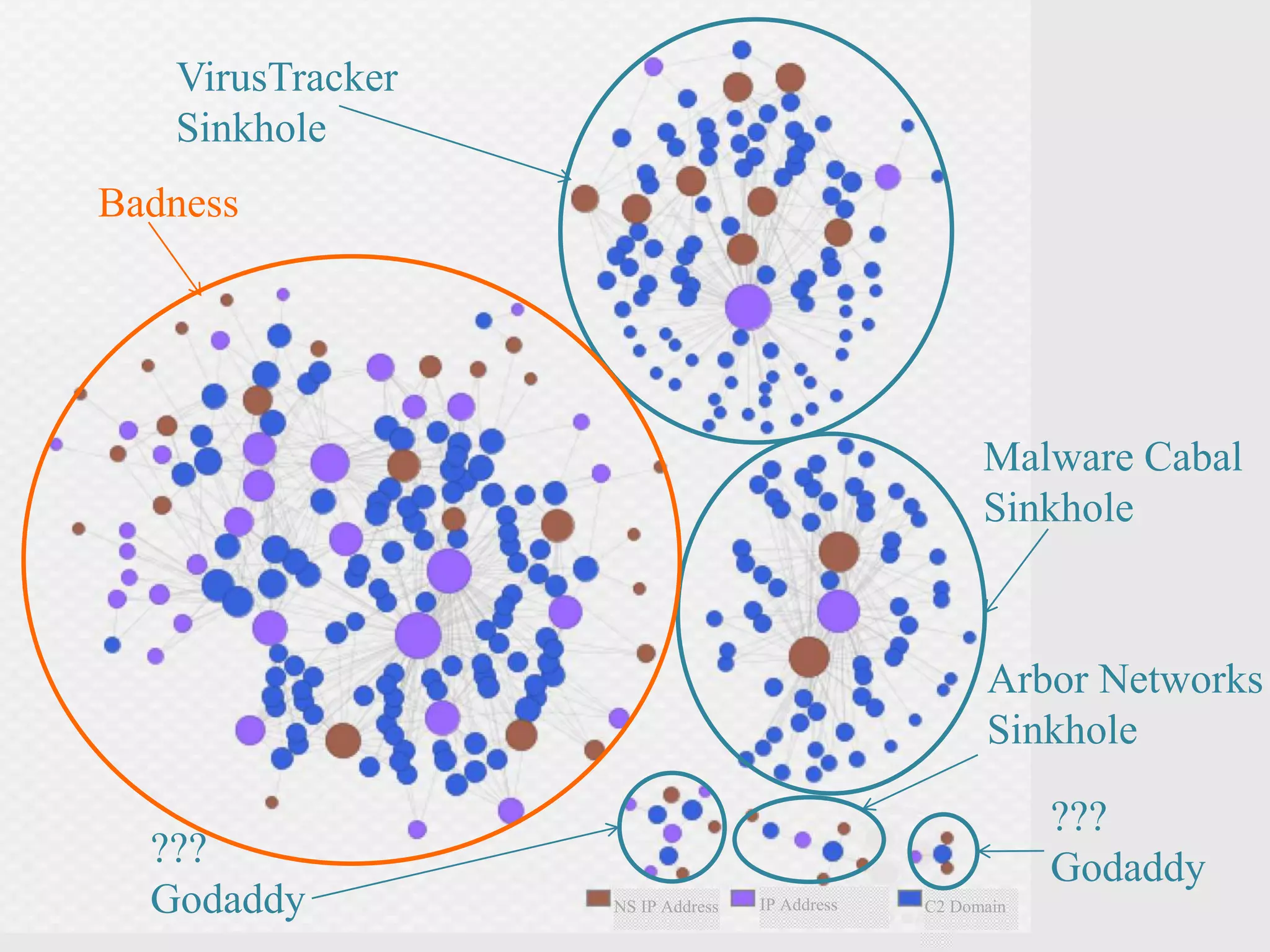

- 72. Malware Cabal Sinkhole VirusTracker Sinkhole ??? Godaddy Arbor Networks Sinkhole ??? Godaddy Badness NSIP Address C2 DomainIP Address

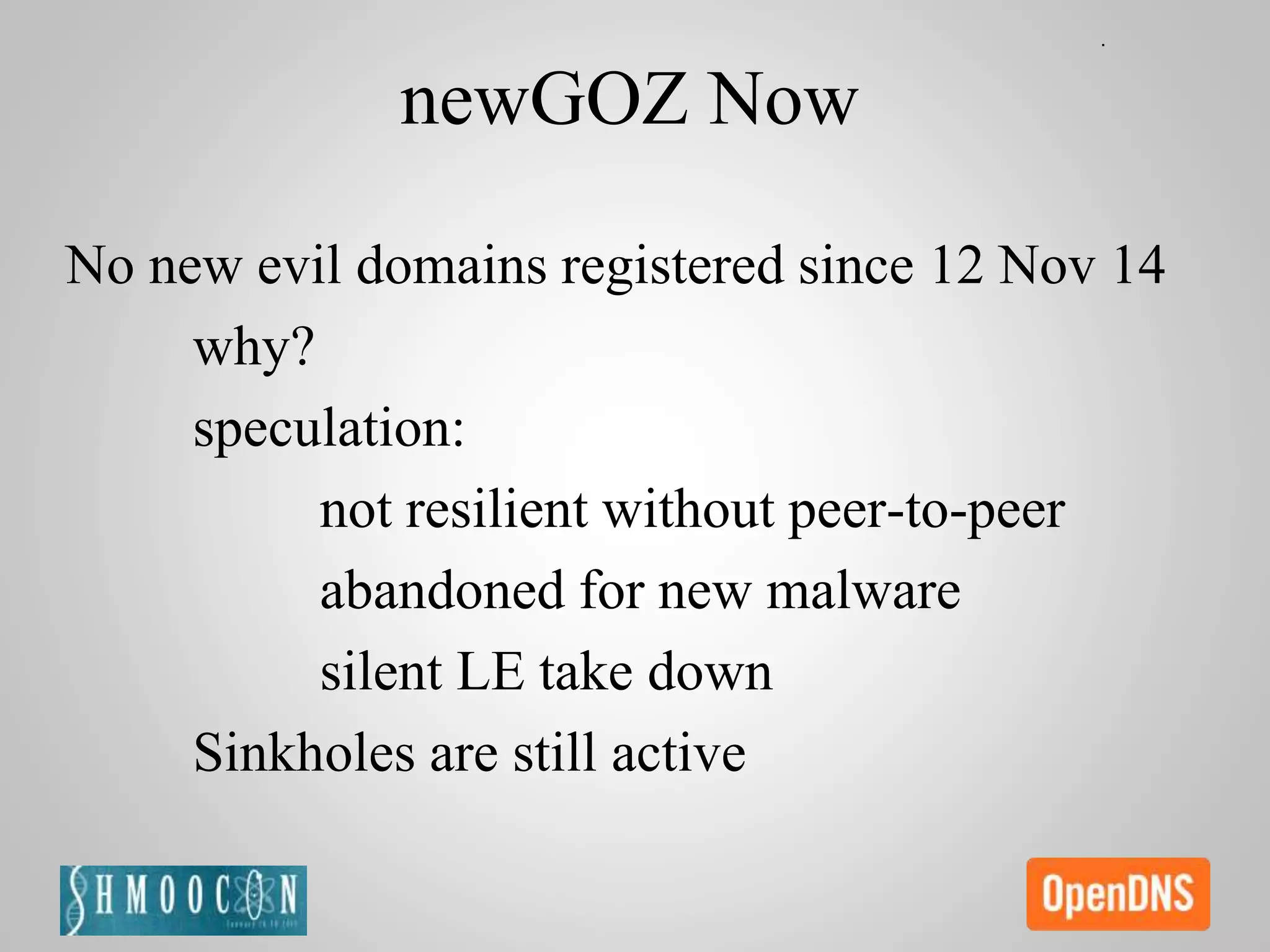

- 73. newGOZ Now No newevil domains registered since 12 Nov 14 why? speculation: not resilient without peer-to-peer abandoned for new malware silent LE take down Sinkholes are still active

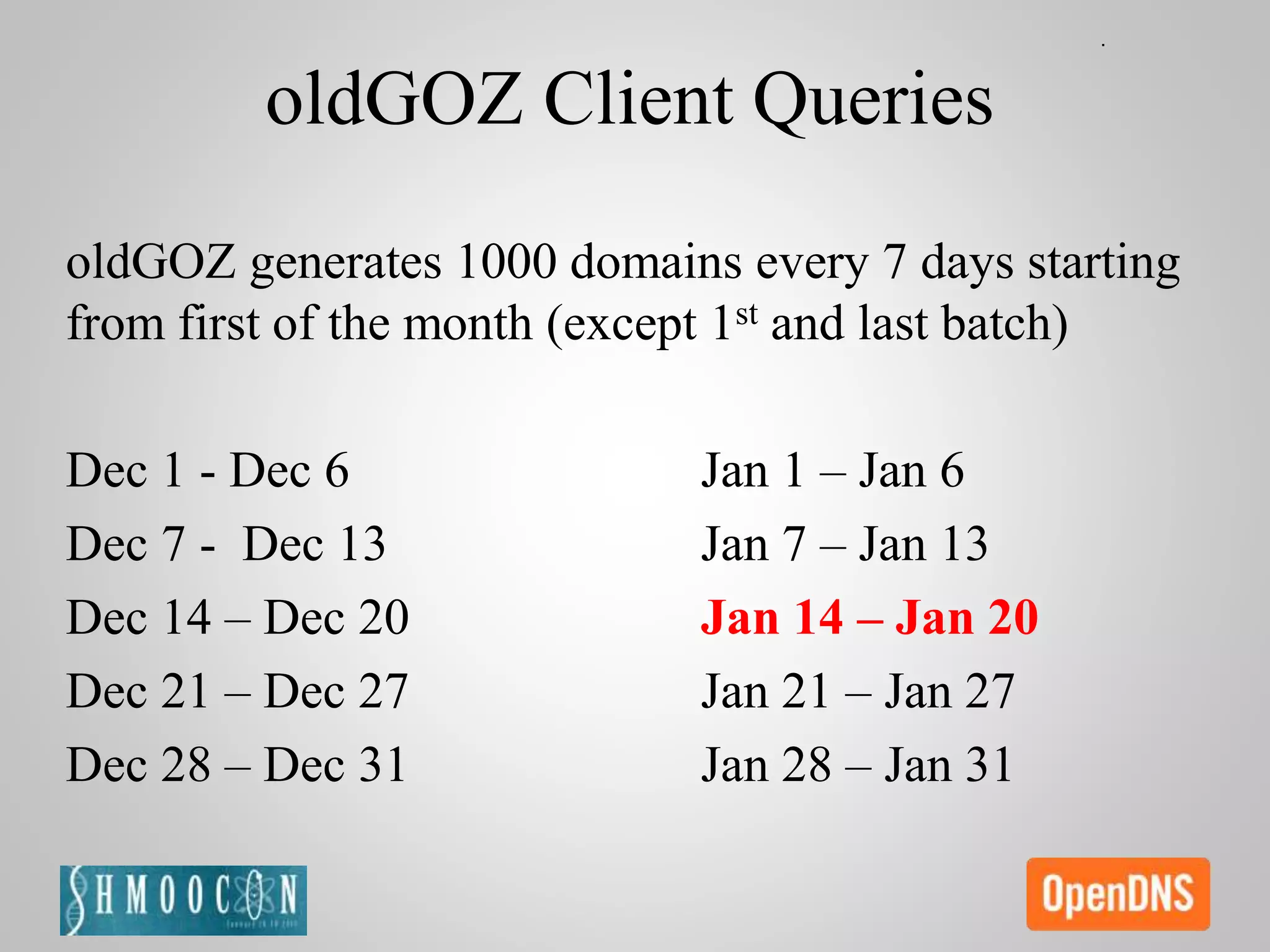

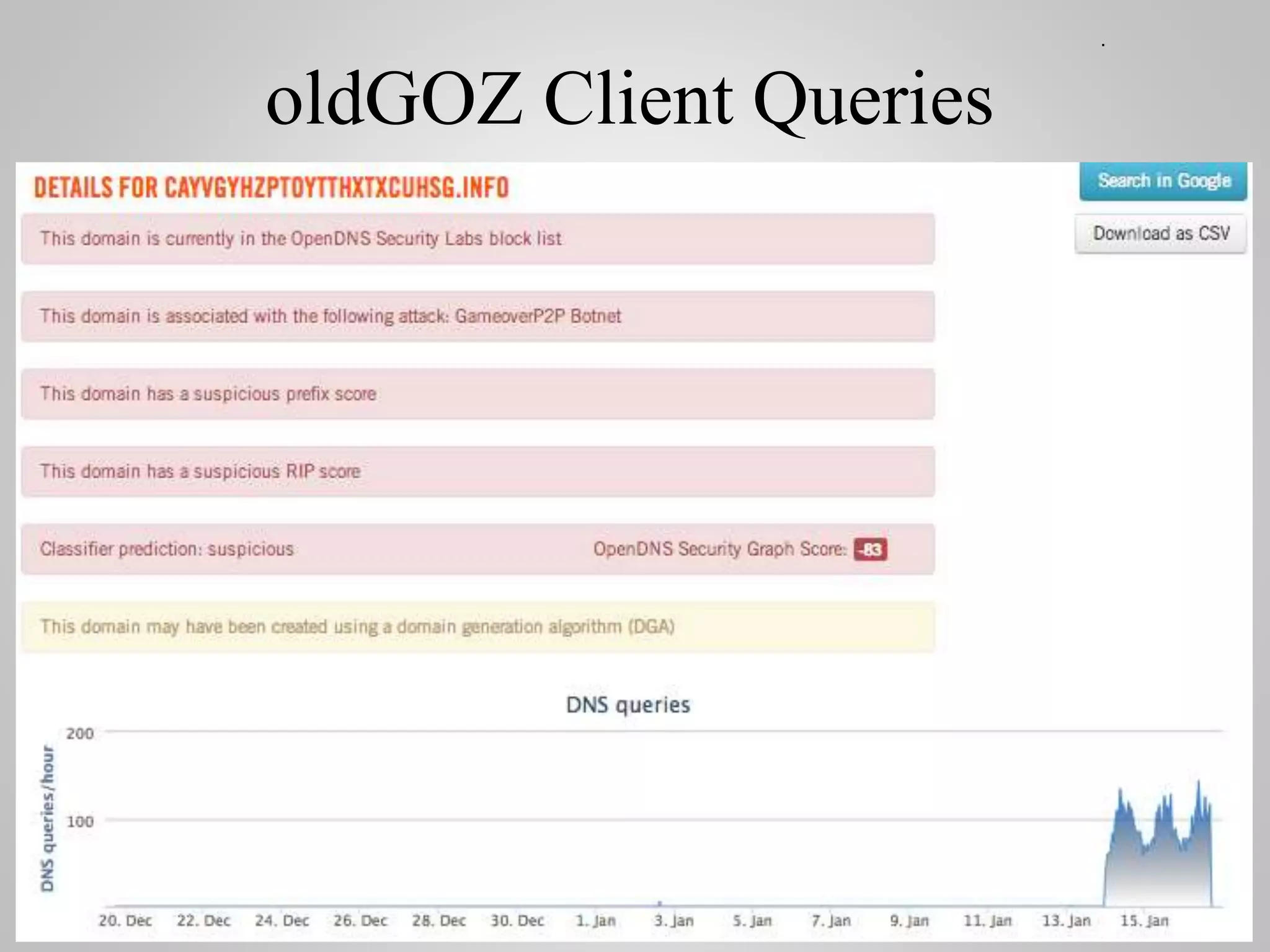

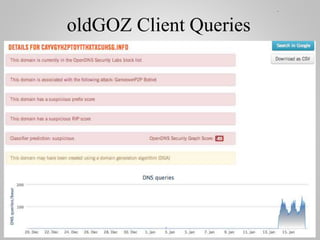

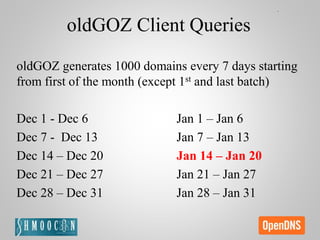

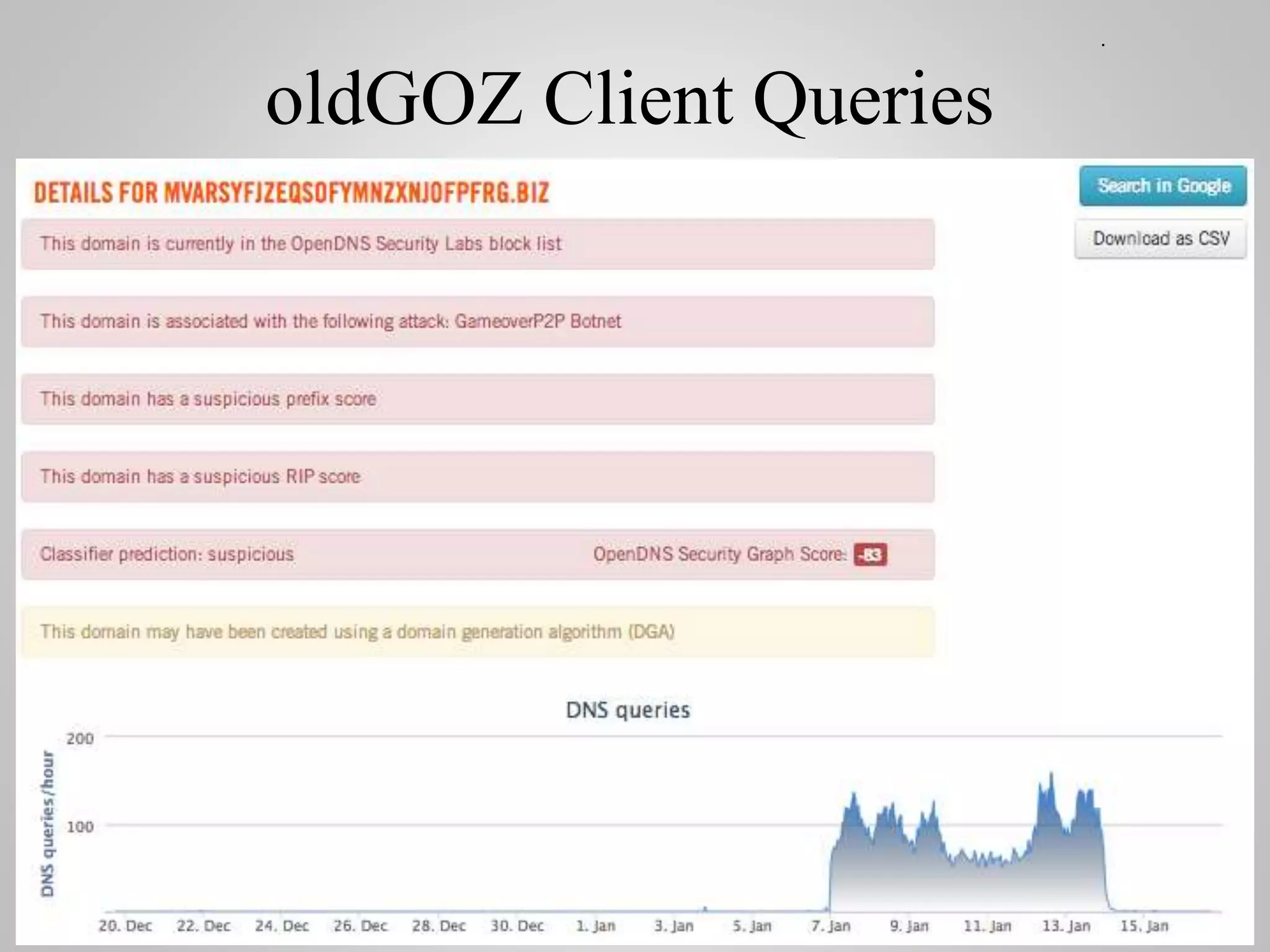

- 74. oldGOZ Client Queries oldGOZgenerates 1000 domains every 7 days starting from first of the month (except 1st and last batch) Dec 1 - Dec 6 Jan 1 – Jan 6 Dec 7 - Dec 13 Jan 7 – Jan 13 Dec 14 – Dec 20 Jan 14 – Jan 20 Dec 21 – Dec 27 Jan 21 – Jan 27 Dec 28 – Dec 31 Jan 28 – Jan 31
- 75.
- 76.

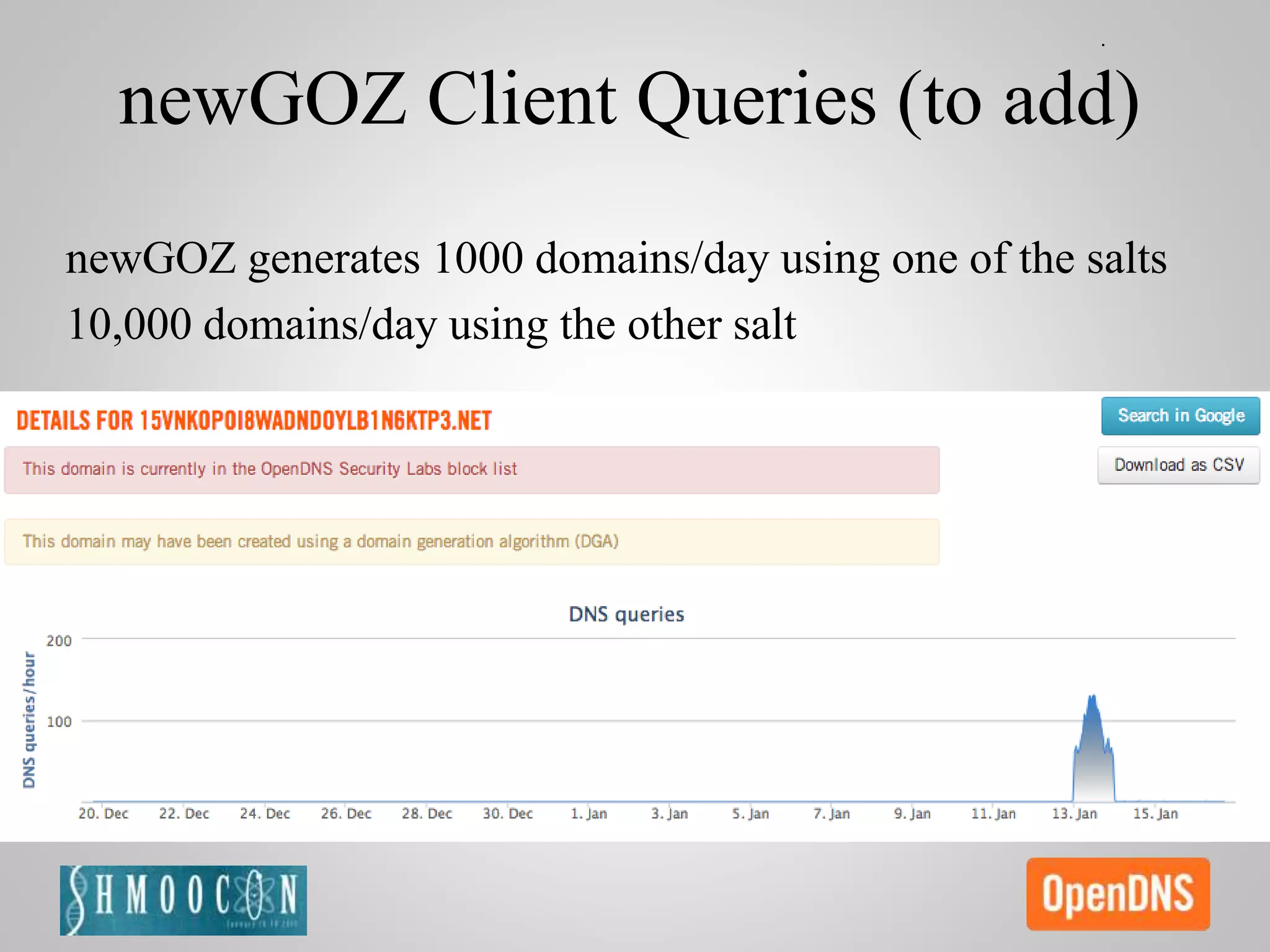

- 77. newGOZ Client Queries(to add) newGOZ generates 1000 domains/day using one of the salts 10,000 domains/day using the other salt

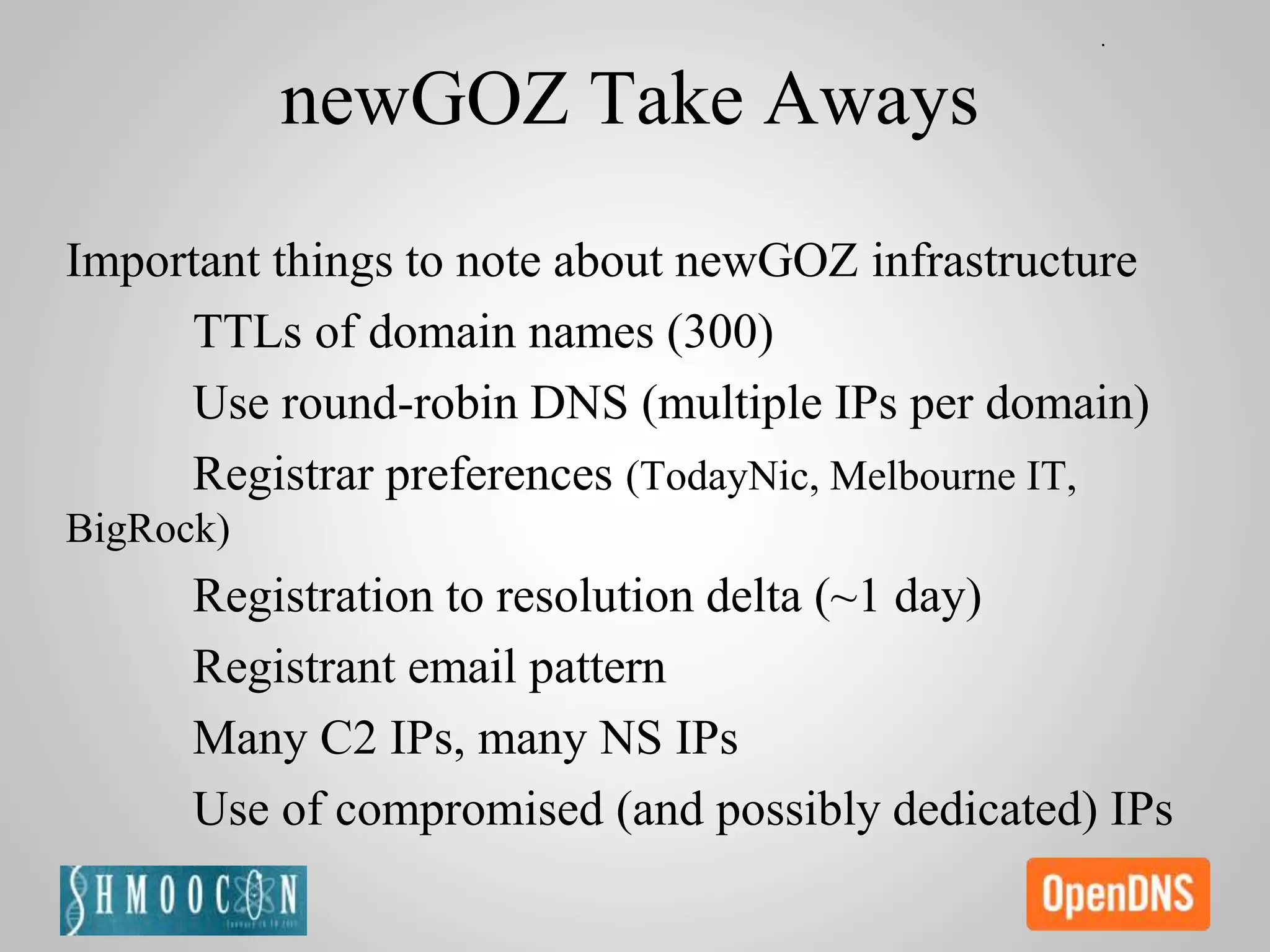

- 78. newGOZ Take Aways Importantthings to note about newGOZ infrastructure TTLs of domain names (300) Use round-robin DNS (multiple IPs per domain) Registrar preferences (TodayNic, Melbourne IT, BigRock) Registration to resolution delta (~1 day) Registrant email pattern Many C2 IPs, many NS IPs Use of compromised (and possibly dedicated) IPs
- 79.

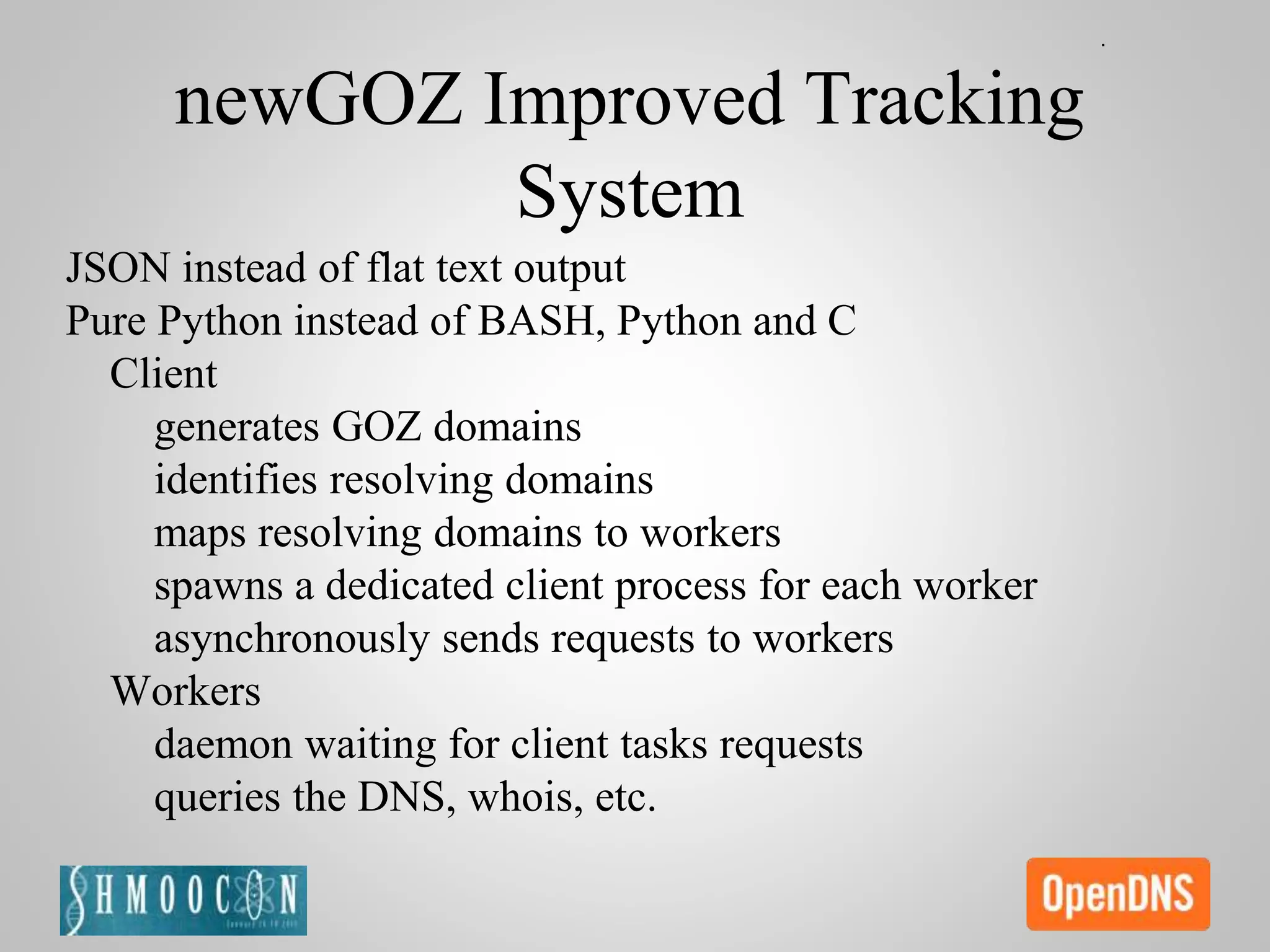

- 80. newGOZ Improved Tracking System JSONinstead of flat text output Pure Python instead of BASH, Python and C Client generates GOZ domains identifies resolving domains maps resolving domains to workers spawns a dedicated client process for each worker asynchronously sends requests to workers Workers daemon waiting for client tasks requests queries the DNS, whois, etc.

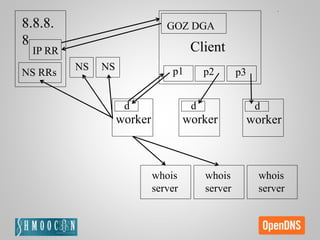

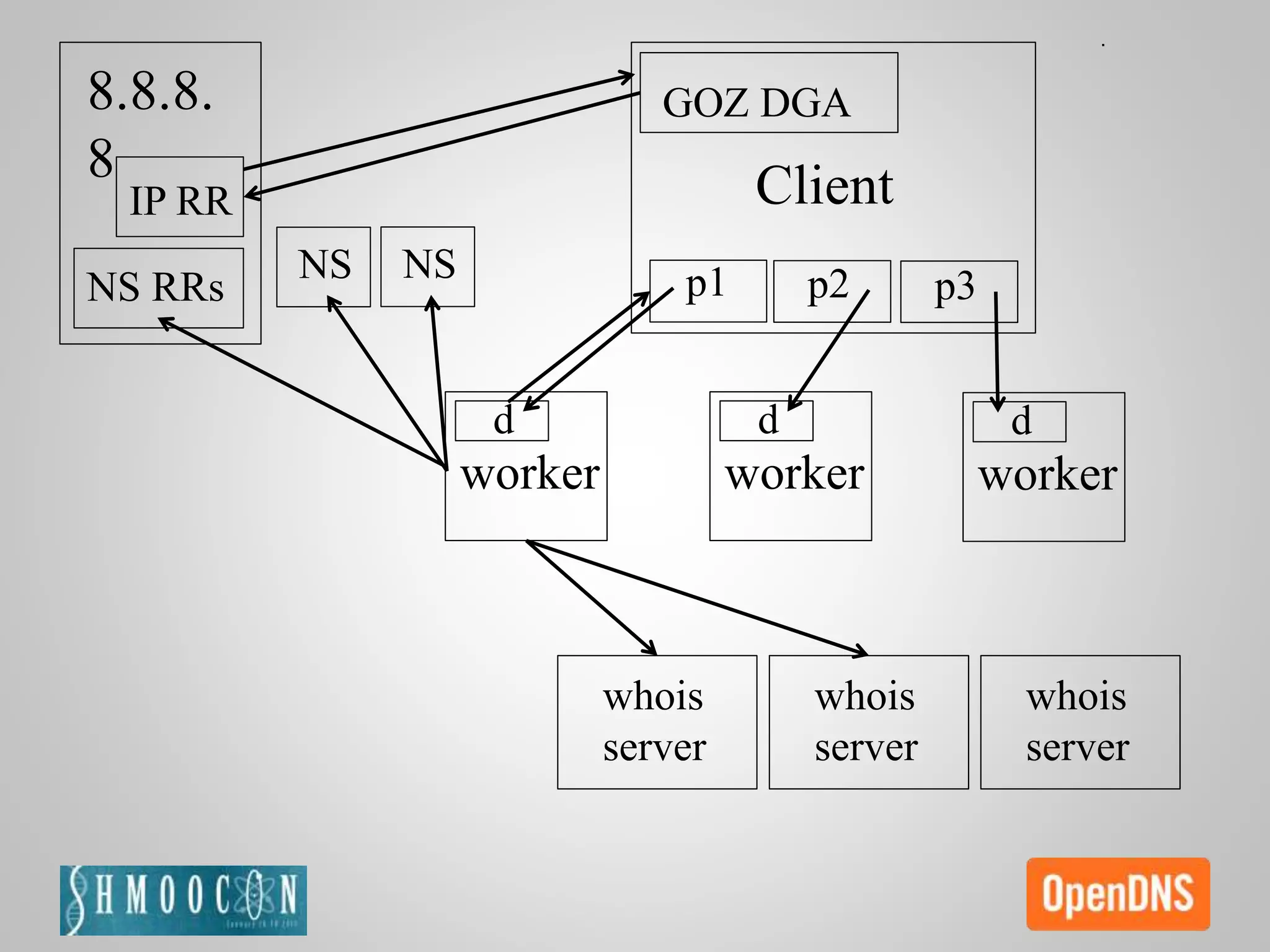

- 81. GOZ DGA p1 p2p3 Client worker d NS RRs whois server whois server whois server worker d worker d NS NS 8.8.8. 8 IP RR

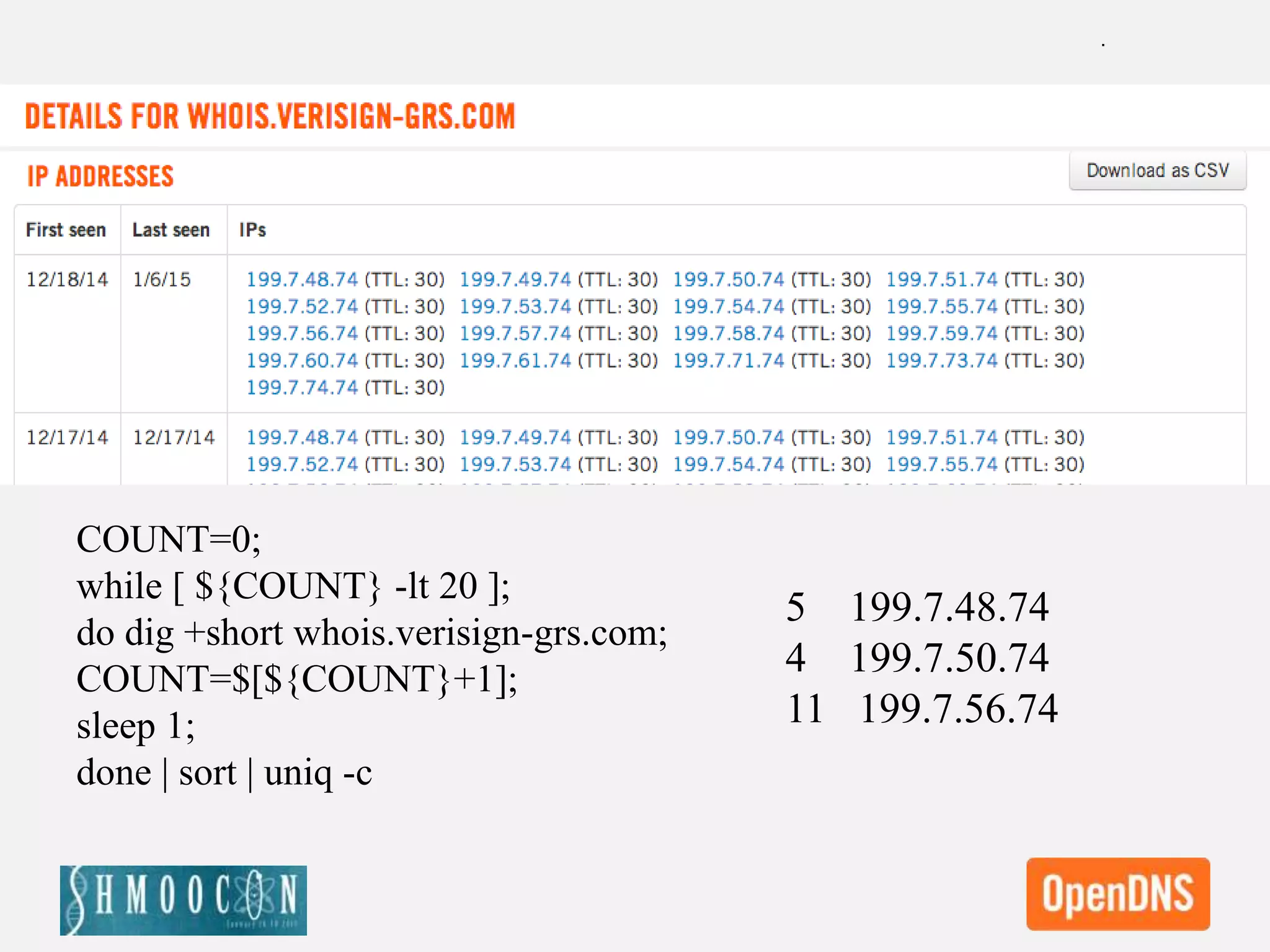

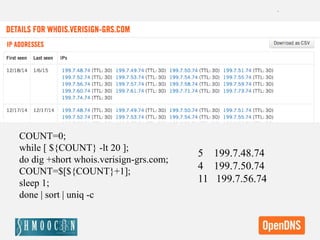

- 82. COUNT=0; while [ ${COUNT}-lt 20 ]; do dig +short whois.verisign-grs.com; COUNT=$[${COUNT}+1]; sleep 1; done | sort | uniq -c 5 199.7.48.74 4 199.7.50.74 11 199.7.56.74
- 83.

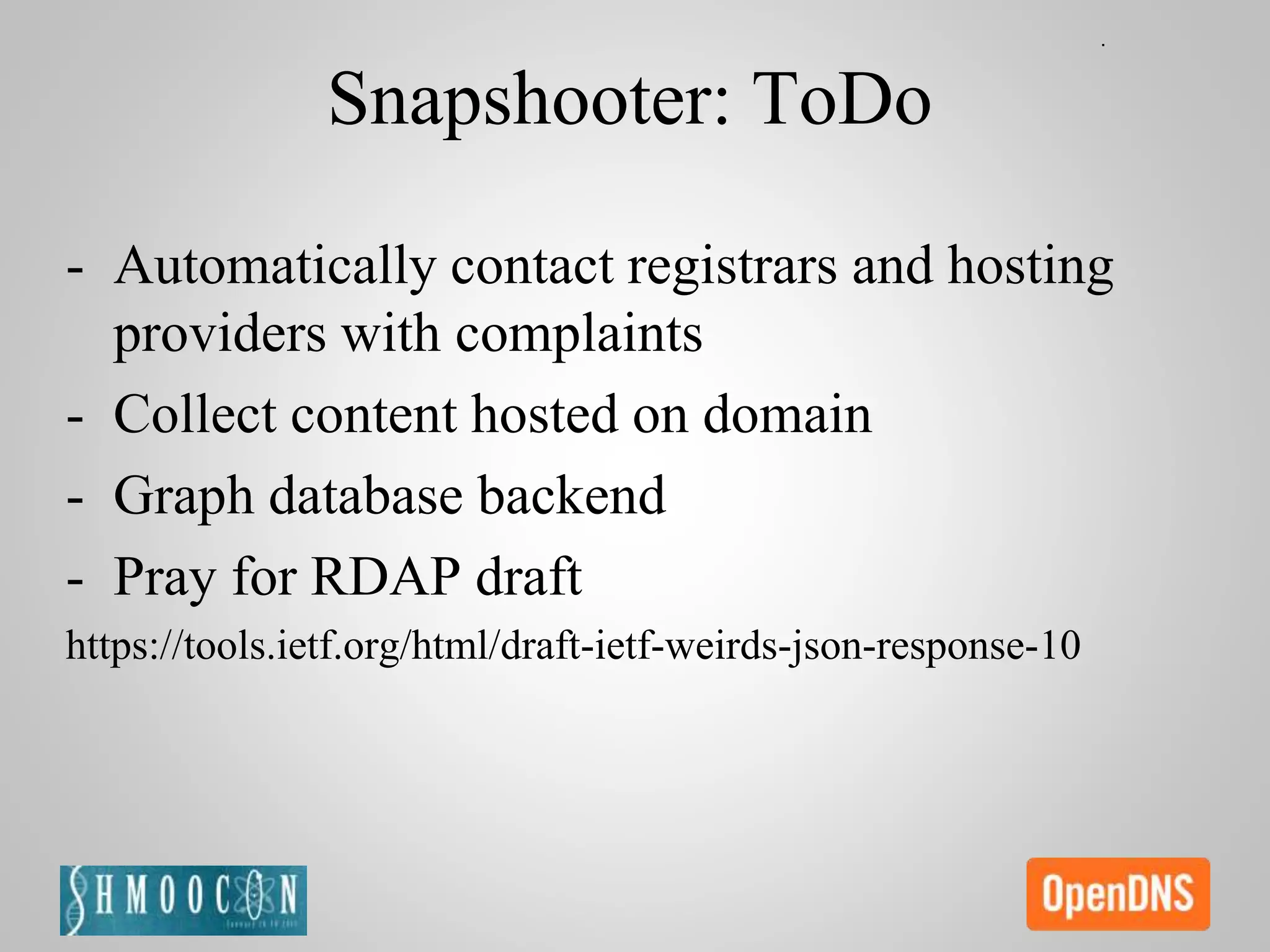

- 84. Snapshooter: ToDo - Automaticallycontact registrars and hosting providers with complaints - Collect content hosted on domain - Graph database backend - Pray for RDAP draft https://tools.ietf.org/html/draft-ietf-weirds-json-response-10

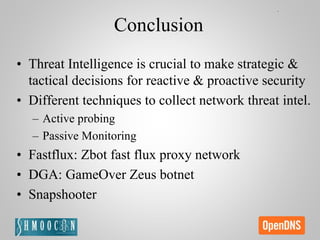

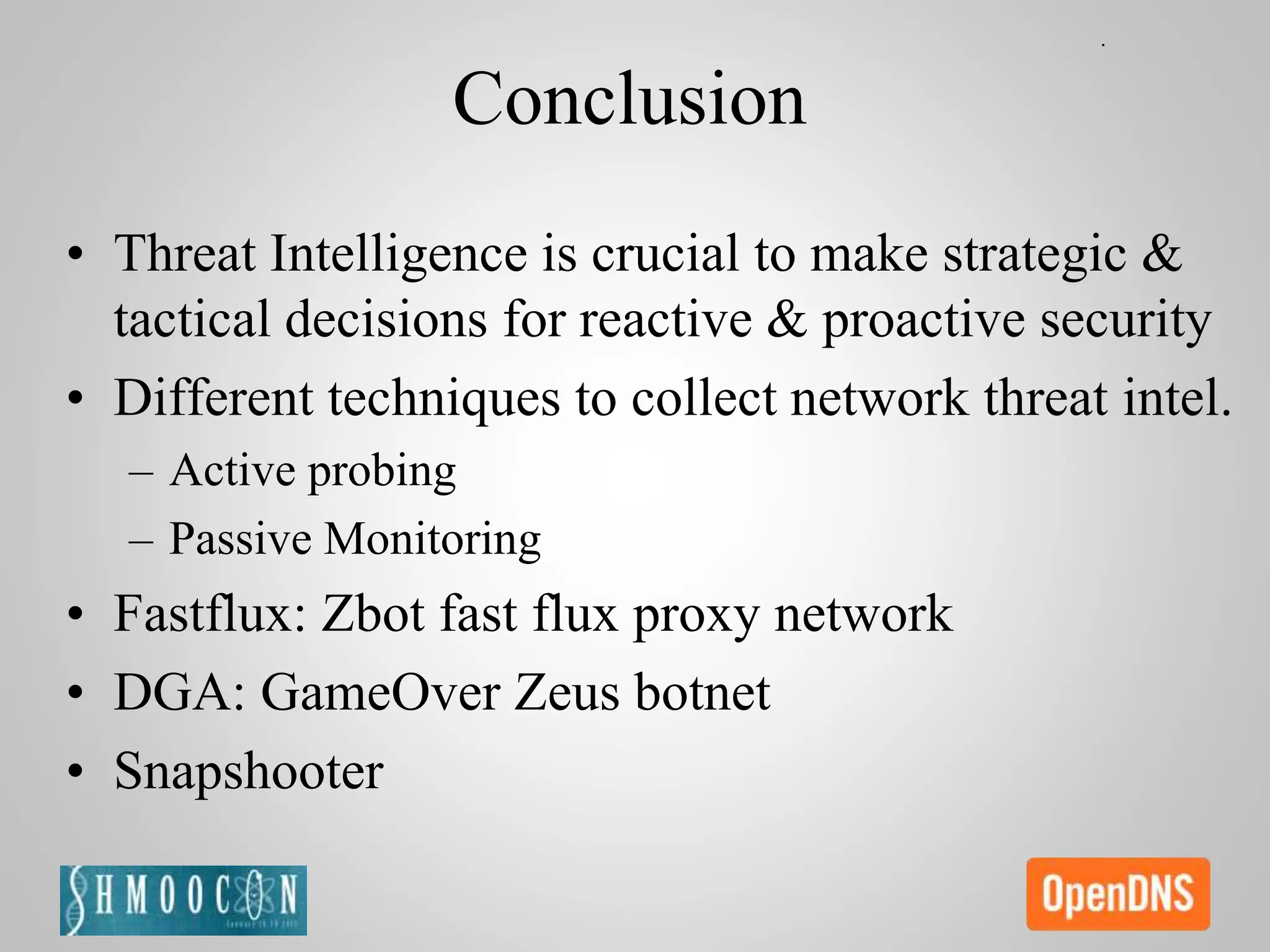

- 85. Conclusion • Threat Intelligenceis crucial to make strategic & tactical decisions for reactive & proactive security • Different techniques to collect network threat intel. – Active probing – Passive Monitoring • Fastflux: Zbot fast flux proxy network • DGA: GameOver Zeus botnet • Snapshooter

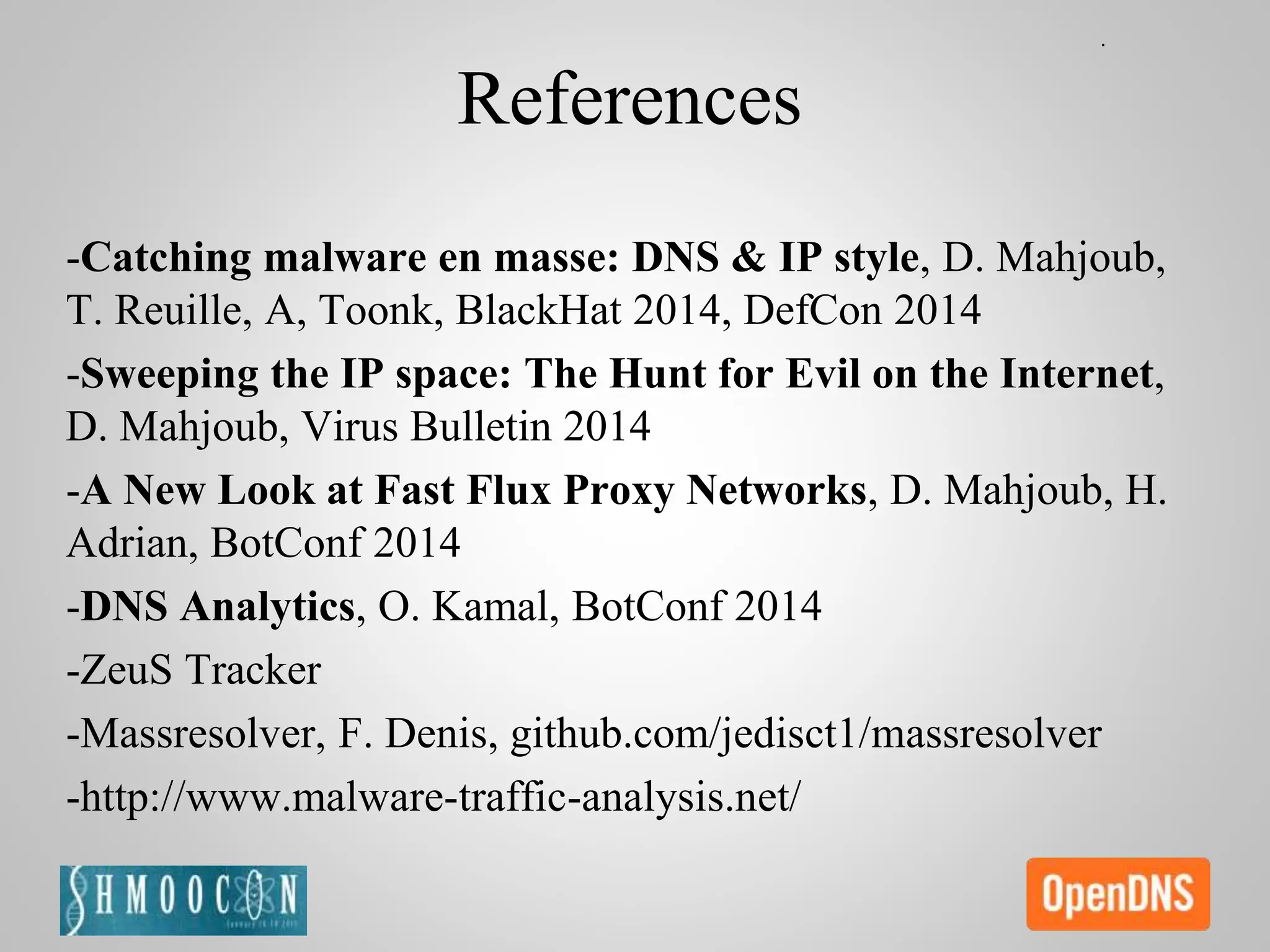

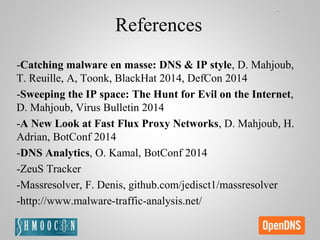

- 86. References -Catching malware enmasse: DNS & IP style, D. Mahjoub, T. Reuille, A, Toonk, BlackHat 2014, DefCon 2014 -Sweeping the IP space: The Hunt for Evil on the Internet, D. Mahjoub, Virus Bulletin 2014 -A New Look at Fast Flux Proxy Networks, D. Mahjoub, H. Adrian, BotConf 2014 -DNS Analytics, O. Kamal, BotConf 2014 -ZeuS Tracker -Massresolver, F. Denis, github.com/jedisct1/massresolver -http://www.malware-traffic-analysis.net/

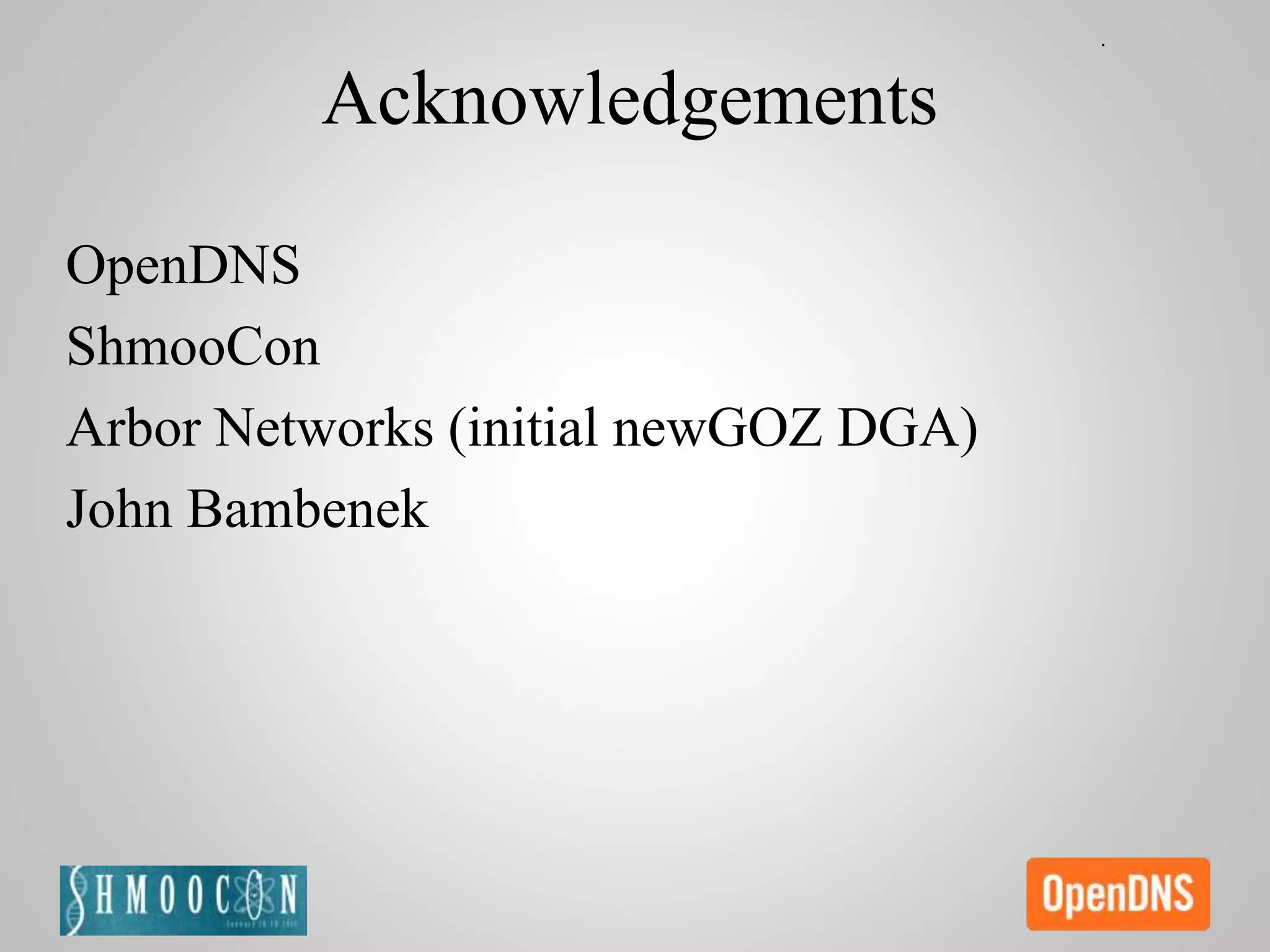

- 87. Acknowledgements OpenDNS ShmooCon Arbor Networks (initialnewGOZ DGA) John Bambenek
- 88.
