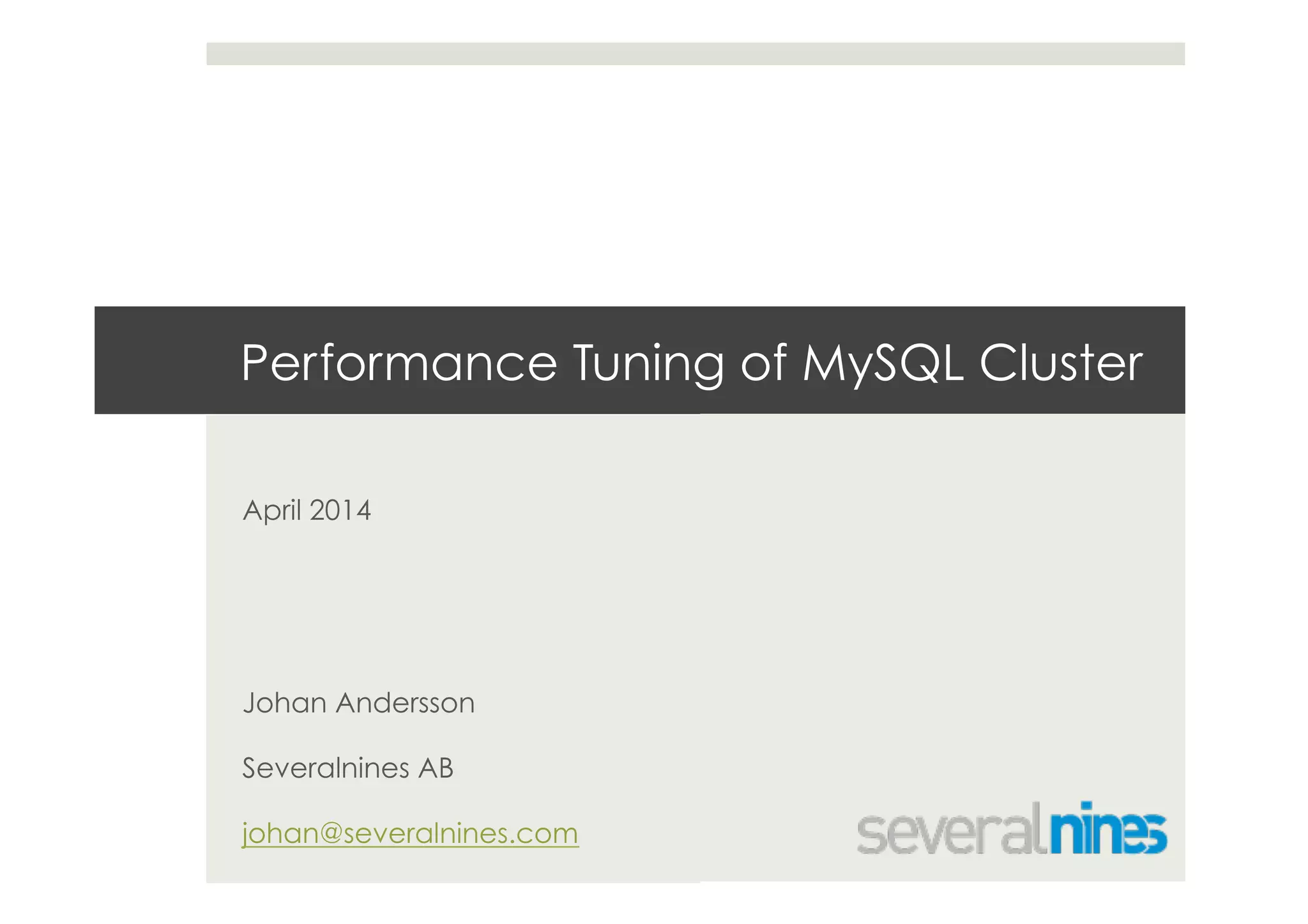

1. Performance Tuning of MySQL Cluster
April 2014
Johan Andersson
Severalnines AB
johan@severalnines.com

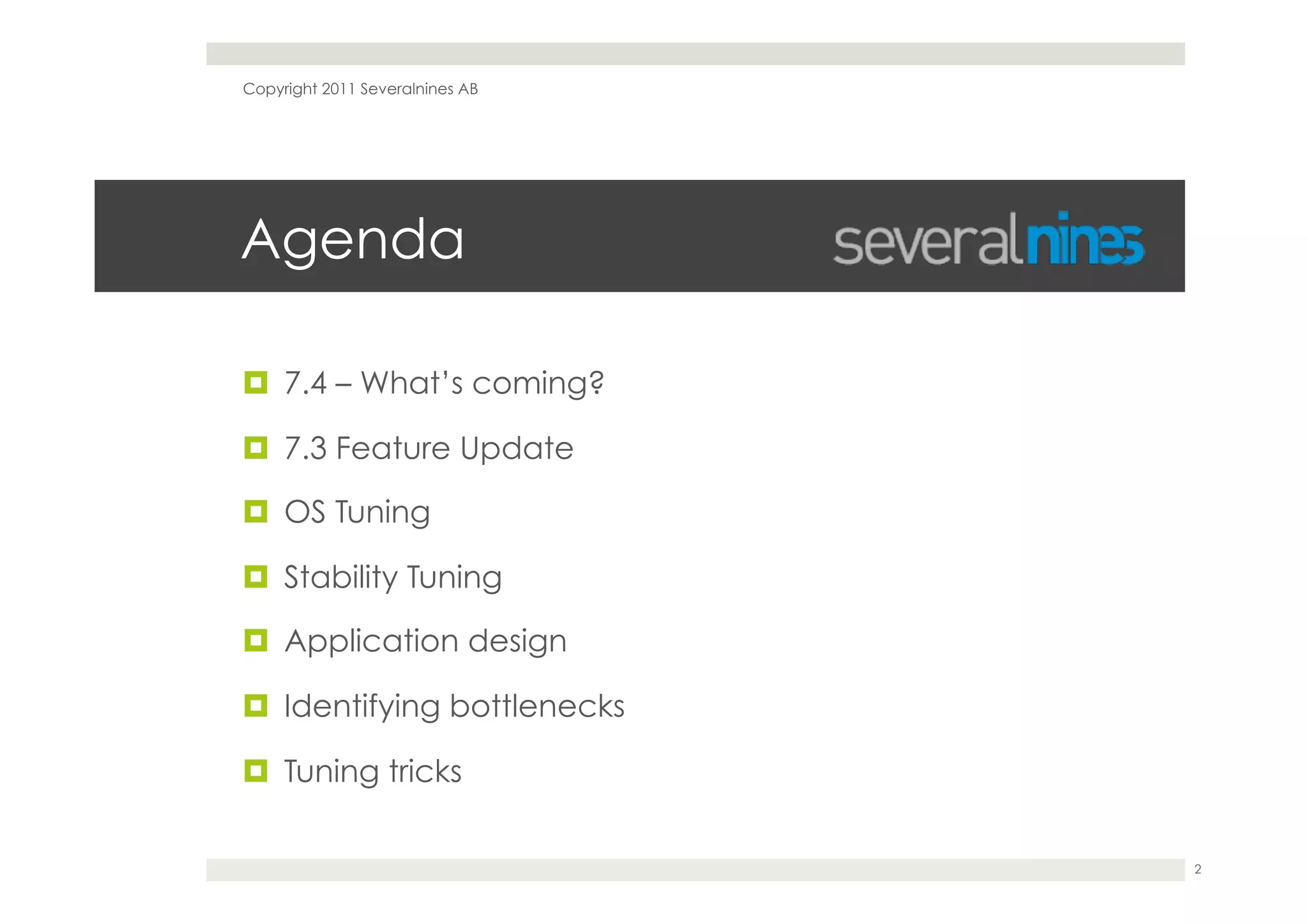

2. Agenda
! 7.4 – What’s coming?
! 7.3 Feature Update
! OS Tuning
! Stability Tuning
! Application design
! Identifying bottlenecks
! Tuning tricks
2
Copyright 2011 Severalnines AB

3. 7.4 - what is coming
! Optimized Scans
! Overload/Overcommitting
Resource protection
! Improved Checkpointing
! 10% more performance
3
Copyright 2011 Severalnines AB

4. 7.3 Feature Update
! Node.js Connector
! JavaScript (V8 engine) to access data directly in the
Data nodes
! No SQL – bypasses the MySQL Server ! lower latency,
high throughput for simple queries (like PK operations,
simple scans from one table)
4
Copyright 2011 Severalnines AB

5. 7.3 Feature Update
! FOREIGN KEYs finally supported!
! Implemented at the Data Node level
! But..
ERROR 1506 (HY000): Foreign key clause is not yet
supported in conjunction with partitioning
! Hopefully fixed for the GA release
! What about the performance penalty?
5
Copyright 2011 Severalnines AB

6. 7.3 Foreign Key Perf
create table users_posts (
uid integer ,
fid integer ,
pid integer auto_increment,
message varchar(1024),
primary key(uid,fid, pid),
constraint fk_forum foreign key(fid) references forum(fid) on delete cascade,
constraint fk_user foreign key(uid) references users(uid) on delete cascade
) engine=ndb;
! Compare INSERT performance with and w/o FKs
! With FK, must check that forum(fid) and users(uid) exists.
! Populate with 1M records
6
Copyright 2011 Severalnines AB

7. 7.3 Foreign Key Perf
! Bencher drivers the load:
! https://github.com/severalnines/bencher
! 4 threads, 2 data nodes, 4 cores,
! App ! mysqld ! data nodes
! FOREIGN KEYs enabled
Summary:
--------------------------
Average Throughput = 1274.58 tps (stdev=59.71)
7
Copyright 2011 Severalnines AB

8. 7.3 Foreign Key Perf
! Bencher drivers the load:
! https://github.com/severalnines/bencher
! 4 threads, 2 data nodes, 4 cores,
! App ! mysqld ! data nodes
! Not using FOREIGN KEYs
Summary:
--------------------------
Average Throughput = 1428.57 tps (stdev=57.10)
! Foreign keys gave ~11% drop in performance.
8
Copyright 2011 Severalnines AB

9. 7.2 ! 7.3 Caveats
! A little gotcha:
! --engine-condition-pushdown ! no longer supported in
MySQL 5.6
! Mysqld will fail to start
! Take it out from my.cnf before upgrading!
9
Copyright 2011 Severalnines AB

10. Facts
! A single query will never run as fast as on Innodb
(served from RAM)
! Network latency is a issue
! More data nodes does not speed up query execution
time.
10
Copyright 2011 Severalnines AB

11. OS Tuning
! Disable NUMA in /etc/grub.conf
! echo ‘0’ > /proc/sys/vm/swappiness
echo ‘vm.swappiness=0’ >> /etc/sysctl.conf
! Bind data node threads to CPUs/cores
! cat /proc/interrupts | grep eth
cpu0 cpu1 cpu2 cpu3
44: 31 49432584 0 0 xen-dyn-event eth0"
45: 1633715292 0 0 0 xen-dyn-event eth1"
11
Copyright 2011 Severalnines AB
Avoid!
OK!
In config.ini [ndbd default]:
ThreadConfig=ldm={count=1,cpubind=1,2},main={cpubind=3} ..

12. Perf Config Tuning (1)
! How many Local Data Managers ?
! How many TC threads?
Copyright 2011 Severalnines AB
12

13. Perf Config Tuning (2)
Copyright 2011 Severalnines AB
13
3
4
5
9
10
11
IRQBALANCE_BANNED_CPUS
IRQ
CPU0
CPU1

14. Perf Config Tuning (3)
! Run representative load
! Does any NDB Thread run hot?
! Increase with threads of that type
! Enable HyperThreading
! Can give 40% more
! Enable:
! RealTimeScheduler=1
! Don’t forget:
! NoOfFragmentLogParts=<no of LDMs>
Copyright 2011 Severalnines AB
14

15. Stability Tuning
! Tuning the REDO log is key
! FragmentLogFileSize=256M
! NoOfFragmentLogFiles=<4-6> X DataMemory in MB / 4 x
FragmentLogFileSize
! RedoBuffer=64M for a write busy system
! Disk based data:
! SharedGlobalMemory=4096M
! In the LOGFILE GROUP: undo_buffer_size=128M
! Or higher (max is 600M)
15
Copyright 2011 Severalnines AB

16. Stability Tuning
! Make sure you don’t have more “execution threads” than cores
! You want to have
! Major page faults low
! Involuntary context switches low
mysql> SELECT node_id, thr_no,thr_nm , os_ru_majflt,
os_ru_nivcsw FROM threadstat;
+---------+--------+--------+--------------+--------------+
| node_id | thr_no | thr_nm | os_ru_majflt | os_ru_nivcsw |
+---------+--------+--------+--------------+--------------+
| 3 | 0 | main | 1 | 541719 |
| 4 | 0 | main | 0 | 561769 |
+---------+--------+--------+--------------+--------------+
2 rows in set (0.01 sec)
16
Copyright 2011 Severalnines AB

17. Application Design
! Define the most typical Use Cases
! List all my friends, session management etc etc.
! Optimize everything for the typical use case
! Engineer schema to cater for the Use Cases
! Keep it simple
! Complex access patterns does not scale
! Simple access patterns do ( Primay key and Partitioned Index Scans )
! Note! There is no parameter in config.ini that affects
performance – only availability.
! Everything is about the Schema and the Queries.
! Tune the mysql servers (sort buffers etc) as you would for innodb.
17
Copyright 2011 Severalnines AB

18. Simple Access
! PRIMARY KEY lookups are HASH lookup O(1)
! INDEX searches a T-tree and takes O(log n) time.
! In 7.2 and later JOINs are ok, but in 7.1 you should try
to avoid them.
18
Copyright 2011 Severalnines AB

19. Identifying Bottlenecks
! High CPU usage on data nodes
! Probably a lot of large index scans and full table scans are used.
! Check Slow query log or a query monitor
! High CPU usage on MySQL servers
! Probably a lot of GROUP BY/DISTINCT or aggregate functions.
! Hardly no CPU is used on either MySQL or data nodes
! Probably low load
! Time is spent on network (a lot of “ping pong” to satisfy a request).
! System is running slow in general
! Disks (io util), queries, swap (must never happen), network

20. Need To Add Data Nodes?
! (adding MySQL servers is easy)
! top –Hd1
! Is any of data nodes threads at 100%?
! Yes: add more data nodes (online)
! No: do nothing

21. Detecting Query Problems
! Here is a standard method for how to attack the problem.
! Performance tuning is a never-ending loop:
BEGIN
– Capture information – e.g, slow query log
• Change long_query_time if needed
– EXPLAIN the queries
• What indexes are used?
• Are tables JOINed in the correct order (small to big)
– Re-run the optimized typical use cases using bencher/
mysqlslap
GOTO BEGIN;
END;
! Never tune unless you can measure and test!
! Don't optimize unless you have a problem!

22. Enable Logging
! Slow query log
! set global slow_query_log=1;
! set global long_query_time=0.01;
! set global log_queries_not_using_indexes=1;
! General log (if you don’t get enough info in the Slow
Query Log)
! Activate for a very short period of time (30-60seconds) –
intrusive
! Can fill up disk very fast – make sure you turn it off.
! set global general_log=1;
! Use Severalnines ClusterControl
! Includes a Cluster-wide Query Monitor.
! Query frequency, EXPLAINs, lock time etc.
! Performance Monitor and Manager.

23. Setup
23
Copyright 2011 Severalnines AB
UID FID data
1 1 A
2 3 B
1 2 C
2 4 D
table t1
Partition 0
Partition 1
NETWORK!

24. Sharding
! By default, all index scans hit all data nodes
! good if result set is big – you want as many CPUs as possible to
help you.
! For smaller result sets (~a couple of hundred records) Partition
Pruning is key for scalability.
! User-defined partitioning can help to improve equality index
scans on part of a primary key.
! CREATE TABLE t1 (uid,
fid,
somedata,
PRIMARY KEY(uid, fid))
PARTITION BY KEY(uid);
! All data belonging to a particular uid will be on the same
partition.
! Great locality!
! select * from user where uid=1;
! Only one data node will be scanned (no matter how many
nodes you have)

25. Sharding
UID FID data
1 1 A
2 3 B
1 2 C
2 4 D
table t1
UID FID data
1 1 A
1 2 C
2 3 B
2 4 D
table t1
Partition 0
Partition 1
PARTITION BY KEY(UID)Default Partitioning

26. Sharding
mysql> show global status like 'ndb_pruned_scan_count’;
+-----------------------+-------+
| Variable_name | Value |
+-----------------------+-------+
| Ndb_pruned_scan_count | 0 |
+-----------------------+-------+
CREATE TABLE t1( … ) PARTITION BY KEY (userid);
An run query, and verify it works:
select * from user where uid=1;
mysql> show global status like 'ndb_pruned_scan_count’;
+-----------------------+-------+
| Variable_name | Value |
+-----------------------+-------+
| Ndb_pruned_scan_count | 1 |
+-----------------------+-------+

27. Sharding
mysql> show global status like 'ndb%pruned%';
| Ndb_api_table_scan_count | 264 |
| Ndb_api_range_scan_count | 18 |
| Ndb_api_pruned_scan_count | 3 |

28. Sharding - EXAMPLE
create table users_posts2 (
uid integer ,
fid integer ,
pid integer auto_increment,
message varchar(1024),
primary key(uid,fid, pid)
) engine=ndb partition by key(uid);
NO PARTITIONING
create table users_posts2 (
uid integer ,
fid integer ,
pid integer auto_increment,
message varchar(1024),
primary key(uid,fid, pid)
) engine=ndb;
PARTITION BY KEY

29. Sharding – EXPLAIN PARTITIONS
mysql> explain partitions select * from users_posts u where u.uid=1G
id: 1
select_type: SIMPLE
table: u
partitions: p0,p1
type: ref
possible_keys: PRIMARY
key: PRIMARY
key_len: 4
ref: const
rows: 2699
Extra: NULL
With PARTITION BY KEY (UID)
mysql> explain partitions select * from users_posts2 u where
u.uid=1G
id: 1
select_type: SIMPLE
table: u
partitions: p0
type: ref
possible_keys: PRIMARY
key: PRIMARY
key_len: 4
ref: const
rows: 2699
Extra: NULL

30. Data Types
BLOBs/TEXTs vs VARBINARY/VARCHAR
! BLOB/TEXT columns are stored in an external hidden table.
! First 256B are stored inline in main table
! Reading a BLOB/TEXT requires two reads
! One for reading the Main table + reading from hidden
table
! Change to VARBINARY/VARCHAR if:
! Your BLOB/TEXTs can fit within an 14000 Bytes record
! (record size is currently 14000 Bytes)
! Reading/writing VARCHAR/VARBINARY is less expensive
Note 1: BLOB/TEXT are also more expensive in Innodb as BLOB/TEXT data is
not inlined with the table. Thus, two disk seeks are needed to read a
BLOB.
Note 2: Store images, movies etc outside the database on the filesystem.

31. Query Tuning
! MySQL Cluster 7.2 and later has pushed down joins ! joins
are performed in the data nodes.
! OPTIMIZER in MySQL Cluster 7.1 and earlier is weak
! Statistics gathering is non-existing
! Optimizer thinks there are only 10 rows to examine in each
table!
! FORCE INDEX / STRAIGHt_JOIN to get queries run the way you
want

32. Query Tuning
! if you have two similar indexes:
! index(a)
! index(a,ts)
on the following table
CREATE TABLE `t1` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`a` bigint(20) DEFAULT NULL,
`ts` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP,
PRIMARY KEY (`id`),
KEY `idx_t1_a` (`a`),
KEY `idx_t1_a_ts` (`a`,`ts`)) ENGINE=ndbcluster DEFAULT CHARSET=latin1

33. Query Tuning
mysql> select count(id) from t1 where a=5;
+-----------+
| count(id) |
+-----------+
| 3072000 |
+-----------+
1 row in set (0.02 sec)
mysql> select count(id) from t1 where a=5
and ts>'2013-04-18 14:34:08’;
+-----------+
| count(id) |
+-----------+
| 512 |
+-----------+
1 row in set (0.00 sec)

34. Query Tuning Pre 7.2
mysql> explain select * from t1 where a=2 and ts='2011-10-05 15:32:11';
+----+-------------+-------+------+----------------------+----------+---------+-------+------+-------------+
| id | select_type | table | type | possible_keys | key | key_len | ref |
rows | Extra |
+----+-------------+-------+------+----------------------+----------+---------+-------+------+-------------+
| 1 | SIMPLE | t1 | ref | idx_t1_a,idx_t1_a_ts | idx_t1_a | 9 | const | 10 |
Using where |
+----+-------------+-------+------+----------------------+----------+---------+-------+------+-------------+
! Use FORCE INDEX(..) ...
mysql> explain select * from t1 FORCE INDEX (idx_t1_a_ts) where a=2 and ts='2011-10-05
15:32:11;
+| 1 | SIMPLE | t1 | ref | idx_t1_a_ts | idx_t1_a_ts | 13 | const,const | 10 |
Using where |
1 row in set (0.00 sec)
! ..to ensure the correct index is picked!
! The difference can be 1 record read instead of any
number of records!

35. Index Statistics
explain select * from t1 where a=5 and ts>'2013-04-18 14:34:08' G
*************************** 1. row ***************************
id: 1
select_type: SIMPLE
table: t1
type: range
possible_keys: idx_t1_a,idx_t1_a_ts
key: idx_t1_a
key_len: 9
ref: const
Rows: 17
Extra: Using where with pushed condition

36. Index Statistics
mysql> analyze table t1;
+---------+---------+----------+----------+
| Table | Op | Msg_type | Msg_text |
+---------+---------+----------+----------+
| test.t1 | analyze | status | OK |
+---------+---------+----------+----------+
1 row in set (3.40 sec)

37. Index Statistics
Mysql> explain select * from t1 where a=5
and ts>'2013-04-18 14:34:08' G
*************************** 1. row ***************************
id: 1
select_type: SIMPLE
table: t1
type: range
possible_keys: idx_t1_a,idx_t1_a_ts
key: idx_t1_a_ts
key_len: 13
ref: NULL
rows: 253
Extra: Using where with pushed condition; Using MRR
1 row in set (0.00 sec)

38. Ndb_cluster_connection_pool
! Improved in MC 7.3, set ndb_cluster_connection_pool
between 1 and 4.
! MySQL Cluster 7.2 and earlier:
! Problem:
! A Sendbuffer on the connection between mysqld and the
data nodes is protected by a Mutex.
! Connection threads in MySQL must acquire Mutex and the put
data in SendBuffer.
! Many threads gives more contention on the mutex
! Must scale out with many MySQL Servers.
! Workaround:
! Ndb_cluster_connection_pool (in my.cnf) creates more
connections from one mysqld to the data nodes
! Threads load balance on the connections gives less
contention on mutex which in turn gives increased scalabilty
! Less MySQL Servers needed to drive load!
! www.severalnines.com/cluster-configurator allows you to
specify the connection pool.

39. Ndb_cluster_connection_pool
! Improved in MC 7.3, set ndb_cluster_connection_pool
between 1 and 4.
! MySQL Cluster 7.2 and earlier:
! Gives at least 70% better performance and a MySQL Server that
can scale beyond four database connections.
! Set Ndb_cluster_connection_pool=2x<CPU cores>
! It is a good starting point
! One free [mysqld] slot is required in config.ini for each
Ndb_cluster_connection.
! 4 mysql servers,each with Ndb_cluster_connection_pool=8
requires 32 [mysqld] in config.ini
! Note that also memcached and node.js, cluster/j etc also has
the concept of the ndb_cluster_connection_pool.

40. Q&A
40
Copyright 2011 Severalnines AB

41. Resources
! MySQL Cluster Configurator
! www.severalnines.com/config
! MySQL Cluster Management + Monitoring
! www.severalnines.com/cmon
! MySQL Cluster Training Slides
! www.severalnines.com/mysql-cluster-training
! My Blog
! johanandersson.blogspot.com

42. Keep in touch…
! Facebook
! www.facebook.com/severalnines
! Twitter
! @severalnines
! Linked in:
! www.linkedin.com/company/severalnines

43. Thank you for your time!
johan@severalnines.com
43
Copyright 2011 Severalnines AB
